TAIYO YUDEN EYSF2CSUU Bluetooth USB Dongle User Manual

Taiyo Yuden Co., Ltd. Bluetooth USB Dongle

Preliminary Uncorrected Manual

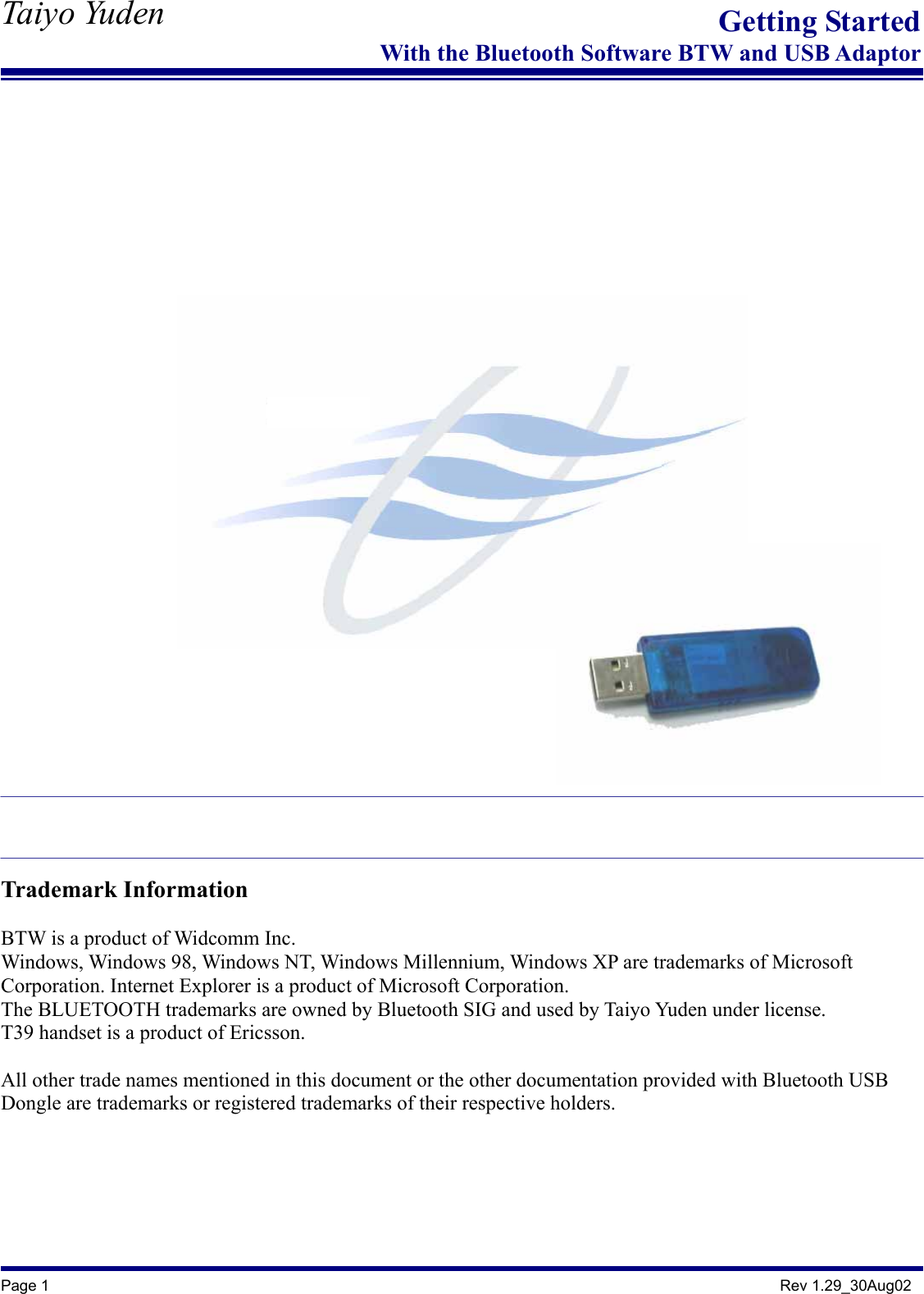

Taiyo Yuden Page 1 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Trademark Information BTW is a product of Widcomm Inc. Windows, Windows 98, Windows NT, Windows Millennium, Windows XP are trademarks of Microsoft Corporation. Internet Explorer is a product of Microsoft Corporation. The BLUETOOTH trademarks are owned by Bluetooth SIG and used by Taiyo Yuden under license. T39 handset is a product of Ericsson. All other trade names mentioned in this document or the other documentation provided with Bluetooth USB Dongle are trademarks or registered trademarks of their respective holders.

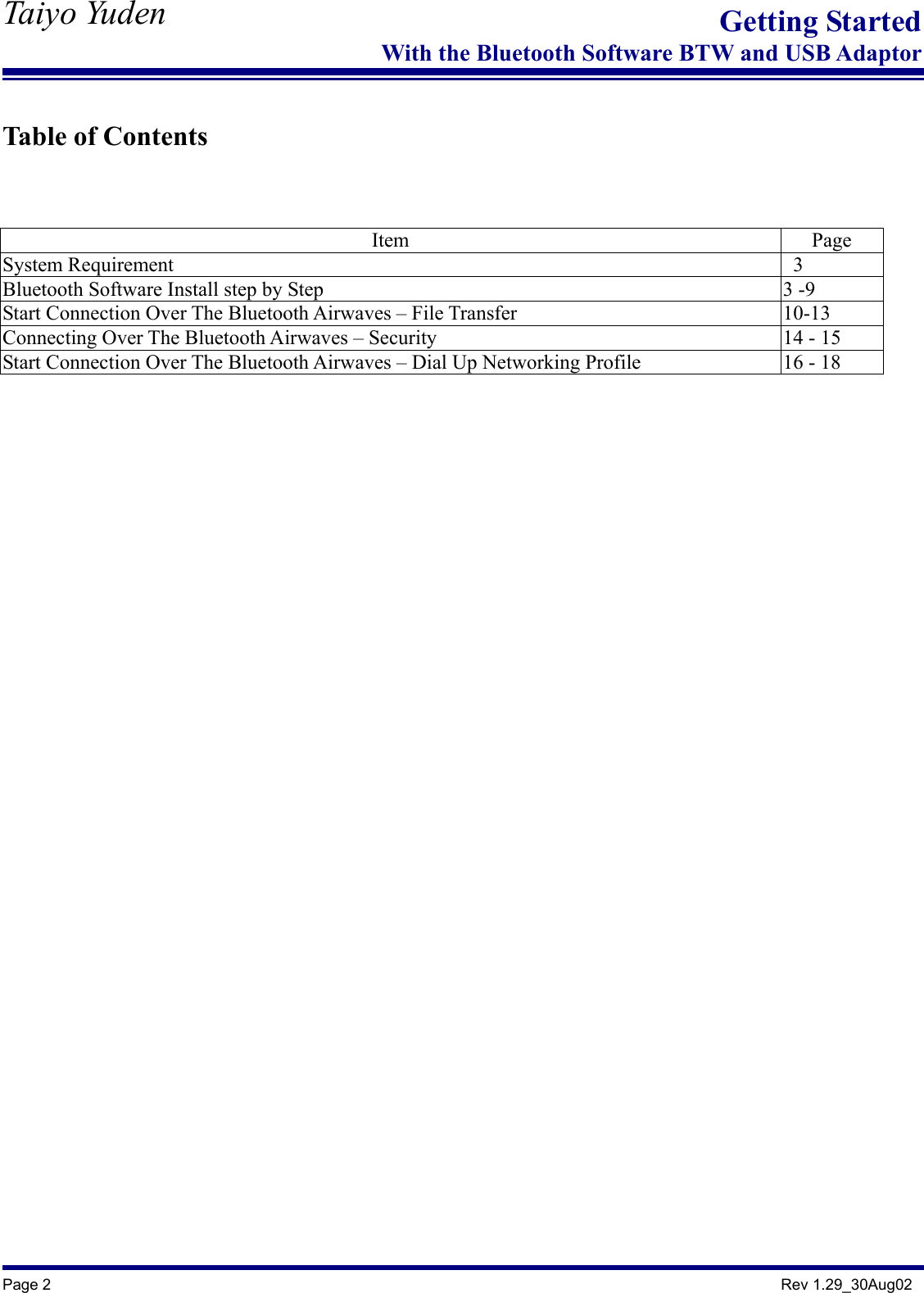

Taiyo Yuden Page 2 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Table of Contents Item Page System Requirement 3 Bluetooth Software Install step by Step 3 -9 Start Connection Over The Bluetooth Airwaves – File Transfer 10-13 Connecting Over The Bluetooth Airwaves – Security 14 - 15 Start Connection Over The Bluetooth Airwaves – Dial Up Networking Profile 16 - 18

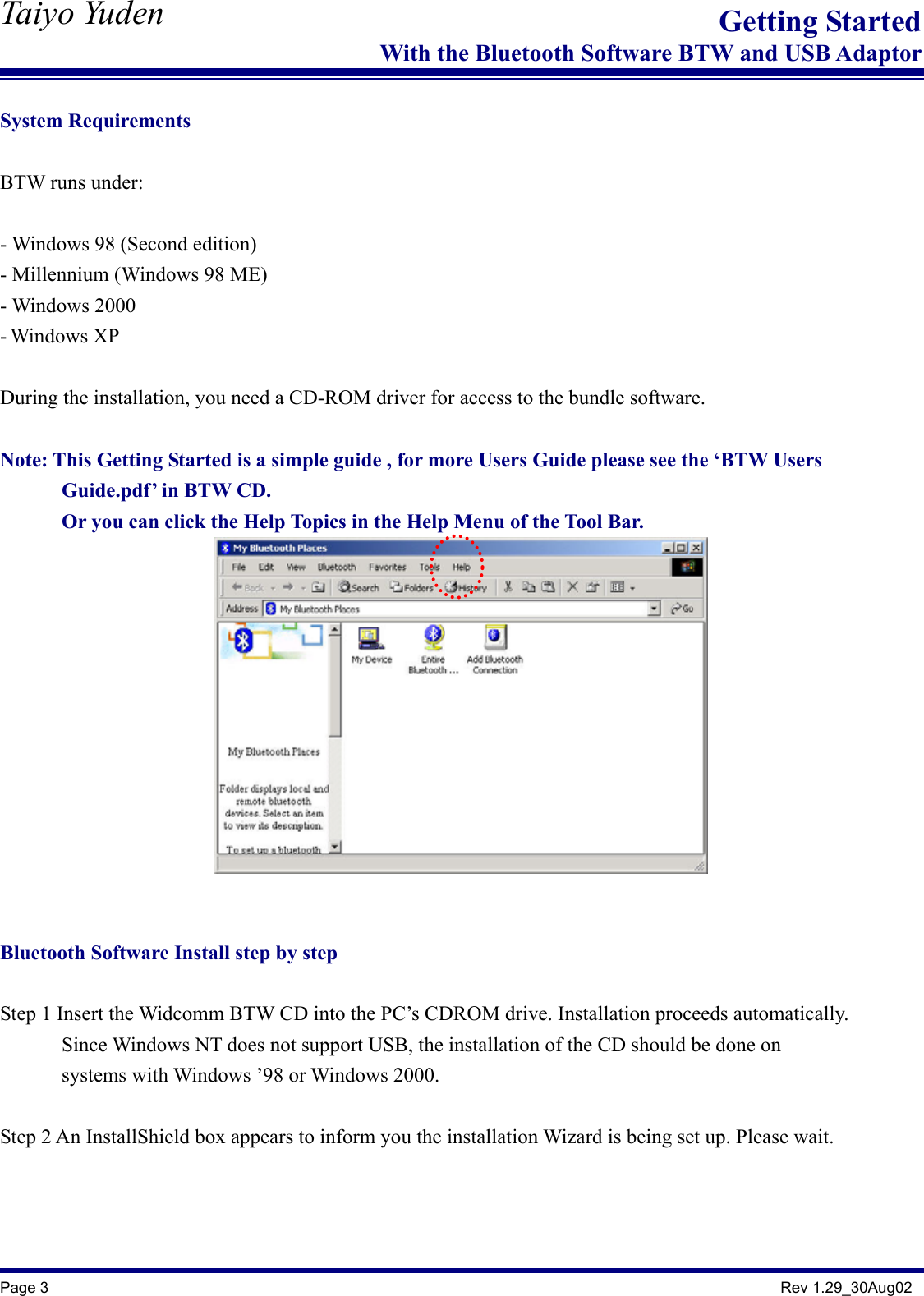

Taiyo Yuden Page 3 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor System Requirements BTW runs under: - Windows 98 (Second edition) - Millennium (Windows 98 ME) - Windows 2000 - Windows XP During the installation, you need a CD-ROM driver for access to the bundle software. Note: This Getting Started is a simple guide , for more Users Guide please see the ‘BTW Users Guide.pdf’ in BTW CD. Or you can click the Help Topics in the Help Menu of the Tool Bar. Bluetooth Software Install step by step Step 1 Insert the Widcomm BTW CD into the PC’s CDROM drive. Installation proceeds automatically. Since Windows NT does not support USB, the installation of the CD should be done on systems with Windows ’98 or Windows 2000. Step 2 An InstallShield box appears to inform you the installation Wizard is being set up. Please wait.

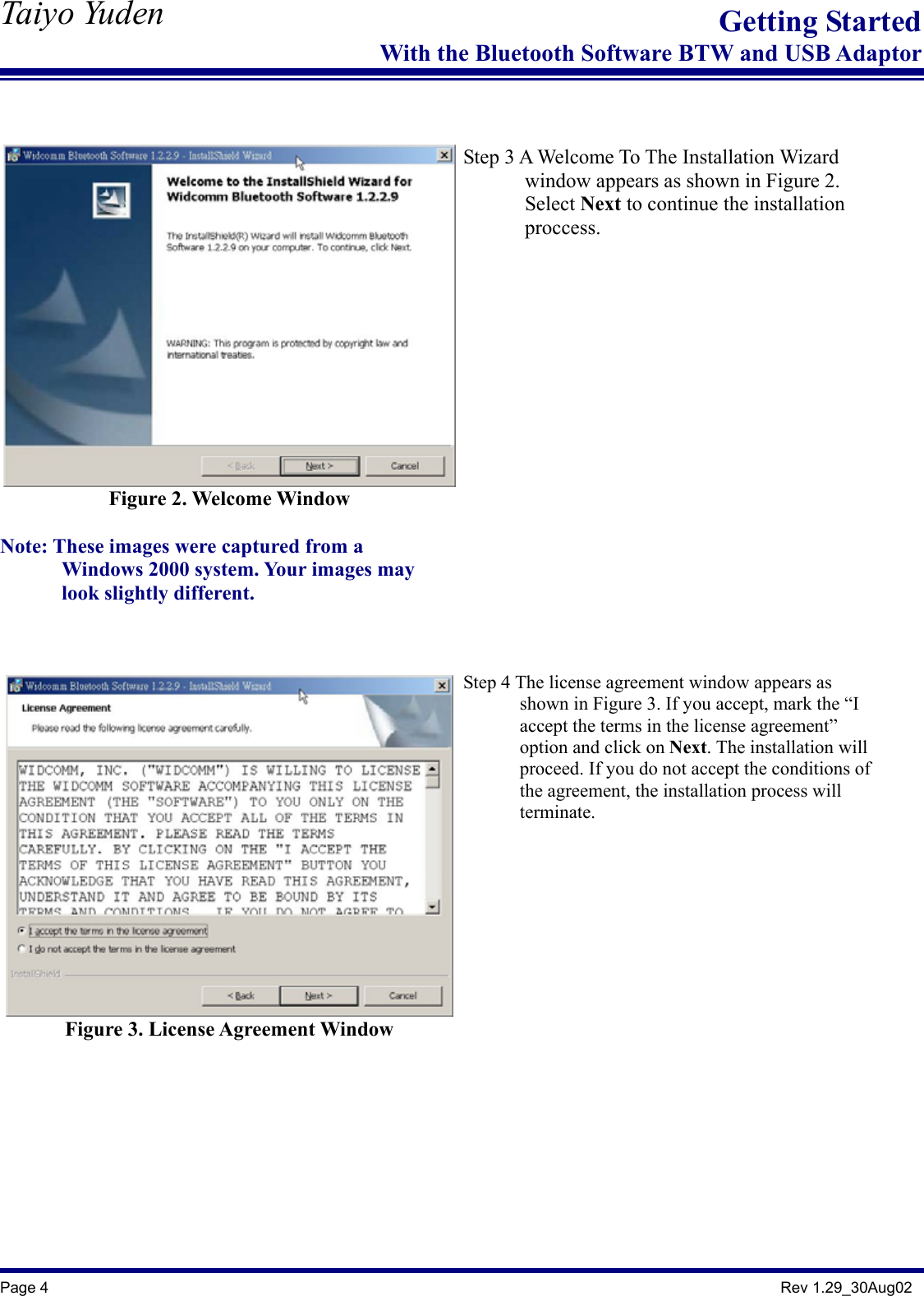

Taiyo Yuden Page 4 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 2. Welcome Window Note: These images were captured from a Windows 2000 system. Your images may look slightly different. Step 3 A Welcome To The Installation Wizard window appears as shown in Figure 2. Select Next to continue the installation proccess. Figure 3. License Agreement Window Step 4 The license agreement window appears as shown in Figure 3. If you accept, mark the “I accept the terms in the license agreement” option and click on Next. The installation will proceed. If you do not accept the conditions of the agreement, the installation process will terminate.

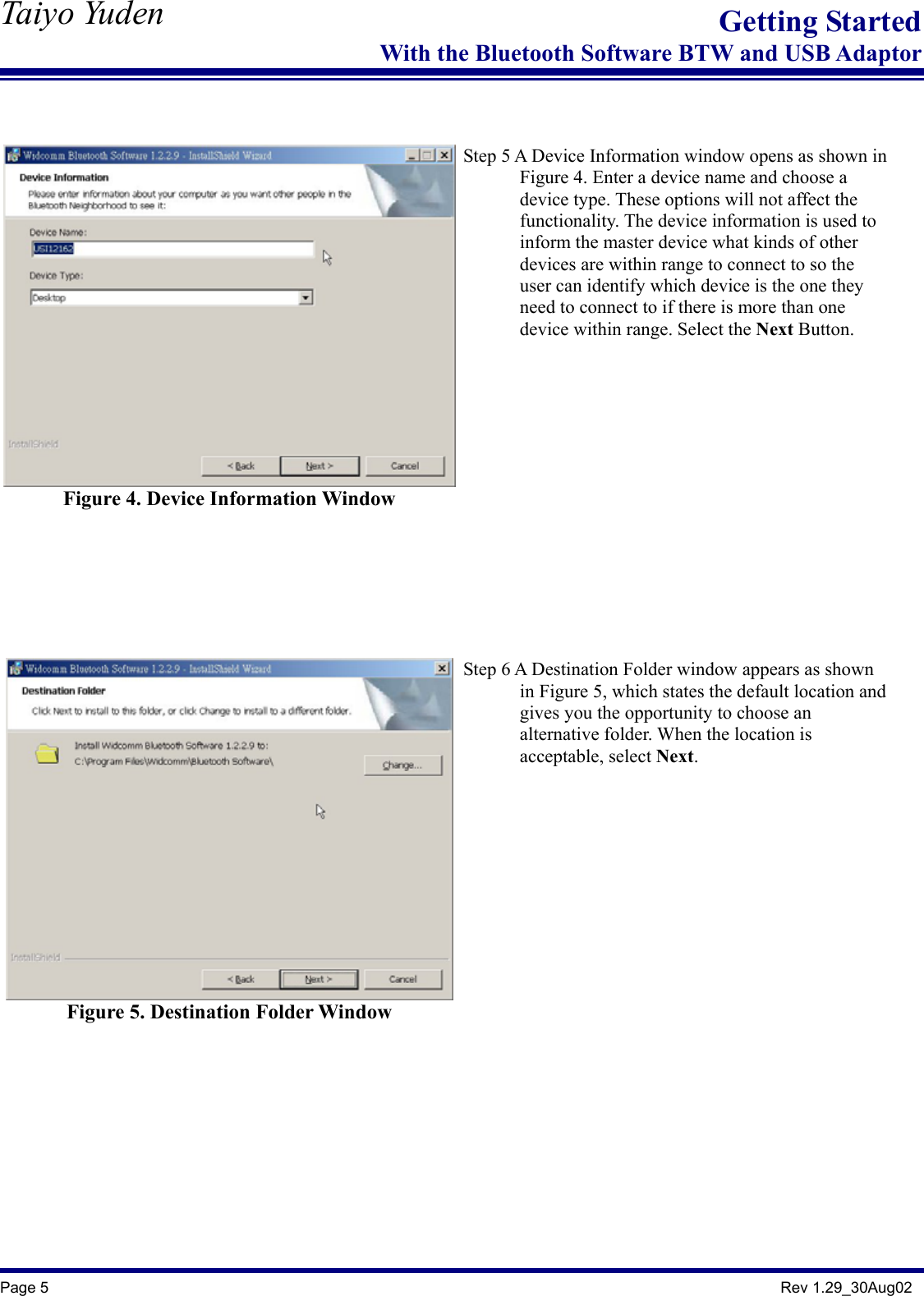

Taiyo Yuden Page 5 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 4. Device Information Window Step 5 A Device Information window opens as shown in Figure 4. Enter a device name and choose a device type. These options will not affect the functionality. The device information is used to inform the master device what kinds of other devices are within range to connect to so the user can identify which device is the one they need to connect to if there is more than one device within range. Select the Next Button. Figure 5. Destination Folder Window Step 6 A Destination Folder window appears as shown in Figure 5, which states the default location and gives you the opportunity to choose an alternative folder. When the location is acceptable, select Next.

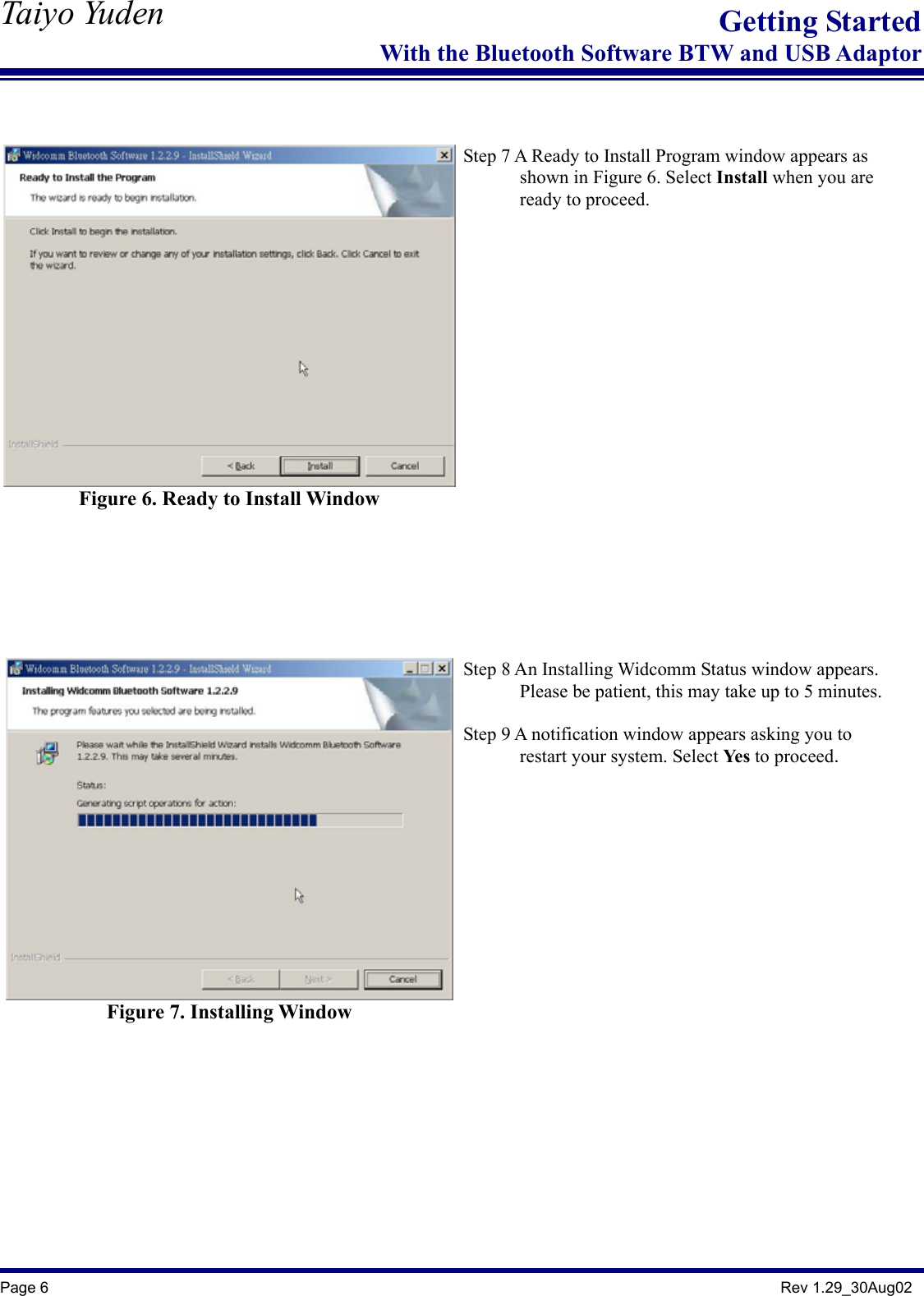

Taiyo Yuden Page 6 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 6. Ready to Install Window Step 7 A Ready to Install Program window appears as shown in Figure 6. Select Install when you are ready to proceed. Figure 7. Installing Window Step 8 An Installing Widcomm Status window appears. Please be patient, this may take up to 5 minutes. Step 9 A notification window appears asking you to restart your system. Select Yes to proceed.

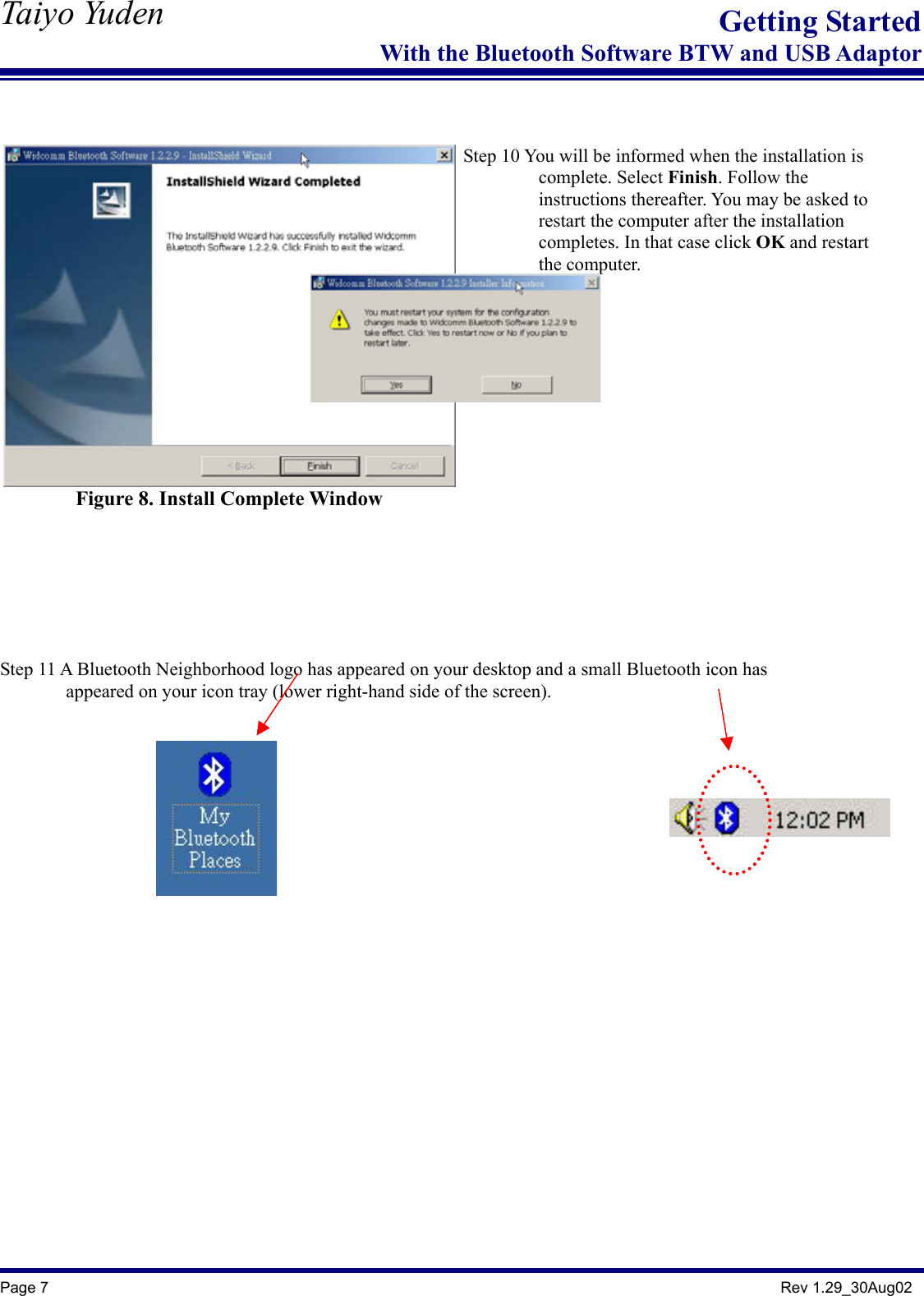

Taiyo Yuden Page 7 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 8. Install Complete Window Step 10 You will be informed when the installation is complete. Select Finish. Follow the instructions thereafter. You may be asked to restart the computer after the installation completes. In that case click OK and restart the computer. Step 11 A Bluetooth Neighborhood logo has appeared on your desktop and a small Bluetooth icon has appeared on your icon tray (lower right-hand side of the screen).

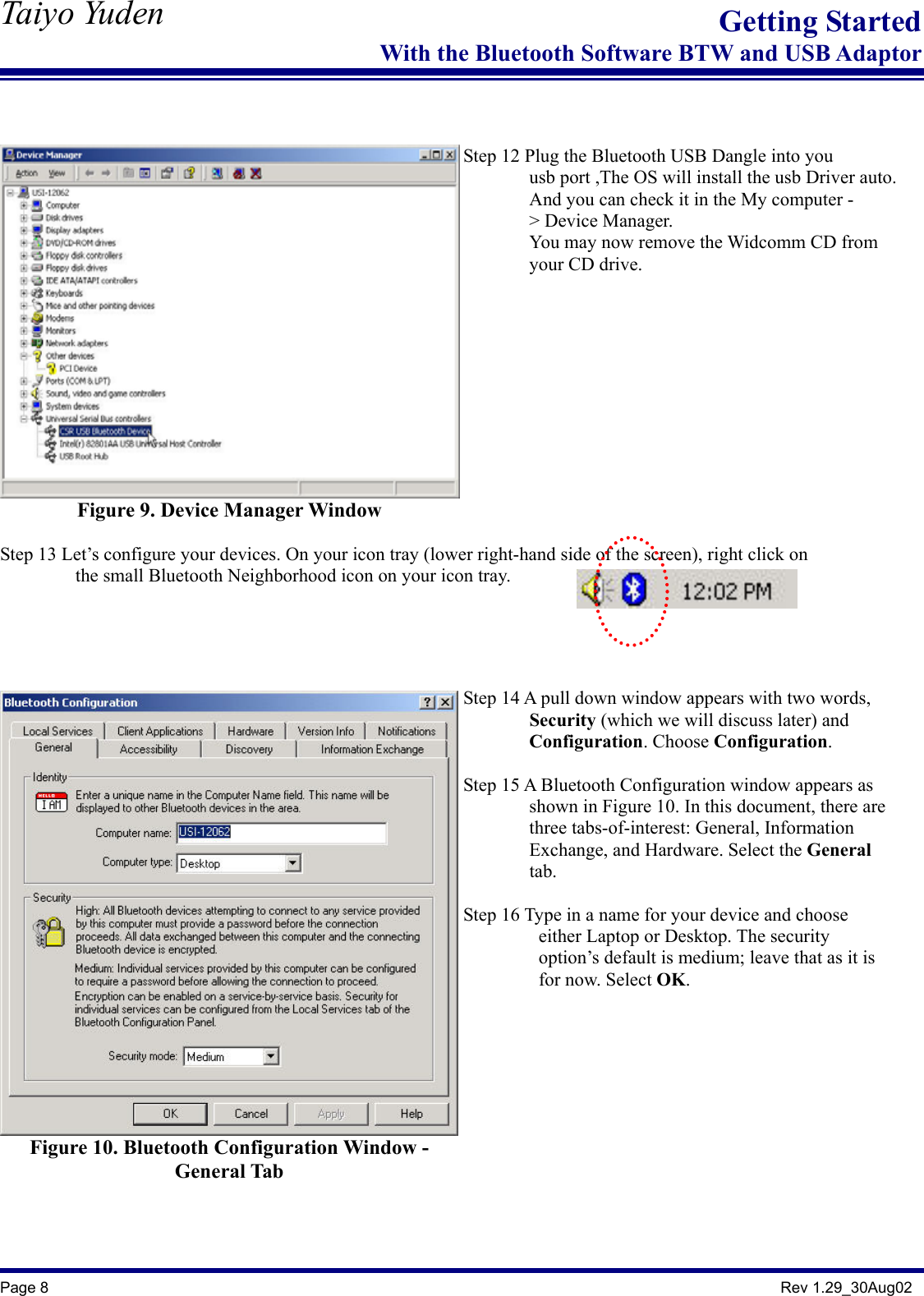

Taiyo Yuden Page 8 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 9. Device Manager Window Step 12 Plug the Bluetooth USB Dangle into you usb port ,The OS will install the usb Driver auto. And you can check it in the My computer - > Device Manager. You may now remove the Widcomm CD from your CD drive. Step 13 Let’s configure your devices. On your icon tray (lower right-hand side of the screen), right click on the small Bluetooth Neighborhood icon on your icon tray. Figure 10. Bluetooth Configuration Window - General Tab Step 14 A pull down window appears with two words, Security (which we will discuss later) and Configuration. Choose Configuration. Step 15 A Bluetooth Configuration window appears as shown in Figure 10. In this document, there are three tabs-of-interest: General, Information Exchange, and Hardware. Select the General tab. Step 16 Type in a name for your device and choose either Laptop or Desktop. The security option’s default is medium; leave that as it is for now. Select OK.

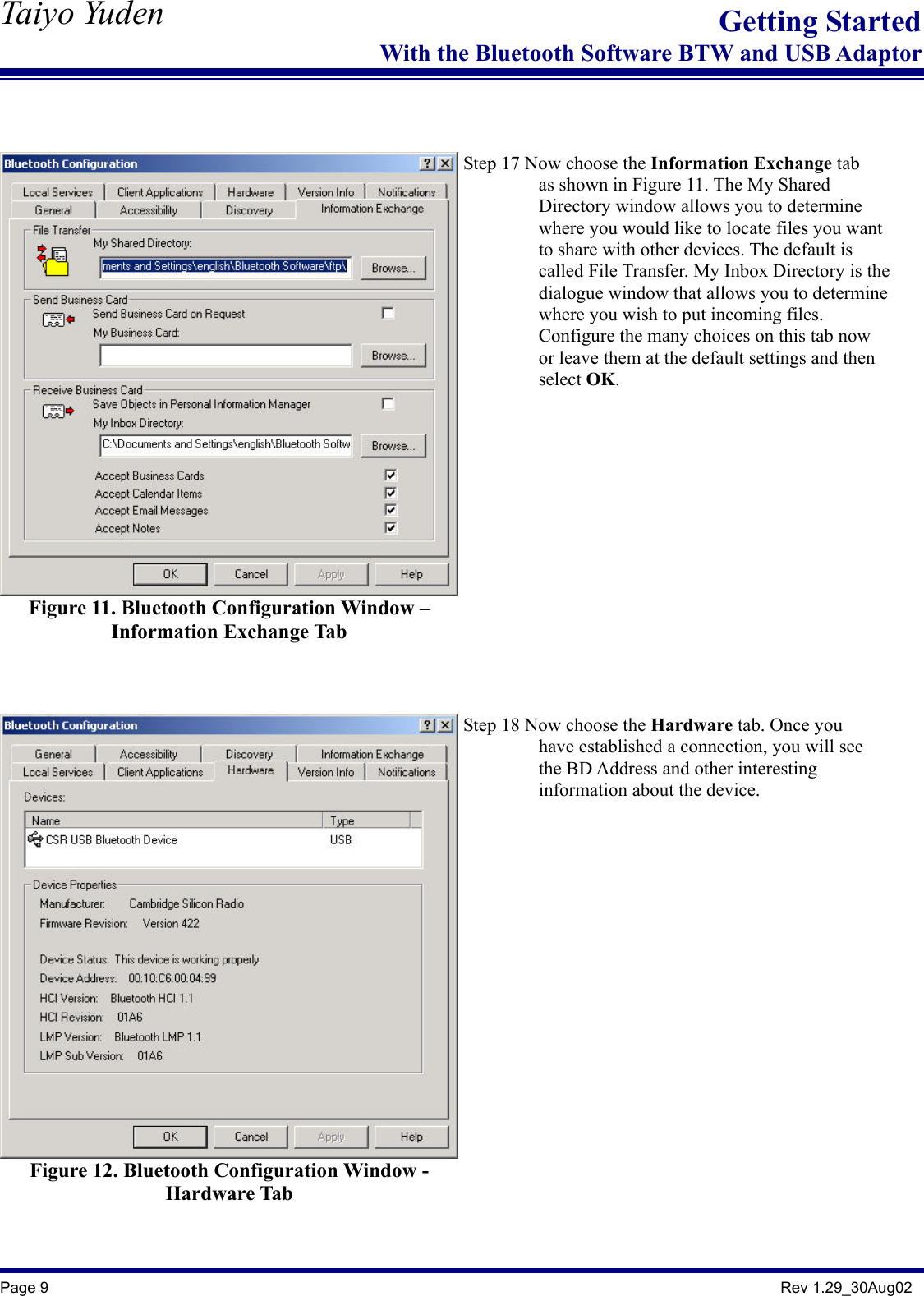

Taiyo Yuden Page 9 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 11. Bluetooth Configuration Window – Information Exchange Tab Step 17 Now choose the Information Exchange tab as shown in Figure 11. The My Shared Directory window allows you to determine where you would like to locate files you want to share with other devices. The default is called File Transfer. My Inbox Directory is the dialogue window that allows you to determine where you wish to put incoming files. Configure the many choices on this tab now or leave them at the default settings and then select OK. Figure 12. Bluetooth Configuration Window - Hardware Tab Step 18 Now choose the Hardware tab. Once you have established a connection, you will see the BD Address and other interesting information about the device.

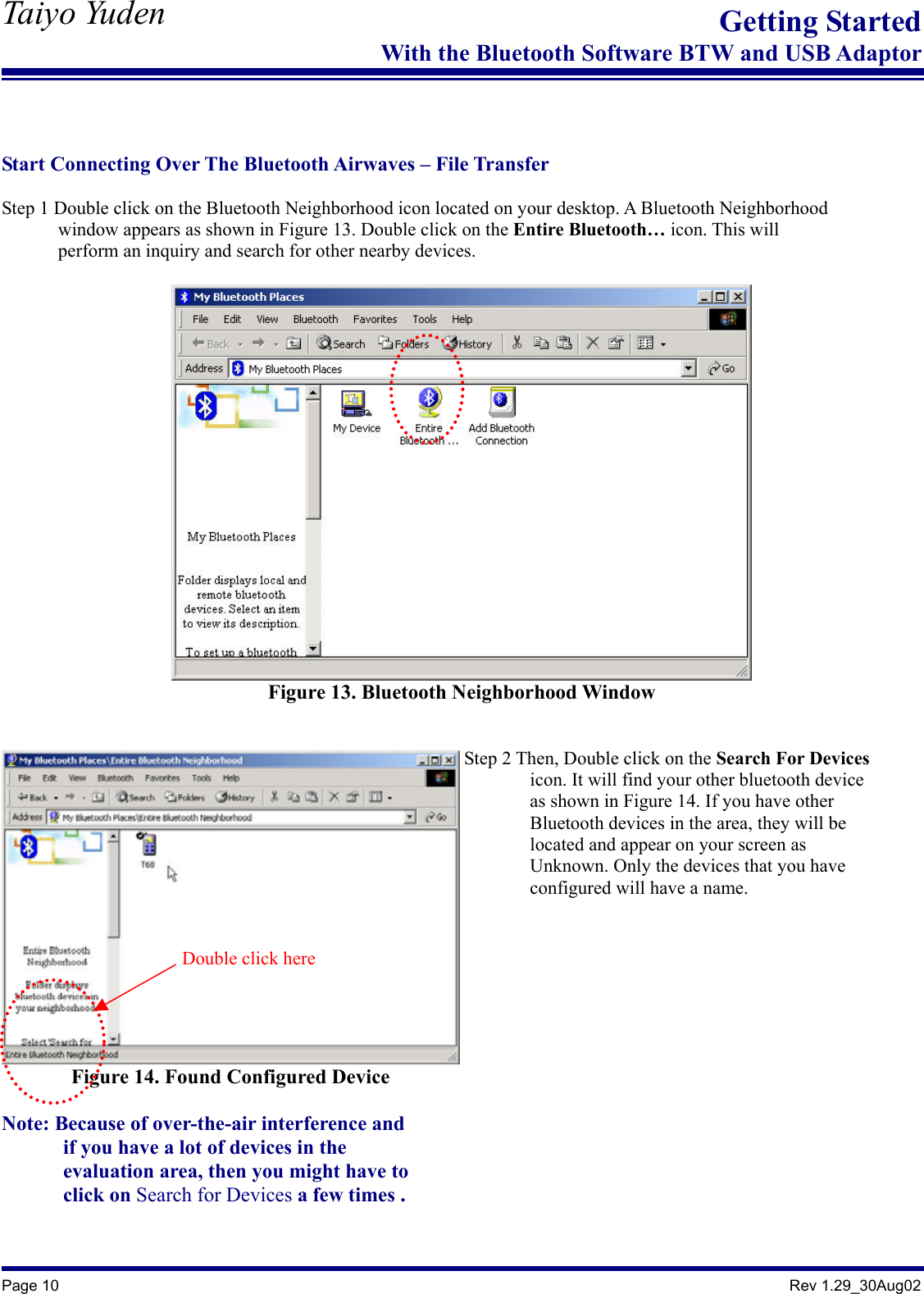

Taiyo Yuden Page 10 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Start Connecting Over The Bluetooth Airwaves – File Transfer Step 1 Double click on the Bluetooth Neighborhood icon located on your desktop. A Bluetooth Neighborhood window appears as shown in Figure 13. Double click on the Entire Bluetooth… icon. This will perform an inquiry and search for other nearby devices. Figure 13. Bluetooth Neighborhood Window Figure 14. Found Configured Device Note: Because of over-the-air interference and if you have a lot of devices in the evaluation area, then you might have to click on Search for Devices a few times . Step 2 Then, Double click on the Search For Devices icon. It will find your other bluetooth device as shown in Figure 14. If you have other Bluetooth devices in the area, they will be located and appear on your screen as Unknown. Only the devices that you have configured will have a name. Double click here

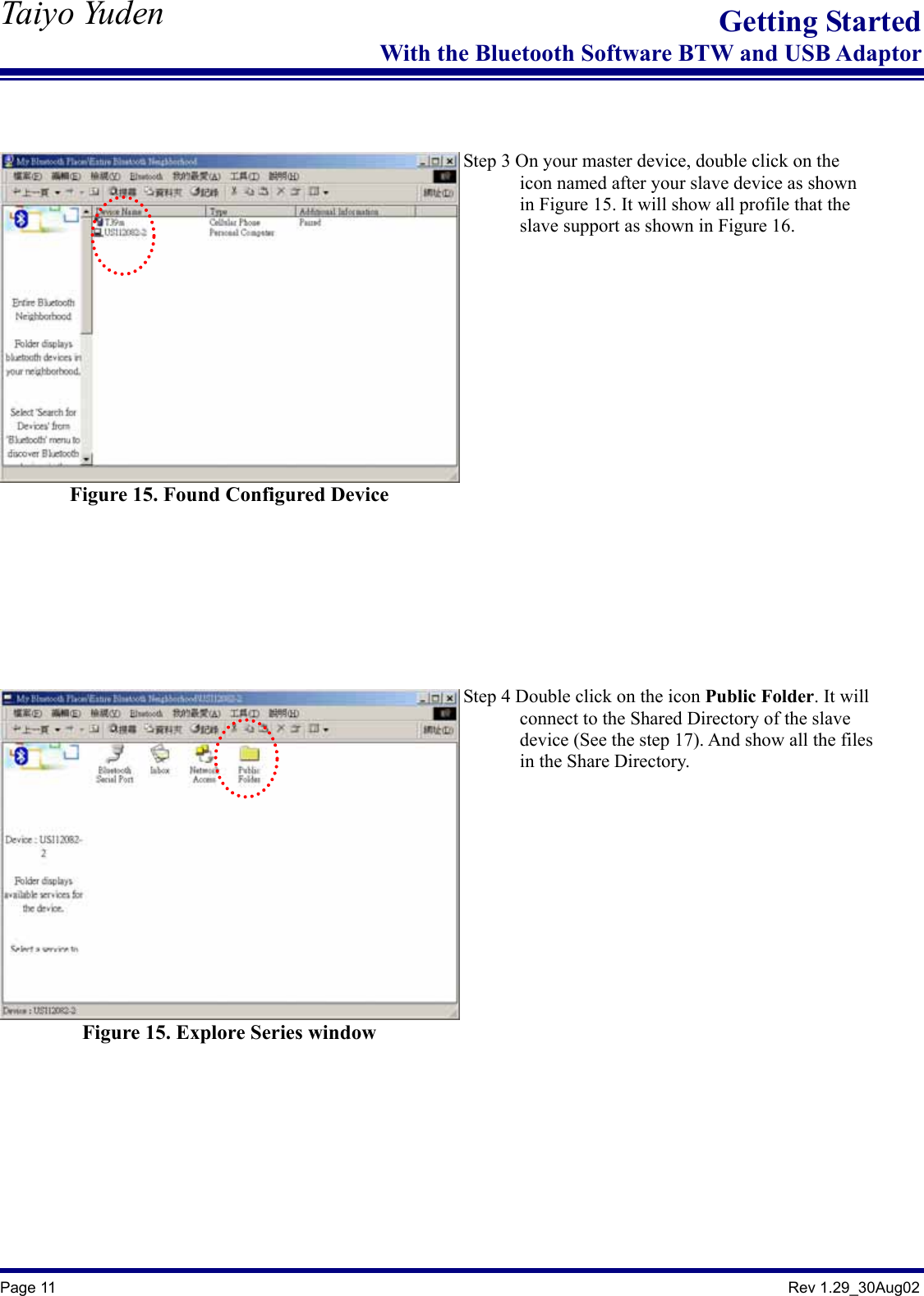

Taiyo Yuden Page 11 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 15. Found Configured Device Step 3 On your master device, double click on the icon named after your slave device as shown in Figure 15. It will show all profile that the slave support as shown in Figure 16. Figure 15. Explore Series window Step 4 Double click on the icon Public Folder. It will connect to the Shared Directory of the slave device (See the step 17). And show all the files in the Share Directory.

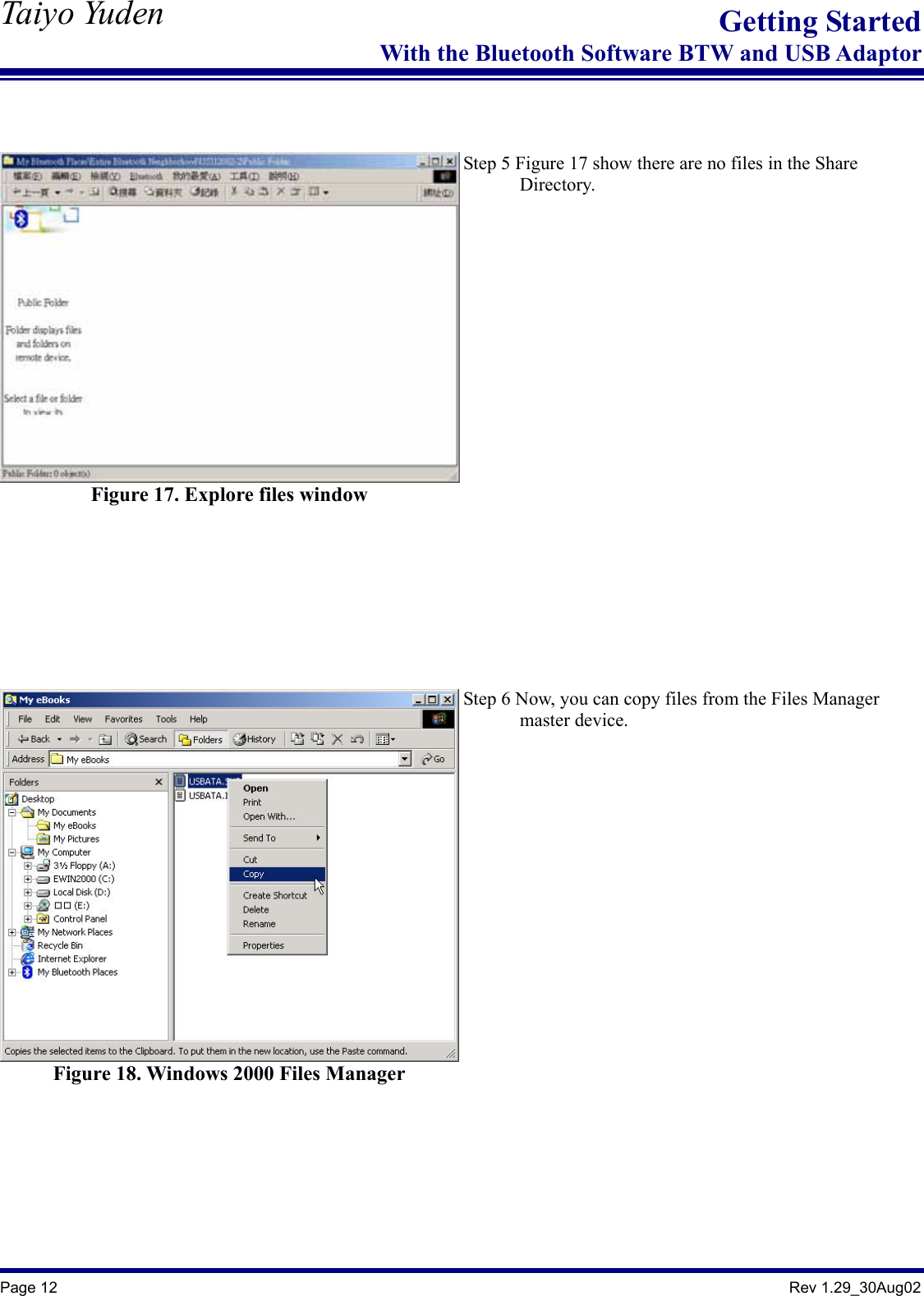

Taiyo Yuden Page 12 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 17. Explore files window Step 5 Figure 17 show there are no files in the Share Directory. Figure 18. Windows 2000 Files Manager Step 6 Now, you can copy files from the Files Manager master device.

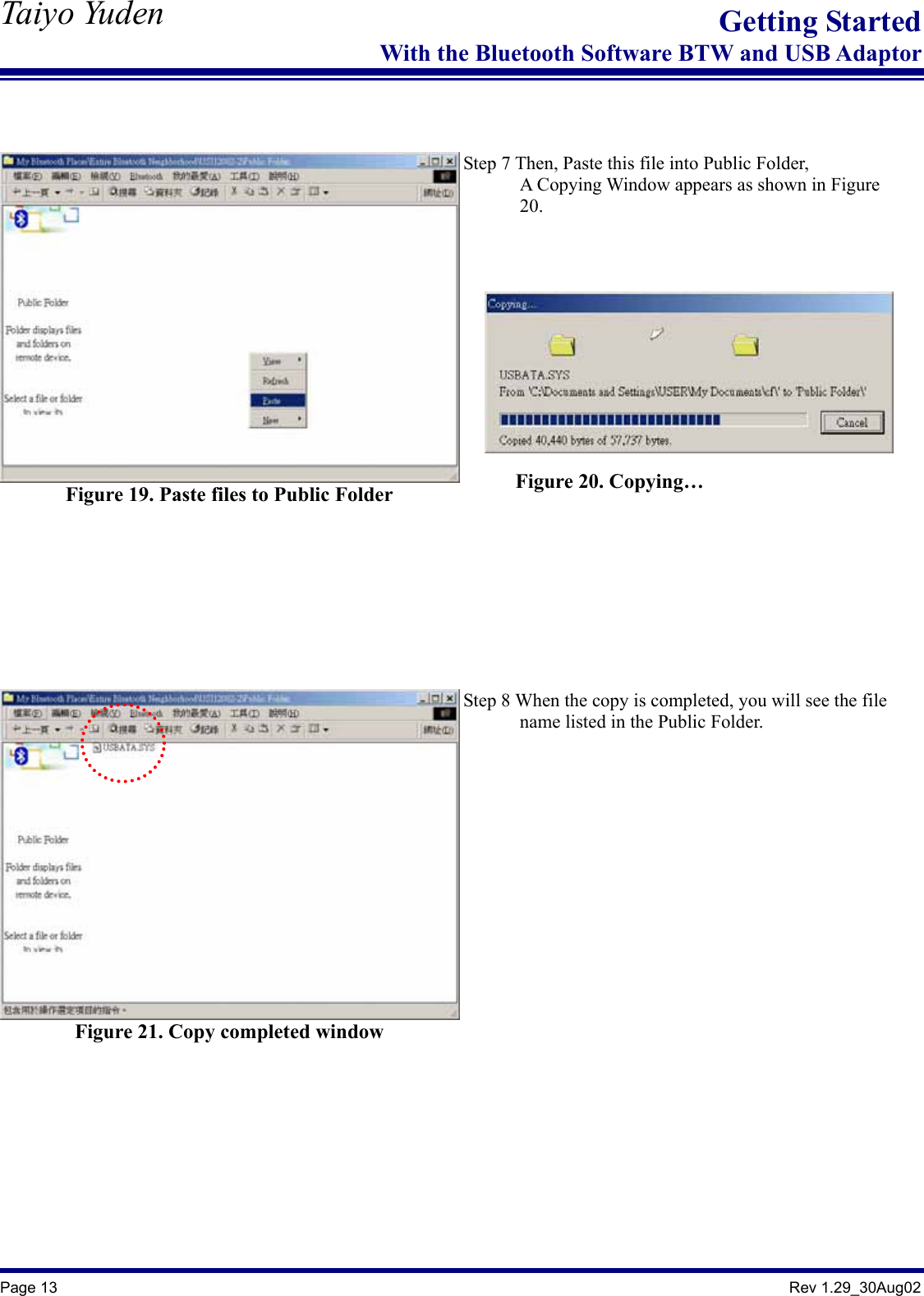

Taiyo Yuden Page 13 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 19. Paste files to Public Folder Step 7 Then, Paste this file into Public Folder, A Copying Window appears as shown in Figure 20. Figure 21. Copy completed window Step 8 When the copy is completed, you will see the file name listed in the Public Folder. Figure 20. Copying…

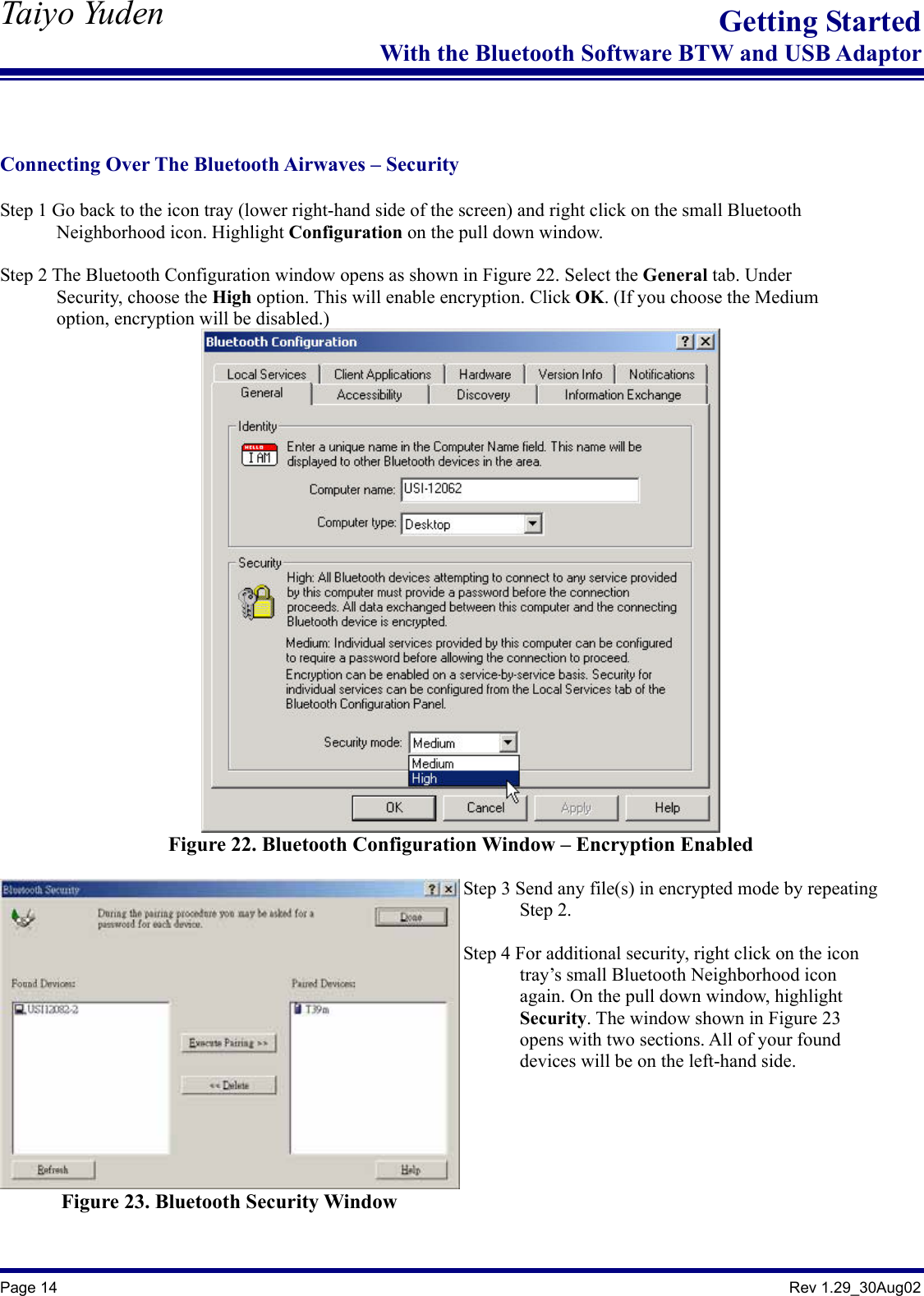

Taiyo Yuden Page 14 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Connecting Over The Bluetooth Airwaves – Security Step 1 Go back to the icon tray (lower right-hand side of the screen) and right click on the small Bluetooth Neighborhood icon. Highlight Configuration on the pull down window. Step 2 The Bluetooth Configuration window opens as shown in Figure 22. Select the General tab. Under Security, choose the High option. This will enable encryption. Click OK. (If you choose the Medium option, encryption will be disabled.) Figure 22. Bluetooth Configuration Window – Encryption Enabled Figure 23. Bluetooth Security Window Step 3 Send any file(s) in encrypted mode by repeating Step 2. Step 4 For additional security, right click on the icon tray’s small Bluetooth Neighborhood icon again. On the pull down window, highlight Security. The window shown in Figure 23 opens with two sections. All of your found devices will be on the left-hand side.

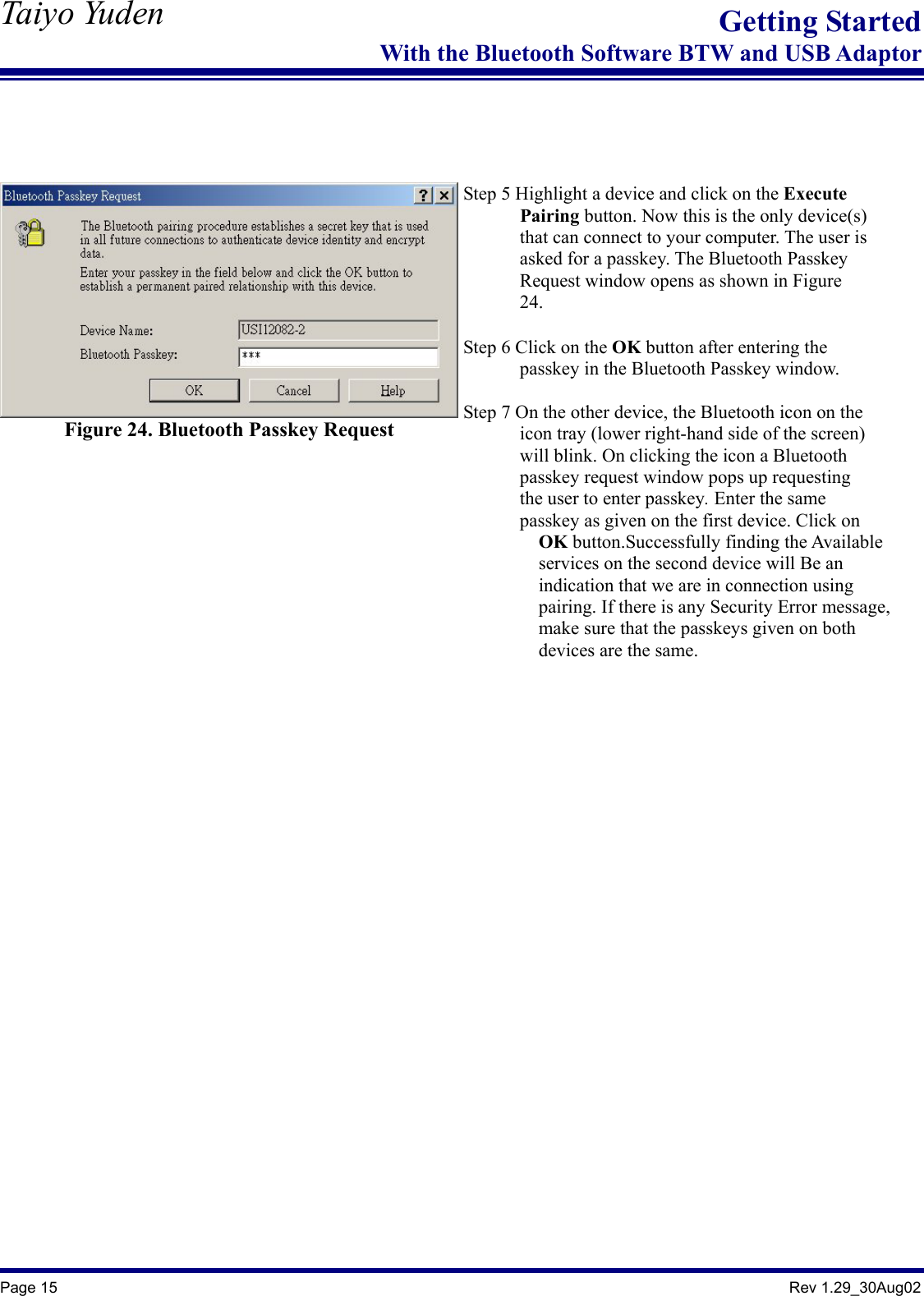

Taiyo Yuden Page 15 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 24. Bluetooth Passkey Request Step 5 Highlight a device and click on the Execute Pairing button. Now this is the only device(s) that can connect to your computer. The user is asked for a passkey. The Bluetooth Passkey Request window opens as shown in Figure 24. Step 6 Click on the OK button after entering the passkey in the Bluetooth Passkey window. Step 7 On the other device, the Bluetooth icon on the icon tray (lower right-hand side of the screen) will blink. On clicking the icon a Bluetooth passkey request window pops up requesting the user to enter passkey. Enter the same passkey as given on the first device. Click on OK button.Successfully finding the Available services on the second device will Be an indication that we are in connection using pairing. If there is any Security Error message, make sure that the passkeys given on both devices are the same.

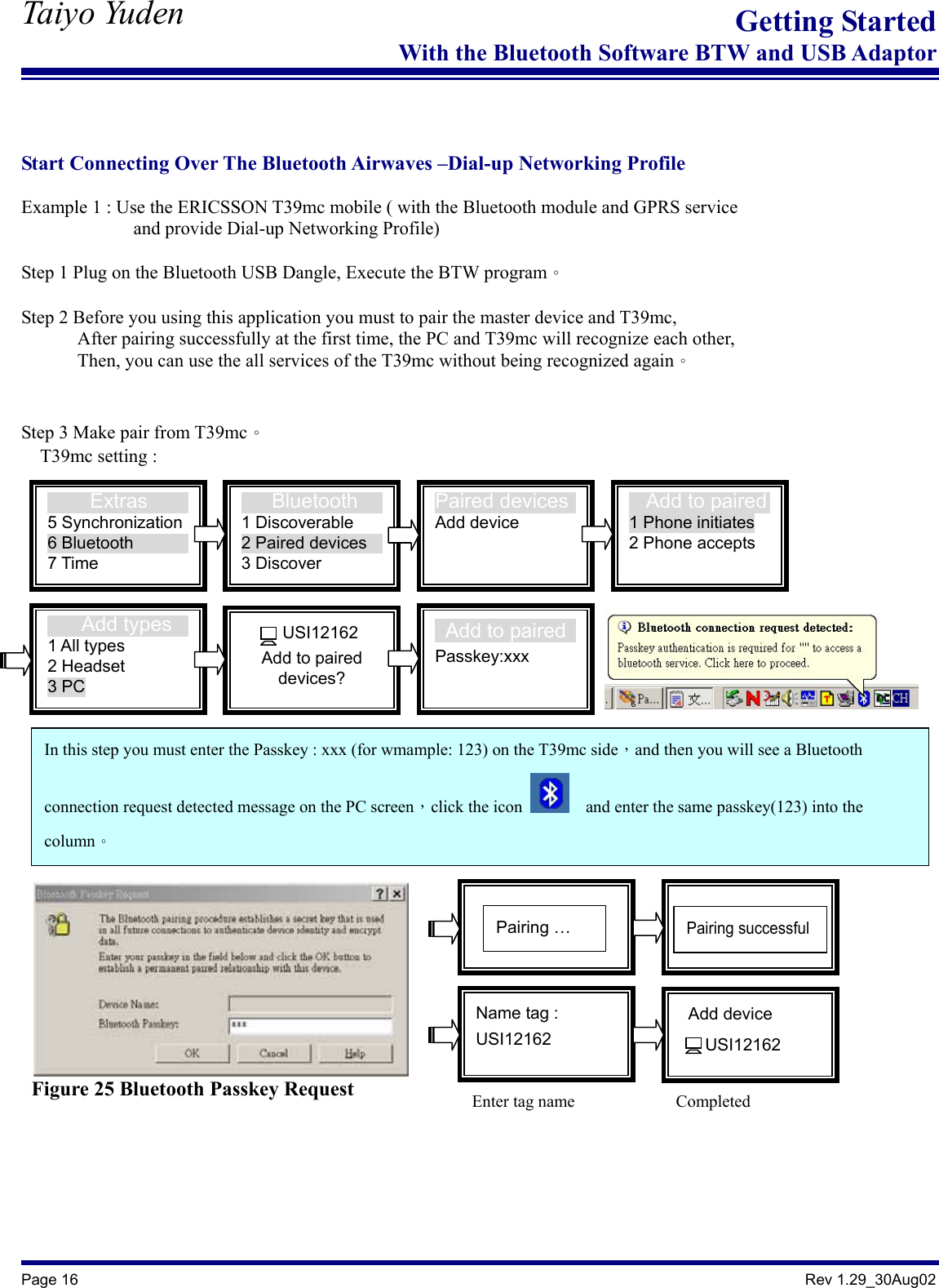

Taiyo Yuden Page 16 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Start Connecting Over The Bluetooth Airwaves –Dial-up Networking Profile Example 1 : Use the ERICSSON T39mc mobile ( with the Bluetooth module and GPRS service and provide Dial-up Networking Profile) Step 1 Plug on the Bluetooth USB Dangle, Execute the BTW program。 Step 2 Before you using this application you must to pair the master device and T39mc, After pairing successfully at the first time, the PC and T39mc will recognize each other, Then, you can use the all services of the T39mc without being recognized again。 Step 3 Make pair from T39mc。 T39mc setting : Figure 25 Bluetooth Passkey Request Extras 5 Synchronization 6 Bluetooth 7 Time Bluetooth 1 Discoverable 2 Paired devices 3 Discover Paired devicesAdd device Add to paired 1 Phone initiates 2 Phone accepts Add types 1 All types 2 Headset 3 PC Add to pairedPasskey:xxx USI12162 Add to paired devices? Name tag : USI12162 Pairing … Pairing successful Add device USI12162 In this step you must enter the Passkey : xxx (for wmample: 123) on the T39mc side，and then you will see a Bluetooth connection request detected message on the PC screen，click the icon and enter the same passkey(123) into the column。 Enter tag name Completed

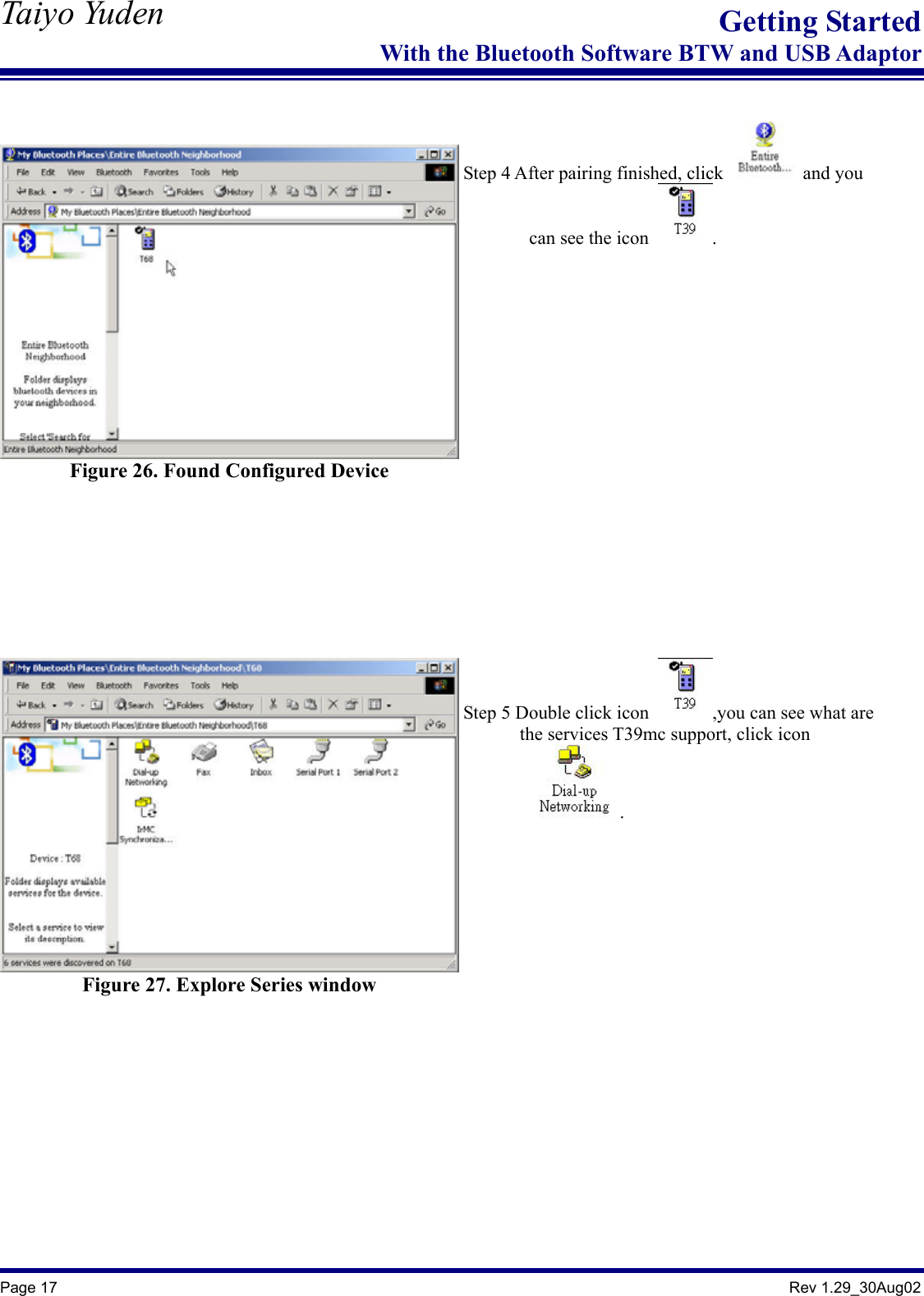

Taiyo Yuden Page 17 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 26. Found Configured Device Step 4 After pairing finished, click and you can see the icon . Figure 27. Explore Series window Step 5 Double click icon ,you can see what are the services T39mc support, click icon .

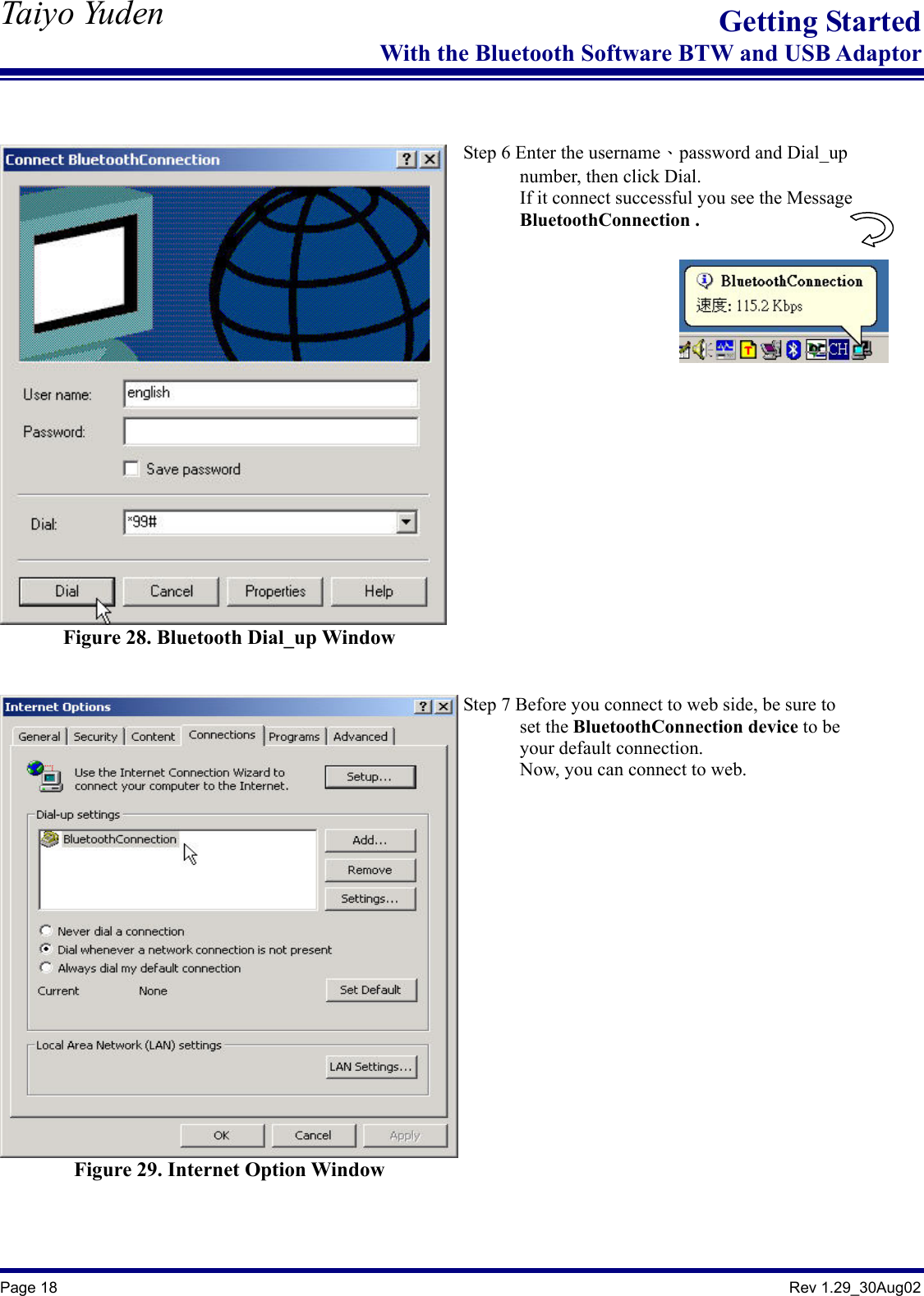

Taiyo Yuden Page 18 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor Figure 28. Bluetooth Dial_up Window Step 6 Enter the username、password and Dial_up number, then click Dial. If it connect successful you see the Message BluetoothConnection . Figure 29. Internet Option Window Step 7 Before you connect to web side, be sure to set the BluetoothConnection device to be your default connection. Now, you can connect to web.

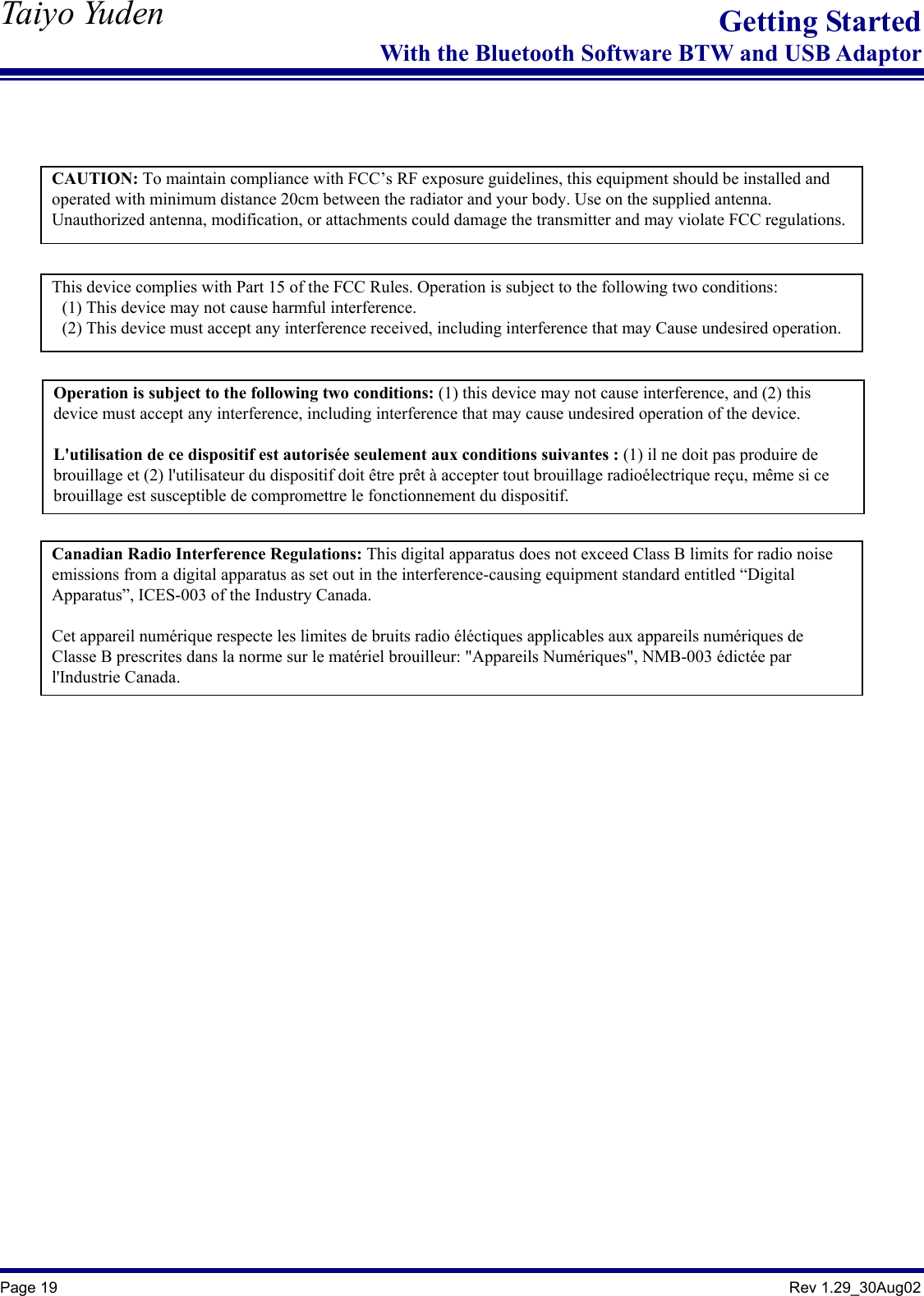

Taiyo Yuden Page 19 Rev 1.29_30Aug02 Getting StartedWith the Bluetooth Software BTW and USB Adaptor CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may Cause undesired operation.Canadian Radio Interference Regulations: This digital apparatus does not exceed Class B limits for radio noise emissions from a digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry Canada. Cet appareil numérique respecte les limites de bruits radio éléctiques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée par l'Industrie Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
