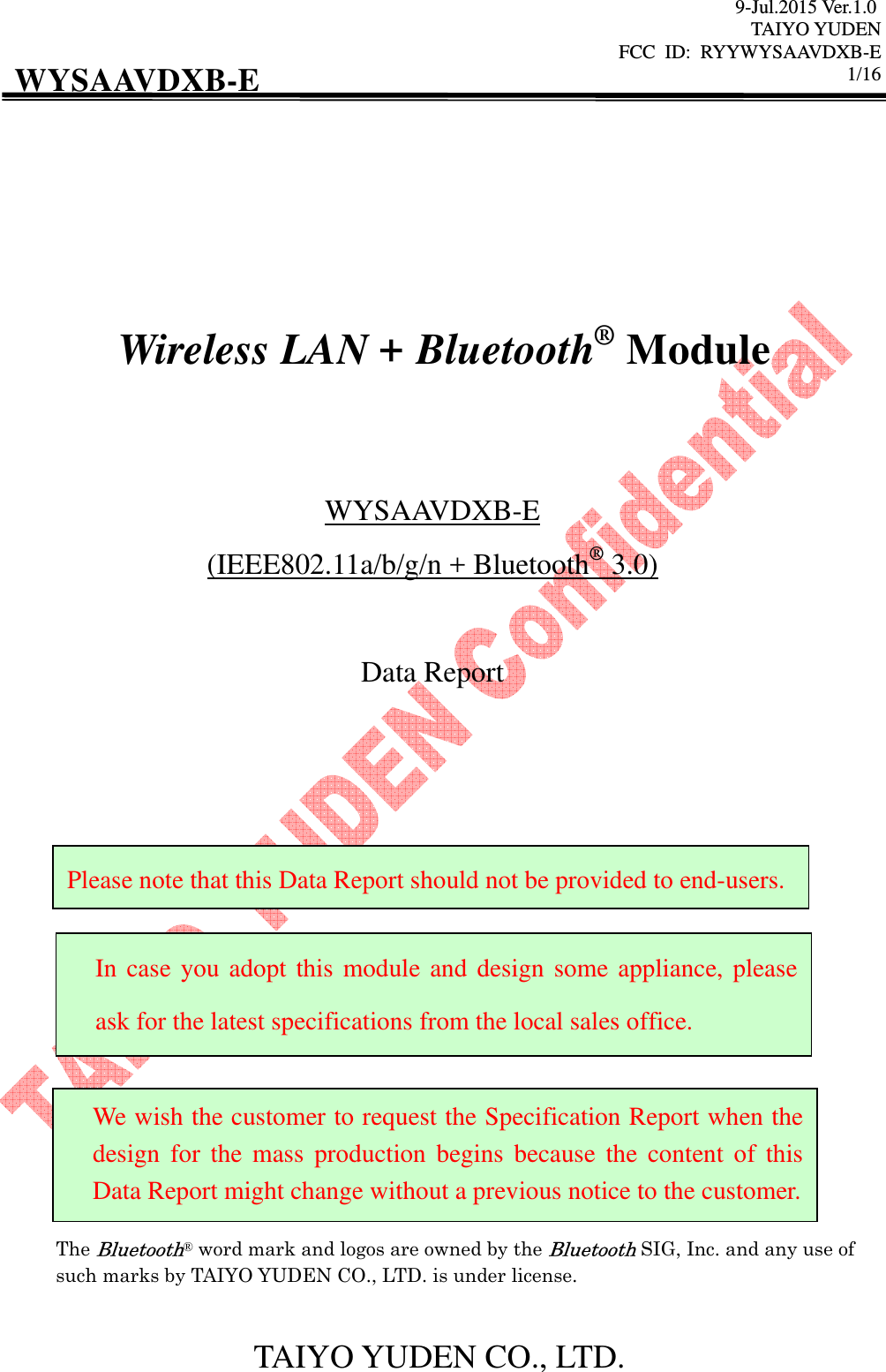

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 1/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Wireless LAN + Bluetooth® Module WYSAAVDXB-E (IEEE802.11a/b/g/n + Bluetooth® 3.0) Data Report The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TAIYO YUDEN CO., LTD. is under license. In case you adopt this module and design some appliance, please ask for the latest specifications from the local sales office. We wish the customer to request the Specification Report when the design for the mass production begins because the content of this Data Report might change without a previous notice to the customer. Please note that this Data Report should not be provided to end-users.

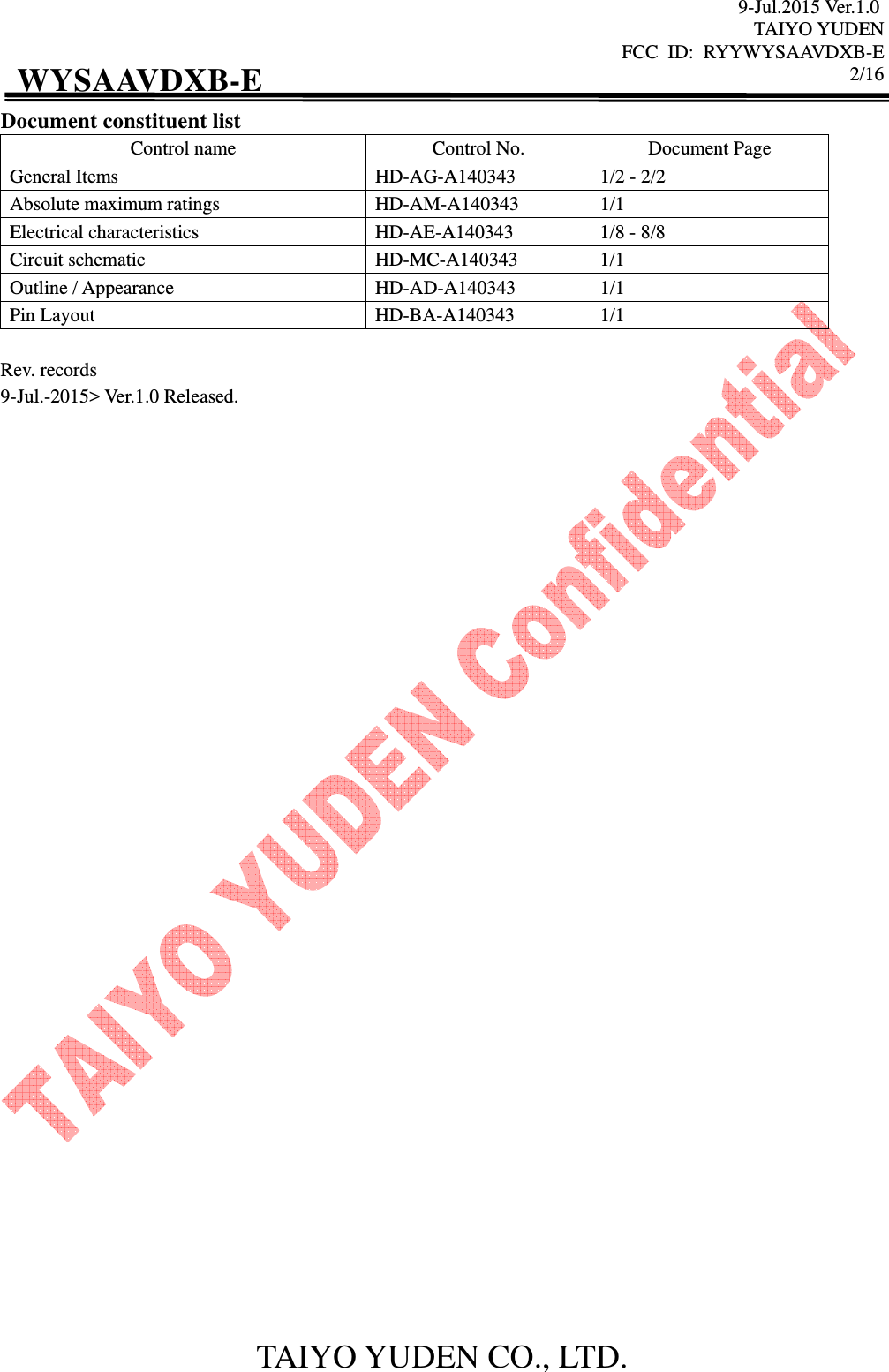

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 2/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Document constituent list Control name Control No. Document Page General Items HD-AG-A140343 1/2 - 2/2 Absolute maximum ratings HD-AM-A140343 1/1 Electrical characteristics HD-AE-A140343 1/8 - 8/8 Circuit schematic HD-MC-A140343 1/1 Outline / Appearance HD-AD-A140343 1/1 Pin Layout HD-BA-A140343 1/1 Rev. records 9-Jul.-2015> Ver.1.0 Released.

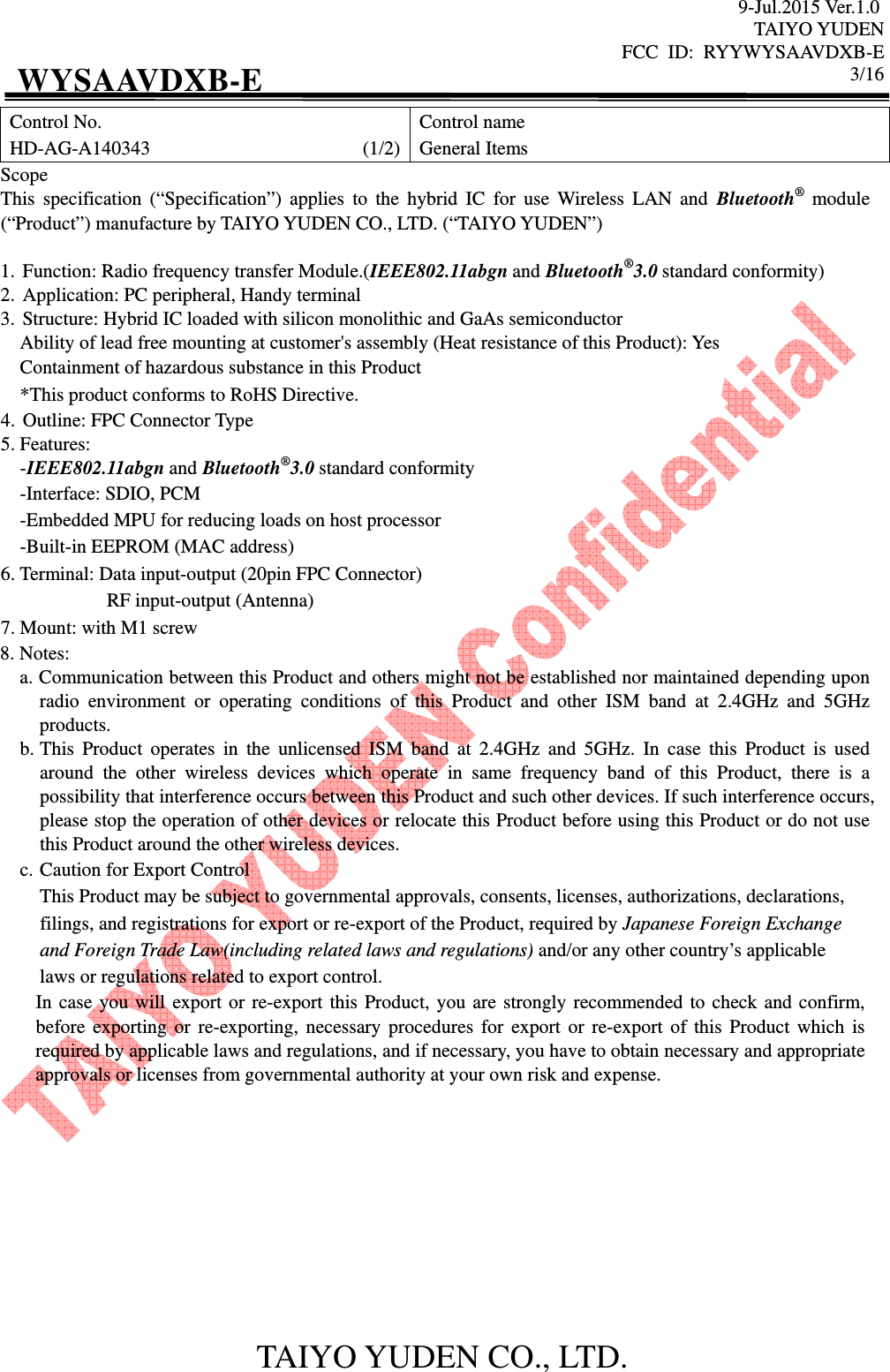

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 3/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AG-A140343 (1/2) Control name General Items Scope This specification (“Specification”) applies to the hybrid IC for use Wireless LAN and Bluetooth® module (“Product”) manufacture by TAIYO YUDEN CO., LTD. (“TAIYO YUDEN”) 1. Function: Radio frequency transfer Module.(IEEE802.11abgn and Bluetooth®3.0 standard conformity) 2. Application: PC peripheral, Handy terminal 3. Structure: Hybrid IC loaded with silicon monolithic and GaAs semiconductor Ability of lead free mounting at customer's assembly (Heat resistance of this Product): Yes Containment of hazardous substance in this Product *This product conforms to RoHS Directive. 4. Outline: FPC Connector Type 5. Features: -IEEE802.11abgn and Bluetooth®3.0 standard conformity -Interface: SDIO, PCM -Embedded MPU for reducing loads on host processor -Built-in EEPROM (MAC address) 6. Terminal: Data input-output (20pin FPC Connector) RF input-output (Antenna) 7. Mount: with M1 screw 8. Notes: a. Communication between this Product and others might not be established nor maintained depending upon radio environment or operating conditions of this Product and other ISM band at 2.4GHz and 5GHz products. b. This Product operates in the unlicensed ISM band at 2.4GHz and 5GHz. In case this Product is used around the other wireless devices which operate in same frequency band of this Product, there is a possibility that interference occurs between this Product and such other devices. If such interference occurs, please stop the operation of other devices or relocate this Product before using this Product or do not use this Product around the other wireless devices. c. Caution for Export Control This Product may be subject to governmental approvals, consents, licenses, authorizations, declarations, filings, and registrations for export or re-export of the Product, required by Japanese Foreign Exchange and Foreign Trade Law(including related laws and regulations) and/or any other country’s applicable laws or regulations related to export control. In case you will export or re-export this Product, you are strongly recommended to check and confirm, before exporting or re-exporting, necessary procedures for export or re-export of this Product which is required by applicable laws and regulations, and if necessary, you have to obtain necessary and appropriate approvals or licenses from governmental authority at your own risk and expense.

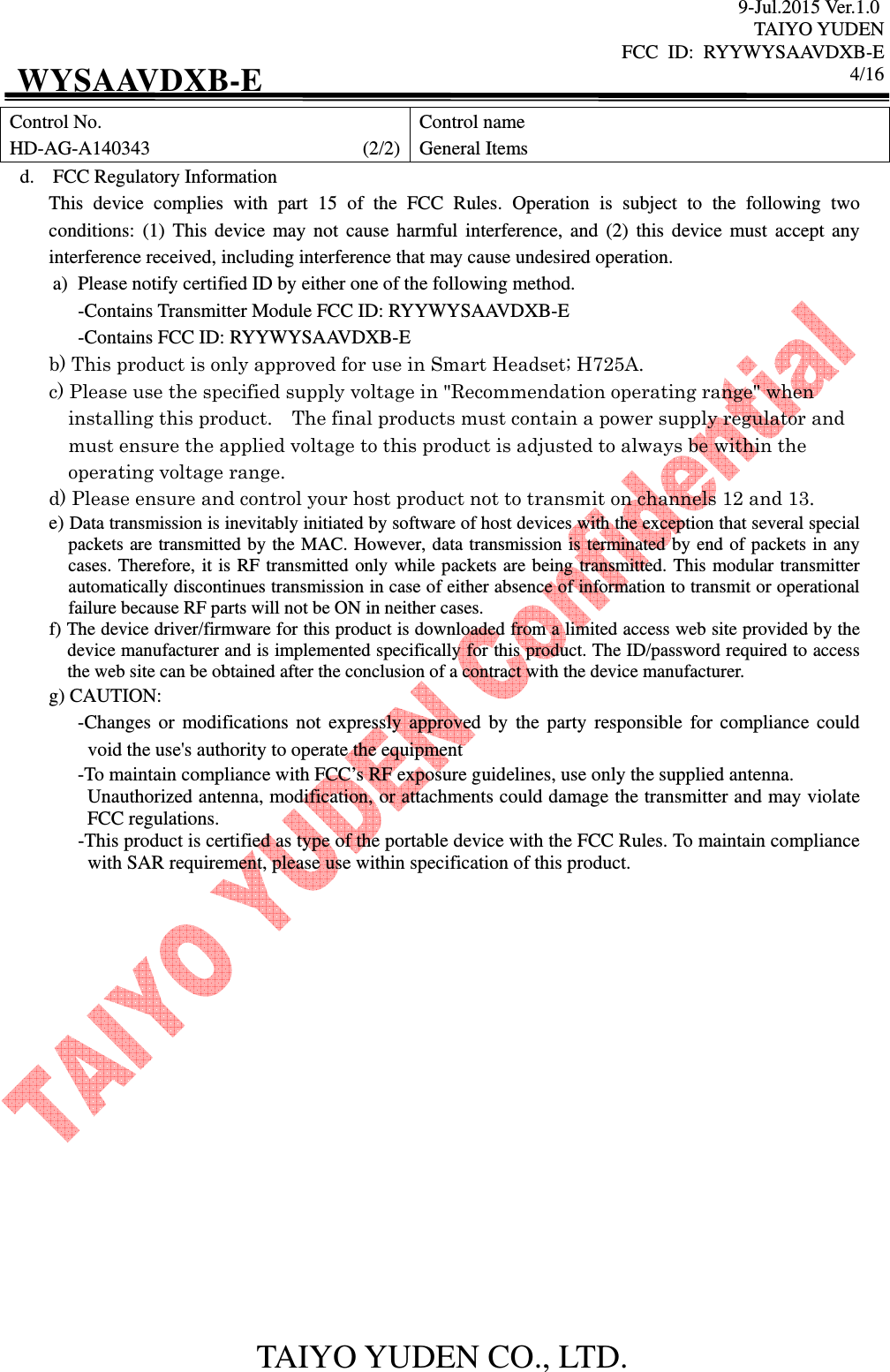

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 4/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AG-A140343 (2/2) Control name General Items d. FCC Regulatory Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. a) Please notify certified ID by either one of the following method. -Contains Transmitter Module FCC ID: RYYWYSAAVDXB-E -Contains FCC ID: RYYWYSAAVDXB-E b) This product is only approved for use in Smart Headset; H725A. c) Please use the specified supply voltage in "Recommendation operating range" when installing this product. The final products must contain a power supply regulator and must ensure the applied voltage to this product is adjusted to always be within the operating voltage range. d) Please ensure and control your host product not to transmit on channels 12 and 13. e) Data transmission is inevitably initiated by software of host devices with the exception that several special packets are transmitted by the MAC. However, data transmission is terminated by end of packets in any cases. Therefore, it is RF transmitted only while packets are being transmitted. This modular transmitter automatically discontinues transmission in case of either absence of information to transmit or operational failure because RF parts will not be ON in neither cases. f) The device driver/firmware for this product is downloaded from a limited access web site provided by the device manufacturer and is implemented specifically for this product. The ID/password required to access the web site can be obtained after the conclusion of a contract with the device manufacturer. g) CAUTION: -Changes or modifications not expressly approved by the party responsible for compliance could void the use's authority to operate the equipment -To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. -This product is certified as type of the portable device with the FCC Rules. To maintain compliance with SAR requirement, please use within specification of this product.

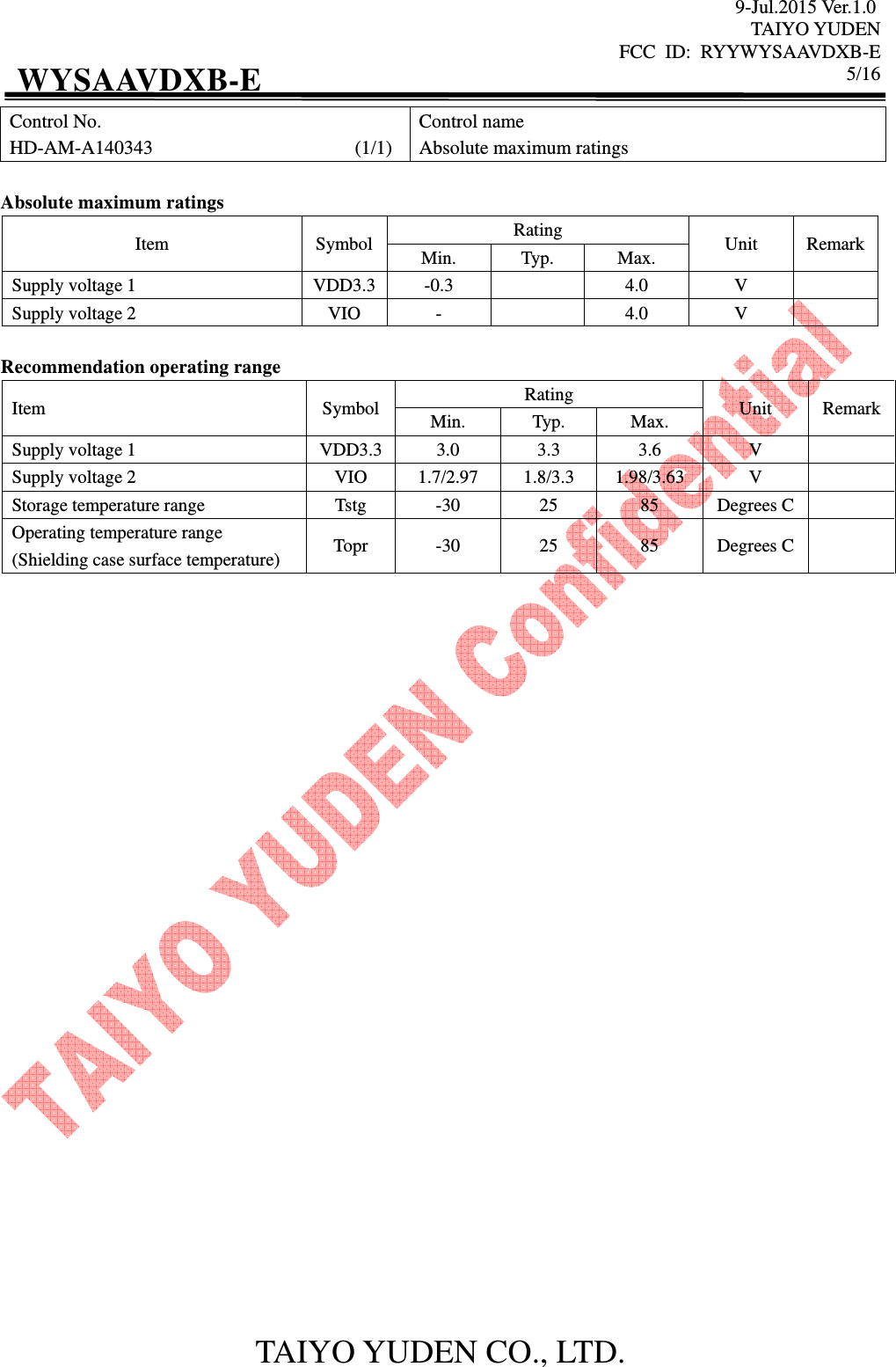

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 5/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AM-A140343 (1/1) Control name Absolute maximum ratings Absolute maximum ratings Item Symbol Rating Unit Remark Min. Typ. Max. Supply voltage 1 VDD3.3 -0.3 4.0 V Supply voltage 2 VIO - 4.0 V Recommendation operating range Item Symbol Rating Unit Remark Min. Typ. Max. Supply voltage 1 VDD3.3 3.0 3.3 3.6 V Supply voltage 2 VIO 1.7/2.97 1.8/3.3 1.98/3.63 V Storage temperature range Tstg -30 25 85 Degrees C Operating temperature range (Shielding case surface temperature) Topr -30 25 85 Degrees C

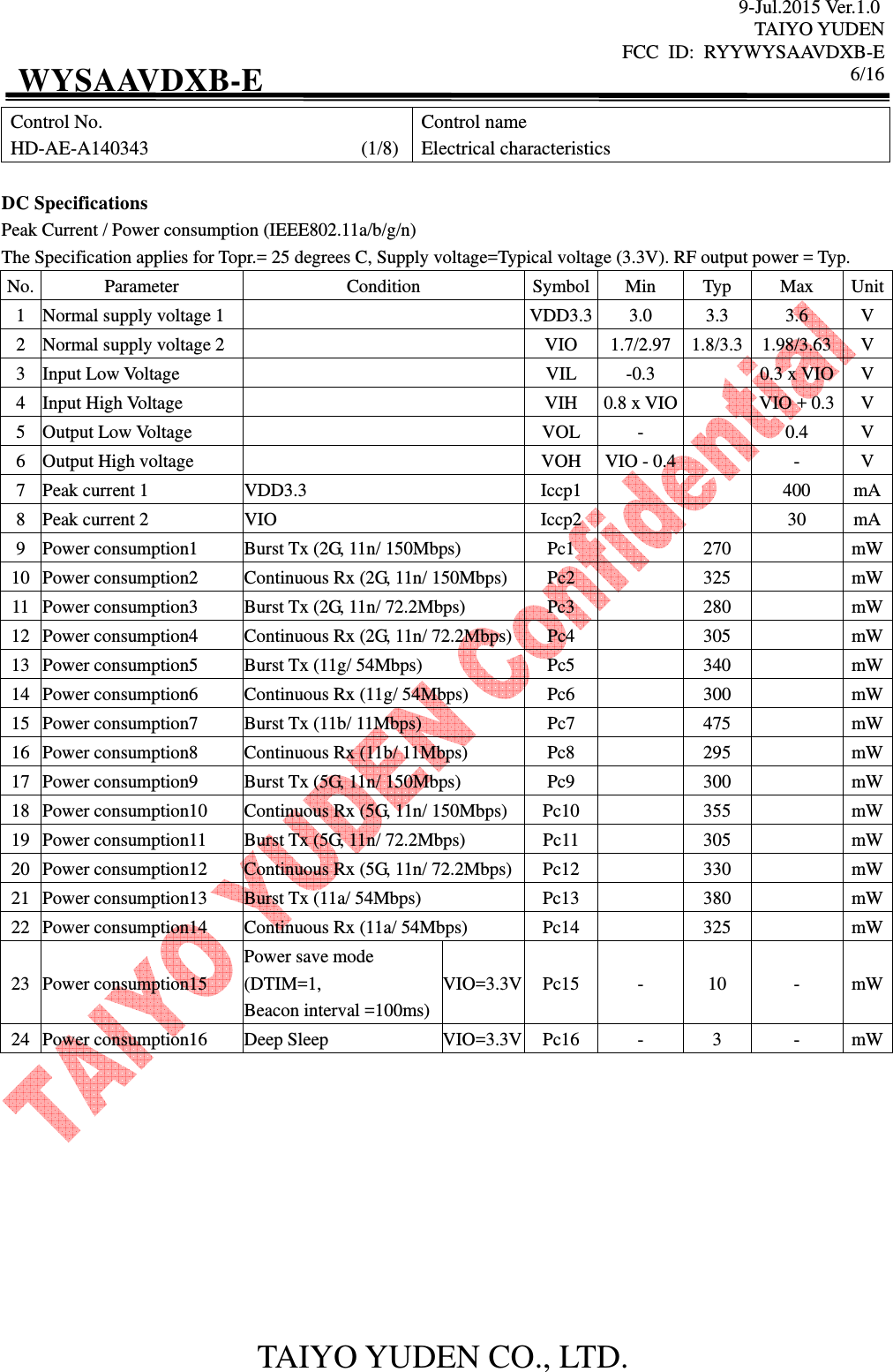

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 6/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (1/8) Control name Electrical characteristics DC Specifications Peak Current / Power consumption (IEEE802.11a/b/g/n) The Specification applies for Topr.= 25 degrees C, Supply voltage=Typical voltage (3.3V). RF output power = Typ. No. Parameter Condition Symbol Min Typ Max Unit 1 Normal supply voltage 1 VDD3.3 3.0 3.3 3.6 V 2 Normal supply voltage 2 VIO 1.7/2.97 1.8/3.3 1.98/3.63 V 3 Input Low Voltage VIL -0.3 0.3 x VIO V 4 Input High Voltage VIH 0.8 x VIO VIO + 0.3 V 5 Output Low Voltage VOL - 0.4 V 6 Output High voltage VOH VIO - 0.4 - V 7 Peak current 1 VDD3.3 Iccp1 400 mA 8 Peak current 2 VIO Iccp2 30 mA 9 Power consumption1 Burst Tx (2G, 11n/ 150Mbps) Pc1 270 mW 10 Power consumption2 Continuous Rx (2G, 11n/ 150Mbps) Pc2 325 mW 11 Power consumption3 Burst Tx (2G, 11n/ 72.2Mbps) Pc3 280 mW 12 Power consumption4 Continuous Rx (2G, 11n/ 72.2Mbps) Pc4 305 mW 13 Power consumption5 Burst Tx (11g/ 54Mbps) Pc5 340 mW 14 Power consumption6 Continuous Rx (11g/ 54Mbps) Pc6 300 mW 15 Power consumption7 Burst Tx (11b/ 11Mbps) Pc7 475 mW 16 Power consumption8 Continuous Rx (11b/ 11Mbps) Pc8 295 mW 17 Power consumption9 Burst Tx (5G, 11n/ 150Mbps) Pc9 300 mW 18 Power consumption10 Continuous Rx (5G, 11n/ 150Mbps) Pc10 355 mW 19 Power consumption11 Burst Tx (5G, 11n/ 72.2Mbps) Pc11 305 mW 20 Power consumption12 Continuous Rx (5G, 11n/ 72.2Mbps) Pc12 330 mW 21 Power consumption13 Burst Tx (11a/ 54Mbps) Pc13 380 mW 22 Power consumption14 Continuous Rx (11a/ 54Mbps) Pc14 325 mW 23 Power consumption15 Power save mode (DTIM=1, Beacon interval =100ms) VIO=3.3V Pc15 - 10 - mW 24 Power consumption16 Deep Sleep VIO=3.3V Pc16 - 3 - mW

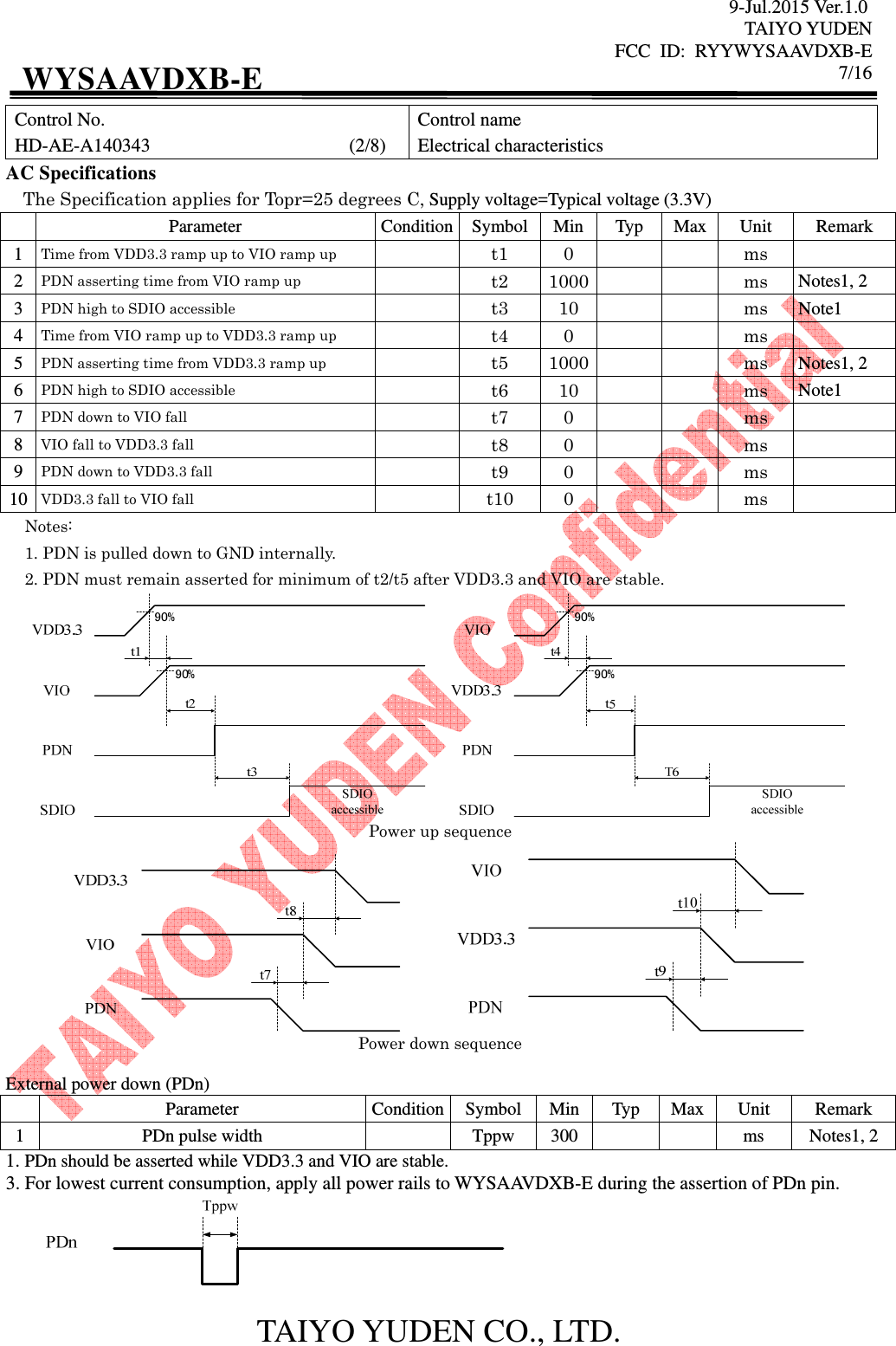

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 7/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (2/8) Control name Electrical characteristics AC Specifications The Specification applies for Topr=25 degrees C, Supply voltage=Typical voltage (3.3V) Parameter Condition Symbol Min Typ Max Unit Remark 1 Time from VDD3.3 ramp up to VIO ramp up t1 0 ms 2 PDN asserting time from VIO ramp up t2 1000 ms Notes1, 2 3 PDN high to SDIO accessible t3 10 ms Note1 4 Time from VIO ramp up to VDD3.3 ramp up t4 0 ms 5 PDN asserting time from VDD3.3 ramp up t5 1000 ms Notes1, 2 6 PDN high to SDIO accessible t6 10 ms Note1 7 PDN down to VIO fall t7 0 ms 8 VIO fall to VDD3.3 fall t8 0 ms 9 PDN down to VDD3.3 fall t9 0 ms 10 VDD3.3 fall to VIO fall t10 0 ms Notes: 1. PDN is pulled down to GND internally. 2. PDN must remain asserted for minimum of t2/t5 after VDD3.3 and VIO are stable. Power up sequence Power down sequence External power down (PDn) Parameter Condition Symbol Min Typ Max Unit Remark 1 PDn pulse width Tppw 300 ms Notes1, 2 1. PDn should be asserted while VDD3.3 and VIO are stable. 3. For lowest current consumption, apply all power rails to WYSAAVDXB-E during the assertion of PDn pin.

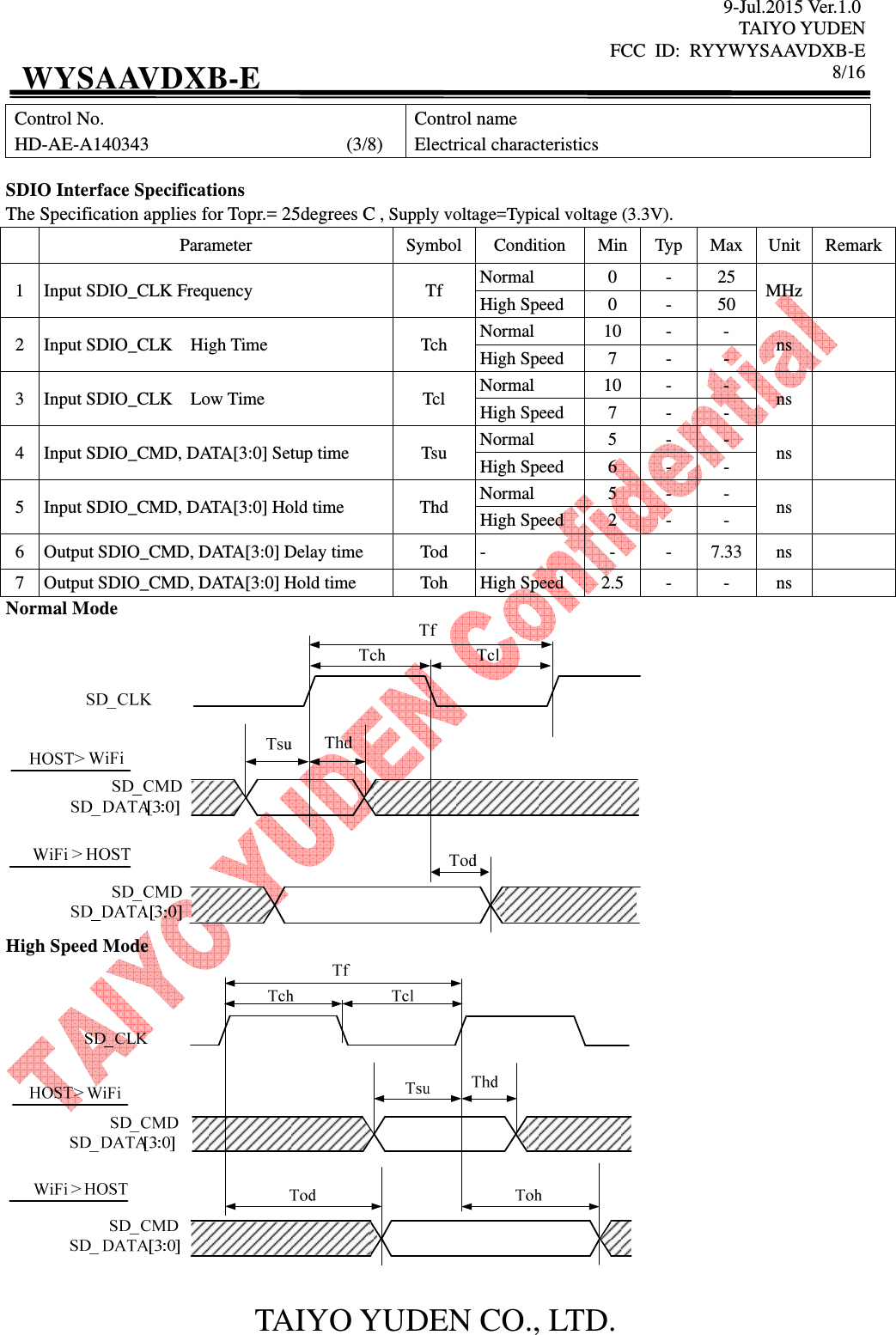

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 8/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (3/8) Control name Electrical characteristics SDIO Interface Specifications The Specification applies for Topr.= 25degrees C , Supply voltage=Typical voltage (3.3V). Parameter Symbol Condition Min Typ Max Unit Remark 1 Input SDIO_CLK Frequency Tf Normal 0 - 25 MHz High Speed 0 - 50 2 Input SDIO_CLK High Time Tch Normal 10 - - ns High Speed 7 - - 3 Input SDIO_CLK Low Time Tcl Normal 10 - - ns High Speed 7 - - 4 Input SDIO_CMD, DATA[3:0] Setup time Tsu Normal 5 - - ns High Speed 6 - - 5 Input SDIO_CMD, DATA[3:0] Hold time Thd Normal 5 - - ns High Speed 2 - - 6 Output SDIO_CMD, DATA[3:0] Delay time Tod - - - 7.33 ns 7 Output SDIO_CMD, DATA[3:0] Hold time Toh High Speed 2.5 - - ns Normal Mode High Speed Mode

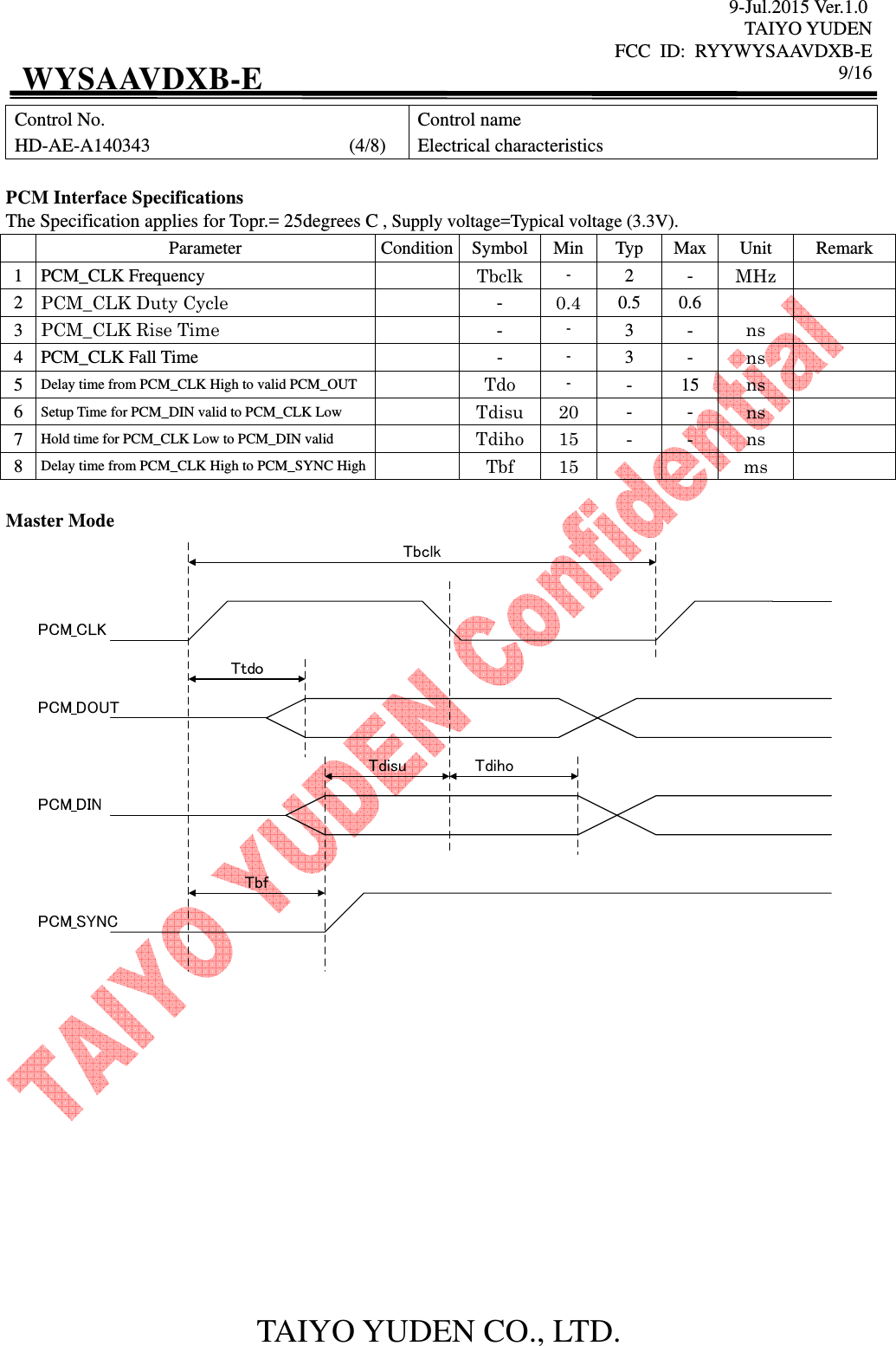

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 9/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (4/8) Control name Electrical characteristics PCM Interface Specifications The Specification applies for Topr.= 25degrees C , Supply voltage=Typical voltage (3.3V). Parameter Condition Symbol Min Typ Max Unit Remark 1 PCM_CLK Frequency Tbclk - 2 - MHz 2 PCM_CLK Duty Cycle - 0.4 0.5 0.6 3 PCM_CLK Rise Time - - 3 - ns 4 PCM_CLK Fall Time - - 3 - ns 5 Delay time from PCM_CLK High to valid PCM_OUT Tdo - - 15 ns 6 Setup Time for PCM_DIN valid to PCM_CLK Low Tdisu 20 - - ns 7 Hold time for PCM_CLK Low to PCM_DIN valid Tdiho 15 - - ns 8 Delay time from PCM_CLK High to PCM_SYNC High Tbf 15 ms Master Mode

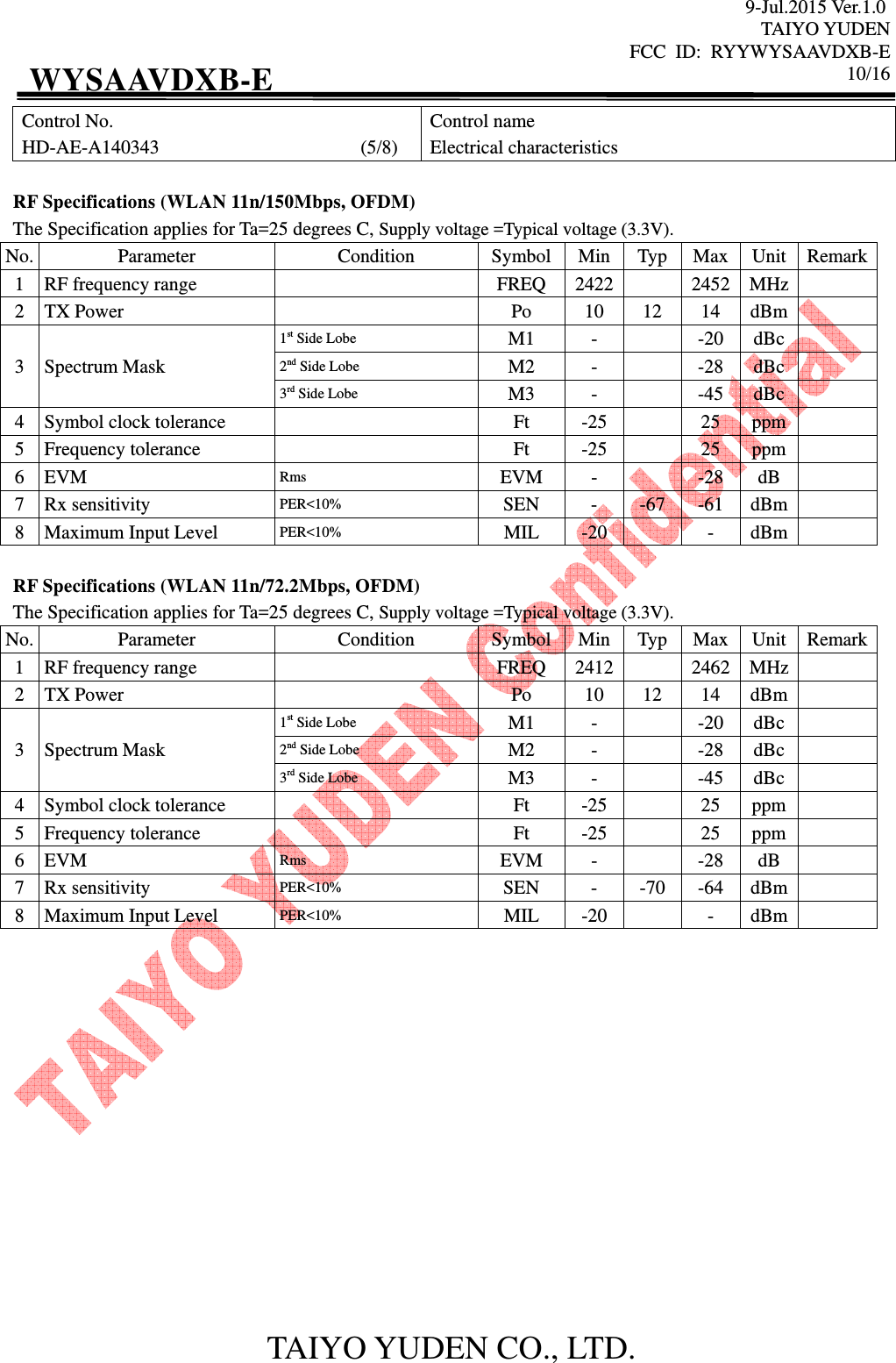

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 10/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (5/8) Control name Electrical characteristics RF Specifications (WLAN 11n/150Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (3.3V). No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RF frequency range FREQ 2422 2452 MHz 2 TX Power Po 10 12 14 dBm 3 Spectrum Mask 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3rd Side Lobe M3 - -45 dBc 4 Symbol clock tolerance Ft -25 25 ppm 5 Frequency tolerance Ft -25 25 ppm 6 EVM Rms EVM - -28 dB 7 Rx sensitivity PER<10% SEN - -67 -61 dBm 8 Maximum Input Level PER<10% MIL -20 - dBm RF Specifications (WLAN 11n/72.2Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (3.3V). No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RF frequency range FREQ 2412 2462 MHz 2 TX Power Po 10 12 14 dBm 3 Spectrum Mask 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3rd Side Lobe M3 - -45 dBc 4 Symbol clock tolerance Ft -25 25 ppm 5 Frequency tolerance Ft -25 25 ppm 6 EVM Rms EVM - -28 dB 7 Rx sensitivity PER<10% SEN - -70 -64 dBm 8 Maximum Input Level PER<10% MIL -20 - dBm

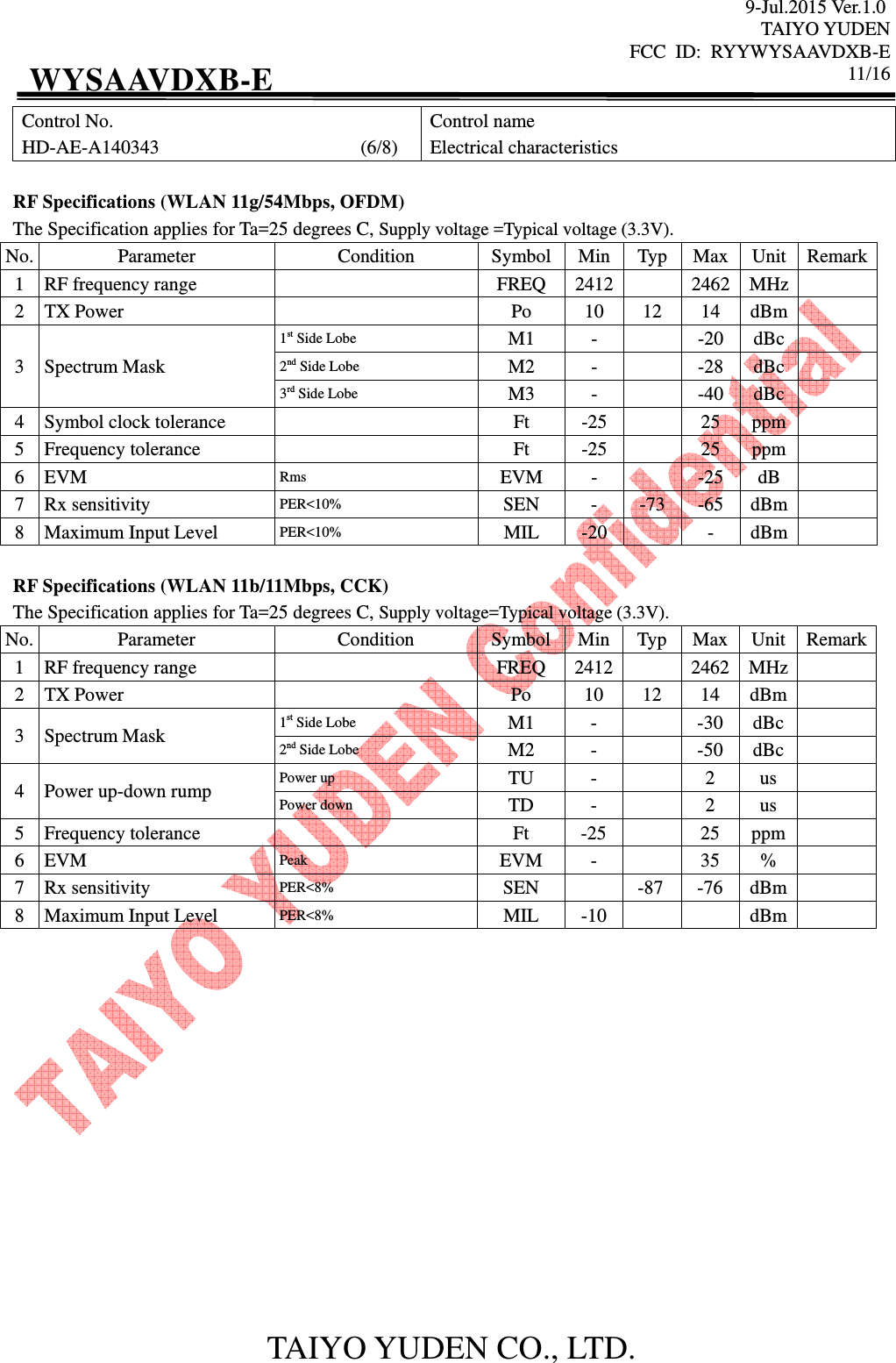

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 11/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (6/8) Control name Electrical characteristics RF Specifications (WLAN 11g/54Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (3.3V). No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RF frequency range FREQ 2412 2462 MHz 2 TX Power Po 10 12 14 dBm 3 Spectrum Mask 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3rd Side Lobe M3 - -40 dBc 4 Symbol clock tolerance Ft -25 25 ppm 5 Frequency tolerance Ft -25 25 ppm 6 EVM Rms EVM - -25 dB 7 Rx sensitivity PER<10% SEN - -73 -65 dBm 8 Maximum Input Level PER<10% MIL -20 - dBm RF Specifications (WLAN 11b/11Mbps, CCK) The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage (3.3V). No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RF frequency range FREQ 2412 2462 MHz 2 TX Power Po 10 12 14 dBm 3 Spectrum Mask 1st Side Lobe M1 - -30 dBc 2nd Side Lobe M2 - -50 dBc 4 Power up-down rump Power up TU - 2 us Power down TD - 2 us 5 Frequency tolerance Ft -25 25 ppm 6 EVM Peak EVM - 35 % 7 Rx sensitivity PER<8% SEN -87 -76 dBm 8 Maximum Input Level PER<8% MIL -10 dBm

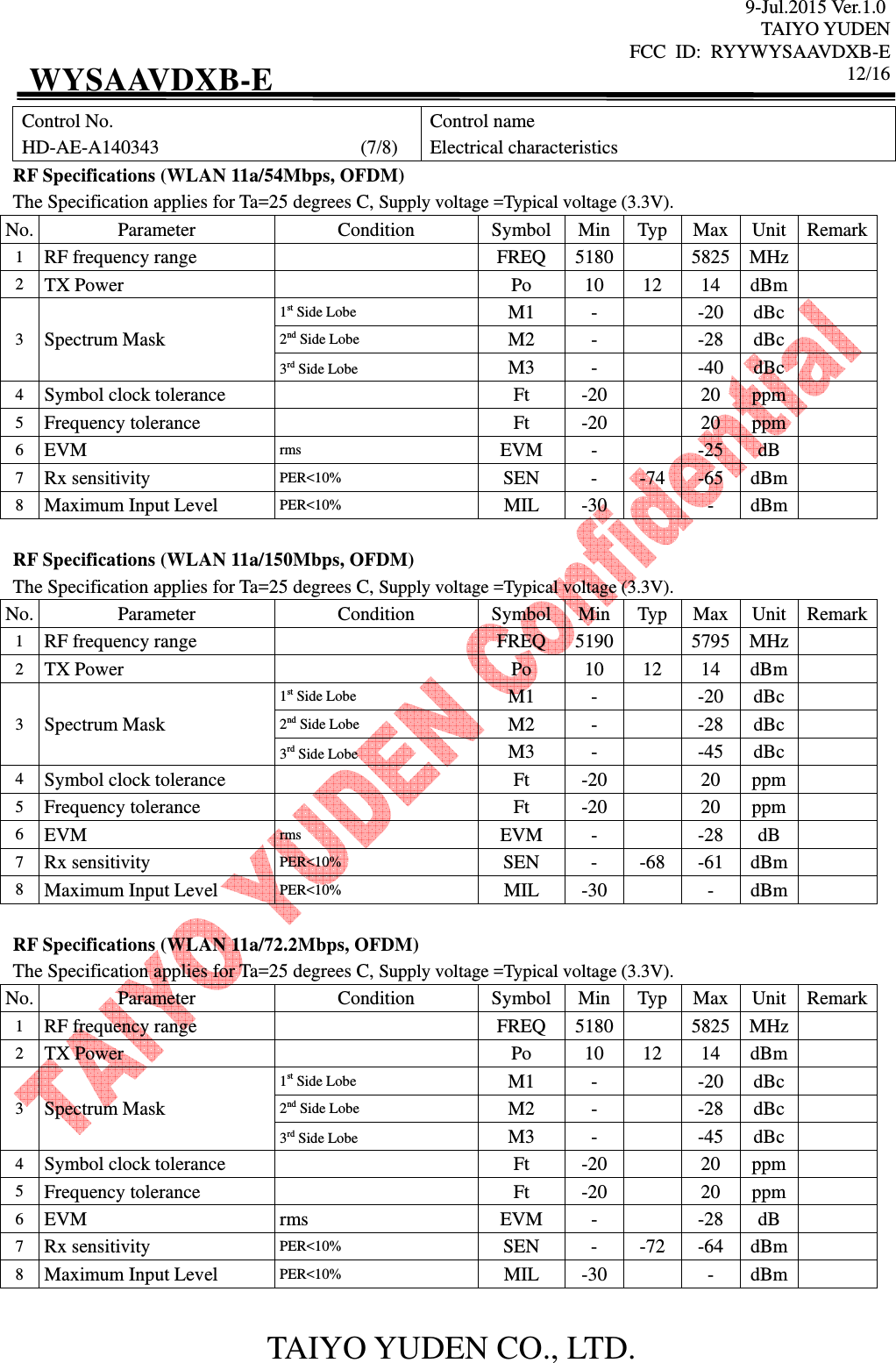

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 12/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (7/8) Control name Electrical characteristics RF Specifications (WLAN 11a/54Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (3.3V). No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RF frequency range FREQ 5180 5825 MHz 2 TX Power Po 10 12 14 dBm 3 Spectrum Mask 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3rd Side Lobe M3 - -40 dBc 4 Symbol clock tolerance Ft -20 20 ppm 5 Frequency tolerance Ft -20 20 ppm 6 EVM rms EVM - -25 dB 7 Rx sensitivity PER<10% SEN - -74 -65 dBm 8 Maximum Input Level PER<10% MIL -30 - dBm RF Specifications (WLAN 11a/150Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (3.3V). No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RF frequency range FREQ 5190 5795 MHz 2 TX Power Po 10 12 14 dBm 3 Spectrum Mask 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3rd Side Lobe M3 - -45 dBc 4 Symbol clock tolerance Ft -20 20 ppm 5 Frequency tolerance Ft -20 20 ppm 6 EVM rms EVM - -28 dB 7 Rx sensitivity PER<10% SEN - -68 -61 dBm 8 Maximum Input Level PER<10% MIL -30 - dBm RF Specifications (WLAN 11a/72.2Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (3.3V). No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RF frequency range FREQ 5180 5825 MHz 2 TX Power Po 10 12 14 dBm 3 Spectrum Mask 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3rd Side Lobe M3 - -45 dBc 4 Symbol clock tolerance Ft -20 20 ppm 5 Frequency tolerance Ft -20 20 ppm 6 EVM rms EVM - -28 dB 7 Rx sensitivity PER<10% SEN - -72 -64 dBm 8 Maximum Input Level PER<10% MIL -30 - dBm

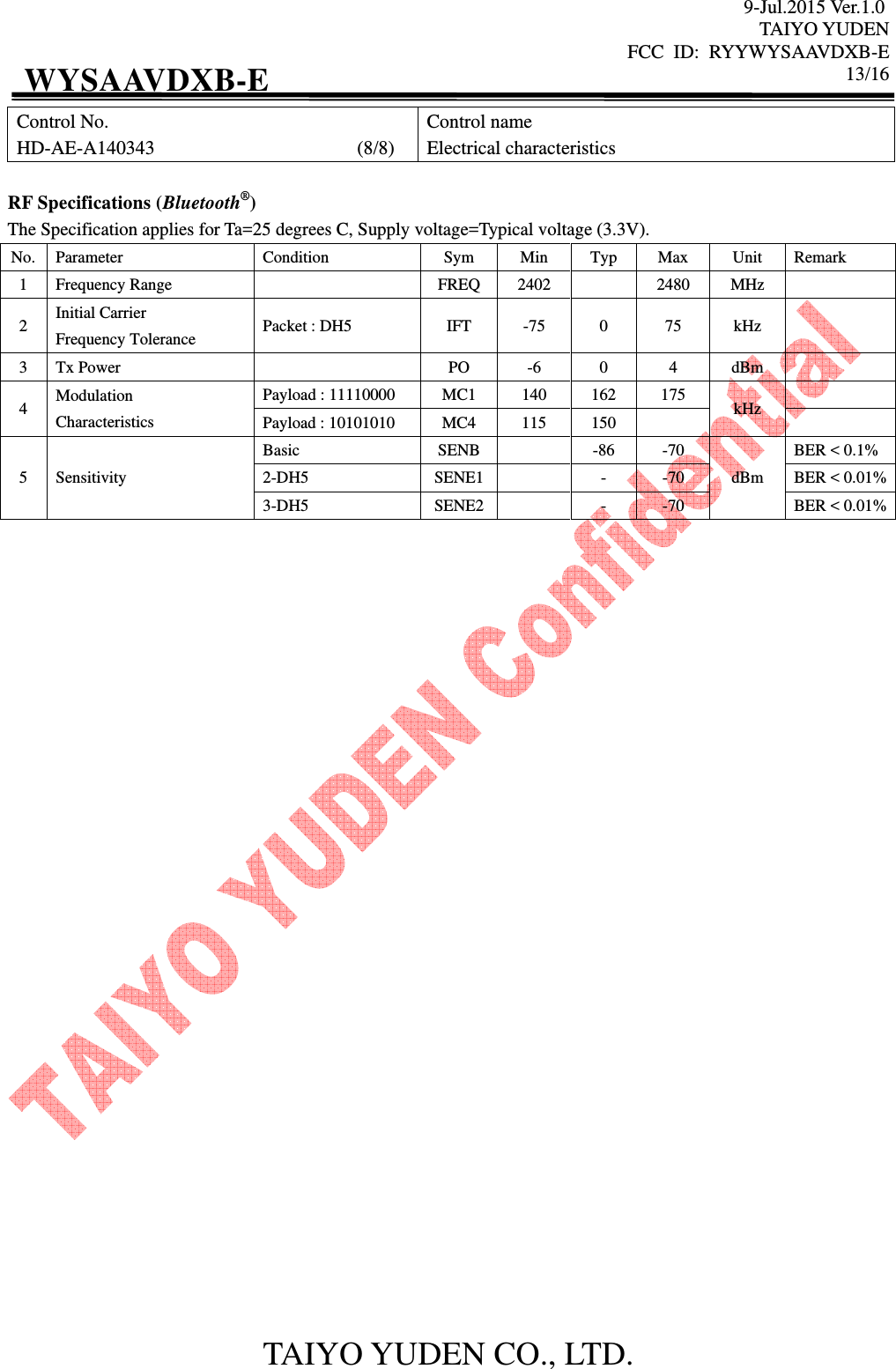

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 13/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AE-A140343 (8/8) Control name Electrical characteristics RF Specifications (Bluetooth®) The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage (3.3V). No. Parameter Condition Sym Min Typ Max Unit Remark 1 Frequency Range FREQ 2402 2480 MHz 2 Initial Carrier Frequency Tolerance Packet : DH5 IFT -75 0 75 kHz 3 Tx Power PO -6 0 4 dBm 4 Modulation Characteristics Payload : 11110000 MC1 140 162 175 kHz Payload : 10101010 MC4 115 150 5 Sensitivity Basic SENB -86 -70 dBm BER < 0.1% 2-DH5 SENE1 - -70 BER < 0.01% 3-DH5 SENE2 - -70 BER < 0.01%

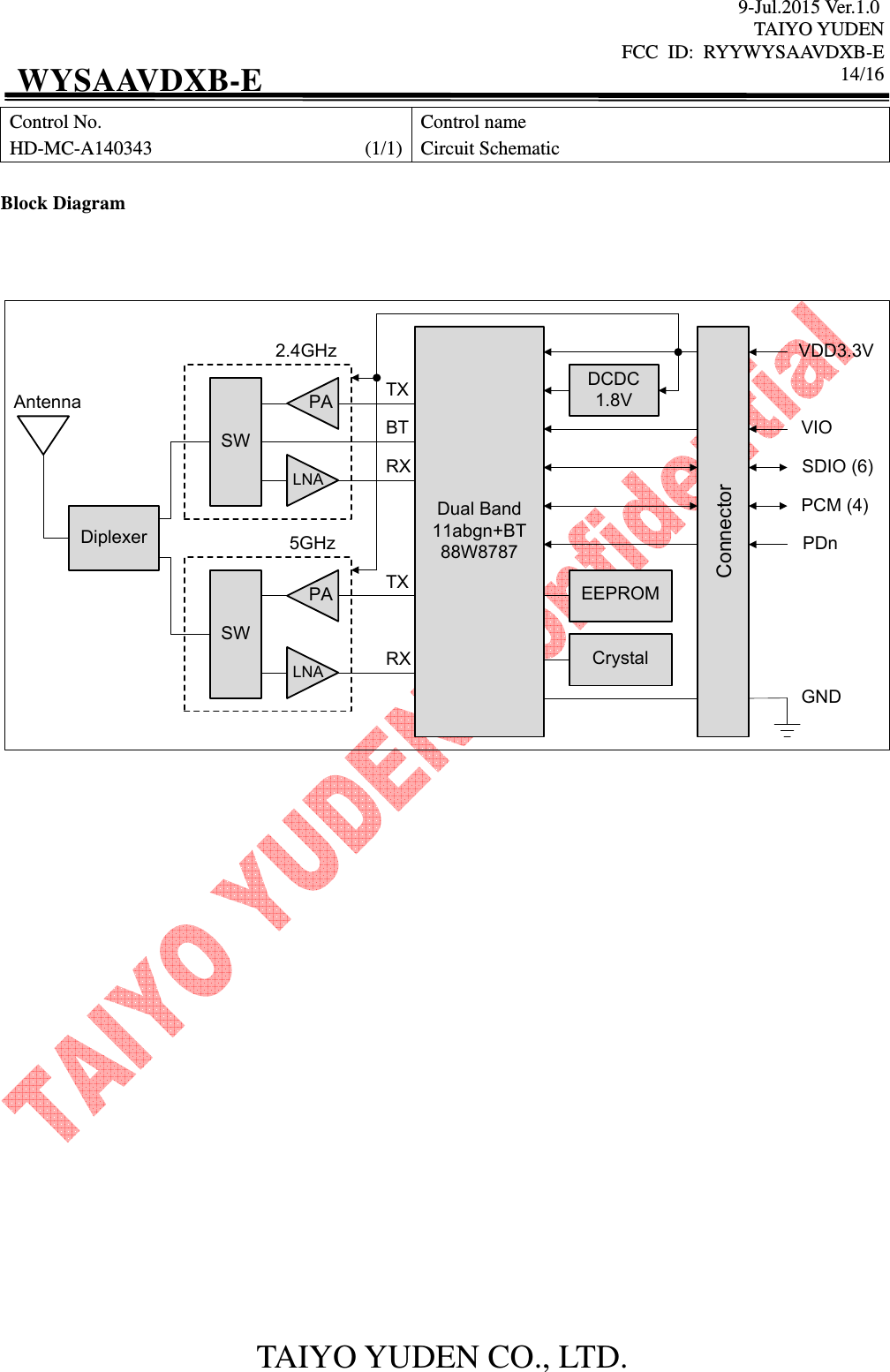

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 14/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-MC-A140343 (1/1) Control name Circuit Schematic Block Diagram EEPROMPAAntennaDual Band11abgn+BT88W8787VDD3.3VVIOGNDSDIO (6)PDnConnector2.4GHzTXBTDCDC1.8VPCM (4)CrystalLNASWRXPA TXLNASWRX5GHzDiplexer

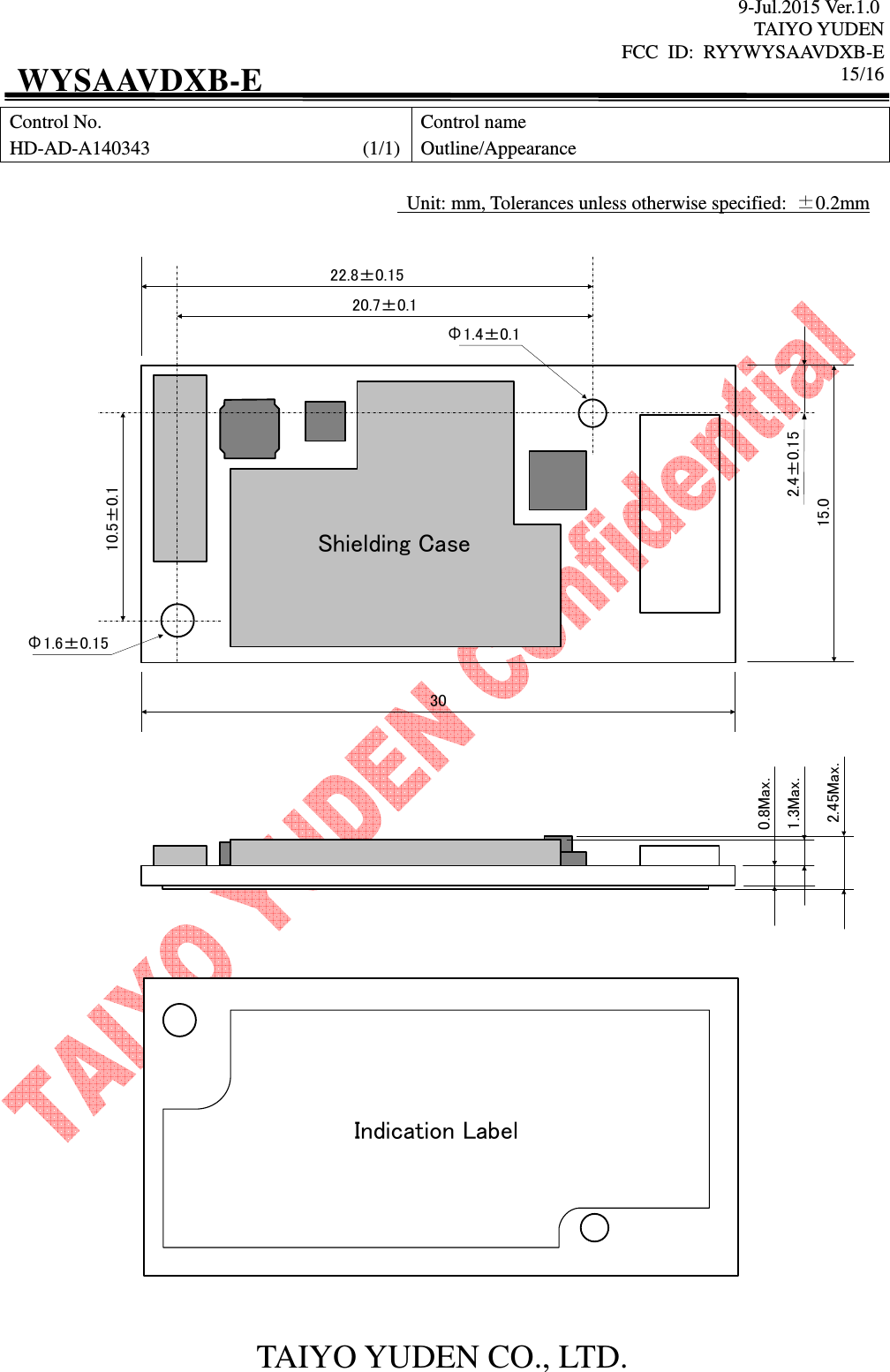

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 15/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-AD-A140343 (1/1) Control name Outline/Appearance Unit: mm, Tolerances unless otherwise specified: ±0.2mm 3015.020.7±0.122.8±0.152.4±0.15Φ1.4±0.110.5±0.1Φ1.6±0.150.8Max.2.45Max.1.3Max.Shielding CaseIndication Label

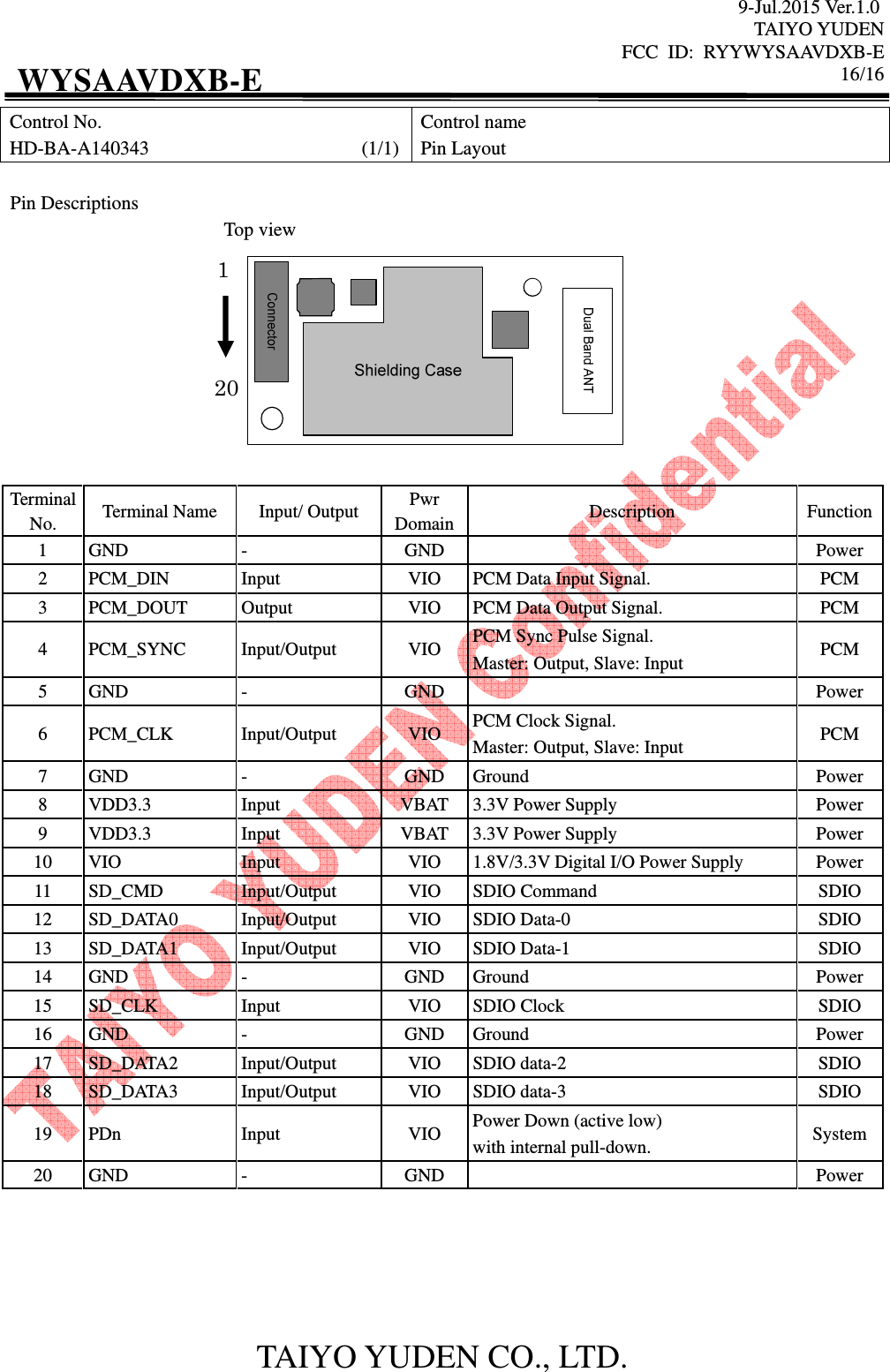

9-Jul.2015 Ver.1.0 TAIYO YUDEN FCC ID: RYYWYSAAVDXB-E 16/16 TAIYO YUDEN CO., LTD. WYSAAVDXB-E Control No. HD-BA-A140343 (1/1) Control name Pin Layout Pin Descriptions Terminal No. Terminal Name Input/ Output Pwr Domain Description Function 1 GND - GND Power 2 PCM_DIN Input VIO PCM Data Input Signal. PCM 3 PCM_DOUT Output VIO PCM Data Output Signal. PCM 4 PCM_SYNC Input/Output VIO PCM Sync Pulse Signal. Master: Output, Slave: Input PCM 5 GND - GND Power 6 PCM_CLK Input/Output VIO PCM Clock Signal. Master: Output, Slave: Input PCM 7 GND - GND Ground Power 8 VDD3.3 Input VBAT 3.3V Power Supply Power 9 VDD3.3 Input VBAT 3.3V Power Supply Power 10 VIO Input VIO 1.8V/3.3V Digital I/O Power Supply Power 11 SD_CMD Input/Output VIO SDIO Command SDIO 12 SD_DATA0 Input/Output VIO SDIO Data-0 SDIO 13 SD_DATA1 Input/Output VIO SDIO Data-1 SDIO 14 GND - GND Ground Power 15 SD_CLK Input VIO SDIO Clock SDIO 16 GND - GND Ground Power 17 SD_DATA2 Input/Output VIO SDIO data-2 SDIO 18 SD_DATA3 Input/Output VIO SDIO data-3 SDIO 19 PDn Input VIO Power Down (active low) with internal pull-down. System 20 GND - GND Power Top view 1 20
