User Manual
Made and printed in China
Thank you for choosing Alcatel. This booklet helps you get started with
your new Alcatel Raven LTE.
Important:
Restart your phone by pressing and holding the power key for more than 8
seconds until the startup screen appears.
In case this does not start your phone, press and hold the power key
and volume up key together until the startup screen appears. From the
following menus, short press the power key to select the language and
then the “factory reset” option.
Note: This operation will erase personal settings and saved data.
For more information about how to use your Alcatel Raven LTE,
go to www.alcatelonetouch.us for the complete user manual.
1
Table of contents
1 Your mobile ..........................................................................3
1.1 Keys and connectors ........................................................3
1.2 Getting started .................................................................4
1.3 Home screen ...................................................................5
2 Text input ...........................................................................10
2.1 Using Onscreen Keyboard ..............................................10
2.2 Text editing ....................................................................11
3 Phone call, Call log and Contacts .....................................11
3.1 Call ................................................................................11
3.2 Call log ..........................................................................14
3.3 Contacts ........................................................................14
4 Messaging, Gmail/Email .................................................... 17
4.1 Messaging .....................................................................17
4.2 Email .............................................................................20
5 Calendar & Clock & Calculator..........................................20
5.1 Calendar ........................................................................20
5.2 Clock ............................................................................21
5.3 Calculator ......................................................................23
6 Getting connected..............................................................24
6.1 Connecting to the Internet ..............................................24
6.2 Connecting to Bluetooth devices ...................................25
6.3 Connecting to a computer ..............................................25
6.4 Sharing your phone's mobile data connection ................26
6.5 Connecting to virtual private networks ...........................26
7 Multimedia applications .................................................... 27
7.1 Camera/Camcorder ........................................................27
7.2 Gallery ...........................................................................28
7.3 Music .............................................................................29
8 Others. ................................................................................30
8.1 Files ...............................................................................30
8.2 Sound Recorder .............................................................30
8.3 Radio .............................................................................30
8.4 Other applications .........................................................31
9 Google applications ................................................................. 31
9.1 Play Store ......................................................................31
9.2 Chrome ..........................................................................31
9.3 Gmail .............................................................................32
9.4 Maps .............................................................................33
9.5 YouTube .........................................................................33
9.6 Drive ..............................................................................33
9.7 Play Music .....................................................................33
9.8 Play Movies & TV ...........................................................33
9.9 Duo ................................................................................33
9.10 Photos ...........................................................................33
10 Settings ..............................................................................34
10.1 Suggestions ...................................................................34
10.2 Wireless & network ........................................................34
10.3 Device ...........................................................................35
2
10.4 Personal .........................................................................37
10.5 System ..........................................................................40
Safety and use ............................................................................. 42
www.sar-tick.com
This product meets applicable national SAR
limits of 1.6 W/kg. The specific maximum SAR
values can be found on page 50 of this user
guide.
When carrying the product or using it while worn
on your body, either use an approved accessory
such as a holster or otherwise maintain a
distance of 15 mm from the body to ensure
compliance with RF exposure requirements.
Note that the product may be transmitting even
if you are not making a phone call.
3
1 Your mobile .......................
1.1 Keys and connectors
Micro-USB/
Charger Connector
Headset connector
Touch screen
Back key
Home key
Menu Key
LED indicator
Front camera
Receiver
Camera
Volume down key
Volume up key
Power key
Back key
• Touch to go back to the previous screen, to close a dialog
box, access the options menu, the notification panel,
and etc.
Home key
• From any application or screen, touch to return to the
Home screen.
• Long press to open Google now.
Menu key
• Touch: Open a list of thumbnail images of apps you've
worked with recently. Touch a thumbnail to open an app.
Swipe horizontally to remove a thumbnail from the list.
4
Power key
• Press: Lock the screen/Light up the screen.
• Press and hold: Show the pop-up menu to select from
Restart/Power off/Airplane mode.
• Press and hold the Power key for more than 8 seconds
to reboot.
• Press the Power key and Volume down key to capture a
screenshot.
Volume Keys
• In call mode, adjusts the earpiece or headset volume.
• In Music/Video/Streaming mode, adjusts the media volume.
• In general mode, adjusts the ringtone volume.
• Mutes the ringtone of an incoming call.
• In camera mode, press Volume up or down key to take
a photo.
1.2 Getting started
1.2.1 Setup
Removing or installing the back cover
Removing or installing the microSD card
To install microSD card, place the microSD card with the chip facing
downwards into the housing, and then slide it into its slot. To remove
microSD card, press and slide it out.
To avoid data loss and SD card damage, before removing the SD
card, ensure that the SD card is unmounted.
Charging the battery
It is advised that you fully charge your battery ( ). Connect the battery
charger to your phone and main socket respectively, charging status is
indicated by the percentage on screen while the phone is powered off. The
percentage increases as the phone is charged.
• When using your telephone for the first time, you are advised to fully
charge the battery (approximately 3 hours).
5
To reduce power consumption and energy waste when the
battery is fully charged, disconnect your charger from the plug;
switch off Wi-Fi, GPS, Bluetooth or background-running
applications when not in use; reduce the backlight time, etc
Power on your phone
Hold down the Power key until the phone powers on, unlock your phone
(Swipe, PIN, Password, Pattern) if necessary and confirm. The Home screen
is displayed.
If you do not know your PIN code or if you have forgotten it, contact your
service provider. Do not leave your PIN code with your phone. Store this
information in a safe place when not in use.
Even if you have no network signal, your phone will still power on and you
will be able to connect to a Wi-Fi network, (refer to section “6.1.2 Wi-Fi”),
sign into your Google account and use some features.
1.2.2 Power off your phone
Hold down the Power key from any screen until the phone options appear,
select Power off.
1.3 Home screen
You can bring all the items (applications, shortcuts, folders and widgets) you
love or use most frequently to your Home screen for quick access. Touch the
Home key to switch to the Home screen.
Status bar
• Status/Notification indicators
• Touch and drag down to open the notification
panel.
Touch an icon to open an application, folder, etc.
Touch to enter application list.
Favorite tray applications
• Touch to enter the application.
• Long press to move or change applications.
The Home screen is provided in an extended format to allow more space
for adding applications, shortcuts etc. Slide the Home screen horizontally
to get a complete view.
1.3.1 Using the touchscreen
Touch
To access an application, touch it with your finger.
Touch and Hold
To enter the available options for an item, touch and hold the item. For
example, select a contact in Contacts, touch and hold this contact, an
options list will then appear on screen.
Drag
Place your finger on the screen to drag an object to another location.
6
Slide/Swipe
Slide the screen to scroll up and down the applications, images, and web
pages at your convenience.
Flick
Flicking is similar to swiping, but makes movement faster.
Pinch/Spread
Place two fingers from one hand on to the screen's surface and draw them
apart or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to landscape by
turning the device sideways to have a better view.
1.3.2 Status bar
From the status bar, you can view both phone status and notification
information.
Status icons
3G connected Vibrate mode
3G in use Alarm is set
4G connected Connected to a Wi-Fi
network
4G in use Speakerphone is on
Signal strength No SIM card inserted
Roaming Battery is charging
No signal Battery is very low
Airplane mode Battery is low
Bluetooth is on Battery is partially
drained
Headset connected Battery is full
GPS is on
7
Notification icons
New Gmail message Missed call
New Email message Radio is on
New text or multimedia
message
An open Wi-Fi network
is available
Problem with SMS or
MMS delivery Uploading data
Upcoming event Downloading data
Screenshot error System update available
Screenshot captured

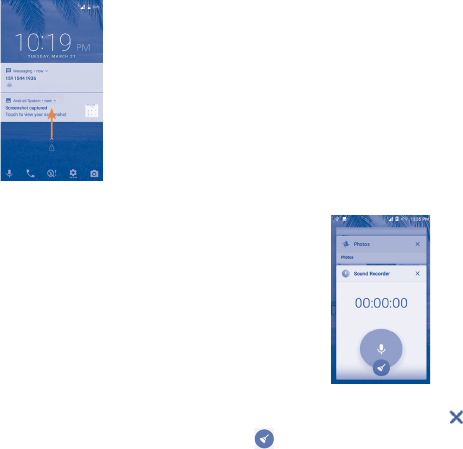

Touch and drag the Status bar down to open the Quick settings panel
or Notification panel. Touch and drag up to close it. When there are
notifications, you can touch them to access notifications directly.
Notification panel
When there are notifications, touch and drag the Status bar down to open
the Notification panel to read the detailed information.
Touch to clear all event–based
notifications (other ongoing notifications
will remain).
Touch to switch to the Quick settings panel.
Quick settings panel
Touch and drag down Notification panel to open Quick settings panel, where
you can enable or disable functions or change modes by touching the icons.
Touch to access Settings, where
you can set more items.
8
1.3.3 Search bar
The phone provides a Search function which can be used to locate
information within applications, the phone or the web.
Search by text
• Touch the Search bar from the Home screen.
• Enter the text/phrase you want to search for.
• Touch the icon on the keyboard to complete your search.
Search by voice
• Touch from the Search bar to display a dialog screen.
• Speak the word/phrase you want to search for. A list of search results will
display for you to select from.
1.3.4 Lock/Unlock your screen
To protect your phone and privacy, you can lock the phone screen by
choosing swipe or creating a variety of patterns, PIN or password.
To create a screen unlock pattern
• Touch the Application tab from the Home screen, then touch Settings/
Lock screen/Screen lock/Pattern.
• Draw your own pattern.
Draw your unlock pattern
Touch to confirm by drawing pattern again
To create a screen unlock PIN/Password
• Touch the Application tab from the Home screen, then touch Settings/
Lock screen/ Screen lock/ PIN or Password.
• Set your PIN or password.
To lock phone screen
Press the Power key once to lock the screen.
To unlock phone screen
Press the power key once to light up the screen, draw the unlock pattern
you have created or enter PIN or password, etc. to unlock the screen.
If you have chosen Swipe as the screen lock, you can press the Power key
to light up the screen first, then slide up to unlock the screen; double touch the
apps icon to enter the application.
9
1.3.5 Personalize your Home screen
Add
You can touch and hold a folder, an application or a widget to activate the
Move mode, and drag the item to any Home screen as you prefer.
Reposition
Touch and hold the item to be repositioned to activate the Move mode, drag
the item to the desired position and then release. You can move items both
on the Home screen and the Favorite tray. Hold the icon on the left or right
edge of the screen to drag the item to another Home screen.
Remove
Touch and hold the item you want removed in order to activate the Move
mode, drag the item up to the top of the Remove icon, and release after
the item turns red.
Create folders
To improve the organization of items (shortcuts or applications) on the Home
screen and the Favorite tray, you can add them to a folder by stacking one
item on top of another. To rename a folder, open the folder and long press
the folder's title bar to input a new name.
Wallpaper customization
Touch and hold the background on the Home screen then touch
WALLPAPERS to customize wallpaper.
1.3.6 Recently-used applications
Consult recently-used applications
To consult recently-used applications, touch the Menu key from the Home
screen. Touch a thumbnail in the window to open the related application.
Slide vertically to view all thumbnails of recently-used applications.
Touch one thumbnail and slide it horizontally or touch to delete it.
Touch to delete all thumbnails at once.
10
1.3.7 Volume adjustment
Using volume key
Press Volume key to adjust the volume. To active the vibrate mode, press
the Volume down key until the phone vibrates.
Using Settings Menu
Touch the Application tab from the Home screen, then touch Settings/
Sound to set the volume of media, ringtone, alarm, etc. to your preference.
2 Text input
2.1 Using Onscreen Keyboard
Onscreen Keyboard settings
Touch the Application tab from the Home screen, select Settings/Language
& Input/Virtual keyboard, touch the keyboard name to access a series
of settings.
2.1.1 Google keyboard
Touch to access
number, symbols,
emoji input keyboard. Touch to select emoji.
Touch to enter text
or numbers.
Touch to enter voice input.
Touch to switch "abc/
Abc" mode; Touch
and hold to switch
"ABC" mode.
11
2.2 Text editing
You can edit the text you have entered.
• Touch and hold or double tap the text you would like to edit.
• Drag the tabs to change the highlighted selection.
• The following options will show: CUT, COPY, SHARE, SELECT ALL,
and ASSIST.
• Touch the other words that haven't been selected or an empty place in
the entry bar to go back without any action.
You can also insert new texts as you prefer
• Touch where you want to type, or long press a blank space. The cursor
will blink and the tab will show. Drag the tab to move the cursor.
• If you have selected any text, touch the tab to show PASTE and SELECT
ALL which allows you to complete paste immediately.
3 Phone call, Call log and
Contacts
3.1 Call ....................................................
3.1.1 Placing a call
You can easily launch a call using Call. Touch the Application tab from the
Home screen and select Call, or touch the icon on the home screen
to access Call application.
Slide left to access
Contacts; slide right to
access Favorites.
Touch to hide
keyboard
12
Long press to
access voicemail.
Touch to place
a call
Enter the desired number from the keyboard directly or select a contact
from Contacts or Call log by sliding or touching tabs, then touch
to place the call.
The number you entered can be saved to Contacts by touching the Create
new contact.
If you make a mistake, you can delete the incorrect digits by touching .
To hang up a call, touch or the Power key (when the Settings/
Accessibility/Power button to ends call option is activated).
International call
To dial an international call, long press to enter “+”, then enter the
international country prefix followed by the full phone number and finally
touch .
Emergency call
If your phone has network coverage, dial emergency number and touch
to make an emergency call. This works even without network signal and
without typing the PIN code.
3.1.2 Answering or rejecting a call
When you receive a call, you can touch DISMISS to reject the call or touch
ANSWER to connect the call. For more, touch the incoming call then:
• Slide the icon up to answer;
• Slide the icon up to reject;
• Touch the icon to reject the call by sending a preset message.
• Touch the icon to reject the call with a reminder.
To mute the ringtone volume of an incoming call, press the Volume up/
down key or turn the phone over (when the Settings/Gesture/Turn over
to mute option is set to On by default).
3.1.3 Calling your voicemail
Your voicemail is provided by your network to avoid missing calls. It works
like an answering machine that you can consult at any time.
To access your voicemail, long press from dial screen.
To set your voicemail number, touch from the Dial screen, then touch
Settings/Call settings/Voicemail/Setup/Voicemail number.
13
If you receive a voicemail, a voicemail icon appears on the Status bar.
Open the Notification panel, touch New voicemail.
3.1.4 During a call
To adjust the volume during a call, press the Volume up/down key.
Touch to end the current call.
Touch to display dial pad.
Touch to activate the speaker during the current call. Touch
this icon again to deactivate the speaker.
Touch to mute the current call. Touch this icon again to
unmute the call.
Touch to add a call.
Touch to hold a call.
Touch to view the contact list and details.
To avoid incorrect operations on the touchscreen during a call,
the screen will automatically lock and unlock once the cellphone
is placed and removed from your ear.
3.1.5 Call settings
Touch the from dial screen, then touch Settings, the following options
are available:
Phone settings
Sounds and vibrate
• Phone ringtone: Touch to select phone ringtone.
• Also vibrate for calls: Mark the checkbox to vibrate when ringing.
• Dial pad tones: Mark the checkbox to enable playing tones when using
the dial pad.
Quick responses
Touch to edit quick responses which will be used when you reject a call
with a message.
Call settings
Calling accounts
• SIP accounts: Touch to add and manage SIP (Session Initiation Protocol)
accounts.
• Use SIP calling: Touch to setup when to use SIP calling, use for all calls
or only for SIP calls.
• Receive incoming calls: Mark the checkbox to enable receive incoming
calls.
14
Voicemail
• Service: Touch to select the carrier.
• Setup: Touch to set voicemail number for listening to and managing
your voicemail.
• Sound: Touch to select notification sound.
• Vibrate: Mark the checkbox to vibrate when you have a new voicemail.
Fixed Dialing Numbers
Fixed dialing number (FDN) is a SIM service mode, where outgoing calls are
restricted to a set of phone numbers. These numbers are added to the FDN
list. The most common practical application of FDN is for parents to restrict
the phone numbers to which their children can dial. For security reasons,
you’ll be prompted to enable FDN by entering SIM PIN2 which is usually
acquired from your service provider or SIM maker.
GSM call settings
• Call forwarding: Touch to configure how your calls are forwarded when
you are busy, unanswered or unreachable.
• Additional settings: Mark the check to enable notification of incoming
calls when during a call.
• Call barring: Touch to enter call barring setup.
Accessibility
TTY mode
TTY mode enables people who are deaf, hard of hearing, or speech-
impaired to use the telephone to communicate. After connecting the phone
and TTY devices that includes a keyboard and a text display mechanism,
calls are linked to a relay service, which converts incoming speech to text
and converts outgoing text to a spoken voice.
Hearing aids
Mark the checkbox to enable hearing aid compatibility.
Contact settings
Manage Accounts
Touch to enter manage accounts, you can add, remove, and setup your
Google and other supported accounts.
Display options
• Sort by: To set the contacts display by First name or Last name.
• Name format: To set the name format by First name first or Last
name first.
3.2 Call log
You can access your call memory by touching RECENT from the Dial screen.
Touch a contact or number to view information or further operations. You
can launch a new call, send SMS to the contact or number, view detailed
information of the call, or clear the call.
Touch Call history to view all call log, touch and Clear call history to
clear the entire call memory.
3.3 Contacts
Contacts enables quick and easy access to the people you want to reach.
You can view and create contacts on your phone and synchronize these
with your Gmail contacts or other applications on the web or on your phone.
15
3.3.1 Consult your Contacts
o access this feature:
• Touch from the Home screen, then touch ;
• Touch the Application tab from the Home screen, then select Contacts
.
Touch to add
new contact.
Touch to view the
contact’s detailed
information.
To delete a contact,
touch and hold the
image, then press
the delete icon.
Touch to view your
favorite contacts.
Touch the to display contacts list option menu, following actions are
enabled:
• Group Touch to add and manage contact group.
• Contact to
display
Touch to choose contacts to display.
• Import/Export Import or export contacts between phone storage and
microSD card, or share contacts.
• Block number Touch to manage the block numbers, you won't receive
calls or texts from blocked numbers.
• Merge
contacts
Touch to merge the duplicate contacts.
• Settings Touch to change the display of the sort list and contact
names.
3.3.2 Adding a contact
Touch the icon in the contact list to create a new contact.
You are required to enter the contact's name and other contact information.
By scrolling up and down the screen, you can easily move from one field
to another.
Touch to select a picture for the contact.
Touch to save.
Touch to add a new label.
If you want to add more information, touch More to add a new category.
When finished, touch to save.
To exit without saving, you can touch and then touch Discard changes.
16
Add to/remove from Favorites (1)
To add a contact to favorites, you can touch a contact to view details
then touch .
To remove a contact from favorites, touch the star on contact details
screen.
3.3.3 Editing your contacts
To edit contact information, touch in the contact details screen. When
finished, touch .
3.3.4 Communicating with your contacts
From the contacts list, you can communicate with your contacts by making
a call or exchanging messages.
To launch a call to a contact, touch the contact to enter the detail screen,
then touch the number.
To send a message to a contact, touch the contact to enter the detail screen,
then touch the icon on the right side of the number.
(1) Only phone contacts can be added to Favorites.
The icons available on Quick Contact panel depend on the information you
have for the contact and the applications and accounts on your phone.
3.3.5 Contacts importing, exporting and sharing
This phone enables you to import or export contacts between microSD card
and phone storage.
From the Contacts screen, touch the icon to open the options menu, touch
Import/Export, then select the location to copy contacts from, touch NEXT,
then select the location to copy contacts to, touch NEXT.
To import/export a single contact, select the contact you want to import/
export, and touch the icon to confirm.
To import/export all contacts, touch the icon and then the icon
to confirm.
You can share a single contact or contacts with others by sending the
contact's vCard to them via Bluetooth, Gmail, etc.
Touch a contact you want to share, long press the Menu icon and Share
from the contact details screen, choose a phone number or touch if
there are more than one number, then touch and select the application
to perform this action.
3.3.6 Displaying contacts
You can configure which group of contacts, for each account, you want to
display in the Contacts list. Touch and touch Contacts to display from
contacts list screen, then you can choose contacts to display.
Touch and Settings, sort the list by first name or last name, as well as
view contact names as first/last name first.
17
3.3.7 Joining/Separating contacts(1)
To avoid duplication, you can add any new contact information to existing
contacts in a single action.
Touch and touch Merge contacts from contacts list screen, then you can
merge duplicate contacts.
Touch from the duplicate contact list screen, the contacts will merge
automatically.
3.3.8 Accounts
Contacts, data or other information can be synchronized from multiple
accounts, depending on the applications installed on your phone.
To add an account, touch from the contacts list and touch Settings/
Manage Accounts/Add account, or from the Home screen, touch the
Application tab then Settings/Accounts/Add account.
You are required to select the kind of account you are adding, like Google,
Corporate, etc.
As with other account setups, you need to enter detailed information, like
username, password, etc.
You can remove or delete an account and all associated information from
your phone. Open the Settings screen, touch the account you want to
delete, touch and select Remove account, then confirm.
Turn on/off the sync & Auto-sync
In the Accounts screen, touch and mark the Auto-sync data checkbox.
When activated, all changes to information on the phone or online will be
automatically synchronized with each other.
(1) Only applicable for phone/account contacts.
4 Messaging, Gmail/Email
4.1 Messaging .........................................
You can create, edit and receive SMS and MMS with this mobile phone.
To access this feature, touch the Application tab from the Home screen,
then select Messaging.
4.1.1 Write message
On the message list screen, touch the new message icon to write text/
multimedia messages.
Touch to create a new message.
• Touch to view the whole message thread.
• Touch and hold to activate delete mode.
For saved contacts, touch the photo to open the Quick Contact
panel to communicate with the contact. For unsaved contacts,
touch the photo to add the number to your Contacts.
18
Sending a text message
Enter the mobile phone number of the recipient in the To bar or touch
to add recipients and touch the Type message bar to enter the text of the
message. When finished, touch to send the text message.
An SMS of more than 160 characters will be charged as several
SMS. A counter will be on the right of the text box to remind you
how many characters are allowed to be entered in one message.
Specific letters (accent) will also increase the size of the SMS,
this may cause multiple SMS to be sent to your recipient.
Sending a multimedia message
MMS enables you to send video clips, images, photos, animations, slides
and sounds to other compatible mobiles and e-mail addresses.
An SMS will be converted to MMS automatically when media files (image,
video, audio, etc.) are attached or subject or email addresses are added.
To send a multimedia message, enter the recipient's phone number in the
To bar, touch Type message bar to enter the text of the message. Touch
the icon to attach photo, video, audio and so on. When finished, touch
to send the multimedia message.
Attach options:
Touch to choose an animated emoji as an attachment.
Access Camera to capture a new picture for attachment.
Access Gallery application or Files to select a picture as
an attachment.
Enter Sound Recorder to record a voice message for
attachment.
Enter Contacts to select a contact or contacts as an
attachment.
Touch to edit the title of this slide.
4.1.2 Manage messages
When receiving a message, an icon will appear on status bar as a
notification. Drag the status bar down to open the notification panel, touch
the new message to open and read it. You can also access the Messaging
application and touch the message to open. Messages are displayed in
conversational order.
To reply to a message, touch the current message, enter the text, then
touch .
Long press an SMS in message details screen. The following message
options are available for selection:
•
This option displays when the message is an SMS.
Copy the current message content. You can paste it
to the enter bar of the new message you are going
to compose.
• Touch to forward the message to another recipient.
•
Touch to view details of the message.
19
•
Delete the current message.
• Lock message Touch to lock/unlock the message so it can't/can
be deleted if you reach maximum number of stored
messages.
• Save message
to SIM card
Touch to save a message to the SIM card.
• Report as
Spam
Report the message as Spam for further investigation.
4.1.3 Adjust message settings
You can adjust a set of message settings. From Messaging application
screen, touch and touch Settings.
• SMS enabled Touch to change your default SMS app.
• Quick text Touch to add or edit quick text.
STORAGE
• Delete old
messages
Select to delete old messages when the maximum
number of stored messages is reached.
• Text message
limit
Touch to set the number of text messages to be
saved per conversation.
• Multimedia
message limit
Touch to set the number of multimedia messages to
be saved per conversation.
Notification
• Notifications Mark the checkbox to display message notifications
in the status bar.
• Select ringtone Touch to select a ringtone as a new message
notification tone.
• Vibrate Touch to activate vibrate mode as a notification when
receiving a new message.
• Beep when on
an active call
Mark the checbox to have the phone beep when a
new message is received on an active call.
WAP message settings
• WAP message
enable
Mark the checkbox to enable receive of push
messages from network.
Cell broadcast settings
• Cell broadcast Mark the checkbox to enable receipt of cell broadcast
messages.
• Select CB
ringtone
Touch to select CB ringtone when device receives cell
broadcast messages.
• Enable LED
indicator
Mark the checkbox to enable CB LED indicator.
• Enable light up
screen
Mark the checkbox to light up the screen when
receiving cell broadcast.
• Vibrate Touch to activate vibrate mode as a notification when
receiving a new cell broadcast.
• Cell broadcast
settings
Touch to set broadcast channel.
• Emergency
alerts
Touch to enter emergency alerts settings, include
whether to show threats and alert tone.
Text message (SMS) Settings
• Manage SIM
message
Touch to manage SMS saved in SIM card.
20
• SMS Service
Center
Touch to edit or view the service center number.
• Character code Touch to set SMS character code.
• SMS signature Mark the checkbox to enable signature.
• Edit SMS
signature
Touch to edit SMS signature.
Multimedia message (MMS) Settings
• Group
messaging
Touch to send a single message by MMS when there
are multiple recipients.
• Auto-retrieve Mark the checkbox to retrieve messages
automatically.
• Creation mode Select to change creation mode.
• Maximum
message size
Select to input the maximum message size.
4.2 Email
The first time you set up your phone, you can select to use an existing Gmail
or to create a new Email account.
4.2.1 Email ..............................................................
Besides your Gmail account, you can also set up external POP3, IMAP or
Exchange email accounts on your phone.
To access this feature, touch the Application tab from the Home screen,
then select Email.
An email wizard will guide you through the steps to set up an email account.
• Enter the email address and password of the account you want to set up.
• Touch NEXT. If the account you entered is not provided by your service
provider in the phone, you will be prompted to go to the email account
settings screen to enter settings manually. Alternatively, you can touch
MANUAL SETUP to directly enter the incoming and outgoing settings for
the email account you are setting up.
• Enter the account name and display name in the outgoing emails.
• To add another email account, you can touch and Settings. Touch
Add account to create an account.
To create and send emails
• Touch the icon from the Inbox screen.
• Enter recipient(s) email address(es) in the To field.
• If necessary, touch the icon beside the To field to add Cc/Bcc to add
a copy or a blind carbon copy to the message.
• Enter the subject and the content of the message.
• Touch to add an attachment.
• If you do not want to send the email right away, you can touch and
Save draft or touch the Back key to save a copy.
• Finally, touch to send.
5 Calendar & Clock &
Calculator
5.1 Calendar .............................................
Use Calendar to keep track of important meetings, appointments, etc.
21
To check the calendar, touch the Application tab from the Home screen,
then touch Calendar.
5.1.1 Multimode view
To change your Calendar view, touch the icon besides the month title
to open the month view, or touch and select Schedule, Day, 3-Day,
Week or Month to open different views. Touch the icon (1) to return
to Today’s view.
Day view
Schedule view
Week view
Month view
3-day view
5.1.2 To create new events
You can add new events from any Calendar view.
• Touch the icon to access the new event edit screen.
• Fill in required information for this new event. If it is a whole-day event,
you can select ALL DAY.
(1) The number indicates the date.
• Invite people to the event. Enter the email addresses of the guests and
separate with commas. Then all guests will receive an invitation from
Calendar and Email.
• When finished, touch or SAVE from the top of the screen.
• Before you can add an event, you must add at least one Calendar account
and make the calendar visible.
5.1.3 To delete or edit an event
Touch an event to open its detailed screen, then touch and then touch
DELETE to delete.
5.1.4 Event reminder
If a reminder is set for an event, the upcoming event icon will appear
on the Status bar as a notification when the reminder time arrives.
Touch and drag the Status bar down to open the notification panel, then
touch an event name to view the Calendar notification list.
Touch the Back key to keep the reminders pending in the status bar and
the notification panel.
5.2 Clock ................................................
Your mobile phone has a built-in clock.
To open Clock, touch the Application tab from the Home screen, then touch
Clock.
5.2.1 Alarm
To set an alarm
From the Clock screen, touch to enter the Alarms screen, then touch
to add a new alarm. Following options will show:
22
• Time Touch numbers to set the time for your alarm.
• Repeat Mark the checkbox of Repeat and then select the
days you want your alarm to go off.
• Ringtone Select an alarm ringtone.
• Vibrate Mark the checkbox to activate/deactivate vibration.
• Label Touch to set a name for the alarm.
• Delete Touch to delete the alarm.
To adjust alarm settings
Touch and select Settings from the Alarms screen. The following
options will be available:
Clock
• Style Touch to set Analog or Digital style.
• Automatic home
clock
Will automatically add a home clock while
traveling outside. To disable it, unmark the
checkbox.
• Home time zone Touch to set Home time zone.
• Change date & time Touch to set up date and time.
Alarms
• Silence after Select a silence time.
• Snooze duration Touch to choose length of snooze.
• Alarm volume Touch to set alarm volume.
23
• Gradually increase
volume
Volume of the ringtone will gradually increase
after the timer is set.
• Volume key Preset volume up/down keys' behavior when
alarm sounds: Snooze, Dismiss, or Do nothing.
• Default alarm tone Touch to choose ringtone or music for default
alarm tone.
• Shake action Shake the phone when the alarm sounds to
snooze, dismiss or to do nothing.
• Start week on Select to start week on Saturday, Sunday,
or Monday.
Timer
• Timer ringtone Touch to select a timer ringtone.
• Gradually increase
volume
Volume of the ringtone will gradually increase
after the timer is set.
5.2.2 World clock
To view the world clock, touch on the Clock screen.
• Touch to add a time zone from the list.
5.2.3 Countdown
From the Clock screen, touch to enter the Countdown screen.
Touch the digits to set the countdown time. Type the time in hours, minutes,
and seconds.
Touch to start the countdown.
Delete
Pause/play
Add a countdown
5.2.4 Timer
From the Time screen, touch to enter the Timer screen.
Touch to start the timer.
Show a list of records according to the updated time: Touch .
Pause: Touch .
Share the timer through Bluetooth, Gmail, etc.: Touch .
Delete the recorded times: Touch .
5.3 Calculator........................................
To solve mathematical problems with Calculator, touch the Application tab
from the Home screen, then touch Calculator.
There are two panels available: Basic calculation and Scientific calculation.
To switch between panels, select one of the following two ways:
24
• Swipe the basic calculation screen to the left to open the scientific
calculation.
• Or turn the device to the landscape mode from the basic panel to open
the scientific calculation. This option is only available if Settings /
Display / Auto-rotate screen / Rotate screen contents is on.
Enter a number and the arithmetic operation to be performed, enter the
second number, then touch “=” to display the result. Touch to delete
digits one by one, or long press to delete all at once.
6 Getting connected
To connect to the internet with this phone, you can use 4G network or Wi-Fi,
whichever is more convenient.
6.1 Connecting to the Internet
6.1.1 4G
The first time you turn on your phone with network signal, it will automatically
configure your network service: 4G.
To activate/deactivate Data roaming
When roaming, you can decide to connect/disconnect to a data service.
• Touch the Application tab from the Home screen.
• Touch Settings/More.../Cellular networks.
• Select Data roaming to set roaming mode.
• When Data roaming is disabled, you can still perform data exchange with
a Wi-Fi connection (refer to “6.1.2 Wi-Fi”).
6.1.2 Wi-Fi
Using Wi-Fi, you can connect to the Internet when your phone is within
range of a wireless network. Wi-Fi can be used on your phone even without
network signal.
To turn Wi-Fi on and connect to a wireless network
• Touch the Application tab from the Home screen, then select Settings/
Wi-Fi.
25
• Touch the switch beside Wi-Fi to turn on/off Wi-Fi.
• Touch Wi-Fi, then the detailed information of Wi-Fi networks will display
in the network section.
• Touch a Wi-Fi network to connect. If the network you selected is secured,
you are required to enter a password or other credentials (you may
contact the network carrier for details). When finished, touch CONNECT.
To activate notification when a new network is detected
When Wi-Fi is on and the phone detects an available network within range,
a Wi-Fi icon will appear on the status bar. The following steps activate the
notification function when Wi-Fi is on:
• Touch the Application tab from the Home screen and Settings.
• Touch Wi-Fi, then touch and Advanced from Wi-Fi screen.
• Mark/Unmark the Network notification checkbox to activate/deactivate
this function.
To add a Wi-Fi network
When Wi-Fi is on, you may add new Wi-Fi networks according to your
preference.
• Touch the Application tab from the Home screen and Settings.
• Touch Wi-Fi, then touch Add network at the bottom of Wi-Fi screen.
• Enter the network SSID and required network information.
• Touch SAVE.
When successfully connected, your phone will be connected automatically
the next time you are within range of this network.
To forget a Wi-Fi network
The following steps prevent automatic connections to networks which you
no longer wish to use.
• Turn on Wi-Fi, if it’s not already on.
• In the Wi-Fi screen, touch & hold the name of the saved network.
• Touch FORGET in the dialog that opens.
6.2 Connecting to Bluetooth devices (1)
Bluetooth is a short-range wireless communication technology that you
can use to exchange data, or connect to other Bluetooth devices for
various uses.
To access this function, Touch the Application tab from the Home screen,
then touch Settings/Bluetooth, your advice and other available ones will
show on the screen.
To turn on Bluetooth
• Touch the Application tab from the Home screen, then touch Settings.
• Touch Bluetooth, touch to activate/deactivate this function.
To make your phone more recognizable, you can change your phone name
which is visible to others.
• Touch the Application tab from the Home screen,
• Touch Settings/Bluetooth.
• Touch and Rename this device.
• Enter a name, and touch RENAME to confirm.
To pair/connect your phone with a Bluetooth device
To exchange data with another device, you need to turn Bluetooth on
and pair your phone with the Bluetooth device with which you want to
exchange data.
(1) You are recommended to use Alcatel Bluetooth headsets, which
have been tested and proved compatible with phone. You can go
to www.alcatelonetouch.us for more information about Alcatel
Bluetooth headsets.
26
• Touch the Application tab from the Home screen.
• Touch Settings/Bluetooth.
• Touch and touch Refresh.
• Touch a Bluetooth device you want to be paired with in the list.
• A dialog will pop up, touch PAIR to confirm.
• If the pairing is successful, your phone connects to the device.
To disconnect/unpair from a Bluetooth device
• Touch the Settings icon beside the device you want to unpair.
• Touch FORGET to confirm.
6.3 Connecting to a computer
With a USB cable, you can transfer media files and other files between your
microSD card/internal storage and the computer.
To connect/disconnect your phone to the computer:
To connect:
• Use a cable to connect the phone to a USB port on your computer. You
will receive a notification that the USB is connected.
• Touch the notice to change connect mode, such as Charge this device,
Tranfer files(MTP), Transfer photos(PTP), Drivers CD-ROM.
Before using MTP, make sure that the driver (Windows Media
Player 11 or higher version) has been installed.
To locate the data you have transferred or downloaded in the internal
storage, touch Files. All data you have downloaded is stored in Files, where
you can view media files (videos, photos, music and others), rename files,
install applications onto your phone, etc.
6.4 Sharing your phone's mobile data
connection
You can share your phone's mobile data connection with a single computer
via a USB cable (USB tethering) or with up to eight devices at once by
turning your phone into a portable Wi-Fi hotspot.
The functions below may incur additional network charges
from your network carrier. Extra fees may also be charged in
roaming areas.
To share your phone's data connection via USB
Use a USB cable to connect the phone to a USB port on your computer.
• Touch Settings/More.../Tethering & Mobile hotspot.
• Touch the switch beside USB tethering to activate/deactivate this
function.
To share your phone's data connection as a portable Wi-Fi hotspot
• Touch Settings/More.../Tethering & Mobile hotspot.
• Touch the switch beside Protable Wi-Fi hotspot to activate/deactivate
this function.
To rename or secure your portable hotspot
When a Portable Wi-Fi hotspot is activated, you can change the name of
your phone's Wi-Fi network (SSID) and secure its Wi-Fi network.
• Touch Settings/More.../Tethering & Mobile Hotspot.
• Touch Set up Wi-Fi Hotspot to change the network SSID or set your
network security.
• Touch SAVE.
6.5 Connecting to virtual private networks
Virtual private networks (VPNs) allow you to connect to the resources inside
a secured local network from outside that network. VPNs are commonly
deployed by corporations, schools, and other institutions so that their users
can access local network resources when not inside that network, or when
connected to a wireless network.
27
To add a VPN
• Touch Settings/More.../VPN and then touch .
• In the screen that opens, follow the instructions from your network
administrator to configure each component of the VPN settings.
• Touch SAVE.
The VPN is added to the list on the VPN settings screen.
Before adding a VPN, you should set a PIN code or password for
your phone.
To connect/disconnect VPN
To connect to a VPN:
• Touch Settings/More.../VPN.
• VPNs you have added are listed; touch the VPN you want to connect with.
• In the dialog that opens, enter any requested credentials and touch
CONNECT.
To disconnect:
• Touch a connected VPN, then select Disconnect.
To edit/delete a VPN
To edit a VPN:
• Touch Settings/More.../VPN.
• VPNs you have added are listed; touch and touch Edit profile to edit.
• After editing, touch SAVE.
To delete:
• Touch and touch Delete profile.
7 Multimedia applications
7.1 Camera/Camcorder...........................
Your mobile phone is fitted with a Camera and a Camcorder for taking
photos and shooting videos.
Before using the Camera or Camcorder, be sure to remove the protective
lens cover to avoid it from affecting your picture quality.
To capture a picture or take a video, touch the Application tab from the
Home screen and then touch Camera.
Touch to take a
picture.
Touch to switch
between front and
back camera.
Touch to acess
settings.
Touch to turn on/off
flashlight, or set it
to auto.
Touch to view the
picture you've taken.
Touch to zoom in/
out. It will turn to face
beauty fuction when
front camera is in use.
Touch to set
countdown seconds.
Touch to turn on/
off HDR.
Slide to the left to
choose capture
mode, such as VIDEO,
PANO, etc..
To take a picture
The screen acts as the viewfinder. First position the object or landscape in
the viewfinder, touch the screen to focus if necessary, touch the icon to
take the picture which will be automatically saved.
28
To shoot a video
Slide the screen to the left to enter Video mode. First position the object or
landscape in the viewfinder, and touch the icon to start recording. Touch
the icon again to stop recording. The video will be automatically saved.
While recording a video, touch to capture a picture, touch to pause.
7.1.1 Shooting mode
Before taking a photo/shooting a video, slide the camera screen to the left
to choose shooting mode.
Back camera shooting mode
• Pano Turn on the panorama function. Touch the shutter button
to start taking a panoramic photo and move the phone
steadily along the direction indicated by the onscreen
line. Once the preview frame is filled, the phone will
automatically save the photo.
• TIME-LAPSE Time-lapse is a technique whereby the frequency at
which video frames are captured (the frame rate) is
much lower than that used to view the sequence.
When played at normal speed, time appears to be
moving faster and thus lapsing. It can be considered
the opposite of high speed photography or slow motion.
• INSTANT
COLLAGE
In Instant collage mode, you can take and collage 4
pictures at most to one picture. Touch to choose
how to collages pictures.
7.1.2 Settings
Before taking a photo/shooting a video, touch to adjust a number of
settings in framing mode.
• Size Touch to select picture size.
Video
• Video quality Touch to select video progressive scan output and
definition.
General
• Grid Switch the toggle to enable/disable grid view. It
divides the screen into equal parts and helps you
take better photos by making it simple to align
compositional elements to the grid.
• Volume button
function
Touch to set volume button function in camera
mode.
• Media storage Touch to set up default storage location of pictures
and videos captured.
• Save location
information
Touch to turn on/off save location information when
taking a picture.
• Shutter sound Switch the toggle to enable/disable shutter sound
when taking a photo.
• Anti Banding Touch to set up the banding in order to adapt
different light frequencies.
• Zoom button Switch the toggle to enable display zoom button
on camera screen.
29
• Reset settings Touch to reset settings to default.
7.2 Gallery ...............................................
Gallery acts as a media player for you to view photos and playback videos.
In addition, a set of further operations to pictures and videos are available
for your choice.
To open your Gallery, touch the Application tab from the Home screen,
then touch Gallery.
Touch to access more
options, such as Select
items, Slideshow, etc..
Touch to open camera.
Scroll up to view more
pictures and videos.
Scroll up to view more
albums.
Touch to access Select
Albums, Sort albums, and
settings.
Touch to create album.
To view a picture/play a video
Pictures and videos are displayed by moments and albums in Gallery.
• All pictures and videos are divided by moments, and by albums. Touch an
album to view pictures and videos spread on the screen.
• Touch the picture/video directly to view or play.
• Slide up/down to view previous or next pictures/videos.
Working with pictures
Gallery provides a multi-select function, so that you can work with pictures/
videos in batches.
You can touch one album, then slide up to view the pictures.
Touch a picture you want to work on, then, touch the icon to delete
selected photos. Touch to share selected ones.
Touch and select Set as... to set the picture as Contact photo, or
Wallpaper
Touch from full-screen picture view, more options will display for you
to choose from.
30
Touch to set picture to Favorites, then the picture can be found in the
Favorites album. Touch again to remove from Favorites.
7.3 Music ..................................................
You can play music files stored on your phone or microSD card. Music files
can be downloaded from your computer to the phone or microSD card
using a USB cable.
To play your music, touch Music from the Home screen.
You will find five categories in which all songs are classified: SONGS,
ALBUMS, ARTISTS, PLAYLISTS, GENRES. Touch their tabs to open the lists.
7.3.1 Playing music
Touch a song to play it.
Hide the play screen.
Open the playing list.
Open options menu.
Play/pause.
Touch the icon to switch repeat modes: Repeating all songs, Repeating
current song, Shuffle play, Repeat is off.
Touch to go back to previous track.
Touch to go to the next track.
Set as favorites.
Swipe to the right or to the left to skip to the next track or previous track
in the album, playlist, or shuffle.
While playing songs with Mix you can still Pause, Play or Skip
your music even if the screen is locked.
31
8 Others..........................
8.1 Files ..................................................
To open Files, touch the Application tab from the Home screen, then
touch Files.
Files displays all data stored on the phone and the microSD card, including
applications, media files downloaded from Google Play Store, YouTube or
other locations; videos, pictures or audios you have captured; other data
transferred via Bluetooth, USB cable, etc.
When you download an application from PC to phone/microSD card, you
can locate the application on Files, then touch it to install it on your phone.
Files allows you to perform and be really efficient with the following
common operations: create (sub) folder, open folder/file, view, rename,
move, copy, delete, play, share, etc.
8.2 Sound Recorder ................................
To record a sound or voice memo, touch the Application tab from the Home
screen, then touch Sound Recorder.
Sound Recorder allows you to record voice/sound for seconds/hours.
8.3 Radio .................................................
Your phone is equipped with a radio (1) with RDS (2) functionality. You can use
the application as a traditional radio with saved channels or with parallel
visual information related to the radio program on the display if you tune to
stations that offer Visual Radio service.
To listen to the radio, touch the Application tab from the Home screen,
then touch Radio.
Touch to play/stop.
Touch to go to next
saved channel.
Touch to open and view
the saved channels list.
Touch to add the current
station to favorites.
Drag to change
current frequency.
Touch to go to
previous saved
channel.
Touch to decrease
by 0.1MHz.
Long press to
search and go to
the nearest lower
frequency channel.
Touch to increase by
0.1MHz.
Long press to search and
go to the nearest higher
frequency channel.
To use it, you must plug in your headset, which works as an
antenna connected with your phone.
Touch on the up right corner of the radio playing screen to find available
options:
(1) The quality of the radio depends on the coverage of the radio
station in that particular area.
(2) Depending on your network carrier and market.
32
• Save channel Save the current channel.
• Scan channels Touch to scan all the available channels.
• Delete Delete the channel
• Enter
frequency
Enter the frequency manually.
• Station Info Mark the checkbox to show station information.
• Exit Turn off the radio.
8.4 Other applications (1)
The previous applications in this section are preinstalled on your phone. You
can also download thousands of 3rd party applications by going to Google
Play Store on your phone.
(1) Application availability depends on country and provider.
9 Google applications (2)
Google apps are preinstalled on your phone to improve work efficiency and
help you enjoy life.
This manual briefly introduces the apps. For detailed features and user
guides, refer to related websites or the introduction provided in the apps.
You are recommended to register with a Google account to enjoy all the
functions.
9.1 Play Store
Serves as the official app store for the Android operating system, allowing
users to browse and download applications and games. Applications are
either free of charge or at a cost.
In the Play Store, search for the app you need, download it and then follow
the installation guide to install the app. You can also uninstall, update an
app, and manage your downloads.
9.2 Chrome
Using the Chrome browser you can enjoy surfing the Web. Your bookmarks,
browsing history, and settings across all devices with the browser installed
can be synchronized with your Google account.
To get onto the Web, go to the Home screen and touch the Chrome icon
in the Favorites tray.
(2) Availability depends on phone variants.
33
To go to a web page
On the Chrome browser screen, touch the URL box at the top, enter the
address of the web page, touch on keyboard to confirm.
Delete all contents
During web page surfing, touch for settings or more options.
9.3 Gmail
As the Google's web-based email service, Gmail is configured when
you first set up your phone. Gmail on your phone can be automatically
synchronized with your Gmail account on the web. With this application, you
can receive and send mails, manage mails by labels, and archive mails, etc.
To open Gmail
From the Home screen, touch the Gmail icon in the Favorites tray.
Gmail displays messages and conversations from one single Gmail account
at a time. If you own more than one account, you can add an account by
touching the icon and then after your account name from the
Inbox screen, then touch Add account. When finished, you can switch to
another account by touching the name of the account you want to view.
To create and send emails
1 Touch from the Inbox screen.
2 Enter the recipient(s)’s email address in To field.
3 If necessary, touch the Add Cc/Bcc menu icon to add a copy or a
blind copy to the message.
4 Enter the subject and the content of the message.
5 Touch icon and select Attach file to add an attachment.
6 Finally, touch the icon to send.
7 If you do not want to send the mail out right away, you can touch the
icon and then Save draft or touch the Back key to save a copy.
To view the draft, touch your account name to display all labels, then
select Drafts.
If you do not want to send or save the mail, you can touch the icon
and then touch Discard.
To add a signature to emails, touch the icon and then touch Settings
from inbox screen, choose an account, then touch Signature.
To receive and read your emails
When a new email arrives, you will be notified by a ringtone or vibration, and
an icon will appear on the Status bar.
Touch and drag the Status bar down to display the Notification panel, then
touch the new email to view. You can also open the Gmail Inbox label and
touch the new mail to read the email.
You can search for an email by sender, recipient, subject, etc.
1 Touch the icon from Inbox screen.
2 Enter the keyword you want to search for in the search bar and touch
on the software keyboard.
34
To reply or forward emails
• Reply When viewing an email, touch .
• Reply all Touch and select Reply all to send a message to all
people in a mail loop.
• Forward Touch and select Forward to forward the received
mail to other people.
9.4 Maps
Google Maps offer satellite imagery, street maps, 360° panoramic views of
streets, real-time traffic conditions, and route planning for traveling by foot,
car, or public transportation. By using this application, you can get your own
location, search for a place, and get suggested route planning for your trips.
9.5 YouTube
YouTube is an online video-sharing application where users can upload,
view, and share videos. Available content includes video clips, TV clips,
music videos, and other content such as video blogging, short original
videos, and educational videos. It supports a streaming function that allows
you to start watching videos almost as soon as they begin downloading
from the Internet.
9.6 Drive
Google Drive is a file storage and synchronization service created by
Google, which allows users to store files in cloud, share and edit files.
Files in Drive are well kept and you can reach your files from any device by
logging in to your Google account. Files or folders can be shared privately
with particular users that have a Google account.
9.7 Play Music
A music streaming service and online music locker operated by Google.
You can upload and listen to a large number of songs for free. In addition
to offering music streaming for Internet-connected devices, the Google
Play Music app allows music to be stored and listened to offline. Songs
purchased through the Play Music are automatically added to the user's
account.
9.8 Play Movies & TV
Movies and television shows can be viewed online via Google Play Movies
& TV. You can also download movies and TV shows for offline viewing. Some
content are only available for rental or purchase.
9.9 Duo
Google Duo is a video chat mobile app, it allows users to use phone
numbers to easily call people from their contact list. The app will
automatically control the video quality by sensing the network connectivity.
9.10 Photos
Google Photos stores and backs up your photos and videos. It also
automatically analyses photos and organizes them into groups, so that you
can quickly locate the photos you need.
35
10 Settings .................
To open Settings, Touch the Application tab and Settings from Home screen.
10.1 Suggestions
There are several frequently used function displayed here. Default items are
Screen lock and Add another email account.
10.2 Wireless & network
10.2.1 Wi-Fi
While using Wi-Fi, you can surf the Internet without network signal
whenever you are in range of a wireless network. The only thing you have
to do is to enter the Wi-Fi screen and configure an access point to connect
your phone to the wireless network.
For detailed instructions on using Wi-Fi, refer to “6.1.2 Wi-Fi”.
10.2.2 Bluetooth
Bluetooth allows your phone to exchange data (videos, images, music, etc.)
in a small range with another Bluetooth supported device (phone, computer,
printer, headset, car kit, etc.).
For more information on Bluetooth, refer to “6.3 Connecting to Bluetooth
devices”.
10.2.3 Data usage
Touch you can view settings related to your data usage. Mark the
checkbox to set cellular data limit. Your cellular data connection will be
disabled when the specified limit is reached. You can also choose a data
usage cycle to view the statistics and related applications of used data
by your phone.
Data usage is measured by your phone and your provider may count
differently. You can set conservative limit to control data usage.
10.2.4 More/Airplane mode
Mark the Airplane mode checkbox to simultaneously disable all wireless
connections including Wi-Fi, Bluetooth and more.
10.2.5 More/Tethering & portable hotspot
This function allows you to share your phone's mobile data connection via
USB or as a portable Wi-Fi access point (refer to “6.4 Sharing your phone's
mobile data connection”).
10.2.6 More/VPN
A mobile virtual private network (mobile VPN or mVPN) provides mobile
devices with access to network resources and software applications
on their home network, when they connect via other wireless or wired
networks. Mobile VPNs are used in environments where workers need to
keep application sessions open at all times, throughout the working day,
as the user connects via various wireless networks, encounters gaps in
coverage, or suspend-and-resumes their devices to preserve battery life.
A conventional VPN can't survive such events because the network tunnel
is disrupted, causing applications to disconnect, time out, fail, or even the
computing device itself to crash.
For more information on VPN, refer to “6.6 Connecting to virtual private
networks”.
36
10.2.7 More/Cellular networks
Data roaming
If you don’t need to transmit data on other provider’s mobile networks,
unmark the checkbox to avoid incurring significant roaming charges.
Access Point Names
You can select your preferred network with this menu.
Network carriers
You can select a network carrier.
10.2.8 Network settings reset
Touch to reset all network settings including Wi-Fi, Bluetooth & other
networks settings to factory defaults.
10.3 Device
10.3.1 Gestures
Turn over to mute
Mark the checkbox to mute ringtones such as alarms, incoming calls etc.
by turning the phone over.
Turn over to activate snooze
Toggle the switch to activate the snooze feature or dismiss a ringtone
when the device is turned over.
Double tap screen
Toggle the switch to enable double tap to turn on or turn off the
homescreen.
Jump to Camera
Toggle the switch to quickly open camera by pressing the power key
twice from any screen.
10.3.2 Lock screen
Func
Touch to customize the application shortcuts displayed on your lock screen.
Screen lock
Touch to set your screen unlock method. For example, you can unlock your
phone by sliding the screen, entering a password, or drawing a pattern, etc.
Smart lock
You must set a screen lock first when you enable this function. Smart
lock can recognize signals like your device's proximity to your home or
your car's Bluetooth system, and keep your device unlocked when it's
safe with you.
37
10.3.3 Display
• Brightness level Touch to adjust screen brightness manually.
• Adaptive
brightness
When the function is turned on, the screen
brightness level will optimize automatically
according to the available light.
• Wallpaper Touch to set the wallpaper.
• Sleep Touch to set screen timeout.
• Screen saver Touch to set what happens when the phone is
docked and/or sleeping.
• Ambient display Touch to enable wake screen when receive
notification.
• Font size Touch to set the font size.
• Display size Touch to set the display size.
• When device is
rotated
Touch to select whether the screen rotates
automatically or not.
10.3.4 Notifications
Touch to manage apps notification. You can set permission of apps
notification, the authority to show the notifications on lacked screen, etc.
10.3.5 Sound
Use the Sound settings to configure many aspects of call ringtones, music,
and other audio settings.
• Silent mode Switch the toggle to turn on/off Slient mode.
• Volume Set volume for media, ringtone, and alarms.
• Phone ringtone Touch to set your incoming call ringtone.
• Also vibrate for
calls
Switch the toggle to enable vibration for incoming
calls.
• Do Not Disturb Touch to set how calls and notifications interrupt
whatever you are doing on your phone.
• Default notification
ringtone
Touch to set the default sound for notifications.
• Mute power on &
off tone
Switch the toggle to enable/disable the power
on & off tone.
• Default alam
ringtone
Touch to set your alarm ringtone.
• Emergency
broadcasts
Touch to set emergency alerts.
• Other sounds Touch to set dial pad tones, screen locking
sounds, touch sounds and vibrate on touch.
10.3.6 Apps
You use the Apps settings to view details about the applications installed
on your phone, to manage their data and force them to stop, and to set
whether you want to permit installation of applications that you obtain from
websites and emails.
38
10.3.7 Storage
This menu displays the amount of internal phone storage. It shows the
amount of internal phone storage used by applications (including those you
downloaded), images, videos, etc. Touch the items to view details and touch
in the details screen to access more available options.
10.3.8 Battery
In the Battery screen you can select whether to display battery percentage
in the status bar or to enable intelligent power saving.
You can also view the battery usage data since your last full charge. The
screen also shows your battery status and how long it can still be used
before your next charge. Touch one category, then you can learn its specific
power consumption.
10.3.9 Memory
Touch to check and manage the phone memory.
10.4 Personal
10.4.1 Location
On
Touch the switch to enable the use of information from Wi-Fi and mobile
networks to determine your approximate location, for use in Google Maps,
when you search, and so on. When you select this option, you’re asked
whether you give consent to share your location anonymously with Google’s
location service.
Mode
Touch to select High accuracy, Battery saving or Device only mode.
High accuracy: Use GPS, Wi-Fi, Bluetooth, or cellular network to determine
location.
Battery saving: Use Wi-Fi, Bluetooth, or cellular network to determine location.
Device only: Use GPS to determine location.
Location services
Touch to report location feedback via lZat or Google account.
Recent location requests
This list shows apps that have requested location recently.
10.4.2 Security
Encrypt phone
Require a numeric PIN or passwords to decrypt your phone each time
you power it on.
Make passwords visible
Mark the checkbox to show passwords as you type.
Device administrators
Touch to view or deactivate device administrators.
Unknown sources
Mark the checkbox to permit installation of applications that you obtain from
websites, emails, or other locations other than Google Play Store.
To protect your phone and personal data, download applications only from
trusted sources, such as Google Play Store.
Storage type
Show storage type.
Trusted credentials
Touch to display trusted CA certificates.
39
User credentials
Touch to check and manage stored credentials.
Install from storage
Touch to install encrypted certificates from storage.
Clear credentials
Touch to remove all certificates.
Trusted agents
Open the setting to view and deactivate trusted agents. You must set a
screen lock first when you enable this function.
Screen pinning
Turn on the switch , you can always keep a screen in view until
you unpin.
Open the screen you want to pin, touch the Overview key, swipe up the
screen and then touch the pin icon . To unpin it, long press the Back key.
App with usage access
Open the menu to view or reset your app usage access.
10.4.3 Accounts
Use the Account settings to add, remove, and manage your email and
other supported accounts. You can also use these settings to control how
and whether all applications send, receive, and synchronize data on their
own schedules, and whether all applications can synchronize user data
automatically.
Add account
Touch the Add account icon to add an account for selected app.
Touch an account to see all sync options. Mark the checkbox to permit
applications to synchronize data on their own schedule. You can also touch
and Sync now to synchronize data for the chosen items of that account.
10.4.4 Google
Location
Touch to access Location (refer to section “10.4.1 Location”).
Security
Remotely locate this device: Turn on the switch , the device location
can show on Android Device Manager.
Allow remote lock and erase: Turn on the switch , you can remotely
lock or factory reset the device with Android Device Manager if you lose
the device.
Scan device for security treats: Turn on the switch , Google will
regularly check your device and prevent or warn about potential harm.
Improve harmful app detection: Turn on the switch , the device will
send unknown apps to Google for better detection. Turn on Scan device for
security treats first before turn on this function.
Set up nearby device
This feature helps you restore your nearby device while you are in same
Wi-Fi region and the device is adjacent to you. If you are booting your device
for the first time, you will come across and option Got another device. Now
select the option copy your Google accounts, apps, and data from your other
device and click on NEXT. Follow the steps to finish setup, the data will be
copied from a nearby device to your new device.
40
Ads
Reset advertising ID: Touch to reset your advertising ID with a new
random number.
Opt out of Ads Personalization: Turn on the switch , apps not to use
your advertising ID to build profiles or show you personalized ads.
Ads by Google: Touch to open the Ads with Browser or Chrome.
Nearby
Nearby allows Google recommend applications or websites for the user
based on user’s location information. When it detects the user is in the
museum visit, it will be recommended to the user audio applications.
Your device must be online to show links to apps or websites from things
nearby.
Touch SCAN NOW to scan available apps or website.
Search
The phone provides a search function which can be used to find the
information you want on your phone, in your applications or on the web.
Touch to access settings about accounts and privacy, language, voice
search, etc.
10.4.5 Language & Input
Use the Language & input settings to select the language for the text
on your phone and for configuring the onscreen keyboard. You can also
configure voice input settings and the pointer speed.
Language
Touch to select the language and the region you want.
Spell checker
Mark the checkbox to enable the system to show suggested words.
Personal dictionary
Touch to open a list of the words you’ve added to the dictionary. Touch a
word to edit or delete it. Touch the add button (+) to add a word.
Virtual keyboard
Google keyboard: The Google keyboard settings apply to the onscreen
keyboard that is included with your phone. The correction and capitalization
features affect only the English version of the keyboard.
Google voice typing: Google voice typing offers free speech-to-text
capabilities which can let you input words by talking instead of typing
by hand.
Tap the microphone icon on the on-screen keyboard to start Voice Typing.
Physical keyboard
Show virtual keyboard: Touch the switch to enable virtual keyboard
on screen while physical keyboard is active.
Keyboard shortcuts helper: Touch to view the available keyboard
shortcuts.
Text-to-speech output
Preferred engine: To choose a preferred text-to-speech engine, touch the
settings icon to show more choices for each engine.
Speech rate: Touch to open a dialog where you can select how quickly you
want the synthesizer to speak.
Pitch: Adjust the tone of the spoken text.
Reset speech rate: Touch to reset the speech at which the text is spoken
to default.
41
Reset speech pitch: Touch to reset the pitch at which the text is spoken
to default.
Listen to an example: Touch to play a brief sample of the speech
synthesizer, using your current settings.
Default language status: This will show status of your default language.
Pointer speed
Touch to open a dialog where you can change the pointer speed, touch
OK to confirm.
10.4.6 Backup & reset
Back up my data
Touch the switch to back up your phone’s settings and other application
data to Google servers, with your Google account. If you replace your phone,
the settings and data you’ve backed up are restored onto the new phone for
the first time you sign in with your Google account. If you mark this option,
a wide variety of settings and data are backed up, including your Wi-Fi
passwords, bookmarks, a list of the applications you’ve installed, the words
you’ve added to the dictionary used by the onscreen keyboard, and most of
the settings that you configure with the Settings application. If you unmark
this option, you stop backing up your settings, and any existing backups are
deleted from Google servers.
Back up account
Touch to back up your account.
Automatic restore
Touch the switch to restore your backed up settings or other data when you
reinstall an application.
Factory data reset
Erase all of your personal data from the internal phone storage, including
information about your Google account, any other accounts, your system
and application settings, and any downloaded applications. Resetting the
phone does not erase any system software updates you’ve downloaded or
any files on your microSD card, such as music or photos. If you reset the
phone in this way, you’re prompted to re-enter the same kind of information
as when you first started Android.
When you are unable to power on your phone, there is another way to
perform a factory data reset by using hardware keys. Hold down the
Volume up key and the Power key at same time until the screen lights up.
10.5 System
10.5.1 Date & time
Use Date & time settings to customize your preferences for how date and
time are displayed.
Automatic date & time
Touch the switch to use network-provided date and time or unmark to set
all values manually.
Automatic time zone
Touch the switch to use network-provided time zone or unmark to set all
values manually.
Set date
Touch to open a dialog where you can manually set the phone’s date.
Set time
Touch to open a dialog where you can manually set the phone’s time.
42
Select time zone
Touch to open a dialog where you can set the phone’s time zone.
Use 24-hour format
Touch the switch to display the time using 24-hour clock format.
10.5.2 Accessibility
You use the Accessibility settings to configure any accessibility plug-ins you
have installed on your phone.
TalkBack
Touch to turn on/off TalkBack. With TalkBack on, your device provides
spoken feedback to help blind and low-vision users by describing what you
touch, select and activate.
Switch Access
Turn on Switch Access switch to allow you to control your phone
with configurable key combinations. Touch Settings on the top right of the
screen to assign key combination for listed behaviors.
Captions
Touch to on/off captions for phone screen.
Magnification gestures
Touch to turn on/off to activate/deactivate zoom in/out function by triple-
tapping the screen.
Font size
Touch the setup the font size of text on screen to default, larger and largest.
Display size
Touch to setup the display size of items, such as app icon, message, etc.
Some apps on your screen may change position.
Touch after pointer stops moving
Touch the to turn on/off the delay before click. Draw the indicate line
to adjust how long to delay before click.
High contrast text
Touch the switch to activate high contrast text.
Power key ends call
Touch the switch to enable power button ends call.
Auto-rotate screen
Touch the switch to activate auto-rotate screen. Content on the screen or
the keyboard will be automatically rotated when you rotate your phone.
Speak passwords
Touch the switch to enable enter passwords by spoken.
Large Mouse pointer
Touch the switch to enlarge mouse pointer.
Mono audio
Touch the to enable/disable combine channels when playing audio.
Accessibility shortcut
When accessibility shortcut is turned on, you can quickly activate
accessibility features in two steps. Touch the to turn on/off this
feature.
Text-to-speech output
Touch to update the settings for text-to-speech output, such as the
speech rate.
43
Touch & hold delay
Touch to adjust the duration of long press delay. This function enables your
phone to differ touch and touch & hold, which may avoid incorrect operations.
Color inversion
Touch the switch to turn on/off color inversion.
Color correction
Touch to turn on/off color correction.
10.5.3 Printing
Your phone supports wireless printing to enabled printers and online
services.
10.5.4 Developer options
To enable this function, go to Settings / About phone, then touch Build
number 7 times. Now Developer options is available. The developer
options screen contains settings that are useful for developing Android
applications.
10.5.5 About phone
This contains information about things ranging from Model number, Android
version, Android security patch level, Baseband version Kernel version, Build
number to those listed below:
Software Update
Touch to check for Software updates.
System app updates
Touch to check for app updates.
Status
This contains the status of the Battery status, Battery level, My phone
number, Mobile network type, Signal strength, etc.
Legal information
Touch to view legal information.
Safety and use
Please read before using your phone
THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO
DISASSEMBLE THE DEVICE.
Privacy restrictions
Some countries require full disclosure of recorded telephone conversations,
and stipulate that you must inform the person with whom you are speaking
that the conversation is being recorded. Always obey the relevant laws and
regulations of your country when using the recording feature of your phone.
44
Disclaimers
ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR
DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS”
AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, TCT MOBILE AND ITS
AFFILIATES expressly disclaim any and all representations and warranties,
arising by law or otherwise, related to the Accessed Information, including
without limitation any express or implied representation or warranty of
merchantability, fitness for a particular purpose, non-infringement, quality,
accuracy, completeness, effectiveness, reliability, or usefulness. Without
limiting the foregoing, it is further understood that TCT Mobile and its
Affiliates are not responsible for any use of the Accessed Information or
the results arising from such use, and that you use such information at
your own risk.
Limitation of damages
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO
EVENT SHALL TCT MOBILE OR ITS AFFILIATES BE LIABLE TO YOU, ANY
USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL,
INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT,
TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF
REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF
DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY
THEREOF OR WHETHER TCT MOBILE OR ITS AFFILIATES HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT
SHALL THE TOTAL LIABILITY OF TCT MOBILE OR ITS AFFILIATES EXCEED
THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY
UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES
NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED.
Important health information and safety
precautions
When using this product, the safety precautions below must be taken to
avoid possible legal liabilities and damages.
Retain and follow all product safety and operating instructions. Observe all
warnings in the operating instructions on the product.
To reduce the risk of bodily injury, electric shock, fire, and damage to the
equipment, observe the following precautions.
WARNING: This product contains chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
Warning: Not all 911 emergency service providers are capable of
receiving location information. Be prepared to report your precise location/
address when calling 911. The device location cannot be identified in all
circumstances.
Electrical safety
This product is intended for use when supplied with power from the
designated battery or power supply unit. Other usage may be dangerous
and will invalidate any approval given to this product.
Safety precautions for proper grounding installation
CAUTION: Connecting to improperly grounded equipment can result in an
electric shock to your device.
Safety precautions for power supply unit
Use the correct external power source
A product should be operated only from the type of power source indicated
on the electrical ratings label. If you are not sure of the type of power source
required, consult your authorized service provider or local power company.
For a product that operates from battery power or other sources, refer to
the operating instructions that are included with the product. This product
should be operated only with the following designated power supply unit(s).
Travel charger: Input: 100-240 V, 50/60 Hz, 200mA
Output: 5 V, 1000mA
Handle battery packs carefully
45
This product contains a Lithium-ion polymer or Lithium-ion battery. There
is a risk of fire and burns if the battery pack is handled improperly. Do not
attempt to open or service the battery pack. Do not disassemble, crush,
puncture, short external contacts or circuits, dispose of in fire or water, or
expose a battery pack to temperatures higher than 140˚F (60˚C) .
WARNING: Danger of explosion if battery is incorrectly replaced.
To reduce risk of fire or burns, do not disassemble, crush,
puncture, short external contacts, expose to temperature above
140˚F (60˚C), or dispose of in fire or water. Replace only with
specified batteries. Recycle or dispose of used batteries
according to the local regulations or reference guide supplied
with your product.
NOTE: This product should be operated only with the following designated
Battery Pack(s).
Take extra precautions
• Keep the battery or device dry and away from water or any liquid as it
may cause a short circuit.
• Keep metal objects away so they don’t come in contact with the battery
or its connectors as it may lead to short circuit during operation.
• The phone should only be connected to products that bear the USB-IF
logo or have completed the USB-IF compliance program.
• Do not use a battery that appears damaged, deformed, or discolored, or
the one that has any rust on its casing, overheats, or emits a foul odor.
• Always keep the battery out of the reach of babies and small children,
to avoid swallowing of the battery. Consult the doctor immediately if
the battery is swallowed.
• Only use the battery with a charging system that has been qualified
with the system per this standard, IEEE-Std-1725-2011. Use of an
unqualified battery or charger may present a risk of fire, explosion,
leakage or other hazard.
• Replace the battery only with another battery that has been qualified with
the system per this standard, IEEE-Std-1725-2011. Use of an unqualified
battery may present a risk of fire, explosion, leakage or other hazard.
• Avoid dropping the phone or battery. If the phone or battery is dropped,
especially on a hard surface, and the user suspects damage, take it to a
service center for inspection.
• If the battery leaks:
• Do not allow the leaking fluid to come in contact with skin or clothing.
If already in contact, flush the affected area immediately with clean
water and seek medical advice.
• Do not allow the leaking fluid to come in contact with eyes. If already
in contact, DO NOT rub; rinse with clean water immediately and seek
medical advice.
• Take extra precautions to keep a leaking battery away from fire as
there is a danger of ignition or explosion.
Safety precautions for direct sunlight
Keep this product away from excessive moisture and extreme temperatures.
Do not leave the product or its battery inside a vehicle or in places where the
temperature may exceed 140˚F (60˚C), such as on a car dashboard, window
sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet
light for extended periods of time. This may damage the product, overheat
the battery, or pose a risk to the vehicle.
Prevention of hearing loss
CAUTION: Permanent hearing loss may occur if earphones or headphones
are used at high volume for prolonged periods of time.
46
Safety in aircraft
Due to the possible interference caused by this product to an aircraft’s
navigation system and its communications network, using this device’s
phone function on board an airplane is against the law in most countries. If
you want to use this device while on board of an aircraft, remember to turn
off your phone by switching to Airplane Mode.
Environment restrictions
Do not use this product in gas stations, fuel depots, chemical plants or
where blasting operations are in progress, or in potentially explosive
atmospheres such as fuelling areas, fuel storehouses, below the deck on
boats, chemical plants, fuel or chemical transfer or storage facilities, and
areas where the air contains chemicals or particles, such as grain, dust,
or metal powders. Be aware that sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death.
Explosive atmospheres
When in any area with a potentially explosive atmosphere or where
flammable materials exist, the product should be turned off and the user
should obey all signs and instructions. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death.
Users are advised not to use the equipment at refueling points such as
service or gas stations, and are reminded of the need to observe restrictions
on the use of radio equipment in fuel depots, chemical plants, or where
blasting operations are in progress. Areas with a potentially explosive
atmosphere are often, but not always, clearly marked. These include
fueling areas, below the deck on boats, fuel or chemical transfer or storage
facilities, and areas where the air contains chemicals or particles, such as
grain, dust, or metal powders.
Road safety
Full attention must be given to driving at all times in order to reduce the
risk of an accident. Using a phone while driving (even with a hands free kit)
causes distraction and can lead to an accident. You must comply with local
laws and regulations restricting the use of wireless devices while driving.
Safety precautions for RF exposure
Avoid using your phone near metal structures (for example, the steel
frame of a building).
Avoid using your phone near strong electromagnetic sources, such as
microwave ovens, sound speakers, TV and radio.
Only use original manufacturer-approved accessories, or accessories
that do not contain any metal.
Use of non-original manufacturer-approved accessories may violate your
local RF exposure guidelines and should be avoided.
Interference with medical equipment functions
This product may cause medical equipment to malfunction. The use of this
device is forbidden in most hospitals and medical clinics.
If you use any other personal medical device, consult the manufacturer
of your device to determine if they are adequately shielded from external
RF energy. Your physician may be able to assist you in obtaining this
information.
Turn your phone OFF in health care facilities when any regulations posted in
these areas instruct you to do so. Hospitals or health care facilities may be
using equipment that could be sensitive to external RF energy.
Nonionizing radiation
Your device has an internal antenna. This product should be operated in its
normal-use position to ensure the radiative performance and safety of the
interference. As with other mobile radio transmitting equipment, users are
advised that for satisfactory operation of the equipment and for the safety of
personnel, it is recommended that no part of the human body be allowed to
come too close to the antenna during operation of the equipment.
Only use the supplied integral antenna. Use of unauthorized or modified
antennas may impair call quality and damage the phone, causing loss of
performance and SAR levels exceeding the recommended limits as well as
result in non-compliance with local regulatory requirements in your country.
47
To assure optimal phone performance and ensure human exposure to RF
energy is within the guidelines set forth in the relevant standards, always
use your device only in its normal-use position. Contact with the antenna
area may impair call quality and cause your device to operate at a higher
power level than needed. Avoiding contact with the antenna area when the
phone is IN USE optimizes the antenna performance and the battery life.
Electrical safety
Accessories
• Only use approved accessories.
• Do not connect with incompatible products or accessories.
• Make sure not to touch or allow metal objects, such as coins or key rings,
to contact or short-circuit the battery terminals.
Connection to a car
• Seek professional advice when connecting a phone interface to the
vehicle electrical system.
Faulty and damaged products
• Do not attempt to disassemble the phone or its accessory.
• Only qualified personnel must service or repair the phone or its
accessory.
General precautions
You alone are responsible for how you use your phone and any
consequences of its use. You must always switch off your phone wherever
the use of a phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Avoid applying excessive pressure to the device
Do not apply excessive pressure on the screen and the device to
prevent damaging them and remove the device from your pants’ pocket
before sitting down. It is also recommended that you store the device
in a protective case and only use the device stylus or your finger when
interacting with the touch screen. Cracked display screens due to improper
handling are not covered by the warranty.
Device getting warm after prolonged use
When using your device for prolonged periods of time, such as when you’re
talking on the phone, charging the battery or browsing the Web, the device
may become warm. In most cases, this condition is normal and therefore
should not be interpreted as a problem with the device.
Heed service markings
Except as explained elsewhere in the Operating or Service documentation,
do not service any product yourself. Service needed on components inside
the device should be done by an authorized service technician or provider.
Protect your phone
• Always treat your phone and its accessories with care and keep them in
a clean and dust-free place.
• Do not expose your phone or its accessories to open flames or lit
tobacco products.
• Do not expose your phone or its accessories to liquid, moisture or
high humidity.
• Do not drop, throw or try to bend your phone or its accessories.
• Do not use harsh chemicals, cleaning solvents, or aerosols to clean the
device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its accessories, only authorized
personnel must do so.
• Do not expose your phone or its accessories to extreme temperatures,
maximum 140°F (60°C).
• Please check local regulations for disposal of electronic products.
• Do not carry your phone in your back pocket as it could break when
you sit down.
48
Damage requiring service
Unplug the product from the electrical outlet and refer servicing to an
authorized service technician or provider under the following conditions:
• Liquid has been spilled or an object has fallen into the product.
• The product has been exposed to rain or water.
• The product has been dropped or damaged.
• There are noticeable signs of overheating.
• The product does not operate normally when you follow the operating
instructions.
Avoid hot areas
The product should be placed away from heat sources such as radiators,
heat registers, stoves, or other products (including amplifiers) that produce
heat.
Avoid wet areas
Never use the product in a wet location.
Avoid using your device after a dramatic change in temperature
When you move your device between environments with very different
temperature and/or humidity ranges, condensation may form on or within
the device. To avoid damaging the device, allow sufficient time for the
moisture to evaporate before using the device.
NOTICE: When taking the device from low-temperature conditions into a
warmer environment or from high-temperature conditions into
a cooler environment, allow the device to acclimate to room
temperature before turning on power.
Avoid pushing objects into product
Never push objects of any kind into cabinet slots or other openings in the
product. Slots and openings are provided for ventilation. These openings
must not be blocked or covered.
Air bags
Do not place a phone in the area over an air bag or in the air bag
deployment area. Store the phone safely before driving your vehicle.
Mounting accessories
Do not use the product on an unstable table, cart, stand, tripod, or bracket.
Any mounting of the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the manufacturer.
Avoid unstable mounting
Do not place the product with an unstable
base.
Use product with approved equipment
This product should be used only with
personal computers and options identified as
suitable for use with your equipment.
Adjust the volume
Turn down the volume before using headphones or other audio devices.
Cleaning
Unplug the product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use
water to clean the LCD screen.
Small children
Do not leave your phone and its accessories within the reach of small
children or allow them to play with it. They could hurt themselves or others,
or could accidentally damage the phone. Your phone contains small parts
with sharp edges that may cause an injury or which could become detached
and create a choking hazard.
Repetitive motion injuries
To minimize the risk of RSI, when Texting or playing games with your phone:
• Do not grip the phone too tightly
• Press the buttons lightly
• Make use of the special features in the handset which minimize
the number of buttons which have to be pressed, such as message
templates and predictive text.
49
• Take lots of breaks to stretch and relax.
Operating machinery
Full attention must be given to operating the machinery in order to reduce
the risk of an accident.
Loud noise
This phone is capable of producing loud noises which may damage your
hearing.
Emergency calls
This phone, like any wireless phone, operates using radio signals, which
can't guarantee connection in all conditions. Therefore, you must never rely
solely on any wireless phone for emergency communications.
Regulatory agency identifications
For regulatory identification purposes, your product is assigned a model
number of A574BL.
To ensure continued reliable and safe operation of your device, use only the
accessories listed below with your A574BL device.
Operating temperature range: 32°F to 104°F (0°C to 40°C)
NOTE: This product is intended for use with a certified Class Limited Power
Source, rated 4.35 Volts DC, maximum 1 Amp power supply unit.
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio or television technician
for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Important Note
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compliance
with FCC RF exposure compliance requirements, please follow operation
instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter, except the transmitters built-in with
the device.
50
US Information Concerning the Federal
CommunicationsCommission (“FCC”) Requirements for
Hearing Aid Compatibility with Wireless Devices
When wireless devices are used near hearing devices (such as hearing
aids and cochlear implants), users may detect a buzzing, humming, or
whining noise. Some hearing devices are more immune than others to this
interference, and wireless devices also vary in the amount of interference
that they generate.
The wireless telephone industry has developed ratings to assist hearing
device users in finding wireless devices that may be compatible with their
hearing devices. Not all wireless devices have been rated. Wireless devices
that are rated will have the rating displayed on the box together with other
relevant approval markings.
The ratings are not guarantees. Results will vary depending on the user’s
hearing device and hearing loss. If your hearing device is vulnerable
to interference, you may not be able to use a rated wireless device
successfully. Consulting with your hearing health professional and testing
the wireless device with your hearing device is the best way to evaluate it
for your personal needs.
This smartphone has been tested and rated for use with hearing aids for
some of the wireless technologies that the smartphone uses. However,
other wireless technologies may be used in this smartphone that have not
been tested for use with hearing aids. It is important to try the different
features of your smartphone thoroughly and in different locations to
determine if you hear any interfering noise when using this smartphone
with your hearing aid or cochlear implant. Consult your wireless service
provider about its return and exchange policies, and for information about
hearing aid compatibility.
Hearing aid compatibility rating for this smartphone: M4/T3
How the ratings work
M-Ratings: Wireless devices rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than wireless
devices that are not labeled. M4 is the better or higher of the two ratings.
T-Ratings: Wireless devices rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T Switch” or
“Telephone Switch”) than unrated wireless devices. T4 is the better or
higher of the two ratings. (Note that not all hearing devices have telecoils
in them.)
Hearing devices may also be measured for immunity to this type
of interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to experience
interference noise from wireless devices.
For more information about the actions that the FCC has taken with regard
to hearing aid compatibility with wireless devices and other steps that the
FCC has taken to ensure that individuals with disabilities have access to
telecommunications services, visit www.fcc.gov/cgb/dro.
SAR Information
0.8 W/kg @ 1g (HEAD)
1.31 W/kg @ 1g (BODY)
THIS MODEL DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES. For body worn operation, this phone has
been tested and meets the FCC RF exposure guidelines when used with the
TCT Mobile Limited. Accessories supplied or designated for this product.
Use of other accessories may not ensure compliance with the FCC RF
exposure guidelines.
Your wireless mobile phone is a radio transmitter and receiver. It is designed
and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government. These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the general population. The
guidelines are based on the safety standards previously set by both U.S. and
international standards bodies:
American National Standards Institute (ANSI) IEEE. C95.1-1992 .
National Council on Radiation Protection and Measurement (NCRP).
Report 86. 1986.
51
International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1996.
Ministry of Health (Canada), Safety Code 6. The standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile phone employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg*.
The FCC has granted an Equipment Authorization for this model device
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model device is on file with the
FCC and can be found under the Display Grant section of https://fjallfoss.
fcc.gov/oetcf/eas/reports/GenericSearch.cfm after searching on FCC ID:
2ACCJB079. Additional information on Specific Absorption Rates (SAR) can
be found on the Cellular Telecommunications & Internet Association (CTIA)
Web-site as http://http://www.ctia.org/.
* In the U.S. and Canada, the SAR limit for mobile phone used by the public
is 1.6 Watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give additional protection for
the public and to account for any variations in usage.
Normal condition only to ensure the radiative performance and safety of the
interference. As with other mobile radio transmitting equipment, users are
advised that for satisfactory operation of the equipment and for the safety of
personnel, it is recommended that no part of the human body be allowed to
come too close to the antenna during operation of the equipment.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with
RF exposure requirements, a minimum separation distance of 15 mm
must be maintained between the user’s body and the handset, including
the antenna. Third-party belt-clips, holsters, and similar accessories used
by this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with RF
exposure requirements and should be avoided.
Only use the supplied or an approved antenna. Unauthorized antennas,
modifications, or attachments could impair call quality, damage the phone,
or result in violation of regulations. Do not use the phone with a damaged
antenna. If a damaged antenna comes into contact with the skin, a minor
burn may result. Please contact your local dealer for replacement antenna.
FCC RF Radiation Exposure Statement
This Transmitter has been demonstrated co-location compliance
requirements with Bluetooth® and WLAN. This transmitter must not
be co-located or operating in conjunction with any other antenna or
transmitter.
This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment.
Telecommunications & Internet Association
(TIA) safety information
Pacemakers
The Health Industry Manufacturers Association recommends that a
minimum separation of 15 cm (6 inches) be maintained between a
handheld wireless phone and a pacemaker to avoid potential interference
with the pacemaker. These recommendations are consistent with the
independent research by and recommendations of Wireless Technology
Research.
Persons with pacemakers:
Should ALWAYS keep the phone more than 15 cm (6 inches) from their
pacemaker when the phone is turned ON.
Should not carry the phone in a breast pocket.
Should use the ear opposite the pacemaker to minimize the potential
for interference. If you have any reason to suspect that interference is
taking place, turn the phone OFF immediately.
52
Hearing aids
Some digital wireless phones may interfere with some hearing aids. In the
event of such interference, you may want to consult your service provider,
or call the customer service line to discuss alternatives.
RoHS compliance
This product is in compliance with Directive 2011/65/EU of the European
Parliament and of the Council of 7 January 2003, on the restriction of the
use of certain hazardous substances in electrical and electronic equipment
(RoHS) and its amendments.
Electronic Recycling (Within USA Only):
For more information on Electronic Recycling, please:
1. Visit Alcatel Electronic Recycling Program website at
http://www.alcatelonetouch.us/electronic-recycling-program, or
2. Call Alcatel US Customer Support at 1-855-368-0829.
Battery Recycling (USA & Canada):
Alcatel partners with Call2Recycle® to offer a safe and convenient battery
recycling program. For more information on our Battery Recycling Program,
please visit the USA and Canada website at www.alcatelonetouch.us/
battery-recycling and www.alcatelonetouch.ca/battery-recycling
