TCL Communication N013 HSUPA/HSDPA/UMTS Tri Band/GSM Quad Band/LTE 6 Band mobile phone User Manual TempConfidential 4044V QG US Eng 20170205

TCL Communication Ltd. HSUPA/HSDPA/UMTS Tri Band/GSM Quad Band/LTE 6 Band mobile phone TempConfidential 4044V QG US Eng 20170205

TempConfidential_4044V QG_US Eng_20170205

1 2

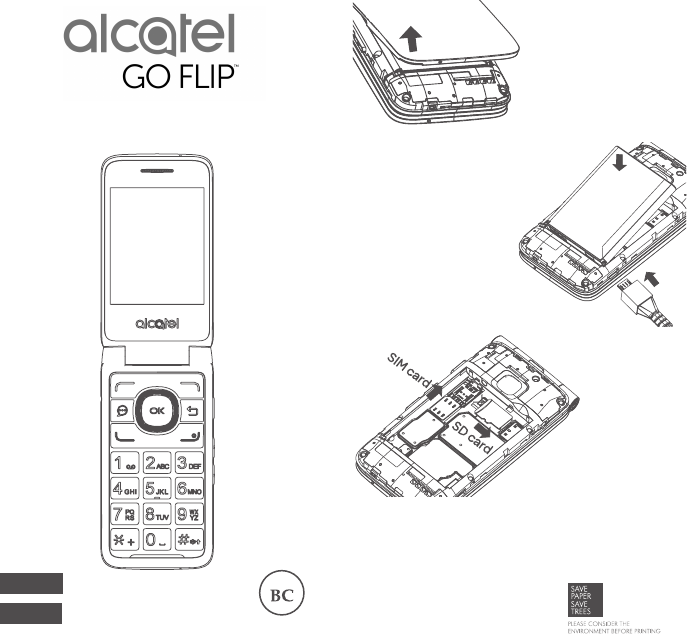

QUICK START GUIDE
Removing or installing
the back cover.
Removing or installing baery.
Charging the baery.
To insert a SIM or MicroSD card, push the SIM or MicroSD card into
the card slot with the gold-colored contacts facing down.
To remove the SIM or MicroSD card, push down the plasc spring
and pull the SIM or MicroSD card out.
①
User guide and FAQ are available online
www.alcatelonetouch.ca
English - CJB61UC01AAA
②
③
SIM card
SD card
④
⑤
4044V
2.8"
4044M
3 4
1 Your Mobile ........................
1.1 Keys
Camera
Headset
connector
Charging
port
Camera key
Volume key
①
②
③
④
⑤
⑥
⑦
⑧
①Left soft key
②Messages key Enter the messages screen from any
screen.
③Call key •Send call
•Access call log (from app list and Home
screen)
④Center soft key •Access app list (from Home screen)
•Confirm an option (press the middle
of the key)
⑤Navigation key ( up,
down, left, right)
Goes to up, down, left or right menu.
⑥Right soft key
⑦Back/clear key Lets you return to the previous screen,
options menu or close a dialogue box
⑧End/power key •Powers on/off the handset (long press)
•End call
•Return to Home screen
1.2 Home screen
Press the End/power key to get instant access to the Home screen.
1.3 App list
Press the Center soft key from the Home screen to access the App list.
5 6
1.4 Status bar
The Status bar appears at the top of your Home screen. Icons indicating
your phone’s status and new notification alerts appear in the Status bar.
Status and Notification icons
New text or
multimedia message Missed call
New Email message Upcoming event
4G LTE connected Alarm is set
EDGE connected Bluetooth is on
4G connected Transferring files via
Bluetooty
2G connected Headset connected
Silent mode GPS is on
Connected to a Wi-Fi
network Vibrate mode
Signal strength Battery is very low
(red bar)
No signal Battery is low
Airplane mode Battery is full
Roaming Battery is charging
Song is playing New voicemail
No SIM card installed
99
5General numerical notications (missed call, new mail, new
message, new event, etc.)
2 Making a Call .....................
2.1 Placing a call
Dial the desired number then press key to place the call. If you
make a mistake, press key to delete the incorrect digits.
Press the up and down
of the Navigation key
to select more options.
You can also make a call from your call log:
First, press key from Home screen to access the call log and choose
the contact you want to dial, press key to make the call.
If you want to make a call from Contacts, please select Contacts from
app list. Choose the contact you want to dial, press key or key
to make the call.
7 8
To hang up the call, press the key.
Making an emergency call
If your phone has network coverage, dial emergency number and press
the Call key to make an emergency call. This works even without a SIM
card and without typing the PIN code.
International call
To dial an international call, press and hold to enter “+”, then enter
the international country prefix followed by the full phone number and
finally press .
2.2 Calling your voicemail 1
To access your voicemail, press and hold key. To edit your
voicemail, in Home screen select Speed Dial, select Voice Mail\Edit\
Voice Mail\Options\Change Voice Mail Number, then you can edit
the voicemail number. Finally, press to save.
2.3 Answering or rejecting a call
When you receive a call:
•Press the key or key to answer;
•Press the key or key to reject;
(1) Contact your network operator to check service availability.
To mute the ringtone volume of an incoming call, press the Volume
up/down key.
2.4 Consulting your call history
You can access your call memory by pressing to view call history in
categories of Incoming calls, Outgoing calls, and Missed calls.
3 Contacts .........................
You can access this function by selecting Contacts from the app list.
Searching for a contact
You can search for a contact by typing the initial of their name.
Subsequent letters may be added to refine the search.
Viewing a contact
Select a name from your contacts to read the contact information.
3.1 Add a contact
You can add a new contact to your phone:
1. From the app list select Contacts icon .
2. Press the key in the Contacts list to create a new contact.
3. Enter contact’s name and other contact information.
4. When finished, press the key and select Save.
3.2 Delete a contact
Select the contact you want to delete and press the key to select
Delete contact option.
3.3 Available options
From the contact list, you can access the following options:
9 10
•Edit contact Modify the contents of a contact.
•Call Make a call to the selected contact.
•Send Message Send an SMS/MMS to a contact.
•Share Share the selected contact via E-Mail,
Messages and Bluetooth.
•Delete contact Delete the selected contact.
•Settings Enter more contacts settings.
4 Messages .......................
You can create, edit and receive SMS and MMS with this phone.
To access this feature, select from the app list.
4.1 Write message
1. From the app list select Messages icon or press directly from
Home screen to enter Messages.
2. Press to write text messages.
3. Enter the phone number of the recipient in the To bar or press
to add recipients from Contacts.
4. Press the SMS bar to enter the text of the message.
5. Press to send text messages.
How to type a message
You can enter text using predictive text input.
For normal text input, press a number key, 2-9, repeatedly until the
desired character is displayed. If the next letter you want is located
on the same key as the present one, please wait until the cursor is
displayed.
Press the key to switch among "123/Abc/abc/ABC/T9" mode.
To insert a punctuation mark or special character, please press the
key.
If you want to delete the already typed letters or symbols please press
the key to delete them one by one.
An SMS of more than 160 characters will be charged as
several SMS. Specific letters with accents will also increase
the size of the SMS. This may cause multiple SMS to be sent
to your recipient.
Sending a multimedia message
MMS enables you to send video clips, images, photos, and sounds to
other compatible phones and email addresses.
An SMS will be converted to MMS automatically when media files
(image, video, audio, etc.) are attached.
5 FM Radio .......................
Your phone is equipped with a radio1 with RDS2 functionality. You can
use the application as a traditional radio with saved channels. In FM
radio interface, press the key to play/pause the playing process of
the current channel, press the Navigation Left/Right key to search the
channel. Press the key to open Options menu. You can listen to it
while running other applications.
(1) The quality of the radio depends on the coverage of the radio
station in that particular area.
(2) Depending on your network operator and market.
11 12
6 Media ..................................
6.1 Camera
Your mobile phone is fitted with a camera for taking photos and
shooting videos by selecting Camera. Press the key to take the
picture. You can send them directly by Bluetooth, set as wallpaper
or select them as incoming call image to a contact in your Contacts
6.2 Gallery
Using the Gallery application, you can view pictures that you've taken
with your phone's camera.
For pictures that stored on your phone, you can do basic editing such as
rotating or cropping. You can also easily assign a picture as your contact
picture or wallpaper and share pictures with your friend.
6.3 Video
Use this funtion to play video files. Press the key to play/pause the
video player, press the key to open Options menu.
6.4 Music
Use the Music app to listen to all your music on your phone.
Compatible music file formats include: mp3, wav, aac, etc.
7 Getting connected ...........
To connect to the Internet with this phone, you can use GPRS/
EDGE/3G/4G/4G LTE networks or Wi-Fi, whichever is most
convenient.
7.1 Connecting to the Internet
7.1.1 GPRS/EDGE/3G/4G/4G LTE
The first time you turn on your phone with your SIM card inserted, it
will automatically configure your network service: GPRS, EDGE, 3G,
4G, 4G LTE.
To check the network connection you are using, press Settings\
Network & Connectivity\Cellular & Data, and press Carrier\Network
Type.
7.1.2 Wi-Fi
Using Wi-Fi, you can connect to the Internet when your phone is within
range of a wireless network. Wi-Fi can be used on your phone even
without a SIM card inserted.
To turn Wi-Fi on and connect to a wireless network
•Press Settings\Network & Connectivity\Wi-Fi.
•Select the On/Off icon to turn on/off Wi-Fi.
•The detailed information of detected Wi-Fi networks is displayed in
the Available Networks section.
•Touch a Wi-Fi network to connect. If the network you selected is
secured, you will need to enter a password or other credentials (you
can contact the network operator for details). When finished, press
the key to connect.
