TCL Technoly Electronics 12 Bluetooth Module User Manual TBM A2823 Bluetooth Module Datasheet

TCL Technoly Electronics (Huizhou) Co., Ltd. Bluetooth Module TBM A2823 Bluetooth Module Datasheet

User Manual

Bluetooth Module Datasheet
Model No.型号:TBM-A2823
版本 Version：V1.0
公布日期 Release Date: 2016-03-08
TONLY ELECTRONICS HOLDINGS LIMITED.通力电子控股有限公司
Address:Section 37, Zhongkai Hi-tech Development Zone, Huizhou Guangdong 516006, P.R.China
地址：中国广东省惠州市仲恺高新区惠风 6路37 号小区
网址 http://www.tonlyele.com
©2015 TONLY ELECTRONICS HOLDINGS LIMITED.All rights reserved 保留所有版权
Tonly confidential
法律声明 Legal Notice, Disclaimer, Copyright
本手册是通力电子控股有限公司机密，未经能力电子控股有限公司的事先书面许可，任何人不得复制、
传播本手册的内容。通力电子控股有限公司不对由于使用本手册或执行本手册内容带来的损害负责。
本手册所涉及的知识产权归通力电子控股有限公司所有（或经合作商授权许可使用），任何人不得侵
犯。
本手册是按当前状态提供参考，本公司司保留随时更新本手册的权利,恕不另行通知。
本手册不对包括但不限于下列事项担保：适销性、特殊用途的适应性;实施该用途不会侵犯第三方的知
识产权等权利。 本文档在此未以禁止反言或其它方式授予任何知识产权使用许可，不管是明示许可还是暗
示许可。
本手册中提到的所有商标名称、商标和注册商标均属其各自所有者的财产，特此声明.
本协议以中、英文两种语言制作，两种语言文本冲突时，任何时候均以中文为准。
This data sheet contains information that is confidential to TONLY ELECTRONICS HOLDINGS
LIMITED. Unauthorized use or disclosure of the information contained herein is prohibited. You may be held
responsible for any loss or damages suffered by TONLY ELECTRONICS HOLDINGS LIMITED .for your
unauthorized disclosure hereof, in whole or in part.
Information herein is subject to change without noticed. TONLY ELECTRONICS HOLDINGS LIMITED does
not assume any responsibility for any use of, or reliance on, the information contained herein
THIS DATA SHEET AND ALL INFORMATION CONTAINED HEREIN IS PROVIDED “AS IS” WITHOUT
WARRANTY OF ANY KIND, WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE. TONLY
ELECTRONICS HOLDINGS LIMITED. SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY, NON-INFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE. NEITHER
DOES TONLY ELECTRONICS HOLDINGS LIMITED. PROVIDE ANY WARRANTY WHATSOEVER
WITH RESPECT TO THE SOFTWARE OF ANY THIRD PARTY WHICH MAY BE USED BY,
INCORPORATED IN, OR SUPPLIED WITH THIS DATA SHEET, AND USER AGREES TO LOOK ONLY TO
SUCH THIRD PARTY FOR ANY WARRANTY CLAIM RELATING THERETO. TONLY ELECTRONICS
HOLDINGS LIMITED. SHALL ALSO NOT BE RESPONSIBLE FOR ANY TONLY ELECTRONICS
HOLDINGS LIMITED DELIBERABLES MADE TO USER’S SPECIFICATION OR TO CONFORM TO A
PARTICULAR STANDARD OR OPEN FORUM.
Tonlyis a trademark of TONLY ELECTRONICS HOLDINGS LIMITED. other names mentioned in this document
are trademarks/registered trademark of their respective owners.
This data shall be executed in two languages including one Chinese and one English. Any conflict exist between
the two languages, theChinese will prevail in any time.
Tonly confidential
TBM-A2823 Bluetooth Module Datasheet
3
TONLY ELECTRONICS HOLDINGS LIMITED Confidential
版本变更说明 Document Revision History
Revision
版本
Date
日期
Author
作者
Description
描述
V1.0
2017-02-08 Tommy.li First release.
V1.1
2017-07-17 Tommy.li Operating temperature modify
V1.2
2017-09-20 Tommy.li BT version modify
Tonly confidential
目录 Table of Contents
法律声明 Legal Notice, Disclaimer, Copyright
文档变更说明 Document Revision History
目录 Table of contents
1.系统概览 System overview
1.1 通用说明 General Descriptions
1.2 性能特点 Features
1.3系统方框图 Block Diagram
2.产品描述 Production Description
引脚与功能说明 Pin Layout & Pin Description
外观与尺寸 Appearance& Dimension
3.应用说明 Application Explanation
4.电气特性 Electrical Characteristics
工作条件
直流特性 DC characteristics
热特性 Thermal characteristics
电流消耗 Current consumption
5.射频性能 RF Performance
6.认证与法规信息 Certificate& Regulation
7.包装与订货说明 Package& Ordering information
8.环保声明 Green Policy
9 推荐过炉温度 RECOMMENDED TEMPERATURE REFLOW PROFILE
10.抗静电保护 ESD Protection
Tonly confidential
TBM-A2823 Bluetooth Module Datasheet
5
TONLY ELECTRONICS HOLDINGS LIMITED Confidential
1. 系统概览 System overview
1.1 通用说明 General Descriptions
TBM-A2823 is a Bluetooth sub-system using ATS2823 chipset from ‘Actions’ . The ATS2823
consumer audio platform for wired and wireless applications integrates an ultra low power DSP
and application processor , a high-performance stereo codec, a power management subsystem,
LED drivers , Usb flash Disk and MMC in a SoC IC.
1.2 性能特点 Features
104 MHz MIPS32 Processor and 180 MHz DSP
Internal ROM and serial flash memory
interface supporting randomizer
Internal RAM for data and program
Built-in high performance stereo 24 bit DAC& ADC
Supports Digital microphones, single-ended
Analog microphones and full difference microphone
Built-in stereo PA for headphone and differential audio output for speaker PA
Bluetooth V4.2 compatible with Bluetooth V4.1, V3.0, V2.1 systems
Bluetooth fast AGC control to improve receiving dynamic range
Supports AFH to dynamically detect channel quality to improve Bluetooth transmission
quality.
Support SD/MMC/eMMC card interface and
SPI Nor Flash interface
Audio Interfaces: I2S, SPDIF TX
Serial Interfaces: UART, SPI
Infrared Remote controller supported
Integrated PMU supports multiple low energy States
Integrated Linear battery charger up to 600mA charging current
PCB Dimension: 16.9mm (L) × 13.7mm (W) ×0.8mm (H)
1.3 系统方框图Block Diagram
Tonly confidential
2.产品描述 Production Description

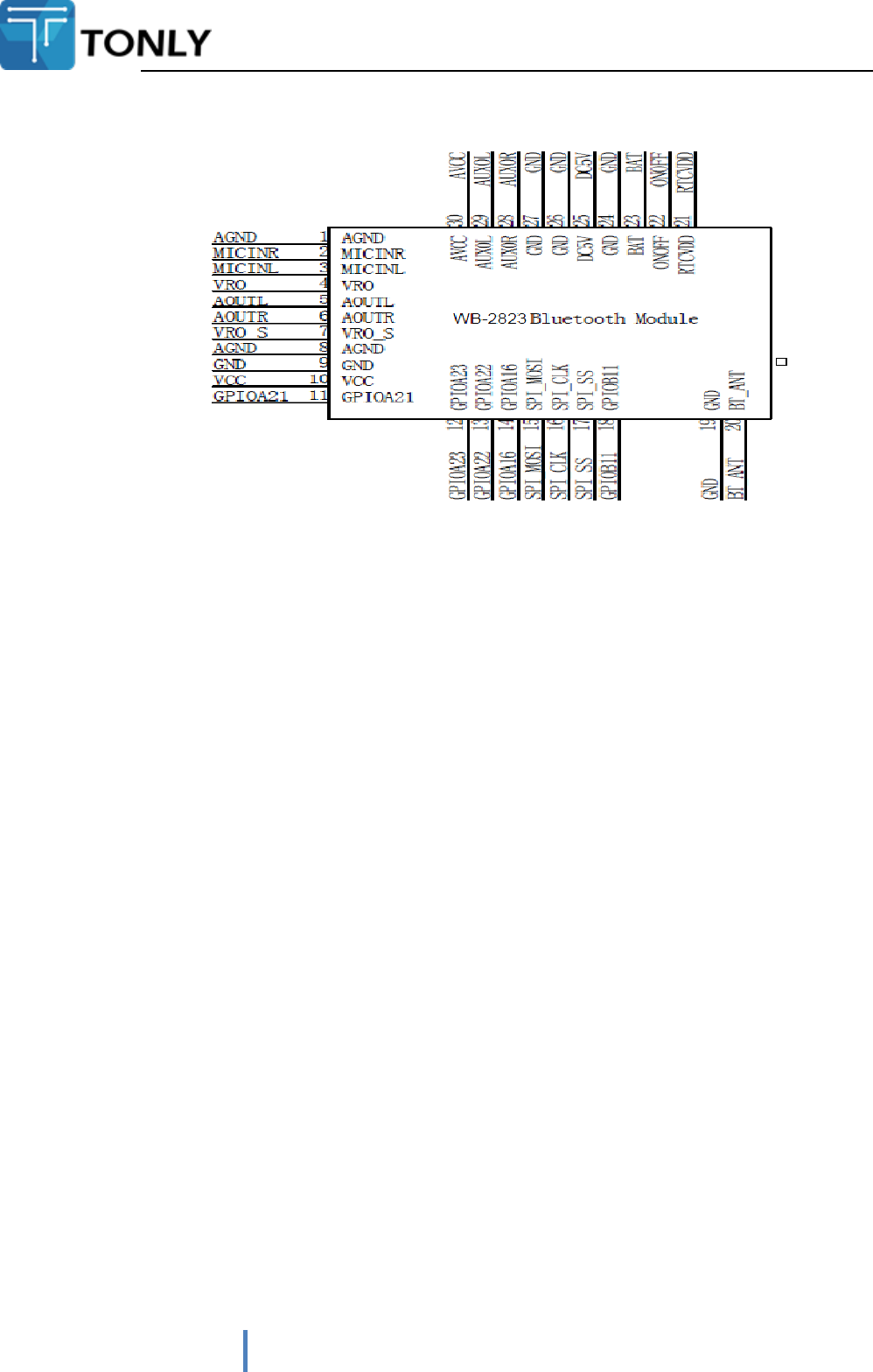

引脚与功能说明 Apperance & Pin Description& Physical Dimensions
Description & Apperance:
Tonly confidential
TBM-A2823 Bluetooth Module Datasheet
7
TONLY ELECTRONICS HOLDINGS LIMITED Confidential

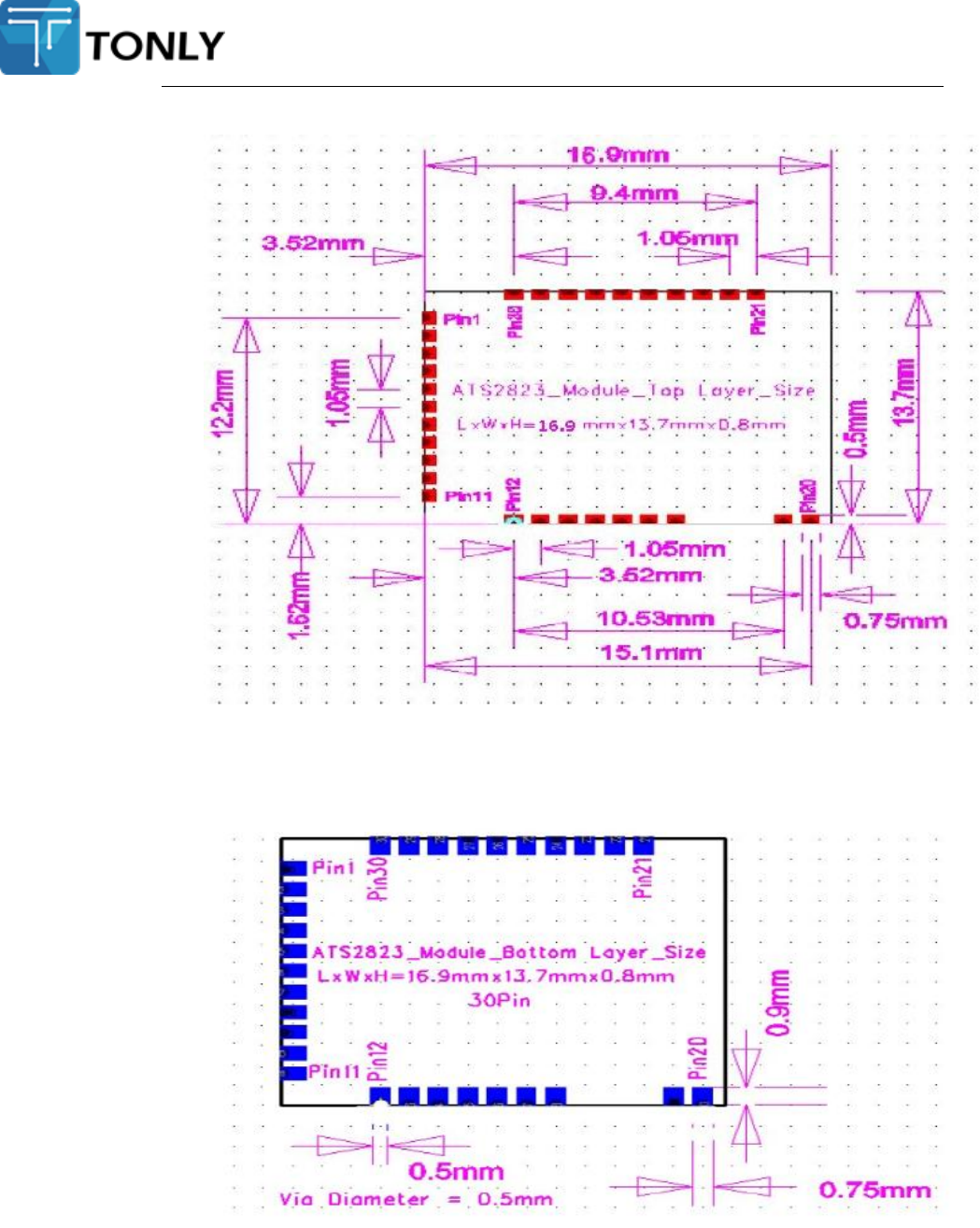

Physical Dimensions
Top VIEW
Tonly confidential
Bottom VIEW

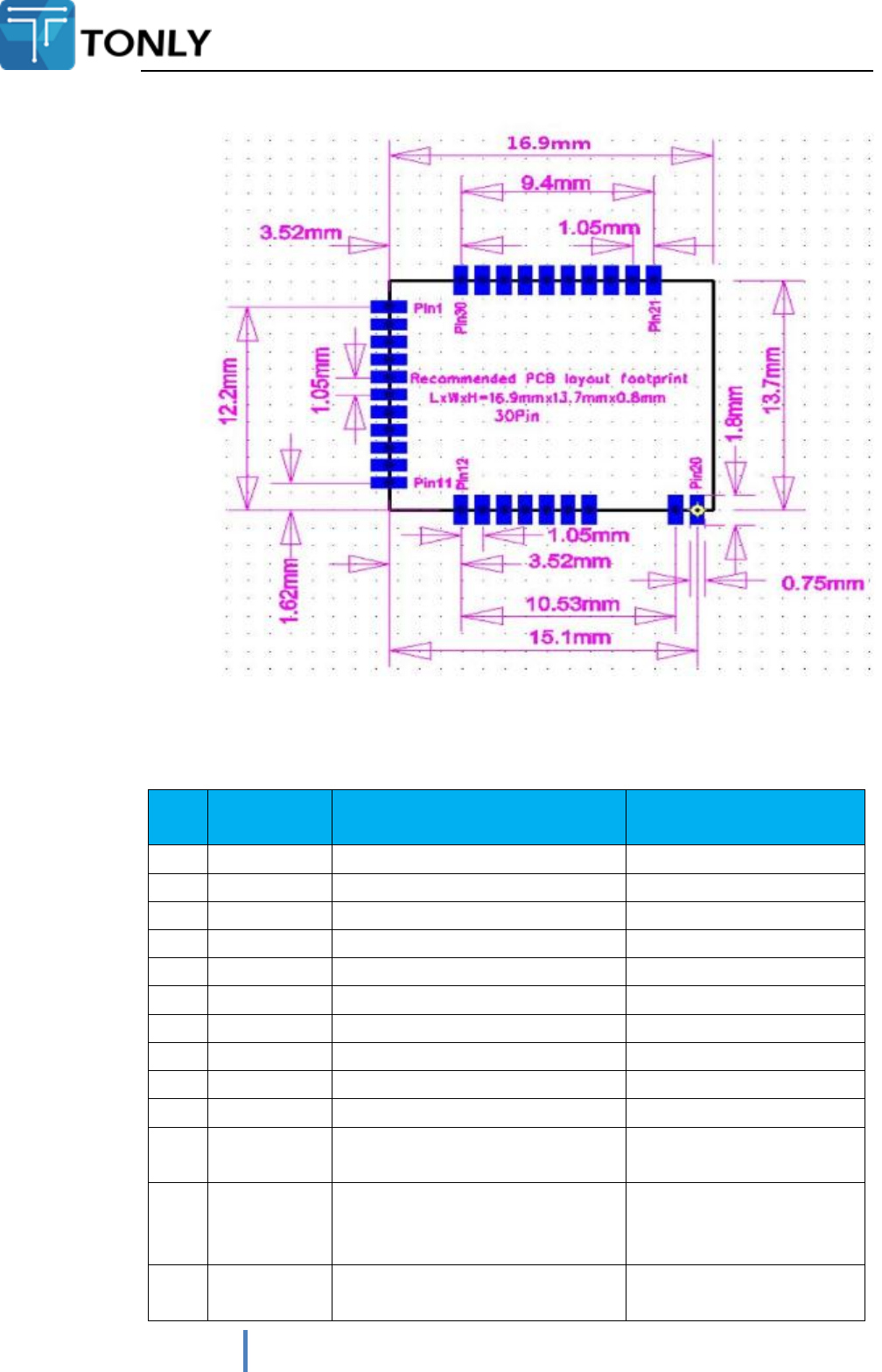

PCB Layerout recommend
Tonly confidential
TBM-A2823 Bluetooth Module Datasheet
9
TONLY ELECTRONICS HOLDINGS LIMITED Confidential
Pin descriptions
Symbol Description Function
AGND Ground Analog ground
MICINR Analog input MIC right channel input
MICINL Analog input MIC left channel input
VRO Analog output Virtual Ground for PA
AOUTL Analog output Left channel of PA
AOUTR Analog output Right channel of PA
VRO_S Analog input VRO Sense for PA
AGND ground Analog ground
GND Power ground Ground
VCC Power output 3.3V power supply
GPIOA21 Bi-directional General Purpose Input
Output: A21/Uart_RX
GPIOA23 Bi-directional
General Purpose Input
Output:
A23/SPDIF_TX,Uart_TX1
GPIOA22
Bi-directional
General Purpose Input
Output: A22/IR_RX
Tonly confidential
GPIOA16 Bi-directional Bi-directional General
Purpose Input Output: A16
SPI_MOSI Bi-directional General Purpose Input
Output: A31/SPI_MOSI
SPI_CLK
Bi-directional
General Purpose Input
Output: A29/ SPI_CLK
SPI_SS Bi-directional General Purpose Input
Output: A28 SPI_SS
GPIOB11 Bidirectional with weak
pull-down
Programmable I/O line
11./SPI_BTIO2
GND Power ground Ground
BT_ANT
This pin can be used when not using
a chip antenna or connector of the
module.
Bluetooth 50Ω transmitter
output /receiver inpu
RTCVDD Power output Power for RTC Module,
typical voltage:1.2V
ON/OFF Input Power on/off
BAT Power input
Battery input, typical
voltage
range :3.4V ~ 4.2V
GND Power ground Ground
DC5V Power input
USB power input, typical
voltage
range :4.5V ~ 7.0V
GND Power ground Ground
GND Power ground Ground
AUX0R Analog input AUX0 right channel input
AUX0L Analog input AUX0 left channel input
AVCC Power output
Power for Analog module,
typical
voltage:2.95V
3.应用说明 Application Explanations
Stereo headsets and headphones
Portable stereo speakers and speakerphones
Bluetooth car audio unit
Bluetooth sound bar
4. 电气特性 Electrical Characteristics
Base Characteristics
ELECTRICAL CHARACTERISTICS
Supply Voltage
>= 3.6V DC
Tonly confidential
TBM-A2823 Bluetooth Module Datasheet
11
TONLY ELECTRONICS HOLDINGS LIMITED Confidential
(Absolute Maximum Ratings 4.2V)
Working current
Depends on profiles, Max 24mA (A2DP)
Standby current(disconnected)
0mA~5mA
WEIGHT AND DIMENSIONS
(unit : mm)
Size (L x W x H)
24.9*14*1.5 mm
Weight
~1.0g
Recommended operating conditions
Min
Max
Unit
Operating temperature
-10
70
°C
VDD_BAT
2.8
4.2
V
VDD_CHG
0
7
V
Terminal voltages
0
VD
D
V

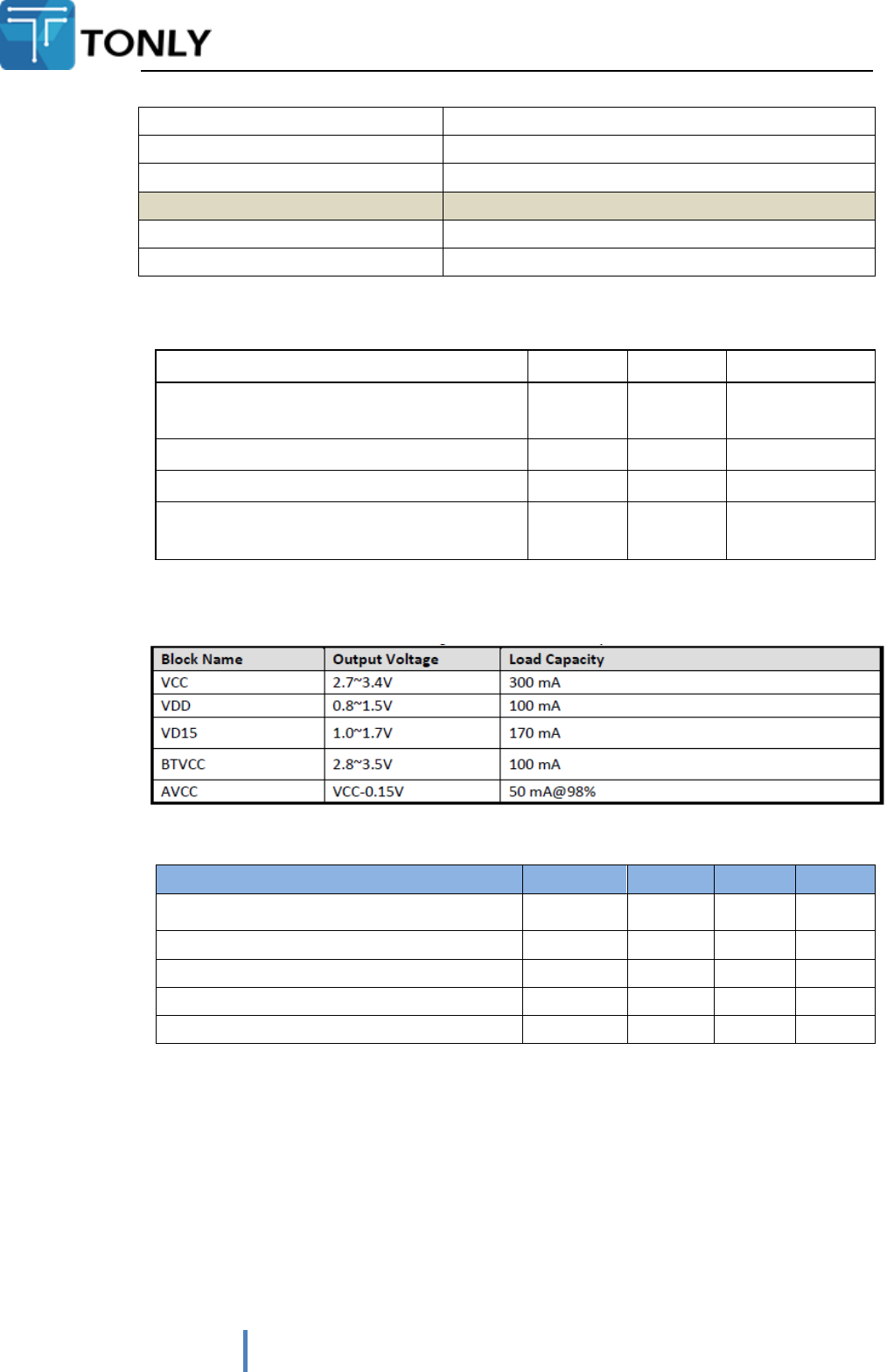

Regulator Maximum output current
电池充电 Battery charger
Item
Min Type Max Unit
Input Voltage
4.5 5 7 V
Charge Current(CC mode)
~ 500 600 mA
Trickle Charge Current
10 mA
Trickle Charge Threshold Voltage
3 V
Regulated Output(Float)Voltage
4.2 V

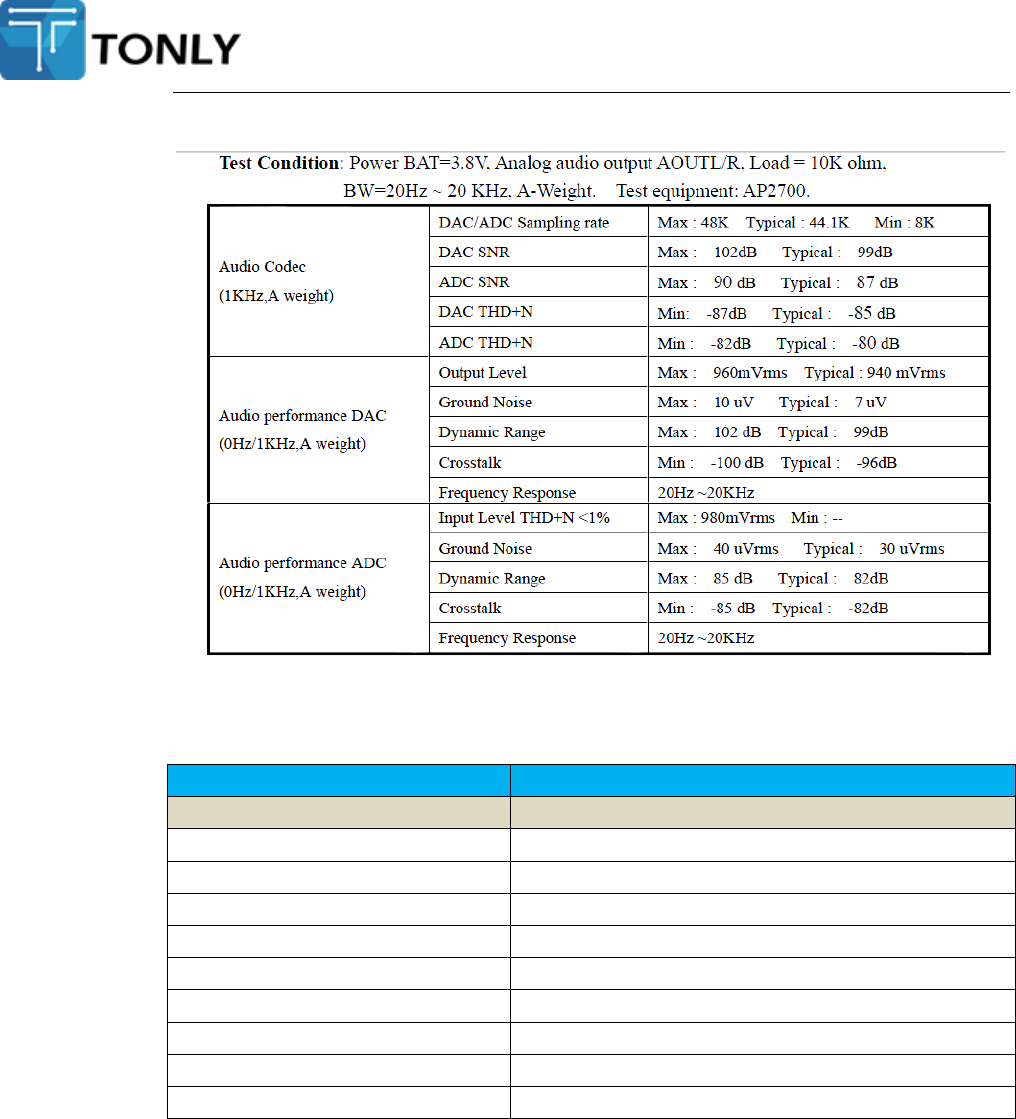

Audio feature
Tonly confidential
5.射频性能 RF Performance
Specification
Description
RF performance
Standard
Bluetooth 4.2
Frequency Band
2.402~ 2.48GHz
Modulation Method
GFSK；4/ΠDQPSK;8DQPSK
Maximum Data Rate
1 Mbps/2 Mbps/3 Mbps
Antenna
External antenna
Interface
UART, PIO, AIO, SPI,PCM,SPI
Operation Range
>=30 meters(Free Space)
Sensitivity
-90dBm at 0.1% BER
RF TX Power
<+10dBm
6.认证与法规信息 Certification& Regulation

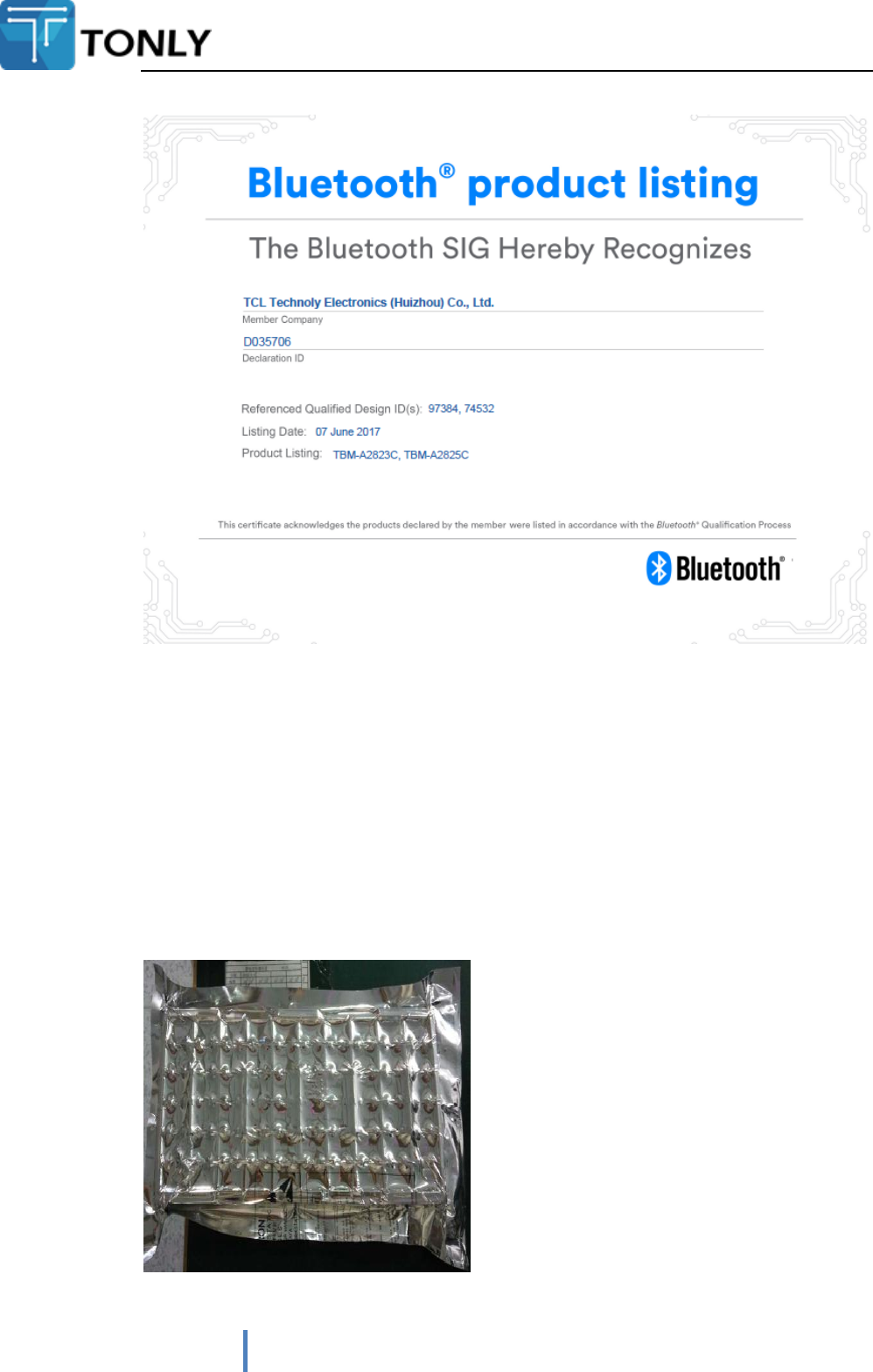

The BQB Certification：
Tonly confidential
TBM-A2823 Bluetooth Module Datasheet
13
TONLY ELECTRONICS HOLDINGS LIMITED Confidential
7.包装与订货说明 Package & Ordering Information
Assembly Information
60Pcs per every Blister tray
600Pcs per every Vacuum packing
Tonly confidential
8.环保声明 Green Policy
This module can meet ROHS&REACH compliance.

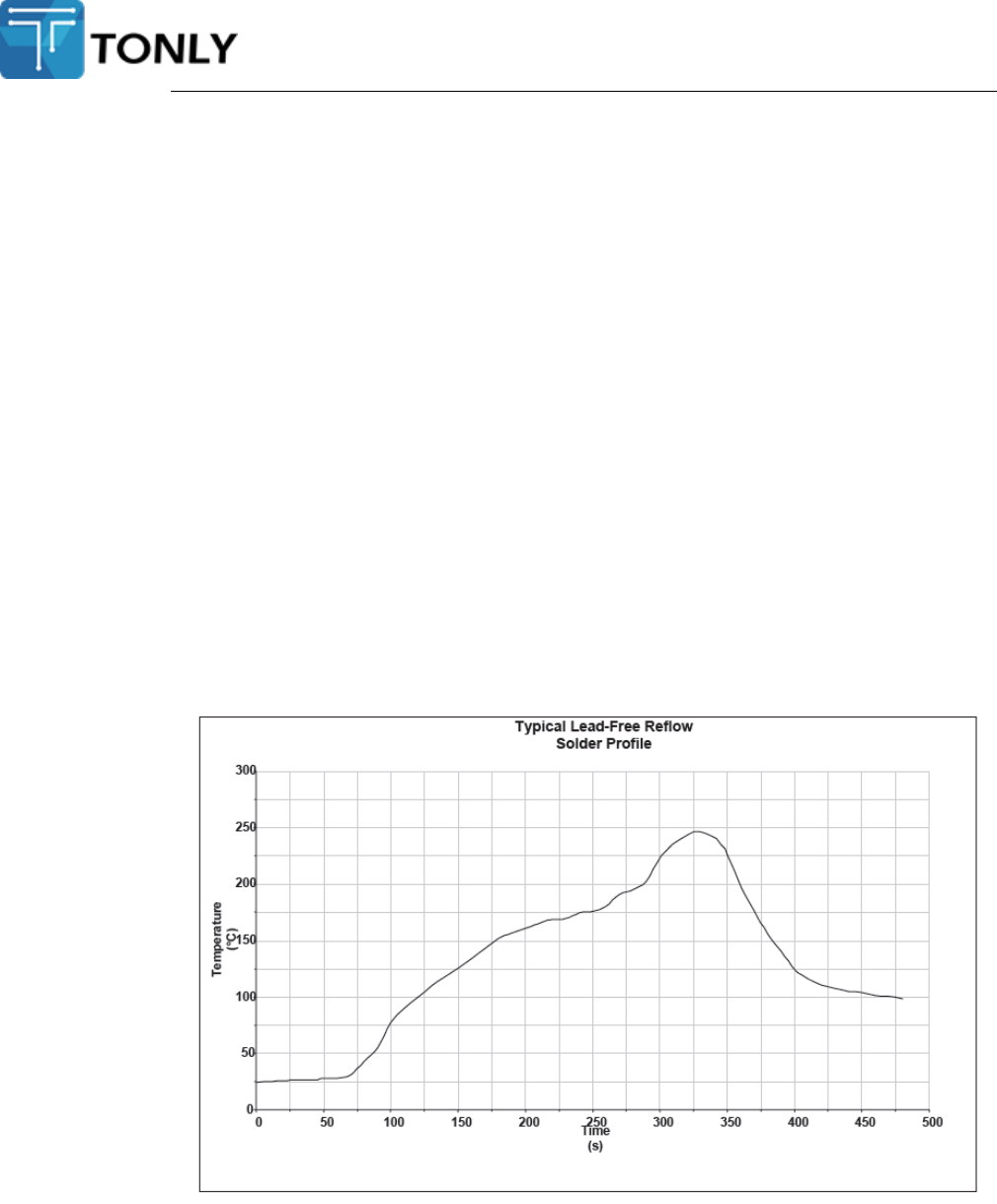

9.推荐过炉温度 RECOMMENDED TEMPERATURE REFLOW PROFILE
The soldering profile depends on various parameters necessitating a set up for each
application. The data here is given only for guidance on solder re-flow. There are four zones:
1. Preheat Zone - This zone raises the temperature at a controlled rate, typically 1-2.5°C/s.
2. Equilibrium Zone - This zone brings the board to a uniform temperature and also activates the
flux. The duration in this zone (typically 2-3 minutes) will need to be adjusted to optimize the out
gassing of the flux.
3. Reflow Zone - The peak temperature should be high enough to achieve good wetting but not
so high as to cause component discoloration or damage. Excessive soldering time can lead to
inter metallic growth which can result in a brittle joint.
4. Cooling Zone - The cooling rate should be fast, to keep the solder grains small which will give a
longer lasting joint. Typical rates will be 2-5°C/s.
Key features of the profile:
■ Initial ramp = 1-2.5°C/sec to 175°C ±25°C equilibrium
■ Equilibrium time = 60 to 180 seconds
■ Ramp to maximum temperature (245°C) = 3°C/sec max.
■ Time above liquidus temperature (217°C): 45-90 seconds
■ Device absolute maximum reflow temperature: 260°C
Tonly confidential
TBM-A2823 Bluetooth Module Datasheet
15
TONLY ELECTRONICS HOLDINGS LIMITED Confidential

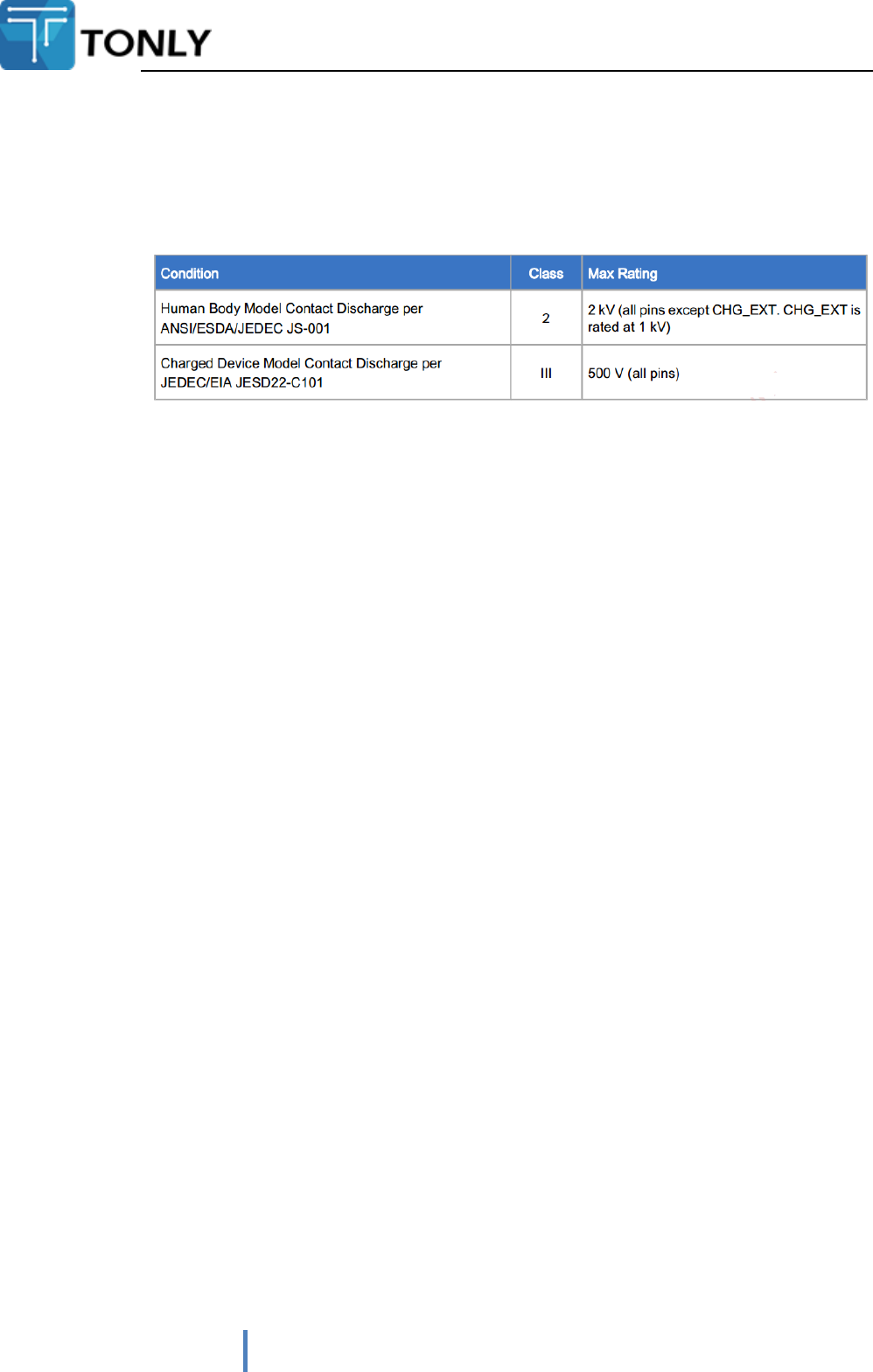

10.抗静电保护 ESD Protection
-------------------------END--------------------------
Tonly confidential
undesired operation.
2.This device must accept any interference received, including interference that may cause
1.This device may not cause harmful interference.
conditions:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
For IC:
This device complies with RSS247 of Industry Canada. Cet appareil se conforme à
RSS247 de Canada d'Industrie. This device complies with Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the
device. appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
prejudiciable, et (2) ce dispositif doit accepter tout brouillage recu, y compris un
brouillage susceptible de provoquer un fonctionnement indesirable.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du
Canada.
For FCC:
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
“The device must not be co-located or operating in conjunction with any other
antenna or transmitter.”
FCC RF Radiation Exposure Statement Caution: To maintain compliance with the
FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.
The device should be installed and operated with a minimum distance of 20cm between the
radiator and your body.
L'appareil doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateu
et votre corps.
FCC Conditions
Antenna Gain : 2dBi
Antenna Type: PCB Antenna
ZVA12
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna.
3) For all products market in United States, OEM has to limit the operation channels in CH1
to CH11 for 2.4G band by supplied firmware programming tool. And OEM shall
not supply any tool or info to the end-user regarding to change the domain selection.
As long as 3 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for
any additional compliance requirements required with this module installed (for
example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for
example certain laptop configurations or co-location with another transmitter), then
the FCC authorization is no longer considered valid and the FCC ID cannot be
used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may
be installed such that 20 cm may be maintained between the antenna and users (for
example: Access point, Wireless Router, Notebook, etc.). The final end product
must be labeled in a visible area with the following: “Contains FCC ID: ”.

Navigation menu
