TCT Mobile 440 One touch-H200 3G Router User Manual RAD440 V2

TCT Mobile Limited One touch-H200 3G Router RAD440 V2

RAD440 User Manual V2

User Manual
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. The antenna used for this transmitter must be installed
to provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
There is no country code option in the WIFI setting.
In the USA, only 11 channels are available for 802.11 operation, the following table
provides the frequencies for the 11 channels:
Channel Number
Center Frequency
(MHz)
1
2412
2
2417
3
2422
4
2427
5
2432
6
2437
7
2442
8
2447
9
2452
10
2457
11
2462
User Manual of Onetouch-H200 3G Router
i
Table of Contents
1 Hardware Description and Device connection .............................. 2
1.1 Hardware Description .................................................... 2
1.1.1 LED Indicator Status ............................................. 2
1.1.2 Interface Description ............................................. 3
1.2 Device Connection ........................................................ 3
1.2.1 Device Install ......................................................... 3
2 PC Setting ...................................................................................... 4
3 WIFI Connection ........................................................................... 6
4 Web Configuration ........................................................................ 7
4.1 Language Setting ........................................................... 8
4.2 Setup Wizard ................................................................. 8
4.3 Network Setup ............................................................. 10
4.3.1 WAN Interface Setup ........................................... 10
4.4 Wireless Setup ............................................................. 13
4.4.1 Basic Setup .......................................................... 13
User Manual of Onetouch-H200 3G Router
2
1 Hardware Description and Device connection
1.1 Hardware Description
1.1.1 LED Indicator Status
This 3G router contains 8 LED indicators. User can easily check the situation of
device by observing LED indicator’s status
Definition of LED Indicators follows below table.
LED Indicator
Status
Description
PWR
Light
Power on and normal operation
Off
Power off or failure
WPS
Light
Connected
Blink
Connecting
Off
Closed or not used
LAN1/2
Light
Lan port is on without data transporting
Blink
Lan port is on with data transporting
Off
Lan port is off
PPP
Light
Connected
Blink
Data transporting
Off
Connection off
WiFi
Light
WiFi radio is on without data transporting
Blink
WiFi radio is on with data transporting
Off
WiFi radio is off
PHONE
Light
In use
Off
Stand by
2G/3G
Light
Registered on network
User Manual of Onetouch-H200 3G Router
3
LED Indicator
Status
Description
off
Disconnected to network

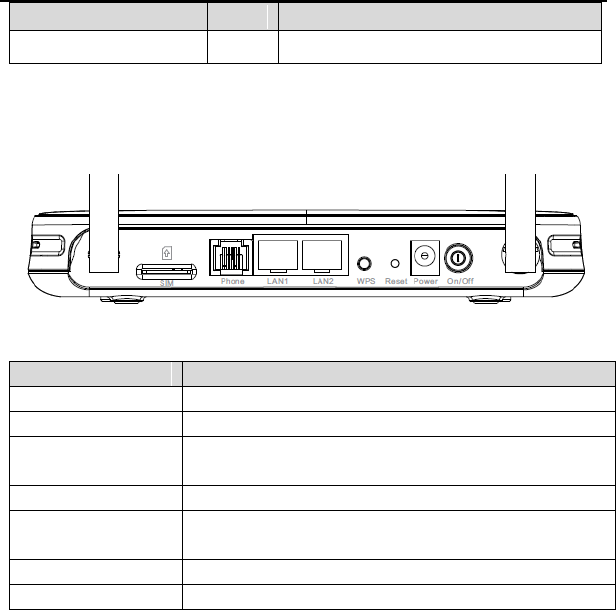

1.1.2 Interface Description
Interface and button description follows the below table.
Description
Place to insert SIM card
Voice interface (RJ11) for phone connection
LAN port for switch, concentrator and PC with network
adaptor
WPS PBC mode control button.
By pressing the button for 3-6 seconds, the system will
restore the default setting.
Interface for power adaptor
Press for power on/off
1.2 Device Connection
1.2.1 Device Install
Device should be connected by following procedure:
Step 1: insert the RJ45 cable in package to the LAN port of your device
Step 2: insert another port of RJ45 cable to your PC
Step 3: connect the power adaptor to the power slot of your device
User Manual of Onetouch-H200 3G Router
4
2 PC Setting
In default setting, the IP address of LAN of the device is 192.168.1.1, DNS server
address is 255.255.255.0，DHCP Server on.
When PC connected to Onetouch-H200, normally the user needs to set the TCP/IP
of PC according to follow procedure.

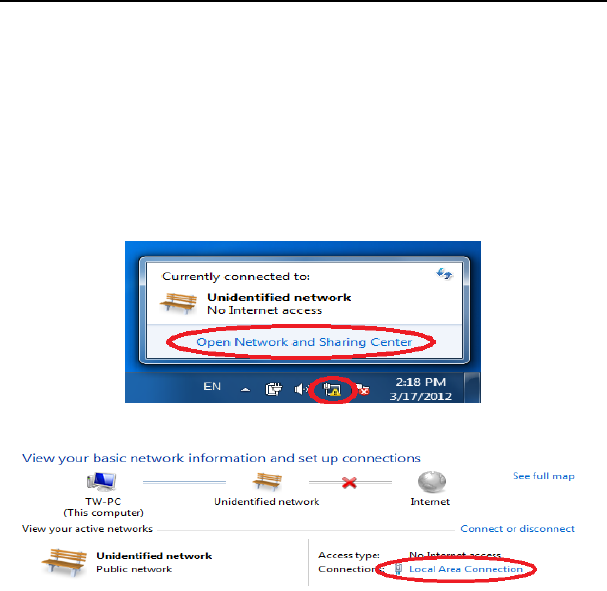

Step 1: Click the right bottom as red part, then click “Open Network and Sharing
Center”.
Step 2:Click “Local Area Connection”

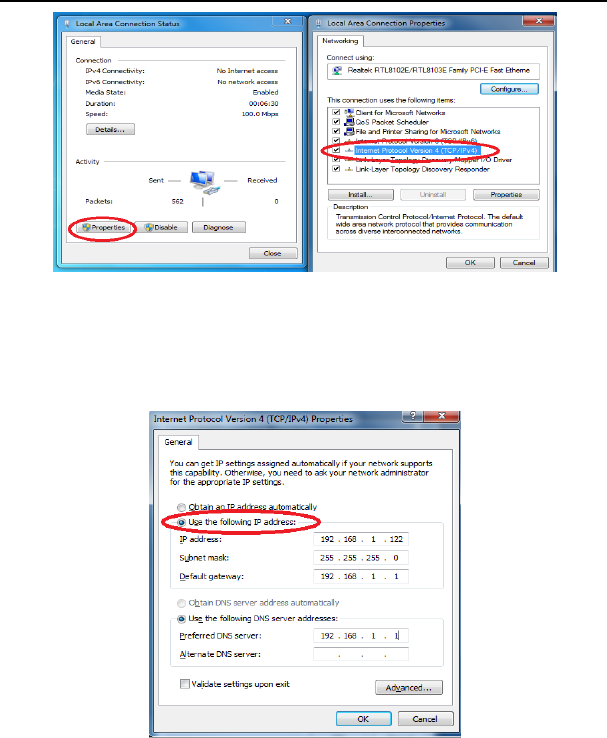

Step 3: Click the “Properties” of Ethernet, then double-click “TCP/IPv4”
User Manual of Onetouch-H200 3G Router
5
Step 4: Normally the user should choose “Obtain an IP address automatically, then
Click “OK”. Also the user can choose “Use the following IP address” as below
pictures, set “IP address” as 192.168.1.X (any figure from 2-254), DNS server
address as 255.255.255.0.

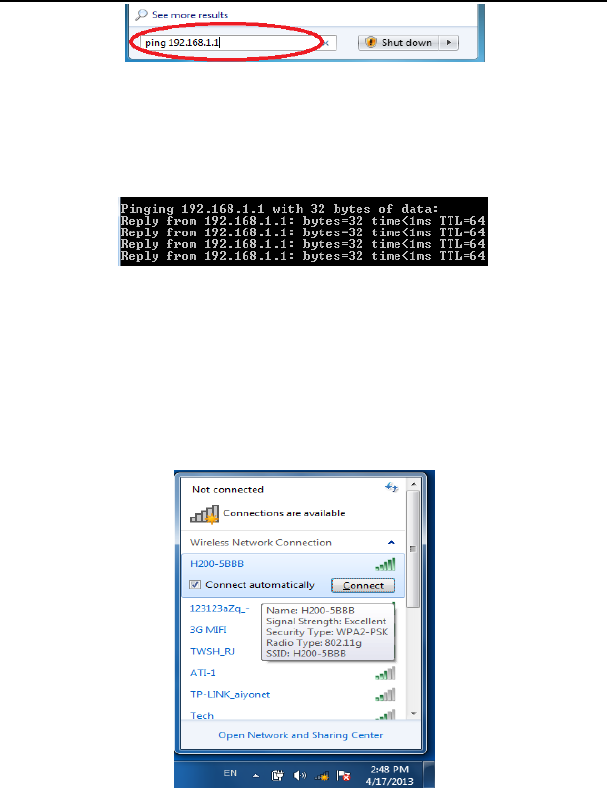

Step 5: after configuration, select “Start”, input “ping 192.168.1.1” in command to
check if PC and 3G router has been right connected.
User Manual of Onetouch-H200 3G Router
6
Note:
192.168.1.1 is the default IP address of LAN of the 3G router. If the IP address has
been changed, please modify the IP address to current one.
Step 6: if connected successfully, the page will show like below.
3 WIFI Connection
The connection of WIFI adaptor of PC to OneTouch-H200 should follow below
steps.
Step 1: Click “WIFI connection” in right bottom of desktop.
User Manual of Onetouch-H200 3G Router
7

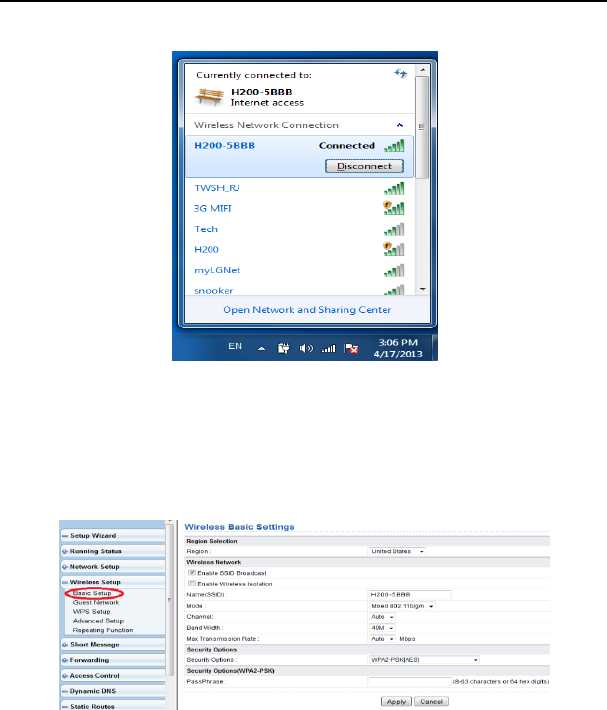

Step 2: Choose the right WIFI hotspot, click “Connect”, when it shows “connected”,
it means PC has been connected to WIFI.
Note:
Default SSID ofOneTouch-H200 is H200-XXXX (XXXX is the last four digits of its
Mac)
Step 3: If you have problem with the SSID of the device, please log on the device,
choose “Wireless Setup”-“Basic Setup”, then check the current SSID.
4 Web Configuration
User Manual of Onetouch-H200 3G Router
8
4.1 Language Setting
After log on Web page, user can set the language in the up-right part of web page.
Simple Chinese and English have been offered. User can choose either one of
them, then click “Apply”.
4.2 Setup Wizard
Through Setup Wizard, user can configure basic networkparameter.
Fast configuration should follow below procedures:
Step 1: After log on, click “Setup Wizard” to start the configuration.
Step 2: if user has good knowledge of router configuration, you can select “No. I Want
To Configure The Router Myself”. If user wants to use Setup Wizard to configure the
router, select “Yes”, then click “Next”, the page will show like below:
User Manual of Onetouch-H200 3G Router
9
Description of the page is like below table.

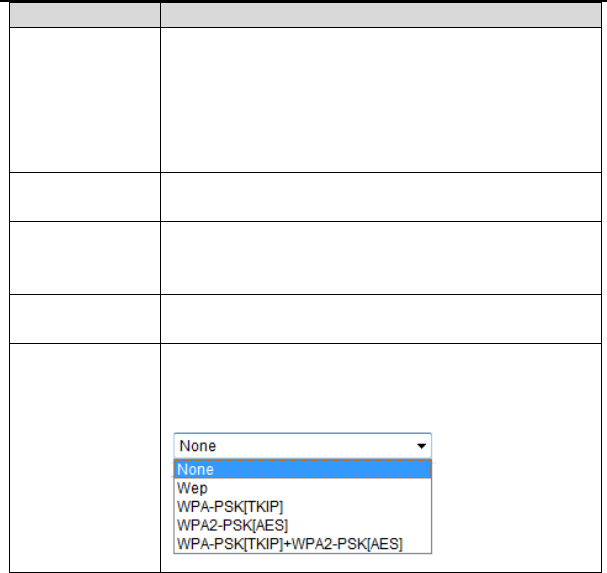

Domain
Description
ISP
Choose the ISP that provides the SIM card
Account
Input the account provided by ISP
Password
Input the password provided by ISP
Dial Number
Input the dial number provided by ISP (Default setting as
above)
Modem Baudrate
3G network transporting speed
Authentication
Method
Authentication method of 3G dial-up
APN
Input access point name
MTU
Maximum transmission unit
Connection Mode
Connection mode of 3G dial-up
Idle Timeout (In
minutes)
If connection mode set as “dial on demand”, set the idle
timeout here to apply non-operation disconnecting.
Domain Name
Server (DNS)
Address
Input the DNS provided by ISP. If you ISP didn’t provide
it,please choose “Get Automatically From ISP”.
Primary DNS
If necessary, input IP address of primary DNS.
Secondary DNS
If ISP provides another DNS, input the IP address here.

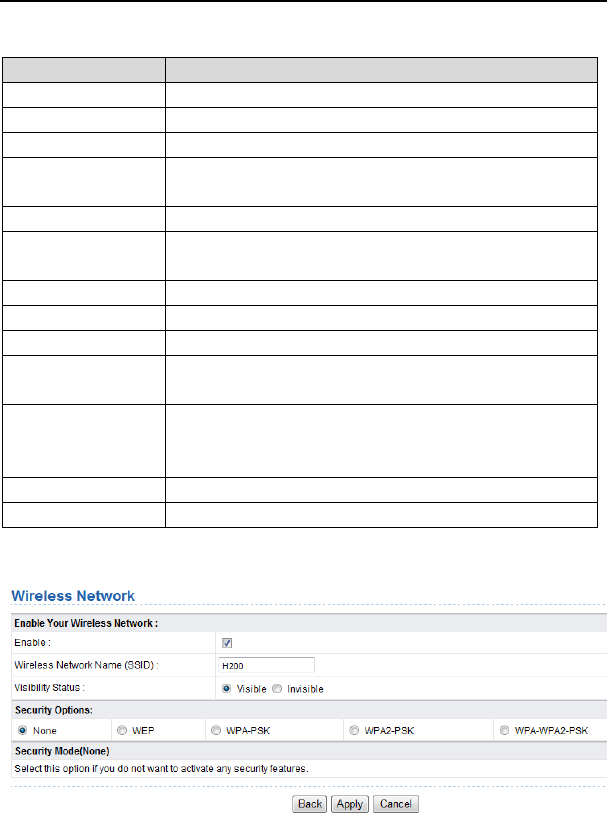

Step 3: Configure WIFI network
WIFI fast configure as below:
User Manual of Onetouch-H200 3G Router
10
Description of the page is like below page.
Domain
Description
Enable
When click-on, the WIFI LED indicator will be green-lighted,
client can connect to the router through WIFI
SSID
Wireless network name. Maximum the SSID can contain 32
character, including letter, digit, underline. The SSID
differs capital and small.
Visibility Status
Set the visibility of SSID
Security Options
Security option is used for encryption of the wireless
network, preventing from unauthorized save and load and
monitor. Five options have been provided. Please refer to
wireless setting part for the details.
After configuration, please click “Apply”, the wireless configuration will be finished
then.
4.3 Network Setup
4.3.1 WAN Interface Setup

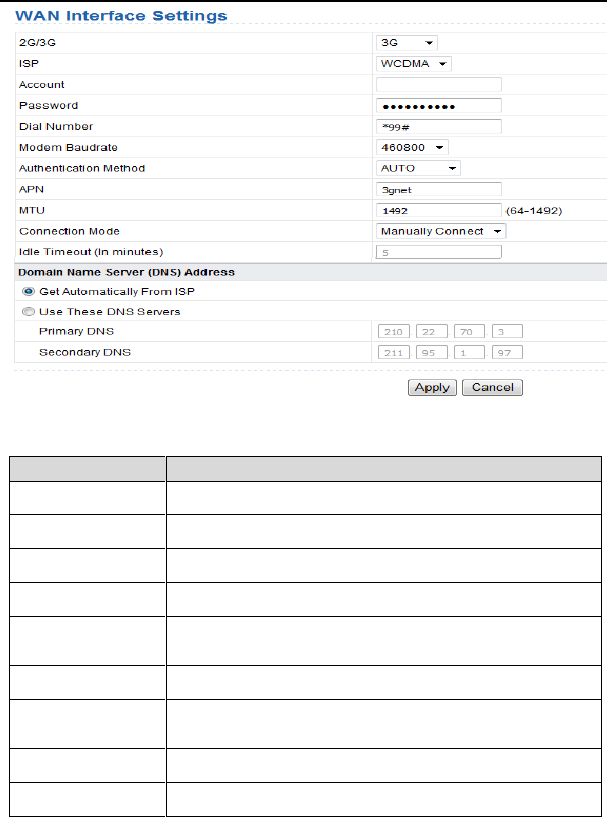

Click “Network Setting”-“WAN Interface Setting
User Manual of Onetouch-H200 3G Router
11
In above page, user can configure the relevant parameter according to actual
requirement.
Domain
Description
2G/3G
AUTO/2G/3G。
ISP
Choose the ISP that provides the SIM card
Account
Input the account provided by ISP
Password
Input the password provided by ISP
Dial Number
Input the dial number provided by ISP (Default setting as
above)
Modem Baudrate
3G network transporting speed
Authentication
Method
Authentication method of 3G dial-up
APN
Input access point name
MTU
Maximum transmission unit
User Manual of Onetouch-H200 3G Router
12
Domain
Description
Connection Mode
Auto Connect: when the user chooses “Auto
Connect”, the system will connect automatically. If
disconnected by other reason, the system will try to
re-connect every 10 seconds. If the user pay monthly
for the service, it is recommended to adopt this mode.
Dial on Demand: when the user choose “Dial on
Demand”, if there is any request for visiting the
internet, the system will dial up automatically. If
non-operation during the set idle timeout, the system
will disconnect by itself. This mode is suitable for user
who pays according time.
Manually Connect: when the user chooses “Manually
Connect”, he should dial up manually.
Idle Timeout (In
minutes)
If stand by time reaches the set value, the connection will
be cut.
Domain Name
Server (DNS)
Address
Input the DNS provided by ISP. If you ISP didn’t provide it,
please choose “Get Automatically From ISP”.
Primary DNS
If necessary, input IP address of primary DNS.
Second DNS
If ISP provides another DNS, input the IP address here.
User Manual of Onetouch-H200 3G Router
13
4.4 Wireless Setup
4.4.1 Basic Setup

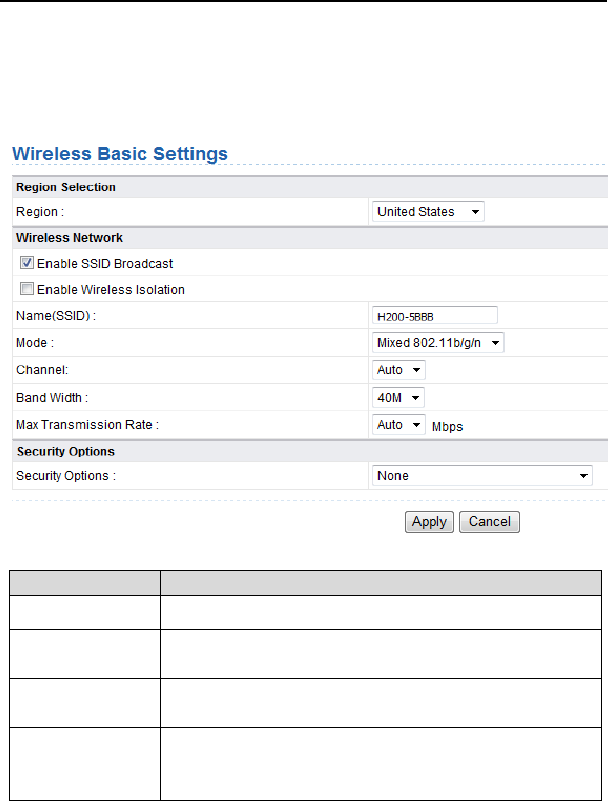

Click “Wireless Setup”-“Basic Setup”
Domain
Description
Region
Choose the region you are located in
Enable SSID
Broadcast
When enable SSID broadcast, the SSID will be
broadcasted in wireless network and visible to user.
Enable Wireless
Isolation
When enable wireless isolation, the same SSID user can’t
communicate with each other.
Name (SSID)
Wireless network name. Maximum the SSID can contain 32
character, including letter, digit, underline. The SSID
differs capital and small.
User Manual of Onetouch-H200 3G Router
14
Domain
Description
Mode
Choose the wireless mode, default as “Mixed 802.11b/g/n”
802.11b only–Maximum Rate is 11 Mbps。
Mixed 802.11b/g –Compatible with 802.11b and
802.11g
Mixed 802.11b/g/n –Compatible with 802.11b, 802.11n
and 802.11g
Channel
Choose wireless network channel. Default set as “Auto”,
the device will search for the best available channel.
Band Width
Choose the right band width. Band width of 20M provides
maximum 130Mbps rate. Band width of 40M provides
maximum 270Mbps.
Max Transmission
Rate
All the supported rates have been listed. Please choose the
right one as the maximum transmission rate.
Security Options
Security option is used for encryption of the wireless
network, preventing from unauthorized save and load and
monitor.

Navigation menu
