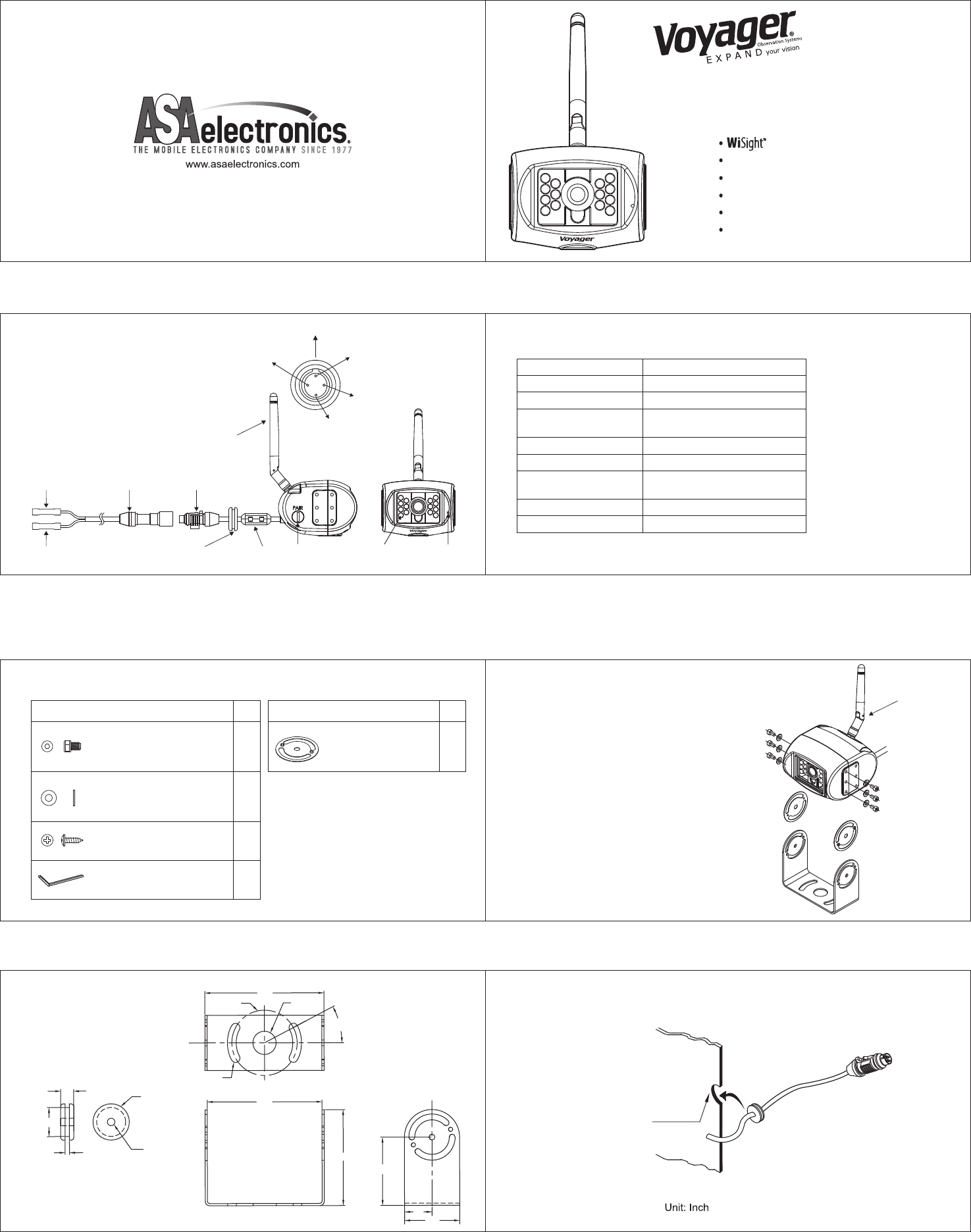

TECH CAST MFG WVCMS10B201101 Digital Wireless Camera User Manual WVCMS10B V1 2
TECH-CAST MFG. CORP. Digital Wireless Camera WVCMS10B V1 2
User manual
Hex Socket Head M4 X 6L
Stainless screws
Flat washer 4.5 X 9.5 X 1mm
Stainless
Tapping P/H w/washer 5 X 16mm
Stainless
Allen
Specifications
6
6
4
1
Q’ty
Camera to bracket hardware
Screw For Use
Installation
Hex Socket Head M4 X 6L Stainless screws
Flat Washers 4.5x9.5x1mm Stainless
Allen wrench
WVCMS10B - DIGITAL WIRELESS
COLOR CMOS CAMERA
WVCMS10B Features:
Digital Wireless Technology
High Performance CMOS Sensor
IR LED low Light Enhancement
Waterproof (IPX6)
Wide View Angle
Integrated Audio Microphone
Antenna Vertical
Recommended grommet Hole
Ø.63
Ø1.77
Ø.24
2-PLCS.
28°
TYP.
3.23
3.11
3.228
1.85
1.50
.75
Bracket Mtg.
Hole Dimensions
Unit : Inch
Ø.98
Ø.20
.12
.79
.35
Ø 0.75”
Washer 37.5 X 5 X 0.5mm
PP
Specifications Q’ty
2
Contents:
Camera
Bracket
Hardware Kit
Installation and Pin Out:
Specifications
Mounting Type
Image sensor
External type
1/3” CMOS camera
Resolution 320 TV lines
Water resistance IPX6
92(W) X 76(H) X 83(D)mm
3.6(W) X 3.7(H) X 3.3(D)Inch
View angle
Dimension
Working temperature
93°(H), 66°(V), 117°(D)
-20°C ~ +65°C
Weight Approx. 0.79kg / 1.74lbs
Min illumination 1.0 Lux at F2.0
0 Lux with IR on
Cable Connector
End View
MicrophoneLED Assisted
Illumination
Arrow Locking Location
No connection No connection
12V DC
Ground/Shield
Grommet To Seal Through
Vehicle Exterior
PAIR
Waterproof Camera
Connector
Antenna Vertical
Standard Cable
Connector
Red
12V DC
Ground/Shield
Black
Model: WVCMS10B
FCC ID : ZCPWVCMS10B201101
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Notice:
The changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
Important Note:
To comply with the FCC RF exposure
compliance requirements, the antenna(s)
used for this transmitter must be installed to
provide a separation distance of at least 20
cm from all persons and must not be co-located
or operating in conjunction with any other
antenna or transmitter. No change to the
antenna or the device is permitted. Any change
to the antenna or the device could result in the
device exceeding the RF exposure requirements
and void user’s authority to operate the device.
Core
