User Manual and Quick Start Guide Page 1
Multimedia Display Unit with GPS and
wireless communications capabilities
User Manual and Quick Start Guide
RegulatoryInformation
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. such modifications could void the user’s authority to operate this equipment
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with Industry Canada RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes:
(1)
il ne doit pas produire de brouillage et
(2)
l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage
est susceptible de compromettre le fomctionnement du dispositif.
FCCID:2AN3C-TFM10,IC:23310-TFM10
ContainFCCID:QISMU709S-6
The distance between user and products should be no less than 20cm
Dimensions

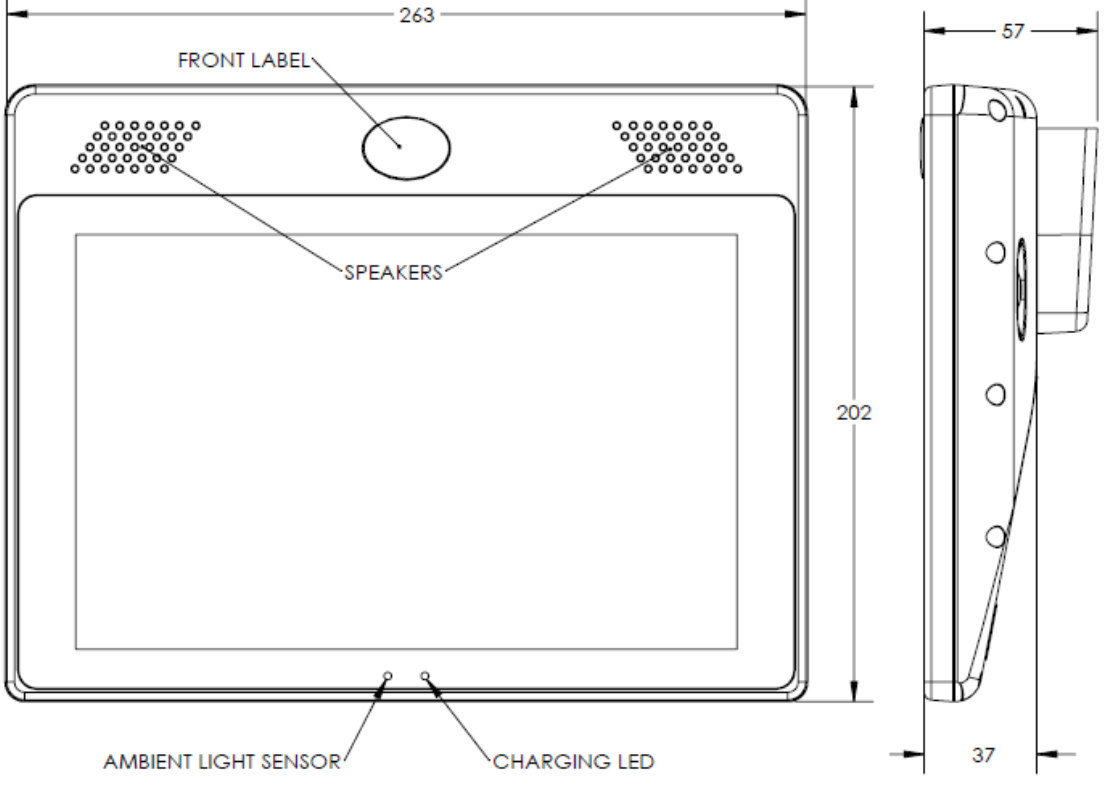

Front and Side View

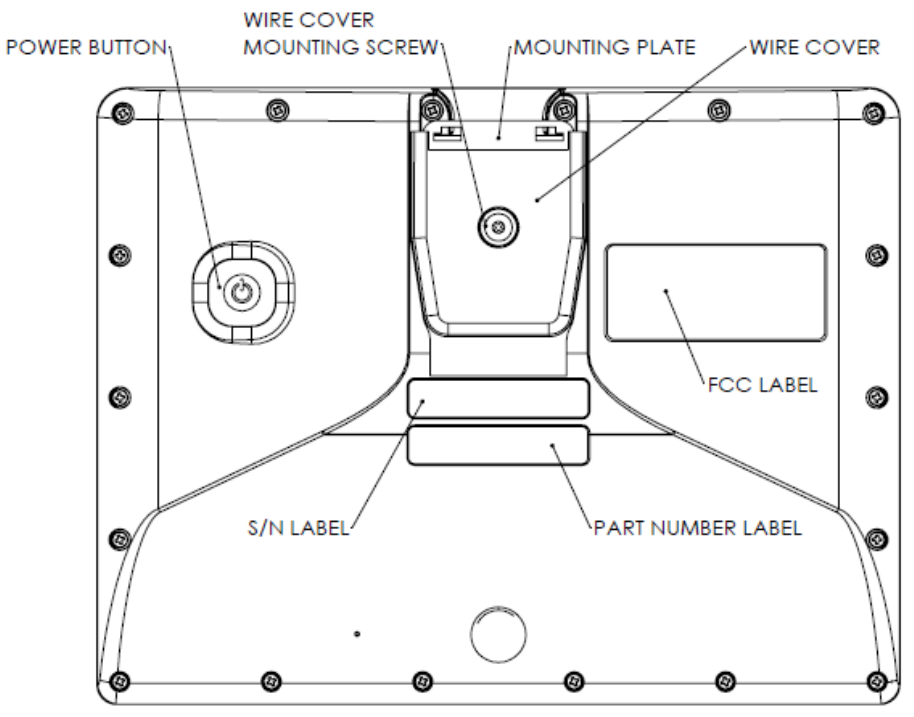

Rear View

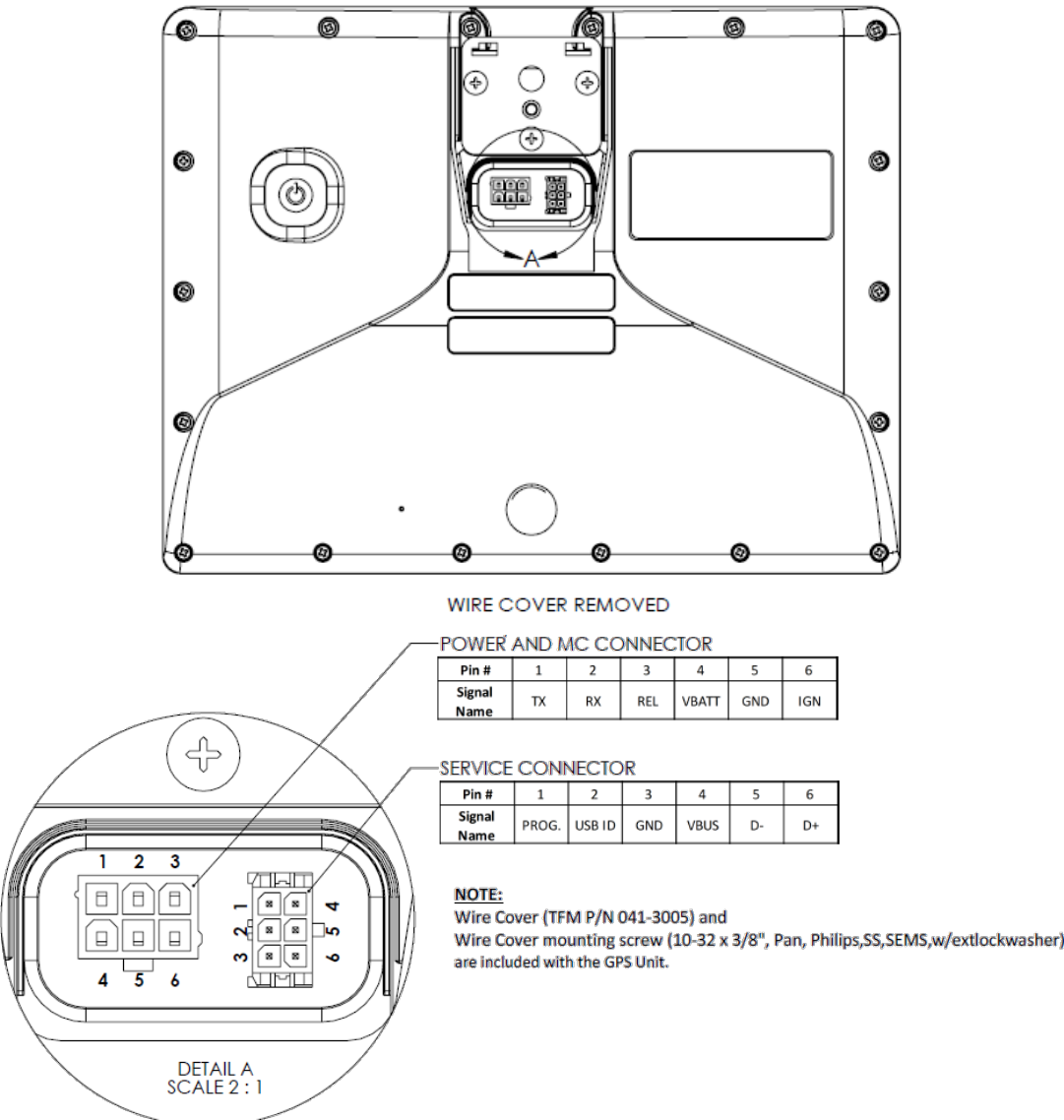

Connector
Hardware Specifications
Features
Description
OS
Google Android 5.1
Processor
Quad Core – 1.4 GHz with graphics accelerator and Internal
Temperature Sensor.
Memory
Min 2GB RAM + 8GB (min) FLASH
Memory Expansion
MicroSD Card, Up to 32GB
Cellular Modem
GSM/GPRS/EDGE/WCDMA/HSPA
GSM：850/1900MHz
WCDMA：850/1900 MHz
SIM Card
1.8 / 3.0V standard SIM holder.
Bluetooth
Bluetooth 4.0 support A2DP - FCC pre-certified.
Wi-Fi
Wi-Fi 802.11 b/g/n
GPS
Yes, fast fix technology.
NFC
13.56 MHz - ISO/IEC 14443 (ACTIVE/PASSIVE)
Antennas
GSM & WCDMA internal embedded antenna,
2.4G BT&WiFi internal embedded antenna, NFC internal antenna
Display
10.1in (1280 x 800, 160 dpi) IPS LCD 700 nits LED backlight brightness
Touch Panel
10-point Capacitive
Ambient Light Detector
Control display brightness
Battery
6,000 mAh + Internal Temperature Sensor; LiFePO4 chemistry.
Buttons
Power Button
Motion Detection
Tri-axis accelerometer, G-sensor
Speakers
Stereo, min 2W per channel speaker support.
Microphone
Low noise, suitable for voice capture, communication apps.
USB
USB2.0 X 1 port USB OTG
Serial Interface
RS232 TTL level, ESD, overvoltage protection.
Automotive Interface
CANBUS, ESD, overvoltage protection.
Camera
5 Mega Pixels – support only (camera not present)
Software User Guide

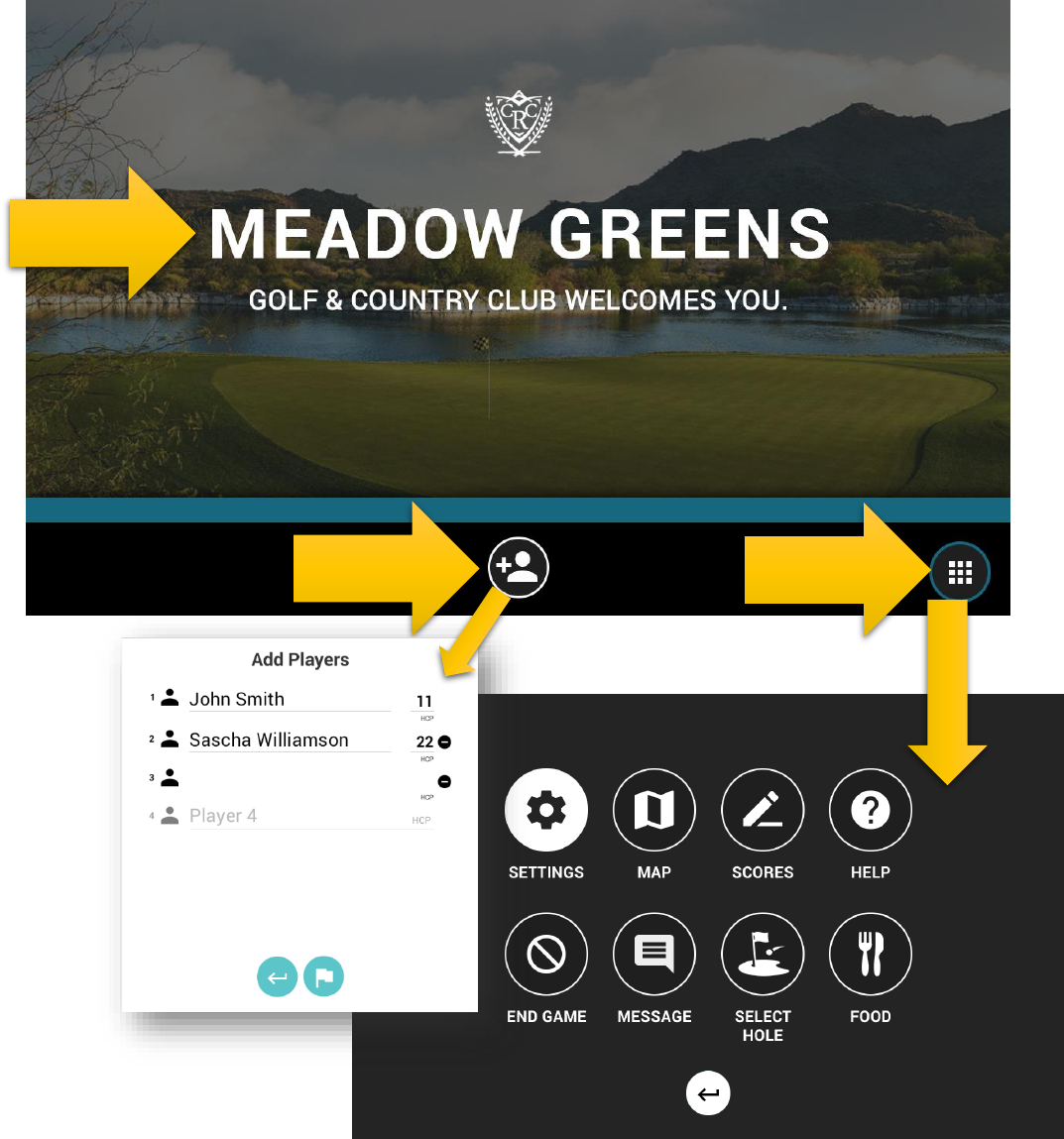

Welcome Screen
After power up, the GPS unit will display a message with information about the golf facility it operates on.
The user has access to a menu with options to enter their name and golf handicap for score keeping and other options.
Add Players
*optional*
Access main
menu
Golf Course
Information

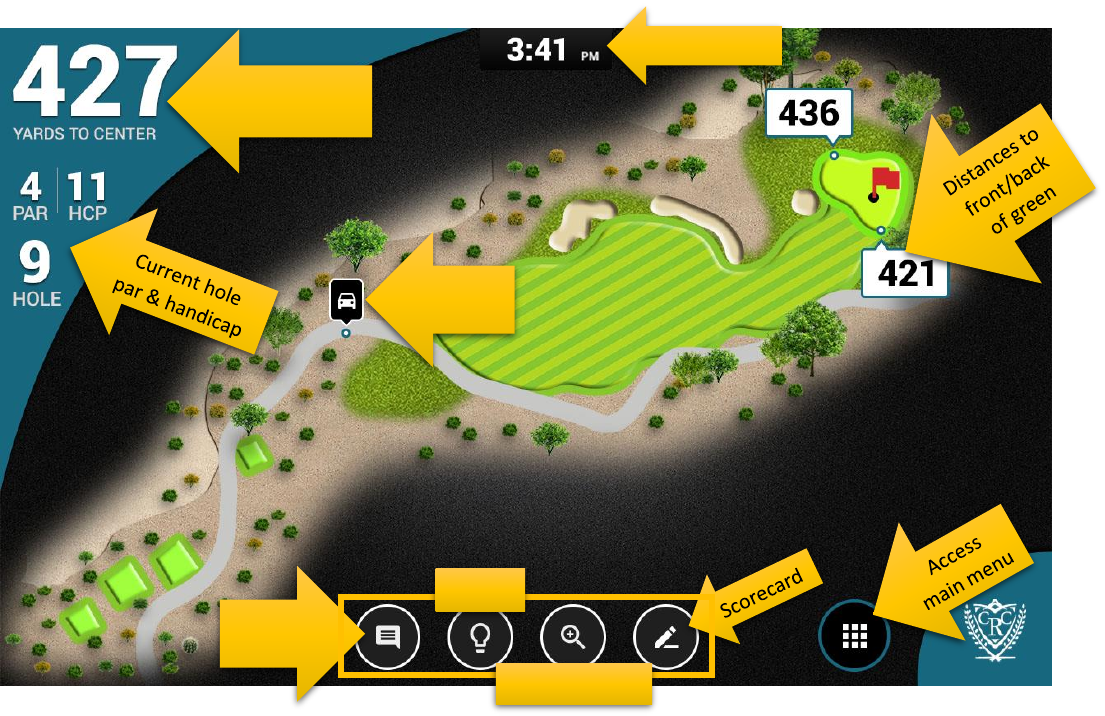

Main View During Game • Hole View
Once the golfer arrives on the first hole, the unit automatically transitions into play mode and shows the current hole.
Distance to
center/pin
Golfer
Location
Current Time
Send
Message
Protip
To Greenview

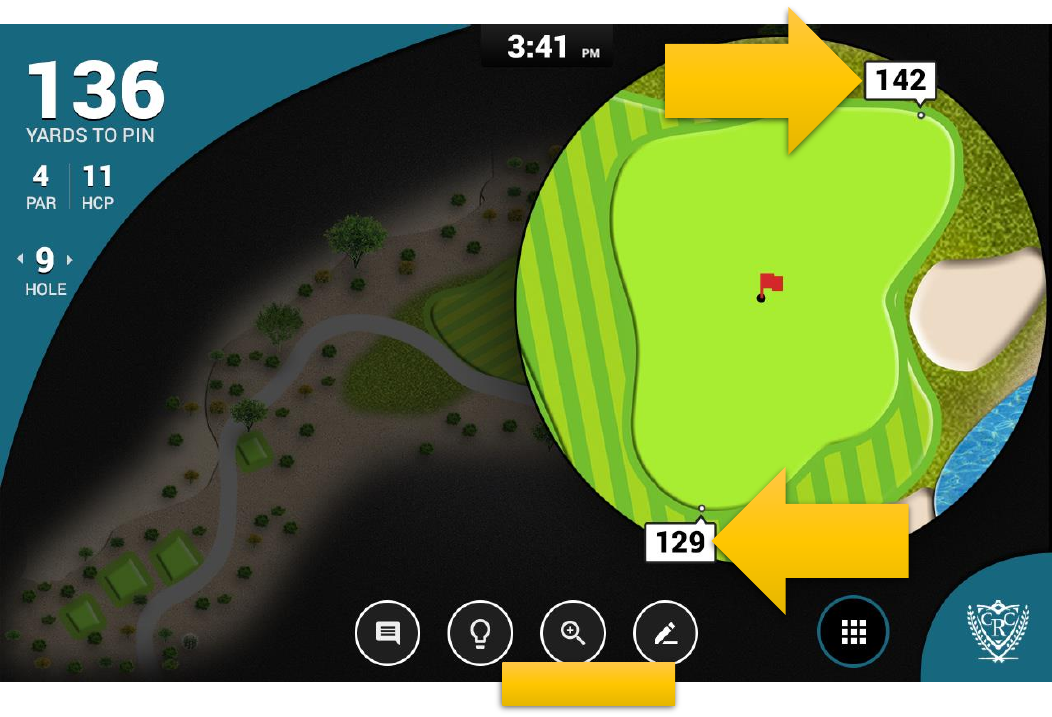

Main View During Game • Zoomed-in Green View
Distance to
back of green
Distance to
front of green
To Hole View

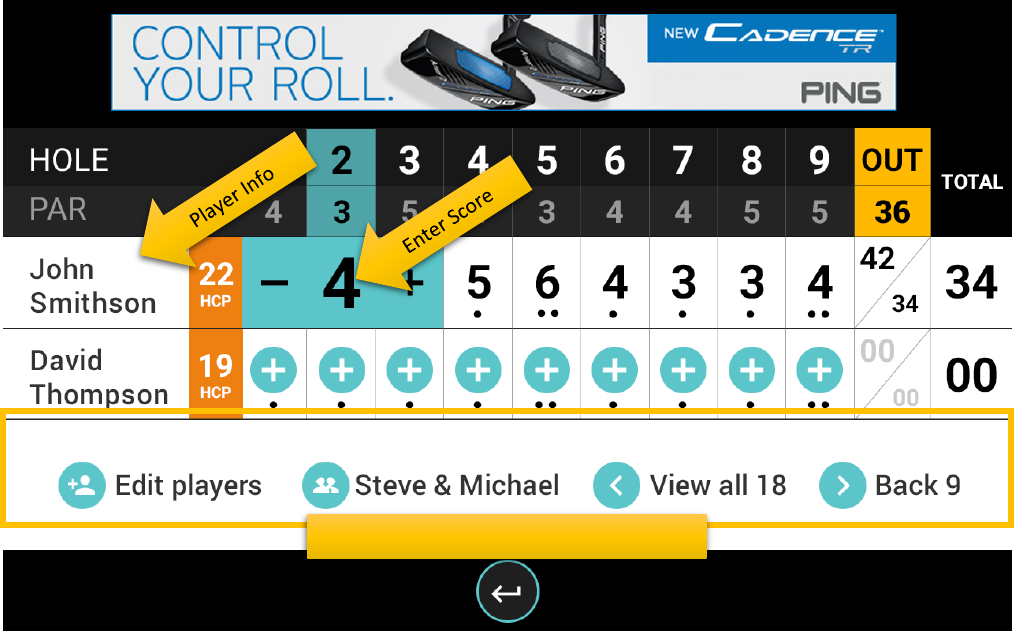

Scorecard
Once a game is started, players can enter hole-by-hole scores. Handicap stroke holes are automatically allocated and
net scores calculated as the round progresses.
Edit Players and Review Scores

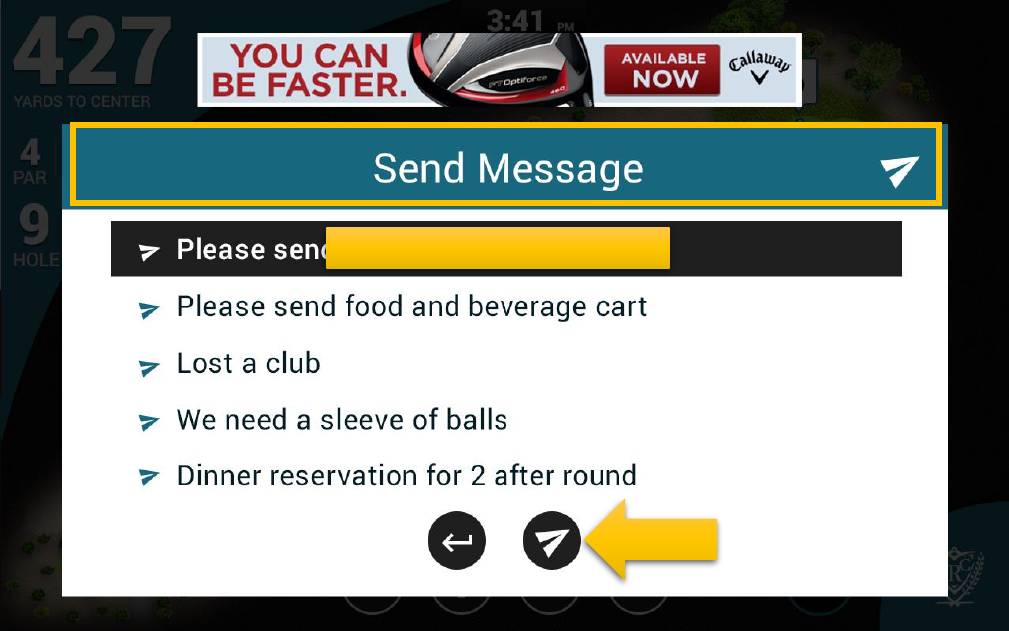

Messaging
At any time during the round, golfers may send messages to the clubhouse.
Select a message
Send

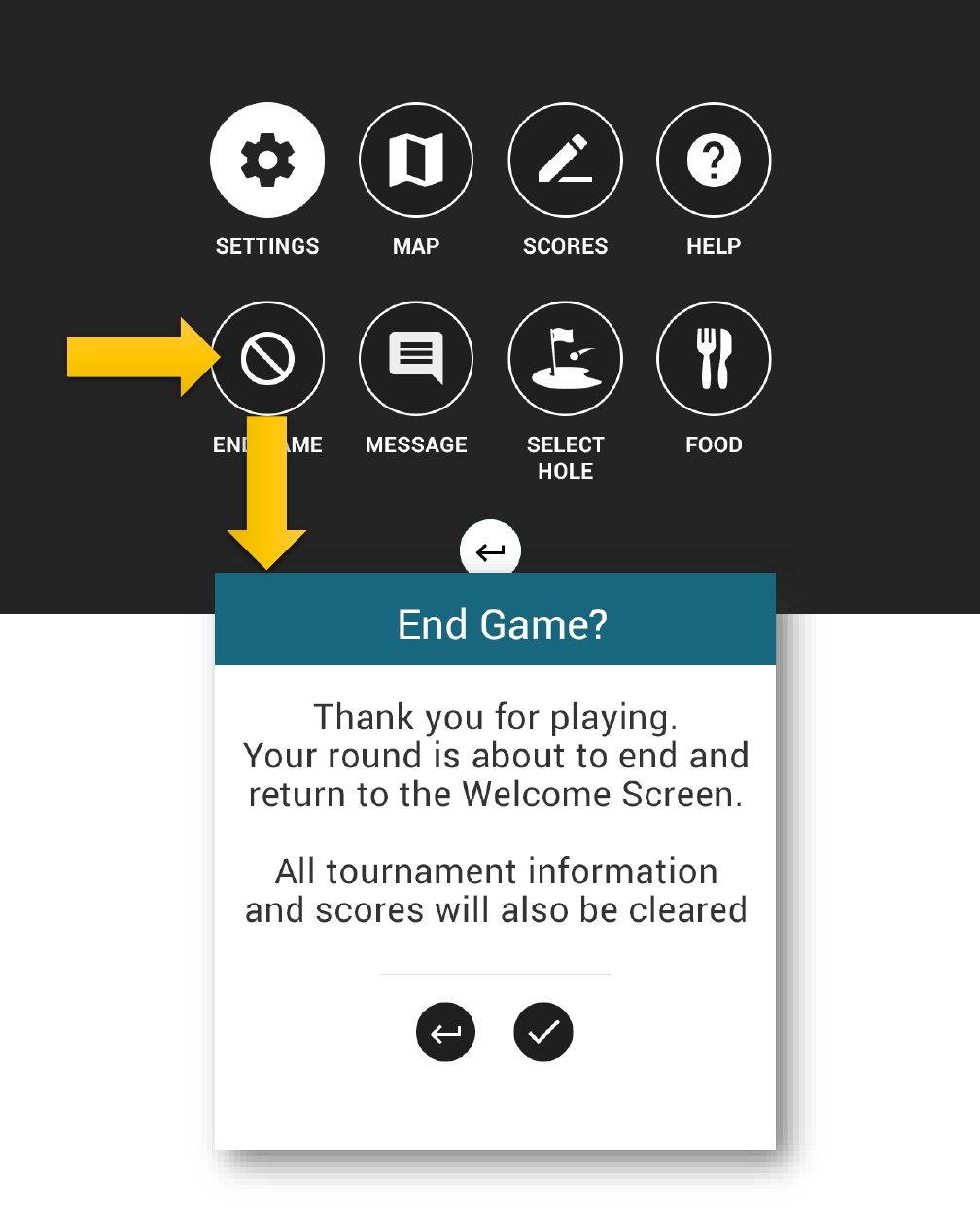

Ending a Game
When a round is completed, the unit will automatically return to the welcome screen and clear player information
within 15-30 minutes. To end a game right away, select ‘End Game’ from the main menu.
The unit will return to the welcome screen, ready for a new round.
End Game
