Bilbao
Bilbao
Please follow the instruction
in this guide to enjoy the best sound.
Bilbao
Increase the volume
Decrease the volume
Short press to turn on speaker. Long press to turn off.
When the speaker is on, short press to switch between
Bluetooth (blue light) and AUX (green light)
Short press for Bluetooth discovery mode. Long
press for Bluetooth "Twins" mode (see next section).

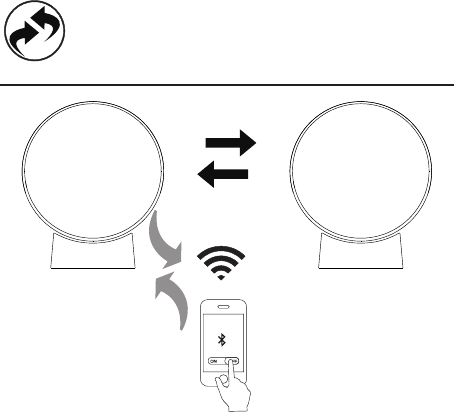

1) Bluetooth Twins mode is only available with two
TIC Bilbao speakers.
2) Turn on both speakers in Bluetooth mode.
3) Long press the "M" buttons on both speakers
until you hear a double tone and see quick blue
flashing light.
4) If successfully paired, a second double tone is
played. A blue light would indicate the Main
speaker while a red light would indicate the
Pairing speaker.
5) Connect audio device to Main speaker and play
music as previously instructed.
Note:
1) While in "Twins" mode, control will be only be available via the Main speaker (except for the power off function
in the Pairing speaker).
3) If powered off and back on, the two speakers should reconnect automatically. If not, please repeat the step
above to set up "Twins" mode.
2) The Main speaker will act as the left channel speaker while the Pairing speaker will act as the right channel speaker.
Bluetooth Twins
(additional speaker required)

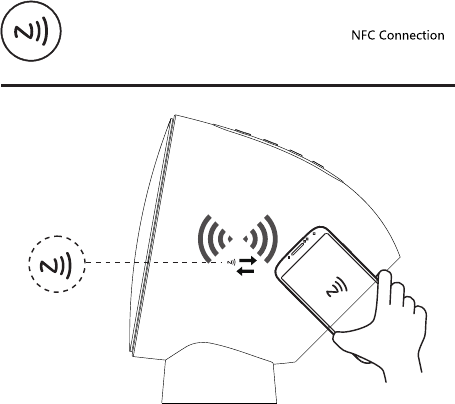

1) Turn on NFC on a NFC-enabled device. (Refer to device's instruction manual if unsure on how to turn
on NFC.)
2) Put device near the NFC area and follow instruction on device when prompted for easy pairing.

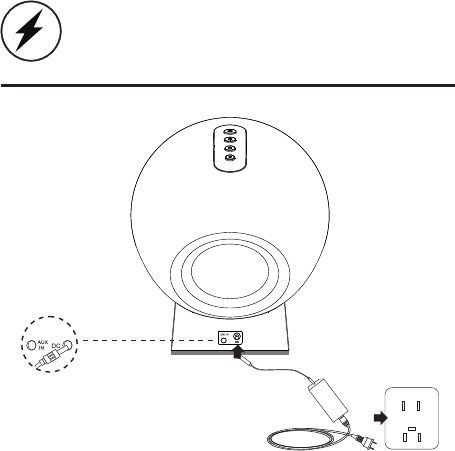

Power Adapter Connection

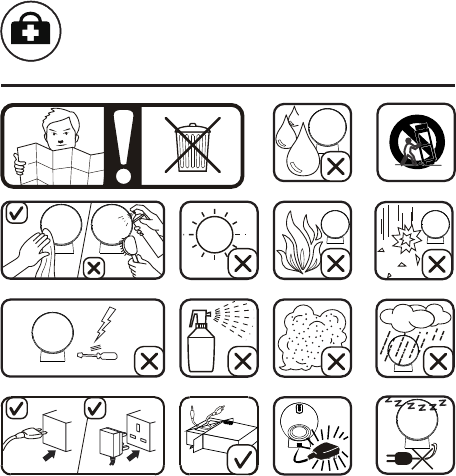

Safety and Maintenance
Bilbao/BA2
8.1" x 7.4" x 7.4"
NFC for easy pairing
Optional stereo "Twins" mode
(additional speaker required)
Plastic/ Cloth
Product: Bluetooth Speaker
1)Read these instructions.
2)Keep and follow all instructions.
3)Heed all warnings.
4)For indoor products, do not use this apparatus near water. For outdoor products, please do
not expose apparatus to water longer than its intended time and level.
5)Clean only with a dry cloth.
6)Do not install this apparatus near any heat sources such as radiators, heat registers,
stoves or other apparatus (including amplifiers) that produce heat.
7)Do not block any ventilation openings. Install this apparatus in accordance with the
manufacturer's instructions.
8)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A ground-type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
9)Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
10)Use only attachments and accessories specified by the manufacturer.
11)Unplug this apparatus during lightning storms or when unused for long periods of time.
12)Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, or the apparatus
had been exposed to rain or moisture, does not operate normally or has been dropped.
13)Do not expose this apparatus to dripping or splashing, and ensure that no objects filled
with liquids, such as vases, are placed on the apparatus.
14)To disconnect this apparatus from the AC mains completely, disconnect the power supply
cord plug from the AC receptacle.
15)The mains plug of the power supply cord shall remain readily operable.
16)Do not expose batteries to excessive heat such as sunshine, fire, or the like.
17)This is not a children's product and is not intended for use by children under 14 years old.

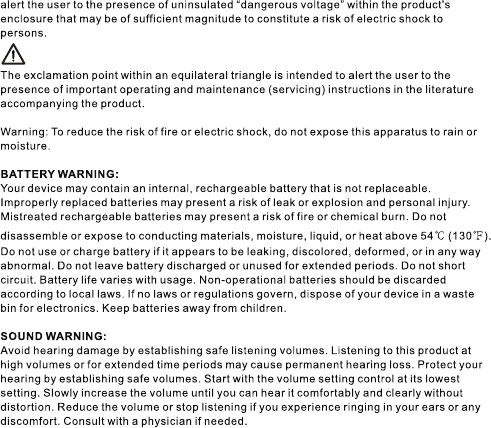

CAUTION:
Risk of Electric Shock. Do Not Open.
The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to
IMPORTANT SAFETY INSTRUCTIONS:
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Note 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Note 2: 1.Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
2. The minimum separation generally be used is at least 20 cm.
