1. Users manual
2. Users Manual

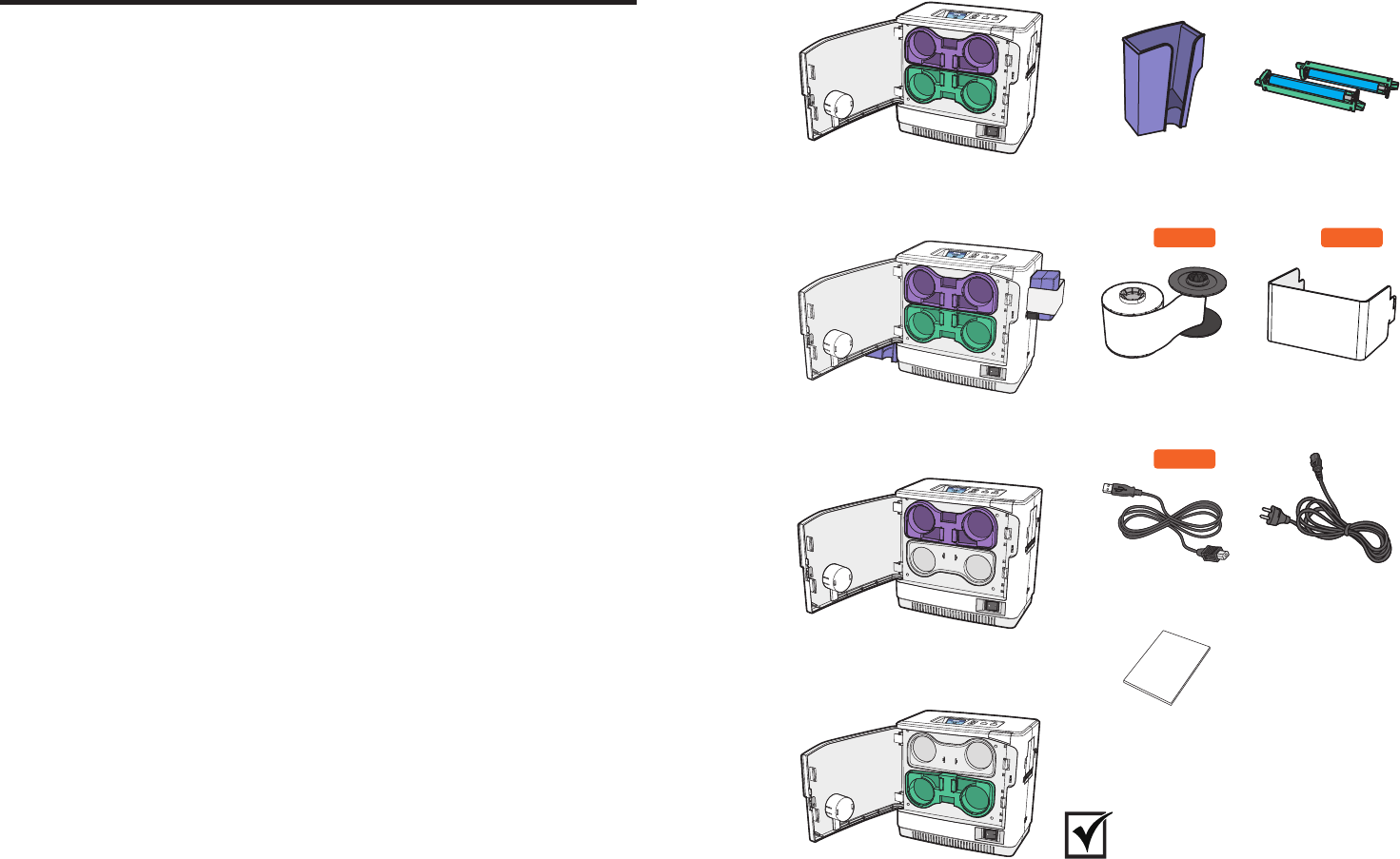

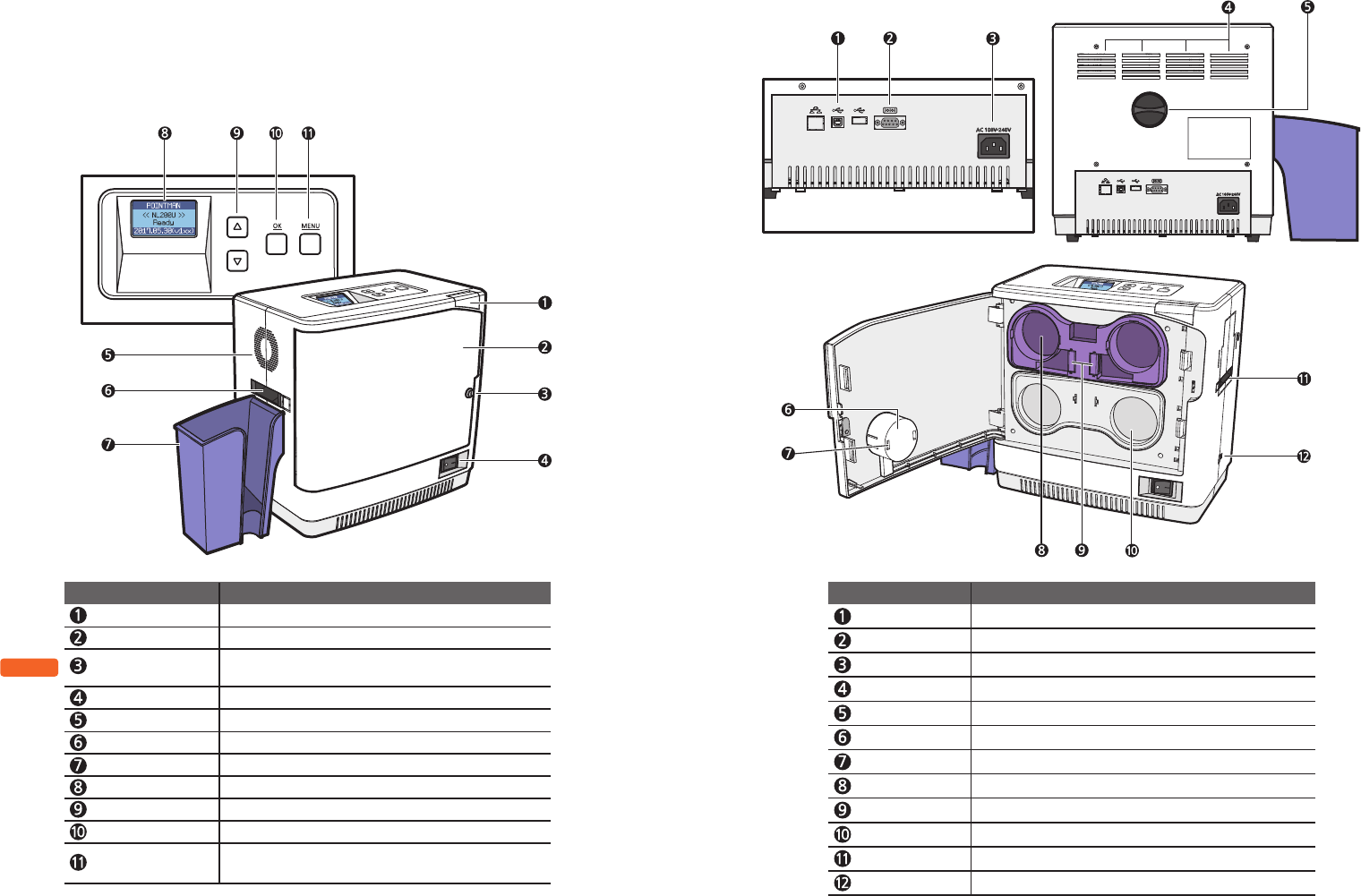

Users Manual

24 25

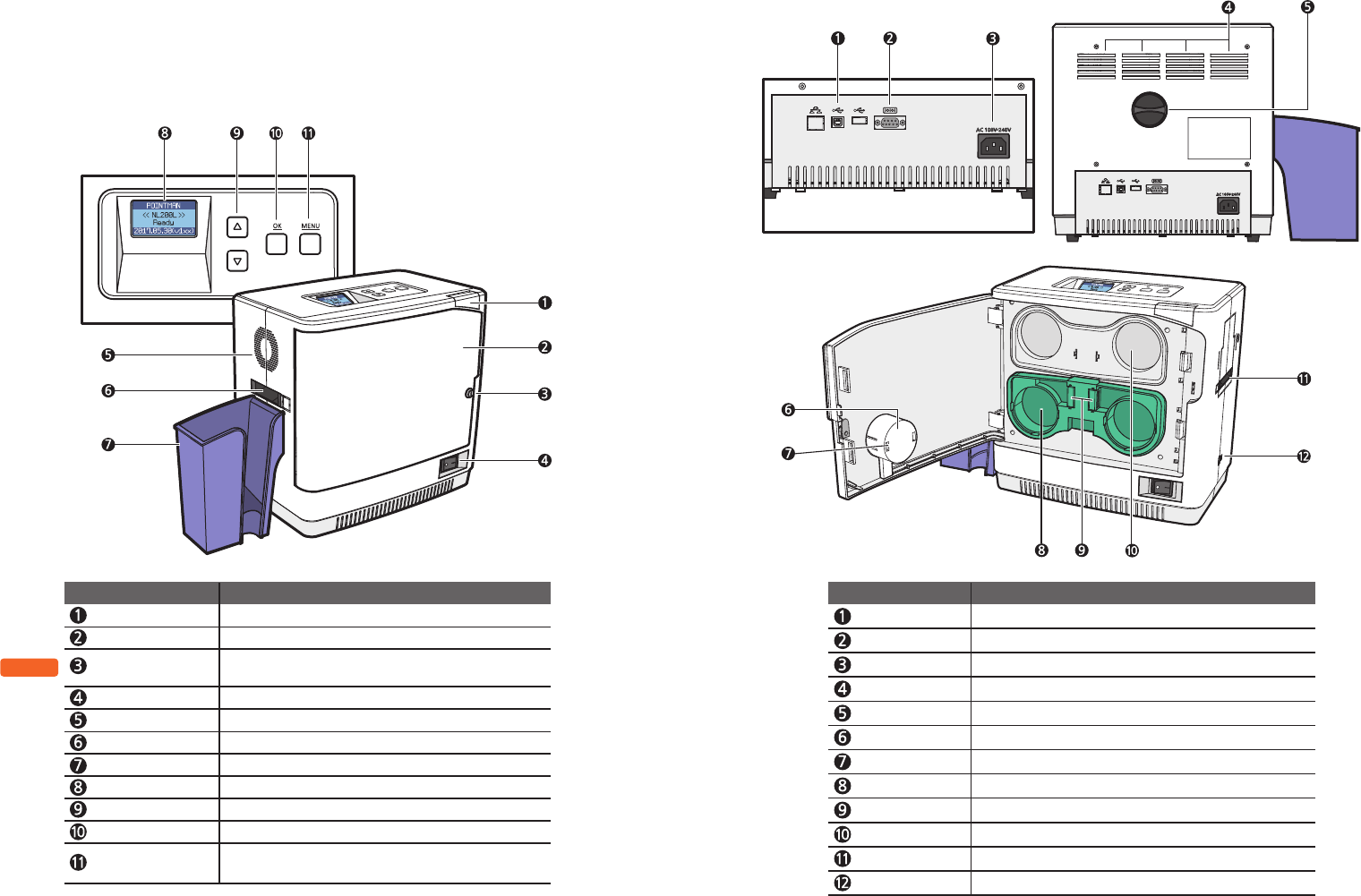

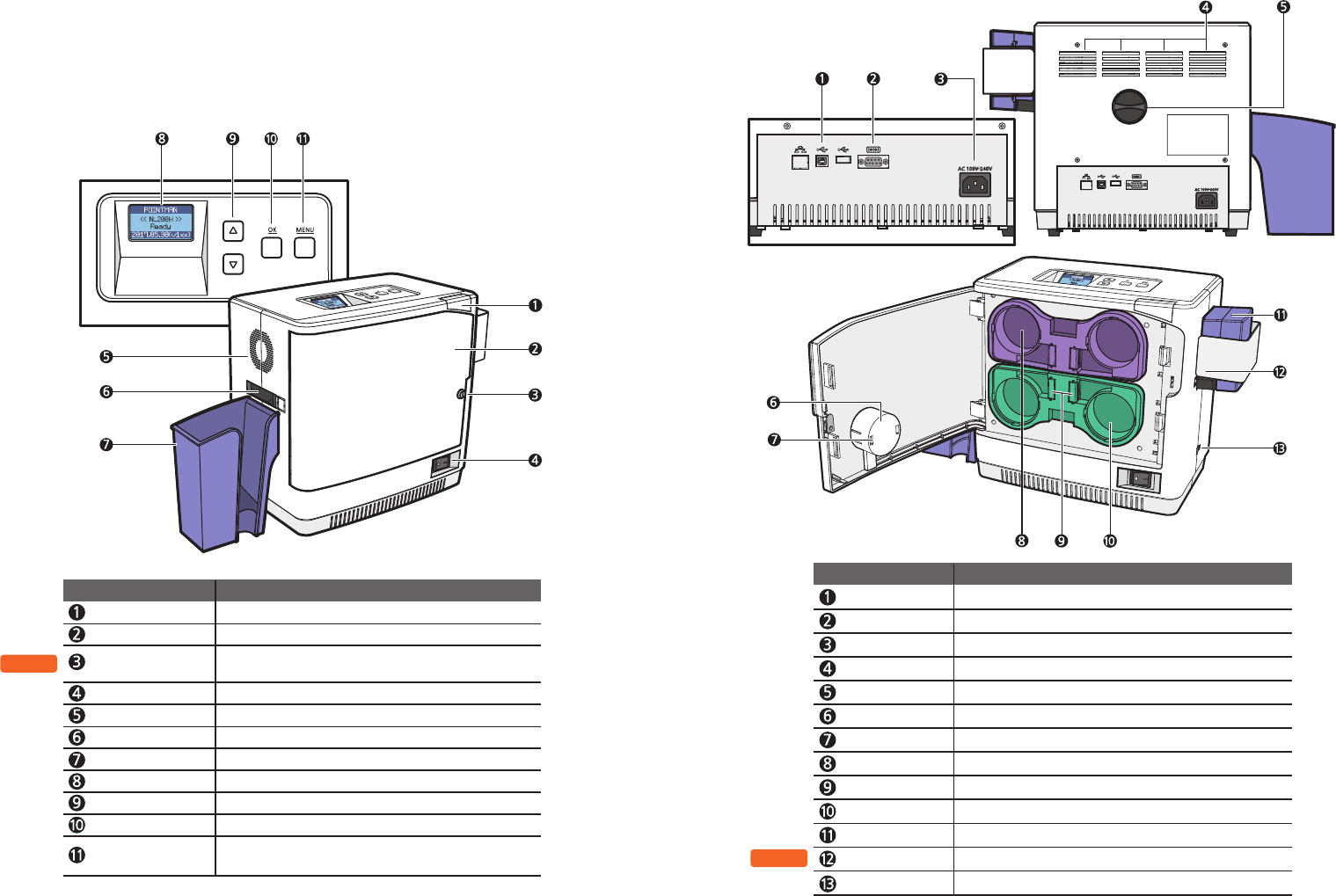

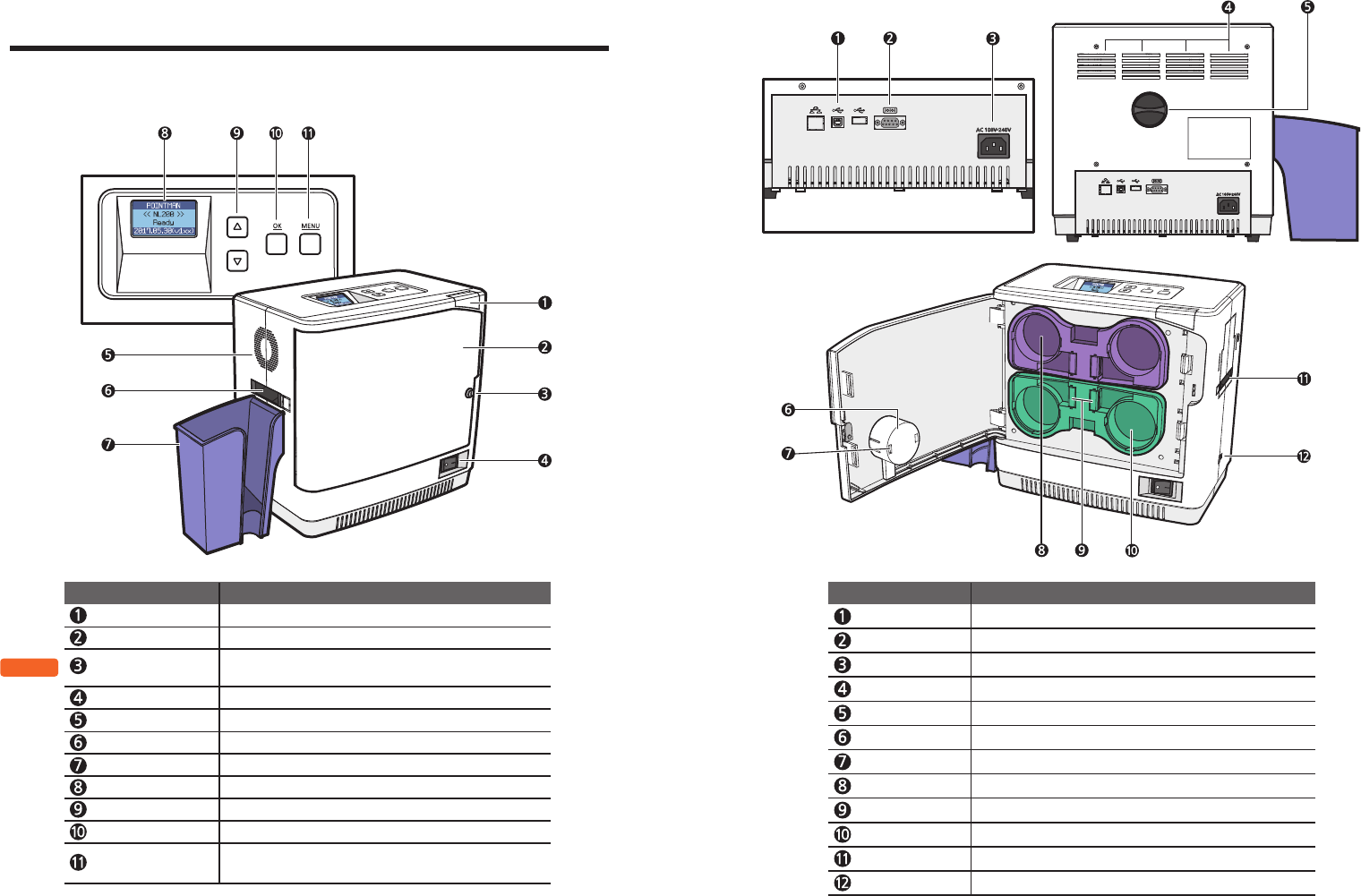

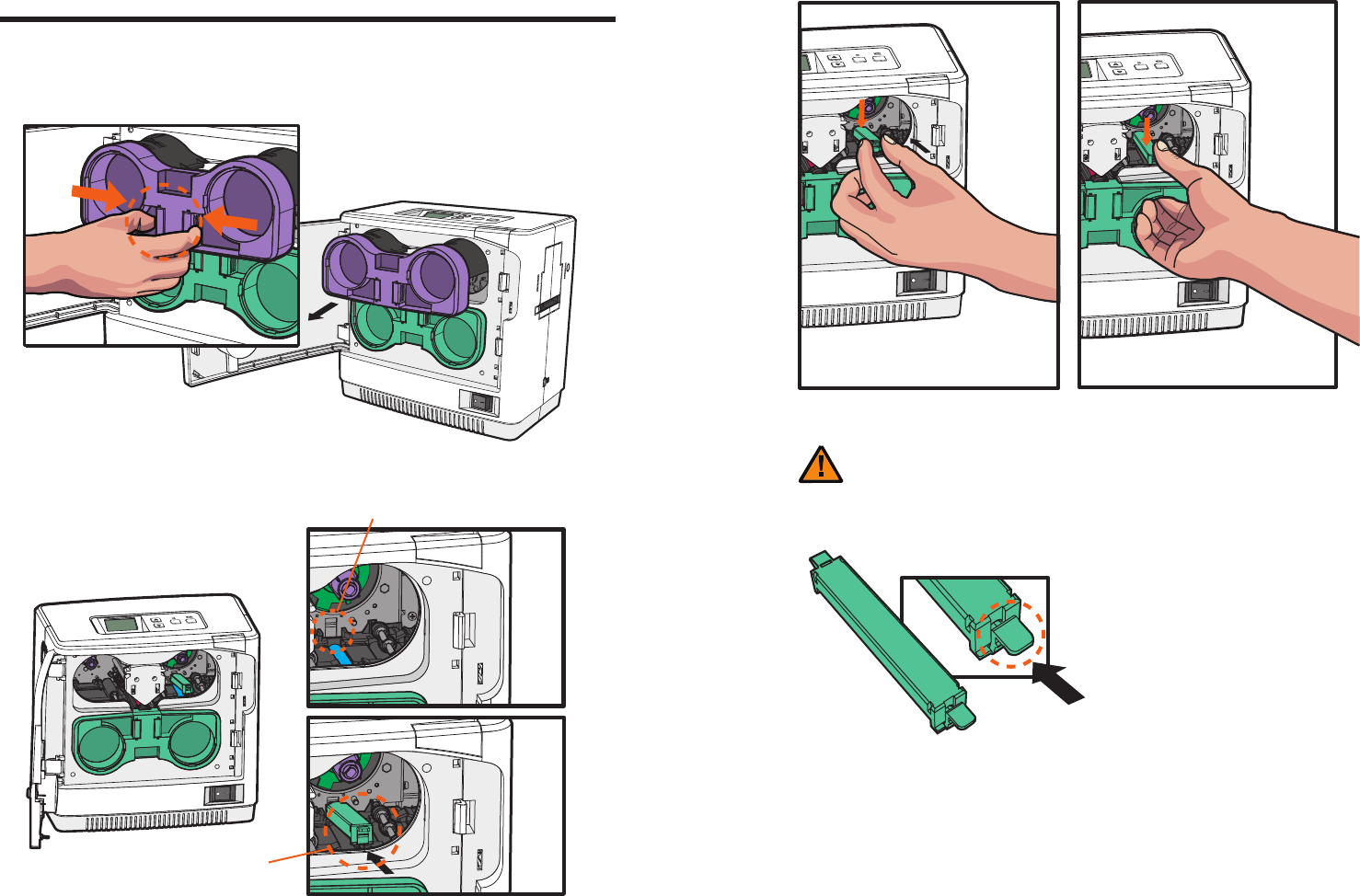

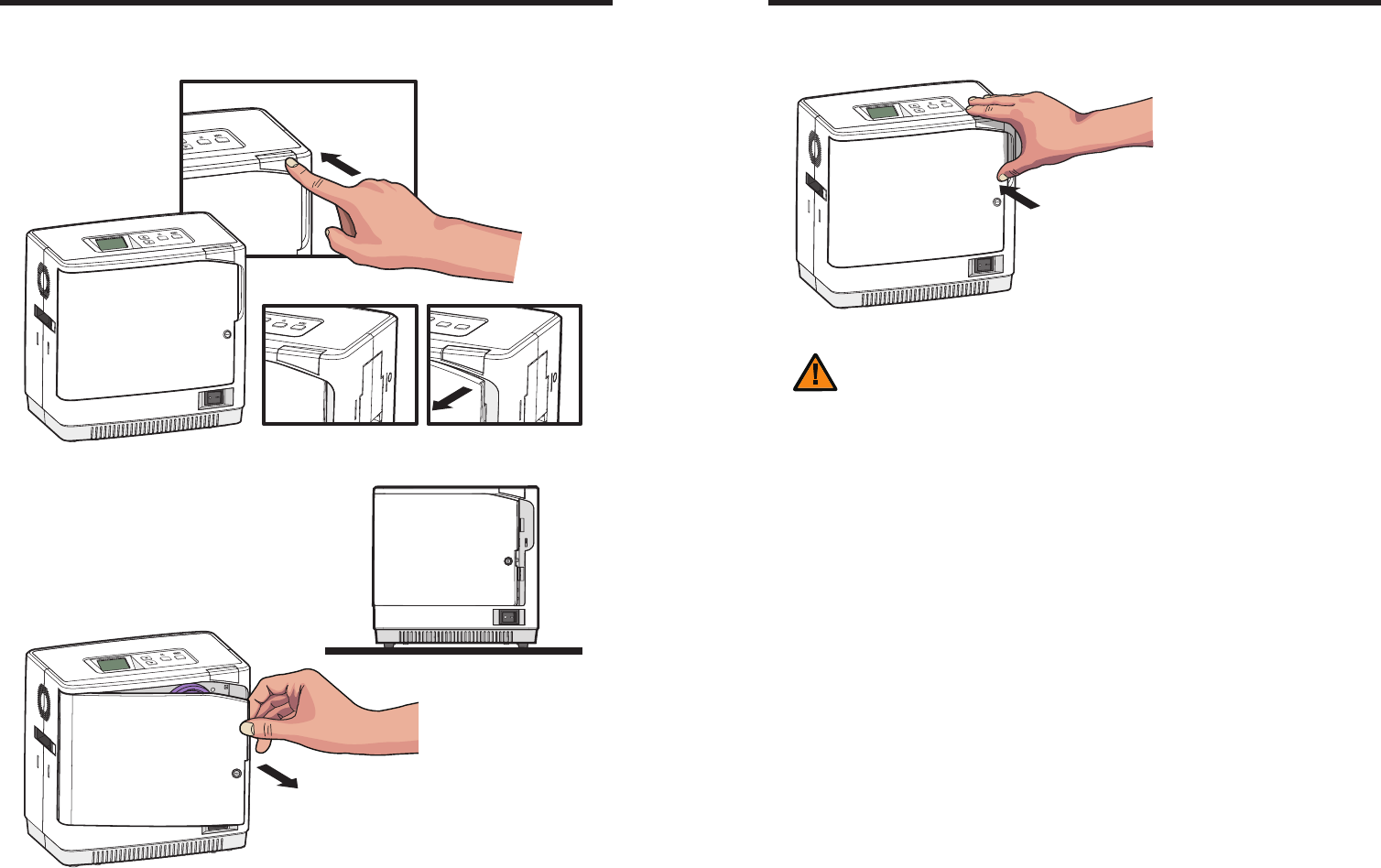

Load Lower Cleaning Roller & Films

1. Pull the cartridge out while pressing the Cartridge Load/Eject Button to

remove it from the laminator as shown in the image below.

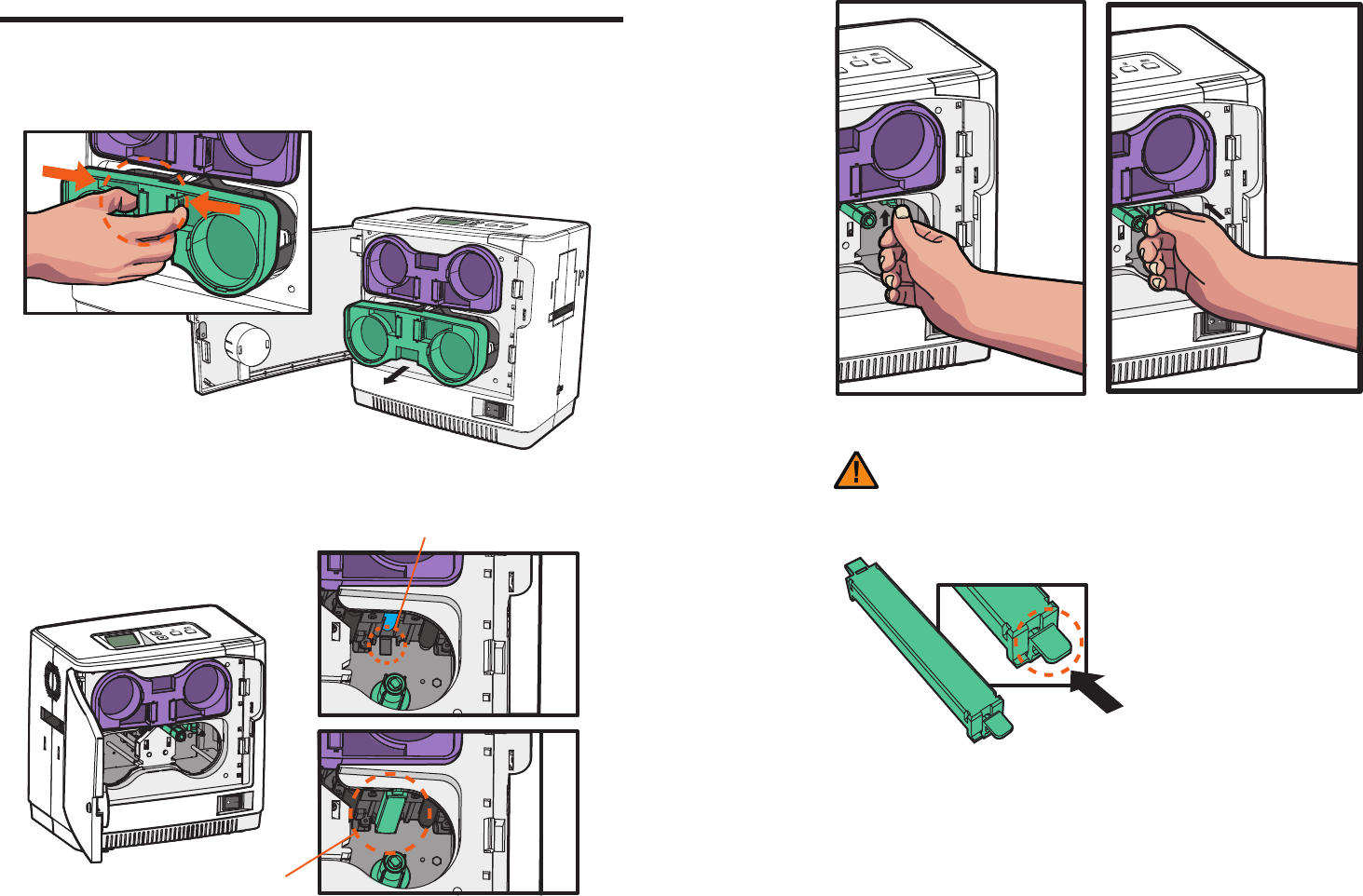

- Load Lower Cleaning Roller

2. Align the Cleaning Roller with its hole and push it up until it clicks.

- Make sure that it is fully inserted into the Cleaning Roller Hole before pushing the indicated area.

Important

After installation

of cleaning roller

Cleaning roller hole

26 27

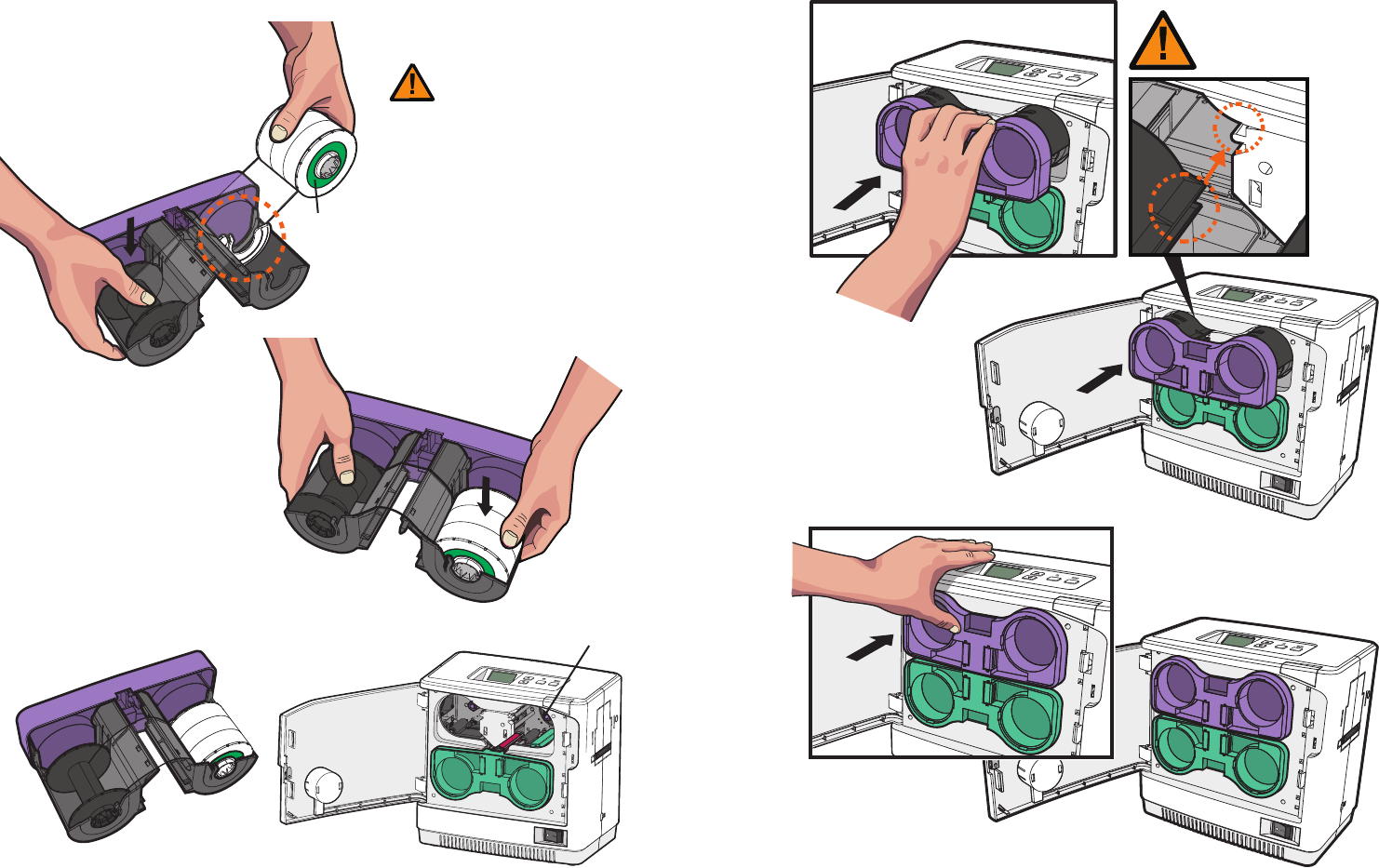

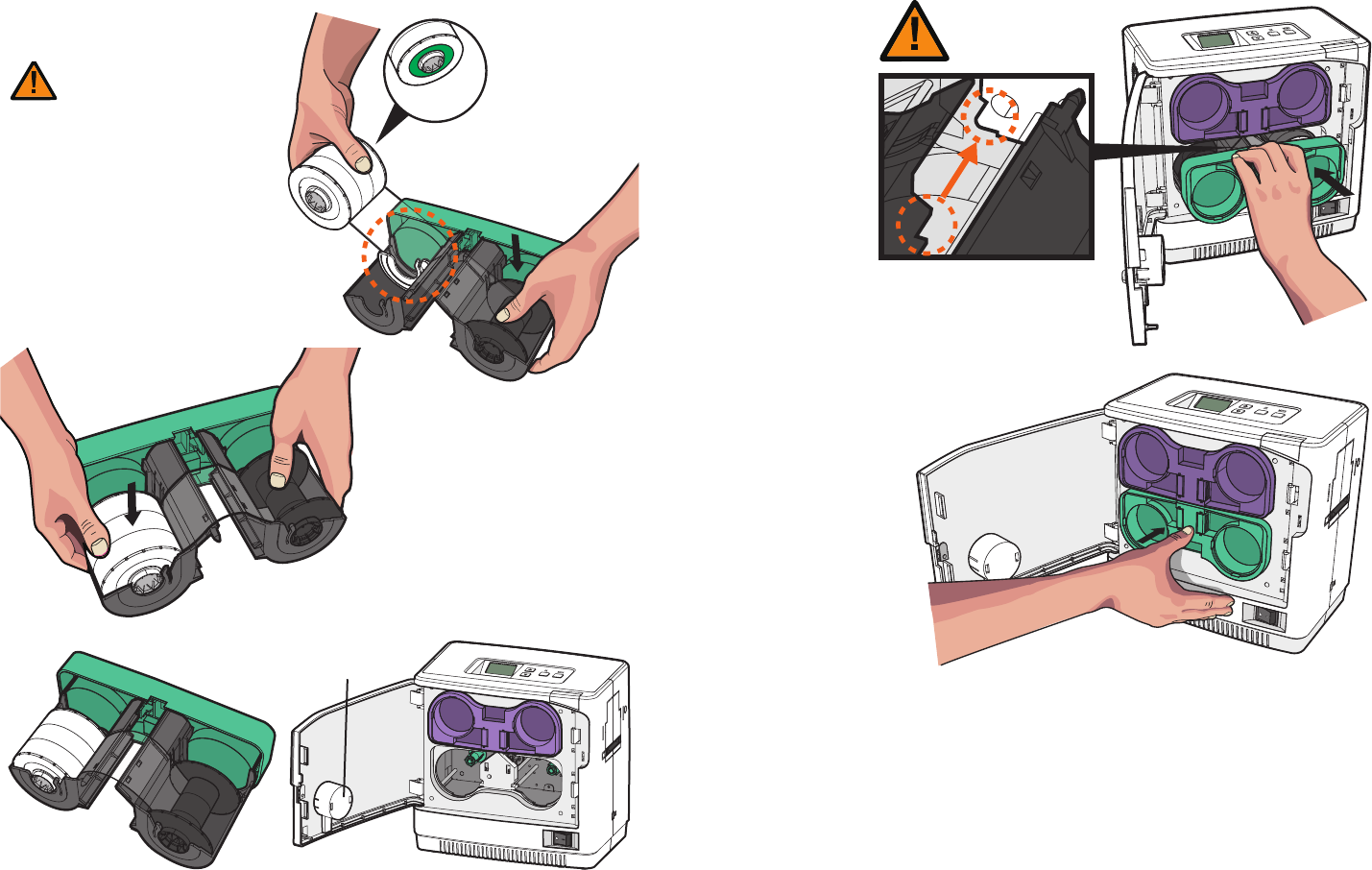

1. Load the films for lamination and rewinding in the correct position as

shown in the image below.

- Load Films to Lower Cartridge

- Place the white film core on the core guide.

- The white film core does not fit the black

film core guide.

- Do not force the film core in as it can

damage the cartridge.

- Check the position of the RFID tag.

Important

2. Check the position of the Lower Film Cartridge and films for

rewinding and push the cartridge in until it clicks.

RFID Tag

RFID Tag Reader

28 29

Load Cards

1. Open the Card input hopper by pulling it sideway.

- Place cards in the Input Hopper

2. Place the cards inside the card input hopper as shown in the picture.

- Load Cards after taking out the Card Input Hopper

1.Hold the side of the card input hopper and pull it backward to remove it .

2. Hold the backside of the card input hopper with one hand and open the

cover with the other. Then, place the cards inside as shown in the picture.

30 31

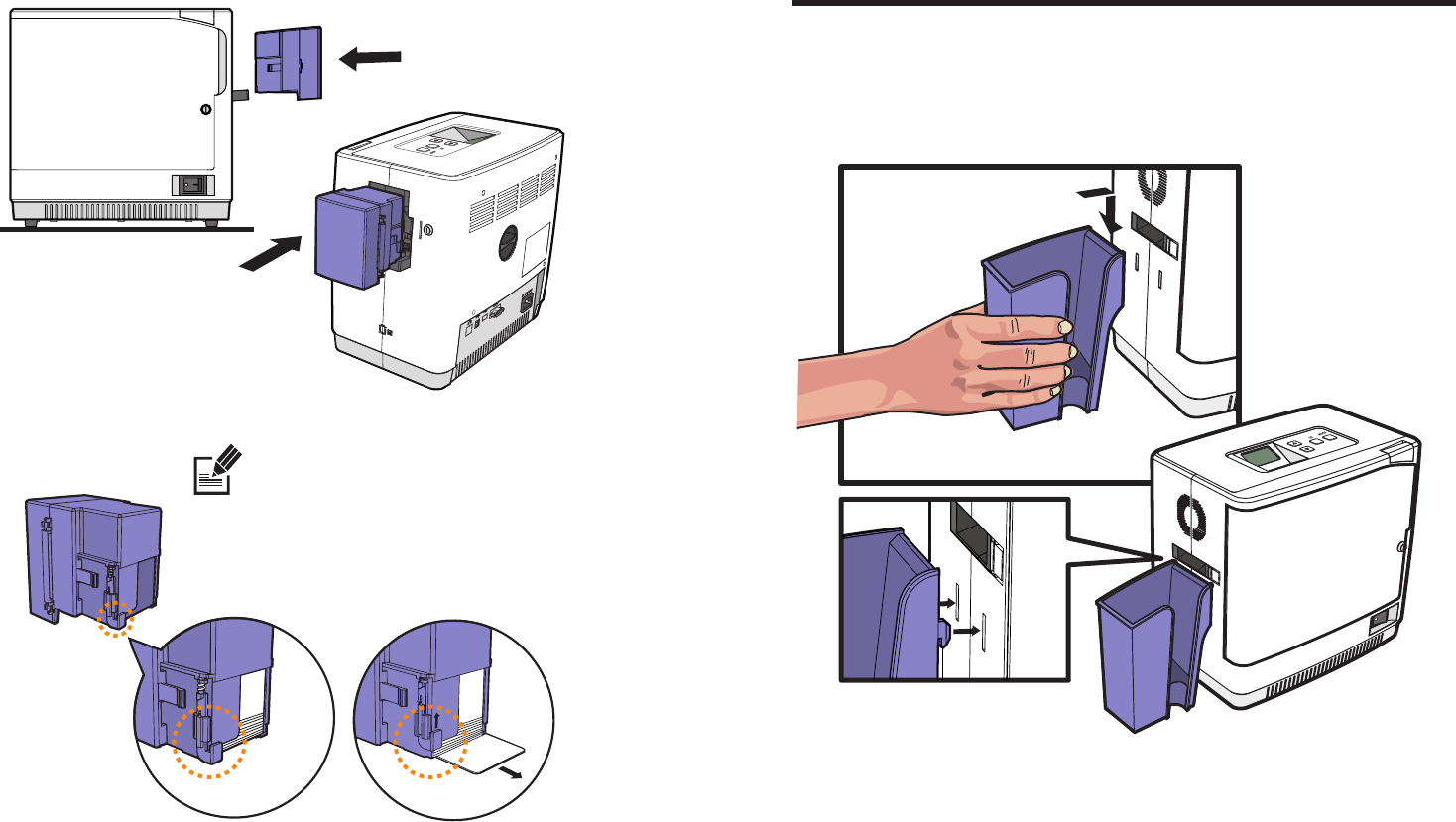

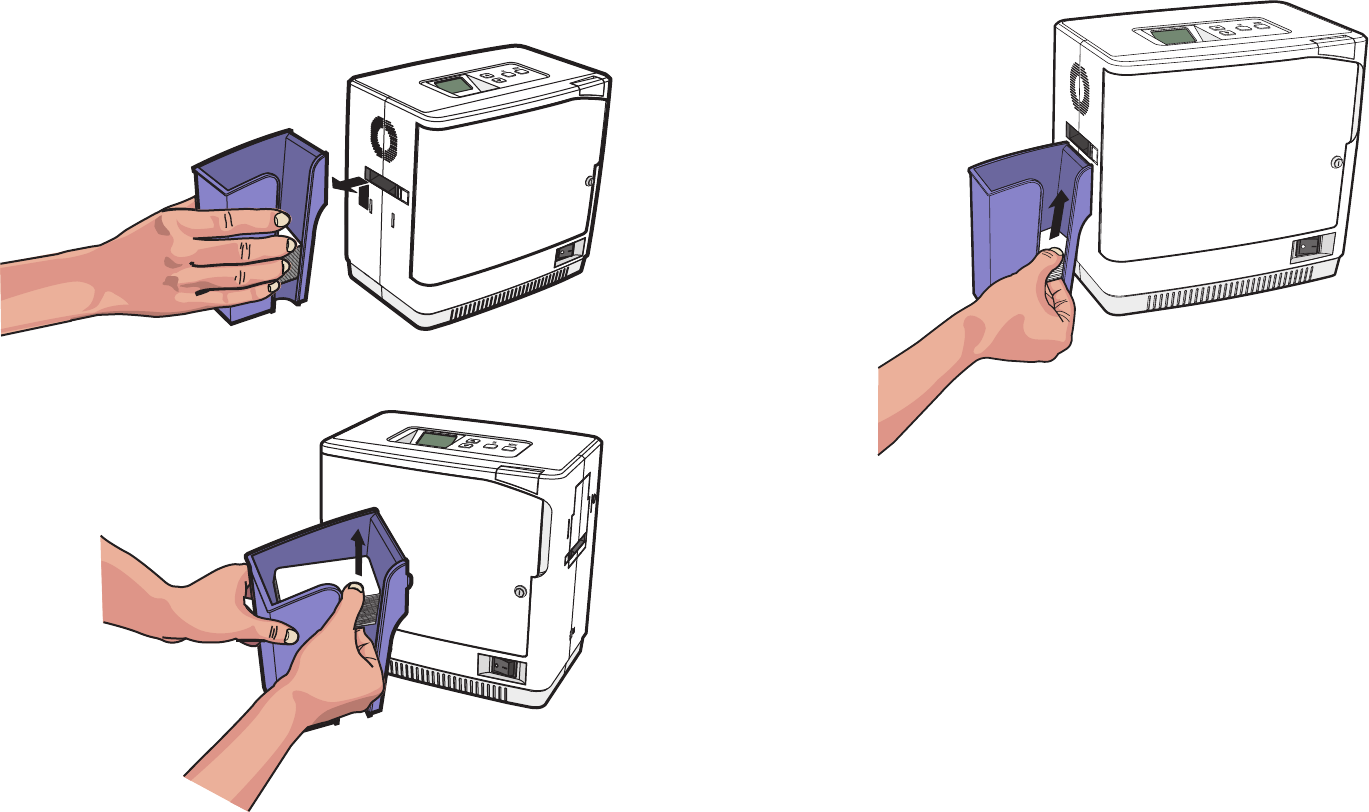

Load/Unload Card Stacker to Laminator

Insert the hook on the Card Stacker and push it down in the side

of the laminator. (Max. 150 cards can be loaded at once.)

- Load Card Stacker to Laminator

3. Close the cover and place the card input hopper in the tray.

- The hinge is located where the card is loaded into the path to

prevent displacement.

- The hinge is lifted when the card is loaded into the laminator.

Note

Before the card is loaded When the card is loading

32 33

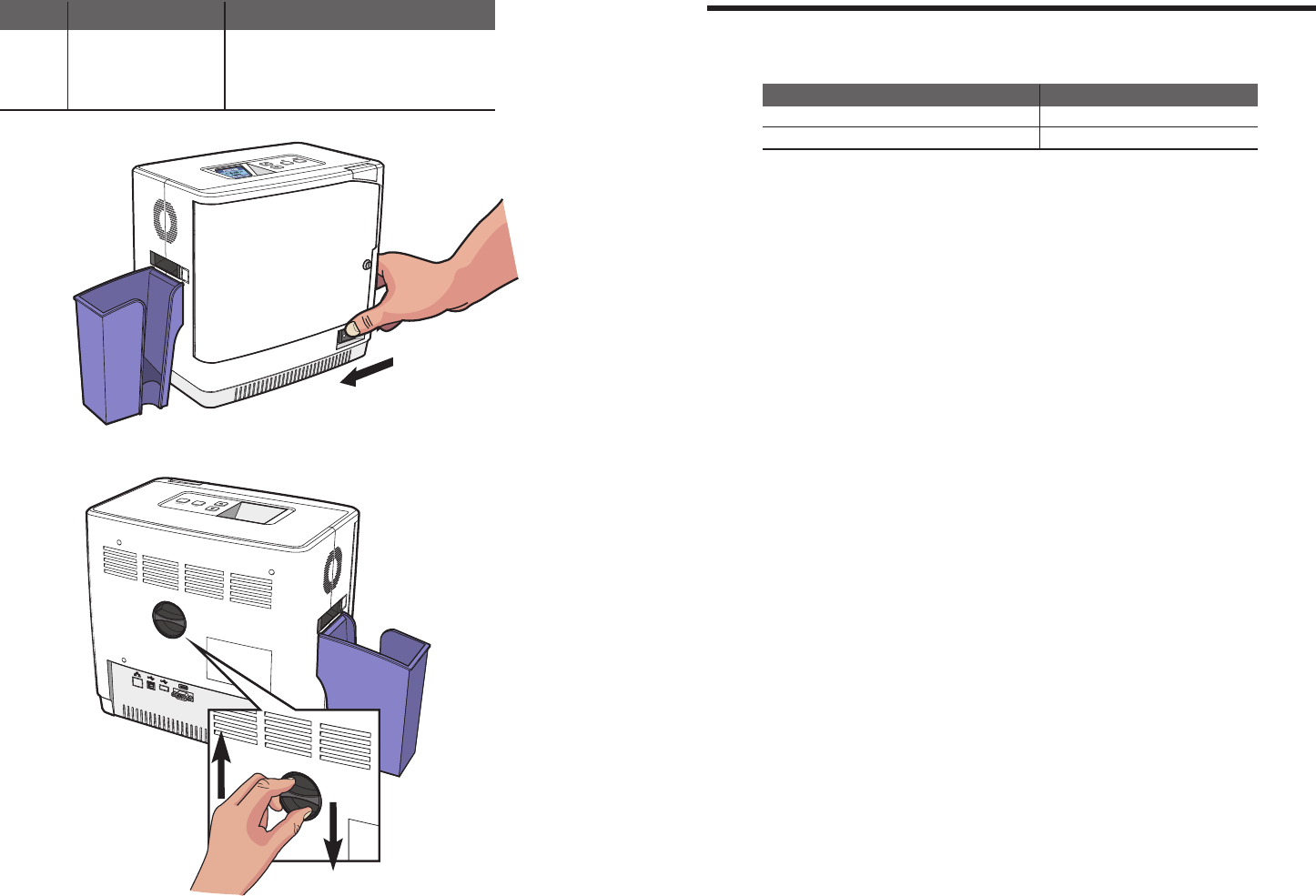

Hold the side of Card Stacker and pull it up to remove as shown in

the image.

- Remove Cards after Taking Out

Card Stacker Use your thumb and index finger to take out 60 or fewer cards

from the Card Stacker without removing it from the laminator.

- Remove Cards without Taking Out Card Stacker

34 35

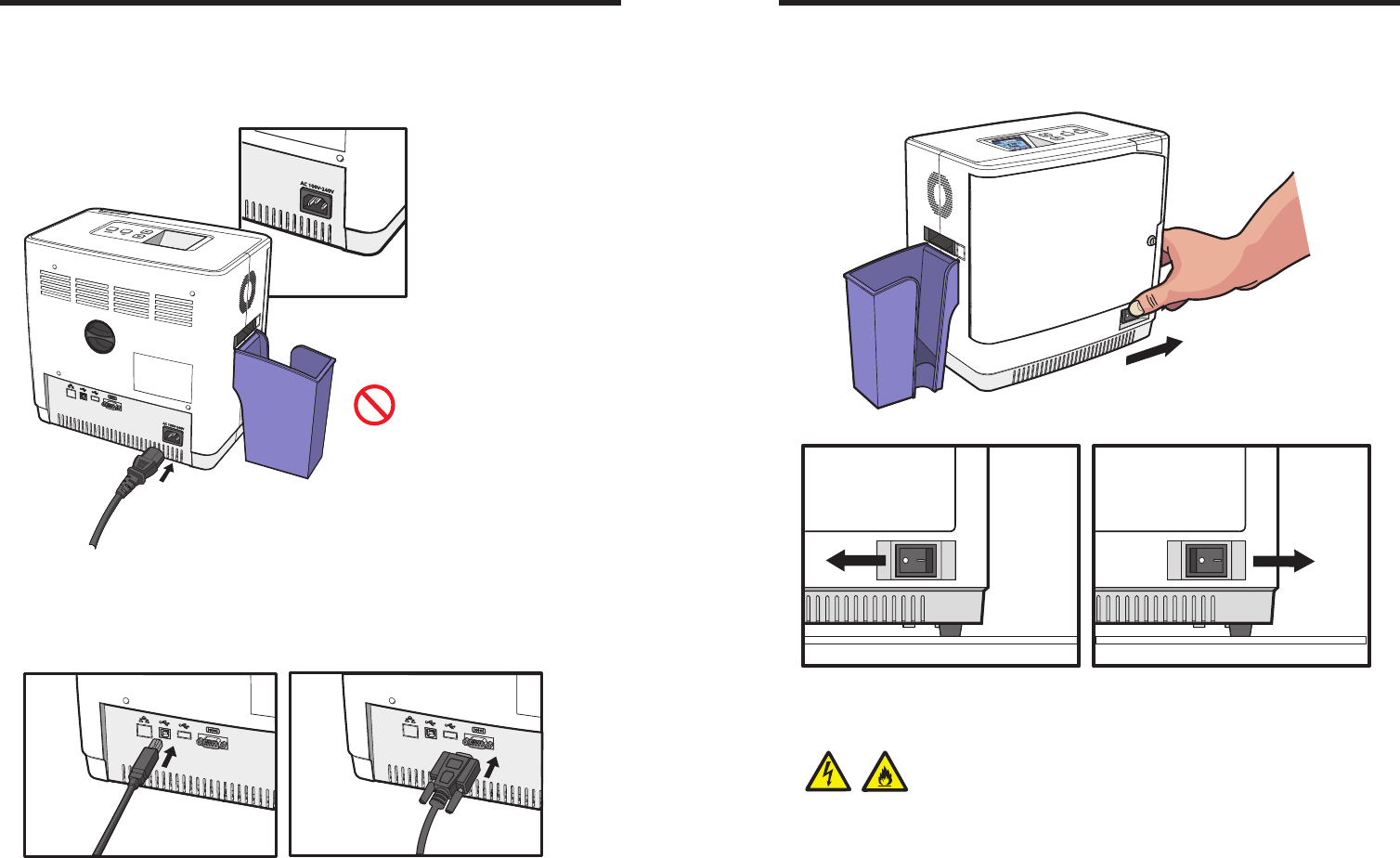

Make sure that the Power Switch is off and connect the AC Power Cable to

the Power Port on the back of the laminator.

- Connect Power Cable

Connect Power & Communication Cables

- The product must be used with AC power

with rated label.

- Check whether the Power Cable is

plugged in before use.

Prohibition

To download the firmware, connect the laminator to a PC using either

RS232C or USB Port.

- Connect Communication Cable

RS232C PortUSB Port

Power On

Press the Power Switch (‘―’) to turn the laminator on.

Power ON -> OFF Power OFF -> ON

If the product is exposed to rain or liquid, please turn off and unplug the cable, and contact an authorized

service representative.

Electrical Hazard / Fire Hazard

36 37

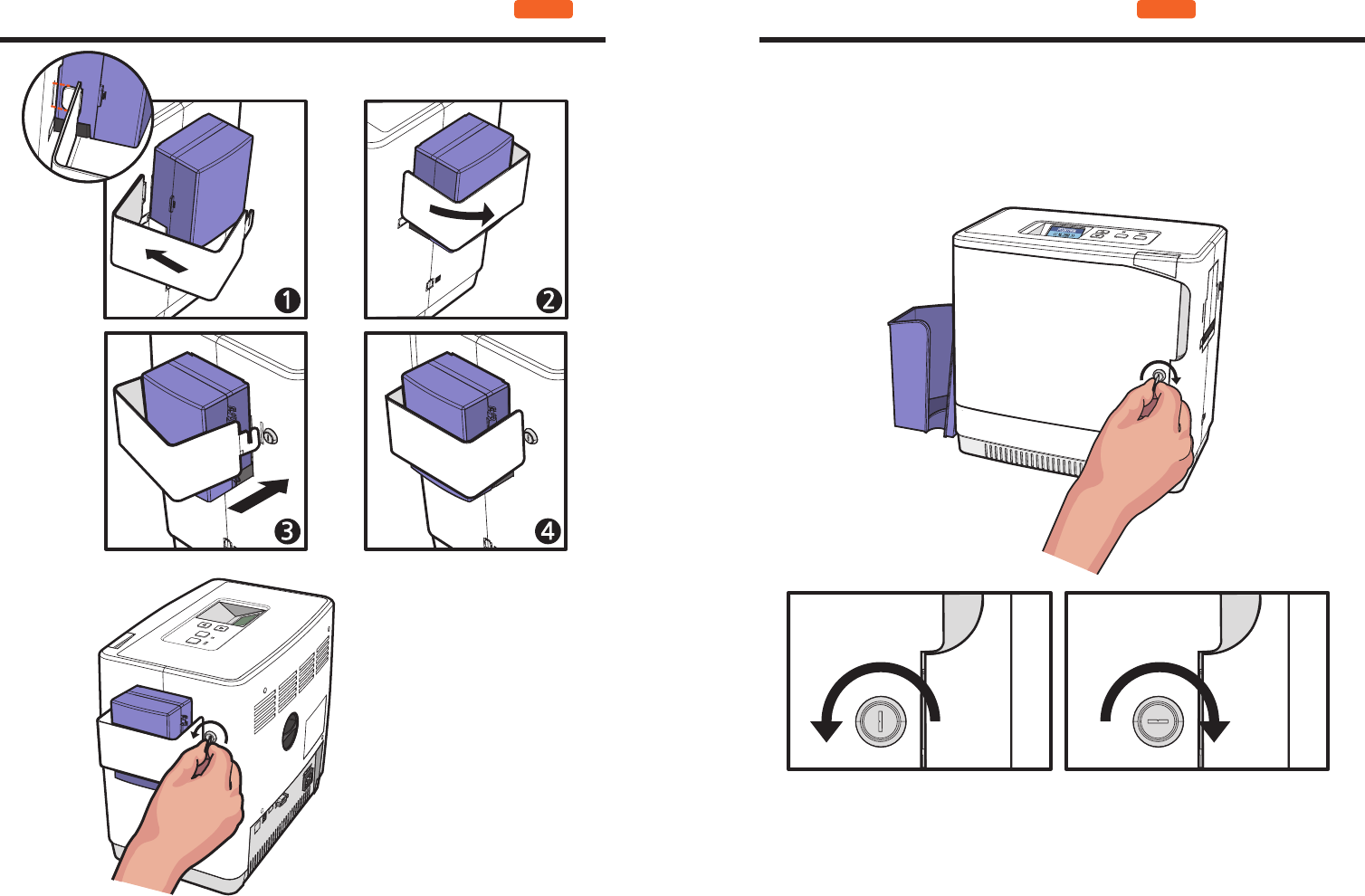

Turn the key clockwise to lock the Front Cover.

The key cannot be pulled out if the Front Cover is not closed. Do not force it

out as it can damage the Front Cover.

Front Cover Lock

Locked -> Unlocked Unlocked -> Locked

OPTION

Card Input Hopper Lock OPTION

Insert the left side of card input

hopper lock and mount the other

side pulling to the sideway. Then,

use the Lock Key to lock it .

38 39

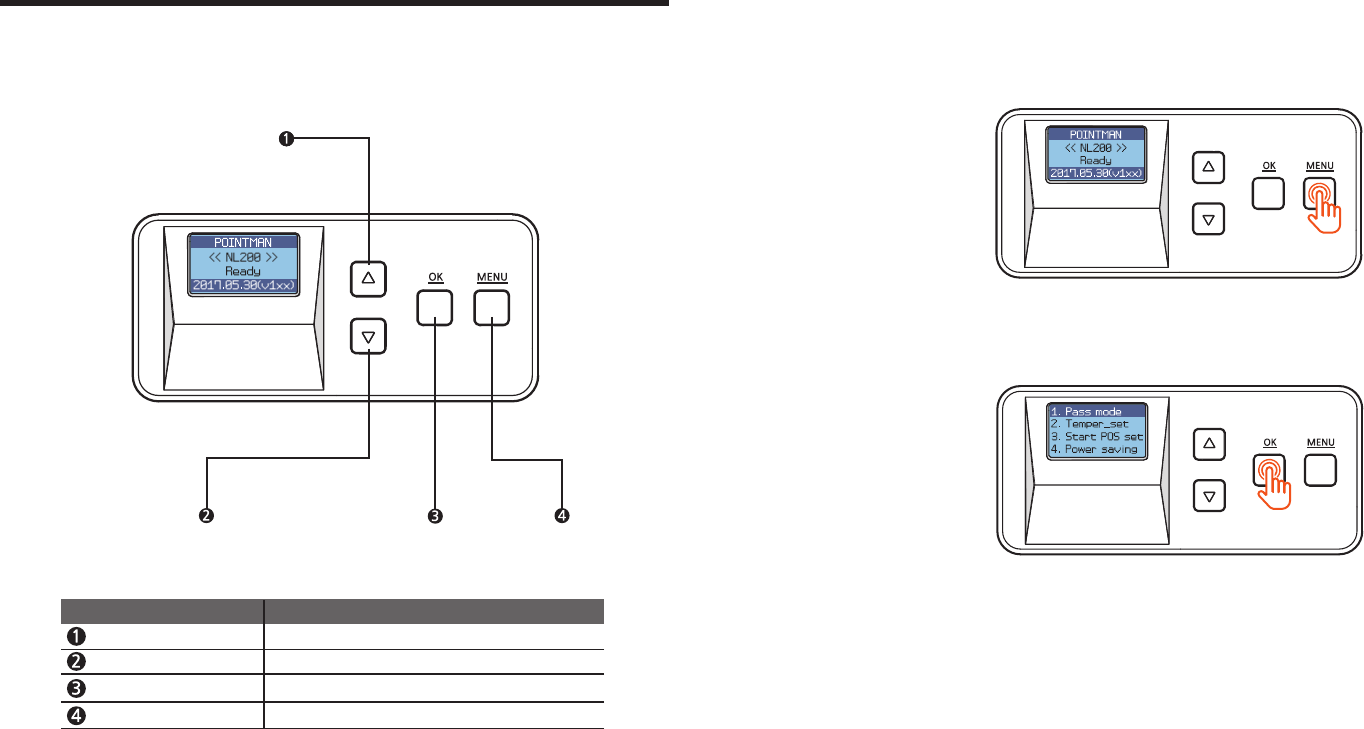

Button Control & Menu

- Buttons 1. Press ‘MENU’ to enter the menu mode.

- Pass Mode

2. Press ‘OK’ when ‘1. Pass mode’ appears on the LCD display.

Function : Set pass mode

Menu Navigation (Up)

Increase the value or navigate the menu.

Menu Navigation (Down)

Decrease the value or navigate the menu.

Set the value.

Enter or exit the menu.

Name Description

40 41

- In the Pass mode, you can choose ‘Auto’, ‘Alone_uppper’,

‘Alone_lower’, ‘Both’ or ‘Bypass’.

Use the menu navigation buttons to navigate the menu.

Note

Auto mode

Alone_uppper

Alone_lower

Both

Bypass

Select this option to start

laminating automatically when

the card is inserted.

Select this option to laminate

only the lower side.

Select this option to laminate

both upper and upper sides.

Select this option to pass

without laminating either

upper or lower side.

Select this option to laminate

only the upper side.

- In the Alone Upper Mode, an error occurs

if any film is loaded at the lower cartridge

Caution

- In the Alone Upper Mode, an error occurs

if any film is loaded at the lower cartridge

Caution

3. After selecting the pass mode, press ‘OK’ to go back to the previous step.

4. Press ‘MENU’ to go into the standby mode.

5. If any changes have been made, you will be prompted to save the changes.

Press ‘OK’ to save the new settings or ‘MENU’ if you do not want to save them.

42 43

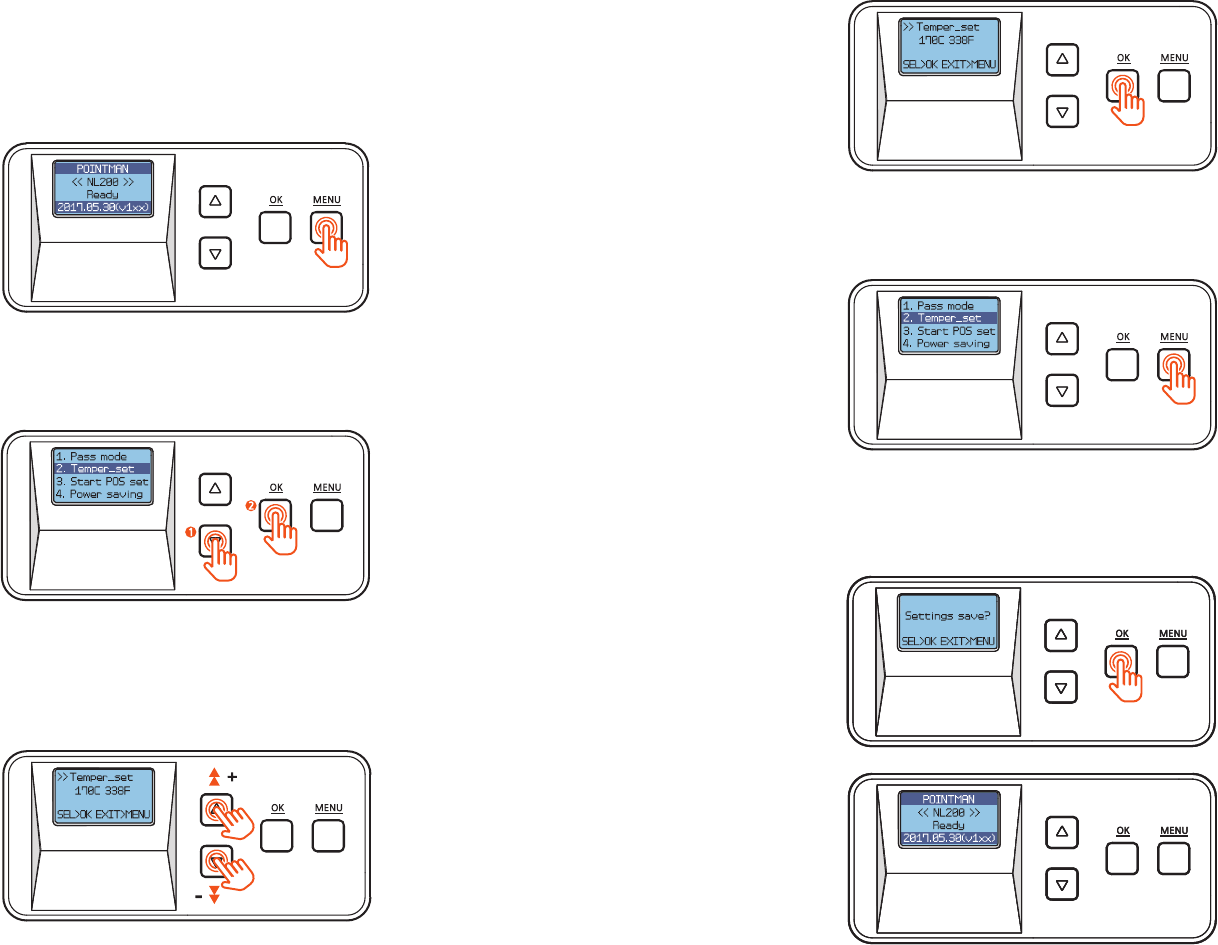

1. Press ‘MENU’ to enter the menu mode.

- Lamination Temperature (Temper_set)

Function: Set the temperature of the lamination heater.

You can set the temperature between 120℃ and 190℃(248℉ and 374℉)

+/- increments of 5℃(9℉)

2. Press the menu navigation button to select ‘2. Temper_set’ and press ‘OK’.

3. Use the menu navigation button to adjust the temperature for the

lamination heater.

(It can be set between 120℃ and 190℃(248℉ and 374℉) +/- increments of

5℃(9℉).)

4. Press ‘OK’ to set the temperature and go back to the previous step.

5. Press ‘MENU’ to go into the standby mode.

6. If any changes have been made, you will be prompted to save the changes.

Press ‘OK’ to save the new settings or ‘MENU’ if you do not want to save them.

44 45

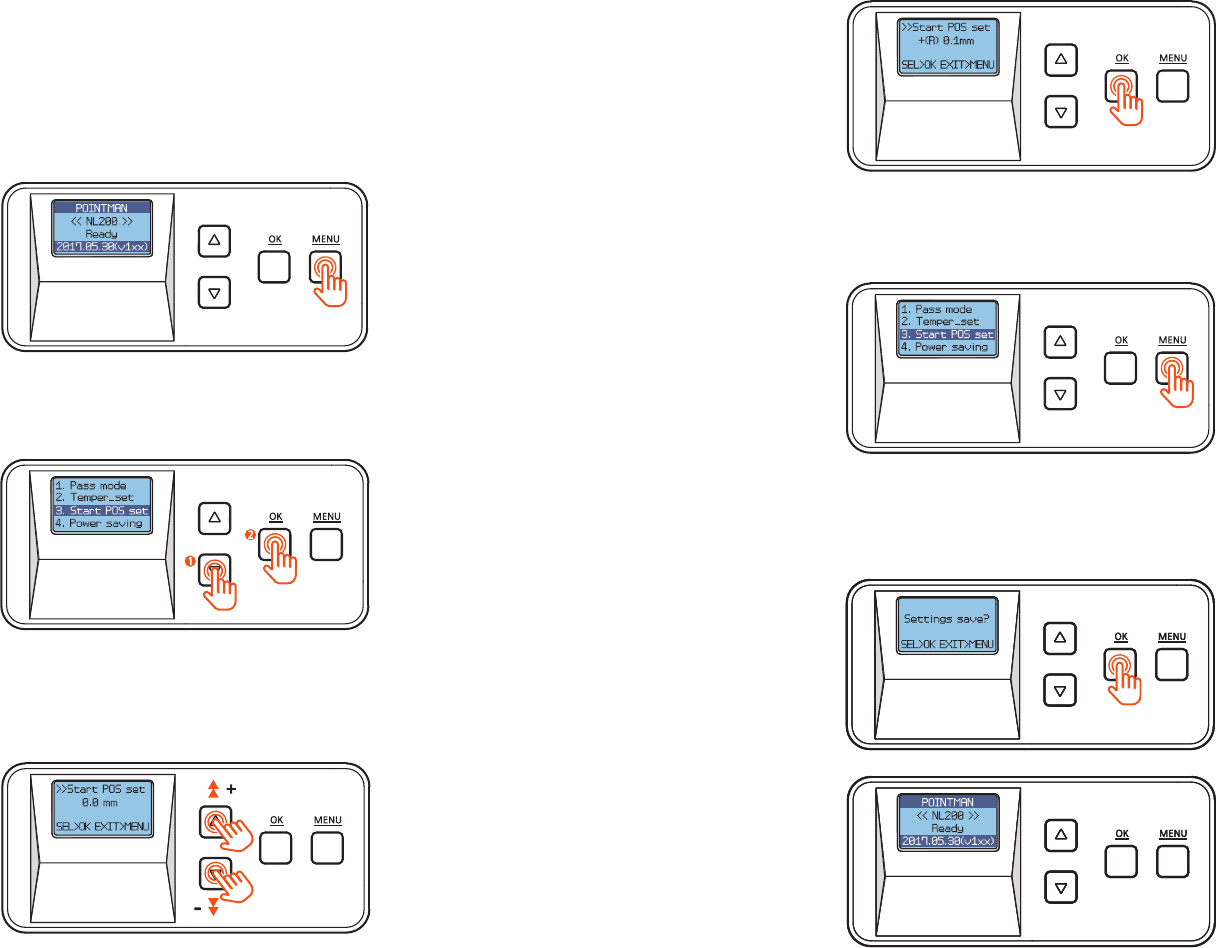

1. Press ‘MENU’ to enter the menu mode.

- Film Position (Start POS set)

Function : Set the position of film and card for lamination.

- It can be set between -1.0mm ~+1.5mm +/- increments of 0.1mm.

From the direction of inserting the card, it moves back by ‘– (L)‘ value and for-

ward by ‘+(R)’.

2. Press the Menu Navigation Button to select ‘3. Start POS set’ and press ‘OK’.

3. Use the Menu Navigation Button to adjust the position to laminate.

(It can be set between -1.0mm ~+1.5mm +/- increments of 0.1mm.)

4. Press ‘OK’ to set the position and go back to the previous step.

5. Press ‘MENU’ to go into the standby mode.

6. If any changes have been made, you will be prompted to save the changes.

Press ‘OK’ to save the new settings or ‘MENU’ if you do not want to save them.

46 47

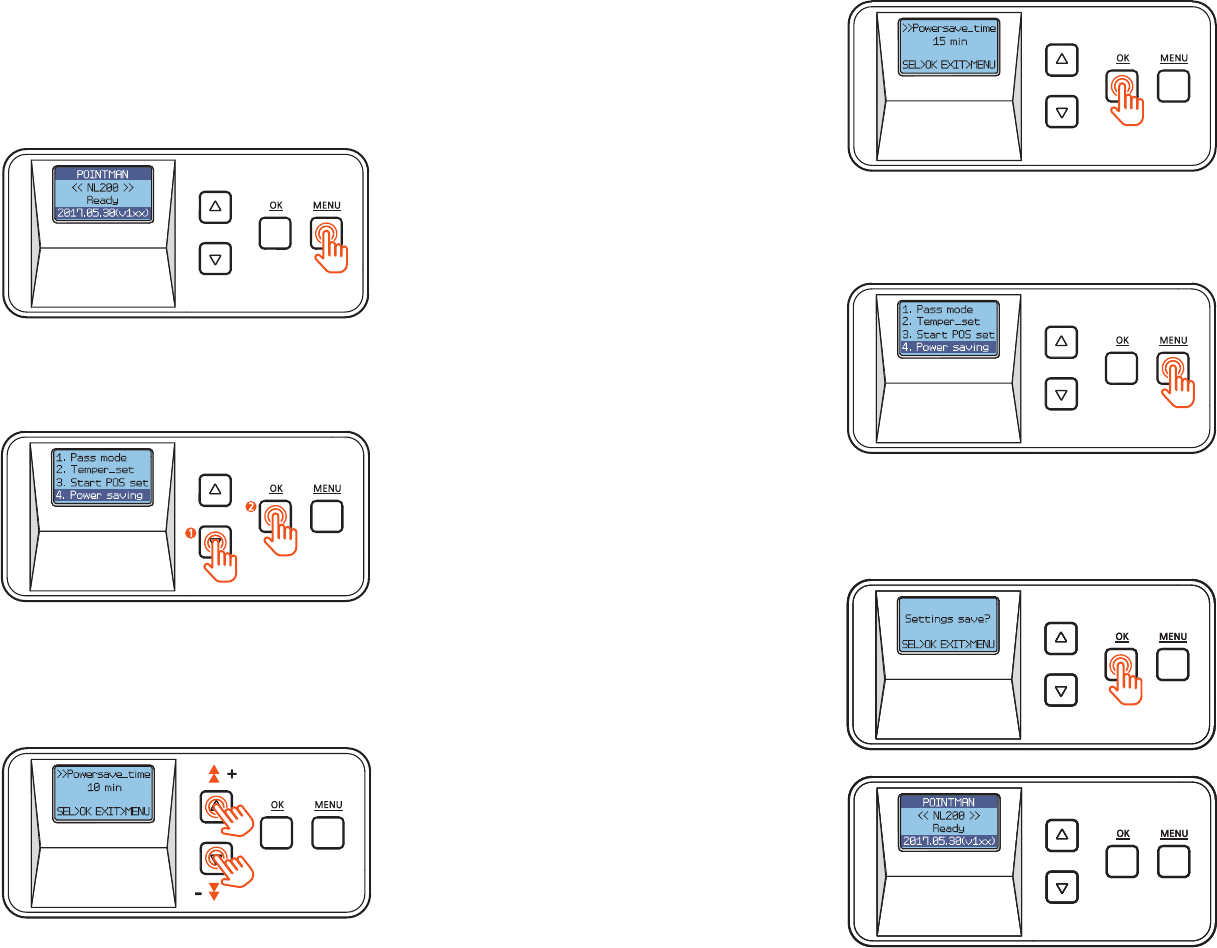

1. Press ‘MENU’ to enter the menu mode.

- Power Saving Mode

Function : The system turns off if it is inactive for a set duration of time.

It can be set between 5 and 60 minutes +/- increments of 5 minutes.

2. Press the Menu Navigation Button to select ‘4. Power saving’ and press ‘OK’.

3. Use the Menu Navigation Button to set the power saving mode.

(It can be set between 5 and 60 minutes +/- increments of 5 minutes.)

4. Press ‘OK’ to set the power saving mode and go back to the previous step.

5. Press ‘MENU’ to go into the standby mode.

6. If any changes have been made, you will be prompted to save the changes.

Press ‘OK’ to save the new settings or ‘MENU’ if you do not want to save them.

48 49

1. Press ‘MENU’ to enter the menu mode.

- Path Sensor

Function : Check whether the path sensor works correctly.

2. Press the Menu Navigation Button to select ‘5. Path sensor’ and press ‘OK’.

3. Insert a card that is not printed into the Card Slot.

(Make sure to hold the card until the operation starts.)

4. Press ‘OK’ while holding the card and it goes in.

5. The card will move back and forth 5-6 times. Each time the card passes

the sensor, the indicator changes from X to O.

6. The laminator releases the card upon completion.

50 51

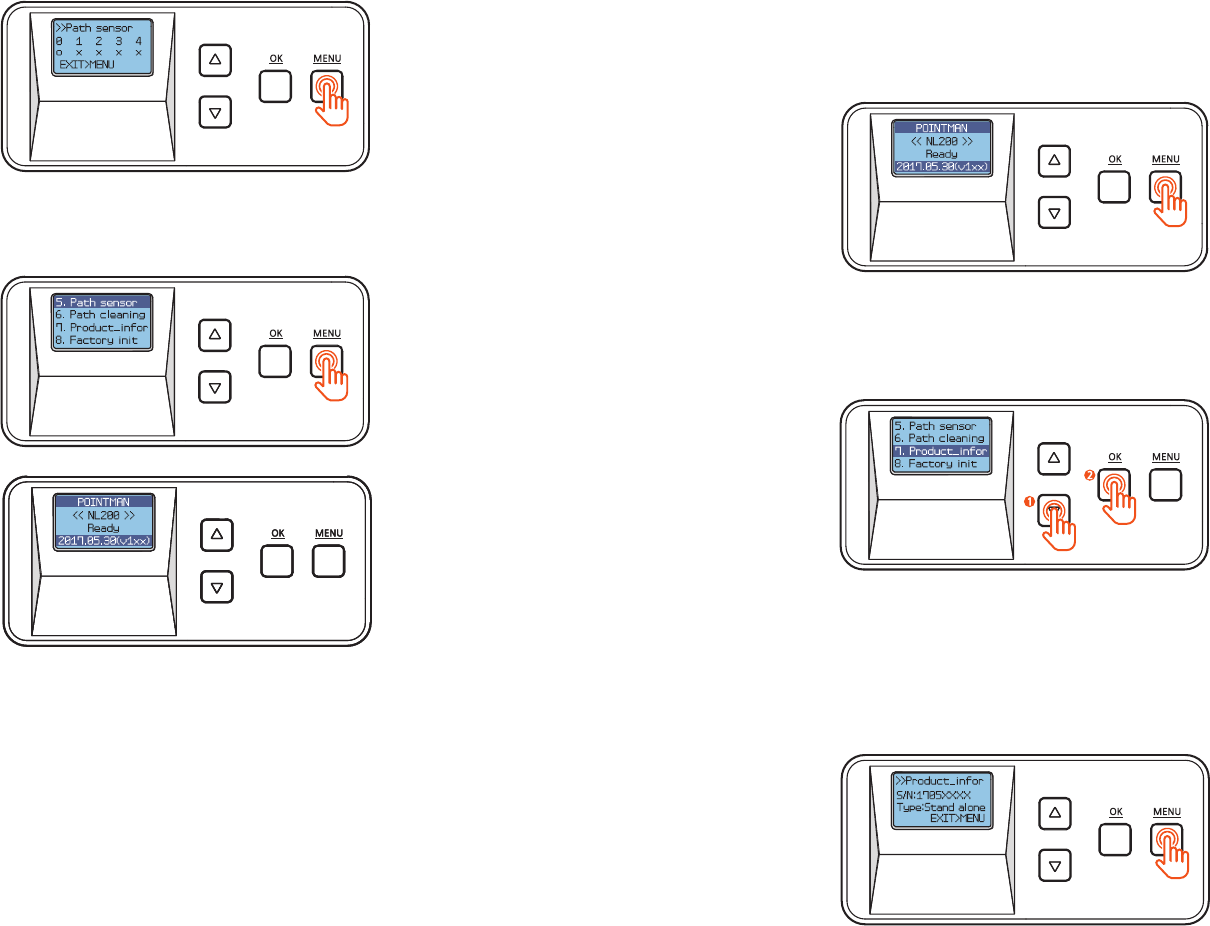

7. Press 'OK' to go back to the previous step.

8. Press ‘MENU’ to go into the standby mode.

1. Press ‘MENU’ to enter the menu mode.

- Serial No. (Product_infor)

Function : check the serial number of the product.

2. Press the menu navigation button to select ‘7. Product_infor’ and press ‘OK’.

3. Check the serial number.

The first 4 digits indicate the year and month of manufacture and the last

4 digits mean production lot number.

52 53

6. Press 'MENU' to go back to the previous step.

7. Press ‘MENU’ to go into the standby mode.

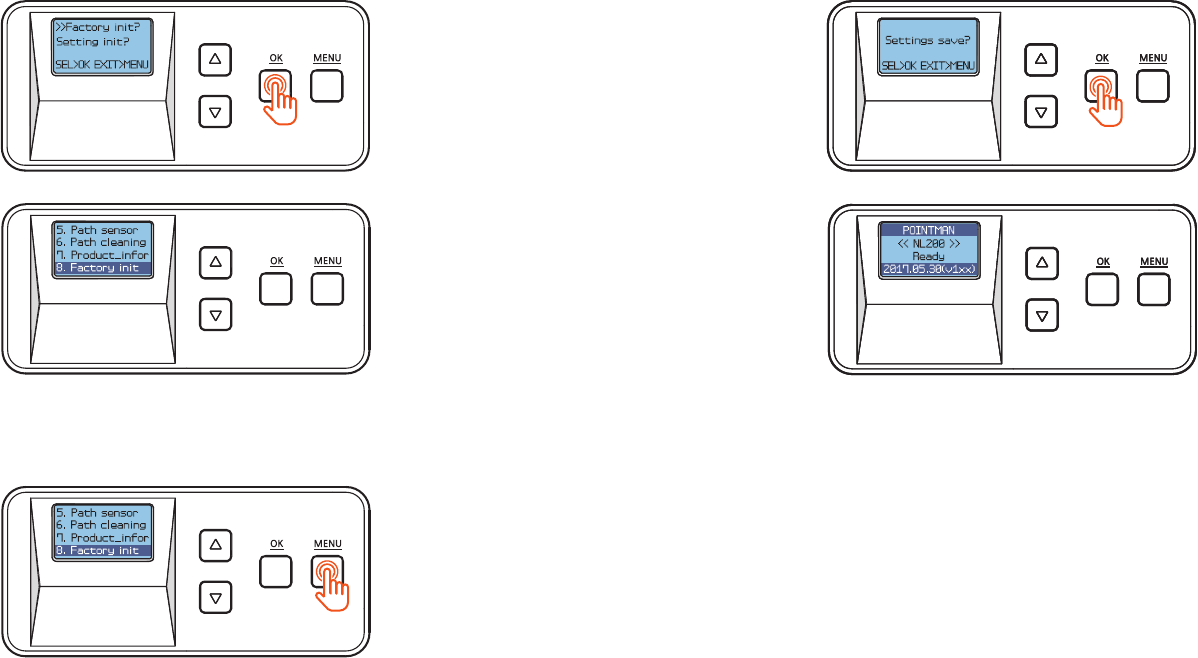

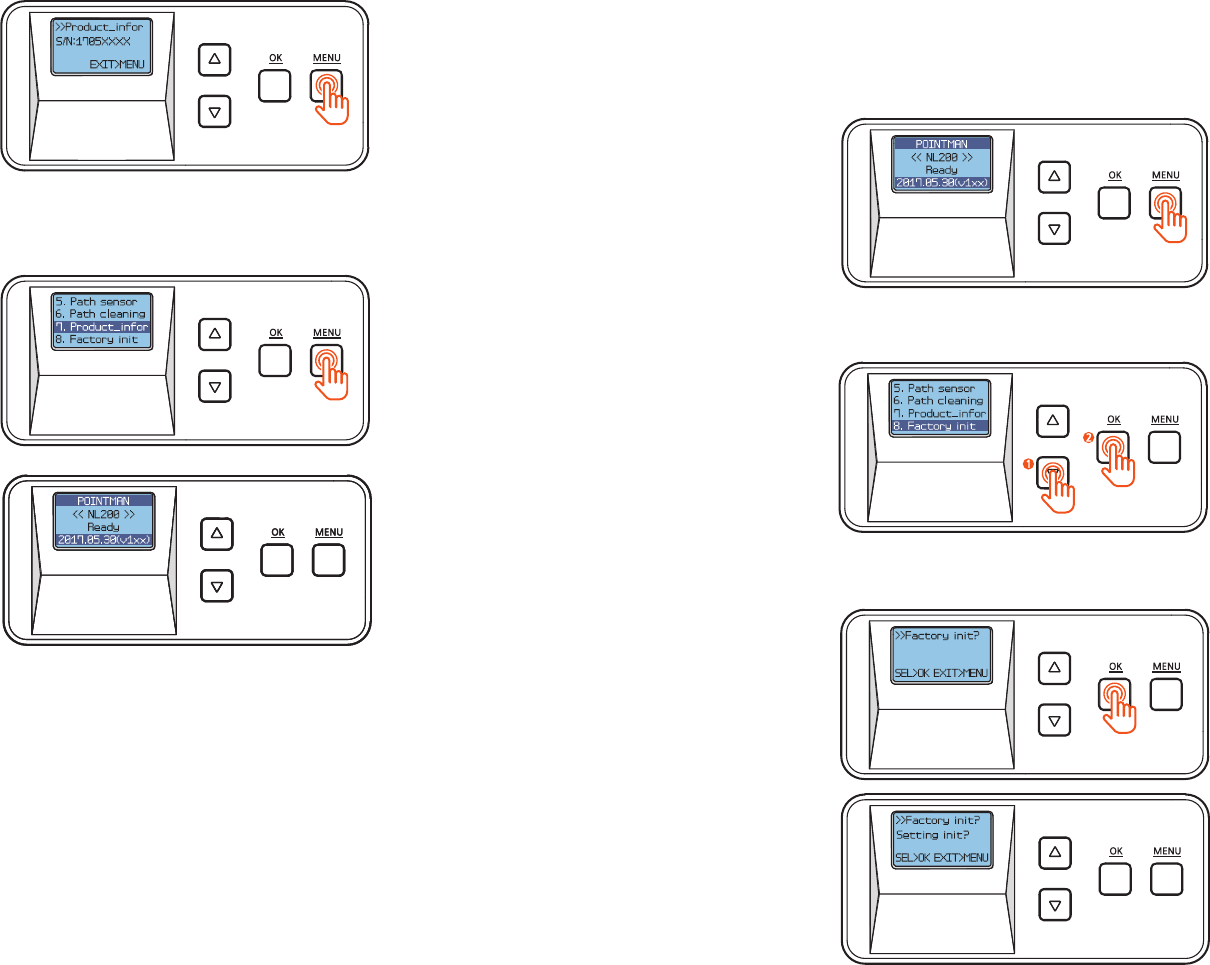

1. Press ‘MENU’ to enter the menu mode.

- Factory Reset (Factory init)

Function : Reset the system to factory default settings.

Default Settings: Pass mode : Auto, Temper_set: 150℃(302℉),

Start_POS set : 0mm, Power_saving: 5min

2. Press the Menu Navigation Button to select ‘8. Factory init’ and press ‘OK’.

3. Press ‘OK’ and ‘Setting init?’ appears on the screen.

54 55

4. Press ‘OK’ to proceed or ‘MENU’ to cancel the action. (You will be directed

to the previous step when you press either ‘OK’ or ‘MENU’.)

5. Press ‘MENU’ to go into the standby mode.

6. If any changes have been made, you will be prompted to save the changes.

Press ‘OK’ to save the new settings or ‘MENU’ if you do not want to save them.

56 57

Maintenance Instructions

- Supported Cards

The following cards are recommended for the prevention of jams

and the best results.

- International Standard (CR-79, CR-80 ISO 7810)

- 53.98mm (W) x 85.60mm (L)/3.375"x2.215"

① Size

- Standard : 0.76mm~1.0mm (30mil~40mil)

② Thickness

- Glossy white

- Free of dirt or grease

- Not contaminated

- Free of scratches or dents

- Completely flat

- Static Free

③ Acceptable Cards

- Heavily damaged

- Stained or contaminated

- Scratched

- Bent or deformed

- Embossed

④ Unacceptable Cards

Do not use cards considered unacceptable

as they may damage the parts.

Caution

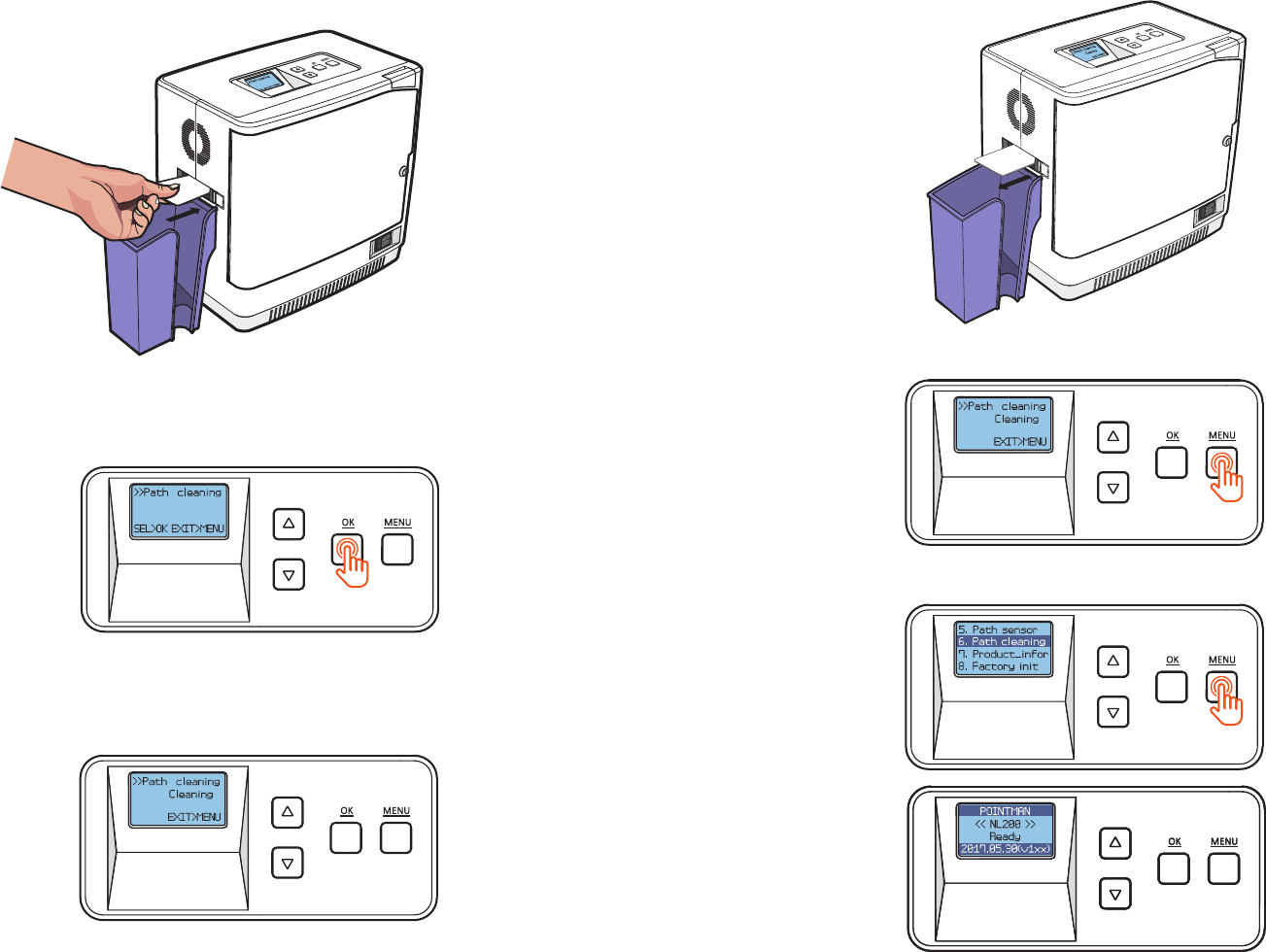

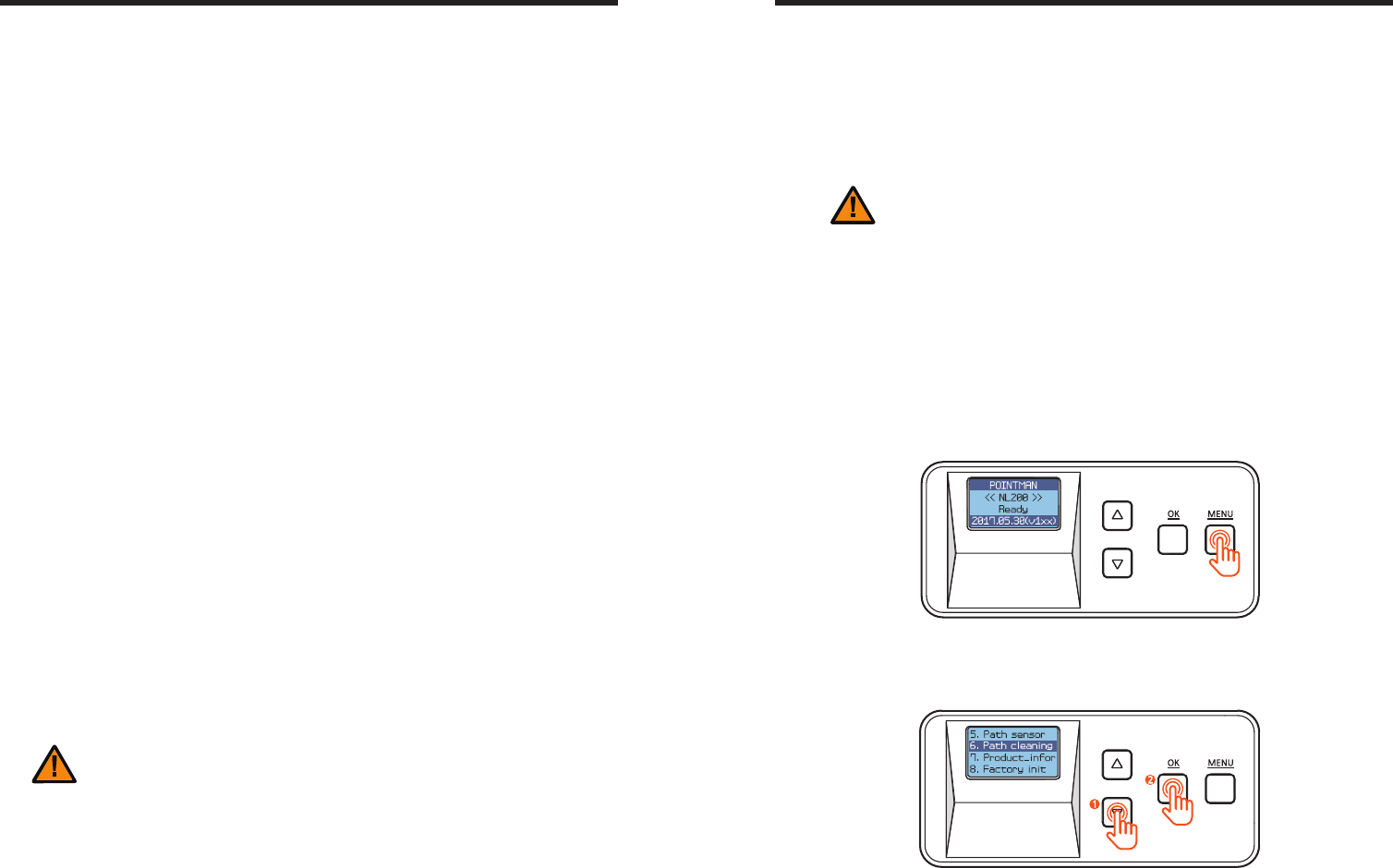

1. Press ‘MENU’ to enter the menu mode.

- Clean Roller Using Cleaning Card

It is recommended to clean the laminator using the cleaning card every month

or each time 500 cards are laminated in order to maintain quality and prevent

damage to the important parts.

2. Press the menu navigation button to select ‘6. Path cleaning’ and press ‘OK’.

- Make sure to turn off the laminator and unplug the power cable

before cleaning it with a soft cloth slightly dampened with water.

- Do not allow any liquid to drip inside the printer.

- Make sure that the printer is dry before turning it on.

Do not use any liquid / gel containing a high content of alcohol or solvent to

clean the printer as it may cause discoloration or fissure on its surface.

Caution

Clean the Laminator

- Clean the Exterior

58 59

4. Press ‘OK’ while holding the card and it goes in.

5. The card will move back and forth 3-4 times while cleaning the roller.

6. The card will be released once the cleaning process is complete.

7. Press 'MENU' to go back to the previous step.

8. Press ‘MENU’ to go into the standby mode.

3. Insert the cleaning card to the card ejector.

(Make sure to hold the card until the operation starts.)

60 61

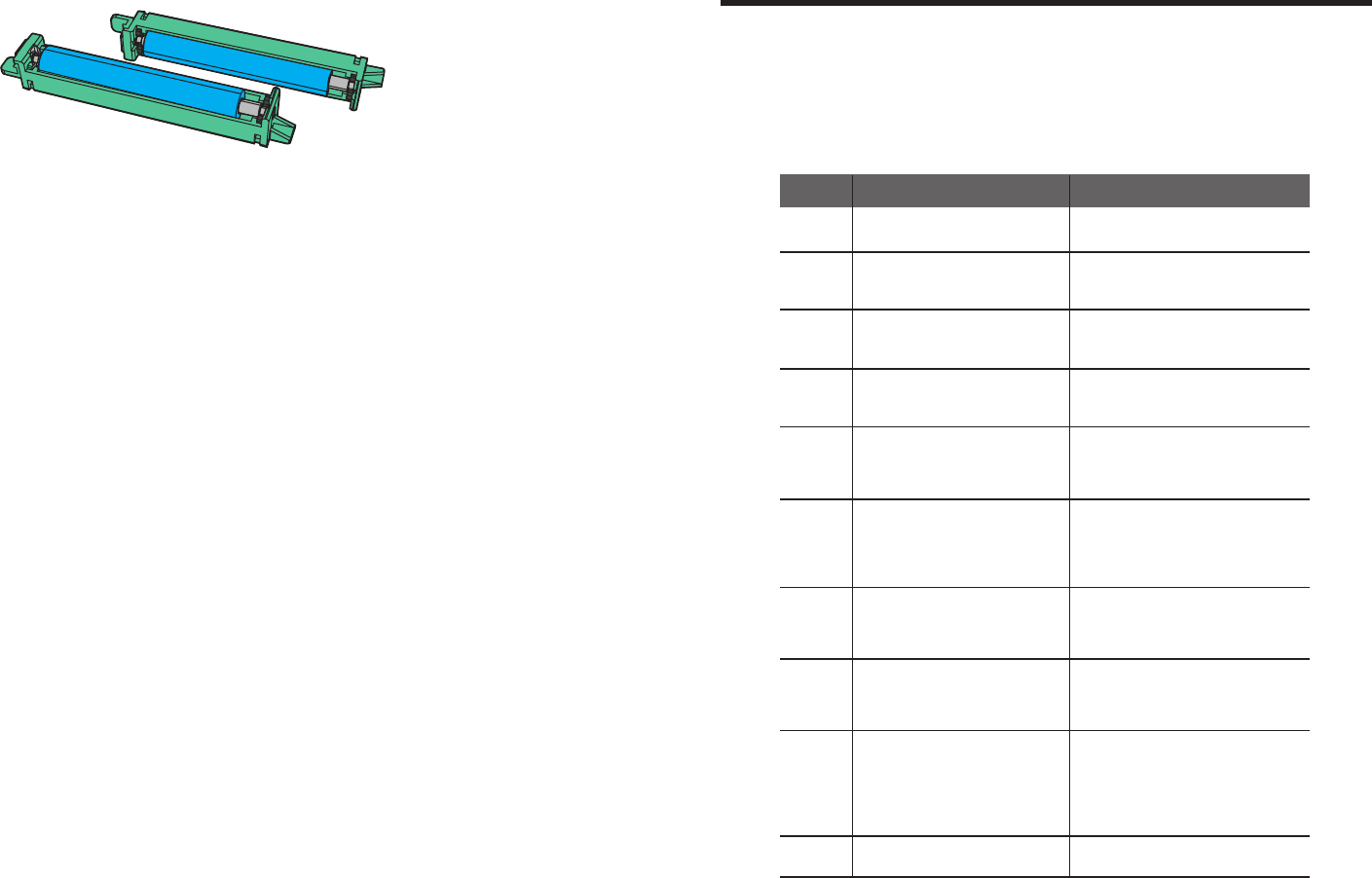

- Clean the Blue Cleaning Roller

Blue Cleaning Roller

This cleaning tool is designed to remove any unwanted materials from

the surface of cards, and it can be used semi-permanently since it can be

washed.

It is recommended to clean it at least once every two weeks. If more than

400 cards are laminated within a month, it is recommended to clean it every

200 times of use.

1. Remove the cleaning roller from the laminator

2. Wash it under running water.

3. Make sure that it is fully dried before installing it into the laminator.

Some of the problems you may encounter while using the printer can be

fixed by referring to the following troubleshooting guide.

If the problem persists, then please contact your local dealer.

Troubleshooting

해결

E11

Leave the laminator for a while to cool it

off. (Power off)

The temperature of the heater not in

use is too high.

E13

If the error message persists when the

cards are loaded, please contact the

service representative for assistance.

The card loader is empty.

E20

Check whether the cover is closed. If the

problem persists, please contact the service

representative for assistance.

The Front Cover is open

E21

Check the cartridge. If the problem persists,

please contact the service representative

for assistance.

No cartridge is loaded.

E22

Check if there are films. If there are

enough films, check whether the tag can

be recognized. If not, please contact the

service representative for assistance.

There is no film. The tag cannot be

recognized.

E24

Check if there are films. If there are

enough films, check whether the tag can

be recognized. If not, please contact the

service representative for assistance.

E25

Check the ribbon mark on the film. If

there is no problem with the ribbon mark,

please contact the service representative

for assistance.

The sensor does not recognize the

ribbon mark while lamination is in

process.

E26

If there is no card inside the laminator or

slot, the system goes back to normal. If the

problem persists, please contact the service

representative for assistance.

Jam occurs when there is no

lamination process.

Description Solution

Error

Messages

The Pass Mode does not match how

the cartridge ribbon is loaded.

(ex. Pass Mode is set to Both in the

menu settings and only the lower

cartridge has films.)

E42

Restart the system 2-3 times. If the

problem persists, please contact the service

representative for assistance.

(This is caused by overheating. Please

contact the service representative promptly

to avoid injuries.)

The heater module fails to return to

its original position.

W10

Replace the films.

There are 40 or fewer ribbon films.

- Error Messages & Solutions

62 63

- Remove Jammed Card

2. Rotate the knob and remove the jammed card as shown in the image.

1. Turn the power off.

Film Specifications

- Patch-Type Film

SpecificationsType

Clear (1.0mil) 500 Prints/Roll

Hologram(1.0 mil) 500 Prints/Roll

E31

Jam occurs while laminating.

Description

Error

Messages

Turn the power off and release the card

(using the handle on the back).

If the problem persists after changing the settings,

please contact the service representative for assistance.

Solution

64 65

Laminator Specifications

- Features

Quick heating process and laminating performance

- After initialization, the system is ready within 40 seconds and laminates both

sides within 20 seconds.

Easy operation and configuration

- Easy to operate and configure the quality settings

- Easy to load the film cartridge thanks to door-type front cover

- Designed with a knob for removing jammed card

Wide display and convenient button control (4Line MONO LCD, 4 Control Buttons)

High level of security

- The front cover can be locked to protect the films inside (optional feature).

Large amount of laminator films

- Up to 500 laminator films (Dual sides) are supported.

- Standard Specifications

① Laminating Type

- Heat Roller +Halogen Lamp Type

② Laminating Function

- Edge to edge, Dual/single sided lamination

③ Laminating Speed

- 8mm/s (for both Dual and single sided lamination)

- Optional Specifications

- Card Stacker: 150 cards (0.76mm)

- Front Cover Lock (for the protection of films)

- Cradle (for connecting to a card/retransfer printer)

- Laminator Specifications

① Product Dimensions(Width x Length x Height) and Weight

- Dimensions : 216.5mm(W) x 320mm(L) x 313.5mm(H)

- Weight : 9.45kg

1) NL200 (Standard)

- Dimensions : 216.5mm(W) x 443.4mm(L) x 313.5mm(H)

- Weight : 9.65kg

2) NL200 (Standard, Card Stacker)

- Dimensions : 216.5mm(W) x 377.2mm(L) x 313.5mm(H)

- Weight : 10kg

3) NL200H (Standard, Card Input Hopper)

- Dimensions : 216.5mm(W) x 500.6mm(L) x 313.5mm(H)

- Weight : 10.2kg

4) NL200H (Standard, Card Input Hopper, Card Stacker)

② Power Supply

- AC 110V ~ 240V

- Single 600W / Dual 600W

③ Interface

- USB 2.0

- RS-232

④ Laminating Temperature

- 120℃ to 195℃(248℉ to 383℉)

⑤ Supported Card Size

- CR-79, CR-80

⑥ Film Patch Dimensions

- Size: 81mm x 51mm (CR-79, CR-80)

- Thickness : 1.0 mil

⑦ Film Patch Capacity

- 500 patches / roll (1.0mil)

66 67

-FCC

Regulatory

FCC Statement

CAUTION: Changes or modifications not expressly approved by the party

responsible for compliance could void the user`s authority to operate the

equipment.

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more

of the following measures.

This product is CE marked according to the provision of the R&TTE Directive (99/5/EC).

Here by T.I.T ENG Co., Ltd. Declares that this product is in compliance with the essential

requirement and other relevant provisions of Directive 1999/5/EC.

FCC IDENTIFIER : XTNNL200

Name of Grantee : TIT ENG Co.,Ltd.

Equipment Class : Part 15 Low Power Communication Device Transmitter

Notes :

- EU

Warranty Certificate

(30 months) from the date of purchase

Product

Model No.

Manufacture

No.

Size

Name of Customer

Address

Date of Purchase

Warranty Period

(YYYY/MM/DD)

Purchase

Dealer Address: TEL)

- Repaired at cost if any of the following apply.

- The warranty has expired.

- The product is damaged by the negligence or misuse of the consumer

(e.g. impact, water, fire).

- The product is damaged by a natural disaster (e.g. earthquake, flood).

- The product is damaged from unauthorized repair or modification.

- Consumable parts are consumed (according to the company policy).

- The product is damaged by the use of unsupported cards.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device should be installed and operated with minimum 20 cm

between the radiator and your body.

We hereby guarantee that all products that POINTMAN will deliver directly or

through any third party to you, do not contain Pb, Cd, Hg, CR+6, PBB, PBDE

to the beat of our knowledge, Thereby our products are in accordance with

RoHS2 Directive.

- Directive 2002/95/EC

- Directive 2005/717/EC

- Directive 2005/747/EC

-RoHS

This document is the copyright of T.I.T ENG Co., Ltd. and may not be reproduced in

full or in part by any means, electronic or otherwise, without the prior written consent

of T.I.T ENG Co., Ltd.

The Company would be very grateful if any accidental inaccuracies could be pointed

out to us, as well as any other constructive criticism which might lead to a better

understanding.

T.I.T ENG Co.,Ltd.

7th floor, Shin-do B/D, 215, Jungdae-ro, Songpa-gu, Seoul, Korea (ZIP: 05702)

260 Maple Court Suite 277, Ventura, CA 93003,

TEL: +1 844 384 3279, www.pointmanusa.com

Room 10G, Building B, Zhongyangdadao, Baoyuan Road 2004,

Xixiang Street, Bao an district, Shenzhen, China (ZIP: 518102)

sales@pointman.co.kr

POINTMAN Technologies Inc.

POINTMAN Trading Co.,Ltd

TIT ENG NL200 CARD LAMINATOR User Manual

TIT ENG Co.,Ltd. CARD LAMINATOR Users Manual

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
