TOKYO COSMOS ELECTRIC L1 TOCOS wireless engine User Manual

TOKYO COSMOS ELECTRIC CO.,LTD. TOCOS wireless engine

User Manual

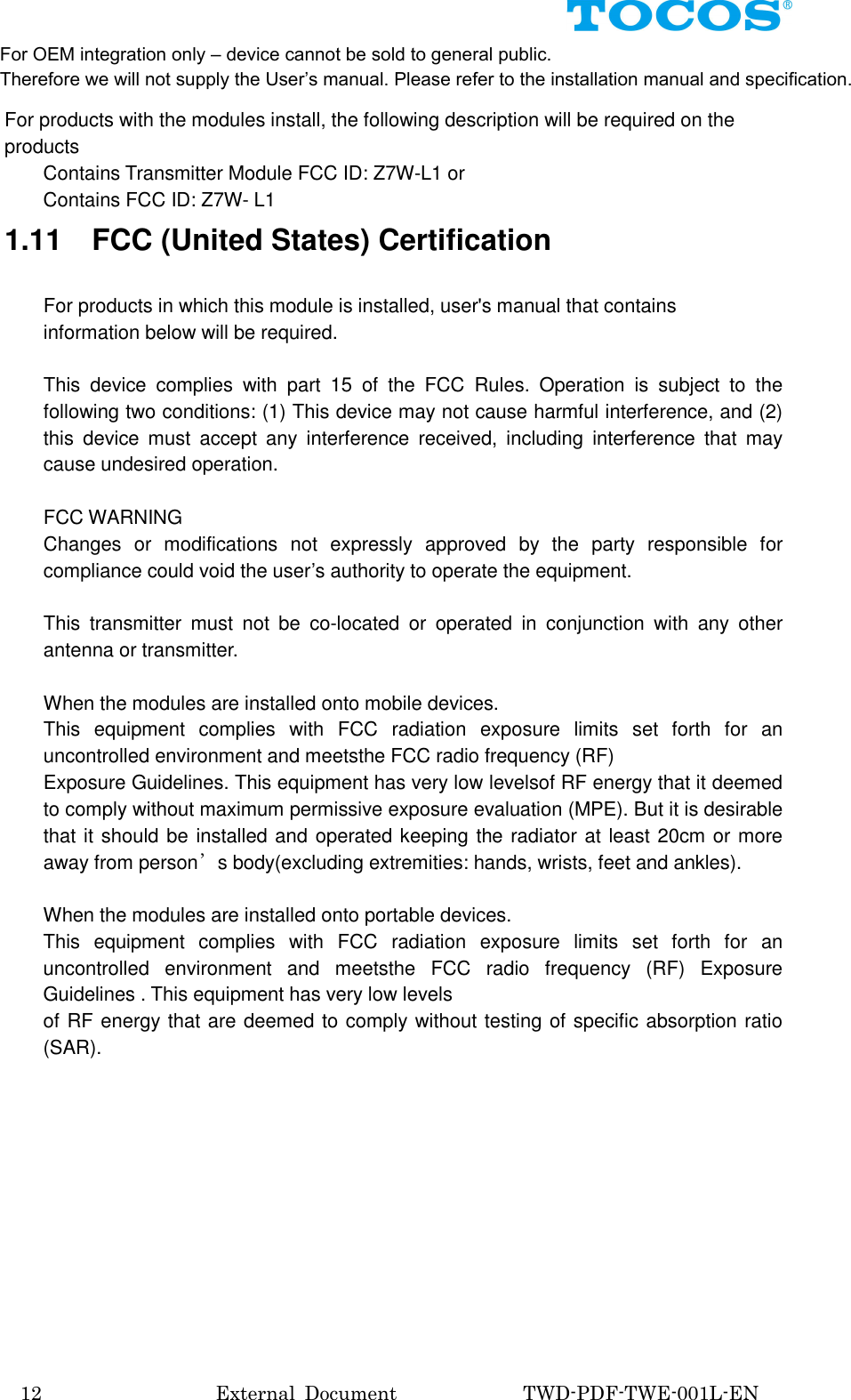

12 External Document TWD-PDF-TWE-001L-EN For products with the modules install, the following description will be required on the products Contains Transmitter Module FCC ID: Z7W-L1 or Contains FCC ID: Z7W- L1 1.11 FCC (United States) Certification For products in which this module is installed, user's manual that contains information below will be required. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. When the modules are installed onto mobile devices. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meetsthe FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levelsof RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body(excluding extremities: hands, wrists, feet and ankles). When the modules are installed onto portable devices. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meetsthe FCC radio frequency (RF) Exposure Guidelines . This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). For OEM integration only – device cannot be sold to general public. Therefore we will not supply the User’s manual. Please refer to the installation manual and specification.

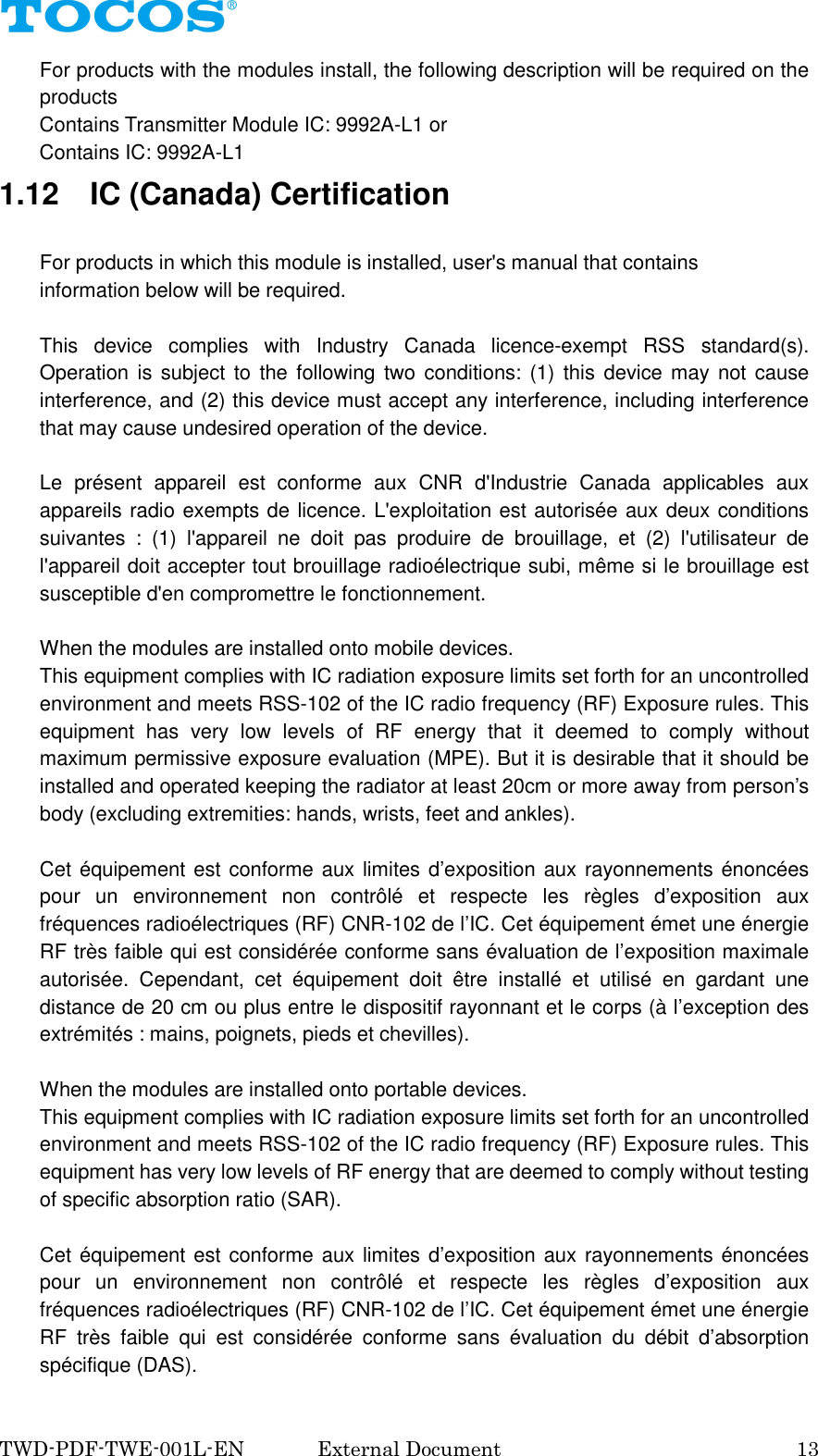

TWD-PDF-TWE-001L-EN External Document 13 For products with the modules install, the following description will be required on the products Contains Transmitter Module IC: 9992A-L1 or Contains IC: 9992A-L1 1.12 IC (Canada) Certification For products in which this module is installed, user's manual that contains information below will be required. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. When the modules are installed onto mobile devices. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). When the modules are installed onto portable devices. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS).

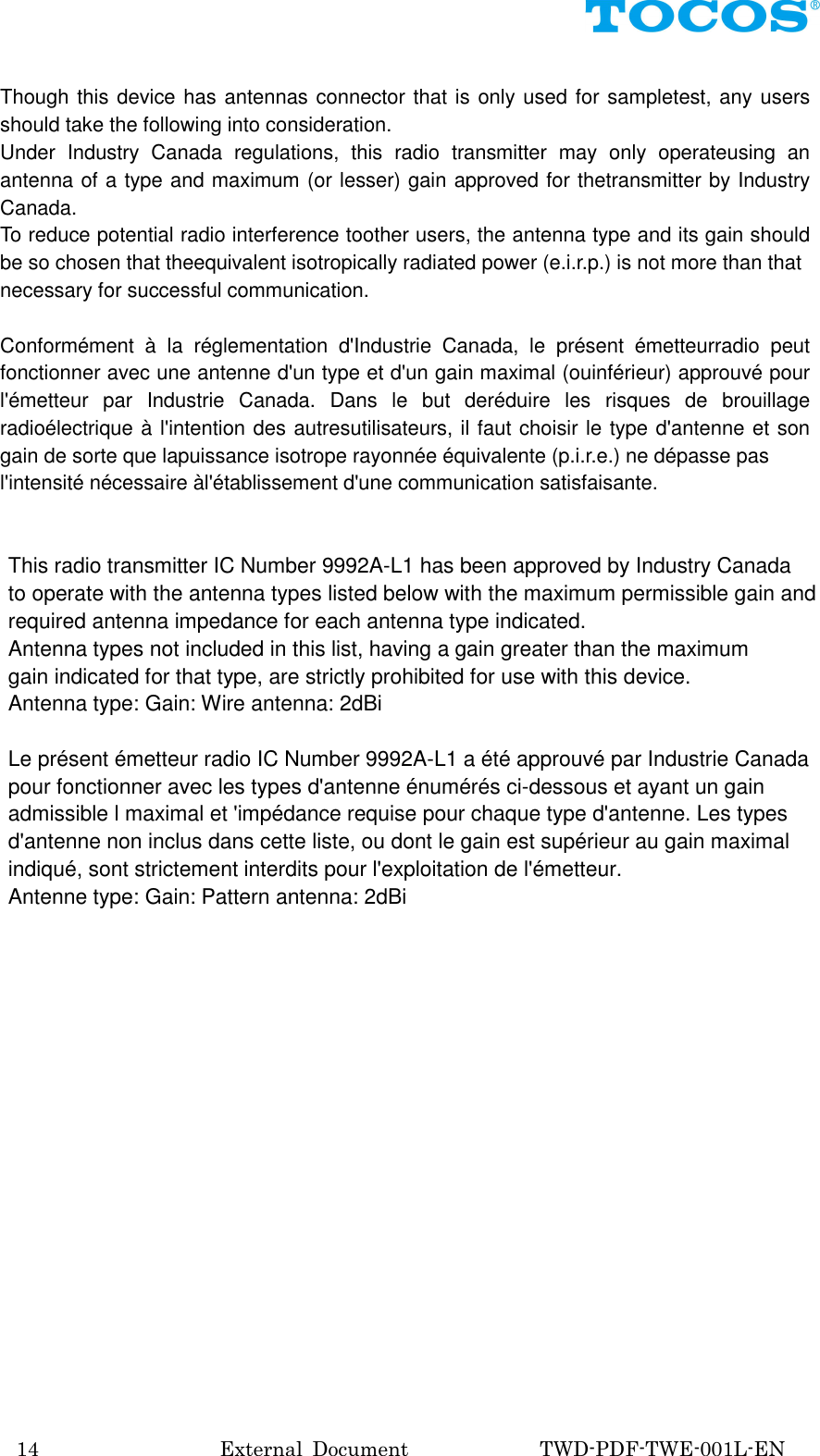

14 External Document TWD-PDF-TWE-001L-EN Though this device has antennas connector that is only used for sampletest, any users should take the following into consideration. Under Industry Canada regulations, this radio transmitter may only operateusing an antenna of a type and maximum (or lesser) gain approved for thetransmitter by Industry Canada. To reduce potential radio interference toother users, the antenna type and its gain should be so chosen that theequivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteurradio peut fonctionner avec une antenne d'un type et d'un gain maximal (ouinférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but deréduire les risques de brouillage radioélectrique à l'intention des autresutilisateurs, il faut choisir le type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une communication satisfaisante. This radio transmitter IC Number 9992A-L1 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna type: Gain: Wire antenna: 2dBi Le présent émetteur radio IC Number 9992A-L1 a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible l maximal et 'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Antenne type: Gain: Pattern antenna: 2dBi
