TP Link Technologies C9AV1 C9A FDD-LTE Smartphone User Manual 1

TP-Link Technologies Co., Ltd. C9A FDD-LTE Smartphone 1

User Manual_1

1910100132 REV1.0.0
C9A FDD-LTE Smartphone
TP706C, TP706CXYZZ
TP-Link Technologies Co.,Ltd.
Contents
About this guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Chapter 1. Get started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1. 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1. 2 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1. 3 Put in the cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1. 4 Initial setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. 5 Charge your phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Chapter 2. Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. 1 Touchscreen gestures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. 2 Home screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. 3 Status bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

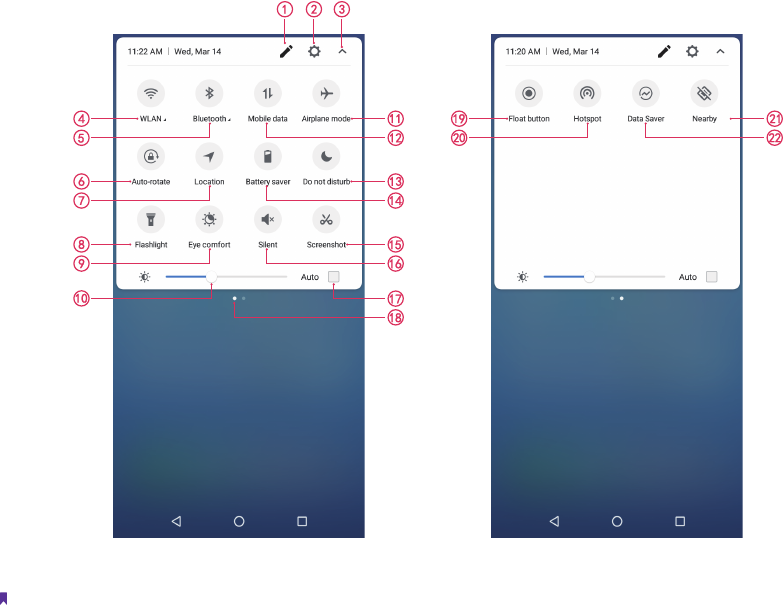

2. 4 Quick Settings Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. 5 Notification Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2. 6 Type text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2. 7 Take a screenshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2. 8 Configure your fingerprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2. 9 Access applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

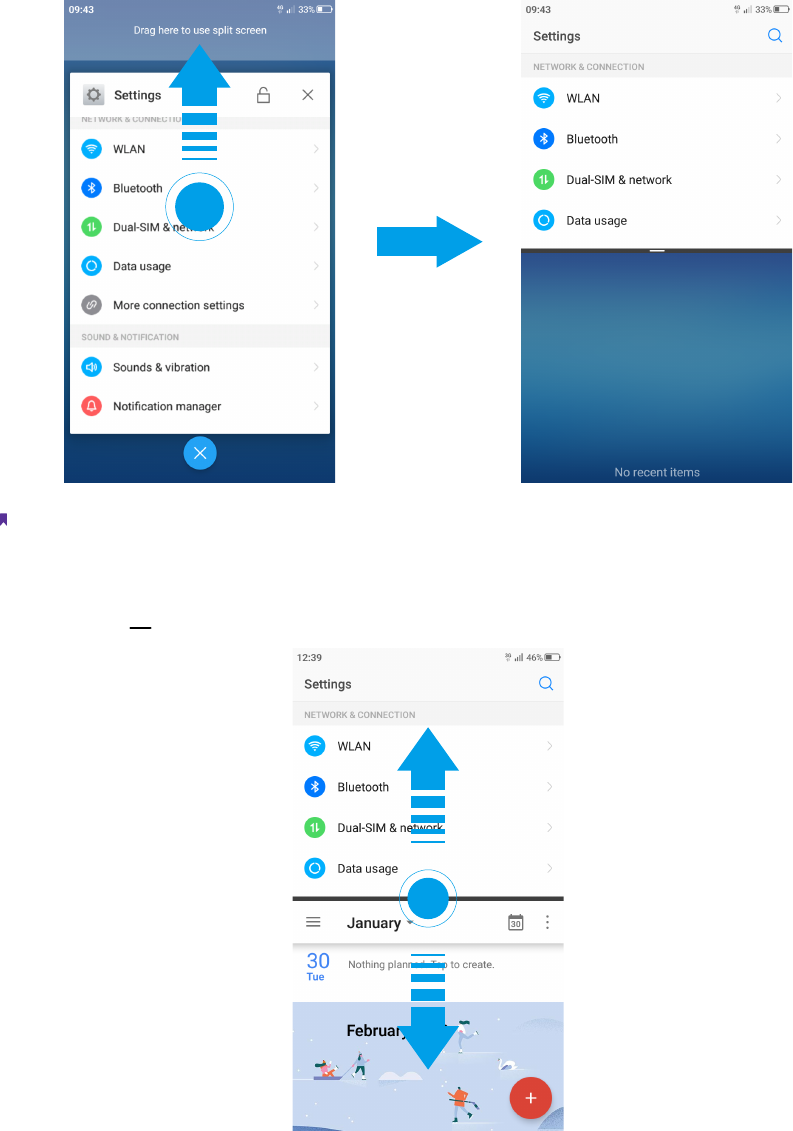

2. 10 Split-screen mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 3. Network and Share . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3. 1 WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3. 2 Mobile data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3. 3 Connect to computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3. 4 Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3. 5 Share your mobile data with other devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3. 6 Smart WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Chapter 4. Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4. 1 Make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4. 2 Answer or reject a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4. 3 Options during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4. 4 Call log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4. 5 Manage contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4. 6 Harassment filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4. 7 Call settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4. 8 Advance settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Chapter 5. Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5. 1 Type of messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5. 2 Send messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5. 3 Reply to messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5. 4 Search for messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5. 5 Manage your messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5. 6 Message settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Chapter 6. Music and video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6. 1 Listen to music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6. 2 Play Music playback screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6. 3 Manage Play Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6. 4 Play a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 7. Camera and Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7. 1 Camera at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7. 2 Take a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7. 3 Record a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7. 4 Shooting mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7. 5 Camera and video settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7. 6 Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Chapter 8. Themes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8. 1 Change the theme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8. 2 Change the wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8. 3 Change the icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8. 4 Change the sounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Chapter 9. Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9. 1 Use the calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9. 2 Calendar settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Chapter 10. Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
10. 1 Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
10. 2 Worldclock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10. 3 Stopwatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10. 4 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10. 5 Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Chapter 11. Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
11. 1 Go to a webpage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
11. 2 Browser tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
11. 3 Browser settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Chapter 12. File Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
12. 1 Create a folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
12. 2 View files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
12. 3 Manage files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
12. 4 File sharing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Chapter 13. Weather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
13. 1 Check the weather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
13. 2 Weather settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 14. Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
14. 1 Compose a new note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
14. 2 Note options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
14. 3 Manage notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Chapter 15. GoogleTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Chapter 16. Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
16. 1 Sound Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
16. 2 Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
16. 3 Compass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
16. 4 Downloads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
16. 5 SIM Toolkit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
16. 6 Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
16. 7 Calculator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
16. 8 Kasa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
16. 9 Tether. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Chapter 17. Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
17. 1 Search settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
17. 2 Dual-SIM & network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
17. 3 Data usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
17. 4 More connection settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
17. 5 Sounds & vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
17. 6 Notification manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
17. 7 Do not disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
17. 8 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
17. 9 Apps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
17. 10 Permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
17. 11 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
17. 12 Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
17. 13 Smart settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
17. 14 Float button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
17. 15 Accessibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
17. 16 Apps Cloner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
17. 17 Screen lock, fingerprint & security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
17. 18 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
17. 19 Google. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
17. 20 Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
17. 21 Language & input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
17. 22 Backup & reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
17. 23 Date & time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
17. 24 System update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
17. 25 About phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Appendix A: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Appendix B: Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Appendix C: Explanation of the symbols on the product label . . . . . . . 82
About this guide
This guide is a complement to Quick Start Guide. The Quick Start Guide provides instructions for quick setup, while this guide
provides details of each function and shows how to configure the smart phone appropriate to your needs.
When using this guide, please notice that features of the device may vary slightly depending on the model and software
version you have, and on your location, language, and Internet service provider. All screenshots, images, parameters and
descriptions documented in this guide are used for demonstration only.
Conventions
In this guide, the following conventions are used:
Convention Description
Smart phone/phone Stands for Neffos C9A without any explanation.
Parameters Parameters provided in the screenshots are just references for configuring the smart phone, which may be
different from the actual situation. You can set the parameters according to your demand.
Underlined Italic and underlined words or phrases are hyperlinks. You can click to redirect to a specific section for more
details.
Screenshots The demonstrated screenshots may look a little different from the actual UI of your smart phone due to the
various firmware versions. Please just configure your phone based on the actual UI.
-> The menu structure which shows the path to enter the corresponding page. For example, Settings -> WLAN
means the WLAN function page is under the Settings menu.
Note: Ignoring the notes in the guide might result in a malfunction or damage to the device.
1Chapter 1 . Get started
Get started
This chapter introduces the smart phone’s hardware information and guides you how to
assemble your phone when you get started on using your new phone.
• Overview
• Buttons
• Put in the cards
• Initial setup
• Charge your phone
1. 1 Overview
Volume buttons
Power button
Fingerprint sensor
SIM/SD card tray
Rear camera
Flash
Softlight
Ambient light &
proximity sensor
Front camera
LED indicator
Earpiece
Charging/data port
Headphone jack
1. 2 Buttons
The buttons you use with Neffos include virtual ones and physical ones.
Power button
• Lock Neffos: Locking your phone puts the display to sleep, saves the battery and prevents unmeant operations
on the screen. You can still receive phone calls, text messages, alarms and notifications as well as listening to
music and adjusting the volume.
1
2Chapter 1 . Get started
Press the Power button to manually lock the screen. If you enabled float button (see Float button), you can
tap -> Lock to lock your Neffos. Neffos locks the screen automatically in a given period of inactivity. To
adjust the time, go to Settings -> Display -> Automatically lock.
Neffos can display your screen signature on the lock screen. To set the signature, go to Settings ->
Screen lock, fingerprint & security -> Lock screen message (For more information, see Lock screen
message).
• Unlock Neffos: Press the Power button to wake the screen. For additional security, you can require a swipe,
pattern, PIN, password or fingerprint to unlock you phone. Go to Settings -> Screen lock, fingerprint
and security -> Screen lock to choose a safe way to unlock your phone (For more information, see Screen
lock).
Note:
You can turn on/turn off the screen by double-tapping the screen, if Double tap to wake/turn off the screen is
enabled. To adjust the function, go to Settings -> Smart settings -> Screen-off gestures.
• Turn Neffos on: Press and hold the Power button until your phone vibrates and the screen turns on.
Note:
If your device displays the shut down notice after the screen turns on, the battery is empty. Connect your phone to a
charger to charge the battery, otherwise your phone will shut down in 30 seconds.
• Turn Neffos off: Press and hold the Power button, then tap Power off.
• Reboot Neffos: Press and hold the Power button, then tap Reboot.
Volume button
You can adjust the audio volume when you’re on the phone or listening to songs, movies or other media.
You can also use Volume button to take a picture or record a video. Refer to Take a photo and Record a video
to learn more.
Ring/silent switch
Switch ring/silent mode.
Home button
• Tap Home button to return to the default Home screen.
• Touch and hold Home button to open Google search.
Back button
Tap Back button to return to the previous screen or close an application. When entering text, tap Back button
to close the onscreen keyboard.
Recent apps button
• Tap Recent apps button to display recently used applications.
• Double-tap Recent button to switch to the previous application.
Note:
You can go to Settings -> Smart settings -> Buttons settings to set the Back button on the left or on the right of
Home button.
1. 3 Put in the cards
Insert Nano SIM cards and microSD card (optional)
1. Eject the SIM card tray by inserting the SIM ejector pin provided into the hole on the tray.
2. Place the the card(s) into the tray with the gold contacts face down. The card tray can support two Nano-
SIM cards or a Nano-SIM card and a mircoSD card.
3Chapter 1 . Get started
3. Insert the card tray back into your phone in the correct orientation.
Note:
1. Your phone only supports nano-SIM cards. Contact your carrier for a new or replacement nano-SIM card. You can
insert 2 nano-SIM cards, or 1 nano-SIM card and 1 micro-SD card. For more information, see Dual-SIM & network.
2. Ensure that the card is in the correct position and keep the card tray level when inserting it into your device.
3. Please exercise caution when using the SIM ejector pin to avoid hurting your fingers or damaging your phone.
4. The SIM eject pin should only be used to eject the SIM card tray. Inserting the SIM eject pin into other holes may
damage your device.
5. Store your pin in a safe place out of the reach of children to prevent accidental swallowing or injury.
1. 4 Initial setup
It is recommended to insert your SIM card before you start the initial setup.
Press and hold the Power button to turn on your phone, and then follow the onscreen instructions to complete
the initial setup.
1. Select your language, and then tap .
2. If you don’t insert any SIM card, your device will proceed to Insert SIM cards screen. Read the tips and
tap SKIP.
If you insert two SIM cards, your device will proceed to Set up SIM cards screen. Follow the onscreen
instructions to finish dual-SIM settings and tap NEXT. You can always adjust dual-SIM settings in
Settings -> Dual-SIM & network.
If you insert only one SIM card, your device will skip this step automatically.
3. Proceed to Welcome to your Neffos C9A screen. You can configure your device in following two ways:
• Tap Copy your data and follow the onscreen instructions to restore a backup or copy from a device.
• Tap Set up as new to skip this step.
4. Proceed to Get connected screen. Your phone will automatically list available WLAN networks. Select the
network you want to connect to (If you want to view more Wi-Fi networks, tap See all Wi-Fi networks),
and then enter the password to access the Internet (This can take up to 2 minutes). If you have activated
mobile data services with your carrier, you can tap Use cellular network for setup. Or you can tap Don’t
use any network for setup -> CONTINUE to skip this step.
Note:
Using cellular network for setup may result in additional fees. Contact your carrier for information about your cellular
data plan rates.
5. If you don’t connect to any networks, your device will proceed to Date & time screen. Set the data and
time, then tap NEXT. You also can tap NEXT directly to skip this step. You can always adjust date and time
in Settings -> Date & time.
4Chapter 1 . Get started
6. Proceed to Name screen. Add your name to allow your phone to personalize some apps. Your name will
be saved as ME in Contacts. Then tap NEXT. Then tap NEXT after finishing. If you don’t want to set
now, tap NEXT directly. You can always set your name in Contacts -> Set up my profile.
7. Pcoceed to Protect your phone screen. Select a device protection feature and tap NEXT, then follow
the onscreen instructions to complete. If you don’t want to set now, choose No, thanks and tap SKIP ->
SKIP ANYWAY. You can always set your device protection in Settings -> Screen lock, fingerprint
& security.
8. Proceed to Google services screen. Read the Google terms and conditions, then tap AGREE.
9. Pcoceed to Anything else screen. You can set up a few more things there, or you can just skip by tapping
ALL SET.
10. Proceed to Terms And Conditions screen. Carefully read the terms and conditions and then tap AGREE.
11. Setup completed. Tap START USING YOUR PHONE to start using your phone.
1. 5 Charge your phone
Your device displays a low battery warning when the battery is nearly empty. Charge your device immediately
to prevent it from switching off automatically.
Your Neffos C9A uses USB Type-C interface which supports insertion with the cable either way up.
Use the charger to charge your device
Connect the device to a power outlet using the included USB cable and power adapter.
1. Connect the USB cable into the Charging port.
2. Connect the USB cable to the power adapter, then plug the power adapter into a power outlet.
3. When the battery is full, unplug the power adapter from the power outlet and remove the USB cable from
your phone.
Use a USB port to charge your device
If you do not have access to a charger, you can charge your device by connecting it to a computer with a USB
cable.
When you use a USB cable to connect your device to a computer or another device, Allow access to device
data will be displayed in a popup dialog. Touch DENY.
If another USB connection mode has been selected, swipe down from the status bar to open the Notification
Panel. Tap the notification of USB connection mode, and then select Charge this device.
Note:
1. The battery is built into the phone and is not removable. Do not attempt to remove the battery yourself.
2. It is entirely normal that your phone may become warm after prolonged use or when exposed to high ambient
temperatures. If your phone becomes hot to the touch, stop charging it and disable unnecessary features. Place your
phone in a cool location and allow it to cool down to room temperature. Avoid prolonged contact with the surface
of your phone if it becomes hot.
3. When charging your phone, only use genuine Neffos chargers and USB cables. Third-party accessories are a potential
safety hazard and may impair your phone’s performance.
4. Avoid using your phone when it is charging. Do not cover your phone or the power adapter.
5. A low battery warning will be displayed when the battery level is low. Your phone will turn off automatically when
the battery is nearly empty.
6. Charging times may vary depending on the ambient temperature and the remaining battery level.
5Chapter 2 . Basics
Basics
Learn about your smart phone’s basic feature.
• Touchscreen gestures
• Home screen
• Status bar
• Quick Settings Panel
• Notification Panel
• Type text
• Take a screenshot
• Configure your fingerprint
• Access applications
• Split-screen mode
2. 1 Touchscreen gestures
Use simple touchscreen gestures to perform a variety of tasks, such as open applications, scroll through lists,
and zoom images.
Tap: Simply touch an item once. For example, tap to select an option or open an application.
Double-tap: Touch the target area of the screen twice in quick succession. For example, double-tap an image
in full screen mode to zoom in or out.
2
6Chapter 2 . Basics
Touch and hold: Touch and leave your finger on the screen for 2 seconds or more to activate onscreen items.
For example, touch and hold a widget on the Home screen to move it.
Swipe: Place your finger on the screen, and drag your finger to the direction you want. For example, in the
Notifications Panel, swipe left or right on a notification to dismiss it. Swipe vertically or horizontally to go to
other home screens, scroll through a document, and more.
Drag: Touch and hold an item and then move it to another position. For example, you can rearrange applications
and widgets on the Home screen.
7Chapter 2 . Basics
Pinch fingers together: Pinch two fingers together on the screen. For example, pinch two fingers together
to zoom out on a picture.
Spread fingers apart: Spread two fingers apart on the screen. For example, pinch two fingers out to zoom in
on a picture.
Slide three fingers: Slide down three fingers on the screen to take a screenshot.
8Chapter 2 . Basics
2. 2 Home screen
Your home screens are where you can find your self-contained widgets and all your applications.
• Status bar: Displays notifications and status icons.
• Widget: Self-contained applications that run on the Home screen (not shortcuts).
• APP screen indicator: Indicates which screen is displayed.
• Dock component bar: Shortcuts to your frequently used applications.
Organize applications and widgets on the Home screen
• Add a widget to the Home screen
Add frequently used widgets to the Home screen for quick access.
1. On the Home screen, touch and hold a blank area (or pinch two fingers together) to open the Home
screen editor.
2. Tap Widgets and select a widget. Tap the widget to add to the Home screen and drag it to a blank
area you like. Or you can just touch and hold the widget to drag it to target area.
3. Tap a blank area on the Home screen (or tap Home Button/Back button) to quit the Home screen editor.
Note:
You must have enough space on the Home screen to add widgets. If there is not enough space, add another Home
screen (see Add a Home screen) or free up some space.
• Move a widget or icon
On the Home screen, touch and hold an application icon or widget and then drag them to the desired
location.
• Batch moving icons
1. On the Home screen, touch and hold a blank area to open the Home screen editor.
2. Tap Adjustment. Tap or drag the icons to put them in the adjustment at the bottom.
3. Swipe left or right to choose the target Home screen.
4. Tap or drag the icons in adjustment to add them to the target Home screen.
5. Tap a blank area on the Home screen (or tap Home Button/Back button) to quit the Home screen editor.
• Remove a widget
On the Home screen, touch and hold the widget you want to delete and then drag it to Remove in the
status bar.
• Uninstall an application
On the Home screen, touch and hold the application you want to remove, then drag it to Uninstall in the
status bar.
Note:
Some pre-installed system applications cannot be removed.
• Create a folder
Create Home screen folders to organize your applications as desired. For example, you can create a Camera
folder that contains all of your camera applications.
1. On the Home screen, drag an icon on top of another icon to create a folder containing both applications.
2. To name the new folder, open the folder, tap Unnamed Folder and enter the folder name.
• Rename a folder
On the Home screen, open the folder and touch the folder name, then enter the new name.
• Add apps to a folder
On the Home screen, touch and hold the application you want to remove, then drag it to the folder you want
to add it to.
9Chapter 2 . Basics
• Remove apps from a folder
1. On the Home screen, open the folder.
2. Touch and hold the application you want to remove, then drag it to the desired location.
• Delete a folder
1. On the Home screen, open the folder.
2. Remove all the applications in it, then the folder will be automatically deleted.
Manage Home screen
• Add a Home screen
1. On the Home screen, touch and hold a blank area (or pinch two fingers together) to open the Home
screen editor.
2. Swipe right and tap on the rightest screen to add a new screen.
• Delete a Home screen
1. On the Home screen, touch and hold a blank area (or pinch two fingers together) to open the Home
screen editor.
2. Tap on the Home screen to delete it.
Note:
Only blank Home screen can be deleted.
• Adjust screen order
1. On the Home screen, touch and hold a blank area (or pinch two fingers together) to open the Home
screen editor.
2. Touch and hold the screen you want to move and drag it to the desired location.
• Set the default home screen
1. On the Home screen, touch and hold a blank area (or pinch two fingers together) to open the Home
screen editor.
2. Tap at the top of a Home screen to set the chosen Home screen as default. On the default Home
screen, will display at the top.
Set the Home screen wallpaper
1. On the Home screen, touch and hold a blank area to open the Home screen editor.
2. Tap Wallpapers, and follow the onscreen instructions to set the picture as the Home screen or lock
screen wallpaper (or both). For more information, see Change the wallpaper.
Note:
You also can set Home screen wallpaper in following two ways.
1. On the Home screen, tap Themes - > -> Wallpapers.
2. On the Home screen, tap Settings - > Display -> Wallpaper.
10Chapter 2 . Basics
2. 3 Status bar
Status icons
Status icons are displayed on the right-hand side of the status bar and tell you about your device’s status.
Status icons Indications
Battery low
Charging
Battery full
Battery save mode enabled
Signal strength
4G SIM 1 selected for cellular data
4G
SIM 2 selected for cellular data
No signal
EConnected over GPRS
3G Connected over 3G
4G Connected over LTE
Headset inserted
WLAN connected
Mobile data enabled
No SIM card installed
Mute mode enabled
Airplane mode enabled
Data save enabled
Bluetooth enabled
Alarms enabled
Do not disturb
Notification icons
Notification icons are displayed on the left-hand side of the status bar when you receive a new message or
other notifications.
Notification icons Indications
Call in progress
Missed calls
New messages
Connected to a PC using USB cable
Hotspot enabled
Downloading status
Uploading data
Screenshots
More than three notifications
11Chapter 2 . Basics
2. 4 Quick Settings Panel
Swipe down from the status bar to open the Quick Settings Panel.
Touch the shortcut switches on the Quick Settings Panel to enable or disable the functions.
Note:
You can touch and hold the shortcut icon to enter the feature’s settings page.
1. Edit: Tap to enter the edit page. You can drag the shortcut switches on the edit page to/from Quick
Settings Panel.
2. Settings: Tap to go to Settings.
3. Collapse/expand the panel: Tap to collapse the Quick Settings Panel.
4. WLAN: Tap to enable WLAN.
5. Bluetooth: Tap to enable Bluetooth.
6. Auto-rotate: Tap to open auto-rotate which can switch the touchscreen from portrait to landscape when
you rotate your phone.
7. Location: Tap to enable location service.
8. Flashlight: Tap to enable flashlight.
9. Eye comfort: Tap to enable eye comfort mode.
10. Brightness slider: Use this slider to adjust the brightness of the screen.
11. Airplane mode: Tap to enable airplane mode.
12. Mobile data: Tap to enable mobile data.
13. Do not disturb: Tap to silence your phone.
14. Battery saver: Tap to enable battery saver.
15. Screenshot: Tap to make a full-screen shot.
16. Silent: Tap to enable silent mode.
17. Adaptive brightness: Tap to enable auto-brightness setting. Your device will optimize brightness level for
available light.
12Chapter 2 . Basics
18. Screen indicator: Tap to change to next screen to view other options.
19. Float button: Tap to enable float button.
20. Hotspot: Tap to enable hotspot.
21. Data saver: Turn on data saver to reduce data usage.
22. Nearby: Tap to scan for links from things nearby (need to open Bluetooth and Location).
Adjust the position of shortcut switches
1. Swipe down twice from the status bar to to open the Quick Settings Panel.
2. Tap to enter the edit page and you can:
• Rearrange shortcut switches: Touch and hold a shortcut switch and then drag the icon to a position of
your choice.
• Add a shortcut switch: Touch and hold a shortcut switch, and drag it from the bottom section of the
panel to the top section.
• Remove a shortcut switch: Touch and hold a shortcut switch, and drag it from the top section of the
panel to the bottom section.
• Reset Quick Settings Panel: Tap -> Reset to reset the Quick Seetings Panel to default settings.
2. 5 Notification Panel
Notification Panel collects all the notifications and alerts so that you can review them whenever you like.
• Open Notification Panel: Swipe down from the status bar to open the Notification Panel.
• View a notification: Tap an item to view the details. Or swipe the notification left or right to remove it from
the list. You can also tap to remove the details all at once. (New notifications, such as missed calls and
messages are displayed on the Lock screen. Double-tap it to view the details).
• Quickly manage notification: Touch and hold the notification detail to open the quick settings screen. Choose
Notifications allowed or Show notifications without prompts and tap DONE. And you can tap MORE
SETTINGS to go to the notification manage page. For more information, see Notification manager.
• Close Notification Panel: Swipe up, or press the Back button or Home button.
13Chapter 2 . Basics
2. 6 Type text
Enter text
Use AndroidTM input method to enter text.
1. Touch and hold the letter to enter the number.
2. Tap and tap a letter, or tap and slide to a letter to type uppercase. Double-tap for caps lock.
3. Enter numbers, punctuations and symbols.
4. Enter a comma. Touch and hold it to open the input options menu.
5. If you have several keyboards, you can tap to switch to the last one you used. You can also touch and
hold it to choose the keyboard you need.
6. Enter a space, or double-tap the space bar quickly to end a sentence with a period.
7. Enter a period. Touch and hold to enter a symbol.
8. Enter emoticon.
9. Delete the characters to the left of the cursor.
10. Use Google voice typing.
Edit text
• Revise text: Tap the text to position the insertion point and start revising.
• Select text: Touch and hold the text field to display the selection options (SELECT ALL/CUT/COPY, and tap
to view more: PASTE/SEARCH/SHARE). Drag to select more or less text.
Spell checker
You can turn on the Spell checker feature to help you enter correct words.
Go to Settings -> Language & input -> Spell checker, and turn on the switch.
Switch input method
On the Home screen, tap Settings -> Language & input. Select an input method you need.
2. 7 Take a screenshot
You can capture the entire screen by following ways:
• Press the Power button and Volume-down button at the same time.
• Swipe down from the status bar to open the Quick Settings Panel, then tap Screenshot.
• Slide down three fingers on the screen.
• If you enabled float button (see Float button), tap -> Screenshot.
14Chapter 2 . Basics
2. 8 Configure your fingerprint
Use the fingerprint sensor to unlock the screen, take photos and unlock apps.
Add a fingerprint for the first time
For added security and to ensure that you can still access your data if your phone fails to recognize your
fingerprint, you will need to set a backup screen lock method when configuring fingerprint unlock.
1. Go to Settings -> Screen lock, fingerprint & security -> Fingerprint management.
2. Select Pattern or PIN or Password, and then follow the onscreen instructions to set a screen lock
password.
3. Once you have configured the password, tap Add fingerprint.
4. Place your fingertip on the fingerprint sensor. Press down lightly on the sensor until your phone vibrates.
Repeat this step using different parts of your fingertip until your phone has successfully added your
fingerprint.
5. Once you have added your fingerprint, tap DONE.
Note:
1. When recording your fingerprint, make sure the fingerprint sensor and your fingers are dry and clean.
2. For more security settings, see Screen lock, fingerprint & security.
Add, delete or rename your fingerprint
Add multiple fingerprints to make it easier to unlock your phone. You can also delete or rename your fingerprints.
1. Go to Settings -> Screen lock, fingerprint & security -> Fingerprint management.
2. Enter the screen lock pattern/password/PIN.
3. In the Fingerprint list section, you can:
• Add a fingerprint: Tap Add fingerprint to add a new fingerprint. You can add up to five in total.
• Rename/delete a fingerprint: Tap a previously added fingerprint to rename or tap to delete it.
4. After you enter several fingerprint, there is a list showing all the recorded fingerprint. When you place your
fingertip on the fingerprint sensor, the corresponding place turns grey, which helps you easily find the
fingerprint.
Use fingerprint to take photos or record videos
When using the camera, touch the fingerprint sensor to take a picture or record a video.
If you don’t want to use this function:
• Go to Settings -> Screen lock, fingerprint & security -> Press and hold your fingerprint to capture,
and turn off the switch to disable the function.
• Go to Camera, swipe right and tap , then switch off Press and hold your fingerprint to capture.
Use fingerprint to access locked applications
Use a Pattern, PIN, Password or fingerprint to lock the selected app(s) to ensure privacy.
1. Go to Settings -> Screen lock, fingerprint & security -> App lock.
2. Use fingerprints or enter the password.
3. Turn on the switch to enable the app lock for the app you want to lock.
15Chapter 2 . Basics
2. 9 Access applications
Launch and switch between applications
• Launch an application from the Home screen: Tap an icon to launch the corresponding application.
• Launch an application from the Lock screen: Swipe up to launch the camera application. Swipe up
to open the toolkit.
Sound Recorder
Calculator Flashlight
Clock
Note:
If you have set the Pattern/PIN/Password, after tapping , you can only go to Stopwatch and Timer.
• Switch to another application: Tap the Home button to return to the Home screen, and then tap the icon of
the application you want to open. Or you can tap Recent apps button to view the recently used applications,
then tap the application you want to open.
Note:
Double-tap Recent apps button to switch to the previous application.
Viewing recently used applications
Tap Recent apps button to display the list of recently used applications.
• View more applications: Swipe up or down on the screen to view more recently used applications.
• Open an application: Tap a thumbnail to open the corresponding application.
• Close an application: Swipe left or right on a thumbnail to close the corresponding application, or you can
tap on a thumbnail to close it.
• Close all applications: Tap to close all applications.
Note:
Before tapping , you can tap to lock the application you want to hold. The system will not close locked application
when you tap .
Uninstall applications
Free up space on your phone and boost performance by removing unused applications.
On the Home screen, touch and hold the application you want to uninstall, then drag it to Uninstall in
the status bar. You can also go to Settings -> Apps, select the application you want to uninstall and tap
UNINSTALL.
Note:
Some pre-installed system applications cannot be removed.
16Chapter 2 . Basics
2. 10 Split-screen mode
Use split-screen mode to use two apps at the same time.
Enable spilt-screen mode
1. Open an app and tap Recent apps button to open recents apps list.
2. Touch and hold an app, then drag it up. Then you can open another app, and it will be displayed at the
bottom of the screen.
Note:
Split screen mode is not available for all apps. Some apps may not function properly in split screen mode.
Switch to full screen mode
Touch and hold swipe up or down to switch to full screen mode.
17Chapter 3 . Network and Share
Network and Share
Connect to internet and computer, and share your phone’s network with others.
• WLAN
• Mobile data
• Connect to computer
• Bluetooth
• Share your mobile data with other devices
• Smart WLAN
3. 1 WLAN
Connect to a WLAN network to access the Internet and reduce mobile data usage.
Note:
Your personal data and financial information may be at risk if you connect to insecure public WLAN networks.
Connect to a WLAN network
Enable WLAN to connect to the Internet using a WLAN access point or hotspot.
If appears in the status bar, you are connected to a WLAN network. Neffos reconnects anytime you return
to the same location.
1. Swipe down from the status bar to open the Quick Settings Panel.
2. Touch and hold WLAN to open the WLAN settings screen.
3. Turn on the switch. A list of available WLAN networks will be displayed.
• Refresh the list: Tap to refresh the available WLAN list.
• Add a WLAN network that is not shown in the list: Swipe down to the bottom of the list and tap Add
network. Follow the onscreen instructions to configure the WLAN settings and password.
4. Select the WLAN network you want to connect to, and then enter the password if needed. (You can also
turn WLAN on in Settings -> WLAN.) Your phone will remember WLAN networks that you have used
before and reconnect to them automatically when you enable WLAN.
Connect to a WLAN network through WPS
Connecting to a WPS-enabled router over WPS allows you to quickly connect to the network without entering
a password. Go to Settings -> WLAN and you can connect to your router in following two ways:
• Tap -> WPS push button and press the router’s WPS button.
• Tap -> WPS pin entry to generate a PIN, and then enter the PIN on the router.
Advanced WLAN settings
Go to Settings -> WLAN -> -> Advanced, you can configure these settings:
• Saved networks: Tap Saved networks to view the networks remembered by your device. Tap a network and
tap FORGET to forget it.
• Network notification: Turn on the switch, and your phone will notify you when a public network is available.
• Keep WLAN on during sleep: There are three options:
1 ) Always: Always stay connected to Wi-Fi when the screen is off.
2 ) Only when plugged in: When the screen is off, only stay connected to Wi-Fi when your phone is charging.
3
18Chapter 3 . Network and Share
3 ) Never: Always switch to mobile data when the screen is off. (When Never is selected, your phone will
disconnect from WLAN and switch to mobile data when the screen turns off.)
• Install certificates: Tap Install certificates and follow the onscreen instructions to install certificates.
3. 2 Mobile data
Before using mobile data, ensure that you have a data plan with your carrier to avoid incurring excessive data
charges.
Connect to mobile data
You can connect to mobile data in following three ways:
• Swipe down from the status bar to open the Quick Settings Panel and tap . When it lights up, mobile data
is enabled.
• Swipe down from the status bar to open the Quick Settings Panel. Touch and hold to enter the cellular
data settings. Turn on the Cellular data switch.
• Go to Settings -> Dual-SIM & network and switch on Cellular data.
Note:
1. If a WLAN connection to the Internet isn’t available, apps and services may transfer data over your carrier’s cellular
network, which may result in additional fees. Contact your carrier for information about you cellular data plan rates.
2. When you don’t need to access the Internet, disable mobile data to save battery power and reduce data usage.
3. 3 Connect to computer
Transfer the data on your phone to your computer or transfer the data on your computer to your phone.
When you use a USB cable to connect your phone with a computer or another device, Allow access to device
data will be displayed in a popup dialog. Tap ALLOW to allow file transfer between your phone and the
computer. Tap DENY to deny data conncection and charge only.
Select the USB connection mode
Swipe down from the status bar to open the Notification Panel, and then tap the USB connection notification.
You can choose from the following USB connection modes:
• Charge this device: Charge your phone only.
• Transfer files: Transfer files between your phone and the computer.
• Transfer photos (PTP): Transfer images between your phone and the computer.
Note:
PTP (picture transfer protocol) is an image transfer protocol.
• Use device as MIDI: Use your phone as a MIDI input device and play MIDI files on the computer.
Note:
MIDI (Musical Instrument Digital Interface) is a music technology protocol that allows digital music instruments to
communicate with each other.
3. 4 Bluetooth
You can share data on your phone with other devices using Bluetooth. And you can use Bluetooth to connect
your phone to Bluetooth headsets and in-car Bluetooth to navigate or listen to music while you drive. You can
also connect your phone to Bluetooth wearables to record and manage fitness data.

Navigation menu
