5. User Manual
Quick Installation Guide
300Mbps Wireless N Router
EN020-F5
Connect the Hardware
Connect the modem to the
router’s WAN port with an
Ethernet cable.
Modem
Power adapter
Router
Power adapter
4Connect the power adapter
to the router.
Turn on the modem and
then wait about 2 minutes
for it to restart.
3
2.A
Confirm that the following
LEDs are solid and on to
verify the hardware
connection is correct.
Power
On
Internet
On
Wi-Fi
On
5
Internet
POWER WAN 1 2 3 4
WPS/
RESET
POWER WAN 1 2 3 4
WPS/
RESET
Turn off the modem and
remove the backup battery if
it has one.
1
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the
Ethernet cable directly to the router’s WAN port as Step 2B, and then
follow Step 4 and 5 to complete the hardware connection.
Connect the Ethernet cable
directly to the router’s WAN
port.
2.B
TL-WR850N
TL-WR840N
©2018 TP-Link 7109505091 REV1.0.0
below:
Follow the step-by-step instructions of the Quick Setup to complete the
initial configuration.
Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1 in
the address bar. Create a password (1 - 15 characters) and get started.
Note: If the login window does not appear, please refer to FAQ > Q1.
Find the SSID (Network Name)
and Wireless Password printed
on the label at the bottom of
the router.

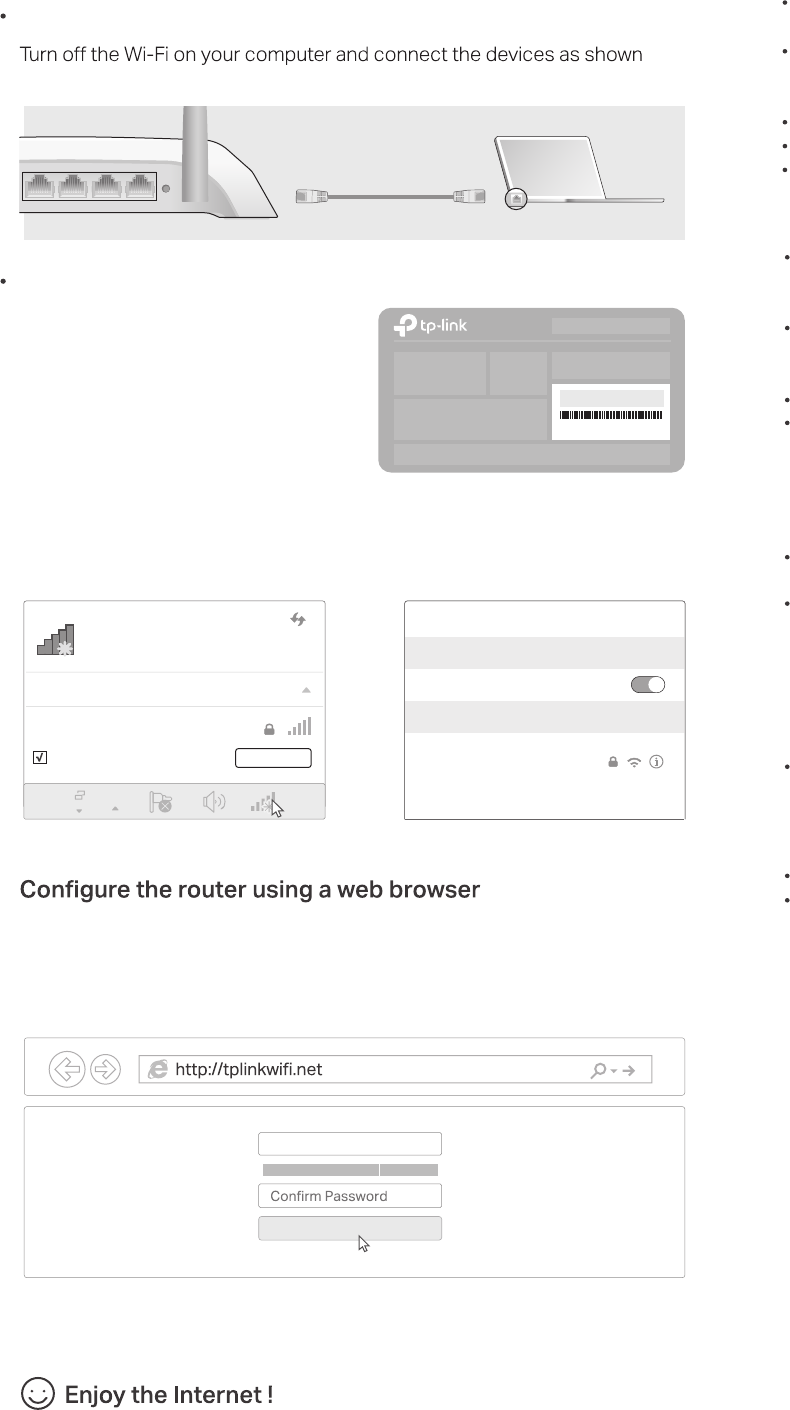

Click the network icon of your computer or go to Wi-Fi Setting of your
smart device, and then select the SSID to join the network.
Wireless
Connect your computer to the router (Wired or Wireless)
Wired
1.
a
b
2.
A
Configure the Router
Ethernet cable
Computer Smart Device
B
WPS/
RESET
2 3
WAN
1 4
Wireless Password/PIN:XXXXXXXX
SSID:TP-Link_XXXX
OR
Connections are available
Wireless Network Connection
TP-Link_XXXX
Connect automatically Connect
Wi-Fi
Wi-Fi
TP-Link_XXXX
CHOOSE A NETWORK...
Other...
< Settings
FAQ (Frequently Asked Questions)
Q1. What can I do if the login window does not appear?
If the computer is set to a static or fixed IP address, change the settings
to obtain an IP address automatically.
Verify if http://tplinkwifi.net or http://192.168.0.1 is correctly entered in
the web browser. Alternatively, enter http://192.168.1.1 in the web
browser and press Enter.
Use another web browser and try again.
Reboot your router and try again.
Disable then able the network adapter being used.
Q2. What can I do if I cannot access the Internet?
Check if the Internet is working properly by connecting a computer
directly to the modem using an Ethernet cable. If it is not, contact your
Internet Service Provider.
Log in to the web management page of the router, and go to the Status
page to check whether the WAN IP address is valid or not. If it is, please
run the Quick Setup again; otherwise, recheck the hardware connection.
Reboot your router and try again.
For cable modem users, log in to the web management page of the
router. Go to Network > MAC Clone, click Clone MAC Address and click
Save . Then reboot both the modem and the router.
Q3. How do I restore the router to its factory default settings?
With the router powered on, use a pin to press and hold the WPS/RESET
button on the back panel of the router for about 8 seconds.
Log in to the web management page of the router, go to System Tools >
Factory Defaults, and click Restore . The router will restore and reboot
automatically.
Q4. What can I do if I forget my web management page
password?
Refer to FAQ > Q3 to reset the router, and then you can set up a new
password .
Q5. What can I do if I forget my wireless network password?
The factory default wireless password is printed on the label of the router.
Connect a computer directly to the router using an Ethernet cable. Log in
to the router’s web management page, and go to Wireless > Wireless
Security to obtain or reset your wireless password.
