M5350
-1-
Package Contents
The following items should be found in your package:
M5350 3G Mobile Wi-Fi
One power adapter
One USB cable
One battery
Quick Installation Guide
Note:
Make sure that the package contains the above items. If any of the listed items is damaged or
missing, please contact with your distributor.
Conventions
The Device or M5350 mentioned in this guide stands for M5350 3G Mobile Wi-Fi without any
explanation.
Attention: All the 3G function described below is not available in the United States. 3G
function is designed for other countries except the United States.
M5350
-2-
Chapter 1. Introduction
1.1 Product Overview
TP-LINK’s M5350 is at the forefront of wireless 3G sharing. Equipped with a built-in 3G modem,
you can instantly establish your own Wi-Fi hotspot simply by inserting a 3G SIM card at the
interior of the device. With up to 21.6Mbps download and 5.76Mbps upload speeds, M5350 is
able to provide 3G wireless sharing to up to 10 users simultaneously. Its pocket-sized design
and powerful 2000mAh internal battery make it an ideal travel companion, allowing users to
work or play for hours on end. Besides, with its innovative OLED display, users can have a
much more intuitive view of the device’s working status, such as signal strength, network type
(2G/3G), Wi-Fi status, message, internet status and battery meter.
1.2 Main Features
Equipped with a built-in 3G modem - No other bulky devices required
HSPA+ supported with up to 21.6Mbps download and 5.76Mbps upload speeds
Supports up to 10 users simultaneously
2000mAh internal battery for extended hours of outdoor use
Portable and cobblestone design ideal for travel use
Micro USB port for versatile recharging
OLED display provides an intuitive view of the device’s working status
Equipped with a micro SD card slot for up to 32GB of optional storage
1.3 Physical Description

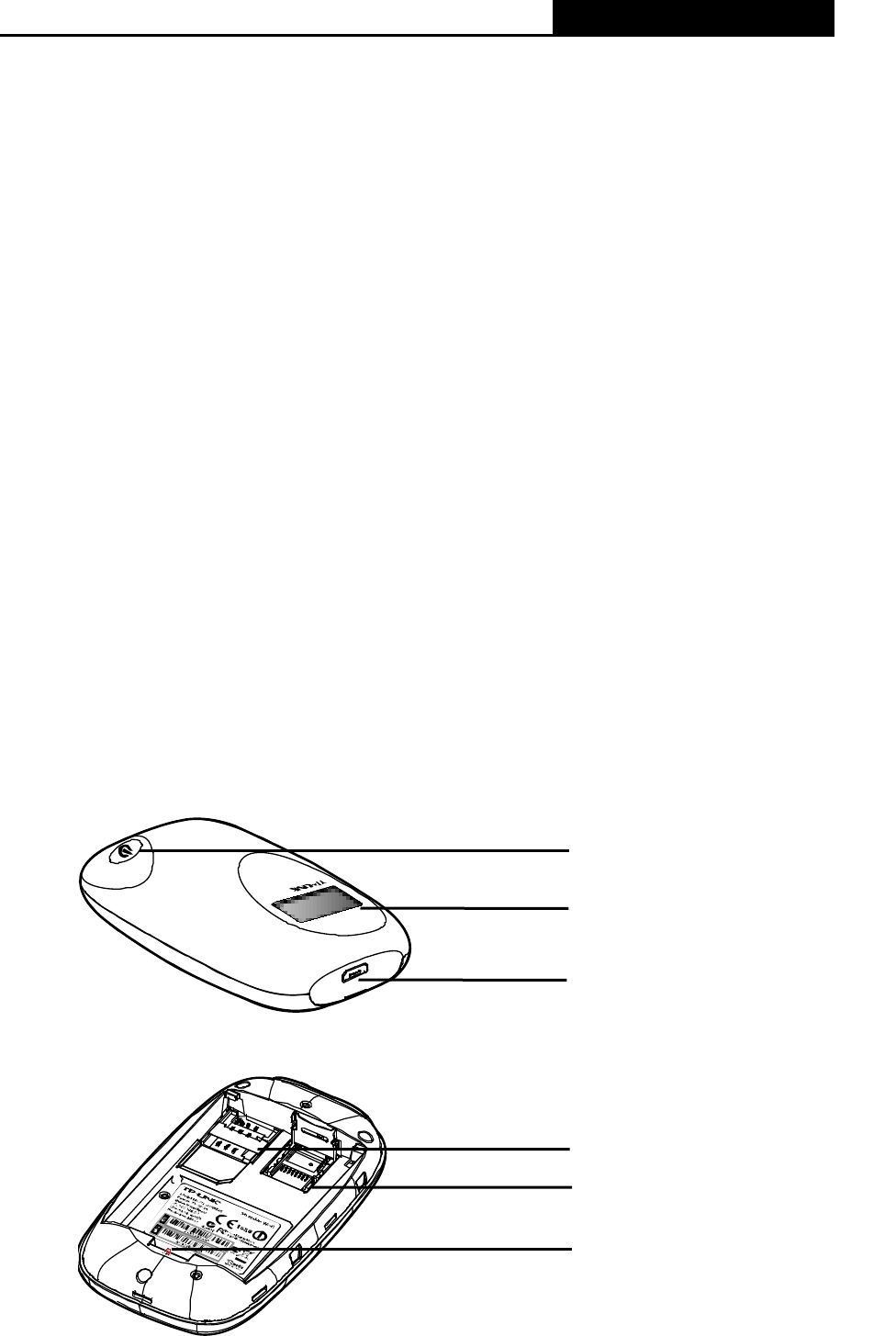

Figure 1-1 the Exterior
Figure 1-2 the Interior
Power
Button
O
LED Screen
Micro USB
Port
SIM
Card Slot
Micro SD Memory
C
ard Slot
RESET Button (hole)
M5350
-3-
The details about the Exterior and Interior are explained as below.
Power Button: When the Device is successfully installed, and it’s powered (either by
battery or electricity); press this button for about 5 seconds to turn on the Device, and if you
want to turn it off, please press this button for another 3 seconds.
Micro USB Port: It’s for you to connect the Device with the power adapter (attached in the
package) via the USB cable.
SIM Card Slot: It’s where to insert your SIM card.
Micro SD Memory Card Slot: It’s where to insert your micro SD memory card.
RESET Button (hole): It’s the button to restore the Device to its factory defaults. With the
Device powered on, use a pin to press and hold the RESET button (hole) for about 5
seconds, until the LED screen is off and later displays “TP-LINK”; then release the button
and wait the Device to reboot and restore its factory default settings.

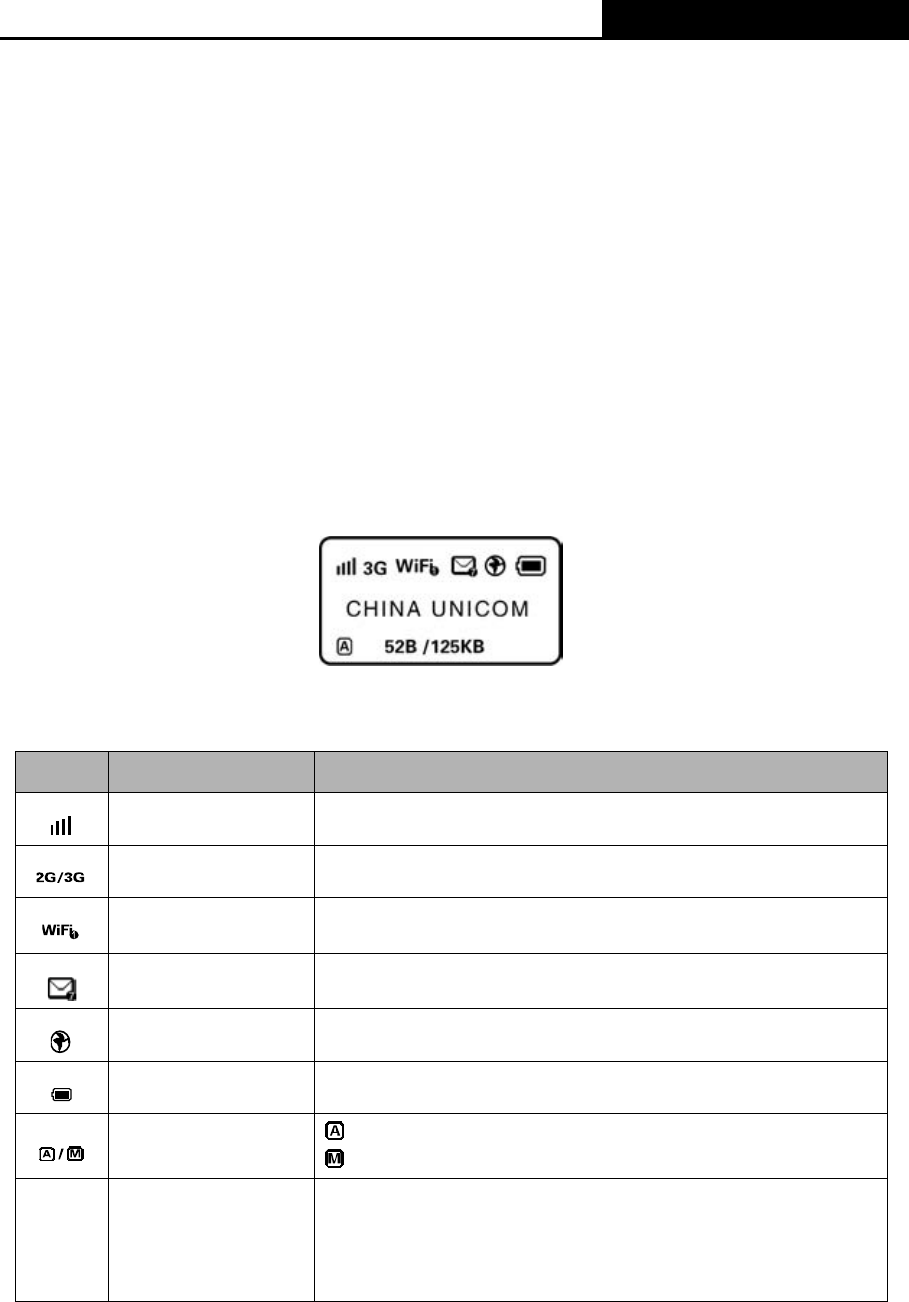

OLED Screen:
Figure 1-3 LED Screen
The OLED Indication:
Item Description Indication
Signal Strength Indicates the signal strength of current 2G/3G network.
Network Option Displays the current network option: 2G or 3G.
Wi-Fi Connection Displays the Wi-Fi status and the amount of current
wireless client.
SMS Displays the amount of un-read short message(s);
if the icon flashes, it means the mail-box is full.
Connection Status Indicates the successful network connection.
Battery Status Displays the remaining battery power.
Connection Mode Means the automatic mode of Internet connection;
Means the manual mode of Internet connection.
52B/125B Traffic Statistics
Means “current traffic/ total traffic”.
(The “current traffic” will be cleared every time the device
turns off, while the “total traffic” will be cleared only when
the device is reset.)
Table 1-1 The OLED Screen details
Note:
When you leave alone the buttons on the device, the OLED screen will light on for 55 seconds
and then turn off. Later when you press the power button, the OLED screen will light up and
display the related information.
M5350
-4-
Chapter 2. Hardware Installation
2.1 Environment Requirements
Place the Device in a well-ventilated place far from any heater or heating vent
Avoid direct irradiation of any strong light (such as sunlight)
Keep at least 2 inches (5 cm) of clear space around the Device
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90%RH, Non-condensing
2.2 Hardware Installation

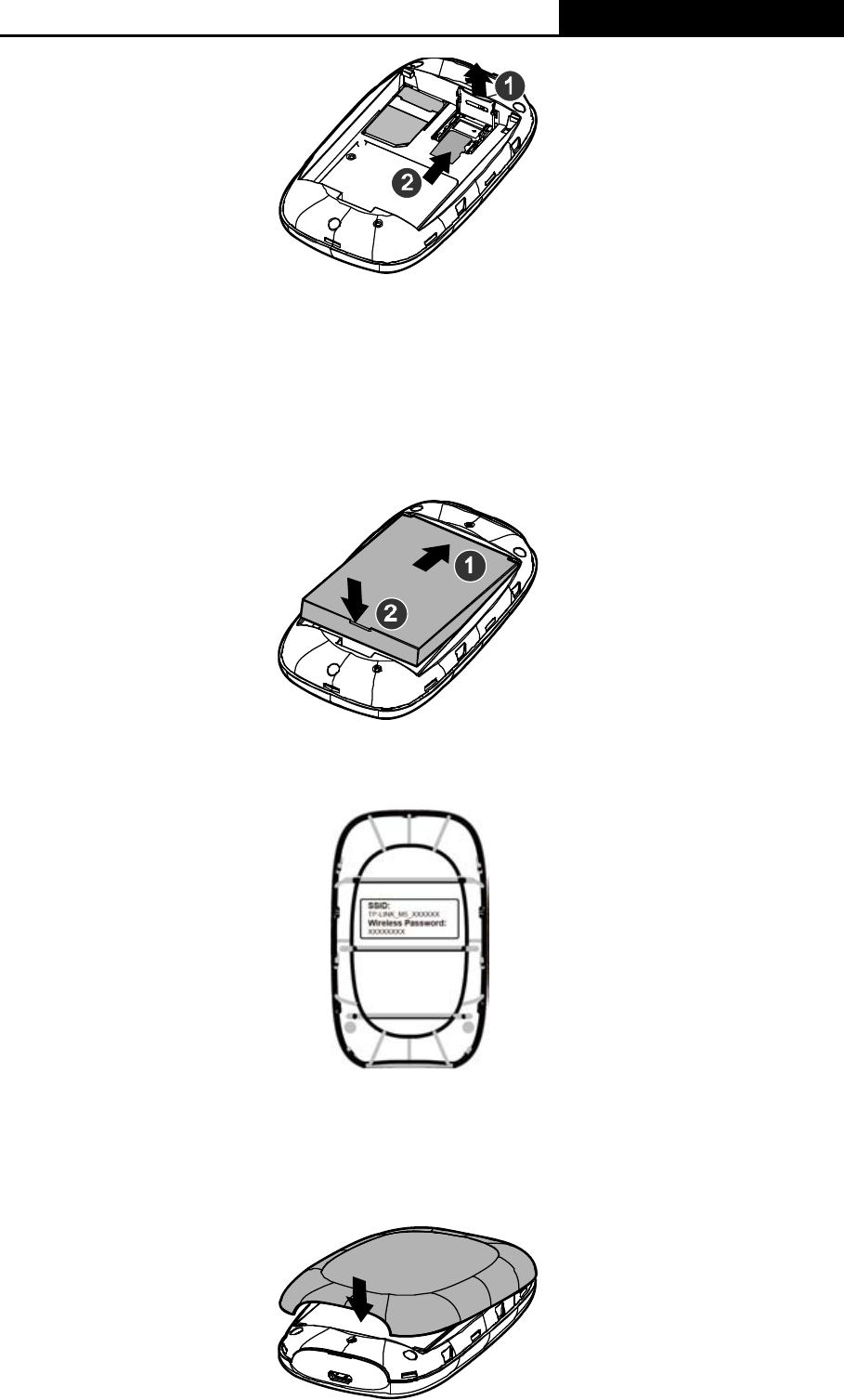

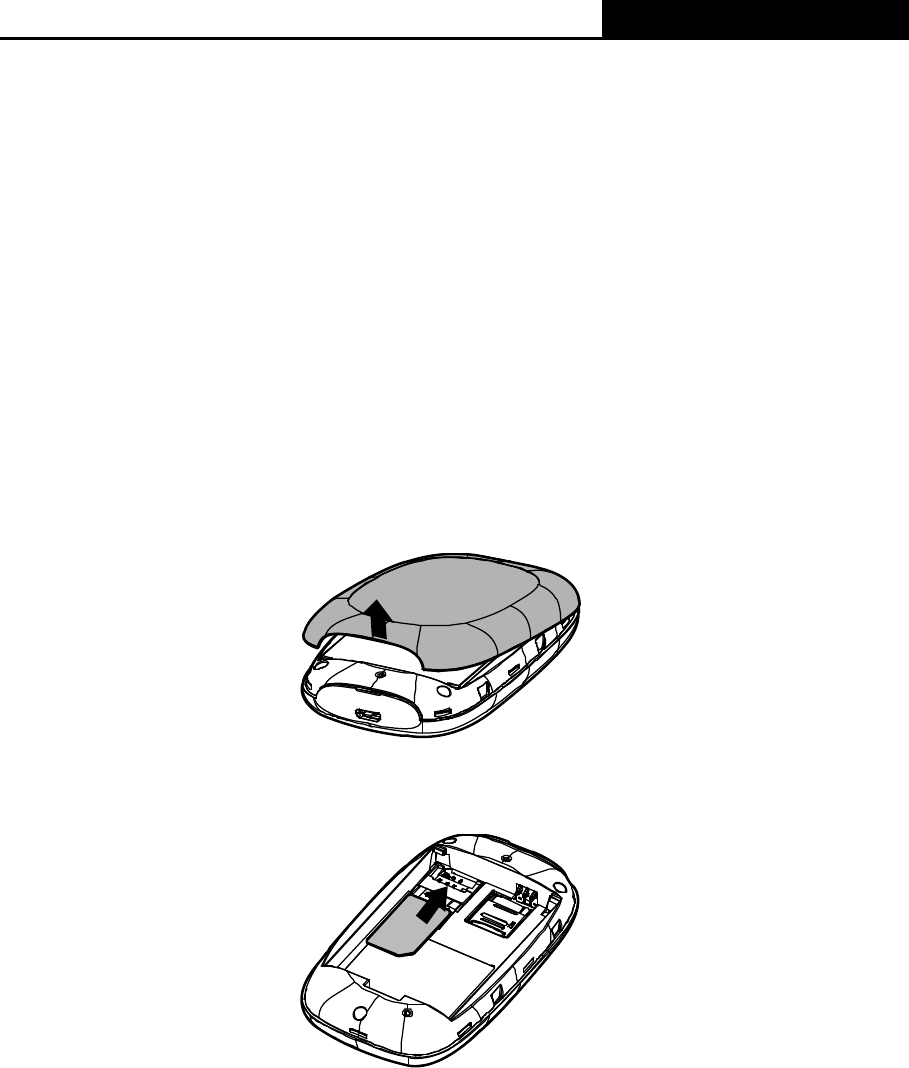

STEP 1: Install SIM card and memory card.
1) Open the cover upwards (as the arrow shows).
2) Make sure to have the SIM card’s metal chip downwards and the triangle notch outwards,
and then slide the card into its slot (in the direction as the arrow shows).
Note:
If you have a Micro-SIM or Nano-SIM, please use an adapter to convert it to a standard SIM
card.
3) First, push and then lift the locker to open it. Second, have the memory card’s metal chip
downwards and inwards, and then fit it in its slot. Finally, put down and then pull the locker
to lock it.
M5350
-5-
Note:
The micro SD memory card is optional. You can purchase it appropriate to your own need.
STEP 2: Install the battery.
1) Touch the metal contacts of the battery to the metal points of the Device, and then press to
fit the battery body into the slot.
2) Before closing the cover, please note down the SSID and the wireless password on the
label for later use.
SSID: The wireless network name of M5350
Wireless Password: The pre-encryption of M5350
3) Close the cover by pressing it.
M5350
-6-
Note:
It’s advised that you do not use M5350 until the battery has been installed.
When finishing the above two-step installation, you can press the power button for about
5 seconds to turn on M5350.

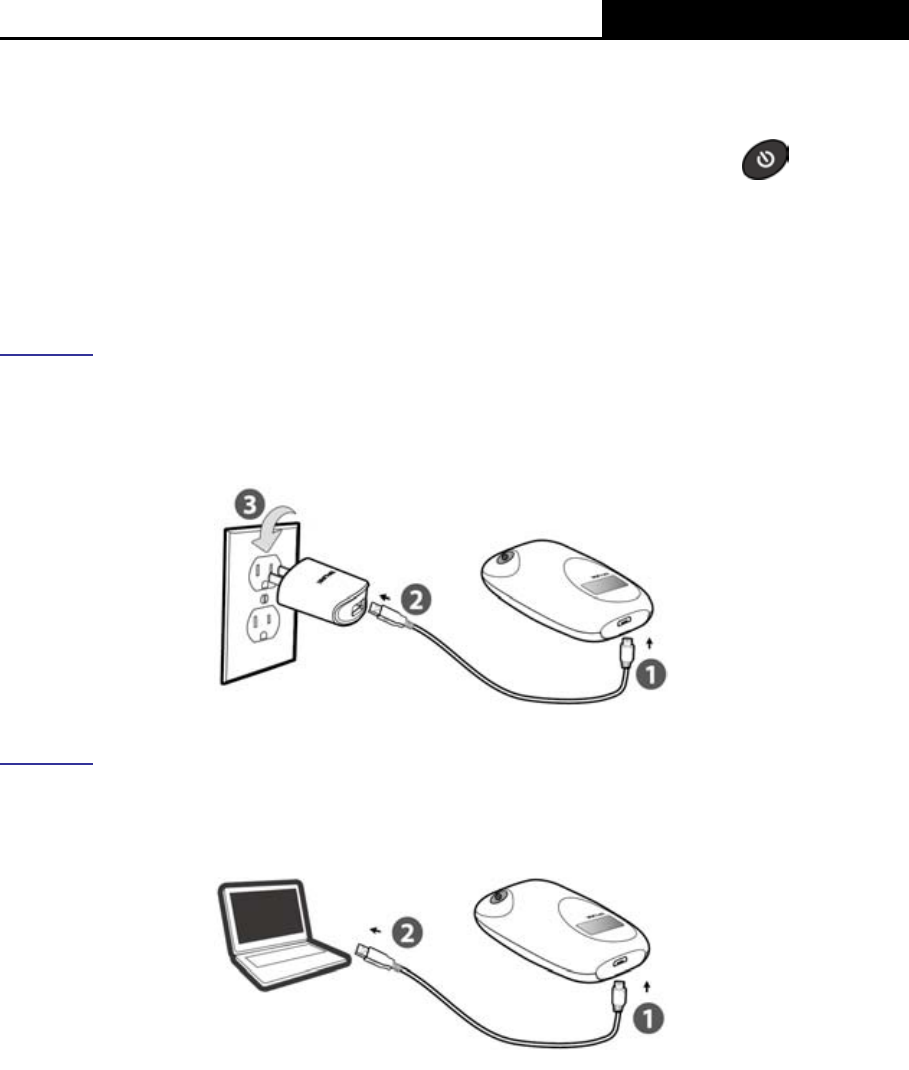

Tips:
You are supported to charge the battery in two ways:
Method 1:
1) Connect one end of the USB cable to the micro USB port.
2) Connect the other end of the USB cable to the USB port of the power adapter.
3) Plug the power adapter to a standard wall socket.
Method 2:
1) Connect one end of the USB cable to the micro USB port.
2) Connect the other end of the USB cable to the USB port of your PC.
M5350
-7-
Chapter 3. Quick Installation Guide
This chapter will guide you to quickly set up the basic functions for your M5350 3G Mobile
Wi-Fi.
3.1 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet)
One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the Device
is connected directly to the Ethernet.)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors
TCP/IP protocol on each PC
Web browser, such as Microsoft Internet Explorer 5.0 , Netscape Navigator 6.0 or above
3.2 TCP/IP Configuration
The default IP address of the M5350 3G Mobile Wi-Fi is 192.168.0.1, and the default Subnet
Mask is 255.255.255.0, which values can be changed as you desire. In this guide, we use all
the default values for description, and take the configuration in Windows 7 for example. While,
Pads or Wi-Fi cellphones by default obtain IP address and DNS server address automatically,
so you can just skip this step and continue with the 3.3 Wireless Connection.
Note:
Before configuration, please make sure your computer has been equipped with a wireless
network adapter.
Obtain an IP address automatically
1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.

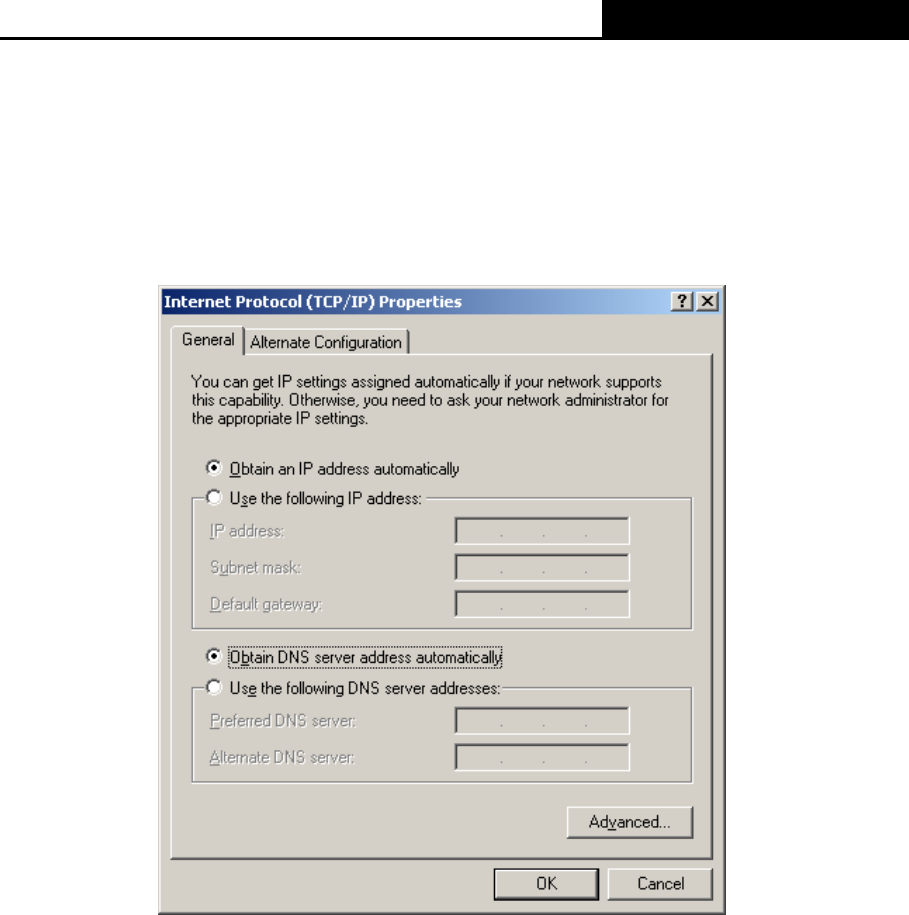

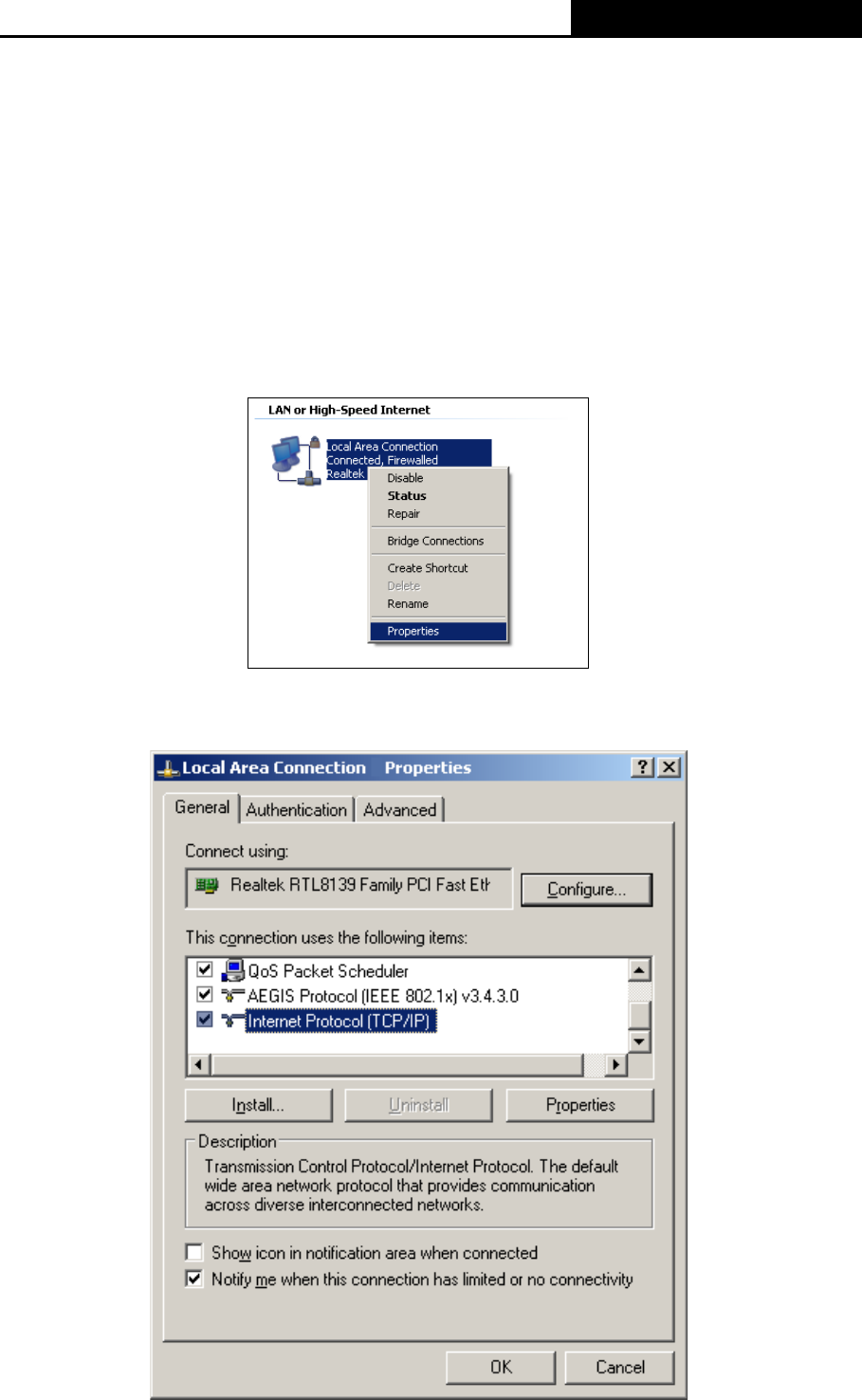

Please refer to Appendix B: Configuring the PC for the detailed instructions.
2) Then the built-in DHCP server will assign an IP address for the PC.
Configure the IP address manually
1) Set up the TCP/IP Protocol for your PC. Please refer to Appendix B: Configuring the PC for
the detailed instructions.
2) Configure the network parameters. The IP address is 192.168.0.X ( X stands for any
number from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.0.1 (the
device's default IP address).
3.3 Wireless Connection
Note:
To log in the Device’s web-based management page, you need to first connect to the wireless
network of the Device.

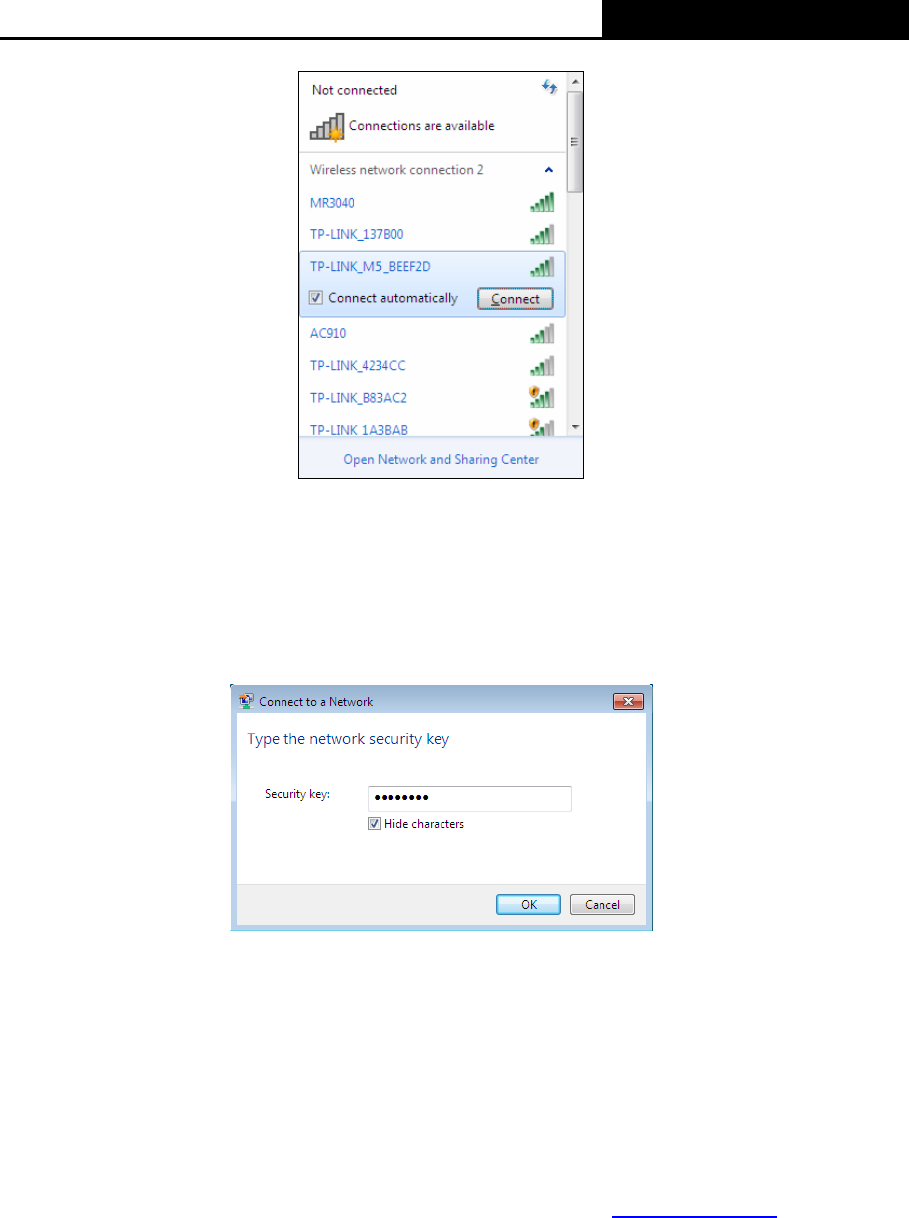

1. Click the icon at the bottom of your desktop.
2. Click the refresh button , and then select the SSID of M5350 and then click Connect.
M5350
-8-
Note:
The default SSID (also called Wireless Network Name) of the device is TP-LINK_M5_XXXXXX
(XXXXXX is the last 6 characters of the device’s MAC address.
3. Enter the wireless password you’ve noted down in the Security Key field, and then click
OK.
Note:
You can refer to the label on the rear cover for the default SSID and wireless password of
M5350.
4. When Connected appears behind the SSID of M5350, you’ve successfully connected to
its wireless network.
Note:
After successful connection to M5350 (with a SIM card inserted), you can enjoy the 3G mobile
connection instantaneously. Otherwise, please continue with 3.4 Quick Setup to further
configure your device.
3.4 Quick Setup
1. Open a web-browser, enter the default address 192.168.0.1 in the address field and then
press Enter. When the login window appears, enter admin (in lower case letters) for both
User Name and Password, and then click the OK button or press the Enter.
M5350
-9-

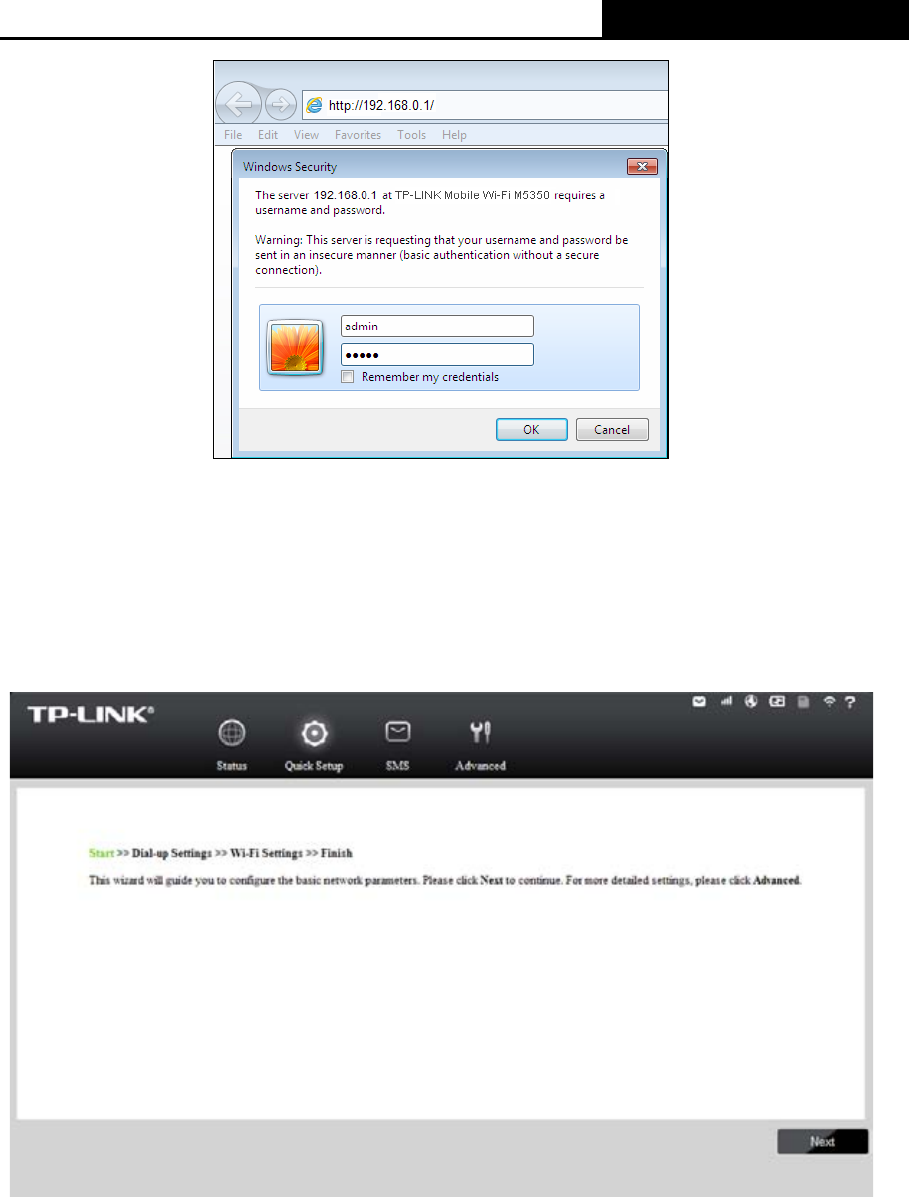

Figure 3-1 Login Windows
Note:
If the above screen does not pop-up, it means that your Web-browser has been set to a proxy.
Go to Tools menu > Internet Options > Connections > LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
2. After successful login, there will appear the Quick Setup page. Click Next to continue.
Figure 3-2 Quick Setup – Start
3. On the Dial-up Settings page shows the related information of the SIM card inserted. Click
Next to continue, if you are sure the information is correct. You can also click New to create
a new profile.
M5350
-10-
Figure 3-3 Quick Setup – Dial-up Settings
4. On the Wi-Fi Settings page, you can create a unique and easy-to-remember wireless
network name (SSID) or keep it default, and in the Wireless Password field set a wireless
password for your network. Then click Next to continue.
Figure 3-4 Quick Setup – Wi-Fi Settings
5. On the Finish page, please double-check your settings. If all the parameters are verified,
click Finish to complete the Quick Setup; if there is anything wrong, you can click Back to
re-configure it.
M5350
-11-

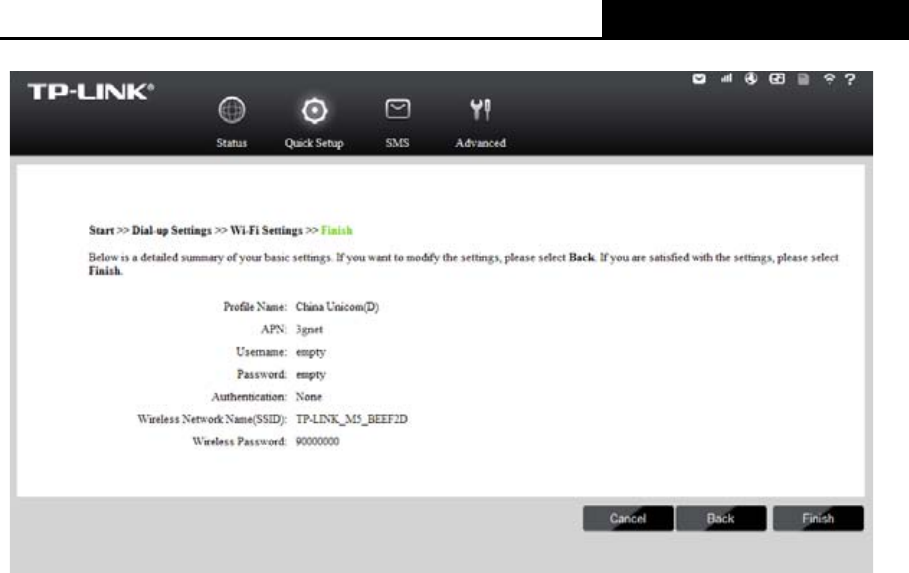

Figure 3-5 Quick Setup – Finish
M5350
-12-
Chapter 4. Device Configuration
After the successful login to the web-based management page of M5350, you will see the main
menu listing Connection, Quick Setup, SMS, and Advanced on the top. In the following parts,
these items will be explained in details, about their respective functions and configurations.
Figure 4-1 Main Menu
4.1 Connection
The Status page displays the current status information about the device. All information is
read-only.

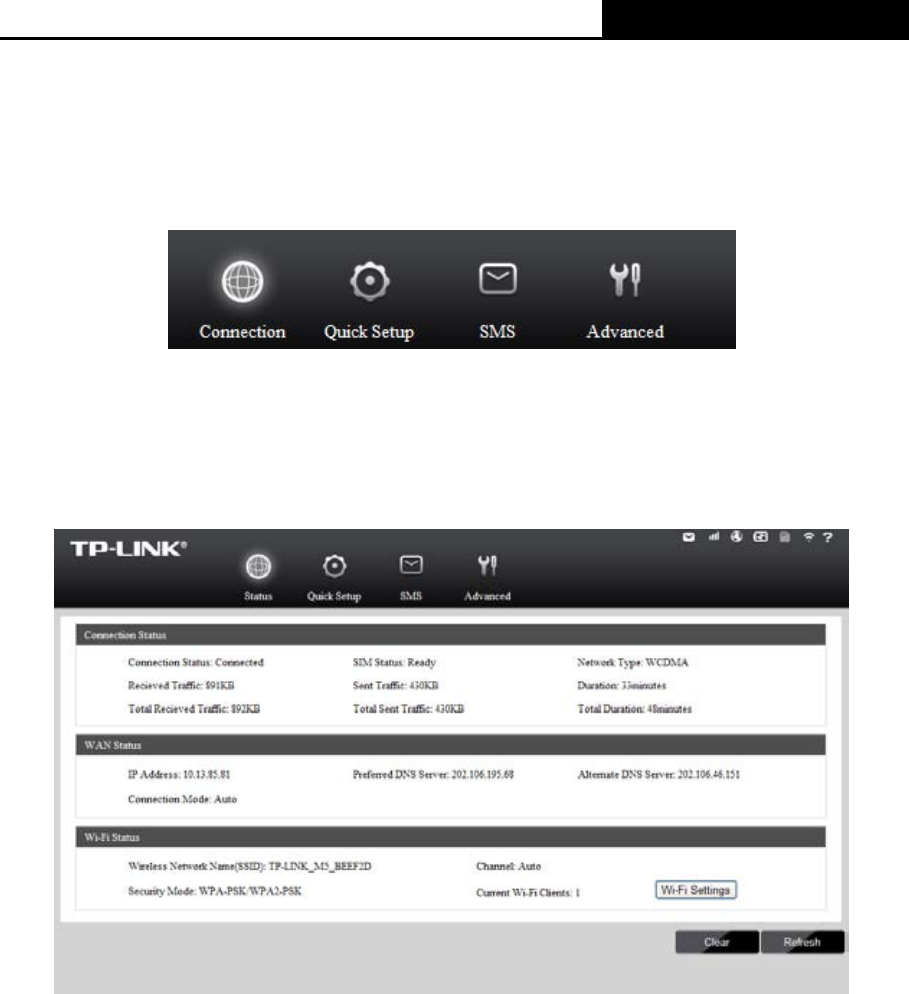

Figure 4-2 Connection
Connection Status: Displays the device’s current connection status, including the
connection and SIM status, network type, received and sent traffics and their totals,
duration and its total, etc.
WAN Status: Displays the device’s current WAN status, including IP address, DNS server
and connection mode.
Wi-Fi Status: Displays the device’s current wireless settings, including SSID, channel,
security mode and current Wi-Fi clients.
Click Wi-Fi Settings to head for the Wi-Fi Settings page and configure it.
Click Clear to clear the total traffic statistics and total duration of the device
Click Refresh to get the status information updated.
M5350
-13-
4.2 Quick Setup
Please refer to 3.4 Quick Setup.
4.3 SMS
Figure 4-3 SMS Menu
There are five submenus under the SMS tab (as shown in Figure 4-3): New Message, Inbox,
Sentbox, Drafts and Settings. Click any of them, and you will be able to configure the
corresponding functions.
4.3.1 New Message

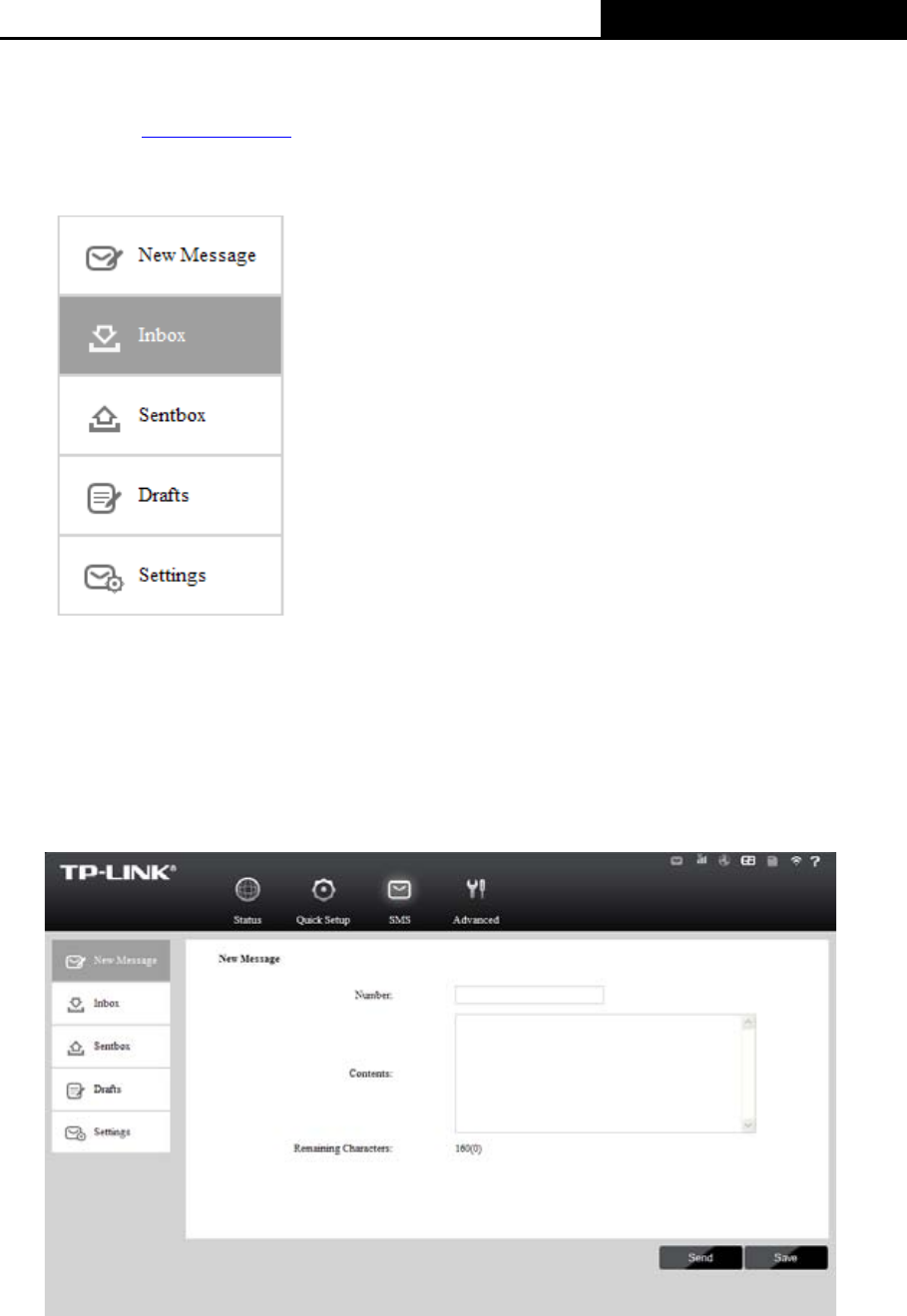

Figure 4-4 New Message
Number: Enter the receiver’s cellphone number.
Contents: Text your message in this box.
Click Send to send the message.
Click Save to save the message in the Drafts box.
M5350
-14-
4.3.2 Inbox

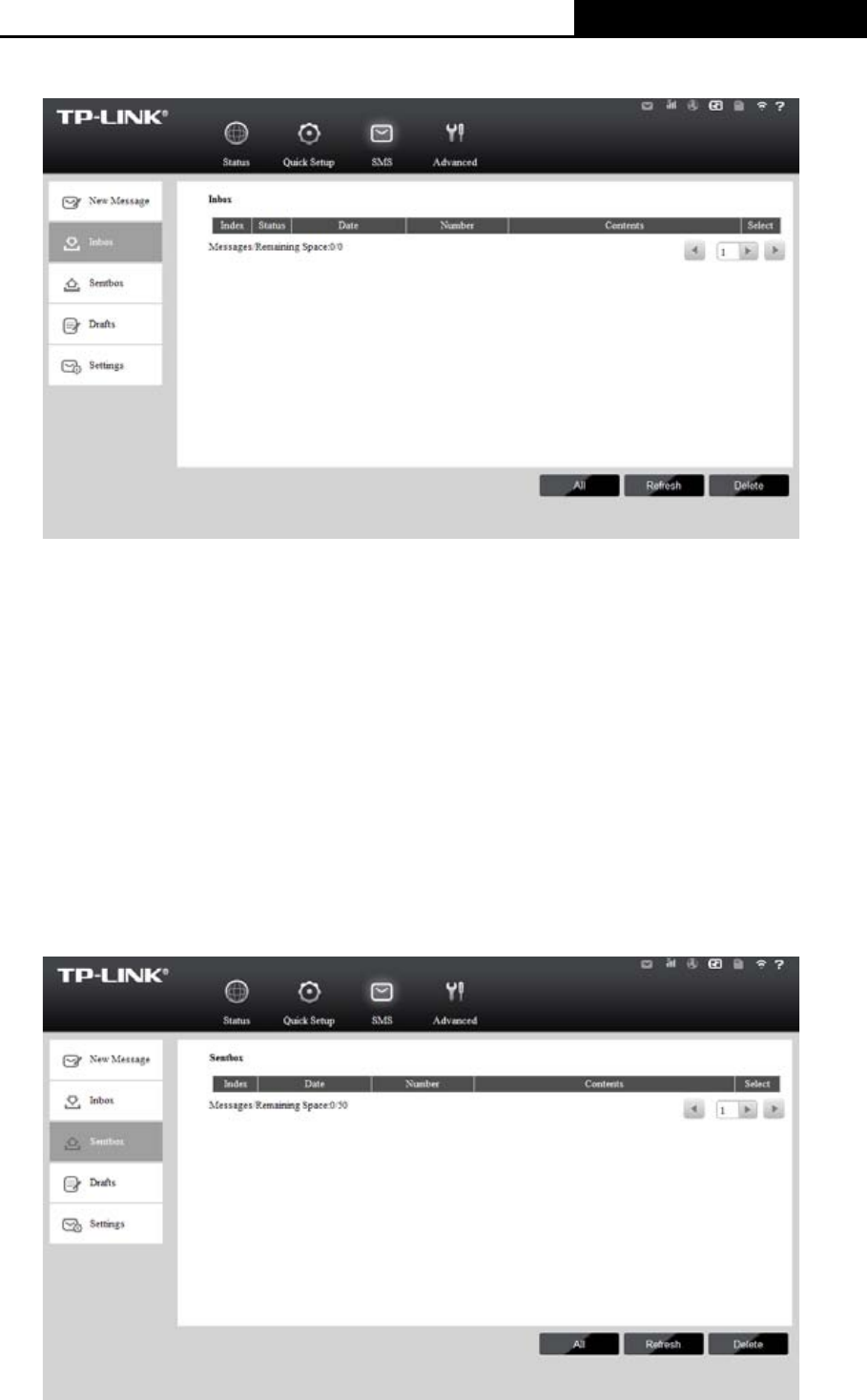

Figure 4-5 Inbox
Index: The index of the message.
Status: means the message has been read. means the message hasn't been read yet.
Date: Shows the date when the message was received.
Number: Shows the cellphone number that sent this message.
Contents: Click to unfold and read the detailed content of the message.
Select: Select the message(s) for deletion.
Click All to select all of the messages.
Click Refresh to refresh the inbox, and get any new message(s).
Click Delete to delete the message(s).
4.3.3 Sentbox
Figure 4-6 Sentbox
M5350
-15-
Index: The index of the message.
Date: Shows the date when the message was sent.
Number: Shows the cellphone number that the message was planned to be sent to.
Contents: Click to unfold and read the detailed content of the message(s).
Select: Select the message(s) for deletion.
Click All to select all of the messages.
Click Refresh to refresh the inbox.
Click Delete to delete the message(s).
4.3.4 Drafts
You can review the unsent saved message(s) on this page.

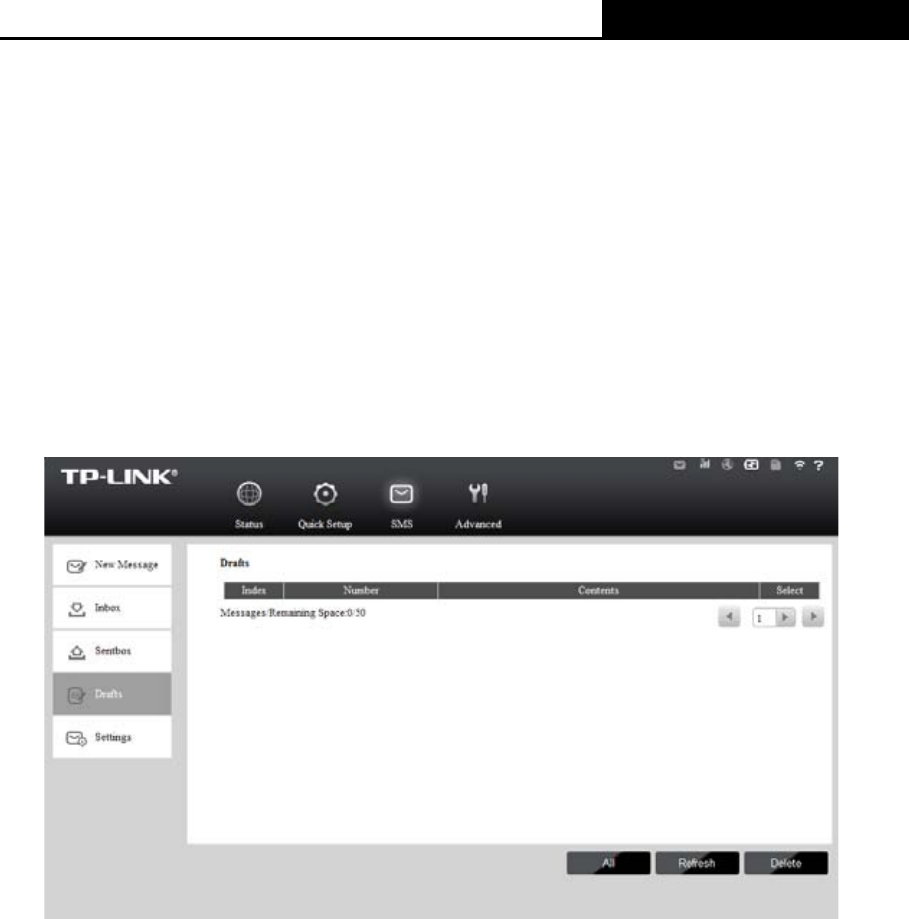

Figure 4-7 Drafts
Index: The index of the message.
Number: Shows the cellphone number that this message was planned to be sent to.
Contents: Click to unfold and read the detailed content of the message(s), or for further
edition and delivery.
Select: Select the message(s) for deletion.
Click All to select all of the messages.
Click Refresh to refresh the drafts.
Click Delete to delete the message(s).
M5350
-16-

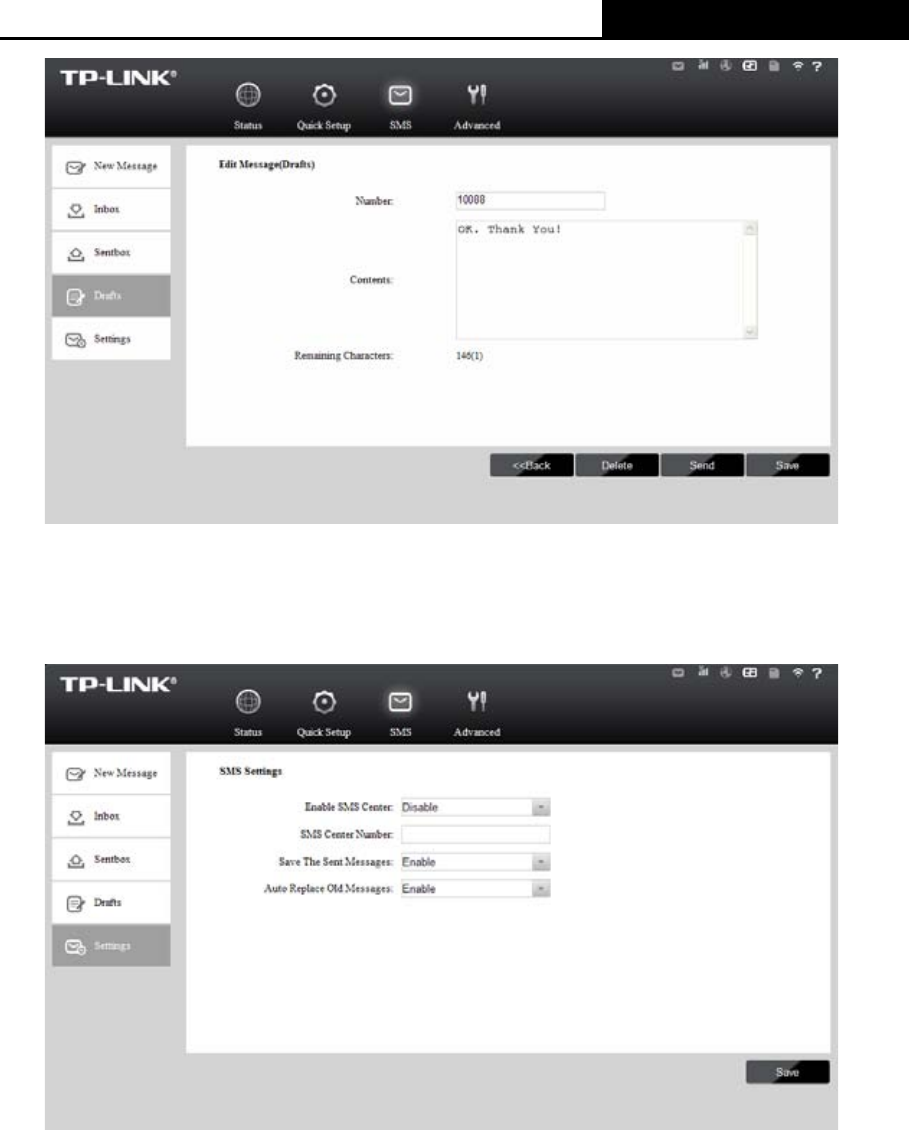

Figure 4-8 Edit Message(Drafts)
4.3.5 Settings
On this page, you can do the following settings:
Figure 4-9 Settings
Enable SMS Center: Disabled by default. It's recommended to keep the default setting. If
you want to manually set the SMS Center Number, please select Enable.
SMS Center Number: When the SMS Center is enabled, you can enter the SMS Center
Number of the local ISP. If you enter a wrong number, the SMS would be affected and not
properly used.
Save The Sent Message: Enable it to automatically save the sent message in the
sentbox.
Auto Replace Old Messages: If enabled, it will automatically delete the old messages
and save the new ones when the sentbox or drafts box is full. If disabled, you need to
M5350
-17-
manually delete the old messages to save the new ones when the sentbox or drafts box is
full.
Click Save to make your settings take effect.
4.4 Advanced

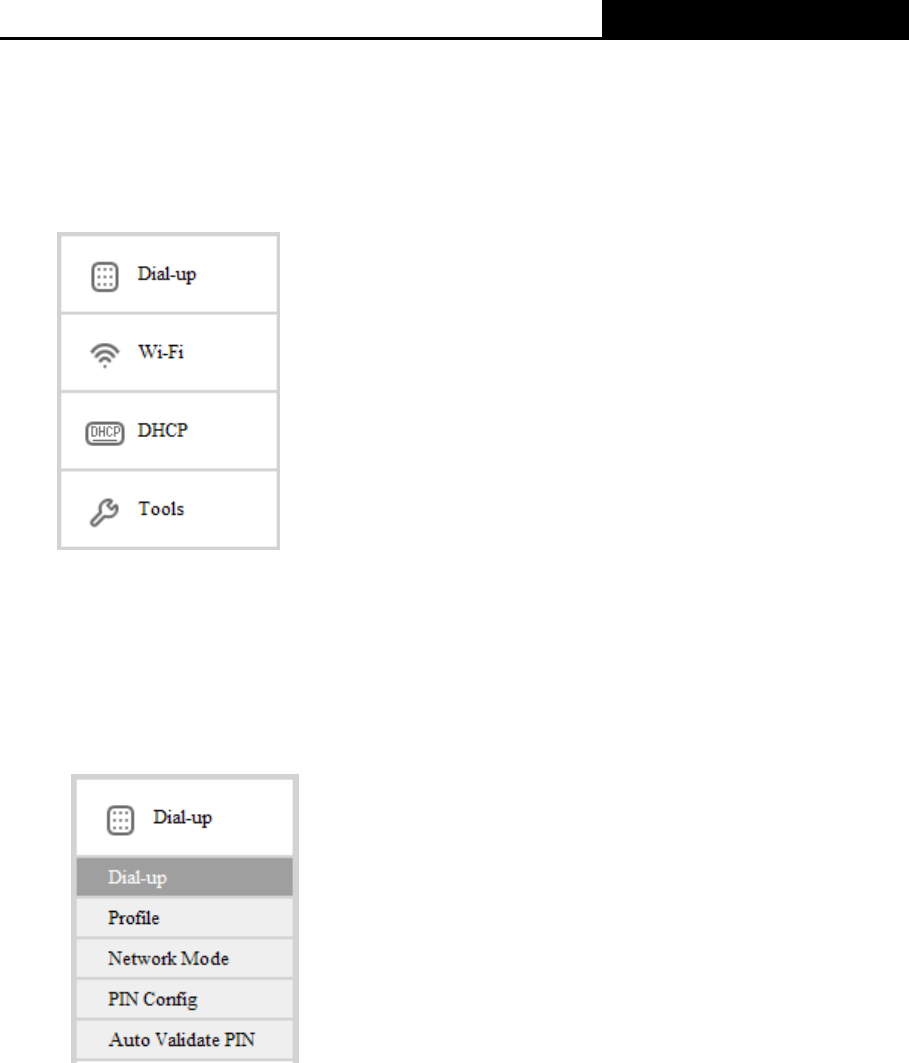

Figure 4-10 Advanced Menu
There are four submenus under the Advanced tab (as shown in Figure 4-10): Dial-up, Wi-Fi,
DHCP and Tools. Click any of them, and you will be able to configure the corresponding
functions.
4.4.1 Dial-up
Figure 4-11 Dial-up Menu
4.4.1.1. Dial-up
Dial-up Settings page allows you to do the following configurations.
M5350
-18-
Figure 4-12 Dial-up Settings
Profile List: A list of profile(s). Select the profile of your SIM card currently inserted in the
device, and then you can manually control the connection status and mode of it.
Connection Status: Shows whether the Internet is connected or disconnected at present.
Connection Mode: The device provides two modes of connection – Auto and Manual.
Please select the connection mode as you need.
Auto (Connection): The device will automatically establish connection once it’s started.
During the process, if your Internet connection is terminated due to some exterior
reasons, the device would automatically attempt connection until it’s successful. This
option is suggested, if you have the network service paid by month.
Manual (Connection): When you start the device and your computer, or when the
connection is terminated during the process, you need to manually dial up for
connection, either in here or on the Status page. When you select Manual as your
connection mode, you need to specify a MAX Idle Time (5 minutes by default), namely
a period of inactivity, after which the device will disconnect your Internet connection,
and not be able to re-establish your connection automatically as soon as you attempt
to access the Internet again. If you have the network service paid by hour, this option
is suggested.
Click Save to save the above settings and have them take effect.
4.4.1.2. Profile
You can manage your profile on this page.
M5350
-19-
Figure 4-13 Profile Management
Profile List: A list of profile(s). Select the profile of your SIM card currently inserted in the
device, and then you can view the related information of it. If you find any parameters
wrong, you can click New to create a new profile with the right settings (as shown in Figure
4-14).
Profile Name: Displays the name of the profile you’ve selected.
APN Type: Displays the type of your APN, either Auto or Manual. Auto means the device
have dynamic APN, which need not to be specified. Manual means you specify your APN
manually.
APN: Displays the Access Point Name provided by your ISP.
Username/Password: Displays the User Name and Password provided by your ISP.
Authentication: Displays the specific authentication type your ISP required.
None: Means no authentication is required.
PAP: Means your ISP required Password Authentication Protocol, which allows the
device to establish authentication with the peer using two handshakes.
CHAP: Means your ISP required Challenge Handshake Authentication Protocol,
which allows the device to establish authentication with the peer using three
handshakes and checking the peer identity periodically.
Auto: Means the device have dynamic negotiation with the dialing server and the
Authentication Type need not to be specified.
Click New to create a new profile.
M5350
-20-

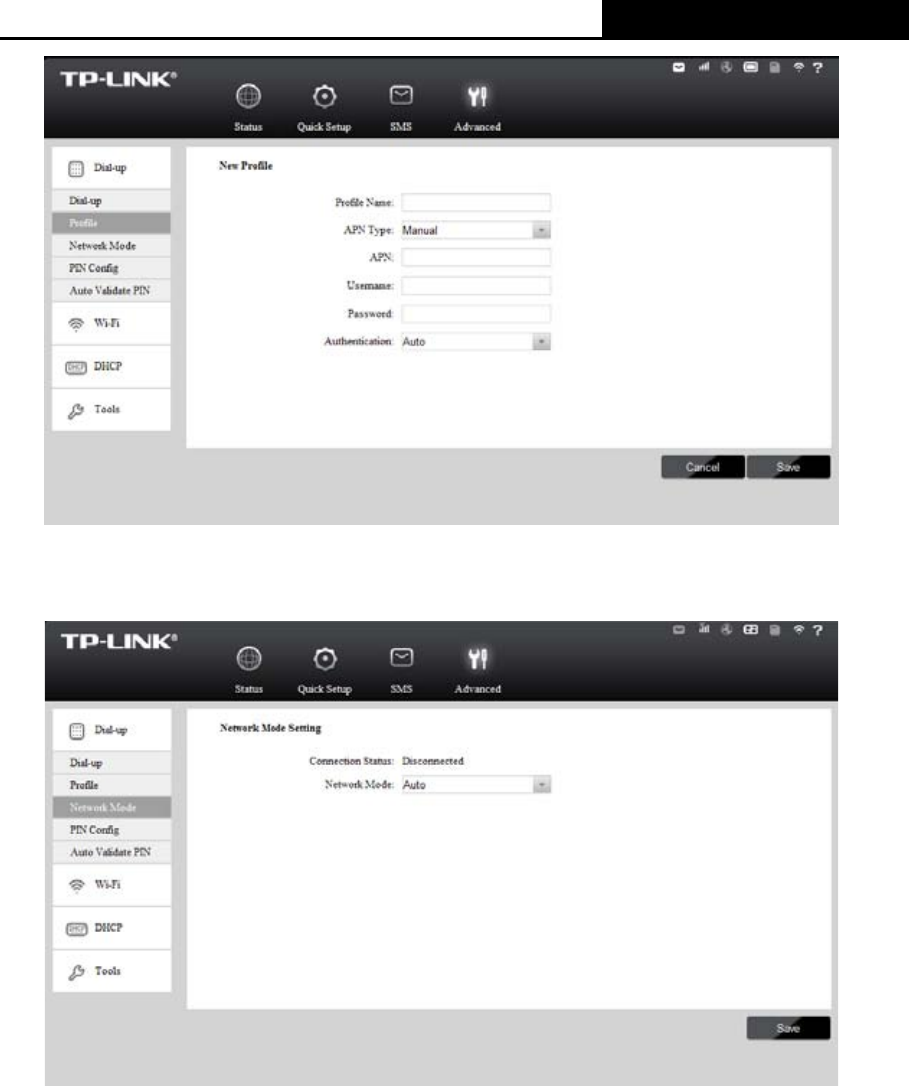

Figure 4-14 New Profile
4.4.1.3. Network Mode
Figure 4-15 Network Mode Settings
Connection Status: Shows whether the Internet is connected or disconnected at present.
Network Mode: The device supports three modes of network connection – Auto, 2G only
and 3G only. If your SIM card supports GSM, please select 2G only; if your SIM card
supports WCDMA, please select 3G only; if you are not very sure about it, please select
Auto and then the device will detect it automatically.
Click Save to save your settings.
4.4.1.4. PIN Config
You can configure your PIN code on this page.
M5350
-21-

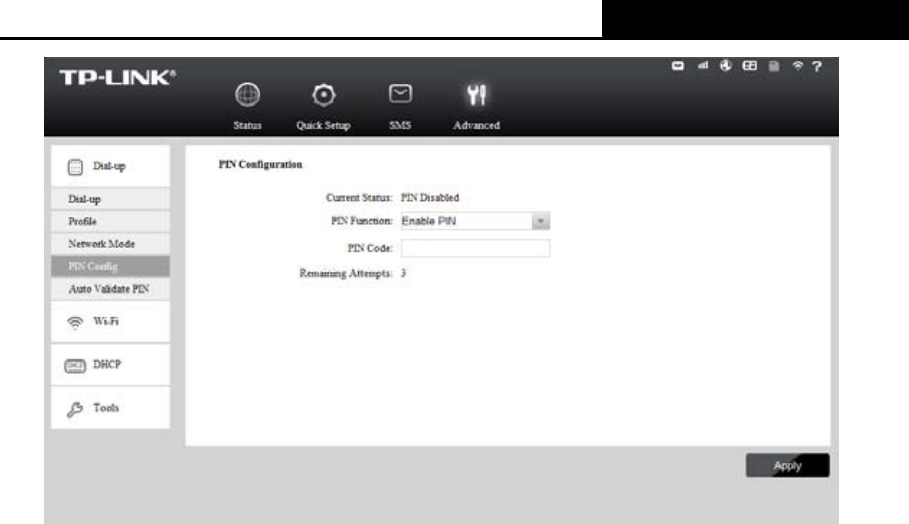

Figure 4-16 PIN Configuration
Current Status: Shows whether your PIN code function is enabled or disabled.
PIN Function: You can select whether to enable PIN function or not. Once the PIN
function is enabled, every time you start the device with this SIM card inserted, you need to
enter the PIN code; while if you go to enable the Auto Validate PIN function, it could save
you this trouble.
PIN Code: You can set a PIN code, not more than 8 characters.
Remaining Attempts: Shows how many attempts there are left for you to try entering the
PIN code after you failed to enter the right one. You have 3 attempts at most. If you
accidentally fail in three attempts, the PIN will be locked and you will be required to enter
the PUK code that is written on your SIM card (as shown in Figure 4-17).
If the current status of PIN is disabled, you can select Enable PIN and set a PIN code, and then
click Apply to make your settings take effect. While, if the SIM current status is PIN enabled
and verified, you can select Disable PIN and enter the current PIN code, or select Modify PIN
and enter the required parameters to set a new PIN code, and then click Apply to make your
settings take effect.
M5350
-22-

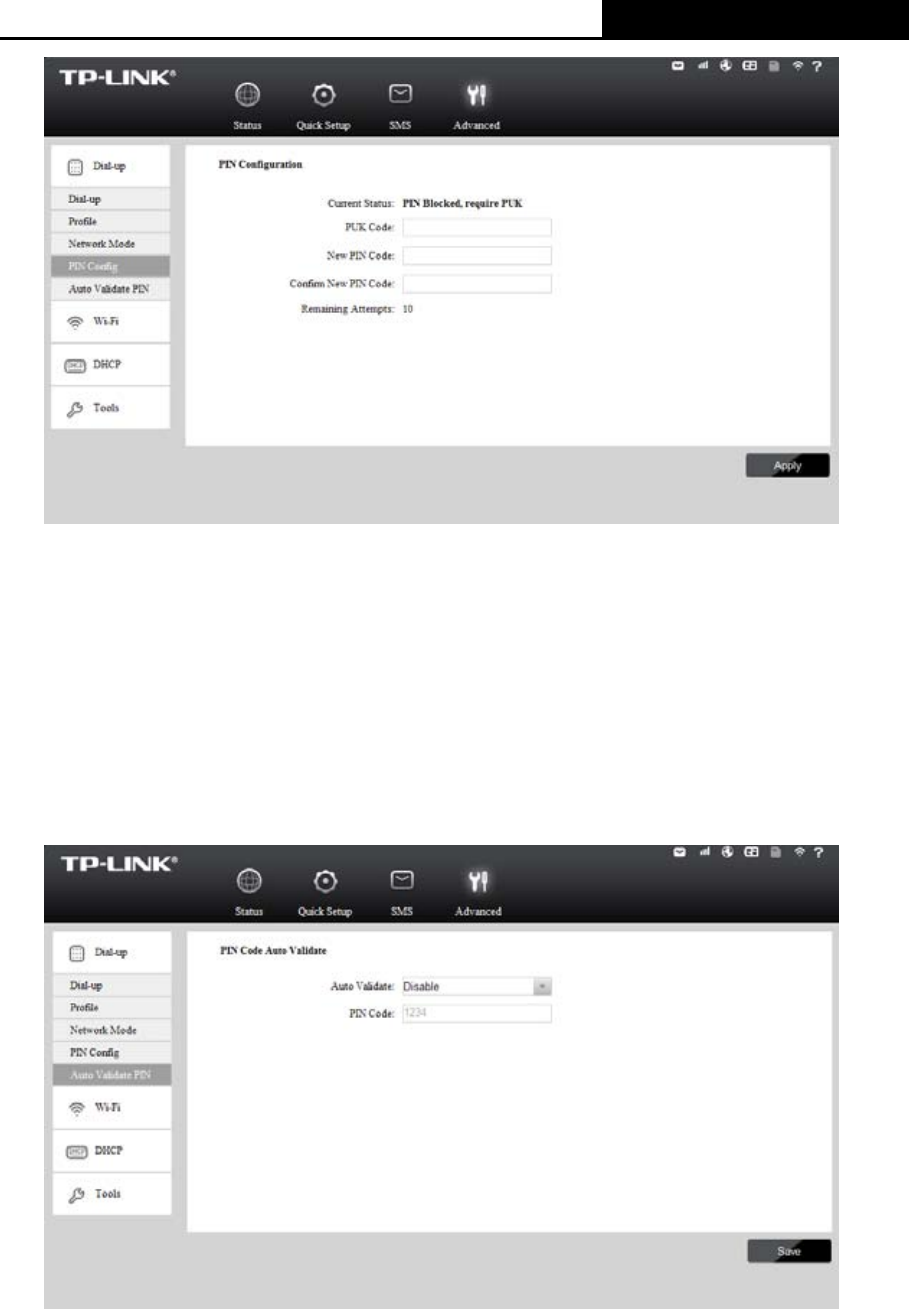

Figure 4-17 PIN Configuration - PUK Decode
A PUK (PIN Unlocked Key), also known as Personal Unlock Code (PUC), is used in 3GPP
mobile phones to reset a personal identification number (PIN) that has been lost or forgotten.
The PUK is a SIM-specific code assigned by the service provider. If a user does not know his or
her PUC and is prompted for it, it should be obtained from the service provider.
On the page as shown in Figure 4-17, first enter the PUK code and then set a new PIN code to
unlock your SIM card as well as any device with it inserted.
4.4.1.5. Auto Validate PIN
Figure 4-18 PIN Code Auto Validate
Auto Validate: Select to enable or disable this function.
PIN Code: If you enable the Auto Validate function above, please enter the appropriate
PIN code of your SIM card in this filed. When the PIN code is required upon device
M5350
-23-
restarting, it will be validated automatically once. If validation failed, please go to PIN
Config page to input another PIN code.
Click Save to save your settings.
4.4.2 Wi-Fi
Figure 4-19 Wi-Fi menu
Wi-Fi Settings can prevent any intruders from connecting your wireless network, occupying
your network resources, hacker-overhearing and hacker-attacking, and thus enhance the
security of your wireless network.
4.4.2.1. Basic Settings
Wi-Fi basic settings enable you to configure your wireless parameters.
Figure 4-20 Wi-Fi Basic Settings
Wireless Network Name (SSID): SSID is short for Service Set Identification, which is for
you to distinguish the different wireless network. The default SSID of this device is
TP-LINK_M5_XXXXXX (XXXXXX stand for the last 6 characters of the MAC address of it.)
You can rename it as your preference, but the value is limited to 32 characters at most and
also it is case-sensitive (For example, TEST is NOT the same as test.) Later on it will
displays in the wireless network list searched by your devices.
M5350
-24-
Enable SSID Broadcast: Select to enable or disable this function. When wireless clients
survey the local area for wireless networks to associate with, they will detect the SSID
broadcast by the device. If you Enable SSID Broadcast, the Wireless device will broadcast
its name (SSID) on the air; otherwise, you have to manually type in the SSID and then you
can join its network.
Region: Select your region from the drop-down list. This field specifies the region where
the wireless function of the device can be used. It may be illegal to use the wireless
function of the device in a region other than one of those specified in this field. If your
country or region is not listed, please contact your local government agency for assistance.
Channel: This field determines which operating frequency ranging from 1~13 will be used.
If you select Auto, then the device will choose the best channel automatically. It is not
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
Security Mode: You are provided three modes of security here: None,
WPA-PSK/WPA2-PSK, and WEP.
WPA-PSK/WPA2-PSK: It’s the WPA/WPA2 authentication type based on pre-shared
passphrase. It’s easy to set and secure to use. So it’s perfect for SOHO users.
WPA Encryption: Two types of encryption are provided here: TKIP and AES. AES is
recommended.
WPA Key: The default WPA key is the last 8 characters of IMEI. You can keep it
default or enter 8~63 ASCII characters or 8~64 hexadecimal characters as your new
WPA key.
WEP: Wired Equivalent Privacy, a basic type of security, is not so secure as
WPA-PSK/WPA2-PSK. It is based on the IEEE 802.11 standard.
WEP Authentication Type: Select either Open (System) or Shared (Key) as your
authentication.
WEP Key Type: HEX and ASCII formats are provided. HEX format stands for any
combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. ASCII format
stands for any combination of keyboard characters in the specified length.
WEP Key Lengths: You can select the WEP key length WEP_40 (64-bit) or
WEP_104 (128-bit) for encryption. You can enter 10 hexadecimal digits (any
combination of 0-9, a-f, A-F, zero key is not promoted) or 5 ASCII characters for
WEP_40 (64-bit).You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F, zero key is not promoted) or 13 ASCII characters for WEP_104 (128-bit).
WEP Key: In accordance with the WEP Key length you have selected above, enter
your WEP Key.
M5350
-25-
Wi-Fi off time: If no clients connect to the device’s wireless network in a period of time (15
minutes by default), the Wi-Fi will be shut down. You can press the power button to resume
the Wi-Fi.
Click Save to save your settings.
4.4.2.2. MAC Filter
The Wireless MAC Address Filtering feature allows you to control the wireless stations
accessing the device, which depends on the station's MAC addresses. MAC Address is the
physical address of the wireless stations, usually in the format of XX-XX-XX-XX-XX-XX format
(X is any hexadecimal digit).

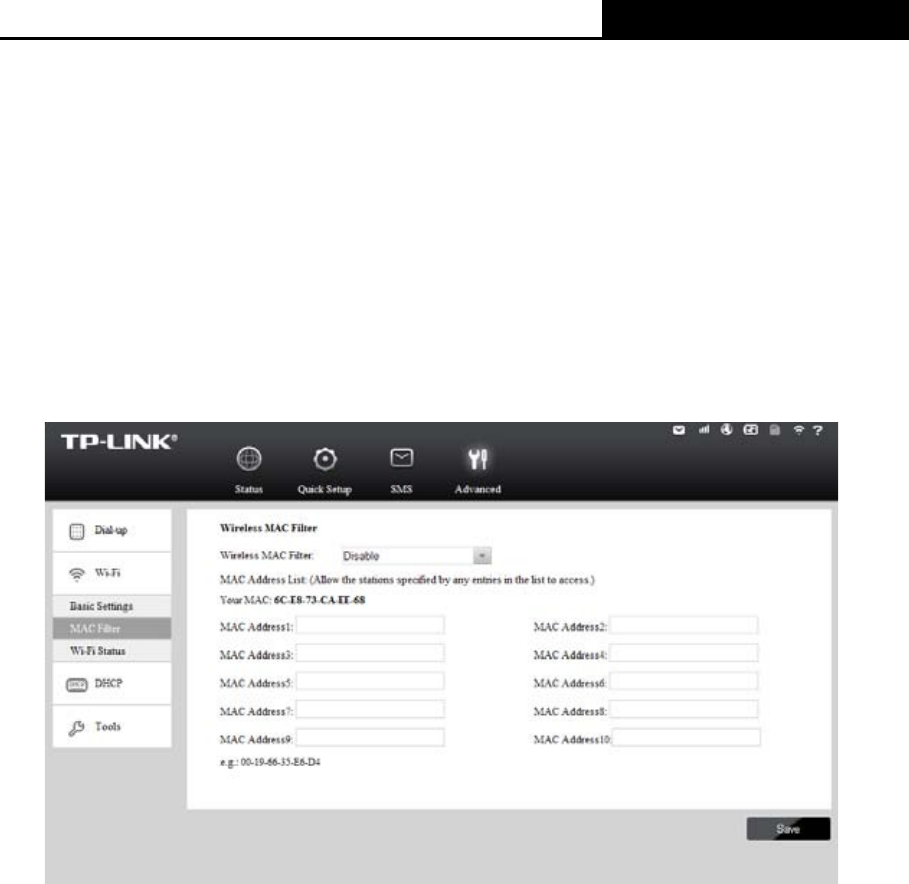

Figure 4-21 Wireless MAC Filter
Wireless MAC Filter: Select to Enable or Disable the MAC filter function of the device. The
below settings will take effect only when you select Enable.
MAC Address List: A List of MAC addresses will be allowed to access the device.
Your MAC: Displays the MAC address of your client(s) currently wirelessly connected to
the device.
Click Save to save your settings.
4.4.2.3. Wi-Fi Status
The Wi-Fi Status page displays the basic information about the Wi-Fi client(s) that are currently
connected to the device.
M5350
-26-

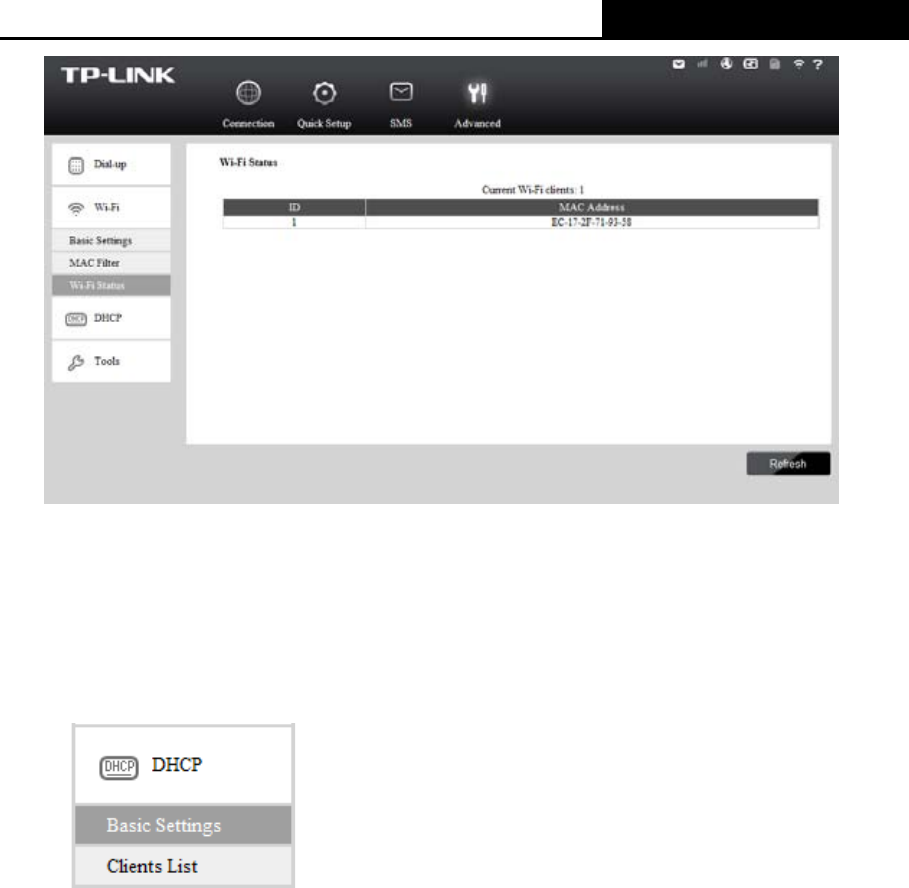

Figure 4-22 Wi-Fi Status
ID: The index of the Wi-Fi Client.
MAC Address: The MAC address of the Wi-Fi client.
Click Refresh to update the amount of the Wi-Fi clients and their information.
4.4.3 DHCP
Figure 4-23 DHCP menu
The Device is set up by default as a DHCP (Dynamic Host Configuration Protocol) server,
which provides the TCP/IP configuration for all the wireless clients that are connected to the
device in the LAN.
M5350
-27-
4.4.3.1. Basic Settings

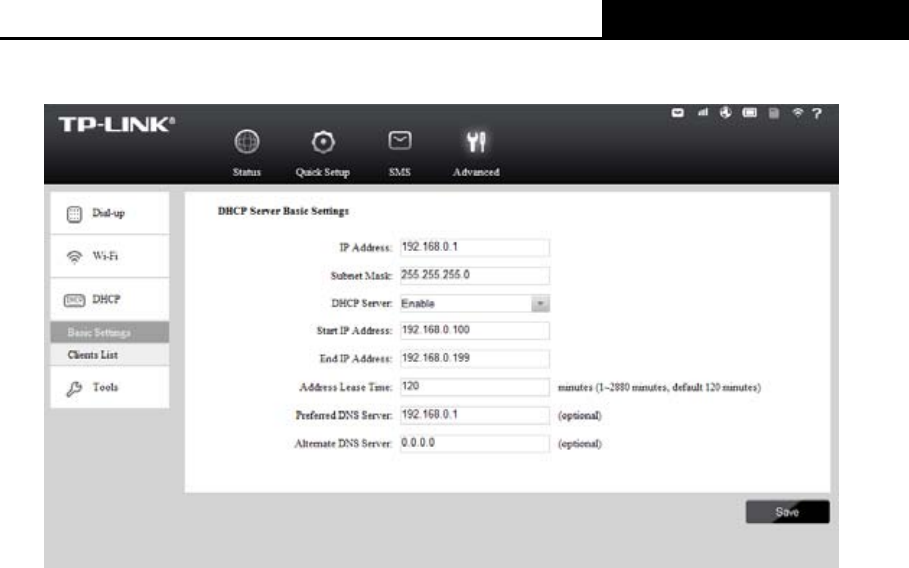

Figure 4-24 Basic Settings
IP Address: The IP address of the device, which is used to log in its web-based
management page. The default value is 192.168.0.1.
Subnet Mask: An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
DHCP Server: You can select to enable or disable the DHCP server. If you disable the
server, you must have another DHCP server within your network, or else you must
configure the IP address of the host(s) manually.
Start IP Address: This field specifies the first address in the IP address pool.
192.168.0.100 is the default start IP address.
End IP Address: This field specifies the last address in the IP Address pool.
192.168.0.199 is the default end IP address.
Address Lease Time: It is the length of time a network user will be allowed to keep
connecting to the device with the current IP address (that is assigned by the DHCP server).
Enter the amount of time, in minutes, that the IP address will be "leased". The time range is
1~2880 minutes. The default value is 120 minutes.
Preferred DNS Server: Input the DNS IP address provided by your ISP. It is optional.
Alternate DNS Server: Input the IP address of another DNS server if your ISP provides
two DNS servers. It is optional.
Click Save to save the changes.
Note:
To use the DHCP server function of the Device, you should configure all the clients in the LAN
as "Obtain an IP Address automatically" mode.
M5350
-28-
4.4.3.2. Clients List
On this page, you can view the information about the clients attached to the device. All the
information is read-only. You cannot change any of the values on this page.

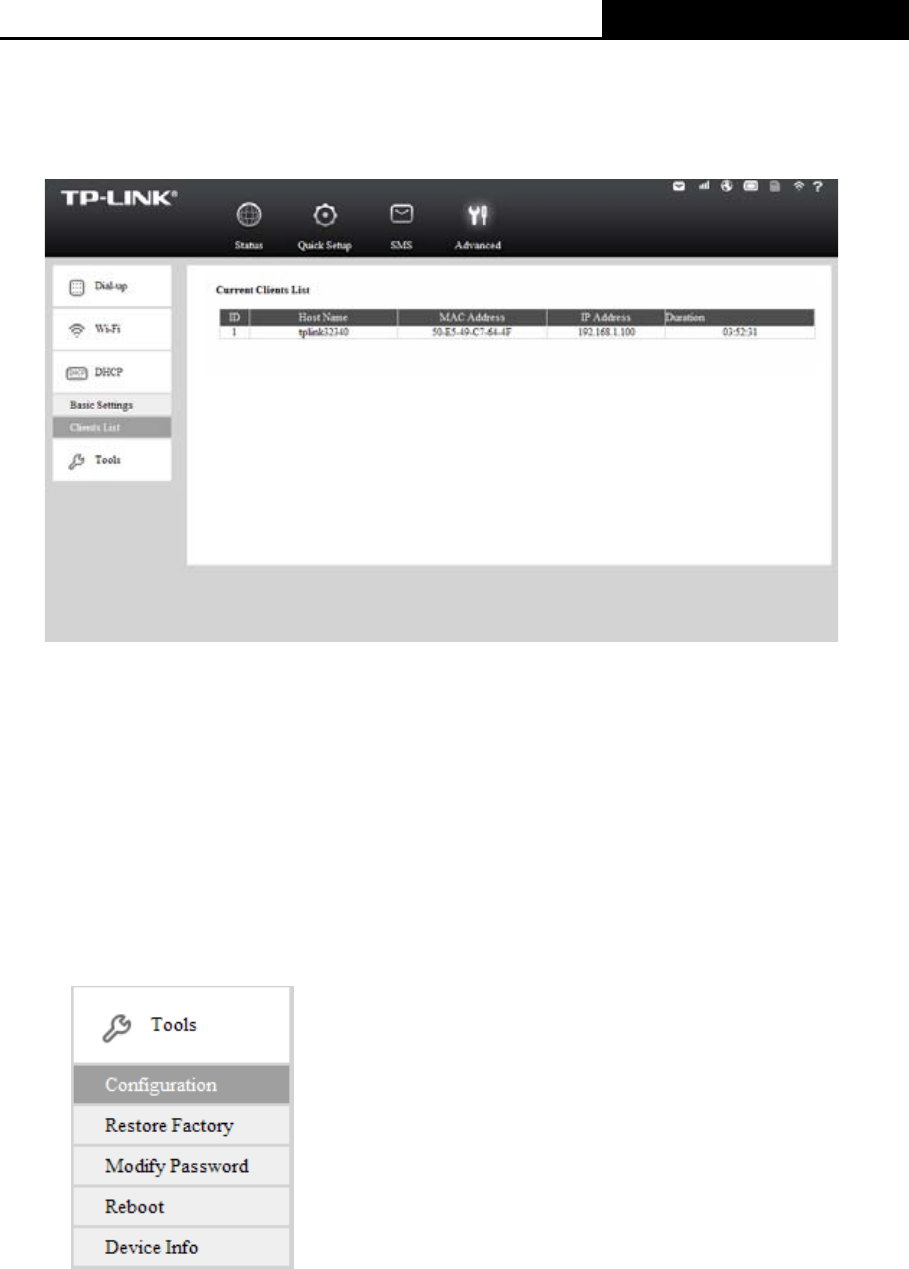

Figure 4-25 Clients List
ID: The index of the DHCP Clients.
Host Name: The name of the DHCP client(s).
MAC Address: The MAC address of the DHCP client(s).
IP Address: The IP address the device has assigned to the DHCP client(s).
Duration: The time of the DHCP client(s) leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the client(s).
4.4.4 Tools
Figure 4-26 Tools menu
Under Tools menu, you can do such configurations as backing up or uploading a configuration
file of the device, restoring all the settings of the device to its factory defaults, modifying the
password for your login, rebooting the device, and checking some information about the device.
As follows, we will explain them in details.
M5350
-29-
4.4.4.1. Configuration
On this page, you can back up the configuration of the device to file, or upload a configuration
file to the device.

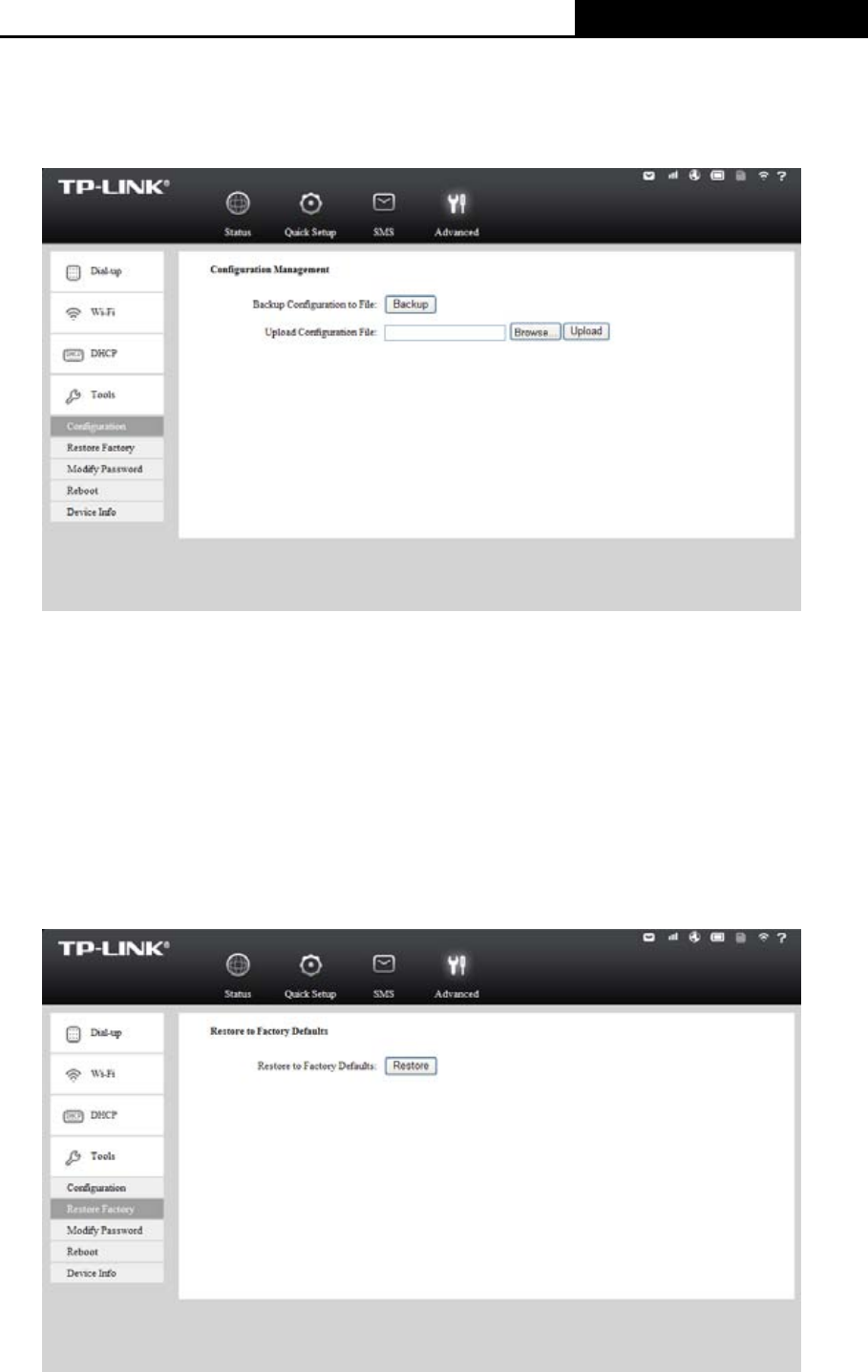

Figure 4-27 Configuration Management
Backup Configuration to File: Click Backup to save the configuration file in your
computer, for later necessary use. It’s strongly recommended to back up the old
configuration file before firmware upgrade or new configuration file upload, in case that
during those process it might get the original configuration lost.
Upload Configuration File: Click Browse to locate the config.bin file or directly enter its
location file, and then click Upload to upload the configuration file.
4.4.4.2. Restore Factory
You can restore the device to its factory default settings, when necessary.
Figure 4-28 Restore to factory defaults
M5350
-30-
Restore to Factory Defaults: Click Restore to reset all configuration settings to their
default values. All of the settings you have saved will be lost when the default settings are
restored.
You can restore the following factory default values:
• The default User Name: admin
• The default Password: admin
• The default IP Address: 192.168.0.1
• The default Subnet Mask: 255.255.255.0
4.4.4.3. Modify Password
It is strongly recommended that you change the factory default password of the device.

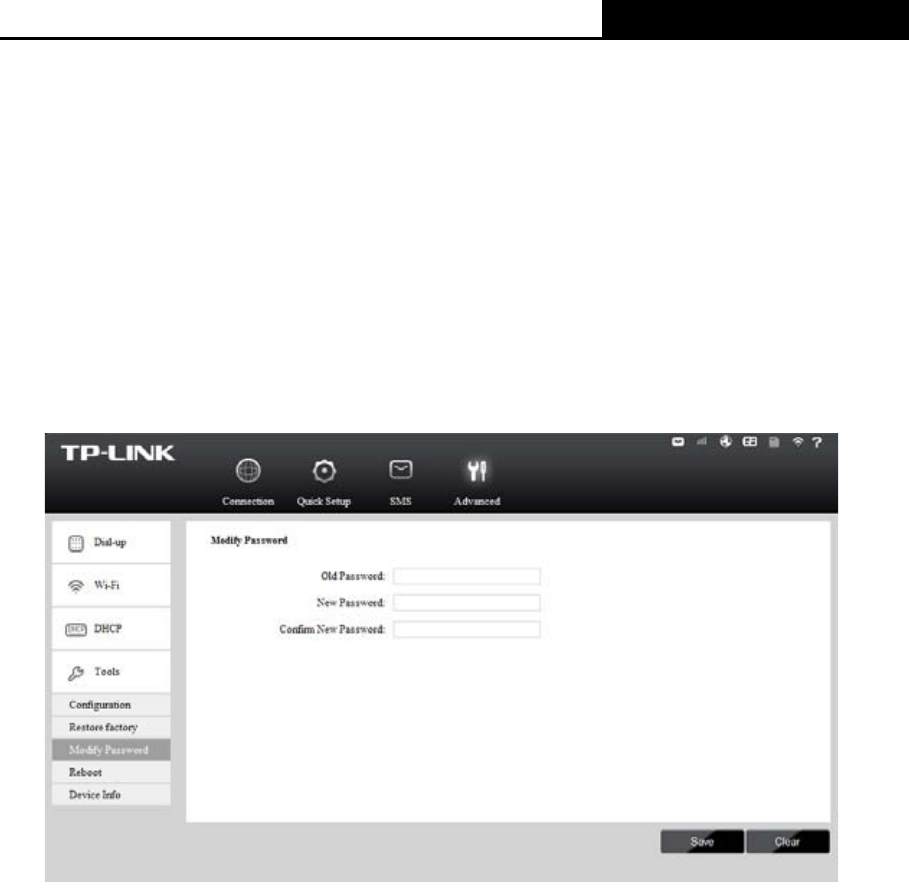

Figure 4-29 Modify Password
Old Password: The old password that is used to log in the device.
New Password: The new password you want to set for the login of the device.
Confirm New Password: Enter the new password again for confirmation.
Click Save when you finish the setting.
Click Clear to clear all the values you have already set, and then you can reset it.
Note:
The new password must not exceed 14 characters in length and not include any spaces.
M5350
-31-
4.4.4.4. Reboot

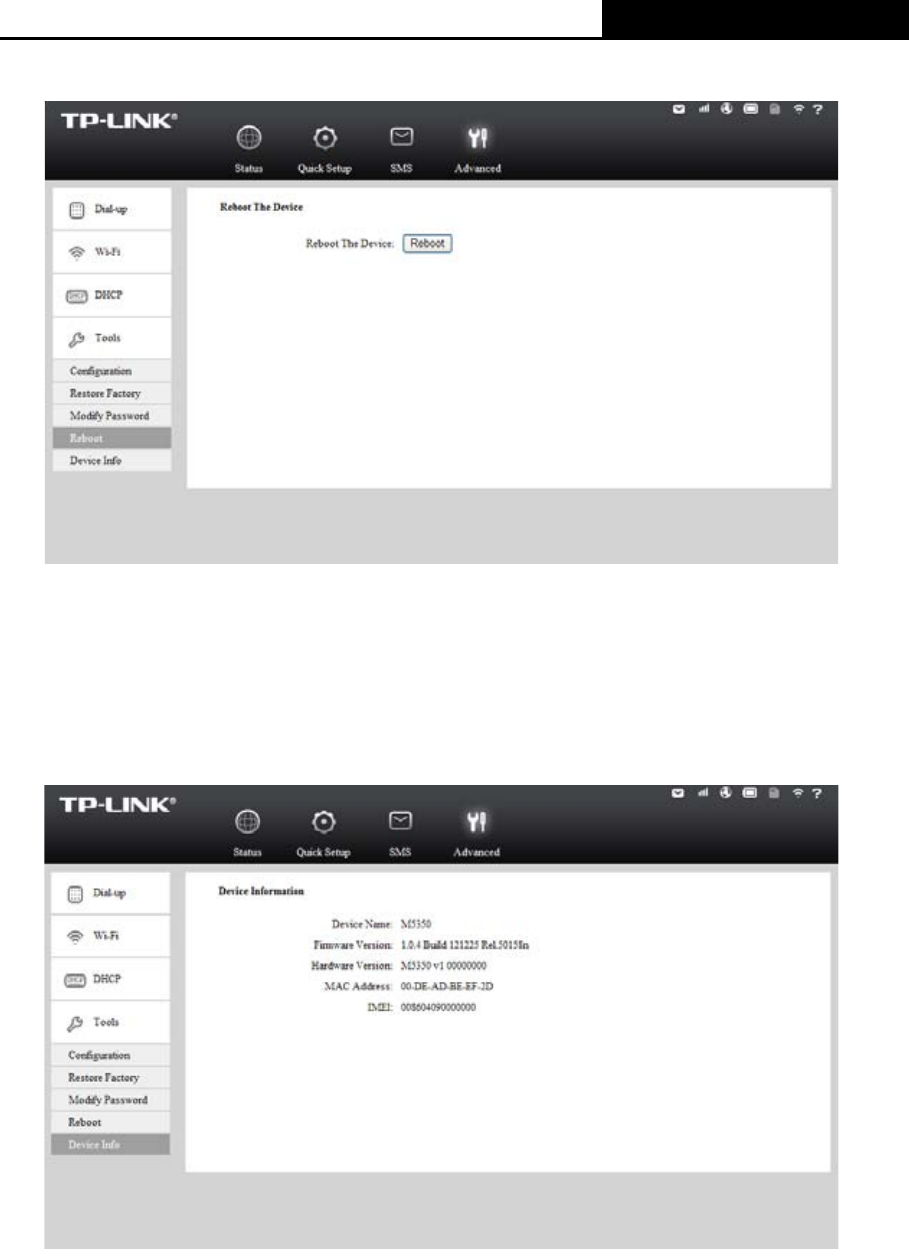

Figure 4-30 Reboot the Device
Reboot the Device: Click Reboot to get the device rebooted and the saved settings to
take effect.
4.4.4.5. Device Info
This page displays the related information about this device, including Device Name, Firmware
Version, Hardware Version, MAC Address, and IMEI.
Figure 4-31 Device Information
Device Name: The Model of the device.
Firmware Version: The current firmware version
Hardware Version: The current hardware version.
MAC Address: The physical address of the device. The value is read-only thus could not
be changed.
IMEI: International Mobile Equipment Identity. Composed of 15 digits, it is unique and thus
used to identify individual mobile equipment.
M5350
-32-
Appendix A: FAQ
T1. What should I do if I cannot log in the web-based management page of M5350 after I
have successfully connected to M5350?
1) Please verify your PC‘s IP address is on the same network segment with M5350. If not,
please go to the next step.
2) Manually set an IP address for your PC, or configure your PC to “Obtain an IP address
automatically” and “Obtain DNS server address automatically”. Thus to make sure your
PC‘s IP address on the same network segment with M5350.
3) If the above two steps failed, please feel free to contact our technical support.
T2. What should I do if I cannot access the Internet?
1) Please verify the card you inserted into M5350 is a valid WCDMA SIM card.
2) Please check if the PIN function is enabled. If enabled, please go to Advanced -> Dial-up
-> PIN Config and enter the correct PIN code.
3) Please verify the current ISP parameters are correct. Otherwise, please go to Advanced ->
Dial-up -> Profile and configure the correct parameters.
4) Please check if the connection mode is auto or manual. If it is manual connection, please
go to Advanced -> Dial-up and click Connect to manually get connected to the Internet.
5) If the above steps failed, please feel free to contact our technical support.
T3. What if I forget my login password?
1) Restore M5350 to its factory defaults;
2) Log into M5350 with the default user name and password: admin. And then reconfigure
M5350 following the QIG.
T4. How could I restore M5350 to its factory defaults?
Method 1:
With M5350 powered on, use a pin to press the RESET button in the interior panel.
Method 2:
Get logged in to the web-based management page of M5350, and then go to Advanced ->
Tools -> Restore Factory and click Restore.
Note:
Once M5350 is reset, all the current configurations will be lost and you need to reconfigure it.
M5350
-33-
Appendix B: Configuring the PC
In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP.
First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
1. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Settings, and then click Control
Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.
3) Right click the icon that showed below, select Properties on the prompt page.
Figure B-1
4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).
Figure B-2
M5350
-34-
5) The following TCP/IP Properties window will display and the IP Address tab is open on
this window by default.
You have two ways to configure the TCP/IP protocol below:
Setting IP address automatically
Select Obtain an IP address automatically, Choose Obtain DNS server automatically,
as shown in the Figure below:
Figure B-3
Setting IP address manually
a. Select Use the following IP address radio button. And the following items available
b. If the Device's LAN IP address is 192.168.0.1, type IP address is 192.168.0.x (x is
from 2 to 254), and Subnet mask is 255.255.255.0.
c. Type the Device’s LAN IP address (the default IP is 192.168.0.1) into the Default
gateway field.
d. Select Use the following DNS server addresses radio button. In the Preferred DNS
Server field you can type the DNS server IP address, which has been provided by
your ISP.
M5350
-35-
Figure B-4
6) Now click OK to keep your settings.
M5350
-36-
Appendix C: Specifications
General
StandardsIEEE 802.11n, IEEE 802.11b, IEEE 802.11g
Network Type HSPA+ / HSUPA / HSDPA / UMTS
Certification CE, FCC, RoHS
Dimension 94mm x 56.7mm x 19.8mm (W x D x H)
Interface
One Micro USB port
One SIM card slot
One Micro SD Memory card slot
Power button
RESET button
OLED Display
Power Supply 2000m Internal Ah Rechargeable Battery
5VDC/1.0A External Power Adapter
Wireless
BandWCDMA: 2100/1900/900Mhz
GSM: 850/900/1800/1900Mhz
Data Rate Download: 21.6Mbps
Upload: 5.76Mbps
Frequency 2.4-2.4835GHz
EIRP <20dBm
Security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Antenna Internal Antenna
Environment
TemperatureOperating : 15℃~40℃
Storage: -20℃~50℃
Humidity Operating: 0% ~ 75% RH, Non-condensing
Storage: 0% ~ 75% RH, Non-condensing
Attention：All the 3G function described above is not available in the United States.
3G Function is designed for other countries except the Unites States.
M5350
-37-
Appendix D: Glossary
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) [3] was formed to help accelerate the IEEE 802.11n development process and
promote a technology specification for interoperability of next-generation wireless local area
networking (WLAN) products.
802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the
TCP/IP parameters for the all the PC(s) that are connected to a DHCP server.
ISP (Internet Service Provider) - A company that provides access to the Internet.
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name.
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit
shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.

Navigation menu
