TP Link Technologies WR702N 150Mbps Wireless N Nano Router Model No.: TL-WR702N User Manual TL WR702N UG rev1

TP-Link Technologies Co., Ltd. 150Mbps Wireless N Nano Router Model No.: TL-WR702N TL WR702N UG rev1

TL-WR702N_UG_rev1

TL-WR702N
150Mbps Wireless N Nano Router
Rev: 1.0.0
1910010547
- I -
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TVinterference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
- II -
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country
Restriction
Reason/remark
Bulgaria
None
General authorization required for outdoor use and
public service
France
Outdoor use limited to 10
mW e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy
None
If used outside of own premises, general authorization is
required
Luxembourg
None
General authorization required for network and service
supply(not for spectrum)
Norway
Implemented
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation
None
Only for indoor applications
Note: Please don’t use the product outdoors in France.
- III -
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu,y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
NOTE IMPORTANTE:
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
NCC Notice:
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並
改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電
機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
- IV -
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan,
Shenzhen, P. R. China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 150Mbps Wireless N Nano Router
Model No.: TL-WR702N
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V2.1.1:2009
EN60950-1:2006+A11:2009+A1:2010+A12:2011
Recommendation 1999/519/EC
EN62311:2008
Directives 2004/108/EC
The above product is in conformity with the following standards or other normative documents
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006
EN 61000-3-3:1995+A1:2001+A2:2005
Directives 2006/95/EC
The above product is in conformity with the following standards or other normative documents
EN60950-1:2006+A11:2009+A1:2010+A12:2011
Directive（ErP） 2009/125/EC
Audio/Video, information and communication technology equipment- Environmentally conscious
design
EN62075:2008
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
- I -
CONTENTS
Package Contents.................................................................................................................................. 1
Chapter 1. Introduction ....................................................................................................................... 2
1.1 Overview of the Router ....................................................................................................... 2
1.2 Conventions ........................................................................................................................ 3
1.3 Main Features ..................................................................................................................... 3
1.4 Panel Layout ....................................................................................................................... 4
Chapter 2. Connecting the Router ..................................................................................................... 5
2.1 System Requirements ......................................................................................................... 5
2.2 Installation Environment Requirements .............................................................................. 5
2.3 Connecting the Router ........................................................................................................ 5
Chapter 3. Quick Installation Guide .................................................................................................10
3.1 TCP/IP Configuration ........................................................................................................10
3.2 Quick Installation Guide ....................................................................................................12
Chapter 4. Configuration for AP Mode ............................................................................................28
4.1 Login .................................................................................................................................28
4.2 Status ................................................................................................................................28
4.3 Quick Setup .......................................................................................................................30
4.4 Working Mode ...................................................................................................................30
4.5 Network .............................................................................................................................31

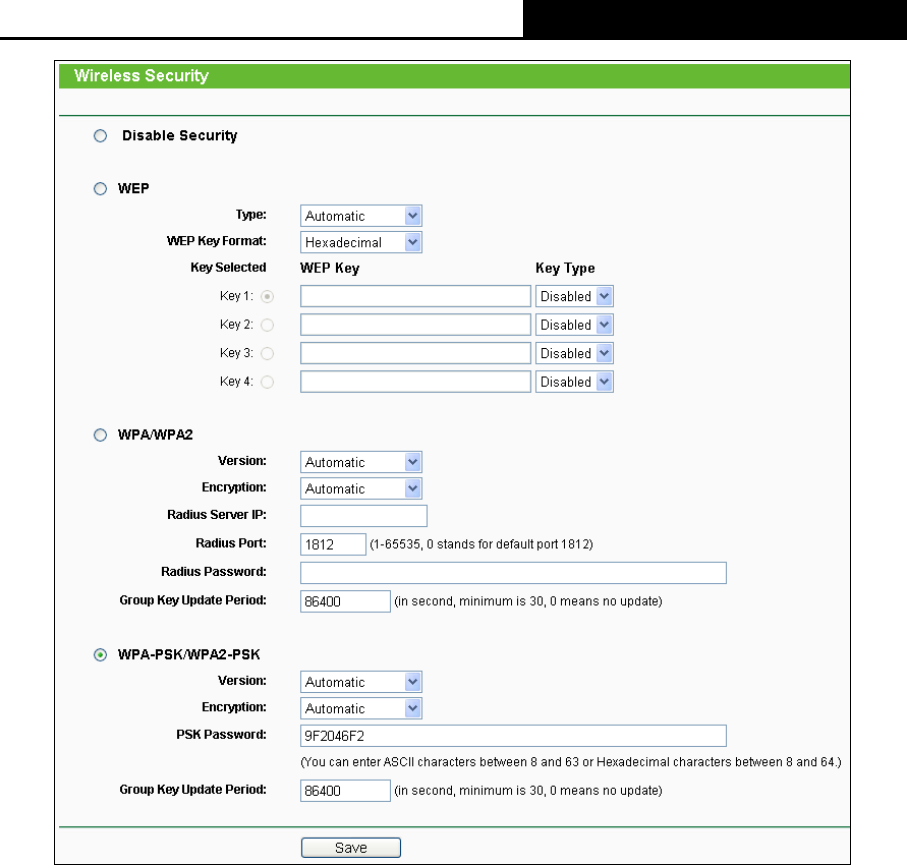

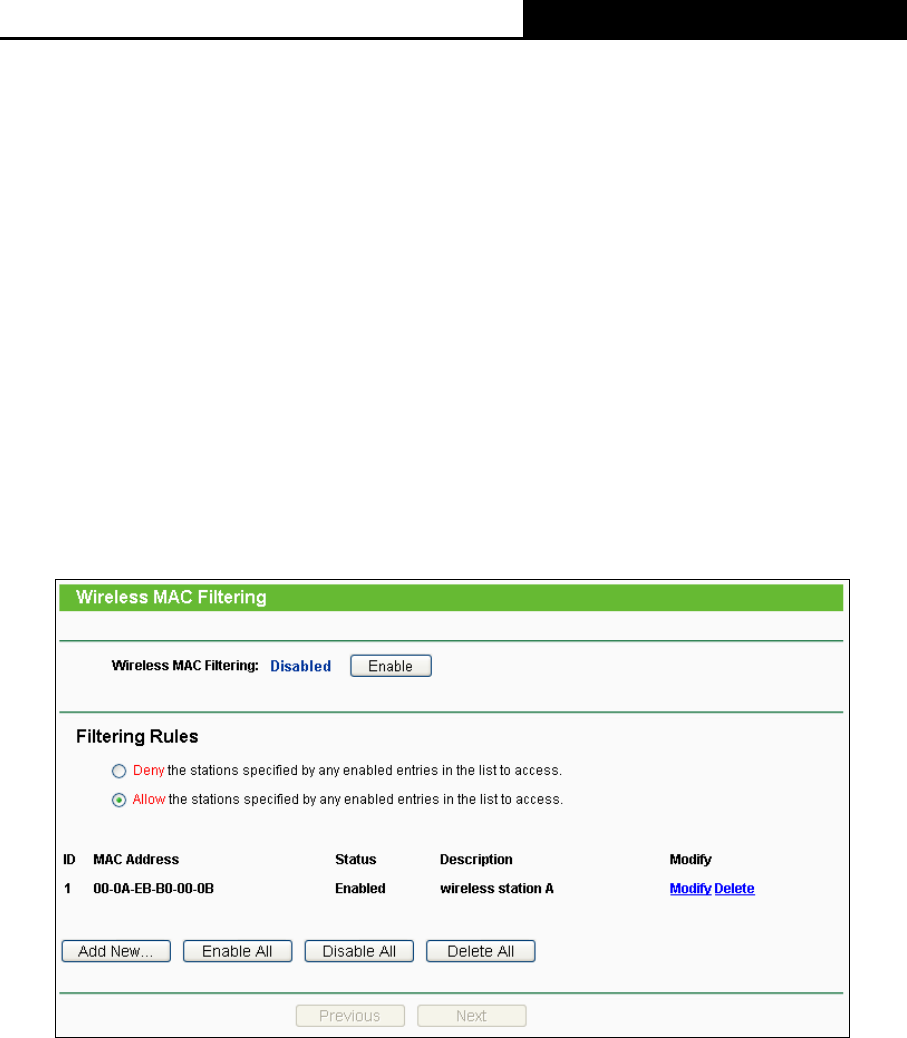

4.6 Wireless ............................................................................................................................32

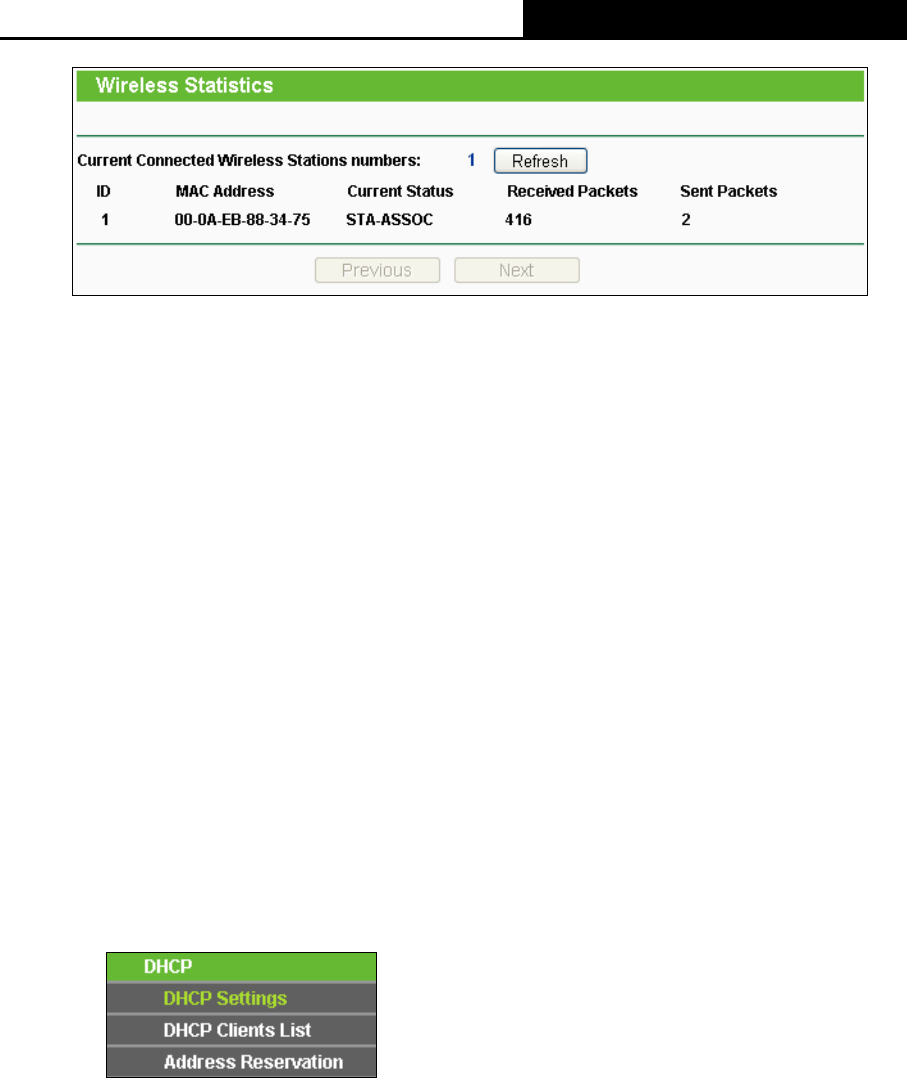

4.7 DHCP ................................................................................................................................41

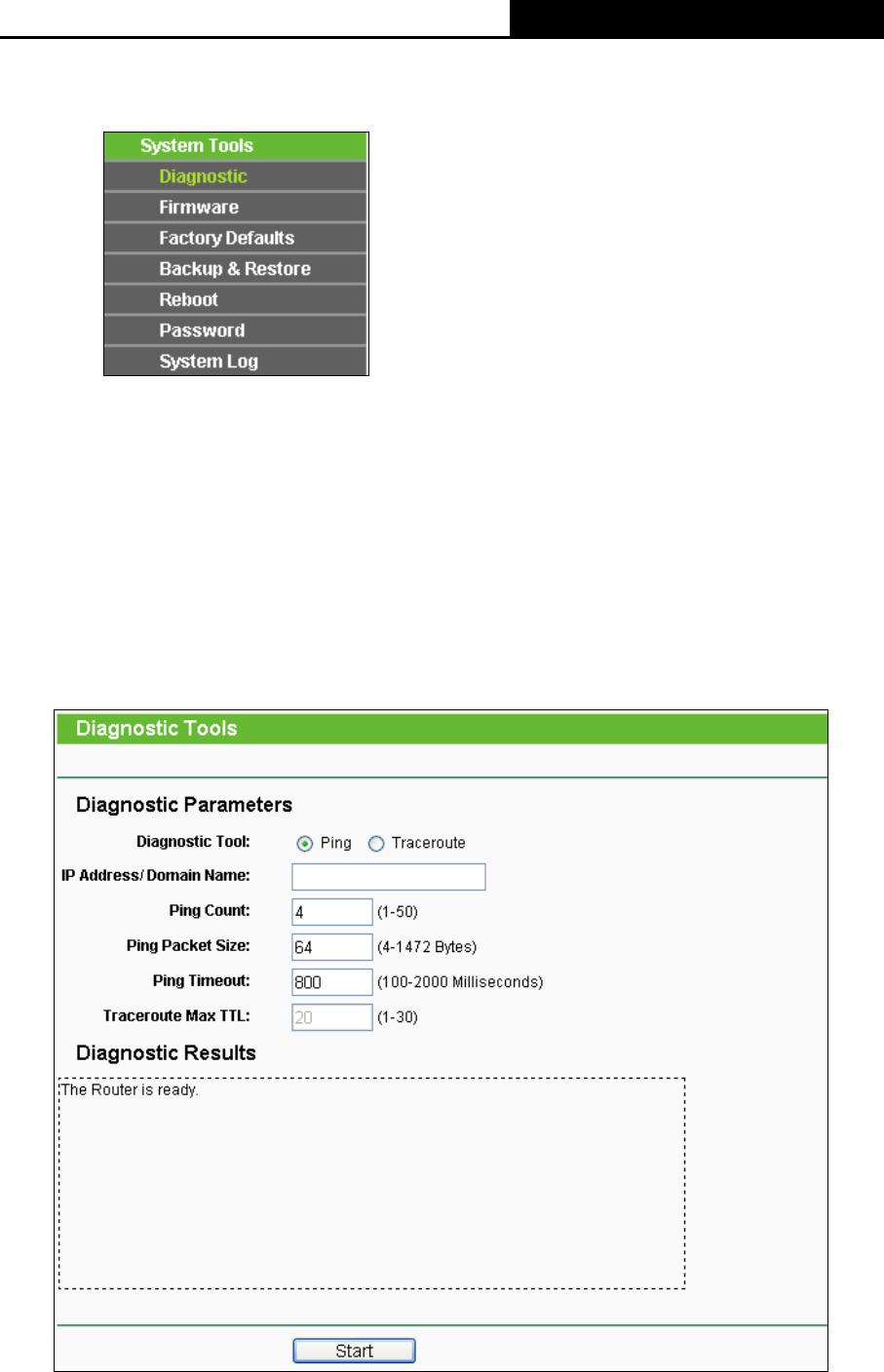

4.8 System Tools .....................................................................................................................44
Chapter 5. Configuration for Router Mode .....................................................................................51
5.1 Login .................................................................................................................................51
5.2 Status ................................................................................................................................51

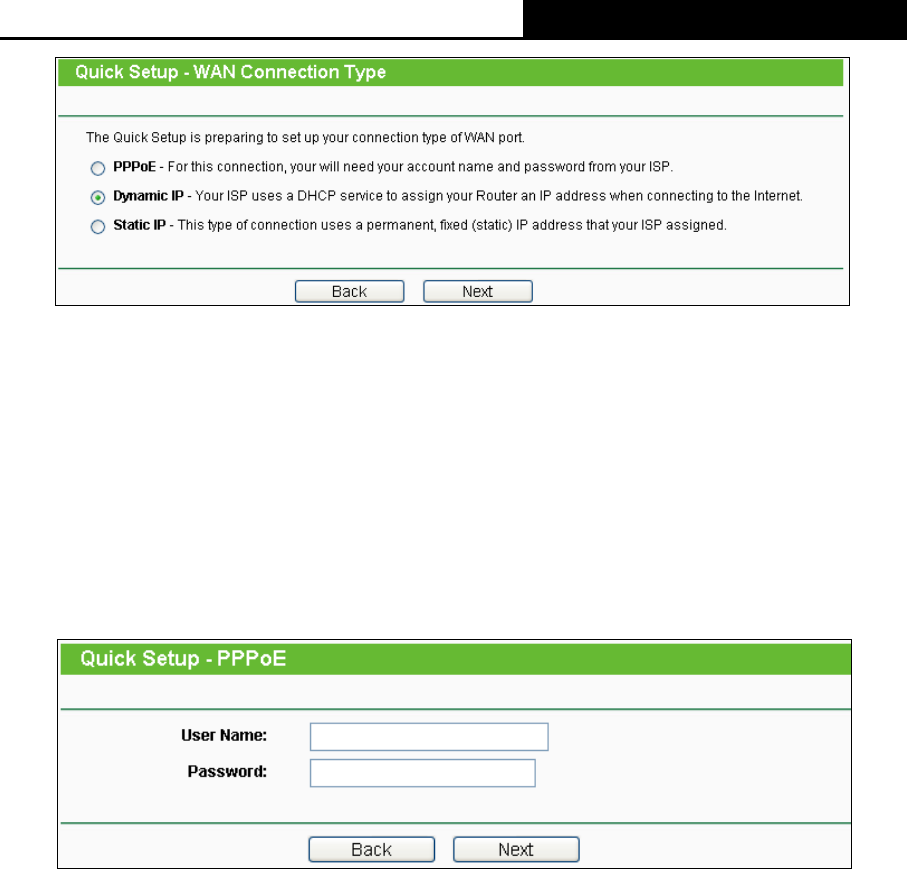

5.3 Quick Setup .......................................................................................................................54
5.4 Working Mode ...................................................................................................................54

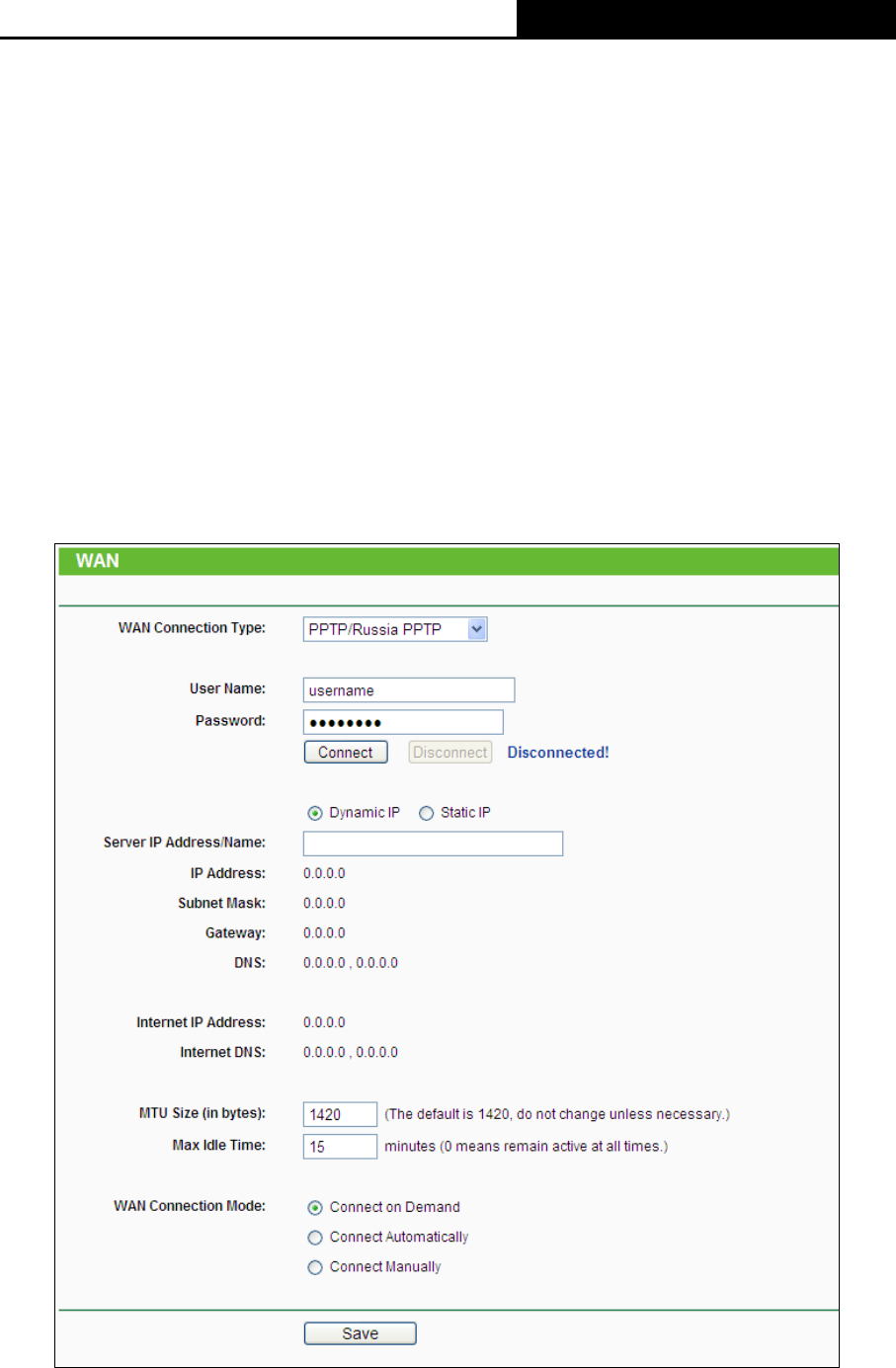

5.5 Network .............................................................................................................................55
5.6 Wireless ............................................................................................................................64
5.7 DHCP ................................................................................................................................74

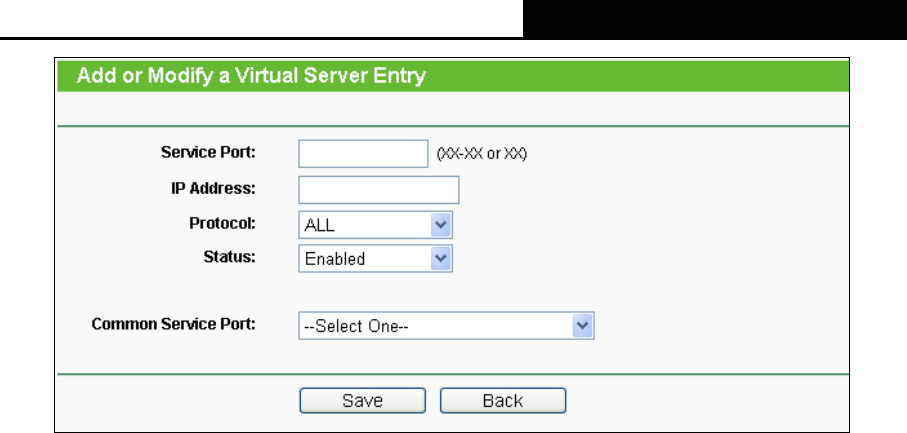

5.8 Forwarding ........................................................................................................................77

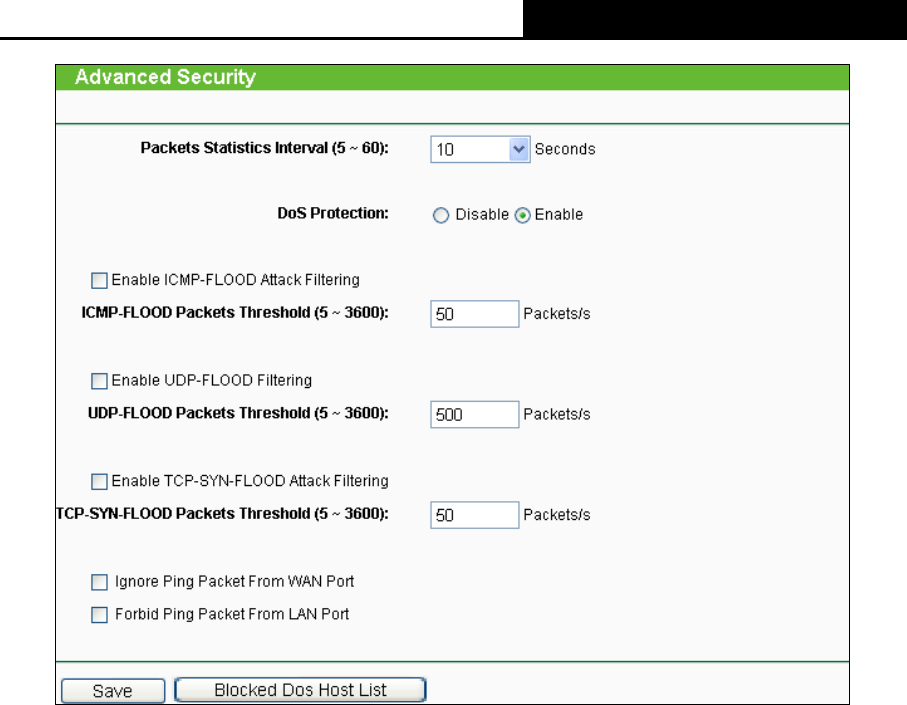

5.9 Security .............................................................................................................................83

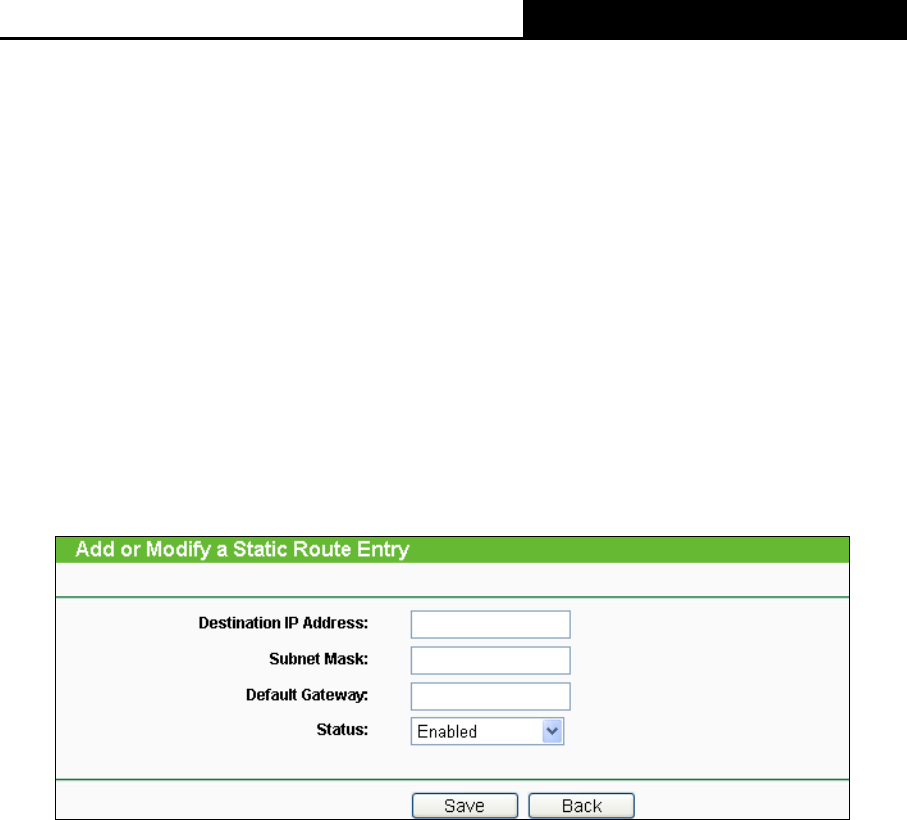

5.10 Static Routing ....................................................................................................................91
5.11 IP QoS ...............................................................................................................................92
- II -
5.12 IP & MAC Binding Setting .................................................................................................94
5.13 Dynamic DNS ....................................................................................................................96
5.14 System Tools .....................................................................................................................98
Chapter 6. Configuration for Repeater Mode ...............................................................................107
6.1 Login ...............................................................................................................................107
6.2 Status ..............................................................................................................................107
6.3 Quick Setup .....................................................................................................................108
6.4 Working Mode .................................................................................................................109
6.5 Network ...........................................................................................................................109
6.6 Wireless .......................................................................................................................... 110
6.7 DHCP .............................................................................................................................. 112
6.8 System Tools ................................................................................................................... 116
Chapter 7. Configuration for Bridge Mode ...................................................................................122
7.1 Login ...............................................................................................................................122
7.2 Status ..............................................................................................................................122
7.3 Quick Setup .....................................................................................................................124
7.4 Working Mode .................................................................................................................124
7.5 Network ...........................................................................................................................125
7.6 Wireless ..........................................................................................................................126
7.7 DHCP ..............................................................................................................................131
7.8 System Tools ...................................................................................................................135
Chapter 8. Configuration for Client Mode .....................................................................................142
8.1 Login ...............................................................................................................................142
8.2 Status ..............................................................................................................................142
8.3 Quick Setup .....................................................................................................................143
8.4 Working Mode .................................................................................................................144
8.5 Network ...........................................................................................................................144
8.6 Wireless ..........................................................................................................................145
8.7 DHCP ..............................................................................................................................147
8.8 System Tools ...................................................................................................................151
Appendix A: FAQ ...............................................................................................................................158
Appendix B: Configuring the PC .....................................................................................................163
Appendix C: Specifications ..............................................................................................................167
Appendix D: Glossary .......................................................................................................................168
150Mbps Wireless N Nano Router
- 1 -
Package Contents
The following items should be found in your package:
One TL-WR702N 150Mbps Wireless N Nano Router
Quick Installation Guide
One Power Adapter
One USB Cable
One RJ-45 Ethernet Cable
One Resource CD for TL-WR702N 150Mbps Wireless N Nano Router, including:
User Guide
Other Helpful Information
Note:
Make sure that the package contains the above items. If any of the listed items is damaged or
missing, please contact with your distributor.
150Mbps Wireless N Nano Router
- 2 -
Chapter 1. Introduction
Thank you for choosing the TL-WR702N 150Mbps Wireless N Nano Router.
1.1 Overview of the Router
Small enough to fit in the average pocket, the TL-WR702N 150Mbps Wireless N Nano Router is
uniquely suited to provide robust wireless networking to travelers, students, or anyone else for
work or play.
TL-WR702N supports the newest 802.11n standards, and provides backward compatibility with
older 802.11b/g standards as well. The up-to-150Mbps wireless speed makes it ideal for handling
multiple data streams at the same time, which ensures your network stable and smooth.

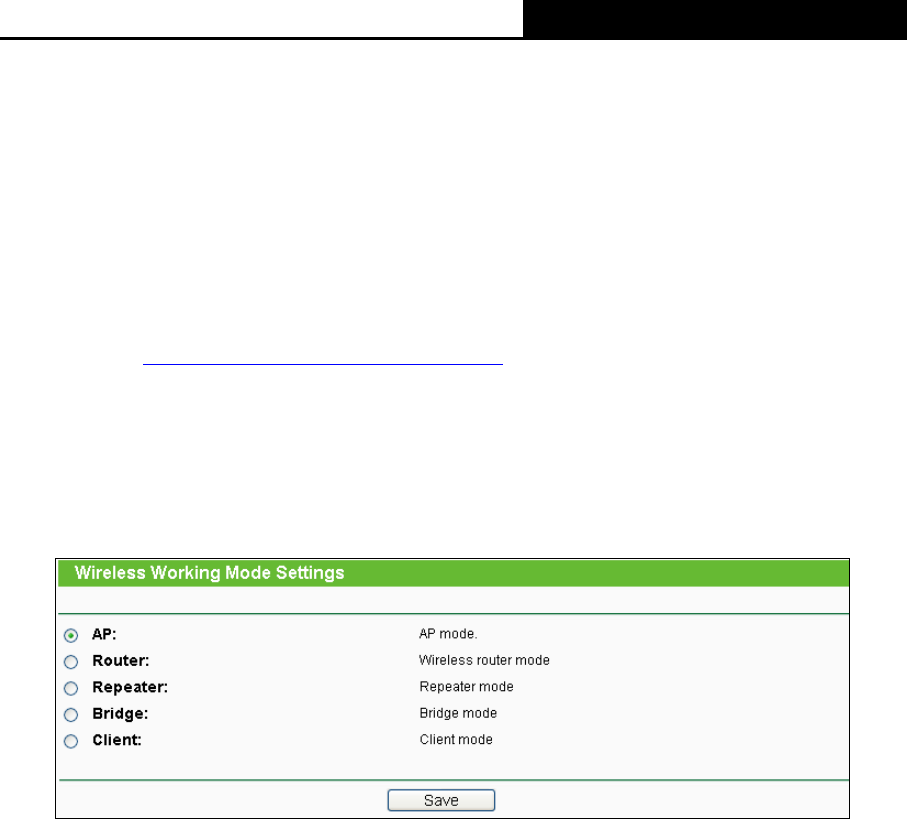

The TL-WR702N 150Mbps Wireless N Nano Router supports five operation modes. The AP mode
enables the wired LAN to connect to the Internet wirelessly. The Router mode enables the
TL-WR702N to work as a router for network sharing with high speed. The functions of Repeater
mode and AP Bridge mode are similar, for they both make the TL-WR702N able to extend the
existing wireless network. In Client mode, TL-WR702N acts as a wireless station to enable the
wired host(s) to access AP.
With multiple protection measures, including SSID broadcast control and wireless LAN
64/128/152-bit WEP encryption, WiFi protected Access (WPA2-PSK, WPA-PSK), as well as
advanced Firewall protections, the TL-WR702N 150Mbps Wireless N Nano Router provides
complete data privacy.

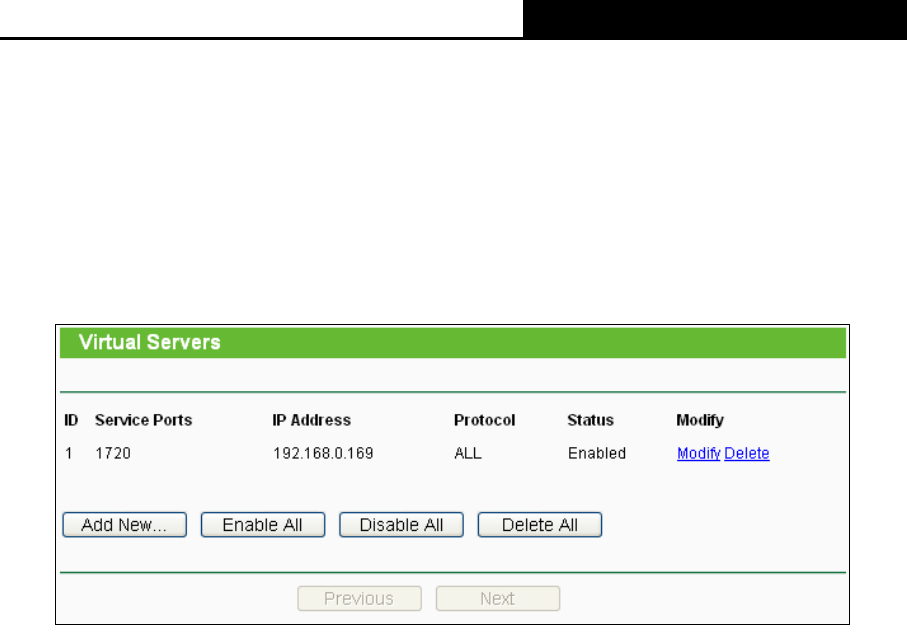

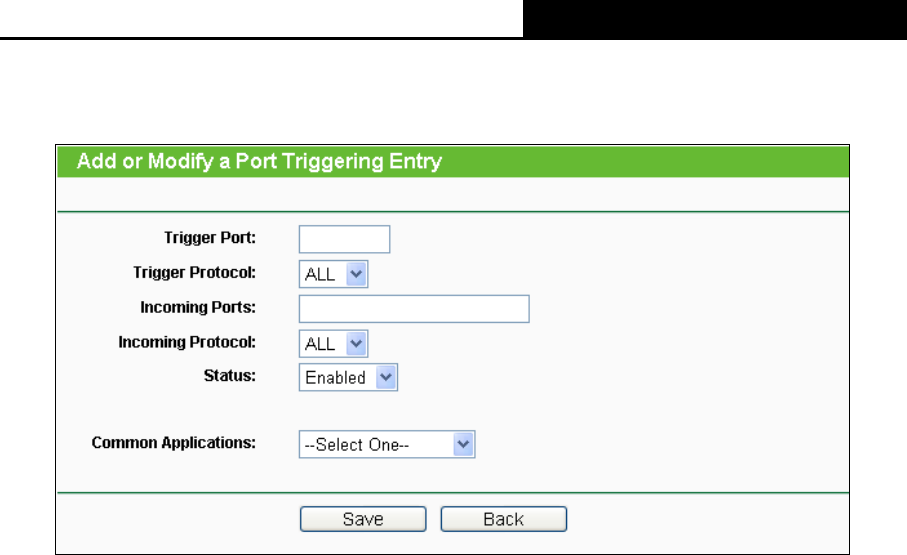

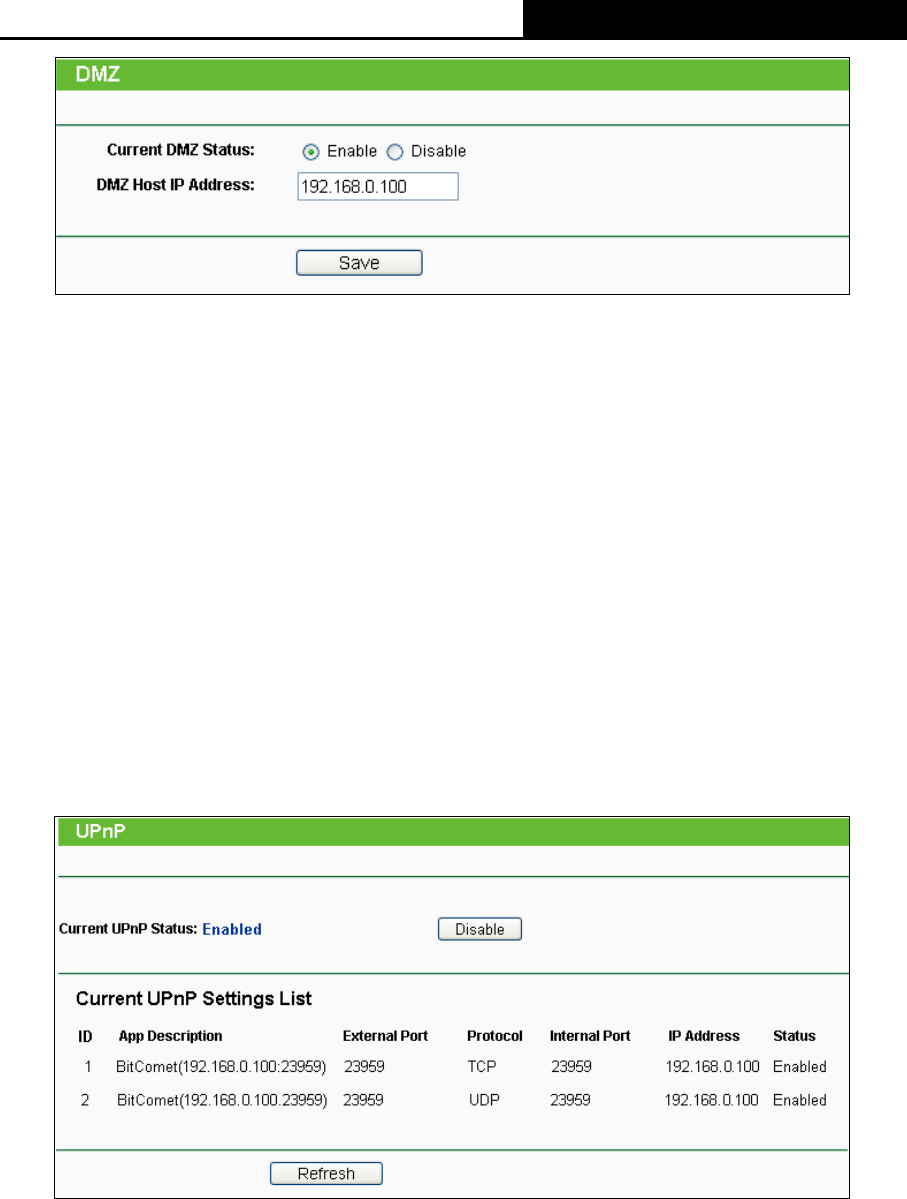

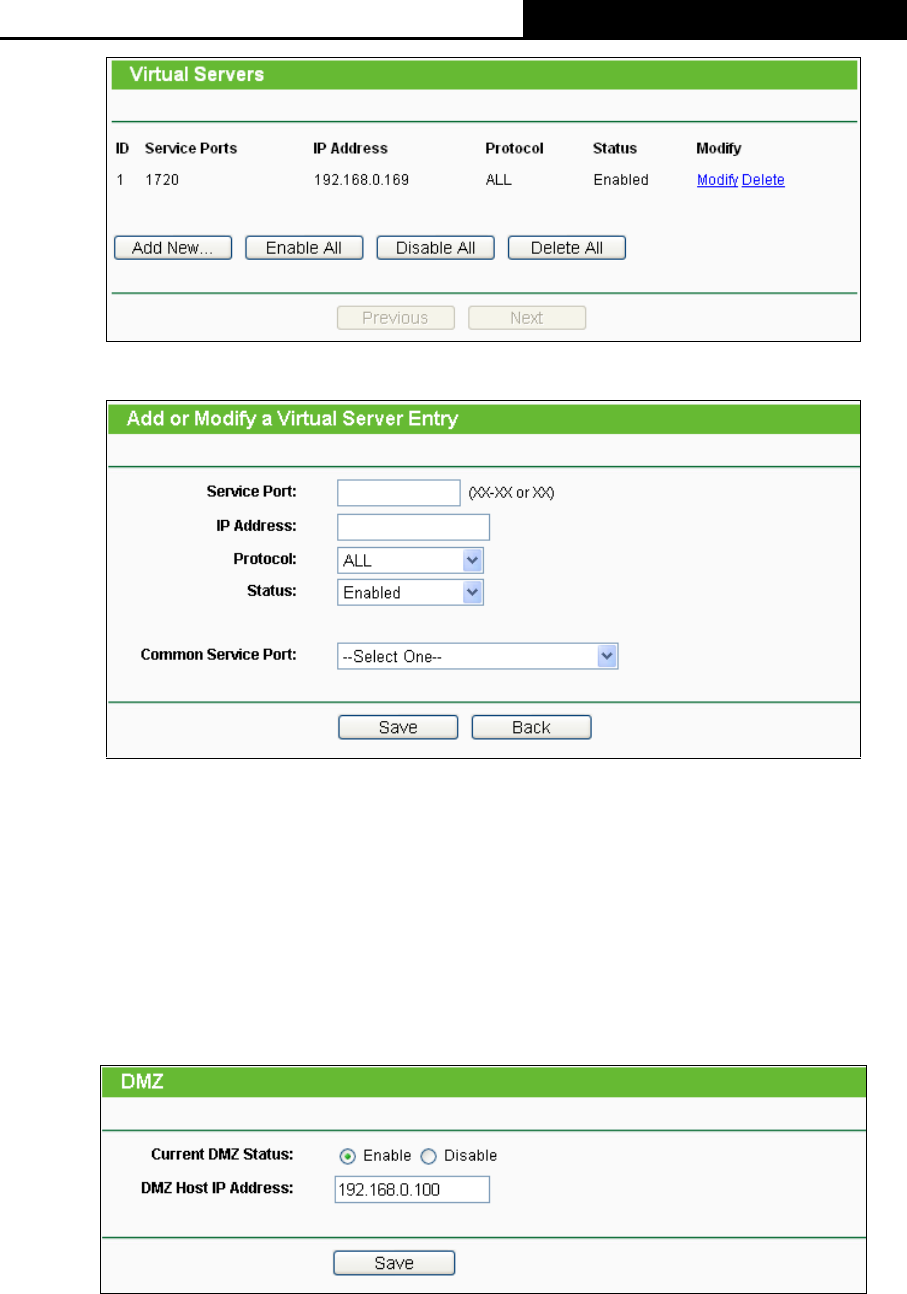

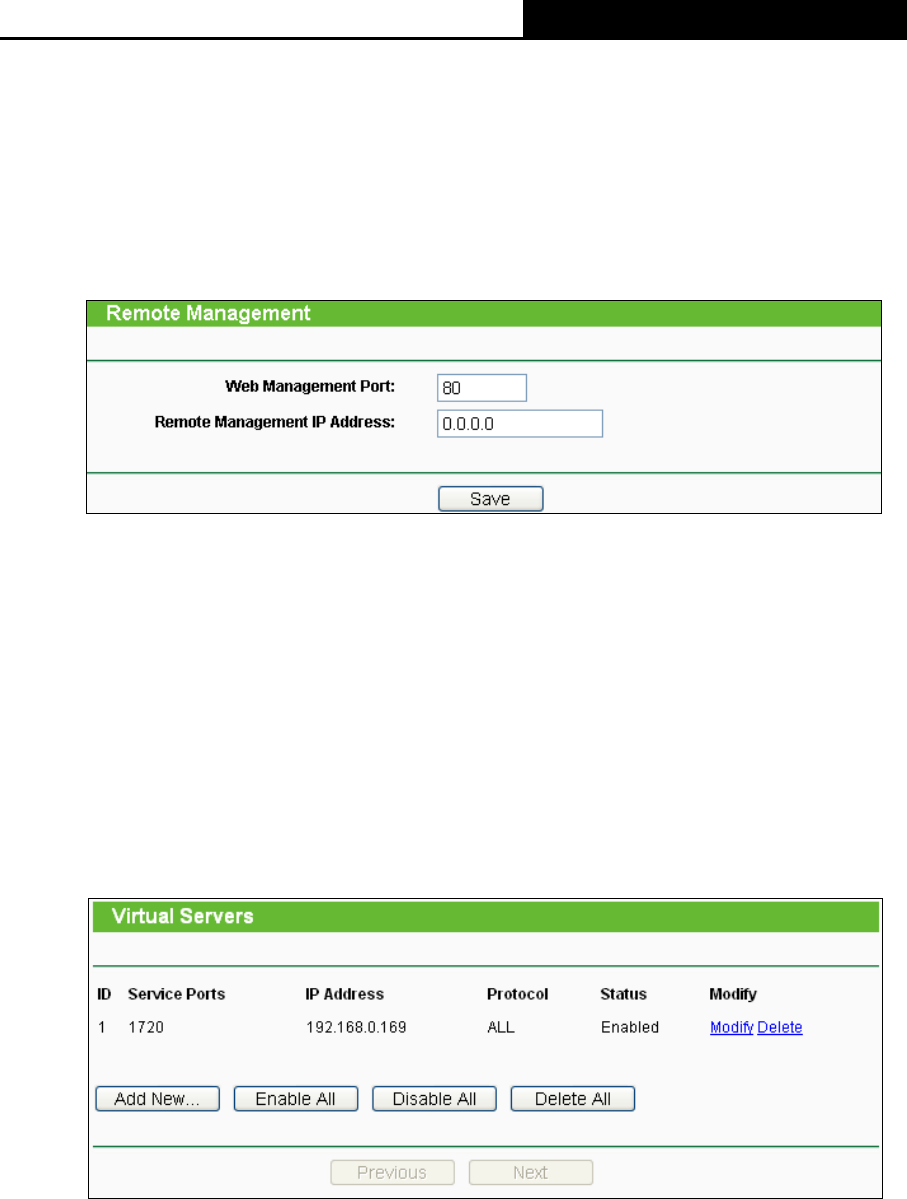

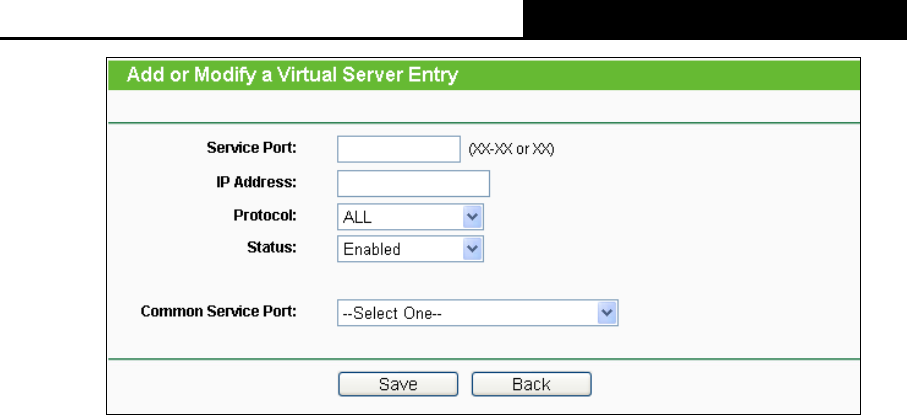

The TL-WR702N 150Mbps Wireless N Nano Router supports Virtual Server and DMZ host for Port
Triggering, and then the network administrators can manage and monitor the network in real time with
the remote management function.
Since the Router is compatible with virtually all the major operating systems, it is very easy to
manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in
Flexible Access Control
AccessontroInstallation
Reliable Security Protections
Incredible Speed
ccessontroInstallation
Multiple Operation Modes
150Mbps Wireless N Nano Router
- 3 -
this user guide. Before installing the Router, please look through this guide to know all the
Router’s functions.
1.2 Conventions
The Router or TL-WR702N mentioned in this guide stands for TL-WR702N 150Mbps Wireless N Nano
Router without any explanation.
Parameters provided in the pictures are just references for setting up the product, which may
differ from the actual situation.
You can set the parameters according to your demand.
1.3 Main Features
Complies with IEEE 802.11n/g/b
Wireless speed up to 150Mbps
Powered by external power adapter or USB connection to computer
Travel size design, ideal for home or travel use
Compact and portable, powerful wireless signal as well
Perfectly compatible with almost all the 2.4GHz Wi-Fi devices
Supports AP, Router, Repeater, Bridge, and Client modes
Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
150Mbps Wireless N Nano Router
- 4 -
1.4 Panel Layout

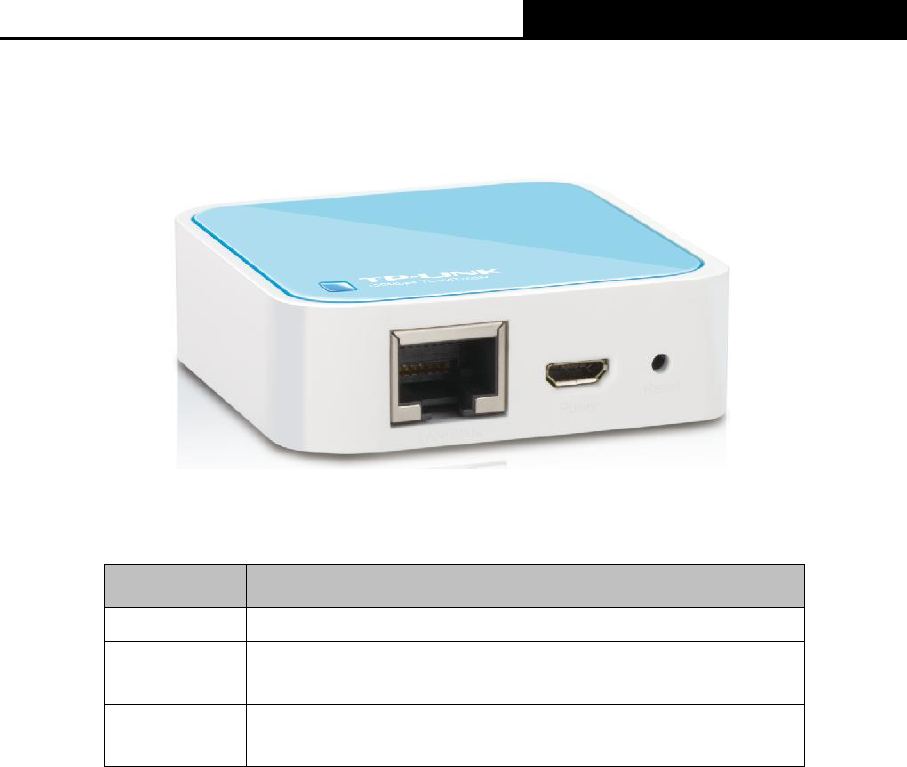

Figure 1-1 TL-WR702N sketch
LED
Status
Indication
Solid
It’s powered on but the LAN/WAN port is not connected.
Flashing
Slowly
The LAN/WAN cable is connected but there is no data
being transmitted or received.
Flashing
Quickly
The LAN/WAN cable is connected and there is data being
transmitted or received.
Table 1-1 The LED Description
LAN/WAN: This LAN/WAN port works as LAN in AP/Repeater/ Bridge/Client mode and as
WAN in Router mode. As LAN, it connects the Router to the local PC; as WAN, it enables
you connect the DSL/cable Modem, or Ethernet.
Power: This port is used to connect the provided power adapter.
Reset：It is used to reset the Router to its factory defaults. With the Router powered on, use
a pin to press and hold the Reset button (about 5 seconds) until the SYS LED becomes
quick-flash from slow-flash. And then release the button and wait the Router to reboot to its
factory default settings.
150Mbps Wireless N Nano Router
- 5 -
Chapter 2. Connecting the Router
2.1 System Requirements
Each PC in the LAN needs a working Ethernet Adapter
TCP/IP protocol must be installed on each PC
Web browser, such as Microsoft Internet Explorer 5.0 or later, Mozilla Firefox, Apple Safari
If the device is configured to AP router mode, you also need Broadband Internet Access
Service (DSL/Cable/Ethernet)
One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the Router is
connected directly to the Ethernet.)
2.2 Installation Environment Requirements
Place the Router in a well ventilated place far from any heater or heating vent
Place the Router in a location where it can be connected to the various devices as well as to
a power source
Avoid direct irradiation of any strong light (such as sunlight)
Keep at least 2 inches (5 cm) of clear space around the Router
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90%RH, Non-condensing
2.3 Connecting the Router
Before installing the Router, please make sure your broadband service provided by your ISP is
available. If there is any problem, please contact with your ISP. To connect the Router, please
follow the steps below:
1. Power off your PC, Cable/DSL Modem, and the Router.
2. Locate an optimum location for the Router. The best place is usually at the center of your
wireless network. The place must accord with the Installation Environment Requirements.
3. Plug the power plug in the electrical wall socket. The Router will start to work automatically.
After finishing the steps above, please choose the operation mode you need and carry out the
corresponding steps. There are five operation modes supported by this router: AP, Router,
Repeater, Bridge and Client.
150Mbps Wireless N Nano Router
- 6 -
2.3.1 AP Mode
As the supplement of wired LAN, TL-WR702N enables the wired LAN to connect to the Internet
wirelessly.
The default mode of TL-WR702N is AP. Plug the power plug of TL-WR702N in electrical wall
socket and connect the Ethernet cable correctly, you can surf the Internet by connecting your
PC(s) to the Router wirelessly.
On this mode, the only wired port works as LAN. Computer could connect to the device by either
wired or wireless way. The Pre-encryption function is opened by default and the default password
is the last unique eight numbers of each Router’s MAC address. To avoid the conflict of DHCP
service with front-end devices, the DHCP server is default to be closed on this mode. If you want
to login in the management page, please set your computer’s IP address manually.
Figure 2-1 Hardware Installation of the TL-WR702N in AP Mode
1. Connect the LAN port of TL-WR702N to the wired network port with an Ethernet cable.
2. Plug the power plug of TL-WR702N in electrical wall socket.
3. Power on the PC(s) and notebook(s).
2.3.2 Router Mode
As a wireless router, TL-WR702N enables multi-user to share Internet via DSL/Cable Modem.
On this mode, the only wired port works as WAN, which can be connected to DSL Modem with an
Ethernet cable. Computers could connect to the device by only wireless way. DHCP server is
default opened and it is recommended that the IP address and DNS server address obtained
automatically.
150Mbps Wireless N Nano Router
- 7 -

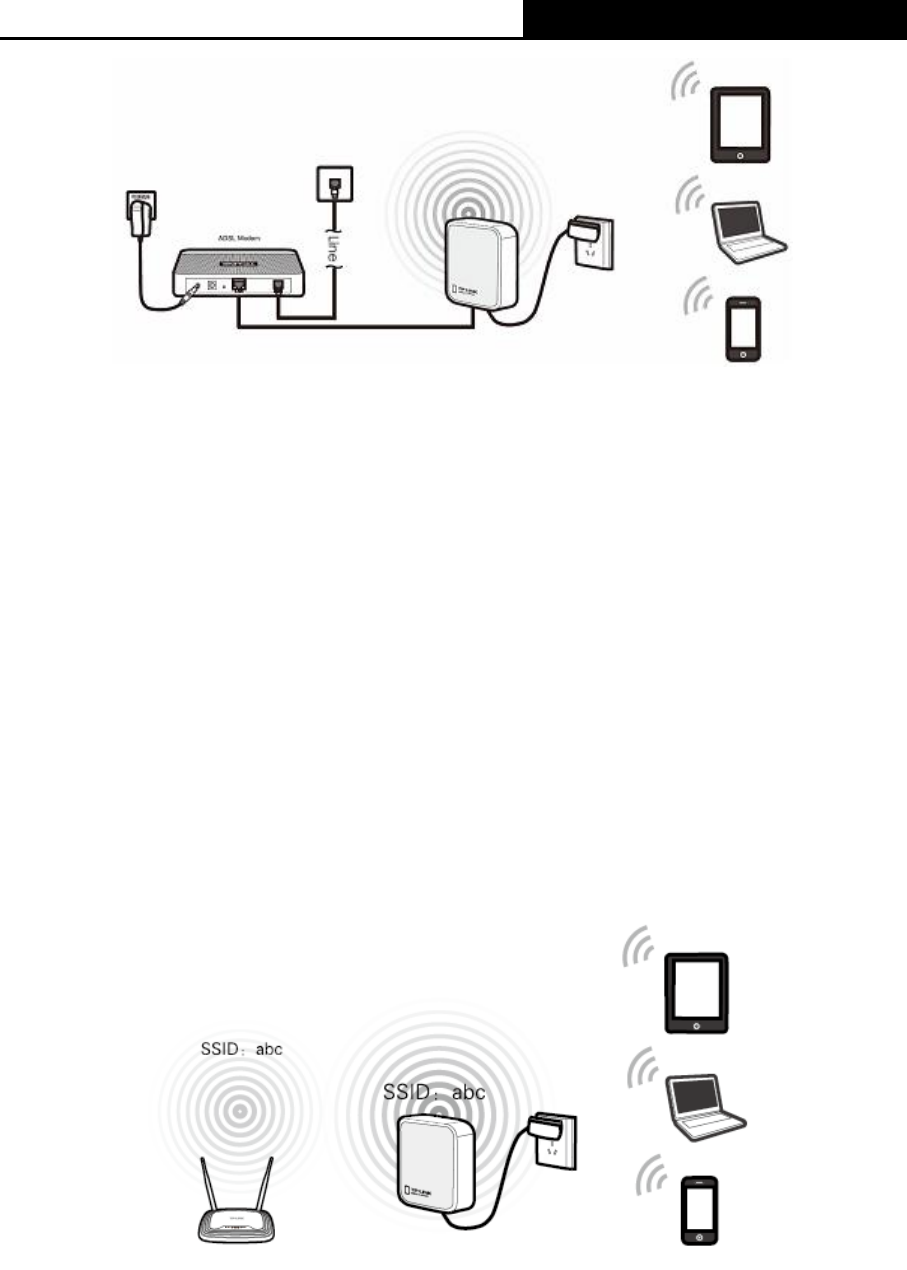

Figure 2-2 Hardware Installation of the TL-WR702N in Router Mode
1. Connect the WAN port of TL-WR702N to the LAN Port on the DSL/Cable Modem.
2. Connect the WAN port on the DSL/Cable Modem to the wired Internet.
3. Plug the power plug of TL-WR702N in electrical wall socket.
4. Power on the DSL/Cable Modem, PC(s) and notebook(s).
2.3.3 Repeater Mode
TL-WR702N is used to extend the range of wireless signal of the existing AP or wireless router.
On this mode, the only wired port works as LAN. Computer could connect to the device by either
wired or wireless way. The SSID of TL-WR702N should be the same as that of the device you
repeat. To avoid the conflict of DHCP service with front-end devices, the DHCP server is default to
be closed on this mode. If you want to log in the management page, please set your computer’s IP
address manually.
Figure 2-3 Hardware Installation of the TL-WR702N in Repeater Mode
1. Plug the power plug of TL-WR702N in electrical wall socket.
2. Power on the notebook(s).
150Mbps Wireless N Nano Router
- 8 -
Note:
It is recommended that you connect a PC/notebook to the LAN port of the Router with an Ethernet
cable, and then login the Router from the PC/notebook to set the Router in AP Repeater mode.

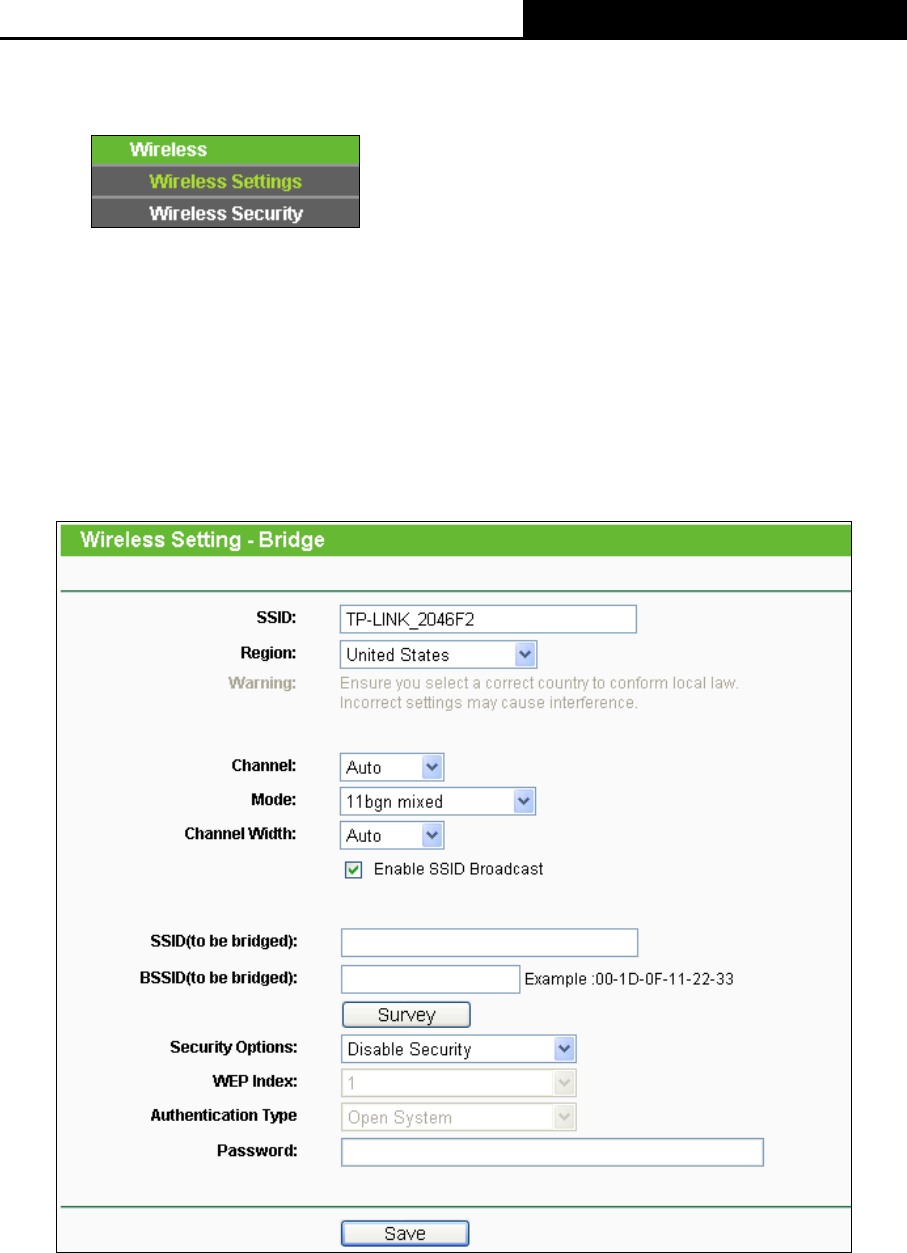

2.3.4 Bridge Mode
Similar to the Bridge mode, TL-WR702N in Bridge mode is also used to extend the range of
wireless signal of the existing AP or wireless router.
On this mode, the only wired port works as LAN. Computer could connect to the device by either
wired or wireless way. To avoid the conflict of DHCP service with front-end devices, the DHCP
server is default to be closed on this mode. If you want to log in the management page, please set
your computer’s IP address manually.
Figure 2-4 Hardware Installation of the TL-WR702N in Bridge Mode
1. Plug the power plug of TL-WR702N in electrical wall socket.
2. Power on the notebook(s).
Note:
It is recommended that you connect a PC/notebook to the LAN port of the Router with an Ethernet
cable, and then login the Router from the PC/notebook to set the Router in Bridge mode.
2.3.5 Client Mode
TL-WR702N is used as a wireless network card to connect the wireless network signal or wireless
router.
On this mode, the only wired port works as LAN. Computer could connect to the device by either
wired or wireless way. To avoid the conflict of DHCP service with front-end devices, the DHCP
server is default to be closed on this mode. If you want to log in the management page, please set
your computer’s IP address manually.
150Mbps Wireless N Nano Router
- 9 -

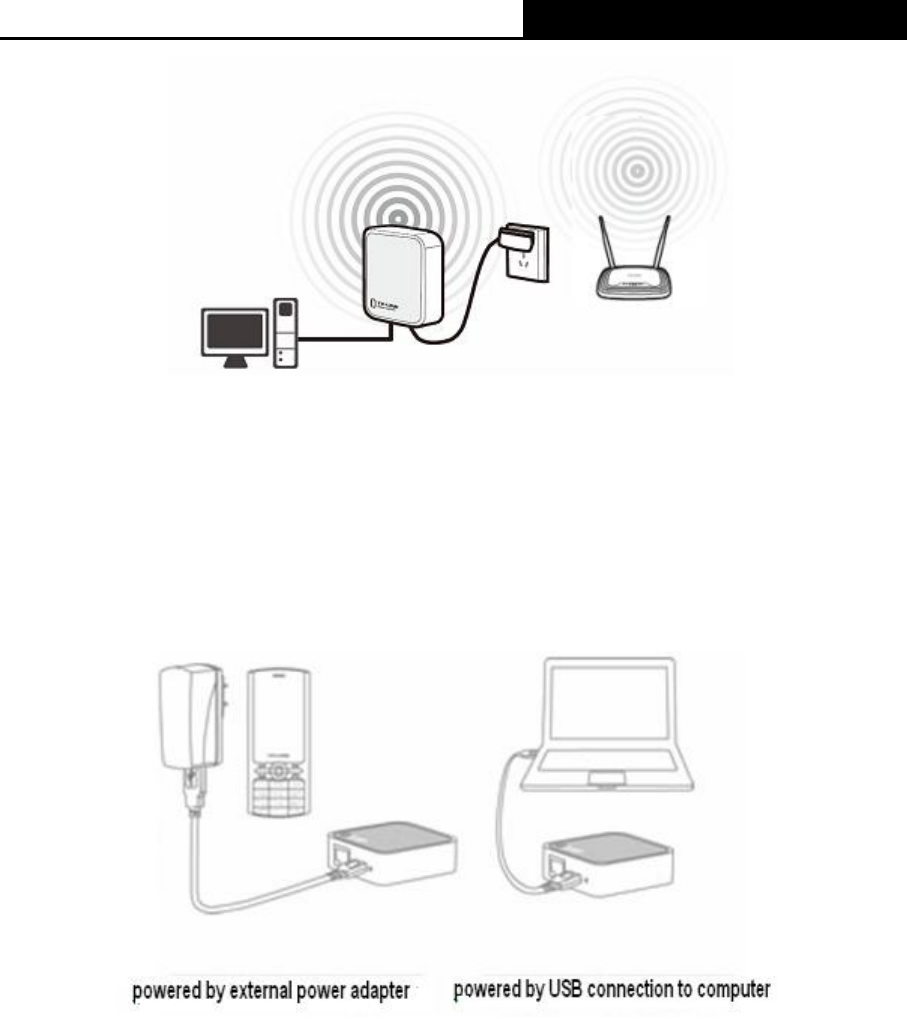

Figure 2-5 Hardware Installation of the TL-WR702N in Client Mode
1. Connect the PC to the LAN/WAN port of TL-WR702N router with an Ethernet cable.
2. Plug the power plug of TL-WR702N in electrical wall socket.
3. Power on the PC(s).
Note:
TL-WR702N can be powered by external power adapter or USB connection to computer.
150Mbps Wireless N Nano Router
- 10 -
Chapter 3. Quick Installation Guide
This chapter will show you how to configure the basic functions of your TL-WR702N 150Mbps
Wireless N Nano Router using Quick Setup Wizard within minutes.
3.1 TCP/IP Configuration
The default IP address of the TL-WR702N 150Mbps Wireless N Nano Router is 192.168.0.254.
And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In
this guide, we use all the default values for description.
Connect the local PC to the LAN/WAN port of the Router. And then you can configure the IP
address for your PC in the following two ways.

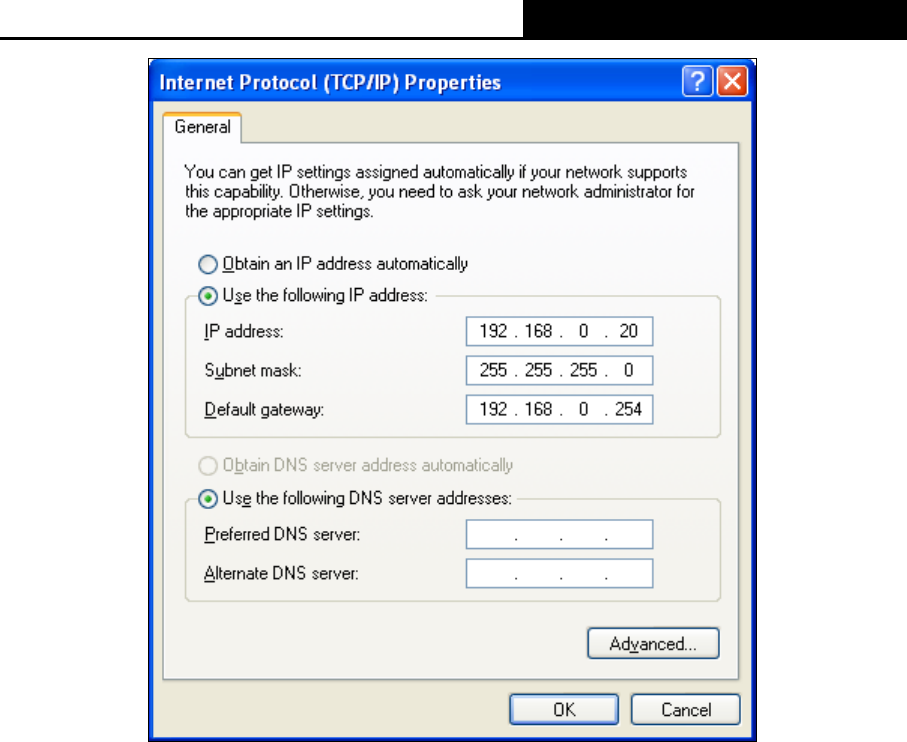

Configure the IP address manually
1) Set up the TCP/IP Protocol for your PC. If you need instructions as to how to do this,

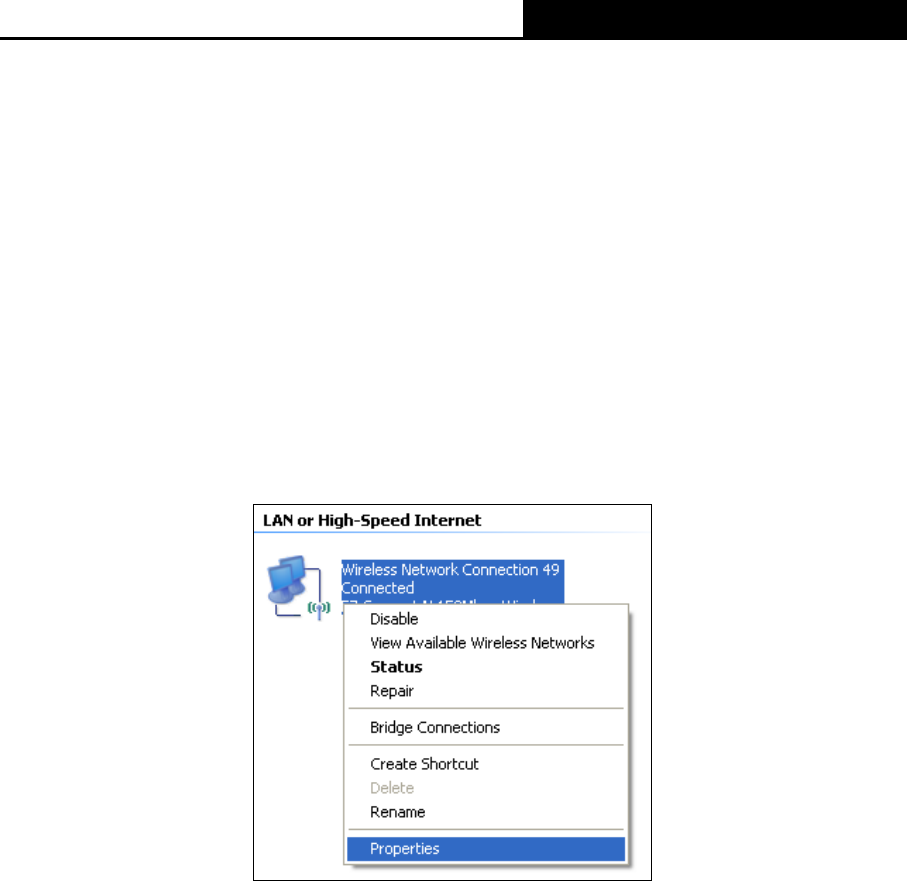

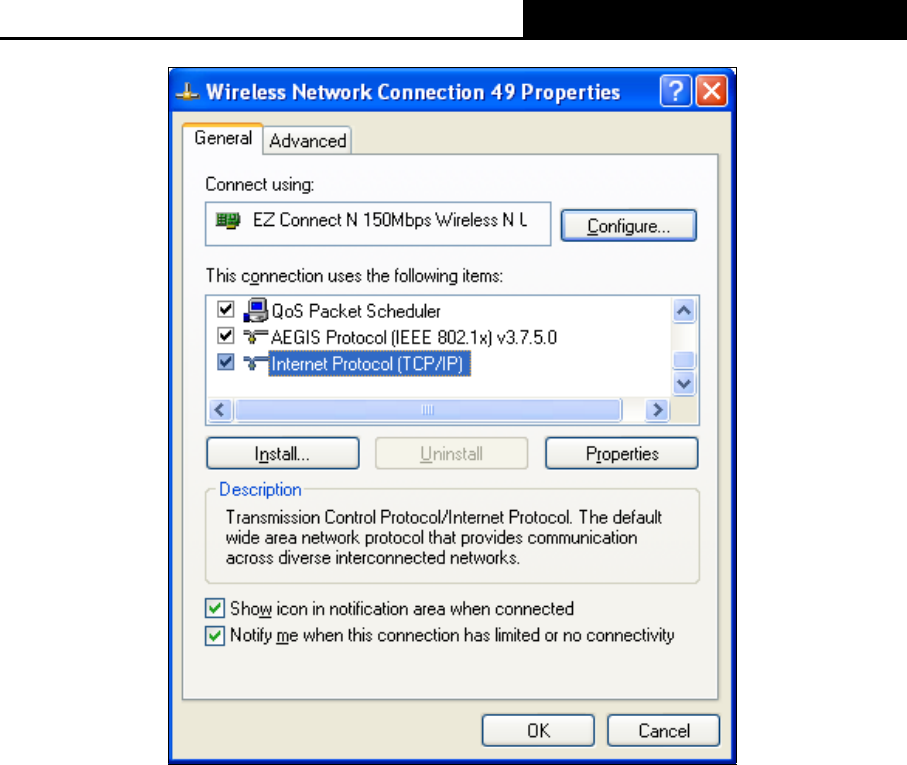

please refer to Appendix B: "Configuring the PC".
2) Configure the network parameters. The IP address is 192.168.0.x ("x" is any number
from 1 to 253), Subnet Mask is 255.255.255.0, and Gateway is 192.168.0.254 (The
Router's default IP address).
Obtain an IP address automatically
1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.
If you need instructions as to how to do this, please refer to Appendix B: "Configuring the
PC”.
2) Then the built-in DHCP server will assign IP address for the PC.
Now, you can run the Ping command in the command prompt to verify the network connection
between your PC and the Router. The following example is in Windows XP.
Open a command prompt, and type ping 192.168.0.254, and then press Enter.
If the result displayed is similar to the Figure 3-1, it means the connection between your PC
and the Router has been established well.
150Mbps Wireless N Nano Router
- 11 -

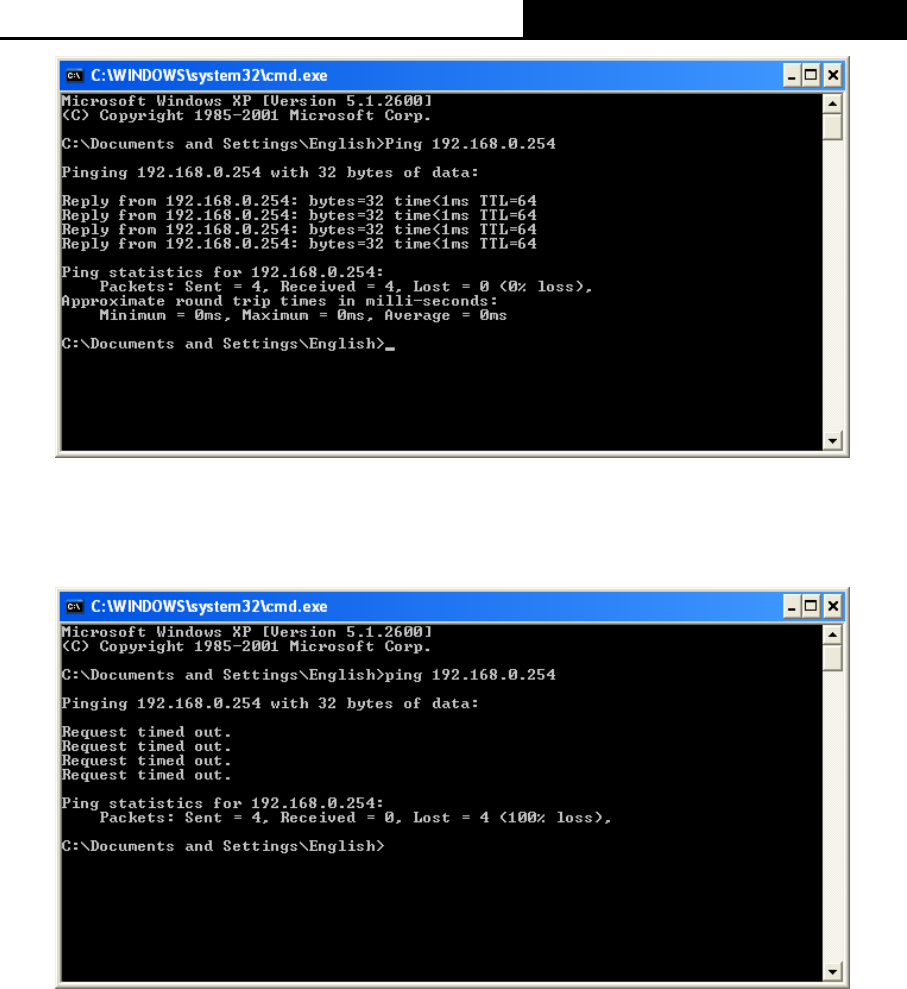

Figure 3-1 Success result of Ping command
If the result displayed is similar to the Figure 3-2, it means the connection between your PC
and the Router has failed.
Figure 3-2 Failure result of Ping command
Please check the connection following these steps:
1. Is the connection between your PC and the Router correct?
Note:
The LED of LAN/WAN ports which you link to on the Router should be lit.
2. Is the TCP/IP configuration for your PC correct?
Note:
If the Router's IP address is 192.168.0.254, your PC's IP address must be within the range of
192.168.0.1 ~ 192.168.0.253.
150Mbps Wireless N Nano Router
- 12 -
3.2 Quick Installation Guide
With a Web-based utility, it is easy to configure and manage the TL-WR702N 150Mbps Wireless
N Nano Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with
a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
1. To access the configuration utility, open a web-browser and type in the default address
http://192.168.0.254 in the address field of the browser.
After a moment, a login window will appear, similar to the Figure 3-3. Enter admin for the
User Name and Password, both in lower case letters. Then click the OK button or press the
Enter key.
Figure 3-3 Login Windows
Note:
If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go
to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel
the Using Proxy checkbox, and click OK to finish it.
2. After a successfully login, you can click the Quick Setup menu to quickly configure your
Router.
Figure 3-4 Quick Setup
150Mbps Wireless N Nano Router
- 13 -
3. Click Next, and then Working Mode page will appear, shown in Figure 3-5.

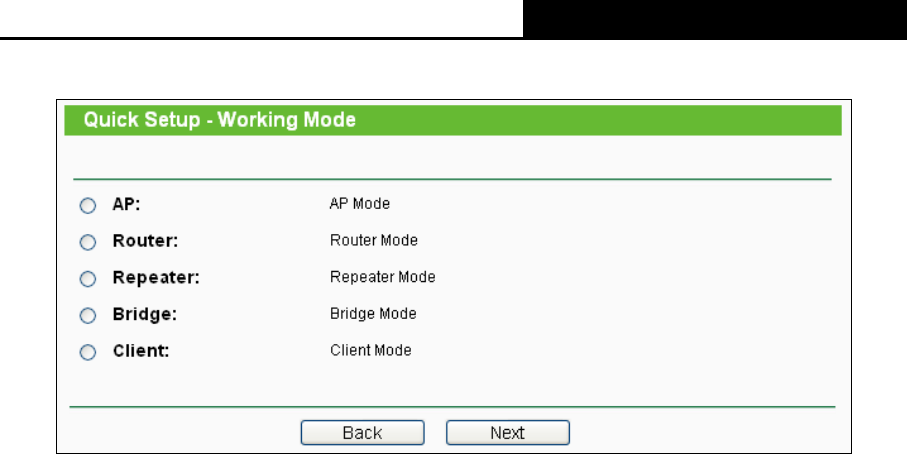

Figure 3-5 Quick Setup - Working Mode
Note:
The Router supports five working modes for multi-user to access the Internet: AP, Router,
Repeater, Bridge and Client. In AP mode, TL-WR702N enables the wired LAN to connect to the
Internet wirelessly. In Router mode, it can access the Internet via DSL/Cable Modem. In Repeater
mode, the device will relay data to an associated root AP. In Bridge mode, the device bridges to
another AP. In Client mode, the device will act as a wireless station to enable wired host(s) to
access AP. You can configure your device quickly by the following steps in different modes.
3.2.1 AP Mode
When you choose AP on Working Mode page in Figure 3-5 , take the following steps:
1. Click Next in Figure 3-5, and then Wireless AP page will appear as shown in Figure 3-6.
150Mbps Wireless N Nano Router
- 14 -

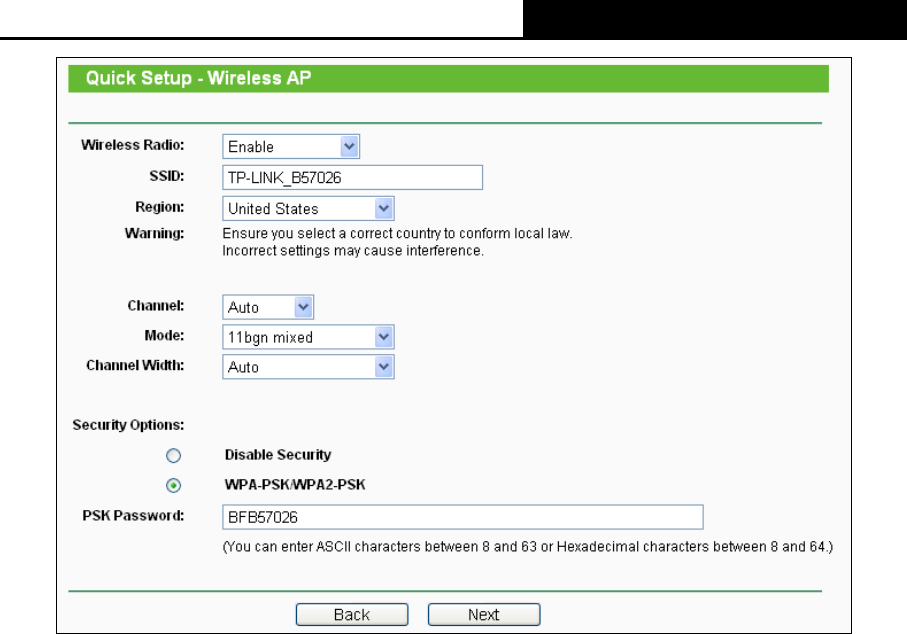

Figure 3-6 Quick Setup - Wireless AP
Wireless Radio - Enable or disable the wireless radio choosing from the pull-down list.
SSID - Enter a string of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. The default
SSID is set to be TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of
each Router’s MAC address). But it is recommended strongly that you change your
networks name (SSID) to a different value. This value is case-sensitive. For example,
TEST is NOT the same as test.
Region - Select your region from the pull-down list. This field specifies the region where
the wireless function of the Router can be used. It may be illegal to use the wireless
function of the Router in a region other than one of those specified in this field. If your
country or region is not listed, please contact your local government agency for
assistance.
Note:
The Region code is fixed as “United States” in the US and can’t be chosen according to the local
law. You can only use channel 1-11 in the US.
Channel - This field determines which operating frequency will be used. The default
channel is set to Auto. It is not necessary to change the wireless channel unless you
notice interference problems with another nearby access point.
Mode - Select the desired mode. The default setting is 11bgn mixed.
11b only - Select if all of your wireless clients are 802.11b.
150Mbps Wireless N Nano Router
- 15 -
11g only - Select if all of your wireless clients are 802.11g.
11n only- Select only if all of your wireless clients are 802.11n.
11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.
11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.
Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless
stations can connect to the Router. When 802.11n mode is selected, only 802.11n wireless
stations can connect to the AP. It is strongly recommended that you set the Mode to
802.11b/g/n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the
Router.
Channel Width - Select any channel width from the pull-down list. The default setting is
automatic, which can automatically adjust the channel width for your clients.
Disable Security - The wireless security function can be enabled or disabled. If
disabled, the wireless stations will be able to connect the Router without encryption. It is
recommended strongly that you choose one of following options to enable security.
WPA-PSK/WPA2-PSK - Select WPA based on pre-shared passphrase.
PSK Password - You can enter ASCII or Hexadecimal characters. The default
password is the last unique eight numbers of each Router’s MAC address
For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the
length should be between 8 and 63 characters.
For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F,
the length should be between 8 and 64 characters.
Please also note the key is case sensitive, this means that upper and lower case
keys will affect the outcome. It would also be a good idea to write down the key and
all related wireless security settings.

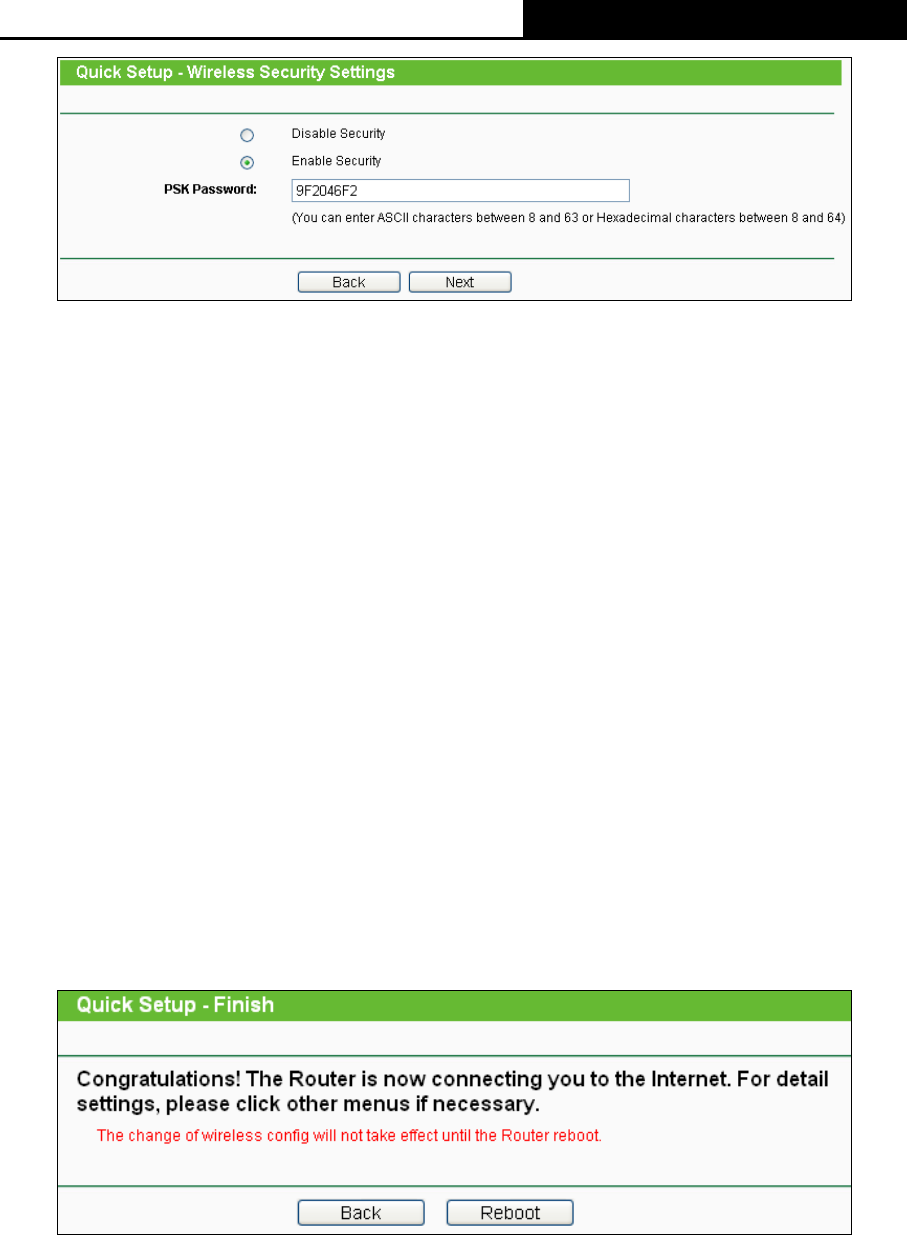

2. Click the Next button. You will then see the Finish page.
If you don’t make any change on the Wireless page, you will see the Finish page as shown
in Figure 3-7. Click the Finish button to finish the Quick Setup.

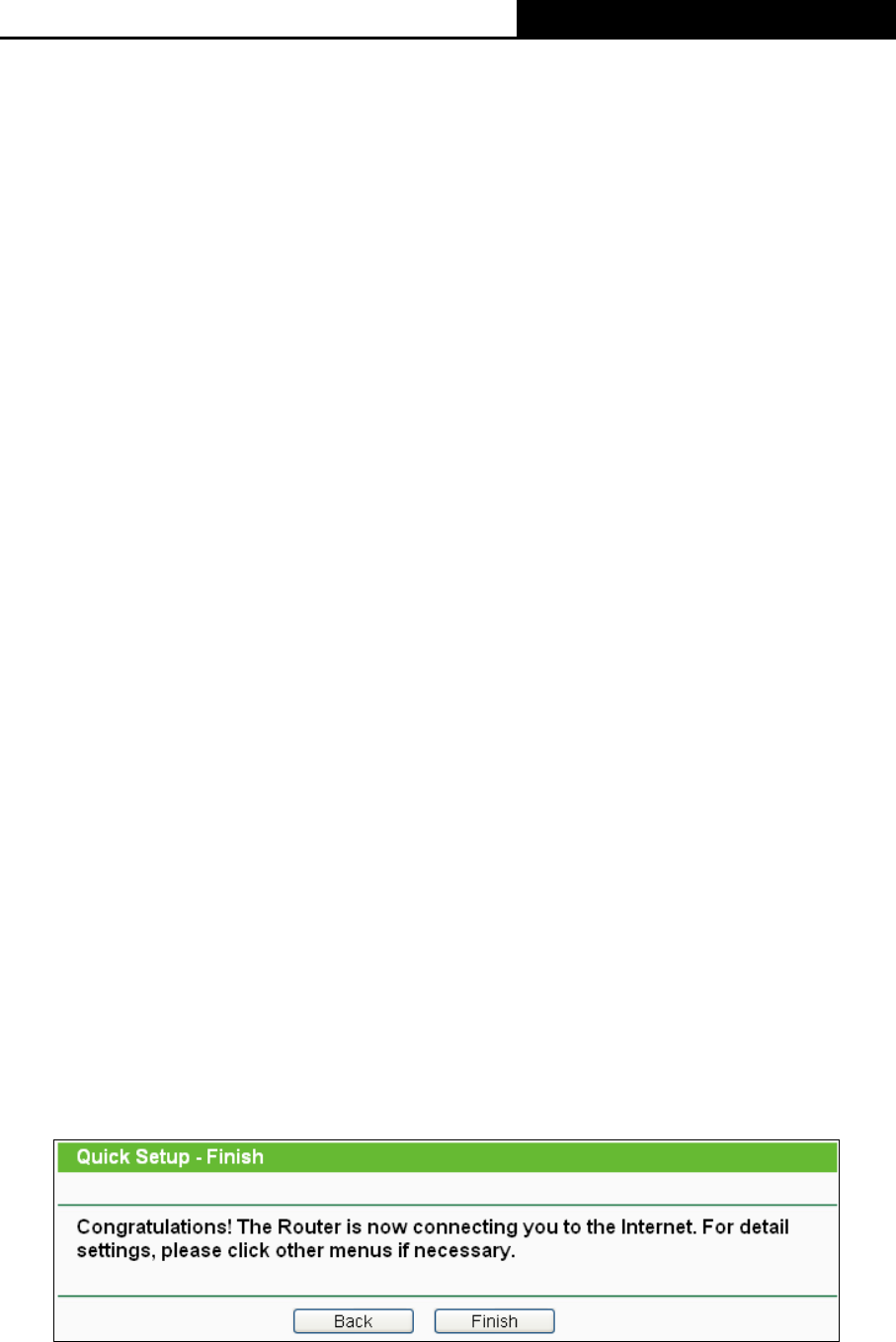

Figure 3-7 Quick Setup - Finish
150Mbps Wireless N Nano Router
- 16 -

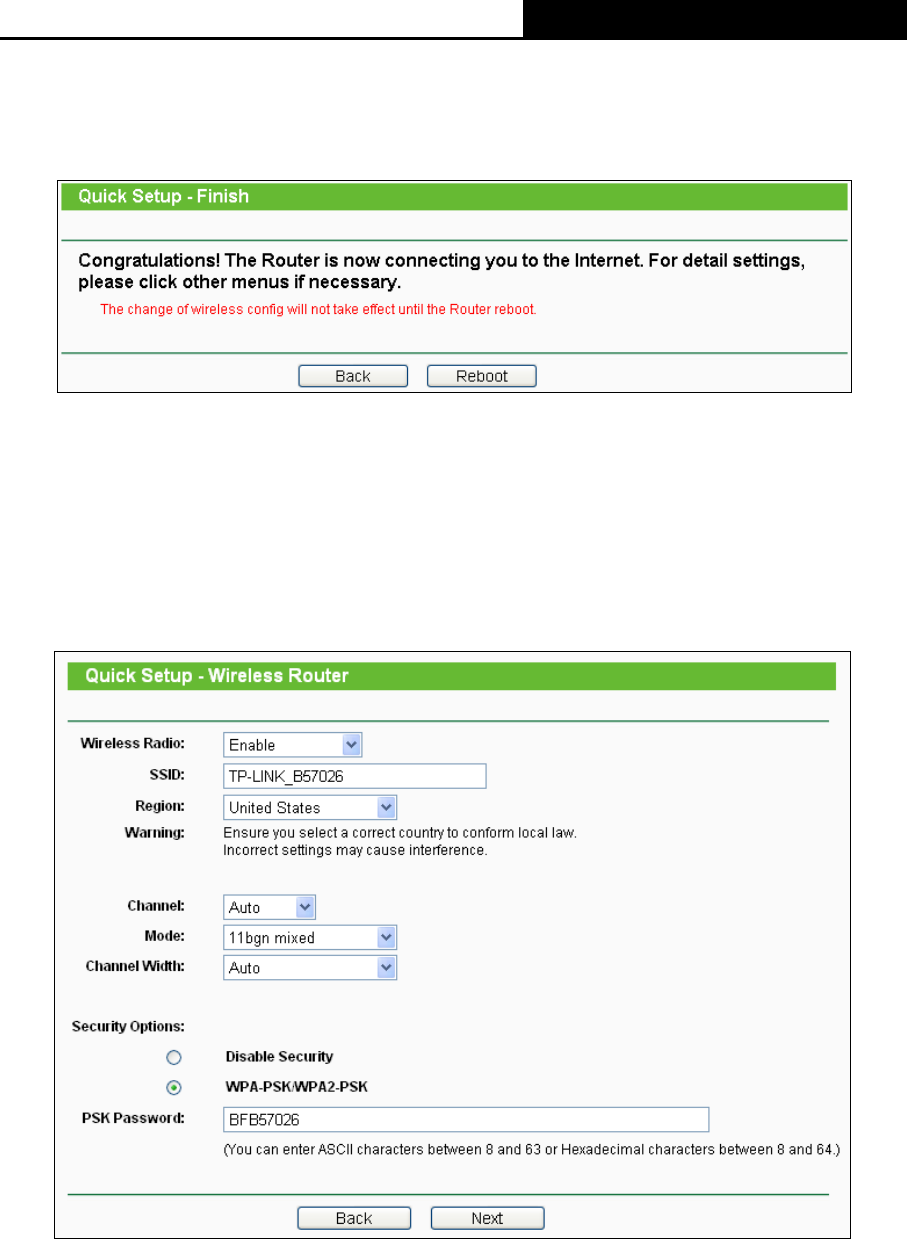

If there is something changed on the Wireless page, you will see the Finish page as shown
in Figure 3-8. Click the Reboot button to make your wireless configuration take effect and
finish the Quick Setup.
Figure 3-8 Quick Setup – Finish
3.2.2 Router Mode
When you choose Router on Working Mode page in Figure 3-5 , take the following steps:
1. Click Next in Figure 3-5, and you will see the following screen. The wireless settings on
Router mode are the same as that on AP mode.
Figure 3-9 Quick Setup - Wireless Router
2. Click Next in Figure 3-9, and then WAN Connection Type page will appear as shown in
Figure 3-10.
150Mbps Wireless N Nano Router
- 17 -
Figure 3-10 Quick Setup - WAN Connection Type
The Router supports three popular ways PPPoE, Dynamic IP and Static IP to connect to the
Internet. To make sure the connection type your ISP provides, please refer to the ISP. Make sure
the cable is securely plugged into the WAN port before detection.

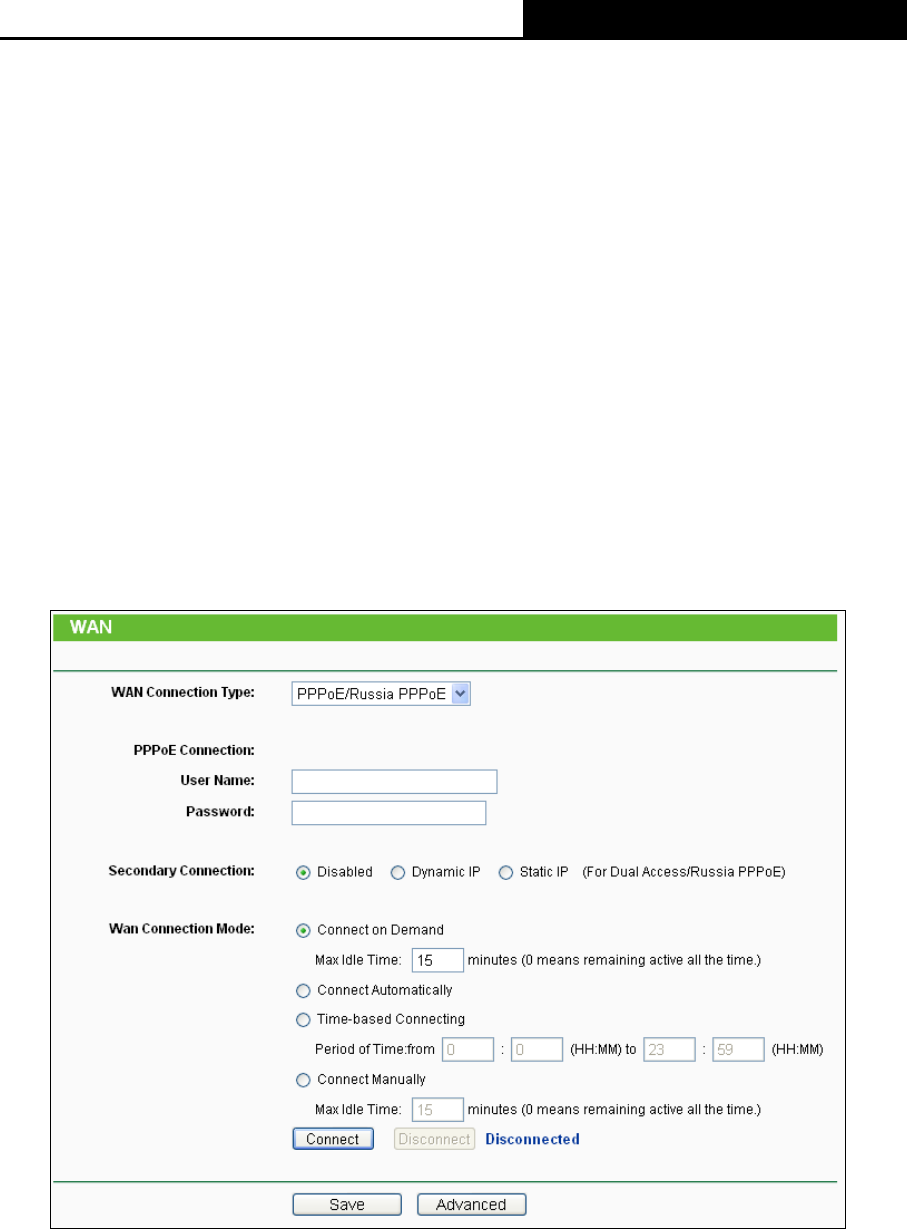

PPPoE - For this connection, you will need your account name and password from your ISP.
If you have applied ADSL to realize Dial-up service, you should choose this type. Under this
condition, you should fill in both the User Name and Password that the ISP supplied. Please
note that these fields are case-sensitive.

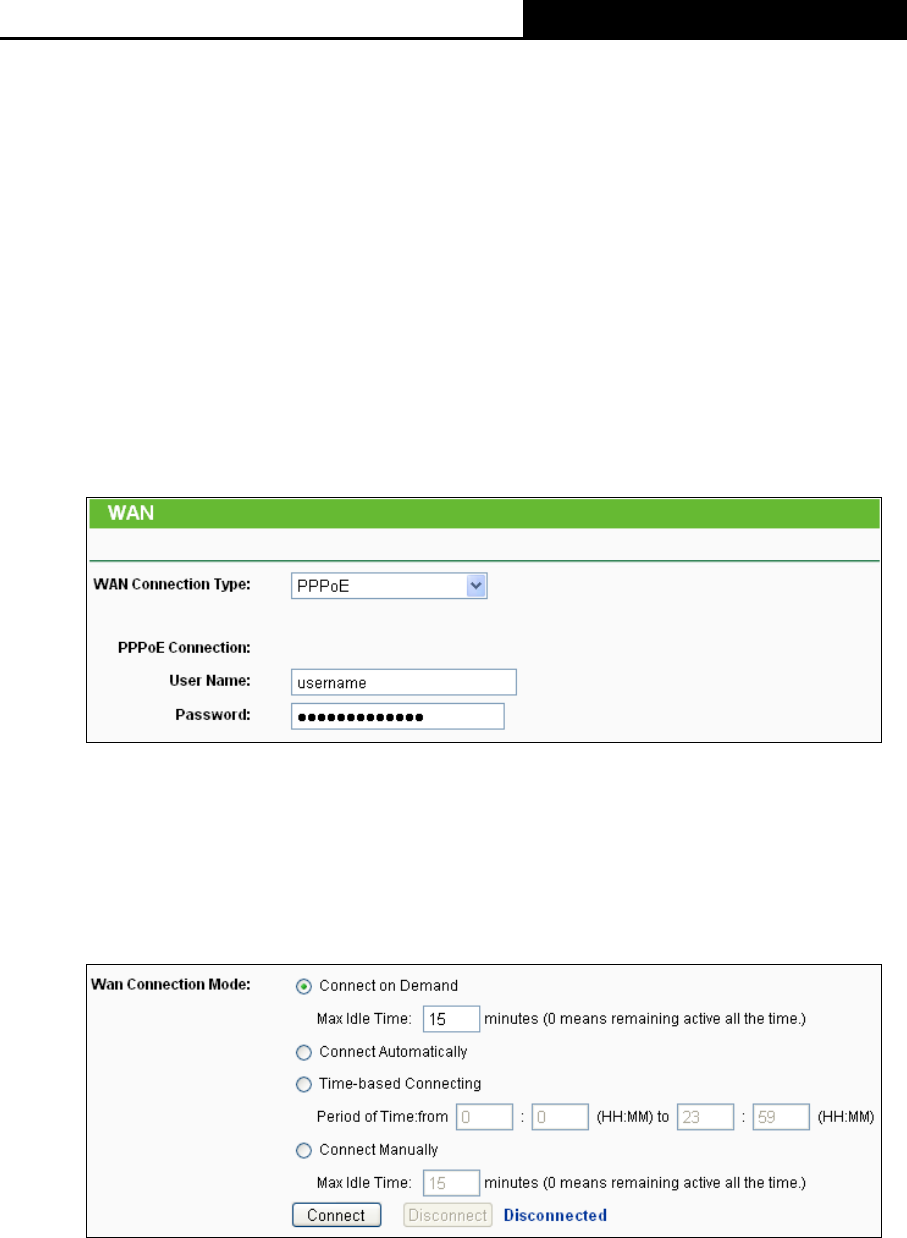

Figure 3-11 Quick Setup - PPPoE
Dynamic IP - Your ISP uses a DHCP service to assign your Router an IP address when
connecting to the Internet.
When the Router connects to a DHCP server, or the ISP supplies you with DHCP connection,
please choose this type. The Router gets the IP address automatically from the DHCP server
or the ISP if you choose Dynamic IP, and then the next screen will appear as shown in
Figure 3-16. Then you can go on with the wireless configuration.
Static IP - This type of connection uses a permanent, fixed (static) IP address that your ISP
assigned.
In this type, you should fill in the IP address, Subnet Mask, Default Gateway, and DNS IP
address manually, which are specified by your ISP.
150Mbps Wireless N Nano Router
- 18 -

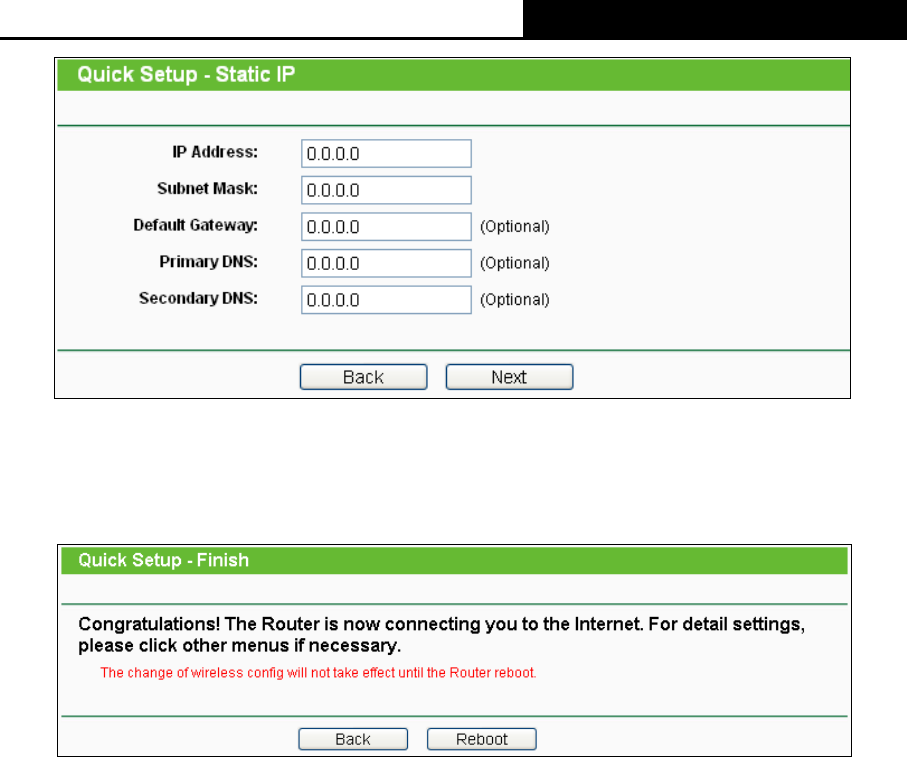

Figure 3-12 Quick Setup - Static IP
3. Click Next, you will see the Finish page as shown in Figure 3-13. Click the Reboot button to
make your wireless configuration take effect and finish the Quick Setup.
Figure 3-13 Quick Setup – Finish
3.2.3 Repeater Mode
When you choose Repeater Mode on Working Mode page in Figure 3-5 , take the following
steps:
1. Click Next, and then Wireless Repeater page will appear as shown in Figure 3-14.
150Mbps Wireless N Nano Router
- 19 -

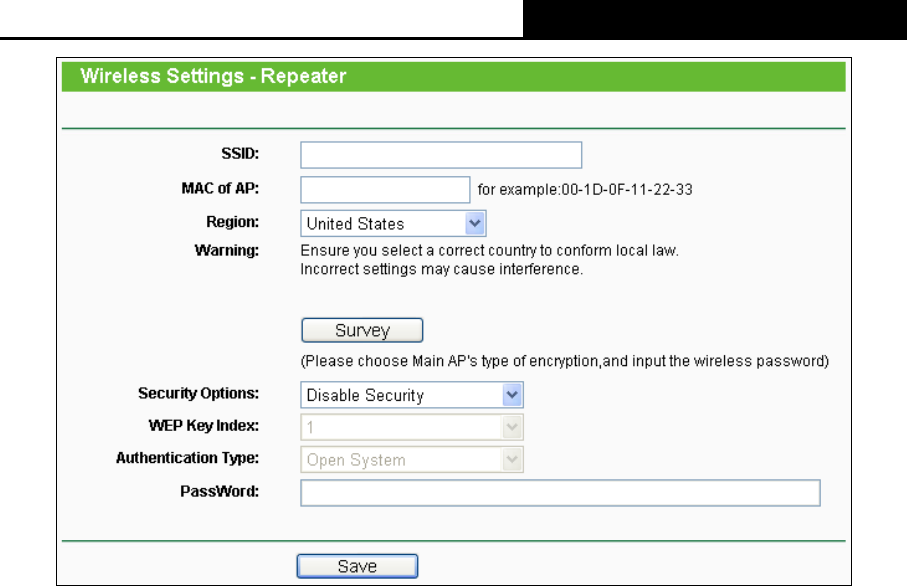

Figure 3-14 Quick Setup - Wireless Repeater
SSID - The SSID of AP that you want to access.
MAC of AP - The MAC address of AP that you want to access.
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Survey - Click this button, you can search the AP which runs in the environment.
Security Options - This option should be chosen according to the security configuration of
the AP you want to access. It is recommended that the security type is the same as your AP’s
security type.
WEP Key Index - This option should be chosen if the key type is WEP (ASCII) or WEP (HEX).
It indicates the index of the WEP key.
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authentication type of the Root AP.
Password - If the AP your router is going to connect need password, you need to fill the
password in this blank.

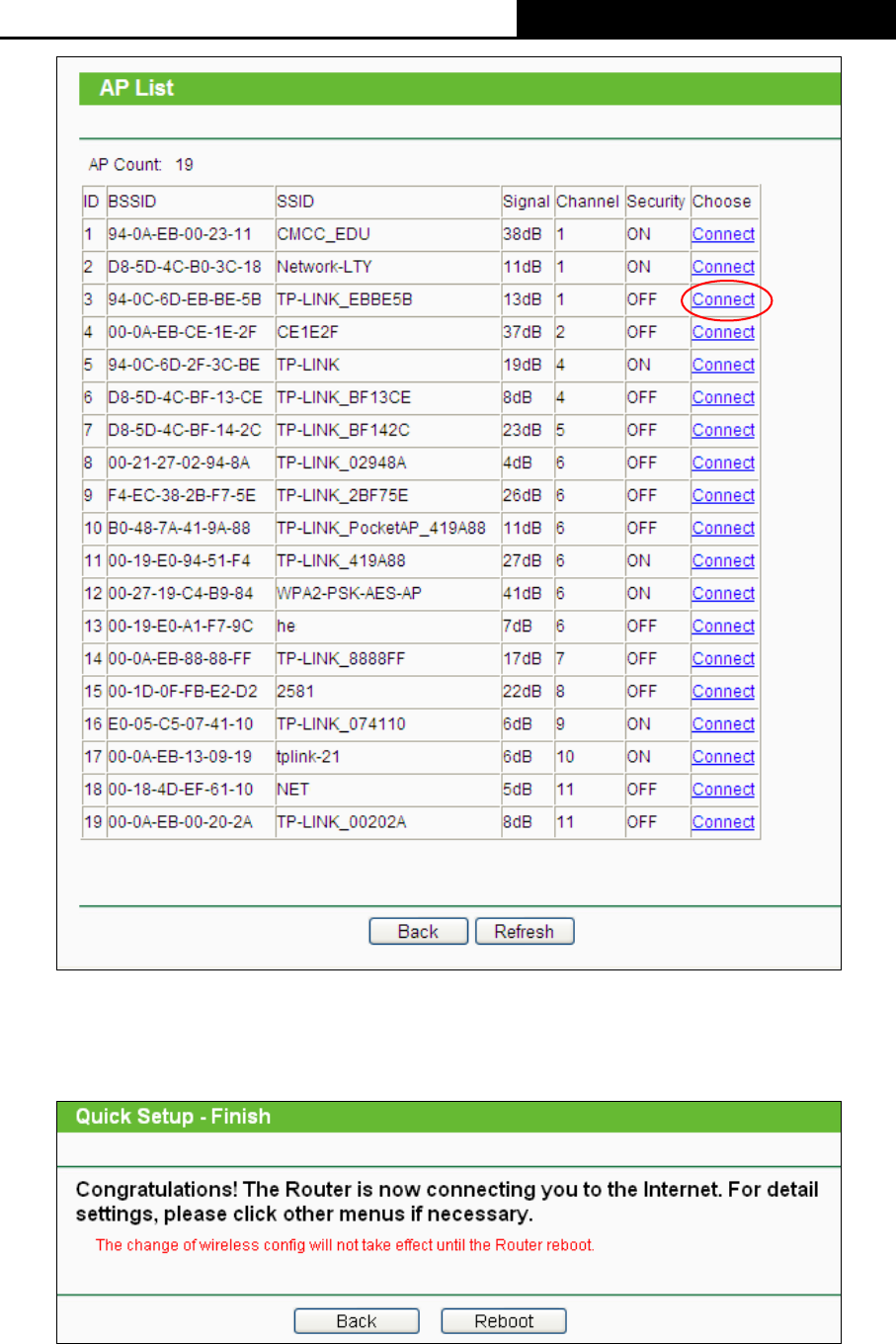

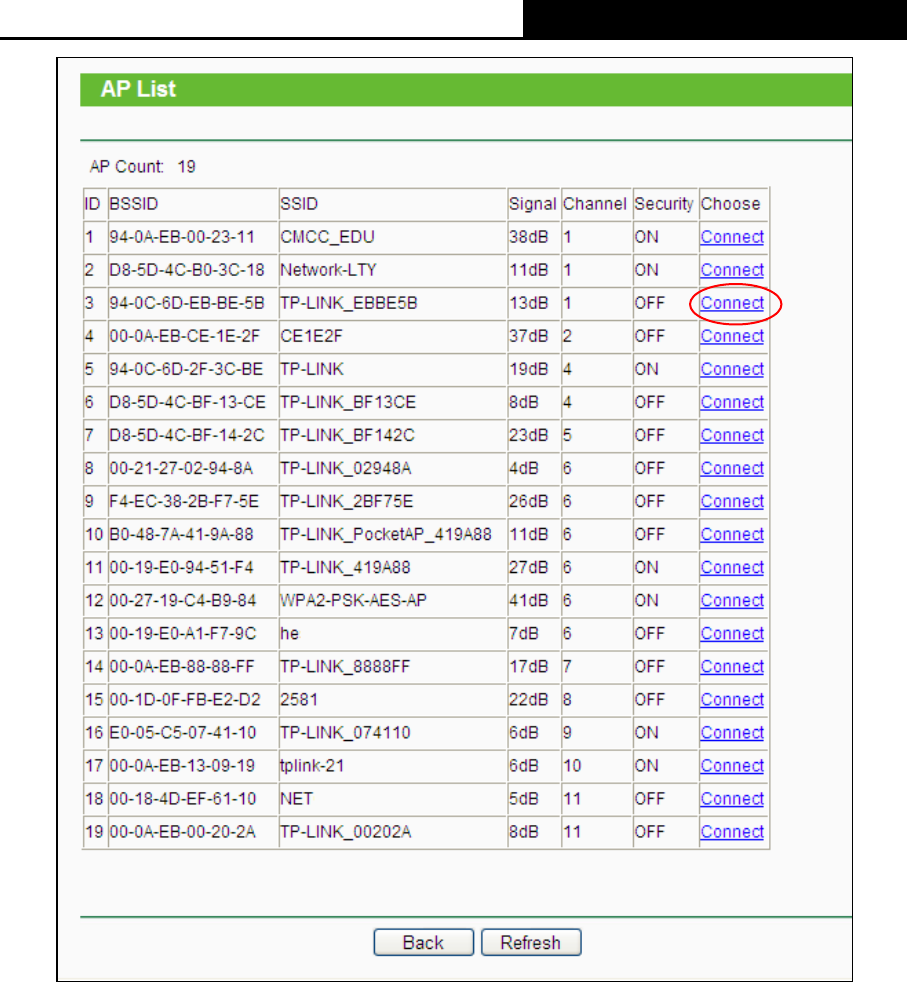

Click Survey button on the Wireless page as shown in Figure 3-14, and then AP List page will
appear as shown in Figure 3-15. Find the SSID of the Access Point you want to access, and click
Connect in the corresponding row. For example, the third item is selected. The target network’s
SSID will be automatically filled into the corresponding box which is shown as the Figure 3-14.
150Mbps Wireless N Nano Router
- 20 -

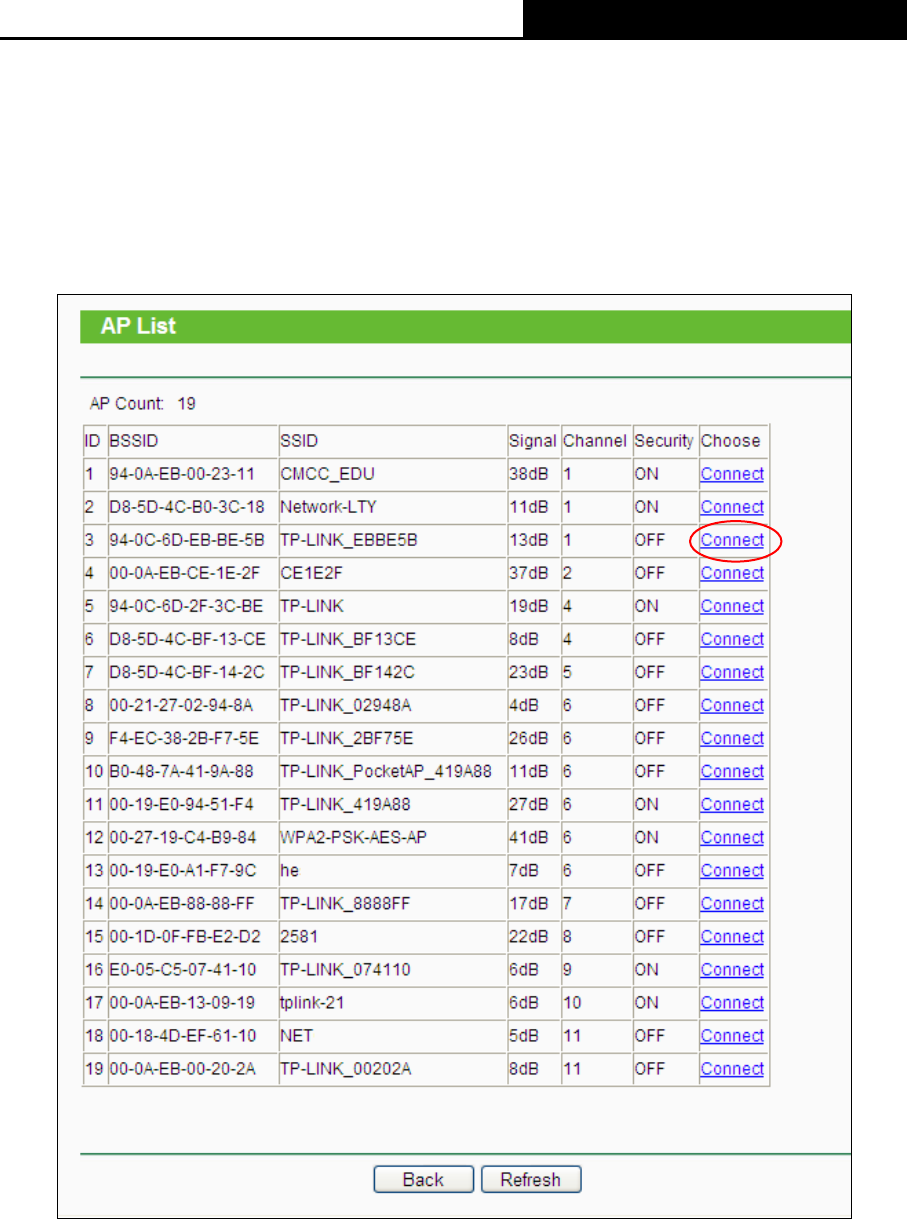

Figure 3-15 AP List
Note:
If you know the SSID of the desired AP, you can also input it into the field "SSID" manually.
2. Click the Next button in Figure 3-14. You will then see the Finish page.
Because something has changed on the Wireless Repeater page, you will see the Finish
page as shown in Figure 3-16. Click the Reboot button to make your wireless configuration
take effect and finish the Quick Setup.
150Mbps Wireless N Nano Router
- 21 -

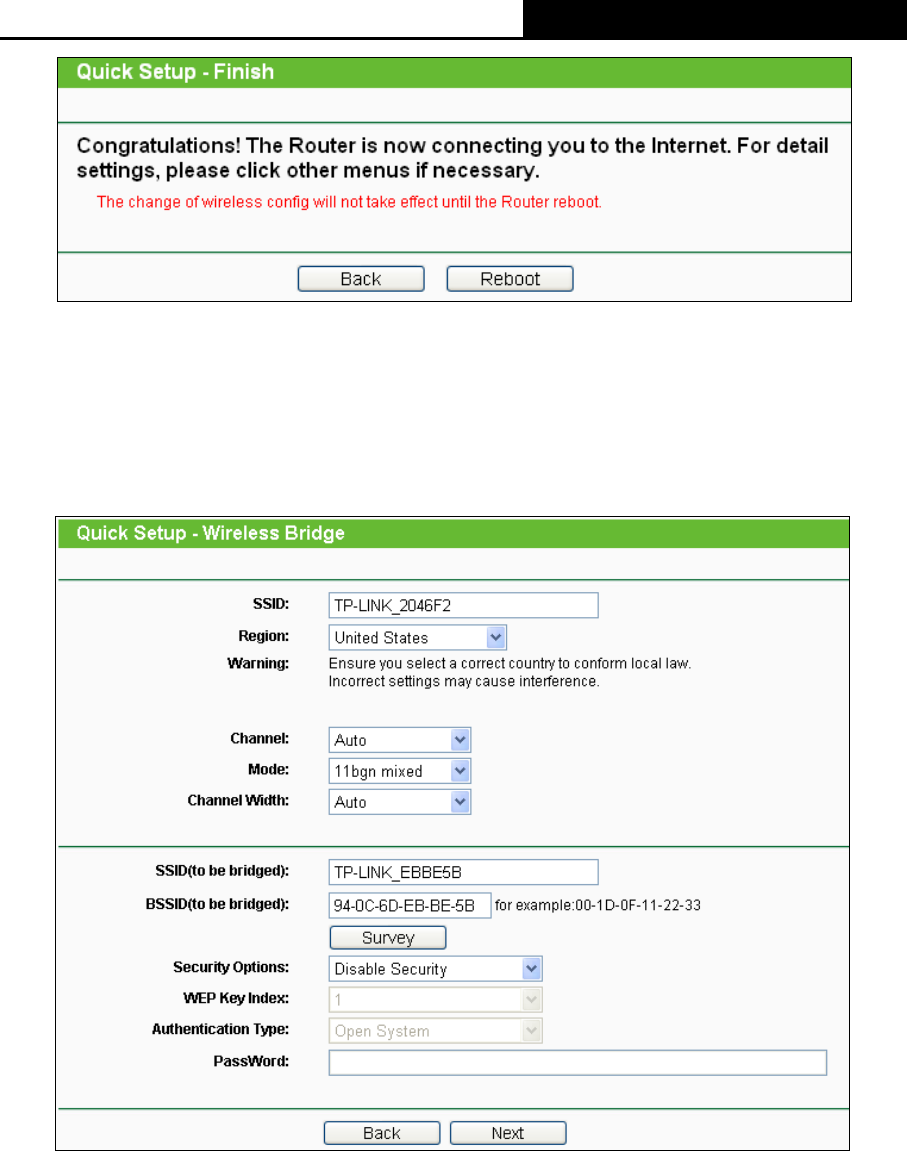

Figure 3-16 Quick Setup - Finish
3.2.4 Bridge Mode
When you choose Bridge on Working Mode page in Figure 3-5 , take the following steps:
1. Click Next, and then Wireless Repeater page will appear as shown in Figure 3-17.
Figure 3-17 Quick Setup - Wireless Bridge
SSID - Enter a string of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. The default SSID is
set to be TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of each
Router’s MAC address). But it is recommended strongly that you change your networks
name (SSID) to a different value. This value is case-sensitive. For example, TEST is NOT
the same as test.
150Mbps Wireless N Nano Router
- 22 -
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Channel - This field determines which operating frequency will be used. It is not necessary
to change the wireless channel unless you notice interference problems with another nearby
access point. If you select auto, then AP will choose the best channel automatically.
Mode - Select the desired mode. The default setting is 11bgn mixed.
11b only - Select if all of your wireless clients are 802.11b.
11g only - Select if all of your wireless clients are 802.11g.
11n only- Select only if all of your wireless clients are 802.11n.
11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.
11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.
Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless
stations can connect to the Router. When 802.11n mode is selected, only 802.11n wireless
stations can connect to the AP. It is strongly recommended that you set the Mode to
802.11b/g/n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the
Router.
Channel width - Select the channel width from the pull-down list. The default setting is auto,
which can automatically adjust the channel width for your clients.
Note:
If 11b only, 11g only, or 11bg mixed is selected in the Mode field, the Channel Width selecting
field will turn grey and the value will become 20MHz, which is unable to be changed.

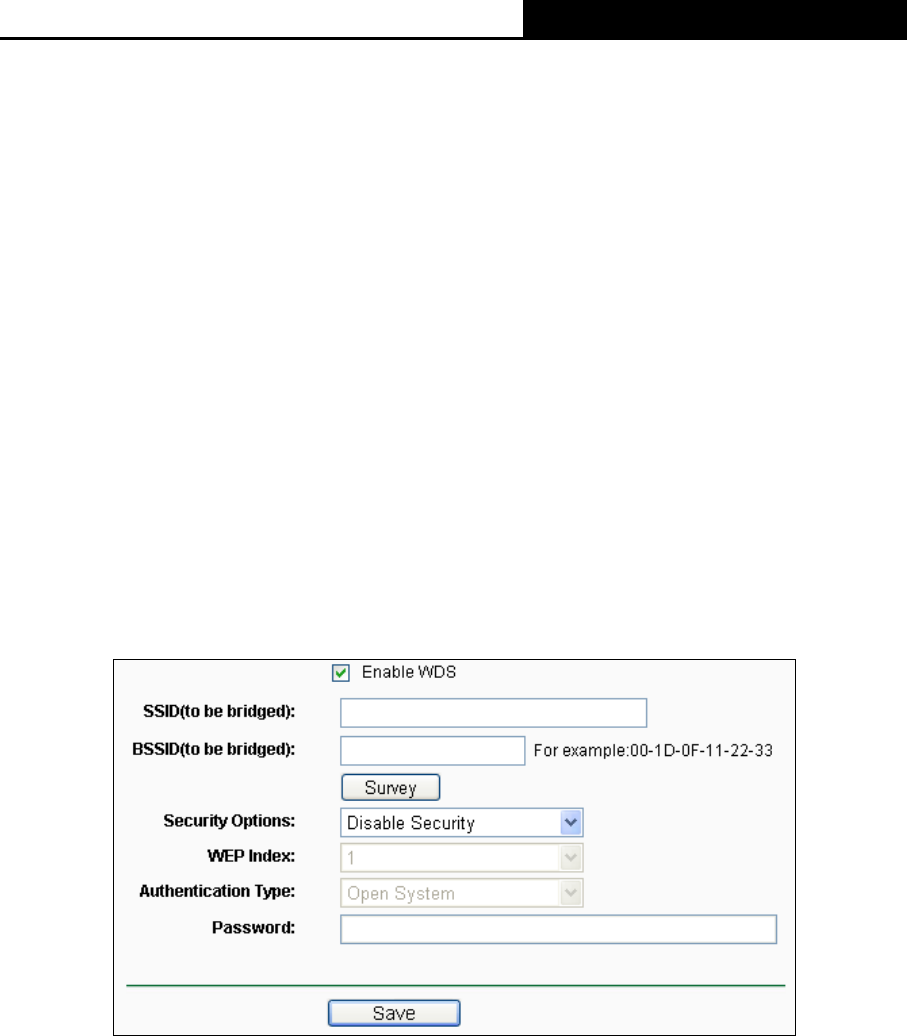

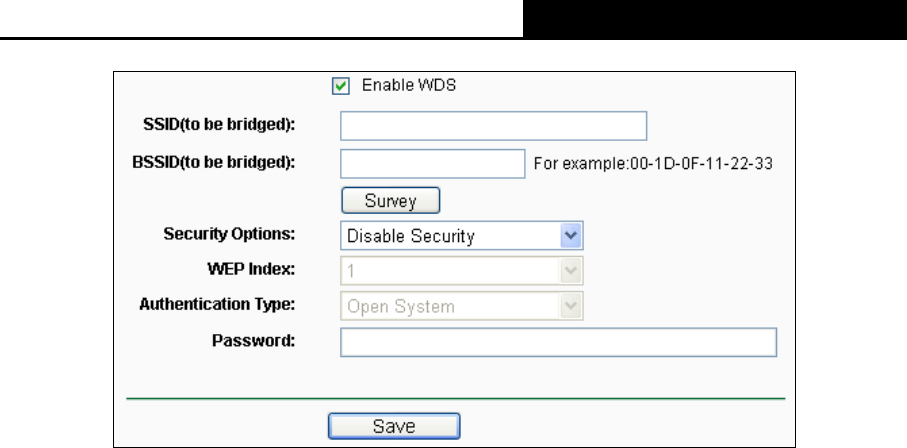

SSID (to be bridged) - The SSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the SSID to join.
BSSID (to be bridged) - The BSSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the BSSID to join.
Survey - Click this button, you can survey the AP which runs in the environment.
Security Options - This option should be chosen according to the AP's security
configuration. It is recommended that the security type is the same as your AP's security
type.
WEP Key Index - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the index of the WEP key.
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authorization type of the Root AP.
150Mbps Wireless N Nano Router
- 23 -
PassWord - If the AP your Router is going to connect needs password, you need to fill the
password in this blank.
Click Survey button on the Wireless page as shown in Figure 3-17, and then AP List page will
appear as shown in Figure 3-18. Find the SSID of the Access Point you want to access, and click
Connect in the corresponding row. For example, the third item is selected. The target network’s
SSID will be automatically filled into the corresponding box which is shown as the Figure 3-17.
Figure 3-18 AP List
2. Click Next in Figure 3-17, and then Wireless Security Settings page will appear as shown
in Figure 3-19.
150Mbps Wireless N Nano Router
- 24 -

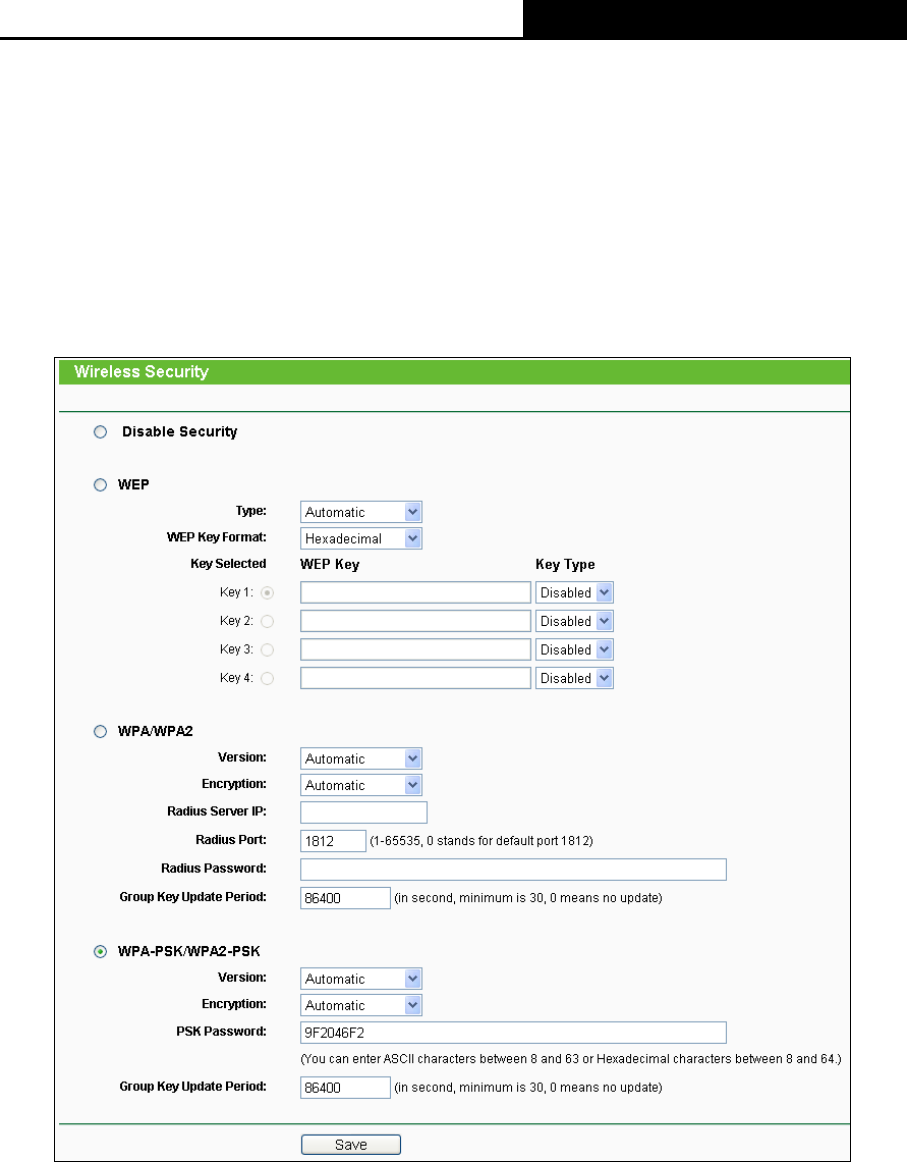

Figure 3-19 Quick Setup - Wireless Security Settings
This page is for setting wireless security of your own AP. When computers and mobile phones
are connected to the AP, they should input the same password.
Disable Security - The wireless security function can be enabled or disabled. If disabled,
the wireless stations will be able to connect the Router without encryption. It is
recommended strongly to enable security.
PSK Password - ou can enter ASCII or Hexadecimal characters. The default password is
the last unique eight numbers of each Router’s MAC address
For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the length
should be between 8 and 63 characters.
For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F, the
length should be between 8 and 64 characters.
Please also note the key is case sensitive, this means that upper and lower case keys will
affect the outcome. It would also be a good idea to write down the key and all related wireless
security settings.
3. Click the Next button in Figure 3-20. You will then see the Finish page. Click the Reboot
button to make your wireless configuration take effect and finish the Quick Setup.
Figure 3-20 Quick Setup - Finish
3.2.5 Client Mode
When you choose Client on Working Mode page in Figure 3-5 , take the following steps:
1. Click Next in Figure 3-5, and then Wireless Client page will appear as shown in Figure 3-21.
150Mbps Wireless N Nano Router
- 25 -

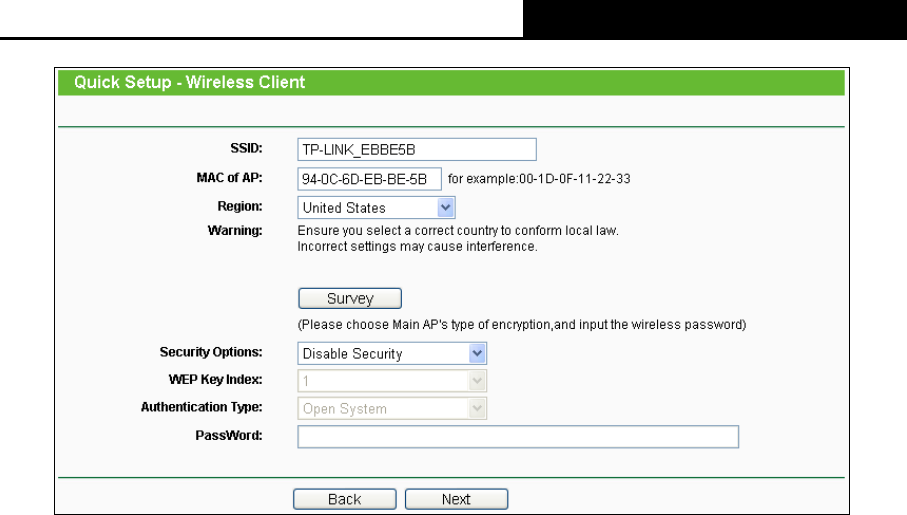

Figure 3-21 Quick Setup - Wireless Client
SSID - Enter the SSID that you want to access.
MAC of AP - Enter the MAC address of AP that you want to access.
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Survey - Click this button, you can survey the AP which runs in the environment.
Security Options - This option should be chosen according to the security configuration of
the AP you want to access. It is recommended that the security type is the same as your AP’s
security type.
WEP Key Index - This option should be chosen if the key type is WEP (ASCII) or WEP (HEX).
It indicates the index of the WEP key.
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authorization type of the Root AP.
PassWord - If the AP your Router is going to connect needs password, you need to fill the
password in this blank.
2. Click Survey button on the Wireless page as shown in Figure 3-21, and then AP List page will
appear as shown in Figure 3-22. Find the SSID of the Access Point you want to access, and
click Connect in the corresponding row. For example, the third item is selected. The target
network’s SSID will be automatically filled into the corresponding box which is shown as the
Figure 3-21.
150Mbps Wireless N Nano Router
- 26 -
Figure 3-22 AP List
3. Click the Next button in Figure 3-23. You will then see the Finish page. Click the Reboot
button to make your wireless configuration take effect and finish the Quick Setup.
Figure 3-23 Quick Setup - Finish
150Mbps Wireless N Nano Router
- 27 -
Note:
1. The operating distance or range of your wireless connection varies significantly based on the
physical placement of the Router. For best results, place your Router.
Near the center of the area in which your wireless stations will operate.
In an elevated location such as a high shelf.
Away from the potential sources of interference, such as PCs, microwaves, and cordless
phones.
Away from large metal surfaces.
Failure to follow these guidelines can result in significant performance degradation or inability to
wirelessly connect to the Router.
150Mbps Wireless N Nano Router
- 28 -
Chapter 4. Configuration for AP Mode
This chapter will show each Web page's key functions and the configuration way for AP Mode of
TL-WR702N.
4.1 Login
After your successful login, you can configure and manage the device. There are main menus on
the left of the web-based utility. Submenus will be available after you click one of the main menus.
On the right, there are the corresponding explanations and instructions.

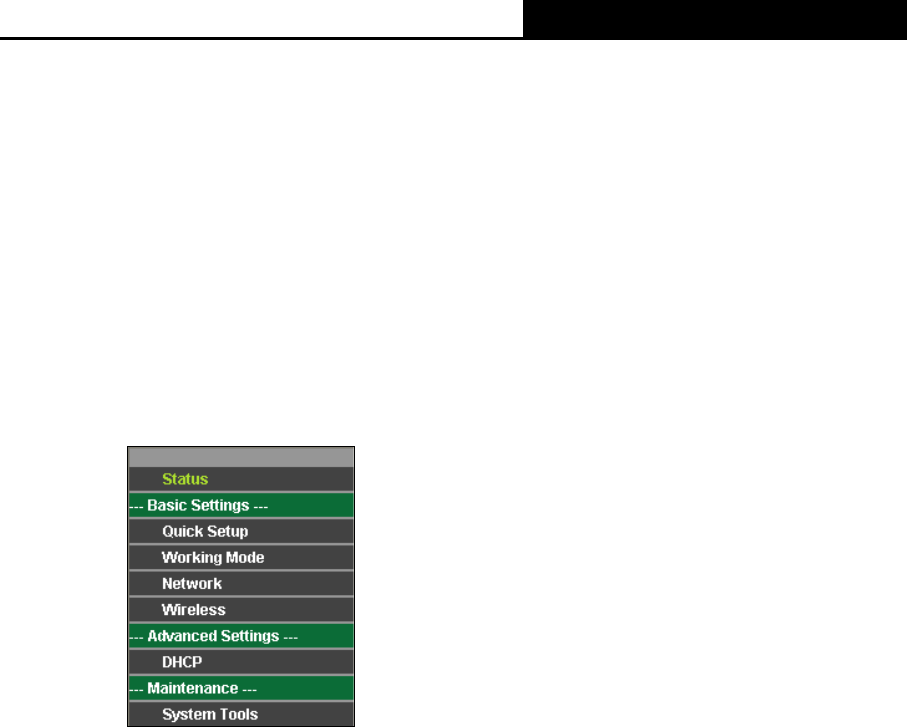

Figure 4-1
The detailed explanations for each Web page’s key function are listed below.
4.2 Status
The Status page provides the current status information about the Router on AP Mode. All
information is read-only.
150Mbps Wireless N Nano Router
- 29 -

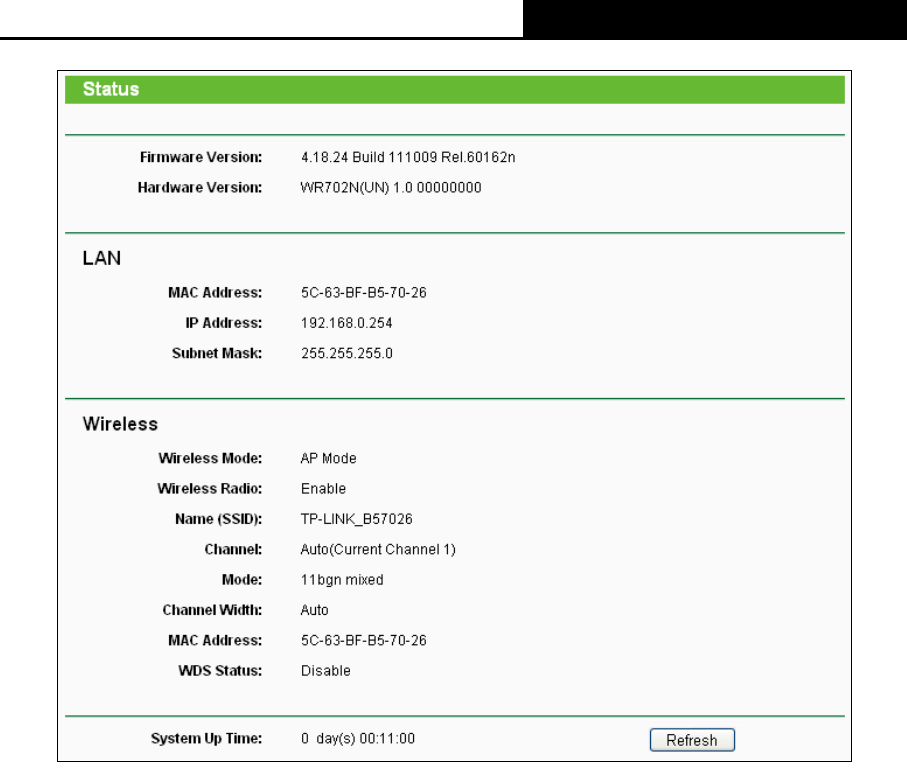

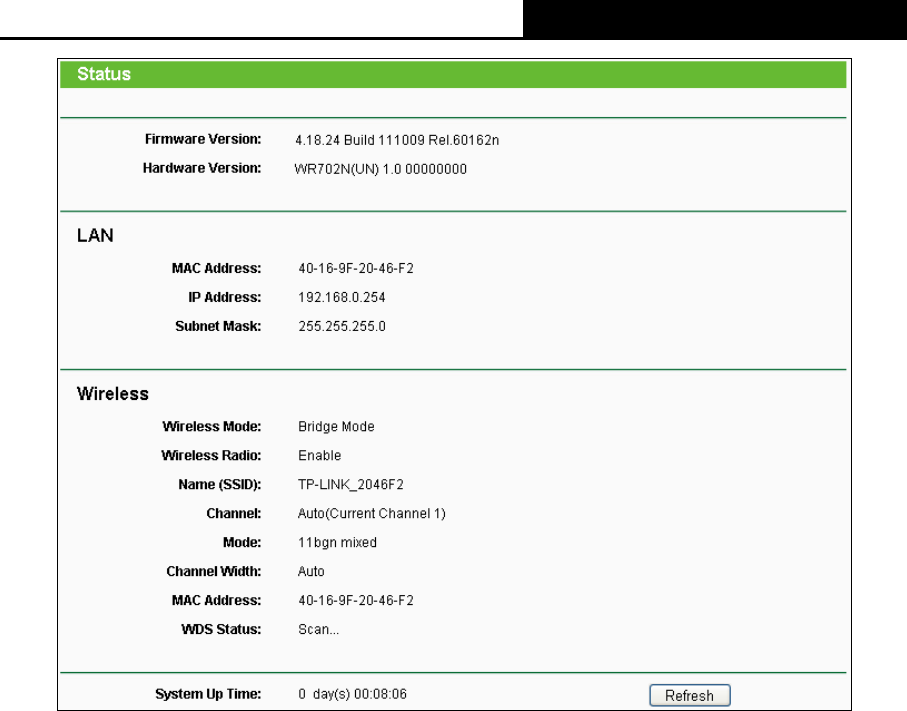

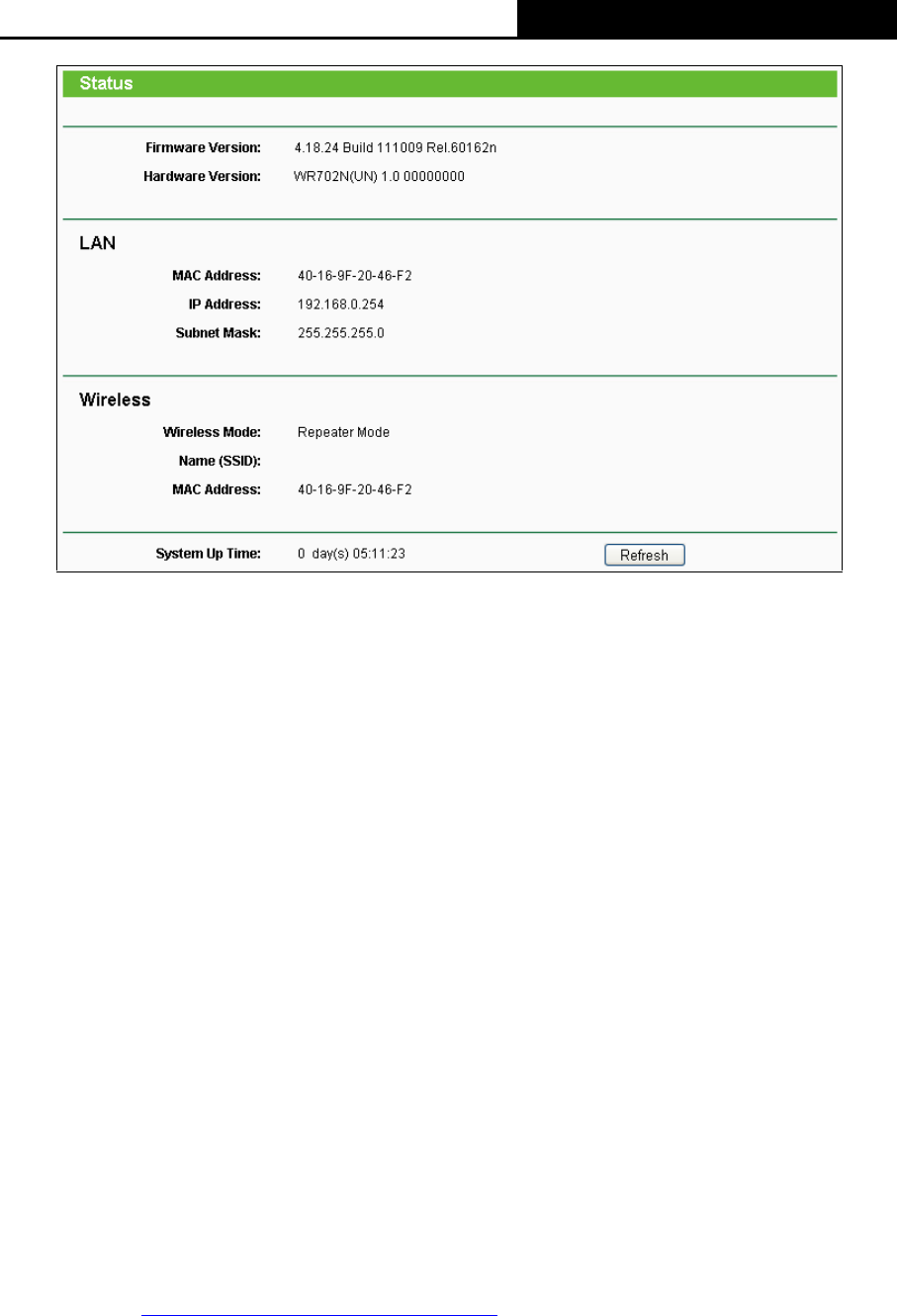

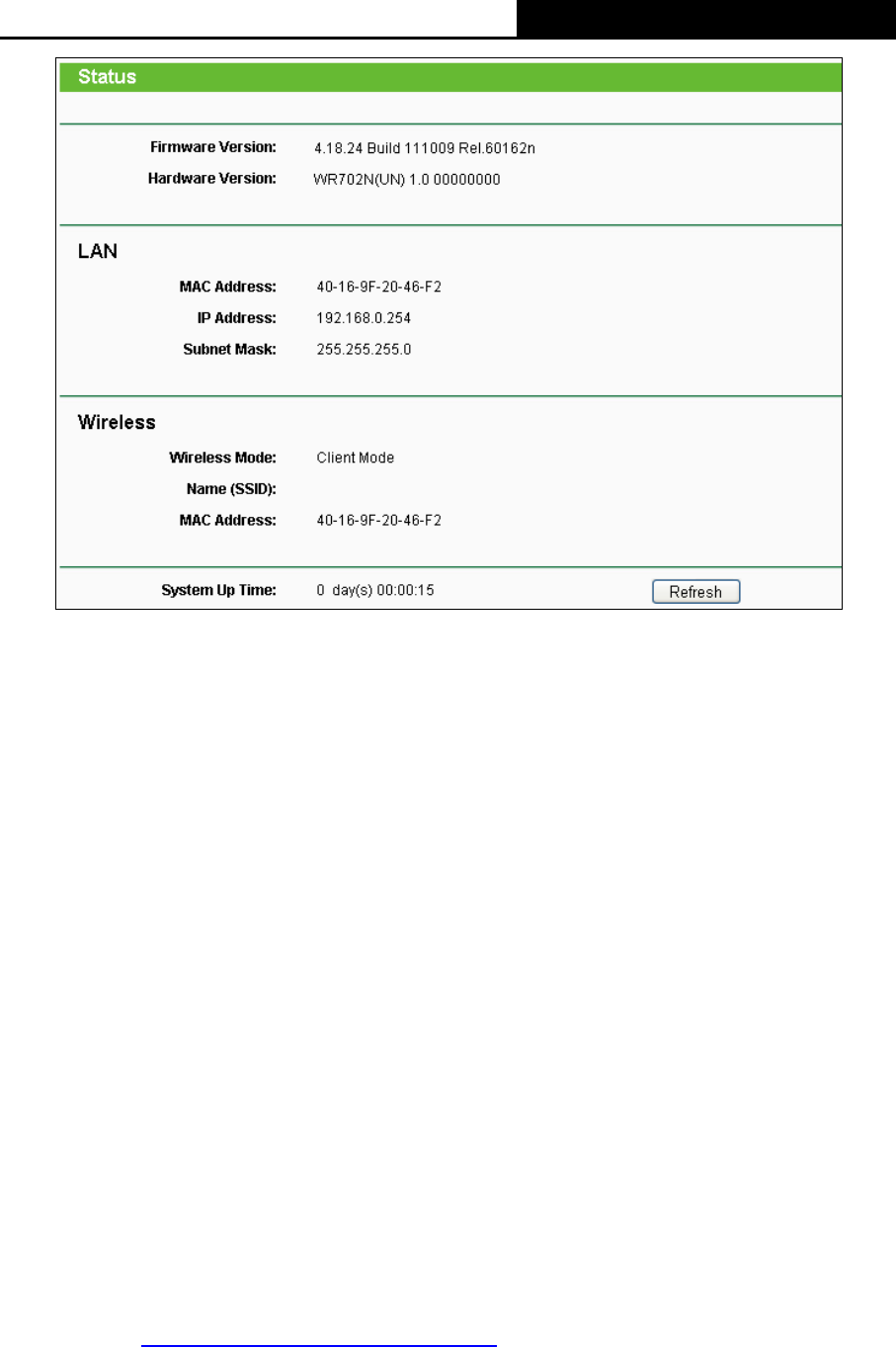

Figure 4-2 Status
Firmware Version - The version information of the Router’s firmware.
Hardware Version - The version information of the Router’s hardware.
LAN - This field displays the current settings or information for the LAN, you can configure
them in the Network > LAN page.
MAC address - The physical address of the Router, as seen from the LAN.
IP address - The LAN IP address of the Router.
Subnet Mask - The subnet mask associated with LAN IP address.
Wireless - This field displays basic information or status for wireless function, you can
configure them in the Wireless > Wireless Settings page.
Wireless Mode - The current wireless working mode in use.
Wireless Radio - Indicates whether the wireless radio feature of the AP is enabled or
disabled.
Name (SSID) - The SSID of the AP.
Channel - The current wireless channel in use.
Mode - The current wireless mode which the Router works on.
150Mbps Wireless N Nano Router
- 30 -
Channel Width - The current wireless channel width in use.
MAC address - The physical address of the Router, as seen from the WLAN.
WDS Status - The status of WDS connection.
System Up Time - The length of the time since the Router was last powered on or reset.
Click the Refresh button to get the latest status and settings of the Router.
4.3 Quick Setup
Please refer to Section 3.2: "Quick Installation Guide."
4.4 Working Mode
The Router supports five operation mode types: AP, Router, Repeater, Bridge and Client.
Please select one your want. Click Save to save your choice, which is shown as Figure 4-3.

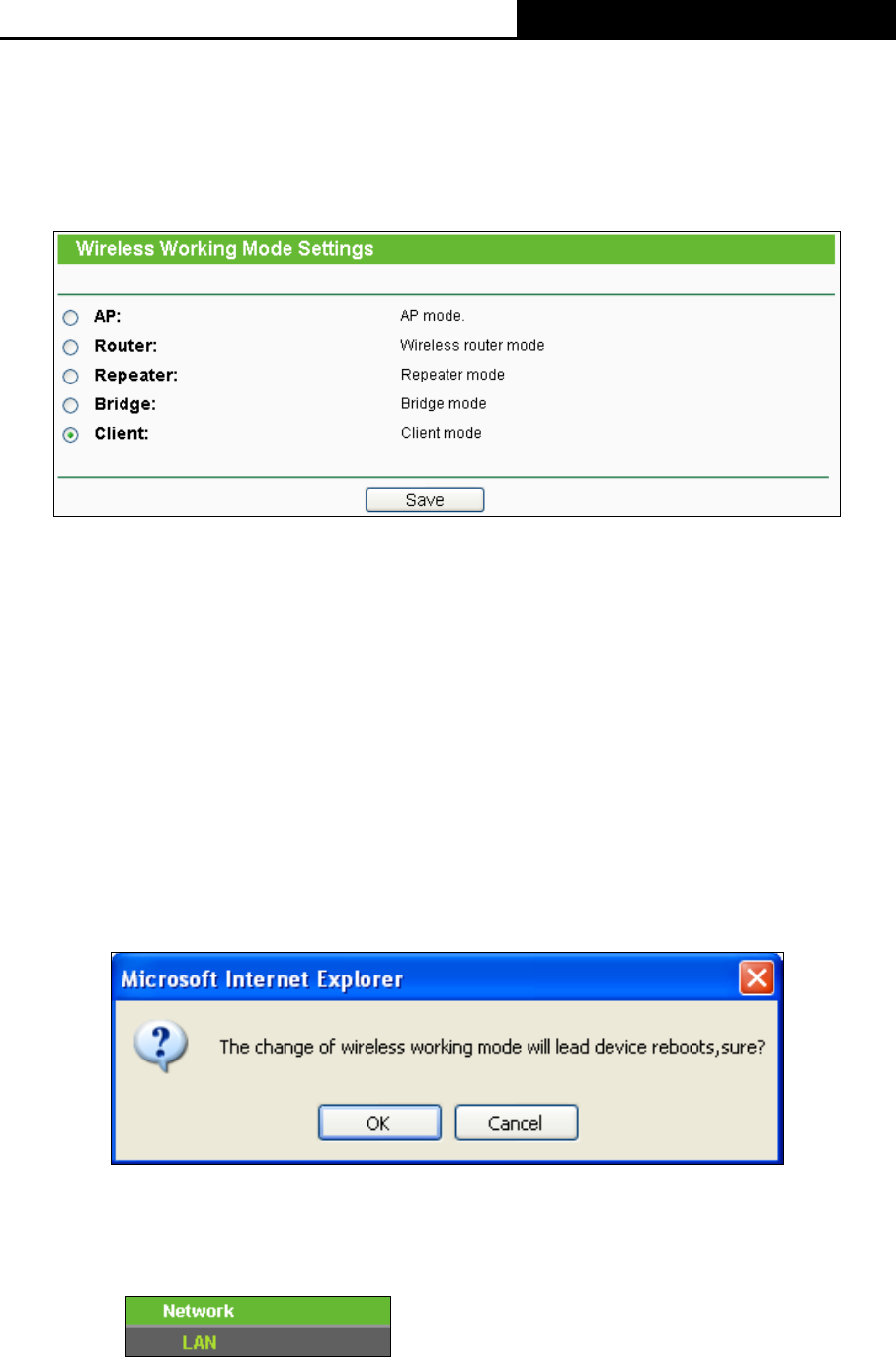

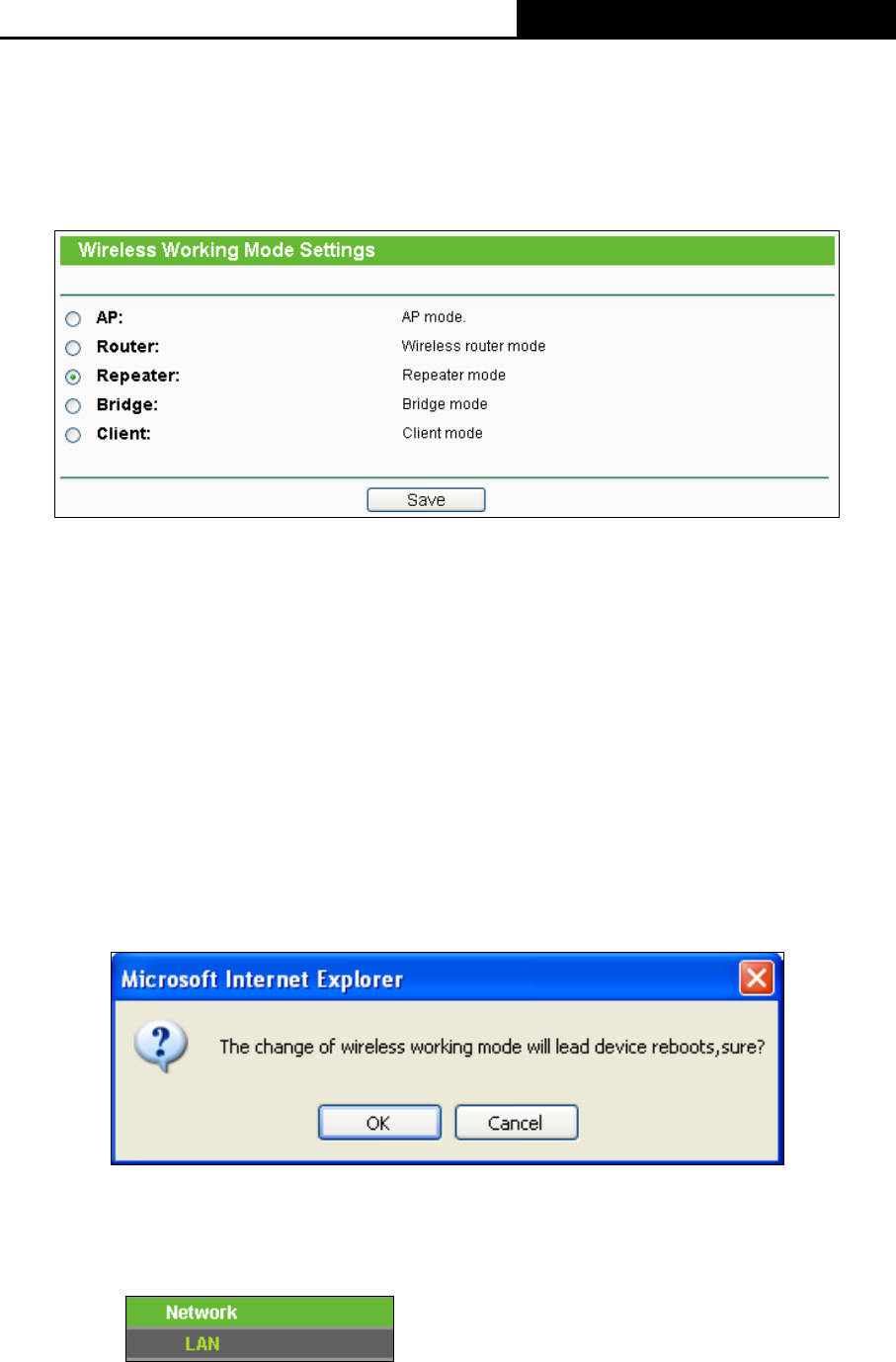

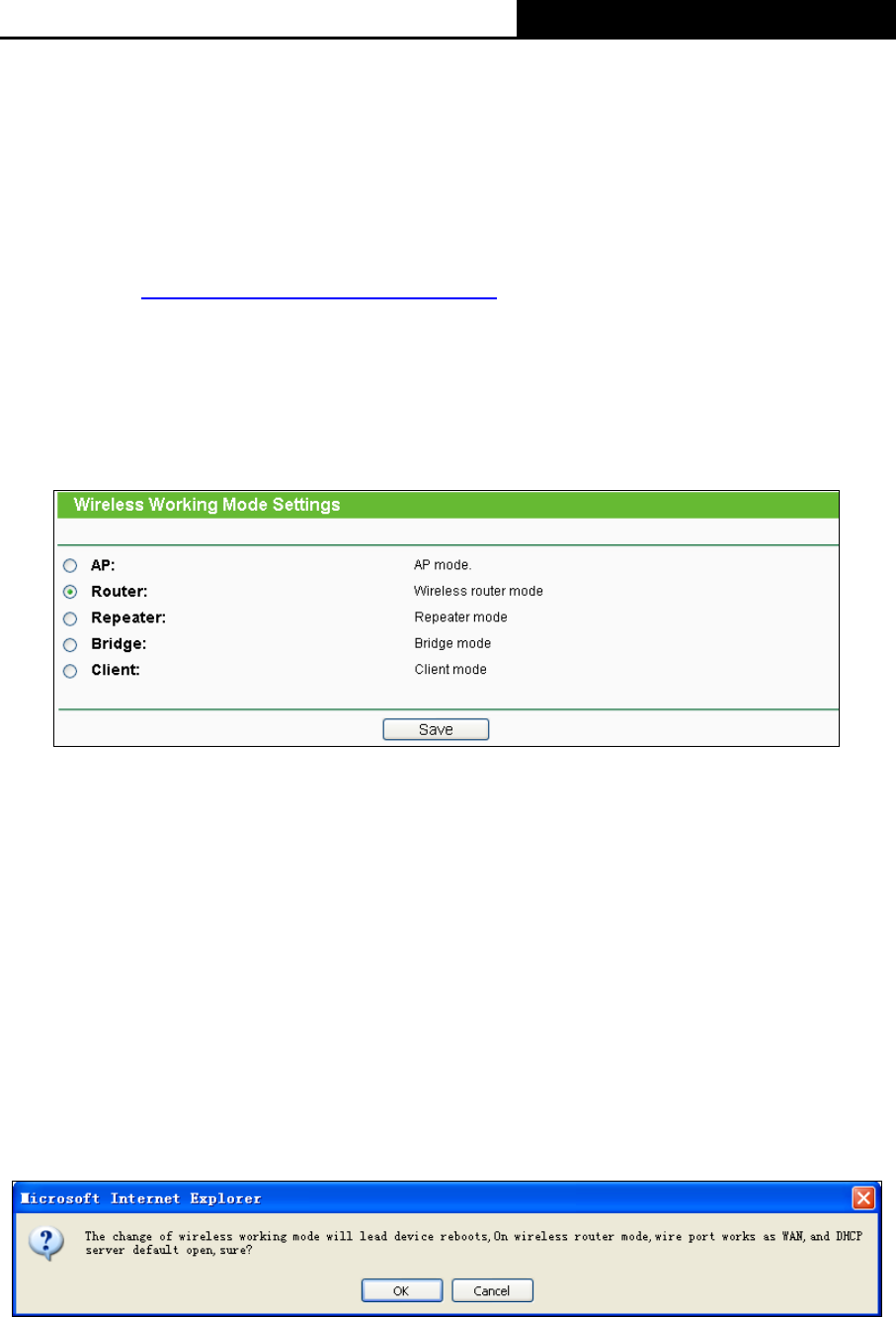

Figure 4-3 Wireless Working Mode Settings
AP - The wireless access point mode.
Router - The wireless Router Mode. In this mode, the device enables multi-user to share
Internet via DSL/Cable Modem. The only wired port works as WAN.
Repeater - The wireless Repeater Mode. It could extend the range of wireless network.
Bridge - The wireless Bridge Mode. It could communicate with another wireless network.
Client - The Client Mode. The computer connected by Ethernet could get access to an AP by
Client mode.

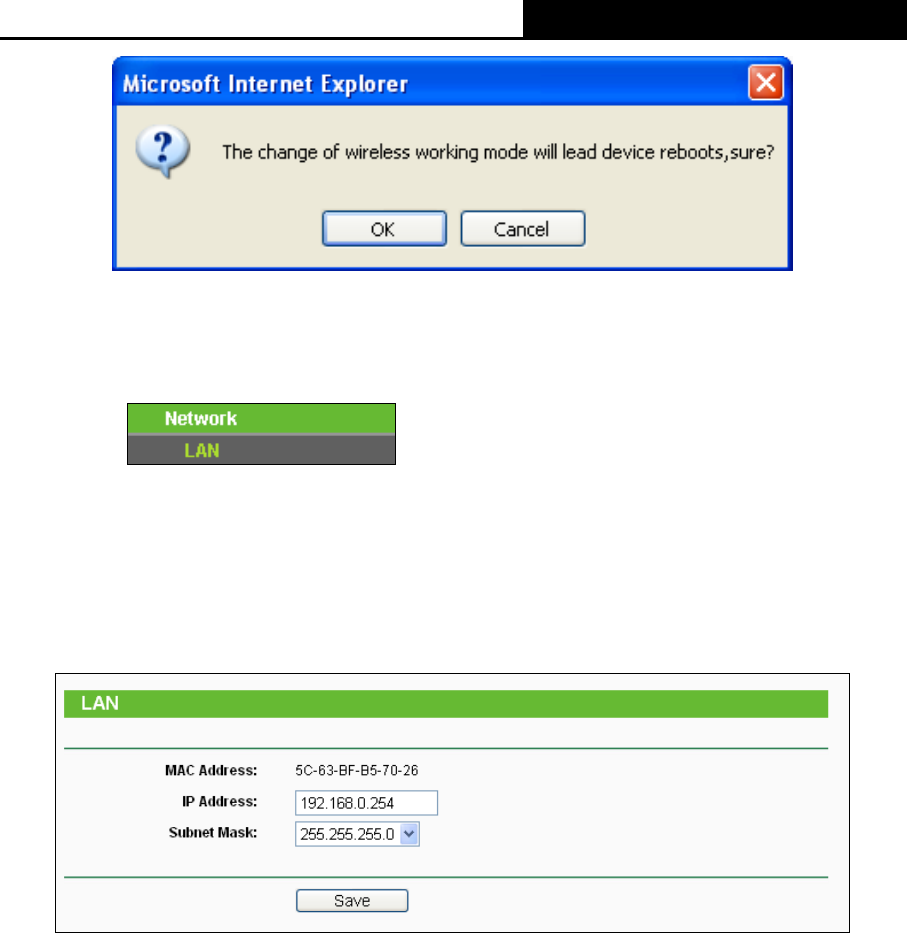

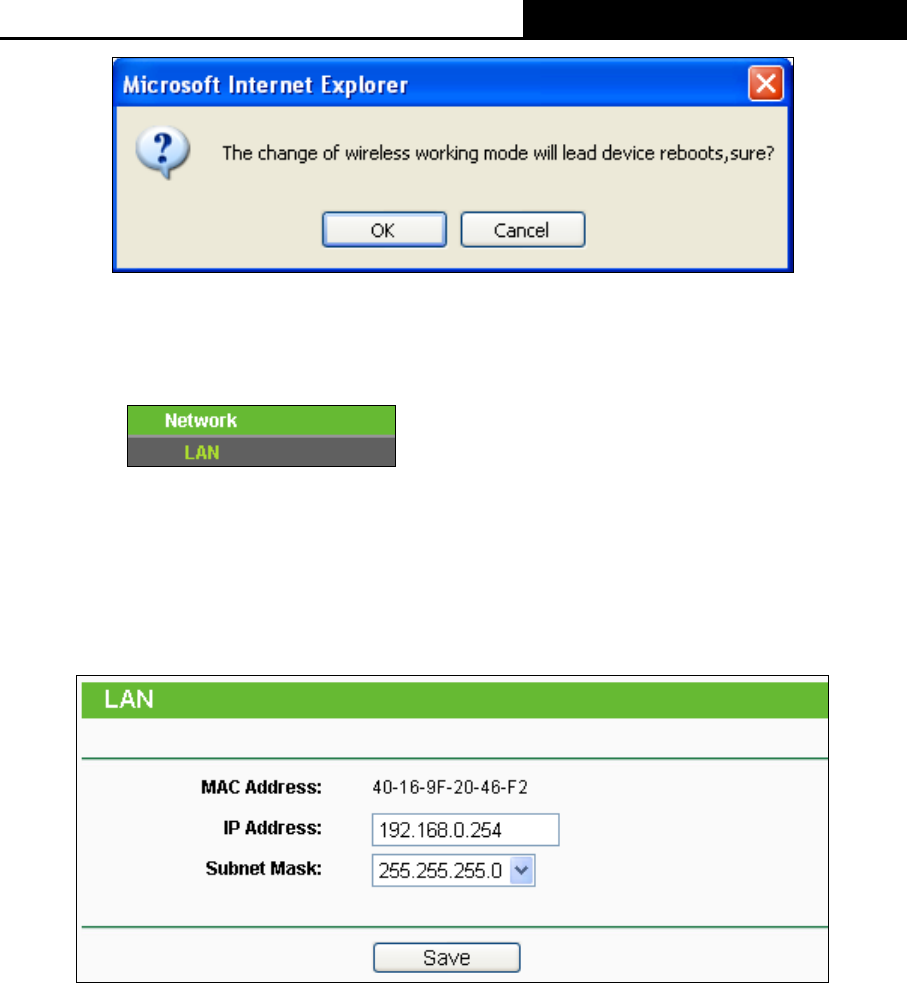

Click OK in the following screen and then the Router will reboot and to work on AP Mode.
150Mbps Wireless N Nano Router
- 31 -
Figure 4-4
4.5 Network
Figure 4-5 the Network menu
There is only one submenu under the Network menu (shown in Figure 4-5): LAN.
4.5.1 LAN
Choose menu “Network → LAN”, and then you can configure the IP parameters of the LAN on
the screen as below.

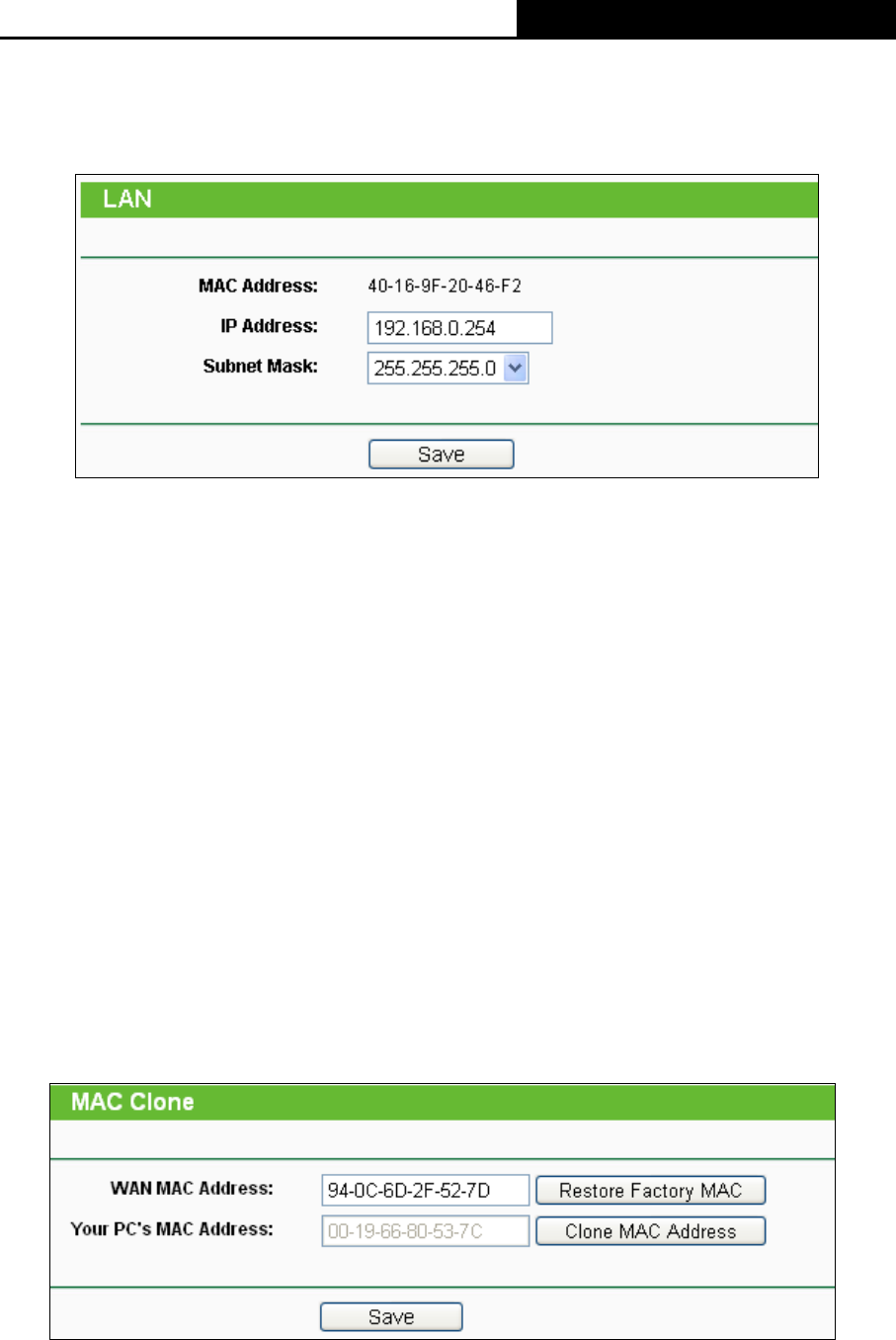

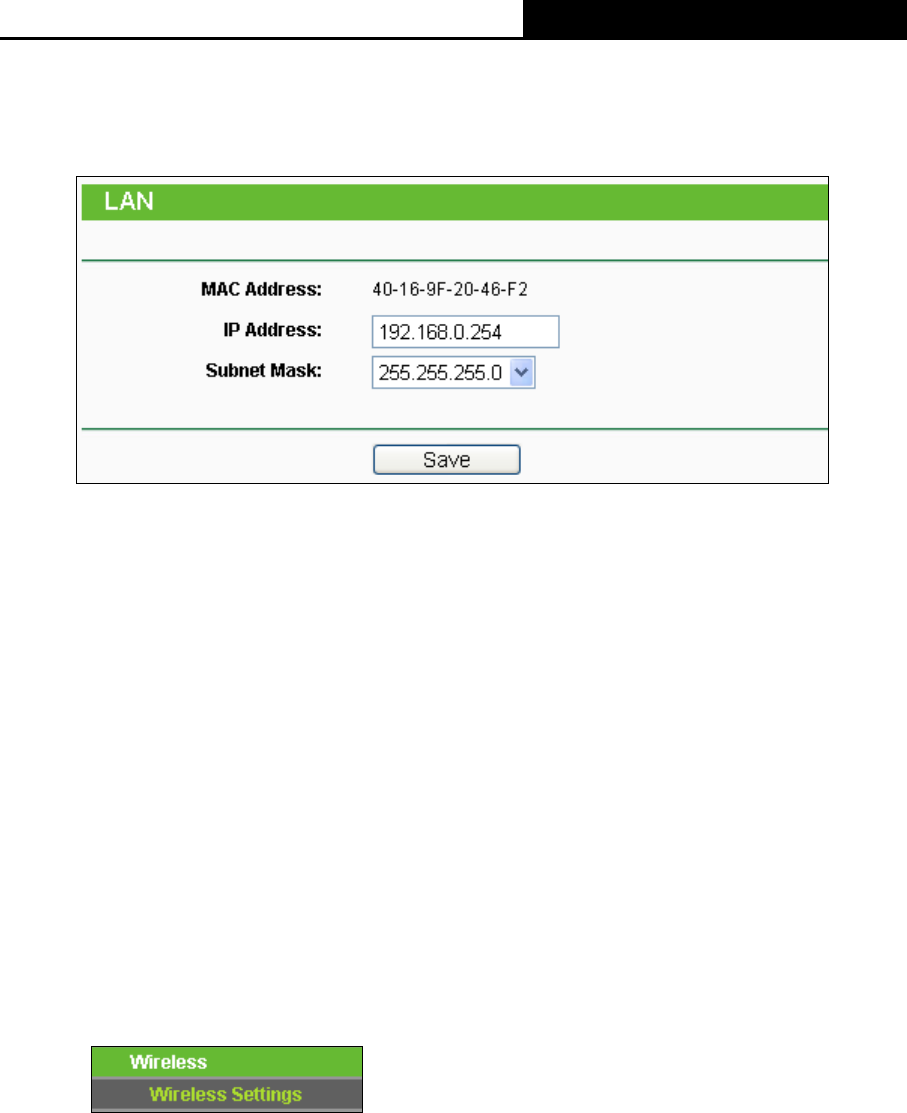

Figure 4-6 LAN
MAC Address - The physical address of the LAN ports, as seen from the LAN. The value
can't be changed.
IP Address - Enter the IP address of your Router in dotted-decimal notation (factory default:
192.168.0.254).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Note:
1. If you change the IP Address of LAN, you must use the new IP Address to login to the Router.
2. If the new LAN IP Address you set is not in the same subnet with the previous one, the IP
Address pool in the DHCP server will be configured automatically，while the Virtual Server and
DMZ Host will not take effect until they are re-configured.
150Mbps Wireless N Nano Router
- 32 -
4.6 Wireless

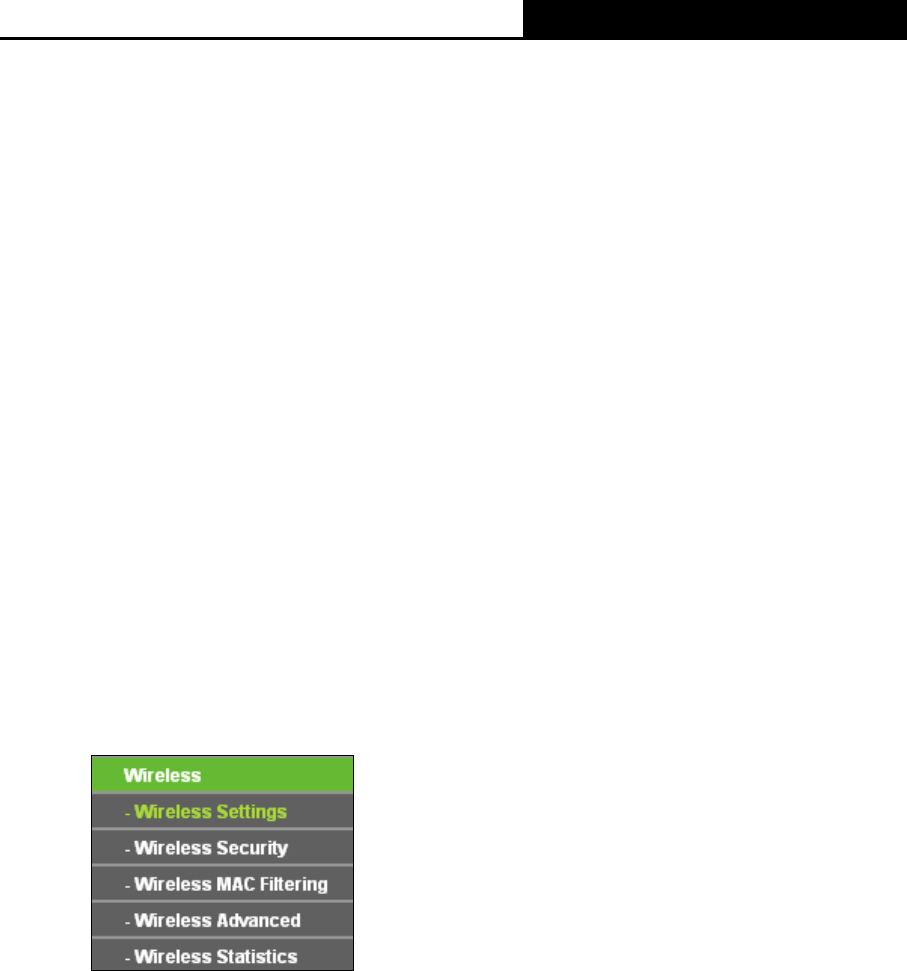

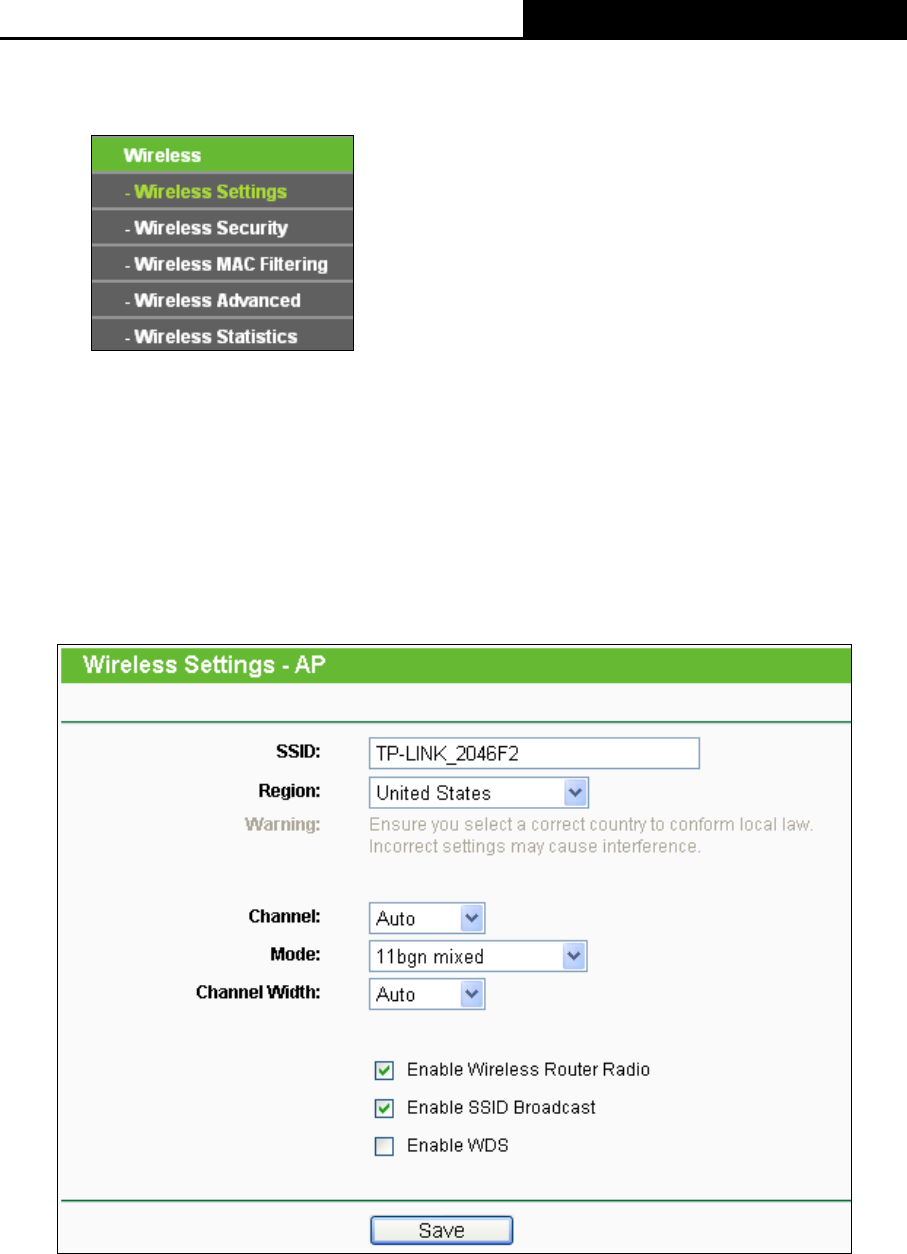

Figure 4-7 Wireless menu
There are five submenus under the Wireless menu (shown in Figure 4-7): Wireless Settings,
Wireless Security, MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of
them, and you will be able to configure the corresponding function.
4.6.1 Wireless Settings
Choose menu “Wireless → Wireless Settings”, and then you can configure the basic settings
for the wireless network on this page.
Figure 4-8 Wireless Settings - AP
SSID - Enter a string of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. The default SSID is
set to be TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of each
Router’s MAC address). But it is recommended strongly that you change your network’s
150Mbps Wireless N Nano Router
- 33 -
name (SSID) to a different value. This value is case-sensitive. For example, TEST is NOT
the same as test.
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Channel - This field determines which operating frequency will be used. The default channel
is set to Auto. It is not necessary to change the wireless channel unless you notice
interference problems with another nearby access point.
Mode - Select the desired mode. The default setting is 11bgn mixed.
11b only - Select if all of your wireless clients are 802.11b.
11g only - Select if all of your wireless clients are 802.11g.
11n only- Select only if all of your wireless clients are 802.11n.
11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.
11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.
Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless
stations can connect to the Router. When 802.11n mode is selected, only 802.11n wireless
stations can connect to the AP. It is strongly recommended that you set the Mode to
802.11b/g/n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the
Router.
Channel Width - Select any channel width from the pull-down list. The default setting is
automatic, which can automatically adjust the channel width for your clients.
Enable Wireless Router Radio - The wireless radio of the Router can be enabled or disabled
to allow wireless stations access. If enabled, the wireless stations will be able to access the
Router. Otherwise, wireless stations will not be able to access the Router.
Enable SSID Broadcast - If you select the Enable SSID Broadcast checkbox, the wireless
router will broadcast its name (SSID) on the air.
Enable WDS - You can select to enable WDS. With this function, the Router can bridge two or
more WLANs. If this checkbox is selected, you will have to set the following parameters as
shown below. Make sure the following settings are correct.
150Mbps Wireless N Nano Router
- 34 -
SSID (to be bridged) - The SSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the SSID to join.
BSSID (to be bridged) - The BSSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the BSSID to join.
Survey - Click this button, you can survey the AP which runs in the current channel.
Security Options - This option should be chosen according to the AP's security
configuration. It is recommended that the security type is the same as your AP's security
type.
WEP Index - This option should be chosen if the key type is WEP (ASCII) or WEP (HEX). It
indicates the index of the WEP key.
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authorization type of the Root AP.
Password - If the AP your Router is going to connect needs password, you need to fill the
password in this blank.
Be sure to click the Save button to save your settings on this page.
Note:
1. The operating distance or range of your wireless connection varies significantly based on the
physical placement of the Router. For best results, place your Router.
Near the center of the area in which your wireless stations will operate.
In an elevated location such as a high shelf.
Away from the potential sources of interference, such as PCs, microwaves, and cordless
phones.
Away from large metal surfaces.
150Mbps Wireless N Nano Router
- 35 -
2. Failure to follow these guidelines can result in significant performance degradation or inability
to wirelessly connect to the Router.
4.6.2 Wireless Security
Choose menu “Wireless → Wireless Security”, and then you can configure the security
settings of your wireless network.
There are three wireless security modes supported by the Router: WEP (Wired Equivalent
Privacy), WPA/WPA2 and WPA-PSK/WPA2-PSK.
Figure 4-9 Wireless Security
Disable Security - The wireless security function can be enabled or disabled. If disabled, the
wireless stations will be able to connect the Router without encryption. But it’s strongly
recommended to choose one of the following modes to enable security.
WEP - It is based on the IEEE 802.11 standard.
150Mbps Wireless N Nano Router
- 36 -
Type - you can choose the type for the WEP security on the pull-down list. The default
setting is Automatic, which can select Shared Key or Open System authentication type
automatically based on the wireless station's capability and request.
WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal
format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified
length. ASCII format stands for any combination of keyboard characters in the specified
length.
WEP Key (Password) - Select which of the four keys will be used and enter the matching
WEP key that you create. Make sure these values are identical on all wireless stations in
your network.
Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 5 ASCII characters.
128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 13 ASCII characters.
152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 16 ASCII characters.
Note:
If you do not set the key, the wireless security function is still disabled even if you have selected
Shared Key as Authentication Type.
WPA /WPA2
Version - you can choose the version of the WPA security from the pull-down list. The
default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2
(WPA version 2) automatically based on the wireless station's capability and request.
Encryption - You can select Automatic, TKIP or AES.
Radius Server IP - Enter the IP address of the Radius server.
Radius Port - Enter the port that Radius server used.
Radius Password - Enter the password for the Radius server.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
WPA-PSK/WPA2-PSK- It’s the WPA/WPA2 authentication type based on pre-shared
passphrase.
Version - you can choose the version of the WPA-PSK security on the drop-down list. The
default setting is Automatic (Recommended), which can select WPA-PSK (Pre-shared
150Mbps Wireless N Nano Router
- 37 -
key of WPA) or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless
station's capability and request.
Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select
Automatic (Recommended), TKIP or AES as Encryption.
PSK Password - You can enter ASCII or Hexadecimal characters. The default password
is the last unique eight numbers of each Router’s MAC address.
For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the length
should be between 8 and 63 characters.
For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F, the
length should be between 8 and 64 characters.
Please also note the key is case sensitive, this means that upper and lower case keys will
affect the outcome. It would also be a good idea to write down the key and all related
wireless security settings.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
Be sure to click the Save button to save your settings on this page.
4.6.3 MAC Filtering
Choose menu “Wireless → MAC Filtering”, and then you can control the wireless access by
configuring the Wireless MAC Filtering function, as shown in Figure 4-10.
Figure 4-10 Wireless MAC Filtering
To filter wireless users by MAC Address, click Enable. The default setting is Disabled.
MAC Address - The wireless station's MAC address that you want to access.
Status - The status of this entry, either Enabled or Disabled.
150Mbps Wireless N Nano Router
- 38 -
Description - A simple description of the wireless station.
To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-11:

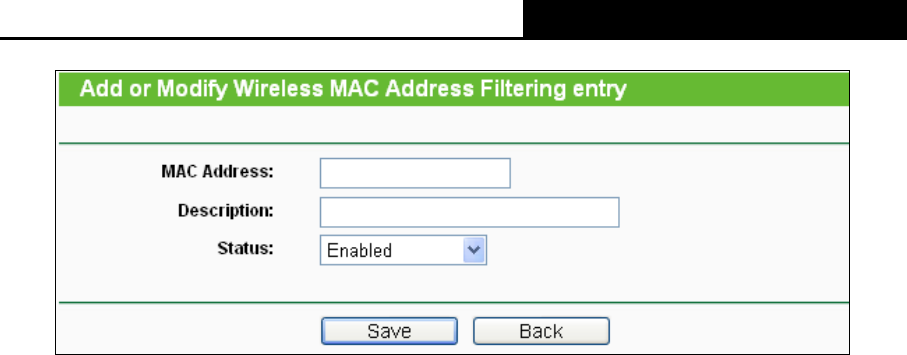

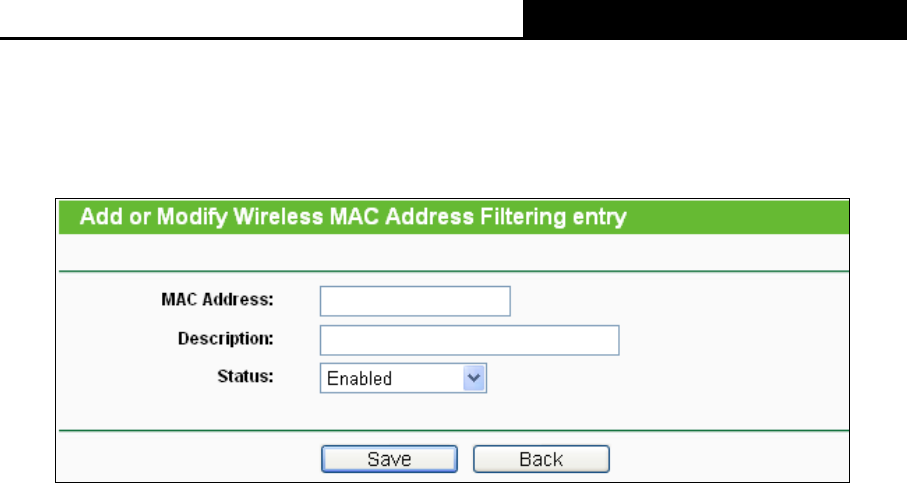

Figure 4-11 Add or Modify Wireless MAC Address Filtering entry
To add or modify a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:
00-0A-EB-B0-00-0B.
2. Give a simple description for the wireless station in the Description field. For example:
Wireless station A.
3. Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save this entry.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page.
Click the Previous button to return to the previous page.
For example: If you desire that the wireless station A with MAC address 00-0A-EB-B0-00-0B and
the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the Router, but all
the other wireless stations cannot access the Router, you can configure the Wireless MAC
Address Filtering list by following these steps:
150Mbps Wireless N Nano Router
- 39 -
1. Click the Enable button to enable this function.
2. Select the radio button “Allow the stations specified by any enabled entries in the list to
access” for Filtering Rules.
3. Delete all or disable all entries if there are any entries already.
4. Click the
Add New...
button.
Enter the MAC address
00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F
in the MAC Address field.
Enter wireless station A/B in the Description field.
Select Enabled in the Status pull-down list.
Click the Save button.
Click the Back button.

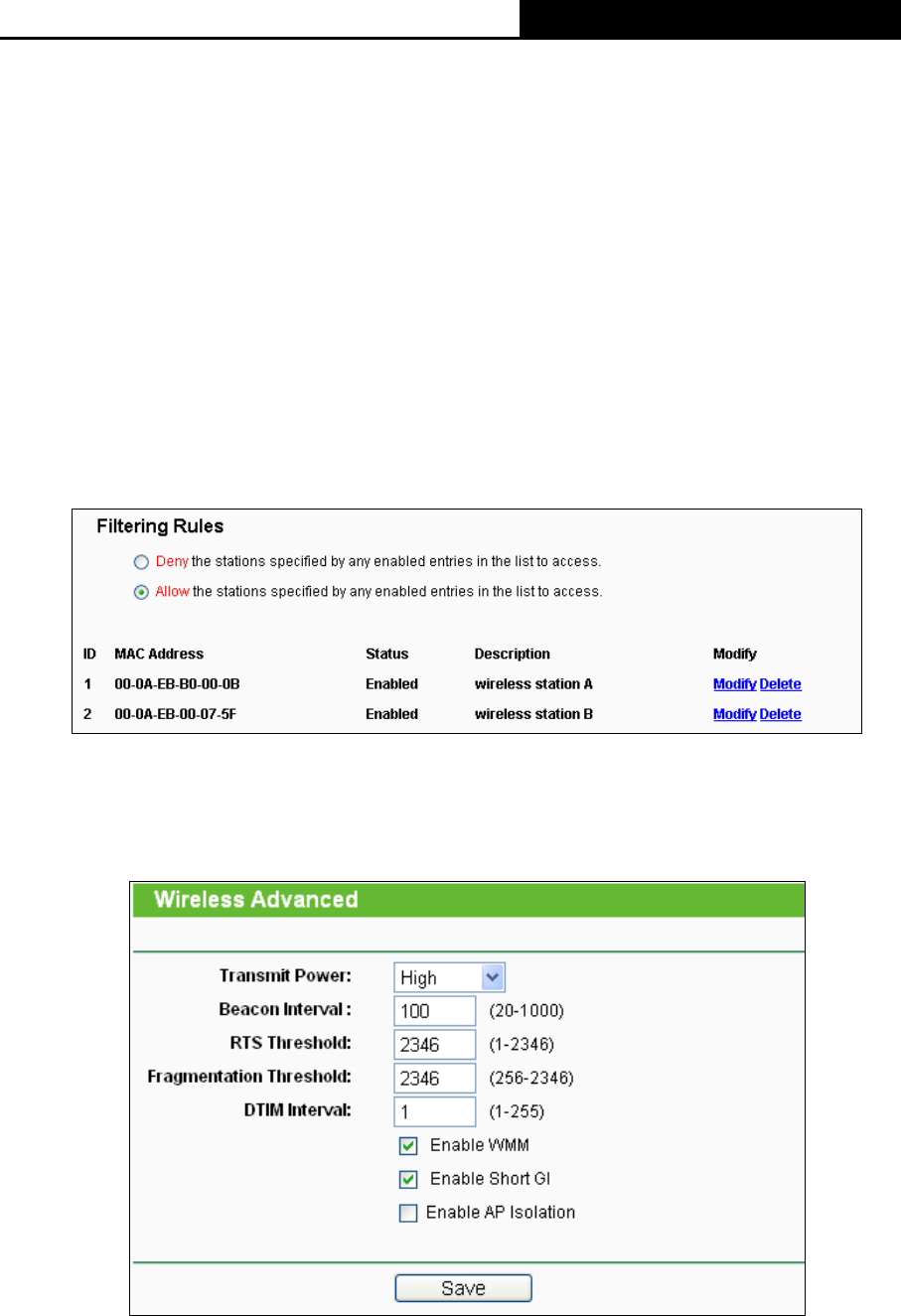

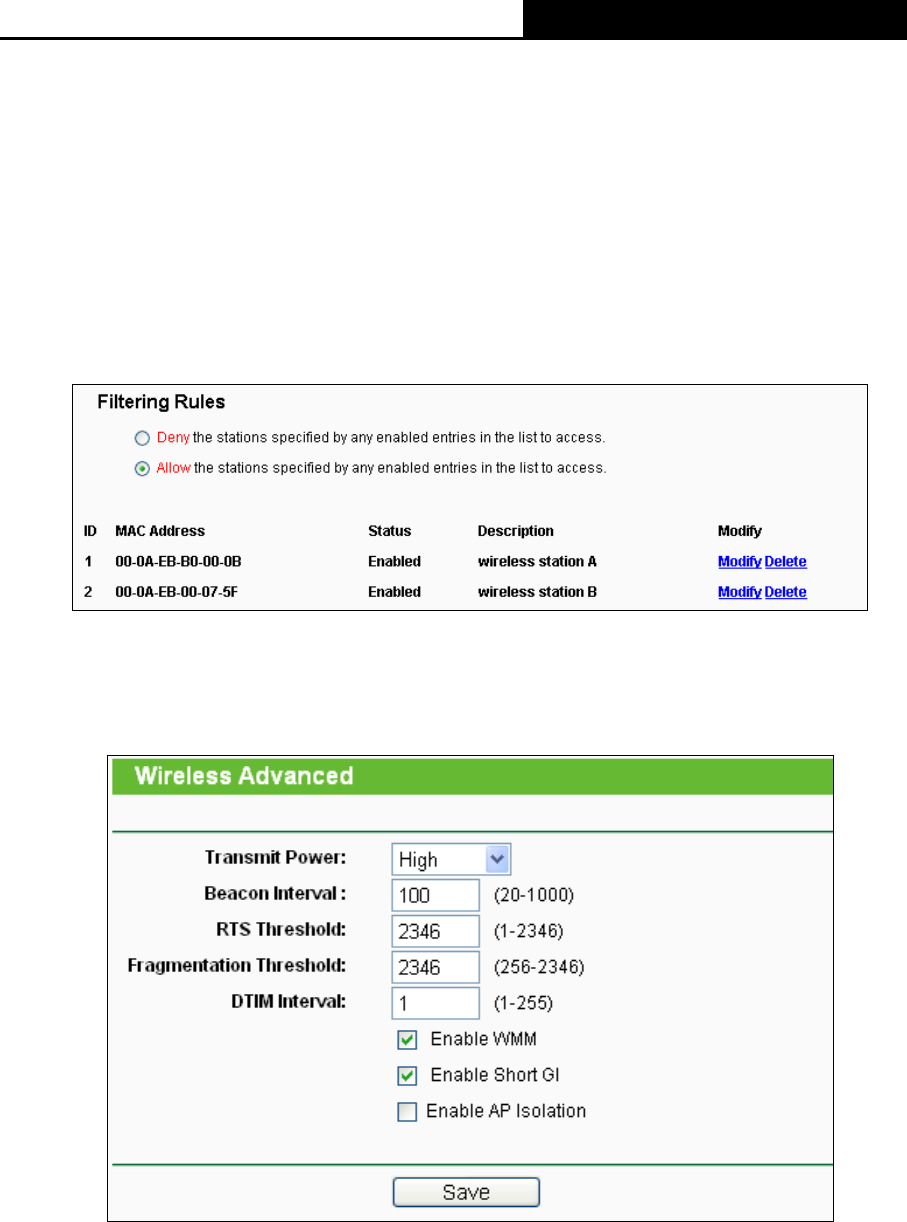

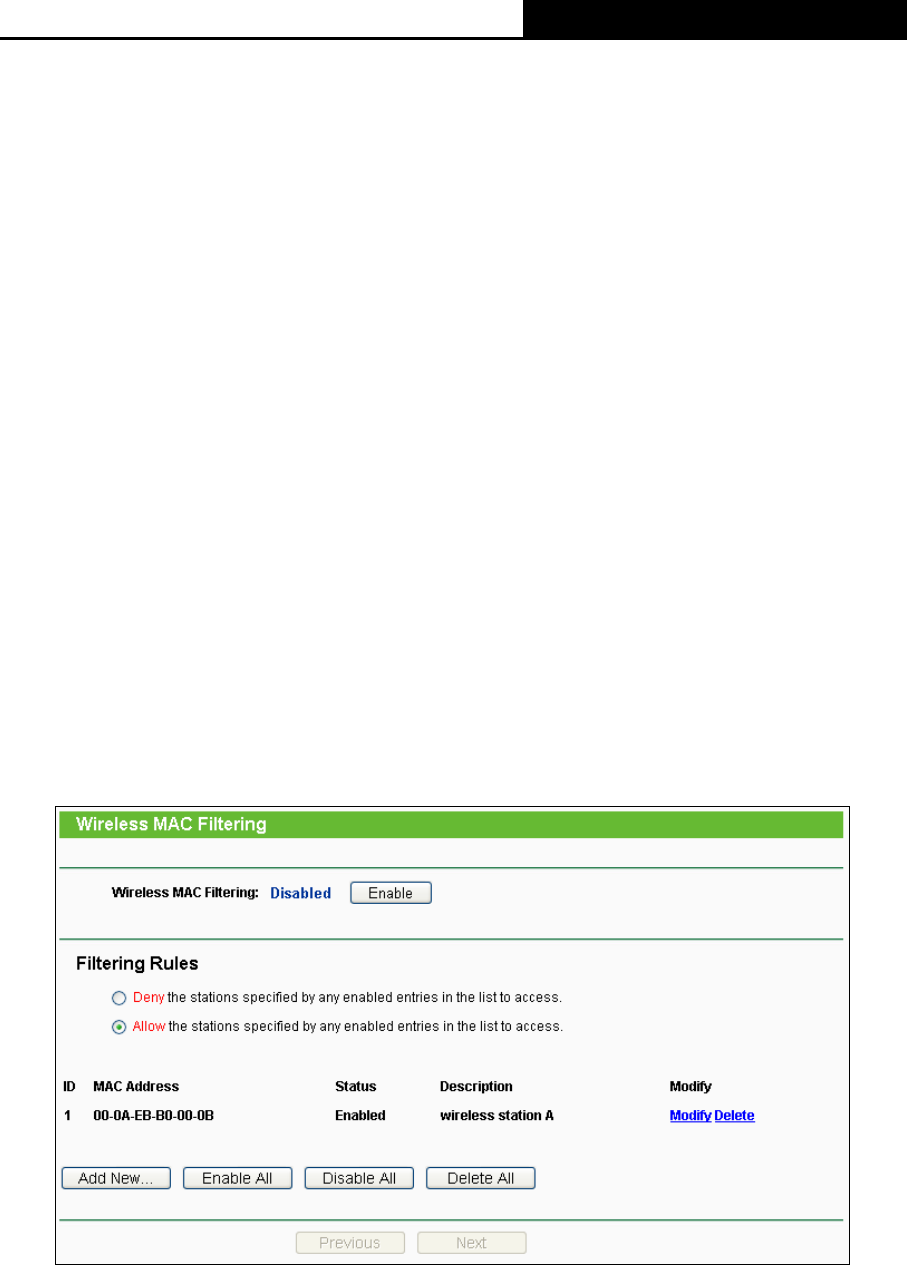

The filtering rules that configured should be similar to the following list:
4.6.4 Wireless Advanced
Choose menu “Wireless → Wireless Advanced”, and then you can configure the advanced
settings of your wireless network.
Figure 4-12 Wireless Advanced
150Mbps Wireless N Nano Router
- 40 -
Transmit Power - Here you can specify the transmit power of Router. You can select High,
Middle or Low which you would like. High is the default setting and is recommended.
Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here.
The beacons are the packets sent by the Router to synchronize a wireless network. Beacon
Interval value determines the time interval of the beacons. The default value is 100.
RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet
is larger than the specified RTS Threshold size, the Router will send RTS frames to a
particular receiving station and negotiate the sending of a data frame. The default value is
2346.
Fragmentation Threshold - This value is the maximum size determining whether packets
will be fragmented. Setting the Fragmentation Threshold too low may result in poor network
performance because of excessive packets. 2346 is the default setting and is
recommended.
DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message
(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to
broadcast and multicast messages. When the Router has buffered broadcast or multicast
messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can
specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates
the DTIM Interval is the same as Beacon Interval.
Enable WMM - WMM function can guarantee the packets with high-priority messages being
transmitted preferentially. It is strongly recommended enabled.
Enable Short GI - This function is recommended for it will increase the data capacity by
reducing the guard interval time.
Enabled AP Isolation - This function isolate all connected wireless stations so that wireless
stations cannot access each other through WLAN. This function will be disabled if
WDS/Bridge is enabled.
Note:
If you are not familiar with the setting items in this page, it's strongly recommended to keep the
provided default values; otherwise it may result in lower wireless network performance.
4.6.5 Wireless Statistics
Choose menu “Wireless → Wireless Statistics”, and then you can see the MAC Address,
Current Status, Received Packets and Sent Packets for each connected wireless station.
150Mbps Wireless N Nano Router
- 41 -
Figure 4-13 Wireless Statistics
MAC Address - The connected wireless station's MAC address
Current Status - The connected wireless station's running status, one of STA-AUTH /
STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN /
Disconnected
Received Packets - Packets received by the station
Sent Packets - Packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click on the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.
Note:
This page will be refreshed automatically every 5 seconds.

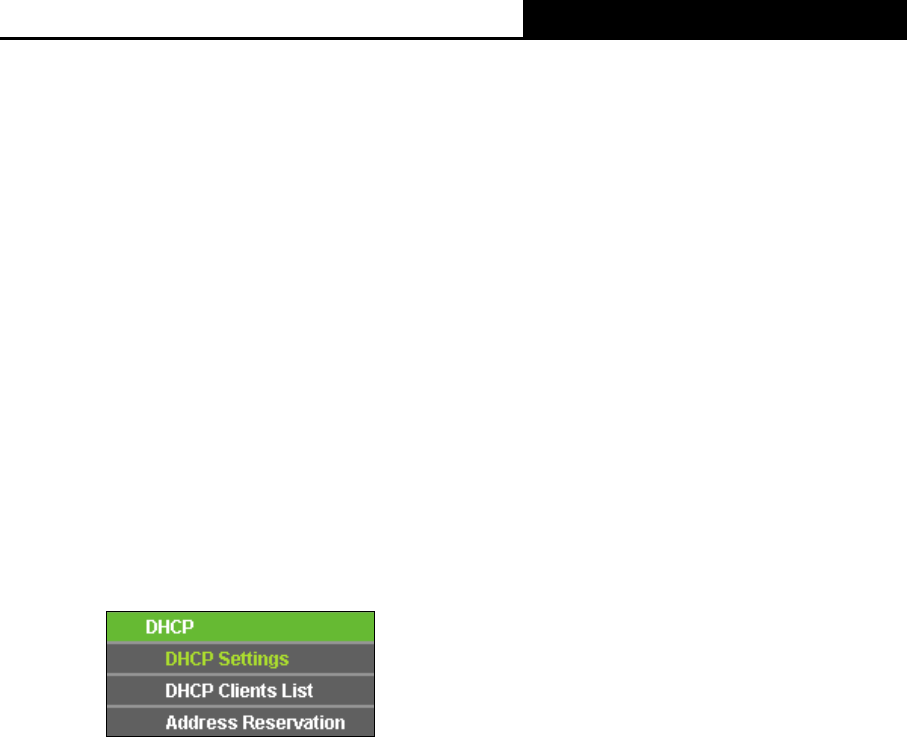

4.7 DHCP

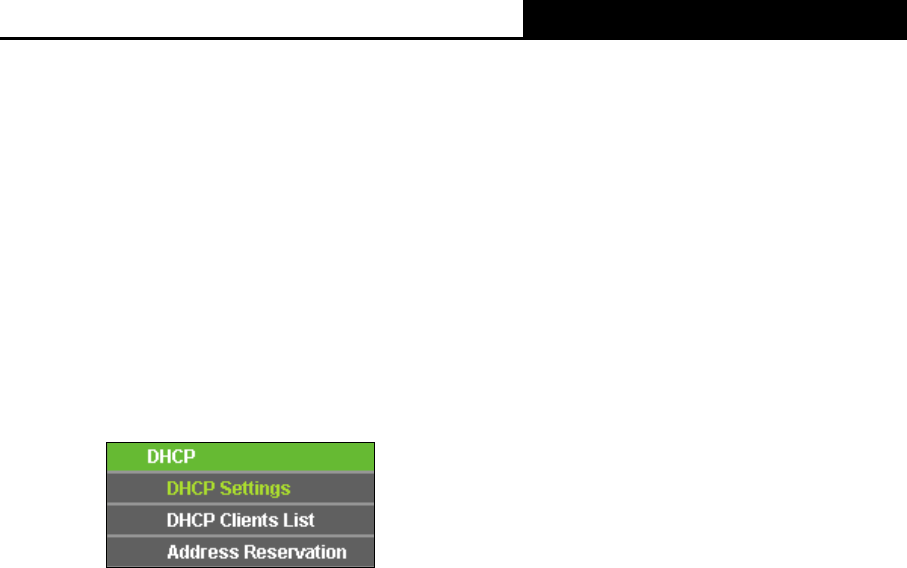

Figure 4-14 The DHCP menu
There are three submenus under the DHCP menu (shown in Figure 4-14), DHCP Settings,
DHCP Clients List and Address Reservation. Click any of them, and you will be able to
configure the corresponding function.
4.7.1 DHCP Settings
Choose menu “DHCP → DHCP Settings”, and then you can configure the DHCP Server on the
page as shown in Figure 4-15. The Router is set up by default as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are
connected to the Router in the LAN.
150Mbps Wireless N Nano Router
- 42 -

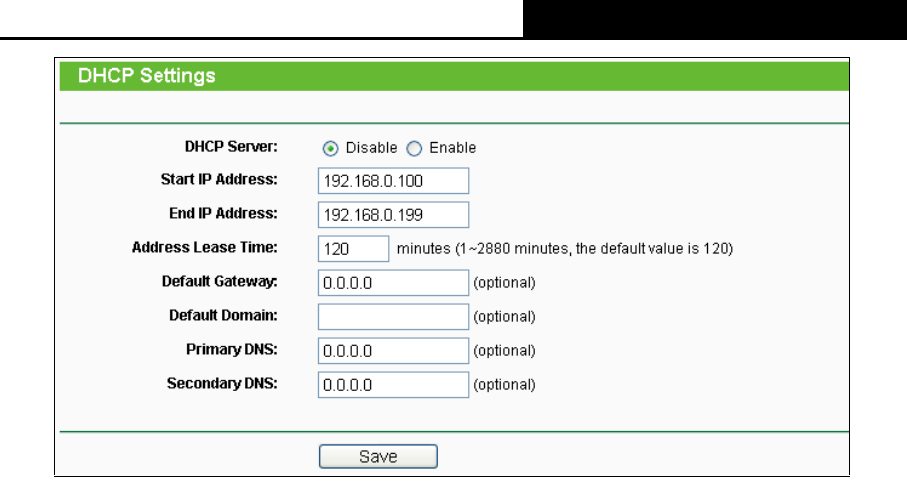

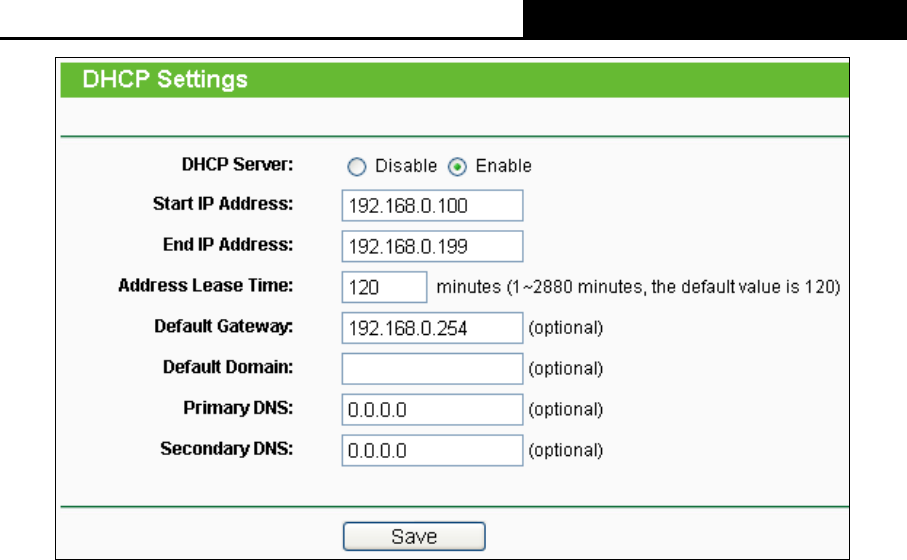

Figure 4-15 DHCP Settings
DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must
have another DHCP server within your network or else you must configure the computer
manually.
Start IP Address - Specify an IP address for the DHCP Server to start with when assigning
IP addresses. 192.168.0.100 is the default start address.
End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP
addresses. 192.168.0.199 is the default end address.
Address Lease Time - The Address Lease Time is the amount of time a network user will
be allowed connection to the Router with their current dynamic IP Address. Enter the
amount of time in minutes and the user will be "leased" this dynamic IP Address. After the
time is up, the user will be automatically assigned a new dynamic IP address. The range of
the time is 1 ~ 2880 minutes. The default value is 120 minutes.
Default Gateway (Optional) - It is suggested to input the IP address of the LAN port of the
Router. The default value is 192.168.0.254.
Default Domain (Optional) - Input the domain name of your network.
Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your
ISP.
Secondary DNS (Optional) - Input the IP address of another DNS server if your ISP
provides two DNS servers.
Note:
To use the DHCP server function of the Router, you must configure all computers on the LAN as
"Obtain an IP Address automatically".
150Mbps Wireless N Nano Router
- 43 -

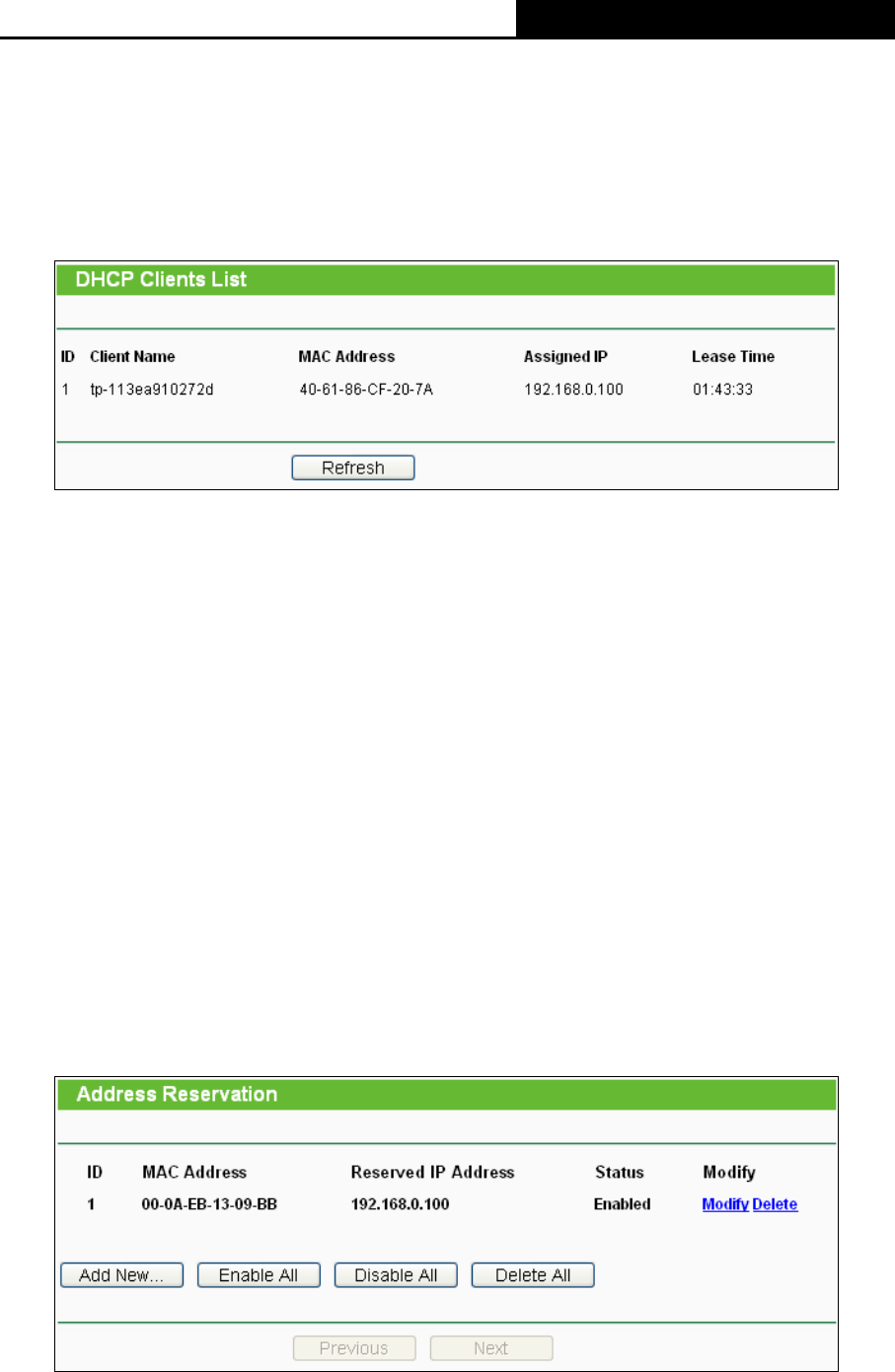

4.7.2 DHCP Clients List

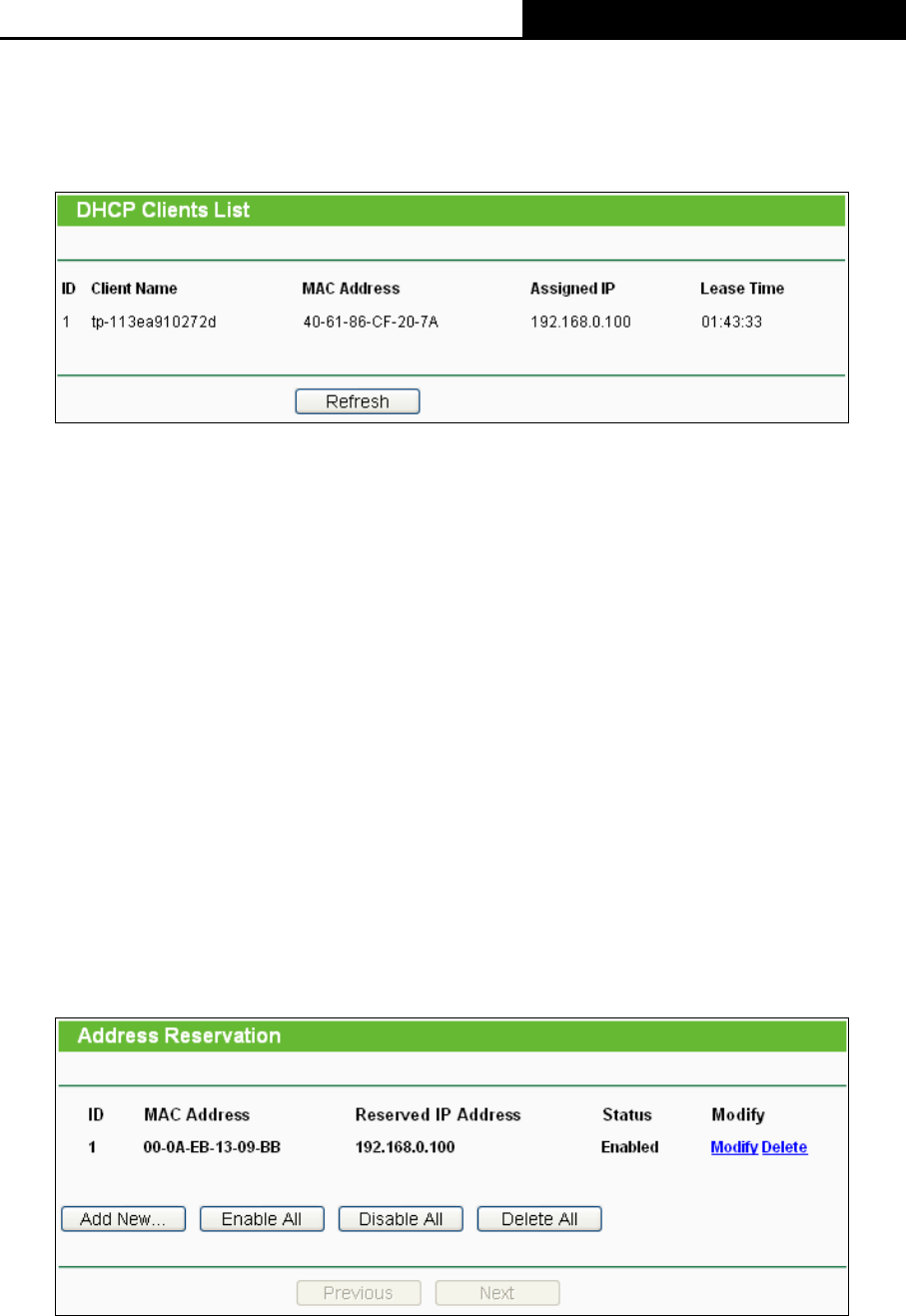

Choose menu “DHCP → DHCP Clients List”, and then you can view the information about the
clients attached to the Router in the screen as shown in Figure 4-16.

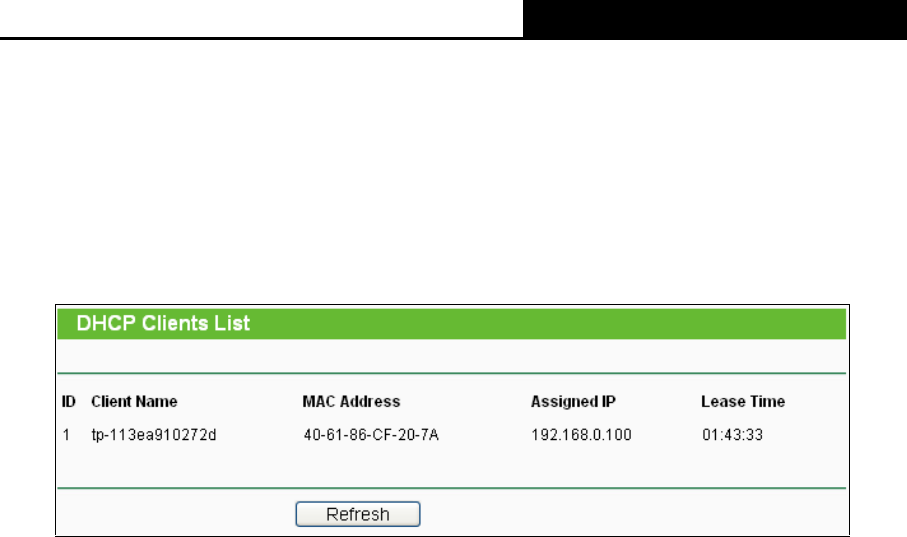

Figure 4-16 DHCP Clients List
Client Name - The name of the DHCP client
MAC Address - The MAC address of the DHCP client
Assigned IP - The IP address that the Router has allocated to the DHCP client
Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
4.7.3 Address Reservation
Choose menu “DHCP → Address Reservation”, and then you can view and add a reserved
address for clients via the next screen (shown in Figure 4-17).When you specify a reserved IP
address for a PC on the LAN, that PC will always receive the same IP address each time when it
accesses the DHCP server. Reserved IP addresses should be assigned to the servers that
require permanent IP settings.

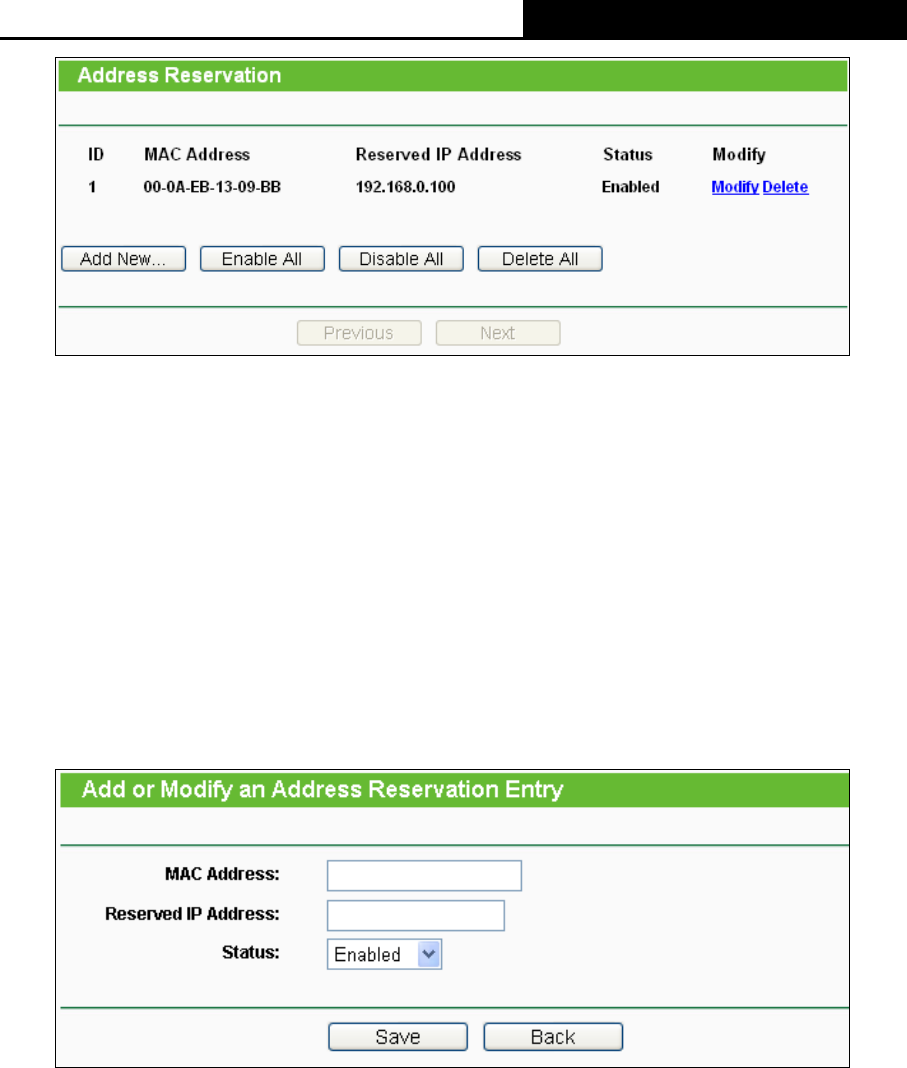

Figure 4-17 Address Reservation
MAC Address - The MAC address of the PC for which you want to reserve an IP address.
Reserved IP Address - The IP address reserved for the PC by the Router.
150Mbps Wireless N Nano Router
- 44 -
Status - The status of this entry either Enabled or Disabled.
To Reserve an IP address:
1. Click the Add New… button. Then Figure 4-18 will pop-up.
2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address (in dotted-decimal
notation) of the computer for which you want to reserve an IP address.
3. Click the Save button.

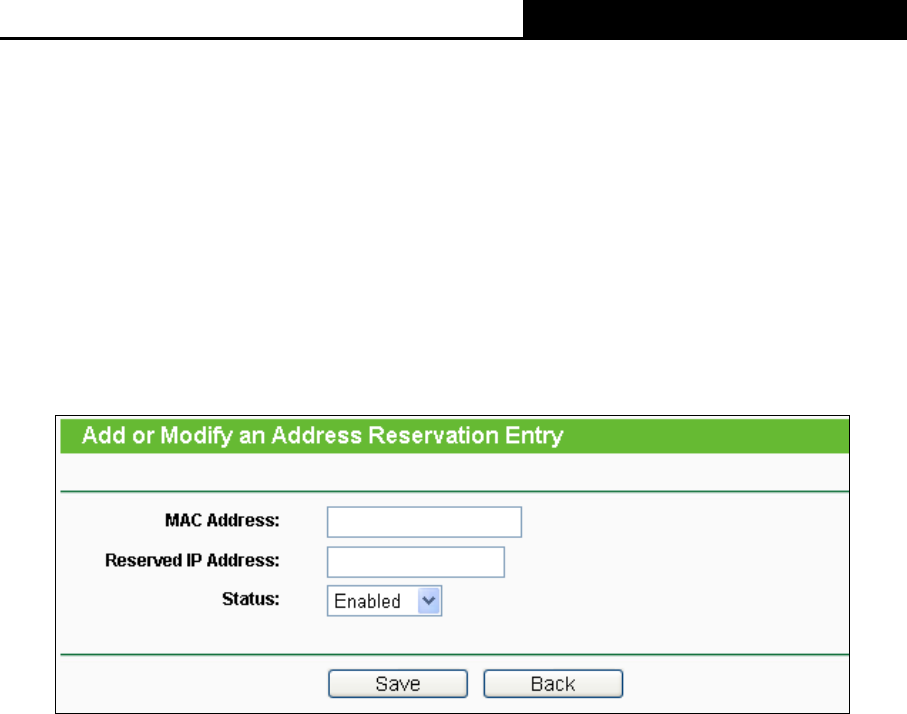

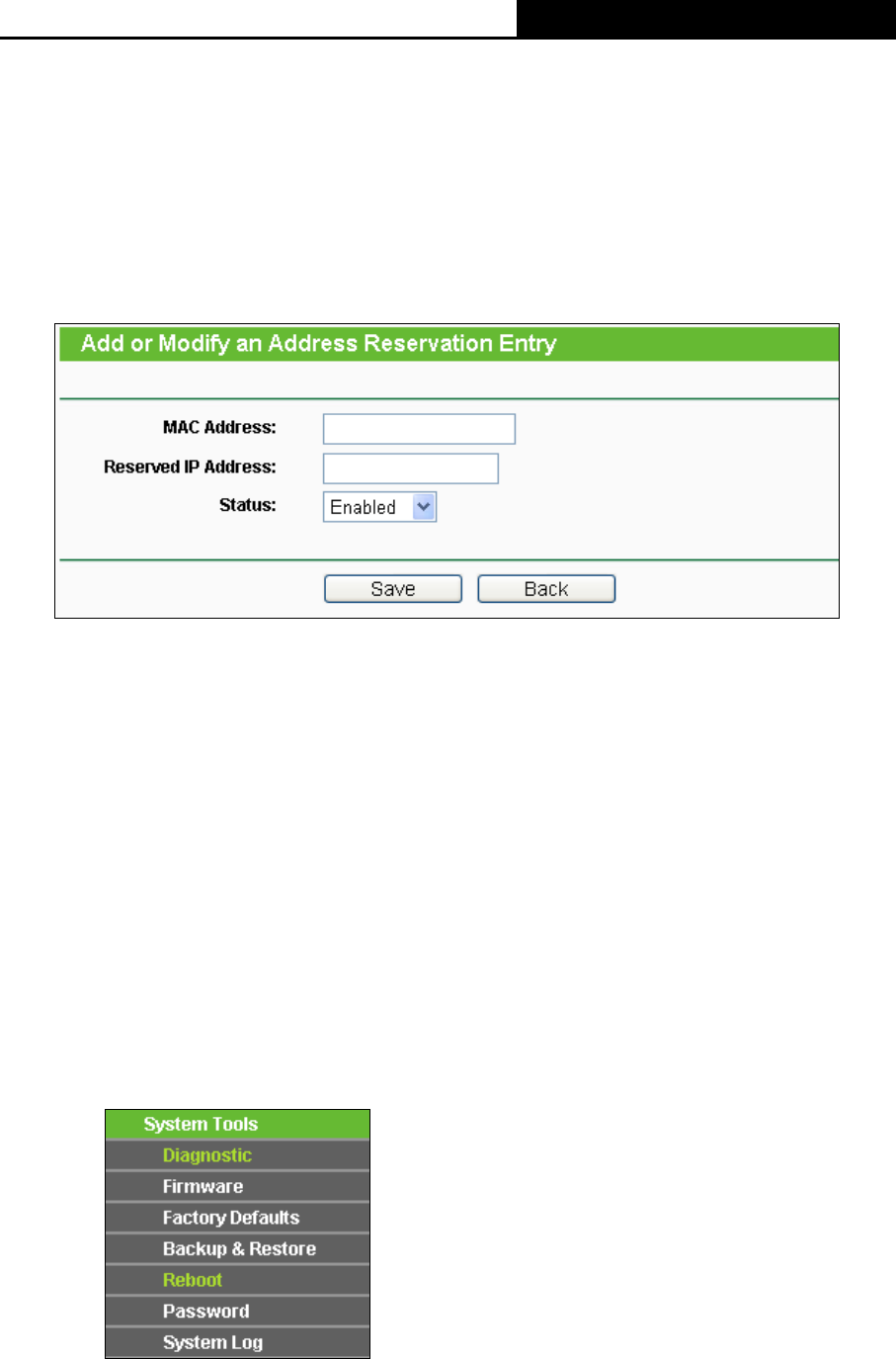

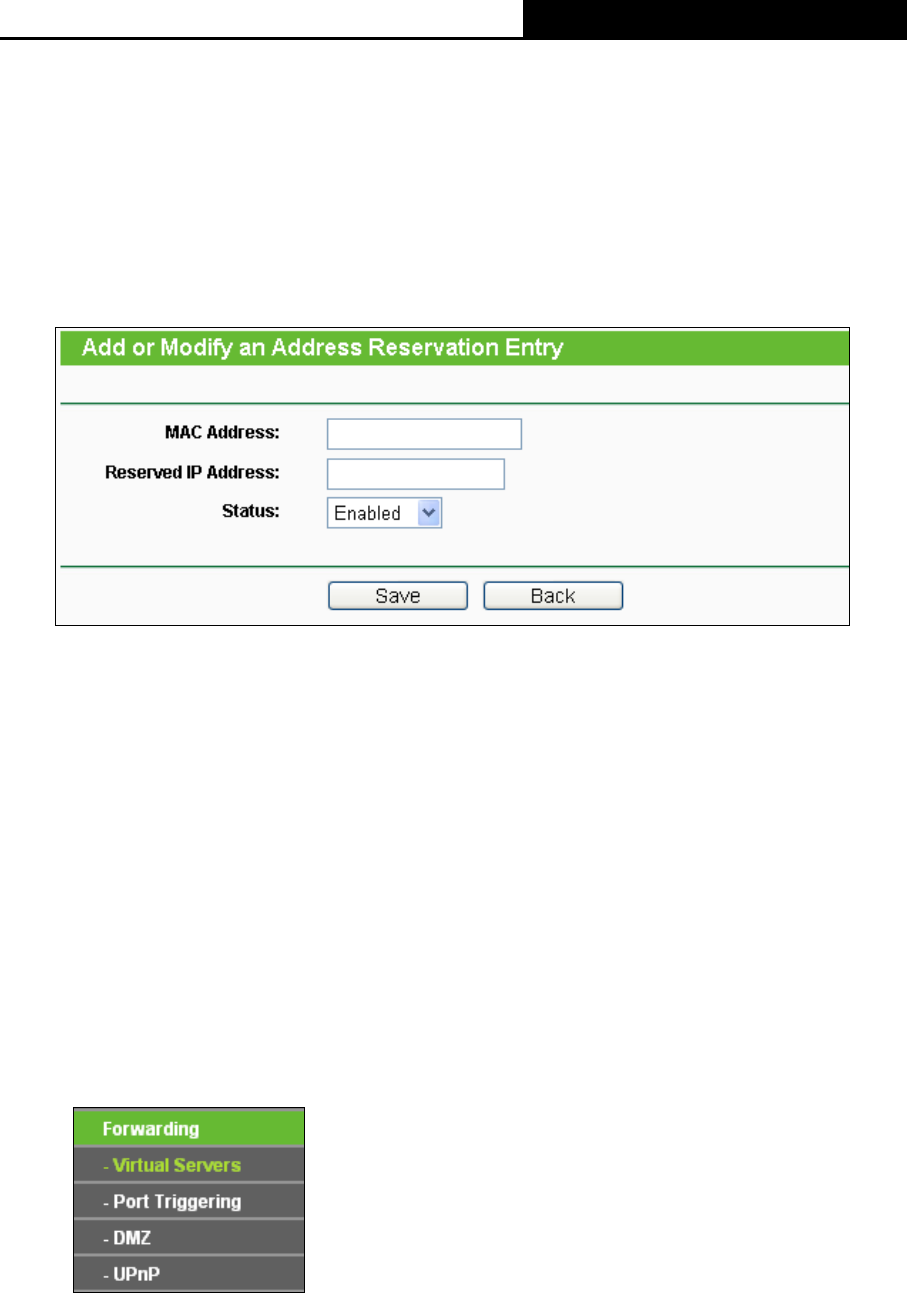

Figure 4-18 Add or Modify an Address Reservation Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable/Disabled All button to make all entries enabled/disabled
Click the Delete All button to delete all entries.
Click the Next button to go to the next page and Click the Previous button to return the previous
page.
4.8 System Tools

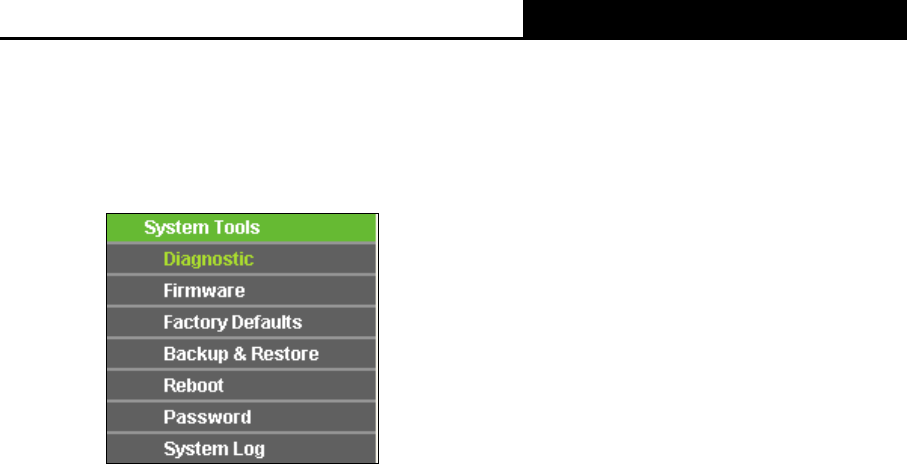

Figure 4-19 The System Tools menu
150Mbps Wireless N Nano Router
- 45 -
Choose menu “System Tools”, and then you can see the submenus under the main menu:
Diagnostic, Firmware, Factory Defaults, Backup & Restore, Reboot, Password, and System
Log. Click any of them, and you will be able to configure the corresponding function. The detailed
explanations for each submenu are provided below.
4.8.1 Diagnostic
Choose menu “System Tools → Diagnostic”, and then you can transact Ping or Traceroute
function to check connectivity of your network in the following screen.

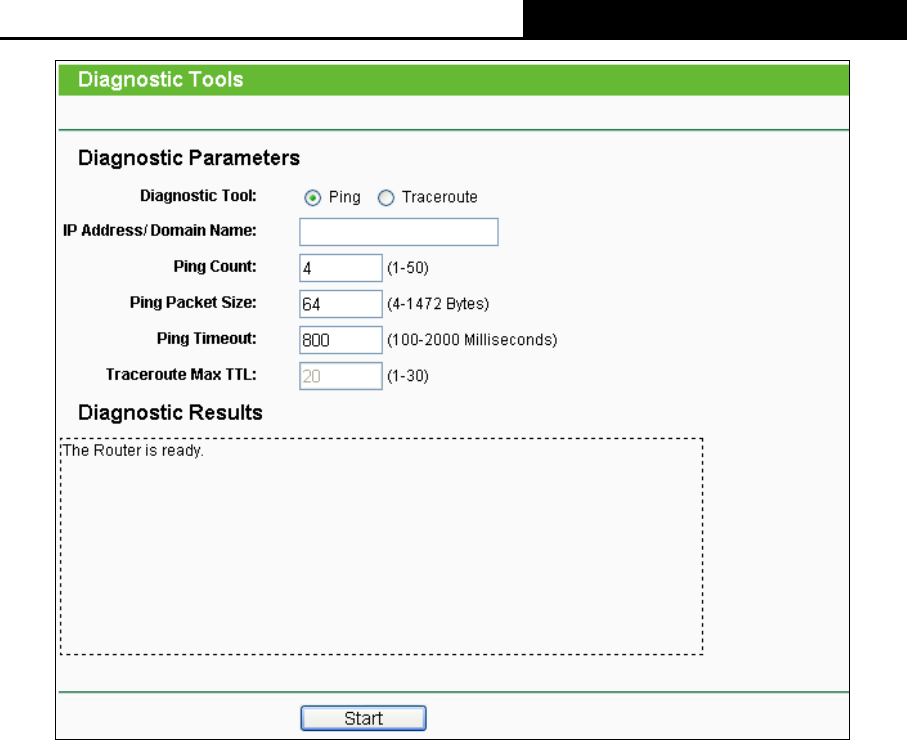

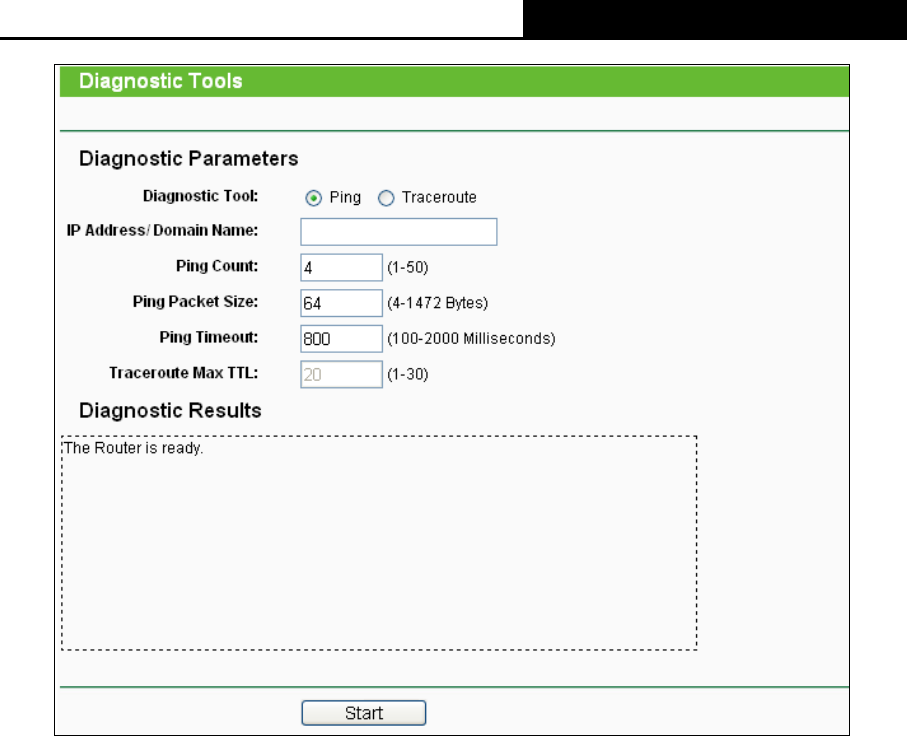

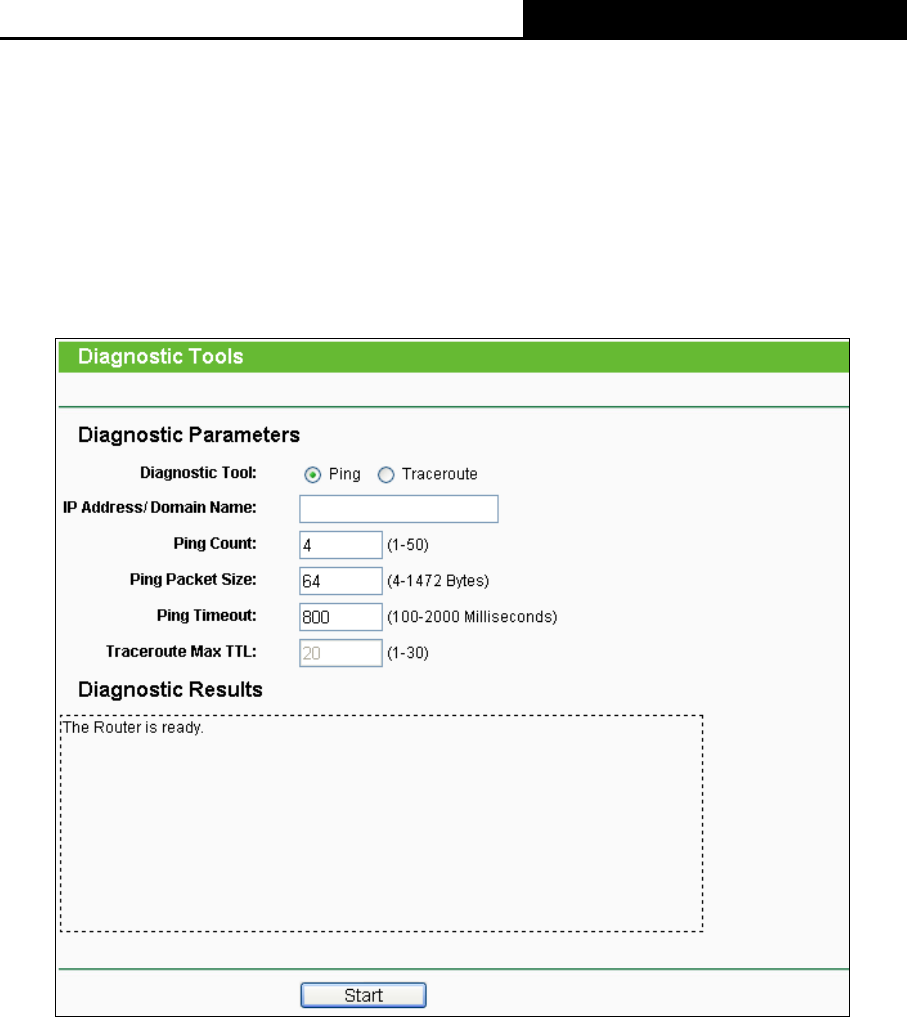

Figure 4-20 Diagnostic Tools
Diagnostic Tool - Check the radio button to select one diagnostic tool.
Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a connection.
Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not,
you might have a name resolution problem. In this case, ensure that the domain name you are
specifying can be resolved by using Domain Name System (DNS) queries.
150Mbps Wireless N Nano Router
- 46 -
IP Address/Domain Name - Type the destination IP address (e.g. 202.108.22.5) or Domain
name (e.g. http://www.tp-link.com).
Pings Count - The number of Ping packets for a Ping connection. The default is 4.
Ping Packet Size - The size of Ping packet. The default is 64.
Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in
the specified time, the connection is overtime. The default is 800.
Traceroute Max TTL - The max number of hops for a Traceroute connection. The default is
20.
Click Start to check the connectivity of the Internet.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.

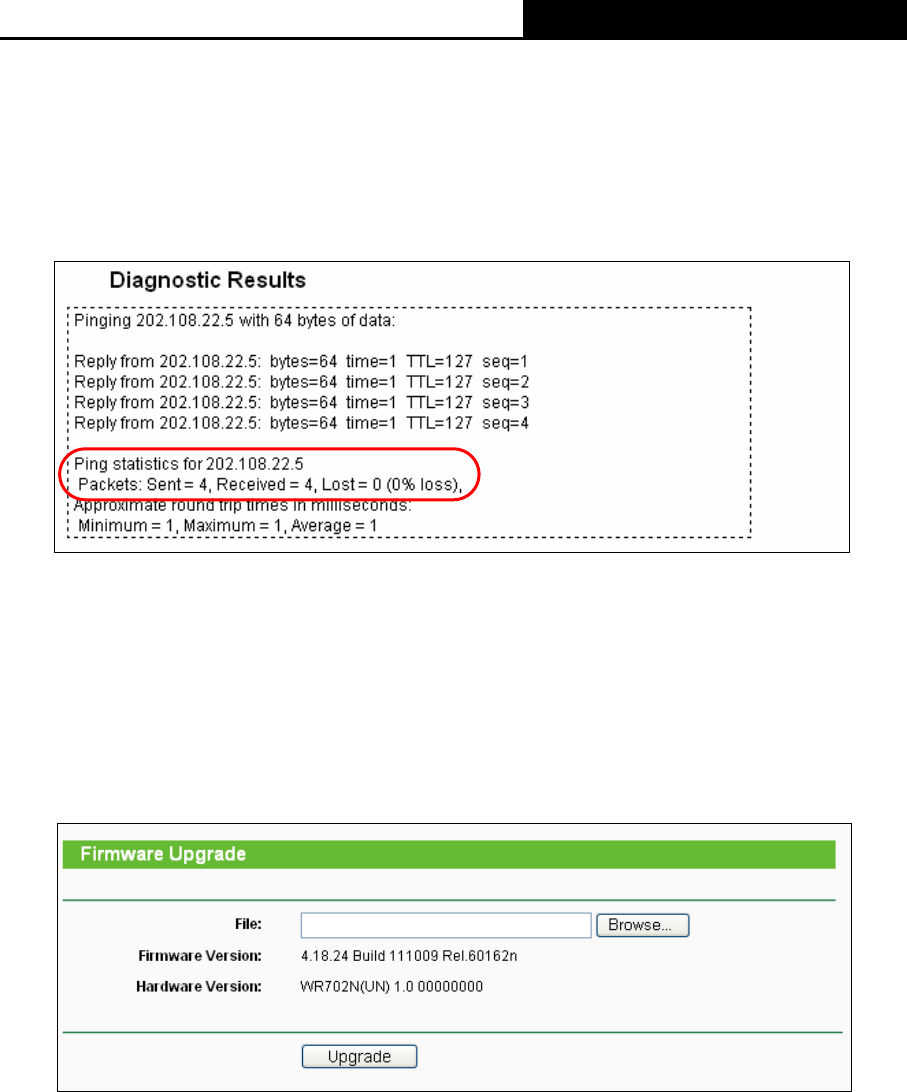

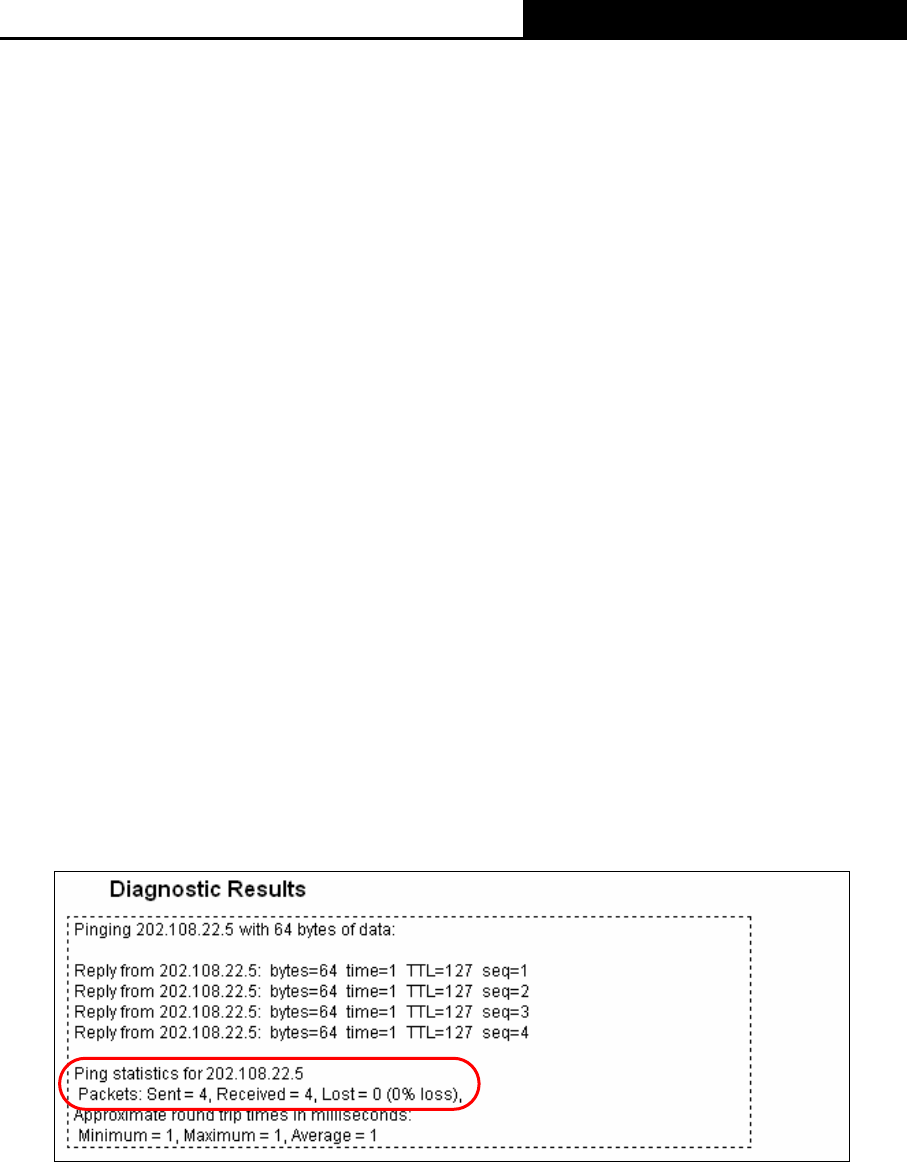

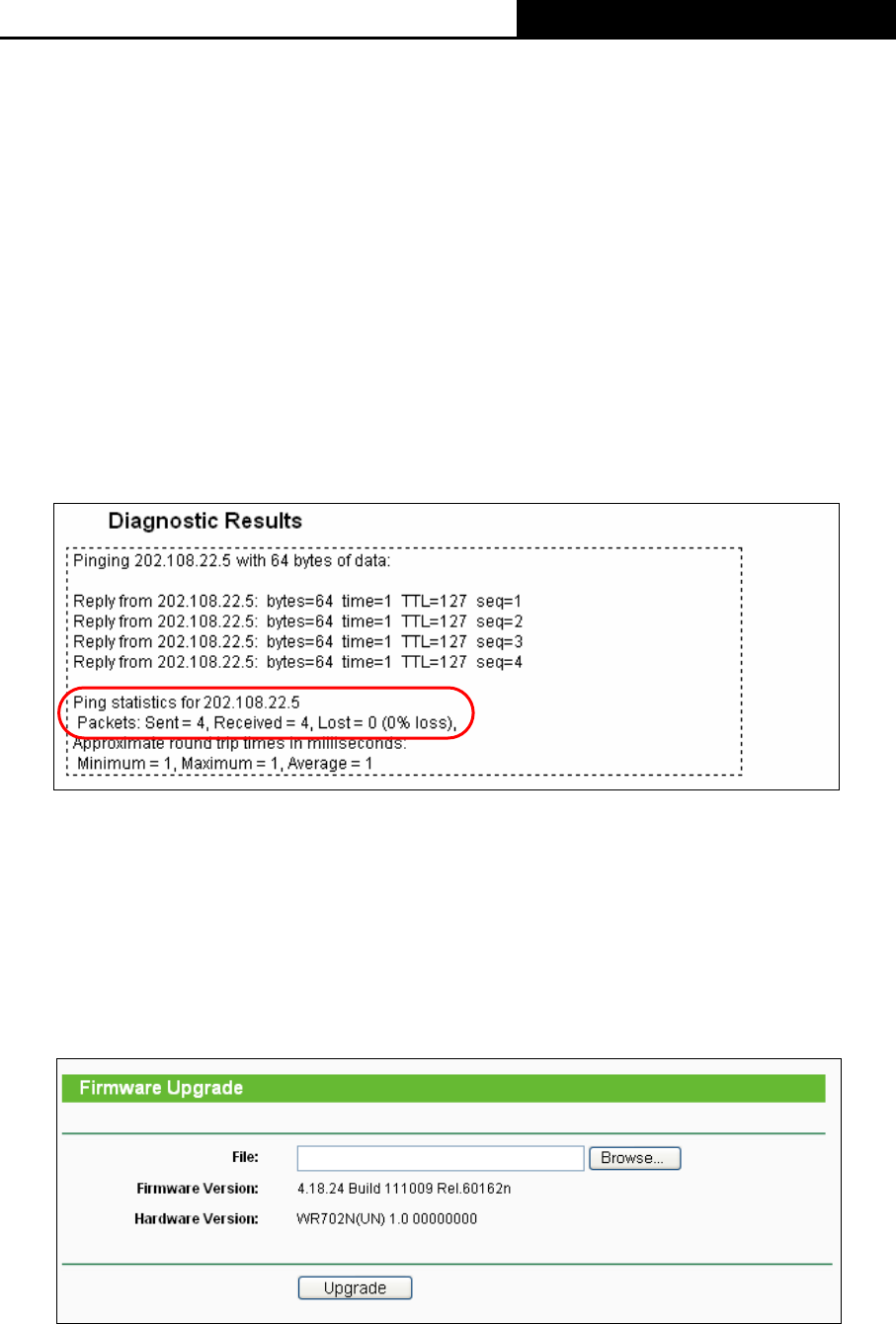

Figure 4-21 Diagnostic Results
Note:
Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping
Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function.
4.8.2 Firmware
Choose menu “System Tools → Firmware Upgrade”, and then you can update the latest
version of firmware for the Router on the following screen.

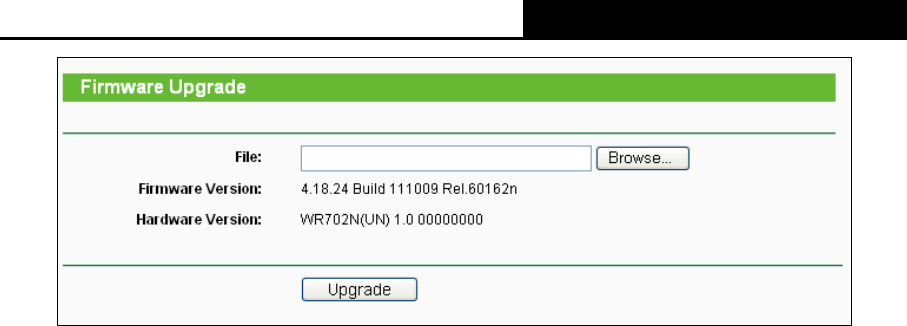

Figure 4-22 Firmware Upgrade
Firmware Version - This displays the current firmware version.
150Mbps Wireless N Nano Router
- 47 -
Hardware Version - This displays the current hardware version. The hardware version of the
upgrade file must accord with the Router’s current hardware version.
To upgrade the Router's firmware, follow these instructions below:
1. Download a more recent firmware upgrade file from the TP-LINK website
(http://www.tp-link.com).
2. Type the path and file name of the update file into the File field, or click the Browse button to
locate the update file.
3. Click the Upgrade button.
Note:
1. New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.
There is no need to upgrade the firmware unless the new firmware has a new feature you
want to use. However, when experiencing problems caused by the Router rather than the
configuration, you can try to upgrade the firmware.
2. When you upgrade the Router's firmware, you may lose its current configurations, so before
upgrading the firmware please write down some of your customized settings to avoid losing
important settings.
3. Do not turn off the Router or press the Reset button while the firmware is being upgraded,
otherwise, the Router may be damaged.
4. The Router will reboot after the upgrading has been finished.
4.8.3 Factory Defaults
Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of
the Router to factory defaults on the following screen.

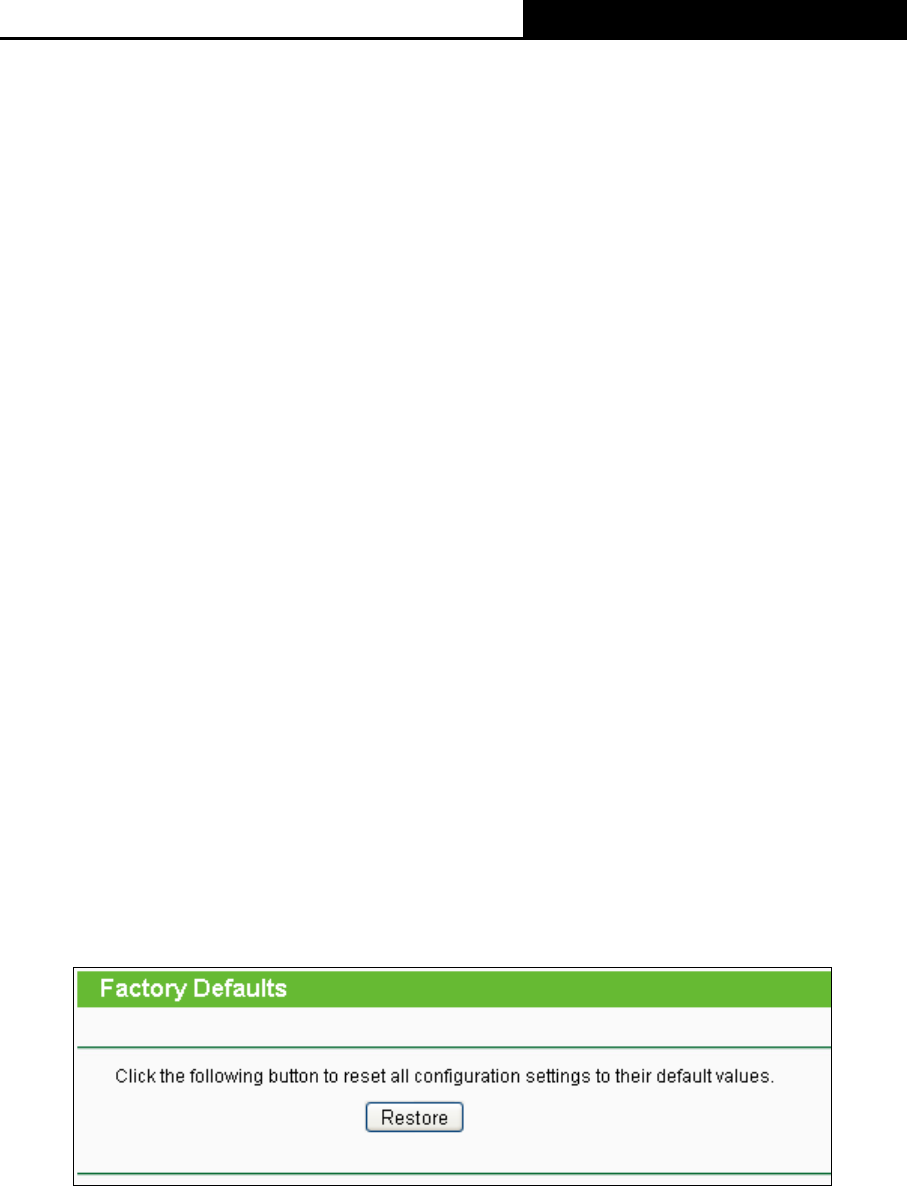

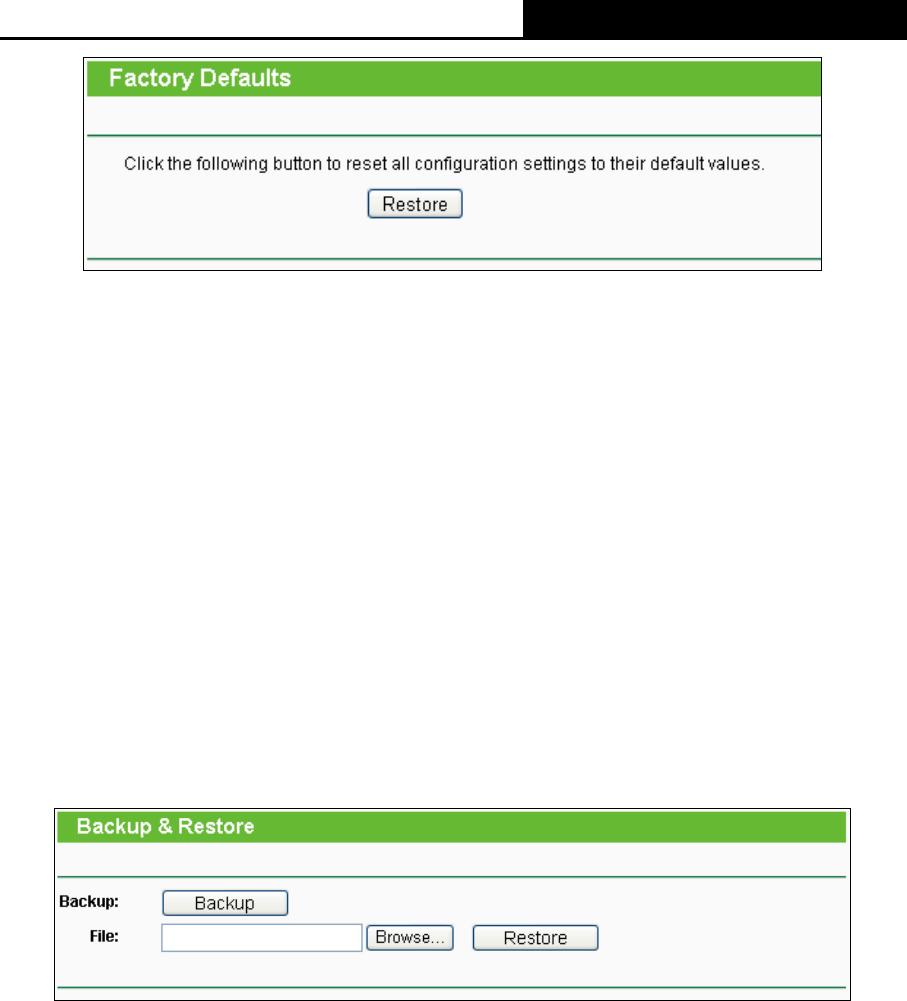

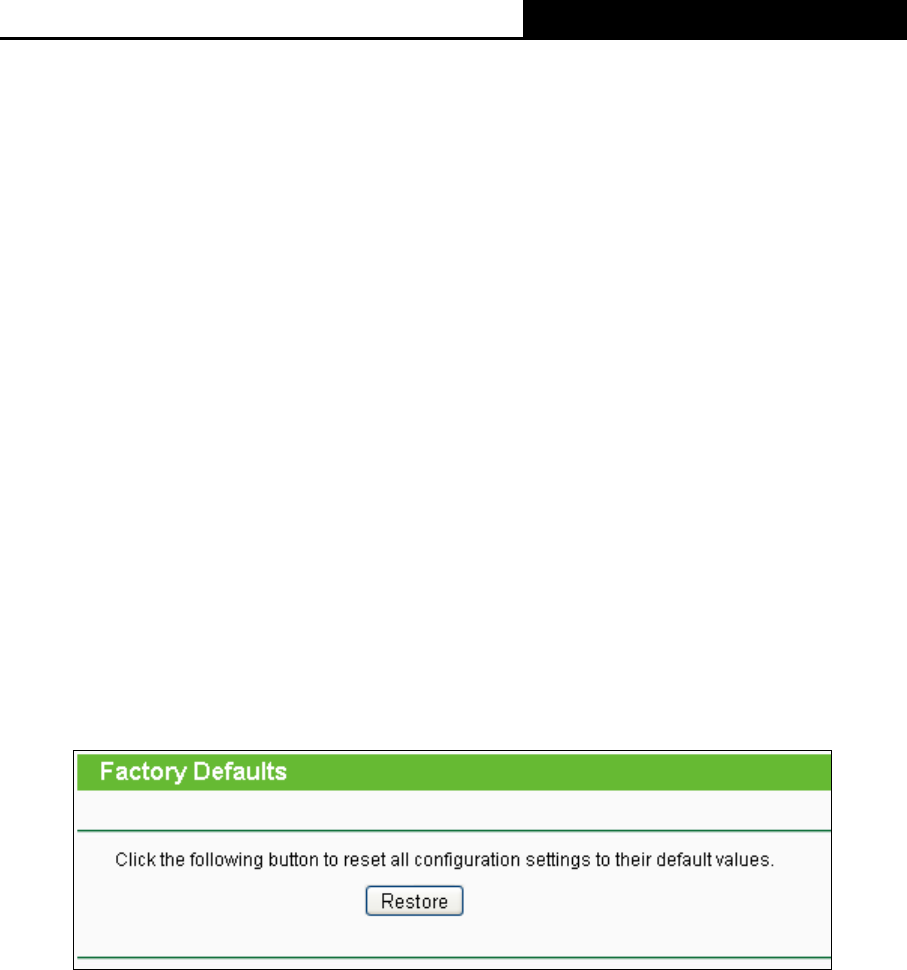

Figure 4-23 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
The default User Name: admin
The default Password: admin
The default IP Address: 192.168.0.254
The default Subnet Mask: 255.255.255.0
150Mbps Wireless N Nano Router
- 48 -
Note:
All changed settings will be lost when defaults are restored.
4.8.4 Backup & Restore
Choose menu “System Tools → Backup & Restore”, and then you can save the current
configuration of the Router as a backup file and restore the configuration via a backup file as
shown in Figure 4-24.

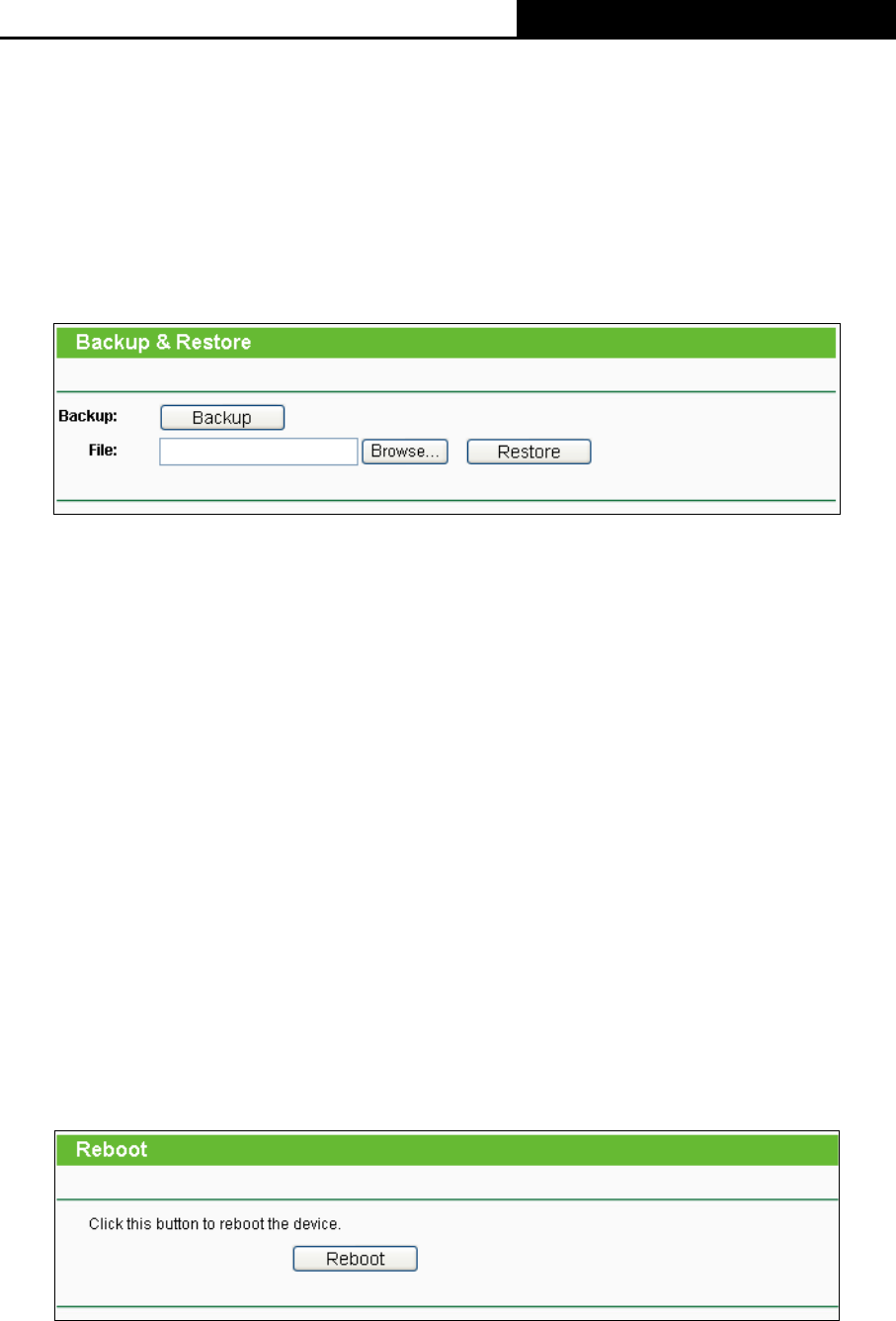

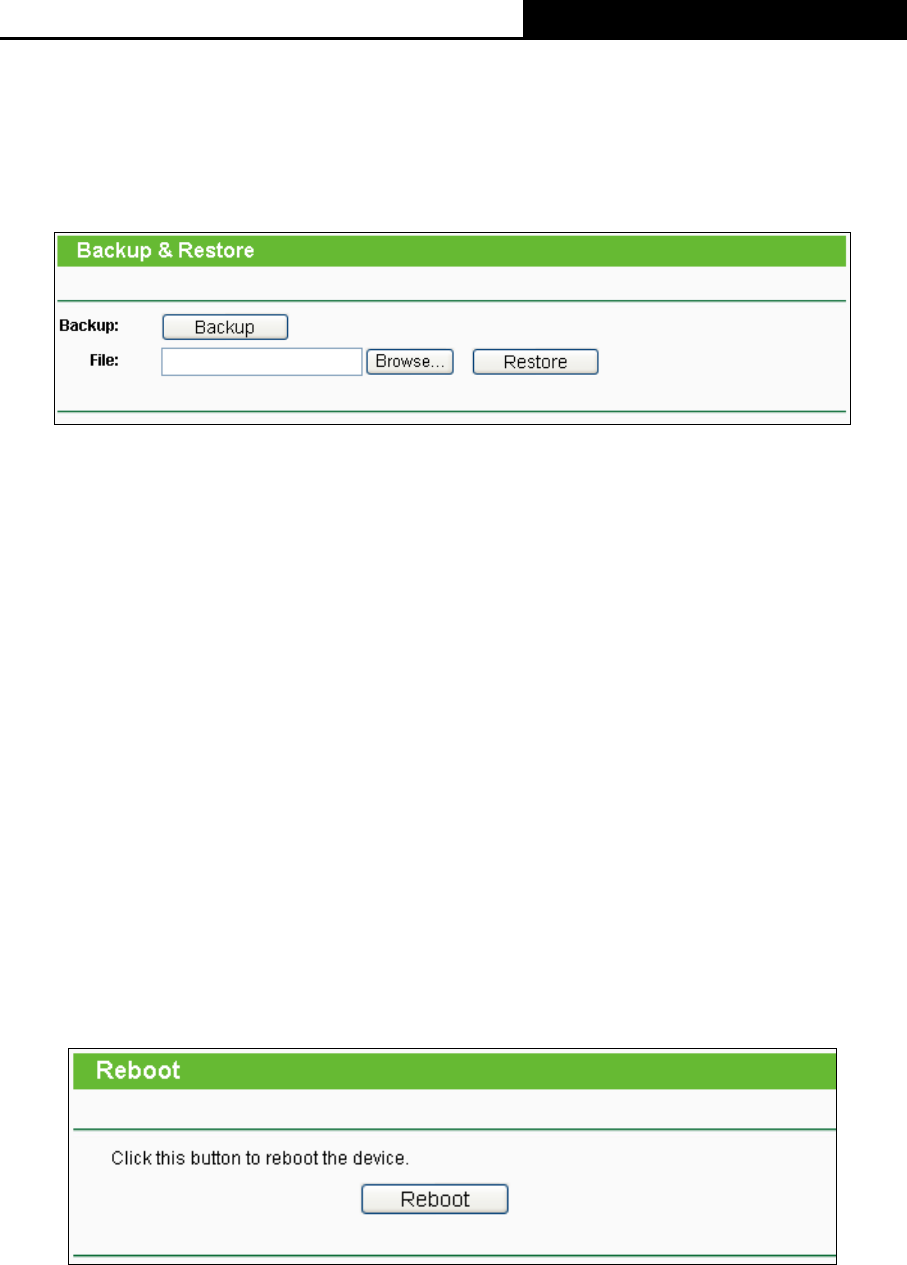

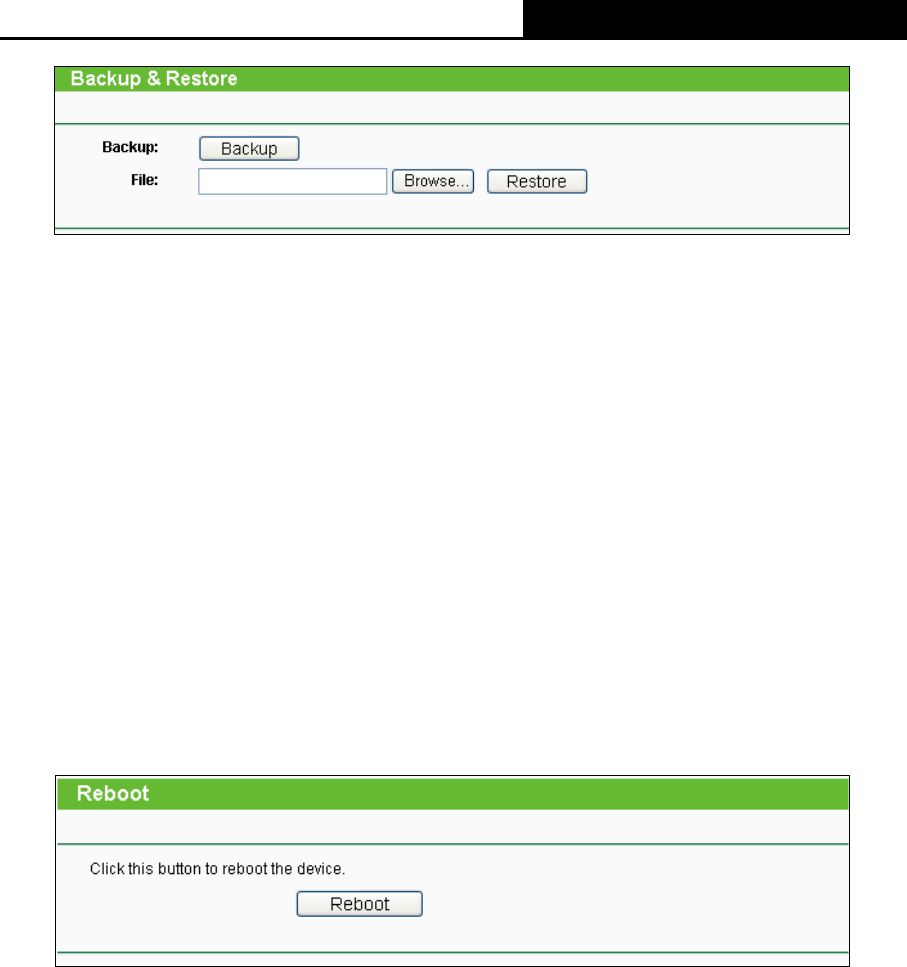

Figure 4-24 Backup & Restore Configuration
Click the Backup button to save all configuration settings as a backup file in your local
computer.
To upgrade the Router's configuration, follow these instructions.
Click the Browse… button to locate the update file for the Router, or enter the exact path
to the Setting file in the text box.
Click the Restore button.
Note:
The current configuration will be covered by the uploading configuration file. The upgrade process
lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the
upgrading process to prevent any damage.
4.8.5 Reboot
Choose menu “System Tools → Reboot”, and then you can click the Reboot button to reboot
the Router via the next screen.

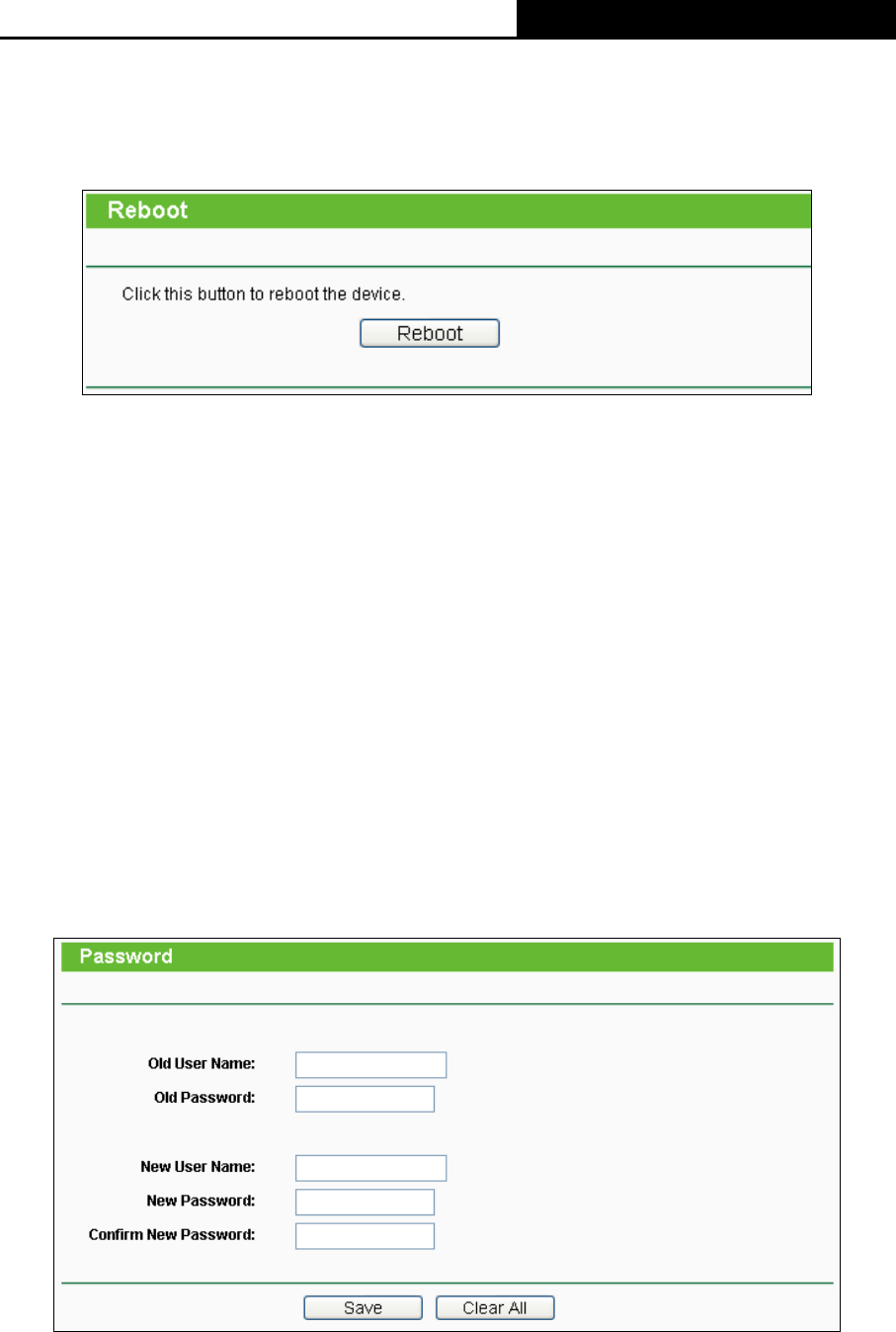

Figure 4-25 Reboot the Router
Some settings of the Router will take effect only after rebooting, which include:
150Mbps Wireless N Nano Router
- 49 -
Change the LAN IP Address (system will reboot automatically).
Change the DHCP Settings.
Change the Wireless configurations.
Change the Web Management Port.
Upgrade the firmware of the Router (system will reboot automatically).
Restore the Router's settings to factory defaults (system will reboot automatically).
Update the configuration with the file (system will reboot automatically).
4.8.6 Password
Choose menu “System Tools → Password”, and then you can change the factory default user
name and password of the Router in the next screen as shown in Figure 4-26.

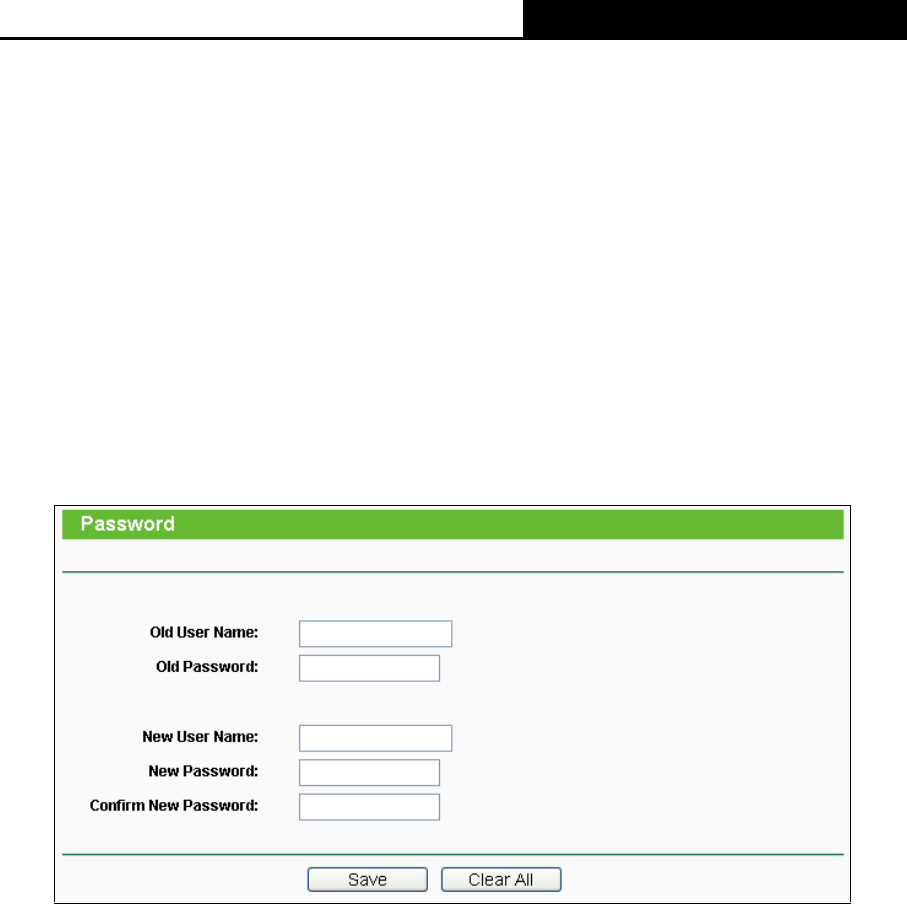

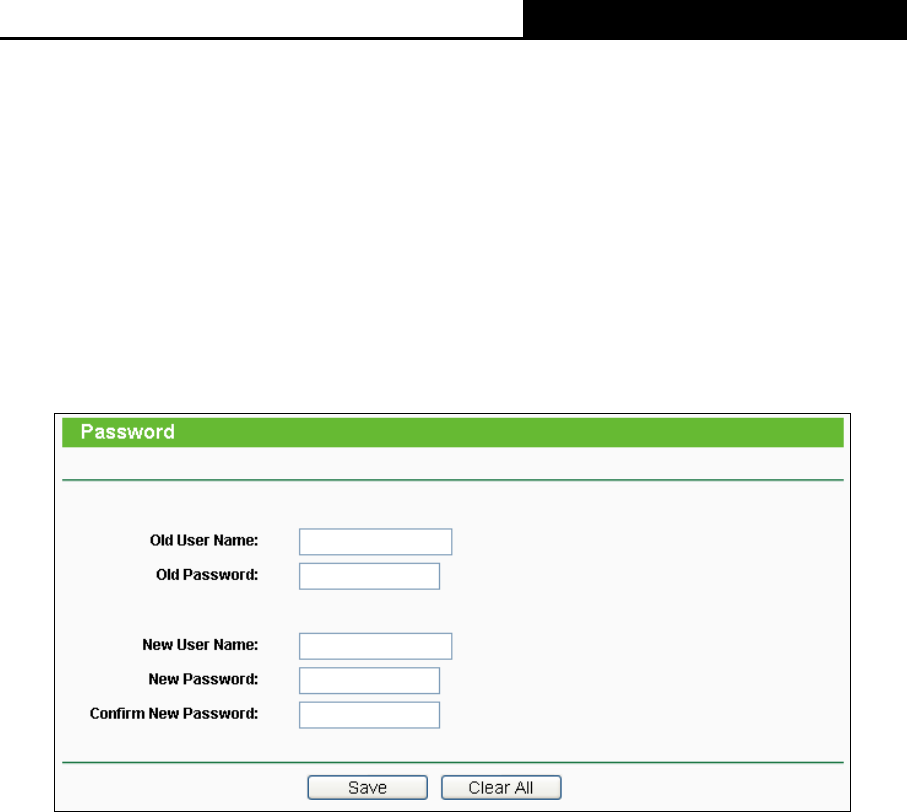

Figure 4-26 Password
It is strongly recommended that you should change the factory default user name and password
of the Router, because all users who try to access the Router's Web-based utility or Quick Setup
will be prompted for the Router's default user name and password.
Note:
The new user name and password must not exceed 14 characters in length and not include any
spaces. Enter the new Password twice to confirm.
Click the Save button when finished.
Click the Clear All button to clear all.
150Mbps Wireless N Nano Router
- 50 -
4.8.7 System Log
Choose menu “System Tools → System Log”, and then you can view the logs of the Router.

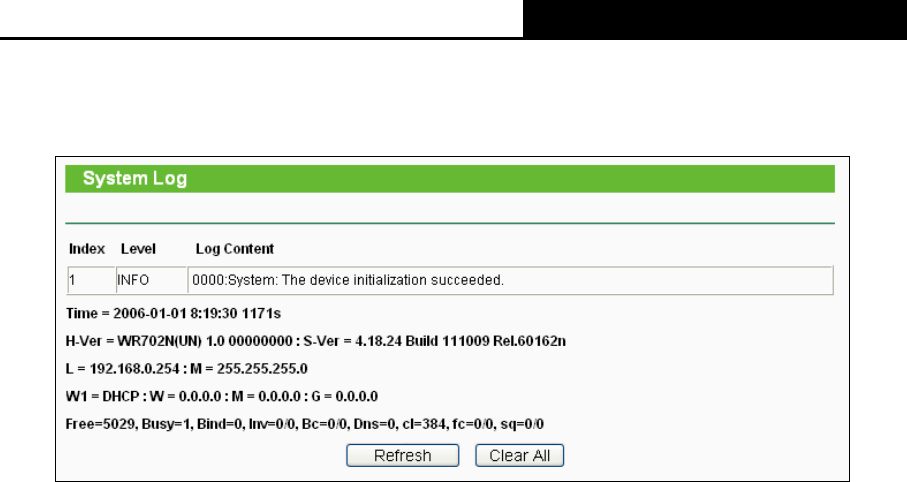

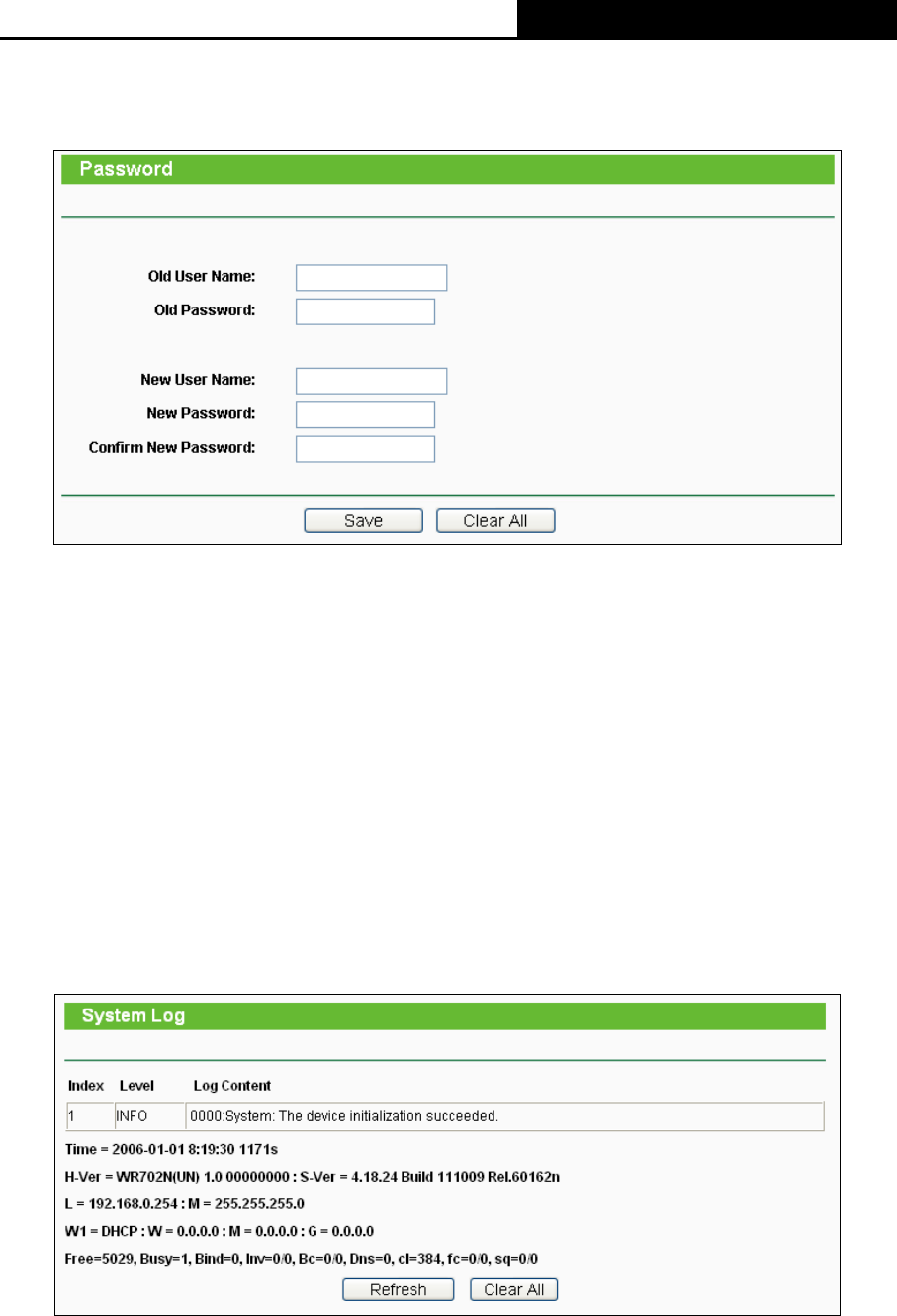

Figure 4-27 System Log
Refresh - Refresh the page to show the latest log list.
Clear All - All the logs will be deleted from the Router permanently, not just from the page.
150Mbps Wireless N Nano Router
- 51 -
Chapter 5. Configuration for Router Mode
This chapter will show each Web page's key functions and the configuration way for Router Mode
of TL-WR702N.
5.1 Login
After your successful login, you can configure and manage the device. There are main menus on
the left of the web-based utility. Submenus will be available after you click one of the main menus.
On the right, there are the corresponding explanations and instructions.
Figure 5-1
The detailed explanations for each Web page’s key function are listed below.
5.2 Status
The Status page provides the current status information about the Router on Router Mode. All
information is read-only.
150Mbps Wireless N Nano Router
- 52 -

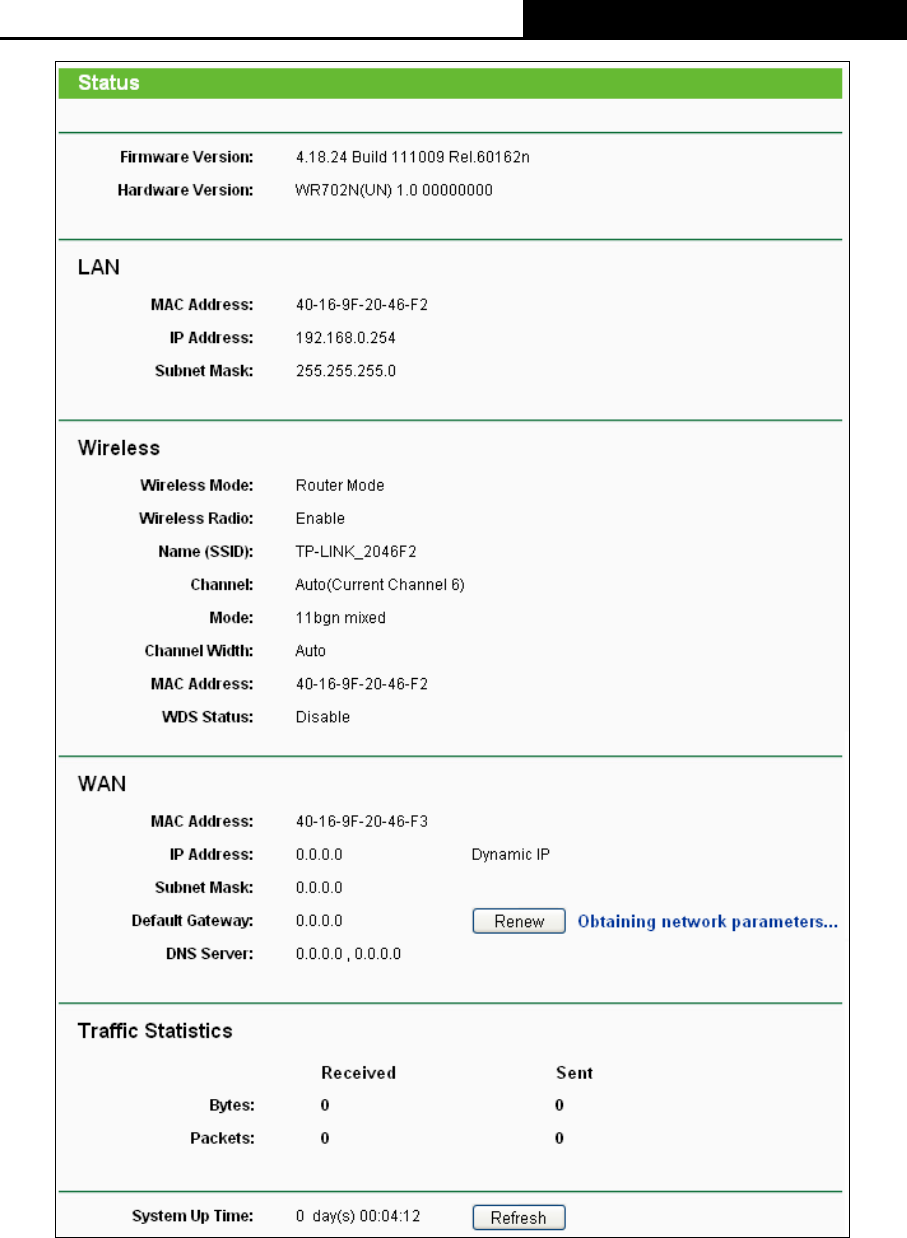

Figure 5-2
Firmware Version - The version information of the Router’s firmware.
Hardware Version - The version information of the Router’s hardware.
150Mbps Wireless N Nano Router
- 53 -
LAN - This field displays the current settings or information for the LAN, you can configure
them in the Network > LAN page.
MAC Address - The physical address of the Router, as seen from the LAN.
IP Address - The LAN IP address of the Router.
Subnet Mask - The subnet mask associated with LAN IP address.
Wireless - This field displays basic information or status for wireless function, you can
configure them in the Wireless > Wireless Settings page.
Wireless Mode - The current wireless working mode in use.
Wireless Radio - Indicates whether the wireless radio feature of the AP is enabled or
disabled.
Name (SSID) - The SSID of the AP.
Channel - The current wireless channel in use.
Mode - The current wireless mode which the Router works on.
Channel Width - The current wireless channel width in use.
MAC address - The physical address of the Router, as seen from the WLAN.
WDS Status - The status of WDS connection.
WAN - This field displays the current settings or information for the WAN, you can configure
them in the Network > WAN page.
MAC Address - The physical address of the WAN port, as seen from the Internet.
IP Address - The current WAN (Internet) IP Address. This field will be blank or 0.0.0.0 if the
IP Address is assigned dynamically and there is no connection to the Internet.
Subnet Mask - The subnet mask associated with the WAN IP Address.
Default Gateway - The Gateway currently used by the Router is shown here. When you
use Dynamic IP as the connection Internet type, the Renew button will be displayed here.
Click the Renew Button to obtain new IP parameters dynamically from the ISP. And if you
have got an IP address, Release button will be displayed here. Click the Release button to
release the IP address the Router has obtained from the ISP.
DNS Server - The DNS (Domain Name System) server IP addresses currently used by the
Router.
Traffic Statistics - The Router’s traffic statistics.
Sent (Bytes) - Traffic that counted in bytes has been sent out from the WAN port.
Sent (Packets) - Traffic that counted in packets has been sent out from the WAN port.
Received (Bytes) - Traffic that counted in bytes has been received out from the WAN port.
150Mbps Wireless N Nano Router
- 54 -
Received (Packets) - Traffic that counted in packets has been received out from the WAN
port.
System Up Time - The length of the time since the Router was last powered on or reset.
Click the Refresh button to get the latest status and settings of the Router.
5.3 Quick Setup
Please refer to Section 3.2: "Quick Installation Guide."
5.4 Working Mode
The Router supports five operation mode types: AP, Router, Repeater, Bridge and Client.
Please select one your want. Click Save to save your choice, which is shown as Figure 5-3.
Figure 5-3 Wireless Working Mode Settings
AP - The wireless access point mode.
Router - The wireless Router Mode. In this mode, the device enables multi-user to share
Internet via DSL/Cable Modem. The only wired port works as WAN.
Repeater - The wireless Repeater Mode. It could extend the range of wireless network.
Bridge - The wireless Bridge Mode. It could communicate with another wireless network.

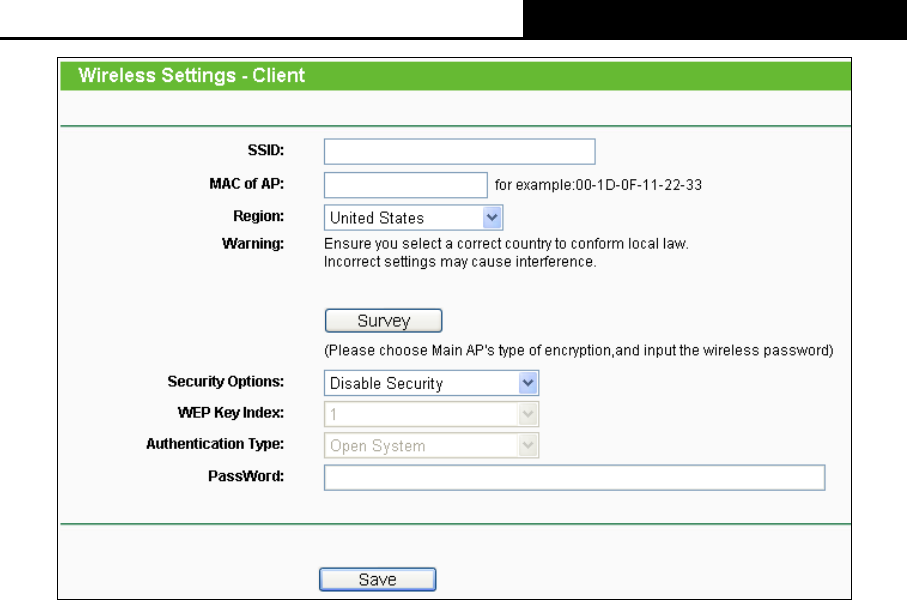

Client - The Client Mode. The computer connected by Ethernet could get access to an AP by
Client mode.
Click OK in the following screen and then the Router will reboot and to work on Router Mode.
Figure 5-4
150Mbps Wireless N Nano Router
- 55 -
5.5 Network

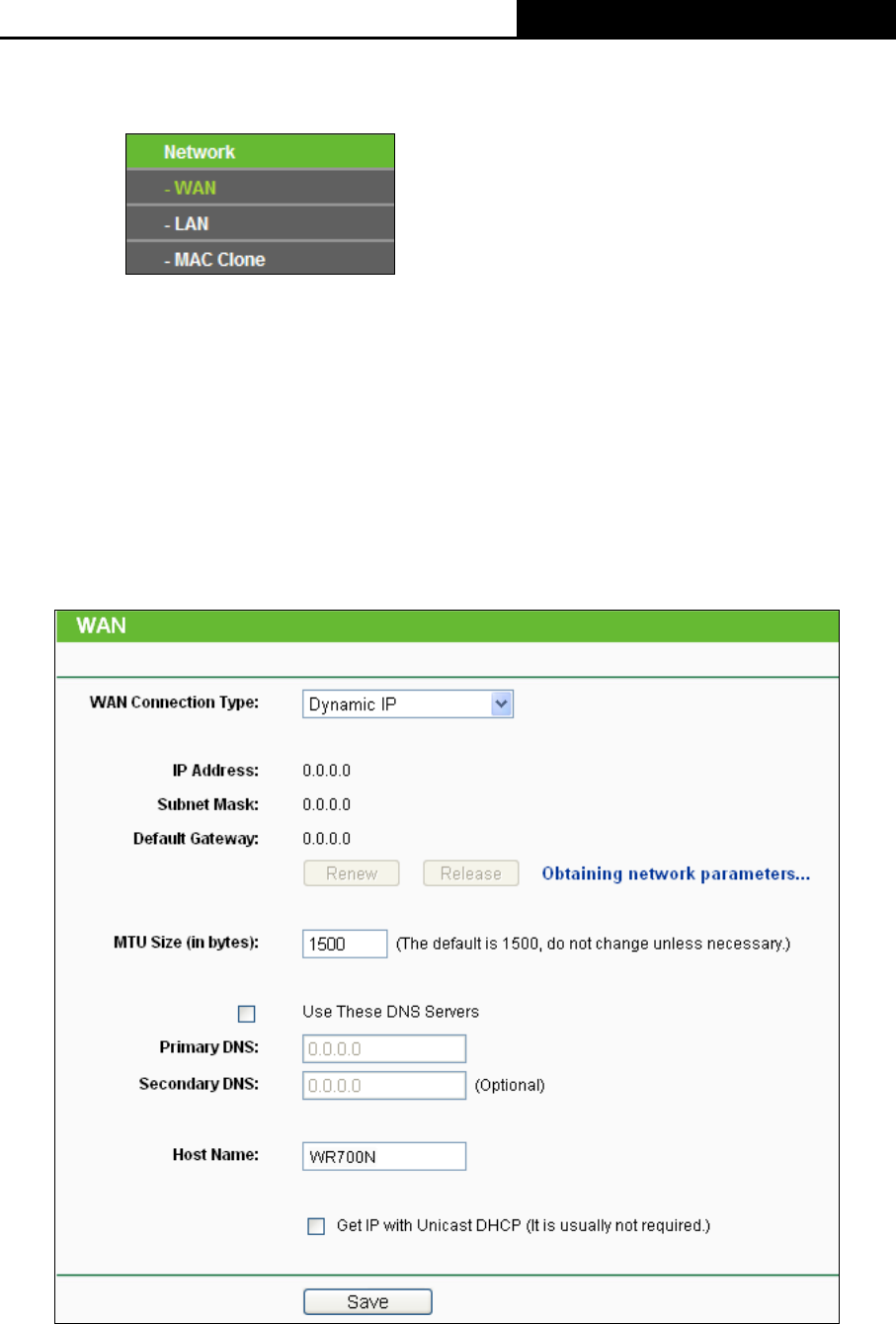

Figure 5-5 the Network menu
There are three submenus under the Network menu (shown in Figure 5-5): WAN, LAN and MAC
Clone. Click any of them, and you will be able to configure the corresponding function.
5.5.1 WAN
Choose menu “Network → WAN”, and then you can configure the IP parameters of the WAN on
the screen below.
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the Router will
automatically get IP parameters from your ISP. You can see the page as follow (Figure 5-6):
Figure 5-6 WAN – Dynamic IP
150Mbps Wireless N Nano Router
- 56 -
This page displays the WAN IP parameters assigned dynamically by your ISP, including IP
address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters
from your ISP. Click the Release button to release the IP parameters.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU Size
unless required by your ISP.
Use These DNS Servers - If your ISP gives you one or two DNS addresses, select Use
These DNS Servers and enter the primary and secondary addresses into the correct
fields. Otherwise, the DNS servers will be assigned dynamically from your ISP.
Note:
If you find error when you go to a website after entering the DNS addresses, it is likely that your
DNS servers are set up improperly. You should contact your ISP to get DNS server addresses.
Host Name - This option specifies the Host Name of the Router.
Get IP with Unicast DHCP - A few ISPs' DHCP servers do not support the broadcast
applications. If you cannot get the IP Address normally, you can choose this option. (It is
rarely required.)
Click the Save button to save your settings.
2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting,
select Static IP. The Static IP settings page will appear as shown in Figure 5-7.
Figure 5-7 WAN - Static IP
150Mbps Wireless N Nano Router
- 57 -
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation
provided by your ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU Size
unless required by your ISP.
Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in
dotted-decimal notation provided by your ISP.
Click the Save button to save your settings.
3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. Then you
should enter the following parameters (Figure 5-8):
Figure 5-8 WAN – PPPoE/Russia PPPoE
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive.
Confirm Password - Enter again the Password provided by your ISP to ensure the
password you entered is correct.
150Mbps Wireless N Nano Router
- 58 -
Secondary Connection - It’s available only for PPPoE Connection. If your ISP provides
an extra Connection type such as Dynamic/Static IP to connect to a local area network,
then you can check the radio button of Dynamic/Static IP to activate this secondary
connection.
Disabled - The Secondary Connection is disabled by default, so there is PPPoE
connection only. This is recommended.
Dynamic IP - You can check this radio button to use Dynamic IP as the secondary
connection to connect to the local area network provided by ISP.
Static IP - You can check this radio button to use Static IP as the secondary
connection to connect to the local area network provided by ISP.
Connect on Demand - In this mode, the Internet connection can be terminated
automatically after a specified inactivity period (Max Idle Time) and be re-established
when you attempt to access the Internet again. If you want your Internet connection
keeps active all the time, please enter “0” in the Max Idle Time field. Otherwise, enter
the number of minutes you want to have elapsed before your Internet access
disconnects.
Connect Automatically - The connection can be re-established automatically when it
was down.
Time-based Connecting - The connection will only be established in the period from the
start time to the end time (both are in HH:MM format).
Note:
Only when you have configured the system time on “System Tools → Time” page, will the
Time-based Connecting function can take effect.
Connect Manually - You can click the Connect/Disconnect button to
connect/disconnect immediately. This mode also supports the Max Idle Time function as
Connect on Demand mode. The Internet connection can be disconnected automatically
after a specified inactivity period and re-established when you attempt to access the
Internet again.
Click the Connect button to connect immediately. Click the Disconnect button to disconnect
immediately.
Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle
Time because some applications are visiting the Internet continually in the background.
If you want to do some advanced configurations, please click the Advanced button, and the page
shown in Figure 5-9 will then appear:
150Mbps Wireless N Nano Router
- 59 -

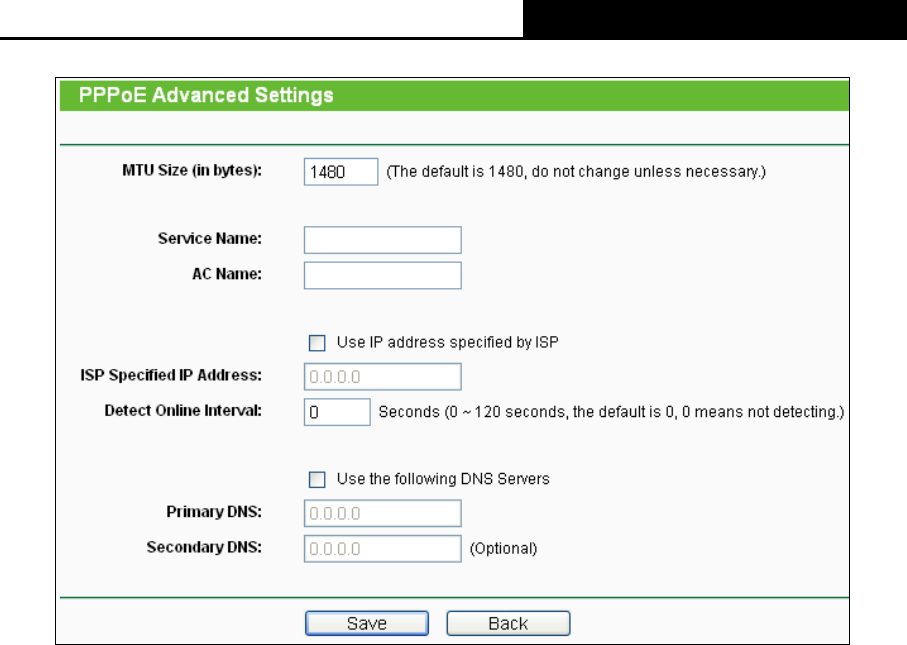

Figure 5-9 PPPoE Advanced Settings
MTU Size - The default MTU size is “1480” bytes, which is usually fine. It is not
recommended that you change the default MTU Size unless required by your ISP.
Service Name/AC Name - The service name and AC (Access Concentrator) name
should not be configured unless you are sure it is necessary for your ISP. In most cases,
leaving these fields blank will work.
ISP Specified IP Address - If your ISP does not automatically assign IP addresses to
the Router during login, please click “Use IP address specified by ISP” check box and
enter the IP address provided by your ISP in dotted-decimal notation.
Detect Online Interval - The Router will detect Access Concentrator online at every
interval. The default value is “0”. You can input the value between “0” and “120”. The
value “0” means no detect.
Primary DNS/Secondary DNS - If your ISP does not automatically assign DNS
addresses to the Router during login, please click “Use the following DNS servers”
check box and enter the IP address in dotted-decimal notation of your ISP’s primary
DNS server. If a secondary DNS server address is available, enter it as well.
Click the Save button to save your settings.
4. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. Then you
should enter the following parameters (Figure 5-10):
150Mbps Wireless N Nano Router
- 60 -
Figure 5-10 WAN – L2TP/Russia L2TP
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive.
Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect
button to connect immediately. Click the Disconnect button to disconnect immediately.
Connect on Demand - You can configure the Router to disconnect from your Internet
connection after a specified period of inactivity (Max Idle Time). If your Internet
connection has been terminated due to inactivity, Connect on Demand enables the
Router to automatically re-establish your connection as soon as you attempt to access
the Internet again. If you wish to activate Connect on Demand, check the radio button.
If you want your Internet connection to remain active at all times, enter 0 in the Max Idle
Time field. Otherwise, enter the number of minutes you want to have elapsed before
your Internet connection terminates.
Connect Automatically - Connect automatically after the Router is disconnected. To
use this option, check the radio button.
150Mbps Wireless N Nano Router
- 61 -
Connect Manually - You can configure the Router to make it connect or disconnect
manually. After a specified period of inactivity (Max Idle Time), the Router will
disconnect from your Internet connection, and you will not be able to re-establish your
connection automatically as soon as you attempt to access the Internet again. To use
this option, check the radio button. If you want your Internet connection to remain active
at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number of minutes
that you wish to have the Internet connecting last unless a new link is requested.
Caution: Sometimes the connection cannot be disconnected although you specify a time to Max
Idle Time, because some applications are visiting the Internet continually in the background.
Click the Save button to save your settings.
5. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you
should enter the following parameters (Figure 5-11):
Figure 5-11 WAN – PPTP/Russia PPTP
150Mbps Wireless N Nano Router
- 62 -
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive.
Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s
IP address or the domain name.
If you choose static IP and enter the domain name, you should also enter the DNS
assigned by your ISP. And click the Save button.
Click the Connect button to connect immediately. Click the Disconnect button to
disconnect immediately.
Connect on Demand - You can configure the Router to disconnect from your Internet
connection after a specified period of inactivity (Max Idle Time). If your Internet
connection has been terminated due to inactivity, Connect on Demand enables the
Router to automatically re-establish your connection as soon as you attempt to access
the Internet again. If you wish to activate Connect on Demand, check the radio button.
If you want your Internet connection to remain active at all times, enter “0” in the Max
Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before
your Internet connection terminates.
Connect Automatically - Connect automatically after the Router is disconnected. To
use this option, check the radio button.
Connect Manually - You can configure the Router to make it connect or disconnect
manually. After a specified period of inactivity (Max Idle Time), the Router will
disconnect from your Internet connection, and you will not be able to re-establish your
connection automatically as soon as you attempt to access the Internet again. To use
this option, click the radio button. If you want your Internet connection to remain active at
all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in minutes
that you wish to have the Internet connecting last unless a new link is requested.
Caution: Sometimes the connection cannot be disconnected although you specify a time to Max
Idle Time because some applications are visiting the Internet continually in the background.
Click the Save button to save your settings.
150Mbps Wireless N Nano Router
- 63 -
5.5.2 LAN
Choose menu “Network → LAN”, and then you can configure the IP parameters of the LAN on
the screen as below.
Figure 5-12 LAN
MAC Address - The physical address of the LAN ports, as seen from the LAN. The value
can't be changed.
IP Address - Enter the IP address of your Router in dotted-decimal notation (factory default:
192.168.0.254).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Note:
1. If you change the IP Address of LAN, you must use the new IP Address to login to the Router.
2. If the new LAN IP Address you set is not in the same subnet with the previous one, the IP
Address pool in the DHCP server will be configured automatically，while the Virtual Server and
DMZ Host will not take effect until they are re-configured.
5.5.3 MAC Clone
Choose menu “Network → MAC Clone”, and then you can configure the WAN MAC address
on the screen below, as shown in Figure 5-13:

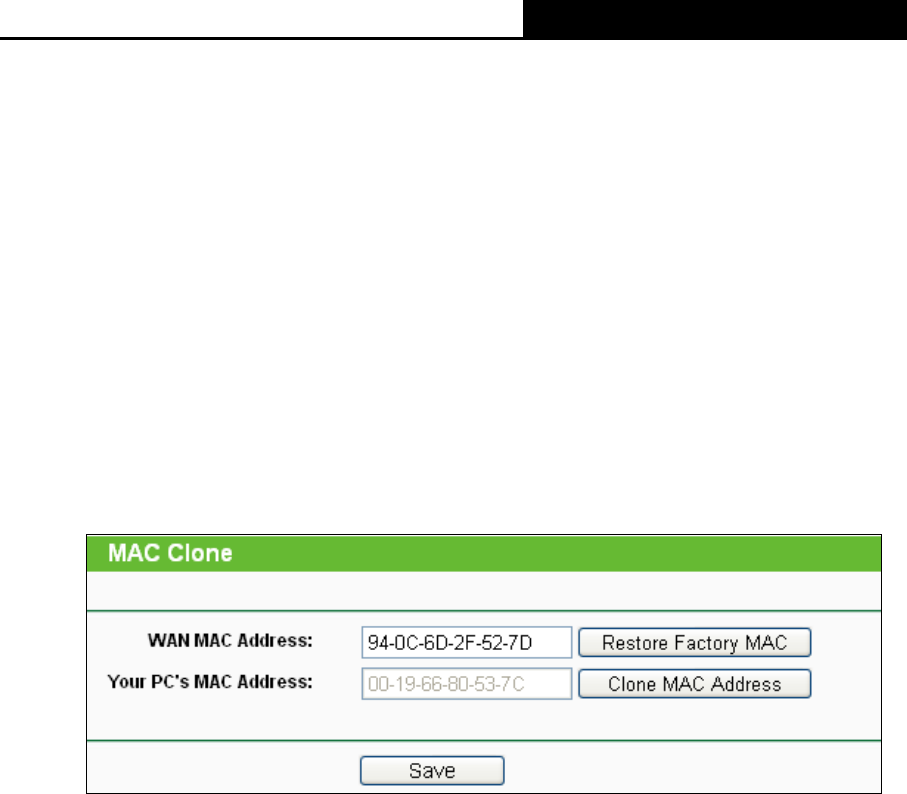

Figure 5-13 MAC Address Clone
150Mbps Wireless N Nano Router
- 64 -
Some ISPs require that you register the MAC Address of your adapter. Changes are rarely
needed here.
WAN MAC Address - This field displays the current MAC address of the WAN port. If your
ISP requires you to register the MAC address, please enter the correct MAC address into
this field in XX-XX-XX-XX-XX-XX format (X is any hexadecimal digit).
Your PC's MAC Address - This field displays the MAC address of the PC that is managing
the Router. If the MAC address is required, you can click the Clone MAC Address To
button and this MAC address will fill in the WAN MAC Address field.
Click Restore Factory MAC to restore the MAC address of WAN port to the factory default
value.
Click the Save button to save your settings.
Note:
1. Only the PC on your LAN can use the MAC Address Clone function.
2. If you change WAN MAC Address when the WAN connection is PPPoE, it will not take effect
until the connection is re-established.
5.6 Wireless
Figure 5-14 Wireless menu
There are five submenus under the Wireless menu (shown in Figure 5-14): Wireless Settings,
Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click
any of them, and you will be able to configure the corresponding function.
5.6.1 Wireless Settings
Choose menu “Wireless → Wireless Settings”, and then you can configure the basic settings
for the wireless network on this page.
150Mbps Wireless N Nano Router
- 65 -

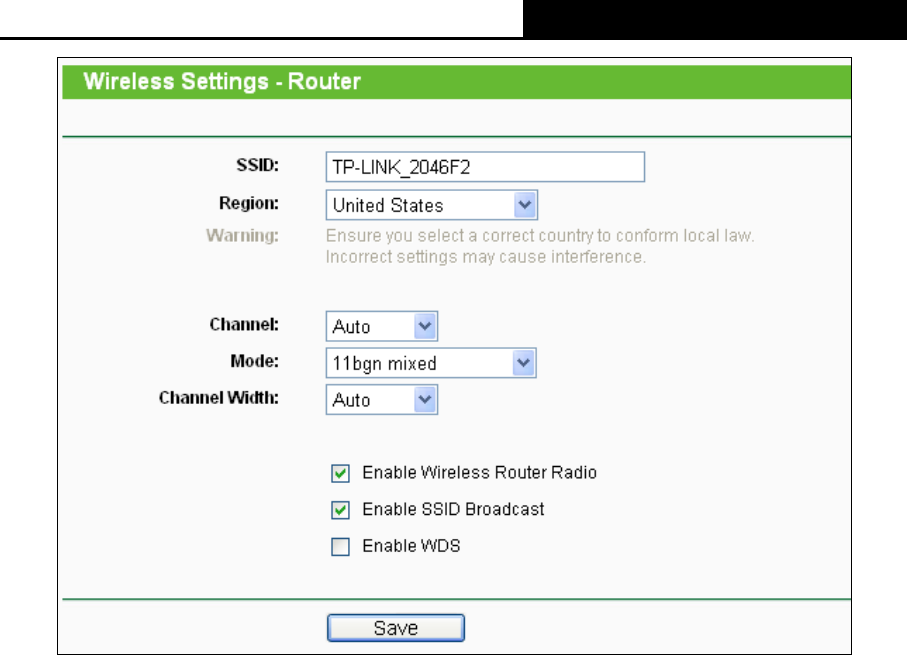

Figure 5-15 Wireless Settings - Router
SSID - Enter a string of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. The default SSID is
set to be TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of each
Router’s MAC address). But it is recommended strongly that you change your networks
name (SSID) to a different value. This value is case-sensitive. For example, TEST is NOT
the same as test.
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Channel - This field determines which operating frequency will be used. The default channel
is set to Auto. It is not necessary to change the wireless channel unless you notice
interference problems with another nearby access point.
Mode - Select the desired mode. The default setting is 11bgn mixed.
11b only - Select if all of your wireless clients are 802.11b.
11g only - Select if all of your wireless clients are 802.11g.
11n only- Select only if all of your wireless clients are 802.11n.
11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.
11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.
150Mbps Wireless N Nano Router
- 66 -
Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless
stations can connect to the Router. When 802.11n mode is selected, only 802.11n wireless
stations can connect to the AP. It is strongly recommended that you set the Mode to
802.11b/g/n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the
Router.
Channel Width - Select any channel width from the pull-down list. The default setting is
automatic, which can automatically adjust the channel width for your clients.
Enable Wireless Router Radio - The wireless radio of the Router can be enabled or disabled
to allow wireless stations access. If enabled, the wireless stations will be able to access the
Router. Otherwise, wireless stations will not be able to access the Router.
Enable SSID Broadcast - If you select the Enable SSID Broadcast checkbox, the wireless
router will broadcast its name (SSID) on the air.
Enable WDS - You can select to enable WDS. With this function, the Router can bridge two or
more WLANs. If this checkbox is selected, you will have to set the following parameters as
shown below. Make sure the following settings are correct.
SSID (to be bridged) - The SSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the SSID to join.
BSSID (to be bridged) - The BSSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the BSSID to join.
Survey - Click this button, you can survey the AP which runs in the current channel.
Security Options - This option should be chosen according to the AP's security
configuration. It is recommended that the security type is the same as your AP's security
type.
WEP Index - This option should be chosen if the key type is WEP (ASCII) or WEP (HEX). It
indicates the index of the WEP key.
150Mbps Wireless N Nano Router
- 67 -
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authorization type of the Root AP.
Password - If the AP your Router is going to connect needs password, you need to fill the
password in this blank.
Be sure to click the Save button to save your settings on this page.
Note:
1. The operating distance or range of your wireless connection varies significantly based on the
physical placement of the Router. For best results, place your Router.
Near the center of the area in which your wireless stations will operate.
In an elevated location such as a high shelf.
Away from the potential sources of interference, such as PCs, microwaves, and cordless
phones.
Away from large metal surfaces.
2. Failure to follow these guidelines can result in significant performance degradation or inability
to wirelessly connect to the Router.
5.6.2 Wireless Security
Choose menu “Wireless → Wireless Security”, and then you can configure the security
settings of your wireless network.
There are three wireless security modes supported by the Router: WEP (Wired Equivalent
Privacy), WPA/WPA2 and WPA-PSK/WPA2-PSK.
150Mbps Wireless N Nano Router
- 68 -
Figure 5-16 Wireless Security
Disable Security - The wireless security function can be enabled or disabled. If disabled, the
wireless stations will be able to connect the Router without encryption. But it’s strongly
recommended to choose one of the following modes to enable security.
WEP - It is based on the IEEE 802.11 standard.
Type - you can choose the type for the WEP security on the pull-down list. The default
setting is Automatic, which can select Shared Key or Open System authentication type
automatically based on the wireless station's capability and request.
WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal
format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified
length. ASCII format stands for any combination of keyboard characters in the specified
length.
150Mbps Wireless N Nano Router
- 69 -
WEP Key (Password) - Select which of the four keys will be used and enter the matching
WEP key that you create. Make sure these values are identical on all wireless stations in
your network.
Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 5 ASCII characters.
128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 13 ASCII characters.
152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 16 ASCII characters.
Note:
If you do not set the key, the wireless security function is still disabled even if you have selected
Shared Key as Authentication Type.
WPA /WPA2
Version - you can choose the version of the WPA security from the pull-down list. The
default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2
(WPA version 2) automatically based on the wireless station's capability and request.
Encryption - You can select Automatic, TKIP or AES.
Radius Server IP - Enter the IP address of the Radius server.
Radius Port - Enter the port that Radius server used.
Radius Password - Enter the password for the Radius server.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
WPA-PSK/WPA2-PSK- It’s the WPA/WPA2 authentication type based on pre-shared
passphrase.
Version - you can choose the version of the WPA-PSK security on the drop-down list. The
default setting is Automatic (Recommended), which can select WPA-PSK (Pre-shared
key of WPA) or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless
station's capability and request.
Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select
Automatic (Recommended), TKIP or AES as Encryption.
PSK Password - You can enter ASCII or Hexadecimal characters. The default password
is the last unique eight numbers of each Router’s MAC address
150Mbps Wireless N Nano Router
- 70 -
For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the length
should be between 8 and 63 characters.
For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F, the
length should be between 8 and 64 characters.
Please also note the key is case sensitive, this means that upper and lower case keys will
affect the outcome. It would also be a good idea to write down the key and all related wireless
security settings.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
Be sure to click the Save button to save your settings on this page.
5.6.3 MAC Filtering
Choose menu “Wireless → MAC Filtering”, and then you can control the wireless access by
configuring the Wireless MAC Filtering function, as shown in Figure 5-17.
Figure 5-17 Wireless MAC Filtering
To filter wireless users by MAC Address, click Enable. The default setting is Disabled.
MAC Address - The wireless station's MAC address that you want to access.
Status - The status of this entry, either Enabled or Disabled.
Description - A simple description of the wireless station.
To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 5-18:
150Mbps Wireless N Nano Router
- 71 -

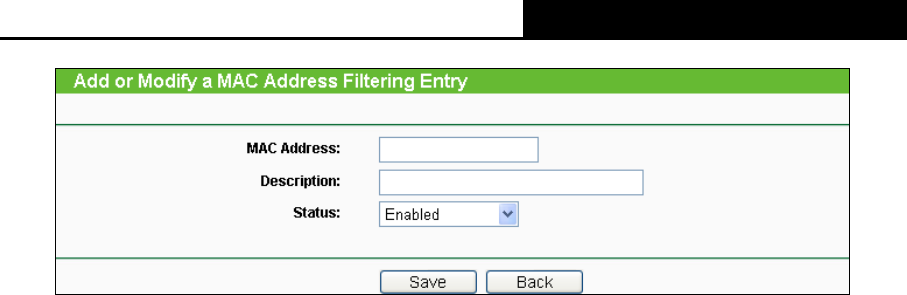

Figure 5-18 Add or Modify Wireless MAC Address Filtering entry
To add or modify a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:
00-0A-EB-B0-00-0B.
2. Give a simple description for the wireless station in the Description field. For example:
Wireless station A.
3. Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save this entry.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page.
Click the Previous button to return to the previous page.
For example: If you desire that the wireless station A with MAC address 00-0A-EB-B0-00-0B and
the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the Router, but all
the other wireless stations cannot access the Router, you can configure the Wireless MAC
Address Filtering list by following these steps:
1. Click the Enable button to enable this function.
2. Select the radio button “Allow the stations specified by any enabled entries in the list to
access” for Filtering Rules.
150Mbps Wireless N Nano Router
- 72 -
3. Delete all or disable all entries if there are any entries already.
4. Click the
Add New...
button.
1) Enter the MAC address
00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F
in the MAC Address field.
2) Enter wireless station A/B in the Description field.
3) Select Enabled in the Status pull-down list.
4) Click the Save button.
5) Click the Back button.
The filtering rules that configured should be similar to the following list:

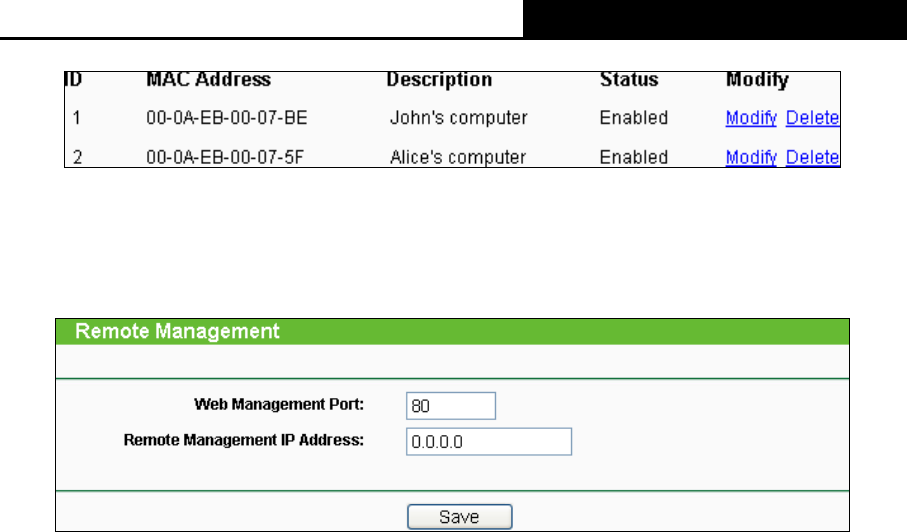

5.6.4 Wireless Advanced
Choose menu “Wireless → Wireless Advanced”, and then you can configure the advanced
settings of your wireless network.
Figure 5-19 Wireless Advanced
Transmit Power - Here you can specify the transmit power of Router. You can select High,
Middle or Low which you would like. High is the default setting and is recommended.
150Mbps Wireless N Nano Router
- 73 -
Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here.
The beacons are the packets sent by the Router to synchronize a wireless network. Beacon
Interval value determines the time interval of the beacons. The default value is 100.
RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet
is larger than the specified RTS Threshold size, the Router will send RTS frames to a
particular receiving station and negotiate the sending of a data frame. The default value is
2346.
Fragmentation Threshold - This value is the maximum size determining whether packets
will be fragmented. Setting the Fragmentation Threshold too low may result in poor network
performance because of excessive packets. 2346 is the default setting and is
recommended.
DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message
(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to
broadcast and multicast messages. When the Router has buffered broadcast or multicast
messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can
specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates
the DTIM Interval is the same as Beacon Interval.
Enable WMM - WMM function can guarantee the packets with high-priority messages being
transmitted preferentially. It is strongly recommended enabled.
Enable Short GI - This function is recommended for it will increase the data capacity by
reducing the guard interval time.
Enabled AP Isolation - This function isolate all connected wireless stations so that wireless
stations cannot access each other through WLAN. This function will be disabled if
WDS/Bridge is enabled.
Note:
If you are not familiar with the setting items in this page, it's strongly recommended to keep the
provided default values; otherwise it may result in lower wireless network performance.
5.6.5 Wireless Statistics
Choose menu “Wireless → Wireless Statistics”, and then you can see the MAC Address,
Current Status, Received Packets and Sent Packets for each connected wireless station.
150Mbps Wireless N Nano Router
- 74 -
Figure 5-20 Wireless Statistics
MAC Address - The connected wireless station's MAC address
Current Status - The connected wireless station's running status, one of STA-AUTH /
STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN /
Disconnected
Received Packets - Packets received by the station
Sent Packets - Packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click on the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.
Note:
This page will be refreshed automatically every 5 seconds.
5.7 DHCP
Figure 5-21 Figure 5-21The DHCP menu
There are three submenus under the DHCP menu (shown in ), DHCP Settings, DHCP Clients
List and Address Reservation. Click any of them, and you will be able to configure the
corresponding function.
5.7.1 DHCP Settings
Choose menu “DHCP → DHCP Settings”, and then you can configure the DHCP Server on the
page as shown in Figure 5-22. The Router is set up by default as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are
connected to the Router on the LAN.
150Mbps Wireless N Nano Router
- 75 -
Figure 5-22 DHCP Settings
DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must
have another DHCP server within your network or else you must configure the computer
manually.
Start IP Address - Specify an IP address for the DHCP Server to start with when assigning
IP addresses. 192.168.0.100 is the default start address.
End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP
addresses. 192.168.0.199 is the default end address.
Address Lease Time - The Address Lease Time is the amount of time a network user will
be allowed connection to the Router with their current dynamic IP Address. Enter the
amount of time in minutes and the user will be "leased" this dynamic IP Address. After the
time is up, the user will be automatically assigned a new dynamic IP address. The range of
the time is 1 ~ 2880 minutes. The default value is 120 minutes.
Default Gateway (Optional) - It is suggested to input the IP address of the LAN port of the
Router. The default value is 192.168.0.254.
Default Domain (Optional) - Input the domain name of your network.
Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your
ISP. Or consult your ISP.
Secondary DNS (Optional) - Input the IP address of another DNS server if your ISP
provides two DNS servers.
Note:
To use the DHCP server function of the Router, you must configure all computers on the LAN as
"Obtain an IP Address automatically".
150Mbps Wireless N Nano Router
- 76 -
5.7.2 DHCP Clients List
Choose menu “DHCP → DHCP Clients List”, and then you can view the information about the
clients attached to the Router in the screen as shown in Figure 5-23.
Figure 5-23 DHCP Clients List
Client Name - The name of the DHCP client
MAC Address - The MAC address of the DHCP client
Assigned IP - The IP address that the Router has allocated to the DHCP client
Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
5.7.3 Address Reservation
Choose menu “DHCP → Address Reservation”, and then you can view and add a reserved
address for clients via the next screen (shown in Figure 5-24).When you specify a reserved IP
address for a PC on the LAN, that PC will always receive the same IP address each time when it
accesses the DHCP server. Reserved IP addresses should be assigned to the servers that
require permanent IP settings.
Figure 5-24 Address Reservation
MAC Address - The MAC address of the PC for which you want to reserve an IP address.
Reserved IP Address - The IP address reserved for the PC by the Router.
150Mbps Wireless N Nano Router
- 77 -
Status - The status of this entry, either Enabled or Disabled.
To Reserve an IP address:
1. Click the Add New… button. Then will pop-up.
2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address (in dotted-decimal
notation) of the computer for which you want to reserve an IP address.
3. Click the Save button.
Figure 5-25 Add or Modify an Address Reservation Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable/Disabled All button to make all entries enabled/disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page and Click the Previous button to return the previous
page.
5.8 Forwarding
Figure 5-26 The Forwarding menu
There are four submenus under the Forwarding menu (shown in Figure 5-26): Virtual Servers,
Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the
corresponding function.
150Mbps Wireless N Nano Router
- 78 -
5.8.1 Virtual Servers
Choose menu “Forwarding → Virtual Servers”, and then you can view and add virtual servers
in the screen as shown in Figure 5-27. Virtual servers can be used for setting up public services
on your LAN, such as DNS, Email and FTP. A virtual server is defined as a service port, and all
requests from the Internet to this service port will be redirected to the computer specified by the
server IP. Any PC that was used for a virtual server must have a static or reserved IP Address
because its IP Address may be changed when using the DHCP function.
Figure 5-27 Virtual Servers
Service Port - The numbers of External Ports. You can type a service port or a range of
service ports (in XXX – YYY format, XXX is the start port number, YYY is the end port
number).
IP Address - The IP Address of the PC providing the service application.
Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols
supported by the Router).
Status - The status of this entry, either Enabled or Disabled.
To setup a virtual server entry:
1. Click the Add New… button, the next screen will pop-up as shown in Figure 5-28.
2. Select the service port you want to use from the Common Service Port list. If the Common
Service Port list does not have the service that you want to use, type the service port
number or service port range in the Service Port box.
3. Type the IP Address of the computer in the IP Address box.
4. Select the protocol used for this application, either TCP, UDP, or All.
5. Select the Enable to enable the virtual server.
6. Click the Save button.
150Mbps Wireless N Nano Router
- 79 -
Figure 5-28 Add or Modify a Virtual Server Entry
Note:
If your computer or server has more than one type of available service, please select another
service, and enter the same IP Address for that computer or server.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable/Disabled All button to make all entries enabled/disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page and click the Previous button to return the previous
page.
Note:
If you set the service port of the virtual server as 80, you must set the Web management port on
“Security → Remote Management” page to be any other value except 80 such as 8080.
Otherwise there will be a conflict to disable the virtual server.
5.8.2 Port Triggering
Choose menu “Forwarding → Port Triggering”, and then you can view and add port triggering
in the screen as shown in Figure 5-29. Some applications require multiple connections, like
Internet games, video conferencing, Internet calling and so on. These applications cannot work
with a pure NAT Router. Port Triggering is used for some of these applications that can work with
an NAT Router.
150Mbps Wireless N Nano Router
- 80 -
Figure 5-29 Port Triggering
Once the Router is configured, the operation is as follows:
1. A local host makes an outgoing connection using a destination port number defined in the
Trigger Port field.
2. The Router records this connection, opens the incoming port or ports associated with this
entry in the Port Triggering table, and associates them with the local host.
3. When necessary， the external host will be able to connect to the local host using one of the
ports defined in the Incoming Ports field.
Trigger Port - The port for outgoing traffic. An outgoing connection using this port will trigger
this rule.
Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all
protocols supported by the Router).
Incoming Ports Range - The port or port range used by the remote system when it
responds to the outgoing request. A response using one of these ports will be forwarded to
the PC that triggered this rule. You can input at most 5 groups of ports (or port sections).
Every group of ports must be set apart with ",". For example, 2000-2038, 2050-2051, 2085,
3010-3030.
Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or
ALL (all protocols supported by the Router).
Status - The status of this entry, either Enabled or Disabled.
To add a new rule, follow the steps below:
1. Click the Add New… button, the next screen will pop-up as shown in Figure 5-30.
2. Select a common application from the Common Applications drop-down list, then the
Trigger Port field and the Incoming Ports field will be automatically filled. If the Common
Applications do not have the application you need, enter the Trigger Port and the
Incoming Ports manually.
3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either
TCP, UDP, or All.
4. Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list,
either TCP or UDP, or All.
150Mbps Wireless N Nano Router
- 81 -
5. Select Enable in Status field.
6. Click the Save button to save the new rule.
Figure 5-30 Add or Modify a Port Triggering Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled.
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries.
Note:
1. When the trigger connection is released, the corresponding opening ports will be closed.
2. Each rule is allowed to be used only by one host on LAN synchronously. The trigger
connection of other hosts on LAN will be refused.
3. Incoming Port Range cannot overlap each other.
5.8.3 DMZ
Choose menu “Forwarding → DMZ”, and then you can view and configure DMZ host in the
screen as shown in Figure 5-31. The DMZ host feature allows one local host to be exposed to the
Internet for a special-purpose service such as Internet gaming or videoconferencing. DMZ host
forwards all the ports at the same time. Any PC whose port is being forwarded must have its
DHCP client function disabled and should have a new static IP Address assigned to it because its
IP Address may be changed when using the DHCP function.
150Mbps Wireless N Nano Router
- 82 -
Figure 5-31 DMZ
To assign a computer or server to be a DMZ server:
1. Check the Enable radio button.
2. Enter the IP Address of a local host in the DMZ Host IP Address field.
3. Click the Save button.
Note:
After you set the DMZ host, the firewall related to the host will not work.
5.8.4 UPnP
Choose menu “Forwarding → UPnP”, and then you can view the information about UPnP
(Universal Plug and Play) in the screen as shown in Figure 5-32. The UPnP feature allows the
devices, such as Internet computers, to access the local host resources or devices as needed.
UPnP devices can be automatically discovered by the UPnP service application on the LAN.
Figure 5-32 UPnP
Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or Disable
button.
Current UPnP Settings List - This table displays the current UPnP information.
App Description - The description provided by the application in the UPnP request.
External Port - The external port the Router opens for the application.
150Mbps Wireless N Nano Router
- 83 -
Protocol - The type of protocol the Router opens for the application.
Internal Port - The Internal port the Router opens for local host.
IP Address - The IP address of the UPnP device that is currently accessing the Router.
Status - The status of the port is displayed here. “Enabled” means that the port is still
active. Otherwise, the port is inactive.
Click Refresh to update the Current UPnP Settings List.
5.9 Security

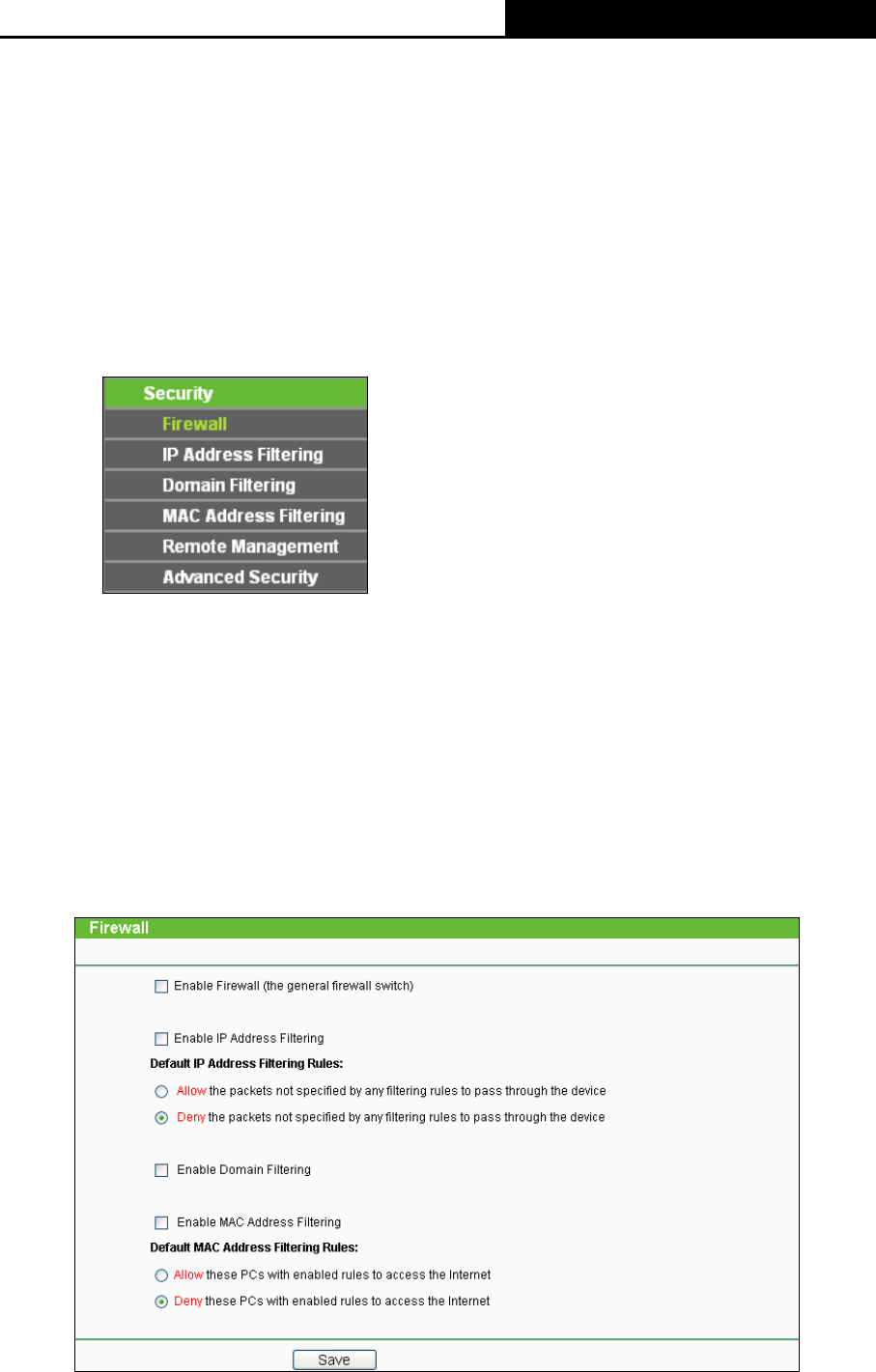

Figure 5-33 The Security menu
There are six submenus under the Security menu as shown in Figure 5-33: Firewall, IP Address
Filtering, Domain Filtering, MAC Address Filtering, Remote Management, and Advanced
Security. Click any of them, and you will be able to configure the corresponding function.
5.9.1 Firewall
Using the Firewall page, you can turn the general firewall switch on or off. The default setting for
the switch is off. If the general firewall switch is off, even if IP Address Filtering, DNS Filtering and
MAC Filtering are enabled, their settings are ineffective.
Figure 5-34 Firewall Settings
150Mbps Wireless N Nano Router
- 84 -
Enable Firewall - the general firewall switch is on or off.
Enable IP Address Filtering - set IP Address Filtering is enabled or disabled. There are two
default filtering rules of IP Address Filtering, either Allow or Deny passing through the router.
Enable Domain Filtering - set Domain Filtering is enabled or disabled.
Enable MAC Filtering - set MAC Address Filtering is enabled or disabled. You can select the
default filtering rules of MAC Address Filtering, either Allow or Deny accessing the router.
5.9.2 IP Address Filtering
The IP address Filtering feature allows you to control Internet Access by specific users on your
LAN based on their IP addresses. The IP address filtering is set on this page:
Figure 5-35 IP address Filtering
To disable the IP Address Filtering feature, keep the default setting, Disabled. To set up an IP
Address Filtering entry, click Enable Firewall and Enable IP Address Filtering on the Firewall
page, and click the Add New… button. The page "Add or Modify an IP Address Filtering entry"
will appear shown in Figure 5-36:
Figure 5-36 Add or Modify an IP Address Filtering Entry
To create or modify an IP Address Filtering entry, please follow these instructions:
150Mbps Wireless N Nano Router
- 85 -
1. Effective Time - Enter a range of time in HHMM format, which point to the range time for the
entry to take effect. For example, 0803 - 1705, the entry will take effect from 08:03 to 17:05.
2. LAN IP Address - Enter a LAN IP Address or a range of LAN IP addresses in the field, in
dotted-decimal notation format. For example, 192.168.0.20 - 192.168.0.30. Keep the field
open, which means all LAN IP Addresses have been put into the field.
3. LAN Port - Enter a LAN Port or a range of LAN ports in the field. For example, 1030 - 2000.
Keep the field open, which means all LAN ports have been put into the field.
4. WAN IP Address - Enter a WAN IP Address or a range of WAN IP Addresses in the field, in
dotted-decimal notation format. For example, 61.145.238.6 – 61.145.238.47. Keep the field
open, which means all WAN IP Addresses have been put into the field.
5. WAN Port - Enter a WAN Port or a range of WAN Ports in the field. For example, 25 – 110.
Keep the field open, which means all WAN Ports have been put into the field.
6. Protocol - Select which protocol is to be used, either TCP, UDP, or All (all protocols
supported by the router).
7. Action - Select either Allow or Deny through the router.
8. Status - Select Enabled or Disabled for this entry on the Status pull-down list.
9. Click the Save button to save this entry.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled.
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries.
You can change the entry’s order as desired. Fore entries are before hind entries. Enter the ID
number in the first box you want to move and another ID number in second box you want to move
to, and then click the Move button to change the entry’s order.
Click the Next button to the next page and click the Previous button to return to the previous
page.

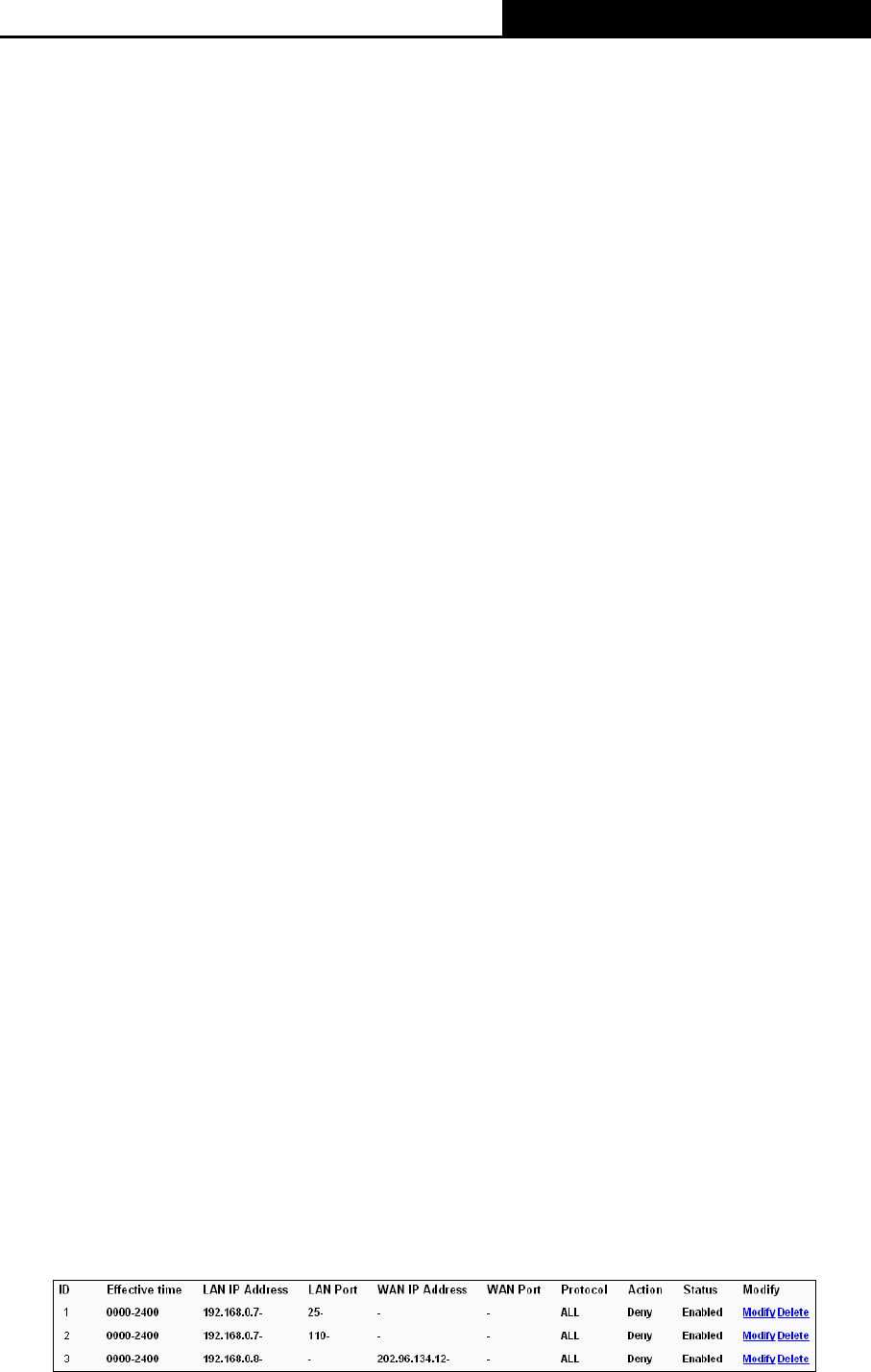

For example: If you desire to block E-mail received and sent by the IP Address 192.168.0.7 on
your local network, and to make the PC with IP Address 192.168.0.8 unable to visit the website of
IP Address 202.96.134.12, while other PC(s) have no limit you should specify the following IP
address filtering list:
150Mbps Wireless N Nano Router
- 86 -
5.9.3 Domain Filtering
The Domain Filtering page allows you to control access to certain websites on the Internet by
specifying their domains or key words.
Figure 5-37 Domain Filtering
Before adding a Domain Filtering entry, you must ensure that Enable Firewall and Enable
Domain Filtering have been selected on the Firewall page. To Add a Domain filtering entry, click
the Add New… button. The page "Add or Modify a Domain Filtering entry " will appear, shown
in Figure 5-38:
Figure 5-38 Add or Modify a Domain Filtering entry
To add or modify a Domain Filtering entry, follow these instructions:
1. Effective Time - Enter a range of time in HHMM format specifying the time for the entry to
take effect. For example, if you enter: 0803 - 1705, than the entry will take effect from 08:03 to
17:05.
2. Domain Name - Type the domain or key word as desired in the field. A blank in the domain
field means all websites on the Internet. For example: www.xxyy.com.cn, .net.
3. Status - Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save this entry.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enabled All button to make all entries enabled.
150Mbps Wireless N Nano Router
- 87 -
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
Click the Next button to go to the next page and the Previous button to return to the previous
page.

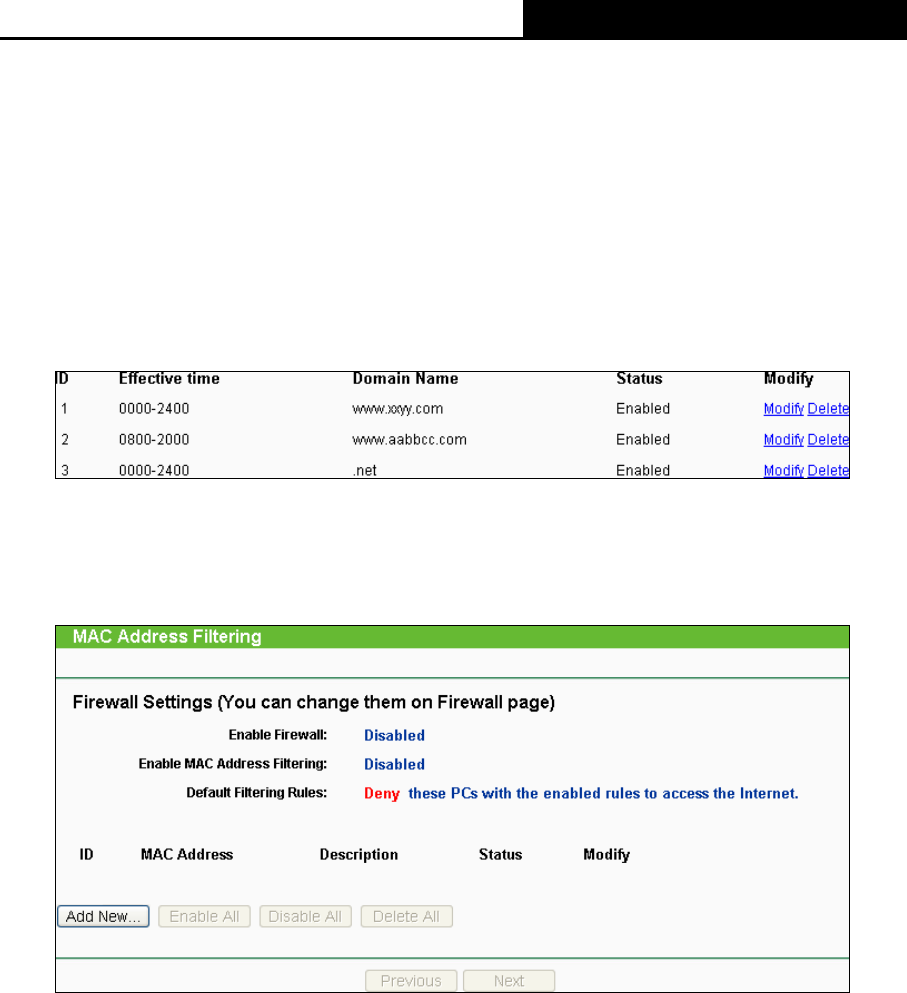

For example: if you want to block the PC(s) on your LAN to access websites www.xxyy.com.cn,
www.aabbcc.com and websites with .net in the end on the Internet while no limit for other
websites, you should specify the following Domain filtering list:
5.9.4 MAC Address Filtering
Like the IP Address Filtering page, the MAC Address Filtering page allows you to control access
to the Internet by users on your local network based on their MAC Address.
Figure 5-39 MAC address Filtering
Before setting up MAC Filtering entries, you must ensure that Enable Firewall and Enable MAC
Filtering have been selected on the Firewall page. To Add a MAC Address filtering entry, clicking
the Add New… button. The page "Add or Modify a MAC Address Filtering entry" will appear,
shown in Figure 5-40:
150Mbps Wireless N Nano Router
- 88 -
Figure 5-40 Add or Modify a MAC Address Filtering entry
To add or modify a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:
00-0E-AE-B0-00-0B.
2. Type the description of the PC in the Description field. Fox example: John’s PC.
3. Status - Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save this entry.
To add additional entries, repeat steps 1-4.
When finished, click the Return button to return to the MAC Address Filtering page.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled.
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
Click the Next button to go to the next page and click the Previous button to return to the previous
page.
Fox example: If you want to block the PC with MAC addresses 00-0A-EB-00-07-BE and
00-0A-EB-00-07-5F to access the Internet, first, enable the Firewall and MAC Address Filtering
on the Firewall page, then, you should specify the Default MAC Address Filtering Rule "Deny
these PC(s) with effective rules to access the Internet" on the Firewall page and the following
MAC address filtering list on this page:
150Mbps Wireless N Nano Router
- 89 -
5.9.5 Remote Management
You can configure the Remote Management function on this page. This feature allows you to
manage your Router from a remote location, via the Internet.
Figure 5-41 Remote Management
Web Management Port - Web browser access normally uses the standard HTTP service
port 80. This router’s default remote management Web port number is 80. For greater
security, you can change the remote management Web interface to a custom port by
entering that number in this box provided. Choose a number between 1024 and 65534, but
do not use the number of any common service port.
Remote Management IP Address - This is the current address you will use when
accessing your router from the Internet. The default IP Address is 0.0.0.0. It means this
function is disabled. To enable this function, change the default IP Address to another IP
Address as desired.
To access the router, you will type your router's WAN IP Address into your browser's Address (in
IE) or Location (in Navigator) box, followed by a colon and the custom port number. For example,
if your Router's WAN address is 202.96.12.8 and you use port number 8080, enter in your
browser: http://202.96.12.8:8080. You will be asked for the router's password. After successfully
entering the password, you will be able to access the router's Web-based utility.
Note:
Be sure to change the router's default password to a very secure password.
5.9.6 Advanced Security
Using Advanced Security page, you can protect the router from being attacked by TCP-SYN
Flood, UDP Flood and ICMP-Flood from LAN.
150Mbps Wireless N Nano Router
- 90 -
Figure 5-42 Advanced Security settings
Packets Statistic interval (5 ~ 60) - The default value is 10. Select a value between 5 and
60 seconds in the pull-down list. The Packets Statistic interval value indicates the time
section of the packets statistic. The result of the statistic used for analysis by SYN Flood,
UDP Flood and ICMP-Flood.
DoS protection - Enable or Disable the DoS protection function. Only when it is enabled,
will the flood filters be effective.
Enable ICMP-FLOOD Attack Filtering - Enable or Disable the ICMP-FLOOD Attack
Filtering.
ICMP-FLOOD Packets threshold: (5 ~ 3600) - The default value is 50. Enter a value
between 5 ~ 3600 packets. When the current ICMP-FLOOD Packets numbers is beyond the
set value, the router will start up the blocking function immediately.
Enable UDP-FLOOD Filtering - Enable or Disable the UDP-FLOOD Filtering.
UDP-FLOOD Packets threshold: (5 ~ 3600) - The default value is 50. Enter a value
between 5 ~ 3600 packets. When the current UPD-FLOOD Packets numbers is beyond the
set value, the router will start up the blocking function immediately.
Enable TCP-SYN-FLOOD Attack Filtering - Enable or Disable the TCP-SYN- FLOOD
Attack Filtering.
TCP-SYN-FLOOD Packets threshold: (5 ~ 3600) - The default value is 50. Enter a value
between 5 ~ 3600 packets. When the current TCP-SYN-FLOOD Packets numbers is
beyond the set value, the router will start up the blocking function immediately.
150Mbps Wireless N Nano Router
- 91 -
Ignore Ping Packet from WAN Port - Enable or Disable ignore ping packet from WAN port.
The default is disabled. If enabled, the ping packet from the Internet cannot access the
router.
Forbid Ping Packet from LAN Port - Enable or Disable forbidding Ping Packet to access
the router from the LAN port. The default value is disabled. If enabled, the ping packet from
the LAN port cannot access the router. (Defends against some viruses)
Click the Save button to save the settings.
Click the Blocked DoS Host Table button to display the DoS host table by blocking. The page will
appear:

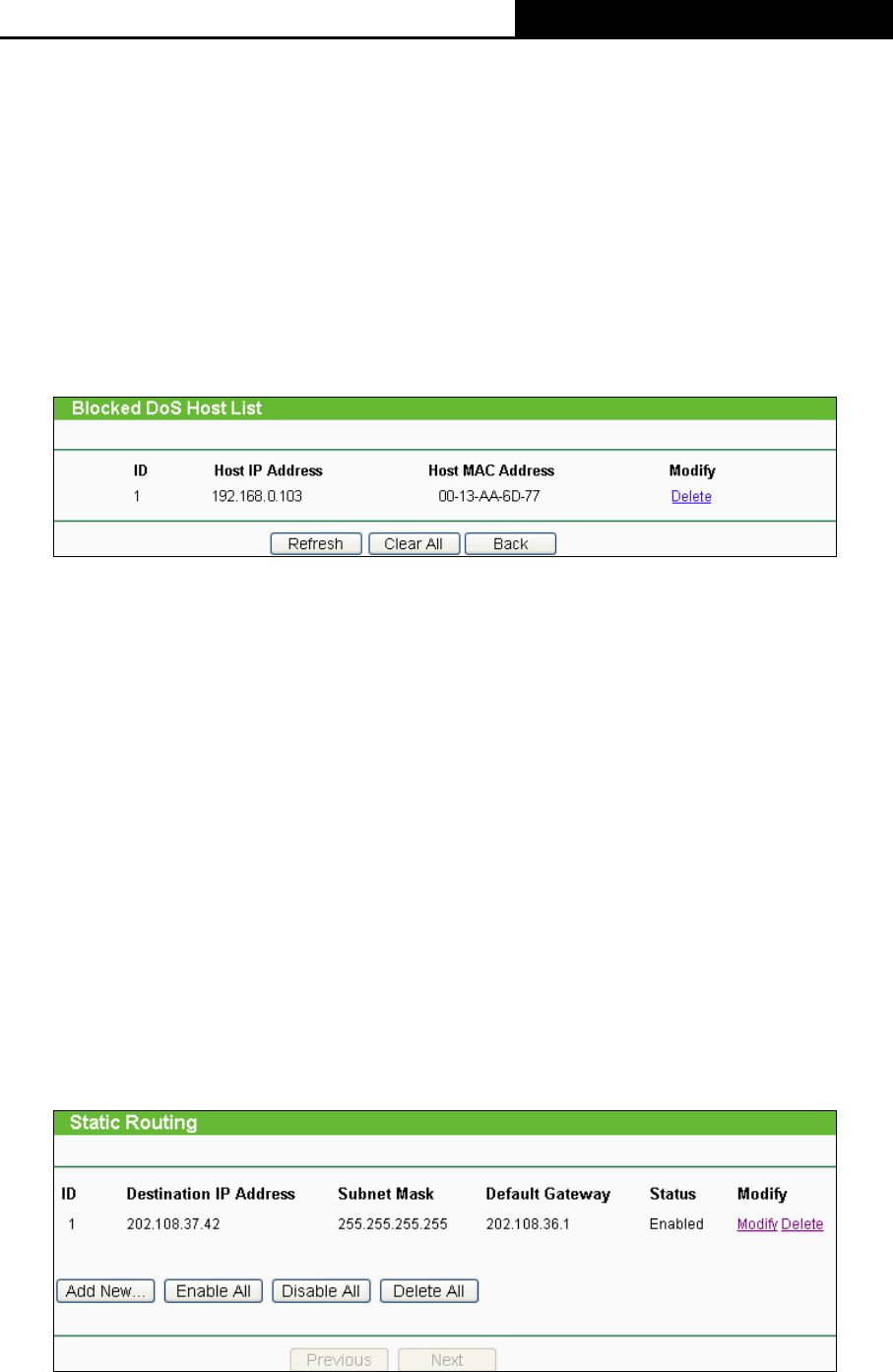

Figure 5-43 Blocked DoS Host Table
This page shows Host IP Address and Host MAC Address for each host blocked by the router.
Host IP Address- The IP address that blocked by DoS are displayed here.
Host MAC Address - The MAC address that blocked by DoS are displayed here.
To update this page and to show the current blocked host, click on the Refresh button.
Click the Clear All button to clear all displayed entries. After the table is empty the blocked host
will regain the capability to access Internet.
Click the Return button to return to the Advanced Security page.
5.10 Static Routing
A static route is a pre-determined path that network information must travel to reach a specific
host or network. To add or delete a route, work in the area under the Static Routing page.
Figure 5-44 Static Routing
150Mbps Wireless N Nano Router
- 92 -
To add static routing entries:
1. Click the Add New button.
2. Enter the following data:
Destination IP Address - The Destination IP Address is the address of the network or host
that you want to assign to a static route.
Subnet Mask - The Subnet Mask determines which portion of an IP Address is the network
portion, and which portion is the host portion.
Gateway - This is the IP Address of the gateway device that allows for contact between the
router and the network or host.
3. Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save it.
Figure 5-45 Add or Modify a Static Route Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled.
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
5.11 IP QoS
You can configure the IP QoS function on this page.
150Mbps Wireless N Nano Router
- 93 -

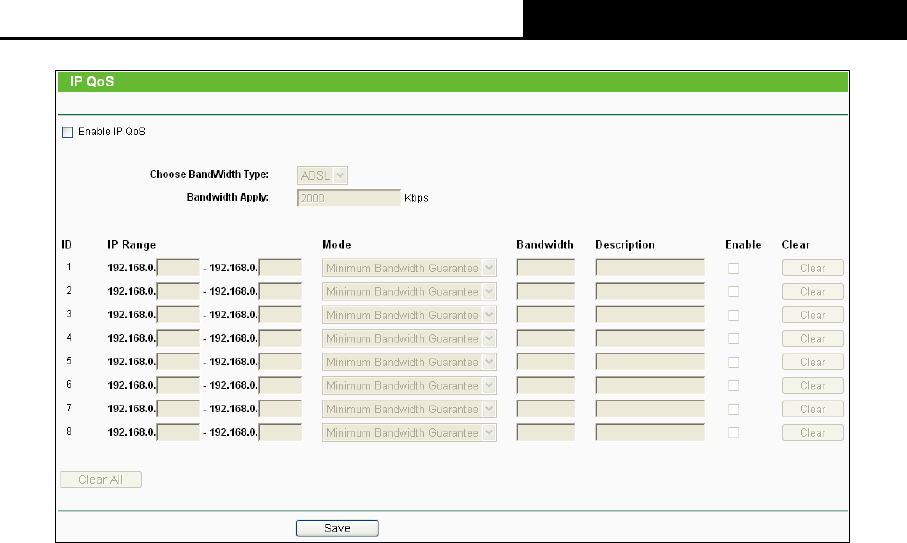

Figure 5-46 IP QoS
Enable IP QoS - Enable or disable the function of IP QoS.
Choose BandWidth Type - Select the network connection type from the drop-down list.
Bandwidth Apply - The bandwidth you get. If you are not clear about that, please contact
with your ISP for help.
IP Range - IP range of this entry.
Mode - There are two types of mode: Minimum Bandwidth Guarantee and Maximum
Bandwidth Limit.
Bandwidth - The bandwidth you supply to this entry.
Description - The description for this entry.
Click Enable to enable this entry.
Click the Clear button to clear a single entry.
Click the Clear All button to clear all entries.
Click the Save button to save all configurations.
Note:
1. The conversion relation of bandwidth: 1Mbps = 1000Kbps.
2. Please choose the Network Connection Type and set the bandwidth according to your
Network. If you are not clear about that, please contact with your ISP for help.
3. If no IP QoS item is enabled, the Bandwidth Apply won't be effective.
150Mbps Wireless N Nano Router
- 94 -
4. IP address range for different entries could not have intersection with each other.
5. After the configurations, click the Save button for the change to take effect.
5.12 IP & MAC Binding Setting

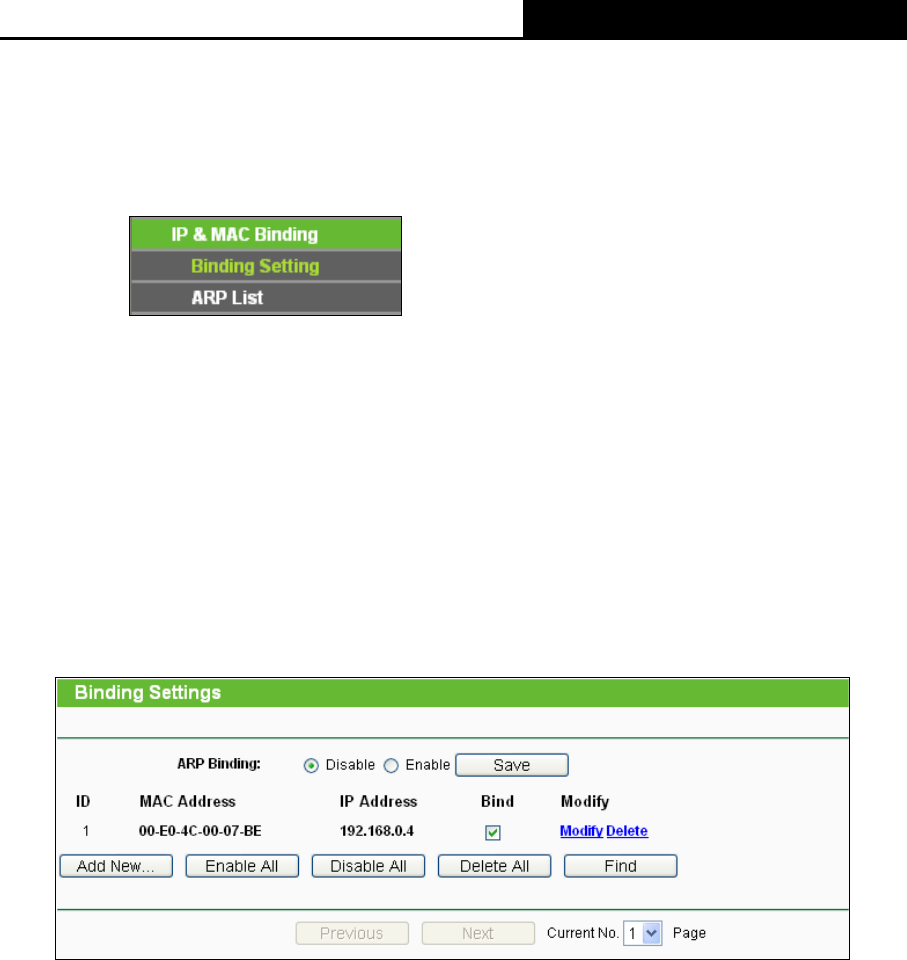

Figure 5-47 the IP & MAC Binding menu
There are two submenus under the IP & MAC Binding menu: Binding Setting and ARP List.
Click any of them, and you will be able to scan or configure the corresponding function. The
detailed explanations for each submenu are provided below.
5.12.1 Binding Setting
This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire.
Figure 5-48 IP & MAC Binding Setting
MAC Address - The MAC address of the controlled computer in the LAN.
IP Address - The assigned IP address of the controlled computer in the LAN.
Bind - Whether or not enable the ARP binding.
Modify - Edit or delete item.
When you want to add or modify an IP & MAC Binding entry, you can click the Add New button
or Modify button, and then you will go to the next page. This page is used for adding or
modifying an IP & MAC Binding entry.
150Mbps Wireless N Nano Router
- 95 -

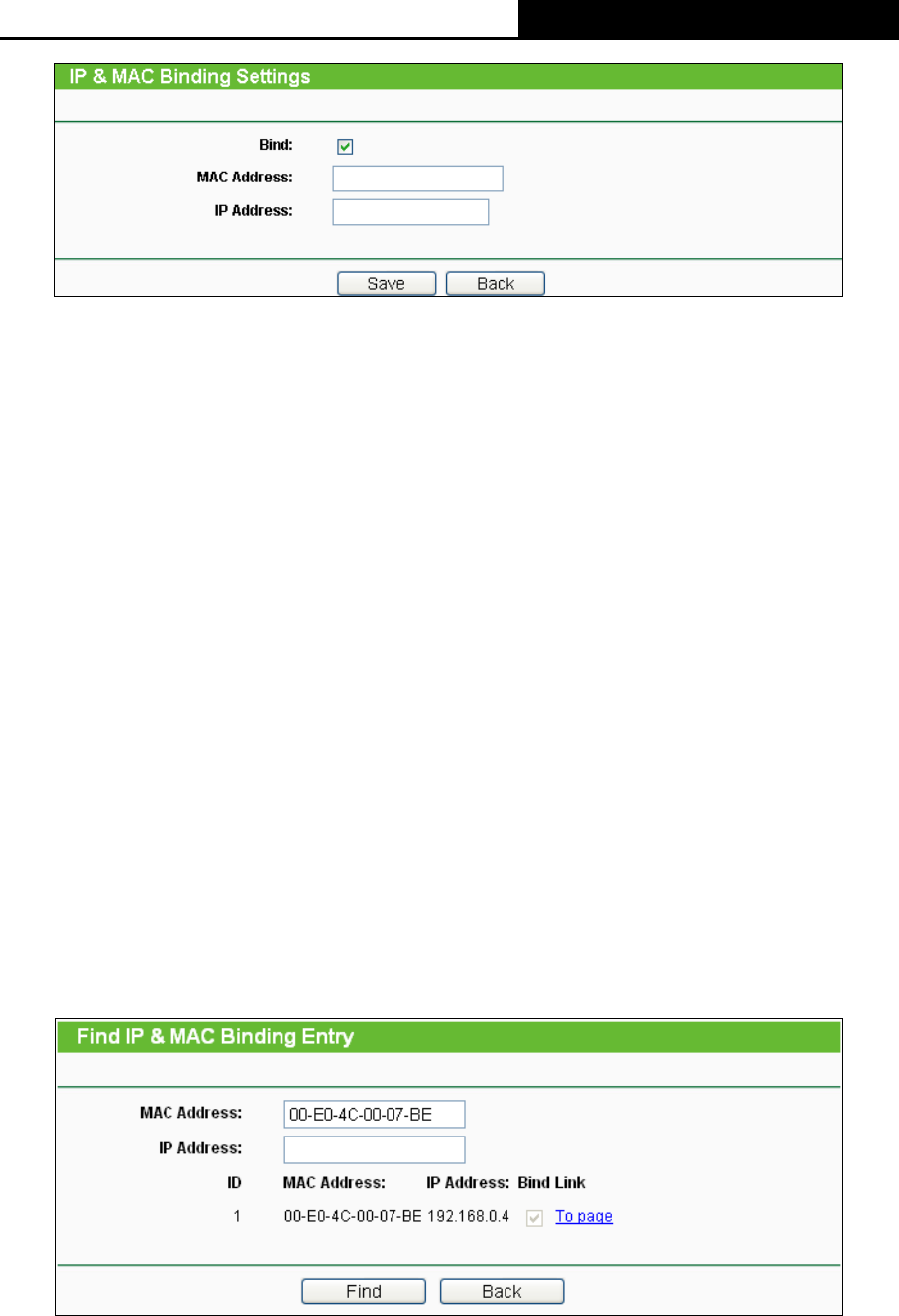

Figure 5-49 IP & MAC Binding Setting (Add & Modify)
To add IP & MAC Binding entries:
1. Click the Add New.. button.
2. Enter the MAC Address and IP Address.
3. Select the Bind checkbox.
4. Click the Save button to save it.
To modify or delete an existing entry:
1. Find the desired entry in the table.
2. Click Modify or Delete as desired on the Modify column.
To find an existing entry:
1. Click the Find button (shown in Figure 5-48).
2. Enter the MAC Address or IP Address.
3. Enter the Find button in the next page (shown in Figure 5-50).
Figure 5-50 Find IP & MAC Binding Entry
Click the Enable All button to make all entries enabled.
150Mbps Wireless N Nano Router
- 96 -
Click the Delete All button to delete all entries.
5.12.2 ARP List
To manage the computer, you could observe the computers in the LAN by checking the
relationship of MAC address and IP address on the ARP list, and you could configure the items on
the ARP list also. This page displays the ARP List; it shows all the existing IP & MAC Binding
entries.

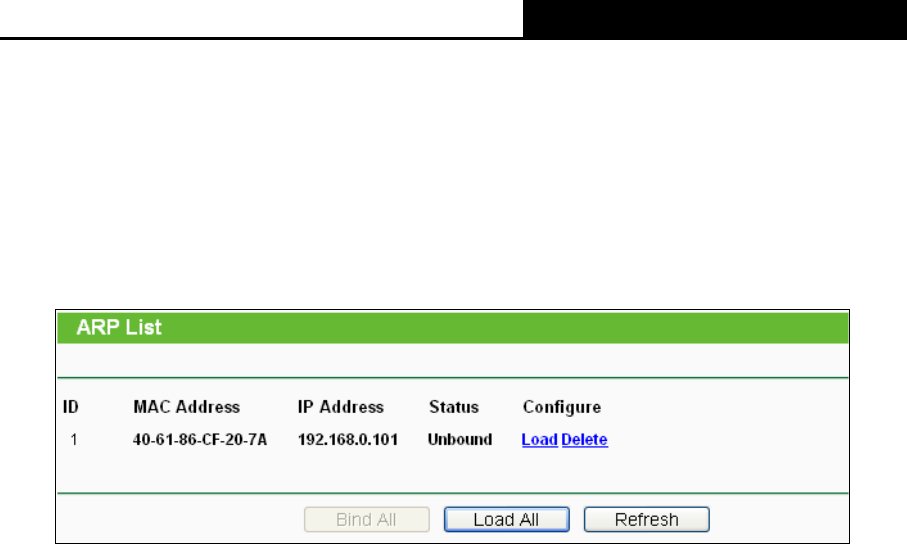

Figure 5-51 ARP List
MAC Address - The MAC address of the controlled computer in the LAN.
IP Address - The assigned IP address of the controlled computer in the LAN.
Status - Enabled or Disabled of the MAC address and IP address binding.
Configure - Load or delete item.
Load - Load the item to the IP & MAC Binding list.
Delete - Delete the item.
1. Click the Bind All button to bind all the current items, available after enable.
2. Click the Load All button to load all items to the IP & MAC Binding list.
3. Click the Refresh button to refresh all items.
Note:
An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been
loaded before. Error warning will prompt as well. Likewise, "Load All" only loads the items without
interference to the IP & MAC Binding list.
5.13 Dynamic DNS
The router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed
host and domain name to a dynamic Internet IP Address. It is useful when you are hosting your
own website, FTP server, or other server behind the router. Before using this feature, you need to
150Mbps Wireless N Nano Router
- 97 -
sign up for DDNS service providers such as www.dyndns.org, www.oray.net or www.comexe.cn.
The Dynamic DNS client service provider will give you a password or key.
5.13.1 Oray.net DDNS
If your selected dynamic DNS Service Provider is www.oray.net, the page will appear as shown
in Figure 5-52:

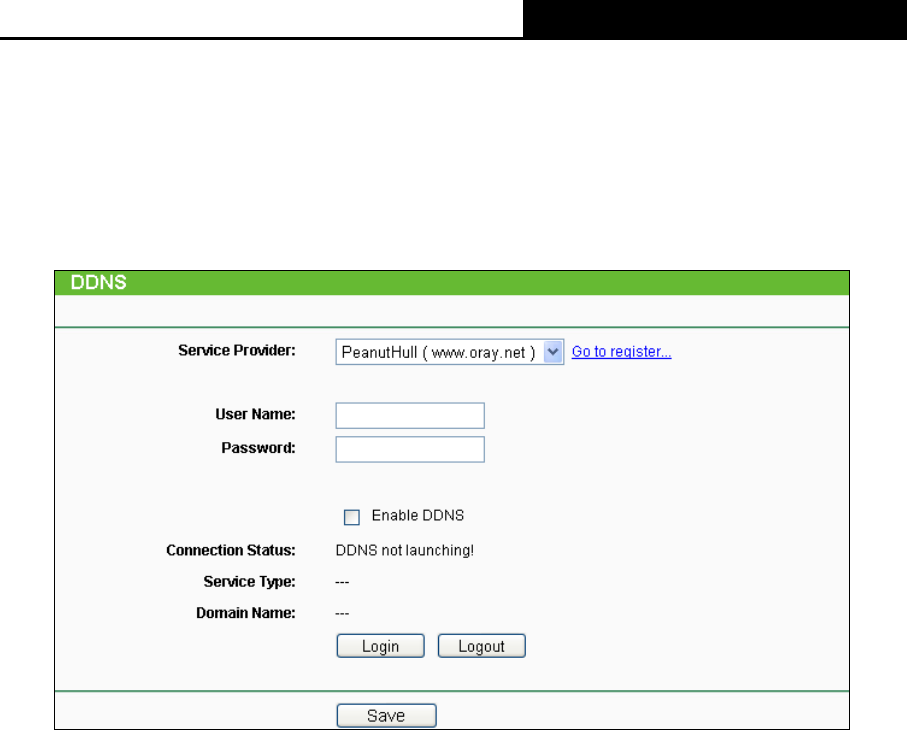

Figure 5-52 Oray.net DDNS Settings
To set up for DDNS, follow these instructions:
1. Type the User Name for your DDNS account.
2. Type the Password for your DDNS account.
3. Click the Login button to login the DDNS service.
Connection Status - The status of the DDNS service connection is displayed here.
Domain Name - The domain names are displayed here.
Click Logout to logout the DDNS service.
150Mbps Wireless N Nano Router
- 98 -
5.14 System Tools

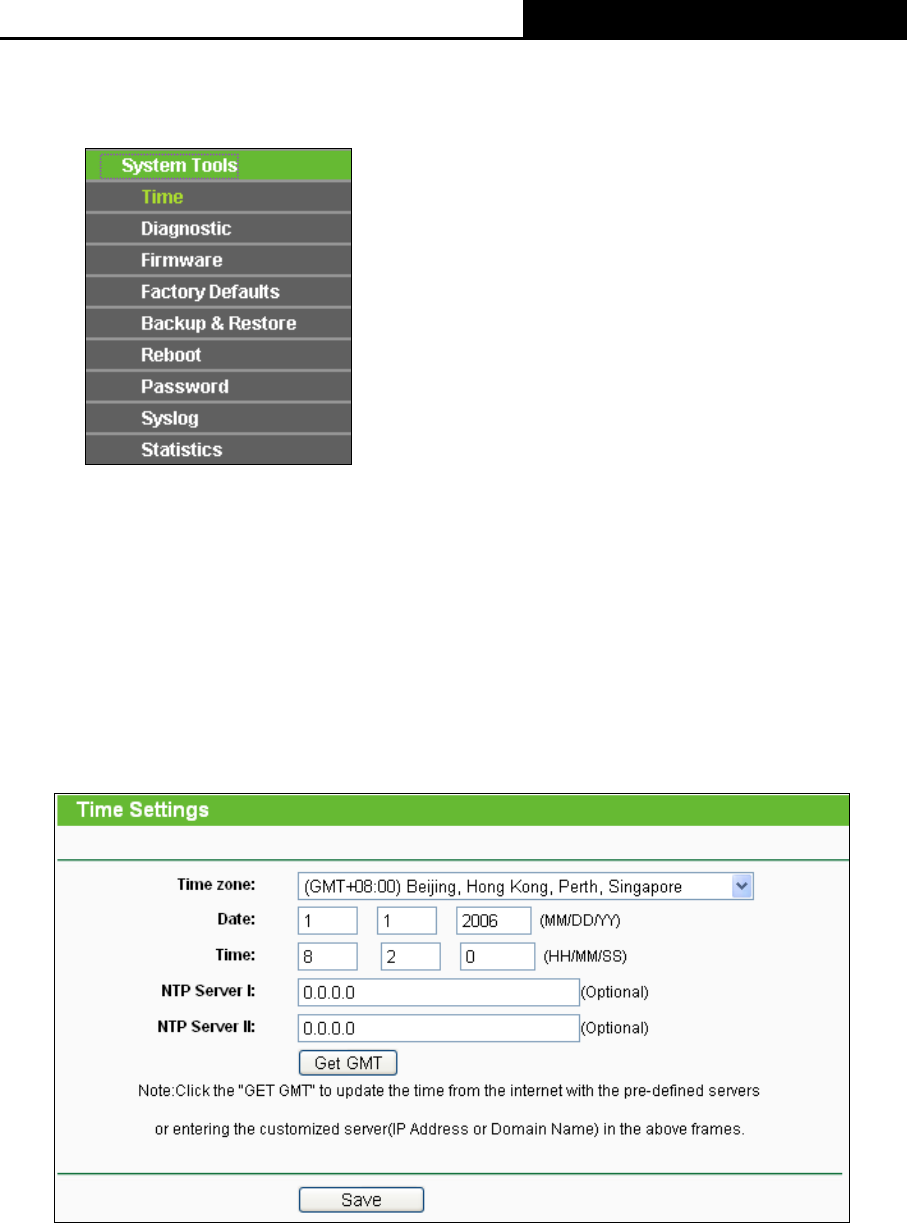

Figure 5-53 The System Tools menu
There are nine submenus under the System Tools menu: Time, Diagnostic, Firmware, Factory
Defaults, Backup and Restore, Reboot, Password, Log and Statistics. Click any of them, and
you will be able to configure the corresponding function. The detailed explanations for each
submenu are provided below.
5.14.1 Time
You can set time manually or get GMT from the Internet for the router on this page:
Figure 5-54 Time settings
Time Zone - Select your local time zone from this pull-down list.
Date - Enter your local date in MM/DD/YY into the right blanks.
Time - Enter your local time in HH/MM/SS into the right blanks.
150Mbps Wireless N Nano Router
- 99 -
To set time manually, follow the steps below:
1. Select your local time zone.
2. Enter the Date in Month/Day/Year format.
3. Enter the Time in Hour/Minute/Second format.
4. Click Save.
For automatic time synchronization:
1. Enter the address of the NTP Server I or NTP Server II.
2. Click the Get GMT button to get GMT time from Internet if you have connected to Internet.
Note:
This setting will be used for some time-based functions such as firewall. You must specify your
time zone once you login to the router successfully, if not, the time limited on these functions will
not take effect.
The time will be lost if the router is turned off.
The router will obtain GMT automatically from Internet if it has already connected to
Internet.
5.14.2 Diagnostic
Choose menu “System Tools → Diagnostic”, you can transact Ping or Traceroute function to
check connectivity of your network in the following screen.
150Mbps Wireless N Nano Router
- 100 -
Figure 5-55 Diagnostic Tools
Diagnostic Tool - Check the radio button to select one diagnostic too.
Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a connection.
Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not,
you might have a name resolution problem. In this case, ensure that the domain name you are
specifying can be resolved by using Domain Name System (DNS) queries.
IP Address/Domain Name - Type the destination IP address (such as 202.108.22.5) or
Domain name (such as www.baidu.com).
Pings Count - The number of Ping packets for a Ping connection.
Ping Packet Size - The size of Ping packet.
Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in
the specified time, the connection is overtime.
150Mbps Wireless N Nano Router
- 101 -
Traceroute Max TTL - The max number of hops for a Traceroute connection.
Click Start to check the connectivity of the Internet.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure 5-56 Diagnostic Results
Note:
Only one user can use this tool at one time. "Ping Count", "Ping Packet Size" and "Ping Timeout"
are Ping Parameters. "Traceroute Max TTL" is Traceroute Parameter.
5.14.3 Firmware
The page allows you to upgrade the latest version firmware to keep your router up-to-date.
Figure 5-57 Firmware Upgrade
New firmware is posted at http://www.tp-link.com and can be downloaded for free. If the router is
not experiencing difficulties, there is no need to upgrade firmware, unless the new firmware
supports a new feature you need.
Note:
1. When you upgrade the router's firmware, you will lose current configuration settings, so make
sure you backup the router’s settings before you upgrade its firmware.
150Mbps Wireless N Nano Router
- 102 -
2. Make sure that your computer is connected to the Internet through the cable when you
upgrade the firmware. To upgrade through wireless connection is not allowed.
3. Set your IP address as static IP before upgrading.
To upgrade the router's firmware, follow these instructions:
1. Download the latest firmware upgrade file from the TP-LINK website http://www.tp-link.com.
2. Enter or select the path name where you save the downloaded file on the computer into the
File blank.
3. Click the Upgrade button.
Firmware Version - Displays the current firmware version.
Hardware Version - Displays the current hardware version. The hardware version of the
upgrade file must accord with the current hardware version.
Note:
The firmware version must correspond to the hardware. The upgrade process takes a few minutes
and the Router will restart automatically when the upgrade is completed. It is important to keep
power on during the entire process. Loss of power during the upgrade could damage the Router.
5.14.4 Factory Defaults
This page allows you to restore the factory default settings for the router.
Figure 5-58 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
The default User Name: admin
The default Password: admin
The default access: tplinklogin.net
Note:
Any settings you have saved will be lost when the default settings are restored.
5.14.5 Backup & Restore
This page allows you to save current configuration of router as backup or restore the configuration
file you saved before.
150Mbps Wireless N Nano Router
- 103 -
Figure 5-59 Backup & Restore Configuration
Click the Backup button to save all configuration settings as a backup file in your local
computer.
To restore the router's configuration, follow these instructions:
Click the Browse button to select the backup file which you want to restore.
Click the Restore button.
Note:
The current configuration will be covered with the uploading configuration file. The restoration
process lasts for 20 seconds and the router will restart automatically. Keep the router on during the
restoring process to prevent any damage.
5.14.6 Reboot
This page allows you to reboot the router.
Figure 5-60 Reboot the router
Click the Reboot button to reboot the router.
Some settings of the router will take effect only after rebooting, which include:
Change LAN IP Address. (System will reboot automatically)
MAC Clone (system will reboot automatically)
DHCP service function.
Static address assignment of DHCP server.
Web Service Port of the router.
Upgrade the firmware of the router (system will reboot automatically).
Restore the router's settings to factory default (system will reboot automatically).
150Mbps Wireless N Nano Router
- 104 -
5.14.7 Password
This page allows you to change the factory default user name and password of the router.
Figure 5-61 Password
It is recommended strongly that you change the factory default user name and password of the
router. All users who try to access the router's Web-based utility or Quick Setup will be prompted
Note:
The new user name and password must not exceed 14 characters in length and must not include
any spaces. Enter the new Password twice to confirm it.
Click the Save button when finished.
Click the Clear All button to clear all.
5.14.8 System Log
This page allows you to query the logs of the router.
Figure 5-62 System Log
The router can keep logs of all traffic. You can query the logs to find what happened to the router.
150Mbps Wireless N Nano Router
- 105 -
Click the Refresh button to refresh the logs.
Click the Clear All button to clear all the logs.
5.14.9 Statistics
The Statistics page displays the network traffic of each PC in LAN, including total traffic and traffic
of the last Packets Statistic interval seconds.

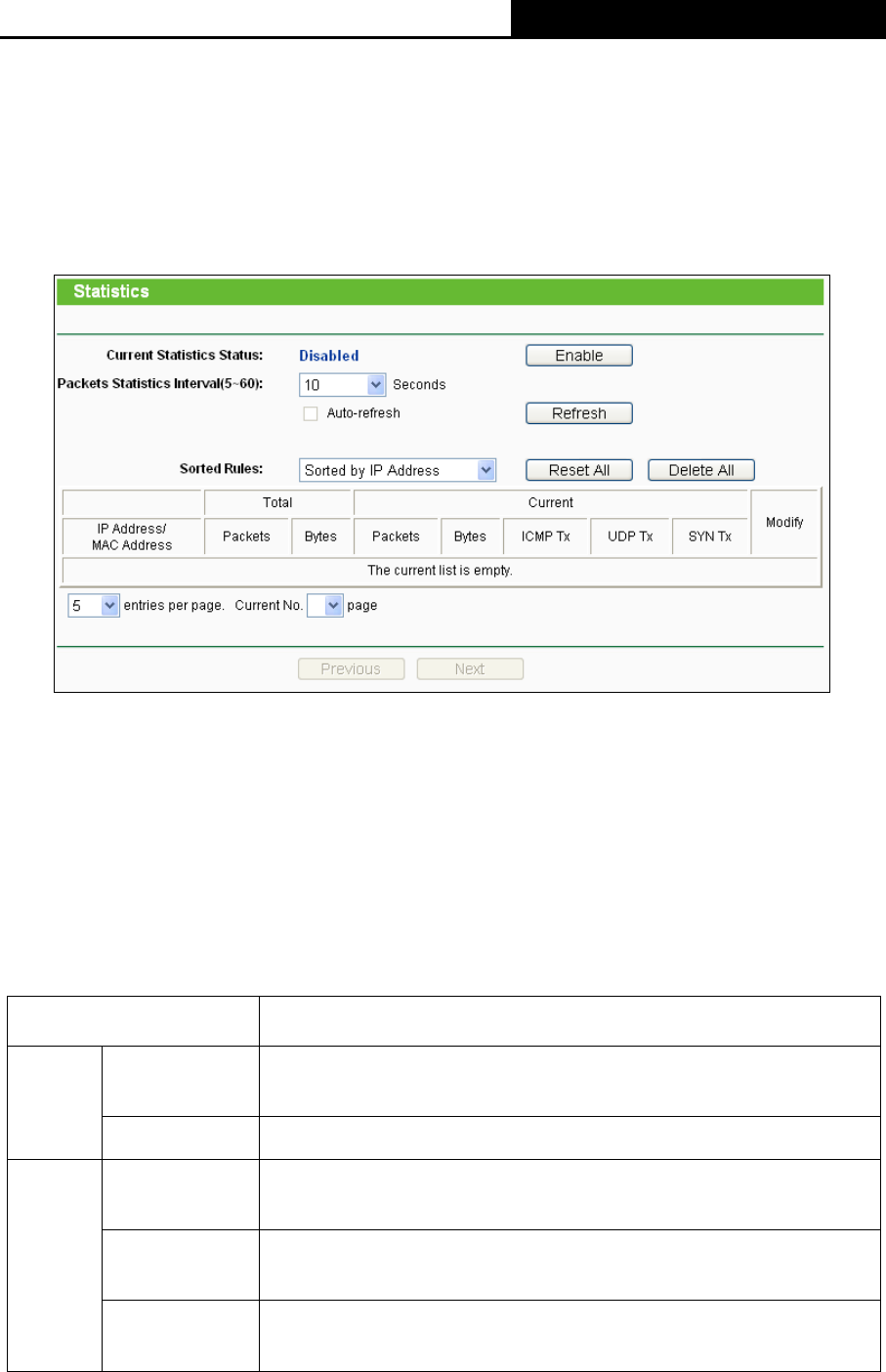

Figure 5-63 Statistics
Current Statistics Status - Enable or Disable. The default value is disabled. To enable, click
the Enable button. If disabled, the function of DoS protection in Security settings will be
ineffective.
Packets Statistics Interval - The default value is 10. Select a value between 5 and 60
seconds in the pull-down list. The Packets Statistic interval indicates the time section of the
packets statistic.
Sorted Rules - Here displays sort as desired.
Statistics Table:
IP Address
The IP Address displayed with statistics
Total
Packets
The total amount of packets received and transmitted by the
router.
Bytes
The total amount of bytes received and transmitted by the router.
Current
Packets
The total amount of packets received and transmitted in the last
Packets Statistic interval seconds.
Bytes
The total amount of bytes received and transmitted in the last
Packets Statistic interval seconds.
ICMP Tx
The total amount of the ICMP packets transmitted to WAN in the
last Packets Statistic interval seconds.
150Mbps Wireless N Nano Router
- 106 -
UDP Tx
The total amount of the UDP packets transmitted to WAN in the
last Packets Statistic interval seconds.
TCP SYN Tx
The total amount of the TCP SYN packets transmitted to WAN in
the last Packets Statistic interval seconds.
Click the Save button to save the Packets Statistic interval value.
Click the Auto-refresh checkbox to refresh automatically.
Click the Refresh button to refresh immediately.
150Mbps Wireless N Nano Router
- 107 -
Chapter 6. Configuration for Repeater Mode
This chapter will show each Web page's key functions and the configuration way for Repeater
Mode of TL-WR702N.
6.1 Login
After your successful login, you can configure and manage the device. There are main menus on
the left of the web-based utility. Submenus will be available after you click one of the main menus.
On the right, there are the corresponding explanations and instructions.
Figure 6-1
The detailed explanations for each Web page’s key function are listed below.
6.2 Status
The Status page provides the current status information about the Router on Repeater Mode. All
information is read-only.
150Mbps Wireless N Nano Router
- 108 -
Figure 6-2 Status
Firmware Version - The version information of the Router’s firmware.
Hardware Version - The version information of the Router’s hardware.
LAN - This field displays the current settings or information for the LAN, you can configure
them in the Network > LAN page.
MAC address - The physical address of the Router, as seen from the LAN.
IP address - The LAN IP address of the Router.
Subnet Mask - The subnet mask associated with LAN IP address.
Wireless - This field displays basic information or status for wireless function, you can
configure them in the Wireless > Wireless Settings page.
Wireless Mode - The current wireless working mode in use.
Name (SSID) - The SSID of Root AP.
MAC address - The physical address of the Router, as seen from the WLAN.
System Up Time - The length of the time since the Router was last powered on or reset.
Click the Refresh button to get the latest status and settings of the Router.
6.3 Quick Setup
Please refer to Section 3.2: "Quick Installation Guide."
150Mbps Wireless N Nano Router
- 109 -
6.4 Working Mode
The Router supports five operation mode types: AP, Router, Repeater, Bridge and Client.
Please select one your want. Click Save to save your choice, which is shown as Figure 4-3.
Figure 6-3 Working Mode
AP - The wireless access point mode.
Router - The wireless Router Mode. In this mode, the device enables multi-user to share
Internet via DSL/Cable Modem. The only wired port works as WAN.
Repeater - The wireless Repeater Mode. It could extend the range of wireless network.
Bridge - The wireless Bridge Mode. It could communicate with another wireless network.
Client - The Client Mode. The computer connected by Ethernet could get access to an AP by
Client mode.
Click OK in the following screen and then the Router will reboot and to work on Repeater Mode.
Figure 6-4
6.5 Network
Figure 6-5 the Network menu
There is only one submenu under the Network menu (shown in Figure 6-5): LAN.
150Mbps Wireless N Nano Router
- 110 -
6.5.1 LAN
Choose menu “Network → LAN”, and then you can configure the IP parameters of the LAN on
the screen as below.
Figure 6-6 LAN
MAC Address - The physical address of the LAN ports, as seen from the LAN. The value
can't be changed.
IP Address - Enter the IP address of your Router in dotted-decimal notation (factory default:
192.168.0.254).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Note:
1. If you change the IP Address of LAN, you must use the new IP Address to login to the Router.
2. If the new LAN IP Address you set is not in the same subnet with the previous one, the IP
Address pool in the DHCP server will be configured automatically，while the Virtual Server and
DMZ Host will not take effect until they are re-configured.
6.6 Wireless
Figure 6-7 Wireless menu
There is one submenu under the Wireless menu (shown in Figure 6-7): Wireless Settings. Click
it, and you will be able to configure the corresponding function.
6.6.1 Wireless Settings
Choose menu “Wireless → Wireless Settings”, and then you can configure the basic settings
for the wireless network on this page.
150Mbps Wireless N Nano Router
- 111 -
Figure 6-8 Wireless Settings - Repeater
SSID - The SSID of AP that you want to access.
MAC of AP - The MAC address of AP that you want to access.
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Survey - Click this button, you can search the AP which runs in the environment.
Security Options - This option should be chosen according to the security configuration of
the AP you want to access. It is recommended that the security type is the same as your AP’s
security type.
WEP Key Index - This option should be chosen if the key type is WEP (ASCII) or WEP (HEX).
It indicates the index of the WEP key.
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authentication type of the Root AP.
Password - If the AP your router is going to connect need password, you need to fill the
password in this blank.
Be sure to click the Save button to save your settings on this page.
Note:
1. The operating distance or range of your wireless connection varies significantly based on the
physical placement of the Router. For best results, place your Router.
150Mbps Wireless N Nano Router
- 112 -
Near the center of the area in which your wireless stations will operate.
In an elevated location such as a high shelf.
Away from the potential sources of interference, such as PCs, microwaves, and cordless
phones.
Away from large metal surfaces.
2. Failure to follow these guidelines can result in significant performance degradation or inability
to wirelessly connect to the Router.
6.7 DHCP
Figure 6-9 The DHCP menu
There are three submenus under the DHCP menu (shown in Figure 6-9), DHCP Settings, DHCP
Clients List and Address Reservation. Click any of them, and you will be able to configure the
corresponding function.
6.7.1 DHCP Settings
Choose menu “DHCP → DHCP Settings”, and then you can configure the DHCP Server on the
page as shown in Figure 6-10. The Router is set up by default as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are
connected to the Router in the LAN.
150Mbps Wireless N Nano Router
- 113 -
Figure 6-10 DHCP Settings
DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must
have another DHCP server within your network or else you must configure the computer
manually.
Start IP Address - Specify an IP address for the DHCP Server to start with when assigning
IP addresses. 192.168.0.100 is the default start address.
End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP
addresses. 192.168.0.199 is the default end address.
Address Lease Time - The Address Lease Time is the amount of time a network user will
be allowed connection to the Router with their current dynamic IP Address. Enter the
amount of time in minutes and the user will be "leased" this dynamic IP Address. After the
time is up, the user will be automatically assigned a new dynamic IP address. The range of
the time is 1 ~ 2880 minutes. The default value is 120 minutes.
Default Gateway (Optional) - It is suggested to input the IP address of the LAN port of the
Router. The default value is 192.168.0.254.
Default Domain (Optional) - Input the domain name of your network.
Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your
ISP.
Secondary DNS (Optional) - Input the IP address of another DNS server if your ISP
provides two DNS servers.
Note:
150Mbps Wireless N Nano Router
- 114 -
To use the DHCP server function of the Router, you must configure all computers on the LAN as
"Obtain an IP Address automatically".
6.7.2 DHCP Clients List
Choose menu “DHCP → DHCP Clients List”, and then you can view the information about the
clients attached to the Router in the screen as shown in Figure 6-11.
Figure 6-11 DHCP Clients List
Client Name - The name of the DHCP client
MAC Address - The MAC address of the DHCP client
Assigned IP - The IP address that the Router has allocated to the DHCP client
Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
6.7.3 Address Reservation
Choose menu “DHCP → Address Reservation”, and then you can view and add a reserved
address for clients via the next screen (shown in Figure 6-12).When you specify a reserved IP
address for a PC on the LAN, that PC will always receive the same IP address each time when it
accesses the DHCP server. Reserved IP addresses should be assigned to the servers that
require permanent IP settings.
Figure 6-12 Address Reservation
150Mbps Wireless N Nano Router
- 115 -
MAC Address - The MAC address of the PC for which you want to reserve an IP address.
Reserved IP Address - The IP address reserved for the PC by the Router.
Status - The status of this entry either Enabled or Disabled.
To Reserve an IP address:
1. Click the Add New… button. Then Figure 4-18 will pop-up.
2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format) and IP address (in dotted-decimal
notation) of the computer for which you want to reserve an IP address.
3. Click the Save button.
Figure 6-13 Add or Modify an Address Reservation Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable/Disabled All button to make all entries enabled/disabled.
Click the Delete All button to delete all entries.
Click the Next button to go to the next page and Click the Previous button to return the previous
page.
150Mbps Wireless N Nano Router
- 116 -
6.8 System Tools
Figure 6-14 The System Tools menu
Choose menu “System Tools”, and then you can see the submenus under the main menu:
Diagnostic, Firmware, Factory Defaults, Backup & Restore, Reboot, Password, and System
Log. Click any of them, and you will be able to configure the corresponding function. The detailed
explanations for each submenu are provided below.
6.8.1 Diagnostic
Choose menu “System Tools → Diagnostic”, and then you can transact Ping or Traceroute
function to check connectivity of your network in the following screen.
Figure 6-15 Diagnostic Tools
150Mbps Wireless N Nano Router
- 117 -
Diagnostic Tool - Check the radio button to select one diagnostic tool.
Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a connection.
Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not,
you might have a name resolution problem. In this case, ensure that the domain name you are
specifying can be resolved by using Domain Name System (DNS) queries.
IP Address/Domain Name - Type the destination IP address (e.g. 202.108.22.5) or Domain
name (e.g. http://www.tp-link.com).
Pings Count - The number of Ping packets for a Ping connection. The default is 4.
Ping Packet Size - The size of Ping packet. The default is 64.
Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in
the specified time, the connection is overtime. The default is 800.
Traceroute Max TTL - The max number of hops for a Traceroute connection. The default is
20.
Click Start to check the connectivity of the Internet.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure 6-16 Diagnostic Results
Note:
Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping
Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function.
6.8.2 Firmware
Choose menu “System Tools → Firmware Upgrade”, and then you can update the latest
version of firmware for the Router on the following screen.
150Mbps Wireless N Nano Router
- 118 -
Figure 6-17 Firmware Upgrade
Firmware Version - This displays the current firmware version.
Hardware Version - This displays the current hardware version. The hardware version of the
upgrade file must accord with the Router’s current hardware version.
To upgrade the Router's firmware, follow these instructions below:
1. Download a more recent firmware upgrade file from the TP-LINK website
(http://www.tp-link.com).
2. Type the path and file name of the update file into the File field, or click the Browse button to
locate the update file.
3. Click the Upgrade button.
Note:
1. New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.
There is no need to upgrade the firmware unless the new firmware has a new feature you
want to use. However, when experiencing problems caused by the Router rather than the
configuration, you can try to upgrade the firmware.
2. When you upgrade the Router's firmware, you may lose its current configurations, so before
upgrading the firmware please write down some of your customized settings to avoid losing
important settings.
3. Do not turn off the Router or press the Reset button while the firmware is being upgraded,
otherwise, the Router may be damaged.
4. The Router will reboot after the upgrading has been finished.
6.8.3 Factory Defaults
Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of
the Router to factory defaults on the following screen.
150Mbps Wireless N Nano Router
- 119 -
Figure 6-18 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
The default User Name: admin
The default Password: admin
The default IP Address: 192.168.0.254
The default Subnet Mask: 255.255.255.0
Note:
All changed settings will be lost when defaults are restored.
6.8.4 Backup & Restore
Choose menu “System Tools → Backup & Restore”, and then you can save the current
configuration of the Router as a backup file and restore the configuration via a backup file as
shown in Figure 6-19.
Figure 6-19 Backup & Restore Configuration
Click the Backup button to save all configuration settings as a backup file in your local
computer.
To upgrade the Router's configuration, follow these instructions.
Click the Browse… button to locate the update file for the Router, or enter the exact path
to the Setting file in the text box.
Click the Restore button.
Note:
The current configuration will be covered by the uploading configuration file. The upgrade process
lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the
upgrading process to prevent any damage.
150Mbps Wireless N Nano Router
- 120 -
6.8.5 Reboot
Choose menu “System Tools → Reboot”, and then you can click the Reboot button to reboot
the Router via the next screen.
Figure 6-20 Reboot the Router
Some settings of the Router will take effect only after rebooting, including:
Change the LAN IP Address (system will reboot automatically).
Change the DHCP Settings.
Change the Wireless configurations.
Change the Web Management Port.
Upgrade the firmware of the Router (system will reboot automatically).
Restore the Router's settings to factory defaults (system will reboot automatically).
Update the configuration with the file (system will reboot automatically.
6.8.6 Password
Choose menu “System Tools → Password”, and then you can change the factory default user
name and password of the Router in the next screen as shown in Figure 6-21.
Figure 6-21 Password
150Mbps Wireless N Nano Router
- 121 -
It is strongly recommended that you should change the factory default user name and password
of the Router, because all users who try to access the Router's Web-based utility or Quick Setup
will be prompted for the Router's default user name and password.
Note:
The new user name and password must not exceed 14 characters in length and not include any
spaces. Enter the new Password twice to confirm.
Click the Save button when finished.
Click the Clear All button to clear all.
6.8.7 System Log
Choose menu “System Tools → System Log”, and then you can view the logs of the Router.
Figure 6-22 System Log
Refresh - Refresh the page to show the latest log list.
Clear All - All the logs will be deleted from the Router permanently, not just from the page.
150Mbps Wireless N Nano Router
- 122 -
Chapter 7. Configuration for Bridge Mode
This chapter will show each Web page's key functions and the configuration way for Bridge Mode
of TL-WR702N.
7.1 Login
After your successful login, you can configure and manage the device. There are main menus on
the left of the web-based utility. Submenus will be available after you click one of the main menus.
On the right, there are the corresponding explanations and instructions.
Figure 7-1
The detailed explanations for each Web page’s key function are listed below.
7.2 Status
The Status page provides the current status information about the Router on Bridge Mode. All
information is read-only.
150Mbps Wireless N Nano Router
- 123 -
Figure 7-2 Status
Firmware Version - The version information of the Router’s firmware.
Hardware Version - The version information of the Router’s hardware.
LAN - This field displays the current settings or information for the LAN, you can configure
them in the Network > LAN page.
MAC address - The physical address of the Router, as seen from the LAN.
IP address - The LAN IP address of the Router.
Subnet Mask - The subnet mask associated with LAN IP address.
Wireless - This field displays basic information or status for wireless function, you can
configure them in the Wireless > Wireless Settings page.
Wireless Mode - The current wireless working mode in use.
Wireless Radio - Indicates whether the wireless radio feature of the AP is enabled or
disabled.
Name (SSID) - The SSID of the AP.
Channel - The current wireless channel in use.
Mode - The current wireless mode which the Router works on.
Channel Width - The current wireless channel width in use.
150Mbps Wireless N Nano Router
- 124 -
MAC address - The physical address of the Router, as seen from the WLAN.
WDS Status - The status of WDS connection.
System Up Time - The length of the time since the Router was last powered on or reset.
Click the Refresh button to get the latest status and settings of the Router.
7.3 Quick Setup
Please refer to Section 3.2: "Quick Installation Guide."
7.4 Working Mode
The Router supports five operation mode types: AP, Router, Repeater, Bridge and Client.
Please select one your want. Click Save to save your choice, which is shown as Figure 7-3.
Figure 7-3 Working Mode
AP - The wireless access point mode.
Router - The wireless Router Mode. In this mode, the device enables multi-user to share
Internet via DSL/Cable Modem. The only wired port works as WAN.
Repeater - The wireless Repeater Mode. It could extend the range of wireless network.
Bridge - The wireless Bridge Mode. It could communicate with another wireless network.
Client - The Client Mode. The computer connected by Ethernet could get access to an AP by
Client mode.
Click OK in the following screen and then the Router will reboot and to work on Bridge Mode.
150Mbps Wireless N Nano Router
- 125 -
Figure 7-4
7.5 Network
Figure 7-5 the Network menu
There is only one submenu under the Network menu (shown in Figure 7-5): LAN.
7.5.1 LAN
Choose menu “Network → LAN”, and then you can configure the IP parameters of the LAN on
the screen as below.
Figure 7-6 LAN
MAC Address - The physical address of the LAN ports, as seen from the LAN. The value
can't be changed.
IP Address - Enter the IP address of your Router in dotted-decimal notation (factory default:
192.168.0.254).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Note:
1. If you change the IP Address of LAN, you must use the new IP Address to login to the Router.
2. If the new LAN IP Address you set is not in the same subnet with the previous one, the IP
Address pool in the DHCP server will be configured automatically，while the Virtual Server and
DMZ Host will not take effect until they are re-configured.
150Mbps Wireless N Nano Router
- 126 -
7.6 Wireless
Figure 7-7 Wireless menu
There are two submenus under the Wireless menu (shown in Figure 7-7): Wireless Settings and
Wireless Security. Click any of them, and you will be able to configure the corresponding
function.
7.6.1 Wireless Settings
Choose menu “Wireless → Wireless Settings”, and then you can configure the basic settings
for the wireless network on this page.
Figure 7-8 Wireless Settings - Bridge
SSID - Enter a string of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. The default SSID is
set to be TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of each
Router’s MAC address). But it is recommended strongly that you change your networks
150Mbps Wireless N Nano Router
- 127 -
name (SSID) to a different value. This value is case-sensitive. For example, TEST is NOT
the same as test.
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Channel - This field determines which operating frequency will be used. The default channel
is set to Auto. It is not necessary to change the wireless channel unless you notice
interference problems with another nearby access point.
Mode - Select the desired mode. The default setting is 11bgn mixed.
11b only - Select if all of your wireless clients are 802.11b.
11g only - Select if all of your wireless clients are 802.11g.
11n only- Select only if all of your wireless clients are 802.11n.
11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.
11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.
Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless
stations can connect to the Router. When 802.11n mode is selected, only 802.11n wireless
stations can connect to the AP. It is strongly recommended that you set the Mode to
802.11b/g/n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the
Router.
Channel Width - Select any channel width from the pull-down list. The default setting is
automatic, which can automatically adjust the channel width for your clients.
Enable SSID Broadcast - It is default enabled, so that the wireless router will broadcast its
name (SSID) on the air.
SSID (to be bridged) - The SSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the SSID to join.
BSSID (to be bridged) - The BSSID of the AP your Router is going to connect to as a client.
You can also use the search function to select the BSSID to join.
Survey - Click this button, you can survey the AP which runs in the current channel.
Security Type - This option should be chosen according to the AP's security configuration.
It is recommended that the security type is the same as your AP's security type.
WEP Key Index - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the index of the WEP key.
150Mbps Wireless N Nano Router
- 128 -
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authorization type of the Root AP.
Password - If the AP your Router is going to connect needs password, you need to fill the
password in this blank.
Be sure to click the Save button to save your settings on this page.
Note:
1. The operating distance or range of your wireless connection varies significantly based on the
physical placement of the Router. For best results, place your Router.
Near the center of the area in which your wireless stations will operate.
In an elevated location such as a high shelf.
Away from the potential sources of interference, such as PCs, microwaves, and cordless
phones.
Away from large metal surfaces.
2. Failure to follow these guidelines can result in significant performance degradation or inability
to wirelessly connect to the Router.
7.6.2 Wireless Security
Choose menu “Wireless → Wireless Security”, and then you can configure the security
settings of your wireless network.
There are three wireless security modes supported by the Router: WEP (Wired Equivalent
Privacy), WPA/WPA2 and WPA-PSK/WPA2-PSK.
150Mbps Wireless N Nano Router
- 129 -
Figure 7-9 Wireless Security
Disable Security - The wireless security function can be enabled or disabled. If disabled, the
wireless stations will be able to connect the Router without encryption. But it’s strongly
recommended to choose one of the following modes to enable security.
WEP - It is based on the IEEE 802.11 standard.
Type - you can choose the type for the WEP security on the pull-down list. The default
setting is Automatic, which can select Shared Key or Open System authentication type
automatically based on the wireless station's capability and request.
WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal
format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified
length. ASCII format stands for any combination of keyboard characters in the specified
length.
150Mbps Wireless N Nano Router
- 130 -
WEP Key (Password) - Select which of the four keys will be used and enter the matching
WEP key that you create. Make sure these values are identical on all wireless stations in
your network.
Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for
encryption. "Disabled" means this WEP key entry is invalid.
64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 5 ASCII characters.
128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 13 ASCII characters.
152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is
not promoted) or 16 ASCII characters.
Note:
If you do not set the key, the wireless security function is still disabled even if you have selected
Shared Key as Authentication Type.
WPA /WPA2
Version - you can choose the version of the WPA security from the pull-down list. The
default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2
(WPA version 2) automatically based on the wireless station's capability and request.
Encryption - You can select Automatic, TKIP or AES.
Radius Server IP - Enter the IP address of the Radius server.
Radius Port - Enter the port that Radius server used.
Radius Password - Enter the password for the Radius server.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
WPA-PSK/WPA2-PSK- It’s the WPA/WPA2 authentication type based on pre-shared
passphrase.
Version - you can choose the version of the WPA-PSK security on the drop-down list. The
default setting is Automatic (Recommended), which can select WPA-PSK (Pre-shared
key of WPA) or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless
station's capability and request.
Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select
Automatic (Recommended), TKIP or AES as Encryption.
PSK Password - You can enter ASCII or Hexadecimal characters. The default password
is the last unique eight numbers of each Router’s MAC address
150Mbps Wireless N Nano Router
- 131 -
For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the length
should be between 8 and 63 characters.
For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F, the
length should be between 8 and 64 characters.
Please also note the key is case sensitive, this means that upper and lower case keys will
affect the outcome. It would also be a good idea to write down the key and all related wireless
security settings.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
Be sure to click the Save button to save your settings on this page.
7.7 DHCP
Figure 7-10 The DHCP menu
There are three submenus under the DHCP menu (shown in Figure 7-10): DHCP Settings,
DHCP Clients List and Address Reservation. Click any of them, and you will be able to
configure the corresponding function.
7.7.1 DHCP Settings
Choose menu “DHCP → DHCP Settings”, and then you can configure the DHCP Server on the
page as shown in Figure 7-11. The Router is set up by default as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are
connected to the Router in the LAN.
150Mbps Wireless N Nano Router
- 132 -
Figure 7-11 DHCP Settings
DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must
have another DHCP server within your network or else you must configure the computer
manually.
Start IP Address - Specify an IP address for the DHCP Server to start with when assigning
IP addresses. 192.168.0.100 is the default start address.
End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP
addresses. 192.168.0.199 is the default end address.
Address Lease Time - The Address Lease Time is the amount of time a network user will
be allowed connection to the Router with their current dynamic IP Address. Enter the
amount of time in minutes and the user will be "leased" this dynamic IP Address. After the
time is up, the user will be automatically assigned a new dynamic IP address. The range of
the time is 1 ~ 2880 minutes. The default value is 120 minutes.
Default Gateway (Optional) - It is suggested to input the IP address of the LAN port of the
Router. The default value is 192.168.0.254.
Default Domain (Optional) - Input the domain name of your network.
Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your
ISP.
Secondary DNS (Optional) - Input the IP address of another DNS server if your ISP
provides two DNS servers.
150Mbps Wireless N Nano Router
- 133 -
Note:
To use the DHCP server function of the Router, you must configure all computers on the LAN as
"Obtain an IP Address automatically".
7.7.2 DHCP Clients List
Choose menu “DHCP → DHCP Clients List”, and then you can view the information about the
clients attached to the Router in the screen as shown in Figure 7-12.
Figure 7-12 DHCP Clients List
Client Name - The name of the DHCP client
MAC Address - The MAC address of the DHCP client
Assigned IP - The IP address that the Router has allocated to the DHCP client
Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
7.7.3 Address Reservation
Choose menu “DHCP → Address Reservation”, and then you can view and add a reserved
address for clients via the next screen (shown in Figure 7-13).When you specify a reserved IP
address for a PC on the LAN, that PC will always receive the same IP address each time when it
accesses the DHCP server. Reserved IP addresses should be assigned to the servers that
require permanent IP settings.
150Mbps Wireless N Nano Router
- 134 -
Figure 7-13 Address Reservation
MAC Address - The MAC address of the PC for which you want to reserve an IP address.
Reserved IP Address - The IP address reserved for the PC by the Router.
Status - The status of this entry either Enabled or Disabled.
To Reserve an IP address:
1. Click the Add New… button. Then Figure 4-18 will pop-up.
2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format) and IP address (in dotted-decimal
notation) of the computer for which you want to reserve an IP address.
3. Click the Save button.
Figure 7-14 Add or Modify an Address Reservation Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable/Disabled All button to make all entries enabled/disabled.
Click the Delete All button to delete all entries.
150Mbps Wireless N Nano Router
- 135 -
Click the Next button to go to the next page and Click the Previous button to return the previous
page.
7.8 System Tools
Figure 7-15 The System Tools menu
Choose menu “System Tools”, and then you can see the submenus under the main menu:
Diagnostic, Firmware, Factory Defaults, Backup & Restore, Reboot, Password, and System
Log. Click any of them, and you will be able to configure the corresponding function. The detailed
explanations for each submenu are provided below.
7.8.1 Diagnostic
Choose menu “System Tools → Diagnostic”, and then you can transact Ping or Traceroute
function to check connectivity of your network in the following screen.
150Mbps Wireless N Nano Router
- 136 -
Figure 7-16 Diagnostic Tools
Diagnostic Tool - Check the radio button to select one diagnostic tool.
Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a connection.
Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not,
you might have a name resolution problem. In this case, ensure that the domain name you are
specifying can be resolved by using Domain Name System (DNS) queries.
IP Address/Domain Name - Type the destination IP address (e.g. 202.108.22.5) or Domain
name (e.g.http://www.tp-link.com).
Pings Count - The number of Ping packets for a Ping connection. The default is 4.
Ping Packet Size - The size of Ping packet. The default is 64.
Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in
the specified time, the connection is overtime. The default is 800.
150Mbps Wireless N Nano Router
- 137 -
Traceroute Max TTL - The max number of hops for a Traceroute connection. The default is
20.
Click Start to check the connectivity of the Internet.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure 7-17 Diagnostic Results
Note:
Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping
Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function.
7.8.2 Firmware
Choose menu “System Tools → Firmware Upgrade”, and then you can update the latest
version of firmware for the Router on the following screen.
Figure 7-18 Firmware Upgrade
Firmware Version - This displays the current firmware version.
Hardware Version - This displays the current hardware version. The hardware version of the
upgrade file must accord with the Router’s current hardware version.
To upgrade the Router's firmware, follow these instructions below:
1. Download a more recent firmware upgrade file from the TP-LINK website
(http://www.tp-link.com).
150Mbps Wireless N Nano Router
- 138 -
2. Type the path and file name of the update file into the File field, or click the Browse button to
locate the update file.
3. Click the Upgrade button.
Note:
1. New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.
There is no need to upgrade the firmware unless the new firmware has a new feature you
want to use. However, when experiencing problems caused by the Router rather than the
configuration, you can try to upgrade the firmware.
2. When you upgrade the Router's firmware, you may lose its current configurations, so before
upgrading the firmware please write down some of your customized settings to avoid losing
important settings.
3. Do not turn off the Router or press the Reset button while the firmware is being upgraded,
otherwise, the Router may be damaged.
4. The Router will reboot after the upgrading has been finished.
7.8.3 Factory Defaults
Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of
the Router to factory defaults on the following screen.
Figure 7-19 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
The default User Name: admin
The default Password: admin
The default IP Address: 192.168.0.254
The default Subnet Mask: 255.255.255.0
Note:
All changed settings will be lost when defaults are restored.
150Mbps Wireless N Nano Router
- 139 -
7.8.4 Backup & Restore
Choose menu “System Tools → Backup & Restore”, and then you can save the current
configuration of the Router as a backup file and restore the configuration via a backup file as
shown in Figure 7-20.
Figure 7-20 Backup & Restore Configuration
Click the Backup button to save all configuration settings as a backup file in your local
computer.
To upgrade the Router's configuration, follow these instructions.
Click the Browse… button to locate the update file for the Router, or enter the exact path
to the Setting file in the text box.
Click the Restore button.
Note:
The current configuration will be covered by the uploading configuration file. The upgrade process
lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the
upgrading process to prevent any damage.
7.8.5 Reboot
Choose menu “System Tools → Reboot”, and then you can click the Reboot button to reboot
the Router via the next screen.
Figure 7-21 Reboot the Router
Some settings of the Router will take effect only after rebooting, which include:
Change the LAN IP Address (system will reboot automatically).
Change the DHCP Settings.
150Mbps Wireless N Nano Router
- 140 -
Change the Wireless configurations.
Change the Web Management Port.
Upgrade the firmware of the Router (system will reboot automatically).
Restore the Router's settings to factory defaults (system will reboot automatically).
Update the configuration with the file (system will reboot automatically.
7.8.6 Password
Choose menu “System Tools → Password”, and then you can change the factory default user
name and password of the Router in the next screen as shown in Figure 7-22.
Figure 7-22 Password
It is strongly recommended that you should change the factory default user name and password
of the Router, because all users who try to access the Router's Web-based utility or Quick Setup
will be prompted for the Router's default user name and password.
Note:
The new user name and password must not exceed 14 characters in length and not include any
spaces. Enter the new Password twice to confirm.
Click the Save button when finished.
Click the Clear All button to clear all.
150Mbps Wireless N Nano Router
- 141 -
7.8.7 System Log
Choose menu “System Tools → System Log”, and then you can view the logs of the Router.
Figure 7-23 System Log
Refresh - Refresh the page to show the latest log list.
Clear All - All the logs will be deleted from the Router permanently, not just from the page.
150Mbps Wireless N Nano Router
- 142 -
Chapter 8. Configuration for Client Mode
This chapter will show each Web page's key functions and the configuration way for Client Mode
of TL-WR702N.
8.1 Login
After your successful login, you can configure and manage the device. There are main menus on
the left of the web-based utility. Submenus will be available after you click one of the main menus.
On the right, there are the corresponding explanations and instructions.
Figure 8-1
The detailed explanations for each Web page’s key function are listed below.
8.2 Status
The Status page provides the current status information about the Router on Client Mode. All
information is read-only.
150Mbps Wireless N Nano Router
- 143 -
Figure 8-2 Status
Firmware Version - The version information of the Router’s firmware.
Hardware Version - The version information of the Router’s hardware.
LAN - This field displays the current settings or information for the LAN, you can configure
them in the Network > LAN page.
MAC address - The physical address of the Router, as seen from the LAN.
IP address - The LAN IP address of the Router.
Subnet Mask - The subnet mask associated with LAN IP address.
Wireless - This field displays basic information or status for wireless function, you can
configure them in the Wireless > Wireless Settings page.
Wireless Mode - The current wireless working mode in use.
Name (SSID) - The SSID of Root AP.
MAC address - The physical address of the Router, as seen from the WLAN.
System Up Time - The length of the time since the Router was last powered on or reset.
Click the Refresh button to get the latest status and settings of the Router.
8.3 Quick Setup
Please refer to Section 3.2: "Quick Installation Guide."
150Mbps Wireless N Nano Router
- 144 -
8.4 Working Mode
The Router supports five operation mode types: AP, Router, Repeater, Bridge and Client.
Please select one your want. Click Save to save your choice, which is shown as Figure 8-3.
Figure 8-3 Working Mode
AP - The wireless access point mode.
Router - The wireless Router Mode. In this mode, the device enables multi-user to share
Internet via DSL/Cable Modem. The only wired port works as WAN.
Repeater - The wireless Repeater Mode. It could extend the range of wireless network.
Bridge - The wireless Bridge Mode. It could communicate with another wireless network.
Client - The Client Mode. The computer connected by Ethernet could get access to an AP by
Client mode.
Click OK in the following screen and then the Router will reboot and to work on Client Mode.
Figure 8-4
8.5 Network
Figure 8-5 the Network menu
There is only one submenu under the Network menu (shown in Figure 8-5): LAN.
150Mbps Wireless N Nano Router
- 145 -
8.5.1 LAN
Choose menu “Network → LAN”, and then you can configure the IP parameters of the LAN on
the screen as below.
Figure 8-6 LAN
MAC Address - The physical address of the LAN ports, as seen from the LAN. The value
can't be changed.
IP Address - Enter the IP address of your Router in dotted-decimal notation (factory default:
192.168.0.254).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Note:
1. If you change the IP Address of LAN, you must use the new IP Address to login to the Router.
2. If the new LAN IP Address you set is not in the same subnet with the previous one, the IP
Address pool in the DHCP server will be configured automatically，while the Virtual Server and
DMZ Host will not take effect until they are re-configured.
8.6 Wireless
Figure 8-7 Wireless menu
There is one submenu under the Wireless menu (shown in Figure 8-7): Wireless Settings. Click
any of them, and you will be able to configure the corresponding function.
8.6.1 Wireless Settings
Choose menu “Wireless → Wireless Settings”, and then you can configure the basic settings
for the wireless network on this page.
150Mbps Wireless N Nano Router
- 146 -
Figure 8-8 Wireless Settings - Client
SSID - Enter a string of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. The default SSID is
set to be TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of each
Router’s MAC address). But it is recommended strongly that you change your networks
name (SSID) to a different value. This value is case-sensitive. For example, TEST is NOT
the same as test.
MAC of AP - The MAC address of AP that you want to access.
Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the Router can be used. It may be illegal to use the wireless function of
the Router in a region other than one of those specified in this field. If your country or region
is not listed, please contact your local government agency for assistance.
Survey - Click this button, you can survey the AP which runs in the current channel.
Security Type - This option should be chosen according to the AP's security configuration.
It is recommended that the security type is the same as your AP's security type.
WEP Key Index - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the index of the WEP key.
Authentication Type - This option should be chosen if the key type is WEP (ASCII) or WEP
(HEX). It indicates the authorization type of the Root AP.
PassWord - If the AP your Router is going to connect needs password, you need to fill the
password in this blank.
150Mbps Wireless N Nano Router
- 147 -
Be sure to click the Save button to save your settings on this page.
Note:
1. The operating distance or range of your wireless connection varies significantly based on the
physical placement of the Router. For best results, place your Router.
Near the center of the area in which your wireless stations will operate.
In an elevated location such as a high shelf.
Away from the potential sources of interference, such as PCs, microwaves, and cordless
phones.
Away from large metal surfaces.
2. Failure to follow these guidelines can result in significant performance degradation or inability
to wirelessly connect to the Router.
8.7 DHCP
Figure 8-9 The DHCP menu
There are three submenus under the DHCP menu (shown in Figure 8-9), DHCP Settings, DHCP
Clients List and Address Reservation. Click any of them, and you will be able to configure the
corresponding function.
8.7.1 DHCP Settings
Choose menu “DHCP → DHCP Settings”, and then you can configure the DHCP Server on the
page as shown in Figure 8-10. The Router is set up by default as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are
connected to the Router in the LAN.
150Mbps Wireless N Nano Router
- 148 -
Figure 8-10 DHCP Settings
DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must
have another DHCP server within your network or else you must configure the computer
manually.
Start IP Address - Specify an IP address for the DHCP Server to start with when assigning
IP addresses. 192.168.0.100 is the default start address.
End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP
addresses. 192.168.0.199 is the default end address.
Address Lease Time - The Address Lease Time is the amount of time a network user will
be allowed connection to the Router with their current dynamic IP Address. Enter the
amount of time in minutes and the user will be "leased" this dynamic IP Address. After the
time is up, the user will be automatically assigned a new dynamic IP address. The range of
the time is 1 ~ 2880 minutes. The default value is 120 minutes.
Default Gateway (Optional) - It is suggested to input the IP address of the LAN port of the
Router. The default value is 192.168.0.254.
Default Domain (Optional) - Input the domain name of your network.
Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your
ISP.
Secondary DNS (Optional) - Input the IP address of another DNS server if your ISP
provides two DNS servers.
150Mbps Wireless N Nano Router
- 149 -
Note:
To use the DHCP server function of the Router, you must configure all computers on the LAN as
"Obtain an IP Address automatically".
8.7.2 DHCP Clients List
Choose menu “DHCP → DHCP Clients List”, and then you can view the information about the
clients attached to the Router in the screen as shown in Figure 8-11.
Figure 8-11 DHCP Clients List
Client Name - The name of the DHCP client
MAC Address - The MAC address of the DHCP client
Assigned IP - The IP address that the Router has allocated to the DHCP client
Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
8.7.3 Address Reservation
Choose menu “DHCP → Address Reservation”, and then you can view and add a reserved
address for clients via the next screen (shown in Figure 8-12).When you specify a reserved IP
address for a PC on the LAN, that PC will always receive the same IP address each time when it
accesses the DHCP server. Reserved IP addresses should be assigned to the servers that
require permanent IP settings.
150Mbps Wireless N Nano Router
- 150 -
Figure 8-12 Address Reservation
MAC Address - The MAC address of the PC for which you want to reserve an IP address.
Reserved IP Address - The IP address reserved for the PC by the Router.
Status - The status of this entry either Enabled or Disabled.
To Reserve an IP address:
1. Click the Add New… button. Then Figure 8-13 will pop-up.
2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address (in dotted-decimal
notation) of the computer for which you want to reserve an IP address.
3. Click the Save button.
Figure 8-13 Add or Modify an Address Reservation Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable/Disabled All button to make all entries enabled/disabled
Click the Delete All button to delete all entries.
150Mbps Wireless N Nano Router
- 151 -
Click the Next button to go to the next page and Click the Previous button to return the previous
page.
8.8 System Tools
Figure 8-14 The System Tools menu
Choose menu “System Tools”, and then you can see the submenus under the main menu:
Diagnostic, Firmware, Factory Defaults, Backup & Restore, Reboot, Password, and System
Log. Click any of them, and you will be able to configure the corresponding function. The detailed
explanations for each submenu are provided below.
8.8.1 Diagnostic
Choose menu “System Tools → Diagnostic”, and then you can transact Ping or Traceroute
function to check connectivity of your network in the following screen.
150Mbps Wireless N Nano Router
- 152 -
Figure 8-15 Diagnostic Tools
Diagnostic Tool - Check the radio button to select one diagnostic tool.
Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a connection.
Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not,
you might have a name resolution problem. In this case, ensure that the domain name you are
specifying can be resolved by using Domain Name System (DNS) queries.
IP Address/Domain Name - Type the destination IP address (e.g. 202.108.22.5) or Domain
name (e.g.http://www.tp-link.com).
Pings Count - The number of Ping packets for a Ping connection. The default is 4.
Ping Packet Size - The size of Ping packet. The default is 64.
Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in
the specified time, the connection is overtime. The default is 800.
150Mbps Wireless N Nano Router
- 153 -
Traceroute Max TTL - The max number of hops for a Traceroute connection. The default is
20.
Click Start to check the connectivity of the Internet.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure 8-16 Diagnostic Results
Note:
Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping
Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function.
8.8.2 Firmware
Choose menu “System Tools → Firmware Upgrade”, and then you can update the latest
version of firmware for the Router on the following screen.
Figure 8-17 Firmware Upgrade
Firmware Version - This displays the current firmware version.
Hardware Version - This displays the current hardware version. The hardware version of the
upgrade file must accord with the Router’s current hardware version.
To upgrade the Router's firmware, follow these instructions below:
1. Download a more recent firmware upgrade file from the TP-LINK website
(http://www.tp-link.com).
150Mbps Wireless N Nano Router
- 154 -
2. Type the path and file name of the update file into the File field, or click the Browse button to
locate the update file.
3. Click the Upgrade button.
Note:
1. New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.
There is no need to upgrade the firmware unless the new firmware has a new feature you
want to use. However, when experiencing problems caused by the Router rather than the
configuration, you can try to upgrade the firmware.
2. When you upgrade the Router's firmware, you may lose its current configurations, so before
upgrading the firmware please write down some of your customized settings to avoid losing
important settings.
3. Do not turn off the Router or press the Reset button while the firmware is being upgraded,
otherwise, the Router may be damaged.
4. The Router will reboot after the upgrading has been finished.
8.8.3 Factory Defaults
Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of
the Router to factory defaults on the following screen.
Figure 8-18 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
The default User Name: admin
The default Password: admin
The default IP Address: 192.168.0.254
The default Subnet Mask: 255.255.255.0
Note:
All changed settings will be lost when defaults are restored.
150Mbps Wireless N Nano Router
- 155 -
8.8.4 Backup & Restore
Choose menu “System Tools → Backup & Restore”, and then you can save the current
configuration of the Router as a backup file and restore the configuration via a backup file as
shown in Figure 8-19.
Figure 8-19 Backup & Restore Configuration
Click the Backup button to save all configuration settings as a backup file in your local
computer.
To upgrade the Router's configuration, follow these instructions.
Click the Browse… button to locate the update file for the Router, or enter the exact path
to the Setting file in the text box.
Click the Restore button.
Note:
The current configuration will be covered by the uploading configuration file. The upgrade process
lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the
upgrading process to prevent any damage.
8.8.5 Reboot
Choose menu “System Tools → Reboot”, and then you can click the Reboot button to reboot
the Router via the next screen.
Figure 8-20 Reboot the Router
Some settings of the Router will take effect only after rebooting, which include:
Change the LAN IP Address (system will reboot automatically).
Change the DHCP Settings.
150Mbps Wireless N Nano Router
- 156 -
Change the Wireless configurations.
Change the Web Management Port.
Upgrade the firmware of the Router (system will reboot automatically).
Restore the Router's settings to factory defaults (system will reboot automatically).
Update the configuration with the file (system will reboot automatically.
8.8.6 Password
Choose menu “System Tools → Password”, and then you can change the factory default user
name and password of the Router in the next screen as shown in Figure 8-21.
Figure 8-21 Password
It is strongly recommended that you should change the factory default user name and password
of the Router, because all users who try to access the Router's Web-based utility or Quick Setup
will be prompted for the Router's default user name and password.
Note:
The new user name and password must not exceed 14 characters in length and not include any
spaces. Enter the new Password twice to confirm.
Click the Save button when finished.
Click the Clear All button to clear all.
150Mbps Wireless N Nano Router
- 157 -
8.8.7 System Log
Choose menu “System Tools → System Log”, and then you can view the logs of the Router.
Figure 8-22 System Log
Refresh - Refresh the page to show the latest log list.
Clear All - All the logs will be deleted from the Router permanently, not just from the page.
150Mbps Wireless N Nano Router
- 158 -
Appendix A: FAQ
1. How do I configure the Router to access the Internet by ADSL users?
1) First, configure the ADSL Modem configured in RFC1483 bridge model.
2) Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. The
telephone cord plugs into the Line port of the ADSL Modem.
3) Log in to the Router, click the “Network” menu on the left of your browser, and click
"WAN" submenu. On the WAN page, select “PPPoE/Russia PPPoE” for WAN
Connection Type. Type user name in the “User Name” field and password in the
“Password” field and the “Confirm Password” field, and finish it by clicking Connect.
Figure A-1 PPPoE Connection Type
4) If your ADSL lease is in “pay-according-time” mode, select “Connect on Demand” or
“Connect Manually” for Internet connection mode. Type an appropriate number for “Max
Idle Time” to avoid wasting paid time. Otherwise, you can select “Auto-connecting” for
Internet connection mode.
Figure A-2 PPPoE Connection Mode
Note:
1. Sometimes the connection cannot be disconnected although you specify a time to Max Idle
Time, since some applications is visiting the Internet continually in the background.
2. If you are a Cable user, please configure the Router following the above steps.
150Mbps Wireless N Nano Router
- 159 -
2. How do I configure the Router to access the Internet by Ethernet users?
1) Log in to the Router, click the “Network” menu on the left of your browser, and click
"WAN" submenu. On the WAN page, select “Dynamic IP” for "WAN Connection Type",
finish by clicking Save.
2) Some ISPs require that you register the MAC Address of your adapter, which is
connected to your cable/DSL Modem during installation. If your ISP requires MAC
register, log in to the Router and click the "Network" menu link on the left of your browser,
and then click "MAC Clone" submenu link. On the "MAC Clone" page, if your PC’s MAC
address is proper MAC address, click the Clone MAC Address button and your PC’s
MAC address will fill in the "WAN MAC Address" field. Or else, type the MAC Address
into the "WAN MAC Address" field. The format for the MAC Address is
XX-XX-XX-XX-XX-XX. Then click the Save button. It will take effect after rebooting.
Figure A-3 MAC Clone
3. I want to use NetMeeting, what do I need to do?
1) If you start NetMeeting as a sponsor, you don’t need to do anything with the Router.
2) If you start as a response, you need to configure Virtual Server or DMZ Host and make
sure the H323 ALG is enabled.
3) How to configure Virtual Server: Log in to the Router, click the “Forwarding” menu on
the left of your browser, and click "Virtual Servers" submenu. On the "Virtual Servers"
page, click Add New…. Then on the “Add or Modify a Virtual Server Entry” page,
enter “1720” for the “Service Port” blank, and your IP address for the “IP Address” blank,
taking 192.168.0.169 for an example, remember to Enable and Save.
150Mbps Wireless N Nano Router
- 160 -
Figure A-4 Virtual Servers
Figure A-5 Add or Modify a Virtual server Entry
Note:
Your opposite side should call your WAN IP, which is displayed on the “Status” page.
4) How to enable DMZ Host: Log in to the Router, click the “Forwarding” menu on the left
of your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio
button and type your IP address into the “DMZ Host IP Address” field, using
192.168.0.169 as an example, remember to click the Save button.
Figure A-6 DMZ
4. I want to build a WEB Server on the LAN, what should I do?
150Mbps Wireless N Nano Router
- 161 -
1) Because the WEB Server port 80 will interfere with the WEB management port 80 on the
Router, you must change the WEB management port number to avoid interference.
2) To change the WEB management port number: Log in to the Router, click the “Security”
menu on the left of your browser, and click "Remote Management" submenu. On the
"Remote Management" page, type a port number except 80, such as 88, into the "Web
Management Port" field. Click Save and reboot the Router.
Figure A-7 Remote Management
Note:
If the above configuration takes effect, configure to the Router by typing 192.168.0.188 (the
Router’s LAN IP address: Web Management Port) in the address field of the Web browser.
3) Log in to the Router, click the “Forwarding” menu on the left of your browser, and click
the "Virtual Servers" submenu. On the "Virtual Servers" page, click Add New…, then
on the “Add or Modify a Virtual Server” page, enter “80” into the blank next to the
“Service Port”, and your IP address next to the “IP Address”, assuming 192.168.0.188
for an example, remember to Enable and Save.
Figure A-8 Virtual Servers
150Mbps Wireless N Nano Router
- 162 -
Figure A-9 Add or Modify a Virtual server Entry
5. The wireless stations cannot connect to the Router.
1) Make sure the "Enable Wireless Router Radio" is checked.
2) Make sure that the wireless stations' SSID accord with the Router's SSID.
3) Make sure the wireless stations have right KEY for encryption when the Router is
encrypted.
4) If the wireless connection is ready, but you can’t access the Router, check the IP Address
of your wireless stations.
150Mbps Wireless N Nano Router
- 163 -
Appendix B: Configuring the PC
In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP.
First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary.
1. Configure TCP/IP component
1) On the Windows taskbar, click the Start button, and then click Control Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.
3) Right click the icon that showed below, select Properties on the prompt page.
Figure 0-1
4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).
150Mbps Wireless N Nano Router
- 164 -
Figure 0-2
5) The following TCP/IP Properties window will display and the IP Address tab is open on
this window by default.
Now you have two ways to configure the TCP/IP protocol below:
Setting IP address automatically
Select Obtain an IP address automatically, Choose Obtain DNS server automatically, as
shown in the Figure below:
150Mbps Wireless N Nano Router
- 165 -
Figure 0-3
Note:
For Windows 98 OS or before, the PC and Router may need to be restarted.
Setting IP address manually
1 Select Use the following IP address radio button. And the following items available
2 If the Router's LAN IP address is 192.168.0.254, specify the IP address as 192.168.0.x (x is
from 1 to 253), and the Subnet mask as 255.255.255.0.
3 Type the Router’s LAN IP address (the default IP is 192.168.0.254) into the Default gateway
field.
4 Select Use the following DNS server addresses. In the Preferred DNS Server field you
can enter the same value as the Default gateway or type the local DNS server IP address.
150Mbps Wireless N Nano Router
- 166 -
Now:
Click OK to keep your settings.
150Mbps Wireless N Nano Router
- 167 -
Appendix C: Specifications
General
Standards
IEEE 802.11n, 802.11b, 802.11g
Protocols
TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP
Port
One 10/100Mbps LAN/WAN port, one USB port
Cabling Type
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED
SYS
Dimensions (L×W×H)
57mm×57mm×18mm
Safety & Emissions
FCC, CE
Wireless
Frequency Band
2.4~2.4835GHz
Radio Data Rate
11n：up to 150Mbps（Automatic）
11g：54/48/36/24/18/12/9/6M（Automatic）
11b：11/5.5/2/1M（Automatic）
Frequency Expansion
DSSS(Direct Sequence Spread Spectrum)
Modulation
DBPSK, DQPSK, CCK, 16-QAM, 64-QAM, BPSK, QPSK
Security
64/128/152-bit WEP, WPA/WPA2, WPA2-PSK/WPA-PSK
Sensitivity @PER
135M: -70dBm@10% PER
65M: -73dBm@10% PER
54M: -76dBm@10% PER
Mode
AP Mode, Router Mode, Repeater Mode, Bridge Mode, Client
Mode
Environmental and Physical
Temperature
Operating : 0℃~40℃ (32℉~104℉)
Storage: -40℃~70℃(-40℉~158℉)
Humidity
Operating: 10% - 90% RH, Non-condensing
Storage: 5% - 90% RH, Non-condensing
150Mbps Wireless N Nano Router
- 168 -
Appendix D: Glossary
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) [3] was formed to help accelerate the IEEE 802.11n development process and
promote a technology specification for interoperability of next-generation wireless local area
networking (WLAN) products.
802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
DDNS (Dynamic Domain Name System) - The capability of assigning a fixed host and domain
name to a dynamic Internet IP Address.
DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the
TCP/IP parameters for the all the PC(s) that are connected to a DHCP server.
DMZ (Demilitarized Zone) - A Demilitarized Zone allows one local host to be exposed to the
Internet for a special-purpose service such as Internet gaming or videoconferencing.
DNS (Domain Name System) – An Internet Service that translates the names of websites into
IP addresses.
Domain Name - A descriptive name for an address or group of addresses on the Internet.
DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over
existing traditional phone lines.
ISP (Internet Service Provider) - A company that provides access to the Internet.
MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be
transmitted.
NAT (Network Address Translation) - NAT technology translates IP addresses of a local area
network to a different IP address for the Internet.
150Mbps Wireless N Nano Router
- 169 -
PPPoE (Point to Point Protocol over Ethernet) - PPPoE is a protocol for connecting remote
hosts to the Internet over an always-on connection by simulating a dial-up connection.
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name.
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group
promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
