STALLATIOP RATIOTCE18-BG02D1-5ALL phases of this installation must comply withNATIONAL, STATE AND LOCAL CODESModel: DCY024F1 Single Package Dual FuelDCY030FI Heat Pump ConvertibleDCY036F1,3,4DOY048F1,3,4 BAYLIFT002AA 2 - 5Ton 12 SEERDCY060F1,3,4 LIFTING LUG KITIMPORTANT -- This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.All phases of this installation must comply withthe NATIONAL, STATE &LOCAL CODES.In the absence of local codes, the installationmust conform with National Electric Code --ANSI/NFPA 70 or "LATEST REVISION':OTlCEWarnings and Cautions appear at appropriate locations throughout this manual.Read these carefully._,WARNING: Indicates a potentially hazardous situation which, if not avoided, couldresult in death or serious injury.,_CAUTION: Indicates a potentially hazardous situation which, if not avoided, mayresult in minor or moderate injury. It may also be used to alert against unsafe practicesand where property-damage-only accidents could occur.© 2003 American Standard Inc. All rights reserved Dwgo No. X664366 P0110/03

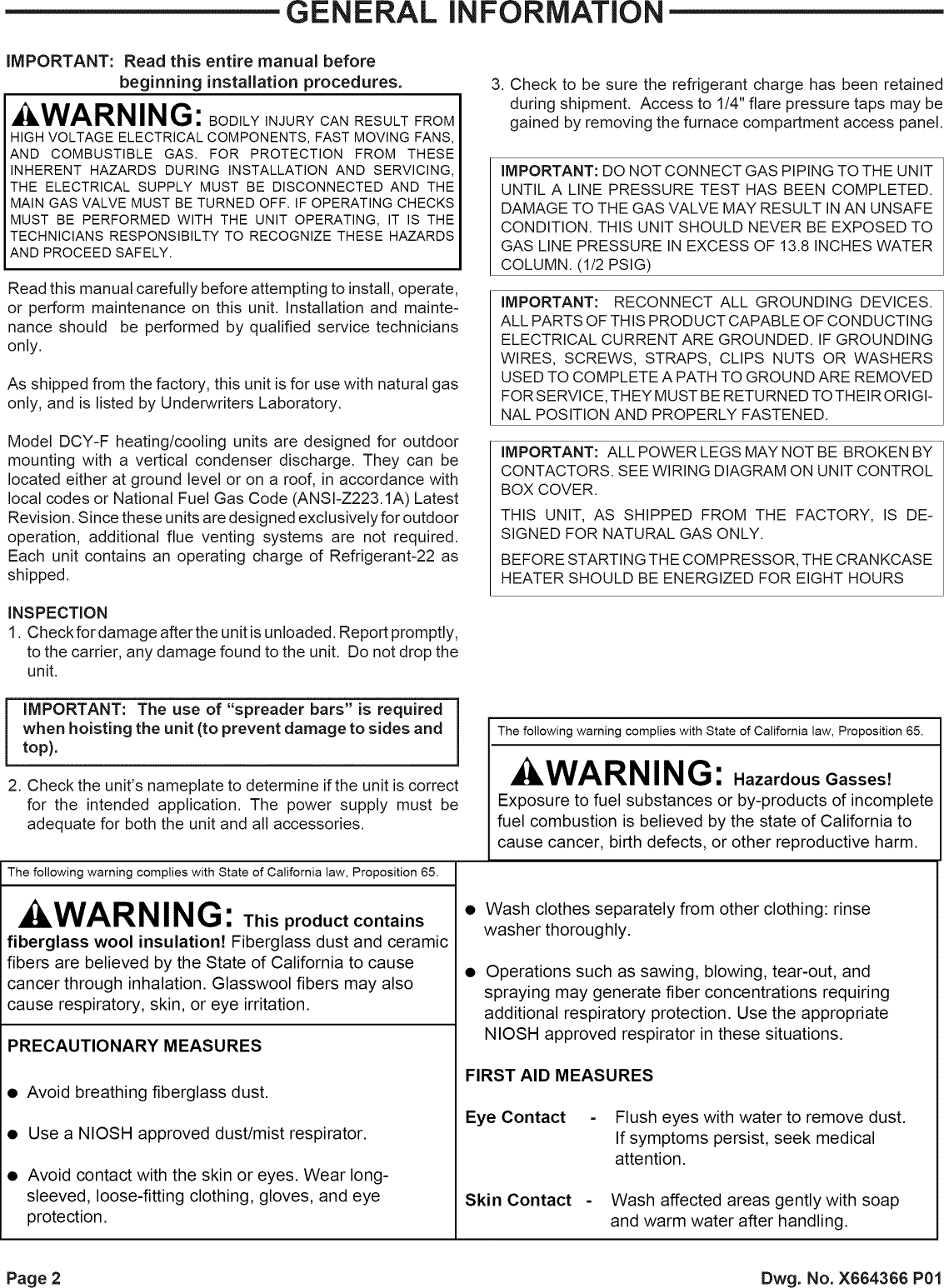

GENERAL INFORMATIONIMPORTANT: Read this entire manual beforebeginning installation procedures. kWARNING: BOD,LY,NJURYCANRESU'TFROMHIGHVOLTAGE ELECTRICAL COMPONENTS, FAST MOVING FANS,AND COMBUSTIBLE GAS. FOR PROTECTION FROM THESEINHERENT HAZARDS DURING INSTALLATION AND SERVICING,THE ELECTRICAL SUPPLY MUST BE DISCONNECTED AND THEMAIN GAS VALVE MUST BE TURNED OFF. IF OPERATING CHECKSMUST BE PERFORMED WITH THE UNIT OPERATING, IT IS THETECHNICIANS RESPONSIBILTY TO RECOGNIZE THESE HAZARDSAND PROCEED SAFELY.Read this manual carefully before attempting to install, operate,or perform maintenance on this unit. Installation and mainte-nance should be performed by qualified service techniciansonly.As shipped from the factory, this unit is for use with natural gasonly, and is listed by Underwriters Laboratory.Model DCY-F heating/cooling units are designed for outdoormounting with a vertical condenser discharge. They can belocated either at ground level or on a roof, in accordance withlocal codes or National Fuel Gas Code (ANSI-Z223.1A) LatestRevision. Since these units are designed exclusively for outdooroperation, additional flue venting systems are not required.Each unit contains an operating charge of Refrigerant-22 asshipped.INSPECTION1. Checkfor damage after the unit is unloaded. Report promptly,to the carrier, any damage found to the unit. Do not drop theunit.iMPORTANT: The use of "spreader bars" is requiredwhen hoisting the unit (to prevent damage to sides andtop).2. Check the unit's nameplate to determine if the unit is correctfor the intended application. The power supply must beadequate for both the unit and all accessories.The following warning complies with State of California law, Proposition 65. kWARNING: This product containsfiberglass wool insulation! Fiberglass dust and ceramicfibers are believed by the State of California to causecancer through inhalation. Glasswool fibers may alsocause respiratory, skin, or eye irritation.PRECAUTIONARY MEASURES• Avoid breathing fiberglass dust.• Use a NIOSH approved dust/mist respirator.• Avoid contact with the skin or eyes. Wear long-sleeved, loose-fitting clothing, gloves, and eyeprotection.3. Check to be sure the refrigerant charge has been retainedduring shipment. Access to 1/4" flare pressure taps may begained by removing the furnace compartment access panel.IMPORTANT: DO NOT CONNECT GAS PIPING TO THE UNITUNTIL A LINE PRESSURE TEST HAS BEEN COMPLETED.DAMAGE TO THE GAS VALVE MAY RESULT IN AN UNSAFECONDITION. THIS UNIT SHOULD NEVER BE EXPOSED TOGAS LINE PRESSURE IN EXCESS OF 13.8 INCHES WATERCOLUMN. (1/2 PSIG)IMPORTANT: RECONNECT ALL GROUNDING DEVICES.ALL PARTS OF THIS PRODUCT CAPABLE OF CONDUCTINGELECTRICAL CURRENT ARE GROUNDED. IF GROUNDINGWIRES, SCREWS, STRAPS, CLIPS NUTS OR WASHERSUSED TO COMPLETE A PATH TO GROUND ARE REMOVEDFOR SERVICE, THEY MUST BE RETURNED TO THEIR ORIGI-NAL POSITION AND PROPERLY FASTENED.IMPORTANT: ALL POWER LEGS MAY NOT BE BROKEN BYCONTACTORS. SEE WIRING DIAGRAM ON UNIT CONTROLBOX COVER.THIS UNIT, AS SHIPPED FROM THE FACTORY, IS DE-SIGNED FOR NATURAL GAS ONLY.BEFORE STARTING THE COMPRESSOR, THE CRANKCASEHEATER SHOULD BE ENERGIZED FOR EIGHT HOURSThe following warning complies with State of California law, Proposition 65. WARNING: HazardousGasses!Exposure to fuel substances or by-products of incompletefuel combustion is believed by the state of California tocause cancer, birth defects, or other reproductive harm.• Wash clothes separately from other clothing: rinsewasher thoroughly.Operations such as sawing, blowing, tear-out, andspraying may generate fiber concentrations requiringadditional respiratory protection. Use the appropriateNIOSH approved respirator in these situations.FIRST AID MEASURESEye Contact Flush eyes with water to remove dust.If symptoms persist, seek medicalattention.Skin Contact Wash affected areas gently with soapand warm water after handling.Page 2Dwg. No. X664366 P01
