Users Manual

108Mbps 802.11g High Power Wireless USB 2.0 Adapter
2
Table of Contents
1 INTRODUCTION................................................................................................................... 3
1.1 FEATURES & BENEFITS............................................................................................................. 3
1.2 PACKAGE CONTENTS................................................................................................................ 4
1.3 USB ADAPTER DESCRIPTION.................................................................................................... 4
1.4 SYSTEM REQUIREMENTS .......................................................................................................... 4
1.5 APPLICATIONS.......................................................................................................................... 5
1.6 NETWORK CONFIGURATION ...................................................................................................... 6
a) Ad hoc (peer-to-peer) Mode.................................................................................................... 6
b) Infrastructure Mode................................................................................................................. 7
2 INSTALL DRIVERS & CLIENT UTILITY.................................................................................. 8
2.1 BEFORE YOU BEGIN................................................................................................................. 8
2.2 INSTALLING THE DRIVERS ......................................................................................................... 8
3 USING THE CLIENT UTILITY................................................................................................ 20
3.1 CURRENT STATUS .................................................................................................................. 20
3.2 PROFILE MANAGEMENT .......................................................................................................... 21
3.2.1 Scan for available networks..................................................................................... 22
3.2.2 Create a New Profile................................................................................................ 23
3.2.3 Security.................................................................................................................... 24
3.2.3.1 Security Disabled..........................................................................................................24
3.2.3.2 WPA / WPA2– TLS, TTLS.............................................................................................25
3.2.3.3 WPA/WPA2 – PEAP (EAP-GTC)..................................................................................27
3.2.3.4 WPA/WPA2 – PEAP (EAP-MSCHAP-V2).....................................................................29
3.2.3.5 WPA/WPA2 – LEAP......................................................................................................31
3.2.3.6 WPA/WPA2 – EAP-FAST..............................................................................................32
3.2.3.7 WPA/WPA2 – Passphrase............................................................................................34
3.2.3.8 802.1x – TLS, TTLS......................................................................................................34
3.2.3.9 802.1x – PEAP (EAP-GTC)..........................................................................................36
3.2.3.10 802.1x – PEAP (EAP-MSCHAP-V2).............................................................................38
3.2.3.11 802.1x – LEAP..............................................................................................................40
3.2.3.12 802.1x – EAP-FAST......................................................................................................42
3.2.3.13 Pre-Shared Key (Static WEP).......................................................................................44
3.2.4 Advanced Settings................................................................................................... 46
3.2.4.1 Infrastructure Settings...................................................................................................46
3.2.4.2 Ad Hoc Settings............................................................................................................47
3.3 DIAGNOSTICS......................................................................................................................... 48
3.4 ENABLE / DISABLE RADIO ....................................................................................................... 50
3.5 DISABLE TRAY ICON ............................................................................................................... 52
3.6 DISPLAY SETTINGS................................................................................................................. 52
4 UNINSTALL THE DRIVERS & CLIENT UTILITY .................................................................. 54
APPENDIX A – SPECIFICATIONS............................................................................................... 56
APPENDIX B – FCC INTERFERENCE STATEMENT ................................................................. 57
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
3
1 Introduction
This 108Mbps 802.11g High-Gain Wireless USB Adapter supports the IEEE
802.11b/g (2.4GHz) protocol. It provides a high-speed wireless connection with data
rates up to 108Mbps.
To protect your wireless connectivity, the high-speed wireless USB adapter supports
64/128/152-bit WEP data encryption and WPA. Dynamic Frequency Selection (DFS)
puts your network on the clearest channel in your location. With this high-speed
wireless USB adapter, you will experience the best wireless connectivity available.
This chapter describes the features & benefits, package contents, applications, and
network configuration.
1.1 Features & Benefits
Features Benefits
High Speed Data Rate up to 108 Mbps in
Super G mode
Capable of handling heavy data payloads
such as MPEG video streaming.
High Output Power up to 23 dBm A higher power output can increase the range.
Advanced Encryption Standard (AES),
Temporal Key Integrity Protocol (TKIP) and
Wired Equivalent Privacy (WEP)
Powerful data security.
IEEE 802.1x Client Support Enhances authentication and security.
Support for 802.11e standard Wireless Multimedia Enhancements Quality of
Service support (QoS)
Advanced Power Management Low power consumption in power saving
mode up to 98%.
Support eXtended Range technology eXtended Range technology provides Wi-Fi
products twice the range of existing designs
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
4
1.2 Package Contents
Open the package carefully, and make sure that none of the items listed below are
missing. Do not discard the packing materials, in case you need to return the product
return. The unit must be returned in its original package.
h One Wireless LAN USB Adapter
h One USB Cable (Type A to Mini B)
h One 2dBi Detachable Antenna
h One Driver and Utility CD-ROM with User’s Manual Included
h One Quick Installation Guide

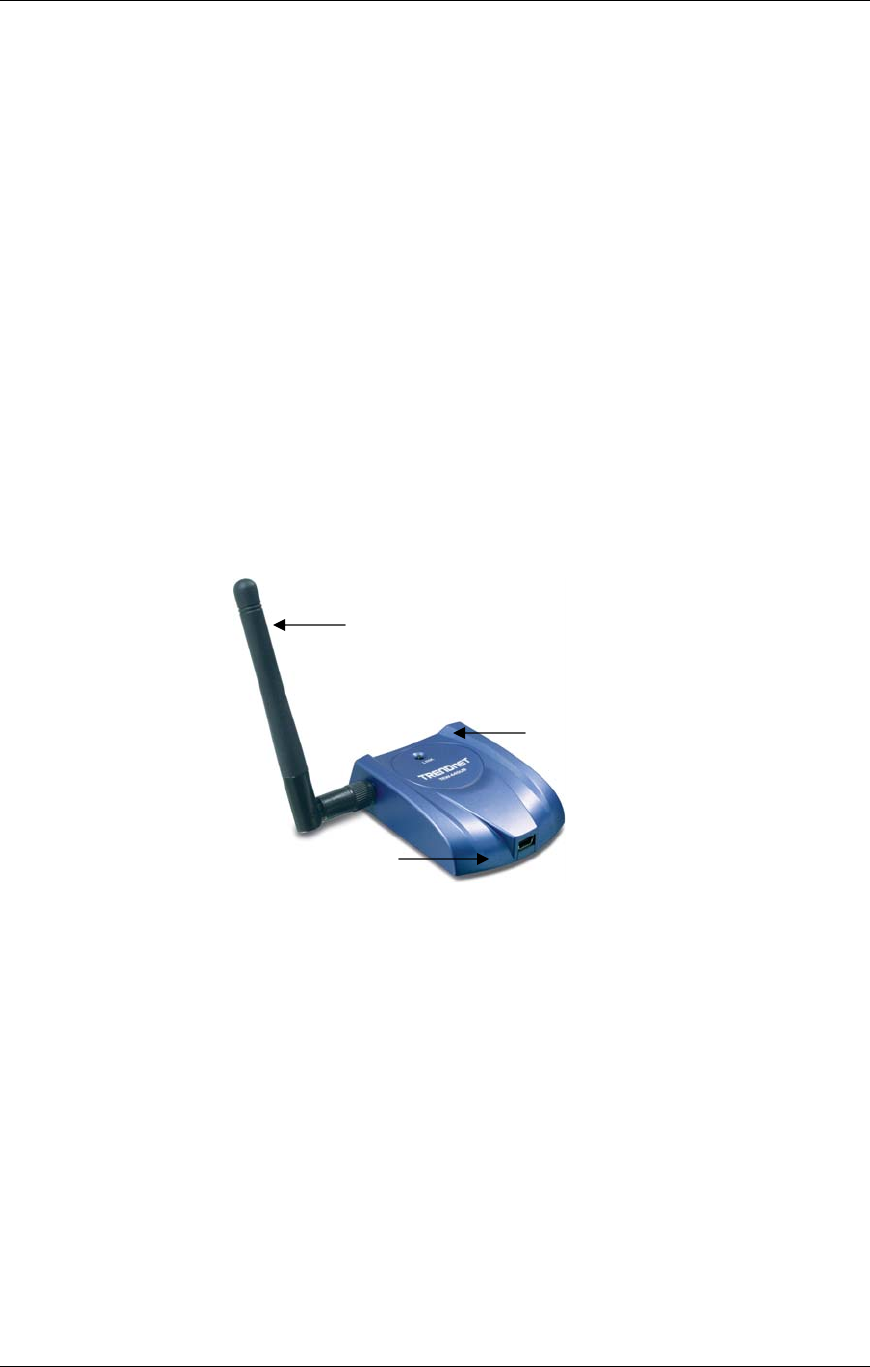

1.3 USB Adapter Description
This wireless USB adapter fits into your computer’s USB 1.1 or 2.0 port. The USB
adapter has a LED indicator and an external high-sensitivity dipole antenna.
1.4 System Requirements
The following are the minimum system requirements in order to use the USB
adapter.
h PC/AT compatible computer with a USB 1.1 or 2.0 interface.
h Windows 2000/XP operating system.
h 20 MB of free disk space for installing the USB adapter driver and utility
program.
h CD-ROM Drive
h CPU: 300MHz or above
h Memory: 32MB or above
USB port
High-sensitivity Dipole Antenna
LED Indicator:
Ad hoc Mode: Solid Green, whether the
wireless is connected or not.
Infrastructure Mode: Solid green while
connected, and blinking during activity.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
5
1.5 Applications
. The following list describes some of the many applications made possible through
the power and flexibility of wireless LANs:
a) Difficult-to-wire environments
There are many situations where wires cannot be easily installed. Historic
buildings, older buildings, open areas and across busy streets make the
installation of LANs either impossible or very expensive.
b) Temporary workgroups
Consider situations in parks, athletic arenas, exhibition centers, disaster-
recovery, temporary offices and construction sites where one wants a
temporary WLAN established and removed.
c) The ability to access real-time information
Doctors/nurses, point-of-sale employees, and warehouse workers can
access real-time information while dealing with patients, serving
customers and processing information.
d) Dynamic environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where
the workplace is frequently rearranged.
e) Small Office and Home Office (SOHO) networks
SOHO users need a cost-effective, easy–to-install network.
f) Wireless extensions to Ethernet networks
Network managers in dynamic environments can minimize the overhead
caused by moves, extensions to networks, and other changes with
wireless LANs.
g) Wired LAN backup
Network managers implement wireless LANs to provide backup for
mission-critical applications running on wired networks.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
6
1.6 Network Configuration
To better understand how wireless devices work together to create a wireless
network, it might be helpful to depict a few of the possible wireless network
configurations. Wireless devices can be configured as:
a) Ad hoc (or peer-to-peer)
b) Infrastructure

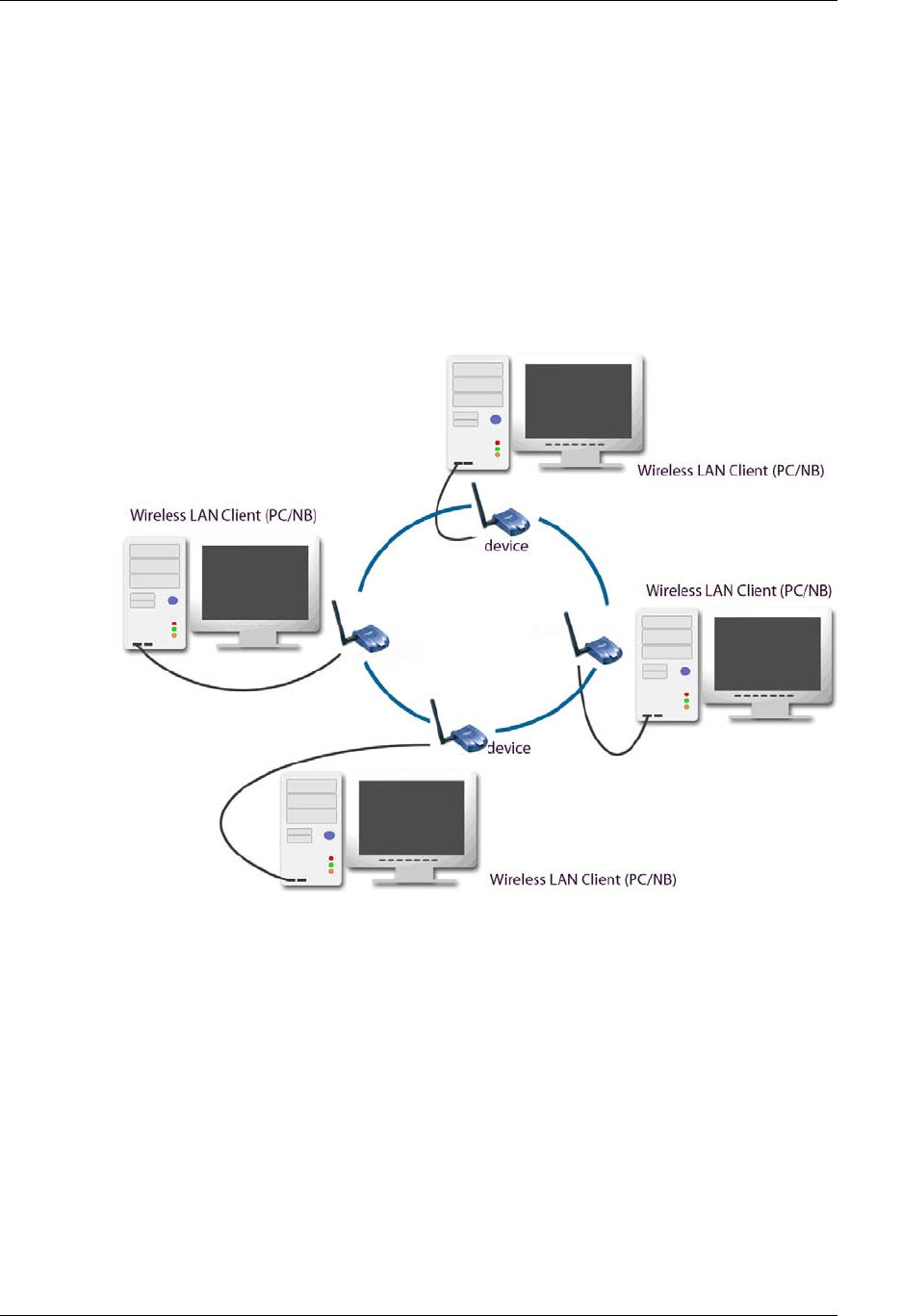

a) Ad hoc (peer-to-peer) Mode
In ad hoc mode, each client is peer-to-peer. The client would only have
access to the resources of the other client. Ad hoc mode does not
require an access point. This is the easiest and least expensive way for
the SOHO to set up a wireless network. The image above depicts a
network in Ad hoc mode.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
7
b) Infrastructure Mode
Infrastructure mode requires the use of an access point (AP). In this
mode, all wireless communication between clients passes through an AP.
It doesn’t matter if the AP is stand-alone or wired to an Ethernet network.
If used in stand-alone, the AP can extend the range of independent
wireless LANs by acting as a repeater. The image below depicts a
network in infrastructure mode.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
8
2 Install Drivers & Client Utility
2.1 Before You Begin
Before installing your wireless USB adapter, you need to remove all Wireless LAN
drivers that you have previously installed.
During the installation, Windows XP/2K/ME/98 may need to copy systems files from
its installation CD. Therefore, you may need a copy of the Windows installation CD at
hand before installing the drivers. On many systems, instead of a CD, the necessary
installation files are archived on the hard disk in C:\WINDOWS \OPTIONS\CABS
directory.
2.2 Installing the Drivers
Windows XP/2000
Follow the steps below in order to install the USB adapter drivers:

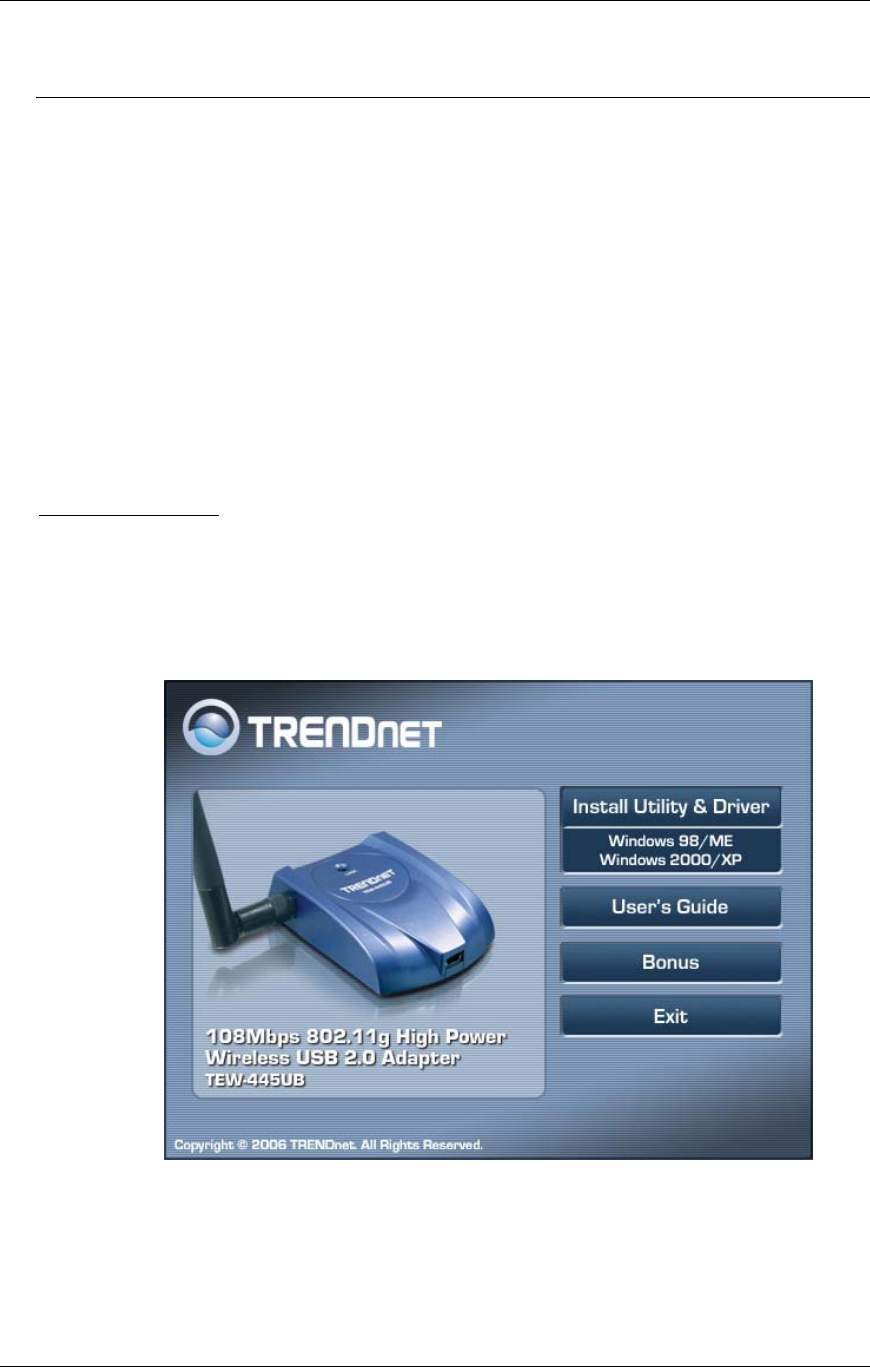

1. Insert the provided CD-ROM into your CD-ROM drive. The autorun screen
will appear.
2. Click Install Utility & Driver and then click Windows 2000/XP.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
9
3. Click Run.
4. Click Run.
5. Click Next to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
10

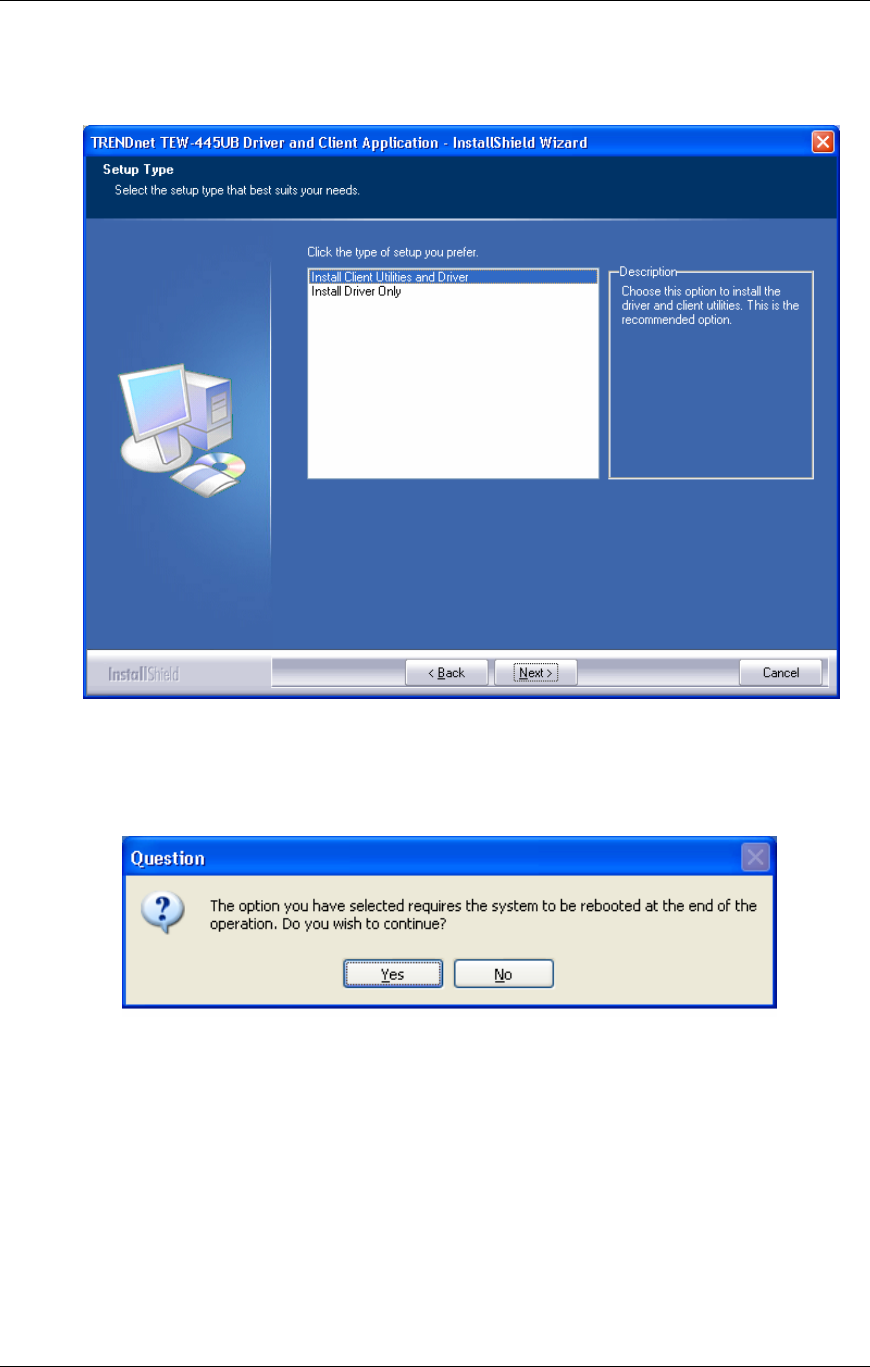

6. Select Install Client Utilities and Driver and then click Next.
7. This message informs you that the system must be restarted after the
installation is complete. Click Yes to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
11
8. Click on the Browse button to select another drive or folder to install the
drivers, and then click Next. If you would like to use the default destination
folder, click Next.

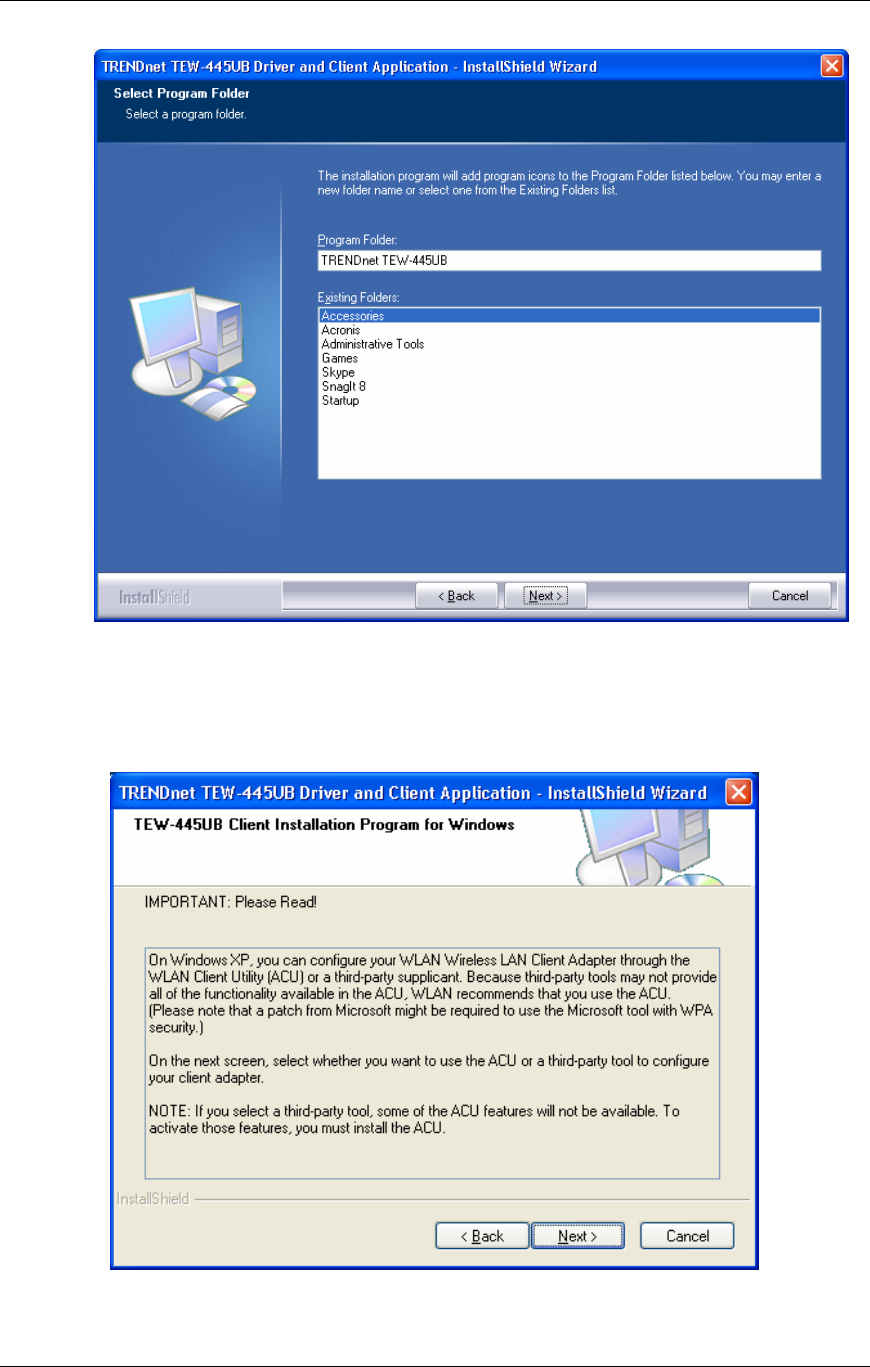

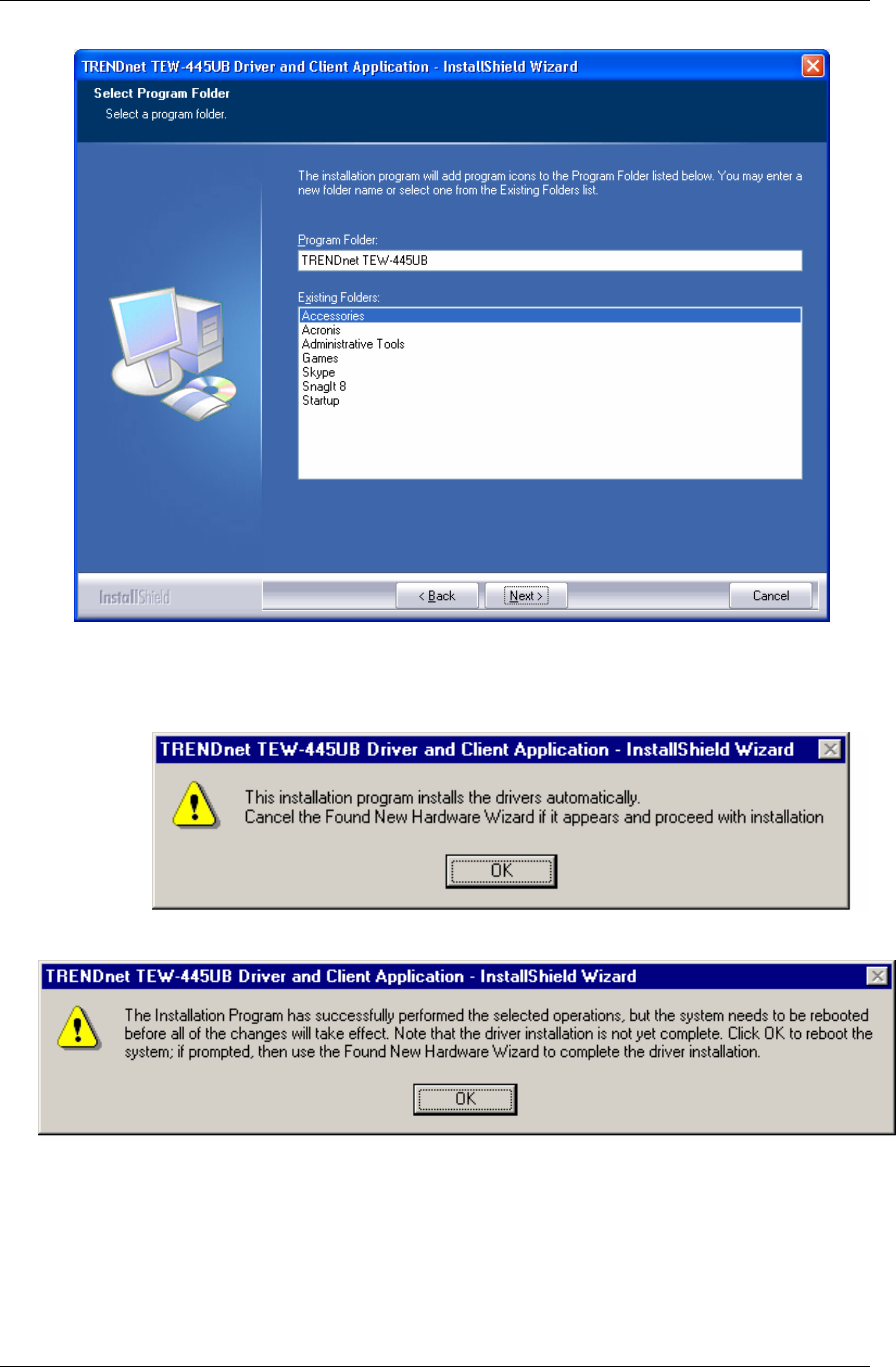

9. Select a program folder for the Start menu, or use the default setting: WLAN.
Click Next to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
12
10. The message below informs you about configuring this device through the
802.11 Client Utility (ACU) or a third party supplicant. If you choose to use a
third party supplicant, some of the ACU features will not be available. Click
Next to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
13
11. Select one of the options. It is recommended that you select the first option:
WLAN Client Utility (ACU) and Supplicant. Click Next to continue.
12. When you reach the screen below, plug in the provided USB cable into the
TEW-445UB and into an available USB plug on your computer. Cancel the
Found New Hardware Wizard and then click OK.
13. If you are using Windows XP, you will see a message regarding Windows
Logo Testing, click on the Continue Anyway button to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
14
14. If you are using Windows 2000, a Digital Signature Not Found window
appears. Click Yes to continue the installation.
15. Select Yes, I want to restart my computer now and then click Finish.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
15
Windows ME/98SE
Follow the steps below in order to install the USB adapter drivers:
1. Insert the provided CD-ROM into your CD-ROM drive. The autorun screen
will appear.
2. Click Install Utility & Driver and then click Windows 98/ME.
3. Select Run this program from its current location and then click OK.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
16
4. Click Yes.
5. Remove the USB adapter from the USB port if it is inserted and then click OK.
6. Click Next to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
17
7. Select Install Client Utilities and Driver and then click Next.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
18
8. This message informs you that the system must be restarted after the
installation is complete. Click Yes to continue.
9. Click on the Browse button to select another drive or folder to install the
drivers, and then click Next. If you would like to use the default destination
folder, click Next.
10. . Click Next to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
19
11. When you reach the screen below, plug in the provided USB cable into the
TEW-445UB and into an available USB port on your computer. Cancel the
Found New Hardware Wizard and then click OK.
12. Click OK to reboot the computer.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
20
3 Using the Client Utility

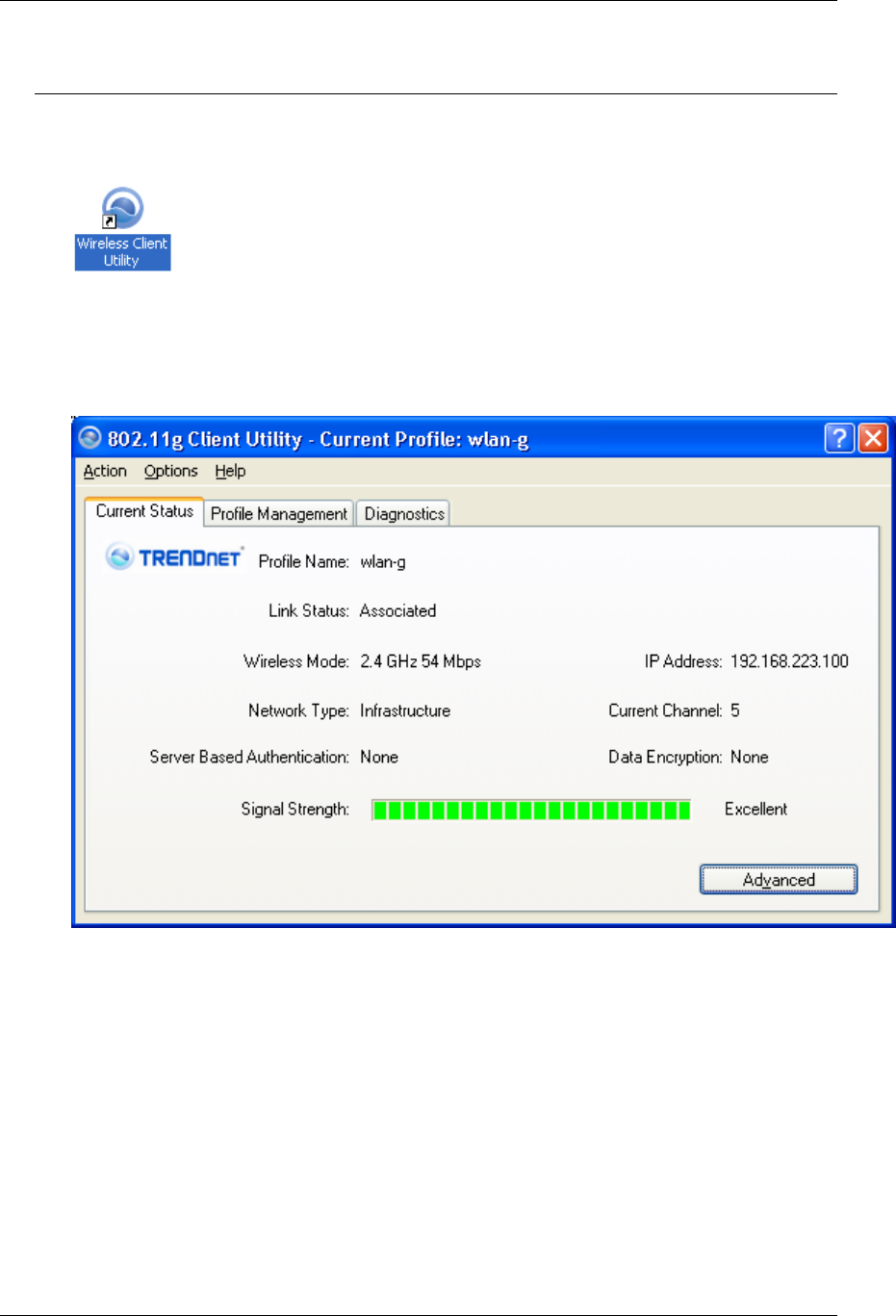

You will see the Wireless Client Utility icon on your desktop. Double click this
icon to open up the utility program.
3.1 Current Status
The Current Status tab displays the current status of the wireless radio. The
following information is included in this tab:
h Profile Name: Displays the name of this profile. One device can have
many profiles, but only one profile can be loaded at a time.
Note: The profile name and network name (SSID) are not the same.
h Link Status: This indicates the state of the client; associated or not
associated.
h Wireless Mode: Displays the 802.11 mode (e.g. “2.4GHz 11 Mbps”,
“2.4GHz 54 Mbps”, “2.4GHz 108Mbps”).
h Network Type: Displays the type of network (e.g. “Infrastructure” or “Ad
hoc”).
h Server Based Authentication: Displays information about the
authentication method.
h IP address: Displays the IP address assigned to this device.
h Current Channel: Displays the channel of the access point the device is
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
21
connected to.
h Data Encryption: Displays the type of encryption used.
h Signal Strength: Displays the strength of the wireless connection.
Click on the Advanced button to display more details about the current status.
This window includes information such as: Network Name (SSID), AP MAC
address, Power Save Mode, Signal Strength, Noise Level, Channel, Frequency,
and Channel Set (country). Click OK to close the window.

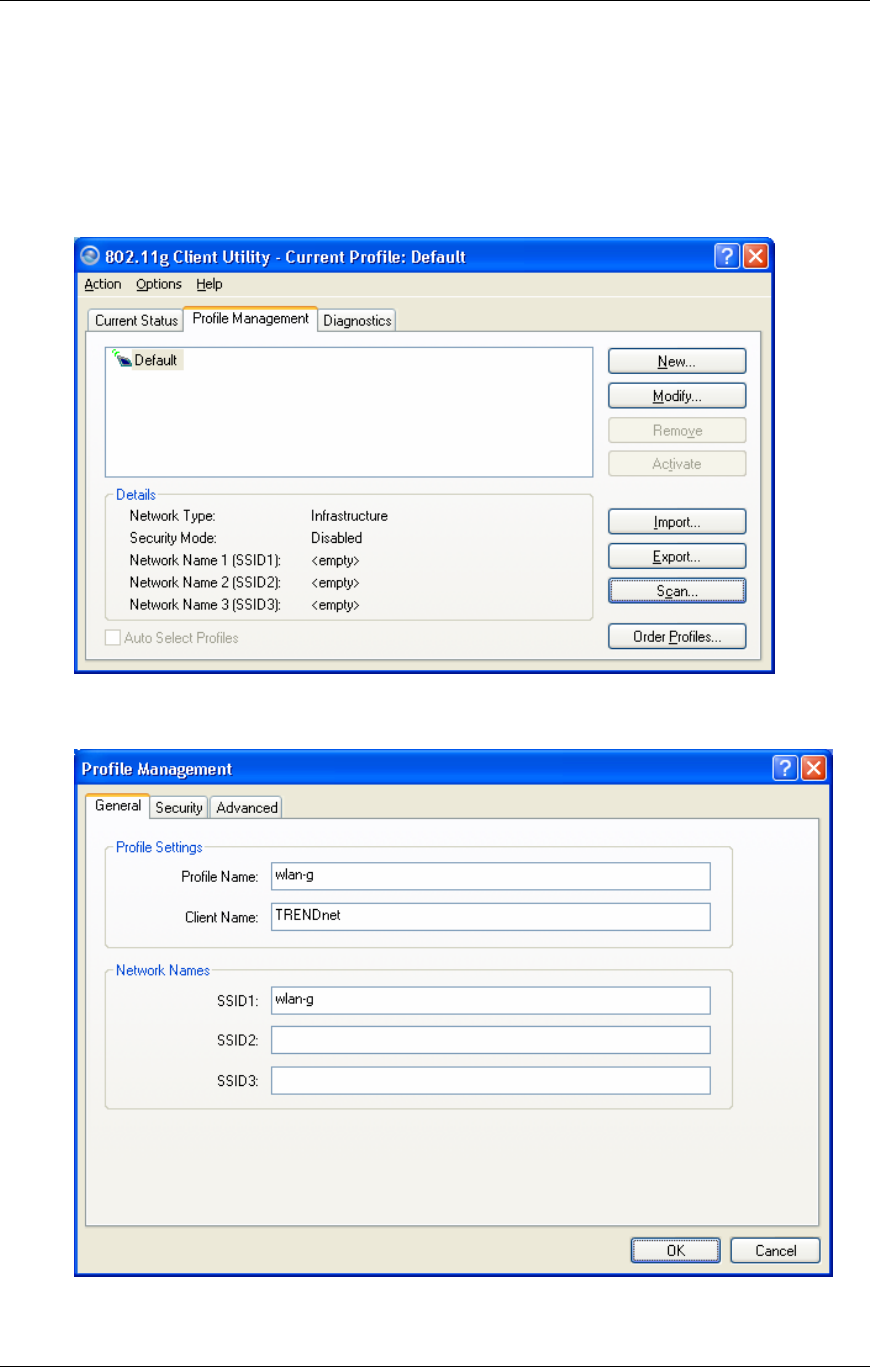

3.2 Profile Management
This tab is used to create a new profile, modify an existing profile, remove an
existing profile and activate an existing profile.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
22
3.2.1 Scan for available networks
Click on the Scan button to view a list of available infrastructure and ad hoc
networks. This table lists the Network Name, Encryption Key (if required), Signal
Strength, Channel, and Wireless Mode.
If you would like to associate with a specific network, select the network name
(SSID) and then click on the Activate button.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
23
3.2.2 Create a New Profile
Multiple profiles can be created for different Network Names (SSIDs). This allows
a user to quickly associate with another network, instead of entering the SSID
each time.
Click on the New button to create a new profile. The window below appears:
h Profile Name: Enter a name for this profile; this can be any name that
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
24
you may associate with your network. This feature comes in handy when
you need to work at several locations where there are different network
settings. Using this you can configure a different profile for each of your
networks.
h Client Name: Enter any name to describe the profile.
h SSID1: Enter the SSID of the network. The SSID is a unique name
shared among all points in your wireless network. The SSID must be
identical for all points in the network, and is case-sensitive.
h Click OK to continue.
3.2.3 Security
The next tab displayed is the Security tab. Here you can configure the
authentication and encryption method that is used on your network. There are
five types of security methods available: none, WPA, WPA-PSK, 802.1x and Pre-
shared WEP key. The configuration steps for each method are described below.
3.2.3.1 Security Disabled
If your network does not require any encryption key, then select None in the
security tab, and then click OK.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
25
3.2.3.2 WPA / WPA2– TLS, TTLS
WPA2 (Wi-Fi Protected Access 2) provides network administrators with a high
level of assurance that only authorized users can access the network. WPA (Wi-
Fi Protected Access) was designed to improve upon the security features of WEP
(Wired Equivalent Privacy). The technology is designed to work with existing Wi-
Fi products that have been enabled with WEP. WPA provides improved data
encryption through the Temporal Integrity Protocol (TKIP), which scrambles the
keys using a hashing algorithm and by adding an integrity-checking feature which
makes sure that keys haven’t been tampered with.

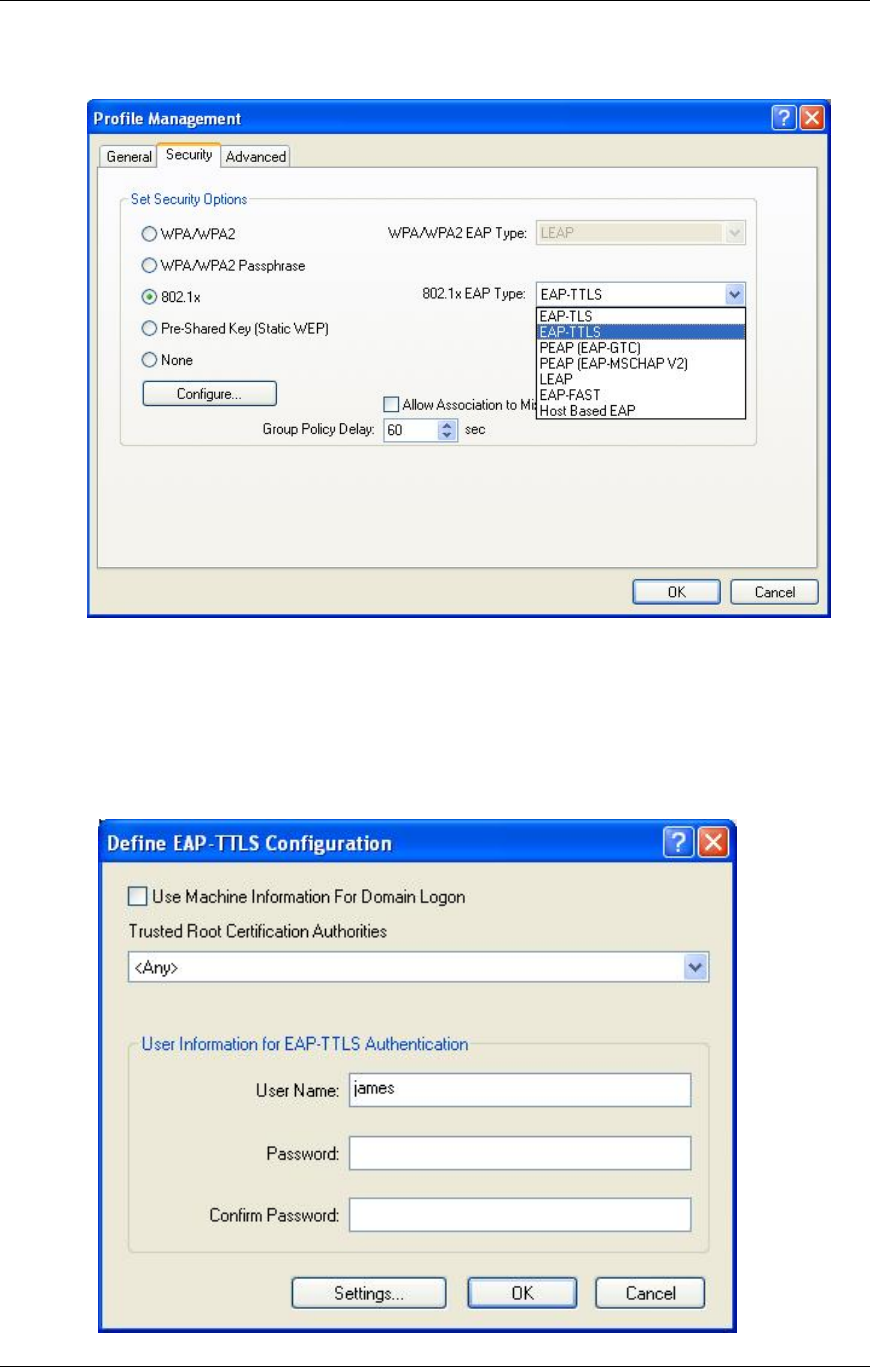

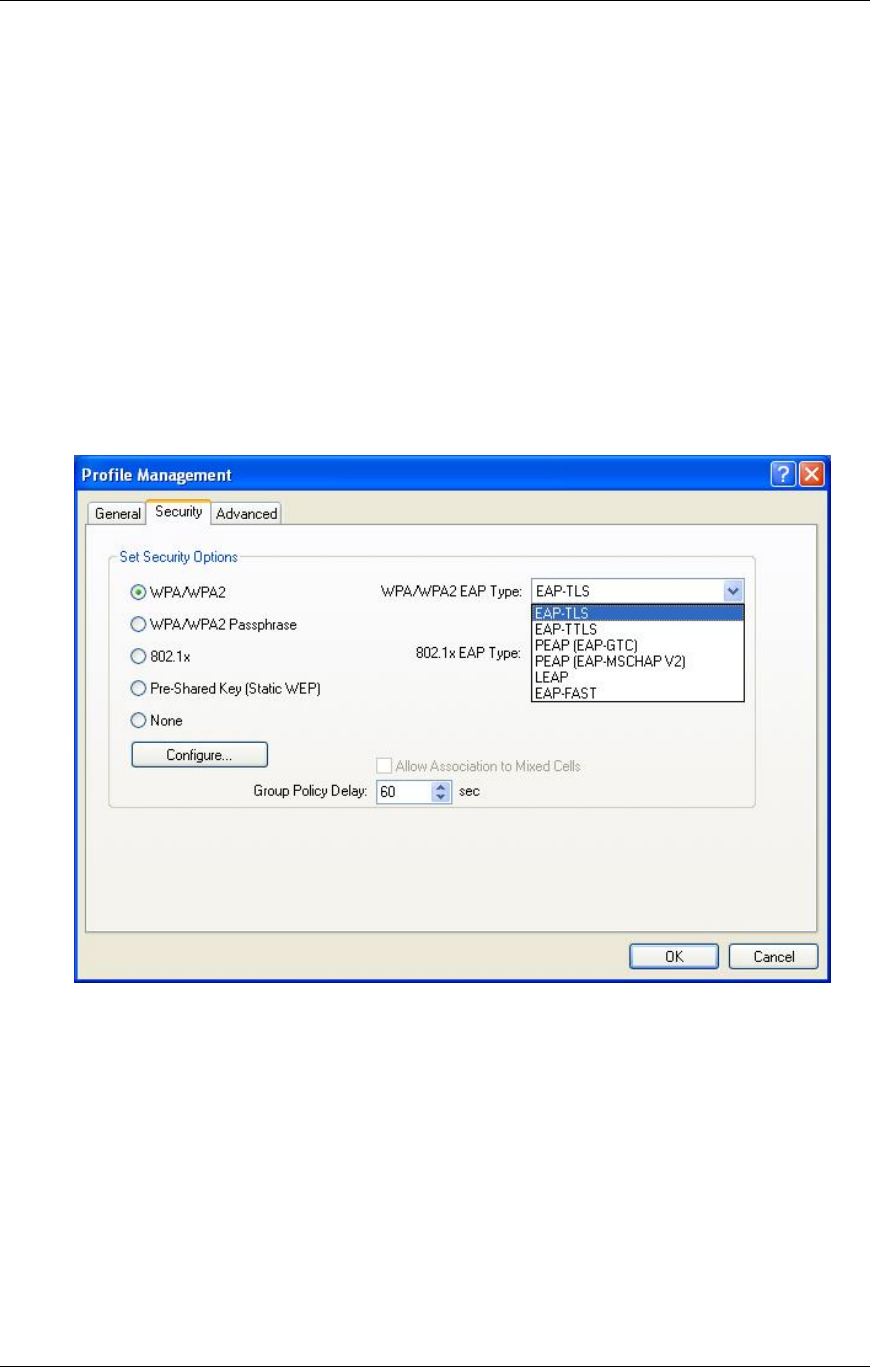

Select the WPA/WPA2 radio button, and then select EAP – TLS or EAP – TTLS
from the drop-down list. TLS (Transport Layer Security) is an IETF standardized
authentication protocol that uses PKI (Public Key Infrastructure) certificate-based
authentication of both the client and authentication server.
Click Configure to configure the TTLS settings.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
26
h Trusted Root Certification Authorities: Select the appropriate
certificate authority from the drop-down list.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
Click Settings.
h Specific Server or Domain: Leave the server name blank for the client
to accept a certificate from any server with a certificate signed by the
authority listed in the Trusted Root Certification Authorities drop-down
list. (Recommended). You can also enter the domain name of the server
from which the client will accept a certificate.
h Login Name: Enter the login name if required.
Click OK to return to the previous window. Click OK again to return to the
Profile Management window.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
27
3.2.3.3 WPA/WPA2 – PEAP (EAP-GTC)
PEAP (EAP-GTC) was standardized along with EAP in RFC 2284. EAP-GTC
allows the exchange of clear text authentication credentials across the network.
The GTC method does provide a way to move a simple username and password
from client to server using an EAP method, so it can be used to provide an
authentication method. Naturally, if EAP-GTC is used to transport reusable
passwords, it must be used inside a tunnel for protection and server
authentication. EAP-GTC can be used with both TTLS and PEAP.

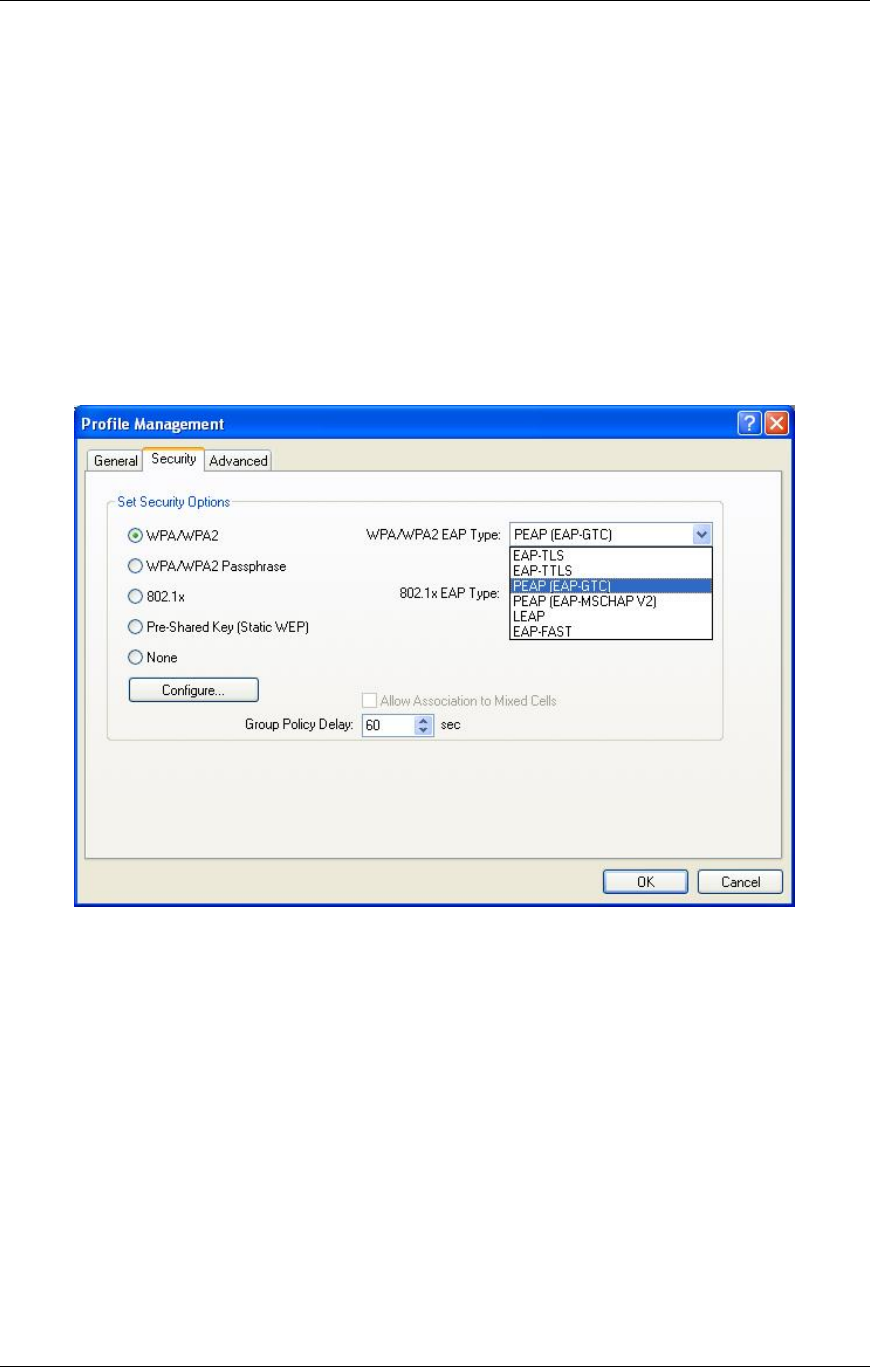

Select the WPA/WPA2 radio button, and then select PEAP (EAP-GTC) from the
drop-down list.
Click Configure to configure the PEAP (EAP-GTC) settings.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
28
h Trusted Root Certification Authorities: Select the appropriate
certificate authority from the drop-down list. .
h Set Password: Select Token or Static Password radio button. The
default setting is Static Password.
h User Name: Enter the user name for the certificate authority
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
Click Settings.
h Specific Server or Domain: Leave the server name blank for the client
to accept a certificate from any server with a certificate signed by the
authority listed in the Trusted Root Certification Authorities drop-down
list. (Recommended). You can also enter the domain name of the server
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
29
from which the client will accept a certificate.
h Login Name: Enter the login name if required.
Click OK to return to the previous window. Click OK again to return to the
Profile Management window.
3.2.3.4 WPA/WPA2 – PEAP (EAP-MSCHAP-V2)
The PEAP (EAP-MSCHAP V2) authentication type is based on EAPTLS
authentication, but uses a password instead of a client certificate for
authentication. PEAP (EAP-MSCHAP V2) uses a dynamic session-based WEP
key, which is derived from the device and RADIUS server, to encrypt data.

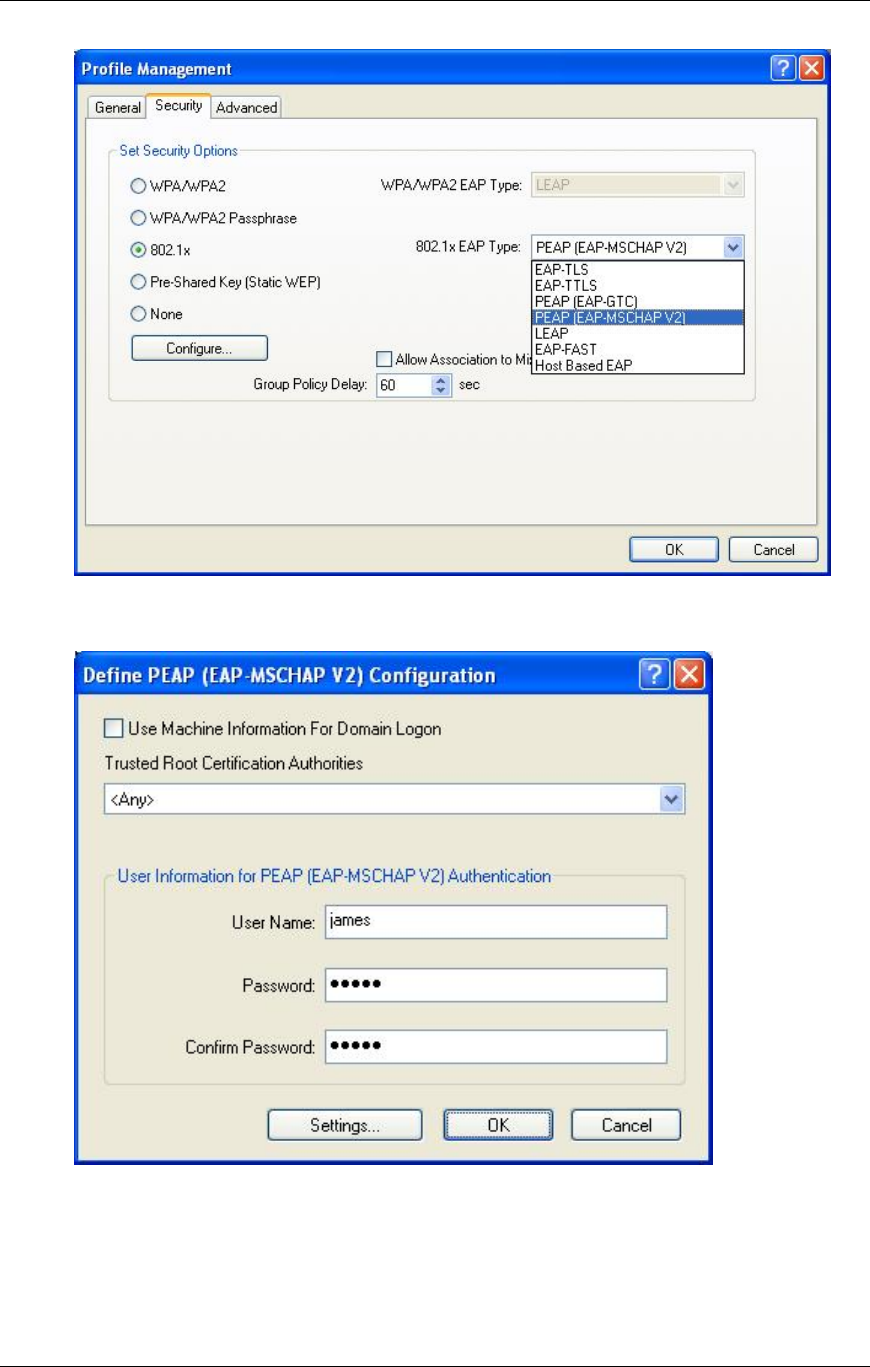

Select the WPA/WPA2 radio button, and then select PEAP (EAP-MSCHAP-V2)
from the drop-down list.
Click Configure to configure the PEAP (EAP-MSCHAP-V2) settings.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
30
h Trusted Root Certification Authorities: Select the appropriate
certificate authority from the drop-down list.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.

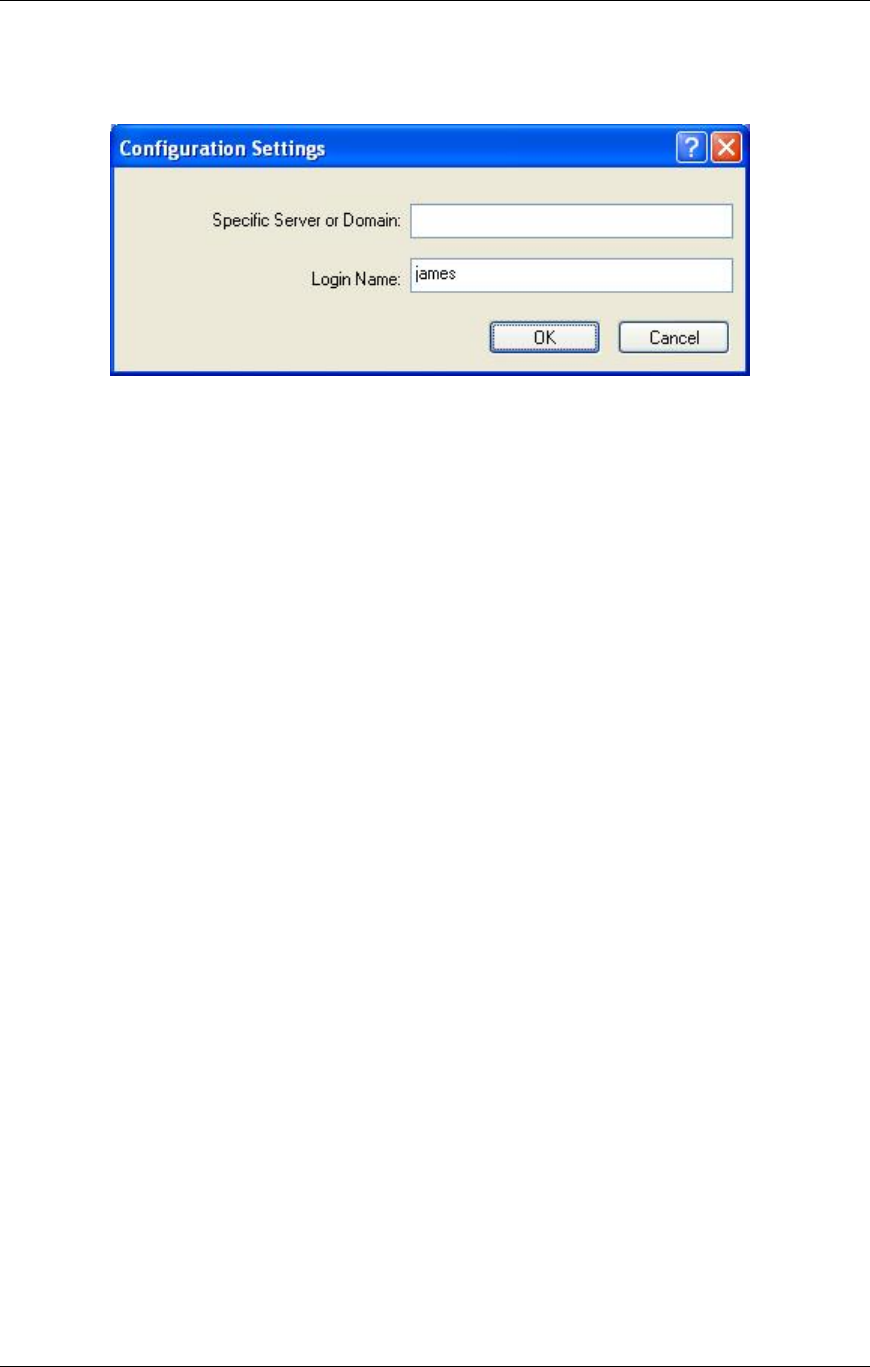

Click Settings.
h Specific Server or Domain: Leave the server name blank for the client
to accept a certificate from any server with a certificate signed by the
authority listed in the Trusted Root Certification Authorities drop-down
list. (Recommended). You can also enter the domain name of the server
from which the client will accept a certificate.
h Login Name: Enter the login name if required.
Click OK to return to the previous window. Click OK again to return to the
Profile Management window.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
31
3.2.3.5 WPA/WPA2 – LEAP
LEAP (Lightweight Extensible Authentication Protocol) also known as Cisco-
Wireless EAP provides username/password-based authentication between a
wireless client and a RADIUS server. LEAP is one of several protocols used with
the IEEE 802.1X standard for LAN port access control. LEAP also delivers a
session key to the authenticated station, so that future frames can be encrypted
with a key that is different than keys used by others sessions. Dynamic key
delivery eliminates one big vulnerability; static encryption keys that are shared by
all stations in the WLAN.
Select the WPA/WPA2 radio button, and select LEAP from the drop-down list.
Click Configure to configure the LEAP settings.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
32

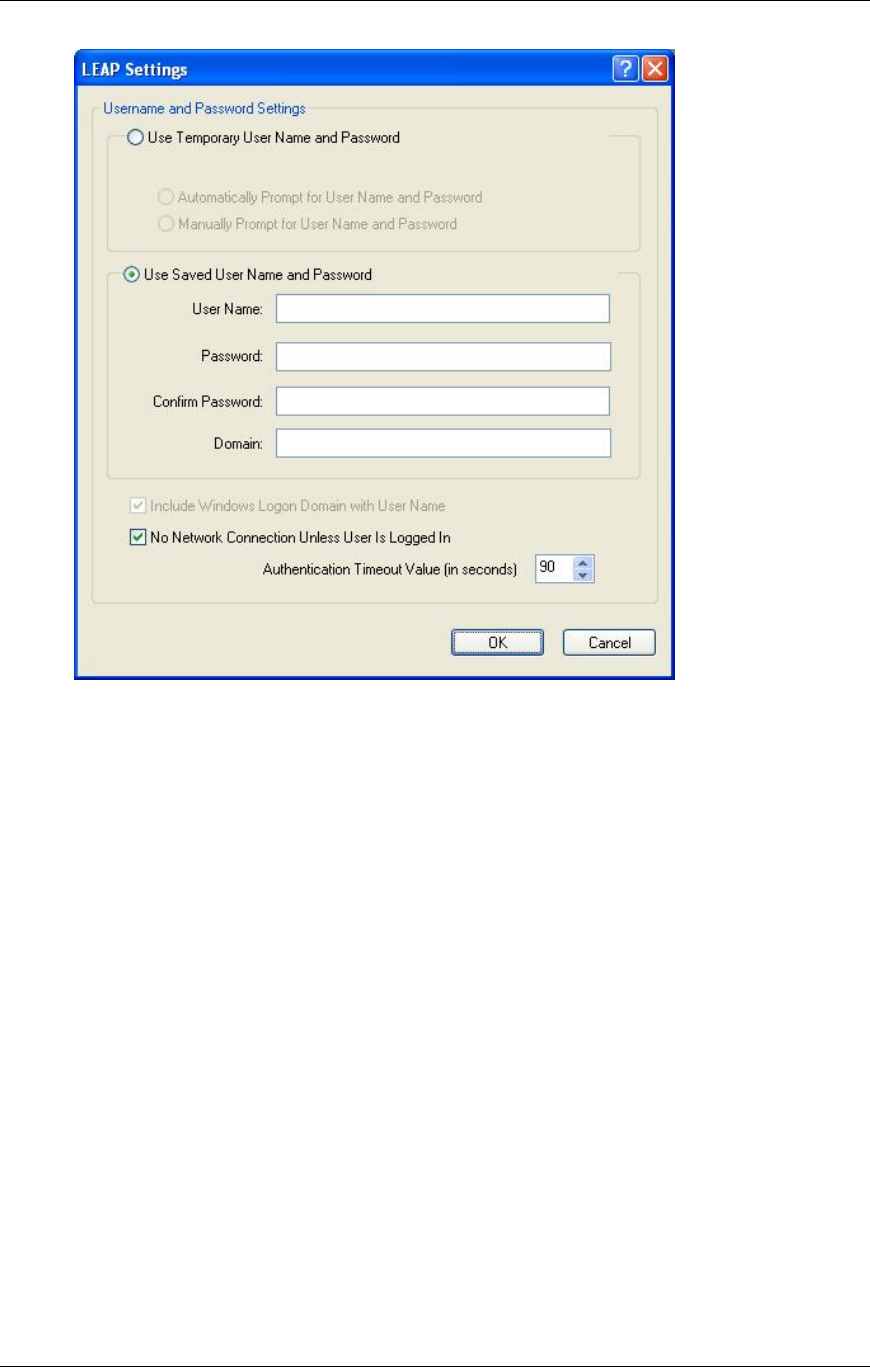

h Use Temporary User Name and Password: Select this radio button for
a temporary user name and password. This will manually prompt for the
user name and password.
h Use Saved User Name Password: Select this radio button if the user
name and password will be saved in this profile.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
Click OK to return to the previous window.
3.2.3.6 WPA/WPA2 – EAP-FAST
EAP-FAST allows customers who cannot enforce a strong password policy to
deploy EAP authentication that does not require digital certificates. This method
supports a variety of user and password database types and password expiration
and change. It is flexible, easy to deploy, and easy to manage. For example, a
customer using Cisco LEAP who cannot enforce a strong password policy and
does not want to use certificates can migrate to EAP-FAST for protection from
dictionary attacks. (See help menu on configuration utility for
more details)
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
33

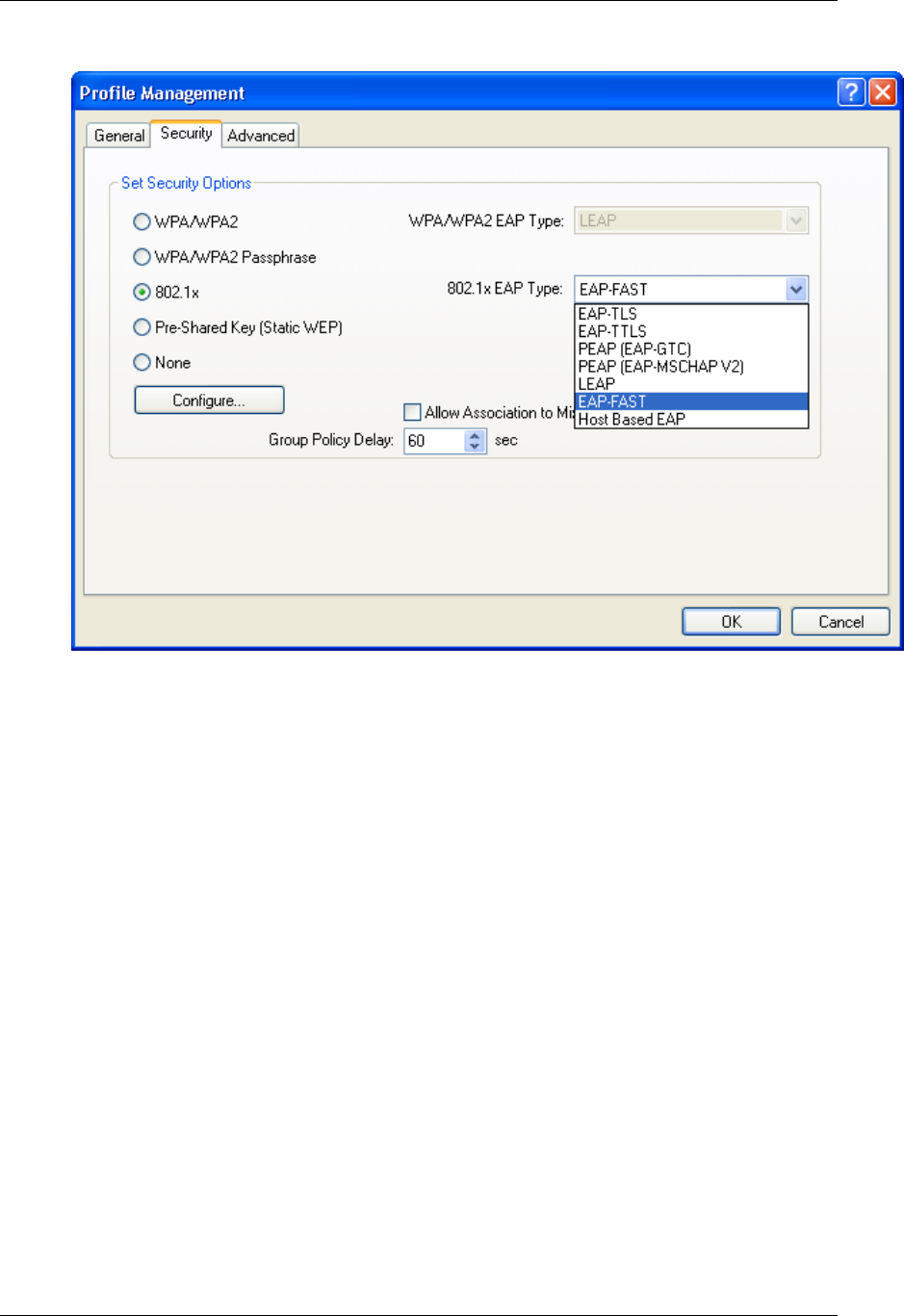

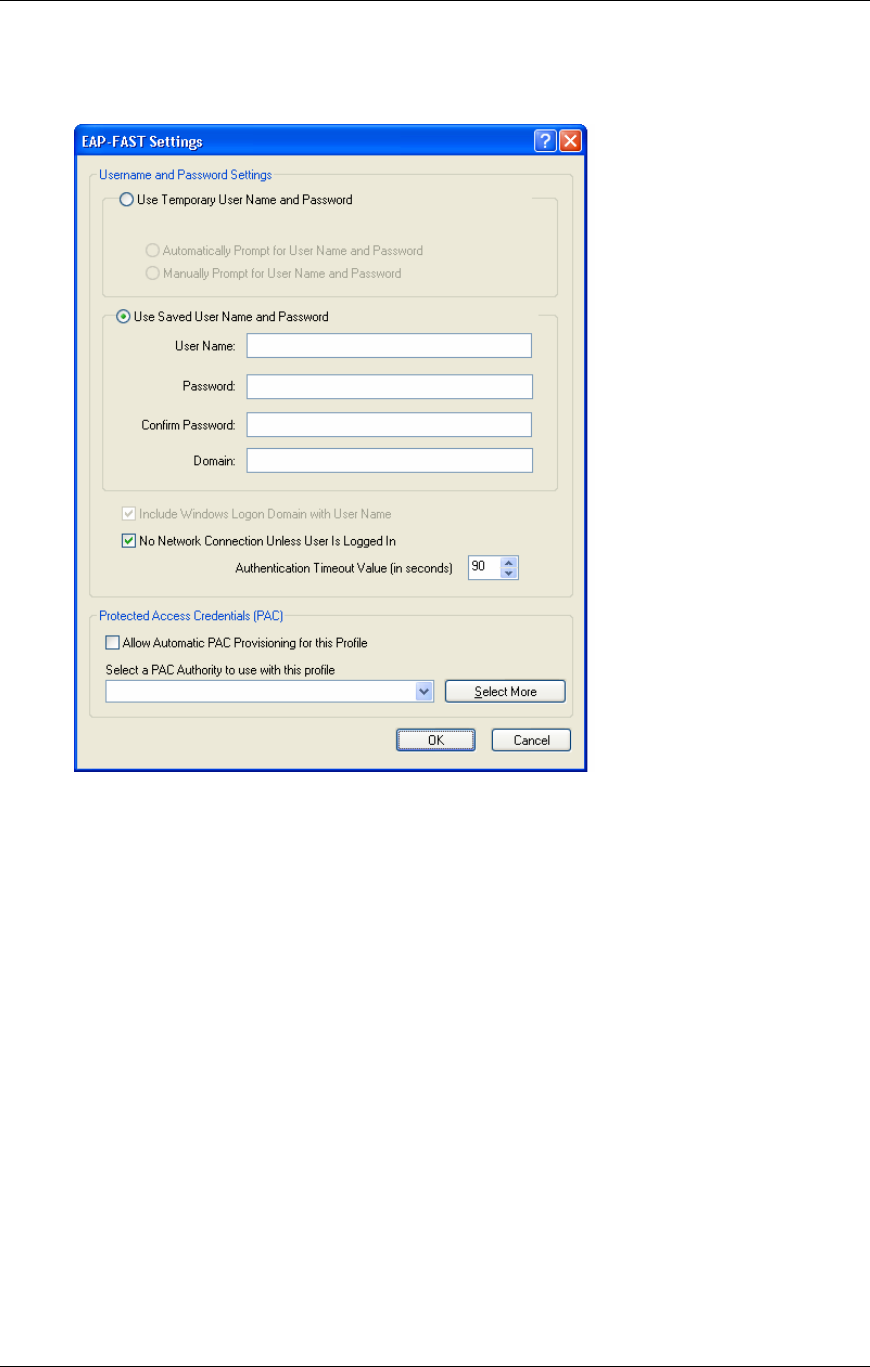

Click Configure to configure the EAP-Fast settings
h Use Temporary User Name and Password: Selecting this option will
manually prompt for the user name and password.
h Use Saved User Name Password: Select this radio button if the user
name and password will be saved in this profile.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
Click OK to return to the previous window.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
34
3.2.3.7 WPA/WPA2 – Passphrase
Select the WPA/WPA2 Passphrase radio button and then click Configure.
h Enter a WPA/WPA2 passphrase. For ASCII text, enter 8-63 characters,
for hexadecimal enter 64 characters).
Click OK to return to the previous window. Click OK again to return to the
Profile Management window.
3.2.3.8 802.1x – TLS, TTLS
802.1X provides an authentication framework for wireless LANs allowing a user
to be authenticated by a central authority. 802.1X uses an existing protocol
called EAP. EAP (Extensible Authentication Protocol) is an extension to the PPP
protocol that enables a variety of authentication protocols to be used. It passes
through the exchange of authentication messages, allowing the authentication
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
35
software stored in a server to interact with its counterpart in the client.
Select the 802.1x radio button, and then select EAP – TLS or EAP – TTLS from
the drop-down list. TLS (Transport Layer Security) is an IETF standardized
authentication protocol that uses PKI (Public Key Infrastructure) certificate-
based authentication of both the client and authentication server.
Click Configure to configure the TTLS settings.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
36
h Trusted Root Certification Authorities: Select the appropriate
certificate authority from the drop-down list.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
Click Settings.
h Specific Server or Domain: Leave the server name blank for the client
to accept a certificate from any server with a certificate signed by the
authority listed in the Trusted Root Certification Authorities drop-down
list (Recommended). You can also enter the domain name of the server
from which the client will accept a certificate.
h Login Name: Enter the login name if required.
Click OK to return to the previous window. Click OK again to return to the
Profile Management window.
3.2.3.9 802.1x – PEAP (EAP-GTC)
PEAP (EAP-GTC) was standardized along with EAP in RFC 2284. EAP-GTC
allows the exchange of clear text authentication credentials across the network.
The GTC method does provide a way to move a simple username and password
from client to server using an EAP method, so it can be used to provide an
authentication method. If EAP-GTC is used to transport reusable passwords, it
must be used inside a tunnel for protection and server authentication. EAP-GTC
can be used with both TTLS and PEAP.
Select the 802.1x radio button, and then select PEAP (EAP-GTC) from the drop-
down list.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
37
Click Configure to configure the PEAP (EAP-GTC) settings.
h Trusted Root Certification Authorities: Select the appropriate
certificate authority from the drop-down list.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
38
h User Name: Enter the user name for the certificate authority.
h Set Password: Select Token or Static Password radio button. The
default setting is Static Password.
Click Settings.
h Specific Server or Domain: Leave the server name blank for the client
to accept a certificate from any server with a certificate signed by the
authority listed in the Trusted Root Certification Authorities drop-down
list. (Recommended). You can also enter the domain name of the server
from which the client will accept a certificate.
h Login Name: Enter the login name if required.
Click OK to return to the previous window. Click OK again to return to the
Profile Management window.
3.2.3.10 802.1x – PEAP (EAP-MSCHAP-V2)
The PEAP (EAP-MSCHAP V2) authentication type is based on EAPTLS
authentication, but uses a password instead of a client certificate for
authentication. PEAP (EAP-MSCHAP V2) uses a dynamic session-based WEP
key, which is derived from the device and RADIUS server, to encrypt data.
Select the 802.1x radio button, and then select PEAP (EAP-MSCHAP-V2) from
the drop-down list.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
39
Click Configure to configure the PEAP (EAP-MSCHAP-V2) settings.
h Trusted Root Certification Authorities: Select the appropriate
certificate authority from the drop-down list.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
40
Click Settings.
h Specific Server or Domain: Leave the server name blank for the client
to accept a certificate from any server with a certificate signed by the
authority listed in the Trusted Root Certification Authorities drop-down
list. (Recommended). You can also enter the domain name of the server
from which the client will accept a certificate.
h Login Name: Enter the login name if required.
Click OK to return to the previous window. Click OK again to return to the
Profile Management window.
3.2.3.11 802.1x – LEAP
LEAP (Lightweight Extensible Authentication Protocol) also known as Cisco-
Wireless EAP provides username/password-based authentication between a
wireless client and a RADIUS server. LEAP is one of several protocols used with
the IEEE 802.1X standard for LAN port access control. LEAP also delivers a
session key to the authenticated station, so that future frames can be encrypted
with a key that is different than keys used by others sessions. Dynamic key
delivery eliminates one big vulnerability; static encryption keys that are shared by
all stations in the WLAN.
Select the 802.1x radio button, and then select LEAP from the drop-down list.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
41
Click Configure to configure the LEAP settings.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
42
h Use Temporary User Name and Password: Selecting this option will
manually prompt for the user name and password.
h Use Saved User Name Password: Select this radio button if the user
name and password will be saved in this profile.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
Click OK to return to the previous window.
3.2.3.12 802.1x – EAP-FAST
EAP-FAST allows customers who cannot enforce a strong password policy to
deploy an 802.1X EAP type that does not require digital certificates. This method
supports a variety of user and password database types and password expiration
and change. It is flexible, easy to deploy, and easy to manage. For example, a
customer using Cisco LEAP who cannot enforce a strong password policy and
does not want to use certificates can migrate to EAP-FAST for protection from
dictionary attacks. (See help menu on configuration utility for
more details)
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
43
h Use Temporary User Name and Password: Selecting this option will
manually prompt for the user name and password.
h Use Saved User Name Password: Select this radio button if the user
name and password will be saved in this profile.
h User Name: Enter the user name for the certificate authority.
h Password: Enter the password that corresponds with the user name for
the certificate authority.
h Confirm Password: Retype the password.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
44
Click OK to return to the previous window.
3.2.3.13 Pre-Shared Key (Static WEP)
You may select 64, 128 or 152 bit WEP (Wired Equivalent Privacy) key to encrypt
data (Default setting is Disable). WEP encrypts each frame transmitted from the
radio using one of the Keys from the panel. When you use WEP to communicate
with the other wireless clients, all the wireless devices in this network must have
the same encryption key or pass phrase.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
45
Select the Pre-Shared Key (Static WEP) radio button and click Configure.
h Key Entry: Select Hexadecimal or ASCII depending on the WEP key
that is used.
h WEP Key Size: Select 64, 128, or 152 bit WEP key size.
h Transmit Key: Enter the WEP key in the four WEP key text boxes.
Click OK to return to the previous window.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
46
3.2.4 Advanced Settings
Click on the Advanced tab in the Profile Management section. Here you can
configure the wireless mode, power save mode, and network type.
3.2.4.1 Infrastructure Settings
h Wireless Mode: Place a check in the preferred frequency and data rate.
h Power Save Mode: Select Maximum, Normal, or Off from the drop-
down list. Selecting Maximum will save the most power. This is
recommended if using a laptop running on battery.
h Network Type: Select Infrastructure from the dropdown list if the
wireless client is connecting to an access point.
h 802.11b Preamble: This setting should be the same as the access point.
If you are not sure of that setting, select Short & Long.
h Preferred APs: Click on this button to add specific access points to this
profile. Then enter the MAC addresses of the specific access points and
then click OK to return to the previous window.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
47
3.2.4.2 Ad Hoc Settings
h Wireless Mode: Place a check next to the preferred frequency and data
rates.
h Network Type: Select Ad hoc from the drop-down list if the wireless
client is connecting to another wireless client
h 802.11b Preamble: This setting should be the same as the other
wireless client. If you are not sure of that setting, select Short & Long.
Click OK to return to the previous window.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
48
3.3 Diagnostics
The third tab displayed is the Diagnostics tab. This tab displays the number of
transmitted and received packets.
Click on Adapter Information to view information about the wireless USB
adapter (e.g. Card Name, MAC address, Driver, Driver Version and Driver Date).
Click OK to return to the previous window
Click Advanced Statistics to view detailed statistics about transmit and receive
frames.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
49
Click OK to return to the previous window
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
50
3.4 Enable / Disable Radio
To disable the radio, click on Action in the menu bar, and then click on Disable
Radio.
You will then see a confirmation message “The RF signals for the following
network card(s) have been successfully disabled”.
Click OK to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
51

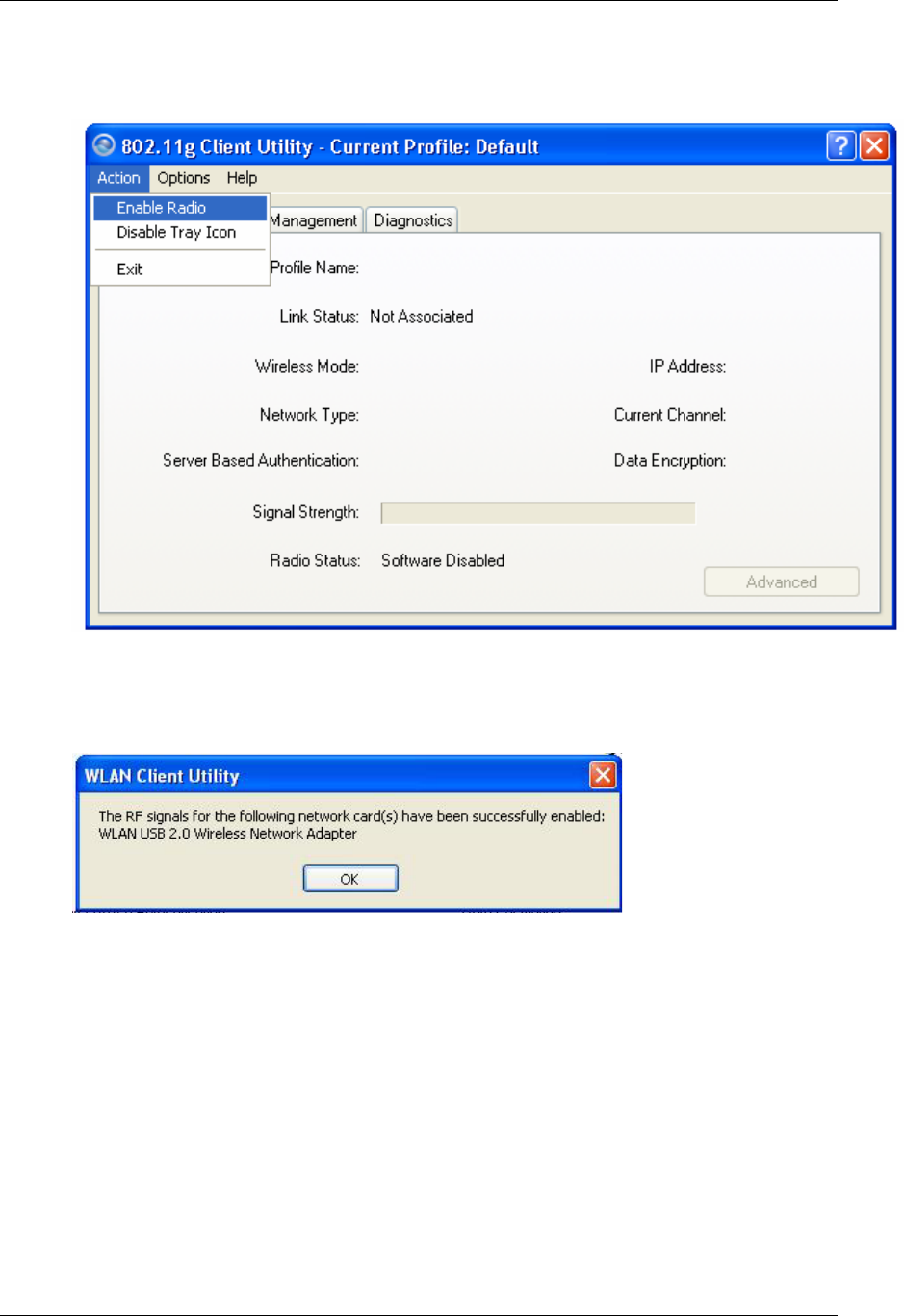

To enable the radio, click on Action in the menu bar, and then click on Enable
Radio.
You will then see a confirmation message “The RF signals for the following
network card(s) have been successfully enabled”.
Click OK to continue.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
52
3.5 Disable Tray Icon

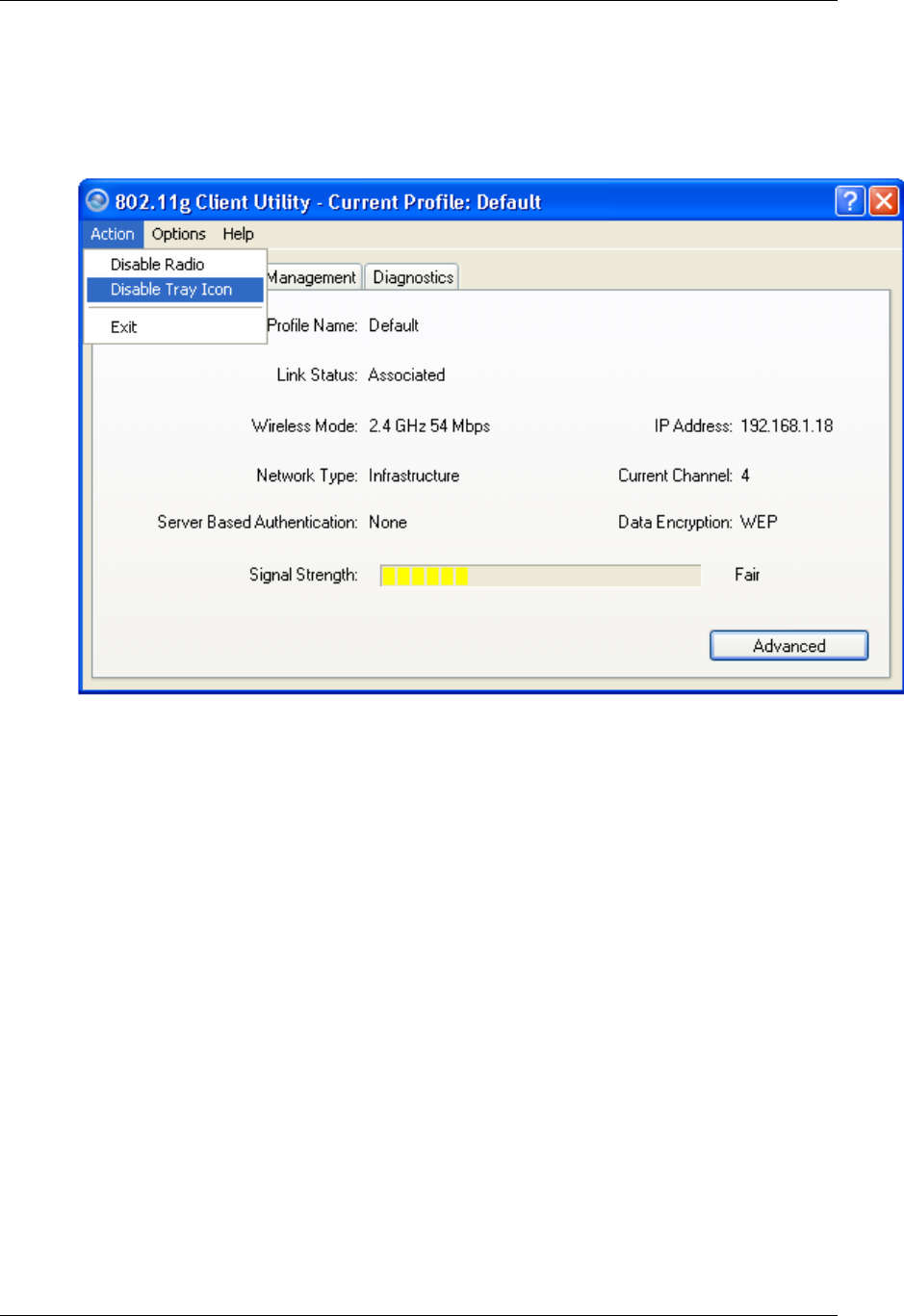

To disable the tray icon, click on Action in the menu bar, and then click on
Disable Tray Icon.
You will then notice that the tray icon has disappeared from the system tray.
3.6 Display Settings
To change the display settings, click on Options in the menu bar, and then click
on Display Settings.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
53
In this window you can change the Signal Strength Display Units from dBm to %,
and increase or decrease the refresh interval rate. You can also display date in a
cumulative or relative format.
Click OK to return to the previous window.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
54
4 Uninstall the Drivers & Client Utility
If the device installation is unsuccessful for any reason, the best way to solve the
problem is to completely uninstall the device and its utility and repeat the
installation procedure again.
Follow the steps below in order to uninstall the Drivers and Client Utility:
1. Click on Start > Settings > Control Panel > Add or Remove Programs
2. You will then see the following window. Select the TRENDnet TEW-445UB
Wireless Client Utility and then click Remove.
3. Select Uninstall the previous installation radio button. Then click Next.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
55

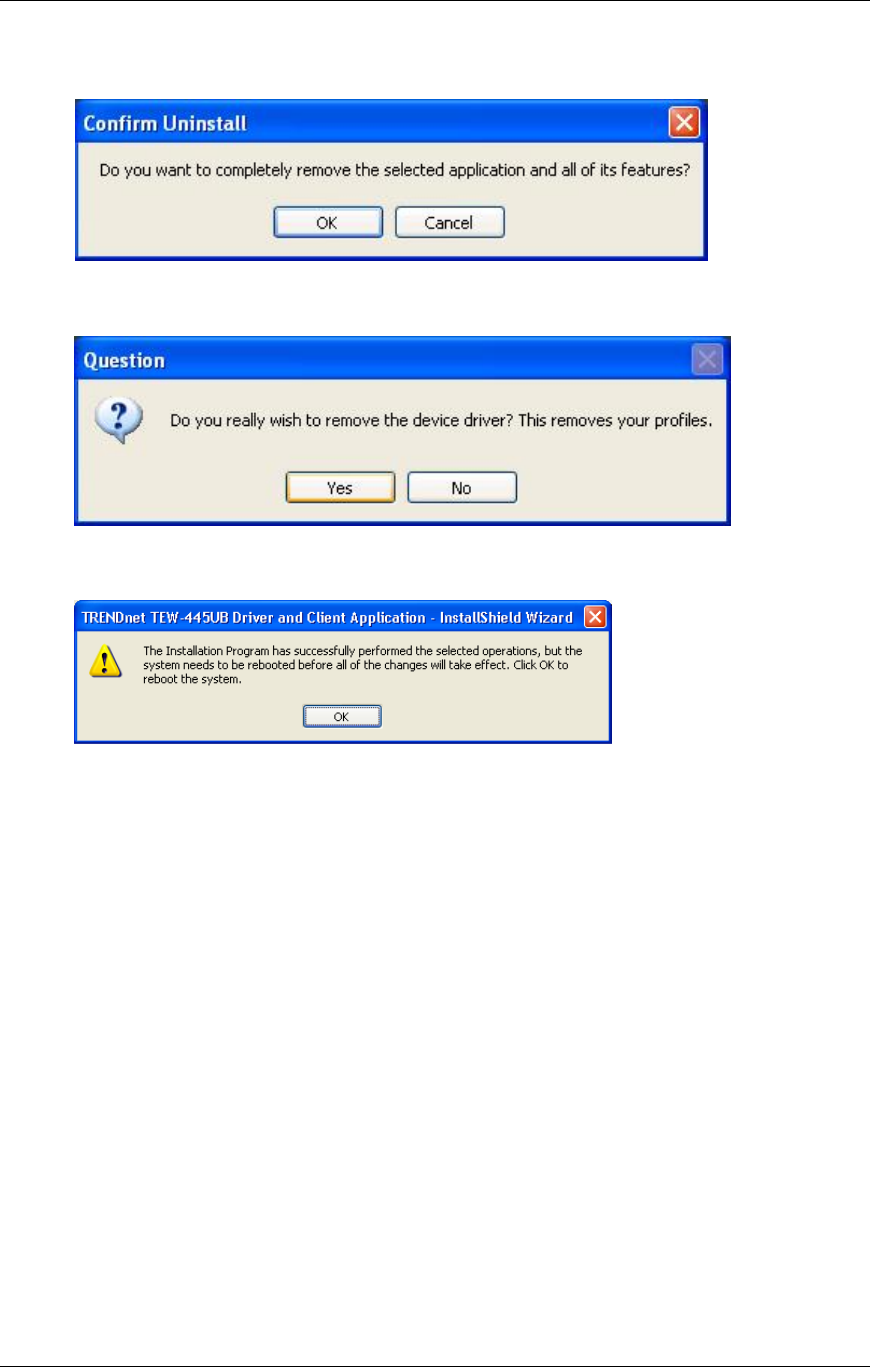

4. Click OK.
5. Click Yes.
6. Remove the device from your computer and then click OK.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
56
Appendix A – Specifications
Data Rates
802.11g: 6, 9, 12, 18, 24, 36, 48, 54, 72, 96 &
108 (Super G) Mbps
802.11b: 1, 2, 5.5, 11Mbps
Standards / Compliance
IEEE802.11, IEEE802.11g, IEEE802.11b, draft
IEEE 802.11e, and i standards, IEEE802.1x
Regulation Certifications
FCC Part 15/UL, ETSI 300/328/CE
Operating Voltage
5 V ± 0.25V
Status LEDs
RF link activity
Drivers
Windows XP/2K/ME/98
RF Information
Frequency Band
U.S., Europe and Japan product covering 2.4
to 2.484 GHz, programmable for different
country regulations
Media Access Protocol
Carrier Sense Multiple Access with Collision
Avoidance (CSMA/CA)
Modulation Technology
802.11g: OFDM (64-QAM, 16-QAM, QPSK,
BPSK)
802.11b: DSSS (DBPSK, DQPSK, CCK)
Operating Channels
11 for North America, 13 for Europe and Japan
Receive Sensitivity (Typical)
z 2.412~2.472G(IEEE802.11g)
6Mbps@ -91dBm;
54Mbps@ -76dBm
z 2.412~2.472G(IEEE802.11b)
11Mbps@ -91dBm;
1Mbps@ -96dBm
Available transmit power
FCC
z 2.412~2.462G(IEEE802.11g)
22 dBm @ 6 ~ 24 Mbps
21 dBm @ 36 Mbps
20 dBm @ 48 Mbps
19 dBm @ 54 Mbps
z 2.412~2.462G(IEEE802.11b)
21 dBm @1~11Mbps
ETSI
z 2.412~2.472G(IEEE802.11g)
20 dBm @ 6 ~ 24 Mbps
20 dBm @ 36 Mbps
20 dBm @ 48 Mbps
19 dBm @ 54 Mbps
z 2.412~2.472G(IEEE802.11b)
20 dBm @1~11Mbps
Antenna
Detachable Dipole antenna (2dBi Gain)
Networking
Topology
Ad hoc, Infrastructure
Security
IEEE802.1x support for LEAP/PEAP
WEP 64,128,152bit
WPA (PSK, TKIP)
WPA2 (AES)
Physical
Form Factor
USB 2.0
Dimensions
75.2(L) mm x 53.9(W) mm x 14(H) mm
Weight
40 g/ 1.5oz
Environmental
Temperature Range
Operating: -0°C to 55°C
Storage: -20°Cto 75°C
Humidity (non-condensing)
5%~95% Typical
Package Contents
One USB Adapter
One USB Cable (Type A to Mini B)
One CD-ROM with User’s Manual and Drivers
One Quick Installation Guide
One 2dBi Detachable Antenna
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
57
Appendix B – FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and radiates radio frequency energy. If not installed and used in
accordance with the instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device complies with FCC RF Exposure limits set forth for an uncontrolled environment, under 47
CFR 2.1093 paragraph (d) (2).
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This 
equipment should be installed and operated with minimum distance 20cm between the radiator & your 
body.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 - 11.
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
58
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use
and service, for the following lengths of time from the date of purchase.
TEW-445UB Three years
If a product does not operate as warranted above during the applicable warranty period, TRENDnet
shall, at its option and expense, repair the defective product or deliver to customer an equivalent
product to replace the defective item. All products that are replaced will become the property of
TRENDnet. Replacement products may be new or reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of
customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant
to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the
product through any unauthorized service center. This warranty is voided if (i) the product has
been modified or repaired by any unauthorized service center, (ii) the product was subject to
accident, abuse, or improper use (iii) the product was subject to conditions more severe than those
specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable warranty
period for a Return Material Authorization (RMA) number, accompanied by a copy of the dated
proof of the purchase. Products returned to TRENDnet must be pre-authorized by TRENDnet with
RMA number marked on the outside of the package, and sent prepaid, insured and packaged
appropriately for safe shipment.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S
OPTION, REPAIR OR REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR
IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE
OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST
OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,
IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR
MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
59
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY
OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY
FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL
OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Note: AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1-Year Warranty
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
60

Navigation menu
