Getting Started with the TEW-601PC
Congratulations on purchasing the TEW-601PC! The quick start guide included with your
TEW-601PC tells you how to install the Wireless Client Utility and how to operate the Wireless
feature of the TEW-601PC.
This manual provides information for setting up and configuring the TEW-601PC. This manual is
intended for both home users and professionals. It is not required to read some of the more
technical information in this manual to operate and enjoy the TEW-601PC. It is included for your
reference only.
The following conventions are used in this manual:
LIKE NOTES AND TIPS, THE IMPORTANT SYMBOL INDICATES INFORMATION THAT
CAN IMPROVE NETWORKING. THIS INFORMATION SHOULD NOT BE OVERLOOKED.
This section covers the following topics:
• Overview of the Wireless Client Utility
• Working with Profiles
• Checking for Available Access Points
• Disabling the Wireless Client Utility
THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE TOPIC AT
HAND.
THE TIP SYMBOL INDICATES HELPFULL INFORMATION AND TIPS TO IMPROVE
YOUR NETWORK EXPERIENCE.
THE CAUTION SYMBOL ALERTS YOU TO SITUATIONS THAT MAY DEGRADE
YOUR NETWORKING EXPERIENCE OR COMPROMISE YOUR SECURITY.
NOTE
2 -- Getting Started with the TEW-601PC
Overview of the Wireless Client Utility
The Wireless Client Utility is included on the CD that shipped with the TEW-601PC. Install the utility
as described in the Quick Start Guide before attaching the TEW-601PC to your computer.
IMPORTANT
BE SURE TO INSTALL THE WIRELESS CLIENT UTILITY BEFORE YOU ATTACH
THE TEW-601PC TO YOUR COMPUTER. ATTACHING THE TEW-601PC
BEFORE THE UTILITY IS INSTALLED COULD CAUSE THE INSTALLATION TO FAIL.
When the TEW-601PC is installed, it is configured to automatically
load when you start your computer. The utility icon displays in the
system tray at the bottom-right corner of your screen.

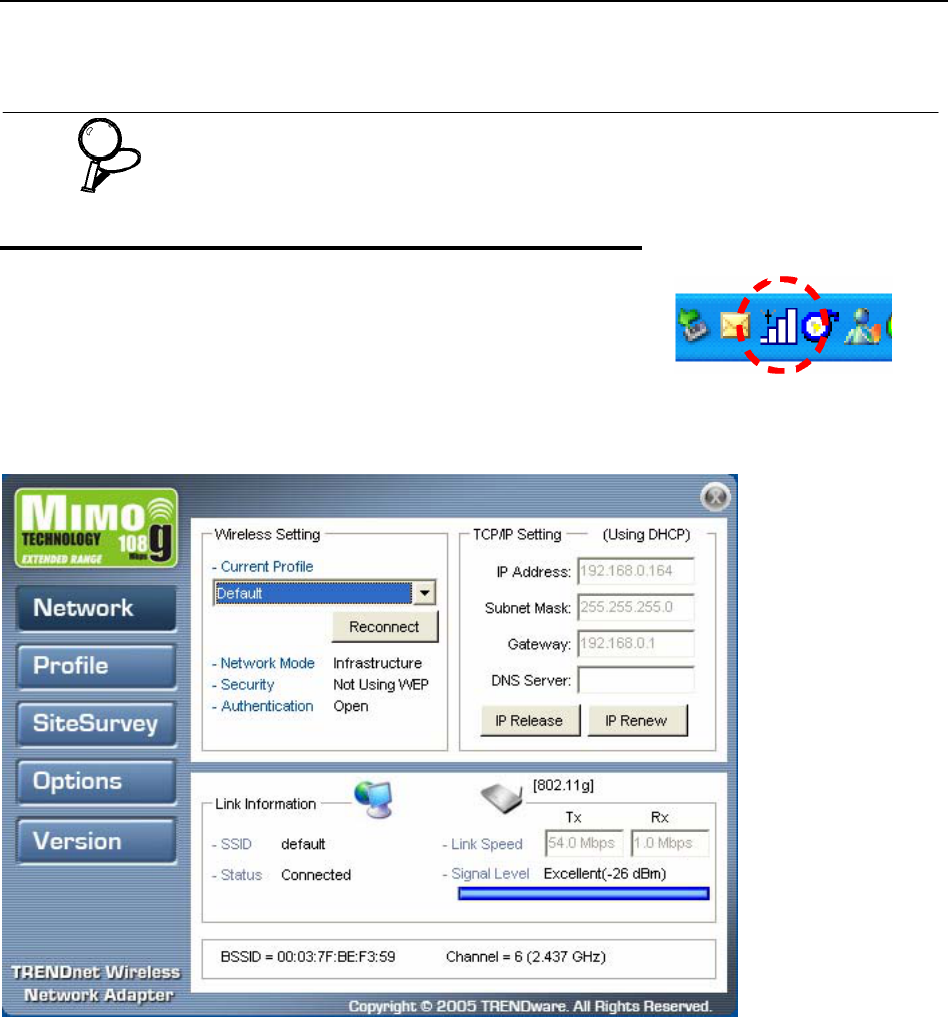

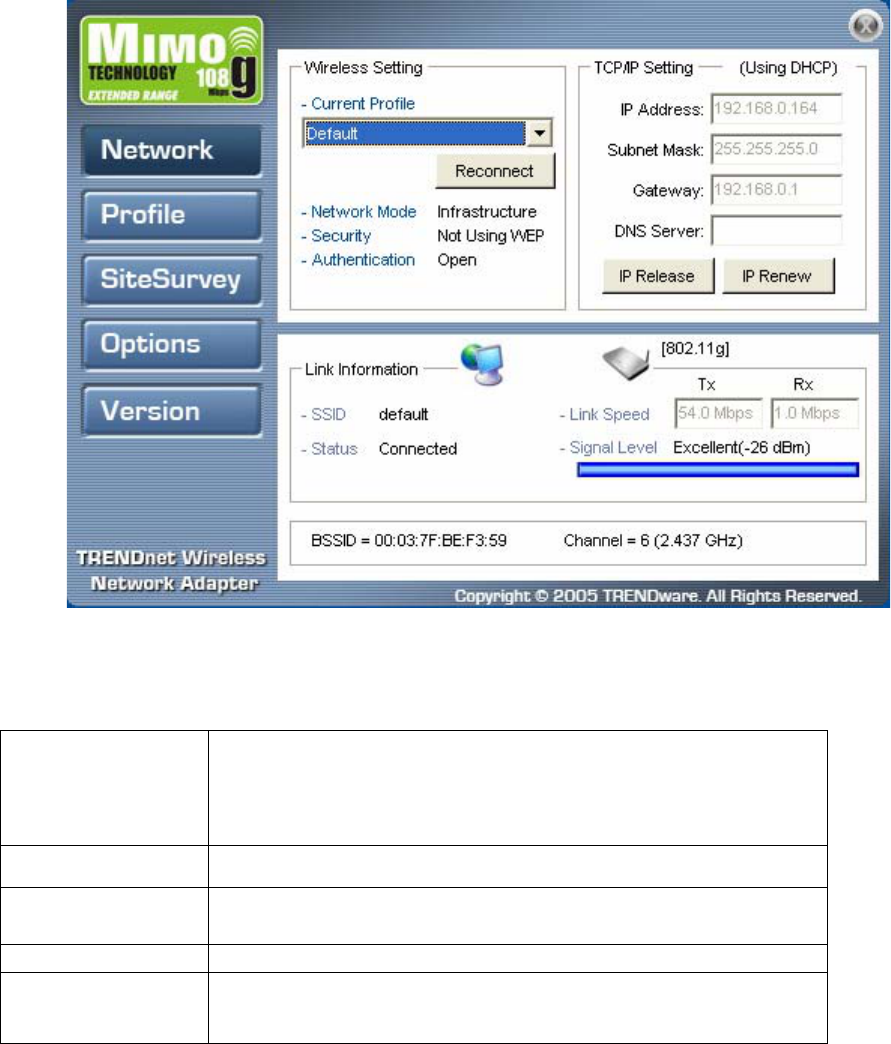

Double-click the TEW-601PC icon in the system tray, the following
Network screen opens:
There are five screens in the utility.
• The Network Screen
• The Profile Screen
• The Site Survey Screen
• The Options Screen
• The Version Screen
Getting Started with the
TEW-601PC
-- 3
The Link Information pane provides information on your current connection. This same pane is
shows at the bottom of all screens so you are always aware of your connection status. l
A profile is a record of the configuration you use to connect to a particular access point. Without
profiles, you would have to reconfigure the TEW-601PC each time you change access points.
Using the Profile screen you can configure the TEW-601PC to access your home network and your
office network. Each configuration is saved as a profile. Then when you go from the office to your
home you just select the appropriate profile.
CREATING A PROFILE
Refer to the following to add a profile.

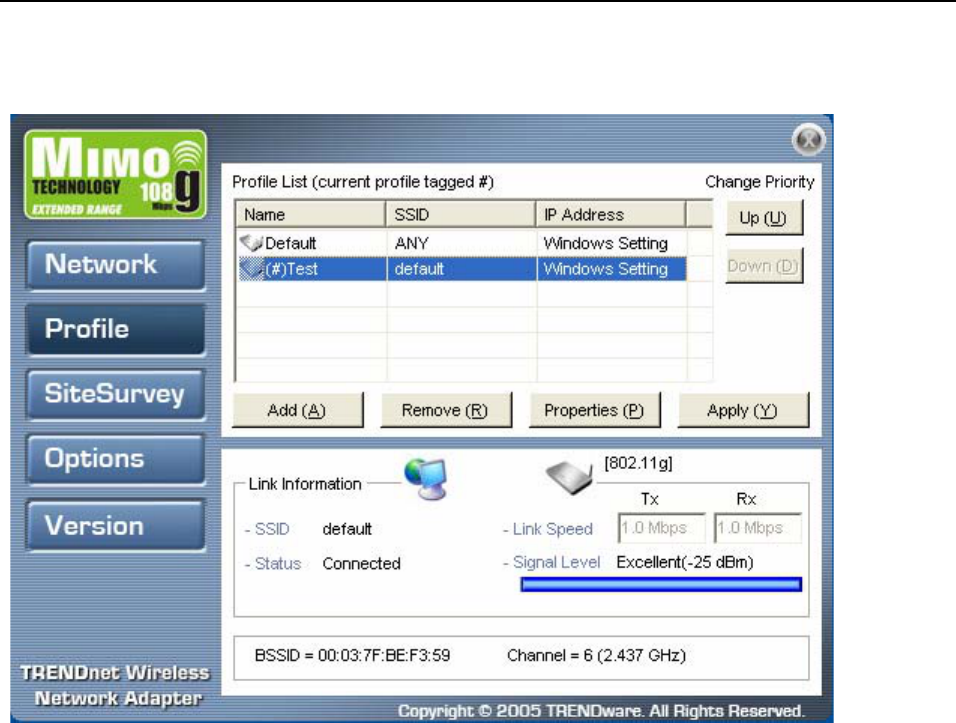

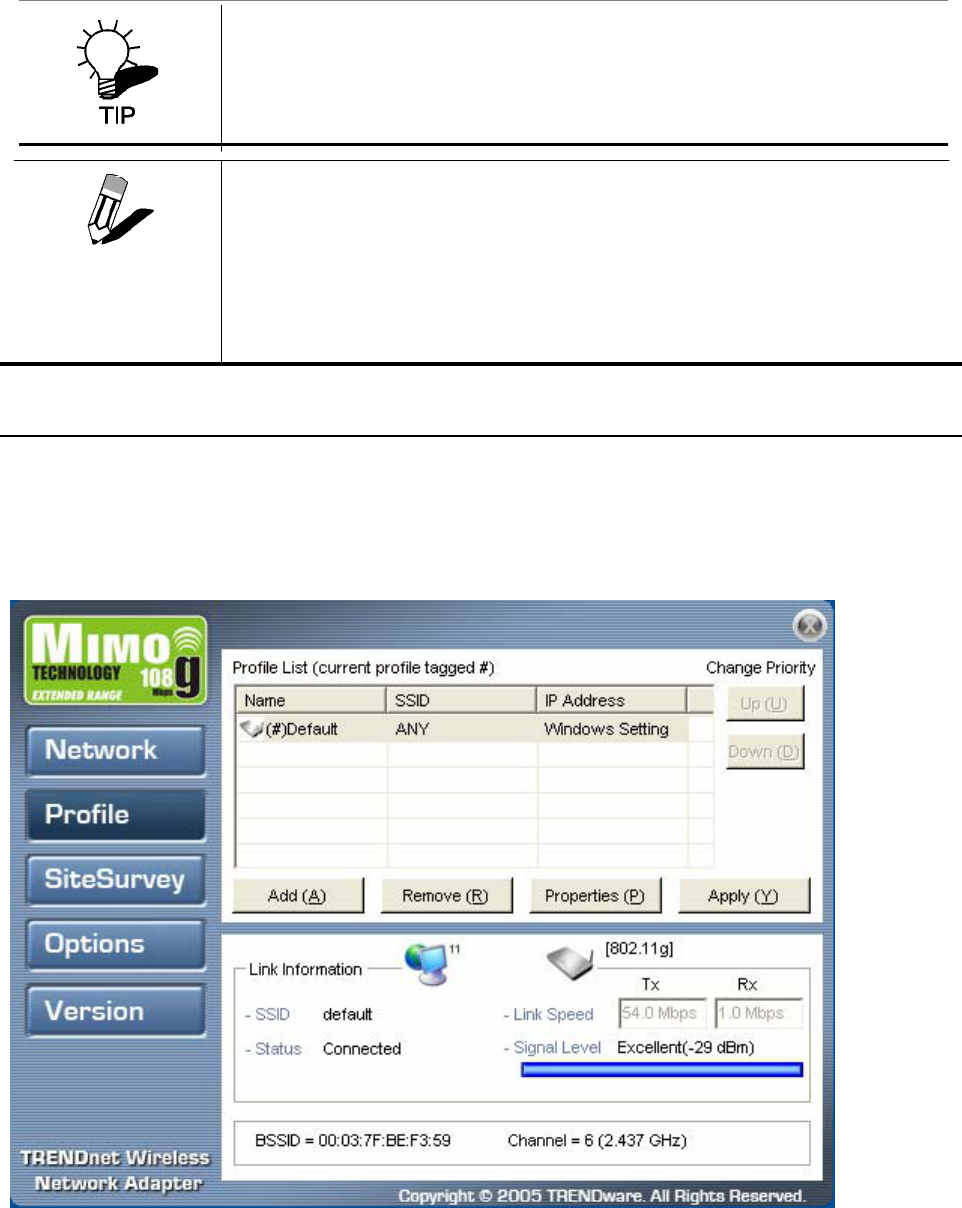

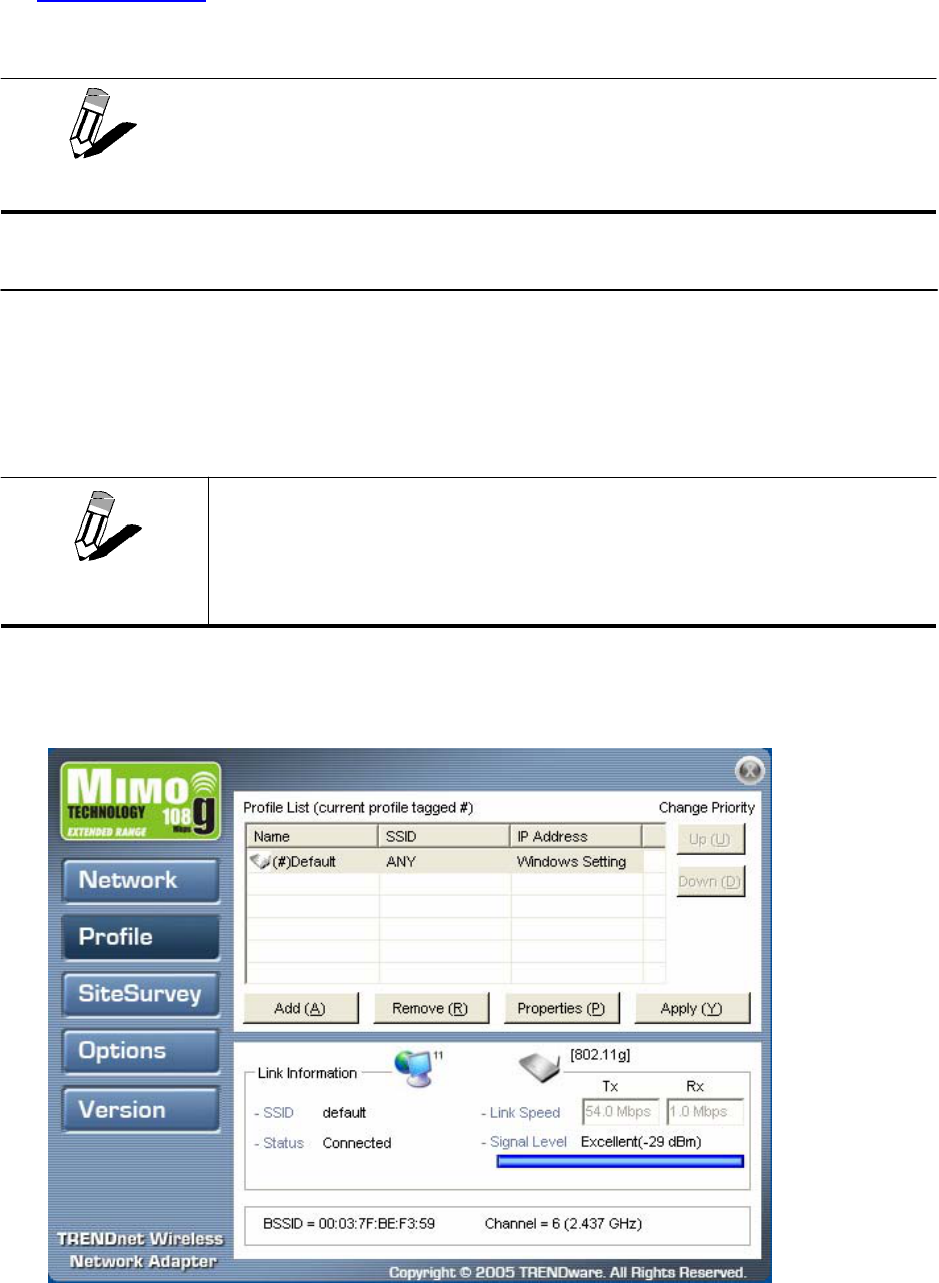

1. Click Profile.
WHEN THE WCB-360A IS NOT CONNECTED TO YOUR COMPUTER, MOST
SETTINGS IN THE WIRELESS CLIENT UTILITY ARE UNAVAILABLE. SETTINGS OR
BUTTONS THAT ARE NOT AVAILABLE ARE GRAYED OUT.
Working with Profiles
NOTE
YOU CAN CHANGE PROFILES WITHOUT REBOOTING YOUR COMPUTER. (PERHAPS
WHEN WALKING FROM ONE ACCESS POINT TO ANOTHER WITHIN YOUR OFFICE.) IF
YOU USE WINDOWS CONTROL PANEL TO CONFIGURE YOUR CONNECTIONS, YOU
MUST REBOOT THE COMPUTER WHEN CHANGING ACCESS POINTS.
NOTE
4 -- Getting Started with the TEW-601PC

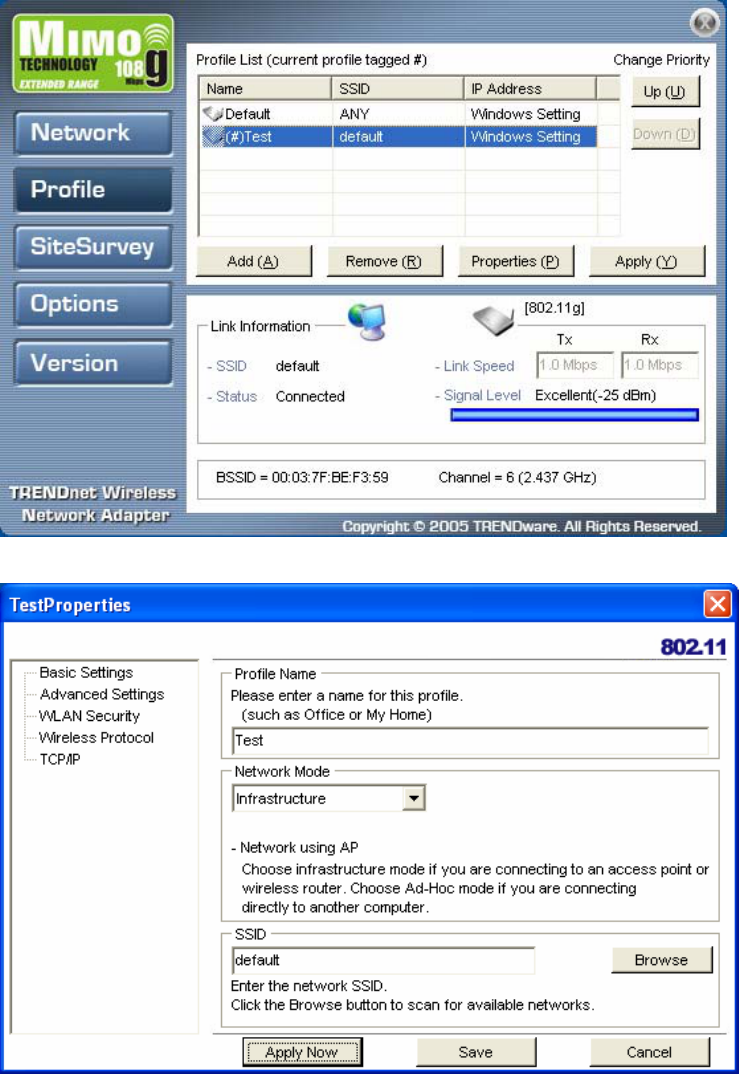

2. Click Add. The Wireless Client Utility Profile Wizard opens.
3. Type a descriptive name for the profile such as Home or Test.
4. Click the drop-down arrow at Network Mode and select Infrastructure or Ad-Hoc. Choose
Infrastructure when connecting to an access point or wireless router. You will need to know the
SSID of the access point.
Choose Ad-Hoc when connecting directly to another computer without using an access point.
You can type anything for the SSID as long as the same SSID is used on the computer you are
connecting to.
Getting Started with the
TEW-601PC
-- 5

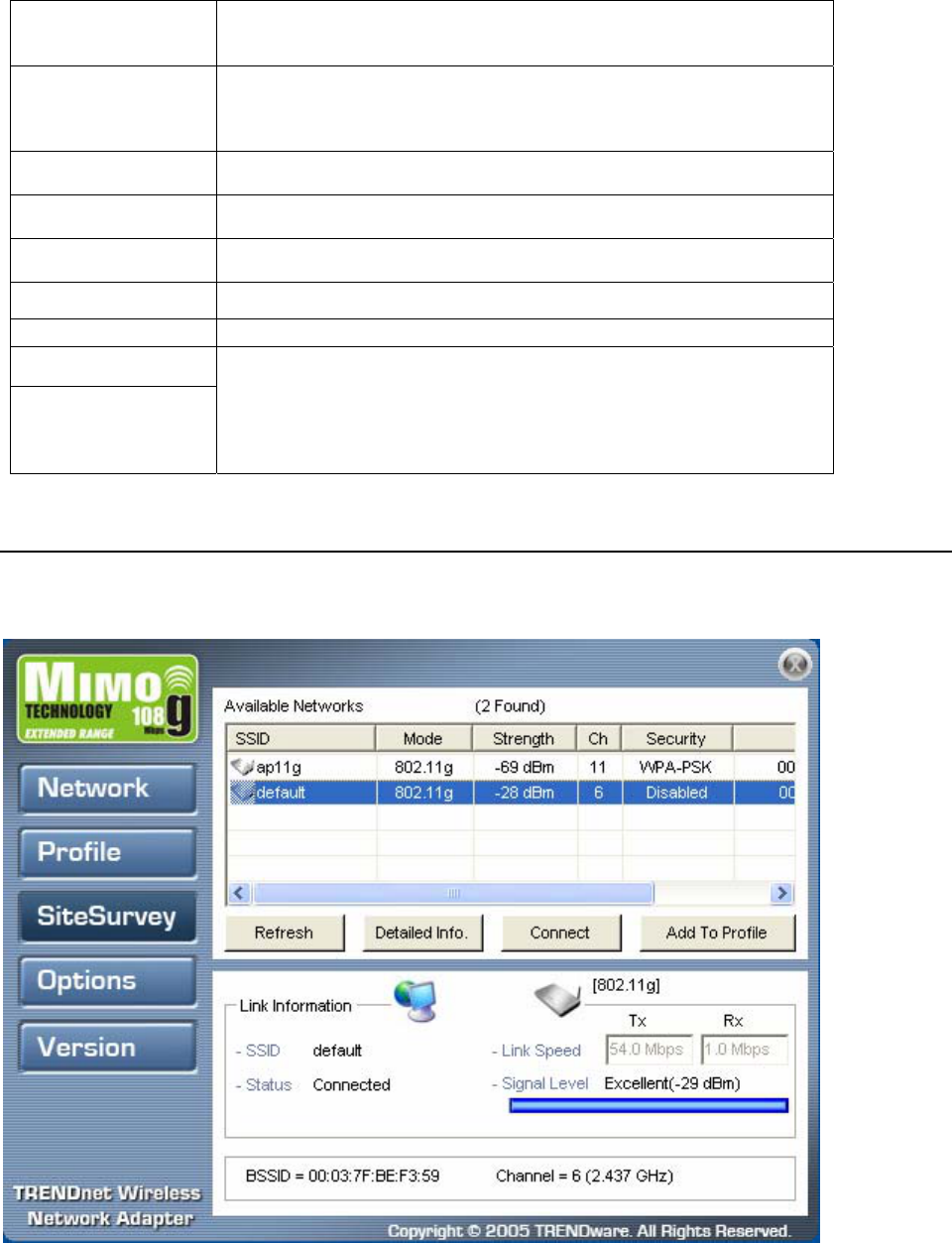

5. In the SSID pane click Browse. The utility performs a site survey and displays the results.
The SSID (Service Set IDentifier) is the name assigned to a wireless Wi-Fi network. All devices
must use this case-sensitive name, which is a text string up to 32 bytes long, in order to
communicate.
6. Select the SSID you want to connect to and click Add To Profile.
7. Click Next. The WLAN Security Configuration screen appears.
This screen reflects the security settings detected in the access point you want to connect to.
Security settings vary in complexity and you may have to consult your network administrator for
this information. See “Configuring Wireless Security” for more information.
6 -- Getting Started with the TEW-601PC
8. Select the Security Mode from the drop-down list and then select the
appropriate settings for the security mode.
9. Click Next to select Wireless Protocol
10. Click Save to complete the wizard and save the new profile. (If you do
not want to activate the profile, uncheck the Apply this profile now
checkbox.)
Getting Started with the
TEW-601PC
-- 7
MODIFYING PROFILES
You may need to modify settings for a profile, for example, if you purchase a
new router, or if your office administrator provides you with new security
settings. Refer to the following to modify a profile.
1. Open the Wireless Client Utility and click Profile.
2. Select the profile you want to modify and click Properties.
8 -- Getting Started with the TEW-601PC

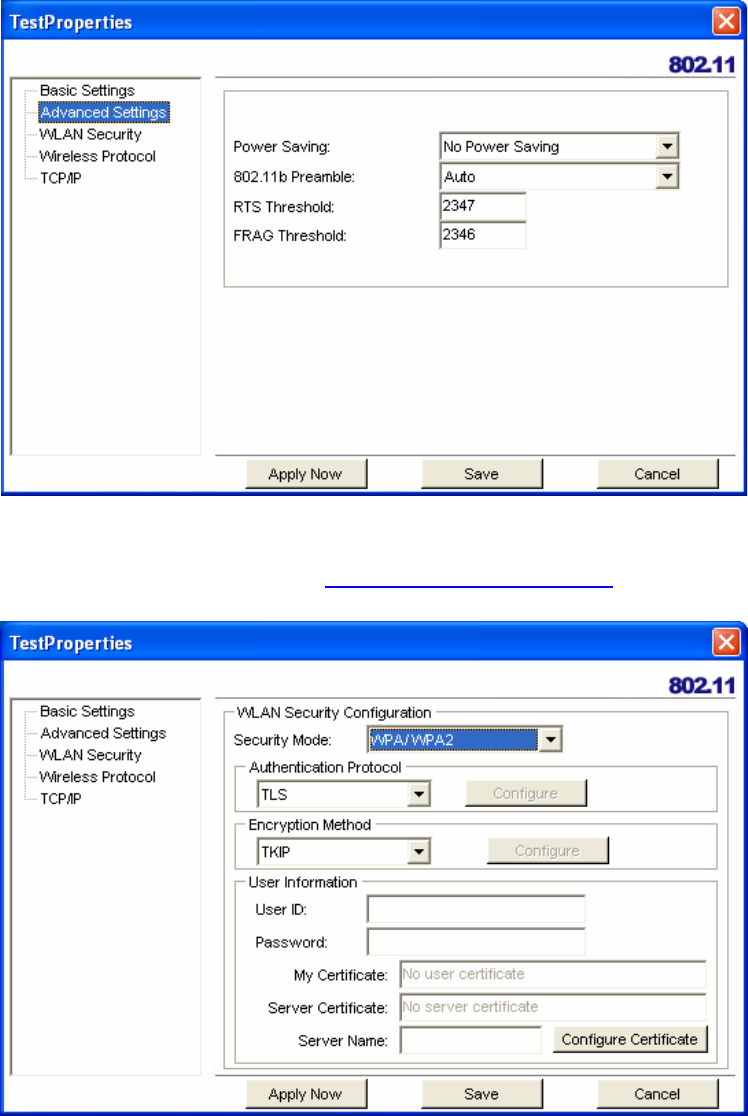

3. Make the changes you want to the Basic Settings and click Advanced Settings.
Unless you have a thorough understanding of wireless networking, it is recommended that
you leave these settings at the defaults.
4. Click WLAN Security. (Refer to “Configuring Wireless Security” for more details on security
settings.)

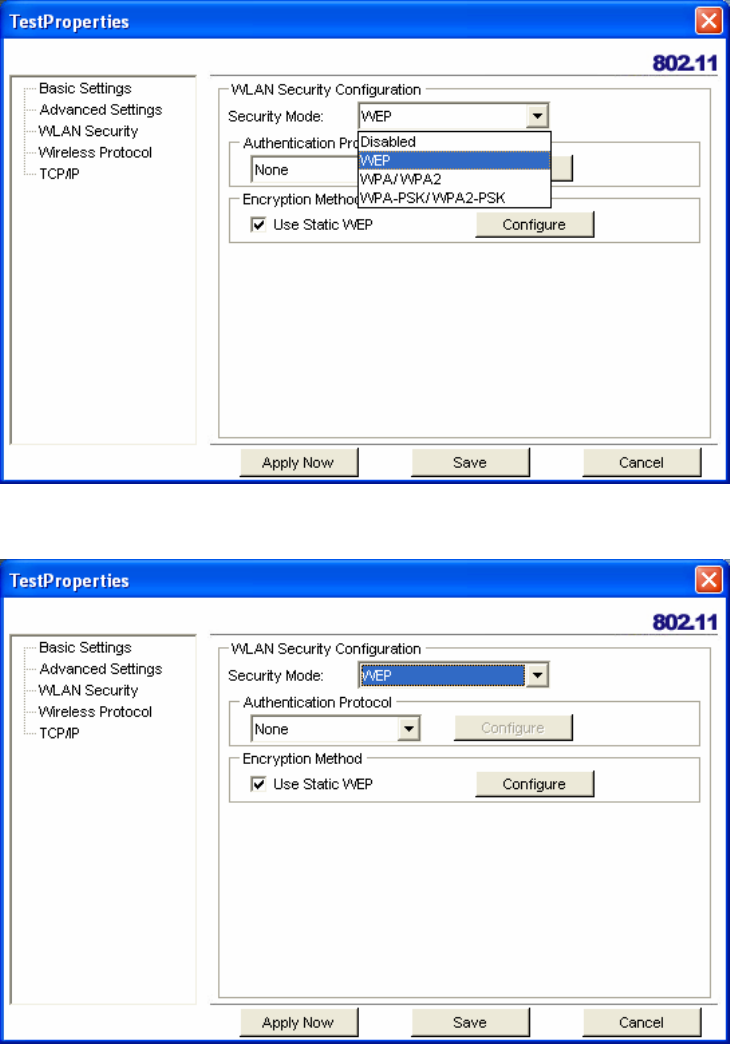

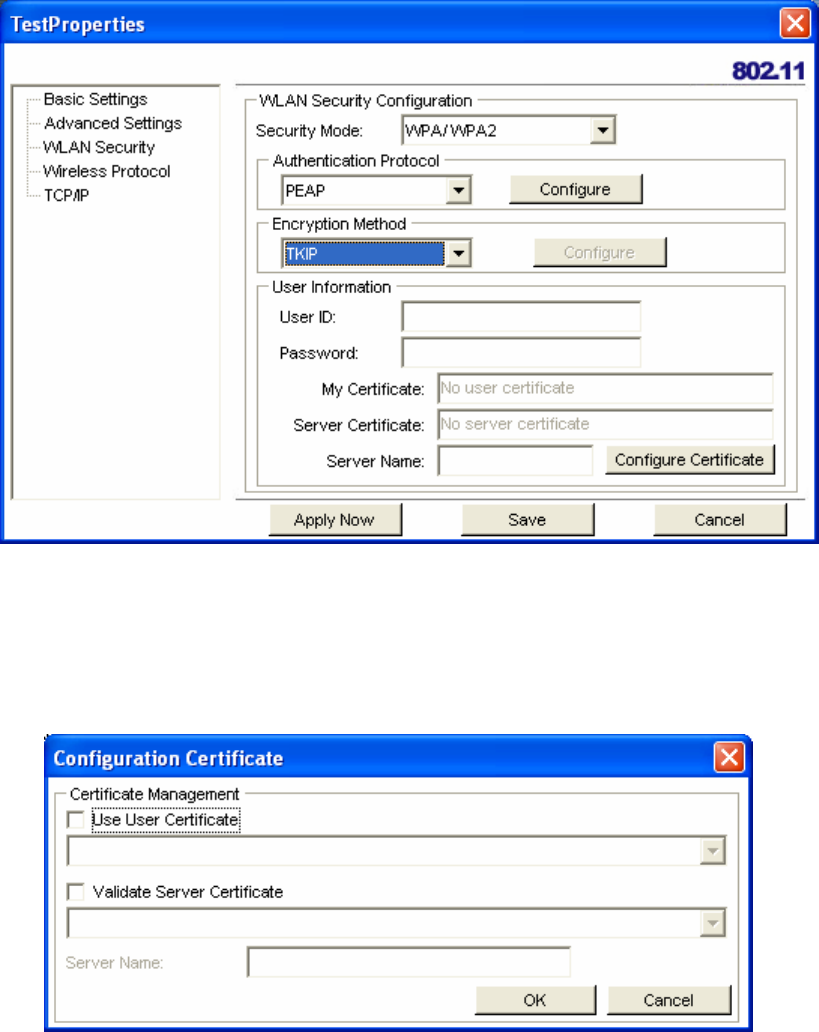

Click the drop-down arrow at Security Mode to choose from the following settings:
Disabled (No Encryption)
All data sent between the access point and the client is left unencrypted and may be viewed by
other wireless devices.

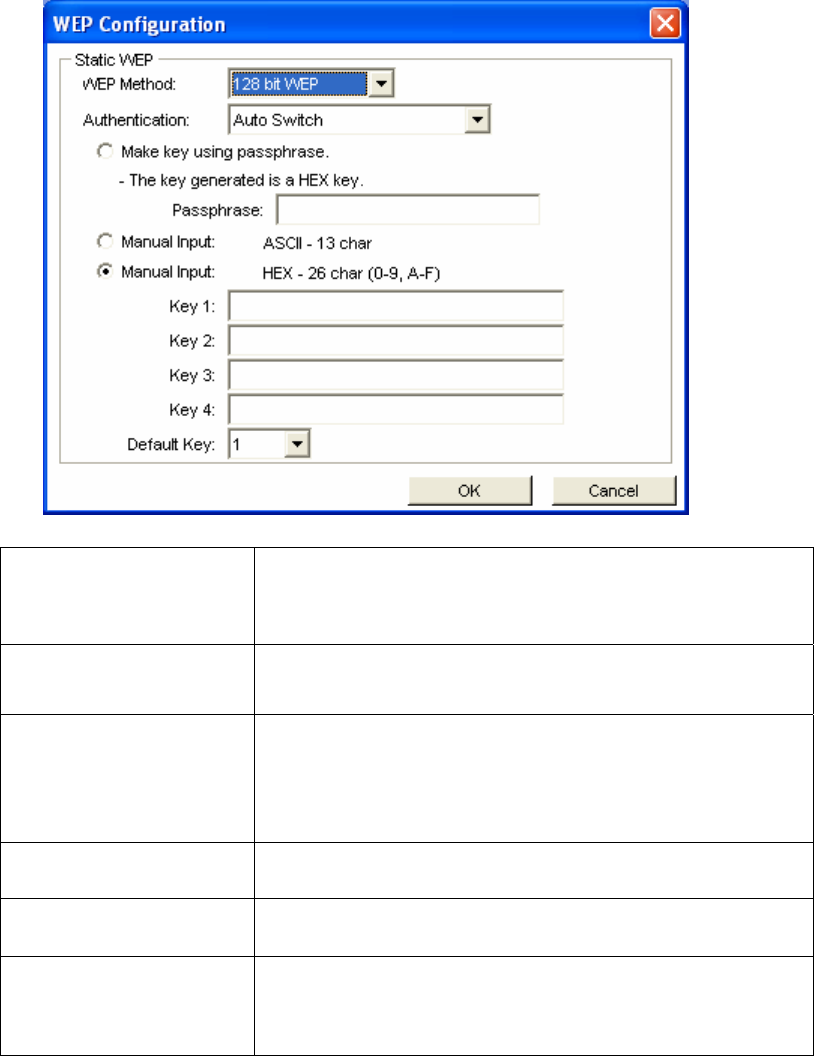

WEP (Wired Equivalent Privacy)
Encrypts all traffic sent between the access point and the client using a shared key. When using
WEP encryption, only access points and PCs using the same WEP Key can communicate with
each other.
Getting Started with the
TEW-601PC
-- 9

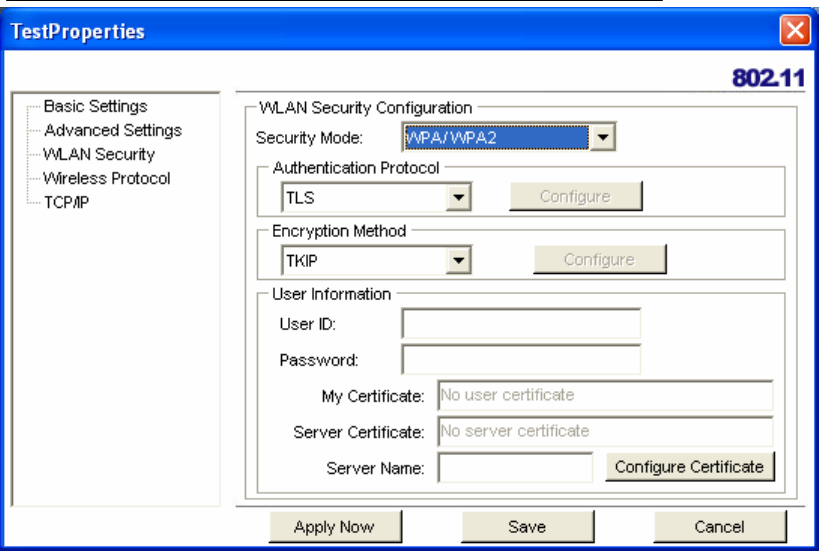

WPA/WPA2
WPA encrypts all traffic between the access point and the client using either TKIP or AES
encryption. Depending on the authentication protocol selected, each client must authenticate
using their own unique username, password, and security certificate.
WPA-PSK/WPA2-PSK
WPA-PSK or WPA2-PSK is a compromise between WPA/WPA2 and WEP. Like WEP, it uses a
pre-shared key that every user of the network must have in order to send and receive data. Like
WPA, it uses either TKIP or AES.

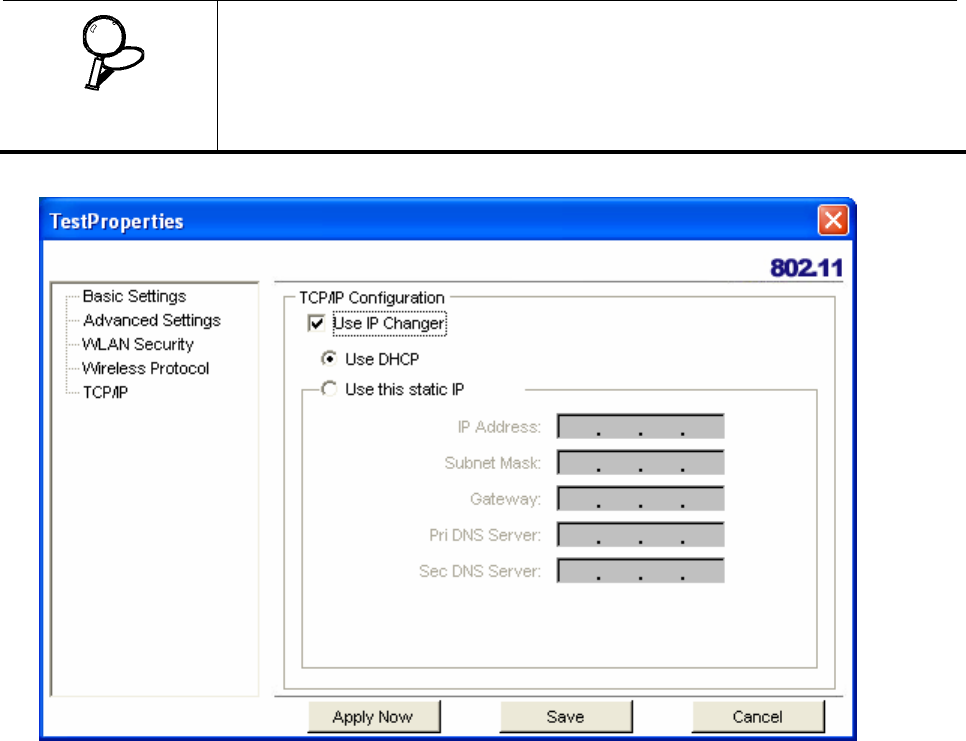

5. Make the changes you want and click TCP/IP Config.
Select the Use IP Changer checkbox. This allows you to bypass your existing wireless TCP/ IP
settings and configure TCP/IP settings for each profile.
Use DHCP
DHCP (Dynamic Host Configuration Protocol) automatically assign IP addresses. Check this
radio button if your router is set to DHCP.
Use static IP below
Check this radio button if you have to enter a static IP address.
IT IS RECOMMEDED THAT YOU USE WPA/WPA2 OR WPA-PSK/WPA2-PSK
WHENEVER POSSIBLE. WPA (WI-FI PROTECTED ACCESS) PROVIDES STRON-
GER ENCRYPTION THAN THE EARLIER WEP (WIRED EQUIVALENT PRIVACY)
METHOD. WPA2 PROVIDES EVEN STRONGER ENCRYPTION, AUTHENTICATION
A
ND KEY MANAGEMENT.
IMPORTANT
10 -- Getting Started with the TEW-601PC
Checking for Available Access Points
The number of access points or hot spots for public use is constantly increasing in major cities.
Many Web sites report on the locations of hot spots. Check the following Web sites for updated
information for your location.
• http://intel.jiwire.com
• www.hotspot-locations.com
• www.hotspotlist.com
• www.wififreespot.com
• www.wifinder.com
• www.wi-fizone.org
If you think you are in the vicinity of an access point, you can use the SiteSurvey screen to list the ones
available.
To scan for access points using the TEW-601PC, refer to the following.
1. Open the Wireless Client Utility and click SiteSurvey.
2. Available wireless networks are listed. Click Refresh anytime to update the list.
Getting Started with the
TEW-601PC
-- 11
3. Select the network you want and click Connect. Or click Add To Profile if you want to connect
later.
For details about any of the listed access points, select it from the list and click Detailed Info to
see the following screen. (You can also double-click an access point to view the Detailed Info
screen.
Disabling the Wireless Client Utility
You may need to have Windows manage your wireless network settings. In that case, you should
disable the Wireless Client Utility. To disable the Wireless Client Utility refer to the following.
1. Open the Wireless Client Utility and click Options.
2. Select the Let Windows manage this wireless adapter check box and click Apply Now.
12 -- Exploring the Wireless Client Utility
Exploring the Wireless Client Utility Screens
This section covers the following topics:
• The Network Screen
• The Profile Screen
• The SiteSurvey Screen
• The Options Screen
• The Version Screen
The Network Screen
The Wireless Client Utility is included on the CD that shipped with the TEW-601PC. Install the utility
as described in the Quick Start Guide before attaching the TEW-601PC to your computer.
IMPORTANT
BE SURE TO INSTALL THE WIRELESS CLIENT UTILITY BEFORE YOU ATTACH
THE TEW-601PC TO YOUR COMPUTER. ATTACHING THE TEW-601PC
BEFORE THE UTILITY IS INSTALLED COULD CAUSE THE INSTALLATION TO FAIL.
When the TEW-601PC is installed, it is configured to automatically load when you start your computer.
The utility icon displays in the system tray at the bottom-right corner of your screen.
Double-click the TEW-601PC icon in the system tray, the following Network screen opens:
W
IRELESS
S
ETTING
The Wireless Setting pane settings are described below
Current Profile
Shows the current profile you have selected. If you have not
added a profile, only Default shows. The settings shown in the
Network screen are for the current profile. Click the dropdown
arrow to select another profile.
Reconnect (button)
Press to reconnect to the current access point.
Network Mode
Shows the current network mode. Infrastructure or ad-hoc
mode. (See Note below for more information.)
Securit
y
Shows the securit
y
status.
Authentication
Shows the authentication required.
14 -- Exploring the Wireless Client Utility
WIRELESS SYSTEMS WORK IN INFRASTRUCTURE MODE OR PEER-TO-PEER MODE.
IN INFRASTRUCTURE MODE, WIRELESS DEVICES COMMUNICATE TO A WIRED LAN VIA
ACCESS POINTS. IN AD-HOC MODE (ALSO KNOWN AS PEERTO-PEER MODE),
WIRELESS DEVICES COMMUNICATE WITH EACH OTHER DIRECTLY AND DO NOT USE
AN ACCESS POINT.
TCP/IP S
ETTING
The TCP/IP Setting pane settings are described below.
IP Address
Shows the current network IP address.
Subnet Mask
Shows the current subnet mask status.
Gateway
Shows the current gateway.
DNS Server
Shows the current network DNS address.
IP Release (button)
Click to release the current
TCP/IP
settings.
IP Renew (button)
Click to renew the
TCP/IP
settings.
L
INK
I
NFORMATION
The Link Information pane settings are described below. The Link Information pane shows the
network status.
SSID
Shows the current SSID (Service Set IDentifier). This is the
name assigned to a wireless Wi-Fi network. All devices must
use this case-sensitive name in order to communicate.
Status
Shows the current connection status.
Link Speed
Shows the speed of the current connection. Tx is the transmit
speed; Rx the receive speed.
Signal Level
Shows the signal strength of the current connection. (See Tip
below for more information.)
BSSID
Shows the ID of the current BSS. (See Note below for more
information.)
Channel
Shows the network channel.
Exploring the Wireless Client Utility Screens -- 15
THE LINK INFORMATION PANEL IS SHOWN IN ALL SCREENS SO YOU CAN ALWAYS
SEE THE STATUS OF YOUR CURRENT CONNECTION. MONITOR THIS SETTING AS
YOU MOVE AROUND TO ATTAIN A SUITABLE SIGNAL..
The Profile Screen
A profile is a record of the configuration you use to connect to a particular access point. Without
profiles, you would have to reconfigure the TEW-601PC each time you change access points. Using
the Profile screen you can configure the TEW-601PC to access your home network and your office
network. Each configuration is saved as a profile.
WIRELESS SYSTEMS WORK IN INFRASTRUCTURE MODE OR AD-HOC
(PEER-TO-PEER) MODE. IN INFRASTRUCTURE MODE, WIRELESS DEVICES
COMMUNICATE TO A WIRED LAN VIA ACCESS POINTS. EACH ACCESS POINT AND
ITS WIRELESS DEVICES ARE KNOWN AS A BASIC SERVICE SET (BSS). IN
A
D-HOC MODE (ALSO KNOWN AS PEER-TO-PEER MODE), WIRELESS DEVICES
COMMUNICATE WITH EACH OTHER DIRECTLY AND DO NOT USE AN ACCESS
POINT. THIS IS AN INDEPENDENT BSS (IBSS).
NOTE
16 -- Exploring the Wireless Client Utility
P
ROFILE
L
IST
The Profile List pane settings are described below.
Name
Shows the name of the profile that you assigned. If only default
displays, no profiles have been added.
SSID
Shows the name (usually the equipment vendor's name)
assigned to a wireless Wi-Fi network. (The keyword “ANY”
means any available network.)
IP Address
Shows the IP address.
Add (button)
Click to add a profile.
Remove (button)
Click to remove the selected profile.
Properties (button)
Click to view properties for the selected profile.
A
pp
l
y
(
button
)
Click to apply changes after modifying settings.
Up (button)
Down (button)
Use the Up/Down buttons to move the selected profile to the top
of the list or to the bottom. When in the Network screen, the
TEW-601PC attempts to connect to the network at the top of this
list first.
The SiteSurvey Screen
Use the SiteSurvey screen to scan for available networks in your vicinity.
Exploring the Wireless Client Utility Screens -- 17
A
VAILABLE
N
ETWORKS
The Available Networks pane settings are described below.
SSID
Shows the name (usually the equipment vendor's name)
assigned to a wireless Wi-Fi network.
Mode
Shows the signal type (802.11b/g).
Strength
Shows the signal strength.
Ch
Shows the network channel.
Security
Shows the security status.
Refresh (button)
Click to refresh the list of currently available networks.
Detailed Info (button)
Click to view properties for the selected network. (See
Detailed Info. Screen below.)
Connect (button)
Click to connect to the selected network. (The network is not
added to the profile list.)
Add To Profile (button)
Click to add the network to the profile list.

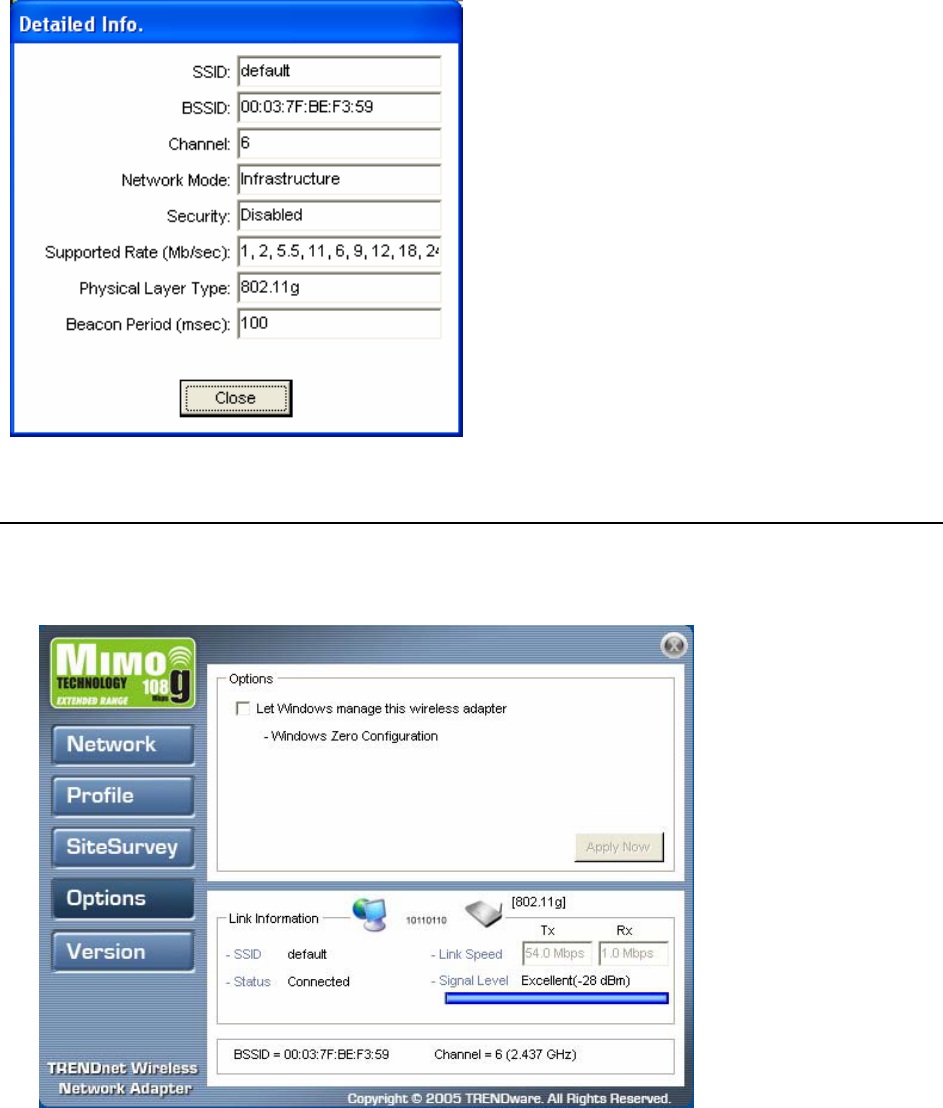

DETAILED INFO. SCREEN
For details about any of the listed access points, select it from the list and click Detailed Info to
see the following screen. (You can also double-click an access point to view the Detailed Info
screen.
18 -- Exploring the Wireless Client Utility

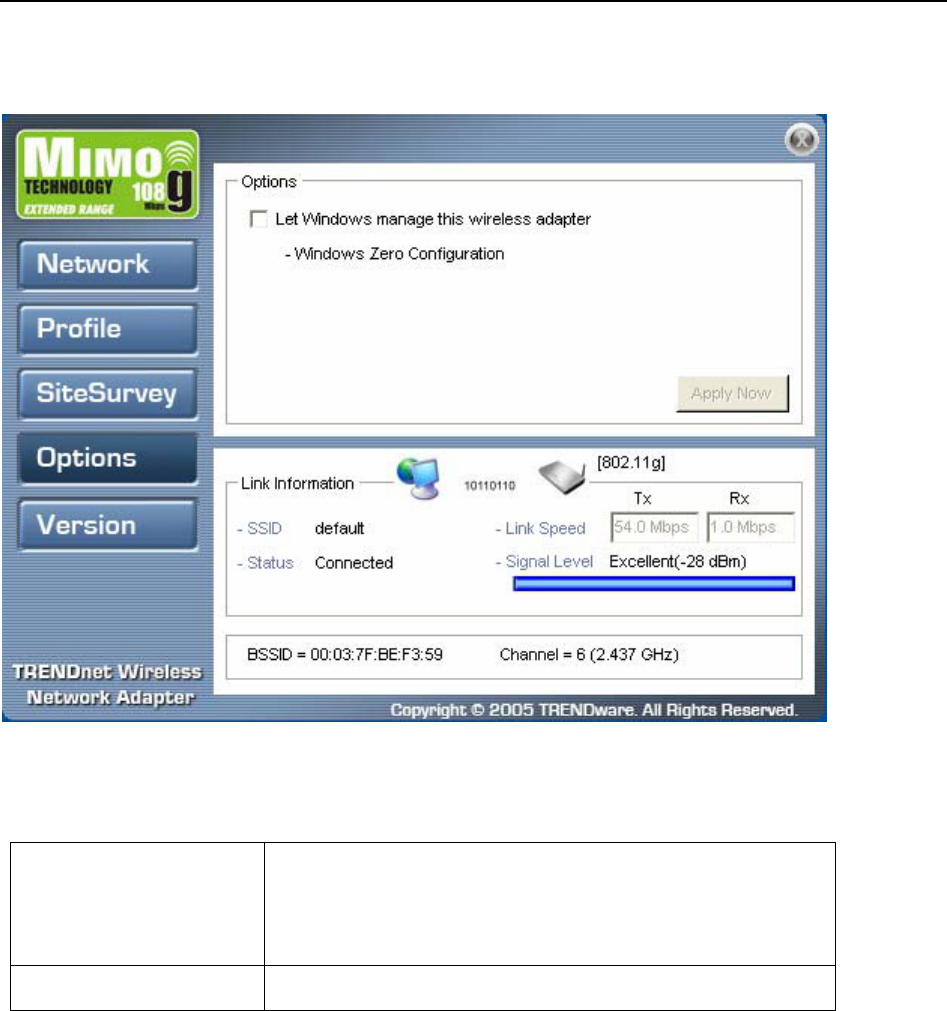

The Options Screen
By default, the Wireless Client Utility configures your wireless settings. Use this screen to disable
the Wireless Client Utility.
O
PTIONS
The Options pane settings are described below.
Let Windows manage
this wireless adapter
(tick box)
When you check the Let Windows manage this wireless
adapter checkbox, Windows Zero Configuration manages
your wireless settings. The Wireless Client Utility still
shows the link status of the adapter.
Apply Now (button)
Click to execute the changes.
Exploring the Wireless Client Utility Screens -- 19

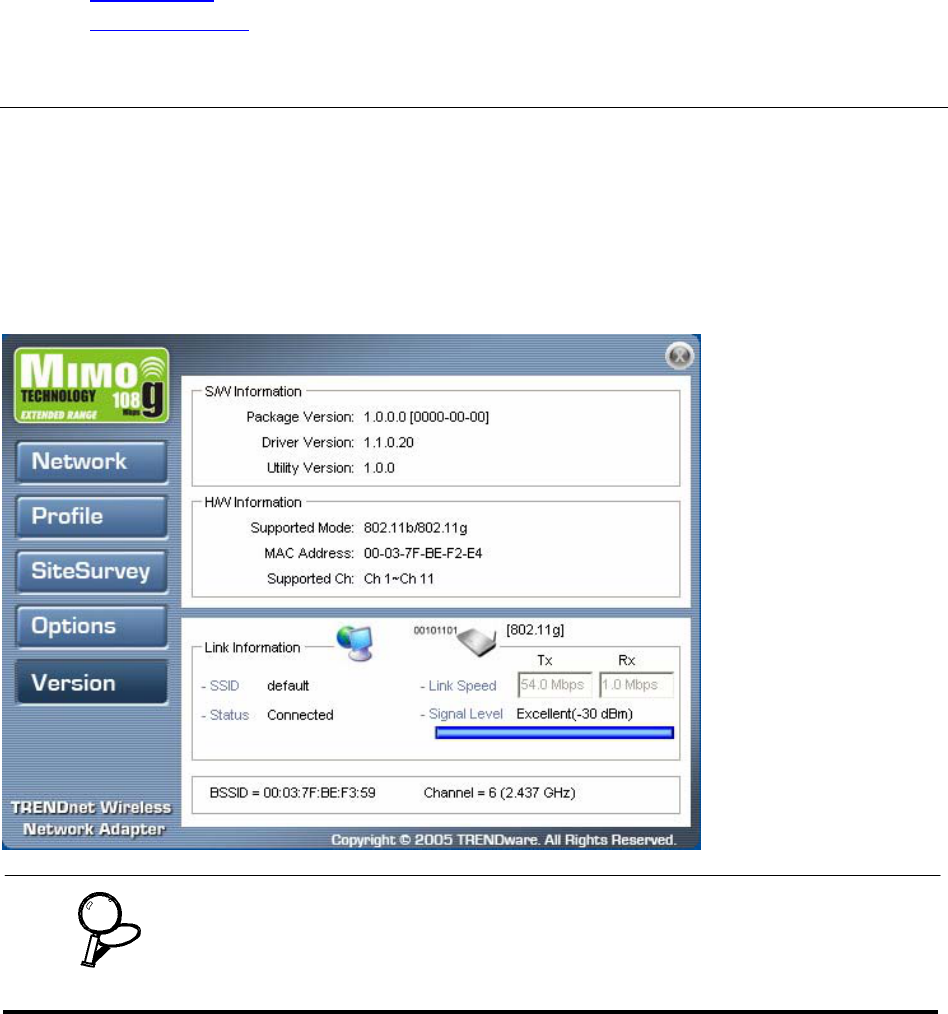

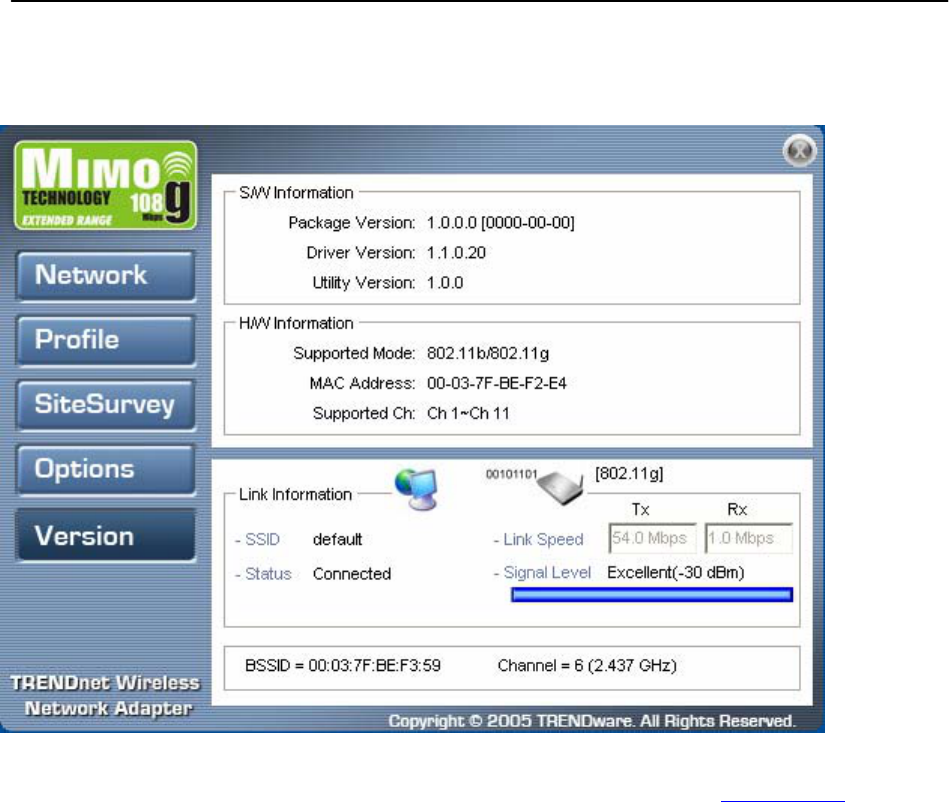

The Version Screen
This screen displays the software and hardware information of the adapter. You cannot make
changes to this screen.
Reference the Version screen if you need to contact technical support. See “Maintenance”.
20 -- Configuring Wireless Security
Configuring Wireless Security
This chapter covers the configuration of security options in the 802.11 Wireless Client Utility.
Configuring Security
When you create a profile you need to configure the security settings with the information provided
by the administrator. You modify security settings by selecting the profile and clicking Properties.
CONFIGURING WEP
Refer to the following to modify WEP settings.
1. In the Properties window, click WLAN Security.
2. Click the drop-down arrow at Security Mode and choose WEP.
3. Click the Use Static WEP checkbox.
22 -- Configuring Wireless Security
4. Click Configure. The WEP Configuration screen appears.
WEP Method
Select the encryption to match your access point: 64, 128,
or 152-bit. The encryption level must match the
encryption level used by your access point.
Authentication
Options are Auto, Open System, and Shared. For most
installations choose Auto.
Make Key using Pass-
Phrase
A WEP Key is automatically generated as you type in any
Passphrase of your choice. Use this feature when you
have used a Passphrase to generate your WEP key on you
r
access point.
Manual Input (ASCII)
Generate your own WEP Key (4 keys maximum) using
ASCII characters.
Manual Input (HEX)
Generate your own WEP Key using hexadecimal
characters.
Default Key
Four keys are used for decryption; you have to choose a
default key from them for encryption. Make sure access
point uses same WEP key.
Configuring Wireless Security -- 23
CONFIGURING WPA & WPA2
Refer to the following to configure WPA & WPA2.

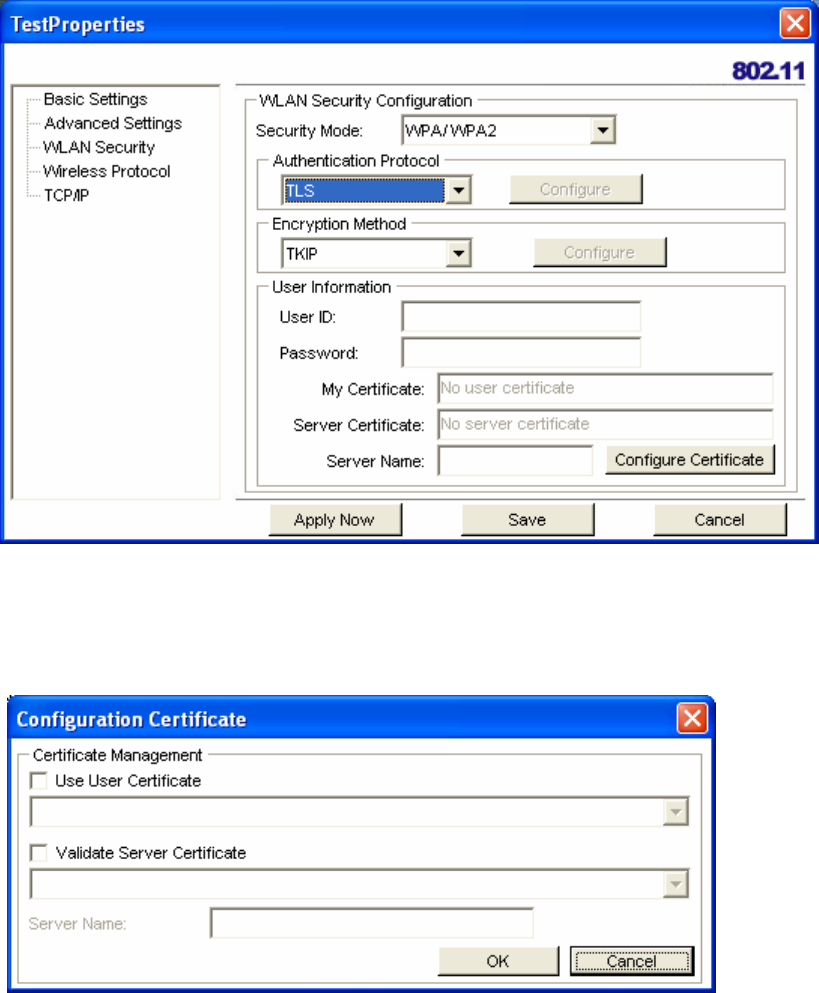

1. Click the drop-down arrow at Security Mode and choose WPA / WPA2.
2. Click the drop-down arrow at Encryption Method and choose TKIP or AES.
To configure 802.1X (authentication protocol) for WPA/ WPA2, see “Configuring 802.1X ” section.
24 -- Configuring Wireless Security
C
ONFIGURING
WPA-PSK & WPA2-PSK
Refer to the following to configure WPA-PSK & WPA2-PSK.
Click the drop-down arrow at Security Mode and choose WPA-PSK / WPA2-PSK.
1. Click the drop-down arrow at Encryption Method and choose TKIP or AES. (Most access
points use TKIP for WPA-PSK & AES for WPA2-PSK.)
2. At PSK Passphrase enter the same pass phrase used to configure the WPA-PSK or
WPA2-PSK on your access point.
Configuring Wireless Security -- 25
CONFIGURING 802.1X
You need to know if your access point supports 802.1X and then apply the configuration here.
1. Choose the EAP method under Authentication protocol.
2. Options for User Information depend on the EAP method chosen.
CONFIGURING 802.1X – PEAP
Refer to the following to configure PEAP.
1. At WPA/ WPA2 security mode, click Configure button next to Authentication Protocol.
2. Select Inner PEAP protocol.
3. Click Save to finish and return to the previous screen.
4. Type in a unique User ID and Password under User Information.
5. If your network uses a user server certificate click Configure Certificate (see Note below).
The following window appears:
26 -- Configuring Wireless Security
Use user certificate
Check this box if your network requires user certification and
then select the certificate from the drop-down menu.
Validate server certificate
Check this box if your network requires server certification and
then select the certificate authority from the drop-down menu.
Server name:
Type in the name of the server that is used for 802.1X
authentication.
Server name should
match exactly
Check this box if the server name should exactly match the name
in the certificate.
6. Click OK to apply the settings.
Server Certificates require a wired connection to the network so you
Can obtain the certificate(s) from the certificate authority. Your network
administrator can provide on certificate management.
.
Configuring Wireless Security -- 27
CONFIGURING 802.1X – EAP-TLS
1. At Security Mode select WPA/ WPA2 from the drop-down menu.
2. At Authentication Protocol select TLS from the drop-down menu.
3. TLS requires both server and user certification. Click Configure Certificate (see Note
below). The following window appears:
28 -- Configuring Wireless Security
Use user certificate
Check this box if your network requires user certification and then
select the certificate from the drop-down menu.
Validate server certificate
Check this box if your network requires server certification and
then select the certificate authority from the drop-down menu.
Server name:
Type in the name of the server that is used for 802.1X
authentication.
Server name should match
exactly
Check this box if the server name should exactly match the name
in the certificate.
5. Click OK to apply the settings.
Server Certificates require a wired connection to the network so you
Can obtain the certificate(s) from the certificate authority. Your network
administrator can provide on certificate management.
.
Glossary
For unfamiliar terms used below, look for entries elsewhere in the glossary.
AD-HOC
Ad-hoc mode does not require an AP or a wired network. A network that transmits wireless
from computer to computer without the use of a base station (access point).
Two or more wireless stations communicate directly to each other. An ad-hoc network may
sometimes be referred to as an Independent Basic Service Set (IBSS).
CHANNEL
A radio frequency used by a wireless device is called a channel.
EAP AUTHENTICATION
EAP (Extensible Authentication Protocol) is an authentication protocol that runs on top of the
IEEE802.1X transport mechanism in order to support multiple types of user authentication. By
using EAP to interact with an EAP-compatible RADIUS server, an access point helps a wireless
station and a RADIUS server perform authentication.
ENCRYPTION
The reversible transformation of data from the original to a difficult-to-interpret format. Encryption
is a mechanism for protecting confidentiality, integrity, and authenticity of data. It uses an
encryption algorithm and one or more encryption keys.
FRAGMENTATION THRESHOLD
This is the maximum data fragment size that can be sent before the packet is fragmented into
smaller packets.
IEEE 802.1X
The IEEE 802.1X standard outlines enhanced security methods for both the authentication of
wireless stations and encryption key management. Authentication can be done using an external
RADIUS server.
INFRASTRUCTURE (BSS)
When a number of wireless stations are connected using a single AP, you have a Basic Service
Set (BSS).
ROAMING
In an infrastructure network, wireless stations are able to switch from one BSS to another as they
move between the coverage areas. During this period, the wireless stations maintain
uninterrupted connection to the network. This is roaming. As the wireless station moves from
place to place, it is responsible for choosing the most appropriate AP depending on the signal
strength, network utilization among other factors.
30 -- Glossary
SSID
The SSID (Service Set Identity) is a unique name shared among all wireless devices in a wireless
network. Wireless devices must have the same SSID to communicate with each other.
T
EMPORAL
K
EY
I
NTEGRITY
P
ROTOCOL
(TKIP)
Temporal Key Integrity Protocol (TKIP) uses 128-bit keys that are dynamically generated and
distributed by the authentication server.
U
SER
A
UTHENTICATION
WPA applies IEEE 802.1X and Extensible Authentication Protocol (EAP) to authenticate wireless
clients using an external RADIUS database. If you do not have an external RADIUS server, use
WPA-PSK/WPA2-PSK (WPA -Pre-Shared Key) that only requires a single (identical) password
entered into each access point, wireless gateway and wireless client. As long as the passwords
match, clients will be granted access to a WLAN.
WEP
WEP (Wired Equivalent Privacy) encryption scrambles all data packets transmitted between the
TEW-601PC and the AP or other wireless stations to keep network communications private.
Both the wireless stations and the access points must use the same WEP key for data
encryption and decryption.
WPA/WPA2
Wi-Fi Protected Access (WPA) and WPA2 (future upgrade) is a subset of the IEEE 802.11 i
security specification draft. Key differences between WPA and WEP are user authentication and
improved data encryption. WPA2 is a wireless security standard that defines stronger
encryption, authentication and key management than WPA.
Appendix
This section provides maintenance and troubleshooting procedures. The following topics are
discussed:
• See “Maintenance”
• See “Troubleshooting”
Maintenance
Installing a newer version of the Wireless Client Utility may improve the performance of the
TEW-601PC. Before installing the new version, you must uninstall the old one.
CHECKING THE WIRELESS CLIENT UTILITY VERSION
To check the current Wireless Client Utility, open the utility on the Version screen. In the S/W
Information pane, note the Utility Version number.
IMPORTANT
If you need to contact technical support, you will need to provide the S/W
Information. Be sure to check the screen in the utility that is installed on
your computer and not the screen shown in this manual.
32 --
U
NINSTALLING THE
W
IRELESS
C
LIENT
U
TILITY

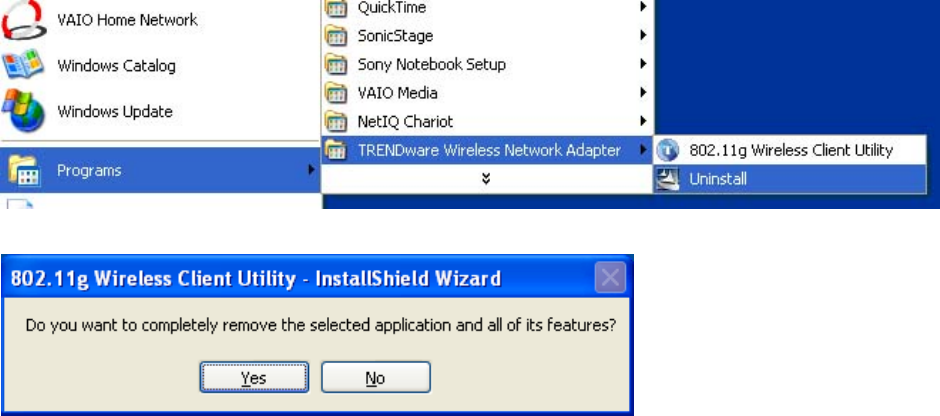

Refer to the following to uninstall (remove) the Wireless Client Utility from your computer.
1. Click Start -> All Programs (Windows 2000 Programs) -> 802.11g Wireless Client
Utility -> Uninstall.
2.
3. When prompted, click Yes to remove the driver and utility software.
4. Click Finish to complete the uninstallation.
5. Reboot your computer if prompted.
U
PGRADING THE
W
IRELESS
C
LIENT
U
TILITY
Contact your dealer or technical support for details on downloading the current Wireless Client
Utility. Refer to the following to upgrade the Wireless Client Utility.
1. Double-click the Setup.exe file that you downloaded. The installation wizard screen opens.
2. Click Next to continue.
3. Click Next in the Choose Destination Location screen.
4. Click Install to begin the installation.
5. Click Finish to exit the wizard and complete the installation.
Appendix -- 33
Troubleshooting
PROBLEMS STARTING THE 802.11g WIRELESS CLIENT UTILITY PROGRAM
PROBLEM CORRECTIVE ACTION
Make sure the TEW-601PC power switch is turned off and properly inserted into
the PCMCIA slot and then restart your computer.
Perform a hardware scan by clicking Start, Settings, Control Panel and then
double-click Add/Remove Hardware. (Steps may vary depending on Windows
version).
Follow the on-screen instructions to search for the TEW-601PC and install the driver.
Check for possible hardware conflicts. In Windows, click Start, Settings, Control
Panel, System, Hardware and then click Device Manager. Verify the status of the
TEW-601PC under Network Adapter.
(Steps may vary depending on the Windows version).
Windows does not
auto-detect the
TEW-601PC.
Install the TEW-601PC in another computer. If the error persists, there may be a
hardware problem. In this case, please contact your local dealer for support.
PROBLEMS WITH THE LINK STATUS
PROBLEM CORRECTIVE ACTION
The link quality and/or
signal strength is poor all
the time from the status
bar.
Search and connect to another AP with a better link quality using the Site
Survey screen.
Change the channel used by your AP.
Move your computer closer to the AP or the peer computer(s) within the
transmission range.
There may be too much radio interference (for example microwave or
another AP using the same channel) around your wireless network.
Relocate or reduce the radio interference.
PROBLEMS WITH SECURITY SETTINGS
“Disconnected” (meaning
authentication failure)
Shown in the Status Bar
Make sure your AP/Router has the same setting as your client adapter and
follow AP/Router’s security settings.
LED PWR and LINK are
on but cannot receive or
sending data and connect
to network
Make sure your AP/Router has the same setting as your client adapter and
follow AP/Router’s security settings.
Problems Communicating With Other Computers
PROBLEM CORRECTIVE ACTION
The TEW-601PC
computer cannot
communicate with the
other computer.
Make sure you are connected to the network.
34 --
Infrastructure Make sure that the AP and the associated computers are turned on and
working properly.
Make sure the TEW-601PC computer and the associated AP use the
same SSID.
Change the AP and the associated wireless clients to use another radio
channel if interference is high.
Make sure that the computer and the AP share the same security option
and key. Verify the settings in the Profile Security Settings screen.
Ad-Hoc Verify that the peer computer(s) is turned on.
Make sure the TEW-601PC computer and the peer computer(s) are
using the same SSID and channel.
Make sure that the computer and the peer computer(s) share the same
security option and key.
Change the wireless clients to use another radio channel if interference is
high.
Limited Warranty
TRENDware warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
Wireless Products – 3 Years Warranty
If a product does not operate as warranted above during the applicable warranty period,
TRENDware shall, at its option and expense, repair the defective product or part, deliver to
customer an equivalent product or part to replace the defective item, or refund to customer
the purchase price paid for the defective product. All products that are replaced will
become the property of TRENDware. Replacement products may be new or reconditioned.
TRENDware shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDware pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service
the product by any unauthorized service center. This warranty is voided if (i) the product
has been modified or repaired by any unauthorized service center, (ii) the product was
subject to accident, abuse, or improper use (iii) the product was subject to conditions more
severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDware office within the applicable
warranty period for a Return Material Authorization (RMA) number, accompanied by a copy
of the dated proof of the purchase. Products returned to TRENDware must be
pre-authorized by TRENDware with RMA number marked on the outside of the package,
and sent prepaid, insured and packaged appropriately for safe shipment.
WARRANTIES EXCLUSIVE: IF THE TRENDWARE PRODUCT DOES NOT OPERATE
AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT
TRENDWARE’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDWARE
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION
MAINTENANCE OR USE OF TRENDWARE’S PRODUCTS.
TRENDWARE SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE,
NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO
REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE
INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDWARE
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR
FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH
DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF
THE PURCHASE PRICE PAID, AT TRENDWARE’S OPTION. THIS DISCLAIMER OF
LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 Year Warranty
