Product Overview

TEW-711BR

Package Contents

In addition to your router, the package includes:

• Multi-Language Quick Installation Guide

• CD-ROM (User’s Guide)

• Network cable (1.5 m / 5 ft.)

• Power adapter (5V DC, 1A)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Features

TRENDnet’s N150 Wireless Home Router, model TEW-711BR, provides reliable 150Mbps

wireless n speed and coverage to share files, play games, and surf the Internet.

Advanced encryption protects your wireless network, Access Control tools help block

unwanted Websites and unknown users, and embedded GREENnet technology reduces

power consumption by up to 50%.

WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video

streams.

Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the

touch of a button. LEDs on the front of the router convey device status. Network wired

devices to the four Fast Ethernet ports on the back of the router.

 4 x 10/100Mbps Auto-MDIX LAN ports

 1 x 10/100Mbps Auto-MDIX WAN port (Internet)

 High-speed data rates of up to 150Mbps based on IEEE 802.11n*

 Compliant with IEEE 802.11b/g standards

 GREENnet technology reduces power consumption by up to 50%

 Compatible with most popular cable/DSL Internet service providers using

Dynamic/Static IP, PPPoE, PPTP and L2TP protocols

 Support for IPv6 (Internet Protocol v6) 6rd (IPv6 rapid deployment) DHCPv4,

manual and automatic configuration

 One touch wireless connection to wireless clients using the WPS button

 Advanced wireless security of up to WPA2-RADIUS

 Internet Access Control (MAC Address, Domain, and IP Filtering)

 Easy setup via Web browser using Internet Explorer 6.0 or above, Firefox 2.0

or above, Chrome, Opera, Safari

 Firewall features Network Address Translation (NAT)

 Virtual server and Application Level Gateway (ALG) services for special

Internet applications

 Universal Plug and Play (UPnP) for auto discovery and support for device

configuration of Internet applications

 Dynamic DNS Client for dynamic Internet IP resolution

 Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization

 Indoor range up to 100 meters (330 ft.)* depending on the environment

 Outdoor range up to 300 meters (980 ft.)* depending on the environment

 3-year limited warranty

TRENDnet User’s Guide TEW-711BR

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual

data throughput and coverage will vary depending on interference, network traffic, building

materials and other conditions.

Product Hardware Features

Rear View

• Reset Button – Use an item such as a paperclip to push and hold this button for

15 seconds and release to reset your router to its factory defaults.

• LAN Ports – Connect Ethernet cables (also called network cables) from your

router LAN ports to your wired network devices.

• WAN Port– Connect an Ethernet cable from your router WAN port to your

modem.

• Power Port – Connect the included power adapter from your router power

port and to an available power outlet.

• On/Off Power Switch – Push the router On/Off power switch to turn your

router “On” (Inner position) or “Off” (Outer position).

• Antenna – The antenna broadcasts wireless network signals.

TRENDnet User’s Guide TEW-711BR

Front View

• Power LED -This LED indicator is solid green when your router is powered on.

Otherwise if this LED indicator is off, there is no power to your router.

• Status LED - This LED indicator is blinking green when your router is ready and

working successfully. If this LED indicator is solid green on or off, your router is

not receiving power or not working properly.

• WAN (Link/Activity) LED – This LED indicator is solid green when your router

WAN port is physically connected to the modem Network port (also called

network port) successfully with a Network cable. The LED indicator will be

blinking green while data is transmitted or received through the WAN port of

your router.

• WLAN (Link/Activity) LED – This LED indicator is blinking green when the

wireless is “On” and functioning properly on your router. This LED indicator will

be blinking green rapidly while data is transmitted or received by your wireless

clients or wireless network devices connected to your router.

• LAN 1-4 (Link/Activity) LEDs – These LED indicators are solid green when the

LAN ports are successfully connected to your wired network devices (which are

turned on). These LED indicators will blink green while data is transmitted or

received through your router’s LAN ports.

TRENDnet User’s Guide TEW-711BR

Side View

• WPS (Wi-Fi Protected Setup) – Push and hold this button for 3 seconds to

activate WPS. The button LED is blinking blue when WPS is activated.

Application Diagram

The router is installed near the modem (typically supplied by your ISP “Internet Service

Provider”) and physically connected to it from the router’s WAN port to the modem’s

network port which connects to the Internet. Wireless signals from the router are

broadcasted to wireless clients such as laptops (with wireless capability) thereby

providing Internet access.

TRENDnet User’s Guide TEW-711BR

Basic Router Setup

Creating a Home Network

What is a network?

A network is a group of computers or devices that can communicate with each other. A

home network of more than one computer or device also typically includes Internet

access, which requires a router.

A typical home network may include multiple computers, a media player/server, a

printer, a modem, and a router. A large home network may also have a switch,

additional routers, access points, and many Internet-capable media devices such as TVs,

game consoles, and Internet cameras.

• Modem – Connects a computer or router to the Internet or ISP (Internet

Service Provider).

• Router – Connects multiple devices to the Internet.

• Switch –Connect several wired network devices to your home network. Your

router has a built-in network switch (the LAN port 1-4). If you have more wired

network devices than available Ethernet ports on your router, you will need an

additional switch to add more wired connections.

How to set up a home network

1. For a network that includes Internet access, you’ll need:

• Computers/devices with an Ethernet port (also called network port) or wireless

networking capabilities.

• A modem and Internet service to your home, provided by your ISP (modem

typically supplied by your ISP).

• A router to connect multiple devices to the Internet.

2. Make sure that your modem is working properly. Your modem is often provided by

your Internet Service Provider (ISP) when you sign up for Internet service. If your

modem is not working contact your ISP to verify functionality.

3. Set up your router. See “How to setup your router” below.

4. To connect additional wired computers or wired network devices to your network,

see “Connect additional wired devices to your network” on page 11.

5. To set up wireless networking on your router, see “Wireless Networking and Security”

on page 12.

How to setup your router

Refer to the Quick Installation Guide or continue to the next section “Router

Installation” on page 6 for more detailed installation instructions.

Where to find more help

In addition to this User’s Guide, you can find help below:

• http://www.trendnet.com/support

(documents, downloads, and FAQs are available from this Web page)

TRENDnet User’s Guide TEW-711BR

Router Installation

Before you Install

Many Internet Service Providers (ISPs) allow your router to connect to the Internet

without verifying the information fields listed below. Skip this section for now and if

your router cannot connect to the Internet using the standard installation process, come

back to this page and contact your ISP to verify required ISP specification fields listed

below.

1. Obtain IP Address Automatically (DHCP)

Host Name (Optional)

Clone Mac Address (Optional)

2. Fixed IP address

WAN IP Address: _____. _____._____._____

(e.g. 215.24.24.129)

WAN Subnet Mask: _____. _____._____._____

WAN Gateway IP Address: _____. _____._____._____

DNS Server Address 1: _____. _____._____._____

DNS Server Address 2: _____. _____._____._____

3. PPPoE to obtain IP automatically

User Name: _________

Password: ________________

Verify Password: ________________

4. PPPoE with a fixed IP address

User Name: _________

Password: ________________

Verify Password: ________________

IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

5. PPTP or Russian PPTP

Type (Dynamic IP or Static IP)

My IP Address: _____. _____._____._____

(e.g. 215.24.24.129)

Subnet Mask:_____. _____._____._____

Gateway:_____. _____._____._____

Server IP: _____. _____._____._____

PPTP Account: ________________

PPTP Password: ________________

Retype Password: ________________

6. L2TP or Russia L2TP

Type (Dynamic IP or Static IP)

My IP Address: _____. _____._____._____

(e.g. 215.24.24.129)

Subnet Mask:_____. _____._____._____

Gateway:_____. _____._____._____

Server IP: _____. _____._____._____

L2TP Account: ________________

L2TP Password: ________________

Retype Password: ________________

7. Russia PPPoE

Type (Dynamic IP or Static IP)

User Name: _________

Password: ________________

Verify Password: ________________

IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

TRENDnet User’s Guide TEW-711BR

Hardware Installation

1. Verify that you have an Internet connection when connecting your computer directly

to your modem.

2. Turn off your modem.

3. Disconnect the Network cable from your computer to your modem.

4. Using a Network cable, connect your computer to one of the four LAN ports on the

router.

5. Using another Network cable, connect the WAN port on the router to your modem.

6. Plug in the power adapter, connect it to the router’s power port, and then push the

On/Off Power Switch to the “On” position (pushed in).

7. Turn on your modem.

8. Verify that the following front panel LED indicators on your router: Power (Solid

Green), Status (Blinking Green), LAN 1, 2, 3, or 4 (Solid/Blinking Green for ports for

which devices are connected), WAN (Solid/Blinking Green), and WLAN (Blinking Green).

TRENDnet User’s Guide TEW-711BR

Setup Wizard

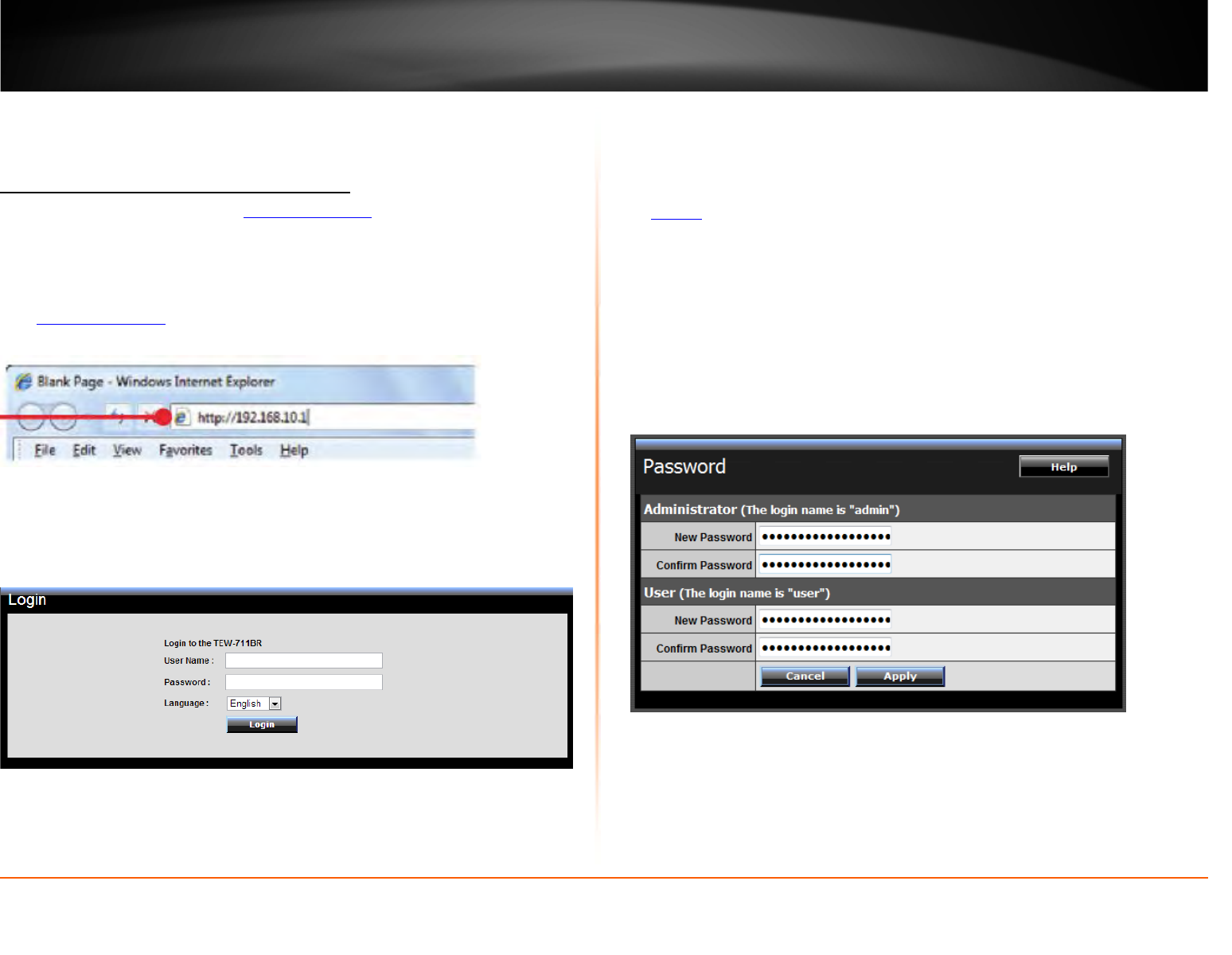

1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and

go to http://192.168.10.1. Your router will prompt you for a user name and password.

2. Next to Language, click the drop-down list to select your preferred language. Enter

the default user name and password and then click Login.

Default User Name: admin

Default Password: admin

3. The Setup Wizard will automatically appear. Click Next.

Note: If the Setup Wizard does not automatically appear, click Wizard (the bottom

button on the left tab).

4. Enter a new login password for your router and enter it again next to “Verify

Password” to confirm. This will change the password required to log into your router.

Click Next.

Note: This is the password to enter your router’s management interface and NOT to

connect to the router wirelessly. Once you change the login password, it will be required

every time you log into your router. Store your router password in a location that you

can reference at a future time.

TRENDnet User’s Guide TEW-711BR

5. Select the Time Zone for your router and click Next.

6. Click Next at the Set LAN connection and DHCP Server window.

Note: If you are an advanced user, you can make LAN IP address interface and DHCP IP

address range changes here.

7. This section determines what method the router will use to interface with your ISP

service. Most ISP services allow your router to obtain an IP address automatically. Do

not change the default setting of Obtain IP Automatically and click next to proceed.

Note: If you know that your ISP requires a configuration other than Obtain IP

Automatically or if are having difficulty completing the router installation, please contact

your ISP to verify all required settings for one of the options listed on page 6. The options

listed on page 6 match the settings options available to choose from.

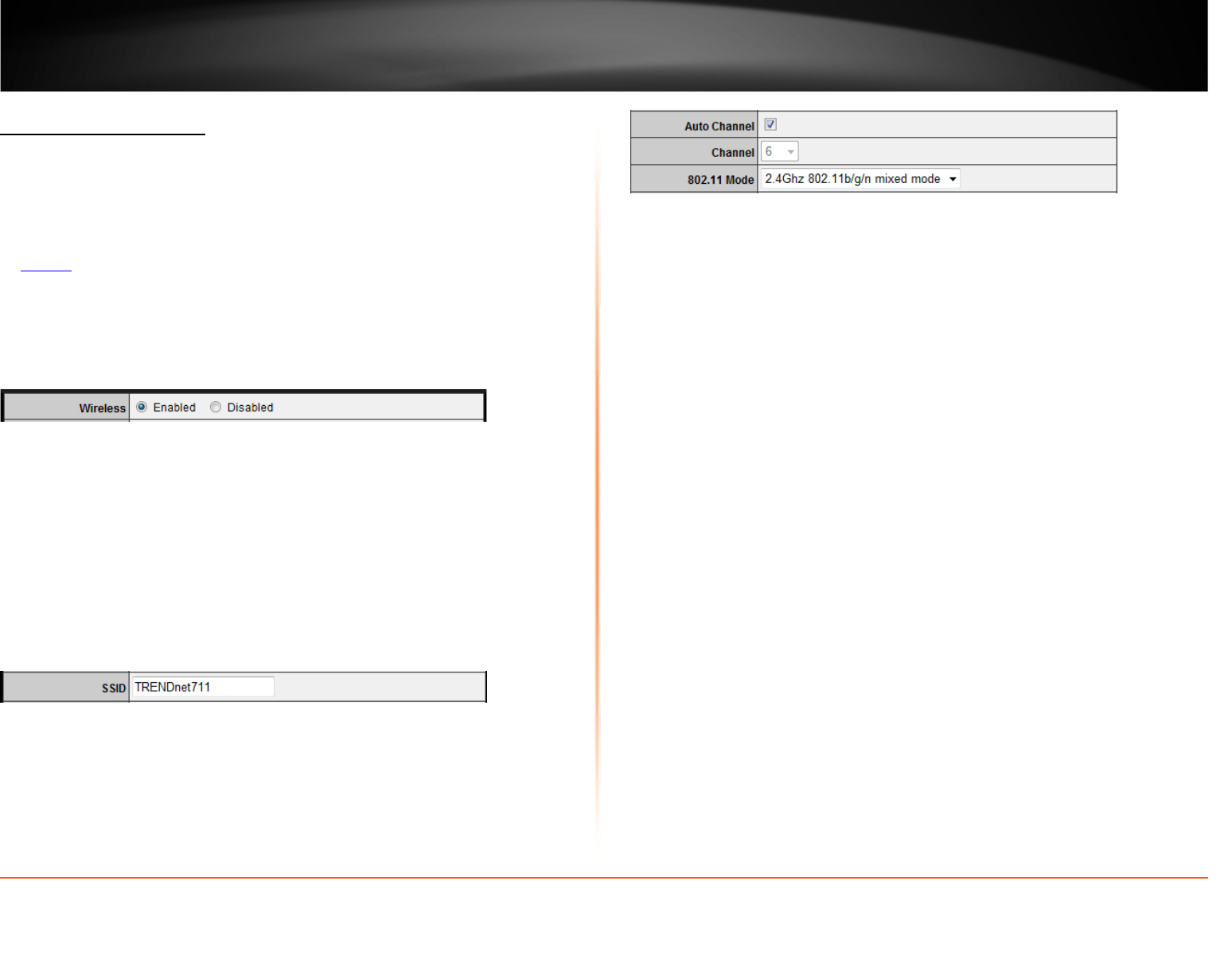

8. Wireless LAN: Select Enable for Wireless LAN.

Note: Selecting Disable will disable the wireless functionality of the router and will not

allow wireless clients to connect.

TRENDnet User’s Guide TEW-711BR

9. SSID: Enter a unique SSID (Wireless Network Name). Choose something that you

would easily identify when searching for available wireless networks (using laptops,

smart phones, etc.) Click Next.

Note:

1. To protect your network from unauthorized access, it is recommended to enable

wireless encryption. See “Secure your wireless network” on page 13 for information on

configuring wireless security.

2. Once wireless security is enabled on your router, each wireless device connecting to

your router must be configured with the same wireless security type and key.

10. Click Restart and wait for your router to reboot.

11. Wait for your router to reboot.

12. Verify you have an Internet connection by opening a Web browser on your

computer.

Note: If you cannot access the Internet, power down your modem and router again.

Occasionally certain modems need to be power cycled to adopt new router settings.

TRENDnet User’s Guide TEW-711BR

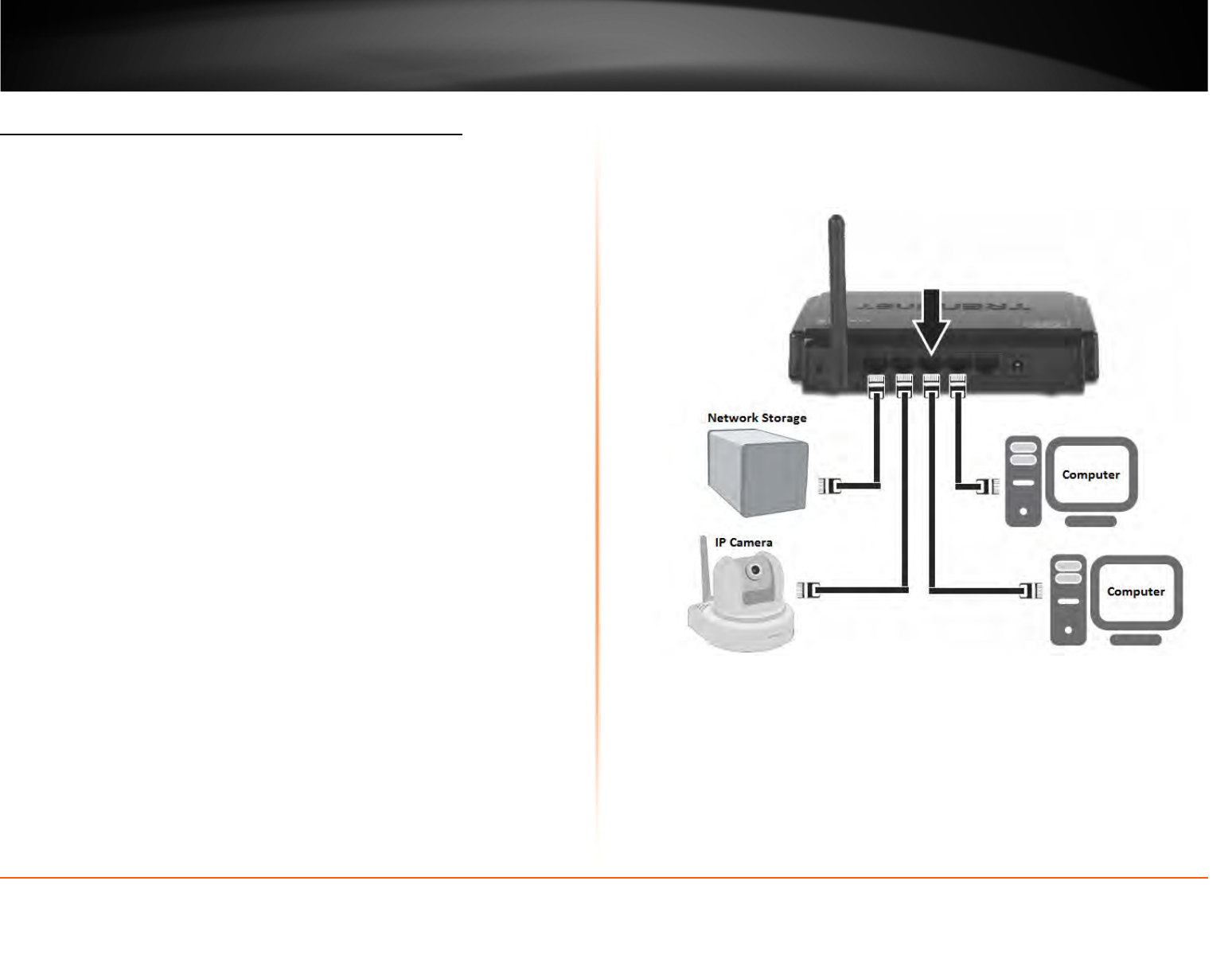

Connect additional wired devices to your network

You can connect additional computers or other network enabled devices to your

network by using Ethernet cables to connect them to one of the available LAN ports

labeled 1,2,3,4 on your router. Check the status of the LED indicators (1, 2, 3, or 4) on

the front panel of your router to ensure the physical cable connection from your

computer or device.

Note: If you encounter issues connecting to your network, there may be a problem with

your computer or device network settings. Please ensure that your computer or device

network settings (also called TCP/IP settings) are configured to obtain IP address settings

automatically (also called dynamic IP address or DHCP) and to Obtain DNS Server

address settings automatically.

TRENDnet User’s Guide TEW-711BR

Wireless Networking and Security

How to choose the type of security for your wireless network

Setting up wireless security is very important. Leaving your wireless network open and

unsecure could expose your entire network and personal files to outsiders. TRENDnet

recommends reading through this entire section and setting up wireless security on your

new router.

There are a few different wireless security types supported in wireless networking each

having its own characteristics which may be more suitable for your wireless network

taking into consideration compatibility, performance, as well as the security strength

along with using older wireless networking hardware (also called legacy hardware).

It is strongly recommended to enable wireless security to prevent unwanted users from

accessing your network and network resources (personal documents, media, etc.).

In general, it is recommended that you choose the security type with the highest

strength and performance supported by the wireless computers and devices in your

network. Please review the security types to determine which one you should use for

your network.

Wireless Encryption Types

• WEP: Legacy encryption method supported by older 802.11b/g hardware. This

is the oldest and least secure type of wireless encryption. It is generally not

recommended to use this encryption standard, however if you have old 802.11

b or 802.11g wireless adapters or computers with old embedded wireless

cards(wireless clients), you may have to set your router to WEP to allow the old

adapters to connect to the router. Note: This encryption standard will limit

connection speeds to 54Mbps.

• WPA: This encryption is significantly more robust than the WEP technology.

Much of the older 802.11g hardware was been upgraded (with firmware/driver

upgrades) to support this encryption standard. Total wireless speeds under

this encryption type however are limited to 54Mbps.

• WPA-Auto: This setting provides the router with the ability to detect wireless

devices using either WPA or WPA2 encryption. Your wireless network will

automatically change the encryption setting based on the first wireless device

connected. For example, if the first wireless client that connects to your

wireless network uses WPA encryption your wireless network will use WPA

encryption. Only when all wireless clients disconnect to the network and a

wireless client with WPA2 encryption connects your wireless network will then

change to WPA2 encryption. NOTE: WPA2 encryption supports 802.11n speeds

and WPA encryption will limit your connection speeds to 54Mbps

• WPA2: This is the most secure wireless encryption available today, similar to

WPA encryption but more robust. This encryption standard also supports the

highest connection speeds. TRENDnet recommends setting your router to this

encryption standard. If you find that one of your wireless network devices does

not support WPA2 encryption, then set your router to either WPA or WPA-Auto

encryption.

Note: Check the specifications of your wireless network adapters and wireless appliances

to verify the highest level of encryption supported.

TRENDnet User’s Guide TEW-711BR

Below is brief comparison chart of the wireless security types and the recommended

configuration depending on which type you choose for your wireless network.

Security Standard

WEP

WPA

WPA2

Compatible

Wireless

Standards

IEEE 802.11a/b/g

(802.11n devices

will operate at

802.11g to connect

using this standard)

IEEE 802.11a/b/g

(802.11n devices

will operate at

802.11g to connect

using this

standard)

IEEE 802.11a/b/g/n

Highest

Performance

Under This

Setting

Up to 54Mbps

Up to 450Mbps*

Encryption

Strength

Low

Medium

High

Additional

Options

Open System or

Shared Key,

HEX or ASCII,

Different key sizes

TKIP or AES,

Preshared Key or

RADIUS

TKIP or AES,

Preshared Key or

RADIUS

Recommended

Configuration

Open System ASCII

13 characters

TKIP

Preshared Key

8-63 characters

AES

Preshared Key

8-63 characters

*Dependent on the maximum 802.11n data rate supported by the device (150Mbps,

300Mbps, or 450Mbps)

Secure your wireless network

Wireless > Security

After you have determined which security type to use for your wireless network (see

“How to choose the security type for your wireless network” on page 12), you can set up

wireless security.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Wireless, and click on Security.

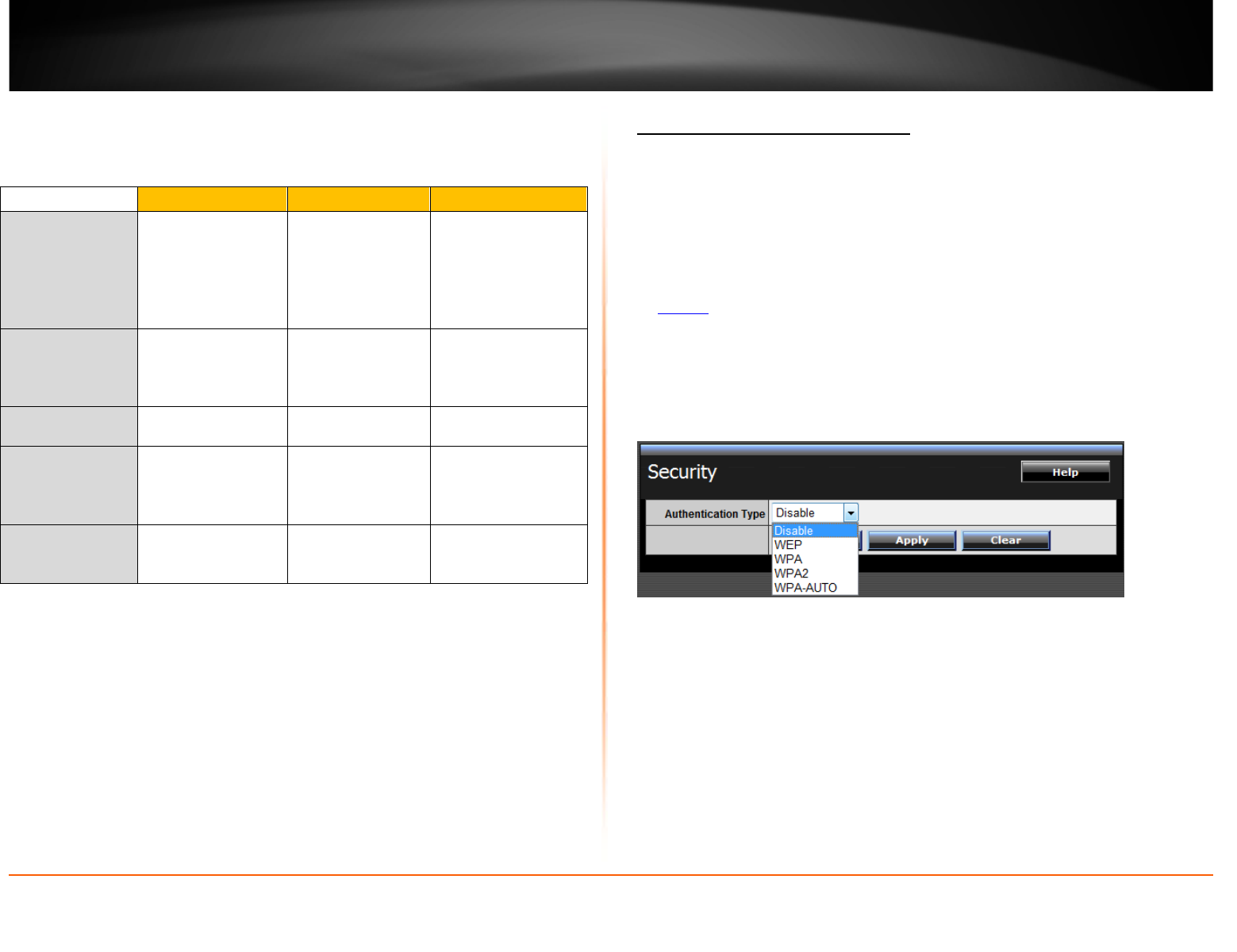

3. Click on the Authentication Type drop-down list to select your wireless security type.

TRENDnet User’s Guide TEW-711BR

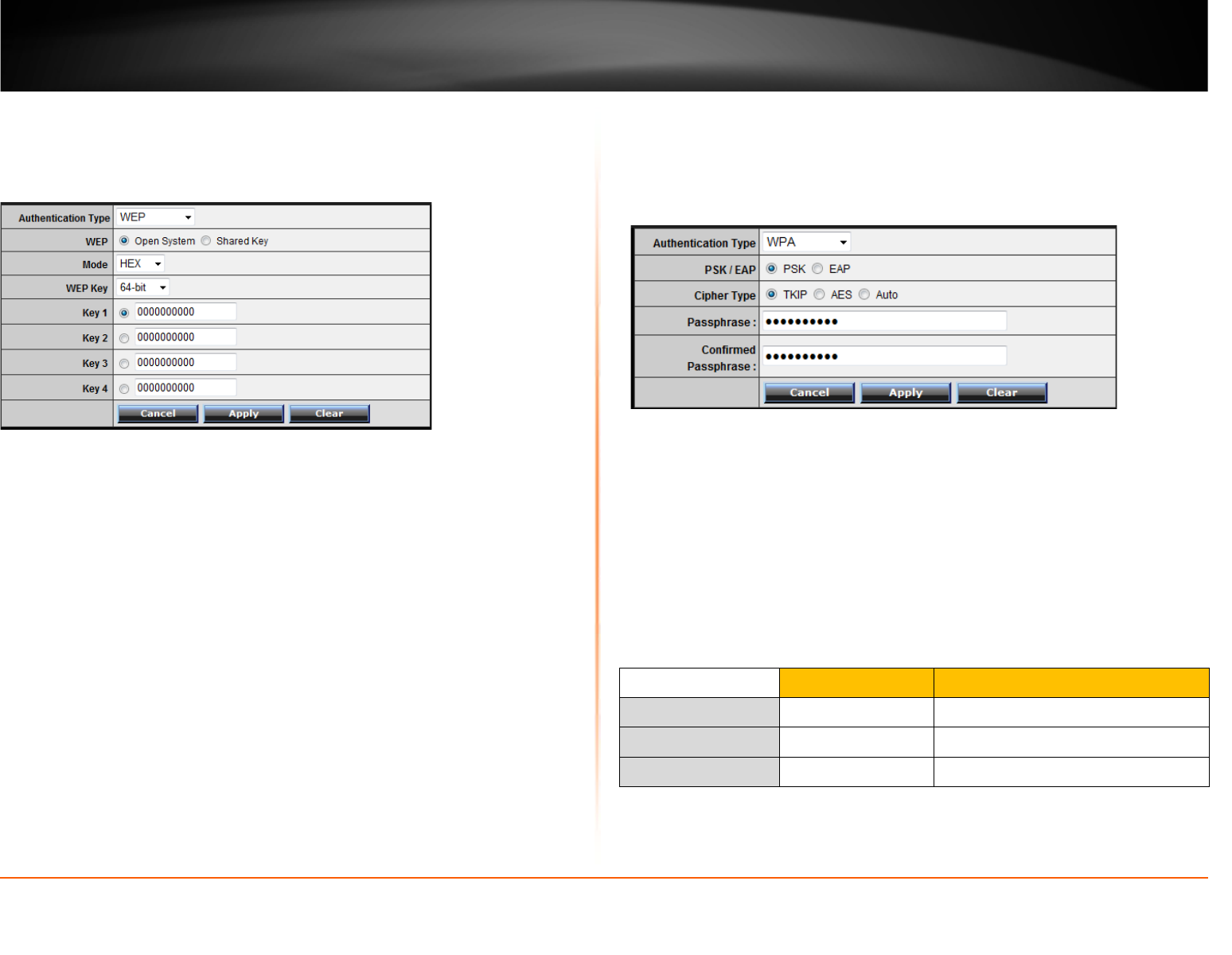

Selecting WEP:

If selecting WEP (Wired Equivalent Privacy), please review the WEP settings to configure

and click Apply to save the changes.

• WEP– Choose Open System or Shared Key.

Note: It is recommended to use Open System because it is known to be more secure

than Shared Key.

• Mode – Choose HEX or ASCII.

Note: It is recommended to use ASCII because of the much larger character set that

can be used to create the key.

• WEP Key – Choose the key length 64-bit or 128-bit.

Note: It is recommended to use 128-bit because it is more secure to use a key that

consists of more characters.

• Key 1-4

o This is where you enter the password or key needed for a computer to

connect to the router wirelessly

o You can define up to 4 passwords or 4 keys. Only one key can be active

at a given time. Most users simply define one key.

o Choose a key index 1, 2, 3, or 4 and enter the key.

o When connecting to the router, the client must match both the

password and the Key number. (e.g. if you have activated Key 2 with a

password of 12345, then the client must select: Key 2 (entering Key 1,

3, or 4 will block the ability to connect) and enter password 12345)

Selecting WPA, WPA-Auto, or WPA2 (WPA2 recommended):

First, from the Authentication Type row, select WPA, WPA-Auto, or WPA2.

Then from the PSK/EAP row, select either PSK or EAP

• PSK stands for Preshared Key

• EAP stands for Extensive Authentication Protocol, also called Remote

Authentication Dial-In User Service or RADIUS).

Note: EAP requires an external RADIUS server, PSK only requires you to create a

passphrase.

The following section outlines options when selecting PSK (Preshared Key Protocol),

o Select a Cipher Type. When selecting WPA security, it is recommended

to use TKIP.

o When selecting WPA-Auto security, it is recommended to use AES.

o When selecting WPA2 security, it is recommended to use AES.

WEP Key Format HEX ASCII

Character set 0-9 & A-F, a-f only Alphanumeric (a,b,C,?,*, /,1,2, etc.)

64-bit key length 10 characters 5 characters

128-bit key length 26 characters 13 characters

TRENDnet User’s Guide TEW-711BR

Create your Wireless security Passphrase (password or key):

• Passphrase – Enter the passphrase.

o This is the password or key that is used to connect your computer to

this router wirelessly

• Confirmed Passphrase – Re-enter the passphrase.

Note: 8-63 alphanumeric characters (a,b,C,?,*, /,1,2, etc.)

The following section outlines options when selecting EAP (Extensive Authentication

Protocol),

EAP (Extensible Authentication Protocol) is also called Remote Authentication Dial-In

User Service or RADIUS.

Select a Cipher Type

o When selecting WPA security, it is recommended to use TKIP.

o When selecting WPA-Auto security, it is recommended to use AES.

o When selecting WPA2 security, it is recommended to use AES.

• RADIUS Server 1/2 - Configure the RADIUS server settings.

Note: RADIUS Server 2 is optional and can be configured as a backup if there are any

issues with RADIUS Server 1.

o IP – Enter the IP address of the RADIUS server. (e.g. 192.168.10.250)

o Port – Enter the port your RADIUS server is configured to use for

RADIUS authentication.

Note: It is recommended to use port 1812.

o Shared Secret – Enter the shared secret used to authorize your router

with your RADIUS server.

Connect wireless devices to your router

A variety of wireless network devices can connect to your wireless network such as:

• Gaming Consoles

• Internet enabled TVs

• Network media players

• Smart Phones

• Wireless Laptop computers

• Wireless IP cameras

Each device may have its own software utility for searching and connecting to available

wireless networks, therefore, you must refer to the User’s Manual/Guide of your

wireless client device to determine how to search and connect to this router’s wireless

network.

See the “Appendix” on page 54 for general information on connecting to a wireless

network.

TRENDnet User’s Guide TEW-711BR

Connect wireless devices using WPS

WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your

wireless network. If your wireless devices support WPS, you can use this feature to

easily add wireless devices to your network.

Note: You will not be able to use WPS if you set the SSID Broadcast setting to Disabled.

There are two methods the WPS feature can easily connect your wireless devices to

your network.

• Push Button Configuration (PBC) method

o RECOMMENDED Hardware Push Button method–with an external

button located physically on your router and on your client device

o WPS Software/Virtual Push Button - located in router management

page

• PIN (Personal Identification Number) Method - located in router management

page

Note: Refer to your wireless device documentation for details on the operation of WPS.

Recommended Hardware Push Button (PBC) Method

• Note it is recommended that a wireless key (passphrase or password) is created

before connecting clients using the PBC method. If no wireless key is defined

when connecting via PBC, the router will automatically create an encryption

key that is 64 characters long. This 64 character key will then have to be used if

one has to connect computers to the router using the traditional connection

method.

To add a wireless device to your network, simply push the WPS button on the wireless

device you are connecting(consult client device User’s Guide for length of time), then

push and hold the WPS button located on your router for 3 seconds and release it. A

blue LED on your router WPS button will flash indicating that the WPS setup process has

been activated on your router. (See “Product Hardware Features” on page 2)

For connecting additional WPS supported devices, repeat this process for each

additional device.

PBC (Software/Virtual Push Button)

Wireless >WiFi Protected Setup

In addition to the hardware push button located physically on your router, the router

management page also has push button which is a software or virtual push button you

can click to activate WPS on your router.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Wireless, and click on WPS.

3. To add a wireless device to your network, simply the push the WPS button on the

wireless device (consult wireless device’s User’s Guide for length of time), you are

connecting, then in your router management page next to Push Button Configuration,

click Start PBC.

4. You will receive a message counting down indicating the WPS process is activated on

your router.

5. You will receive a success message indicate that the wireless device successfully

connected using WPS.

TRENDnet User’s Guide TEW-711BR

PIN (Personal Identification Number)

Wireless >WiFi Protected Setup

If your wireless device has WPS PIN (typically an 8-digit code printed on the wireless

device product label or located in the wireless device wireless software utility), you can

use this method.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Wireless, and click on WPS.

3. Next to Client PIN Number, enter the WPS PIN of the wireless device you are

connecting and click Start PIN.

Note: You may need to initiate the WPS PIN on your wireless device first when using this

method. Refer to your wireless device documentation for details on the operation of

WPS.

WPS PIN Security

Wireless >WiFi Protected Setup

To protect your wireless network against WPS PIN attacks, the WPS Auto Lock Down

State feature will automatically disable the WPS PIN method after 10 failed WPS PIN

attempts. Once lock down state is activated, the WPS PIN method will be disabled until

you access the router management page and unlock it.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Wireless, and click on WPS.

3. If Auto-lock-down-state is activated, the status will display as Locked. To unlock this

state and re-enable WPS PIN method, click Unlock.

4. To save changes, click Apply.

TRENDnet User’s Guide TEW-711BR

Basic wireless settings

Wireless > Basic

This section outlines available management options under the Basic Wireless sub tab.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Wireless, and click on Basic.

3. To save changes to this section, click Apply when finished.

• Wireless

o Enabled turns on the wireless networking on your router (by default it

is enabled).

o Disabled turns off wireless networking on your router.

Note: It is recommended to leave the wireless setting to Enabled unless you do not

plan on connecting any wireless computers or devices to your network.

• SSID – This acronym stands for Service Set Identifier and is the name of your

wireless network. It differentiates your wireless network from others around

you. By default, the router broadcast TRENDnet711 as the wireless network

name. If you choose to change the SSID, change it to a name that you can easily

remember.

• Auto Channel – In North America, this router can broadcast on 1 of 11

Channels (13 in Europe and other countries). Selecting Auto Channel enables

the router to automatically select the best Channel for wireless

communication.

• Channel – To manually set the channel on which the router will broadcast,

uncheck Auto Channel, then click the drop-down list and select the desired

Channel for wireless communication. The goal is to select the Channel that is

least used by neighboring wireless networks.

• 802.11 Mode - Select the appropriate mode for your network.

o 2.4GHz 802.11b/g/n mixed mode – Select this mode for the best

compatibility. This mode allows older 802.11b and 802.11g wireless

devices to connect to the router in addition to newer 802.11n devices.

o 2.4GHz 802.11b/g mixed mode – This mode only allows devices to

connect to the router using older and slow 802.11b or 802.11g

technology and it thereby reduces the router’s maximum speed to

54Mbps (typically not recommended).

o 2.4GHz 802.11n only mode – This mode only allows newer 802.11n

devices to connect to your router. This mode does ensure the highest

speed and security for your network, however if you have older

802.11g wireless clients, they will no longer be able to connect to this

router.

TRENDnet User’s Guide TEW-711BR

o 2.4GHz 802.11g only mode – This mode only allows devices to

connect to the router using older and slow 802.11g technology

(typically not recommended).

o 2.4GHz 802.11b only mode – This mode only allows devices to

connect to the router using older and slow 802.11b technology

(typically not recommended).

Note: Please check the specifications on your wireless devices for the highest wireless

capability supported first before applying these settings. If you are unsure, it is

recommended that you keep the default setting (2.4GHz 802.11b/g/n mixed mode) for

the best compatibility.

When applying the 802.11 mode setting, please keep in mind the following:

• Wireless devices that support 802.11n are backwards compatible and can

connect wirelessly at 802.11g or 802.11b.

• Connecting at 802.11b or 802.11g will limit the capability of your 802.11n

supported wireless devices from obtaining higher performance and data rates.

• Allowing 802.11b or 802.11g devices to connect to an 802.11n capable wireless

network may degrade the wireless network performance below the higher

performance and data rates of 802.11n.

• Wireless devices that only support 802.11b or 802.11g will not be able to

connect to a wireless network that is set to 802.11n only mode.

• Wireless devices that only support 802.11b will not be able to connect to a

wireless network that is set to 802.11g only mode.

• Channel Width – This setting only applies to wireless devices connecting at

802.11n. Select the appropriate channel width for your wireless network.

o 20 MHz – This mode operates using a single 20MHz channel for

wireless devices connecting at 802.11n. This setting may provide more

stability than Auto 20/40 MHz for connectivity in busy wireless

environments where there are several wireless networks in the area.

o Auto 20/40 MHz – This mode can automatically switch between using

a single 20MHz channel or 40MHz (two 20MHz channels). When

40MHz is active, this mode is capable of providing higher performance

only if the wireless devices support the 40MHz channel width.

Enabling 20/40MHz typically results in substantial performance

increases when connecting to an 802.11n client.

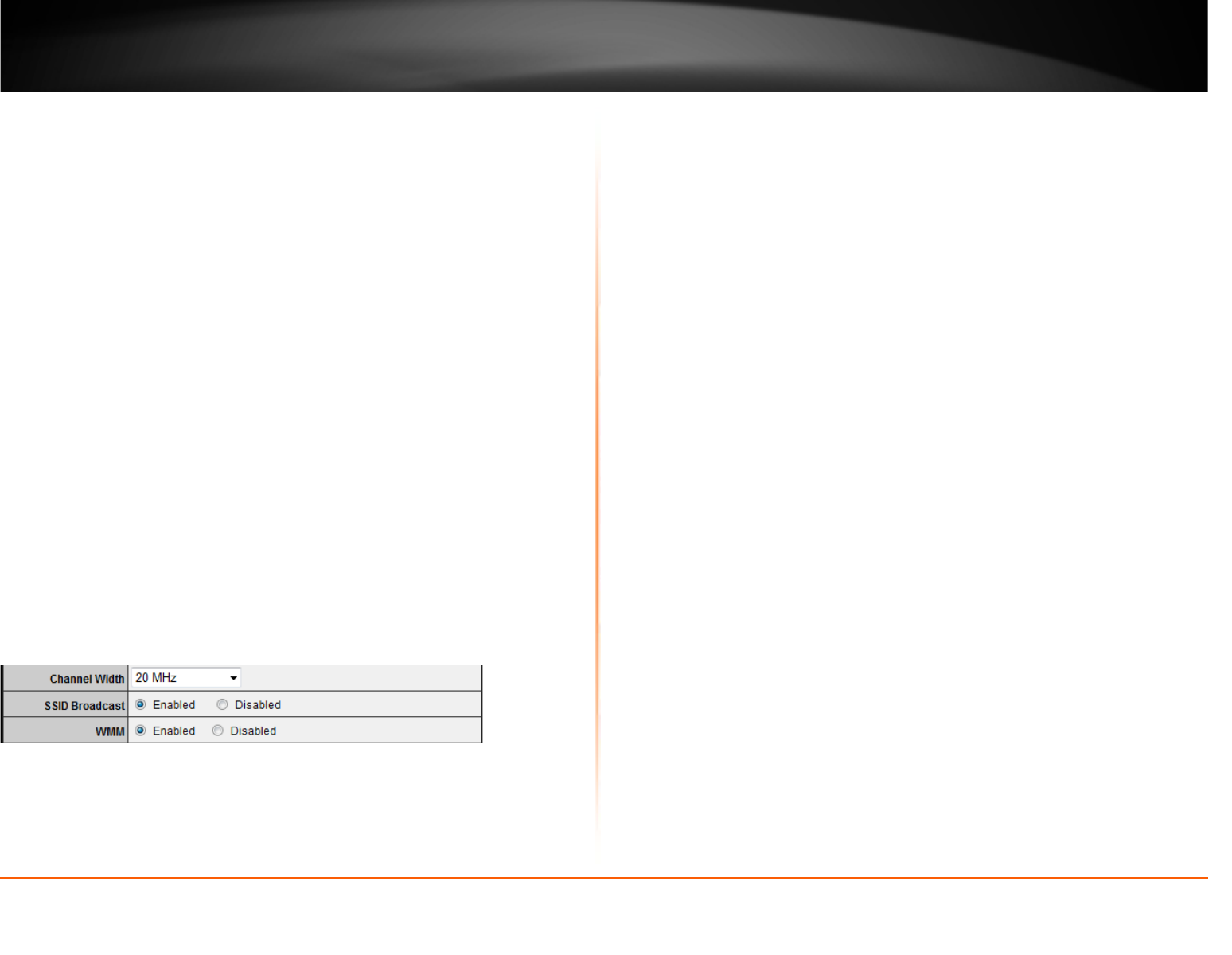

• SSID Broadcast

o Enabled allows wireless devices to search and discover your wireless

network name (also called SSID) broadcasted by your router.

o Disabled turns off the ability for wireless devices to find your network.

It is still possible for wireless devices to be configured to connect to

your wireless network.

Note: Setting this option to Disabled, will disable WPS functionality.

• WMM – Wi-Fi Multimedia is a Quality of Service (QoS) feature which prioritizes

audio and video data packets. This feature requires the wireless device to also

support WMM. Click Enabled (recommended) or Disabled to turn this feature

on or off on your router.

TRENDnet User’s Guide TEW-711BR

Steps to improve wireless connectivity

There are a number of factors that can impact the range of wireless devices. Follow

these tips to help improve your wireless connectivity:

1. Keep the number of obstructions to a minimum. Each obstruction can reduce

the range of a wireless device. Position the wireless devices in a manner that

will minimize the amount of obstructions between them.

a. For the widest coverage area, install your router near the center of

your home, and near the ceiling, if possible.

b. Avoid placing the router on or near metal objects (such as file cabinets

and metal furniture), reflective surfaces (such as glass or mirrors), and

masonry walls.

c. Any obstruction can weaken the wireless signal (even non-metallic

objects), so the fewer obstructions between the router and the

wireless device, the better.

d. Place the router in a location away from other electronics, motors,

and fluorescent lighting.

e. Many environmental variables can affect the router’s performance, so

if your wireless signal is weak, place the router in several locations and

test the signal strength to determine the ideal position.

2. Building materials can have a large impact on your wireless signal. In an indoor

environment, try to position the wireless devices so that the signal passes

through less dense material such as dry wall. Dense materials like metal, solid

wood, glass or even furniture may block or degrade the signal.

3. Antenna orientation can also have a large impact on your wireless signal. Use

the wireless adapter’s site survey tool to determine the best antenna

orientation for your wireless devices.

4. Interference from devices that produce RF (radio frequency) noise can also

impact your signal. Position your wireless devices away from anything that

generates RF noise, such as microwaves, radios and baby monitors.

If possible, upgrade wireless network interfaces (such as wireless cards in computers)

from older wireless standards to 802.11n. If a wirelessly networked device uses an older

standard, the performance of the entire wireless network may be slower. If you are still

experiencing low or no signal consider repositioning the wireless devices or installing

additional access points.

TRENDnet User’s Guide TEW-711BR

Advanced wireless settings

Wireless > Advanced

These settings are advanced options that can be configured to change advanced

wireless broadcast specifications. It is recommended that these settings remain set to

their default values unless you are knowledgeable about the effects of changing these

values. Changing these settings incorrectly can degrade performance.

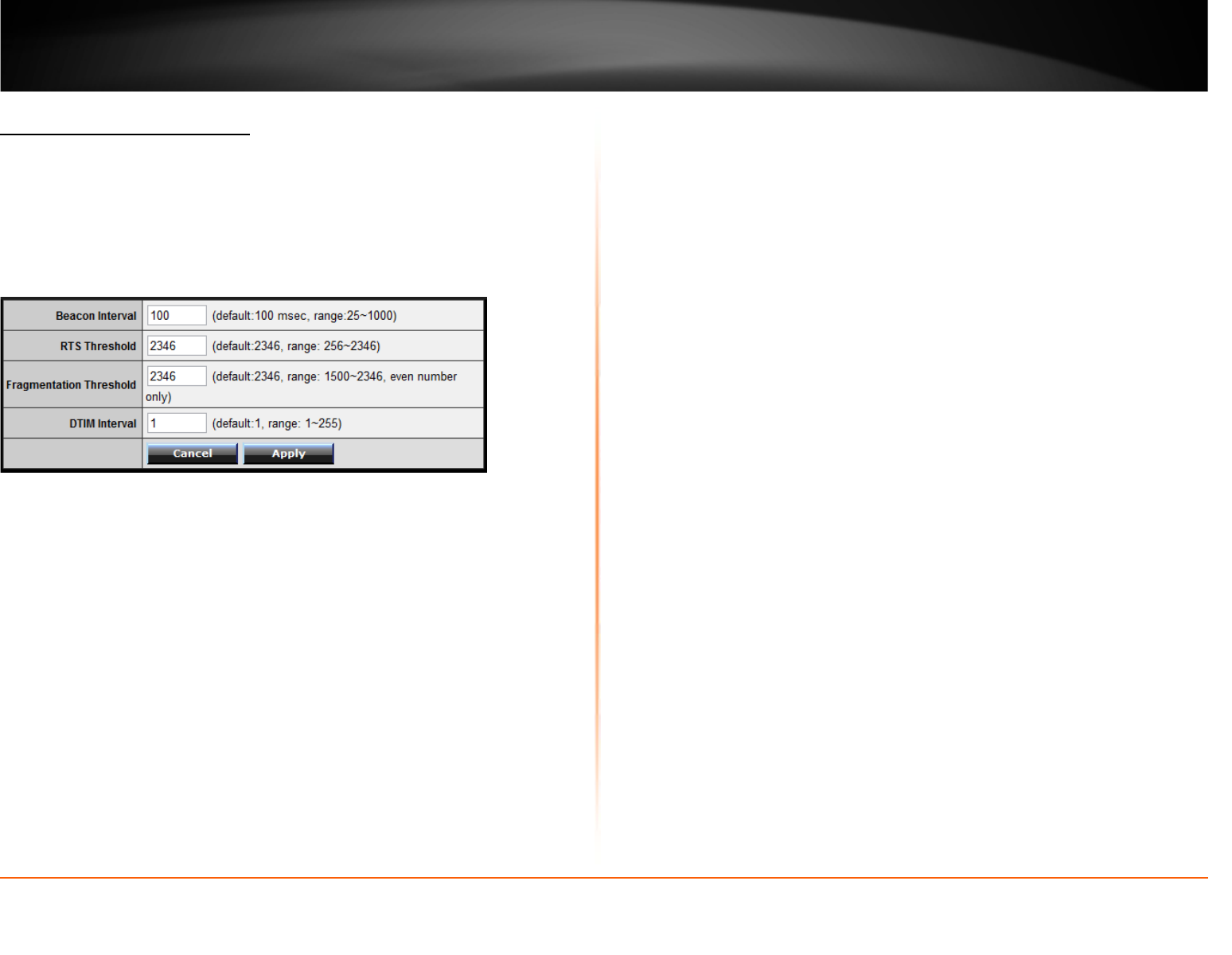

• Beacon Interval – A beacon is a management frame used in wireless networks

that transmitted periodically to announce the presence and provide

information about the router’s wireless network. The interval is the amount

time between each beacon transmission.

Default Value:100 milliseconds (range: 25-1000)

• RTS Threshold – The Request To Send (RTS) function is part of the networking

protocol. A wireless device that needs to send data will send a RTS before

sending the data in question. The destination wireless device will send a

response called Clear to Send (CTS). The RTS Threshold defines the smallest

data packet size allowed to initiate the RTS/CTS function.

Default Value: 2346 (range: 256-2346)

• Fragmentation Threshold – Fragmentation in wireless networks is the process

of breaking down data communications into smaller data packets in order to

improve data efficiency when transferring or receiving data between wireless

devices. The fragmentation threshold defines the maximum size of the data

packets that are broken down.

Default Value: 2346 (range: 1500~2346, even numbers only)

• DTIM Interval – A Delivery Traffic Indication Message (DTIM) is an

informational message that is sent as part of a beacon by an access point (your

wireless router) to a wireless client (wireless device or connecting station) in

sleep mode to provide an alert that data is awaiting delivery. The DTIM Interval

(also called Data Beacon Rate) is the amount of time between DTIM

transmissions included in part of a beacon.

Default Value: 1 (range: 1-255)

TRENDnet User’s Guide TEW-711BR

Access Control Filters

Access control basics

Access > Filter

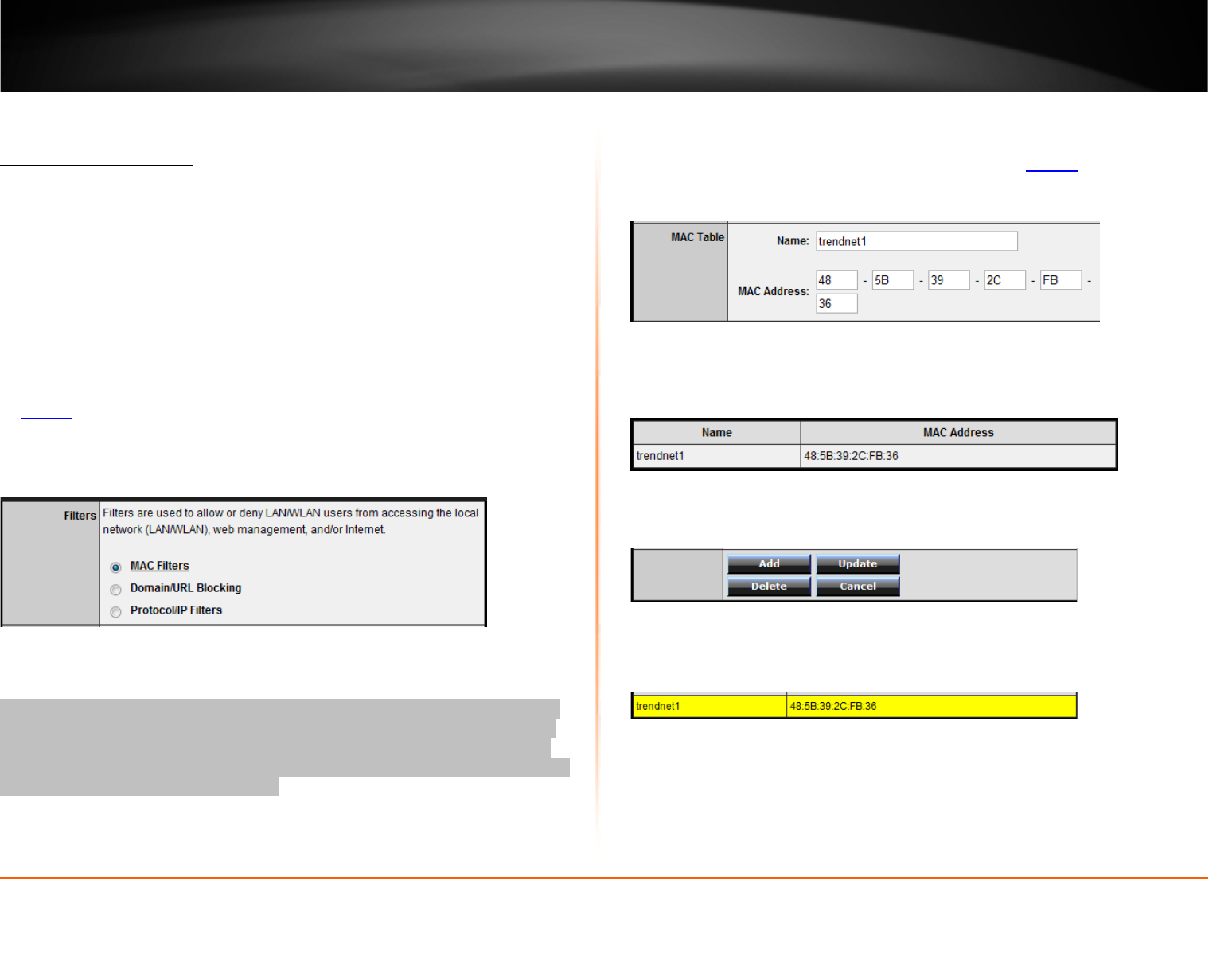

MAC address filters

Access > Filter > MAC Filters

Every network device has a unique, 12-digit MAC (Media Access Control) address. Using

MAC filters, you can allow or deny specific computers and other devices from using this

router’s wired or wireless network.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Access, click on Filter, and click on MAC Filters.

3. Add the MAC addresses to the MAC Table first before applying the MAC filter

function.

Note: MAC filter can be configured to allow access to the listed MAC address and deny

all others unlisted or vice versa. The recommended function is to choose to only allow

access to the MAC addresses listed and deny all others unlisted because it is easier to

determine the MAC addresses of devices in your network then to determine which MAC

addresses you do not want to allow access.

• Name – Enter a name for the MAC address entry.

• MAC Address – Enter the 12-digit MAC address.(e.g. 00-11-22-AA-BB-CC)

Note: You can check the Dynamic DHCP List for the MAC addresses of the devices on

your network, see “Setup the DHCP server on your router” on page 31 or refer to your

computer or device documentation to find the MAC address.

Click Add to save the new MAC address entry to the MAC Table. After clicking Add, the

MAC address entry will appear in the list below. Repeat for each device.

• Add – Saves a new MAC address entry.

To modify an existing MAC address entry, click on the entry in the MAC Table. When

selected, the entry will be highlighted.

• Delete – Removes an existing MAC address entry.

• Update – Modifies an existing MAC address entry.

• Cancel – Discard changes to an existing MAC address entry.

TRENDnet User’s Guide TEW-711BR

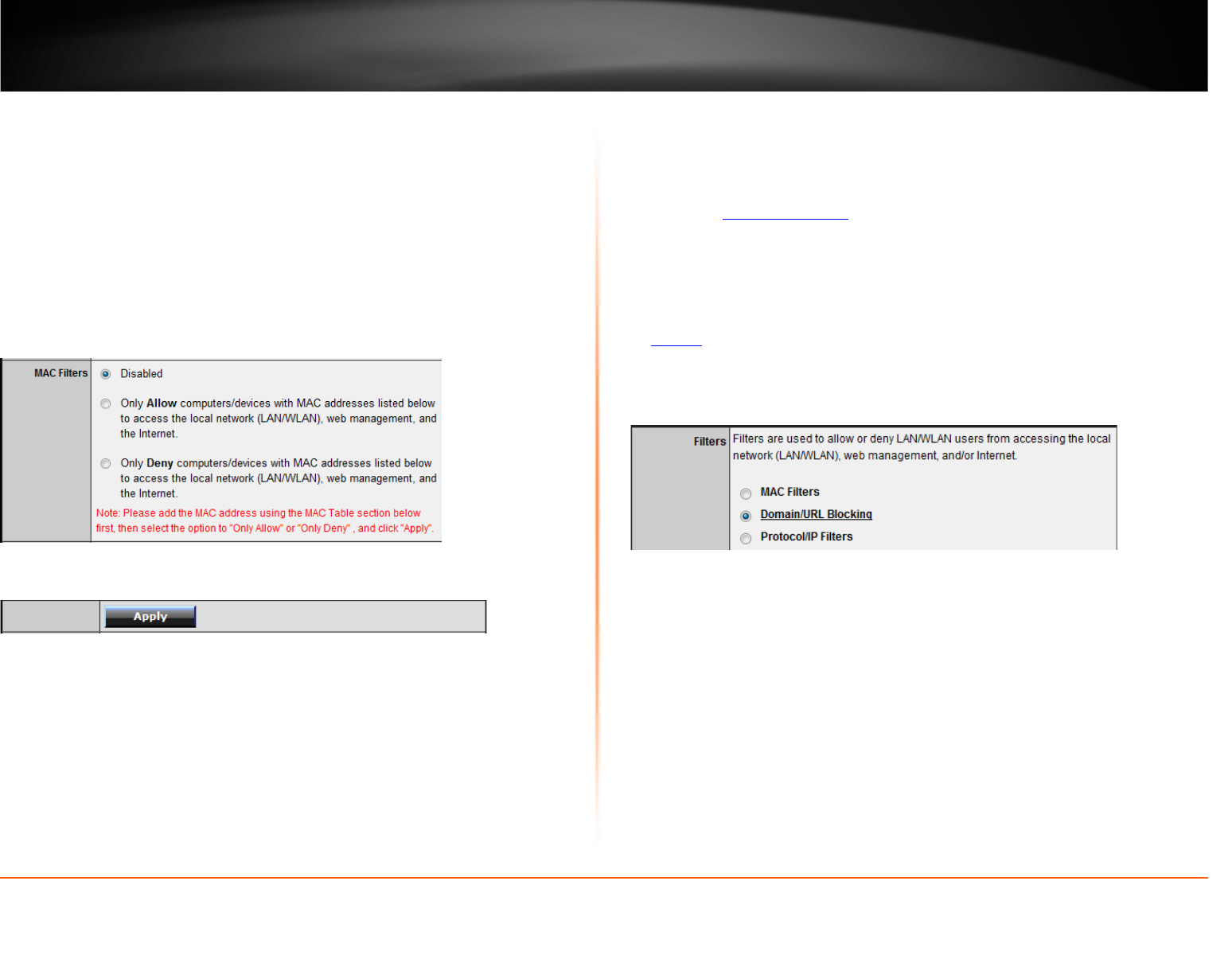

4. Review the MAC Filter options.

• Disabled – disables MAC address filter.

• Only Allow computers/devices with MAC addresses listed below to access the

local network (LAN/WLAN), web management, and the Internet.

• Only Deny computers/devices with MAC addresses listed below to access the

local network (LAN/WLAN), web management, and the Internet

Note: Do not configure this setting until you have added the MAC addresses to the MAC

Table first. The recommended option is to only Allow access to the MAC addresses listed

and deny all others unlisted.

Click Apply to save the changes.

Domain/URL Filters

Access > Filter > Domain/URL Blocking

You may want to allow or block computers or devices on your network access to specific

websites (e.g. www.trendnet.com, etc.), also called domains or URLs (Uniform Resource

Locators). You may also enter a keyword (e.g. instead of complete URL to generally

allow or block computers or devices access to websites that may contain the keyword in

the URL or on the web page.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Access, click on Filter, and click on Domain/URL Blocking.

3. Review the Domain/URL blocking options.

• Disabled – disables domain/URL blocking

• Allow users to access all domains listed.

(Deny access to all other unlisted websites)

• Deny users to access all domains listed.

(Allow access to all other unlisted websites)

TRENDnet User’s Guide TEW-711BR

Click Apply to save the changes.

4. Under Domain Blocking click on Allow or Deny. The Domains List will then appear.

Enter the Website/URL/domain (e.g.www.trendnet.com) or keyword (e.g. trendnet) to

allow or block access and click Add to add this to the domains list. The entry will be

listed below. Repeat for each additional website or keyword added.

• Cancel - Discard changes to the domains list.

• Delete -Delete an existing website/URL/domain or keyword entry, click on the

entry in the Domains List. When selected, the entry will be highlighted. Click

Delete to remove it from the list.

4. Go back to the Domain Blocking section and confirm you want to Allow or Deny

access to the Domains List. It is generally easier to manage a list of Domains for which

access is denied.

5. In Domain Blocking click on Apply to save the selected settings.

Protocol/IP filters

Access > Filter > Protocol/IP Filters

You may want to block computers or devices on your network access to specific ports

(used or required by a specific application) to the Internet.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Access, click on Filter, and click on Protocol/IP Filters.

To simplify configuration, there is a list of commonly used pre-defined Protocol/IP Filters

to modify otherwise, you can choose to manually add a new Protocol/IP Filter.

3. Review the protocol/IP filter settings.

• Enabled – Selecting Enabled turns on the Protocol/IP Filter and selecting

Disabled turns it off.

• Name – Enter a name for the Protocol/IP Filter.

TRENDnet User’s Guide TEW-711BR

• Protocol – Select the protocol type to filter. TCP, UDP, or you can select * to

choose all protocol types.

• Port – Enter the port number or port range numbers to block. (e.g. 80-80 or 20-

21).

• IP Range – Enter the IP address or IP address range to apply the protocol/IP

filter. (e.g. 192.168.10.20-192.168.10.20 or 192.168.10.20-192.168.10.30).

Note: The filter will not be applied to IP addresses outside of the range

specified.

• Add – Saves new protocol/IP filter.

To modify an existing protocol/IP filter, click on the entry in the Protocol/IP Filters list.

When selected, the entry will be highlighted.

• Delete – Removes an existing protocol/IP filter.

• Update – Modifies an existing protocol/IP filter.

• Cancel – Discard changes to an existing protocol/IP filter.

Firewall rules

Access > Firewall Rule

You may want specify inbound or outbound access control to allow/deny sources (or

Internet IP addresses) to your network from the Internet or from computers or devices

on your network to the Internet. Firewall rules may allow for more granular control of

specific inbound and outbound access between your network and the Internet. It is

recommended that these settings remain set to default unless you are knowledgeable

about the effects of changing the firewall rule configuration. It is possible to have

undesirable functionality from your router if these settings are improperly modified.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Access, click on Filter, and click on Firewall Rule.

3. In the list, there are two default rules specific which cannot be modified. One rule to

deny all access from the Internet to your network for security and the other to allow all

access from your network to the Internet. Any additional rules will take precedence over

the default rules.

TRENDnet User’s Guide TEW-711BR

4. Review the firewall rule settings.

• Enabled – Selecting Enabled turns on the firewall ruler and selecting Disabled

turns it off.

• Name – Enter a name for the firewall rule.

• Action – Select Allow will allow access and selecting Deny will block or deny

access.

• Source – Configure the source information for the firewall rule.

o Interface - Click the drop-down list and select LAN (from your

network) or WAN (from the Internet) depending on where the traffic

will be coming from.

o IP Range Start – Changes the starting address for the firewall rule to

apply (e.g. 192.168.1.20)

o IP Range End – Changes the last address for the firewall rule to apply

(e.g. 192.168.1.30)

Note: The IP Range Start and End specify the range of IP addresses

that the firewall rule will apply. Both fields need to be completed so

use the same value to specify a single IP address.

• Destination – Configure the destination information for the firewall rule.

o Interface - Click the drop-down list and select LAN (your network) or

WAN (Internet) depending on where the traffic will be coming from.

o IP Range Start – Changes the starting address for the firewall rule to

apply (e.g. 192.168.10.20)

o IP Range End – Changes the last address for the firewall rule to apply

(e.g. 192.168.10.30)

Note: The IP Range Start and End specify the range of IP addresses that the

firewall rule will apply. Both fields need to be completed so use the same

value to specify a single IP address.

o Protocol – Select the protocol type to filter. TCP, UDP, ICMP, or you

can select * to choose all protocol types. Below, enter the port

number or range of port numbers to apply the firewall rule. (e.g. 80-80

or 20-21). For all ports, use the port range 1 - 65534.

• Add – Saves new firewall rule.

• Update – Modifies an existing firewall rule.

• Delete – Removes an existing firewall rule.

• New -Saves new firewall rule.

• Cancel – Discard changes to an existing firewall rule.

•

• Priority Up – Moves an existing firewall rule one step higher in priority.

• Priority Down – Moves an existing firewall rule one step below in priority.

• Update Priority – Save updated changes to priority.

Note: Top position in the list is the highest priority, bottom position in the list is

the lowest priority.

To modify an existing firewall rule, click on the rule in the firewall rules list. When

selected, the entry will be highlighted.

TRENDnet User’s Guide TEW-711BR

Advanced Router Setup

Access your router management page

Note: Your router management page http://192.168.10.1 is accessed through the use of

your Internet web browser (e.g. Internet Explorer, Firefox, Chrome, Safari, Opera) and

will be referenced frequently in this User’s Guide.

1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and

go to http://192.168.10.1. Your router will prompt you for a user name and password.

2. Next to Language, click the drop-down list to select your preferred language. Enter

the default user name and password and then click Login.

Default User Name: admin

Default Password: admin

Change your router login password

Main > Password

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Main, and click on Password.

3. Under the Administrator section, in the New Password field, enter the new

password, and in the Confirm Password field, retype the new password again to

confirm.

4. To save changes, click Apply.

Note: If you change the router login password, you will need to access the router

management page using the User Name “admin” and the new password instead of the

default password “admin”.

TRENDnet User’s Guide TEW-711BR

User (Optional): The User account is an additional account used for viewing the settings

on the router management page only. Accessing the router management page using the

User account will restrict access to viewing only and will not allow any settings to be

changed.

Default User Name: user

Default Password: user

Set your router date and time

Main > Time

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Main, and click on Time.

3. Next to Time Zone, click the drop-down list to select your Time Zone.

4. Next to Synchronize the clock with, you can choose one of the following options:

• Manual – Set your router date and time manually in the Set Time section. To

save changes, click Apply.

Note: Time is specified in 24-hour format.

• Automatic – Set your router date and time to synchronize with an NTP

(Network Time Protocol) server address (e.g. pool.ntp.org). Enter the NTP

server address next to Default NTP server, (e.g. pool.ntp.org). Next to Daylight

Saving, set the annual range when daylight saving is activated. To save

changes, click Apply.

Note: NTP servers are used for computers and other network devices to synchronize

time across an entire network.

5. You can verify the time/date settings next to Local Time at the top of the page. Local

Time displays the current date and time set on your router.

Manually configure your Internet connection

Main > WAN

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Main, and click on WAN.

3. In the Connection Type drop-down list, click the type of Internet connection provided

by your Internet Service Provider (ISP).

4. Complete the fields required by your ISP.

TRENDnet User’s Guide TEW-711BR

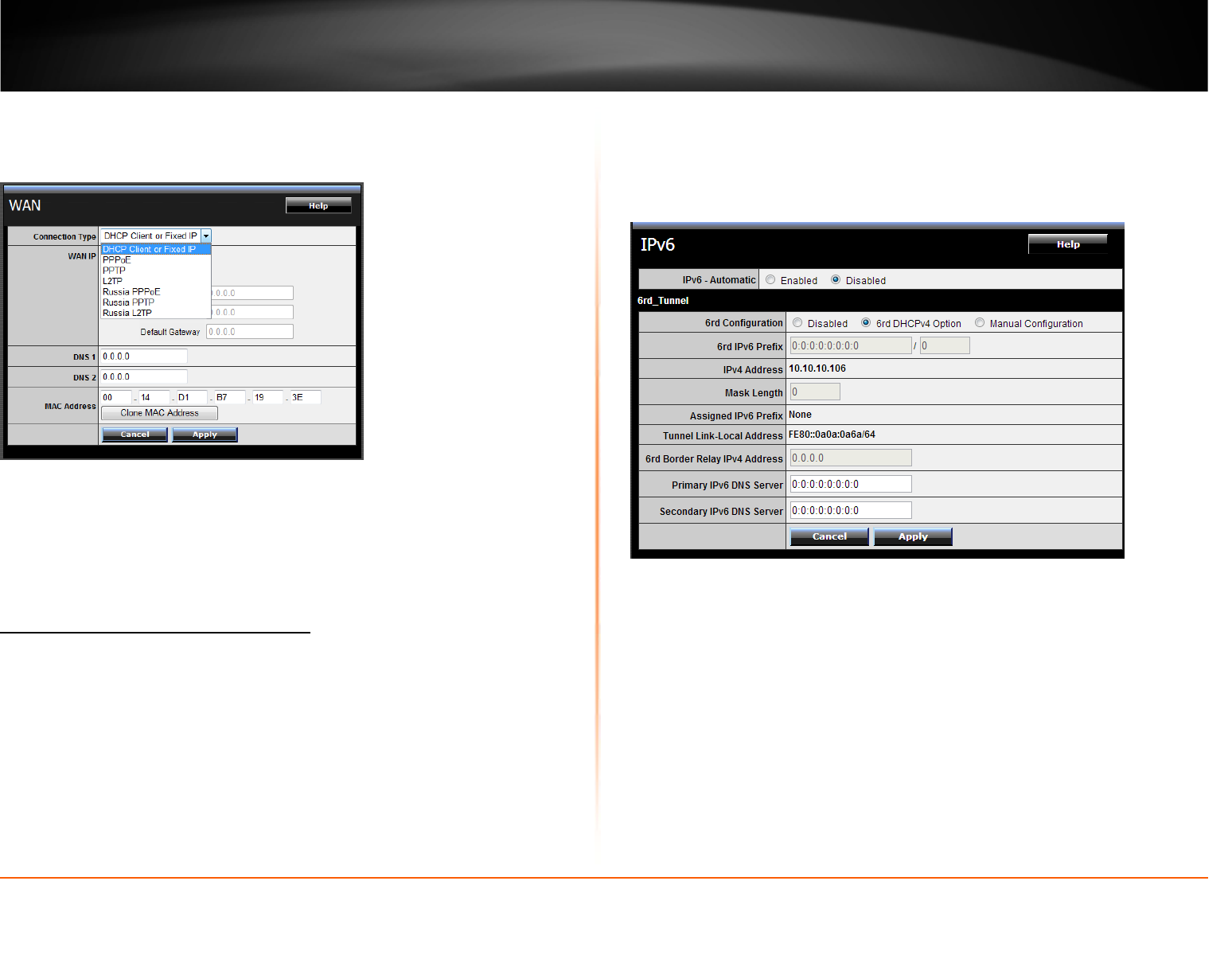

5. Complete the optional settings only if required by your ISP.

6. To save changes, click Apply.

Note: If you are unsure which Internet connection type you are using, please contact

your ISP. Note: If your ISP requires a host name to be specified, you can specify it under

Main > LAN & DHCP Server, in the Host Name field. To save changes, click Apply at

bottom of the page.

IPv6 Internet Connection Settings

Main > IPv6

IPv6 (Internet Protocol Version 6) is a new protocol that significantly increases the

number of available Internet public IP addresses due to the 128-bit IP address structure

versus IPv4 32-bit address structure. In addition, there are several integrated

enhancements compared to the most commonly used and well known IPv4 (Internet

Protocol Version 4) such as:

• Integrated IPsec – Better Security

• Integrated Quality of Service (QoS) – Lower latency for real-time applications

• Higher Efficiency of Routing – Less transmission overhead and smaller routing

tables

• Easier configuration of addressing

Note: In order to use IPv6 Internet connection settings, it is required that your ISP

provide you with the IPv6 service. Please contact your ISP for availability and more

information about the IPv6 service.

1. Review the IPv6 Internet Connection settings and enter information settings specified

by your ISP.

• IPv6 – Automatic – Select Enabled for automatic configuration of your IPv6

address settings. Otherwise, if it is required to manually configure the

parameters provided by your ISP, select Disabled.

• 6rd Configuration – Select the appropriate option according to the parameters

specified by your ISP.

• IPv4 Address – Displays the IPv4 address automatically provided by your ISP. To

manually configure the IPv4 address settings, click on Main > WAN and

configure your IPv4 settings.

• Mask Length – Enter the IPv4 mask length used for the tunnel provided by your

ISP.

TRENDnet User’s Guide TEW-711BR

• Assigned IPv6 Prefix – Displays the IPv6 address automatically provided by

your ISP.

• Tunnel Link-Local Address – Displays the IPv6 local link WAN (Internet)

interface address.

• 6rd Border Relay IPv4 Address – Enter the IPv4 relay address used for the

tunnel provided by your ISP.

• Primary IPv6 DNS Server – Enter the primary IPv6 DNS server address provided

by your ISP.

• Secondary IPv6 DNS Server – Enter the secondary IPv6 DNS server address

provided by your ISP.

2. To save changes, click Apply.

Clone a MAC address

Main > WAN

On any home network, each network device has a unique MAC (Media Access Control)

address. Some ISPs register the MAC address of the device (usually a router or a

computer) connected directly to the modem. If your computer MAC address is already

registered with your ISP and to prevent the re-provisioning and registration process of a

new MAC address with your ISP, then you can clone the address (assign the registered

MAC address of your previous device to your new router). If you want to use the MAC

address from the previous device (computer or old router that directly connected to the

modem, you should first determine the MAC address of the device or computer and

manually enter it into your router using the clone MAC address feature.

Note: For many ISPs that provide dynamic IP addresses automatically, typically, the

stored MAC address in the modem is reset each time you restart the modem. If you are

installing this router for the first time, turn your modem before connecting the router to

your modem. To clear your modem stored MAC address, typically the procedure is to

disconnect power from the modem for approximately one minute, then reconnect the

power. For more details on this procedure, refer to your modem’s User Guide/Manual or

contact your ISP.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Main, and click on WAN.

3. Under your Internet connection settings, find the MAC Address section shown below.

4. Click either Clone MAC Address to clone the MAC address of the computer you are

currently using or manually enter the 12-digit MAC address of your old router.

5. To save changes, click Apply.

TRENDnet User’s Guide TEW-711BR

Change your router IP address

Main > LAN & DHCP Server

In most cases, you do not need to change your router IP address settings. Typically, the

router IP address settings only needs to be changed, if you plan to use another router in

your network with the same IP address settings, if you are connecting your router to an

existing network that is already using the IP address settings your router is using, or if

you are experiencing problems establishing VPN connections to your office network

through your router.

Note: If you are not encountering any issues or are not faced with one of the cases

described above or similar, it is recommended to keep your router IP address settings as

default.

Default Router IP Address: 192.168.10.1

Default Router Network: 192.168.10.0 / 255.255.255.0

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Main, and click on LAN & DHCP Server.

3. Enter the router IP address settings.

• IP Address – Enter the new router IP address.

(e.g. 192.168.200.1)

• Subnet Mask – Enter the new router subnet mask.

(e.g. 255.255.255.0)

Note: The DHCP address range will change automatically to your new router IP

address settings so you do not have to change the DHCP address range manually to

match your new router IP address settings.

4. To save changes, click Apply.

Note: You will need to access your router management page using your new router IP

address to access the router management page. (e.g. Instead of using the default

http://192.168.10.1 using your new router IP address will use the following format using

your new router IP address http://(new.router.ipaddress.here) to access your router

management page.

Set up the DHCP server on your router

Main > LAN & DHCP Server

Your router can be used as a DHCP (Dynamic Host Configuration Protocol) server to

automatically assign an IP address to each computer or device on your network. The

DHCP server is enabled by default on your router. If you already have a DHCP server on

your network, or if you do not want to use your router as a DHCP server, you can disable

this setting. It is recommended to leave this setting enabled.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Main, and click on LAN & DHCP Server.

3. Review the DHCP Server settings.

• DHCP Server – Enable or Disable the DHCP server.

• Start IP – Changes the starting address for the DHCP server range. (e.g.

192.168.10.20)

• End IP – Changes the last address for the DHCP server range. (e.g.

192.168.10.30)

Note: The Start IP and End IP specify the range of IP addresses to automatically assign to

computers or devices on your network.

TRENDnet User’s Guide TEW-711BR

• Domain Name (Optional) – Specifies a domain name to assign to computers or

devices. (e.g. trendnet.com)

• Lease Time – Click the drop-down list to select the lease time.

Note: The DHCP lease time is the amount of time a computer or device can keep an

IP address assigned by the DHCP server. When the lease time expires, the computer

or device will renew the IP address lease with the DHCP server, otherwise, if there is

no attempt to renew the lease, the DHCP server will reallocate the IP address to be

assigned to another computer or device.

4. To save changes, click Apply.

Dynamic DHCP List – You can view the list of active lease entries for computers or

devices that have been assigned IP addresses automatically from the DHCP server on

your router.

Set up DHCP reservation

Main > LAN & DHCP Server

DHCP (Dynamic Host Configuration Protocol) reservation (also called Static DHCP) allows

your router to assign a fixed IP address from the DHCP server IP address range to a

specific device on your network. Assigning a fixed IP address can allow you to easily

keep track of the IP addresses used on your network by your computers or devices for

future reference or configuration such as virtual server (also called port forwarding, see

“Virtual Server” on page 36) or special applications (also called port triggering, see

“Special Applications” on page 37).

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Main, and click on LAN & DHCP Server.

3. Review the DHCP reservation settings.

• Static DHCP– Enable or Disable the DHCP reservation feature.

• Name – Enter a name for the reservation.

• IP Address – Enter the IP address to assign to the reservation. (e.g.

192.168.10.101)

Note: You cannot assign IP addresses outside of the DHCP range. The IP address is

required to be within the DHCP IP address range (Start IP & End IP).

• MAC Address – Enter the MAC (Media Access Control) address of the computer

or network device to assign to the reservation. (e.g. 00:11:22:AA:BB:CC)

• Add - Saves the reservation.

TRENDnet User’s Guide TEW-711BR

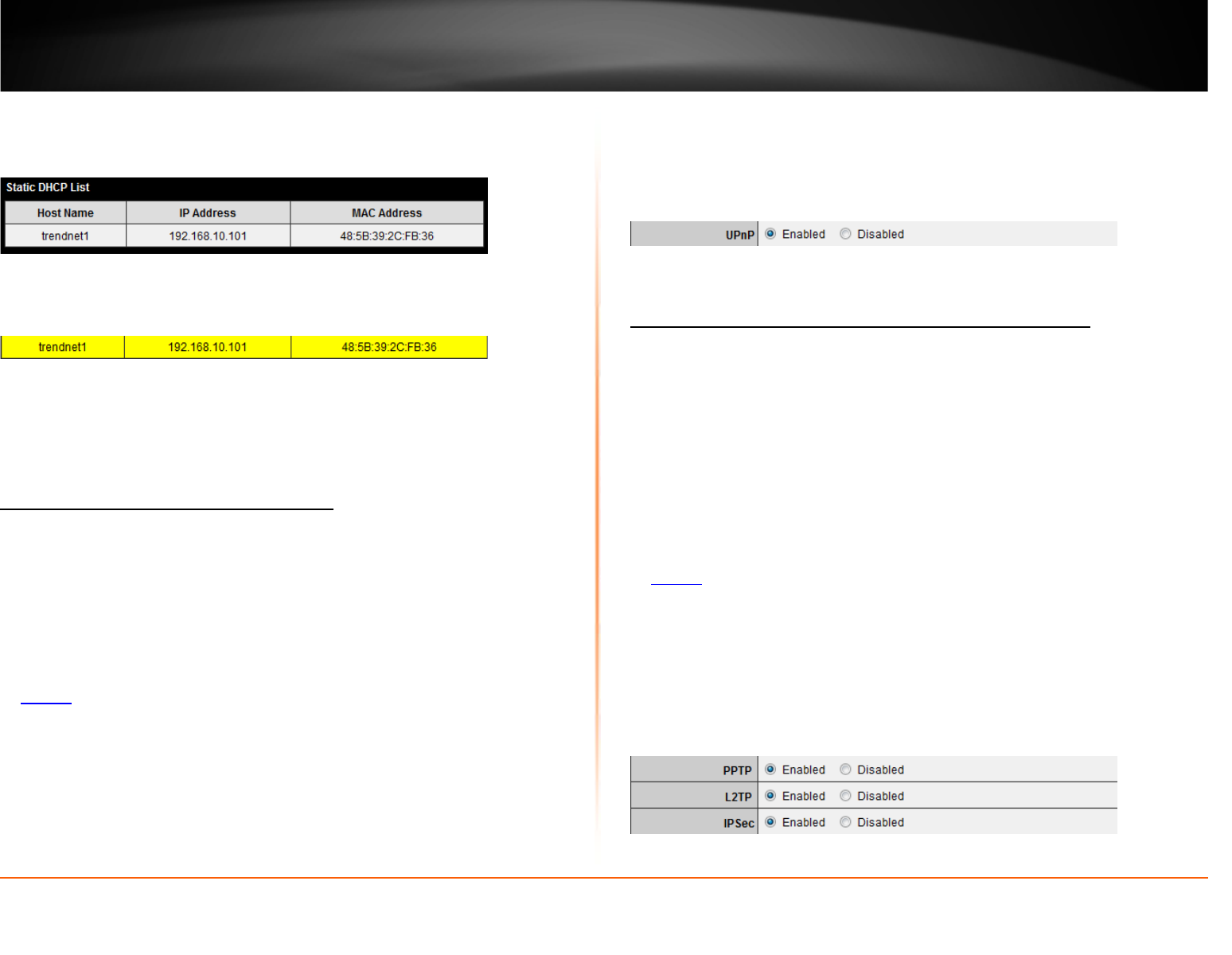

Static DHCP List – You can view the list of reservations for computers or devices that

have been created in this list.

To modify an existing reservation, click on the entry in the Static DHCP list. When

selected, the entry will be highlighted.

• Update – Saves changes to an existing reservation.

• Delete – Removes an existing reservation.

• Cancel – Discards changes to existing reservation.

Enable/disable UPnP on your router

Management > Remote Management

UPnP (Universal Plug and Play) allows devices connected to a network to discover each

other and automatically open the connections or services for specific applications (e.g.

instant messenger, online gaming applications, etc.) UPnP is enabled on your router by

default to allow specific applications required by your computers or devices to allow

connections through your router as they are needed.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Management, and click on Remote Management.

3. Next to UPnP, click Enabled or Disabled to turn the feature on or off on your router.

Note: It is recommended to leave this setting enabled, otherwise, you may encounter

issues with applications that utilize UPnP in order allow the required communication

between your computers or devices and the Internet.

4. To save changes, click Apply.

Allow/deny VPN connections through your router

Management > Remote Management

A Virtual Private Network (VPN) is a network that uses a public network, such as the

Internet, to provide secure communications between a remote computer or network

and another network. Some offices often provide VPN access to their networks to

enable employees to work from their remote office/home office, or while traveling.

If your office or place of work has allowed and authorized access for you to access their

network through VPN, the default VPN settings in your router have been configured to

pass through the most common types of VPN protocols, which typically do not require

any additional configuration changes.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Management, and click on Remote Management.

3. Next to PPTP, L2TP, or IPsec (depending the VPN protocol your corporation requires)

click Enabled or Disabled to turn the VPN pass through feature on or off on your router.

Note: It is recommended to leave these settings enabled.

4. To save changes, click Apply.

TRENDnet User’s Guide TEW-711BR

Allow/deny multicast streaming

Management > Remote Management

In some cases, applications require multicast communication (also called IP multicast

which is the delivery of information to a specific group of computers or devices in a

single transmission) typically used in media streaming applications. Multicast streaming

is enabled by default on your router to allow applications that require multicast

communication through your router which typically does not require additional

configuration changes.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Management, and click on Remote Management.

3. Next to Multicast Stream, click Enabled or Disabled to turn the feature on or off on

your router.

Note: It is recommended to leave this setting enabled.

4. To save changes, click Apply.

Identify your network on the Internet

Main > Dynamic DNS

Since most ISPs constantly change your home IP address, providing access to devices on

your home or small office Local Area Network (such as IP Cameras) from the Internet

requires setting up a Dynamic DNS service and entering the parameters into this

management area. Dynamic DNS services allow your router to confirm its location to the

given Dynamic DNS service, thereby providing the Dynamic DNS service with the ability

to provide a virtual fixed IP address for your network. This means that even though your

ISP is always changing your IP address, the Dynamic DNS service will be able to identify

your network using a fixed address—one that can be used to view home IP Camera and

other devices on your local area network.

Note: First, you will need to sign up for one of the DDNS service providers listed in the

Server Address drop-down list.

1. Sign up for one of the DDNS available service providers list under Server Address.

(e.g. dyndns.com, no-ip.com, etc.)

2. Log into your router management page (see “Access your router management page”

on page 27).

3. Click on Main and click on Dynamic DNS.

4. Next to DDNS, click Enabled.

5. In the Server Address drop-down list, select the provider you selected, and enter your

information in the fields.

• Host Name: Personal URL provided to you by your Dynamic DNS service

provider (e.g. www.trendnet.dyndns.biz)

• User Name: The user name needed to log in to your Dynamic DNS service

account

• Password: This is the password to gain access to Dynamic DNS service (NOT

your router or wireless network password) for which you have signed up to.

6. To save changes, click Apply.

TRENDnet User’s Guide TEW-711BR

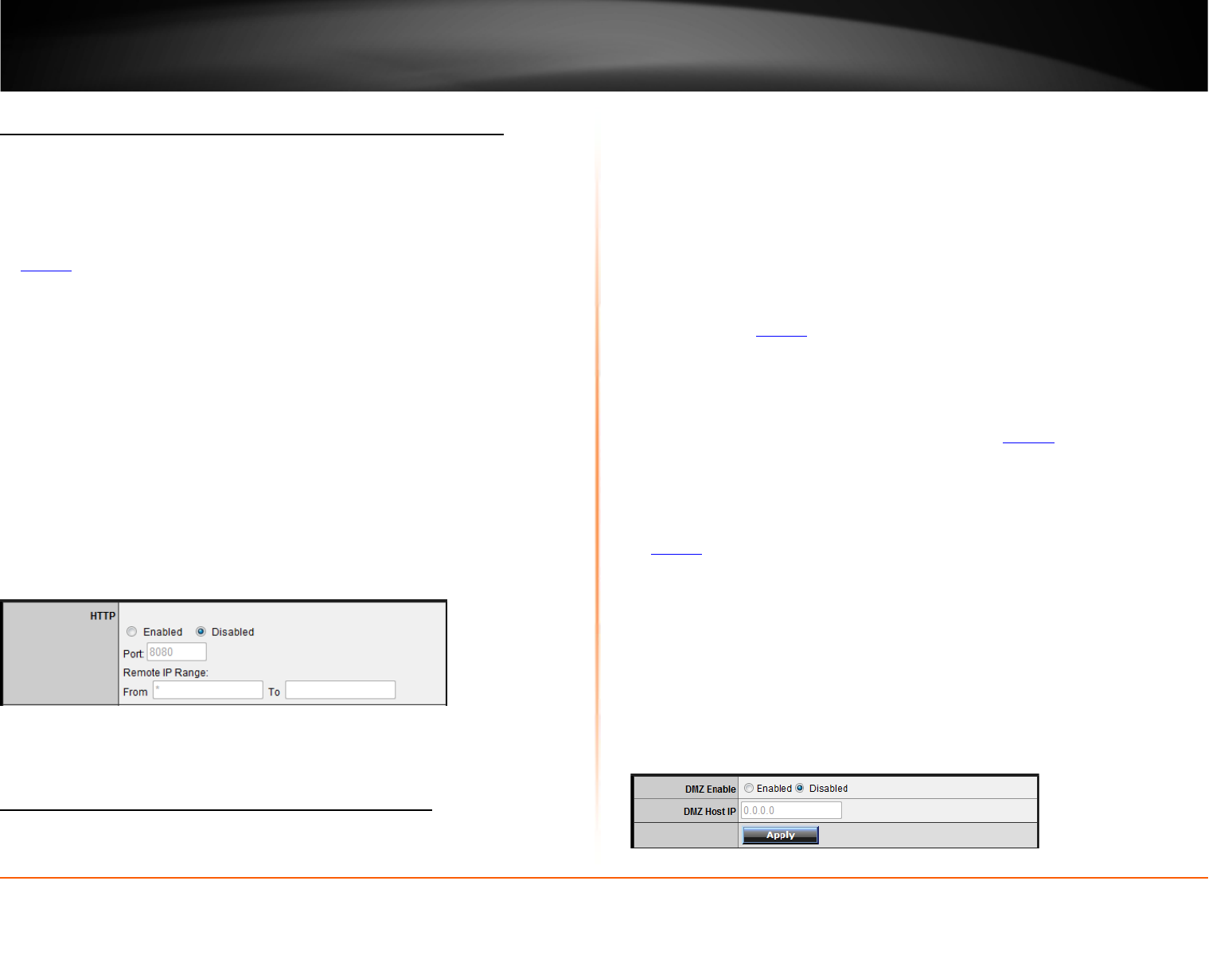

Allow remote access to your router management page

Management > Remote Management

You may want to make changes to your router from a remote location such at your

office or another location while away from your home.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Management, and click on Remote Management.

3. Under the HTTP section, click Enabled.

• Port– It is recommended to leave this setting as 8080.

Note: If you have configured port 8080 for another configuration section such

as virtual server or special application, please change the port to use.

(Recommended port range 1024-65534)

• Remote IP Range – It is recommended to leave this setting as *, to allow

remote access from anywhere on the Internet.

Note: You can enter a specific range of Internet IP addresses that are allowed to

access your router management page, all others will be denied.

4. To save changes, click Apply.

Open a device on your network to the Internet

This router can provide access to devices on your local area network to the Internet

using the Virtual Server, Special Application, method (DMZ NOT recommended).

DMZ

Access > DMZ

You may want to expose a specific computer or device on your network to the Internet

to allow anyone to access it. Your router includes the DMZ (Demilitarized Zone) feature

that makes all the ports and services available on the WAN/Internet side of the router

and forwards them to a single IP address (computer or network device) on your

network. The DMZ feature is an easy way of allowing access from the Internet however,

it is a very insecure technology and will open local area network to greater threats from

Internet attacks.

It is strongly recommended to use Virtual Server (also called port forwarding, see

“Virtual Server” on page 36) to allow access to your computers or network devices from

the Internet.

1. Make the computer or network device (for which you are establishing a DMZ link) has

a static IP address (or you can use the DHCP reservation feature to ensure the device

has a fixed IP address) (see “Set up DHCP reservation” on page 32).

A. Signing up for a Dynamic DNS service (outlined in the DDNS section) will

provide identification of the router’s network from the Internet.

2. Log into your router management page (see “Access your router management page”

on page 27).

3. Click on Access, and click on DMZ.

4. Next to DMZ Enable, click Enabled.

5. Next to DMZ Host IP, enter the IP address you assigned to the computer or network

device to expose to the Internet.

6. To save changes, click Apply.

TRENDnet User’s Guide TEW-711BR

Virtual Server

Access > Virtual Server

Virtual Server (also called port forwarding) allows you to define specific ports (used or

required by a specific application) and forward them to a single IP address (a computer

or device) on your network. Using this feature is more secure compared to using DMZ

(see DMZ on page 35) in which DMZ forwards all ports instead of only specific ports

used by an application. An example would be forwarding a port to an IP camera

(TRENDnet IP cameras default to HTTP TCP port 80 for remote access web requests) on

your network to be able to view it over the Internet.

Since most ISPs constantly change your home IP address, to be able to access the Virtual

Server port(s) from the Internet it is recommended to setup Dynamic DNS service (See

DynDNS section).

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Access, and click on Virtual Server.

To simplify configuration, there is a list of commonly used pre-defined virtual server

entries to modify, otherwise, you can choose to manually add a new virtual server.

3. Review the virtual server settings.

• Enabled – Selecting Enabled turns on the virtual server and selecting Disabled

turns off the virtual server.

• Name – Enter a name for the virtual server.

• Protocol – Select the protocol required for your device. TCP, UDP, or you can

select Both to choose both TCP & UDP (recommended).

Note: Please refer to the device documentation to determine which ports and

protocols are required.

• Private Port – Enter the port number required by your device. Refer to the

connecting device’s documentation for reference to the network port(s)

required.

• Public Port – Enter the port number used to access the device from the

Internet.

Note: The Public Port can be assigned a different port number than the Private Port

(also known as port redirection), however it is recommended to use the same port

number for both settings. Please refer to the device documentation to determine

which ports and protocols are required.

• LAN Server – Enter the IP address of the device to forward the port (e.g.

192.168.10.101).

Note: You should assign a static IP address to the device or use DHCP reservation to

ensure the IP address of the device does not change.

TRENDnet User’s Guide TEW-711BR

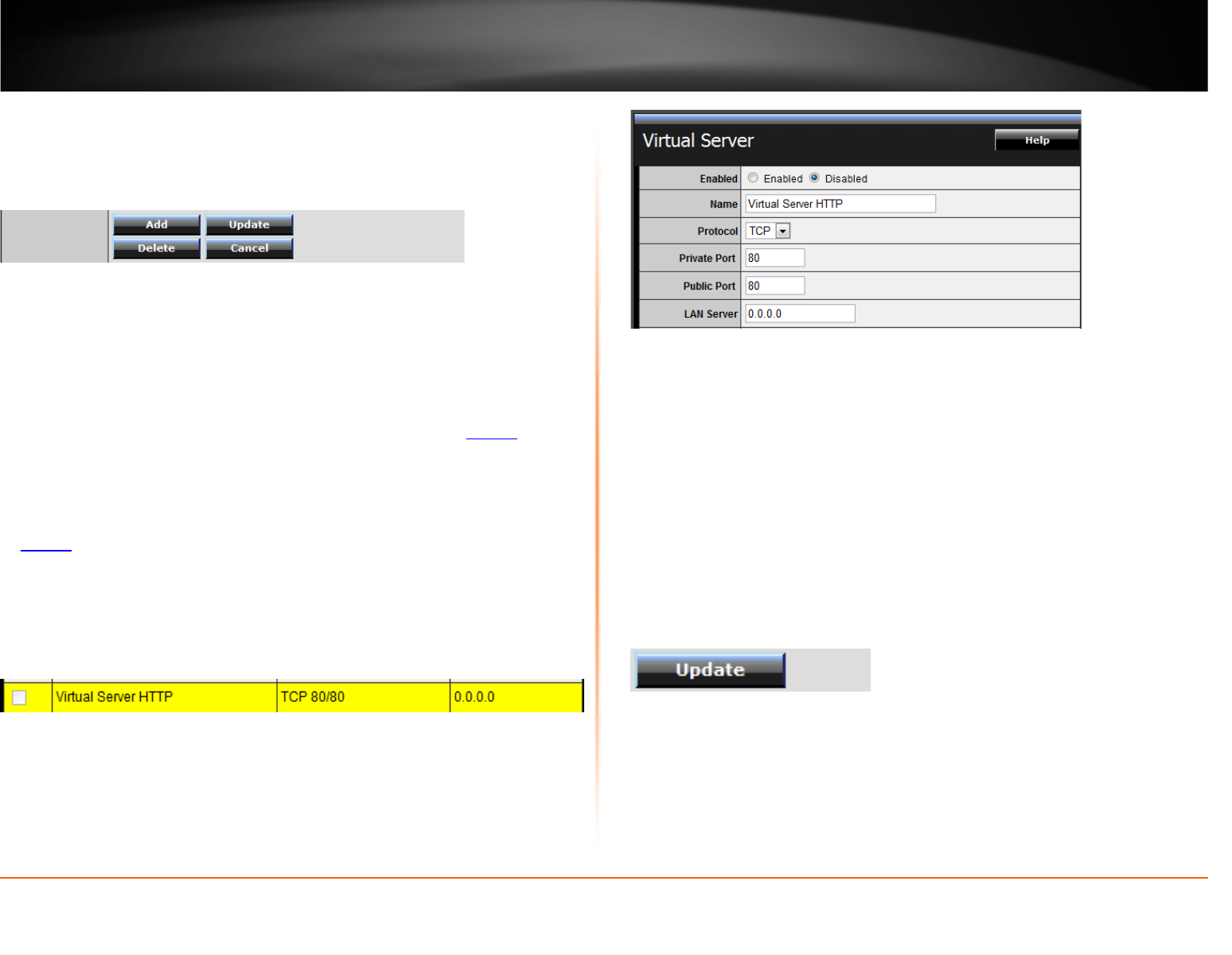

• Add – Saves a new virtual server entry.

• Delete – Removes an existing virtual server.

• Update – Modifies an existing virtual server.

• Cancel – Discard changes to an existing virtual server.

Example: To forward TCP port 80 to your IP camera

1. Setup DynDNS service (See DynDNS section).

2. Access TRENDnet IP Camera management page and forward Port 80 (see

product documentation)

3. Make sure to configure your network/IP camera to use a static IP address or you can

use the DHCP reservation feature (see “Set up DHCP reservation” on on page 32).

Note: You may need to reference your camera documentation on configuring a static IP

address.

4. Log into your router management page (see “Access your router management page”

on page 27).

5. Click on Access, and click on Virtual Server.

6. In the list below, click the pre-defined virtual server entry named Virtual Server HTTP.

Note: The selected item will be highlighted in yellow when selected.

7. The fields will be populated with the selected pre-defined virtual server entry.

8. Click Enabled to turn on this virtual server.

9. Next to Name, you can enter another name for the virtual server, otherwise, leave

the default name.

10. Next to Protocol, make sure TCP is selected in the drop-down list.

11. The Private Port and Public Port, make sure port number 80 is configured for both

settings.

12. Next to LAN Server, enter the IP address assigned to the camera. (e.g.

192.168.10.101)

13. To save the changes, click Update.

TRENDnet User’s Guide TEW-711BR

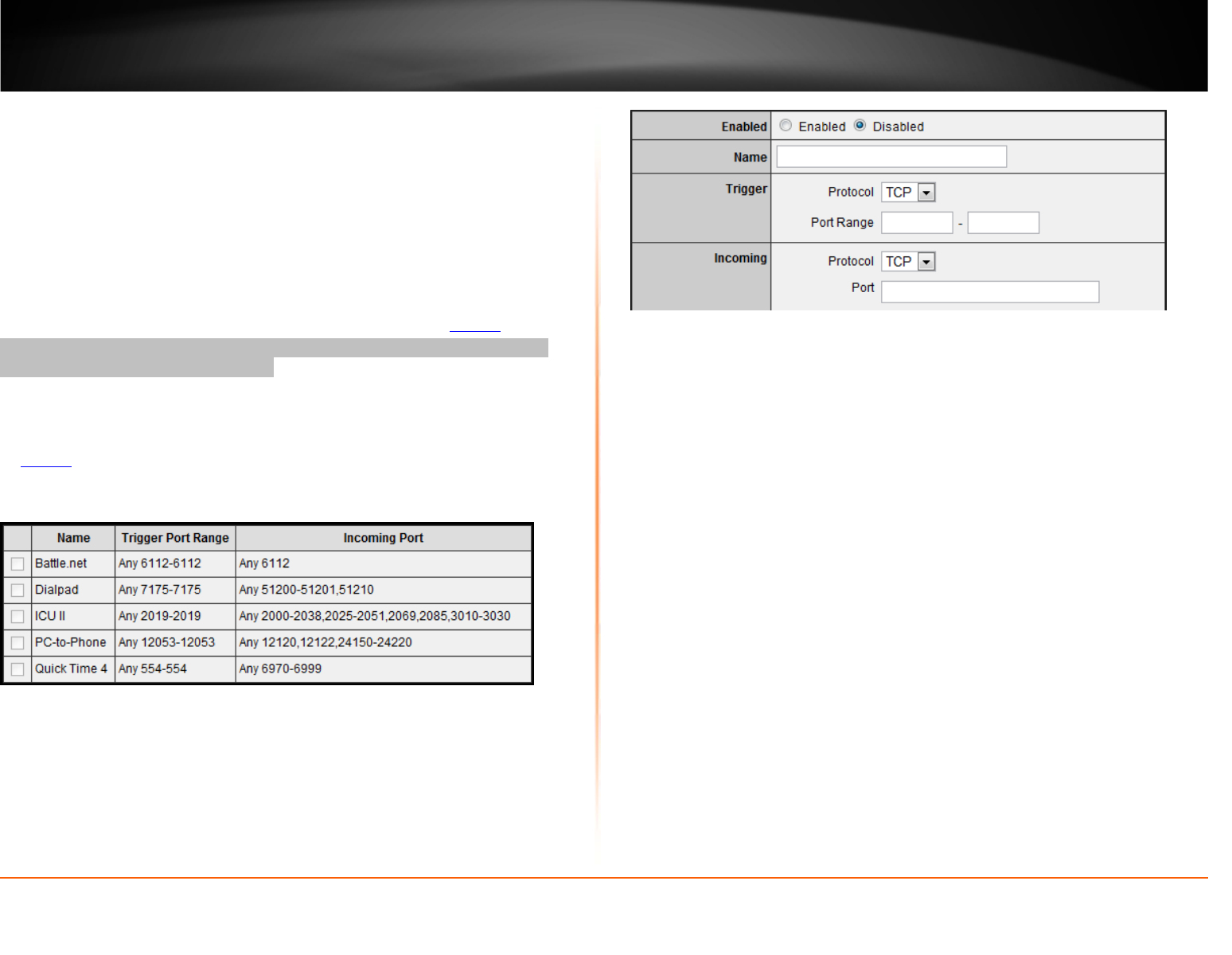

Special Applications

Access > Special AP

Special applications (also called port triggering) is typically used for online gaming

applications or communication applications that require a range of ports or several

ports to be dynamically opened on request to a device on your network. The router will

wait for a request on a specific port or range of ports (or trigger port/port range) from a

device on your network and once a request is detected by your router, the router will

forward a single port or multiple ports (or incoming port/port range) to the device on

your network. This feature is not typically used as most devices and routers currently

use UPnP (Universal Plug and Play) to automatically configure your router to allow

access for applications. See “Enable/disable UPnP on your router” on page 33.

Note: Please refer to the device documentation to determine if your device supports

UPnP first, before configuring this feature.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Access, and click on Special AP.

To simplify configuration, there is a list of commonly used pre-defined special

application entries to modify, otherwise, you can choose to manually add a new special

application.

3. Review the special application settings.

• Enabled – Selecting Enabled turns on the special application and selecting

Disabled turns it off.

• Name – Enter a name for the special application.

• Trigger – Port or port range requested by the device.

o Protocol – Select the protocol requested by the device. TCP, UDP, or you

can select Both to choose both TCP and UDP.

o Port Range – Enter the ports or port range requested by the device.

(e.g. 554-554 or 6112-6112).

Note: Please refer to the device documentation to determine which ports and protocols

are required.

• Incoming – Port(s) forwarded to the device.

o Protocol – Select the protocol to be forwarded to the device. TCP,

UDP, or you can select Both to choose both TCP and UDP.

o Port Range – Enter the ports or port range to be forwarded to the

device.

(e.g. 2000-2038,2069,2081,2200-2210).

Note: Please refer to the device documentation to determine which ports and protocols

are required.

TRENDnet User’s Guide TEW-711BR

• Add – Saves a new special application.

To modify an existing application, click on the entry in the special applications list. When

selected, the entry will be highlighted.

• Delete – Removes an existing special application.

• Update – Modifies an existing special application.

• Cancel – Discard changes to an existing special application.

Add static routes to your router

Routing > Static

You may want set up your router to route computers or devices on your network to

other local networks through other routers. Generally, different networks can be

determined by the IP addressing assigned to those networks. Generally speaking and for

the case of an example, your network may have 192.168.10.x IP addressing and another

network may have 192.168.20.x IP addressing and because the IP addressing of these

two networks are different, they are separate networks. In order to communicate

between the two separate networks, static routing needs to be configured. Below is an

example diagram where routing is needed for devices and computers on your network

to access the other network.

Note: Configuring this feature assumes that you have some general networking

knowledge.

TRENDnet User’s Guide TEW-711BR

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Routing, and click on Static.

3. Review the static route settings.

• Network Address – Enter the IP network address of the destination network

for the route.

(e.g. 192.168.20.0)

• Network Mask – Enter the subnet mask of the destination network for the

route.

(e.g. 255.255.255.0)

• Gateway Address – Enter the gateway to the destination network for the

route.

(e.g. 192.168.10.2)

• Interface – Click the drop-down list and select the Interface on your router

where the route is active.

(e.g. LAN)

• Metric – Enter the metric or priority of the route. The metric range is 1-15, the

lowest number 1 being the highest priority. (e.g. 1 )

• Add – Saves the static route.

To modify an existing reservation, click on the entry in the static route list. When

selected, the entry will be highlighted.

• Update – Saves changes to an existing static route.

• Delete – Removes an existing static route.

• Cancel – Discards changes to existing static route.

TRENDnet User’s Guide TEW-711BR

Enable dynamic routing on your router

Routing > Dynamic

You may want to setup your router to route computers or devices on your network to

other local networks through other routers. If other routers support dynamic routing

such as RIP (Routing Information Protocol), you can enable this feature on your router

to automatically learn the required routes to reach those networks. It is required that

the same dynamic routing protocol and version is also enabled on the other routers in

order your router and the other routers to exchange information about the network.

Note: Configuring this feature assumes that you have some general networking

knowledge.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Routing, and click on Dynamic.

3. Select the appropriate dynamic routing protocol and version communicate with other

routers.

• Transmit – Allows your router to send out network information to other

routers so other routers can dynamically build routes to your network.

o Disabled – Disable sending routing information from your router to

other routers.

o RIP 1 - Sends out routing information to other routers using the RIP

version 1 protocol.

o RIP 2 – Sends out routing information to other routers using the RIP

version 2 protocol (recommended if supported by both devices).

• Receive - Allows your router to receive network information from other router

so your router can build routes to other networks.

o Disabled – Disable receiving routing information from other routers to

your router.

o RIP 1 - Receive routing information from other routers using the RIP

version 1 protocol.

o RIP 2 – Receive routing information from other routers using the RIP

version 2 protocol.

4. Click Apply to save the changes or click Cancel to discard the changes.

TRENDnet User’s Guide TEW-711BR

Router Maintenance & Monitoring

Reset your router to factory defaults

Tools > Settings

You may want to reset your router to factory defaults if you are encountering difficulties

with your router and have attempted all other troubleshooting. Before you reset your

router to defaults, if possible, you should backup your router configuration first, see

“Backup and restore your router configuration settings” on page 43.

There are two methods that can be used to reset your router to factory defaults.

• Reset Button – Located on the rear panel of your router, see “Product

Hardware Features” on page 2 . Use this method if you are encountering

difficulties with accessing your router management page.

• Router Management Page

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Tools and click on Settings.

3. Under Restore factory default settings, click Restore. When prompted to confirm this

action, click OK.

Router Default Settings

Administrator User Name admin

Administrator Password admin

Router IP Address 192.168.10.1

Router Subnet Mask 255.255.255.0

DHCP Server IP Range 192.168.10.101-192.168.199

Wireless Enabled

SSID (wireless network name) TRENDnet711

Wireless Security Disabled

802.11 Mode 2.4GHz 802.11b/g/n mixed mode

Channel Auto Channel

TRENDnet User’s Guide TEW-711BR

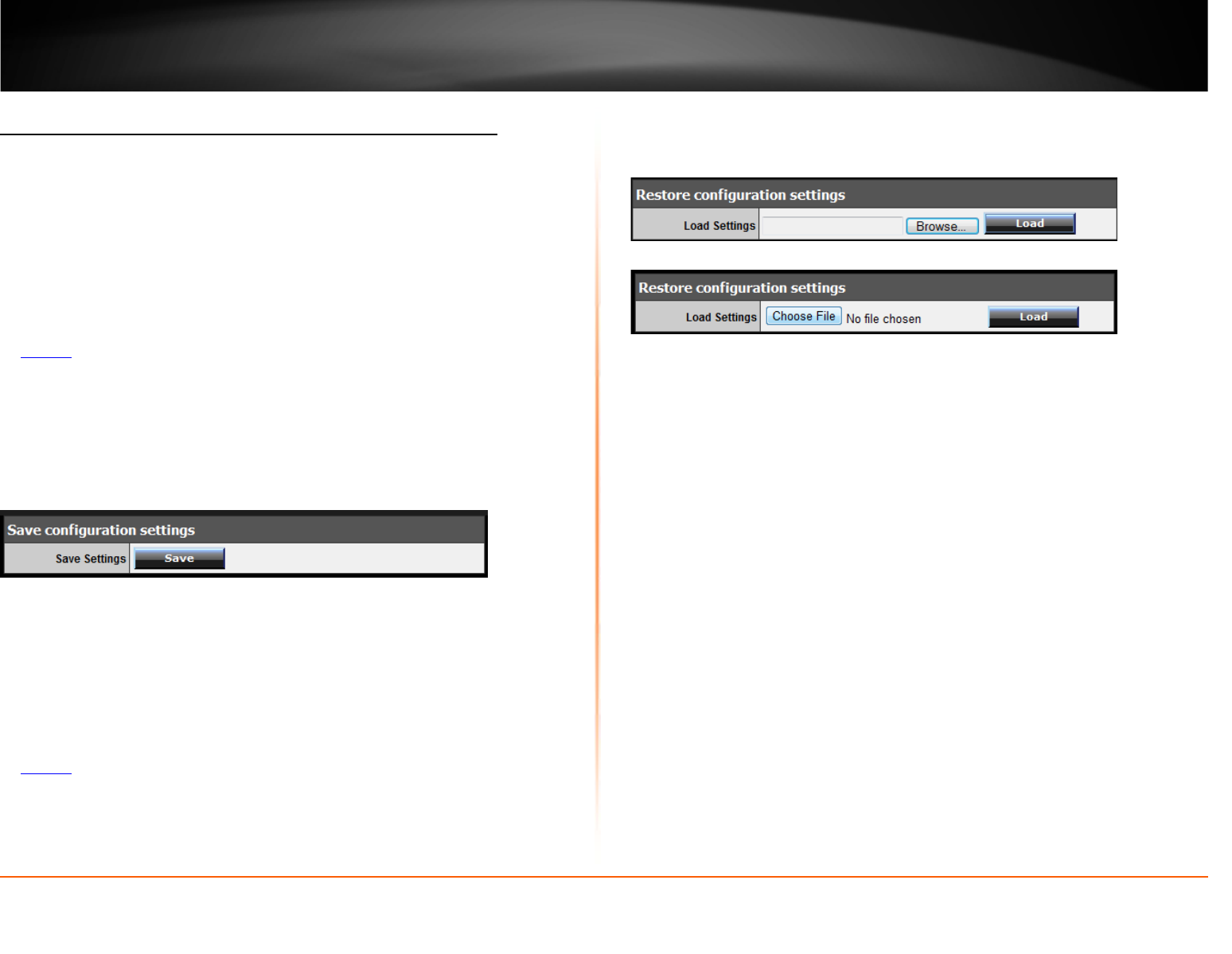

Backup and restore your router configuration settings

Tools > Settings

You may have added many customized settings to your router and in the case that you

need to reset your router to default, all your customized settings would be lost and

would require you to manually reconfigure all of your router settings instead of simply

restoring from a backed up router configuration file.

To backup your router configuration:

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Tools and click on Settings.

3. Under Save Configuration Settings and next to Save Settings, click Save.

4. Depending on your web browser settings, you may be prompted to save a file (specify

the location) or the file may be downloaded automatically to the web browser settings

default download folder. (Default Filename: cfg.bin)

To restore your router configuration:

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Tools and click on Settings.

3. Under Restore Configuration Settings, next to Load Settings, depending on your web

browser, click on Browse or Choose File.

A separate file navigation window should open.

4. Select the router configuration file to restore and click Load.

(Default Filename: cfg.bin). If prompted, click Yes or OK.

5. Wait for the router to restore settings.

TRENDnet User’s Guide TEW-711BR

Upgrade your router firmware

Tools > Firmware

TRENDnet may periodically release firmware upgrades that may add features or fix

problems associated with your TRENDnet router model and version. To check if there is

a firmware upgrade available for your device, please check your TRENDnet model and

version using the link. http://www.trendnet.com/downloads/

In addition, it is also important to verify if the latest firmware version is newer than the

one your router is currently running. To identify the firmware that is currently loaded on

your router, log in to the router, click on the Status tab and then on the Device

Information sub-tab. The firmware used by the router is listed at the top of this page. If

there is a newer version available, also review the release notes to check if there were

any new features you may want or if any problems were fixed that you may have been

experiencing.

1. If a firmware upgrade is available, download the firmware to your computer.

2. Unzip the file to a folder on your computer.

Please note the following:

• Do not interrupt the firmware upgrade process. Do not turn off the device or

press the Reset button during the upgrade.

• If you are upgrade the firmware using a laptop computer, ensure that the

laptop is connected to a power source or ensure that the battery is fully

charged.

• Disable sleep mode on your computer as this may interrupt the firmware

upgrade process.

• Do not upgrade the firmware using a wireless connection, only using a wired

network connection.

• Any interruptions during the firmware upgrade process may permanently

damage your router.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Status and click on Device Information to check your router’s current

firmware version at the top of the page.

3. Click on Tools and click on Firmware.

4. Depending on your web browser, next to Upgrade Firmware, click Browse or Choose

File.

5. Navigate to the folder on your computer where the unzipped firmware file (.bin) is

located and select it.

6. Click Upgrade. If prompted, click Yes or OK.

TRENDnet User’s Guide TEW-711BR

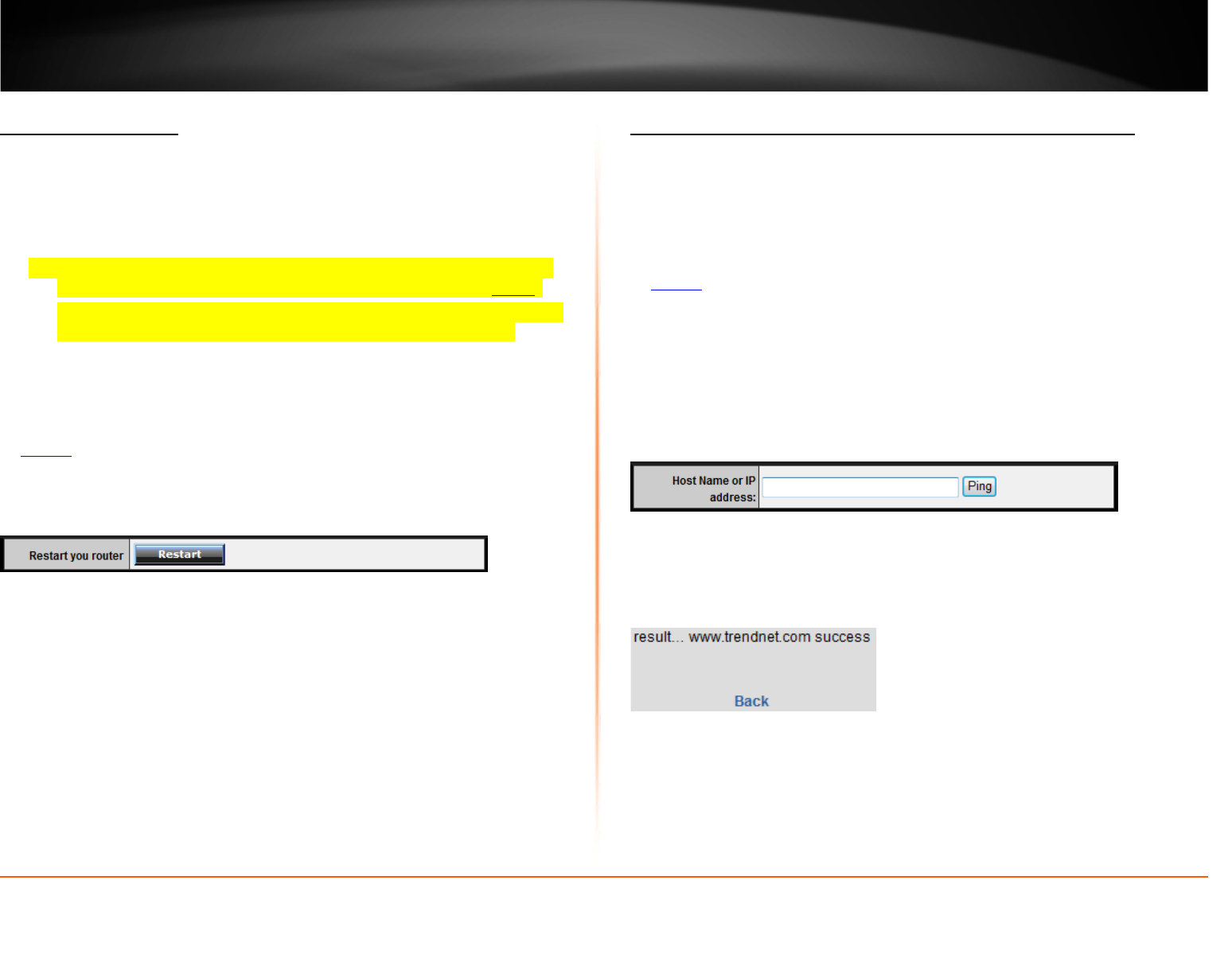

Restart your router

Tools > Restart

You may want to restart your router if you are encountering difficulties with your router

and have attempted all other troubleshooting.

There are two methods that can be used to restart your router.

• Turn the router off for 10 seconds using the router On/Off switch located on

the rear panel of your router, see “Product Hardware Features” on page 2 .

Use this method if you are encountering difficulties with accessing your router

management page. This is also known as a hard reboot or power cycle.

• Router Management Page – This is also known as a soft reboot or restart.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Tools and click on Restart. If prompted, click Yes or OK.

Check connectivity using the router management page

Tools > Ping Test

For troubleshooting purposes, you may want to check your router connectivity using the

ping (also known as a network connectivity test) test tool on your router management

page.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Tools and click on Ping Test.

3. Enter in the IP address (e.g. 192.168.10.101) or host name (e.g. www.trendnet.com)

to test.

4. Click Ping.

5. You will receive a success or fail result message of the address you entered providing

a basic indicating of the router’s connectivity to the Internet or devices that are

connected to your network. Click Back to bring you back to the Ping Test page.

TRENDnet User’s Guide TEW-711BR

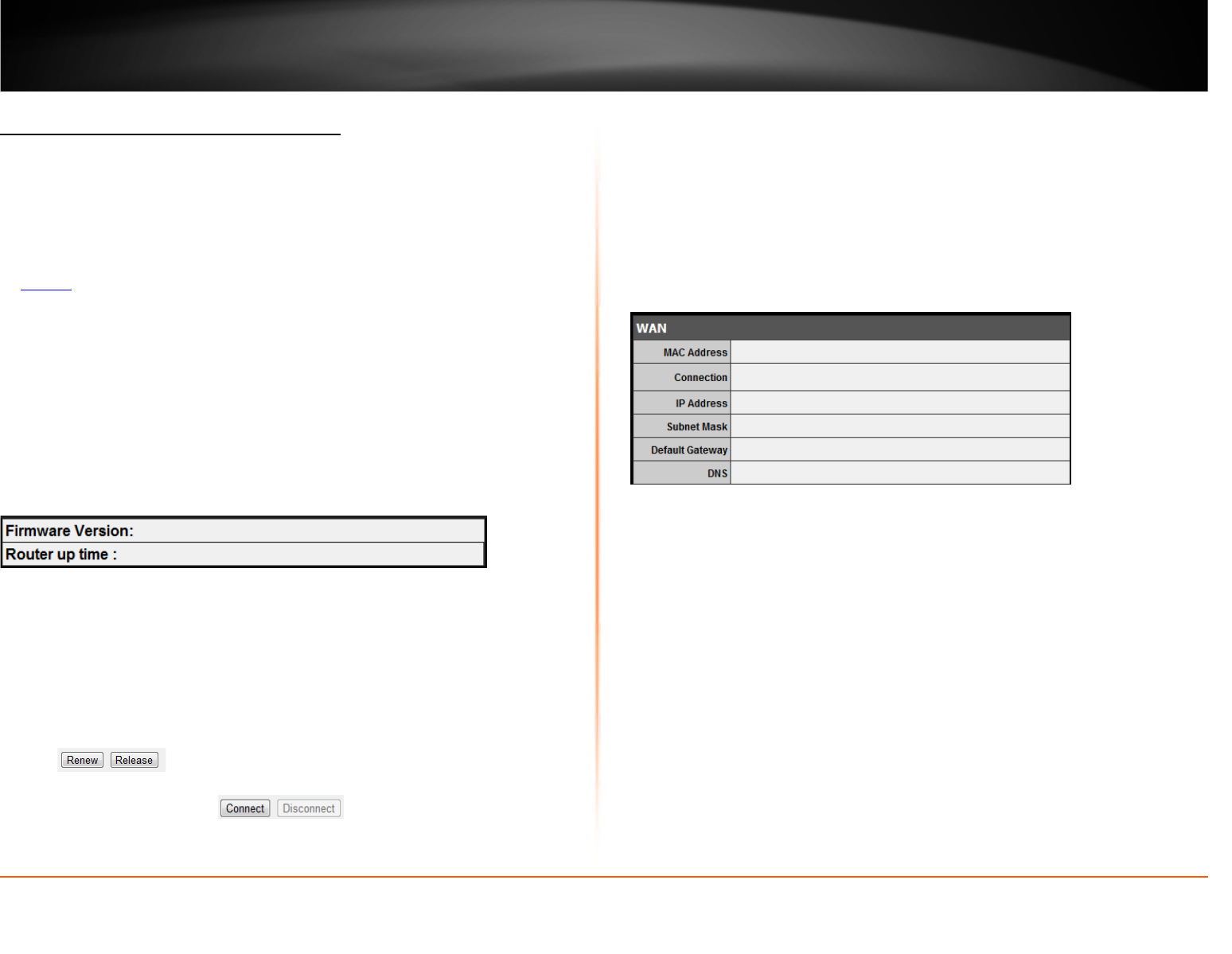

Check the router system information

Status > Device Information

You may want to check the system information of your router such as WAN (Internet)

connectivity, wireless and wired network settings, router MAC address, and firmware

version.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Status and click on Device Information.

3. Review the device information.

• Firmware Version – The current firmware version your router is running.

• Router Up Time – The duration your router has been running continuously

without a restart/power cycle (hard or soft reboot) or reset.

WAN (Internet) Information

• MAC Address – The current MAC address used by your router’s WAN port or

interface configuration.

• Connection – Displays the current WAN (Internet) connection status. When

using DHCP Client (or Dynamic IP address) Internet connection type, you will

provide the option to Release and Renew your IP address settings.

Other Internet connection types such as PPPoE will provide the option to

Connect and Disconnect.

• IP Address – The current IP address assigned to your router WAN port or

interface configuration.

• Subnet Mask - The current subnet mask assigned to your router WAN port or

interface configuration.

• Default Gateway – The current gateway assigned to your router WAN port or

interface configuration.

• DNS (Domain Name System) – The current DNS address(es) assigned to your

router port or interface configuration.

Wireless Information

• MAC Address – The current MAC address of your router’s wireless or interface

configuration.

• Connection – Displays the status if your wireless functionality on your router is

enabled or disabled.

• SSID – Displays the current wireless network name assigned to your router.

• Channel – Displays the current wireless channel your router is operating.

Authentication – Displays the current wireless security configured on your router.

TRENDnet User’s Guide TEW-711BR

Wired LAN Information

• MAC Address – The current MAC address of your router’s wired LAN or

interface configuration.

• IP Address - Displays your router’s current IP address.

• Subnet Mask – Displays your router’s current subnet mask.

• DHCP Server - Display your router’s DHCP server status, enabled or disabled,

and provides a link to the DHCP client listing.

View your router log

Status > Log

Your router log can be used to obtain activity information on the functionality of your

router or for troubleshooting purposes.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Status and click on Log.

3. Review the device log information.

• Time – Displays the time of the log entry. If the time is inaccurate, make sure to

set the router date and time correctly. (See “Set your router date and time” on

page 28)

• Type – Displays a notification regarding the type of log.

• Message – Displays the log message.

Router Log Navigation

• First Page – Displays the first page of the log.

• Last Page – Displays the last page of the log.

• Previous Page – Display the log page previous to the current. The Page: 1/1 will

display the current page.

• Next Page – Displays the log page next to the current.

• Clear Log - Clears all logging

• Refresh - The Page: 1/1 will display the current page.

TRENDnet User’s Guide TEW-711BR

Configure your router log

Status > Log Setting

You may want send your router log to your e-mail address or to an external log server

(also known as Syslog server) so you can check it periodically while away from home.

You may also want to only see specific categories of logging.

Send router logs to your e-mail address

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Status and click on Log Setting.

3. Review the e-mail log settings.

• SMTP Authentication – Set this option to Enabled if your e-mail service

requires authentication. If not, leave this setting to Disabled.

Note: If you are unsure of this setting check with your e-mail service provider if

authentication is required.

• SMTP Account – Enter your account user name for your e-mail service.

• SMTP Password – Enter your password for your e-mail service.

• SMTP Server – Enter the IP address (e.g. 10.10.10.10) or domain name (e.g.

mail.trendnet.com) of your e-mail server.

• SMTP Server Port – Enter the port used by your e-mail service. (e.g. Default

SMTP Server Port: 25)

• From Email Address – Enter a sender e-mail address. (e.g.

router@trendnet.com)

Note: This does not need to be real e-mail address, only used for identification

purposes when checking your e-mail.

• To Email Address – Enter your e-mail address.

• Email Log Now – Click this option to send an e-mail with the current router log

using your email settings.

• Email Logs – Select when you want the router log to be e-mailed.

o When log is full – The router log will be e-mailed to your e-mail

address when router internal log is full.

o Click the drop-down list and configure to e-mail logs according to a set

schedule. Once on a specific day of the week or once every day.

4. To save changes, click Apply.

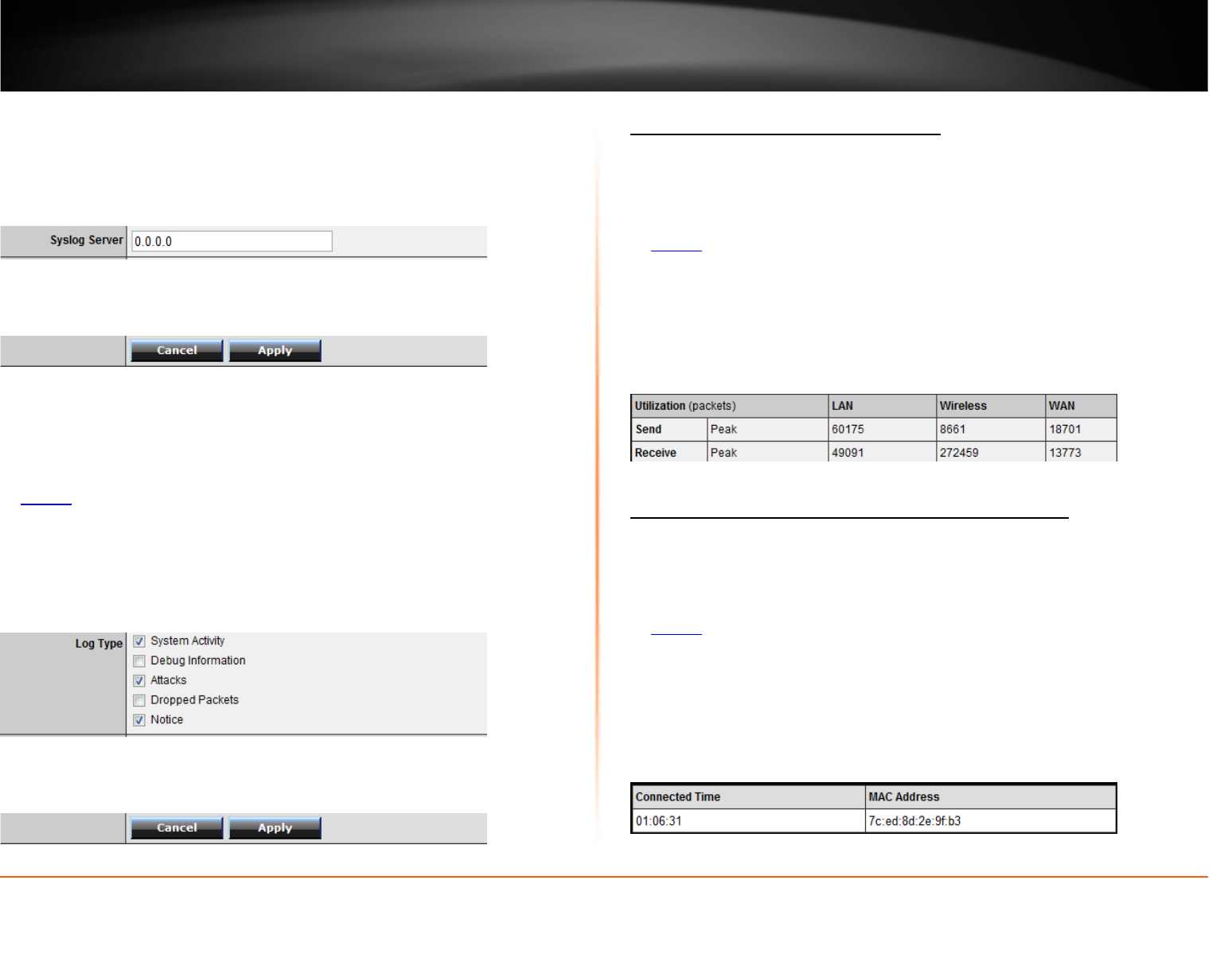

Send router logs to an external log server

1. Log into your router management page (see “Access your router management page”

on page 27).

TRENDnet User’s Guide TEW-711BR

2. Click on Status and click on Log Setting.

3. Next to Syslog Server, enter the IP address of the external log server to send router

logging.

4. To save changes, click Apply.

Set the types or categories to include in logging

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Status and click on Log Setting.

3. Next to Log Type, check the types or categories to include in logging.

4. To save changes, click Apply.

View your router packet statistics

Status > Statistics

You may want to check your router packet statistics for informational purposes only.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Status and click on Statistic.

3. The table displays the amount of packets sent and received on your router’s wired

LAN, wireless, and WAN (Internet).

View wireless devices connected to your router

Status > Wireless

You may want to check the wireless devices connected to your router.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Status and click on Wireless.

3. The table displays the amount time each wireless device has been connected and the

MAC address of each wireless device.

TRENDnet User’s Guide TEW-711BR

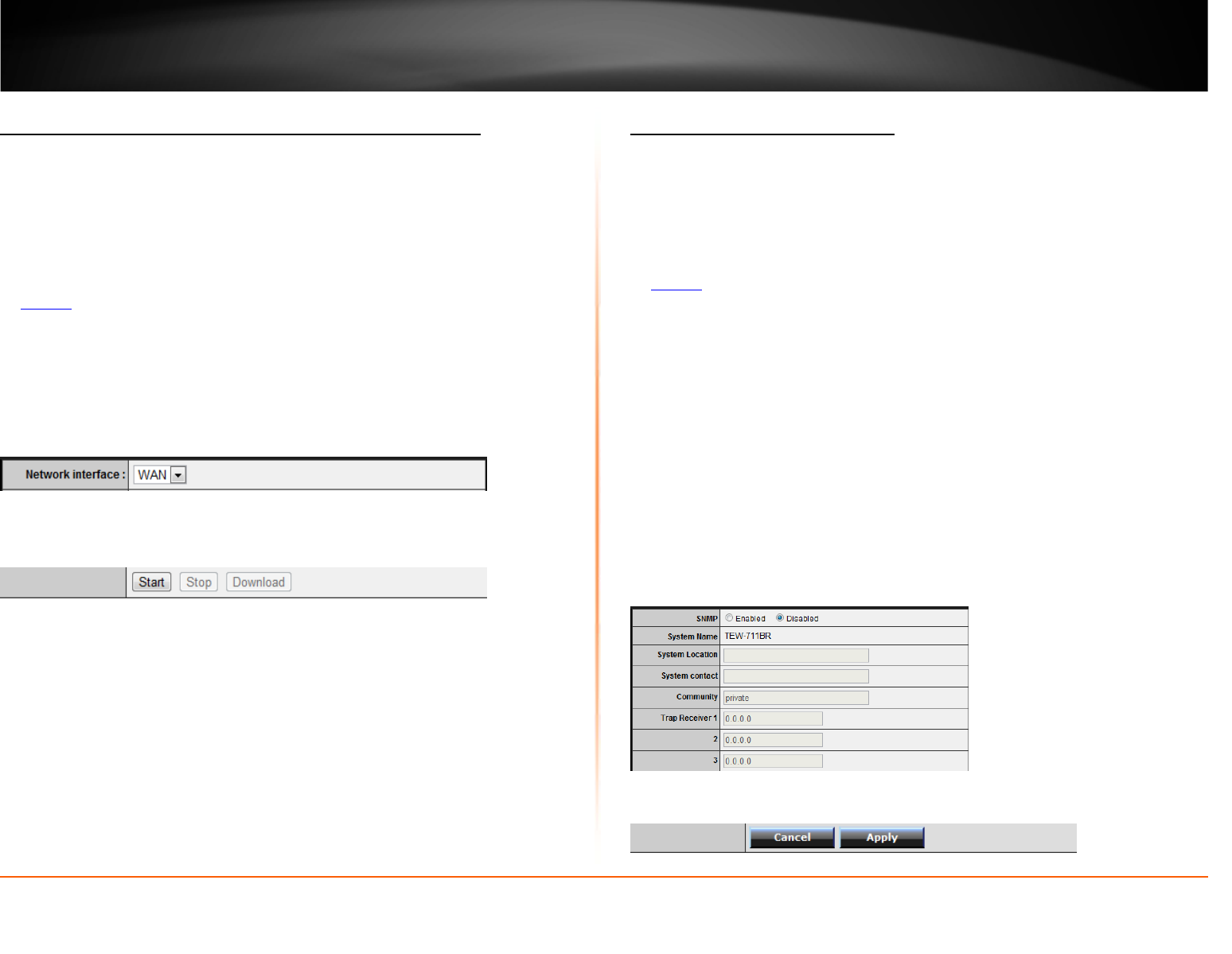

Capture packets using the router management page

Management > Capture Packets

You may want to use the router management page to capture data packets for further

troubleshooting and analysis. Packet captures allow you to see what type of data and

information is inside each packet. You will need a packet capture software application to

be able to open and view the packet capture files downloaded from the router.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Management and click on Capture Packets.

3. Click on the Network Interface drop-down list and select which interface you would

like to capture data packets, LAN or WAN.

4. Review the options for capturing packets.

• Start – Starts the packet capture.

• Stop - Stops the packet capture

• Download – Download the packet capture file.

(.pcap file)

Enable SNMP on your router

Management > SNMP

SNMP (Simple Network Management Protocol) is a network management protocol used

to monitor (read) and/or manage (write) multiple network devices on a network. This

preconfigured external SNMP server.

1. Log into your router management page (see “Access your router management page”

on page 27).

2. Click on Management and click on SNMP.

3. Review the options for SNMP.

• SNMP – Select Enabled to enable SNMP.

• System Location – Enter the location. (optional)

• System Contact – Enter the contact. (optional)

• Community – Enter the community to match the settings with the external

SNMP server.

• Trap Receiver 1-3 – Enter the IP address of the external SNMP trap receiver.

You can enter up to three receivers. (e.g. 192.168.10.250)

4. To save changes, click Apply.

TRENDnet User’s Guide TEW-711BR

Router Management Page Structure

Main

• LAN & DHCP Server

o Static DHCP Reservation

• WAN

o Clone MAC Address

• Password

• Time

• Dynamic DNS

• IPv6

Wireless

• Basic

• Security

• Advanced

• Wi-Fi Protected Setup

Status

• Device Information

• Log

• Log Setting

o Email Log

o Syslog

o Log Type

• Statistic

• Wireless

Routing

• Static

• Dynamic

• Routing Table

Access

• Filter

o MAC Filters

o Domain/URL Blocking

o Protocol/IP Filters

• Virtual Server

• Special AP

• DMZ

• Firewall Rule

Management

• SNMP

• Remote Management

• Capture Packets

Routing

• Static

• Dynamic

• Routing Table

Tools

• Restart

• Settings

o Save Configuration Settings

o Restore Configuration Settings

o Reset to Factory Default

• Firmware

• Upgrade Firmware

• Ping Test

Wizard

• Setup Wizard

TRENDnet User’s Guide TEW-711BR

Technical Specifications

Hardware

Standards

IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE

802.11b, IEEE 802.11g, Based on IEEE 802.11n technology,

IEEE 802.3az

WAN 1 x 10/100Mbps Auto-MDIX WAN port (Internet)

LAN 4 x 10/100Mbps Auto-MDIX LAN ports

WPS Button Enables Wi-Fi Protected Setup (WPS) function (Hold for 3

seconds)

Power Switch On/Off power switch

Connection Type

Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP, IPv6 6rd

(IPv6 rapid deployment) DHCPv4, manual and automatic

configuration

Supported Web Browsers Internet Explorer 6.0 or above, Firefox 2.0 or above,

Chrome, Opera, Safari

Internet Access Control

MAC Address Filter, Domain/URL Filter, Protocol/IP Filter,

Virtual Server, DMZ host, UPnP, PPTP/L2TP/IPsec VPN

pass through

Management / Monitoring

Local/remote configuration, upgrade firmware,

Backup/Restore configuration via Web browser, Internal

System Log, Syslog, E-Mail Logging, SNMPv1/v2c, Ping

Test Tool, Dynamic DNS

Routing Static and Dynamic RIPv1/2

LED Indicators Power, Status, LAN1 - LAN4, WAN, WLAN

Power Input: 100~240V AC, 50~60Hz

Output: 5V DC, 1A

Power Consumption 2.8 Watts (max)

Dimensions (L x W x H) 158 x 109 x 34 mm (6.2 x 4.3 x 1.3 in)

Weight 204 g (7.2 oz)

Temperature Operating: 0° ~ 40°C (32° ~ 104°F)

Storage: -10°C ~ 70°C (-14° ~ 158°F)

Humidity Max. 95% (non-condensing)

Certifications CE, FCC

Wireless

Frequency 2.412 ~ 2.484 GHz ISM band

Antenna 1 x 2dBi fixed dipole antenna

Modulation

802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK

(1Mbps)

802.11g: OFDM with BPSK, QPSK and 16/64-QAM

802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM

Media Access Protocol CSMA/CA with ACK

Data Rate

802.11b: up to 11Mbps

802.11g: up to 54Mbps

802.11n: up to 150Mbps

Output Power

802.11b: 15dBm (typical) @ 11Mbps

802.11g: 15dBm (typical) @ 54Mbps

802.11n: 13dBm (typical) @ 150Mbps

Receiving Sensitivity

802.11b: -85dBm (typical) @ 11Mbps

802.11g: -68dBm (typical) @ 54Mbps

802.11n: -62dBm (typical) @ 150Mbps

Encryption 64/128-bit WEP (HEX/ASCII), WPA /WPA2-PSK,

WPA/WPA2-RADIUS

Channels 1-11 (FCC), 1-13 (ETSI)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual

data throughput and coverage will vary depending on interference, network traffic, building

materials and other conditions.

TRENDnet User’s Guide TEW-711BR

Troubleshooting

Q: I typed http://192.168.10.1 in my Internet Browser Address Bar, but an error

message says “The page cannot be displayed.” How can I access the router

management page?

Answer:

1. Check your hardware settings again. See “Router Installation” on page 2.

2. Make sure the LAN and WLAN lights are lit.

3. Make sure your network adapter TCP/IP settings are set to Obtain an IP address

automatically or DHCP (see the steps below).

4. Make sure your computer is connected to one of the router’s LAN ports

5. Press on the factory reset button for 15 seconds, the release.

Windows 7

a. Go into the Control Panel, click Network and Sharing Center.

b. Click Change Adapter Settings, right-click the Local Area Connection icon.

c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).

d. Then click Obtain an IP address automatically and click OK.

Windows Vista

a. Go into the Control Panel, click Network and Internet.

b. Click Manage Network Connections, right-click the Local Area Connection

icon and click Properties.

c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.

d. Then click Obtain an IP address automatically and click OK.

Windows XP/2000

a. Go into the Control Panel, double-click the Network Connections icon

b. Right-click the Local Area Connection icon and the click Properties.

c. Click Internet Protocol (TCP/IP) and click Properties.

d. Then click Obtain an IP address automatically and click OK.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

Q: I am not sure what type of Internet Account Type I have for my Cable/DSL

connection. How do I find out?

Answer:

Contact your Internet Service Provider (ISP) for the correct information.

Q: The Wizard does not appear when I access the router. What should I do?

Answer:

1. Click on Wizard on the left hand side.

2. Near the top of the browser, “Pop-up blocked” message may appear. Right click on

the message and select Always Allow Pop-ups from This Site.

3. Disable your browser's pop up blocker.

Q: I went through the Wizard, but I cannot get onto the Internet. What should I do?

Answer:

1. Verify that you can get onto the Internet with a direct connection into your modem

(meaning plug your computer directly to the modem and verify that your single

computer (without the help of the router) can access the Internet).

2. Power cycle your modem and router. Unplug the power to the modem and router.

Wait 30 seconds, and then reconnect the power to the modem. Wait for the modem to

fully boot up, and then reconnect the power to the router.

3. Contact your ISP and verify all the information that you have in regards to your

Internet connection settings is correct.

Q: I cannot connect wirelessly to the router. What should I do?

Answer:

1. Double check that the WLAN light on the router is lit.

2. Power cycle the router. Unplug the power to the router. Wait 15 seconds, then plug

the power back in to the router.

3. Contact the manufacturer of your wireless network adapter and make sure the

wireless network adapter is configured with the proper SSID. The preset SSID is

TRENDnet(model_number).

4. To verify whether or not wireless is enabled, login to the router management page,

click on Wireless.

5. Please see “Steps to improve wireless connectivity” on page 19 if you continue to

have wireless connectivity problems.

TRENDnet User’s Guide TEW-711BR

Appendix

How to find your IP address?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

configuring network settings.

Command Prompt Method

Windows 2000/XP/Vista/7/8

1. On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run

dialog box.

2. In the dialog box, type cmd to bring up the command prompt.

3. In the command prompt, type ipconfig /all to display your IP address settings.

MAC OS X

1. Navigate to your Applications folder and open Utilities.

2. Double-click on Terminal to launch the command prompt.

3. In the command prompt, type ipconfig getifaddr <en0 or en1> to display the wired

or wireless IP address settings.

Note: en0 is typically the wired Ethernet and en1 is typically the wireless Airport

interface.

Graphical Method

MAC OS 10.6/10.5

1. From the Apple menu, select System Preferences.

2. In System Preferences, from the View menu, select Network.

3. In the Network preference window, click a network port (e.g., Ethernet, AirPort,

modem). If you are connected, you'll see your IP address settings under "Status:"

MAC OS 10.4

1. From the Apple menu, select Location, and then Network Preferences.

2. In the Network Preference window, next to "Show:", select Network Status. You'll see

your network status and your IP address settings displayed.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

How to configure your network settings to obtain an IP address automatically or use

DHCP?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

configuring network settings.

Windows 7/8

a. Go into the Control Panel, click Network and Sharing Center.

b. Click Change Adapter Settings, right-click the Local Area Connection icon.

c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).

d. Then click Obtain an IP address automatically and click OK.

Windows Vista

a. Go into the Control Panel, click Network and Internet.

b. Click Manage Network Connections, right-click the Local Area Connection

icon and click Properties.

c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.

d. Then click Obtain an IP address automatically and click OK.

Windows XP/2000

a. Go into the Control Panel, double-click the Network Connections icon

b. Right-click the Local Area Connection icon and the click Properties.

c. Click Internet Protocol (TCP/IP) and click Properties.

d. Then click Obtain an IP address automatically and click OK.

MAC OS 10.4/10.5/10.6

a. From the Apple, drop-down list, select System Preferences.

b. Click the Network icon.

c. From the Location drop-down list, select Automatic.

d. Select and view your Ethernet connection.

In MAC OS 10.4, from the Show drop-down list, select Built-in

Ethernet and select the TCP/IP tab.

In MAC OS 10.5/10.6, in the left column, select Ethernet.

e. Configure TCP/IP to use DHCP.

TRENDnet User’s Guide TEW-711BR

In MAC 10.4, from the Configure IPv4, drop-down list, select Using

DHCP and click the Apply Now button.

In MAC 10.5, from the Configure drop-down list, select Using DHCP

and click the Apply button.

In MAC 10.6, from the Configure drop-down list, select Using DHCP

and click the Apply button.

f. Restart your computer.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

How to find your MAC address?

In Windows 2000/XP/Vista/7,

Your computer MAC addresses are also displayed in this window, however, you can type

getmac –v to display the MAC addresses only.

In MAC OS 10.4,

1. Apple Menu > System Preferences > Network

2. From the Show menu, select Built-in Ethernet.

3. On the Ethernet tab, the Ethernet ID is your MAC Address.

In MAC OS 10.5/10.6,

1. Apple Menu > System Preferences > Network

2. Select Ethernet from the list on the left.

3. Click the Advanced button.

3. On the Ethernet tab, the Ethernet ID is your MAC Address.

How to connect to a wireless network using the built-in Windows utility?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

connecting to a wireless network using the built-in utility.

Windows 7/8

1. Open Connect to a Network by clicking the network icon ( or ) in the notification

area.

2. In the list of available wireless networks, click the wireless network you would like to

connect to, then click Connect.

4. You may be prompted to enter a security key in order to connect to the network.

5. Enter in the security key corresponding to the wireless network, and click OK.

Windows Vista

1. Open Connect to a Network by clicking the Start Button. and then click Connect

To.

2. In the Show list, click Wireless.

3. In the list of available wireless networks, click the wireless network you would like to

connect to, then click Connect.

4. You may be prompted to enter a security key in order to connect to the network.

5. Enter in the security key corresponding to the wireless network, and click OK.

Windows XP

1. Right-click the network icon in the notification area, then click View Available

Wireless Networks.

2. In Connect to a Network, under Available Networks, click the wireless network you

would like to connect to.

3. You may be prompted to enter a security key in order to connect to the network.

4. Enter in the security key corresponding to the wireless network, and click Connect.

TRENDnet User’s Guide TEW-711BR

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are

country dependent and are firmware programmed at the factory to match the intended

destination. The firmware setting is not accessible by the end user.

RoHS

This product is RoHS compliant.

Europe – EU Declaration of Conformity

This product is herewith confirmed to comply with the Directive of 1999/5/EC,

2006/95/EC, and 2009/125/EC.

EC No. 278/2009

EN60950-1: 2006 + A11 : 2009 + A1 : 2010

Safety of Information Technology Equipment

EN 50385: 2002

Product standard to demonstrate the compliance of radio base stations and fixed

terminal stations for wireless telecommunication systems with the basic restrictions or

the reference levels related to human exposure to radio frequency electromagnetic

fields (110MHz - 40 GHz) - General public

EN 300 328 V1.7.1 (2006-10) Class B

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband

transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band

and using wide band modulation techniques; Harmonized EN covering essential

requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 V1.8.1 (2008-04)

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 1: Common

technical requirements

EN 301 489-17 V2.1.1 (2009-05)

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 17: Specific

conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance

RLAN equipment

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in

all EU member states and EFTA countries, except in France and Italy where restrictive

use applies. In Italy the end-user should apply for a license at the national spectrum

authorities in order to obtain authorization to use the device for setting up outdoor

radio links and/or for supplying public access to telecommunications and/or network

services. This device may not be used for setting up outdoor radio links in France and in

some areas the RF output power may be limited to 10 mW EIRP in the frequency range

of 2454 – 2483.5 MHz. For detailed information the end-user should contact the

national spectrum authority in France.

TRENDnet User’s Guide TEW-711BR

Česky [Czech] TRENDnet tímto prohlašuje, že tento TEW-711BR je ve shodě se

základními požadavky a dalšími příslušnými ustanoveními směrnice

1999/5/ES, 2006/95/ES, a 2009/125/ES.

Dansk [Danish] Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-

711BR overholder de væsentlige krav og øvrige relevante krav i

direktiv 1999/5/EF, 2006/95/EF, og 2009/125/EF.

Deutsch

[German]

Hiermit erklärt TRENDnet, dass sich das Gerät TEW-711BR in

Übereinstimmung mit den grundlegenden Anforderungen und den

übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG,

2006/95/EG und 2009/125/EG befindet.

Eesti [Estonian] Käesolevaga kinnitab TRENDnet seadme TEW-711BR vastavust

direktiivi 1999/5/EÜ, 2006/95/EÜ ja 2009/125/EÜ põhinõuetele ja

nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

English Hereby, TRENDnet, declares that this TEW-711BR is in compliance

with the essential requirements and other relevant provisions of

Directive 1999/5/EC, 2006/95/EC, and 2009/125/EC.

Español

[Spanish]

Por medio de la presente TRENDnet declara que el TEW-711BR

cumple con los requisitos esenciales y cualesquiera otras

disposiciones aplicables o exigibles de la Directiva 1999/5/CE,

2006/95/CE, 2009/125/CE y.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑTRENDnet ΔΗΛΩΝΕΙ ΟΤΙTEW-

711BRΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ

ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ, 2006/95/ΕΚ,

2009/125/ΕΚ και.

Français

[French]

Par la présente TRENDnet déclare que l'appareil TEW-711BR est

conforme aux exigences essentielles et aux autres dispositions

pertinentes de la directive 1999/5/CE, 2006/95/CE, 2009/125/CE et.

Italiano[Italian] Con la presente TRENDnet dichiara che questo TEW-711BR è

conforme ai requisiti essenziali ed alle altre disposizioni pertinenti

stabilite dalla direttiva 1999/5/CE, 2006/95/CE e 2009/125/CE.

Latviski [Latvian] AršoTRENDnetdeklarē, ka TEW-711BR atbilstDirektīvas 1999/5/EK,

2006/95/EK, un 2009/125/EK būtiskajāmprasībām un citiemar to

saistītajiemnoteikumiem.

Lietuvių

[Lithuanian]

Šiuo TRENDnet deklaruoja, kad šis TEW-711BR atitinka esminius

reikalavimus ir kitas 1999/5/EB, 2006/95/EB ir 2009/125/EB

Direktyvos nuostatas.

Nederlands

[Dutch]

Hierbij verklaart TRENDnet dat het toestel TEW-711BR in

overeenstemming is met de essentiële eisen en de andere relevante

bepalingen van richtlijn 1999/5/EG, 2006/95/EG, en 2009/125/EG.

Malti [Maltese] Hawnhekk, TRENDnet, jiddikjara li dan TEW-711BR jikkonforma mal-

ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-

Dirrettiva 1999/5/KE, 2006/95/KE, u 2009/125/KE.

Magyar

[Hungarian]

Alulírott, TRENDnet nyilatkozom, hogy a TEW-711BRmegfelel a

vonatkozó alapvetõ követelményeknek és az 1999/5/EK irányelv, a

2006/95/EK és a 2009/125/EK irányelv egyéb elõírásainak.

Polski [Polish] Niniejszym TRENDnet oświadcza, że TEW-711BR jest zgodny z

zasadniczymi wymogami oraz pozostałymi stosownymi

postanowieniami Dyrektywy 1999/5/WE, 2006/95/WE i

2009/125/WE.

Português

[Portuguese]

TRENDnet declara que este TEW-711BR está conforme com os

requisitos essenciais e outras disposições da Directiva 1999/5/CE,

2006/95/CE e 2009/125/CE.

Slovensko

[Slovenian]

TRENDnet izjavlja, da je ta TEW-711BR v skladu z bistvenimi

zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES,

2006/95/ES in 2009/125/ES.

Slovensky

[Slovak]

TRENDnettýmtovyhlasuje, že TEW-711BRspĺňazákladnépožiadavky a

všetkypríslušnéustanoveniaSmernice 1999/5/ES, 2006/95/ES, a

2009/125/ES.

Suomi [Finnish] TRENDnet vakuuttaa täten että TEW-711BR tyyppinen laite on

direktiivin 1999/5/EY, 2006/95/EY ja 2009/125/EY oleellisten

vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Svenska

[Swedish]

Härmed intygar TRENDnet att denna TEW-711BR står I

överensstämmelse med de väsentliga egenskapskrav och övriga

relevanta bestämmelser som framgår av direktiv 1999/5/EG,

2006/95/EG och 2009/125/EG.

TRENDnet User’s Guide Limited Warranty

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEW-711BR – 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period,

TRENDnet shall reserve the right, at its expense, to repair or replace the defective

product or part and deliver an equivalent product or part to the customer. The

repair/replacement unit’s warranty continues from the original date of purchase. All

products that are replaced become the property of TRENDnet. Replacement products

may be new or reconditioned. TRENDnet does not issue refunds or credit. Please

contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product by any unauthorized service center. This warranty is voided if (i) the

product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable

warranty period and providing a copy of the dated proof of the purchase. Upon proper

submission of required documentation a Return Material Authorization (RMA) number

will be issued. An RMA number is required in order to initiate warranty service support

for all TRENDnet products. Products that are sent to TRENDnet for RMA service must

have the RMA number marked on the outside of return packages and sent to TRENDnet

prepaid, insured and packaged appropriately for safe shipment. Customers shipping

from outside of the USA and Canada are responsible for return shipping fees. Customers

shipping from outside of the USA are responsible for custom charges, including but not

limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS

WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S

OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE

EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,

EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR

IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE

OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST

OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR

MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY

ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO

EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN

CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,

INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL

LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY

OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY

FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL

OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Some TRENDnet products include software code written by third party developers.

These codes are subject to the GNU General Public License ("GPL") or GNU Lesser

General Public License ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section

and look for the desired TRENDnet product to access to the GPL Code or LGPL Code.

These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of

the developers. TRENDnet does not provide technical support for these codes. Please go

to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for

specific terms of each license.

PWP05202009v2 2013/01/07

TRENDNET TEW711BRV2 N150 Wireless Home Router User Manual test 3

TRENDNET, Inc. N150 Wireless Home Router test 3

User Manual.pdf

Navigation menu

Namespaces

Views

Navigation
