TRENDnet User’s Guide
TV-IP662WI
1

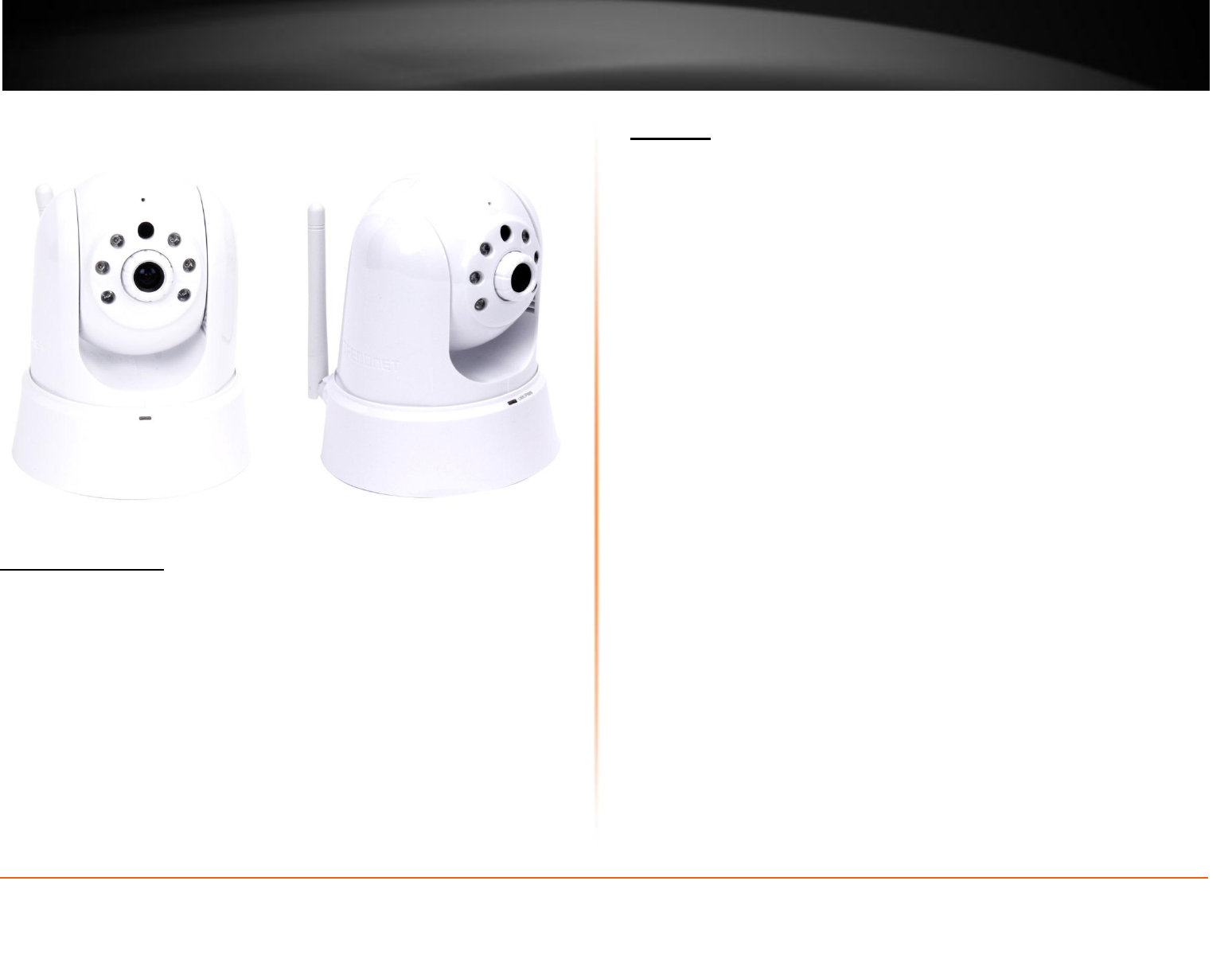

Product Overview
TV-IP662WI
Package Contents
In addition to your camera, the package includes:
Multi-Language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Network cable (1.8m / 6ft)
Power adapter (12V DC, 1A)
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor that the item was purchased.
Features(百萬畫素無線夜視旋轉網路攝影機)
The IP camera records at 1280x720 pixels (VGA), 30 FPS (frames per second). You can
manage up to 32 TRENDnet cameras with the included complimentary camera
management software. The IP camera also includes adjustable motion detection
recording areas, email alerts, and scheduled recording sessions. Some other features of
the IP camera are Pan/Tilt auto-patrol, date-and-time overlays, one-way audio, an
adjustable lens, and four times digital zoom. A wall/ceiling mounting kit is included and
the camera’s white housing blends into most environments.
Easy Installation
The IP camera includes a CD-ROM with a setup wizard that guides you through the
installation process.
Wide Platform Support
The IP camera supports TCP/IP networking, HTTP, and other Internet related protocols
and can be integrated easily into other Internet/Intranet applications because of its
standards-based features.
10/100 Ethernet Support
The IP camera supports 10/100Mbps Ethernet.
Web Configuration
Once the setup is complete, administrators can use a standard Web browser to; access
images and video, configure the camera over an intranet or over the Internet.
Administration by a Web browser over the Internet means the IP camera can be
accessed and administered from anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet connections, many scenarios for the application of
your network camera exist, including industrial and public monitoring of properties such
as homes, offices, banks, hospitals, child-care centers and amusement parks.
Pan & Tilt
The IP camera can pan side-to-side at a remarkable 330 degrees.
Recording Quality
The IP camera can record 1280x720 (720p) video resolution.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
2
Product Hardware Features
Rear Panel View
1. Micro SD Slot Insert a micro SD card into this slot to store video/image data.
2. Power Port Connect the included power adapter from your camera to an
available power outlet. Note: Use only the adapter that came with your camera.
3. Line Out Insert an external microphone to this connection.
4. Rear Air Vent This is to cool the camera.
5. WPS (Wi-Fi Protected Setup) Push and hold this button for 3 seconds to
activate WPS.
6. WPS LED The WPS LED will blink green when WPS is activated.
7. Reset Button Use an item such as a paperclip to push and hold this button for
3 seconds and release to reset your camera to its factory defaults.
8. Antenna 2dBi detachable antenna.
9. LAN Port Connect Ethernet cables to your wired network devices.
Front Panel View
1. IR LED Built-in 6 IR LED for night vision uses. (for TV-IP862IC)
2. Power/Link LED This LED indicator is solid blue when your camera is powered
on. If this LED indicator is off, there is no power to your camera. This LED
indicator is blinking green when there is connection/data to your camera.
3. Microphone Built-in microphone for audio can be turn on or off.
4. Light Sensor Detects the light source to turn IR on or off.
5. Camera Lens The camera lens.
6. Focus Ring Turn to adjust the focus of the camera.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
3
Installation
Wired Connection

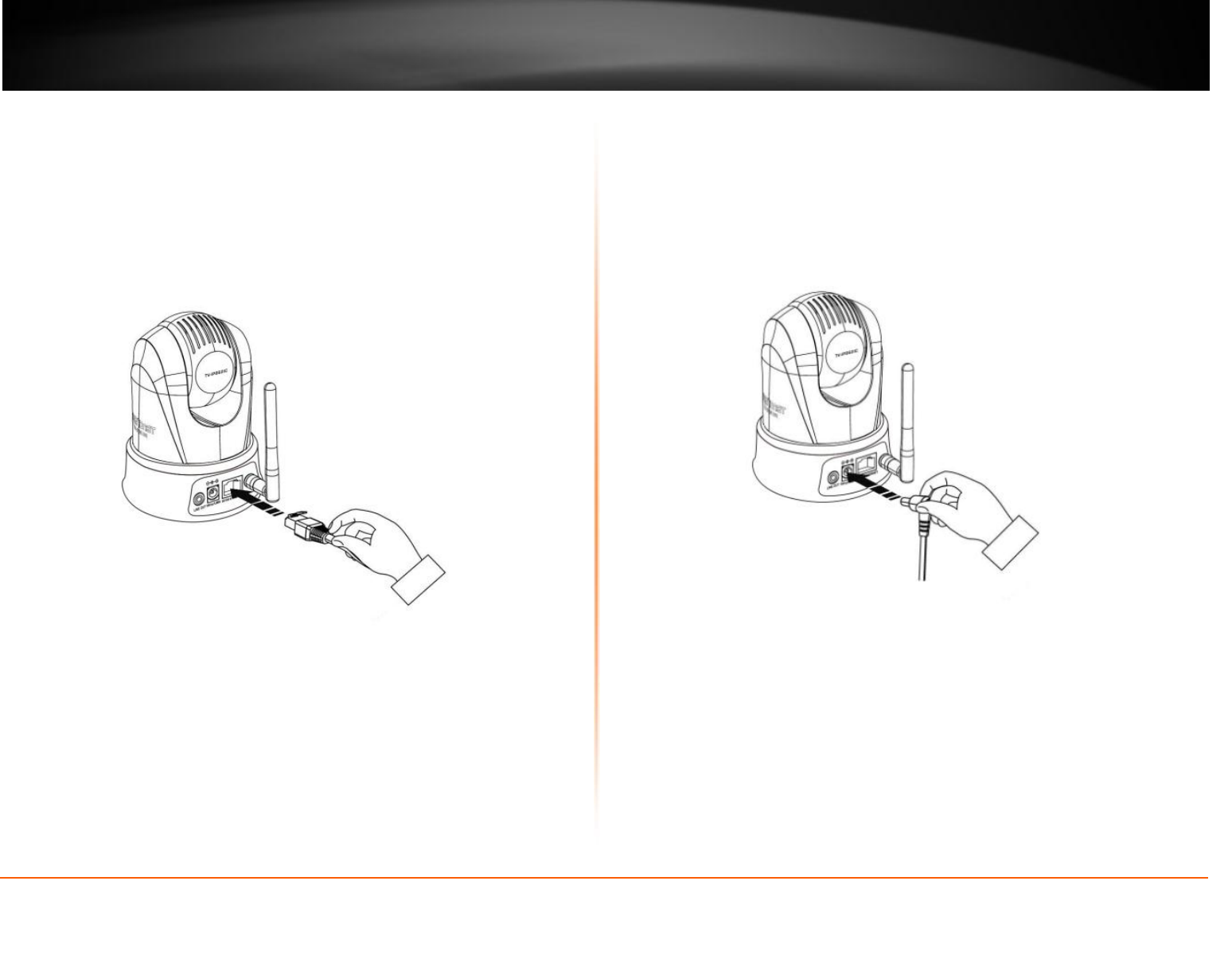

1. Connect the Ethernet Cable. If you intend to use the network camera as a wired
device, connect one end of the included Ethernet cable into the Ethernet port
on the rear panel of the camera and connect the other end to an available port
on your network. If you prefer to use the camera on a wireless network, see
below for instructions on connecting the power adapter.
2. Attach the Power Supply. Attach the included power supply to the DC 12V 1.0A
receptor on the rear panel of the camera and then connect it to a wall outlet or
power strip. A blue LED will light up under the lens indicating that the camera
has power.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
4
WPS Connection
An alternative method of connecting your camera to your network is by using WPS. WPS
is a quick, simple and secure method of adding devices to a network. If you have a
router which supports WPS follow the steps below, otherwise, please use the wired
mode of setting up the camera.
1. Attach the Power Supply
2. Press the WPS button on your wireless device then press the WPS button on
the camera.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
5
Wall mount installation
To attach the metal plates carry out the following:
Remove the two rubber pads under the base of the Camera.
Slide the metal plate onto the base of the camera, making sure that the two
holes on the base of the camera align with the two screw holes on the base of
the camera.
Secure the metal plate to the base of the Camera with the two screws provided.

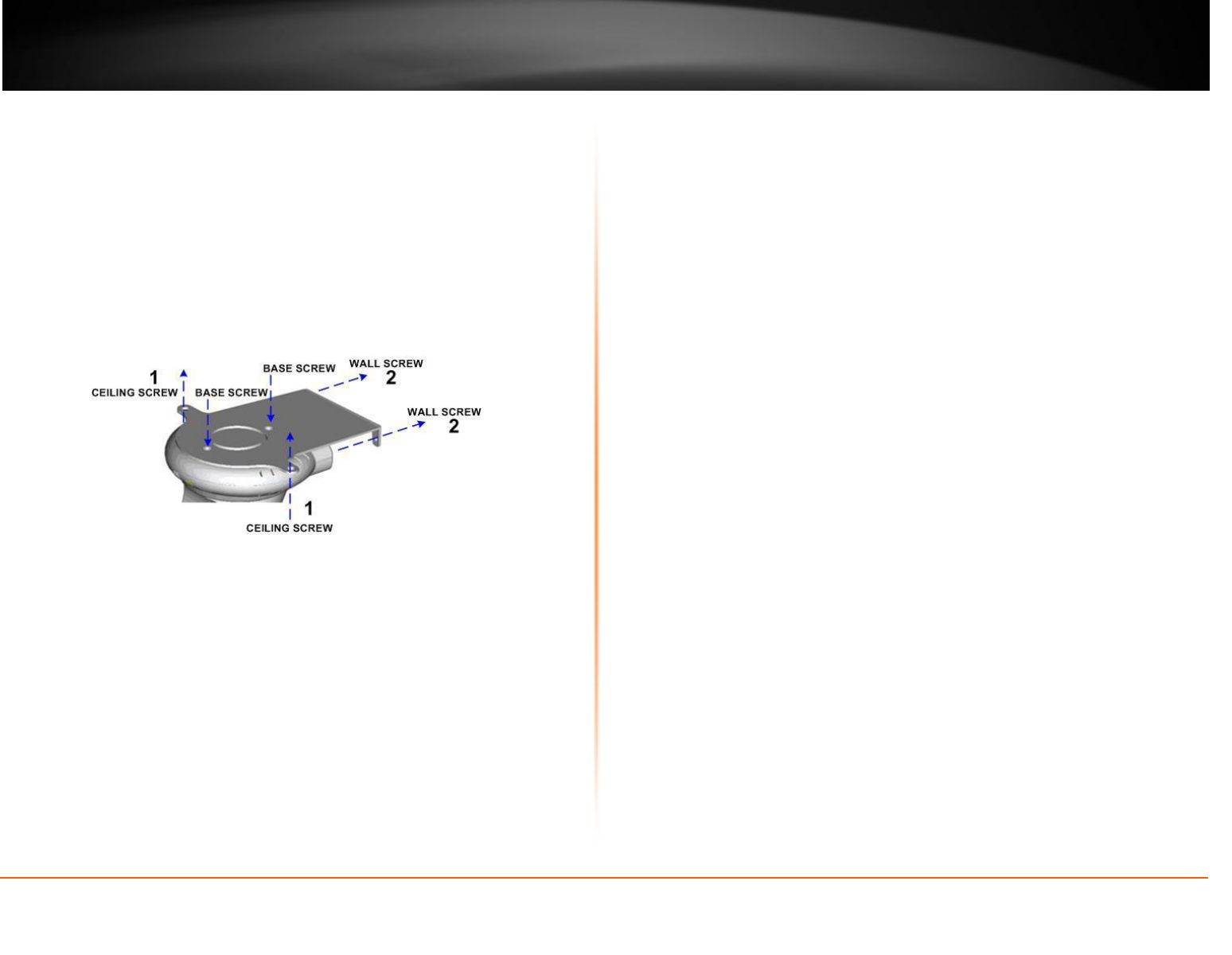

The camera can now be mounted to the ceiling or a wall. See the diagram
below for more information.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
6
Using the AutoRun Wizard

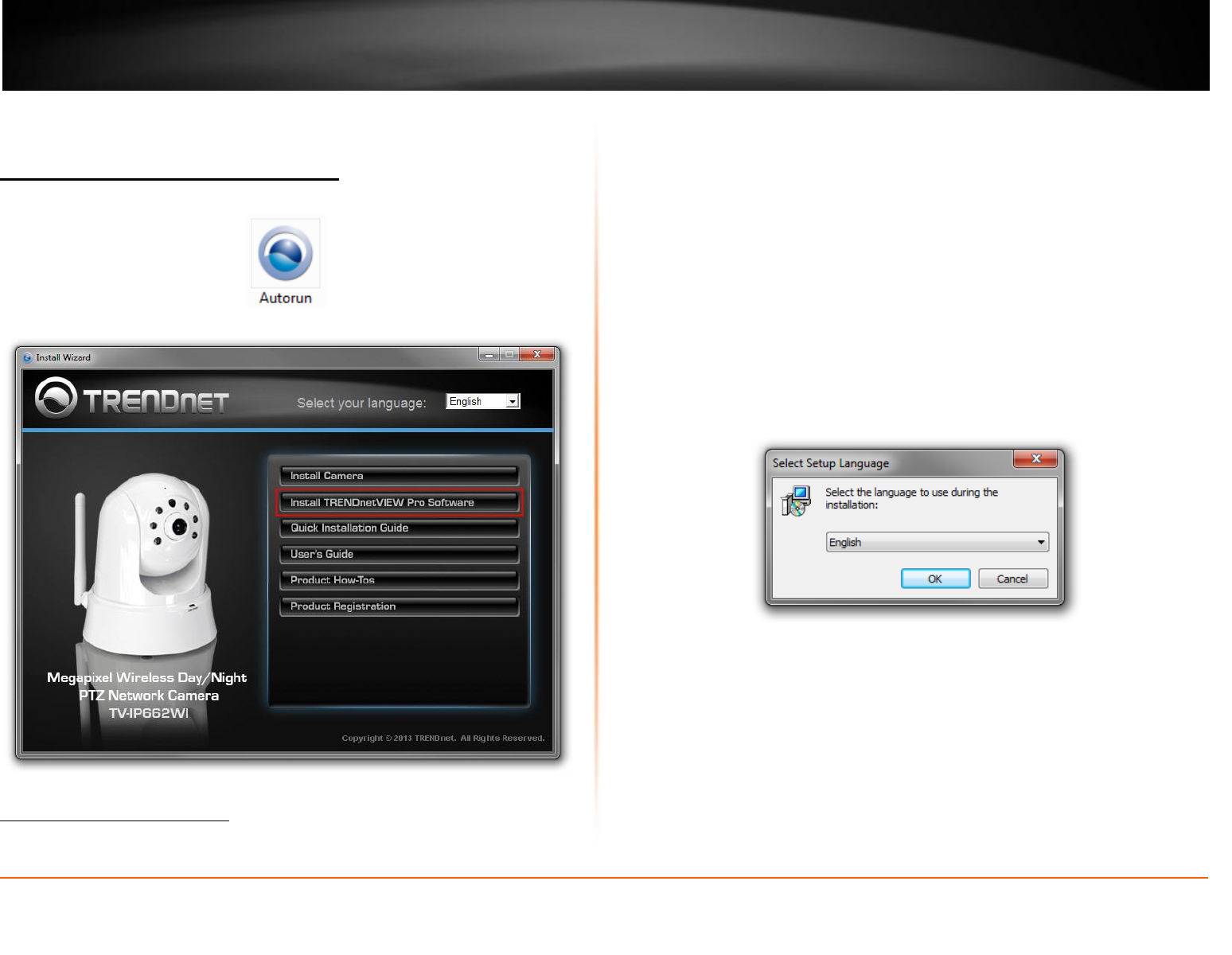

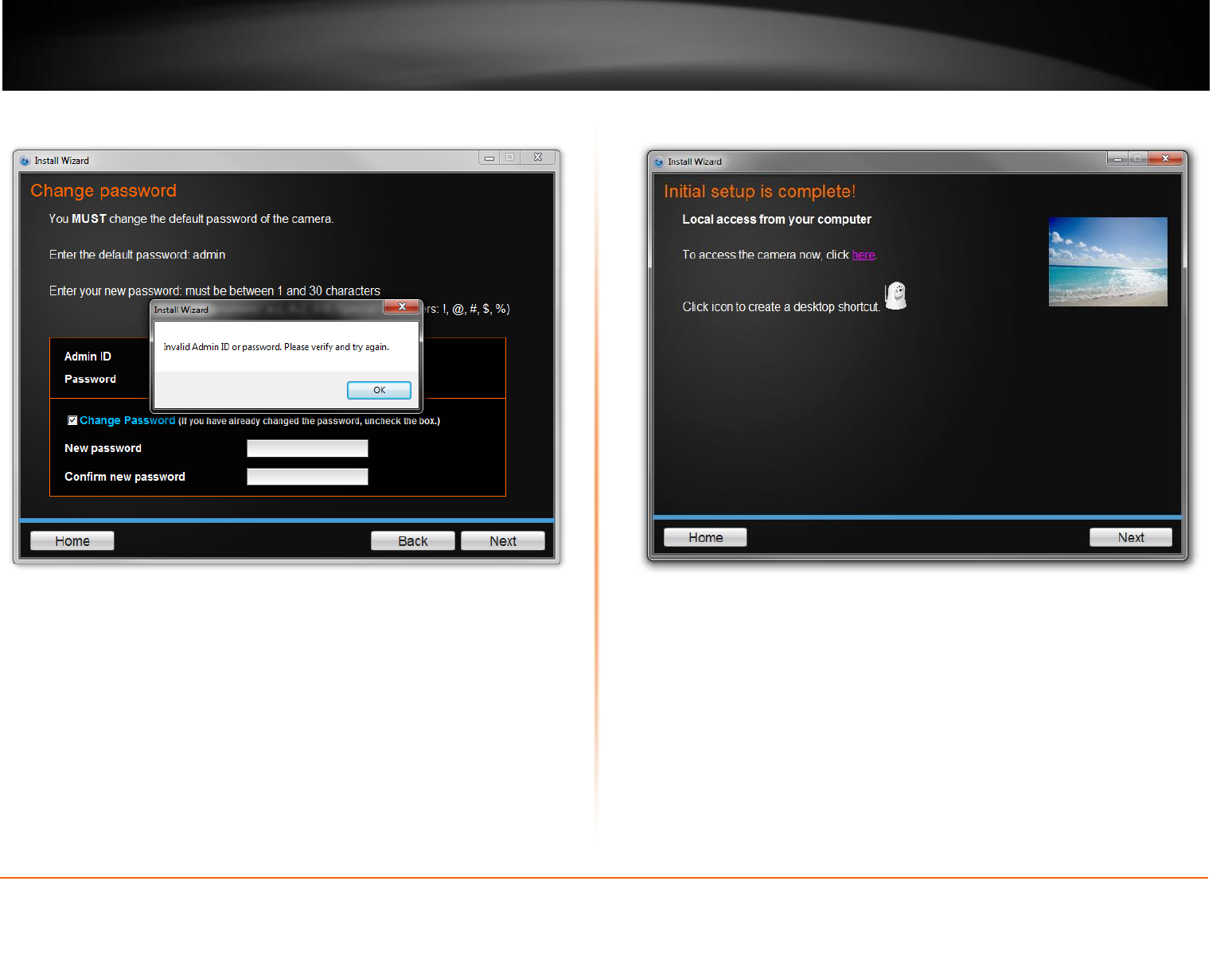

Insert the included CD-ROM into your CD/DVD drive. The Install Wizard program will
run automatically.
Note: If the Install Wizard does not run, you may have auto-run disabled on your
machine. In this case, browse to the CD drive and run InstallWizard.exe to begin the
installation wizard.

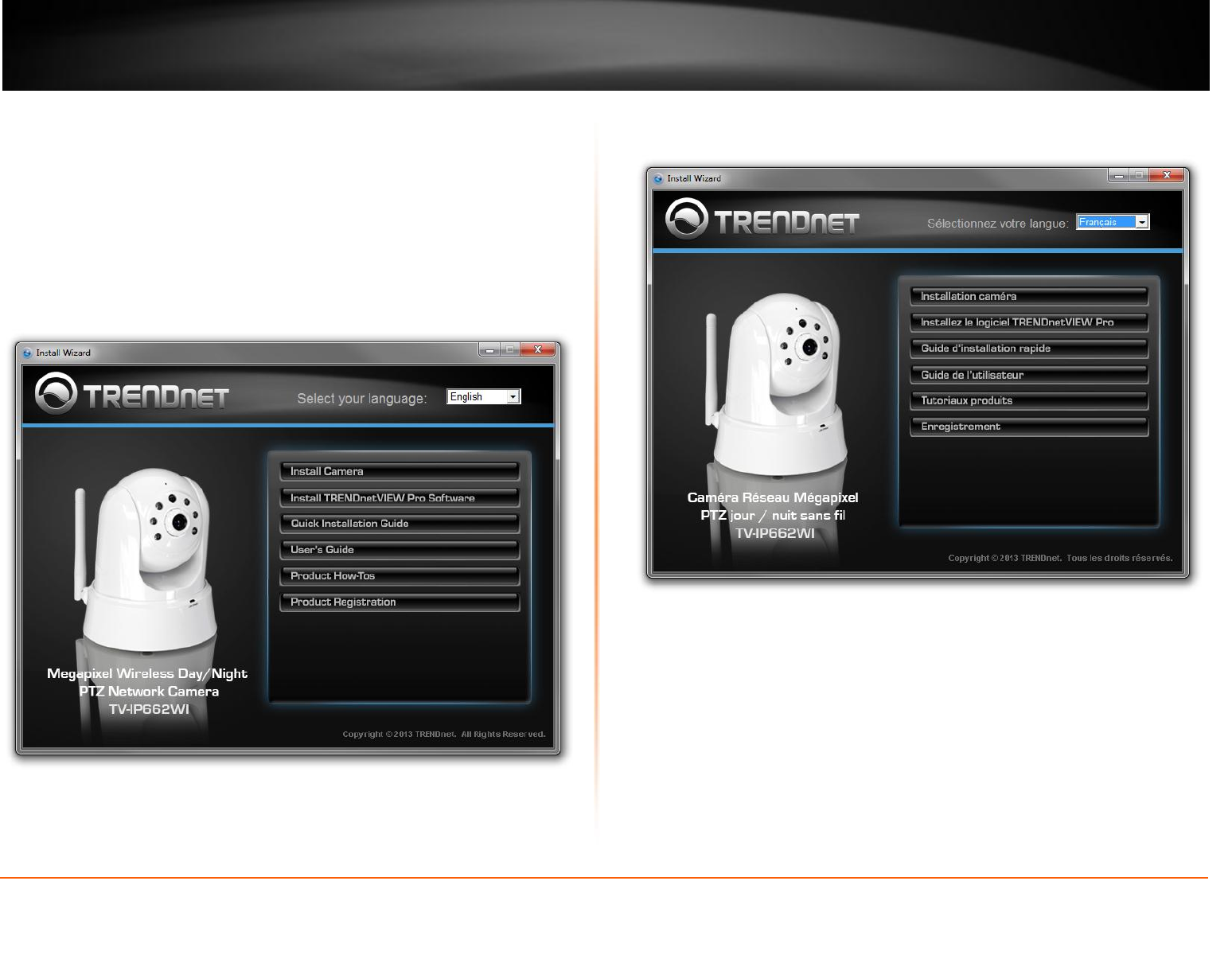

Begin by selecting a language from the drop-down list. There is a choice of five
languages English, French, German, Spanish, and Russian.
English
French
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
7

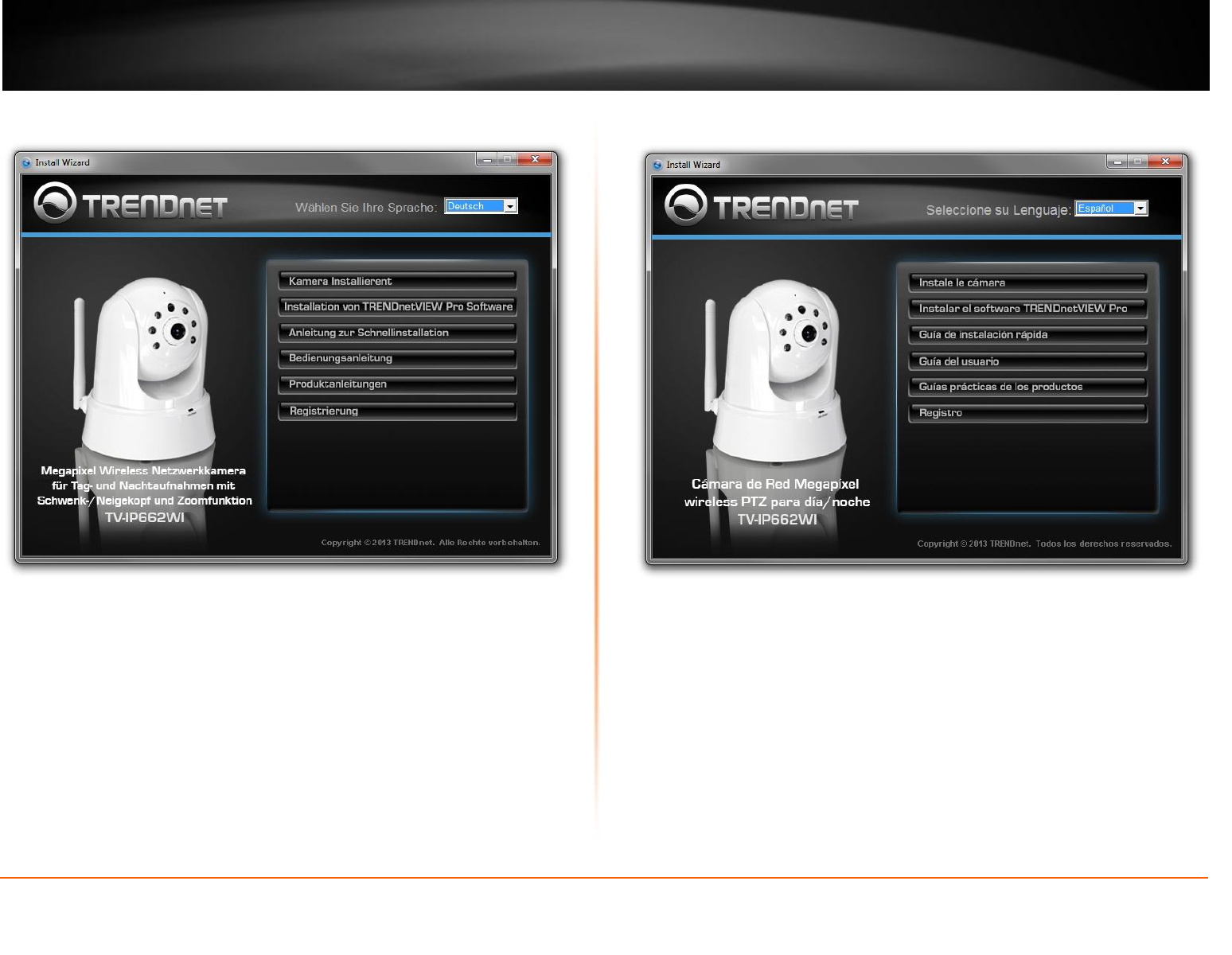

German
Spanish
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
8
Russian

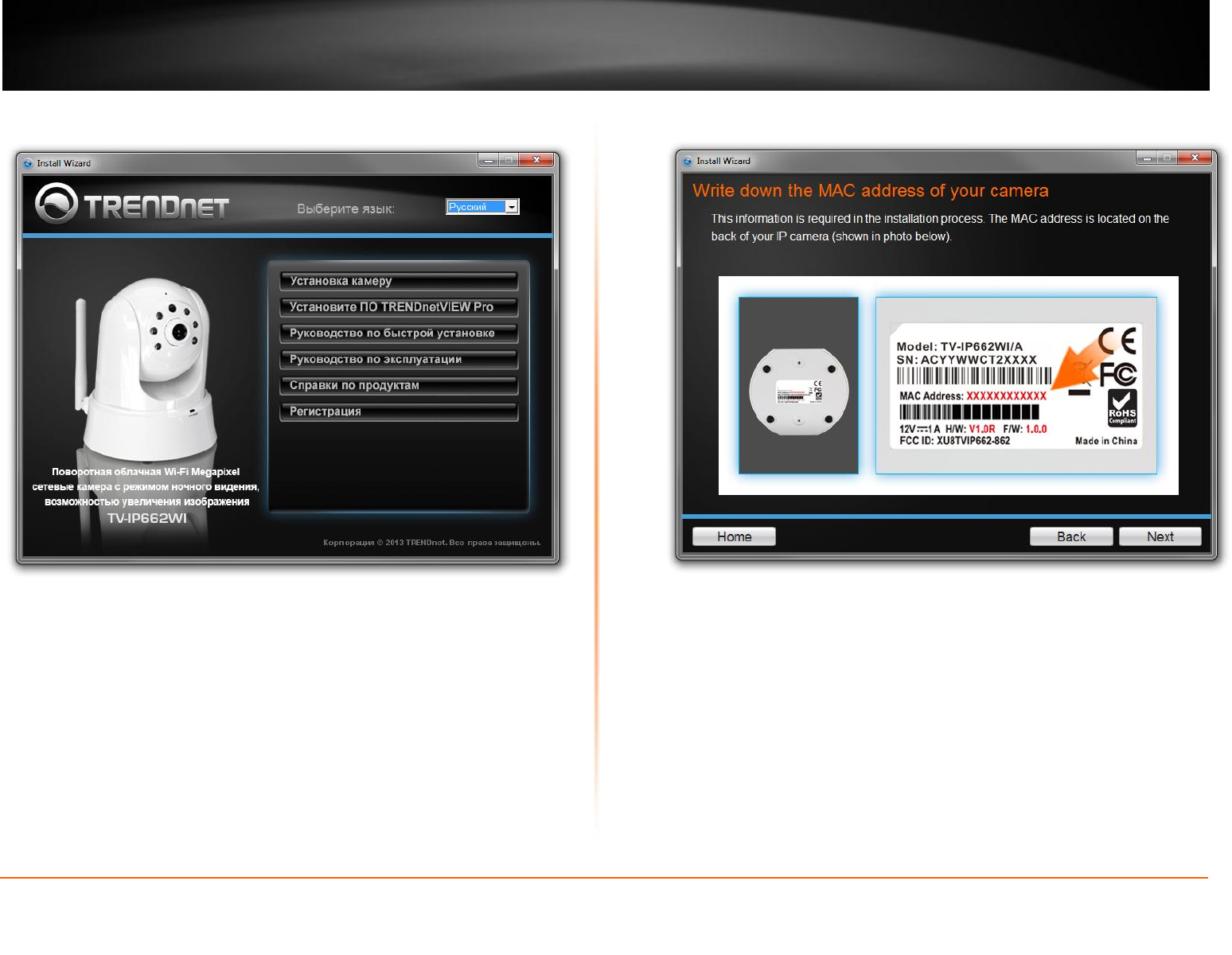

1. Click Install Camera and follow the on-screen steps to continue the installation.
2. This step references information on the camera itself. Go to your camera and
check the details at the bottom of the device. Click Next to continue, Back to go
to the previous screen or Home to return to the main menu. Also enclosed, is a
sticker with the same details attached.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
9

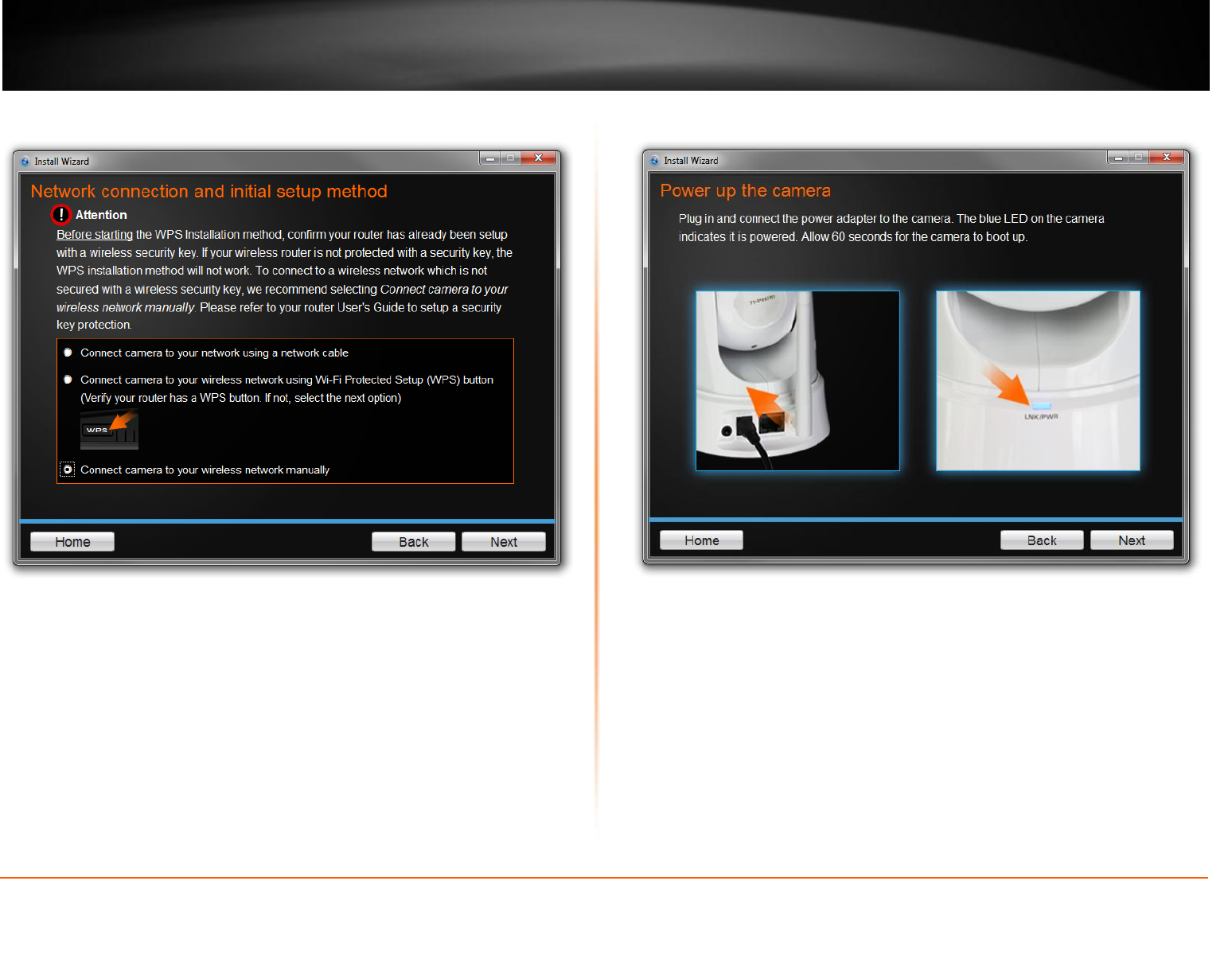

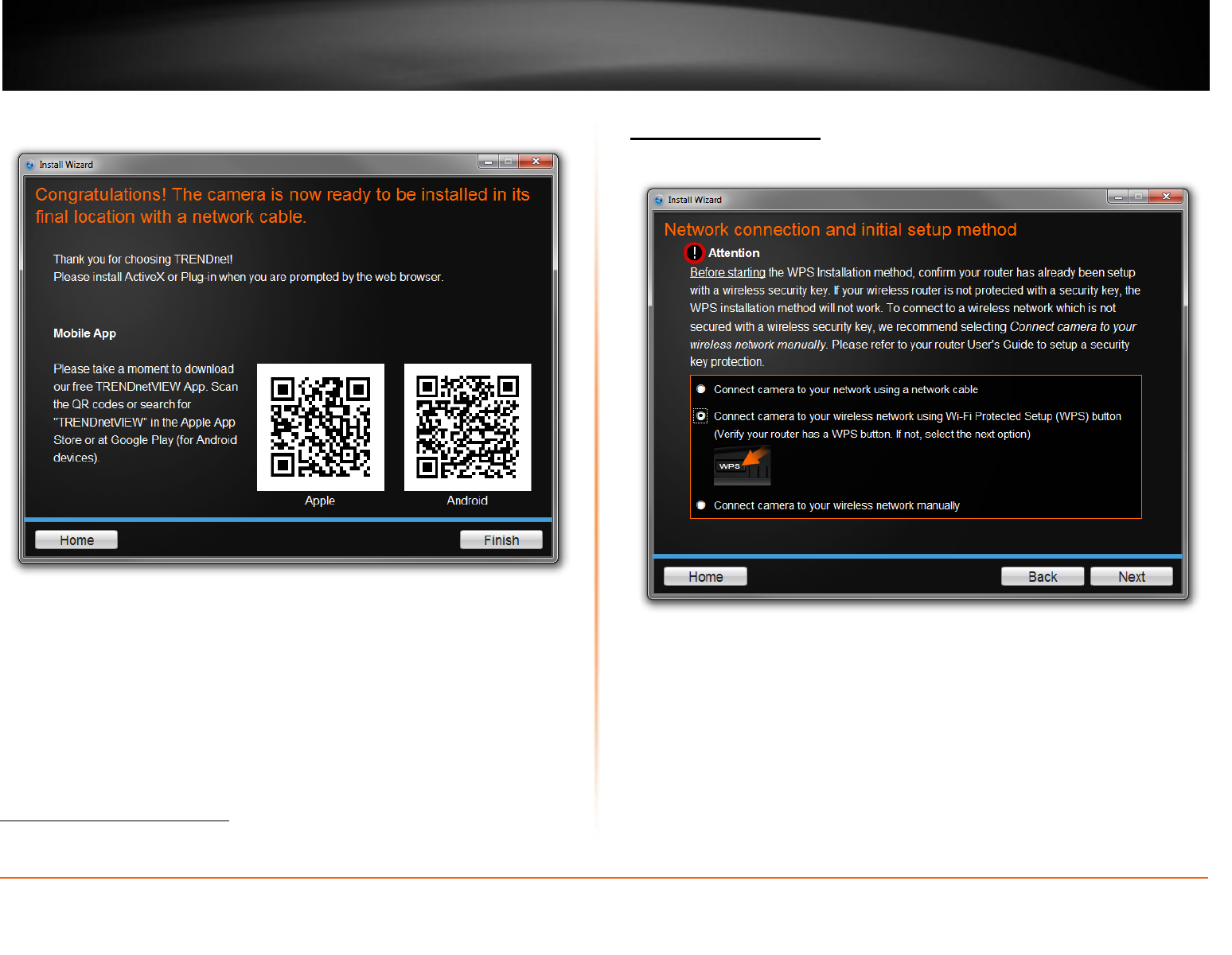

3. The most important part of the setup process is the network connection type.
There are three options:
a. Connect camera to your network using a network cable
b. Connect camera to your wireless network using Wi-Fi Protected Setup
(WPS) button (Verify your router has a WPS button. If not, select the
next option).
c. Connect camera to your wireless network manually.
The basic connection type is the first option, using a network cable. Let’s begin
the installation process using the network cable connection first. Click this
radio button and click Next to continue, Back to go to the previous screen or
Home to return to the main menu.

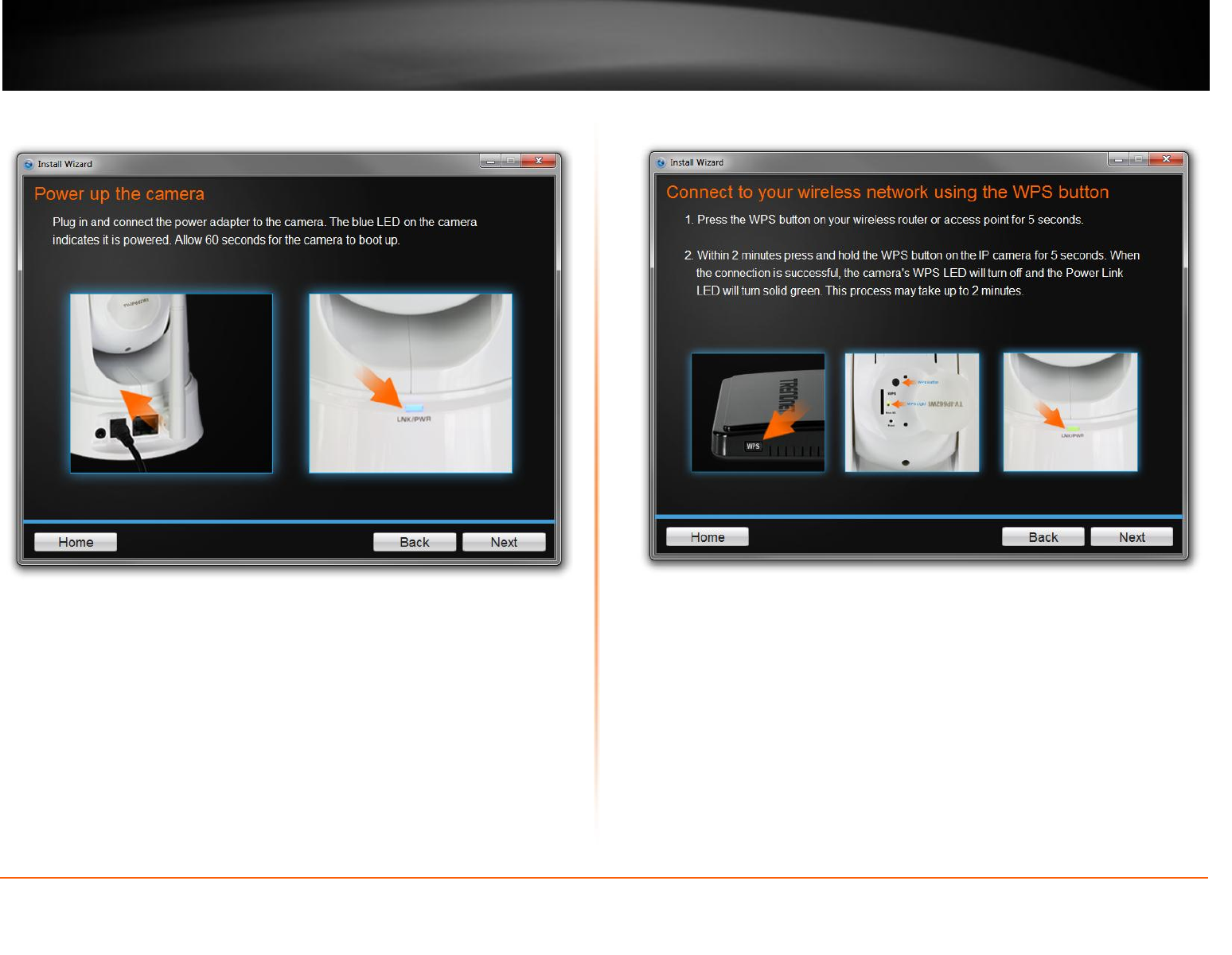

4. Follow the instructions in the next screen to Power up the Camera. Connect
one end of the power adapter to the camera and watch the LED flicker. Click
Next to continue, Back to go to the previous screen or Home to return to the
Main Menu.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
10

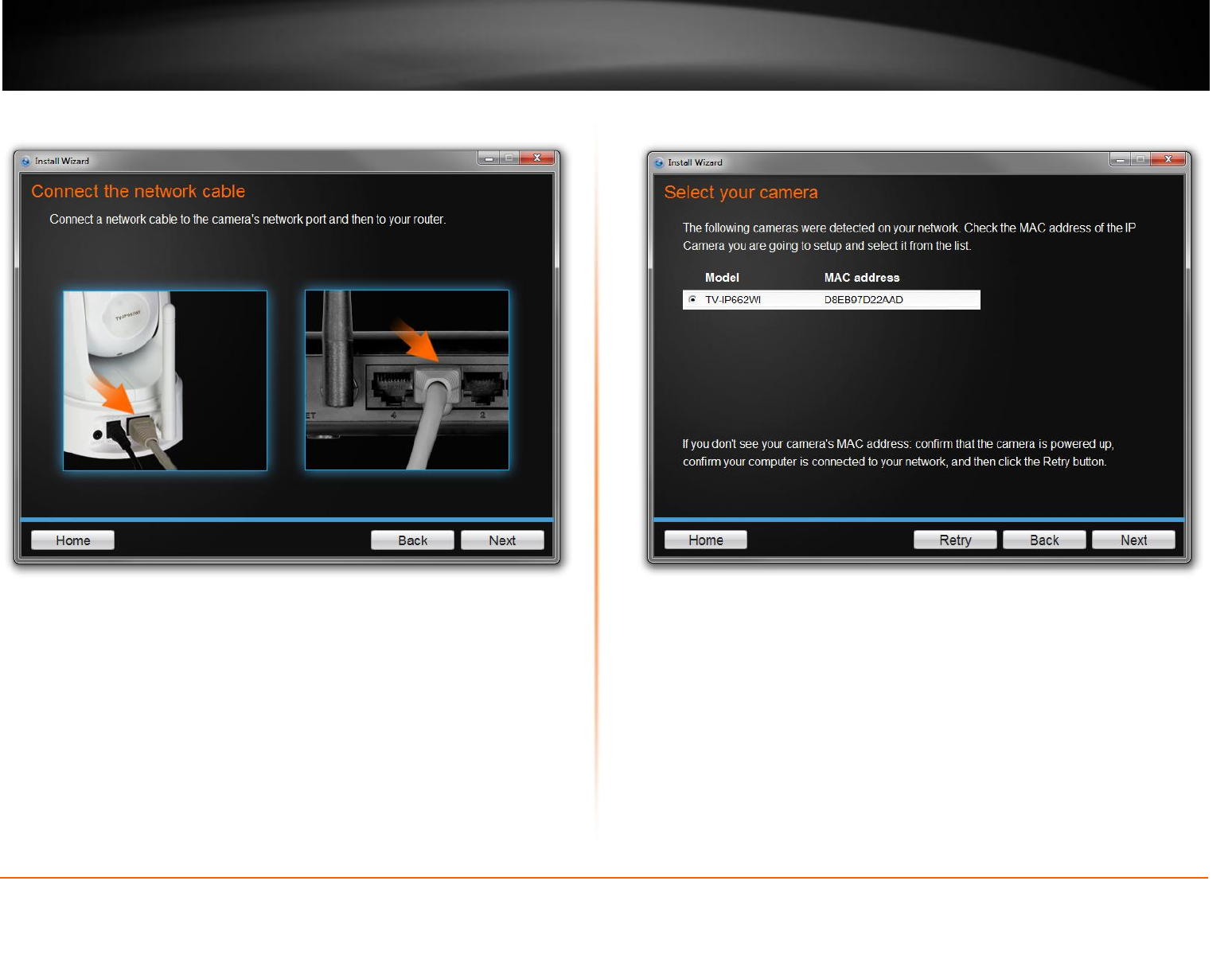

5. Connect one end of the network cable to your camera and the other end to
your router. Click Next to continue, Back to go to the previous screen or Home
to return to the Main Menu.
6. The wizard searches the network for your camera.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
11

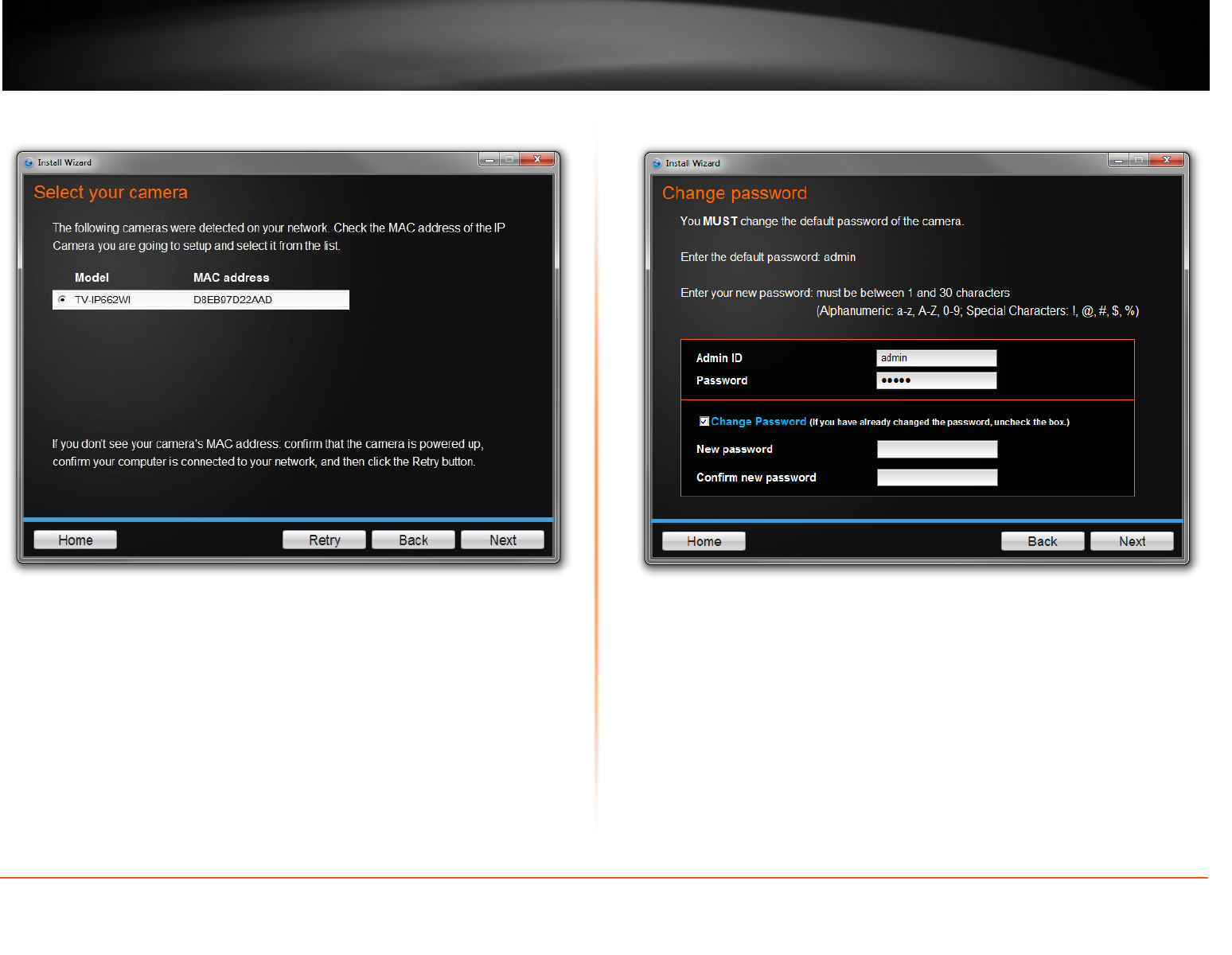

7. If you only have one camera on your network, the wizard will automatically
select it. Otherwise, if you have more than one camera, it provides several
options from the list. The wizard provides the Model Name and MAC Address
of the camera. If you do not see any of your camera(s) in the wizard, click Retry
to scan for the camera again. Click Next to continue, Back to go to the previous
screen or Home to return to the Main Menu.

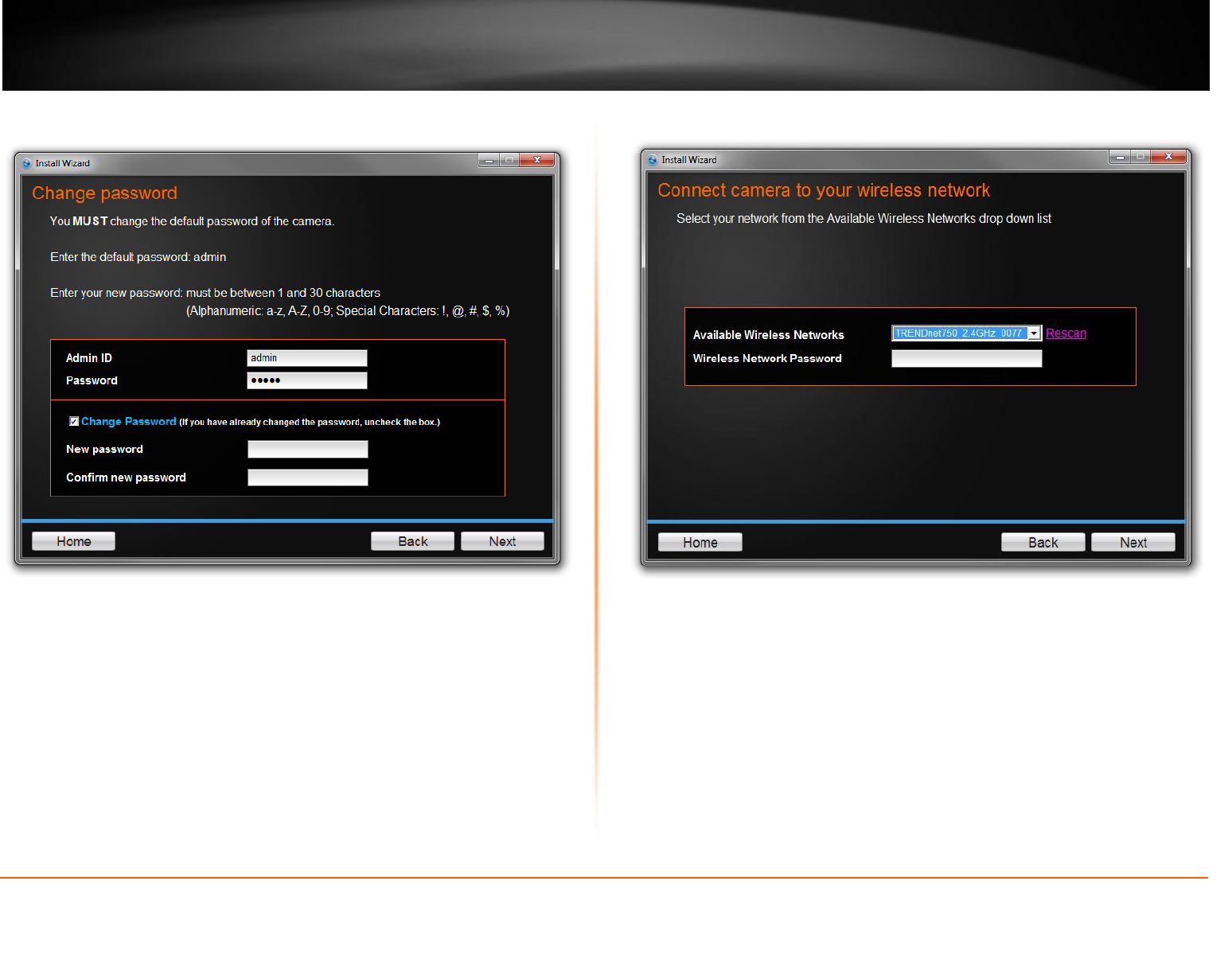

8. Password Settings. Follow the instructions on the screen. The default
username and password is admin. Tick the Change Password checkbox to enter
the new password details. The password should be between 1 and 30
characters. Click Next to continue, Back to go to the previous screen or Home
to return to the Main Menu.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
12
If you have entered the incorrect admin details, you are prompted to change the
configuration, as shown below.

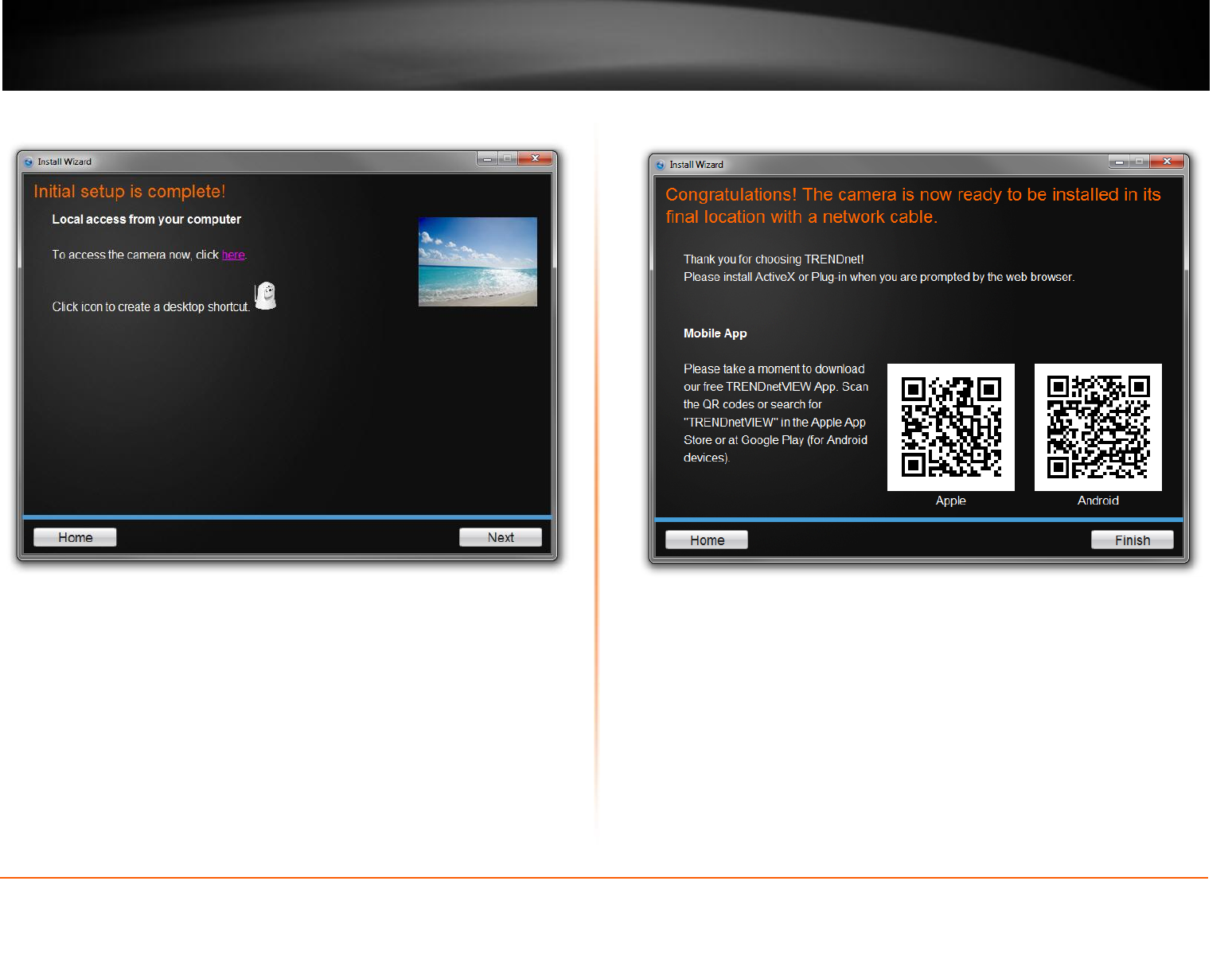

9. The initial setup is complete. Click the link to navigate to the camera’s Web
User Interface for further configuration or click Next to continue to the next
step.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
13

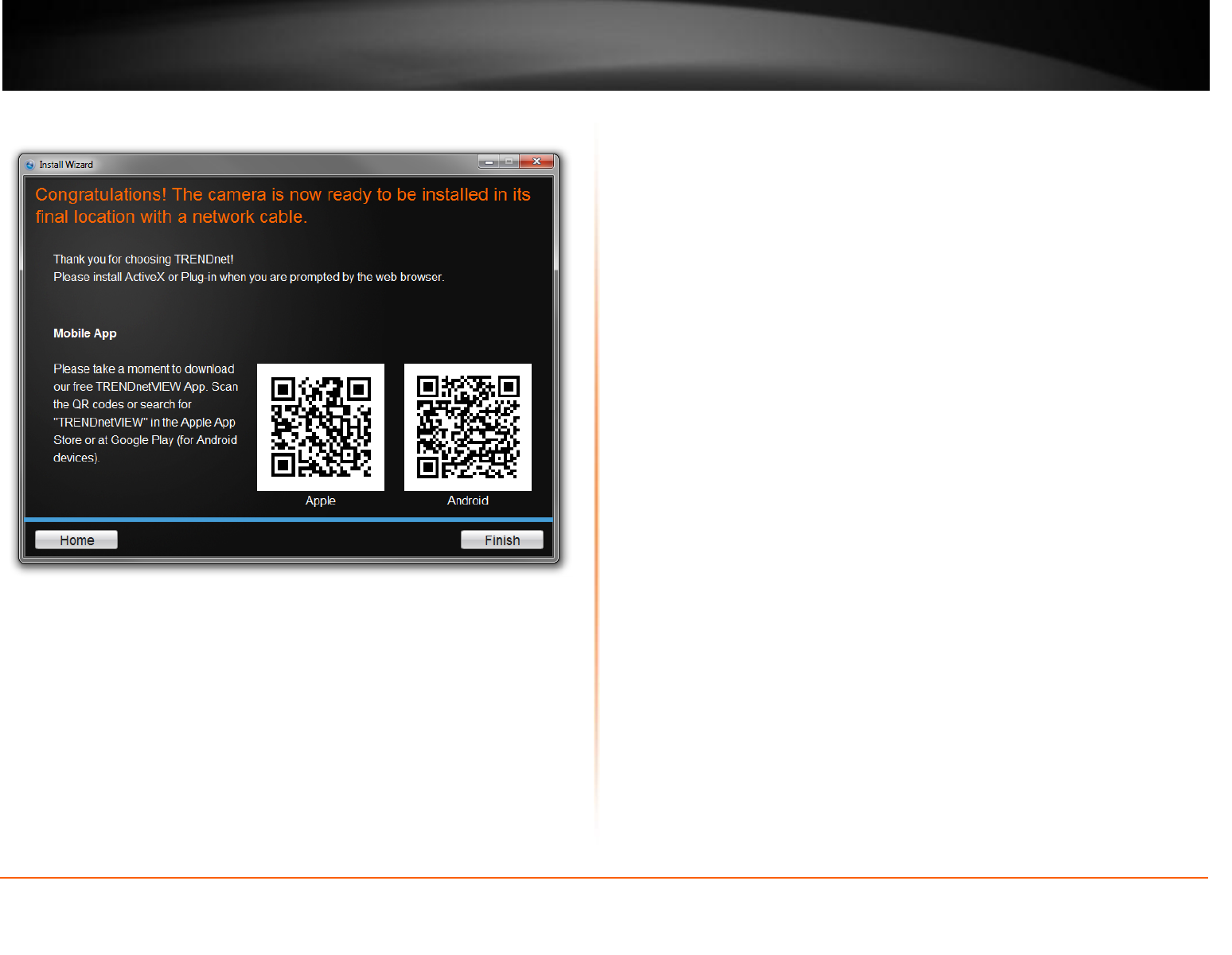

The Mobile App section allows the user to download the TRENDnet Mobile App either
for Apple iOS or Android™
1
devices. To use this feature, the user must have a QR Code
Scanner App on their mobile device. This is also available from the Apple App Store or
Google Play
2
.
You are now ready to use your camera. Click Finish to exit.
1
Android is a trademark of Google Inc.
2
Google Play is a trademark of Google Inc.
Wireless Connection
Using WPS
The WPS connection type is the second option, using a wireless router. Click this radio
button and click Next to continue, Back to go to the previous screen or Home to return
to the main menu.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
14
1. Follow the instructions on the screen to Power up the Camera. Click Next to
continue, Back to go to the previous screen or Home to return to the Main
Menu.
2. Follow the instructions and click Next to continue. If you wish to go to the
previous screen, click Back or Home to return to the main menu.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
15
3. If you only have one camera on your network, the wizard will automatically
select it (as shown below). Otherwise, if you have more than one camera, it
provides several options from the list. The wizard provides the Model Name
and MAC Address of the camera. If you do not see any of your camera(s) in the
wizard, click Retry to scan for the camera again. Click Next to continue, Back to
go to the previous screen or Home to return to the Main Menu.
4. Password Settings. Follow the instructions on the screen. The default
username and password is admin. Tick the Change Password checkbox to enter
the new password details. The password should be between 8 and 16
characters. Click Next to continue, Back to go to the previous screen or Home
to return to the Main Menu.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
16
5. The initial setup is complete. Click the link to navigate to the camera’s Web
User Interface for further configuration or click Next to continue to the next
step.
6. The Mobile App option allows the user to download the TRENDnet Mobile App
either for Apple iOS or Android™ format. To use this feature, the user must
have a QR Code Scanner App on their mobile device. This is also available from
the Apple App Store or Google Play. You are now ready to use your camera.
Click Finish to exit.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
17
Connecting Wireless Network Manually
The manual wireless connection type is the third option, using a wireless router. Click
this radio button and click Next to continue, Back to go to the previous screen or Home
to return to the main menu.
1. Follow the instructions in the next screen to Power up the Camera. Click Next
to continue, Back to go to the previous screen or Home to return to the Main
Menu.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
18
2. Connect one end of the network cable to your camera and the other end to
your router. Click Next to continue, Back to go to the previous screen or Home
to return to the Main Menu.
3. If you only have one camera on your network, the wizard will automatically
select it (as shown below). Otherwise, if you have more than one camera, it
provides several options from the list. The wizard provides the Model Name
and MAC Address of the camera. If you do not see any of your camera(s) in the
wizard, click Retry to scan for the camera again. Click Next to continue, Back to
go to the previous screen or Home to return to the Main Menu.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
19
4. Password Settings. Follow the instructions on the screen. The default
username and password is admin. Tick the Change Password checkbox to enter
the new password details. The password should be between 8 and 16
characters. Click Next to continue, Back to go to the previous screen or Home
to return to the Main Menu.
5. Once your wireless network is discovered, the wizard provides you with an
option to select the Available Wireless Network and also to provide a Wireless
Network Password. If you do not see your wireless network details, click the
Rescan link to scan the network again.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
20

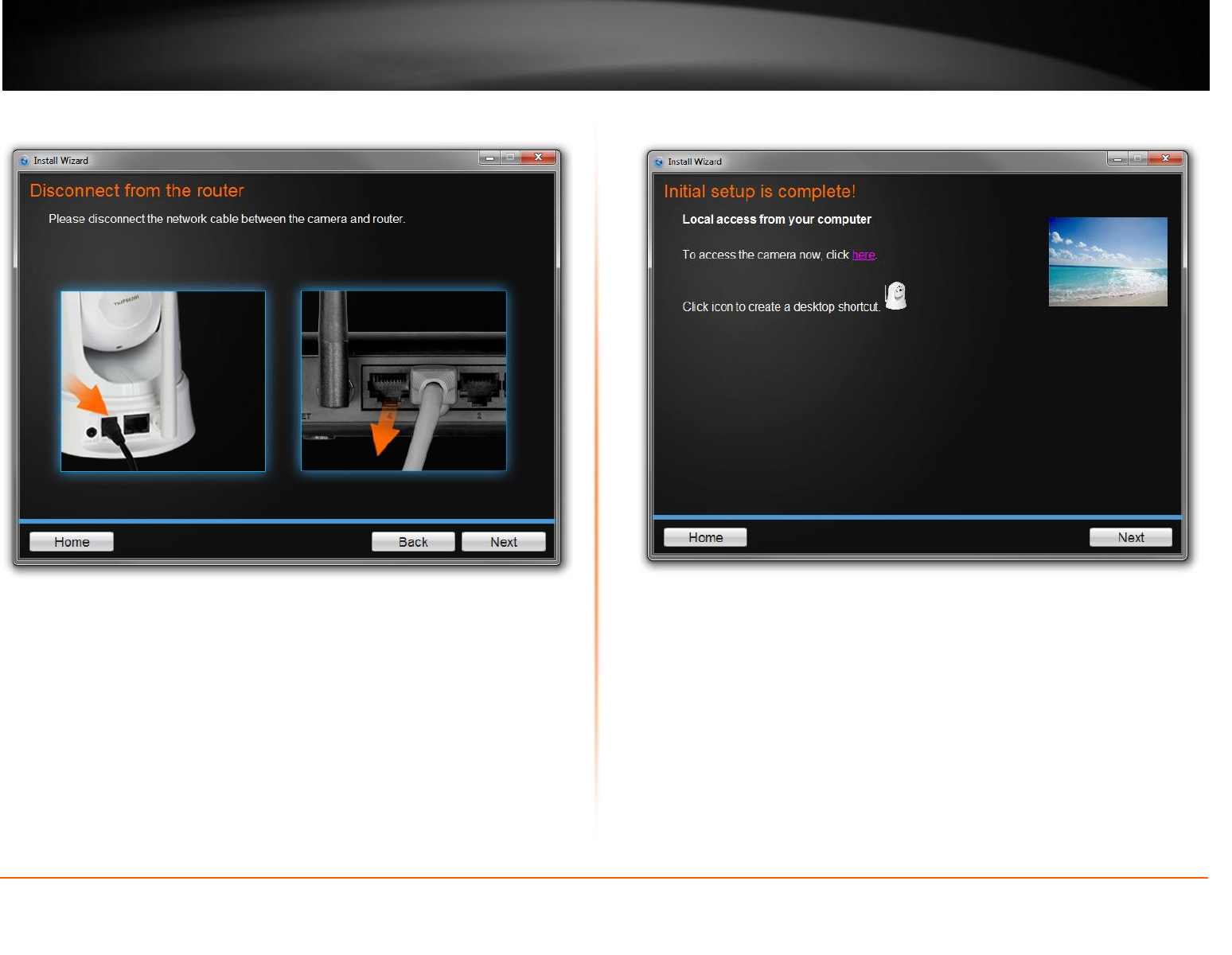

6. Next, you are prompted to disconnect your network cable from the
camera/router. Click Next to continue, Back to go to the previous screen or
Home to return to the Main Menu.
7. The initial setup is complete. Click the link to navigate to the camera’s Web
User Interface for further configuration or click Next to continue to the next
step.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
21
8. The Mobile App option allows the user to download the TRENDnet Mobile App
either for Apple iOS or Android™ format. To use this feature, the user must
have a QR Code Scanner App on their mobile device. This is also available from
the Apple App Store or Google Play. You are now ready to use your camera.
Click Finish to exit.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
22
Mobile Apps
Using your mobile
3
device, in this example it is an Android phone, touch the Bar Code
scanning app on your phone. Hold it up to the QR Code on the wizard that reads,
Android, and snap to scan the image. The Bar Code app will read the QR Code and
record it.
The app copies the QR link and provides a HTML link to the TRENDnet app. You will be
directed to the Google Play Storefront to download the app. Download the app,
install it and use the app on your mobile device to view the TRENDnet camera.
3
Please use the Quick Installation Guide to install the mobile applications or learn how
to use mobile accessibility.
Here is Apple iTunes version
Scan the QR Code using one of IOS’s QR Code apps. The app automatically creates an
HTML link to the iTunes App Store. You are immediately directed to the iTunes App
Store. Click the link to download.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
23
Configuration
After completing the AutoRun Wizard, you are ready to use your camera. The
camera’s built-in Web configuration utility is designed to allow you to easily access and
configure your camera. Open a web browser such as Internet Explorer® and enter the IP
address of your camera (Default IP Address: http://192.168.10.30).

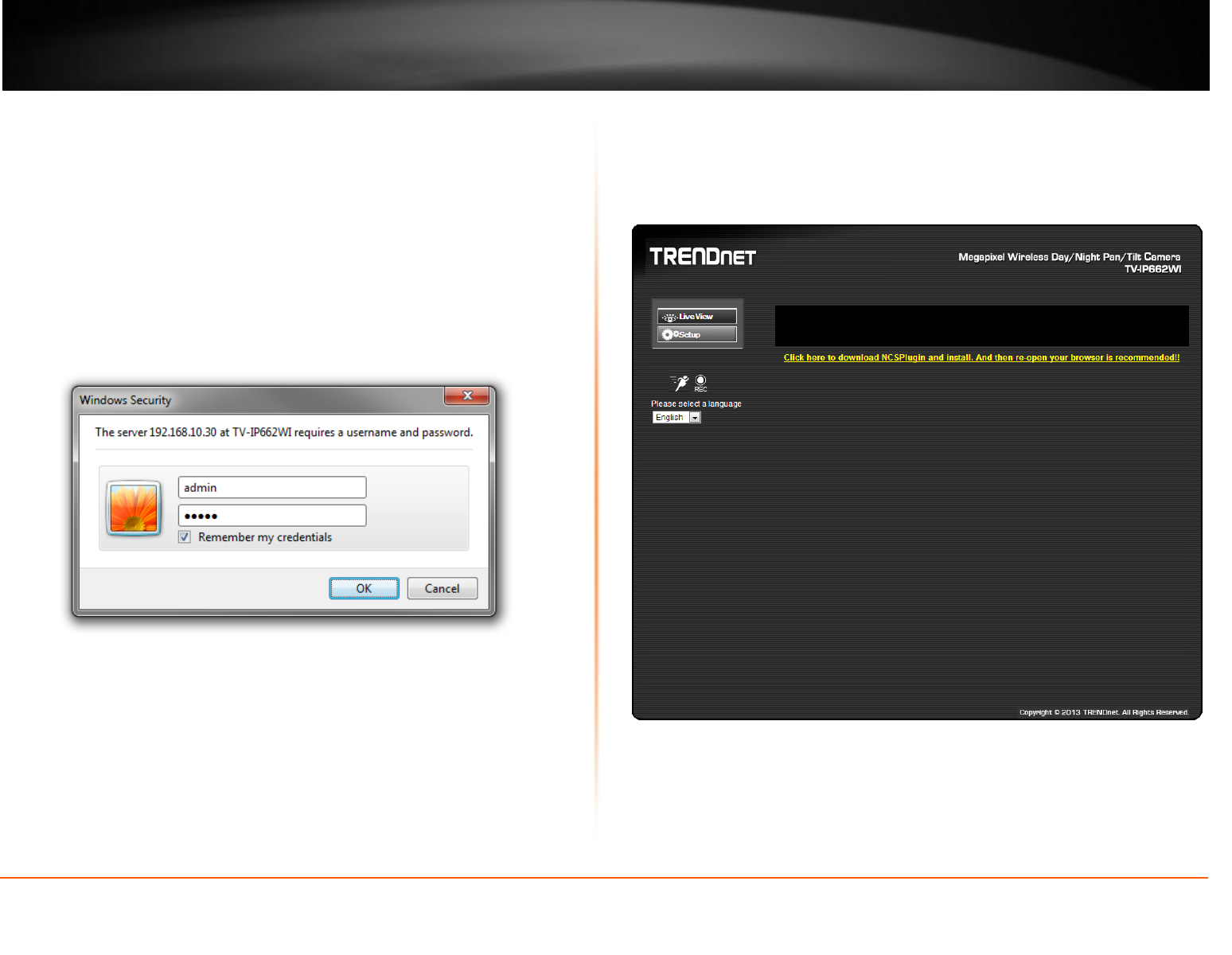

To log in, type the Username admin and the password you created in the Setup Wizard.
If you did not create a password, the default password is admin. After entering your
password, click OK.
These initial steps are using Internet Explorer.
PLEASE NOTE: Depending on the browser you are using, download the plugin needed
to view and access the camera feed.
After you have logged in, you need to install the plug-in required. Click the link below
the camera view finder to install the plug-in.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
24
Download the plugin to a folder on the local PC and run the downloaded plugin
installation file after the download.
Click Next to continue.
The Camera stream control application will be installed. Note: Make sure all Internet
browsers are closed during this installation.
Click the Close button to finish the installation.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
25
Main Web User Interface
After successfully logging into the Web User Interface of the camera, the following
window will appear.
The following table describes all the icons and settings that can be configured on the
Live View page:

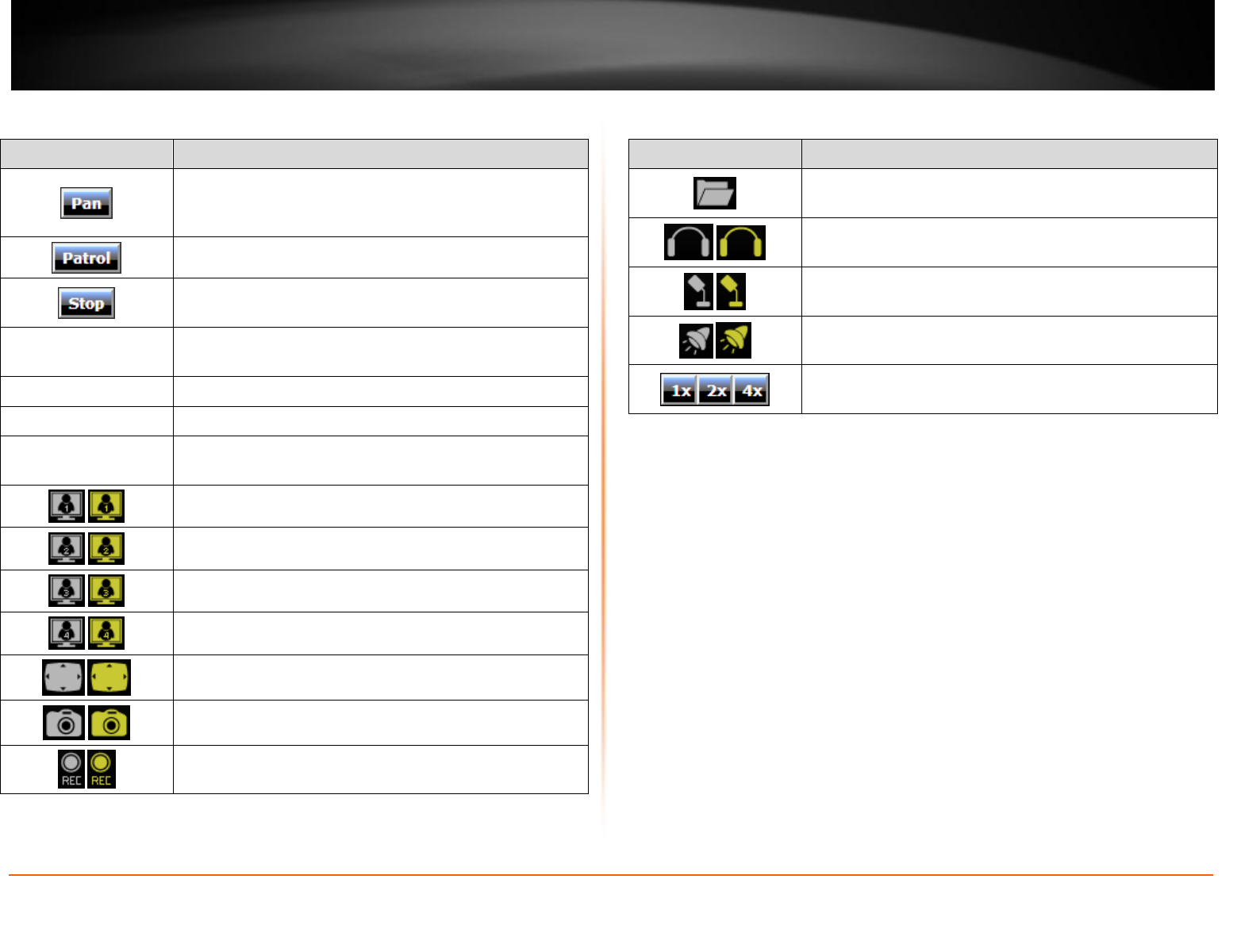

Icon
Description
Click this button to view the live video feedback of this
camera.
Click this button to access the setup pages for this camera.
This icon is used to display the motion detection status of the
current live video feed. This icon will be white when no
motion is detected and will be yellow when motion is
detected.
This icon is used to display the recording status of the current
live video feed. This icon will be white when not recording
and will be yellow when recording.
Day Mode will be displayed when the camera is supplying
video feed in a daylight (normal light) environment.
Night Mode will be displayed when the camera is supplying
video feed in a night time (low light) environment.
When the Day Mode is active, the video feed will be in color.
When the Night Mode is active, the video feed will be in
black and white.
This is the pan and tilt control panel. Click the left, right, up or
down arrows to control the camera to pan or tilt in the
direction needed. Also, for more accuracy, arrows are
available in between the left, right, up and down arrows.
Click the [+] button to return the camera to the home
position.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
26
Icon
Description
Click this button to initiate the automatic pan option. The
camera will pan to the far left and then to the far right and
then return to the home position.
Click this button to initiate the automatic patrol option.
Click this button to immediately stop the pan or patrol
options.
Go To
Select a pre-defined position option here. The camera will
then pan/tilt to the position selected.
Pan Speed
Select the pan speed value here.
Tilt Speed
Select the tilt speed value here.
Please select a
language
Select the display language here. Options to choose from are
English, German, Spanish, Russian, and French.
Click this icon to view the video profile 1.
Click this icon to view the video profile 2.
Click this icon to view the video profile 3.
Click this icon to view the video profile 4.
Click this icon to view the video feed in the full screen mode.
Click this icon to manually take a snapshot of the video feed.
Click this icon to manually enable or disable video recording.
Icon
Description
Click this icon to specify the video/snapshot storage folder on
the local PC.
Click this icon to enable or disable the audio feed from the
camera.
Click this icon to enable or disable the audio feed to the
camera.
Click this icon to manually toggle the video feed between the
Day and the Night Modes.
Click one of these options to digitally zoom the video feed by
1, 2 or 4 times.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
27
Setup
In the Setup section we can view and configure more advanced features available on
the IP camera. After clicking the Setup button, the following page will be displayed.
In the left side of this page, there is a Category menu. Except for Wizard, Motion
Detection, and Sound Detection, within each category, there are multiple pages
available that is used to configure different types of features available on this camera.
Wizard

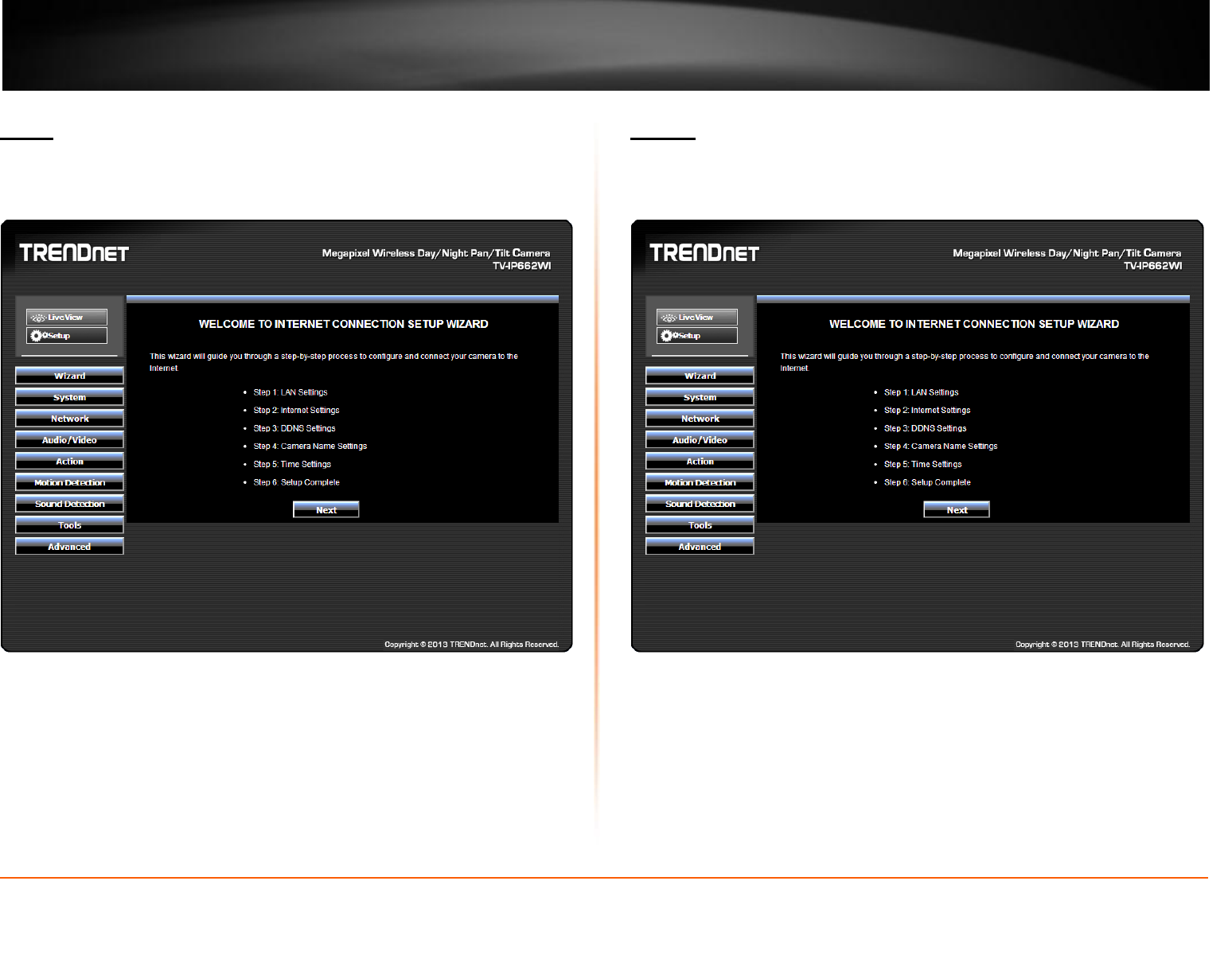

The first category option available is Wizard. The setup wizard will guide users through a
simplified step-by-step wizard to configure basic settings available on this camera.
This first page of the wizard will display a welcome message and layout the steps that
will be followed using this wizard. Click Next to continue.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
28

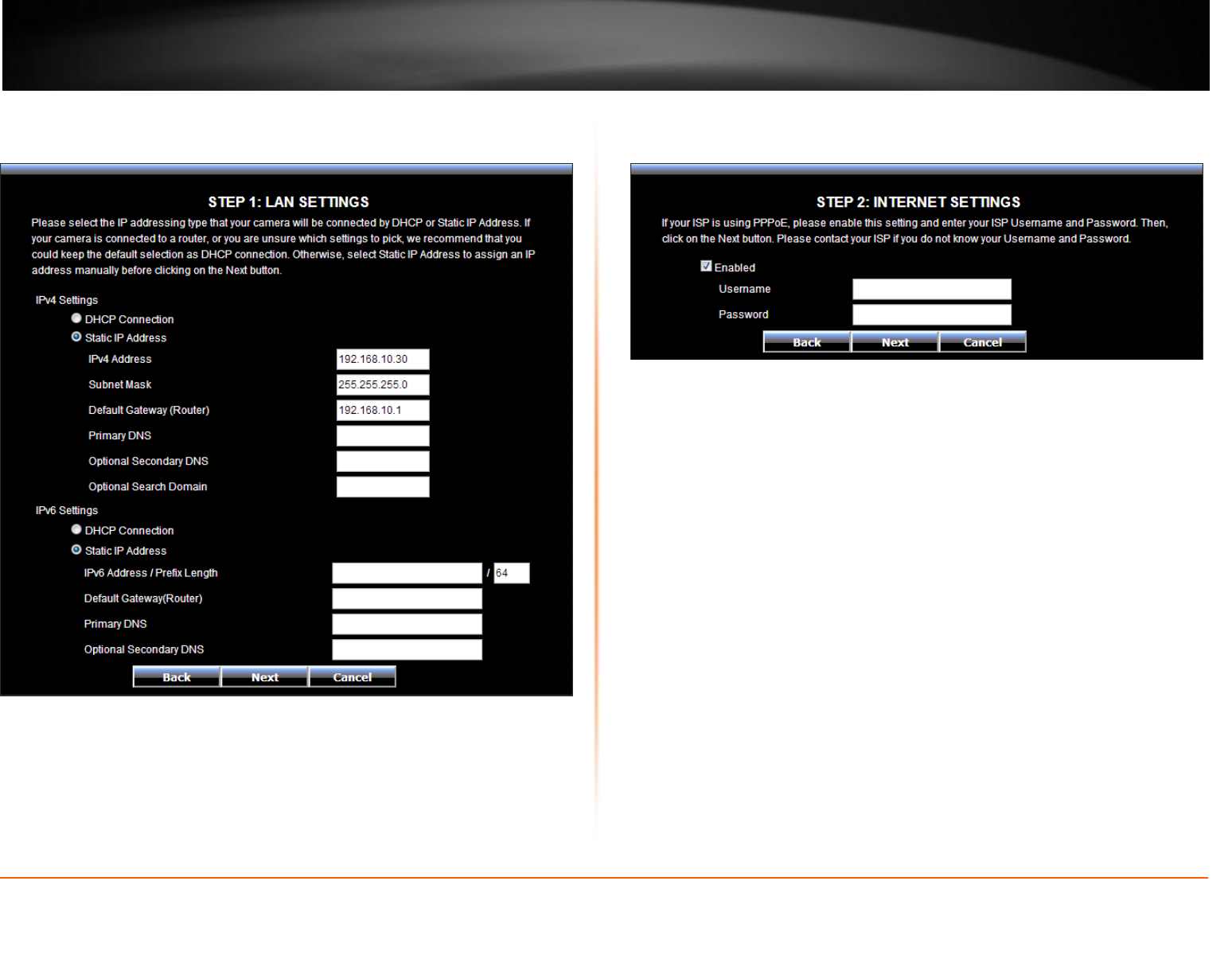

Step 1: LAN Settings
On this page users can configure the IPv4 and IPv6 connection settings for this camera.
Select DHCP Connection to allow the camera to automatically obtain the IPv4 or IPv6
settings from a DHCP server on the local network, or select Static IP Address to
manually enter the IPv4 and IPv6 connection settings. Click Next to continue.
Step 2: Internet Settings
This camera can connect to the Internet directly through the means of a PPPoE
connection. On this page users can enter the PPPoE Internet connection’s Username
and Password. Click the checkbox to enable this feature. This information can be
acquired from your ISP. Click Next to continue.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
29

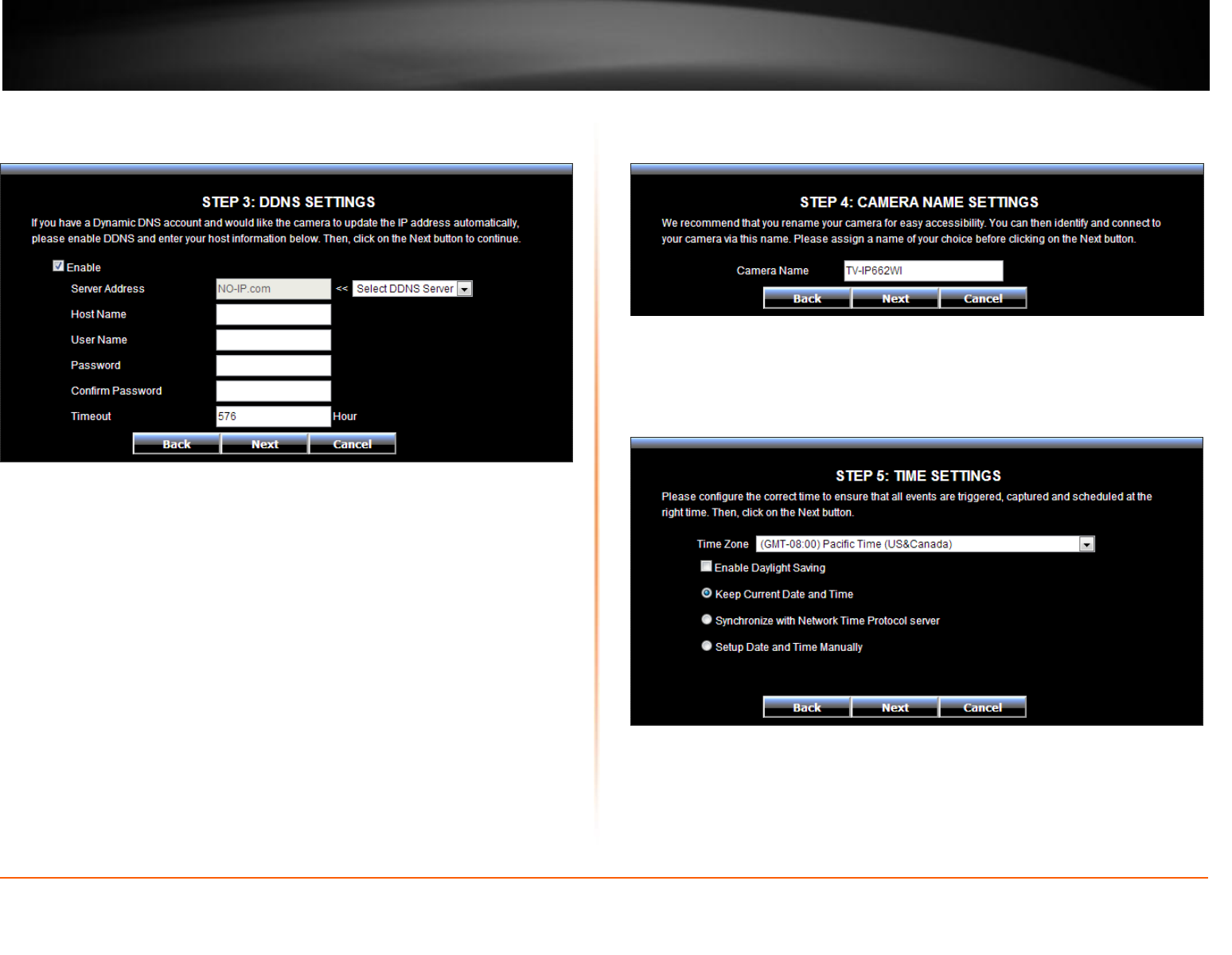

Step 3: DDNS Settings

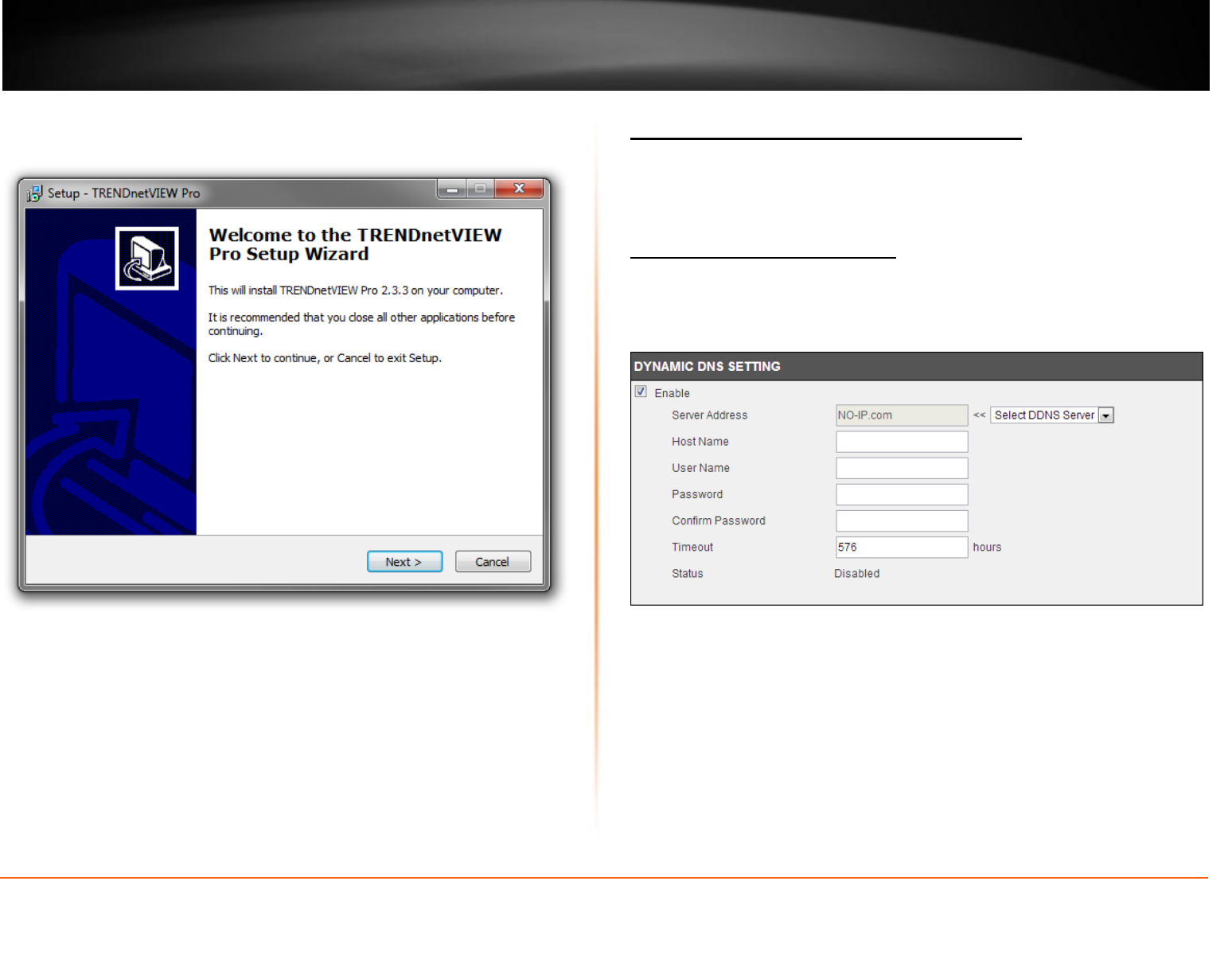

On this page users can configure the Dynamic DNS (DDNS) settings. Click the checkbox
to enable this feature. In Server Address, select one of the domains from the drop-down
menu. The field to the left of the drop-down menu automatically populates. Under Host
Name enter the name the DDNS service provided. Enter a Username and Password,
repeat the password and finally enter the Timeout value. Timeout states the time DDNS
is updated. Click Next to continue.
Step 4: Camera Name Settings
On this page users can configure the camera’s name. Enter a name for the camera. This
feature is helpful when you have more than one camera setup. Click Next to continue.

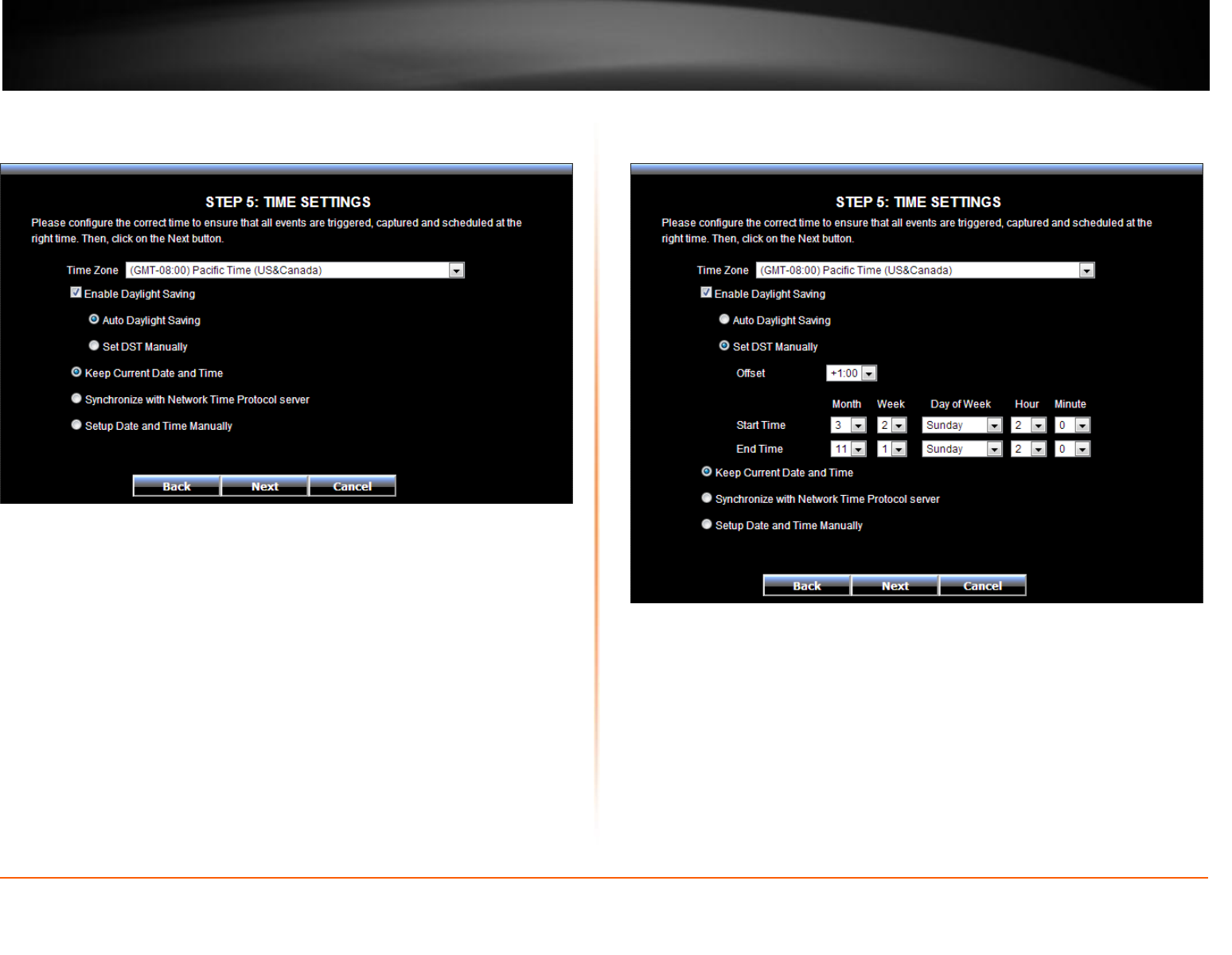

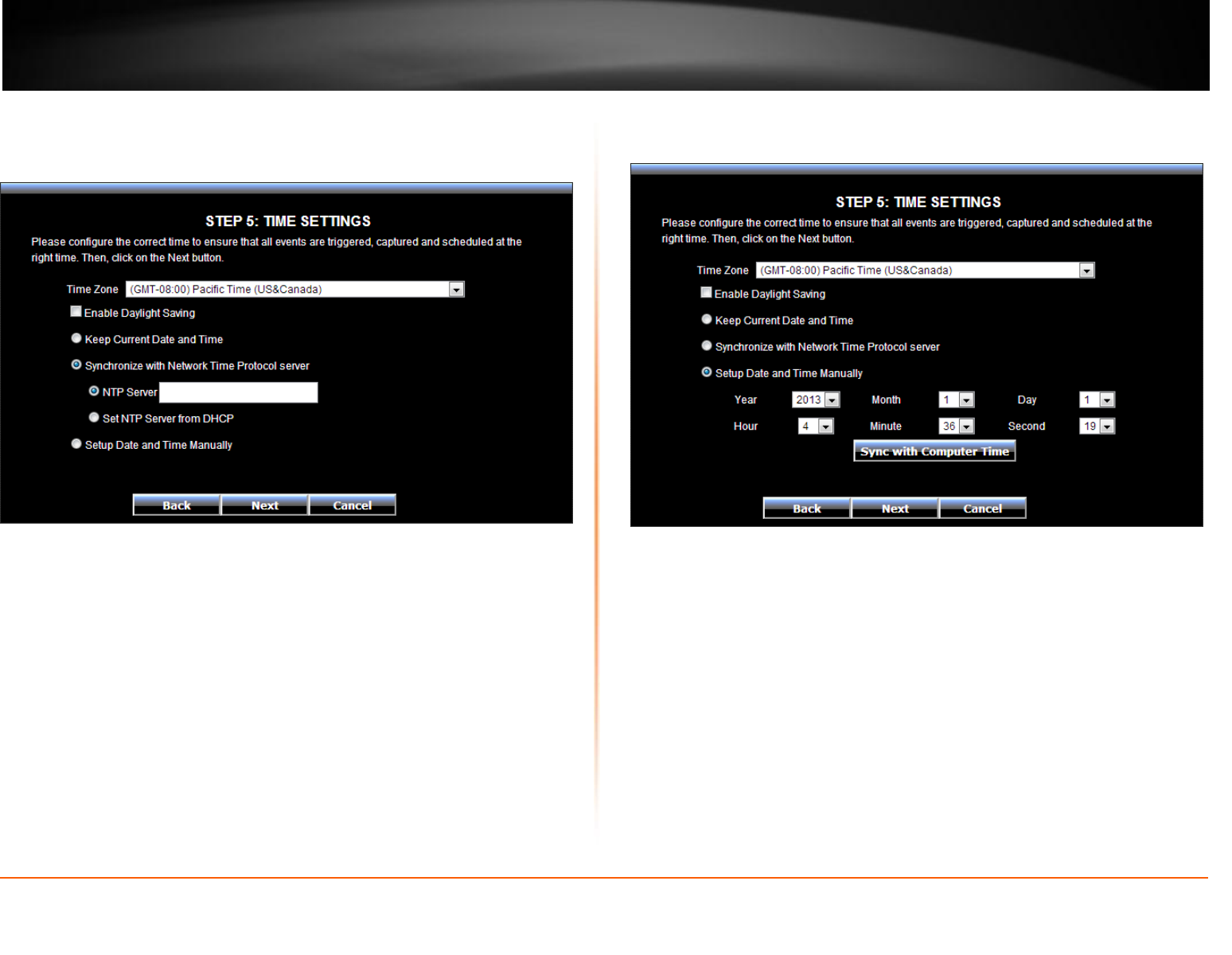

Step 5: Time Settings
On this page users can view and configure the time settings used by this router. This is a
dynamic page and will change depending on the selections made. From the drop-down
menu, select a Time Zone. To enable daylight saving time, tick the checkbox next to
Enable Daylight Saving.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
30
After enabling the daylight saving feature, the following will appear.
To allow the camera to automatically detect the daylight saving time, select the Auto
Daylight Saving option or select the Set DST manually option to manually enter the
daylight saving time.
After selecting the Set DST Manually option, the following will appear.
Select the Offset of the time within 1 to 2 hours. Then select a Start Time and an End
Time from the drop-down menus provided.
Select the Keep Current Date and Time option to keep the current date and time
configured on the camera. Select the Synchronize with Network Time Protocol server
option to make use of a time server to keep the date and time of this camera updated.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
31
After selecting the Synchronize with Network Time Protocol server option, the
following will appear.
Select and enter the NTP Server address used here or alternatively select the Set NTP
Server from DHCP option to allow the camera to obtain the date and time settings from
the NTP Server that is configured to run in collaboration with the DHCP server on your
local network.
Select the Setup Date and Time Manually option to manual configure the date and time
settings for this camera.
After selecting the Setup Date and Time Manually option, the following will appear.
Select the Year, Month, Day, Hour, Minute, and Second options from the drop-down
menus provided to manually configure the date and time settings used by the camera.
Alternatively, click the Sync with Computer Time button to automatically configure the
camera’s date and time settings to be the same as the current date and time settings on
the local computer. Click Next to continue.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
32

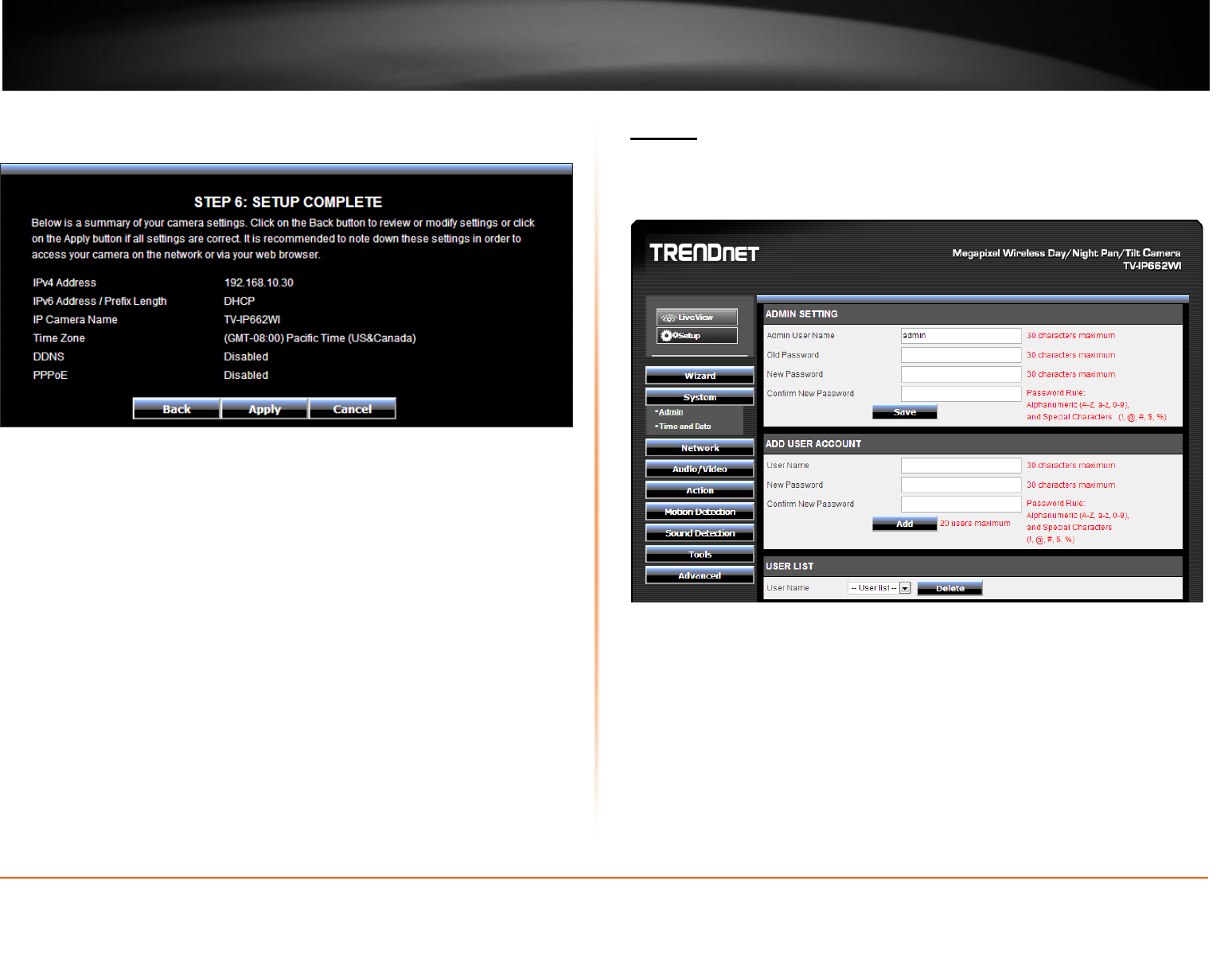

Step 6: Setup Complete
This is the final screen of the wizard. It shows the configuration options selected. Click
Apply to make the changes. After clicking the Apply button, a notice will appear to
mention that the camera will restart in 60 seconds and that it is saving the settings to
the camera. After the restart, the Web UI will direct back to the start of the wizard.
System
The next category option available is System. In the System category we can configure
administrative settings and the date and time settings.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
33
Admin

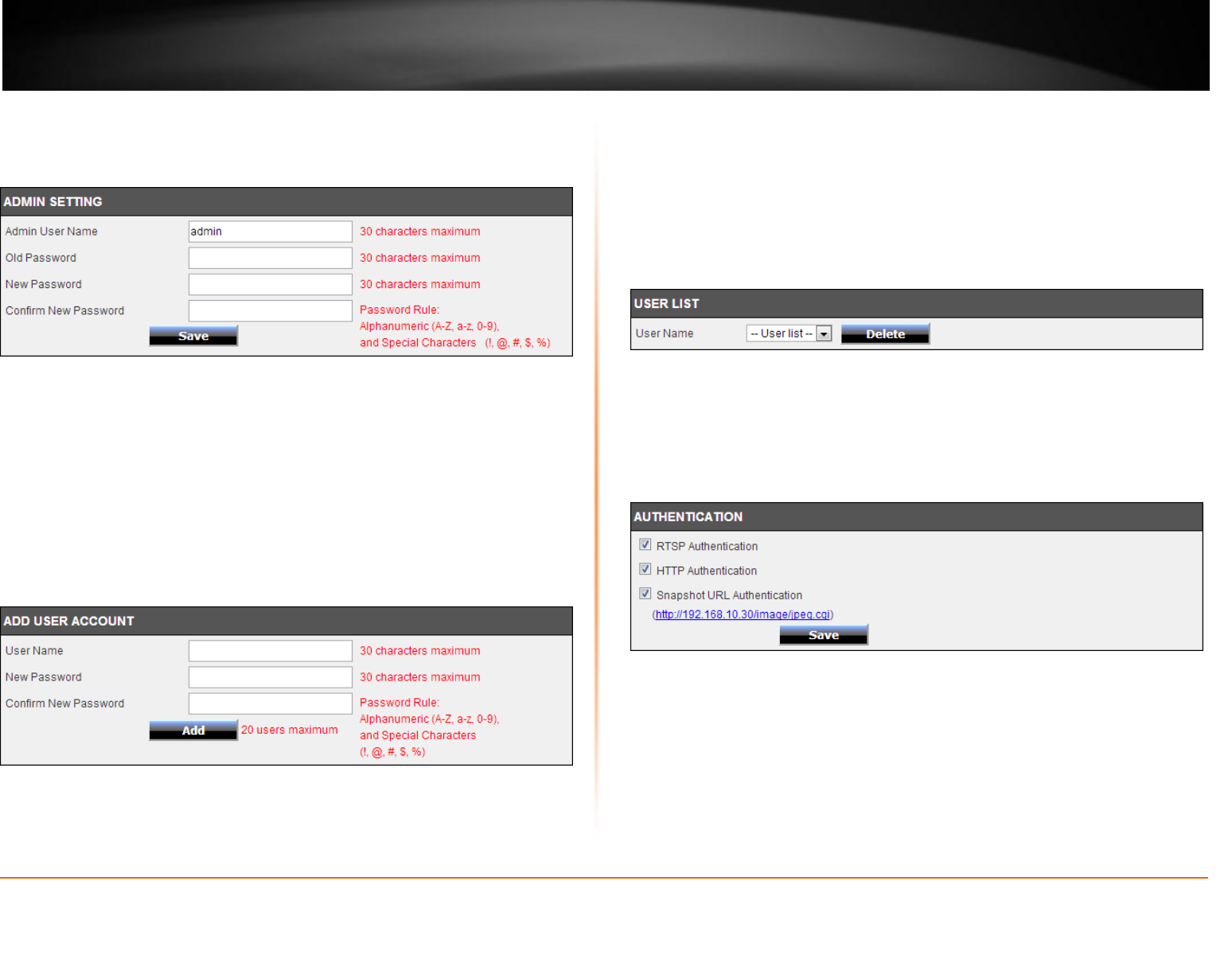

In the Admin Settings section, we can configure the following.
In this section we can configure the administrator account’s login credentials that will
be used to login to the camera’s Web UI. In the Admin User Name field, enter the login
username that will be used for this camera. In the Old Password field enter the
old/current login password of the camera. In the New Password and Confirm New
Password fields, enter the new login password that will be used for this camera. Click
the Save button to save the modifications made.
Note that the password can only contain: Alphanumeric: A-Z, a-z, 0-9, and Special
Characters: !, @, #, $, %
In the Add User Account section, we can configure the following.
In this section we can configure the user account’s login credentials that will be used to
login to the camera’s Web UI. In the User Name field, enter the login username that will
be used for this camera. In the New Password and Confirm New Password fields, enter
the new login password that will be used for this camera. Click the Add button to add
the new user account created.
In the User List section, we can configure the following.
The User Name list will be populated with the names of the user accounts created in the
previous section. To delete a user, select the user from the drop-down list and click the
Delete button.
In the Authentication section, we can configure the following.
Tick the RSTP Authentication option to enable RSTP real-time authentication. Tick the
HTTP Authentication option to enable HTTP authentication. Tick the Snapshot URL
Authentication option to enable snapshot authentication of the current video stream
using the hyperlink. Click the Save button to save the modifications made.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
34

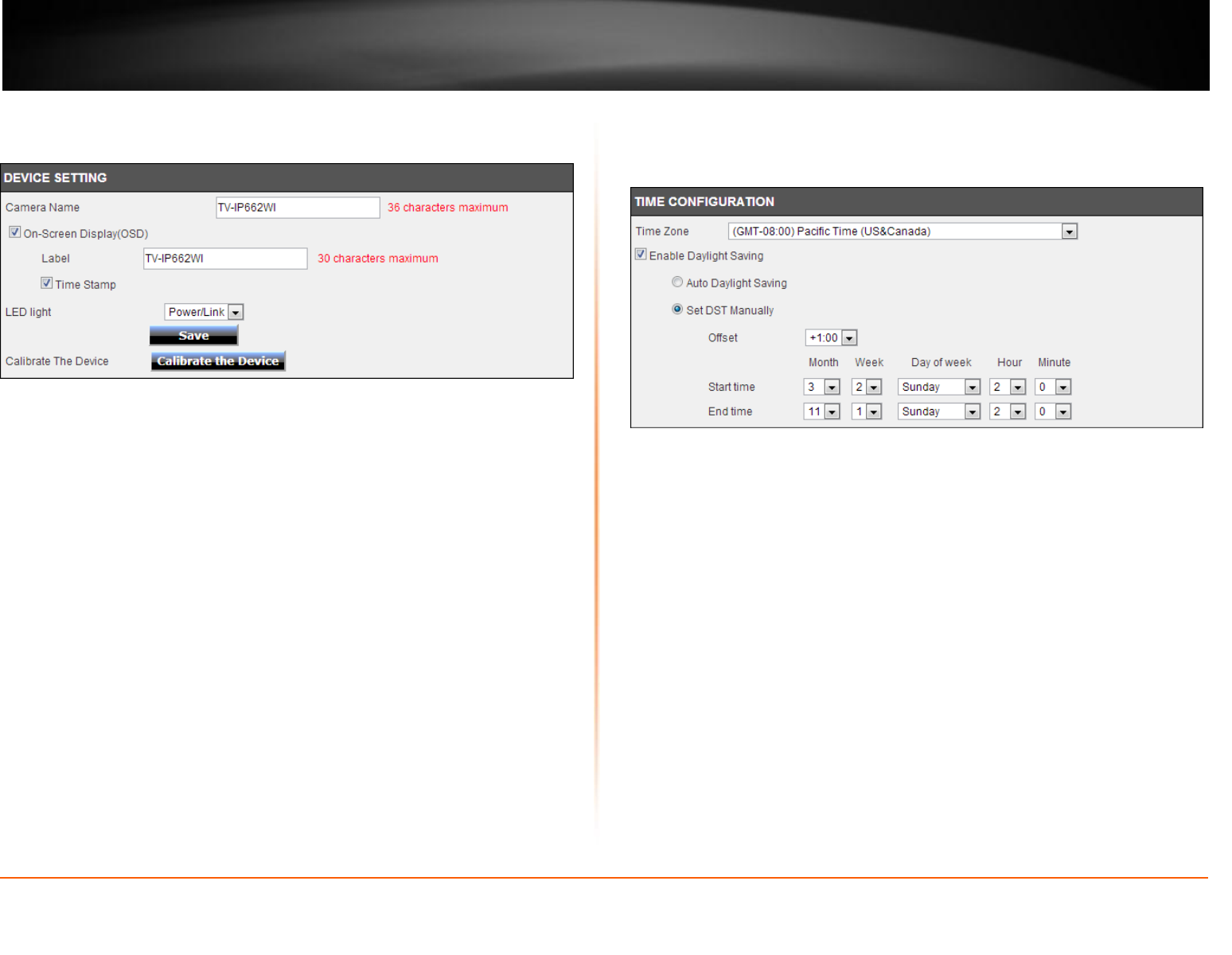

In the Device Settings section, we can configure the following.
Enter the Camera Name in the space provided. Tick the On-Screen Display (OSD) option
to display the label, date and time on the video feed. Enter the Label name in the space
provided. Tick the Time Stamp option to display the date and time on the video feed.
Select the LED light option from the drop-down list. When selecting the Power/Link
option, the LED will light up when the camera has power and a network link. When
selecting the Off option, the LED will be turned off. When selecting the Blinking option,
the LED will rhythmically blink.
To calibrate the pan and tilt region of the camera, click the Calibrate the Device button.
Time and Date
In the Time Configuration section, we can configure the following.
Select the Time Zone option from the drop-down menu. Tick the Enable Daylight Saving
option to enable the daylight saving feature on this camera. Select the Auto Daylight
Saving option to automatically receive the daylight saving update from the time server.
Select the Set DST Manually option to manually configure the daylight saving time
options. After selecting to manually configure the daylight saving time, select the Offset
value used. Select the Start time and End time options.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
35
In the Automatic Time Configuration section, we can configure the following.
Tick the Synchronize with Network Time Protocol server option to enable the
automatic time configuration option. Enter the NTP Server address of the time server
used here or select the Set NTP Server from DHCP option to allow the camera to obtain
the date and time settings from the NTP Server that is configured to run in collaboration
with the DHCP server on your local network.
In the Set Date and Time Manually section, we can configure the following.
Tick the Setup Date and Time Manually option to manually configure the date and time
settings for this camera. Select the Year, Month, Day, Hour, Minute, and Second
options from the drop-down menus provided to manually configure the date and time
settings used by the camera. Alternatively, click the Sync with Computer Time button to
automatically configure the camera’s date and time settings to be the same as the
current date and time settings on the local computer. Click the Apply button to apply
the modifications made.
Network
The next category option available is Network. In the Network category we can
configure the wired and wireless network settings. Also available for configuration in
this category is Dynamic DNS.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
36
Network
In the LAN Settings section, we can configure the following.
In the IPv4 Settings part, we can configure the IPv4 network settings used by this
camera. Select the DHCP Connection option to automatically obtain the IPv4 network
settings, for this camera, from a DHCP server, located on the local network.
Select the Static IP Address option to manually configure the IPv4 network settings used
by this camera. Enter the IPv4 Address, Subnet Mask, Default Gateway, Primary DNS,
Optional Secondary DNS, and Optional Search Domain parameters in the spaces
provided.
This camera can connect to the Internet directly through the means of a PPPoE
connection. Tick the PPPoE option to enable this feature. Enter the PPPoE Internet
connection’s User Name and Password in the spaces provided. This information can be
acquired from your ISP.
In the IPv6 Settings part, we can configure the IPv6 network settings used by this
camera. Select the DHCP Connection option to automatically obtain the IPv6 network
settings, for this camera, from a DHCP server, located on the local network.
Select the Static IP Address option to manually configure the IPv6 network settings used
by this camera. Enter the IPv6 Address/Prefix Length, Default Gateway (Router),
Primary DNS, and Optional Secondary DNS parameters in the spaces provided.
In the Port Settings part, enter the HTTP Port and RSTP Port numbers used.
In the UPnP part, tick the UPnP option to enable the UPnP feature on this camera. Tick
the UPnP Port Forward option to enable the UPnP port forwarding feature. Enter the
External HTTP and External RSTP port number in the respective spaces provided.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
37
In the Apple part, we can enable the Bonjour feature. Click the Apply button to apply
the modifications made.
Wireless Setup

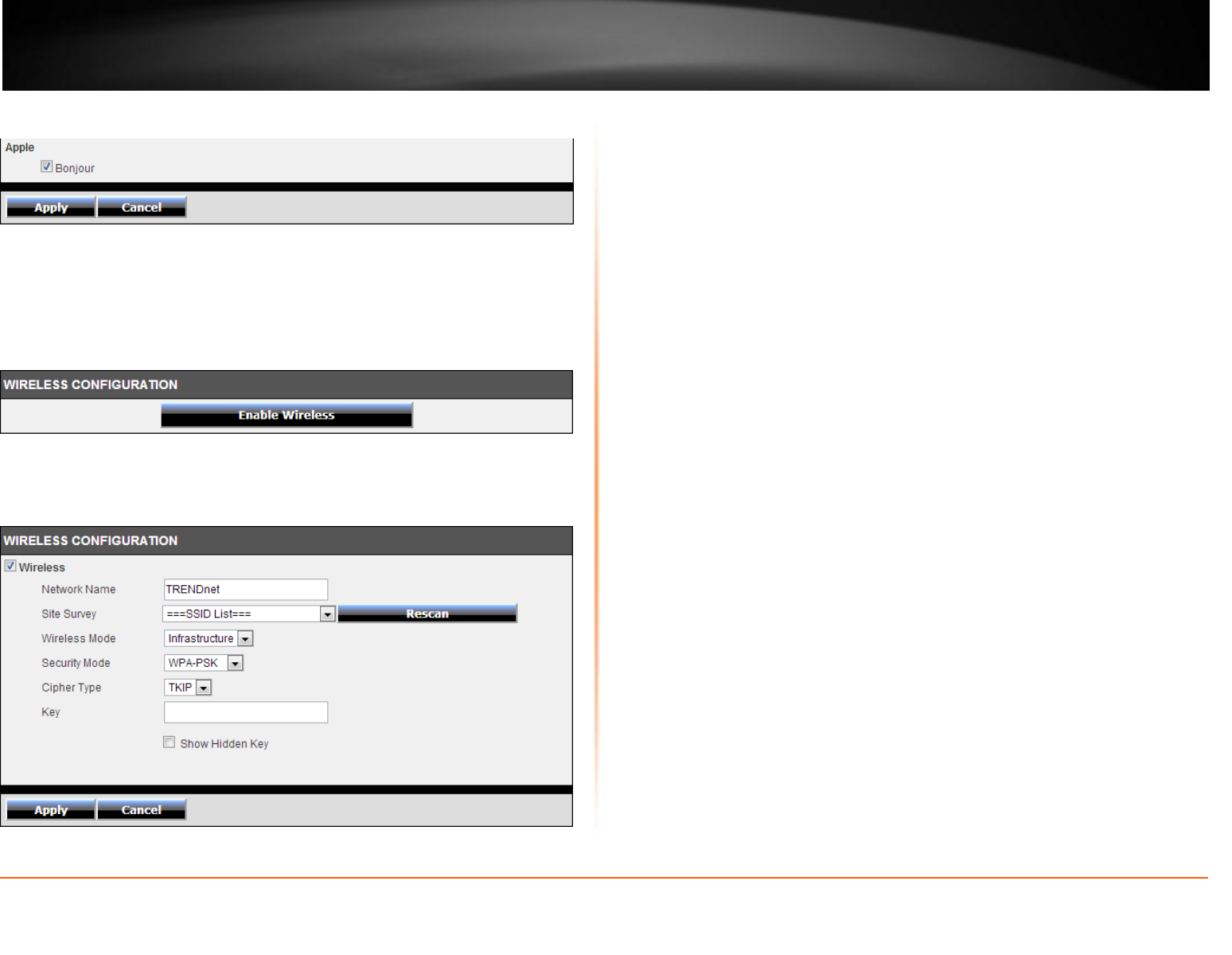

In the Wireless Configuration section, we can configure the following.
Click the Enable Wireless button to enable the wireless feature for this camera. After
clicking the Enable Wireless button, the camera will restart (80 seconds) and the
following page will be available.
Untick the Wireless option to disable the wireless functionality of this camera. Enter the
wireless Network Name (SSID) in the space provide or select the wireless network name
from the Site Survey drop-down list. If the wireless network exists and is not displayed
in the Site Survey drop-down list, click the Rescan button to rescan for available
wireless networks.
Select the Wireless Mode for this camera. The two supported modes are Infrastructure
and Ad-Hoc. When connecting the camera to a wireless access point or router, use the
infrastructure mode. When connecting the camera to a wireless adapter directly, select
the ad-hoc mode. After selecting the ad-hoc mode, we will be able to manually select
the wireless Channel number used for the connection.
Select the Security Mode for this camera. The four supported security modes for this
camera are None, WEP, WPA-PSK, and WPA2-PSK. After selecting WPA-PSK or WPA2-
PSK as the security mode, select the Cipher Type used for this security mode. After
selecting WEP, WPA-PSK, or WPA2-PSK as the security mode, enter the wireless Key
used in the space provided.
Tick the Show Hidden Key option to display the key entered.
Click the Apply button to apply the modifications made.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
38
Dynamic DNS

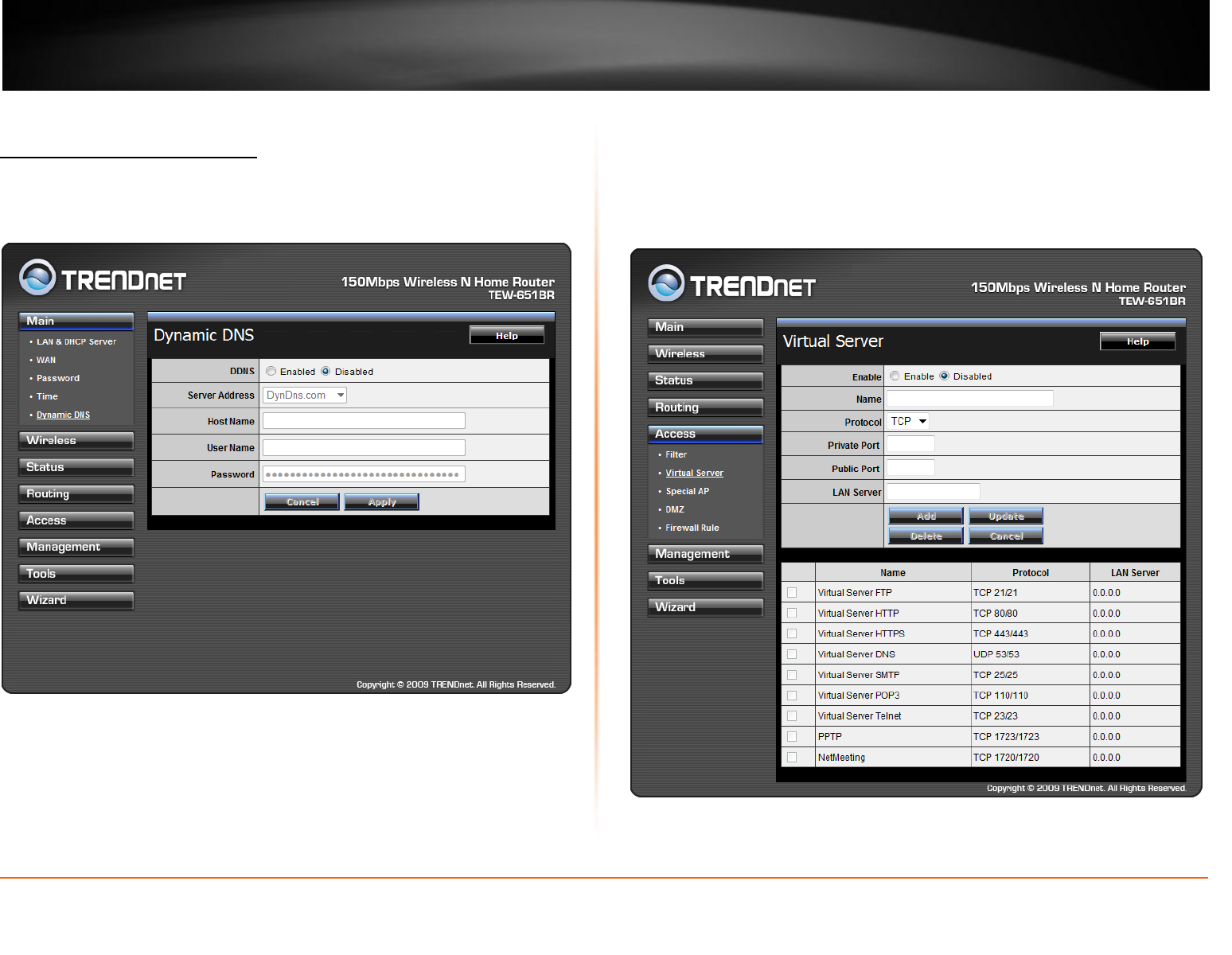

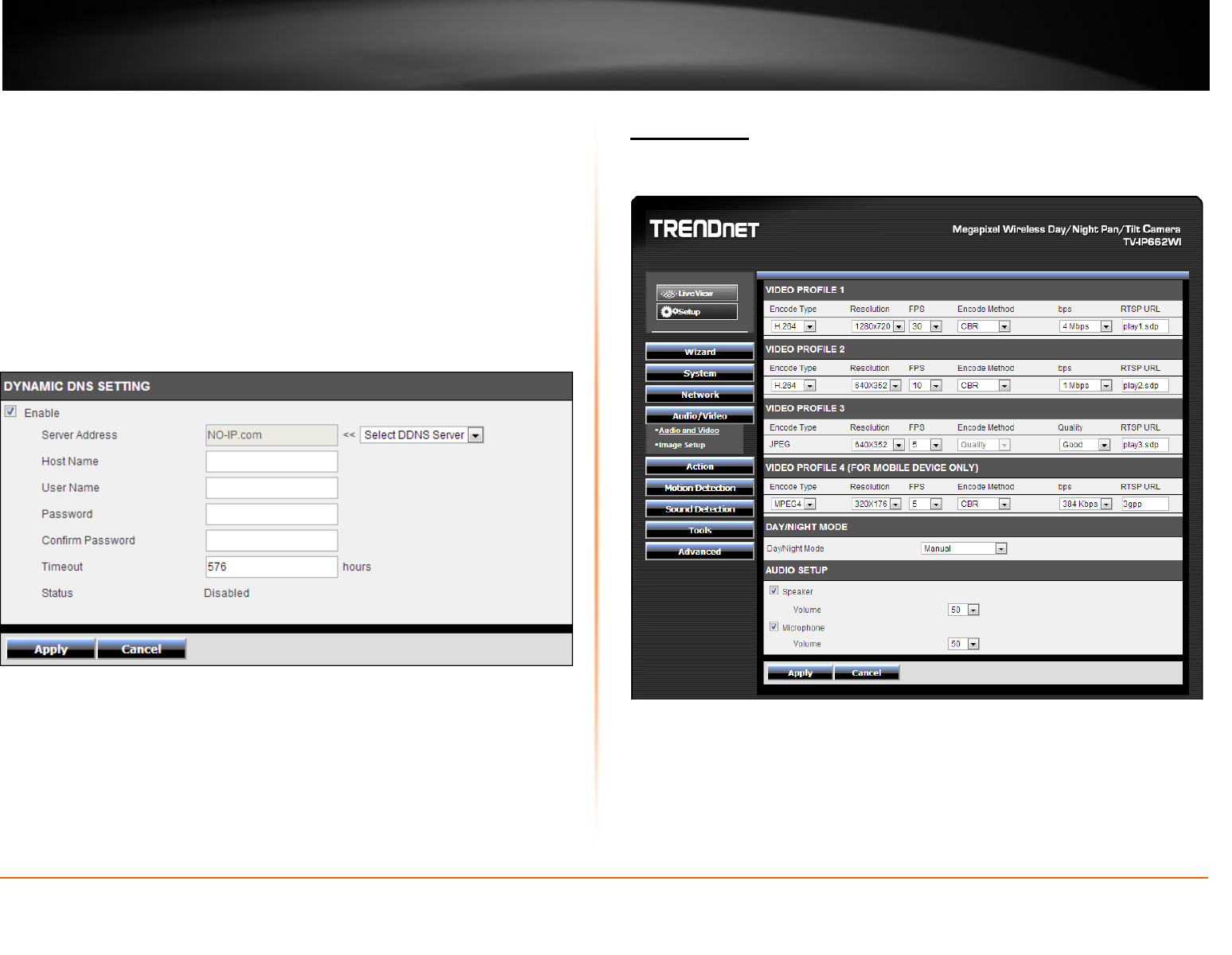

Dynamic DNS is a method of keeping a domain name linked to a changing public IP
address as not all public IP addresses are static. Typically, when a user connects to the
Internet, the user’s ISP assigns an unused IP address from a pool of IP addresses and this
address is used only for the duration of that specific connection. This method of
dynamically assigning addresses extends the usable pool of available IP addresses. A
dynamic DNS service provider uses a special program that runs on the user’s computer,
contacting the DNS service each time the IP address provided by the ISP changes and
subsequently updating the DNS database to reflect the change in IP address.
In the Dynamic DNS Settings section, we can configure the following.
Tick the Enable option to enable the Dynamic DNS feature. Select the DDNS service
provider from the drop-down list after which the service provider’s name will be moved
to the Server Address field. Enter the Host Name, User Name, Password, and Timeout
information in the spaces provided. Click the Apply button to apply the modifications
made.
Audio/Video
The next category option available is Audio/Video. In the Audio/Video category we can
configure audio and video profiles and settings as well as configure image settings.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
39
Audio and Video

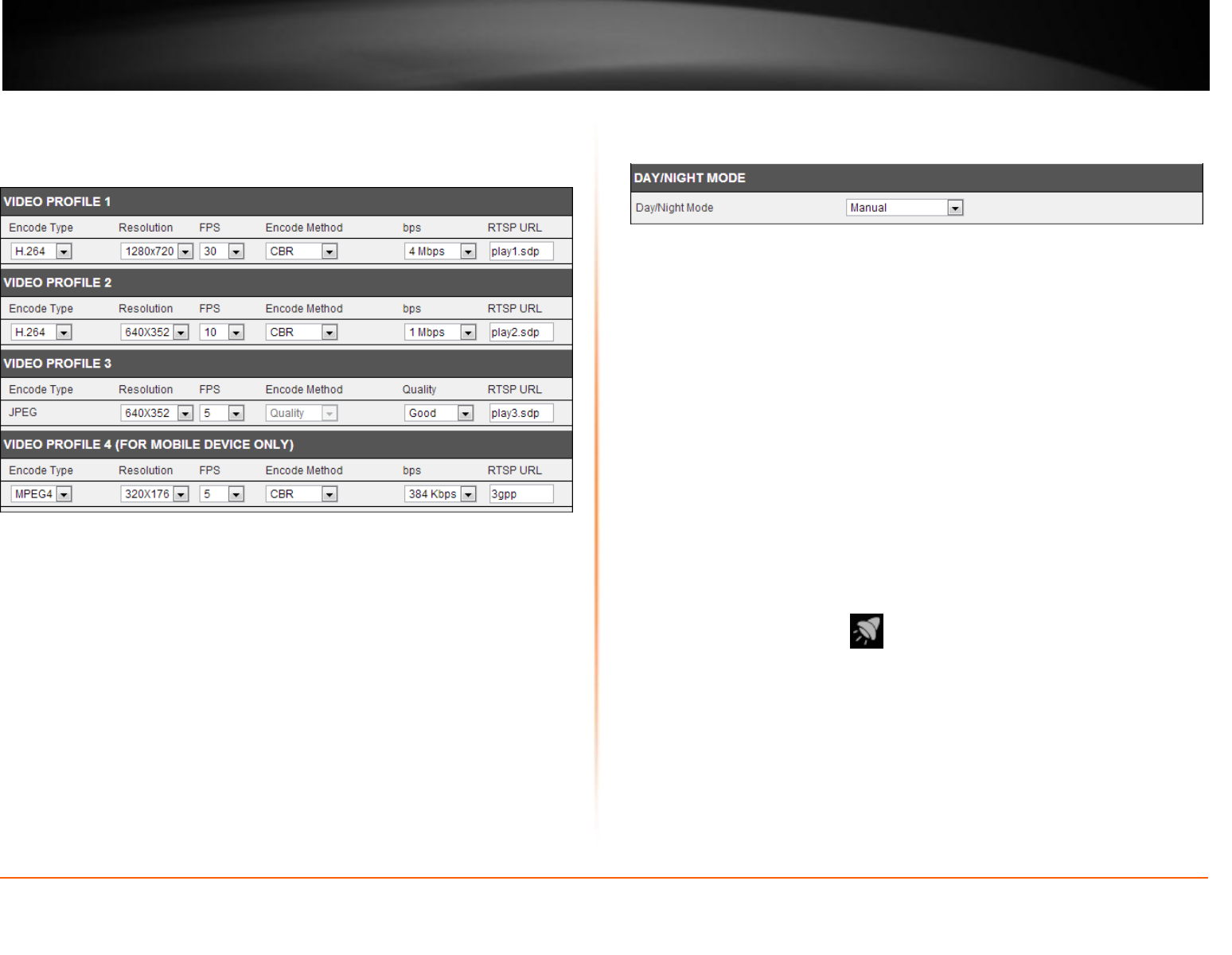

In the Video Profile sections, we can configure the following.
Select the Encode Type option from the drop-down list. Encoding types that can be
selected are MPEG4, H.264, and profile 3 will be on JPEG permanently.
Select the Resolution size option from the drop-down list. Resolutions that can be
selected are 1280x720, 640x352, 320x176, and 160x80. The resolution of 120x720 is
only available on profiles 1 and 3.
Select the Frames Per Second (FPS) from the drop-down list. FPS speeds that can be
selected are 30, 15, 10, 6, 5, 3, 2, and 1.
Select the Encode Mode option from the drop-down list. Encoding modes that can be
selected are Constant Bit Rate (CBR) and Quality and profile 3 will use the quality mode
permanently.
After selecting CBR as the Encode Mode, select the Bits Per Second (bps) value. Options
to choose from are between 64 Kbps and 4 Mbps. After selecting Quality as the Encode
Mode, select the Quality option. Options to choose from are Low, Fair, Standard, Good,
and Excellent.
Users can also enter a custom RSTP URL in the space provided.
In the Day/Night Mode section, we can configure the following.
The camera allows users to record data in day and night mode. The camera has IR LED’s
for night mode. When selecting the Day mode, the viewing image is in normal color.
However, when you use Night mode, the viewing image turns black and white. The
reason for this is to create a clearer and smoother image. When you select automatic
mode, the Day/Night function is concealed.
Please Note: This allows you to set the camera to switch automatically from day to night
mode (default) or to permanently set the color and Black/White operations. Also note,
even when the camera is set to color mode, it will switch to Black/White night vision if
there is no longer enough ambient light to support the color saturation.
Select the Day/Night Mode option from the drop-down list. Options to choose from are
Auto, Manual, Always day mode, Always night mode, and Schedule. When selecting
Auto, the camera will automatically switch between day and night modes depending on
the light conditions. When selecting Manual, the user can manually toggle between day
and night modes by clicking the button on the Live View page. When selecting
Always day mode or Always night mode the camera will stay on the mode selected
even when the light conditions change. When selecting the Schedule option, the camera
will toggle between day and night modes depending on the time schedule configured.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
40
In the Audio Setup section, we can configure the following.
Tick the Speaker option to enable the audio feed from the camera to the PC. Tick the
Microphone option to enable the audio feed from the PC to the camera. Select the
Volume level for both selections. Click the Apply button to apply the modifications
made.
Image Setup

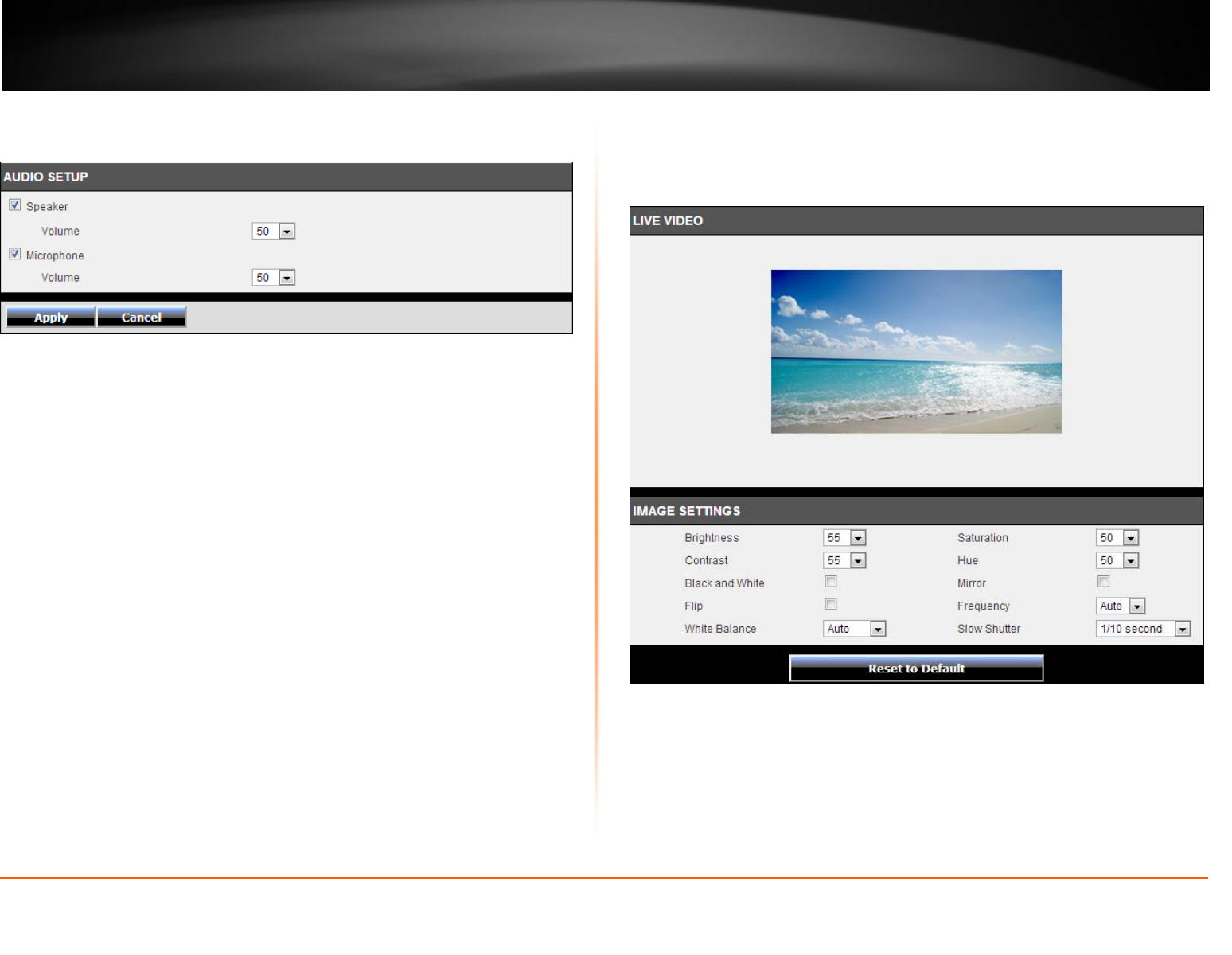

In the Live Video section, we can view the live video feed while we do image
modifications in the Image Settings section.
Select the Brightness, Saturation, Contrast, and Hue values from the respective drop-
down menus. Tick the Black and White option to change the image color to black and
white. Tick the Mirror option to flip the video image horizontally. Tick the Flip option to
flip the video image vertically for upside-down mounting. Select the video Frequency
value from the drop-down list.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
41
Select to enable or disable the auto White Balance feature. To enable the Slow Shutter
feature, select one of the time values (1/15 second, 1/10 second, 1/7.5 second or
1/3.75 second) from the drop-down list. Click the Reset to Default button to return the
image settings to their default values.
Action
The next category option available is Action. In the Action category we can configure
the action that will be taken when recording is done.
Recording
This camera allows users to record video, based on a trigger event, and then save the
video recording either on a micro SD card or on a Samba server shared folder. In the
Recording section, we can configure the following.
Tick the Enable option to enable the recording feature. Select the Trigger by option
from the drop-down list. Options to choose from are Motion, Schedule, Always, and
Sound. The parameters available for configuration will change depending on the
selections made.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
42

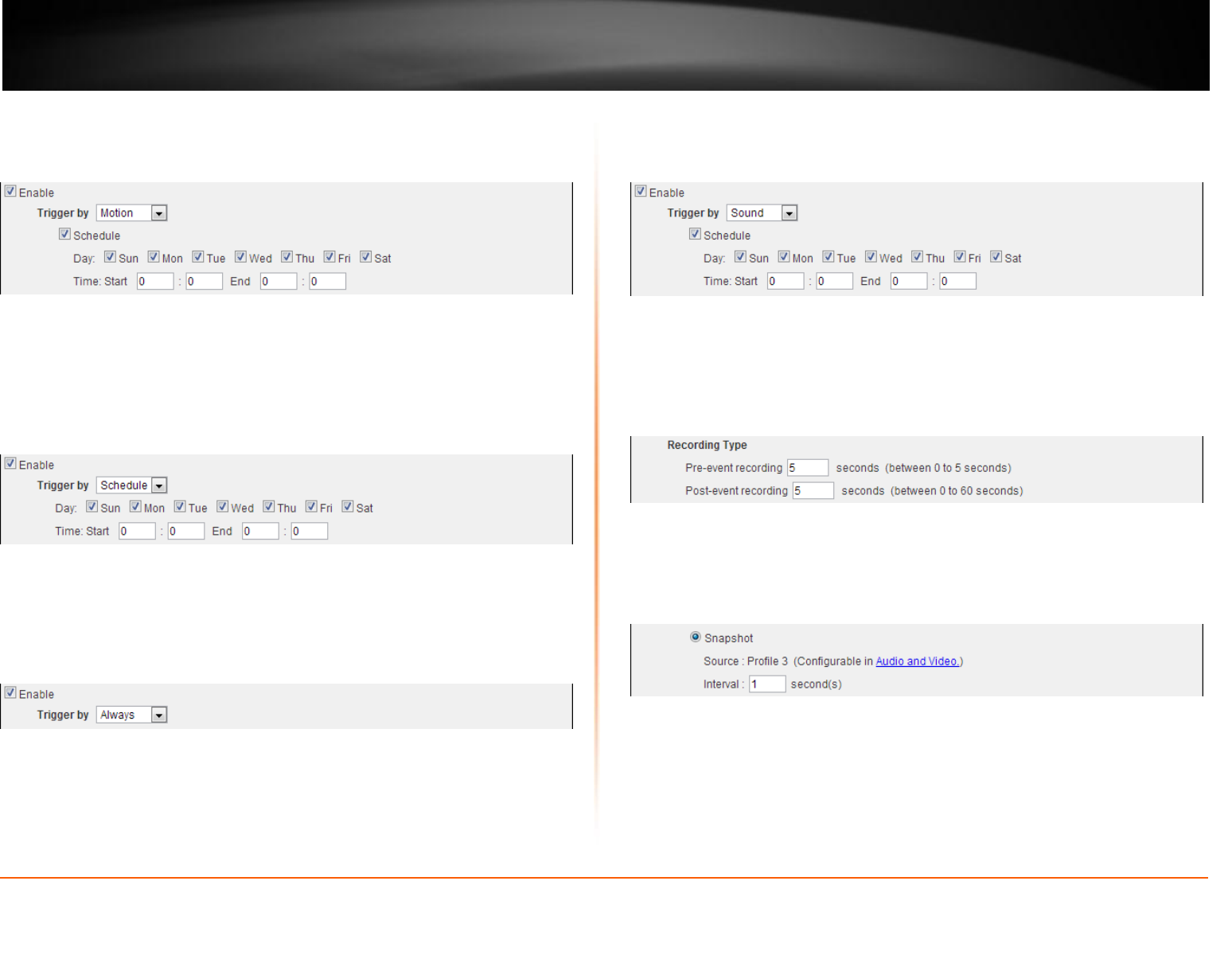

After selecting the Motion option as the Trigger by event, the following can be
configured.
Selecting Motion, will tell the camera only to record when motion is detected. Tick the
Schedule option to only record motion at specific times of the week. Tick the Day and
enter the Start and End times.
After selecting the Schedule option as the Trigger by event, the following can be
configured.
Selecting Schedule, will tell the camera to record always within the scope of the
schedule configured. Tick the Day and enter the Start and End times.
After selecting the Always option as the Trigger by event, the following can be
configured.
Selecting Always, will tell the camera to record always.
After selecting the Motion option as the Trigger by event, the following can be
configured.
Selecting Sound, will tell the camera only to record when sound is detected. Tick the
Schedule option to only record video when sound is detected at specific times of the
week. Tick the Day and enter the Start and End times.
In the Recording Type section, we can configure the following.
Enter the Pre-event recording and Post-event recording time values in the respective
fields provided.
When selecting the Snapshot option, the following can be configured.
Selecting this option will tell the camera to only take a snapshot (an image capture) of
the video feed when the abovementioned criteria are met. Enter the Interval value in
the space provided. The interval value means that a snapshot will be taken at every
interval configured. Only Profile 3 can be used for this selection.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
43
When selecting the Video option, the following can be configured.
Selecting this option will tell the camera to record a video clip when the
abovementioned criteria are met. Select the video profile (Source) that will be used for
the recording. Select the File Format that the recording will be saved as. File formats
available are AVI and MP4. Select the Recording clip time value between 1 and 6
minutes. This will split the total recording into smaller separate files for the duration of
the recording.
In the Target section, we can configure the following.
After selecting Micro SD Card as the recording Target, the recording will be saved on the
micro SD card installed in the camera. Enter the Keep Free Space value that is needed
on the micro SD card. Tick the Recycle option to record until the space is filled on the
micro SD card and then to record over the oldest recordings found on the card.
After selecting Samba Network Storage as the recording Target, the recording will be
saved on the Samba network attached storage available on the local network.
After selecting Samba Network Storage as the recording Target, the recording will be
saved on the Samba network storage available on the network. Enter the Samba Server
Address in the space provided. To connect to the Samba server as anonymous, select
the Anonymous option. To connect the Samba server with a user account, select the
Account option and enter the Username and Password in the spaces provided.
Enter the Share Folder name, Sub Folder name, and Keep Free Space information in the
spaces provided. Tick the Recycle option to record until the space is filled on the Samba
server account and then to record over the oldest recordings.
Click the Apply button to apply the modifications made.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
44
Video Clip
This camera allows users to record video clips and then send it to an FTP server or email
the video to an email account. In the Video Clip section, we can configure the following.
Tick the Enable option to enable the video clip feature. Select the Trigger by option
from the drop-down list. Options to choose from are Motion, Schedule, Always, and
Sound. The parameters available for configuration will change depending on the
selections made.

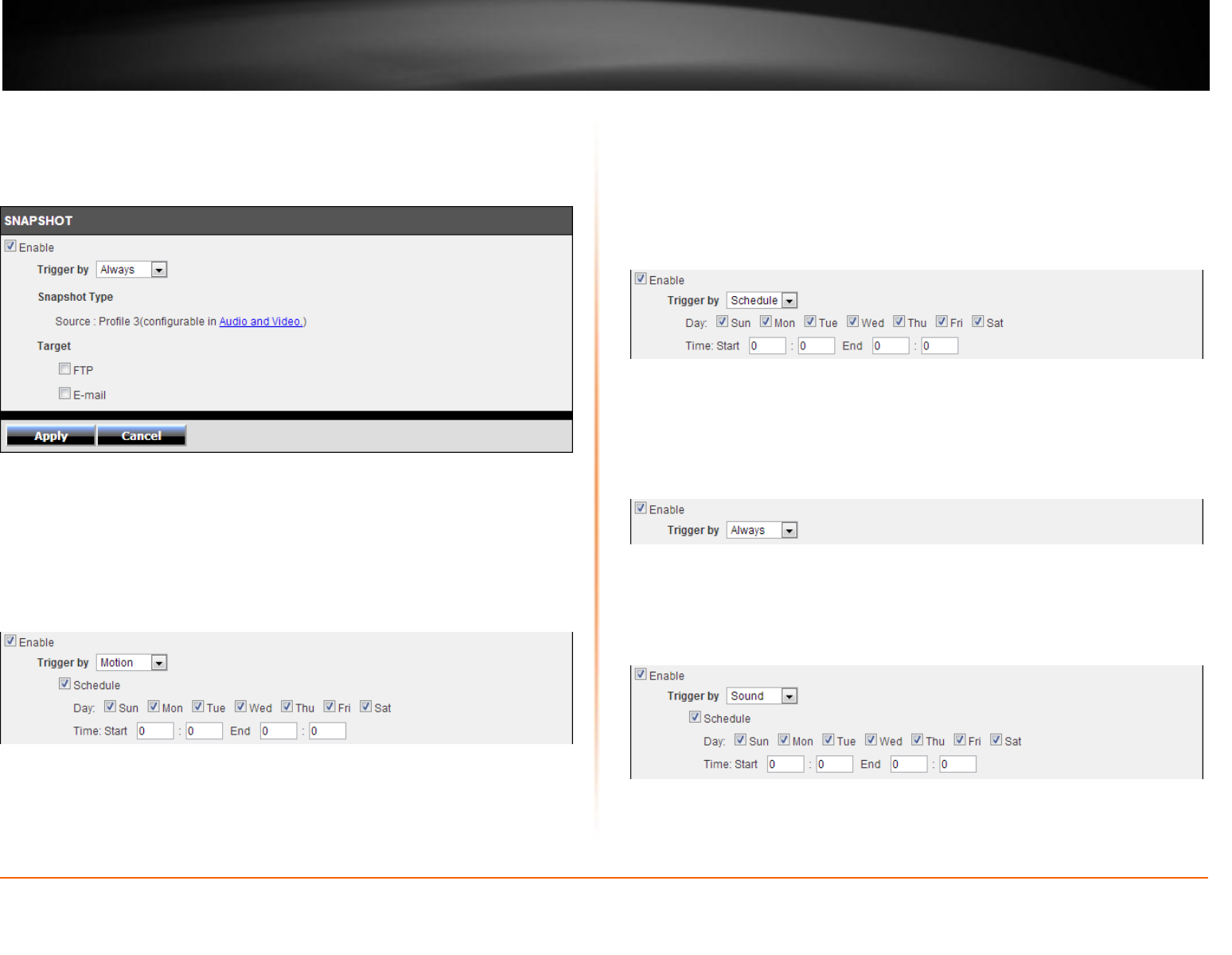

After selecting the Motion option as the Trigger by event, the following can be
configured.
Selecting Motion, will tell the camera only to record when motion is detected. Tick the
Schedule option to only record motion at specific times of the week. Tick the Day and
enter the Start and End times.
After selecting the Schedule option as the Trigger by event, the following can be
configured.
Selecting Schedule, will tell the camera to record always within the scope of the
schedule configured. Tick the Day and enter the Start and End times.
After selecting the Always option as the Trigger by event, the following can be
configured.
Selecting Always, will tell the camera to record always.
After selecting the Motion option as the Trigger by event, the following can be
configured.
Selecting Sound, will tell the camera only to record when sound is detected. Tick the
Schedule option to only record video when sound is detected at specific times of the
week. Tick the Day and enter the Start and End times.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
45
In the Video Clip Type section, we can configure the following.
Select the video profile in the Source drop-down list to use. Since profile 3 is only for
JPEG, it cannot be used here. Select the File Format that the video clip will be saved as.
Options to choose from are AVI and MP4. Enter the Pre-event recording time value and
the Maximum duration time value in the spaces provided.
In the Target section, we can configure the following.
In this section we can configure where the recorded video clip will be saved. Select FTP
or E-mail as the target. After selecting FTP as the Target, enter the FTP Server address,
Port number, User Name, Password, Path, Filename Prefix, and Interval information in
the spaces provided. Tick the Passive Mode option to enable the passive mode feature.
Click the Test button to test the FTP connection.

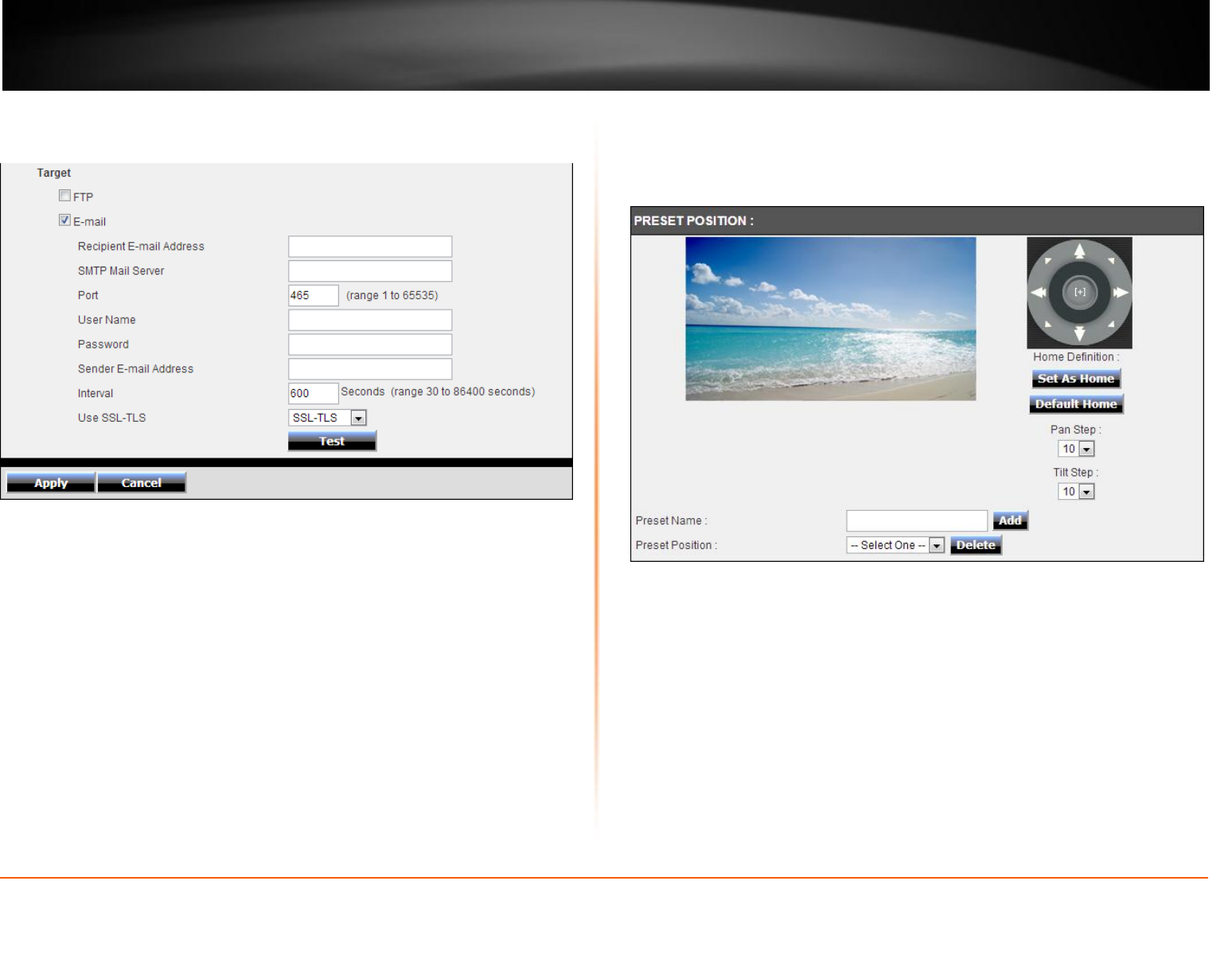

After selecting E-mail as the Target, the following will be available.
Enter the Recipient E-mail Address, SMTP Mail Server address, Port number, User
Name, Password, Sender E-mail Address, and Interval information in the spaces
provided. Select the SSL-TLS option that will be used. Options to choose from are None,
SSL-TLS, and STARTTLS. Click the Test button to test the E-mail connection.
Click the Apply button to apply the modifications made.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
46
Snapshot
Snapshots can be taken by this camera based on the trigger by event. In the Snapshot
section, we can configure the following.
Tick the Enable option to enable the snapshot feature. Select the Trigger by option from
the drop-down list. Options to choose from are Motion, Schedule, Always, and Sound.
The parameters available for configuration will change depending on the selections
made.
After selecting the Motion option as the Trigger by event, the following can be
configured.
Selecting Motion, will tell the camera only to take snapshots when motion is detected.
Tick the Schedule option to only take snapshots for motion at specific times of the week.
Tick the Day and enter the Start and End times.
After selecting the Schedule option as the Trigger by event, the following can be
configured.
Selecting Schedule, will tell the camera to always take snapshots within the scope of the
schedule configured. Tick the Day and enter the Start and End times.
After selecting the Always option as the Trigger by event, the following can be
configured.
Selecting Always, will tell the camera to always take snapshots.
After selecting the Motion option as the Trigger by event, the following can be
configured.
Selecting Sound, will tell the camera only to take snapshots when sound is detected.
Tick the Schedule option to only take snapshots when sound is detected at specific
times of the week. Tick the Day and enter the Start and End times.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
47

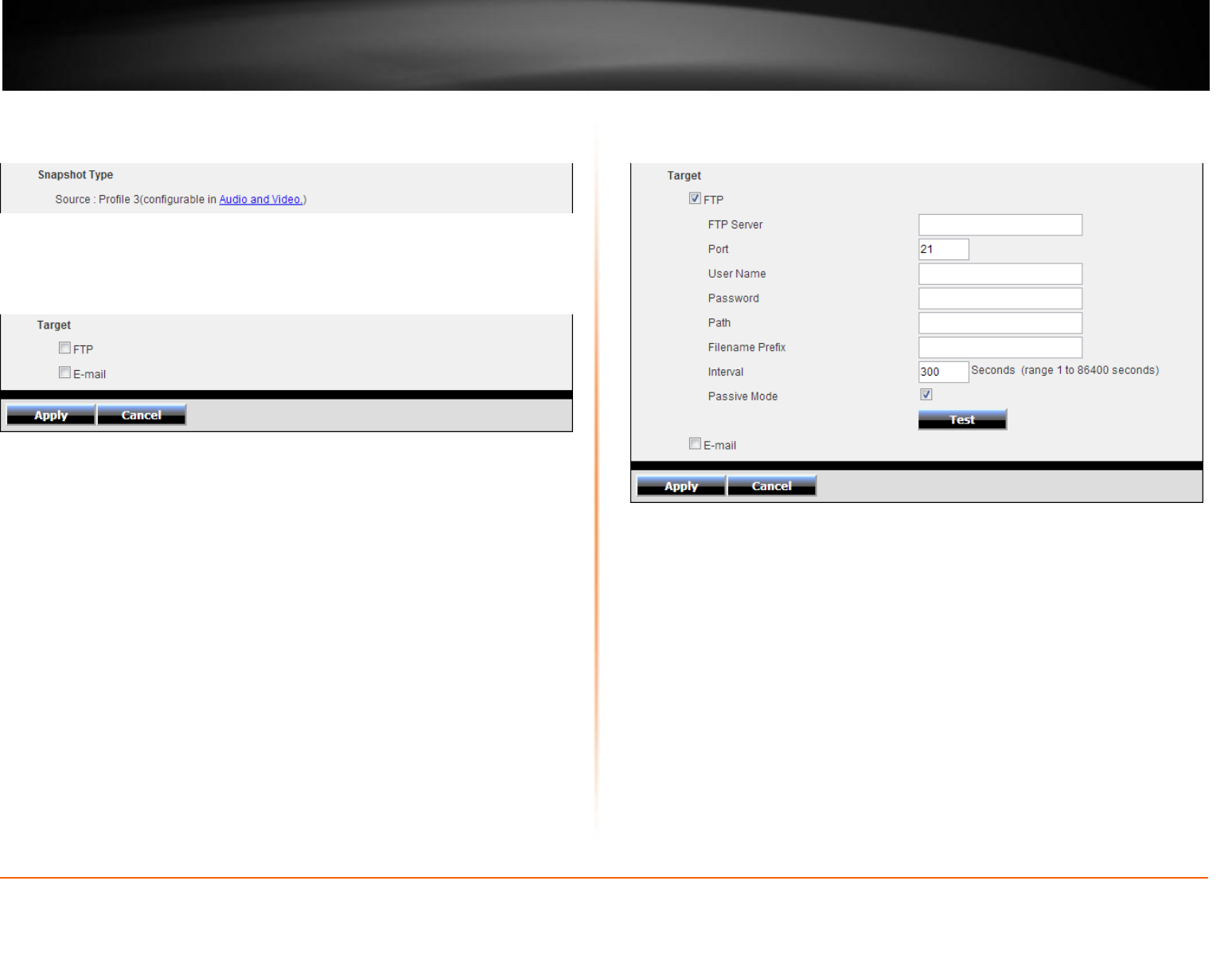

In the Snapshot Type section, we can configure the following.
Only Profile 3 can be used to take snapshots.
In the Target section, we can configure the following.
In this section we can configure where the snapshot will be saved. Select FTP or E-mail
as the target.
After selecting FTP as the Target, the following will be available.
Enter the FTP Server address, Port number, User Name, Password, Path, Filename
Prefix, and Interval information in the spaces provided. Tick the Passive Mode option to
enable the passive mode feature. Click the Test button to test the FTP connection.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
48
After selecting E-mail as the Target, the following will be available.
Enter the Recipient E-mail Address, SMTP Mail Server address, Port number, User
Name, Password, Sender E-mail Address, and Interval information in the spaces
provided. Select the SSL-TLS option that will be used. Options to choose from are None,
SSL-TLS, and STARTTLS. Click the Test button to test the E-mail connection.
Click the Apply button to apply the modifications made.
Preset Position
On this page we can configure the pan and tilt preset positions. In the Preset Position
section, we can configure the following.
A live video feed is displayed in the top-left corner to assist users when moving the
camera’s video angle to a specific position. A control menu, on the top-right corner can
be used to pan and tilt the camera’s video angle to a specific position. Click the Set As
Home button to save the current viewing angle as the home position. Click the Default
Home button to restore the default home position as the home position. Select the Pan
Step speed and Tilt Step speed from the drop-down menus provided. Enter the Preset
Name in the space provided and click the Add button to save the current viewing angle
as a saved preset position that can be used later. A list of configured preset positions
will be displayed in the drop-down list. Select a configured Preset Position from the
drop-down list and click the Delete button to remove a saved preset position.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
49

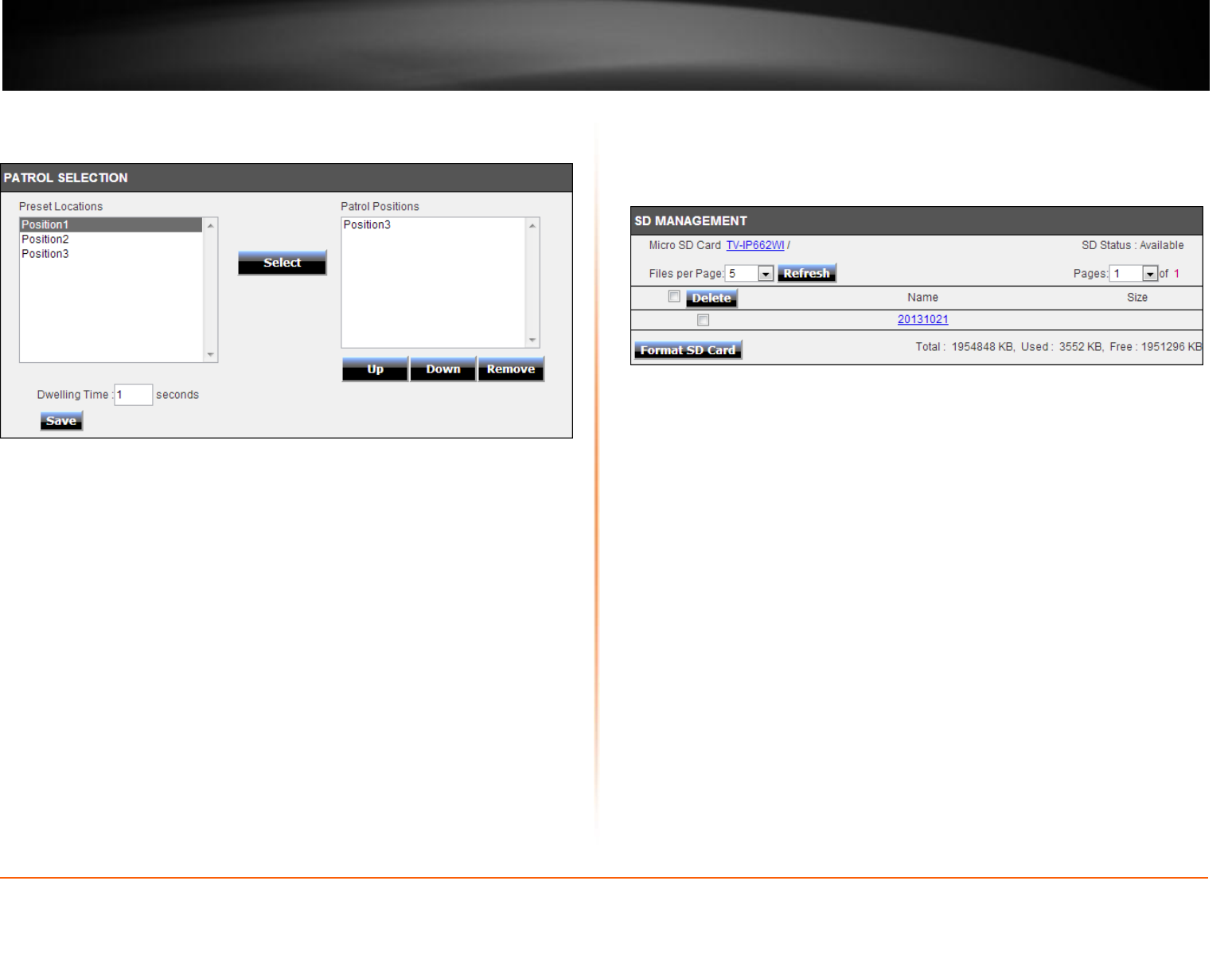

In the Patrol Selection section, we can configure the following.
In the Patrol Selection section we can configure the patrol feature in which the camera
will patrol through a list of predefined preset position in order from top to bottom.
Select a preconfigured preset position in the Preset Locations menu and click on the
Select button to move it over to the Patrol Position menu. To reorder the patrol
positions, select it and click either on the Up or Down buttons. To remove a patrol
position from the list, select the patrol position and click on the Remove button.
Enter the Dwelling Time value in the space provided. This indicates the time needed to
span each preset while patrolling. Click the Save button to the save the patrol
modifications done.
SD Management
On this page the micro SD card can be managed. In the SD Management section, we can
configure the following.
In this section the SD Status, Folder Name, Folder Size, Total Space, Total Space Used,
and Total Space Free information will be displayed. Select the Files per Page option
from the drop-down list to view a certain amount of files per page. Select the Pages
option from the drop-down list to view a certain page’s information, when multiple
pages exist. Select a folder’s or file’s checkbox and click the Delete button to manually
remove a folder or file from the micro SD card. Click the Format SD Card button to
completely reformat the micro SD card.
Note: When formatting the SD card, all files and folders will be removed from the micro
SD card and cannot be recovered.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
50

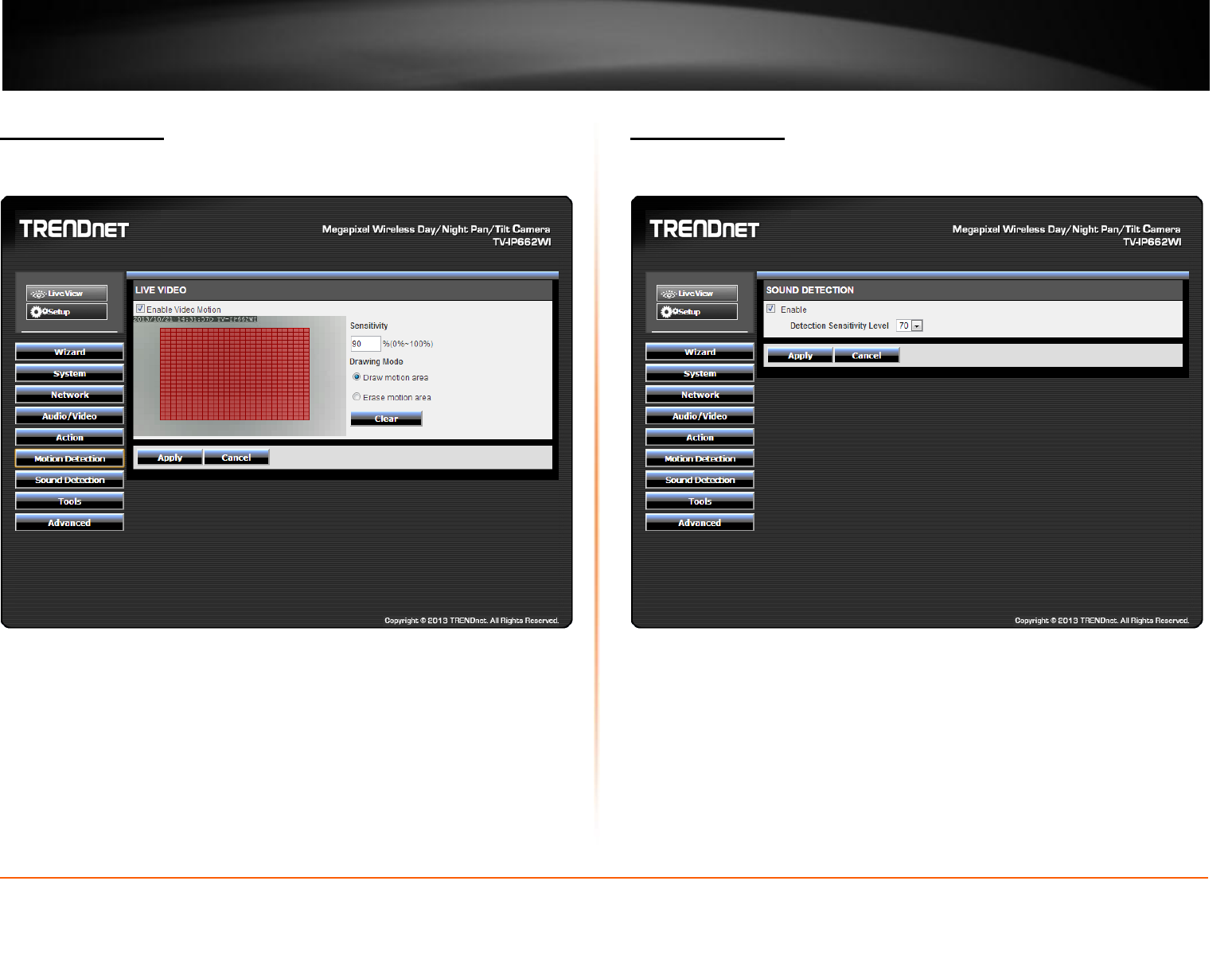

Motion Detection
The next category option available is Motion Detection. In the Motion Detection
category we can configure the motion detection area and settings for this camera.
Tick the Enable Video Motion option to enable the motion detection feature for this
camera. When the Draw motion area option is selected, in the live video feed block, use
the left mouse button to draw an area that will be used for motion detection. The area
will be highlighted with Red Blocks. When the Erase motion area option is selected, in
the live video feed block, use the left mouse button to erase the area that was used for
motion detection. Enter the Sensitivity value in the space provided. Click the Clear
button to completely remove all the red blocks from the video feed.
Click the Apply button to apply the modifications made.
Sound Detection
The next category option available is Sound Detection. In the Sound Detection category
we can configure the sound detection settings for this camera.
Tick the Enable button to enable the sound detection feature of this camera. Select the
sound Detection Sensitivity Level value from the drop-down list provided.
Click the Apply button to apply the modifications made.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
51

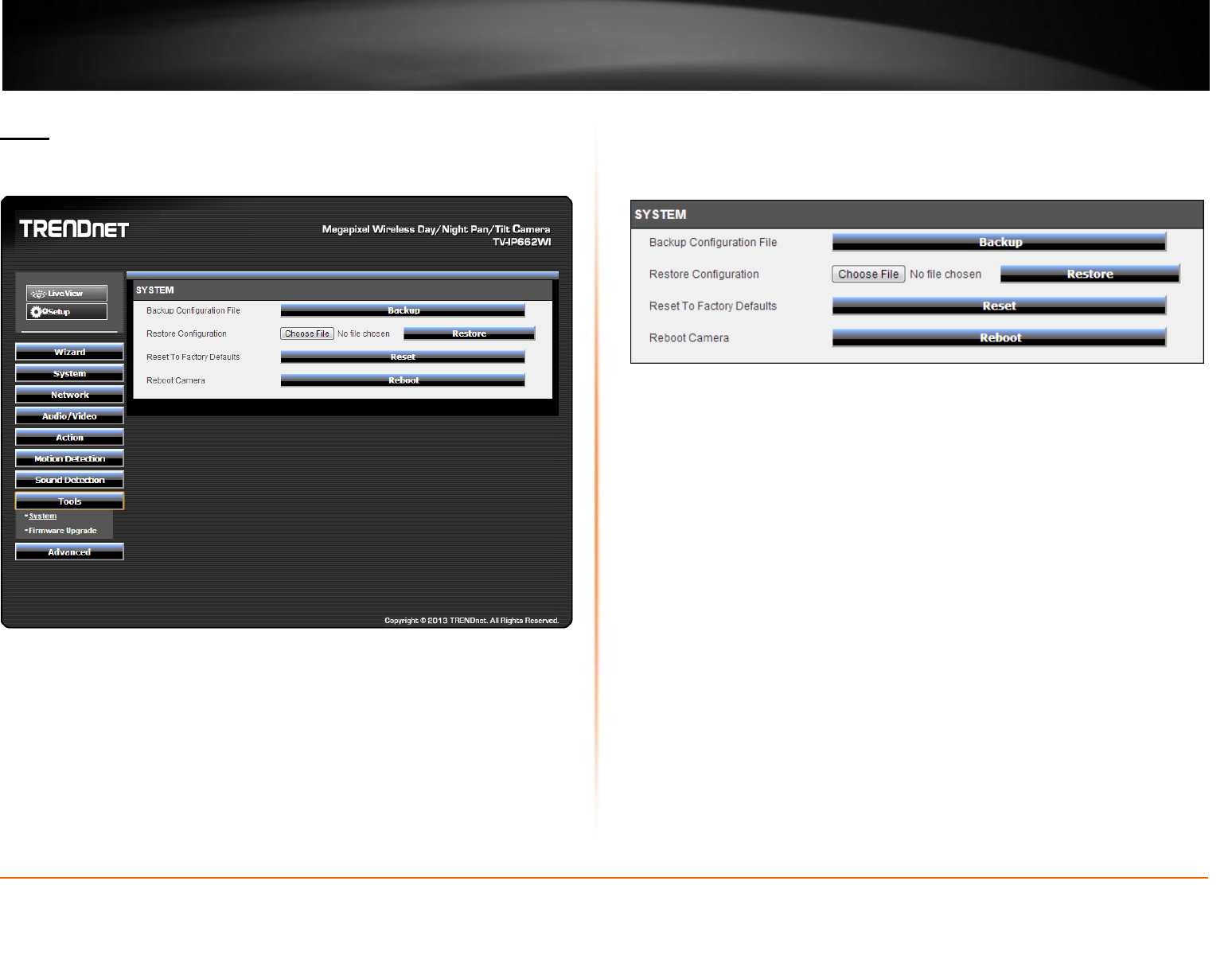

Tools
The next category option available is Tools. In the Tools category we can backup and
restore configuration files, reset or reboot the camera, and perform a firmware update.
System
In the System section we can configure the following.
Click the Backup button to back the configuration of this camera up to a file that will be
saved on the local computer.
Click the Choose File button to navigate to the backed up configuration file on the local
computer and then click the Restore button to restore the configuration of this camera
based on the settings saved on the backup configuration file.
Click the Reset button to restore the camera to its factory default settings. Note: All
configurations that were done on this camera will be lost and the camera will return to
its factory default configuration.
Click the Reboot button to simply reboot the camera.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
52

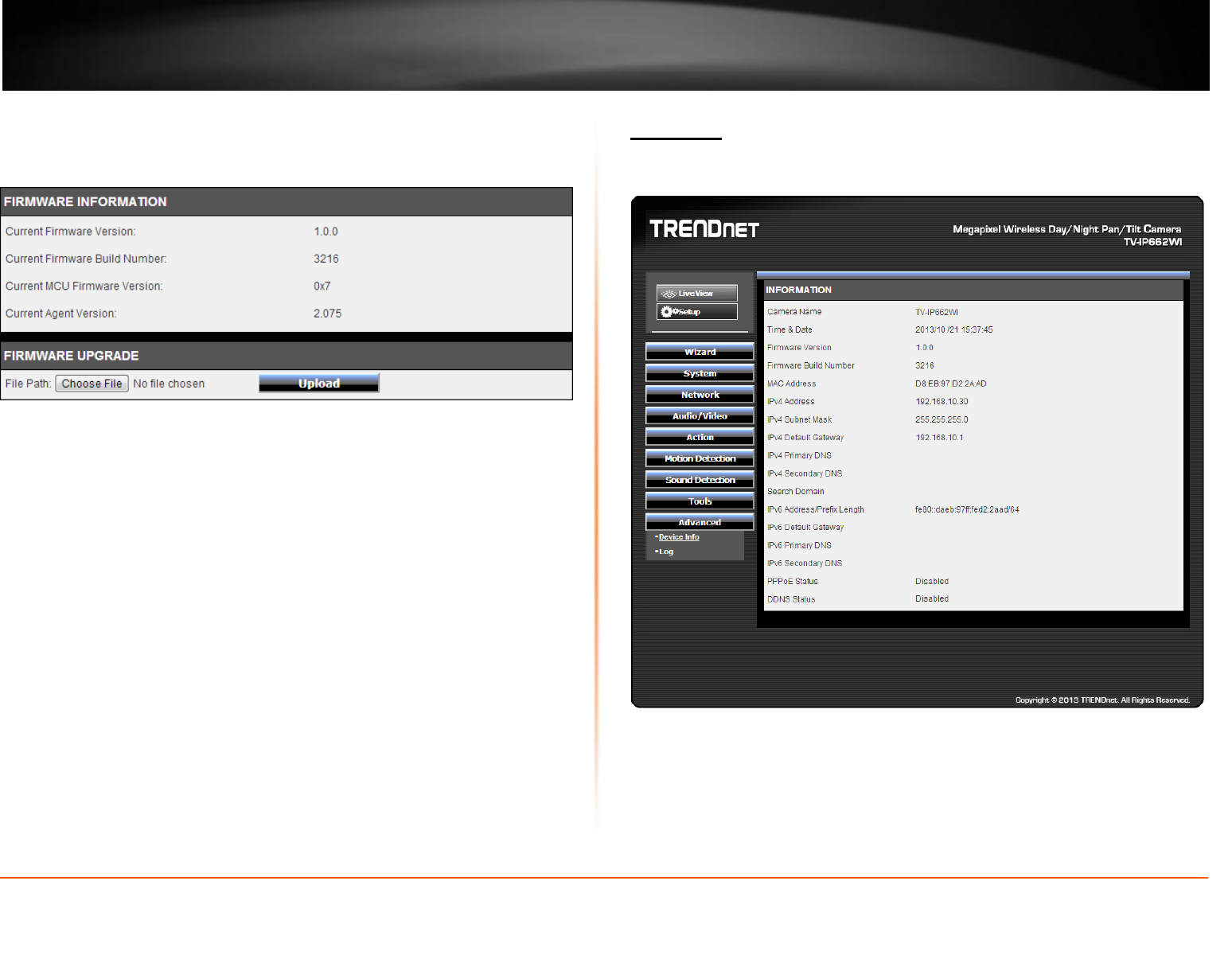

Firmware Update
In the Firmware section we can view and configure the following.
In the Firmware Information section, information regarding the current running
firmware version will be displayed.
In the Firmware Upgrade section, click the Choose File button to navigate to the saved
firmware file, located on the local computer, and then click the Upload button to upload
that firmware to the camera. The camera will then use this firmware file to upgrade the
firmware of the camera.
Note: To find the latest firmware available for this camera, visit the TRENDnet website.
Advanced
The next category option available is Advanced. In the Advanced category we view
more detailed information about the camera as well as the system log.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
53
Device Info
In the Information section we can view more detailed information about the camera’s
configuration.
Log
In the Current Log section we can view a list of system log entries that was generated
based on events that occurred during the runtime of this camera.
Click the Clear button to remove all the log entries from the table.
Click the Download button export the log table to a text file and then save it to the local
computer.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
54
Knowledge Base
Install TRENDnetVIEW Pro Software
4
Click Autorun.
Click on the link, Install TRENDnetVIEW Pro Software, to install it.
4
Please refer to TRENDnetView Pro User Guide for a more detailed installation
experience.
Using the proprietary-based configuration interface
This section describes the how to setup a camera using the TRENDnetVIEW Pro 2.0
camera monitoring software. To install TRENDnetVIEW Pro 2.0 on a system running
Windows, launch the TRENDnetVIEW Pro 2.0 installation software on the installation
CD-ROM and follow the setup instructions. Once the software is installed, the TRENDnet
View Pro 2.0 camera monitoring utility is ready for use. Add up to 32 network cameras
to monitor using the software. Additional software, TRENDnet IPView Pro Player
software is also installed. The TRENDnetVIEW Pro 2.0 Player is used for playing recorded
video from cameras that have been configured to save recorded files.
Running the Software
When the wizard starts, you have the option to select a language. The default is English.
Alternatively, there are 13 other languages to choose from. Select the one that best
suits your needs.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
55
The next screen displays the Welcome screen. Click Next to continue.
Please view the TRENDnetVIEW Pro User Guide for more details on the software.
How to setup/access the camera remotely
The Dynamic DNS connection can be configured on the camera itself or the home router.
An account from any of the listed Dynamic DNS providers is required prior to this
operation.
Configure Dynamic DNS on your Camera
1. Go to camera’s Dynamic DNS page. Tick Enable to activate the feature. Then
select a Dynamic DNS provider from the list. After selecting the Dynamic DNS
provider, the domain name will be entered into the Server Address field.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
56
2. Enter Dynamic DNS Host Name, User Name and Password. Re-enter the
password to confirm it.
3. Open the router’s Web configuration page. (In the example, TRENDnet’s TEW-
651BR Wireless N router is used)
4. Go to Access > Virtual Server and select Enable. Enter the Name for the virtual
server rule in the space provided. Select TCP as the Protocol option. Enter 80 as
the Private Port and Public Port number. Enter the IP address of the camera in
the LAN Server space provided. Click Add to add the rule.
Refer to the router’s user manual for more detailed information about the Virtual Server.
Some routers might use Port Forwarding or Special applications for this function. The
setup steps should be very similar.
5. From a remote location the camera can now be accessed using the domain
name instead of the IP address.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
57
Configure Dynamic DNS on your router
Again, for this configuration we’ll refer to the TEW-651BR TRENDnet router.
1. Login to your router’s web configuration page.
2. Go to the Main > Dynamic DNS page and Enable DDNS. Select the Dynamic
DNS provider from the Server Address drop-down list and enter the Host
Name, User Name, and Password information in the spaces provided.
3. Go to Access > Virtual Server and select Enable. Enter the Name for the virtual
server rule in the space provided. Select TCP as the Protocol option. Enter 80 as
the Private Port and Public Port number. Enter the IP address of the camera in
the LAN Server space provided. Click Add to add the rule.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
58
Refer to the router’s user manual for more detailed information about the Virtual Server.
Some routers might use Port Forwarding or Special applications for this function. The
setup steps should be very similar.
4. From a remote location the camera can now be accessed using the domain
name instead of the IP address.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
59
Technical Specifications
System
General
Network Processor Faraday SOC
System ROM 16MB Flash
System RAM 128MB DDR II
Ethernet Interface - 10/100BaseT Port x1
- Compliant to following standards
-IEEE 802.3 compliance
-IEEE 802.3u compliance
-Support Full-Duplex operation
-MDI/MDIX auto-negotiation
-802.3x Flow Control support for Full-Duplex mode
Power Supply - Input : 100 ~ 240 VAC, 0.5 A, 50 - 60 Hz
-Output : DC 12V / 1 A
- Power cord length: 1.5 meters
Power Consumption - Max.10.5W / 12V @motor on and IR on
Environment - Operation: Temp: 0 ~ 40 Humidity: 20% ~ 85% non-
condensing Storage: Temp: -25 ~ 70 Humidity: 5% ~ 95% non-
condensing
Certification - FCC / CE class B / LVD / Anatel
Sensor and Lens
Image Sensor
1/4” CMOS Sensor
Image resolution
1280X 800
F-Stop
F2.0
Focus Length
4.6mm
Sensitivity
1 lux@IR_LED Off (minimum)
0 lux@IR_LED On
Focus Depth
20cm~Infinity
View Angle
Horizontal 48.8°
Vertical 31.1°
Diagonal 57.8°
Image Processing
Compression
H.264/MPEG4/MJPEG triple format compression simultaneously
Multi-profile
Support 4 video profiles simultaneously
Exposure Control
Auto
White Balance
Auto
Frequency
50 Hz
60 Hz
Image size and
frame rate
1280*800 mode /H.264
- Max Resolution: 1280x800
- Max frame rate: 30 fps
Audio
Input Internal
Microphone
Yes
Input Sensitivity
42dB +/- 3dB (5 Meters distance min.)
Input Directivity
Omni-directional
Input Frequency
Response
50~16000Hz
S/N
More than 58 dB
Output Audio
Output
Line Out
Two-way audio
Full Duplex
Audio Codec
PCM /ADPCM/AAC
Other
Day/Night
Built-in ICR
IR LED
Built-in IR LED (Max up to 5 M)
I/O Connector
Micro SD slot *1 , Max support 32GB (SDHC class10)
Pan/Tilt
Pan range
+165° ~ -165°
Tilt range
+90° ~ -25°
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
60
LED & Buttons
Power LED
Color: Blue (Lighting when power on)
Link/act. LED
Color: Green (Lighting when LAN/WLAN is connected , Flashing when
LAN/WLAN is transmitting video stream)
WPS LED
Color: Green
Push WPS button over 3 seconds and then release WPS button,
and LED blinking 1 time/sec.
-WPS success: Lighting and then reboot directly.
-WPS Fail: blinking 5 times/ sec for 20 seconds and then reboot
directly.
WPS button
Push button(more than 3 seconds) to enable Wi-Fi Protected Setup (WPS)
function
Reset button
Push button for Factory reset
Wireless Interface
Chipset Model
Ralink RT5370 11b/g/n
Host Interface
USB2.0 Chipset on board
IEEE 802.11b specification
Standard
IEEE 802.11b
Radio and
Modulation Type
DQPSK, DBPSK, DSSS, and CCK
Operating Frequency
2400 ~ 2483.5MHz ISM band
Channel Numbers
11 channels for United States
13 channels for Europe Countries
Data Rate
11, 5.5, 2, and 1Mbps
Media Access
Protocol
CSMA/CA with ACK
Transmitter Output
Power
Typical RF Output Power at each RF chain, Data Rate and at room Temp.
25degree C
17.5dBm(±2dB) at 1,2,5.5,11Mbps
Receiver Sensitivity
Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate =8%
92dBm at 1Mbps
91dBm at 2Mbps
90dBm at 5.5Mbps
89dBm for 11Mbps
IEEE 802.11g specification
Standard
IEEE 802.11g
Radio and
Modulation Type
BPSK, QPSK, 16QAM, 64QAM with OFDM
Operating Frequency
2400 ~ 2483.5MHz ISM band
Channel Numbers
11 channels for United States
13 channels for Europe Countries
Data Rate
6,9,12,18,24,36,48,54Mbps
Media Access
Protocol
CSMA/CA with ACK
Transmitter Output
Power
Typical RF Output Power (tolerance +-2dB) at each RF chain, Data Rate
and at room Temp. 25degree C
17.5dBm at 6~12 Mbps
17.5dBm at 18 Mbps
17.5dBm at 24 Mbps
16.5dBm at 36 Mbps
15.5dBm at 48 Mbps
14.5dBm at 54 Mbps
Receiver Sensitivity
Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate =10%
90dBm at 6Mbps
88dBm at 9Mbps
86dBm at 12Mbps
83dBm at 18Mbps
81dBm at 24Mbps
78dBm at 36Mbps
76dBm at 48Mbps
74dBm at 54Mbps
IEEE 802.11n specification
Standard
IEEE 802.11n
Radio and
BPSK, QPSK, 16QAM, 64QAM with OFDM
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
61
Modulation Type
Operating Frequency
2400 ~ 2483.5MHz ISM band
Channel Numbers
11 channels for United States
13 channels for Europe Countries
Data Rate
From MCS0 to MCS7
MCS
GI-400ns / 20MHz
0
7.2
1
14.4
2
21.7
3
28.9
4
43.3
5
57.8
6
65.0
7
72.2
Media Access
Protocol
CSMA/CA with ACK
Transmitter Output
Power
Typical RF Output Power (tolerance +-2dB) at each RF chain, Data
Rate and at room Temp. 25degree C
HT20
14.5dBm at MCS0~MCS7
Receiver Sensitivity
Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate =10%
HT20
88dBm at MCS0
84dBm at MCS1
81dBm at MCS2
78dBm at MCS3
74dBm at MCS4
72dBm at MCS5
70dBm at MCS6
67dBm at MCS7
Antenna
Specification
Antenna
Dipole Antenna
Gain
2 dBi (max.)
Operating Frequency
2.4~2.5Ghz
Firmware Specification
OS
Linux 2.6
Live Video (IE)
Video Profile : Profile1, Profile2 Profile3 and Profile4
Manually Snapshot, Manually Recording, Set Storage Folder
Listen/Stop Listening, Talk/ Stop Talking
Language selection: English, German, Spanish, Russian, and French
IR_LED On/Off (When “Day/Night Mode setting” is “Manual IR” mode)
Digital Zoom in /Zoom out control
Indicator
1. Motion Trigger Indicator
2. Recording Indicator
Live Video (Non-IE)
Video Profile : Profile1, Profile2 Profile3 and Profile4
Manually Snapshot, Manually Recording, Set Storage Folder
Listen/Stop Listening, Talk/ Stop Talking
Language selection: English, German, Spanish, Russian, and French
IR_LED On/Off (When “Day/Night Mode setting” is “Manual IR” mode)
Digital Zoom in /Zoom out control
Indicator
1. Motion Trigger Indicator
2. Recording Indicator
Digital Zoom
4X
Setup wizard
This wizard will guide you through a step-by-step process to configure
your new IP Camera and connect the camera to the internet.
Network setting
LAN Settings
1. Automatic IP Address
2. Static IP Address (Default IP:192.168.10.30)
3. PPPoE :Enable/Disable
User Name
Password
Confirm password
Port Settings
1. HTTP Port(default is 80)
2. RTSP Port(default is 554)
UPnP
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
62
1. UPnP :Enable/Disable
2. UPnP Port Forward :Enable/Disable
External HTTP port(default is 80)
External RTSP port(default is 554)
Apple
Bonjour :Enable/Disable
Dynamic DNS setting
Enable/ Disable
1. Server Address
2. Host Name
3. User name
4. Password
5. Confirm Password
6. Timeout
7. Status
Network Protocols
support
IPv4 , IPv6 ,ARP, TCP, UDP, ICMP
DHCP Client
NTP Client
DNS Client
DDNS Client
SMTP Client
FTP Client
HTTP Server
UPnP Port Forwarding
PPPoE
LLTD
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)
3GPP
SAMBA Client
Image setting
Brightness (0 ~100)
Saturation (0 ~100)
Contrast (0 ~100)
Hue (0~100)
Black/White mode
Mirror (Enable/Disable)
Flip(Enable/Disable)
Frequency: 60Hz ,50Hz and Auto
White balance: Auto/ Disable
Slow Shutter: Disable, 1/15s, 1/10s, 1/7.5s, 1/3.75s
Reset to Default
Video Profiles
setting
Video Profile 1 mode
1. Encode Type: H.264/MPEG4
2. Resolution Type:1280x720, 640x352, 320x176, 160x80
3. Max Frame Rate: H.264@30fps , MPEG4@30fps
4. Fixed Bit Rate: 64K, 128K, 256K, 384K, 512K, 768K, 1M, 1.5M,
2M, 3M, 4M (H.264/MPEG4 only)
5. RTSP Default URL is http://IP_Cam_IP/play1.sdp
Video Profile 2 mode
1. Encode Type: H.264/MPEG4
2. Resolution Type: 640x352, 320x176, 160x80
3. Max Frame Rate: 30fps
4. Fixed Bit Rate: 64K, 128K, 256K, 384K, 512K, 768K, 1M, 1.5M,
2M, 3M, 4M (H.264/MPEG4 only)
5. RTSP Default URL is http://IP_Cam_IP/play2.sdp
Video Profile 3 mode
1. Encode Type: JPEG
2. Resolution Type: 1280x720, 640x352, 320x176, 160x80
3. Max Frame Rate: 1280x720@5fps,
640x352/320x176/160x80@30fps
4. JPEG Quality: Low, Fair, Standard, Good, Excellent (JPEG only)
5. RTSP Default URL is http://IP_Cam_IP/play3.sdp
Video Profile 4 mode
1. Encode Type: H.264/MPEG4
2. Resolution Type: 640x352, 320x176, 160x80
3. Max Frame Rate: 30fps
4. Fixed Bit Rate: 64K, 128K, 256K, 384K, 512K, 768K, 1M, 1.5M,
2M, 3M, 4M (H.264/MPEG4 only)
5. RTSP Default URL is http://IP_Cam_IP/3gpp
Audio setting
Speaker:
-Enable/ Disable
-Volume adjustable: 0 ~ 100
Microphone:
-Enable/ Disable
-Volume adjustable: : 0 ~ 100
3GPP support
Audio codec: AAC
Video codec/MPEG4
Protocols / RTSP, RTP, RTCP
System Time setting
Time Configuration
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
63
1. Time Zone Setting
2. Daylight Saving: Enable/ Disable
-Auto Daylight Saving
-Set date and time manually
Automatic Time Configuration
1. Synchronize with NTP Server
Set Date and Time manually
manually setting/ Copy your PC’s Time settings
Recording
Enable/ Disable
1. Trigger Event:
-Always
-Motion Detection
Only during
Pre-event recording: Default is 5 seconds(between 0
to 5 seconds)
Post-event recording: Default is 5 seconds(between 0
to 60 seconds)
-Sound Detection
Only during
Pre-event recording: Default is 5 seconds(between 0
to 5 seconds)
Post-event recording: Default is 5 seconds(between 0
to 60 seconds)
-Scheduled
2. Recording Type
Snapshot
-Source:Profiles3
Video
-Source:Profiles1, 2 and 4(Default is Profile2)
3. Record to:
-Micro SD card
-Samba network device
Video Clip setting
Enable/ Disable
1. Trigger Event:
-Always
-Motion Detection
Scheduled
-Sound Detection
Scheduled
-Scheduled
2. Video Clip Type
- Source: Profiles1, 2 and 4(Default is Profile2)
-Pre-event recording (Between 0~5 seconds)
-Maximum duration (Between 5~10 seconds)
3. Target :
-FTP Server
FTP Server IP address and port number
User Name
Password
Path
Filename Prefix
Interval: Between 60~86400 seconds(for Schedule
and Always)
Send next FTP after (for Motion only)
Passive Mode: Enable/Disable
-E-mail Address
Recipient E-mail Address
SMTP Mail Server
Port
User Name
Password
Sender E-mail Address
Interval: Range :60 to 86400 seconds(for Schedule
and Always)
Send next E-mail after(for Motion and Sound)
Use SSL-TLS
- Test
Snapshot setting
Enable/ Disable
1. Trigger Event:
-Always
-Motion Detection
Scheduled
-Sound Detection
Scheduled
-Scheduled
2. Snapshot Type
-Source:Profiles3
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
64
-Single snapshot
-6 snapshot with 1 or 2 second interval
3 frames before and 3 frames after motion frame
3. Target :
-FTP Server
FTP Server IP address and port number
User Name
Password
Path
Filename Prefix
Interval: Between 60~86400 seconds(for Schedule
and Always)
Send next FTP after (for Motion and Sound)
Passive Mode: Enable/Disable
-E-mail Address
Recipient E-mail Address
SMTP Mail Server
Port
User Name
Password
Sender E-mail Address
Interval: Range :60 to 86400 seconds(for Schedule
and Always)
Send next E-mail after(for Motion and Sound)
Use SSL-TLS
Test
Motion detection
Enable/ Disable: Video Motion
1. Sensitivity: Range 0~100
Drawing Mode: Draw motion area/ Erase motion area
Sound Detection
Enable/ Disable
Detection Sensitivity: Range 50~100
Maintenance-
Admin setting
Admin password setting
Add User account: 20 users maximum
User List: Delete
Authentication
1. RTSP Authentication : Enable/Disable
2. HTTP Authentication : Enable/Disable
3. Snapshot URL authentication : Enable/Disable
Device setting
1. Camera Name
2. OSD: Enable/ Disable
-Label
-Time Stamp : Enable/ Disable
3. LED light
-Power/Link
-Off
-Blinking
Backup and restore
Setting
Save to local hard drive
Load from local hard drive
Restore to factory defaults
Reboot Device
Firmware upgrade
Firmware information
1. Current firmware Version
2. Current product name
Firmware upgrade
System log
512 items (max) stored on the Flash drive
Clear system log
Download from device
System
Management
Web Based Administration
NIPCA support
ONVIF profile S
RESET Function
Keep the RESET button pressed for at least 6 second to reset all
configurations to factory default values.
When factory reset processing, Power LED and Link LED have switch
lighting.
Browser
Internet Explore Version 9 above
Firefox 13.0 or above
Safari 4.0 or above
Google Chrome 24 or above
WLAN setting
Wireless : Enable/Disable (Default is “Enable”)
Network Name(SSID): (Default is “TRENDnet”)
Site Survey
Wireless Mode: Infrastructure / Ad-hoc
Security Mode: None /WEP /WPA-PSK /WPA2-PSK
Authentication:
1. WEP 64/128 bits
2. WPA-PSK (TKIP/AES) ( Infrastructure support only )
3. WPA2-PSK (TKIP/AES) ( Infrastructure support only )
Show Hidden Key
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
65
Channel ( Ad-hoc support only )
WPS Support
Day/Night Mode
setting
Auto
Manual IR
Always day mode
Always night mode
Schedule
Software Specifications
OS
Windows XP/Vista/7 (32/64bit platform)
AutoRun
Installation
One is Executable format, another
can install to PC from CD-ROM
Setting Items
Search and list IP camera
Suggestion IP address function
IP mode
Wireless setting
API (SDK)
Uniform interface
CGI
Uniform interface
Mobile App Specification
OS Support
Apple iOS 5 or above
Android 2.3 or above.
Zoom in/ out
Pinch to control
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
66
Troubleshooting
1. The Power LED and Ethernet Activity LED do not light up.
The power supply or camera might be faulty. Check that the connection to both
the power source and the terminal on the back of the camera are secure and
that you are using the provided power supply. If the camera is otherwise
functioning correctly, the LEDs might have been disabled in the configuration.
See the section of this guide on Configuration of System settings.
2. The camera can’t be accessed or access is slow.
There might be a problem with the network cable. To confirm that the cables
are working, ping the address of a known device on the network. If the cabling
is OK and your network is reachable, you should receive a reply similar to the
following (…bytes = 32 time = 2 ms).
Another possible problem may be that the network device such as a hub or
switch utilized by the Network Camera is not functioning properly. Please
confirm the power for the devices are well connected and functioning properly.
3. The camera can be accessed locally but not remotely.
This might be caused by a firewall. Check the Internet firewall with your system
administrator. The firewall may need to have some settings changed in order
for the Network Camera to be accessible outside your local LAN. For more
information, please refer to the section about installing your camera behind a
router.
Make sure that the Network Camera isn’t conflicting with any Web server you
may have running on your network.
The default router setting might be a possible reason. Check that the
configuration of the router settings allow the Network Camera to be accessed
outside your local LAN.
4. White vertical lines appear on the image from the camera.
It could be that the CMOS sensor (a square panel situated behind the lens
that measures the light signals and changes it into a digital format so your
computer can present it into an image that you are familiar with) has become
overloaded when it has been exposed to bright lights such as direct exposure
to sunlight or halogen lights. Reposition the Network Camera into a more
shaded area immediately as prolonged exposure to bright lights will damage
the CMOS sensor.
5. The camera images are ‘noisy’.
Often if the camera is in a low-light environment, the images can contain a lot
of noise. Try enabling Night mode and see if that improves the image quality.
Otherwise, try to use the camera in a location where there is a bit more light.
6. The camera images are of poor quality.
Make sure that your computer’s display properties are set to at least 16-bit
color. Using 16 or 256 colors on your computer will produce dithering artifacts
in the image, making the image look as if it is of poor quality.
Try also adjusting the brightness, contrast, saturation, light frequency and anti-
flicker controls on the Video Settings under the Configuration menu. You may
also consider adjusting the resolution of the camera and the compression rate
to improve the image.
7. Video can’t be viewed through the web browser interface.
ActiveX might be disabled. If you are viewing the images from Internet Explorer
make sure ActiveX has been enabled in the Internet Options menu. You may also
need to change the security settings on your browser to allow the ActiveX plug-
in to be installed.
If you are using Internet Explorer with a version number lower than 6, then you
will need to upgrade your Web browser software in order to view the
streaming video transmitted by the Network Camera. Try also viewing the
video using Java. Ensure that you have the latest version of Java installed
before you do. Go to www.java.com for more information.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
67
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Europe EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
The following test methods have been applied in order to prove presumption of
conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Safety of Information Technology Equipment
EN 62311: 2008
Assessment of electronic and electrical equipment related to human exposure
restrictions for electromagnetic fields (0 Hz-300 GHz)
(IEC 62311:2007 (Modified))
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band
and using spread spectrum modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.9.2: 2011
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements
EN 301 489-17 V2.1.1 (2009-05)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2,4 GHz wideband transmission systems
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in
all EU member states and EFTA countries, except in France and Italy where restrictive
use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in
order to obtain authorization to use the device for setting up outdoor radio links and/or
for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some
areas the RF output power may be limited to 10 mW EIRP in the frequency range of
2454 2483.5 MHz. For detailed information the end-user should contact the national
spectrum authority in France.
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
68
This device is designed to provide uninterrupted monitoring and/or recording. This
device does not off power management functionality such as Off mode or Standby
mode.
IMPORTANT NOTE:
NCC AND FCC Warning Statement
FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)
Note: This country code selection is for non-US models only and is not available
to all US models. Per FCC regulation, all WiFi products marketed in the US must
be fixed to US operation channels only.
以下警語適用台灣地區
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得
擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,
應立即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依電信法規定作
業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射
性電機設備之干
© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TV-IP662WI
69
Česky
[Czech]
TRENDnet tímto prohlašuje, že tento TV-IP862IC je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními
směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede TRENDnet erklæ rer herved, at følgende udstyr TV-
TV-IP862IC overholder de væ sentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt TRENDnet, dass sich das Gerät TV-IP862IC in
Ü bereinstimmung mit den grundlegenden Anforderungen und
den übrigen einschlägigen Bestimmungen der Richtlinie
1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab TRENDnet seadme TV-IP862IC vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby, TRENDnet, declares that this TV-IP862IC is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente TRENDnet declara que el TV-IP862IC
cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TV-IP862IC
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente TRENDnet déclare que l'appareil TV-IP862IC est
conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente TRENDnet dichiara che questo TV-IP862IC è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo TRENDnet deklarē, ka TV-IP862IC atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
[Lithuanian]
Šiuo TRENDnet deklaruoja, kad šis TV-IP862IC atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart TRENDnet dat het toestel TV-IP862IC in
overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, TRENDnet, jiddikjara li dan TV-IP862IC jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, TRENDnet nyilatkozom, hogy a TV-IP862IC megfelel a
vonatkozó alapvetõvetelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Polski
[Polish]
Niniejszym TRENDnet oświadcza, że TV-IP862IC jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
TRENDnet declara que este TV-IP862IC está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
TRENDnet izjavlja, da je ta TV-IP862IC v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
TRENDnet týmto vyhlasuje, že TV-IP862IC spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
TRENDnet vakuuttaa täten että TV-IP862IC tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar TRENDnet att denna TV-IP862IC står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
© Copyright 2013 TRENDnet. All Rights Reserved.
70
TRENDnet User’s Guide
Limited Warranty
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
TV-IP862IC 3 Years Warranty
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.
If a product does not operate as warranted during the applicable warranty period,
TRENDnet shall reserve the right, at its expense, to repair or replace the defective
product or part and deliver an equivalent product or part to the customer. The
repair/replacement unit’s warranty continues from the original date of purchase. All
products that are replaced become the property of TRENDnet. Replacement products
may be new or reconditioned. TRENDnet does not issue refunds or credit. Please
contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product by any unauthorized service center. This warranty is voided if (i) the
product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the applicable
warranty period and providing a copy of the dated proof of the purchase. Upon proper
submission of required documentation a Return Material Authorization (RMA) number
will be issued. An RMA number is required in order to initiate warranty service support
for all TRENDnet products. Products that are sent to TRENDnet for RMA service must
have the RMA number marked on the outside of return packages and sent to TRENDnet
prepaid, insured and packaged appropriately for safe shipment. Customers shipping
from outside of the USA and Canada are responsible for return shipping fees. Customers
shipping from outside of the USA are responsible for custom charges, including but not
limited to, duty, tax, and other fees.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S
OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR
IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE
OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST
OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,
IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR
MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY
OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNETS OPTION. THIS DISCLAIMER OF LIABILITY
FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL
OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Some TRENDnet products include software code written by third party developers.
These codes are subject to the GNU General Public License ("GPL") or GNU Lesser
General Public License ("LGPL").
Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section
and look for the desired TRENDnet product to access to the GPL Code or LGPL Code.
These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of
the developers. TRENDnet does not provide technical support for these codes. Please go
to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for
specific terms of each license.

Navigation menu
