Industrial Gigabit UPoE Splitter
TI-SG104 (v1.0R)
• Power a non-PoE device up to 100m (328 ft.) away from PSE
• Splits a gigabit PoE signal into separate power and data sources
• A single Ultra PoE source can power up to two devices
• Adjustable voltage output supports 12V, 16V, 24V or 48V devices
• For best performance pair with UPoE switches or injectors
• Save on installation and equipment cost
• Full Duplex Gigabit speeds
• IEEE 802.3bt compatible
TI-SG104

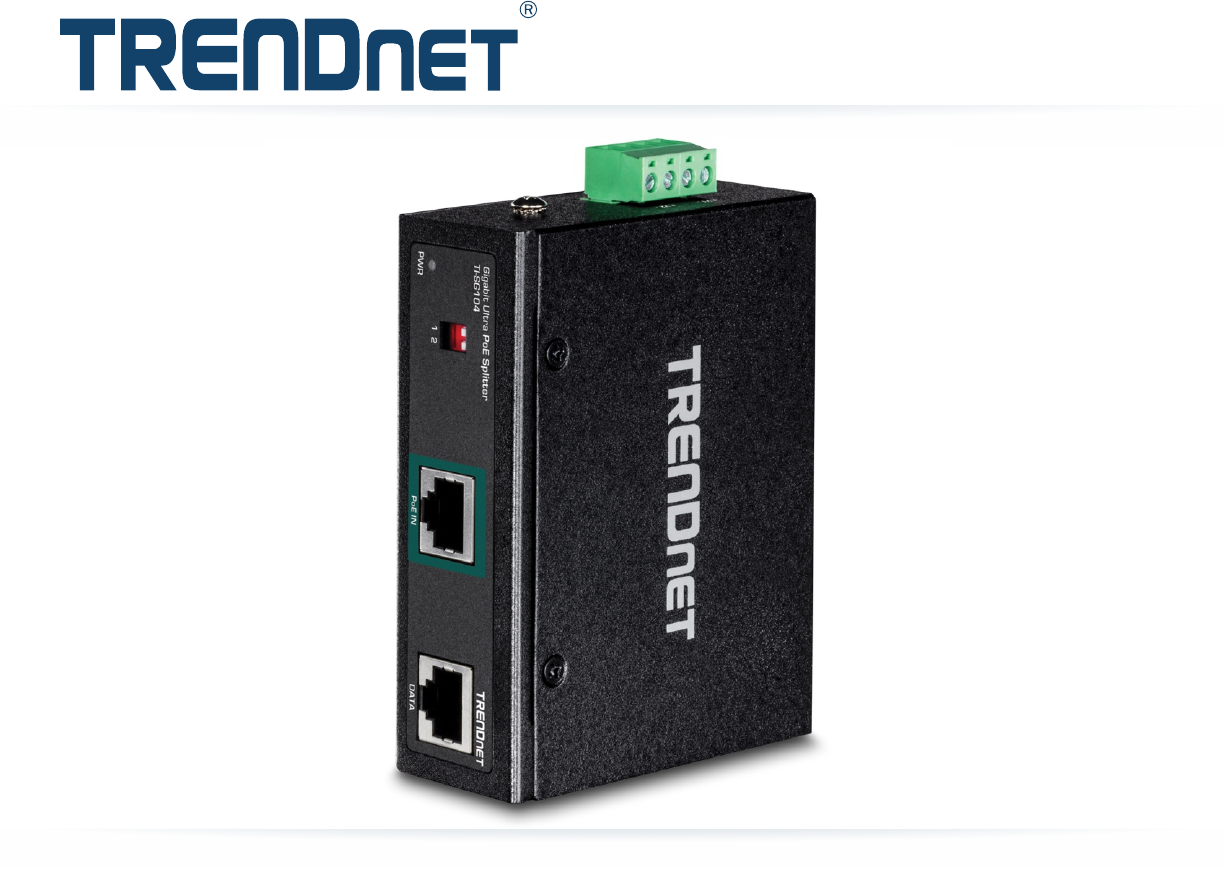

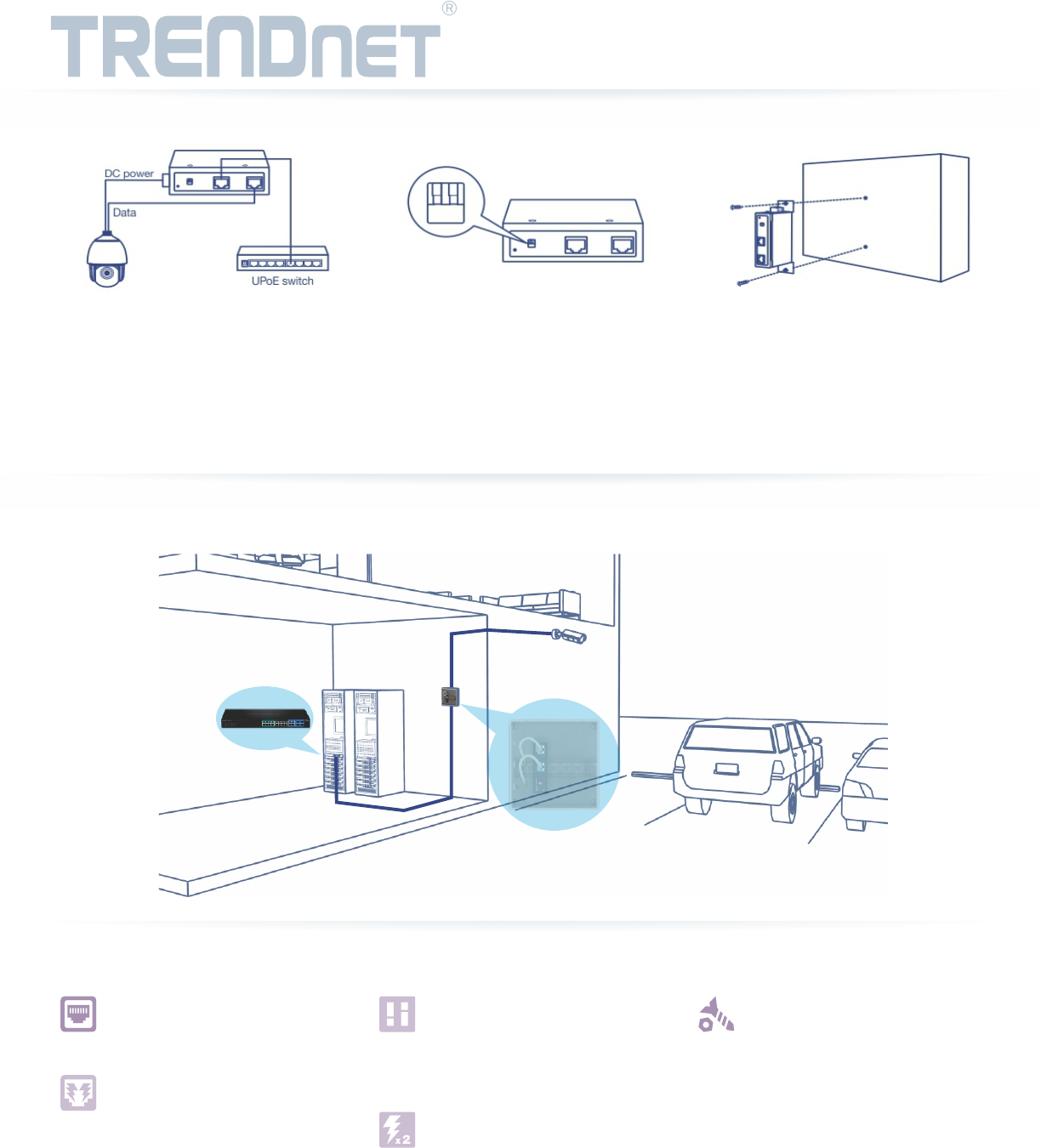

TRENDnet’s Industrial Gigabit UPoE Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into
separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP
switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter’s dual DC power output
provides greater device compatibility.
UPoE Powered
No power adapter necessary; the UPoE
splitter takes a UPoE network connection,
and splits power and data into separate
connections to network a non-PoE device
with power up to 100m (328ft.).
Adjustable Voltage Output
Convenient DIP switch adjusts voltage
output to 12V (2.3A), 16V (2.3A), 24V
(2.3A) or 48V (1.25A) to match non-PoE
device power requirements.
Wall Mountable
The UPoE splitter’s wall mountable design
accommodates most installation
scenarios.
Networking Solution
TI-SG104
UPoE switch
UPoE Powered
No power adapter necessary; the UPoE
splitter takes a UPoE network
connection and splits power and data
into separate connections to network a
non-PoE device with power up to 100m
(328 ft.)
Adjustable Voltage Output
Convenient DIP switch adjusts voltage
output to 12V (2.3A), 16V (2.3A), 24V
(2.3A) or 48V (1.25A) to match non-PoE
device power requirements
Dual DC Power Output Terminal Block
The UPoE splitter includes a dual DC
power output terminal block, powering
for up to two devices
Wall Mountable
Wall mountable design accommodates
most installation scenarios
TI-SG104
Gigabit Ethernet
1 x Gigabit UPoE input port, 1 x Gigabit
output port
Device Interface • 1 x Gigabit port
• 1 x Gigabit Ultra PoE in port
• 4-pin removable terminal block (dual DC output)
• Adjustable output power DIP switch (48V, 24V, 16V, 12V)
• LED indicator
• DIN-Rail mount
• Wall mount
• Grounding point
Data Transfer Rate • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)
Special Features • Hardened components rated for extreme temperatures
• Dual DC power output
• Auto-Negotiation
• ESD 4kV and Surge 2kV protection
TI-SG104
Power • Input: 15.4W/30W/60W/95W PoE power
• Max. Consumption: 7W (splitter only)
• Max. Combined DC Output: 48V (1.25A), 24V (2.3A), 16V
(2.3A), 12V (2.3A)
PoE Input Max. DC Output
(split between two devices)
95W
60W
30W
15.4W
48V(1.25A) DC Output: 60W
24V(2.3A) DC Output: 55W
16V(2.18A) DC Output: 35W
12V(2.25A) DC Output: 27W
•
•
•
•
• 48V(1.16A) DC Output: 56W
24V(2.12A) DC Output: 51W
16V(2.18A) DC Output: 35W
12V(2.16A) DC Output: 26W
• 48V(0.52A) DC Output: 25W
24V(0.95A) DC Output: 23W
16V(1.37A) DC Output: 22W
12V(1.83A) DC Output: 22W
•48V(0.22A) DC Output: 10.6W
24V(0.44A) DC Output: 10.7W
16V(0.63A DC Output: 10.2W
12V(0.85A) DC Output: 10.2W
Terminal Block • Dual DC power outputs, 4 pin
• Wire range: 0.34mm^2 to 2.5mm^2
• Solid wire (AWG): 12-24/14-22
• Stranded wire (AWG): 12-24/14-22
• Torque: 5 lb. – In / 0.5Nm / 0.56Nm
• Wire strip length: 7-8mm
•
•
•
•
•
•
•
•
•
•
•
•
Standards • IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt compatible
Specifications
DIP Switch DIP 1 DIP 2 Function
OFF OFF 48V output
ON OFF 24V output
OFF ON 16V output
ON ON 12V output
MTBF • 684,452 hours
Housing • IP30 metal case
• DIN-rail mount
• Wall mount
• Grounding point
• 4KV ESD protection
• 2KV surge protection
Operating
Temperature
• - 40° – 75° C (-40° – 167° F)
Operating
Humidity
• Max. 95% non-condensing
Dimensions • 104 x 82 x 32mm (4.1 x 3.2 x 1.2 in.)
Weight • 172g (6 oz.)
Certifications • CE
• FCC
• IEC EN60950-1
• Shock (IEC 60068-2-27)
• Freefall (IEC 60068-2-32)
• Vibration (IEC 60068-2-6)
Warranty • 3 year
PACKAGE CONTENTS
• TI-SG104
• Quick Installation Guide
• Removable terminal block
• DIN-rail and wall mount kit
