TTE Technology 40D100 LCD TV User Manual 70 32MS55 QSG9A
TTE Technology, Inc. LCD TV 70 32MS55 QSG9A
User Manual
Ready.
Set.
Go!
D-Series / D100
Model No. Serial No.
Purchase Date Dealer/Address/Phone
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important
instructions accompanying the
product.
This symbol indicates that this product
incorporates double insulation between
hazardous main voltage and user accessible
parts. When servicing, use only identical
replacement parts.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING
To reduce the risk of re or electric shock,
do not expose this product to rain or
moisture. This product should not be
exposed to dripping or splashing. No
objects lled with
liquids, such as vases,
should be placed on the apparatus.
WARNING
The TV is unstable if it is not properly
attached to the base or mounted to the
wall. Please follow the base or wall
mounting instructions provided in the
User’s Guide to ensure your safety.
Warning: The batteries shall not be exposed to excessive heat such as sunshine,
re or the like.
Important Information
Refer to the identication/rating label located on the back panel of your product for its
proper operating voltage.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of
the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which
provides guidelines for proper grounding and, in particular, species that the cable
ground should be connected to the grounding system of the building as close to the
point of cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface.
Don’t place the TV on soft carpeting or similar surface because the ventilation slots on
the bottom of the unit will be blocked, resulting in reduced lifetime from overheating.
To assure adequate ventilation for this product, maintain a spacing of 1 inch from the
top and side of the TV receiver and 2 inches from the rear of the TV receiver and other
surfaces.
Also, make sure the stand or base you use is of adequate size and strength to
prevent the TV from being accidentally tipped over, pushed o, or pulled o. This
could cause personal injury and/or damage to the TV. Refer to the Important Safety
Instructions on the next page.
The Power button on this TV and your remote control puts the TV into a very
low-power standby mode but will not completely turn the power o. In order to
completely shut the power o, you will need to disconnect the power cord from the
outlet. The mains plug/appliance coupler is used to completely turn o the device. If
you prefer to completely turn o the device, you should install the TV in a manner that
allows you to disconnect the power cord when desired.
Product Registration
Please register your TCL TV purchase on-line at www.tclusa.com. It will make it easier
to contact you should it ever be necessary. Registration is not required for warranty
coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase.
Attach it here and record the serial and model numbers in case you need them. These
numbers are located on the product.
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Keep the apparatus at least 20cm far sway trom the human body.
For the best viewing experience, remove the energy guide label from the TV front
panel or TV screen before use.
Antenna/Cable 480i, 480p, 720p, l080i (NTSC, ATSC, and QAM formats)
Composite Video 480i, 576i
HDMI 480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz, 576i/p, 1080i/p/50Hz
Input Signal Compatibility
1
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specied by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when unused for long periods
of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

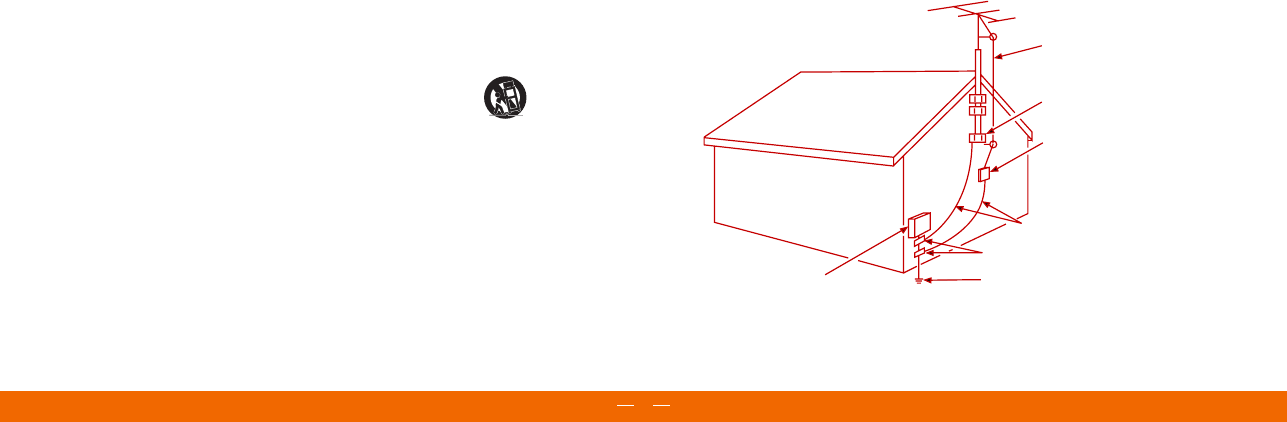

ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT POWER SERVICE GROUNDING
ELECTRODE SYSTEM (NEC ART
250, PARTH)
2
15. If an outside antenna or cable system is connected to the product, be sure the antenna
or cable system is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.
70-2011 (Section 54 of Canadian Electrical Code, Part 1) provides information with respect
to proper grounding of the mast and supporting structure, grounding of the lead in wire
to an antenna-discharge unit, size of grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode.
See following example:
14. For safe operation of the apparatus, observe these installation requirements:
Keep at least 2 inches of ventilation space between the rear cover of the apparatus
and the wall. Keep at least 1 inch of ventilation space between the apparatus and all
other surfaces. Do not allow any of the apparatus’ ventilation openings to be blocked
by objects that might obstruct them, such as; newspapers, curtains, table-cloths or any
other objects. Do not expose the apparatus to any external heat sources. Do not place
any heat sources such as candles, lamps, etc. on the apparatus. Do not expose the device
to high levels of humidity or to any possible sources of moisture. When disposing of used
batteries from the remote control, consult local regulations regarding proper disposal.
What’s included
TV standsTCL TV
2 x AAA batteries
for remote
TV remote
What’s required
Phillips head screwdriver
4 x TV stand screws (Phillips)
(ST4X20mm for 32”)
(ST4X25mm for 40”)
(M5X35mm for 49”)
3
Removable power cable
(only for 49" model)
Ready for the step-by-step? You’re only minutes away from TV bliss!
Remove your TV from the box
Be careful, it’s heavy!

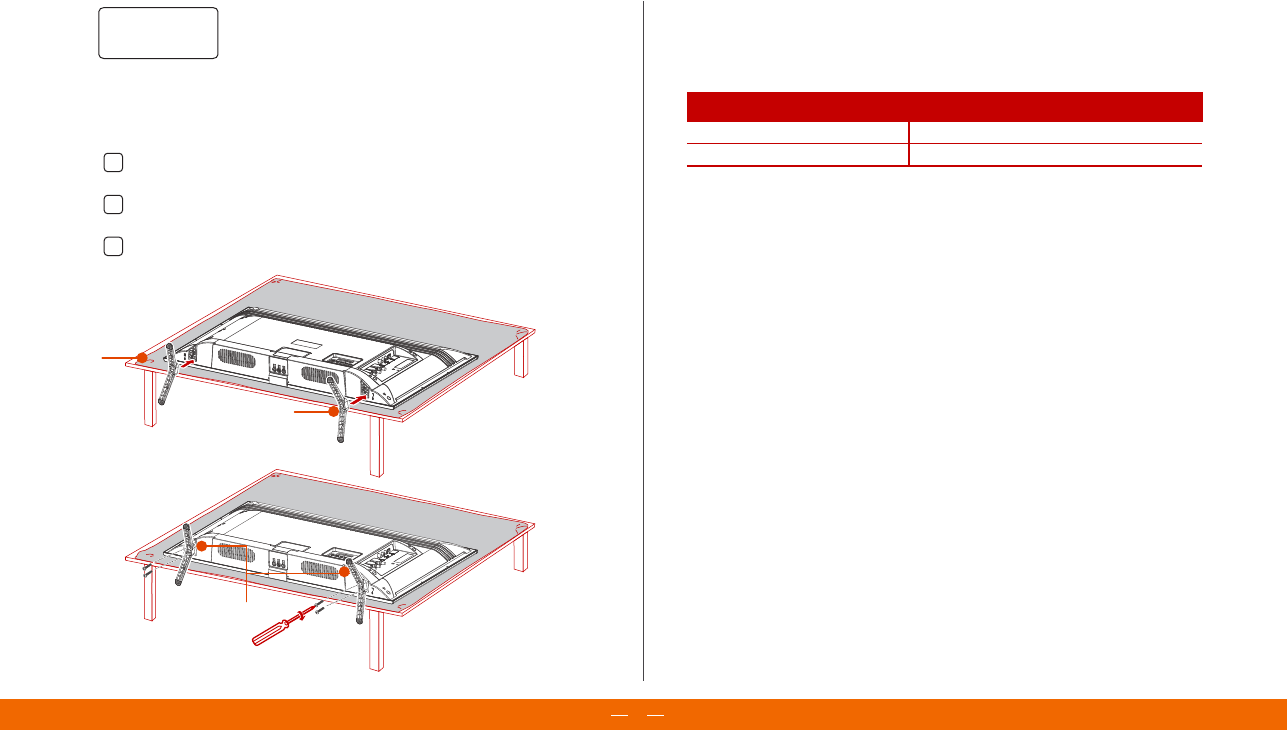

To use the stand
To prevent damage to the screen, carefully place your
TV on a soft, cushioned surface.
Align the base stand with the screw hole located on the
TV stand column.
Secure the stands to the TV with four (4) screws.
A
B
C
To mount on a wall
Models of 32” or 40” Purchase a VESA 100x100, M4x12 screw
If you are mounting your TV to the wall, don’t attach the stands.
To mount your TV to the wall, purchase a VESA wall mount
Model of 49”Purchase a VESA 200x200, M6x16 screw
The VESA number is the horizontal and vertical measurement of the mounting
holes. For example, 200X200 refers to the fact that the mounting measurements
are 200mm horizontally and 200mm vertically.
Follow the instructions that come with the wall mount.
Your wall mount must be able to bear a minimum of five times the TV’s net
weight to avoid causing damage.
Table Stand Placement Safety:
Never place a television set in an unstable location. A television set may fall,
causing serious personal injury or death. Many injuries, particularly to children,
can be avoided by taking simple precautions such as:
- Using cabinets or stands recommended by the television manufacturer.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting
furniture.
- Not placing the television set on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the television set to a
suitable support.
- Not placing the television set on cloth or other materials that may be located
between the television set and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the
television set or its controls.
Step 1 Set up your TV
4
Stand
A
B
C
(ST4 X 20mm for 32”)
(ST4 X 25mm for 40”)
(M5 X 35mm for 49”)
Screws
If your existing television set is being retained and relocated, the same
considerations as above should be applied.
In this step, we’ll make sure all systems are GO!
Power your TV remote by inserting the
included batteries.
Plug your power cable in to the wall
outlet.
(connect the power cable to the TV rst for 49”)
Connect other devices by referencing port label and descriptions on
the bottom of page 6.
Set Up Tip! Always replace dead batteries with two brand-new batteries from the
same manufacturer. Never use damaged batteries.
If your remote gets warm/hot during use, discontinue use and contact customer
support immediately at www.TCLUSA.com/support.
Step 2 Power up
5

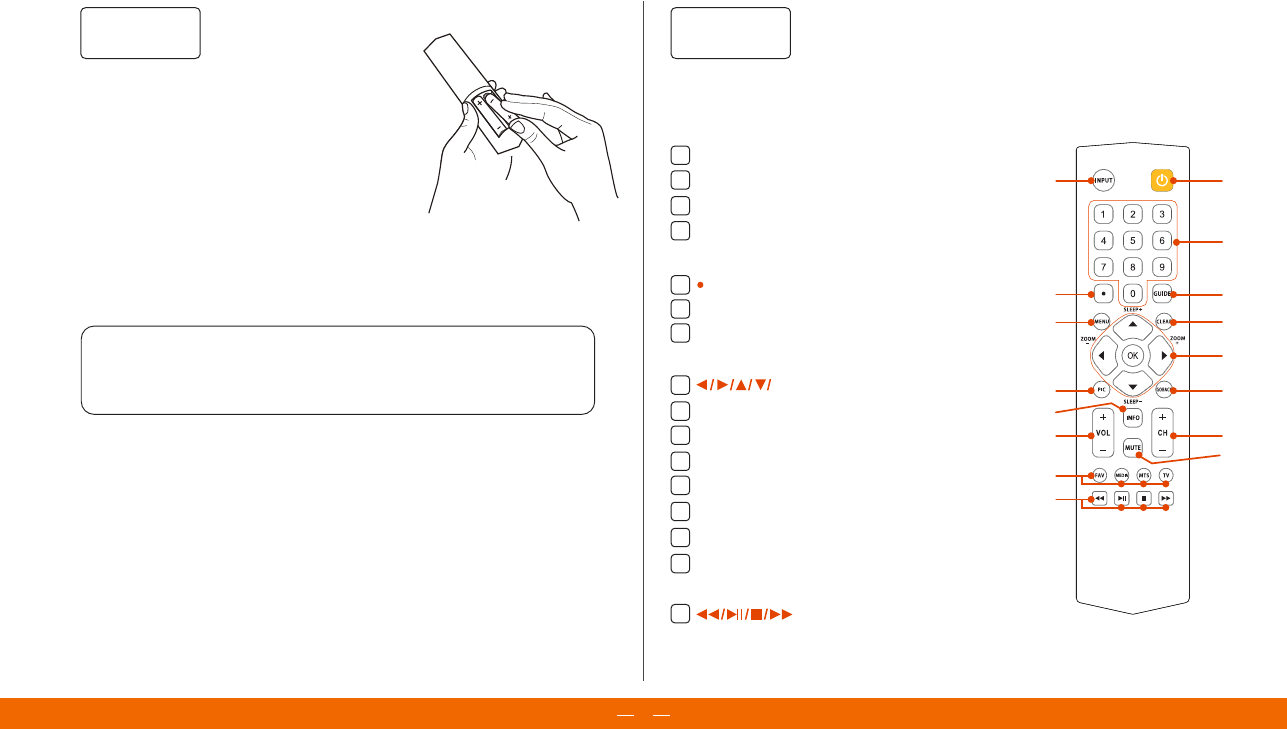

Here are some buttons you should know about.
Your remote
Step 3
AB
POWER Turn TV on and o
INPUT Source selection
0-9 Numeric keys for Channel input
GUIDE The Electronic Program Guide for
digital channels
For digital channel input
MENU Main menu
CLEAR Clear the screen and return to normal
viewing
OK Adjusts the menu controls
GOBACK Return to the previously viewed channel
PIC Selects picture mode
VOL+/- Volume adjusting
CH+/- Channel adjusting
INFO Channel information
MUTE Turn volume on and o
FAV Choose your favorite channel, or USB, sound mode,
TV mode set in your favorite list.
For playing music and photos
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
C
DE
GF
H
IJ
M
L
N
K
O
P
OPTICAL
Y/VIDEO
PbPr
A/V IN
COMPONENT IN
AUDIO OUT
STATUS LIGHT Glows when the TV is
in standby, flashes when the TV is busy,
flashes once with each button press of
the remote control.
B
C
D
E
FG
TV BACK
TV FRONT
Step 4
A
AUD IO
OUT
CAB LE/
ANT
H
A
USB PORT Connect a USB device to
access photos, music and movies.
B
AUDIO OUT Use an RCA audio
cable to connect your TV to a
compatible audio receiver.
C
CABLE/ANTENNA IN
Connect an outdoor VHF/UHF
antenna or Cable TV feed.
D
3 HDMI® PORTS Highest Quality
audio/video connection.
Connect cable box, Blu-ray
player, gaming console, or
other devices to your TV using
HDMI cables.
HDMI ARC PORT Connect HDMI
ARC (audio return channel)
capable audio devices like
sound bars or AV receivers.
E
6
Get to know your TV Step 5 Initial Setup
OPTICAL(AUDIO OUT) Connect an optical cable to an external digital audio system.
F
A/V IN If your device isn’t able to connect using HDMI®, connect to your TV using
standard red/white/yellow cables.
G
COMPONENT IN If your device isn’t able to connect using HDMI®, connect to your TV
using standard green/blue/red/white/red cables.
H
The screen will change to show the
progress of the channel scanning
process.
Use the arrows on the remote to adjust the initial menu.
Select your preferred language for the
menu system.
Set the power on mode, Select “Home
Mode” for best viewing and energy
eciency at home.
Select either “Antenna” or “Cable/Sat”
as the channel scan type.
TTE Technology, Inc. (“TTE”) Limited Warranty
All LCD/LED Models.
What your warranty covers: Defects in materials or workmanship to the original
owner of this TCL product when purchased as new from an Authorized Dealer of TCL
brand products in the United States and packaged with this warranty statement.
New LCD/LED Televisions (Non-Commercial Use)
For how long after your purchase:
One (1) year from date of purchase for parts and labor for non-commercial use.
New LCD/LED Televisions (Commercial Use)
For how long after your purchase:
Six (6) months from date of purchase for parts and labor for commercial use.
Commercial use includes, but is not limited to, the use of this product in a commercial
or business environment, the use of this product in an institution or for institutional
purposes, or other commercial purposes including rental purposes.
What we will do:
At TTE’s discretion, (1) pay an Authorized TCL Service Center for both labor charges
and parts to repair your television, or (2) replace your television with a new or
refurbished / remanufactured equivalent value product. The decision to repair or
replace will be made solely by TTE. See “How to get service”.
How to get service:
Call 1-877-300-8837.
Please have your original purchase receipt or proof of purchase (bill of sale or
receipted invoice), the unit’s date of purchase, place of purchase and model/serial
number ready. The model/serial number information can be found on the back of
your unit.
A representative will troubleshoot your problem over the telephone. If it is
determined that your unit requires service, the service location will be at the sole
discretion of TTE based upon the TTE Limited Warranty Statement.
At the sole discretion of TTE, television screen sizes 32” and smaller will either be
repaired at an Authorized TCL Service Center or directly exchanged for a new or
refurbished/remanufactured unit. At the sole discretion of TTE, television screen
sizes 33” through 55” or larger will either be repaired at an Authorized TCL Service
Center or repaired in-home.
If repaired at an Authorized TCL Service Center, TTE is not responsible for transportation
costs to the Authorized TCL Service Center. However, TTE will pay for return shipping.
TTE will provide instructions for packaging and shipping the unit.
Proof of purchase in the form of a bill of sale or receipted invoice from an Authorized
Dealer which is evidence that the product is within the warranty period must be
presented to obtain warranty service.
PRE-AUTHORIZATION MUST BE OBTAINED BEFORE (1) SENDING ANY PRODUCT TO
AN AUTHORIZED TCL SERVICE CENTER, OR (2) OBTAINING ANY IN-HOME REPAIR/RE-
PLACEMENT/RENTAL SERVICES.
What your warranty does not cover:
Customer instruction. (Your Owner’s Manual describes how to install, adjust, and
operate your unit. Any additional information should be obtained from your
Authorized Dealer).
Installation and related adjustments, or damage resulting from installation.
Damage resulting from non-approved installation methods.
Signal reception problems not caused by your unit.
Damage from misuse, abuse, neglect, normal wear and tear, cosmetic damage,
mishandling, faulty installation, or power line surges.
Markings or images on the television’s panel resulting from viewing xed images
(including but not limited to certain 4:3 images on wide screen televisions, or data or
images in xed screen locations from banners, video games, or certain broadcast
networks).
A television that has been modied or incorporated into other products.
A unit purchased or serviced outside the USA.
A unit sold in “As-Is”, “Factory Reconditioned”, “Factory Re-Certied”, or “Refurbished”
condition or with faults.
Acts of nature or God, such as but not limited to earthquake or lightning damage.
Special, incidental or consequential damages.
Product Registration:
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to
contact you should it ever be necessary. Registration is not required for warranty
coverage.
7
TTE Technology, Inc. (“TTE”)
Limited Warranty
LIMITATION OF WARRANTY
THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS
PRODUCT. NO VERBAL OR WRITTEN INFORMATION GIVEN BY TTE TECHNOLOGY,
INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY
INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. TTE TECHNOLOGY, INC. SHALL NOT BE LIABLE FOR
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED
WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF CALIFORNIA. EXCEPT
TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS
LIMITED TO THE APPLICABLE WARRANTY AND WARRANTY PERIOD SET FORTH
ABOVE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE VISIT
WWW.TCLUSA.COM TO VIEW THE MOST CURRENT VERSION.
How State Law relates to this warranty:
Some states do not allow the exclusion or limitation of incidental or consequential
damages, orlimitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you.
This warranty gives you specic legal rights, and you also may have other rights that
vary from state to state.
If you purchased your unit outside the United States or seek warranty
coverage outside the United States:
This warranty does not apply. Contact your dealer for warranty information.
Service calls which do not involve defective materials or workmanship are not
covered by this warranty. Costs of such service calls are the sole responsibility
of the purchaser.
Broadcasting system US System NTSC-M
ATSC standard (8VSB), QAM
Receiving Channels VHF2-13
UHF14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Tuner type Frequency synthesized
Operating Temperature 5°C to 35°C (41°F to 95°F)
Operating Humidity 20% to 80%, non-condensing
Storage Temperature -15°C to 45°C (5°F to 113°F)
Storage Humidity 10% to 90%, non-condensing
Broadcasting & Operating Environment
8
Having trouble completing the guided setup? Don’t worry, it’s usually
an easy x.
9
Troubleshooting
My picture is too small
• Press zoom-/zoom+ button to select picture mode, then select zoom to
adjust picture size.
Problems connecting my cable/satellite box or antenna through a
coax cable
• For best performance, use the HDMI connection. If not available, then:
What is the remote code for programming my Universal or Cable/
Satellite box remote control
• Pleade visit www.tclusa.com/remotecodes
• Make sure the cable connections to the TV and your device are securely
fastened.
• Select cable/satellite box or antenna TV input.
• Select “start nding channels” and follow the on-screen instructions to
perform a full channel scan.
How to turn on/o voice guidance quickly
• Press “Menu” button;
• Press button “1”, “2” and “3” in sequence;
• The voice guidance has been turn on;
• Repeat the action to turn o the voice guidance.
Need more help?
www.TCLUSA.com/support
TTE Technology, Inc.
2455 Anselmo Drive, Suite 101, Corona, CA 92879
TCL and associated marks are trademarks of TCL Corporation, used under license to TTE Technology Inc.
Part No.: 70-32MS55-QSG9A
This product incorporates HDMI technology.
HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
"Dolby, Dolby Audio, and double-D symbol are trademarks of Dolby Laboratories."
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Please do not send any products to the California address listed in this manual or on the carton. This will only add delays in service for your product.
Figures and illustrations in this User’s Guide are provided for reference only and may dier from actual product appearance. Product design and specications may be changed without notice.
1-877-300-8837
