TYCOFETY KANTECH 15KTMULMTKP Smart Card Reader User Manual My
TYCO SAFETY PRODUCTS / KANTECH Smart Card Reader My
Users Manual
SmartCard Reader
Mullion Single Gang
Technical Specifications
Model KT-MUL-MT-KP / KT-MUL-MT KT-MUL-SC-KP / KT-MUL-SC KT-SG-MT-KP / KT-SG-MT KT-SG-SC-KP / KT-SG-SC
Typical Read Range 13.56 MHz MIFARE Plus X,
encrypted sector, ID-1 Credentials (Cards) Up to 1.2" Up to 1.6"
Typical Read Range 125 kHz ioProx ID-1
Credentials (Cards) Up to 1.8" - Up to 2.0" -
Input Voltage 5VDC to 15VDC
Power Consumption @ 12V 175mA 70mA 160mA 70mA 175mA 70mA 160mA 70mA
Operating Humidity 0 to 95% non-condensing
Operating Temperature -40C to +70C (-40F to +158F)
Environmental Rating IP57

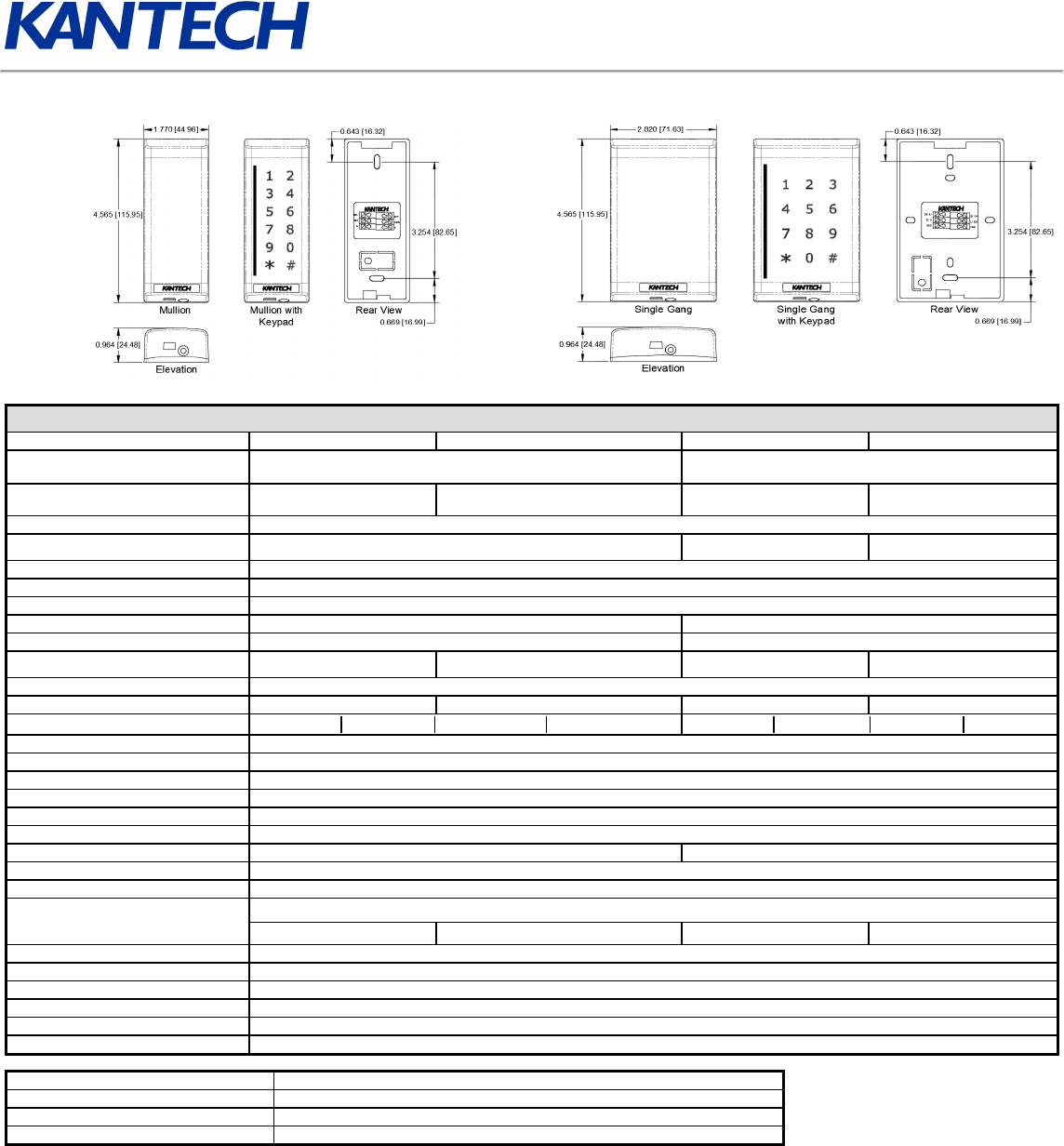

Dimensions (H.W.D.) mm 115.8 x 44.6 x 24.7 115.8 x 71.5 x 24.7
Dimensions (H.W.D.) in 4.56 x 1.75 x 0.97 4.56 x 2.81 x 0.97
Weight 108g (0.24lb) 106g (0.23lb) 105g (0.23lb) 103g (0.23lb) 173g (0.38lb) 166g (0.37lb) 170g (0.37lb) 161g (0.35lb)
Housing Polycarbonate, Smoked Black
RF Technologies 13.56 MHz and 125 kHz 13.56 MHz 13.56 MHz and 125 kHz 13.56 MHz
Capacitive Touch Keypad with backlighting x x x x
LED Indicator Multi-Color Bar: Red, Green, Yellow, Blue, Configurable
Sounder Integrated
Tamper Optical
Inputs Wiegand or RS-485: LED and Buzzer RS-485: 2 to 4 (configurable, using double device)
Output RS-485: 1 supervised, open-drain, up to 750mA
Wiring Terminal 6 Screwless Poles
Mounting Mullion North American Single Gang
Communication RS-485 Bus AES-128 Encrypted or Wiegand
Wiegand Formats 26-bit / 34-bit / Kantech XSF / Kantech SSF
Supported Credentials 13.56MHz
125kHz
MIFARE Plus X and ISO/IEC 14443A
ioProx - ioProx -
Cabling 3 Twisted pairs AWG 22 unshielded, up to 250' (75m)
Security Supports AES-128 Encryption between the Credential and the Reader as well as between the Reader and the Access Controller
Firmware Fully upgradable via RS-485
Certifications FCC, CE, UL, NIST, FIPS 197, RoHS, WEEE
Flammability Rating UL94 V-0
Warranty Limited Lifetime
Compatible Access Control Units:
Wiegand XSF KT-300, KT-400 and KT-1
Wiegand SSF KT-300, KT-400 and KT-1
RS485 KT-400 and KT-1
SmartCard Reader

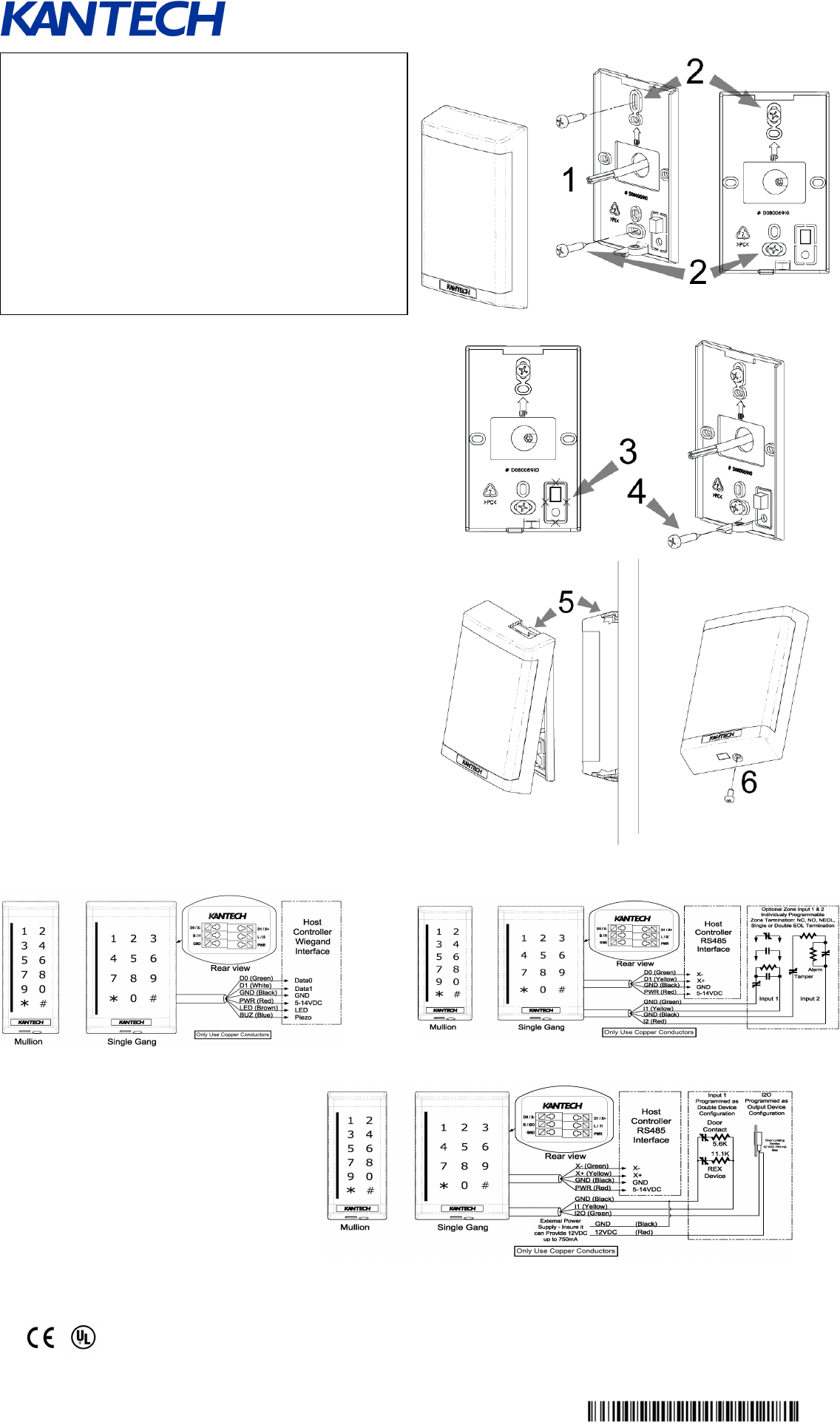

Mounting Instructions
Follow these instructions to install the reader:
1. Pull the controller’s wires in the wall through the hole in the mounting
bracket.
2. Affix the mounting plate to the wall using two screws (#6-32).
3. If a higher level of tamper detection is desired, cut the plastic tamper
tab from the mounting bracket.
4. Secure the white reflector tab back into the mounting plate hole with a
screw. (#6-32).
5. After having wired the reader as per the drawings below, insert the top
hook of the cover into the mounting plate tab and complete the pro-
cedure by pressing the bottom part into place until the bottom hook is in
place.
6. If a more secure installation is desired, install the provided screw at the
bottom of the reader. You may also use the provided security screw
instead for an even safer installation. (#6-32).
FCC COMPLIANCE STATEMENT
CAUTION: Changes or modifications not expressly approved by KANTECH could void your authority to use
this equipment.
This equipment generates and uses radio frequency energy and if not installed and used properly, in strict
accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It
has been type tested and found to comply with the limits for Class B device in accordance with the spe-
cifications in Subpart “B” of Part 15 of FCC Rules, which are designed to provide reasonable protection
against such interference in any residential installation. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause interference to television or radio reception,
which can be determined by turning the equipment off and on, the user is encouraged to tryto correct the inter-
ference by one or more of the following measures:
-Re-orient the receiving antenna
-Relocate the alarm control with respect to the receiver
-Move the alarm control away from the receiver
-Connect the alarm control into a different outlet so that alarm control and receiver are on different circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions. The user may find the following booklet prepared by the FCC useful: “How to Identify and
Resolve Radio/Television Interference Problems”. This booklet is available from the U.S. Government Print-
ing Office, Washington D.C. 20402, Stock # 004-000-00345-4.
INDUSTRY CANADA STATEMENT
CAN-ICES-3(B)/NMB-3(B)
Wiring Chart via Wiegand Wiring Chart via RS485
Wiring Chart via RS485 (Lock Wiring)
UL294 Performance Levels:
Destructive Attack: Level I (no attack test)
Line Security: Level III (AES128 line security)
Endurance: Level IV (100,000 cycles)
Standby Power: Level I (no integral standby power)
Installation location and wiring methods shall be in accordance with the
National Electrical Code, ANSI/NFPA 70. There is no maintenance
required and there are no replacement parts required for these devices.
