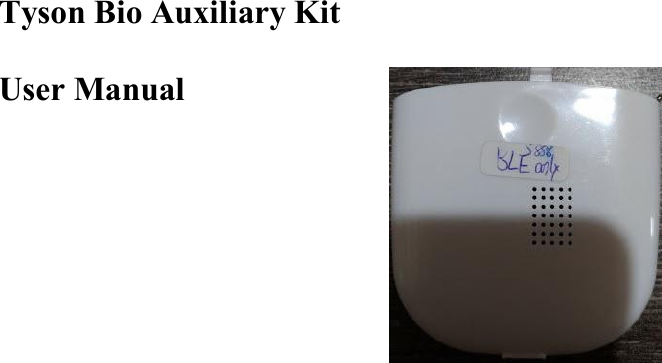

TYSON BIORESEARCH MT Tyson Bio Auxiliary Kit User Manual

TYSON BIORESEARCH, INC. Tyson Bio Auxiliary Kit Users Manual

Users Manual

Tyson Bio Auxiliary KitUser Manual
1Table of ContantIntroduction..........................................................................................................................2Check the Auxiliary Kit Type............................................................................................... 2System Requirements........................................................................................................... 4About Bluetooth®................................................................................................................ 4Important Safety Instructions................................................................................................7How to install the Tyson Bio Auxiliary Kit on your Meter....................................................9Tyson Bio MT-A Auxiliary Kit (Voice Guidance).............................................................. 10Setting Up MT-A Auxiliary Kit Voice Function on the Meter.............................................10Tyson Bio MT-B Auxiliary Kit (Bluetooth )....................................................................... 14Setting Up MT-B Auxiliary Kit Bluetooth Function on the Meter.......................................14Tyson Bio MT-C Auxiliary Kit (Voice Guidance and Bluetooth)........................................ 20Setting Up MT-C Auxiliary Kit Voice Guidance and Bluetooth Function on the Meter.......20Care and Storage.................................................................................................................24Trouble Shooting................................................................................................................25Specifications..................................................................................................................... 27Module Storage.................................................................................................................. 27Icon Description................................................................................................................. 28

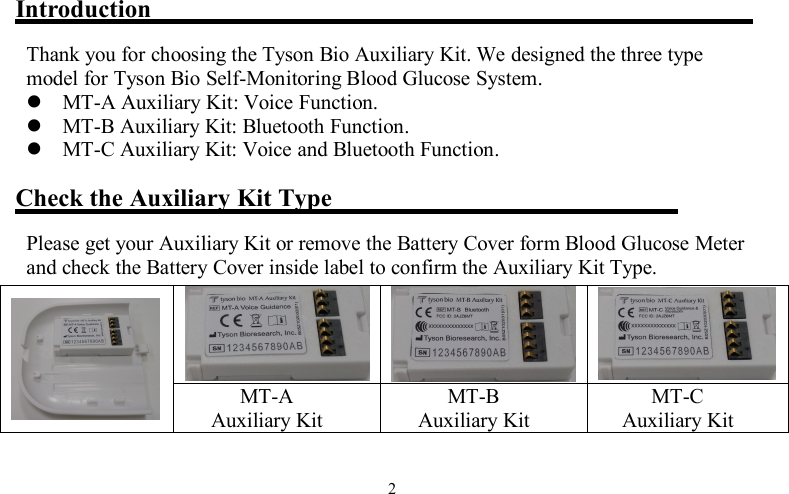

2IntroductionThank you for choosing the Tyson Bio Auxiliary Kit. We designed the three typemodel for Tyson Bio Self-Monitoring Blood Glucose System.MT-A Auxiliary Kit: Voice Function.MT-B Auxiliary Kit: Bluetooth Function.MT-C Auxiliary Kit: Voice and Bluetooth Function.Check the Auxiliary Kit TypePlease get your Auxiliary Kit or remove the Battery Cover form Blood Glucose Meterand check the Battery Cover inside label to confirm the Auxiliary Kit Type.MT-AAuxiliary KitMT-BAuxiliary KitMT-CAuxiliary Kit
3This user’s manual contains all the information needed to use and maintain thisAuxiliary Kit.Note:Please read carefully before use.If Auxiliary Kit Type Is:MT-APlease refer to Tyson Bio MT-A Auxiliary Kit(Voice Guidance)Please refer to 《TysonBio MT-A Auxiliary Kit(Voice Guidance)》MT-BPlease refer to Tyson Bio MT-B Auxiliary Kit(Bluetooth)Please refer to 《Tyson Bio MT-B Auxiliary Kit (Bluetooth)》MT-CPlease refer to Tyson Bio MT-C Auxiliary Kit(Voice Guidance and Bluetooth)Please refer to 《TysonBio MT-C Auxiliary Kit(Voice Guidance andBluetooth)》Note : The voice function of Tyson Bio MT-A Voice Guidance and MT-C VoiceGuidance and Bluetooth Auxiliary Kits are not intended for the visually impaired.

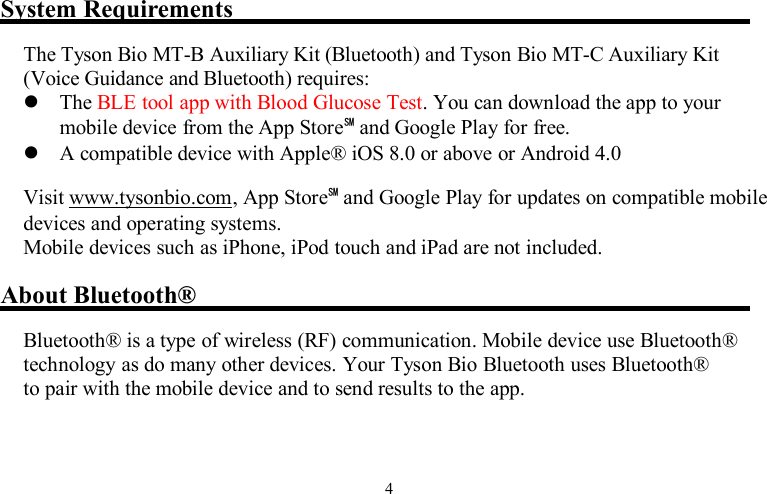

4System RequirementsThe Tyson Bio MT-B Auxiliary Kit (Bluetooth) and Tyson Bio MT-C Auxiliary Kit(Voice Guidance and Bluetooth) requires:The BLE tool app with Blood Glucose Test. You can download the app to yourmobile device from the App Store℠and Google Play for free.A compatible device with Apple® iOS 8.0 or above or Android 4.0Visit www.tysonbio.com, App Store℠and Google Play for updates on compatible mobiledevices and operating systems.Mobile devices such as iPhone, iPod touch and iPad are not included.About Bluetooth®Bluetooth® is a type of wireless (RF) communication. Mobile device use Bluetooth®technology as do many other devices. Your Tyson Bio Bluetooth uses Bluetooth®to pair with the mobile device and to send results to the app.
5CAUTION:1. Before testing, you must first pair your meter with the mobile device and initiallysync with the app. This will ensure that results from your meter are sent wirelesslyto the app on your mobile device.2. Your meter is subject to and complies with U.S. federal guidelines, Part 15 of theFCC rules for devices with RF capability. These rules state two conditions specificto the operation of the device. They are:This device may not cause harmful interference.This device must accept any interference received, including interference that maycause undesirable operation.3. These guidelines help ensure that your meter will not affect the operation of othernearby electronic devices. Additionally, other electronic devices should not affectthe use of your meter. With the exception of your mobile device Phone, otherelectronic wireless devices that are in use nearby, such as a cell phone or a wirelessnetwork, may prevent or delay the transmission of data from your meter to the app.Moving away from or turning off these electronic devices may allowcommunication.4. The meter has been tested and found to be appropriate for use at home. In mostcases, it should not interfere with other home electronic devices if used as instructed.

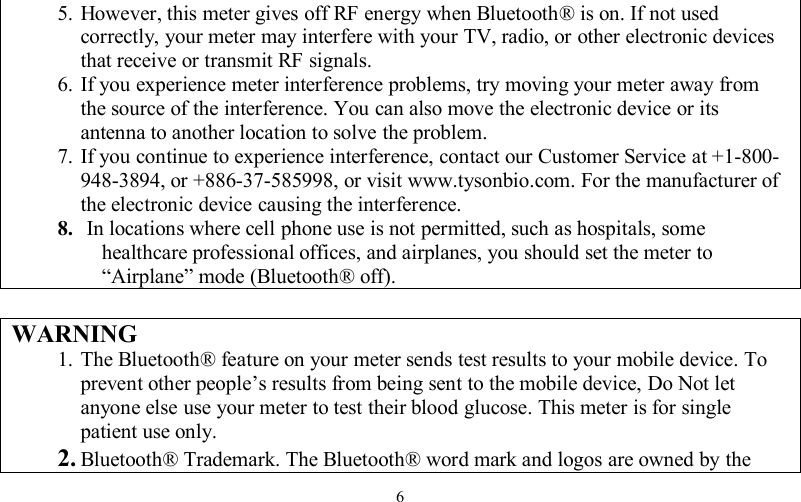

65. However, this meter gives off RF energy when Bluetooth® is on. If not usedcorrectly, your meter may interfere with your TV, radio, or other electronic devicesthat receive or transmit RF signals.6. If you experience meter interference problems, try moving your meter away fromthe source of the interference. You can also move the electronic device or itsantenna to another location to solve the problem.7. If you continue to experience interference, contact our Customer Service at +1-800-948-3894, or +886-37-585998, or visit www.tysonbio.com. For the manufacturer ofthe electronic device causing the interference.8. In locations where cell phone use is not permitted, such as hospitals, somehealthcare professional offices, and airplanes, you should set the meter to“Airplane” mode (Bluetooth® off).WARNING1. The Bluetooth® feature on your meter sends test results to your mobile device. Toprevent other people’s results from being sent to the mobile device, Do Not letanyone else use your meter to test their blood glucose. This meter is for singlepatient use only.2. Bluetooth® Trademark. The Bluetooth® word mark and logos are owned by the

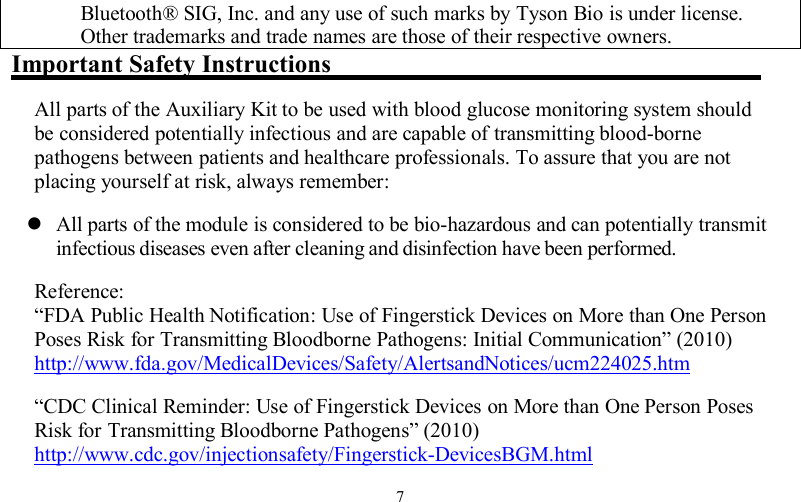

7Bluetooth® SIG, Inc. and any use of such marks by Tyson Bio is under license.Other trademarks and trade names are those of their respective owners.Important Safety InstructionsAll parts of the Auxiliary Kit to be used with blood glucose monitoring system shouldbe considered potentially infectious and are capable of transmitting blood-bornepathogens between patients and healthcare professionals. To assure that you are notplacing yourself at risk, always remember:All parts of the module is considered to be bio-hazardous and can potentially transmitinfectious diseases even after cleaning and disinfection have been performed.Reference:“FDA Public Health Notification: Use of Fingerstick Devices on More than One PersonPoses Risk for Transmitting Bloodborne Pathogens: Initial Communication” (2010)http://www.fda.gov/MedicalDevices/Safety/AlertsandNotices/ucm224025.htm“CDC Clinical Reminder: Use of Fingerstick Devices on More than One Person PosesRisk for Transmitting Bloodborne Pathogens” (2010)http://www.cdc.gov/injectionsafety/Fingerstick-DevicesBGM.html
8“CDC: Infection Prevention during Blood Glucose Monitoring and InsulinAdministration” (2010)http://www.cdc.gov/injectionsafety/blood-glucose-monitoring.html
9How to install the Tyson Bio Auxiliary Kit on your MeterStep 1Step 2Step 3Step 4Press and pulldown the backcoverRemove the backcover form themeter back coversocketTake the Tyson BioAuxiliary Kit(Back Cover)Press and Push upthe back coverinto meter backcover socket

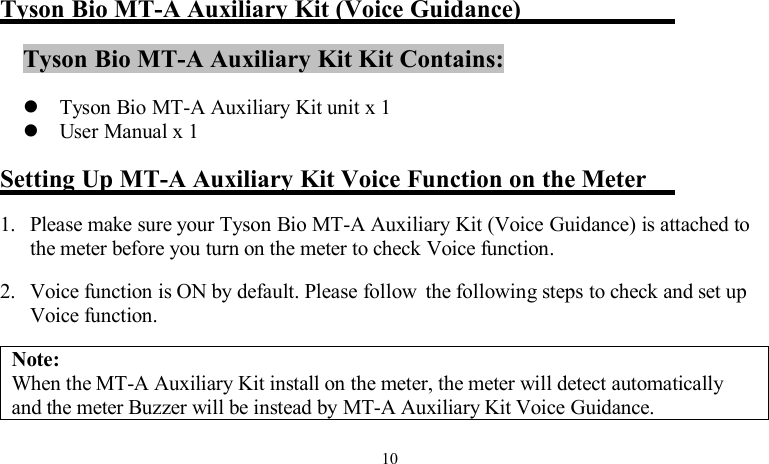

10Tyson Bio MT-A Auxiliary Kit (Voice Guidance)Tyson Bio MT-A Auxiliary Kit Kit Contains:Tyson Bio MT-A Auxiliary Kit unit x 1User Manual x 1Setting Up MT-A Auxiliary Kit Voice Function on the Meter1. Please make sure your Tyson Bio MT-A Auxiliary Kit (Voice Guidance) is attached tothe meter before you turn on the meter to check Voice function.2. Voice function is ON by default. Please follow the following steps to check and set upVoice function.Note:When the MT-A Auxiliary Kit install on the meter, the meter will detect automaticallyand the meter Buzzer will be instead by MT-A Auxiliary Kit Voice Guidance.
113. When the meter is switched off, press and hold button for 4 seconds to enter intosetting menu(Fig. 1).Pressor to select “Voice On” or “Voice Off”.Note:When the “Voice Off” switch to “Voice On”, will heard the short sound.4. Then press to confirm and show the display Fig. 2.5.Pressor to select Voice value, the numbers of “value” will appear and flash. Pressor to adjust from 1 to 7.Note:Every time youPressor will heard the short sound, the voice will bigger or smaller.6.Then pressto confirm and how the display Fig. 3.7.Pressor to select Language, the numbers indicating “L1” or “L2” will appearand flash. Press or to adjust andPressto confirm.Note:

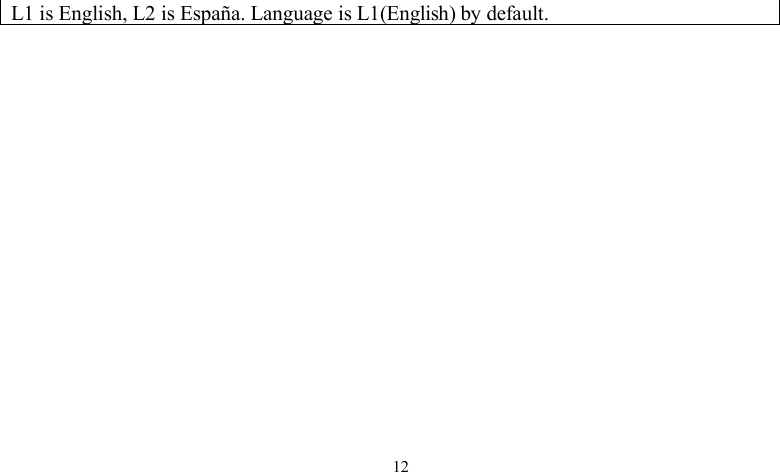

12L1 is English, L2 is España. Language is L1(English) by default.
13Fig. 1Fig. 2Fig. 3

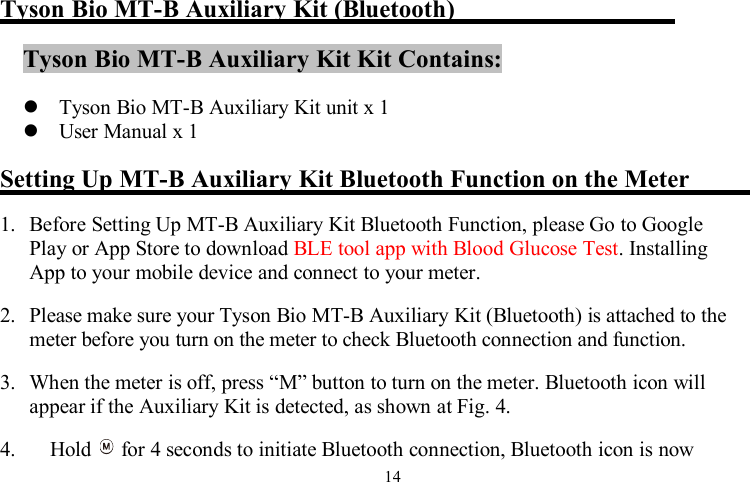

14Tyson Bio MT-B Auxiliary Kit (Bluetooth)Tyson Bio MT-B Auxiliary Kit Kit Contains:Tyson Bio MT-B Auxiliary Kit unit x 1User Manual x 1Setting Up MT-B Auxiliary Kit Bluetooth Function on the Meter1. Before Setting Up MT-B Auxiliary Kit Bluetooth Function, please Go to GooglePlay or App Store to download BLE tool app with Blood Glucose Test. InstallingApp to your mobile device and connect to your meter.2. Please make sure your Tyson Bio MT-B Auxiliary Kit (Bluetooth) is attached to themeter before you turn on the meter to check Bluetooth connection and function.3. When the meter is off, press “M” button to turn on the meter. Bluetooth icon willappear if the Auxiliary Kit is detected, as shown at Fig. 4.4. Hold for 4 seconds to initiate Bluetooth connection, Bluetooth icon is now

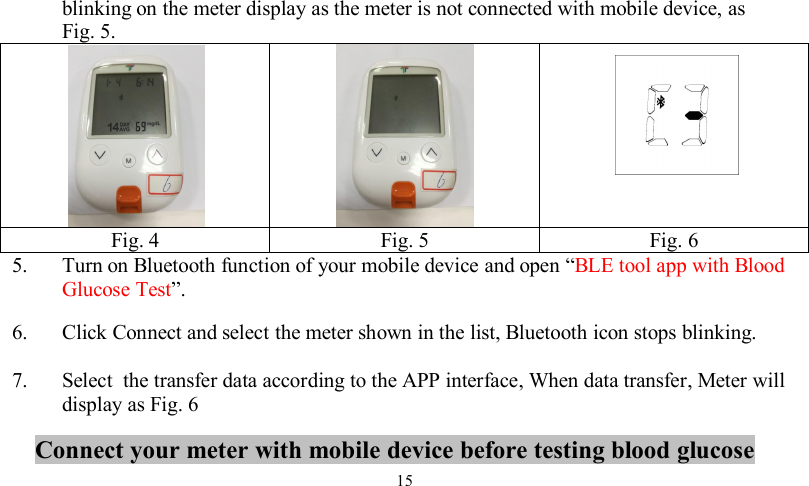

15blinking on the meter display as the meter is not connected with mobile device, asFig. 5.Fig. 4Fig. 5Fig. 65. Turn on Bluetooth function of your mobile device and open “BLE tool app with BloodGlucose Test”.6. Click Connect and select the meter shown in the list, Bluetooth icon stops blinking.7. Select the transfer data according to the APP interface, When data transfer, Meter willdisplay as Fig. 6Connect your meter with mobile device before testing blood glucose

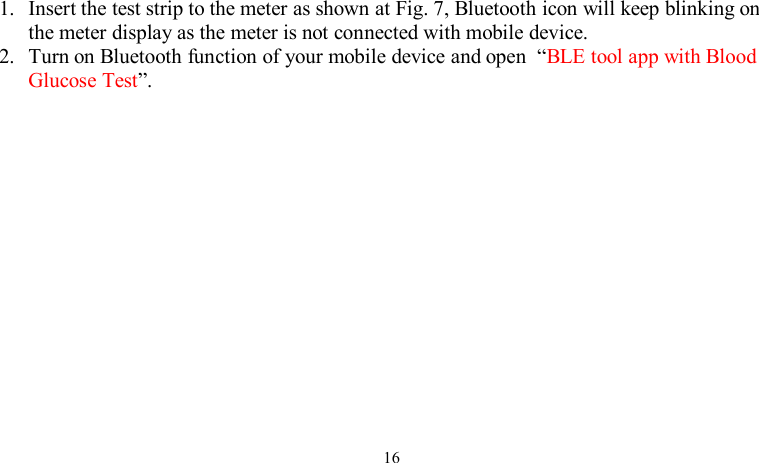

161. Insert the test strip to the meter as shown at Fig. 7, Bluetooth icon will keep blinking onthe meter display as the meter is not connected with mobile device.2. Turn on Bluetooth function of your mobile device and open “BLE tool app with BloodGlucose Test”.

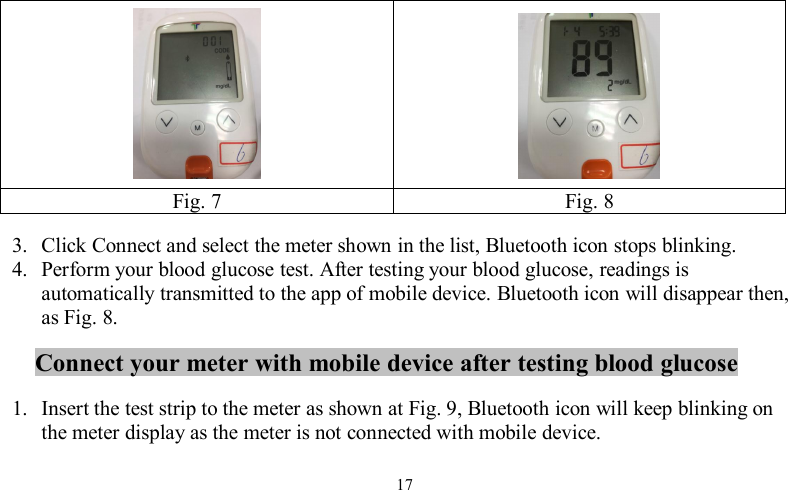

17Fig. 7Fig. 83. Click Connect and select the meter shown in the list, Bluetooth icon stops blinking.4. Perform your blood glucose test. After testing your blood glucose, readings isautomatically transmitted to the app of mobile device. Bluetooth icon will disappear then,as Fig. 8.Connect your meter with mobile device after testing blood glucose1. Insert the test strip to the meter as shown at Fig. 9, Bluetooth icon will keep blinking onthe meter display as the meter is not connected with mobile device.

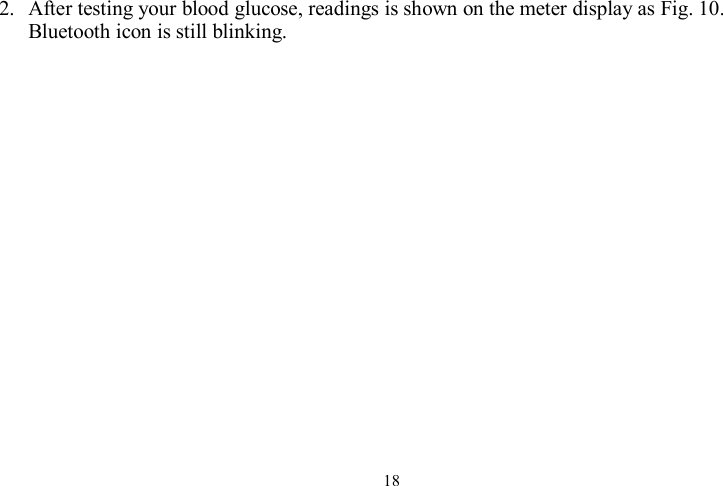

182. After testing your blood glucose, readings is shown on the meter display as Fig. 10.Bluetooth icon is still blinking.
193. Turn on Bluetooth function of your mobile device and open “BLE tool app with BloodGlucose Test”.Fig. 9Fig. 104. Click ” Connect ” and select the meter shown in the list. The test readings just acquiredwill be transmitted to the app of mobile device. Bluetooth icon will disappear then.
20Tyson Bio MT-C Auxiliary Kit (Voice Guidance and Bluetooth)Tyson Bio MT-C Auxiliary Kit Kit Contains:Tyson Bio MT-C Auxiliary Kit unit x 1User Manual x 1Setting Up MT-C Auxiliary Kit Voice Guidance and Bluetooth Functionon the MeterPlease make sure your Tyson Bio MT-C Auxiliary Kit (Voice Guidance andBluetooth) is attached to the meter before you turn on the meter to checkVoice and Bluetooth connection function.For Voice function: please refer to section “Setting Up MT-A Auxiliary KitVoice Function on the Meter” for more detail.F
21or Bluetooth function: please refer to section “Setting Up MT-B Auxiliary KitBluetooth Function on the Meter” for more detail.

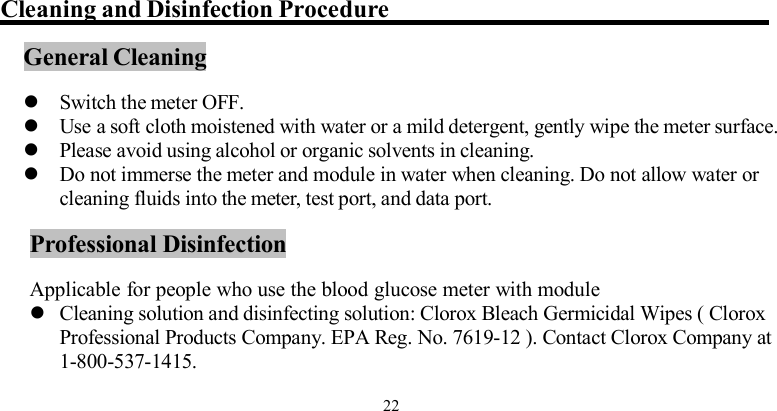

22Cleaning and Disinfection ProcedureGeneral CleaningSwitch the meter OFF.Use a soft cloth moistened with water or a mild detergent, gently wipe the meter surface.Please avoid using alcohol or organic solvents in cleaning.Do not immerse the meter and module in water when cleaning. Do not allow water orcleaning fluids into the meter, test port, and data port.Professional DisinfectionApplicable for people who use the blood glucose meter with moduleCleaning solution and disinfecting solution: Clorox Bleach Germicidal Wipes ( CloroxProfessional Products Company. EPA Reg. No. 7619-12 ). Contact Clorox Company at1-800-537-1415.

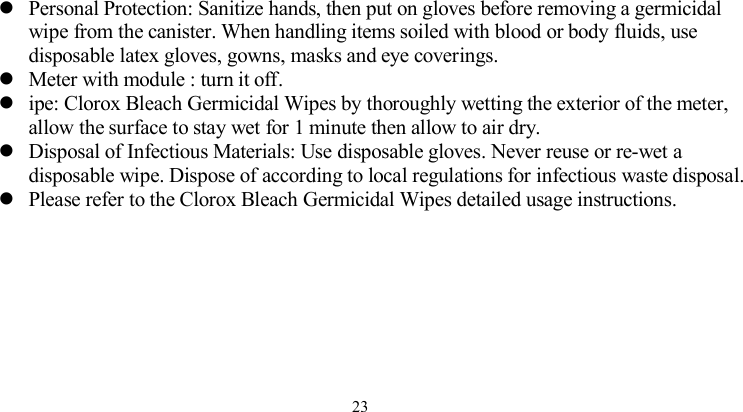

23Personal Protection: Sanitize hands, then put on gloves before removing a germicidalwipe from the canister. When handling items soiled with blood or body fluids, usedisposable latex gloves, gowns, masks and eye coverings.Meter with module : turn it off.ipe: Clorox Bleach Germicidal Wipes by thoroughly wetting the exterior of the meter,allow the surface to stay wet for 1 minute then allow to air dry.Disposal of Infectious Materials: Use disposable gloves. Never reuse or re-wet adisposable wipe. Dispose of according to local regulations for infectious waste disposal.Please refer to the Clorox Bleach Germicidal Wipes detailed usage instructions.
24Care and Storage1. Please handle the meter and module with care. Dropping the meter and module mayresult in damage.2. Do not expose the meter and module to extreme conditions such as high humidity, heat,freezing cold, or dust.3. The meter and module should be stored at room temperature in a dry and clean area.DO NOT STORE IN DIRECT SUNLIGHT OR AREAS WITH HIGH HUMIDITYAND/OR DUST. It is advised that you store the meter, module and its accessories intothe provided carrying case.It is advised that you store all parts of Tyson Bio HT100 Blood Glucose MonitoringSystem in the carrying case provided.

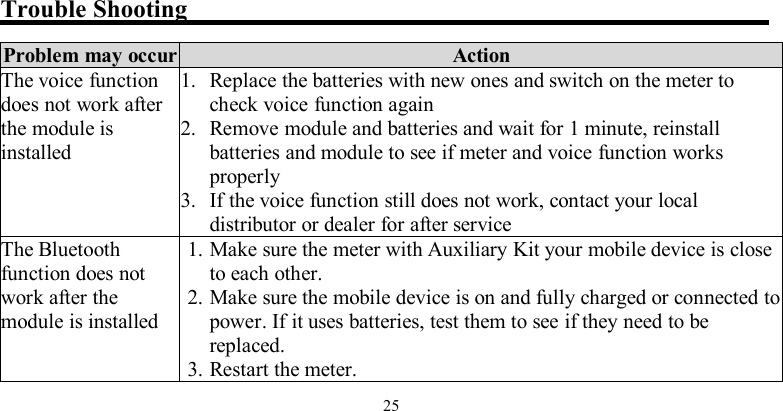

25Trouble ShootingProblem may occurActionThe voice functiondoes not work afterthe module isinstalled1. Replace the batteries with new ones and switch on the meter tocheck voice function again2. Remove module and batteries and wait for 1 minute, reinstallbatteries and module to see if meter and voice function worksproperly3. If the voice function still does not work, contact your localdistributor or dealer for after serviceThe Bluetoothfunction does notwork after themodule is installed1. Make sure the meter with Auxiliary Kit your mobile device is closeto each other.2. Make sure the mobile device is on and fully charged or connected topower. If it uses batteries, test them to see if they need to bereplaced.3. Restart the meter.
26Problem may occurAction4. Make sure that your mobile devices are installed with iOS 8.0 andAndroid 4.3 or above.5. On your mobile device, go to Settings > Bluetooth and make surethat Bluetooth is on. If you can’t turn Bluetooth on or you see aspinning gear, restart your mobile device.6. Unpair the meter, put the meter back in discovery mode, then pairand connect it again.

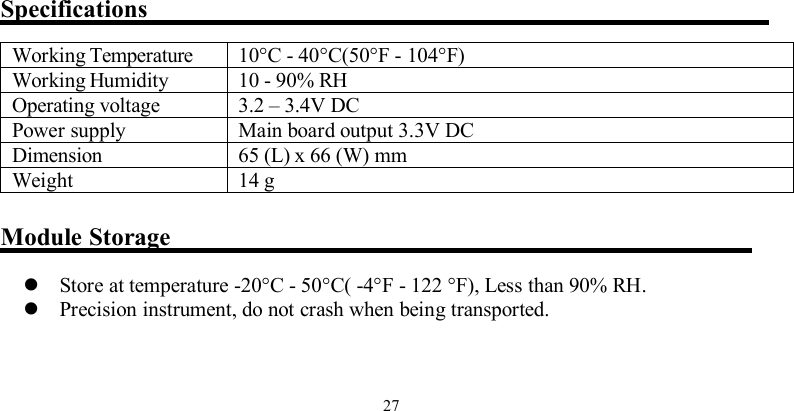

27SpecificationsWorking Temperature10°C - 40°C(50°F - 104°F)Working Humidity10 - 90% RHOperating voltage3.2 – 3.4V DCPower supplyMain board output 3.3V DCDimension65 (L) x 66 (W) mmWeight14 gModule StorageStore at temperature -20°C - 50°C( -4°F - 122 °F), Less than 90% RH.Precision instrument, do not crash when being transported.

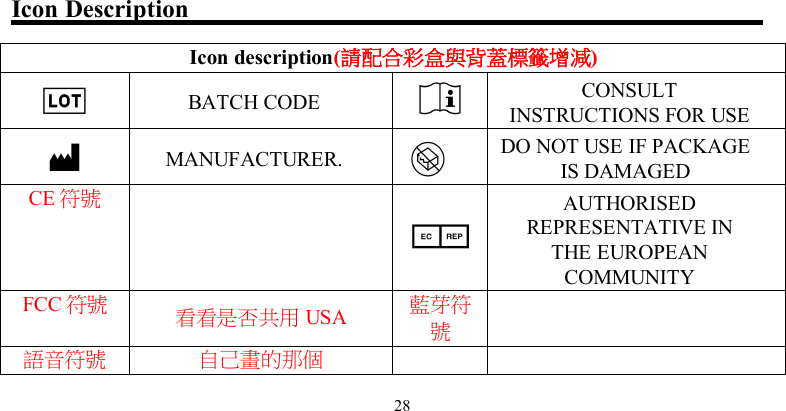

28Icon DescriptionIcon description(請配合彩盒與背蓋標籤增減)BATCH CODECONSULTINSTRUCTIONS FOR USEMANUFACTURER.DO NOT USE IF PACKAGEIS DAMAGEDCE 符號AUTHORISEDREPRESENTATIVE INTHE EUROPEANCOMMUNITYFCC 符號看看是否共用 USA藍芽符號語音符號自己畫的那個

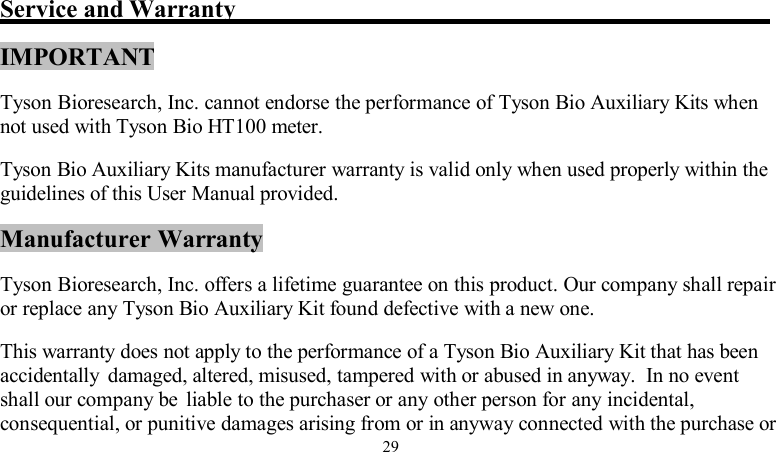

29Service and WarrantyIMPORTANTTyson Bioresearch, Inc. cannot endorse the performance of Tyson Bio Auxiliary Kits whennot used with Tyson Bio HT100 meter.Tyson Bio Auxiliary Kits manufacturer warranty is valid only when used properly within theguidelines of this User Manual provided.Manufacturer WarrantyTyson Bioresearch, Inc. offers a lifetime guarantee on this product. Our company shall repairor replace any Tyson Bio Auxiliary Kit found defective with a new one.This warranty does not apply to the performance of a Tyson Bio Auxiliary Kit that has beenaccidentally damaged, altered, misused, tampered with or abused in anyway. In no eventshall our company be liable to the purchaser or any other person for any incidental,consequential, or punitive damages arising from or in anyway connected with the purchase or

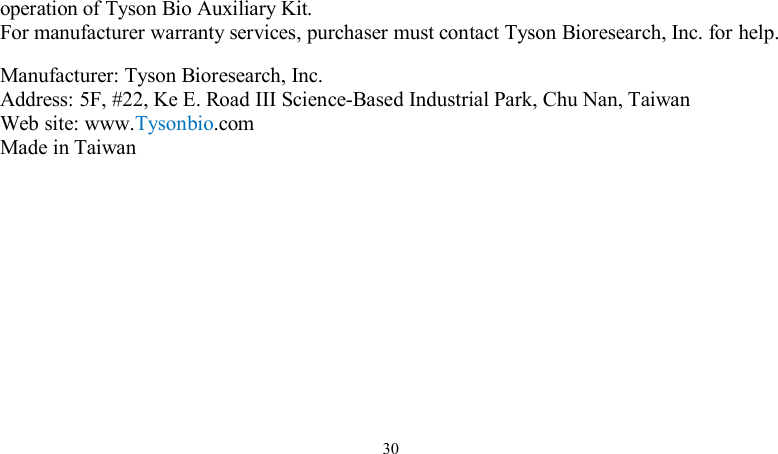

30operation of Tyson Bio Auxiliary Kit.For manufacturer warranty services, purchaser must contact Tyson Bioresearch, Inc. for help.Manufacturer: Tyson Bioresearch, Inc.Address: 5F, #22, Ke E. Road III Science-Based Industrial Park, Chu Nan, TaiwanWeb site: www.Tysonbio.comMade in Taiwan

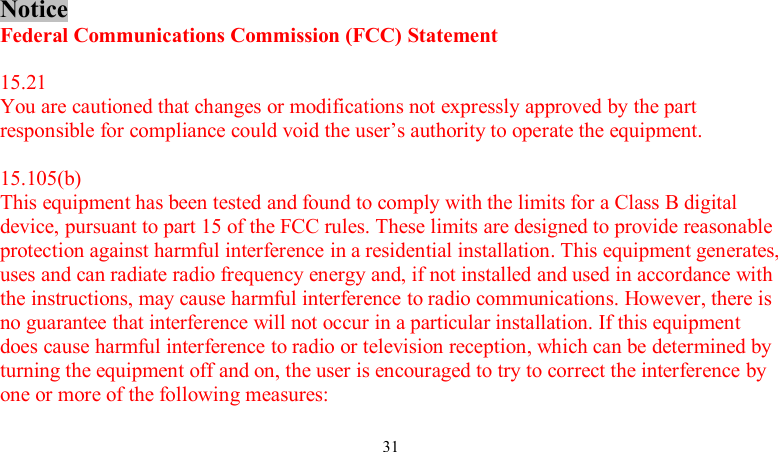

31NoticeFederal Communications Commission (FCC) Statement15.21You are cautioned that changes or modifications not expressly approved by the partresponsible for compliance could void the user’s authority to operate the equipment.15.105(b)This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct the interference byone or more of the following measures:

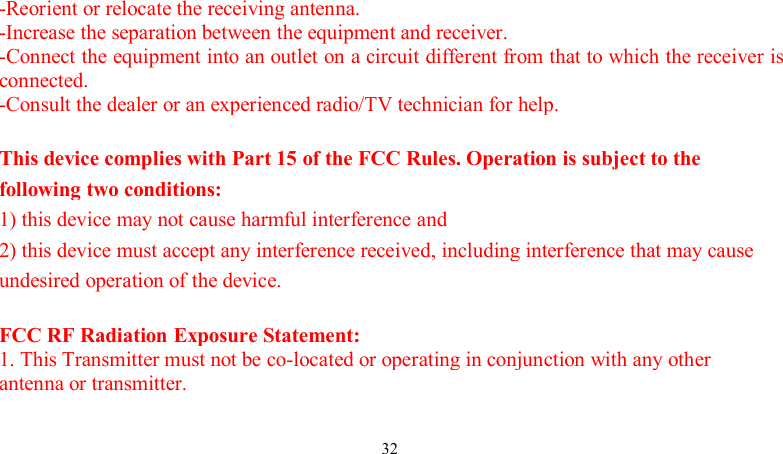

32-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:1) this device may not cause harmful interference and2) this device must accept any interference received, including interference that may causeundesired operation of the device.FCC RF Radiation Exposure Statement:1. This Transmitter must not be co-located or operating in conjunction with any otherantenna or transmitter.
332. This equipment complies with FCC RF radiation exposure limits set forth for anuncontrolled environment.
34NCC 警語根據 NCC 低功率電波輻射性電機管理辦法 規定:第十二條第十四條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

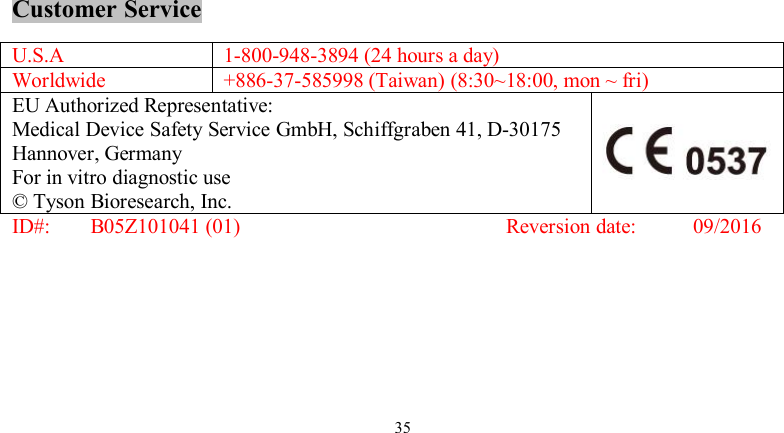

35Customer ServiceU.S.A1-800-948-3894 (24 hours a day)Worldwide+886-37-585998 (Taiwan) (8:30~18:00, mon ~ fri)EU Authorized Representative:Medical Device Safety Service GmbH, Schiffgraben 41, D-30175Hannover, GermanyFor in vitro diagnostic use© Tyson Bioresearch, Inc.ID#:B05Z101041 (01)Reversion date:09/2016
