Tait 2000-4231 Mobile Transceiver User Manual current version of the

Tait Limited Mobile Transceiver current version of the

current version of the user manual

R2000-00-301
Revision Package 301
Copyright TEL 28/02/98
M2000-00-301 Revision Package
Product Code: R2000-00-301
February 1998
Introduction
Revision package R2000-00-301 is the first update of the T2000 Series II service manual. It
includes the following information:
• PCB information for the following new PCBs:

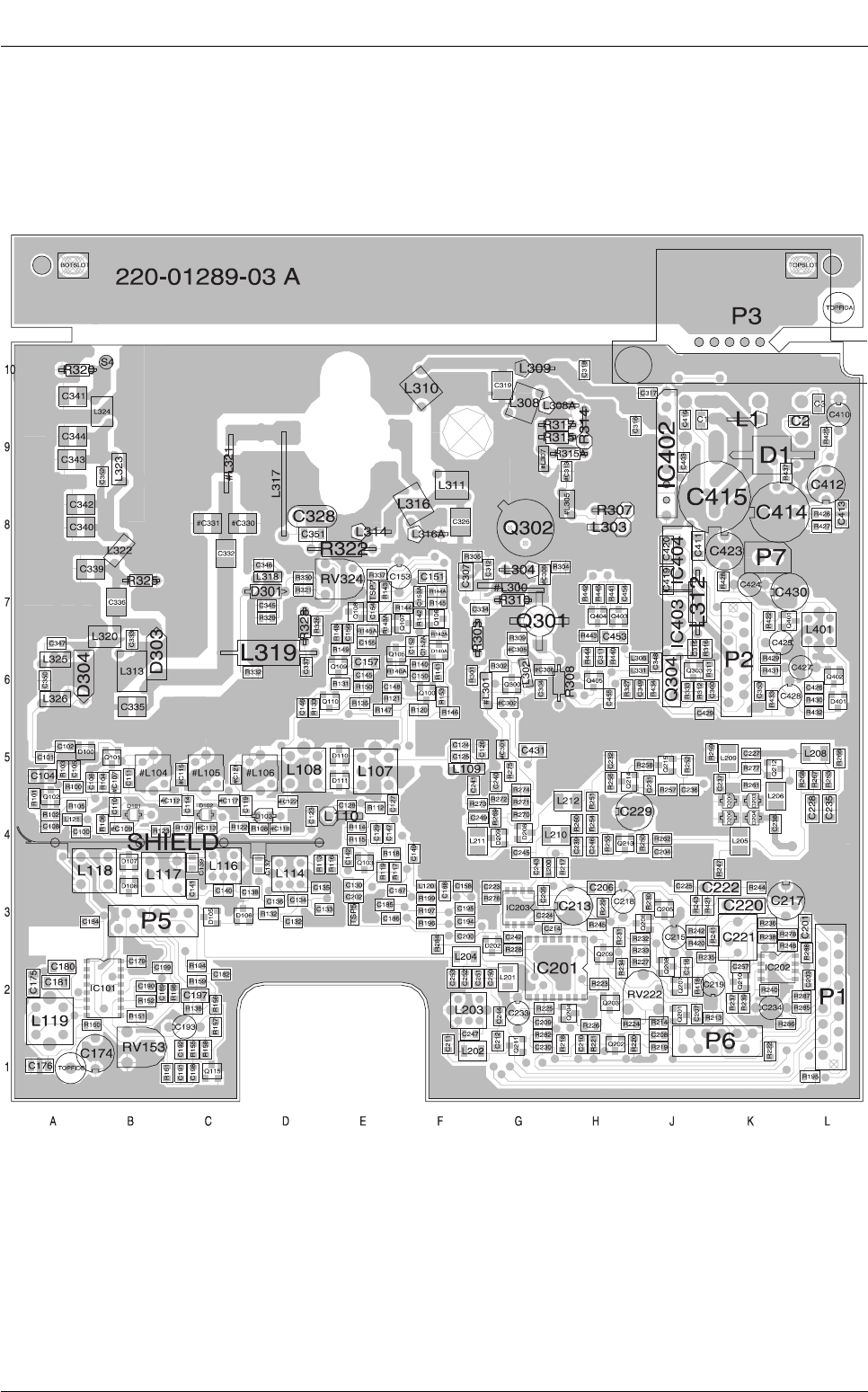

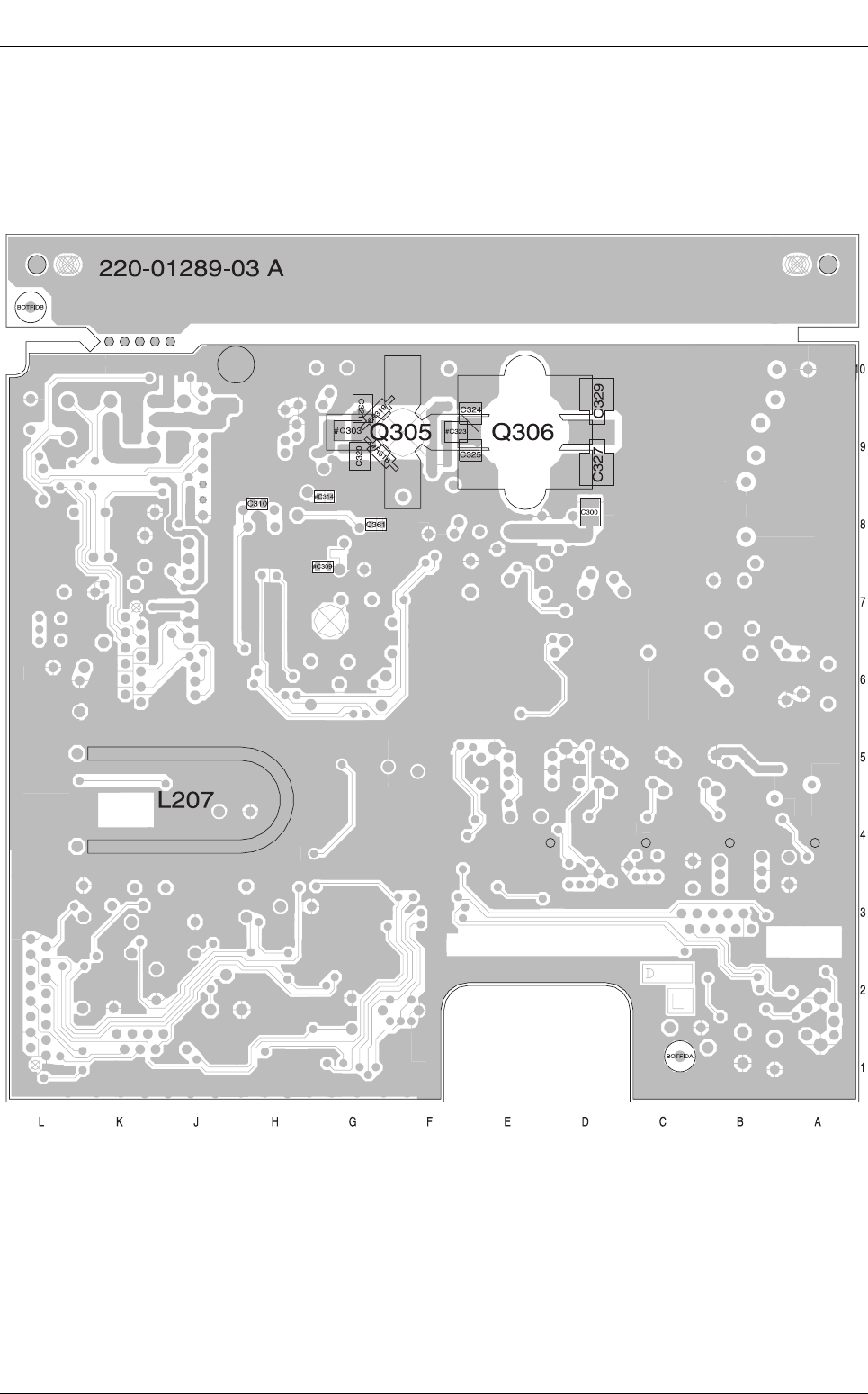

IPN 220-01389-03: T2000-700/-900 RF PCB

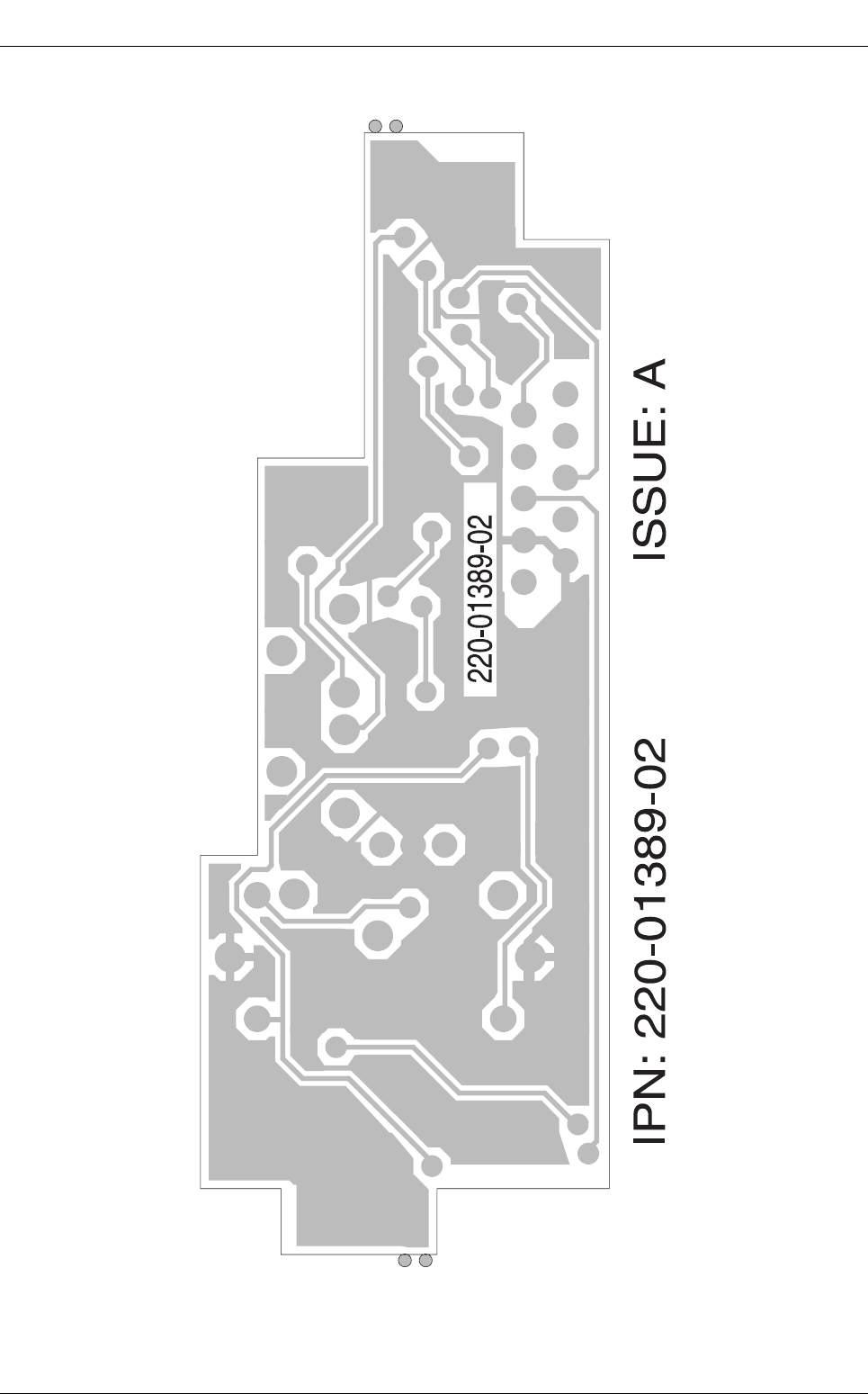

IPN 220-01389-02: T2000 TCXO/Tx audio PCB
IPN 220-01377-02: T201X HC05 logic PCB
IPN 220-01377-03: T201X HC11 logic PCB
IPN 220-01344-04: T2020/T203X/T2040/T2050/T2060 HC11 logic PCB
• Parts list updates & corrections.
• Servicing information on the following new accessory kits:
T2000-A03/-A04 /-A16 remote loom kits
T2000-A4500 CTCSS & T2000-A4502 scrambler kits

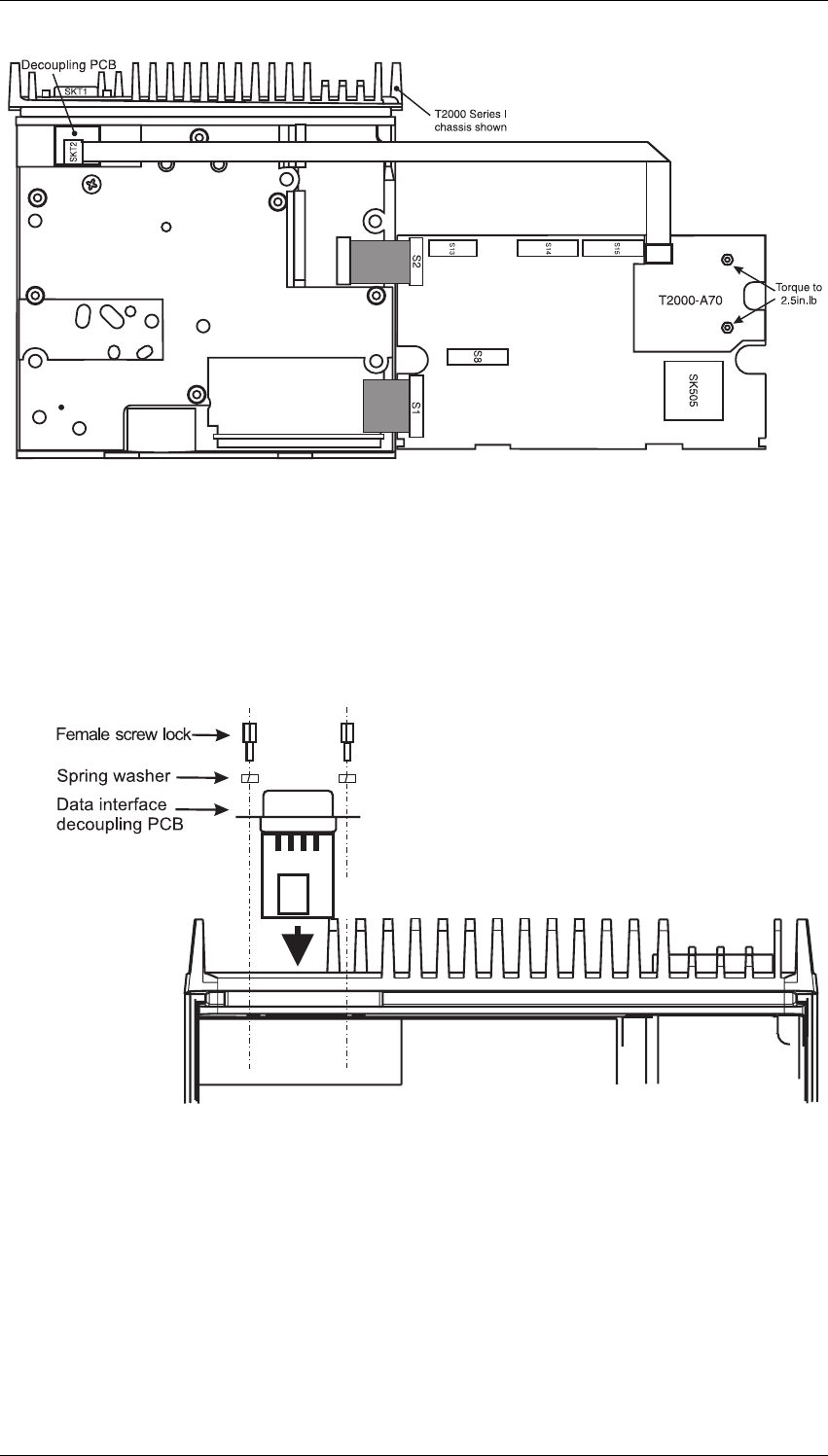

T2000-A70 data modem kit
This revision also contains corrections and additions to other sections of the M2000-00-300 man-
ual. These changes are indicated by a vertical line in the margin, or an arrow with a number, to
show where text has been removed. The Index, containing the List of Effective Pages, has been
updated to include these changes.
Revision Package Contents
Section Description Revision Package
Page Numbers Pages to Replace
Index Index 1 to 20 1 to 18
1 General Information 1.5 to 1.10 1.5 to 1.10
3 Introduction To Servicing 3.1 to 3.12 3.1 to 3.12
4 Functional Tests 4.1 & 4.2 4.1 & 4.2
6 Tuning & Adjustment 6.1 to 6.8 6.1 to 6.8
7 PCB Information 7.1 & 7.2 7.1 & 7.2
7.6 T2000-700/-900 RF PCB 7.6.11 to 7.6.20 Add after 7.6.10
7.7 T2000-800 RF PCB 7.7.1 & 7.7.2 7.7.1 & 7.7.2
7.9 T2000 TCXO/Tx Audio PCB 7.9.1 & 7.9.2
7.9.7 to 7.9.12 7.9.1 & 7.9.2
Add after 7.9.6
7.10 T2010 & T2015 Logic PCB 7.10.11 to 7.10.30 Add after 7.10.10
7.11 T2020/T203X/T2040/T2050/T2060 Logic PCB 7.11.13 to 7.11.24 Add after 7.11.10
7.12 T2010/T2030 Control Head PCB 7.12.1 & 7.12.2 7.12.1 & 7.12.2
7.13 T2015/T2060 Control Head PCB 7.13.1 & 7.13.2 7.13.1 & 7.13.2
7.14 T2020/T2040/T2050 Control Head PCB 7.14.1 to 7.14.4 7.14.1 to 7.14.4
7.15 T2035 Control Head PCB 7.15.1 & 7.15.2 7.15.1 & 7.15.2
7.16 T2000 EMC Filter PCB 7.16.1 & 7.16.2 7.16.1 & 7.16.2
7.17 T2000 Data Interface Decoupling PCB 7.17.1 & 7.17.2 7.17.1 & 7.17.2
continued on next page
Revision Package 301
R2000-00-301
28/02/98 Copyright TEL
The coloured pages between the sections may be discarded.
Additional Revision Packages
Additional revision packages can be ordered from your nearest Tait branch or approved dealer.
Quote the Tait Product Code (R2000-00-301) when ordering.
Section Description Revision Package
Page Numbers Pages to Replace
8 Accessories 8.1 & 8.2 8.1 & 8.2
8.1 T2008 Power Supply 8.1.17 & 8.1.18 8.1.17 & 8.1.1
8.10 T2000-A450X CTCSS & Scrambler Kits 8.10.1 to 8.10.10 8.10.1 to 8.10.10
8.12 T2000-A60 Dual Port UART Kit 8.12.5 & 8.12.6 8.12.5 & 8.12.6
8.13 T2000-A66 Single Port UART Kit 8.13.1 to 8.13.8 8.13.1 to 8.13.8
8.15 T2000-A70 Data Modem Kit 8.15.1 to 8.15.18 Add after 8.13.8
8.16 T2000-A03/-A04/-A16 Remote Kits 8.16.1 to 8.16.8
M2000-00
1
Copyright TEL 31/12/97
T2000 Series II
Service Manual
Issue 301
March 1998
M2000-00-301
2
M2000-00
31/12/97 Copyright TEL
Head Office
New Zealand
Tait Electronics Ltd
558 Wairakei Road
P.O. Box 1645
Christchurch
New Zealand
Phone: 64 3 358-3399
Fax: 64 3 358-3636
Australia
Tait Electronics (Aust) Pty Ltd
275 Toombul Road
Northgate 4013
P.O. Box 679
Virginia
Queensland 4014
Australia
Phone: 61 7 3865-7799
Toll Free: 1 300 304-344
Fax: 61 7 3865-7990
E-mail: helpdesk@tait.com.au
Canada
Tait Mobile Radio Inc.
Unit 5, 158 Anderson Avenue
Markham
Ontario L6E1A9
Canada
Phone: 1 905 472-1100
Fax: 1 905 472-5300
E-mail: 110252.44@compuserve.com
France
Tait France S.A.R.L.
2 avenue de la Cristallerie
92 316 Sèvres, Cedex
France
Phone: 33 1 41 14-05-50
Fax: 33 1 41 14-05-55
E-mail: 100675.651@compuserve.com
Germany
Tait Mobilfunk GmbH
Willstätterstraße 50
D-90449 Nürnberg 60
Germany
Phone: 49 911 967-460
Fax: 49 911 967-4679
E-mail: tait@t-online.de
Hong Kong
Tait Mobile Radio (Hong Kong) Ltd
Room 703A New East Ocean
Centre
9 Science Museum Road
Tsim Sha Tsui East
Hong Kong
Phone: 852 2369-3040
Fax: 852 2369-3009
E-mail: 106122.2060@compuserve.com
New Zealand
Tait Communications Ltd
Unit 4, 75 Blenheim Road
P.O. Box 1185
Christchurch
Phone: 64 3 348-3301
Fax: 64 3 343-0558
E-mail: nsc@tcl.tait.co.nz
Singapore
Tait Electronics (Far East) Pte Ltd
4 Leng Kee Road
SIS Building #05-11A
Singapore 159088
Phone: 65 471-2688
Fax: 65 479-7778
E-mail: taittfe@singnet.com.sg
Taiwan
Tait Mobile Radio (Taiwan) Ltd
1104, 142 Chung Hsiao E Rd
Sec 4
Taipei
Taiwan
Phone: 886 2 2731-1290
Fax: 886 2 2711-6351
E-mail: tait8503@ms7.hinet.net
Thailand
Tait Mobile Radio Ltd
14/1 Suwan Tower, Ground Floor
Soi Saladaeng 1
North Sathorn Rd
Bangrak
Bangkok 10500
Thailand
Phone: 662 267-6290
Fax: 662 267-6293
E-mail: taitthd@loxinfo.co.th
United Kingdom
Tait Mobile Radio Ltd
Ermine Business Park
Ermine Road
Huntingdon
Cambridgeshire PE18 6YA
United Kingdom
Phone: 44 1480-52255
Fax: 44 1480-411996
E-mail: techsupport@tait.co.uk
USA
Tait Electronics (USA) Inc.
9434 Old Katy Road
Suite 110
Houston
Texas 77055
USA
Phone: 1 713 984-8684
Toll Free: 1 800 222-1255
Fax: 1 713 468-6944
E-mail: tech@taitus.com
M2000-00
3
Copyright TEL 31/11/96
About This Manual
Scope
This manual contains general, technical and servicing informa-
tion on T2000 Series II mobile two-way radios.
Format
We have published this manual in a ring binder so that “revision
packages” containing additional information can be added as
required.
Revision Packages
Revision packages will normally be published to coincide with
the release of information on a new PCB, and may also contain
additions or corrections pertaining to other parts of the manual.
If you return the customer registration card at the front of this
manual, you will be notified when revision packages containing
new PCB information and/or text are available. You may then
order as many packages as you require from your local Tait
Company. Revision packages are supplied ready-punched for
inclusion in your manual.
Revision Control
Each page in this manual has a date of issue. This is to comply
with various Quality Standards, but will also serve to identify
which pages have been updated and when. Each page and its
publication date is listed in the “List of Effective Pages”, and a
new list containing any new/revised pages and their publica-
tion dates will be sent with each revision package.
Any portion of text that has been changed is marked by a verti-
cal line (as shown at left) in the outer margin of the page. Where
the removal of an entire paragraph means there is no text left to
mark, an arrow (as shown at left) will appear in the outer mar-
gin. The number beside the arrow will indicate how many para-
graphs have been deleted.
The manual issue and revision status are indicated by the last
three digits of the manual product code. These digits start at 100
and will increment through 101, 102, 103, etc., as revision pack-
ages are published, e.g:
Thus, Issue 301 indicates the first revision to issue 3, and means
that one package should have been added to the manual. The
issue digit will only change if there is a major product revision,
or if the number of revision packages to be included means that
the manual becomes difficult to use, at which point a new issue
manual will be published in a new ring binder.
PCB Information
PCB information is provided for all current issue PCBs, as well
as all previous issue PCBs manufactured in production quanti-
ties, and is grouped according to PCB. Thus, you will find the
parts list, grid reference index (if necessary), PCB layouts and
circuit diagram(s) for each individual PCB grouped together.
2
3 0 1
issue status revision status
4
M2000-00
31/11/96 Copyright TEL
Errors
If you find an error in this manual, or have a suggestion on how
it might be improved, please do not hesitate to contact the Tech-
nical Writer, Product Support Group, Tait Mobile Radio Divi-
sion, Tait Electronics Ltd, P.O. Box 1645, Christchurch, New
Zealand.
Technical Information
Any enquiries regarding this manual or the equipment it describes should be addressed
in the first instance to your nearest approved Tait Dealer or Service Centre. Further tech-
nical assistance may be obtained from the Product Support Group, Tait Mobile Radio
Division, Tait Electronics Ltd, Christchurch, New Zealand.
Updating Equipment And Manuals
In the interests of improving performance, reliability or servicing, Tait Electronics Ltd
reserve the right to update their equipment and/or manuals without prior notice.
Copyright
All information contained in this manual is the property of Tait Electronics Ltd. All
rights are reserved. This manual may not, in whole or part, be copied, photocopied,
reproduced, translated stored or reduced to any electronic medium or machine readable
form without prior written permission from Tait Electronics Ltd.
Ordering Tait Service Manuals
Service Manuals should be ordered from your nearest Tait Branch or approved Dealer.
When ordering, quote the Tait product code and, where applicable, the version.
Date Of Issue
M2000-00-300 T2000 Series II Service Manual
Issue 300 published January 1997
Issue 301 published March 1998
M2000-00
5
Copyright TEL 31/12/97
List Of Effective Pages
The total number of pages in this Manual is 484, as listed below.
Page Issue Date
131/12/97
231/12/97
331/10/96
431/10/96
531/12/97
631/12/97
731/12/97
831/12/97
931/12/97
10 31/10/96
11 31/12/97
12 31/12/97
13 31/12/97
14 31/12/97
15 31/12/97
16 31/12/97
17 31/12/97
18 31/12/97
19 31/12/97
20 31/12/97
1.1 31/10/96
1.2 31/10/96
1.3 31/10/96
1.4 31/10/96
1.5 31/12/97
1.6 31/12/97
1.7 31/10/96
1.8 31/10/96
1.9 31/12/97
1.10 31/10/96
2.1 31/10/96
2.2 31/10/96
2.3 31/10/96
2.4 31/10/96
2.5 31/10/96
2.6 31/10/96
2.7 31/10/96
2.8 31/10/96
2.9 31/10/96
2.10 31/10/96
2.11 31/10/96
2.12 31/10/96
2.13 31/10/96
2.14 31/10/96
2.15 31/10/96
2.16 31/10/96
2.17 31/10/96
2.18 31/10/96
2.19 31/10/96
2.20 blank
3.1 31/12/97
3.2 31/10/96
3.3 31/10/96
3.4 31/10/96
3.5 31/10/96
3.6 31/12/97
3.7 31/10/96
3.8 31/10/96
3.9 31/12/97
3.10 31/12/97
3.11 31/12/97
3.12 31/10/96
3.13 31/10/96
3.14 31/10/96
3.15 31/10/96
3.16 31/10/96
3.17 31/10/96
3.18 31/10/96
4.1 31/10/96
4.2 31/12/97
4.3 31/10/96
4.4 31/10/96
4.5 31/10/96
4.6 31/10/96
4.7 31/10/96
4.8 31/10/96
4.9 31/10/96
4.10 31/10/96
4.11 31/10/96
4.12 blank
5.1 31/10/96
5.2 31/10/96
5.3 31/10/96
5.4 31/10/96
5.5 31/10/96
5.6 31/10/96
5.7 31/10/96
5.8 31/10/96
5.9 31/10/96
5.10 31/10/96
5.11 31/10/96
5.12 31/10/96
5.13 31/10/96
5.14 31/10/96
5.15 31/10/96
5.16 31/10/96
6
M2000-00
31/12/97 Copyright TEL
5.17 31/10/96
5.18 31/10/96
5.19 31/10/96
5.20 31/10/96
5.21 31/10/96
5.22 31/10/96
5.23 31/10/96
5.24 31/10/96
5.25 31/10/96
5.26 31/10/96
5.27 31/10/96
5.28 31/10/96
5.29 31/10/96
5.30 31/10/96
5.31 31/10/96
5.32 31/10/96
6.1 31/12/97
6.2 31/10/96
6.3 31/12/97
6.4 31/12/97
6.5 31/10/96
6.6 31/10/96
6.7 31/12/97
6.8 31/12/97
6.9 31/10/96
6.10 31/10/96
7.1 31/12/97
7.2 31/10/96
7.3 31/10/96
7.4 31/10/96
7.1.1 31/10/96
7.1.2 31/10/96
7.1.3 31/10/96
7.1.4 blank
7.1.5 31/10/96
7.1.6 31/10/96
7.1.7 31/10/96
7.1.8 31/10/96
7.1.9 31/10/96 (fold-out)
7.1.10 blank
7.2.1 31/10/96
7.2.2 31/10/96
7.2.3 31/10/96
7.2.4 31/10/96
7.2.5 31/10/96
7.2.6 31/10/96
7.2.7 31/10/96
7.2.8 31/10/96
7.2.9 31/10/96 (fold-out)
7.2.10 31/10/96 (fold-out)
7.3.1 31/10/96
7.3.2 31/10/96
7.3.3 31/10/96
7.3.4 31/10/96
7.3.5 31/10/96
7.3.6 31/10/96
7.3.7 31/10/96
7.3.8 31/10/96
7.3.9 31/10/96 (fold-out)
7.3.10 31/10/96 (fold-out)
7.4.1 31/10/96
7.4.2 31/10/96
7.4.3 31/10/96
7.4.4 31/10/96
7.4.5 31/10/96
7.4.6 31/10/96
7.4.7 31/10/96
7.4.8 31/10/96
7.4.9 31/10/96 (fold-out)
7.4.10 31/10/96 (fold-out)
7.5.1 31/10/96
7.5.2 31/10/96
7.5.3 31/10/96
7.5.4 31/10/96
7.5.5 31/10/96
7.5.6 31/10/96
7.5.7 31/10/96
7.5.8 31/10/96
7.5.9 31/10/96 (fold-out)
7.5.10 31/10/96 (fold-out)
7.6.1 31/10/96
7.6.2 31/10/96
7.6.3 31/10/96
7.6.4 31/10/96
7.6.5 31/10/96
7.6.6 31/10/96
7.6.7 31/10/96
7.6.8 31/10/96
7.6.9 31/10/96 (fold-out)
7.6.10 blank
7.6.11 31/12/97
7.6.12 31/12/97
7.6.13 31/12/97
7.6.14 31/12/97
7.6.15 31/12/97
7.6.16 31/12/97
7.6.17 31/12/97
7.6.18 31/12/97
7.6.19 31/12/97 (fold-out)
7.6.20 blank
7.7.1 31/12/97
7.7.2 31/10/96
7.7.3 31/10/96
7.7.4 31/10/96
7.7.5 31/10/96
7.7.6 31/10/96
7.7.7 31/10/96
7.7.8 31/10/96
M2000-00
7
Copyright TEL 31/12/97
7.7.9 31/10/96 (fold-out)
7.7.10 blank
7.8.1 31/10/96
7.8.2 blank
7.8.3 31/10/96
7.8.4 31/10/96
7.8.5 31/10/96 (fold-out)
7.8.6 blank
7.9.1 31/12/97
7.9.2 blank
7.9.3 31/10/96
7.9.4 31/10/96
7.9.5 31/10/96 (fold-out)
7.9.6 blank
7.9.7 31/12/97
7.9.8 31/12/97
7.9.9 31/12/97
7.9.10 31/12/97
7.9.11 31/12/97 (fold-out)
7.9.12 blank
7.10.1 31/10/96
7.10.2 31/10/96
7.10.3 31/10/96
7.10.4 31/10/96
7.10.5 31/10/96
7.10.6 31/10/96
7.10.7 31/10/96 (fold-out)
7.10.8 31/10/96 (fold-out)
7.10.9 31/10/96 (fold-out)
7.10.10 blank
7.10.11 31/12/97
7.10.12 31/12/97
7.10.13 31/12/97
7.10.14 31/12/97
7.10.15 31/12/97
7.10.16 31/12/97
7.10.17 31/12/97 (fold-out)
7.10.18 31/12/97 (fold-out)
7.10.19 31/12/97 (fold-out)
7.10.20 blank
7.10.21 31/12/97
7.10.22 31/12/97
7.10.23 31/12/97
7.10.24 31/12/97
7.10.25 31/12/97
7.10.26 31/12/97
7.10.27 31/12/97 (fold-out)
7.10.28 31/12/97 (fold-out)
7.10.29 31/12/97 (fold-out)
7.10.30 blank
7.11.1 31/10/96
7.11.2 31/10/96
7.11.3 31/10/96
7.11.4 31/10/96
7.11.5 31/10/96
7.11.6 31/10/96
7.11.7 31/10/96 (fold-out)
7.11.8 31/10/96 (fold-out)
7.11.9 31/10/96 (fold-out)
7.11.10 blank
7.11.11 31/10/96 (fold-out)
7.11.12 blank
7.11.13 31/12/97
7.11.14 31/12/97
7.11.15 31/12/97
7.11.16 31/12/97
7.11.17 31/12/97
7.11.18 31/12/97
7.11.19 31/12/97 (fold-out)
7.11.20 31/12/97 (fold-out)
7.11.21 31/12/97 (fold-out)
7.11.22 blank
7.11.23 31/12/97 (fold-out)
7.11.24 blank
7.12.1 31/12/97
7.12.2 31/12/97
7.12.3 31/10/96
7.12.4 31/10/96
7.12.5 31/10/96 (fold-out)
7.12.6 blank
7.13.1 31/12/97
7.13.2 31/12/97
7.13.3 31/10/96
7.13.4 31/10/96
7.13.5 31/10/96 (fold-out)
7.13.6 blank
7.14.1 31/12/97
7.14.2 31/12/97
7.14.3 31/12/97
7.14.4 blank
7.14.5 31/10/96
7.14.6 31/10/96
7.14.7 31/10/96 (fold-out)
7.14.8 blank
7.15.1 31/12/97
7.15.2 31/12/97
7.15.3 31/10/96
7.15.4 31/10/96
7.15.5 31/10/96 (fold-out)
7.15.6 blank
7.16.1 31/12/97
7.16.2 blank
7.16.3 31/10/96
7.16.4 31/10/96
7.16.5 31/10/96
7.16.6 blank
7.17.1 31/12/97
7.17.2 blank
8
M2000-00
31/12/97 Copyright TEL
7.17.3 31/10/96
7.17.4 31/10/96
7.17.5 31/10/96
7.17.6 blank
8.1 31/12/97
8.2 31/10/96
8.1.1 31/10/96
8.1.2 31/10/96
8.1.3 31/10/96
8.1.4 31/10/96
8.1.5 31/10/96
8.1.6 31/10/96
8.1.7 31/10/96
8.1.8 31/10/96
8.1.9 31/10/96
8.1.10 31/10/96
8.1.11 31/10/96
8.1.12 31/10/96
8.1.13 31/10/96
8.1.14 31/10/96
8.1.15 31/10/96
8.1.16 31/10/96
8.1.17 31/12/97
8.1.18 31/10/96
8.1.19 31/10/96
8.1.20 31/10/96
8.1.21 31/10/96
8.1.22 31/10/96
8.1.23 31/10/96
8.1.24 blank
8.2.1 31/10/96
8.2.2 31/10/96
8.3.1 31/10/96
8.3.2 31/10/96
8.3.3 31/10/96
8.3.4 31/10/96
8.4.1 31/10/96
8.4.2 31/10/96
8.5.1 31/10/96
8.5.2 31/10/96
8.5.3 31/10/96
8.5.4 blank
8.6.1 31/10/96
8.6.2 31/10/96
8.6.3 31/10/96
8.6.4 31/10/96
8.7.1 31/10/96
8.7.2 31/10/96
8.7.3 31/10/96
8.7.4 31/10/96
8.8.1 31/10/96
8.8.2 31/10/96
8.8.3 31/10/96
8.8.4 31/10/96
8.8.5 31/10/96
8.8.6 31/10/96
8.8.7 31/10/96
8.8.8 blank
8.9.1 31/10/96
8.9.2 blank
8.10.1 31/12/97
8.10.2 31/12/97
8.10.3 31/12/97
8.10.4 31/12/97
8.10.5 31/12/97
8.10.6 blank
8.10.7 31/12/97
8.10.8 31/12/97
8.10.9 31/12/97
8.10.10 31/12/97
8.11.1 31/10/96
8.11.2 31/10/96
8.11.3 31/10/96
8.11.4 31/10/96
8.11.5 31/10/96
8.11.6 31/10/96
8.11.7 31/10/96
8.11.8 31/10/96
8.11.9 31/10/96
8.11.10 31/10/96
8.11.11 31/10/96
8.11.12 31/10/96
8.11.13 31/10/96
8.11.14 31/10/96
8.11.15 31/10/96 fold-out
8.11.16 blank
8.11.17 31/10/96 fold-out
8.11.18 blank
8.12.1 31/10/96
8.12.2 31/10/96
8.12.3 31/10/96
8.12.4 31/10/96
8.12.5 31/12/97
8.12.6 31/10/96
8.12.7 31/10/96
8.12.8 31/10/96
8.12.9 31/10/96
8.12.10 31/10/96
8.12.11 31/10/96
8.12.12 31/10/96
8.12.13 31/10/96
8.12.14 blank
8.13.1 31/12/97
8.13.2 31/12/97
8.13.3 31/12/97
8.13.4 31/12/97
8.13.5 31/12/97
8.13.6 31/12/97
M2000-00
9
Copyright TEL 31/12/97
8.13.7 31/12/97
8.13.8 blank
8.14.1 31/10/96
8.14.2 31/10/96
8.14.3 31/10/96
8.14.4 31/10/96
8.14.5 31/10/96
8.14.6 31/10/96
8.14.7 31/10/96
8.14.8 31/10/96
8.14.9 31/10/96
8.14.10 31/10/96
8.14.11 31/10/96
8.14.12 31/10/96
8.14.13 31/10/96
8.14.14 31/10/96
8.14.15 31/10/96
8.14.16 31/10/96
8.14.17 31/10/96
8.14.18 31/10/96
8.14.19 31/10/96
8.14.20 31/10/96
8.14.21 31/10/96
8.14.22 31/10/96
8.14.23 31/10/96
8.14.24 31/10/96
8.14.25 31/10/96
8.14.26 31/10/96
8.14.27 31/10/96 fold-out
8.14.28 blank
8.15.1 31/12/97
8.15.2 31/12/97
8.15.3 31/12/97
8.15.4 31/12/97
8.15.5 31/12/97
8.15.6 31/12/97
8.15.7 31/12/97
8.15.8 31/12/97
8.15.9 31/12/97
8.15.10 31/12/97
8.15.11 31/12/97
8.15.12 31/12/97
8.15.13 31/12/97
8.15.14 31/12/97
8.15.15 31/12/97
8.15.16 31/12/97
8.15.17 31/12/97
8.15.18 blank
8.16.1 31/12/97
8.16.2 31/12/97
8.16.3 31/12/97
8.16.4 31/12/97
8.16.5 31/12/97
8.16.6 31/12/97
8.16.7 31/12/97
8.16.8 blank
9.1 31/10/96
9.2 31/10/96
9.3 31/10/96
9.4 31/10/96
9.5 31/10/96
9.6 31/10/96
9.7 31/10/96
9.8 31/10/96
10
M2000-00
31/12/97 Copyright TEL
Contents
1 General Information
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2
1.2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3
1.2.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3
1.2.2 General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3
1.2.3 Receiver Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5
1.2.4 Transmitter Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.7
1.2.5 Frequency Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.8
1.2.6 Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.9
1.2.6.1 T2030, T2035, T2040 & T2050 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.9
1.2.6.2 T2060 Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.9
1.3 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.9
1.4 Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.10
2 Circuit Description
2.1 Design Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2
2.2 Synthesiser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.3
2.3 Audio & Regulators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.4
2.4 TCXO/TX Audio PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.4
2.5 IF PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5
2.6 T2000-100 & -400 RF PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.6
2.6.1 T2000-100 & -400 Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.6
2.6.2 T2000-100 & -400 Exciter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.7
2.6.3 T2000-100 & -400 Power Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.7
2.7 T2000-200 RF PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.8
2.7.1 T2000-200 Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.8
2.7.2 T2000-200 Exciter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.9
2.7.3 T2000-200 Power Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.9
2.8 T2000-300 RF PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.10
2.8.1 T2000-300 Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.10
2.8.2 T2000-300 Exciter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.11
2.8.3 T2000-300 Power Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.11
2.9 T2000-500, T2000-600, T2000-700, -900 & -000 RF PCB. . . . . . . . . . . . . . . . . . . . . .2.12
2.9.1 T2000-500, -600, -700, -900 & -000 Receiver . . . . . . . . . . . . . . . . . . . . . . .2.12
2.9.2 T2000-500, -600, -700 -900 & -000 Exciter . . . . . . . . . . . . . . . . . . . . . . . . .2.13
2.9.3 T2000-500, -600, -700, -900 & -000 Power Amplifier. . . . . . . . . . . . . . . .2.13
M2000-00
11
Copyright TEL 31/12/97
2.10 T2000-800 RF PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.14
2.10.1 T2000-800 Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.14
2.10.2 T2000-800 Exciter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.15
2.10.3 T2000-800 Power Amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.15
2.11 Control Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16
2.11.1 T2010 & T2015 HC05 Logic PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16
2.11.2 T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB . . . . . . . . . . . . . 2.19
3 Introduction To Servicing
3.1 Servicing Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
3.1.1 Caution: Accidental Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
3.1.2 Caution: Antenna Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
3.1.3 Caution: Beryllium Oxide & Power Transistors . . . . . . . . . . . . . . . . . . . . 3.2
3.1.4 Caution: CMOS Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
3.1.5 Caution: Screw Head Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3
3.2 Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5
3.2.1 To Gain Access To The Logic PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5
3.2.2 To Remove The Bottom Cover And Microprocessor Shield . . . . . . . . . . 3.5
3.2.3 To Detach The Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6
3.2.3.1 Locally Mounted Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6
3.2.3.2 Remotely Mounted Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6
3.2.4 To Disassemble The Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7
3.2.4.1 T2010, T2015, T203X & T2060 Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7
3.2.4.2 T2020, T2040 & T2050 Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.9
3.2.5 To Detach The EMC Filter PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11
3.2.6 To Remote A Locally Mounted T2020, T2040 & T2050. . . . . . . . . . . . . . 3.11
3.3 Power Amplifier - Special Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12
3.3.1 To Replace PA Transistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12
3.3.2 To Remove Case Mica Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12
3.4 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
3.4.1 Surface Mount Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
3.4.1.1 Surface Mount Device (SMD) Precautions. . . . . . . . . . . . . . . . . . . . . . . . 3.13
3.4.1.2 Servicing Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
3.4.1.3 Removal & Replacement Of SMD Components . . . . . . . . . . . . . . . . . . . 3.15
3.4.1.4 Common Causes Of SMD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17
3.4.2 Leaded Component Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17
3.4.2.1 Desoldering Iron Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17
3.4.2.2 Component Cutting Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.18
3.5 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.18
4 Functional Tests
4.1 Test Equipment Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
4.2 Connecting The Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3
12
M2000-00
31/12/97 Copyright TEL
4.3 Trunked Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.4
4.3.1 Trunking System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.4
4.4 Receiver Performance Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5
4.4.1 To Check The Squelch Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5
4.4.2 To Check The Squelch Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5
4.4.3 To Check The Audio Output Level And Distortion . . . . . . . . . . . . . . . . .4.6
4.4.4 To Check The Sinad Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.6
4.4.5 To Check The Signal+Noise To Noise Ratio. . . . . . . . . . . . . . . . . . . . . . . .4.7
4.4.6 To Check The Ultimate Signal To Noise Ratio. . . . . . . . . . . . . . . . . . . . . .4.7
4.4.7 RSSI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.7
4.4.8 To Check The Operation Of The Noise Blanker . . . . . . . . . . . . . . . . . . . .4.8
4.5 Transmitter Performance Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.9
4.5.1 Audio Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.9
4.5.1.1 To Check The Limiter Circuit Operation . . . . . . . . . . . . . . . . . . . . . . . . . .4.9
4.5.1.2 To Check The Audio ALC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.9
4.5.1.3 To Check The Gain Of The Audio Processor . . . . . . . . . . . . . . . . . . . . . .4.10
4.5.2 Modulation Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.10
4.5.2.1 To Check The Above Limiting Response . . . . . . . . . . . . . . . . . . . . . . . . .4.10
4.5.2.2 To Check The Below Limiting Response . . . . . . . . . . . . . . . . . . . . . . . . .4.10
4.5.3 To Check The RF Power Control Circuit . . . . . . . . . . . . . . . . . . . . . . . . .4.11
5 Fault Finding
5.1 Servicing Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.2
5.2 Visual Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.2
5.3 Component Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.2
5.3.1 Transistor Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.2
5.3.2 Integrated Circuit (IC) Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.2
5.4 DC Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.3
5.5 Receiver RF Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.4
5.5.1 VCO Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.4
5.5.2 Control Line Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.4
5.5.3 RF Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5
5.6 Transmitter RF Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5
5.7 Trunked Radios: System Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.6
5.7.1 Base Station Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.6
5.7.1.1 T2030 Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.6
5.7.1.2 T2040 Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.6
5.7.2 Base Station Control Channel Hunt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.6
5.8 Trunked Radios: Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.7
5.8.1 Test Mode Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.7
5.8.2 Manual Test Mode (MTM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.7
5.8.2.1 T2030 & T2035 MTM Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.8
M2000-00
13
Copyright TEL 31/12/97
5.8.2.2 T2040 & T2050 MTM Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9
5.8.3 Computer Controlled Test Mode (CCTM). . . . . . . . . . . . . . . . . . . . . . . . . 5.9
5.8.3.1 CCTM Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.10
5.8.3.2 CCTM Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.10
5.8.4 Power-Up State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
5.8.5 Test Facilities Available. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
5.8.5.1 Resetting The Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
5.8.5.2 Test Facilities Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.12
5.8.6 Trunked Radios: Radio Mode/Status Display Codes . . . . . . . . . . . . . . 5.15
5.9 Options Interface Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.17
5.10 Fault Finding Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.20
5.10.1 Radio Won’t Switch On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.21
5.10.2 Radio Won’t Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.22
5.10.3 Synthesiser Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.23
5.10.4 Receiver Front End Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.24
5.10.5 Receiver IF Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.25
5.10.6 Receiver Mute Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.26
5.10.7 No Audio On Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.27
5.10.8 Transmitter RF Low Power Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.28
5.10.9 Transmitter Power Control Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.30
5.10.10 Transmit Audio Absent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.31
5.10.11 Trunked Radios: Radio Won’t Acquire A Control Channel . . . . . . . . . 5.32
6 Tuning & Adjustment
6.1 Tuning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
6.2 Tuning & Adjustment Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
6.3 Trunked Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
6.4 Transmitter Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
6.4.1 Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
6.4.2 TCXO Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
6.4.3 Dual Point Modulation Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
6.4.4 CTCSS Modulation Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
6.4.5 LTR Code Deviation Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
6.4.6 Modulation Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
6.4.7 Selcall Tone Deviation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
6.4.8 FFSK Adjustment (Trunked Models Only) . . . . . . . . . . . . . . . . . . . . . . . . 6.8
6.4.8.1 T203X Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
6.4.8.2 T2040 Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
6.5 Receiver Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
6.5.1 RF Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
6.5.2 Internal Mute Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.10
6.5.3 RSSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.10
6.5.3.1 ‘L’ Level Set-Up (Trunked Radios Only) . . . . . . . . . . . . . . . . . . . . . . . . . 6.10
14
M2000-00
31/12/97 Copyright TEL
7 PCB Information
7.1 T2000-100 RF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01331-02 . . . . . . . . . . . . . 7.1.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.1.4
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.1.5
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.1.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.1.8
Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.1.9
7.2 T2000-200 RF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01202-10 . . . . . . . . . . . . . 7.2.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.2.4
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.2.5
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.2.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.2.8
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.2.9
7.3 T2000-300 RF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01314-01 . . . . . . . . . . . . . 7.3.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.3.4
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.3.5
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.3.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.3.8
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.3.9
7.4 T2000-400 RF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01204-11 . . . . . . . . . . . . . 7.4.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.4.4
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.4.5
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.4.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.4.8
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.4.9
7.5 T2000-500/-600 RF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01205-14 . . . . . . . . . . . . . 7.5.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.5.6
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.5.7
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.5.9
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.5.10
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.5.11
7.6 T2000-700/-900 RF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01289-02 . . . . . . . . . . . . . 7.6.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.6.4
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.6.5
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.6.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.6.8
Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . . 7.6.9
M2000-00
15
Copyright TEL 31/12/97
7.7 T2000-800 RF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01305-03 . . . . . . . . . . . . . 7.7.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.7.4
Grid Reference Index . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.7.5
PCB Layout - Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.7.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.7.8
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.7.9
7.8 T2000 IF PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01384-00 . . . . . . . . . . . . . 7.8.1
PCB Layout - Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.8.3
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.8.4
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.8.5
7.9 T2000 TCXO/TX Audio PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01389-00 . . . . . . . . . . . . . 7.9.1
PCB Layout - Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.9.3
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.9.4
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.9.5
7.9 T2000 TCXO/TX Audio PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01389-02 . . . . . . . . . . . . . 7.9.7
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . . 7.9.9
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . 7.9.10
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . .7.9.11
7.10 T2010 & T2015 HC05 Logic PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01377-01 . . . . . . . . . . . . 7.10.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . 7.10.4
Grid Reference Index . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . 7.10.5
PCB Layout - Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . 7.10.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . 7.10.8
Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . . 7.10.9
7.10 T2010 & T2015 HC05 Logic PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01377-02 . . . . . . . . . . . .7.10.11
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.14
Grid Reference Index . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.15
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.17
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.18
Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.19
7.10 T2010 & T2015 HC05 Logic PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01377-03 . . . . . . . . . . . 7.10.21
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.24
Grid Reference Index . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.25
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.27
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.28
Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . " . . . . . . . . . . . . . . . . . . 7.10.29
16
M2000-00
31/12/97 Copyright TEL
7.11 T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01344-02 . . . . . . . . . . . . 7.11.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.11.4
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.10.5
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.11.7
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.11.8
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.11.9
7.11 T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01344-04 . . . . . . . . . . . 7.11.13
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . 7.11.16
Grid Reference Index. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . 7.10.17
PCB Layout - Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . 7.11.19
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . 7.11.20
Circuits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . 7.11.21
7.12 T2010 & T2030 Control Head PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01331-02 . . . . . . . . . . . . 7.12.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.12.2
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.12.3
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.12.4
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.12.5
7.13 T2015 & T2060 Control Head PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01320-01 . . . . . . . . . . . . 7.13.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.13.2
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.13.3
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.13.4
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.13.5
7.14 T2020, T2040 & T2050 Control Head PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01321-04 . . . . . . . . . . . . 7.14.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.14.3
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.14.5
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.14.6
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.14.7
7.15 T2035 Control Head PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01322-03 . . . . . . . . . . . . 7.15.1
Mechanical & Miscellaneous Parts . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.15.2
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.15.3
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.15.4
Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.15.5
7.16 T2000 EMC Filter PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01383-01 . . . . . . . . . . . . 7.16.1
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.16.3
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.16.4
Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.16.5
7.17 T2000 Data Interface Decoupling PCB
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPN 220-01388-01 . . . . . . . . . . . . 7.17.1
PCB Layout - Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.17.3
PCB Layout - Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.17.4
Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ". . . . . . . . . . . . . . . . . . . . 7.17.5
M2000-00
17
Copyright TEL 31/12/97
8 Accessories
8.1 T2008 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.1
8.1.1 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.2
8.1.2 Performance Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.3
8.1.3 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.5
8.1.4 Circuit Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.6
8.1.5 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.8
8.1.6 Introduction To Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.10
8.1.7 Setting Up The Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.12
8.1.8 Fault Finding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.14
8.1.9 Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.15
8.1.10 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.17
8.2 Connection To External Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2.1
8.2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2.1
8.2.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2.1
8.2.3 Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2.2
8.2.4 T2010 & T2015 BCD Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2.2
8.3 T2000-500 & T2000-600 1-7W Versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.1
8.3.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.2
8.3.2 Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.2
8.3.3 Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.4
8.3.4 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.4
8.4 T2000-05 Remote Speaker Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4.1
8.4.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4.1
8.4.2 Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4.1
8.5 T2000-06 Desktop Microphone Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5.1
8.5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5.1
8.5.2 Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5.1
8.5.3 T2000-06 Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5.1
8.5.4 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5.2
8.6 T2000-07 DTMF Microphone Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.6.1
8.6.1 Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.6.1
8.6.2 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.6.1
8.6.3 T2000-07 Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.6.1
8.7 T2000-34 Selcall Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.7.1
8.7.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.7.2
8.7.2 Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.7.2
8.7.3 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.7.3
8.8 T2000-36 Selcall Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8.1
8.8.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8.2
8.8.2 Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8.2
8.8.3 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8.4
8.9 T2000-40 DTMF Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.9.1
8.9.1 Fitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.9.1
8.9.2 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.9.1
18
M2000-00
31/12/97 Copyright TEL
8.10 T2000-A450X CTCSS & Scrambler Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10.1
8.10.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10.2
8.10.2 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10.2
8.10.3 T2000-A450X Link Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10.3
8.10.4 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10.5
8.11 T2000-50 Handsfree Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.1
8.11.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.2
8.11.2 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.2
8.11.3 Fitting The Complete Unit In The Vehicle . . . . . . . . . . . . . . . . . . . . . . 8.11.3
8.11.4 T2000-50 Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.5
8.11.5 Signal Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.7
8.11.6 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.8
8.11.7 Circuit Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.8
8.11.8 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.10
8.12 T2000-60 Dual Port UART Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.1
8.12.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.2
8.12.2 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.3
8.12.3 T2000-60 Link Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.4
8.12.4 T2000-60 Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.5
8.12.5 Signal Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.7
8.12.6 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.9
8.13 T2000-A66 Single Port UART Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.13.1
8.13.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.13.2
8.13.2 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.13.2
8.13.3 Signal Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.13.3
8.13.4 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.13.4
8.14 T2000-80 Line Interface Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.1
8.14.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.2
8.14.2 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.2
8.14.3 Line Interface Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.4
8.14.4 T2000-80 Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.7
8.14.5 Signal Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.9
8.14.6 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.10
8.14.7 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.16
8.14.8 Circuit Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.18
8.14.9 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.21
8.15 T2000-A70 Data Modem Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.1
8.15.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.2
8.15.2 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.2
8.15.3 T2000-A70 Link Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.4
8.15.4 Signal Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.5
8.15.5 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.6
8.15.6 Circuit Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.12
8.15.7 PCB Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.13
8.16 T2000-A03/-A04/-A16 Remote Loom Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.1
8.16.1 Components Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.2
8.16.2 Fitting To Locally Mounted Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.2
8.16.3 Fitting To Remote Mounted Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.6
M2000-00
19
Copyright TEL 31/12/97
9 Software
9.1 Identifying The Software Version Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.2
9.2 Software History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.3
9.2.1 T2010 & T2015 Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.3
9.2.2 T2020 Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.4
9.2.3 T2030 & T3035 Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5
9.2.4 T2040 Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.6
9.2.5 T2050 Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.7
9.2.6 T2060 Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.8
List Of Illustrations
Figure 2.1 T2000 TCXO/TX Audio PCB Block Diagram . . . . . . . . . . . . . . . . . . . . . . 2.4
Figure 2.2 T2000 IF PCB Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Figure 2.3 T2000-100 & -400 RF PCB Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . 2.6
Figure 2.4 T2000-200 RF PCB Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8
Figure 2.5 T2000-300 RF PCB Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
Figure 2.6 T2000-500, -600, -700, -900 & -000 RF PCB Block Diagram . . . . . . . . . . 2.12
Figure 2.7 T2000-800 RF PCB Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.14
Figure 2.8 T2010 & T2030 Control Head Block Diagram . . . . . . . . . . . . . . . . . . . . . 2.17
Figure 2.9 T2015 & T2060 Control Head Block Diagram . . . . . . . . . . . . . . . . . . . . . 2.17
Figure 2.10 T2020, T2040 & T2050 Control Head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.18
Figure 3.1 Anti-Static Bench Set-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Figure 3.2 Screwdriver Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3
Figure 3.3 T2000 Series II Radio Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4
Figure 3.4 T2010, T2015 & T203X Control Head Assembly . . . . . . . . . . . . . . . . . . . . 3.7
Figure 3.5 T2020, T2040 & T2050 Control Head Assembly - Locally Mounted. . . . 3.9
Figure 3.6 T2020, T2040 & T2050 Control Head Assembly - Remotely Mounted. 3.10
Figure 3.7 EMC Filter PCB Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11
Figure 3.8 Identifying SMD Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.14
Figure 3.9 SMD Soldering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.16
Figure 4.1 Suggested Test Equipment Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3
Figure 5.1 RF Test Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5
Figure 6.1 RF & TXCO/Tx Audio PCBs - Tuning & Adjustment Points . . . . . . . . . 6.4
Figure 6.2 Receiver Tuning Amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Figure 8.1.1 T2008 Float Charging Protection Circuit . . . . . . . . . . . . . . . . . . . . . . . . 8.1.9
Figure 8.1.2 T2008 Typical Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1.15
Figure 8.3.1 T2000-500/600 PA - Top Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.2
Figure 8.3.2 T2000-500/600 PA - Bottom Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.3
Figure 8.3.3 T2000-500/600 PA - Bottom Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3.3
Figure 8.4.1 T2000 Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4.2
Figure 8.7.1 T2000-34 Selcall PCB Mounting - T2010 & T2015 Logic PCB . . . . . . . 8.7.3
Figure 8.8.1 T2000-36 Selcall PCB Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8.2
Figure 8.10.1 T2000-A450X PCB Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10.2
Figure 8.11.1 T2000-50 Handsfree PCB Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.2
Figure 8.11.2 T2000-50 Test Equipment Set-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11.5
20
M2000-00
31/12/97 Copyright TEL
Figure 8.11.3 T2000-50 9 Way D-Range Connector (S21). . . . . . . . . . . . . . . . . . . . . . 8.11.7
Figure 8.12.1 T2000-60 UART PCB Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.3
Figure 8.12.2 T2000-60 Test Equipment Set-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12.5
Figure 8.12.3 T2000-60 15 Way D-Range connector (S21) . . . . . . . . . . . . . . . . . . . . . 8.12.8
Figure 8.13.1 T2000-A66 Single Port UART PCB Mounting . . . . . . . . . . . . . . . . . . . 8.13.3
Figure 8.13.2 9 Way D-Range Connector (SKT1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.13.3
Figure 8.14.1 T2000-80 Line Interface PCB Mounting (T2010/T2015 shown) . . . . 8.14.2
Figure 8.14.2 T2000-80 Test Equipment Set-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.14.7
Figure 8.14.3 T2000-80 15 Way D-Range connector (S21) . . . . . . . . . . . . . . . . . . . . . 8.14.9
Figure 8.14.4 T2000-80 Line Interface PCB Block Diagram . . . . . . . . . . . . . . . . . . . 8.14.18
Figure 8.15.1 T2000-A70 PCB Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.2
Figure 8.15.2 T2000-A70 Data Modem PCB Mounting . . . . . . . . . . . . . . . . . . . . . . . 8.15.3
Figure 8.15.3 Data Interface Decoupling PCB Mounting: Series I Chassis . . . . . . . 8.15.3
Figure 8.15.4 Data Interface Decoupling PCB Mounting: Series II Chassis . . . . . . 8.15.4
Figure 8.15.5 9 Way D-Range Connector (SKT1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.5
Figure 8.16.1 Remote Control Head Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.3
Figure 8.16.2 Connector PCB Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.4
Figure 8.16.3 EMC FIlter PCB Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.4
Figure 8.16.4 Dummy Front Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.16.5
List Of Tables
Table 5.1 T2000 Test Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.13
Table 5.2 Radio Mode/Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.16
Table 5.3 Options Connectors - Audio Signal Specifications . . . . . . . . . . . . . . . .5.17
Table 5.4 Options Connectors - Supply Voltage Specifications . . . . . . . . . . . . . .5.17
Table 5.5 Options Connectors - Logic Signal Specifications . . . . . . . . . . . . . . . . .5.18
Table 5.6 BCD Channel Selection (T2010 & T2015 only) . . . . . . . . . . . . . . . . . . . .5.19
Table 6.1 Tuning & Adjustment Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.3
Table 8.15.1 Message Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.7
Table 8.15.2 Messages To The Radio Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.8
Table 8.15.3 Messages From The Radio Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.10
Table 8.15.4 Software Test Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.15.11
M2000-00
1.5
Copyright TEL 31/12/97
Remote Control Head Dimensions:
Length .. 26mm
Width .. 159mm
Height .. 51mm
Weight (radio & control head) .. 1.2kg
1.2.3 Receiver Performance
Type:
All Except T2000-200 .. triple conversion superheterodyne
T2000-200 .. dual conversion superheterodyne
Sensitivity:
12dB Sinad .. better than -117dBm
20dB Sinad (psophometric) .. better than -113dBm
20dB Quieting .. better than -113dBm
IF Amplifiers:
Frequencies:
T2000-200 .. 10.7MHz and 455kHz
T2000-100, -300, -400 .. 27.7MHz, 10.7MHz and 455kHz
T2000-500, -600, -700, -900, -000 .. 49.1MHz, 10.7MHz and 455kHz
T2000-800 .. 61.9MHz, 10.7MHz and 455kHz
First Local Oscillator Injection (with respect to signal):
T2000-200, -300 .. high side
T2000-100, -400, -500, -600, -700, -800, .. low side
-900, -000
Second Local Oscillator Injection (with respect to signal):
T2000-100, -300, -400 .. high side
T2000-200, -500, -600, -700, -800, -900, -000 .. low side
Third Local Oscillator Injection (with respect to signal):
T2000-100, -300, -400 .. low side
T2000-500, -600, -700 -800, -900, -000 .. low side
Bandwidth:
Narrow Band .. 7.5kHz
Medium Band .. 12kHz
Wide Band .. 15kHz
Signal-to-Noise Ratio (with respect to 100% deviation, at RF level of -47dBm):
Narrow Band .. 45dB
Medium Band .. 48dB
Wide Band
All Except T2000-800 .. 50dB
T2000-800 .. 45dB
1.6
M2000-00
31/12/97 Copyright TEL
Audio:
Minimum Load Impedance .. 2Ω
Rated Power (into 4Ω) .. 4W (at 1kHz)
Distortion:
@ Rated Power (1kHz) .. <5%
@ 0.5W (0.3 to 3.0kHz) .. <3% (narrow band)
<2.5% (medium band)
<2% (wide band)
Response .. within +1, -3dB of 6dB/octave
de-emphasis
Bandwidth .. 300Hz to 3kHz
Selectivity .. better than 70dB
Spurious Response Attenuation
All Except T2000-000, -800 .. 75dB (80dB EIA)
T2000-000 .. 60dB
T2000-800 .. 70dB (70dB EIA)
Intermodulation Response Attenuation .. 66dB (75dB EIA)
Spurious Emissions .. better than -57dBm
(conducted & radiated to 1GHz)
Spurious Emissions .. better than -47dBm
(conducted & radiated 1 to 4GHz)
Blocking .. better than -23dBm
Co-channel Rejection:
Narrow Band .. better than 9dB
Medium Band .. better than 7dB
Wide Band .. better than 6dB
Group Delay .. ±50µs (300Hz to 3kHz)
Squelch:
Preset Level .. 11dB sinad
Ratio .. >70dB
Voting Levels .. >20dB sinad
(applies to T2020 only)
M2000-00
1.7
Copyright TEL 31/10/96
1.2.4 Transmitter Performance
Power Output:
Maximum:
All Except T2000-800 .. 30W
T2000-8000 .. 25W
High (high setting):
All Except T2000-800 .. 25W
T2000-8000 .. 15W
. Low (low setting):
T2000-200, -300, -400 .. 1 to 25W
T2000-100, -500, -600, -700, -900 .. 5 to 25W
T2000-800 .. 5 to 15W
Low Power Version .. 1 to 7W (T2000-500, -600)
Duty Cycle (33%) .. 2 minutes Tx, 4 minutes Rx
Lock Up Time (synthesiser) .. 25ms (from PTT to 90% output power
within 2kHz, not including micro.
delay)
Spurious Emissions .. better than -36dBm
(conducted & radiated to 1GHz)
Spurious Emissions .. better than -30dBm
(conducted & radiated to 1 to 4GHz)
Adjacent Channel Power:
Narrow Band .. better than -65dBc
Medium Band .. -70dBc
Wide Band .. -80dBc
Group Delay .. +200/-50µs (300Hz to 3kHz)
Modulation System:
Type .. direct FM
Deviation Limiting:
Narrow Band .. ±2.5kHz (peak) max.
Medium Band .. ±4kHz (peak) max.
Wide Band .. ±5kHz (peak) max.
Bandwidth:
Narrow Band .. 300Hz to 2.55kHz below limiting or
450Hz to 2.55kHz in limiting
Medium & Wide Band .. 300Hz to 3kHz below limiting or
450Hz to 3kHz in limiting
Responses:
In Limiting .. within +0dB, -4dB of maximum
system deviation
Below Limiting .. within +1, -3dB of 6dB/octave
pre-emphasis
Above 3kHz .. greater than 25dB/octave roll-off
1.8
M2000-00
31/10/96 Copyright TEL
Audio:
Microphone Type .. dynamic or electret
Input For 60% Deviation .. 1.5mVrms maximum (at 1kHz)
Distortion .. 5%
Hum & Noise:
All Except T2000-800:
Narrow Band .. 39dB
Medium Band .. 43dB
Wide Band .. 45dB
T2000-800:
Wide Band .. 40dB
Mismatch Capability:
Ruggedness .. 2 minutes transmission into infinite
VSWR
Stability .. VSWR 5:1 (all phase angles)
Transmit Timer (non-trunking models) .. programmable up to 4 minutes, or
continuous.
1.2.5 Frequency Reference
Oscillator Frequency .. 12.8MHz
Crystal Stability And Source Details .. see table below:
*. Not fitted to T2000-200 due to low modulatibility.
†. Fitted only to 400MHz versions and above, due to low modulatibility.
Product Code Frequency Tolerance
(ppm) Temperature Range (ºC) Frequency Source
T2XX-XX1±5 -10 to +60 TE/45 xtal
T2XX-XX3*±3 -30 to +60 VXO-2605A Module
T2XX-XX5±2.5 -30 to +60 VXO-2605A-1 Module†
T2XX-XX6±2.0 -30 to +60 TDC 60281 Module†
M2000-00
1.9
Copyright TEL 31/12/97
1.2.6 Trunking
1.2.6.1 T2030, T2035, T2040 & T2050 Models
Data Modulation .. as per MPT1317
Data Deviation (Tx: 60% full system deviation):
Narrow Band .. 1.5kHz
Medium Band .. 2.4kHz
Wide Band .. 3kHz
1.2.6.2 T2060 Model
System .. LTR® trunked1, systems x groups = 24
Data Deviation (Tx) .. 1kHz
1.3 Operating Instructions
Refer to the User’s Guide supplied with the radio. These are also available separately
under the following IPNs:
T2010/T2015 459-20100-0X
T2020 459-20200-0X
T2030/T2035 459-20300-0X
T2040 459-20400-0X
T2060 459-20600-0X
Comprehensive Operator’s Manuals are also available for T2020 and T2040 radios.
These Manuals cover such topics as advanced user operations and the use of trunked
radios for data applications. These are available under the following IPNs:
T2020 409-20200-0X
T2040 409-20400-0X
1. LTR is a trademark of E F Johnson & Co.
1.10
M2000-00
31/10/96 Copyright TEL
1.4 Product Codes
The 3 groups of digits in a T2000 product code provide information about the radio’s
model, RF type and options fitted, according to the conventions described below.
The following explanation of the T2000 product codes is not intended to suggest that
any combination of features is necessarily available in any one radio. For details regard-
ing availability of specific T2000 radios, consult your nearest Tait dealer or subsidiary.
Model
The Model group indicates the basic features of the radio, as follows:
T20XX-XXX-XXX T2010 4 channels
T2015 24 channels
T2020 100 channels
T2030 4 calls, all preset trunked
T2035 1000 calls, including 20 preset trunked
T2040 dialled calls trunked
T2050 dual mode T2040 or T2020 operation trunked, non-trunked
T2060 LTR®, systems x groups = 24 trunked
RF Type
RF Type group uses 3 digits to indicate the basic RF configuration of the radio.
The first digit in the RF Type group designates frequency band.
T20XX-XXX-XXX ‘1’ for 220 to 270MHz
‘2’ for 66 to 88MHz
‘3’ for 136 to 174MHz
‘4’ for 175 to 225MHz
‘5’ for 400 to 470MHz
‘6’ for 450 to 520MHz
‘7’ for 330 to 360MHz
‘8’ for 800 to 870MHz transmit
851 to 870MHz receive
‘9’ for 360 to 400MHz
‘0’ for 500 to 530MHz
The second digit in the RF Type group designates radio IF bandwidth.
T20XX-XXX-XXX ‘1’ for wide band (15kHz)
‘2’ for narrow band (7.5kHz)
‘3’ for medium band (12.5kHz)
The third digit in the RF Type group designates frequency stability.
T20XX-XXX-XXX refer to “Frequency Reference” on page 1.8.
Options
T20XX-XXX-XXX The third group of digits covers a wide range of software and mar-
ket specific options. The large number of options and their frequent
changes preclude listing them here.
M2000-00
Introduction To Servicing
3.1
Copyright TEL 30/12/97
3 Introduction To Servicing
This Section provides information necessary for servicing T2000 Series II radios, and
covers the following topics:
Section Title Page
3.1 Servicing Precautions 3.2
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
Caution: Accidental Transmit
Caution: Antenna Loading
Caution: Beryllium Oxide & Power Transistors
Caution: CMOS Devices
Caution: Screw Head Types
3.2
3.2
3.2
3.2
3.3
3.2 Disassembly Instructions 3.5
3.2.1
3.2.2
3.2.3
3.2.3.1
3.2.3.2
3.2.4
3.2.4.1
3.2.4.2
3.2.5
3.2.6
To Gain Access To The Logic PCB
To Remove The Bottom Cover And Microprocessor Shield
To Detach The Control Head
Locally Mounted Models
Remotely Mounted Models
To Disassemble The Control Head
T2010, T2015, T203X & T2060 Radios
T2020, T2040 & T2050 Radios
To Detach The EMC Filter PCB
To Remote A Locally Mounted T2020, T2040 & T2050
3.5
3.5
3.6
3.6
3.6
3.7
3.7
3.9
3.11
3.11
3.3 Power Amplifier - Special Instructions 3.12
3.3.1
3.3.2 To Replace PA Transistors
To Remove Case Mica Capacitors 3.12
3.12
3.4 Repair 3.13
3.4.1
3.4.1.1
3.4.1.2
3.4.1.3
3.4.1.4
3.4.2
3.4.2.1
3.4.2.1
Surface Mount Devices
Surface Mount Device (SMD) Precautions
Servicing Equipment Required
Removal & Replacement Of SMD Components
Common Causes Of SMD Failure
Leaded Component Removal
Desoldering Iron Method
Component Cutting Method
3.13
3.13
3.13
3.15
3.17
3.17
3.17
3.18
3.5 Programming 3.18
3.2
Introduction To Servicing
M2000-00
31/10/96 Copyright TEL
3.1 Servicing Precautions
3.1.1 Caution: Accidental Transmit
Under certain circumstances the microprocessor can key the transmitter. Ensure that all
instruments are protected from accidental transmit at all times.
3.1.2 Caution: Antenna Loading
The equipment has been designed to operate with a 50Ω termination impedance, but
will tolerate a wide range of antenna loading conditions. However, it is strongly recom-
mended that the transmitter is not operated in the absence of a suitable load. Failure to
observe this precaution may result in damage to the transmitter power output stage.
3.1.3 Caution: Beryllium Oxide & Power Transistors
The RF power transistors in the T2000 all contain some beryllium oxide. This substance,
while perfectly harmless in its normal solid form, can become a severe health hazard
when it has been reduced to dust.
For this reason the RF power transistors should not be scratched, mutilated, filed,
machined, or physically damaged in any way that can produce dust particles.
3.1.4 Caution: CMOS Devices
This equipment contains CMOS Devices which are susceptible to damage from static
charges. Care when handling these devices is essential. For correct handling procedures
refer to manufacturers’ data books covering CMOS devices, e.g. Philips Data Handbook
Covering CMOS Devices; Motorola CMOS Data Book Section 5 (Handling Procedures),
etc.
The following diagram shows a typical anti-static bench set-up.
Figure 3.1 Anti-Static Bench Set-Up
to building earth
(not mains earth)
via 1M series resistor
metal frame
conductive
wrist strap conductive rubber
bench mat
M2000-00
Introduction To Servicing
3.3
Copyright TEL 31/10/96
3.1.5 Caution: Screw Head Types
Pozidriv screws are the preferred standard on all T2000 series equipment. Pozidriv No.
1 and 2 screwdrivers will fit all pozidriv screws used in the T2000: Philips cross-head
screwdrivers are not satisfactory for use on these screws.
The following diagram identifies the differences between Philips and Pozidriv screw-
drivers.
Figure 3.2 Screwdriver Identification
The diagrams on the following pages show the types of screws used in the T2000
Series II radios, their locations and torque specifications.
driving flutes with
parallel sides
driving flutes with
tapered sides
Pozidriv Philips
internal notches
"star" markings
between slots
no special markings
slots with parallel sides
slots with tapered sides
ridges between
driving flutes
3.4
Introduction To Servicing
M2000-00
31/10/96 Copyright TEL
Figure 3.3 T2000 Series II Radio Assembly
Item Description IPN Quantity Torque (in.lb)
1 TOP COVER 303-23134-01 1
2 LOGIC PCB SEE PARTS LIST 1
3 SCREW M3X8 PANPOZI TAPTITE (LOGIC PCB SCREWS) 349-00020-32 3 8
4 MACHINE SCREW M4X25 (MICRO. SHIELD SCREWS) 345-00050-18 3 12
5 MICROPROCESSOR SHIELD 319-01164-XX 1
6 CHASSIS 308-13093-XX 1
7 D-RANGE BLANKING PLATE 360-01053-XX 1
8 SCREW M3X8 PANPOZI TAPTITE (RF CONNECTOR SCREWS) 349-00020-32 2 8
9 RF CONNECTOR PLATE SEE PARTS LIST
(SECTION 7)
1
10 RF CONNECTOR 1
11 RF PCB 1
12 SCREW M3X8 PANPOZI TAPTITE (RF PCB SCREWS) 349-00020-32 4 8
13 BOTTOM COVER 303-23135-XX 1
14 M4X35 PANPOZI TAPTITE (BOTTOM COVER SCREWS) 349-00020-49 4 12
7
13
14
9
12
11
6
1
2
3
3
4
4
5
8
10
14
12
M2000-00
Introduction To Servicing
3.5
Copyright TEL 31/10/96
3.2 Disassembly Instructions
Caution:
To carry out alignment it is necessary to remove only the top cover (1) and
logic PCB retaining screws (3). It is essential that the bottom cover (13) and
microprocessor shield (5) with its three retaining screws (4) are torqued
down as specified in Figure 3.3.
Caution:
Various electronic components within the radio can be damaged by elec-
trostatic discharge. A properly grounded earth mat and wrist strap should
be used at all times (refer to Section 3.1.4).
3.2.1 To Gain Access To The Logic PCB
Refer to Figure 3.3.
Remove the top cover (1) by unscrewing the four bottom cover screws (14).
Remove the three logic PCB retaining screws (3).
It should now be possible to open out the logic PCB (2), giving access to both sides
of the logic PCB, and access to the RF PCB (11) tuning points, audio, plug-in
TCXO PCB and loop filter components.
3.2.2 To Remove The Bottom Cover And Microprocessor Shield
Refer to Figure 3.3.
Remove the top cover and logic PCB screws as instructed in Section 3.2.1, then
remove the three microprocessor shield retaining screws (4).
Remove the screw securing the earthing wire from the control head to the micro-
processor shield.
It should now be possible to lift off the microprocessor shield (5) and the bottom
cover (13).
This will give access to both sides of the RF PCB and IF PCBs, and enable the con-
trol head to be removed.
3.6
Introduction To Servicing
M2000-00
30/12/97 Copyright TEL
3.2.3 To Detach The Control Head
3.2.3.1 Locally Mounted Models
Remove all covers, as instructed in Section 3.2.2.
Unplug the loom running between the control head and the logic PCB.
Note:
In EMC model radios, the loom connects to a Micromatch connector on the
EMC filter PCB (refer to Section 3.2.5).
3.2.3.2 Remotely Mounted Models
Remove the four screws on the front of the radio dummy front panel. This will
give access to the control head loom, which can now be unplugged.
Note:
In EMC model radios, the loom connects to a Micromatch connector on the
EMC filter PCB (refer to Section 3.2.5).
M2000-00
Introduction To Servicing
3.7
Copyright TEL 31/10/96
3.2.4 To Disassemble The Control Head
3.2.4.1 T2010, T2015, T203X & T2060 Radios
Figure 3.4 T2010, T2015 & T203X Control Head Assembly
Refer to Figure 3.4.
Remove the control head from the main chassis, as instructed in Section 3.2.3.
Remove the four adaptor plate retaining screws (16).
Remove the control head PCB retaining screws (14).
Item Description IPN Quantity Torque (in.lb)
1 KNOB 311-01042-XX 1
2 MICROPHONE GROMMET 360-02003-XX 1
3 FRONT PANEL 316-03095-XX 1
4 VOLUME POT NUT SEE PARTS LIST
(SECTION 7)
1
5 VOLUME POT WASHER 1
6 VOLUME POT LIGHTSPREADER 304-07037-XX 1
7 LIGHTSPREADER BUTTON 304-07035-XX 1
8 BASIC KEYPAD 311-03095-XX 1
9VOLUME POT SEE PARTS LIST
(SECTION 7)
1
10 POT PCB 1
11 MICROPHONE CONNECTOR 1
12 SPEAKER 250-00010-19 1
13 CONTROL HEAD PCB (T2010, T2015, T203X, OR T2060) SEE PARTS LIST 1
14 NO 4X3/8 SCREW (CONTROL HEAD SCREWS) 349-00010-22 3 8
15 ADAPTOR PLATE 301-00001-XX 1
16 NO 4X5/8 SCREW (ADAPTOR PLATE SCREWS) 349-00010-24 4 8
7
8
2
4
5
6
9
12
10
13
14
11
15
16
3
1
3.8
Introduction To Servicing
M2000-00
31/10/96 Copyright TEL
The screws used in the control head are No. 4 Plastites, and should not be con-
fused with the M3 screws used elsewhere. When being replaced, the No. 4 Plas-
tite screws must be tightened to a torque of 8in.lb (0.9Nm).
With the control head face down, gently remove the PCB (13), along with the key-
pad (8) and lightspreader (7).
Do not disturb the positioning or height of the LEDs, as this is critical for reas-
sembly.
Remove the speaker by carefully removing the four speaker retaining spire nuts.
Remove of the volume knob (1) and volume pot nut (5) to access the volume knob
light spreader (6).
M2000-00
Introduction To Servicing
3.9
Copyright TEL 30/12/97
3.2.4.2 T2020, T2040 & T2050 Radios
Figure 3.5 T2020, T2040 & T2050 Control Head Assembly - Locally Mounted
Refer to Figure 3.5 and Figure 3.6.
Remove the control head from the main chassis, as instructed in Section 3.2.3.
Remove the four adaptor plate/remote back panel retaining screws (16). Remote
mounted models also have two captive nuts (17) fitted in the back cover.
Note:
EMC model radios have 4 ESD plugs fitted over the remote back panel screws.
These will need to be removed to access the remote back panel screws.
Remove the control head PCB retaining screws (14).
The screws used in the control head are No. 4 Plastites, and should not be con-
fused with the M3 screws used elsewhere. When being replaced, the No. 4 Plas-
tite screws must be tightened to a torque of 8in.lb (0.9Nm).
Item Description IPN Quantity Torque (in.lb)
1 KNOB 311-01042-XX 1
2 MICROPHONE GROMMET 360-02003-XX 1
3 FRONT PANEL 316-06427-XX 1
4 VOLUME POT NUT SEE PARTS LIST
(SECTION 7)
1
5 VOLUME POT WASHER 1
6 LIQUID CRYSTAL DISPLAY (LCD) 008-02029-XX 1
7 LIGHTSPREADER 304-07036-XX 1
8 ENHANCED KEYPAD 311-03096-XX 1
9VOLUME POT SEE PARTS LIST
(SECTION 7)
1
10 POT PCB 1
11 MICROPHONE CONNECTOR 1
12 LENS 312-01046-XX 1
13 CONTROL HEAD PCB (T2020, T2040 OR T2050) SEE PARTS LIST 1
14 NO 4X3/8 SCREW (CONTROL HEAD SCREWS) 349-00010-22 3 8
15 ADAPTOR PLATE 301-00001-XX 1
16 NO 4X5/8 SCREW (ADAPTOR PLATE SCREWS) 349-00010-24 4 8
4
10
9
6
512
3
2
1
15
7
8
16
11
13
14
3.10
Introduction To Servicing
M2000-00
30/12/97 Copyright TEL
With the control head face down, gently remove the PCB (13), along with the key-
pad (8) and lightspreader (7).
Do not disturb the positioning or height of the LEDs, as this is critical for reas-
sembly.
Carefully remove the LCD (6) and lens (12).
Lay the front panel (3) on a horizontal surface, with the light spreader (7) in place.
Remove the volume knob (1) and volume knob nut (5) to access the lightspreader
and keypad (8).
Before reassembly, the LCD and PCB edge connectors should be wiped with alco-
hol.
Take care to ensure the alcohol does not come in contact with the coating on the
light spreader, as this will dissolve on contact with alcohol.
Figure 3.6 T2020, T2040 & T2050 Control Head Assembly - Remotely Mounted
Item Description IPN Quantity Torque (in.lb)
1KNOB 1
2 MICROPHONE GROMMET 360-02003-XX 1
3 FRONT PANEL 316-06427-XX 1
4 VOLUME POT NUT SEE PARTS LIST
(SECTION 7)
1
5 VOLUME POT WASHER 1
6 LIQUID CRYSTAL DISPLAY (LCD) 008-02029-XX 1
7 LIGHTSPREADER 304-07036-XX 1
8 ENHANCED KEYPAD 311-03096-XX 1
9 VOLUME POT SEE PARTS LIST
(SECTION 7)
1
10 POT PCB 1
11 MICROPHONE CONNECTOR 1
12 LENS 312-01046-XX 1
13 CONTROL HEAD PCB (T2020, T2040 OR T2050) SEE SECTION 7 PARTS 1
14 NO 4X3/8 SCREW (CONTROL HEAD SCREWS) 349-00010-22 3 8
15 REMOTE BACK PANEL 318-08432-XX 1
16 NO 4X5/8 SCREW (REMOTE BACK SCREWS) 349-00010-24 4 8
17 CAPTIVE NUT M4 PRESSED 352-00010-17 2
18 REMOTING CONNECTOR COVER 316-85125-XX 1
M2000-00
Introduction To Servicing
3.11
Copyright TEL 30/12/97
3.2.5 To Detach The EMC Filter PCB
Refer to Figure 3.7.
Remove the top cover and open the logic PCB, as described in Section 3.2.1.
Remove the microprocessor shield and bottom cover, as described in Section 3.2.2.
The control head (locally mounted models) or dummy front panel (remotely
mounted models) can now be removed.
Unplug the loom running between the logic PCB and EMC filter PCB (18).
Unplug the loom running between the EMC filter PCB and the control head.
Remove the 4 EMC filter PCB retaining screws. The EMC filter PCB can now be
lifted from the chassis.
Figure 3.7 EMC Filter PCB Mounting
3.2.6 To Remote A Locally Mounted T2020, T2040 & T2050
Refer to Section 8.16, “T2000-A03/-A04/-A16 Remote Loom Kits”.
3.12
Introduction To Servicing
M2000-00
31/10/96 Copyright TEL
3.3 Power Amplifier - Special Instructions
Caution:
As the location of certain components in the PA is critical to performance,
it is important that any components removed or disturbed are refitted in
exactly the same location.
3.3.1 To Replace PA Transistors
Desolder the tabs by heating them with a soldering iron, then lifting them up
towards the transistor with a thin stainless steel spike or screwdriver.
Unscrew the transistor mounting stud nut or screws and remove the transistor.
Trim the tabs of the replacement to make them similar to the faulty item, then
lightly tin the underside of the tabs.
Apply a thin layer of heatsink compound to the underside of the transistor.
Screw the transistor tightly to the heatsink then solder the tabs.
Do not solder the tabs before tightening the screws or nut, as this will fracture
the device.
3.3.2 To Remove Case Mica Capacitors
Apply a heavy duty soldering iron to the top of the capacitor case.
When the solder is molten, ease the capacitor away from the PCB with a thin
stainless steel spike or screwdriver.
M2000-00
Functional Tests
4.1
Copyright TEL 31/10/96
4 Functional Tests
This Section details test procedures will confirm that the T2000 has been adjusted cor-
rectly and is fully operational.
The following topics are covered:
Section Title Page
4.1 Test Equipment Required 4.2
4.2 Connecting The Radio 4.3
4.3 Trunked Radios 4.4
4.3.1 Trunking System Check 4.4
4.4 Receiver Performance Tests 4.5
4.4.1
4.4.2
4.4.3
4.4.4
4.4.5
4.4.6
4.4.7
4.4.8
To Check The Squelch Operation
To Check The Squelch Ratio
To Check The Audio Output Level & Distortion
To Check The Sinad Sensitivity
To Check The Signal+Noise to Noise Ratio
To Check The Ultimate Signal To Noise Ratio
RSSI
To Check The Operation Of The Noise Blanker
4.5
4.5
4.6
4.6
4.7
4.7
4.7
4.8
4.5 Transmitter Performance Tests 4.9
4.5.1
4.5.1.1
4.5.1.2
4.5.1.3
4.5.2
4.5.2.1
4.5.2.2
4.5.3
Audio Processor
To Check The Limiter Circuit Operation
To Check The Audio ALC Operation
To Check The Gain Of The Audio Processor
Modulation Characteristics
To Check The Above Limiting Response
To Check The Below Limiting Response
To Check The RF Power Control Circuit
4.9
4.9
4.9
4.10
4.10
4.10
4.10
4.11
4.2
Functional Tests
M2000-00
31/12/97 Copyright TEL
4.1 Test Equipment Required
The following equipment is required for functional testing.
• Power supply cord, wired as shown in Section 8.3.
• Power supply adjustable between 9 & 16V DC, with a capacity of at least 8A.
• VHF or UHF signal generator: good quality FM 50Ω, usable from 0.1V (-127dBm) to
200mV (0dBm) pd (e.g. HP8640B, Marconi 2019).
• Frequency counter: 10Hz to 650MHz, 2ppm stability, with at least a 2s time base res-
olution (e.g. Opto).
• Audio signal generator: 600Ω output, -50 to 0dB level, fully adjustable, sine wave
output 10Hz to 100kHz (e.g. Trio 203, HP204C/D).
• FM deviation meter (e.g. Sayrosa 257 or 252), with the following specifications:
-low residual FM
-resolution down to a full scale of 1kHz and a minimum of 10kHz
-maximum positive and negative peak display
-15kHz low pass filter
-detected audio output facility.
Note:
When using with LTR or DCS, the deviation meter must have a good low fre-
quency response, to avoid incorrect deviation readings.
• Sinad meter or audio distortion analyser, 1kHz notch type (e.g. HP334A, HP339A or
Helper Instruments Sinadder).
• AC millivoltmeter (e.g. Trio VT-106).
• Digital multimeter (e.g. Fluke 75).
• 20MHz dual channel oscilloscope and X10 . X1 scope probes (e.g. Trio CS1022).
•RF power meter, 50Ω; RF detecting element 50W and 5W for appropriate frequency
ranges (e.g. Bird Meter 6154 or 611).
• RF power attenuator, 50Ω, total attenuation 30dB (e.g. Weinschel 40-40-33 30dB,
150W).
• Microphone test box (refer to Figure 4.1).
A multifunction test set may be used as long as it has the appropriate function to per-
form the calibration correctly e.g. Rhode & Schwarz CMS52 Radio Communications
Test Set, with a high stability oscillator.
M2000-00
Tuning & Adjustment
6.1
Copyright TEL 31/10/96
6 Tuning & Adjustment
This Section details procedures for tuning and adjustment of T2000 series II radios. This
is normally only required during product manufacture or after major servicing.
The following topics are covered in this Section:
Section Title Page
6.1 Tuning Precautions 6.2
6.2 Tuning & Adjustment Points 6.3
6.3 Trunked Radios 6.5
6.4 Transmitter Adjustments 6.5
6.4.1
6.4.2
6.4.3
6.4.4
6.4.7
6.4.5
6.4.7
6.4.8
6.4.8.1
6.4.8.2
Power Output
TCXO Alignment
Dual Point Modulation Adjustment
CTCSS Modulation Adjustment
Modulation Adjustment
LTR Code Deviation Adjustment
Selcall Tone Deviation
FFSK Adjustment (Trunked Models Only)
T203X Radios
T2040 Radios
6.5
6.6
6.6
6.7
6.7
6.7
6.7
6.8
6.8
6.8
6.5 Receiver Adjustment 6.9
6.5.1
6.5.2
6.5.3
6.5.3.1
RF Alignment
Internal Mute Control
RSSI
‘L’ Level Set Up (Trunked Radios Only)
6.9
6.10
6.10
6.10
6.2
Tuning & Adjustment
M2000-00
31/10/96 Copyright TEL
6.1 Tuning Precautions
Refer to Section 4.1 for a list of test equipment required and a suggested test set-up. The
following precautions must be observed when carrying out the alignment procedures in
this Section.
• The microprocessor shield must remain in place throughout the alignment proce-
dure, with its 3 retaining screws torqued down to 8in.lbf (0.9Nm).
To gain access to the alignment test points and adjustment controls, it is only neces-
sary to remove the top cover and logic PCB mounting screws (refer to Section 3.2.1).
• For accurate tuning, the test cable connecting the signal generator or power meter to
the T2000 must be as short as practical and fitted with a ‘mating’ BNC connector.
Do not use adaptors, ‘sniffer’ couplings, etc., which introduce changes to cable
impedance and errors in test results.
• Non-metallic tuning tools must be used for the alignment of all coil slugs. The use of
metallic tools will result in tuning errors.
Tuning tools need to be of correct size to avoid the damage to coil slugs.
• The RF PA and audio output IC have a direct unswitched supply, and are therefore
not controlled by the control head on/off switch. This switch removes power only
from the regulated supplies.
Caution:
Under certain circumstances the microprocessor can key the transmitter.
Ensure that all instruments are protected from accidental PTT at all times.
M2000-00
Tuning & Adjustment
6.3
Copyright TEL 31/12/97
6.2 Tuning & Adjustment Points
The following table lists tuning and adjustment points, and Figure 6.1 shows their posi-
tion on the RF and TCXO/Tx audio PCBs.
The PCB layouts in Section 7 have all relevant logic PCB test and adjustment points
marked.
Table 6.1 Tuning & Adjustment Point
Tuning/Adjustment Point:
Designator Function Location
RV153 internal squelch control
RF PCB
RV222 dual point modulation control
RV324 high power control
CV212 x4 multiplier
(only used in T2000-800)
L104 to L106 front end tuning
(not used in T2000-800)
L114 & L116 IF tuning
L119 quad coil
L203 x3 /x4 multiplier
(not used in T2000-200)
RV906 CTCSS deviation control
TCXO/Tx audio PCBRV907 deviation control
RV923 frequency control
RV507 low power control
logic PCB
#RV508 T2010, T2015 & T2020:
signalling adjust (not fitted as standard)
#RV599 T203X, T2040, T2050 & T2060:
FFSK adjust
Test Po int s:
Designator Function Location
TSP901 dual point modulation test point TCXO/Tx audio PCB
TP601 Rx audio (detected)
logic PCB
TP602 Tx CTCSS
TP603 Rx CTCSS
TP604 Rx audio
TP605 Tx audio
TP606 ALC audio
TP607 pre-amp output
6.4
Tuning & Adjustment
M2000-00
31/12/97 Copyright TEL
Figure 6.1 RF & TXCO/Tx Audio PCBs - Tuning & Adjustment Points-
(T2000-800 only)
M2000-00
Tuning & Adjustment
6.5
Copyright TEL 31/10/96
6.3 Trunked Radios
The ‘test’ facility enables T2000 trunked radios to emulate a multichannel radio, using
the frequencies reserved for trunking.
For a description of how to put the radio in test mode, refer to Section 5.8 “Trunked
Radios: Test Mode”. Once the radio is in test mode, tuning and adjustment can be car-
ried out as described in Section 6.4 and Section 6.5.
Caution:
When in test mode, connect the antenna socket to a dummy load to pre-
vent interference with trunking systems. Avoid testing on channels in use
locally.
6.4 Transmitter Adjustments
In this Section, deviation settings are given first for wide band, followed by settings for
medium band in brackets ( ) and settings for narrow band in square brackets [ ].
6.4.1 Power Output
Set up the test equipment as shown in Section 4, and close the PTT switch.
Turn RV324 fully clockwise and check that the output power is greater than 30W
for all channels.
Select a channel programmed for high power and adjust RV324 for 25W.
Check that the transmit current is approximately the values stated below:
Select a channel programmed for low power and adjust RV507 for the required
output power.
Model Current
T2000-100 6A
T2000-200 6A
T2000-300 6A
T2000-400 6A
T2000-500 6.5A
T2000-600 7A
T2000-700/900 6.5A
T2000-800 6A
6.6
Tuning & Adjustment
M2000-00
31/10/96 Copyright TEL
6.4.2 TCXO Alignment
Close the PTT switch and monitor the transmit frequency with a frequency coun-
ter.
Adjust RV923 on the TCXO/Tx audio PCB for a channel frequency within ±100Hz
at ambient temperature.
6.4.3 Dual Point Modulation Adjustment
DC isolate the audio generator from TSP901 using a capacitor (10µF is sufficient).
Set the audio generator to 7kHz and inject the audio into the dual point modula-
tion input TSP901 on the TCXO/Tx audio PCB.
Close the PTT switch and select the lowest frequency channel.
Adjust the audio generator level to give a reading of ±5.2kHz deviation on the
modulation meter.
Remove any filters selected on the deviation or modulation meter which could
give erroneous readings.
Select the highest frequency channel and check that the deviation is ±4.8kHz.
If not, adjust the audio generator output level so that the average deviation of the
two channels is ±5kHz.
The difference in deviation between the two channels must be less than
±800Hz.
Select the lowest frequency channel, set the audio generator to 70Hz and inject
the audio at TSP901.
Adjust RV222 to give ±4.8kHz deviation on the modulation meter.
Select the highest frequency channel and check that the deviation is ±5.2kHz.
If not, adjust RV222 so that the average deviation of the two channels is ±5kHz.
The difference in deviation between the two channels must be less than
±400Hz.
M2000-00
Tuning & Adjustment
6.7
Copyright TEL 31/12/97
6.4.4 CTCSS Modulation Adjustment
The following instructions apply only to those radios with CTCSS activated and
must be carried out before any further modulation adjustment can proceed.
Refer to the T2000 Programming Manual for the CTCSS channel programming
instructions. The frequency range of the CTCSS tone is 67 to 250.3Hz.
Switch to any channel with CTCSS activated.
Close the PTT switch.
Adjust RV906, on the TCXO PCB, to set the CTCSS tone peak deviation for
±660Hz ±100Hz (±530Hz ±80Hz) [±330Hz ±50Hz] on the modulation meter.
6.4.5 LTR Code Deviation Adjustment
Close the PTT switch and set up a continuous call. This can be an LTR Repeater
Talkaround call, a Repeater Interconnect Call (RIC) or an on-channel call.
Adjust RV906 on the TCXO PCB to set the LTR code deviation to ±1kHz (±900Hz)
[±600Hz].
Note:
The deviation meter must have a good low frequency response to avoid incor-
rect readings.
6.4.6 Modulation Adjustment
Complete the dual point modulation and CTCSS modulation adjustments (Sec-
tion 6.4.3 and Section 6.4.4) before commencing the modulation adjustment.
Apply a 3kHz sine wave at a level of -40dBm to the microphone input.
Select a channel with CTCSS activated and close the PTT switch. If CTCSS is disa-
bled, select any channel.
Adjust RV907 for a +5kHz (+4kHz) [+2.5kHz] deviation reading on the modula-
tion meter.
Maintain the same sine wave output level and sweep the audio frequency from
300Hz to 3.3kHz.
Find the frequency of maximum ‘+’ deviation and readjust RV907 for +5kHz
(+4kHz) [+2.5kHz] deviation.
Reset the modulation meter to read ‘-’ deviation.
Slowly sweep the audio frequency from 300Hz to 3kHz. If the ‘-’ deviation peak is
found to exceed -5kHz (-4kHz) [-2.5kHz], readjust RV907 for a peak deviation of
-5kHz (-4kHz) [-2.5kHz] at that frequency.
The peak deviation should not exceed ±5kHz (±4kHz) [±2.5kHz] on any channel.
6.8
Tuning & Adjustment
M2000-00
31/12/97 Copyright TEL
6.4.7 Selcall Tone Deviation
This is normally preset at 60% of voice deviation. If adjustment is needed, fit
#RV508 (refer to Section 7 for a component description) to the logic PCB, and pro-
ceed as follows.
Adjust #RV508 for ±3kHz (±2.4kHz) [±1.5kHz] deviation reading on the modula-
tion meter.
Check to ensure that no limiting occurs in IC901.
6.4.8 FFSK Adjustment (Trunked Models Only)
6.4.8.1 T203X Radios
Enter test mode (refer to Section 5.8, “Trunked Radios: Test Mode”).
Press the front panel
clear
key .
Adjust #RV599 for ±3kHz ±200Hz (±2.4kHz ±160Hz) [±1.5kHz ±100Hz] deviation
reading on the modulation meter.
6.4.8.2 T2040 Radios
Enter test mode (refer to Section 5.8, “Trunked Radios: Test Mode”).
Select test function 10 using the control head.
Adjust #RV599 for ±3kHz ±200Hz (±2.4kHz ±160Hz) [±1.5kHz ±100Hz] deviation
reading on the modulation meter.
2
M2000-00
PCB Information
7.1
Copyright TEL 31/12/97
7 PCB Information
This Section provides parts lists, circuit diagrams and component location information
on the individual PCBs within the T2000 Series II radio.
The following PCBs are covered within this Section:
Section Title Page Frequency
(MHz)
7.1 T2000-100 RF PCB IPN 220-01331-02 7.1.1 220 to 270
7.2 T2000-200 RF PCB IPN 220-01202-10 7.2.1 66 to 88
7.3 T2000-300 RF PCB IPN 220-01314-01 7.3.1 136 to 174
7.4 T2000-400 RF PCB IPN 220-01204-11 7.4.1 175 to 225
7.5 T2000-500/-600 RF PCB IPN 220-01205-14 7.5.1 400 to 530
7.6 T2000-700/-900 RF PCB IPN 220-01289-01
IPN 220-01389-03 7.6.1
7.6.11 330 to 400
7.7 T2000-800 RF PCB IPN 220-01305-03 7.7.1 800 to 870
7.8 T2000 IF PCB IPN 220-01384-00 7.8.1
7.9 T2000 TCXO/Tx Audio PCB IPN 220-01389-00
IPN 220-01389-02 7.9.1
7.9.7
7.10 T2010 & T2015 HC05 Logic PCB IPN 220-01377-01
IPN 220-01377-02
IPN 220-01377-03
7.10.1
7.10.11
7.10.23
7.11 T2020, T203X, T2040, T2050 &
T2060 HC11 Logic PCB IPN 220-01344-02
IPN 220-01344-04 7.11.1
7.11.13
7.12 T2010/T2030 Control Head PCB IPN 220-01319-01 7.12.1
7.13 T2015/T2060 Control Head PCB IPN 220-01320-01 7.13.1
7.14 T2020/40 /50 Control Head PCB IPN 220-01321-04 7.14.1
7.15 T2035 Control Head PCB IPN 220-01322-03 7.15.1
7.16 T2000 EMC Filter PCB IPN 220-01383-01 7.16.1
7.17 T2000 Data Interface Decoupling
PCB IPN 220-01388-01 7.17.1
7.2
PCB Information
M2000-00
31/11/96 Copyright TEL
PCB Identification
All PCBs are identified by a unique 10 digit ‘internal part number’ (IPN), e.g.
220-01330-02, which is screen printed onto the PCB (usually the top side).
The last 2 digits of this number define the issue status, which starts at 00 and increments
through 01, 02, 03, etc. as the PCB is updated. Some issue PCBs never reach full produc-
tion status, and are therefore not included in this manual. A letter following the 10 digit
IPN has no relevance in identifying the PCB for service purposes.
In the following diagram of the T2000-66 UART PCB, the IPN is 220-01348-03, (i.e. issue
03 of the PCB).
It is important that you identify which issue PCB you are working on so that you can
refer to the appropriate PCB information.
M2000-00
T2000-700/-900 RF PCB
7.6.11
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01289-03
C1 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C2 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C3 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C100 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C101 015-22120-01 CAP CER 0805 CHIP 12P 5% NPO 50V
C102 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C104 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C105 015-21100-01 CAP CER 0805 CHIP 1PO +/-0.25P NPO 50V
C106 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
#C107 7XX 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO
#C107 9XX 015-21470-01 CAP CER 0805 CHIP 4P7 +/-0.25P NPO
C108 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
#C109 9XX 015-21820-01 CAP CER 0805 CHIP 8P2 +/-0.25P NPO
C110 015-22470-01 CAP CER 0805 CHIP 47P 5% NPO 50V
C111 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
#C112 7XX 015-21120-01 CAP CER 0805 CHIP 1P2 +/-0.25 NPO 5
#C112 9XX 015-21150-01 CAP CER 0805 CHIP 1P5 +/-0.25P NPO
#C113 9XX 015-21820-01 CAP CER 0805 CHIP 8P2 +/-0.25P NPO
C114 015-22470-01 CAP CER 0805 CHIP 47P 5% NPO 50V
#C115 7XX 015-21820-01 CAP CER 0805 CHIP 8P2 +/-0.25P NPO
#C115 9XX 015-22120-01 CAP CER 0805 CHIP 12P 5% NPO 50V
#C117 7XX 015-21120-01 CAP CER 0805 CHIP 1P2 +/-0.25 NPO 5
#C117 9XX 015-21150-01 CAP CER 0805 CHIP 1P5 +/-0.25P NPO
#C118 9XX 015-21820-01 CAP CER 0805 CHIP 8P2 +/-0.25P NPO
C119 015-22470-01 CAP CER 0805 CHIP 47P 5% NPO 50V
#C121 7XX 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO
#C121 9XX 015-22100-01 CAP CER 0805 CHIP 10P +/-0.5P NPO 5
#C122 7XX 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO
#C122 9XX 015-22100-01 CAP CER 0805 CHIP 10P +/-0.5P NPO 5
C123 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C124 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C125 015-21330-01 CAP CER 0805 CHIP 3P3 +/-0.25P NPO 50V
C126 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
C127 015-22120-01 CAP CER 0805 CHIP 12P 5% NPO 50V
C128 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C129 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C130 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C132 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C133 015-22470-01 CAP CER 0805 CHIP 47P 5% NPO 50V
C134 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C135 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C136 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C137 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C138 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C139 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C140 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C141 015-22470-01 CAP CER 0805 CHIP 47P 5% NPO 50V
C142 015-22120-01 CAP CER 0805 CHIP 12P 5% NPO 50V
C145 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C146 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C147 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C148 015-22100-01 CAP CER 0805 CHIP 10P +/-0.5P NPO 50V
C149 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C150 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C151 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C152 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C152A 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C153 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C153A 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C154 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C155 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C156 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C157 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C158 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C174 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C175 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C176 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C179 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C180 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C181 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C182 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C184 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C185 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C186 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C187 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C188 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C189 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C190 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C191 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C192 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C193 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C194 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C195 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C197 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C198 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C199 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C200 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C201 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C202 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C203 015-22560-01 CAP CER 0805 CHIP 56P 5% NPO 50V
C204 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C205 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C206 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C207 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C208 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C209 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C210 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C211 015-23180-01 CAP CER 0805 CHIP 180P 5% NPO 50V
C212 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
C213 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C214 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C215 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C216 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C217 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C218 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C219 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C220 022-55100-10 CAP MYLAR AI 10N 5% 63V POTTED
C221 022-57100-02 CAP MYLAR AI 1M 20% 50V POTTED
C222 022-06100-15 CAP MET POLYSTR 100N 5% 50V 5.6MM HI
C223 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C224 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C225 015-23270-01 CAP CER 0805 CHIP 270P 5% NPO 50V
C227 015-22270-01 CAP CER 0805 CHIP 27P 5% NPO 50V
C228 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C229 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C230 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C231 015-23270-01 CAP CER 0805 CHIP 270P 5% NPO 50V
C232 015-21470-01 CAP CER 0805 CHIP 4P7 +/-0.25P NPO 50V
C233 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C234 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C235 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C236 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C237 015-22270-01 CAP CER 0805 CHIP 27P 5% NPO 50V
C238 015-22470-01 CAP CER 0805 CHIP 47P 5% NPO 50V
C239 015-21100-01 CAP CER 0805 CHIP 1PO +/-0.25P NPO 50V
C240 015-23270-01 CAP CER 0805 CHIP 270P 5% NPO 50V
C241 015-23270-01 CAP CER 0805 CHIP 270P 5% NPO 50V
C242 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C243 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C244 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
C245 015-21270-01 CAP CER 0805 CHIP 2P7 +/-0.25P NPO 50V
C246 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C247 015-21820-01 CAP CER 0805 CHIP 8P2 +/-0.25P NPO 50V
C249 015-23270-01 CAP CER 0805 CHIP 270P 5% NPO 50V
C250 015-22820-01 CAP CER 0805 CHIP 82P 5% NPO 50V
C251 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C252 015-23180-01 CAP CER 0805 CHIP 180P 5% NPO 50V
C253 015-22820-01 CAP CER 0805 CHIP 82P 5% NPO 50V
C300 015-03150-06 CAP CER 1210 CHIP 150P NPO 500V GRM42-2
#C301 7XX 015-23270-01 CAP CER 0805 CHIP 270P 5% NPO 50V
#C301 9XX 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
#C302 7XX 015-21820-01 CAP CER 0805 CHIP 8P2 +/-0.25P NPO
#C302 9XX 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO
#C303 7XX 015-02150-06 CAP CER 1210 CHIP 15P NPO 500V GRM4
#C303 9XX 015-02180-06 CAP CER 1210 CHIP 18P NPO 500V GRM4
C304 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
#C305 7XX 015-22150-01 CAP CER 0805 CHIP 15P 5% NPO 50V
#C305 9XX 015-22120-01 CAP CER 0805 CHIP 12P 5% NPO 50V
#C306 7XX 015-22270-01 CAP CER 0805 CHIP 27P 5% NPO 50V
#C306 9XX 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C307 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C308 7XX 015-22470-01 CAP CER 0805 CHIP 47P 5% NPO 50V
#C308 9XX 015-22120-01 CAP CER 0805 CHIP 12P 5% NPO 50V
#C309 7XX 015-22560-01 CAP CER 0805 CHIP 56P 5% NPO 50V
#C309 9XX 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C310 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
7.6 T2000-700/-900 RF PCB
T2000-700/-900 Parts List (IPN 220-01289-03)
Parts List Amendments
7.6.12
T2000-700/-900 RF PCB
M2000-00
31/12/97 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
IPN 220-01289-03
C311 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C312 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
#C313 7XX 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO
#C313 9XX 015-22100-01 CAP CER 0805 CHIP 10P +/-0.5P NPO 5
#C314 7XX 015-21470-01 CAP CER 0805 CHIP 4P7 +/-0.25P NPO
#C314 9XX 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO
C315 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C316 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C317 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C318 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C319 015-03150-06 CAP CER 1210 CHIP 150P NPO 500V GRM42-2
C320 015-02330-03 CAP CER CHIP 33P 5% NPO 500V HIQ GRH111
C321 015-02330-03 CAP CER CHIP 33P 5% NPO 500V HIQ GRH111
#C323 7XX 015-02270-03 CAP CER CHIP 27P 5% NPO 500V HIQ GR
#C323 9XX 015-02180-03 CAP CER CHIP 18P 5% 500V HIQ GRH111
C324 015-02330-03 CAP CER CHIP 33P 5% NPO 500V HIQ GRH111
C325 015-02330-03 CAP CER CHIP 33P 5% NPO 500V HIQ GRH111
C326 015-03150-06 CAP CER 1210 CHIP 150P NPO 500V GRM42-2
C327 029-02470-02 CAP MICA 5MM CASE 47P 5%
C328 020-07470-04 CAP ELECT RADL 4M7 25V 20% 8X13MM SOLID
C329 029-02470-02 CAP MICA 5MM CASE 47P 5%
#C330 7XX 015-01820-06 CAP CER 1210 CHIP 8P2 NPO 500V GRM4
#C330 9XX 015-02100-06 CAP CER 1210 CHIP 10P 5% NPO 500V G
#C331 7XX 015-01820-06 CAP CER 1210 CHIP 8P2 NPO 500V GRM4
#C331 9XX 015-02100-06 CAP CER 1210 CHIP 10P 5% NPO 500V G
C332 015-03150-06 CAP CER 1210 CHIP 150P NPO 500V GRM42-2
C333 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C334 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C335 015-01270-06 CAP CER 1210 CHIP 2P7 NPO 200V GRM42-2
C336 015-03150-06 CAP CER 1210 CHIP 150P NPO 500V GRM42-2
C337 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C339 015-01560-06 CAP CER 1210 CHIP 5P6 NPO 500V GRM42-2
C340 015-01560-06 CAP CER 1210 CHIP 5P6 NPO 500V GRM42-2
C341 015-01560-06 CAP CER 1210 CHIP 5P6 NPO 500V GRM42-2
C342 015-01470-06 CAP CER 1210 CHIP 4P7 NPO 500V GRM42-2
C343 015-01560-06 CAP CER 1210 CHIP 5P6 NPO 500V GRM42-2
C344 015-01390-06 CAP CER 1210 CHIP 3P9 NPO 500V GRM42-2
C345 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C346 015-21220-01 CAP CER 0805 CHIP 2P2 +/-0.25P NPO 50V
C347 015-21220-01 CAP CER 0805 CHIP 2P2 +/-0.25P NPO 50V
C348 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C349 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C350 015-21470-01 CAP CER 0805 CHIP 4P7 +/-0.25P NPO 50V
C351 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C352 015-21150-01 CAP CER 0805 CHIP 1P5 +/-0.25P NPO 50V
C353 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C360 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C361 015-21330-01 CAP CER 0805 CHIP 3P3 +/-0.25P NPO 50V
C403 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C410 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C411 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C412 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C413 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C414 020-09470-05 CAP ELECT RADL 470M 16V 10X12.5MM
C415 020-19100-02 CAP ELECT RADL 1000M 16V 12X20MM
C416 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C419 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C420 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C423 020-08560-09 CAP ELECT RADL 56M 50V 6.3X15.5MM L/S
C424 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C425 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C426 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C427 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C428 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C429 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C430 020-08560-09 CAP ELECT RADL 56M 50V 6.3X15.5MM L/S
C431 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C453 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C454 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C455 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
D1 001-00012-90 (S) DIODE MR2520L OVERVOLT SUPPRESSOR
D100 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE IN
D101 001-10043-90 (S) DIODE SMD BB439 SI VARICAP SOD323
D102 001-10043-90 (S) DIODE SMD BB439 SI VARICAP SOD323
D103 001-10043-90 (S) DIODE SMD BB439 SI VARICAP SOD323
D105 001-10000-18 (S) DIODE SMD BAT18 BANDSWITCH SOT-23 S
D106 001-10000-18 (S) DIODE SMD BAT18 BANDSWITCH SOT-23 S
D107 001-10000-17 (S) DIODE SMD DUAL BAT-17 SCHOTTKY SML
D108 001-10000-17 (S) DIODE SMD DUAL BAT-17 SCHOTTKY SML
D110 001-10000-17 (S) DIODE SMD DUAL BAT-17 SCHOTTKY SML
D111 001-10000-17 (S) DIODE SMD DUAL BAT-17 SCHOTTKY SML
D140A 001-10000-18 (S) DIODE SMD BAT18 BANDSWITCH SOT-23
D202 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23
D203 001-10043-90 (S) DIODE SMD BB439 SI VARICAP SOD323
D204 001-10043-90 (S) DIODE SMD BB439 SI VARICAP SOD323
D205 001-10006-39 (S) DIODE SMD VARICAP BB639 SOD323
D206 001-10006-39 (S) DIODE SMD VARICAP BB639 SOD323
D208 001-10000-18 (S) DIODE SMD BAT18 BANDSWITCH SOT-23 S
D209 001-10000-18 (S) DIODE SMD BAT18 BANDSWITCH SOT-23 S
D301 001-00013-45 (S) DIODE SCHOTTKY 1SS97/2
D303 001-00012-50 (S) DIODE PIN UM9401 UHF PWR SWITCH
D304 001-00012-50 (S) DIODE PIN UM9401 UHF PWR SWITCH
D401 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23
IC101 002-10033-71 (S) IC SMD MC3371D-R2 FM IF DETECT RSS
IC201 002-10451-58 (S) IC SMD MC145158DW2 FREQ SYNTH SOIC
IC202 002-10330-78 (S) IC MC33078D-R2 DUAL AMP LO NOISE S
IC203 002-10120-22 (S) IC SMD MC12022AD-R2 PRESC 8-P
IC402 002-00013-70 (S) IC TDA1020 AF PWR AMP 9PIN SIL
IC403 002-00078-08 (S) IC MC7808ACT 8V REG(LINEAR)1AMP TO
IC404 002-00078-05 (S) IC MC7805ACT 5V REG(LINEAR)1AMP TO
L1 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L104 050-00016-74 COIL RF 23NH NOM 2.5T BRASS CORE SHIELD
L105 050-00016-74 COIL RF 23NH NOM 2.5T BRASS CORE SHIELD
L106 050-00016-74 COIL RF 23NH NOM 2.5T BRASS CORE SHIELD
L107 050-00016-65 COIL BALUN 7.2MM2 5X0.5PINS 5T/4 456DB-
L108 050-00016-65 COIL BALUN 7.2MM2 5X0.5PINS 5T/4 456DB-
L109 052-08140-15 COIL A/W 1.5T/4.0MM HOR 0.8MM WIRE
L110 056-00021-60 IND FXD 330NH 6.6X2.7MM AXIAL NON MAGNE
L114 050-00016-62 COIL IF 1UH AT 30MHZ 6MMSQX6.2MMH CAN 2
L116 050-00016-62 COIL IF 1UH AT 30MHZ 6MMSQX6.2MMH CAN 2
L117 050-00016-65 COIL BALUN 7.2MM2 5X0.5PINS 5T/4 456DB-
L118 050-00016-65 COIL BALUN 7.2MM2 5X0.5PINS 5T/4 456DB-
L119 050-00016-55 COIL TAIT NO 655 455KHZ QUAD COIL 7MM C
L120 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 1
L121 057-10120-03 IND 0805 BLM21A121 EMI SUPRSN 120 OHM @
L200 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 1
L201 056-10100-00 IND FXD SMD 100NH 3.2*2.5*1.6 SIEMENS S
L202 056-10100-00 IND FXD SMD 100NH 3.2*2.5*1.6 SIEMENS S
L203 050-00016-62 COIL IF 1UH AT 30MHZ 6MMSQX6.2MMH CAN 2
L204 057-00100-02 IND FXD SMD 100NH 10% MLF3216DR 1206 CH
L205 056-10330-02 (L) IND SMD 330NH SIEMENS SMID02
L206 056-10330-02 (L) IND SMD 330NH SIEMENS SMID02
L207 051-00574-00 (L) IND TRANSMISSION LINE 84MM RG405 T2
L208 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS S
L209 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS S
L210 056-10047-00 IND FXD SMD 47NH 3.2*2.5*1.6 SIEMENS SM
L211 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS S
L212 056-10033-00 IND FXD SMD 33NH 3.2*2.5*1.6 SIEMENS SM
#L300 7XX 052-08335-10 COIL A/W 1T/3.5MM SMD 0.8MM WIRE
#L300 9XX 052-08340-10 COIL A/W 1T/4.0MM SMD 0.8MM WIRE
L301 052-08140-15 COIL A/W 1.5T/4.0MM HOR 0.8MM WIRE
L302 052-08130-15 COIL A/W 1.5T/3.0MM HOR 0.8MM WIRE
L303 056-00021-60 IND FXD 330NH 6.6X2.7MM AXIAL NON MAGNE
L304 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L304A 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L305 052-08130-25 COIL A/W 2.5T/3.0MM HOR 0.8MM WIRE
L306 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 1
L307 052-08125-15 COIL A/W 1.5T/2.5MM HOR 0.8MM WIRE
L308 052-08130-65 COIL A/W 6.5T/3.0MM HOR 0.8MM WIRE
L308A 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L309 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L310 052-08130-65 COIL A/W 6.5T/3.0MM HOR 0.8MM WIRE
L311 052-08130-65 COIL A/W 6.5T/3.0MM HOR 0.8MM WIRE
L312 056-00021-60 IND FXD 330NH 6.6X2.7MM AXIAL NON MAGNE
L313 052-08150-55 COIL A/W 5.5T/5.0MM HOR 0.8MM WIRE
L314 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L316 052-08130-65 COIL A/W 6.5T/3.0MM HOR 0.8MM WIRE
L316A 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L317 051-00005-28 COIL TAIT NO 528 HAIRPIN 17MM T550A
L318 052-08130-15 COIL A/W 1.5T/3.0MM HOR 0.8MM WIRE
L319 056-00021-04 IND FXD 330NH AXIAL
L320 052-08135-35 COIL A/W 3.5T/3.5MM HOR 0.8MM WIRE
#L321 7XX 052-08320-10 COIL A/W 1T/2.0MM SMD 0.8MM WIRE
#L321 9XX 052-08320-10 COIL A/W 1T/2.0MM SMD 0.8MM WIRE
L322 052-08135-25 COIL A/W 2.5T/3.5MM HOR 0.8MM WIRE
L323 052-08135-25 COIL A/W 2.5T/3.5MM HOR 0.8MM WIRE
L324 052-08130-35 COIL A/W 3.5T/3.0MM HOR 0.8MM WIRE
L325 052-08135-25 COIL A/W 2.5T/3.5MM HOR 0.8MM WIRE
L326 052-08135-25 COIL A/W 2.5T/3.5MM HOR 0.8MM WIRE
L331 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 1
L401 050-00016-50 COIL TAIT NO 650 455KHZ 5.6MM CAN
P1 240-00026-24 CONN PADLE BRD 16 WAY MICRO MATCH 1-2155
P2 240-00026-26 CONN PADLE BRD 12 WAY MICRO MATCH 1-2155
P3 240-00026-21 PLUG CAP HOUSING 7-POS CONN 172039-1
P5 240-00010-76 PLUG HEADER 10WAY MICROMATCH PCB MTD 1-
P6 240-00010-76 PLUG HEADER 10WAY MICROMATCH PCB MTD 1-
P7 240-00020-72 HEADER 2 WAY PCB MTG ULTREX
Q100 000-10003-12 (S) XSTR SMD BFR31 N JFET SOT-23
Q101 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q102 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q103 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q105 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q106 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q107 000-10008-92 (S) XSTR SMD BFS17 NPN SOT-23 UHF SMALL
Q108 000-10008-92 (S) XSTR SMD BFS17 NPN SOT-23 UHF SMALL
Q109 000-10008-24 (S) XSTR SMD BF824 PNP SOT-23 RF SMALL
Q110 000-10008-92 (S) XSTR SMD BFS17 NPN SOT-23 UHF SMALL
Q115 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q201 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q202 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q203 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q204 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q205 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q206 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q207 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q208 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q209 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q210 000-10003-12 (S) XSTR SMD BFR31 N JFET SOT-23
Q211 000-10008-07 (S) XSTR SMD BC807 PNP SOT-23 AF LO PWR
Q212 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q213 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
M2000-00
T2000-700/-900 RF PCB
7.6.13
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01289-03
Q214 000-10057-10 (S) XSTR SMD MMBR571 NPN SOT-23 UHF LO
Q215 000-10057-10 (S) XSTR SMD MMBR571 NPN SOT-23 UHF LO
Q300 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q301 000-00032-47 (S) XSTR MRF559 NPN XPACK UHF PWR 0.5W
Q302 000-00032-56 (S) XSTR MRF630 NPN TO-39 UHF PWR 3W
Q303 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q304 000-00012-15 (S) XSTR BD234 PNP AF PWR TO126
Q305 000-00022-75 (S) XSTR SD1433-04 NPN STUD MTG UHF PWR
Q306 000-00032-65 (S) XSTR MRF646 NPN 6LFL UHF PWR 45W
Q401 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q402 000-10008-17 (S) XSTR SMD BC817-25 NPN SOT-23 AF LO
Q403 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q404 000-10008-07 (S) XSTR SMD BC807 PNP SOT-23 AF LO PWR
Q405 000-10008-07 (S) XSTR SMD BC807 PNP SOT-23 AF LO PWR
R100 036-13330-00 RES M/F 0805 CHIP 330E 5%
R101 036-14390-00 RES M/F 0805 CHIP 3K9 5%
R102 036-13560-00 RES M/F 0805 CHIP 560E 5%
R103 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R104 036-13120-00 RES M/F 0805 CHIP 120E 5%
R105 036-12180-00 RES M/F 0805 CHIP 18E 5%
R106 036-16100-00 RES M/F 0805 CHIP 100K 5%
R107 036-16100-00 RES M/F 0805 CHIP 100K 5%
R108 036-16100-00 RES M/F 0805 CHIP 100K 5%
R112 036-12470-00 RES M/F 0805 CHIP 47E 5%
R113 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R114 036-13820-00 RES M/F 0805 CHIP 820E 5%
R115 036-15120-00 RES M/F 0805 CHIP 12K 5%
R116 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R117 036-12100-00 RES M/F 0805 CHIP 10E 5%
R118 036-13100-00 RES M/F 0805 CHIP 100E 5%
R119 036-12100-00 RES M/F 0805 CHIP 10E 5%
R120 036-13820-00 RES M/F 0805 CHIP 820E 5%
R121 036-13180-00 RES M/F 0805 CHIP 180E 5%
R122 036-15100-00 RES M/F 0805 CHIP 10K 5%
R123 036-15100-00 RES M/F 0805 CHIP 10K 5%
R131 036-13100-00 RES M/F 0805 CHIP 100E 5%
R132 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R133 036-13270-00 RES M/F 0805 CHIP 270E 5%
R135 036-15100-00 RES M/F 0805 CHIP 10K 5%
R138 036-16100-00 RES M/F 0805 CHIP 100K 5%
R140 036-15680-00 RES M/F 0805 CHIP 68K 5%
R140A 036-15330-00 RES M/F 0805 CHIP 33K 5%
R141 036-14150-00 RES M/F 0805 CHIP 1K5 5%
R142 036-15270-00 RES M/F 0805 CHIP 27K 5%
R142A 036-16100-00 RES M/F 0805 CHIP 100K 5%
R143 036-15330-00 RES M/F 0805 CHIP 33K 5%
R143A 036-15330-00 RES M/F 0805 CHIP 33K 5%
R144 036-15680-00 RES M/F 0805 CHIP 68K 5%
R144A 036-16120-00 RES M/F 0805 CHIP 120K 5%
R145 036-14150-00 RES M/F 0805 CHIP 1K5 5%
R145A 036-15330-00 RES M/F 0805 CHIP 33K 5%
R146 036-12220-00 RES M/F 0805 CHIP 22E 5%
R147 036-13220-00 RES M/F 0805 CHIP 220E 5%
R148 036-13560-00 RES M/F 0805 CHIP 560E 5%
R149 036-16100-00 RES M/F 0805 CHIP 100K 5%
R150 036-16100-00 RES M/F 0805 CHIP 100K 5%
R151 036-14330-00 RES M/F 0805 CHIP 3K3 5%
R152 036-16390-00 RES M/F 0805 CHIP 390K 5%
R153 036-14100-00 RES M/F 0805 CHIP 1K 5%
RV153 042-05470-07 RES PRESET 47K CARBON 6MM FLAT DUAL AD
R155 036-16100-00 RES M/F 0805 CHIP 100K 5%
R156 036-13100-00 RES M/F 0805 CHIP 100E 5%
R157 036-15100-00 RES M/F 0805 CHIP 10K 5%
R158 036-14100-00 RES M/F 0805 CHIP 1K 5%
R159 036-12470-00 RES M/F 0805 CHIP 47E 5%
R160 036-12100-00 RES M/F 0805 CHIP 10E 5%
R161 036-14100-00 RES M/F 0805 CHIP 1K 5%
R194 036-10000-00 RES M/F 0805 CHIP ZERO OHM
R195 036-15680-00 RES M/F 0805 CHIP 68K 5%
R196 036-13100-00 RES M/F 0805 CHIP 100E 5%
R197 036-13100-00 RES M/F 0805 CHIP 100E 5%
R198 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R199 036-13100-00 RES M/F 0805 CHIP 100E 5%
R213 036-13330-00 RES M/F 0805 CHIP 330E 5%
R214 036-14120-00 RES M/F 0805 CHIP 1K2 5%
R217 036-12470-00 RES M/F 0805 CHIP 47E 5%
R218 036-15120-00 RES M/F 0805 CHIP 12K 5%
R219 036-13270-00 RES M/F 0805 CHIP 270E 5%
R220 036-14680-00 RES M/F 0805 CHIP 6K8 5%
R221 036-13330-00 RES M/F 0805 CHIP 330E 5%
R222 036-12470-00 RES M/F 0805 CHIP 47E 5%
RV222 042-05470-07 RES PRESET 47K CARBON 6MM FLAT DUAL AD
R223 036-15220-00 RES M/F 0805 CHIP 22K 5%
R224 036-15330-00 RES M/F 0805 CHIP 33K 5%
R225 036-15220-00 RES M/F 0805 CHIP 22K 5%
R226 036-15150-00 RES M/F 0805 CHIP 15K 5%
R227 036-13560-00 RES M/F 0805 CHIP 560E 5%
R228 036-14330-00 RES M/F 0805 CHIP 3K3 5%
R229 036-12220-00 RES M/F 0805 CHIP 22E 5%
R230 036-13390-00 RES M/F 0805 CHIP 390E 5%
R231 036-13180-00 RES M/F 0805 CHIP 180E 5%
R232 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R233 036-17100-00 RES M/F 0805 CHIP 1M 5%
R234 036-13180-00 RES M/F 0805 CHIP 180E 5%
R235 036-13330-00 RES M/F 0805 CHIP 330E 5%
R236 036-12470-00 RES M/F 0805 CHIP 47E 5%
R237 036-13100-00 RES M/F 0805 CHIP 100E 5%
R238 036-14820-00 RES M/F 0805 CHIP 8K2 5%
R239 036-15220-00 RES M/F 0805 CHIP 22K 5%
R240 036-16100-00 RES M/F 0805 CHIP 100K 5%
R241 036-14150-00 RES M/F 0805 CHIP 1K5 5%
R242 036-12220-00 RES M/F 0805 CHIP 22E 5%
R243 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R244 036-12220-00 RES M/F 0805 CHIP 22E 5%
R245 036-12220-00 RES M/F 0805 CHIP 22E 5%
R247 036-12100-00 RES M/F 0805 CHIP 10E 5%
R248 036-10000-00 RES M/F 0805 CHIP ZERO OHM
R250 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R251 036-13150-00 RES M/F 0805 CHIP 150E 5%
R252 036-13820-00 RES M/F 0805 CHIP 820E 5%
R253 036-12470-00 RES M/F 0805 CHIP 47E 5%
R254 036-12330-00 RES M/F 0805 CHIP 33E 5%
R255 036-12220-00 RES M/F 0805 CHIP 22E 5%
R256 036-14150-00 RES M/F 0805 CHIP 1K5 5%
R257 036-14120-00 RES M/F 0805 CHIP 1K2 5%
R258 036-12100-00 RES M/F 0805 CHIP 10E 5%
R259 036-13390-00 RES M/F 0805 CHIP 390E 5%
R260 036-12180-00 RES M/F 0805 CHIP 18E 5%
R261 036-12330-00 RES M/F 0805 CHIP 33E 5%
R262 036-12100-00 RES M/F 0805 CHIP 10E 5%
R266 036-14330-00 RES M/F 0805 CHIP 3K3 5%
R267 036-14330-00 RES M/F 0805 CHIP 3K3 5%
R268 036-12560-00 RES M/F 0805 CHIP 56E 5%
R269 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R270 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R271 036-13220-00 RES M/F 0805 CHIP 220E 5%
R272 036-13220-00 RES M/F 0805 CHIP 220E 5%
R273 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R274 036-14390-00 RES M/F 0805 CHIP 3K9 5%
R275 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R276 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R277 036-12330-00 RES M/F 0805 CHIP 33E 5%
R278 036-16100-00 RES M/F 0805 CHIP 100K 5%
R282 036-13120-00 RES M/F 0805 CHIP 120E 5%
R284 036-15100-00 RES M/F 0805 CHIP 10K 5%
R285 036-15100-00 RES M/F 0805 CHIP 10K 5%
R286 036-14100-00 RES M/F 0805 CHIP 1K 5%
R287 036-16100-00 RES M/F 0805 CHIP 100K 5%
R288 036-15390-00 RES M/F 0805 CHIP 39K 5%
R301 036-13220-00 RES M/F 0805 CHIP 220E 5%
R302 036-14100-00 RES M/F 0805 CHIP 1K 5%
R303 030-53270-20 RES FILM AI 270E 5% 0.4W 4X1.6MM
R304 036-13100-00 RES M/F 0805 CHIP 100E 5%
R305 036-12100-00 RES M/F 0805 CHIP 10E 5%
R307 030-03220-00 RES FILM 220E 5% 0.25W 7X2.5MM
R308 030-54120-20 RES FILM AI 1K2 5% 0.4W 4X1.6MM
R309 036-12680-00 RES M/F 0805 CHIP 68E 5%
R310 030-53180-20 RES FILM AI 180E 5% 0.4W 4X1.6MM
R311 036-13180-00 RES M/F 0805 CHIP 180E 5%
R312 036-13680-00 RES M/F 0805 CHIP 680E 5%
R314 030-03470-00 RES FILM 470E 5% 0.25W 7X2.5MM
R315 030-52220-20 RES FILM AI 22E 5% 0.4W 4X1.6MM
R315A 030-52220-20 RES FILM AI 22E 5% 0.4W 4X1.6MM
R316 036-13150-00 RES M/F 0805 CHIP 150E 5%
R317 030-53470-20 RES FILM AI 470E 5% 0.4W 4X1.6MM
R319 030-52470-20 RES FILM AI 47E 5% 0.4W 4X1.6MM
R319A 030-52470-20 RES FILM AI 47E 5% 0.4W 4X1.6MM
R320 030-55270-20 RES FILM AI 27K 5% 0.4W 4X1.6MM
R321 036-16470-00 RES M/F 0805 CHIP 470K 5%
R322 030-02100-00 RES FILM 10E 5% 0.25W 7X2.5MM
RV324 042-06470-06 RES PRESET 470/500K 25% 6MM ROUND TOP
R325 030-55270-20 RES FILM AI 27K 5% 0.4W 4X1.6MM
R326 036-16220-00 RES M/F 0805 CHIP 220K 5%
R327 036-14100-00 RES M/F 0805 CHIP 1K 5%
R328 030-53150-20 RES FILM AI 150E 5% 0.4W 4X1.6MM
R329 036-15470-00 RES M/F 0805 CHIP 47K 5%
R330 036-16220-00 RES M/F 0805 CHIP 220K 5%
R332 036-13100-00 RES M/F 0805 CHIP 100E 5%
R333 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R337 036-10000-00 RES M/F 0805 CHIP ZERO OHM
R418 036-13680-00 RES M/F 0805 CHIP 680E 5%
R420 036-15270-00 RES M/F 0805 CHIP 27K 5%
R421 036-15270-00 RES M/F 0805 CHIP 27K 5%
R422 036-12220-00 RES M/F 0805 CHIP 22E 5%
R425 036-14100-00 RES M/F 0805 CHIP 1K 5%
R426 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R427 036-11470-00 RES M/F 0805 CHIP 4E7 5%
R428 036-12220-00 RES M/F 0805 CHIP 22E 5%
R429 036-15270-00 RES M/F 0805 CHIP 27K 5%
R430 036-14680-00 RES M/F 0805 CHIP 6K8 5%
R431 036-16100-00 RES M/F 0805 CHIP 100K 5%
R432 036-12100-00 RES M/F 0805 CHIP 10E 5%
R433 036-13100-00 RES M/F 0805 CHIP 100E 5%
R434 036-12470-00 RES M/F 0805 CHIP 47E 5%
R437 036-14100-00 RES M/F 0805 CHIP 1K 5%
R440 036-16270-00 RES M/F 0805 CHIP 270K 5%
R441 036-15560-00 RES M/F 0805 CHIP 56K 5%
R442 036-13220-00 RES M/F 0805 CHIP 220E 5%
R443 036-13680-00 RES M/F 0805 CHIP 680E 5%
R444 036-15100-00 RES M/F 0805 CHIP 10K 5%
R445 036-14180-00 RES M/F 0805 CHIP 1K8 5%
Variants: 7XX 330-380MHz
9XX 360-400MHz
T2000-700/-900 Mechanical & Miscellaneous Parts
7.6.14
T2000-700/-900 RF PCB
M2000-00
31/12/97 Copyright TEL
IPN DescriptionIPN Description
IPN 220-01289-03
005-10000-10 TEST POINT SMD 0805 2.0 X 1.25 X 1.45
062-00010-14 CAN 7.5MM SQ X 10.2MM TOKO MC-136
CANS TO BE PLACED OVER L107 L108
065-00010-11 BEAD FERRITE 4S3 3*1*4MM RED
L1, L307, L309, L314, L316, L304, L304A
200-00010-05 WIRE T/C 0.5MM
205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
220-01289-03 PCB T2000 330-380MHZ RF BRD
240-00020-51 PLUG 12 WAY 2*6 FLAT CABLE TERMN
240-00020-54 PLUG 16 WAY 2X8 FLAT CABLE TERMN MICROMATCH
240-02100-11 SKT COAX BNC 3.5MM PNL NO EARTH TAG
303-23135-02 COVER BTTM T2000 SII PNTD CMPLT
303-50077-00 CLIP A3M2525 T2000 AUDIO IC AND REG
308-13093-02 CHASSIS A1M2503 DIE CAST T2000 SERIES II
316-85094-00 PLATE A4M2160 BNC MTG UK 5X5 SERIES
319-01164-01 SHIELD A1M2507 DIE CAST T2000 MICROP
319-01167-00 SHIELD RX A3M2594 T2000
349-00020-30 SCREW TAPTITE M3X6MM PAN POZI BZ
349-00020-31 SCREW TAPTITE M3X10MM PAN POZI BZ
349-00020-32 SCREW TAPTITE M3X8MM PAN POZI BZ
Q306 =2 BNC PLATE =2 CHASSIS =2
349-00020-34 SCREW M3*12 PAN POZI TAPTITE BZ
349-00020-48 SCREW M4X25MM PAN POZI TAPTITE II BRIGHT ZINC
349-00020-49 SCREW TAPTITE M4X35MM PAN POZI BZ
TOP COVER
352-00010-35 NUT 8-32 UNC HEX RF PWR XSTR MTG
NUT FOR Q305
356-00010-05 TAG SOLDER 4MM LONG M6144/4.2
360-01053-02 PLUG A3M2563 PLASTIC D-RANGE BLANKING
362-01027-01 GASKET A4M2564 RUBBER SEAL T2000 MAIN CONN
362-01028-00 GASKET A4M2652 130X3MM CONDUCT STRIPS T2000
362-01058-00 GASKET TO-126 11.1X7.9 D2.4 SIL INSULATION
365-01391-01 (L)LABEL BLNK 30*10.8MM TAMPERMARK VOID MATT S
M2000-00
T2000-700/-900 RF PCB
7.6.15
Copyright TEL 31/12/97
T2000-700/-900 Grid Reference Index (IPN 220-01289-03)
Device PCB Circuit Device PCB Circuit
Device PCB Circuit Device PCB Circuit
IPN 220-01289-03
C1 1:J10 1-V9
C2 1:L10 1-U8
C3 1:L10 1-V8
C100 1:A5 1-U3
C101 1:A6 1-T3
C102 1:A6 1-S2
C104 1:A6 1-S3
C105 1:A6 1-S3
C106 1:B6 1-R3
#C107 1:B6 1-R3
C108 1:A5 1-T3
#C109 1:B5 1-Q3
C110 1:B5 1-Q3
C111 1:B6 1-P3
#C112 1:C5 1-P3
#C113 1:C5 1-P3
C114 1:C5 1-P3
#C115 1:C6 1-O3
#C117 1:C5 1-O3
#C118 1:D5 1-O3
C119 1:D5 1-N3
#C121 1:C6 1-N2
#C122 1:D5 1-M3
C123 1:D5 1-M3
C124 1:F6 1-H2
C125 1:F6 1-H2
C126 1:G6 1-H2
C127 1:E5 1-K5
C128 1:E5 1-L5
C129 1:E5 1-M5
C130 1:E4 1-M5
C132 1:D4 1-U6
C133 1:E4 1-O5
C134 1:D4 1-O6
C135 1:E4 1-P5
C136 1:D4 1-P6
C137 1:D5 1-P5
C138 1:D4 1-P6
C139 1:C5 1-Q5
C140 1:C4 1-Q6
C141 1:C4 1-Q5
C142 1:E5 1-L5
C145 1:E7 1-T4
C146 1:D7 1-U4
C147 1:E5 1-N5
C148 1:E7 1-O4
C149 1:F5 1-L4
C150 1:F7 1-O4
C151 1:F8 1-Q5
C152 1:F7 1-Q4
C152A 1:F7 1-P4
C153 1:F8 1-Q4
C153A 1:F8 1-R4
C154 1:E8 1-S4
C155 1:E7 1-S4
C156 1:E8 1-S4
C157 1:E7 1-T5
C158 1:F4 1-K4
C174 1:B2 1-J8
C175 1:A3 1-K8
C176 1:A2 1-K8
C179 1:B3 2-G5
C180 1:A3 1-L8
C181 1:A3 1-L7
C182 1:C3 1-N6
C184 1:B4 1-M8
C185 1:E4 1-I6
C186 1:E4 1-J7
C187 1:E4 1-N8
C188 1:F4 1-A6
C189 1:B3 1-K6
C190 1:B3 1-K7
C191 1:C2 1-M6
C192 1:C2 1-M7
C193 1:C2 1-N7
C194 1:F4 1-A7
C195 1:F4 1-A8
C197 1:C3 1-O7
C198 1:C2 1-M6
C199 1:B3 1-M7
C200 1:F4 1-B5
C201 1:L4 1-B4
C202 1:E4 1-J3
C203 1:L3 1-J4
C204 1:J5 1-C2
C205 1:G4 1-C2
C206 1:H4 2-L5
C207 1:J3 1-B6
C208 1:J2 1-B7
C209 1:G3 1-C7
C210 1:H2 1-D6
C211 1:F2 1-E6
C212 1:G2 1-F7
C213 1:H4 1-D4
C214 1:G4 1-C4
C215 1:J4 1-E4
C216 1:J3 1-E5
C217 1:L4 1-F4
C218 1:H4 1-F5
C219 1:K3 1-G4
C220 1:K4 1-G5
C221 1:K4 1-G5
C222 1:K4 1-H3
C223 1:G4 1-E3
C224 1:G4 1-E2
C225 1:J4 1-A0
C227 1:K6 1-C0
C228 1:L5 1-D1
C229 1:J5 1-D1
C230 1:G2 1-E7
C231 1:J6 1-E1
C232 1:H6 1-F1
C233 1:G3 1-C7
C234 1:K3 1-I3
C235 1:L5 1-C1
C236 1:J6 1-D0
C237 1:K6 1-C0
C238 1:K5 1-B0
C239 1:H5 1-F2
C240 1:G6 1-G1
C241 1:F6 1-G2
C242 1:G4 1-B3
C243 1:G5 1-E3
C244 1:G3 1-F7
C245 1:G5 1-F2
C246 1:H5 1-E2
C247 1:F2 1-F6
C249 1:G5 1-G0
C250 1:G3 1-G7
C251 1:G3 1-G6
C252 1:F3 1-G6
C253 1:F3 1-H6
C257 1:K3 1-F4
C300 2:D9 1-P1
#C301 1:G6 1-H0
#C302 1:G7 1-H0
#C303 2:G10 1-N0
C304 1:G7 1-H0
#C305 1:G7 1-I0
#C306 1:G7 1-I0
C307 1:F8 1-I1
#C308 1:G8 1-K0
#C309 2:G8 1-K0
C310 2:H9 1-M1
C311 1:H7 1-T2
C312 1:G8 1-K1
#C313 1:H10 1-M0
#C314 2:G9 1-L0
C315 1:J7 1-L1
C316 1:J10 1-P1
C317 1:J10 1-P1
C318 1:H10 1-M1
C319 1:G10 1-P1
C320 2:G10 1-O0
C321 2:G10 1-O0
#C323 2:F10 1-P0
C324 2:F10 1-P0
C325 2:F10 1-P0
C326 1:F9 1-P1
C327 2:D10 1-Q0
C328 1:D9 1-Q1
C329 2:D10 1-R0
#C330 1:C9 1-S0
#C331 1:C9 1-R0
C332 1:C9 1-R0
C333 1:B7 1-T1
C334 1:G8 1-J1
C335 1:B7 1-S0
C336 1:B8 1-T0
C337 1:D7 1-T1
C339 1:B8 1-U0
C340 1:A9 1-U0
C341 1:A10 1-V0
C342 1:A9 1-U0
C343 1:A10 1-V0
C344 1:A10 1-V0
C345 1:D8 1-R1
C346 1:D8 1-R1
C347 1:A7 1-T1
C348 1:J7 1-U2
C349 1:J7 1-V2
C350 1:A7 1-T1
C351 1:D9 1-P1
C352 1:B10 1-U0
C353 1:K7 1-V2
C360 1:K7 1-K1
C361 2:G9 1-L0
C403 1:J10 1-S8
C410 1:L10 1-S9
C411 1:J9 1-T8
C412 1:L9 1-T9
C413 1:L9 1-T8
C414 1:K9 1-U9
C415 1:K9 1-U9
C416 1:J10 1-U8
C419 1:J8 1-J8
C420 1:J9 1-K8
C423 1:K9 1-K9
C424 1:K8 1-L9
C425 1:K7 1-N8
C426 1:L7 1-O9
C427 1:L7 1-P8
C428 1:L7 1-Q8
C429 1:J7 1-P8
C430 1:L8 1-M9
C431 1:G6 1-R8
C453 1:H7 1-M1
C454 1:H8 1-N1
C455 1:H7 1-J2
D1 1:K10 1-V9
D100 1:A6 1-S2
D100 1:A6 1-S2
D101 1:B5 1-Q3
D102 1:C5 1-P3
D103 1:D5 1-N3
D105 1:C4 1-T6
D106 1:D4 1-T6
D107 1:B5 1-S5
D107 1:B5 1-S6
D108 1:B4 1-S5
D108 1:B4 1-S5
D110 1:E6 1-K3
D110 1:E6 1-K3
D111 1:E6 1-K3
D111 1:E6 1-K2
D140A 1:F7 1-P4
D202 1:G4 1-C5
D202 1:G4 1-C5
D203 1:K5 1-A0
D204 1:K5 1-B0
D205 1:K5 1-A0
D206 1:K5 1-B0
D208 1:G5 1-F0
D209 1:G5 1-F1
D301 1:D8 1-S1
D303 1:B7 1-S0
D304 1:A7 1-T0
D401 1:L7 1-P9
D401 1:L7 1-P9
IC101 1:B3 1-K6
IC101 1:B3 2-H5
IC101 1:B3 1-L7
IC101 1:B3 1-O7
IC201 1:H3 1-B4
IC202 1:K3 1-G4
IC202 1:K3 2-K5
IC202 1:K3 1-J4
IC203 1:G4 1-E2
IC402 1:J10 2-N5
IC402 1:J10 1-S8
IC403 1:J8 1-K9
IC404 1:J8 1-K8
L1 1:K10 1-U9
#L104 1:B6 1-Q2
#L105 1:C6 1-P2
#L106 1:D6 1-N2
L107 1:E6 1-J3
L108 1:D6 1-L3
L109 1:F6 1-H3
L110 1:E5 1-L5
L114 1:D4 1-P5
L116 1:C5 1-Q5
L117 1:B4 1-R5
L118 1:B4 1-T5
L119 1:A3 1-K8
L120 1:F4 1-L4
L121 1:A5 1-T3
L200 1:G5 1-C2
L201 1:G3 1-G7
L202 1:F2 1-E6
L203 1:F3 1-F6
L204 1:F3 1-H7
L205 1:K5 1-A0
L206 1:K5 1-B0
L207 2:K5 1-C0
L208 1:L6 1-C1
L209 1:K6 1-D0
L210 1:H5 1-F2
L211 1:G5 1-G0
L212 1:H5 1-F1
#L300 1:G8 1-J0
#L301 1:G7 1-H0
L302 1:G7 1-I0
L303 1:H9 1-L1
L304 1:G8 1-L0
#L305 1:H9 1-L0
L306 1:J7 1-L1
#L307 1:G10 1-M0
L308 1:G10 1-N0
7.6.16
T2000-700/-900 RF PCB
M2000-00
31/12/97 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
IPN 220-01289-03
L308A 1:H10 1-N0
L309 1:G10 1-O1
L310 1:F10 1-O1
L311 1:F9 1-O1
L312 1:J8 1-L2
L313 1:B7 1-S1
L314 1:E9 1-P1
L316 1:F9 1-Q0
L316A 1:F9 1-Q0
L317 1:D9 1-Q1
L318 1:D8 1-R1
L319 1:D7 1-S1
L320 1:B7 1-S0
#L321 1:C10 1-R0
L322 1:B9 1-U0
L323 1:B10 1-U0
L324 1:B10 1-V0
L325 1:A7 1-T1
L326 1:A7 1-T1
L331 1:J7 1-U2
L401 1:L8 1-N9
P1 1:L3 2-D5
P2 1:K7 2-D4
P3 1:K10 2-D4
P5 1:B4 2-H4
P6 1:K2 2-G2
P7 1:K9 2-D2
Q100 1:F7 1-O4
Q101 1:B6 1-R3
Q102 1:A5 1-S3
Q103 1:E5 1-M5
Q105 1:E7 1-P4
Q106 1:F8 1-P4
Q107 1:F8 1-R4
Q108 1:E8 1-S4
Q109 1:E7 1-T4
Q110 1:E7 1-U4
Q115 1:C2 1-N6
Q201 1:J3 1-B7
Q202 1:H2 1-D7
Q203 1:H3 1-C5
Q204 1:H3 1-C5
Q205 1:J4 1-D4
Q206 1:J4 1-D5
Q207 1:J3 1-E5
Q208 1:J3 1-E5
Q209 1:H3 1-E4
Q210 1:K3 1-F4
Q211 1:G2 1-E7
Q212 1:K6 1-D0
Q213 1:H5 1-D1
Q214 1:H6 1-F1
Q215 1:J6 1-F0
Q300 1:G7 1-I0
Q301 1:G8 1-J0
Q302 1:G9 1-L0
Q303 1:J7 1-K1
Q304 1:J7 1-L1
Q305 2:F10 1-O0
Q306 2:E10 1-Q0
Q401 1:L8 1-N9
Q402 1:L7 1-O9
Q403 1:H8 1-N1
Q404 1:H8 1-N1
Q405 1:H7 1-O1
R100 1:A6 1-R3
R101 1:A5 1-S3
R102 1:A5 1-S3
R103 1:A6 1-S3
R104 1:B6 1-R3
R105 1:A5 1-S3
R106 1:B5 1-Q3
R107 1:C5 1-P3
R108 1:D5 1-O3
R112 1:E5 1-K5
R113 1:D5 1-M5
R114 1:E5 1-L5
R115 1:E5 1-M5
R116 1:E5 1-M5
R117 1:E4 1-L6
R118 1:E5 1-M6
R119 1:E4 1-O6
R120 1:F7 1-N4
R121 1:E7 1-N4
R122 1:C5 1-P3
R123 1:B5 1-Q3
R131 1:E7 1-T4
R132 1:D4 1-U6
R133 1:D7 1-U4
R135 1:E7 1-U4
R138 1:C3 1-N6
R140 1:F7 1-O4
R140A 1:E7 1-O4
R141 1:F7 1-O4
R142 1:F8 1-R4
R142A 1:F8 1-P4
R143 1:E8 1-S4
R143A 1:E8 1-Q4
R144 1:F8 1-Q4
R144A 1:F8 1-R4
R145 1:F8 1-Q4
R145A 1:E8 1-R4
R146 1:F7 1-R5
R147 1:E7 1-S5
R148 1:E8 1-S5
R149 1:E7 1-T5
R150 1:E7 1-T4
R151 1:B3 1-K7
R152 1:B3 1-K6
R153 1:F7 1-O4
R155 1:C2 1-N7
R156 1:C3 1-N8
R157 1:C2 1-N7
R158 1:C2 1-N7
R159 1:C3 1-P8
R160 1:B2 1-L8
R161 1:C2 1-M6
R194 1:C3 1-O6
R195 1:L2 1-A7
R196 1:F4 1-J7
R197 1:F4 1-I7
R198 1:C3 1-M7
R199 1:F4 1-J9
R213 1:K3 1-B6
R214 1:J3 1-B7
R217 1:H5 2-K6
R218 1:H2 1-C7
R219 1:J2 1-D7
R220 1:J2 1-D6
R221 1:H2 1-D6
R222 1:K2 1-E7
R223 1:H3 1-B5
R224 1:J2 1-C6
R225 1:G3 1-B5
R226 1:H2 1-C5
R227 1:J3 1-E4
R228 1:G3 1-C5
R229 1:H4 1-D4
R230 1:J4 1-D4
R231 1:H4 1-D5
R232 1:J4 1-D5
R233 1:J3 1-E4
R234 1:H3 1-E5
R235 1:J3 1-F5
R236 1:K4 1-F5
R237 1:K3 1-F5
R238 1:K4 1-F4
R239 1:K3 1-F4
R240 1:K3 1-G4
R241 1:K4 1-G5
R242 1:J4 1-H4
R243 1:J4 1-H3
R244 1:K4 1-I3
R245 1:H4 1-D3
R247 1:K4 1-A0
R248 1:L4 1-H4
R250 1:J5 1-D2
R251 1:H5 1-F1
R252 1:J6 1-D0
R253 1:L6 1-C1
R254 1:H5 1-E2
R255 1:H5 1-E2
R256 1:H6 1-E1
R257 1:J6 1-E0
R258 1:J6 1-F0
R259 1:K6 1-D0
R260 1:H5 1-F2
R261 1:K6 1-B0
R262 1:J5 1-D1
R266 1:L6 1-C1
R267 1:L6 1-D1
R268 1:L6 1-D1
R269 1:G5 1-G1
R270 1:G5 1-G0
R271 1:G5 1-G0
R272 1:G5 1-G1
R273 1:G5 1-G2
R274 1:G6 1-H1
R275 1:G6 1-G0
R276 1:G4 1-B2
R277 1:K6 1-D0
R278 1:L4 1-I4
R282 1:G2 1-E7
R284 1:F4 1-J3
R285 1:L3 1-I4
R286 1:L2 1-I3
R287 1:L3 1-J4
R288 1:L3 1-J4
R301 1:F7 1-I0
R302 1:G7 1-I0
R303 1:G7 1-I1
R304 1:H8 1-K0
R305 1:F9 1-I1
R307 1:H9 1-L1
R308 1:H7 1-J0
R309 1:G7 1-J0
R310 1:G8 1-K0
R311 1:K7 1-K1
R312 1:J7 1-L1
R314 1:H10 1-M0
R315 1:H10 1-M0
R315A 1:H10 1-M0
R316 1:J7 1-K1
R317 1:H10 1-M0
#R318 2:G10 1-N0
#R319 2:G10 1-N0
R320 1:A10 1-W0
R321 1:D8 1-R1
R322 1:E9 1-P1
R325 1:B8 1-T0
R326 1:D8 1-R2
R327 1:H7 1-S2
R328 1:D8 1-S2
R329 1:D8 1-R1
R330 1:D8 1-S1
R332 1:D7 1-S1
R333 1:J7 1-L2
R337 1:E8 1-S2
R418 1:J3 1-G6
R420 1:J4 1-H4
R421 1:J4 1-I3
R422 1:K8 1-L9
R425 1:L10 1-S9
R426 1:L9 1-T8
R427 1:L9 1-T8
R428 1:K8 1-L9
R429 1:K7 1-M8
R430 1:L7 1-O9
R431 1:K7 1-O8
R432 1:L7 1-P9
R433 1:K7 1-P9
R434 1:J7 1-Q9
R437 1:L10 1-V6
R440 1:H7 1-M1
R441 1:H8 1-N1
R442 1:H8 1-N1
R443 1:H8 1-N1
R444 1:H7 1-O1
R445 1:H8 1-O1
RV153 1:B2 1-L6
RV222 1:J3 1-C6
RV324 1:E8 1-R2
S4 1:B10 1-W0
SHIELD 1:C5 2-K4
TOPSLOT 1:L10 2-K3
TSP5 1:E4 1-M4
TSP7 1:E8 1-S4
Copyright TEL 31/12/97
M2000-00
T2000-700/-900 RF PCB
7.6.17
IPN 220-01289-03
T2000-700/-900 RF PCB (IPN 220-01289-03) - Bottom Side
7.6.18
T2000-700/-900 RF PCB
M2000-00
31/12/97 Copyright TEL
IPN 220-01289-03
T2000-700/-900 RF PCB (IPN 220-01289-03) - Top Side
M2000-00
T2000-800 RF PCB
7.7.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01305-03
C1 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C2 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C3 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C100 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C104 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C106 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C107 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C108 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C109 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C110 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C124 015-21330-01 CAP CER 0805 CHIP 3P3 +/-0.25P NPO 50V
C125 015-21180-01 CAP CER 0805 CHIP 1P8 +/-0.25 NPO 50V
C126 015-21330-01 CAP CER 0805 CHIP 3P3 +/-0.25P NPO 50V
C127 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C128 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C129 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C130 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C133 015-22390-01 CAP CER 0805 CHIP 39P 5% NPO 50V
C134 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
C135 015-22150-01 CAP CER 0805 CHIP 15P 5% NPO 50V
C136 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C137 015-23120-01 CAP CER 0805 CHIP 120P 5% NPO 50V
C138 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C139 015-22150-01 CAP CER 0805 CHIP 15P 5% NPO 50V
C140 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
C141 015-22390-01 CAP CER 0805 CHIP 39P 5% NPO 50V
C142 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
C149 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C158 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C174 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C175 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C176 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C179 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C180 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C181 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C182 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C184 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C185 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C186 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C187 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C188 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C189 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C190 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C191 015-23560-08 CAP CER 0805 CHIP 560P 10% X7R 50V
C192 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C193 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C194 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C195 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C197 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C198 015-21100-01 CAP CER 0805 CHIP 1PO +/-0.25P NPO 50V
C199 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C200 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C201 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C202 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C203 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C204 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C205 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C206 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C207 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C208 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C209 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C210 015-23100-01 CAP CER 0805 CHIP 100P 5% NPO 50V
C211 015-22560-01 CAP CER 0805 CHIP 56P 5% NPO 50V
CV212 028-02200-01 CAP TRIM 4/20P N750 TOP ADJ RED MUR TZ
C213 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C214 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C215 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C216 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C217 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C218 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C219 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C220 022-55100-10 CAP MYLAR AI 10N 5% 63V POTTED
C221 022-57100-02 CAP MYLAR AI 1M 20% 50V POTTED
C222 022-06100-15 CAP MET POLYSTR 100N 5% 50V 5.6MM HI
C223 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C224 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C225 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C226 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C227 015-21560-01 CAP CER 0805 CHIP 5P6 +/-0.25P NPO 50V
C229 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C230 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C231 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C232 015-21120-01 CAP CER 0805 CHIP 1P2 +/-0.25 NPO 50V
C233 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C235 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C236 015-21330-01 CAP CER 0805 CHIP 3P3 +/-0.25P NPO 50V
C237 015-21330-01 CAP CER 0805 CHIP 3P3 +/-0.25P NPO 50V
C238 015-21390-01 CAP CER 0805 CHIP 3P9 +/-0.25P NPO 50V
C240 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C241 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C242 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C243 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C244 015-22560-01 CAP CER 0805 CHIP 56P 5% NPO 50V
C245 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C246 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C247 015-21270-01 CAP CER 0805 CHIP 2P7 +/-0.25P NPO 50V
C248 020-09100-07 CAP ELECT 100M 10V 6.3X7MM 5MM
C249 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C250 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C251 015-23120-01 CAP CER 0805 CHIP 120P 5% NPO 50V
C252 015-22180-01 CAP CER 0805 CHIP 18P 5% NPO 50V
C253 015-22120-01 CAP CER 0805 CHIP 12P 5% NPO 50V
C254 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C255 015-21270-01 CAP CER 0805 CHIP 2P7 +/-0.25P NPO 50V
C256 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C301 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C303 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C304 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C305 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C306 015-21390-01 CAP CER 0805 CHIP 3P9 +/-0.25P NPO 50V
C307 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C308 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C309 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C310 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C311 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C312 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C313 015-21470-01 CAP CER 0805 CHIP 4P7 +/-0.25P NPO 50V
C314 015-21470-01 CAP CER 0805 CHIP 4P7 +/-0.25P NPO 50V
C315 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C316 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C317 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C318 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C319 015-21330-01 CAP CER 0805 CHIP 3P3 +/-0.25P NPO 50V
C320 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C321 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C322 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C324 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C325 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
7.7 T2000-800 RF PCB
T2000-800 Parts List (IPN 220-01305-03)
Parts List Amendments
R258: Changed from 10Ω to 0Ω (IPN 036-10000-00) to improve power output (6/05/97)
Mechanical parts corrections: Delete IPN 362-00010-08 (insulating gasket)
Add IPN 240-02100-11 (BNC socket)
Add IPN 353-00020-12 (0.9mm flat washer)
7.7.2
T2000-800 RF PCB
M2000-00
31/10/96 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
IPN 220-01305-03
C326 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C328 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C329 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C330 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C331 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C332 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C333 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C334 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C335 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C336 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C337 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C338 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C339 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C340 015-02330-06 CAP CER 1210 CHIP 33P NPO 500V GRM42-2
C341 015-01270-06 CAP CER 1210 CHIP 2P7 NPO 200V GRM42-2
C342 015-21100-01 CAP CER 0805 CHIP 1PO +/-0.25P NPO 50V
C343 015-01330-06 CAP CER 1210 CHIP 3P3 NPO 500V GRM42-2
C344 015-01330-06 CAP CER 1210 CHIP 3P3 NPO 500V GRM42-2
C345 015-21100-01 CAP CER 0805 CHIP 1PO +/-0.25P NPO 50V
C346 015-01270-06 CAP CER 1210 CHIP 2P7 NPO 200V GRM42-2
C347 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C348 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C349 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C350 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C351 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C352 015-02330-06 CAP CER 1210 CHIP 33P NPO 500V GRM42-2
C353 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C354 022-06330-03 CAP METAL POLYES 330N 10% 50V 5MM L/S
C355 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C356 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C357 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C358 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C359 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C360 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C361 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C362 020-57100-55 CAP ELECT AI RDL 1UF 50V 4X7MM
C363 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C364 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C365 020-57100-55 CAP ELECT AI RDL 1UF 50V 4X7MM
C366 015-22330-01 CAP CER 0805 CHIP 33P 5% NPO 50V
C367 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C403 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C410 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C411 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C412 020-58470-05 CAP ELECT AI RDL 47M 16V 6.3X7MM
C413 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C414 020-09470-05 CAP ELECT RADL 470M 16V 10X12.5MM
C415 020-19100-02 CAP ELECT RADL 1000M 16V 12X20MM
C416 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C419 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C420 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C423 020-08560-09 CAP ELECT RADL 56M 50V 6.3X15.5MM L/S
C424 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C425 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C426 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C427 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C428 020-57470-10 CAP ELECT AI RDL 4U7 50V LO ESR
C429 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C430 020-08560-09 CAP ELECT RADL 56M 50V 6.3X15.5MM L/S
C431 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
D1 001-00012-90 (S) DIODE MR2520L OVERVOLT SUPPRESSOR
D100 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE INL
D107 001-10000-17 (S) DIODE SMD DUAL BAT-17 SCHOTTKY SML S
D108 001-10000-17 (S) DIODE SMD DUAL BAT-17 SCHOTTKY SML S
D110 001-10014-00 (LS) DIODE SMD BAT14-099R QUAD CRSSD SCH
D202 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23 C
D203 001-10005-35 (S) DIODE SMD VARICAP BB535 SOD323
D204 001-10005-35 (S) DIODE SMD VARICAP BB535 SOD323
D205 001-10005-35 (S) DIODE SMD VARICAP BB535 SOD323
D206 001-10005-35 (S) DIODE SMD VARICAP BB535 SOD323
D208 001-10014-01 (LS) DIODE SMD BAR14-1 DUAL SI PIN SOT-2
D301 001-00013-45 (S) DIODE SCHOTTKY 1SS97/2
D302 001-00012-50 (S) DIODE PIN UM9401 UHF PWR SWITCH
D303 001-00012-50 (S) DIODE PIN UM9401 UHF PWR SWITCH
D304 001-00010-26 (S) DIODE BA482 RF SWITCH
D401 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23 C
IC101 002-10033-71 (S) IC SMD MC3371D-R2 FM IF DETECT RSSI
IC201 002-10451-58 (S) IC SMD MC145158DW2 FREQ SYNTH SOIC
IC202 002-10330-78 (S) IC MC33078D-R2 DUAL AMP LO NOISE SO
IC203 002-10120-22 (S) IC SMD MC12022AD-R2 PRESC 8-P
IC402 002-00013-70 (S) IC TDA1020 AF PWR AMP 9PIN SIL
IC403 002-00078-08 (S) IC MC7808ACT 8V REG(LINEAR)1AMP TO-
IC404 002-00078-05 (S) IC MC7805ACT 5V REG(LINEAR)1AMP TO-
IC405 004-00070-73 (L) MODULE RF PWR MHW820-1 806-870MHZ 2
L1 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L107 050-10061-70 BALUN MIXER SMD 617DB-1018
L108 050-10061-70 BALUN MIXER SMD 617DB-1018
L110 056-00021-60 IND FXD 330NH 6.6X2.7MM AXIAL NON MAGNET
L114 050-00016-62 COIL IF 1UH AT 30MHZ 6MMSQX6.2MMH CAN 29
L116 050-00016-62 COIL IF 1UH AT 30MHZ 6MMSQX6.2MMH CAN 29
L117 050-00016-65 COIL BALUN 7.2MM2 5X0.5PINS 5T/4 456DB-1
L118 050-00016-65 COIL BALUN 7.2MM2 5X0.5PINS 5T/4 456DB-1
L119 050-00016-55 COIL TAIT NO 655 455KHZ QUAD COIL 7MM CA
L120 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 10
L121 057-10120-03 IND 0805 BLM21A121 EMI SUPRSN 120 OHM @
L200 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 10
L201 057-00100-00 IND FXD SMD 100NH 10% 2.5X3.5MM MUR LQN2
L202 056-10820-00 IND FXD SMD 820NH 3.2*2.5*1.6 SIEMENS SM
L204 050-00016-62 COIL IF 1UH AT 30MHZ 6MMSQX6.2MMH CAN 29
L205 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS SM
L206 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS SM
L207 051-00616-00 COAX RES 28MM (STRIPPED) X 2.18MM T2000
L208 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS SM
L209 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS SM
L211 056-10100-00 IND FXD SMD 100NH 3.2*2.5*1.6 SIEMENS SM
L213 056-10100-00 IND FXD SMD 100NH 3.2*2.5*1.6 SIEMENS SM
L214 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS SM
L300 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS SM
L302 056-10330-00 IND FXD SMD 330NH 3.2*2.5*1.6 SIEMENS SM
L304 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 10
L306 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 10
L308 052-56130-85 COIL A/W 8.5T/3.0MM HOR 0.56MM WIRE
L309 057-00015-00 IND FXD 15NH +-5% 1206 CHIP MUR LQN1A15N
L311 052-56130-85 COIL A/W 8.5T/3.0MM HOR 0.56MM WIRE
L312 056-00021-60 IND FXD 330NH 6.6X2.7MM AXIAL NON MAGNET
L313 052-08330-10 COIL A/W 1T/3.0MM SMD 0.8MM WIRE
L315 052-08130-25 COIL A/W 2.5T/3.0MM HOR 0.8MM WIRE
L316 052-56130-85 COIL A/W 8.5T/3.0MM HOR 0.56MM WIRE
L317 052-56130-85 COIL A/W 8.5T/3.0MM HOR 0.56MM WIRE
L318 052-56130-85 COIL A/W 8.5T/3.0MM HOR 0.56MM WIRE
L319 052-56130-85 COIL A/W 8.5T/3.0MM HOR 0.56MM WIRE
L320 052-08130-35 COIL A/W 3.5T/3.0MM HOR 0.8MM WIRE
L321 052-56130-85 COIL A/W 8.5T/3.0MM HOR 0.56MM WIRE
L322 052-08340-10 COIL A/W 1T/4.0MM SMD 0.8MM WIRE
L323 052-08345-10 COIL A/W 1T/4.5MM SMD 0.8MM WIRE
L324 052-08335-10 COIL A/W 1T/3.5MM SMD 0.8MM WIRE
L325 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L326 030-50000-00 LINK WIRE AI ZERO OHM 0.6MM WIRE
L327 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 10
L331 057-10005-03 IND 0805 BLM21B05 EMI SUPRSN 5 OHM AT 10
L401 050-00016-50 COIL TAIT NO 650 455KHZ 5.6MM CAN
P1 240-00026-24 CONN PADLE BRD 16 WAY MICRO MATCH 1-2155
P2 240-00026-26 CONN PADLE BRD 12 WAY MICRO MATCH 1-2155
P3 240-00026-21 PLUG CAP HOUSING 7-POS CONN 172039-1
P5 240-00010-76 PLUG HEADER 10WAY MICROMATCH PCB MTD 1-
P6 240-00010-76 PLUG HEADER 10WAY MICROMATCH PCB MTD 1-
P7 240-00020-72 HEADER 2 WAY PCB MTG ULTREX
Q101 000-10052-00 (LS) XSTR SMD BFG520/X 9GHZ RF SML SIG N
Q102 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q103 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q115 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q200 000-10003-10 (S) XSTR SMD MMBFJ310 JFET SOT-23 UHF
Q201 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q202 000-10003-10 (S) XSTR SMD MMBFJ310 JFET SOT-23 UHF
Q203 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q204 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q205 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q206 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q207 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q208 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q209 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q210 000-10003-12 (S) XSTR SMD BFR31 N JFET SOT-23
Q211 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q212 000-10009-41 (S) XSTR SMD MMBR941L RF LOW NOISE SOT23
Q213 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q214 000-10009-41 (S) XSTR SMD MMBR941L RF LOW NOISE SOT23
Q215 000-10057-10 (S) XSTR SMD MMBR571 NPN SOT-23 UHF LO P
Q300 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q301 000-10095-10 (S) XSTR SMD MMBR951 NPN UHF SOT-23
Q302 000-00032-47 (S) XSTR MRF559 NPN XPACK UHF PWR 0.5W
Q303 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q304 000-00012-15 (S) XSTR BD234 PNP AF PWR TO126
Q305 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q306 000-10008-07 (S) XSTR SMD BC807 PNP SOT-23 AF LO PWR
Q307 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q308 000-10008-07 (S) XSTR SMD BC807 PNP SOT-23 AF LO PWR
Q309 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q401 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
M2000-00
T2000 TCXO/Tx Audio PCB
7.9.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01389-00
C901 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C902 018-11470-00 CAP 0603 CHIP 4P7 50V NPO +-0.25P
C903 020-09100-07 CAP ELECT 100M 10V 6.3X7MM 5MM
C904 015-25470-08 CAP CER 0805 CHIP 47N 10% X7R 50V
C905 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
#C906 X1X 018-11150-00 CAP 0603 CHIP 1P5 50V NPO +-0.25P
#C906 X2X 018-11470-00 CAP 0603 CHIP 4P7 50V NPO +-0.25P
#C906 X3X 018-11150-00 CAP 0603 CHIP 1P5 50V NPO +-0.25P
C907 018-12470-00 CAP 0603 CHIP 47P 50V NPO +-5%
C908 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 26
C913 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 26
C914 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C915 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C916 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C917 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C918 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
&C919 XX1 015-23120-01 CAP CER 0805 CHIP 120P 5% NPO 50V
&C920 XX1 015-23120-01 CAP CER 0805 CHIP 120P 5% NPO 50V
&C921 XX1 018-12180-00 CAP 0603 CHIP 18P 50V NPO +-5%
&C922 XX1 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C924 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
&D901 XX1 001-10004-00 (S) DIODE SMD VARICAP BBY40 SOT23
IC901 002-10340-02 (S) IC SMD MC34002D LIN.OP-AM
&IC902 XX3 539-00010-46 VCTCXO 12.8MHZ +-3.0PPM -30 TO +75
&IC902 XX5 539-00010-48 VCTCXO 12.8MHZ +-2.5PPM -30 TO +75
IC903 002-10078-05 (S) IC SMD 78L05 5V REG
&Q901 XX1 000-10008-92 (S) XSTR SMD BFS17 NPN SO
#R835A X1X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R835A X3X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R835C X2X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R900 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R901 036-15220-00 RES M/F 0805 CHIP 22K 5%
R902 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
#R903 X1X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R903 X2X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R903 X3X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R904 X1X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R904 X2X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R904 X3X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
RV906 042-04200-02 RES PRESET 2K CARBON VERT SIDE ADJ
RV907 042-04200-02 RES PRESET 2K CARBON VERT SIDE ADJ
R908 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R909 X1X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R909 X2X 038-15560-00 RES 0603 CHIP 56K 1/16W +-5%
#R909 X3X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R910 X1X 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
#R910 X2X 038-15180-00 RES 0603 CHIP 18K 1/16W +-5%
#R910 X3X 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
#R911 X1X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R911 X2X 038-15560-00 RES 0603 CHIP 56K 1/16W +-5%
#R911 X3X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R912 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R913 036-12330-00 RES M/F 0805 CHIP 33E 5%
R914 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
&R915 XX1 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
&R916 XX1 038-14150-00 RES 0603 CHIP 1K5 1/16W +-5%
&R917 XX1 036-12820-00 RES M/F 0805 CHIP 82E 5%
&R918 XX1 036-15330-00 RES M/F 0805 CHIP 33K 5%
&R919 XX1 036-15220-00 RES M/F 0805 CHIP 22K 5%
&R920 XX1 038-14820-00 RES 0603 CHIP 8K2 1/16W +-5%
&R921 XX1 045-15100-00 RES NTC SMD 10K 5%
&R922 XX1 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
&R923 XX3 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R923 XX5 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R924 XX3 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R924 XX5 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R925 XX1 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
&R926 XX1 036-16330-00 RES M/F 0805 CHIP 330K 5%
&RV927 XX1 044-06100-04 RES PRESET 100K CERMET 20T SIDE AD
&R928 XX1 038-15820-00 RES 0603 CHIP 82K 1/16W +-5%
&R928 XX3 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
&R928 XX5 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
&R929 XX1 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
&R930 XX1 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R931 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R932 038-12470-00 RES 0603 CHIP 47E 1/16W +-5%
R957 036-14390-00 RES M/F 0805 CHIP 3K9 5%
S6 240-02010-76 SKT 10WAY MICROMATCH SIDE ENTRY PCB 1-21
TSP901 005-10000-10 TEST POINT SMD 0805 2.0 X 1.25 X 1.45
&X901 XX1 274-01058-00 XTAL 12.8MHZ TE/45 +-5PPM UM-1 3 LE
220-01389-00 PCB T2000 SII TCXO
Variants: X1X wide band (15kHz IF bandwidth)
X2X narrow/dual band (7.5kHz IF bandwidth)
X3X medium band (12kHz IF bandwidth)
XX1 ±5ppm, -10 to +60°C frequency stability
XX3 ±3ppm, -30 to +60°C frequency stability
XX5 ±2.5ppm, -30 to +60°C frequency stability
7.9 T2000 TCXO/Tx Audio PCB
T2000 TCXO/Tx Audio Parts List (IPN 220-01389-00)
7.9.2
T2000 TCXO/Tx Audio PCB
M2000-00
31/10/96 Copyright TEL
IPN 220-01389-00
M2000-00
T2000 TCXO/Tx Audio PCB
7.9.7
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01389-02
C901 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C902 018-11470-10 CAP 0603 CHIP 4P7 50V NPO +-0.1P
C903 016-09100-01 (L) CAP ELECT SMD 100U 6.3V 6.6*6.6MM
C904 015-25470-08 CAP CER 0805 CHIP 47N 10% X7R 50V
C905 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
#C906 X1X 018-11150-10 CAP 0603 CHIP 1P5 50V NPO +-0.1P
#C906 X2X 018-11470-10 CAP 0603 CHIP 4P7 50V NPO +-0.1P
#C906 X3X 018-11150-10 CAP 0603 CHIP 1P5 50V NPO +-0.1P
C907 018-12470-10 CAP 0603 CHIP 47P 50V NPO +-1%
C908 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C913 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C914 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C915 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C916 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C917 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C918 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
&C919 XX1 015-23120-01 CAP CER 0805 CHIP 120P 5% NPO 50V
&C920 XX1 015-23120-01 CAP CER 0805 CHIP 120P 5% NPO 50V
&C921 XX1 018-12180-10 CAP 0603 CHIP 18P 50V NPO +-1%
&C922 XX1 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C924 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
&D901 XX1 001-10004-00 (S) DIODE SMD VARICAP BBY40 SOT23
IC901 002-10340-02 (S) IC SMD MC34002D LIN.OP-AMP DUAL SO
&IC902 XX3 539-00010-46 VCTCXO 12.8MHZ +-3.0PPM -30 TO +75
&IC902 XX5 539-00010-48 VCTCXO 12.8MHZ +-2.5PPM -30 TO +75
IC903 002-10078-05 (S) IC SMD 78L05 5V REG
&Q901 XX1 000-10008-92 (S) XSTR SMD BFS17 NPN SOT-23 UHF S
#R835A X1X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R835A X3X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R835B X1X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R835B X3X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R835C X2X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R900 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R901 036-15220-00 RES M/F 0805 CHIP 22K 5%
R902 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
#R903 X1X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R903 X2X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R903 X3X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R904 X1X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R904 X2X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
#R904 X3X 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
RV906 042-04200-02 RES PRESET 2K CARBON VERT SIDE ADJ
RV907 042-04200-02 RES PRESET 2K CARBON VERT SIDE ADJ
R908 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R909 X1X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R909 X2X 038-15560-00 RES 0603 CHIP 56K 1/16W +-5%
#R909 X3X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R910 X1X 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
#R910 X2X 038-15180-00 RES 0603 CHIP 18K 1/16W +-5%
#R910 X3X 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
#R911 X1X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R911 X2X 038-15560-00 RES 0603 CHIP 56K 1/16W +-5%
#R911 X3X 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R912 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R913 036-12330-00 RES M/F 0805 CHIP 33E 5%
R914 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
&R915 XX1 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
&R916 XX1 038-14150-00 RES 0603 CHIP 1K5 1/16W +-5%
&R917 XX1 036-12820-00 RES M/F 0805 CHIP 82E 5%
&R918 XX1 036-15330-00 RES M/F 0805 CHIP 33K 5%
&R919 XX1 036-15220-00 RES M/F 0805 CHIP 22K 5%
&R920 XX1 038-14820-00 RES 0603 CHIP 8K2 1/16W +-5%
&R921 XX1 045-15100-00 RES NTC SMD 10K 5%
&R922 XX1 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
&R923 XX3 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R923 XX5 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R924 XX3 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R924 XX5 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
&R925 XX1 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
&R926 XX1 036-16330-00 RES M/F 0805 CHIP 330K 5%
&RV927 XX1 044-06100-04 RES PRESET 100K CERMET 20T SIDE AD
&R928 XX1 038-15820-00 RES 0603 CHIP 82K 1/16W +-5%
&R928 XX3 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
&R928 XX5 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
&R929 XX1 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
&R930 XX1 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R931 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R932 038-12470-00 RES 0603 CHIP 47E 1/16W +-5%
R957 036-14390-00 RES M/F 0805 CHIP 3K9 5%
S6 240-02010-76 SKT 10WAY MICROMATCH SIDE ENTRY PCB 1-25
TSP901 005-10000-10 TEST POINT SMD 0805 2.0 X 1.25 X 1.45
&X901 XX1 274-01058-00 XTAL 12.8MHZ TE/45 +-5PPM UM-1 3 LE
220-01389-02 PCB T2000 SII TCXO
Variants: X1X wide band (15kHz IF bandwidth)
X2X narrow/dual band (7.5kHz IF bandwidth)
X3X medium band (12kHz IF bandwidth)
XX1 ±5ppm, -10 to +60°C frequency stability
XX3 ±3ppm, -30 to +60°C frequency stability
XX5 ±2.5ppm, -30 to +60°C frequency stability
7.9 T2000 TCXO/Tx Audio PCB
T2000 TCXO/Tx Audio Parts List IPN 220-01389-02)
7.9.8
T2000 TCXO/Tx Audio PCB
M2000-00
31/12/97 Copyright TEL
IPN 220-01389-02
Copyright TEL 31/12/97
M2000-00
T2000 TCXO/Tx Audio PCB
7.9.9
IPN 220-01389-02
T2000 TCXO/Tx Audio PCB (IPN 220-01389-02) - Bottom Side
7.9.10
T2000 TCXO/Tx Audio PCB
M2000-00
31/12/97 Copyright TEL
IPN 220-01389-02
T2000 TCXO/Tx Audio PCB (IPN 220-01389-02) - Top Side
M2000-00
T2010 & T2015 HC05 Logic PCB
7.10.11
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01377-02
C500 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C501 015-23680-08 CAP CER 0805 CHIP 680P 10% X7R 50V
C501A 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C502 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C503 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C504 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C505 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C506 018-12220-00 CAP 0603 CHIP 22P 50V NPO +-5%
C507 018-12220-00 CAP 0603 CHIP 22P 50V NPO +-5%
C509 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C514 018-12220-00 CAP 0603 CHIP 22P 50V NPO +-5%
C515 018-12220-00 CAP 0603 CHIP 22P 50V NPO +-5%
C517 015-23680-08 CAP CER 0805 CHIP 680P 10% X7R 50V
C518 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C519 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C520 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C521 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C522 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C524 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C525 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C526 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C527 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C528 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C530 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C540 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C541 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C542 018-13100-00 CAP 0603 CHIP 100P 50V NPO +-5%
C543 018-13100-00 CAP 0603 CHIP 100P 50V NPO +-5%
C544 018-13100-00 CAP 0603 CHIP 100P 50V NPO +-5%
C545 018-13100-00 CAP 0603 CHIP 100P 50V NPO +-5%
C546 015-24330-08 CAP CER 0805 CHIP 3N3 10% X7R 50V
C600 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C601 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C602 018-12820-00 CAP 0603 CHIP 82P 50V NPO +-5%
C603 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C604 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C605 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C606 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C607 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C608 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C609 018-12470-00 CAP 0603 CHIP 47P 50V NPO +-5%
C610 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C611 018-13100-00 CAP 0603 CHIP 100P 50V NPO +-5%
C612 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C613 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C614 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C615 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C616 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C617 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C618 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C619 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C620 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C621 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C622 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C623 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C624 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C625 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C626 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C627 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C628 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C629 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C630 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C632 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C633 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C634 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C635 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C636 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C637 018-11470-00 CAP 0603 CHIP 4P7 50V NPO +-0.25P
C638 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C639 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C640 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C641 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C642 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C643 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C644 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C645 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C646 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 267
C647 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C648 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C650 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C651 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
#C700 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C702 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C703 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C705 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C730 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-10% 26
D500 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23 C
IC501 002-10936-60 (LS) IC SMD ST93C66CM6 4K EEPROM SER MI
IC504 002-10340-64 (S) IC SMD MC34064 LO VOLT SENSE
IC505 002-26870-55 (LSH) IC 68HC705C9 MPU (T201X 2.05) MAS
IC506 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REGSTR.SO
IC507 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REGSTR.SO
IC509 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
#IC510 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCHMT SO
IC511 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCHMT SO-
IC513 002-10078-08 (S) IC SMD 78L08 8V REG SO8
IC601 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC602 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC603 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC604 002-10003-58 (S) IC SMD LM358 DUAL OP AMP
IC614 002-10040-53 (S) IC 4053 SMD TRIPLE 2CH MULTI-PLEXR
L501 056-10330-02 (L) IND SMD 330NH SIEMENS SMID02
P1 240-10000-01 CONN SMD 24WAY (PLUG)
P2 240-10000-01 CONN SMD 24WAY (PLUG)
Q501 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q502 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q503 000-10008-69 (S) XSTR SMD BC869 PNP 1W 2A SOT-89
Q504 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q505 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q506 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q507 000-10003-12 (S) XSTR SMD BFR31 N JFET SOT-23
Q508 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q509 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q510 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q520 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q601 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q602 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q603 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q604 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q605 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q606 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q607 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q608 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
7.10 T2010 & T2015 HC05 Logic PCB
T2010 & T2015 HC05 Logic Parts List (IPN 220-01377-02)
Parts List Amendments
7.10.12
T2010 & T2015 HC05 Logic PCB
M2000-00
31/12/97 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
IPN 220-01377-02
R501 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R502 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R503 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R504 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R505 036-16150-00 RES M/F 0805 CHIP 150K 5%
R506 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R507 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
RV507 042-15500-01 RES PRESET SMD 50K +-25% 4X4.5X2.5MM 0.
R508 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R509 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R510 036-18100-00 RES M/F 0805 CHIP 10M 10%
R511 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R512 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R513 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R514 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R515 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R516 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R518 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R519 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R520 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R521 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R522 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R523 036-16470-00 RES M/F 0805 CHIP 470K 5%
R524 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R525 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R526 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R527 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R528 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R529 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R530 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R531 036-18100-00 RES M/F 0805 CHIP 10M 10%
R532 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R533 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R534 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R535 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R536 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R537 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R538 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R539 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R540 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R541 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R542 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R543 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R544 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R546 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R547 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R568 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R569 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R570 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R571 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R572 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R574 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
R575 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R578 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R579 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R580 036-18100-00 RES M/F 0805 CHIP 10M 10%
R581 036-15220-00 RES M/F 0805 CHIP 22K 5%
R582 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R583 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R584 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R585 036-13680-00 RES M/F 0805 CHIP 680E 5%
R586 036-13680-00 RES M/F 0805 CHIP 680E 5%
R592 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R593 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R595 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R596 036-15390-00 RES M/F 0805 CHIP 39K 5%
R599 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R600 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R601 036-15820-00 RES M/F 0805 CHIP 82K 5%
R602 036-14820-00 RES M/F 0805 CHIP 8K2 5%
R603 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R604 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R605 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R606 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R607 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R608 036-15220-00 RES M/F 0805 CHIP 22K 5%
R609 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R610 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R611 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R612 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R613 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R614 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R615 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R616 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R617 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R618 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R619 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R620 036-15270-00 RES M/F 0805 CHIP 27K 5%
R621 036-16390-00 RES M/F 0805 CHIP 390K 5%
R622 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R623 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R624 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R625 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R626 036-15270-00 RES M/F 0805 CHIP 27K 5%
R627 036-16390-00 RES M/F 0805 CHIP 390K 5%
R628 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R629 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R630 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R631 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R632 036-16390-00 RES M/F 0805 CHIP 390K 5%
R633 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R634 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R635 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R636 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R637 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R638 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R639 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R640 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R641 036-16150-00 RES M/F 0805 CHIP 150K 5%
R642 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R643 036-16330-00 RES M/F 0805 CHIP 330K 5%
R644 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R645 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R646 036-16330-00 RES M/F 0805 CHIP 330K 5%
R647 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R648 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R649 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R650 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R651 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R652 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R653 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R654 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R655 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R656 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R657 036-14120-00 RES M/F 0805 CHIP 1K2 5%
R658 036-16150-00 RES M/F 0805 CHIP 150K 5%
R659 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R660 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R661 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R662 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R663 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R664 036-15220-00 RES M/F 0805 CHIP 22K 5%
R665 036-16470-00 RES M/F 0805 CHIP 470K 5%
R666 036-16150-00 RES M/F 0805 CHIP 150K 5%
R667 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R668 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R669 036-14180-00 RES M/F 0805 CHIP 1K8 5%
R670 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R671 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R672 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R673 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R674 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R675 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R676 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R677 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R678 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R679 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R680 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R681 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R682 036-14180-00 RES M/F 0805 CHIP 1K8 5%
R683 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R684 036-13680-00 RES M/F 0805 CHIP 680E 5%
R685 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R686 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R687 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R688 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R689 036-15220-00 RES M/F 0805 CHIP 22K 5%
R690 036-15220-00 RES M/F 0805 CHIP 22K 5%
R691 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R692 036-15220-00 RES M/F 0805 CHIP 22K 5%
R693 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R694 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R695 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R696 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R697 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R698 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R699 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R700 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R701 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R702 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R703 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R704 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
M2000-00
T2010 & T2015 HC05 Logic PCB
7.10.13
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01377-02
R705 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R706 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R707 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R708 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R710 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R712 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R713 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R714 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R720 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R721 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R722 036-16330-00 RES M/F 0805 CHIP 330K 5%
#R723 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R724 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R725 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R726 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R727 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R735 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#SPEC1 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
S1 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
S2 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
S8 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
S13 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
S14 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
S15 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
SK505 240-04020-42 SKT 44 PIN SMD PLCC CHIP CARRIER
X501 274-01070-00 XTAL 4.000MHZ HC49U/S C/W TEFLON INSULAT
T2010 & T2015 HC05 Logic Mechanical & Miscellaneous Parts
7.10.14
T2010 & T2015 HC05 Logic PCB
M2000-00
31/12/97 Copyright TEL
IPN DescriptionIPN Description
IPN 220-01377-02
219-02584-00 CABLE ASSEMBLY T2000 PWR CABLE
220-01377-02 (L) PCB T2010/15 LOGIC HC05 COMMON PLATFOR
240-00020-12 PLUG MICROPHONE BT SR937 (PIN 2 MISSING)
240-00100-13 PLUG COAX BNC CORD MTG CRIMP URM76
240-02010-75 SKT RECEPTL SML 172775-1
240-04021-63 CONN 2WAY 24AWG (BLACK) INLINE HERMAPHRODITIC
252-00010-37 MIC AWC DYNAMIC 600E 6WAY M095D TINSEL SHLD'D
252-00010-49 MIC CLIP (SPRING STEEL CONTACT)
265-00010-60 FUSE 10A 12V AUTOMOTIVE STAPLE TYPE
303-23134-02 COVER TOP A1M2504 T2000 PNTD CMPLT
303-30062-02 CRADLE BODY A3M2551 T2000 BOTTOM
303-30063-02 CRADLE BODY A3M2552 T2000 TOP
303-30064-00 CRADLE CLIP A1M2550 T2000
303-30065-03 KEY T2000 SII
340-00010-23 FUSEHLDR INLINE 3M 972
349-00010-49 SCREW SELFTAP NO 10X1/2 IN TYPE AB PAN POZI BZ
349-00020-32 SCREW TAPTITE M3X8MM PAN POZI BZ
353-00010-32 WASHER M5 SHAKEPROOF EXT BZ
362-01028-00 GASKET A4M2652 130X3MM CONDUCT STRIPS
360-02003-01 GROMMET MIC CORD T2000 SII
365-00100-09 LABEL WHITE VINYL 15X11MM S/A
365-01376-00 LABEL A4A724 SOFTWARE
365-01391-01 (L)LABEL BLNK 30*10.8MM TAMPERMARK VOID MA
369-00020-46 TAPE 6 X 6MM FOAM 1 SIDE S/A
399-00010-52 BAG PLASTIC 100*150MM
410-01099-01 (L) PKG CARTON T2000 SERIES II
410-01101-00 CARTON T700/T2000 OUTER (5 UNIT EA)
M2000-00
T2010 & T2015 HC05 Logic PCB
7.10.15
Copyright TEL 31/12/97
T2010 & T1015 HC05 Logic Grid Reference Index (IPN 220-01377-02)
Device PCB Circuit Device PCB Circuit
Device PCB Circuit Device PCB Circuit
31/12/97
ALC 2:G1 1-V0
BOARD 2:N14 1-T4
C500 1:J3 1-B6
C501 1:J14 1-C8
C502 1:J10 1-B3
C503 1:K21 1-E5
C504 1:P21 1-H9
C505 1:J21 1-H8
C506 1:N21 1-G6
C507 1:N20 1-H6
C509 1:L15 1-C7
C514 1:J12 1-I6
C515 1:J12 1-J6
C517 1:M21 1-D8
C518 1:H9 1-A6
C519 1:F9 1-B7
C520 1:J16 1-H5
C521 1:H21 1-H5
C522 1:H3 1-B6
C524 1:B7 1-B8
C525 1:K3 1-E5
C526 1:K3 1-E5
C527 1:K3 1-F5
C528 1:L12 1-S9
C529 1:E22 1-S9
C530 1:E2 1-T9
C540 1:N19 1-I4
C541 1:N18 1-I4
C542 1:H9 1-A6
C543 1:G9 1-B6
C544 1:L4 1-B0
C545 1:L14 1-N0
C546 1:D6 1-V1
C547 1:G6 1-S1
C600 1:F8 1-C1
C601 1:K4 1-B1
C602 1:L4 1-B0
C603 1:K5 1-C1
C604 1:F10 1-B2
C605 1:K6 1-B0
C606 1:J8 1-C2
C607 1:L3 1-E2
C608 1:L5 1-D1
C609 1:L4 1-E1
C610 1:K5 1-D0
C611 1:L3 1-E1
C612 1:L8 1-G1
C613 1:M5 1-E0
C614 1:M5 1-E0
C615 1:P5 1-F0
C616 1:N4 1-F0
C617 1:N3 1-G0
C618 1:M5 1-H0
C619 1:G15 1-I0
C620 1:J16 1-J0
C621 1:K16 1-J0
C622 1:H15 1-H0
C623 1:C9 1-L0
C624 1:B6 1-N1
C625 1:C6 1-N1
C626 1:L14 1-O0
C627 1:E10 1-M0
C628 1:E8 1-M0
C629 1:L14 1-N0
C630 1:C5 1-T1
#C631 1:G6 1-S2
C632 1:G7 1-T2
C633 1:E7 1-U2
C634 1:F5 1-U1
C635 1:F5 1-U2
C636 1:E5 1-V1
C637 1:D4 1-U1
C638 1:C4 1-V0
C639 1:G4 1-V0
C640 1:G3 1-U0
C641 1:C4 1-S0
C642 1:C3 1-R1
C643 1:D3 1-Q0
C644 1:E3 1-Q0
C645 1:C3 1-B9
C646 1:F5 1-Q0
C647 1:C4 1-S0
C648 1:L7 1-C0
C650 1:D10 1-L1
C651 1:C6 1-N1
#C700 1:C9 1-L1
#C701 1:D15 1-P3
C702 1:F12 1-R1
#C703 1:C9 1-V5
#C704 1:E2 1-P1
C705 1:D15 1-C6
#C730 1:G5 1-S1
C501A 1:J13 1-C8
D500 1:C10 1-K3
D500 1:C10 1-K3
DISABLE 2:F1 1-U0
IC501 1:H14 1-E8
#IC503 1:J12 1-I6
IC504 1:N22 1-H9
IC506 1:D11 1-M4
IC507 1:C14 1-O4
IC509 1:D19 1-L7
#IC510 1:E17 1-V6
#IC510 1:E17 1-O2
#IC510 1:E17 1-W5
#IC510 1:E17 1-V6
#IC510 1:E17 1-O3
IC511 1:H16 1-V3
IC511 1:H16 1-G5
IC511 1:H16 1-N5
IC511 1:H16 1-I5
IC511 1:H16 1-J4
#IC512 1:C17 1-K3
#IC512 1:C17 1-L3
#IC512 1:C17 1-M2
#IC512 1:C17 1-V5
#IC512 1:C17 1-L2
IC513 1:G9 1-A7
IC601 1:M4 1-E0
IC601 1:M4 1-T3
IC601 1:M4 1-C0
IC601 1:M4 1-F1
IC601 1:M4 1-G0
IC602 1:K15 1-H0
IC602 1:K15 1-C7
IC602 1:K15 1-K0
IC602 1:K15 1-O0
IC602 1:K15 1-T3
IC603 1:E4 1-U3
IC603 1:E4 1-P0
IC603 1:E4 1-V1
IC603 1:E4 1-R0
IC603 1:E4 1-A2
IC604 1:K8 1-H2
IC604 1:K8 1-V3
IC604 1:K8 1-C5
IC614 1:E8 1-J1
IC614 1:E8 1-C1
IC614 1:E8 1-M0
IC614 1:E8 1-N1
ID 2:N14 1-T4
L501 1:N19 1-I4
P1 1:G10 1-U9
P2 1:E14 1-U8
Q501 1:C12 1-C9
Q502 1:K11 1-D9
Q503 1:K10 1-D9
Q504 1:F16 1-D6
Q505 1:C12 1-K4
Q506 1:E16 1-C6
Q507 1:L22 1-D7
Q508 1:E16 1-C6
Q509 1:E16 1-D6
Q510 1:F16 1-E6
#Q518 1:C7 1-J4
Q520 1:G18 1-E6
Q601 1:E9 1-J1
Q602 1:D9 1-M1
Q603 1:F6 1-U1
Q604 1:H8 1-W2
Q605 1:F2 1-T0
Q606 1:D7 1-W1
Q607 1:D7 1-W0
Q608 1:G8 1-W2
R501 1:C12 1-B9
R502 1:C12 1-C9
R503 1:K11 1-D9
R504 1:J10 1-D8
R505 1:L21 1-D7
R506 1:L21 1-D7
R507 1:D12 1-C9
R508 1:L21 1-D7
R509 1:K14 1-B7
R510 1:J13 1-C8
R511 1:J9 1-B6
R512 1:J8 1-C6
R513 1:D10 1-K3
R514 1:J9 1-C4
R515 1:J9 1-C5
R516 1:F16 1-D6
R518 1:D3 1-B7
R519 1:D3 1-B7
R520 1:H15 1-E7
R521 1:M22 1-D8
R522 1:M22 1-D8
R523 1:B6 1-D4
R524 1:K21 1-E5
R525 1:K21 1-G8
R526 1:G15 1-F8
R527 1:L21 1-G9
R528 1:L21 1-H8
R529 1:E11 1-F8
R530 1:M19 1-I8
R531 1:M21 1-G6
R532 1:F12 1-J7
R533 1:G17 1-I5
R534 1:G16 1-I5
R535 1:E12 1-K4
R536 1:C10 1-K4
R537 1:D12 1-K4
R538 1:C11 1-L5
R539 1:E11 1-L5
R540 1:E11 1-L5
R541 1:E12 1-M5
R542 1:J10 1-E9
R543 1:J10 1-D9
R544 1:E11 1-Q7
R546 1:C6 1-Q4
R547 1:C11 1-L5
R568 1:D18 1-L7
R569 1:H17 1-G5
R570 1:J16 1-G5
R571 1:L17 1-I6
R572 1:K17 1-I6
R574 1:H3 1-B6
R575 1:G17 1-E6
R578 1:G18 1-F6
R579 1:G17 1-E6
R580 1:J11 1-J6
R581 1:G17 1-E7
R582 1:G16 1-E7
R583 1:K21 1-G9
R584 1:F16 1-E6
R585 1:K10 1-C8
R586 1:K10 1-D8
R592 1:F14 1-H5
R593 1:F14 1-H4
R595 1:F17 1-E6
#R596 1:K21 1-G4
R599 1:L17 1-I6
R600 1:K8 1-B2
R601 1:F8 1-B1
R602 1:P3 1-D0
R603 1:K5 1-B0
R604 1:K5 1-B0
R605 1:K5 1-B0
R606 1:F9 1-B1
R607 1:E8 1-D1
R608 1:L5 1-D0
R609 1:N4 1-D0
R610 1:C9 1-F4
R611 1:M5 1-D1
R612 1:K8 1-D2
R613 1:K4 1-D1
R614 1:L4 1-E1
R615 1:K8 1-G2
R616 1:L9 1-G1
R617 1:L8 1-G2
R618 1:L9 1-H1
R619 1:N4 1-E0
R620 1:M5 1-F0
R621 1:P2 1-F0
7.10.16
T2010 & T2015 HC05 Logic PCB
M2000-00
31/12/97 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
IPN 220-01377-02
R622 1:L5 1-C0
R623 1:N3 1-G0
R624 1:N3 1-G0
R625 1:H15 1-I1
R626 1:P3 1-H0
R627 1:J16 1-H0
R628 1:G15 1-I0
R629 1:G15 1-I0
R630 1:D8 1-M0
R631 1:E8 1-M0
R632 1:K16 1-J0
R633 1:L15 1-K0
R634 1:L16 1-K0
R635 1:E10 1-J1
R636 1:D8 1-K1
R637 1:C8 1-L0
R638 1:C8 1-L0
R639 1:B5 1-B4
R640 1:C8 1-L0
R641 1:K14 1-N0
R642 1:D8 1-M1
R643 1:M15 1-N0
R644 1:J14 1-N0
R645 1:C5 1-O1
R646 1:K14 1-O0
R647 1:K13 1-O0
R648 1:D10 1-M2
R649 1:D6 1-V1
R650 1:D8 1-V1
R651 1:C3 1-B9
R652 1:G7 1-S2
R653 1:F7 1-T2
R654 1:F7 1-T2
R655 1:F6 1-U2
R656 1:F6 1-T2
R657 1:G6 1-T1
R658 1:D5 1-V1
R659 1:F5 1-T1
R660 1:F6 1-U2
R661 1:E6 1-V2
R662 1:G8 1-W2
R663 1:G8 1-V2
R664 1:D5 1-V1
R665 1:D4 1-U1
R666 1:D8 1-W0
R667 1:G2 1-U0
R668 1:D4 1-U0
R669 1:F2 1-U0
R670 1:F2 1-T0
R671 1:F2 1-T0
R672 1:C5 1-S0
R673 1:C4 1-S0
R674 1:C4 1-S0
R675 1:C3 1-S0
R676 1:D3 1-R1
R677 1:E3 1-R0
R678 1:F4 1-Q0
R679 1:E3 1-Q0
R680 1:D2 1-T1
R681 1:F3 1-P0
R682 1:F4 1-Q0
R683 1:F4 1-Q0
R684 1:L9 1-G1
R685 1:G2 1-V0
R686 1:H8 1-V2
R687 1:L6 1-A0
R688 1:K6 1-A0
R689 1:F11 1-I2
R690 1:F10 1-J2
R691 1:C3 1-T1
R692 1:F8 1-C1
R693 1:C10 1-F4
R694 1:N18 1-H5
R695 1:E18 1-I5
R696 1:G16 1-I4
R697 1:C11 1-L4
R698 1:J15 1-M3
R699 1:C11 1-G3
R700 1:C13 1-O8
R701 1:C13 1-P8
R702 1:C13 1-P8
R703 1:D13 1-P8
R704 1:C14 1-P8
R705 1:C15 1-Q8
R706 1:C15 1-Q8
R707 1:C15 1-Q8
R708 1:E3 1-P1
#R710 1:D5 1-S1
#R711 1:D5 1-U1
#R712 1:D13 1-L2
#R713 1:C5 1-S1
#R714 1:B16 1-N4
#R715 1:B16 1-N4
R720 1:E15 1-C6
R721 1:D16 1-C6
#R722 1:D16 1-C6
#R723 1:D16 1-C6
R724 1:E16 1-D6
R725 1:E15 1-D7
R726 1:E15 1-D7
R727 1:F16 1-E6
#R735 1:J21 1-G5
#R751 1:G7 1-S2
RV507 1:L22 1-D7
#RV508 1:K22 1-G4
S1 1:L2 1-V9
S2 1:B2 1-V9
S3 1:E20 1-U8
S8 1:H5 1-V8
S13 1:B4 1-V7
S14 1:B10 1-V7
S15 1:B14 1-V6
SK505 1:K19 1-G6
#SPEC1 1:M14 1-T4
#SPEC2 1:M14 1-T4
#SPEC3 1:M14 1-U4
#SPEC4 1:M13 1-U4
#SPEC5 1:M13 1-U4
#SPEC6 1:M13 1-V4
#SPEC7 1:M13 1-V4
#SPEC8 1:M12 1-V4
#SPEC9 1:M12 1-W4
#SPEC10 1:M12 1-W4
TP601 2:J5 1-A3
TP602 2:K7 1-G1
TP603 2:M9 1-I2
TP604 2:L14 1-O0
TP605 2:F3 1-P0
TP606 2:F1 1-T1
TP607 2:E5 1-U2
TP608 2:B8 1-B3
TP609 2:K21 1-G9
TP610 2:E19 1-M8
TP611 2:F16 1-E6
TP614 1:C11 1-I2
X501 1:N21 1-G6
#X502 1:J13 1-J6
M2000-00
T2010 & T2015 HC05 Logic PCB
7.10.21
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01377-03
C500 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C501 015-23680-08 CAP CER 0805 CHIP 680P 10% X7R 50V
C501A 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C502 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C503 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C504 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C505 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C506 018-12220-10 CAP 0603 CHIP 22P 50V NPO +-1%
C507 018-12220-10 CAP 0603 CHIP 22P 50V NPO +-1%
C509 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C514 018-12220-10 CAP 0603 CHIP 22P 50V NPO +-1%
C515 018-12220-10 CAP 0603 CHIP 22P 50V NPO +-1%
C517 015-23680-08 CAP CER 0805 CHIP 680P 10% X7R 50V
C518 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C519 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C520 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C521 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C522 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C524 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C525 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C526 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C527 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C528 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C530 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C540 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C541 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C542 018-13100-10 CAP 0603 CHIP 100P 50V NPO +-1%
C543 018-13100-10 CAP 0603 CHIP 100P 50V NPO +-1%
C544 018-13100-10 CAP 0603 CHIP 100P 50V NPO +-1%
C545 018-13100-10 CAP 0603 CHIP 100P 50V NPO +-1%
C546 015-24330-08 CAP CER 0805 CHIP 3N3 10% X7R 50V
C600 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C601 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C602 018-12820-10 CAP 0603 CHIP 82P 50V NPO +-1%
C603 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C604 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C605 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C606 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C607 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C608 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C609 018-12470-10 CAP 0603 CHIP 47P 50V NPO +-1%
C610 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C611 018-13100-10 CAP 0603 CHIP 100P 50V NPO +-1%
C612 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C613 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C614 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C615 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C616 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C617 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C618 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C619 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C620 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C621 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C622 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C623 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C624 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C625 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C626 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C627 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C628 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C629 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C630 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C632 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C633 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C634 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C635 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C636 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C637 018-11470-10 CAP 0603 CHIP 4P7 50V NPO +-0.1P
C638 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C639 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C640 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C641 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C642 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C643 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C644 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C645 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C646 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C647 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C648 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C650 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C651 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
#C700 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C702 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C703 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C705 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C730 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
D500 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23 C
IC501 002-10936-60 (LS) IC SMD ST93C66CM6 4K EEPROM SER MI
IC504 002-10340-64 (S) IC SMD MC34064 LO VOLT SENSE
IC505 002-26870-59 (S) IC MC68HC705C9ACFN 8BIT OTP MCU 44
IC506 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REGSTR.SO
IC507 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REGSTR.SO
IC509 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
#IC510 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCHMT SO
IC511 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCHMT SO-
IC513 002-10078-08 (S) IC SMD 78L08 8V REG SO8
IC601 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC602 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC603 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC604 002-10003-58 (S) IC SMD LM358 DUAL OP AMP
IC614 002-10040-53 (S) IC 4053 SMD TRIPLE 2CH MULTI-PLEXR
L501 056-10330-02 (L) IND SMD 330NH SIEMENS SMID02
P1 240-10000-01 CONN SMD 24WAY (PLUG)
P2 240-10000-01 CONN SMD 24WAY (PLUG)
Q501 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q502 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q503 000-10008-69 (S) XSTR SMD BC869 PNP 1W 2A SOT-89
Q504 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q505 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q506 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q507 000-10003-12 (S) XSTR SMD BFR31 N JFET SOT-23
Q508 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q509 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q510 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q520 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q601 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q602 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q603 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q604 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q605 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL S
Q606 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q607 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
Q608 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL S
7.10 T2010 & T2015 HC05 Logic PCB
T2010 & T2015 HC05 Logic Parts List (IPN 220-01377-03)
Parts List Amendments
7.10.22
T2010 & T2015 HC05 Logic PCB
M2000-00
31/12/97 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
IPN 220-01377-03
R501 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R502 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R503 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R504 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R505 036-16150-00 RES M/F 0805 CHIP 150K 5%
R506 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R507 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
RV507 042-15500-01 RES PRESET SMD 50K +-25% 4X4.5X2.5MM 0.
R508 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R509 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R510 036-18100-00 RES M/F 0805 CHIP 10M 10%
R511 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R512 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R513 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R514 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R515 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R516 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R518 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R519 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R520 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R521 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R522 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R523 036-16470-00 RES M/F 0805 CHIP 470K 5%
R524 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R525 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R526 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R527 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R528 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R529 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R530 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R531 036-18100-00 RES M/F 0805 CHIP 10M 10%
R532 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R533 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R534 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R535 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R536 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R537 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R538 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R539 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R540 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R541 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R542 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R543 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R544 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R546 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R547 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R568 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R569 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R570 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R571 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R572 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R574 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
R575 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R578 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R579 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R580 036-18100-00 RES M/F 0805 CHIP 10M 10%
R581 036-15220-00 RES M/F 0805 CHIP 22K 5%
R582 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R583 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R584 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R585 036-13680-00 RES M/F 0805 CHIP 680E 5%
R586 036-13680-00 RES M/F 0805 CHIP 680E 5%
R592 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R593 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R595 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R596 036-15390-00 RES M/F 0805 CHIP 39K 5%
R599 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R600 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R601 036-15820-00 RES M/F 0805 CHIP 82K 5%
R602 036-14820-00 RES M/F 0805 CHIP 8K2 5%
R603 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R604 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R605 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R606 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R607 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R608 036-15220-00 RES M/F 0805 CHIP 22K 5%
R609 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R610 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R611 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R612 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R613 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R614 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R615 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R616 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R617 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R618 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R619 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R620 036-15270-00 RES M/F 0805 CHIP 27K 5%
R621 036-16390-00 RES M/F 0805 CHIP 390K 5%
R622 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R623 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R624 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R625 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R626 036-15270-00 RES M/F 0805 CHIP 27K 5%
R627 036-16390-00 RES M/F 0805 CHIP 390K 5%
R628 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R629 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R630 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R631 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R632 036-16390-00 RES M/F 0805 CHIP 390K 5%
R633 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R634 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R635 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R636 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R637 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R638 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R639 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R640 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R641 036-16150-00 RES M/F 0805 CHIP 150K 5%
R642 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R643 036-16330-00 RES M/F 0805 CHIP 330K 5%
R644 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R645 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R646 036-16330-00 RES M/F 0805 CHIP 330K 5%
R647 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R648 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R649 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R650 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R651 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R652 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R653 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R654 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R655 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R656 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R657 036-14120-00 RES M/F 0805 CHIP 1K2 5%
R658 036-16150-00 RES M/F 0805 CHIP 150K 5%
R659 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R660 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R661 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R662 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R663 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R664 036-15220-00 RES M/F 0805 CHIP 22K 5%
R665 036-16470-00 RES M/F 0805 CHIP 470K 5%
R666 036-16150-00 RES M/F 0805 CHIP 150K 5%
R667 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R668 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R669 036-14180-00 RES M/F 0805 CHIP 1K8 5%
R670 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R671 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R672 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R673 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R674 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R675 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R676 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R677 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R678 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R679 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R680 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R681 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R682 036-14180-00 RES M/F 0805 CHIP 1K8 5%
R683 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R684 036-13680-00 RES M/F 0805 CHIP 680E 5%
R685 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R686 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R687 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R688 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R689 036-15220-00 RES M/F 0805 CHIP 22K 5%
R690 036-15220-00 RES M/F 0805 CHIP 22K 5%
R691 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R692 036-15220-00 RES M/F 0805 CHIP 22K 5%
R693 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R694 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R695 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R696 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R697 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R698 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R699 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R700 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R701 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R702 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R703 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R704 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
M2000-00
T2010 & T2015 HC05 Logic PCB
7.10.23
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01377-03
R705 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R706 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R707 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R708 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R710 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R712 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R713 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R714 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R720 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R721 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R722 036-16330-00 RES M/F 0805 CHIP 330K 5%
#R723 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R724 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R725 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R726 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R727 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R735 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#SPEC1038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
S1 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
S2 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
S8 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
S13 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
S14 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
S15 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
SK505 240-04020-42 SKT 44 PIN SMD PLCC CHIP CARRIER
X501 274-01070-00 XTAL 4.000MHZ HC49U/S C/W TEFLON INSULAT
T2010 & T2015 HC05 Logic Mechanical & Miscellaneous Parts
7.10.24
T2010 & T2015 HC05 Logic PCB
M2000-00
31/12/97 Copyright TEL
IPN DescriptionIPN Description
IPN 220-01377-03
219-02584-00 CABLE ASSEMBLY T2000 PWR CABLE
220-01377-03 (L) PCB T2010/15 LOGIC HC05 COMMON PLATFOR
240-00020-12 PLUG MICROPHONE BT SR937 (PIN 2 MISSING)
240-00100-13 PLUG COAX BNC CORD MTG CRIMP URM76
240-02010-75 SKT RECEPTL SML 172775-1
240-04021-63 CONN 2WAY 24AWG (BLACK) INLINE HERMAPHRODITIC
252-00010-37 MIC AWC DYNAMIC 600E 6WAY M095D TINSEL SHLD'D
252-00010-49 MIC CLIP (SPRING STEEL CONTACT)
265-00010-60 FUSE 10A 12V AUTOMOTIVE STAPLE TYPE
303-23134-02 COVER TOP A1M2504 T2000 PNTD CMPLT
303-30062-02 CRADLE BODY A3M2551 T2000 BOTTOM
303-30063-02 CRADLE BODY A3M2552 T2000 TOP
303-30064-00 CRADLE CLIP A1M2550 T2000
303-30065-03 KEY T2000 SII
340-00010-23 FUSEHLDR INLINE 3M 972
349-00010-49 SCREW SELFTAP NO 10X1/2 IN TYPE AB PAN POZI BZ
349-00020-32 SCREW TAPTITE M3X8MM PAN POZI BZ
353-00010-32 WASHER M5 SHAKEPROOF EXT BZ
360-02003-01 GROMMET MIC CORD T2000 SII
362-01028-00 GASKET A4M2652 130X3MM CONDUCT STRIPS
365-00100-09 LABEL WHITE VINYL 15X11MM S/A
365-00100-20 LABEL WHITE S/A 28X11MM QUIKSTIK RW718/4
365-01376-00 LABEL A4A724 SOFTWARE
365-01391-01 (L)LABEL BLNK 30*10.8MM TAMPERMARK VOID MA
369-00020-46 TAPE 6 X 6MM FOAM 1 SIDE S/A
399-00010-52 BAG PLASTIC 100*150MM
410-01099-01 (L) PKG CARTON T2000 SERIES II
410-01101-01 CARTON T700/T2000 SII OUTER (5 UNIT EA)
M2000-00
T2010 & T2015 HC05 Logic PCB
7.10.25
Copyright TEL 31/12/97
T2010 & T1015 HC05 Logic Grid Reference Index (IPN 220-01377-03)
Device PCB Circuit Device PCB Circuit
Device PCB Circuit Device PCB Circuit
IPN 220-01377-03
ALC 2:G1 1-V0
BOARD 2:N14 1-T4
C500 1:J3 1-B6
C501 1:J14 1-C8
C502 1:J10 1-B3
C503 1:K21 1-E5
C504 1:P21 1-H9
C505 1:J21 1-H8
C506 1:N21 1-G6
C507 1:N20 1-H6
C509 1:L15 1-C7
C514 1:J12 1-I6
C515 1:J12 1-J6
C517 1:M21 1-D8
C518 1:H9 1-A6
C519 1:F9 1-B7
C520 1:J16 1-H5
C521 1:H21 1-H5
C522 1:H3 1-B6
C524 1:B7 1-B8
C525 1:K3 1-E5
C526 1:K3 1-E5
C527 1:K3 1-F5
C528 1:L12 1-S9
C529 1:E22 1-S9
C530 1:E2 1-T9
C540 1:N19 1-I4
C541 1:N18 1-I4
C542 1:H9 1-A6
C543 1:G9 1-B6
C544 1:L4 1-B0
C545 1:L14 1-N0
C546 1:D6 1-V1
C547 1:G6 1-S1
C600 1:F8 1-C1
C601 1:K4 1-B1
C602 1:L4 1-B0
C603 1:K5 1-C1
C604 1:F10 1-B2
C605 1:K6 1-B0
C606 1:J8 1-C2
C607 1:L3 1-E2
C608 1:L5 1-D1
C609 1:L4 1-E1
C610 1:K5 1-D0
C611 1:L3 1-E1
C612 1:L8 1-G1
C613 1:M5 1-E0
C614 1:M5 1-E0
C615 1:P5 1-F0
C616 1:N4 1-F0
C617 1:N3 1-G0
C618 1:M5 1-H0
C619 1:G15 1-I0
C620 1:J16 1-J0
C621 1:K16 1-J0
C622 1:H15 1-H0
C623 1:C9 1-L0
C624 1:B6 1-N1
C625 1:C6 1-N1
C626 1:L14 1-O0
C627 1:E10 1-M0
C628 1:E8 1-M0
C629 1:L14 1-N0
C630 1:C5 1-T1
#C631 1:G6 1-S2
C632 1:G7 1-T2
C633 1:E7 1-U2
C634 1:F5 1-U1
C635 1:F5 1-U2
C636 1:E5 1-V1
C637 1:D4 1-U1
C638 1:C4 1-V0
C639 1:G4 1-V0
C640 1:G3 1-U0
C641 1:C4 1-S0
C642 1:C3 1-R1
C643 1:D3 1-Q0
C644 1:E3 1-Q0
C645 1:C3 1-B9
C646 1:F5 1-Q0
C647 1:C4 1-S0
C648 1:L7 1-C0
C650 1:D10 1-L1
C651 1:C6 1-N1
#C700 1:C9 1-L1
#C701 1:D15 1-P3
C702 1:F12 1-R1
#C703 1:C9 1-V5
#C704 1:E2 1-P1
C705 1:D15 1-C6
#C730 1:G5 1-S1
C501A 1:J13 1-C8
D500 1:C10 1-K3
D500 1:C10 1-K3
DISABLE 2:F1 1-U0
IC501 1:H14 1-E8
#IC503 1:J12 1-I6
IC504 1:N22 1-H9
IC506 1:D11 1-M4
IC507 1:C14 1-O4
IC509 1:D19 1-L7
#IC510 1:E17 1-V6
#IC510 1:E17 1-O2
#IC510 1:E17 1-W5
#IC510 1:E17 1-V6
#IC510 1:E17 1-O3
IC511 1:H16 1-V3
IC511 1:H16 1-G5
IC511 1:H16 1-N5
IC511 1:H16 1-I5
IC511 1:H16 1-J4
#IC512 1:C17 1-K3
#IC512 1:C17 1-L3
#IC512 1:C17 1-M2
#IC512 1:C17 1-V5
#IC512 1:C17 1-L2
IC513 1:G9 1-A7
IC601 1:M4 1-E0
IC601 1:M4 1-T3
IC601 1:M4 1-C0
IC601 1:M4 1-F1
IC601 1:M4 1-G0
IC602 1:K15 1-H0
IC602 1:K15 1-C7
IC602 1:K15 1-K0
IC602 1:K15 1-O0
IC602 1:K15 1-T3
IC603 1:E4 1-U3
IC603 1:E4 1-P0
IC603 1:E4 1-V1
IC603 1:E4 1-R0
IC603 1:E4 1-A2
IC604 1:K8 1-H2
IC604 1:K8 1-V3
IC604 1:K8 1-C5
IC614 1:E8 1-J1
IC614 1:E8 1-C1
IC614 1:E8 1-M0
IC614 1:E8 1-N1
ID 2:N14 1-T4
L501 1:N19 1-I4
P1 1:G10 1-U9
P2 1:E14 1-U8
Q501 1:C12 1-C9
Q502 1:K11 1-D9
Q503 1:K10 1-D9
Q504 1:F16 1-D6
Q505 1:C12 1-K4
Q506 1:E16 1-C6
Q507 1:L22 1-D7
Q508 1:E16 1-C6
Q509 1:E16 1-D6
Q510 1:F16 1-E6
#Q518 1:C7 1-J4
Q520 1:G18 1-E6
Q601 1:E9 1-J1
Q602 1:D9 1-M1
Q603 1:F6 1-U1
Q604 1:H8 1-W2
Q605 1:F2 1-T0
Q606 1:D7 1-W1
Q607 1:D7 1-W0
Q608 1:G8 1-W2
R501 1:C12 1-B9
R502 1:C12 1-C9
R503 1:K11 1-D9
R504 1:J10 1-D8
R505 1:L21 1-D7
R506 1:L21 1-D7
R507 1:D12 1-C9
R508 1:L21 1-D7
R509 1:K14 1-B7
R510 1:J13 1-C8
R511 1:J9 1-B6
R512 1:J8 1-C6
R513 1:D10 1-K3
R514 1:J9 1-C4
R515 1:J9 1-C5
R516 1:F16 1-D6
R518 1:D3 1-B7
R519 1:D3 1-B7
R520 1:H15 1-E7
R521 1:M22 1-D8
R522 1:M22 1-D8
R523 1:B6 1-D4
R524 1:K21 1-E5
R525 1:K21 1-G8
R526 1:G15 1-F8
R527 1:L21 1-G9
R528 1:L21 1-H8
R529 1:E11 1-F8
R530 1:M19 1-I8
R531 1:M21 1-G6
R532 1:F12 1-J7
R533 1:G17 1-I5
R534 1:G16 1-I5
R535 1:E12 1-K4
R536 1:C10 1-K4
R537 1:D12 1-K4
R538 1:C11 1-L5
R539 1:E11 1-L5
R540 1:E11 1-L5
R541 1:E12 1-M5
R542 1:J10 1-E9
R543 1:J10 1-D9
R544 1:E11 1-Q7
R546 1:C6 1-Q4
R547 1:C11 1-L5
R568 1:D18 1-L7
R569 1:H17 1-G5
R570 1:J16 1-G5
R571 1:L17 1-I6
R572 1:K17 1-I6
R574 1:H3 1-B6
R575 1:G17 1-E6
R578 1:G18 1-F6
R579 1:G17 1-E6
R580 1:J11 1-J6
R581 1:G17 1-E7
R582 1:G16 1-E7
R583 1:K21 1-G9
R584 1:F16 1-E6
R585 1:K10 1-C8
R586 1:K10 1-D8
R592 1:F14 1-H5
R593 1:F14 1-H4
R595 1:F17 1-E6
#R596 1:K21 1-G4
R599 1:L17 1-I6
R600 1:K8 1-B2
R601 1:F8 1-B1
R602 1:P3 1-D0
R603 1:K5 1-B0
R604 1:K5 1-B0
R605 1:K5 1-B0
R606 1:F9 1-B1
R607 1:E8 1-D1
R608 1:L5 1-D0
R609 1:N4 1-D0
R610 1:C9 1-F4
R611 1:M5 1-D1
R612 1:K8 1-D2
R613 1:K4 1-D1
R614 1:L4 1-E1
R615 1:K8 1-G2
R616 1:L9 1-G1
R617 1:L8 1-G2
R618 1:L9 1-H1
R619 1:N4 1-E0
R620 1:M5 1-F0
R621 1:P2 1-F0
7.10.26
T2010 & T2015 HC05 Logic PCB
M2000-00
31/12/97 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
IPN 220-01377-03
R622 1:L5 1-C0
R623 1:N3 1-G0
R624 1:N3 1-G0
R625 1:H15 1-I1
R626 1:P3 1-H0
R627 1:J16 1-H0
R628 1:G15 1-I0
R629 1:G15 1-I0
R630 1:D8 1-M0
R631 1:E8 1-M0
R632 1:K16 1-J0
R633 1:L15 1-K0
R634 1:L16 1-K0
R635 1:E10 1-J1
R636 1:D8 1-K1
R637 1:C8 1-L0
R638 1:C8 1-L0
R639 1:B5 1-B4
R640 1:C8 1-L0
R641 1:K14 1-N0
R642 1:D8 1-M1
R643 1:M15 1-N0
R644 1:J14 1-N0
R645 1:C5 1-O1
R646 1:K14 1-O0
R647 1:K13 1-O0
R648 1:D10 1-M2
R649 1:D6 1-V1
R650 1:D8 1-V1
R651 1:C3 1-B9
R652 1:G7 1-S2
R653 1:F7 1-T2
R654 1:F7 1-T2
R655 1:F6 1-U2
R656 1:F6 1-T2
R657 1:G6 1-T1
R658 1:D5 1-V1
R659 1:F5 1-T1
R660 1:F6 1-U2
R661 1:E6 1-V2
R662 1:G8 1-W2
R663 1:G8 1-V2
R664 1:D5 1-V1
R665 1:D4 1-U1
R666 1:D8 1-W0
R667 1:G2 1-U0
R668 1:D4 1-U0
R669 1:F2 1-U0
R670 1:F2 1-T0
R671 1:F2 1-T0
R672 1:C5 1-S0
R673 1:C4 1-S0
R674 1:C4 1-S0
R675 1:C3 1-S0
R676 1:D3 1-R1
R677 1:D3 1-R0
R678 1:F4 1-Q0
R679 1:E3 1-Q0
R680 1:D3 1-T1
R681 1:F3 1-P0
R682 1:F4 1-Q0
R683 1:F4 1-Q0
R684 1:L9 1-G1
R685 1:G2 1-V0
R686 1:H8 1-V2
R687 1:L6 1-A0
R688 1:K6 1-A0
R689 1:F11 1-I2
R690 1:F10 1-J2
R691 1:C3 1-T1
R692 1:F8 1-C1
R693 1:C10 1-F4
R694 1:N18 1-H5
R695 1:E18 1-I5
R696 1:G16 1-I4
R697 1:C11 1-L4
R698 1:J15 1-M3
R699 1:C11 1-G3
R700 1:C13 1-O8
R701 1:C13 1-P8
R702 1:C13 1-P8
R703 1:D13 1-P8
R704 1:C14 1-P8
R705 1:C15 1-Q8
R706 1:C15 1-Q8
R707 1:C15 1-Q8
R708 1:E3 1-P1
#R710 1:D5 1-S1
#R711 1:D5 1-U1
#R712 1:D13 1-L2
#R713 1:C5 1-S1
#R714 1:B16 1-N4
#R715 1:B16 1-N4
R720 1:E15 1-C6
R721 1:D16 1-C6
#R722 1:D16 1-C6
#R723 1:D16 1-C6
R724 1:E16 1-D6
R725 1:E15 1-D7
R726 1:E15 1-D7
R727 1:F16 1-E6
#R735 1:J21 1-G5
#R751 1:G7 1-S2
RV507 1:L22 1-D7
#RV508 1:K22 1-G4
S1 1:L2 1-V9
S2 1:B2 1-V9
S3 1:E20 1-U8
S8 1:H5 1-V8
S13 1:B4 1-V7
S14 1:B10 1-V7
S15 1:B14 1-V6
SK505 1:K19 1-G6
#SPEC1 1:M14 1-T4
#SPEC2 1:M14 1-T4
#SPEC3 1:M14 1-U4
#SPEC4 1:M13 1-U4
#SPEC5 1:M13 1-U4
#SPEC6 1:M13 1-V4
#SPEC7 1:M13 1-V4
#SPEC8 1:M12 1-V4
#SPEC9 1:M12 1-W4
#SPEC10 1:M12 1-W4
TP601 2:J5 1-A3
TP602 2:K7 1-G1
TP603 2:M9 1-I2
TP604 2:L14 1-O0
TP605 2:F3 1-P0
TP606 2:F1 1-T1
TP607 2:E5 1-U2
TP608 2:B8 1-B3
TP609 2:K21 1-G9
TP610 2:E19 1-M8
TP611 2:F16 1-E6
TP614 1:C11 1-I2
TP615 2:G7 1-R4
TP616 2:B19 1-B4
TP617 2:B19 1-B3
TP618 2:D10 1-L1
TP619 2:B20 1-R1
TP620 2:E3 1-Q1
X501 1:N21 1-G6
#X502 1:J13 1-J6
M2000-00
T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
7.11.13
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01344-04
#012 2050 038-13680-00 RES 0603 CHIP 680E 1/16W +-5%
#015 2020 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
#017 2060 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#018 203X 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
#019 2040 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
C501 015-23680-08 CAP CER 0805 CHIP 680P 10% X7R 50V
C502 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C503 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C504 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C505 018-12390-10 CAP 0603 CHIP 39P 50V NPO +-1%
C506 018-12220-10 CAP 0603 CHIP 22P 50V NPO +-1%
C507 018-12270-10 CAP 0603 CHIP 27P 50V NPO +-1%
C508 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C509 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C510 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C511 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C512 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C514 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C514A 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C514B 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C516 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C517 015-23680-08 CAP CER 0805 CHIP 680P 10% X7R 50V
C519 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C520 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C522 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C523 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C524 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C525 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C526 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C527 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C529 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C530 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C532 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C533 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C534 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C535 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C536 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C537 016-07470-01 CAP ELECT 6X4MM CHIP 4M7 20% 16V
C538 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C540 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C541 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C550 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C560 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C570 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C571 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C600 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C601 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C602 018-12820-10 CAP 0603 CHIP 82P 50V NPO +-1%
C603 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C605 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C607 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C608 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C609 018-12470-10 CAP 0603 CHIP 47P 50V NPO +-1%
C610 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C611 018-13100-10 CAP 0603 CHIP 100P 50V NPO +-1%
C613 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C614 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C615 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C616 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C617 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C618 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C619 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C620 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C621 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C622 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C623 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C624 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C625 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C626 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C627 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C628 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C629 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C630 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
#C631 2020 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C631 2040 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C631 2050 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C635 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C635A 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C636 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C637 018-11470-10 CAP 0603 CHIP 4P7 50V NPO +-0.1P
C638 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C639 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C640 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C641 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C642 015-23220-01 CAP CER 0805 CHIP 220P 5% NPO 50V
C643 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C644 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C645 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C646 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C647 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C648 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C650 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C651 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C652 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C653 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
#C661 2020 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C661 203X 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C661 2040 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C661 2050 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C661 2060 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C662 2020 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C662 203X 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C662 2040 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C662 2050 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C662 2060 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C663 2020 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C663 203X 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C663 2040 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C663 2050 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C663 2060 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C664 2020 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C664 2040 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C664 2050 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C664 2060 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C665 2020 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C665 2040 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C665 2050 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C665 2060 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C666 2020 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C666 2040 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C666 2050 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C666 2060 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C667 2020 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C667 2040 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C667 2050 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C667 2060 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C700 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C701 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
#C704 2020 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-1
#C704 203X 014-07470-00 CAP TANT CHIP 4U7 'B' CASE 16V +-1
#C704 2040 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-1
#C704 2050 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-1
#C704 2060 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-1
C705 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
#C706 203X 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C706 2060 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C720 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
7.11 T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
T2000 HC11 Logic Parts List (IPN 220-01344-04)
Parts List Amendments
7.11.14
T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
M2000-00
31/12/97 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
IPN 220-01344-04
C721 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C722 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C801 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C802 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C803 018-11470-10 CAP 0603 CHIP 4P7 50V NPO +-0.1P
C804 015-23180-01 CAP CER 0805 CHIP 180P 5% NPO 50V
C805 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C806 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C808 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
#C810 PE 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C811 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C812 203X 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
#C812 2040 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
#C812 2050 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
#C812 PE 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C813 018-11560-10 CAP 0603 CHIP 5P6 50V NPO +-0.1P
C814 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C815 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C832 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
D502 001-10099-01 (S) DIODE BAV99W DUAL SML SIG SOT323
D503 001-10099-01 (S) DIODE BAV99W DUAL SML SIG SOT323
D800 001-10099-01 (S) DIODE BAV99W DUAL SML SIG SOT323
#F02 PE 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#IC500 2020 002-10481-80 LS) IC SMD M48Z18 8K*8 SNAPHAT RA
#IC500 203X 002-10481-80 LS) IC SMD M48Z18 8K*8 SNAPHAT RA
#IC500 2040 002-10481-80 LS) IC SMD M48Z18 8K*8 SNAPHAT RA
#IC500 2050 002-10483-50 LS) IC SMD M48Z35 32K*8 SNAPHAT R
#IC500 2060 002-10481-80 LS) IC SMD M48Z18 8K*8 SNAPHAT RA
IC501 002-20290-10 (S) IC AM29F010-120JC FLASH MEM 128*8K
IC502 002-74900-00 (S) IC SMD 74HC00 QUAD 2 I/P NAND
#IC503 203X 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REG
#IC503 2060 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REG
IC504 002-10340-64 (S) IC SMD MC34064 LO VOLT SENSE
IC505 002-16800-11 (S) IC SMD MC68HC11A1 MCU PLCC52
IC510 002-74900-40 (LSH) IC SMD TC7S04F SINGLE INV GATE S
IC511 002-74900-40 (LSH) IC SMD TC7S04F SINGLE INV GATE S
IC513 002-10078-05 (S) IC SMD 78L05 5V REG
IC514 002-10078-08 (S) IC SMD 78L08 8V REG SO8
#IC517 203X 002-20004-39 (S) IC FX439LS FFSK MODEM 24 PLCC
#IC517 2040 002-20046-90 (S) IC FX469LS FFSK MODEM 1200/24
#IC517 2050 002-20046-90 (S) IC FX469LS FFSK MODEM 1200/24
IC555 002-16562-60 (LSH) IC CMOS6X GATE ARRAY (T3000/T205
IC601 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC603 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC604 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
#IC606 2020 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCH
#IC606 203X 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCH
#IC606 2040 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCH
#IC606 2050 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCH
#IC606 2060 002-74901-32 (S) IC SMD 74HC132 HCMOS QUAD SCH
IC614 002-10040-53 (S) IC 4053 SMD TRIPLE 2CH MULTI-PLEXR
IC801 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC802 002-10003-58 (S) IC SMD LM358 DUAL OP AMP
L501 056-10330-02 (L) IND SMD 330NH SIEMENS SMID02
MPT3-1 290-00010-41 CELL M4Z28 SNAPHAT BATTERY PACK
Q501 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q504 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q505 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q506 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q507 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q508 000-10008-69 (S) XSTR SMD BC869 PNP 1W 2A SOT-89
Q509 000-10003-12 (S) XSTR SMD BFR31 N JFET SOT-23
Q510 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
#Q511 2020 000-10029-55 (S) XSTR SMD MJD2955 PWR PNP 10A 6
#Q511 2040 000-10029-55 (S) XSTR SMD MJD2955 PWR PNP 10A 6
#Q511 2050 000-10029-55 (S) XSTR SMD MJD2955 PWR PNP 10A 6
Q513 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q514 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL
Q515 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL
Q516 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL
Q517 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q601 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q602 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q604 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q605 000-10085-71 (S) XSTR SMD BC857BW PNP SOT-323 SMALL
Q606 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q607 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q608 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q700 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q800 000-10003-12 (S) XSTR SMD BFR31 N JFET SOT-23
Q802 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
Q804 000-10084-81 (S) XSTR SMD BC848BW NPN SOT-323 SMALL
R400 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R402 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R403 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R500 038-13470-00 RES 0603 CHIP 470E 1/16W +-5%
R501 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R502 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R503 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R504 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R505 036-16150-00 RES M/F 0805 CHIP 150K 5%
R506 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R507 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
RV507 042-15500-01 RES PRESET SMD 50K +-25% 4X4.5X2.5MM 0
R508 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R509 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R510 036-18100-00 RES M/F 0805 CHIP 10M 10%
R511 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R512 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R514 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R515 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R516 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R517 2020 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R517 203X 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R517 2040 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R517 2050 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R517 2060 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R518 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R519 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R520 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R521 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R522 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R523 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
#R524 2020 036-16330-00 RES M/F 0805 CHIP 330K 5%
#R524 203X 036-16330-00 RES M/F 0805 CHIP 330K 5%
#R524 2040 036-16330-00 RES M/F 0805 CHIP 330K 5%
#R524 2050 036-16330-00 RES M/F 0805 CHIP 330K 5%
#R524 2060 036-16330-00 RES M/F 0805 CHIP 330K 5%
R525 038-13330-00 RES 0603 CHIP 330E 1/16W +-5%
R525A 038-13330-00 RES 0603 CHIP 330E 1/16W +-5%
R526 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R529 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R530 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R531 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R532 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R533 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R534 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R535 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R537 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R538 036-15220-00 RES M/F 0805 CHIP 22K 5%
R539 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R540 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R541 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R543 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R544 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R545 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R547 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R548 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R549 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R550 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R551 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R552 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R552 2040 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R552 2050 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R553 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R554 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R556 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R559 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R560 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R562 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R563 036-14390-00 RES M/F 0805 CHIP 3K9 5%
R564 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R565 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R566 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R566A 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R567 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R568 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R569 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R570 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
#R571 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R571 203X 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R571 2040 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R571 2050 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R571 2060 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R571 PE 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R572 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R573 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R578 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R580 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R581 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R582 038-13470-00 RES 0603 CHIP 470E 1/16W +-5%
R583 038-13470-00 RES 0603 CHIP 470E 1/16W +-5%
R584 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R589 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R590 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R591 036-13680-00 RES M/F 0805 CHIP 680E 5%
R592 036-13680-00 RES M/F 0805 CHIP 680E 5%
R594 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R596 2020 036-15390-00 RES M/F 0805 CHIP 39K 5%
M2000-00
T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
7.11.15
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01344-04
#R596 203X 036-15390-00 RES M/F 0805 CHIP 39K 5%
#R596 2040 036-15390-00 RES M/F 0805 CHIP 39K 5%
#R596 2050 036-15390-00 RES M/F 0805 CHIP 39K 5%
#R596 2060 036-15390-00 RES M/F 0805 CHIP 39K 5%
#R597 2020 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R597 203X 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R597 2040 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R597 2050 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R597 2060 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R598 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#RV599 203X 042-15500-01 RES PRESET SMD 50K +-25% 4X4.5X2.
#RV599 2040 042-15500-01 RES PRESET SMD 50K +-25% 4X4.5X2.
#RV599 2050 042-15500-01 RES PRESET SMD 50K +-25% 4X4.5X2.
R600 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R602 036-14820-00 RES M/F 0805 CHIP 8K2 5%
R603 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R604 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R605 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R606 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R607 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R608 036-15220-00 RES M/F 0805 CHIP 22K 5%
R609 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R610 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R611 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R613 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R614 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R615 036-15270-00 RES M/F 0805 CHIP 27K 5%
R616 036-16150-00 RES M/F 0805 CHIP 150K 5%
R617 036-16150-00 RES M/F 0805 CHIP 150K 5%
R619 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R620 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R621 036-16390-00 RES M/F 0805 CHIP 390K 5%
R622 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R623 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R624 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R625 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R626 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R627 036-16390-00 RES M/F 0805 CHIP 390K 5%
R628 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R629 038-15270-00 RES 0603 CHIP 27K 1/16W +-5%
R630 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R631 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R632 036-16390-00 RES M/F 0805 CHIP 390K 5%
R633 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R634 038-14680-00 RES 0603 CHIP 6K8 1/16W +-5%
R635 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R636 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R637 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R638 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R639 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R640 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R641 036-16150-00 RES M/F 0805 CHIP 150K 5%
R642 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R643 036-16330-00 RES M/F 0805 CHIP 330K 5%
R644 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R645 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R646 036-16330-00 RES M/F 0805 CHIP 330K 5%
R647 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R648 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R649 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R650 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R651 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R652 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R653 038-13680-00 RES 0603 CHIP 680E 1/16W +-5%
#R656 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R656 2040 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R656 2050 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R658 038-16150-00 RES 0603 CHIP 150K 1/16W +-5%
R659 038-13680-00 RES 0603 CHIP 680E 1/16W +-5%
R660 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R662 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R663 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R664 038-15220-00 RES 0603 CHIP 22K 1/16W +-5%
R665 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R666 036-16150-00 RES M/F 0805 CHIP 150K 5%
R667 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R668 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
R669 036-14180-00 RES M/F 0805 CHIP 1K8 5%
R670 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R671 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R672 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R673 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R674 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R675 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R676 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R677 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R678 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R679 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R680 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R681 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R682 038-14180-00 RES 0603 CHIP 1K8 1/16W +-5%
R683 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R684 036-16120-00 RES M/F 0805 CHIP 120K 5%
R685 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R686 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R687 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R688 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R689 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R690 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R691 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R692 036-15220-00 RES M/F 0805 CHIP 22K 5%
R699 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R700 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R701 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R702 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R704 038-13330-00 RES 0603 CHIP 330E 1/16W +-5%
R705 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R706 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R709 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
R710 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R711 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R712 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R715 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R717 203X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R717 2040 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R717 2050 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R717A 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R717A 2060 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R720 038-15560-00 RES 0603 CHIP 56K 1/16W +-5%
#R720 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R720 203X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R720 2040 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R720 2050 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R720 2060 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R721 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
#R730 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R730 203X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R730 2040 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R730 2050 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R730 2060 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R731 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R731 203X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R731 2040 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R731 2050 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R731 2060 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R732 2020 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R732 203X 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R732 2040 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R732 2050 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
#R732 2060 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R801 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R802 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R803 036-16470-00 RES M/F 0805 CHIP 470K 5%
R804 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R805 038-13680-00 RES 0603 CHIP 680E 1/16W +-5%
R806 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R807 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
R808 038-14220-00 RES 0603 CHIP 2K2 1/16W +-5%
R809 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R810 038-13220-00 RES 0603 CHIP 220E 1/16W +-5%
R811 038-12220-00 RES 0603 CHIP 22E 1/16W +-5%
R812 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
R845 038-15560-00 RES 0603 CHIP 56K 1/16W +-5%
R846 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
R847 038-12100-00 RES 0603 CHIP 10E 1/16W +-5%
S1 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
S2 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
#S8 203X 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
#S8 2060 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
#S9 2020 240-10000-05 CONN SMD SKT 8WAY 2ROW MICROMATCH
#S9 2040 240-10000-05 CONN SMD SKT 8WAY 2ROW MICROMATCH
#S9 2050 240-10000-05 CONN SMD SKT 8WAY 2ROW MICROMATCH
#S13 OPT 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
#S14 OPT 240-10000-07 CONN SMD SKT 16WAY 2ROW MICROMATCH
#S16 OPT 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
#S17 OPT 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
#S18 OPT 240-10000-06 CONN SMD SKT 12WAY 2ROW MICROMATCH
SK501 240-04043-20 SKT 32 PIN SMD PLCC CHIP CARRIER
TP610 005-10000-10 TEST POINT SMD 0805 2.0 X 1.25 X 1.45
#T3K44 2020 240-10000-01 CONN SMD 24WAY (PLUG)
#T3K44 203X 240-10000-01 CONN SMD 24WAY (PLUG)
#T3K44 2040 240-10000-01 CONN SMD 24WAY (PLUG)
#T3K44 2050 240-10000-01 CONN SMD 24WAY (PLUG)
#T3K45 240-10000-01 CONN SMD 24WAY (PLUG)
X501 274-01072-00 XTAL 8.064MHZ HC-49U/S HOLDER C/W TEFLO
Variants: PE = Pre-emphasised FFSK
OPT = Options connectors fitted
T2000 HC11 Logic Mechanical & Miscellaneous Parts
7.11.16
T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
M2000-00
31/12/97 Copyright TEL
IPN DescriptionIPN Description
IPN 220-01344-04
219-02585-00 CABLE ASSEMBLY T2000 ENHD PWR/SPKR CABLE
220-01344-04 (L) PCB T2000 LOGIC HCII COMMON PLATFORM
240-00020-12 PLUG MICROPHONE BT SR937 (PIN 2 MISSING)
240-00100-13 PLUG COAX BNC CORD MTG CRIMP URM76
240-02010-75 SKT RECEPTL SML 172775-1
252-00010-37 MIC AWC DYNAMIC 600E 6WAY M095D TINSEL SHLD'
252-00010-49 MIC CLIP (SPRING STEEL CONTACT)
265-00010-60 FUSE 10A 12V AUTOMOTIVE STAPLE TYPE
303-23134-02 COVER TOP A1M2504 T2000 PNTD CMPLT
303-30062-02 CRADLE BODY A3M2551 T2000 BOTTOM
303-30063-02 CRADLE BODY A3M2552 T2000 TOP
303-30064-00 CRADLE CLIP A1M2550 T2000
303-30065-03 KEY CRADLE T2000 SII (BLANK)
340-00010-23 FUSEHLDR INLINE 3M 972
349-00010-49 SCREW SELFTAP NO 10X1/2 IN TYPE AB PAN POZI
349-00020-32 SCREW TAPTITE M3X8MM PAN POZI BZ
365-00100-20 LABEL WHITE S/A 28X11MM QUIKSTIK RW718/4
353-00010-32 WASHER M5 SHAKEPROOF EXT BZ
360-02003-01 GROMMET MIC CORD T2000 SII
362-01028-00 GASKET A4M2652 130X3MM CONDUCT STRIPS T2000
ADD GASKET TO REAR OF TOP COVER
365-01376-00 LABEL A4A724 SOFTWARE WARNING GUIDE
365-01516-00 LABEL T2000 MODEL ID/TYPE APPROVAL
399-00010-52 BAG PLASTIC 100*150MM
410-01099-02 (L) PKG CARTON T2000 SERIES II
410-01101-01 CARTON T700/T2000 SII OUTER (5 UNIT EA)
T2020 VARIANT PARTS
005-00000-40 MODULE RMT 5W 4OHM SPKR IN ENCLSR T2000 PACF
T2040 VARIANT PARTS
005-00000-40 MODULE RMT 5W 4OHM SPKR IN ENCLSR T2000 PACF
T2050 VARIANT PARTS
005-00000-40 MODULE RMT 5W 4OHM SPKR IN ENCLSR T2000 PACF
M2000-00
T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
7.11.17
Copyright TEL 31/12/97
T2000 HC11 Logic Grid Reference Index (IPN 220-01344-04)
Device PCB Circuit Device PCB Circuit
Device PCB Circuit Device PCB Circuit
IPN 220-01344-04
#012 1:G8 1-T1
#014 1:G8 1-T1
#015 1:G8 1-T1
#016 1:H8 1-T1
#017 1:H8 1-U1
#018 1:H8 1-U1
#019 1:H8 1-U1
A15ROM 2:E12 2-F5
A16ROM 2:E12 2-F5
ALC 2:G5 1-V1
BOARD 2:H8 1-S1
C501 1:F9 2-C5
C502 1:G10 2-L8
C503 1:J14 2-T9
C504 1:H13 2-Q8
C505 1:H15 2-R5
C506 1:H15 2-Q5
C507 1:H15 2-Q5
C508 1:J15 2-P5
C509 1:F9 2-D5
C510 1:B4 2-L0
C511 1:E11 2-U4
C512 1:E9 2-D3
C514 1:H4 2-B9
C516 1:B15 2-U2
C517 1:F8 2-E6
C519 1:H13 2-P8
C520 1:E11 2-P3
C522 1:F3 2-B4
C523 1:E8 2-C4
C524 1:B3 2-B6
C525 1:G4 2-B3
C526 1:H4 2-B3
C527 1:G3 2-E3
C529 1:G9 1-V6
C530 1:C3 1-V6
C532 1:G4 2-V8
C533 1:E11 2-U2
C534 1:D10 2-S3
C535 1:E10 2-S1
C536 1:E8 2-R1
C537 1:B6 2-S0
C538 1:B15 2-T1
C540 1:D6 1-D7
C541 1:D6 1-E7
C550 1:E15 2-O6
C560 1:E15 2-C0
C570 1:D11 2-J6
C571 1:D11 2-I6
C600 1:G4 2-T7
C601 1:J2 1-C8
C602 1:C3 1-B2
C603 1:C4 1-C3
C605 1:C4 1-A2
C607 1:D5 1-D6
C608 1:D6 1-D6
C609 1:D5 1-D6
C610 1:C3 1-D3
C611 1:D5 1-E6
C613 1:C3 1-E3
C614 1:C3 1-E3
C615 1:D3 1-F3
C616 1:E3 1-F3
C617 1:D3 1-H3
C618 1:D3 1-H3
C619 1:E4 1-I3
C620 1:E4 1-J3
C621 1:E3 1-J3
C622 1:E3 1-H3
C623 1:B4 1-L3
C624 1:B7 1-N5
C625 1:B6 1-O5
C626 1:C7 1-O4
C627 1:B7 1-N3
C628 1:B4 1-M2
C629 1:C6 1-N2
C630 1:H7 1-U4
#C631 1:F5 1-V5
#C632 1:F7 1-P4
C635 1:G3 2-A8
C636 1:J6 1-V4
C637 1:H6 1-V3
C638 1:H5 1-V3
C639 1:G6 1-V2
C640 1:J4 1-U2
C641 1:G5 1-S3
C642 1:G6 1-R3
C643 1:G7 1-Q3
C644 1:G7 1-Q3
C645 1:B3 2-B7
C646 1:H7 1-Q2
C647 1:H6 1-S3
C648 1:D2 1-E2
C650 1:B7 1-L4
C651 1:B6 1-N4
C652 1:F5 2-U6
C653 1:F5 2-V6
#C660 1:B5 1-I5
#C661 1:B5 1-J5
#C662 1:C8 1-T6
#C663 1:F12 1-T9
#C664 1:C3 1-Q9
#C665 1:H6 1-R9
#C666 1:F10 1-S9
#C667 1:D7 1-S9
C700 1:F6 1-Q7
C701 1:E6 1-R7
#C703 1:F6 1-Q7
#C704 1:F6 1-Q6
C705 1:G5 1-R6
#C706 1:G5 1-S7
C720 1:D12 2-G8
C721 1:B13 2-F2
C722 1:D15 2-B0
C801 1:C5 1-G6
C802 1:C5 1-G6
C803 1:C5 1-G6
C804 1:C5 1-H6
C805 1:C5 1-G6
C806 1:C6 1-K6
C808 1:C6 1-L7
#C810 1:D10 2-S2
C811 1:F9 2-S2
#C812 1:D10 2-S2
C813 1:D10 2-S1
C814 1:C6 1-S8
C815 1:E6 1-C6
C831 1:D5 1-E6
C832 1:F10 2-C5
C514A 1:H4 2-A9
C514B 1:H4 2-B9
C635A 1:F3 2-A8
D502 1:E3 2-U7
D502 1:E3 2-U7
D503 1:B7 2-N1
D503 1:B7 2-M0
D800 1:C6 1-K7
D800 1:C6 1-K6
DISABLE 2:G5 1-V2
#F01 1:H8 1-V1
#F02 1:J8 1-V1
#F03 1:J8 1-V1
FACTORY 2:J14 2-S7
FIDA 1:D11 1-H1
FIDB 1:B12 1-H1
#IC500 1:C14 2-F1
IC502 1:D15 2-B0
IC502 1:D15 2-M6
IC502 1:D15 2-R5
IC502 1:D15 2-T5
IC502 1:D15 2-S5
#IC503 1:G15 2-N5
IC504 1:H14 2-S9
IC505 1:G14 2-Q5
IC510 1:G5 2-V5
IC510 1:G5 2-U3
IC511 1:E15 2-A0
IC511 1:E15 2-S5
IC513 1:H3 2-A8
IC514 1:H3 2-A9
#IC517 1:E9 2-Q1
IC555 1:C12 2-I2
IC601 1:D3 1-E3
IC601 1:D3 1-Q9
IC601 1:D3 1-C2
IC601 1:D3 1-H2
IC601 1:D3 1-G2
IC603 1:H6 1-V3
IC603 1:H6 1-V8
IC603 1:H6 1-R3
IC603 1:H6 1-Q2
IC603 1:H6 1-Q9
IC604 1:F9 2-C5
IC604 1:F9 1-V7
IC604 1:F9 2-S2
IC604 1:F9 1-R9
IC604 1:F9 2-E3
#IC605 1:F11 1-I8
#IC605 1:F11 1-T9
#IC605 1:F11 1-H8
#IC605 1:F11 1-H8
#IC605 1:F11 1-G8
#IC606 1:F11 1-J7
#IC606 1:F11 1-I8
#IC606 1:F11 1-U9
#IC606 1:F11 1-V9
#IC606 1:F11 1-V9
IC614 1:D4 1-H7
IC614 1:D4 1-T7
IC614 1:D4 1-M3
IC614 1:D4 1-J3
IC801 1:D5 1-L6
IC801 1:D5 1-F6
IC801 1:D5 1-J6
IC801 1:D5 1-H7
IC801 1:D5 1-S8
IC802 1:C7 1-S9
IC802 1:C7 1-O3
IC802 1:C7 1-K2
ID 2:H8 1-S1
L501 1:E6 1-D8
MANUAL 2:H11 2-S8
MODE 2:E13 2-O8
ONLY 2:J13 2-S7
P1 1:F11 2-U0
PAD1 2:D9 2-F4
PAD2 2:E4 2-V9
PAD3 2:H5 2-C2
PAD6 2:B7 2-O4
Q501 1:H13 2-C7
Q504 1:J15 2-Q5
Q505 1:C9 2-K3
Q506 1:E3 2-T8
Q507 1:B10 2-Q4
Q508 1:B10 2-R4
Q509 1:F8 2-D6
Q510 1:A6 2-L3
#Q511 1:G4 2-V9
Q513 1:D10 2-T2
Q514 1:F8 2-C4
Q515 1:E8 2-C4
Q516 1:D8 2-D4
Q517 1:D8 2-D4
Q601 1:F7 1-J4
Q602 1:B7 1-M4
Q604 1:C8 1-W5
Q605 1:H5 1-T3
Q606 1:J7 1-W4
Q607 1:G7 1-W3
Q608 1:C8 1-W5
Q700 1:G5 1-S6
Q800 1:E5 1-C6
Q802 1:D4 1-I6
Q804 1:E5 1-F5
R400 1:D8 2-D4
R402 1:E8 2-D4
R403 1:D8 2-D4
R500 1:G4 2-T7
R501 1:H12 2-B7
R502 1:H13 2-C7
R503 1:F8 2-C4
R504 1:E9 2-E0
R505 1:F9 2-E5
R506 1:F9 2-E5
R507 1:E12 2-F8
R508 1:F9 2-D5
R509 1:F8 2-B6
R510 1:F9 2-C5
R511 1:F8 2-D3
R512 1:E9 2-D3
R514 1:E9 2-D2
R515 1:E9 2-E2
R516 1:D9 2-E3
#R517 1:E8 2-C4
R518 1:F8 2-B6
R519 1:D9 2-E5
R520 1:E9 2-E2
R521 1:G9 2-D6
R522 1:G9 2-D6
R523 1:F8 2-B5
#R524 1:E8 2-C4
R525 1:J14 2-T9
R526 1:J14 2-S9
R529 1:F8 2-C3
R530 1:H14 2-Q8
R531 1:H14 2-R8
R532 1:F15 2-R8
R533 1:F15 2-R8
R534 1:G15 2-R8
R535 1:H13 2-P8
R537 1:B6 2-L3
R538 1:A6 2-L3
R539 1:H15 2-Q5
R540 1:H14 2-Q5
R541 1:J15 2-P5
R543 1:E3 2-T9
R544 1:E3 2-U7
R545 1:E3 2-U8
R547 1:C8 2-K3
R548 1:C8 2-K0
7.11.18
T2020, T203X, T2040, T2050 & T2060 HC11 Logic PCB
M2000-00
31/12/97 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
IPN 220-01344-04
R549 1:C8 2-K3
R550 1:C9 2-K3
R551 1:E11 2-O5
#R552 1:F15 2-N6
R553 1:F15 2-P8
R554 1:D8 2-F4
R556 1:H13 2-P8
R559 1:G4 2-W8
R560 1:G4 2-W8
R562 1:E10 2-T3
R563 1:E11 2-T2
R564 1:E10 2-T2
R565 1:D10 2-T3
R566 1:E10 2-R3
R567 1:D10 2-S2
R568 1:G10 2-S2
R569 1:G10 2-S2
R570 1:E13 2-M8
#R571 1:E10 2-S1
R572 1:H13 2-C7
R573 1:E10 2-T1
R578 1:B10 2-Q3
#R579 1:E10 2-P1
R580 1:B10 2-Q4
R581 1:B10 2-R4
R582 1:B10 2-R4
R583 1:B10 2-R4
R584 1:B8 2-S0
R589 1:B15 2-U1
R590 1:B4 2-J0
R591 1:C9 2-R3
R592 1:B9 2-S3
#R593 1:E10 2-Q1
R594 1:B15 2-U2
#R596 1:A15 2-U1
#R597 1:B15 2-U1
R598 1:B15 2-T1
R600 1:C6 1-L7
R602 1:E2 1-D2
R603 1:C4 1-A3
R604 1:C4 1-B3
R605 1:C3 1-B3
R606 1:E6 1-C6
R607 1:E6 1-D6
R608 1:C3 1-D3
R609 1:D3 1-D2
R610 1:F3 2-A5
R611 1:C3 1-E3
R613 1:D5 1-D6
R614 1:D5 1-E6
R615 1:C5 1-F6
R616 1:C5 1-G6
R617 1:C5 1-G6
R619 1:D2 1-F2
R620 1:C3 1-E2
R621 1:E3 1-F2
R622 1:C4 1-C2
R623 1:D3 1-G3
R624 1:D3 1-G2
R625 1:D4 1-I3
R626 1:D3 1-H2
R627 1:E3 1-H2
R628 1:D4 1-I2
R629 1:E4 1-J2
R630 1:B4 1-M2
R631 1:B4 1-M2
R632 1:C6 1-J2
R633 1:D6 1-K2
R634 1:D6 1-K3
R635 1:E7 1-J5
R636 1:F7 1-K4
R637 1:B3 1-L2
R638 1:B3 1-L3
R639 1:B4 2-B2
R640 1:B4 1-L2
R641 1:C7 1-N3
R642 1:B7 1-M4
R643 1:C6 1-N2
R644 1:B6 1-N3
R645 1:B6 1-O5
R646 1:C7 1-O3
R647 1:C7 1-O2
R648 1:B7 1-M5
R649 1:J7 1-V4
R650 1:G7 1-W3
R651 1:B3 2-C7
R652 1:B3 2-W6
R653 1:F5 2-V6
#R656 1:F5 2-U6
R658 1:J7 1-U4
R659 1:F5 2-U6
R660 1:J7 1-V5
R662 1:J8 1-W4
R663 1:C8 1-V5
R664 1:J7 1-V4
R665 1:H6 1-U3
R666 1:H5 1-W2
R667 1:H5 1-U2
R668 1:H5 1-U3
R669 1:H5 1-U2
R670 1:H5 1-T3
R671 1:H5 1-T2
R672 1:H6 1-T3
R673 1:H5 1-S3
R674 1:G5 1-S3
R675 1:H6 1-S2
R676 1:G6 1-R3
R677 1:G7 1-R3
R678 1:H7 1-Q2
R679 1:G7 1-Q3
R680 1:H5 1-U3
R681 1:G7 1-P2
R682 1:H7 1-Q2
R683 1:H7 1-Q2
R684 1:C5 1-G6
R685 1:H5 1-U2
R686 1:C8 1-V5
R687 1:C4 1-A3
R688 1:C4 1-A2
R689 1:D6 1-C8
R690 1:D6 1-D8
R691 1:H8 1-T4
R692 1:C4 1-C6
R699 1:F15 2-N5
#R700 1:F6 1-Q7
R700 1:G15 2-O5
R701 1:F6 1-Q7
R702 1:F6 1-R7
R704 1:F6 1-R7
R705 1:F5 1-S7
R706 1:G6 1-Q7
R709 1:F6 1-Q6
R710 1:F6 1-Q6
R711 1:G6 1-R6
R712 1:F5 1-R7
#R713 1:D12 2-E7
R714 1:D12 2-G6
R715 1:D12 2-G6
R716 1:D12 2-E7
#R717 1:E12 2-G6
#R720 1:G7 1-P4
R720 1:E5 1-F6
R721 1:C6 1-J7
#R730 1:B5 1-L5
#R731 1:B5 1-S5
#R732 1:H7 1-T5
#R733 1:H7 1-T6
R801 1:D4 1-I7
R802 1:D4 1-I6
R803 1:C6 1-J6
R804 1:C6 1-J6
R805 1:D6 1-K6
R806 1:D6 1-K7
R807 1:D6 1-K6
R808 1:D6 1-L7
R809 1:D6 1-M6
R810 1:C6 1-M7
R811 1:D6 1-S8
R812 1:B4 2-L0
R845 1:E5 1-F5
R846 1:C10 2-Q4
R847 1:B10 2-Q3
R525A 1:J14 2-T9
R566A 1:D10 2-R3
#R717A 1:E12 2-F6
RESET 2:H12 2-S8
RV507 1:B15 2-D5
#RV508 1:A15 2-U1
#RV599 1:B15 2-T1
S1 1:G2 2-A1
S1 1:G2 2-A3
S1 1:G2 2-A2
S1 1:G2 2-A2
S1 1:G2 2-A2
S1 1:G2 2-A2
S1 1:G2 2-A2
S1 1:G2 2-A2
S1 1:G2 2-A1
S1 1:G2 2-A4
S1 1:G2 2-A4
S1 1:G2 2-A3
S1 1:G2 2-A3
S1 1:G2 2-A3
S1 1:G2 2-A3
S1 1:G2 2-A3
S2 1:B2 2-A5
S2 1:B2 2-A7
S2 1:B2 2-A7
S2 1:B2 2-A7
S2 1:B2 2-A7
S2 1:B2 2-A7
S2 1:B2 2-A7
S2 1:B2 2-A6
S2 1:B2 2-A6
S2 1:B2 2-A6
S2 1:B2 2-A6
S2 1:B2 2-A6
#S8 1:E5 2-V5
#S8 1:E5 2-V5
#S8 1:E5 2-V5
#S8 1:E5 2-V5
#S8 1:E5 2-V5
#S8 1:E5 2-V5
#S8 1:E5 2-V6
#S8 1:E5 2-V4
#S8 1:E5 2-V4
#S8 1:E5 2-V4
#S8 1:E5 2-V4
#S8 1:E5 2-V4
#S8 1:E5 2-V4
#S8 1:E5 2-V5
#S8 1:E5 2-V6
#S8 1:E5 2-V5
#S9 1:F4 2-V7
#S9 1:F4 2-V7
#S9 1:F4 2-V7
#S9 1:F4 2-V7
#S9 1:F4 2-V7
#S9 1:F4 2-V7
#S9 1:F4 2-V7
#S9 1:F4 2-V6
#S13 1:A4 2-K0
#S13 1:A4 2-I0
#S13 1:A4 2-K0
#S13 1:A4 2-I0
#S13 1:A4 2-I0
#S13 1:A4 2-I0
#S13 1:A4 2-J0
#S13 1:A4 2-J0
#S13 1:A4 2-J0
#S13 1:A4 2-J0
#S13 1:A4 2-K0
#S13 1:A4 2-K0
S14 1:A7 2-N0
#S14 1:A7 2-N0
#S14 1:A7 2-O0
#S14 1:A7 2-O0
#S14 1:A7 2-O0
#S14 1:A7 2-O0
#S14 1:A7 2-P0
#S14 1:A7 2-P0
#S14 1:A7 2-L0
#S14 1:A7 2-M0
#S14 1:A7 2-M0
#S14 1:A7 2-M0
#S14 1:A7 2-M0
#S14 1:A7 2-N0
#S14 1:A7 2-N0
#S14 1:A7 2-L0
#S16 1:A10 2-J9
#S16 1:A10 2-H9
#S16 1:A10 2-I9
#S16 1:A10 2-I9
#S16 1:A10 2-I9
#S16 1:A10 2-I9
#S16 1:A10 2-I9
#S16 1:A10 2-H9
#S16 1:A10 2-C9
#S16 1:A10 2-J9
#S16 1:A10 2-C9
#S16 1:A10 2-C9
#S17 1:A12 2-F9
#S17 1:A12 2-H9
#S17 1:A12 2-F9
#S17 1:A12 2-G9
#S17 1:A12 2-G9
#S17 1:A12 2-G9
#S17 1:A12 2-G9
#S17 1:A12 2-G9
#S17 1:A12 2-H9
#S17 1:A12 2-F9
#S17 1:A12 2-F9
#S17 1:A12 2-H9
#S18 1:A14 2-D9
#S18 1:A14 2-D9
#S18 1:A14 2-D9
#S18 1:A14 2-C9
#S18 1:A14 2-E9
#S18 1:A14 2-E9
#S18 1:A14 2-E9
#S18 1:A14 2-E9
#S18 1:A14 2-E9
#S18 1:A14 2-D9
#S18 1:A14 2-D9
#S18 1:A14 2-F9
SK501 1:D14 2-F6
#T3K44 1:D7 2-V0
#T3K45 1:B9 1-A1
TEST 2:E13 2-O8
TP602 2:E4 1-F6
TP606 2:E12 2-K3
TP607 2:E12 2-K3
TP608 2:E12 2-K3
TP609 1:D12 2-K3
TP610 1:A9 2-Q0
X501 1:H15 2-Q6
M2000-00
T2010 & T2030 Control Head PCB
7.12.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01319-01
BUSY 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
C510 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C511 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C512 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C513 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C514 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C515 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C516 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C517 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C518 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C531 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C570 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
DCALL 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
DAUX 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
DSCAN 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
DMON 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D-C1 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D-C2 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D-C3 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D-C4 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D502 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE INL
D520 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.0
D521 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.0
D522 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.0
IC507 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REGSTR.SO
IC508 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
IC514 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
IC515 002-74900-04 (S) IC SMD 74HC04D HEX INVERTER BUFFD
P8 240-00026-24 CONN PADLE BRD 16 WAY MICRO MATCH 1-2155
P11 240-00020-87 HEADER 2X5 WAY RGT ANGLE PCB MTG MOLEX
PT501 040-05100-20 SWITCH ROT 10K LOG POT 3A 16VDC SPST PC
Q506 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q550 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
R517 036-10000-00 RES M/F 0805 CHIP ZERO OHM
R544 036-15470-00 RES M/F 0805 CHIP 47K 5%
R545 036-15470-00 RES M/F 0805 CHIP 47K 5%
R548 036-13560-00 RES M/F 0805 CHIP 560E 5%
R549 036-13560-00 RES M/F 0805 CHIP 560E 5%
R550 036-13560-00 RES M/F 0805 CHIP 560E 5%
R551 036-13560-00 RES M/F 0805 CHIP 560E 5%
R552 036-13560-00 RES M/F 0805 CHIP 560E 5%
R553 036-13560-00 RES M/F 0805 CHIP 560E 5%
R554 036-13560-00 RES M/F 0805 CHIP 560E 5%
R555 036-13560-00 RES M/F 0805 CHIP 560E 5%
R556 036-15470-00 RES M/F 0805 CHIP 47K 5%
R557 036-15470-00 RES M/F 0805 CHIP 47K 5%
R558 036-15470-00 RES M/F 0805 CHIP 47K 5%
R559 036-15470-00 RES M/F 0805 CHIP 47K 5%
R560 036-15470-00 RES M/F 0805 CHIP 47K 5%
R561 036-15470-00 RES M/F 0805 CHIP 47K 5%
R562 036-15470-00 RES M/F 0805 CHIP 47K 5%
R563 036-15470-00 RES M/F 0805 CHIP 47K 5%
R564 036-13470-00 RES M/F 0805 CHIP 470E 5%
R565 036-13470-00 RES M/F 0805 CHIP 470E 5%
R566 036-13470-00 RES M/F 0805 CHIP 470E 5%
R567 036-14100-00 RES M/F 0805 CHIP 1K 5%
R573 036-14100-00 RES M/F 0805 CHIP 1K 5%
R574 036-13560-00 RES M/F 0805 CHIP 560E 5%
R575 036-13560-00 RES M/F 0805 CHIP 560E 5%
R576 036-13560-00 RES M/F 0805 CHIP 560E 5%
R577 036-13560-00 RES M/F 0805 CHIP 560E 5%
R587 036-12100-00 RES M/F 0805 CHIP 10E 5%
R588 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R589 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R590 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R591 036-13150-00 RES M/F 0805 CHIP 150E 5%
R594 036-12100-00 RES M/F 0805 CHIP 10E 5%
S10 240-04021-61 SKT TELEPHONE JACK 6-WAY SIDE ENTY 555163
TX 008-00010-21 (S) LED 2MM RED TOWER 3.8MM BASE ROHM S-
7.12 T2010 & T2030 Control Head PCB
T2010 & T2030 Control Head Parts List (IPN 220-01319-01)
T2010 & T2030 Control Head Mechanical & Miscellaneous Parts
7.12.2
T2010 & T2030 Control Head PCB
M2000-00
31/12/97 Copyright TEL
IPN DescriptionIPN Description
IPN 220-01319-01
220-01319-01 PCB T2010/30 DISPLAY BRD
240-00020-54 PLUG 16 WAY 2X8 FLAT CABLE TERMN MICROMATCH
240-04020-72 SKT HOUSING 2 WAY CORD MTG ULTREX
240-04020-99 SKT RECEPTACLE SML WIRE CRIMP FOR ULTREX HOUS
250-00010-19 SPKR A3M2520 C/W RUBBER SEALING RING
301-00001-05 ADAPTOR FRT PNL T2000 SII
304-07035-00 LIGHT SPREADER A2M2531 BUTTONS T2000 FM1/TR1
304-07037-00 LIGHT SPREADER A4M2533 KNOB T2000 FM1/TR1
311-01042-01 KNOB A3M2530 T2000 S11
349-00010-22 SCREW NO 4X3/8 PAN POZI PLASTITE
349-00010-24 SCREW #4X5/8 PLASTITE PAN POZI
357-00010-03 FIX PUSH ON SFO 2938
365-00100-20 LABEL WHITE S/A 28X11MM QUIKSTIK RW718/4
429-20000-05 T2000 SERIES II INSTALLATION GUIDE
T2010 VARIANT PARTS
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
311-03074-01 KEYPAD T2010 SII INTERNATIONAL
316-06428-01 PNL FRT SCRN T2010 SII
349-00020-30 SCREW TAPTITE M3X6MM PAN POZI BZ
400-00020-07 SLEEVING 2MM SIL RUBBER
459-20100-02 T2010/T2015 SERIES II USERS GUIDE
T2010 EMC VARIANT PARTS
205-00010-16 CABLE FLAT RBBN 25 CORE 28 AWG GREY
240-00010-91 CONN MALE ON WIRE 18WAY MICROMATCH
311-03074-01 KEYPAD T2010 SII INTERNATIONAL
316-06428-01 PNL FRT SCRN T2010 SII
369-00020-30 TAPE VINYLFOAM 2 SIDE S/A 24*1.5MM INSEAL 516
459-20100-02 T2010/T2015 SERIES II USERS GUIDE
X2EF03 EMC FILTER PCB ASSEMBLY T201X T2030
T2030 VARIANT PARTS
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
240-00026-24 CONN PADLE BRD 16 WAY MICRO MATCH 1-215570-6
311-03077-01 KEYPAD T2030 SII INTERNATIONAL
316-06429-01 PNL FRT SCRN T2030 SII
349-00020-30 SCREW TAPTITE M3X6MM PAN POZI BZ
400-00020-07 SLEEVING 2MM SIL RUBBER
459-20300-02 T2030/T2035 SERIES II USERS GUIDE
T2030 EMC VARIANT PARTS
205-00010-16 CABLE FLAT RBBN 25 CORE 28 AWG GREY
240-00010-91 CONN MALE ON WIRE 18WAY MICROMATCH
240-00026-24 CONN PADLE BRD 16 WAY MICRO MATCH 1-215570-6
311-03077-01 KEYPAD T2030 SII INTERNATIONAL
316-06429-01 PNL FRT SCRN T2030 SII
356-00010-01 TAG SOLDER 3MM SHORT M6132/3.2
369-00020-30 TAPE VINYLFOAM 2 SIDE S/A 24*1.5MM INSEAL 516
400-00020-07 SLEEVING 2MM SIL RUBBER
459-20300-02 T2030/T2035 SERIES II USERS GUIDE
X2EF03 EMC FILTER PCB ASSEMBLY T201X T2030
M2000-00
T2015 & T2060 Control Head PCB
7.13.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01320-01
BUSY 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
C510 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C511 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C512 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C513 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C516 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C517 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C518 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C519 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C520 015-24330-08 CAP CER 0805 CHIP 3N3 10% X7R 50V
C531 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C542 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C543 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C570 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C580 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
DSCAN 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
DAUX 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
DCALL 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
DMON 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D502 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE INL
D520 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.0
D521 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.0
D522 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.0
IC507 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REGSTR.SO
IC508 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
IC510 002-10045-43 (S) IC SMD 4543 BCD 7SEG DECODE/DRIVER
IC512 002-10045-43 (S) IC SMD 4543 BCD 7SEG DECODE/DRIVER
IC514 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
IC515 002-74900-04 (S) IC SMD 74HC04D HEX INVERTER BUFFD
P8A 240-00026-23 CONN PADLE BD 8 WAY MICRO MATCH 0-215570-
P11 240-00020-87 HEADER 2X5 WAY RGT ANGLE PCB MTG MOLEX
PT501 040-05100-20 SWITCH ROT 10K LOG POT 3A 16VDC SPST PC
Q506 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q508 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q509 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q550 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
R500 036-14100-00 RES M/F 0805 CHIP 1K 5%
R517 036-10000-00 RES M/F 0805 CHIP ZERO OHM
R544 036-15470-00 RES M/F 0805 CHIP 47K 5%
R545 036-15470-00 RES M/F 0805 CHIP 47K 5%
R552 036-13560-00 RES M/F 0805 CHIP 560E 5%
R553 036-13560-00 RES M/F 0805 CHIP 560E 5%
R554 036-13560-00 RES M/F 0805 CHIP 560E 5%
R555 036-13560-00 RES M/F 0805 CHIP 560E 5%
R556 036-15470-00 RES M/F 0805 CHIP 47K 5%
R557 036-15470-00 RES M/F 0805 CHIP 47K 5%
R558 036-15470-00 RES M/F 0805 CHIP 47K 5%
R559 036-15470-00 RES M/F 0805 CHIP 47K 5%
R560 036-15470-00 RES M/F 0805 CHIP 47K 5%
R561 036-15470-00 RES M/F 0805 CHIP 47K 5%
R562 036-15470-00 RES M/F 0805 CHIP 47K 5%
R563 036-15470-00 RES M/F 0805 CHIP 47K 5%
R564 036-13470-00 RES M/F 0805 CHIP 470E 5%
R565 036-13470-00 RES M/F 0805 CHIP 470E 5%
R566 036-13470-00 RES M/F 0805 CHIP 470E 5%
R567 036-14100-00 RES M/F 0805 CHIP 1K 5%
R573 036-14100-00 RES M/F 0805 CHIP 1K 5%
R576 036-13560-00 RES M/F 0805 CHIP 560E 5%
R577 036-13560-00 RES M/F 0805 CHIP 560E 5%
R587 036-12100-00 RES M/F 0805 CHIP 10E 5%
R588 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R589 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R590 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R591 036-13150-00 RES M/F 0805 CHIP 150E 5%
R594 036-12100-00 RES M/F 0805 CHIP 10E 5%
R596A 036-13680-00 RES M/F 0805 CHIP 680E 5%
R596B 036-13680-00 RES M/F 0805 CHIP 680E 5%
R596C 036-13680-00 RES M/F 0805 CHIP 680E 5%
R596D 036-13680-00 RES M/F 0805 CHIP 680E 5%
R596E 036-13680-00 RES M/F 0805 CHIP 680E 5%
R596F 036-13680-00 RES M/F 0805 CHIP 680E 5%
R596G 036-13680-00 RES M/F 0805 CHIP 680E 5%
R597A 036-13680-00 RES M/F 0805 CHIP 680E 5%
R597B 036-13680-00 RES M/F 0805 CHIP 680E 5%
R597C 036-13680-00 RES M/F 0805 CHIP 680E 5%
R597D 036-13680-00 RES M/F 0805 CHIP 680E 5%
R597E 036-13680-00 RES M/F 0805 CHIP 680E 5%
R597F 036-13680-00 RES M/F 0805 CHIP 680E 5%
R597G 036-13680-00 RES M/F 0805 CHIP 680E 5%
R598 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R599 036-14470-00 RES M/F 0805 CHIP 4K7 5%
S8B 240-04020-50 SKT 8WAY 2ROW(2X4) PCB MTG MICROMATCH
S10 240-04021-61 SKT TELEPHONE JACK 6-WAY SIDE ENTY 555163
TX 008-00010-21 (S) LED 2MM RED TOWER 3.8MM BASE ROHM SL
TENS 008-00020-29 (S) LED DISPLAY GREEN 7 SEG SINGLE HDSP-
UNITS 008-00020-29 (S) LED DISPLAY GREEN 7 SEG SINGLE HDSP
7.13 T2015 & T2060 Control Head PCB
T2015 & T2060 Control Head Parts List (IPN 220-01320-01)
T2015 & T2060 Control Head Mechanical & Miscellaneous Parts
7.13.2
T2015 & T2060 Control Head PCB
M2000-00
31/12/97 Copyright TEL
IPN DescriptionIPN Description
IPN 220-01320-01
220-01320-01 PCB T2015 DISPLAY BRD
240-00020-54 PLUG 16 WAY 2X8 FLAT CABLE TERMN MICROMATCH
240-00020-56 PLUG 8WAY 2ROW(2X4) CORD MTG IDC MICROMATCH
240-04020-72 SKT HOUSING 2 WAY CORD MTG ULTREX
240-04020-99 SKT RECEPTACLE SML WIRE CRIMP FOR ULTREX HOUS
250-00010-19 SPKR A3M2520 C/W RUBBER SEALING RING
304-07035-00 LIGHT SPREADER A2M2531 BUTTONS T2000 FM1/TR1
304-07037-00 LIGHT SPREADER A4M2533 KNOB T2000 FM1/TR1
311-01042-01 KNOB A3M2530 T2000 S11
312-01049-01 LENS T2015/60 SII GREEN MC DISPLAY
316-06489-01 PNL FRT SCRN T2015 SII
349-00010-22 SCREW NO 4X3/8 PAN POZI PLASTITE
349-00010-24 SCREW #4X5/8 PLASTITE PAN POZI
356-00010-01 TAG SOLDER 3MM SHORT M6132/3.2
357-00010-03 FIX PUSH ON SFO 2938
365-00100-20 LABEL WHITE S/A 28X11MM QUIKSTIK RW718/4
400-00020-07 SLEEVING 2MM SIL RUBBER
429-20000-05 T2000 SERIES II INSTALLATION GUIDE
T2015 VARIANT PARTS
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
301-00001-05 ADAPTOR FRT PNL T2000 SII
311-03075-01 KEYPAD T2015 SII INTERNATIONAL
349-00020-30 SCREW TAPTITE M3X6MM PAN POZI BZ
459-20100-02 T2010/T2015 SERIES II USERS GUIDE
T2015 EMC VARIANT PARTS
205-00010-16 CABLE FLAT RBBN 25 CORE 28 AWG GREY
240-00010-91 CONN MALE ON WIRE 18WAY MICROMATCH
301-00001-03 ADAPTOR FRT PNL T2000 SII
311-03075-01 KEYPAD T2015 SII INTERNATIONAL
459-20100-02 T2010/T2015 SERIES II USERS GUIDE
X2EFO3 EMC FILTER PCB ASSEMBLY T201X T2030
T2060 VARIANT PARTS
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
301-00001-03 ADAPTOR FRT PNL T2000 SII
311-03089-01 KEYPAD T2060 SII LTR INTERNATIONAL
459-20600-02 T2060 SERIES II USERS GUIDE
M2000-00
T2020, T2040 & T2050 Control Head PCB
7.14.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01321-04
B701 260-00010-11 LAMP 5V 60MA T-1 3MM OD 0.63LM US REF 68
B702 260-00010-11 LAMP 5V 60MA T-1 3MM OD 0.63LM US REF 68
B703 260-00010-11 LAMP 5V 60MA T-1 3MM OD 0.63LM US REF 68
B704 260-00010-11 LAMP 5V 60MA T-1 3MM OD 0.63LM US REF 68
B705 260-00010-11 LAMP 5V 60MA T-1 3MM OD 0.63LM US REF 68
C102 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 267
C103 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C531 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C700 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C701 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C702 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C703 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C704 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C705 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C706 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C707 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C708 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C710 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C711 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C712 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C713 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C714 016-08100-01 CAP ELECT 6X4MM CHIP 10M 20% 16V
C715 016-08100-01 CAP ELECT 6X4MM CHIP 10M 20% 16V
C716 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C717 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
*C720 014-07470-01 CAP TANT CHIP 4U7 'B' CASE 25V +-10% 26
C720 016-08470-01 CAP ELECT SMD 6X4MM 47M 16V
C721 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C722 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C723 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C725 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C726 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C727 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C728 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C729 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C730 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C731 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C732 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C733 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C734 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
D1 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D2 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D3 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D4 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D5 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D6 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D7 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D8 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D701 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE INL
D703 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE INL
D710 001-10084-33 (S) DIODE ZENER SMD BZX84C3V3 SOT23
D711 001-10084-33 (S) DIODE ZENER SMD BZX84C3V3 SOT23
D712 001-10084-33 (S) DIODE ZENER SMD BZX84C3V3 SOT23
D713 001-10084-47 (S) DIODE ZENER SMD BZX84C4V7 SOT23
D714 001-10084-47 (S) DIODE ZENER SMD BZX84C4V7 SOT23
IC701 002-20068-05 (S) IC MC68HC05C4 MASK PROG.MICRO-P 44P
IC702 002-10085-76 (S) IC SMD PCF8576T LCD DRIVER SOT-190
IC703 002-74900-04 (S) IC SMD 74HC04D HEX INVERTER BUFFD
IC704 002-74900-04 (S) IC SMD 74HC04D HEX INVERTER BUFFD
IC705 002-10078-05 (S) IC SMD 78L05 5V REG
IC706 002-10340-64 (S) IC SMD MC34064 LO VOLT SENSE
LCD 008-02029-00 (S) LCD DISPLAY A2M2523 8 CHR 14 SEG ALPH
P11 240-00020-87 HEADER 2X5 WAY RGT ANGLE PCB MTG MOLEX
PT501 040-05100-20 SWITCH ROT 10K LOG POT 3A 16VDC SPST PC
Q103 000-10008-47 (S) XSTR SMD BCW72 NPN GEN PURPOSE
Q701 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q702 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q703 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q704 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q705 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q706 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q710 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q711 000-10008-69 (S) XSTR SMD BC869 PNP 1W 2A SOT-89
Q712 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q713 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
Q714 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q715 000-10008-57 (S) XSTR SMD BCW70 PNP SOT23 AF SML SIG
R106 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R517 036-10000-00 RES M/F 0805 CHIP ZERO OHM
R595 036-12100-00 RES M/F 0805 CHIP 10E 5%
R701 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R702 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R703 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R704 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R705 036-15470-00 RES M/F 0805 CHIP 47K 5%
R706 036-15470-00 RES M/F 0805 CHIP 47K 5%
R707 036-15470-00 RES M/F 0805 CHIP 47K 5%
R708 036-15470-00 RES M/F 0805 CHIP 47K 5%
R709 036-15470-00 RES M/F 0805 CHIP 47K 5%
R710 036-13470-00 RES M/F 0805 CHIP 470E 5%
R711 036-13470-00 RES M/F 0805 CHIP 470E 5%
R712 036-13470-00 RES M/F 0805 CHIP 470E 5%
R713 036-15470-00 RES M/F 0805 CHIP 47K 5%
R714 036-15470-00 RES M/F 0805 CHIP 47K 5%
R715 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R716 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R717 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R718 036-15470-00 RES M/F 0805 CHIP 47K 5%
R719 036-15100-00 RES M/F 0805 CHIP 10K 5%
R720 036-12100-00 RES M/F 0805 CHIP 10E 5%
R721 036-15330-00 RES M/F 0805 CHIP 33K 5%
R722 036-15180-00 RES M/F 0805 CHIP 18K 5%
R723 036-13330-00 RES M/F 0805 CHIP 330E 5%
R724 036-13330-00 RES M/F 0805 CHIP 330E 5%
R725 036-12100-00 RES M/F 0805 CHIP 10E 5%
R726 036-15680-00 RES M/F 0805 CHIP 68K 5%
R727 036-16120-00 RES M/F 0805 CHIP 120K 5%
R728 036-12100-00 RES M/F 0805 CHIP 10E 5%
R729 036-13330-00 RES M/F 0805 CHIP 330E 5%
R730 036-15470-00 RES M/F 0805 CHIP 47K 5%
R731 036-15470-00 RES M/F 0805 CHIP 47K 5%
R733 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R734 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R735 036-14180-00 RES M/F 0805 CHIP 1K8 5%
R736 036-14680-00 RES M/F 0805 CHIP 6K8 5%
R737 036-15100-00 RES M/F 0805 CHIP 10K 5%
R738 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R739 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R740 036-15120-00 RES M/F 0805 CHIP 12K 5%
R741 036-15330-00 RES M/F 0805 CHIP 33K 5%
R742 036-16560-00 RES M/F 0805 CHIP 560K 5%
R743 036-12100-00 RES M/F 0805 CHIP 10E 5%
R746 036-15100-00 RES M/F 0805 CHIP 10K 5%
R747 036-16330-00 RES M/F 0805 CHIP 330K 5%
R750 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R751 036-13470-00 RES M/F 0805 CHIP 470E 5%
R752 036-13470-00 RES M/F 0805 CHIP 470E 5%
7.14 T2020, T2040 & T2050 Control Head PCB
T2020, T2040 & T2050 Control Head Parts List (IPN 220-01321-04)
7.14.2
T2020, T2040 & T2050 Control Head PCB
M2000-00
31/12/97 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
IPN 220-01321-04
R753 036-13330-00 RES M/F 0805 CHIP 330E 5%
R760 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R761 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R762 036-15100-00 RES M/F 0805 CHIP 10K 5%
R763 036-15100-00 RES M/F 0805 CHIP 10K 5%
R764 036-14330-00 RES M/F 0805 CHIP 3K3 5%
R765 036-15100-00 RES M/F 0805 CHIP 10K 5%
R766 036-15100-00 RES M/F 0805 CHIP 10K 5%
R767 036-18100-00 RES M/F 0805 CHIP 10M 10%
R768 036-15470-00 RES M/F 0805 CHIP 47K 5%
R769 036-16180-00 RES M/F 0805 CHIP 180K 5%
R770 036-15100-00 RES M/F 0805 CHIP 10K 5%
R771 036-15100-00 RES M/F 0805 CHIP 10K 5%
R772 036-15100-00 RES M/F 0805 CHIP 10K 5%
R773 036-15100-00 RES M/F 0805 CHIP 10K 5%
R774 036-15100-00 RES M/F 0805 CHIP 10K 5%
R775 036-15100-00 RES M/F 0805 CHIP 10K 5%
R776 036-15100-00 RES M/F 0805 CHIP 10K 5%
R777 036-15100-00 RES M/F 0805 CHIP 10K 5%
R778 036-13560-00 RES M/F 0805 CHIP 560E 5%
R779 036-13560-00 RES M/F 0805 CHIP 560E 5%
R780 036-13560-00 RES M/F 0805 CHIP 560E 5%
R781 036-13560-00 RES M/F 0805 CHIP 560E 5%
R782 036-13560-00 RES M/F 0805 CHIP 560E 5%
R783 036-13560-00 RES M/F 0805 CHIP 560E 5%
R784 036-13560-00 RES M/F 0805 CHIP 560E 5%
R785 036-13560-00 RES M/F 0805 CHIP 560E 5%
R790 036-13470-00 RES M/F 0805 CHIP 470E 5%
R791 036-13390-00 RES M/F 0805 CHIP 390E 5%
R792 036-12330-00 RES M/F 0805 CHIP 33E 5%
R793 036-12330-00 RES M/F 0805 CHIP 33E 5%
R795 036-13470-00 RES M/F 0805 CHIP 470E 5%
R796 036-14120-00 RES M/F 0805 CHIP 1K2 5%
R797 045-15100-00 RES NTC SMD 10K 5%
S9A 240-04020-50 SKT 8WAY 2ROW(2X4) PCB MTG MICROMATCH
S10 240-04021-61 SKT TELEPHONE JACK 6-WAY SIDE ENTY 555163
X701 274-00010-33 XTAL 4MHZ TE-35 HC49U C/W TEFLON INS
T2020, T2040 & T2050 Control Head Mechanical & Miscellaneous Parts
M2000-00
T2020, T2040 & T2050 Control Head PCB
7.14.3
Copyright TEL 31/12/97
IPN DescriptionIPN Descriptio
IPN 220-01321-04
205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
209-01027-00 STRIP A3M2544 SI IMPREGNATED ELASTOMER 55X8MM
220-01321-04 PCB T2000 LCD DISPLAY
240-00020-56 PLUG 8WAY 2ROW(2X4) CORD MTG IDC MICROMATCH
301-00001-03 ADAPTOR FRT PNL T2000 SII
304-07036-02 LIGHT SPREADER 20 BUTTON T2000 SII
311-01042-01 KNOB A3M2530 T2000 S11
312-01046-03 LENS A2M2543 LCD DISPLAY T2000 FM2/TR2
316-06430-02 PNL FRT SCRN T2020/40/50 SII
349-00010-22 SCREW NO 4X3/8 PAN POZI PLASTITE
349-00010-24 SCREW #4X5/8 PLASTITE PAN POZI
356-00010-01 TAG SOLDER 3MM SHORT M6132/3.2
365-00100-20 LABEL WHITE S/A 28X11MM QUIKSTIK RW718/4
369-00020-29 TAPE VINYL FOAM 2 SIDE S/A 12X0.8MM INSEAL 51
429-20000-05 T2000 SERIES II INSTALLATION GUIDE
T2020 VARIANT PARTS
311-03076-01 KEYPAD T2020 SII INTERNATIONAL
459-20200-02 T2020 SERIES II USERS GUIDE
T2020 EMC VARIANT PARTS
240-00010-91 CONN MALE ON WIRE 18WAY MICROMATCH
311-03076-01 KEYPAD T2020 SII INTERNATIONAL
459-20200-02 T2020 SERIES II USERS GUIDE
X2EF01 EMC FILTER PCB ASSEMBLY T2020 T2035 T2040 T2050
T2040 VARIANT PARTS
311-03078-01 KEYPAD T2040 SII INTERNATIONAL
459-20400-02 T2040 SERIES II USERS GUIDE
T2040 EMC VARIANT PARTS
240-00010-91 CONN MALE ON WIRE 18WAY MICROMATCH
311-03078-01 KEYPAD T2040 SII INTERNATIONAL
459-20400-02 T2040 SERIES II USERS GUIDE
X2EF01 EMC FILTER PCB ASSEMBLY T2020 T2035 T2040 T2050
T2050 VARIANT PARTS
308-13093-02 CHASSIS A1M2503 DIE CAST T2000 SERIES II
311-03009-01 KEYPAD T2050 SII INTERNATIONAL DUAL MODE
459-20200-02 T2020 SERIES II USERS GUIDE
459-20400-02 T2040 SERIES II USERS GUIDE
7.14.4
T2020, T2040 & T2050 Control Head PCB
M2000-00
31/10/96 Copyright TEL
IPN 220-01321-04
M2000-00
T2035 Control Head PCB
7.15.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01322-03
CLEAR 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROH
CALLBK 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE RO
C510 015-24150-08 CAP CER 0805 CHIP 1N5 10% X7R 50V
C511 015-25150-08 CAP CER 0805 CHIP 15N 10% X7R 50V
C512 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C513 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C516 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C517 015-24330-08 CAP CER 0805 CHIP 3N3 10% X7R 50V
C518 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C519 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C520 015-25220-08 CAP CER 0805 CHIP 22N 10% X7R 50V
C531 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C542 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C570 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C571 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C580 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
DVC 008-00010-21 (S) LED 2MM RED TOWER 3.8MM BASE ROHM SL
DSP 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
D502 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE IN
D520 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.
D521 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.
D522 008-00010-15 (S) LED 3MM GREEN HLMP1585 DIFSD 2V3 6.
D523 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE IN
D524 001-10000-99 (S) DIODE SMD BAV99 DUAL SWTCH SNGLE IN
FUNCTI 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE RO
GO 008-00010-25 (S) LED 2MM GREEN TOWER 3.8MM BASE ROHM
HUNDS 008-00020-29 (S) LED DISPLAY GREEN 7 SEG SINGLE HDS
IC507 002-10140-21 (S) IC MC14021BDR2 8BIT SHIFT REGSTR.S
IC508 002-10144-99 (S) IC SMD 4*7 SEGMENT LED DRIVER
IC514 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
IC515 002-74900-04 (S) IC SMD 74HC04D HEX INVERTER BUFFD
IC517 002-74907-40 (S) IC 74HC74 DUAL D-TYPE FLIP FLOP SO
P8A 240-00026-23 CONN PADLE BD 8 WAY MICRO MATCH 0-215570
P11 240-00020-87 HEADER 2X5 WAY RGT ANGLE PCB MTG MOLEX
9
PT501 040-05100-20 SWITCH ROT 10K LOG POT 3A 16VDC SPST P
Q506 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q512 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q513 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q514 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q515 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q516 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
Q550 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23
R517 036-10000-00 RES M/F 0805 CHIP ZERO OHM
R544 036-15470-00 RES M/F 0805 CHIP 47K 5%
R545 036-15470-00 RES M/F 0805 CHIP 47K 5%
R552 036-13270-00 RES M/F 0805 CHIP 270E 5%
R553 036-13270-00 RES M/F 0805 CHIP 270E 5%
R554 036-13270-00 RES M/F 0805 CHIP 270E 5%
R555 036-13270-00 RES M/F 0805 CHIP 270E 5%
R556 036-15470-00 RES M/F 0805 CHIP 47K 5%
R557 036-15470-00 RES M/F 0805 CHIP 47K 5%
R558 036-15470-00 RES M/F 0805 CHIP 47K 5%
R559 036-15470-00 RES M/F 0805 CHIP 47K 5%
R560 036-15470-00 RES M/F 0805 CHIP 47K 5%
R561 036-15470-00 RES M/F 0805 CHIP 47K 5%
R562 036-15470-00 RES M/F 0805 CHIP 47K 5%
R563 036-15470-00 RES M/F 0805 CHIP 47K 5%
R564 036-13470-00 RES M/F 0805 CHIP 470E 5%
R565 036-13470-00 RES M/F 0805 CHIP 470E 5%
R566 036-13470-00 RES M/F 0805 CHIP 470E 5%
R567 036-13270-00 RES M/F 0805 CHIP 270E 5%
R573 036-14100-00 RES M/F 0805 CHIP 1K 5%
R574 036-13270-00 RES M/F 0805 CHIP 270E 5%
R575 036-13270-00 RES M/F 0805 CHIP 270E 5%
R587 036-12100-00 RES M/F 0805 CHIP 10E 5%
R588 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R589 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R590 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R591 036-13150-00 RES M/F 0805 CHIP 150E 5%
R594 036-12100-00 RES M/F 0805 CHIP 10E 5%
R597 036-13270-00 RES M/F 0805 CHIP 270E 5%
R635 036-15100-00 RES M/F 0805 CHIP 10K 5%
R636 036-13560-00 RES M/F 0805 CHIP 560E 5%
R637 036-13560-00 RES M/F 0805 CHIP 560E 5%
R638 036-13560-00 RES M/F 0805 CHIP 560E 5%
R639 036-13560-00 RES M/F 0805 CHIP 560E 5%
R643 036-15470-00 RES M/F 0805 CHIP 47K 5%
S8B 240-04020-50 SKT 8WAY 2ROW(2X4) PCB MTG MICROMATCH
S10 240-04021-61 SKT TELEPHONE JACK 6-WAY SIDE ENTY 55516
TX 008-00010-21 (S) LED 2MM RED TOWER 3.8MM BASE ROHM SC
TENS 008-00020-29 (S) LED DISPLAY GREEN 7 SEG SINGLE HDSP
UNITS 008-00020-29 (S) LED DISPLAY GREEN 7 SEG SINGLE HDS
WAIT 008-00010-23 (S) LED 2MM YELLOW TOWER 3.8MM BASE ROH
7.15 T2035 Control Head PCB
T2035 Control Head Parts List (IPN 220-01322-03)
T2035 Control Head Mechanical & Miscellaneous Parts
7.15.2
T2035 Control Head PCB
M2000-00
31/12/97 Copyright TEL
IPN DescriptionIPN Description
IPN 220-01322-03
220-01322-03 PCB T2033/35 DISPLAY BRD
240-00020-54 PLUG 16 WAY 2X8 FLAT CABLE TERMN MICROMATCH
240-00020-56 PLUG 8WAY 2ROW(2X4) CORD MTG IDC MICROMATCH
240-04020-72 SKT HOUSING 2 WAY CORD MTG ULTREX
240-04020-99 SKT RECEPTACLE SML WIRE CRIMP FOR ULTREX HOU
250-00010-19 SPKR A3M2520 C/W RUBBER SEALING RING
301-00001-05 ADAPTOR FRT PNL T2000 SII
304-07035-00 LIGHT SPREADER A2M2531 BUTTONS T2000 FM1/TR1
311-01042-01 KNOB A3M2530 T2000 S11
311-03080-01 KEYPAD T2035 SII INTERNATIONAL
312-01057-01 LENS T2035 SII GREEN DISPLAY
316-06496-01 PNL FRT SCRN T2035 SII
349-00010-22 SCREW NO 4X3/8 PAN POZI PLASTITE
349-00010-24 SCREW #4X5/8 PLASTITE PAN POZI
356-00010-01 TAG SOLDER 3MM SHORT M6132/3.2
357-00010-03 FIX PUSH ON SFO 2938
365-00100-20 LABEL WHITE S/A 28X11MM QUIKSTIK RW718/4
400-00020-07 SLEEVING 2MM SIL RUBBER
429-20000-05 T2000 SERIES II INSTALLATION GUIDE
459-20300-02 T2030/T2035 SERIES II USERS GUIDE
T2035 VARIANT PARTS
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
304-07037-00 LIGHT SPREADER A4M2533 KNOB T2000 FM1/TR1
349-00020-30 SCREW TAPTITE M3X6MM PAN POZI BZ
T2035 EMC VARIANT PARTS
205-00010-16 CABLE FLAT RBBN 25 CORE 28 AWG GREY
240-00010-91 CONN MALE ON WIRE 18WAY MICROMATCH
369-00020-30 TAPE VINYLFOAM 2 SIDE S/A 24*1.5MM INSEAL 51
X2EF01 EMC FILTER PCB ASSEMBLY T2020 T2035 T2040 T2050
M2000-00
T2000 EMC Filter PCB
7.16.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01383-01
C1 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C2 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C3 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C4 01 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C4 02 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C4 08 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C5 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C6 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C7 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C8 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C9 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C10 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C11 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C12 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C13 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C14 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C15 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C16 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C17 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C18 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
PDL-1 01 240-00026-31 CONN PADLE BRD 18WAY MICROMATCH
PDL-1 02 240-00026-31 CONN PADLE BRD 18WAY MICROMATCH
PDL-1 03 240-00026-31 CONN PADLE BRD 18WAY MICROMATCH
PDL-1 08 240-00026-23 CONN PADLE BD 8 WAY MICRO MATCH 0-215570-
SKT-1 01 240-10000-11 (L) CONN SMD SKT 18WAY MICROMATCH
SKT-1 02 240-10000-11 (L) CONN SMD SKT 18WAY MICROMATCH
SKT-1 03 240-10000-11 (L) CONN SMD SKT 18WAY MICROMATCH
SKT-1 08 240-10000-05 CONN SMD SKT 8WAY 2ROW MICROMATCH
02 205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
08 205-00010-12 CABLE FLAT RBBN 16 CORE 16/7/0.1 GREY
220-01383-01 PCB T2000 SII EMC FILTER BRD
02 240-00020-56 PLUG 8WAY 2ROW(2X4) CORD MTG IDC MICROM
08 240-00020-56 PLUG 8WAY 2ROW(2X4) CORD MTG IDC MICROM
349-00020-32 SCREW TAPTITE M3X8MM PAN POZI BZ
Variants: 01 = T2020, T2035, T2040 & T2050 EMC radios
02 = Non-EMC remote mounted radios
03 = T2010, T2015 & T2030 radios
08 = Used in T2000-A03/-A04/-A16 remote kits (refer to Section 8.16)
7.16 T2000 EMC Filter PCB
T2000 EMC Filter Parts List (IPN 220-01383-01)
7.16.2
T2000 EMC Filter PCB
M2000-00
31/10/96 Copyright TEL
IPN 220-01383-01
M2000-00
T2000 Data Interface Decoupling PCB
7.17.1
Copyright TEL 31/12/97
Ref Var IPN Description Ref Var IPN Description
IPN 220-01388-01
C1 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C2 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C3 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C4 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C5 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C6 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C7 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C8 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
C9 018-14100-00 CAP 0603 CHIP 1N 50V X7R +-10%
SKT1 240-02010-40 SKT 9 WAY D RANGE SUB MA
SKT2 240-04020-84 SKT 24 WAY PCB MTG STAG MA
200-00010-03 WIRE T/C 0.9MM
220-01388-01 PCB T2000 DATA INT FCE DE-COUPLING
349-00020-07 (L) SCREW 4-40 X 5/16 PAN POZI TAPTITE BLACK
354-01041-00 FASTENER SCREW LOCK KIT
(4-40 THREAD FOR DRANGE)
356-00010-05 TAG SOLDER 4MM LONG M MT
7.17 T2000 Data Interface Decoupling PCB
T2000 Data Interface Parts List (IPN 220-01388-01)
7.17.2
T2000 Data Interface Decoupling PCB
M2000-00
31/10/96 Copyright TEL
IPN 220-01388-01
M2000-00
Accessories
8.1
Copyright TEL 31/12/97
8 Accessories
This Section provides information on T2000 Series II accessories.
The following accessories are covered in this Section:
Section Title PCB IPN Page
8.1 T2008 Power Supply 220-01170-03 8.1.1
8.2 Connection To External Devices 8.2.1
8.3 T2000-500 & T2000-600 1-7W Versions 8.3.1
8.4 T2000-05 Remote Speaker Kit 8.4.1
8.5 T2000-A06 Desktop Microphone Kit 8.5.1
8.6 T2000-A07 DTMF Microphone Kit 8.6.1
8.7 T2000-34 Selcall Kit 8.7.1
8.8 T2000-A36 Selcall Kit 220-01313-02 8.8.1
8.9 T2000-40 DTMF Kit 8.9.1
8.10 T2000-A450X CTCSS & Scrambler Kits 220-01335-04 8.10.1
8.11 T2000-A50 Handsfree Kit 225-01210-03 8.11.1
8.12 T2000-A60 Dual Port UART Kit 220-01251-01 8.12.1
8.13 T2000-A66 Single Port UART Kit 220-01348-04 8.13.1
8.14 T2000-A80 Line Interface Kit 220-01272-02 8.14.1
8.15 T2000-A70 Data Modem Kit 220-01378-01 8.15.1
8.16 T2000-A03/-A04/-A16 Remote Loom Kits 8.16.1
8.2
Accessories
M2000-00
31/12/97 Copyright TEL
T2008 Parts List (IPN 220-01170-03)
Ref VAR IPN Description Ref VAR IPN Description
M2000-00
8.1.17
Copyright TEL 31/12/97
8.1.10 PCB Information
CBR 017-15470-01 CAP CER SURFACE BARRIER 47N 20% 50
C1 020-19220-03 CAP ELECT RADL 2200M 35V 16X31MM
C2 020-19220-03 CAP ELECT RADL 2200M 35V 16X31MM
C3 020-19220-03 CAP ELECT RADL 2200M 35V 16X31MM
C4 020-19220-03 CAP ELECT RADL 2200M 35V 16X31MM
C5 020-19220-03 CAP ELECT RADL 2200M 35V 16X31MM
C6 020-19220-03 CAP ELECT RADL 2200M 35V 16X31MM
C7 020-09470-02 CAP ELECT RADL 470M 16V 10X20MM
C8 017-15470-01 CAP CER SURFACE BARRIER 47N 20% 50
C9 051-00006-06 WIRE LINK T/C
C10 022-05150-01 CAP MYLAR 15N 10% 50V
C11 022-04220-01 CAP MYLAR 2N2 10% 50V
C14 022-05100-01 CAP MYLAR 10N 10% 50V
D1 001-00011-50 (S) DIODE MUR810 8A 100V FAST RECOV
D2 001-00012-91 (S) DIODE 16V TRANSIENT SUPPRESSOR
F1 21 265-00010-45 FUSE 1A CARTRIDGE 6*32MM SLOBLOW
F1 22 265-00010-05 FUSE 3A CARTRIDGE 6*32MM BS4265
F1 23 265-00010-45 FUSE 1A CARTRIDGE 6*32MM SLOBLOW
F1 24 265-00010-45 FUSE 1A CARTRIDGE 6*32MM SLOBLOW
F2 265-00010-07 FUSE 10A CARTRIDGE 6*32MM BS4265
IC1 002-00016-63 (S) IC TL494/594 SMPS PWM CTRL
LED1 008-00012-52 (S) LED 2MM TOWER 5MM BASE RED
L1 056-00010-47 IND FXD 125UH PWR CHOKE TOROIDAL
L2 056-00010-20 IND FXD 25UH PWR CHOKE
PL1 240-00020-68 HEADER 2WAY PCB MTG STD
Q1 000-00022-07 (S) XSTR 2N3772 NPN PWR TO-204
Q2 000-00012-15 (S) XSTR BD234 PNP AF PWR TO126
Q3 000-00011-10 (S) XSTR BC548B/BC547B NPN AF SML SI
Q4 000-00011-10 (S) XSTR BC548B/BC547B NPN AF SML SI
R1 030-53120-20 RES FILM AI 120E 5% 0.4W 4X1.6MM
RV1 042-03470-01 RES PRESET 470E CARBON 10MM FLAT
RB1 001-00011-37 (S) DIODE BRIDGE RECT 50V/25AMP
RV2 042-03470-01 RES PRESET 470E CARBON 10MM FLAT
R2 033-03330-00 RES MP816 PWR FILM 330E 10% 16W TO-2
R3 030-52330-20 RES FILM AI 33E 5% 0.4W 4X1.6MM
R4 030-54680-20 RES FILM AI 6K8 5% 0.4W 4X1.6MM
R5 030-54390-20 RES FILM AI 3K9 5% 0.4W 4X1.6MM
R6 030-54180-20 RES FILM AI 1K8 5% 0.4W 4X1.6MM
R7 030-55100-20 RES FILM AI 10K 5% 0.4W 4X1.6MM
R8 030-54470-20 RES FILM AI 4K7 5% 0.4W 4X1.6MM
R9 030-53120-20 RES FILM AI 120E 5% 0.4W 4X1.6MM
R10 030-55680-20 RES FILM AI 68K 5% 0.4W 4X1.6MM
R11 030-55100-20 RES FILM AI 10K 5% 0.4W 4X1.6MM
R12 030-54330-20 RES FILM AI 3K3 5% 0.4W 4X1.6MM
R13 030-54390-20 RES FILM AI 3K9 5% 0.4W 4X1.6MM
R14 030-55220-20 RES FILM AI 22K 5% 0.4W 4X1.6MM
R15 030-54330-20 RES FILM AI 3K3 5% 0.4W 4X1.6MM
R16 030-53470-20 RES FILM AI 470E 5% 0.4W 4X1.6MM
R17 030-53470-20 RES FILM AI 470E 5% 0.4W 4X1.6MM
R18 039-10018-63 RES WIRE WOUND 0.017E A4M1863 T508
R20 030-56220-20 RES FILM AI 220K 5% 0.4W 4X1.6MM
R21 030-53100-20 RES FILM AI 100E 5% 0.4W 4X1.6MM
SW1 232-00010-21 SWITCH PUSH SPST MAINS ON/OFF
*T1 21 053-00010-53 XFMR T4063A 230V MAINS PROTECTED
*T1 22 053-00010-51 XFMR T4065 115V MAINS T508
*T1 23 053-00010-53 XFMR T4063A 230V MAINS PROTECTED
*T1 24 053-00010-53 XFMR T4063A 230V MAINS PROTECTED
8.1.18
M2000-00
31/10/96 Copyright TEL
T2008 Mechanical & Miscellaneous Parts
IPN Description IPN Description
065-00010-20 BEAD FERRITE BALUN 4B1 PHILIPS
200-00010-03 WIRE T/C 0.9MM
201-00030-02 WIRE #1 T/C WIRE 7/0.2MM PVC RED
LED WIRING-330MM
201-00030-04 WIRE #1 T/C WIRE 7/0.2MM PVC YELLOW
INTERNAL SPEAKER LINK (REFER TO WIRING DIAG.)
201-00030-05 WIRE #1 T/C WIRE 7/0.2MM PVC GREEN
C8 & C9 WIRING TO HEATSINK
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
LED WIRING - 330MM, MIC CLIP - 300MM.
205-00010-03 CABLE TWIN CYCLE FLEX 2/7/0.2MM BLACK
205-00010-06 CABLE TWIN AUTO 153 2/28/0.3 RED & BLACK
220-01170-03 PCB T508-21
232-00010-21 SWITCH PUSH SPST MAINS ON/OFF
240-00026-19 PLUG HOUSING 7-POS CONN 172495-1
240-00026-20 PLUG RECEPTL 7-POS CONN 172773-1
240-02010-75 SKT RECEPTL T2000 172775-1
240-04021-63 CONN 2WAY 24AWG (BLACK) INLINE HRMAPHR.
252-00010-02 CLIP MIC MTG
265-00010-07 FUSE 10A CARTRIDGE 6*32MM BS4265
302-05220-00 (L) BRKT HEAT TRANSFER T508/T2008
303-03031-00 CASE 1 PR TOP/BTTM PLASTIC COMPL
308-13064-01 HSINK A1M1755 DCAST T508/2008
316-06442-00 PNL FRT A3A697 COMPL T2008 PWR SUPPLY
319-30055-00 SPACER A4M2615 MIC MTG T2008
340-00010-06 FUSE CLIP PCB MTG 6.3MM CARTRIDGE FUSE
340-00011-52 COVER INSULATING FUSEHLDR PCB MTD
345-00040-08 SCREW M3*12MM PAN POZI ST BZ
Q1 MOUNTING AND PCB TO HEATSINK
349-00010-28 SCREW NO6X1/2 PAN POZI TYPE 25
349-00010-33 SCREW SLFTAP NO 6*3/4IN TYPE AB PAN PZI BZ
FOR WALL MOUNTING
349-00010-40 SCREW SELFTAP NO 8X3/8IN AB PAN SLOT BZ
349-00010-40 SCREW SELFTAP NO 8X3/8IN AB PAN SLOT BZ
349-00020-30 SCREW TAPTITE M3X6MM PAN PZI BZ EARTH
PCB TO HEATSINK MOUNTING X 2
349-00020-31 SCREW TAPTITE M3X10MM PAN POZI BZ
349-00020-45 SCREW TAPTITE M4X20MM PAN POZI BZ
BRIDGE RECTIFIER MOUNTING
352-00010-08 NUT M3 COLD FORM HEX ST BZ
Q1 MOUNTING
353-00010-10 WASHER M3 FLAT 7MM*0.6MM ST BZ
353-00010-12 WASHER M3 SPRING BZ Q1 MOUNTING
353-00010-24 WASHER M4 FLAT ST BZ A4M1957
353-00010-24 WASHER M4 FLAT ST BZ A4M1957
BRIDGE RECTIFIER MOUNTING
356-00010-04 TAG SOLDER 3MM HEAVY DUTY EARTH MAINS
EARTH TAG TO HEATSINK
356-00010-05 TAG SOLDER 4MM LONG M6144/4.2
362-00010-09 GASKET SIL INSULATING TO-3
Q1
365-00011-54 LABEL WHITE RW1556/2 90*24MM SPECIAL ADHESV
365-00100-03 LABEL BLANK 10.8X30MM S/A METLSD POLYES
365-00100-04 LABEL BLANK 30X6.7MM S/A METALLISED POLYES
365-00100-07 LABEL BLANK 47X30MM S/A METLSD POLYES
365-00100-20 LABEL WHITE S/A 28X11MM QUIKSTIK RW718/4
365-01372-00 LABEL POWER CORD CODE/WARNING
369-00010-05 FOOT PLASTIC 10MM SQ SELF ADHESIVE BLACK
369-00010-14 TIE CABLE NYLON 100*2.6MM
369-00020-25 SPONGE RUBBER 3/8 INCH SQ SKELLERUP S3
TOP CASE 2 X 56MM
369-00020-45 TAPE AL FOIL S/A 3M NO 425
399-00010-10 RUBBER BAND NO 33
MAINS PLUG
399-00010-51 BAG PLASTIC 75*100MM
399-00010-59 BAG PLASTIC 225*300MM
400-00010-30 SLEEVING 3MM PVC
2X 3.5MM
400-00010-30 SLEEVING 3MM PVC
2X5MM OVER M3X12MM PAN POZI SCREWS.
400-00020-03 SLEEVING 1MM SIL RUBBER
D1 WIRING
400-00020-05 SLEEVING 1.5MM SIL RUBBER LED WIRES, Q1
409-20008-01 USER GUIDE T2008 PWR SUPPLY
410-00010-36 PKG POLY FOAM 2 PCS T508 A1M1860
410-01038-01 PKG SLEEVE CARD T2008 KIWI P.O.
410-01087-00 CRTN T508/T2008PS OUTER (5 X UNITS)
T2008-21 VARIANT PARTS
240-00010-18 PLUG 3 PIN MLDED ON 2.4M 0.75MM2 230V MAINS
NEW ZEALAND MAINS SUPPLY PLUG (T2008-21)
T2008-22 VARIANT PARTS
240-00010-19 PLUG US 3PIN MOULDED ON 2.4M FLEX 120V 10A
USA MAINS SUPPLY PLUG (T2008-22)
T2008-23 VARIANT PARTS
240-00010-22 PLUG MLDED 3PIN ON 2.0M 5AMP 240V MAINS UK
MAINS SUPPLY PLUG (T2008-23)
T2008-24 VARIANT PARTS
240-00010-20 (L) PLUG EURO SAFETY PLUG WITH 2.5M CABLE
EUROPEAN MAINS SUPPLY PLUG (T2008-24)
M2000-00
T2000-A450X CTCSS & Scrambler Kit
8.10.1
Copyright TEL 31/12/97
8.10 T2000-A450X CTCSS & Scrambler Kit
The T2000-A450X CTCSS and scrambler PCB plugs into an options connector on the top
side of the T2000 Series II logic PCB, and can be configured in two ways:
The CTCSS option is used in trunked radios, and has 38 independent receive and trans-
mit tones, set by solder links on the T2000-A450X PCB.
The scrambler option can be used in either trunked or conventional radios, and is ena-
bled/disabled by the auxiliary ( ) key (conventional models) or function ( )
key (trunked models). The scrambler uses a simple frequency inversion algorithm that
prevents casual eavesdropping by other radio users. After descrambling, the recovered
speech suffers from some degradation in clarity.
Note:
The T2000-A4500 CTCSS kit is only compatible with the following radio and
PGM software versions:
The following topics are covered in this Section:
Product Code Option T201X T2020 T203X T2040 T2050
T2000-A4500 CTCSS xx x
T2000-A4502 Scrambler
Radio Radio Software
Vers ion PGM Software
Version
T2030 3.24 or later later than 1.44
T2035 3.28 or later
T2040 5.36 or later later than 2.57
Section Title Page
8.10.1 Components Required 8.10.2
8.10.2 Fitting 8.10.2
8.10.3 T2000-A450X Link Options 8.10.3
8.10.4 PCB Information 8.10.5
Fn
8.10.2
T2000-A450X CTCSS & Scrambler Kit
M2000-00
31/12/97 Copyright TEL
8.10.1 Components Required
The T2000-A450X kits contain the following components:
8.10.2 Fitting
1Refer to Figure 8.10.1.
Remove the top cover of the radio by unscrewing the four cover screws, unscrew
the logic PCB and fold out.
2Select the T2000-A450X link options, as described in Section 8.10.3, “T2000-A450X
Link Options”.
Position the T2000-A450X PCB as shown, and plug into the connector on the
T2000 logic PCB:
Figure 8.10.1 T2000-A450X PCB Mounting (T201X logic PCB shown)
2Position the foam tape provided on top of #IC5, on the T2000-A450X PCB.
3Carefully fold the logic PCB back in position and secure using the three logic PCB
retaining screws.
Refit the top cover.
Quantity Description
1 T2000-A450X PCB assembly
12mm PVC foam tape
Model PCB IPN Connector Circuit
Reference
T2010 & T2015 220-01377-01 or later P2
T2020, T203X, T2040 &
T2050 220-01344-02 or later #T3K45
SK505
S8
S3
S2
S15
S14
S13
S1
P2
P1
T2000-45
P2
M2000-00
T2000-A450X CTCSS & Scrambler Kit
8.10.3
Copyright TEL 31/12/97
8.10.3 T2000-A450X Link Options
There are 2 groups of links on the underside of the T2000-A4500 PCB, the receive
(R) group and the transmit (T) group. Each group contains 6 bits that are pulled
logic high or low, by either solder links or zero ohm resistors.
The receive settings are set by links R-0 to R-5 and the transmit settings by links T-
0 to T-5. A short to the 5V line represents a ‘1’, and a short to ground represents a
‘0’.
The following diagram shows the T2000-A450X PCB, with links indicated.
T2000-A4500 CTCSS PCB Links
The following table gives the linking details for the 38 independent transmit and receive
CTCSS frequencies.
Ton e Nu m ber R-5
T-5
R-4
T-4
R-3
T-3
R-2
T-2
R-1
T-1
R-0
T-0
CTCSS
Frequency (Hz)
1 000000 67
2 000001 71.9
3 000010 74.4
4 000011 77
5 000100 79.7
6 000101 82.5
7 000110 85.4
8 000111 88.5
9 001000 91.5
10 001001 94.8
11 001010 97.4
12 001011 100
13 001100 103.5
14 001101 107.2
15 001110 110.9
T2000-A450X PCB IPN 220-01335-04 (bottom side):
links for transmit & receive 110.9Hz CTCSS frequency shown.
8.10.4
T2000-A450X CTCSS & Scrambler Kit
M2000-00
31/12/97 Copyright TEL
T2000-A4502 Scrambler PCB Links
The T2000-A4502 has the following R settings linked during manufacture. The T
settings have no effect.
16 001111 114.8
17 010000 118.8
18 010001 123
19 010010 127.3
20 010011 131.8
21 010100 136.5
22 010101 141.3
23 010110 146.2
24 010111 151.4
25 011000 156.7
26 011001 162.2
27 011010 167.9
28 011011 173.8
29 011100 179.9
3 0 011101 186.2
31 011110 192 .8
32 011111 203.5
33 100000 210.7
34 100001 218.1
35 100010 225. 7
36 100011 233.6
37 100100 241.8
3 8 100101 250.3
R-5 R-4 R-3 R-2 R-1 R-0
111111
Tone Nu mb er R-5
T-5
R-4
T-4
R-3
T-3
R-2
T-2
R-1
T-1
R-0
T-0
CTCSS
Frequency (Hz)
T2000-A450X Parts List (IPN 220-01335-04)
Ref Var IPN Description Ref Var IPN Description
8.10.5
T2000-A450X CTCSS & Scrambler Kit
M2000-00
31/12/97 Copyright TEL
8.10.4 PCB Information
#4500 CTCSS 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +
#2T502 SCRAM 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +
C1 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V
C2 018-12330-10 CAP 0603 CHIP 33P 50V NPO +-1%
C3 018-12150-10 CAP 0603 CHIP 15P 50V NPO +-1%
C6 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V
#C11 CTCSS 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V
#C11 SCRAM 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
C12 015-27100-10 CAP CER 0805 CHIP 1M +80-20% Y5V 16V
#C13 CTCSS 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C15 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C16 SCRAM 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
#C22 CTCSS 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
#C22 SCRAM 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
#C25 SCRAM 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
#C30 CTCSS 018-16100-01 CAP 0603 CHIP 100N +80-20% Y5V 16V
D1 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23
IC1 002-74900-40 (LSH) IC SMD TC7S04F SINGLE INV GATE SO-
IC2 002-18937-10 LSH) IC SMD Z89371-16FSC OTP DSP 44PIN Q
IC3 002-74917-30 LSH) IC SMD 74HC173D 4BIT DTYPE REGISTE
#IC4 CTCSS 002-11454-80 LSH) IC SMD MC145480DW PCM CODEC F
#IC4 SCRAM 002-11454-80 LSH) IC SMD MC145480DW PCM CODEC F
#IC5 SCRAM 002-11454-80 LSH) IC SMD MC145480DW PCM CODEC F
OPTION 240-10000-09 CONN SMD 24WAY (SKT/CAP WITH MTG LUGS
R1 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R4 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R6 CTCSS 038-15470-00 RES 0603 CHIP 47K 1/16W +-5%
#R6 SCRAM 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R7 CTCSS 038-14330-00 RES 0603 CHIP 3K3 1/16W +-5%
#R8 SCRAM 038-11470-00 RES 0603 CHIP 4E7 1/16W +-5%
#R9 CTCSS 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
#R9 SCRAM 038-11470-00 RES 0603 CHIP 4E7 1/16W +-5%
#R10 CTCSS 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
#R10 SCRAM 038-11470-00 RES 0603 CHIP 4E7 1/16W +-5%
#R11 CTCSS 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R11 SCRAM 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R13 038-11470-00 RES 0603 CHIP 4E7 1/16W +-5%
#R15 SCRAM 038-11470-00 RES 0603 CHIP 4E7 1/16W +-5%
#R17 SCRAM 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R18 SCRAM 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R19 SCRAM 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R22 CTCSS 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
#R22 SCRAM 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
#R23 SCRAM 038-15150-00 RES 0603 CHIP 15K 1/16W +-5%
R30 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R31 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R32 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R33 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R34 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R35 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R36 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R37 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R38 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R39 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R40 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R41 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R42 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R43 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R44 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R50 CTCSS 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R50 SCRAM 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R51 CTCSS 038-16470-00 RES 0603 CHIP 470K 1/16W +-5%
#R51 SCRAM 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R53 SCRAM 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
#R54 CTCSS 038-16220-00 RES 0603 CHIP 220K 1/16W +-5%
#R55 SCRAM 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
#R56 SCRAM 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R58 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
#R60 SCRAM 038-11470-00 RES 0603 CHIP 4E7 1/16W +-5%
XL1 274-01063-00 (L) XTAL 3.579545MHZ MINITURE CYLINDRICA
220-01298-01 (L) PCB FLEXI T3000 OPTIONS LOOM
220-01335-04 PCB T3000-4500 CTCSS OPTION BOARD
365-00011-38 LABEL STATIC WARNING YELLOW A4A315
365-00011-54 LABEL WHITE RW1556/2 90*24MM SPECIAL AD
369-00020-49 TAPE SA TESAMOLL 9*3 (25 M ROLLS)
369-00020-50 TAPE SA TESAMOLL 6*3MM (25 M ROLLS)
399-00010-86 BAG STATIC SHIELDING 127X203MM
410-01064-01 PKG HEADER CARD (NEW TAIT LOGO)
418-24500-00 FITTNG INS T2000-45 SCRAMBLER KIT
Variants: CTCSS = CTCSS option
SCRAM = Scrambler option
8.10.6
T2000-A450X CTCSS & Scrambler Kit
M2000-00
31/12/97 Copyright TEL
M2000-00
T2000-A450X CTCSS & Scrambler Kit
8.10.7
Copyright TEL 31/12/97
T2000-A450X PCB (IPN 220-01335-04) - Top Side
8.10.8
T2000-A450X CTCSS & Scrambler Kit
M2000-00
31/12/97 Copyright TEL
T2000-A450X PCB (IPN 220-01335-04) - Bottom Side
M2000-00
T2000-A450X CTCSS & Scrambler Kit
8.10.9
Copyright TEL 31/12/97
8.10.10
T2000-A450X CTCSS & Scrambler Kit
M2000-00
31/12/97 Copyright TEL
M2000-00
8.12.5
Copyright TEL 31/12/97
8.12.4 T2000-60 Set-Up
Test Equipment Required
• AF signal generator
• modulation analyser
• high impedance voltmeter (e.g. VTVM)
•IBM
† or compatible personal computer
• lead to connect radio to CE and AE, if required (refer to Figure 8.12.2 & Figure 8.12.3)
• oscilloscope
• power supply (+13.8V)
• RF signal generator
• 40dB RF attenuator
The following diagram shows a typical test set-up.
Figure 8.12.2 Test Equipment Set-Up
† IBM is the registered trademark of International Business Machines.
8.12.6
M2000-00
31/10/96 Copyright TEL
Rx Audio Level
1Set up the test equipment as shown.
2Ensure that pin 5 of S21 is loaded with the impedance normally presented by the
AE (typically 600Ω).
3Apply an RF signal at a level of -50dBm on an appropriate channel. Internal mod-
ulation at 1kHz should be enabled, with the deviation set to ±1.5kHz for a narrow
band radio and ±3kHz for a wide band radio.
Note:
If CTCSS or Selcall is enabled, ensure that the signalling mutes are overridden
(for T2040 radios, refer to Section 5.8.5, “Test Facilities Available”).
4Connect the scope probe to pin 5 of S21, and adjust RV1 to the level required by
the AE.
Tx Audio Level
1Set up the test equipment as shown.
2Connect a 600Ω impedance AF signal generator to pin 15 of S21. If the internal
impedance of the AE is not 600Ω, either load the AF signal generator to get an
internal impedance equivalent to the AE or alternatively, use the AE to provide
the test signal (this is possible with most packet radio modems).
3Apply an audio test signal to TX-AUDIO and set the radio to transmit (for T2040
radios, refer to Section 5.8.5, “Test Facilities Available”).
4Connect the scope probe to pin 15 of S21 and adjust the AF signal generator to a
frequency of 1kHz at a level of 700mVp-p.
While the radio is transmitting, adjust RV2 to produce a deviation on the modula-
tion analyser as stipulated by the AE.
If you are using the test signal from the AE instead of the AF signal generator,
there will be some means of adjusting the signal level inside the AE.
M2000-00
T2000-A66 Single Port UART Kit
8.13.1
Copyright TEL 31/12/97
8.13 T2000-A66 Single Port UART Kit
The T2000-A66 single port UART kit allows computer control of a T2030, T2035 or T2040
Series II radio. With full remote control, either semi or fully automatic communication
systems can be developed.
The following topics are covered in this Section:
Section Title Page
8.13.1 Components Required 8.13.2
8.13.2 Fitting 8.13.2
8.13.3 Signal Specifications 8.13.3
8.13.4 PCB Information 8.13.4
8.13.2
T2000-A66 Single Port UART Kit
M2000-00
31/12/97 Copyright TEL
8.13.1 Components Required
The T2000-A66 kit contains the following components:
8.13.2 Fitting
Refer to Figure 8.13.1.
1Remove the top cover of the radio by unscrewing the four cover screws, unclip the
D-range blanking plate in the rear of the T2000 radio, unscrew the logic PCB and
fold out.
2 T2000-A66 Mounting
Position the T2000-A66 PCB on the top side of the logic PCB, as shown, matching
P1 on the bottom side of the T2000-A66 PCB to the pads labelled ‘P1’ on the logic
PCB.
Use the two M2.5x10mm screws, nuts and shakeproof washers to secure in place.
Note:
The screws are fitted from the bottom of the logic PCB, and secured with the
nuts and washers on the top side of the UART PCB.
Torque the screws to 2.5in.lb. This ensures that the pressure connector, P1, makes
contact with the corresponding pads on the logic PCB.
Caution:
Over-tightening the screws will cause the T2000-A66 PCB to bend, result-
ing in possible track damage.
3 T2000 Data Interface Decoupling PCB Mounting
Fit the decoupling PCB to the T2000 chassis, guiding the PCB through the hole
provided.
Holes are provided in the T2000 chassis for the D-range locking screws. Use the
two black 4-40 Taptite screws provided in the kit to form threads.
Open the locking screw kit, discard the nuts, then secure the D-range using the
two locking screws and spring washers.
Quantity Description
1 T2000-A66 UART PCB assembly
1 Data Interface Decoupling PCB assembly (refer to Section 7.17)
2 M2.5x10mm pan Pozi Taptite screws
2 M2.5 shakeproof washers
2M2.5 nuts
1 locking screw kit (in plastic bag)
2 4-40x¼ pan Pozi Taptite screws (black)
20mm foam tape
1
M2000-00
T2000-A66 Single Port UART Kit
8.13.3
Copyright TEL 31/12/97
Figure 8.13.1 T2000-A66 Single Port UART PCB Mounting
4Fold the T2000-A66 loom as shown, then plug into SKT2 on the decoupling PCB.
5Fold the logic PCB back in position, and secure using the three logic PCB retaining
screws and refit the top cover.
8.13.3 Signal Specifications
The following table describes the signals used on the decoupling PCB 9 way D-range
connector (SKT1). The unused pins may be used for other signals, if required.
The following diagram shows the pin designations of SKT1, viewed from the rear of the
radio.
Figure 8.13.2 9 Way D-Range Connector (SKT1)
SKT1
Pin No.
Signal Description
2TXDTransmit data: Serial data output from UART PCB. This signal complies
with the electrical requirement s of the RS-232 specification.
3RXDReceive data: Serial data input to UART PCB. This signal complies with
the electrical requirements of the RS-232 specification.
5DGNDDigital ground: Ground reference for all digital signals.
2
T2000-A66 Parts List (IPN 220-01348-04)
Ref IPN Description
8.13.4
T2000-A66 Single Port UART Kit
M2000-00
31/12/97 Copyright TEL
8.13.4 PCB Information
C1 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C2 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C10 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C11 015-22220-01 CAP CER 0805 CHIP 22P 5% NPO 50V
C12 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C13 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C14 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C15 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C16 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C17 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
IC1 002-10269-10 (LSH) IC SMD SCC2691 UART SOL24
IC2 002-10020-20 (LSH) IC SMD ADM202 RS-232 CONVERTOR SO-16
P1 240-10000-10 CONN SMD 20PIN SCREW DOWN PRICKLE CONTACT
R1 036-12560-00 RES M/F 0805 CHIP 56E 5%
R2 036-12560-00 RES M/F 0805 CHIP 56E 5%
R3 036-12560-00 RES M/F 0805 CHIP 56E 5%
R4 036-12560-00 RES M/F 0805 CHIP 56E 5%
SK2 240-00021-20 HEADER 4WAY PADDLE BRD STAGGERED PINS MICROMATC
X1 274-01056-00 XTAL 3.6864MHZ AT-51 HOLDER C/W TEFLON INS
205-00010-53 CABLE FLAT RBBN 4 CRE 16/7/0.1 GREY (SCAP FRM 16C)
220-01348-04 PCB T2000 SII UART
240-00026-22 PLUG 4WAY 2ROW MICROMATCH IDC CABLE 0-215083-4
345-00020-02 SCREW M2.5*10MM PAN POZI BZ
349-00020-07 (L) SCREW 4-40 X 5/16 PAN POZI TAPTITE BLACK
352-00010-04 NUT M2.5 MACH HEX ST BZ
353-00010-04 WASHER M2.5/M2.6 SHAKEPROOF INT BZ
354-01041-00 FASTENER SCREW LOCK KIT (4-40 THREAD FOR DRANGE)
356-00010-05 TAG SOLDER 4MM LONG M MT
369-00020-35 TAPE PVC FOAM 1 SIDE S/A 9*10MM INSEAL 5375
1x 20mm TOP SIDE PCB OVER IC1
X2DC01 T2000 INT FACE DE-COUPLING BOARD
M2000-00
T2000-A66 Single Port UART Kit
8.13.5
Copyright TEL 31/12/97
T2000-A66 Single Port UART PCB (IPN 220-01348-04) - Top Side
8.13.6
T2000-A66 Single Port UART Kit
M2000-00
31/12/97 Copyright TEL
T2000-A66 Single Port UART PCB (IPN 220-01348-04) - Bottom Side
M2000-00
T2000-A66 Single Port UART Kit
8.13.7
Copyright TEL 31/12/97
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
ABCDEFGHJ K
REV/ISS AMENDMENTS DATEAPVDD.O.CHKDDRAWN
NO.SHEETS:FILE NAME:
TAIT ELECTRONICS
IPN:
FILE DATE:
ISSUE: ID:.
2.SC.
PROJECT: DESIGNER:
1
2
T2000 SERIES 2
SINGLE PORT U.A.R.T
134804A
220-01348-04
17/12/96
4A
T2000 RPS
P1 NEW FOR SINGLE PORT OPTION ON T2000 CCB PW PW 27/06/95
1A CHANGED XTAL FOR SIDE MOUNT VER PW PW 28/08/95
2A ADDED SK3. CHANGED PLACEMENT TOE PW PW 05/03/96
3A NEW CONNECTOR. RELAY OF CCT DJW/RPS DJW 21/10/96
4A RELAY OF PCB RPS 17/12/96
C1
100N
C10
22P
C11
22P
C12
100N
C13
100N
C14
100N
C15
100N
C16
1N0
C17
1N0
C2
100N
SCC2691
IC1
A2
6
A1
7
A0
8
D7
15
D6
16
D5
17
D4
18
D3
19
D2
20
D1
21
D0
22
MPI
5
GND
12
VCC
24
TXD 3
RXD 2
RESET 11
INTRN 13
CEN 14
RDN 1
WRN 23
X1 9
X2 10
MPO 4
IC2
MAX202
C1+
1
C1-
3
C2+
4
C2-
5
T2IN
10
T1IN
11
R1OUT
12
R2OUT
9
GND
15
+V
16
5/10+ 2
5/10- 6
T2OUT 7
T1OUT 14
R1IN 13
R2IN 8
R1
56
R2
56
R3
56
R4
56
P1
24WAY SKT
SK2
4 WAY PADDLE CONNECTOR
X1
3.6864M
S1
I/OPAD
SK2 DGND
1
SK2 DGND
4
SK2 RXD
3
SK2 TXD
2
+5V
+5V
+5V
P1
A1 5
P1
A0 1
P1
D6 8
P1
D5 9
P1
D4 10
P1
D3 11
P1
WRN 3
P1
RDN 2
P1
CEN 15
P1
INTRN 6
P1
RESET 16
P1
A2 4
P1
D7 7
P1
D2 12
P1
D1 13
P1
D0 14
P1
+5V 17
P1
DGND 18
P1
DGND 20
P1
CGND 19
8.13.8
T2000-A66 Single Port UART Kit
M2000-00
31/12/97 Copyright TEL
M2000-00
T2000-A70 Data Modem Kit
8.15.1
Copyright TEL 31/12/97
8.15 T2000-A70 Data Modem Kit
The T2000-A70 conventional data modem allows a T2010 or T2015 radio to be used in
data applications, and also provides remote channel control via six BCD lines.
The command protocol and some test procedures are provided for those wanting to
write their own software. The protocol definition is based on the T2000 CCI protocol,
with specific extensions to support binary transmission and reception.
Note:
This interface is only compatible with radio firmware version 2.22, or later. If
you have a Series II HC05 logic PCB (PCB IPN 220-01377-0X), with v2.05 radio
firmware, contact your nearest authorised Tait dealer.
After upgrading from v2.05 radio software, it is necessary to change the link
resistors on the top side of the logic PCB. Remove link resistor #R714 and fit
#R714A.
The following topics are covered in this Section:
Section Title Page
8.15.1 Components Required 8.15.2
8.15.2 Fitting 8.15.2
8.15.3 T2000-A70 Link Options 8.15.4
8.15.4 Signal Specifications 8.15.5
8.15.5 Programming 8.15.6
8.15.6 Circuit Description 8.15.12
8.15.7 PCB Information 8.15.13
8.15.2
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
8.15.1 Components Required
The T2000-A70 kit contains the following components:
8.15.2 Fitting
Refer to Figure 8.15.2.
1Remove the top cover of the radio by unscrewing the 4 bottom cover screws,
unscrew the logic PCB and fold out.
2 T2000-A70 Mounting
Position the data modem PCB on the top side of the logic PCB, as shown, match-
ing P3 on the bottom side of the data modem PCB to connector S3 on the logic
PCB.
Use the 2 M2.5x10mm screws, nuts and shakeproof washers to secure in place, as
shown.
Figure 8.15.1 T2000-A70 PCB Mounting
The screws are fitted from the bottom of the logic PCB, and secured with the nuts
and washers on the top side of the data modem PCB.
Torque the screws to 2.5in.lb.
Caution:
Over-tightening the screws will cause damage to the data modem PCB,
and compression of connector P3.
* Discard unused parts from the female screw lock kit.
Quantity Description
1 T2000-A70 data modem PCB assembly
1 Data interface decoupling PCB assembly (refer to Section 7.17)
1 connecting loom
2 M2.5x10mm pan Pozi Taptite screws
2 M2.5 shakeproof washer
2M2.5 nut
1 female screw lock kit (in plastic bag)*
24-40x
5/16 pan Pozi Taptite screws (black)
M2000-00
T2000-A70 Data Modem Kit
8.15.3
Copyright TEL 31/12/97
Figure 8.15.2 T2000-A70 Data Modem PCB Mounting
3 T2000 Data Interface Decoupling PCB Mounting
Unclip the D-range blanking plate in the rear of the T2000 chassis.
a T2000 Series I Chassis
Refer to Figure 8.15.3.
Figure 8.15.3 Data Interface Decoupling PCB Mounting: Series I Chassis
Holes are provided in the T2000 chassis for the D-range screw locks. Use the 2
black 4-40 Taptite screws provided in the kit to form threads.
Fit the decoupling PCB to the T2000 chassis, guiding the PCB through the hole
provided, as shown.
Open the female screw lock kit, then secure the D-range using the 2 screw locks
and spring washers.
8.15.4
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
b T2000 Series II Chassis
Refer to Figure 8.15.4.
Figure 8.15.4 Data Interface Decoupling PCB Mounting: Series II Chassis
Fit the decoupling PCB to the T2000 chassis, from the inside rear of the radio, as
shown.
Secure the D-range in position using the screw locks, spring washers and nuts
provided in the female screw lock kit.
4Fold the data modem loom as shown, then plug into SKT2 on the decoupling PCB.
5Fold the logic PCB back in position, secure using the 3 logic PCB retaining screws,
and refit the top cover.
Note:
Check that the loom is not pinched by the cover or screws during reassembly.
8.15.3 T2000-A70 Link Options
PCB links have been provided on the T2000-A70 data modem PCB for different opera-
tional requirements. To change settings, the PCB links are either solder shorted, or fitted
with 0Ω SMD resistors.
The following table sets out the link selection options on the T2000-A70 data modem PCB.
Option #R19 #R2010 #R2015
Baud Rate:
1200 Fitted - -
2400 Not fitted - -
Radio Type:
T2010 - Fitted Not fitted
T2015 - Not fitted Fitted
M2000-00
T2000-A70 Data Modem Kit
8.15.5
Copyright TEL 31/12/97
8.15.4 Signal Specifications
Data Interface Decoupling PCB
The following tables describe the signals on the decoupling PCB 9 way D-range connec-
tor (SKT1) and 4 way connector (SKT2). The diagram shows the pin designations of
SKT1, viewed from the rear of the radio.
Note:
Pins 1, 4, 6, 7, 8 and 9 on SKT1 are connected to I/O pads, so that additional sig-
nals can be interfaced to the radio through the external connector.
Figure 8.15.5 9 Way D-Range Connector (SKT1)
Data Modem PCB
The following tables describe the signals on the data modem PCB connectors P3 and
PDL-1. For P3 signal descriptions, refer to Section 5.9, “Options Interface Specifica-
tions”.
SKT1
Pin No. Signal Description SKT2
Pin No. Signal Description
1 PAD1 Spare 1 DGND Ground reference for all
digital signals
2 TXD Transmit data 2 RXD Receive data
3 RXD Receive data 3 TXD Transmit data
4 PAD2 Spare 4 DGND Ground reference for all
digital signals
5 DGND Ground reference for all
digital signals
.
6PAD3Spare
7RTSSpare
8CTSSpare
9PAD4Spare
P3 Pin No. Signal P3 Pin No. Signal
1BCD-0 11/PTT-TO-OPT
2BCD-1 12/RX-GATE
3BCD-2 13/IN-LOCK
4 BCD-3 14 /PTT-FRM-OPT
5BCD-4 15/SIG-SQUELCH
6 BCD-5 16 MIC-MUTE
7TX-SIG-IN 17 DGND
8DET-AF-OUT 18 PWR-CTRL
9/BUSY 19GND
10 N/C 20 +5V
PDL-1 Pin No. Signal Description
1 DGND Ground reference for all digital signals
2 TXD Transmit data
3RXDReceive data
4 DGND Ground reference for all digital signals
8.15.6
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
8.15.5 Programming
For those wanting to write their own software, the command protocol and some test
procedures are provided in this Section. The protocol definition is based on the T2000
CCI protocol, with specific extensions to support binary transmission and reception.
Note:
For modem control of channel change, the BCD Channel Selection field in the
Edit - Options menu must be set to Enabled during radio programming.
Common Abbreviations
CCI Computer Controlled Interface
DTE Data Terminal Equipment (e.g. Computer, data head)
RU Radio Unit
RXD Received Data
TXD Transmitted Data
Command Protocol Description
The DTE is connected to the RU via a serial port on the data modem PCB. Commands
are generated by the DTE, and responses or unsolicited messages returned by the RU.
There is a prescribed format for all messages, which allows transmission errors to be
detected.
Control of the RU is accomplished by the DTE sending a command sequence (a
“packet”) and receiving a response (a “transaction”). Unsolicited messages may origi-
nate from the RU.
The RU will issue a prompt character to indicate to the DTE that it is ready to accept a
new command. After issuing a command, the DTE must wait for another prompt before
beginning the next transaction. The prompt character is “•” (full stop, ASCII code =
$2E).
Messages directed to the RU will always be responded to, either explicitly by means of a
return message (“Ready” or “Error”), or implicitly, by just the prompt “•” being issued.
The RU will not originate a message: messages returned by the RU are for information
purposes only, and no reply will be expected from the DTE.
This protocol definition is based on the T2000 CCI protocol, with specific extensions to
support binary data transmission and reception.
M2000-00
T2000-A70 Data Modem Kit
8.15.7
Copyright TEL 31/12/97
Message Format
All message packets take the general form:
[IDENT][SIZE][PARAMETERS][CHECKSUM]<CR>
The following table explains each component of the message packet.
Table 8.15.1 Message Format
General message format characteristics:
• All fields in a message are encoded in ASCII, except for the [PARAMETERS] field of
the transmit and receive commands, which is encoded in Binary.
• Where numeric values are represented in ASCII-hex notation (two characters per
byte), digits A to F are upper case.
• The minimum length of a command packet is 5 characters (i.e. this is when [SIZE] =
00).
• The maximum length of the [PARAMETERS] field is 111 characters. The maximum
length of the command packet is therefore 116 characters ([SIZE] = 0x6F).
Message Component Description
[IDENT] The message identifier. Identifiers are single ASCII characters (lower-case
alphabetical) which categorise the message type.
[SIZE] The number of characters which make up the [PARAMETERS] field. [SIZE]
is an 8-bit number expressed in ASCII-hex notation (two characters).
[PARAMETERS] An optional field, depending upon the command. Parameter values are
generally character strings, unless explicitly stated otherwise. Parameter
type is dependent upon the command - there is no explicit type definition.
[CHECKSUM] An 8 bit checksum of fields [IDENT], [SIZE] and [PARAMETERS]. It is
expressed in ASCII-hex notation (two characters).
Calculating [CHECKSUM]:
[CHECKSUM] is calculated by applying the following algorithm:
1Take the modulo-2 sum of all message bytes preceding [CHECKSUM].
2Retain bits 0 to 7, discarding any higher order bits resulting from the
summation.
3Form the two’s complement of the remainder.
4Convert the binary number into two ASCII-hex digits, MSD first.
<CR> The packet terminator. It is the ASCII “carriage return” character ($0D).
8.15.8
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
Messages To The RU
If the RU receives a command without error, and all parameters are valid, then the com-
mand will be executed and an acknowledge will be returned to the DTE. If an error
arises, the DTE will be notified with an appropriate response.
The following Table describes the commands available to the DTE to control operation
of the RU.
Table 8.15.2 Messages To The Radio Unit
Command Description Message Comments
[IDENT] [PARAMETERS]
Go To
Channel
This forces the RU to
change to another
(conventional) chan-
nel.
g [CHANNEL NUMBER]
This is a string of characters
representing the new channel
number. The range of allowed
characters is 0 to 9 only, and
the maximum number of dig-
its is 3. Valid channel numbers
are 1 to [NUM CHANNELS].
The value of [CHANNEL
NUMBER] must be valid
for the RU being control-
led. The range of allowed
values depends upon the
RU’s programming, type
and the link selections on
the data modem PCB (refer
to Section 8.15.3). The
maximum allowable
value is returned by the
‘Query’ command.
Query This requests the RU to
respond with a block
of data identifying the
type of RU attached,
and the version of
modem firmware.
qNone The Query data is returned
to the DTE as a ‘Query
Response’ message (refer
to “Messages from the
RU”).
Tra ns mit This requests the RU to
broadcast a block of
data on the radio chan-
nel.
bThe data to broadcast is encoded
as binary data. Note that this
field may contain unprintable
ASCII characters (such as CR/
LF) and protocol command
characters (such as “•”).
The maximum length of
data that may be sent with
the ‘Transmit’ command is
111 characters.
Null This requests the RU to
return an acknowl-
edgement to the DTE.
The DTE can use this
command to check that
an RU is connected.
nNone
M2000-00
T2000-A70 Data Modem Kit
8.15.9
Copyright TEL 31/12/97
Messages From The RU
Messages may be sent to the DTE by the radio as part of a transaction (i.e. in response to
a command issued by the DTE) or unsolicited. In the case of solicited commands, the
prompt character will be issued after the RU response to terminate the transaction and
signify that another may begin.
Note:
In the case of solicited commands, the prompt character, “•”, will be issued after the
RU response, to terminate the transaction and signify that another may begin.
Unsolicited commands from the RU will not cause the issuing of the prompt
character, as it is possible for an unsolicited command (e.g. Receive) to occur
during a solicited command (e.g. Transmit).
The following Table describes messages from the RU to the DTE.
Command Description Message Comments
[IDENT] [PARAMETERS]
Receive Unsolicited.
This presents data
received by the RU
to the DTE. The data
received by the RU
has been broadcast
by another RU/DTE,
using the Transmit
command.
i The data received is encoded as
binary data. Note that this field
may contain unprintable ASCII
characters (such as CR/LF) and
protocol command characters
(such as ‘•’).
Query
Response
Solicited
The RU’s response to
a Query command.
m[RU TYPE]
A single character,
representing the
model of the RU.
0 = unknown
3 = T2010
4 = T2015
1The value of [PVER-
SION] = 1.01 is reserved
for the first release of
firmware implementing
this command protocol.
Subsequent enhance-
ments and major
upgrades will incre-
ment this number
accordingly.
2Additional fields may be
added to this message in
future releases to pro-
vide more information
about the RU environ-
ment. In particular, it
may be necessary to
pass the DTE some
information on how the
RU has been pro-
grammed, or what
optional hardware is fit-
ted.
[VERSION] Firmware version. A
character string, in
the format of X.XX,
identifying the
capabilities of the
RU/modem.
[PVERSION] Protocol Version. A
character string, in
the format of X.XX,
identifying the com-
mand protocol ver-
sion supported.
[NUM
CHANNELS] The number of
channels supported
by the Go To Chan-
nel command. A 3
digit ASCII number.
Ready “•”
This response indi-
cates that a transac-
tion has been
completed, and the
RU is ready for the
next command.
None None After issuing a command,
the DTE must wait for
another prompt before
beginning the next transac-
tion.
Continued on next page
8.15.10
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
Table 8.15.3 Messages From The Radio Unit
Error Solicited response to
a transaction error.
This advises the DTE
that the RU has
detected an error
condition and cannot
proceed with the
current transaction.
Unsolicited
response to a system
error.
In some cases, an
exception condition
in the RU may cause
an ‘Error’ message to
be sent to the DTE
independently of
any control transac-
tions. A prompt or
‘Ready’ will be
issued after an
‘Error’ occurs, to
indicate the RU's
availability to accept
further commands.
e[ETYPE] Error type. A single
character represent-
ing the error cate-
gory.
0 = transaction error.
This indicates some
problem with com-
munications. All
such errors result in
the transaction
being terminated,
without the current
command being
executed.
Transition error numbers
([ETYPE] = 0):
1 0x01 = unsupported
command error
This may arise when
the DTE expects a later
version of RU than is
attached, and attempts
to use a command
which is not recognised
by the RU.
2 0x02 = checksum error
indicates that the check-
sum calculated by the
RU did not match the
one received in the com-
mand packet.
3 0x03 = parameter error
This encompasses val-
ues out of range, or
missing fields.
4 0x10 = communication
failure
This encompasses all
low level mechanisms,
i.e. framing error, over-
run error, parity error
etc.
5 0x20 = invalid channel
number
This may arise when
the DTE issues a ‘Go To
Channel’ command
with a [CHANNEL
NUMBER] exceeding
the maximum allowable
number.
[ENUM] Error number. A
character string rep-
resenting a decimal
number in the
range of 00 to 99,
which can identify
the specific error
condition.
For [ETYPE] = 0,
01 = unsupported
command
02 = checksum error
03 = parameter error
10 = communica-
tion failure
20 = invalid channel
number
Command Description Message Comments
[IDENT] [PARAMETERS]
M2000-00
T2000-A70 Data Modem Kit
8.15.11
Copyright TEL 31/12/97
Software Tests
The following Table explains the commands that may be sent to test the software.
Table 8.15.4 Software Test Commands
Command Test Procedure Expected Result
Go To Channel 1. Send command “g01206” Radio changes channel to 2, then returns the
command prompt.
2. Send command “g0203D4” Radio changes channel to 3, then returns the
command prompt.
3. Send command “g03004A2” Radio changes channel to 4, then returns the
command prompt.
4. Send command “g0225D0” Radio sends error message “e03020A6”
(invalid channel)
Transmit 1. Send command “b04this82” Radio transmits this data and “i04this7B” is
received by the other radio.
2. Send command “b17This is a test
command.14”
Radio transmits this data and “i17This is a
test command.0D” is received by the other
radio.
3. Send a “b” command while the
PTT is pressed.
Radio sends error message ”e03010A7”
(communication error)
4. Send a command while the busy
led is lit
Radio sends error message “e03010A7”
(communication error)
Null Send command “n0032” Radio returns a prompt (“•”).
Query Send command “q002F” T2010: a valid message could be
“m0C31.011.01004D9” i.e.
[RU TYPE] = T2010,
[VERSION] = 1.01
[PVERSION] = 1.01
[NUM CHANNELS] = 04
T2015: a valid message could be
“m0C41.011.01024D6”
[RU TYPE] = T2015,
[VERSION] = 1.01
[PVERSION] = 1.01
[NUM CHANNELS] = 24
Command Line Errors 1. Send command ”b03this83” Radio sends error message “e03003A5”
(parameter error).
2. Send command “b04this83” Radio sends error message “e03002A6”
(checksum error).
3. Send command “t04this70” Radio sends error message “e03001A7”
(unsupported command).
8.15.12
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
8.15.6 Circuit Description
The T2000-A70 data modem PCB is based on a CML FX469LS 1200/2400 baud FFSK
modem IC (IC1) and the baud rate is selectable by PCB links.
Receive audio is recovered and fed into IC1 via a buffer amplifier, with filtering (IC5), to
attenuate all but the FFSK tones. The signal is demodulated in IC1 and the data fed into
the microprocessor, IC2. The data, complete with its length & checksum information, is
fed to the DTE via IC4, which converts the 0V/5V TTL levels to RS232.
On transmit, data is sent from the DTE to IC2, via IC4. It is processed and sent on to IC1,
where it is modulated and the output goes to the TX-SIG-IN input of the radio, via a
unity gain buffer, IC6. IC2 also monitors inputs from the radio’s logic PCB and controls
various output lines.
The microprocessor checks that the radio is in lock, and is not busy. It then mutes the
microphone, activates the radio PTT and 30ms later, the PWR-CTRL signal goes low,
releasing the transmit inhibit.
Both buffer amplifiers are biased at half rail by IC1, pin11.
If a channel change is required, the data is sent to IC7, which toggles the appropriate
BCD lines to change the radio channel.
T2000-A70 Parts List (IPN 220-01378-01)
Ref IPN Description Ref IPN Description
M2000-00
T2000-A70 Data Modem Kit
8.15.13
Copyright TEL 31/12/97
8.15.7 PCB Information
C1 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C2 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C5 018-12220-10 CAP 0603 CHIP 22P 50V NPO +-1%
C6 018-12330-10 CAP 0603 CHIP 33P 50V NPO +-1%
C7 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C8 016-07100-01 CAP ELECT 6X4MM CHIP 1M 20% 16V
C9 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C11 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C12 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C13 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C14 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C15 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C20 018-15100-00 CAP 0603 CHIP 10N 50V X7R +-10%
C21 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C22 014-08100-00 CAP TANT CHIP 10M 16VW +-20% 6X3.2X2.5MM
C23 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C24 016-07100-01 CAP ELECT 6X4MM CHIP 1M 20% 16V
C25 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C26 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C27 015-23470-08 CAP CER 0805 CHIP 470P 10% X7R 50V
C29 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C30 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C31 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C32 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C33 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C34 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C35 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C36 018-13150-00 CAP 0603 CHIP 150P 50V NPO +-5%
C37 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
IC1 002-20046-90 (S) IC FX469LS FFSK MODEM 1200/2400 BAUD
IC2 002-20068-07 (S) IC MC68HC705C8FN 1 TIME PROG MICRO-P
IC4 002-10020-20 (LSH) IC SMD ADM202 RS-232 CONVERTOR SO-
IC5 002-10340-64 (S) IC SMD MC34064 LO VOLT SENSE
IC6 002-10003-58 (S) IC SMD LM358 DUAL OP AMP
IC7 002-74905-95 (S) IC SMD 74HC595 SHIFT REGISTER
PDL-1 240-00021-20 HEADER 4WAY PADDLE BRD STAGGERED PINS
P3 240-10000-10 CONN SMD 20PIN SCREW DOWN PRICKLE CON
R1 038-17100-00 RES 0603 CHIP 1M 1/16W +-5%
R4 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R5 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R6 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R7 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R8 038-15100-00 RES 0603 CHIP 10K 1/16W +-5%
R9 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R10 036-15560-00 RES M/F 0805 CHIP 56K 5%
R11 038-16100-00 RES 0603 CHIP 100K 1/16W +-5%
R13 036-15330-00 RES M/F 0805 CHIP 33K 5%
R14 038-14470-00 RES 0603 CHIP 4K7 1/16W +-5%
R15 038-13100-00 RES 0603 CHIP 100E 1/16W +-5%
R16 038-13100-00 RES 0603 CHIP 100E 1/16W +-5%
R17 038-13100-00 RES 0603 CHIP 100E 1/16W +-5%
R18 038-13100-00 RES 0603 CHIP 100E 1/16W +-5%
R20 038-14100-00 RES 0603 CHIP 1K0 1/16W +-5%
#R2010 038-10000-00 RES 0603 CHIP ZERO OHM 1/16W +-5%
SK2 240-04020-42 SKT 44 PIN SMD PLCC CHIP CARRIER
XTAL1 274-01070-00 XTAL 4.000MHZ HC49U/S C/W TEFLON INSULAT
205-00010-13 CABLE FLAT RBBN 10 CORE 10/7/0.1 GREY
220-01378-01 (L) PCB T201X SII 1200/2400 BAUD DATA MODEM
345-00020-02 SCREW M2.5 * 10 PAN POZI ST BZ
352-00010-04 NUT M2.5 MACH HEX ST BZ
353-00010-04 WASHER M2.5/M2.6 SHAKEPROOF INT BZ
316-80032-00 PKG FOAM A4M2495
365-00011-38 LABEL STATIC WARNING YELLOW A4A315
365-00011-54 LABEL WHITE RW1556/2 90*24MM SPECIAL ADH
399-00010-51 BAG PLASTIC 75*100MM
399-00010-87 BAG STATIC SHIELDING 102X152MM
410-00010-60 CARTON 150X112X56MM VICTOR
418-27000-00 FITTNG INS T2000-70 MODEM KIT
X2DC01 T2000 INT FACE DECOUPLING PCB ASSEMBLY
8.15.14
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
Device PCB Circuit
T2000-A70 Grid Reference Index (IPN 220-01378-01)
Device PCB Circuit Device PCB Circuit
C1 2:D9 1-C6
C2 1:H4 1-J6
C5 2:B9 1-A5
C6 2:C9 1-A5
C7 1:H8 1-D4
C8 1:B9 1-D3
C9 1:F9 1-D3
C11 2:B6 1-L4
C12 1:A5 1-L4
C13 1:A6 1-M4
C14 2:A5 1-M4
C15 2:F9 1-F5
C20 2:H10 1-F6
C21 1:A7 1-M4
C22 2:G6 1-J6
C23 1:H7 1-F3
C24 1:C9 1-E4
C25 1:G9 1-D5
C26 1:G9 1-E3
C27 1:F10 1-E5
C29 2:B4 1-N3
C30 2:B4 1-N3
C31 1:A2 1-N3
C32 1:A2 1-P3
C33 1:A3 1-P3
C34 1:A3 1-Q3
C35 1:B4 1-Q3
C36 1:B4 1-Q3
C37 2:C2 1-L2
CTS 1:A4 1-R4
IC1 1:E7 1-B3
IC2 1:E3 1-H3
%IC3 1:H3 1-K5
IC4 1:B5 1-L3
IC5 1:H6 1-K6
IC6 1:G10 1-E6
IC6 1:G10 1-E5
IC6 1:G10 1-F3
IC7 2:D4 1-K1
P3 2:E7 1-A8
PDL-1 1:B3 1-C8
R1 2:C10 1-B5
R4 2:H2 1-K5
R5 1:F9 1-D4
R6 1:F9 1-E3
R7 1:H9 1-D6
R8 1:H10 1-E6
R9 1:H9 1-E6
R10 1:F10 1-E5
R11 1:H6 1-H7
R12 1:F6 1-B3
R13 1:F9 1-F5
R14 2:G10 1-E4
R15 2:B4 1-N3
R16 1:A2 1-P3
R17 1:A3 1-P3
R18 1:A4 1-Q4
#R19 1:G2 1-K5
R20 2:D3 1-L0
#R2010 1:C6 1-F3
#R2015 1:C6 1-F4
RTS 1:A3 1-R4
S6 1:B4 1-J3
S7 1:B4 1-J4
S11 1:H2 1-J5
XTAL1 1:C10 1-A5
M2000-00
T2000-A70 Data Modem Kit
8.15.15
Copyright TEL 31/12/97
T2000-A70 Data Modem PCB (IPN 220-01378-01) - Top Side
8.15.16
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
T2000-70 Data Modem PCB (IPN 220-01378-01) - Bottom Side
M2000-00
T2000-A70 Data Modem Kit
8.15.17
Copyright TEL 31/12/97
8.15.18
T2000-A70 Data Modem Kit
M2000-00
31/12/97 Copyright TEL
M2000-00
T2000-A03/-A04/-A16 Remote Loom Kits
8.16.1
Copyright TEL 31/12/97
8.16 T2000-A03/-A04/-A16 Remote Loom Kits
The T2000-A03 6m remote loom and T2000-A04 4m remote loom installation kits are for
use with T2020, T2040 and T2050 radios in situations where the 3m remote loom or
underdash mounting is unsuitable.
The T2000-A16 6m shielded remote loom is suitable for use with EMC model radios,
and for installations where electromagnetic radiation may cause problems with sensi-
tive equipment installed nearby or interference to the radio’s own antenna.
Once installed, the loom should not be subjected to any pinching, crushing or chafing,
nor should it interfere with the operation of the vehicle controls.
Note:
These instructions must be read in conjunction with Section 3.1 “Servicing Pre-
cautions” and Section 3.2 “Disassembly Instructions”.
The following topics are covered in this Section:
Section Title Page
8.16.1 Components Required 8.13.2
8.16.2 Fitting To Locally Mounted Radios 8.13.2
8.16.3 Fitting To Remote Mounted Radios 8.13.6
8.16.2
T2000-A03/-A04/-A16 Remote Loom Kits
M2000-00
31/12/97 Copyright TEL
8.16.1 Components Required
The T2000 remote loom kits contain the following components:
8.16.2 Fitting To Locally Mounted Radios
1Remove the top cover of the radio by unscrewing the 4 bottom cover screws.
Remove the 3 logic PCB retaining screws and fold back the logic PCB. If necessary,
remove the 3 option PCB mounting screws before lifting the logic PCB.
Remove the microprocessor shield retaining screws and the screw securing the
control head ground lead, then remove the microprocessor shield.
Remove the bottom cover of the radio and unplug the loom running between the
control head and the logic PCB (on EMC model radios, the loom runs between the
control head and the EMC filter PCB).
The control head can now be detached from the chassis.
Remove the 4 adaptor plate retaining screws from the control head and remove
the adaptor plate from the back of the control head.
2Refer to Figure 8.16.1.
Unclip the remote back panel remoting connector cover (3).
Pass one end of the remote loom through the connector cover hole and plug onto
the 8 way connector (6) on the top side of the control head PCB.
T2000-A03 & T2000-A04 kits: Remove the ground lead from under one of the con-
trol head PCB screws, and discard the ground lead.
Quantity Description
1 remote loom, complete with 8 way connectors
1 remote mounting bracket
1 remote back panel
1 dummy front panel
2 remoting connector cover (fitted to the remote back panel & dummy front
panel)
2 M4 pressed captive nut (for remote control head assembly)
2 thumbscrew (for remote mounting bracket)
4 ESD plug (to fit over remote back panel screw heads: T2000-A16 only)
2 No 6x3/4 self-tapping screw (for remote mounting bracket)
4 No 4x 3/8 pan Pozi Plastite screw (dummy front panel mounting)
2 M3x6 pan Pozi Taptite screw (connector PCB mounting)
4 M3x8 pan Pozi Taptite screw (EMC filter PCB mounting)
1 EMC filter PCB (Series II radio chassis)
1 connector PCB (Series I radio chassis)
M2000-00
T2000-A03/-A04/-A16 Remote Loom Kits
8.16.3
Copyright TEL 31/12/97
T2000-A16 kit: Remove the screw from the control head that secures the control
head ground lead. Discard the ground lead, and use this screw to secure the
remote loom drain wire solder tag to the control head PCB.
Note:
Ensure that the tag does not make contact with any devices in the control head.
3Fit the 2 captive M4 nuts (4) into the slots on the remote back panel (2), and mount
the remote back panel onto the control head front assembly (1).
Secure in place using the 4 No. 4x5/8 Plastite screws previously used for the adap-
tor plate, and push the 4 ESD plugs (7) over the screw heads (T2000-A16 only).
Refit the remoting connector cover, pushing the slot in the cover onto the remote
loom cable.
Figure 8.16.1 Remote Control Head Assembly
4 T2000 Series I chassis
Refer to Figure 8.16.2.
Mount the adaptor plate (2) onto the chassis and secure the connector PCB to the 2
chassis pillars, using the 2 M3x6 Taptite screws provided.
As the pillars are not threaded, care must be taken that the screws are not inserted
at an angle.
Pass the logic PCB loom through the slot in the adaptor plate and chassis (7) and
plug the loom onto one of the 8 way connectors (8) on the connector PCB.
Unclip the remoting connector cover (5) from the dummy front panel and pass the
unconnected end of the remote loom through the hole in the dummy head front
panel.
Plug the 8 way remote loom connector onto the 8 way connector (6) on the connec-
tor PCB.
T2000-A16 kit: Secure the remote loom drain wire solder tag under one of the con-
nector PCB screws.
Mount the dummy front panel (1) onto the adaptor plate (2), using the No 4x3/8
Plastite screws (4) provided.
Item Description IPN Quantity Torque (in.lb)
1 CONTROL HEAD FRONT ASSEMBLY 1
2 REMOTE BACK PANEL 316-06432-XX 1
3 REMOTING CONNECTOR COVER 316-85125-XX 1
4 CAPTIVE NUT M4 PRESSED 352-00010-17 2
5 NO 4X5/8 SCREW (REMOTE BACK PANEL SCREWS) 349-00010-24 4 8 (0.9Nm)
6 MICROMATCH CONNECTOR 8 WAY 240-04020-50 1
7 ESD PLUG (OVER REMOTE BACK PANEL SCREWS) 360-01057-00 4
8.16.4
T2000-A03/-A04/-A16 Remote Loom Kits
M2000-00
31/12/97 Copyright TEL
Figure 8.16.2 Connector PCB Mounting
5 T2000 Series II Chassis
Refer to Figures 8.16.3 and 8.16.4.
Fit the EMC filter PCB (18) provided in the kit to
the chassis, first passing the loom on the bottom
side of the PCB through the chassis hole, as
shown.
Secure the EMC filter PCB in place, using the 4
M3x8 Taptite screws.
Note:
EMC model radios will already have an EMC
filter PCB fitted. Check that the top side con-
nector (SKT-1) is 8 way. If not, discard the exist-
ing filter PCB and fit the new PCB provided.
Figure 8.16.3 EMC FIlter PCB Mounting
Plug the EMC filter PCB loom onto the logic PCB.
Unclip the remoting connector cover (5) from the dummy front panel (1), and pass
the unconnected end of the remote loom through the holes in the dummy front
panel and the adaptor plate (2).
Plug the 8 way loom connector onto the 8 way connector (6) on the top side of the
EMC filter PCB.
T2000-A16 kit: Secure the remote loom drain wire solder tag under one of the
EMC filter PCB screws.
Item Description IPN Quantity Torque (in.lb)
1 DUMMY FRONT PANEL 316-06433-XX 1
2 ADAPTOR PLATE (T2000 SERIES I) 301-00001-XX 1
3 CONNECTOR PCB 220-01274-XX 1
4 NO 4X3/8 SCREW (DUMMY FRONT PANEL SCREWS) 349-00010-22 4 8 (0.9Nm)
5 REMOTING CONNECTOR COVER 316-85125-XX 1
6 8 WAY CONNECTOR PCB SOCKET (FOR REMOTE LOOM) 240-04020-50 1
7 SLOTS IN ADAPTOR PLATE & CHASSIS FOR LOGIC PCB LOOM
8 8 WAY CONNECTOR PCB SOCKET (FOR LOOM TO LOGIC PCB) 240-04020-50 1
M2000-00
T2000-A03/-A04/-A16 Remote Loom Kits
8.16.5
Copyright TEL 31/12/97
Mount the dummy head front panel (1) onto the adaptor plate (2), using the 4 No
4x3/8 Plastite screws (4) provided.
Mount the dummy front panel assembly onto the chassis.
Figure 8.16.4 Dummy Front Panel Assembly
6Reposition the bottom cover of the radio and the microprocessor shield and
replace the microprocessor shield retaining screws, tightening them to a torque of
12in.lb (1.4Nm).
Refit the logic PCB, any options PCBs that were fitted and the top cover. Tighten
the top cover to a torque of 15in.lb (1.8Nm).
Refit the remoting connector cover, pushing the slot in the cover onto the remote
loom cable.
7Mount the remote mounting bracket in the desired position (this must be on a flat
surface), using the 2 No 6x3/4 self-tapping screws.
Place the control head in the bracket, positioned for a good viewing angle, and
secure in place with the 2 thumbscrews.
Item Description IPN Quantity Torque (in.lb)
1 DUMMY FRONT PANEL 316-06433-XX 1
2 ADAPTOR PLATE 301-00001-XX 1
3 MAIN CHASSIS ASSEMBLY 1
4 NO 4X3/8 SCREW (DUMMY FRONT PANEL SCREWS) 349-00010-22 4 8 (0.9Nm)
5 REMOTING CONNECTOR COVER 316-85125-XX 1
6 8 WAY EMC FILTER PCB SOCKET 240-04020-50 1
7 EMC FILTER PCB 220-01383-XX 1
8.16.6
T2000-A03/-A04/-A16 Remote Loom Kits
M2000-00
31/12/97 Copyright TEL
8.16.3 Fitting To Remote Mounted Radios
1Refer to Figures 8.16.2, 8.16.3 & 8.16.4.
Remove the radio dummy front panel (1) by removing the 4 dummy front panel
screws (4).
Note:
In later T2000 radios, the radio dummy front panel is fitted with a remoting
connector cover (3). This is unclipped to access the remote loom connector.
When fitting a remote loom, it is therefore unnecessary to remove the dummy
front panel.
Unplug the old remote loom from the connector PCB (Series I chassis) or EMC fil-
ter PCB (Series II chassis).
Series II chassis: Check that the top side connector (SKT-1) on the EMC filter PCB
is 8 way. If not, discard the existing filter PCB and fit the new PCB provided in the
kit (refer to Section 8.16.2, “Fitting To Locally Mounted Radios”, step (5)).
If necessary, replace the old dummy front panel with the new dummy front panel,
complete with remoting connector cover, provided in the kit.
Pass the new remote loom through the connector cover hole in the dummy front
panel, and plug the 8 way remote loom connector onto the 8 way connector (6) on
the connector PCB or EMC filter PCB.
T2000-A16: Fit the remote loom drain wire solder tag under one of the connector
PCB or EMC filter PCB screws.
Mount the dummy front panel onto the adaptor plate (2), and secure in place
using the 4 dummy front panel screws.
Refit the remoting connector cover, pushing the slot in the cover onto the remote
loom cable.
2Refer to Figure 8.16.1.
Remove the control head remote back panel (2) by removing the 4 remote back
panel screws (5), taking care not to loose the captive nuts (4). EMC model radios
will also have ESD plugs (7) over the remote back panel screws.
Note:
In later T2000 radios, the control head remote back panel is fitted with a remot-
ing connector cover (3). This is unclipped to access the remote loom connector.
When fitting a remote loom, it is therefore unnecessary to remove the remote
back panel.
Unplug the old remote loom from the 8 way connector on the control head PCB (6).
If necessary, replace the old remote back panel with the new remote back panel,
complete with remoting connector cover, provided in the kit.
Pass the new remote loom through the connector cover hole in the remote back
panel, and plug the 8 way connector on the new remote loom onto the 8 way con-
nector on the control head PCB.
T2000-A16: Fit the remote loom drain wire solder tag under one of the control
head PCB screws.
Note:
Ensure that the solder tag does not make contact with any devices in the control
head.
M2000-00
T2000-A03/-A04/-A16 Remote Loom Kits
8.16.7
Copyright TEL 31/12/97
Fit the 2 captive M4 nuts into the slots in the remote back panel and mount the
remote back panel onto the control head front assembly (1).
Secure in place using the 4 remote back panel screws, and push the 4 ESD plugs
(7) over the screw heads (T2000-A16 only).
Refit the remoting connector cover, pushing the slot in the cover onto the remote
loom cable.
8.16.8
T2000-A03/-A04/-A16 Remote Loom Kits
M2000-00
31/12/97 Copyright TEL

Navigation menu
