TD9300
S P E C I F I C AT I O N S
© Tait Limited 2013. www.taitradio.com
Optimised data reliability,
Benefit from data and voice PMR
KEY FEATURES
Future proof multi-mode terminal (DMR Tier 3 & Wi-Fi)
Designed for SCADA communications, simplifies integration into SCADA networks
Full adherence to DMR standards, providing choice and interoperability
Automatic selection of DMR data services to maximise throughput and manage voice and data services
Flexible interfacing. Wide input voltage range and adjustable high power RF output, serial and Ethernet
interfaces for legacy and modern data terminal interfacing
Engineered for use in demanding environments
FEATURES AND BENEFITS
Improve efficiency
Monitor and control devices via long
range DMR, less travel, site visits
Central diagnosis of faults enabling
optimum resource deployments.
Secure, manage and maintain single
voice & data PMR network
Designed to perform in demanding
environments
Tough die-cast metal chassis for
protection in all environmental extremes
Protection and fold back mechanisms
limit occurrences of hardware failure,
service restored after fault cleared
Flexible mounting systems, DIN rail in
both vertical and horizontal, on a 19 inch
rack tray or wall mounted
Security
Encryption protects data (128 bit AES
and 56 bit DES)
Terminals must both register and be
authenticated to access the network
Stun and revive to disable devices
Remote monitoring
Extensive outstation diagnostics:
Temperature
Signal (RSSI & BER and MER)
Antenna fault
Input voltage
Telemetry status
Standards based interface protocols
Support for industry standard
protocols:
DNP3 TCP/IP and UDP/IP
DNP3 Serial
IEC60870-5-101 and -104
Eliminates costly proprietary protocol
integration and support
Applications
Control of SCADA IED/RTU
equipment
SCADA for oil & gas utilities
SCADA for control of irrigators
Remote or hard to reach AMR
Weather stations
Data services
Packet data over traffic channels for
telemetry, SCADA and customer
specific applications
IP data for transparent traffic channel
transfers
Control channel short data messages,
location, status and text
Flexible interfaces
Two RS232 / RS485 serial interfaces
for legacy equipment connection
Ethernet connection
2 digital input and 2 digital outputs to
monitor and control surrounding
environment, fully isolated.
Wi-Fi access point for local access,
re-configuration or upgrades
Backed up by our proven radio network expertise, the TD9300 is part of the Tait DMR solution portfolio that consists of
terminals, infrastructure, applications, services and integration with third party interfaces to ensure that your organization can
reap all the benefits of the spectrally-efficient DMR standard in a mission critical environment.
Designed for telemetry and data
communications, Tait DMR offers a secure and
reliable machine to machine data terminal based
on the DMR Tier 3 trunking standard.

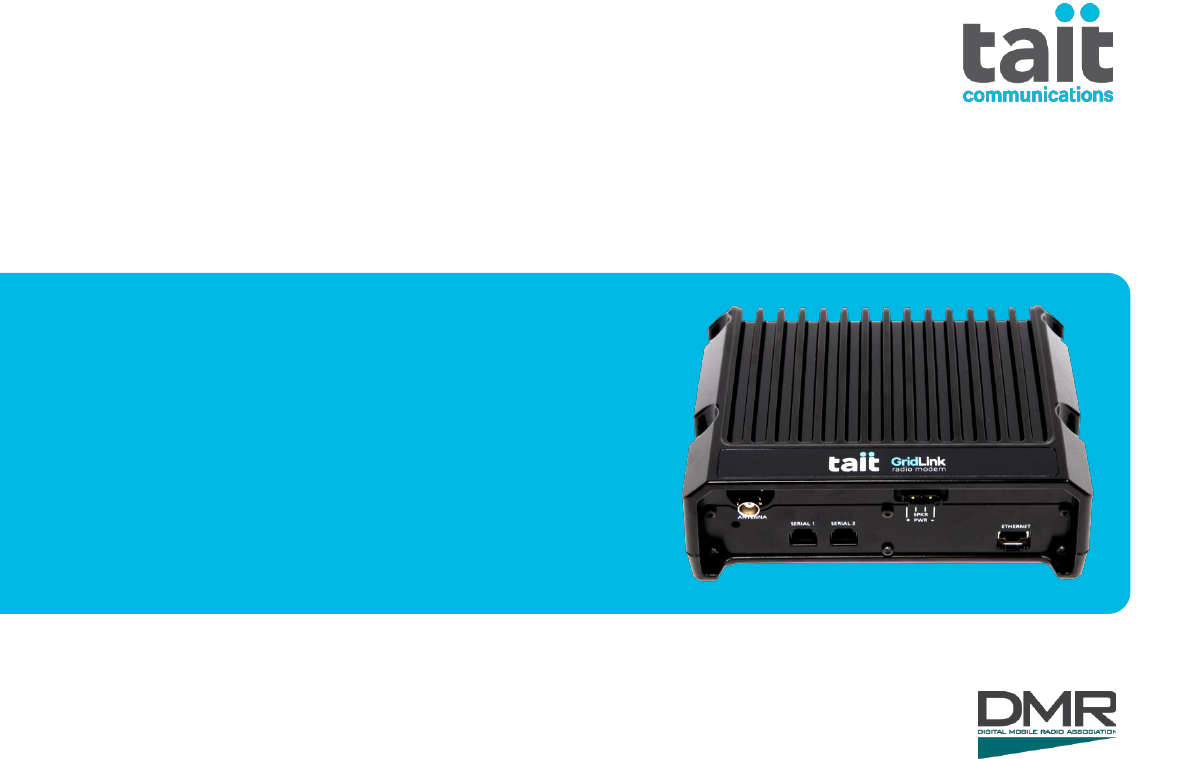

The TD9300 terminal has multiple data interfaces
and the intelligence to simplify wide area DMR
based connectivity, integrate quickly and
transparently support data communications.
Preliminary Datasheet
TD9300
S P E C I F I C AT I O N S
© Tait Limited 2013. www.taitradio.com
Preliminary Datasheet
GENERAL
Power
8-30VDC @ 3.5A (25W output power) Standby: <90mA @ 24VDC
Dimensions
(WxDxH) 195mm x 150 mm x 85 mm
Operating temperature
-22F to 140F (-30C to 60C)
Water and dust protection
IP52
Frequency stability
±0.5ppm (-22F to 140F/-30C to 60C)
Channels
VHF, UHF, 700/800 MHz 12.5kHz spacing 2.5/3.125/5/6.25kHz increment/channel step
Weight lb (kg)
2.1lb
Mounting
DIN rail in both vertical and horizontal configurations, on a 19 inch rack tray or wall mounted
ESD rating
+/-4kV contact discharge and +/-8kV air discharge
Air interface standard
DMR: ETSI TS 102 361
Altitude
4570 meters (15000 feet) Mil-Std-810F 500.4, Proc2
Humidity
95% Relative Humidity thru Temp Cycle. IEC 60068-2-30
Vibration
3 Axis, Sine sweep 10-60Hz TIA_EIA 603B, 3.3.4.3
Indicators
5 status LEDs: Tx, Rx, Active, Fault, Service (trunking)
Packet Data
½ Rate, ¾ Rate, Full rate, Single Slot
Wi-Fi access point
Standard: IEEE 802.11b and g
Encryption: WEP, WPA and WPA2
Authentication: Extensible Authentication Protocol (EAP)
TRANSMITTER
Output power
VHF 136-174MHz
25W: 25W, 12.5W, 5W, 1W
UHF 400-470MHz
25W: 25W, 12W, 5W, 1W
762-870MHz
30/35W
FM Hum and noise (Analog)
12.5kHz: -40dB
12.5kHz: 40dB
12.5kHz: 40dB
Adjacent channel power – static (DMR)
ETS 300-113
12.5kHz: 60dB
12.5kHz: 60dB
12.5kHz: 60dB
Conducted/radiated emissions
25W: -36dBm
50W: -20dBm
25W: -36dBm
40W: -20dBm
25W: -36dBm
40W: -20dBm
Duty Cycle
5W 80% @ 25˚C 25% @ 60˚C
12W 75% @ 25˚C 20% @ 60˚C
25W 65% @ 25˚C 15% @ 50˚C
RECEIVER
VHF 136-174MHz
UHF 400-470MHz
762-870MHz
Sensitivity (DMR) 5% BER
-119dBm (0.25µV)
-119dBm (0.25µV)
-119dBm (0.25µV)
Intermodulation rejection (EIA603D)
76dB
75dB
75dB
Intermodulation rejection (ETS 300)
70dB
70dB
70dB
Spurious response rejection (DMR) (ETS 300-113)
70dB
70dB
70dB
FM hum and noise (Analog)
12.5kHz: -40dB
12.5kHz: -40dB
12.5kHz: -40dB
Conducted spurious emissions
-57dBm
-57dBm
-57dBm
Selectivity (Analog) EIA603D (2 Tone)
12.5kHz: 52dB
12.5kHz: 50dB
12.5kHz: 50dB
Selectivity (Analog) ETS 300-086
12.5kHz: 62dB
12.5kHz: 60dB
12.5kHz: 60dB
Specifications are subject to change without notice and shall
not form part of any contract. They are issued for guidance
purposes only. All specifications shown are typical.
* Tait cannot guarantee full performance to the published
specifications when the radio is operating at frequencies
outside the specified range.
For further information please check with your nearest Tait
office or authorized dealer.
Tait Limited facilities are certified for ISO9001:2008 (Quality
Management System), ISO14001:2004 (Environmental
Management System) and ISO18001:2007 (Occupational
Health and Safety Management System) for aspects
associated with the design, manufacture and distribution of
radio communications and control equipment, systems and
services. In addition, all our Regional Head Offices are certified
to ISO9001:2008
The word “Tait” and the Tait logo are trademarks of Tait
Limited.
REGULATORY DATA
USA
Canada
Europe
Australia/New Zealand
VHF (136-174MHz)
CFR 47
RSS-119
EN300-086, EN300-113, EN300-219
EN301-489, EN60950
AS/NZS4295
UHF (400-470MHz)
CFR 47
RSS-119
EN300-086, EN300-113, EN300-219
EN301-489, EN60950
AS/NZS4295
AS/NZS4365*
700/800MHz
CFR 47
RSS-119
NA
NA
