Installation guide
![](/img.php?id=165239&img=bg1.png)
T2000
INSTALLATION
GUIDE
![](/img.php?id=165239&img=bg2.png)
TAIT ELECTRONICS LIMITED
Software licence agreement
This legal document is an Agreement between you, (the “Licencee”) and Tait Electronics Limited (“Tait”). By opening this product package and/or using the
product you agree to be bound by the terms of this Agreement. If you do not agree to the terms of this Agreement, do not open the product package and
immediately return the unopened product package to Tait. If you open the product package that will be deemed to be acceptance of the terms of this licence
agreement.
Licence
In consideration of the payment of the Licence Fee which forms part of the price you paid for products you acquired from Tait or its subsidiary or agent (the
“products”) and our willingness to be bound by the terms of this agreement, Tait grants to you as Licencee the non-exclusive right to use the copy of a Tait
software program included in the products, (the “Software”).
In particular the Licencee may use the program on a single machine and if the software is supplied on a diskette, the licensee may:
(a) copy the program into any machine readable or printed form for backup purposes in support of your use of the program on the single machine
(Certain programs, however, may include mechanisms to limit or inhibit copying. They are marked “copy protected”), provided the copyright
notice must be reproduced and included on any such copy of the Software.
(b) Merge it into another program for your use on the single machine. (Any portion of this program merged into another program will continue to
be subject to the terms and conditions of this Agreement.);
The Licencee may not duplicate, modify, reverse compile or reverse assemble the Software in whole or part.
Title to software
This agreement does not constitute a contract of sale in relation to the Software supplied to the Licencee. Not withstanding the Licencee may own the magnetic
or other physical media on which the Software was originally supplied, or has subsequently been recorded or fixed, it is a fundamental term of this Agreement
that at all times title and ownership of the Software, whether on the original media or otherwise, shall remain vested in Tait or third parties who have granted
licences to Tait.
Term and termination
This Licence shall be effective until terminated in accordance with the provisions of this Agreement. The Licencee may terminate this Licence at any time by
destroying all copies of the Software and associated written materials. This Licence will be terminated automatically and without notice from Tait in the event that
the Licencee fails to comply with any term or condition of this Agreement. The Licencee agrees to destroy all copies of the Software and associated written
materials in the event of such termination.
Limited warranty
The Software is supplied by Tait and accepted by the Licencee “as is” without warranty of any kind either expressed or implied, including but not being limited to
any implied warranties as to merchantability or fitness for any particular purpose. The entire risk as to the quality and performance of the Software vests in the
Licencee. Should the Software prove to be defective, the Licencee (and not Licensor or any subsidiary or agent of the Licensor) shall assume the entire cost of
all necessary servicing, repair or correction. Tait does not warrant that the functions contained in the Software will meet the Licencee’s requirements or that the
operation of the Software will be uninterrupted or error free. However Tait warrants that the diskettes if any on which the Software is supplied to the Licencee
shall be free from defects in material and workmanship under normal use and service for a period of ninety (90) days from the date of delivery to the Licencee.
Exclusion of liability
Tait’s entire liability and the Licencee’s exclusive remedy shall be:
1. The replacement of any diskette not meeting Tait “limited warranty” and which is returned to Tait or an authorised agent or subsidiary of Tait with a
copy of the Licencee’s purchase receipt; or
2. If a diskette is supplied and if Tait is unable to deliver a replacement diskette which is free from defects in material or workmanship, the Licencee may
terminate this Agreement by returning the Software to Tait.
3. In no circumstances shall Tait be under any liability to the Licencee, or any other person whatsoever, for any direct or consequential damage arising
out of or in connection with any use or inability of using the Software.
4. Tait warrants the operation of the Software only with the operating system for which it was designed. Use of the Software with an operating system
other than that for which it was designed may not be supported by Tait, unless otherwise expressly agreed by Tait.
General
The Licencee confirms that it shall comply with the provisions of law in relation to the Software.
Law and jurisdiction
This Agreement shall be subject to and construed in accordance with New Zealand law and disputes between the parties concerning the provisions hereof shall
be determined by the New Zealand Courts of Law. Provided however Tait may at its election bring proceedings for breach of the terms hereof or for the
enforcement of any judgement in relation to a breach of the terms hereof in any jurisdiction Tait considers fit for the purpose of ensuring compliance with the
terms hereof or obtaining relief for breach of the terms hereof.
No Dealings
The Licencee may not sublicense, assign or transfer the licence or the program except as expressly provided in this Agreement. Any attempt otherwise to
sublicense, assign or transfer any of the rights, duties or obligations hereunder is void.
No Other Terms
The Licencee acknowledges that it has read this agreement, understand it and agree to be bound by its terms and conditions. The Licencee further agrees that
this is the complete and exclusive statement of the agreement between it and Tait in relation to the Software which supersedes any proposal or prior agreement,
oral or written and any other communications between the Licencee and Tait relating to the Software. (LS-589)
![](/img.php?id=165239&img=bg3.png)
Components of the T2000II Radio Kit ........................... 1
Recommended Installation Tools ................................. 1
Installation of your Radio .......................................... 2
Installation Planning ........................................................... 2
To Disassemble the Cradle .................................................. 2
Mounting ............................................................................. 3
To Reassemble the Cradle ................................................... 3
Antenna Installation ............................................................ 4
Wiring ................................................................................. 6
External Speaker ........................................................... 6
Power Cable .................................................................. 6
External Wire (Horn/Hush/Emergency) ............................... 7
Remote Control Head Option .............................................. 7
Microphone Clip .................................................................. 8
Installation Checks .............................................................. 8
Contents
![](/img.php?id=165239&img=bg4.png)
1
Components of the T2000II Radio Kit
The T2000II Radio kit includes the following parts:
zT2000II Radio Unit
zMicrophone
zComplete Cradle
z4 Ohm Speaker (not for internal speaker models)
zInstallation Kit: - Two-way hermaphroditic connector (1)
- Socket receptacle (2)
- 10A 12V Blade fuse (2)
- Inline crimp fuse holder (2)
- Self tapping screw (4)
- Shakeproof washer (4)
- Microphone clip kit (1)
- Control head mounting bracket (T2020II and T2040II only)
Recommended Installation Tools
zPortable Drill
zCentre Punch
zDrill Bits: 4mm for self-tapping screws, 6mm for nuts and bolts
z“Pozidriv” Screwdrivers
zBNC Crimp Tool (e.g. Transradio England Duo crimp 894)
zIn-line Power Meter capable of measuring forward and reflected power at the operat-
ing frequency of the radio
zHammer
zBNC Antenna Crimp Plug
zCradle Keys (2)
zPower Cable (5m)
![](/img.php?id=165239&img=bg5.png)
2
Installation of your Radio
Installation Planning
To ensure trouble-free, efficient installation, inspect the vehicle and determine how and
where the antenna, radio and accessories are to be mounted.
It is possible to remote-mount the T2020II, T2040II and T2050II models as these have
alphanumeric keypads, with the control head separate from the radio chassis. This enables
the radio to be mounted in a discrete location, e.g. the rear luggage space, with the control
head mounted in a convenient position for the vehicle’s occupants. See the M2000 service
manual, available from your Tait dealer, for details of this modification.
Occupant’s Safety
Check that the chosen locations for the radio and accessories do not endanger the vehicle
occupants. Overhead mounting is not recommended, especially without an additional
safety strap. Check that the radio may be conveniently operated when seat belts are worn.
Caution:
To prevent interference with vehicle electronic systems (such as ignition and
anti-skid devices), the radio, its antenna and wiring should be mounted away from these
units and their associated cables.
Allow sufficient airflow around the radio to permit adequate cooling. Once you have found a
suitable mounting position for the radio, hold it (fitted in the cradle) in the proposed mount-
ing position and check there is clearance behind it for the heatsink, cables, etc. Check that the
position provides a large enough flat surface that the cradle will not be distorted.
To Disassemble the Cradle

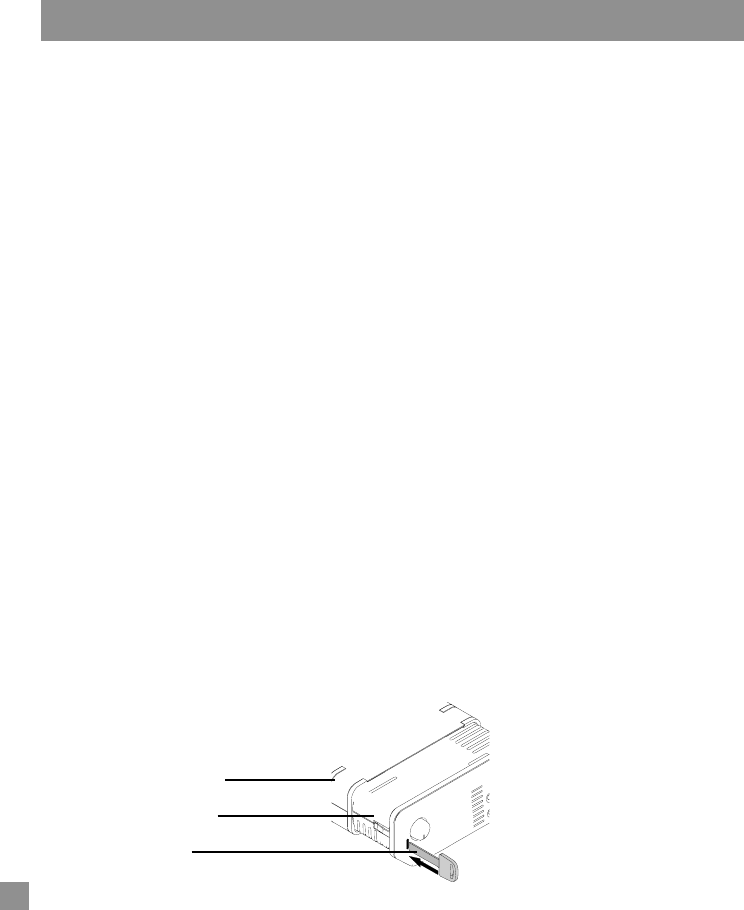

1 Remove the radio from its cradle by sliding the plastic key supplied with the radio fully
into the slot on the left front of the radio unit. The radio will now slide out forwards
from the cradle, as shown below:
Figure 1: Cradle and Key
Cradle
Radio unit
Plastic key
![](/img.php?id=165239&img=bg6.png)
3

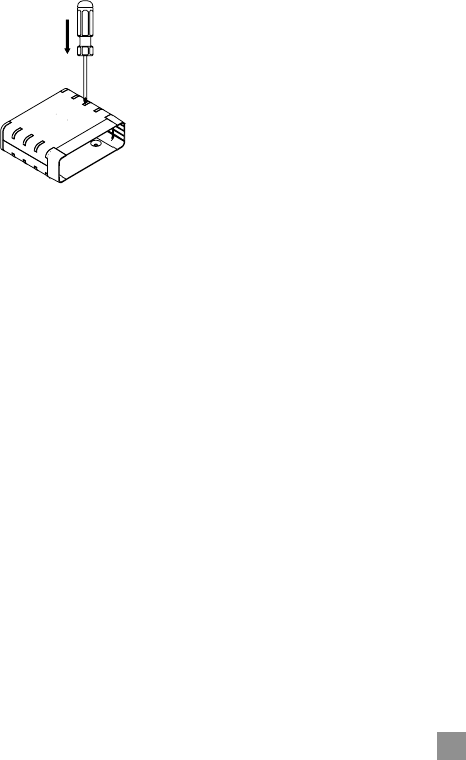

2 Disassemble the cradle by placing it on a firm surface and applying pressure down on
one of the middle ribs of the plastic side moulding with a screwdriver. This will release
the ribs along this edge from the slots in the metal cover with which they mate. A
similar approach will release the other edge of the metal cover which can now be lifted
clear (as shown below).
Figure 2: Cradle Disassembly
Mounting
1 Hold the drilled half of the metal cradle cover in the position chosen for the radio and
use the four cradle cover mounting holes as a template to mark the locations for
drilling. Ensure that drilling at the selected points will not damage existing wiring.
2 Indent the drilling positions with a centre punch and drill 4mm holes for self-tapping
screws, or 6mm holes for nuts and bolts. Reduce the hole size if using self-tapping
screws in metal which is less than 1mm thick.
3 Drill any additional holes required for cables and fit them with suitable grommets or
bushings.
4 Secure the metal cradle cover to the mounting points with the M5 self-tapping screws
supplied, or with M5 nuts and bolts. Ensure that tightening the screws or bolts does
not distort the cradle.
To Reassemble the Cradle
1 Reassemble the cradle by clipping one plastic side moulding to each side of the
mounted metal cover (as shown in Figure 3). Take care to locate the ribs on the plastic
part in the slots on the shoulders of the metal cover. They will only fit one way round.
![](/img.php?id=165239&img=bg7.png)
4
2 Take the remaining metal cover and fit it over the exposed edges of the side mould-
ings, again taking care to align the ribs with the slots. Clip it securely home.
Figure 3: Cradle Reassembly
Antenna Installation
1 Terminate one end of the coaxial cable at the antenna. Good quality 50 ohm coaxial
cables such as RG58 or UR76 are suitable. Run the free end of the coaxial cable to the
radio’s mounting position and cut it to length allowing 200mm to 300mm excess.
2 Terminate the free end of the cable with the BNC crimp plug supplied, as shown in

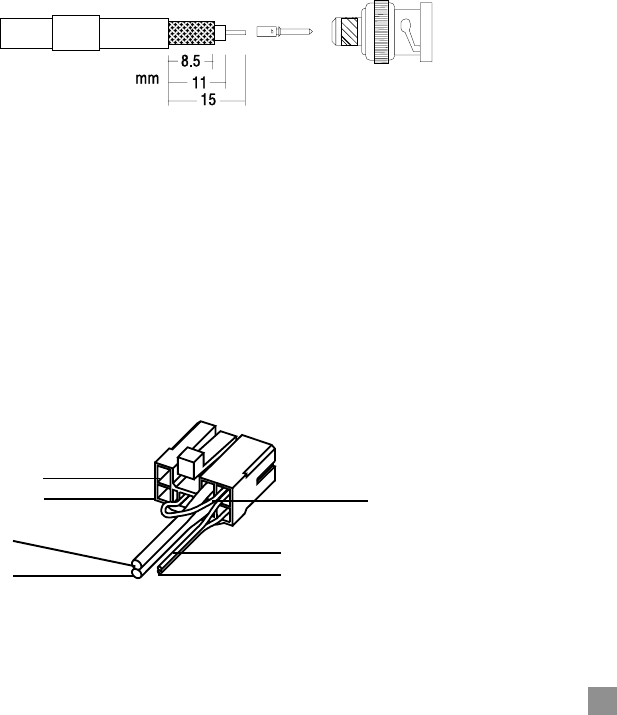

Figure 4:
- Fit the crimp sleeve over the cable sheath.
- Trim the outer sheath from the cable to 15mm.
- Trim the braid to 8.5mm.
- Trim the dielectric to 11mm. (Take extreme care not to ‘nick’ the centre conductor
with the trimming device.)
- Fit the male pin onto the centre conductor with the shoulder pressed against the
end of the dielectric.
To comply with FCC RF exposure limits, this product must be
installed using a 4.5 dBi gain antenna.
![](/img.php?id=165239&img=bg8.png)
5
- Crimp the male pin onto the centre conductor.
- Press the assembly firmly into the rear of the plug. (Check that no braid gets
trapped between the dielectric and the inside of the plug.)
- Slide the crimp sleeve over the braid and press against the shoulder of the plug.
- Crimp the crimp sleeve onto the braid and plug body.
Figure 4: Antenna Connector Assembly
Wiring
External Speaker
Some T2000II models are fitted with internal speakers. However it is possible to fit an
external speaker if required, by terminating a twin wire in the power connector. To disable
the internal speaker, cut the link on the power connector as shown in Figure 5.
T2000II models with no internal speaker must have an external speaker fitted. The power
connector comes pre-wired with the speaker cable.
Mount the external speaker in a convenient location close to the operator. Run the free end
of the speaker wire to the speaker, and connect it to the speaker plug.
Figure 5: Power Connector Wiring
Crimp Sleeve
Male Pin
Plug
Ignition
External Internal Speaker Link
(cut to disable)
Ground
Live }External Speaker
+13.8V
Ground
{
Power
Supply
![](/img.php?id=165239&img=bg9.png)
6
Power Cable
1 Disconnect the vehicle’s battery unless specifically prohibited from doing so by the
customer, vehicle manufacturer, agent or supplier. In this event, exercise extreme
caution throughout the installation and fit the fuses only when the installation is
complete.
Caution:
Always disconnect the radio’s power lead before connecting a second battery
or using power from another vehicle (e.g. when “jump-starting” the vehicle).
2 Determine where the battery leads will be routed.
3 Cut the negative and the positive wires where the in-line crimp fuse holders will be
placed (as close to the battery as practicable).
4 Insert each end of the negative wire into one of the in-line crimp fuse holders and crimp
them to force the metal contacts onto the wires. Terminate the wire at the battery earth.
5 Repeat Step 4 for the positive wire and terminate it at the positive terminal of the battery.
Caution:
Prevent the power wires chafing on any metal parts.
Note:
T2000II radios are designed to operate from a nominal 12V negative earth supply,
and require currents of up to 8A. (The radios will tolerate a supply voltage range of 10.8V
to 16.0V). In vehicles with a 24V electrical system (e.g. many trucks), it is essential to
provide a suitably rated 24/12V converter (e.g. Tait T2007) to isolate the radio from the
battery and protect it against excessive voltages.
6 If the economizer is to be controlled by the ignition line, terminate a wire in the power
connector and connect the ‘ignition’ wire to a +12V supply which is live only when the
vehicle’s ignition is switched ‘On’.
External Wire (Horn/Hush/Emergency)
The T2000II can be configured to operate the vehicle’s horn, radio or a hidden switch:
1 Terminate a suitable length of wiring in the “external” port of the power connector.
2 Run the free end of the external wire from the power connector to the appropriate
vehicle wiring.
The option’s interface is usually configured to switch or be switched in the ground state.
Confirm the exact operation in the documentation supplied with the interface unit.
![](/img.php?id=165239&img=bga.png)
7
Remote Control Head Option
The control head of some T2000II models may be supplied ready for mounting remotely
from the radio chassis. In this case the control head should be located away from direct
sunlight, and the cable connecting it to the radio should be routed away from the antenna
with care taken to ensure that the cable will not be subject to damage.
If it is necessary to run the cable through a bulkhead or similar obstruction, you may
unplug the cable from the control head as follows:
1 Unscrew the rear of the control panel and lift off the rear cover, taking care not to lose
the two nuts located on each end.
2 Disconnect the red connector from the printed circuit board socket to free the cable.
3 Route the cable as required, fitting grommets where necessary to prevent chafing of
the cable insulation.
4 Fit the red connector to the printed circuit board socket – the connector is shaped so
that it can be fitted in the correct orientation only.
5 Refit the cable to the cable clamp on the rear cover and slip the two nuts into the
receptacles at each end of the rear cover.
6 Refit the rear cover and replace the cover screws, tightening them carefully. Do not
overtighten the screws.
The control head can now be installed as follows:
1 Mount the bracket for the control panel on a flat surface using the self-tapping screws
supplied.
2 Place the control head in the bracket, position it for a good viewing angle, and fit the
2 screws to secure it in place.
Microphone Clip
The microphone clip must be earthed (to the negative supply line) if hookswitch control of
monitoring, scanning or call termination is to operate. Refer to the radio’s operating in-
structions to confirm requirements.
Ensure that the microphone clip is mounted in a position where the microphone PTT key
cannot be inadvertently activated or jammed on.
![](/img.php?id=165239&img=bgb.png)
8
Installation Checks
1 Plug the microphone into the socket on the lower left-hand corner of the radio’s front
panel. Push the cable grommet into the rectangular aperture in the panel.
2 Insert the fuses into the power lead.
3 Switch on the radio and confirm that it is operational.
4 Connect an in-line power meter between the radio and the antenna and measure the
forward and reflected power levels. Less than 1W should be reflected for 25W forward
power. If this is not achieved, check the installation – including antenna length.
5 Make a call to another party on the radio (as described in the operating instructions).
Tait Electronics has made every effort to ensure the accuracy of information in this
manual. However, Tait Electronics reserves the right to update the radio and / or this
manual without notice.
![](/img.php?id=165239&img=bgc.png)
Excellence in
Radio Communications
11/00 IPN: 429-20000-06
CORPORATE HEAD OFFICE
NEW ZEALAND
Tait Electronics Ltd
P.O. Box 1645, Christchurch
Phone : (64) (3) 358-3399 Fax : (64) (3) 358-0340
AUSTRALIA
Tait Electronics (Aust) Pty Ltd
Phone : (61) (7) 3865-7799 Fax : (61) (7) 3865-7990
Toll Free : (1-300) 304-344
E-mail: australia@taitworld.com
CANADA
Tait Mobile Radio Inc
Phone : (1) (905) 472-1100 Fax : (1) (905) 472-5300
Toll Free : (1) 1-800-890-8248
E-mail: canada@taitworld.com
LATIN AMERICA
Tait Latin America
Phone : (1) (305) 260-9900 Fax : (1) (305) 260-9209
E-mail: latinamerica@taitworld.com
NEW ZEALAND
Tait Communications Ltd
Phone : (64) (3) 348-3301 Fax : (64) (3) 343-0558
E-mail: newzealand@taitworld.com
USA
Tait Electronics (USA) Inc
Phone : (1) (713) 984-8684 Fax : (1) (713) 468-6944
Toll Free : (1-800) 222-1255
E-mail: usa@taitworld.com
TAIT EUROPE
Regional Head Office
UNITED KINGDOM
Tait Europe Ltd
Phone : (44) (1480) 52255 Fax : (44) (1480) 411-996
E-mail: unitedkingdom@taitworld.com
GERMANY
German Office
Phone : (49) (911) 2870-7064/7160
Fax : (49) (911) 2870-7077
E-mail: germany@taitworld.com
TAIT NORTH ASIA
Regional Head Office
HONG KONG
Tait Mobile Radio (Hong Kong) Ltd
E-mail: hongkong@taitworld.com
Phone : (852) 2369-3040 Fax : (852) 2369-3009
BEIJING
Tait Mobile Radio (Hong Kong) Ltd
Phone : (86) 10-6510-2680 Fax : (86) 10-6510-2686
E-mail: beijing@taitworld.com
TAIWAN
Tait Mobile Radio (Taiwan) Ltd
Phone : (886) 2-2731-1290 Fax : (886) 2-2-711-6351
E-mail: taiwan@taitworld.com
TAIT SOUTH EAST ASIA
Regional Head Office
SINGAPORE
Tait Electronics (Far East) Pte Ltd
Phone : (65) 471-2688 Fax : (65) 479-7778
E-mail: singapore@taitworld.com
THAILAND
Tait Mobile Radio Ltd
Phone : (662) 267-6290 Fax : (662) 267-6293
E-mail: thailand@taitworld.com
FRANCE
Tait France S.A.R.L.
Phone : (33) (1) 41-14-05-50 Fax : (33) (1) 41-14-05-55
E-mail: france@taitworld.com
