users manual
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. THEY CONTAIN IMPORTANT
INFORMATION.
Important! Please read your Owner's Manual all the way through before operating your
vehicle.
Safety First
• Drive your vehicle in a safe area away from people, pets, cars, etc. Not in streets, in or
near water, or in darkness!
• Don't touch or try to pick up vehicle when it is in motion. Wait until it stops
completely.
• Keep hair, fingers, face and loose clothing away from wheels while the vehicle is
switched on or while the remote is operating.
• Be a responsible Cell Racer™ R/C operator!
Batteries Required (not included)
2 "AA" Alkaline batteries required for vehicle. One 9-Volt Alkaline battery required for
the remote.
READ AND FOLLOW ALL INSTRUCTIONS
IMPORTANT BATTERY SAFETY INFORMATION
CAUTION: TO AVOID BATTERY LEAKAGE
• Make sure the batteries are inserted with the correct polarity and follow the toy and
battery manufacturers' instructions.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium or
nickel-metal hydride) batteries.
• Remove weak or exhausted batteries from the product.
ADDITIONAL IMPORTANT BATTERY SAFETY
INFORMATION
• An adult should help with battery replacement
• Only batteries of the same or equivalent type as recommended in the "Battery
Installation" (or replacement) instructions are to be used.
• Non-rechargeable batteries are not to be recharged.
• If removable rechargeable batteries are used, they are only to be charged under adult
supervision.
• Rechargeable batteries are to be removed from the product before they are charged.
• If you use a battery charger, it should be examined regularly for damage to the cord,
plug, enclosure and other parts. Do not use a damaged battery charger until it has
been properly repaired.
• Dispose of batteries safely and properly.
R/C Facts for Improved Operation
1. When batteries start to discharge, vehicle may slow, stop, or refuse to respond to
your control. It's time to replace both vehicle batteries and/or remote battery. This is
absolutely the #1 cause of all problems and questions! Observe polarity when
replacing batteries.
2. Radio frequency interference can interfere with the control of your vehicle.
Buildings, power wires, other R/C remotes, or CB radio can all cause problems. Pick a
place to drive that's away from these things.
3. Hold remote so antenna points up, not toward the vehicle. Keep vehicle within
range (about 30 to 40 feet) to keep control. If vehicle goes out of range, try lifting
remote high into air to increase range.
4. Wipe vehicle clean and dry after each use, including inside battery compartments.
5. Turn vehicle power switch off immediately after running. Remove batteries for
storing or shipping. Keep vehicle and Remote away from heat and direct sunlight and
moisture.
6. Do not run vehicle in or near water.
Troubleshooting Guide
Don't take your vehicle back to the store--try solving problems using this valuable
guide.
COMPLIANCE WITH FCC REGULATIONS
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY HARMFUL INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
This device generates and uses radio frequency energy and if not used properly may cause interference to
radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are
designed to provide reasonable protection against such interference.
CAUTION: FCC Regulations state that changes or modifications to this product not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
PRINTED IN CHINA
© 2001 Taiyo Edge Ltd. Co., P.O. Box 1470, New Smyrna Beach, FL 32170, U.S.A. All Rights Reserved. U.S. and Foreign Patents
Pending.Taiyo Edge; Get the Edge!; On Road, Off-Road, No Road!; and Cell Racer are licensed trademarks of Tilbor Marketing and
Development Inc. Product specifications subject to change. Product may differ from illustrations.
TM
Taiyo Edge™ R/C Consumer Service
We want to assist you!
DO NOT RETURN THE PRODUCT TO THE STORE!
Log on: Click “Help/Service” at www.taiyoedge.com
E-mail: help@taiyoedge.com
90-DAY LIMITED WARRANTY
(a copy of this warranty is inside)
TOLL-FREE CONSUMER HELPLINE NUMBER
1-866-4-EDGE-RC (1-866-433-4372)
™
Problem Probable Cause Correction
Vehicle runs slowly, or • Batteries dead or low charge • Install 2 fresh new "AA" alkaline cells
won't move, or won't steer • Batteries installed incorrectly • Remove and replace batteries, making
in remote or vehicle sure battery direction (polarity, +/-) is
• Loose battery connection correct and battery compartment contacts,
• Dirty battery or battery plug and socket are clean.
compartment contacts • Replace remote battery.
• Power switch is off • Turn on Power switch.
Erratic operation, loss of • Radio interference • Move to another location.
control, short range • Loose or curled • Extend antenna fully. Point up in the air,
remote antenna not at vehicle.
• Antenna touching hands • Don't touch antenna during operation.
or body • Replace both vehicle batteries and / or
• Weak remote battery remote battery
• Weak vehicle batteries
Vehicle stops working after • Water in battery, electronics • Any time vehicle is run through water,
going through water, mud or motor areas turn power knob off IMMEDIATELY,
or snow remove batteries, dry inside and out with
clean soft cloth and allow to dry overnight
with battery door open. Always avoid wet
surfaces, puddles or rain.

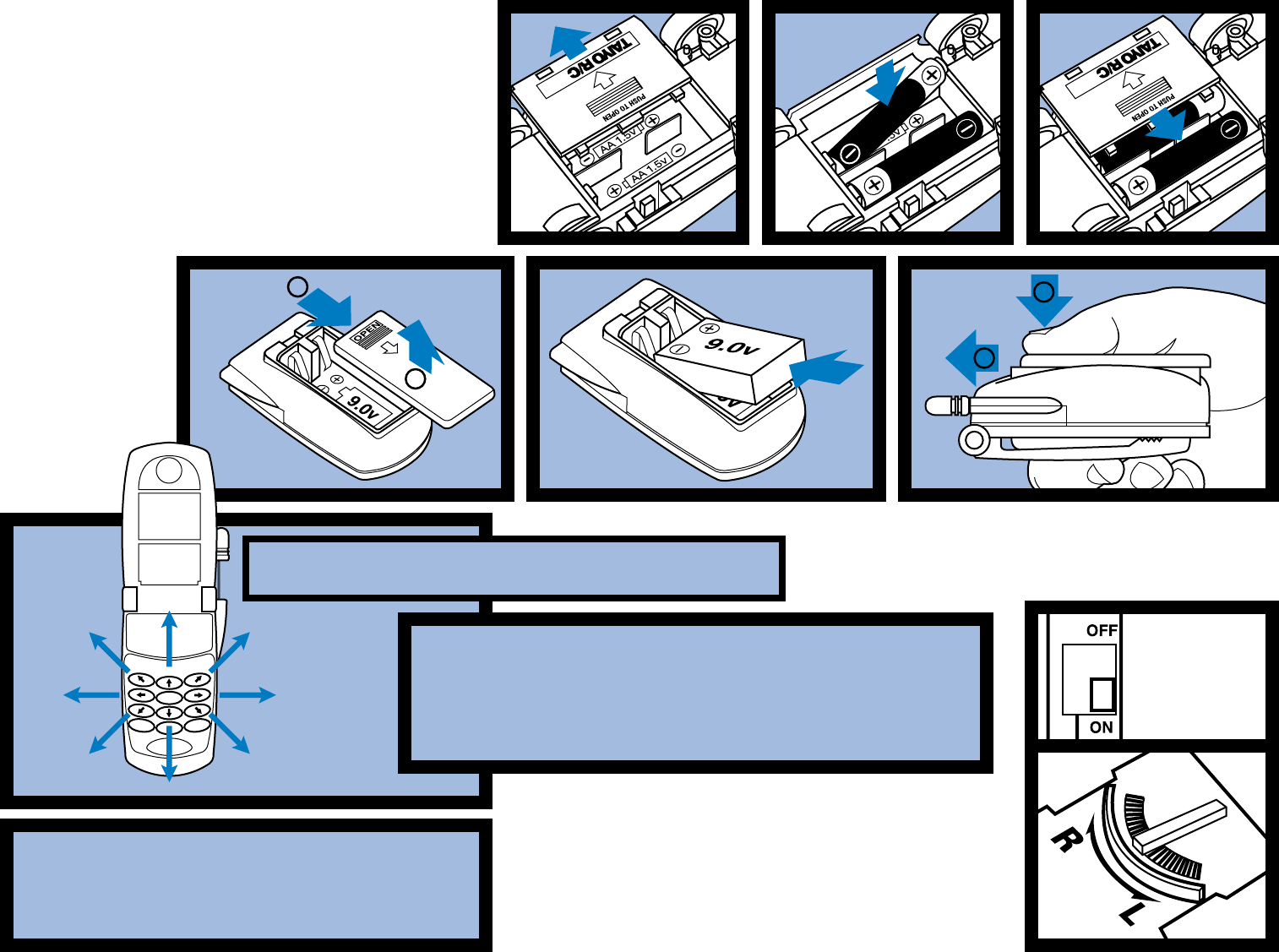

Vehicle Battery Installation
1. Slide vehicle BATTERY DOOR open and remove as shown. (Fig. 1)
2. Insert 2 fresh, new Alkaline batteries into battery compartment as
shown. IMPORTANT: OBSERVE BATTERY POLARITY (DIRECTION, +
AND -). (Fig. 2)
3. Replace BATTERY DOOR and slide closed until it latches. (Fig. 3)
Remote Battery Installation
1. Slide open BATTERY DOOR on REMOTE and remove. (Fig. 4)
2. Insert a fresh, new 9-VOLT ALKALINE BATTERY with the polarity
(+/-) as shown on the bottom of battery compartment. (Fig. 5)
3. Replace BATTERY DOOR and slide it closed to secure. (Fig. 6)
Vehicle Operation
1. Turn on POWER SWITCH on bottom of vehicle. (Fig. 7)
2. Vehicle operates best on flat, smooth, surfaces. KEEP AWAY
FROM WATER, SNOW AND WET SURFACES.
3. If vehicle steers slightly to one side or the other when you
press a button to go straight, move the TRIM TAB on the
bottom in the opposite direction, a little at a time. (Drive vehicle
away from you to test.) Repeat if necessary. (Fig. 8).
Fig 7
Fig 8
POWER
SWITCH
TRIM
TAB
R/C Tip
In order to race or operate two vehicles together, they must
be different frequencies. Check the package and the bottom
of your vehicle for the frequency label.
Remote Operation
Press and hold a "dialing" button to move the vehicle in the direction
shown by the arrow on the button. Release button for "neutral."
Note: There is no on/off switch on Remote. Pressing the buttons turns it
on. Releasing the buttons turns it off.
Forward
Right Forward
Left Forward
Reverse
Right Reverse
Left Reverse
Left Right
Fig 1 Fig 2 Fig 3
Fig 4 Fig 5 Fig 6
ANTENNA
Extend antenna fully for operation. Hold Remote so antenna points straight up
in the air. Don't touch during operation.
