Tantalus Systems 532856 TSC Security System User Manual

Tantalus Systems Corp TSC Security System

User Manual

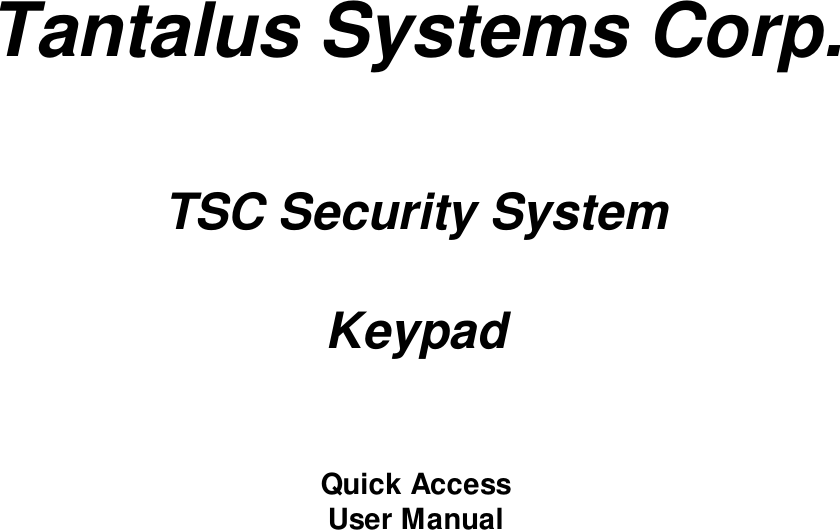

Tantalus Systems Corp.TSC Security SystemKeypadQuick AccessUser Manual

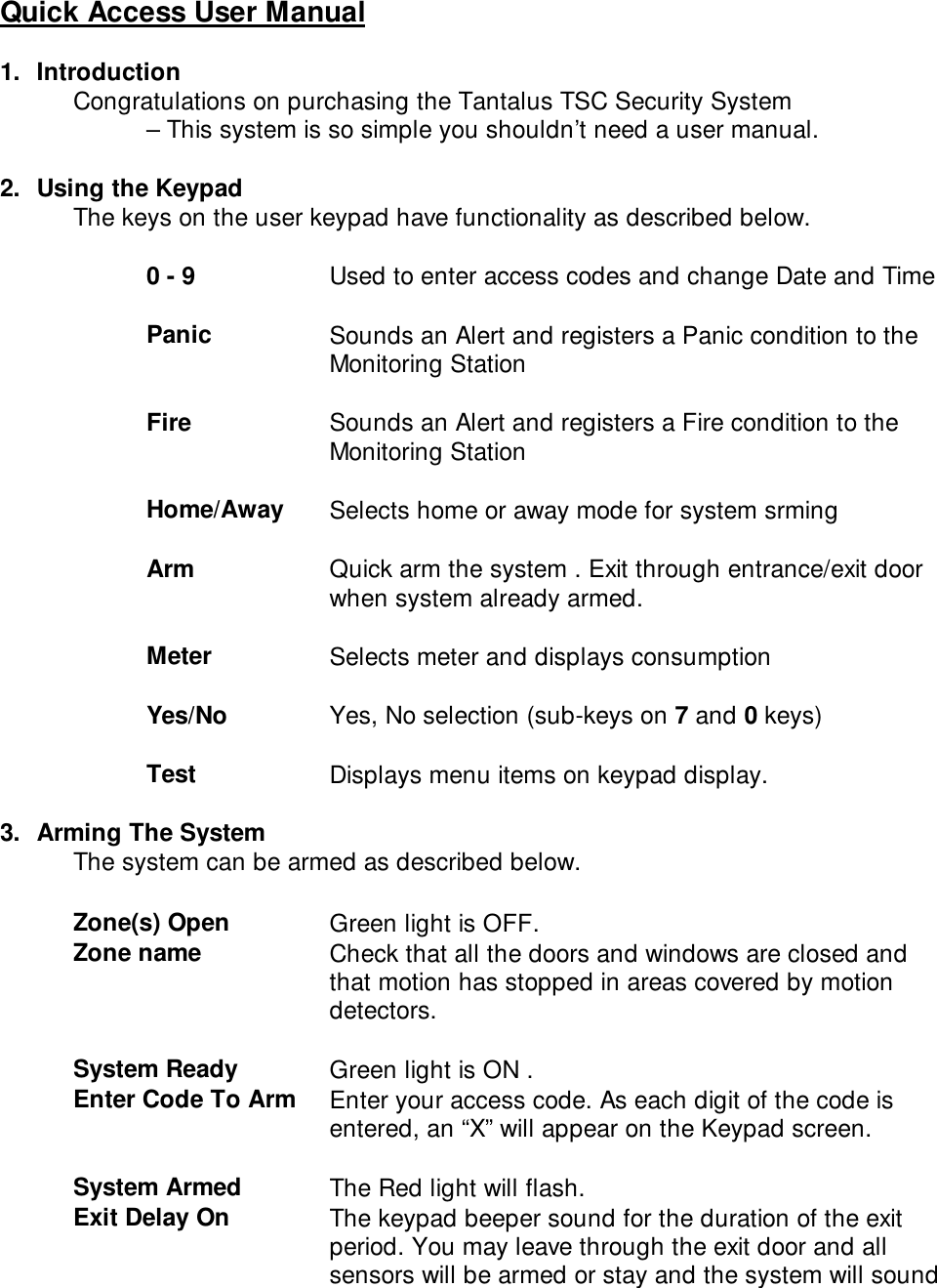

Quick Access User Manual1. IntroductionCongratulations on purchasing the Tantalus TSC Security System– This system is so simple you shouldn’t need a user manual.2. Using the KeypadThe keys on the user keypad have functionality as described below.0 - 9 Used to enter access codes and change Date and TimePanic Sounds an Alert and registers a Panic condition to theMonitoring StationFire Sounds an Alert and registers a Fire condition to theMonitoring StationHome/Away Selects home or away mode for system srmingArm Quick arm the system . Exit through entrance/exit doorwhen system already armed.Meter Selects meter and displays consumptionYes/No Yes, No selection (sub-keys on 7 and 0 keys)Test Displays menu items on keypad display.3. Arming The SystemThe system can be armed as described below.Zone(s) Open Green light is OFF.Zone name Check that all the doors and windows are closed andthat motion has stopped in areas covered by motiondetectors.System Ready Green light is ON .Enter Code To Arm Enter your access code. As each digit of the code isentered, an “X” will appear on the Keypad screen.System Armed The Red light will flash.Exit Delay On The keypad beeper sound for the duration of the exitperiod. You may leave through the exit door and allsensors will be armed or stay and the system will sound

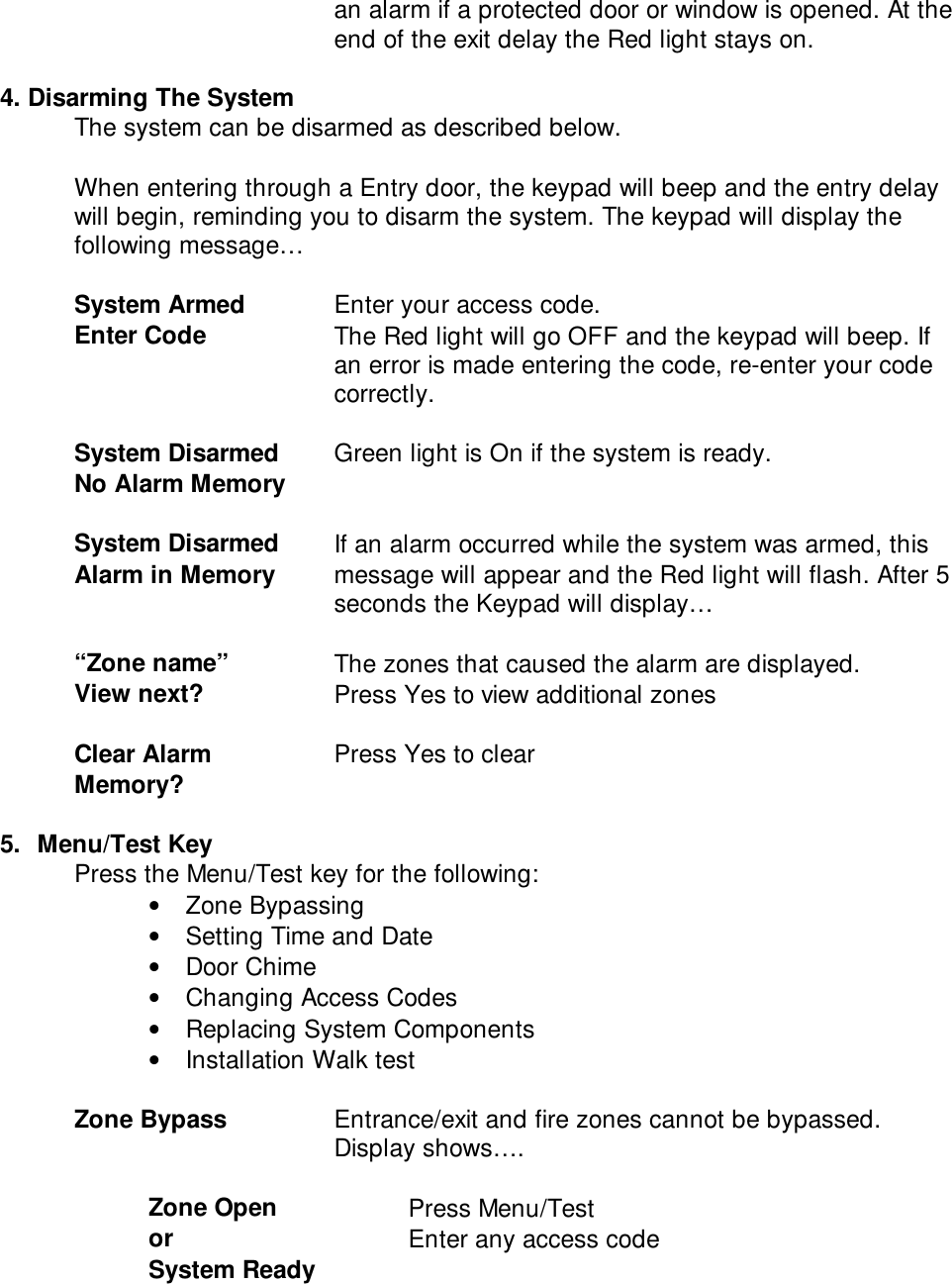

an alarm if a protected door or window is opened. At theend of the exit delay the Red light stays on.4. Disarming The SystemThe system can be disarmed as described below.When entering through a Entry door, the keypad will beep and the entry delaywill begin, reminding you to disarm the system. The keypad will display thefollowing message…System Armed Enter your access code.Enter Code The Red light will go OFF and the keypad will beep. Ifan error is made entering the code, re-enter your codecorrectly.System Disarmed Green light is On if the system is ready.No Alarm MemorySystem Disarmed If an alarm occurred while the system was armed, thisAlarm in Memory message will appear and the Red light will flash. After 5 seconds the Keypad will display…“Zone name” The zones that caused the alarm are displayed.View next? Press Yes to view additional zonesClear Alarm Press Yes to clearMemory?5. Menu/Test KeyPress the Menu/Test key for the following:• Zone Bypassing• Setting Time and Date• Door Chime• Changing Access Codes• Replacing System Components• Installation Walk testZone Bypass Entrance/exit and fire zones cannot be bypassed.Display shows….Zone Open Press Menu/Testor Enter any access codeSystem Ready
Enter Code To Arm Open zones are displayed firstBypass? Press the Yes/No key to bypass the displayedzone.“Zone Name” After selection the next zone is displayed.Bypass? “O” will appear if a zone is open and notbypassed.“Zone Name” OBypass? “B” will appear on the display to show the zone is“Zone Name” B bypassed.After 5 seconds of inactivity display returns to 5AIf system is now ready to arm display shows…System Ready Bypass activeBypass OnPress Menu/Test again for additional menu items.The Master code must have been entered.MM/DD/YY HH:MM Enter Date and Time or press Menu for next menu item.Door Chime OFF Yes turns door chime on, No leaves it offTurn ON?Press Menu/Test againEdit Access Codes Select number of access code to edit, “M” represents themaster code.1(M) 2 3Access Code 2 Enter new code or press Menu to return to ” EditAccess Codes”XXXXCode is XXXX Press Yes to confirmConfirm?Replacing System ComponentsReplace System Press the Yes key to replace system components.
Sensors? Contact installer to replace Keypad andController.“Zone Name” The Keypad will display the first component thatmay be replacedReplace? Press the No key to select the next component orpress the Yes key to replace this component .Remove Component The keypad will wait two minutes for you toAnd Press Yes remove component and press the Yes key. TheKeypad will beep.Enter New Comp Enter the new component’s Serial Number . If anerror is made press No# [XXXXXXXXX] to re-enter. Add Batteries to the new component.# is [XXXXXXXX] Press Yes to confirm the Serial Number or No toreturn to previousConfirm?Start Walk Test? Press Yes to start walk test.Walk Test Active The keypad will display this message during theTo Stop Press No walk test. When a sensor is activated the Keypadwill sound a series of beeps.6. System MessagesAnother Keypad Only one keypad may be used at a time.In UseCommunication The Controller was unable to communicate with themonitoring station.Failure Contact your installer for service and press Bypass toclear message.Low Battery Change the battery on the named device or bypass the“Zone/Device name” zone. Contact installer if device is the controller.Sensor Fault Contact your installer for service. Press Bypass tobypass the sensor “Zone/Device name” or clear themessage.
Loss of Clock Press Menu to adjust time or Bypass to clear message.“Device Name” AC Make sure the device is plugged in or contact installer.
