Targus Multimedia Presentation Remote
2
Introduction
Thank you for your purchase of the Targus Multimedia Presentation
Remote. This combination remote, with laser pointer and cursor control,
works with both Microsoft PowerPoint® and Apple Keynote®. This cordless
remote also offers true plug-n-play capability with no need for software
drivers, whilst the long range 2.4 GHz technology allows for effective
presentations up to 50 feet (15 m).
System Requirements
Hardware
• USB port
Operating System
• Microsoft Windows® 2000
• Microsoft Windows® XP
• Microsoft Windows Vista®
• Microsoft Windows7®
• Mac OS® X 10.4 or later
Contents
• Targus Multimedia Presentation Remote
• Mini USB receiver
• 2 x AAA batteries
• User guide
Targus Multimedia Presentation Remote
3
Setting Up Your Remote
Installing the Batteries
Press the battery cover release button to open the battery cover and
carefully lift the cover as shown.
Battery
Cover
Insert the supplied batteries, making sure the positive (+) and negative
(-) ends of the batteries match the polarity indicators inside the battery
compartment.
Spare battery compartment
Battery cover
release button
Targus Multimedia Presentation Remote
4
NOTE: THE SPARE BATTERY COMPARTMENT PROVIDES CONVENIENT STORAGE
FOR A SEPARATE BATTERY (INCLUDED) WHICH CAN BE USED FOR EMERGENCY
POWER.
Remove the mini USB receiver stored inside the center compartment.
Slide the battery cover back into position until it “clicks” firmly into place.
Targus Multimedia Presentation Remote
5
Using Your Remote
Before using the remote, please select your computer type and preferred
presentation software. Locate the switch inside the battery compartment
as shown.
PC PowerPoint®
Mac KeyNote®
Mac PowerPoint®
This remote is a plug-n-play device. It will automatically operate when
the USB receiver is connected to the computer. Plug the mini USB
receiver into any available USB port on your computer.
NOTE: SELECT “PC POWERPOINT” IF YOU USE A COMPUTER MADE BY: HP/
COMPAQ, DELL, TOSHIBA, GATEWAY, PANASONIC, FUJITSU, SONY, IBM/
LENOVO, ACER, ASUS, ETC.
Targus Multimedia Presentation Remote
6
Turn on the remote by pressing and holding the on/off power button for
3 seconds.
Targus Multimedia Presentation Remote
7
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Keys and Functions
This device can function as a presenter or a wireless mouse by using the
mode switch (12).
1Power button
Press and hold for 3 seconds to turn on the remote.
LED ring will turn green.
Press and hold for 3 seconds to turn off the remote.
LED ring will shut off.
Targus Multimedia Presentation Remote
8
Using the device - Presenter mode
2Blank screen button The screen will become blank/dark.
3Slide show
Start - Press once to begin.
Stop - Press and hold for 2 seconds to stop the slide
show.
4Page Forward/Next slide Press once to go to next slide.
5Page
Backward/Previous slide Press once to go back one slide.
6Laser pointer Laser light is emitted from the opening.
7LED ring Power and KeyLockTM indicator.
8KeyLock button
Press once to enable KeyLock function.
- Disables all keys except the laser, page forward/ next
slide and page backward/previous slide buttons.
- LED ring will become RED.
Press once to exit the KeyLock function.
- LED ring will return to GREEN.
9Laser pointer button Press and hold to activate the laser pointer.
10 Volume up button Press to increase the volume.
11 Volume down button Press to decrease the volume.
Targus Multimedia Presentation Remote
9
4Right mouse click Right mouse click.
5Left mouse click Left mouse click.
6Joystick Moves the mouse cursor.
7LED ring Power indicator.
8KeyLock button Disabled in mouse mode.
9Joystick Pressing the joystick resembles left mouse click.
10 Volume up button Press to increase the volume.
11 Volume down button Press to decrease the volume.
Using the device - Mouse mode
Targus Multimedia Presentation Remote
10
Safety Measures
• To avoid possible eye damage, never point the remote’s laser at people,
especially their faces, or look directly into the remote’s laser beam.
• Avoid pointing the remote’s laser beam at a mirror or other highly-reective
surface.
• Keep the remote away from young children.
• Never view the remote’s laser beam using telescopic devices, such as a
microscope or binoculars.
• Any attempt to disassemble, adjust or repair the remote may result in exposure to
laser light or other safety hazards.
Troubleshooting
What do I do if the response time of the remote is slow or it intermittently
stops working?
• Make sure that the remote is within 50 feet (15 m) of the mini USB receiver and
computer.
• Increase the distance between the remote’s receiver and the base units of other
wireless devices.
• Turn off any wireless devices and their base units that are near the remote’s
receiver.
• Replace the battery.
Targus Multimedia Presentation Remote
11

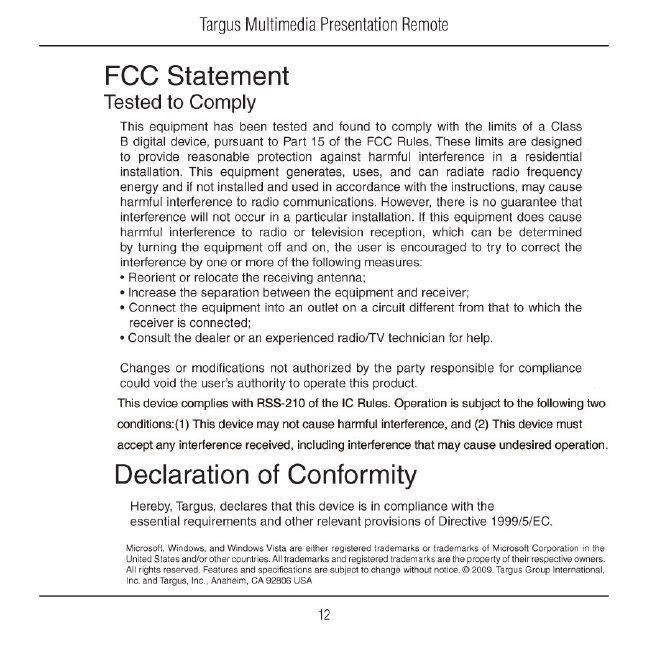

Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
Technical Support
For technical questions, please visit:
US Internet: www.targus.com/support.asp
Australia Internet: www.targus.com/au
Email: infoaust@targus.com
Telephone: 1800-641-645
New Zealand Telephone: 0800-633-222
Product Registration
Targus recommends that you register your Targus accessory shortly after purchasing
it. Go to:
http://www.targus.com/registration.asp
You will need to provide your full name, email address, country of residence and
product information.
Warranty
Targus warrants this product to be free from defects in materials and workmanship
for one year. If your Targus accessory is found to be defective within that time, we will
promptly repair or replace it. This warranty does not cover accidental damage, wear
and tear, or consequential or incidental loss. Under no conditions is Targus liable for
loss of, or damage to devices; nor loss of, or damage to, programs, records, or data;
nor any consequential or incidental damages, even if Targus has been informed of
their possibility. This warranty does not affect your statutory rights.
Targus Multimedia Presentation Remote
13
AVOID EXPOSURE--HAZARDOUS ELECTROMAGNETIC RADIATION EMITTED FROM THIS
APERTURE.

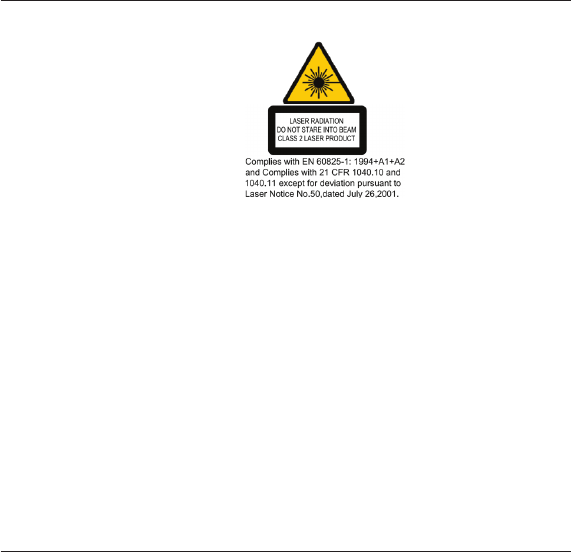

LASER RADIATION. DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS. CLASS 2 LASER PRODUCT.
NEVER POINT A LASER BEAM INTO A PERSON’S EYES OR VIEW A LASER BEAM DIRECTLY,
AS PROLONGED EXPOSURE CAN BE HAZARDOUS TO THE EYES. MOMENTARY EXPOSURE
FROM A LASER POINTER, SUCH AS AN INADVERTENT SWEEP OF THE LIGHT ACROSS A
PERSON’S EYES, MAY CAUSE TEMPORARY FLASH BLINDNESS SIMILAR TO THE EFFECT OF A
CAMERA FLASH BULB. ALTHOUGH THIS CONDITION IS TEMPORARY, IT CAN BECOME MORE
DANGEROUS IF THE EXPOSED PERSON IS ENGAGED IN A VISION-CRITICAL ACTIVITY SUCH
AS DRIVING.
CAUTION: ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
THIS DEVICE AND ITS ANTENNA(S) MUST NOT BE CO-LOCATED OR OPERATING IN
CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER. YOUR DEVICE CONTAINS
A LOW POWER TRANSMITTER. WHEN DEVICE IS TRANSMITTED IT SENDS OUT RADIO
FREQUENCY (RF) SIGNAL. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
410-1680-001A / AMP09US
