DK-7200BI User Manual
VER: 0.1
Page 1 of 10
Model Name : Targus Bluetooth 3.0 Keyboard
MODEL NO. : AKB35 (DK-7200BI)
VERSION : 0.1
DATE : 2013.02.26
USER MANUAL
DK-7200BI User Manual
VER: 0.1
Page 2 of 10
Version.
#
Revised Date PIC Remark
0.1 02/26/2013 Natural Preliminary
DK-7200BI User Manual
VER: 0.1
Page 3 of 10
Electrical Specification
1. Operating Voltage
Keyboard supply voltage: 3.5V-5.5V (Inter－Lithium Battery or DC 5V)
2. Current Consumption
Current use :< 5mA
3. Sleeping Mode
3.1 Timing to sleep mode: 10S (The time from all keys are free to the keyboard turn to
sleeping mode)
3.2 Current during the sleeping mode :< 5mA (finally stable the current)
3.3 Wake up: press any key of the keyboard
4. Low-voltage indicate
When the voltage below 3.7V, the LED light was flashing 1Hz, which means the power is
low. (No action during sleeping model)
5 Wireless specifications
2.402-2.480GHz frequency coverage.
GFSK RF transceiver
High Speed RF link data rate Max. 1M bit/s
DK-7200BI User Manual
VER: 0.1
Page 4 of 10
Key Function Chart

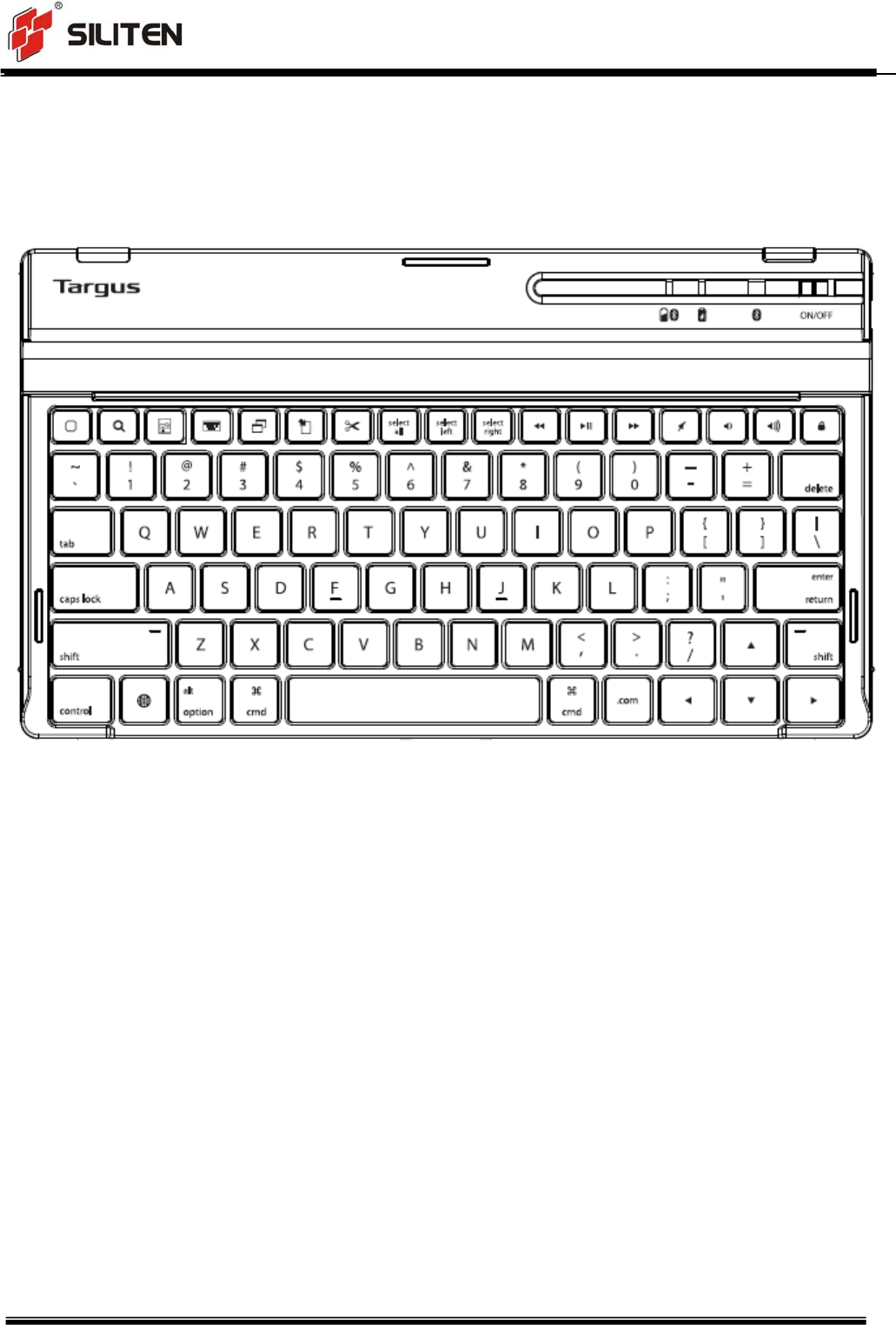

1. The keys function as the figure shows (for IPAD)：
DK-7200BI User Manual
VER: 0.1
Page 5 of 10
Operation Process
Step 1
Push the power button to ON, and then the power indication Lamp is bright once.
Keyboard power is on.
Step 2
Operate your PC to find remote Bluetooth device.
Step 3
Push the connect button to be found. Indicator Lamp is twinkling。
Step 4
PC find the Bluetooth keyboard, Setup the device go by PC.
Step 5
Use the keyboard freely.
DK-7200BI User Manual
VER: 0.1
Page 6 of 10
Charge Process
General using when the keyboard power indication Lamp twinkle means the inter-battery
is power low. You can charge keyboard as follow.
Step 1
Insert the micro USB plug which cable has a micro USB plug and a type A USB plug into
the keyboard micro USB socket.
Step 2
Insert the type A USB plug into a compatible USB socket which can supply DC5V, 500mA
power.
Step 3
The charge indication Lamp on keyboard is yellow. It means keyboard is charging.
Waiting …
IF the charge indications Lamp turn in blue, this means keyboard is full.
Step 4
When keyboard is full, you can cancel the cable connect.
Caution
Please use the keyboard in human house only and keep away
DK-7200BI User Manual
VER: 0.1
Page 7 of 10
water.
Children use the keyboard with guardian together is necessary.
Keep dry. Humidity, liquids, contain minerals that will corrode
electronic circuits.
Don’t use or store in dusty, dirty areas.
Don’t store in hot areas. High temperature can shorten the life of
electronic devices and warp or melt certain plastics.
Don’t store in very cold areas. Moisture can form inside the case,
which may damage electronic circuit boards.
Don’t attempt to open the case. Non-expert handling of the device
may damage the system.
Avoid dropping and strong impact.
FCC Statement
This equipment has been tested and found to comply with the
DK-7200BI User Manual
VER: 0.1
Page 8 of 10
limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
DK-7200BI User Manual
VER: 0.1
Page 9 of 10
(Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment. Such modifications could void the user authority to
operate the equipment.
Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
The device meets the exemption from the routine evaluation limits in section 2.5 of
RSS 102 and users can obtain Canadian information on RF exposure and
compliance.
DK-7200BI User Manual
VER: 0.1
Page 10 of 10
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section
2.5 de RSS 102 et les utilisateurs peuvent obtenir l'information canadienne sur
l'exposition et la conformité de rf.
Please feel free to contact information below for any questions you
have regarding your product
TARGUS CANADA LTD.
90 Admiral Blvd. Mississauga Ontario, L5T 2W1 Canada
Tel: 905-564-9300 Fax: 905-564-9322
