Tata Indica - V2

Diesel / Diesel Turbo

(DL, DLE, DLS, DLG & DLX)

Owner's Manual & Service Book

Passenger Car Business Unit

Mumbai Pune

This owner's manual is advised to be kept in the vehicle at all time.

Ofrecido por www.electromanuales.com

CAR IDENTIFICATION AND RECORD

OWNER'S NAME

ADDRESS

SELLING DEALER CODE

DATE OF DELIVERY

DATE OF REGISTRATION

REGISTRATION NO.

CHASSIS NO.

ENGINE NO.

TRANSAXLE NO.

THE WARRANTY ON THIS CAR IS VALID ONLY IF THE DETAILS ARE FILLED, SIGNED AND STAMPED

BY THE SELLING DEALER.

DEALER'S SIGNATURE

AND STAMP

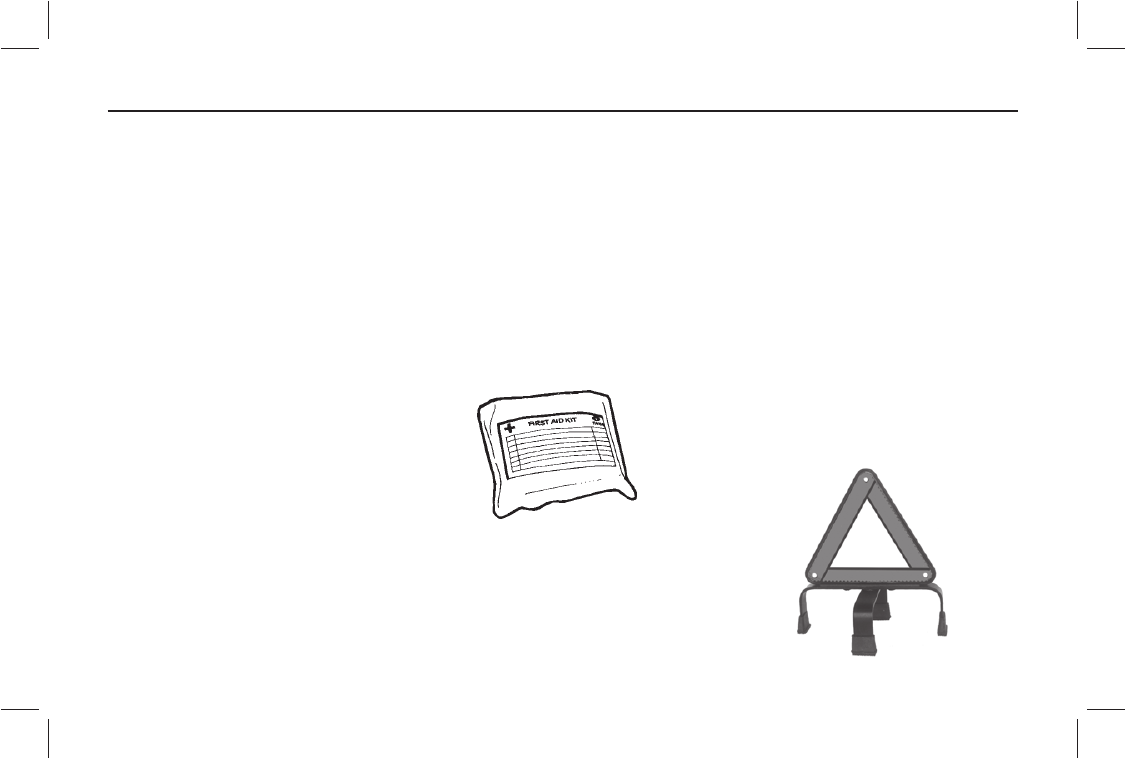

Following items are provided

with your Tata Indica :

1. Owner's Manual & Service Book.

2. Battery Warranty Card.

3. First Aid Kit.

4. Advance Warning Triangle.

5. Jack and Handle.

6. Spare Headlamp bulbs - 2 Nos.

7. Spare Fuses - (Provided in fuse

box)

8. Tool Kit

a. Wheel Spanner

b. Screw Driver

c. Open end spanner (8-10)

d. Adjustable Plier

9. Manufacturer's manual for Music

System (if fitted)

Ofrecido por www.electromanuales.com

Dear Indica customer,

We are privileged to have you choose the Tata Indica V2. The car comes backed by the trusted Tata brand

and is part of the stable of offerings from Tata Motors in the passenger car range.

We would want you to be acquainted with the details in this user's manual, which will enable you to derive

optimum performance from your Indica. We look forward to having you as a satisfied customer and hope to

have you retain us as your first choice for any of your motoring needs.

Yours sincerely

Rajiv Dube

Vice President (Commercial)

Passenger Car Business Unit

Tata Motors Limited

Ofrecido por www.electromanuales.com

This owner's manual & service book include information on the operation and maintenance of various

equipment installed on the different versions of Tata Indica V2 car. Please note that this manual applies all

equipment including options not installed on your car.

• Should any question or query exit regarding any aspect of your car, please contact the nearest TATA

MOTORS dealer, who will be pleased to assist wherever possible.

• The recommended routine maintenance servicing along with any running repairs that may be required,

should be entrusted to TATA MOTORS dealership or to TATA Authorised Service Centres (TASCs) or TATA

Authorised Service Points (TASPs) to ensure that only latest methods and genuine TATA MOTORS

replacement parts are used for the continued reliability, safety and performance of the vehicle.

any form without written permission from TATA MOTORS.

• In the event of the vehicle being sold, please ensure that this manual is left in the vehicle for the reference

of the new owner.

Ofrecido por www.electromanuales.com

INTRODUCTION 7

TAKING CARE OF THE ENVIRONMENT

We request you to spend a few minutes in going

through our environmental concern

WARRANTY 10

INFORMATION AT A GLANCE 12

•Filling Station Information

•Car Dimensions

BEFORE DRIVING 15

•Controls •

Instrument Panel

•Heating, Ventilation & Air Conditioning

•Interiors and Accessories

STARTING & DRIVING THE CAR 55

•Check List •

Starting & Stopping

•Preparing to Drive •

Fuel Economy

•Driving in adverse conditions

•Driving Diesel cars • Driving safety

MAINTENANCE & CAR CARE 73

•Engine Compartment

•Engine Compartment Lamp

•Windshield Washer

•Air Filter •

Engine Cooling System

CONTENTS

•Engine Belt Tension •

Engine Oil & Oil Filter

•Fuel Filter •

Transaxle •

Fuel Filling Cap

•Clutch & Brakes •

Power Steering

•Battery •

Catalytic Converter

•

EGR System (Diesel Engine)

•Fuses & Relays •

Wheels & Tyres

EMERGENCY SERVICE TIPS 111

•Engine •

Clutch •

Transaxle •

Brakes

•Steering System •

Electrical •

Suspension

IMPORTANT INFORMATION 119

•Location of Aggregate Numbers

•Fuel, Coolants & Lubricants

•Technical Specifications

•Service Schedule

•Car Record Sheet

CUSTOMER SUPPORT NETWORK

141

•Tata Motors Offices & Network

•Names & Address of Tata Motors Main Dealers

(MDs), Tata Motors Authorised Service Centres

(TASCs),Tata Motors Authorised Service Points

(TASPs)

Ofrecido por www.electromanuales.com

1800 209 6688

Ofrecido por www.electromanuales.com

Congratulations on acquiring the Tata Indica V2 and welcome

to the family of Tata Indica V2 owners.

This owner's manual has been prepared to acquaint you with

the operation and maintenance of your new Tata Indica V2

and to provide you with important safety information and tips

for effective driving. Please refer to it from time to time for

enjoyable, safe and troublefree driving pleasure.

This manual is an essential part of your car and should always

be kept in the car.

Regular servicing of your car ensures its road worthiness and

troublefree operation.

To assist you in maintaining your Tata Indica V2 we have a

network of dealers and Service Centres throughout the

country. The list is included in this manual for your

convenience.

Happy motoring

INTRODUCTION

Tata Indica is a safe car designed for quality performance.

In order to maintain the level of performance and reliability,

it is important that only Tata Motors genuine accessories

are to be fitted. Any accessory without authorisation can

hamper the safety and performance of the car besides

depriving you of your warranty benefits.

Use of genuine parts, designed and manufactured to our

exacting standards, is the best way to maintain your Tata

Indica in peak operating condition. Please do not use

substitutes. They always prove costlier in the long run.

Failure to use genuine parts can invalidate warranty

claims.

The information and specifications given in this book are

valid as on the date of printing. Tata Motors reserves the

right to make changes in design and specifications and/

or to make additions to or improvements in this product

without obligation to install them on products previously

sold.

Indicates "CAUTION"

Ofrecido por www.electromanuales.com

Taking care of the Environment

Tata Motors is committed to producing cars using

environmental friendly technology. A number of features have

been incorporated in our passenger cars which are specifically

designed to ensure environmental compatibility throughout

the life cycle of the car. We would like to inform you that your

car meets statutory emission norms and is being regularly

validated at the manufacturing stages to keep up with the

stringent emission norms.

As a user you too can protect the environment by operating

your car in a proactive manner. A lot depends on your driving

style and the way you maintain your car. Listed below are few

tips that will help you do so.

WHILE DRIVING :

Avoid frequent and violent acceleration.

Do not carry any unnecessary weight on the vehicle as it

overloads the engine.

Avoid using devices requiring high power consumption

during slow traffic condition.

Monitor the car’s fuel consumption regularly. If it shows

a rising trend get the car immediately attended to at the

Company’s Authorised Service Centre.

Switch off the engine during long stops at traffic jams or

signals. If you need to keep the engine running, avoid

unnecessarily revving or stopping and starting.

It is not necessary to rev up the engine before turning it

off as it unnecessarily burns the fuel.

Shift to higher gears as soon as it is possible. Use each

gear upto 2/3rd of it’s maximum engine speed. A chart

indicating gear shifting speeds is given in this book.

MAINTENANCE OF THE CAR :

Ensure that recommended maintenance is carried out

on the car regularly at the Tata Engineering Authorised

Service Outlets.

As soon as you notice any leakages of oil or fuel in the

car we recommend that you get it attended to

immediately.

Use only recommended brands and grades of lubricants

& coolants and clean/uncontaminated fuels.

Get your vehicle checked for emission periodically by our

authorised dealer and regularly renew the P.U.C.

Certificate.

Ensure that fuel filter, oil filter, breathers are periodically

checked and if required, replace the same using only

genuine recommended brands.

ENVIRONMENTAL PROTECTION Taking Care of the Environment

Ofrecido por www.electromanuales.com

ENVIRONMENTAL PROTECTION Taking Care of the Environment

Do not pour used oils or coolants into sewage drains, garden

soil or open streams. Dispose of the used filters and

batteries in compliance with the current legislation.

Do not allow any unauthorised person to tamper with the

engine settings or to carry out modifications on the car.

Parts like brake liners and clutch disc should be vacuum

cleaned. Do not use compressed air for cleaning these

parts which may spread the dust in the atmosphere.

While carrying out the servicing or repairs of your car, you

should pay keen attention to some of the important engine

aggregates which greatly affect emission. These components

are :-

1. Fuel injection pump, Injectors/Nozzles

2. Air intake & Exhaust system especially for leakages

3. Cylinder head for valve leakage

4. All filters such as air, oil & fuel filters (check

periodically)

5. Catalytic converter (if fitted)

6. E.G.R. system

7. Turbocharger and Intercooler

This Owner’s Manual & Service Book contains further information

on driving precautions and maintenance care leading to

environment protection. Please familiarise yourself with these

aspects before driving.

Ofrecido por www.electromanuales.com

WARRANTY Terms and Conditions

We WARRANT each Tata Indica car and

parts thereof manufactured by us to be

free from defect in material and

workmanship subject to the following

conditions -

1. This warranty shall be for 18 months

from the date of sale of the car

irrespective of the distance covered.

However, for the cars used for

commercial applications (used for

hire or reward viz those operating

with a yellow number plate), the

warranty shall be limited to 18

months or 50,000 kms, whichever

occurs earlier.

2. Our obligation under this warranty

shall be limited to repairing or

replacing, free of charge, such parts

of the car which, in our opinion, are

defective, on the car being brought

to us or to our dealers within the

warranty period. The parts so

repaired or replaced shall also be

warranted for quality and

workmanship but such warranty

shall be co-terminus with this original

warranty.

3. Any part which is found to be

defective and is replaced by us under

the warranty shall be our property.

4. As for such parts as tyres, batteries,

electrical equipment, fuel injection

equipment,etc.not manufactured

by us but supplied by other parties,

this warranty shall not apply, but

buyers of the car shall be entitled

to, so far as permissible by law, all

such rights as we may have against

such parties under their warranties

in respect of such parts.

5. This warranty shall not apply if the

car or any part thereof is repaired

or altered otherwise than in

accordance with our standard

repair procedure or by any person

other than from our sales or service

establishments, our authorised

dealers, service centres or service

points in any way so as, in our

judgement which shall be final and

binding, to affect its reliability, nor

shall it apply if, in our opinion which

shall be final and binding, the car

is subjected to misuse, negligence,

improper or inadequate

maintenance or accident or

loading in excess of such carrying

capacity as certified by us, or such

services as prescribed in our

Owner's Manual and Service Book

are not carried out by the buyer

through our sales or service

establishments, our authorised

dealers, service centres or service

points.

6. This warranty shall not cover

normal wear and tear or any

inherent normal deterioration of

the car or any of its parts arising

from the actual use of the car or

any damage due to negligent or

improper operation or storage of

the car. This warranty shall not

apply to normal maintenance

services like oils & fluid changes,

head lamps focussing, fastener

Ofrecido por www.electromanuales.com

WARRANTY Terms and Conditions

10. Any claim arising from this

warranty shall be recognised only

if it is notified in writing to us or to

our authorised dealer without any

delay soon after such defects as

covered and ascertained under this

warranty.

11. This warranty shall stand

terminated if the car is transferred

or otherwise alienated by the buyer

without our prior written consent.

12. We reserve our rights to make any

change or modification in design

of the car or its parts or to introduce

any improvement therein or to

incorporate in the car any

additional part or accessory at any

time without incurring any

obligation to incorporate the same

in the cars previously sold.

retightening, wheel balancing, tyre

rotation, adjustment of valve

clearance, fuel timing, ignition

timing and consumables like bulbs,

fuel filters & oil filters, etc. This

warranty shall not apply to any

damage or deterioration caused by

environmental pollution or bird

droppings. This warranty shall not

apply to V-belts, hoses and gas

leaks in case of air conditioned

cars.Slight irregularities not

recognised as affecting the function

or quality of the vehicle or parts, such

as slight noise or vibration, defects

appearing only under particular or

irregular operations are items

considered characteristic of the

vehicle.

7. This warranty shall be null and void

if the car is subjected to abnormal

use such as rallying, racing or

participation in any other

competitive sport. This warranty

shall not apply to any repair or

replacements as a result of accident

or collision.

8. This warranty is expressly in lieu of

all warranties, whether by law or

otherwise, expressed or implied,

and all other obligations or

liabilities on our part and we

neither assume, nor authorise any

person to assume on our behalf,

any other liability arising from the

sale of the car or any agreement in

relation thereto.

9. The buyer shall have no other

rights except those set out above

and have, in particular, no right to

repudiate the sale, or any

agreement or to claim any

reduction in the purchase price of

the car, or to demand any damages

or compensation for losses,

incidental or indirect, or

inconvenience or consequential

damages, loss of car, or loss of time,

or otherwise, incurred or accrued.

Ofrecido por www.electromanuales.com

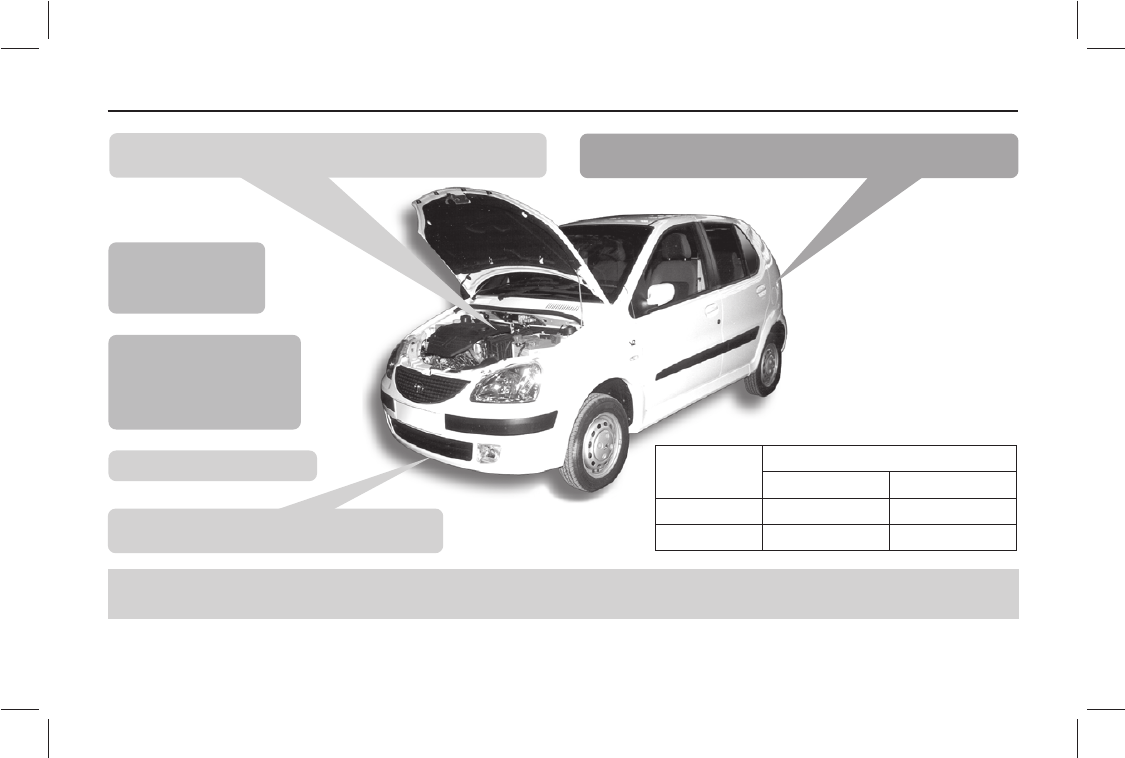

IMPORTANT : For diesel car fitted with catalytic converter use diesel with sulphur contents less than 0.25%.

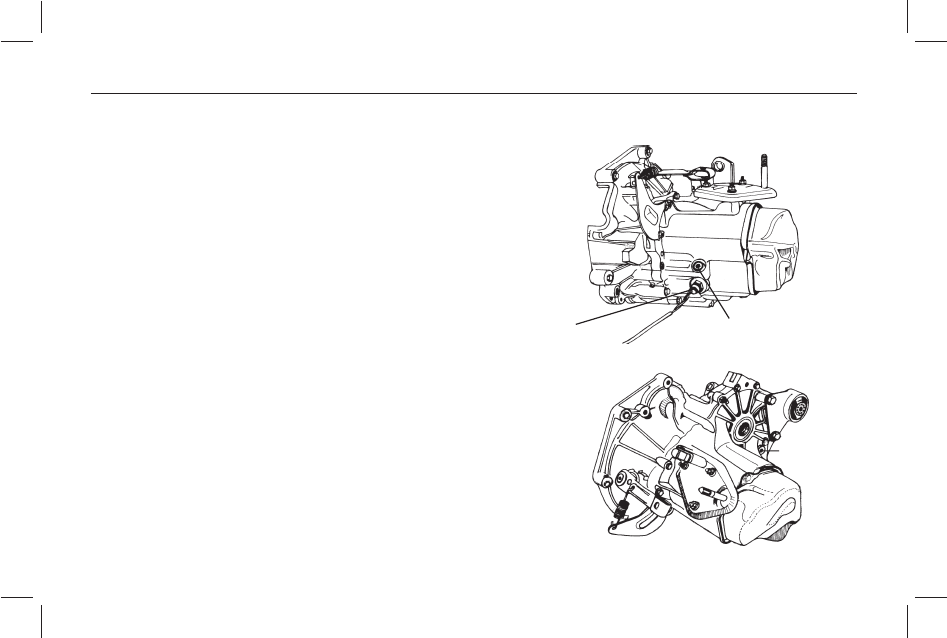

TRANSAXLE OIL 3.3 Litres

For recommended oil grades and change intervals, refer lubricants chart and service schedule

Windshield Washer

reservoir = 3.5 Litres

for DLX, 1.5 Litres for

DL, DLE, DLS, DLG.

Brake fluid = 0.265 Litres TYRE SIZE TYRE PRESSURE

FRONT REAR

165/65 R 13 30 psi.(2.1 bar) 28 psi.(1.9 bar)

165/65 R 14 28 psi (1.9 bar) 24 psi.(1.6 bar)

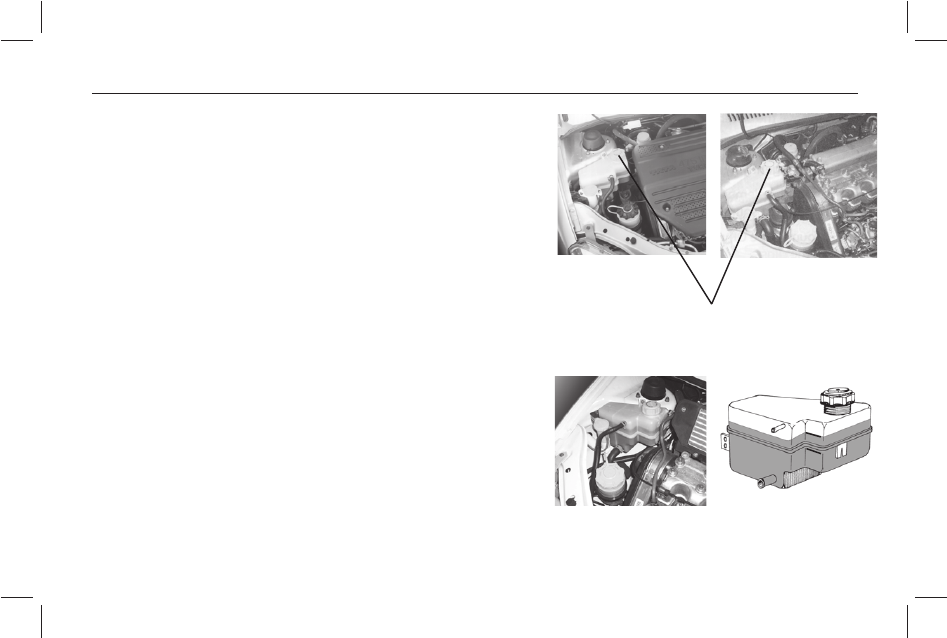

INFORMATION AT A GLANCE Filling Station Information

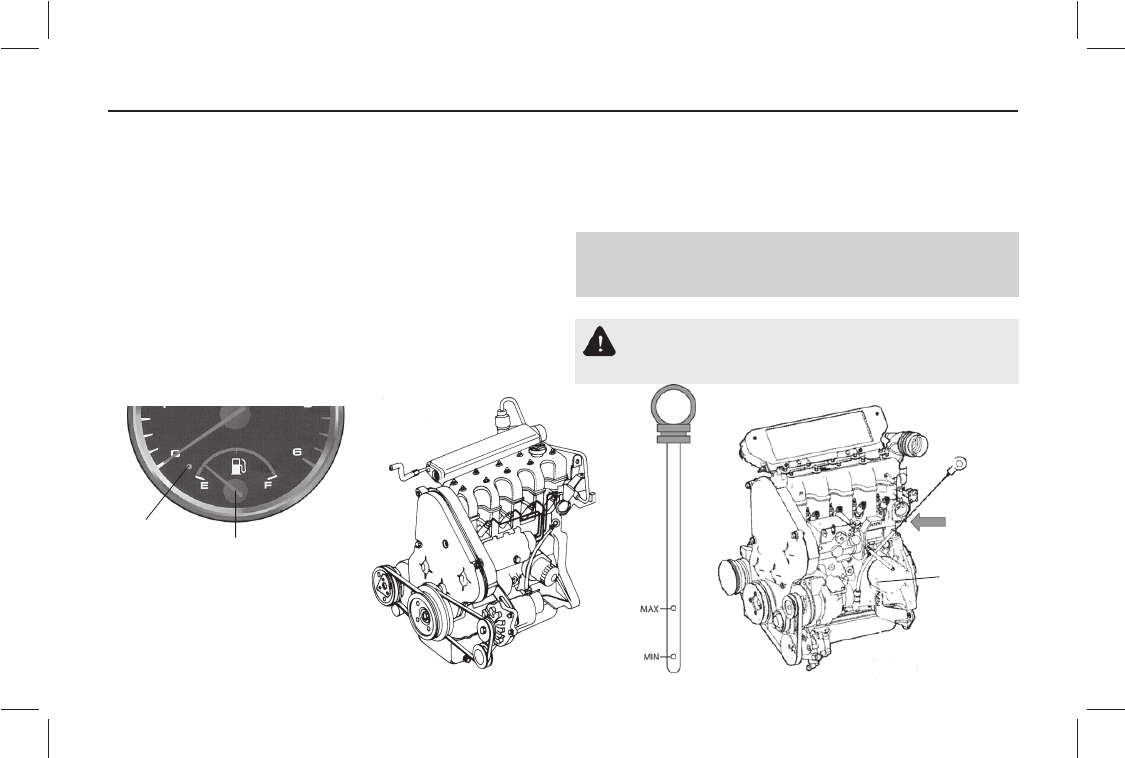

ENGINE OIL UPTO DIPSTICK MAX.MARK ~ 4.0 Ltrs. (IDI) FUEL TANK CAPACITY 37 Litres

* Premixed ready

to use Engine

Coolant = 6 Litres

5.5 Ltrs (TCIC)

Ofrecido por www.electromanuales.com

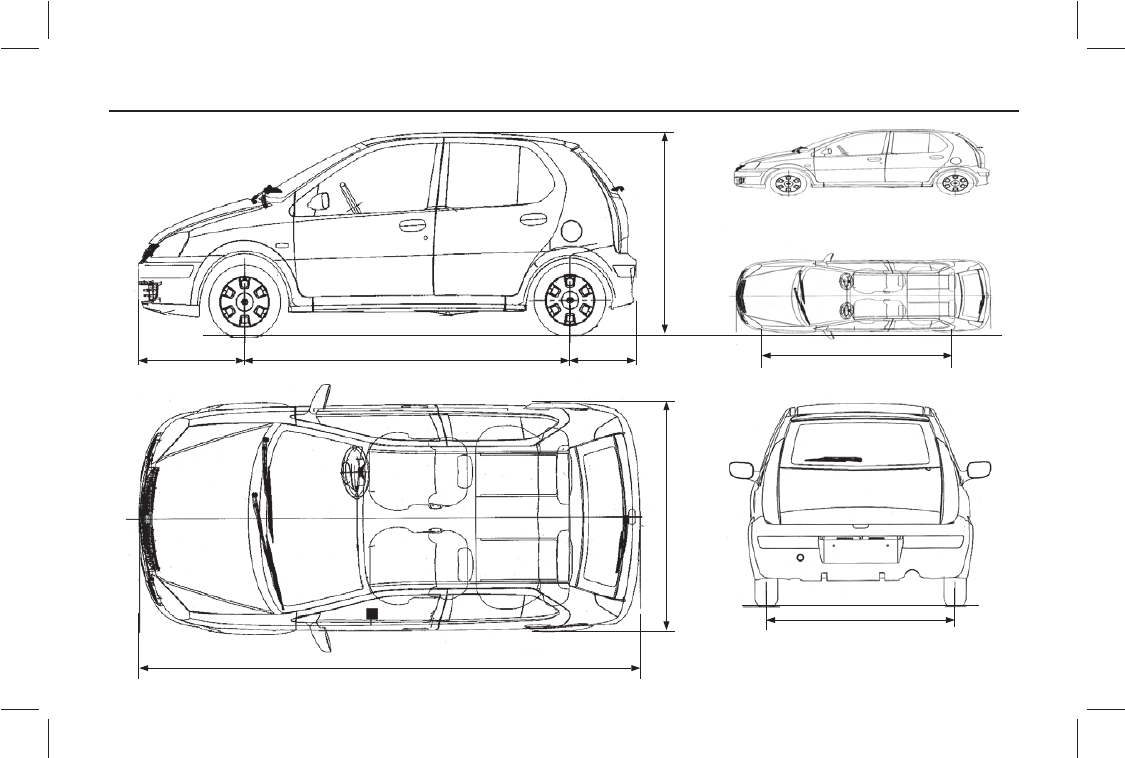

INFORMATION AT A GLANCE Dimensions

1485 mm

unladen

3675 mm

Note : Co-driver's side rear view mirrors for Deluxe & DLG version only

2400 mm785 mm 490 mm

1665 mm

1400 mm

1380 mm

Ofrecido por www.electromanuales.com

BEFORE DRIVING

•CONTROLS

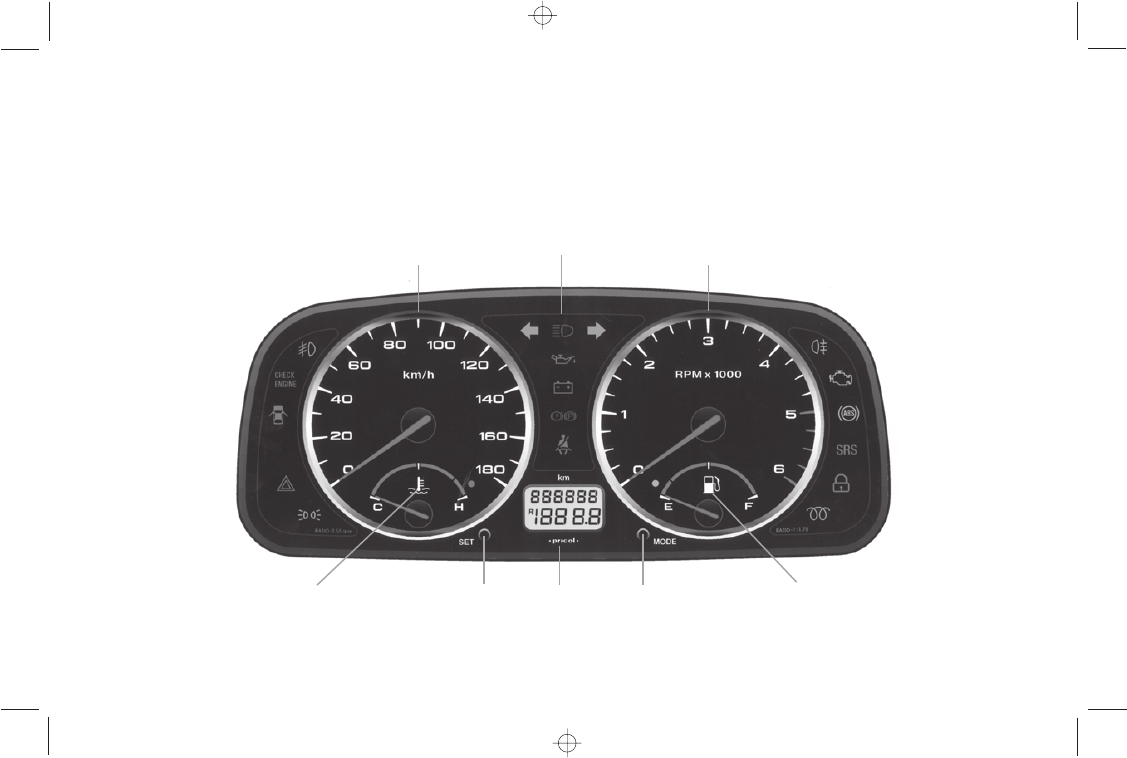

•INSTRUMENT PANEL

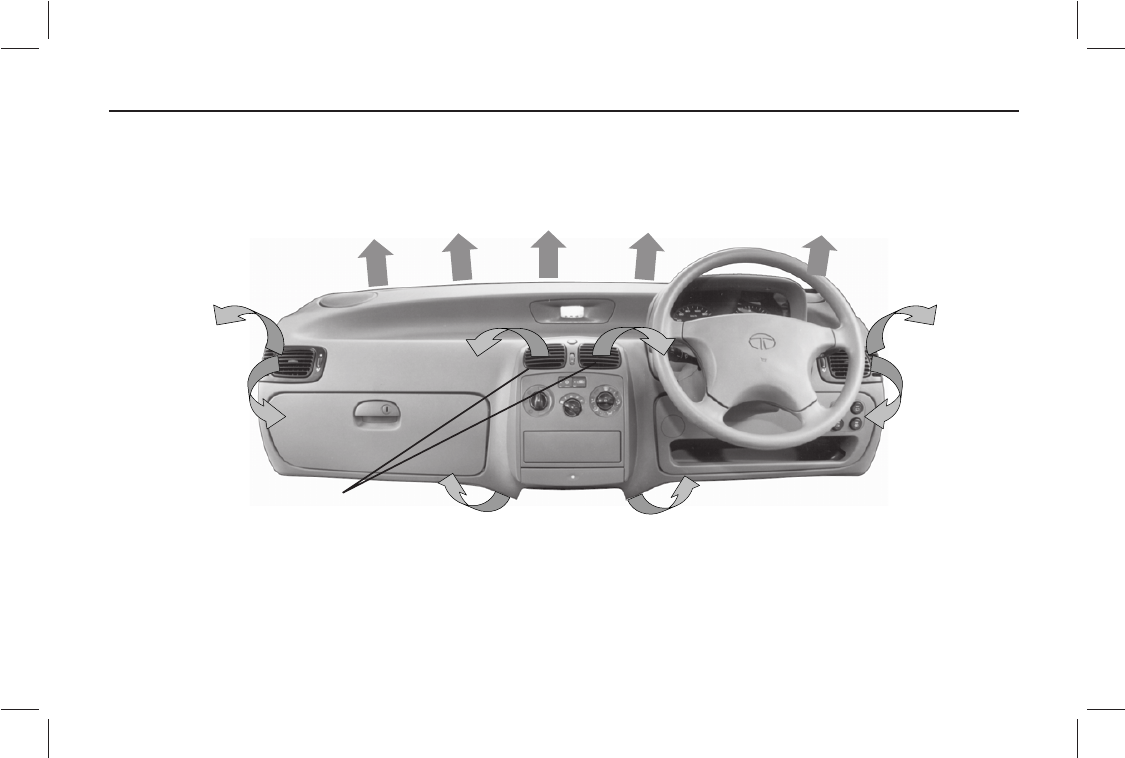

•HEATING, VENTILATION &

AIR CONDITIONING

•INTERIORS & ACCESSORIES

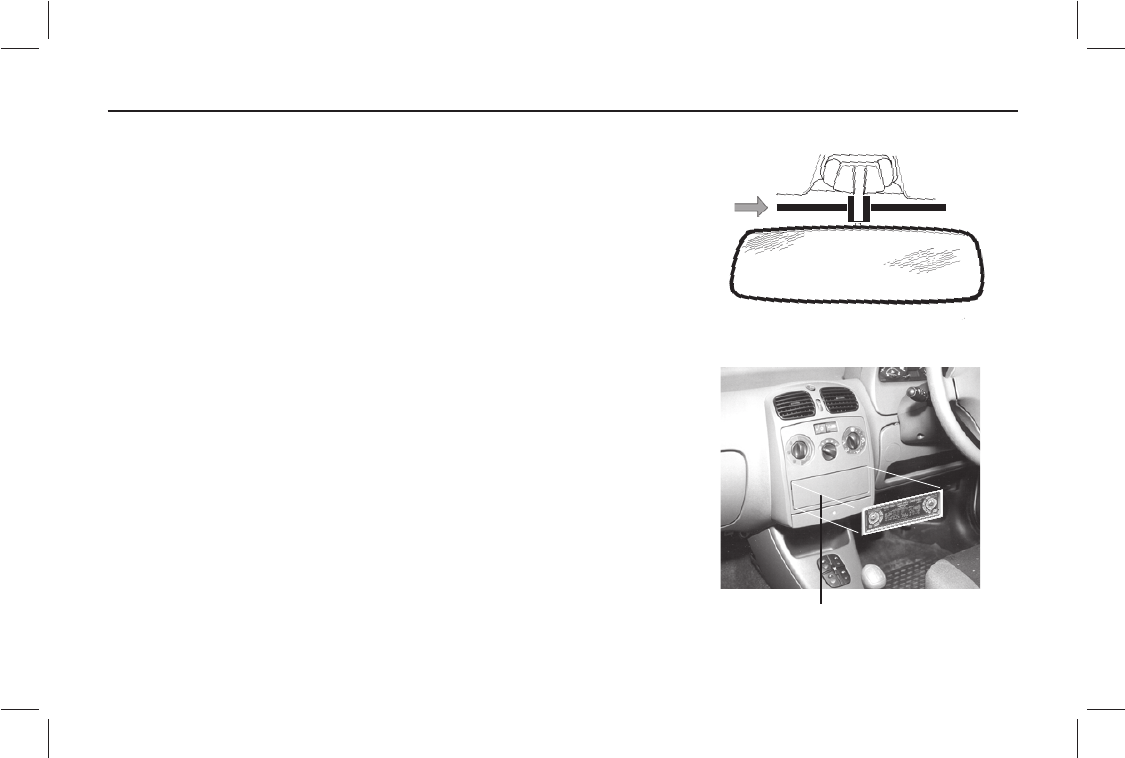

Rear View Mirrors

Sunvisors

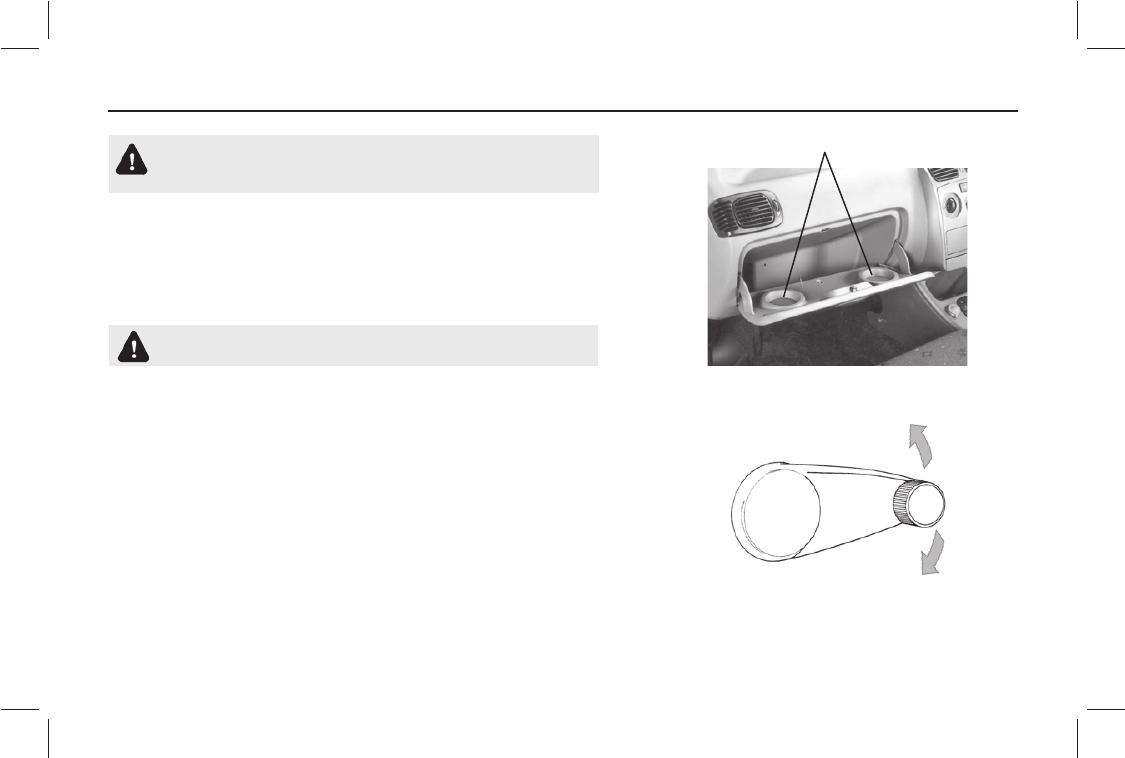

Glove Box

Window Winding

Power Windows

Tray Cover with Coin Holder

Plug Socket

Rear Ashtray

Digital Clock

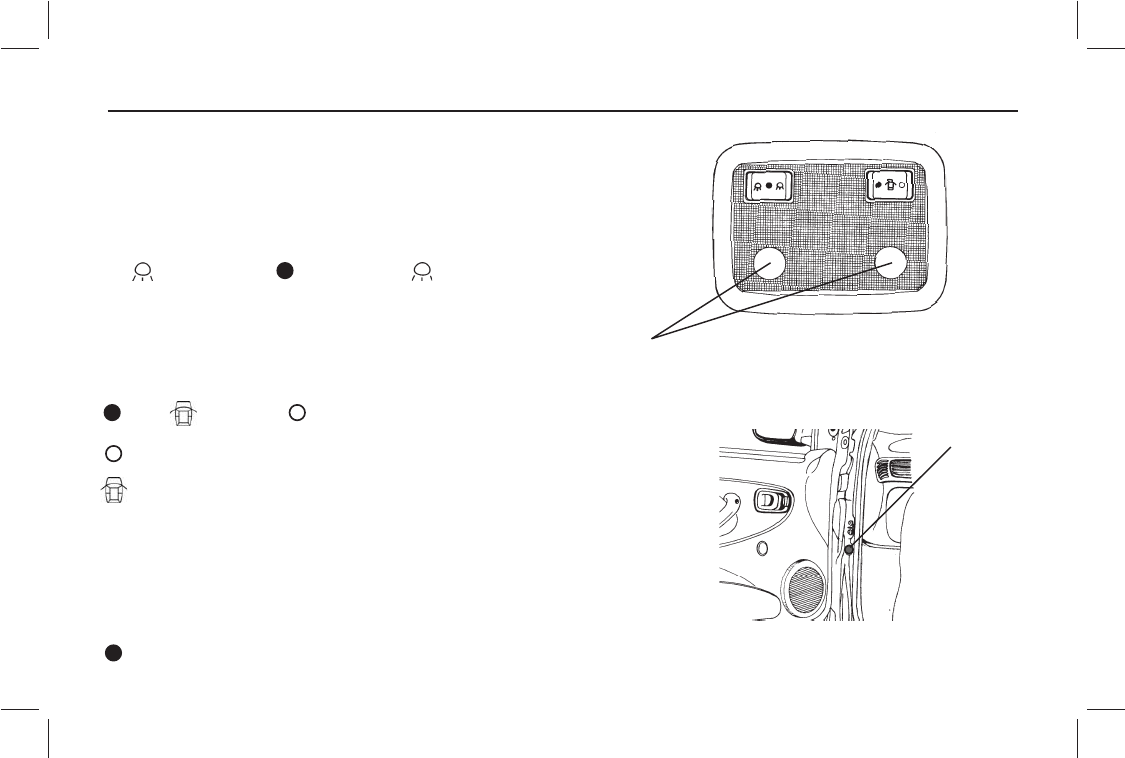

Roof Mounted Interior Lights

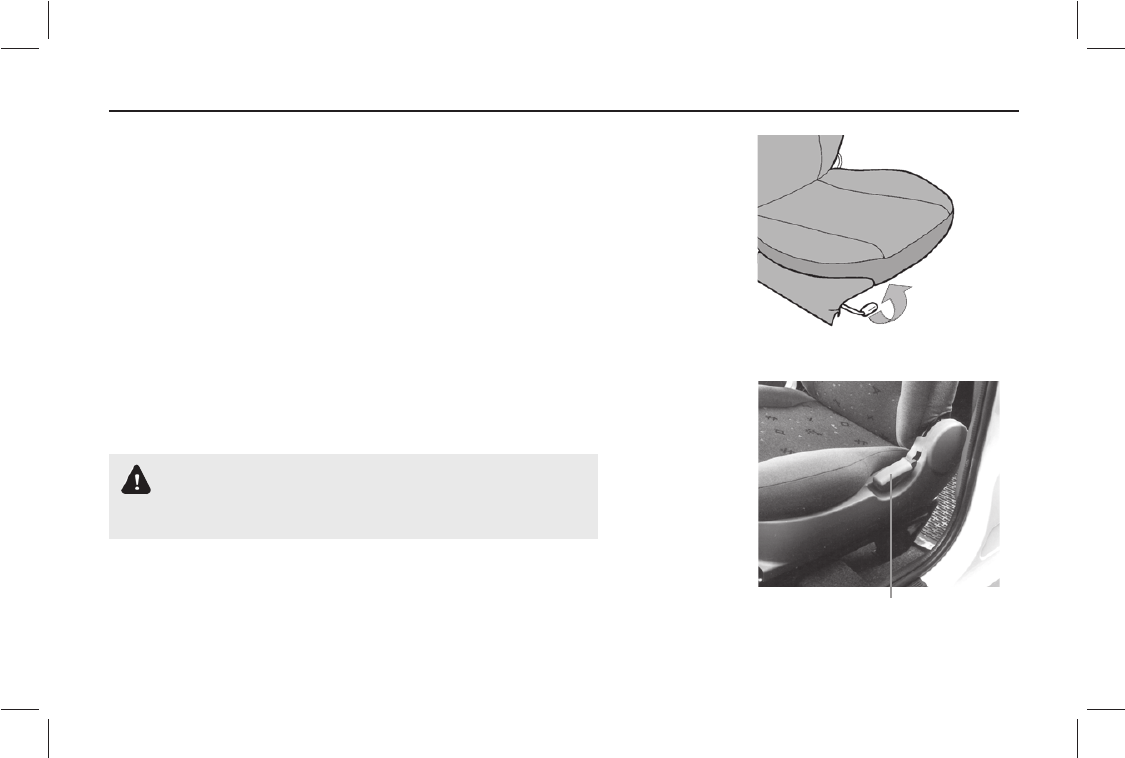

Front Seat & Seat Adjustments

Head Rest

Rear Seat

Seat Belt Adjustment

Tailgate Opening

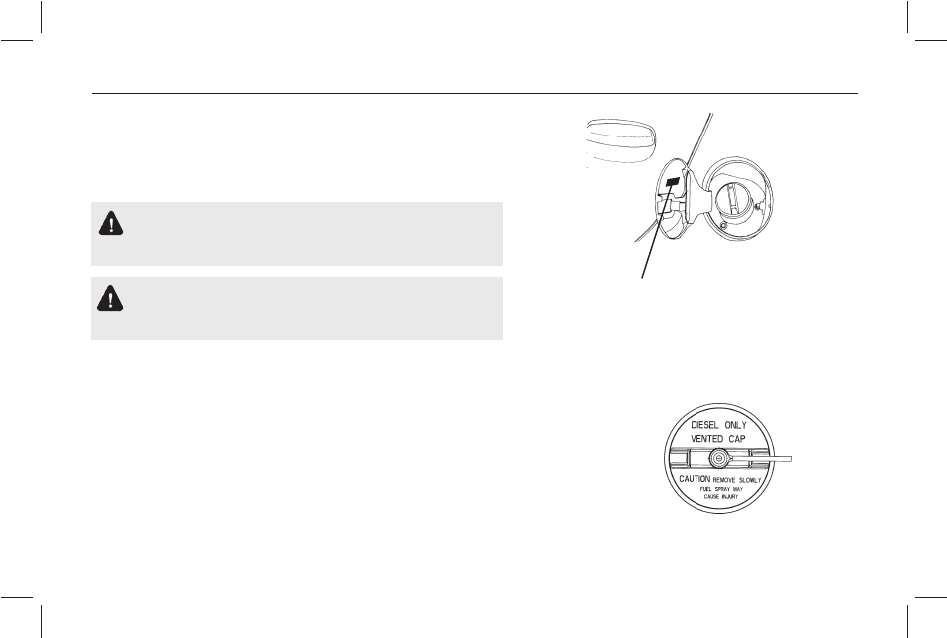

Fuel Flap Opening

Music System

Electrical Accessories Fitment

Load Area Lamp

Front Fog Lamps

Ofrecido por www.electromanuales.com

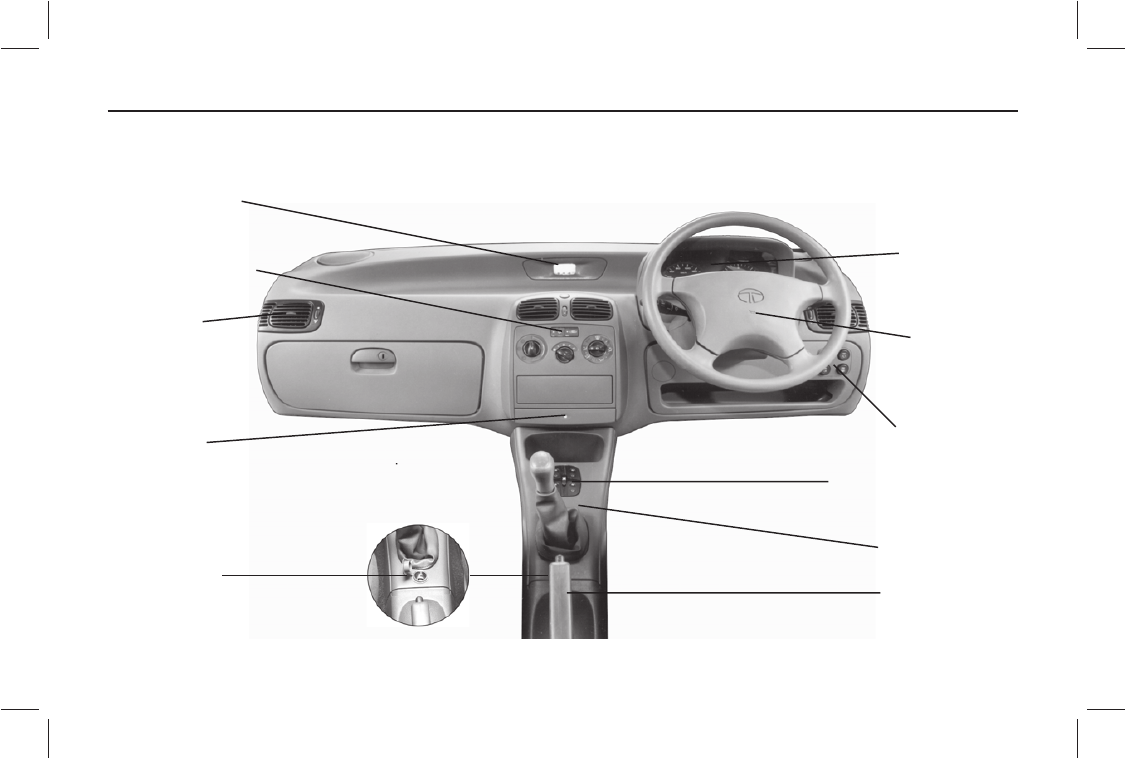

CONTROLS

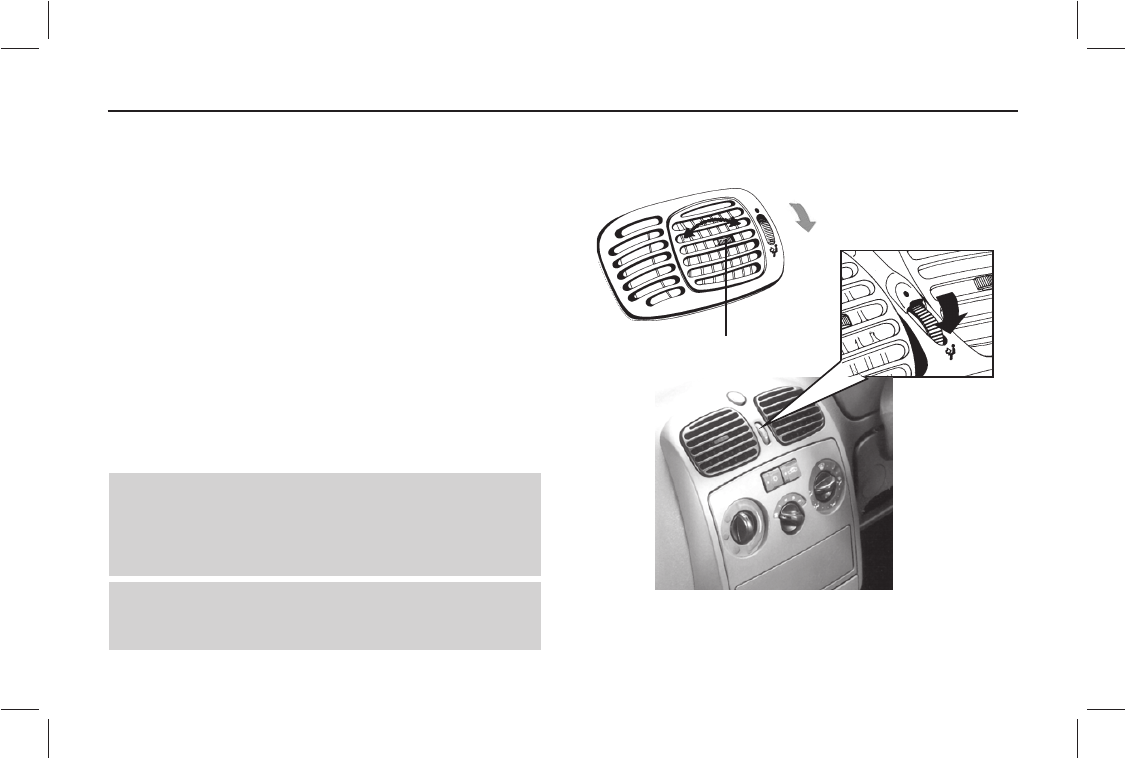

Air Vent

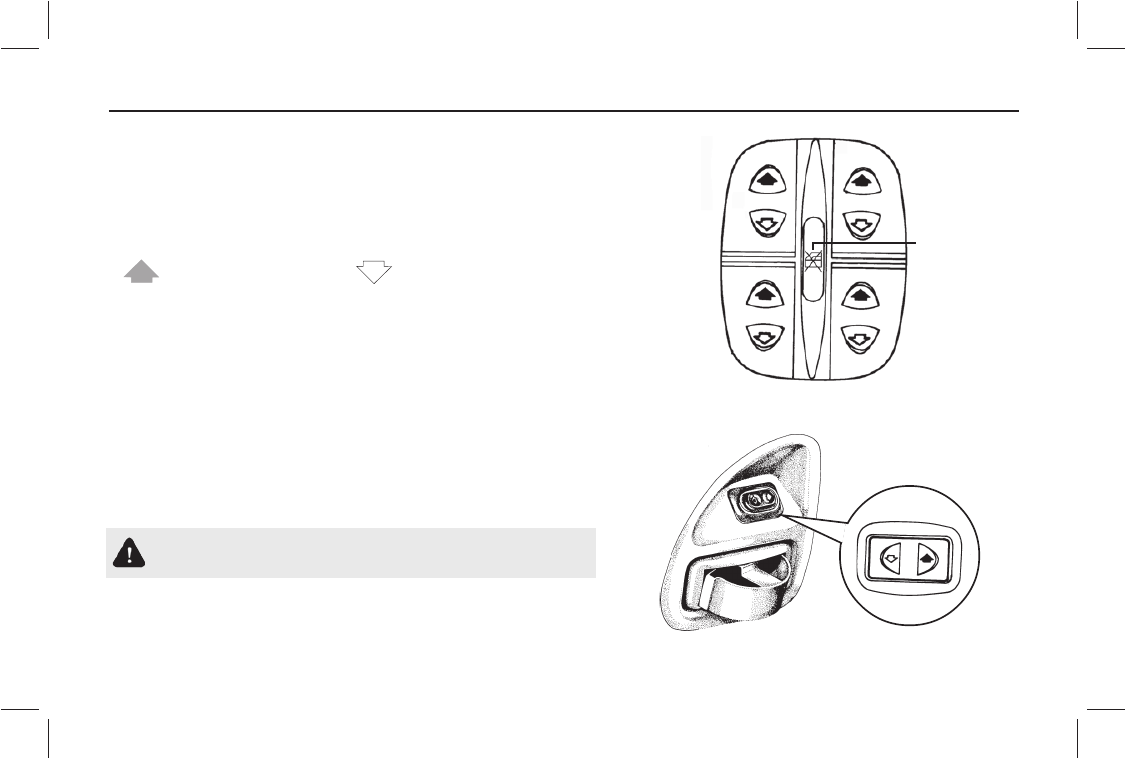

Power Window Switch

Pack

Digital Clock

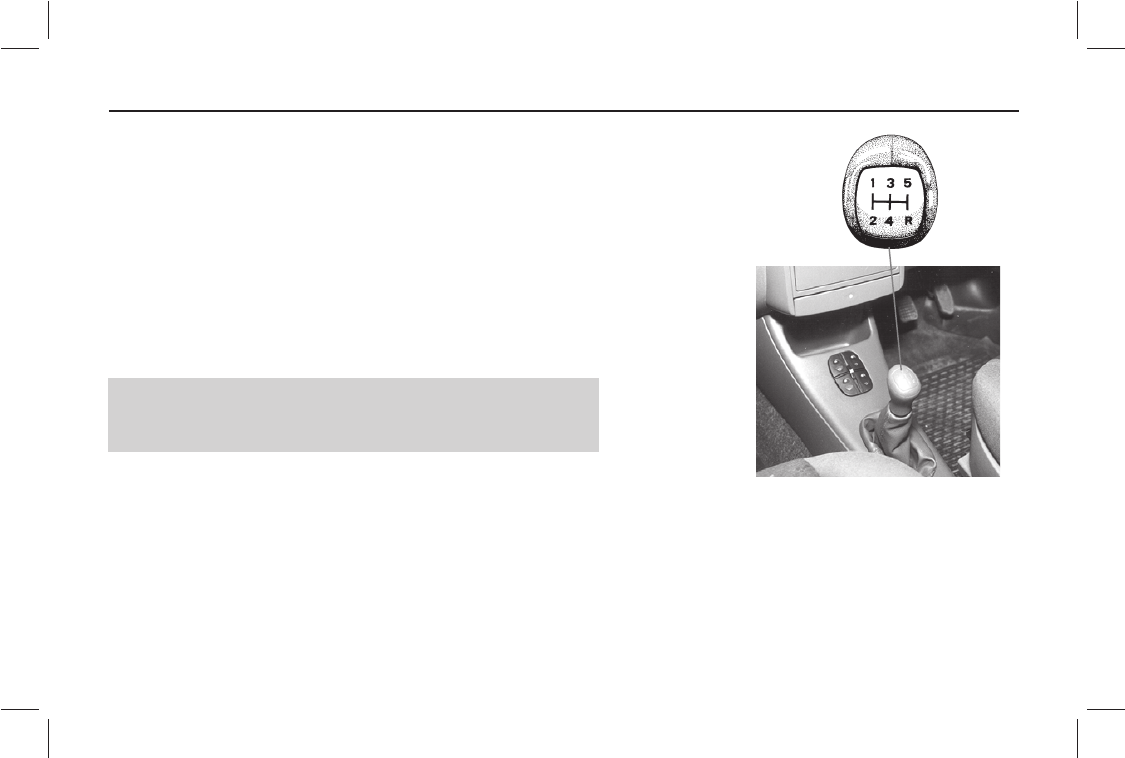

Gear Shift

Lever

Parking Brake

Accessory Switches

Instrument

Panel

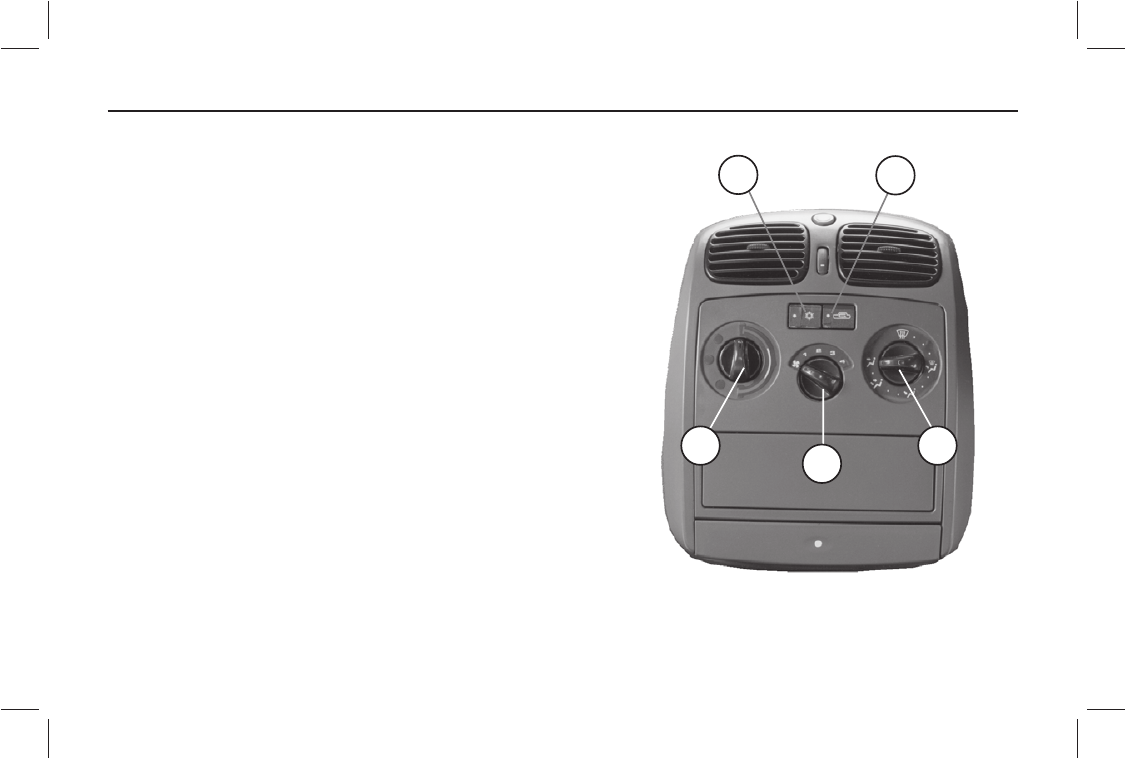

Heating, Ventilation

& A.C. Controls

Coin Box

Horn Pad

Plug

Socket

(if fitted)

BEFORE DRIVING Controls

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

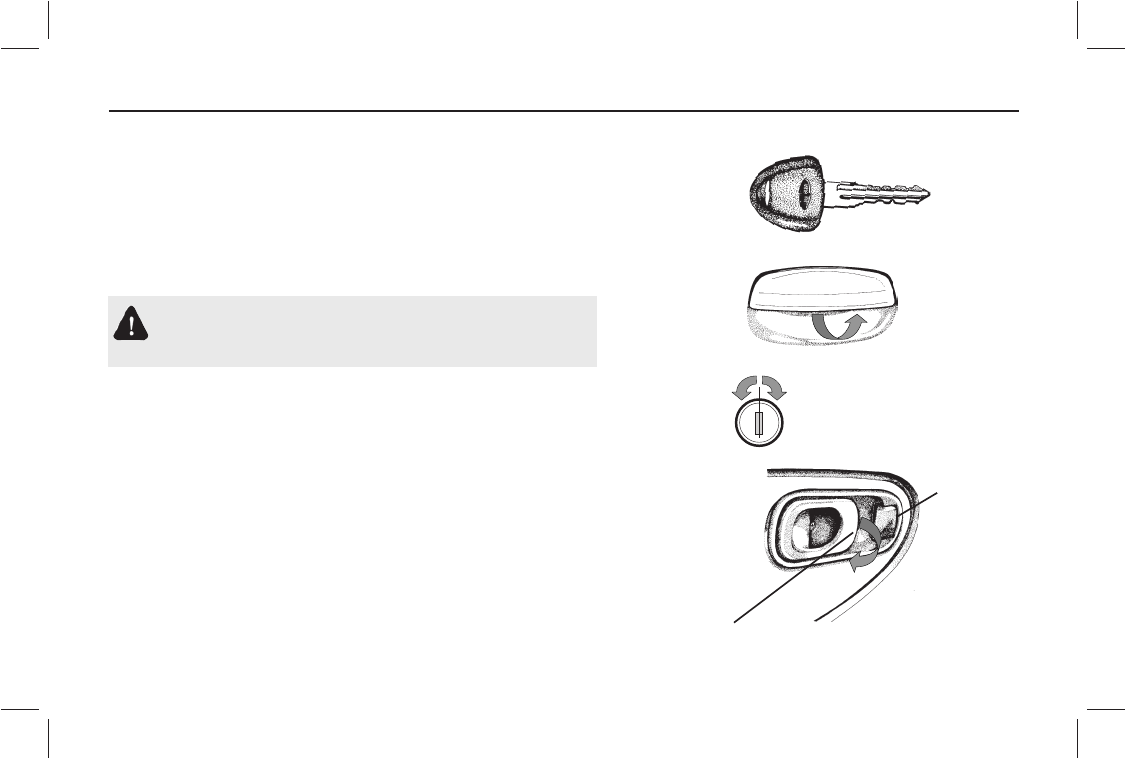

Keys :

Your car comes with two identical keys.

With this key, you can operate - 1. Door Locks

2. Steering Lock cum ignition switch

3. Tail gate Lock 4. Glove box

It is advisable to keep one of the keys in a safe place for use in case of

an emergency.

Do not use a locally made key, but obtain a duplicate through

your Tata Motors dealer.

Do not leave the key inside the car.

Door Locks :

The front doors can be locked and unlocked from outside with the

key or from inside using the door lock lever. In your car, the driver's

door & co-driver's door have separate locking facilities. To lock from

inside turn the lever towards the inner hinged handle.

Where the central locking system is provided, if you lock/unlock the

driver door with the key, the remaining three doors get locked/

unlocked at a time. The tail gate door is not a part of the central locking

provision.

To open the door from outside use the swing handle. After unlocking

the door with the key, pull the swing handle upward. The swing handles

are provided on each door.

To open the door from inside pull the hinged handle outward.

Outside swing handle

To open

Lock Unlock

Inside door handle

To open

Hinged handle

Locking /

Unlocking

lever

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

On LHS Door

On RHS Door

Childproof Lock :

Both the rear doors of the car are provided with childproof locks. Push

the lock lever located on the vertical face near the rear lock downward

before closing the door. The door which has been locked can no longer

be opened from inside.

It can be opened only from the outside.

Deactivate the childproof lock when not required.

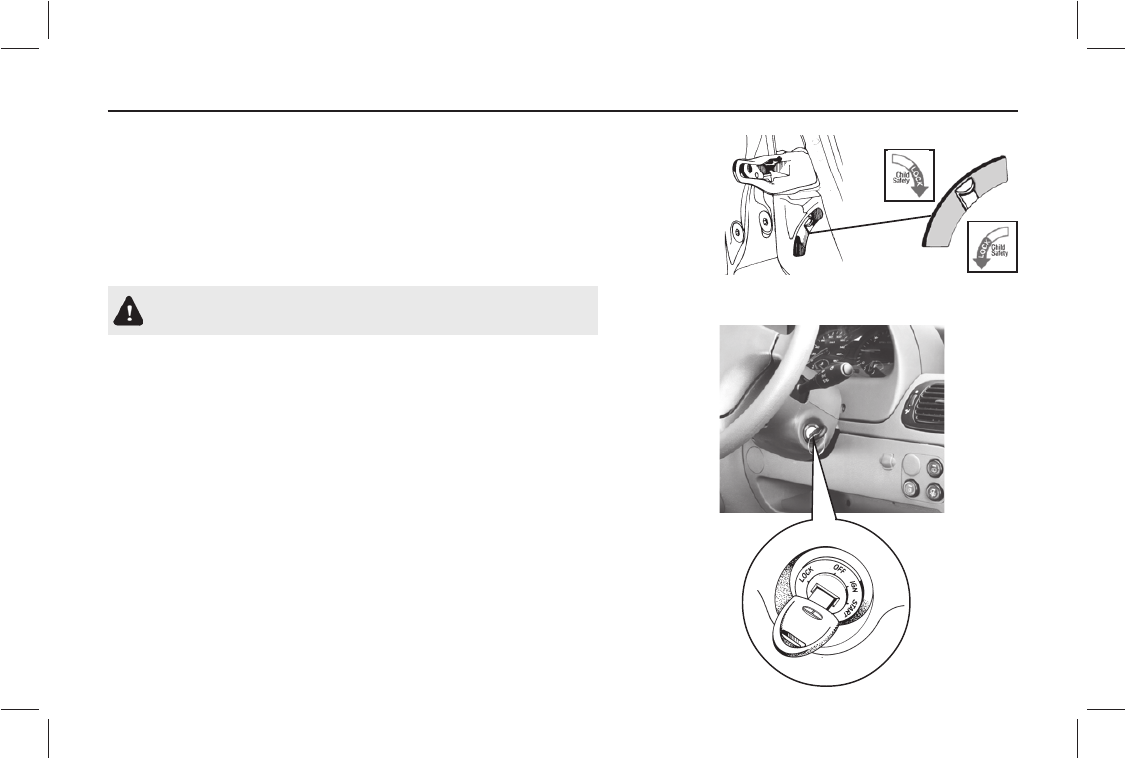

Steering lock cum ignition switch :

The steering column lock cum ignition switch has the following four

positions and is operated with the key.

1. LOCK POSITION - The key can be inserted or taken out only in this

position. When the key is removed from the switch, the steering is

locked. To unlock the steering, insert the key and also turn it to the

'OFF' (Steering unlock) position.

2. 'OFF' POSITION - In this position, the steering lock opens and the

music system is powered.

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

3. 'IGN' POSITION - This is for switching 'ON' the power supply to the

following items :

• Blower & A/C (HVAC)

• Engine cooling fan

• Horn

• Plug Socket

• Power window (if fitted)

• Head lamps

• Front fog lamps (if fitted)

• Load Area Lamp

• Music system (if fitted)

• Digital clock

• Engine ignition, fuel supply and glow plug

• Turn signal lamps

• Wash and wiper system

• Reverse light

• Instruments and gauges and tell tale warning lamps

• Audio warning unit

• Rear windshield demister control (if fitted)

4. 'START' POSITION - In this position, which is momentary, the switch

cranks the engine. When the switch is in this position momentarily,

the devices listed under "Accessories supply" above, are switched

'OFF'.

Accessories supply

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

The following items are operated/powered without the key in the

ignition switch :

Hazard warning system, Stop lamps, Position lamps, Registration lamps,

Illumination of A.C. control panel, Odometer display (LCD) of

Instrument Panel, Roof lamp, Reading lamps, Engine lamp, Load Area

Lamp, Central door locking, Audio warning unit, Memory of digital clock

, Music System and Rear Windshield Demister.

The switch symbol lamps may come 'ON' without the key in the 'IGN'

position on ignition switch.

Note : When the key is returned from 'OFF' position to LOCK

position, the music system continues to be powered until the key is

removed from the switch. This also helps to remind the driver if the

key is inadvertantly left in the vehicle when aligting from the vehicle,

where this is provided.

I) Do not remove the key, while the car is in motion, as the

steering will get locked and the car cannot be steered.

II) While turning the key from `LOCK 'position to `OFF'

position slightly rotate steering wheel to relieve pressure

on steering spindle for easy operation of the key. Also

ensure the key is inserted fully before turning the key.

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

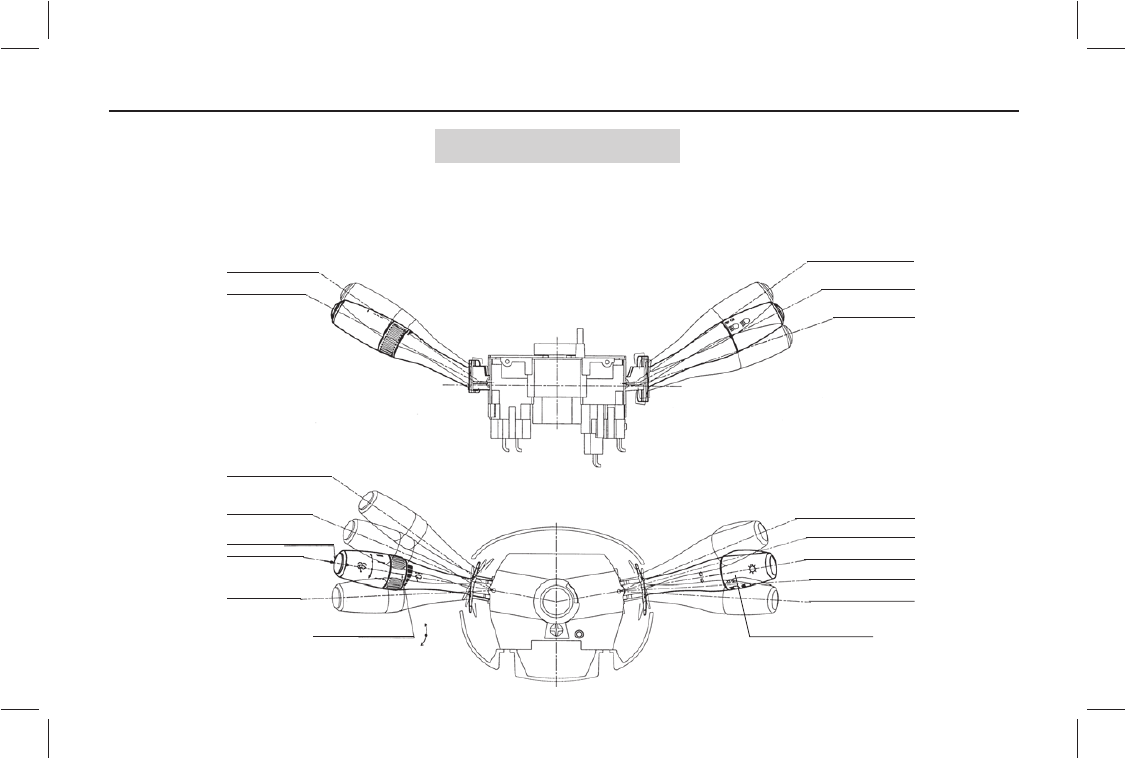

Combi-switch

FLICK WIPE

SPRING RETURN

OFF

FLASH HIGH BEAM

SPRING RETURN

DIP BEAM

(NORMAL POSITION)

HIGH BEAM

LEFT TURN

(SIGNAL SELF CANCELLING)

OFF

RIGHT TURN

(SIGNAL SELF CANCELLING)

OFF

FAST WIPE

SLOW WIPE

PUSH SWITCH

FOR WASH & WIPE

OFF

INT. WIPE

DELAY TIMING FOR

INTERMITTENT WIPE

MIN.

MAX.

WIPER STALK LIGHT STALK

LANE CHANGE LEFT (SPRING RETURN)

LANE CHANGE RIGHT (SPRING RETURN)

LIGHTS CONTROL SWITCH

OFF

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

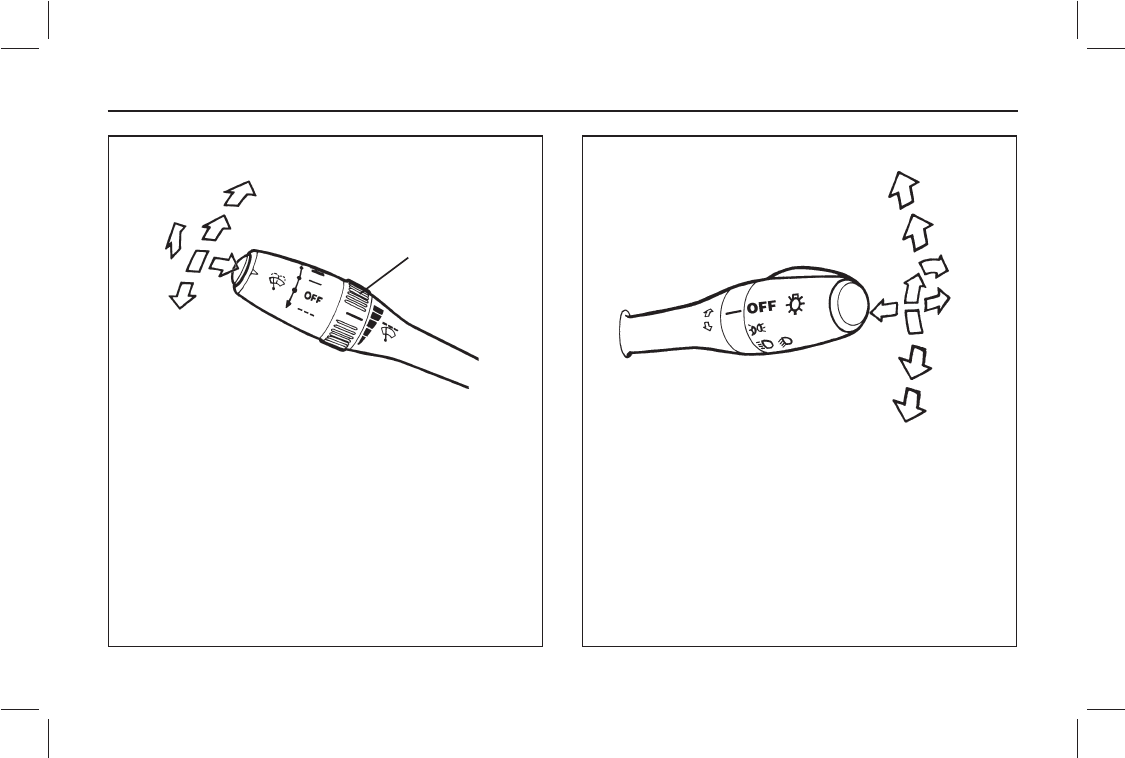

Wiper Control Combi-Switch Lever - Left

Wiper Control Combi-switch Lever - Left

A. Wiper 'OFF' position

B. Slow Wipe

C. Fast Wipe

D. Intermittent wipe *

E. Pull up for windshield wipe

(Flick Wipe Spring Return)

F. Press side knob for wash

* Rotate selector to set delay timing for intermittent wipe

Selector

Lights Control Combi-Switch Lever - Right

Lights Control Combi-switch Lever - Right

A. Head lamp 'OFF' position

B. Position lamp 'ON'

C. Position lamp & head lamp 'ON'

D. Push down the lever for high beam

E. Pull up the lever (spring return) for high beam flash

F. Lane change left (spring return)

G. Side Indicator - LH

H. Lane change right (spring return)

I. Side Indicator - RH

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

Authorised Service Outlet/ Dealer in case of fog lights

activation requirement.

3. Rear windshield wiper (latched switch)

Push to switch 'ON' - Push to switch 'OFF'

The function indicator on the knob lights

up in green when the wiper function is

'ON'.

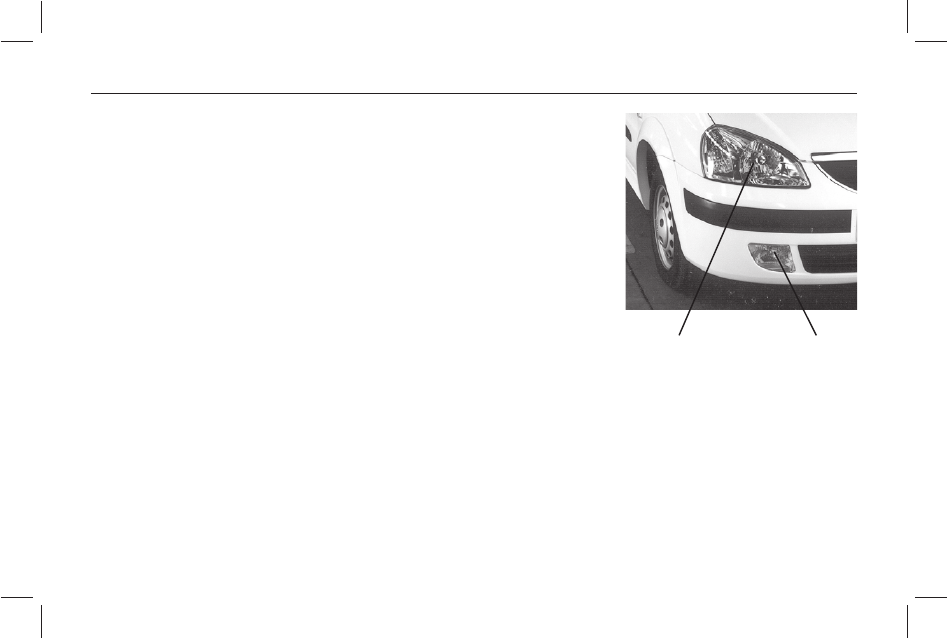

4. Front fog lights - (Unlatched switch)

Push to switch 'ON' and push to switch

'OFF'. Front fog lights are operative only

when the position lamps are switched 'ON'.

The function indicator on the knob lights

up in green when the lamps are 'ON'. Lamps 'ON'

indicator is provided on instrument panel also.

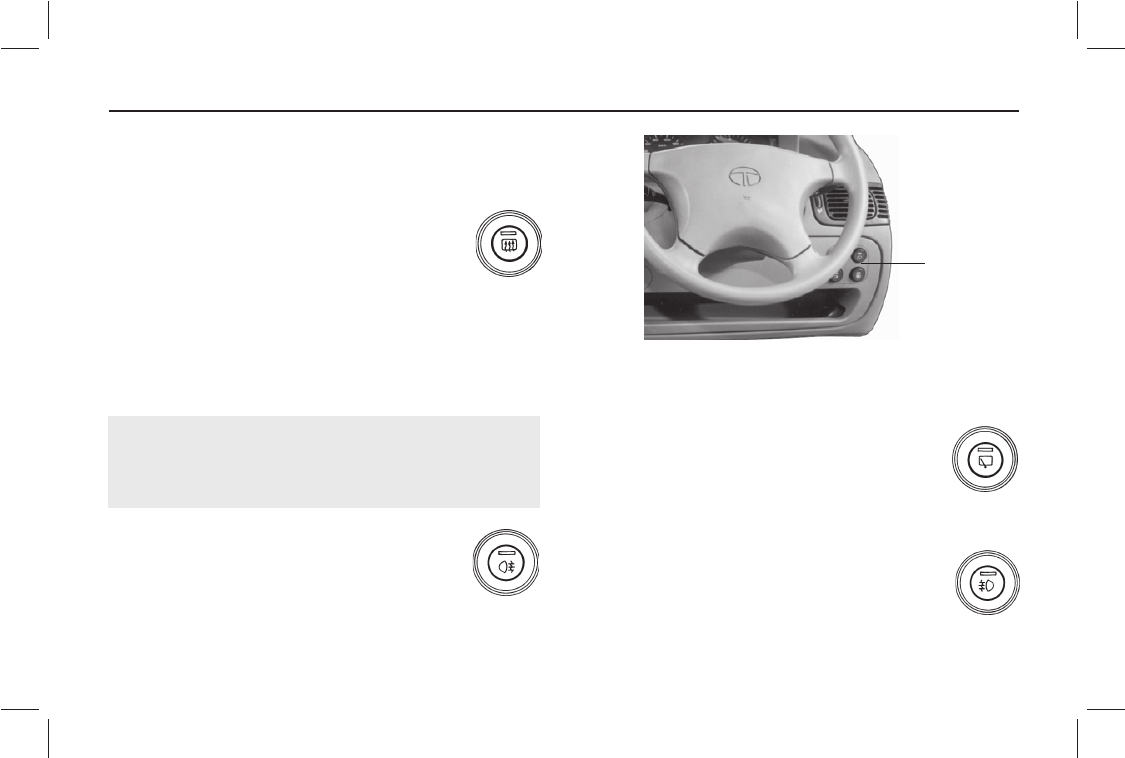

Accessory Switches : (if installed)

Accessory switches have been provided on the dash board

near the steering column on the right hand side.

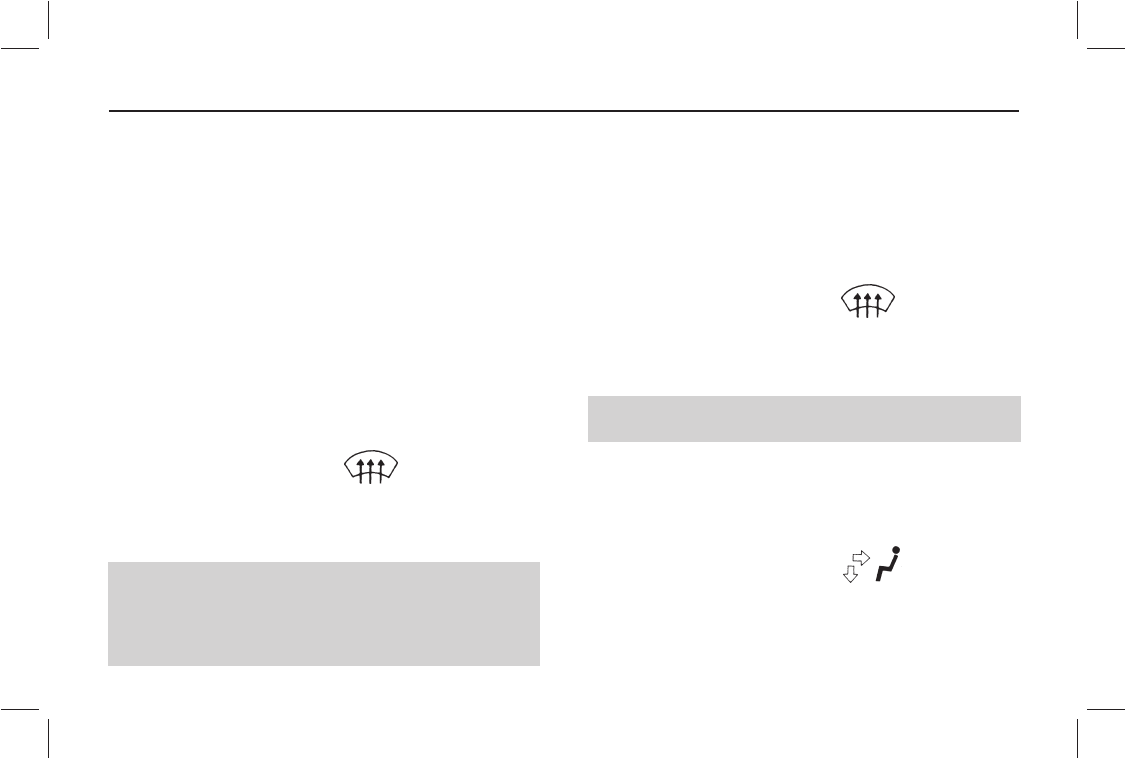

1. Rear windshield demister (unlatched switch)

The switch is pushed and released to switch

'ON' and the knob returns to the normal

position.The function indicator lights up in amber

indicating that the demister heater is 'ON'. The function is

controlled through a timer and operates for 15 minutes

(approximately) and goes 'OFF' automatically at the end

of the duration. The heater can be switched 'OFF' anytime

by once again pushing and releasing the switch knob.

Note : Switching 'ON' and 'OFF' can be done only with key

in 'IGN' position. The demister heater remains 'ON' even

after removal of ignition switch key and goes 'OFF' at the

end of 15 minutes period.

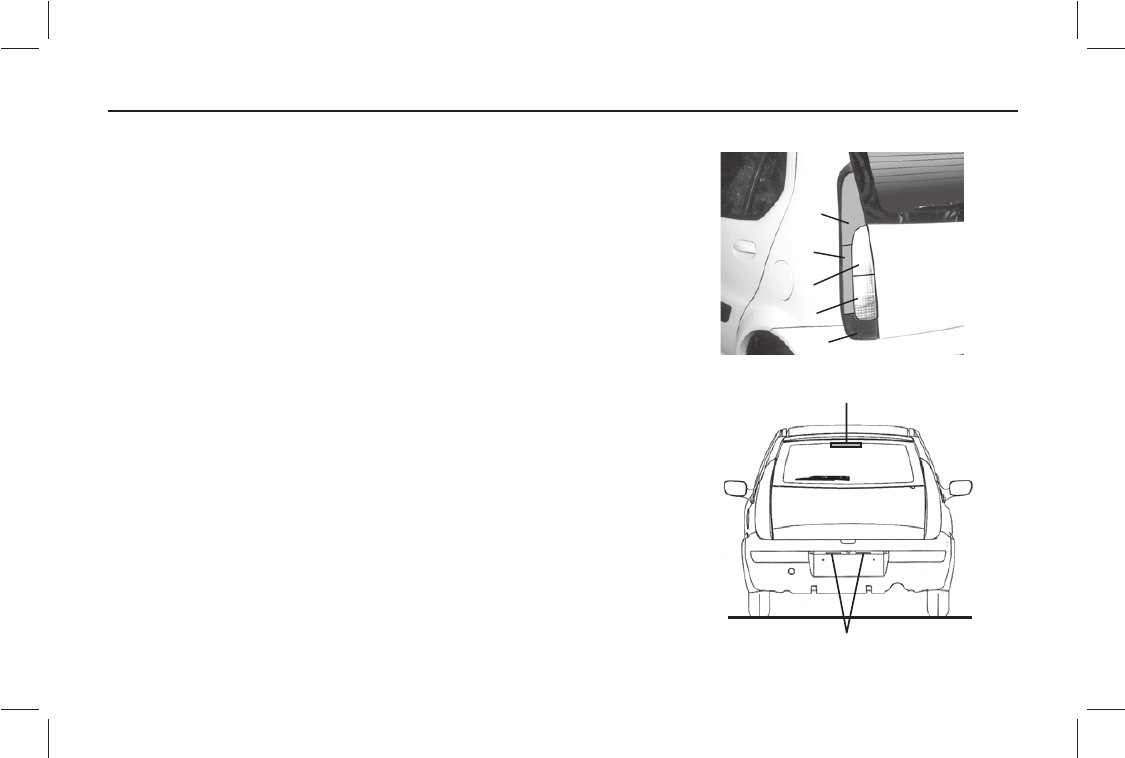

2. Rear fog lights (Unlatched switch) provision

Push to switch 'ON' and push to switch 'OFF'.

Rear fog lights are operative only when the

head lights are switched 'ON' or front fog lamps

are switched 'ON'. The function indicator on the knob lights

up in amber when the lamps are 'ON'. Lamps 'ON' indication

is provided in Instrument panel also. Please contact any

Accessory

Switches

Ofrecido por www.electromanuales.com

BEFORE DRIVING Controls

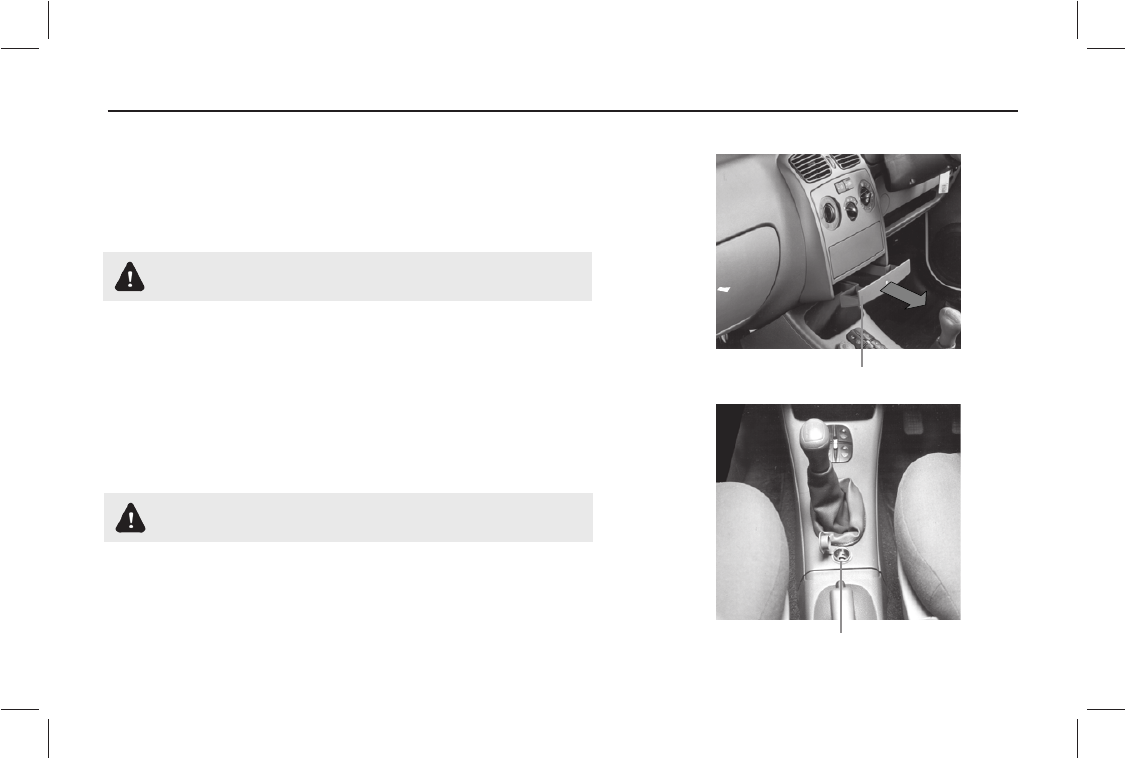

Gearshift lever & Shifting pattern :

The gearshift lever is mounted on the central console between the

two front seats. The gearshift pattern is shown on the gear lever knob.

The reverse gear should be engaged only when the car is

stationary. Wait for 5 seconds after declutching to ensure

smooth engagement of the reverse gear.

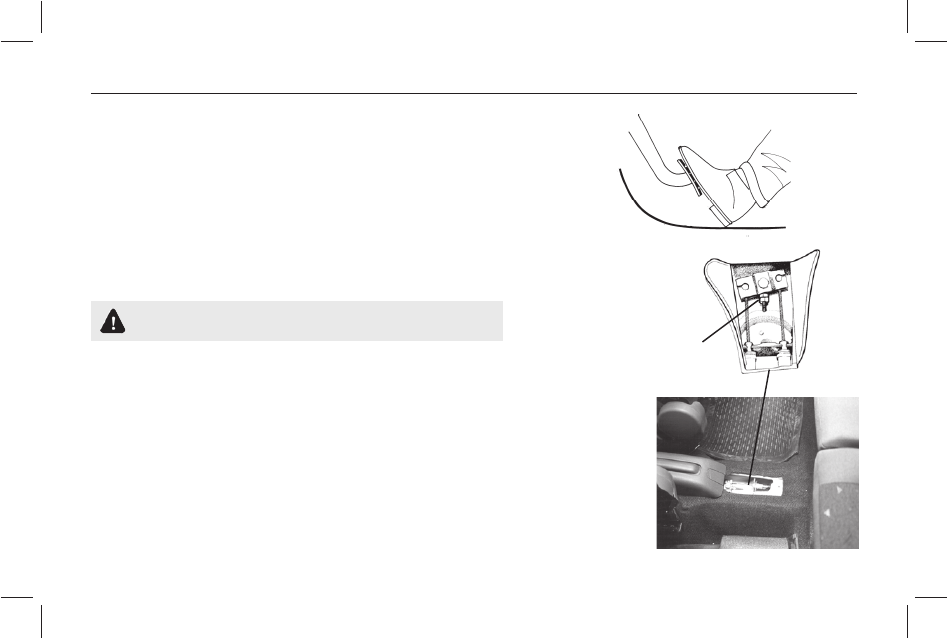

Parking brake :

A mechanical parking brake acting only on the rear wheel is provided

on your car. The parking brake lever is located behind the gearshift

lever. To apply the parking brake, pull the lever up fully. The indicator

light on the instrument panel will become `ON'. To release it,

pull the lever up slightly, press the release button and push the lever

down. The parking brake indicator on the instrument panel will

go 'OFF' when the parking brake lever is fully released.

When parking on level ground, place the gear lever in the 'Neutral'

position. When parking on a downhill gradiant, place the gear lever in

'Reverse' position. When parking on uphill gradiant, place the gear lever

in the '1st' position

Apply the parking brake properly before leaving the car &

release it before moving. Use the parking brake for holding

the car on a gradient.

Parking Brake Lever

Release

Button

Ofrecido por www.electromanuales.com

CMYK +ve No. 25

BEFORE DRIVING Instrument Panel

INSTRUMENT PANEL

Speedometer Engine RPM

Meter

Fuel Gauge

*Some indicators and Chrome ring may not be provided on certain clusters.

Indicators*

Mode Selector Knob

LCD

Set KnobTemprature Gauge

Ofrecido por www.electromanuales.com

BEFORE DRIVING Instrument Panel

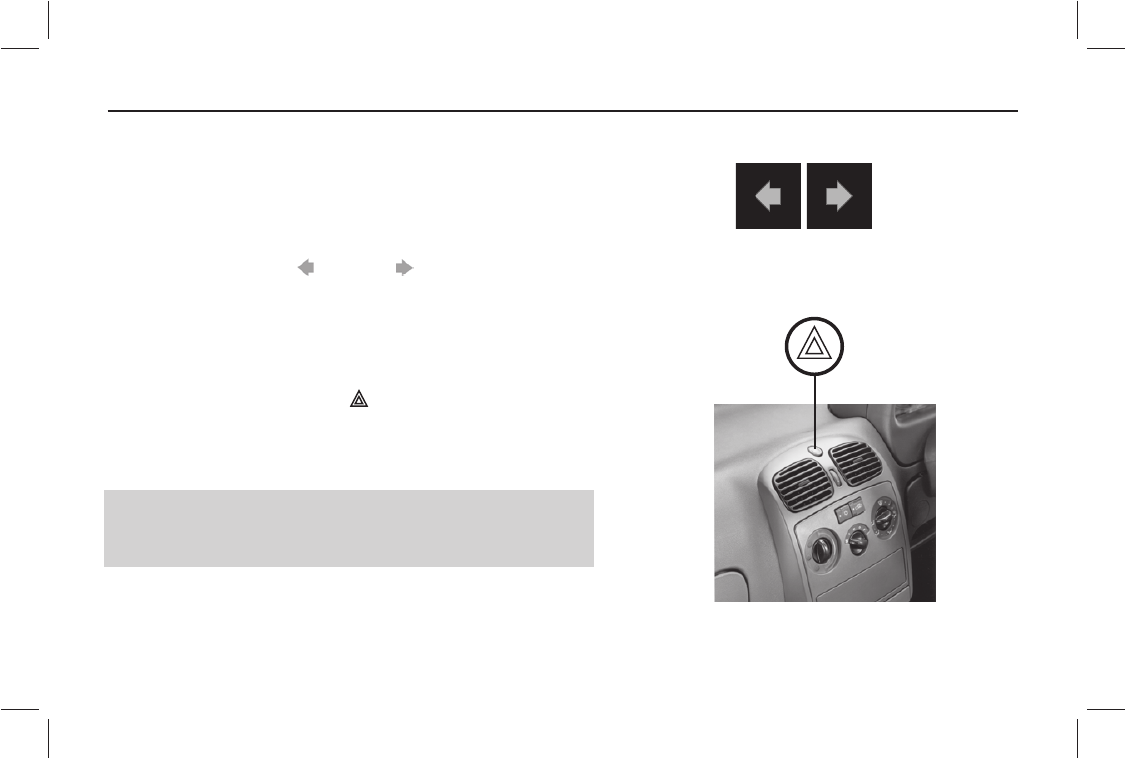

Turn Signal and Hazard Warning

I) Turn Signal :

Turn signal lamps can be operated only when the ignition supply

is 'ON and by using the turn indicator switch on the combiswitch.

The direction indicator (LHS) and (RHS) on the instrument

cluster flashes alongwith external indicator lights as selected.

II) Hazard Warning :

This can be operated without ignition 'ON'. Press the hazard

warning switch (red knob) on the centre of the dash board, all side

indicator lights and indicator , LHS and RHS turn indicators

provided on cluster will flash simultaneously to warn the other road

users about any hazardous condition of the car. Depress the knob

again to switch 'OFF' the hazard function.

Note : If light does not blink or blinks rapidly, it is an indication of

problem in the blinker electrical system or the indicator bulb at

front or rear has fused. Get it rectified immediately.

Hazard Warning Switch

Ofrecido por www.electromanuales.com

BEFORE DRIVING Indicators

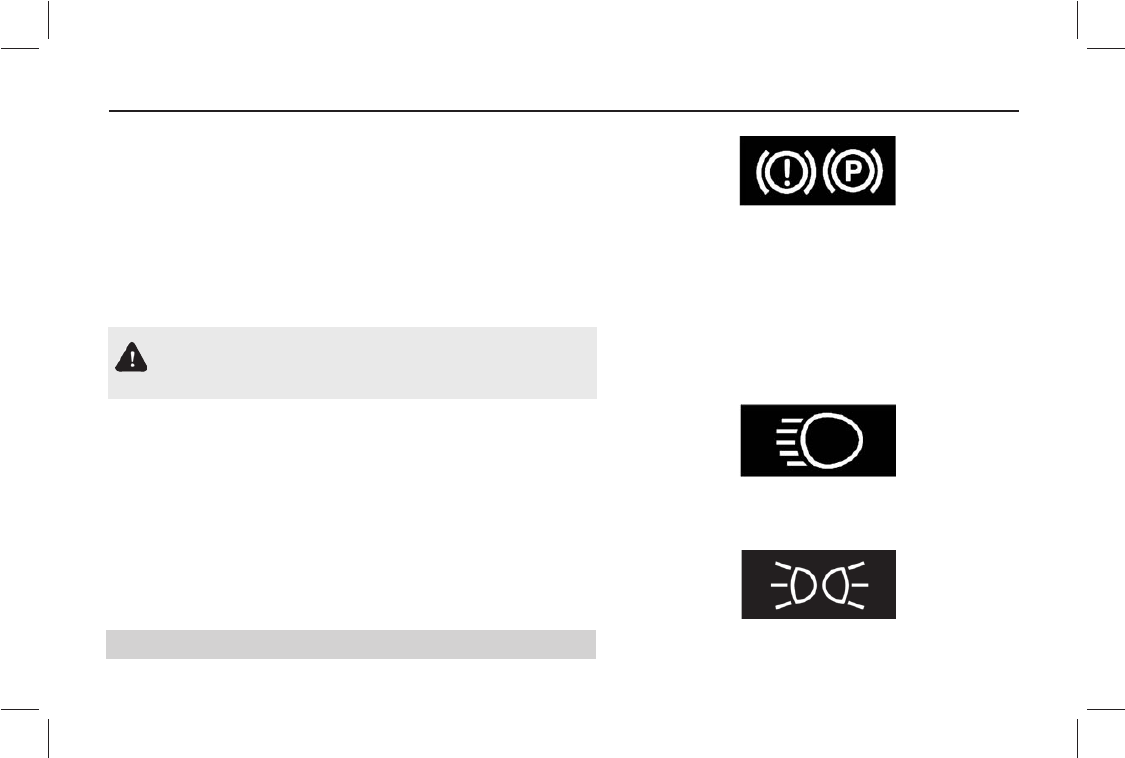

Parking Brake Indicator cum Low Brake Fluid Warning Light

When the ignition key is turned to the 'IGN' position, the symbols light

up for the following :

i) when the parking brake is applied, and/or

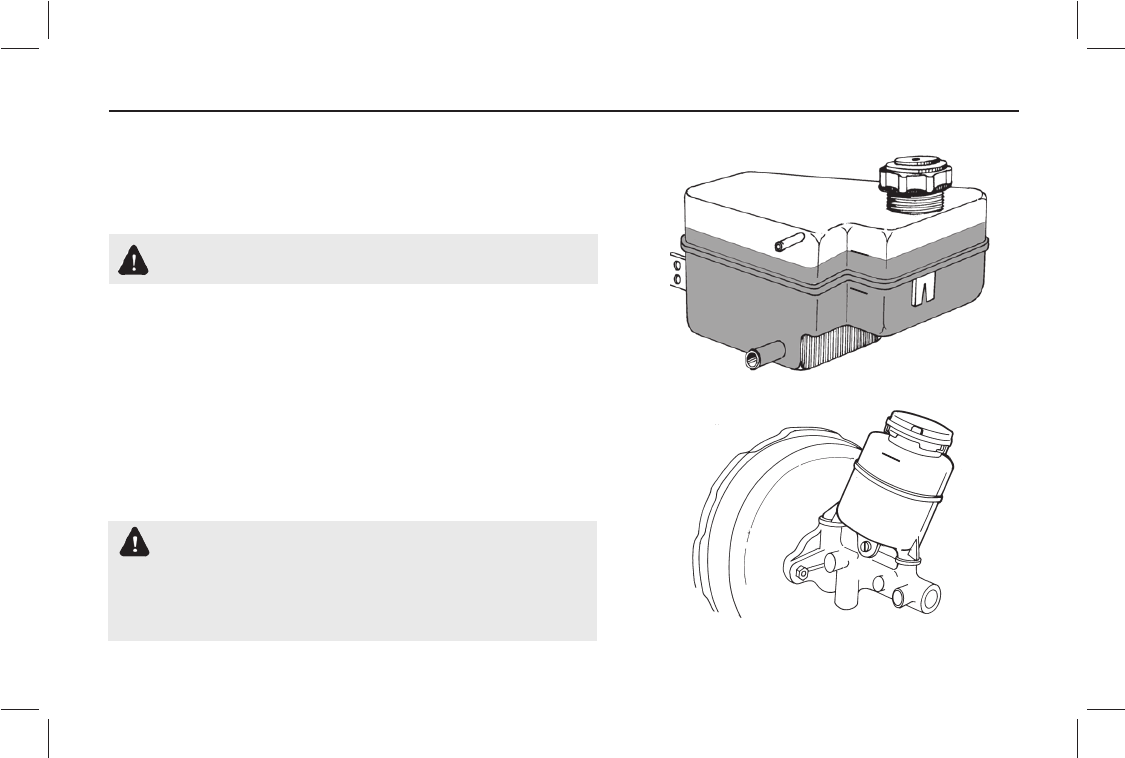

ii) when the brake fluid level in the container is low.

Else the indication goes 'OFF' after few seconds.

If the lamp glows while engine is running, then check the parking

brake or brake fluid oil level.

Do not drive the car if this indicator remains 'ON'. Get the

problem attended to immediately at an Authorised Service

outlet.

High Beam Indicator :

Symbol lights up when the headlamp high beam is 'ON'.

Position Lamp Indicator :

Symbol lights up when the position lamps are switched 'ON'.

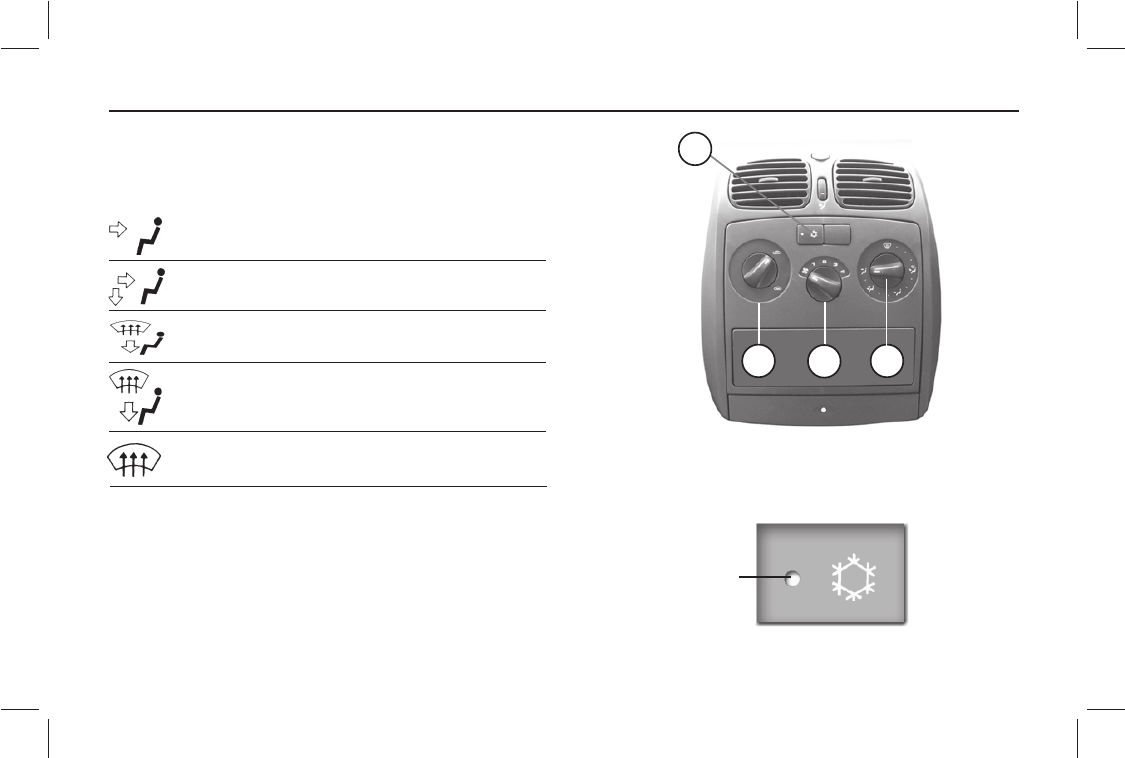

Illumination lamps for AC, HVAC or ventilation panel and switch

illumination lamps comes 'ON', when the position lamps are 'ON').

Position lamps can be used as parking lamps.

Instrument cluster illumination turns on with key in 'IGN' position and

position lamps 'ON'.

Note : Position lamps also remain 'ON' while head lamps are 'ON'.

Ofrecido por www.electromanuales.com

BEFORE DRIVING Indicators

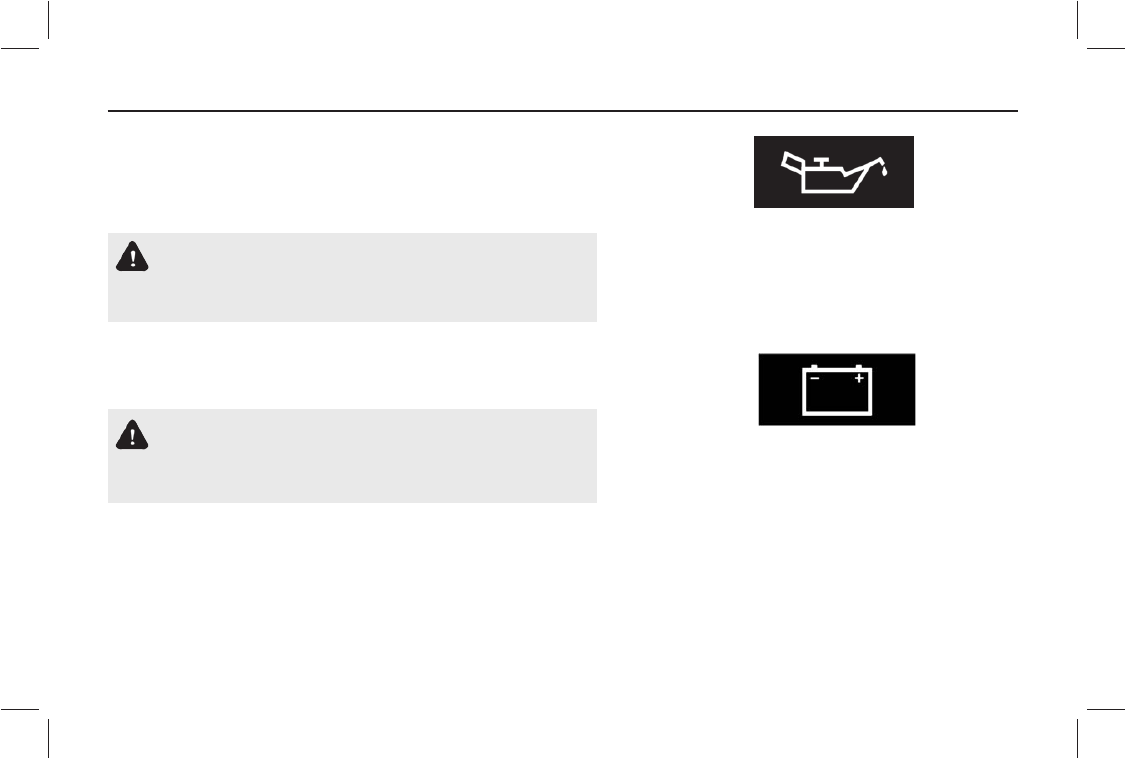

Low Oil Pressure Indicator :

When the ignition key is turned to the 'IGN' position, symbol lights up

and goes off as soon as the required engine oil pressure is developed

after starting the engine.

If the low oil pressure indicator does not glow or remains 'ON'

with the 'IGN' on and engine is running, it indicates a fault in

the electrical circuit/lubrication system. Check & get the

problem attended to at an Authorised Service outlet.

Battery Charging Indicator :

Symbol lights up when the 'IGN' is turned 'ON' and should go 'OFF'

after the engine starts.

If it remains 'ON' while the engine is running, it indicates that

the battery is not being charged. Switch off all unnecessary

electrical equipment and get the problem attended to at an

Authorised Service outlet.

Ofrecido por www.electromanuales.com

Glow Plug Indicator

Symbol lights up when the 'IGN' is switched 'ON' and goes off after a

few moments automatically depending on the engine temperature,

indicating readiness to start the engine.

Do not start the engine until this light goes off. The duration of

'ON' time varies with engine block temperature and it glows for a

longer duration with a cold engine.

If this indicator blinks instead of glowing steadily, it indicates

that the temperature sensor connection to the glow plug

timer is either open or the sensor is faulty. In this condition,

the engine can be started, and the car can be driven. However,

the fault should be attended to at the earliest, at an Authorised

Service outlet, as it affects the engine starting performance

intially before the engine warms up.

Front Fog Lamp Indicator (Provision) :

This symbol lights up when the front fog lamps are switched 'ON'

Rear Fog Lamp Indicator (Provision) :

This symbol lights up when the rear fog lamps are switched 'ON'

BEFORE DRIVING Indicators

Ofrecido por www.electromanuales.com

BEFORE DRIVING Gauges

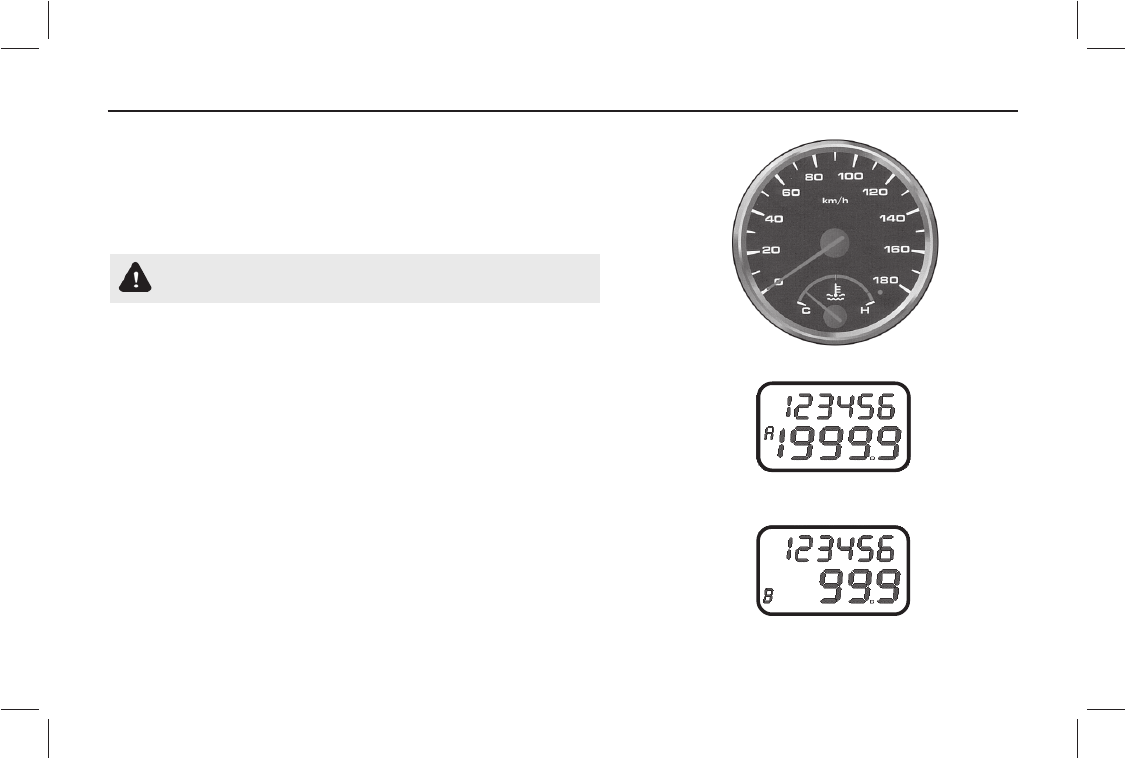

Speedometer, Main Odometer and Tripmeter (on LCD) :

The speedometer indicates the car speed in km/hr. The odometer

records the total distance the car has been driven. The tripmeter can

be used to measure the distance travelled on each trip or between

fuel fillings.

Keep track of the odometer reading & follow the maintenance

schedule regularly for meeting service requirements.

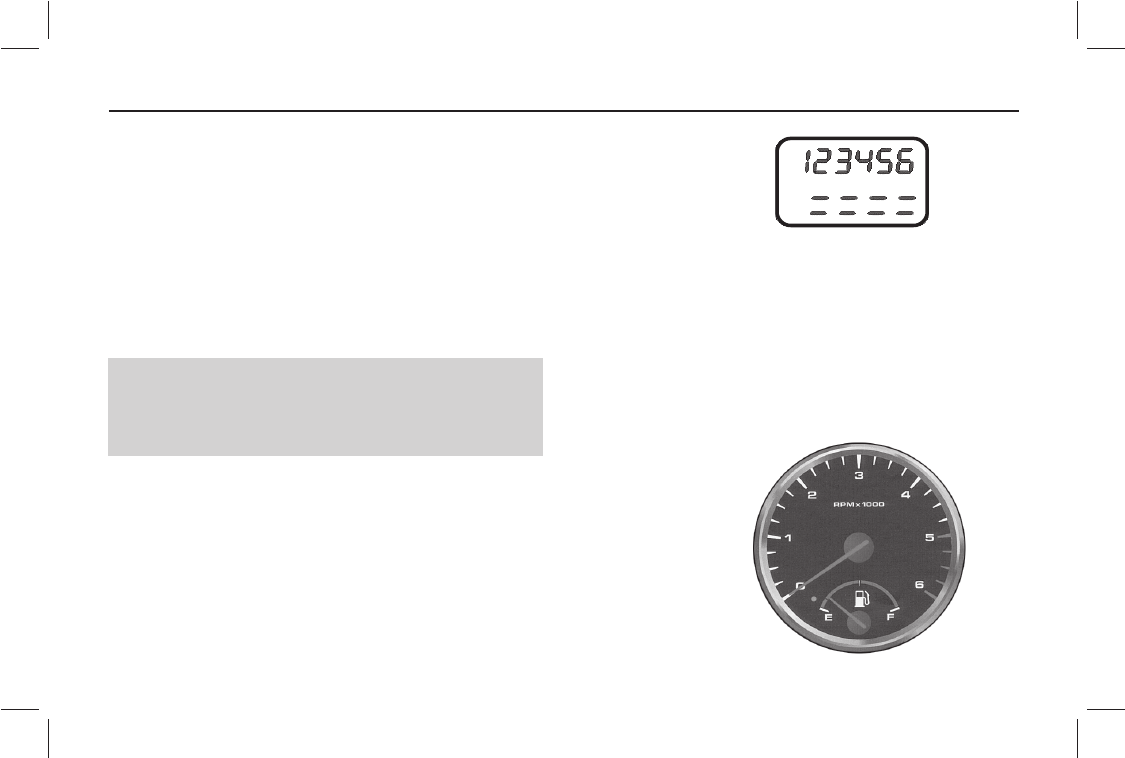

Odometer, Tripmeter and Illumination intensity control on

instrument panel (LCD) :

The instrument panel has an LCD to display the following :

Main Odometer (Non- resettable) - Counts upto 999999 kms

Tripmeter A (Resettable) - Counts upto 1999.9 kms

Tripmeter B (Resettable) - Counts upto 1999.9 kms

Intensity level of instrument panel illumination - selection among

preset levels.

LCD has two line display.The first line displays the Odometer count.The

second line displays either of Tripmeter A, Tripmeter B, Intensity level

of panel illumination.

The selection and control of functions are done through 'MODE' and

'SET' push buttons (knobs) provided on either side of the LCD.

The 'MODE' knob is used to select one of Tripmeter A, Tripmeter B or

Intensity level of panel illumination. Switching among the above three

functions can be done by pressing the knob.

Display for Trip - B

Display for Trip - A

Ofrecido por www.electromanuales.com

BEFORE DRIVING Gauges

The 'SET' knob is used to control the chosen function. Pressing

the knob for a few seconds resets the chosen tripmeter and

varies the intensity level of instrument panel illumination.

The panel illumination intensity varies among preset levels as

follows :

=Min

= = = = Max

This display returns to Tripmeter A after a few seconds of

intensity level selection, if left in this mode.

Note : Main odometer and tripmeter A indication will

remain on display even if the ignition key is removed.

Reduced contrast in display may occur at low and high

temperatures.

RPM meter :

The meter indicates engine speed in revolutions per minute

(rpm)

Change gears at appropriate engine rpm and car speed to get

optimum fuel economy.

The permitted engine rpm upper limit is the start of Red Zone

on the dial.

Intensity Level Indicator

Ofrecido por www.electromanuales.com

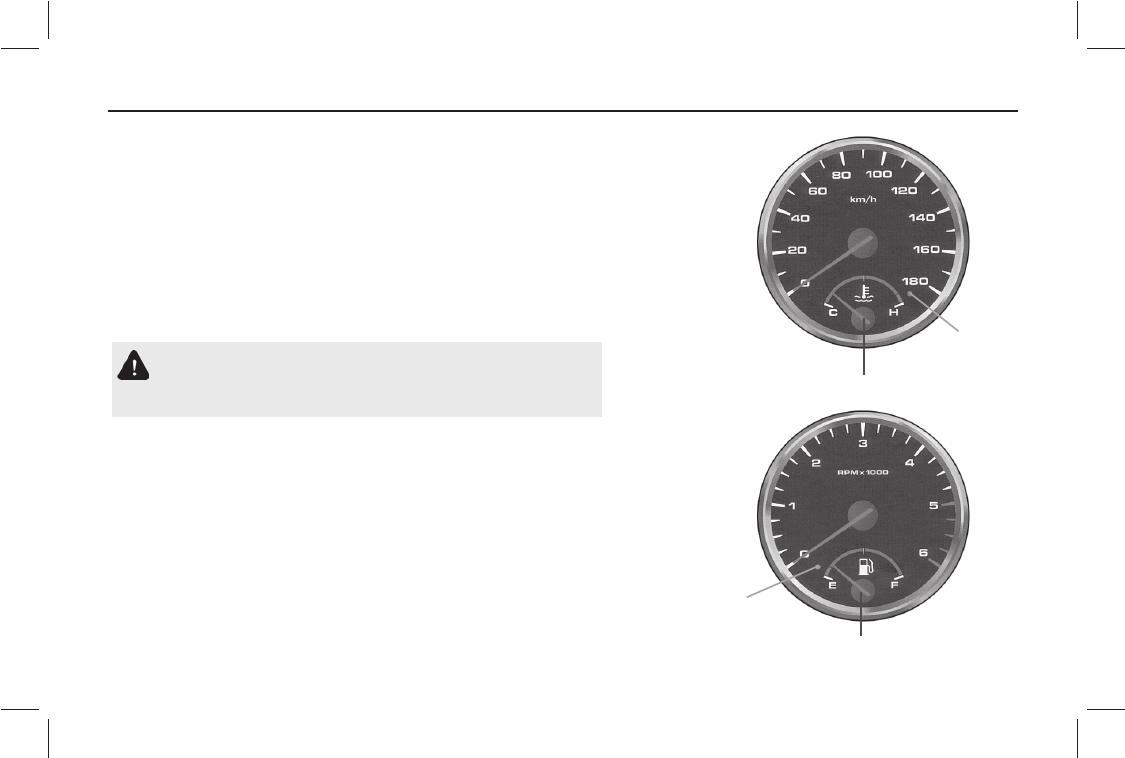

BEFORE DRIVING Gauges / Audio Warning

Fuel Gauge

Temperature Gauge

Temperature gauge :

The gauges indicates the temperature level of the engine coolant. The

red zone at 'H' indicates temperatures higher than normal. A visual

warning indication (Red coloured) comes 'ON' indicating that when

the coolant temperature is higher than normal.

Avoid driving, when the pointer is in the red zone. It indicates engine

overheating, which may be due to insufficient coolant in the radiator

or due to any other defect. Take the car to the nearest Authorised

Service outlet for necessary attention.

Never remove the cap from the coolant reservoir when the

engine is hot. Do not restart the engine until the problem has

been duly attended.

Fuel Gauge :

The fuel gauge indicates the approximate fuel level in the tank. Refill

the fuel tank at the earliest, when the needle touches the red band

(indicating reserve capacity has been reached.), a visual warning

indication (Amber coloured) comes 'ON' indicating the fuel level is

low. Visual

Warning

Visual

Warning

Ofrecido por www.electromanuales.com

Audio Warning Unit

Seat Belt Reminder (Beeper) : (If installed)

When the key is in the 'IGN' position and the driver's seat belt has not

been fastened, an audio warning comes 'ON'. Please fasten the seat

belt. The warning goes 'OFF' automatically after a few seconds, even if

the seat belt is not fastened.

'Key in' Warning Beeper : (if installed)

When the ignition is turned to 'OFF' position and the key is not

removed from the switch, an audio beep comes on if driver door is

open. The beeper will go "OFF' after a few seconds automatically if

warning is ignored or if the key is removed/door is closed.

BEFORE DRIVING Audio Warning

Ofrecido por www.electromanuales.com

CMYK +ve No. 31

'Key in' warning Beeper : (if installed)

When the ignition is turned to 'OFF' position and the key is not removed

from the switch, an audio beep comes on if driver door is open.The beeper

wiil go 'OFF' after a few seconds automatically if warning is ignored or if

the key is removed / door is closed.

Headlamp leveling switch : (if installed)

A motorised headlamp leveling arrangement with the setting knob at the

dash board is provided on the LH side of steering column.

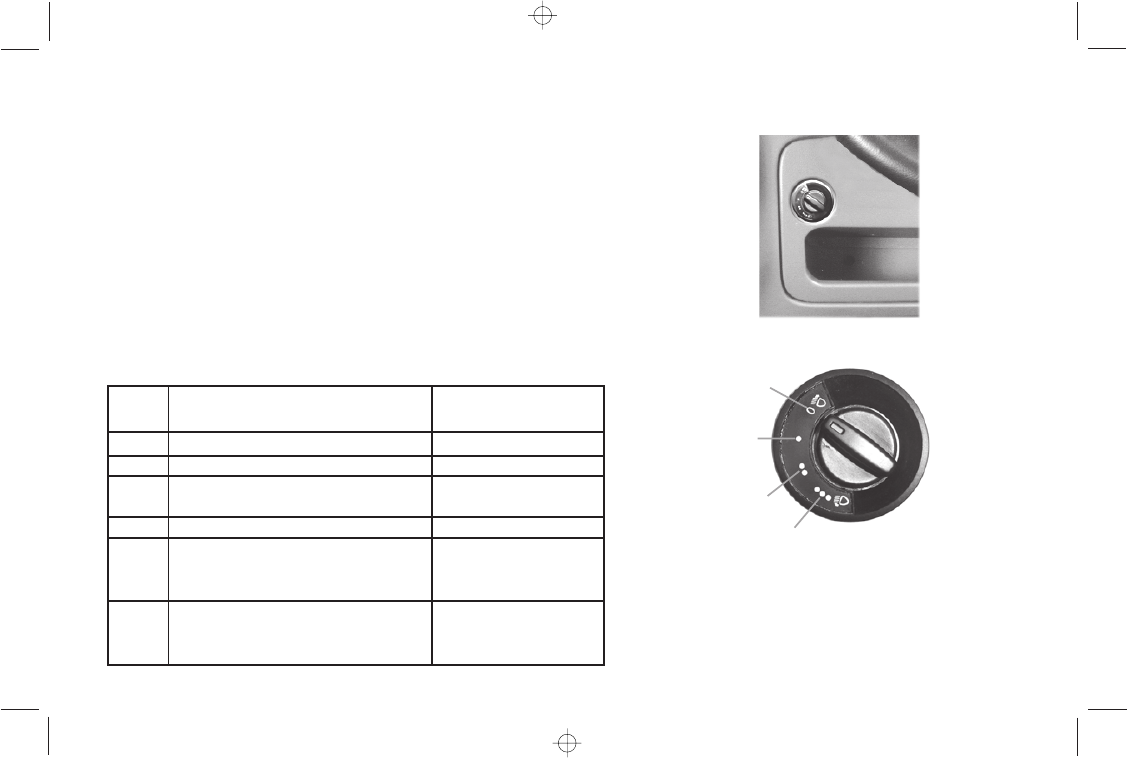

As and when required, head lamp leveling, setting is done by rotating the

knob to select one of the 3 levels marked in the switch depending upon

the loading of the vehicle.

Sl.No. Loading condition Sw.position/

Marks assigned *

1 One person in Driver seat 0

2 Driver+One passenger in front 0

3 Driver+One passenger in front+

All the seats at rear occupied

4 All the seats occupied 

5 All the seats at rear occupied+

Luggage in boot space to achieve

permissible load on the rear axle**

6 Driver+Luggage in boot space to

achieve permissible load on the

corresponding axle**

* Switch position / Marks assigned is for highest ULW.

** If the maximum permissible laden mass is obtained before the

permissible load on the axle, the loading of the boot shall be

limited to the figure, which enables that mass to be reached.

BEFORE DRIVING

Audio Warning & Headlamp leveling switch





Ofrecido por www.electromanuales.com

BEFORE DRIVING Audio Warning / Tail Lamps

Lamps 'ON' Reminder (if installed)

An audio warning (beeper) is provided to inform the driver that the

headlamps/position lamps are left 'ON'. This comes 'ON' when the

driver removes the key and opens the door. Switch 'OFF' the lamps,

before leaving the car. However the lamps can be kept 'ON' ignoring

the warning, if desired.

Tail Lamp : The tail lamp assembly incorporates the following-

1. Stop cum position lamp

2. Position Lamp

3. Turn Indicator

4. Fog lamp provision on RH side. Reverse lamp on LH side.

5. Reflex reflector

Registration Plate Lamps :

Two concealed lamps are provided for illumination of the rear

registration number plate.

High Mounted Stop Lamp :

High mounted stop lamp is provided at the rear and it glows whenever

service brake is applied.

High Mounted Stop Lamp

Registration Plate Lamps

Ofrecido por www.electromanuales.com

BEFORE DRIVING Heating, Ventilation and Air Conditioning

Air Flow Pattern

Towards Windscreen (Defrost)

Towards

Foot Board

Central

Air Vents

Side Air

Vents

Towards

Foot Board

Ofrecido por www.electromanuales.com

HEATING, VENTILATION & AIR CONDITIONING

(if installed)

A. Temperature Control Knob :

The air temperature in the car can be controlled by operating

the temperature control knob (A) at the left hand side of the

control panel. The temperature can be increased by rotating

the knob towards the red segment and decreased by rotating

it towards the blue segment.

B. Blower Speed Regulation Knob :

The ventilation system has a three/four speed blower. The

blower speeds can be regulated to any one of the following

speeds by operating the knob (B) at the centre of the control

panel.

LOW • MEDIUM • HIGH • VERY HIGH

BEFORE DRIVING Heating, Ventilation & Air Conditioning

A C

H.V.A.C. CONTROLS

Ofrecido por www.electromanuales.com

BEFORE DRIVING Heating, Ventilation & Air conditioning

C. Air Direction Control Knob :

The air flow can be changed by turning the switch (C) to the

desired direction.

Towards face

Towards face and feet

Towards feet

Towards feet and windshield

(Recommended for clearing fogging on windshield)

Air demist / defrost windshield

(Recommended for clearing heavy fog and snow)

D. A.C. ON/OFF Switch :

The A.C. can be switched 'ON' by pressing the switch (D) on

the A.C. control panel provided the blower is `ON' and the

engine is running. The indicator lamp will show that the A.C. is

`ON'.

A.C. ON / OFF Switch

Indicator

A.C. CONTROLS

A C

Ofrecido por www.electromanuales.com

BEFORE DRIVING Heating, Ventilation & Air conditioning

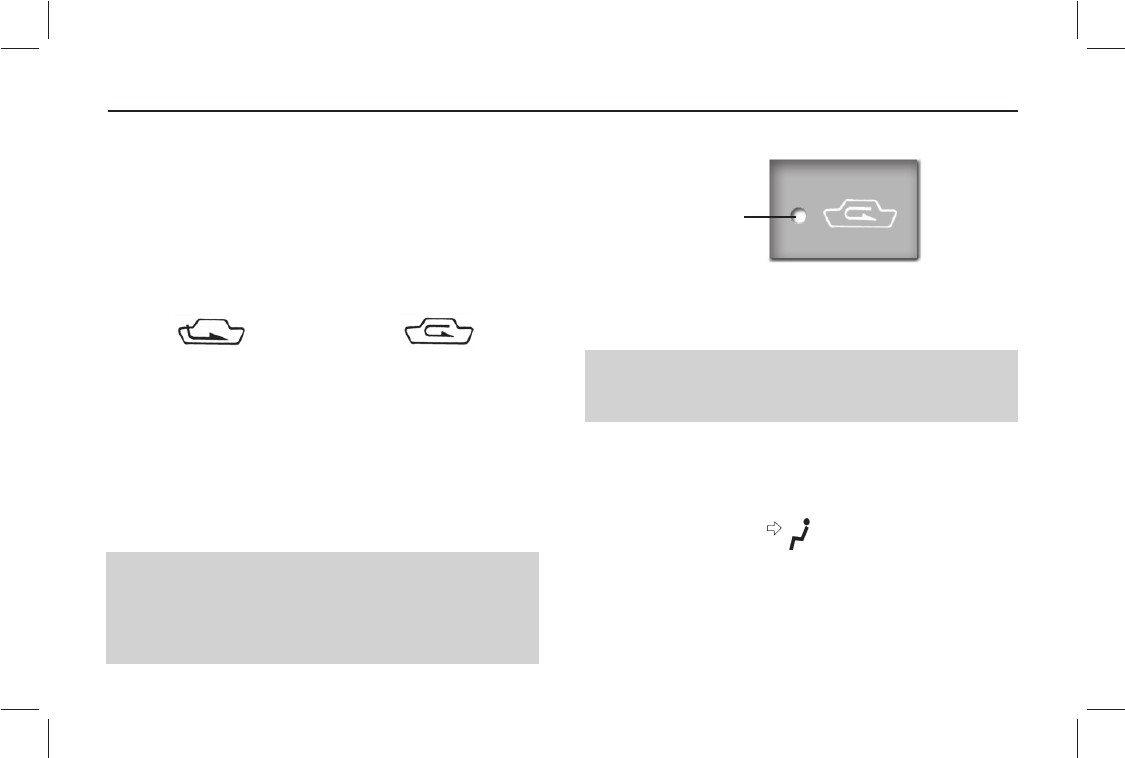

E. Air Circulation Switch :

• In HVAC version to put air circulation mode in recirculation,

press switch 'E'. The indicator lamp will show air circulation

is in recirculation.

To put vehicle in Fresh mode release switch 'E'. Indicator

lamp will be 'OFF'.

• In A.C. version, air circulation mode can be selected by

rotating knob 'E'.

Fresh Recirculation

• In recirculation mode, air inside the vehicle is circulated

again and again. In Fresh mode, air is taken from

atmosphere and circulated in the vehicle.

Recirculation mode can be used

• While driving in dusty condition

• To avoid traffic pollution

• To get quick cooling/heating as required.

Whenever discomfort is felt switch air circulation mode to

fresh.

Notice : The A.C. can be switched `ON' only if the blower is

'ON' and engine is running. When A.C. is switched 'ON'

engine idling RPM increases marginally, to adjust to the A.C.

compressor load. When desired temperature is achieved A.C.

trips 'OFF' automatically.

Air Recirculation

Knob

Indicator

Notice : The A.C. compressor gets switched 'OFF'

automatically when engine gets overheated. The A.C. is

automatically switched 'ON' when the engine cools down.

Normal Cooling :

A.C. - ON

Knob 'B' - desired speed position

Knob 'C' - towards face

Switch 'E' - suitably as explained

Quick Cooling :

If your car is left in the sun with window closed, inside

temperature increases.

Ofrecido por www.electromanuales.com

BEFORE DRIVING Heating, Ventilation & Air conditioning

To achieve quick cooling effect, open the windows briefly while

you operate the air conditioner, with air circulation switch is

in Fresh mode, fan at higher speed and air direction towards

'FACE'. All vents to be opened completely.

Once temperature inside has come down sufficiently, close

the windows and change air circulation suitably to fresh/

recirculation.

Demisting :

In rainy season or in areas of high humidity, mist formation

inside windshield glass is observed. To clear mist dehumidified

air is passed on the windshield glass.

The position of control knobs should be adjusted as follows :

A.C. - ON

Knob 'B' - desired speed position

Knob 'C' - towards windshield

Knob 'A' (for vehicles fitted with HVAC) - at suitable

temperature

Air circulation - at suitable position

Notice : When mist gets cleared switch the knob "C' position

to Face mode.

In high humidity areas, if cold air continues to flow over

windshield, it may cause sudden fogging on outside surface

of windshield.

Defrosting :

(For vehicles fitted with HVAC unit)

In low temperature areas, to clear frost formation outside the

windshield glass, this setting is used.

First start the engine and accelerate to warm up.

Knob 'A' - Maximum hot position

Knob 'B' - Very High

Knob 'C' - towards windshield

Switch 'E' - Fresh air mode condition

Once the windscreen has become clear, move the fan switch

to desired speed.

Notice : Electric heater coil is provided for demisting of tail

gate glass for deluxe versions.

Normal Heating :

( For vehicles fitted with HVAC )

Knob 'A' - Suitable temperature position

Knob 'B' - Suitable blower speed

Knob 'C' - towards face & feet

A.C. - OFF

Air Circulation- Fresh switch

Ofrecido por www.electromanuales.com

BEFORE DRIVING Heating, Ventilation & Air conditioning

Quick Heating :

All settings as explained above except air circulation switch

to recirculation.

Once vehicle is heated switch back to fresh mode.

Ventilator :

The air flow can be adjusted continuously with the rotary

control knob at the vents on the dash board. The air vents can

be adjusted upward and downward. This is common for HVAC,

AC and ventilation.

Notice : Refrigerant charged in the air conditioning circuit

has been identified on the label over front body member.

Use only refrigerant as given in the label for topping up or

recharge, i.e. do not charge R12 (CFC) in the vehicle earlier

charged with R134a (Non CFC) or vice versa.

Notice : Fresh air is taken from the grill opening provided

at base of windshield glass outside the vehicle. Keep these

openings clear and free from fallen leaves etc.

Open

Air flow Direction Control

Knob

Ofrecido por www.electromanuales.com

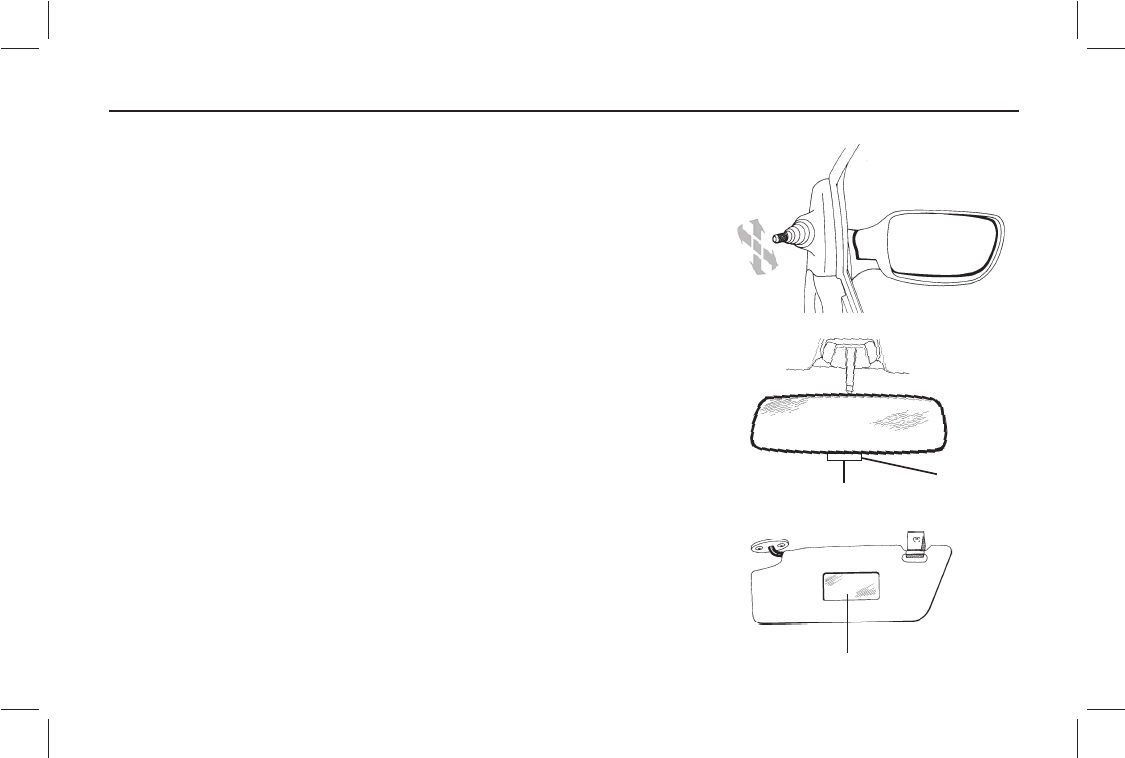

REAR VIEW MIRRORS

Exterior Mirrors : Driverside only (alternate) Both sides (if fitted)

The rear view mirror is fitted on the door from the outside and can be

adjusted by the lever provided inside the door. In some versions the

mirrors are provided on both the doors.

Inner Rear View Mirror :

Antiglare mirror

Plain mirror (Alternate)

If an antiglare mirror has been fitted inside the cab. Provision has been

made for two positions :

1. Antiglare position

2. Normal position

Use antiglare position only when necessary, as it reduces rear view

clarity.

Normal Mirror (if fitted)

In some versions, a normal mirror has been fitted inside the cab.

Sunvisors :

Two adjustable sunvisors are provided inside the cab above the

windshield to prevent sun glare.

Lower the sunvisors to protect the eyes from bright sunlight. The

sunvisor also moves sideways towards the door.

A vanity mirror has been provided on the back of the co-driver's

sunvisor.

BEFORE DRIVING Interiors and Accessories

Vanity Mirror

ANTIGLARE MIRROR

(Only on deluxe version)

Operating

Knob

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

Cup Holders

Glove Box

Window Winding Lever

When not in use keep the sunvisors in their stowed position

otherwise they may block the driver's vision.

Glove Box :

The glove box is located on the dash board in front of the co-driver's

seat. The glove box can be locked with the ignition key.

Cup holders are provided on the inner face of glove box flap.

Do not use the cup holder while the car is in motion.

Window Winding :

Manually Operated Window Winding :

Window winding in the standard version is manually operated. Rotate

the handle on the door pad to raise or lower the window glass.

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

Power Windows : (if installed)

All the window glasses can be operated by means of switches, provided

on the floor console near the gear shift lever for all the four windows.

In some version, power windows are provided only on front doors.

These can be operated only when the key is in the 'IGN' position.

Press to raise the glass Press to lower the glass

In the same switch, safety locking arrangement has also been provided

using the push type switch at centre. This switch has two positions ;

LOCK - when the switch is in depressed condition

UNLOCK - when the switch is in pressed condition

In the lock position, the rear window switches become inoperative.

However the rear windows can be operated by the switches on the

console. Illumination on rear window switches goes 'OFF' in locked

position. Press down the lock button to unlock.

Individual window winding switches have been provided only on the

rear doors.

While raising the glass take care to avoid fingers/hands getting

trapped between the glass and the frame.

Window Winding Switch

On floor Console

Window Winding Switch On Rear Door

Push type

Lock/Unlock

Switch

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

Tray cover with coin holder (Box)

Plug Socket

Tray Cover with coin holder :

Tray cover is provided on centre cluster for the occupants of front seat.

Inside tray cover coin holder is provided to place all types of coins.

To open tray cover, first push it gently at the middle and then pull out

slowly.

Do not pull tray cover directly. It will damage inside locking

mechanism.

Plug Socket :

A plug socket is provided on the floor console behind the gear shift

lever . This can be used for connecting loads (upto 10A maximum)

like mobile charger . To use this socket, remove the cap first.

Always keep this socket coverd with the cap when not

in use.

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

H M Z

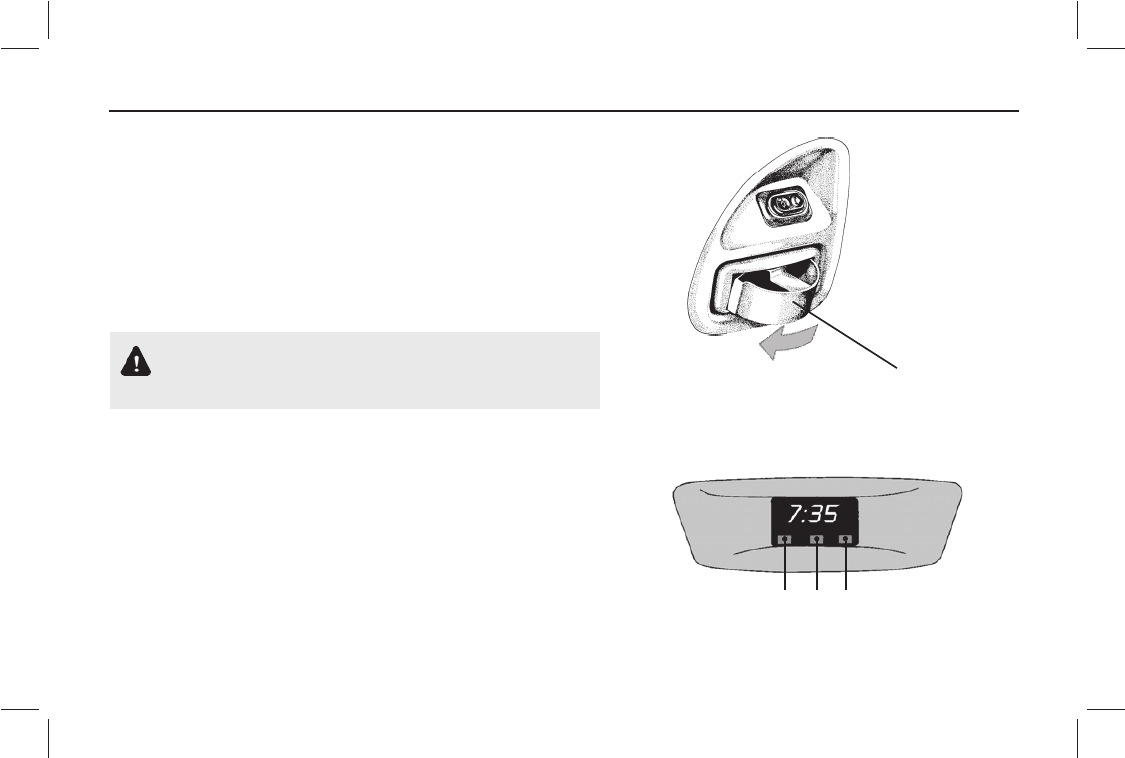

Rear Ash tray

Rear Ash Tray : (if fitted)

Ash trays are provided on both rear doors for the occupants at the

rear.

To open the rear ash tray press the lid, it will rotate outward.

To remove the ashtray open fully and press down to disengage the

top piot pin.

To refit the as tray, locate the bottom piot pin and push the top piot

pin in to place.

Do not forget to extinguish the cigarette butts, before putting

them in the ash tray.

Do not put paper or other flammable material in the ash trays.

Digital Clock :

A digital clock is provided in the middle of the dash board. It displays

the time when the steering lock cum ignition switch is in 'IGN' position.

Three push knobs 'H', 'M' and 'Z' are provided for setting the time

and for resetting the display to zero - 'H' for hours setting, 'M' for minute

setting and 'Z' for accurate setting of the clock.

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

Roof Mounted Interior Light & Reading Lamps :

Interior roof lighting and reading lamps with inbuilt switches are

provided on the roof near the rear view mirror.

The switch for the reading lamps, has 3 positions -

LEFT SIDE OFF RIGHT SIDE

READING LAMP READING LAMP

Delayed Turn Off

(for deluxe model)

This switch has 3 positions -

OFF DOOR ON

ON - The lamp will come 'ON' as long as switch is in this position.

DOOR - In this position the lamp comes on when either of the

front and rear doors are opened. When the door is closed, the

lamp will not go 'OFF' immediately, but remains 'ON' for few

seconds. This helps settling in the seat and inserting the key in

the Ignition switch.

When the key is turned to the 'IGN' position, the lamp goes 'OFF'

immediately, before the delay period.

OFF - In this position the lamp will not comes 'ON' at all.

Door Switch

Reading Lamps

Ofrecido por www.electromanuales.com

Front Seats and Seat Adjustments :

Front Seats : Both the driver and co-driver seats are of bucket type to

provide maximum riding comfort.

Moving the seats forward and backward :

To adjust the seat position, lift the lever under the seat cushion front,

then move the seat to the desired position and release the lever.

Make sure the seat is locked in position.

Adjusting the angle of the seat back :

To adjust the angle of the seat back, a lever has been provided on the

sides of the front seats. By lifting the lever, you can adjust the angle of

the backrest.

Do not adjust the seat when the car is in motion.

Always adjust the seat back to an upright position and sit well

back in the seat.

BEFORE DRIVING Interiors and Accessories

Lever for adjusting the seat back

rest

Lever for sliding (Forward/Backward)

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

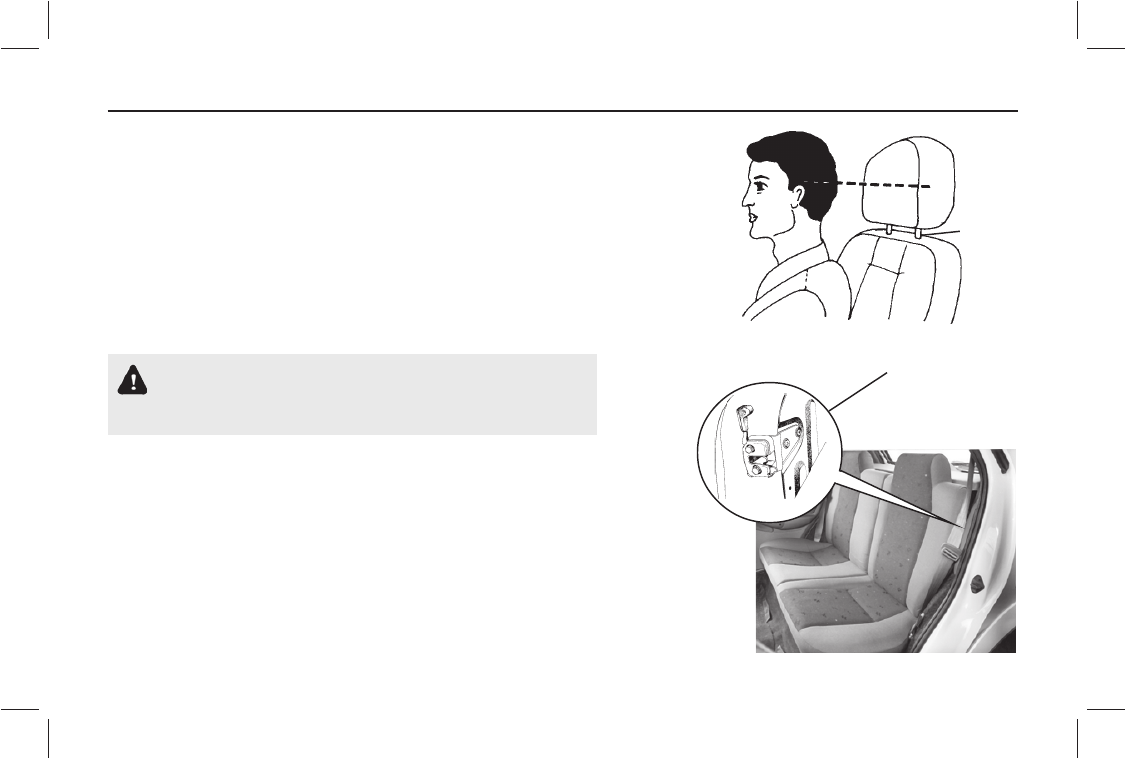

Head-rest :

(Adjustable on the front seat & fixed on the rear seat)

Head-rests are designed to help reduce the risk of neck injuries in case

of accidents. For best protection, adjust the top of the headrest, so

that it is in level with one's ears. To adjust the head-rest pull /push it to

the desired position until it clicks. The head-rest can be adjusted up to

64 mm in steps of 16 mm.

If headrest is required to be removed (for cleaning fabric etc.) pull the

headrest fully up, then push notch button with a thin punch while

pulling the headrest up. To install proceed in reverse.

Avoid driving the car with the head-rest removed as it is a

safety item. Do not attempt to adjust the head-rest while

driving the car.

Rear Seat : (Split 60 : 40)

A cushion bench 60 : 40 split seat has been provided for the rear

passengers. Any one of the split seat back can be folded by releasing

the latch, on both the 'C' pillars simultaneously. For making more

luggage space, the folded rear seat can be somersaulted further. Before

summersaulting ensure that the front seats are at 3/4 the full travel

towards rear.

For fixing the seat back upright, just push back the seat in position. It

will get locked by itself.

Seat Release Latch on 'C' pillar

Release

Button

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

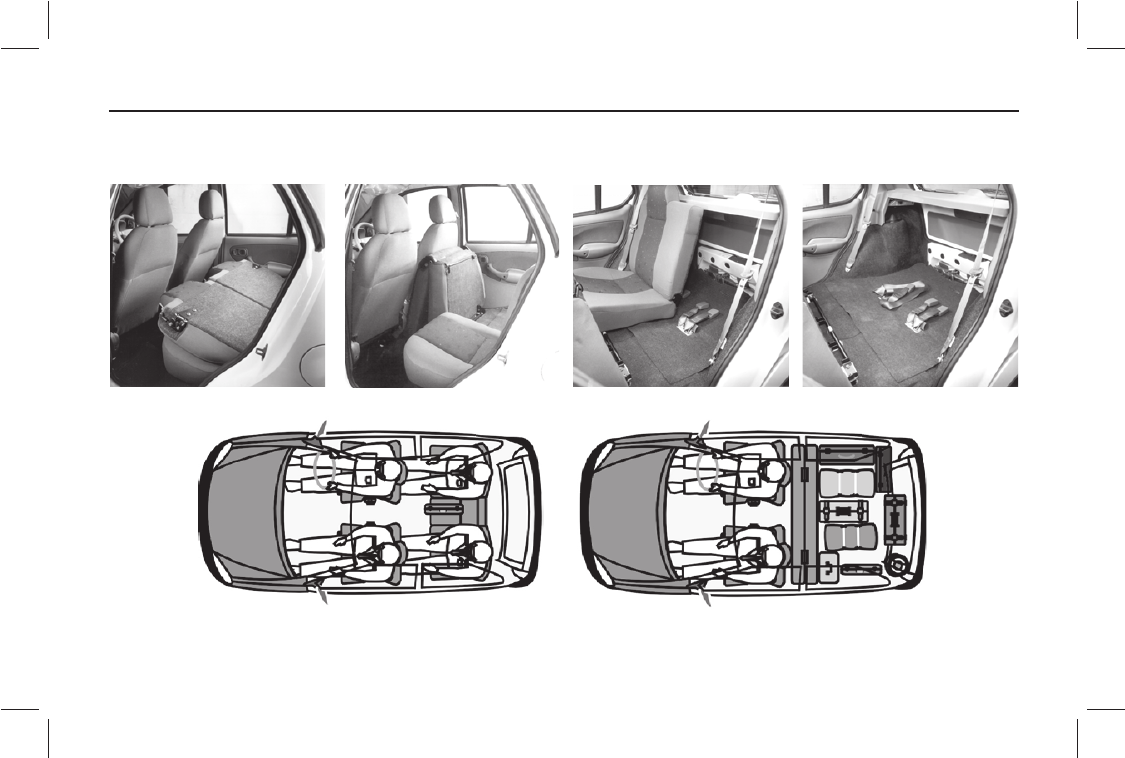

SOMERSAULT POSITION

Lugguage space before summersault

operation

Lugguage space after summersault

operation

Ofrecido por www.electromanuales.com

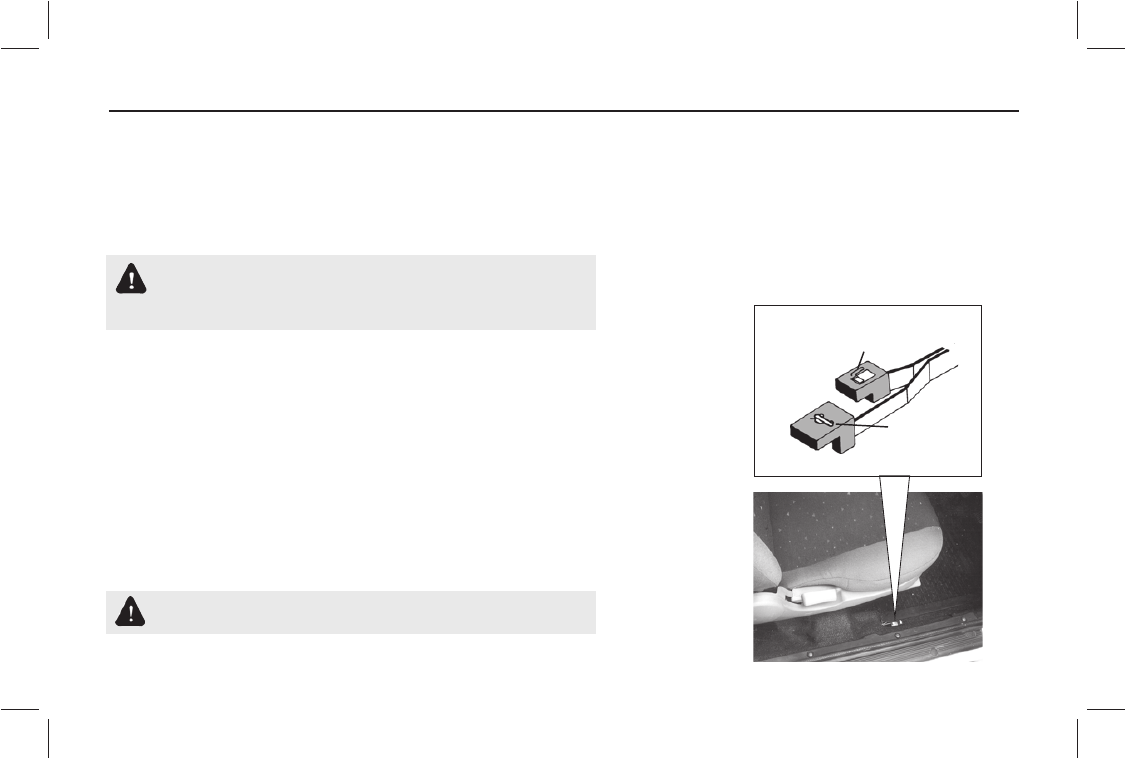

Seat Belt

Seat belts have been provided on the front seats (with micro swtich

on driver's side for the deluxe model)

Always wear seat belts, while driving.

Seat belt adjustment :

1. Pull the tongue across your body and insert it into the buckle.

2. Check and ensure that the belt is not twisted.

3. Position the lap portion of the belt as low as possible across your

hip bone.

4. Pull up the shoulder part of the belt to remove the slack.

5. Make sure that the belt goes over your collar bone and across the

chest.

6. To unlatch the belt, press the red button on the buckle. Guide the

belt to the pillar as it retracts.

7. Each belt should be used by one occupant only (such as front LH/

RH, Rear outboard passenger LH/RH & Rear lap belt-location as per

sketch). The belt must not be put round a child, seated on

passenger's lap.

8. When the belt has been use in a serious accident or shows signs of

severe fraying or of having been cut, replace the belt kit.

9. The belt must not be altered or modified during use.

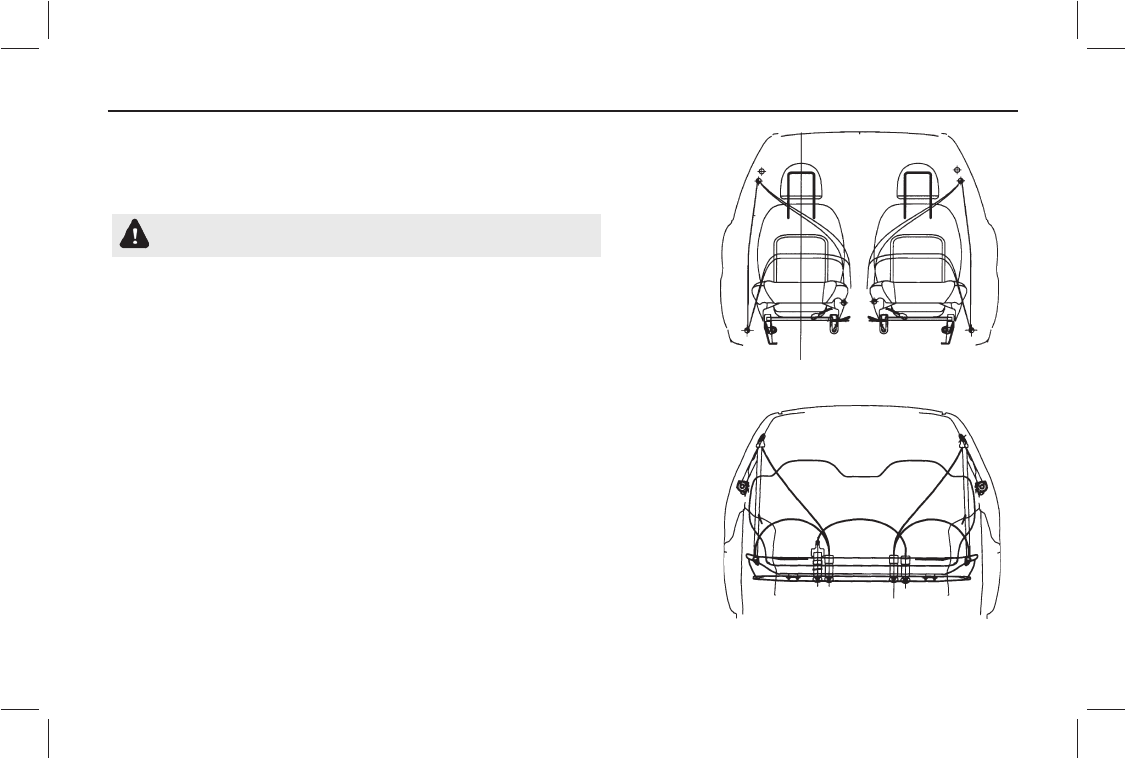

BEFORE DRIVING Interiors and Accessories

Rear seat seat-belts arrangement

viewed from rear

Front seat seat-belts arrangement

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

10. The belts are meant (intended) for adult occupants only.

11. The belts if required should be repaired, by authorised personnel

only.

12. The belts should not be disassembled, if required, authorised

personnel only should carry out disassembly and assembly.

Do not wear your seat belt over hard or breakable objects in

pockets or on your clothing. If an accident occurs, objects such

as glasses, pens, etc. under the seat belt can cause injury.

Tailgate opening :

A tailgate opening lever is provided on the floor between the driver's

seat and door.

Pull the lever up to unlock the tailgate.

Lift the tail gate by hand using the recess in the centre, near the bumper.

The two telescopic balancers will open the door automatically.

To close and lock the tailgate push it down.

The tailgate can also be opened with the key.

While tailgate opening the parcel shelf also gets lifted up by the lifting

cords and parcel shelf closes back while closing the tailgate.

Ensure proper closing of parcel shelf while closing the tailgate.

Tailgate

opening

lever

Fuel flap

opening lever

Ofrecido por www.electromanuales.com

BEFORE DRIVING Interiors and Accessories

Fuel flap opening :

The fuel flap is located on the left rear side of the car. The fuel flap can be

opened by pulling the opening lever located near the tailgate opening

lever and can be locked by simply closing the flap.

Music System :

A provision has been made for fitment of music system.

An internal antenna comes fitted on the front windshield glass on the

inner side near the rear view mirror. Provision for the installation of speakers

is made on the dash board on both the sides and on each of the front

doors.

If the music system is originally provided in your vehicle, please refer

manufacturer's manual for operation of the music system.

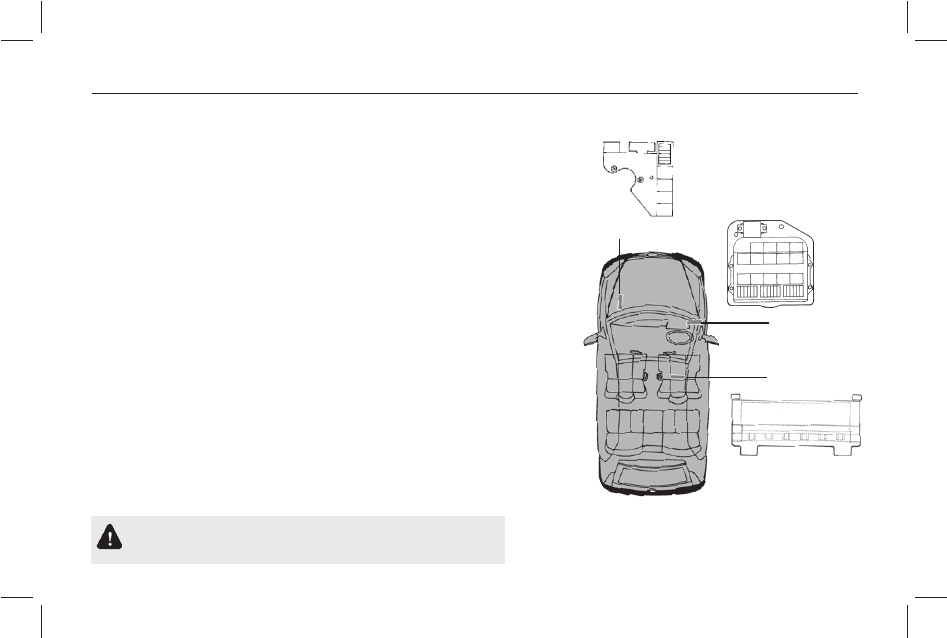

Electrical Accessory fitment :

Provision has been made in your car wiring to fit the following electrical

accessories :

1. Engine Compartment Lamp

2. Front Fog lamp

3. Additional Horn (on LH side)

4. Reversing buzzer

5. Music System

6. Speakers

7. Immobilizer for vehicle security

For details of fitment please contact our nearest authorised service outlet.

Antenna

Provision for Music System

Ofrecido por www.electromanuales.com

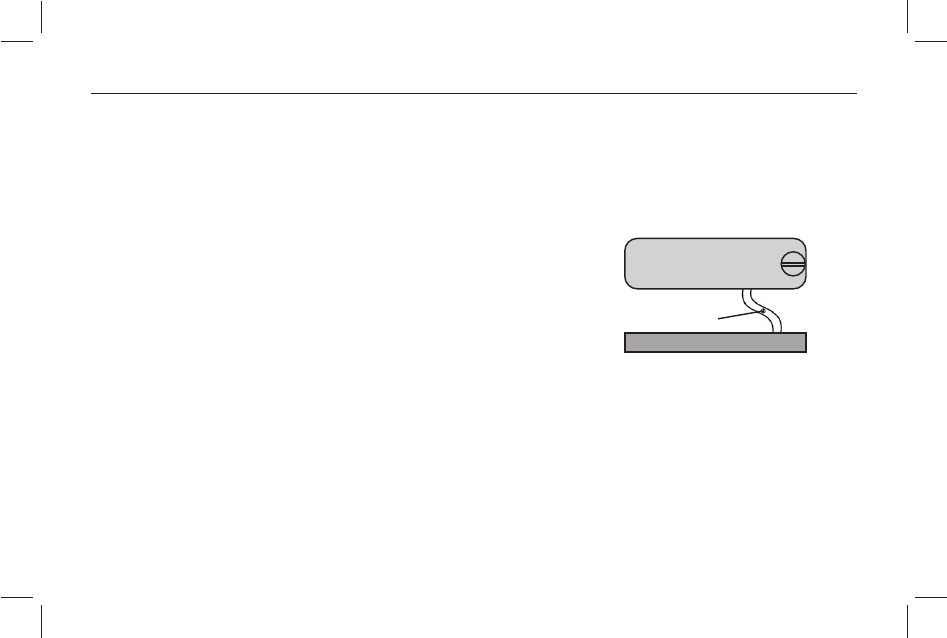

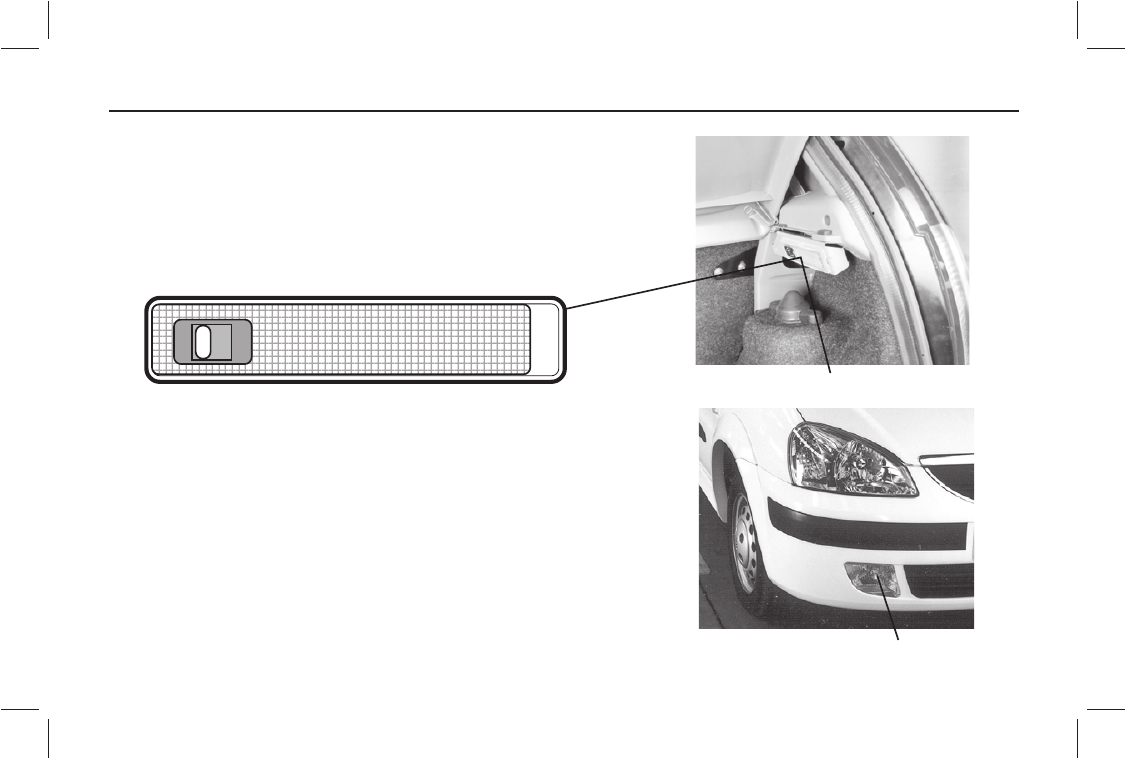

Load Area Lamp (if installed)

A lamp is fitted in the luggage compartment to illuminate the luggage

area, when required. To operate this lamp, a simple ON/OFF switch is

provided along with this lamp. For the lamp to come 'ON' with the

opening of tailgate, the switch should be in 'ON' position.

BEFORE DRIVING Interiors and Accessories

Load Area Lamp

OFF

Front Fog Lamps (if installed)

The Front fog lamps are provided with halogen lamps of H3 type to

provide adequate light in the vehicle front. This enables to drive the

vehicle during rains, fog, etc.

Fog Lamp

Ofrecido por www.electromanuales.com

•CHECK LIST

•STARTING & STOPPING

•PREPARING TO DRIVE

•FUEL ECONOMY

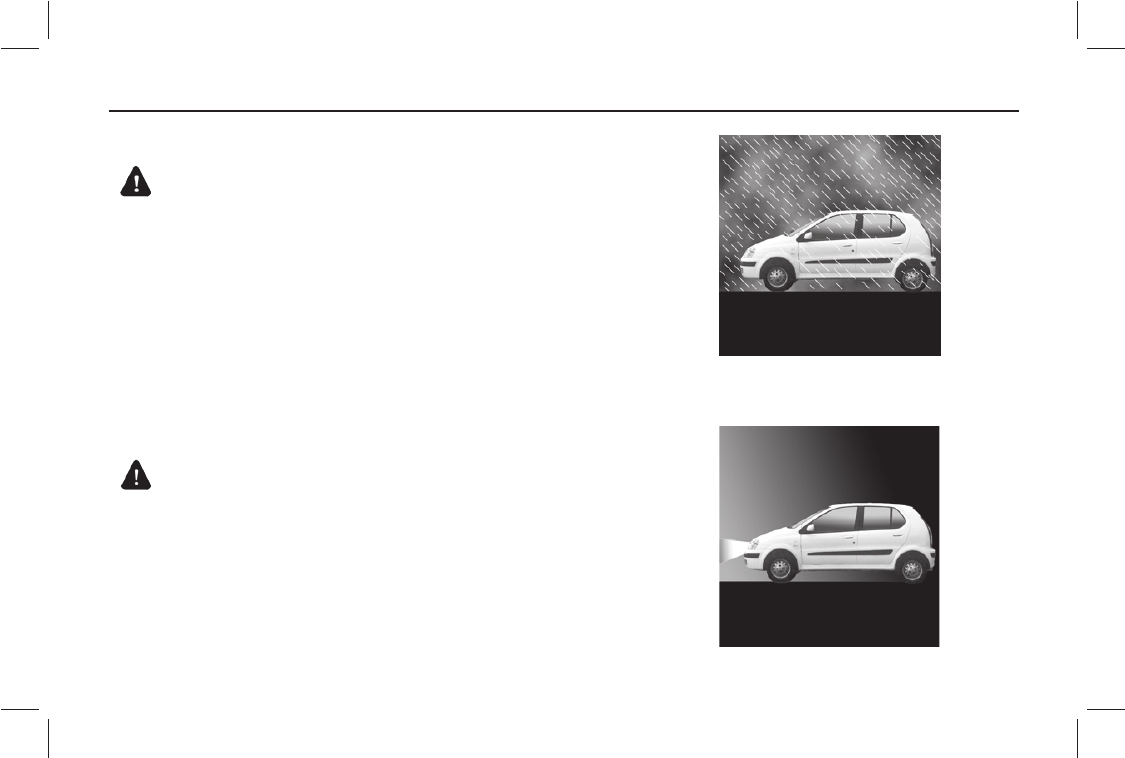

•DRIVING IN ADVERSE CONDITIONS

•DRIVING DIESEL CARS

•DRIVING SAFETY

STARTING AND DRIVING THE CAR

Ofrecido por www.electromanuales.com

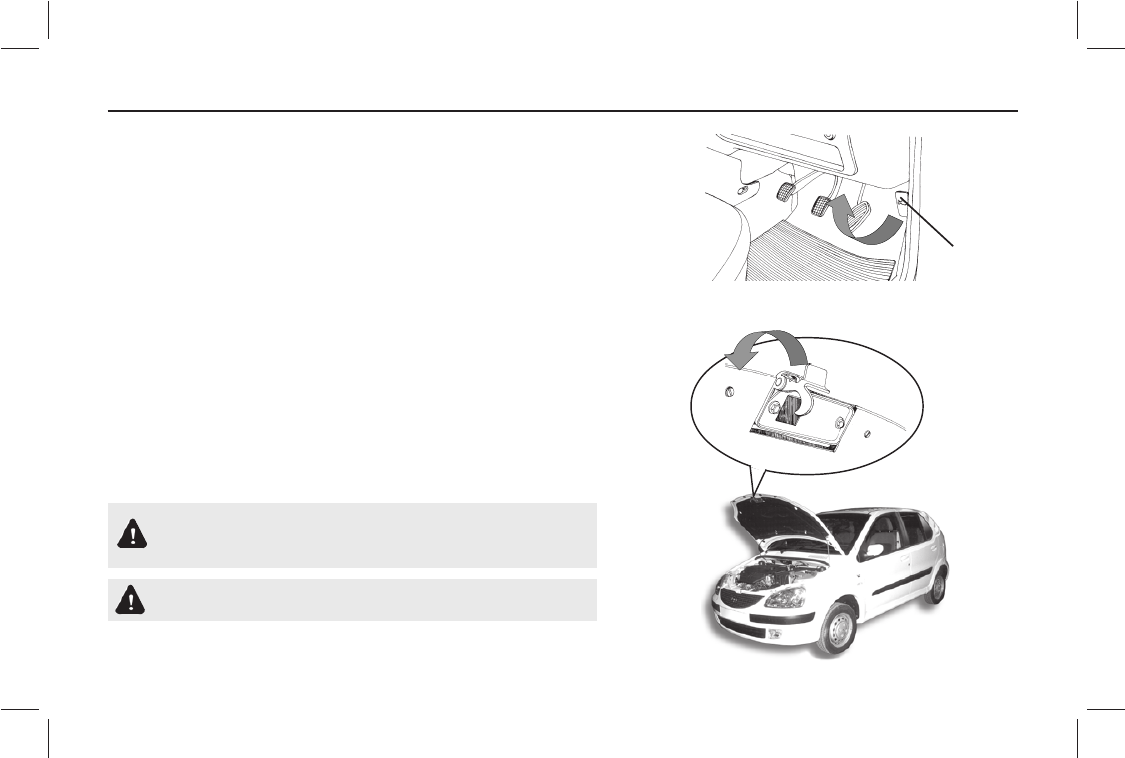

OPENING & CLOSING THE BONNET

Opening :

1. Ensure that the car is in neutral gear with the parking brake applied.

2. Pull the bonnet release lever located under the right hand corner

of the dash board. The bonnet will pop up slightly.

3. Raise the bonnet slightly and with your finger lift the secondary

lock lever located under the bonnet centre.

4. Lift the bonnet up. Pull the bonnet stay rod from its clip and insert

the free end into the slot in the bonnet, slide stay rod outward to

secure.

Closing :

1. To close the bonnet disengage the stay rod & clamp it properly.

2. Lower the bonnet and drop it from a short height to shut.

Ensure that the bonnet is properly locked before driving.

Do not press the bonnet onto the bonnet lock.

Do not leave the engine running in a closed garage.

STARTING & DRIVING Opening & Closing the Bonnet

Bonnet

release

lever

Ofrecido por www.electromanuales.com

STARTING & DRIVING Check List

Check Adjust Ensure

1. Tyre pressure 1. Front seat 1. Bonnet is fully closed

2. Coolant level 2. Rear view mirrors 2. All doors are properly closed

3. Engine oil level 3. Seat belts are fastened

4. Brake fluid level 4. All switches & lamps are

5. Water in windshield washer reservoir working

6. Power steering oil level (if installed) 5. Gear shift lever is

7. Battery electrolyte level in neutral position

8. Fuel level 6. Parking brake is released

Ofrecido por www.electromanuales.com

Fuel Level :

Check fuel level on the gauge in the instrument panel. If the

pointer is in the red zone and/or visual low fuel level warning

indicator (Amber colour LED) glows, please ensure fuel filling at

the earliest. Avoid driving with fuel at minimum level.

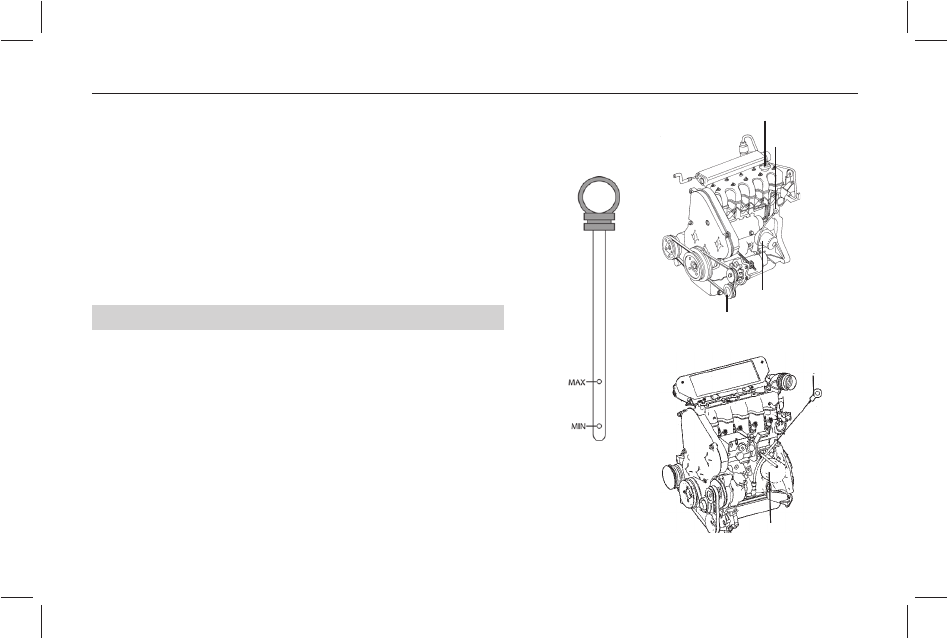

Engine Oil Level :

1. Open the bonnet. Pull out the dipstick and wipe it with a clean

cloth or a paper napkin.

2. Insert it again to its original position.

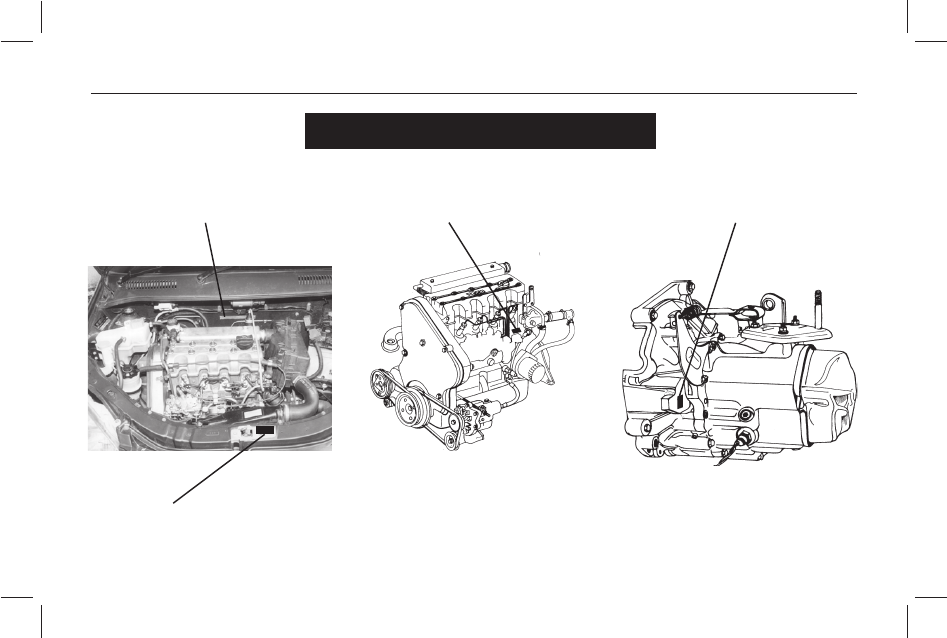

STARTING & DRIVING Fuel & Engine Oil Level

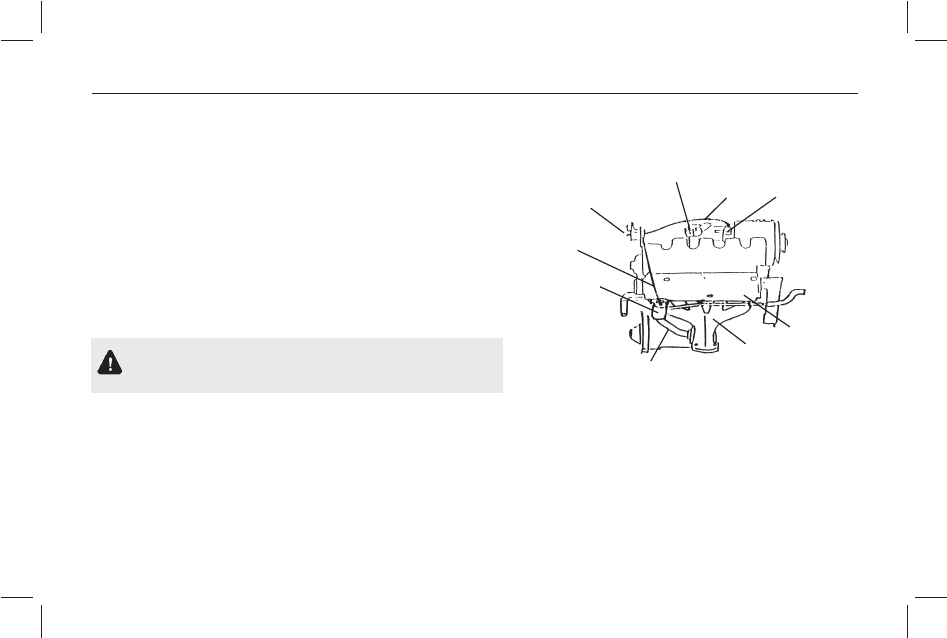

Dip Stick

Oil Filter

BS-III engine

Dip Stick (Diesel Engine)

3. Pull out the dipstick again and observe the oil level on the

dipstick.

4. Top up oil if the oil level is below the mid point of min. and

max. marks.

Note : Oil level should not exceed the max. mark. Always

check the oil level when the car is on level ground and the

engine is cold.

Check the engine oil level if low oil pressure warning

comes 'ON' while driving.

Fuel Guage

Amber

Colour LED

Ofrecido por www.electromanuales.com

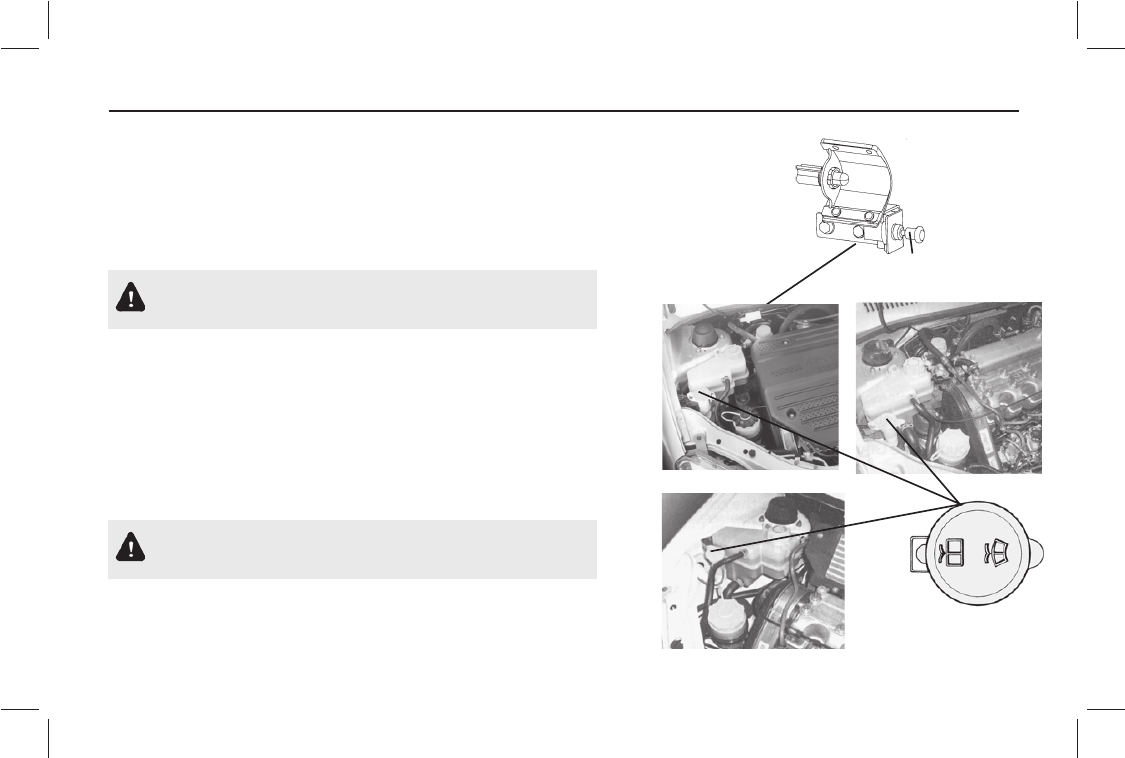

Engine Coolant Level :

The coolant level is visible through the translucent reservoir. It should be

between max. & min. marks. If it seems less, add premixed coolant into

the auxiliary tank upto the max. mark. Put the cap back properly.

Never remove the filler cap when the engine is hot.

In case of an emergency, normal water can be used, but the system

should be flushed & filled with proper coolant mixture at the earliest.

Brake Fluid Level :

The level of the brake fluid must be between the min. & max. marks on

the side of the brake fluid container. If the level falls below the min.

mark, add recommended brake fluid. (Refer chapter - Fuels, coolants &

lubricants)

In case of spongy or hard pedal or low brake efficiency, please contact

the nearest Authorised Service outlet.

1. Do not allow brake fluid to make contact with the skin or

eyes.

2. Do not allow brake fluid to splash or spill on the paint

surface as it will damage the paint. In case of spillage, wipe

it off immediately.

STARTING & DRIVING Engine Coolant & Brake Fluid Level

Max.

Min.

Max.

Min.

Ofrecido por www.electromanuales.com

STARTING & DRIVING Starting & Stopping

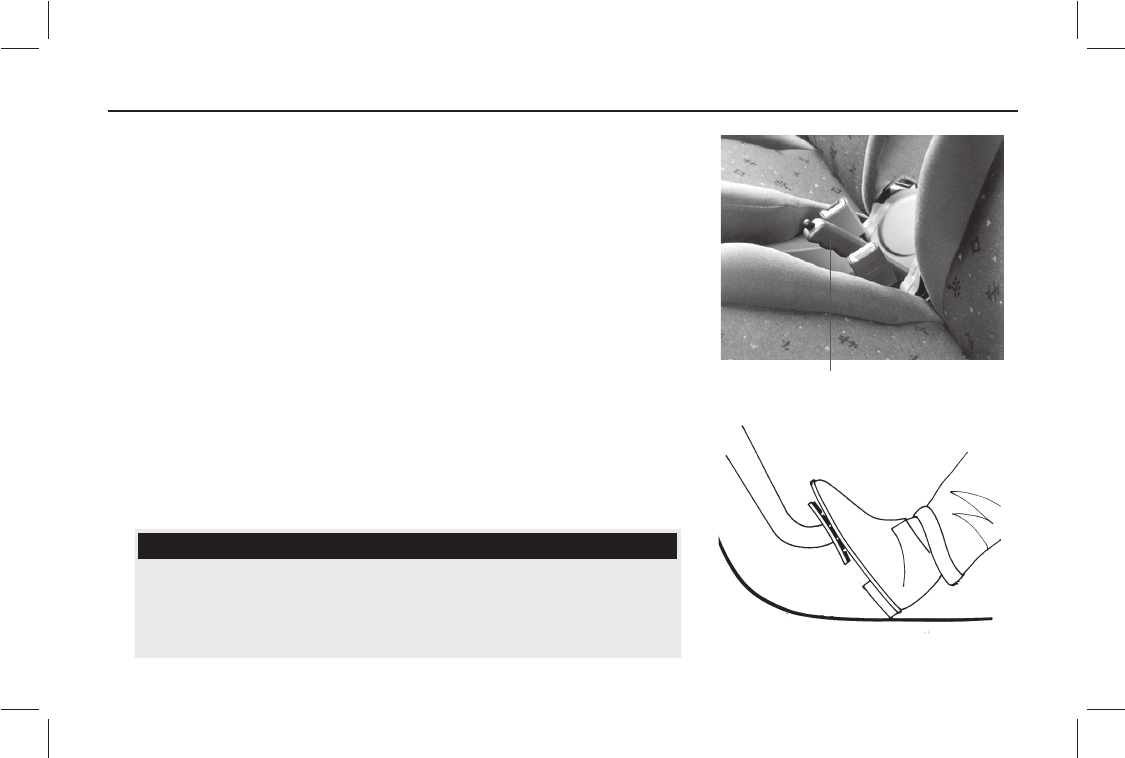

Parking Brake

STARTING THE ENGINE

Before starting the engine :

• Apply the parking brake fully.

• Ensure that the gear lever is in neutral position.

Starting the Engine :

• Insert the key into the switch and turn it to 'IGN' position.

• The glow plug indicator light on the instrument panel will glow.

•Wait till the glow plug indicator light goes off.

• Press the clutch pedal fully and crank the engine. If the engine does not start, turn

the key to 'OFF' position & try again after 30 sec.

• After starting the engine, keep the engine in idling for atleast 30 sec. Do not

accelerate the engine immediately after starting to avoid damage to

turbocharger(in case of Indica Turbo)

• After starting the engine, ensure the "CHECK ENGINE" lamp is "OFF", This is a

normal phenomenon of "CHECK ENGINE" lamp (only in Indica Turbo & BS-III)

NOTICE

Do not crank the engine for more than 10 sec continuously. If the engine does

not start, wait for 30 sec. before cranking it again. Release the key immediately

after starting the engine, otherwise the starter motor fly wheel ring gear may

get damaged.

Ofrecido por www.electromanuales.com

Stopping the Engine :

• Let the car come to a stop and engine to idle.

• Before switching 'OFF' the engine , run the engine 'idle' for at least

20 sec. and then switch 'OFF'. This allow the engine oil to lubricate

the turbocharger till its speed is fully reduced and will allow the unit

to cool down (Only on Indica Turbo).

• This precaution will ensure satisfactory life and performance from

the turbocharger.(Only on Indica Turbo).

• Turn the key to 'OFF' position.

Parking :

• Park the car in a safe place. Switch on the indicator signal before

turning to park.

• Apply the parking brake.

• Ensure that all window glasses are closed and all lamps are turned

'OFF'.

• At night, put on the parking lights if required.

• Remove the key from the ignition switch.

• Place wheel chocks at the wheels if parked on a slope.

STARTING & DRIVING Starting & Stopping

Do not leave the key inside the car.

Do not leave children unsupervised in the car.

When parking on level ground, place the gear

lever in the 'Neutral' position. When parking

on a downhill gradiant, place the gear lever in

'Reverse' position. When parking on uphill

gradiant, place the gear lever in the '1st'

position.

Ofrecido por www.electromanuales.com

Preparing to Drive :

The following checks and adjustments should be carried out

before you start driving the car.

• Ensure that the windshield, all mirrors, windows and outside

lights are clean. Check & adjust rear view mirrors.

• Ensure that the windshield washer reservoir is full.

• Ensure that the bonnet is properly closed.

Do not put excessive pressure on top of bonnet to

avoid damage.

• Release the parking brake.

• Check that any items that you may be carrying

inside, are fully secured.

• Check & adjust seat.

• Ensure that all doors are locked properly.

• Fasten seat belt properly.

• Ensure that all gauges and indicator lights are

working.

• Check for blind areas being unobstructed in front

and rear of the car.

• Before driving off check in the rear view mirror,

for oncoming traffic. Switch on side indicator

signal when getting into main stream of traffic.

STARTING & DRIVING Preparing To Drive

Running-in instructions :

During running-in period i.e. first 1000 km. follow the running-

in instructions given below :

A. 1. After starting the engine do not rev it up.

Warm up gradually at idling speed.

2. Avoid sudden acceleration and full throttle.

3. It is always preferred not to rev up a cold engine lest

engine bearings get affected.

B. Recommended car speeds during running-in period for

diesel and petrol versions :

Gear Speed (kmph)

1st 20

2nd 40

3rd 60

4th 80

5th 90

Ofrecido por www.electromanuales.com

Gear Shifting :

All forward gears being synchronised, provide for easy and effortless

gear shifting. Always remember to press the clutch pedal fully while

shifting the gears and also to release the clutch pedal gently.

Avoid sudden clutching i.e. abrupt release of depressed clutch pedal.

Do not shift into reverse gear when the car is moving forward or when

the engine is not at idling r.p.m. A 5 second pause after declutching

will ensure smooth engagement of the reverse gear. Change gears at

appropriate gear change speeds.

Note : There is an interlock provided between fifth and reverse gear

to prevent accidental shift from 5th gear to reverse gear. (Shifting

from reverse gear to 5th gear is possible)

STARTING & DRIVING Preparing To Drive

Ofrecido por www.electromanuales.com

STARTING & DRIVING Preparing to Drive

Gear Shifting

Appropriate gear change speeds for good pick-up

Speed (kmph) Speed (kmph)

Upshift Downshift

1st to 2nd - 30 2nd to 1st - 20

2nd to 3rd - 50 3rd to 2nd - 35

3rd to 4th - 75 4th to 3rd - 50

4th to 5th - 105 5th to 4th - 75

Recommended maximum speed, during normal operation.

Gear Speed (kmph)

135

265

395

4 130

5 140

Ofrecido por www.electromanuales.com

INSTRUCTIONS TO IMPROVE FUEL ECONOMY :

Your car's fuel economy is mainly dependent on your style of

driving.

To operate your car as economically as possible, use the

following driving suggestions.

Avoid Excessive Idling :

Stop the engine and start it again, if you have to wait for more

than a minute while you are stopped.

Avoid fast starts & unnecessary stops :

Start off slowly from traffic lights or stop signs to prevent

increased fuel consumption and shortening of engine life.

Avoid unnecessary deceleration (stopping or slowing down)

and then acceleration which uses more fuel.

Always maintain clean air-cleaner :

The amount of air supplied will reduce due to clogged air-

cleaner, resulting in waste of fuel due to incomplete

combustion.

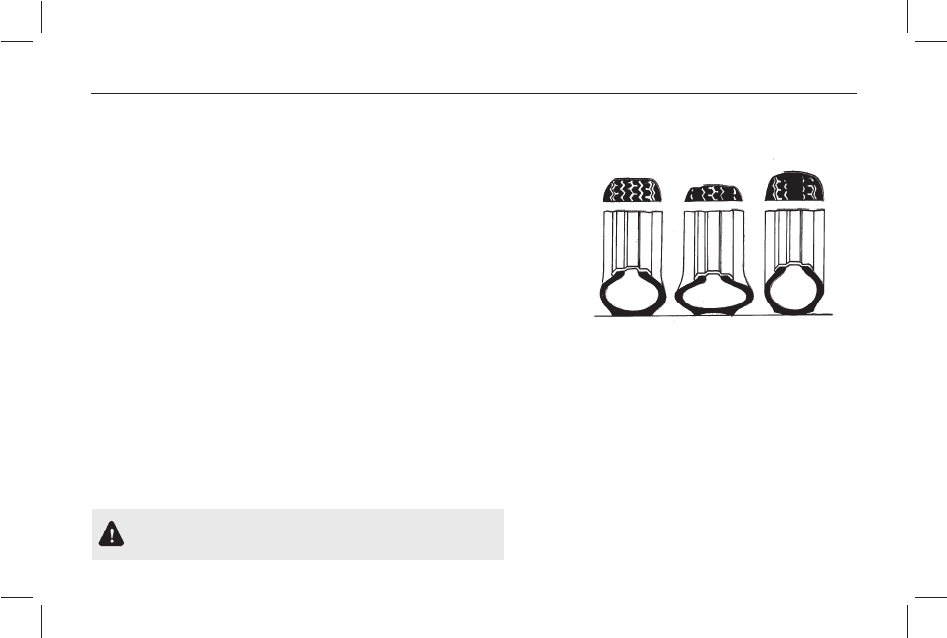

Avoid incorrect tyre pressures :

Under-inflated tyres result in increased running resistance of

the tyres, leading to wastage of fuel.

STARTING & DRIVING Fuel Economy

Always have the engine tuned correctly through

recommended maintenance at an Authorised Service

outlet.

Proper Driving Practices :

Keep a safe distance from other vehicles to avoid braking

suddenly.

Do not rest your foot on the clutch pedal. It does not allow full

engine power to be transmitted to the vehicle and reduces

clutch life.

Fuel economy speeds :

Diesel

Gear Speed (kmph)

1st 15

2nd 25

3rd 40

4th 60

5th 65

Ofrecido por www.electromanuales.com

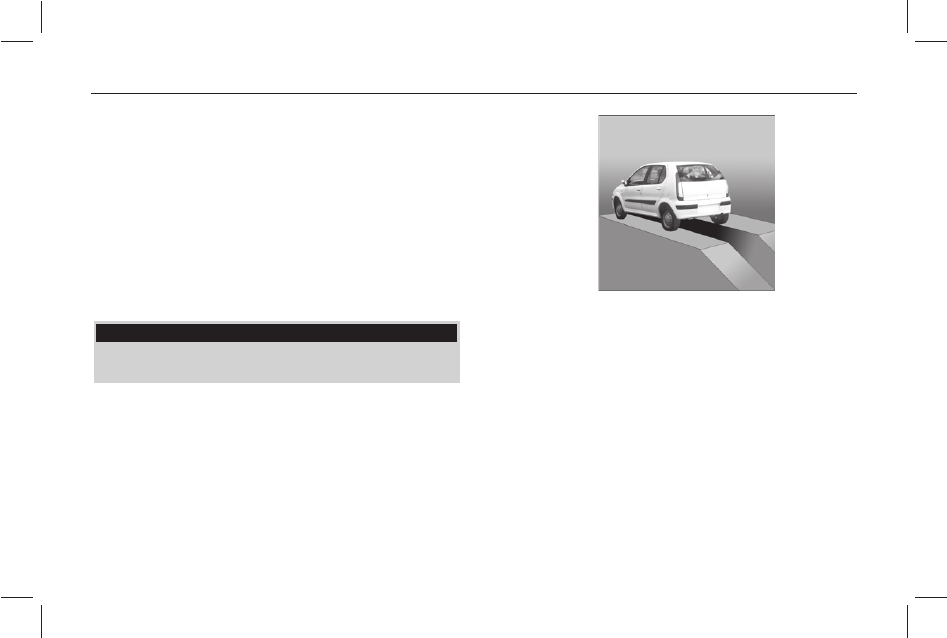

Driving Through Water :

•Never venture to drive through water when it flows above

the stone guard or above the tyre centre line.

•The engine may get seriously damaged if attempts are made

to cross through deep water.

•If at all the situation demands that you have to drive through

water even at great risk then,

•Keep the engine in fast idling and 'crawl' in low gear.

•After driving through water apply the brakes several times

to dry the liners and to regain original braking.

•Check the engine and transaxle for any water ingress.

Do not attempt to start the engine if the car gets flooded

due to water.

•Tow the car to a safe place.

•Take the car to the nearest Authorised Service outlet to

check for entry of water in the engine.

•Lubricants in the engine and transaxle need to be changed

in case of water entry.

STARTING & DRIVING Driving In Adverse Conditions

Ofrecido por www.electromanuales.com

Driving on a Rainy Day :

•Check wiper blades for proper functioning.

•Check brakes, steering and windows.

•Check tyres for wear and tyre pressure. Worn out tyres are

unsafe on wet roads.

•Avoid harsh braking and sharp turns. It may cause loss of

steering control and lead to the car skidding.

•For slowing down, shift to lower gears and apply brakes

gently.

•Keep lights on if visibility is poor.

•Use heater and demister if required to clear off mist on the

windshield.

Night Driving :

•Dip the head lamp for oncoming traffic during night driving.

•Maintain a speed such that you can stop within illuminated

distance of the head lamps.

•Use head lamp main/dip beam to alert other users on turns/

cross roads, etc.

•Use side indicators to indicate lane change or turning.

•Put on the hazard warning switch in case of hazardous

parking or if your car is disabled to warn passing traffic.

STARTING & DRIVING Driving In Adverse Conditions

Ofrecido por www.electromanuales.com

DRIVING DIESEL & PETROL CARS :

The combustion systems of the petrol engine & diesel engine are

totally different. While the former makes use of the spark ignition,

the latter uses compression ignition type. Due to the difference

in compression ratios, cylinder pressure and combustion cycle the

performance characteristics of both the engines differ greatly, even

if the final power out put is the same.

Therefore, if the diesel car is driven in the same fashion as the petrol

car the response of the car will be entirely different for equal

capacity engines.

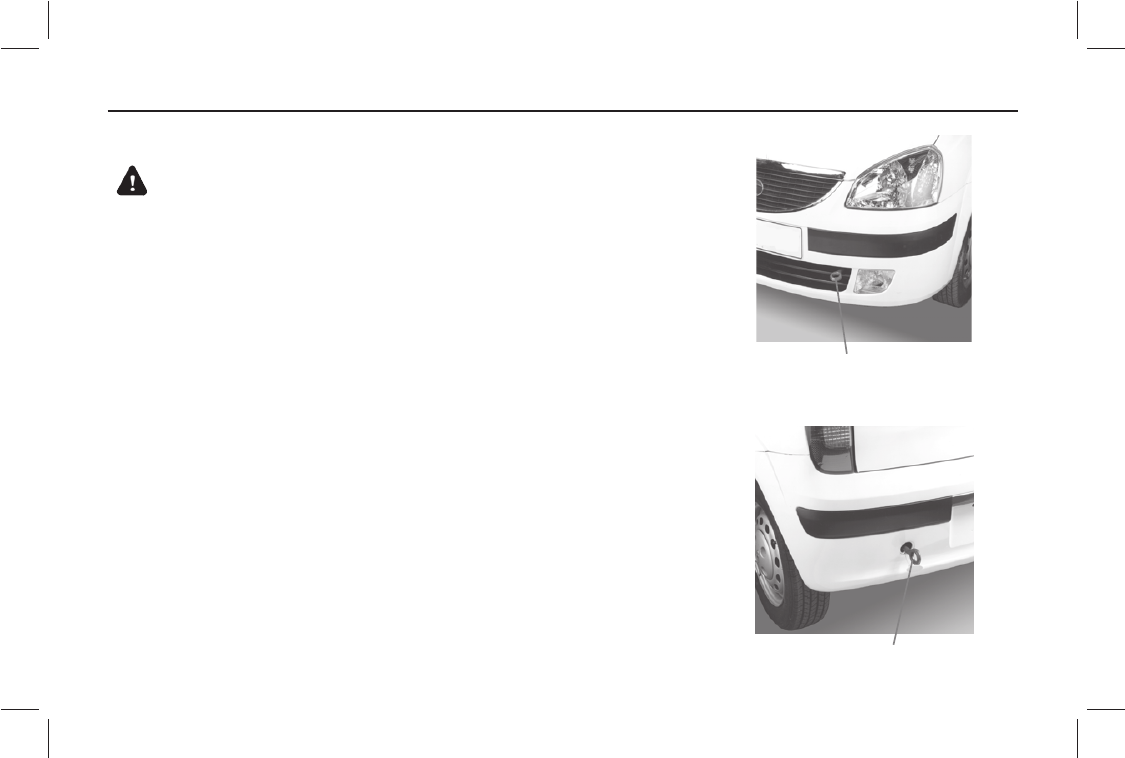

Towing the Vehicle :

•For towing a car, the best way is to use a wrecker.

•Alternatively use a rigid tow bar.

•Avoid using a flexible cable or rope as your car may crash into

the car towing your car when it stops suddenly.

•Switch ‘ON’ the hazard warning signals of both the cars to

warn other road users.

•Where possible, keep the engine idling so that power steering

assistance and brake vacuum are available.

•Limit the speed to 20-30 kmph.

•In case of brake failure, use the parking brake to control the

car.

STARTING & DRIVING Driving In Adverse Conditions

Towing hook rear

Towing hook front

Ofrecido por www.electromanuales.com

DRIVING SAFETY

Seat-Belt

Seat-belts are life saving equipment and

their use reduces the chance of injury

and severity of injury in case of an

accident. It is strongly recommended

that all the car occupants should always

wear the seat-belt, while car is in motion.

Influence of Alcohol

Avoid driving under the influence of

alcohol or drugs. Alcohol and drugs will

severely impair your control on the

vehicle and increase the risk of injury to

yourself and others.

Mobile phones

Avoid using mobile phones while

driving. This could divert your attention

from the road and result in an accident.

Fatigue 'Rest Revive Survive'

Do not attempt driving when you feel

tired or sleepy. Long distance driving

can tire you very much and fatigue can

dull your reflexes and judgment. Take a

break and get refreshed at intervals.

CAR SAFETY CHECKS

Windshield/wiper/windshield

washer

Always keep windshield glass clean to

avoid any distraction in visibility. Ensure

proper working of wipers and condition

of wiper blade. Ensure that windshield

washer reservoir is full. Do not operate

wiper alone when the windshield glass

is dry, which would damage the

windshield.

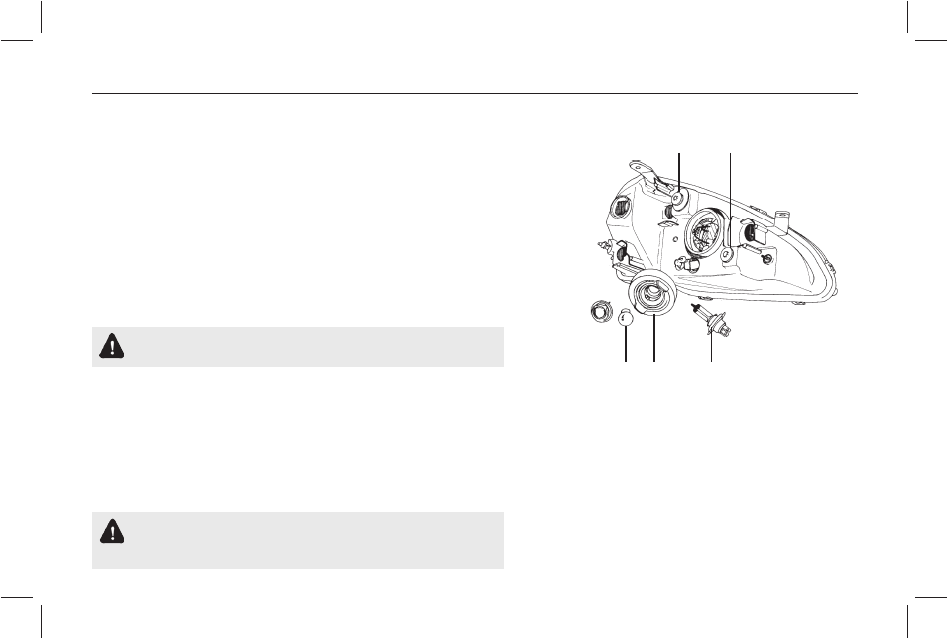

Headlights

Keep headlight lenses clean. Check for

operation of headlamp in both high/

low beam conditions. Check for correct

focusing of headlamps. Use only

recommended type of bulbs. Do not use

the high beam unless it is inevitable. Its

dazzle may glare the driver of the

oncoming car thus causing an accident.

STARTING & DRIVING Driving Safety

Ofrecido por www.electromanuales.com

Side indicators / Hazard warning

Ensure that all side indicators/hazard

warning lights are always in working

condition and they are used when

required.

Horn

Ensure the horn is working properly. Horn

provides safety to other road users by

alerting your presence.

Brakes

Ensure brakes are in working condition.

Check brake fluid level in reservoir. Do

not drive the car when brake warning

lamp is 'ON'.

Tyres

Check the condition of tyres for any

abnormalities. Maintain correct tyre

pressure, it is very important particularly

when subjected to extreme conditions,

such as high speed, high load and high

outside temperature. Do not use worn

or bald tyres on the front wheels.

First Aid Kit :

First aid kit is provided in your car. This

is for use in case of minor injuries. It is

to be regularly checked for any

disintegration and should be updated

regularly.

Advance Warning Triangle :

There is an advance warning triangle

provided along with your vehicle. In case

STARTING & DRIVING Driving Safety

there is a breakdown and the vehicle is

parked at the side of road, then the

triangle is to be kept as per instructions

given below :

Remove advance warning triangle from

case and assemble.

Place the triangle on the road behind

the vehicle when it stranded on the road.

The triangle must be at least 50 meters

behind the vehicle in the same lane of

traffic.

Increase the distance to 150 meters on

a highway or if a bad/hill top obscures

the view.

Ofrecido por www.electromanuales.com

• Engine Compartment

• Engine Compartment Lamp

• Windshield Washer

• Air Filter

• Engine Cooling System

• Engine Oil & Oil Filter

• Engine Belt Tension

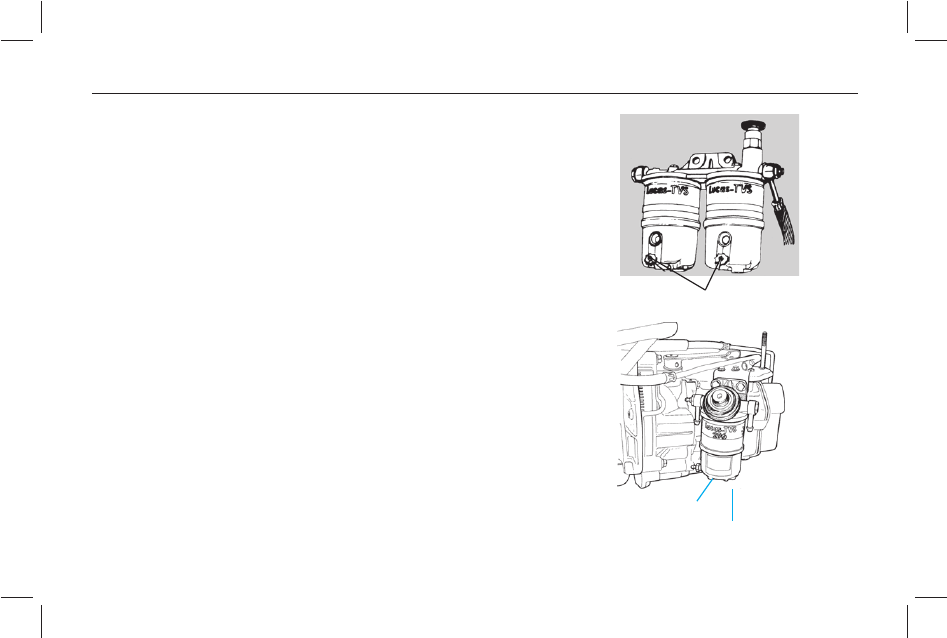

• Fuel Filter

• Transaxle Oil

• Fuel Filling Cap

• Clutch & Brakes

• Power Steering

•Battery

• Catalytic Converter

• EGR System

• Starting with Jump Leads

• Wheels & Tyres

• Electricals

• Car Care

MAINTENANCE & CAR CARE

Ofrecido por www.electromanuales.com

MAINTENANCE POINTS Engine Compartment

Auxiliary Tank

Brake Fluid Container Fuse Box & Relay (if fitted)

Engine Oil Filling Cap

Battery

Air Filter

Dip StickPower Steering Fluid Container

(if fitted)

Windshield

Washer Filling

Cap

Engine Compartment

Engine Compartment Lamp

Ofrecido por www.electromanuales.com

Auxiliary Tank

Intercooler Fuse Box & Relay

Engine Oil Filling

Cap

Battery

Air Filter

Dip Stick

Power Steering

Fluid Container

(if fitted)

Windshield

Washer Filling

Cap

475 IDI (TCIC) Diesel Engine (BS-III)

Air Filter

Service

Indicator

MAINTENANCE POINTS — Engine Compartment

Brake Fluid Container

(Behinf Intercooler)

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Engine Compartment Lamp & Windshield Washer

ENGINE COMPARTMENT LAMP : (if fitted)

Engine compartment lamp is provided to illuminate the engine

compartment.

A push - pull type switch is provided to operate the lamp.

Do not forget to switch 'OFF' the engine compartment lamp

before closing the bonnet.

A provision has been made for installation of engine compartment

lamp in standard version.

Windshield Washer :

Windshield washer fluid container is located behind the front right

hand side panel and its filler neck is provided near auxiliary tank in the

engine compartment.

Do not add detergent or any solvent in the windshield washing

water.

Push-Pull Switch

Windshield Washer

Filler Cap (Turbo)

Turbo

BS - II BS - III

Ofrecido por www.electromanuales.com

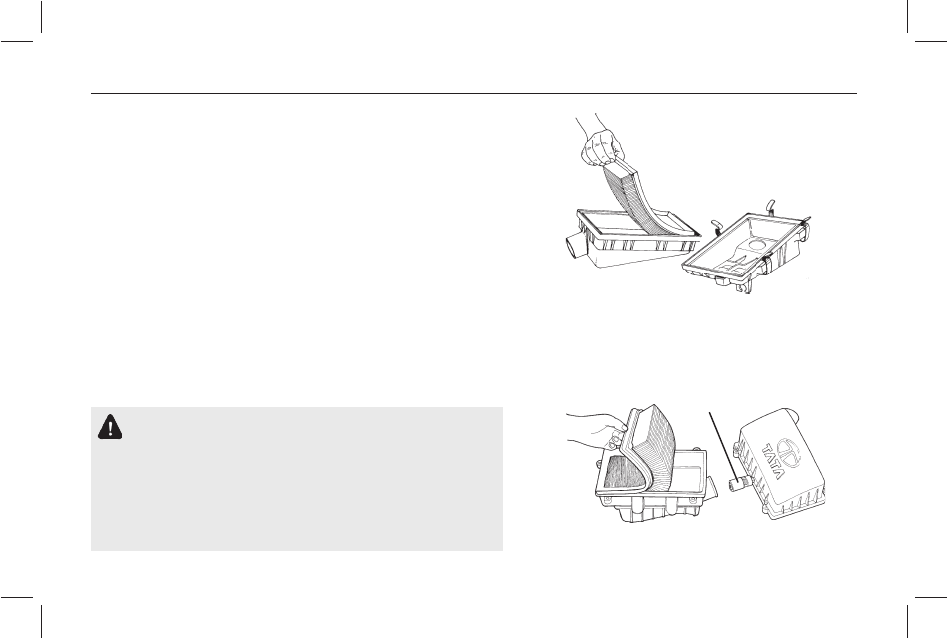

AIR FILTER :

The air filter element should be periodically cleaned. Replace the air

filter element with a new one, if necessary.

Always use a genuine air filter element.

The air filter is located on the LH side of the engine compartment.

Replacement of Air Filter Element :

a) Remove the cover of the air filter, by loosening the clips.

b) Remove the air filter element.

c) Clean it gently by tapping. Clean air filter cover and air ducting.

d) Check the element for puncture or pin holes by holding against a

bright light source.

e) If found to be OK, reinstall the filter element. Fit the cover and plug

on the clips.

a) When a car is driven under dusty conditions, frequent

replacement of the air-cleaner element is necessitated.

b) Clogged air-cleaners lead to greater intake resistance and

result in increased fuel consumption. Using low pressure

compressed air, blow off dust on the air cleaner element. If

the air cleaner element appears to be choked, replace it

with a new one.

MAINTENANCE & CAR CARE Air Filter

Air Filter (Diesel)

Air Filter (Diesel Turbo)

Service

Indicator

Ofrecido por www.electromanuales.com

ENGINE COOLING SYSTEM :

If engine overheating occurs, there could be a fault in the cooling

system which may be due to :

1. Insufficient coolant in the cooling system or dirt/scales having

accumulated inside the cooling water passages especially in the

radiator core.

2. Choking or damage of radiator passages.

3. Defective thermostat.

4. Non operation of electrically operated fan. (40 Amp. fuse blown)

5. Coolant leakage.

6. Auxiliary tank cap not sealing properly.

7. A.C. condenser fan not working.

8. Excessive refrigerant charging in the A.C. system.

9. Improper bleeding of the cooling system.

Prevention of Rust Formation :

To prevent rust formation use the branded premixed engine coolant

in the radiator.

This is sufficient to operate the car upto -400C.

MAINTENANCE & CAR CARE Engine Cooling System

Engine Coolant Container

Turbo

Max.

Min.

BS II BS III

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Engine Cooling System

Bleeding procedure for Cooling System :

(For new filling or during reconditioning after complete draining)

a) Fill coolant from the auxiliary tank (Branded premixed engine

coolant) after ensuring all hoses are secured and leak proof.

b) During filling, keep the bleeding screw on the hose from cylinder

head to radiator loose.

c) During coolant filling ensure that the air in the system is removed

from this bleeding screw and only then tighten the screw, using a

screw driver.

d) Start the engine and slowly raise the engine speed and wait for

the temperature to reach 85oC-90oC to allow the thermostat to

open up. Engine running at idling speed, open the bleeding screw

which is fitted on the hose between the cylinder head and radiator,

by using a screwdriver to allow any trapped air in the system to

escape. Tighten the bleeding screw and top up with coolant to max.

level.

Bleeding Screw

Radiator

Engine

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Engine Cooling System

Replacing Engine Coolant :

The cooling system should be completely drained and refilled with new coolant at

the specified intervals.

1. Touch the engine and radiator only after ensuring that they are cold.

2. Remove the auxiliary tank cap.

3. Loosen the drain plug at the bottom of the radiator.

4. Remove the auxiliary tank from its holder, drain the coolant and refit it.

5. Flush the radiator by using reverse flow i.e. radiator drain plug to auxiliary tank

with clean water and close the drain plugs.

6. Pour the premixed ready to use engine coolant into the radiator until it is full.

7. Fill the auxiliary tank upto the 'MAX' mark and fit the cap.

8. Ensure that there is no leakage in the system.

9. Bleed the system as per procedure given in this book.

Ofrecido por www.electromanuales.com

Changing of Engine Oil and Oil Filter :

Change the oil and oil filter cartridge at specified intervals (Engine oil

and oil filter cartridge may be changed earlier if the car is operating in

sandy/dusty conditions). Changing of oil and oil filter requires access

from underneath the body. The car should be raised on a hoist at a

service station or should be parked on a service pit.

1. Run the engine until it reaches normal operating temperature. Then

shut it off.

2. Open the bonnet and remove the engine oil filler cap. Remove the

drain plug of the oil sump from the bottom of the engine. Drain

the oil into an appropriate container. Take proper care as the engine

oil will be hot.

3. Remove the oil filter with the help of a special wrench. Destroy the

filter to avoid reusage of the same.

4. Smear a little fresh engine oil on the rubber gasket of the new

engine oil filter. Hand tighten the engine oil filter and give a further

three fourth turn with the special tool.

Do not over tighten engine oil filter as this may damage oil

filter and oil may leak out.

5. Before filling in fresh oil in the engine, clean the drain plug and

threads on the sump. Apply Maxifix sealant on the threads.

6. Refit the drain plug using a new sealing washer.

Tighten the drain plug to 3.5 mkg. torque.

MAINTENANCE & CAR CARE Engine Oil & Oil Filter

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Engine Oil & Oil Filter

7. Fill recommended quantity of fresh engine oil in the crank case

and secure the oil filler cap in its place.

8. Start the engine and run for a few minutes. Do not heat up the

engine. The engine oil pressure lamp should go ‘OFF’. after starting

the engine.

9. Check for engine oil leakages, rectify if any.

10. Stop the engine and recheck the engine oil level after a few minutes.

If necessary add oil to bring the level to the upper mark on the dip

stick.

Note : Use of reclaimed oil is not recommended.

Oil Filter

Dip Stick

Oil Filler Cap

Drain Plug

DIESEL ENGINE

DIESEL ENGINE (Turbo)

Dip Stick

Oil Filter

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Engine Belt Tension

Belt Tension :

Check the condition of belts on the engine. Examine the edges of the

belt for cracks or fraying.

Check the tension of the belt by pushing on it with your thumb midway

between the pulleys for the alternator belt, power steering pump belt

and A.C. compressor belt. If the belt tension is not proper i.e. it gets

deflected more than specified, get it attended to at the nearest

Authorised Service outlet.

Ofrecido por www.electromanuales.com

Fuel System Maintenance

The fuel filters are located behind the radiator.

For draining the fuel filters, place the car on a pit or two pole hoists,

loosen drain plugs by 1-2 turn and drain out water and other sediments

at every 5000 kms or earlier depending on operating conditions to

ensure that no water is allowed to enter the fuel system.

Changing Fuel Filter Element :

Unscrew the drain plug and drain the fuel from the fuel filter bowls.

Remove the fuel filter with top cover from the mounting bracket.

Unscrew the fuel filter bowl mounting bolt and remove the bowl with

element.

Clean the bowl and replace the fuel filter element at specified intervals

MAINTENANCE & CAR CARE Fuel Filter

On Diesel Car

Fuel filter mounted

on Transaxle

(On Diesel Turbo Car)

Drain Plug

Ofrecido por www.electromanuales.com

Transaxle Oil :

Checking of Oil Level :

1. Clean the oil level plug and the surrounding area.

2. Remove the oil level plug and check whether oil is dripping out. The

oil level must not be below the filler plug.

Add oil to bring it to the required level.

3. Tighten the oil level plug to 3 - 4 mkg. torque.

Changing Oil in Transaxle :

1. Let the engine idle for about 5 min. in neutral gear, so that the Transaxle

is warmed up.

2. Clean the oil level plug, drain plug and surrounding area.

3. Place a container under the transaxle to collect the oil.

4. Remove the oil level plug.

5. Remove the drain plug and let the oil drain out fully.

6. Refit the drain plug with a new sealing washer. Tighten the oil drain

plug and fill new recommended oil through the oil level plug.

Tighten both the oil drain plug and oil level plug (with new sealing

washer) to 3 - 4 mkg. torque.

MAINTENANCE & CAR CARE Transaxle

Oil Filler / Level Plug

Drain Plug

Reverse Light

Switch

Ofrecido por www.electromanuales.com

FUEL FILLING CAP :

The fuel filler cap is located on the left rear side of the car. The fuel filler

lid can be unlocked by pulling the opening lever located on the out-

board side of the driver's seat and locked by simply closing the lid.

Remove the fuel filler cap slowly. The fuel may be under

pressure & may spray out, causing injury if the cap is opened

suddenly.

The fuel cap for the petrol version is of the non vented type

while in the diesel version it is vented. They should not be

interchanged during replacement.

• To remove the fuel filler cap turn the cap anti-clockwise. Turn the

cap slowly to allow any residual pressure to escape.

• To install turn the cap clockwise till a click sound is heard.

MAINTENANCE & CAR CARE Fuel Filling Cap

Sticker

DIESEL ONLY

Diesel

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Clutch & Brakes

CLUTCH :

The Tata Indica is provided with a 190 mm dia single plate dry friction

diaphragm type, pre-loaded release bearing clutch which is

mechanically actuated by a cable connecting the clutch pedal & the

clutch release lever.

There is no free play in the system and hence no clutch pedal free play

adjustment is required although the clutch pedal height from the floor

has to be adjusted as clutch lining wears. The clutch pedal height from

the floor keeps on increasing as the clutch lining wears.

However, ensure that clutch pedal has free movement when lifted

upward.

Do not ride the clutch. It will cause premature clutch wear.

Do not release the clutch suddenly.

BRAKES :

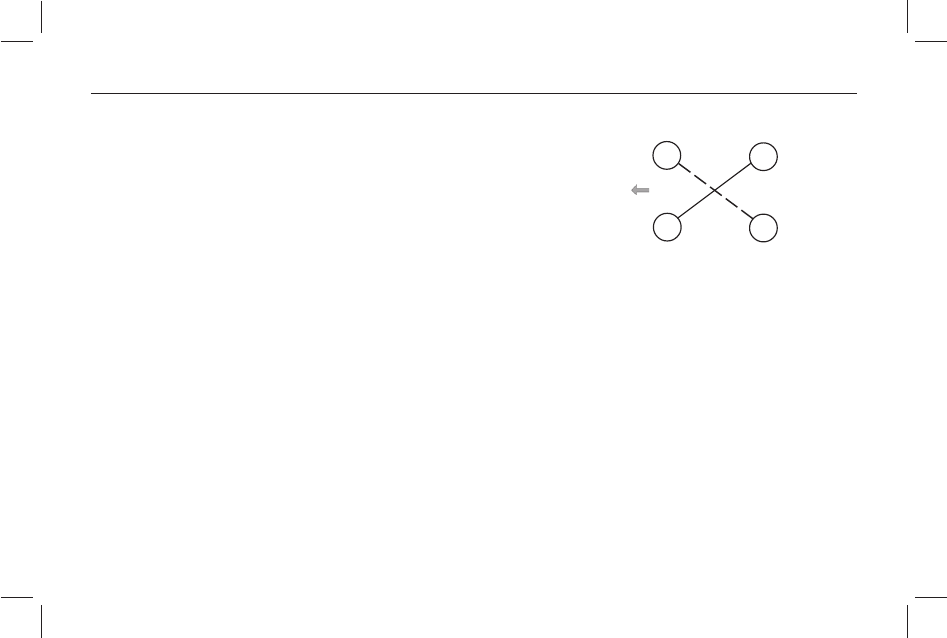

Dual circuit, diagonal split hydraulic brakes through tandem master

cylinder have been provided. The front brakes are disc brakes with

floating type calipers while the rear brakes are drum brakes with

automatic adjustment.

No adjustments are required for front & rear brakes.

The parking brake is a mechanical lever type, console mounted, cable

operated, acting on rear wheels.

To operate, pull up.

To release pull up, press the button, lower handle then release the

button & handle.

Pressure reducing valves are provided on both circuits for the rear

brakes to avoid locking of wheels & skidding of the car.

Parking Brake

Adjustment Screw

Ofrecido por www.electromanuales.com

Rear wheel

Front wheel

Bleeding Nipple

NOTE : Vacuum Assistance : The hydraulic brake system of Tata Indica is

assisted by a vacuum booster which reduced the effort of driver during

braking. In the unlikely event of disruption in supply of vacuum to the

booster (e.g. stoppage of engine, or failure of vacuum hose) this

assistance will still be available but only for one or two brake applications

to bring the vehicle to a stop. Beyond this, vacuum assistance will not be

felt by the driver and brakes will appear to be hard/ineffective. In order

to stop the vehicle effectively the driver will have to apply a much

higher force on the brake pedal (roughly 5 times the normal effort)

Never drive the vehicle in engine switched "OFF" condition.

BLEEDING PROCEDURE FOR BRAKE SYSTEM :

1. Clean all dirt from around reservoir filler cap.

2. Fill reservoir with fresh brake fluid to lower edge of filler neck.

3. Attach bleed tube to left front caliper bleed screw and dip the other

end in jar of fresh brake fluid.

4. Start engine and open the bleed screw by 1/2 to 3/4 of turn.

5. Depress foot pedal slowly and fully. After tightening the bleed screw,

allow it to return slowly.

6. Wait for 3-4 seconds before next stroke.

7. Repeat until bubbles stop emanating from bleed tube.

8. Close bleed screw immediately after the last downward stroke of

pedal and hold pedal.

MAINTENANCE & CAR CARE Clutch & Brakes

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Clutch & Brakes

9. Tighten bleed screw and remove tube.

10. Replace dust cap on bleed screw.

11. Repeat same procedure on rear right, front right and then rear left.

12. If bleeding continues without success it means air is being drawn in

past the bleed screw threads.

13. Close bleed screw at the end of each downward stroke of pedal.

14. Allow pedal to return fully and slowly.

15. Tighten bleed screw finally after last downward stroke of pedal .

16. Replace the dust cap on the bleed screw.

17. Apply brake pedal hard and check for any leaks.

Front Rear

Ofrecido por www.electromanuales.com

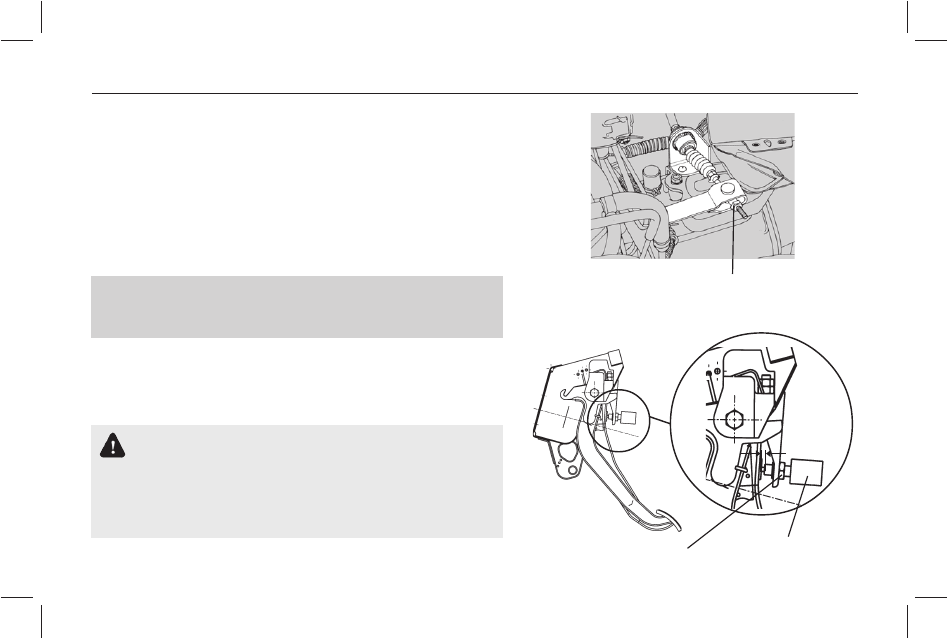

Brake and clutch pedal adjustment :

1. Ensure that clutch pedal height is the same as the brake pedal

height.

2. Connect the front end of the clutch cable to the clutch release lever

and adjust the cable by setting the nut by hand so as to get clutch

pedal height same as brake pedal height, and cable is tight.

3. Due to wear of the clutch disc, the pedal lever will lift up. Readjust

the pedal height again, using clutch cable.

Note : Brake pedal height adjustment is required only in case of

component removal, etc. Adjustment is not required during normal

maintenance.

4. Adjust brake light switch, gap of 3 mm to be maintained as shown

in the fig. after loosening the lock nut on the switch. Tighten the

nut after adjustment. This should be done with brake pedal in

complete released condition.

Do not apply tightening force over the switch body/terminal

block as it may damage the switch. Electrical supply for brake

lights is 'ON' without ignition switch. Under normal condition

the switch shall be 'OFF' and the lights are not glowing.

Any improper adjustment may result in either brake grabbing

unneccessarily or spongy brakes.

MAINTENANCE & CAR CARE Clutch & Brakes

Clutch Adjustment Nut

Brake Light Switch

Lock Nut

3 mm

Ofrecido por www.electromanuales.com

Brake Fluid :

Check the level of brake fluid in the brake fluid container.

It should be between the Min. and Max. marks.

If not, then add brake fluid. Clean the area surrounding the cap before

opening the cap. Always use fresh brake fluid and tighten the cap fully,

otherwise moisture from the atmosphere will be absorbed by the brake

fluid, making it unserviceable.

In case of spongy or hard pedal or low brake efficiency, please contact

the nearest Authorised Service outlet and get the defect rectified.

POWER STEERING (if installed)

Power steering is fitted for lighter steering effort and easy

manoeuverability, during driving and also help absorb the road shocks.

The system consists of steering gear box, hydraulic pump and hydraulic

tank. Pump drive is through the poly ‘V’ belt from the engine. Power

assistance is available during normal operating conditions. In case of

failure in the hydraulic system, the steering can be operated

mechanically with increased steering effort for bringing the car to an

Authorised Service outlet.

Drive slowly as vacuum assistance for brake would not be available.

Report any external leakage to the nearest Authorised Service

outlet.

MAINTENANCE & CAR CARE Power Steering

Brake Fluid Container

Power Steering Fluid Container

Brake Fluid Container

Turbo

BS II BS III

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Power Steering

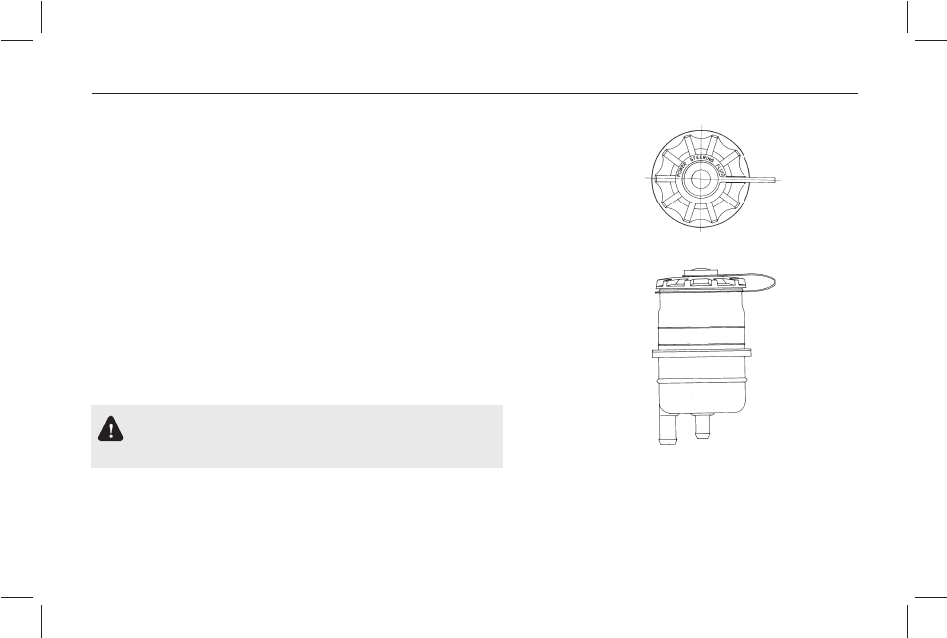

Procedure for Oil Filling and Bleeding of Power Steering

(Ensure that the Power Steering fluid reservoir is clean before starting

any work)

1. Fill the reservoir till it is nearly full, when the system is newly installed

otherwise fill up to 'Max' mark on reservoir. Crank the engine for 10

seconds without allowing it to start (if possible). If engine does start,

shut the engine immediately.

Check & refill the reservoir. Repeat at least three times, each time

checking & refilling the reservoir.

2. Check for any leakage in the system and if noticed take corrective

action.

3. Start the engine & steer the car from full left to full right turn 3-4

times.

4. Add fluid if necessary to maintain the level upto 'Max' mark on

reservoir.

Do not force the wheel in lock position either to the extreme

left or right. The power steering pump may get damaged. Hold

it gently.

5. When the engine is at steady speed, check for bubbles or foaming

in the oil. If present it indicates that air is getting sucked into the

system. Check the suction line/fittings and correct if necessary.

MAX

MIN

Power Steering Fluid Container

Ofrecido por www.electromanuales.com

6. Once the system is bled properly and free from foaming, there

should not be any appreciable change in the oil level in the

reservoir, when the engine is started or stopped repeatedly.

7. Now the car is ready to be driven.

Final oil level should be upto 'Max' mark of reservoir.

Do not allow fluid level to drop significantly or run out of the

reservoir during the above operation. This may induce air into

the system.

Severe damage could occur to the power steering pump due

to dry running (Running without sufficient oil and due to

severe cavitation on account of air entry due to low oil level).

This could lead to loss of power assistance, damage and failure

of the power steering system.

Do not start the engine without oil in the power steering

system. This will result in serious damage to the pump. In case

of an emergency, disconnect the pump drive belt and then

start the engine or drive slowly as vacuum assistance for brake

would not be available.

Always use recommended oil from sealed containers. Any

contaminated oil poured in the system will result in damage

to the pump and gear box.

Avoid mixing of different brands of oils.

MAINTENANCE & CAR CARE Power Steering

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Battery

BATTERY :

Check the battery for proper electrolyte level and corrosion on

the terminals.

During normal operation the battery generates gas

which is explosive in nature, a spark or open flame can

cause the battery to explode causing very serious

injuries.

Keep all sparks & open flames and smoking materials

away from the battery.

Getting electrolyte in your eyes or on the skin can cause

severe burns. Wear protective clothing and a face shield

or have a skilled technician to do the battery

maintenance.

The battery contains sulphuric acid (electrolyte) which

is poisonous and highly corrosive in nature.

1. Check the battery for electrolyte level against the marking

on the battery outer case.

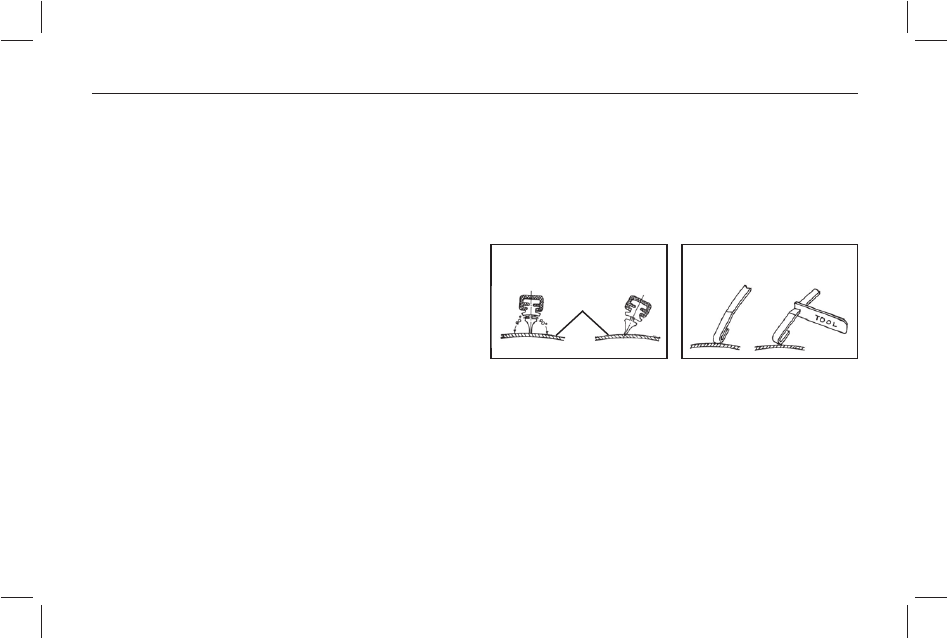

2. Check the battery terminals for corrosion (a white or yellowish

powder). To remove it, cover the terminals with a solution of

baking soda. It will bubble up and turn brown.

When this stops wash it off with plain water. Dry off the

battery with a cloth or paper towel.

Coat the terminal with petroleum jelly to prevent future

corrosion.

Use a proper wrench to loosen and remove cables from the

terminals. Always disconnect the negative (-ve) cable first

and reconnect it last.

Clean the battery terminals with a terminal cleaning tool or wire

brush.

Reconnect and tighten the cables, coat the terminals with

petroleum jelly.

If you need to connect the battery to a charger, disconnect both

cables to prevent damage to the vehicle’s electrical system.

Note : Charging the battery with the cables connected can

seriously damage your vehicle's electrical/electronic

equipment.

Detach the battery cables before connecting the battery to a

charger.

Swallowing electrolyte can cause fatal injury if immediate

action is not taken.

Do not reverse the battery connection on the vehicle as

it may damage the vehicle electricals.

Note : -ve terminal is connected to the body/cab.

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Catalytic Converter

Catalytic Converter : (if fitted)

To reduce exhaust pollution, the vehicle is fitted with Diesel Oxidation

Catalytic Converter. The two way Catalytic Converter has coating of

precious metals which enables conversion of pollutants.

Care of the catalytic Converter

The catalytic Converter does not require any special maintenance

however, following precaution should be taken for the effective

functioning of the converter and to avoid damage to the Converter.

•It is mandatory to use Diesel fuel with sulphur content less than

0.25%. Use of any other diesel fuel can increase the pollutants.

•Avoid parking the vehicle over inflammable materials, such as dry

leaves, grass etc., as the exhaust system is hot enough to initiate

"FIRE".

Turbocharger

Your car is fitted with a turbocharger. Turbocharger is an efficient

supercharging device used in our engine. It makes use of thermal energy

of engine exhaust gases to run a turbine which in turn drives a

compressor to force air under pressure into the inlet manifold.

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE EGR System

EGR System (if installed) :

To reduce exhaust pollution from your car, the engine is provided with

exhaust gas recirculation (EGR) system.

The engine is fitted with EGR pipe, vacuum tubes, EGR

electropneumatic switch, EGR switch on FIP throttle lever and

associated electical circuitary. With this, controlled amount of exhaust

gas is mixed with intake air of the engine, in part load and part speed

conditions. This helps in reducing harmful pollutants.

In addition to EGR System your car is also fitted with diesel oxydation

catalytic convertor to reduce exhaust pollution.

Use diesel fuel with sulphur content less than 0.25%. Use of

any other diesel fuel can increase the pollutants.

EGR Switch

on throttle Vacuum

Tube

Vacuum

Pump

Intake

Manifold

Exhaust

Manifold

EGR Pipe

EGR Valve

Vacuum

Tube

Electropneumatic

EGR Switch

Ofrecido por www.electromanuales.com

Starting the Engine with Jump Leads :

The engine of a car with a discharged battery may be started by

transferring electrical power from a battery in another car.

This may be dangerous as any deviation from the following instructions

could lead to personal injury resulting from any battery explosion, as

well as damage to the electrical systems in both cars.

Do not allow battery electrolyte to come in contact with eyes,

skin, fabrics or painted surfaces. The fluid contains sulphuric

acid which can cause injury and severe damage. Wear rubber

gloves, to avoid risk of contact.

•To lessen the risk of injury, wear eye protection when working near

any battery.

•Make sure that the battery providing the jump start has the same voltage

as the battery in your car (12 V). Its capacity must be approximately the

same as the original battery capacity. The voltage and capacity are given

on the batteries.

•Do not disconnect the discharged battery from the car.

•Switch off all unnecessary electrical loads.

•Do not lean over the battery during jump starting.

•Do not allow the terminals of one lead to touch those of the other

lead.

•Apply the hand brake. Keep the gearshift lever in neutral.

MAINTENANCE & CAR CARE Starting With Jump Leads

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Wheels & Tyres

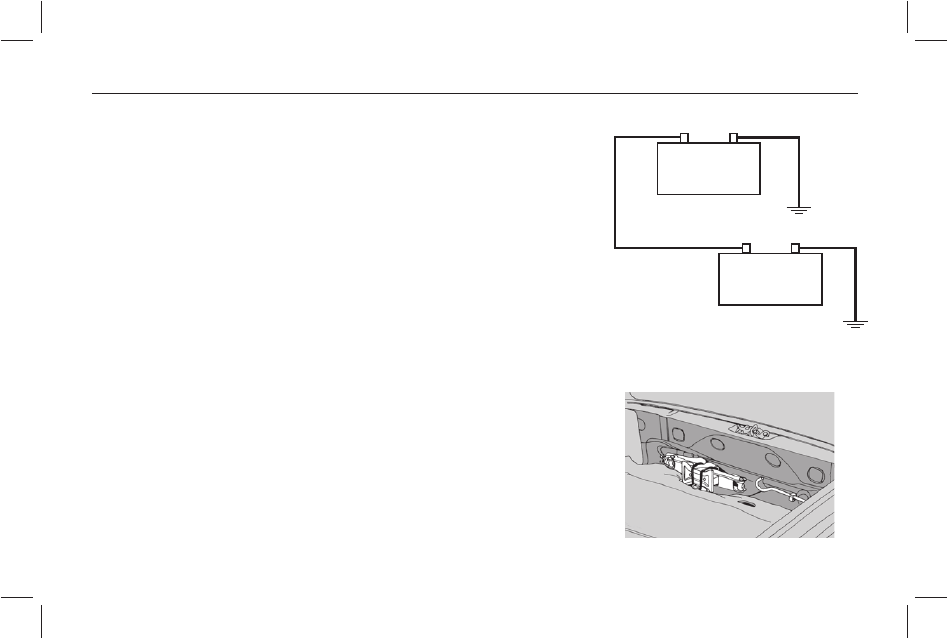

Connect leads in the order as shown in the sketch :

•Do not connect the lead to the negative terminal of the discharged

battery.

•The connection of the -ve lead point should be as far away from

the discharged battery as possible and close to the starter motor

on engine/transaxle.

•Route the leads so that they cannot get caught by the rotating

parts in the engine compartment.

•The engine of the car providing the jump start can be allowed to

run during starting.

Attempts to start the engine of the car with the discharged battery

should be made at intervals of one minute and should not last more

than 15 seconds. After starting, allow both engines to idle for

approximately 3 minutes with the leads still connected.

WHEELS & TYRES :

Always use only the recommended size of wheel rims & tyres. Use of

non-recommended rims and tyres may have an adverse effect on car

safety and furthermore could infringe on car regulations.

Wheel Change :

When changing wheels, use the jack provided with the car. The jack

with handle is located on tailgate inner sill.

• Park the car on a safe level ground. Engage 1st gear and also apply

the parking brake. Place wheel chocks behind the rear wheels and

in front of the front wheels.

Another Car Battery

(Jump Start battery)

Body Earthing

Discharged battery

Location of Jack & Handle

Ofrecido por www.electromanuales.com

• Loosen the wheel pins of the wheel to be changed slightly. Keep

the spare wheel to be fitted nearby.

• Jack up the car by placing the jack at the appropriate location.

• Remove the wheel pins, the wheel rim cover and the wheel.

• Fit the new wheel, wheel rim cover and tighten the wheel pins.

• Lower the jack and tighten the wheel pins to 8 mkg. torque.

Note : The jack should never be supported on any of the body sheet

metal components. This can cause damage to the body.

Do not apply oil on the wheel pins. Wipe off the oil if present.

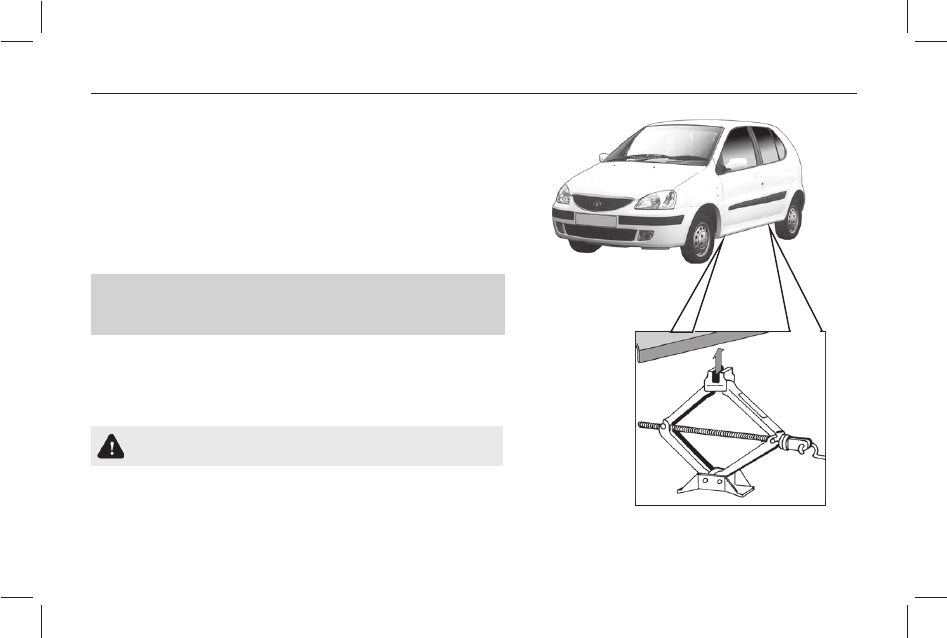

• The jack should be placed below the body sill behind the front

wheel tyre for front wheel changing and before the rear wheel tyre

for rear wheel changing. Please refer to the sticker (Jack location)

fixed on the jack.

Do not work under the jacked up car without proper support.

MAINTENANCE & CAR CARE Wheels & Tyres

Jacking Points

Ofrecido por www.electromanuales.com

MAINTENANCE & CAR CARE Wheels & Tyres

Wheel Alignment :

Correct wheel alignment helps to ensure uniform tyre wear. You should

get your car’s wheel alignment checked regularly as per

recommendation.

In case uneven tyre wear is observed, the vehicle’s wheel alignment

should be checked as soon as possible.

Wheel Balancing :

Wheels are balanced at the factory. They may need to be rebalanced

at some time.

The wheels should be checked for balance if a tyre or tube is repaired.

Whenever a tyre or wheel rim is changed, the tyre needs to be balanced.

1. Permissible imbalance for tyre with rim = 125 gm. cm. (max.)

2. Total balance weight should be within 80 gm on each side.

3. Relocate the tyre on the wheel rim if the weight required to balance

is more than 80 gm.

4. Balance weights are available from 5 gm to 80 gm, in steps of 5 gm.

5. Do not use more than one balance weight on one side.

Ofrecido por www.electromanuales.com

100

MAINTENANCE & CAR CARE Wheels & Tyres

Tyres :

Check for inflation and condition of your car tyres periodically.

Inflation :

Check the pressure in the tyres when they are cold.

Refer to the tyre information label fitted on the driver side doorpost for

correct cold tyre pressure.

Recommended Tyre Pressures : (with cold tyres)

Front/Rear 30 PSI (2.1 bar) / 28 PSI (1.9 bar) -165/65 R 13

Front/Rear 28 PSI (1.9 bar) / 24 PSI (1.6 bar) - 165/65 R 14

You should have your own tyre pressure gauge and use it at all times.

This makes it easier for you to tell if pressure loss is caused by a tyre

problem and not by variation between gauges.

Keeping the tyres properly inflated gives you the best combination of

riding comfort, handling and tyre life.

Over inflation of tyres makes the car ride bumpy and harsh. Tyres are

more prone to uneven wear and damage from road hazards.

Under inflated tyres reduce your comfort in car handling and are prone

to failures due to high temperature. They also cause uneven wear and

more fuel consumption.

Inspection :

Every time you check inflation pressure, you should also

examine tyres for leakage, damage, foreign objects & wear.

✔✔

✔

1. Correct Tyre Pressure

2. Underinflation

3. Overinflation

1. Uniform Tyre Wear

2. Excessive Side Tread Wear

3. Excessive Centre Tread Wear

123

Ofrecido por www.electromanuales.com

101

MAINTENANCE & CAR CARE Wheels & Tyres

You should look for :

•Bumps or bulges in the tread or the side of the tyre. Replace

the tyre if you find either of these conditions.

•Cuts, splits or cracks in the side of the tyre. Replace the tyre

if you notice this on the fabric or cord.

•Excessive tread wear or non uniform tyre wear.

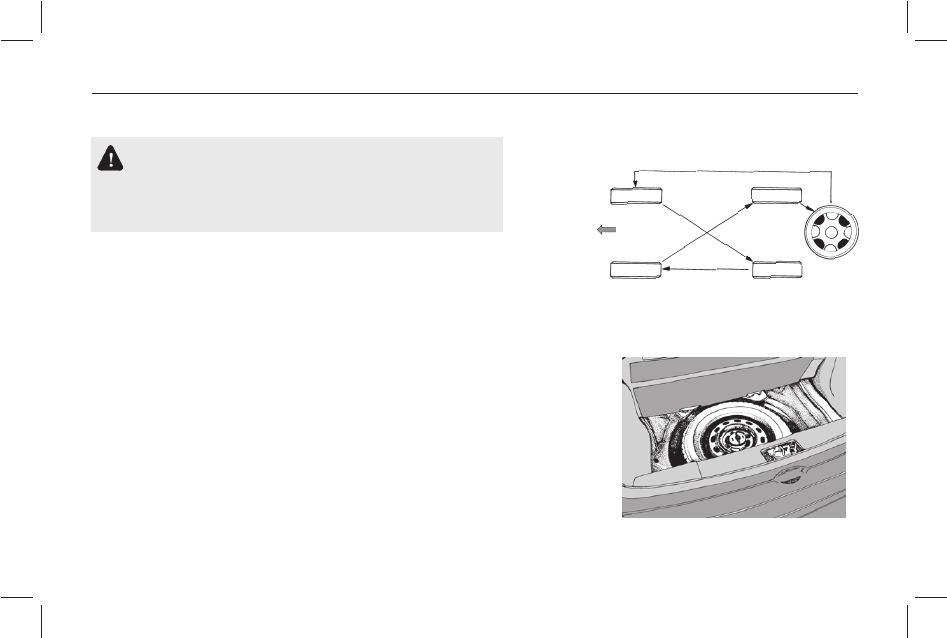

Tyre Rotation :

To help increase tyre life and distribute wear more evenly you should

have tyres rotated at specified intervals or earlier depending on the

operation of car and tyre wear pattern.

The illustration shows how to rotate tyres when a normal spare wheel is

included in tyre rotation.

Spare Wheel :

It is located in the luggage compartment.

•To take out the spare wheel, first fold in and lift up the floor cover.

•Unscrew and remove retaining bolt, at the centre.

•Lift and take out the spare wheel.

Repairing a Tyre/Tube :

Mark the tyre position suitably (if original colour dot mark is not visible)

with respect to valve stem hole to ensure that the tyre is refitted in the

original location on the wheel rim.

Tyre Rotation

Front

Ofrecido por www.electromanuales.com

102

Ensure that balancing weights are not disturbed during removal of tyres.

Check the balance weight prior to the removal of the tyre. If found

loose, mark its location on the rim & refit properly.

Balance the wheel after every dismantling and assembly of tyre on

the wheel rim.

While fitting wheels on the car ensure that wheel pins are free from

dust, scratches, dirt, dents, etc.

Ensure the tube being replaced has the correct valve.

Do not apply any oil on the wheel pins. Wipe off the oil if

present.

For replacement of the decorative wheel cover, remove only 3 wheel

pins. The 4th wheel pin, where the hole on the cover is larger need not

be removed to remove the cover.

MAINTENANCE & CAR CARE Wheels & Tyres

Ofrecido por www.electromanuales.com

103

Fuses & Relays :

The electrical circuits in your car have fuses to protect the wiring from

accidental short circuit or sustained overload. Fuses and relays are

located at 3 locations in your car as shown in the sketch.

Circuit connected through fuses and relays and the amperage of the

fuse is printed on the fuse box covers.

Checking and replacing fuses :

If any electrical unit in your car has stopped functioning, the fuses

should be checked first.

•Turn the ignition key to 'LOCK' position.

•Remove the fuse box cover, locate the fuse for the function.

•Remove the fuse & look for the fuse element inside the fuse. If it is

damaged replace it with a fuse of same rating and type. Push the

fuse firmly into the holder.

•Check that all other fuses are firmly in position and fix the cover

back in position. Spare fuses are provided in the fuse box in the

cabin.

If the replaced fuse of the correct rating burns out in short time, there

is probably a serious electrical problem in your car. Get the car attended

to at the nearest our Authorised Service outlet.

If any of the function relays is found defective, replace it by a genuine

relay.

Never use a fuse of higher rating than specified.

Always ensure that spare fuses are replenished.

MAINTENANCE & CAR CARE Electricals

1. Engine compartment (if fitted).

2. Cabin compartment under dashboard.

3. Cabin compartment under driver's seat

(if installed).

LOCATION OF FUSE BOX & RELAYS

Ofrecido por www.electromanuales.com

104

Head Lamps :

The head lamps are provided with halogen lamps of H4 type with

double filament for providing straight ahead illumination of the road

for long distance or a dip beam which illuminates the road immediately

ahead for short distance visibility. Use dip beam to avoid inconvenience

/ blinding the drivers of oncoming vehicles.

The head lamps must be properly aligned in order to obtain maximum

road illumination and reduced glare for oncoming traffic. It is

recommended to check alignment of head lamp beams periodically.

Focusing of Head Lamps & Front Fog Lamps :

Provision is made for focusing of headlamps and front fog lamps. This

should be done at the authorised service outlets.

MAINTENANCE & CAR CARE Electricals

Fog LampHead Lamp

Ofrecido por www.electromanuales.com

105

MAINTENANCE & CAR CARE Electricals

Head Lamp Bulb Replacement :

•Switch 'OFF' the head lamps & ensure that the bulb is not hot.

•Open the bonnet and remove the lamp connector from the head

lamp bulb.

•Remove rubber cap. Unlock the locking clip and take out the bulb

from the holder. This should be done carefully, otherwise it may

lead to breakage of the bulb holder / holding clip.

•Note the instructions on the bulb carton.

Replace the bulb with a new one of the same type with right

orientation in the holder.

•Lock the clip, fit the rubber cap and fix the connector.

•Switch 'ON' the head lamps and check the lighting.

Do not clean or touch the head lamp reflector as it will damage

the mirror finish of the surface.

The horizontal and vertical adjustment screws are located on the back

of the reflector.

Precise adjustment can be carried out only in the authorised workshops.

When replacing the head lamp bulb, handle it by gripping the cap.

Protect the glass from contact with your skin or hard object. If you

touch the glass, clean it with spirit and a clean cloth. After replacement

of the bulb in any emergency get the head lamp adjustment done at

an Authorised Service outlet at the earliest.

Halogen head lamp bulbs get very hot when illuminated. Oil,

perspiration or a scratch on the glass can cause the bulb to

break due to the heat.

1. Head Lamp Adjustment Screw

2. Head Lamp Adjustment Screw

3. Side Indicator Bulb

4. Rubber Cap

5. Head Lamp Bulb

Ofrecido por www.electromanuales.com

106

MAINTENANCE & CAR CARE Car Care

abrasives and solvents that remove the top layer of the finish

coat. Polish your car if the finish does not regain its original

shine after using wax.

Cleaning of Carpets :

Vacuum clean the carpet regularly to remove dirt. Dirt will make

the carpet wear out faster. Periodically shampoo the carpet to

keep it looking new.

Use carpet cleaners (preferably foam type). Follow the

instructions that come with the cleaner, applying it with a

sponge or soft brush. Keep the carpeting as dry as possible by

not adding water to the foam.

CAR CARE :

The car is subjected to many external influences such as climate,

road conditions, industrial pollution and proximity to the sea.

These conditions demand regular care of the car body. Dirt,

insects, bird droppings, oil, grease, fuel and stone chippings

should be removed as soon as possible.

Washing :

Do not wash the car in direct sunlight, wash in shade. Spray the

car thoroughly with a cold water jet (car on a washing pit or

hoist). Mix car shampoo in the wash water. No solvent (fuel,

thinners) need be used.

NOTICE

Avoid wiping of painted surface in dry condition as it may

leave scratches on the painted surface.

Use a soft bristle brush, sponge or soft cloth and rinse it

frequently while washing. When you have washed the whole

exterior, dry it with a chamois or soft cloth. After drying the car,

inspect it for chips and scratches that could allow corrosion to

start. Apply touch up paint where necessary.

Polishes :

Polishes and cleaners can restore shine to the painted surface

that has oxidised and become dull. They normally contain mild

Car on Washing Pit

Ofrecido por www.electromanuales.com

107

MAINTENANCE & CAR CARE Car Care

Cleaning of Windows, Front & Rear Glasses :

Clean the windows inside and outside with commercially

available glass cleaners.

This will remove the haze that builds up on the inside of

windows. Use a soft cloth or paper towels to clean all glass and

plastic surfaces.

Maintaining the car when not in extended use :

Park the car in covered, dry and if possible well-ventilated

premises.

Engage a gear.

Remove the cables from the battery terminals (first remove the

cable from the negative terminal).

Make sure the handbrake is not engaged.

Clean and protect the painted parts using protective wax.

Clean and protect the shiny metal parts using commercially

available special compounds.

Sprinkle talcum powder on the rubber windscreen wiper and

rear window wiper blades and lift them off the glass.

Slightly open the windows.

Cover the car with a cloth or perforated plastic sheet. Do not

use sheets of imperforated plastic as they do not allow moisture

on the car body to evaporate.

Inflate the tyres to 0.5 bar above the normal specified pressure

and check it at regular intervals.

Check the battery charge every six weeks.

Do not drain the engine cooling system.

Wiper Care :

Wiper blade attack angle on windshield glass should be 900

i.e. perpendicular.

Remove wiper blade and root wiper arm on windshield glass

in the centre position. Check the gap between arm strip and

glass.

Adjust by twisting wiper arm as shown in the figure.

FOR CHATTERING & NOISY PROBLEMS VIEW WITHOUT WIPER BLADE

Windshield

Glass

OK NOT OK

Ofrecido por www.electromanuales.com

108

FOLLOWING GUIDELINES WILL HELP YOU TO BETTER

PROTECT YOUR INDICA FROM CORROSION

PROPER CLEANING :

In order to protect your Indica from corrosion it is

recommended that you wash your Indica thoroughly and

frequently in case :

1. There is an heavy accumulation of dirt and mud especially

on the underbody.

2. It is driven in areas having high atmosphere pollution due

to smoke, soot, dust, iron dust & other chemical pollutants.

3. It is driven in coastal areas.

4. The underbody must be thoroughly pressure washed after

every three months.

In addition to regularly washing your Indica, the following

precautions need to be taken.

PERIODIC INSPECTION :

1. Regularly inspect your Indica for any damage in the paint

film such as deep scratches and immediately get them

repaired from an authorised service center, as these defects

tend to accelerate corrosion.

2. Inspect mud liners for damages.

3. Keep all drain holes clear from clogging.

PROPER PARKING :

Always park your vehicle in shade to protect it from harsh

sunlight or in a well-ventilated garage so that there is no

dampness on any part of the vehicle.

WASHING YOUR INDICA :

Follow these tips while washing your Indica.

HAND WASH :

1. Always wash your Indica in shade and when the surface is

at room temperature.

2. Wash with mild car wash soap like "Car Shampoo" and use

a soft 100% cotton cloth to avoid scratches. Please take help

of your dealer to buy the right products.

3. Please be sure that you remove your wristwatch and wear

soft gloves to avoid scratches due to finger rings or nails.

4. To remove stubborn stains and contaminants like tar, use

turpentine or cleaners like "Stain Remover" which is safe

for painted surfaces. Again your dealer can help you in

selecting the right product.

5. Avoid substances like petrol, diesel, kerosene, benzene or

other solvents that cause damage to paint.

6. Dry your vehicle thoroughly to prevent any damp spots.

7. Rinse all surfaces thoroughly to prevent any traces of soap

and other cleaners as this may lead to the formation of

stains on the painted surface later.

MAINTENANCE & CAR CARE Car Care

Ofrecido por www.electromanuales.com

109

MAINTENANCE & CAR CARE Car Care

WAXING :

Waxing and polishing is recommended to maintain the gloss

and wet-look appearance of your paint finish.

1. Use a good quality polish and wax for your Indica.

2. Re-wax your Indica when the water does not slip off the

surface and collects over the surface in patches.

Further tips for the care of your new INDICA finish :

We recommend that you do not use an automatic car wash as

the stiff brushes or sponges could mar the finish and damage

the surface of your Indica. Wash the vehicle by hand with cool

and clean water using a soft cloth or sponge. Please do not use

soap but a car shampoo recommended by your dealer.

Please take the following precautions :

1. Always wash your car in shade, avoiding direct exposure to

sunlight during washing.

2. Dry wiping your Indica may lead to the formation of

scratches and hence always use a soft cloth and clean water

while wiping your Indica.

3. Always keep your Indica parked in a well ventilated shade.

Exposure to heat with entrapped moisture promotes

corrosion.

4. Avoid driving on gravel roads, as the possibility of paint chip

off due to the impact of stones is high. If you are driving on

freshly tarred road, check immediately afterwards for any

stains & clean them.

5. External contamination in the form of sap or industrial fall-

out may mar or develop spots on a new finish. Hence avoid

parking your Indica near trees, which are known to drop

sap, or near factories, which give out heavy smoke.

6. The acid content in bird droppings may damage the newly

painted finish and hence any bird dropping must be

immediately washed off.

7. The paint finish is susceptible to damage in case petrol,

brake fluid, liquid from car battery, oil, antifreeze,

transmission fluid or windshield solvent spills onto the

painted surface. In case of such a spillage immediately rinse

the affected area with water. Avoid wiping the area far as

possible, however if wiping is required, ensure that you wipe

the area gently with soft cotton cloth.

8. Avoid using sharp objects to scrap off tar or mud from a

painted surface as it may develop scratches or may peel off

the paint.

Ofrecido por www.electromanuales.com

110

Ofrecido por www.electromanuales.com

111

•ENGINE

•CLUTCH

•TRANSAXLE

•BRAKES

•STEERING SYSTEM

•ELECTRICAL

•SUSPENSION

EMERGENCY SERVICE TIPS

Ofrecido por www.electromanuales.com

112

These tips are given for your guidance. These preliminary jobs are to be carried out in an emergency. In normal cases the problems

should be attended to in an Authorised Service outlet by following the repair procedures given in the Workshop Manual.

SR. NO. PROBLEM OBSERVED PROBABLE CAUSE ACTION TO BE TAKEN

ENGINE (Diesel)

1. Engine not cranking Dead battery, loose or improper •

Get battery checked and/or changed

battery/electrical connections •Jump start using another battery

•Clean & tighten connections

2. Engine cranks but does not start Air in the fuel system •Get the air removed by bleeding

•Check leakages & correct

Engine stop solenoid fuse blown •Replace the fuse

3. Engine overheats Coolant level low, coolant leakages •Check and correct leakages

Top up coolant

Hose collapsed/torn •Get the hose replaced

Low engine oil level •Add oil

Cap not sealing properly •Fit the auxiliary water tank cap

correctly

A.C. condenser fan not working •Get defect rectified

Brakes binding •Get defect rectified

Electric fan not working •Get defect rectified

High delivery pressure in A.C. •Get defect rectified

refrigerant circuit

Radiator fins clogged •Clean it

Radiator water passage clogged •Get it rectified

Thermostat defective •Get it rectified

EMERGENCY SERVICE TIPS Engine/Clutch

Ofrecido por www.electromanuales.com

113

EMERGENCY SERVICE TIPS Transaxle

SR. NO. PROBLEM OBSERVED PROBABLE CAUSE ACTION TO BE TAKEN

4. Poor pickup Accelerator cable loose •Get it adjusted correctly

Air in the fuel system •Remove the air

Clogged fuel filter •Clean / Replace the element

Clogged air filter •Clean / Replace the element

Clutch slipping/out of adjustment •Get it rectified

Brakes grabbing •Get it rectified

5. Does not accelerate Accelerator cable broken •Get cable replaced

Fuel filter choked •Replace

6. Belt squeal Loose belt •Get belt tension adjusted

Belt glazed •Get belt replaced

7. Low engine oil pressure indicator Pressure transducer faulty, •Do not run the engine extensively.

'ON' when engine is running even and/or oil pump faulty Take the car to the nearest

though engine oil level is within Authorised Service outlet & get

maximum/minimum marking the fault rectified

8. 'Check Engine' lamp continue Some fault are detected by the •Get the vehicle checked and

to glow evenafter start ECU control system rectified at authorised service

outlets.

Ofrecido por www.electromanuales.com

114

SR. NO. PROBLEM OBSERVED PROBABLE CAUSE ACTION TO BE TAKEN

CLUTCH

1. Clutch slipping Improper pedal travel •Adjust pedal travel

Rusted clutch cable •Replace cable

Oil on clutch disc •Clean or replace disc at

Authorised Service outlet

2. Noisy clutch Pressure plate & diaphragm •Get car attended to by

spring rattling Authorised Service outlet

Release bearing broken/worn out •Replace

Broken damper spring of clutch disc •Replace

TRANSAXLE

1. Gears slipping out of mesh Worn/damaged grooves on shifter •Replace

shaft

Worn shift fork or synchroniser sleeve •Replace

Weak or damaged detent springs •Replace

Worn bearings on input shaft or

layshaft •Replace

Worn dog teeth on sleeve and gear •Replace sleeve and gear

2. Hard shifting Inadequate lubricant •Replenish

Inadequate clutch pedal travel •Adjust

Distorted or broken clutch disc •Replace

EMERGENCY SERVICE TIPS Transaxle

Ofrecido por www.electromanuales.com

115

SR. NO. PROBLEM OBSERVED PROBABLE CAUSE ACTION TO BE TAKEN

Damaged clutch pressure plate •Replace clutch cover/disc

Worn synchrocones •Replace

Worn dog teeth on sleeve or gear •Replace sleeve or gear

Distorted shift shaft/Linkages •Replace

3. Noise Inadequate or insufficient lubricant •Replenish

Damaged or worn bearing(s) •Replace

Damaged or worn gear(s) •Replace

Damaged or worn synchroniser

parts •Replace

BRAKES

1. Poor brakes Insufficient brake fluid •Get the brake fluid filled

Air in the system •Get the air removed

Pedal travel excessive due to •Rectify automatic adjuster

excessive shoe gap

Vacuum leakage •Rectify the leakage

Brake oil (line) leaking •Replace the leaking line

Oil on the drum/liners •Get the liners cleaned/

Replace seals if leaking

Worn brake lining •Get the liners replaced

Defective/worn parts •Get them replaced

2. Brake pulling to one side Oil on the brake lining •Clean the brake lining

One side shoe/pad worn •Get the shoe/pad replaced

Loose brake anchor plate •Tighten the bolts

EMERGENCY SERVICE TIPS Brakes

Ofrecido por www.electromanuales.com

116

SR. NO. PROBLEM OBSERVED PROBABLE CAUSE ACTION TO BE TAKEN

One side brake pipe clogged •Get the brake line cleaned

Defective tandem master cylinder •Rectify/Replace tandem master

cylinder

3. Brake Squeal Defective brake lining •Replace

Glazed lining •Clean or replace lining

Loose rivets. •Install rivets properly

Wrong lining •Install correct lining

Shoe return spring broken •Replace

Front pads rubbing on the disc •Get it corrected

STEERING SYSTEM

1. Hard steering (Mechanical) Wheel alignment disturbed •Check & adjust

Rack & pinion need adjustment •Check & replace if necessary

Low tyre pressure •Adjust to correct value

Grabbing of linkages •Check & rectify

2. Poor Returnability Grabbing of linkages •Check & rectify

Steering gear disturbed •Check & adjust

3. Excessive play in steering Rack & pinion attachment loose •Get it tightened

4. Hard steering Less fluid in the power •Get the fluid topped up to the

(For power steering) steering tank correct level

Air in the system •Get the air removed by bleeding

the system

Loose pump belt •Get the belt correctly adjusted

Low tyre pressure •Adjust to correct value

EMERGENCY SERVICE TIPS Steering System

Ofrecido por www.electromanuales.com

117

SR. NO. PROBLEM OBSERVED PROBABLE CAUSE ACTION TO BE TAKEN

ELECTRICAL

1. Battery charge & engine oil Battery terminal loose or •Check connections

pressure lamp in cluster not disconnected

operating when key is in 'IGN' Battery completely dead •Get the battery properly

position connected

Fuse blown •Get the battery charged

Loose/open connections •Get the alternator & charging

circuit checked

2. Non functioning electrical Fuse blown in the circuit •Replace the fuse if blown

accessories such as power Loose connectors. •Get the connection properly

windows, head lamps, fuel & tightened/Fixed

temperature gauge, RPM meter,

Circuit relay/controllers loose in the base

•Fix the relay firmly

wiper & washer unit and all Defective components •Get the defective components

lamps etc. replaced at an Authorised

Service outlet

SUSPENSION

1. Abnormal or excessive tyre wear Tyre out of balance •Check balance and/or adjust if

required

Steering geometry disturbed •Adjust steering geometry

Tyres not adequately inflated •Adjust tyre pressure

EMERGENCY SERVICE TIPS Electrical/Suspension

Ofrecido por www.electromanuales.com

118

SR. NO. PROBLEM OBSERVED PROBABLE CAUSE ACTION TO BE TAKEN

Wobbly wheel or tyre •Replace wheel or tyre

Defective tyre •Replace tyre

Hub play not proper •Adjust hub play

Brake grabbing •Check and rectify

Excessive braking •Modify driving habit

2. Abnormal noise from front end Worn, sticky or loose tie •Replace tie rod end, suspension

rod ends, lower ball joints, arm, tie rod or drive shaft joints

tie rod in side ball joints or

drive shaft joints

Warning noise for pad wear •Replace pad

Damaged struts or mounting •Repair mounting or replace struts

Worn suspension arm bushings •Replace

Loose wheel nuts •Tighten wheel nuts

Loose suspension bolts or nuts •Tighten suspension bolts or nuts

Broken or damaged wheel bearing •Replace

Poorly lubricated or worn strut •Lubricate or replace strut bearings

bearings

Excessive hub play •Adjust

Loose caliper housing bolts •Check & tighten

3. Ride too soft / bumpy Faulty struts •Replace strut

4. Suspension bottoms Over loaded •Check loading

Faulty struts •Replace struts

EMERGENCY SERVICE TIPS Suspension

Ofrecido por www.electromanuales.com

119

•AGGREGATE NUMBERS

•FUEL, COOLANTS & LUBRICANTS

•TECHNICAL SPECIFICATIONS

•SERVICE SCHEDULE

•CAR RECORD SHEET

IMPORTANT INFORAMTION

Ofrecido por www.electromanuales.com

120

LOCATION OF AGGREGATE NUMBERS

IMPORTANT INFORMATION Aggregate Numbers

Chassis Number Engine Number Transaxle Number

Chassis Number Plate

Ofrecido por www.electromanuales.com

121

Fuel :

High speed diesel conforming to IS 1460 or DIN 51601 or

equivalent is recommended to be used as fuel.

At very low temperatures fluidity of diesel may become

insufficient due to paraffin separation. It is therefore, necessary

to mix supplementary fuel with summer or winter grade diesel.

The supplementary fuel to be used is kerosene or aviation

turbine fuel.

Ratios for mixing of supplementary fuel and diesel are shown

in the table :

Ambient Percentage

temperature upto Summer Suppl.

Deg C. Grade diesel fuel

upto 0 100 0

0 to -10 70 30

-10 to -15 50 50

Ambient Percentage

temperature upto Winter Suppl.

Deg C. Grade diesel fuel

upto -15 100 0

-15 to -20 70 30

-20 and below 50 50

IMPORTANT INFORMATION Fuel, Coolants & Lubricants

Care should be taken that diesel and supplementary fuel are

thoroughly mixed before filling.

Note : where catalytic converter is fitted, it is mandatory to use

Diesel fuel with sulphur contents less than 0.25%. Use of any

other diesel fuel can increase the pollutants.

Lubricants : (Diesel)

Engine Oil : Recommended grade of engine oil conforming

to API CF4+ specification and range of ambient temperature

at which these can be used are given in the table below.

Ambient temp. Engine oil grade

in deg. C

-10 deg. & above SAE 15W/40 or SAE 15W/50

-20 deg. to 30 deg. SAE 10W/30

Below -10 deg. SAE 5W/20 or SAE 5w/30

Transaxle : Use recommended brand of EP 80 gear oil.

Grease for axle bearings :

Lithium base grease

Brake fluid : IS 8654/DOT 3

Power Steering :

ATF Type A, Suffix A

Ofrecido por www.electromanuales.com

122

Coolants :

Presence of dirt in the coolant chokes up passages in the

radiator, cylinder head and cylinder block, thereby causing

insufficient cooling of engine.

To prevent rust formation and freezing of coolant inside the

passages of radiator, cylinder block and cylinder head, use

branded premixed coolant (ready to use).

IMPORTANT INFORMATION Fuel, Coolants & Lubricants

Ofrecido por www.electromanuales.com

123

IMPORTANT INFORMATION Co-branded Fuel, Coolants & Lubricants

PLEASE USE ONLY GENUINE ENGINE OILS, COOLANTS, LUBRICANTS, ANTI RUST & SOUND DEADENING

COATS, WINDSCREEN SEALANT, ADHESIVES & FUEL ADDITIVES BRANDED BY TATA MOTORS FOR

OPTIMUM PERFORMANCE OF YOUR TATA INDICA DIESEL...

ITEM COMPANY BRAND QTY

ENGINE OIL CASTROL Castrol GTD 15 W/40

4.0 Litres

HPCL HP Milcy 15 W/40

COOLANT SUNSTAR Golden Cruiser 1400 M

ANCHEMCO Frostox SFD 12 6 Litres

HPCL HP Thanda Raja P

TRANSMISSION OIL HPCL Gear Oil EP 80 3.3 Litres

CASTROL Castrol Extreme Pressure 80 EP

STEERING OIL HPCL HP ATF 1.2 Litres

CASTROL Castrol Transpower TQ

BRAKE FLUID HPCL Super Duty Brake Fluid DOT-3 0.270 Litres

CASTROL Castrol Universal Brake Fluid DOT-3

HUB GREASE CASTROL Castrol Grease AP2

ANTI RUST TREATMENT DINITROL Dinitrol —

& SOUND DEADENING WUERTH Wuerth —

WIND SCREEN SEALANT ANCHEMCO Terostat 8590 Kit Form —

METAL & PLASTIC ADHESIVE ANCHEMCO Terostat 930 310 ml Cartridge

DIESEL ADDITIVE IFTEX Iftex Clean System D 250 ml pack*

* Add to Diesel as per the dosage recommended by M/s IFTEX.

5.5 Ltrs

5.5 Litres TCIC

ICI

Ofrecido por www.electromanuales.com

124

2. CLUTCH

Type : Single plate dry

friction diaphragm type

Outside diameter : 190 mm

of clutch lining 200 mm (Turbo)

Friction area : 285 sq.cm.

289 sq.cm. (Turbo)

3. TRANSAXLE : Front wheel drive through

constant velocity joints.

Model : TA65-5

with overdrive

Type : Synchromesh

on all forward

gears. Sliding

mesh for

reverse gear.

No. of gears : 5 Forward

1 Reverse

IMPORTANT INFORMATION Technical Specifications

1. ENGINE :

Model : Tata 475 IDI (for BS-II)

Tata 475 IDI 03 NA (for BS-III)

Tata 475 IDT 15 TCIC

Type : Water cooled,

Indirect injection

Diesel Engine with Exhaust Gas

Recirculation system & oxydation

catalyst (BS-II and BS-III) and

Turbocharger and intercooler.(TCIC)

No of cylinders : 4 inline

Bore/Stroke : 75 mm x 79.5 mm

Capacity : 1405 cc

Max. engine output : 53.5 PS at 5000 rpm

68PS at 4500 rpm (Turbo)

Max. Torque : 85 Nm at 2500 rpm

130 Nm at 2500 rpm (Turbo)

Compression ratio : 22 : 1

21:1 (Turbo)

Firing order : 1-3-4-2

Ofrecido por www.electromanuales.com

125

TURBO

Gear ratios : 1st - 3.64 3.64

2nd - 1.95 1.95

3rd - 1.27 1.13

4th - 0.88 0.78

5th - 0.64 0.636

Rev. - 3.58 3.58

Final drive ratio 4.4 4.4

Gear Shift Floor mounted with

International "H" pattern,

with Fifth and Reverse inline.

with interlock to prevent

accidental engagement from

5th to reverse

4. REAR AXLE : Non driven axle

Independently suspended

5. SUSPENSION

Front : Independent, Lower

wishbone, McPherson Strut

type.

Rear : Independent, Semi-trailing

arm with coil spring

mounted on hydraulic shock

absorbers.

Antiroll bar : At front

IMPORTANT INFORMATION Technical Specifications

6. STEERING

DL & DLE : 1) Manual Rack & Pinion

with A/c Version Steering Gear with

collapsible steering column

DLS, DLG , DLX & : 2) Hydraulic Power assisted

Turbo Version Rack & Pinion Steering

Gear with collapsible

steering column

Steering Wheel : 380 mm dia

7. BRAKES

Service brakes : Dual circuit, diagonal split

hydraulic brakes through

tandem master cylinder.

ABS : optional in Turbo version

Front : 231 mm dia disc brake

Rear : 180 mm dia drum brake

Parking brake : Lever type, Console mounted,

Cable operated mechanical

linkages acting on rear wheels

Ofrecido por www.electromanuales.com

126

12. PERFORMANCE

(kmph)

Max. speed at rated GVW 140(BS II & BS III)

160 (Turbo)

13. MAIN CHASSIS DIMENSIONS AS PER ISO:612 IN MM

(Nominal) TOLERANCES AS PER INTEREUROPE STVZO

Wheel base : 2400

Track front : 1400

Track rear : 1380

Front Overhang : 785

Rear Overhang : 490

Overall length : 3675

Max. Width :

Over body : 1665

Over outer rear view mirrors

in open condition: : 1915

Overall height - unladen : 1485

Min. turning circle dia : 9.8 m

Min. turning clearance circle dia : 10.2 m

Ground clearance - unladen : 166

8. WHEELS & TYRES

Tyres : 165/65 R13(BSII & BSIII)

165/65 R14 (Turbo)

Wheel rims : 4.50 J x 13 stylised steel rims

5 J X1A stylised steel rims (Turbo)

No. of wheels : Front - 2

Rear - 2

Spare - 1

9. FUEL TANK

Capacity : 37 litres

10. BODY : Semi-mono Volume, Mini size

5 door hatch-back, steel

monocoque body.

11. ELECTRICAL SYSTEM

System Voltage : 12 Volts -ve earth

Battery : 12V, MF 50 Z

Alternator : 12V 75 Amps (BS-II)

90 Amps (BS-III & Turbo)

IMPORTANT INFORMATION Technical Specifications

Ofrecido por www.electromanuales.com

127

14. WEIGHT (kg) (TOLERANCE AS PER EEC 92/21)

DL DLE DLS/DLG DLX TURBO

Complete car

kerb weight as

per ISO:1176 980 995 1000 1005 1050

(with spare

wheel & tools)

Gross Vehicle

Weight 1380 1395 1400 1405 1450

Payload 400 400 400 400 400

15. PASSENGER CAPACITY : 2 front + 3 rear

16. LUGGAGE SPACE

Net inside loading space : 0.22 cubic metre

upto rear seat backrest

0.61 cubic metre

upto front seat backrest

when rear seat folded

IMPORTANT INFORMATION Technical Specifications

Ofrecido por www.electromanuales.com

128

IMPORTANT INFORMATION Service Schedule

Service Instructions

The Tata Indica has been manufactured to give you economical and

trouble free performance. To achieve this please follow the instructions

as stated.

Your Car is entitled to four free services (labour only). The free

service coupons are attached to the sales invoice. Please present

these coupons to the servicing dealer while availing free services.

The free services should be availed of, at the following km. range within

18 months.

1st free service - At 5000-5500 km.

2nd free service - At 10000-10500 km.

3rd free service - At 15000-15500 km.

4th free service - At 20000-20500 km.

All services other than free services are chargeable.

Servicing of the car can be done at any

Tata Motors Authorised Dealer

Workshop, Tata Motors Authorised

Service Centre (TASC) or Tata Motors

Authorised Service Point (TASP). The

details of their locations are given in

this manual.

Warranty claims can be settled by any

Tata Motors Authorised Dealer for all

failures, while all warranty claims

excluding the consideration on the

replacement of major aggregates, can

be settled by any TASC which is

authorised for handling warranty

claims. TASPs will not handle warranty

repairs.

Ofrecido por www.electromanuales.com

129

IMPORTANT INFORMATION Service Schedule

5000-5500

10000-10500

15000-15500

20000-20500

25000-25500

30000-30500

35000-35500

40000-40500

45000-45500

50000-50500

55000-55500

60000-60500

65000-65500

70000-70500

75000-75500

80000-80500

85000-85500

90000-90500

95000-95500

100000-100500

Wash and clean the car At every service x x x x x x x x x x x x x x x x x x x x

DIESEL ENGINE (475IDI)

1 Clean air filter 5000 x x x x x x x x x x x x x x x x x x x x

2 Replace air filter element 40000 x x

3 Change coolant (Change at 40,000 kms or two years whichever is earlier) 40000 x x

4 Change engine oil (Change at every 10,000 kms or 6 months whichever earlier)475IDI 10000 x x x x x x x x x x

(Change at every 7500 kms or 6 months whichever earlier.) 475IDITC 7500

5 Change engine oil filter (Change at every 10,000 kms or 6 months whichever earlier) 10000 x x x x x x x x x x

6 Change fuel filter element (primary) Add TCIC 10000 x x x x x

7 Change both fuel filter elements 20000 x x x x x

8 Check timing belt, adjust tension if necessary, replace if defective 10000 x x x x x x x x x x

9 Replace timing belt 100000 x

10 Check alternator belt tension, adjust if necessary 10000 x x x x x x x x x x

11 Check injector nozzles for opening pressure & spray pattern Check if any problem noticed

12 Check / adjust engine idle speed, accelerator pedal and cable 10000 x x x x x x x x x x

13 Check exhaust system for noise, leakages or defects , rectify if necessary 10000 x x x x x x x x x x

14 Check / adjust AC compressor belt tension 10000 x x x x x x x x x x

15 Check exhaust smoke level and correct if necessary 5000 x x x x x x x x x x x x x x x x x x x x

16 Check engine mounting for looseness and damage to mounting 10000 x x x x x x x x x x

17 Check & tighten engine bolts 10000 x x x x x x x x x x

(cylinder head cover, oil sump, starter motor, alternator, fuel filter)

1 8 Drain water from fuel fiters 5000 x x x x x x x x x x x x x x x x x x x x

BRAKES

1 Check brake fluid level and leakage if any 10000 x x x x x x x x x x

2 Check brake pedal ( pedal to wall clearance) and brake operation 10000 x x x x x x x x x x

3 Replace brake fluid (Change at 40000 kms or two years whichever is earlier) 40000 x x

4 Check parking brakes and cable for play/ damage, adjust / replace if necessary 10000 x x x x x x x x x x

5 Check brake discs and pads for wear, replace if necessary 10000 x x x x x x x x x x

SR.

NO. OPERATION FREQUENCY

IN KM

Ofrecido por www.electromanuales.com

130

IMPORTANT INFORMATION Service Schedule

5000-5500

10000-10500

15000-15500

20000-20500

25000-25500

30000-30500

35000-35500

40000-40500

45000-45500

50000-50500

55000-55500

60000-60500

65000-65500

70000-70500

75000-75500

80000-80500

SR.

NO. OPERATION FREQUENCY

IN KM

85000-85500

90000-90500

95000-95500

100000-100500

6 Check brake drums and shoes wear, anchor plate mounting bracket 10000 x x x x x x x x x x

7 Check brake master cylinder, wheel cylinder, mounting bolts, caliper & PCRV for proper 30000 x x x

operation / condition, repair if necessary

8 Check brake hoses and pipes for leakage / damage & replace if necessary 10000 x x x x x x x x x x

WHEELS & TYRES

1 Inspect wheel rims and tyres (tyre pressure and damage) Frequently

2 Rotate tyres 10000 x x x x x x x x x x

3 Check front wheel bearings for looseness/damage, tighten / replace if necessary 30000 x x x

4 Check rear wheel bearings for looseness/damage, tighten / replace if necessary 20000 x x x x x

5 Check free rotation of wheels 15000 x x x x x x

FRONT AND REAR SUSPENSION

1 Check suspension strut for oil leakage / damage, replace if necessary 10000 x x x x x x x x x x

2 Check suspension arms & steering knuckle supports for 10000 x x x x x x x x x x

looseness/damage , tighten if required

3 Check rear coil spring for damage, replace if necessary 10000 x x x x x x x x x x

4 Check shock absorbers for oil leakage / damage, replace if necessary 10000 x x x x x x x x x x

5 Tighten all bolts and nuts to specified torque 10000 x x x x x x x x x x

6 Check suspension front lower link, ball joints & rear semi trailing arms for looseness

of bolts tighten if necessary 10000 x x x x x x x x x x

7 Check suspension bushes and silencer hangers for damage, replace if necessary 10000 x x x x x x x x x x

8 Check wheel alignment 15000 x x x x x x

STEERING

1 Check steering wheel (play, looseness) 10000 x x x x x x x x x x

2 Check steering gear for looseness / leakages, pipelines, hoses 10000 x x x x x x x x x x

3 Check tie rods ends (looseness, damage, wear) 10000 x x x x x x x x x x

4 Replace power steering system oil and oil filter element 80000 x

Ofrecido por www.electromanuales.com

131

5000-5500

10000-10500

15000-15500

20000-20500

25000-25500

30000-30500

35000-35500

40000-40500

45000-45500

50000-50500

55000-55500

60000-60500

65000-65500

70000-70500

75000-75500

80000-80500

SR.

NO. OPERATION FREQUENCY

IN KM

IMPORTANT INFORMATION Service Schedule

85000-85500

90000-90500

95000-95500

100000-100500

ELECTRICAL

1 Check battery electrolyte (level, leakage & charging) 5000 x x x x x x x x x x x x x x x x x x x x

2 Check wiring harness. Relay, fuses connections & functioning of electrical equipment 10000 x x x x x x x x x x

(looseness, damage)

3 Check functioning of lights, signals, indicators, guages, window winders, horn

and central locking, etc. 10000 x x x x x x x x x x

TRANSAXLE & CLUTCH

1 Check oil level and top up if necessary (First at 5000 to 5500 kms & every 10,000 kms thereafter) 10000 x x x x x x x x x x

2 Change oil 20000 x x x x x

3 Check and tighten mounting bolts (First at 5000 to 5500 kms and every 10,000 kms thereafter) 10000 x x x x x x x x x x

4 Inspection of drive shaft (C.V. joints) / boot damage 20000 x x x x x

5 Inspection of clutch pedal height and cable (First at 5000 to 5500 kms and every 10,000 kms

thereafter) 10000 x x x x x x x x x x

6 Inspection of clutch slippage / drag and gear shifting (First at 5000 to 5500 kms and every

10,000 kms thereafter) 10000 x x x x x x x x x x

A. C. System

1 . Clean the fins of condenser with pressurized air and then with water

(Ensure that the fins don't get damaged) Every Service x x x x x x x x x x x x x x x x x x x x

2 . Check A.C. belt tension, A.C. leakages, blower speeds & functioning

of all control knobs 10000 x x x x x x x x x x

3 . Clean the fins of evaporator with pressurized air and then with water

(Ensure that the fins don't get damaged) 30000 x x

Body

1 Check body and chassis for unusual noise Frequently

Ofrecido por www.electromanuales.com

132

Fuel filled Fuel consumption Remarks / Complaints

Km. readingDate

IMPORTANT INFORMATION Car Record Sheet

Ofrecido por www.electromanuales.com

133

Fuel filled Fuel consumption Remarks / Complaints

Km. readingDate

IMPORTANT INFORMATION Car Record Sheet

Ofrecido por www.electromanuales.com

134

Recommended Date Odometer Repair Servicing

Service reading Order Dealer's

km. No. Signature &

At km. Stamp

PDI Free Labour

5,000 *

10,000 *

15,000 *

20,000 *

25,000

30,000

35,000

40,000

45,000

Recommended Date Odometer Repair Servicing

Service reading Order Dealer's

km. No. Signature &

At km. Stamp

50,000

55,000

60,000

65,000

70,000

75,000

80,000

85,000

90,000

95,000

* Labour free, material chargeable

IMPORTANT INFORMATION Record of Services Performed

Ofrecido por www.electromanuales.com

135

Recommended Date Odometer Repair Servicing

Service reading Order Dealer's

km. No. Signature &

At km. Stamp

1,00,000

1,05,000

1,10,000

1,15,000

1,20,000

1,25,000

1,30,000

1,35,000

1,40,000

1,45,000

Recommended Date Odometer Repair Servicing

Service reading Order Dealer's

km. No. Signature &

At km. Stamp

1,50,000

1,55,000

1,60,000

1,65,000

1,70,000

1,75,000

1,80,000

IMPORTANT INFORMATION Record of Services Performed

Ofrecido por www.electromanuales.com

136

Record of warranty repairs carried out Chassis No._____________________

Repair

Order No. Particulars of Repair Servicing Dealer's Signature & Stamp

Odometer

reading (km)

Date

Ofrecido por www.electromanuales.com

137

Record of warranty repairs carried out Chassis No._____________________

Repair

Order No. Particulars of Repair Servicing Dealer's Signature & Stamp

Odometer

reading (km)

Date

Ofrecido por www.electromanuales.com

138

AC Air Conditioning

ACC Accessories

Amp Ampere

Br Branch

Brg Bearing

cc Cubic Centimeters

Cm Centimeter

Dia Diagonal

EGR Exhaust Gas Recirculation

FAW Front Axle Weight

Fig Figure

FIP Fuel Injection Pump

gm Gram

GVW Gross Vehicle Weight

IGN Ignition

Kg Kilogram

Km Kilometer

Km/h Kilometer per hour

LH Left Hand

Max Maximum

MD Main Dealer

Min Minimum

mkg Meter per Kilogram

mm Millimeter

Mtg Mounting

No Number

PCBU Passenger Car Business Unit

PDI Pre-delivery Inspection

PSI Pounds per Square Inch

PUC Pollution Under Control

RAW Rear Axle Weight

RCSM Regional Customer Support Manager

RH Right Hand

RM Regional Manager

RPM Revolution Per Minute

Sec Seconds

Sq.cm. Square Centimeter

TASC Tata Motors Authorised Service Centre

TASP Tata Motors Authorised Service Point

V Volts

W Watts

Wt Weight

ABBREVIATIONS

Ofrecido por www.electromanuales.com

139

ALPHABETICAL INDEX

Aggregate Numbering 120

Air Filter 76

Air Flow Pattern 35

Audio Warning 33

Battery 93

Battery Charging Indicator 28

Belt Tension 82

Bonnet Opening & Closing 56

Brake Fluid 90

Brake Fluid Level 59

Brake Pedal Adjustment 89

Brakes 86

Car Care 106

Car Record sheet 132

Catalytic Converter 94

Childproof Lock 18

Clutch 86

Clutch Pedal Adjustment 89

Co-branded Oils, Coolant & Lubricants 123

Combi-Switch 21

Controls 16

Coolants 122

Digital Clock 45

Door Locks 17

Driving on a Rainy Day 67

Driving Safety 71

Driving Through Water 66

EGR System 95

Electrical Accessory Fitment 52

Emergency Service Tips 112

Engine Compartment 74

Engine Compartment Lamp 75

Engine Coolant Level 59

Engine Cooling System 77

Engine Oil and Oil Filter Change 80

Engine Oil Level 58

Environment Protection 8

Filling Station Information 12

Front Fog Lamp 23

Front Fog Lamp Indicator 29

Front Fog Lamps 53

Front Seat 47

Front Seat Adjustments 47

Fuel Economy 65

Fuel Filling 85

Fuel Flap Opening 52

Fuel Gauge 32

Fuel Level 58

Fuels 121

Fuses 103

Gear Shifting and Shifting Pattern 24

Gear Shifting 63

Glove Box 42

Glow Plug Indicator 29

Hazard Warning 26

Headlamps 104

Head-rest 48

Heating, Ventilation & Air Conditioning 36

High Beam Indicator 27

High Mounted Stop Lamp 34

Ignition Switch 18

Instrument Panel 25

Keys 17

Ofrecido por www.electromanuales.com

140

Lamp 'ON' Reminder 34

Load Area Lamp 53

Low Brake Fluid Warning Light 27

Low Oil Pressure Indicator 28

Lubricants 121

Music System 52

Night Driving 67

Parking 61

Parking Brake Indicator 27

Plug Socket 44

Position Lamp Indicator 27

Power Steering 90

Power Windows (if fitted) 43

Preparing to Drive 62

Reading Lamps 46

Rear Ash Tray 45

Rear Fog Lamp (Provision) 23

Rear Fog Lamp Indicator 29

ALPHABETICAL INDEX

Rear Seat 48

Rear Seat Somersault Position 49

Rear View Mirrors 41

Rear Windshield Demister 23

Rear Windshield Wiper 23

Record of Service Performed 134

Record of Warranty Repairs Carried Out 136

Relays 103

Roof Mounted Interior Lamp 46

RPM Meter 31

Running-In Instructions 62

Seat Belt 50

Seat-belt Adjustments 50

Service Instructions 128

Service Schedule 129

Spare Wheel 101

Speedometer 30

Starting the Engine 60

Starting the Engine With Jump Leads 96

Steering Lock 18

Stopping the Engine 61

Sunvisors 41

Tail Lamp 34

Tailgate Opening 51

Technical Specification 124

Temperature Gauge 32

Towing the Vehicle 68

Transaxle Oil Change 84

Tray Cover with Coin Holder 44

Turn Signal 26

Tyre Pressure 100

Tyre Rotation 101

Tyres 100

Vehicle Dimensions 13

Warranty - Terms & Conditions 10

Wheel Alignment 99

Wheel Balancing 99

Wheel Change 97

Wheels & Tyres 97

Window Winding 42

Windshield Washer 75

Ofrecido por www.electromanuales.com

141

•Tata Motors Offices

•Names & Addresses of Tata Motors

– Main Dealerships (MD)

– Tata Motors Authorised Service Centres (TASCs)

– Tata Motors Authorised Service Points (TASPs)

* This list is dated 31st August, 2004 and subject to amendments. Updated list will be available at dealerships and Regional offices

CUSTOMER SUPPORT NETWORK

1800 209 6688

Ofrecido por www.electromanuales.com
