OPERATOR'S

MANUAL

Model 8756

Single Stage Pump

Soft Serve Freezer

Original Operating Instructions

069071-M 11/15/10 (Original Publication)

(Updated 8/14/14)

Complete this page for quick reference when service is required:

Taylor Distributor:

Address:

Phone:

Fax:

E-mail:

Service:

Parts:

Date of Installation:

Information found on the data label:

Model Number:

Serial Number:

Electrical Specs: Voltage Cycle

Phase

Maximum Fuse Size: A

Minimum Wire Ampacity: A

E2010 Carrier Commercial Refrigeration, Inc.

069071-M

Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this

work may be a violation of Copyright Law of the United States of America and other countries, could result

in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072

Model 8756 Table of Contents

Table of Contents

Section 1 To the Installer 1............................................

Installer Safety 1........................................................

Site Preparation 1.......................................................

Air Cooled Units 1.......................................................

Water Connections (Water Cooled Units Only) 2............................

Electrical Connections 2.................................................

Beater Rotation 3.......................................................

Refrigerant 3...........................................................

Section 2 To the Operator 4...........................................

Section 3 Safety 5....................................................

Section 4 Operator Parts Identification 8...............................

Beater Door Assembly 10.................................................

Air/Mix Pump Assembly 11................................................

Accessories 12..........................................................

Section 5 Important: To the Operator 13.................................

Symbol Definitions 14....................................................

Power Switch 14.........................................................

Indicator Lights - MIX LOW and MIX OUT 14................................

Reset Button 14.........................................................

MIX REF 14.............................................................

Standby 14..............................................................

Wash 15................................................................

Auto 15.................................................................

Pump 15................................................................

Adjustable Draw Handle 15...............................................

Section 6 Operating Procedures 16.....................................

Assembly 16............................................................

Air/Mix Pump Assembly 21................................................

Sanitizing 25............................................................

Priming 28..............................................................

Table of Contents Model 8756

Table of Contents - Page 2

Closing Procedure 29....................................................

Draining Product From the Freezing Cylinder 30.............................

Rinsing 30..............................................................

Cleaning 31.............................................................

Disassembly 32..........................................................

Brush Cleaning 33.......................................................

Section 7 Important: Operator Checklist 34..............................

During Cleaning and Sanitizing 34.........................................

Troubleshooting Bacterial Count 34........................................

Regular Maintenance Checks 34...........................................

The Air/Mix Pump 35.....................................................

Section 8 Troubleshooting Guide 36....................................

Section 9 Parts Replacement Schedule 41...............................

Section 10 Limited Warranty on Equipment 42............................

Section 11 Limited Warranty on Parts 44.................................

Section 12 Parts List 47.................................................

Wiring Diagram 56.......................................................

Note: Continuing research results in steady improvements; therefore, information

in this manual is subject to change without notice.

Note: Only instructions originating from the factory or its authorized translation

representative(s) are considered to be the original set of instructions.

E2010 Carrier Commercial Refrigeration, Inc. (Original Publication)

(Updated August, 2014)

069071-M

Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this

work may be a violation of Copyright Law of the United States of America and other countries, could result

in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072

Model 8756 To the Installer

131220

Section 1 To the Installer

The following information has been included in the

manual as safety and regulatory guidelines. For

complete installation instructions, please see the

Installation Checklist.

Installer Safety

In all areas of the world, equipment should

be installed in accordance with existing local codes.

Please contact your local authorities if you have any

questions.

Care should be taken to ensure that all basic safety

practices are followed during the installation and

servicing activities related to the installation and

servicing of Taylor equipment.

SOnly authorized Taylor service personnel

should perform installation and repairs on

the equipment.

SAuthorized service personnel should consult

OSHA Standard 29CFRI910.147 or the

applicable code of the local area for the

industry standards on lockout/tagout

procedures before beginning any installation

or repairs.

SAuthorized service personnel must ensure

that the proper PPE is available and worn

when required during installation and

service.

SAuthorized service personnel must remove

all metal jewelry, rings, and watches before

working on electrical equipment.

The main power supply(s) to the freezer

must be disconnected prior to performing any

repairs. Failure to follow this instruction may result in

personal injury or death from electrical shock or

hazardous moving parts as well as poor

performance or damage to the equipment.

Note:Allrepairsmustbeperformedbyan

authorized Taylor Service Technician.

This unit has many sharp edges that can

cause severe injuries.

Site Preparation

Review the area where the unit will be installed

before uncrating the unit. Make sure all possible

hazards to the user or equipment have been

addressed.

For Indoor Use Only: This unit is designed to

operate indoors, under normal ambient

temperatures of 70_-75_F(21_-24_C). The freezer

has successfully performed in high ambient

temperatures of 104_(40_C) at reduced capacities.

This unit must NOT beinstalledinanarea

where a water jet or hose can be used. NEVER use

a water jet or hose to rinse or clean the unit. Failure

to follow this instruction may result in electrocution.

This unit must be installed on a level surface

to avoid the hazard of tipping. Extreme care should

be taken when moving this equipment for any

reason. Two or more people are required to safely

move this unit. Failure to comply may result in

personal injury or equipment damage.

Uncrate the unit and inspect it for damage. Report

any damage to your Taylor Distributor.

This piece of equipment is made in the USA and has

USA sizes of hardware. All metric conversions are

approximate and vary in size.

Air Cooled Units

DO NOT obstruct air intake and discharge openings:

Air cooled units require a minimum of 3” (76 mm) of

clearance around all sides of the freezer and 12”

(305 mm) on top to allow for adequate air flow

across the condenser(s). Failure to allow adequate

clearance can reduce the refrigeration capacity of

the freezer and possibly cause permanent damage

to the compressor.

2Model 8756To the Installer

Water Connections

(Water Cooled Units Only)

An adequate cold water supply must be provided

with a hand shut-off valve. On the underside of the

base pan, two 3/8” I.P.S. (for single-head units) or

two 1/2” I.P.S. (for double-head units) water

connections for inlet and outlet have been provided

for easy hook-up. 1/2” inside diameter water lines

should be connected to the machine. (Flexible lines

are recommended, if local codes permit.) Depending

on local water conditions, it may be advisable to

install a water strainer to prevent foreign substances

from clogging the automatic water valve. There will

be only one water “in” and one water “out”

connection for both single-head and double-head

units. DO NOT install a hand shut-off valve on the

water “out” line! Water should always flow in this

order: first, through the automatic water valve;

second, through the condenser; and third, through

the outlet fitting to an opentrapdrain.

A back flow prevention device is

required on the incoming water connection side.

Please refer to the applicable National, State, and

local codes for determining the proper configuration.

Electrical Connections

In the United States, this equipment is intended to

be installed in accordance with the National

Electrical Code (NEC), ANSI/NFPA 70-1987. The

purpose of the NEC code is the practical

safeguarding of persons and property from hazards

arising from the use of electricity. This code contains

provisions considered necessary for safety. In all

other areas of the world, equipment should be

installed in accordance with the existing local codes.

Please contact your local authorities.

FOLLOW YOUR LOCAL ELECTRICAL CODES!

Each unit requires one power supply for each data

label on the unit. Check the data label(s) on the

freezer for branch circuit overcurrent protection or

fuse, circuit ampacity, and other electrical

specifications. Refer to the wiring diagram provided

inside of the electrical box for proper power

connections.

CAUTION: THIS EQUIPMENT MUST BE

PROPERLY GROUNDED! FAILURE TO DO SO

CAN RESULT IN SEVERE PERSONAL INJURY

FROM ELECTRICAL SHOCK!

This unit is provided with an equipotential

grounding lug that is to be properly attached to the

rear of the frame by the authorized installer. The

installation location is marked by the equipotential

bonding symbol (5021 of IEC 60417-1) on both the

removable panel and the equipment's frame.

SStationary appliances which are not

equipped with a power cord and a plug or

another device to disconnect the appliance

from the power source must have an all-pole

disconnecting device with a contact gap of

at least 3 mm installed in the external

installation.

SAppliances that are permanently connected

to fixed wiring and for which leakage

currents may exceed 10 mA, particularly

when disconnected or not used for long

periods or during initial installation, shall

have protective devices such as a GFI, to

protect against the leakage of current,

installed by the authorized personnel to the

local codes.

Model 8756 To the Installer

131220

SSupply cords used with this unit shall be

oil-resistant, sheathed flexible cable not

lighter than ordinary polychloroprene or oth-

er equivalent synthetic elastomer-sheathed

cord (Code designation 60245 IEC 57) in-

stalled with the proper cord anchorage to

relieve conductors from strain, including

twisting, at the terminals and protect the in-

sulation of the conductors from abrasion.

If the supply cord is damaged, it must be

replaced by an authorized Taylor service

technician in order to avoid a hazard.

Beater Rotation

Beater rotation must be clockwise as viewed

looking into the freezing cylinder.

The following procedures must be

performed by an authorized Taylor service

technician.

To correct the rotation on a three-phase unit,

interchange any two incoming power supply lines at

freezer main terminal block only.

To correct rotation on a single-phase unit, change

the leads inside the beater motor. (Follow the

diagram printed on the motor.)

Electrical connections are made directly to the

terminal block provided in the main control box.

Refrigerant

In consideration of our environment, Taylor

uses only HFC refrigerants. The HFC refrigerant

used in this unit is R404A. This refrigerant is

generally considered non-toxic and non-flammable,

with an Ozone Depleting Potential (ODP) of zero (0).

However, any gas under pressure is potentially

hazardous and must be handled with caution.

NEVER fill any refrigerant cylinder completely with

liquid. Filling the cylinder to approximately 80% will

allow for normal expansion.

Use only R404A refrigerant that conforms

to the AHRI standard 700 specification. The use of

any other refrigerant may expose users and

operators to unexpected safety hazards.

Refrigerant liquid sprayed onto the skin may

cause serious damage to tissue. Keep eyes and skin

protected. If refrigerant burns should occur, flush

immediately with cold water. If burns are severe,

apply ice packs and contact a physician

immediately.

Taylor reminds technicians to be cautious of

government laws regarding refrigerant recovery,

recycling, and reclaiming systems. If you have any

questions regarding these laws, please contact the

factory Service Department.

WARNING: R404A refrigerant used in

conjunction with polyolester oils is extremely

moisture absorbent. When opening a refrigeration

system, the maximum time the system is open must

not exceed 15 minutes. Cap all open tubing to

prevent humid air or water from being absorbed by

the oil.

4Model 8756To the Operator

131220

Section 2 To the Operator

The unit you have purchased has been carefully

engineered and manufactured to give you

dependable operation. This unit, when properly

operated and cared for, will produce a consistent

quality product. Like all mechanical products, it will

require cleaning and maintenance. A minimum

amount of care and attention is necessary if the

operating procedures outlined in this manual are

followed closely.

This Operator's Manual should be read before

operating or performing any maintenance on the

unit.

Your Taylor unit will NOT compensate for and/or

correct any errors made during the set-up or filling

operations. Thus, the initial assembly, set-up, and

priming procedures are of extreme importance. It is

strongly recommended that all personnel

responsible for the unit's operation, including

assembly and disassembly, go through these

procedures together in order to be properly trained

and to make sure that all understand their role in

using and maintaining the unit.

In the event you should require technical assistance,

please contact your local authorized Taylor

Distributor.

Note: Your Taylor warranty is valid only if the parts

are authorized Taylor parts, purchased from the

local authorized Taylor Distributor, and only if all

required service work is provided by an authorized

Taylor service technician. Taylor reserves the right

to deny warranty claims on units or parts if

non-Taylor approved parts or incorrect refrigerant

were installed in the unit, system modifications were

performed beyond factory recommendations, or it is

determined that the failure was caused by abuse,

misuse, neglect, or failure to follow all operating

instructions. For full details of your Taylor Warranty,

please see the Limited Warranty section in this

manual.

If the crossed out wheeled bin symbol is

affixed to this unit, it signifies that this unit is

compliant with the EU Directives as well as other

similar end of life legislation in effect after August

13, 2005. Therefore, it must be collected separately

after its use is completed, and cannot be disposed

as unsorted municipal waste. The user is

responsible for returning the unit to the appropriate

collection facility, as specified by your local code.

For additional information regarding applicable local

disposal laws, please contact the municipal waste

facility and/or local authorized Taylor distributor.

Compressor Warranty Disclaimer

The refrigeration compressor(s) on this unit are

warranted for the term stated in the Limited

Warranty section in this manual. However, due to

the Montreal Protocol and the U.S. Clean Air Act

Amendments of 1990, many new refrigerants are

being tested and developed, thus seeking their way

into the service industry. Some of these new

refrigerants are being advertised as drop-in

replacements for numerous applications. It should

be noted that in the event of ordinary service to this

unit's refrigeration system, only the refrigerant

specified on the affixed data label should be

used. The unauthorized use of alternate refrigerants

will void your Taylor compressor warranty. It is the

unit owner's responsibility to make this fact known to

any technician he employs.

It should also be noted that Taylor does not warrant

the refrigerant used in its equipment. For example, if

the refrigerant is lost during the course of ordinary

service to this unit, Taylor has no obligation to either

supply or provide replacement refrigerant either at

billable or unbillable terms. Taylor will recommend a

suitable replacement if the original refrigerant is

banned, obsoleted, or no longer available during the

five (5) year Taylor warranty of the compressor.

From time-to-time Taylor may test new refrigerant

alternates. Should a new refrigerant alternate prove,

through Taylor's testing, that it would be accepted as

a drop-in replacement for this unit, then the

disclaimer in this “Compressor Warranty Disclaimer”

section will not apply to the use of the alternate

refrigerant approved by Taylor.

To find out the current status of an alternate

refrigerant as it relates to your compressor warranty,

call Taylor or your local authorized Taylor distributor.

Be prepared to provide the Model/Serial Number of

the unit in question.

Note: Continuing research results in steady

improvements; therefore, information in this

Operator Manual is subject to change without

notice.

Model 8756 Safety

131220

Section 3 Safety

We, at Taylor Company, are concerned about the

safety of the operator at all times when they are

coming in contact with the unit and its parts. Taylor

makes every effort to design and manufacture

built-in safety features to protect both operators and

service technicians.

Installing and servicing refrigeration equipment can

be hazardous due to system pressure and electrical

components. Only trained and qualified service

personnel should install, repair, or service

refrigeration equipment. When working on

refrigeration equipment, observe precautions noted

in the literature, tags and labels attached to the unit,

and other safety precautions that may apply. Follow

all safety code requirements. Wear safety glasses

and work gloves.

IMPORTANT - Failure to adhere to the

following safety precautions may result in

severe personal injury or death. Failure to

comply with these warnings may also damage

the unit and/or its components. Such damage

may result in component replacement and

service repair expenses.

DO NOT operate the unit without reading

this entire Operator Manual first. Failure to follow all

of these operating instructions may result in damage

to the unit, poor performance, health hazards,

personal injury, or death.

This unit is to be used only by trained

personnel. It is not intended for use by children or

people with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge.

Where limited equipment operation is allowed for

public use, such as a self-serve application,

supervision or instruction concerning the use of the

appliance by a person responsible for their safety is

required. Children should be supervised to ensure

that they do not play with the appliance.

SAll repairs should be performed by an

authorized Taylor service technician.

SThe main power supplies to the unit must be

disconnected prior to performing installation,

repairs, or maintenance.

SDO NOT operate the unit unless it is

properly grounded.

SDO NOT operate the unit with larger fuses

than specified on the unit's data label.

SCord Connected Units: Only Taylor

authorized service technicians or licensed

electricians may install a plug or

replacement cord on these units.

SUnits that are permanently connected to

fixed wiring and for which leakage currents

may exceed 10 mA, particularly when

disconnected or not used for long periods,

or during initial installation, shall have

protective devices such as a GFI, to protect

against the leakage of current, installed by

the authorized personnel to the local codes.

SStationary units which are not equipped with

a power cord and a plug or another device

to disconnect the appliance from the power

source must have an all-pole disconnecting

device with a contact gap of at least 3 mm

installed in the external installation.

SSupply cords used with this unit shall be

oil-resistant, sheathed flexible cable not

lighter than ordinary polychloroprene or

other equivalent synthetic

elastomer-sheathed cord (Code designation

60245 IEC 57) installed with the proper cord

anchorage to relieve conductors from strain,

including twisting, at the terminals and

protect the insulation of the conductors from

abrasion.

If the supply cord is damaged, it must be

replaced by an authorized Taylor service

technician in order to avoid a hazard.

Failure to follow these instructions may result in

electrocution. Contact your local authorized Taylor

Distributor for service.

6Model 8756Safety

131220

DO NOT use a water jet to clean or rinse

the unit. Failure to follow these instructions may

result in serious electrical shock.

SDO NOT allow untrained personnel to

operate this unit.

SDO NOT operate the unit unless all service

panels and access doors are restrained with

screws.

SDO NOT remove any internal operating

parts (including, but not limited to, freezer

door, beater, or scraper blades), unless all

control switches are in the OFF position.

Failure to follow these instructions may result in

severe personal injury, especially to fingers or

hands, from hazardous moving parts.

This unit has many sharp edges that can

cause severe injuries.

SDO NOT put objects or fingers in the door

spout. This may contaminate the product

and cause severe personal injury from blade

contact.

SUSE EXTREME CAUTION when removing

the beater assembly. The scraper blades

are very sharp.

This unit must be placed on a level surface.

Extreme care should be taken when moving the unit

for any reason. Two or more persons are required to

safely move this unit. Failure to comply may result in

personal injury or damage to the unit.

Access to the service area of the unit must

be restricted to persons having knowledge and

practical experience with the unit, in particular as far

as safety and hygiene are concerned.

Cleaning and sanitizing schedules are

governed by your state or local regulatory agencies

and must be followed accordingly. Please refer to

the cleaning section of this Operator Manual for the

proper procedure to clean this unit.

This unit is designed to maintain product

temperature under 41°F (5°C). Any product being

added to this unit must be below 41°F (5°C). Failure

to follow this instruction may result in health hazards

and poor freezer performance.

DO NOT run the unit without product. Failure to

follow this instruction can result in damage to the

unit.

DO NOT obstruct air intake and discharge

openings:

Air cooled units require a minimum of 3” (76 mm) of

clearance around all sides of the freezer and 12”

(305 mm) on top to allow for adequate air flow

across the condenser(s). Failure to allow adequate

clearance can reduce the refrigeration capacity of

the freezer and possibly cause permanent damage

to the compressor.

For Indoor Use Only: This unit is designed to

operate indoors, under normal ambient

temperatures of 70°-75°F (21°-24°C). The unit has

successfully performed in high ambient

temperatures of up to 104°F (40°C) at reduced

capacities.

NOISE LEVEL: Airborne noise emission does not

exceed 78 dB(A) when measured at a distance of

1.0 meter from the surface of the unit and at a

height of 1.6 meters from the floor.

Model 8756 Safety

Notes:

8Model 8756Operator Parts Identification

Section 4 Operator Parts Identification

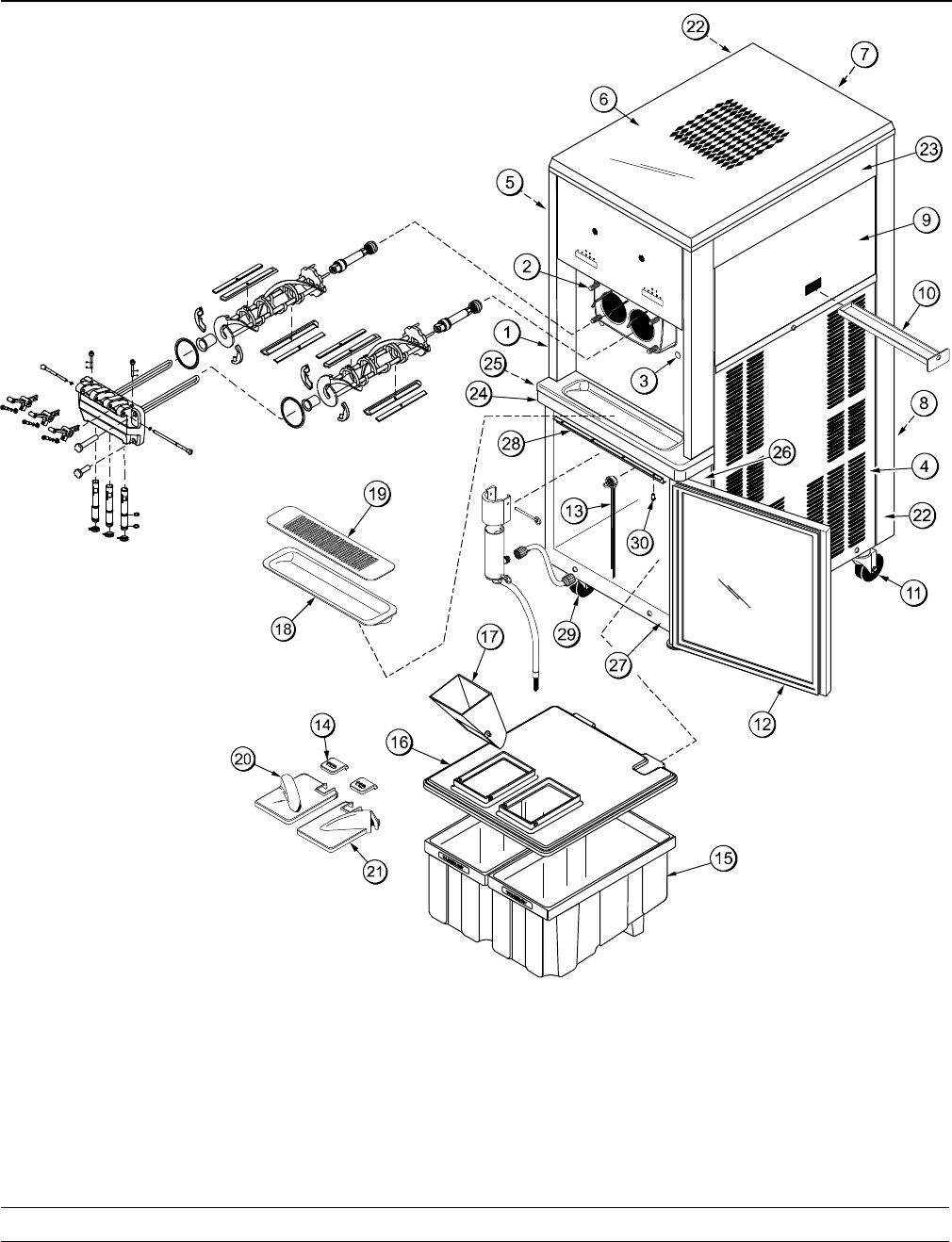

Figure 1

Model 8756 Operator Parts Identification

8756 Parts Identification

ITEM DESCRIPTION PART NO.

1PANEL A.-FRONT X22879

2STUD-NOSE CONE 068410

3BOLT-CARRIAGE 012347

4PANEL A.-LOWER SIDE (R & L) X23956

5PANEL-UPPER SIDE LEFT 028599

6HOOD 048526

7PANEL-UPPER REAR 022015

8PANEL-LOWER REAR 023598

9PANEL-UPPER SIDE RIGHT 028600

10 PAN-DRIP 17-1/4” LONG 027504

11 CASTER-SWIVEL 3/4-10 3” WHL 021279

12 GASKET-CABINET MIX DOOR 024629

13 PROBEA.-MIX(2) X35981

14 BOOT-MIX COVER 037200

15 TANK A.-MIX W/DECALS X38755

15a* TANK (ONLY) 034928

ITEM DESCRIPTION PART NO.

16 COVER-MIX TANK 024590

17 FUNNEL-MIX 036637

18 TRAY-DRIP 22-7/8 X 5-1/8 014533

19 SHIELD-SPLASH 23” LONG 022766

20 COVER-LEFT MIX STORAGE 037138

21 COVER-RIGHT MIX STORAGE 037139

22 TRIM-CORNER-LEFT/RIGHT 022013

23 TRIM A.-SIDE LEFT/RIGHT X22424

24 TRIM A.-SHELF X24813

25 TRIM-FRONT-LEFT 024824-SP

26 TRIM-FRONT-RIGHT 024825

27 TRIM-BOTTOM CABINET 024826

28 STRIP-TOP TRIM 024827

29 CASTER 3” SWIVEL (FRONT) 030307

30 SCREW-6-32 X 3/8 SLOTTED 002201

*NOT SHOWN

10 Model 8756Operator Parts Identification

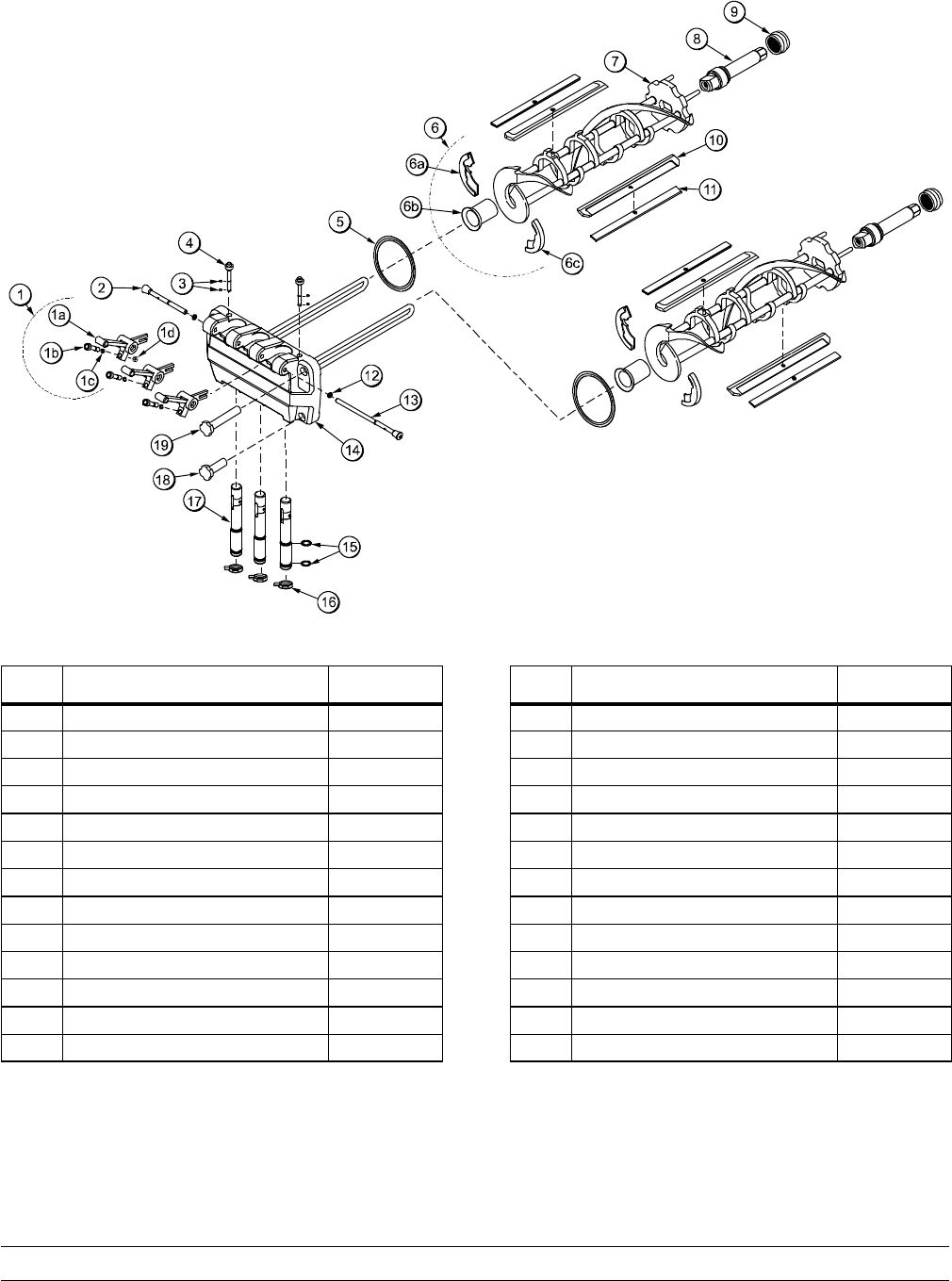

Beater Door Assembly

Figure 2

ITEM DESCRIPTION PART NO.

1HANDLE A.-DRAW ADJ X55096

1a HANDLE-ADJUSTABLE 028804

1b SCREW-ADJUSTMENT 055092

1c O-RING-1/4 OD X .070W 50 015872

1d NUT-5/16-24 FINISHED HEX 029639-BLK

2ROD A.-PIVOT-SHORT X22388

3O-RING-3/8 OD X .070W 016137

4PLUG-PRIME 028805

5GASKET-DOOR HT 4"-DOUBLE 048926

6KIT A.-BEATER-FRONT SHOES X50350

6a SHOE-FRONT HELIX-REAR 050346

6b BEARING-FRONT-SHOE 050348

6c SHOE-FRONT HELIX-FRONT 050347

ITEM DESCRIPTION PART NO.

7BEATER A.-3.4QT-1 PIN X46231

8SHAFT-BEATER 032564

9SEAL-DRIVE SHAFT 032560

10 BLADE-SCRAPER-PLASTIC 046235

11 CLIP-SCRAPER·BLADE-7.00·IN 046236

12 O-RING-5/16 OD X .070W 016272

13 ROD A.-PIVOT-LONG X22387

14 DOOR A.-3 SPOUT X51532-12

15 O-RING-7/8 OD X .103W 014402

16 CAP-DESIGN-1.010"ID-6 POINT 014218

17 VALVE A.-DRAW X18303

18 NUT-STUD-SHORT 034383

19 NUT-STUD-LONG 034382

Model 8756 Operator Parts Identification

Air/Mix Pump Assembly

ITEM DESCRIPTION PART NO.

1CAP-PUMP 021276-9

2PIN-RETAINING 021276-8

*3 PUMP A.-SOFT SERVE

COMPLETE X22345

3a CYLINDER A.-PUMP 022345-1

3b PIN-RETAINING 021276-8

3c PISTON 021276-2

3d RING-CHECK 2” OD x 1/2 020050

3e O-RING 2-1/8 OD x .139 W 020051

3f BODY A.-VALVE X22345-3

3g O-RING - 13/16 OD x .139 W 021278

3h ELBOW-INLET 90 DEGREE 022502-4

4ORIFICE 023425-50

5O-RING - 3/8 OD x .070 W 016137

6LINE A.-FLARE 038299

7LINE A.-PUMP PRESSUSRE X27139

8DIAPHRAGM-PRESSURE

SWITCH 020249

9TUBE-VINYL 5/8 ID X 1/8 WALL 020945-18

10 COUNTERWEIGHT-SUCTION

TUBE 020452

*INCLUDES ITEMS 3a-3h

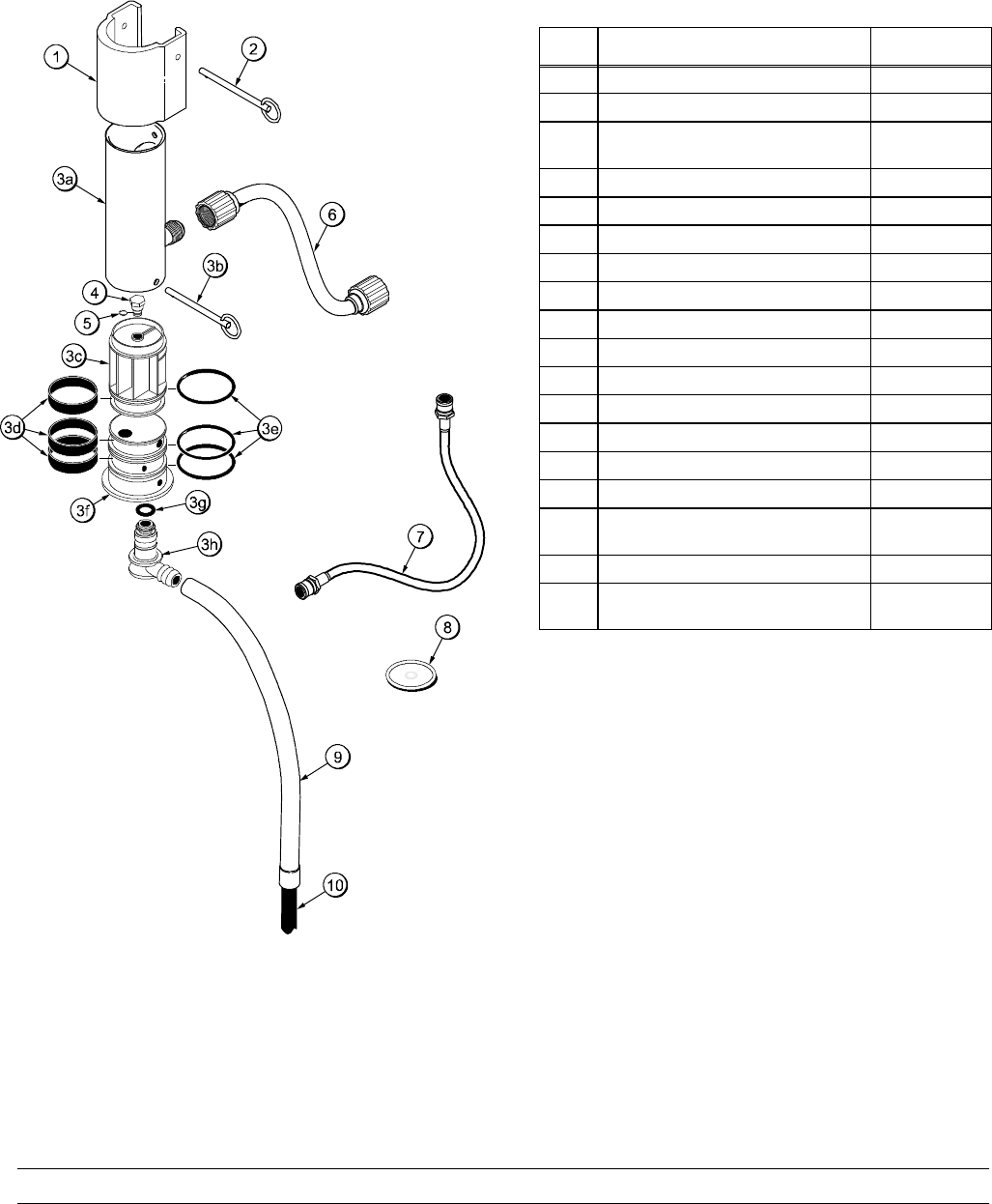

Figure 3

12 Model 8756Operator Parts Identification

140814

Accessories

Figure 4

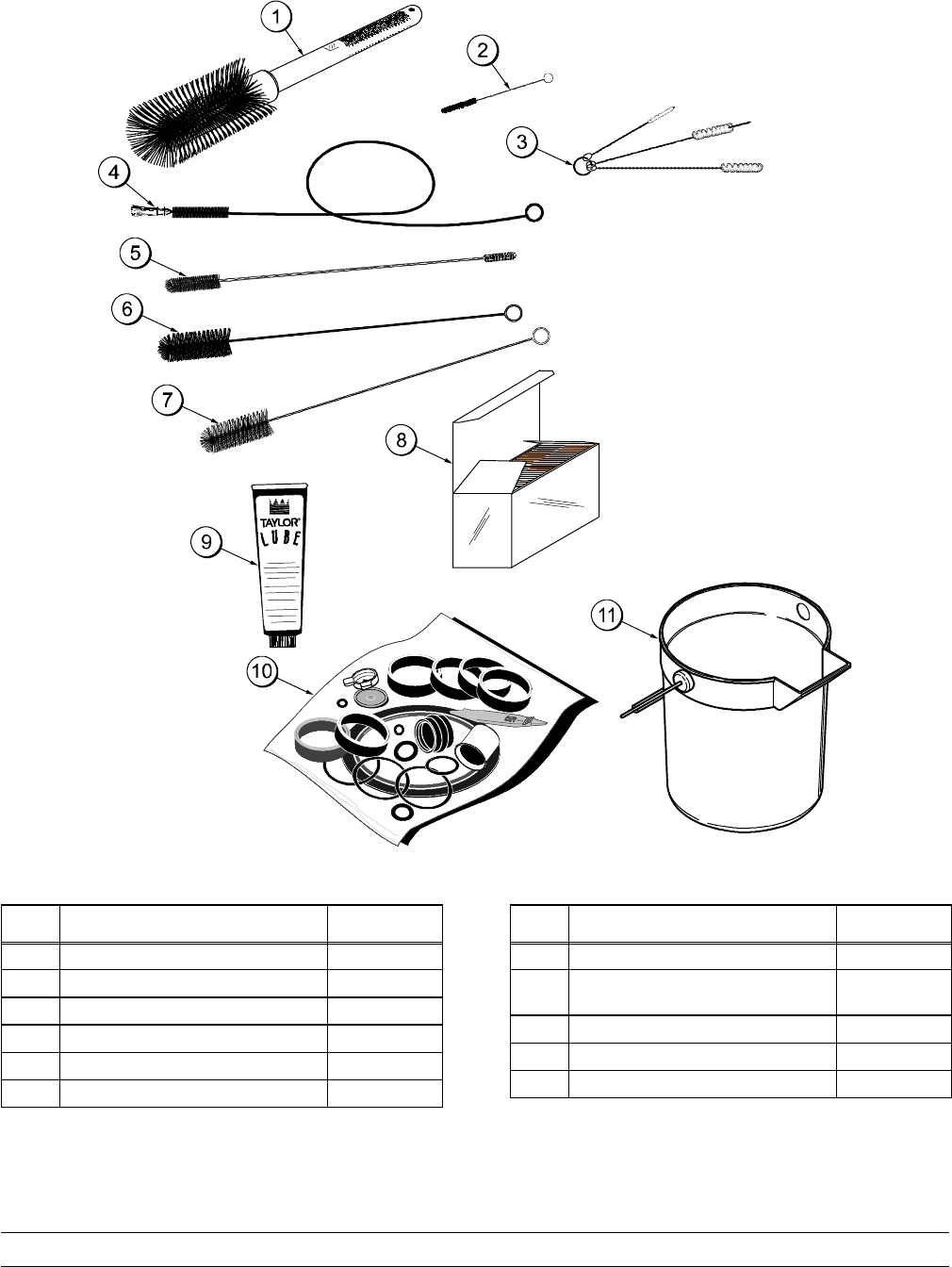

ITEM DESCRIPTION PART NO.

1BRUSH-MIX PUMP BODY 023316

2BRUSH-PRESSURE SWITCH 027647

3BRUSH SET-LVB 050103

4BRUSH-FEED TUBE 021101

5BRUSH-DOUBLE ENDED 013072

6BRUSH-REAR BEARING 013071

ITEM DESCRIPTION PART NO.

7BRUSH-DRAW VALVE 013073

*8 SANITIZER-STERA SHEEN

GREEN SEE NOTE

9LUBRICANT-TAYLOR 4 OZ. 047518

10 KIT A.-TUNE UP X49463-2

11 PAIL-10 QT. 013163

*Note: A sample container of sanitizer is sent with the

unit. For reorders, order Stera Sheen part no. 055492

(100 packs) or Kay-5 part no. 041082 (125 packs).

Model 8756 Important: To the Operator

Section 5 Important: To the Operator

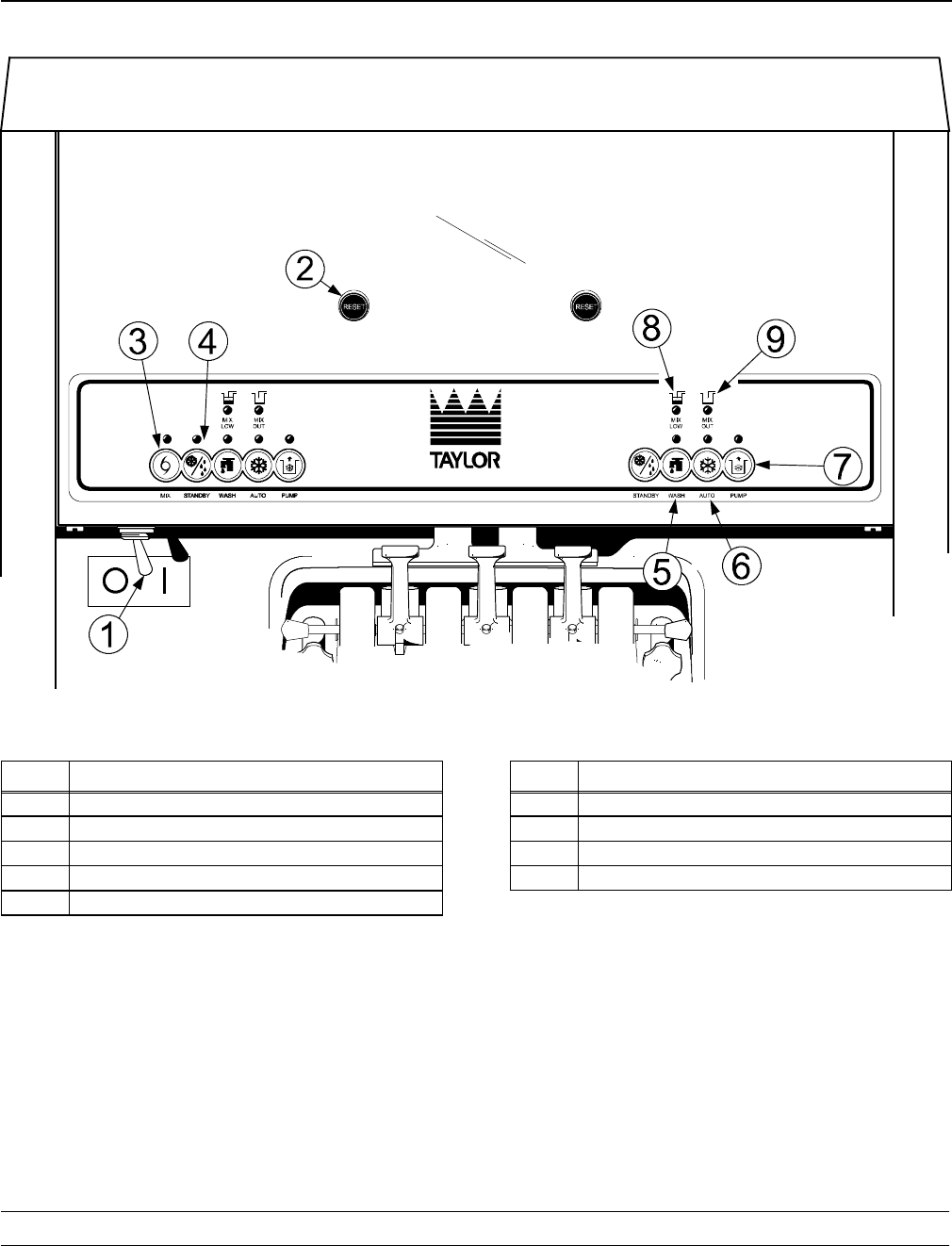

Figure 5

ITEM DESCRIPTION

1POWER SWITCH (TOGGLE)

2RESET SWITCH

3MIX REFRIGERATION CONTROL

4STANDBY KEY

5WASH KEY

ITEM DESCRIPTION

6AUTO KEY

7PUMP KEY

8MIX LOW INDICATOR

9MIX OUT INDICATOR

14 Model 8756Important: To the Operator

Symbol Definitions

To better communicate in the International arena,

the words on many of our operator switches and

buttons have symbols to indicate their functions.

Your Taylor equipment is designed with these

International symbols.

=AUTO

=ON

=OFF

=MIXREF

= WASH

=PUMP

= STANDBY

=MIXLOW

= MIX OUT

Power Switch

When placed in the ON position, the power switch

allows SOFTECH control panel operation.

Indicator Lights -

MIX LOW and MIX OUT

When the MIX LOW light begins to flash, the mix

tank has a low supply of mix and should be refilled

as soon as possible. When the MIX OUT light

begins to flash, it indicates the mix tank has been

almost completely exhausted and has an insufficient

supply of mix to operate the freezer. At this time, the

STANDBY and AUTO modes are locked out and the

freezer shuts down. To initiate the refrigeration

system, add mix to the tank and press the AUTO

key. The freezer will automatically begin operation.

Reset Button

The reset button is located in the decorative plate

above the SOFTECH controls. The reset protects

the beater motor from an overload condition. Should

an overload occur, the reset mechanism will trip. To

properly reset the freezer, press the AUTO key to

cancel the cycle. Turn the power switch to the OFF

position. Press the reset button firmly. Turn the

power switch to the ON position. Press the WASH

key and observe the freezer's performance. The

beater motor should be turning the drive shaft in a

clockwise (from operator end) direction without

binding.

If it is turning properly, press the WASH key to

cancel the cycle. Press the AUTO key on both sides

to resume normal operation. If the freezer shuts

down again, contact a service technician.

MIX REF

When the MIX REF key is pressed, the light comes

on, indicating the mix cabinet refrigeration system is

operating. There are two touch-tone panels, one for

each freezing cylinder. The mix refrigeration system

is controlled by the MIX REF key found on the left

panel. By pressing the AUTO key on either side of

the freezer, the MIX REF function is automatically

turned on. The MIX REF function cannot be

cancelled unless the AUTO or STANDBY mode is

cancelled first.

Standby

During long “No Sale” periods it becomes necessary

to warm the product in the freezing cylinder to

approximately 35_to 40_F(1.7_to 4.4_C) to prevent

overbeating and product breakdown.

When the STANDBY key is pressed, the light comes

on, indicating the CTR (Cylinder Temperature

Retention System) has been activated. In the

STANDBY mode, the WASH, PUMP, and AUTO

functions are automatically cancelled. The MIX REF

function is automatically locked in to maintain the

mix in the cabinet.

To resume normal operation, press the AUTO key.

When the unit cycles off, the product in the freezing

cylinder will be at serving viscosity.

Model 8756 Important: To the Operator

Wash

When the WASH key is pressed, the light comes on,

indicating beater motor operation. The STANDBY or

AUTO modes must be cancelled first to activate the

WASH mode.

Auto

When the AUTO key is pressed, the light comes on,

indicating the main refrigeration system has been

activated. In the AUTO mode, the WASH or

STANDBY functions are automatically cancelled.

The MIX REF function is automatically locked in to

maintain the mix in the cabinet and the PUMP

function is locked in to allow air/mix pump operation

as required.

Pump

When the PUMP key is pressed, the light comes on

indicating the air/mix pump will operate as required.

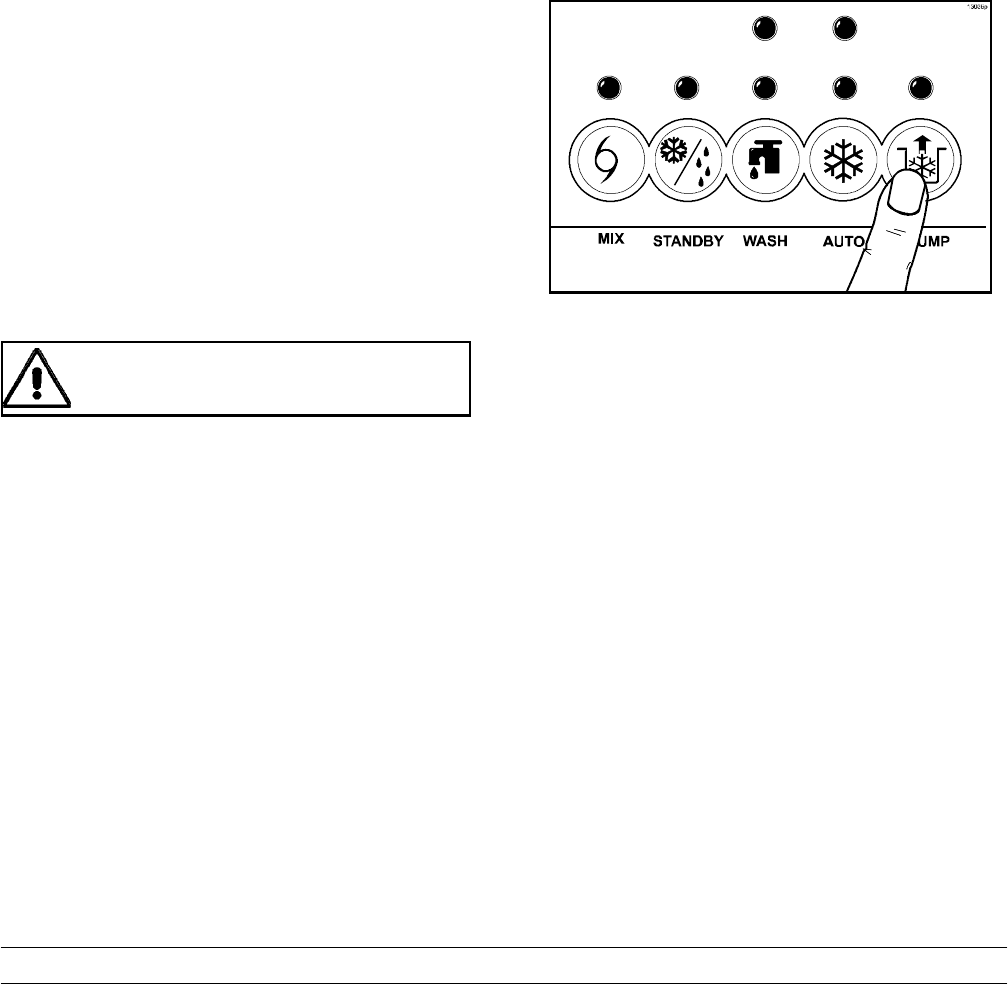

Note: An indicating light and an audible tone will

sound whenever a mode of operation has been

pressed. To cancel any function, press the key

again and the light and mode of operation will shut

off.

Adjustable Draw Handle

This unit features an adjustable draw handle to

provide the best portion control, giving a better,

consistent quality to your product and controlling

costs. The draw handle should be adjusted to

provide a flow rate of 5 to 7-1/2 oz. of product by

weight per 10 seconds. To increase the flow rate,

turn the screw counterclockwise. To decrease the

flow rate, turn the screw clockwise.

In addition, for purposes of sanitizing and rinsing,

the flow rate can be increased by removing the pivot

pin and placing the restrictive bar on the top.

When drawing product, always have the restrictive

bar on the bottom.

IMPORTANT! When dispensing product, pull

only one draw handle at a time.

16 Model 8756Operating Procedures

Section 6 Operating Procedures

The Model 8756 has two freezing cylinders. The size

of each freezing cylinder is 3.4 quarts (3.2 liters).

Mix is stored in the lower front refrigerated

compartment and is pumped up to the freezing

cylinder by an air/mix pump.

Duplicate the following procedures, where they

apply, for the second freezing cylinder.

We begin our instructions at the point where we

enter the store in the morning and find the parts laid

out to air dry from the previous night's brush

cleaning.

If you are disassembling the machine for the first

time, or need information to get to this starting point

in our instructions, turn to page 32, “Disassembly”

and start there.

Assembly

MAKE SURE THE POWER SWITCH IS IN

THE “OFF” POSITION. Failure to follow this

instruction may result in electrocution or injury to

fingers or hands from hazardous moving parts.

Step 1

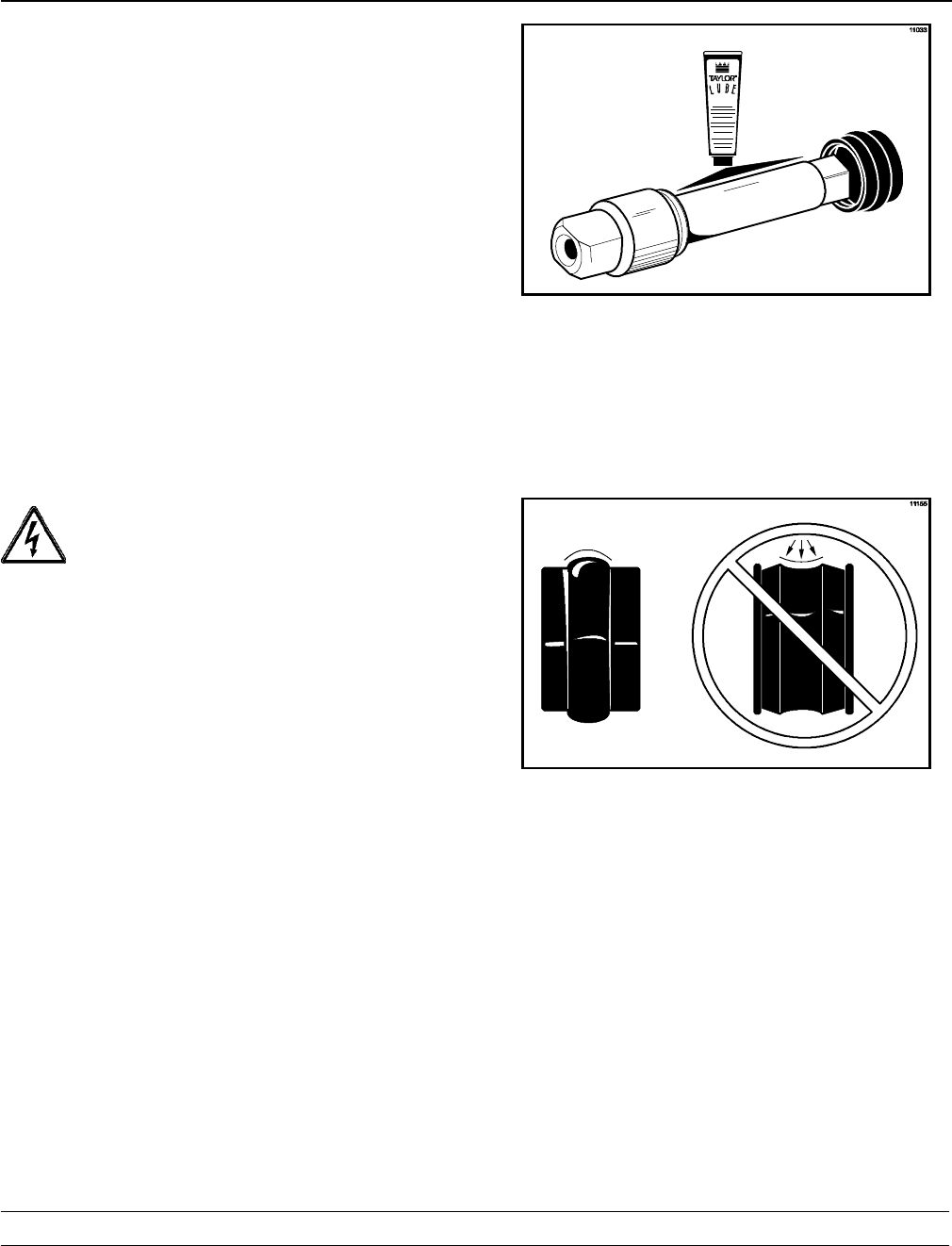

Lubricate the groove and shaft portion that comes in

contact with the bearing on the beater drive shaft.

Slide the seal over the shaft and groove until it

snaps into place. DO NOT lubricate the hex end of

the drive shaft. Fill the inside portion of the seal

with1/4” more lubricant and evenly lubricate the end

of the seal that fits onto the rear shell bearing.

Figure 6

Note: For ease of cleaning, the seal may be turned

inside out. Be sure to position the seal correctly

during assembly.

Figure 7

Model 8756 Operating Procedures

Step 2

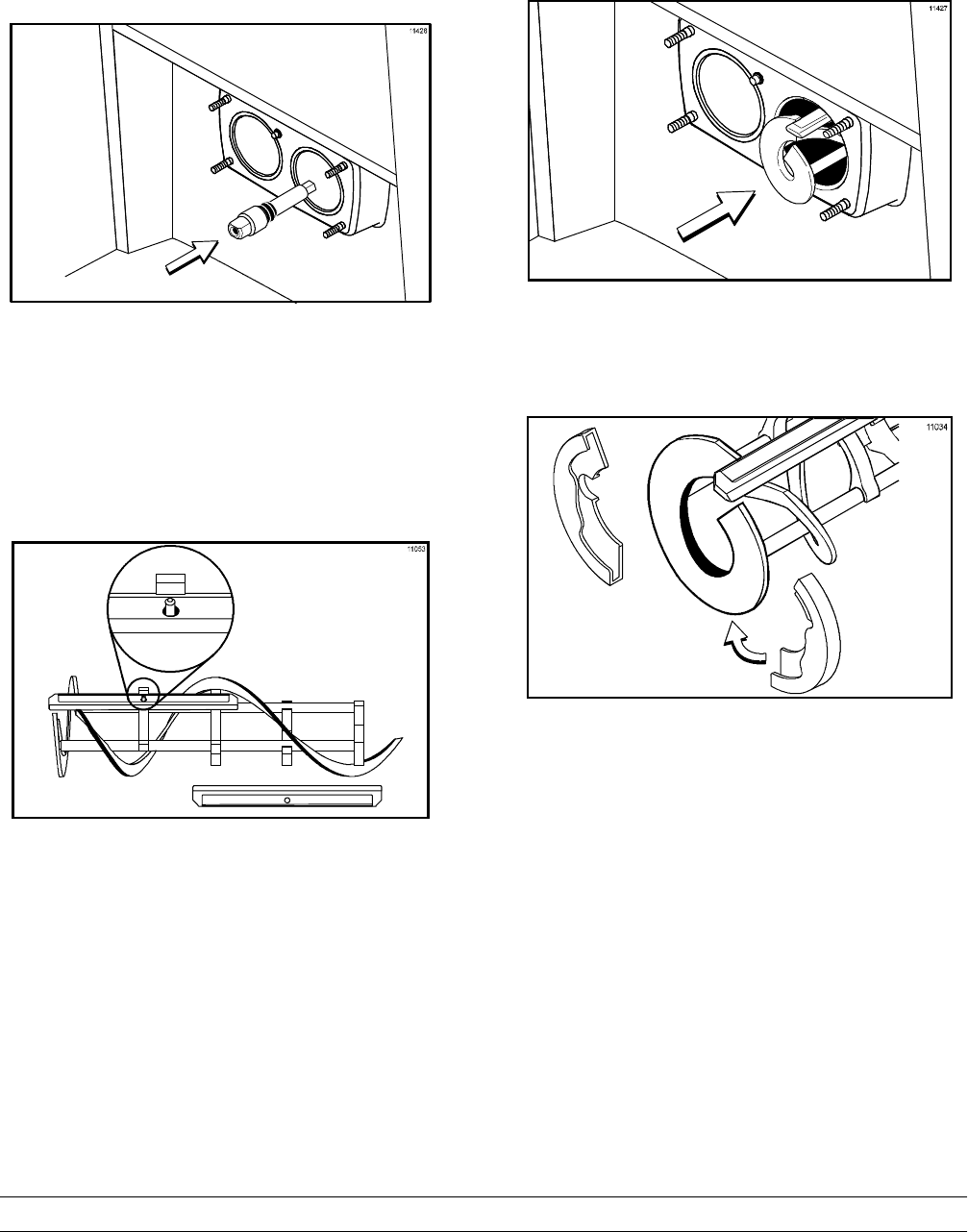

Install the drive shaft through the rear shell bearing

in the freezing cylinder and engage the hex end

firmly into the gear box coupling. Be sure the drive

shaft fits into the drive coupling without binding.

Figure 8

Step 3

Check the scraper blades for any nicks or signs of

wear. If any nicks are present, replace both blades.

If the blades are in good condition, install the

scraper blade clips on the scraper blades. Place the

rear scraper blade over the rear holding pin on the

beater.

Figure 9

Note: The hole on the scraper blade must fit

securely over the pin to prevent costly damage.

Step 4

Holding the rear blade on the beater, slide it into the

freezing cylinder half way. Install the front scraper

blade over the front holding pin.

Figure 10

Step 5

Install the beater shoes. Slide the beater assembly

the rest of the way into the freezing cylinder.

Figure 11

Make sure the beater assembly is in position over

the drive shaft. Turn the beater slightly to be certain

that the beater is properly seated. When in position,

the beater will not protrude beyond the front of the

freezing cylinder.

Repeat these steps for the other side of the

freezer.

18 Model 8756Operating Procedures

Step 6

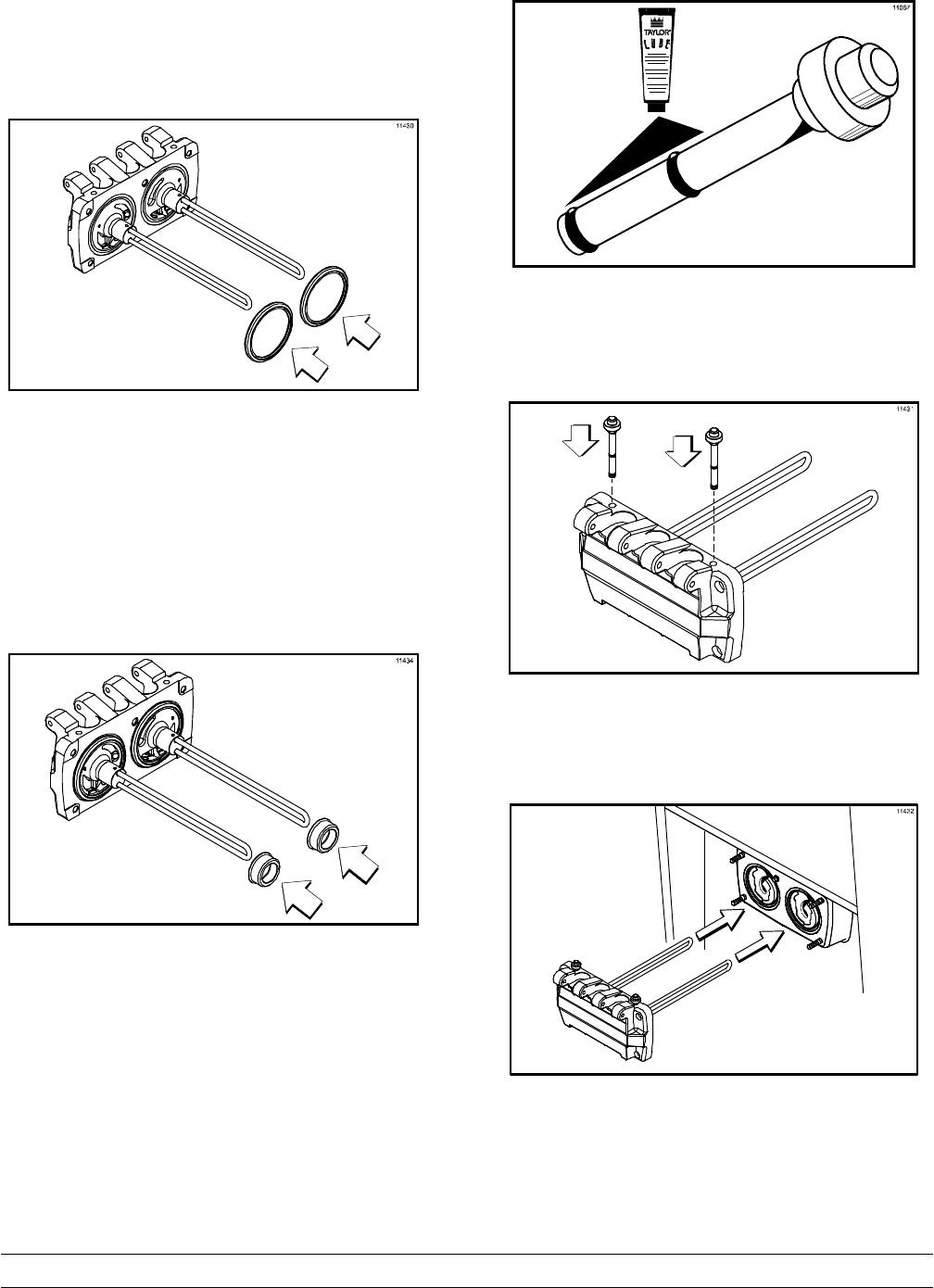

Place the large rubber gaskets in the grooves on the

back side of the freezer door.

Figure 12

Step 7

Slide the white plastic front bearings over the baffle

rods. Make certain that the flanged end of the

bearing is resting against the freezer door. DO NOT

lubricate the gaskets or the front bearings.

Figure 13

Step 8

Slide the o-rings into the grooves on the prime

plugs. Apply an even coat of lubricant to the o-rings

and the shafts.

Figure 14

Step 9

Insert the prime plugs into the holes at the top of the

freezer door and push down.

Figure 15

Step 10

Insert the baffle rods through the beaters in the

freezing cylinders.

Figure 16

Model 8756 Operating Procedures

Step 11

With the door seated on the freezer studs, install the

short handscrews on the bottom and the long

handscrews on the top. Tighten the handscrews

equally in a criss-cross pattern until the door is snug.

Figure 17

Step 12

Slide the two o-rings into the grooves on the draw

valves. Lubricate the o-rings.

Figure 18

Step 13

Lubricate the inside of the freezer door spouts, top

and bottom. Insert the draw valves from the bottom

of the door until the slot in the draw valves comes

into view.

Figure 19

Step 14

Slide the o-rings into the grooves on the pivot pins.

Lubricate the o-rings.

Figure 20

20 Model 8756Operating Procedures

Step 15

Slide the fork of each draw handle into the slot of the

draw valves, starting from the right. Slide the long

pivot pin through the right and middle draw handles.

Secure the left draw handle with the short pivot pin.

Figure 21

Note: This unit features adjustable draw handles to

provide the best portion control, giving a better

consistency quality to your product and controlling

costs. The draw handles can be adjusted for

different flow rates. See page 15 for more

information on adjusting these handles.

Step 16

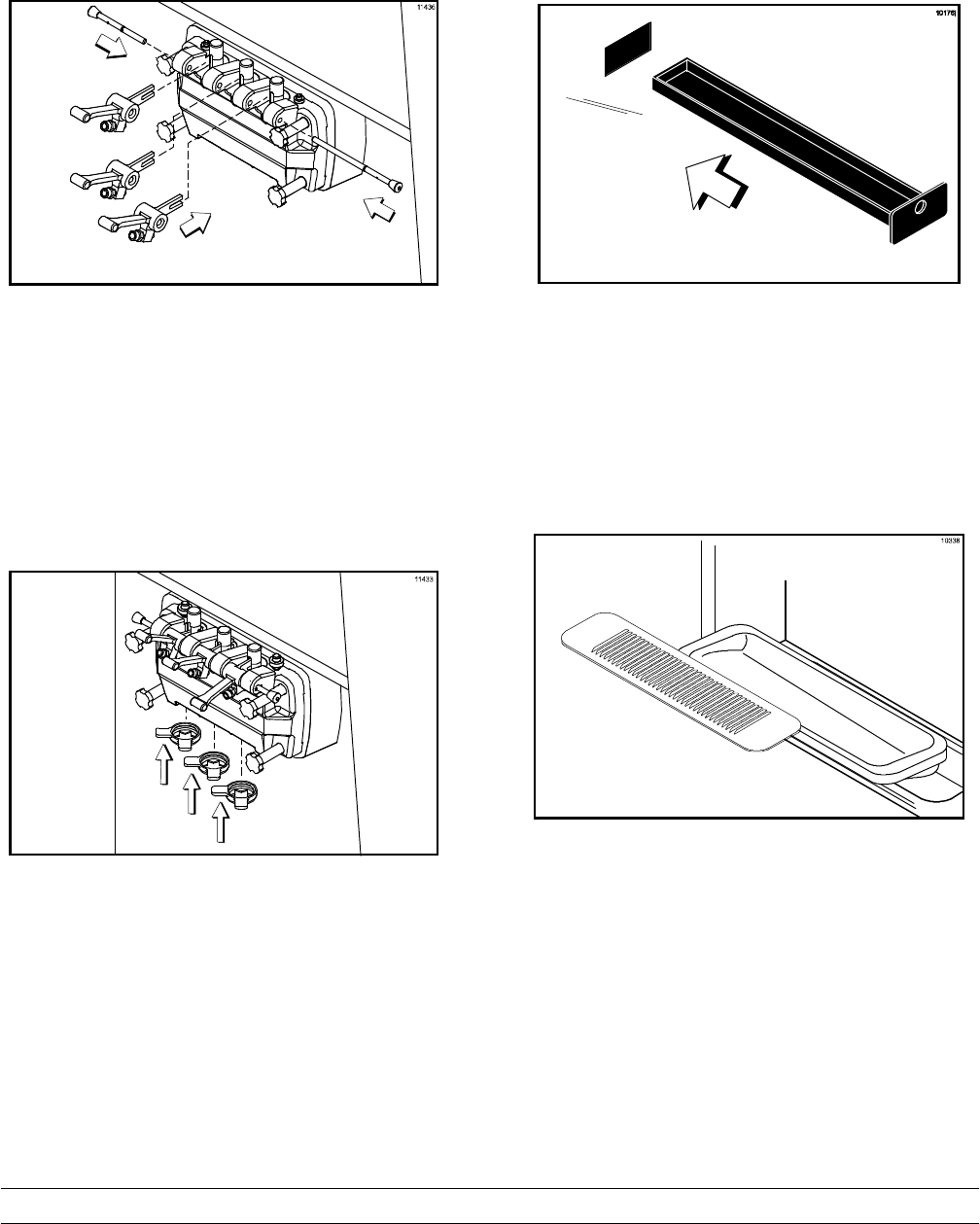

Snap the design caps over the bottom of each door

spout.

Figure 22

Step 17

Slide the rear drip pan into the hole in the side

panel.

Figure 23

Step 18

Install the front drip tray and the splash shield

beneath the door spouts.

Figure 24

Model 8756 Operating Procedures

Air/Mix Pump Assembly

This Model 8756 uses a single-stage pump. The

purpose of the pump is to transfer specific amounts

of air and mix to the freezing cylinder.

Step 1

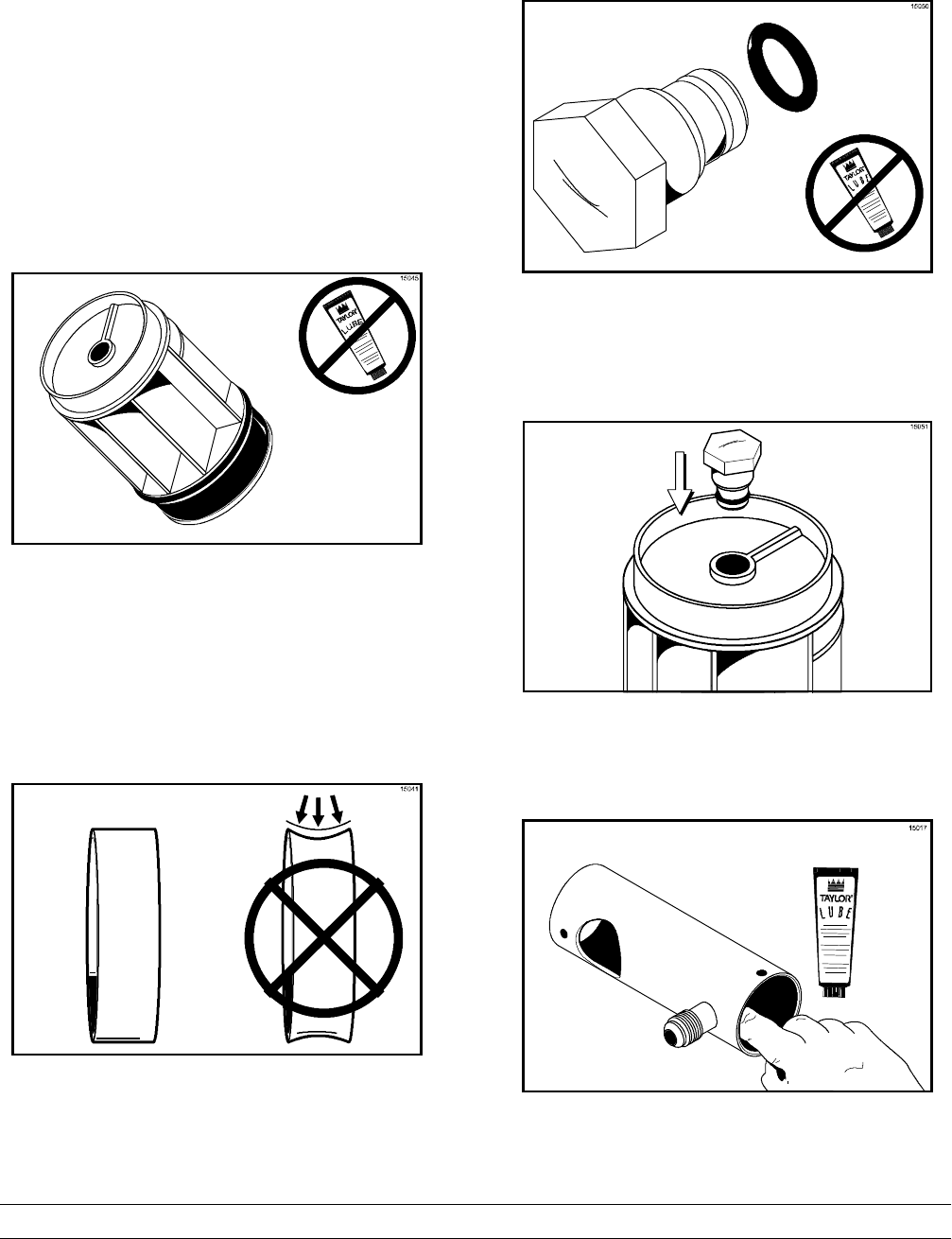

Assemble the piston by sliding the check band and

the o-ring into the grooves on the piston. Do not

lubricate the check band or o-ring.

Figure 25

Note: A concave shaped check band indicates an

incorrect assembly. Turn the check band inside out

to correctly expose the flat surface.

Figure 26

Step 2

Slide the small o-ring into the groove in the air

orifice. DO NOT lubricate this o-ring.

Figure 27

Step 3

Check the small hole in the air orifice to insure that it

is not clogged. Place the air orifice into the top of the

piston.

Figure 28

Step 4

Lightly lubricate the inside of the pump body, top

and bottom.

Figure 29

22 Model 8756Operating Procedures

Step 5

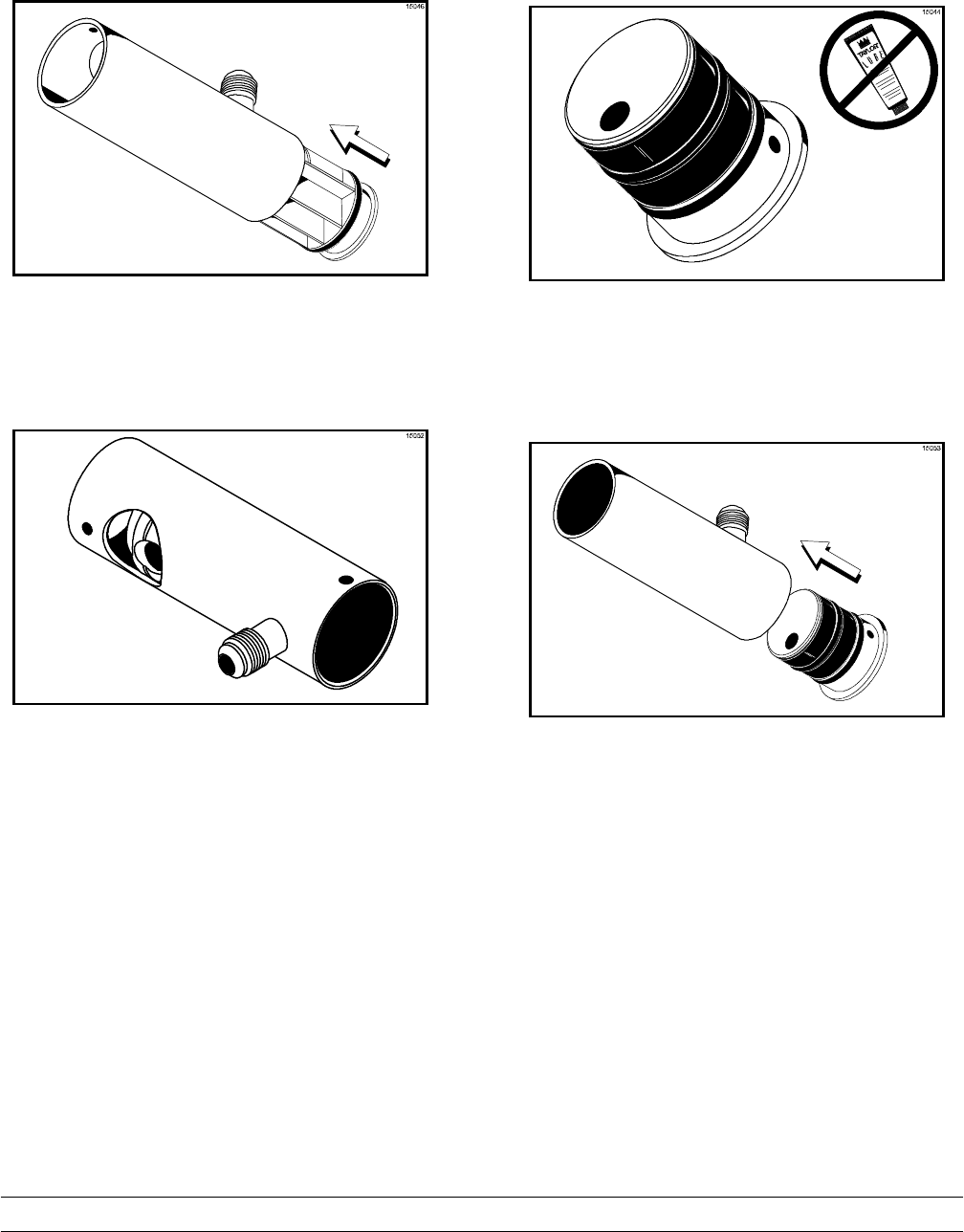

Insert the piston, air orifice end first, into the pump

body and push upward.

Figure 30

Note: The drive hole in the piston must be visible

through the hole in the pump body.

Figure 31

Step 6

Slide the two check bands and the two o-rings into

the grooves on the liquid valve body. Do not

lubricate the check bands or o-rings.

Figure 32

Step 7

Insert the liquid valve body by aligning the steel

button at the base of the liquid valve body with the

cut-out groove at the bottom of the pump body.

Figure 33

Model 8756 Operating Procedures

Step 8

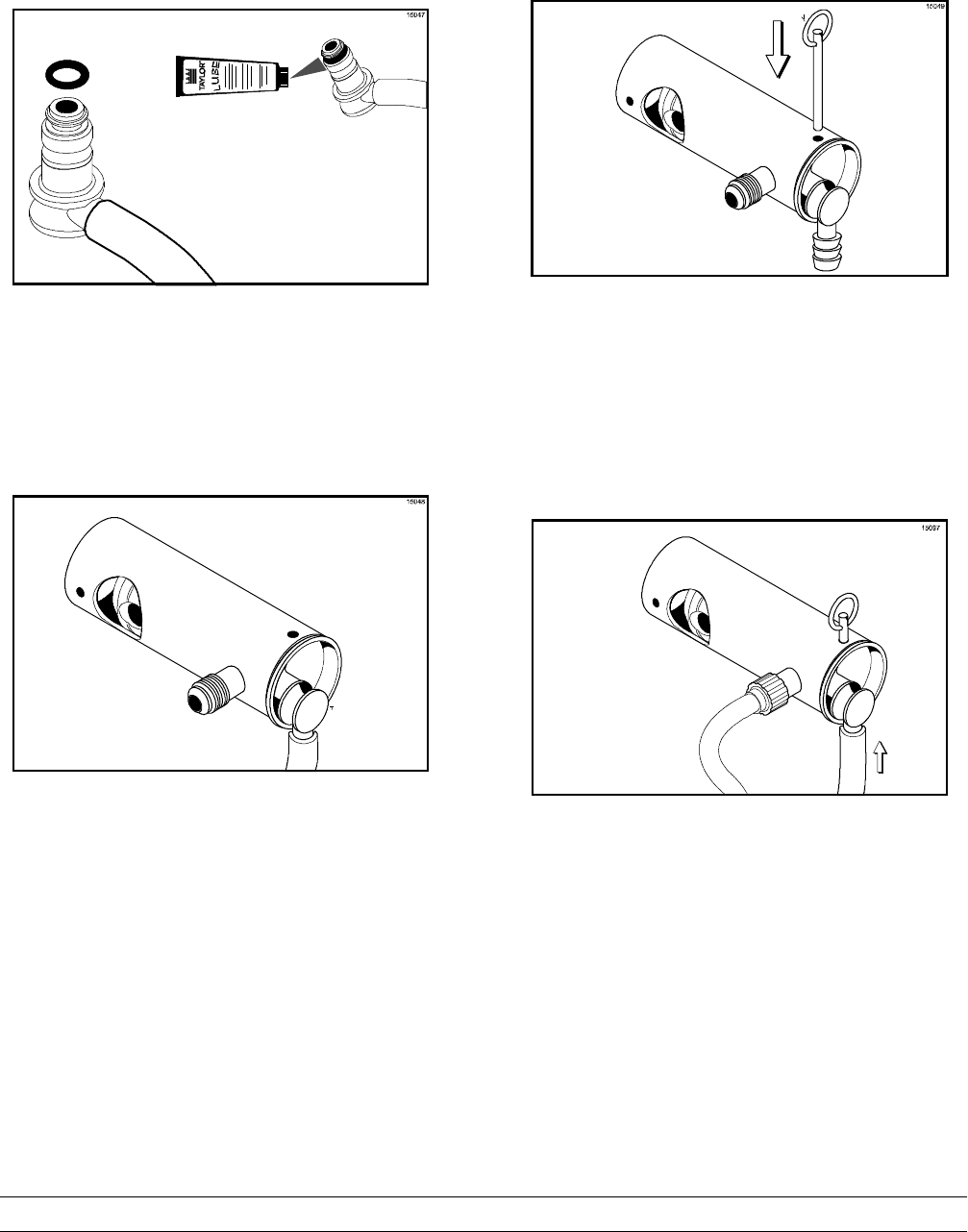

Slide the o-ring into the groove on the mix inlet fitting

and lubricate the o-ring.

Figure 34

Step 9

Insert the mix inlet fitting into the hole in the base of

the liquid valve body.

Figure 35

Step 10

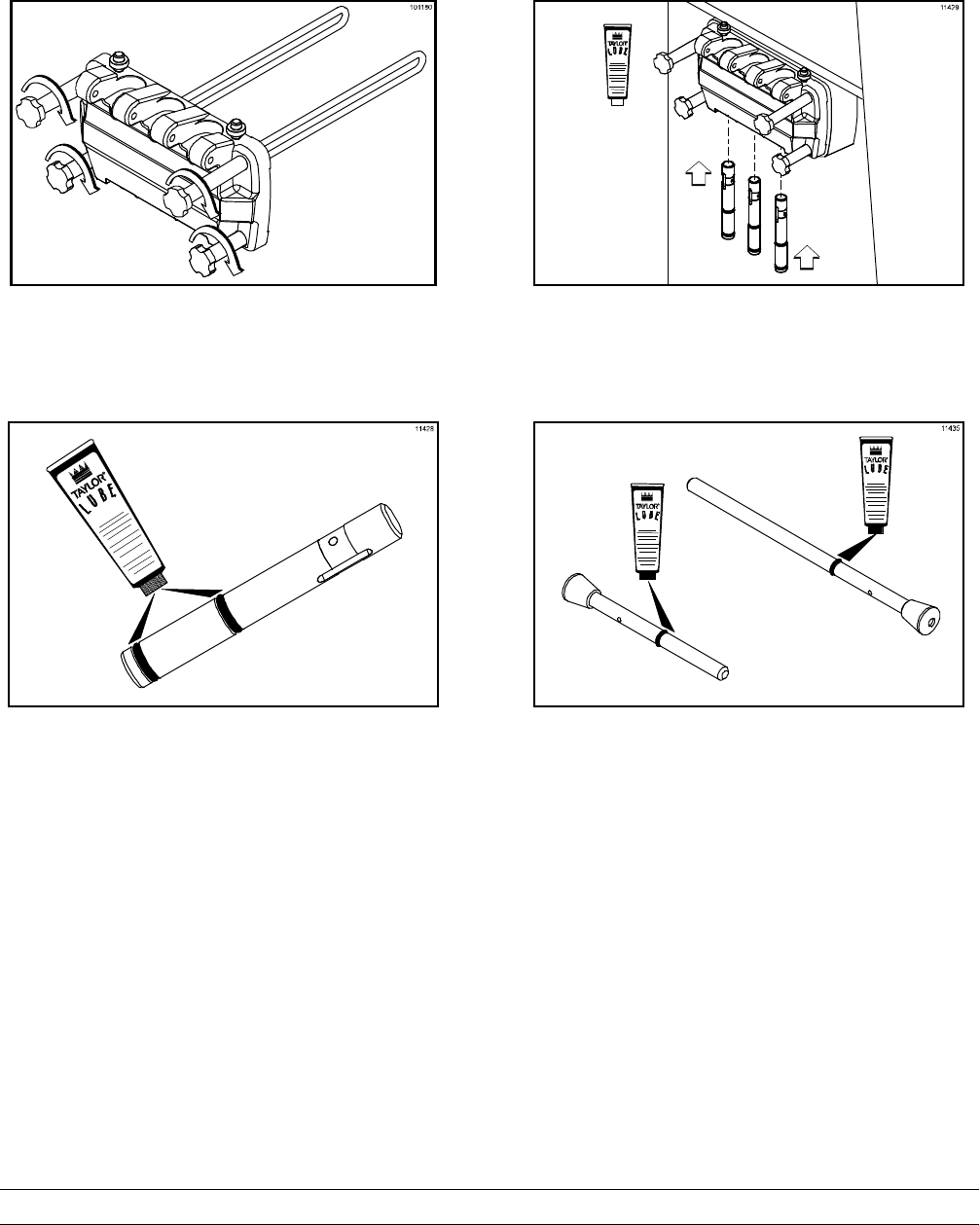

Secure the pump parts in position by sliding the

keeper pin through the holes located at the bottom

of the pump body.

Figure 36

Step 11

Assemble the flare line and suction line. Attach the

suction line to the barbed end of the mix inlet fitting

and allow the weighted end to hang freely.

Attach one end of the flare line to the threaded fitting

on the lower side of the pump body. Allow the other

end to hang freely.

Figure 37

24 Model 8756Operating Procedures

Step 12

To secure the air/mix pump, place the pump collar

over the pump body. (The cross holes of the pump

collar will be on top.)

Figure 38

Align the drive hole in the piston to the ball crank of

the motor reducer. At the same time, align the

locating pin on the face plate.

Slide the pump collar upward into the grooves on the

side of the face plate and secure the air/mix pump in

place by slipping the keeper pin through the cross

holes of the pump collar.

Note: Alignment of the air/mix pump is extremely

important. Severe and costly damage may occur if it

is not properly aligned.

Figure 39

Step 13

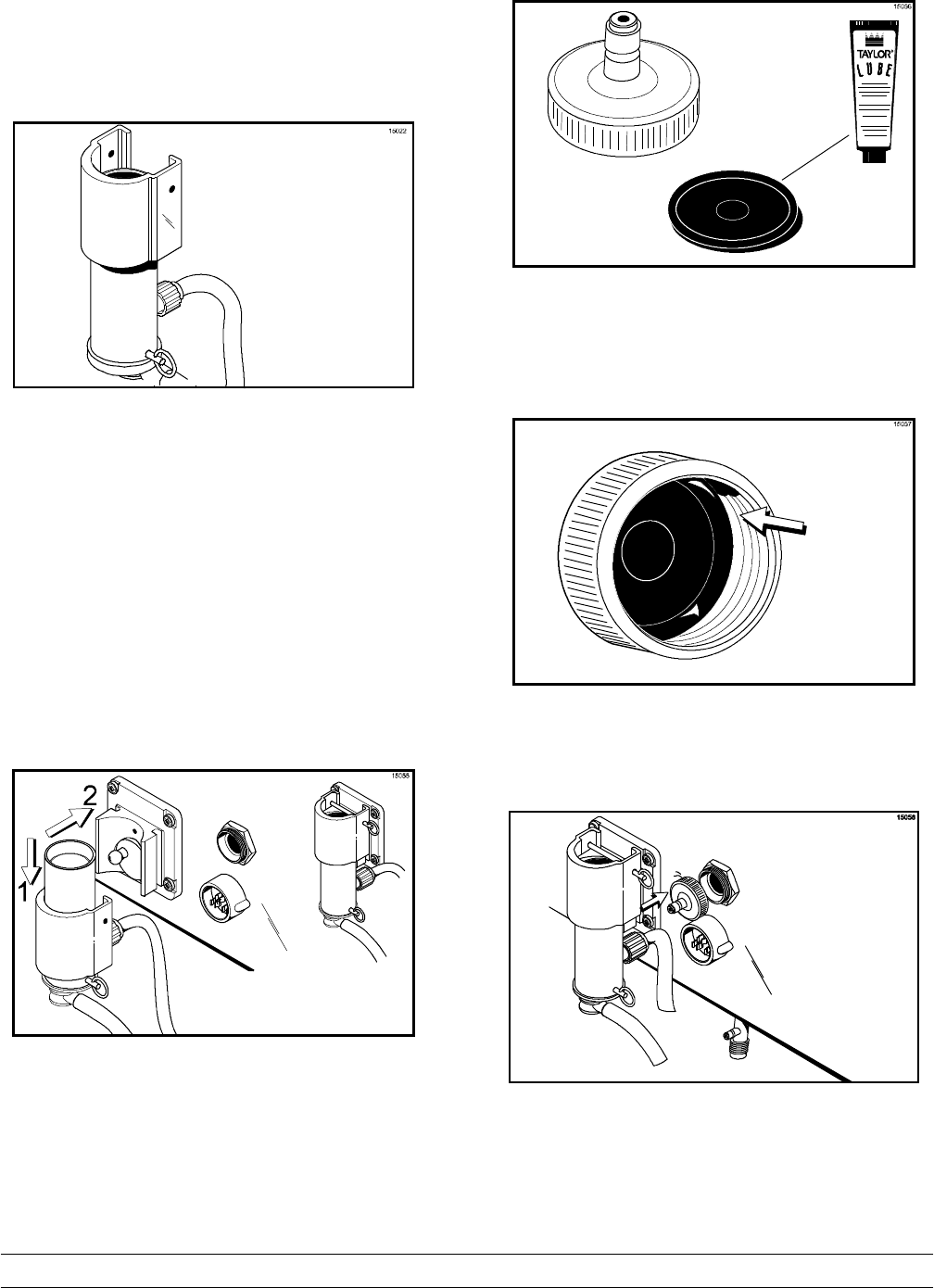

Lubricate both sides of the pressure switch

diaphragm.

Figure 40

Step 14

Place the diaphragm into its groove in the pressure

switch cap.

Figure 41

Step 15

Screw the cap securely onto the housing.

Figure 42

Repeat these steps for the other side of the

freezer.

Model 8756 Operating Procedures

Sanitizing

Step 1

Prepare a pail of approved 100 PPM sanitizing solu-

tion (examples: 2-1/2 gal. [9.5 liters] of Kay-5Ror

2 gal. [7.6 liters] of Stera-SheenR). USE WARM

WATER AND FOLLOW THE MANUFACTURER'S

SPECIFICATIONS.

Step 2

Place the pail of sanitizing solution inside the mix

cabinet.

Step 3

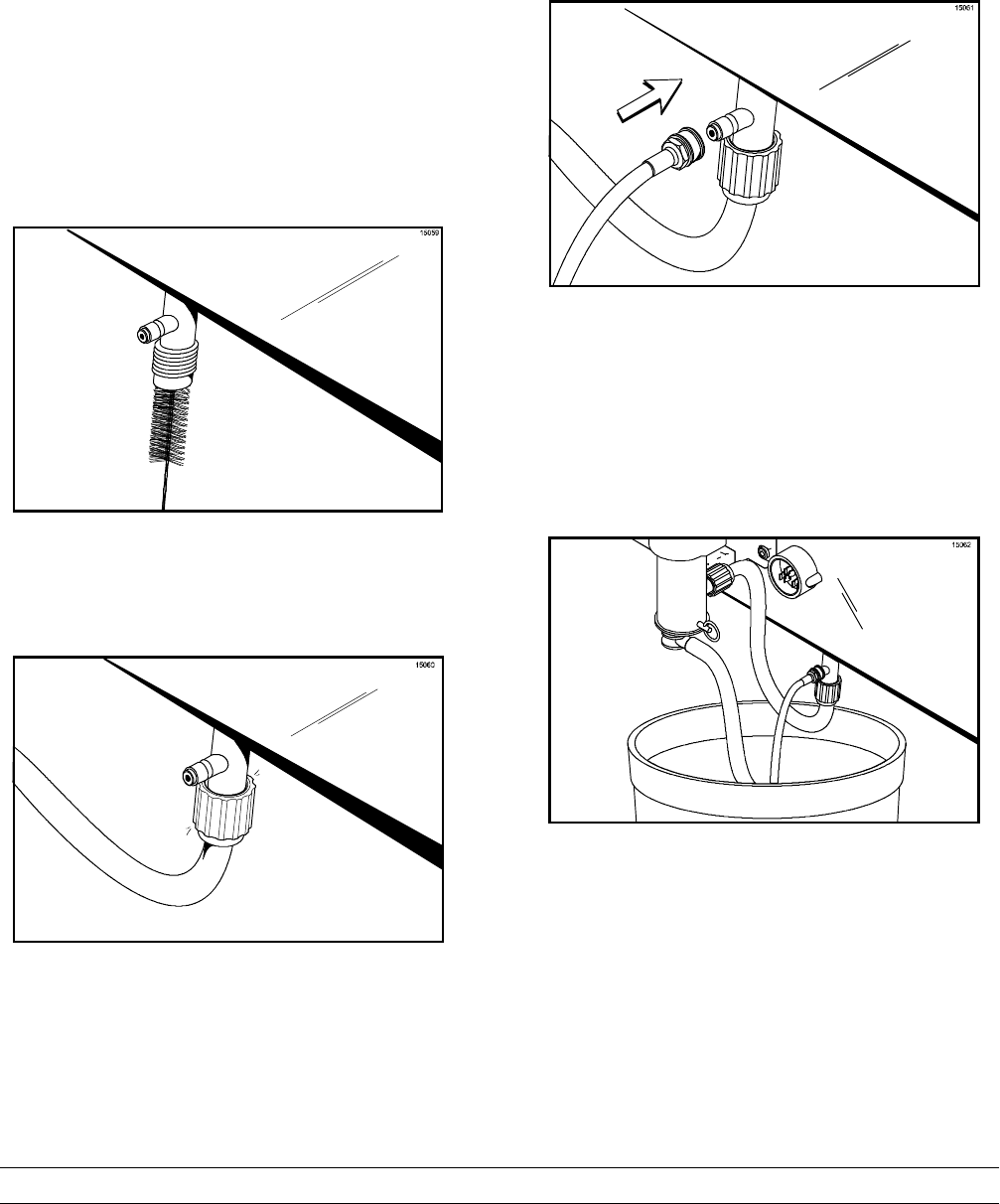

Brush clean the mix inlet tube with the long brush

and the sanitizing solution.

Figure 43

Step 4

Connect the free end of the flare line to the threaded

fitting on the mix inlet tube.

Figure 44

Step 5

Attach the quick disconnect fitting of the pressure

line to the other fitting on the mix inlet tube, just

above the flare line. Allow the other end to hang

free.

Figure 45

Step 6

Insert the free end of the suction line and the

pressure line into the pail of sanitizing solution.

Figure 46

Step 7

Place the power switch in the ON position.

26 Model 8756Operating Procedures

Step 8

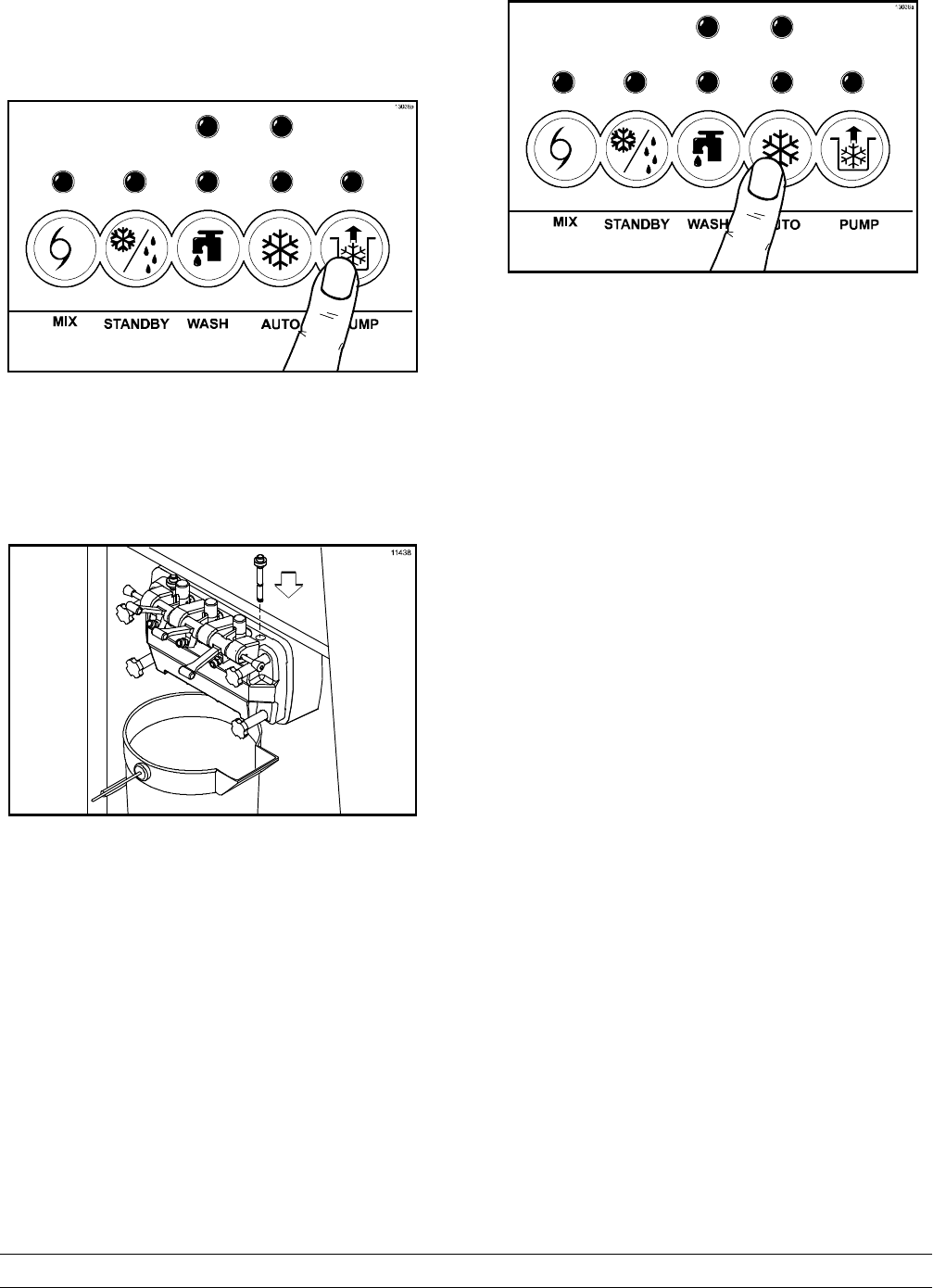

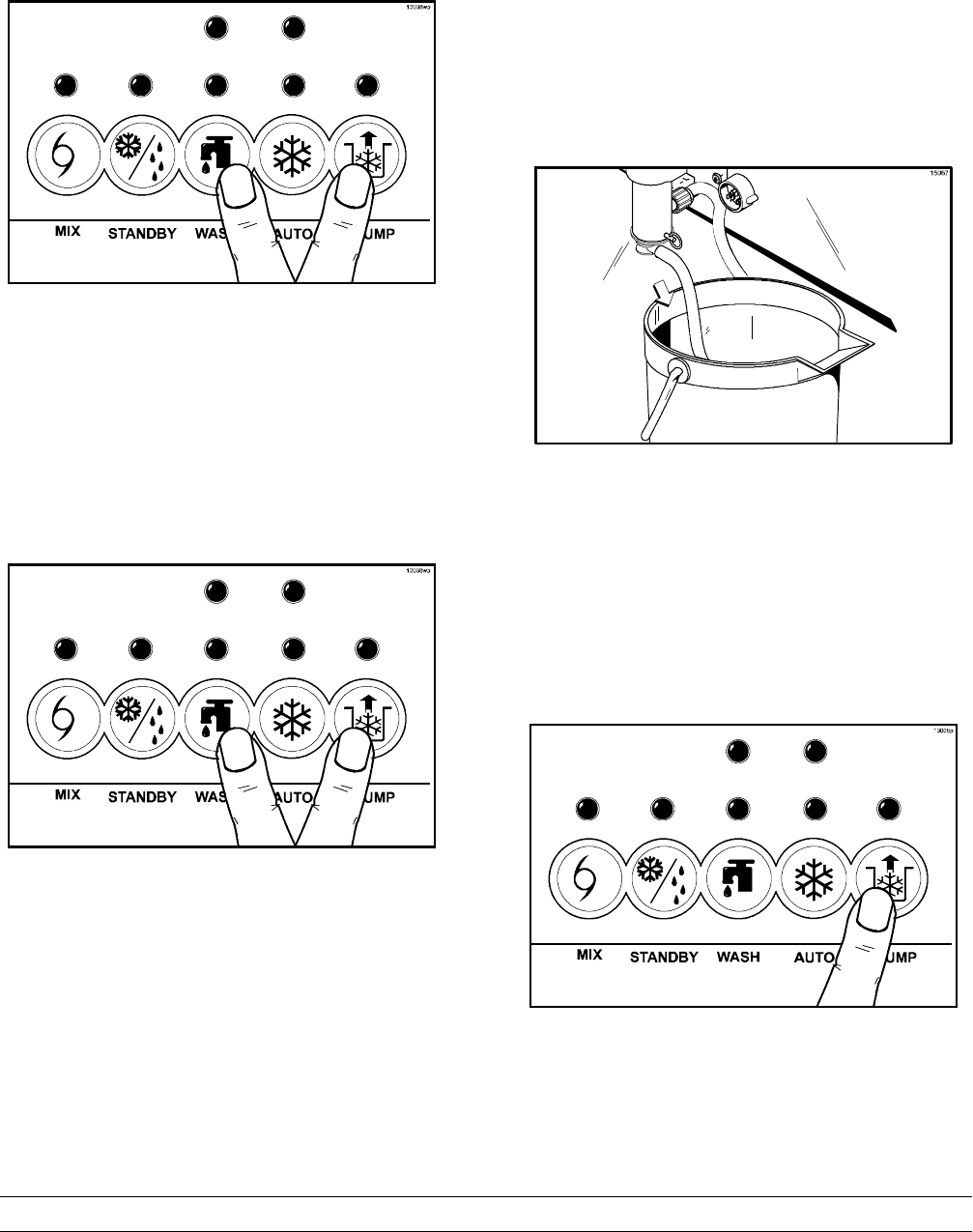

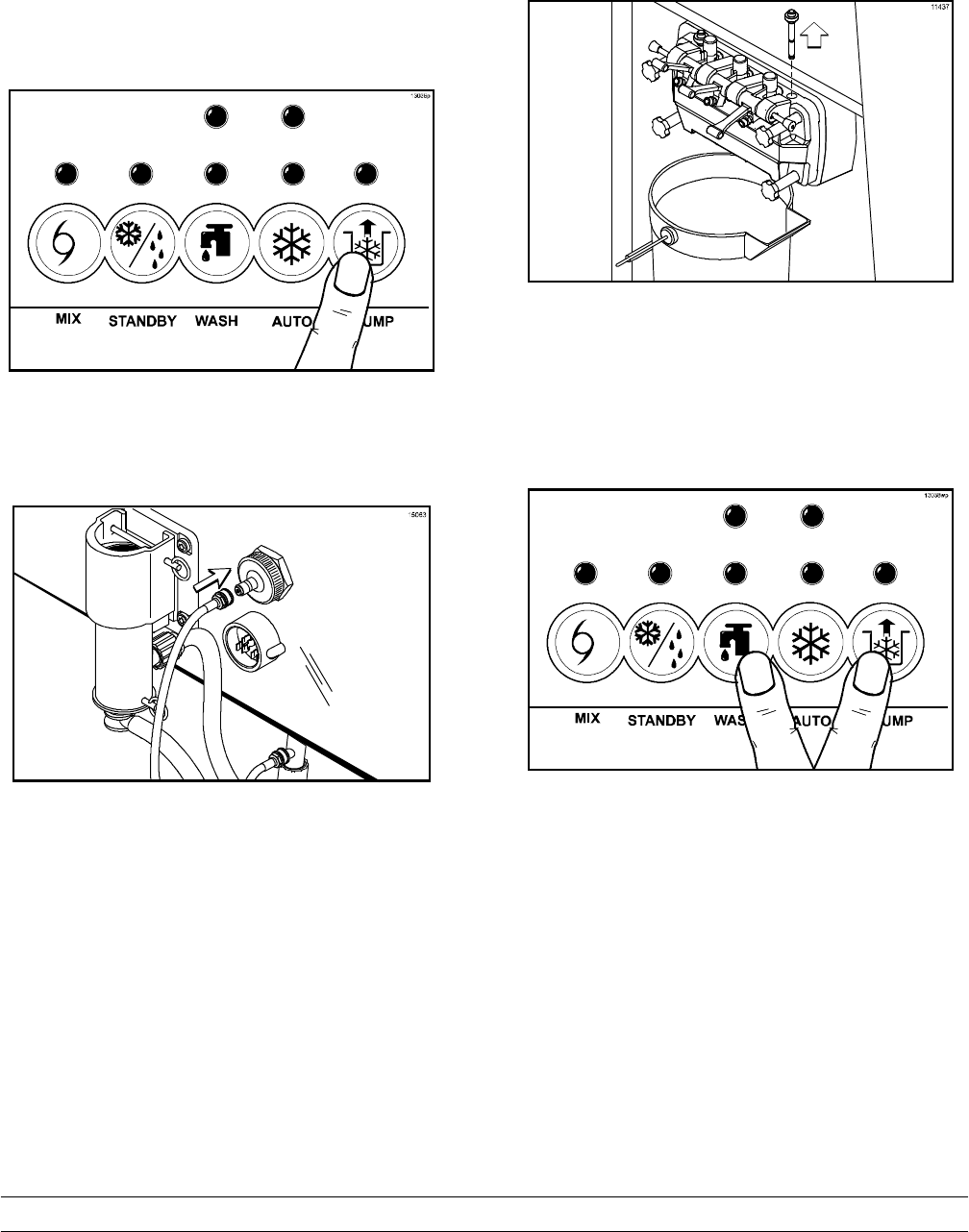

Press the PUMP key. A light will illuminate,

indicating that the air/mix pump is operating. This

action will cause the sanitizing solution to be

pumped through the air/mix pump and out through

the pressure line. After approximately 15 seconds,

press the PUMP key. The light will extinguish and

the pump will stop operation.

Figure 47

Step 9

Drain the pressure line. Connect the free end of the

pressure line to the pressure switch.

Figure 48

Step 10

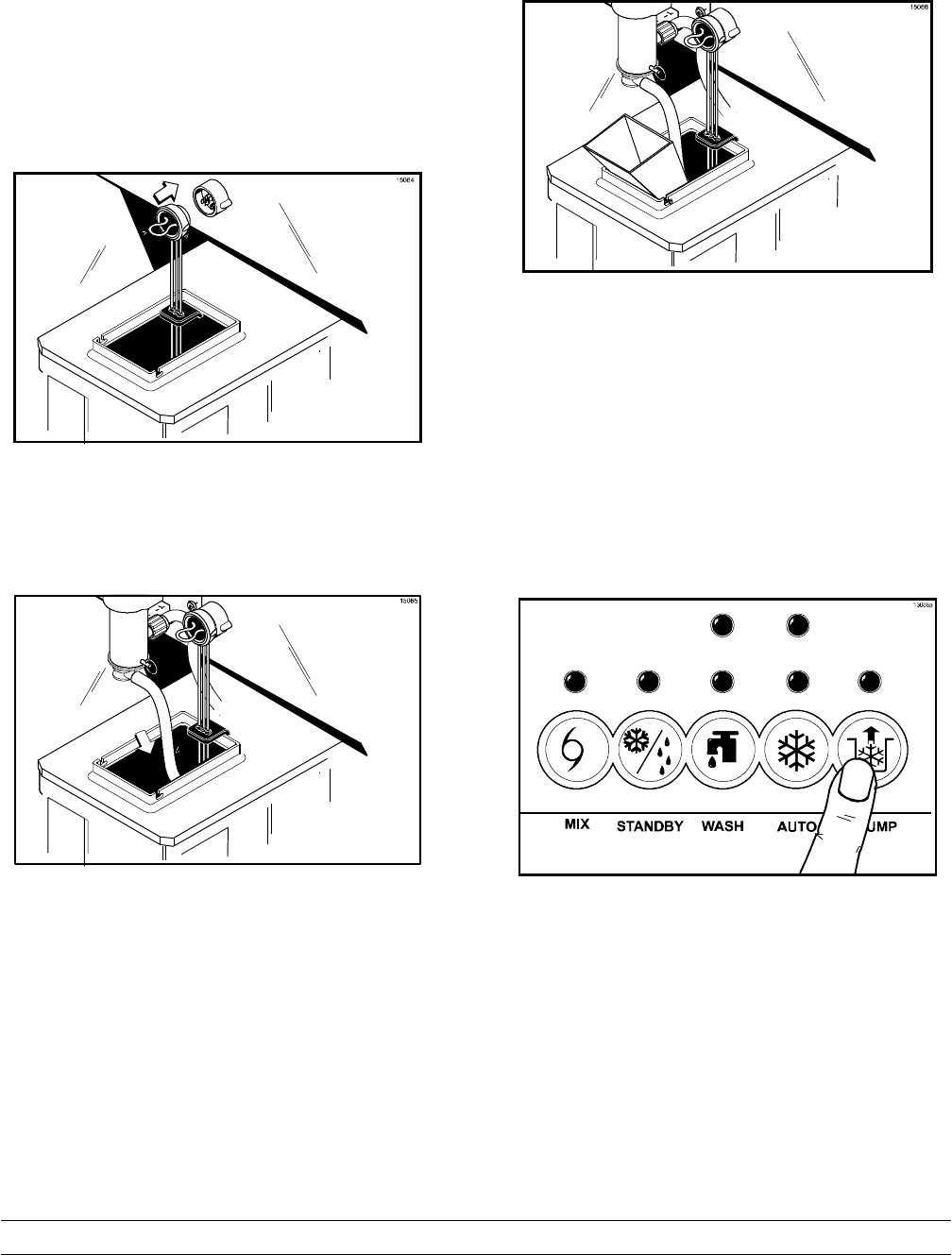

Place an empty pail beneath the door spout. Raise

the prime plug.

Figure 49

Step 11

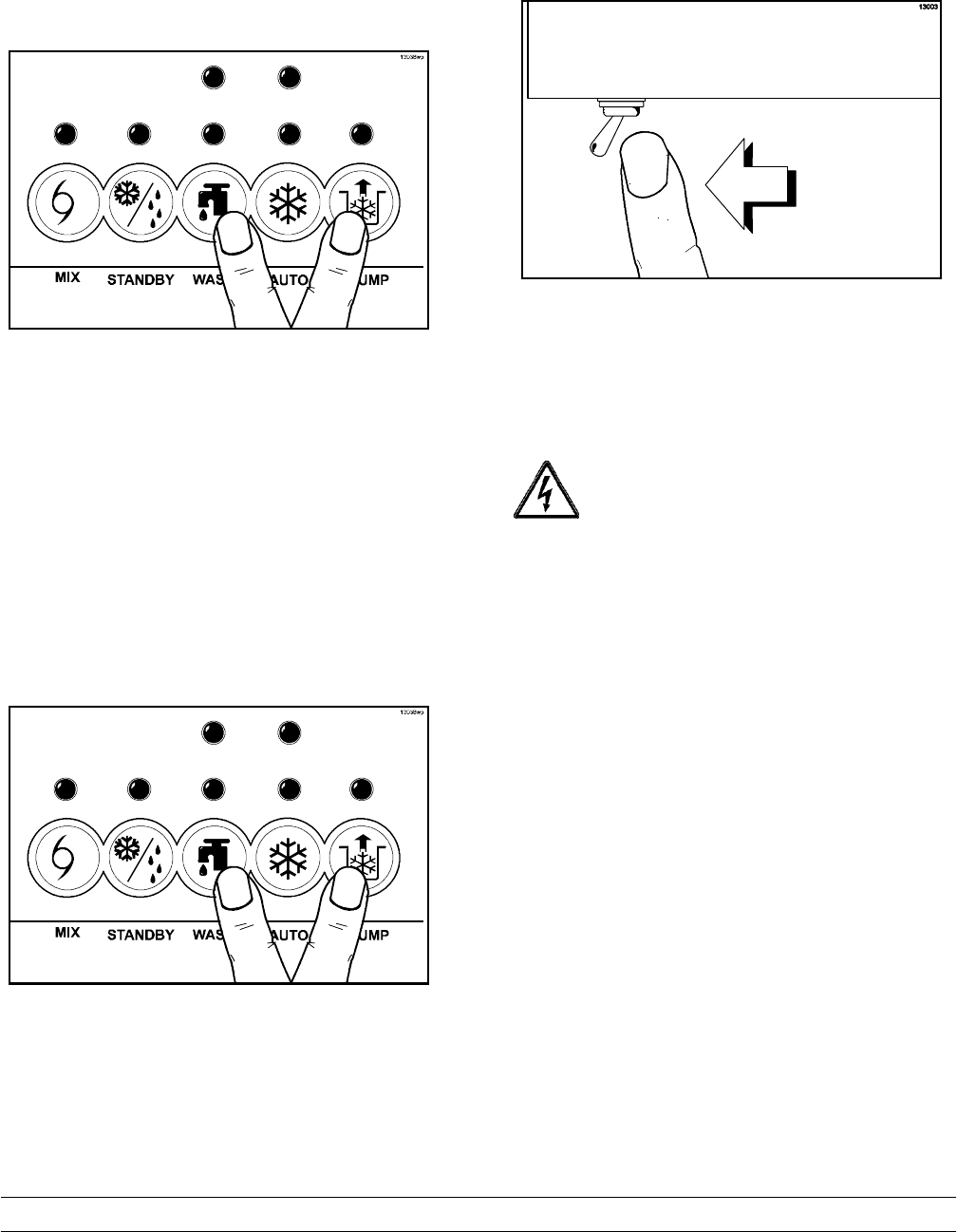

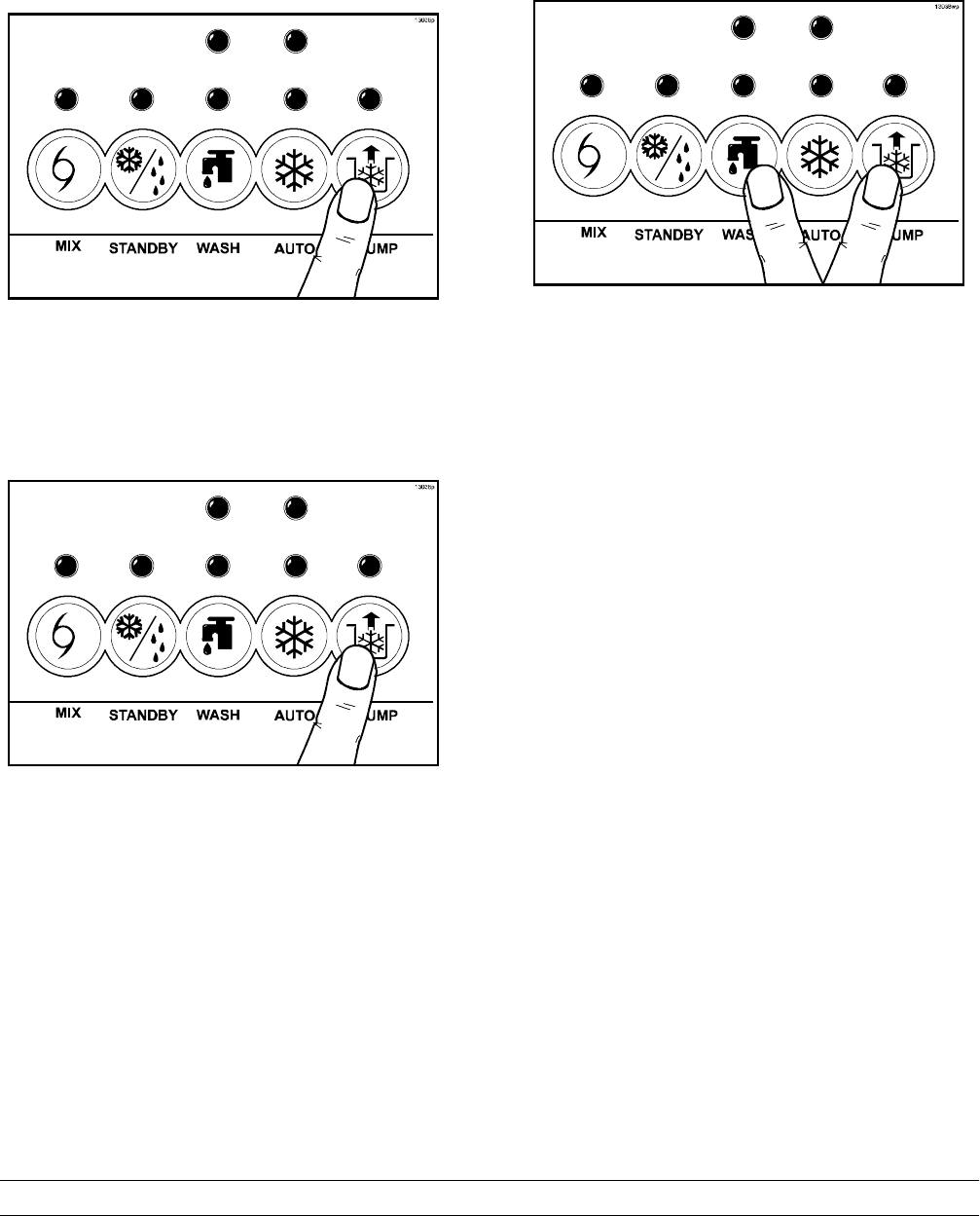

Press the WASH and PUMP keys. The indicator

lights will illuminate, indicating pump and beater

motor operation.

Figure 50

Model 8756 Operating Procedures

Step 12

When a steady stream of sanitizing solution is

flowing from the prime plug hole in the bottom of the

freezer door, press the PUMP key. This will

de-activate pump operation. Push down the prime

plug and allow the beater to agitate for 5 minutes.

Figure 51

Step 13

After 5 minutes, open the prime plug. Press the

PUMP key. Open the draw valve and draw off the

remaining sanitizer. Momentarily open the center

draw handle to sanitize the center door spout.

Figure 52

Step 14

When the sanitizer stops flowing from the door

spout, close the draw valve. Press the WASH and

PUMP keys to stop operation.

Figure 53

Step 15

Disconnect the pressure line from the pressure

switch. Drain the sanitizer. Reconnect the pressure

line to the pressure switch.

Repeat these steps for the second freezing

cylinder.

Step 16

Prepare a sink with an approved sanitizing solution

(examples: Stera SheenRor Kay-5R). USE WARM

WATER AND FOLLOW THE MANUFACTURER'S

SPECIFICATIONS.

Step 17

Take the following parts to the sink and sanitize:

mix tanks, mix tank covers, mix probes, mix storage

covers, and funnels.

28 Model 8756Operating Procedures

Priming

Step 1

Place the mix tank and the cover in the mix cabinet.

Step 2

Insert the prongs of the mix probe inside the mix

tank. Connect the mix probe in the socket

receptacle.

Figure 54

Step 3

Place the free end of the suction line into the mix

tank.

Figure 55

Step 4

Install the funnel. Fill the mix tank with fresh mix.

Figure 56

Step 5

Remove the funnel and install the mix storage cover.

Close the mix cabinet door.

Step 6

Place an empty pail beneath the door spout and

open the draw valve. With the prime plug still in the

UP position, press the PUMP key. This will allow the

mix to be pumped through the freezing cylinder and

force out any remaining sanitizer. When full strength

mix is flowing from the door spout, close the draw

valve.

Figure 57

Model 8756 Operating Procedures

Step 7

When a steady stream of mix is flowing from the

prime plug hole in the bottom of the freezer door,

press the PUMP key to stop operation.

Figure 58

Step 8

Once the stream of mix stops flowing from the prime

plug hole, push down the prime plug. Rinse the

prime plug hole area with water. Remove the pail

and discard the mix and sanitizer.

Figure 59

Step 9

Press the AUTO key. The MIX REF indicator will

illuminate to indicate the mix refrigeration system is

operating. The AUTO indicator will illuminate to

indicate that the main refrigeration system is

operating. The PUMP indicator will illuminate to

indicate that the air/mix pump will operate whenever

mix is needed in the freezing cylinder.

Figure 60

Repeat these steps for the other side of the

freezer.

When the unit cycles off, the product will be at the

correct viscosity.

Note: Keep the mix cabinet door closed except

when filling the mix tank and during cleaning and

sanitizing procedures. Leaving the door open while

the mix refrigeration system is active may cause the

evaporator to ice up and impair the mix cabinet

refrigeration.

Closing Procedure

To disassemble the Model 8756, the following items

will be needed:

STwo cleaning and sanitizing pails

SNecessary brushes (provided with freezer)

SCleaner

SSingle service towels

30 Model 8756Operating Procedures

Draining Product From the

Freezing Cylinder

Step 1

Press the AUTO and MIX REF keys to cancel

freezer operation.

Step 2

Open the mix cabinet door and remove the mix

storage cover, the mix tank cover, the mix tank, and

the mix probe.

Step 3

If local health codes permit the use of rerun,

empty the mix from the mix tank into a sanitized,

NSF approved stainless steel rerun container. Place

a sanitized lid on the rerun container and place it in

the walk-in cooler.

Note: If local health codes DO NOT permit the

use of rerun, the product must be discarded.

Step 4

Placethesuctionlineinanemptypailinthemix

cabinet.

Repeat these steps for the second freezing

cylinder.

ALWAYS FOLLOW LOCAL HEALTH CODES.

Rinsing

Step 1

Fill the empty pail in the mix cabinet with two gallons

(7.6 liters) of cool, clean water. Place the free end

of the suction line in the pail of water.

Step 2

Disconnect the pressure line from the pressure

switch and place it in the pail of water.

Step 3

Press the PUMP key. This action will cause the

rinse water to be pumped through the air/mix pump

and out through the pressure line. After

approximately 15 seconds, press the PUMP key to

stop operation.

Figure 61

Step 4

Drain and connect the free end of the pressure line

to the pressure switch.

Model 8756 Operating Procedures

Step 5

Place an empty pail beneath the door spout. Raise

the prime plug and press the WASH and PUMP

keys.

Figure 62

Step 6

When a steady stream of rinse water is flowing from

the prime plug hole in the bottom of the freezer door,

open the draw valve and drain all the rinse water.

Step 7

Once the rinse water stops flowing from the door

spout, close the draw valve and press the WASH

and PUMP keys to stop operation.

Figure 63

Step 8

Disconnect the pressure line from the pressure

switch. Drain the water and then reconnect.

Step 9

Repeat this procedure using clean warm water, until

the water being discharged is clear.

Repeat these steps for the second freezing

cylinder.

Cleaning

Step 1

Prepare a pail of approved 100 PPM cleaning solu-

tion (examples: 2-1/2 gal. [9.5 liters] of Kay-5Ror

2 gal. [7.6 liters] of Stera-SheenR). USE WARM

WATER AND FOLLOW THE MANUFACTURER'S

SPECIFICATIONS.

Step 2

Place the pail of cleaning solution inside the mix

cabinet and insert the suction line.

Figure 64

Step 3

Disconnect the pressure line from the pressure

switch and place it in the pail of cleaning solution.

Step 4

Press the PUMP key. This action will cause the

cleaning solution to be pumped through the air/mix

pump and out through the pressure line. After

approximately 15 seconds, press the PUMP key to

stop operation.

Figure 65

Step 5

Drain and connect the free end of the pressure line

to the pressure switch.

32 Model 8756Operating Procedures

Step 6

Place an empty pail beneath the door spout. Raise

the prime plug and press the WASH and PUMP

keys.

Figure 66

Step 7

When a steady stream of solution is flowing from the

prime plug hole in the bottom of the freezer door,

open the draw valve and draw off the remaining

cleaning solution.

Step 8

Once the solution stops flowing from the door spout,

close the draw valve and press the WASH and

PUMP keys to stop operation.

Figure 67

Repeat these steps for the other side of the

freezer.

Step 9

Place the power switch in the OFF position before

disassembling the machine.

Figure 68

Disassembly

MAKE SURE THE POWER SWITCH IS IN

THE “OFF” POSITION. Failure to follow this

instruction may result in electrocution or injury to

fingers or hands from hazardous moving parts.

Step 1

Remove the handscrews, freezer door, beaters,

shoes, scraper blades and the drive shafts from the

freezing cylinders. Take these parts to the sink for

cleaning.

Step 2

Remove the air/mix pump. Unscrew the flare line

from the mix inlet tube. Disengage the pressure line

from the pressure switch and the mix inlet tube. Pull

the retaining pin out of the pump collar and slide the

collar down. Tilt the air/mix pump away from the

machine and take the entire assembly to the sink for

further disassembly and brush cleaning.

Step 3

Remove the pressure switch cap from the mix

cabinet. Remove the diaphragm from the cap.

Repeat Steps 3 and 4 for the other side of the

freezer.

Step 4

Remove the front drip tray and the splash shield.

Model 8756 Operating Procedures

Brush Cleaning

Step 1

Prepare a sink with an approved cleaning solution

(examples: Kay-5Ror Stera-SheenR). USE

WARM WATER AND FOLLOW THE

MANUFACTURER'S SPECIFICATIONS.

If an approved cleaner other than Kay-5ror

Sterar-Sheen is used, dilute it according to the label

instructions. IMPORTANT: Follow the label

directions. Too STRONG of a solution can cause

parts damage and too MILD of a solution will not

provide adequate cleaning. Make sure all brushes

provided with the freezer are available for brush

cleaning.

Step 2

Remove the seals from the drive shafts.

Step 3

Remove the scraper blade clips from the scraper

blades.

Step 4

From the freezer doors, remove the gaskets, front

bearings, pivot pins, draw handles, draw valves,

prime plugs, and design caps. Remove all o-rings.

Note: To remove the o-rings, use a single service

towel to grasp the o-ring. Apply pressure in an

upward direction until the o-ring pops out of its

groove. With the other hand, push the top of the

o-ring forward. It will roll out of the groove and can

be easily removed. If there is more than one o-ring

to be removed, always remove the rear o-ring first.

This will allow the o-ring to slide over the forward

rings without falling into the open grooves.

Step 5

Remove the flare lines, the suction lines, the

retaining pins and the mix inlet fittings from the

pump cylinders. Remove the liquid valve bodies

from the pump cylinders.

Remove the pistons from the pump cylinders.

Remove all o-rings and check bands.

Step 6

Return to the freezer with a small amount of

cleaning solution. Use the black bristle brush to

brush clean the rear shell bearings at the back of the

freezing cylinders.

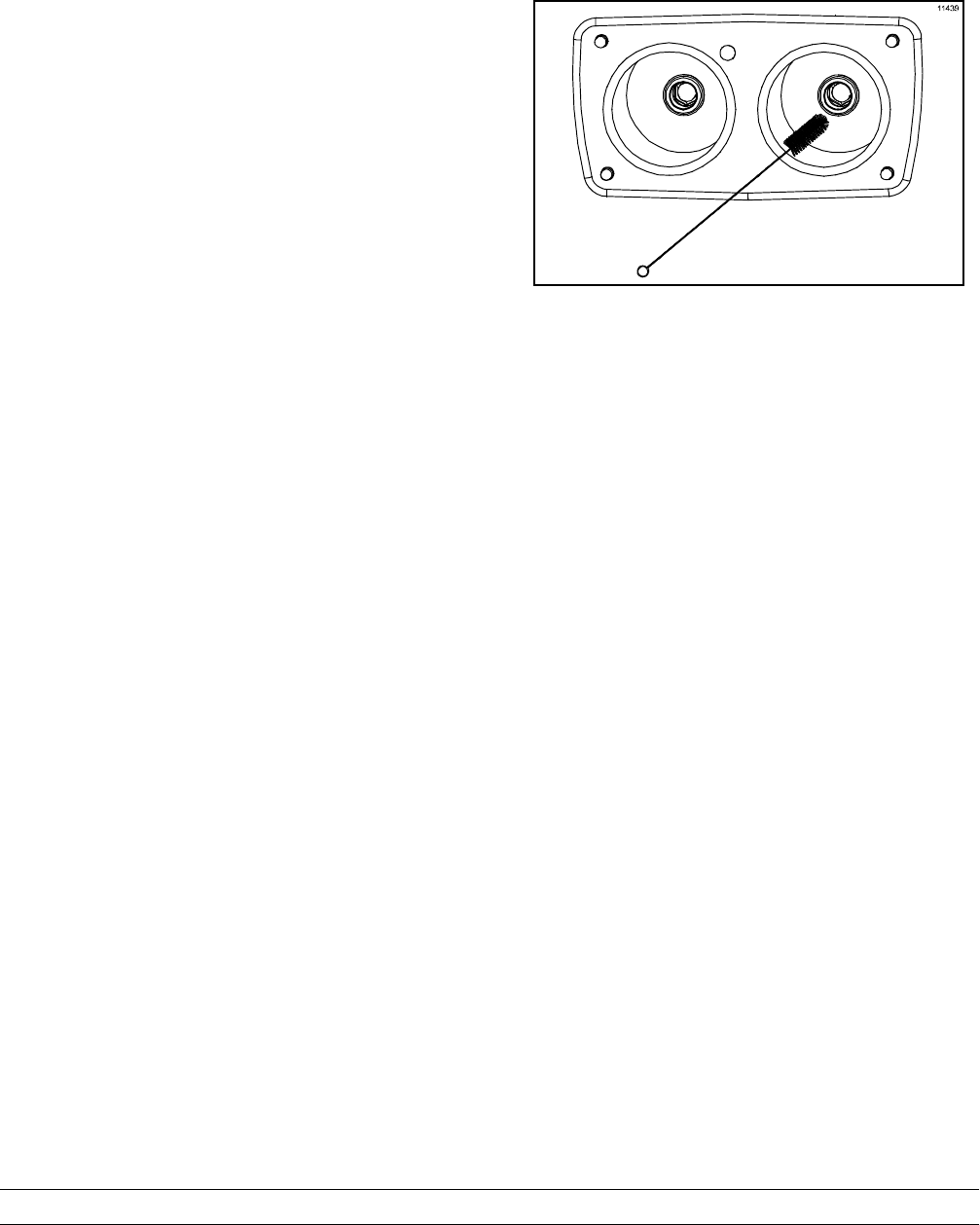

Figure 69

Step 7

Using the long, flexible brush and cleaning solution,

clean the mix inlet tubes located in the mix cabinet.

Thoroughly clean the tubes all the way up to the

freezing cylinder. This area needs special attention

because bacteria and milkstone can build up here.

Step 8

Remove the rear drip pan from the side panel and

take it to the sink for cleaning.

Note: If the rear drip pan is filled with an excessive

amount of mix, refer to the Troubleshooting Guide.

Step 9

Thoroughly brush clean all disassembled parts in the

cleaning solution. Make sure all lubricant and mix

film is removed. Take particular care to brush clean

the draw valve cores in the freezer door.

Step 10

Place the parts on a clean, dry surface to air dry

overnight.

Step 11

Wipe clean all exterior surfaces of the freezer and

the mix cabinet.

34 Model 8756Important: Operator Checklist

Section 7 Important: Operator Checklist

During Cleaning and Sanitizing

ALWAYS FOLLOW LOCAL HEALTH CODES.

Cleaning and sanitizing schedules are governed

by federal, state, or local regulatory agencies,

and must be followed accordingly. If the unit

has a “Standby mode”, it must not be used in

lieu of proper cleaning and sanitizing

procedures and frequencies set forth by the

ruling health authority. The following check

points should be stressed during the cleaning

and sanitizing operations.

CLEANING AND SANITIZING MUST BE

PERFORMED DAILY.

Troubleshooting Bacterial Count

j1. Thoroughly clean and sanitize the machine

regularly, including complete disassembly and

brush cleaning.

j2. Use all brushes supplied for thorough

cleaning. The brushes are specially designed

to reach all mix passageways.

j3. Use the long white bristle brush to clean the

mix feed tube which extends from the mix

reservoir to the rear of the freezing cylinder.

j4. Use the black bristle brush to thoroughly

clean the rear shell bearing located at the rear

of the freezing cylinder. Be sure there is a

generous amount of cleaning solution on the

brush.

j5. Properly prepare the cleaning and sanitizing

solutions. Read and follow the label directions

carefully. Too strong of a solution may

damage the parts and too weak of a solution

will not do an adequate job of cleaning or

sanitizing. Sanitize the freezing cylinder for 5

minutes.

j6. The temperature of the mix in the mix cabinet

and the walk-in cooler should be below 38_F

(3.3_C).

Regular Maintenance Checks

j1. Replace scraper blades that are bent,

damaged or worn.

j2. Before installing the beater, be certain that the

scraper blades are properly attached over the

pins and the beater assembly is straight.

j3. Check the rear shell bearing for signs of wear

(excessive mix leakage in the rear drip pan)

and be certain it is properly cleaned.

j4. Using a screwdriver and cloth towel, keep the

rear shell bearing and the female hex drive

socket clean and free of lubricant and mix

deposits.

j5. Dispose of o-rings and seals if they are worn,

torn, or fit too loosely, and replace with new

ones.

j6. Follow all lubricating procedures as outlined in

“Assembly”.

Model 8756 Important: Operator Checklist

j7. If your machine is air cooled, check the

condensers for accumulation of dirt and lint.

Dirty condensers will reduce the efficiency

and capacity of the machine. Condensers

should be cleaned monthly with a soft brush.

Never use screwdrivers or other metal probes

to clean between the fins.

Note: For machines equipped with an air

filter, it will be necessary to vacuum the filters

on a monthly schedule.

j8. Your machine is equipped with an auxiliary

refrigeration system. Check the auxiliary

condenser for accumulation of dirt and lint.

Dirty condensers will reduce the refrigeration

capacity of the mix cabinet. Condensers must

be cleaned monthly with a soft brush. Never

use screwdrivers or other metal probes to

clean between the fins.

j9. On water cooled units, check the water lines

for kinks or leaks. Kinks can occur when the

machine is moved back and forth for cleaning

or maintenance purposes.

The Air/Mix Pump

j1. Dispose of the o-rings, the check bands and

the pressure switch diaphragm if they are

worn, torn or fit too loosely. Replace them

with new ones.

j2. Follow lubricating procedures carefully.

Never lubricate check bands.

j3. Handle plastic pump parts with care to avoid

nicks and cracks.

j4. Be sure the pressure line is securely attached

to the pressure switch.

j5. Clean, sanitize, and lubricate the pressure

switch diaphragm daily.

j6. Be sure the air/mix pump is properly aligned

with the face plate of the motor reducer or

severe and costly damage may occur.

36 Model 8756Troubleshooting Guide

Section 8 Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

1. No product is being

dispensed. a. Low on mix. The MIX

OUT light is on. a. Add mix to the mix tank

and press the AUTO key. 28

b. The power switch is in the

OFF position. b. Place the power switch in

the ON position and press

the AUTO key.

---

c. The beater motor is out on

reset. c. Reset the freezer. 13

d. Insufficient mix in the

freezing cylinder. d. Refer to problem #2. ---

e. Restriction in the door

spout. e. Disassemble and clean

the freezer. Never put

objects or fingers in the

door spout.

---

f. Machine is unplugged. f. Plug machine into the wall

receptacle. ---

g. Circuit breaker is off or the

fuse is blown. g. Turn the breaker on or

replace the fuse. ---

h. The mix probe was not

installed properly or was

damaged.

h. Check the mix probe

installation. 28

i. The beater assembly is

rotating counterclockwise. i. Contact a service

technician to correct the

rotation to clockwise.

---

2. Insufficient mix in the

freezing cylinder. a. Suction line is not fully

submerged in the mix. a. Arrange the suction line

so the weighted end is

fully submerged.

b. Improper seal of suction

line to the mix inlet fitting. b. Remove the suction line

from the mix inlet fitting.

Place under hot running

water, allow tubing to

swell, then cool. Connect

suction line to barbed

fitting. Eventual

replacement will be

necessary.

---

c. Worn or defective check

bands or o-rings in air/mix

pump assembly.

c. Replace regularly. Never

lubricate check bands. 21 / 41

Model 8756 Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

2. Insufficient mix in the

freezing cylinder. (Cont'd.) d. Missing, defective, or no

lubrication on the mix inlet

fitting o-ring.

d. Replace or evenly

lubricate the o-ring on the

mix inlet fitting.

23 / 41

e. The pump motor is not

activated. e. Place power switch in

OFF position. Push reset

button on pump drive

motor. Return power

switch to ON position.

Press the AUTO key.

---

f. Pressure switch

diaphragm installed

incorrectly, or missing.

f. Diaphragm must be

correctly installed in the

pressure switch cap.

g. The mix inlet tube is

frozen or clogged. g. Use the long flexible brush

and sanitizing solution to

clear the restriction in the

mix inlet tube. Contact a

service technician to

correct the cause of

over-refrigeration in the

mix cabinet.

---

h. The mix pump ball crank

is broken. h. Contact a service

technician to replace the

ball crank.

---

i. Defective air/mix pump

pressure switch. i. Contact a service

technician to replace the

pressure switch.

---

3. Product is too stiff. a. Insufficient mix in the

freezing cylinder. a. Refer to problem #2.

b. Improper priming

procedures. b. Drain the freezing cylinder

and reprime the machine. 28

c. Out-of-date mix. c. Use fresh mix. 28/ 41

d. Viscosity control is set too

cold. d. Contact a service

technician. ---

38 Model 8756Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

4. Product is too soft. a. Worn scraper blades. a. Replace scraper blades

regularly. 41

b. Dirty condensers or air

filters on air cooled units. b. Clean monthly. 35

c. Inadequate water supply

on water cooled units. c. Check the water supply.

Check water lines for

leaks or kinks.

1/ 35

d. Inadequate air space

around air cooled units. d. Allow adequate room for

air flow across the

condensers. Minimum of

3” (76 mm) clearance on

all sides. Do not obstruct

air discharge on top. 12”

(305 mm) clearance on

top of freezer.

e. Viscosity control is set too

warm. e. Contact a service

technician. ---

5. Mix in the mix cabinet is

too warm. a. Warm mix was placed in

the tank. a. Mix added to the mix tank

should be below 40_F

(4.4_C).

b. The mix cabinet door was

left open. b. The door must be kept

closed. 28

c. The mix cabinet door

gasket is not sealing. c. Repair or replace gasket. ---

d. Dirty mix cabinet

condenser or air filter. d. Clean monthly. 35

e. The mix cabinet

refrigeration system needs

adjustment.

e. Contact a service

technician. ---

6. Mix in the mix cabinet is

too cold. a. The mix cabinet

refrigeration system needs

adjustment.

a. Contact a service

technician. ---

7. Excessive mix leakage

from the bottom of the

door spout.

a. Worn, missing or incorrect

o-ring is on the draw

valve.

b. Check the o-rings.

(Replace every 3 months.) 41

b. Improper lubrication on

the draw valve o-rings. c. Lubricate properly. 19

Model 8756 Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

8. Excessive mix leakage

into the rear drip pan. a. Worn or missing drive

shaft seal. a. Install or replace the seal. 16/ 41

b. Improper lubrication of the

drive shaft. b. Lubricate properly. 16

c. Worn rear shell bearing. c. Contact a service

technician to replace the

rear shell bearing.

---

d. The gear box is out of

alignment. d. Contact a service

technician to align the

gear box.

---

9. The drive shaft is stuck in

the gear box coupling. a. Rounded corners on hex

end of drive shaft or gear

coupling.

a. Replace damaged

component. ---

b. The gear box is out of

alignment. b. Contact a service

technician to align the

gear box.

---

10. Freezing cylinder walls are

scored. a. Broken pins on beater

assembly. a. Repair or replace the

beater assembly. Be sure

the scraper blades are

properly seated on pins.

b. Missing front bearing. b. Install the front bearing on

the back of the freezer

door.

c. The beater assembly is

bent. c. Repair or replace the

beater assembly. Contact

a service technician to

correct the cause of

insufficient mix in freezing

cylinder.

---

11. The air/mix pump does

not operate. a. The pump motor is not

activated. a. Place power switch in

OFF position. Push reset

button on pump drive

motor. Place power switch

in ON position.

---

b. The pressure switch

diaphragm was installed

incorrectly or is missing.

b. The diaphragm must be

correctly installed in the

pressure switch cap.

c. Defective air/mix pump

pressure switch. c. Contact a service

technician to replace the

pressure switch.

---

40 Model 8756Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

12. The machine will not

operate in the AUTO

mode.

a. The machine is

unplugged. a. Plug the machine into the

wall receptacle. ---

b. The circuit breaker is off

or the fuse is blown. b. Turn the breaker on or

replace the fuse. ---

c. Low on mix. The MIX

OUT light is flashing. c. Add mix to the mix tank

and press the AUTO key. 13

d. The mix probe is not

installed properly or is

damaged.

d. Check the mix probe

installation. 28

e. The beater motor is out on

reset. e. Reset the freezer. 13

f. The power switch is in the

OFF position. f. Place the power switch in

the ON position. 25

g. The unit is off on high

head pressure. g. Air cooled: clean the

condenser.

Water cooled: check the

water supply. Contact a

service technician.

13. Overrun is too low. a. The air orifice is plugged. a. Use a soap solution to

clean the small hole in the

air orifice.

---

14 Air is “popping” during the

dispensing of product. a. Incorrect assembly of the

air/mix pump. a. Assemble and lubricate

the air/mix pump

components according to

instructions.

b. The mix suction line is

losing its prime. b. The mix suction line is

cracked or has a loose fit

to the mix inlet fitting.

Replace the mix suction

line.

---

Model 8756 Parts Replacement Schedule

Section 9 Parts Replacement Schedule

PART DESCRIPTION EVERY 3 MONTHS EVERY 6 MONTHS ANNUALLY

Scraper Blades X

Drive Shaft Seal X

Freezer Door Gasket X

Front Bearing X

Beater Shoes X

Draw Valve O-Rings X

Prime Plug O-Rings X

Air/Mix Pump O-Rings X

Check Rings X

Mix Inlet Fitting O-Ring X

Pressure Switch Diaphragm X

Design Cap X

Black Bristle Brush, 1” x 2” Inspect & Replace

if Necessary Minimum

Double Ended Brush Inspect & Replace

if Necessary Minimum

White Bristle Brush, 1” x 2” Inspect & Replace

if Necessary Minimum

White Bristle Brush, 9/16” x 44” Inspect & Replace

if Necessary Minimum

White Bristle Brush, 3” x 7” Inspect & Replace

if Necessary Minimum

Small White Bristle Brush, 1/8” Inspect & Replace

if Necessary Minimum

Brush Set Inspect & Replace

if Necessary Minimum

42 Model 8756Limited Warranty on Equipment

131220

Section 10 Limited Warranty on Equipment

TAYLOR COMPANY LIMITED WARRANTY ON FREEZERS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited

warranty on new Taylor-branded freezer equipment available from Taylor to the market generally (the “Product”)

to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Product against failure due to defect in materials or workmanship under normal use and

service as follows. All warranty periods begin on the date of original Product installation. If a part fails due to

defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency,

will provide a new or re-manufactured part, at Taylor’s option, to replace the failed defective part at no charge for

the part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited warranty

for a Product failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed

below and on the reverse (if any) of this document.

Product Part Limited Warranty Period

Soft Serve

Frozen Yogurt

Shakes

Smoothies

Frozen Beverage

Batch Desserts

Insulated shell assembly Five (5) years

Refrigeration compressor

(except service valve) Five (5) years

Beater motors Two (2) years

Beater drive gear Two (2) years

Printed circuit boards and

Softech controls beginning

with serial number H8024200

Two (2) years

Parts not otherwise listed in

this table or excluded below One (1) year

LIMITED WARRANTY CONDITIONS

1. If the date of original installation of the Product cannot be verified, then the limited warranty period begins

ninety (90) days from the date of Product manufacture (as indicated by the Product serial number). Proof of

purchase may be required at time of service.

2. This limited warranty is valid only if the Product is installed and all required service work on the Product is

performed by an authorized Taylor distributor or service agency, and only if genuine, new Taylor parts are

used.

3. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in

the Taylor Operator’s Manual.

4. Defective parts must be returned to the authorized Taylor distributor or service agency for credit.

5. The use of any refrigerant other than that specified on the Product’s data label will void this limited warranty.

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not cover:

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of

defective parts, replacement parts, or new Products.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning

of condensers.

Model 8756 Limited Warranty on Equipment

3. Replacement of wear items designated as Class “000” parts in the Taylor Operator’s Manual.

4. External hoses, electrical power supplies, and machine grounding.

5. Parts not supplied or designated by Taylor, or damages resulting from their use.

6. Return trips or waiting time required because a service technician is prevented from beginning warranty

service work promptly upon arrival.

7. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,

unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including

but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning

supplies.

8. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake

or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,

accident or condition beyond the reasonable control of Taylor; operation above or below the electrical or

water supply specification of the Product; or components repaired or altered in any way so as, in the

judgment of the Manufacturer, to adversely affect performance, or normal wear or deterioration.

9. Any Product purchased over the Internet.

10. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the

inadequacy or interruption of electrical service.

11. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

12. Damages resulting from the use of any refrigerant other than that specified on the Product’s data label will

void this limited warranty.

13. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

14. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY

NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential

damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from

jurisdiction to jurisdiction.

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS

AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER'S SOLE

REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE

COMPONENTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL

OR INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,

PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS

WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED

BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or

complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other

correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or

remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, USA

44 Model 8756Limited Warranty on Parts

131220

Section 11 Limited Warranty on Parts

TAYLOR COMPANY LIMITED WARRANTY ON TAYLOR GENUINE PARTS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited

warranty on new Taylor genuine replacement components and parts available from Taylor to the market generally

(the “Parts”) to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service

as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails

due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service

agency, will provide a new or re-manufactured Part, at Taylor’s option, to replace the failed defective Part at no

charge for the Part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited

warranty for a Part failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions

listed below and on the reverse (if any) of this document.

Part's Warranty Class Code or Part Limited Warranty Period

Class 103 Parts¹ Three (3) months

Class 212 Parts² Twelve (12) months

Class 512 Parts Twelve (12) months

Class 000 Parts No warranty

Taylor Part #072454 (Motor-24VDC *C832/C842*) Four (4) years

LIMITED WARRANTY CONDITIONS

1. If the date of original installation of the Part cannot be otherwise verified, proof of purchase may be required

at time of service.

2. This limited warranty is valid only if the Part is installed and all required service work in connection with the

Part is performed by an authorized Taylor distributor or service agency.

3. The limited warranty applies only to Parts remaining in use by their original owner at their original installation

location in the unit of original installation.

4. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in

the Taylor Operator’s Manual.

5. Defective Parts must be returned to the authorized Taylor distributor or service agency for credit.

6. This warranty is not intended to shorten the length of any warranty coverage provided pursuant to a separate

Taylor Limited Warranty on freezer or grill equipment.

7. The use of any refrigerant other than that specified for the unit in which the Part is installed will void this

limited warranty.

1, 2 Except that Taylor Part #032129SER2 (Compressor-Air-230V SERV) and Taylor Part #075506SER1

(Compressor-Air-115V 60HZ) shall have a limited warranty period of twelve (12) months when used in Taylor

freezer equipment and a limited warranty period of two (2) years when used in Taylor grill equipment.

Model 8756 Limited Warranty on Parts

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not cover:

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of

defective Parts, replacement Parts, or new Parts.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning

of condensers or carbon and grease buildup.

3. Required service, whether cleaning or general repairs, to return the cooking surface assemblies, including

the upper platen and lower plate, to an operational condition to achieve proper cooking or allow proper

assembly of release sheets and clips as a result of grease build-up on the cooking surfaces, including but

not limited to the platen and plate, sides of the shroud or top of the shroud.

4. Replacement of cooking surfaces, including the upper platen and lower plate, due to pitting or corrosion (or

in the case of the upper platen, due to loss of plating) as a result of damage due to the impact of spatulas or

other small wares used during the cooking process or as a result of the use of cleaners, cleaning materials

or cleaning processes not approved for use by Taylor.

5. Replacement of wear items designated as Class “000” Parts in the Taylor Operator’s Manual, as well as any

release sheets and clips for the Product’s upper platen assembly.

6. External hoses, electrical power supplies, and machine grounding.

7. Parts not supplied or designated by Taylor, or damages resulting from their use.

8. Return trips or waiting time required because a service technician is prevented from beginning warranty

service work promptly upon arrival.

9. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,

unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including

but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning

supplies.

10. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake

or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,

accident or condition beyond the reasonable control of Taylor; operation above or below the gas, electrical or

water supply specification of the unit in which a part is installed; or Parts or the units in which they are

installed repaired or altered in any way so as, in the judgment of Taylor, to adversely affect performance, or

normal wear or deterioration.

11. Any Part purchased over the Internet.

12. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the

inadequacy or interruption of electrical service.

13. Electricity, gas or other fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

14. Damages resulting from the use of any refrigerant other than that specified for the unit in which the Part is

installed will void this limited warranty.

15. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

16. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY

NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential

damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from

jurisdiction to jurisdiction.

46 Model 8756Limited Warranty on Parts

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS

AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER'S SOLE

REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE

PARTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL OR

INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,

PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS

WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED

BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or

complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other

correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, USA

Section 12 Parts List

Model 8756 Parts List

+ Available Separately

DESCRIPTION PART

NUMBER QTY. WARR.

CLASS REMARKS

ADAPTOR-PUMP-CABINET 024259 2103

BEARING-REAR SHELL-NICKEL 031324 2000

+GUIDE-DRIP SEAL 028992 2000

+NUT-BRASS BEARING 028991 2000

+WASHER-BEARING LOCK 012864 2000

BEATER A.-3.4QT-1 PIN-SUPPORT X46231 2103

+BLADE-SCRAPER-PLASTIC 046235 4000

+CLIP-SCRAPER BLADE 046236 4103

BEARING-FRONT-SHOE 050348 --> 000 ORDER X50350 SHOE KIT

BELT-AX36 022849 4000

BLOCK-TERMINAL 039423 4103 208-230V 60HZ 3PH

BLOWER A.-STANDARD OUTPUT X53725-27 1103

CAPACITOR-RUN 7.5UF/370V 034749 1103

BOOT-CAPACITOR-INSULATING 031314 1000

MOTOR-FAN 208-230V 50/60 HZ 053481-27 1103

BOARD-LOGIC-GEN X36641SER2 2212

BOARD-POWER-GEN 1 & 2 X32326-SER 2212

BOOT-PRESSURE SWITCH 032624 2000

BRACKET A.-RESET BUTTON X22004 2103

+PIN-PIVOT 013592 2103

+EYELET-RESET BUTTON 013739 2103

BRUSH-REAR BRG 1“ D X 2” LONG X 14 013071 1000

BRUSH-DOUBLE ENDED 013072 1000

BRUSH-DRAW VALVE 1" OD X 2" X 17" L 013073 1000

BRUSH-FEED TUBE 9/16 OD 021101 1000

BRUSH-MIX PUMP BODY-3" X 7" WHITE 023316 1000

BRUSH-PRESSURE SWITCH 027647 2000

BRUSH-SET 050103 1000

CABLE A.-2 COND-24 IN-PUSH ON X34464 1000

CABLE-RIBBON-POWER/RELAY-18 IN 032444 2103

Parts List Model 8756

+ Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

CAP-DESIGN-1.010"ID-6 POINT 014218 3000

CAP-PUMP 021276-9 2103

CASTER-SWV-3/4-10 ST. 3IN WHEEL 021279 2103

CASTER-3" SWV 3/4-10 STM W/BRAKE 030307 2103

COMPRESSOR L63A113DBLA 048259-33 2512 208-230V 60HZ 3PH - 3

COMPRESSOR AEA0415ZXD-AE580ET 048627-27 1512 MIX CABINET 208-230V 60HZ 1PH & 208-230V 60HZ 3PH

+CAPACITOR-RUN 7.5UF/370V 034749 1103

+RELAY-START-COMPRESSOR 050106-27 1103

CONTROL A.-LOW VOLTAGE PUMP X65954 1103

+BRACKET-PUMP CIRCUIT MOUNT 065955 1103

+RELAY-DPDT-24VAC-30A@277V 054703-03 1103 LOW VOLTAGE CONTROL PUMP

+TRANS.-CONT.-ANTICIPATOR 20 016352-27 1103 LOW VOLTAGE CONTROL PUMP

CONDENSER-AC-18LX14H-4ROW - NEW 050104 2103 MAIN

CONDENSER-AC-9X8 -2 ROW 029797 1103 MIX CABINET

COUPLING-DRIVE 3/4 HEX X 1-7/8 012721 2103

+SCREW-5/16-18 X 5/16 ALLEN SET 042511 4000

COVER-PUMP CONTROL 065956 2000

COVER-MIX TANK 024590 1103

COVER-MIX STORAGE-LEFT 037138 1103

COVER- MIX STORAGE-RIGHT 037139 1103

+BOOT-MIX COVER 037200 2000

COMPRESSOR L63A113BBC2 (BRISTOL-OLD) 048259-27 *512 MAIN - 8752-PRIOR TO J9066372

+CAPACITOR-RUN 20UF/440V 012906 *103 8756-PRIOR TO J9013732 - 230-60-1

+CAPACITOR-START - 161-193UF/250V 031790 *103 230-60-1 - BRISTOL

+RELAY-START COMPRESSOR 038145 *103 230-60-1 - BRISTOL

COMPRESSOR CS18K6E-PFV (COPELAND) 052397- *512 MAIN - 8752-J9066372/UP, 8756-J9013732/UP

+CAPACITOR-RUN- 35UF-370V 029439 *103 230-60-1

+CAPACITOR-START-216-259UF-250V 031304 *103 230-60-1

+RELAY-START-COMPRESSOR 052401-27 *103 230-60-1

+KIT-MOUNTING-COMPRESSOR 052197 *000

DECAL-DEC-TAYLOR-TWIN-SS-CABINET 032424 1000

Model 8756 Parts List

+ Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

DECAL-DOOR-3 SPOUT-TWIN TWIST 021521 1000

DECAL-INST-CLN-CAB 024735 1000

DECAL-MIX TANK-WRONG 038750 2000

DECAL-TROUBLESHOOT 038374 1000

DIAGRAM-WIRING 037807-33 1000

DOOR A.-3 SPOUT X51532-12 1103

DECAL-DOOR-3 SPOUT-TWIN TWIST 021521 1000

+GASKET-DOOR-4" SHELL 048926 2000

+HANDLE A.-DRAW ADJUSTABLE X55096 3103

+O-RING-1/4 OD X .070 W 50 015872 3000

+SCREW-ADJUSTMENT-STAINLESS 033662 3000

+NUT-5/16-24 18-8 SS JAM 029639-BLK 3000

+KIT A.-BEATER-FRONT SHOES X50350 2000

BEARING-FRONT-SHOE 050348 2000

SHOE-FRONT HELIX *REAR* 050346 2000

SHOE-FRONT HELIX *FRONT* 050347 2000

+PLUG-PRIME 028805 2103

+O-RING-3/8 OD X .070W 016137 4000 PRIME PLUG

+ROD A.-PIVOT X22388 1103 SHORT

+O-RING-5/16 OD X .070W 016272 2000 PIVOT ROD

+ROD A.-PIVOT X22387 1103 LONG

+O-RING-5/16 OD X .070W 016272 2000 PIVOT ROD

+VALVE A.-DRAW X18303 2103

+O-RING-7/8 OD X .103W 014402 5000 DRAW VALVE

DOOR A.-INS.MIX X24816 1103

DRYER-CAP. TUBE 049346 1000 MIX CABINET

DRYER-FILTER 048901 2000 MAIN

DVD-OPS TRAIN VIDEO 038417-DVD 1000

EVAPORATOR-12L X 4H X 1-7/8T X30939 1103 MIX CABINET

FASTENER-CLIP 1/4-20 U TYPE 8 045865 8000 PANELS

FITTING DOOR INTERLOCK 065471 1103

Parts List Model 8756

+ Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

FITTING-INLET 013087 2103

FUNNEL-MIX 036637 2103

FUSE-15 AMP CARTRIDGE 027582 4000

FUSE-.063A-250V-5X20MM 051272 2103

FUSE-15 AMP CARTRIDGE 027582 2000

GASKET-CAB MIX DOOR 024629 1000

GASKET-DOOR HT 4"-DOUBLE 048926 2000

GEAR A.*REDUCER 021286-SER 2212

GUARD-FAN 028534-1 2103 MIX CABINET

GUIDE A.-DRIP PAN X28628 1103

HARNESS A.-TRANS/RELAY 068529-27 1

HINGE A.-MOTOR X25736 2103

HINGE-SELF CLOSING DOOR 020143 1103

+BEARING A.-HINGE X20305 1000

+CAP-DOOR 032934 1000

+PIN A.-UPPER HINGE X20315 1103

+PLATE-LOWER HINGE 020323 1103

+SPACER-HINGE 020741 2000

+SHIM-DOOR 036023 2103

+SUPPORT A.-HINGE X32521 1103

HOLDER-FUSE 300 VOLT PANEL MOUNT 027581 4103

HOOD 048526 1103

KIT A.-BEATER-FRONT SHOES X50350 1000

KIT A.-MOTOR-FAN X62253-27 2103 MIX CABINET

KIT A.-TUNE UP-3 SPOUT-CAB X49463-2 1000

DIAPHRAGM-PRESSURE SWITCH 020249 2

KIT A.-BARREL *TWIN SS X56200-6 1

CAP-DESIGN 1.010"ID-6 POINT 014218 3

O-RING-7/8 OD X .103W 014402 7

O-RING-5/16 OD X .070W 016272 2

SEAL-DRAW VALVE 034698 1

Model 8756 Parts List

+ Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

KIT A.-DRAW VALVE *TWIN SS* X56200-3 1

GASKET-DOOR HT 4"-DOUBLE 048926 2

SEAL-DRIVE SHAFT 032560 2

KIT A.-BEATER-FRONT SHOES X50350 2

BEARING-FRONT-SHOE 050348 2

SHOE-FRONT HELIX *FRONT* 050347 2

SHOE-FRONT HELIX *REAR* 050346 2

O-RING-13/16 OD X .139W 021278 2

O-RING-1-3/8 OD X .103W-#123 018664 2

O-RING-2-1/8 OD X .139W-#225 020051 6

O-RING-3/8 OD X .070W 016137 4

POPPET-RUBBER-BLACK 022473 2

RING-CHECK 1-1/4 OD X 3/8 033215 2

RING-CHECK 2 IN OD X 1/2 020050 4

TOOL-O-RING REMOVAL-FREEZER 048260-WHT 1

LABEL-CHECK MOTOR ROTATATION 020090 1000 208-230V 60HZ 3PH

LABEL-DOOR-WARNING-MOVING PARTS 032749 1000

LABEL-WARNING-COVER 051433 7000

LABEL-SWITCH-POWER-OFF/ON 052632 1000

LINE A.-PUMP PRESSURE X27139 2103

FERRULE-3/8 OD BRASS 030553 4000

SOCKET-QD. 3/16 BARB 020021 4103

TUBE-VINYL 3/16 ID X 1/16 020940-16 2000 R30314 TUBE-VINYL 3/16IDX5/16OD-100'R

LINE A.-FLARE 15" 038299 2103

LUBRICANT-TAYLOR 4 OZ. 047518 1000 36 TUBES PER CASE

MAN-OPER 8752/8756/8757 028752-M 1000

MOTOR-1.5 HP 021522-33 2212

MOTOR-FAN 95.3 CFM 2700 RPM 062253-27 2103 ORDER X62253-27 KIT A.-MOTOR-FAN KIT A.-MOTOR

+GUARD-FAN 028534-1 2103

MOTOR-FAN 208-230V 50/60 HZ 053481-27 1103 BLOWER

MOTOR-REDUCER 54 RPM-SS 03091327AS 2103

Parts List Model 8756

140814 + Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

NUT-STUD *LONG 034382 2103

NUT-STUD *SHORT 034383 2103

ORIFICE 023425-50 2103

+O-RING-13/16 OD X .103W 019330 2000

PAIL-10 QT. 013163 2000

PAN A.-DRIP X22811 1103 EXPANSION VALVE

PAN-DRIP 17-1/4"LONG 027504 1103

PANEL A.-FRONT X22879 1103

PANEL A.-LOWER SIDE X23956 2103 RIGHT & LEFT

PANEL-LOWER REAR 023598 1103

PANEL-UPPER REAR 022015 1103

PANEL-UPPER SIDE LEFT 028599 1103 HINGED

PANEL-UPPER SIDE RIGHT 028600 1103 HINGED

+WASHER-PLASTIC PIVOT 013808 4000

PIN-RETAINING 021276-8 2103

PLATE A.-DEC. X32138 1103

PLUG-DRIP TRAY HOLE 029595 1000

PLUG-HOLE 1/2 034878 1000

PROBE A.-MIX-W/BALL CONNECTORS X35981 2103 MIX CABINET

PROBE A.-THERMISTOR X31602 2103 BARREL

PROBE A.-THERMISTOR *SHORT* X36267 1103 MIX CABINET

PULLEY-2AK22 X .625-.6265 016403 2103

PULLEY-2AK74-5/8 027822 2103 GEAR

PUMP A.-SOFT SERVE *CABINET* X22345 2103

BODY A.-VALVE X22345-3 2103

CYLINDER A.-PUMP 022345-1 2103

ELBOW-INLET 90 DEG. 022502-4 2103

O-RING-13/16 OD X .139W 021278 2000

O-RING-2-1/8 OD X .139W-#225 020051 6000

PIN-RETAINING 021276-8 2103

PISTON 021276-2 2103

Model 8756 Parts List

+ Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

RING-CHECK 2 IN OD X 1/2 020050 6000

+CAP-PUMP 021276-9 2103

+PIN-RETAINING 021276-8 2103

RELAY-3 POLE-20A-208/240 50/60 066795-33 2103

RELAY-DPDT 100UA TO 7A 1/8HP 052111-03 1103

RELAY-DPDT-24VAC-30A@277V 054703-03 2103

RELAY-MTR START TI#4CR-2-645 042007-34 2103

RELAY-SPST-30 A-240V 032607-27 1103

RELAY-START-COMPRESSOR 050106-27 1103

SANITIZER-STERA SHEEN-GREEN 055492 1000 100/2OZ. PACKETS PER CASE

SANITIZER-STERA SHEEN GREEN 010425 1000 64 OZ. PER JAR

SHAFT-BEATER 032564 2103

+SEAL-DRIVE SHAFT 032560 2000

SHELL A.-INSULATED X24347-SER 1512

STUD-NOSE CONE 068410 4103

SHIELD-SPLASH 23 INCH 022766 1103

SHROUD-CONDENSER *REAR 048517 1103

SHROUD-CONDENSER *TOP 048518 1103

SHROUD-CONDENSER *FRONT 048519 1103

SHROUD A.-EVAPORATOR X49124 1103

SPRING-COMP.970X.115X2.00 025707 4103

SPRING-RETURN RIGHT 023488 1103

SPRING-RETURN LEFT 023487 1103

SPRING-COMP.480X.047X1.00 032651 2103

SPRING-INTERLOCK DOOR 065409 1000

SOCKET A.-PROBE*BALL&SOCK*60IN X36615 2103

CLIP-BALL CONNECTOR 035813 6000

SCREW-5-40 X 1/4 SOCKET CAP SS 037843 6000

STARTER-3 PHASE 4 TO 6.5 AMP 066794-33J 2103

OVERLOAD-THERMAL-3P-4.0/6.5A 067461-3J 2103

STRIP-TOP TRIM 024827 1103

Parts List Model 8756

+ Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

SWITCH A.-DRAW *TWIN TWIST X38921 1103

ARM-SWITCH-DRAW-LEFT 038649 1103

ARM-SWITCH-DRAW-RIGHT 038650 1103

BRACKET A.-SWITCH X38252 1103

E-RING 1/4 032190 2000

PIN-PIVOT-DRAW SWITCH 038484 1103

SPRING-RETURN LEFT 023487 1103

SPRING-RETURN RIGHT 023488 1103

SWITCH A.-DRAW-TWIN TWIST X39269 1103

BRACKET-DRAW SWITCH-TWIN TWIST 039264 1103

SWITCH-LEVER-SPDT-11A-125-277V 039252 2103

SWITCH A.-PRESSURE X32660 2103

ACTUATOR-LEAF TYPE 032653 2000

BODY-PRESSURE SWITCH 032633 2103

CAP-SWITCH-PRESSURE 032635 2103

DIAPHRAGM-PRESSURE SWITCH 020249 2103

O-RING-1/2ID X 5/8 OD 017998 2000

PISTON-PRESSURE SWITCH 032634 2103

SPRING-COMP.480X.047X1.00 032651 2103

SWITCH-PLUNGER-SPDT15A125-25 032260 2103

SWITCH-LEVER-SPDT-11A-125-277V 039252 2103

SWITCH-PLUNGER-SPDT15A125-250V 032260 2103

SWITCH-PRESSURE 440 PSI-SOLDER 048230 2103

SWITCH-TOGGLE-DPDT*ON-NONE-ON 037394 1103 POWER

TANK A.-MIX W/DECALS X38755 2103

DECAL-MIX TANK-WRONG SIDE OUT 038750 2000

TANK-MIX 9-GALLON TAPERED BOTTOM 034928 2103

TOOL-LIQ.VALVE BODY EXTRACTING 035793 1000

TRANS.-240V PR1/24V SEC 10 VA 030132-27 1103

TRANS.-CONT.-ANTICIPATOR 20 016352-27 2103 LOW VOLTAGE CONTROL PUMP

TRAY-DRIP 22-7/8L X 5-1/8W 014533 1103

Model 8756 Parts List

+ Available Separately

DESCRIPTION REMARKSWARR.

CLASS

QTY.PART

NUMBER

TRIM A.-SHELF X24813 1103 BELOW DRIP TRAY

TRIM A.-SIDE X22424 2103

TRIM-BOTTOM MIX DOOR 024826 1103

TRIM-FRONT LEFT 024824-SP 1103

TRIM-FRONT RIGHT 024825 1103

TRIM-REAR CORNER 022013 2103 RIGHT & LEFT

TUBE A.-MIX INLET-SOFT SERVE X23124 2103

+O-RING-13/16 OD X .103W 019330 2000

+SEAL-INLET TUBE 032886 2000

TUBE A.-SUCTION *18 INCH X37293 2103

COUNTERWEIGHT-SUCTION TUBE 020452 2103

TUBE-VINYL 5/8 ID X 1/8 WALL 020945-18 2000

TUBE-VINYL 1/4 ID X 3/8 OD R30312 7' 000

TUBE-VINYL 3/16IDX5/16OD-100'R R30314 3' 000

VALVE A.-ACCESS - CABINET X49653 1103

VALVE A.-DRAW X18303 3103

VALVE-ACCESS 1/4 X 3/8 SOLDER 029406 1103

VALVE-ACCESS 1/4FL X 1/4SOLDER 044404 1103 SUCTION LINE

VALVE-ACCESS 1/4FL X 3/8SOLDER 043232 2103

VALVE-ACCESS-1/4 MFLX1/4 S-90 047016 2103

VALVE-EPR 1/4S 022665 1103 SUCTION LINE

VALVE-EXP-AUTO-1/4S X1/4 FPT 046365 2103

+BOOT-EXPANSION VALVE 050900 2000

WIRE A.-PRESSURE*LONG* X32663 2103 FOR X51985 PRESSURE SWITCH

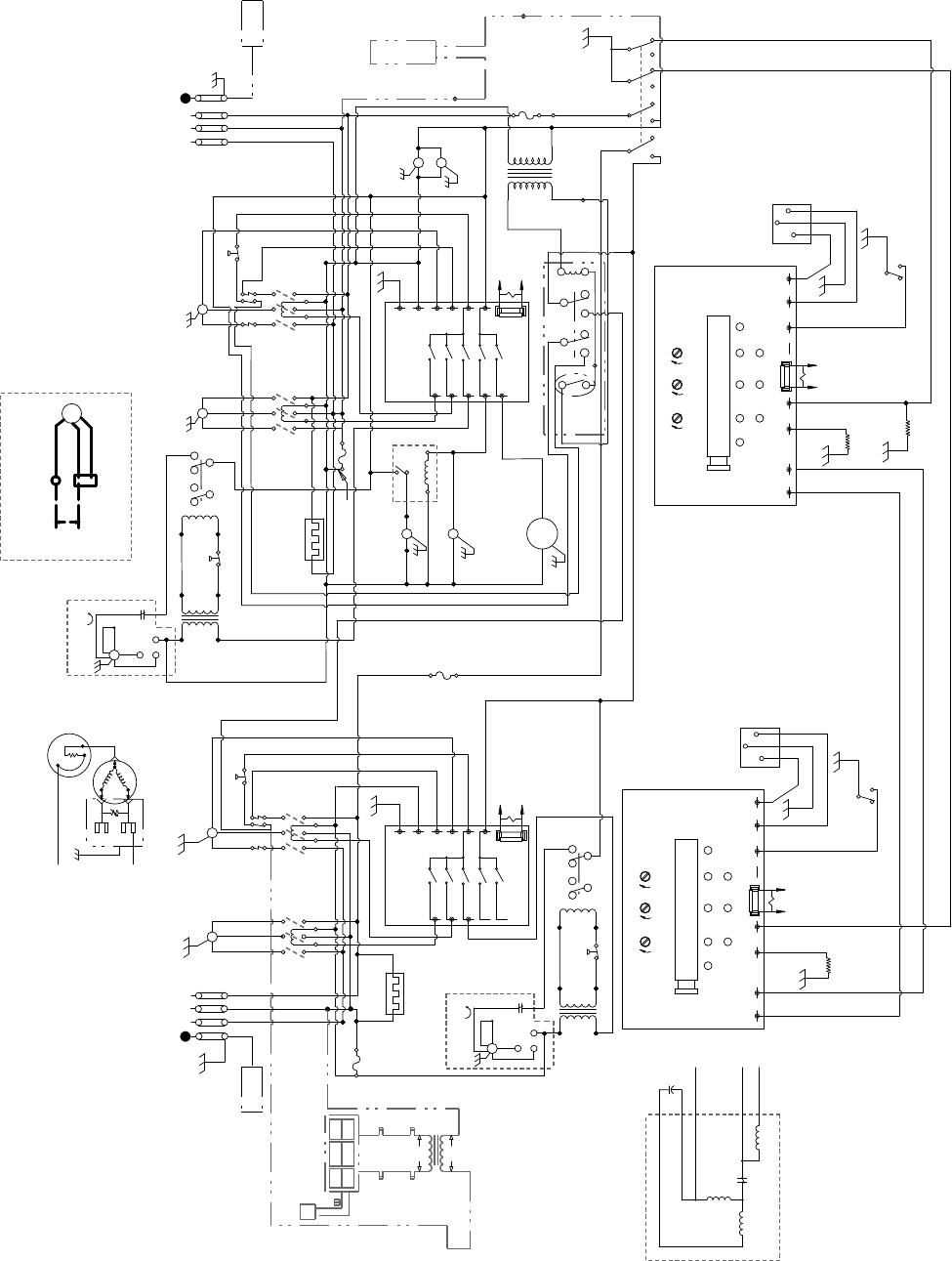

8756

037807-33

11/12/13

BRN

DRAW

SWITCH

BLK

RED

BLK

BRN RED

GRN/YEL

MIX HOPPER

TEMP

MEMBRANE

SWITCHES

BRN

BLK

GRN/YEL

BRN

BLK

MIX

LOW

MIX

SHK.TEMP/

VISCOSITY

COLDER

DIP SWITCH

UP = OFF

1-COMP 5

2-COMP 10

3-BTR 5

4-BTR 10

5-FAN 2

6-STBY DIS

7-INTERVAL

8-INTERVAL

SWITCH INTERVAL

7 8 TIME

OFF

MIX

OUT DRAW SHK

PUMP MIX 1 BRL

PROBE FAN MIX 2

SET POINT MIX LOW MIX OUT

STANDBY WASH AUTO PUMP

MIX

COLDER

STANDBY

COLDER

LEFT LOGIC PANEL

SOFTECH CONTROL

MIX

LOW

MIX

SHK.TEMP/

VISCOSITY

COLDER

DIP SWITCH

UP = OFF

1-COMP 5

2-COMP 10

3-BTR 5

4-BTR 10

5-FAN 2

6-STBY DIS

7-INTERVAL

8-INTERVAL

SWITCH INTERVAL

7 8 TIME

OFF

MIX

OUT DRAW SHK

PUMP MIX 1 BRL

PROBE FAN MIX 2

SET POINT MIX LOW MIX OUT

STANDBY WASH AUTO PUMP

MIX

COLDER

STANDBY

COLDER

RIGHT LOGIC PANEL

SOFTECH CONTROL

MEMBRANE

SWITCHES

MIX LEVEL

PROBE

STANDBY

TEMP

WHT

GRN/YEL STRIPE

DRAW

SWITCH

BLK

BRN

BLK

MIX LEVEL

PROBE

STANDBY

TEMP

WHT

GRN/YEL

POWER

SWITCH

4PDT

GRN/YEL

FUSE

BLKBLK

BLK

BLK/WHT

BLK

H.P.SW.

COMP

YEL

RED

GND L2 BEATER 0L L1

MIX

FANPUMP

BTR

COM

BRN/WHT

BLK

YEL

ORN

RED

LEFT

POWER/RELAY

BOARD

BLK

WHT

BLK

BLK/WHT

BLU/WHT

BLU

BLK/WHT

MIX CAB.

EVAP. FANS

WHT

BLK/WHT

ORN

BLK

WHT

FAN RELAY

(AIR COOLED ONLY) WHT

BLK

CORD BLK BLK

CORD

MIX CAB.COND.FAN

(WATER COOLED ONLY)

WHT

BLK WHT

MIX CAB

COMP.

BRN

CONDENSOR BLOWER

(AIR COOLED ONLY)

L1 L2

LINE

BLU

FUSE

WHT

BLK RED

ORN

BLK

GND L2 BEATER 0L L1

MIXFANPUMP

BTR

COM

RIGHT

POWER/RELAY

BOARD

RED

ORN

YEL

BLU/WHT

BLK

H.P.SW

BLK

BEATER

MTR. COMP

BLK

L1 L3

RED

BLK

WHT

BLK

BLU/WHT

NC NO

WHT FUSE WHT

BRN

WHT WHT

40 WATT

HEATER

CONDENSATION PAN

HEATER OPTION

IN PHANTOM

WHT FUSE

BLK

12V

240V

BLK

YEL

BRN

ORN

YEL

BRN

ORN

BLK

TEMP. INDICATOR

TRANS.

TEMP. INDICATOR

PROBE

MIX CABINET TEMP.

INDICATOR.

DIGITAL TEMP. INDICATOR

OPTION IN PHANTOM.

BLK

BLU/WHT

BLU

BLK

RED

BRN

BEATER

MOTOR

RED

BRN

BLK

RED

BRN

GRN/YEL

BLU

(SEE FIG. 1)

BLK

WHT

BLK

(SEE FIG. 2)

BLK

BROWN

WHITE

PTC RELAY

OVERLOAD

(MOTOR PROTECTOR)

MIX REFRIGERATION

COMPRESSOR FIG. 2

GRN/YEL

BLK BLK

PRESSURE

SW.

WHT

YEL

WHT

BLU

RED

BLK

PUMP ROTATION

AS VIEWED

FROM FRONT

OVLD.

RESET

MIX

PUMP

24VAC

BLK

YEL

BLK BLK

PRESSURE

SW.

WHT

YEL

WHT

BLU

RED

BLK

PUMP ROTATION

AS VIEWED

FROM FRONT

OVLD.

RESET

MIX

PUMP

24VAC

BLK

WHT

YEL

START

MAIN

THERMAL

O.L.

EXTRA

MAIN

RED 50 HZ

BLK 60 HZ

WHT COM

BRN

CAP

208/240 50/60 HZ

GE MOTOR SCHEMATIC

FIG 1

BLK

WHT

MIX PUMP

FIG. 3

ALTERNATE WIRING

DIAGRAM

MOTOR

CCW LINE

PRP

WHT

BLK

OVLD.

RELAY

BLK

WHT

L2 DR N

(SEE FIG. 3)

BLU/WHT

BLK/WHT

BLK

WHT

YEL WHT

BLK

PUR/WHT N. O.

DOOR

INTERLOCK

SWITCH

YEL

BLK/WHT

YEL BLK

BLU/WHT

COMPRESSOR

PTC CRANKCASE

HEATER

RED

COMPRESSOR

PTC CRANKCASE

HEATER

RED

ELECTRICAL

ENCLOSURES

ELECTRICAL

ENCLOSURES

Taylor 8756 User Manual To The A465c5cc 0760 4631 9e32 492c994fc7dc

Navigation menu

Versions of this User Manual:

Views

Navigation
