CONTENTS

Chapter 1: Introduction ................................. 1

Chapter 2: Getting to know your Prodigi ...... 2

Box Contents ............................................. 2

Prodigi Tablet at a glance ......................... 2

Setting up .................................................. 4

Chapter 3: Using Prodigi .............................. 6

Magnifying ................................................. 6

Capturing and Reading ............................. 8

Chapter 4: Switching to Standard Interface 12

Magnifying (Standard Interface) .............. 13

Capturing and Reading (Standard

Interface) ................................................. 15

Spot Reading .......................................... 17

Using the Carousel menu ........................ 18

Viewing saved documents ...................... 20

Chapter 5: Choosing your contrast ............. 22

Chapter 6: Changing your Settings ............ 25

Chapter 7: Recharging your Tablet ............ 32

Chapter 8: Software update ....................... 35

Chapter 9: Troubleshooting ........................ 37

Appendix A: Safety and Maintenance ........ 40

Appendix B: Specifications ......................... 45

Appendix C: Warranty ................................ 46

Page 1

CHAPTER 1: INTRODUCTION

Thank you for purchasing Prodigi, the touch-

controlled personal vision assistant system

from HumanWare, global leader in assistive

technologies for people who have low vision.

Prodigi is a simple, intelligent, portable, and

adaptable line of products aimed at restoring

and maintaining independence for people

living with vision loss.

Prodigi Tablet, small enough to fit in your

pocket, is a complete magnification system

that will allow you to magnify and read

documents, capture images, and spot read

on-the-go, anywhere you are.

Carefully read the operating and safety

instructions described in this user guide prior

to using your Prodigi. If you have any

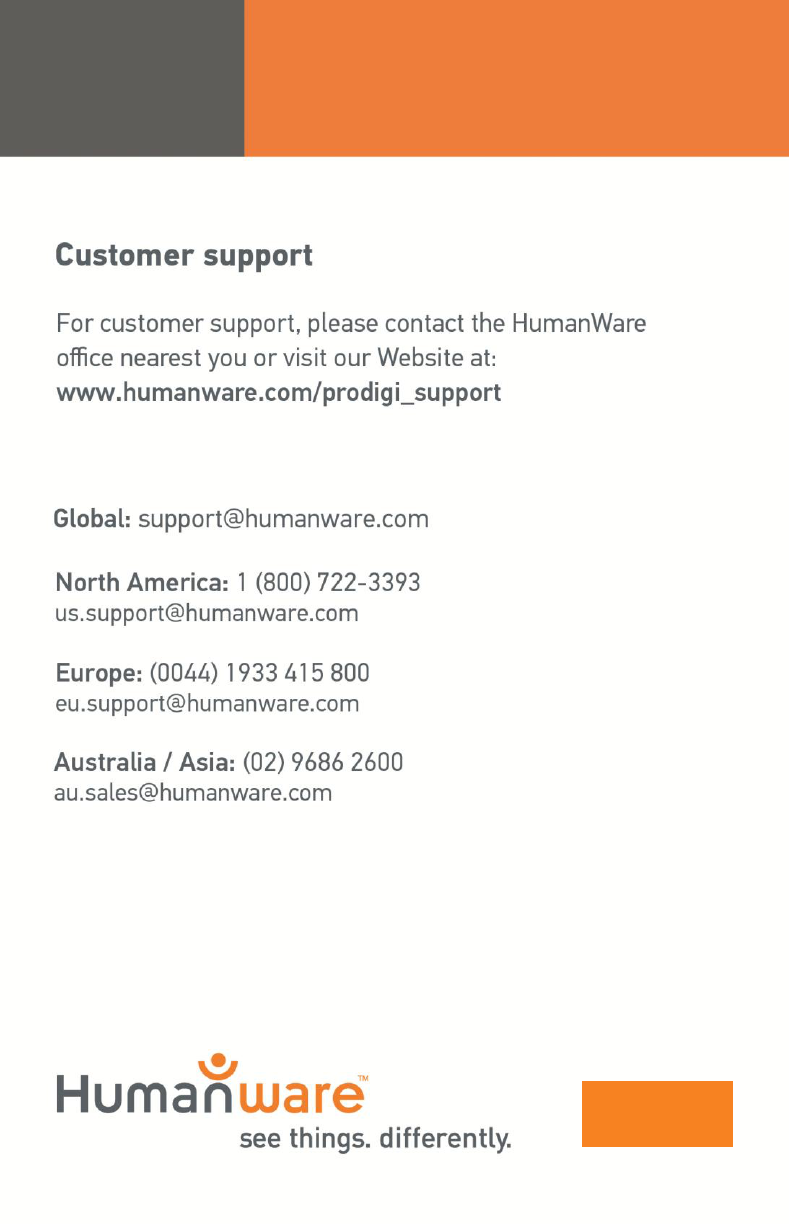

questions about your system, please contact

HumanWare Customer Service by consulting

the contact information in the back of this user

guide.

publication may be reproduced or distributed

Page 2

in any form or by any means, or stored in a

database or retrieval system, without the prior

written permission of Technologies

HumanWare Inc.

CHAPTER 2: GETTING TO KNOW

YOUR PRODIGI

BOX CONTENTS

 Tablet

 Protective Carrying Case

 Power Supply

 USB Recharge Cable

 Reading Stand

 Unboxing Guide

 Getting Started Guide

 User Guide

 Warranty Sheet

 Cleaning Tissue

 DVD

PRODIGI TABLET AT A GLANCE

Top Edge and Front Face

Page 3

Bottom Edge and Back Side

Prodigi

Page 4

1. Plus-Minus keys

2. Power Button

3. Read Button

4. Speaker

5. Touchscreen

6. Back Button

7. Audio Port

8. Recharge Port

9. Release Button (for battery)

10. Battery Compartment

11. LED Lights (2)

SETTING UP

1. Connect the USB Recharge Cable to the

Power Supply.

2. Hold the Tablet so that the screen side is

facing you and the recharge port is aiming

downwards. Make sure the tactile

HumanWare logo on the recharge cable is

facing you (1). Carefully connect the cable

to the recharge port and plug it to an

outlet.

Page 5

IMPORTANT: Use caution while inserting

the cable into the Recharge Port.

3. Let the Tablet recharge for 8 consecutive

hours (initial charge).

4. Press Power to power on the Tablet.

Prodigi will take about 1 minute to

initialize. HumanWare’s logo will appear

on the screen, followed by Prodigi’s

startup screen.

Page 6

CHAPTER 3: USING PRODIGI

MAGNIFYING

 Power on the Tablet.

 Hold the Tablet about 1 to 2 inches (3 to

5 cm) above the document or object you

wish to view.

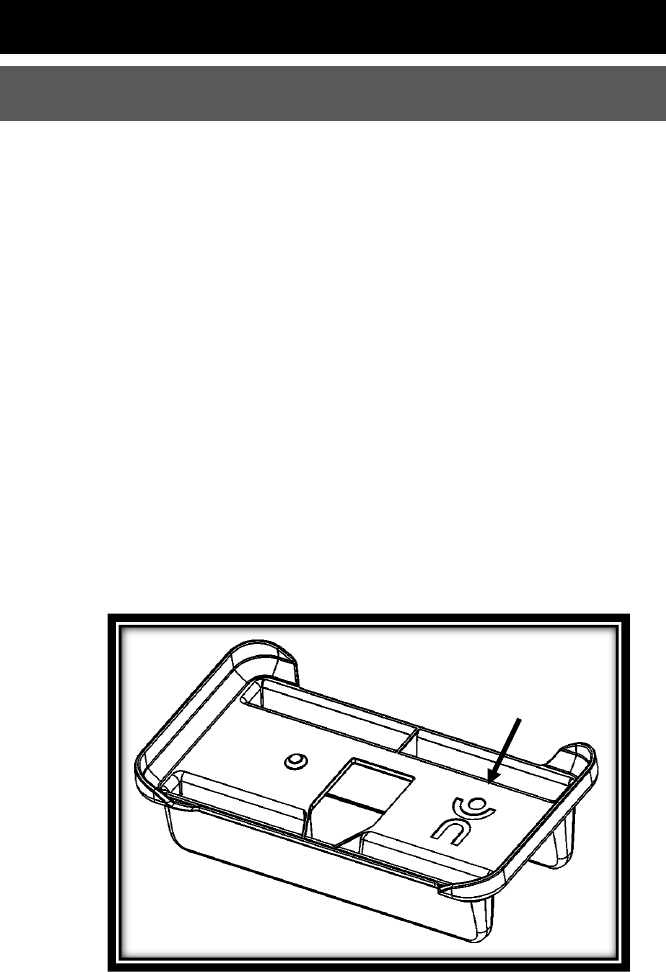

 It is recommended to use the Reading

Stand to stabilize the Tablet above the

document you wish to view. Make sure

the tactile HumanWare logo on the

Reading Stand is facing up (1) and that

you place the Tablet front face up on

the Reading Stand:

Page 7

 Use the Plus-Minus keys to adjust the

zoom level. To increase character size,

press the Plus key (the right one). To

decrease character size, press the

Minus key (the left one).

 Move the Tablet (or slide the Reading

Stand) above the object/document to

find the information you are looking for.

 To toggle between color, positive, and

negative contrasts, press and hold the

Back button to access the Settings.

Then, scroll down to select Contrast,

and tap (press your finger down

quickly on the touchscreen) to toggle

between the different contrasts. Press

Back to exit the Settings.

Note: You can either tap or use the Plus-

Minus keys to toggle between different values

in the Settings.

 By default, Prodigi will read aloud the

Settings’ menus, items, and values. To

deactivate Speech, press and hold the

Back button, select Speech, and tap.

Press Back to return to your document.

Page 8

 Diamond Edge contrast will become

available once you freeze an image of

what you are viewing. To freeze an

image, press and hold the Read button.

You will hear a clicking noise indicating

that the document has been captured.

 Press Back to unfreeze the image.

 You can adjust the brightness of what

you are viewing by accessing the

Settings menu. Press and hold the Back

button and select Brightness. Tap to

adjust the brightness in percentage.

Once you reach your desired brightness

level, press Back or simply wait a few

seconds to continue magnifying. Press

and hold the Back button if you want to

return to the Settings menu.

CAPTURING AND READING

 First, press and hold the Back button to

access the Settings menu and tap to

select Working Range: Full Page. Press

Back to exit the Settings menu.

Page 9

 Position the Tablet at 4 inches (10 cm)

or more above the document you wish

to capture and read.

Note: To see a complete letter-size page on

the screen, position the Tablet at about 10

inches (25 cm) above your document.

 Press and hold the Read button to

capture your document. You will hear a

clicking noise indicating that the

document has been captured.

 Press Read again to scroll and read

aloud the text according to your reading

preferences.

 To adjust the volume, use the Plus-

Minus keys while reading.

 To pause, press Read.

 To resume, press Read again.

Note: Text can be presented in 3 different

ways (Reading Modes): it can be transformed

into a single line in the Line mode, a column

in the Column mode, or you can read text

without losing its configuration in the Page

mode (default).

Page 10

Two “greater than” inequality signs will mark

the end of a paragraph in the Line and

Column modes (˃˃). Prodigi will beep and

announce “End of document” when you reach

the end of your document; press Read to

start reading from the beginning again.

 To set a different Reading Mode, press

and hold the Back button to access the

Settings menu and select Reading

Mode. Tap to change your Reading

Mode. Press Back to exit the Settings

menu.

 You can increase the speech rate by

swiping to the left (sliding and

releasing your finger to the left) on

the touchscreen, and decrease the

speech rate by swiping to the right.

Note that changing the speech rate will

change the reading speed (text scrolling

speed) accordingly.

Note: You can also increase or decrease the

speech rate from the Settings. Press and

hold the Back button, select Speech Rate,

Page 11

and tap to change the value. Press Back

multiple times to exit the Settings.

 To deactivate Speech, press and hold

the Back button, select Speech and tap.

When Speech is deactivated, you will be

able to change the reading speed (text

scrolling speed) by swiping left or right,

or from the Settings (in the Visual menu

and Text submenu). You can toggle

back to Speech On by pressing and

holding the Read button anywhere in the

Settings menu.

 Prodigi contains 2 different voices that

can be used to read aloud text

documents. To select a different voice,

press and hold the Back button, select

Voice, and tap to toggle between the 2

reading voices. Press Back to return to

your document. Make sure that the

language of the selected voice is the

same as in the document you want to

read.

 Press Back to stop reading and return to

camera view.

Page 12

Note: If the captured image is too dark,

blurry, or unfocused, you may want to turn on

the camera’s flash and capture a new image.

Press and hold the Back button to access the

Settings and select Flash. Tap to set it to On.

Press Back to exit the Settings.

Turning on or off the camera’s flash is only

possible when the camera’s Working Range

is set to Full Page.

CHAPTER 4: SWITCHING TO

STANDARD INTERFACE

Prodigi contains two different interfaces,

Simple and Standard, which can be changed

according to your specific needs. By default,

Prodigi’s interface is set to Simple (see

previous chapter for more information).

Prodigi’s Standard interface allows you to

perform more touch gestures, keep your

documents in memory, and further customize

your system.

Page 13

To switch your interface to Standard:

 Press and hold the Back button to

access the Settings, select All Settings

and tap.

 Select General and tap.

 Tap again to change the User Interface.

Select Yes, and tap to confirm.

MAGNIFYING (STANDARD

INTERFACE)

 After switching your interface to

Standard, Prodigi will automatically

launch the Magnifier.

 You can manipulate the Tablet, navigate

in the text and adjust the brightness in

the same way as on the Simple

interface. See chapter 3 (section

Magnifying) for more information.

Page 14

 In addition to the Plus-Minus keys, you

can use the pinch and zoom gesture to

adjust the zoom level. Decrease the

distance between 2 fingers to zoom

out, and increase the distance to

zoom in:

 In addition to changing the contrast from

the Settings, you can toggle between

color, positive, and negative contrasts

by swiping on the right edge of the

touchscreen:

Page 15

 To freeze and save an image of what

you are viewing, press and hold the

Read button. It will be saved in the

Gallery for future use. Press Back to

unfreeze the image.

CAPTURING AND READING

(STANDARD INTERFACE)

 First, press and hold the Back button to

access the Settings menu and tap to

select Working Range: Full Page. Press

Back to exit the Settings menu.

Note: Manipulate the Tablet, navigate in the

enlarged text, and adjust the brightness in the

same way as on the Simple interface (see

chapter 3, section Magnifying for more

information). To toggle between the different

contrasts, swipe on the right edge of the

touchscreen or access the Settings (see

previous section for more information).

Page 16

 Press and hold the Read button to

capture and save your document. You

will hear a clicking noise indicating that

the document has been captured, and it

will be saved in the Gallery for future

use.

 Press Read again to scroll and read

aloud the text according to your reading

preferences.

 To pause, press Read or Back.

 To resume, press Read again.

 On the Standard interface, in addition to

deactivating speech from the Settings,

you can toggle between Speech On and

Off when reading a document by doing

a double tap gesture on the

touchscreen (tapping twice quickly

with 1 finger).

 You can change the speech rate or

reading speed, adjust the volume, and

select a different reading voice in the

same way as on the Simple interface

(see chapter 3, section Capturing and

Reading).

Page 17

 While paused, press Back to stop

reading, and Back again to return to

camera view.

Note: Turn on the camera’s flash if

necessary in the same way as on the Simple

interface. See chapter 3 (section Capturing

and Reading) for more information.

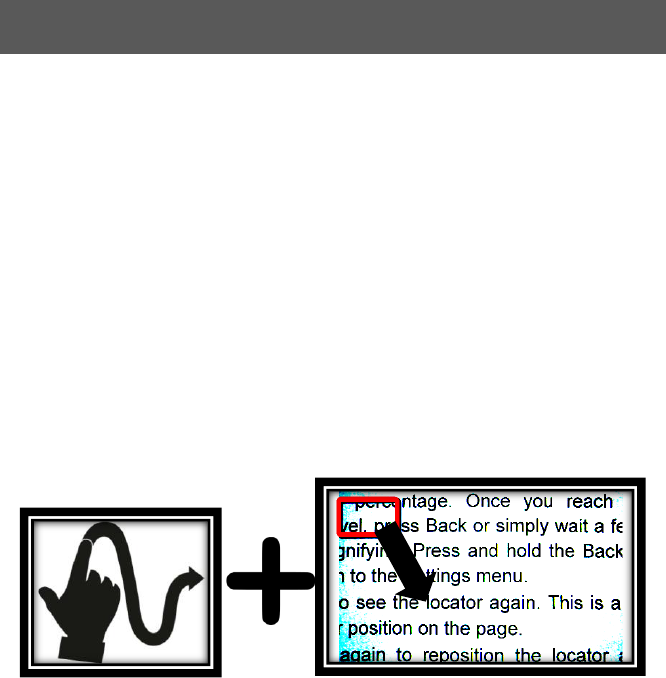

SPOT READING

 Once you have captured a document

(either at Working Range: Close-up or

Full Page), you will notice a rectangle

frame on the top left corner. This is

Prodigi’s locator. Move the locator by

slowly moving your finger on the

touchpad without lifting it (pan

gesture) to quickly reach a section of the

document you want to read:

Page 18

 Tap to enlarge the section delimited by

the locator:

 When a section of a document is

magnified, pan to reach other parts of

the document.

 Press Back to see the locator again.

This is a practical way to locate your

position on the document.

USING THE CAROUSEL MENU

Prodigi has 3 main applications – Magnifier,

Gallery, and Settings. They are presented

one by one in the carousel menu:

Page 19

To access the carousel menu from the

Magnifier:

 Press Back to close the Magnifier and

access the carousel menu.

 Prodigi will announce “Main Carousel”

followed by the currently selected

application. The currently selected

application is positioned in the center of

the screen:

 Swipe left or right in the carousel menu

to select an application.

 To launch a selected application, simply

tap.

 To cancel, press Back.

Page 20

VIEWING SAVED DOCUMENTS

The Gallery contains all the documents you

saved.

 Select and tap on the Gallery in the

carousel menu:

 Swipe left or right in the Gallery to flip

through your saved documents.

 The currently selected document is in

the center of the screen. Prodigi will

announce and indicate the first word

contained in the currently selected

document. If the document contains no

words, Prodigi will tag it as an image.

 To open a selected document, simply

tap.

 Move the locator to quickly reach a

section of the document you want to

magnify.

 Tap to see the section delimited by the

locator at your preferred zoom level.

Page 21

 You can toggle between color, positive,

negative, and Diamond Edge™ (if the

image contains text) contrasts, and

adjust the brightness in the same way

as with the Magnifier (see section

Magnifying (Standard interface) for more

information).

 Press Back to see the locator again.

 Press Back again to close a document

and return to the Gallery. Once you

close a document, Prodigi will

remember your position and apply it

automatically the next time you open the

document.

Notes: Prodigi will announce “Gallery empty”

if the Gallery contains no documents. The

Gallery cannot contain more than 100

documents. Once you pass this number, you

will be prompted to delete some documents

from the Gallery before saving new ones.

Page 22

To delete a document:

 In the Gallery, press and hold your

finger down on the image you want to

delete. You will be prompted ‘DELETE?’

and a red ‘X’ will appear. Tap to confirm,

or press Back to cancel.

CHAPTER 5: CHOOSING YOUR

CONTRAST

Prodigi allows you to view documents,

pictures and objects in 3 types of contrast:

color, positive or negative. For documents

that contain text, a 4th type of contrast can be

used: Diamond Edge™. Positive, negative,

and Diamond Edge™ contrasts are

enhanced; they are meant to enhance the

original color of a document or object to

facilitate your visual experience.

Page 23

Color contrast is useful if you want to view

documents, objects, and photographs in their

original color.

Positive contrast shows text and images in 2

colors according to your selected color

combination, the default combination being

Black on White. This is a practical way to

view text in the best color combination for

your vision.

Negative contrast shows text and images in

reversed contrast as compared to your

selected color combination. For example, if

your combination is Black on White, negative

contrast will show text and images in White

on Black. This is useful if you wish to reverse

the contrast of a text that contains different

contrasts.

Diamond Edge™ contrast combines the best

of both worlds; it shows Diamond Edge

Text™ in your selected color combination

and images in their original color. This allows

you to magnify text indefinitely without

compromising its quality in the best color

combination for your vision, while viewing

Page 24

images in their original color on the same

page.

To toggle between the different contrasts,

press and hold the Back button to access the

Settings, select Contrast, and tap to choose a

contrast. Press Back to return to your

document or object.

Prodigi’s Standard interface also allows you

to toggle between the different contrasts by

swiping on the right edge of the touchscreen:

Note: The contrast cannot be changed while

in Line or Column mode, or while viewing an

image at 1x (Read View or Gallery).

Page 25

CHAPTER 6: CHANGING YOUR

SETTINGS

(Note: The values marked with a star (*) are

default settings.)

To quickly configure your system while

viewing a document, you can press and hold

the Back button to access the Settings menu.

The currently selected item is announced and

highlighted by a rectangular frame. Scroll up

or down to move the rectangle and select an

item. The items will be read one at a time (by

default). Tap or use the Plus-Minus keys to

toggle the value. Press Back to return to your

document.

The Settings menu lists the battery charge

level and the most frequently used settings:

 Working Range (Camera’s focus on

work area): Close-up*, Full Page

 Brightness (Change the brightness of a

live or captured image, except for 1x

image in Read view and in Gallery): 0 to

100% (50%*)

Page 26

 Contrast: Diamond Edge (if captured

image contains text), Color*, Positive,

Negative

 Colors: Black on White* (see list of 16

color pairs in main Settings below)

 Reading Mode: Page*, Column, Line

 Speech: On*, Documents only, Off

 Speech Rate: Very slow, Slow,

Normal*, Fast, Very fast

 Voice: Voice 1*, Voice 2

 Tablet Volume: 0 to 15 (9*)

 Headphone Volume (when

headphones are plugged): 0 to 15 (3*)

 Flash (Turn flash on or off when

Working Range: Full Page is selected):

On, Off*

You can further customize your system by

selecting All Settings at the end of the

Settings menu. With Prodigi’s Standard

interface, you can also access these Settings

by selecting and opening the Settings

application in the carousel menu:

Page 27

The Settings contain 5 main menus: Visual,

Audio, Gestures and Controls, General, and

About. Scroll up or down in the Settings to

select a menu. Prodigi will announce

“submenu” if a selected menu contains

submenus and display an arrow on the right

edge of the screen. To open a menu or

submenu, simply select it and tap or press

the Plus key. Once you have reached the

setting you want to modify, tap or use the

Plus-Minus keys to change its value. Press

Back to return to a previous screen.

VISUAL

The Visual menu contains 3 submenus:

1. Display contains the following settings:

 Screen Brightness (Change the

screen’s brightness level): 1 to 100%

(60%*)

 Contrast: Diamond Edge (if captured

image contains text), Color*, Positive,

Negative (see chapter 5)

 Diamond Edge: Always*, On Request

(See chapter 5)

Page 28

 Colors (Select from 16 color pairs):

Black on White*, White on Black,

Yellow on Black, Orange on Black,

Cyan on Black, Purple on Black, Green

on Black, Black on Green, Black on

Purple, Black on Cyan, Black on

Orange, Black on Yellow, Blue on

Yellow, Yellow on Blue, White on Blue,

Blue on Black

 Locator Color (change the locator’s

color): Red*, Orange, Yellow, Purple,

Cyan, Green, Blue

 Preferred Zoom (change the locator’s

initial zoom level): 2 to 35x (4x*)

2. Text contains the following settings:

 Reading Mode: Page*, Column, Line

 Reading Speed: Very slow, Slow,

Normal*, Fast, Very fast

 Font Size: Minimum, Small, Medium,

Standard*, Large, Very large, Extra

large, Maximum

 Font Type: Regular, Bold*

3. Camera contains the following setting:

 Working Range (Camera’s focus on

work area): Close-up*, Full Page

Page 29

AUDIO

The Audio menu contains the following

settings:

 Tablet Volume: 0 to 15 (9*)

 Headphone Volume (when

headphones are plugged): 0 to 15 (3*)

 Sounds: On*, Off

 Tablet Vibrations: On*, Off

 Speech: On*, Documents only, Off

 Speech Rate: Very slow, Slow,

Normal*, Fast, Very fast

 Voice: Voice 1*, Voice 2

GESTURES AND CONTROLS

The Gestures and Controls menu contains

1 item:

1. Gestures (Enable and disable gestures.

By default, all gestures are deactivated on

Simple interface and activated on

Standard interface):

Page 30

 Swipe on right edge / Contrast:

Toggle between Color, Positive,

Negative, and Diamond Edge™

contrasts (Note: The last selection will

be saved in Prodigi’s memory).

 Pinch and Zoom: Adjust the zoom level

by decreasing or increasing the distance

between 2 fingers.

 Double tap / Speech: Toggle between

Speech On and Off by tapping twice

quickly with 1 finger.

 Tap / Zoom: Press your finger down

quickly (tap) to zoom at your preferred

zoom level from the locator.

GENERAL

The General menu contains the following

items:

 User Interface: Simple*, Standard

 System Language: Language 1*,

Language 2 (Choices depend on

country or region)

Page 31

 WI-FI Setup (Help of a sighted person

is required to configure wireless

network)

 Tablet Auto Shutoff: 3 min*, 5 min, 10

min

 Software Update (see chapter 8)

 Delete Gallery content (Standard

interface only): Permanently delete all

files in Gallery.

 Restore to Factory Defaults (except

for restoring the selected user

interface)

ABOUT

The About menu contains the following

items:

 Software (Version)

 Tablet SN (Serial Number)

 Tablet Model

 Android (Version)

Page 32

CHAPTER 7: RECHARGING YOUR

TABLET

Maximizing operating efficiency:

 In a working situation where you need

the Tablet intermittently, you can enter

Standby mode when you are not using

the Tablet by pressing Power quickly.

The screen will power off and a double-

beep will be sounded.

 Exit Standby mode by pressing Power

quickly again.

 If you will not be using the Tablet for the

next few days, it is recommended that

you power it off by pressing and holding

the Power button.

Recharging the battery:

Press and hold the Back button to enter the

Settings menu and to display the Tablet’s

battery charge level. Swiping upwards in the

Settings menu from the first item will

announce the charge level (if Speech is set to

On in the Settings). If the battery charge level

Page 33

is below 10%, it is recommended that you

recharge the battery.

IMPORTANT: The battery becomes warm

during recharging. Do not recharge the

battery near a heat source.

To recharge the battery using mains

electricity:

 Connect the USB Recharge Cable to

the Tablet Power Supply. Then,

carefully connect the USB Recharge

Cable to the Tablet and plug the Power

Supply to an outlet.

 Let the Tablet recharge for 8 hours the

first time and for 4 hours subsequently.

To recharge the battery with a computer:

 First, press Power shortly to enter

Standby Mode.

 Then, plug the USB recharge cable to a

computer USB port.

Note: Please note that recharging the

battery this way can take longer than by

plugging it to an outlet.

Page 34

 Press Power to exit Standby Mode.

Battery safety precautions:

 Do not disassemble or modify the battery.

 Use only the specified HumanWare

charger.

 There is a risk of overheating, fire or

explosion if the battery is put in a fire,

heated, subjected to impact, put in contact

with water, or if its terminals are shorted.

Replacing the battery:

Contact HumanWare or your authorized

distributor to obtain a replacement battery.

 Power off the Tablet and unplug it from

the outlet.

 Hold the Tablet up, its back side facing

you.

 Press the release button near the left

edge of the Tablet, and simultaneously

slide the compartment door to the left to

remove it.

 The battery’s upper left edge has a tab.

Use this tab to lift the used battery up.

Page 35

Note: The model and serial numbers

can be found under the battery.

 To insert the new battery: there are

connector pins on the lower right edge

of the battery. Insert the right edge first,

and press gently on the left edge to

snap the new battery in place.

 Slide the compartment door back on

until the release button snaps back in

place.

CHAPTER 8: SOFTWARE UPDATE

Before initiating a software update, the WI-FI

network has to be configured with the help of

a sighted person.

 Press and hold the Back button to

access the Settings, and select All

Settings. Tap to open. Select General

and tap. Select WI-FI Setup and tap.

 Tap the OFF button on the top edge of

the screen to switch it to ON.

 Tap on the network you wish to

configure.

Page 36

 To enter your password, tap on the

blinking cursor. A keyboard will appear

on the screen. Enter the password and

tap on Done. Then, tap on Connect.

 Press Back twice to return to General in

Prodigi’s Settings.

 To initiate a software update, select

Software Update and tap.

IMPORTANT: Make sure your system is

connected to power before updating the

software.

 Once the WI-FI connection is

established, Prodigi will tell you whether

your software is up to date or whether

an update is available.

 If an update is available and you wish to

install it, select Install and tap. If you

wish to cancel, select Cancel and tap.

 If you chose to install the update,

Prodigi will download the update and

show the download progress in

percentage.

Page 37

 Once the download is complete, Prodigi

will reboot and install the update

automatically. Android’s green logo will

be shown on screen during the update.

CHAPTER 9: TROUBLESHOOTING

If the image on the screen is flickering

while magnifying:

 Make sure that the Working Range is

set to Close-up in the Settings.

If the screen is blank:

 Zoom out of the image for minimum

magnification.

 The Tablet could be powered off or in

Standby Mode. Press Power to power it

on or to exit Standby Mode.

If colors are difficult to detect:

 Check if you have sufficient ambient

light.

 Choose a different contrast or color

combination in the Settings.

 Adjust the brightness level in the

Settings.

Page 38

If there is a lot of glare:

 Tilt object in a different direction to

reduce glare.

 Reduce the brightness level in the

Settings.

 Reduce external lighting effects.

 If the camera’s flash is turned on and

your captured image is too bright or

uneven, turn off the flash in the Settings

and capture a new image.

If the image/text is out of focus or blurry:

 Use the Plus-Minus keys to zoom in and

then out of the image so as to trigger the

camera’s focus. If needed, capture a

new image of your document.

 Make sure you hold the camera still

while capturing an image.

 Turn on the camera’s flash in the

Settings and capture a new image.

 Make sure your Tablet is powered off,

and wipe the LED lights and camera

surface on the back side with your

included cleaning tissue.

Page 39

If the audio reading does not make sense:

 Make sure the voice setting is the same

as your document’s language. Change it

in the Settings if necessary.

If the Tablet is not responding:

 Make sure the battery is not empty.

Recharge it if necessary.

Technologies Humanware PGITAB Modular video magnifier User Manual

Technologies Humanware Inc. Modular video magnifier Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
