Technovare Systems OPSPCIA-SHSWSH Embedded Computer User Manual 72 Megabit QDR 4 Word Burst Module
Technovare Systems, Inc. Embedded Computer 72 Megabit QDR 4 Word Burst Module
Users Manual
Intel's D525 CPU and NVidia's GT218 GPU to
Intel Atom' s D525 CPU with integrated NVidia' s
based upon
PCIA
PCIA
PCIA
PCIA
PCIA
display support and Display PORT for external display
Copyright 2012 Technovare Systems, Inc, all rights reservedocument Number OPS_PCIA_3_1 _12
(DVI internal, Display PORT
GT218 GPU
PCIA
PCIA
PCIAOPS- Option Slot PC For
NEC Displays
Integrated PC For Commercial Display Applications
D
Applications
Digital Signage
QSR
Display Walls
Large Venue/Stadiums
Education
Medical
IPTV/Hospitality
Features
Support for Windows Standard Embedded 7
or Linux
High definition 1080P video playback:
MPEG/2, H.264, or WM9
Dual video outputs
external)
Stereo audio outputs
RS232 for display control
4 USB ports
Gigabit Ethernet
All metal chassis
OPS option slot form factor

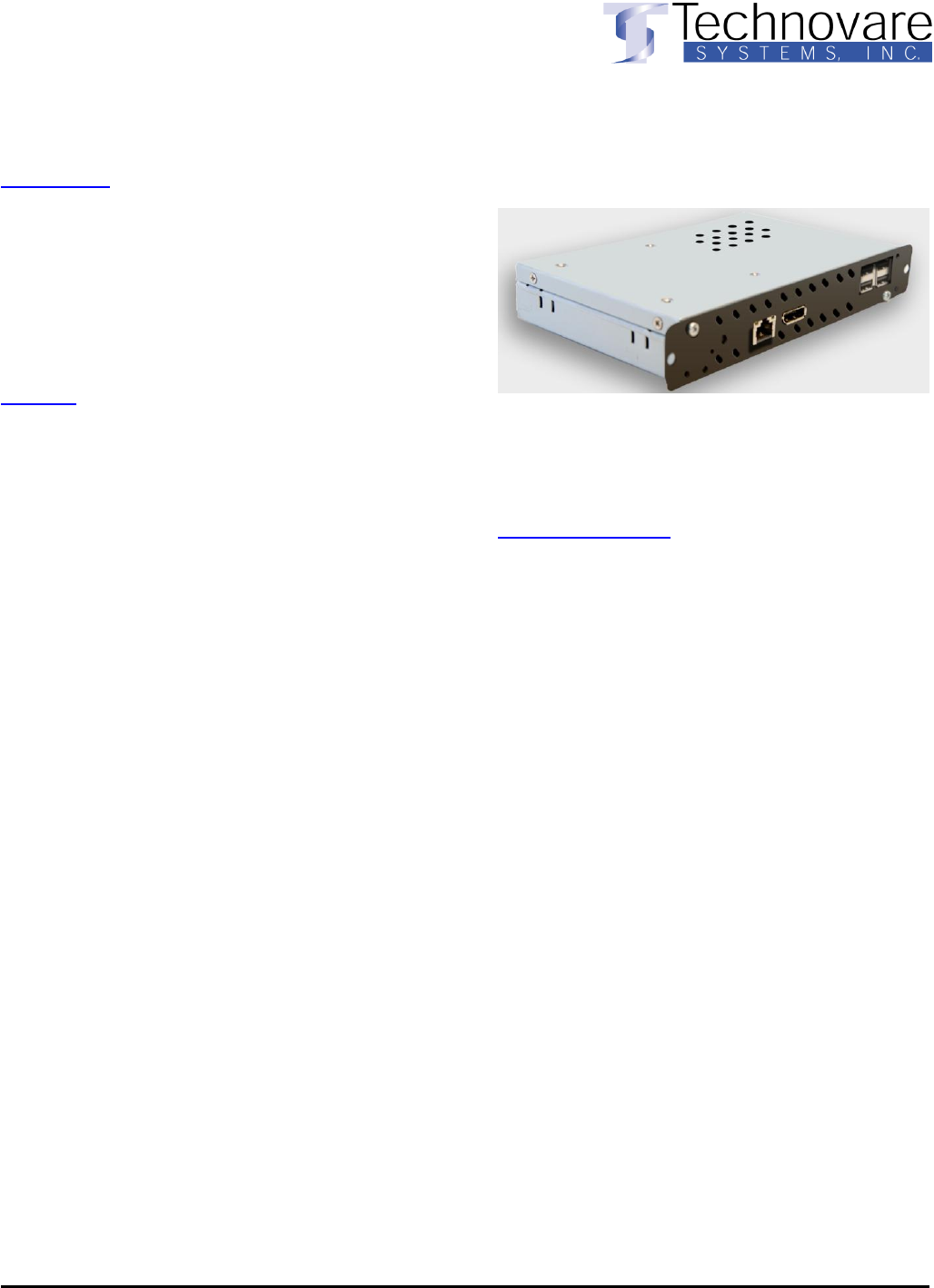

OPS- Option Slot PC
General Description
The OPS- is a full-featured High Definition PC
use with NEC Displays. Targeted for Commercial
applications such as Digital Signage, the OPS-
has been optimized for reliable 1080P video
playback. With support for Windows OS the OPS-
has the flexibility to run most third part
software and custom applications.
The OPS- supports true 1080P video with
hardware assisted support for formats such as
MPEG2, H.264, and WM9. The OPS- was
designed with display integration in mind and
features dual video outputs with DVI for internal
support. The unit also includes integrated Display
Control via internal RS232 connection.
The OPS- ’s all metal chassis and small form
factor make it ideal for commercial applications
requiring a powerful yet small PC that can be
integrated within the display itself.
OPS-PCAF Option Slot PC For
NEC Displays
Integrated PC For Commercial Display Applications
Document Number OPS_PCAF_9_1_11 Copyright 2011 Technovare Systems, Inc, all rights reserved
Technical Specification
OS Options
Windows Standard Embedded 7
Linux
Performance
CPU 1.6 GHz AMD Fusion Dual
Core (T56N)
GPU Integrated HD 6310
RAM 2 GB DDR3
Hard Drive 160 GB SATA
Video Output
DVI internal connector
DPORT external connector
Audio Output
Stereo internal connector
DPORT external connector
Network Connections
LAN Gigabit Ethernet
Control I/O
USB2.0 x4
RS232 internal connector
Power
Input Voltage 16 VDC
Power Dissipation 35 Watts
Environmental
Operating Temperature 0° to 40° C
Operating Humidity 80% maximum relative
humidity, non-condensing
General
Dimensions 180 mm W x 118 mm D
X 30 mm H
Unit Weight 2.5 lb
Certifications
FCC, Section 15
CE
Corporate Offices:
1675 Scenic Ave, Suite 200
Costa Mesa, CA 92626
Phone: 714-966-9099
Fax: 714-966-9199
URL: www.technovare.com
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
