Teko Telecom Srl DFE Digital Front End User Manual

Teko Telecom Srl Digital Front End Users Manual

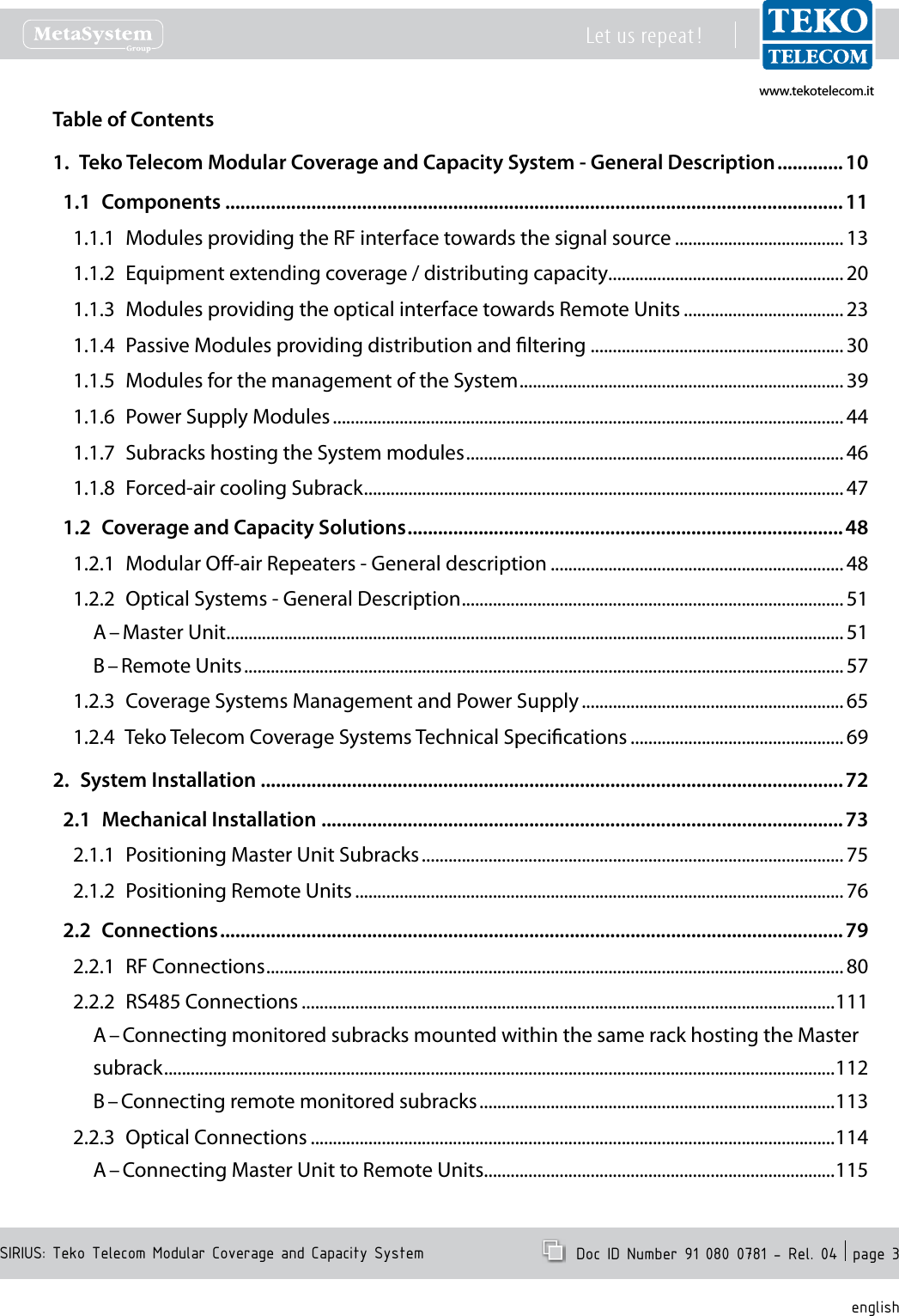

Contents

Users Manual

www.tekotelecom.itwww.tekotelecom.itLet us repeat !SIRIUS: Teko Telecom Modular Coverage and Capacity SystemTECHNICAL HANDBOOK Doc ID Number 91 080 0781 - Rel. 04 english
www.tekotelecom.itwww.tekotelecom.itLet us repeat !english Doc ID Number 91 080 0781 - Rel. 04BOLOGNA, 11/10/2010UPDATINGS:Rel. 02 (11/04/2011)Rel. 03 (15/03/2012)Rel. 04 (11/06/2012)Document Identication Number91 080 0781 – Rel. 04SIRIUS: Teko Telecom Modular Coverage and Capacity System
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 3englishTable of Contents1. Teko Telecom Modular Coverage and Capacity System - General Description ............. 101.1 Components ..........................................................................................................................111.1.1 Modules providing the RF interface towards the signal source ...................................... 131.1.2 Equipment extending coverage / distributing capacity ..................................................... 201.1.3 Modules providing the optical interface towards Remote Units .................................... 231.1.4 Passive Modules providing distribution and ltering .........................................................301.1.5 Modules for the management of the System ......................................................................... 391.1.6 Power Supply Modules ................................................................................................................... 441.1.7 Subracks hosting the System modules ..................................................................................... 461.1.8 Forced-air cooling Subrack ............................................................................................................ 471.2 Coverage and Capacity Solutions ......................................................................................481.2.1 Modular O-air Repeaters - General description .................................................................. 481.2.2 Optical Systems - General Description ...................................................................................... 51A – Master Unit ...........................................................................................................................................51B – Remote Units .......................................................................................................................................571.2.3 Coverage Systems Management and Power Supply ........................................................... 651.2.4 Teko Telecom Coverage Systems Technical Specications ................................................ 692. System Installation ...................................................................................................................722.1 Mechanical Installation .......................................................................................................732.1.1 Positioning Master Unit Subracks ............................................................................................... 752.1.2 Positioning Remote Units .............................................................................................................. 762.2 Connections ...........................................................................................................................792.2.1 RF Connections .................................................................................................................................. 802.2.2 RS485 Connections ........................................................................................................................111A – Connecting monitored subracks mounted within the same rack hosting the Master subrack .......................................................................................................................................................112B – Connecting remote monitored subracks ................................................................................1132.2.3 Optical Connections ......................................................................................................................114A – Connecting Master Unit to Remote Units ...............................................................................115
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 4englishB – Connecting Master point to point Modules to Slave point to point Modules ..........1172.2.4 Power Supply and External Alarms connections .................................................................118A – Active Subracks Power Supply Connection ...........................................................................119B – Very High/High/Medium Power Remote Unit External Alarms Connection ..............122C – Remote Units Power Supply Connection ................................................................................1232.3 Power-Up ..............................................................................................................................1263. System Commissioning ..........................................................................................................1284. Preventive Maintenance ........................................................................................................1304.1 Optical Fibres .......................................................................................................................1304.2 Remote Units .......................................................................................................................1304.2.1 Remote Units with passive cooling system (natural convection - fan unit not equipped) ......................................................................................................................................................1304.2.2 Remote Units with active cooling system (equipped with the fan unit) ....................1305. Troubleshooting ......................................................................................................................1335.1 Troubleshooting procedures ............................................................................................1375.1.1 Active RF Interface Modules .......................................................................................................137A – Digital Donor Front End module - MU-DFE ............................................................................137B – Point of Interface module with remote controlled attenuators- TAPOI .......................1415.1.2 Modules for the management of the System .......................................................................1425.1.3 Power Supply Modules .................................................................................................................1435.1.4 Modules providing the optical interface towards Remote Units ..................................144A – Fiber Optic Transmitter/Receiver modules - MU-OTRX ......................................................144B – Master and Slave Point to Point modules - MU-PTP ............................................................1465.1.5 Equipment extending coverage/ distributing capacity ....................................................150A – Service Front End Subrack ............................................................................................................150B – Very High/High/Medium power Remote Unit .......................................................................151C – SFE Subrack / Very High/High/Medium power Remote Unit ampliers ......................154D – Very High/High/Medium power Remote Unit modules ...................................................156E – Single/Dual/Triband Low power Remote Unit ......................................................................159F – 5-band/6-band Low power Remote Unit ................................................................................163
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 5english5.1.6 Forced-air cooling subrack ..........................................................................................................1685.2 Flow charts ...........................................................................................................................1695.2.1 Received Optical Power out of range - Uplink path ...........................................................1705.2.2 Received Optical Power out of range - Downlink path .....................................................1715.3 Replacement Instructions .................................................................................................1725.3.1 Replacing the fan unit ...................................................................................................................1725.3.2 Replacing plug-in modules .........................................................................................................1735.3.3 Extracting guide rails for plug-in modules from active subracks ..................................1735.3.4 Cleaning optical connectors ......................................................................................................174Attached DocumentsSafety RulesStandards
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 6englishInitial NotesDeclaration of Conformity (*)According to Directive 1999/5/EC (R&TTE)We TEKO TELECOM hereby declare that the products described in this technical handbook are manufactured by TEKO TELECOM S.p.A. Via Meucci, 24/a 40024 Castel S. Pietro Terme (Bologna) – ITALY. All the above cited products are compliant with the essential requirements of article 3 and other relevant provisions of the Radio & Telecommunications Terminal Equipment Directive, n.1999/5/EC, when used for their intended purpose: improving coverage of mobile communication networks.Castel S. Pietro Terme (Bologna) – ITALYLegal representativeTeko Telecom S.p.A.a Socio Unico(*) A signed copy of the conformity declaration is available upon request. Please get in touch with our after sale service, lling in the form on line at the following Internet address: www.tekotelecom.itNote relevant to product utilization within the European Union (EU)It’s under user’s own responsibility to verify to be compliant to the National provisions or authorisations required.For further information refer to: http://ec.europa.eu/enterprise/sectors/rtte/index_en.htmEU directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment)This product complies with the EU directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment)The symbol of the crossed container marked on the equipment shows that the product, at the end of its useful life, must be collected separately from other refuse. Therefore the user must deliver the equipment that has reached the end of its life to the special dierentiated electronic and electrotechnical refuse collection centres, far subsequent dispatch of the discarded equipment for recycling, treatment and environmentally compatible disposal, thus contributing in preventing possible negative eects on the environment and on health and favouring the recycling of the materials from which the equipment is made.Illicit disposal of the product by the user will lead to the application of the penalties provided far by the national legislations of the various Member States on receipt of directive 2002/96/EC.For further information, please contact our after sales department: www.tekotelecom.itPackaging and Packaging Waste Directive 94/62/ECThe packaging of the product complies with the Directive 94/62/EC, concerning packaging and packaging waste. Environmentally harmful materials are not used for packaging.Packaging is made from materials that can easily be recycled after use. Depending on the means of transportation, the equipment is packed in a cardboard or wooden box, protected with expanded polystyrene or barrier bags.The packaging materials are marked according to ISO 11 469.Please do not throw packaging materials into unsorted waste but separate them according to local regulations waste disposal options.

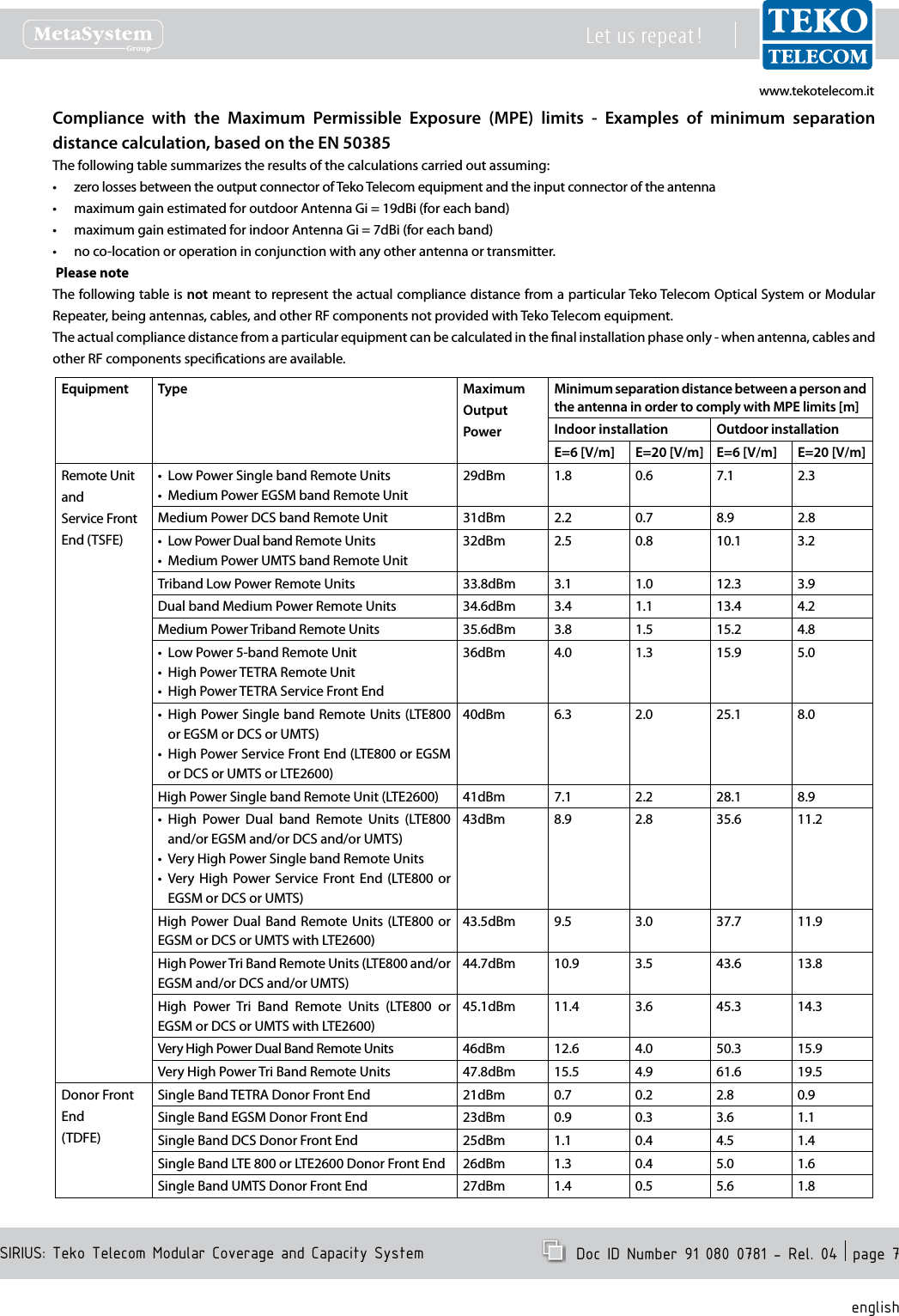

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 7englishCompliance with the Maximum Permissible Exposure (MPE) limits - Examples of minimum separation distance calculation, based on the EN 50385The following table summarizes the results of the calculations carried out assuming:zero losses between the output connector of Teko Telecom equipment and the input connector of the antenna•maximum gain estimated for outdoor Antenna Gi = 19dBi (for each band)•maximum gain estimated for indoor Antenna Gi = 7dBi (for each band)•no co-location or operation• in conjunction with any other antenna or transmitter. Please note The following table is not meant to represent the actual compliance distance from a particular Teko Telecom Optical System or Modular Repeater, being antennas, cables, and other RF components not provided with Teko Telecom equipment.The actual compliance distance from a particular equipment can be calculated in the nal installation phase only - when antenna, cables and other RF components specications are available.Equipment Type Maximum Output PowerMinimum separation distance between a person and the antenna in order to comply with MPE limits [m]Indoor installation Outdoor installationE=6 [V/m] E=20 [V/m] E=6 [V/m] E=20 [V/m]Remote UnitandService Front End (TSFE)Low Power Single band Remote Units•Medium Power EGSM band Remote Unit•29dBm 1.8 0.6 7.1 2.3Medium Power DCS band Remote Unit 31dBm 2.2 0.7 8.9 2.8Low Power Dual band Remote Units•Medium Power UMTS band Remote Unit•32dBm 2.5 0.8 10.1 3.2Triband Low Power Remote Units 33.8dBm 3.1 1.0 12.3 3.9Dual band Medium Power Remote Units 34.6dBm 3.4 1.1 13.4 4.2Medium Power Triband Remote Units 35.6dBm 3.8 1.5 15.2 4.8Low Power 5-band Remote Unit•High Power TETRA Remote Unit•High Power TETRA Service Front End•36dBm 4.0 1.3 15.9 5.0High Power Single band Remote Units (LTE800 •or EGSM or DCS or UMTS)High Power Service Front End (LTE800 or EGSM •or DCS or UMTS or LTE2600)40dBm 6.3 2.0 25.1 8.0High Power Single band Remote Unit (LTE2600) 41dBm 7.1 2.2 28.1 8.9High Power Dual band Remote Units (LTE800 •and/or EGSM and/or DCS and/or UMTS)Very High Power Single band Remote Units•Very High Power Service Front End (LTE800 or •EGSM or DCS or UMTS)43dBm 8.9 2.8 35.6 11.2High Power Dual Band Remote Units (LTE800 or EGSM or DCS or UMTS with LTE2600)43.5dBm 9.5 3.0 37.7 11.9High Power Tri Band Remote Units (LTE800 and/or EGSM and/or DCS and/or UMTS)44.7dBm 10.9 3.5 43.6 13.8High Power Tri Band Remote Units (LTE800 or EGSM or DCS or UMTS with LTE2600)45.1dBm 11.4 3.6 45.3 14.3Very High Power Dual Band Remote Units 46dBm 12.6 4.0 50.3 15.9Very High Power Tri Band Remote Units 47.8dBm 15.5 4.9 61.6 19.5Donor Front End(TDFE)Single Band TETRA Donor Front End 21dBm 0.7 0.2 2.8 0.9Single Band EGSM Donor Front End 23dBm 0.9 0.3 3.6 1.1Single Band DCS Donor Front End 25dBm 1.1 0.4 4.5 1.4Single Band LTE 800 or LTE2600 Donor Front End 26dBm 1.3 0.4 5.0 1.6Single Band UMTS Donor Front End 27dBm 1.4 0.5 5.6 1.8

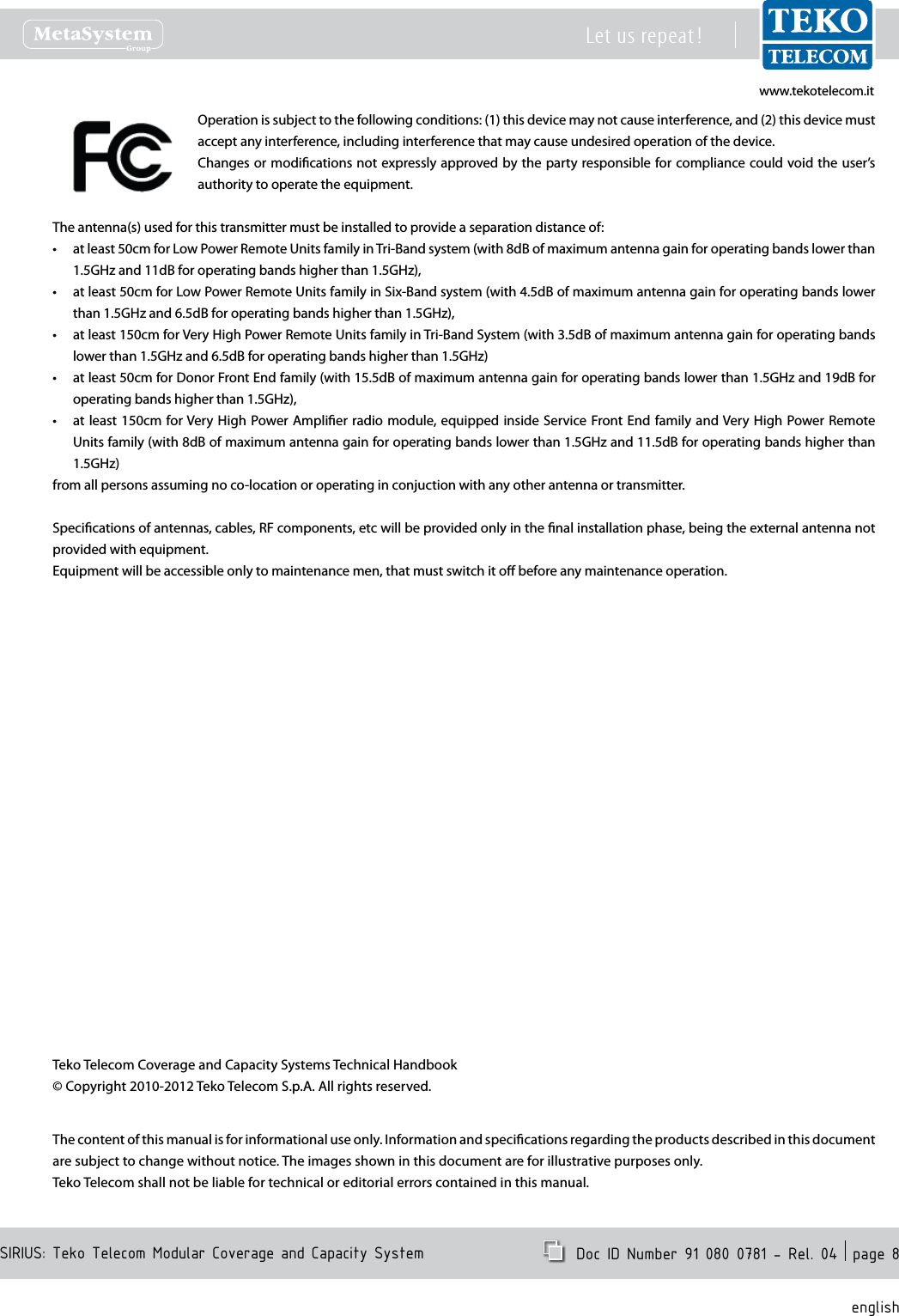

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 8englishOperation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.The antenna(s) used for this transmitter must be installed to provide a separation distance of:at least 50cm for Low Power Remote Units family in Tri-Band system (with 8dB of maximum antenna gain for operating bands lower than •1.5GHz and 11dB for operating bands higher than 1.5GHz),at least 50cm for Low Power Remote Units family in Six-Band system (with 4.5dB of maximum antenna gain for operating bands lower •than 1.5GHz and 6.5dB for operating bands higher than 1.5GHz),at least 150cm for Very High Power Remote Units family in Tri-Band System (with 3.5dB of maximum antenna gain for operating bands •lower than 1.5GHz and 6.5dB for operating bands higher than 1.5GHz)at least 50cm for Donor Front End family (with 15.5dB of maximum antenna gain for operating bands lower than 1.5GHz and 19dB for •operating bands higher than 1.5GHz),at least 150cm for Very High Power Amplier radio module, equipped inside Service Front End family and Very High Power Remote •Units family (with 8dB of maximum antenna gain for operating bands lower than 1.5GHz and 11.5dB for operating bands higher than 1.5GHz)from all persons assuming no co-location or operating in conjuction with any other antenna or transmitter.Specications of antennas, cables, RF components, etc will be provided only in the nal installation phase, being the external antenna not provided with equipment.Equipment will be accessible only to maintenance men, that must switch it o before any maintenance operation.Teko Telecom Coverage and Capacity Systems Technical Handbook© Copyright 2010-2012 Teko Telecom S.p.A. All rights reserved.The content of this manual is for informational use only. Information and specications regarding the products described in this document are subject to change without notice. The images shown in this document are for illustrative purposes only.Teko Telecom shall not be liable for technical or editorial errors contained in this manual.

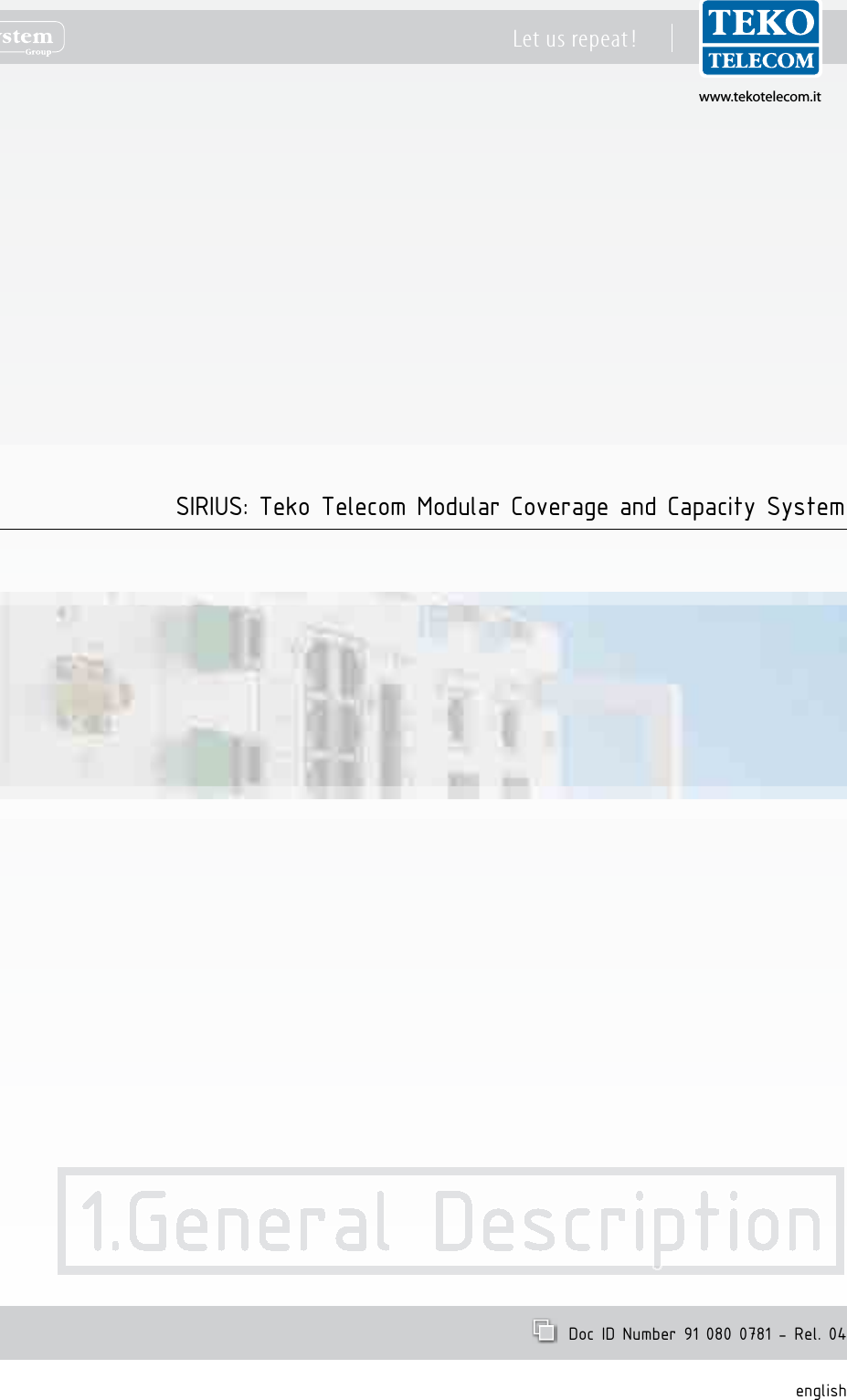

www.tekotelecom.itwww.tekotelecom.itLet us repeat !english Doc ID Number 91 080 0781 - Rel. 041.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General Description1.General DescriptionSIRIUS: Teko Telecom Modular Coverage and Capacity System

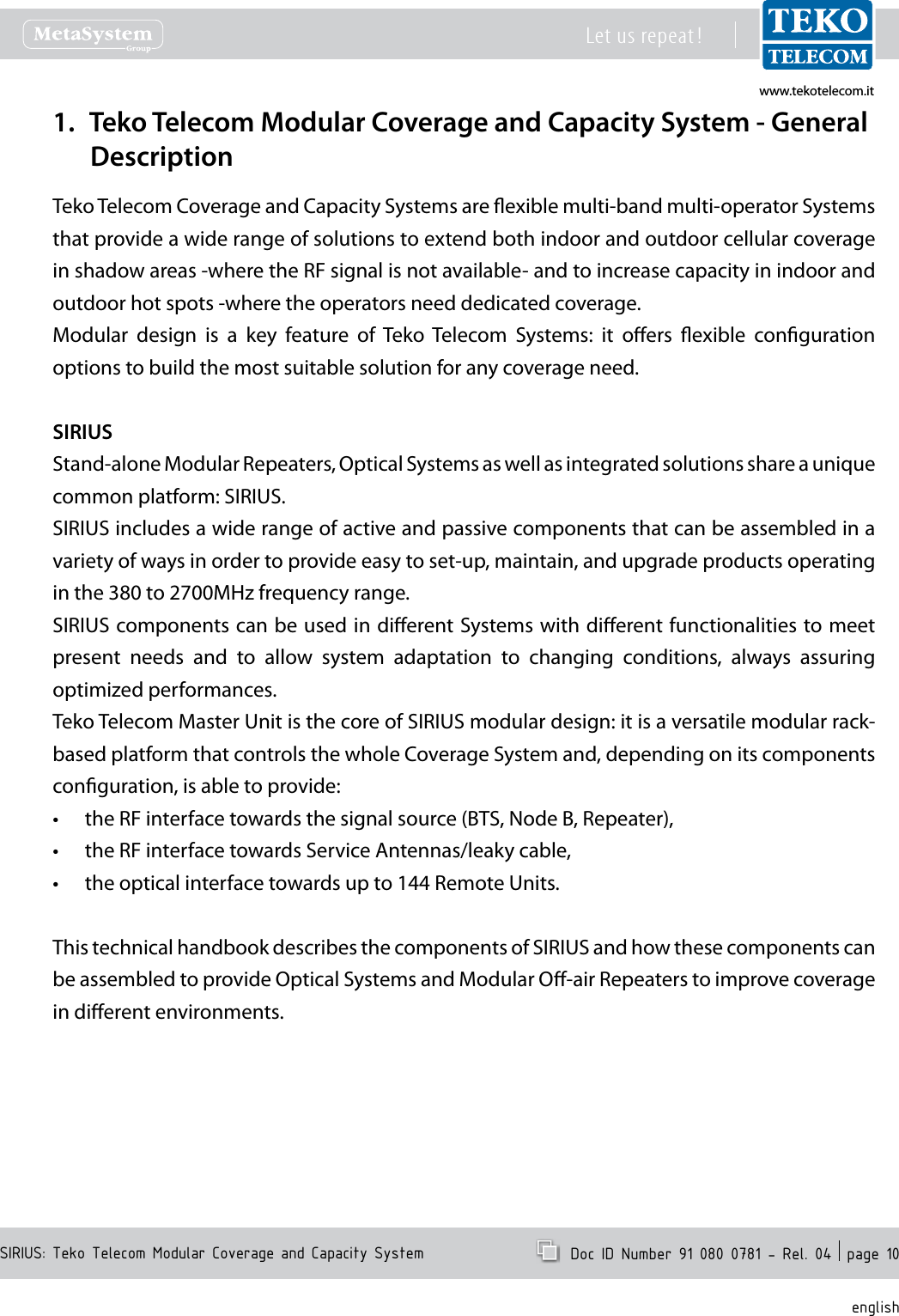

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 10englishTeko Telecom Modular Coverage and Capacity System - General 1. DescriptionTeko Telecom Coverage and Capacity Systems are exible multi-band multi-operator Systems that provide a wide range of solutions to extend both indoor and outdoor cellular coverage in shadow areas -where the RF signal is not available- and to increase capacity in indoor and outdoor hot spots -where the operators need dedicated coverage.Modular design is a key feature of Teko Telecom Systems: it oers exible conguration options to build the most suitable solution for any coverage need.SIRIUSStand-alone Modular Repeaters, Optical Systems as well as integrated solutions share a unique common platform: SIRIUS.SIRIUS includes a wide range of active and passive components that can be assembled in a variety of ways in order to provide easy to set-up, maintain, and upgrade products operating in the 380 to 2700MHz frequency range. SIRIUS components can be used in dierent Systems with dierent functionalities to meet present needs and to allow system adaptation to changing conditions, always assuring optimized performances.Teko Telecom Master Unit is the core of SIRIUS modular design: it is a versatile modular rack-based platform that controls the whole Coverage System and, depending on its components conguration, is able to provide: the RF interface towards the signal source (BTS, Node B, Repeater),•the RF interface towards Service Antennas/leaky cable,•the optical interface towards up to 144 Remote Units.•This technical handbook describes the components of SIRIUS and how these components can be assembled to provide Optical Systems and Modular O-air Repeaters to improve coverage in dierent environments.

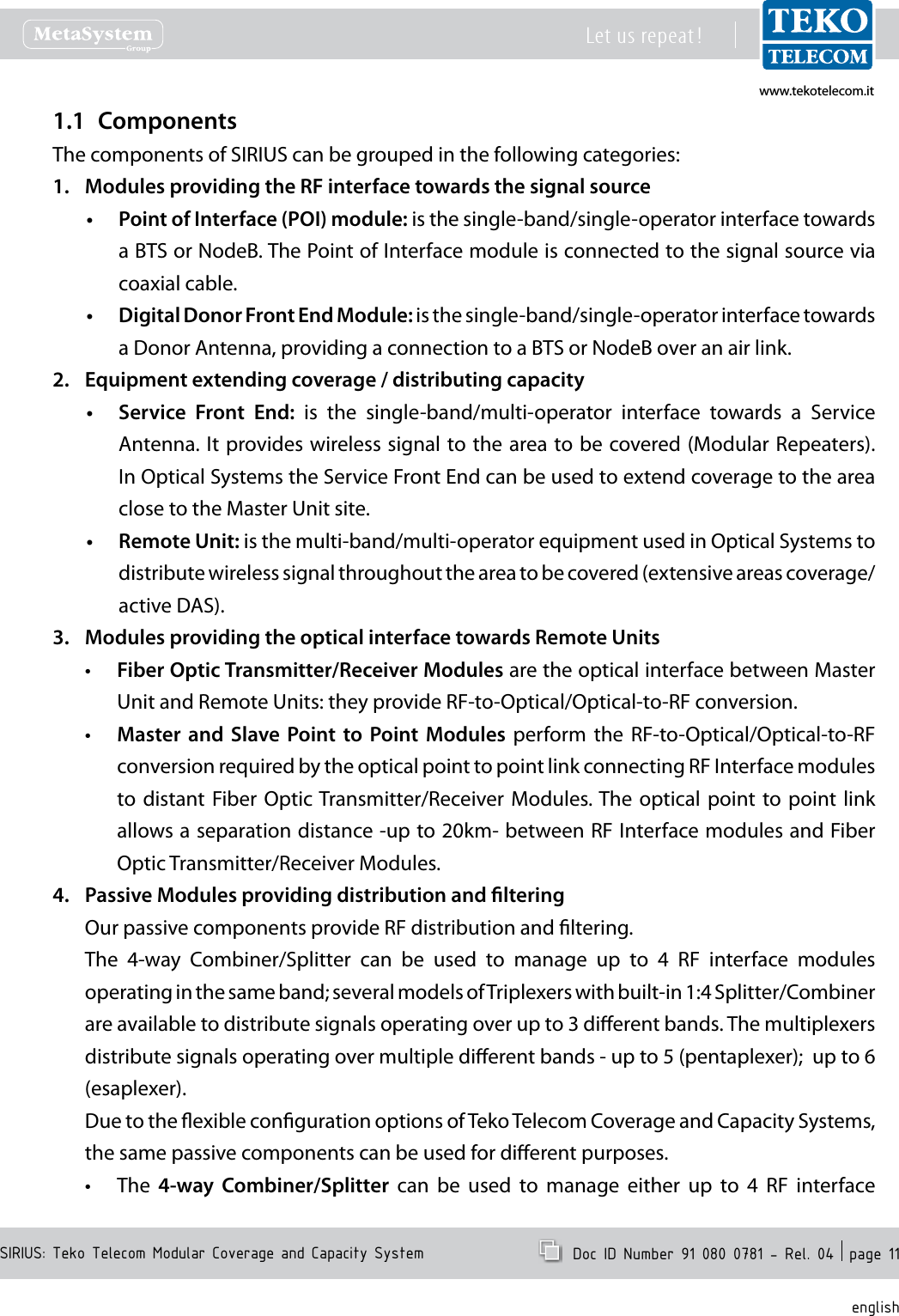

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 11englishComponents1.1 The components of SIRIUS can be grouped in the following categories:Modules providing the RF interface towards the signal source1. Point of Interface (POI) module:• is the single-band/single-operator interface towards a BTS or NodeB. The Point of Interface module is connected to the signal source via coaxial cable.Digital Donor Front End Module: • is the single-band/single-operator interface towards a Donor Antenna, providing a connection to a BTS or NodeB over an air link. Equipment extending coverage / distributing capacity2. Service Front End:• is the single-band/multi-operator interface towards a Service Antenna. It provides wireless signal to the area to be covered (Modular Repeaters). In Optical Systems the Service Front End can be used to extend coverage to the area close to the Master Unit site.Remote Unit:• is the multi-band/multi-operator equipment used in Optical Systems to distribute wireless signal throughout the area to be covered (extensive areas coverage/active DAS).Modules providing the optical interface towards Remote Units3. Fiber Optic Transmitter/Receiver Modules• are the optical interface between Master Unit and Remote Units: they provide RF-to-Optical/Optical-to-RF conversion.Master and Slave Point to Point Modules • perform the RF-to-Optical/Optical-to-RF conversion required by the optical point to point link connecting RF Interface modules to distant Fiber Optic Transmitter/Receiver Modules. The optical point to point link allows a separation distance -up to 20km- between RF Interface modules and Fiber Optic Transmitter/Receiver Modules.Passive Modules providing distribution and ltering4. Our passive components provide RF distribution and ltering.The 4-way Combiner/Splitter can be used to manage up to 4 RF interface modules operating in the same band; several models of Triplexers with built-in 1:4 Splitter/Combiner are available to distribute signals operating over up to 3 dierent bands. The multiplexers distribute signals operating over multiple dierent bands - up to 5 (pentaplexer); up to 6 (esaplexer).Due to the exible conguration options of Teko Telecom Coverage and Capacity Systems, the same passive components can be used for dierent purposes.The • 4-way Combiner/Splitter can be used to manage either up to 4 RF interface

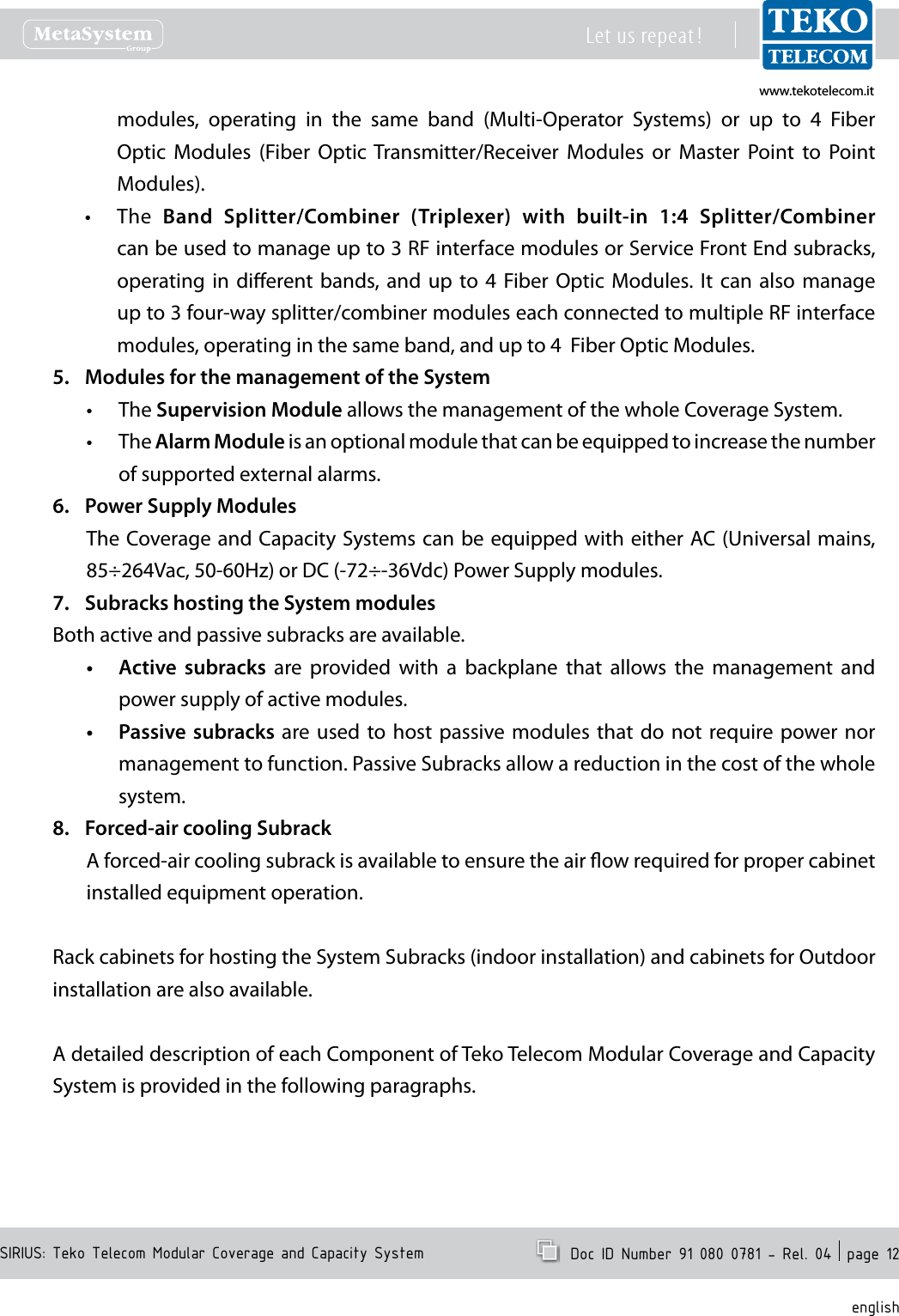

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 12englishmodules, operating in the same band (Multi-Operator Systems) or up to 4 Fiber Optic Modules (Fiber Optic Transmitter/Receiver Modules or Master Point to Point Modules).The • Band Splitter/Combiner (Triplexer) with built-in 1:4 Splitter/Combiner can be used to manage up to 3 RF interface modules or Service Front End subracks, operating in dierent bands, and up to 4 Fiber Optic Modules. It can also manage up to 3 four-way splitter/combiner modules each connected to multiple RF interface modules, operating in the same band, and up to 4 Fiber Optic Modules.Modules for the management of the System5. The • Supervision Module allows the management of the whole Coverage System.The • Alarm Module is an optional module that can be equipped to increase the number of supported external alarms.Power Supply Modules6. The Coverage and Capacity Systems can be equipped with either AC (Universal mains, 85÷264Vac, 50-60Hz) or DC (-72÷-36Vdc) Power Supply modules.Subracks hosting the System modules7. Both active and passive subracks are available.Active subracks• are provided with a backplane that allows the management and power supply of active modules.Passive subracks• are used to host passive modules that do not require power nor management to function. Passive Subracks allow a reduction in the cost of the whole system.Forced-air cooling Subrack8. A forced-air cooling subrack is available to ensure the air ow required for proper cabinet installed equipment operation.Rack cabinets for hosting the System Subracks (indoor installation) and cabinets for Outdoor installation are also available.A detailed description of each Component of Teko Telecom Modular Coverage and Capacity System is provided in the following paragraphs.

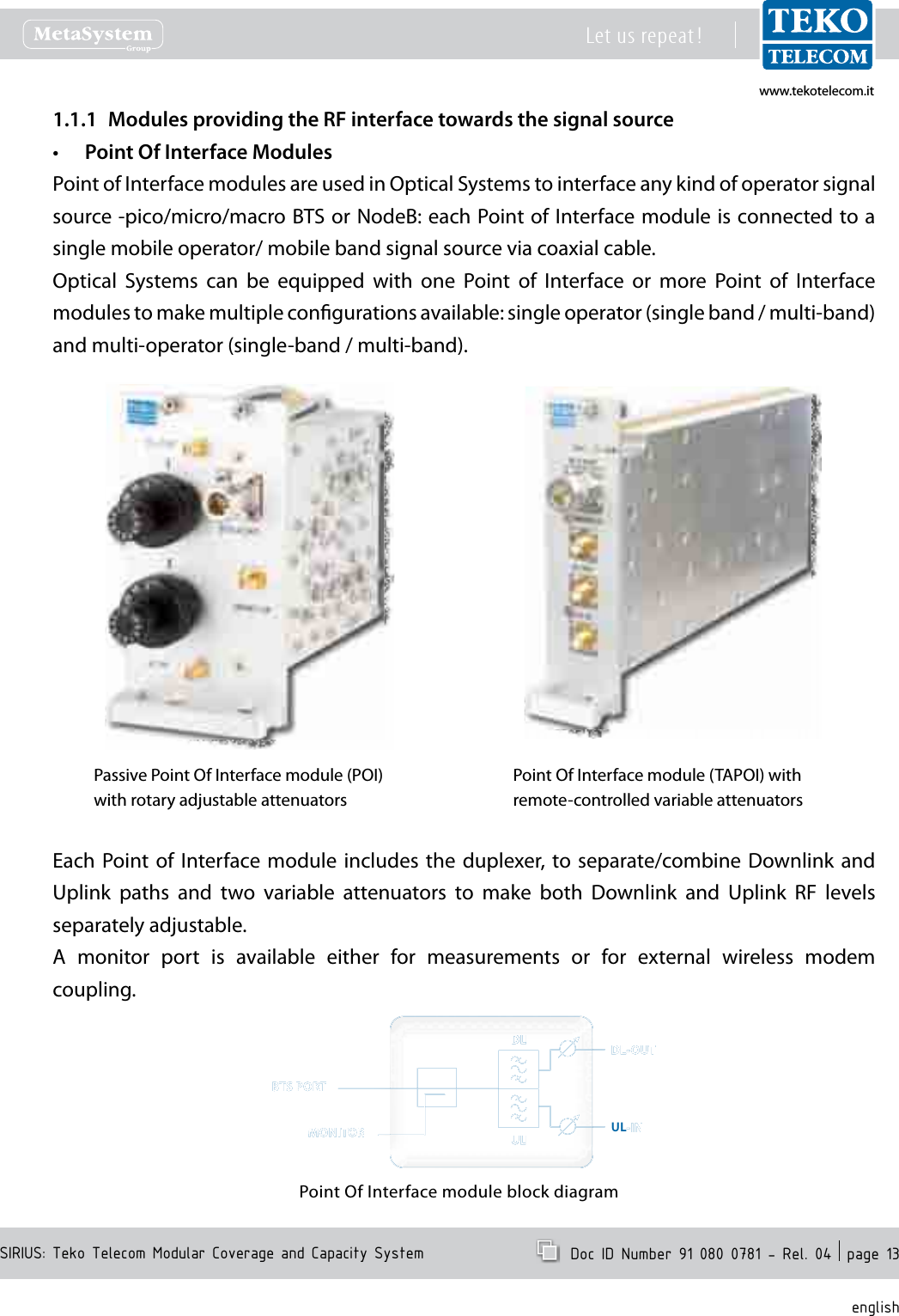

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 13englishModules providing the RF interface towards the signal source1.1.1 Point Of Interface Modules•Point of Interface modules are used in Optical Systems to interface any kind of operator signal source -pico/micro/macro BTS or NodeB: each Point of Interface module is connected to a single mobile operator/ mobile band signal source via coaxial cable.Optical Systems can be equipped with one Point of Interface or more Point of Interface modules to make multiple congurations available: single operator (single band / multi-band) and multi-operator (single-band / multi-band).Passive Point Of Interface module (POI)with rotary adjustable attenuatorsPoint Of Interface module (TAPOI) with remote-controlled variable attenuatorsEach Point of Interface module includes the duplexer, to separate/combine Downlink and Uplink paths and two variable attenuators to make both Downlink and Uplink RF levels separately adjustable.A monitor port is available either for measurements or for external wireless modem coupling.Point Of Interface module block diagramULDLDLDLDLDLULULULULULDLDLDLDLDL-----OUTOUTOUTOUTOUT-IN-IN-IN-IN-INBTBTBTBTBTS PORTS PORTS PORTS PORTS PORTMONITMONITMONITMONITMONITOROROROROR

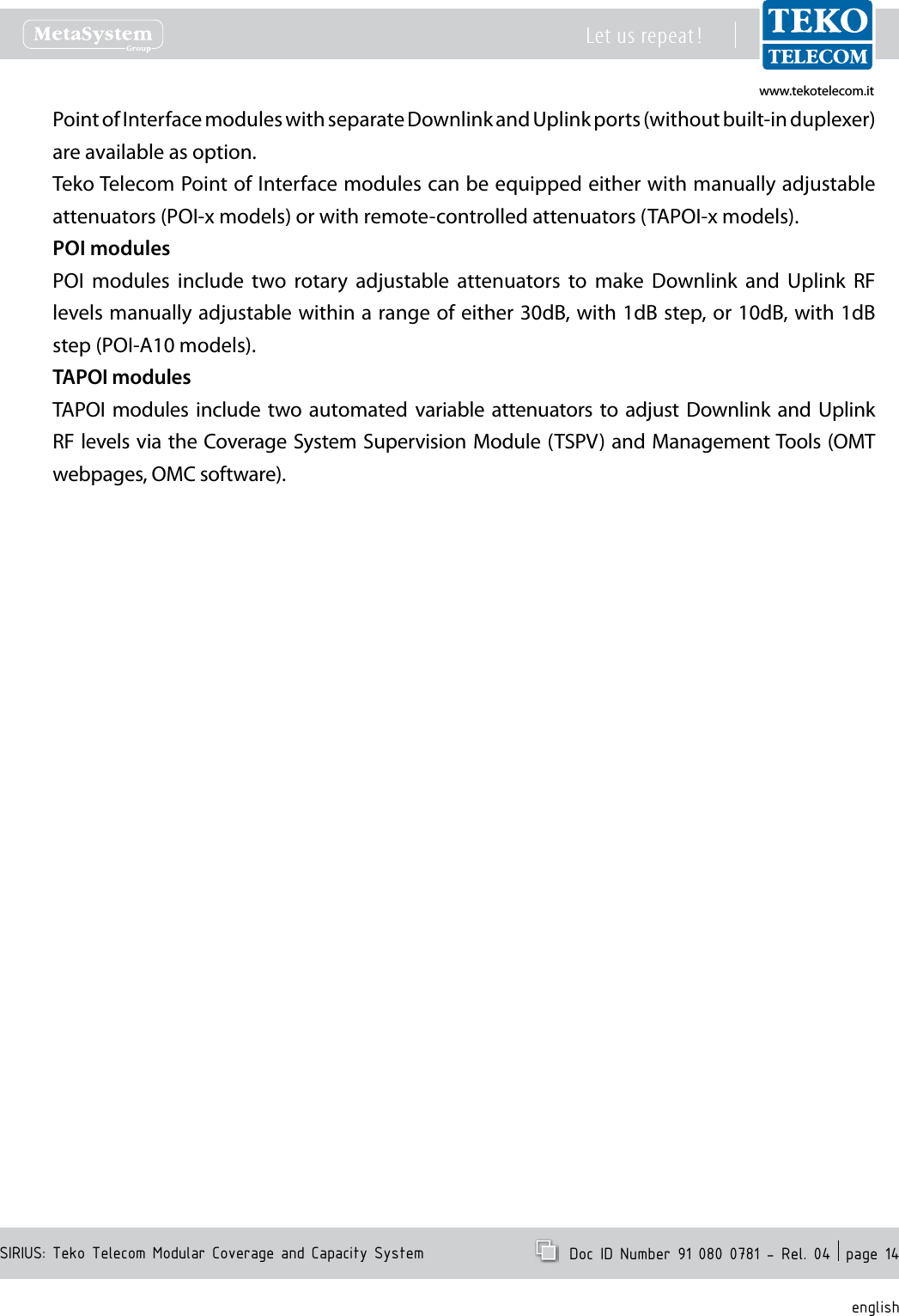

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 14englishPoint of Interface modules with separate Downlink and Uplink ports (without built-in duplexer) are available as option.Teko Telecom Point of Interface modules can be equipped either with manually adjustable attenuators (POI-x models) or with remote-controlled attenuators (TAPOI-x models).POI modulesPOI modules include two rotary adjustable attenuators to make Downlink and Uplink RF levels manually adjustable within a range of either 30dB, with 1dB step, or 10dB, with 1dB step (POI-A10 models).TAPOI modulesTAPOI modules include two automated variable attenuators to adjust Downlink and Uplink RF levels via the Coverage System Supervision Module (TSPV) and Management Tools (OMT webpages, OMC software).

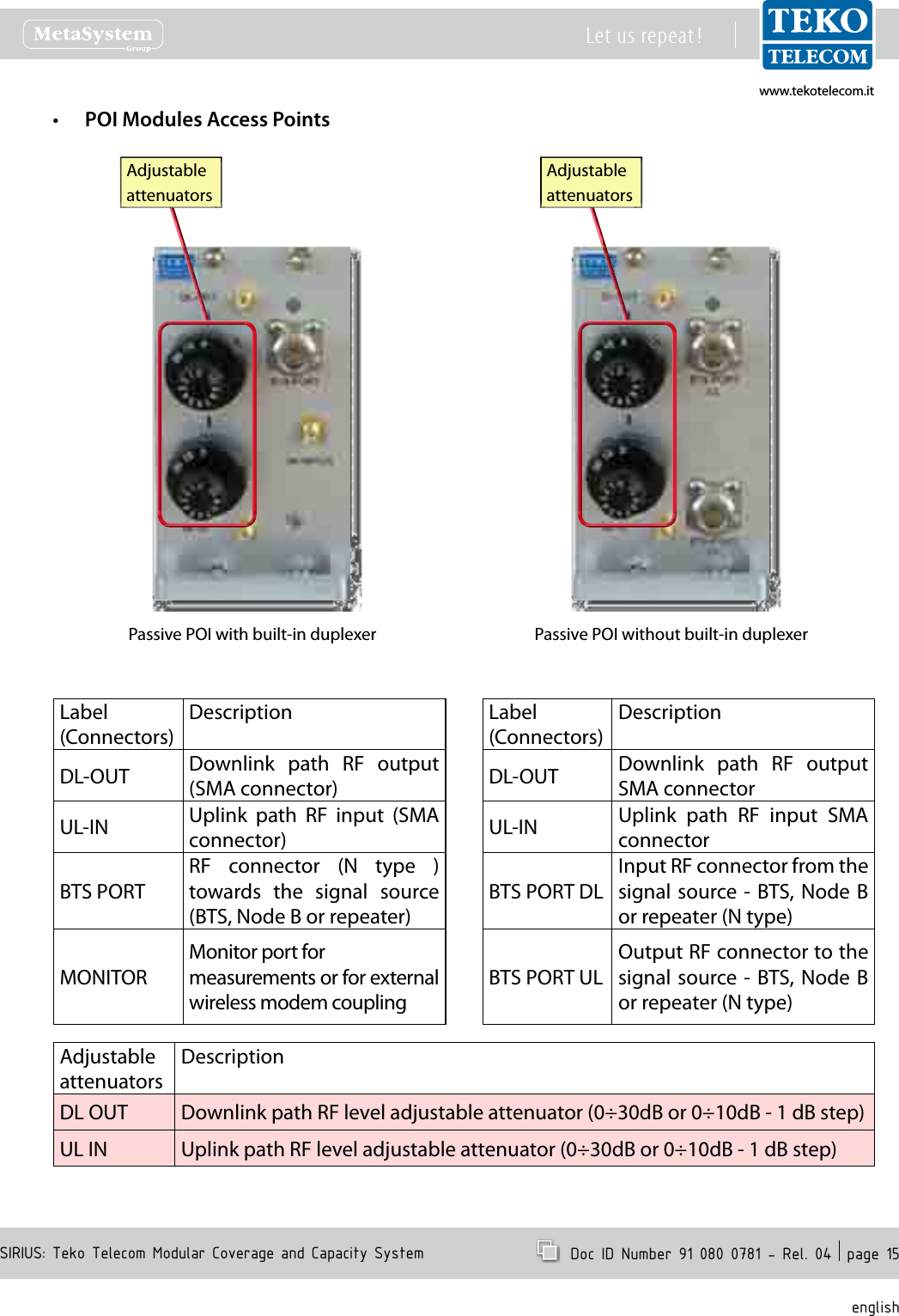

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 15englishPOI Modules Access Points•Passive POI with built-in duplexer Passive POI without built-in duplexerAdjustableattenuatorsAdjustableattenuatorsLabel(Connectors)DescriptionDL-OUT Downlink path RF output (SMA connector)UL-IN Uplink path RF input (SMA connector)BTS PORTRF connector (N type ) towards the signal source (BTS, Node B or repeater)MONITORMonitor port formeasurements or for external wireless modem couplingLabel(Connectors)DescriptionDL-OUT Downlink path RF output SMA connectorUL-IN Uplink path RF input SMA connectorBTS PORT DLInput RF connector from the signal source - BTS, Node B or repeater (N type)BTS PORT ULOutput RF connector to the signal source - BTS, Node B or repeater (N type)Adjustable attenuatorsDescriptionDL OUT Downlink path RF level adjustable attenuator (0÷30dB or 0÷10dB - 1 dB step)UL IN Uplink path RF level adjustable attenuator (0÷30dB or 0÷10dB - 1 dB step)

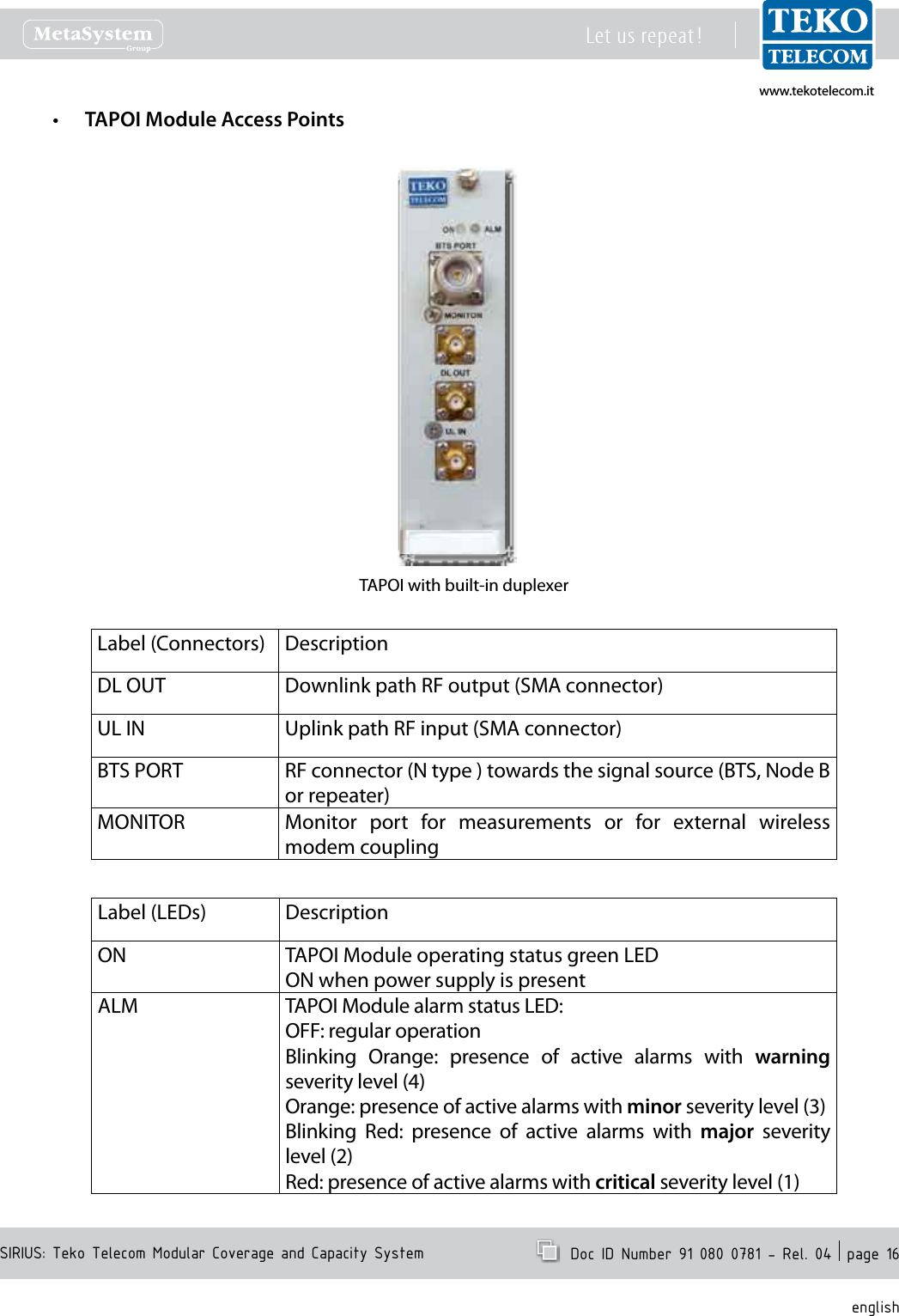

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 16englishTAPOI Module Access Points•TAPOI with built-in duplexerLabel (Connectors) DescriptionDL OUT Downlink path RF output (SMA connector)UL IN Uplink path RF input (SMA connector)BTS PORT RF connector (N type ) towards the signal source (BTS, Node B or repeater)MONITOR Monitor port for measurements or for external wireless modem couplingLabel (LEDs) DescriptionON TAPOI Module operating status green LEDON when power supply is presentALM TAPOI Module alarm status LED:OFF: regular operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

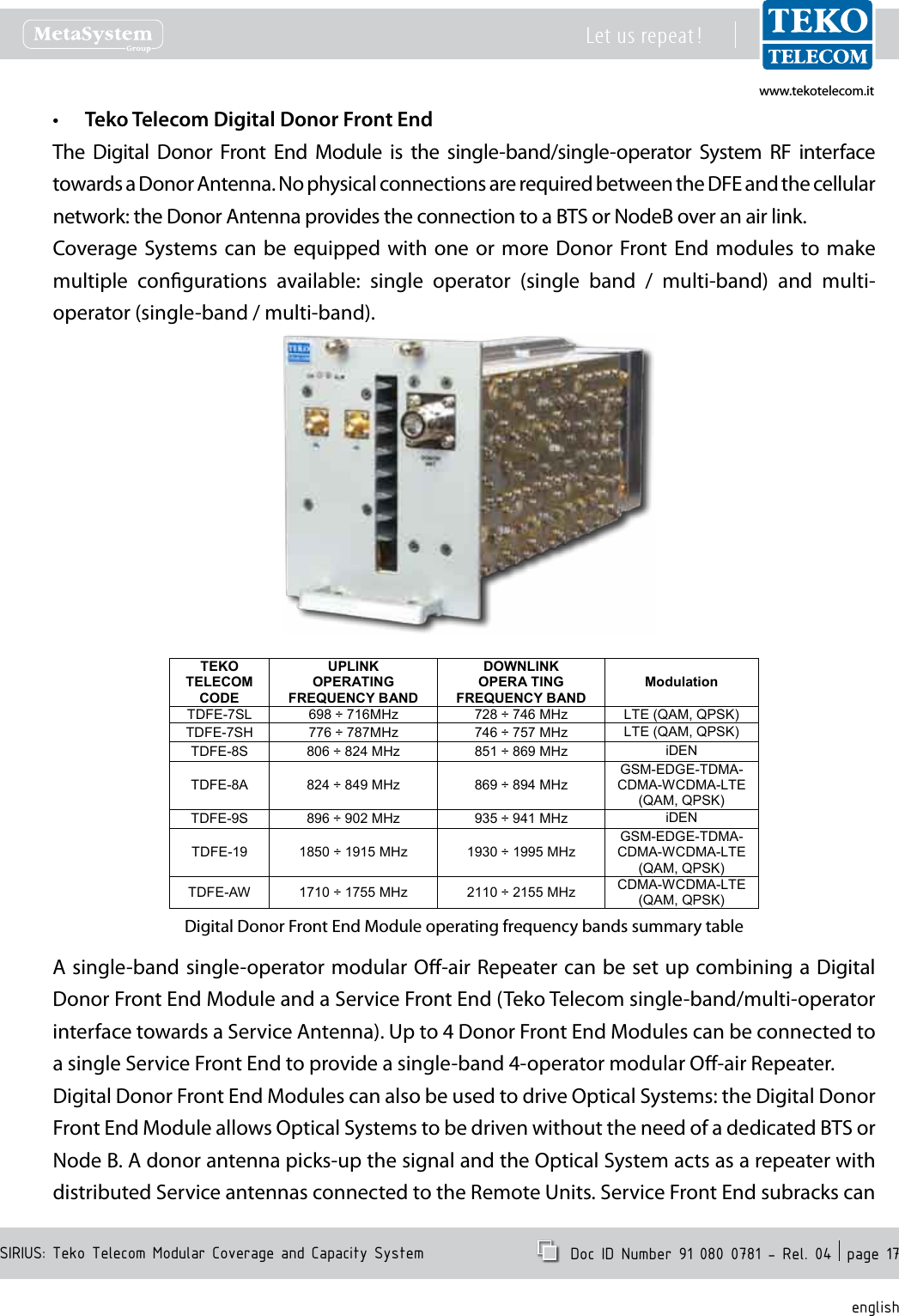

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 17englishTeko Telecom Digital Donor Front End•The Digital Donor Front End Module is the single-band/single-operator System RF interfacetowardsaDonorAntenna.NophysicalconnectionsarerequiredbetweentheDFEandthecellularnetwork:theDonorAntennaprovidestheconnectiontoaBTSorNodeBoveranairlink.CoverageSystemscan be equippedwithone or moreDonor FrontEnd modules to makemultiple congurations available: single operator (single band / multi-band) and multi-operator(single-band/multi-band).TEKO TELECOMCODEUPLINKOPERATING FREQUENCY BANDDOWNLlNKOPERA TING FREQUENCY BANDModulationTDFE-7SL 698÷716MHz 728÷746 MHz LTE (QAM, QPSK)TDFE-7SH 776÷787MHz 746÷757 MHz LTE (QAM, QPSK)TDFE-8S806 ÷824 MHz 851÷869 MHz iDENTDFE-8A824 ÷849 MHz 869÷894 MHzGSM-EDGE-TDMA-CDMA-WCDMA-LTE (QAM, QPSK)TDFE-9S896 ÷902 MHz 935÷941 MHz iDENTDFE-191850 ÷1915 MHz1930 ÷1995 MHzGSM-EDGE-TDMA-CDMA-WCDMA-LTE (QAM, QPSK)TDFE-AW1710 ÷1755 MHz2110 ÷2155 MHz CDMA-WCDMA-LTE (QAM, QPSK)DigitalDonorFrontEndModuleoperatingfrequencybandssummarytableAsingle-bandsingle-operatormodularO-airRepeatercanbesetupcombiningaDigitalDonorFrontEndModuleandaServiceFrontEnd(TekoTelecomsingle-band/multi-operatorinterfacetowardsaServiceAntenna).Upto4DonorFrontEndModulescanbeconnectedtoasingleServiceFrontEndtoprovideasingle-band4-operatormodularO-airRepeater.DigitalDonorFrontEndModulescanalsobeusedtodriveOpticalSystems:theDigitalDonorFrontEndModuleallowsOpticalSystemstobedrivenwithouttheneedofadedicatedBTSorNodeB.Adonorantennapicks-upthesignalandtheOpticalSystemactsasarepeaterwithdistributedServiceantennasconnectedtotheRemoteUnits.ServiceFrontEndsubrackscan

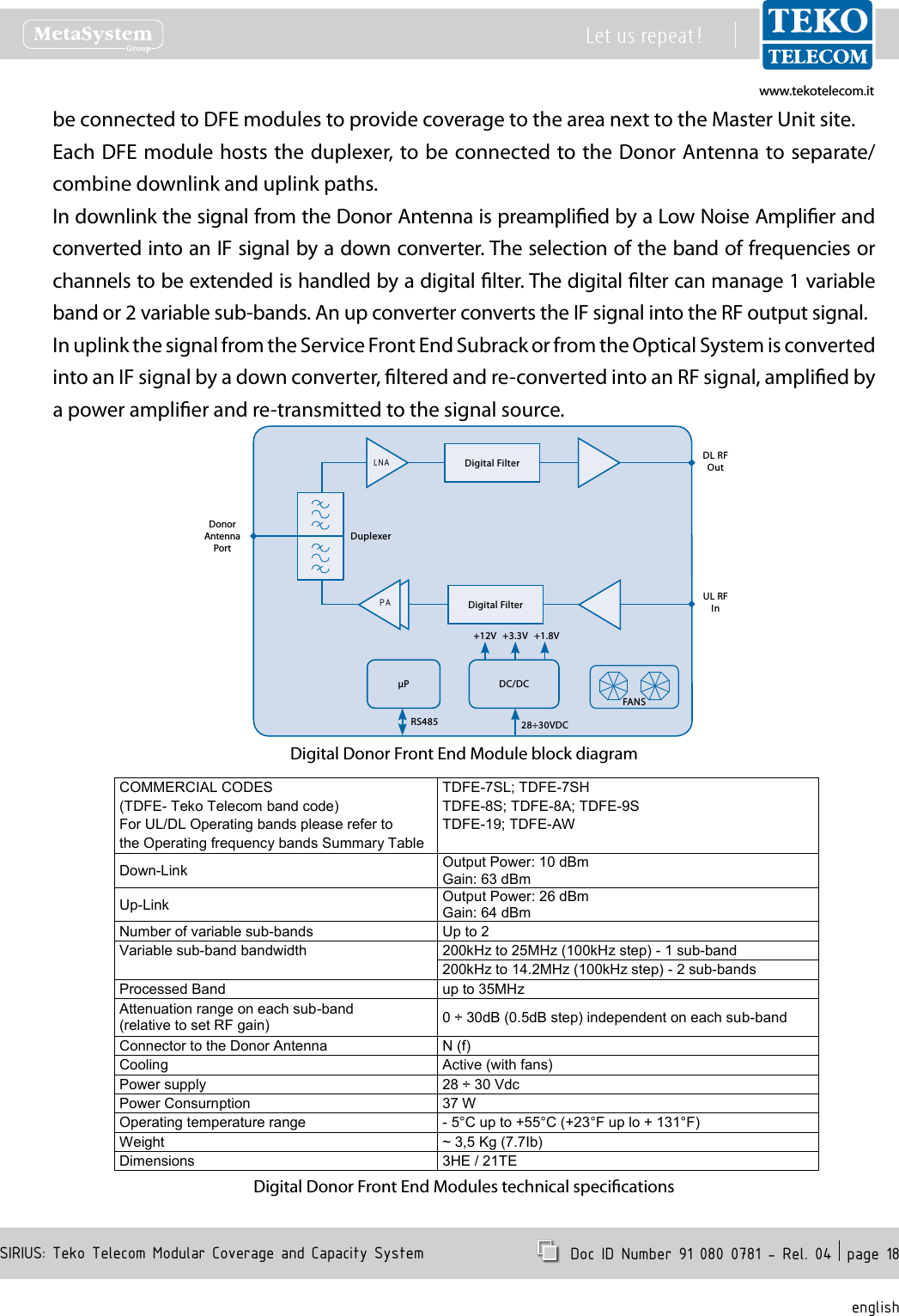

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 18englishbeconnectedtoDFEmodulestoprovidecoveragetotheareanexttotheMasterUnitsite.EachDFEmodulehoststheduplexer,tobeconnectedtotheDonorAntennatoseparate/combinedownlinkanduplinkpaths.IndownlinkthesignalfromtheDonorAntennaispreampliedbyaLowNoiseAmplierandconvertedintoanIFsignalbyadownconverter.Theselectionofthebandoffrequenciesorchannelstobeextendedishandledbyadigitallter.Thedigitalltercanmanage1variablebandor2variablesub-bands.AnupconverterconvertstheIFsignalintotheRFoutputsignal.InuplinkthesignalfromtheServiceFrontEndSubrackorfromtheOpticalSystemisconvertedintoanIFsignalbyadownconverter,lteredandre-convertedintoanRFsignal,ampliedbyapoweramplierandre-transmittedtothesignalsource.DLRFOutULRFInDonorAntennaPortDuplexerμP DC/DC+12V +1.8V+3.3V28÷30VDCRS485FANSDigitalFilterDigitalFilterPALNADigitalDonorFrontEndModuleblockdiagramCOMMERCIAL CODES TDFE-7SL; TDFE-7SH(TDFE- Teko Telecom band code)TDFE-8S; TDFE-8A; TDFE-9SFor UL/DL Operating bands please refer to TDFE-19; TDFE-AWthe Operating frequency bands Summary TableDown-LinkOutput Power: 10 dBmGain: 63 dBmUp-LinkOutput Power: 26 dBmGain: 64 dBmNumber of variable sub-bandsUp to 2Variable sub-band bandwidth 200kHz to 25MHz (100kHz step) -1 sub-band200kHz to 14.2MHz (100kHz step) -2 sub-bandsProcessed Band up to 35MHzAttenuation range on each sub-band (relative to set RF gain) 0÷30dB (0.5dB step) independent on each sub-bandConnector to the Donor Antenna N (f)CoolingActive (with fans)Power supply28÷30 VdcPower Consurnption 37 WOperatingtemperature range -5°C up to +55°C (+23°F up lo + 131°F)Weight ~ 3,5 Kg (7.7Ib)Dimensions 3HE / 21TEDigitalDonorFrontEndModulestechnicalspecications

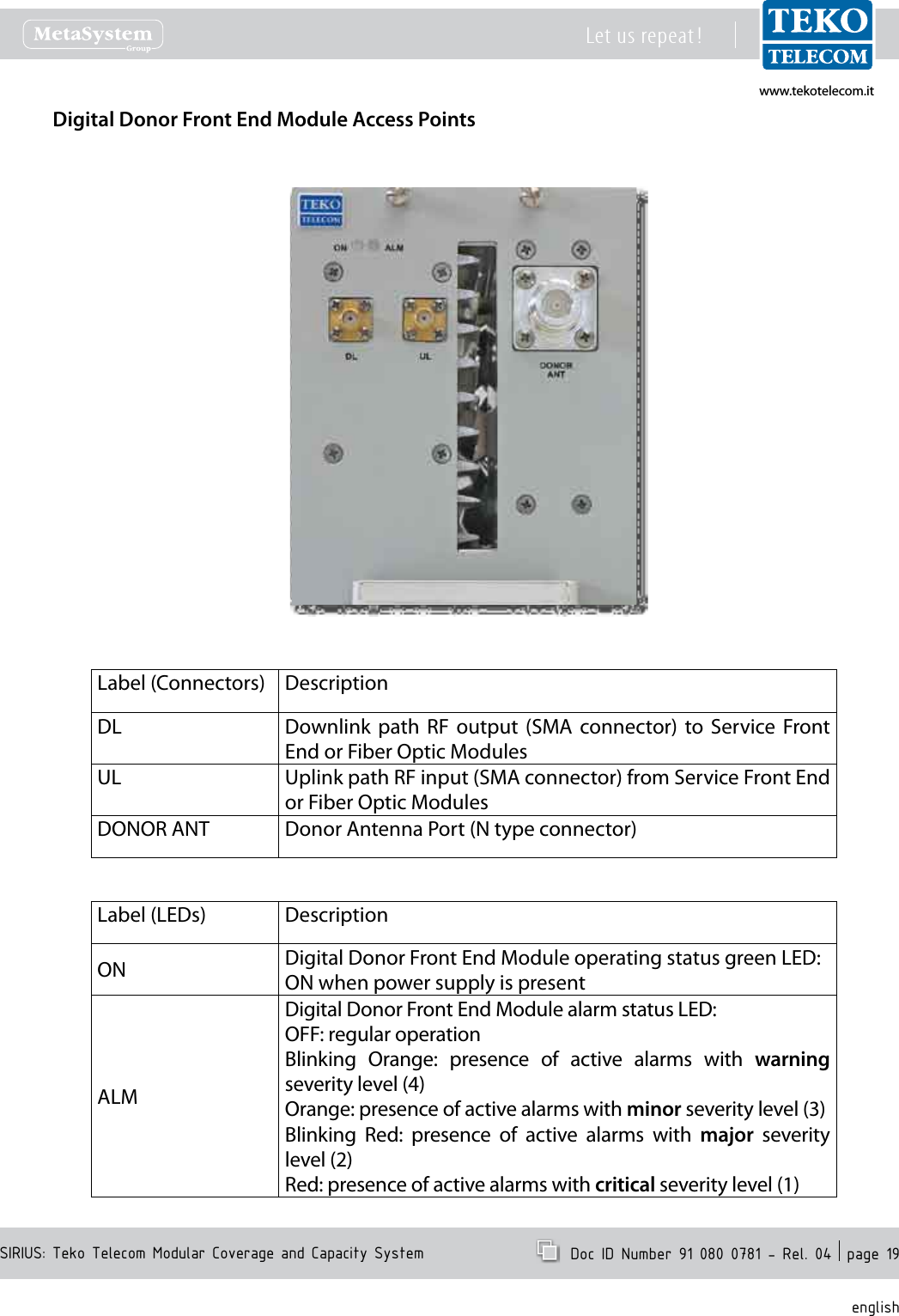

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 19englishDigital Donor Front End Module Access PointsLabel (Connectors) DescriptionDL Downlink path RF output (SMA connector) to Service Front End or Fiber Optic ModulesUL Uplink path RF input (SMA connector) from Service Front End or Fiber Optic ModulesDONOR ANT Donor Antenna Port (N type connector)Label (LEDs) DescriptionON Digital Donor Front End Module operating status green LED:ON when power supply is presentALMDigital Donor Front End Module alarm status LED:OFF: regular operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

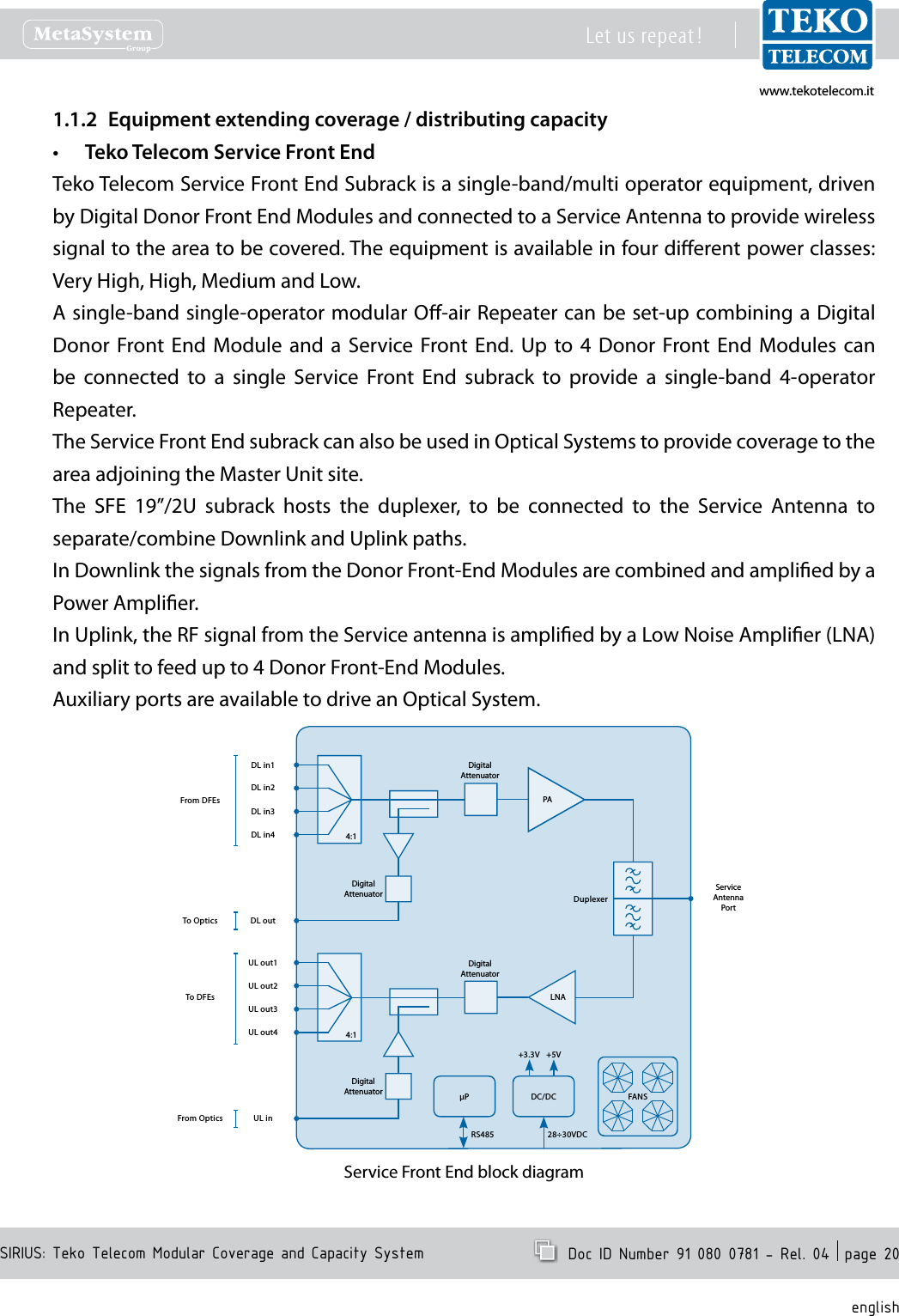

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 20englishEquipment extending coverage / distributing capacity1.1.2 Teko Telecom Service Front End•Teko Telecom Service Front End Subrack is a single-band/multi operator equipment, driven by Digital Donor Front End Modules and connected to a Service Antenna to provide wireless signal to the area to be covered. The equipment is available in four dierent power classes: Very High, High, Medium and Low.A single-band single-operator modular O-air Repeater can be set-up combining a Digital Donor Front End Module and a Service Front End. Up to 4 Donor Front End Modules can be connected to a single Service Front End subrack to provide a single-band 4-operator Repeater.The Service Front End subrack can also be used in Optical Systems to provide coverage to the area adjoining the Master Unit site.The SFE 19”/2U subrack hosts the duplexer, to be connected to the Service Antenna to separate/combine Downlink and Uplink paths.In Downlink the signals from the Donor Front-End Modules are combined and amplied by a Power Amplier.In Uplink, the RF signal from the Service antenna is amplied by a Low Noise Amplier (LNA) and split to feed up to 4 Donor Front-End Modules.Auxiliary ports are available to drive an Optical System.PADL in1ServiceAntenna PortDuplexerP DC/DC+3.3V +5V28÷30VDCRS485DigitalAttenuatorDL in2DL in3DL in4DL outLNAUL out1 DigitalAttenuatorUL out2UL out3UL out4UL inDigitalAttenuatorDigitalAttenuator4:14:1FANSFrom DFEsTo DFEsTo OpticsFrom OpticsService Front End block diagram

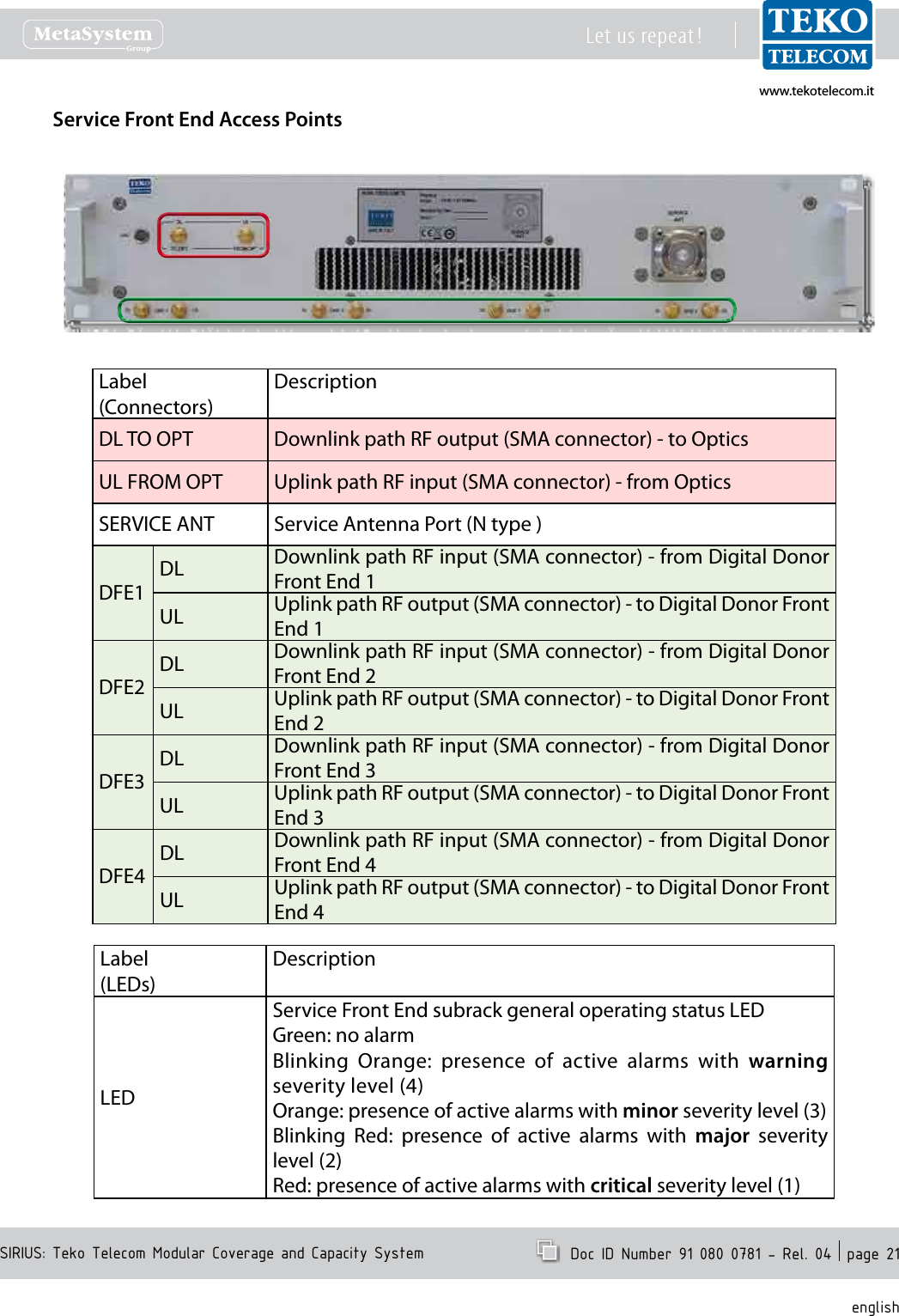

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 21englishService Front End Access PointsLabel(Connectors)DescriptionDL TO OPT Downlink path RF output (SMA connector) - to OpticsUL FROM OPT Uplink path RF input (SMA connector) - from OpticsSERVICE ANT Service Antenna Port (N type )DFE1DL Downlink path RF input (SMA connector) - from Digital Donor Front End 1UL Uplink path RF output (SMA connector) - to Digital Donor Front End 1DFE2DL Downlink path RF input (SMA connector) - from Digital Donor Front End 2UL Uplink path RF output (SMA connector) - to Digital Donor Front End 2DFE3DL Downlink path RF input (SMA connector) - from Digital Donor Front End 3UL Uplink path RF output (SMA connector) - to Digital Donor Front End 3DFE4DL Downlink path RF input (SMA connector) - from Digital Donor Front End 4UL Uplink path RF output (SMA connector) - to Digital Donor Front End 4Label(LEDs)DescriptionLEDService Front End subrack general operating status LEDGreen: no alarmBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

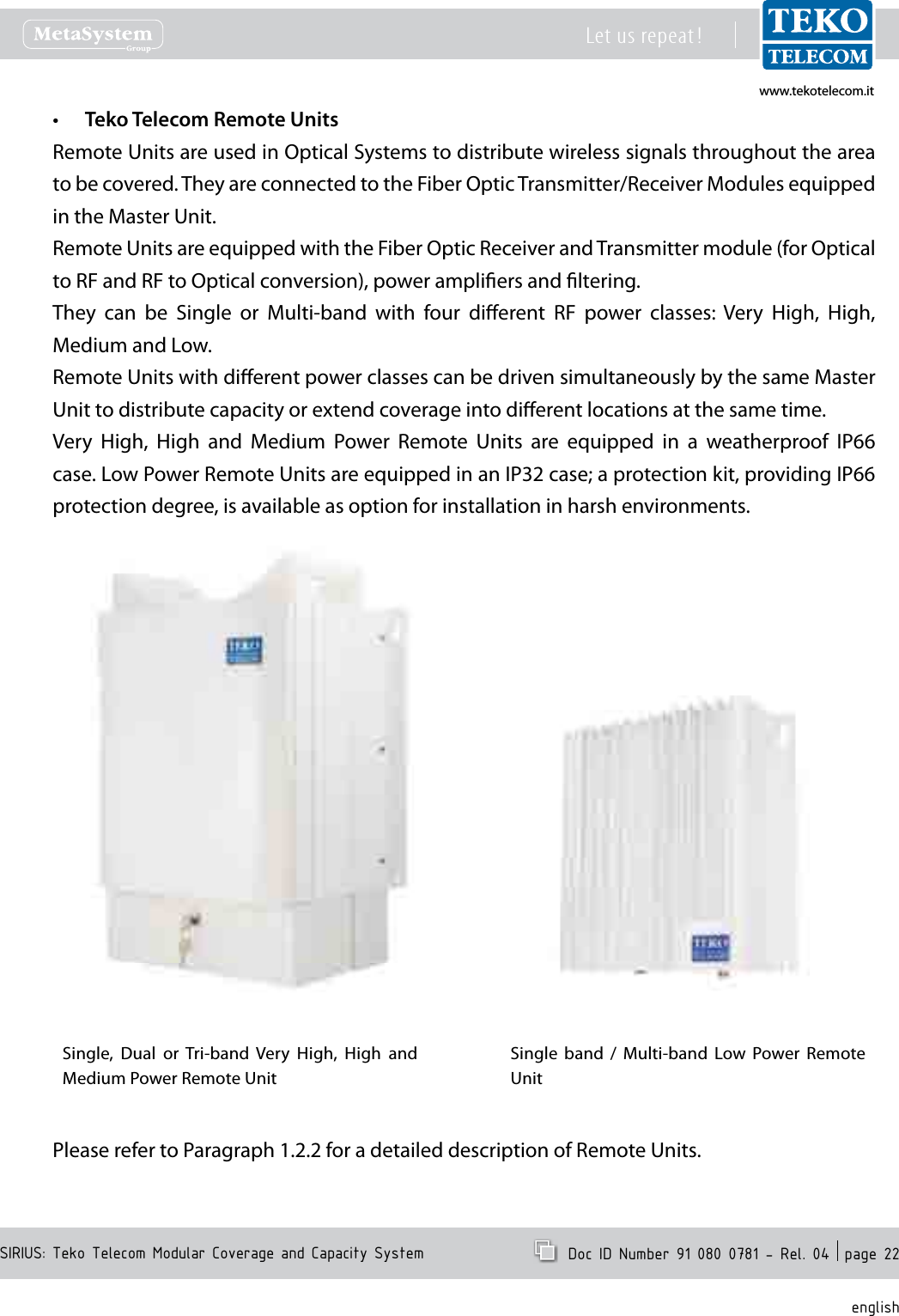

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 22englishTeko Telecom Remote Units•Remote Units are used in Optical Systems to distribute wireless signals throughout the area to be covered. They are connected to the Fiber Optic Transmitter/Receiver Modules equipped in the Master Unit.Remote Units are equipped with the Fiber Optic Receiver and Transmitter module (for Optical to RF and RF to Optical conversion), power ampliers and ltering.They can be Single or Multi-band with four dierent RF power classes: Very High, High, Medium and Low.Remote Units with dierent power classes can be driven simultaneously by the same Master Unit to distribute capacity or extend coverage into dierent locations at the same time.Very High, High and Medium Power Remote Units are equipped in a weatherproof IP66 case. Low Power Remote Units are equipped in an IP32 case; a protection kit, providing IP66 protection degree, is available as option for installation in harsh environments.Single, Dual or Tri-band Very High, High and Medium Power Remote UnitSingle band / Multi-band Low Power Remote UnitPlease refer to Paragraph 1.2.2 for a detailed description of Remote Units.

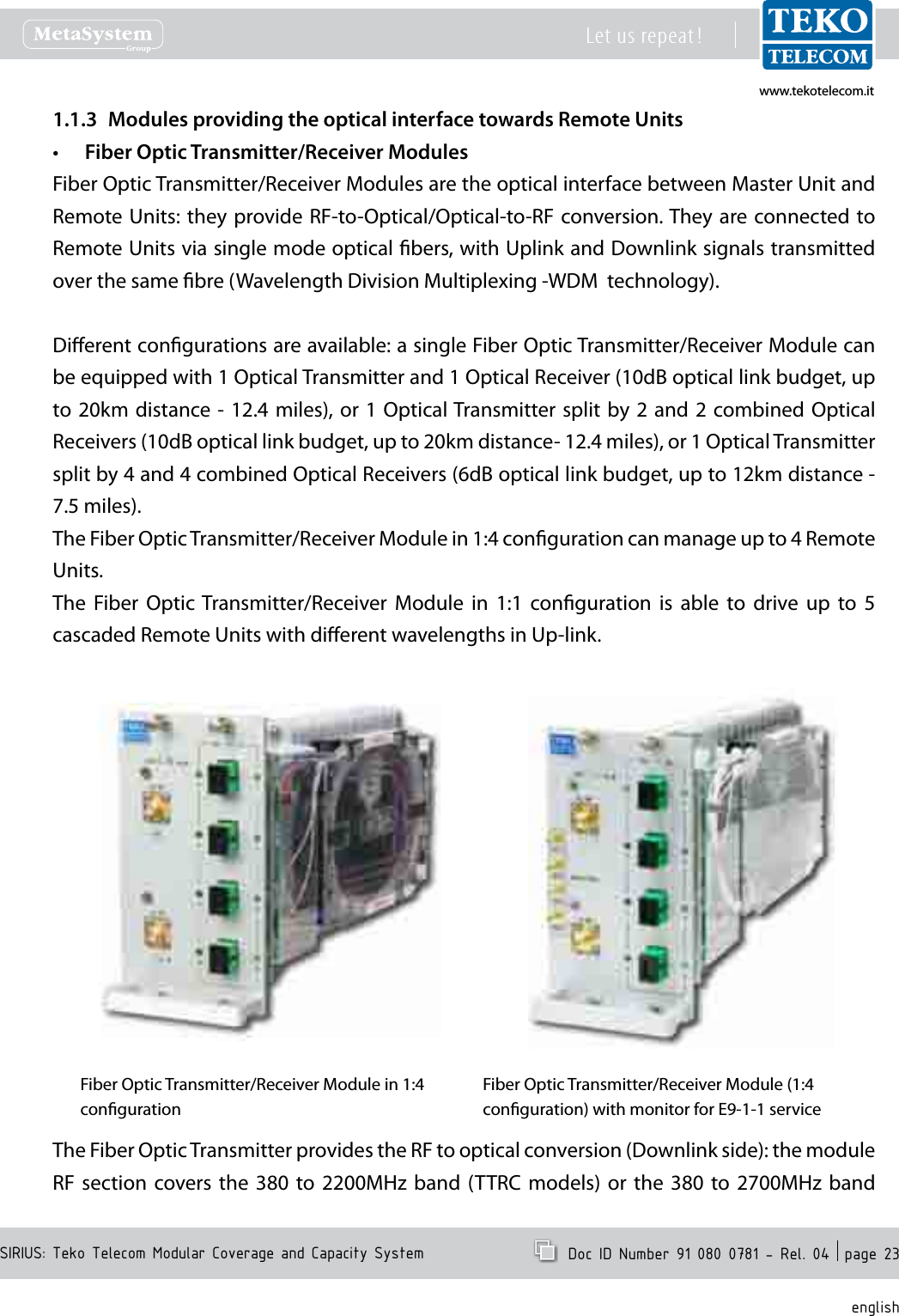

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 23englishModules providing the optical interface towards Remote Units1.1.3 Fiber Optic Transmitter/Receiver Modules•Fiber Optic Transmitter/Receiver Modules are the optical interface between Master Unit and Remote Units: they provide RF-to-Optical/Optical-to-RF conversion. They are connected to Remote Units via single mode optical bers, with Uplink and Downlink signals transmitted over the same bre (Wavelength Division Multiplexing -WDM technology).Dierent congurations are available: a single Fiber Optic Transmitter/Receiver Module can be equipped with 1 Optical Transmitter and 1 Optical Receiver (10dB optical link budget, up to 20km distance - 12.4 miles), or 1 Optical Transmitter split by 2 and 2 combined Optical Receivers (10dB optical link budget, up to 20km distance- 12.4 miles), or 1 Optical Transmitter split by 4 and 4 combined Optical Receivers (6dB optical link budget, up to 12km distance - 7.5 miles).The Fiber Optic Transmitter/Receiver Module in 1:4 conguration can manage up to 4 Remote Units.The Fiber Optic Transmitter/Receiver Module in 1:1 conguration is able to drive up to 5 cascaded Remote Units with dierent wavelengths in Up-link.Fiber Optic Transmitter/Receiver Module in 1:4 congurationFiber Optic Transmitter/Receiver Module (1:4 conguration) with monitor for E9-1-1 serviceThe Fiber Optic Transmitter provides the RF to optical conversion (Downlink side): the module RF section covers the 380 to 2200MHz band (TTRC models) or the 380 to 2700MHz band

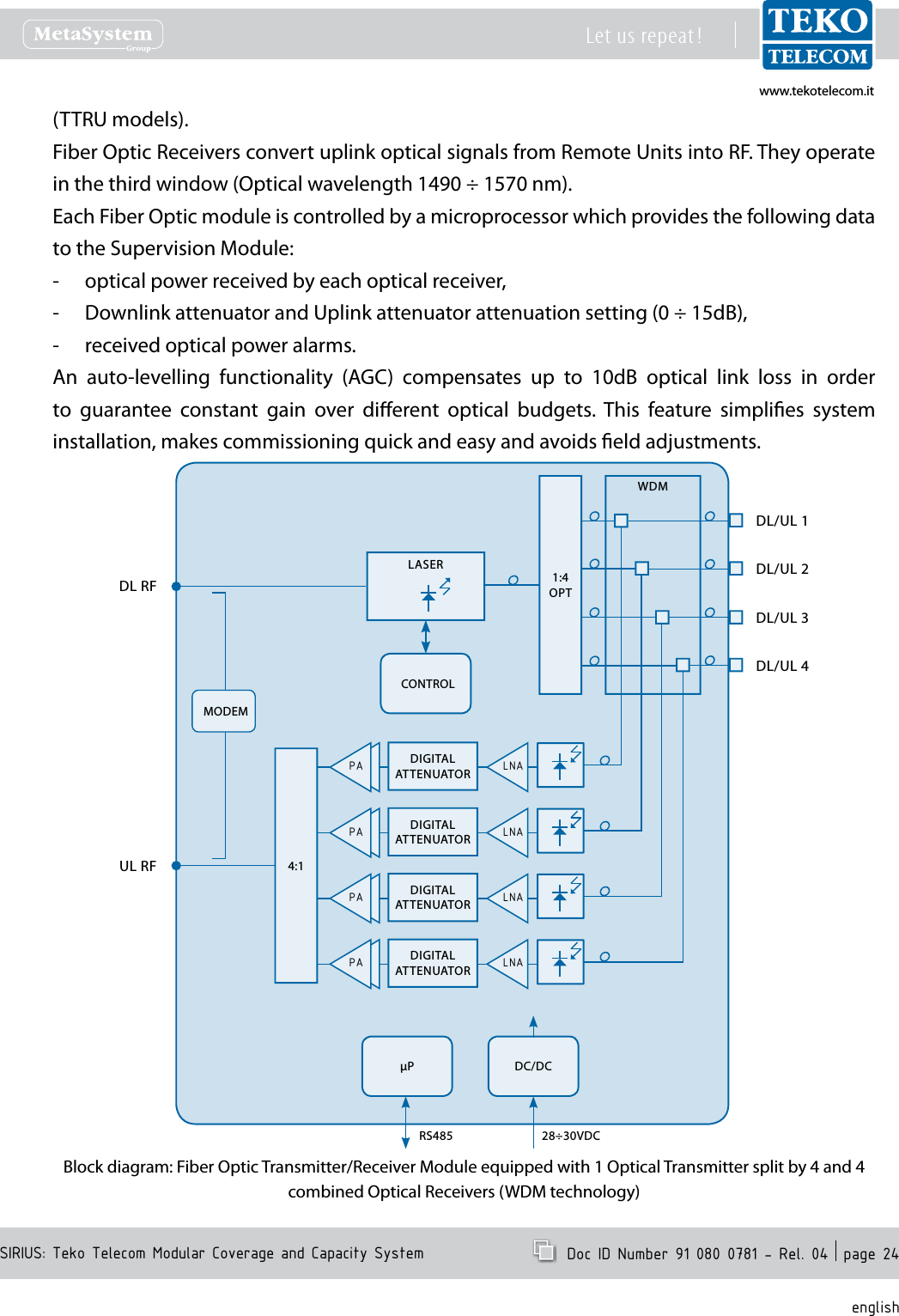

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 24english(TTRU models).Fiber Optic Receivers convert uplink optical signals from Remote Units into RF. They operate in the third window (Optical wavelength 1490 ÷ 1570 nm).Each Fiber Optic module is controlled by a microprocessor which provides the following data to the Supervision Module:optical power received by each optical receiver, -Downlink attenuator and Uplink attenuator attenuation setting (0 ÷ 15dB), -received optical power alarms. -An auto-levelling functionality (AGC) compensates up to 10dB optical link loss in order to guarantee constant gain over dierent optical budgets. This feature simplies system installation, makes commissioning quick and easy and avoids eld adjustments.CONTROL1:4OPTMODEM4:1P DC/DC28÷30VDCRS485PA DIGITALATTENUATOR LNAPA DIGITALATTENUATOR LNAPA DIGITALATTENUATOR LNAPA DIGITALATTENUATOR LNADL RFWDMDL/UL 1DL/UL 3DL/UL 2DL/UL 4UL RFLASERBlock diagram: Fiber Optic Transmitter/Receiver Module equipped with 1 Optical Transmitter split by 4 and 4 combined Optical Receivers (WDM technology)

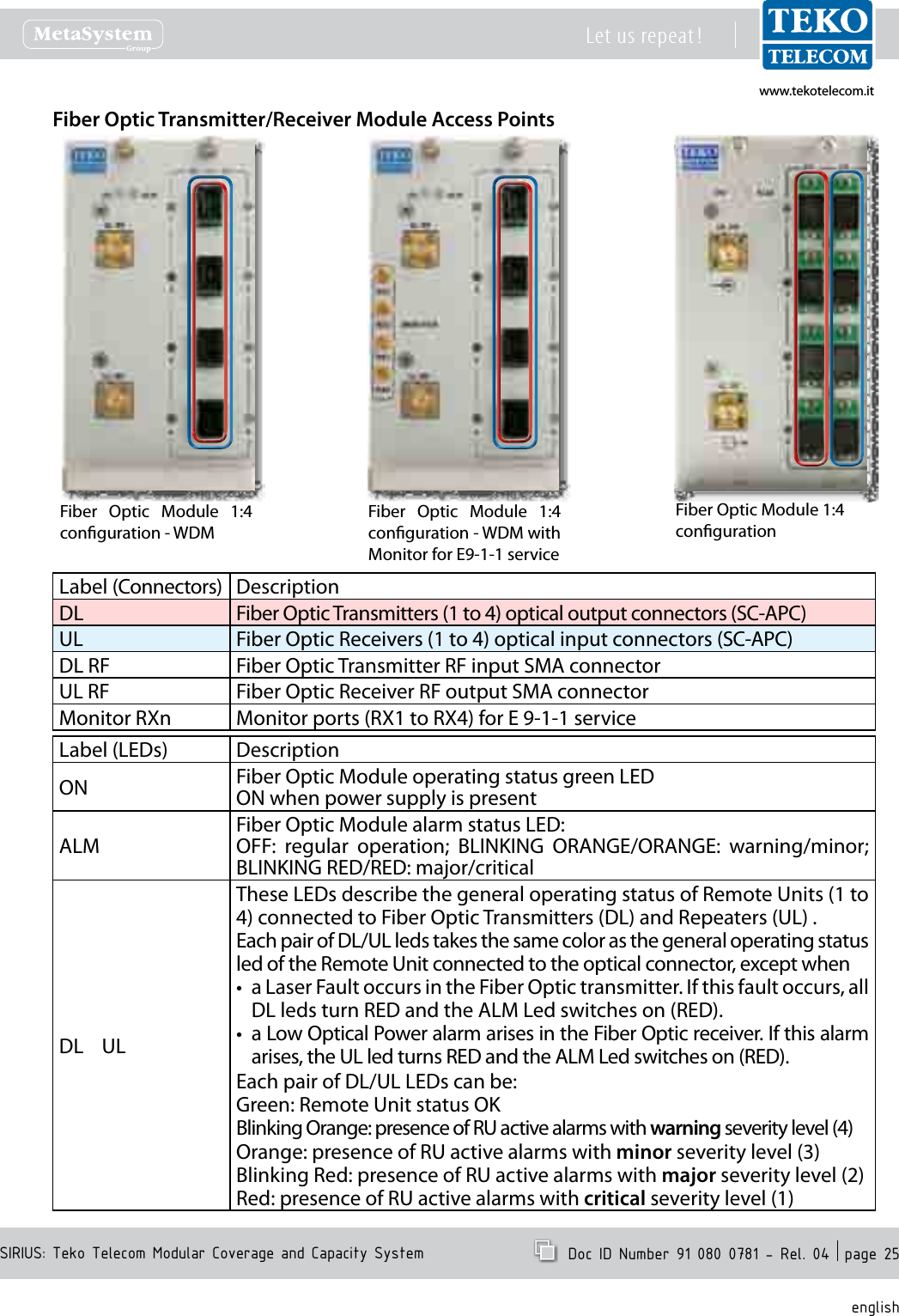

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 25englishFiber Optic Transmitter/Receiver Module Access PointsLabel (Connectors) DescriptionDL Fiber Optic Transmitters (1 to 4) optical output connectors (SC-APC)UL Fiber Optic Receivers (1 to 4) optical input connectors (SC-APC)DL RF Fiber Optic Transmitter RF input SMA connectorUL RF Fiber Optic Receiver RF output SMA connectorMonitor RXn Monitor ports (RX1 to RX4) for E 9-1-1 serviceLabel (LEDs) DescriptionON Fiber Optic Module operating status green LEDON when power supply is presentALMFiber Optic Module alarm status LED:OFF: regular operation; BLINKING ORANGE/ORANGE: warning/minor; BLINKING RED/RED: major/criticalDL ULThese LEDs describe the general operating status of Remote Units (1 to 4) connected to Fiber Optic Transmitters (DL) and Repeaters (UL) .Each pair of DL/UL leds takes the same color as the general operating status led of the Remote Unit connected to the optical connector, except whena Laser Fault occurs in the Fiber Optic transmitter. If this fault occurs, all •DL leds turn RED and the ALM Led switches on (RED).a Low Optical Power alarm arises in the Fiber Optic receiver. If this alarm •arises, the UL led turns RED and the ALM Led switches on (RED).Each pair of DL/UL LEDs can be:Green: Remote Unit status OKBlinking Orange: presence of RU active alarms with warning severity level (4)Orange: presence of RU active alarms with minor severity level (3)Blinking Red: presence of RU active alarms with major severity level (2)Red: presence of RU active alarms with critical severity level (1)Fiber Optic Module 1:4 congurationFiber Optic Module 1:4 conguration - WDMFiber Optic Module 1:4 conguration - WDM with Monitor for E9-1-1 service

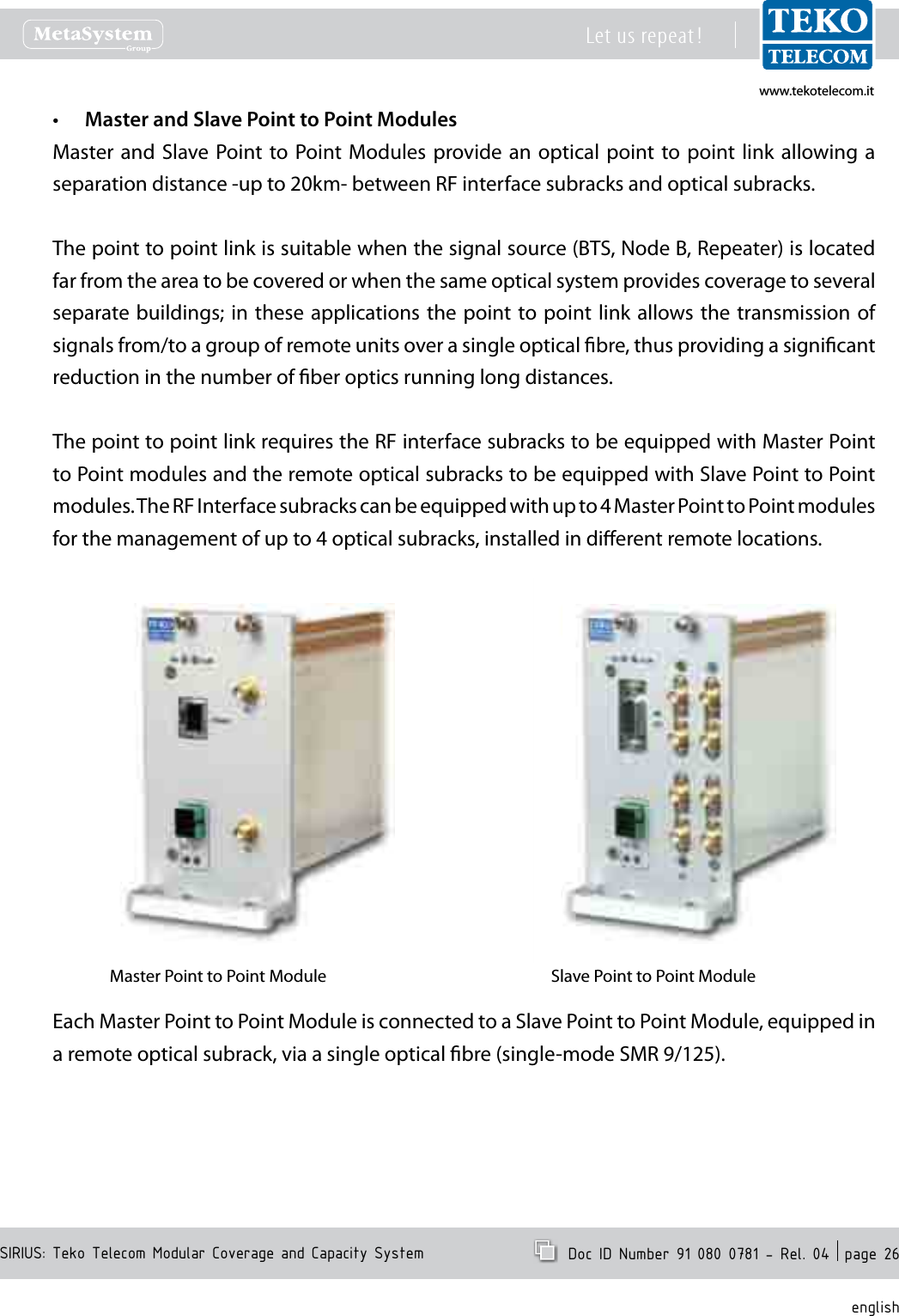

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 26englishMaster and Slave Point to Point Modules•Master and Slave Point to Point Modules provide an optical point to point link allowing a separation distance -up to 20km- between RF interface subracks and optical subracks.The point to point link is suitable when the signal source (BTS, Node B, Repeater) is located far from the area to be covered or when the same optical system provides coverage to several separate buildings; in these applications the point to point link allows the transmission of signals from/to a group of remote units over a single optical bre, thus providing a signicant reduction in the number of ber optics running long distances.The point to point link requires the RF interface subracks to be equipped with Master Point to Point modules and the remote optical subracks to be equipped with Slave Point to Point modules. The RF Interface subracks can be equipped with up to 4 Master Point to Point modules for the management of up to 4 optical subracks, installed in dierent remote locations.Master Point to Point Module Slave Point to Point ModuleEach Master Point to Point Module is connected to a Slave Point to Point Module, equipped in a remote optical subrack, via a single optical bre (single-mode SMR 9/125).

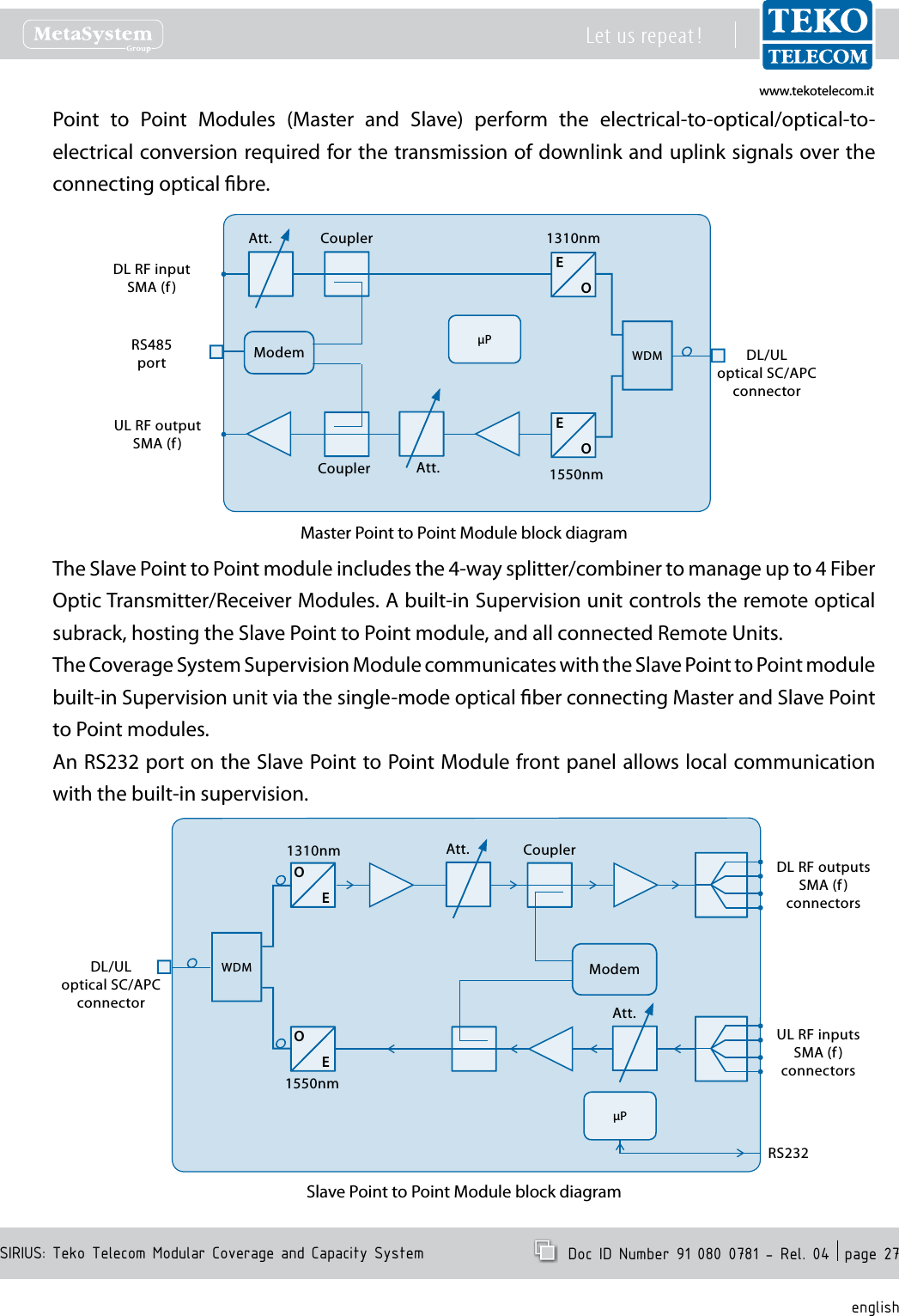

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 27englishPoint to Point Modules (Master and Slave) perform the electrical-to-optical/optical-to-electrical conversion required for the transmission of downlink and uplink signals over the connecting optical bre.1550nmUL RF outputSMA (f)DL RF inputSMA (f)RS485port1310nmEOEOCouplerCouplerAtt.Att.DL/ULoptical SC/APC connectorWDMModemPMaster Point to Point Module block diagramThe Slave Point to Point module includes the 4-way splitter/combiner to manage up to 4 Fiber Optic Transmitter/Receiver Modules. A built-in Supervision unit controls the remote optical subrack, hosting the Slave Point to Point module, and all connected Remote Units.The Coverage System Supervision Module communicates with the Slave Point to Point module built-in Supervision unit via the single-mode optical ber connecting Master and Slave Point to Point modules.An RS232 port on the Slave Point to Point Module front panel allows local communication with the built-in supervision.1310nmDL RF outputsSMA (f)connectorsUL RF inputsSMA (f)connectorsRS2321550nmOEOECouplerAtt.WDM ModemPDL/ULoptical SC/APC connectorAtt.Slave Point to Point Module block diagram

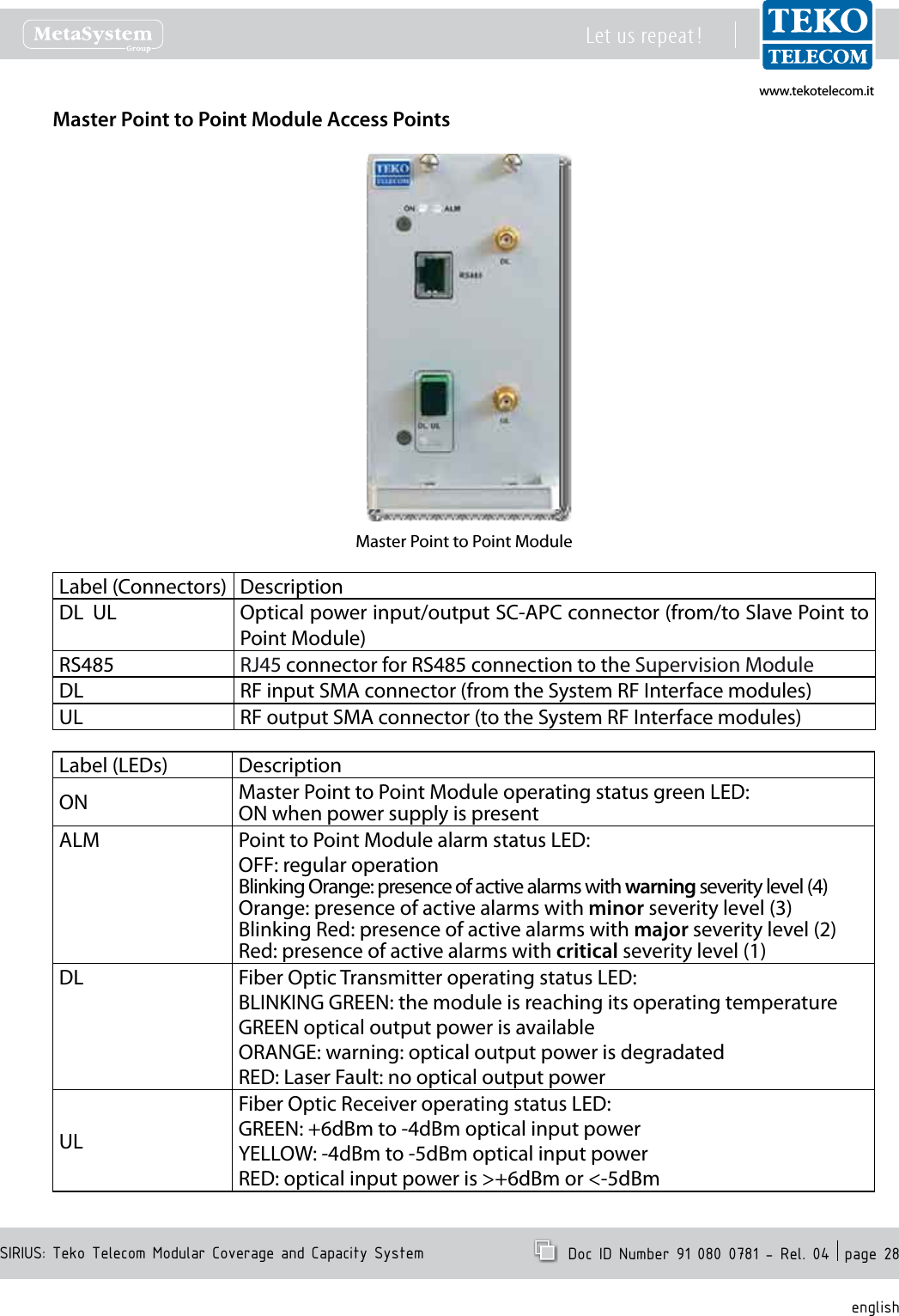

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 28englishMaster Point to Point Module Access PointsMaster Point to Point ModuleLabel (Connectors) DescriptionDL UL Optical power input/output SC-APC connector (from/to Slave Point to Point Module)RS485 RJ45 connector for RS485 connection to the Supervision ModuleDL RF input SMA connector (from the System RF Interface modules)UL RF output SMA connector (to the System RF Interface modules)Label (LEDs) DescriptionON Master Point to Point Module operating status green LED:ON when power supply is presentALM Point to Point Module alarm status LED:OFF: regular operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)DL Fiber Optic Transmitter operating status LED:BLINKING GREEN: the module is reaching its operating temperatureGREEN optical output power is availableORANGE: warning: optical output power is degradatedRED: Laser Fault: no optical output powerULFiber Optic Receiver operating status LED:GREEN: +6dBm to -4dBm optical input powerYELLOW: -4dBm to -5dBm optical input powerRED: optical input power is >+6dBm or <-5dBm

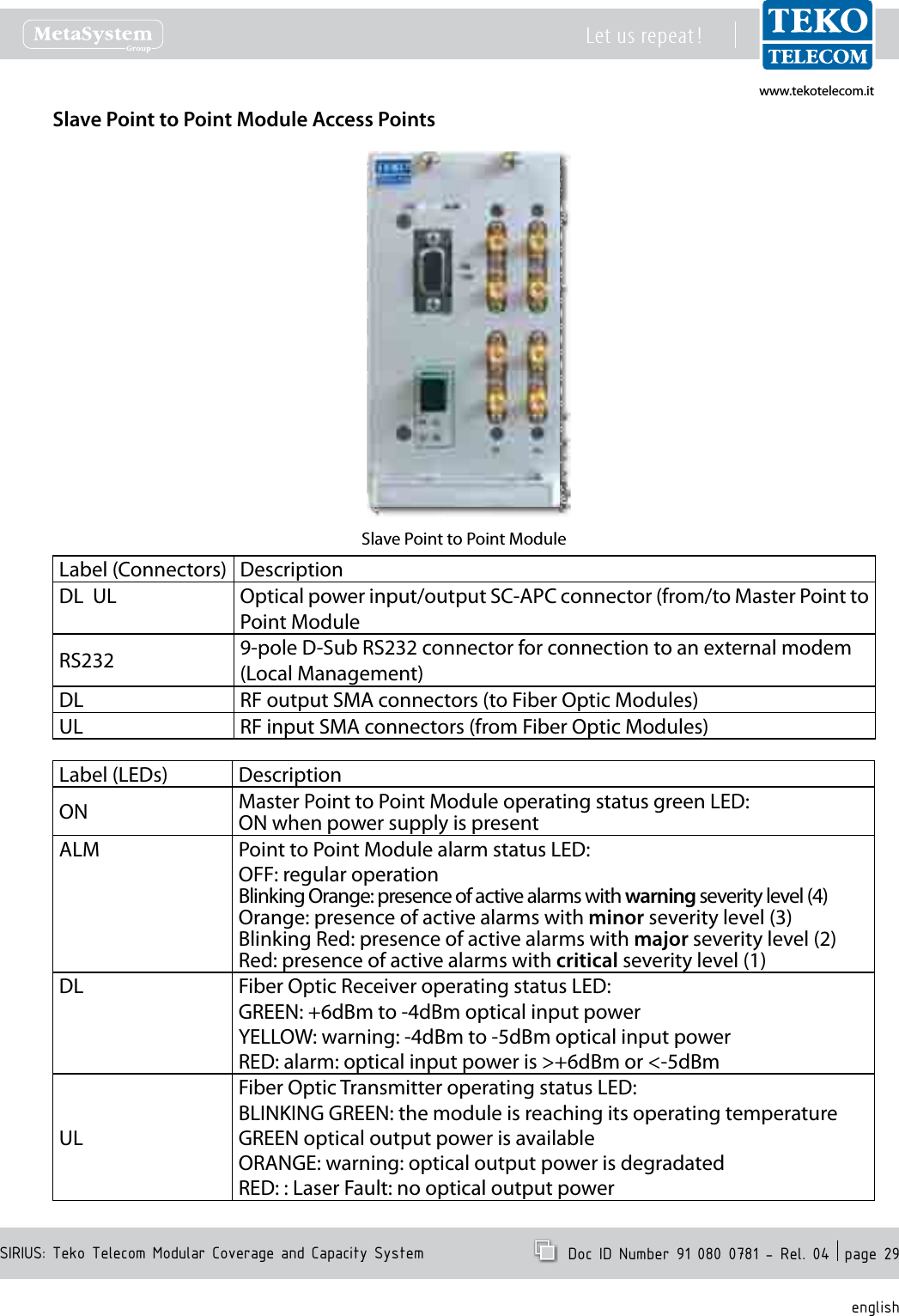

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 29englishSlave Point to Point Module Access PointsSlave Point to Point ModuleLabel (Connectors) DescriptionDL UL Optical power input/output SC-APC connector (from/to Master Point to Point ModuleRS232 9-pole D-Sub RS232 connector for connection to an external modem (Local Management)DL RF output SMA connectors (to Fiber Optic Modules)UL RF input SMA connectors (from Fiber Optic Modules)Label (LEDs) DescriptionON Master Point to Point Module operating status green LED:ON when power supply is presentALM Point to Point Module alarm status LED:OFF: regular operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)DL Fiber Optic Receiver operating status LED:GREEN: +6dBm to -4dBm optical input powerYELLOW: warning: -4dBm to -5dBm optical input powerRED: alarm: optical input power is >+6dBm or <-5dBmULFiber Optic Transmitter operating status LED:BLINKING GREEN: the module is reaching its operating temperatureGREEN optical output power is availableORANGE: warning: optical output power is degradatedRED: : Laser Fault: no optical output power

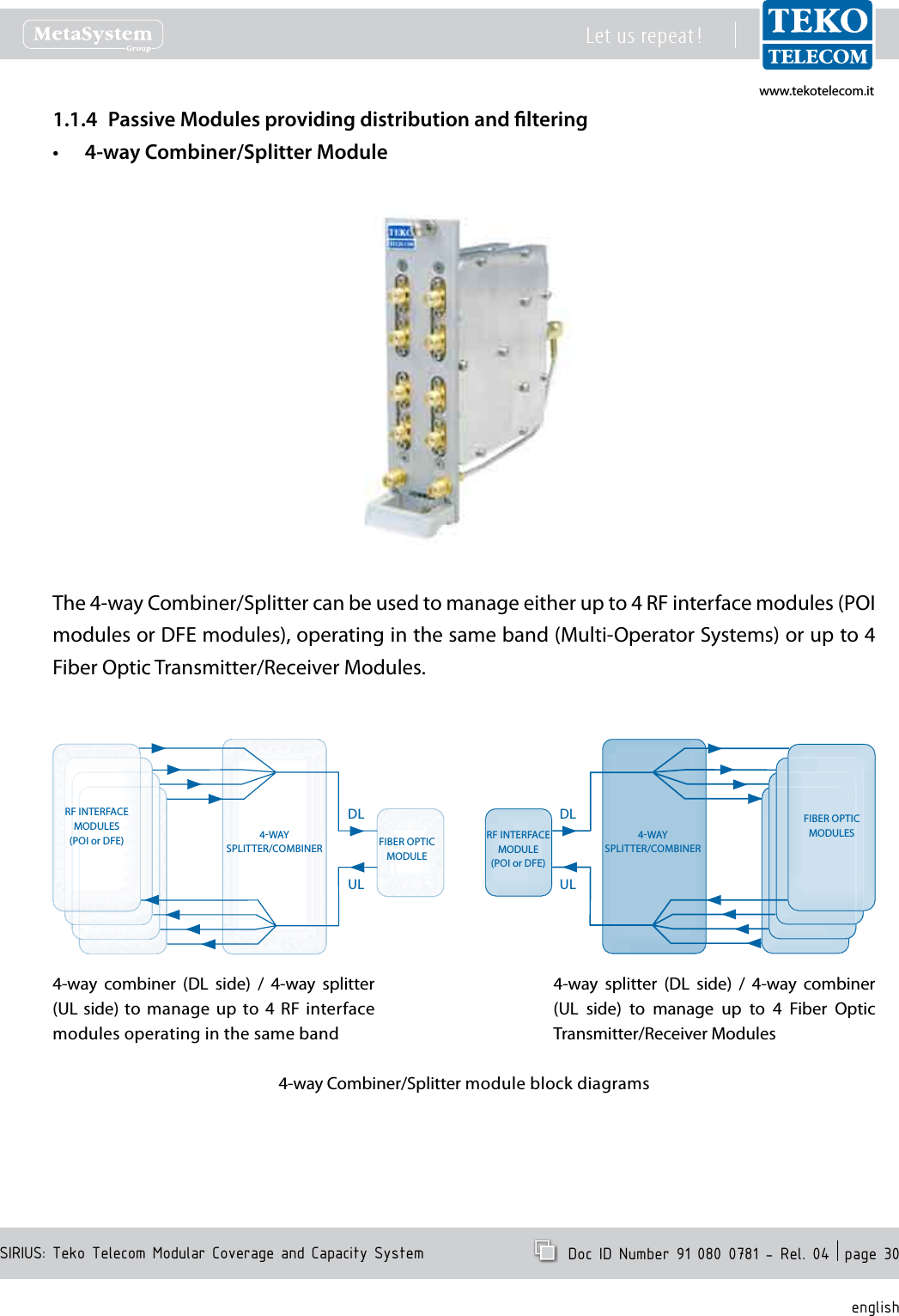

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 30englishPassive Modules providing distribution and ltering1.1.4 4-way Combiner/Splitter Module•The 4-way Combiner/Splitter can be used to manage either up to 4 RF interface modules (POI modules or DFE modules), operating in the same band (Multi-Operator Systems) or up to 4 Fiber Optic Transmitter/Receiver Modules.4-way combiner (DL side) / 4-way splitter (UL side) to manage up to 4 RF interface modules operating in the same band4-way splitter (DL side) / 4-way combiner (UL side) to manage up to 4 Fiber Optic Transmitter/Receiver ModulesRF INTERFACEMODULES(POI or DFE)FIBER OPTICMODULES4WAYSPLITTER/COMBINER4WAYSPLITTER/COMBINERDLULDLULRF INTERFACEMODULE(POI or DFE)FIBER OPTICMODULE4-way Combiner/Splitter module block diagrams

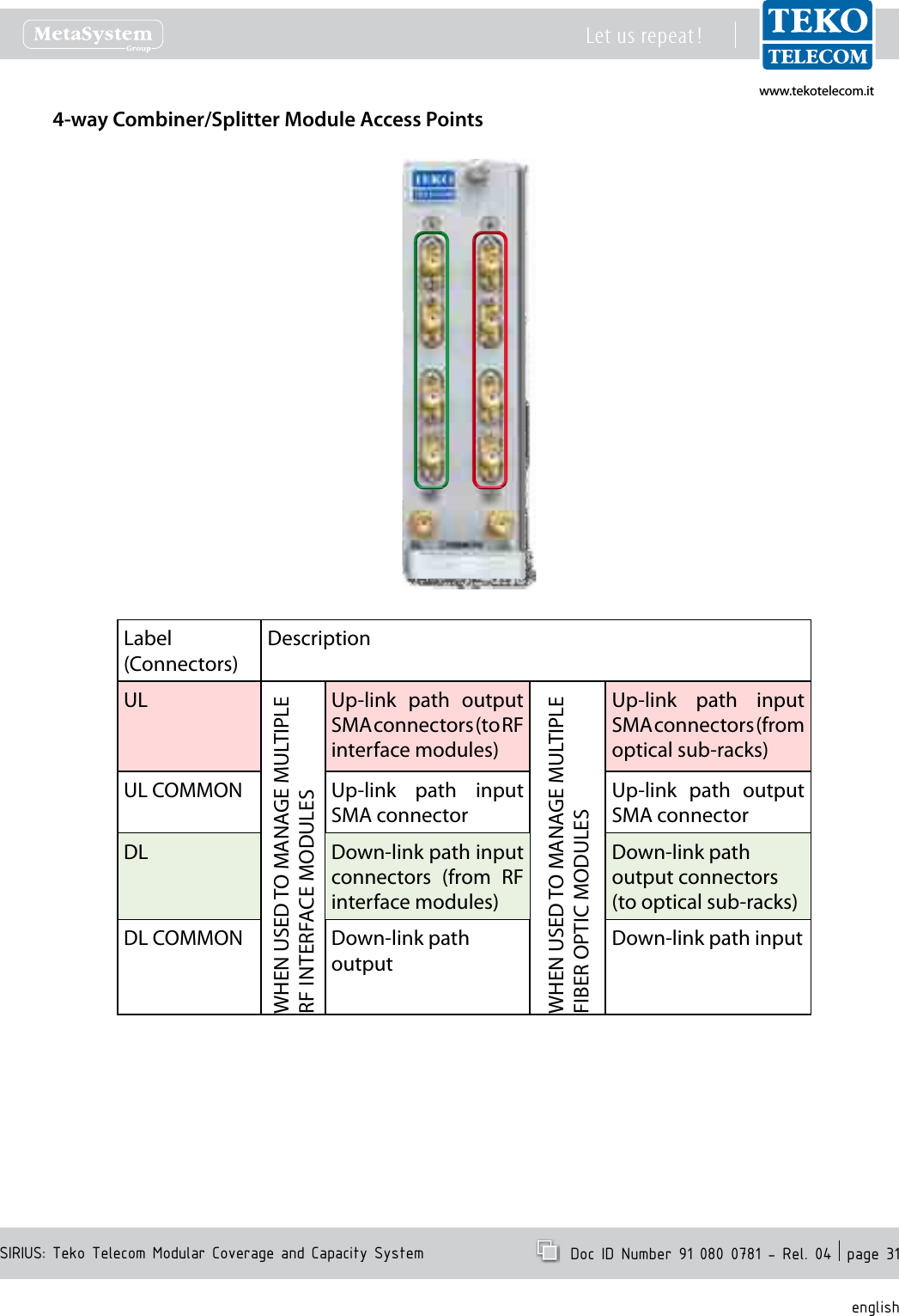

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 31english4-way Combiner/Splitter Module Access PointsLabel(Connectors)DescriptionULWHEN USED TO MANAGE MULTIPLE RF INTERFACE MODULESUp-link path output SMA connectors (to RF interface modules)WHEN USED TO MANAGE MULTIPLE FIBER OPTIC MODULESUp-link path input SMA connectors (from optical sub-racks)UL COMMON Up-link path input SMA connectorUp-link path output SMA connectorDL Down-link path input connectors (from RF interface modules) Down-link path output connectors (to optical sub-racks) DL COMMON Down-link path outputDown-link path input

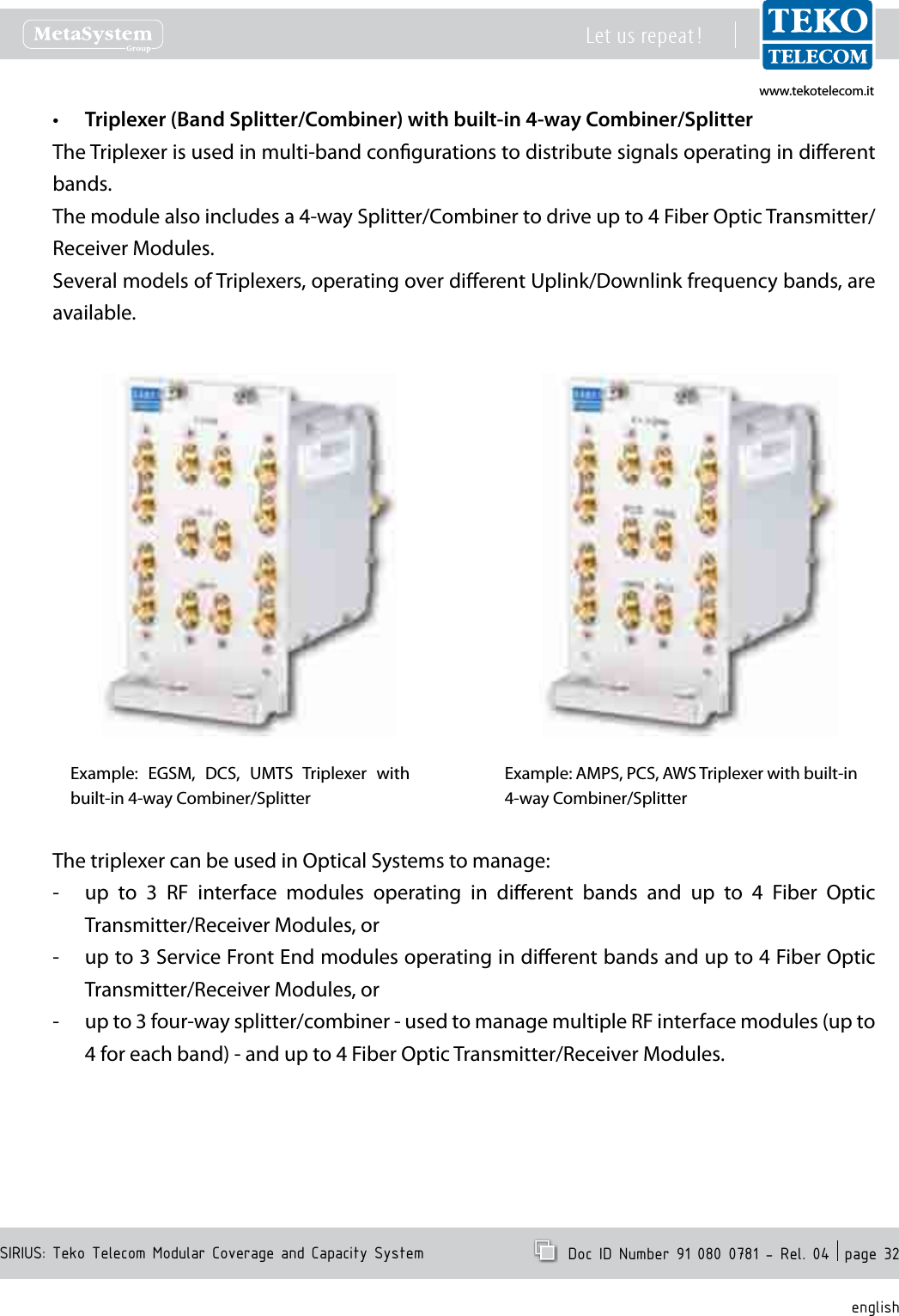

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 32englishTriplexer (Band Splitter/Combiner) with built-in 4-way Combiner/Splitter•The Triplexer is used in multi-band congurations to distribute signals operating in dierent bands.The module also includes a 4-way Splitter/Combiner to drive up to 4 Fiber Optic Transmitter/Receiver Modules.Several models of Triplexers, operating over dierent Uplink/Downlink frequency bands, are available.Example: EGSM, DCS, UMTS Triplexer with built-in 4-way Combiner/SplitterExample: AMPS, PCS, AWS Triplexer with built-in 4-way Combiner/Splitter The triplexer can be used in Optical Systems to manage:up to 3 RF interface modules operating in dierent bands and up to 4 Fiber Optic -Transmitter/Receiver Modules, orup to 3 Service Front End modules operating in dierent bands and up to 4 Fiber Optic -Transmitter/Receiver Modules, orup to 3 four-way splitter/combiner - used to manage multiple RF interface modules (up to -4 for each band) - and up to 4 Fiber Optic Transmitter/Receiver Modules.

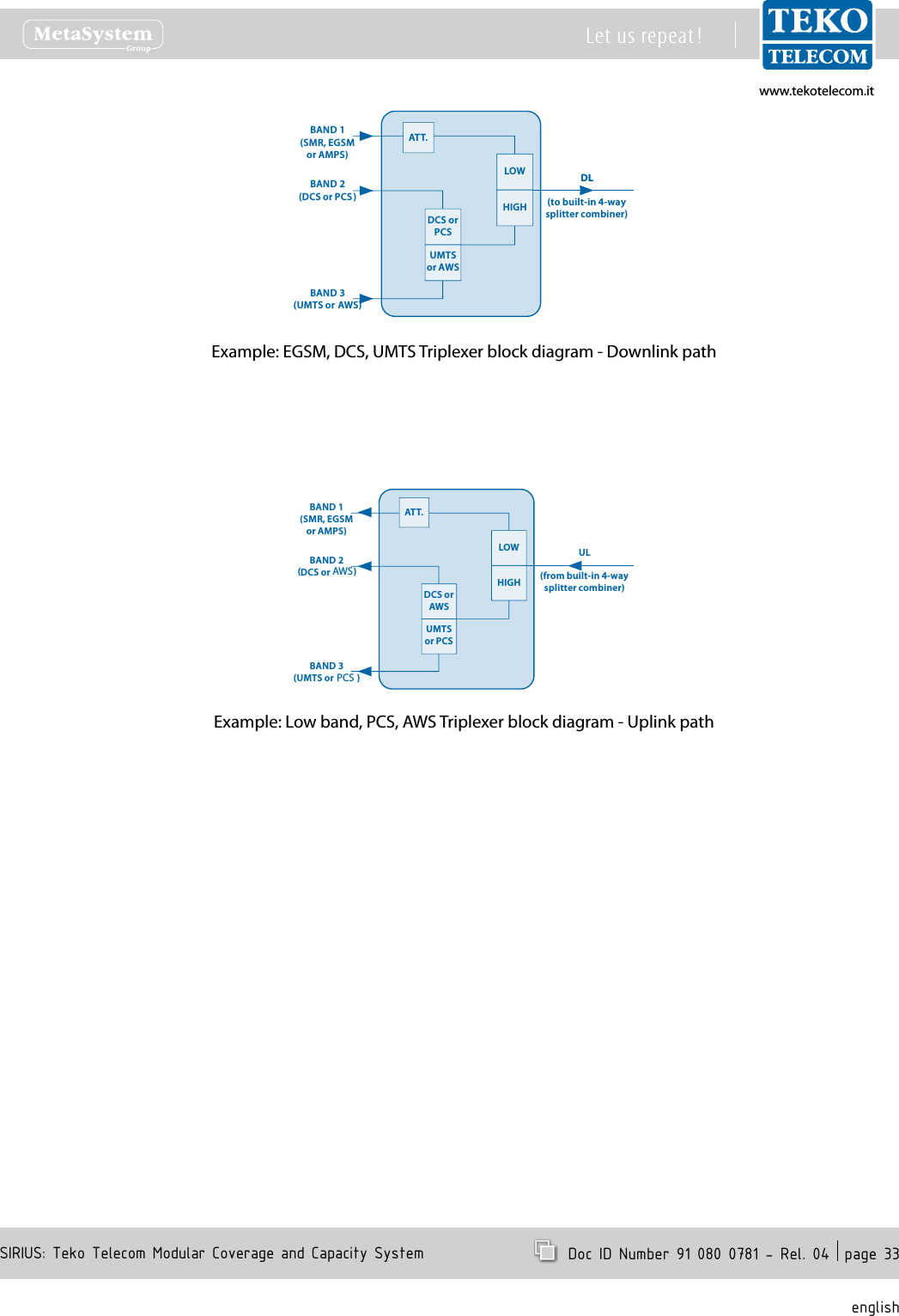

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 33englishExample: EGSM, DCS, UMTS Triplexer block diagram - Downlink pathExample: Low band, PCS, AWS Triplexer block diagram - Uplink pathDLDCS or PCSUMTS or AWSHIGHLOWDL(to built-in 4-waysplitter combiner)BAND 1(SMR, EGSMor AMPS)BAND 2(DCS or PCS)BAND 3(UMTS or AWS)ATT.DCS or AWSUMTS or PCSHIGHLOWBAND 1(SMR, EGSMor AMPS)BAND 2(DCS or PCS )BAND 3(UMTS or AWS)UL(from built-in 4-way splitter combiner)ATT.PCSAWS

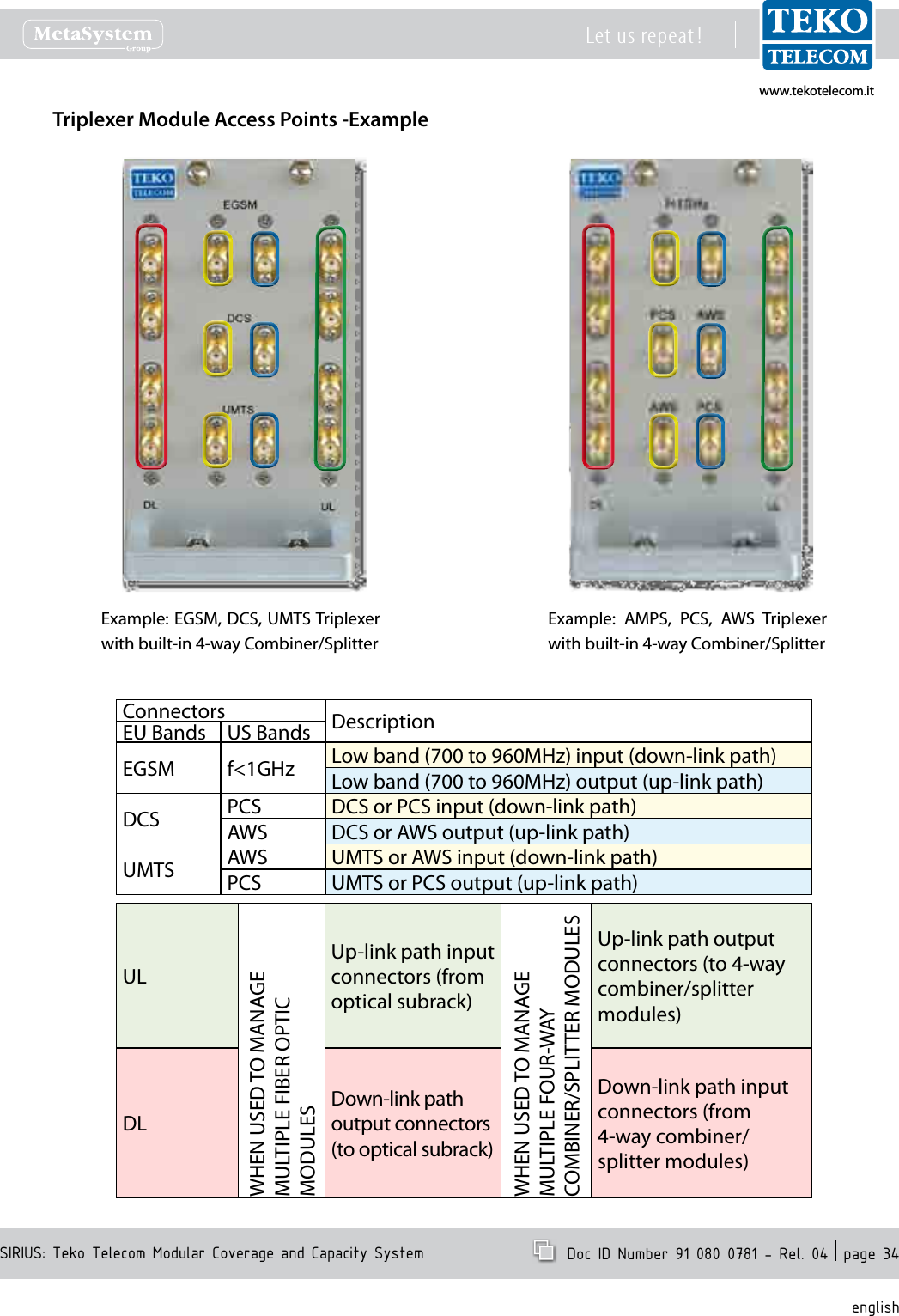

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 34englishTriplexer Module Access Points -ExampleExample: EGSM, DCS, UMTS Triplexer with built-in 4-way Combiner/SplitterExample: AMPS, PCS, AWS Triplexer with built-in 4-way Combiner/Splitter Connectors DescriptionEU Bands US BandsEGSM f<1GHz Low band (700 to 960MHz) input (down-link path) Low band (700 to 960MHz) output (up-link path)DCS PCS DCS or PCS input (down-link path)AWS DCS or AWS output (up-link path)UMTS AWS UMTS or AWS input (down-link path)PCS UMTS or PCS output (up-link path)ULWHEN USED TO MANAGE MULTIPLE FIBER OPTIC MODULESUp-link path input connectors (from optical subrack)WHEN USED TO MANAGE MULTIPLE FOUR-WAY COMBINER/SPLITTER MODULESUp-link path output connectors (to 4-way combiner/splitter modules)DLDown-link path output connectors (to optical subrack)Down-link path input connectors (from 4-way combiner/splitter modules)

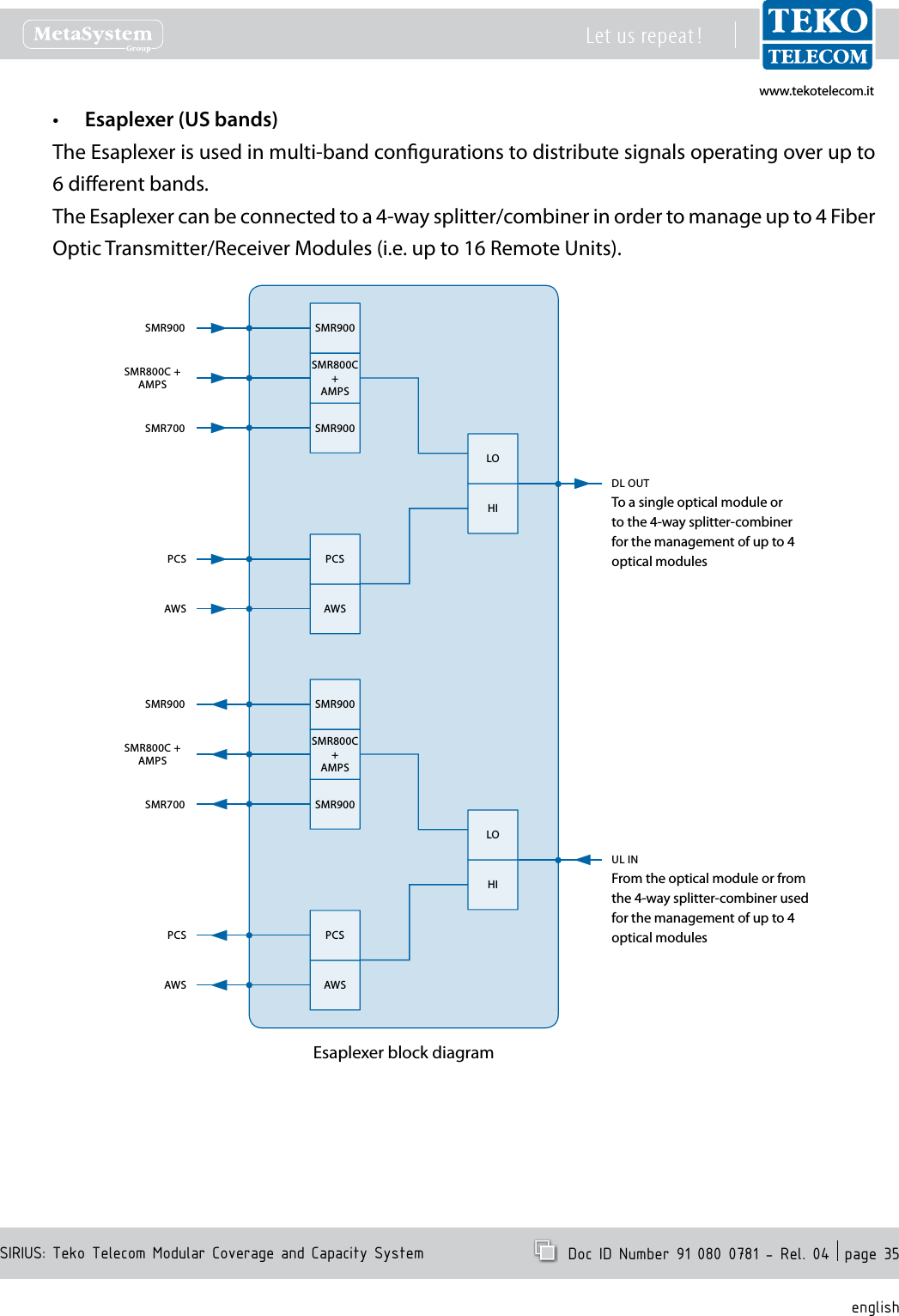

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 35englishEsaplexer (US bands)•The Esaplexer is used in multi-band congurations to distribute signals operating over up to 6 dierent bands. The Esaplexer can be connected to a 4-way splitter/combiner in order to manage up to 4 Fiber Optic Transmitter/Receiver Modules (i.e. up to 16 Remote Units).Esaplexer block diagramSMR900SMR700DL OUTSMR900SMR900AWSAWSHISMR800C +AMPSSMR800C+AMPSPCSPCSLOTo a single optical module or to the 4-way splitter-combiner for the management of up to 4 optical modulesFrom the optical module or from the 4-way splitter-combiner used for the management of up to 4 optical modulesSMR900SMR700UL INSMR900SMR900AWSAWSHISMR800C +AMPSSMR800C+AMPSPCSPCSLO

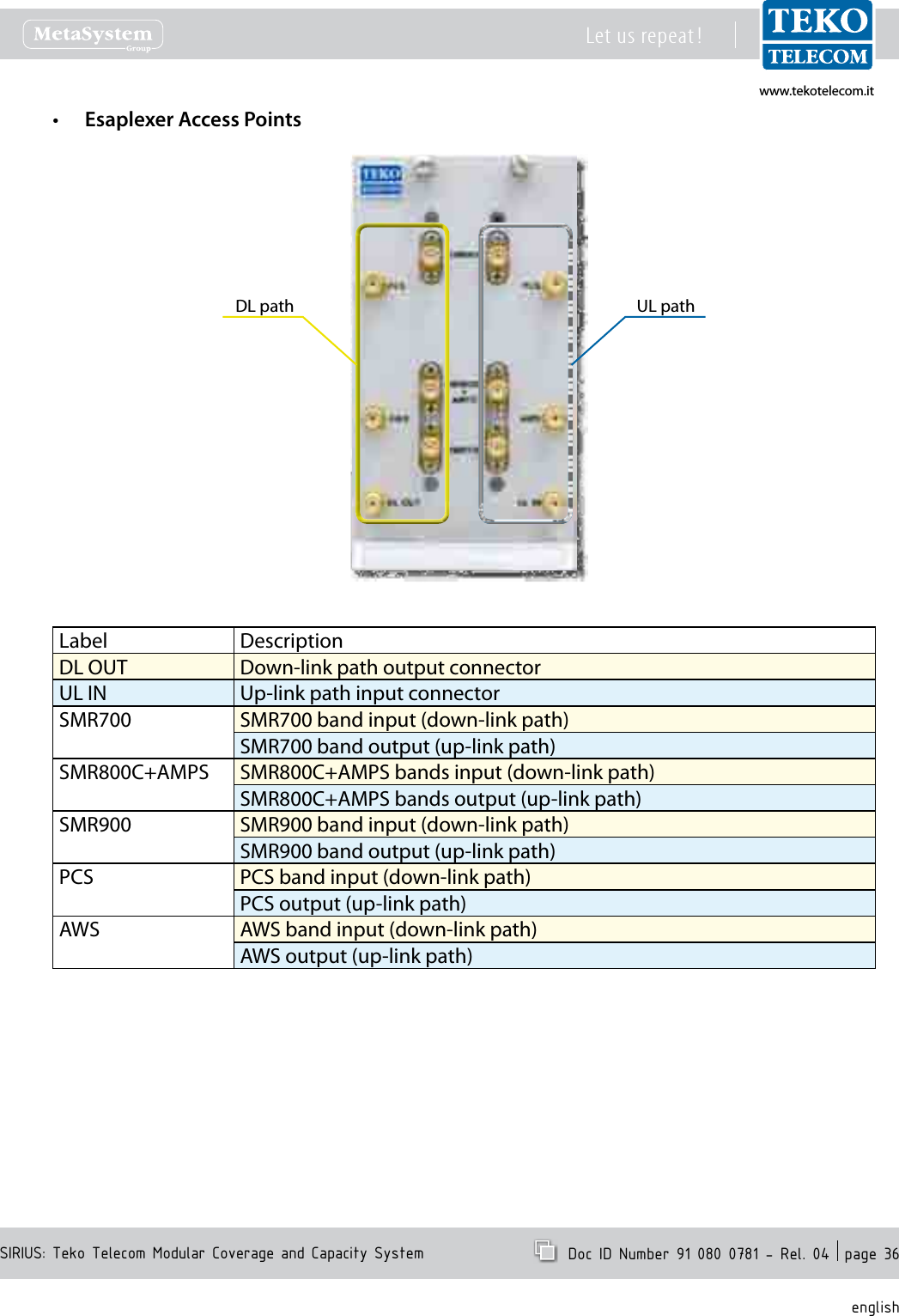

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 36englishEsaplexer Access Points•DL path UL pathLabel DescriptionDL OUT Down-link path output connectorUL IN Up-link path input connectorSMR700 SMR700 band input (down-link path) SMR700 band output (up-link path)SMR800C+AMPS SMR800C+AMPS bands input (down-link path)SMR800C+AMPS bands output (up-link path)SMR900 SMR900 band input (down-link path)SMR900 band output (up-link path)PCS PCS band input (down-link path)PCS output (up-link path)AWS AWS band input (down-link path)AWS output (up-link path)

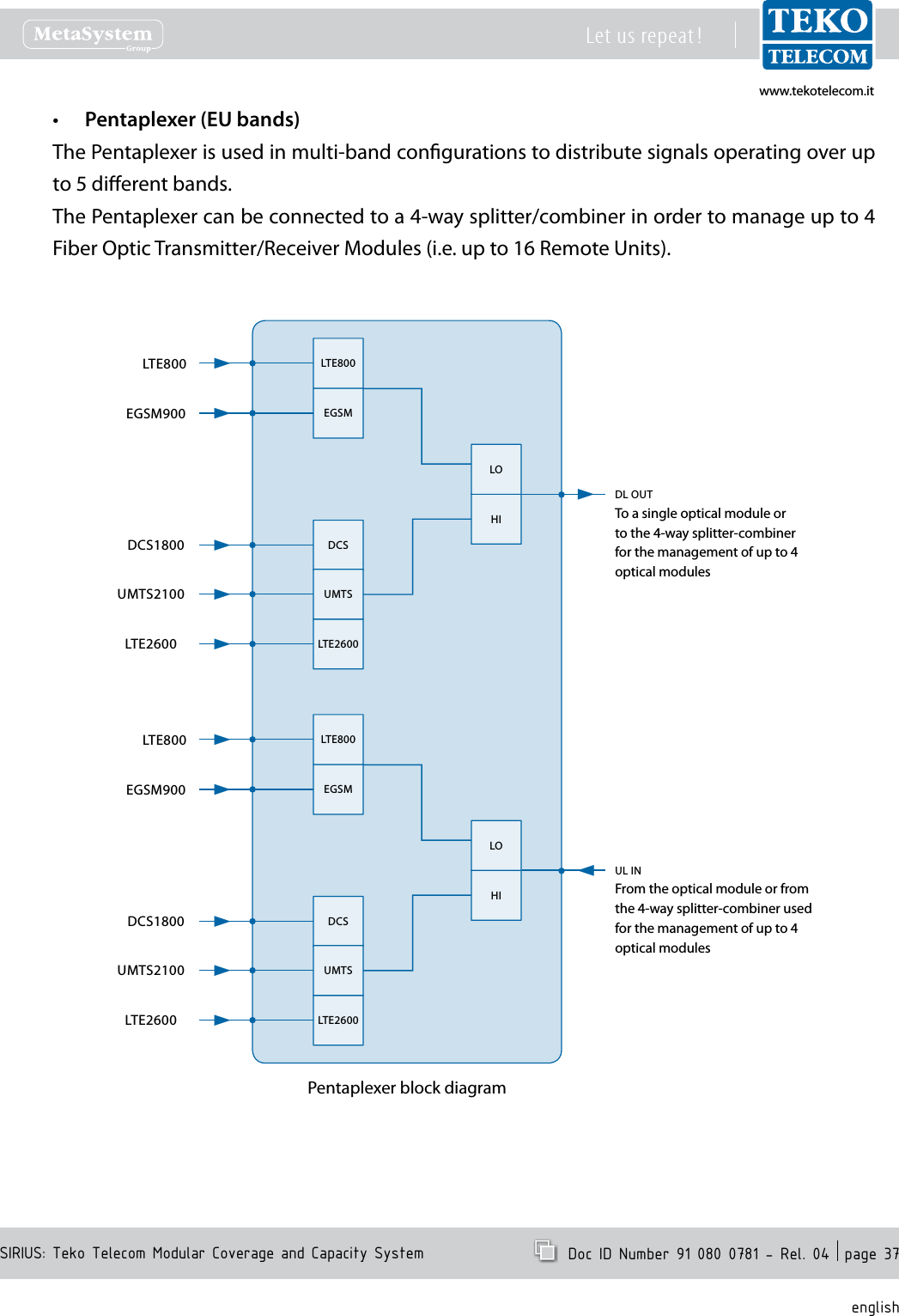

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 37englishPentaplexer (EU bands)•The Pentaplexer is used in multi-band congurations to distribute signals operating over up to 5 dierent bands.The Pentaplexer can be connected to a 4-way splitter/combiner in order to manage up to 4 Fiber Optic Transmitter/Receiver Modules (i.e. up to 16 Remote Units).Pentaplexer block diagramDL OUTLTE800DCSLTE2600HIEGSMUMTSLOTo a single optical module or to the 4-way splitter-combiner for the management of up to 4 optical modulesFrom the optical module or from the 4-way splitter-combiner used for the management of up to 4 optical modulesUL INHILOLTE800EGSM900DCS1800UMTS2100LTE2600LTE800DCSLTE2600EGSMUMTSLTE800EGSM900DCS1800UMTS2100LTE2600

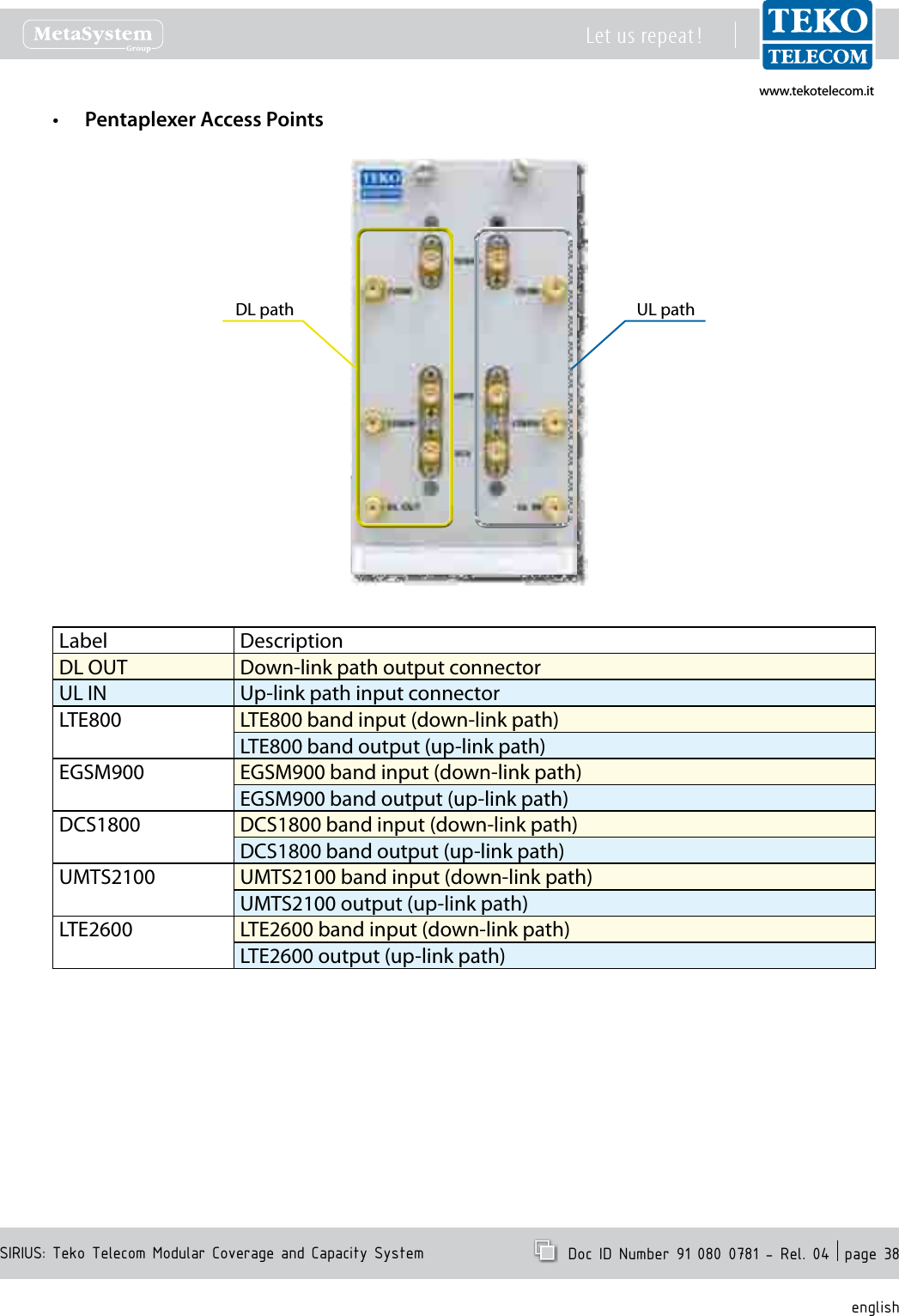

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 38englishPentaplexer Access Points•DL path UL pathLabel DescriptionDL OUT Down-link path output connectorUL IN Up-link path input connectorLTE800 LTE800 band input (down-link path) LTE800 band output (up-link path)EGSM900 EGSM900 band input (down-link path)EGSM900 band output (up-link path)DCS1800 DCS1800 band input (down-link path)DCS1800 band output (up-link path)UMTS2100 UMTS2100 band input (down-link path)UMTS2100 output (up-link path)LTE2600 LTE2600 band input (down-link path)LTE2600 output (up-link path)

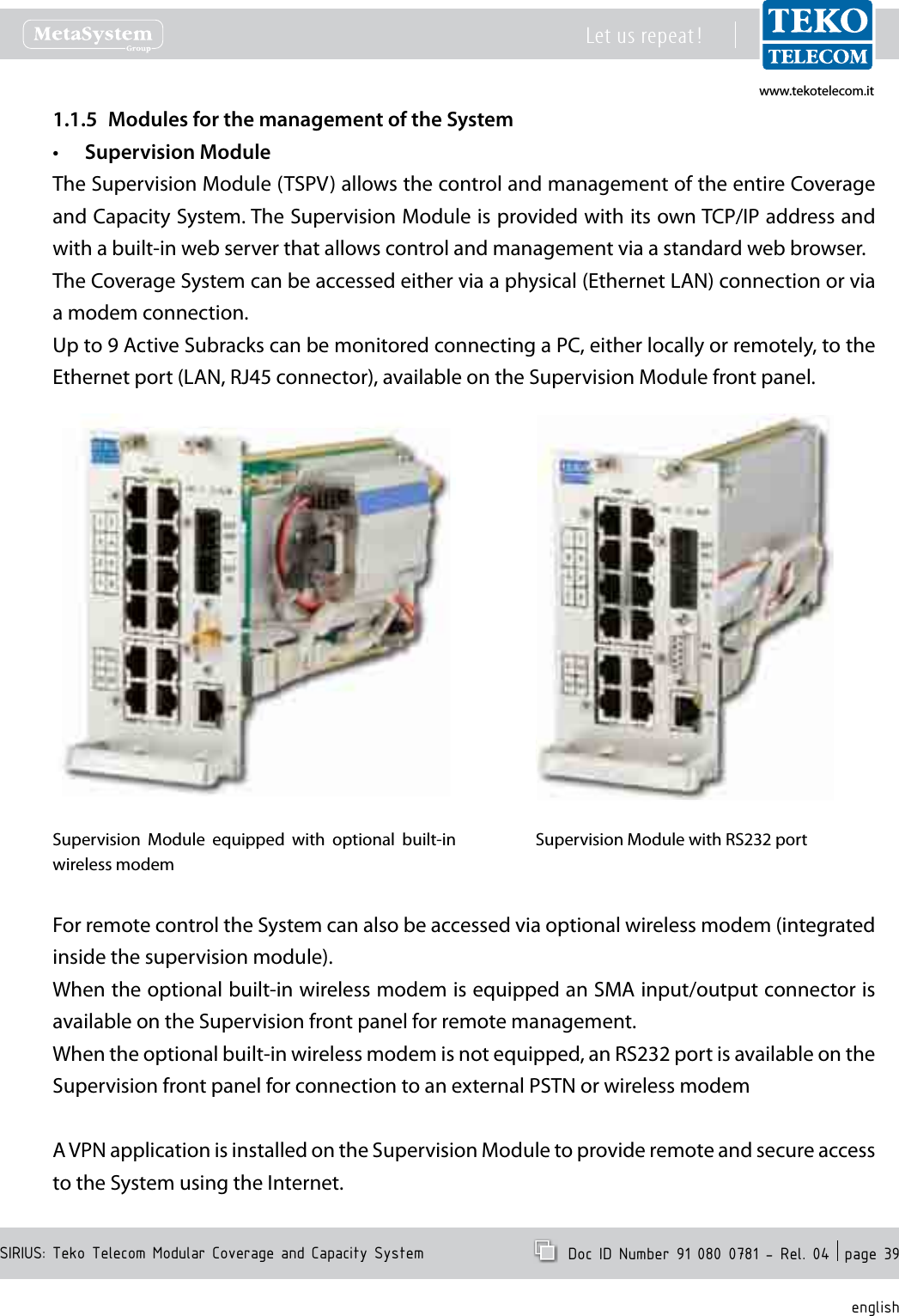

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 39englishModules for the management of the System1.1.5 Supervision Module•The Supervision Module (TSPV) allows the control and management of the entire Coverage and Capacity System. The Supervision Module is provided with its own TCP/IP address and with a built-in web server that allows control and management via a standard web browser.The Coverage System can be accessed either via a physical (Ethernet LAN) connection or via a modem connection.Up to 9 Active Subracks can be monitored connecting a PC, either locally or remotely, to the Ethernet port (LAN, RJ45 connector), available on the Supervision Module front panel.Supervision Module equipped with optional built-in wireless modemSupervision Module with RS232 portFor remote control the System can also be accessed via optional wireless modem (integrated inside the supervision module).When the optional built-in wireless modem is equipped an SMA input/output connector is available on the Supervision front panel for remote management.When the optional built-in wireless modem is not equipped, an RS232 port is available on the Supervision front panel for connection to an external PSTN or wireless modemA VPN application is installed on the Supervision Module to provide remote and secure access to the System using the Internet.

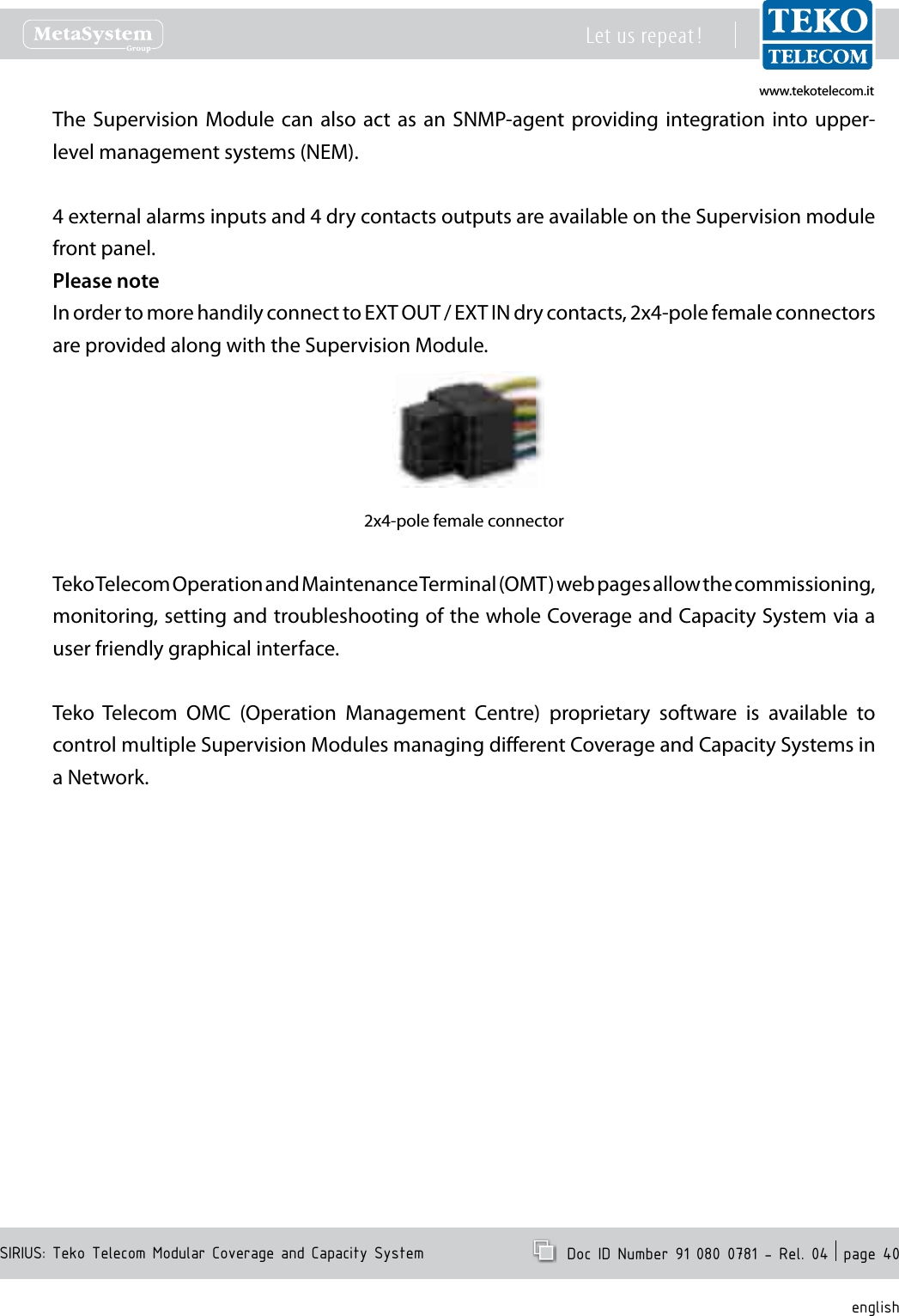

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 40englishThe Supervision Module can also act as an SNMP-agent providing integration into upper-level management systems (NEM).4 external alarms inputs and 4 dry contacts outputs are available on the Supervision module front panel.Please noteIn order to more handily connect to EXT OUT / EXT IN dry contacts, 2x4-pole female connectors are provided along with the Supervision Module.2x4-pole female connectorTeko Telecom Operation and Maintenance Terminal (OMT) web pages allow the commissioning, monitoring, setting and troubleshooting of the whole Coverage and Capacity System via a user friendly graphical interface.Teko Telecom OMC (Operation Management Centre) proprietary software is available to control multiple Supervision Modules managing dierent Coverage and Capacity Systems in a Network.

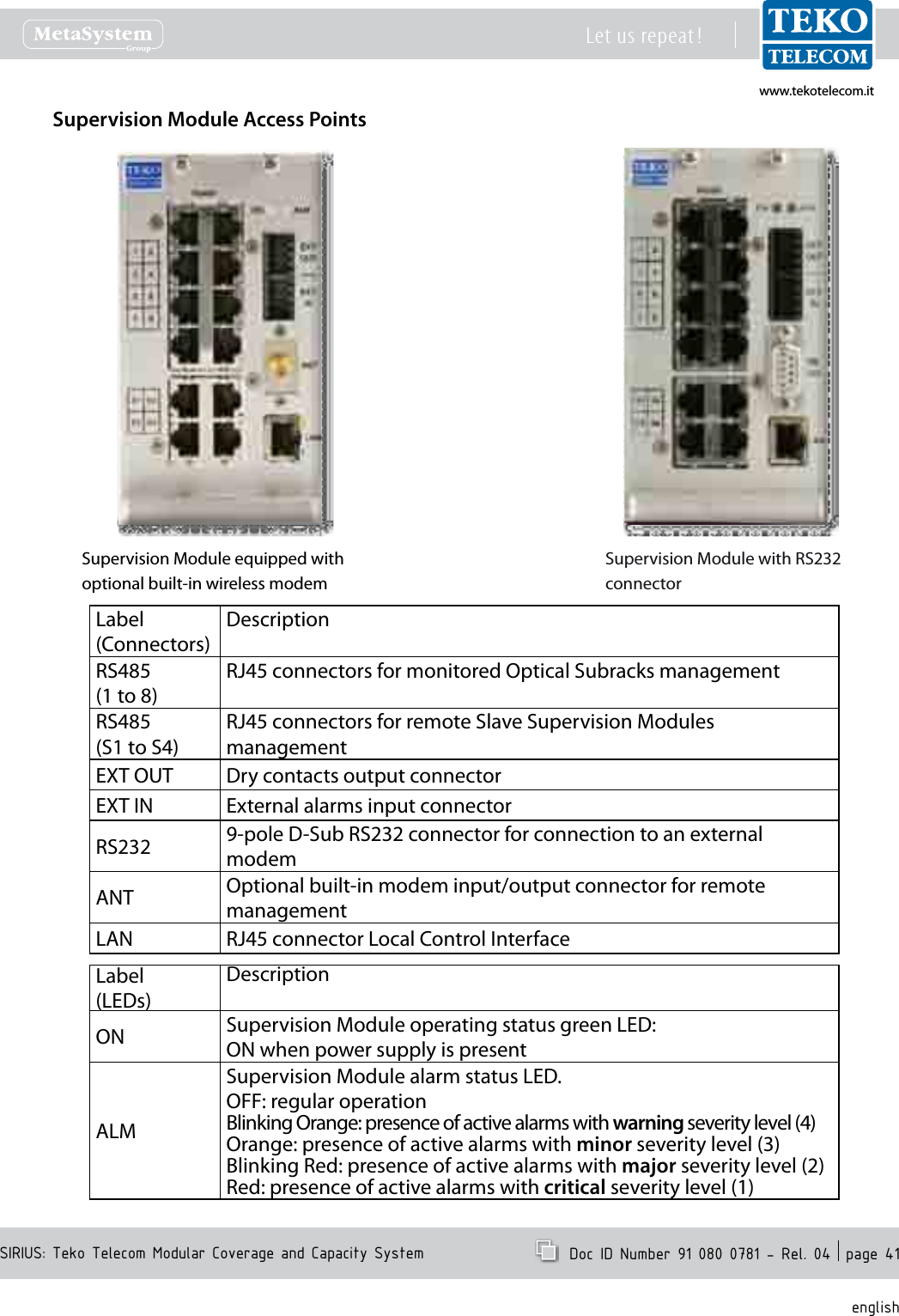

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 41englishSupervision Module Access PointsSupervision Module equipped withoptional built-in wireless modemSupervision Module with RS232 connectorLabel(Connectors)DescriptionRS485(1 to 8) RJ45 connectors for monitored Optical Subracks managementRS485(S1 to S4) RJ45 connectors for remote Slave Supervision Modules managementEXT OUT Dry contacts output connectorEXT IN External alarms input connectorRS232 9-pole D-Sub RS232 connector for connection to an external modemANT Optional built-in modem input/output connector for remote managementLAN RJ45 connector Local Control InterfaceLabel(LEDs)DescriptionON Supervision Module operating status green LED:ON when power supply is presentALMSupervision Module alarm status LED.OFF: regular operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

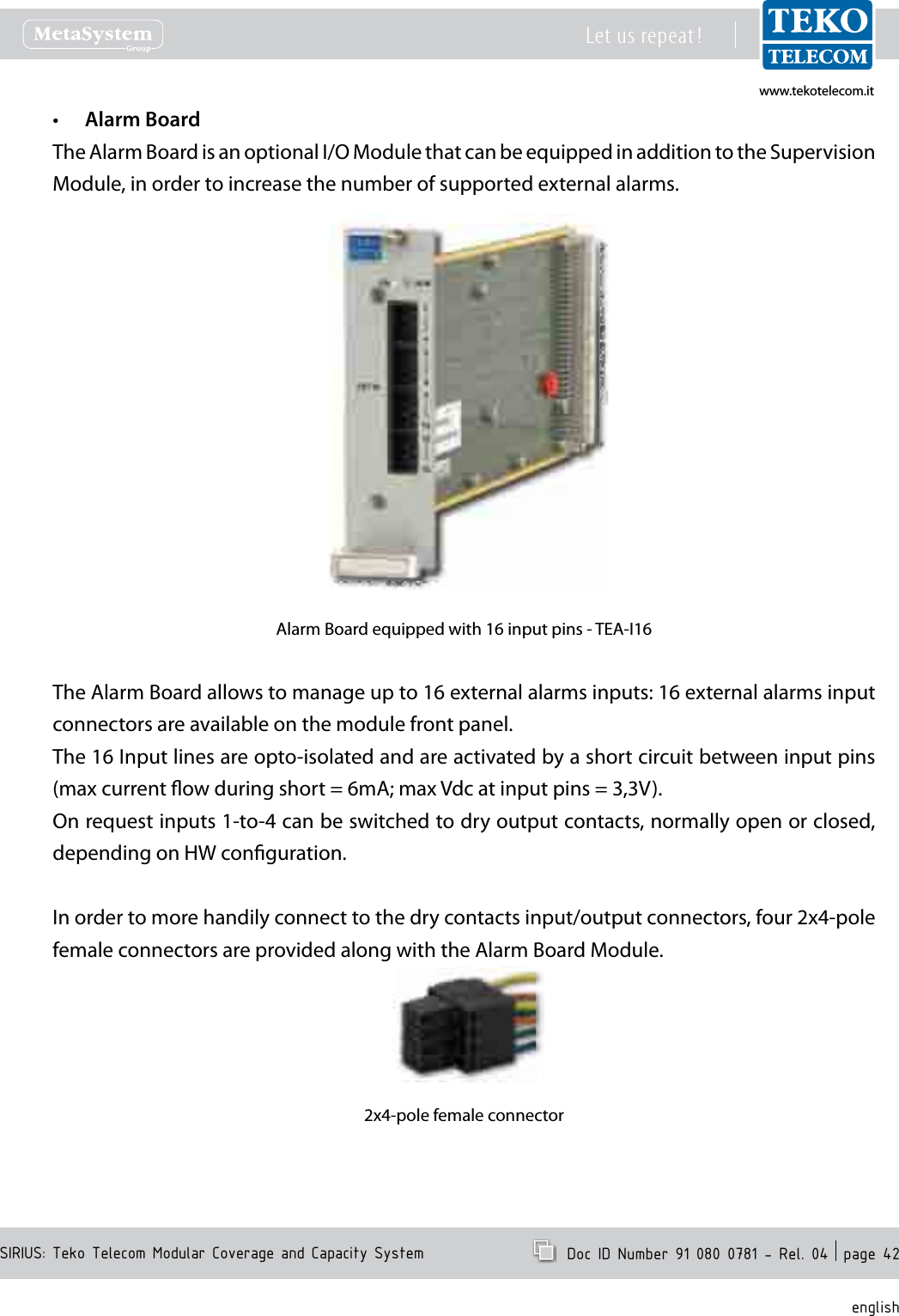

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 42englishAlarm Board•The Alarm Board is an optional I/O Module that can be equipped in addition to the Supervision Module, in order to increase the number of supported external alarms.Alarm Board equipped with 16 input pins - TEA-I16The Alarm Board allows to manage up to 16 external alarms inputs: 16 external alarms input connectors are available on the module front panel.The 16 Input lines are opto-isolated and are activated by a short circuit between input pins (max current ow during short = 6mA; max Vdc at input pins = 3,3V).On request inputs 1-to-4 can be switched to dry output contacts, normally open or closed, depending on HW conguration.In order to more handily connect to the dry contacts input/output connectors, four 2x4-pole female connectors are provided along with the Alarm Board Module.2x4-pole female connector

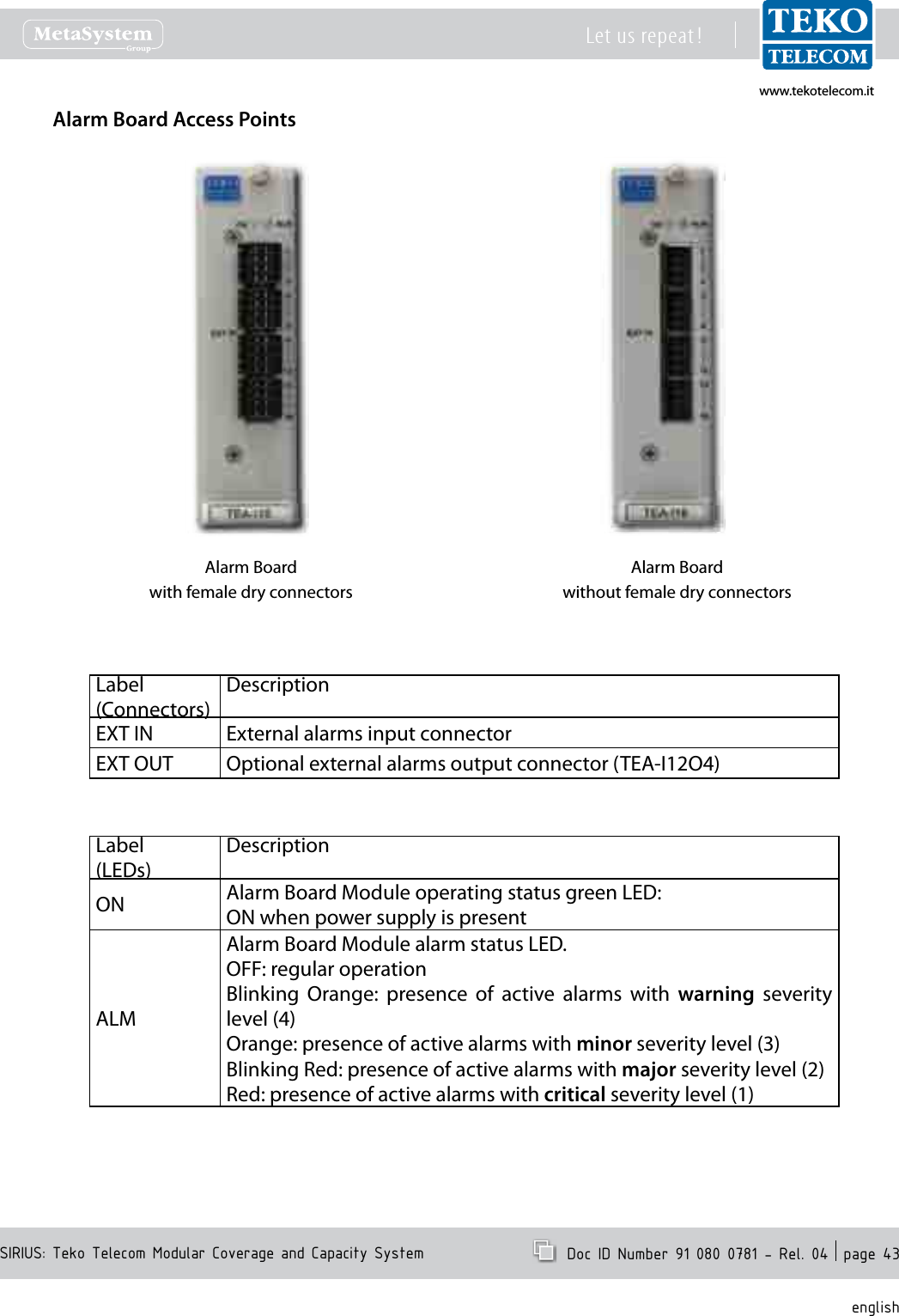

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 43englishAlarm Board Access PointsAlarm Boardwith female dry connectorsAlarm Boardwithout female dry connectorsLabel(Connectors)DescriptionEXT IN External alarms input connectorEXT OUT Optional external alarms output connector (TEA-I12O4)Label(LEDs)DescriptionON Alarm Board Module operating status green LED:ON when power supply is presentALMAlarm Board Module alarm status LED.OFF: regular operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

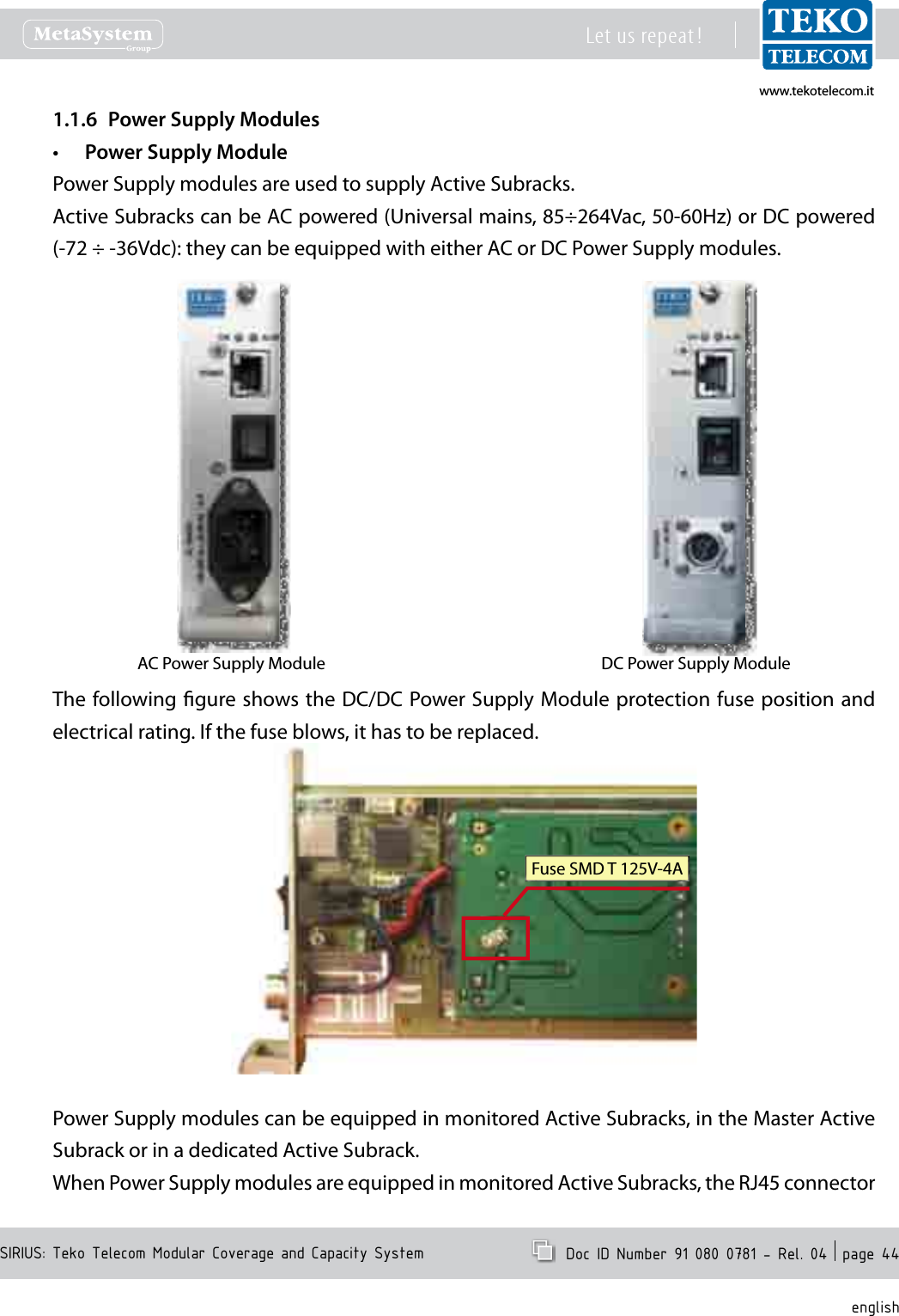

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 44englishPower Supply Modules1.1.6 Power Supply Module•Power Supply modules are used to supply Active Subracks.Active Subracks can be AC powered (Universal mains, 85÷264Vac, 50-60Hz) or DC powered (-72 ÷ -36Vdc): they can be equipped with either AC or DC Power Supply modules.AC Power Supply Module DC Power Supply ModuleThe following gure shows the DC/DC Power Supply Module protection fuse position and electrical rating. If the fuse blows, it has to be replaced.If the fuse blows, it has to be replaced.Fuse SMD T 125V-4APower Supply modules can be equipped in monitored Active Subracks, in the Master Active Subrack or in a dedicated Active Subrack.When Power Supply modules are equipped in monitored Active Subracks, the RJ45 connector

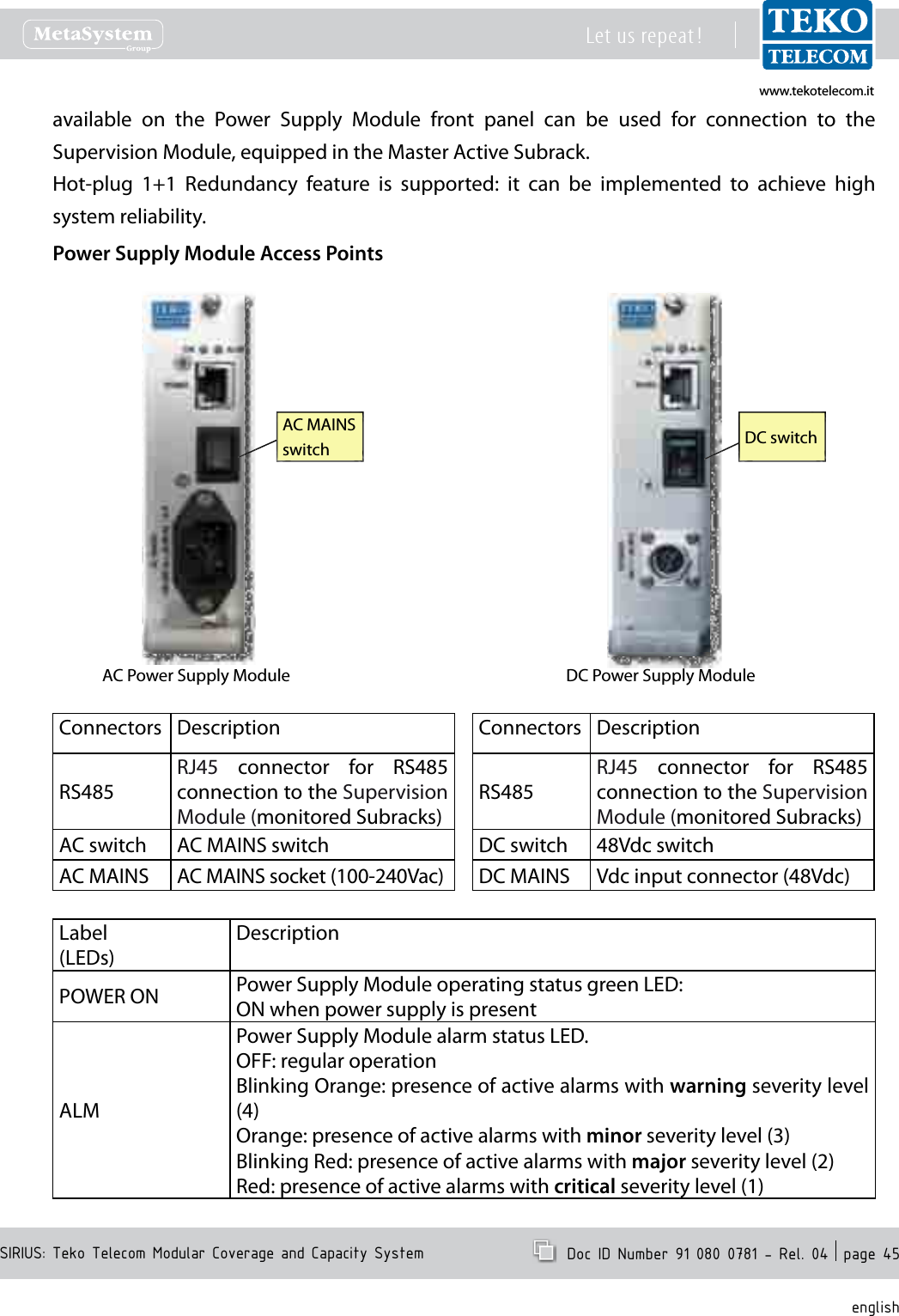

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 45englishavailable on the Power Supply Module front panel can be used for connection to the Supervision Module, equipped in the Master Active Subrack.Hot-plug 1+1 Redundancy feature is supported: it can be implemented to achieve high system reliability.Power Supply Module Access PointsAC Power Supply Module DC Power Supply ModuleDC switchAC MAINS switchConnectors DescriptionRS485RJ45 connector for RS485 connection to the Supervision Module (monitored Subracks)AC switch AC MAINS switchAC MAINS AC MAINS socket (100-240Vac)Connectors DescriptionRS485RJ45 connector for RS485 connection to the Supervision Module (monitored Subracks)DC switch 48Vdc switchDC MAINS Vdc input connector (48Vdc)Label(LEDs)DescriptionPOWER ON Power Supply Module operating status green LED:ON when power supply is presentALMPower Supply Module alarm status LED.OFF: regular operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

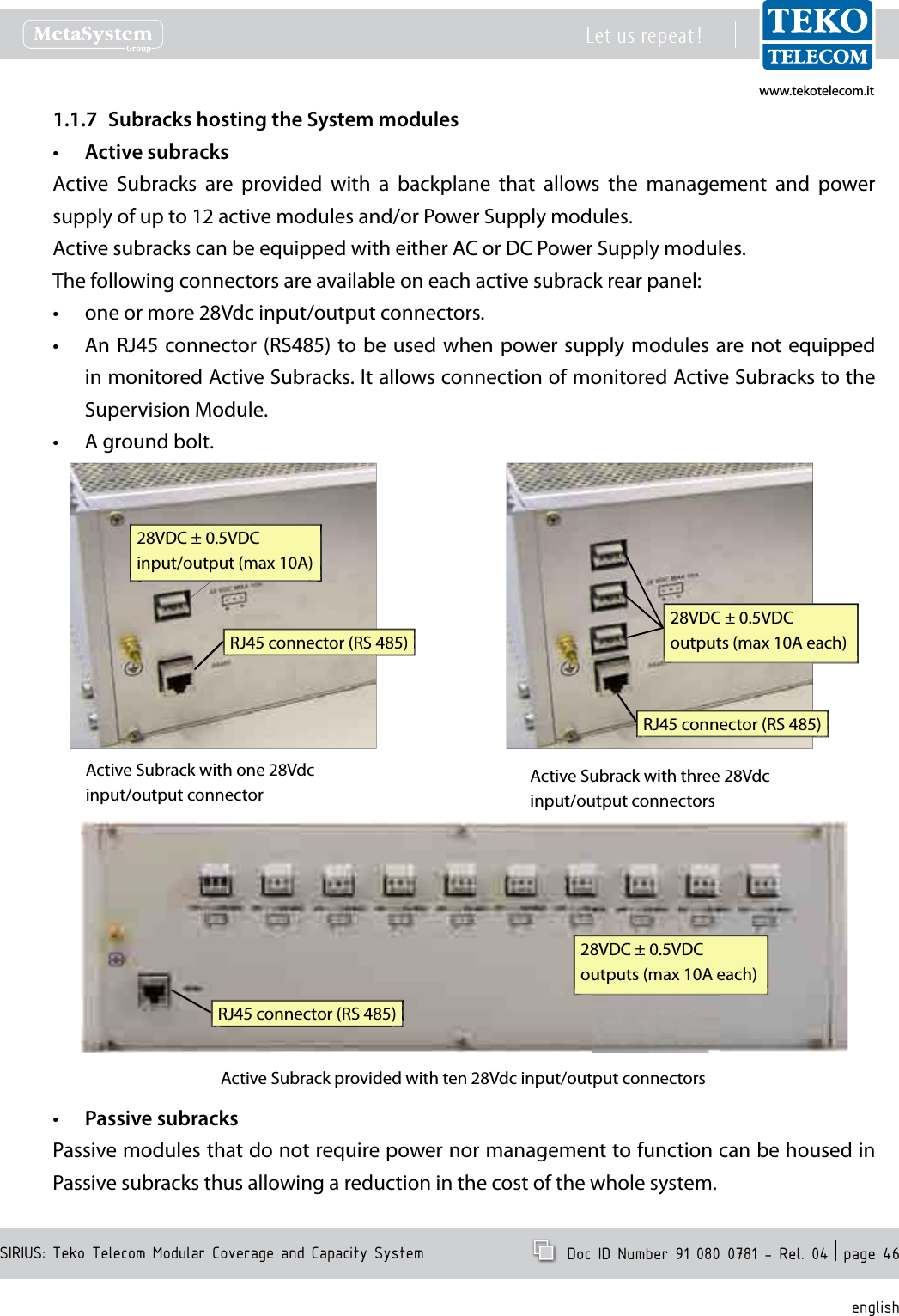

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 46englishSubracks hosting the System modules1.1.7 Active subracks•Active Subracks are provided with a backplane that allows the management and power supply of up to 12 active modules and/or Power Supply modules.Active subracks can be equipped with either AC or DC Power Supply modules.The following connectors are available on each active subrack rear panel:one or more 28Vdc input/output connectors.•An RJ45 connector (RS485) to be used when power supply modules are not equipped •in monitored Active Subracks. It allows connection of monitored Active Subracks to the Supervision Module.A ground bolt.•28VDC ± 0.5VDCinput/output (max 10A)RJ45 connector (RS 485)Active Subrack with one 28Vdc input/output connector28VDC ± 0.5VDCoutputs (max 10A each)RJ45 connector (RS 485)Active Subrack with three 28Vdc input/output connectors28VDC ± 0.5VDCoutputs (max 10A each)RJ45 connector (RS 485)Active Subrack provided with ten 28Vdc input/output connectorsPassive subracks•Passive modules that do not require power nor management to function can be housed in Passive subracks thus allowing a reduction in the cost of the whole system.

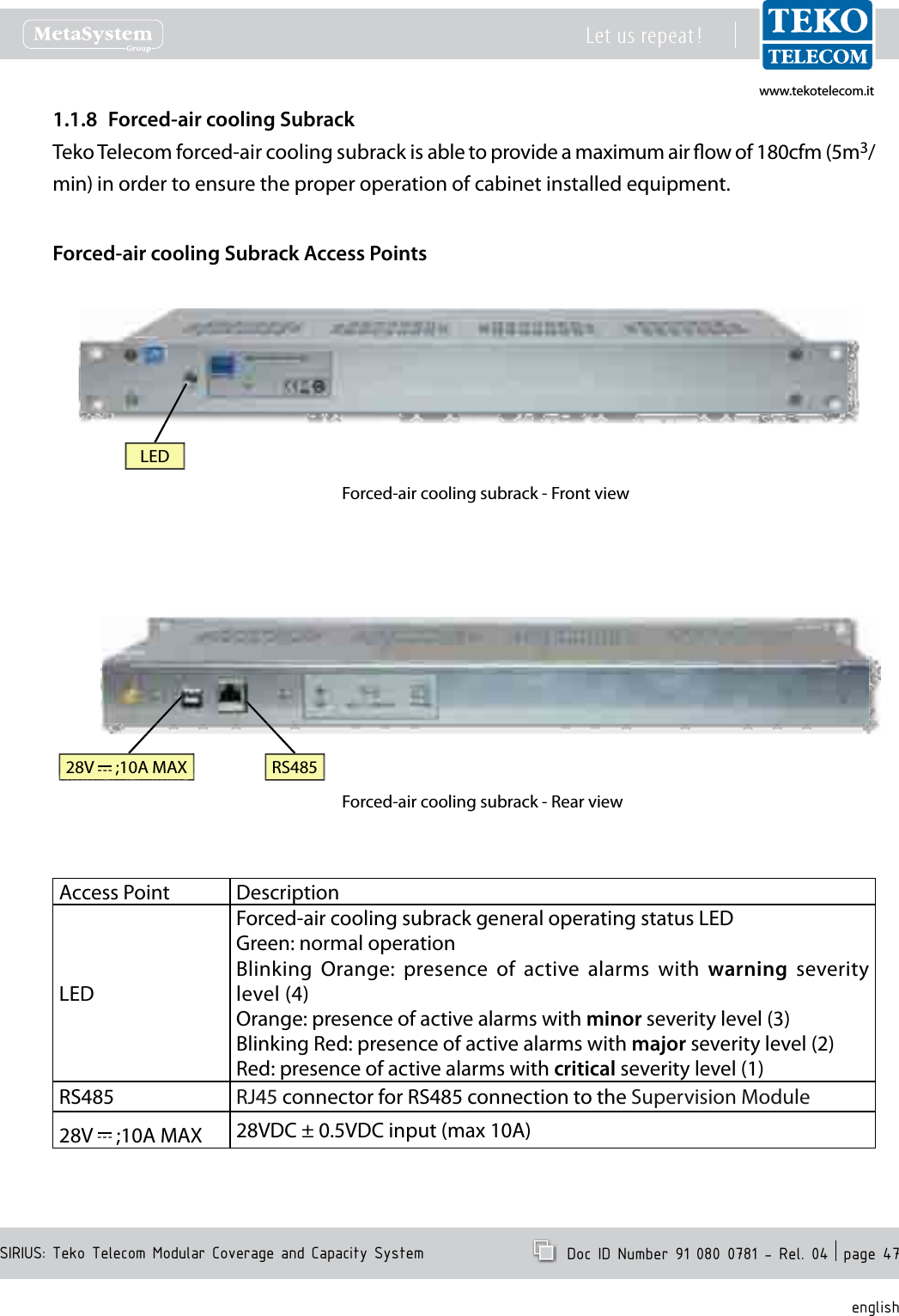

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 47englishForced-air cooling Subrack1.1.8 Teko Telecom forced-air cooling subrack is able to provide a maximum air ow of 180cfm (5m3/min) in order to ensure the proper operation of cabinet installed equipment.Forced-air cooling Subrack Access PointsForced-air cooling subrack - Front viewForced-air cooling subrack - Rear view28V ;10A MAX RS485LEDAccess Point DescriptionLEDForced-air cooling subrack general operating status LEDGreen: normal operationBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)RS485 RJ45 connector for RS485 connection to the Supervision Module28V ;10A MAX 28VDC ± 0.5VDC input (max 10A)

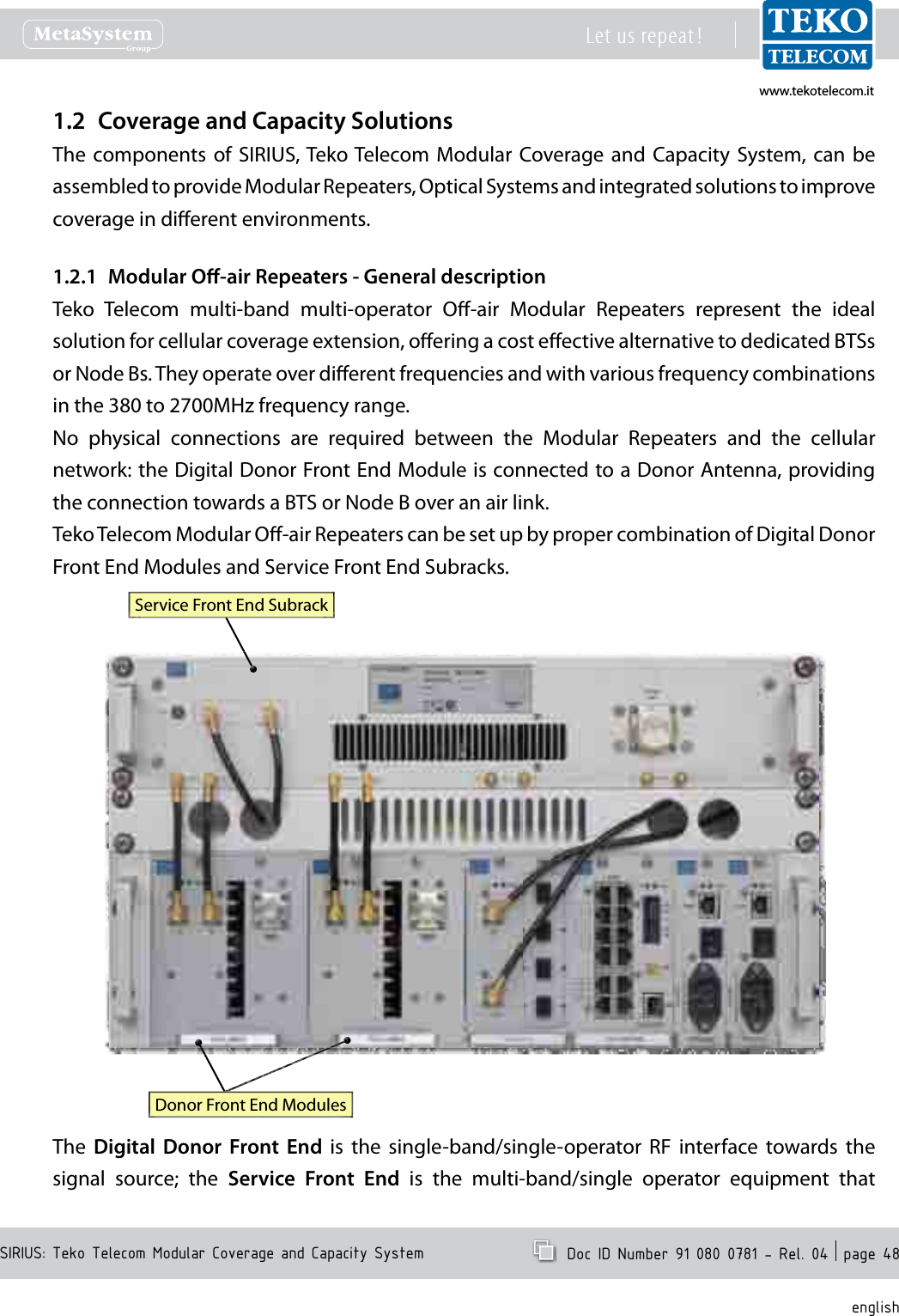

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 48englishCoverage and Capacity Solutions1.2 The components of SIRIUS, Teko Telecom Modular Coverage and Capacity System, can be assembled to provide Modular Repeaters, Optical Systems and integrated solutions to improve coverage in dierent environments.Modular O-air Repeaters - General description1.2.1 Teko Telecom multi-band multi-operator O-air Modular Repeaters represent the ideal solution for cellular coverage extension, oering a cost eective alternative to dedicated BTSs or Node Bs. They operate over dierent frequencies and with various frequency combinations in the 380 to 2700MHz frequency range.No physical connections are required between the Modular Repeaters and the cellular network: the Digital Donor Front End Module is connected to a Donor Antenna, providing the connection towards a BTS or Node B over an air link.Teko Telecom Modular O-air Repeaters can be set up by proper combination of Digital Donor Front End Modules and Service Front End Subracks.Donor Front End ModulesService Front End SubrackThe Digital Donor Front End is the single-band/single-operator RF interface towards the signal source; the Service Front End is the multi-band/single operator equipment that
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 49englishprovides wireless signal to the area to be covered.O-air Modular Repeaters can be equipped with one Donor Front End or more Donor Front End modules to make multiple congurations available: single operator (single band / multi-band) and multi-operator (single-band / multi-band).A single-band single-operator Repeater can be set-up combining a Digital Donor Front End Module and a Service Front End Subrack.Up to 4 Digital Donor Front End Modules can be connected to a single Service Front End obtaining a single-band 4-operator O-air Repeater.Digital Donor Front End Modules can be connected to dierent Service Front End Subracks to provide multi-band/multi-operator Systems.Operating principleModular repeaters use a directional antenna to interface with the operator’s donor BTS (or Node B) and one or more service antennas to transmit the amplied wireless signals to the area to be covered.In down-link the repeater receives the signals from the BTS (or Node B), amplies them and re-transmits them to the mobiles. In the up-link path the repeater receives the signals from the mobiles (MS), amplies them and re- transmits them to the base station.Each DFE module hosts the duplexer, to be connected to the Donor Antenna to separate/combine Downlink and Uplink paths.DL RF OutUL RFInDonorAntenna PortDuplexerP DC/DC+12V +1.8V+3.3V28÷30VDCRS485FANSDigital FilterDigital FilterPALNAIn downlink the signal from the Donor antenna is preamplied by a Low Noise Amplier and

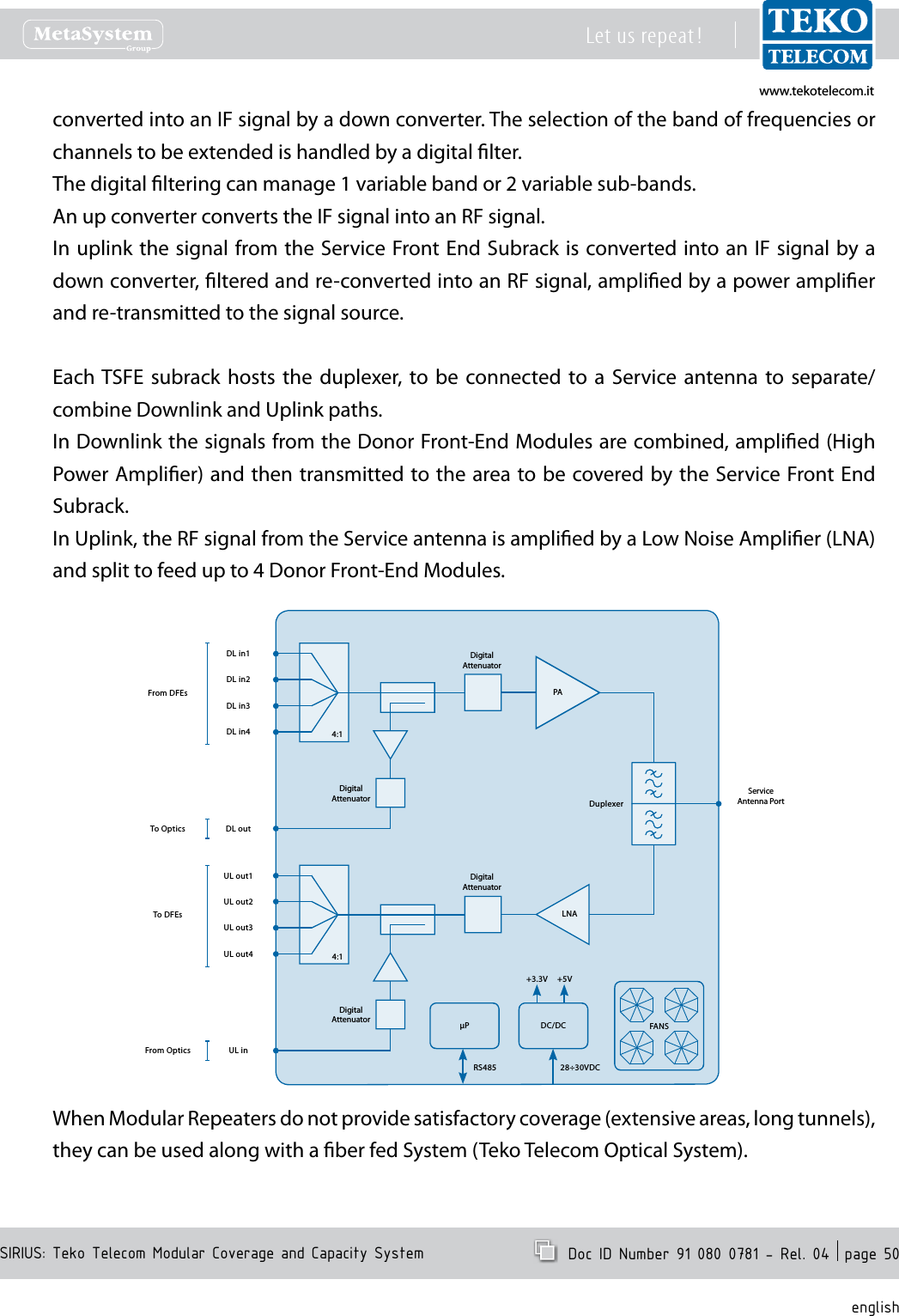

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 50englishconverted into an IF signal by a down converter. The selection of the band of frequencies or channels to be extended is handled by a digital lter.The digital ltering can manage 1 variable band or 2 variable sub-bands.An up converter converts the IF signal into an RF signal.In uplink the signal from the Service Front End Subrack is converted into an IF signal by a down converter, ltered and re-converted into an RF signal, amplied by a power amplier and re-transmitted to the signal source.Each TSFE subrack hosts the duplexer, to be connected to a Service antenna to separate/combine Downlink and Uplink paths.In Downlink the signals from the Donor Front-End Modules are combined, amplied (High Power Amplier) and then transmitted to the area to be covered by the Service Front End Subrack.In Uplink, the RF signal from the Service antenna is amplied by a Low Noise Amplier (LNA) and split to feed up to 4 Donor Front-End Modules.PADL in1ServiceAntenna PortDuplexerP DC/DC+3.3V +5V28÷30VDCRS485DigitalAttenuatorDL in2DL in3DL in4DL outLNAUL out1 DigitalAttenuatorUL out2UL out3UL out4UL inDigitalAttenuatorDigitalAttenuator4:14:1FANSFrom DFEsTo DFEsTo OpticsFrom OpticsWhen Modular Repeaters do not provide satisfactory coverage (extensive areas, long tunnels), they can be used along with a ber fed System (Teko Telecom Optical System).

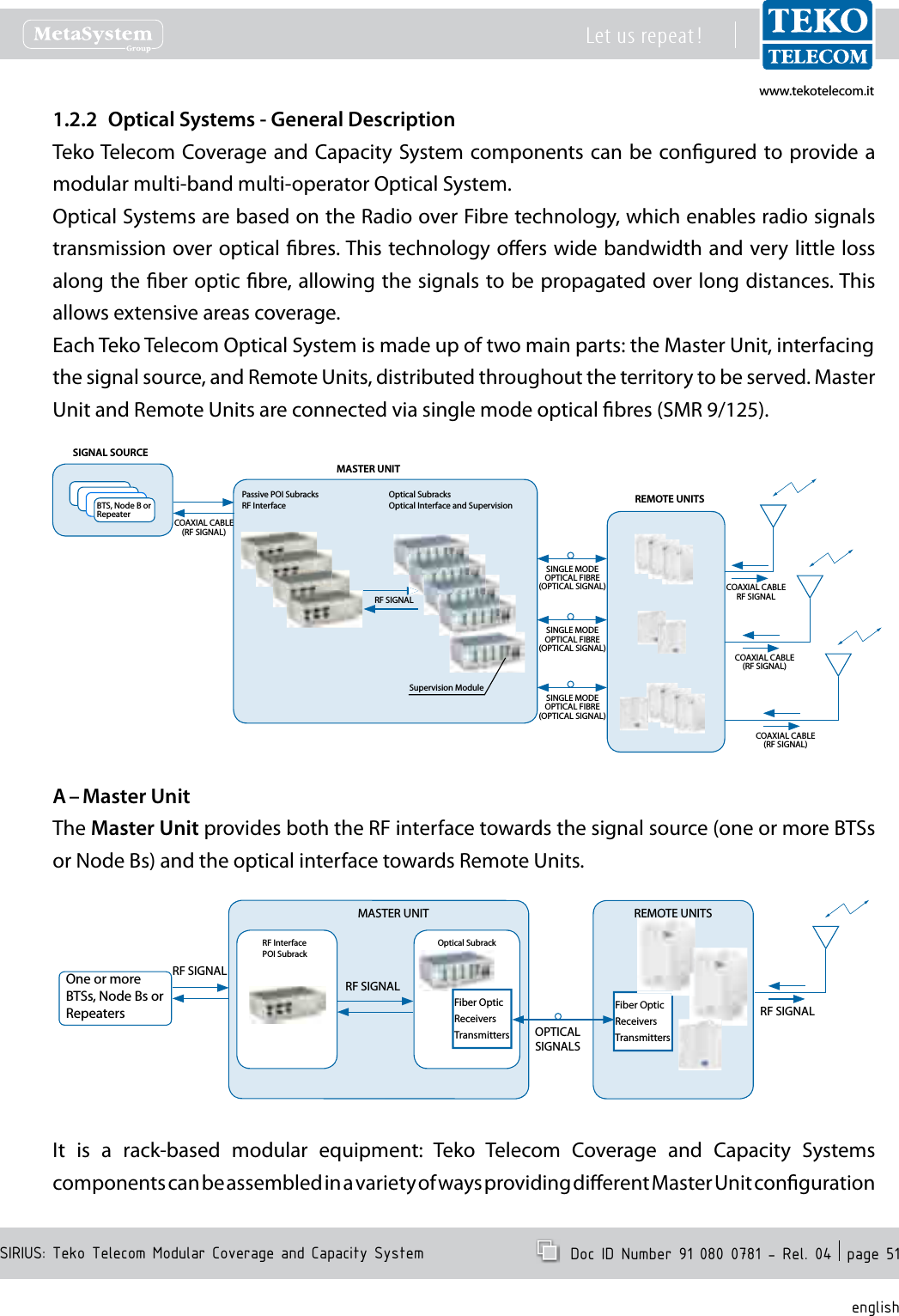

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 51englishOptical Systems - General Description1.2.2 Teko Telecom Coverage and Capacity System components can be congured to provide a modular multi-band multi-operator Optical System.Optical Systems are based on the Radio over Fibre technology, which enables radio signals transmission over optical bres. This technology oers wide bandwidth and very little loss along the ber optic bre, allowing the signals to be propagated over long distances. This allows extensive areas coverage.Each Teko Telecom Optical System is made up of two main parts: the Master Unit, interfacingthe signal source, and Remote Units, distributed throughout the territory to be served. Master Unit and Remote Units are connected via single mode optical bres (SMR 9/125).REMOTE UNITSPassive POI SubracksRF InterfaceOptical SubracksOptical Interface and SupervisionCOAXIAL CABLE(RF SIGNAL)BTS, Node B or RepeaterSIGNAL SOURCESINGLE MODE OPTICAL FIBRE(OPTICAL SIGNAL) COAXIAL CABLERF SIGNALCOAXIAL CABLE(RF SIGNAL)COAXIAL CABLE(RF SIGNAL)RF SIGNALSupervision ModuleMASTER UNITSINGLE MODE OPTICAL FIBRE(OPTICAL SIGNAL)SINGLE MODE OPTICAL FIBRE(OPTICAL SIGNAL)Master UnitA – The Master Unit provides both the RF interface towards the signal source (one or more BTSs or Node Bs) and the optical interface towards Remote Units.One or more BTSs, Node Bs or RepeatersRF SIGNALFiber OpticReceiversTransmittersREMOTE UNITSRF InterfacePOI SubrackMASTER UNITOptical SubrackRF SIGNALFiber OpticReceiversTransmitters OPTICALSIGNALSRF SIGNALIt is a rack-based modular equipment: Teko Telecom Coverage and Capacity Systems components can be assembled in a variety of ways providing dierent Master Unit conguration

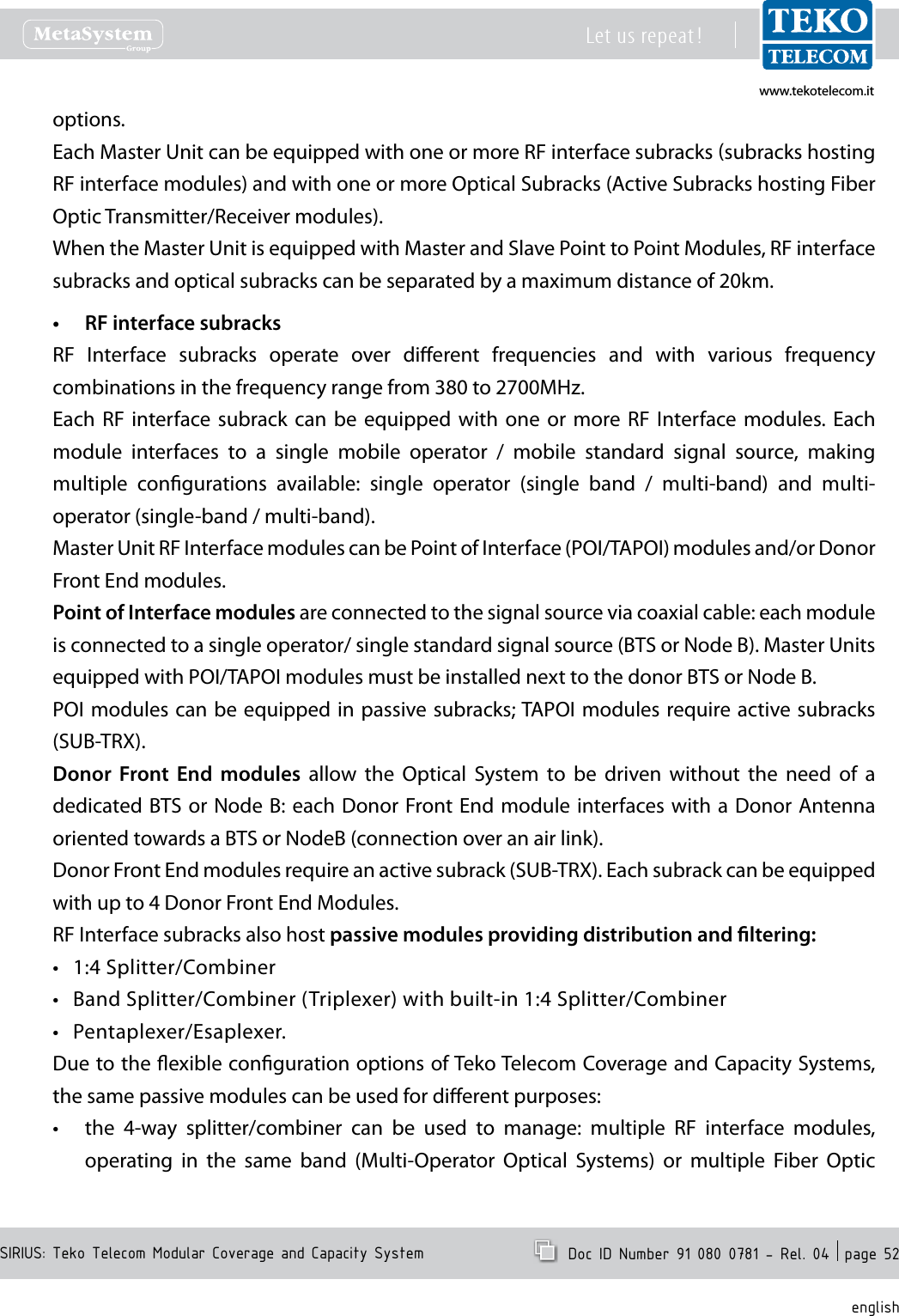

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 52englishoptions.Each Master Unit can be equipped with one or more RF interface subracks subracks hosting RF interface modules) and with one or more Optical Subracks (Active Subracks hosting Fiber Optic Transmitter/Receiver modules).When the Master Unit is equipped with Master and Slave Point to Point Modules, RF interface subracks and optical subracks can be separated by a maximum distance of 20km.RF interface subracks•RF Interface subracks operate over dierent frequencies and with various frequency combinations in the frequency range from 380 to 2700MHz.Each RF interface subrack can be equipped with one or more RF Interface modules. Each module interfaces to a single mobile operator / mobile standard signal source, making multiple congurations available: single operator (single band / multi-band) and multi-operator (single-band / multi-band).Master Unit RF Interface modules can be Point of Interface (POI/TAPOI) modules and/or Donor Front End modules.Point of Interface modules are connected to the signal source via coaxial cable: each module is connected to a single operator/ single standard signal source (BTS or Node B). Master Units equipped with POI/TAPOI modules must be installed next to the donor BTS or Node B.POI modules can be equipped in passive subracks; TAPOI modules require active subracks (SUB-TRX).Donor Front End modules allow the Optical System to be driven without the need of a dedicated BTS or Node B: each Donor Front End module interfaces with a Donor Antenna oriented towards a BTS or NodeB (connection over an air link).Donor Front End modules require an active subrack (SUB-TRX). Each subrack can be equipped with up to 4 Donor Front End Modules.RF Interface subracks also host passive modules providing distribution and ltering:1:4 Splitter/Combiner•Band Splitter/Combiner (Triplexer) with built-in 1:4 Splitter/Combiner•Pentaplexer/Esaplexer.•Due to the exible conguration options of Teko Telecom Coverage and Capacity Systems, the same passive modules can be used for dierent purposes:the 4-way splitter/combiner can be used to manage: multiple RF interface modules, •operating in the same band (Multi-Operator Optical Systems) or multiple Fiber Optic
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 53englishmodules;the triplexer can be used to manage•up to 3 RF interface modules operating in dierent bands and up to 4 Fiber Optic -Transmitter/Receiver Modules orup to 3 Service Front End subracks operating in dierent bands and up to 4 Fiber Optic -Transmitter/Receiver Modules orup to 3 four-way splitter/combiner modules - used to manage multiple RF interface -modules (up to 4 for each band) - and up to 4 Fiber Optic Transmitter/Receiver Modules.the Pentaplexer and Esaplexer can be used to manage•up to 5 (Pentaplexer)/ up to 6 (Esaplexer) RF interface modules operating in dierent -bands orup to 5 (Pentaplexer)/ up to 6 (Esaplexer) Service Front End subracks operating in -dierent bands orup to 5 (Pentaplexer)/ up to 6 (Esaplexer) four-way splitter/combiner modules- used -to manage multiple RF interface modules (up to 4 for each band).The RF Interface subracks can also be equipped with up to 4 Master Point to Point modules for the management of up to 4 optical subracks installed in dierent remote locations.Digital Donor Front End modules can be connected to Service Front End Subracks to provide coverage to the area adjoining the Master Unit site.Each Service Front End can be fed by up to 4 Donor Front-End Modules interfacing the signal source. Downlink and uplink auxiliary ports are available to drive the Optical System.Service Front End Subrack

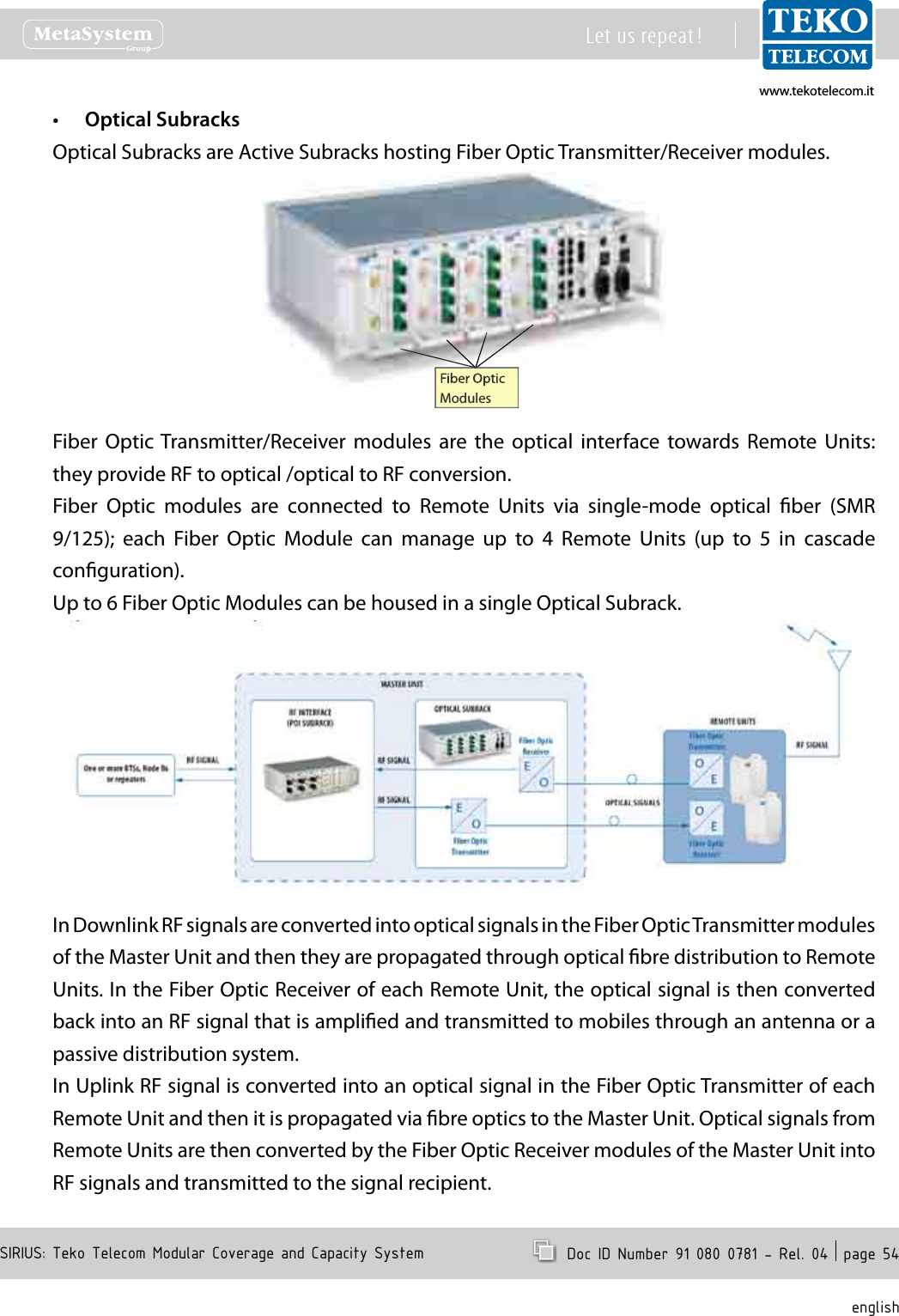

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 54englishOptical Subracks•Optical Subracks are Active Subracks hosting Fiber Optic Transmitter/Receiver modules.Fiber OpticModulesFiber Optic Transmitter/Receiver modules are the optical interface towards Remote Units: they provide RF to optical /optical to RF conversion.Fiber Optic modules are connected to Remote Units via single-mode optical ber (SMR 9/125); each Fiber Optic Module can manage up to 4 Remote Units (up to 5 in cascade conguration).Up to 6 Fiber Optic Modules can be housed in a single Optical Subrack.In Downlink RF signals are converted into optical signals in the Fiber Optic Transmitter modules of the Master Unit and then they are propagated through optical bre distribution to Remote Units. In the Fiber Optic Receiver of each Remote Unit, the optical signal is then converted back into an RF signal that is amplied and transmitted to mobiles through an antenna or a passive distribution system.In Uplink RF signal is converted into an optical signal in the Fiber Optic Transmitter of each Remote Unit and then it is propagated via bre optics to the Master Unit. Optical signals from Remote Units are then converted by the Fiber Optic Receiver modules of the Master Unit into RF signals and transmitted to the signal recipient.

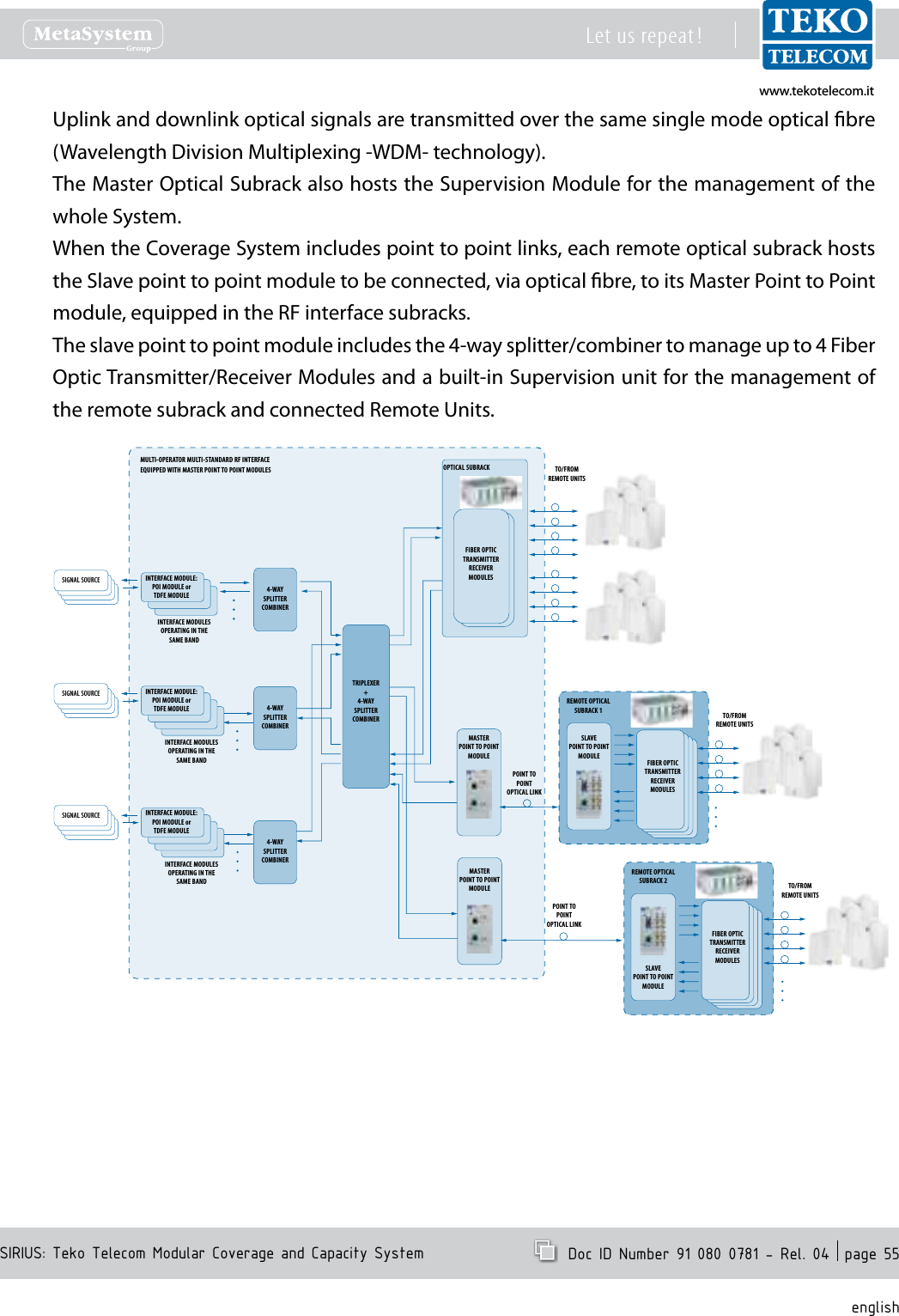

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 55englishUplink and downlink optical signals are transmitted over the same single mode optical bre (Wavelength Division Multiplexing -WDM- technology).The Master Optical Subrack also hosts the Supervision Module for the management of the whole System.When the Coverage System includes point to point links, each remote optical subrack hosts the Slave point to point module to be connected, via optical bre, to its Master Point to Point module, equipped in the RF interface subracks.The slave point to point module includes the 4-way splitter/combiner to manage up to 4 Fiber Optic Transmitter/Receiver Modules and a built-in Supervision unit for the management of the remote subrack and connected Remote Units.4-WAYSPLITTERCOMBINERTRIPLEXER+4-WAYSPLITTERCOMBINERFIBER OPTICTRANSMITTERRECEIVERMODULES4-WAYSPLITTERCOMBINER4-WAYSPLITTERCOMBINERTO/FROMREMOTE UNITSSIGNAL SOURCE SIGNAL SOURCE SIGNAL SOURCE INTERFACE MODULESOPERATING IN THESAME BANDINTERFACE MODULE:POI MODULE orTDFE MODULEINTERFACE MODULESOPERATING IN THESAME BANDINTERFACE MODULE:POI MODULE orTDFE MODULEINTERFACE MODULESOPERATING IN THESAME BANDINTERFACE MODULE:POI MODULE orTDFE MODULEMASTERPOINT TO POINTMODULESLAVEPOINT TO POINTMODULEPOINT TOPOINTOPTICAL LINKPOINT TOPOINTOPTICAL LINKMASTERPOINT TO POINTMODULEREMOTE OPTICAL SUBRACK 1FIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSFIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSSLAVEPOINT TO POINTMODULEREMOTE OPTICAL SUBRACK 2OPTICAL SUBRACKMULTI-OPERATOR MULTI-STANDARD RF INTERFACEEQUIPPED WITH MASTER POINT TO POINT MODULES

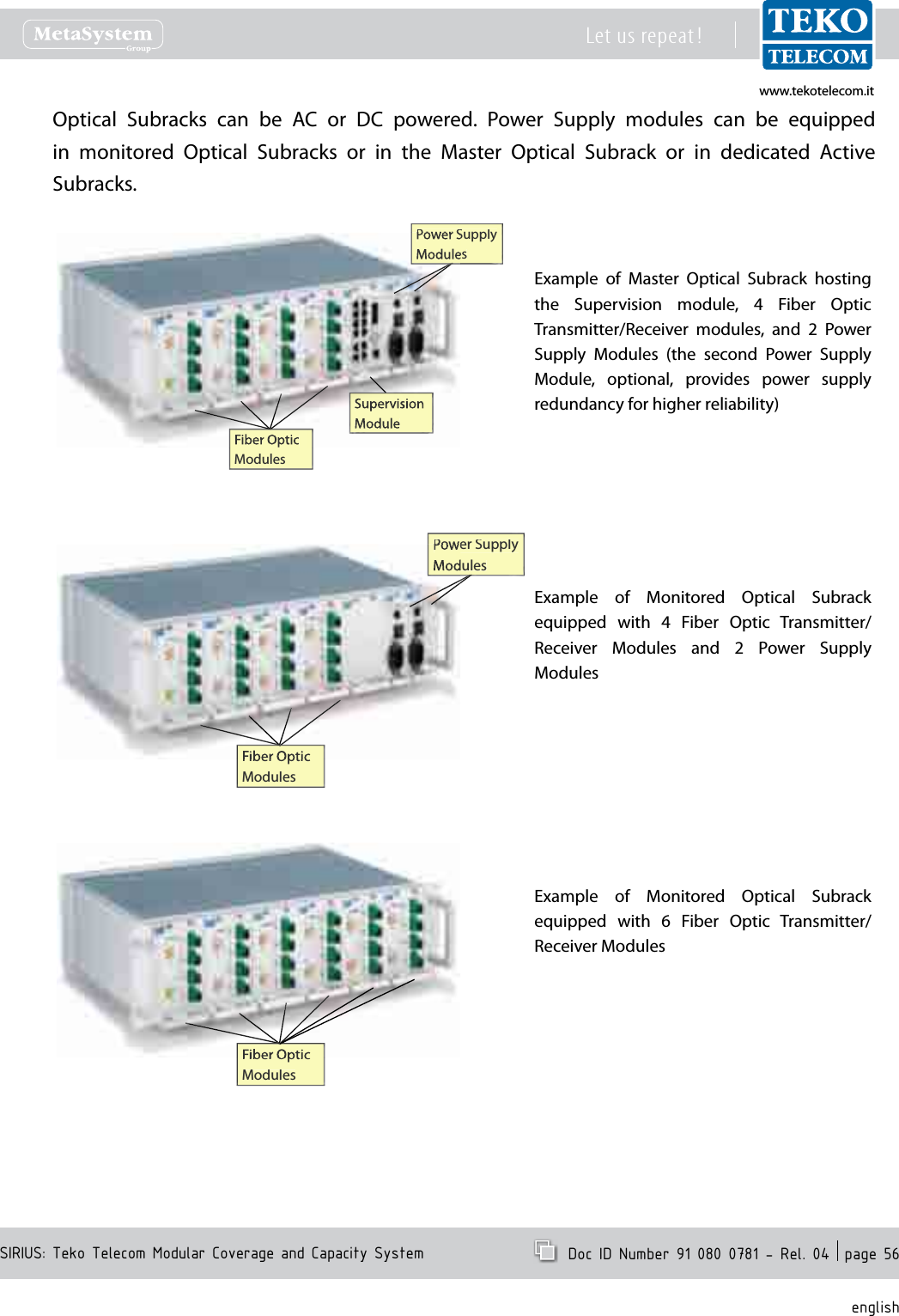

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 56englishOptical Subracks can be AC or DC powered. Power Supply modules can be equipped in monitored Optical Subracks or in the Master Optical Subrack or in dedicated Active Subracks.Example of Master Optical Subrack hosting the Supervision module, 4 Fiber Optic Transmitter/Receiver modules, and 2 Power Supply Modules (the second Power Supply Module, optional, provides power supply redundancy for higher reliability)Power Supply Power Supply ModulesModulesFiber OpticModulesSupervisionModulePower Supply Power Supply ModulesModulesFiber OpticFiber OpticModulesExample of Monitored Optical Subrack equipped with 4 Fiber Optic Transmitter/Receiver Modules and 2 Power Supply ModulesFiber OpticFiber OpticModulesExample of Monitored Optical Subrack equipped with 6 Fiber Optic Transmitter/Receiver Modules

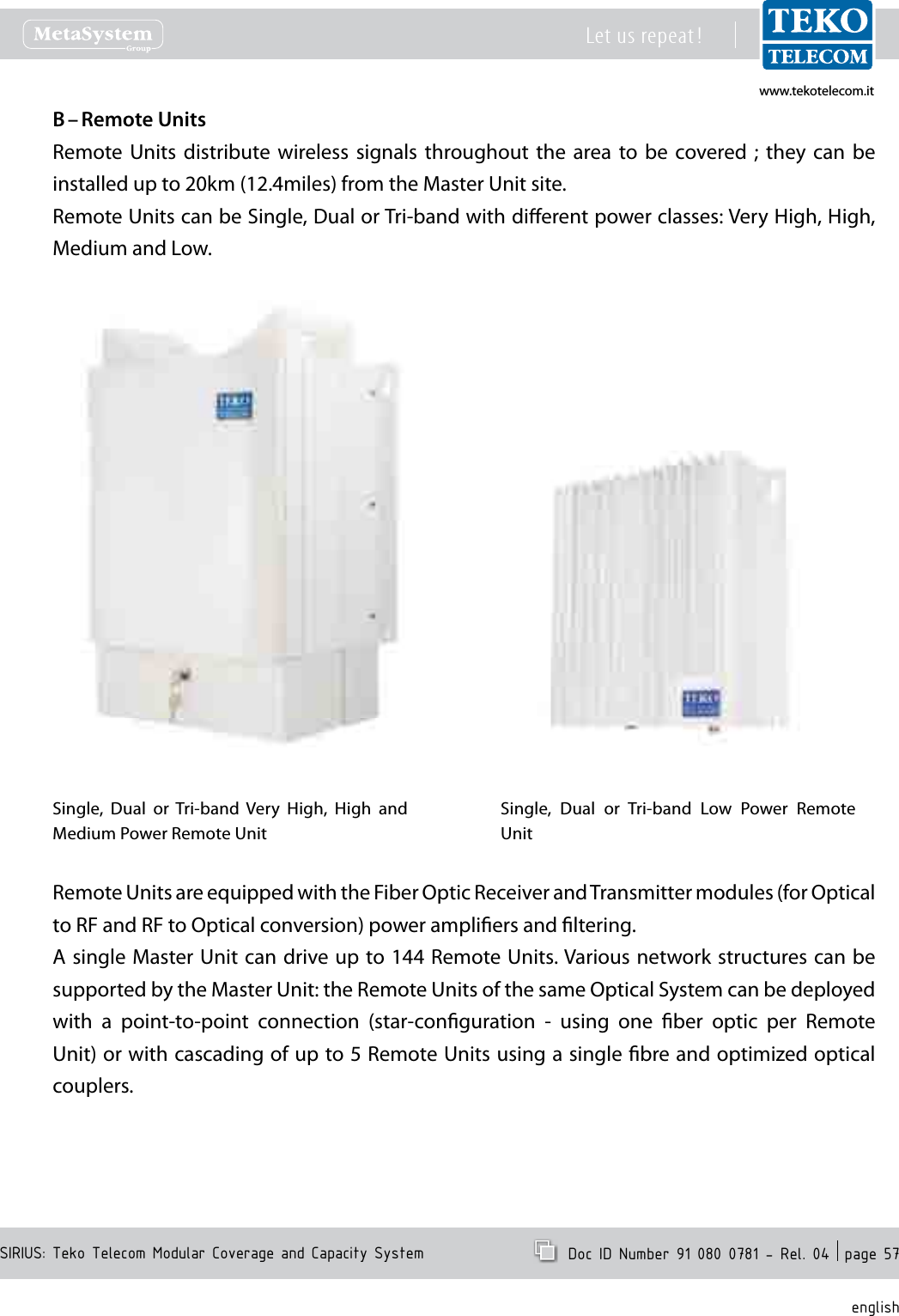

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 57englishRemote UnitsB – Remote Units distribute wireless signals throughout the area to be covered ; they can be installed up to 20km (12.4miles) from the Master Unit site.Remote Units can be Single, Dual or Tri-band with dierent power classes: Very High, High, Medium and Low.Single, Dual or Tri-band Very High, High and Medium Power Remote UnitSingle, Dual or Tri-band Low Power Remote UnitRemote Units are equipped with the Fiber Optic Receiver and Transmitter modules (for Optical to RF and RF to Optical conversion) power ampliers and ltering.A single Master Unit can drive up to 144 Remote Units. Various network structures can be supported by the Master Unit: the Remote Units of the same Optical System can be deployed with a point-to-point connection (star-conguration - using one ber optic per Remote Unit) or with cascading of up to 5 Remote Units using a single bre and optimized optical couplers.

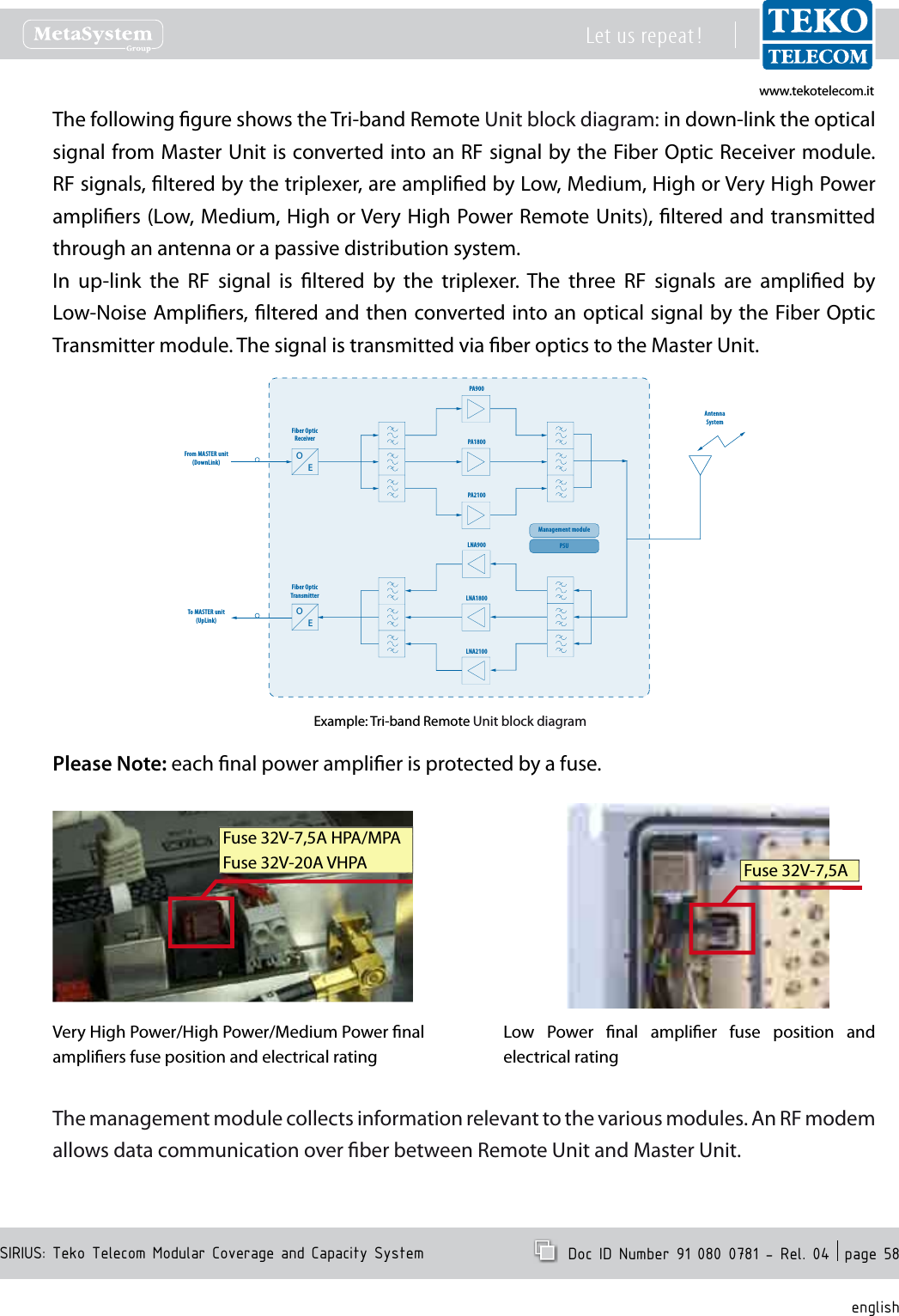

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 58englishThe following gure shows the Tri-band Remote Unit block diagram: in down-link the optical signal from Master Unit is converted into an RF signal by the Fiber Optic Receiver module. RF signals, ltered by the triplexer, are amplied by Low, Medium, High or Very High Power ampliers (Low, Medium, High or Very High Power Remote Units), ltered and transmitted through an antenna or a passive distribution system.In up-link the RF signal is ltered by the triplexer. The three RF signals are amplied by Low-Noise Ampliers, ltered and then converted into an optical signal by the Fiber Optic Transmitter module. The signal is transmitted via ber optics to the Master Unit.Fiber OpticReceiverFrom MASTER unit(DownLink)To MASTER unit(UpLink)PA900PA1800PA2100AntennaSystemLNA900LNA1800LNA2100Fiber OpticTransmitterManagement modulePSUOEOEExample: Tri-band Remote Unit block diagramPlease Note: each nal power amplier is protected by a fuse.Very High Power/High Power/Medium Power nal ampliers fuse position and electrical rating Fuse 32V-7,5A HPA/MPAFuse 32V-20A VHPA Fuse 32V-7,5ALow Power nal amplier fuse position and electrical rating The management module collects information relevant to the various modules. An RF modem allows data communication over ber between Remote Unit and Master Unit.

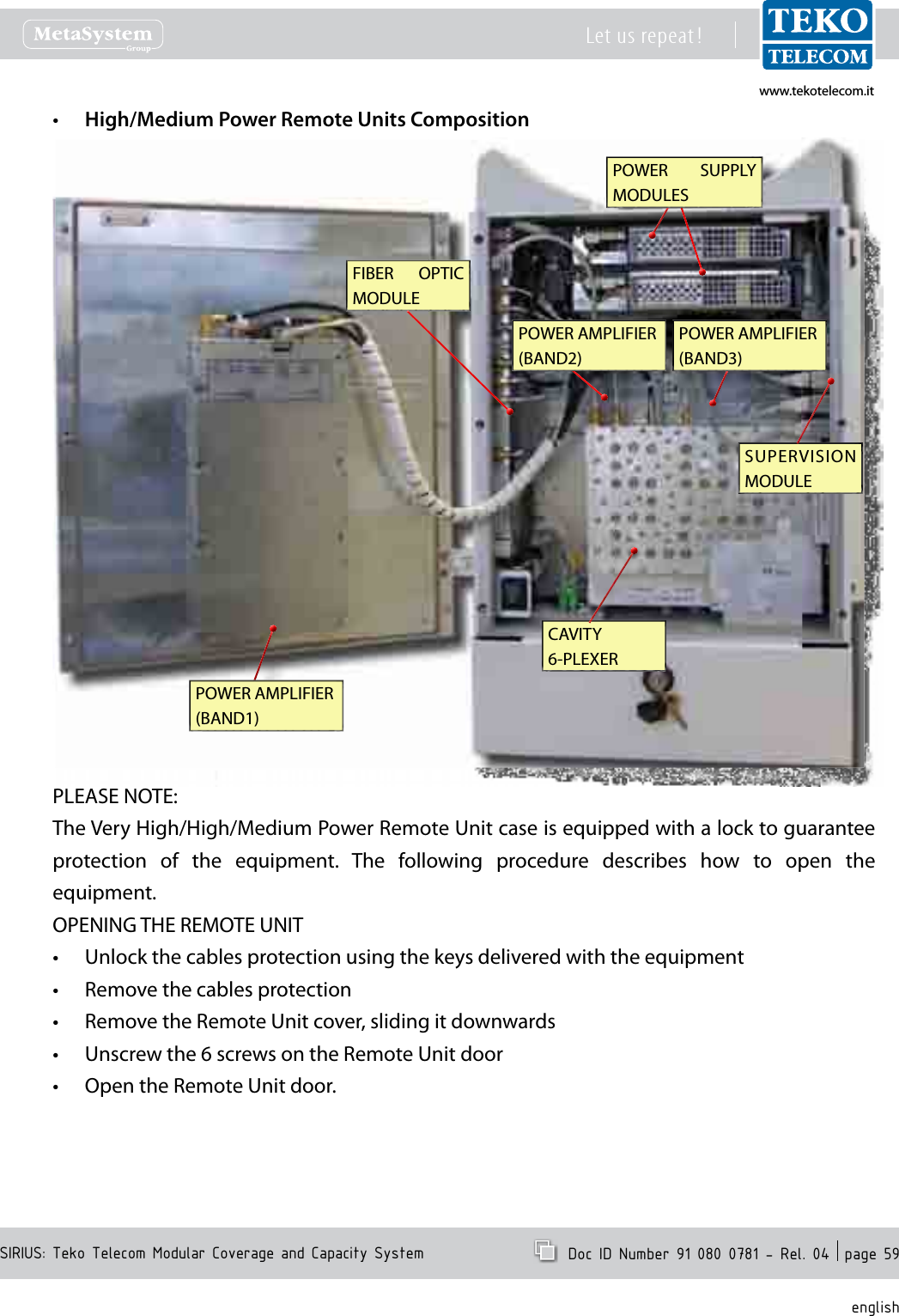

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 59englishHigh/Medium Power Remote Units Composition•POWER SUPPLY MODULESSUPERVISION MODULEFIBER OPTIC MODULECAVITY 6-PLEXERPOWER AMPLIFIER (BAND1)POWER AMPLIFIER (BAND2)POWER AMPLIFIER (BAND3)PLEASE NOTE:The Very High/High/Medium Power Remote Unit case is equipped with a lock to guarantee protection of the equipment. The following procedure describes how to open the equipment.OPENING THE REMOTE UNITUnlock the cables protection using the keys delivered with the equipment•Remove the cables protection•Remove the Remote Unit cover, sliding it downwards•Unscrew the 6 screws on the Remote Unit door•Open the Remote Unit door.•

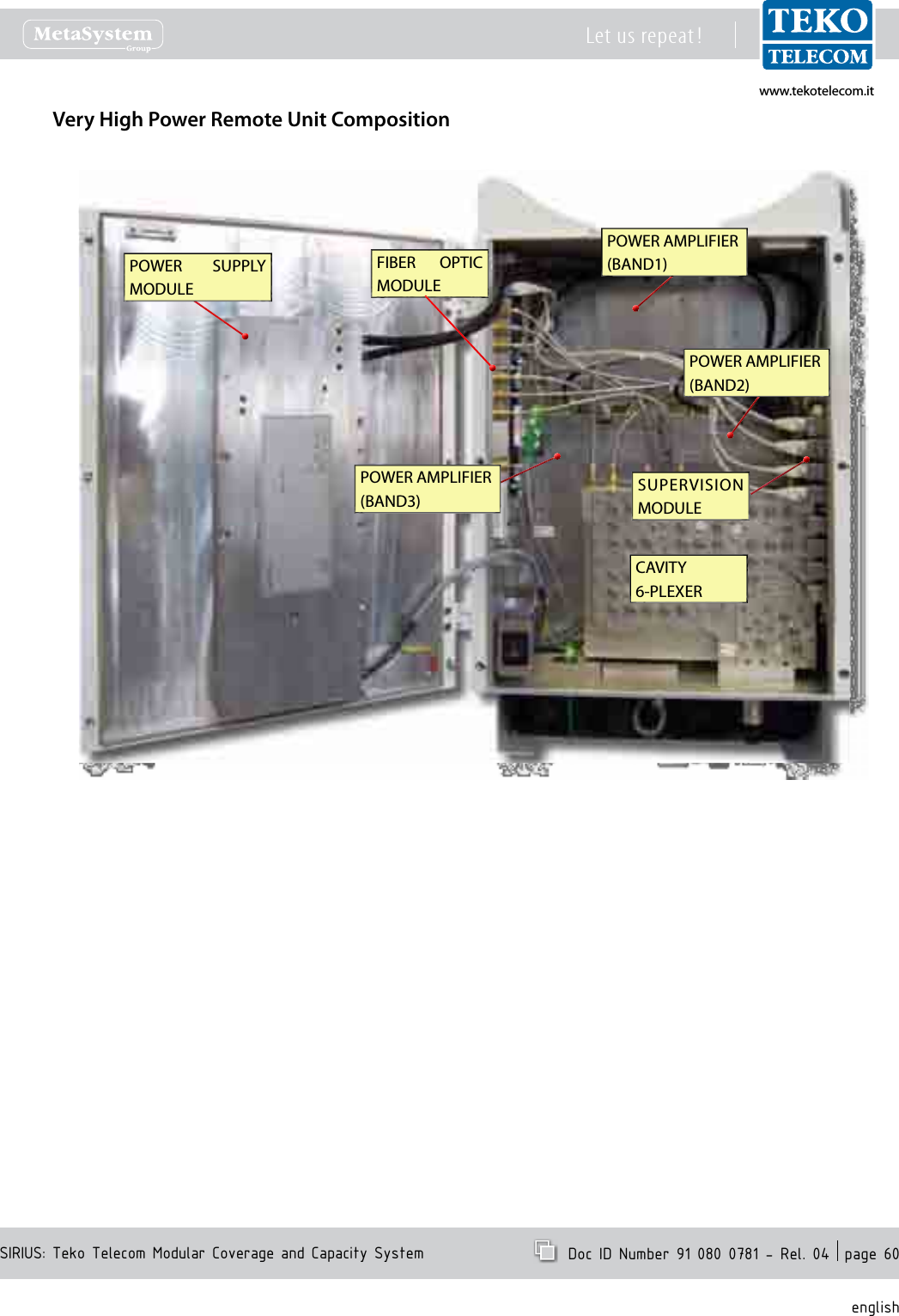

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 60englishVery High Power Remote Unit CompositionPOWER SUPPLY MODULECAVITY 6-PLEXERSUPERVISION MODULEFIBER OPTIC MODULEPOWER AMPLIFIER (BAND1)POWER AMPLIFIER (BAND2)POWER AMPLIFIER (BAND3)

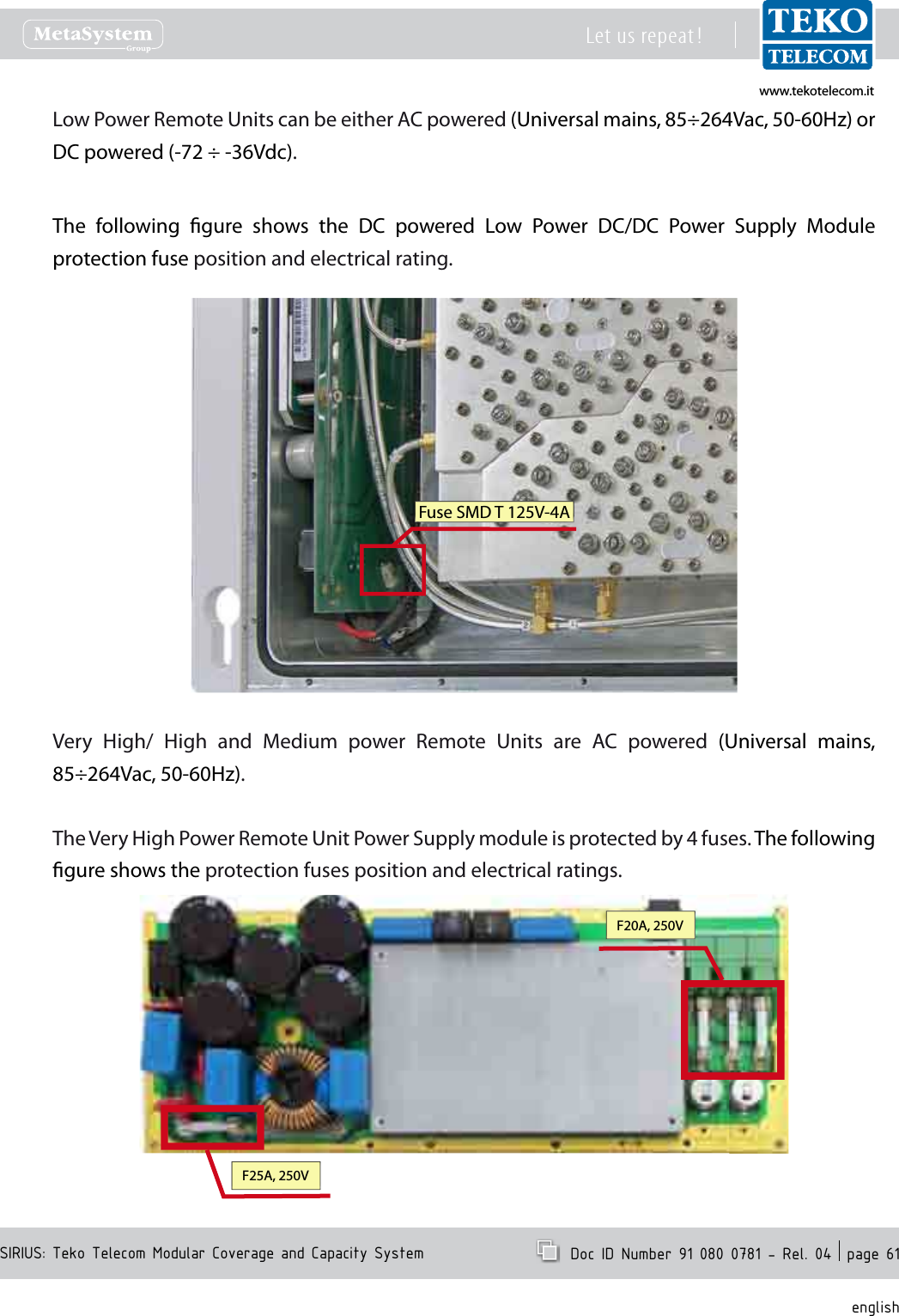

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 61englishLow Power Remote Units can be either AC powered (Universal mains, 85÷264Vac, 50-60Hz) or DC powered (-72 ÷ -36Vdc).The following gure shows the DC powered Low Power DC/DC Power Supply Module protection fuse position and electrical rating.Fuse SMD T 125V-4AVery High/ High and Medium power Remote Units are AC powered (Universal mains, 85÷264Vac, 50-60Hz).The Very High Power Remote Unit Power Supply module is protected by 4 fuses. The following gure shows the protection fuses position and electrical ratings.F20A, 250VF25A, 250V

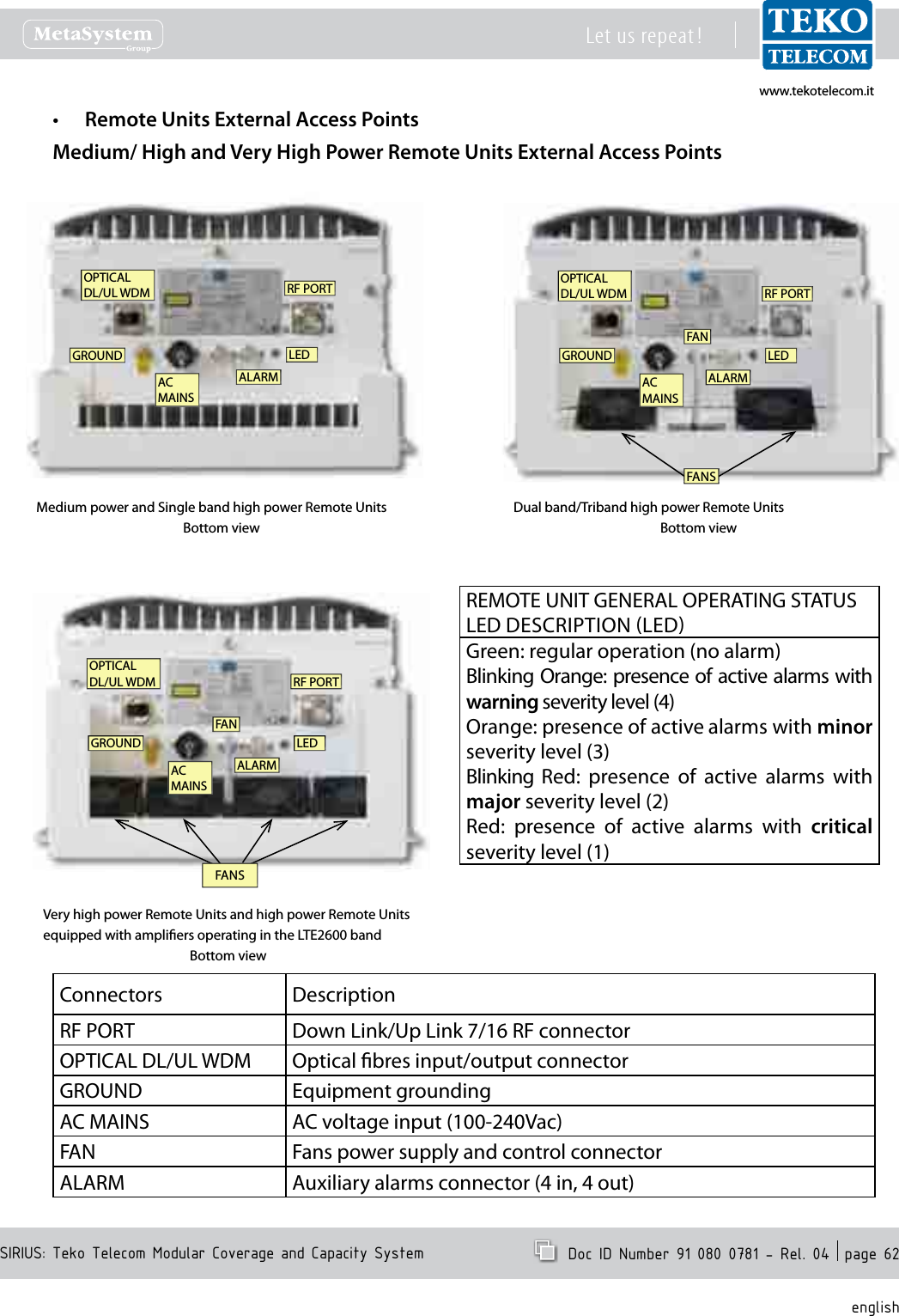

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 62englishRemote Units External Access Points•Medium/ High and Very High Power Remote Units External Access PointsGROUNDOPTICALDL/UL WDMALARMRF PORTACMAINSLEDMedium power and Single band high power Remote UnitsBottom viewGROUNDOPTICALDL/UL WDMALARMRF PORTACMAINSLEDFANFANSDual band/Triband high power Remote Units Bottom viewVery high power Remote Units and high power Remote Units equipped with ampliers operating in the LTE2600 bandBottom viewGROUNDOPTICALDL/UL WDMALARMRF PORTACMAINSLEDFANFANSREMOTE UNIT GENERAL OPERATING STATUS LED DESCRIPTION LEDGreen: regular operation (no alarm)Blinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)Connectors DescriptionRF PORT Down Link/Up Link 7/16 RF connectorOPTICAL DL/UL WDM Optical bres input/output connectorGROUND Equipment groundingAC MAINS AC voltage input (100-240Vac) FAN Fans power supply and control connectorALARM Auxiliary alarms connector (4 in, 4 out)

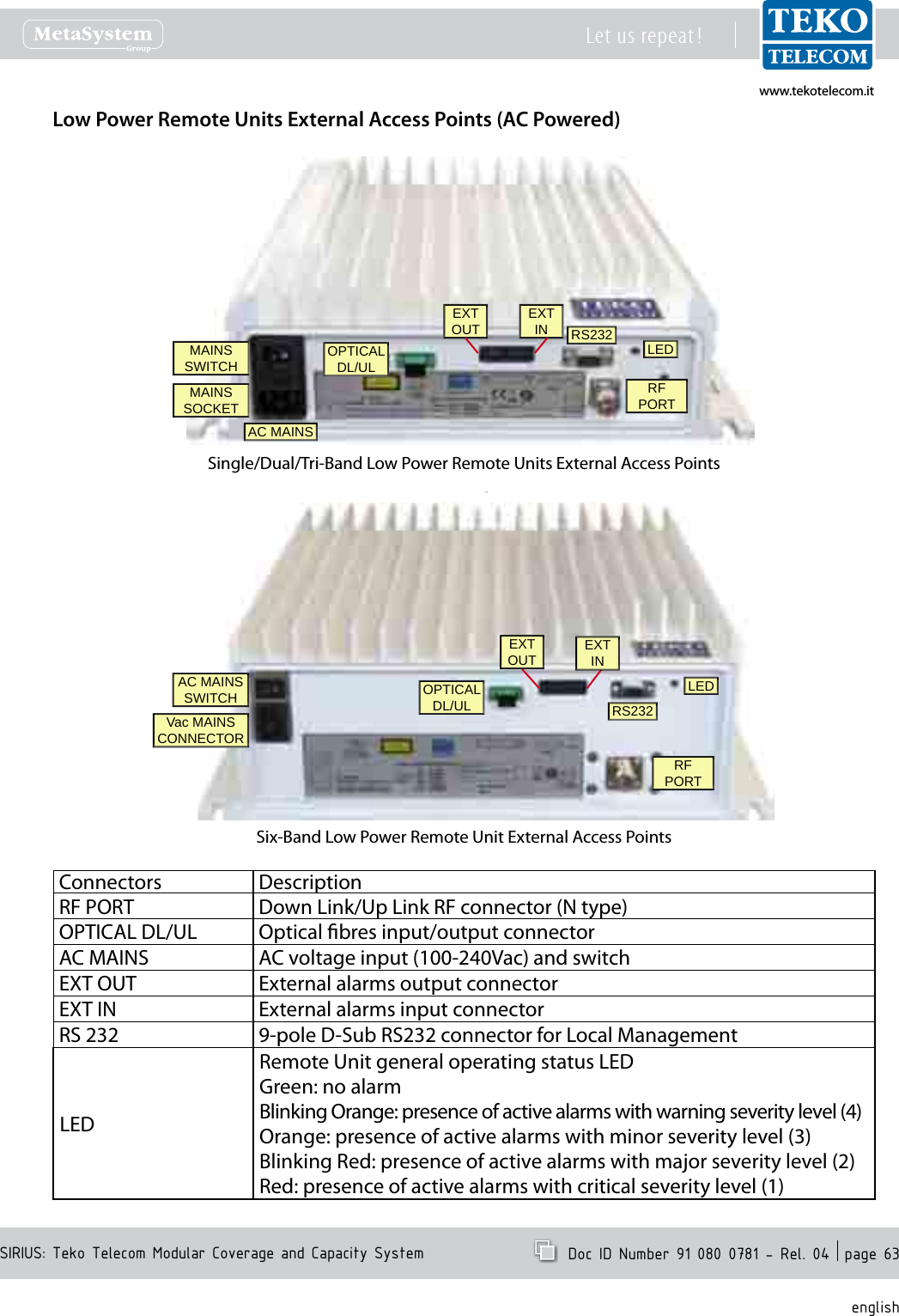

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 63englishLow Power Remote Units External Access Points (AC Powered)AC MAINSMAINS SOCKETMAINS SWITCHEXTOUT EXTIN RS232RF PORTLEDOPTICALDL/ULSingle/Dual/Tri-Band Low Power Remote Units External Access PointsVac MAINS CONNECTORAC MAINS SWITCH RS232RF PORTLEDOPTICALDL/ULEXTOUT EXTINSix-Band Low Power Remote Unit External Access PointsConnectors DescriptionRF PORT Down Link/Up Link RF connector (N type)OPTICAL DL/UL Optical bres input/output connectorAC MAINS AC voltage input (100-240Vac) and switchEXT OUT External alarms output connectorEXT IN External alarms input connectorRS 232 9-pole D-Sub RS232 connector for Local ManagementLEDRemote Unit general operating status LEDGreen: no alarmBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

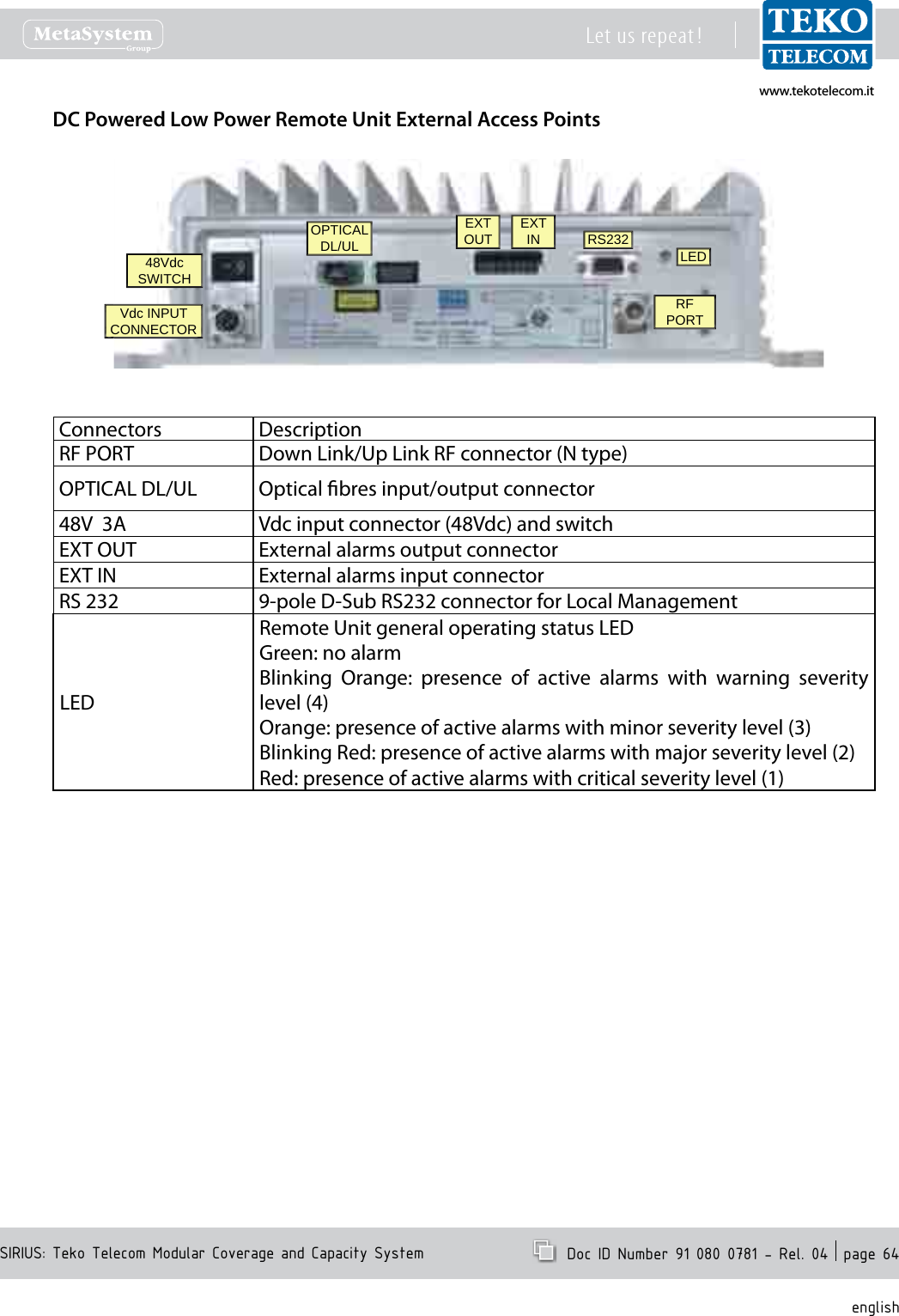

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 64englishDC Powered Low Power Remote Unit External Access PointsVdc INPUT CONNECTOR48Vdc SWITCHEXTOUT EXTIN RS232RF PORTLEDOPTICALDL/ULConnectors DescriptionRF PORT Down Link/Up Link RF connector (N type)OPTICAL DL/UL Optical bres input/output connector48V 3A Vdc input connector (48Vdc) and switchEXT OUT External alarms output connectorEXT IN External alarms input connectorRS 232 9-pole D-Sub RS232 connector for Local ManagementLEDRemote Unit general operating status LEDGreen: no alarmBlinking Orange: presence of active alarms with warning severity level (4)Orange: presence of active alarms with minor severity level (3)Blinking Red: presence of active alarms with major severity level (2)Red: presence of active alarms with critical severity level (1)

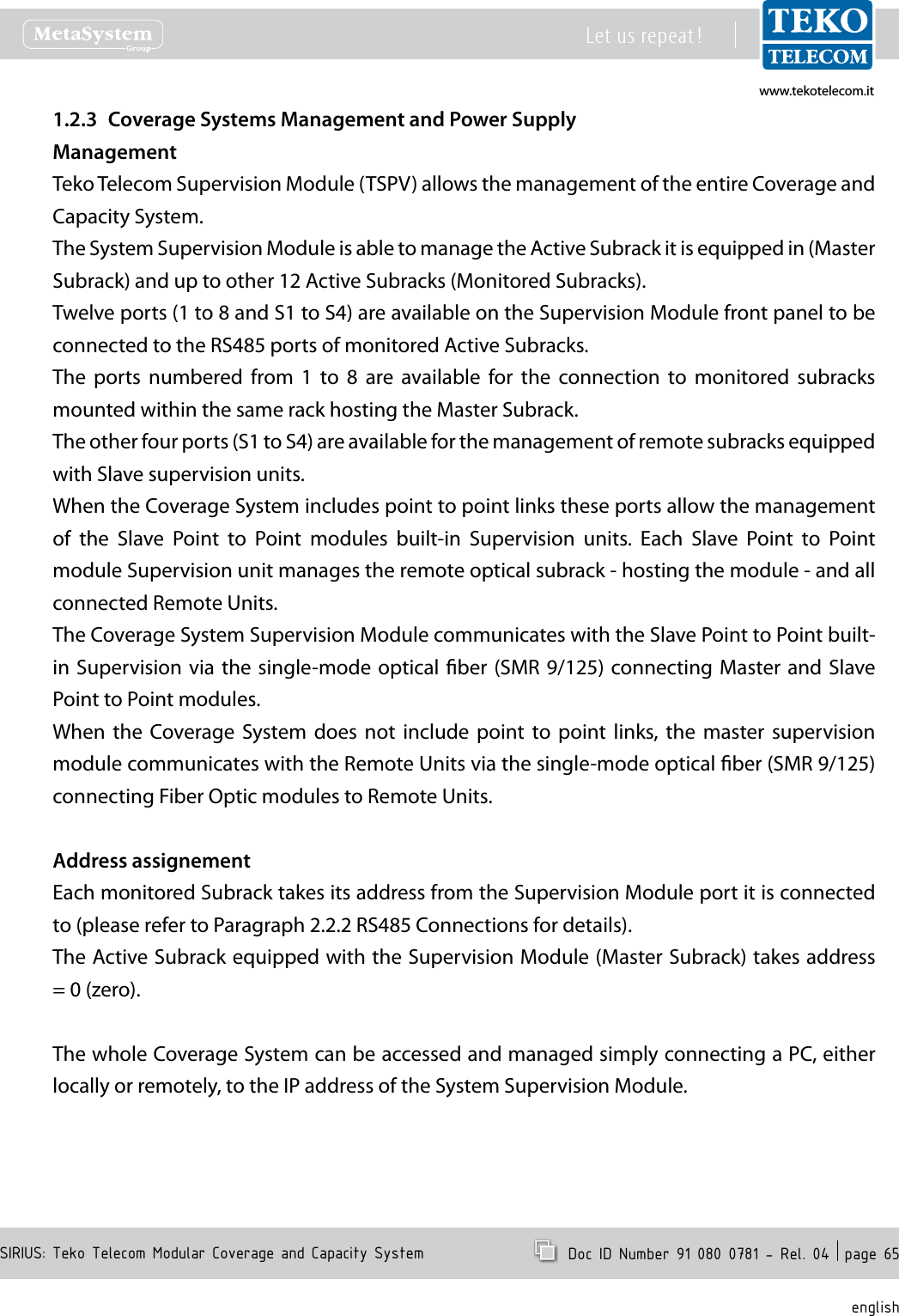

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 65englishCoverage Systems Management and Power Supply1.2.3 ManagementTeko Telecom Supervision Module (TSPV) allows the management of the entire Coverage and Capacity System.The System Supervision Module is able to manage the Active Subrack it is equipped in (Master Subrack) and up to other 12 Active Subracks (Monitored Subracks).Twelve ports (1 to 8 and S1 to S4) are available on the Supervision Module front panel to be connected to the RS485 ports of monitored Active Subracks.The ports numbered from 1 to 8 are available for the connection to monitored subracks mounted within the same rack hosting the Master Subrack.The other four ports (S1 to S4) are available for the management of remote subracks equipped with Slave supervision units.When the Coverage System includes point to point links these ports allow the management of the Slave Point to Point modules built-in Supervision units. Each Slave Point to Point module Supervision unit manages the remote optical subrack - hosting the module - and all connected Remote Units.The Coverage System Supervision Module communicates with the Slave Point to Point built-in Supervision via the single-mode optical ber (SMR 9/125) connecting Master and Slave Point to Point modules.When the Coverage System does not include point to point links, the master supervision module communicates with the Remote Units via the single-mode optical ber (SMR 9/125) connecting Fiber Optic modules to Remote Units.Address assignementEach monitored Subrack takes its address from the Supervision Module port it is connected to (please refer to Paragraph 2.2.2 RS485 Connections for details).The Active Subrack equipped with the Supervision Module (Master Subrack) takes address = 0 (zero).The whole Coverage System can be accessed and managed simply connecting a PC, either locally or remotely, to the IP address of the System Supervision Module.

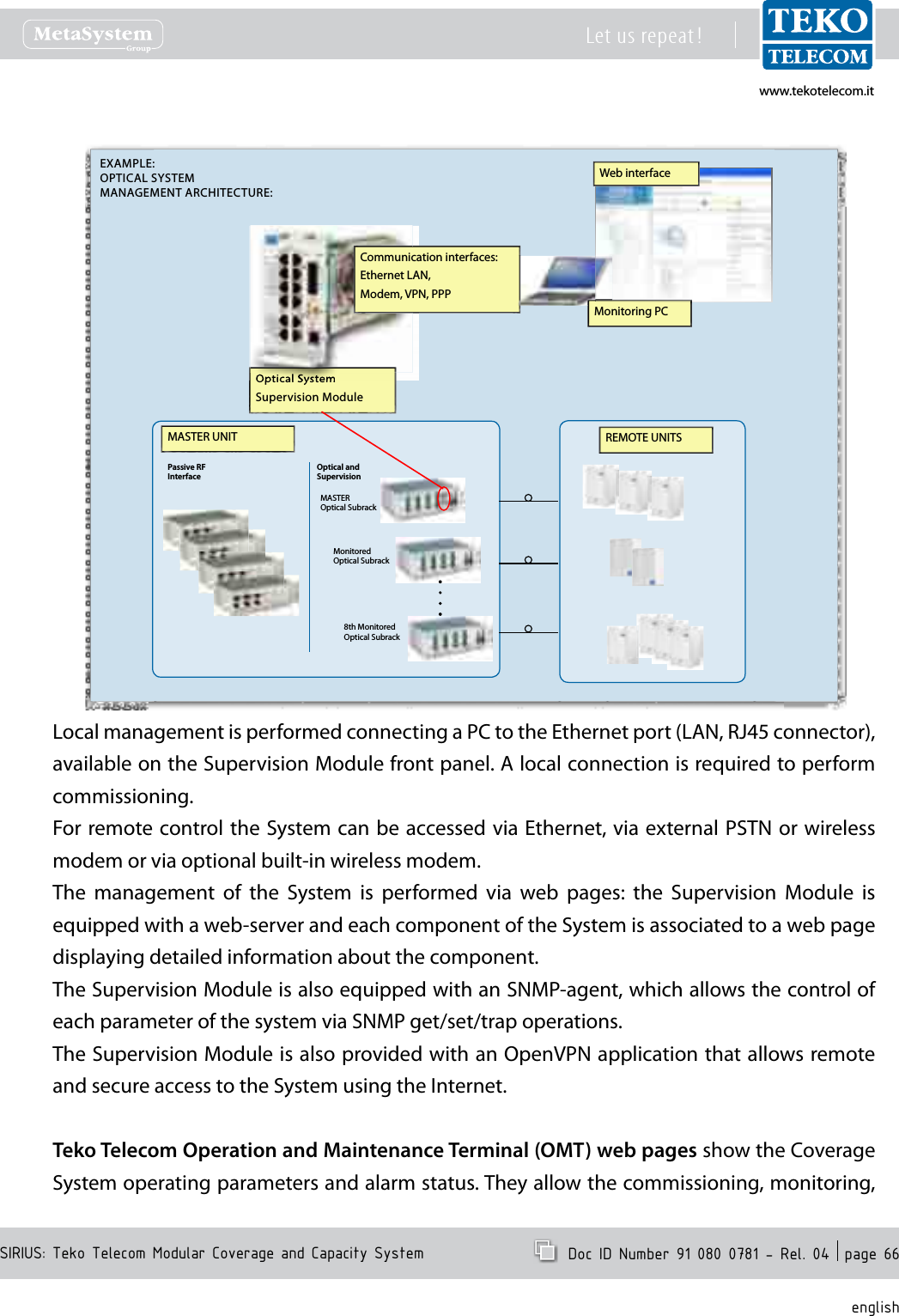

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 66englishEXAMPLE:OPTICAL SYSTEMMANAGEMENT ARCHITECTURE:Optical SystemSupervision ModulePassive RFInterfaceOptical and SupervisionMASTEROptical SubrackMonitored Optical Subrack8th MonitoredOptical SubrackOptical SystemMASTER UNIT REMOTE UNITSCommunication interfaces:Ethernet LAN,Modem, VPN, PPPMonitoring PCWeb interfaceLocal management is performed connecting a PC to the Ethernet port (LAN, RJ45 connector), available on the Supervision Module front panel. A local connection is required to perform commissioning.For remote control the System can be accessed via Ethernet, via external PSTN or wireless modem or via optional built-in wireless modem.The management of the System is performed via web pages: the Supervision Module is equipped with a web-server and each component of the System is associated to a web page displaying detailed information about the component.The Supervision Module is also equipped with an SNMP-agent, which allows the control of each parameter of the system via SNMP get/set/trap operations.The Supervision Module is also provided with an OpenVPN application that allows remote and secure access to the System using the Internet.Teko Telecom Operation and Maintenance Terminal (OMT) web pages show the Coverage System operating parameters and alarm status. They allow the commissioning, monitoring,

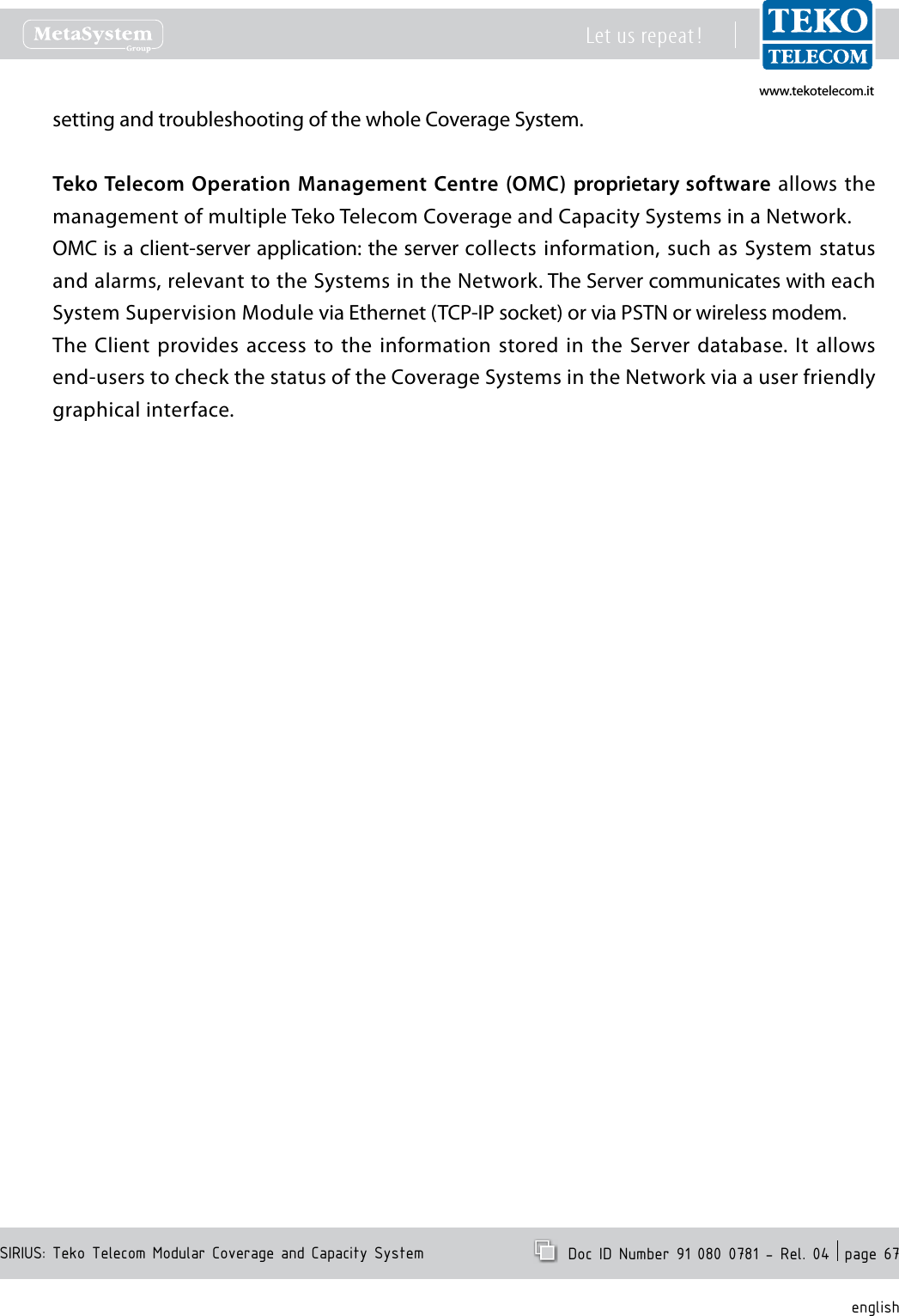

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 67englishsetting and troubleshooting of the whole Coverage System.Teko Telecom Operation Management Centre (OMC) proprietary software allows the management of multiple Teko Telecom Coverage and Capacity Systems in a Network.OMC is a client-server application: the server collects information, such as System status and alarms, relevant to the Systems in the Network. The Server communicates with each System Supervision Module via Ethernet (TCP-IP socket) or via PSTN or wireless modem.The Client provides access to the information stored in the Server database. It allows end-users to check the status of the Coverage Systems in the Network via a user friendly graphical interface.
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 68englishPower SupplyCoverage Systems can be AC or DC powered. Power supply modules can be equipped in monitored Active Subracks or in the Master Subrack or in dedicated Active Subracks.Example of Power Supply Modules equipped in the Master Optical Subrack (the second Power Supply Module, optional, provides power supply redundancy for higher reliability).Power Supply Power Supply ModulesModulesFiber OpticModulesSupervisionModulePower Supply Power Supply ModulesModulesFiber OpticFiber OpticModulesExample of Power Supply Modules equipped in a monitored Active Subrack. The RJ45 connector available on the Power Supply Module front panel can be used for connection to the Supervision Module, equipped in the Master Active Subrack.Example of Power Supply Modules equipped in a dedicated Active Subrack.
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 69englishTeko Telecom Coverage Systems Technical Specications1.2.4 This paragraph makes Coverage and Capacity Systems mechanical, environmental and power supply specications available. Please refer to product datasheets for detailed electrical specications. Contact Teko Telecom Sales Oce for further information.Remote Units•Remote Unit modelDimensions(HxWxD)Weight Operating temperature rangeDegree of protection(IP)Power supplyLOW POWERSingle / Dual / Triband350x350x100mm (13.78x13.78x3.94 in)max volume - heat sinks and connectors included13 kg(28.7 lbs)-20°C up to +55°C(-4°F up to +131°F)IP32 (box)IP66 (with optional pro-tection kit)85÷264Vac (50-60Hz) AC version-72 ÷ -36Vdc DC version6-band 395 x 414 x 144 mm (15.55 x 16.30 x 5.67in)max volume - heat sinks and connectors included19 kg(41.9lbs)MEDIUM POWERTriband 570x415x260mm(22.44x16.34x10.24 in)max volume - heat sinks, handles and connectors included30 kg(66.1 lbs)-20°C up to +55°C(-4°F up to +131°F)IP66 85÷264Vac (50-60Hz)Dual band 28 kg (61.73 lbs)Single band 26 kg (57.32 lbs)HIGH POWERTriband 570x415x260mm(22.44x16.34x10.24 in)max volume - heat sinks, handles and connectors included32 kg(70.5 lbs)-20°C up to +55°C(-4°F up to +131°F)IP66 85÷264Vac (50-60Hz)Dual band 30 kg(66.1 lbs)Single band 28 kg (61.73 lbs)VERY HIGH POWERTriband 620x415x260mm (24.41x16.34x10.24 in)max volume - heat sinks, handles and connectors included38 kg (83.78 lbs)-20°C up to +55°C(-4°F up to +131°F)IP66 85÷264Vac (50-60Hz)Dual band 37 kg (81.57 lbs)Single band 36 kg (79.37 lbs)

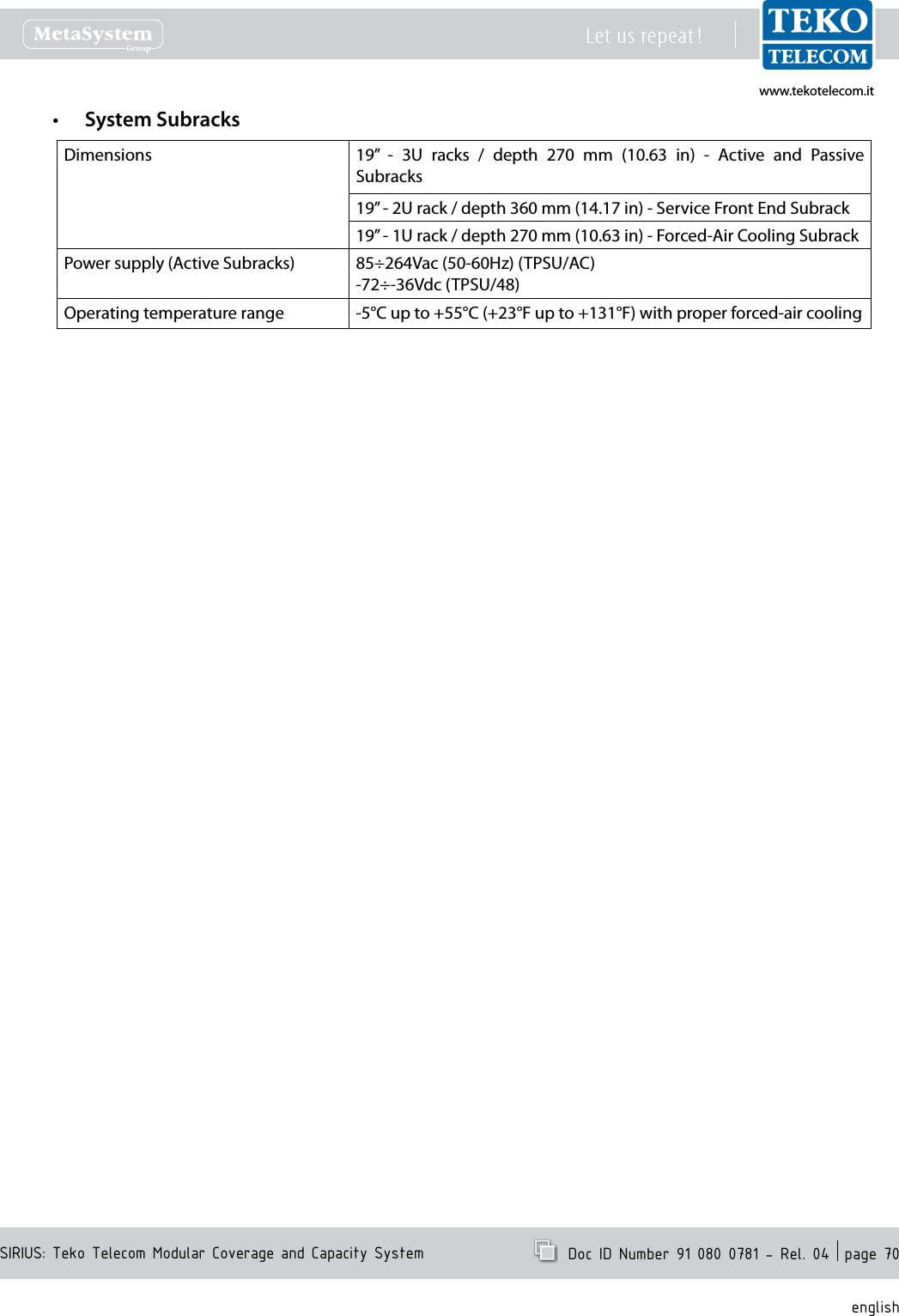

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 70englishSystem Subracks•Dimensions 19” - 3U racks / depth 270 mm (10.63 in) - Active and Passive Subracks19” - 2U rack / depth 360 mm (14.17 in) - Service Front End Subrack19” - 1U rack / depth 270 mm (10.63 in) - Forced-Air Cooling SubrackPower supply (Active Subracks) 85÷264Vac (50-60Hz) (TPSU/AC)-72÷-36Vdc (TPSU/48)Operating temperature range -5°C up to +55°C (+23°F up to +131°F) with proper forced-air cooling
www.tekotelecom.itwww.tekotelecom.itLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 englishSIRIUS: Teko Telecom Modular Coverage and Capacity System2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation2.System Installation

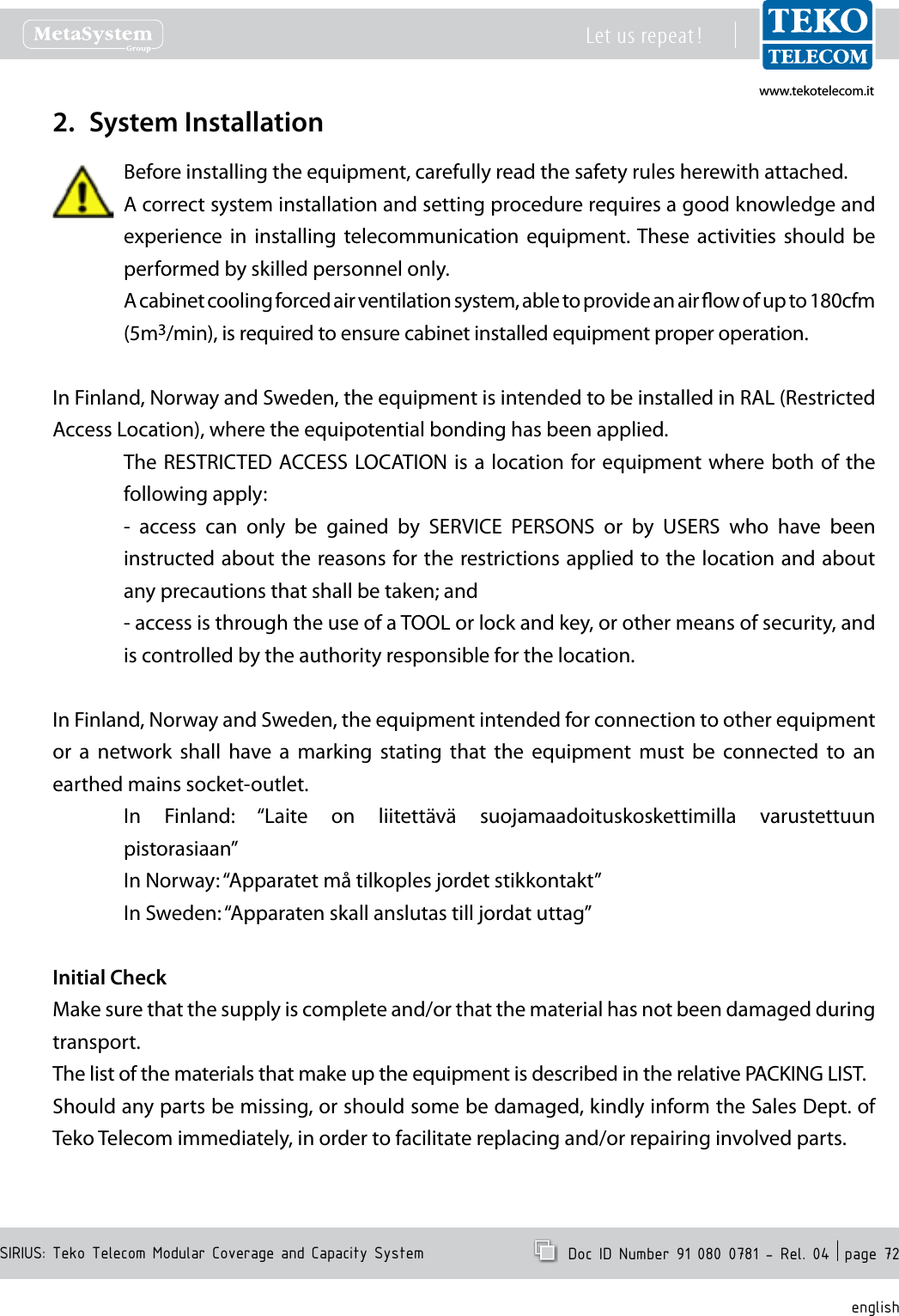

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 72englishSystem Installation2. Before installing the equipment, carefully read the safety rules herewith attached.A correct system installation and setting procedure requires a good knowledge and experience in installing telecommunication equipment. These activities should be performed by skilled personnel only.A cabinet cooling forced air ventilation system, able to provide an air ow of up to 180cfm (5m3/min), is required to ensure cabinet installed equipment proper operation.In Finland, Norway and Sweden, the equipment is intended to be installed in RAL (Restricted Access Location), where the equipotential bonding has been applied.The RESTRICTED ACCESS LOCATION is a location for equipment where both of the following apply:- access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken; and- access is through the use of a TOOL or lock and key, or other means of security, and is controlled by the authority responsible for the location.In Finland, Norway and Sweden, the equipment intended for connection to other equipment or a network shall have a marking stating that the equipment must be connected to an earthed mains socket-outlet.In Finland: “Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan”In Norway: “Apparatet må tilkoples jordet stikkontakt”In Sweden: “Apparaten skall anslutas till jordat uttag”Initial CheckMake sure that the supply is complete and/or that the material has not been damaged during transport.The list of the materials that make up the equipment is described in the relative PACKING LIST.Should any parts be missing, or should some be damaged, kindly inform the Sales Dept. of Teko Telecom immediately, in order to facilitate replacing and/or repairing involved parts.
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 73englishMechanical Installation2.1 Before starting mechanical installation, make sure that the components of the System are not powered.Master Units: make sure that the switches of all the power supply modules equipped in the System are set to O (OFF).Remote Units: make sure that Remote Units are not connected to the MAINS.Please NoteIf the Supervision Module is equipped with the optional wireless modem and/or the optional battery backup, before starting the System installation, please activate the options as follows:Battery backup option > : the two internal backup batteries are not connected to the Supervision board in order to prevent batteries from discharging during shipment. To activate the option, perform the following steps:Remove the Supervision module (if necessary): loosen the four screws that x the module 1. to the Subrack and carefully slide the module forward.Connect the terminals of the two backup batteries to the J9 and J10 connectors, available 2. on the Supervision board.Please refer to the following gures for details about the cabling.BackupbatteriesBackup battery and Supervision board connections - Side viewBackup Battery and Supervision board connections - Top viewIf the 3. optional wireless modem is equipped inside the Supervision module, please refer to the following procedure to insert the SIM card, otherwise carefully slide the Supervision module back into the slot and x its position tightening the 4 screws.BACKUP BATTERY SPECIFICATIONSNominal Voltage 3.7 VNominal Capacity > 1100 mAhType RechargeableCAUTIONRisk of explosion if battery is replaced by an incorrect type.Dispose of used batteries according to the instructions.Backup Batteries Installation and replacement should be performed by skilled personnel only.

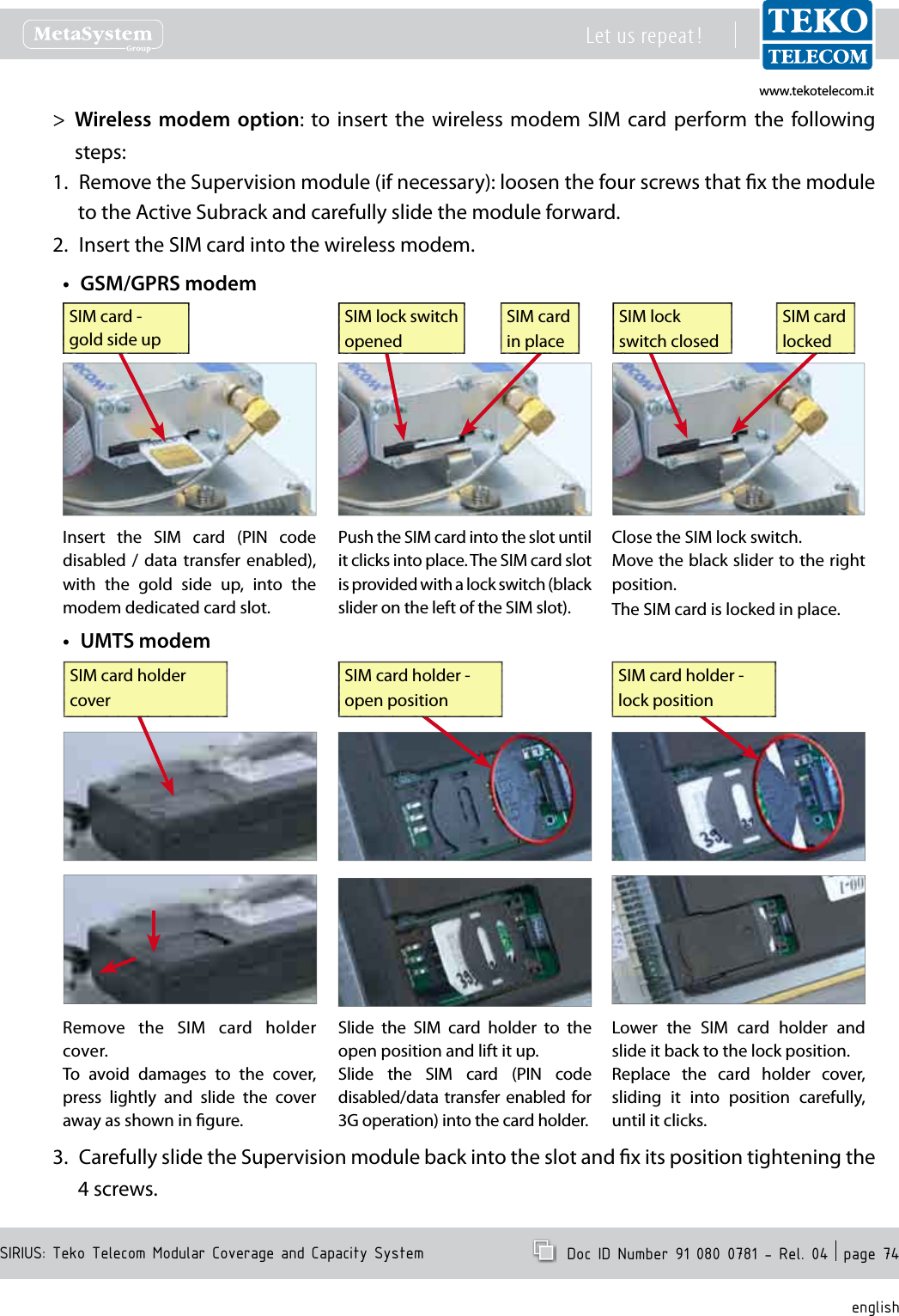

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 74englishWireless modem > option: to insert the wireless modem SIM card perform the following steps:Remove the Supervision module (if necessary): loosen the four screws that x the module 1. to the Active Subrack and carefully slide the module forward.Insert the SIM card into the wireless modem.2. GSM/GPRS modem•Insert the SIM card (PIN code disabled / data transfer enabled), with the gold side up, into the modem dedicated card slot.Push the SIM card into the slot until it clicks into place. The SIM card slot is provided with a lock switch (black slider on the left of the SIM slot).SIM cardin placeSIM lock switch openedClose the SIM lock switch.Move the black slider to the right position.The SIM card is locked in place.SIM cardlockedSIM lock switch closedSIM card - gold side upUMTS modem•Remove the SIM card holder cover.To avoid damages to the cover, press lightly and slide the cover away as shown in gure.SIM card holder coverSlide the SIM card holder to the open position and lift it up.Slide the SIM card (PIN code disabled/data transfer enabled for 3G operation) into the card holder.SIM card holder -open positionLower the SIM card holder and slide it back to the lock position.Replace the card holder cover, sliding it into position carefully, until it clicks.SIM card holder -lock positionCarefully slide the Supervision module back into the slot and x its position tightening the 3. 4 screws.

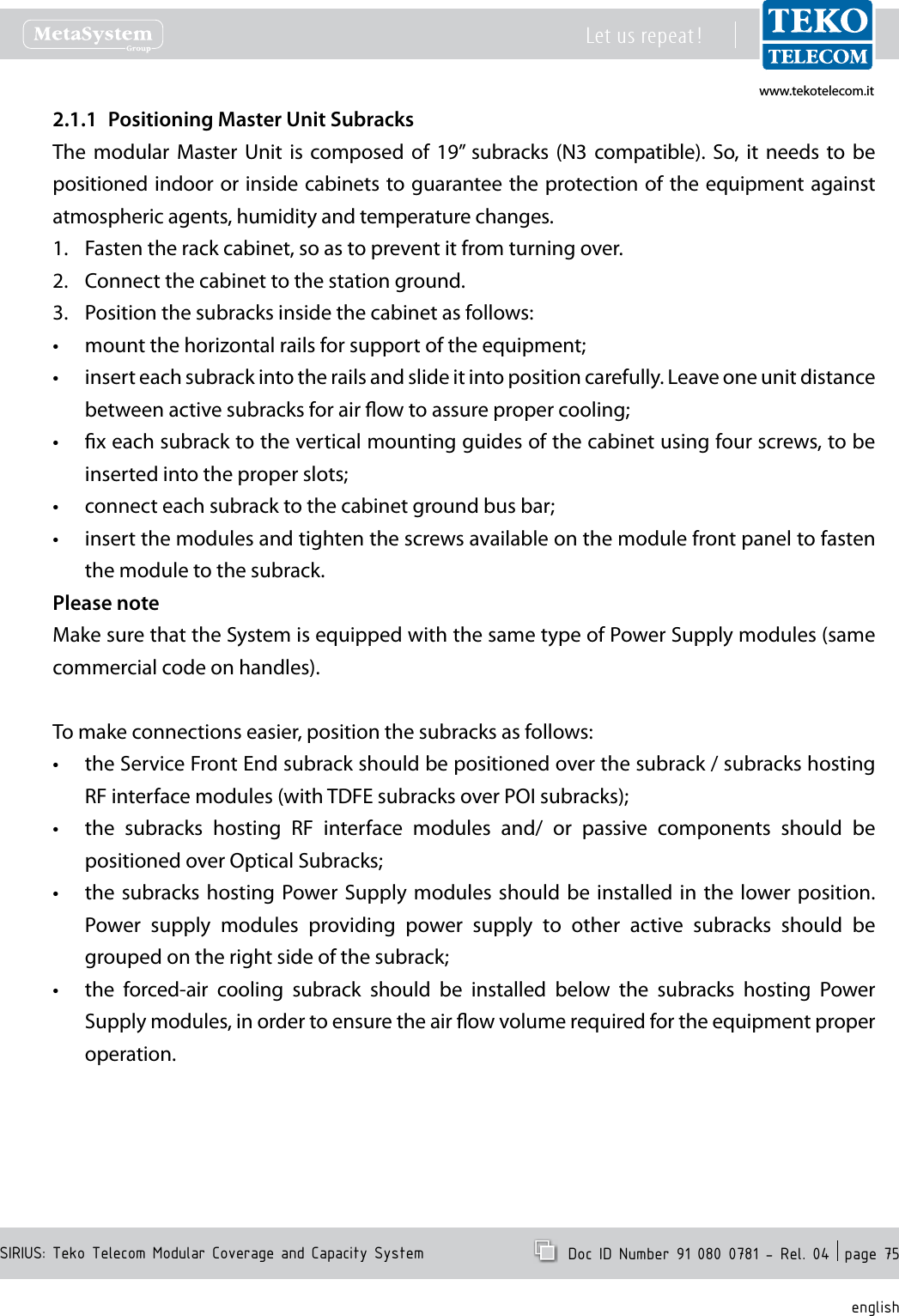

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 75englishPositioning Master Unit Subracks2.1.1 The modular Master Unit is composed of 19” subracks (N3 compatible). So, it needs to be positioned indoor or inside cabinets to guarantee the protection of the equipment against atmospheric agents, humidity and temperature changes.Fasten the rack cabinet, so as to prevent it from turning over.1. Connect the cabinet to the station ground.2. Position the subracks inside the cabinet as follows:3. mount the horizontal rails for support of the equipment;•insert each subrack into the rails and slide it into position carefully. Leave one unit distance •between active subracks for air ow to assure proper cooling;x each subrack to the vertical mounting guides of the cabinet using four screws, to be •inserted into the proper slots;connect each subrack to the cabinet ground bus bar;•insert the modules and tighten the screws available on the module front panel to fasten •the module to the subrack.Please noteMake sure that the System is equipped with the same type of Power Supply modules (same commercial code on handles).To make connections easier, position the subracks as follows:the Service Front End subrack should be positioned over the subrack / subracks hosting •RF interface modules (with TDFE subracks over POI subracks);the subracks hosting RF interface modules and/ or passive components should be •positioned over Optical Subracks;the subracks hosting Power Supply modules should be installed in the lower position. •Power supply modules providing power supply to other active subracks should be grouped on the right side of the subrack; the forced-air cooling subrack should be installed below the subracks hosting Power •Supply modules, in order to ensure the air ow volume required for the equipment proper operation.
www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 76englishPositioning Remote Units2.1.2 Remote Units can be installed either outdoor (on a wall or pole) or inside specic cabinets. Very High/High/Medium power Remote Unit weatherproof IP66 case is equipped with handles to make mounting easier. Very High/High/Medium power Remote Units xing holes position is shown in the following gure.Dimensions (max volume - heat sinks, han-dles and connectors included)HIGH/MEDIUM POWER REMOTE UNIT•approx 570 x 415 x 260 mm (22.44 x 16.34 x 10.24 in)VERY HIGH POWER REMOTE UNIT•approx 620 x 415 x 260 mm (24.41 x 16.34 x 10.24 in)Weightapprox 30 kg (66.14 lbs) - Triband Medium •Power Remote Unitapprox 32 kg (70.55 lbs) - Triband High •Power Remote Unitapprox 38 Kg (83.78 lbs) - Triband Very •High Power Remote UnitAABBPOSITION OF THE PRECUT SLOTS IN THE EQUIPMENT SUPPORT BRACKETSThe SINGLE/DUAL/TRIBAND Low power Remote Units xing holes position is shown in the following gure.SINGLE/DUAL/TRIBAND REMOTE UNITSDimensions (max volume - heat sinks and connectors included):approx 350 x 350 x 100mm (13.78 x 13.78 x 3.94 in)Weightapprox 13 kg (28.7 lbs) - Single/Dual/Triband Low Power Remote UnitPOSITION OF THE PRECUT SLOTS IN THE EQUIPMENT SUPPORT BRACKETSAB BA

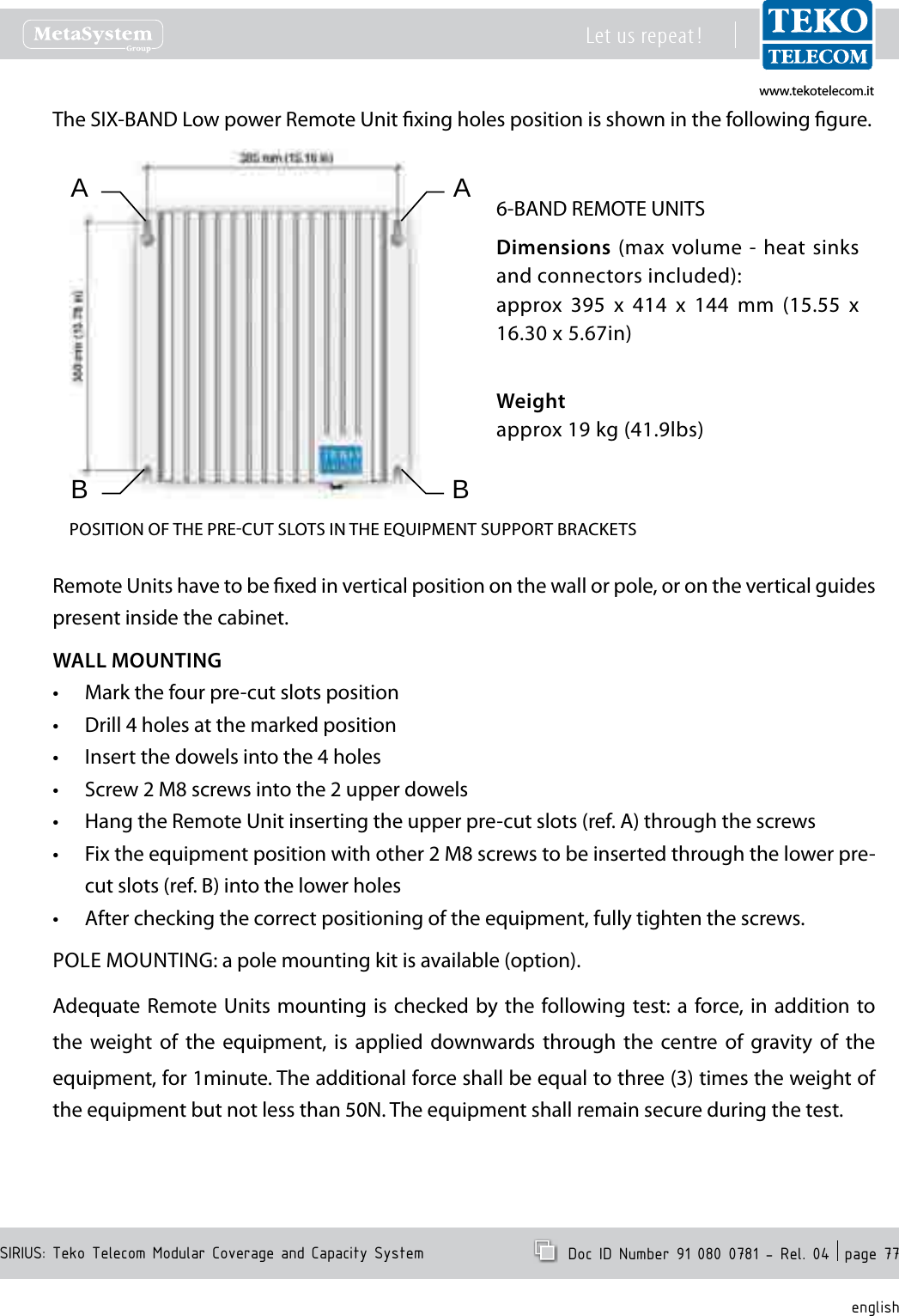

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 77englishThe SIX-BAND Low power Remote Unit xing holes position is shown in the following gure.6-BAND REMOTE UNITSDimensions (max volume - heat sinks and connectors included):approx 395 x 414 x 144 mm (15.55 x 16.30 x 5.67in)Weightapprox 19 kg (41.9lbs)POSITION OF THE PRECUT SLOTS IN THE EQUIPMENT SUPPORT BRACKETSABBARemote Units have to be xed in vertical position on the wall or pole, or on the vertical guides present inside the cabinet.WALL MOUNTINGMark the four pre-cut slots position•Drill 4 holes at the marked position•Insert the dowels into the 4 holes•Screw 2 M8 screws into the 2 upper dowels•Hang the Remote Unit inserting the upper pre-cut slots (ref. A) through the screws•Fix the equipment position with other 2 M8 screws to be inserted through the lower pre-•cut slots (ref. B) into the lower holesAfter checking the correct positioning of the equipment, fully tighten the screws.•POLE MOUNTING: a pole mounting kit is available (option).Adequate Remote Units mounting is checked by the following test: a force, in addition to the weight of the equipment, is applied downwards through the centre of gravity of the equipment, for 1minute. The additional force shall be equal to three (3) times the weight of the equipment but not less than 50N. The equipment shall remain secure during the test.

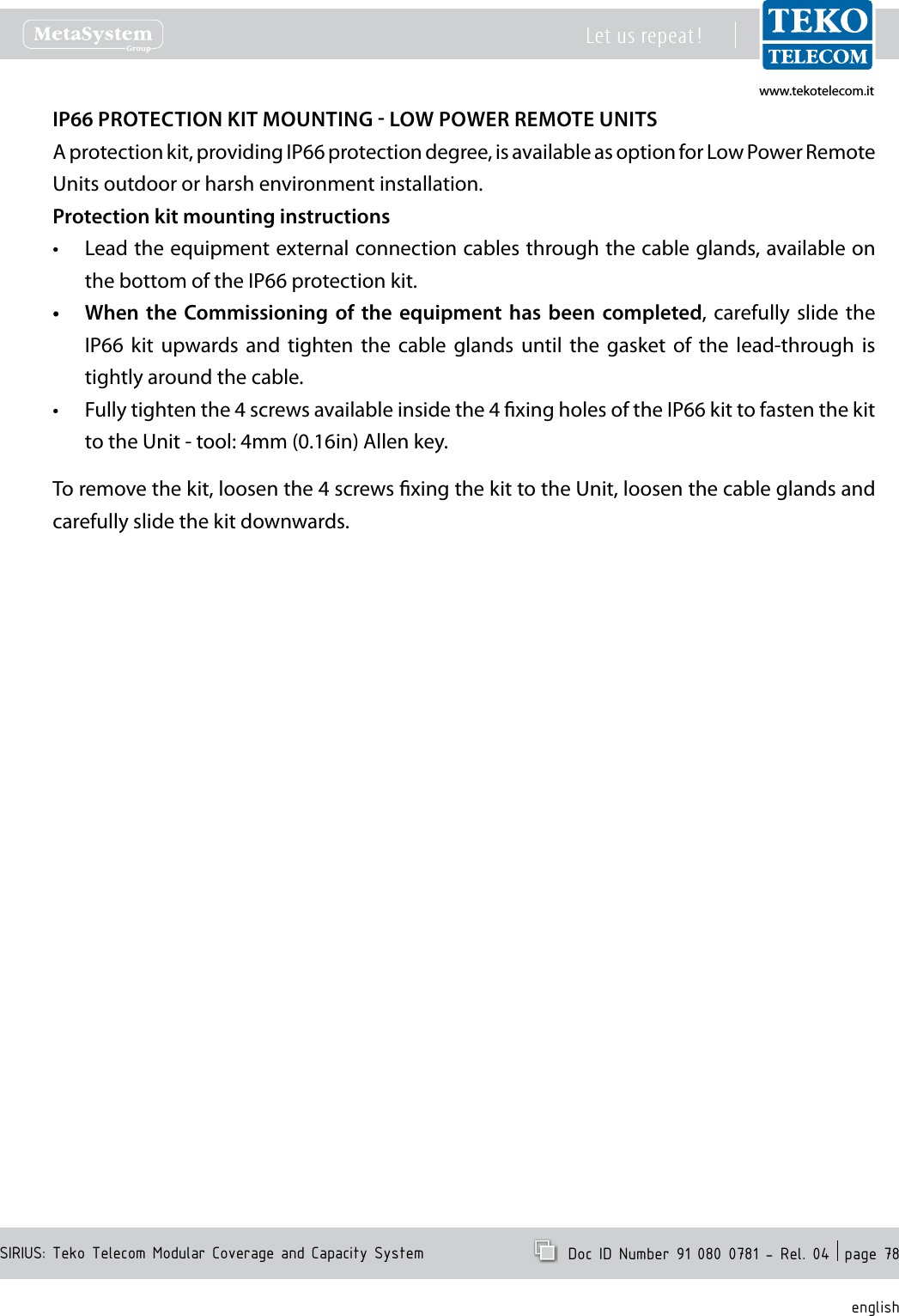

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 78englishIP66 PROTECTION KIT MOUNTING  LOW POWER REMOTE UNITSA protection kit, providing IP66 protection degree, is available as option for Low Power Remote Units outdoor or harsh environment installation.Protection kit mounting instructionsLead the equipment external connection cables through the cable glands, available on •the bottom of the IP66 protection kit.When the Commissioning of the equipment has been completed• , carefully slide the IP66 kit upwards and tighten the cable glands until the gasket of the lead-through is tightly around the cable.Fully tighten the 4 screws available inside the 4 xing holes of the IP66 kit to fasten the kit •to the Unit - tool: 4mm (0.16in) Allen key.To remove the kit, loosen the 4 screws xing the kit to the Unit, loosen the cable glands and carefully slide the kit downwards.

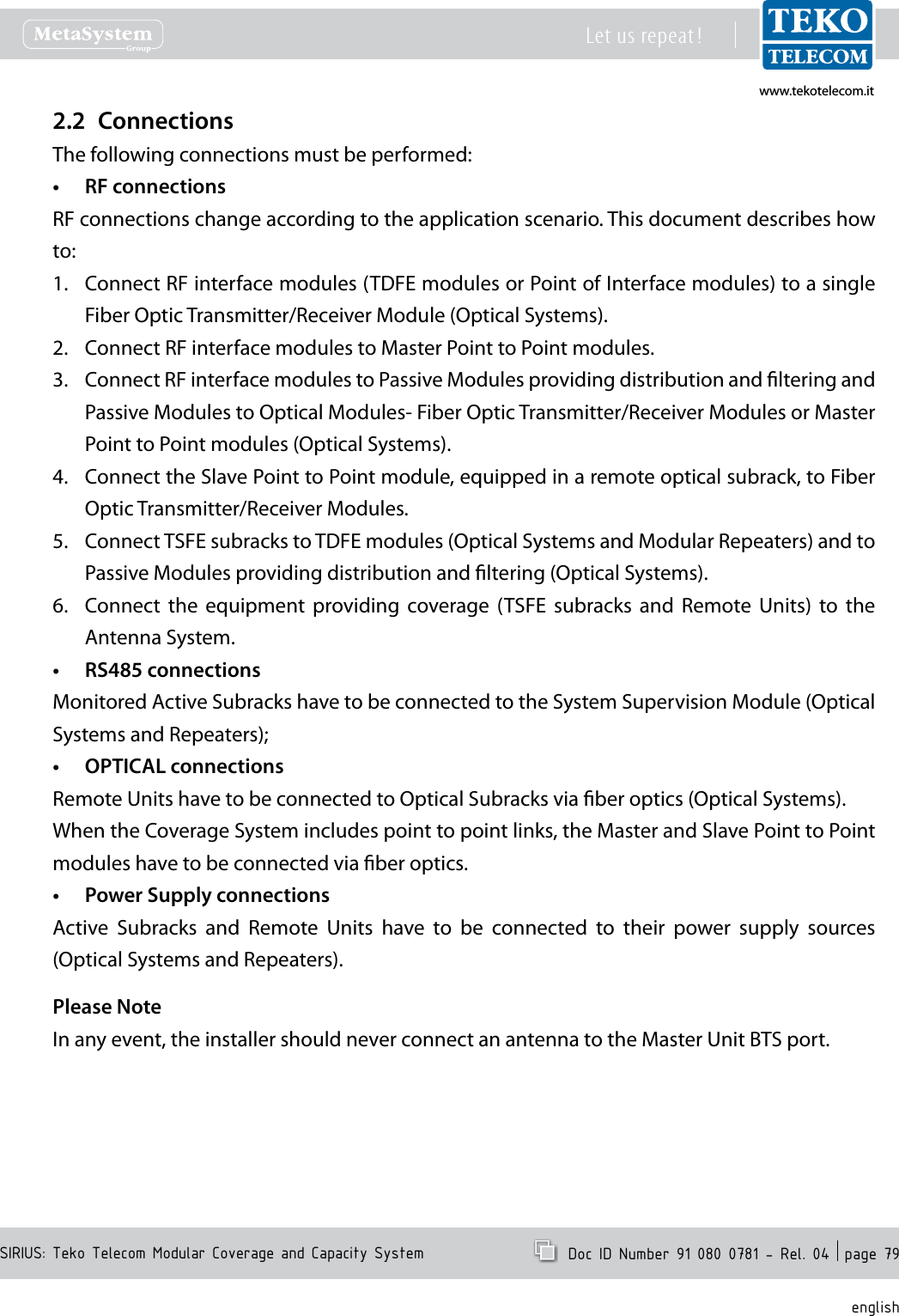

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 79englishConnections2.2 The following connections must be performed:RF connections•RF connections change according to the application scenario. This document describes how to:Connect RF interface modules (TDFE modules or Point of Interface modules) to 1. a single Fiber Optic Transmitter/Receiver Module (Optical Systems).Connect RF interface modules to Master Point to Point modules.2. Connect RF interface modules to Passive Modules providing distribution and ltering and 3. Passive Modules to Optical Modules- Fiber Optic Transmitter/Receiver Modules or Master Point to Point modules (Optical Systems).Connect the Slave Point to Point module, equipped in a remote optical subrack, to Fiber 4. Optic Transmitter/Receiver Modules.Connect TSFE subracks to TDFE modules (Optical Systems and Modular Repeaters) and to 5. Passive Modules providing distribution and ltering (Optical Systems).Connect the equipment providing coverage (TSFE subracks and Remote Units) to the 6. Antenna System.RS485 connections•Monitored Active Subracks have to be connected to the System Supervision Module (Optical Systems and Repeaters);OPTICAL connections•Remote Units have to be connected to Optical Subracks via ber optics (Optical Systems).When the Coverage System includes point to point links, the Master and Slave Point to Point modules have to be connected via ber optics.Power Supply connections•Active Subracks and Remote Units have to be connected to their power supply sources (Optical Systems and Repeaters).Please NoteIn any event, the installer should never connect an antenna to the Master Unit BTS port.

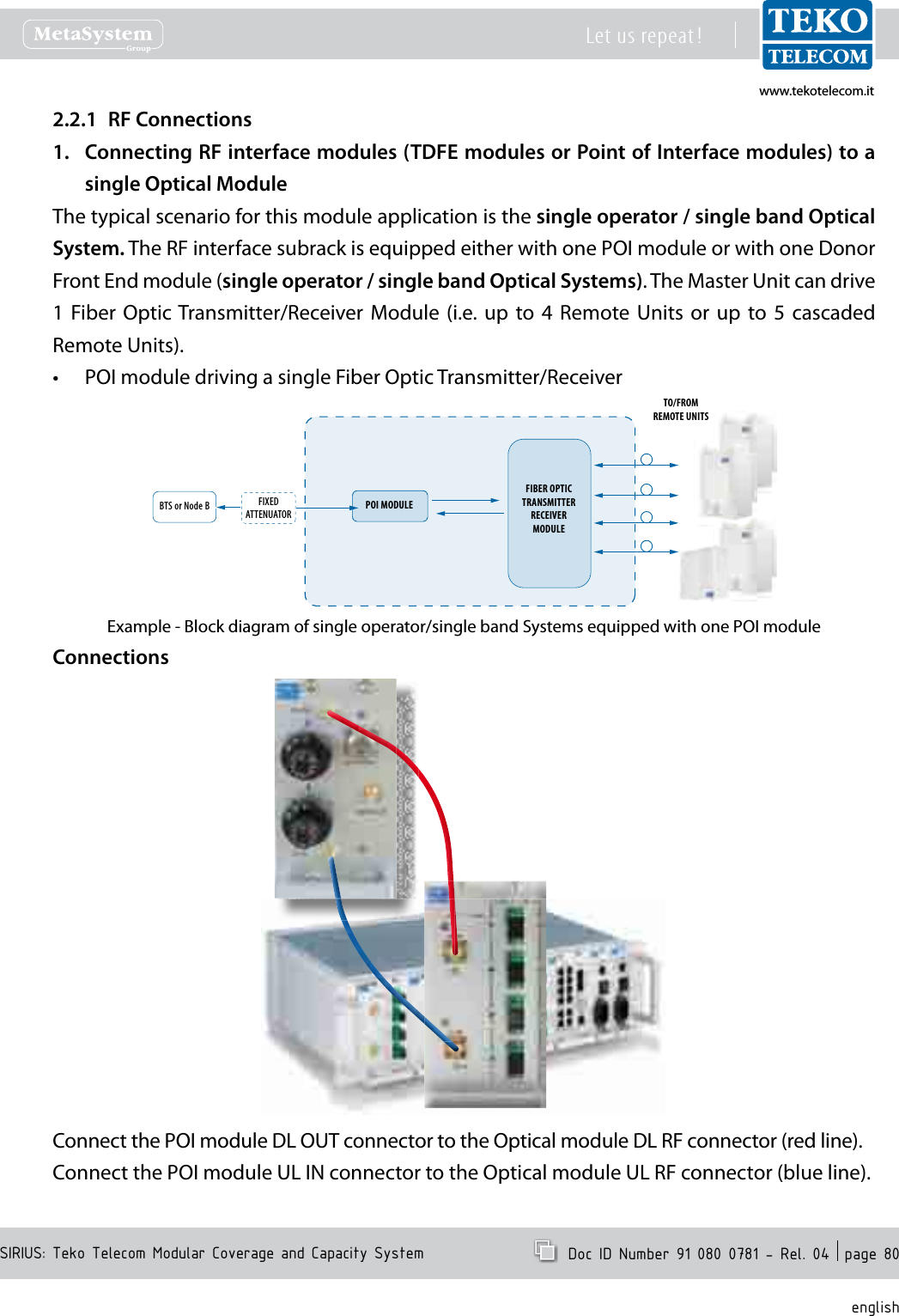

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 80englishRF Connections2.2.1 Connecting RF interface modules (TDFE modules or Point of Interface modules) to a 1. single Optical ModuleThe typical scenario for this module application is the single operator / single band Optical System. The RF interface subrack is equipped either with one POI module or with one Donor Front End module (single operator / single band Optical Systems). The Master Unit can drive 1 Fiber Optic Transmitter/Receiver Module (i.e. up to 4 Remote Units or up to 5 cascaded Remote Units).POI module driving a single Fiber Optic Transmitter/Receiver•BTS or Node B POI MODULEFIXEDATTENUATORFIBER OPTICTRANSMITTERRECEIVERMODULETO/FROMREMOTE UNITSExample - Block diagram of single operator/single band Systems equipped with one POI moduleConnectionsConnect the POI module DL OUT connector to the Optical module DL RF connector (red line).Connect the POI module UL IN connector to the Optical module UL RF connector (blue line).

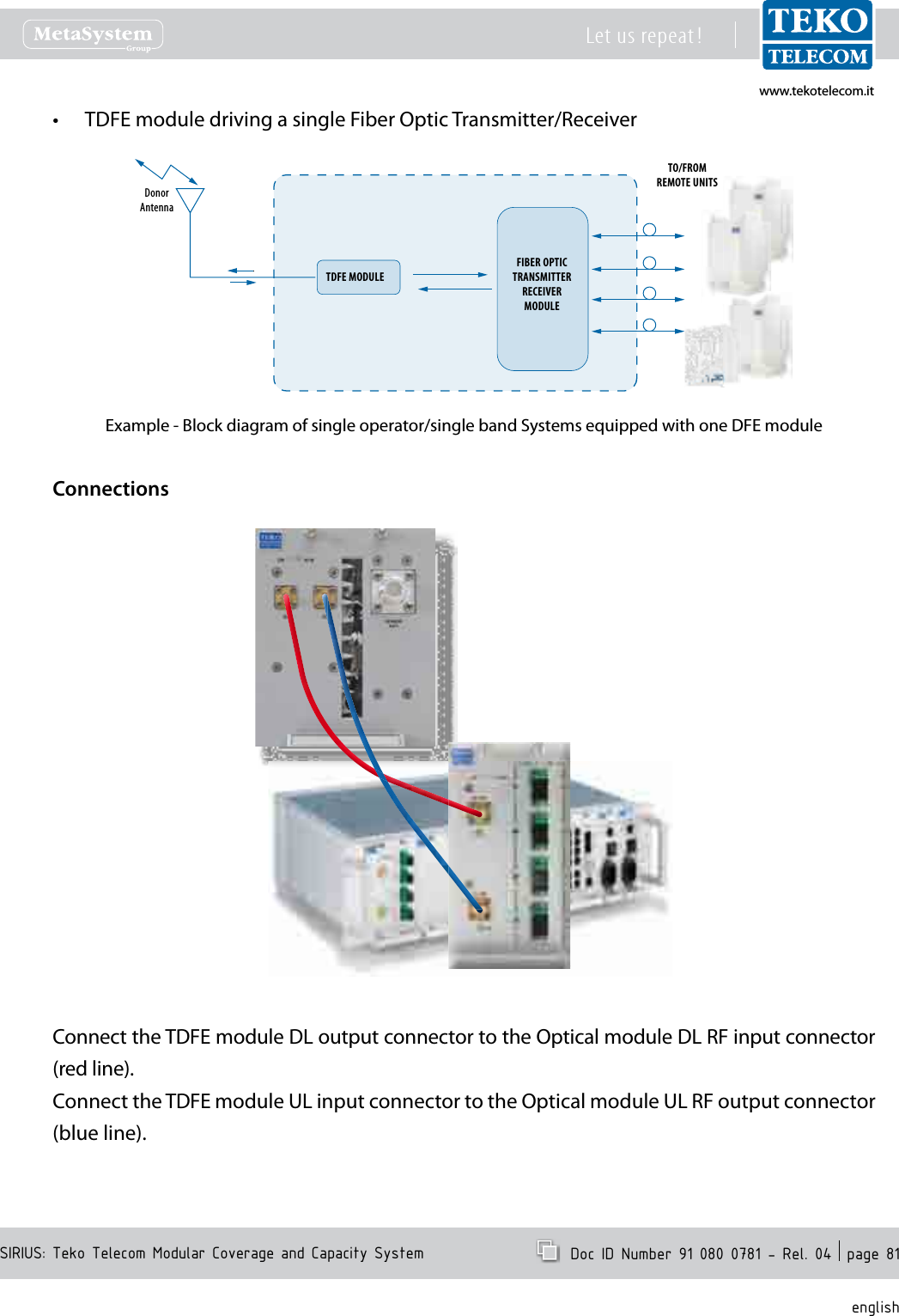

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 81englishTDFE module driving a single Fiber Optic Transmitter/Receiver•FIBER OPTICTRANSMITTERRECEIVERMODULETO/FROMREMOTE UNITSDonorAntennaTDFE MODULEExample - Block diagram of single operator/single band Systems equipped with one DFE moduleConnectionsConnect the TDFE module DL output connector to the Optical module DL RF input connector (red line).Connect the TDFE module UL input connector to the Optical module UL RF output connector (blue line).

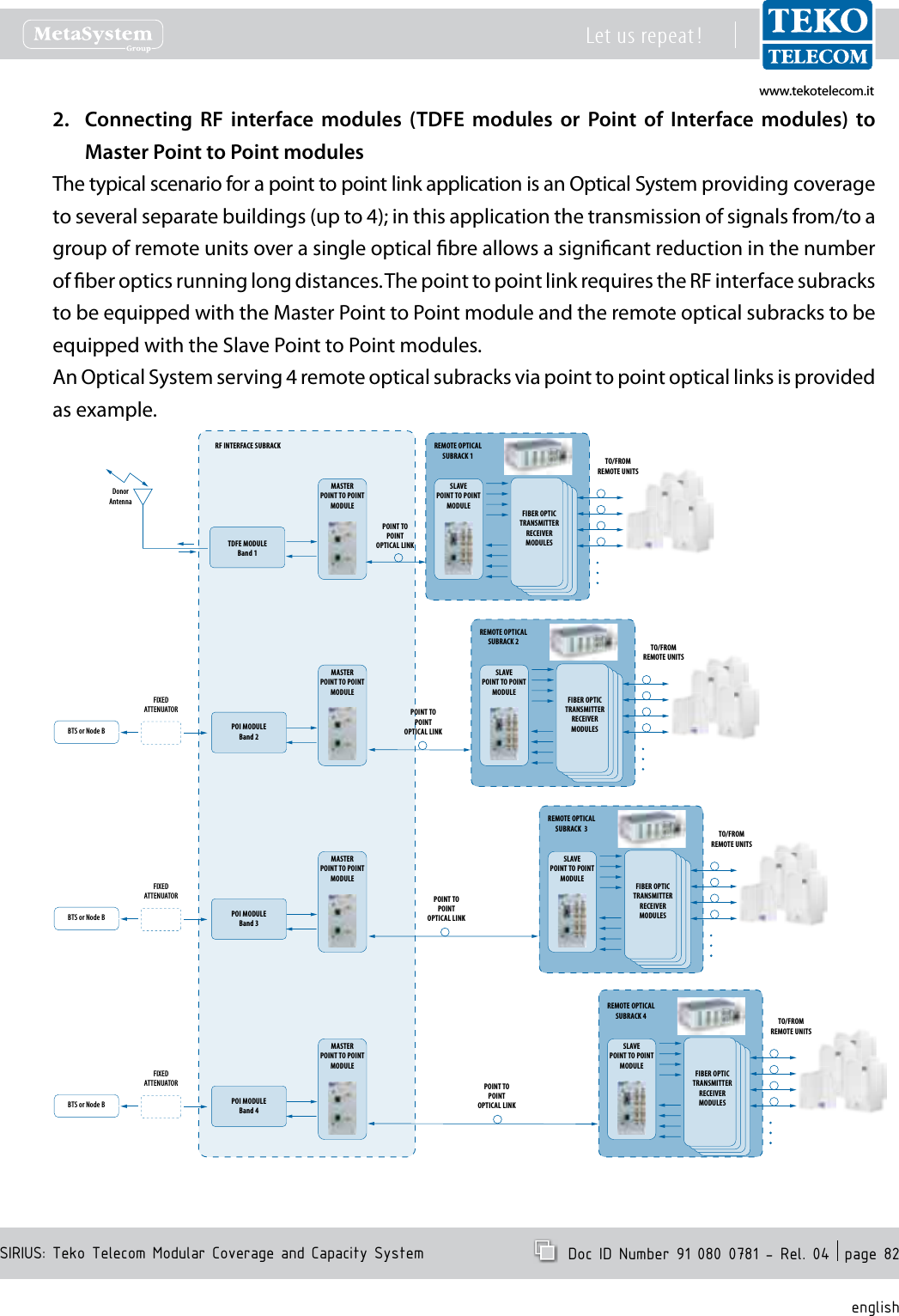

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 82englishConnecting RF interface modules (TDFE modules or Point of Interface modules) to 2. Master Point to Point modulesThe typical scenario for a point to point link application is an Optical System providing coverage to several separate buildings (up to 4); in this application the transmission of signals from/to a group of remote units over a single optical bre allows a signicant reduction in the number of ber optics running long distances. The point to point link requires the RF interface subracks to be equipped with the Master Point to Point module and the remote optical subracks to be equipped with the Slave Point to Point modules.An Optical System serving 4 remote optical subracks via point to point optical links is provided as example.RF INTERFACE SUBRACKBTS or Node B FIXEDATTENUATORTDFE MODULEBand 1DonorAntennaPOI MODULEBand 2FIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSMASTERPOINT TO POINTMODULESLAVEPOINT TO POINTMODULEPOINT TOPOINTOPTICAL LINKREMOTE OPTICAL SUBRACK 1FIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSMASTERPOINT TO POINTMODULESLAVEPOINT TO POINTMODULEPOINT TOPOINTOPTICAL LINKREMOTE OPTICAL SUBRACK 2BTS or Node B FIXEDATTENUATORPOI MODULEBand 3FIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSMASTERPOINT TO POINTMODULESLAVEPOINT TO POINTMODULEPOINT TOPOINTOPTICAL LINKREMOTE OPTICAL SUBRACK 3BTS or Node B FIXEDATTENUATORPOI MODULEBand 4FIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSMASTERPOINT TO POINTMODULESLAVEPOINT TO POINTMODULEPOINT TOPOINTOPTICAL LINKREMOTE OPTICAL SUBRACK 4

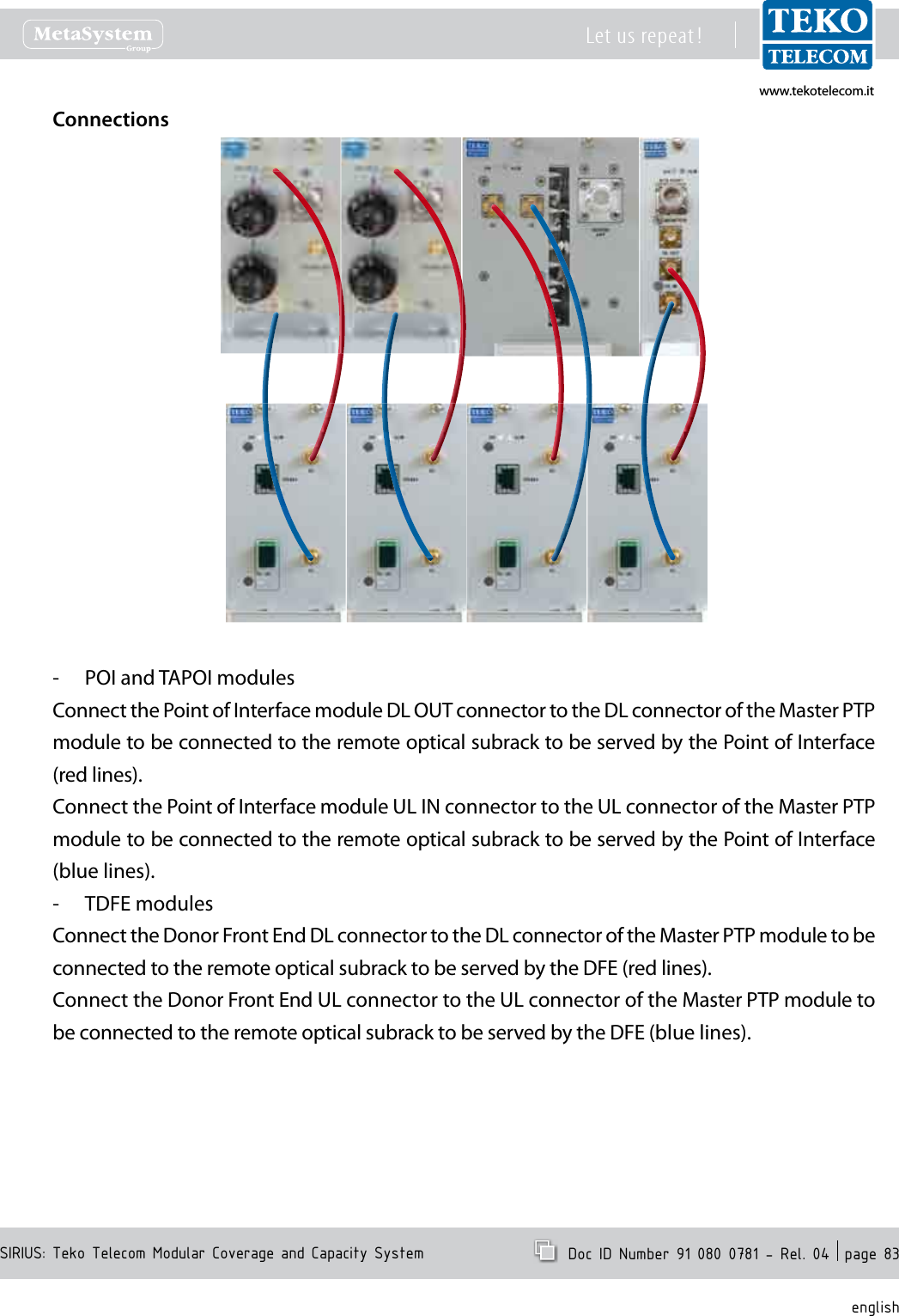

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 83englishConnectionsPOI and TAPOI modules -Connect the Point of Interface module DL OUT connector to the DL connector of the Master PTP module to be connected to the remote optical subrack to be served by the Point of Interface (red lines).Connect the Point of Interface module UL IN connector to the UL connector of the Master PTP module to be connected to the remote optical subrack to be served by the Point of Interface (blue lines).TDFE modules -Connect the Donor Front End DL connector to the DL connector of the Master PTP module to be connected to the remote optical subrack to be served by the DFE (red lines).Connect the Donor Front End UL connector to the UL connector of the Master PTP module to be connected to the remote optical subrack to be served by the DFE (blue lines).

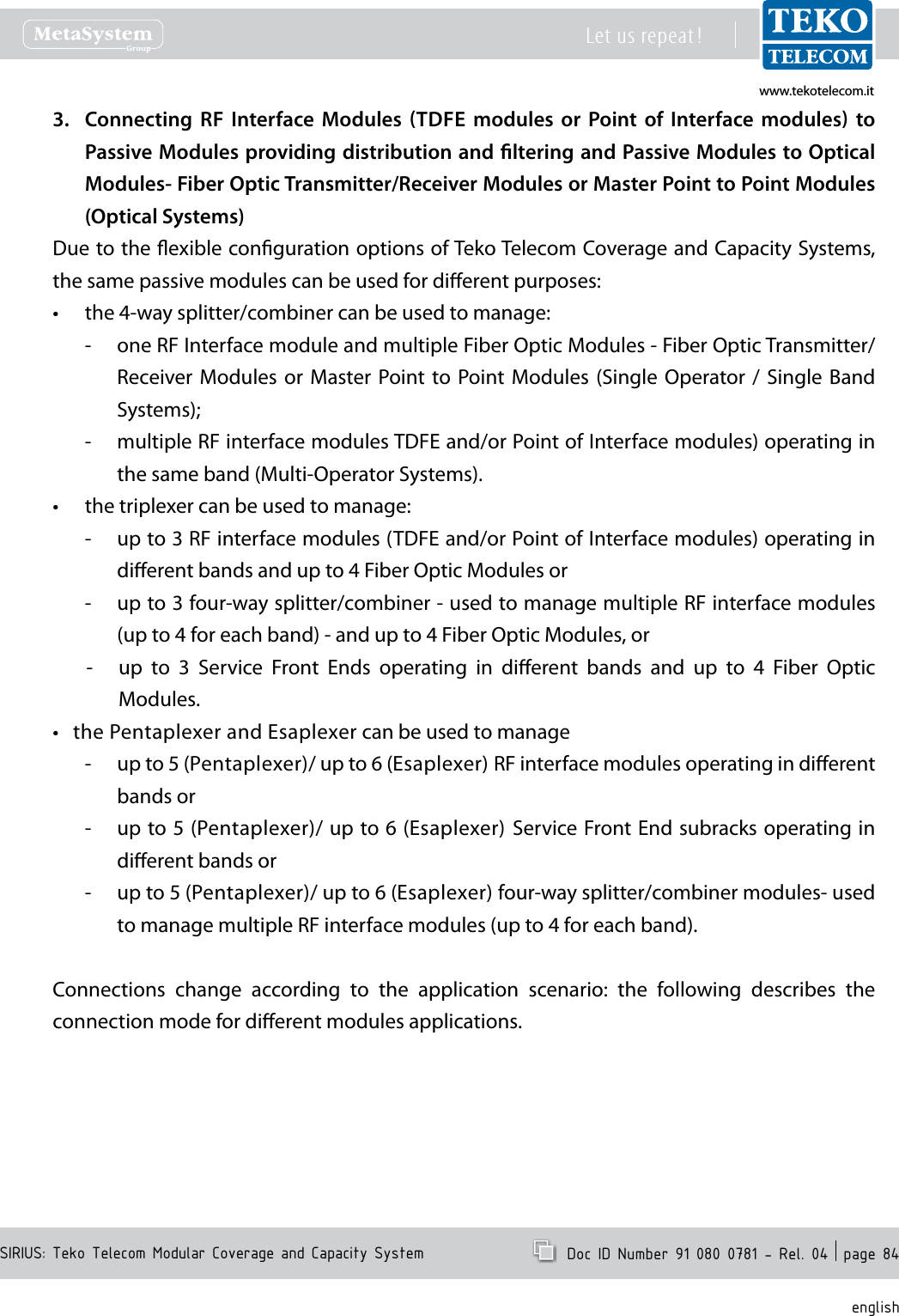

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 84englishConnecting3. RF Interface Modules TDFE modules or Point of Interface modules to Passive Modules providing distribution and ltering and Passive Modules to Optical Modules- Fiber Optic Transmitter/Receiver Modules or Master Point to Point Modules (Optical Systems)Due to the exible conguration options of Teko Telecom Coverage and Capacity Systems, the same passive modules can be used for dierent purposes:the 4-way splitter/combiner can be used to manage:•one RF Interface module and multiple Fiber Optic Modules - Fiber Optic Transmitter/ -Receiver Modules or Master Point to Point Modules (Single Operator / Single Band Systems);multiple RF interface modules TDFE and/or Point of Interface modules) operating in -the same band (Multi-Operator Systems).the triplexer can be used to manage:•up to 3 RF interface modules (TDFE and/or Point of Interface modules) operating in -dierent bands and up to 4 Fiber Optic Modules orup to 3 four-way splitter/combiner - used to manage multiple RF interface modules -(up to 4 for each band) - and up to 4 Fiber Optic Modules, orup to 3 Service Front Ends operating in dierent bands and up to 4 Fiber Optic -Modules.the Pentaplexer and Esaplexer can be used to manage•up to 5 (Pentaplexer)/ up to 6 (Esaplexer) RF interface modules operating in dierent -bands orup to 5 (Pentaplexer)/ up to 6 (Esaplexer) Service Front End subracks operating in -dierent bands orup to 5 (Pentaplexer)/ up to 6 (Esaplexer) four-way splitter/combiner modules- used -to manage multiple RF interface modules (up to 4 for each band).Connections change according to the application scenario: the following describes the connection mode for dierent modules applications.

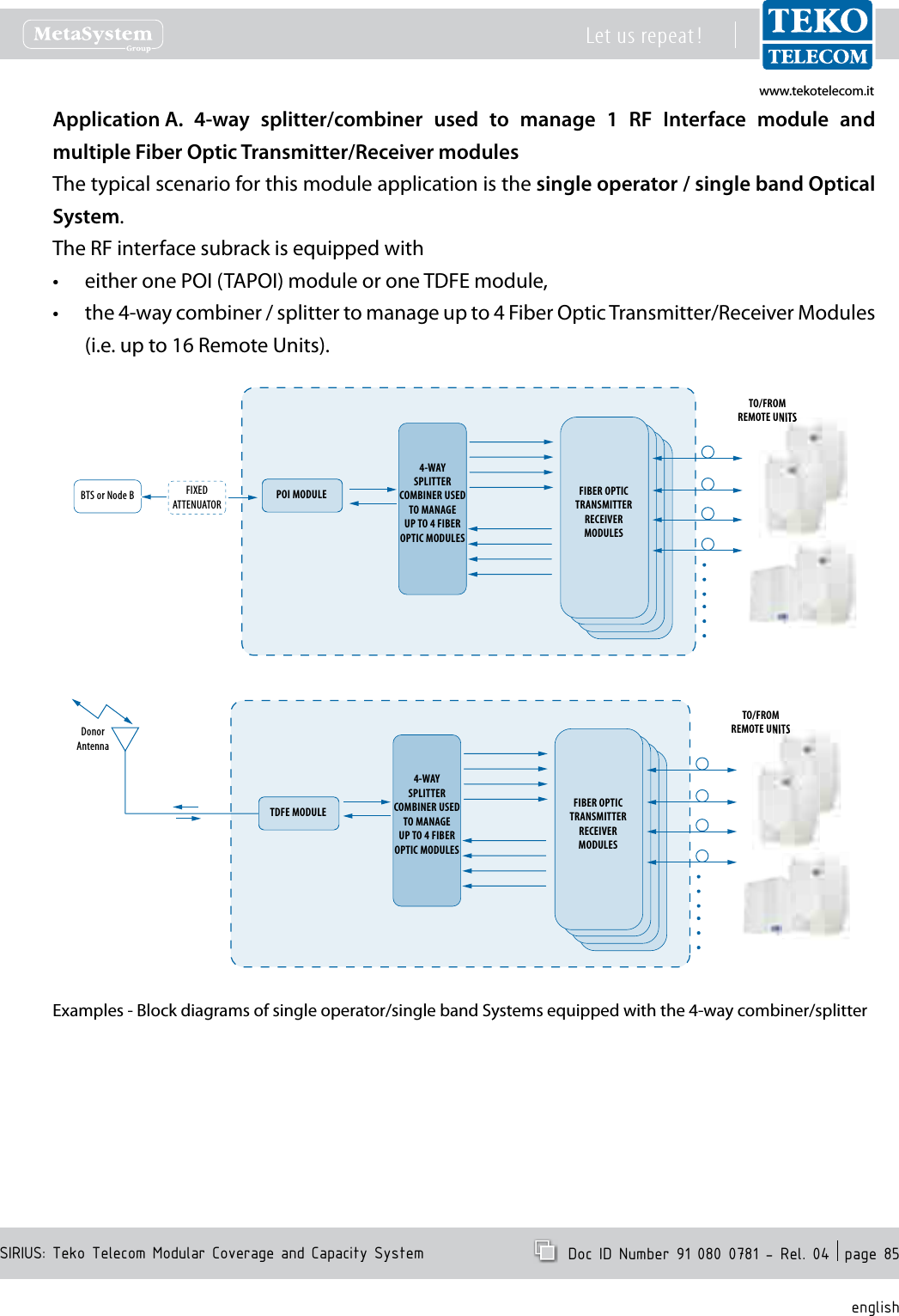

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 85english4-way splitter/combiner used to manage 1 RF Interface module and Application A. multiple Fiber Optic Transmitter/Receiver modulesThe typical scenario for this module application is the single operator / single band Optical System.The RF interface subrack is equipped witheither one POI (TAPOI) module or one TDFE module,•the 4-way combiner / splitter to manage up to 4 Fiber Optic Transmitter/Receiver Modules •(i.e. up to 16 Remote Units).4-WAYSPLITTERCOMBINER USEDTO MANAGEUP TO 4 FIBEROPTIC MODULES BTS or Node B POI MODULEFIXEDATTENUATORFIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSREMOTE UNITS4-WAYSPLITTERCOMBINER USEDTO MANAGEUP TO 4 FIBEROPTIC MODULES FIBER OPTICTRANSMITTERRECEIVERMODULESTO/FROMREMOTE UNITSREMOTE UNITSTDFE MODULEDonorAntennaExamples - Block diagrams of single operator/single band Systems equipped with the 4-way combiner/splitter

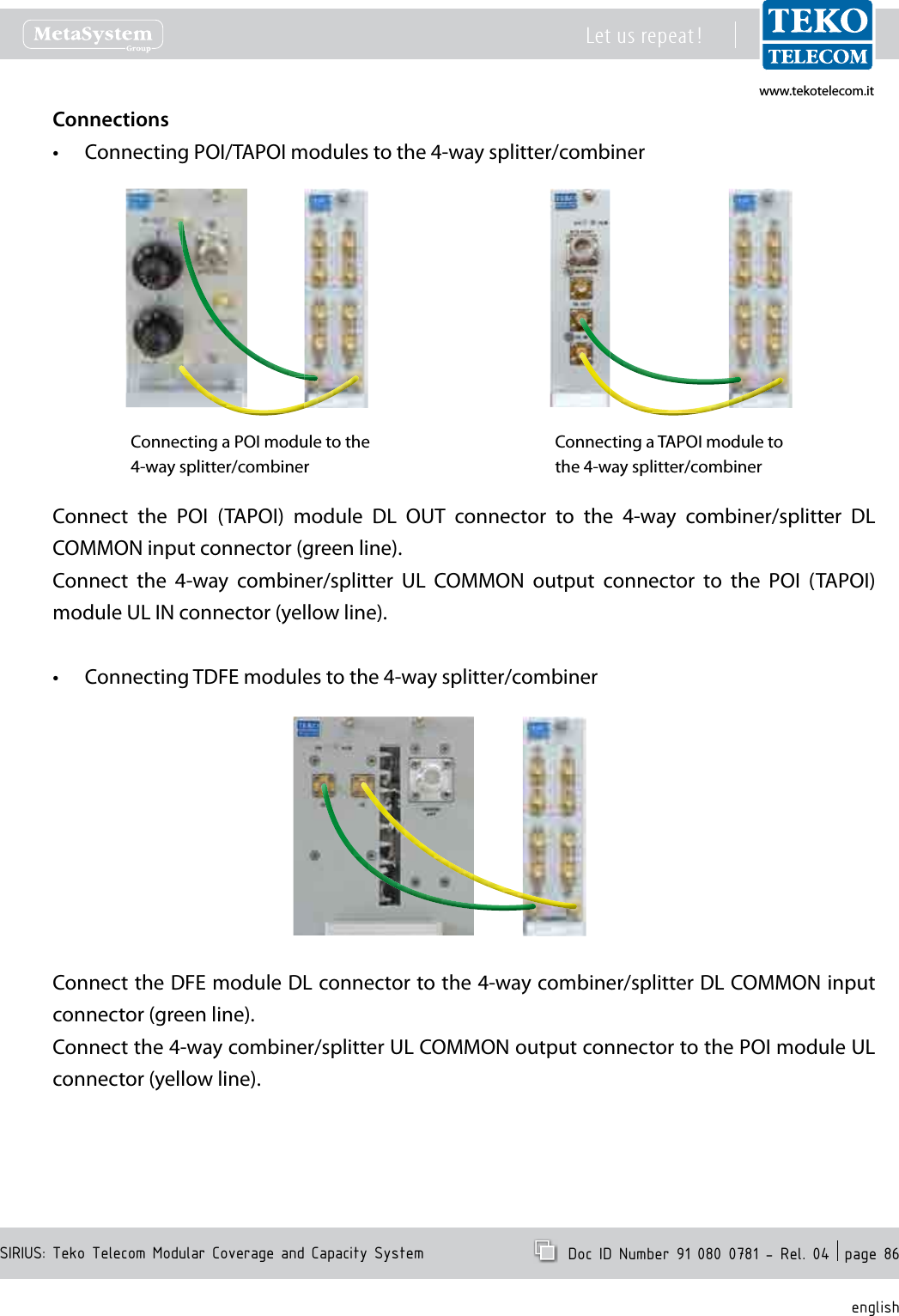

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 86englishConnectionsConnecting POI/TAPOI modules to the 4-way splitter/combiner•Connecting a TAPOI module to the 4-way splitter/combinerConnecting a POI module to the 4-way splitter/combinerConnect the POI (TAPOI) module DL OUT connector to the 4-way combiner/splitter DL COMMON input connector (green line).Connect the 4-way combiner/splitter UL COMMON output connector to the POI (TAPOI) module UL IN connector (yellow line).Connecting TDFE modules to the 4-way splitter/combiner•Connect the DFE module DL connector to the 4-way combiner/splitter DL COMMON input connector (green line).Connect the 4-way combiner/splitter UL COMMON output connector to the POI module UL connector (yellow line).

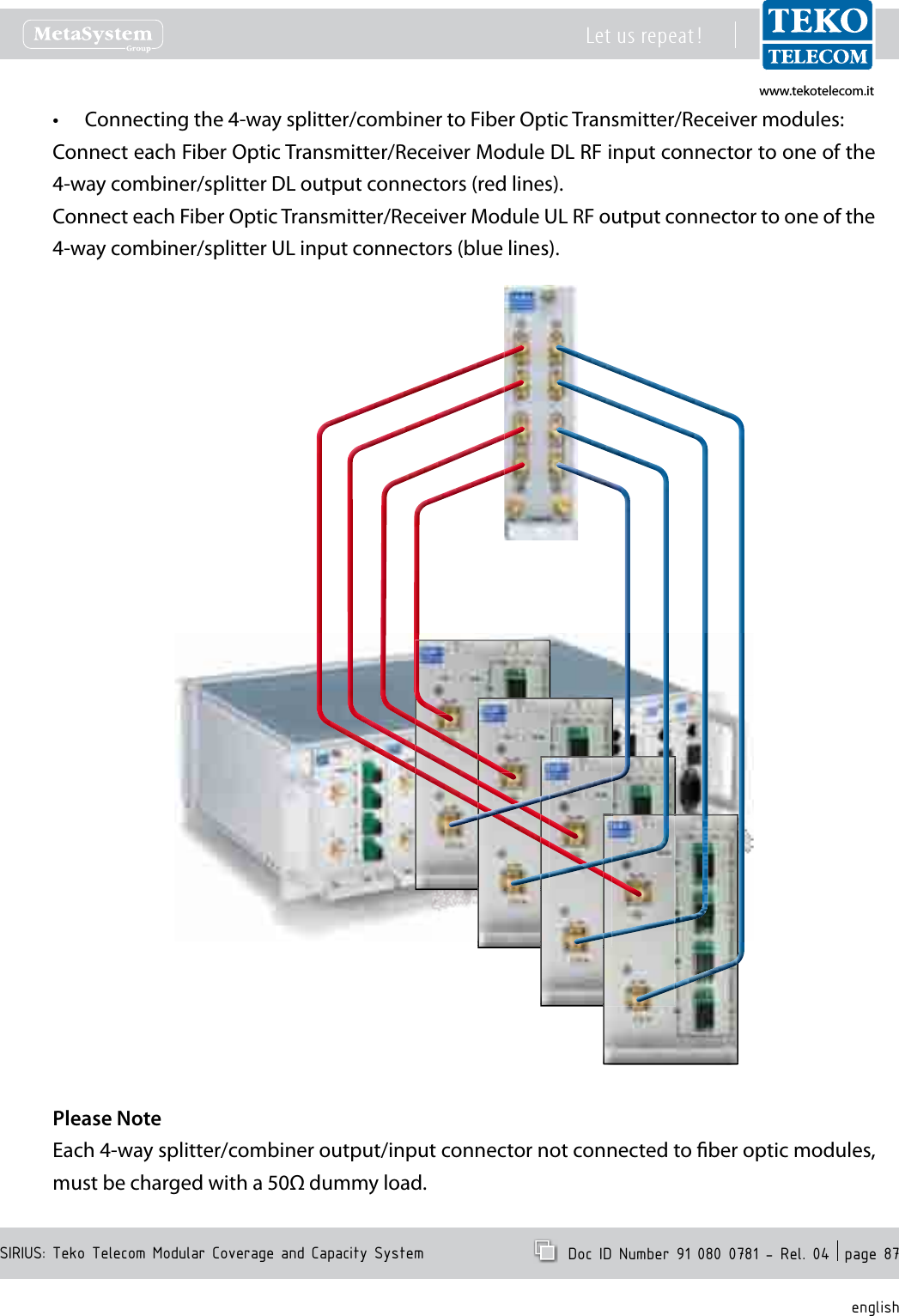

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 87englishConnecting the 4-way splitter/combiner to Fiber Optic Transmitter/Receiver modules:•Connect each Fiber Optic Transmitter/Receiver Module DL RF input connector to one of the 4-way combiner/splitter DL output connectors (red lines).Connect each Fiber Optic Transmitter/Receiver Module UL RF output connector to one of the 4-way combiner/splitter UL input connectors (blue lines).Please NoteEach 4-way splitter/combiner output/input connector not connected to ber optic modules, must be charged with a 50Ω dummy load.

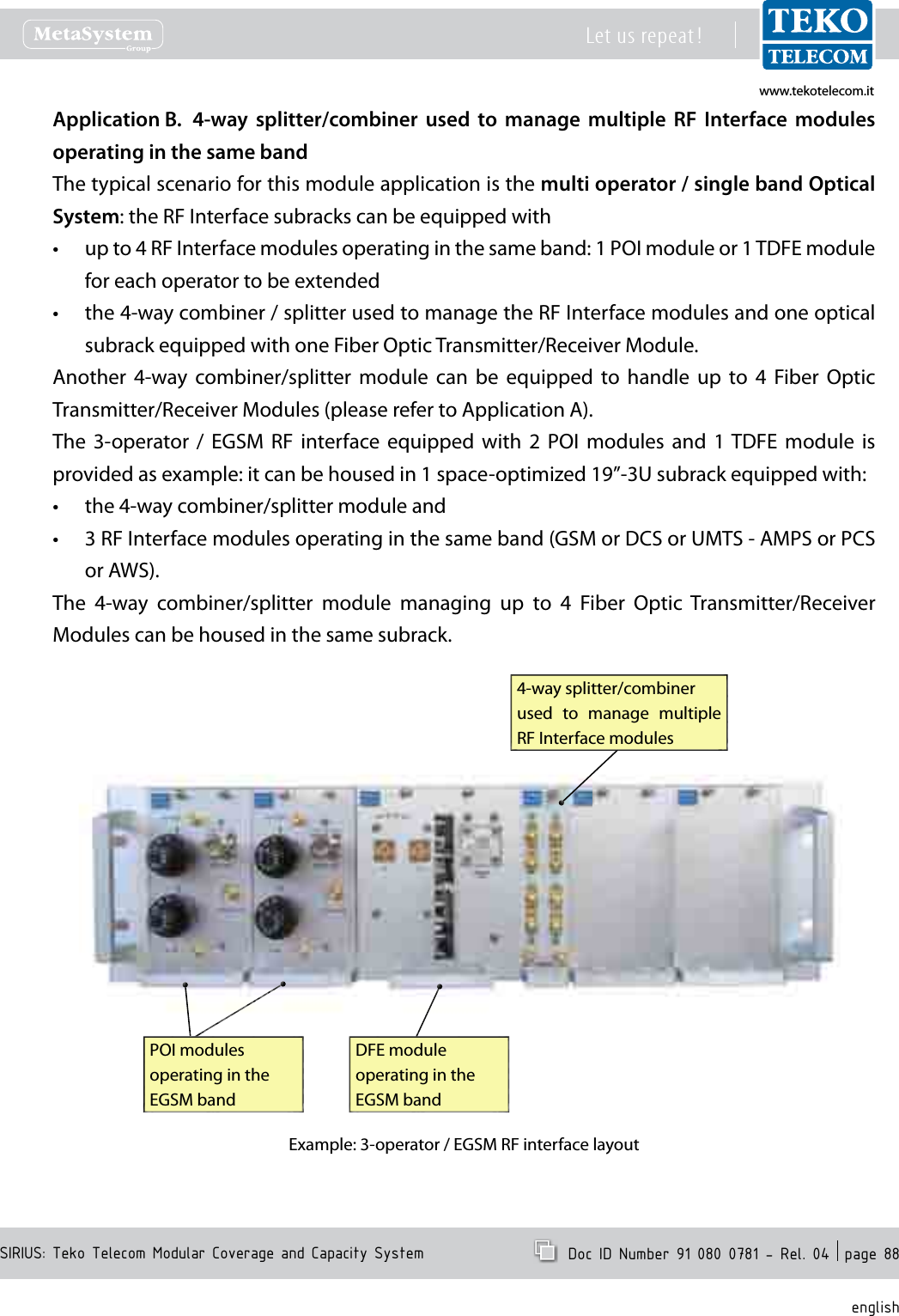

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 88english4-way splitter/combiner used to manage multiple RF Interface modules Application B. operating in the same bandThe typical scenario for this module application is the multi operator / single band Optical System: the RF Interface subracks can be equipped withup to 4 RF Interface modules operating in the same band: 1 POI module or 1 TDFE module •for each operator to be extendedthe 4-way combiner / splitter used to manage the RF Interface modules and one optical •subrack equipped with one Fiber Optic Transmitter/Receiver Module.Another 4-way combiner/splitter module can be equipped to handle up to 4 Fiber Optic Transmitter/Receiver Modules (please refer to Application A).The 3-operator / EGSM RF interface equipped with 2 POI modules and 1 TDFE module is provided as example: it can be housed in 1 space-optimized 19”-3U subrack equipped with:the 4-way combiner/splitter module and•3 RF Interface modules operating in the same band (GSM or DCS or UMTS - AMPS or PCS •or AWS). The 4-way combiner/splitter module managing up to 4 Fiber Optic Transmitter/Receiver Modules can be housed in the same subrack.4-way splitter/combiner used to manage multiple RF Interface modulesPOI modules operating in the EGSM bandDFE module operating in the EGSM bandExample: 3-operator / EGSM RF interface layout

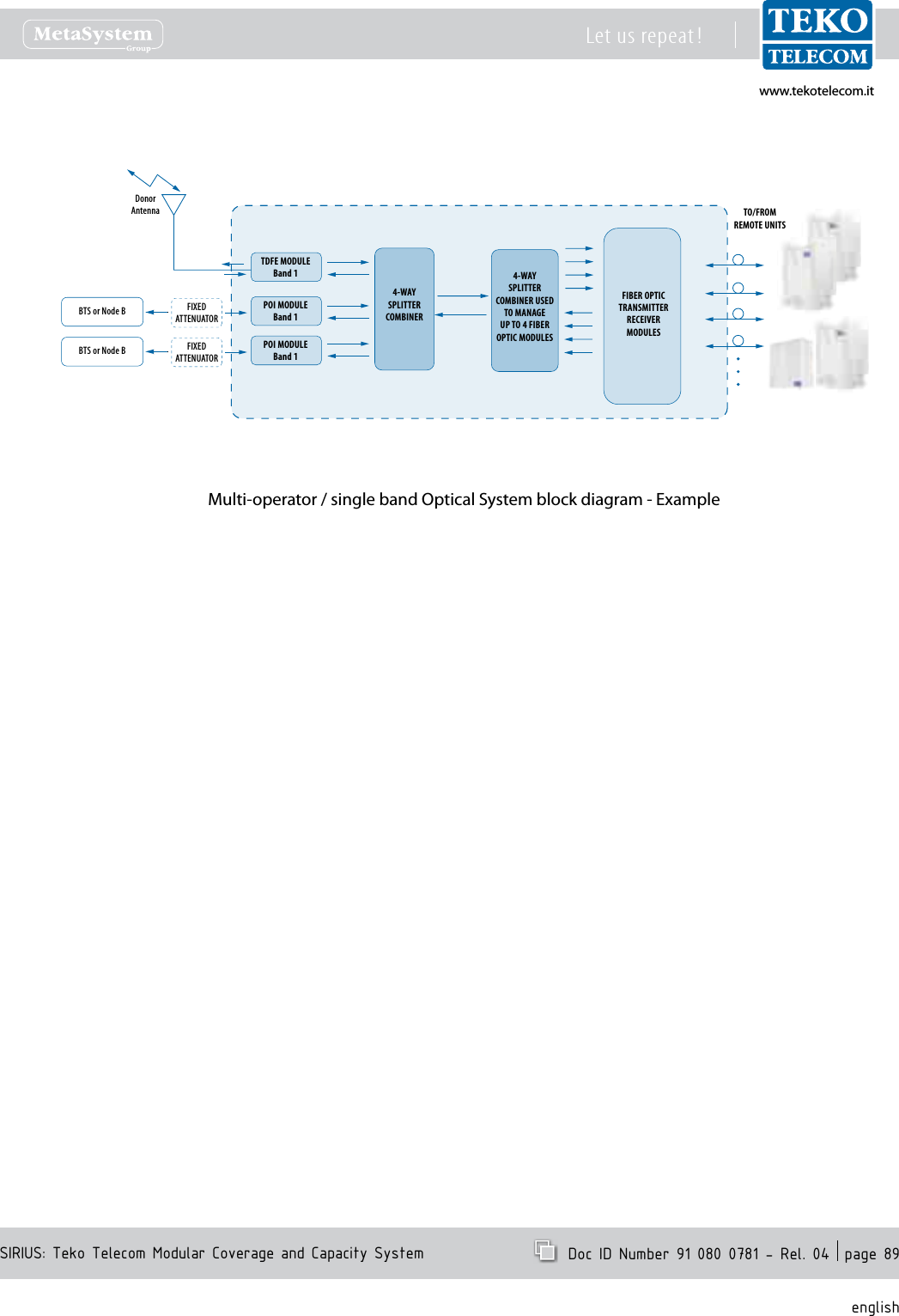

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 89english4-WAYSPLITTERCOMBINERTO/FROMREMOTE UNITS4-WAYSPLITTERCOMBINER USEDTO MANAGEUP TO 4 FIBEROPTIC MODULES FIBER OPTICTRANSMITTERRECEIVERMODULESBTS or Node B BTS or Node B POI MODULEBand 1FIXEDATTENUATORPOI MODULEBand 1FIXEDATTENUATORTDFE MODULEBand 1DonorAntennaMulti-operator / single band Optical System block diagram - Example

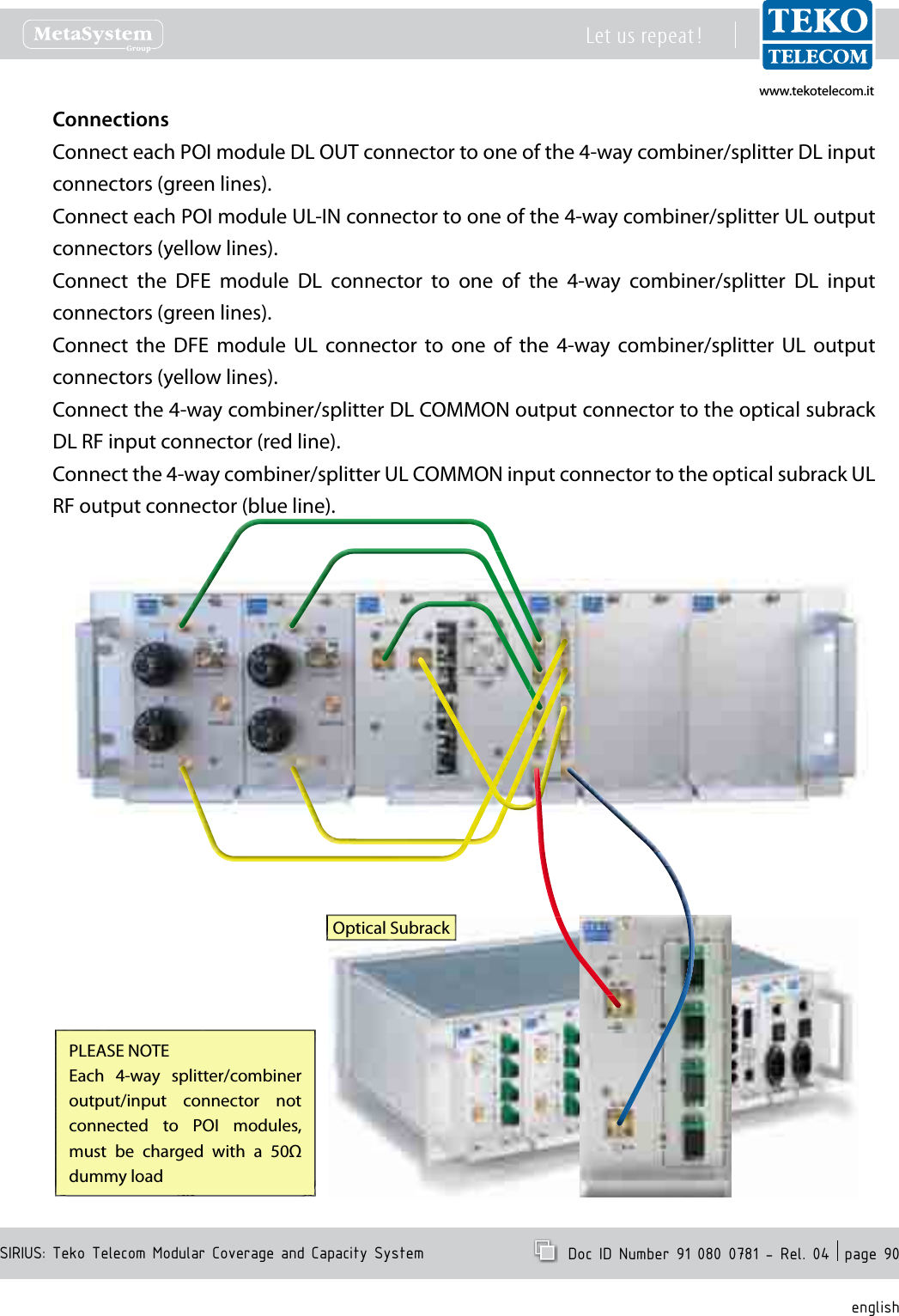

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 90englishConnectionsConnect each POI module DL OUT connector to one of the 4-way combiner/splitter DL input connectors (green lines).Connect each POI module UL-IN connector to one of the 4-way combiner/splitter UL output connectors (yellow lines).Connect the DFE module DL connector to one of the 4-way combiner/splitter DL input connectors (green lines).Connect the DFE module UL connector to one of the 4-way combiner/splitter UL output connectors (yellow lines).Connect the 4-way combiner/splitter DL COMMON output connector to the optical subrack DL RF input connector (red line).Connect the 4-way combiner/splitter UL COMMON input connector to the optical subrack UL RF output connector (blue line).Optical SubrackPLEASE NOTEEach 4-way splitter/combiner output/input connector not connected to POI modules, must be charged with a 50Ω dummy load

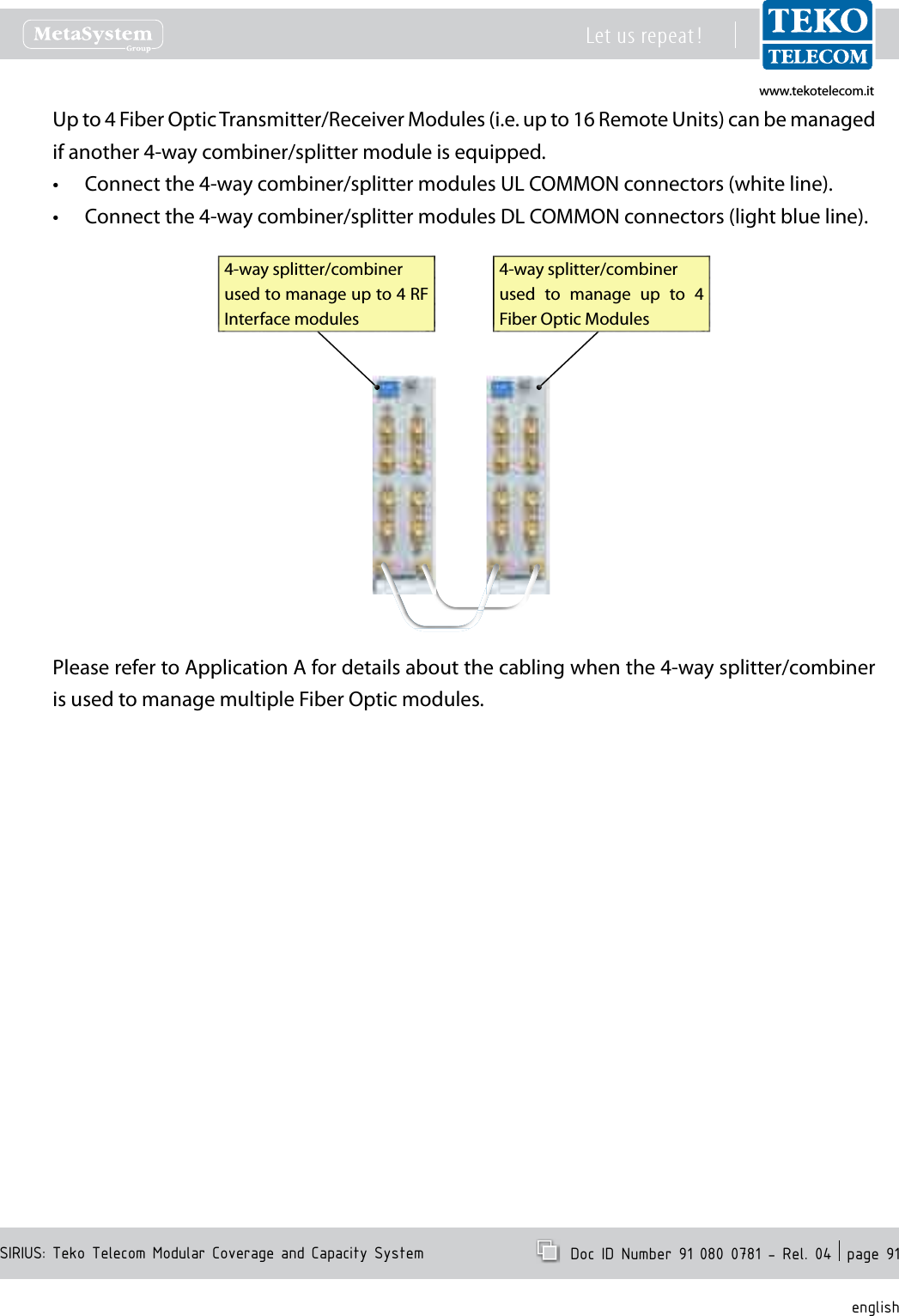

www.tekotelecom.itwww.tekotelecom.itSIRIUS: Teko Telecom Modular Coverage and Capacity SystemLet us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 91englishUp to 4 Fiber Optic Transmitter/Receiver Modules (i.e. up to 16 Remote Units) can be managed if another 4-way combiner/splitter module is equipped.Connect the 4-way combiner/splitter modules UL COMMON connectors (white line).•Connect the 4-way combiner/splitter modules DL COMMON connectors (light blue line).•4-way splitter/combiner used to manage up to 4 Fiber Optic Modules4-way splitter/combiner used to manage up to 4 RF Interface modulesPlease refer to Application A for details about the cabling when the 4-way splitter/combiner is used to manage multiple Fiber Optic modules.
