Information Brief - Artem ComPoint Embedded
Information Brief
Brief: Artem ComPoint Embedded
Publishing Date: Nov. 11, 2004
Funkwerk
Enterprise Comms. GmbH
Südwestpark. 94
D-90449 Nürnberg, Germany
Phone: +49-180-300 91 91-0
Fax: +49-180-300 91 93-0
info@funkwerk-ec.com
www.funkwerk-ec.com
Information Brief - artem Core Module
Content....................................................................................................................................................................................................................................................2
General Description ...............................................................................................................................................................................................................................3
Usable CPU Ports ...................................................................................................................................................................................................................................3
Core Module Technical Graphics
Block Diagramm..............................................................................................................................................................................................................................4
MiniPCI-Header For Core ..............................................................................................................................................................................................................5
Software Features....................................................................................................................................................................................................................................6
Legal Notices ...........................................................................................................................................................................................................................................7
Contact ....................................................................................................................................................................................................................................................8
Content
2
Wireless LAN and your health
The Artem Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted
by Wireless LAN devices however is far much less than the electromagnetic energy emitted by wireless devices like for example mobi-
le phones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommenda-
tions, Artem believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the
scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the
extensive research literature.
Regulatory information
This device must be installed and used in strict accordance with the manufacturer's instructions as described in the user documenta-
tion that comes with the product. For country-specific radio and telecommunications approvals, please consult page 2 of this flyer.In
some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible repre-
sentatives of the organization. These situations may for example include: Using the wireless equipment on board of airplanes, or in
any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are
uncertain of the policy that applies on the use of wireless equipment in a specific organization or environment (e.g. airports), you are
encouraged to ask for authorization to use this device prior to turning on the equipment. The manufacturer is not responsible for
any radio or television interference caused by unauthorized modification of the devices included with this kit, or the substitution or
attachment of connecting cables and equipment other than specified by manufacturer. The correction of interference caused by such
unauthorized modification, substitution or attachment will be the responsibility of the user. The manufacturer and its authorized
resellers or distributors are not liable for any damage or violation of government regulations that may arise from failing to comply
with these guidelines.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
When integrating the Module, the following information must be considered:
All products containing the module must be labelled. The label must be affixed on an exterior surface of the end product such
that it will be visible upon inspection in compliance with the modular approval guidelines developed by the FCC.
The label must state "This device contains FCC ID R8G-CM11B-01"
In addition, the user manual for the end product must contain the following information:
"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired
operation."
Information Brief - artem Core Module
General Description
3

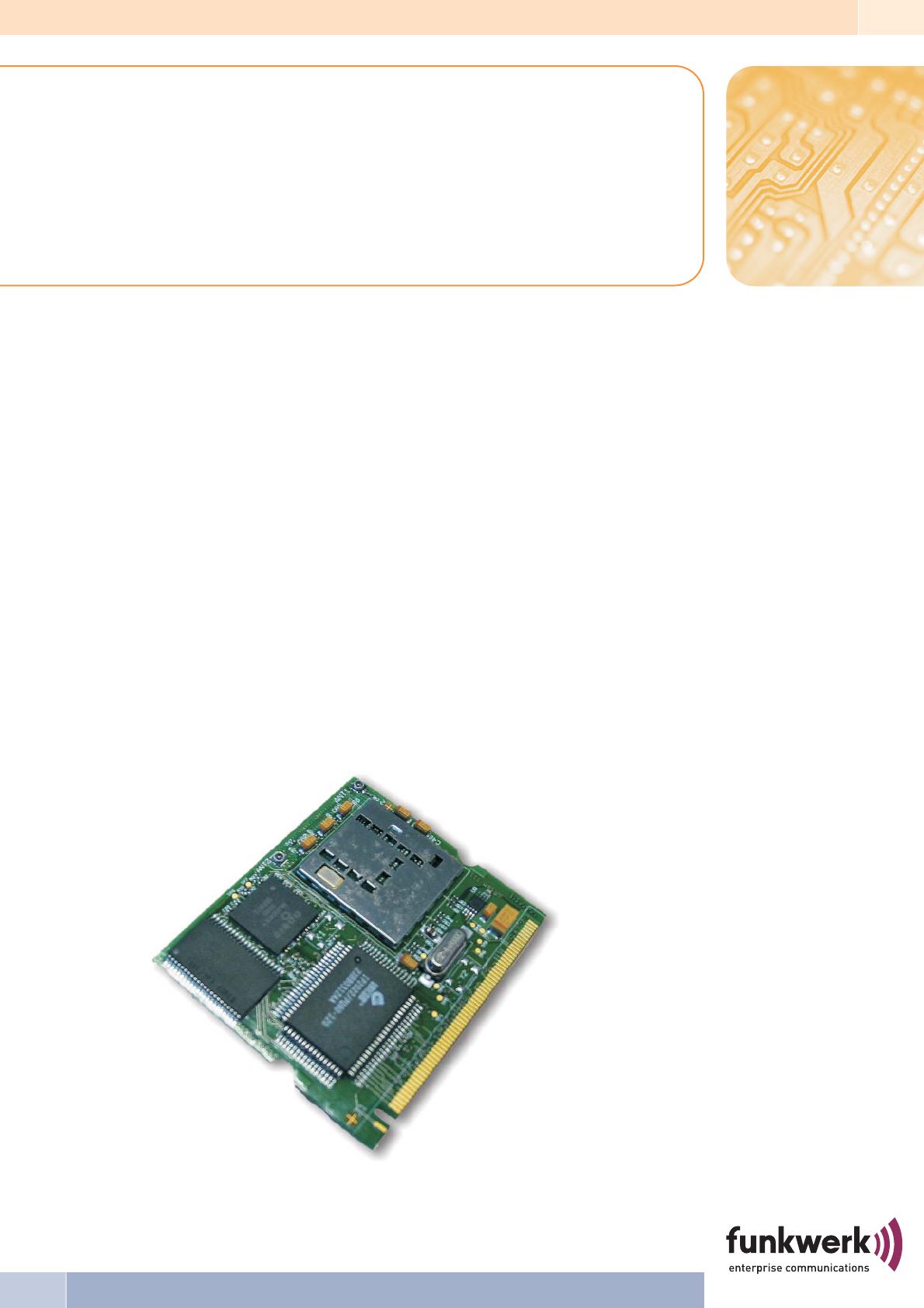

The Core Module combines all needed components to build an IEEE 802.11b wireless device.
It contains:
• Network processor (Ubicom IP2022 @ 120MHz)
• IEEE 802.11b radio (Agere Hermes 2 and Penguin)
• Clock (4.8MHz crystal, CPU internal PLL to generate 120MHz and 240MHz)
• Optional: 32kHz crystal for RTC and sleep mode
• Voltage supervisor including debounced reset input
• 1 MBit SRAM and 4 MBit Serial Flash for packet buffering and firmware storage
• 2.5V LDO
• 2 U.FL antenna connectors (Rx/Tx and Rx diversity)
The module is designed in the form factor of a MiniPCI Type IIIA card (50.95 x 59.75 x 8 mm (L x W x H)) , however with a pro-
prietary pinout. Please see the MiniPCI standard for mechanical details (MiniPCI Spec Rev. 1.0, Figure 5-7 on page 45).
Power consumption: max. 500mA @ 3.3V (avg.: tbd ; sleep: tbd)
Supply voltage: 3.3V +/- 3%
Operating temperature: -20 °C .. +70°C
Usable CPU Ports
Port Vmax Imax Assignment Preferred usage
RA1 3.3V 24mA DI / DO SPI SCK (fixed) SPI SCK
RA2 3.3V 24mA DI / DO SPI SI (fixed) SPI SI
RA3 3.3V 24mA DI / DO SPI SO (fixed) SPI SO
RB0 3.3V 8mA DI / DO / Ext. Interrupt SPI CS
RB1 3.3V 8mA DI / DO / Ext. Interrupt
RE4 3.3V 8mA DI / DO SERDES 1 Ethernet 1
RE5 3.3V 24mA DI / DO SERDES 1 Ethernet 1
RE6 3.3V 24mA DI / DO SERDES 1 Ethernet 1
RE7 3.3V 8mA DI / DO SERDES 1 Ethernet 1
RG4 2.5V 4mA AI / DO SERDES 1 Ethernet 1
RG5 2.5V 4mA AI / DO SERDES 1 Ethernet 1
RF0 3.3V 8mA DI / DO SERDES 2 Ethernet 2 / RS232 RTS
RF1 3.3V 24mA DI / DO SERDES 2 Ethernet 2 / RS232 TxD
RF2 3.3V 24mA DI / DO SERDES 2 Ethernet 2 / RS232 CTS
RF3 3.3V 8mA DI / DO SERDES 2 Ethernet 2
RG6 2.5V 4mA AI / DO SERDES 2 Ethernet 2
RG7 2.5V 4mA AI / DO SERDES 2 Ethernet 2
RG0 2.5V 4mA AI / DO / ACOMP Out Act. LED 2
RG1 2.5V 4mA AI / DO / ACOMP In - Link LED 2
RG2 2.5V 4mA AI / DO / ACOMP In + Act. LED 1 & Monitor button
RG3 2.5V 4mA AI / DO / ADC Ref In Link LED 1
RF7 3.3V 8mA DI / DO SERDES 2 RS232 RxD
AI = Analog Input (ADC, 48kHz, 10bit)
DI = Digital Input
DO = Digital Output
Ext. Interput = Interupt Input
ACOMP = Analog Comparator
Access Point Ethernet Client Ethernet Serial Client
Current firmware & version sm_ap V1.40 sm_ac V1.40 sm_sc V1.40
Wireless
Network Name yes yes yes
Channel Setting yes yes (Ad-Hoc) yes (Ad-Hoc)
802.11d Support yes yes yes
Transmission Rate (auto + fixed) yes yes yes
Ad-Hoc Mode n/a yes yes
Load Balancing yes yes yes
AP Distance yes n/a n/a
RTS Threshold (1 - 2347) yes yes yes
Microwave robustness yes yes yes
Medium Distribution Support yes yes yes
DTIM Interval (1 - 65535) yes n/a n/a
Multicast rate yes yes yes
PS Multicast Buffering yes n/a n/a
IAPP (ARtem proprietary) yes n/a n/a
WLAN Node Table yes n/a n/a
AP Scan List n/a yes yes
LAN Node Table n/a yes yes
Security
802.1x Authentication MD5, TLS, TTLS, MD5 MD5
PEAP
802.1x Reauthentication Timer yes n/a n/a
RADIUS Client yes n/a n/a
ACL Local yes n/a n/a
Data Encryption WEP64/128/Plus WEP64/128/Plus WEP64/128/Plus
TKIP TKIP
Deny Unencrypted Data yes n/a n/a
WPA-Personal (PSK) Planned yes yes
WPA-Enterprise (802.1x) Planned Planned Planned
Radio On/Off yes yes yes
AP Visibility (Hide SSID) yes n/a n/a
Inter Traffic Blocking (Repeating) yes n/a n/a
Admin Password yes yes yes
Configuration over WLAN Option yes yes yes
Configuration & Management
User-Friendly Web Interface yes yes yes
ComPoint Manager - Discovery- & Rollout-Tool yes yes yes
Configuration Management API yes yes yes
DHCP Client yes yes yes
Reboot yes yes yes
Reset Configuration yes yes yes
Reset All to Factory Default yes yes yes
Information Brief - artem Core Module4
Software Features
Information Brief - artem Core Module 5
Software Features
Access Point Ethernet Client Ethernet Serial Client
Serial
TCP Server n/a n/a yes
TCP Client n/a n/a yes
Transparent Serial Bridge n/a n/a Planned
Virtual COM n/a n/a Planned
Serial Statistics n/a n/a yes
Baudrate n/a n/a 2400 - 230400
Data Bits (7/8) n/a n/a yes
Parity (None, Even, Odd) n/a n/a yes
Stop Bits (1, 2) n/a n/a yes
Handshake HW (RTS/CTS, DTR/DSR) n/a n/a yes (only for RS232)
Handshake SW (XON/XOFF) n/a n/a Planned
Frame Send Trigger via Time-Out n/a n/a yes
Frame Send Trigger via Byte Count n/a n/a yes
Frame Send Trigger via Multi-Byte Delimiter n/a n/a Planned
Contact
AAddddrreessss
Funkwerk Enterprise Communications GmbH
Südwestpark 94
D-90449 Nürnberg, Germany
GGeenneerraall
Phone: +49-180-300 91 91-0
Fax: +49-180-300 91 93-0
eMail: info@funkwerk-ec.com
Legal Notices
All product names are trade marks of the Funkwer Enterprise Communications GmbH or of the respective owner and will be accep-
ted hereby. All statements are valid at the time of publishing and can be changed without any announcements.
©2004 Funkwer Enterprise Communications GmbH. All rights reserved. Duplications, changes or translations are not allowed without
permission of the Funkwer Enterprise Communications GmbH.
