Teleco Automation S r l TXRW433US Remote Control, Gates, Doors, Shutters, etc. User Manual txr gb USA

Teleco Automation S.r.l. Remote Control, Gates, Doors, Shutters, etc. txr gb USA

Contents

User Manual and Operational Description TXR

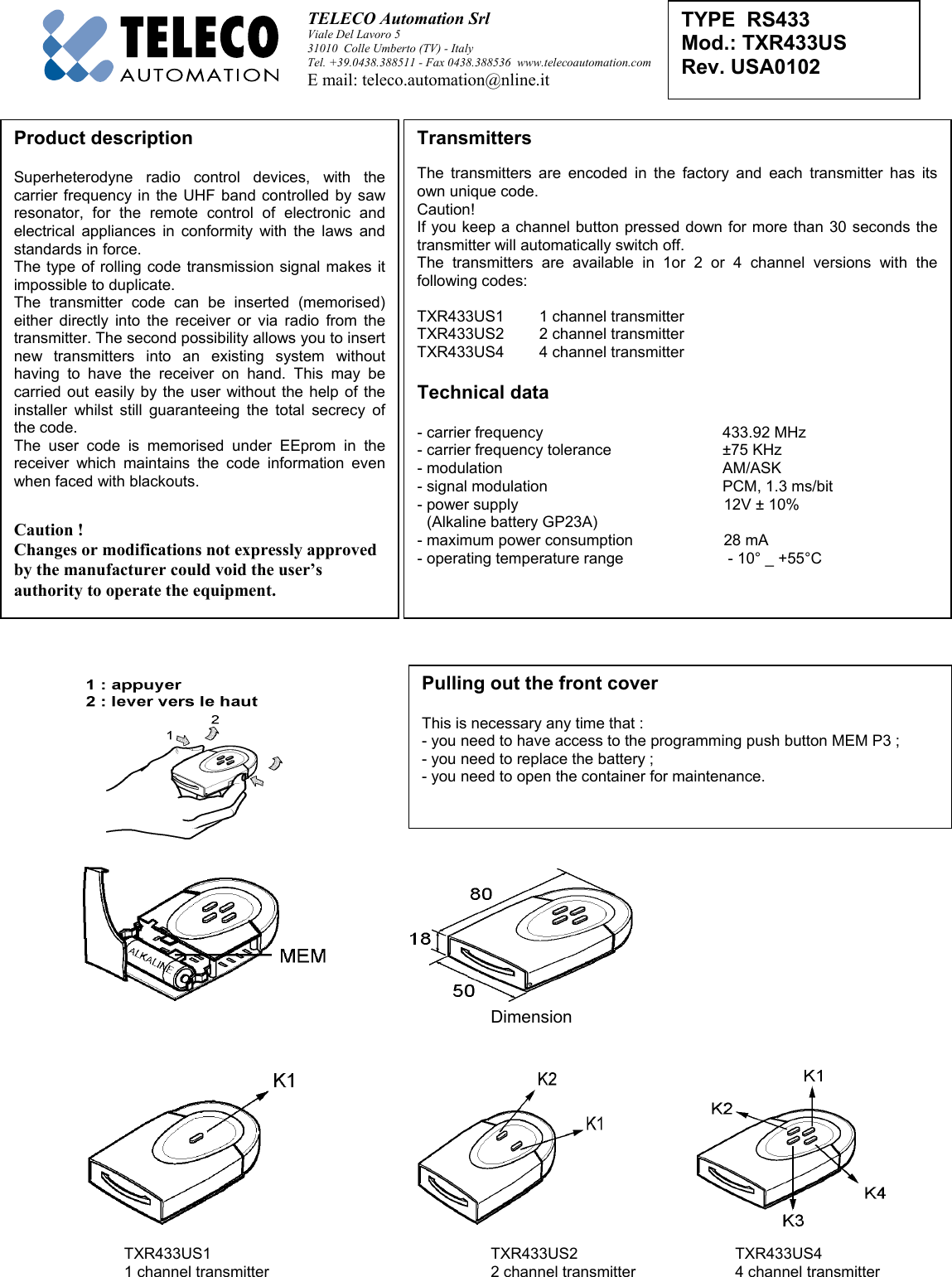

TELECO Automation Srl Viale Del Lavoro 531010 Colle Umberto (TV) - ItalyTel. +39.0438.388511 - Fax 0438.388536 www.telecoautomation.comE mail: teleco.automation@nline.itDimensionTXR433US1 TXR433US2 TXR433US41 channel transmitter 2 channel transmitter 4 channel transmitterTYPE RS433Mod.: TXR433USRev. USA0102Pulling out the front coverThis is necessary any time that :- you need to have access to the programming push button MEM P3 ;- you need to replace the battery ;- you need to open the container for maintenance.Product descriptionSuperheterodyne radio control devices, with thecarrier frequency in the UHF band controlled by sawresonator, for the remote control of electronic andelectrical appliances in conformity with the laws andstandards in force.The type of rolling code transmission signal makes itimpossible to duplicate.The transmitter code can be inserted (memorised)either directly into the receiver or via radio from thetransmitter. The second possibility allows you to insertnew transmitters into an existing system withouthaving to have the receiver on hand. This may becarried out easily by the user without the help of theinstaller whilst still guaranteeing the total secrecy ofthe code.The user code is memorised under EEprom in thereceiver which maintains the code information evenwhen faced with blackouts.Caution !Changes or modifications not expressly approvedby the manufacturer could void the user’sauthority to operate the equipment.TransmittersThe transmitters are encoded in the factory and each transmitter has itsown unique code.Caution!If you keep a channel button pressed down for more than 30 seconds thetransmitter will automatically switch off.The transmitters are available in 1or 2 or 4 channel versions with thefollowing codes:TXR433US1 1 channel transmitterTXR433US2 2 channel transmitterTXR433US4 4 channel transmitterTechnical data - carrier frequency 433.92 MHz- carrier frequency tolerance ±75 KHz- modulation AM/ASK- signal modulation PCM, 1.3 ms/bit- power supply 12V ± 10%(Alkaline battery GP23A)- maximum power consumption 28 mA- operating temperature range - 10° _ +55°C
