INTRODUCTION
Welcome to Teletrac’s Prism TM Information and Installation Guide. The goal of this guide is
to give you an understanding of how the Prism TM functions and how the different systems it
uses function, as well as, how to install the Prism TM itself. As you make your way through this
guide, you will start to become familiar with many aspects of the Prism TM, however, nothing will
replace the hands-on experience of installing a unit and seeing how it functions in person. It is
hoped that you will use this guide as a reference to give you guidance whenever a problem is
encountered.
This guide starts with a discussion of the physical characteristics of the Prism TM and the
equipment it requires to function. Next is a brief introduction to the systems the Prism TM relys
upon to do it’s job. After that will be a feature list to compare the Prism TM to an RF & CDPD
VLU along with descriptions of the features. Lastly is a section on how to install and test the
Prism TM. Now, let’s get going…
--------------Unit One--------------
PHYSICAL CHARACTERISTICS
PRISM TM

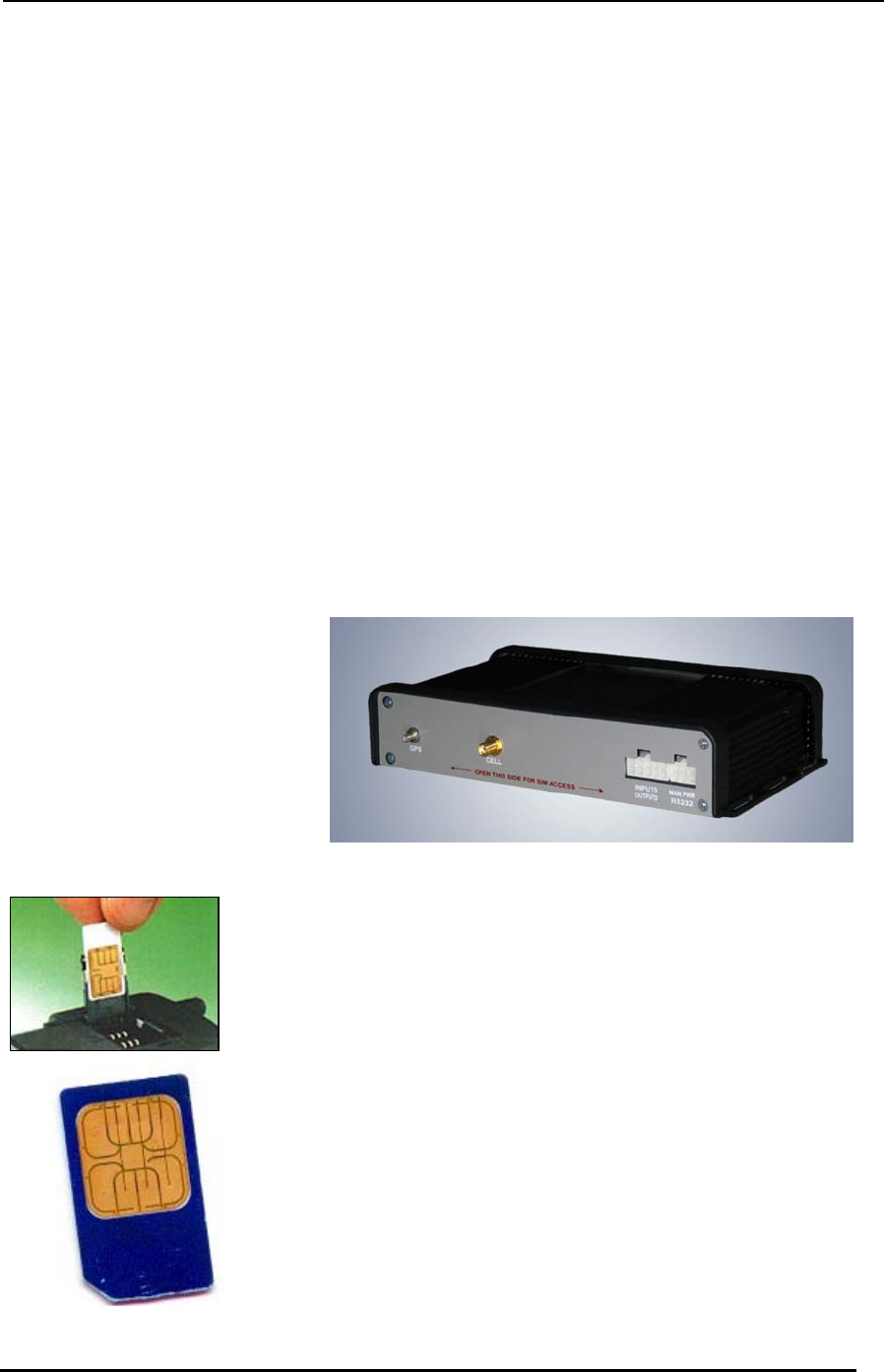

The Prism TM is a custom built
transceiver made for Teletrac. The
device is a black anodized
aluminum box roughly the same
size as a CD carrying case.
Internally it consists of a GPRS
modem, a GPS receiver, a
controller board and a SIM card.
The GPRS modem and GPS
receiver are basically off-the-shelf
devices. It’s the SIM card that
makes this product unique.
The SIM (subscriber identity module) card is a small electronic board
that contains the “personality” of the unit. The SIM is a programmable
card that can easily be moved from one unit to the next so that in the
event of hardware failure the card can be remove and placed in a new
unit without any reprogramming. SIM cards and the GPRS system run
on the GSM network which is considered to be one of the most secure
communication systems since both data and voice are encrypted to
prevent eavesdropping. See Section Two for more information about
how GSM, GPRS and SIM cards work.
In theory, the Prism TM should work about the same as a VLUplus. It
has been purposefully designed to have a similar wiring scheme and
to use the same installed peripherals. See Unit Five for installation
information.
Teletrac, Inc. - Prism TM Information and Installation Guide
8 1622-0300 B1 3/18/04

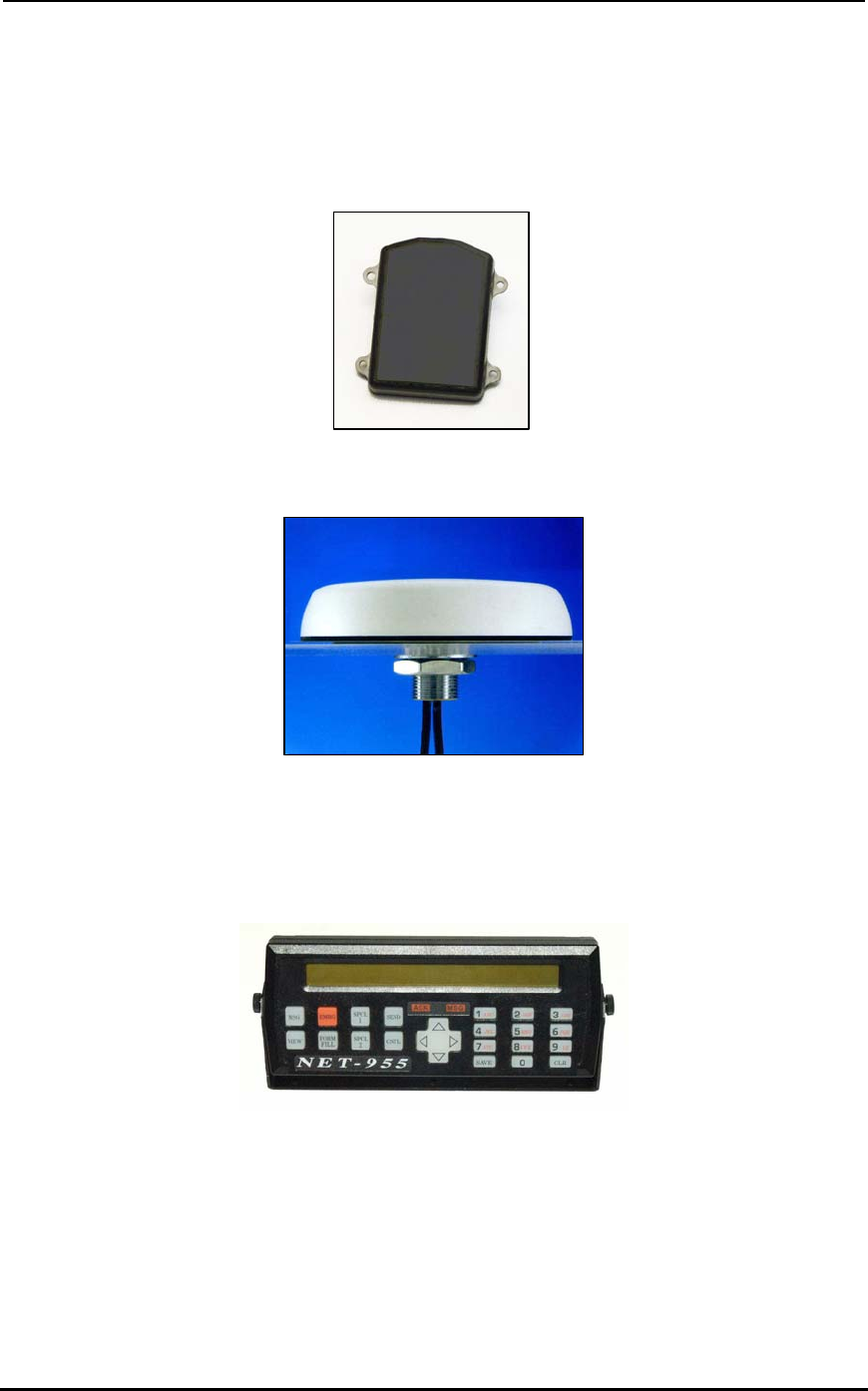

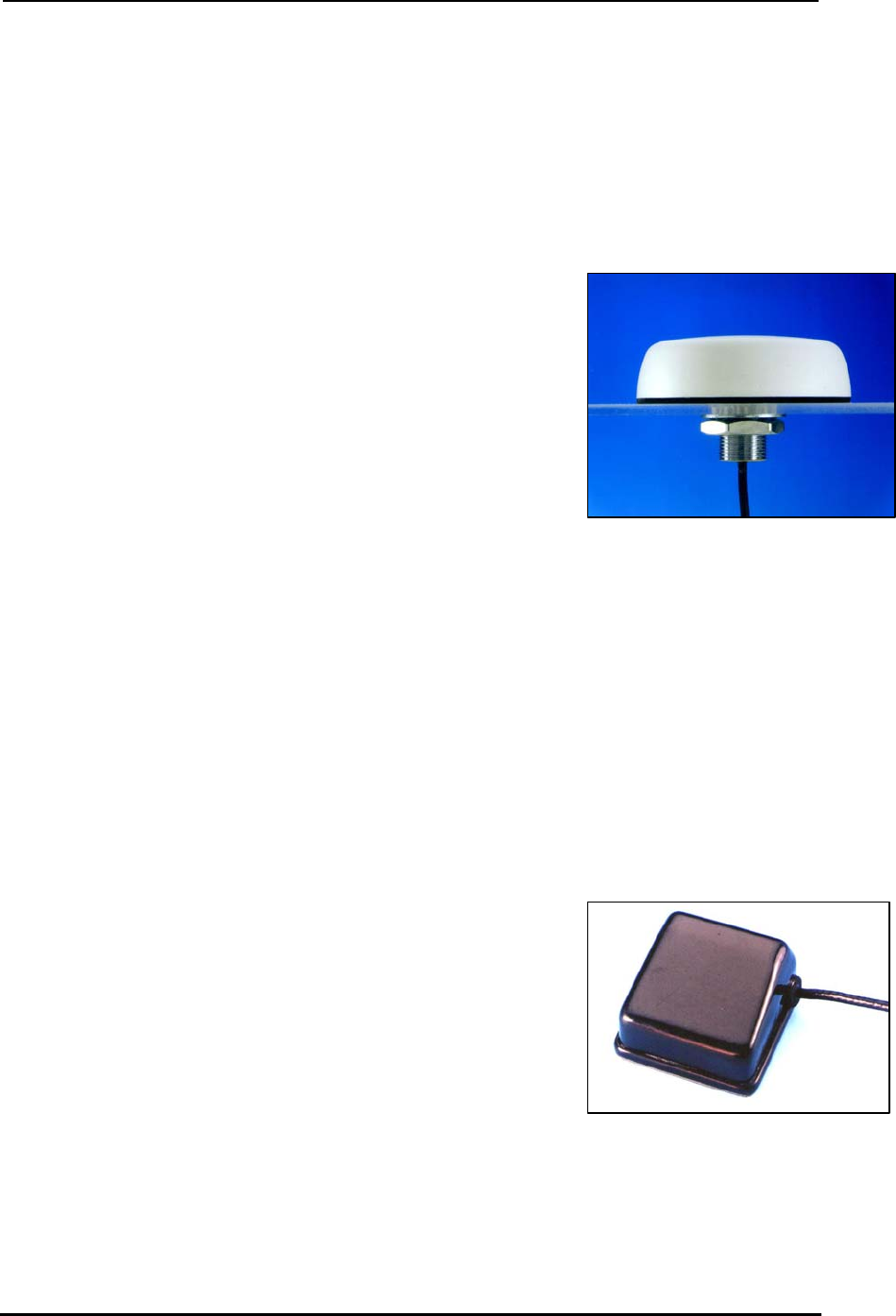

ANTENNAS

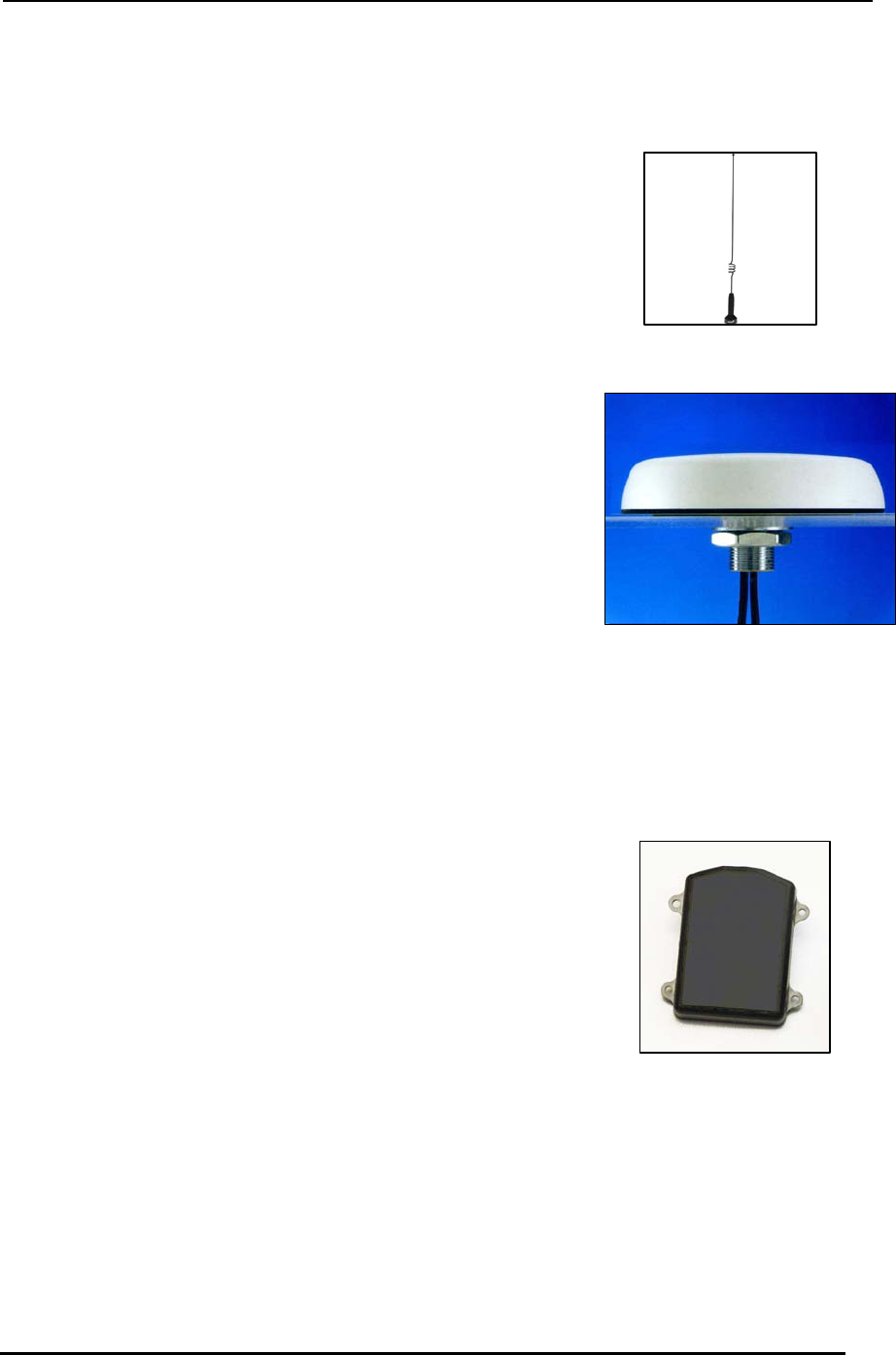

The Prism TM uses a hidden combo antenna or roof mount combo antenna. In the future there
will be more antenna options once the physical connector has changed.
Combo Hidden Antenna
Roof Mount combo Antenna
PERIPHERALS
MDT
The Prism TM is designed to use the same peripherals or accessories that the RF and CDPD
VLU uses. In addition to the same peripherals, the Prism TM currently has two inputs and two
outputs. Input 0 is configured to work with ignition on/off and inputs 1 & 2 allow for the connection
of PTOs.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 9
--------------Unit Two--------------
THE GPS AND GPRS SYSTEMS

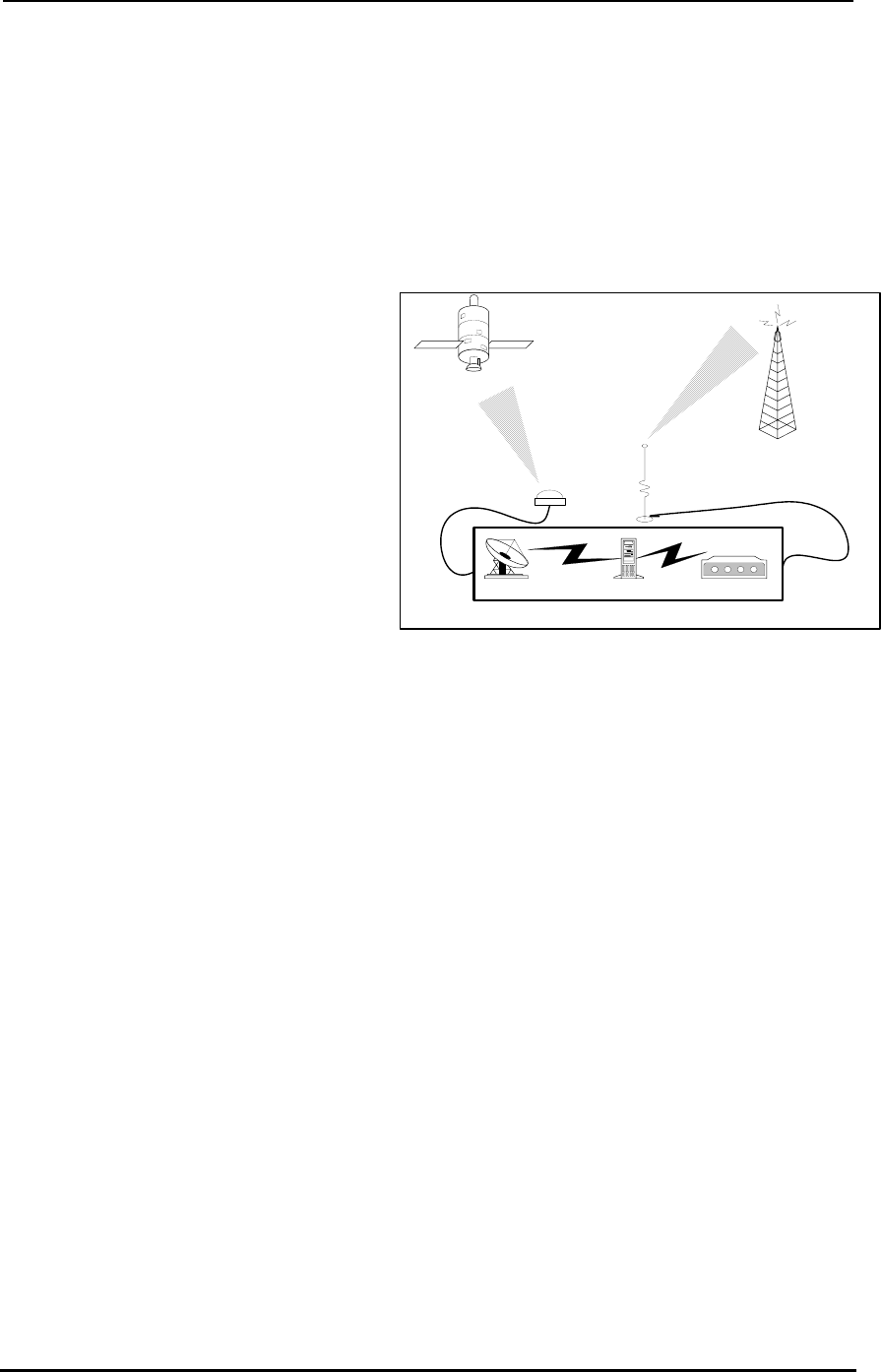

There are two systems that the Prism TM uses outside of the Teletrac system. One is the Global
Positioning System, more commonly called GPS and the other is the General Packet Radio
System otherwise known as GPRS. The following pages will give you a basic introduction to
where these systems came from as well as how they work. At the end of this section will be a

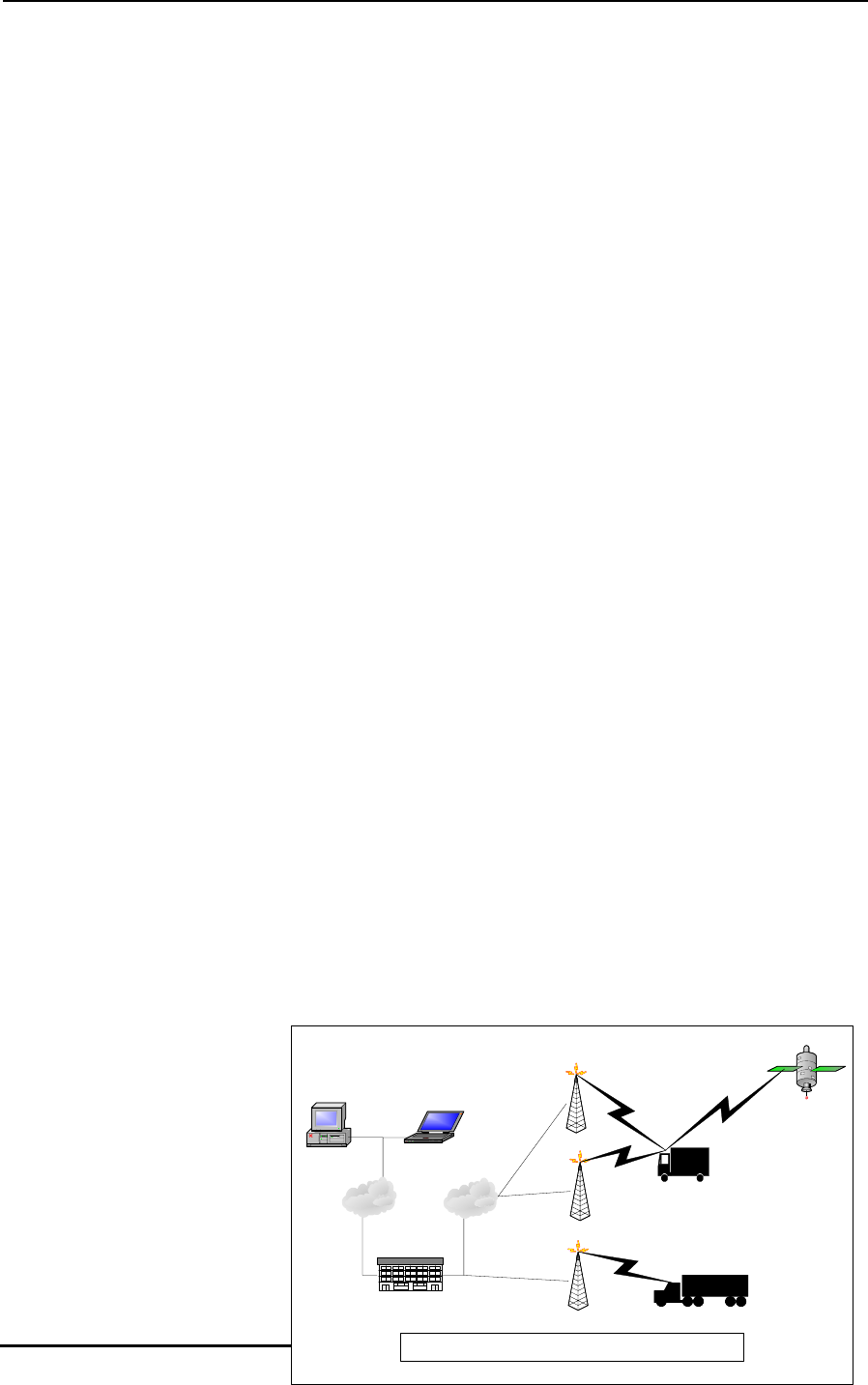

summary of how Teletrac uses these two systems together to get the location of a vehicle.

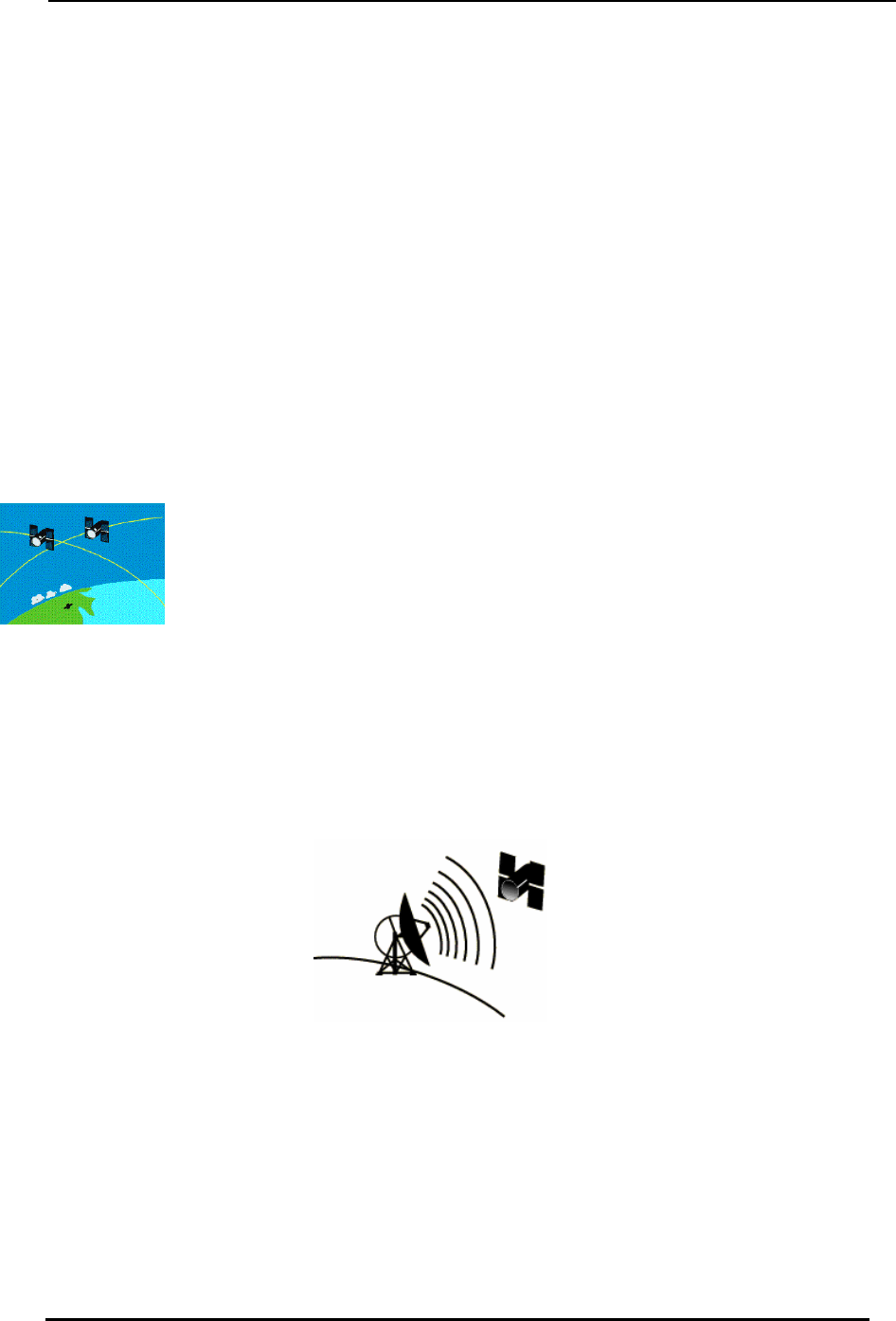

GLOBAL POSITIONING SYSTEMS (GPS)
The following information was taken from information posted to the Teletrac Intranet. Included
here is the abridged version of GPS. The full text appears in Appendix A at the end of this
Information Guide.
AN INTRODUCTION TO GLOBAL POSITIONING SATELLITE SYSTEMS
Global Positioning Systems
GPS uses "man-made stars" or satellites as reference points to calculate positions on Earth
accurate to within meters. In fact, with advanced forms of GPS you can make measurements to
better than a centimeter. In a sense, it's like giving every square meter on the planet a unique
address.
Since GPS receivers have been miniaturized to just a few integrated circuits and have become
very economical, the technology has become increasingly accessible.
Here's how GPS works in five logical steps:
Here is a summary of each of the steps involved with GPS in order to determine a location. This
is the first part of Teletrac finding the locations of vehicles using a Prism TM. Once a location is
determined then it is sent via another system. We'll explain each of the following points in the
next five sections.
1. The basis of GPS is "triangulation" from satellites.
2. To "triangulate," a GPS receiver measures distance using the travel time of radio
signals.
3. To measure travel time GPS needs very accurate timing, which it achieves with
some tricks.
Teletrac, Inc. - Prism TM Information and Installation Guide
10 1622-0300 B1 3/18/04
4. Along with distance, you need to know exactly where the satellites are in space.
High orbits and careful monitoring are the secret.
5. Finally you must correct for any delays the signal experiences as it travels
through the atmosphere.

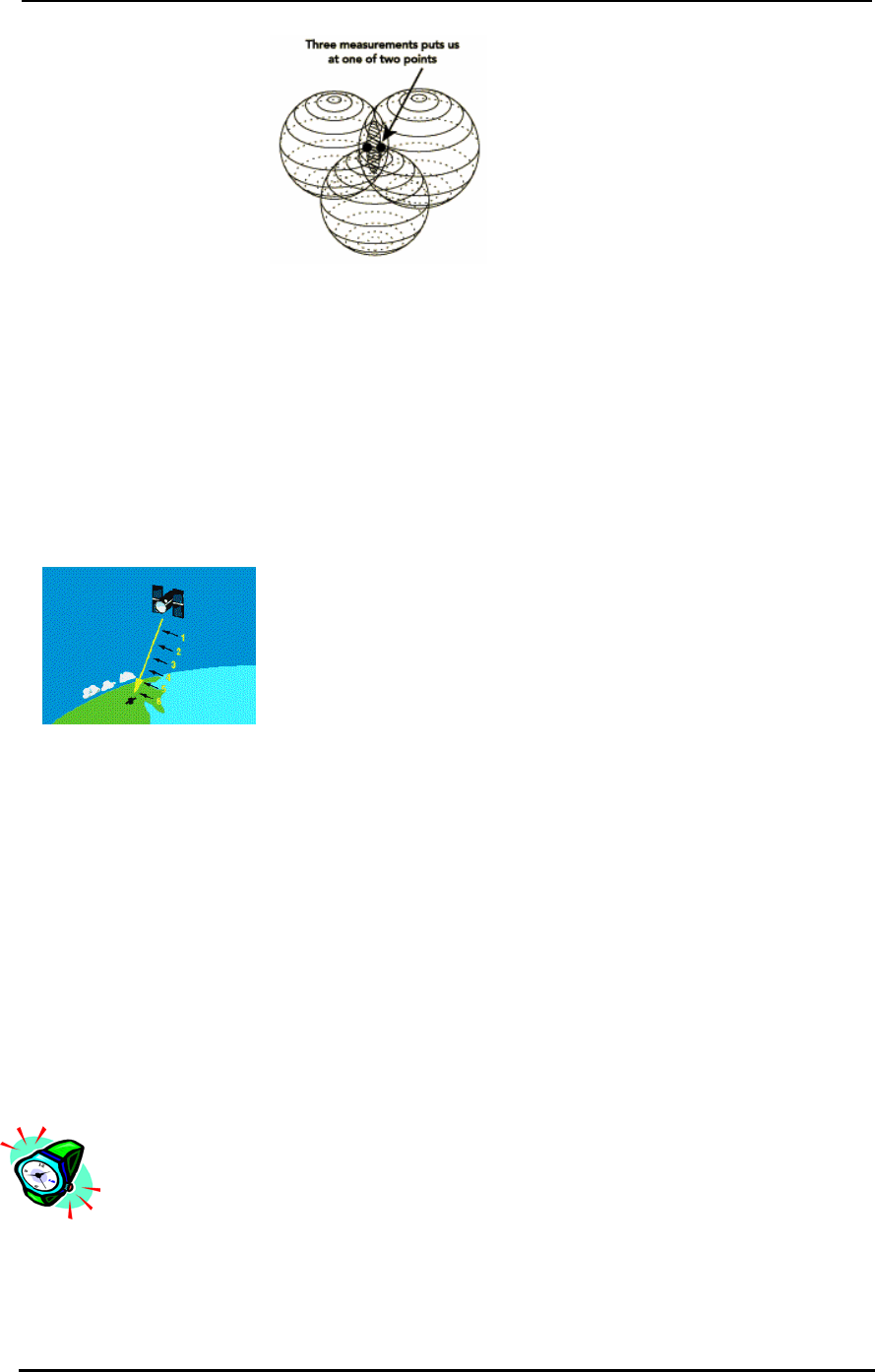

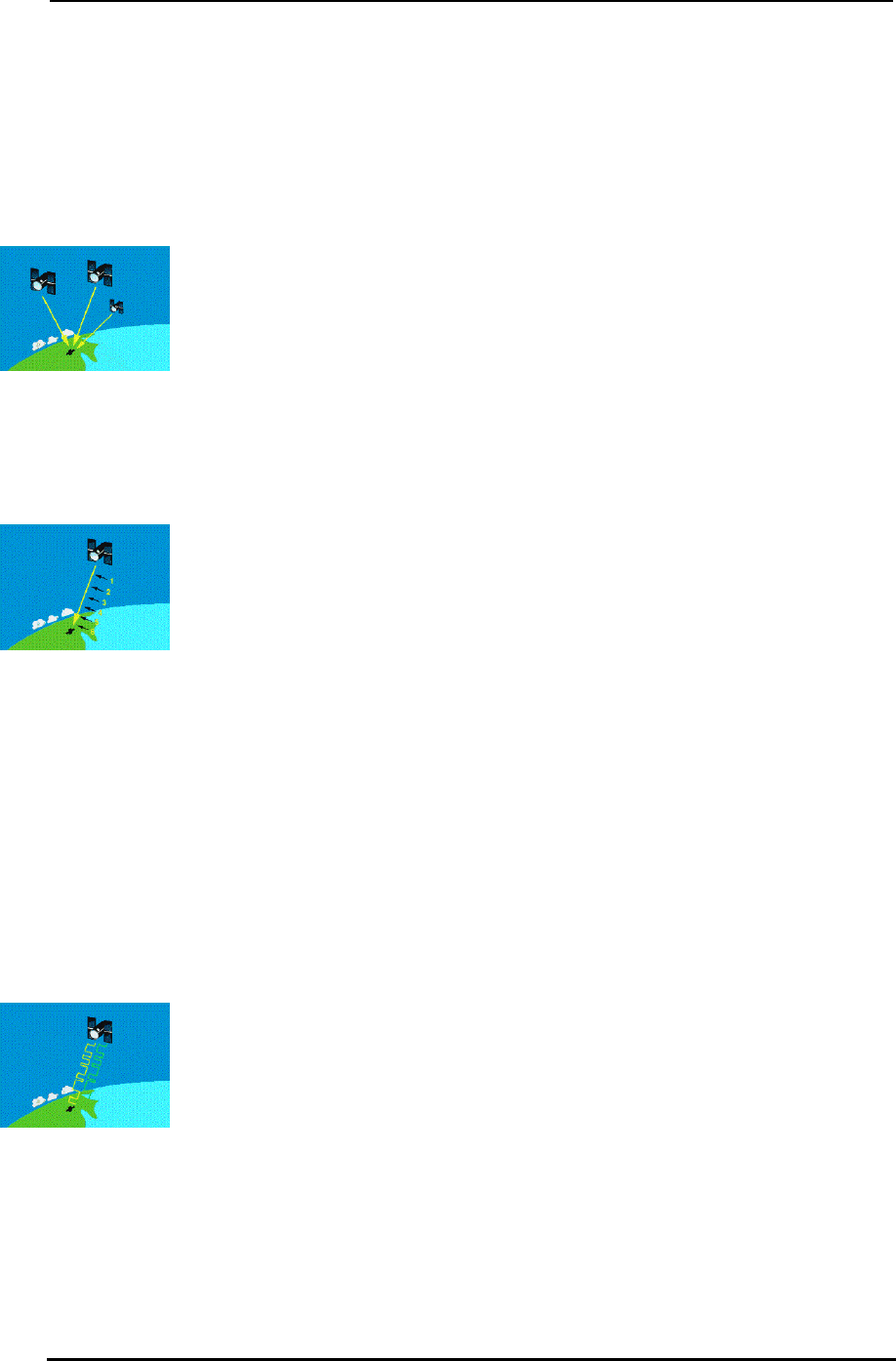

Step 1: Triangulating from Satellites
Improbable as it may seem, the whole idea behind GPS is to use satellites in space as reference
points for locations here on earth. That's right, by very, very accurately measuring our distance

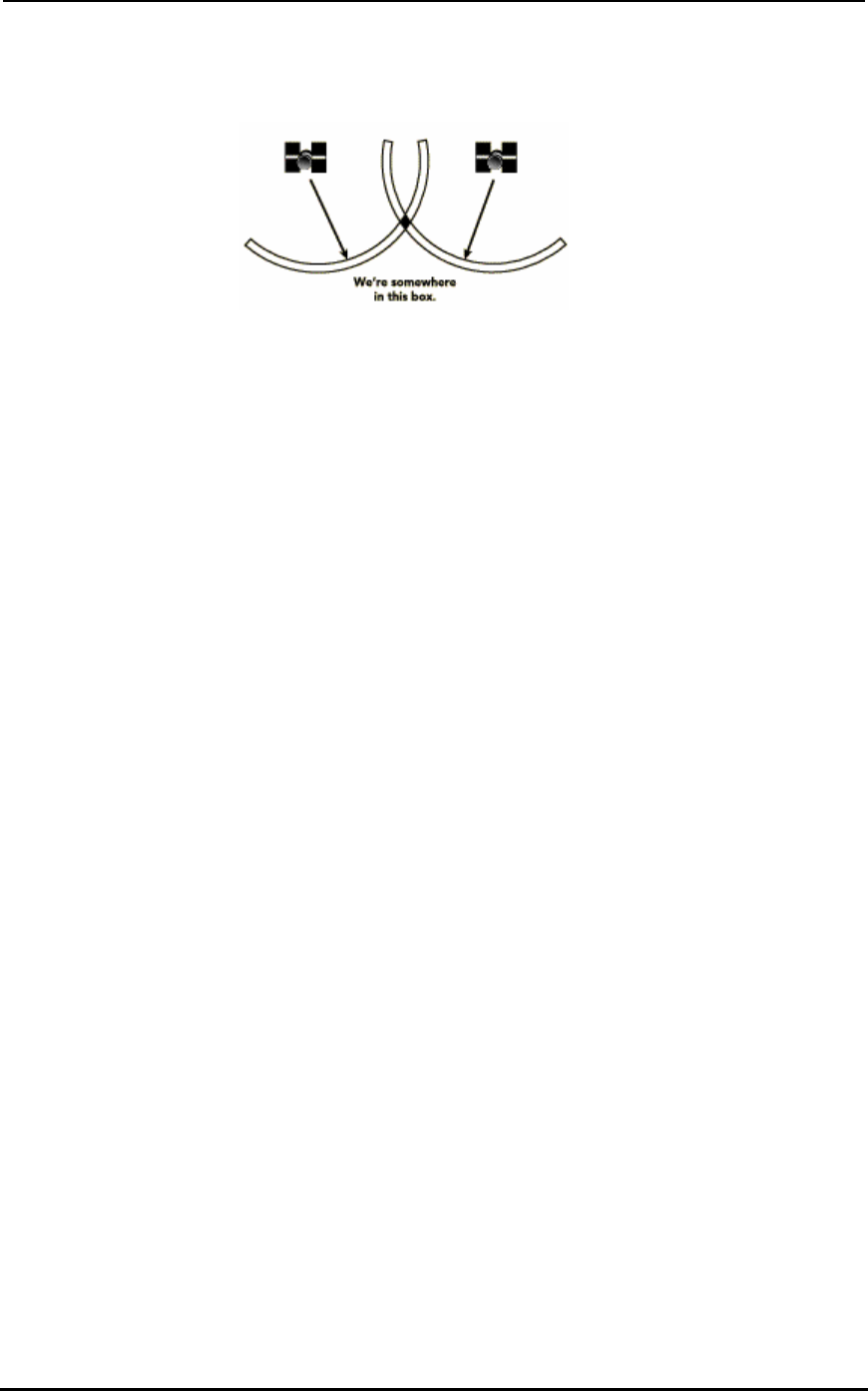

from three satellites we can "triangulate" our position anywhere on earth.
Step 2: Measuring Distance from a Satellite

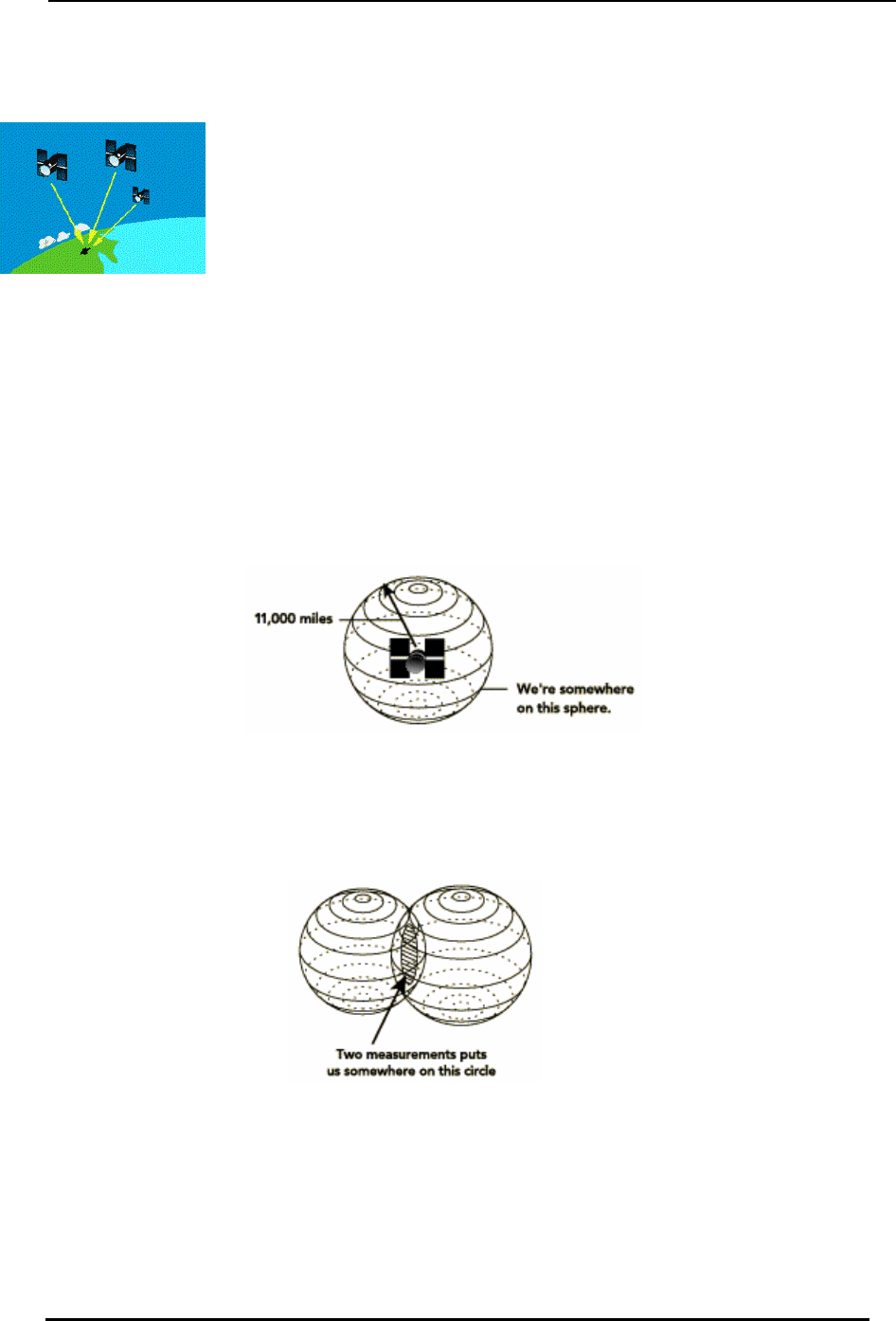

But how can you measure the distance to something that's floating around in space? We do it by
timing how long it takes for a signal sent from the satellite to arrive at our receiver.
THE BIG IDEA, MATHEMATICALLY
In a sense, the whole thing boils down to those "velocity times travel time" math problems we did
in high school. Remember the old: "If a car goes 60 miles per hour for two hours, how far does it
travel.?"
Velocity (60 mph) x Time (2 hours) = Distance (120 miles)
In the case of GPS we're measuring a radio signal so the velocity is going to be the speed of
light, or roughly 186,000 miles per second.
Step 3: Getting Perfect Timing
If measuring the travel time of a radio signal is the key to GPS, then our stop watches had better
be darn good because if their timing is off by just a thousandth of a second, at the speed of light,
that translates into almost 200 miles of error!
The secret to perfect timing is to make an extra satellite measurement.
That's right, if three perfect measurements can locate a point in 3-dimensional space, then four
imperfect measurements can do the same thing.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 11
EXTRA MEASUREMENT CURES TIMING OFFSET
If everything were perfect (i.e. if our receiver's clocks were perfect) then all of our satellite ranges
would intersect at a single point (which is our position). But with imperfect clocks, a fourth
measurement, done as a cross-check, will NOT intersect with the first three.
So the receiver's computer says "Uh-oh! There is a discrepancy in my measurements. I must not
be perfectly synced with universal time."
Since any offset from universal time will affect all of our measurements, the receiver looks for a
single correction factor that it can subtract from all its timing measurements that would cause
them all to intersect at a single point.
That correction brings the receiver's clock back into sync with universal time, and bingo! - you've
got atomic accuracy time right in the palm of your hand.
Once it has that correction it applies to all the rest of its measurements, and now we've got
precise positioning.
Step 4: Knowing Where a Satellite is in Space
On the ground all GPS receivers have an almanac programmed into their computers that tells
them where in the sky each satellite is, moment by moment.
CONSTANT MONITORING ADDS PRECISION
The basic orbits are quite exact but just to make things perfect, the GPS satellites are constantly
monitored by the Department of Defense.
They use very precise radar to check each satellite's exact altitude, position and speed.
Teletrac, Inc. - Prism TM Information and Installation Guide
12 1622-0300 B1 3/18/04

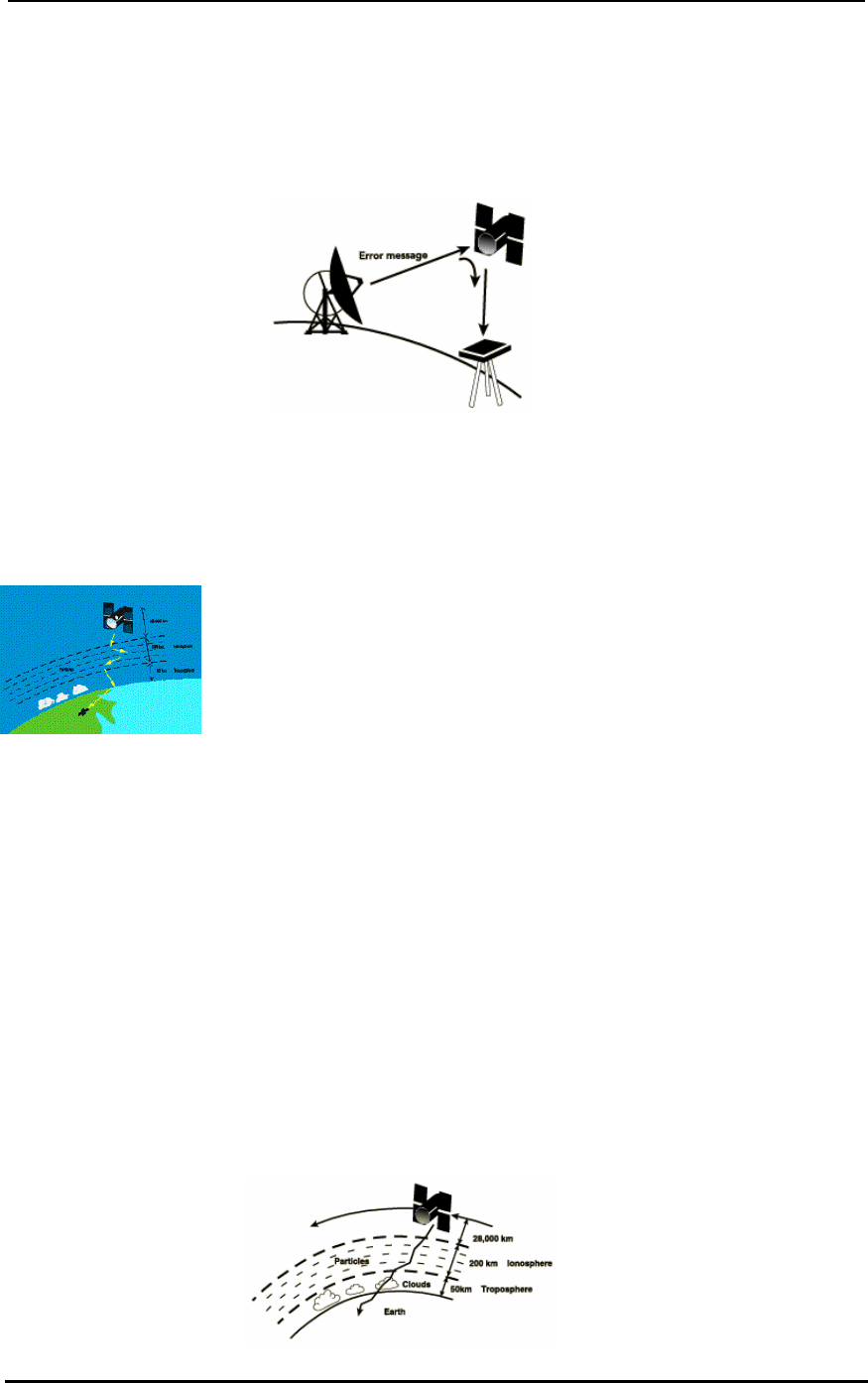

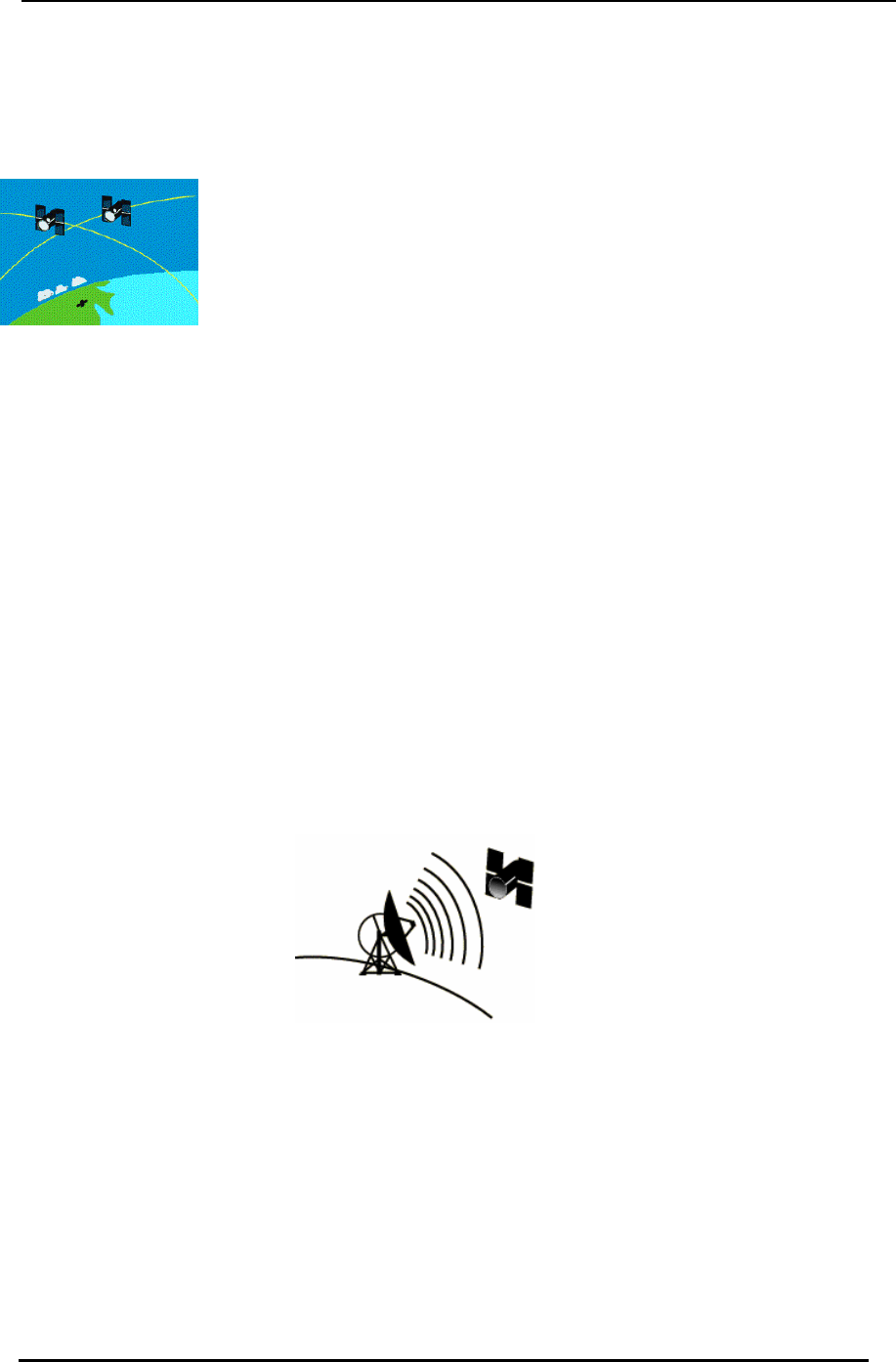

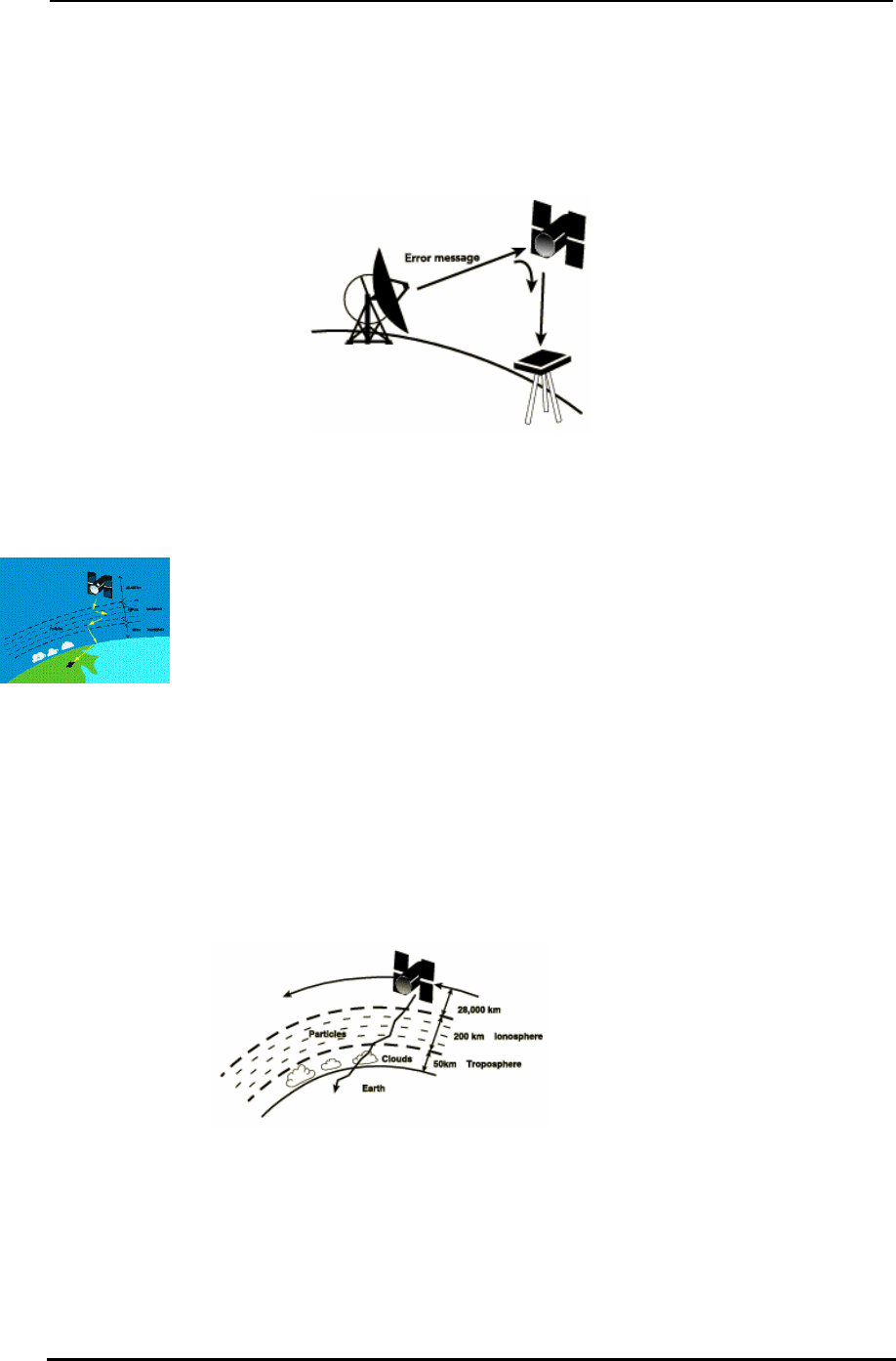

GETTING THE MESSAGE OUT
Once the DoD has measured a satellite's exact position, they relay that information back up to the
satellite itself. The satellite then includes this new corrected position information in the timing
signals it's broadcasting.
Step 5: Correcting Errors
ROUGH TRIP THROUGH THE ATMOSPHERE
First, one of the basic assumptions we've been using throughout this tutorial is not exactly true.
We've been saying that you calculate distance to a satellite by multiplying a signal's travel time by
the speed of light. But the speed of light is only constant in a vacuum.
As a GPS signal passes through the charged particles of the ionosphere and then through the
water vapor in the troposphere it gets slowed down a bit, and this creates the same kind of error
as bad clocks.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 13
ROUGH TRIP ON THE GROUND
Trouble for the GPS signal doesn't end when it gets down to the ground. The signal may bounce
off various local obstructions before it gets to our receiver.

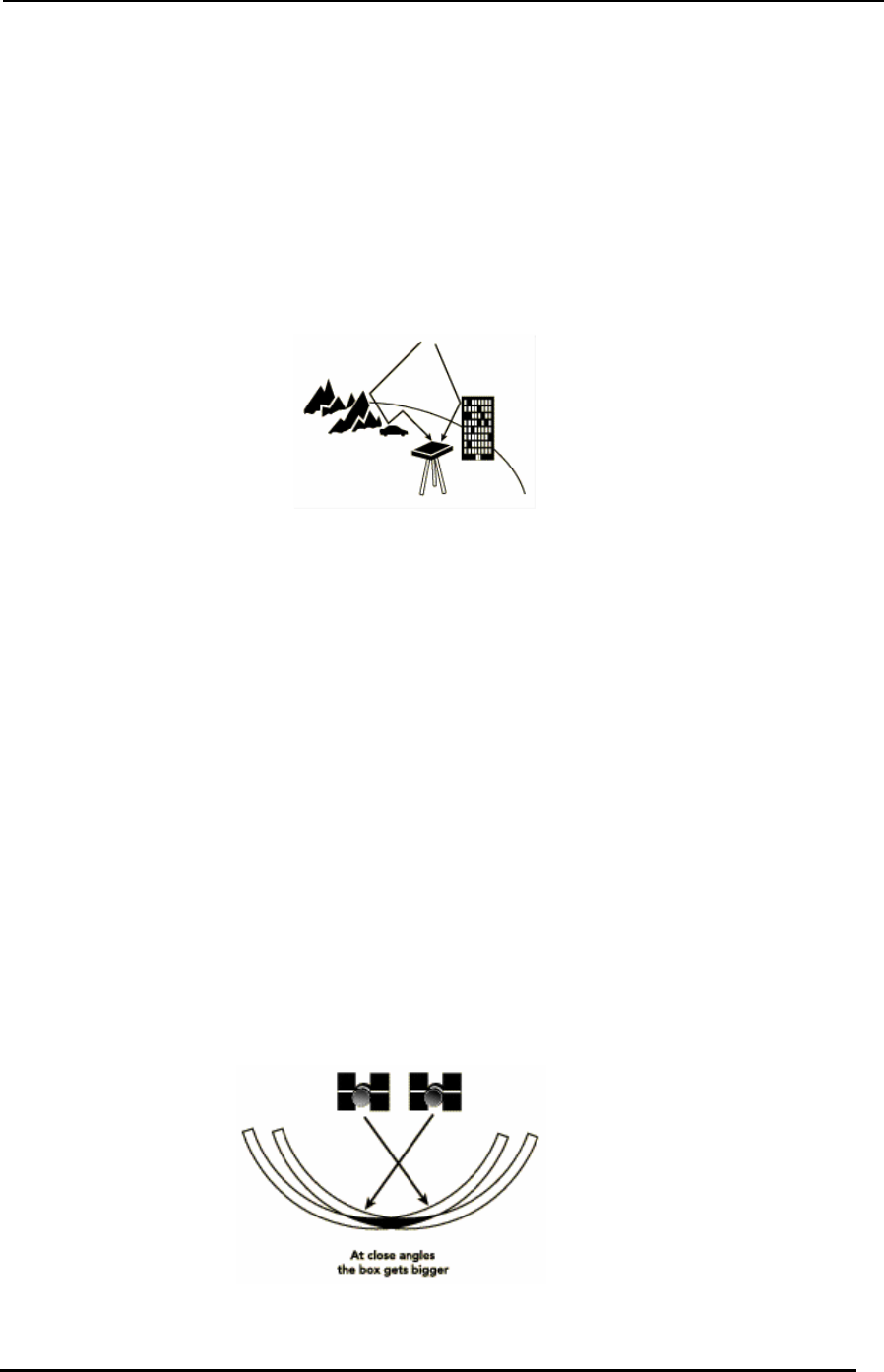

This is called multipath error and is similar to the ghosting you might see on a TV. Good receivers
use sophisticated signal rejection techniques to minimize this problem.
PROBLEMS AT THE SATELLITE
The atomic clocks they use are very, very precise but they're not perfect. Minute discrepancies
can occur, and these translate into travel time measurement errors.
SOME ANGLES ARE BETTER THAN OTHERS
There are usually more satellites available than a receiver needs to fix a position, so the receiver
picks a few and ignores the rest.

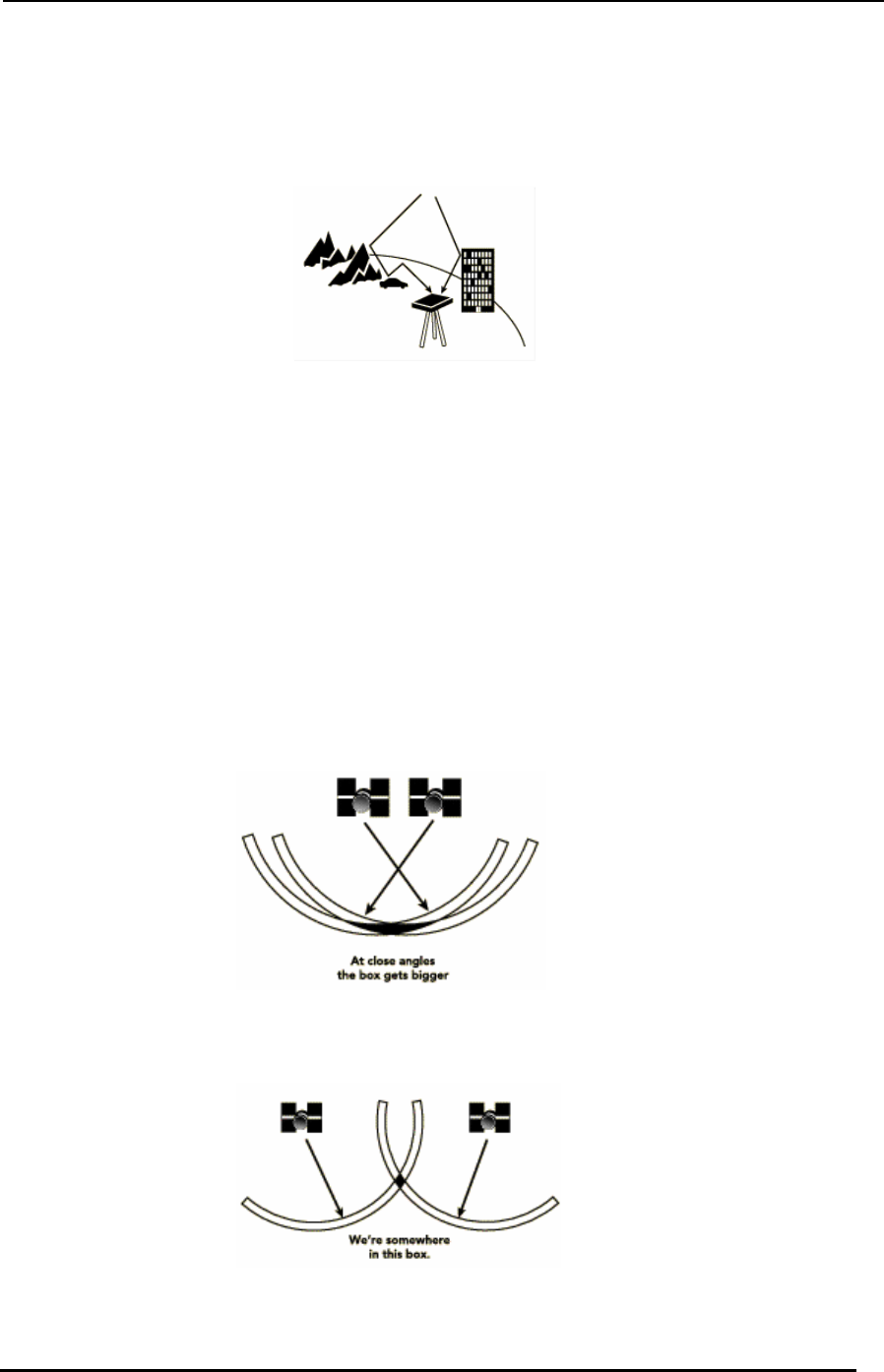

If it picks satellites that are close together in the sky the intersecting circles that define a position
will cross at very shallow angles. That increases the gray area, or error margin, around a position.
Commonly refered to as HDOP.
If it picks satellites that are widely separated, the circles intersect at almost right angles and that
minimizes the error region.
Teletrac, Inc. - Prism TM Information and Installation Guide
14 1622-0300 B1 3/18/04
Intentional Errors!
As hard as it may be to believe, the same government that spent $12 billion to develop the most
accurate navigation system in the world can cause errors by intentionally degrading its accuracy.
The policy is called "Selective Availability" or "SA" and the idea behind it is to make sure that no
hostile force or terrorist group can use GPS to make accurate weapons.
Basically the DoD introduces some "noise" into the satellite's clock data which, in turn, adds noise
(or inaccuracy) into position calculations. The DoD may also be sending slightly erroneous orbital
data to the satellites which they transmit back to receivers on the ground as part of a status
message.
Together these factors make SA the biggest single source of inaccuracy in the system. Military
receivers use a decryption key to remove the SA errors and so they're much more accurate.
Note: As of Spring 2000, the DoD eliminated the intentional error in the calculation, however, this
may come back at any time.
The Bottom Line
Fortunately, all of these inaccuracies still don't add up to much of an error, and a form of GPS
called "Differential GPS" can significantly reduce these problems.
GPRS
The second system used by the Prism TM is the General Packet Radio System, more commonly
called GPRS. This system is meant to be an invisible link from a mobile unit, such as a wireless
modem, to land line systems. The next few pages will give you an introduction to GPRS and how
it works to transmit information.
The following information was taken from information posted to
http://www.rysavy.com/Articles/GPRS2/gprs2.html and
http://www.geocities.com/mobile4g/gprs.html.
AN INTRODUCTION TO GENERAL PACKET RADIO SERVICE
What is GPRS?
GPRS offers packet-switched connections to data networks via mobile technology. It is designed
to allow faster and easier Internet access with continuous connectivity, and enables applications
including multimedia messaging, wireless corporate intranet, remote control and maintenance of
appliances. It is also considered part of the migration to third generation (3G) mobile networks.
The advantages of GPRS technology allows users to stay connected to the Internet by using
packet switching technology, providing faster downloads as no time is spent attempting to access
a dial-up connection.
How does GPRS work?
GPRS transports packets between mobile devices and packet networks. Packets can be IP or
X.25, though with the Internet's popularity, operators and device vendors will probably emphasize
IP. Mobile devices will have an IP address, either static or dynamic, and, once on the network, IP
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 15
packets can originate from mobile devices and travel to external networks, such as the Internet or
privately connected intranets. IP packets from external networks will reach mobile devices, even
when moving. GPRS doesn't care what protocols operate above IP. This indifference enables all
standard Internet protocols to operate, including TCP, UDP, HTTP, Secure Sockets Layer (SSL),
and IPSec.
GPRS uses two essential new infrastructure elements, the Serving GPRS Support Node (SGSN)
and Gateway GPRS Support Node (GGSN). The SGSN, which connects to base-station
controllers, tracks the mobile station's location and sends data packets to and from the mobile
station. It forwards packets using a tunneling protocol to the GGSN, which acts as a gateway to
external networks, such as the Internet or private intranets. An operator will have multiple SGSNs
for different service areas, but needs only one GGSN for each external network it interconnects
with. The GGSN assigns IP addresses to mobile stations, and IP packets from external networks
route to the GGSN, which tunnels them to the appropriate SGSN for delivery to the mobile
station.
Architecture and protocols are fine, but how do users actually connect to the network and send
data, and how does the network keep track of users as they move around? When users turn on
the GPRS device (GPRS PC Card modem) in a GPRS coverage area, the device first registers
with the network and then requests a Packet Data Protocol (PDP) context. The PDP context
activates an IP address for the device, generally a dynamic address assigned by the GGSN. At
this stage the device can send and receive data.
To actually send a packet of data, the device makes requests using a packet random-access
channel. Channels are logical data paths consisting of predefined time slots in select GPRS radio
channels, and are the primary mechanism in the MAC layer. The network responds by assigning
a data-traffic channel for a temporary period sufficient to send the data packet. GPRS networks
use 200KHz radio channels, with each channel divided into eight time slots. Each time slot can
support 13Kbits/sec of throughput in today's networks (though options exist to increase data rates
to over 20Kbits/sec), and so actual user throughput will depend on the number of time slots a
user's device can handle and the particular service options from the carrier.
To support mobility, the GPRS device informs the SGSN when it's within a new base station's
coverage range. If the user travels out of one SGSN's coverage to another, then the old SGSN
and the new SGSN must collaborate and inform the GGSN of the user's new location. Users will
also be able to roam into networks operated by other GPRS carriers.
THE OVERALL TELETRAC PICTURE
Now that you have an understanding of GPS and GPRS, let’s talk about how Teletrac uses these
systems in order to provide location and messaging services to our customers. In Unit One we
talked about the components
that make up the Prism TM,
now let’s talk about how those
components work together.
As shown in the diagram, a
computer running eClient
connects to the Teletrac NCC
via the Internet. The NCC is
where all the customer
databases are stored and
where customer location
requests are processed. From
eClient eClient
GPRS Site
CDPD Site
Radio Tower
GPS Satellite
Teletrac NCC
Internet Internet
The three types of location systems Teletrac uses
VLUplus or VLU-G
RF VLU
Teletrac, Inc. - Prism TM Information and Installation Guide
16 1622-0300 B1 3/18/04
there, the NCC contacts the customer’s vehicles via the Internet. The vehicles that use GPS to
determine their location send that information directly to the NCC and it is in turn sent back to the
eClient workstation.
The GPS receiver built into the Prism TM works to determine the location of itself. As long as the
receiver is able to see enough satellites it can tell the Prism TM where it is. If a vehicle drives
into an underground garage, inside a warehouse or even under an overpass, the receiver may
not be able to see enough, if any, satellites to determine it’s location. Since the signals coming
from the satellites to the receiver are very low they can easily be blocked, even dense cloud
cover can reduce the actual signal.
The GPS receiver will determine its
location every few seconds and store the
information. When the Prism TM
Controller is contacted through the GPRS
modem, the Controller contacts the GPS
receiver and a request is made for its
location at a certain time. Once the
Controller receives the location information
from the GPS receiver, it relays the locate
to the Teletrac NCC via the GPRS modem.
Even if the GPRS modem cannot be
contacted by the NCC, the GPS receiver is
still collecting the information on where it is
located. When the GPRS modem is able
to communicate with the NCC, the Prism
TM will download the location information
that the GPS receiver has been providing.
Now, lets say your driver is taking a lunch break under the awning of a drive-up restaurant. In
this location the GPS receiver probably cannot see enough satellites to determine it’s location. In
this event, when the controller requests a locate from the GPS receiver, the last known location
will be used. Since the receiver takes it’s own readings every few seconds the last known
location is probably just outside the restaurant awning. When it’s time to send in a locate to the
NCC, the Prism TM can still “pick up” the GPRS modem and contact the NCC. But, the only
location that will be returned is the last known location reported to the Prism TM Controller, which
was probably just outside the awning. This location will be reported as a poor quality locate and
display as the last known location.
Even though the GPS receiver is blocked, a dispatcher can still send messages to a driver. Since
the messages travel over the GPRS system they will be sent to the Prism TM and simply a poor
locate (last known location) will be returned to the dispatcher.
Lastly, the Prism TM can be set up to store events such as ignition on/off, messages and location
information when the GPRS modem is out of it’s coverage area. The events, messages and
locations can be stored in a memory buffer and later transmitted once the modem is able to

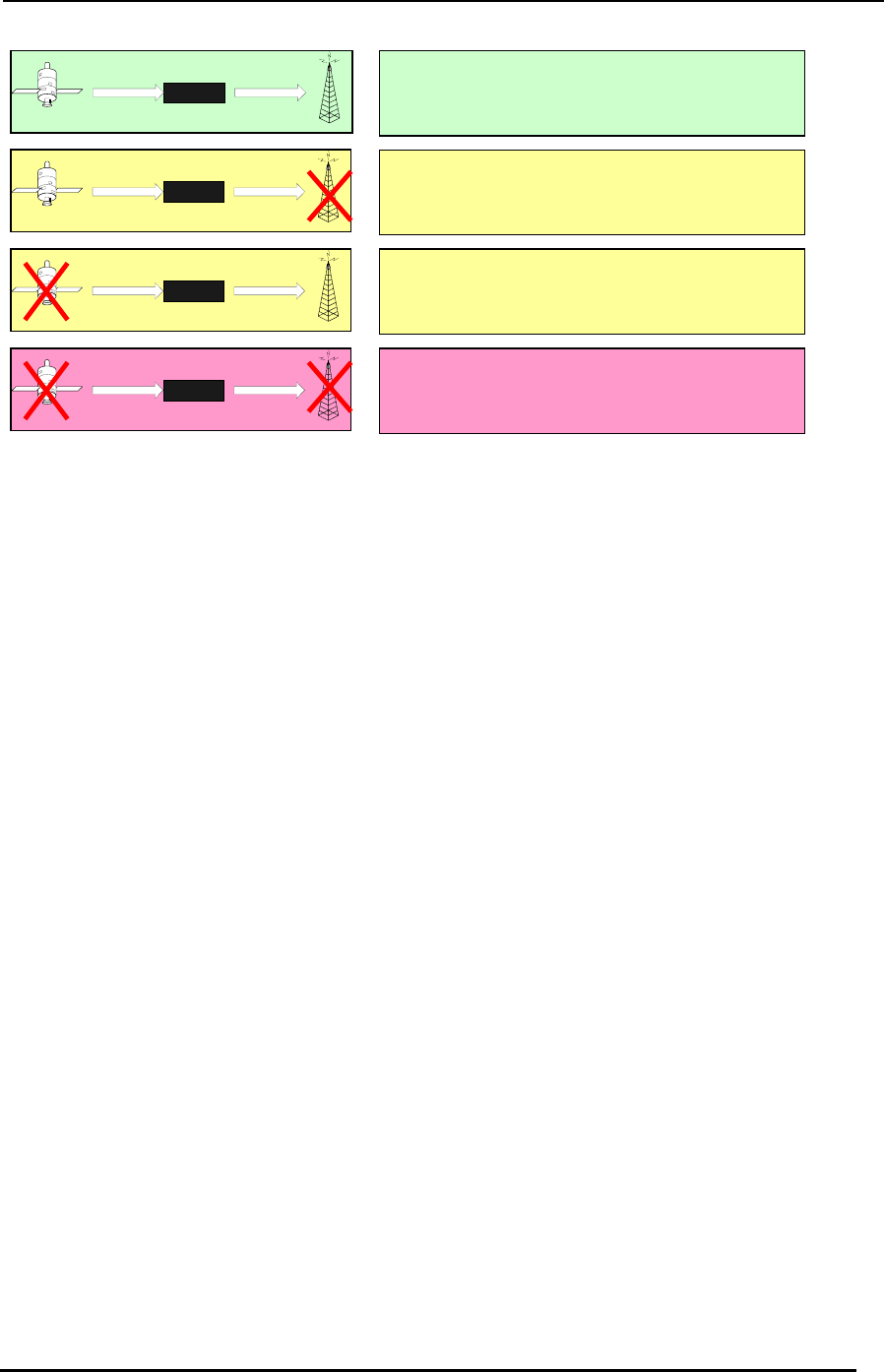

communicate. See the following chart to help explain what happens when each system is able to
operate or is blocked.
GPRS Communication to NCC
Satellite
GPRS ModemControl BoardGPS Receiver
Location Unit
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 17
SUBSCRIBER IDENTITY MODULE (SIM) CARD
Each Subscriber Identity Module is programmed with specific identification features for a unique
user, allowing the device that contains a module to be used for such things as online banking and
purchasing that require a secure means of identification. They can be swapped between other
GSM devices, so the Subscriber Identity Module owner isn't confined to a single device.
Teletrac will use the SIM Cards as a quick way to move specific programming information from
one location unit to another. The SIM Card will contain information such as location schedules,
landmarks, service reminders etc. When the hardware of a locator unit goes bad an installer will
replace the hardware and take the SIM Card from the broken device and place it in the new
device. This will move all the programmed information and alleviate the need to reprogram units.
PRISM
PRISM
PRISM
PRISM
Can Locate, Message & Send Events
Can Message & Send Events, Last
Known Good Location is Sent
Storing of Locations, Events &
Messages in a buffer to transmit later
Store Events, Messages & Locates,
Last Locate is sent to W/S
Teletrac, Inc. - Prism TM Information and Installation Guide
18 1622-0300 B1 3/18/04
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 19
--------------Unit Three--------------
PRISM TM FUNCTIONALITY
The Prism TM is designed to behave the same way as the VLUplus unit and have the same
features available. However, the Prism TM is not as programmable as the VLUplus. Instead of
having a script, the Prism TM has a hard coded set of instructions that can have some small
configuration changes. Below is a list of how the unit will act by default; changes to the
configuration will be a future implementation. See Unit Four for a description of the features
available, as well as, a feature comparison between all the Teletrac units.
DEFAULT SETTINGS
Default New
Power Management: ---- ----
Wait time until unit goes to sleep 4 hours
How long should it sleep 4 hours
When it wakes, how long should it wait to acquire
GPS and CDPD signals
4 minutes
Wait time between sending “going to sleep”
message and actually going to sleep
6 minute
Will the units use Ignition On/Off messaging ---- Y N
Will the unit self locate when in coverage ---- Y N
How will the unit be located? Workstation or Locate itself ---- Wkstn Itself
Location schedule when the vehicle locates itself 15 min / -- miles
Maximum speed limit 75 mph
Reminder message for exceeding the speed limit
(i.e. when a vehicle exceeds the speed limit you
will get a message, then, every 5 min that the
driver is speeding you will get another message.)
5 minutes
Would you like to use Service Mileage? ---- Y N
Number of miles between services 3000 miles
Number of miles to receive service reminder
message
50 miles
Will the units use Tow Away messaging ---- Y N
If yes, how soon after the vehicle moves should a
message be sent
60 seconds
The Prism TM can also be programmed with landmarks, either rectangles or circles. When a
vehicle goes into or out of the zone a message is sent in, no matter what time of day it is.
Programming the unit with the Lat/Long of the center then either the radius of the circle or the
distance North/South and East/West in meters creates a landmark.
Teletrac, Inc. - Prism TM Information and Installation Guide
20 1622-0300 B1 3/18/04
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 21
--------------Unit Four--------------
FEATURE COMPARISON
Following is a chart to allow you to quickly see each of the features followed by a description of
the feature. The chart and feature descriptions are broken down into RF VLU, VLUplus and Prism
TM features. We will also go over how these features will be implemented to the field.
COMPARISON CHART
Feature Standard
VLU VLUplus Prism Prism TM Feature Description
Teletrac Towers X Uses the Teletrac RF system of
towers to determine locations and
transmit information.
GPS Locations X X X Uses Global Positioning System to
determine locations only.
CDPD Connections X Uses Cellular Digital Packet Data
Systems to transmit locations,
messages and events.
GPRS Connection X X Uses General Packet Radio System to
transmit locations, messages and
events,
Low Power Idle Current X Draws a low amount of electricity and
places less of a strain on vehicle
resources.
Dynamic
Power
Management
X X X X Allows for low power consumption
Location Store and
Forward
X X X Can determine location and store for
later transmission if out of coverage.
Message Store
Forward
X X X Allows messages to be stored in the
unit while out of the coverage area
Event Store and
Forward
X X X Can capture an output event such as
ignition on/off and store it for later
transmission if out of coverage.
Peripherals X X X X Can be used with other Teletrac
equipment such as MDTs, SMTs,
panic buttons and other Teletrac
approved peripherals.
Input Configuration X X X X RF VLU, VLUplus & PRISM TM can be
wired for inputs such as ignition on/off,
lift up/down, alarm activation, etc.
Long Inbound
Messaging
X X X Send long inbound messages without
additional equipment added to the
Teletrac system.
Over-the-Air
Programming
X
(optional)
X X X Change characteristics by sending
information over the airwaves. More
comprehensive programming for the
VLUplus.
Built-in Link Diagnostics X X X Diagnostics connection point.
Teletrac, Inc. - Prism TM Information and Installation Guide
22 1622-0300 B1 3/18/04
Scheduled
Locations
X X X Ability to perform locates based upon
a schedule programmed into the unit
and downloaded upon request to the
workstation. This is in addition to the
locates scheduled by the workstation
Scheduled
Events
X X X Used to turn on/off timers or triggers
such as Exception Conditions or
Ignition on/off
In Motion
Detection
X X X Can determine when it is in motion
and act upon the information
Zone
Compliance
X X X Send an alert that a preprogram
exception condition has been thrown
Speed &
Heading
Threshold
X X X Send an alert that a preprogrammed
speed or heading has been exceeded
or changed
Speed
X X X Unit can accurately determine it’s
actual speed using GPS system
Time & Distance
Events
X X X Send an alert when a specified time of
day and week is reached or distance
is traveled
MDT Time Calibration X X X Time on the MDT is set by the unit
automatically and will change
depending on what time zone it is
currently located in
PRISM TM FEATURES DEFINED
The Prism TM has many new features in addition to the features seen in the Standard units.
Below is an explanation of these features.
Long Inbound Messaging
Long Inbound Messaging (LIM) is a feature that allows the Prism TM to send alphanumeric form
fill messages that are longer than five form characters, up to 197 of free text or field characters.
With LIM comes a larger amount of applications such as bar code readers, credit card readers,
data terminals and driver identification can be supported. LIM requires a messaging terminal and
optional keyboard.
Scheduled Locations
A vehicle is able to send locates to the dispatcher without the workstation sending a request.
This means a vehicle can automatically send in a locate at the end of a designated amount of
time or distance. Now, if a vehicle is in motion, you will get locates at a given interval no matter if
the ignition is on or not. Further, the vehicle will send in located at a given interval if the ignition is
on no matter if the vehicle is moving or not (i.e. idling). By having location schedules in the Prism
Note: Scheduled Locations
is not dependant upon what
time of day it is, only what
co
n
d
i
t
i
o
n
t
h
e
v
e
hi
c
l
e
i
s
in.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 23
TM, the unit changes it’s own schedule through the condition of the vehicle and doesn’t require a
message with a status change be sent to the workstation in order to change it’s location
schedule. Also, since a location schedule can also be stopped due to the vehicle’s condition
(Ignition off and Not moving), a lot of unnecessary locates and locations requests are
eliminated thereby, reducing airtime usage.
Teletrac, Inc. - Prism TM Information and Installation Guide
24 1622-0300 B1 3/18/04
In Motion detection
The Prism TM will be capable of detecting when the vehicle
is stationary or moving with +/- 1 mph accuracy. Upon
detecting either of the events, the Prism TM can send
messages or begin timers. The ultimate goal of this feature
is to eliminate locations unless the vehicle is moving or the ignition is on, which will save location
units. (Min. detectable speed is 3 mph due to jitter)
This feature can be used to perform several capabilities currently being done by Fleet Director but
without the high rate of location requests and possibility of missed information. For example, this
feature can be used as a security feature to determine if a vehicle is parked where is supposed to
be without the use of Landmarks or Exception Conditions and the workstation does not have to
locate the vehicle every 15 minutes to see if it is still stationary. With this feature the Prism TM
will identify that it is stationary and send a message upon detecting movement. Once in motion,
the Prism TM can send locates on a regular bases to keep the workstation up to date. This
prevents the problems of unnecessary locations and status change requirements to get a
different location. Since the Prism TM locates itself, there is no dropped/lost information. This
feature may be used in place of the zone feature for security applications.
Zone Compliance or Landmark Detection
The feature of Zone Compliance is the capability to store a set of coordinates inside the Prism
TM that make up an area called a zone. The Prism TM can then perform certain actions upon
detecting where the vehicle is in relation to the zone. This function acts similar to Exception
Conditions in the Fleet Director software depending on how it is programmed. Upon entering or
leaving a zone, the Prism TM can send a message or change its operating condition. To most
people it is obvious what zone
compliance means due to the Fleet
Director’s current standards, but
with the Prism TM having the
internal zone capabilities, a whole
new level of zone compliance is
capable.
A few examples of this new
capability would be that by setting
up a zone around a customer’s
yard, the truck driver is no longer
required to press an “In Yard” or
“Left Yard” button. When set up
around a customer site, the driver
would no longer be required to send a message if he was at
a site too long, nor would Fleet Director have to time the “At
Site” condition or locate the vehicle to insure it is still there.
And, when combined with the In Motion Detection feature,
the customer would not have to locate his truck all night
long to make sure it has not left the yard due to theft.

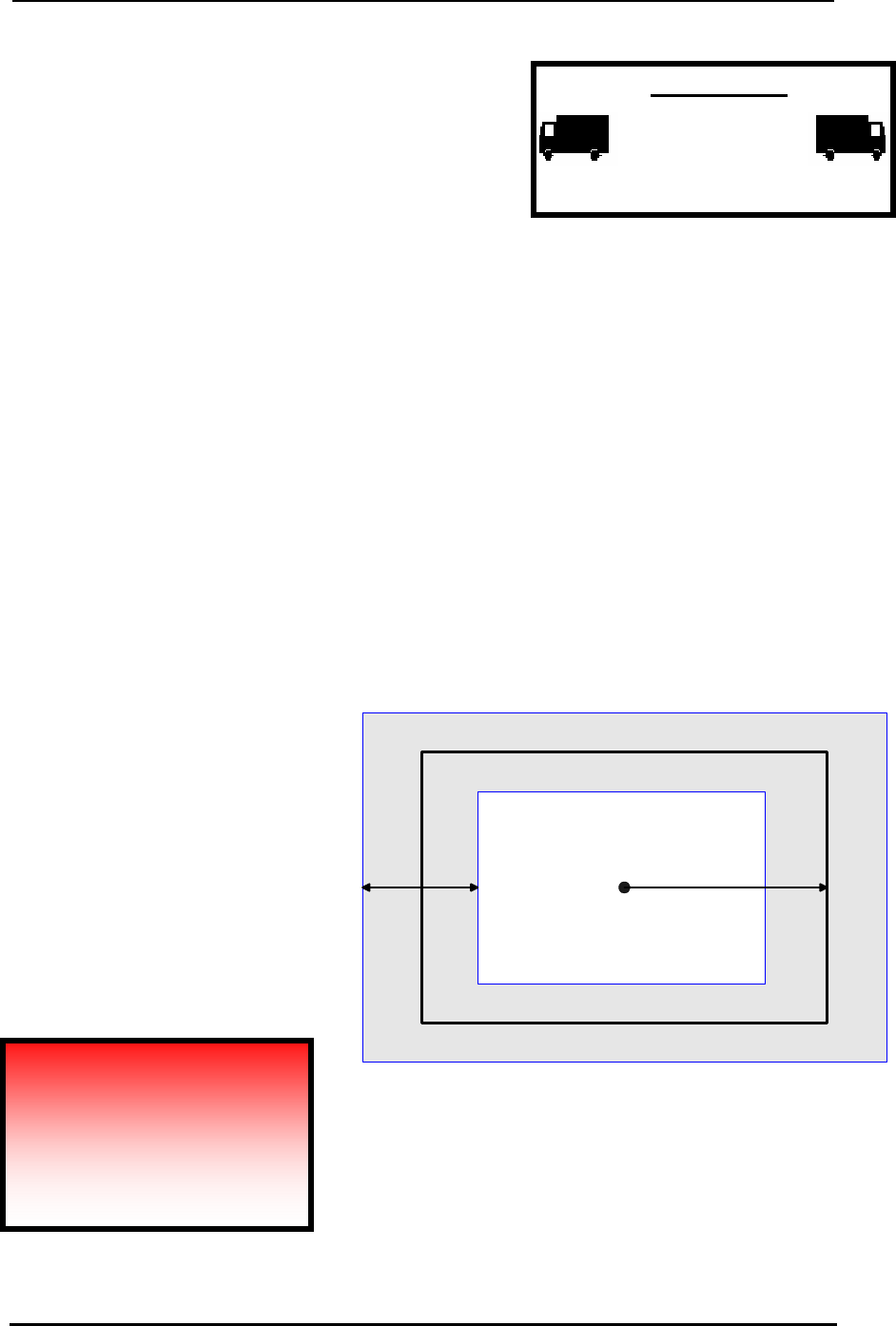

texttext
200 Meters
No Mans Land
No Mans Land
Exterior Hysteresis
Exterior Hysteresis
Interior Hysteresis
Interior Hysteresis
50 M
Center of
Zone
Actual Zone Perimeter
Actual Zone Perimeter
Not to Scale
50 M
Note: Be sure to make the
Hysteresis smaller than the
smallest distance to the zone
edge. Otherwise, if the
Hysteresis is less than your
perimeter distance from the
center the interior Hysteresis will
be the perimeter zone
< 4 mph
Stationary
6 mph<
In Motion
For Example
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 25
In addition, since the GPS Receiver is locating itself continually, the Prism TM would send a
message with the exact time of the event happening. This would eliminate the 15-minute error
factor in Fleet Director. There are a maximum of three (3) zones that can be configured into each
unit.
A zone can either be a circle with a center and radius or a
square with a center and distance to the edge. In order to
determine a zone, you will need to find the Latitude and
Longitude for the center of the zone. Next, determine the
distance, in meters, from the center of the zone to its edge.
Next, you will need to determine the Hysteresis. This is a
gray area outside and inside the edges of the zone that will
account for jitter in the locations. You will be able to select
the size of the Hysteresis from 0 meters to 250 meters. Within the Hysteresis, you will not be
considered inside or outside the zone. The vehicle will effectively be in “No Mans Land”. The
Hysteresis can also be turned off so that the actual edges of the zone are used for the exception.
Speed Threshold
A natural spin-off from time and distance is speed. The Prism TM can detect its own speed more
accurately then Fleet Director (+/- 1 mph accuracy). Because of this, the Prism TM can detect
speed violations thus alerting dispatch of possible violations or exception condition.
Thresholds can be set in the Prism TM to trigger warning messages when the
vehicle goes above a specific speed. Even more, a timer can be set to alert
dispatch only if the threshold is detected for a required length of time. In order
for the messages to be sent, the speed must pass through the set speed.
Dynamic Power Management
By default, the Prism TM is programmed with a robust interactive power management routine.
This routine forces the Prism TM to periodically shut down its internal high current components
(the GPRS modem and the GPS receiver) while the vehicle ignition is OFF. This feature will
decrease the Prism TM current consumption significantly. While these components are shut
down, the workstation is incapable of setting up a communications link with the Prism TM for the
requesting of location or the sending of messages. While the Prism TM is asleep the ability to
send messages from the MDT and do vehicle status changes (in motions, input change, etc.) will
not be prevented but may suffer a slight delay caused by the Prism TM waking up.
To the customer (and the system) it appears as though the Prism TM is out of the coverage area
while the Prism TM is asleep. To reduce the possible confusion as to if the unit is asleep or out
of coverage, when the unit goes to sleep it will send a message prior to shutting down to indicate
the shut down and to inform how long the unit will be asleep. Otherwise, if no message is
captured then the unit is out of the coverage area.
When the unit does go to sleep, it will check it’s operating conditions to see if it
is allowed to go to sleep then, it will start a timer, if the conditions remain the
same at the end of the timer then the unit will go to sleep. The unit will send a
message to the workstations saying that in X minutes it will be going to sleep

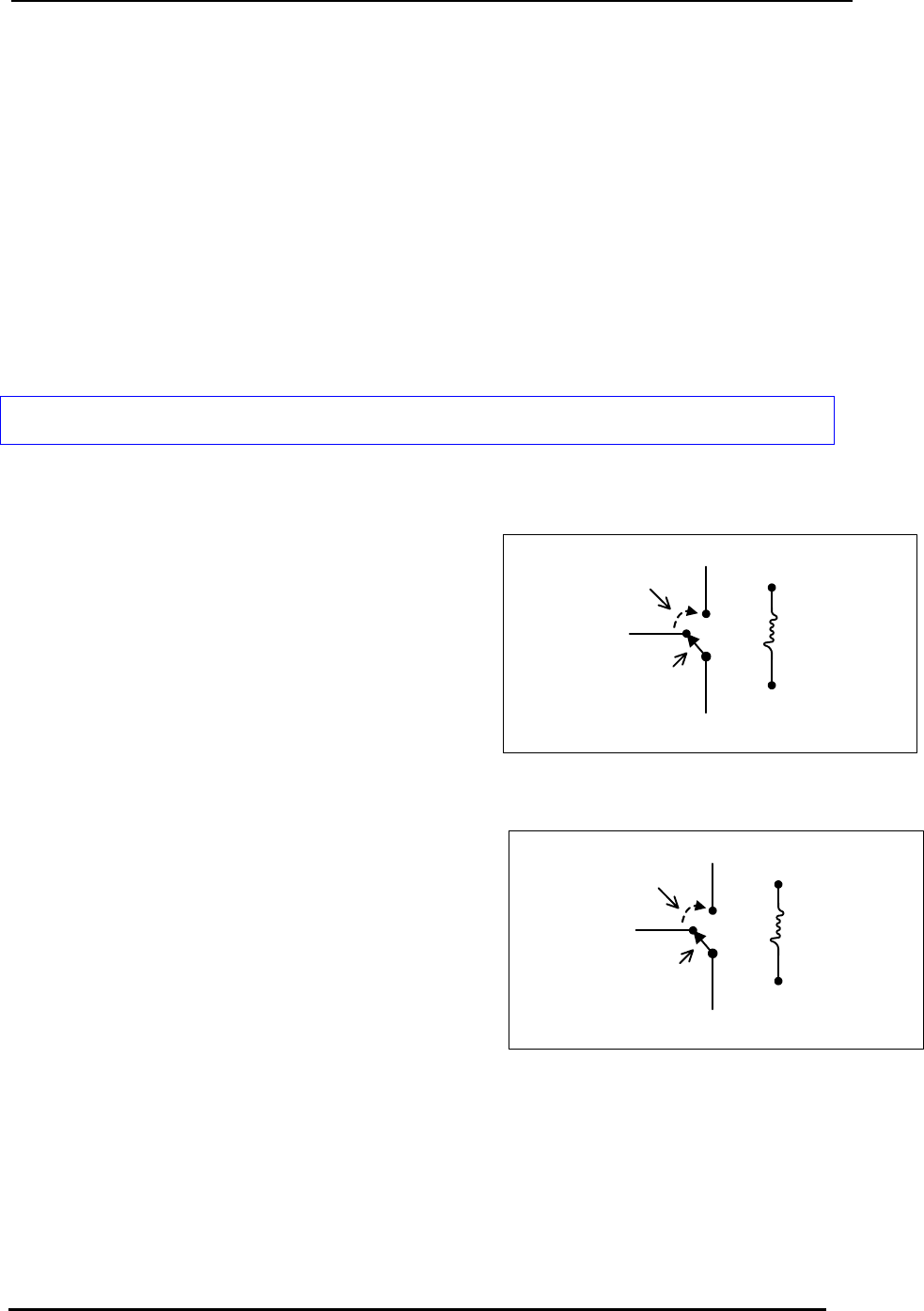

hys·ter·e·sis (h s t -r ss)
n., pl. hys·ter·e·ses (-s z.)
The lagging of an effect behind
its cause, as when the change in
magnetism of a body lags behind
chan
g
es in the ma
g
netic fiel
d
Note: Unit must have
the following conditions
in order to go to sleep:
Ignition Off
Not movin
g
Note: The actual speed
must pass through the set
speed in order to trigger
t
h
e
m
essage
.
Teletrac, Inc. - Prism TM Information and Installation Guide
26 1622-0300 B1 3/18/04
for Y hours (this message must be set up in Fleet Director as a message for now). Once the
Prism TM has gone to sleep it is unreachable until the operating conditions change or it is time to
wake up. If the unit wakes up and determines that the operating conditions have not changed it
will send out the same message as above.
In order to keep a unit awake, the operating conditions must change. For instance, since the
Prism TM is connected to sense ignition on/off, when the ignition is turned on the unit will wake
up. Another way to keep the unit awake is to keep it busy. By moving the unit into a status that
locates it more frequently than the time required for it to go to sleep, it will remain awake since the
timer is reset after each activity with the unit.
When a unit is out of the coverage area or asleep, it will send messages to the buffer. Once the
messages are in the buffer they are stored until they are downloaded. The unit will still go to
sleep with messages in the buffer. Events or reports that occur while the unit is asleep will still be
stored in the buffer.
When programming the Prism TM, you will have the option to fill in the amount of time the unit
will wait once it has determined that it can go to sleep, how long it will remain asleep and how
long it will stay awake when it does wake up.
Message Store and Forward (Message History)
The unit has ability to store locations, event history and messages. Any of these pieces of data
can be stored while the Prism TM migrates outside the GPRS coverage area. The unit will first
attempt to send the message or event, if it fails, the message will be sent to a memory buffer for
later delivery. When a report is run, the coverage area will appear greater. With the addition of
storing message, this feature will allow the driver to continue to send status messages while
outside the GPRS coverage area to time stamp his activities so a compliance report can be
generated when he returns to the GPRS coverage area. Also, the messages will be stored even
if the unit goes to sleep.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 27
Teletrac, Inc. - Prism TM Information and Installation Guide
28 1622-0300 B1 3/18/04
--------------Unit Five--------------
PRISM TM INSTALLATION INSTRUCTIONS
This unit covers the installation of the PRISM TM. We will take a look at the equipment and walk
through a typical installation. As a note, this section does not cover the programming of the
PRISM TM.
NOTE: This section discusses a typical installation in a step-by-step fashion. Please e-mail the
Field Service group for questions concerning special installations.
PRE-INSTALLATION CONSIDERATIONS
a) Perform a Pre-installation Vehicle Checkout. Ensure that major electrical/mechanical
components are in working order in the event anything happens to the vehicle at a later date.
Check the headlamps, air conditioner, dome lights, turn signals, radio, windshield wipers and,
if at all possible, start the vehicle engine.
b) Prior to beginning the PRISM TM installation, record the unit’s IP address and vehicle ID on
the installation form. The stickers, created at the time of provisioning, need to be affixed to
the installation forms. A set of these forms is to be left with the customer and a set placed in
their file. This reduces the need to uninstall the unit then reinstall it in order to find the unit’s
number. The units will have their MIN activated upon provisioning in the metro. Upon MIN
activation Teletrac starts paying for it’s use and therefore, units should be installed as quickly
as possible and not kept in stock.
c) Next, remove the courtesy light fuse in order to avoid running the vehicles battery down
during installation.
d) Before beginning any work you will need to find suitable locations for the following equipment.
As a courtesy, all equipment will be installed in a manner that will conceal its location, usually
behind the dashboard. You will need a flat surface for mounting. Also, keep in mind that
coax for the antennas must be run behind panels and in pillars. Review the equipment
location with the customer and obtain their approval.
PRISM TM Transceiver
Combo antennas
Cable runs
MDT
12 VDC and ground spots
e) While you are determining the mounting location use the system layout as a reference to plan
the wiring harness routing and connection points. Typical locations are under or behind the
vehicle dashboard. Avoid places with extreme vibration, heat or moisture.
f) Once the hardware is mounted and when you are making the wiring connections, hold the
PRISM TM in place and route the unit’s wiring harness to the connection point at the target
wire. Cut the wires to the correct length and make the connections. Once the first installation
is complete you can prepare the rest of the equipment (harnesses) in advance of the actual
installation.
NOTE: Due to the importance of the connections, it is mandatory that all connections be either
Soldered or Crimped with the proper crimping tool. Wrap and tape, Scotch-Loc., or T-Tap
connections MAY NOT BE USED when installing this system.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 29
ITEMS REQUIRED FOR PRISM TM INSTALLATION
In order to complete the installation of a Prism TM you will need to have the following equipment
on hand:
• PRISM TM - Previously tested and activated with GPRS service and IP address
• GPS Antenna - Through-hole or magnetic mount or a combo antenna
• GPRS Antenna - 3dB gain whip, with either NMO or magnetic mount or a combo antenna
• Wiring harness - Standard PRISM TM harness with 8-pin connector or VLU to PRISM
adapter
• PRISM TM to VLU Adapter – One foot long wiring adapter to connect the Teletrac harness
to the Prism.
• Hook-up wire - 22 AWG, minimum
• Installation Tools - Soldering iron, crimper, press hole punch, 7/8" punch, and misc. tool kit.
• MDT – optional
• Laptop – with HyperTerminal to do testing
WIRING SCHEMATIC
There are two unique wiring schematics; one for replacing a VLUplus with a PRISM TM and one
for a new installation of a Prism. For a replacement installation you will need to use the VLU to
PRISM TM adapter and for a new installation you will need to use the PRISM TM harness. There
are a couple of differences between the standard VLU and PRISM TM harnesses, in particular,
the PRISM TM ground is a bare wire and the PRISM TM ignition is orange.
Prism TM to VLU/VLU+
Adapter
Prism
GPS Antenna
GPRS Antenna
SMB
SMA
MDT
Connector
Grn/Blue - Green LED NOT USED
Rd/Wht - Red LED NOT USED
Orange - Aux 1 input +/-
Black/White - Aux 2 input +/-
Black/Red - Aux 2 output 100ma
Yllw/Rd - Output 3 NOT USED
Blck/Yllw - Input 3 NOT USED
Black - Chassis Ground
White - True Ignition - Not Accessory
Red - Battery +
Standard Teletrac Harness

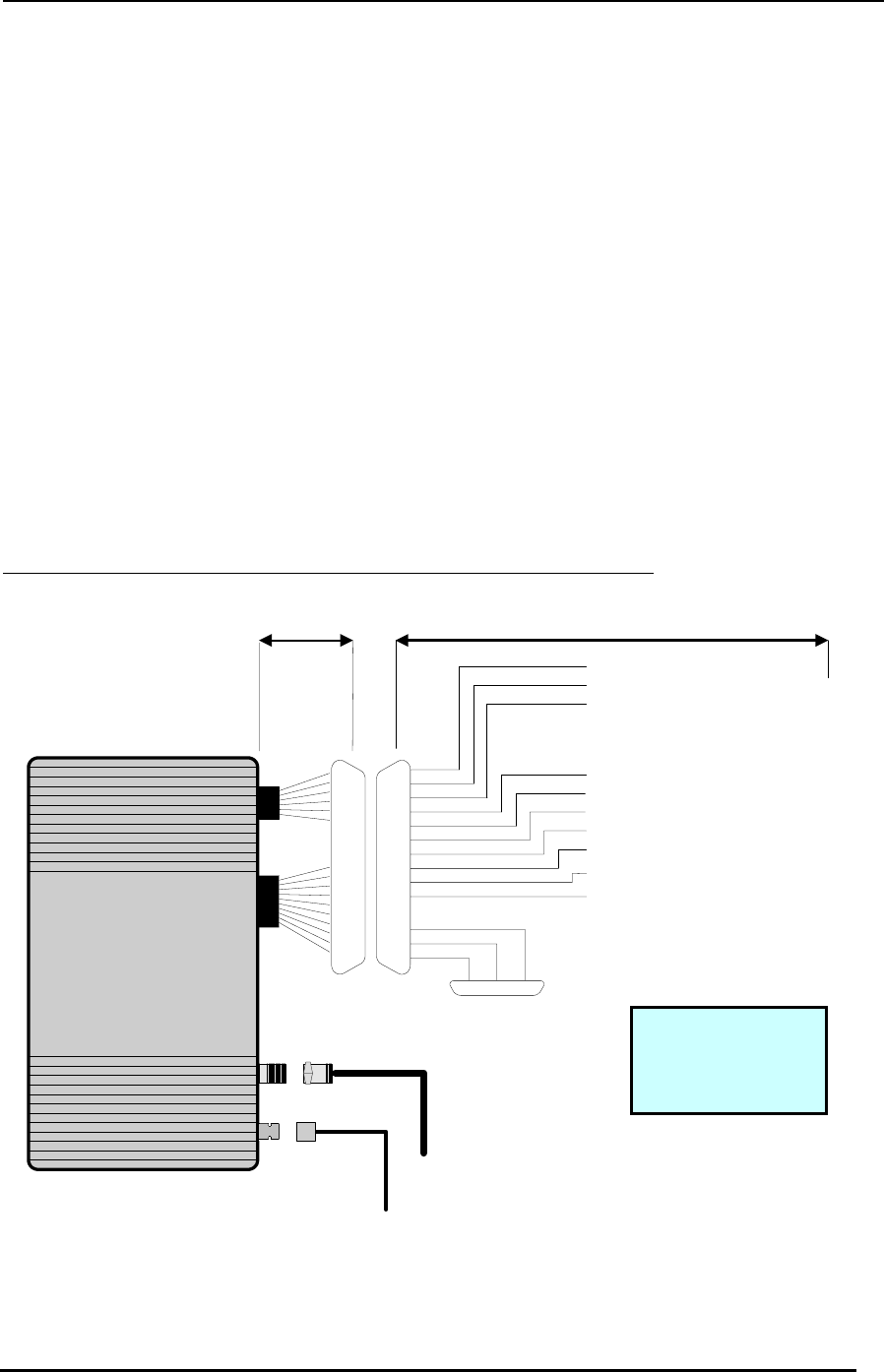

Figure 1: Replacement Schematic with VLU to PRISM TM Adapter
See Appendix F
for complete
Teletrac harness
p
inouts
Teletrac, Inc. - Prism TM Information and Installation Guide
30 1622-0300 B1 3/18/04
Prism
GPS Antenna
GPRS Antenna
SMB
Red - Batt (+) 12 VDC
Green/Blue - Led 2
Red/White - Led 1
Yellow - Relay 2
Blue - Relay 1
Black - Ground (-)
Orange - High 1 IN
Gray - High 2 IN
White - Ignition
Black - RS232 Ground
Yellow - RS232 RX
White - RS232 TX
Black - Main Ground
Red - Main 12 VDC (+)
Orange/Black - Low 1 IN
Gray/Black - Low 2 IN
SMA

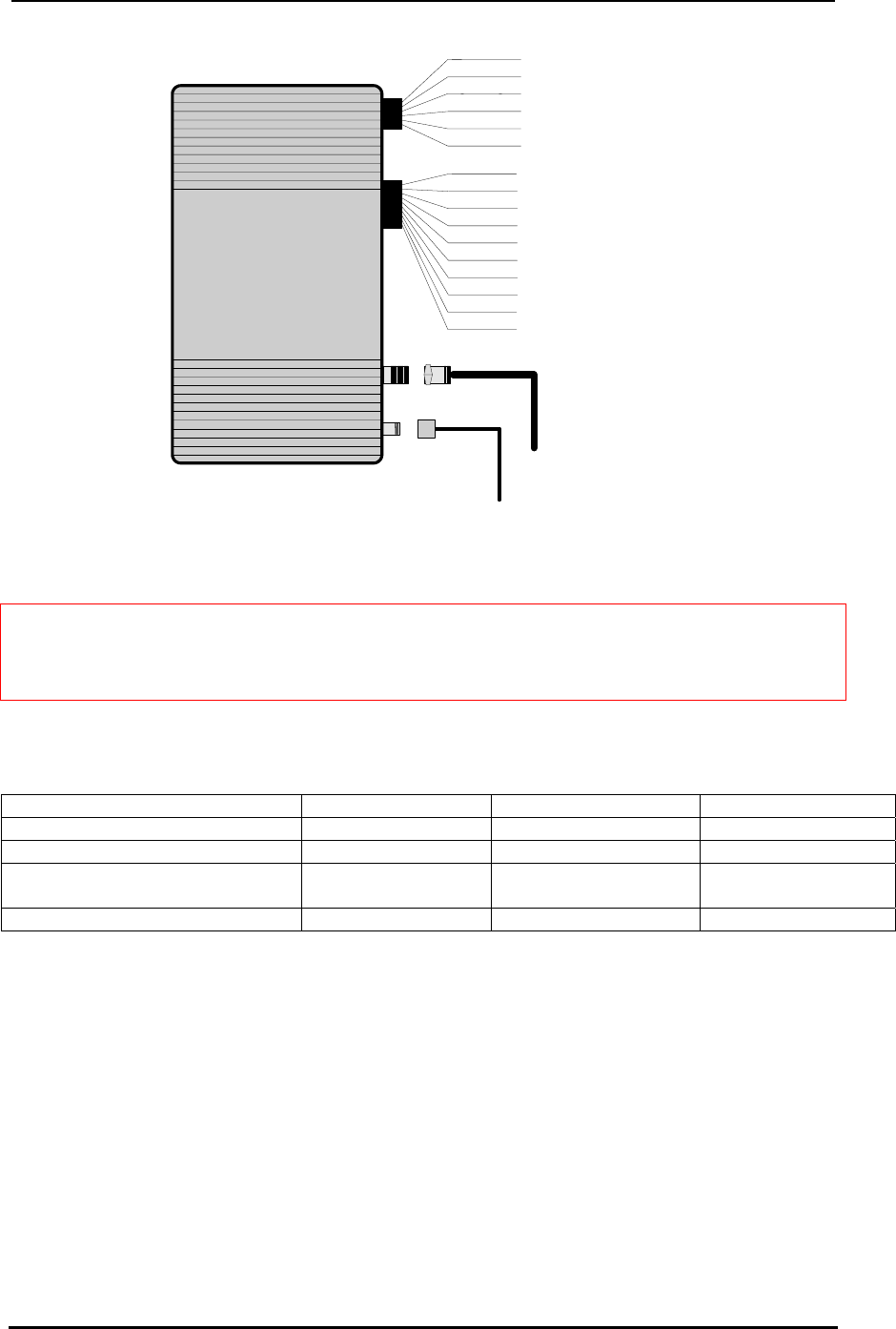

Figure 2 PRISM TM Wiring Scheme
NOTE: To insure that the GPS receiver and power management functions operate properly, it is
essential that the Power input be connected to a constant (unswitched) +12 VDC supply and the
Ignition input be connected to the vehicle ignition or another appropriate key operated line, such
as ACCESSORY that goes low during engine cranking.
ANTENNA PLACEMENT
Available Antennas
NAME VLUplus PRISM PRISM TM
Black 3db Whip X X X
White Combo X X X
Hidden Combo – ARC (see note
below)
X X X
Glass Mount Combo X NO NO
GPS Antenna
Now that there are two antennas and one is a GPS antenna, placement becomes critical. The
received signal levels for the GPS antenna from the satellites are very low in power
(approximately -136 dBm) so that any blockage of the antenna can affect the quality of the
location computed by the receiver. The following figures show examples of good and poor vehicle
GPS antenna mounting locations.
When installing the GPS antenna on a vehicle roof, make sure there are no obstructions close to
the antenna that might block the view 360° to the horizon. Nothing should block the antenna 5°
above the horizon - for example, air horns or marker lights. The best location is usually near the
center of the roof, although it is also desirable to locate the cellular antenna as far from the GPS
antenna as is practical. It is best to keep the antenna at least 12” from any other antenna. IF
using the hidden combo antenna, it should be placed on the highest part of the dash or inside the
headliner, see the note below. Be sure to use the correct antenna for this application.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 31
Also, kinks or tight knots in the antenna cable can cause problems that will not allow the PRISM
TM to operate. When laying out the antenna cable, care should be taken so that the cable will not
be subjected to crushing or strain.

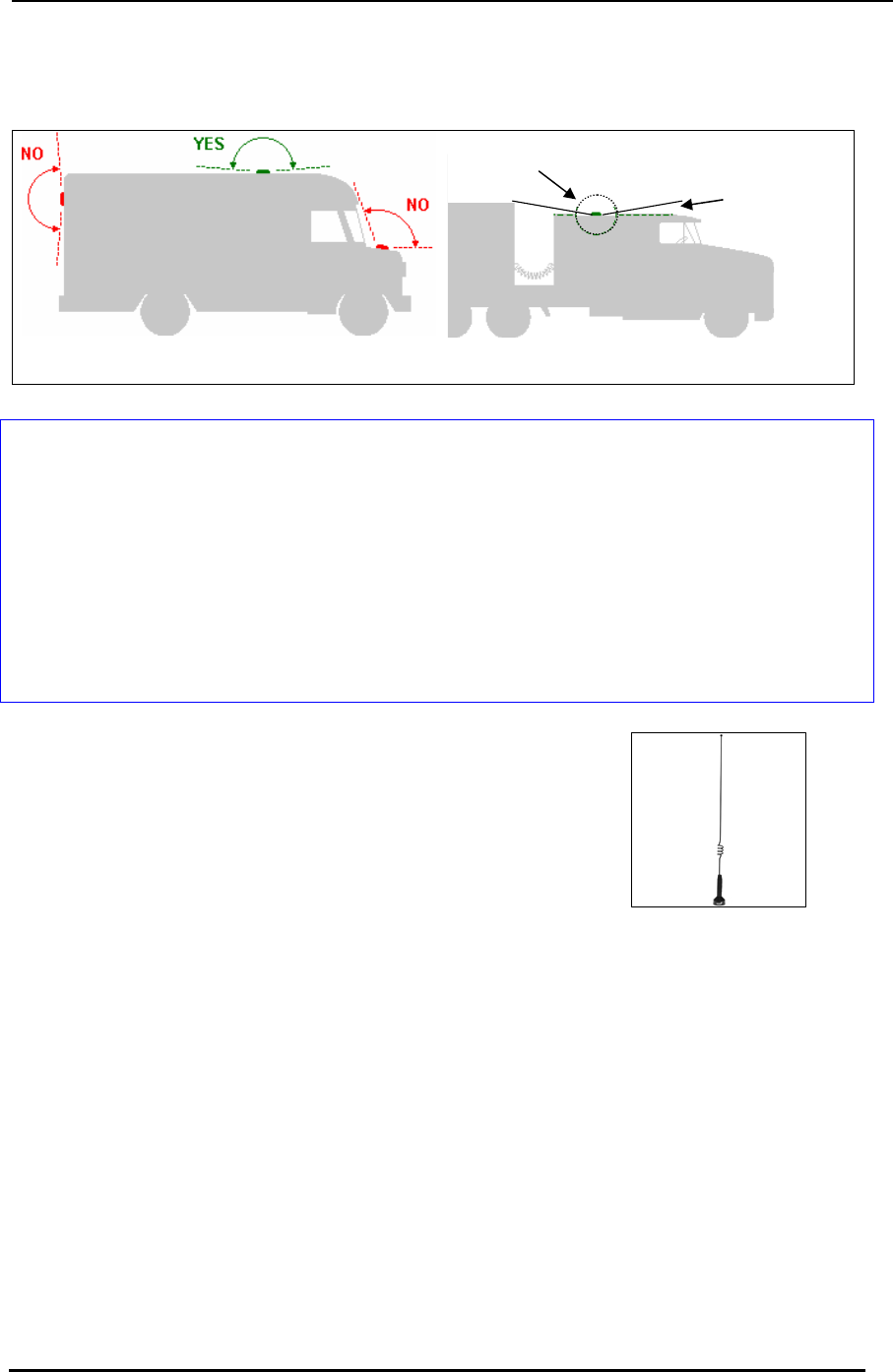

Examples of good and poor GPS antenna placement
NOTE: To insure that Hidden Combo – ARC antenna will function properly, mount the
antenna’s base (large flat side) against a metal surface.
NEVER shorten or lengthen the antenna co-ax cable.
NEVER locate the antenna near the transceiver unit, or other black box device.
NEVER mount the antenna vertically.
NEVER mount the antenna below the “beltline” of the vehicle.
NEVER mount the antenna in the trunk or engine compartment.
NEVER use silver (metallic) duct tape to secure the antenna
GPS performance will be less than optimum when using a hidden antenna. When using this type
of antenna, be aware of surrounding obstructions that could further reduce GPS operation.
GPRS Antenna
The cellular antenna used by the PRISM TM for GPRS service is a
standard black 3dB gain whip. It mounts with a standard NMO
"Motorola" mount and requires ground plane to work properly. If
possible, the GPRS antenna should be locate at least 12” from any
other antenna. Ensure that the cable does not get crushed during
installation.
3 dB Gain Cellular Antenna for GPRS
No Blockage
above 5°
Teletrac, Inc. - Prism TM Information and Installation Guide
32 1622-0300 B1 3/18/04
PRISM TM INSTALLATION PROCEDURES
Once you have all your tools in order and have planned the location of all the devices, you are
ready to install the unit. Following are the steps for two types of installations, replacement of an
existing VLUplus OR Prism and installation of a new PRISM TM.
Replacing a VLUplus with a PRISM TM
You can use all the same wiring and only need to switch out the unit itself. However, there will be
an adapter between the unit and the VLUplus harness; see wiring schematic.
1. Locate the existing VLUplus and remove the fuse or disconnect main power to the VLUplus at
the power source.
2. Disconnect the antennas from the VLUplus.
3. Disconnect the 37-pin VLUplus wiring harness.
4. Remove VLUplus and note the IP address.
5. Using a voltmeter, make sure that the ignition line (white harness wire pin 6) is correctly wired
to the keyed side of the ignition switch at the ACCESSORY wire. This wire goes high upon
turning the key but it goes low when at the CRANK position. Also that the power input (red
wire) is connected to a constant (unswitched) +12v DC supply.
6. Verify that the existing harness has all required wires soldered or crimped for reliability.
7. Attach the VLUplus wiring harness 37-pin connector to the adapter, tighten the screws, and
then plug the adapter into the PRISM TM unit.
8. Mount the PRISM TM to the chassis of the vehicle utilizing the mounting tabs. Secure the
unit with four (4) self-tapping machine screws.
9. A new antenna must be installed since the connectors from the Connect the SMA connector
to the GPRS antenna port on the unit. Connect the SMB GPS connector to the PRISM TM.
10. Reattach the main vehicle power and/or replace the fuse.
PRISM TM New Installations
1. Find suitable locations for the PRISM TM, and GPS/GPRS combo antenna. Select a PRISM
TM mounting location that is free of moisture or heat, typically behind the dashboard or under
the seat.
2. Install the GPS antenna and route the cable to the PRISM TM location. Typically, the
installation will require a hole drilled into the vehicle. The exact size of the hole is dependant
upon the antenna mount used. Keep in mind that coax must be run behind panels. Note that
the GPS antenna should have no blockage 5° above the horizon. (See Antenna Placement
page 5.)
3. Install the GPRS antenna and route the antenna cable to the PRISM TM location. This will
also typically require a hole drilled into the vehicle. The exact size of the hole is dependant
upon the antenna mount used. Keep in mind that coax must be run behind panels. (See
Antenna Placement page 5.) If a Combo antenna is being used only one hole will be
required.
4. Apply silicone around both antenna bases if holes are required.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 33
5. Connect the PRISM TM wiring harness as recommended below. For safety, remove fuse
until installation is complete. Never tap into existing power or ignition wires used from other
aftermarket devices.
Ground – Locate chassis ground within one (1) foot of the PRISM TM placement. If chassis
has sound absorbent materials, scrape materials and/or paint until you reach clean metallic
surface. Always use a star washer when attaching to chassis ground.
Run Constant +12 Volt Wire – Attach one end of the fuse holder to determined power
source. Recommended locations are the starter solenoid, main +12 volt terminal behind fuse
box or battery distribution block in ending compartment / behind dash. Never use the existing
factory wires that are attached to ground, this could cause interference.
Run Ignition Wire – Attach one end of fuse holder to determined +12 volt switched ignition
source that will rest at ground (verify with suitable Multimeter). Recommended locations are
behind ignition cylinder, behind fuse box or the starter solenoid in the engine compartment.
Never use the existing factory wires attached to ground, this could cause interference.
TIP: Using a voltmeter, make sure that the Voltage on the line you are connecting to does not
drop to zero while the engine is started (Cranking). This line will be referred to as “True Ignition”.
6. Mount the PRISM TM to the chassis of the vehicle utilizing the mounting tabs. Secure the
unit with four (4) self-tapping machine screws.
7. Zip tie excess wire slack and zip tie around the fuse
holder to prevent tampering.
8. Attach PRISM wiring harness to the PRISM TM.
9. Connect GPRS and GPS connectors to the PRISM
TM. Attach the main power and/or replace the fuse.
10. Attach accessories as necessary:
MDT – Determine placement within 10 feet of the
PRISM TM placement. Run a serial cable to the
unit. Be sure to get placement approval from the
customer.
Ignition On/Off Messaging – see schematic for
relay placement.
PTO On/Off Messaging – see schematic for relay
placement.
11. Attach laptop and perform a local installation
checkout.
12. Reinstall all vehicle panels.
13. Clean up any debris within your work area.
14. Complete the work order form, including the vehicle
license plate number, VIN, installation test results
and the PRISM TM IP sticker.
85 - Ignition
Sense
86 - Ground
30
87
Ground
Normally Open
Normally Closed
87A
Ignition Input
Orange
85 - Active High
Input Sense
86 - Ground
30
87
Constant +12V
Normally Open
Normally Closed
87A
Sample Input 1
Blue
Constant +12V
Ground
Teletrac, Inc. - Prism TM Information and Installation Guide
34 1622-0300 B1 3/18/04
SWAPPING OUT A PRISM TM
1. Locate the current PRISM TM and disconnect the main power to it at the power source.
2. Disconnect the wiring harness from the VLU.
3. Disconnect the antenna(s).
4. Install the new PRISM TM; this should be a floating unit from van stock.
5. Insure the existing harness has all the required wires soldered or crimped for reliability and
connect the harness to the new PRISM TM.
6. Connect the antenna(s).
7. Attach accessories as necessary.
8. Remove the SIM chip from the old unit and place it in the new unit, copper side down, white
side up, numbers visible.
9. If the PRISM TM fails to register upon installation, verify the RSSI level and move the vehicle
to a location with better reception if necessary. Also verify the SIM is installed correctly.
Complete the work order for, including the vehicle license plate number, VIN, installation test
results and PRISM TM MIN sticker. Leave a copy with the customer.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 35
Teletrac, Inc. - Prism TM Information and Installation Guide
36 1622-0300 B1 3/18/04
--------------Unit Six--------------
PRISM TM ADMINISTRATION & PROVISIONING
Administrative Procedures
NEW ORDERS
1. CAR does the Site Survey with the customer.
2. The Administrator places the order in TOPSS.
3. The warehouse will receive picking ticket.
4. The warehouse provisions and ships Prism TM order to the metro.
5. The VSR installs the equipment.
6. Help Desk program units over the air if needed.
7. CAR sets up the vehicles in Fleet Director during training.
REPAIRS
Hardware
1. The local metro will retain a vanstock of units (appropriate for market volume). They
are generic units that don’t have a SIM sticker on them or SIM in them.
2. Upon determining need for replacing a unit, the old unit will be removed from the
vehicle, a new one installed and the SIM from the old unit is placed in the new unit
(metal side down, numbers visible.
3. The VSR RMAs the old unit back to the warehouse. The Administrator orders new
vanstock at the same time they give a RMA number to the VSR.
SIM
1. The local metro will retain a vanstock of SIMs (appropriate for market volume).
2. Upon determining need for replacing a SIM, the old SIM is removed from the unit and
a new blank SIM is placed in the unit. The factory default setting are written to the
new SIM by the unit.
3. The VSR RMAs the SIM back to the warehouse. The Administrator orders new
vanstock at the same time they give a RMA number to the VSR.
4. Help Desk programs over the air as needed.
5. The CAR or Customer swaps unit numbers in Fleet Director as required.
DEACTIVATION
1. In the event the unit is removed and/or returned to Teletrac, RMA the unit and SIM
back to the warehouse.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 37
Provisioning Procedures
1. Distribution receives equipment and SIMs into inventory.
2. Distribution stages equipment and SIMs for QA Technician.
3. QA Technician assembles equipment:
a. Scan SIM & unit numbers with bar code reader.
b. Generate stickers with SIM number on it for the unit, vehicle and paperwork.
c. Place SIM in unit and place coresponding SIM sticker on the unit.
d. Repackage assembled units and stickers.
e. Return prepared equipment to Distribution.
4. Distribution receives TOPSS order and pulls equipment.
5. Distribution gives units back to QA Technician for programming appropriate carrier
and configuration. The units are returned to Distribution.
6. Distribution notifies carrier that the SIMs need to be made active and places number
in Simon.
7. Distribution sends equipment to the metro.
8. Help Desk programs the units over the air if needed.
NOTE: Hardware units that are being used for vanstock are not sent to the QA Technician
because they will not have SIM cards in them.
Teletrac, Inc. - Prism TM Information and Installation Guide
38 1622-0300 B1 3/18/04
Appendix
These pages may be updated or added to at any time. Please check the Ops Web for the
most current information.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 39
Teletrac, Inc. - Prism TM Information and Installation Guide
40 1622-0300 B1 3/18/04
Appendix A
APPENDIX A – AN INTRODUCTION TO GLOBAL POSITIONING SATELLITE SYSTEMS
Global Positioning Systems - A Primer
Navigation and positioning are crucial to so many activities and over the years all kinds of
technologies have tried to simplify the task including Teletrac's RF system. The U.S. Department
of Defense (DoD) decided the U.S. military needed a super-precise form of worldwide positioning.
And fortunately, they had the kind of money ($12 billion) it took to build it. The result is the Global
Positioning System. The Global Positioning System (GPS) is a worldwide radio-navigation system
formed from a constellation of 24 satellites and their ground stations. GPS uses these "man-
made stars" as reference points to calculate positions accurate to within meters. In fact, with
advanced forms of GPS you can make measurements to better than a centimeter. In a sense, it's
like giving every square meter on the planet a unique address.
GPS receivers have been miniaturized to just a few integrated circuits and so are becoming very
economical. And that makes the technology increasingly accessible. The U.S. military was able to
successfully deploy GPS for the first time during the Gulf War in 1991. It is credited as being one
of the factors that led to the fast victory over Iraqi forces as our military units were "visible" (that
is, their locations and movements were precisely known) to strategists at all times.
Here's how GPS works in five logical steps:
Here is a summary of each of the steps involved with GPS in order to determine a location. This
is the first part of Teletrac finding the locations of vehicles using a Prism TM. Once a location is
determined, then it is sent via another system. We'll explain each of the following points in the
next five sections.
1. The basis of GPS is "triangulation" from satellites.
2. To "triangulate," a GPS receiver measures distance using the travel time of radio
signals.
3. To measure travel time, GPS needs very accurate timing, which it achieves with
some tricks.
4. Along with distance, you need to know exactly where the satellites are in space. High
orbits and careful monitoring are the secret.
5. Finally you must correct for any delays the signal experiences as it travels through
the atmosphere.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 41
Step 1: Triangulating from Satellites
Improbable as it may seem, the whole idea behind GPS is to use satellites in space as reference
points for locations here on earth. That's right, by very, very accurately measuring our distance
from three satellites we can "triangulate" our position anywhere on earth. Forget for a moment
how our receiver measures this distance. We'll get to that later. First consider how distance
measurements from three satellites can pinpoint you in space.
THE BIG IDEA GEOMETRICALLY:
Suppose we measure our distance from a satellite and find it to be 11,000 miles.
Knowing that we're 11,000 miles from a particular satellite narrows down all the possible locations
we could be in the whole universe to the surface of a sphere that is centered on this satellite and
has a radius of 11,000 miles.
Next, say we measure our distance to a second satellite and find out that it's 12,000 miles away.
That tells us that we're not only on the first sphere but we're also on a sphere that's 12,000 miles
from the second satellite. Or in other words, we're somewhere on the circle where these two
spheres intersect.
If we then make a measurement from a third satellite and find that we're 13,000 miles from that
one, that narrows our position down even farther, to the two points where the 13,000 mile sphere
cuts through the circle that's the intersection of the first two spheres.
Teletrac, Inc. - Prism TM Information and Installation Guide
42 1622-0300 B1 3/18/04
So by ranging from three satellites we can narrow our position to just two points in space.
To decide which one is our true location we could make a fourth measurement. But usually one of
the two points is a ridiculous answer (either too far from Earth or an impossible velocity) and can
be rejected without a measurement.
A fourth measurement does come in very handy for another reason however, but we'll tell you
about that later.
Next we'll see how the system measures distances to satellites.
Step 2: Measuring Distance from a Satellite
We saw in the last section that a position is calculated from distance measurements to at least
three satellites. But how can you measure the distance to something that's floating around in
space? We do it by timing how long it takes for a signal sent from the satellite to arrive at our
receiver.
THE BIG IDEA MATHEMATICALLY
In a sense, the whole thing boils down to those "velocity times travel time" math problems we did
in high school. Remember the old: "If a car goes 60 miles per hour for two hours, how far does it
travel.?"
Velocity (60 mph) x Time (2 hours) = Distance (120 miles)
In the case of GPS we're measuring a radio signal so the velocity is going to be the speed of light
or roughly 186,000 miles per second. The problem is measuring the travel time.
SYNCHRONIZING OUR WATCHES
The timing problem is tricky. First, the times are going to be awfully short. If a satellite were right
overhead, the travel time would be something like 0.06 seconds. So we're going to need some
really precise clocks. We'll talk about those soon.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 43
But assuming we have precise clocks, how do we measure travel time? To explain it let's use a
goofy analogy:
Suppose there was a way to get both the satellite and the receiver to start playing "The Star-
Spangled Banner" at precisely 12 Noon. If sound could reach us from space (which, of course, is
ridiculous) then standing at the receiver we'd hear two versions of "The Star-Spangled Banner,"
one from our receiver and one from the satellite.
These two versions would be out of sync. The version coming from the satellite would be a little
delayed because it had to travel over 11,000 miles.
If we wanted to see just how delayed the satellite's version was, we could start delaying the
receiver's version until they fell into perfect sync.
The amount we have to shift back the receiver's version is equal to the travel time of the satellite's
version. So we just multiply that time times the speed of light and BINGO! we've got our distance
to the satellite.
That's basically how GPS works.
Only instead of "The Star-Spangled Banner" the satellites and receivers use something called a
"Pseudo Random Code." - which is probably easier to sing than "The Star-Spangled Banner."
A RANDOM CODE?
The Pseudo Random Code (PRC) is a fundamental part of GPS. Physically it's just a very
complicated digital code, or in other words, a complicated sequence of "on" and "off" pulses as
shown here:

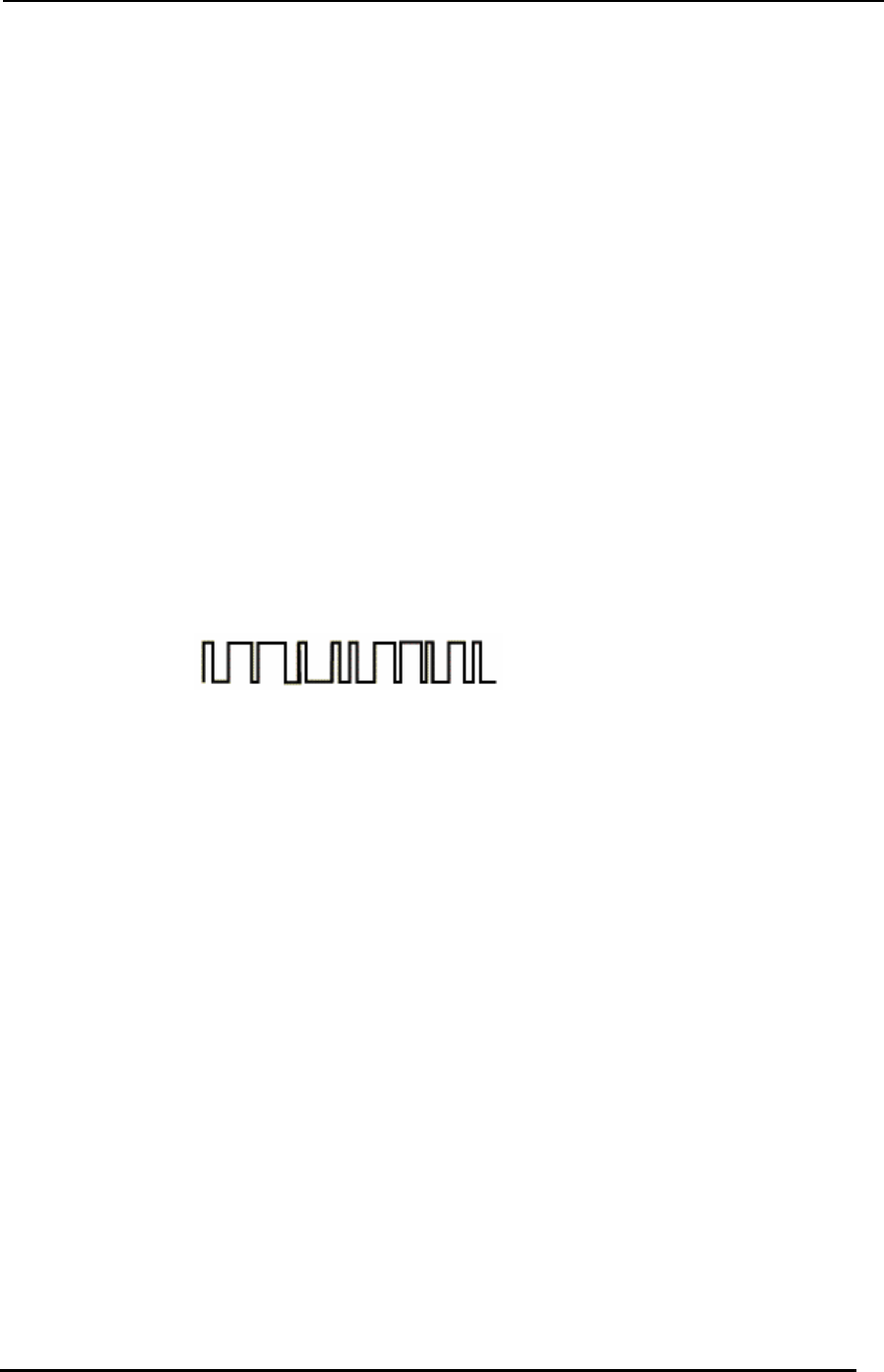

The signal is so complicated that it almost looks like random electrical noise. Hence the name
"Pseudo-Random."
There are several good reasons for that complexity: First, the complex pattern helps make sure
that the receiver doesn't accidentally sync up to some other signal. The patterns are so complex
that it's highly unlikely that a stray signal will have exactly the same shape.
Since each satellite has its own unique Pseudo-Random Code this complexity also guarantees
that the receiver won't accidentally pick up another satellite's signal. So all the satellites can use
the same frequency without jamming each other. And it makes it more difficult for a hostile force
to jam the system. In fact the Pseudo Random Code gives the DoD a way to control access to the
system.
But there's another reason for the complexity of the Pseudo Random Code, a reason that's
crucial to making GPS economical.
The codes make it possible to use "information theory" to "amplify" the GPS signal. And that's
why GPS receivers don't need big satellite dishes to receive the GPS signals.
We glossed over one point in our goofy Star-Spangled Banner analogy. It assumes that we can
guarantee that both the satellite and the receiver start generating their codes at exactly the same
time. But how do we make sure everybody is perfectly synced? Stay tuned and see.
Teletrac, Inc. - Prism TM Information and Installation Guide
44 1622-0300 B1 3/18/04
Step 3: Getting Perfect Timing
If measuring the travel time of a radio signal is the key to GPS, then our stop watches had better
be darn good, because if their timing is off by just a thousandth of a second, at the speed of light,
that translates into almost 200 miles of error!
On the satellite side, timing is almost perfect because they have incredibly precise atomic clocks
on board.
But what about our receivers here on the ground?
Remember that both the satellite and the receiver need to be able to precisely synchronize their
pseudo-random codes to make the system work.
If our receivers needed atomic clocks (which cost upwards of $50K to $100K) GPS would be a
lame duck technology. Nobody could afford it.
Luckily the designers of GPS came up with a brilliant little trick that lets us get by with much less
accurate clocks in our receivers. This trick is one of the key elements of GPS and, as an added
side benefit, it means that every GPS receiver is essentially an atomic-accuracy clock.
The secret to perfect timing is to make an extra satellite measurement.
That's right, if three perfect measurements can locate a point in 3-dimensional space, then four
imperfect measurements can do the same thing.
EXTRA MEASUREMENT CURES TIMING OFFSET
If everything were perfect (i.e. if our receiver's clocks were perfect) then all of our satellite ranges
would intersect at a single point (which is our position). But with imperfect clocks, a fourth
measurement, done as a cross-check, will NOT intersect with the first three.
So the receiver's computer says "Uh-oh! There is a discrepancy in my measurements. I must not
be perfectly synced with universal time."
Since any offset from universal time will affect all of our measurements, the receiver looks for a
single correction factor that it can subtract from all its timing measurements that would cause
them all to intersect at a single point.
That correction brings the receiver's clock back into sync with universal time, and bingo! - you've
got atomic accuracy time right in the palm of your hand.
Once it has that correction it applies to all the rest of its measurements and now we've got
precise positioning.
One consequence of this principle is that any decent GPS receiver will need to have at least four
channels so that it can make the four measurements simultaneously.
O.K, with the pseudo-random code as a rock solid timing sync pulse, and this extra measurement
trick to get us perfectly synced to universal time, we have got everything we need to measure our
distance to a satellite in space.
But for the triangulation to work we not only need to know distance, we also need to know exactly
where the satellites are.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 45
Step 4: Knowing Where a Satellite is in Space
In this tutorial we've been assuming that we know where the GPS satellites are so we can use
them as reference points.
But how do we know exactly where they are? After all they're floating around 11,000 miles up in
space.
A HIGH SATELLITE GATHERS NO MOSS
That 11,000 mile altitude is actually a benefit in this case, because something that high is well
clear of the atmosphere. And that will mean it will orbit according to very simple mathematics.
The Air Force has injected each GPS satellite into a very precise orbit, according to the GPS
master plan.
On the ground all GPS receivers have an almanac programmed into their computers that tells
them where in the sky each satellite is, moment by moment.
CONSTANT MONITORING ADDS PRECISION
The basic orbits are quite exact but just to make things perfect the GPS satellites are constantly
monitored by the Department of Defense.
They use very precise radar to check each satellite's exact altitude, position and speed.
The errors they're checking for are called "ephemeris errors" because they affect the satellite's
orbit or "ephemeris." These errors are caused by gravitational pulls from the moon and sun and
by the pressure of solar radiation on the satellites.
The errors are usually very slight but if you want great accuracy they must be taken into account.
Teletrac, Inc. - Prism TM Information and Installation Guide
46 1622-0300 B1 3/18/04
GETTING THE MESSAGE OUT
Once the DoD has measured a satellite's exact position, they relay that information back up to the
satellite itself. The satellite then includes this new corrected position information in the timing
signals it's broadcasting.
So a GPS signal is more than just pseudo-random code for timing purposes. It also contains a
navigation message with ephemeris information as well.
With perfect timing and the satellite's exact position you'd think we'd be ready to make perfect
position calculations. But there's trouble afoot. Check out the next section to see what's up.
Step 5: Correcting Errors
Up to now we've been treating the calculations that go into GPS very abstractly, as if the whole
thing were happening in a vacuum. But in the real world there are lots of things that can happen
to a GPS signal that will make its life less than mathematically perfect.
To get the most out of the system, a good GPS receiver needs to take a wide variety of possible
errors into account. Here's what they've got to deal with.
ROUGH TRIP THROUGH THE ATMOSPHERE
First, one of the basic assumptions we've been using throughout this tutorial is not exactly true.
We've been saying that you calculate distance to a satellite by multiplying a signal's travel time by
the speed of light. But the speed of light is only constant in a vacuum.
As a GPS signal passes through the charged particles of the ionosphere and then through the
water vapor in the troposphere it gets slowed down a bit, and this creates the same kind of error
as bad clocks.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 47
There are a couple of ways to minimize this kind of error. For one thing we can predict what a
typical delay might be on a typical day. This is called modeling and it helps but, of course,
atmospheric conditions are rarely exactly typical.
Another way to get a handle on these atmosphere-induced errors is to compare the relative
speeds of two different signals. This "dual frequency" measurement is very sophisticated and is
only possible with advanced receivers.
ROUGH TRIP ON THE GROUND
Trouble for the GPS signal doesn't end when it gets down to the ground. The signal may bounce
off various local obstructions before it gets to our receiver.
This is called multipath error and is similar to the ghosting you might see on a TV. Good receivers
use sophisticated signal rejection techniques to minimize this problem.
PROBLEMS AT THE SATELLITE
Even though the satellites are very sophisticated they do account for some tiny errors in the
system.
The atomic clocks they use are very, very precise but they're not perfect. Minute discrepancies
can occur, and these translate into travel time measurement errors.
And even though the satellites positions are constantly monitored, they can't be watched every
second. So slight position or "ephemeris" errors can sneak in between monitoring times.
SOME ANGLES ARE BETTER THAN OTHERS
Basic geometry itself can magnify these other errors with a principle called "Geometric Dilution of
Precision" or GDOP. It sounds complicated but the principle is quite simple.
There are usually more satellites available than a receiver needs to fix a position, so the receiver
picks a few and ignores the rest.
If it picks satellites that are close together in the sky the intersecting circles that define a position
will cross at very shallow angles. That increases the gray area or error margin around a position.
Teletrac, Inc. - Prism TM Information and Installation Guide
48 1622-0300 B1 3/18/04
If it picks satellites that are widely separated the circles intersect at almost right angles and that
minimizes the error region.
Good receivers determine which satellites will give the lowest GDOP.
INTENTIONAL ERRORS!
As hard as it may be to believe, the same government that spent $12 billion to develop the most
accurate navigation system in the world is intentionally degrading its accuracy. The policy is
called "Selective Availability" or "SA" and the idea behind it is to make sure that no hostile force
or terrorist group can use GPS to make accurate weapons.
Basically the DoD introduces some "noise" into the satellite's clock data which, in turn, adds noise
(or inaccuracy) into position calculations. The DoD may also be sending slightly erroneous orbital
data to the satellites which they transmit back to receivers on the ground as part of a status
message.
Together these factors make SA the biggest single source of inaccuracy in the system. Military
receivers use a decryption key to remove the SA errors and so they're much more accurate.
The Bottom Line
Fortunately all of these inaccuracies still don't add up to much of an error. And a form of GPS
called "Differential GPS" can significantly reduce these problems.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 49
Teletrac, Inc. - Prism TM Information and Installation Guide
50 1622-0300 B1 3/18/04
Appendix B
APPENDIX B – TELETRAC PRISM TM ANTENNAS
Teletrac has approved 5 antennas compatible with the Prism TM. Two of these designs
are GPS only and need to be installed along with the GPRS only antenna. The other two
have both GPS and GPRS antennas.
GPS Roof Mount Antenna - Part # 335-0054
This antenna mounts on the outside of the vehicle trough a 5/8-inch
perforation of the roof. This antenna features a 15-foot antenna
cable and a SMB connector.
Specs: Voltage: +5 VDC supplied by unit
Gain: +18 dBm trought internal amplifier
Polarization: Omni directional loaded patch when on top of vehicle
Mounting Options: Top mount attached with retaining nut from inside the vehicle.
Top mount when screwing mounting nut to the vehicle from the
outside, this eliminates need to secure the nut from the inside.
GPS Magnetic Mount - Part # 335-0057
This antenna is best suited for temporary installations or when
drilling a hole is not permitted.
Specs: Voltage +5 VDC supplied by unit
Gain: +18 dBm trought internal amplifier
Polarization: Omnidirectional loaded patch when on top of vehicle
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 51
CDPD/GPRS 3dB Antenna - Black
Part # 335-0053 – Cable & Mast
Part # 335-0058 – Mast Only
Part # 335-0083 – W/ 4 Bolt Spring, Special Order
This antenna is the most common CDPD/GPRS antenna used today due
to its low loss cable, elevated gain mast and low price. The antenna
features a “M” mount which requires a ¾’’ perforation. There is no
need of adjustments and the mast will work on any 900 MHz antenna
mount currently used by us. Options are Mag Mount, Trunk Lip Mount,
and Though Hole.
Roof Mount Combo Antenna - Part # 335-0060
Self contained antenna that encloses all its components inside a
single unit. GPRS and GPS both share the same ground plane in
order to minimize noise. The body of the antenna is a 4-inch disc
that is 100 % waterproof. Its low profile and ease of installation
and high gain makes it a very flexible option. Color is white.
Specs: Voltage: +5 VDC Supplied by unit
Gain 27 dB @ GPS and 3 dB 820 to 900 MHz
Polarization: Omnidirectional
Mounting Options: Roof mount.
Hidden Combo Antenna - Part # 335-0074
This is a combo antenna used on VLUplus and PRISM TM units. It is
intended to be installed in the headliner with a view out all four sides of
the vehicle.
Teletrac, Inc. - Prism TM Information and Installation Guide
52 1622-0300 B1 3/18/04
Appendix C
APPENDIX C – INSTALLATION EQUIPMENT
Metro Equipment
Each metro should have the following available on site for the installers.
• Eltron Printer – for printing labels to affix to units (TLP 2242 Series or equivalent)
Installer Equipment
Each installer should have the following equipment in their vanstock.
• Laptop with working serial port
• Working VLUplus in their Vehicle (can be mobile unit)
• Working RF VLU in their Vehicle (can me mobile unit)
• Working PRISM TM in their vehicle (can be mobile unit)
• VLUplus Programming tools
• RF VLU Programming tools*
• PRISM TM Programming tools
• VLU Terminal software (VLU_PRO)
• HyperTerminal SW (part of std. Windows Install)
• VLUplus Programming Cable (or Technocom Tester)
• CDPD Diagnostics MDT
• Good-Working CDPD/GPRS Mag-mount Antenna (for reference)
• Good-Working GPS Mag-mount Antenna (for reference)
• Good-Working RF VLU Mag-mount Antenna (for reference)*
• MDT Serial Cable
• MDT Programming Cable
• MDT Programming Software
• Std. Tool Kit with the usual electrical tools (soldering iron, wire cutters, volt meter, etc.)
• GPS Receiver – Part # 400-3070 (Garmin GPS48)
NOTE: * RF VLUs and its support hardware and software are only needed in markets with both
RF and CDPD coverage.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 53
Teletrac, Inc. - Prism TM Information and Installation Guide
54 1622-0300 B1 3/18/04
Appendix D
APPENDIX D – HOW MESSAGES ARE USED IN SCRIPTS
Message Code Usage
General
NOTE: The term VLU means all Teletrac location units.
The purpose of this paper is to give guidelines on how to standardize message code usage
for Fleet Director, MDTs and VLUs. The standardization of message codes is intended
to help make it easier to develop and support customer applications. The following bullet
list expresses the basic reasons for message code standardization.
• Training – Standardization of codes make the code usage intuitive by using
the same codes for similar messages. This helps both the newcomer and the
trainer since code usage has common rules that easily understood.
• Customer Support – As in training the code standards make it easier to
support the customer when all customers are setup with common rules on
code usage. This avoids the confusion associated with have multiple customer
applications using similar messages but uncommon codes.
• Installation Support – By standardizing code usage standard workstation,
MDT and VLU configurations can be developed as packages with minimal
customization requirements. This prevents mistakes in application setup and
decreases the cost and time to install customer equipment.
• Code Conservation – Message codes are limited, especially for inbound
messages. All messages cannot be given unique. By standardizing codes,
commonly used messages can be given unique codes leaving the remaining
codes for reuse in new applications.
• Script Development – By developing standardized relationships for codes and
script features and VLU hardware, script development is made less costly.
Without standardization far more scripts would need to be developed for
different uses of the codes for similar functions or features. This would be
very confusing since most scripts would have minor differences and keeping
track of the difference would be difficult. Ultimately the support personnel
would standardize on script usage by using the script most familiar to them
thus achieving a similar affect as code standardization. Unfortunately
different installers would have different standards and engineering would still
have to produce large numbers of scripts to meet everyone’s expectations.
• System Development – As new system capabilities are developed along with
new workstation software and mobile equipment, the usage of message codes
play a part on service privileges and expectations. By standardizing codes, the
system can more easily be developed to handle ranges of codes or a selected
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 55
few codes with similar function or features rather than being expected to
handle all codes with different with a variety of possible functions or features.
Code standardization should take into consideration both inbound and outbound message
usage. It should also consider the limitations within the System, the VLU, the MDT, and
the workstation software that force some messages to be reserved or identified for special
usage. For example, the MDT has built in limitations due to resource limitations and the
VLU has unchangeable firmware where codes force VLU behavior differences.
There are three forms of inbound messages: ACM which are also known as ECM or
canned inbound messages, RCM_A which are known as Form Fill message and LIM
which are variable length free form message, which can be either Form Fill or Free Text.
This paper focuses on only canned inbound messages. The Teletrac Air Interface
protocol restricts inbound canned messages to ACM 11-99 codes. There are other
message codes available for special services and emergency messages but have system
restrictions due to EMS (Episode Management System) services (i.e. ACM 235-Panic,
ACM 207-Stolen, ACM 167-Roadside Assistance, etc).
There are two types of outbound message that are called FCM and Long FCM. The FCM
codes are allocated by the Teletrac Air Interface Protocol and are not the subject of this
paper. However, this paper does address the usage of codes within the use of FCM 220,
221 and 222. To date all outbound canned messages sent to the MDT use the FCM 220
message and send one of 256 possible codes (0-255) within the message structure as a
canned message code.
Inbound Message Guidelines
As mentioned above the ACM 11-99 codes can be used for inbound canned messages.
From those available 89 message codes the following considerations must be made:
• The MDT supports 40 canned inbound messages.
• The MDT supports 10 emergency messages.
• The VLU has 4 inputs capable of 8 messages (each ON and OFF).
• The VLUplus & PRISM TM has zones requiring 2 messages each (zone entry
and exit).
• The VLUplus & PRISM TM will have common script functions like Power
Management and Tow-Away which require message codes.
• The VLUplus & PRISM TM uses code “0” for Store and Forwarded locations.
• The current system has allocated messages ACM 90-99 as alternate
notification messages.
• The RF VLU has special functionality for ACM 94, 97 and 99.
Although the system currently may not take advantage of these features or in the future
may change the definition, the standardization of codes should expect that the codes are
used as intended. The following table shows how the inbound message codes could be
allocated.
Teletrac, Inc. - Prism TM Information and Installation Guide
56 1622-0300 B1 3/18/04
Table 1 - Standardized Inbound Message Code Usage
IB Codes Definition Comments
0 S&F Location VLUplus & PRISM TM uses this
message code for S&F locations.
11-50 MDT inbound canned message The definition of these messages
depends on customer requirements.
51-58 VLU input messages (i.e. Ign,
Alert, etc.)
Ign ON/OFF = 51/52
Input 1 ON/OFF= 53/54 (Fleet Director
Panic)
Input 2 ON/OFF = 55/56
Input 3 ON/OFF = 57/58
59-70 VLUplus & PRISM TM Zone
Entry and Exits messages
Zone 1 Entry/Exit=59/60
Zone 2 Entry/Exit=61/62
Zone 3 Entry/Exit=63/64
Zone 4 Entry/Exit=65/66
Zone 5 Entry/Exit=67/68
Zone 6 Entry/Exit=69/70
71-79 VLUplus PEG script status
messages Sleep Message=71
72-79 reserved for future PEG usage.
(i.e. StopToLong, TimeForService, etc.)
80-89 MDT Emergency Menu messages Per customer requirements.
90-99 VLU Service and Emergency
messages
90-96 reserved for PEG usage.
AfterHours=97 (VAR Panic in RF VLU)
Speeding=98
TowAway=99 (VAR Stolen in RF VLU)
Outbound Message Guidelines
As mentioned above the inbound canned message codes can be 0-255 and are sent as part
of the FCM 220 message structure. From these available 256 message codes the
following considerations must be made:
• The MDT can support up to 40 canned outbound messages.
• The MDT allows codes 1-6 to control its outputs.
• The Prism TM can use any of the 256 codes for script controls and
commands.
• The Prism TM passes all 256 message codes to the MDT thus causing the
MDT to display text if the message is understood by the MDT.
• The RF VLU allows message codes 80-143 to control its output, however
only 20 of the codes are utilized (80-84, 96-100, 112-116 and 128-132).
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 57
The following table shows how the outbound message codes could be allocated.
Table 2 - Standardized Outbound Message Code Usage
OB Code Definition Comments
1-6 MDT Output Control Messages 1-3=Output 1 On/Off/Pulse
4-6= Output 2 On/Off/Pulse
7-10 PEG Control Message PEG operation control messages (i.e.
Disable Sleep Mode, Reset Mileage,
etc.)
11-50 MDT OB Canned messages Customer defined messages.
51-79 PEG Status Requests and Control To request PEG to send reports or
identify operating status (i.e. Send
Mileage Report, Send Run Time, etc.).
80-143 VLU Output Control Messages Same as RF VLU definition.
144-255 undefined For future use.
Teletrac, Inc. - Prism TM Information and Installation Guide
58 1622-0300 B1 3/18/04
Final Comments
The key to good standardization is to keep similar message grouped together and to make
the code usage intuitive. Unfortunately sometimes intuitive and grouping don’t mix. The
best standardization method would never use the same message code twice however we
don’t have that luxury due to limited code availability (especially on the inbound
messages). For Teletrac the best approach is to review our message code usage and
anticipate future needs. As we already know, some messages definitions are similar and
used by all customers (or nearly all-Ignition On/Off, VLU Sleep, etc.). These commonly
used messages should become standardized.
We also know that some messages are used for status, some for information and others
for control. We should try to group these three groups as best we can. Unfortunately,
some messages can’t fit neatly into standard grouping definitions due to either multiple
uses in the same installation (i.e. Panic might be in the MDT emergency menu and also in
the VLU for a hidden switch). When dealing with these conflicts its best to think of
installation support and script standardization. We don’t want to make it difficult on
support personnel when similar functions end up being different for each case.
Furthermore, if we keep changing which message is used for standard script functions
(input activity) we will end up with a lot of scripts with minor differences that will be
hard to track. For the above Panic message example it would be best to use the Input 2
message code ACM 53 for Panic in both the MDT and VLU so that the basic multi-input
script could work without changes and the installer knows that input two always causes
an ACM 53 message.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 59
Teletrac, Inc. - Prism TM Information and Installation Guide
60 1622-0300 B1 3/18/04
Appendix E
APPENDIX E – PINOUTS FOR STANDARD TELETRAC HARNESS

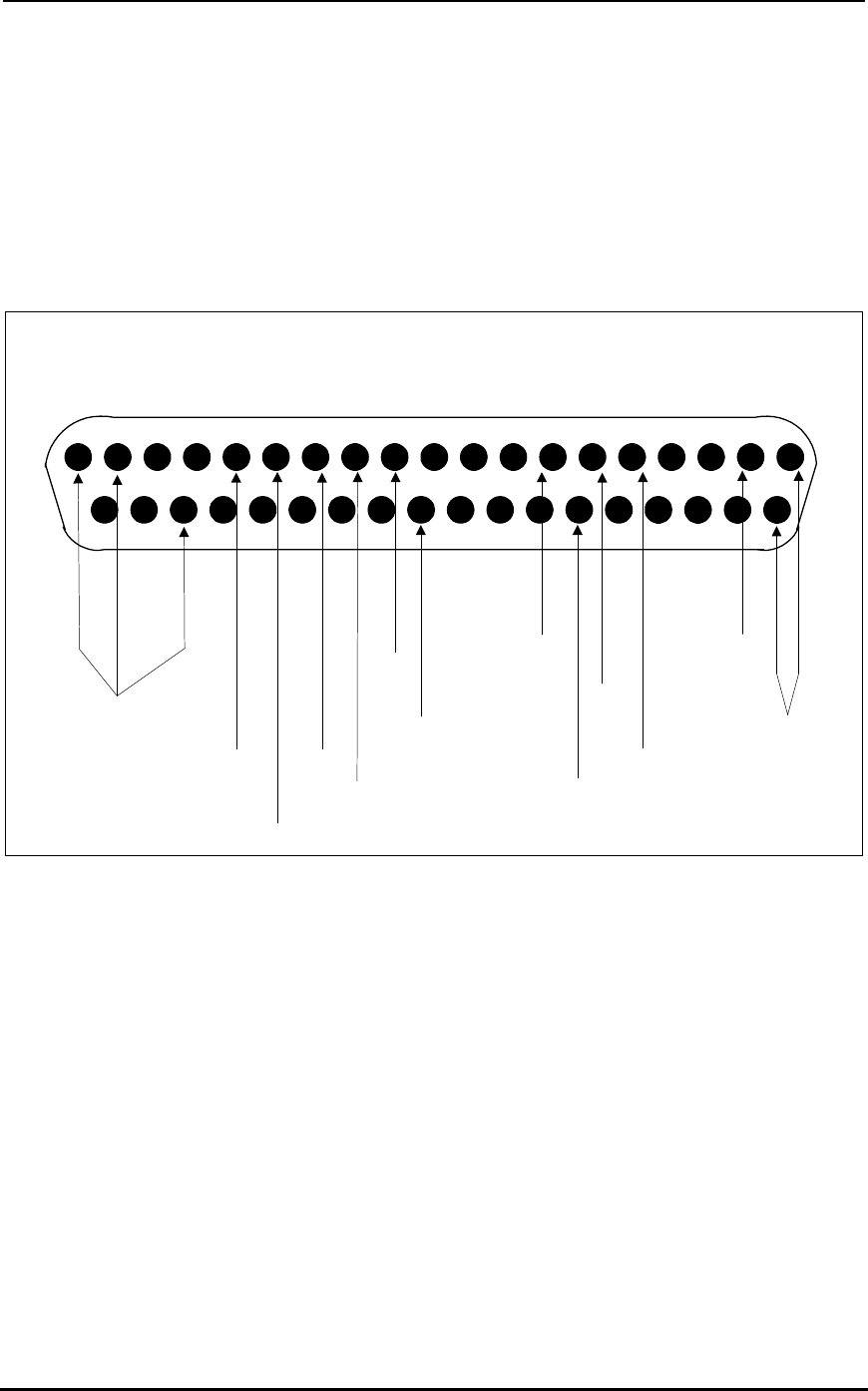

Teletrac Harness Pinouts (DB 37) for RF and VLUplus
9
Male Connector Located on the Unit
White
618 19
Ignition Sense
Standard Installations
125
7891513 14
22 28 32 37
White/Green
Black/Green
Yellow/White
Serial Port (MDT)
Orange
Input 1
Black/White
Input 2
Black/Yellow
Input 3
Red/White
Red
LED
Green/Blue
Green
LED
Yellow
Pizo
Output
Black/Brown
Backup
Battery
Black/Red
Output 1
Green
Battery
Ground
Red
+12 Volt
Black
Black
Ground
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 61
Teletrac, Inc. - Prism TM Information and Installation Guide
62 1622-0300 B1 3/18/04
Appendix F
APPENDIX F – FCC STATEMENT
Statement according FCC part 15.19
FCC identifier has to be on the equipment
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Statement according FCC part 15.21
Modifications not expressly approved by Teletrac, Inc. could void the user's authority to operate
the equipment.
Statement according FCC part 15.105
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
RF Exposure
Note: The antenna of this device is installed on the top of a vehicle, which is a mounted
“antenna location.” Thus, the truck driver and passenger are at least 20 cm from the
antenna.
Health and Safety Information
Exposure to Radio Frequency (RF) Signals
This product is a radio transmitter and receiver. It is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines
are based on standards that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 63
Appendix G
APPENDIX G - SAFETY INFORMATION
Simple Guidelines
Please follow these guidelines when configuring or using the Prism TM. Violating these
guidelines may be dangerous, illegal or otherwise detrimental. Further detailed information is
provided in this manual.
Do Not Operate Where Prohibited
Do not allow the Prism TM to operate wherever wireless phone use is prohibited or when
doing so may cause interference or danger. Examples include but are not limited to
operation in hospitals, aircraft, near blasting sites or wherever operation can cause
interference.
Interference
Like all wireless devices, the Prism TM may encounter electrical interference that may
affect its performance.
Avoid Body Contact with Device During Operation
Do not operate the Prism TM in direct contact with your body. Maintain minimum
separation distance of 6.2 inch (20 cm) between the device antenna and any parts
of your body. Antenna must be installed on the top of the vehicle or the
windshield area of the vehicle, in order to maintain a distance of 20 cm from a
human body.
Qualified Service
Except for batteries and Subscriber Identification Module (SIM) card, the Prism TM
contains no user serviceable or replaceable parts. Non-functioning units must be
returned to an authorized service center for repair or replacement.
Water-Resistance
The Prism TM is not waterproof. Even though it is water-resistant, it is recommended
that it be used where it is relatively dry and not subjected to either water streams or
submersion.
Teletrac, Inc. - Prism TM Information and Installation Guide
64 1622-0300 B1 3/18/04
Detailed Safety Information
Exposure to Radio Frequency Signals
The Prism TM is a low power radio transmitter and receiver. When it is ON, it receives
and also sends out radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure
guidelines with safety levels for hand-held wireless phones. Those guidelines are
consistent with safety standards previously set by both U.S. and international standards
bodies:
• ANSI C95.1 (1992)
• NCRP Report 86 (1986)
• ICNIRP (1996)
Those standards were based on comprehensive and periodic evaluations of the relevant
scientific literature. For example, over 120 scientists, engineers, and physicians from
universities, government health agencies, and industry reviewed the available body of
research to develop the ANSI Standard (C95.1)
While the Prism TM is not intended for hand-held use, its design nonetheless complies
with the FCC guidelines (and those standards).
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However, certain
electronic equipment may not be shielded against the RF signals generated by the Prism
TM.
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum separation
of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to
avoid potential interference with the pacemaker. These recommendations are consistent
with the independent research by and recommendations of Wireless Technology
Research.
Persons with pacemakers:
• Should ALWAYS keep the Prism TM more than eight inches from their
pacemaker with the device is operational.
• Should not carry the Prism TM on their person
• If there is any reason to suspect that interference is taking place, the
Prism TM battery pack should be removed immediately.
Other Medical Devices
If any other personal medical devices are used in the vicinity of a Prism TM, consult the
manufacturers of the medical devices to determine if they are adequately shielded from
external RF energy. Physicians may be able to assist in obtaining this information.
Disable operation of the Prism TM by removing the battery pack in health care facilities
when any regulations posted in these areas prohibit the use of wireless phones or two-
way radios. Hospitals and health care facilities may be using equipment that could be
sensitive to external RF energy.
Teletrac, Inc. - Prism TM Information and Installation Guide
1622-0300 B1 3/18/04 65
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles. Check with the manufacturer or its representative regarding the vehicle.
Also consult the manufacturer of any equipment that has been added to the vehicle.
Posted Facilities
Disable operation of the Prism TM by removing the battery pack in any facility where
posted notices prohibit the use of wireless phones or two-way radios.
Aircraft
FCC regulations prohibit using wireless phones while in the air. Disable operation of the
Prism TM by removing the battery pack prior to boarding or loading in an aircraft
Blasting Areas
To avoid interfering with blasting operations, disable operation of the Prism TM by
removing the battery pack when in a “blasting area” or in areas posted: “Turn off two-way
radio”. Obey all signs and instructions.
Potentially Explosive Atmospheres
Disable operation of the Prism TM by removing the battery pack prior to entering any
area with a potentially explosive atmosphere and obey all signs and instructions. Sparks
in such areas could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always marked clearly.
Potential areas may include: fueling areas (such as gasoline stations); below deck on
boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum
gas (such as propane or butane); areas where the air contains chemicals or particles
(such as grain, dust, or metal powders); and any other area where it would normally be
advisable to turn off motor vehicle engines.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. DO NOT place objects, including the Prism TM, in
the area over the air bag or in the air bag deployment area. If in-vehicle wireless
equipment is improperly installed and the air bag inflates, serious injury could result.
Teletrac, Inc. - Prism TM Information and Installation Guide
66 1622-0300 B1 3/18/04
Overview
Introduction
This manual covers the Prism TM operating on 900 MHz, 1800 MHz and 1900 MHz GSM
networks. As used in this manual, the term GSM shall include any and all of these
frequencies.
Regulatory Approvals
CE
The Prism TM product complies with the essential requirements of the R&TTE
Directive 199/5/EC as stated by the EC Declaration of Conformity (CE0681) and
the EC R&TTE Type Examination Certificate.
The Prism TM product complies with the European Telecommunications
Standards Institute Specifications ETS300-342-1 (EMC for GSM 900MHZ and
DCS 1800MHZ Radio Equipment and Systems).
EEC
The Prism TM product complies with Directive 72/245/EEC as amended by
Directive 95/54/EC (el*72/245*95/54).
FCC
The Prism TM product complies with FCC Part 15, FCC Part 24, and Industry
Canada requirements.
The Prism TM product complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

Navigation menu
