Telit Communications S p A GC864QC2 Quadband GSM/ GPRS Module User Manual GC864 Hardware User Guide
Telit Communications S.p.A. Quadband GSM/ GPRS Module GC864 Hardware User Guide
User Manual
![](/img.php?id=1303214&img=bg1.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2010-06-04
![](/img.php?id=1303214&img=bg2.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
APPLICABILITY TABLE
PRODUCT
GC864-QUAD
GC864-PY
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 2 of 69
![](/img.php?id=1303214&img=bg3.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
DISCLAIMER
The information contained in this document is the proprietary information of Telit
Communications S.p.A. and its affiliates (“TELIT”).
The contents are confidential and any disclosure to persons other than the officers,
employees, agents or subcontractors of the owner or licensee of this document,
without the prior written consent of Telit, is strictly prohibited.
Telit makes every effort to ensure the quality of the information it makes available.
Notwithstanding the foregoing, Telit does not make any warranty as to the
information contained herein, and does not accept any liability for any injury, loss or
damage of any kind incurred by use of or reliance upon the information.
Telit disclaims any and all responsibility for the application of the devices
characterized in this document, and notes that the application of the device must
comply with the safety standards of the applicable country, and where applicable,
with the relevant wiring rules.
Telit reserves the right to make modifications, additions and deletions to this
document due to typographical errors, inaccurate information, or improvements to
programs and/or equipment at any time and without notice.
Such changes will, nevertheless be incorporated into new editions of this document.
Copyright: Transmittal, reproduction, dissemination and/or editing of this document
as well as utilization of its contents and communication thereof to others without
express authorization are prohibited. Offenders will be held liable for payment of
damages. All rights are reserved.
Copyright © Telit Communications SpA 2009.©
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 3 of 69
![](/img.php?id=1303214&img=bg4.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Contents
APPLICABILITY TABLE.........................................................................................................................................2
1. INTRODUCTION................................................................................................................................6
1.1. SCOPE ........................................................................................................................................................6
1.2. AUDIENCE...................................................................................................................................................6
1.3. CONTACT INFORMATION, SUPPORT.................................................................................................................6
1.4. DOCUMENT ORGANIZATION ...........................................................................................................................7
1.5. TEXT CONVENTIONS .....................................................................................................................................8
1.6. RELATED DOCUMENTS..................................................................................................................................8
1.7. DOCUMENT HISTORY ....................................................................................................................................9
2. OVERVIEW...................................................................................................................................... 11
3. GC864 MECHANICAL DIMENSIONS ................................................................................................ 12
3.1. MECHANICAL VIEW OF TELIT GC864-QUAD WITH SIM HOLDER......................................................................13
4. GC864-QUAD/PY MODULE CONNECTIONS ..................................................................................... 14
4.1. PIN-OUT.................................................................................................................................................14
4.1.1.
GC864-QUAD/PY Antenna Connector............................................................................................17
5. HARDWARE COMMANDS................................................................................................................ 18
5.1. TURNING ON THE GC864-QUAD / PY.........................................................................................................18
5.2. TURNING OFF THE GC864-QUAD / PY .......................................................................................................20
5.2.1.
Hardware Shutdown...................................................................... Error! Bookmark not defined.
5.2.2.
Hardware Unconditional Reboot...................................................................................................21
6. POWER SUPPLY............................................................................................................................. 23
6.1. POWER SUPPLY REQUIREMENTS ..................................................................................................................23
6.2. GENERAL DESIGN RULES ............................................................................................................................24
6.2.1.
Electrical Design Guidelines .........................................................................................................24
6.2.2.
Thermal Design Guidelines...........................................................................................................30
6.2.3.
Power Supply PCB Layout Guidelines...........................................................................................31
6.2.4.
Parameters for ATEX Applications................................................................................................32
7. ANTENNA ...................................................................................................................................... 34
7.1. GSM ANTENNA REQUIREMENTS ..................................................................................................................34
7.2. GSM ANTENNA – INSTALLATION GUIDELINES................................................................................................35
8. LOGIC LEVEL SPECIFICATIONS...................................................................................................... 36
8.1. RESET SIGNAL...........................................................................................................................................37
9. SERIAL PORTS ............................................................................................................................... 38
9.1. MODEM SERIAL PORT ...........................................................................................................................38
9.2. RS232 LEVEL TRANSLATION .......................................................................................................................41
9.3. 5V UART LEVEL TRANSLATION ...................................................................................................................43
10. AUDIO SECTION OVERVIEW........................................................................................................ 45
1.1 SELECTION MODE .............................................................................................................................................45
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 4 of 69
![](/img.php?id=1303214&img=bg5.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
1.2 ELECTRICAL CHARACTERISTICS ..........................................................................................................................47
1.2.1 Input Lines Characteristics...................................................................................................................47
1.2.2 Output Lines Characteristics ................................................................................................................48
11. GENERAL PURPOSE I/O ............................................................................................................. 50
11.1. GPIO LOGIC LEVELS ..............................................................................................................................52
11.2. USING A GPIO PAD AS INPUT ................................................................................................................52
11.3. USING A GPIO PAD AS OUTPUT .............................................................................................................53
11.4. USING THE RF TRANSMISSION CONTROL GPIO4 .......................................................................................53
11.5. USING THE RFTXMON OUTPUT GPIO5 ...................................................................................................53
11.6. USING THE ALARM OUTPUT GPIO6 ..........................................................................................................54
11.7. USING THE BUZZER OUTPUT GPIO7.........................................................................................................54

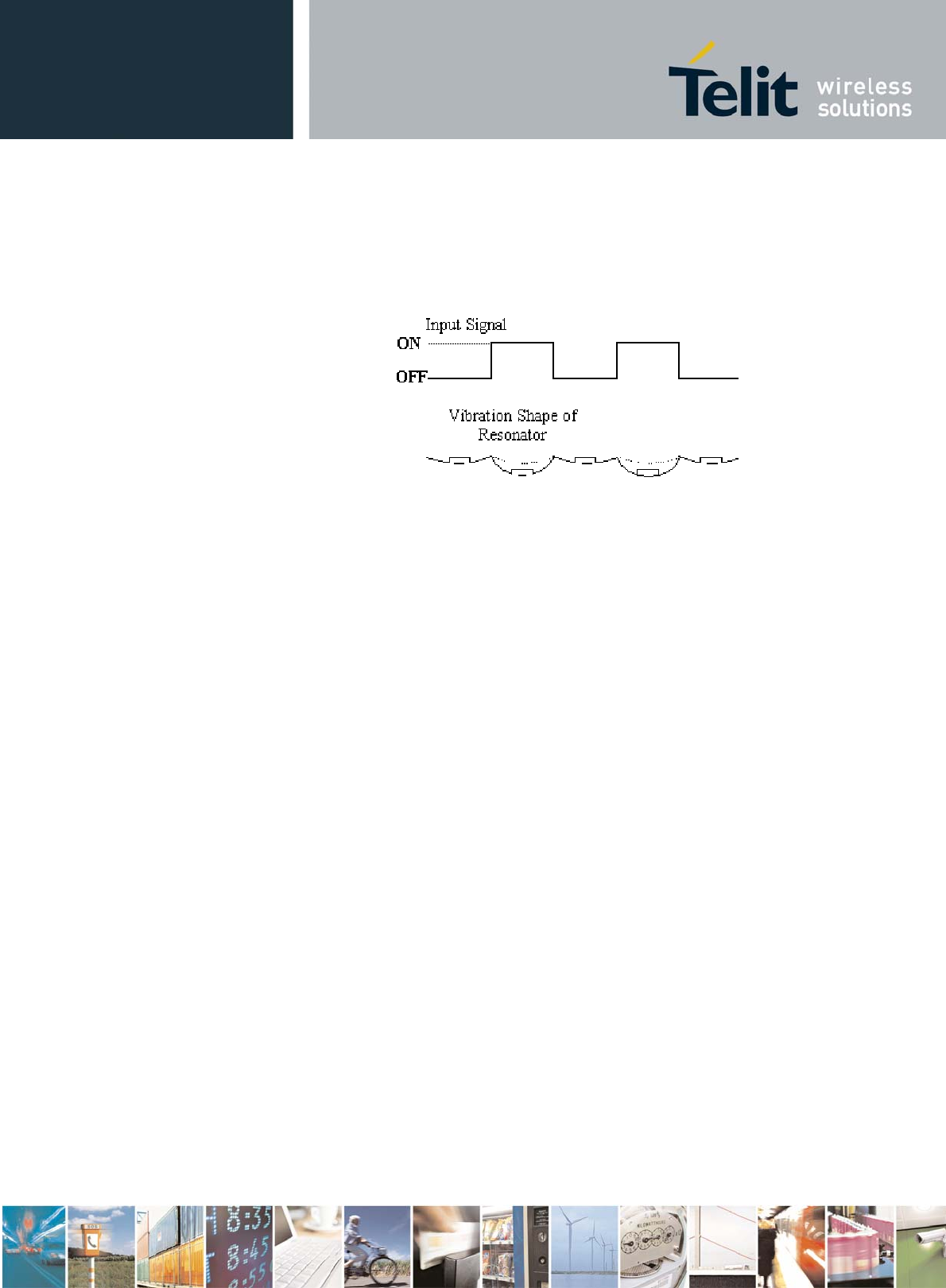

11.8. MAGNETIC BUZZER CONCEPTS ................................................................................................................55
11.8.1.
Short Description...........................................................................................................................55
1.2.1 Frequency Behavior ..............................................................................................................................56
11.8.2.
Power Supply Influence.................................................................................................................56
11.8.3.
Warning..........................................................................................................................................56
11.8.4.
Working Current Influence............................................................................................................57
11.9. USING THE TEMPERATURE MONITOR FUNCTION.........................................................................................57
11.9.1.
Short Description...........................................................................................................................57
11.9.2.
Allowed GPIO .................................................................................................................................57
11.10. INDICATION OF NETWORK SERVICE AVAILABILITY........................................................................................58
11.11. RTC BYPASS OUT ..................................................................................................................................59
11.12. VAUX1 POWER OUTPUT .........................................................................................................................60
12. DAC AND ADC SECTION ............................................................................................................. 61
12.1. DAC CONVERTER ..................................................................................................................................61
12.1.1.
Description.....................................................................................................................................61
12.1.2.
Enabling DAC.................................................................................................................................61
12.1.3.
Low Pass Filter Example...............................................................................................................62
12.2. ADC CONVERTER ..................................................................................................................................62
12.2.1.
Description.....................................................................................................................................62
12.2.2.
Using ADC Converter.....................................................................................................................62
13. MOUNTING THE GC864-QUAD/PY ON THE BOARD ..................................................................... 63
13.1.1.
Debug of the GC864-QUAD/PY in Production ...............................................................................64
14. PACKING SYSTEM ...................................................................................................................... 65
15. CONFORMITY ASSESSMENT ISSUES .......................................................................................... 66
16. SAFETY RECOMMENDATIONS .................................................................................................... 68
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 5 of 69
![](/img.php?id=1303214&img=bg6.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
1. Introduction
1.1. Scope
The aim of this document is the description of some hardware solutions useful for
developing a product with the Telit GC864-QUAD / PY module.
1.2. Audience
This document is intended for Telit customers, who are integrators, about to
implement their applications using our GC864 module.
1.3. Contact Information, Support
For general contact, technical support, to report documentation errors and to order
manuals, contact Telit’s Technical Support Center (TTSC) at:
TS-EMEA@telit.com
TS-NORTHAMERICA@telit.com
TS-LATINAMERICA@telit.com
TS-APAC@telit.com
Alternatively, use:
http://www.telit.com/en/products/technical-support-center/contact.php
For detailed information about where you can buy the Telit modules or for
recommendations on accessories and components visit:
http://www.telit.com
To register for product news and announcements or for product questions contact
Telit’s Technical Support Center (TTSC).
Our aim is to make this guide as helpful as possible. Keep us informed of your
comments and suggestions for improvements.
Telit appreciates feedback from the users of our information.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 6 of 69
![](/img.php?id=1303214&img=bg7.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
1.4. Document Organization
This document contains the following chapters:
Chapter 1: “Introduction” provides a scope for this document, target audience,
contact and support information, and text conventions.
Chapter 2: “Overview” provides an overview of the document.
Chapter 3: “GC864 Mechanical Dimensions”
Chapter 4: “GC864 Module Connections” deals with the pin out configuration and
layout.
Chapter 5: “Hardware Commands” How to control the module via hardware.
Chapter 6: “Power supply” Power supply requirements and general design rules.
Chapter 7: “Antenna” The antenna connection and board layout design are the most
important parts in the full product design
Chapter 8: “Logic Level specifications” Specific values adopted in the implementation
of logic levels for this module.
Chapter 9: “Serial ports” The serial port on the Telit GC864 is the core of the
interface between the module and OEM hardware

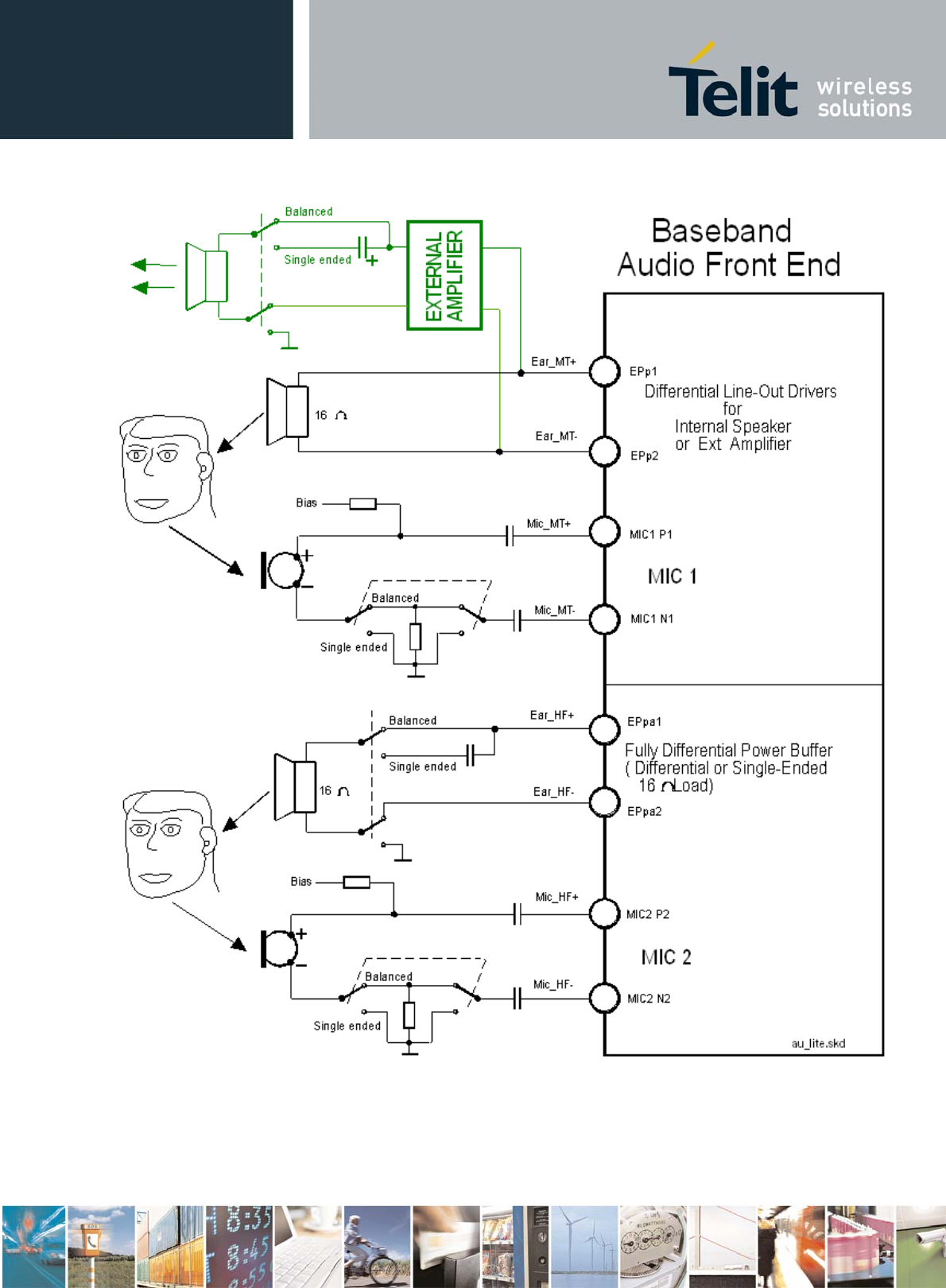

Chapter 10: “Audio Section overview” Refers to the audio blocks of the Base Band
Chip of the GC864 Telit Modules.
Chapter 11: “General Purpose I/O” How the general purpose I/O pads can be
configured.
Chapter 12 “DAC and ADC Section” Deals with these two kind of converters.
Chapter 13: “Mounting the GC864 on the application board” Recommendations and
specifics on how to mount the module on the user’s board.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 7 of 69
![](/img.php?id=1303214&img=bg8.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
1.5. Text Conventions
Danger
–
This information MUST be followed or catastrophic equipment failure
or bodily injury may occur.
Caution or Warning
–
Alerts the user to important points about integrating the
module, if these points are not followed, the module and end user equipment
may fail or malfunction.
Tip or Information – Provides advice and suggestions that may be useful when
integrating the module.
All dates are in ISO 8601 format, i.e. YYYY-MM-DD.
1.6. Related Documents
• Telit's GSM/GPRS Family Software User Guide, 1vv0300784
• Audio settings application note , 80000NT10007a
• Digital voice Interface Application Note, 80000NT10004a
• GC864 Product description, 80273ST10008a
• SIM Holder Design Guides, 80000NT10001a
• AT Commands Reference Guide, 80000ST10025a
• Telit EVK2 User Guide, 1vv0300704
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 8 of 69
![](/img.php?id=1303214&img=bg9.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 9 of 69
1.7. Document History
R
Re
ev
vi
is
si
io
on
n
D
Da
at
te
e
C
Ch
ha
an
ng
ge
es
s
ISSUE#0 2006-06-12 Release First ISSUE# 0
ISSUE #1 2006-09-07 Full Review of the manual
Added ADC description
Added DAC description
Added Pinout and Process flow description
Added Packaging
ISSUE #2 2006-10-03 TGPIO23 now RESERVED
ISSUE #3 2006-11-07 3.1 (table on page 12); PWRCTL must be PWRMON
ISSUE #4 2007-02-08 Pinout updated, Camera removed, Added Stat Led and GPIO5 description, added
VAUX, schematics updated for On_off, reset, level adapter 5V, RS232
transceiver, Power supply. Modified Charger description.
ISSUE#5 2007-06-07 Updated DISCLAIMER, Added note on charger (CFUN4 and ON_OFF), Added
Power consumptions table, Added new table for GPIO status in Reset and Power
on, added RFTXMON timing, modified DB9 picture in par 8.2, Switching
description modified in “+ 12V input Source Power Supply Design Guidelines”,
Added Alternate Function for GPIO4.
ISSUE#6 2007-06-21 Updated Absolute maximum ratings, Added Alternate Function for GPIO2;
added PWRMON description during ON_OFF, updated chapter
ISSUE#7 2008-05-21 Added GC864-QUAD with SIM holder product p/n
Par 3.1: Removed nominal values on Audio, Added DVI pins descriptions
Par 5.1: Added Supply Voltage Range
Par 10.7: GPIO7 description; added section on Buzzer description
Par 9: Audio section removed (a dedicated User guide on audio has been
created)
Par 5.2.1.4: added note on Charger
Par 8.1: tip on RXD pull up added
11.3 added note on reflow not possible
8.3 pull ups referred to VAUX
10.9 Temperature monitor function added
4.2.2 removed table with logic levels
7 removed reference to buffered pins
ISSUE#8 2008-06-30 Added GC864-QUAD with SIM holder drawings (2.1)
4.1 and 4.22 modified example
7 Updated 1.8V CMOS voltage range
ISSUE#9 2009-01-22 Updated operating voltage and P/N list
Updated GC864-PY with SIM Holder module in the list of modules concerned by
this document
Added useful parameters for ATEX Applications
Updated Audio Block Diagram
ISSUE#10 2009-08-31 Applied new layout + minor editing
Modified idle consumption values
Added on/off/reset block diagrams procedures
Added DVI info in the pin-out section + notice
Added DVI App Note in the related documents list
![](/img.php?id=1303214&img=bga.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Noted in the pin-out section about rts in need of being connected to ground p.18
Updated all schematic drawings
Updated Chapter 10 Audio Section
ISSUE#11 2009-12-16 Modified power consumption values
Fixed minor adobe acrobat issues
ISSUE#12 2010-06-04 Updated Chapter 7.1 Gain values
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 10 of 69
![](/img.php?id=1303214&img=bgb.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
2. Overview
In this document all the basic functions of a mobile phone are taken into account; for
each one of them a proper hardware solution is suggested and eventually the wrong
solutions and common errors to be avoided are evidenced. Obviously this document
cannot embrace the whole hardware solutions and products that may be designed.
The wrong solutions to be avoided shall be considered as mandatory, while the
suggested hardware configurations shall not be considered mandatory, instead the
information given shall be used as a guide and a starting point for properly
developing your product with the Telit GC864-QUAD / PY module. For further
hardware details that may not be explained in this document refer to the Telit GC864-
QUAD / PY Product Description document where all the hardware information is
reported.
NOTICE:
(EN) The integration of the GSM/GPRS GC864-QUAD / PY cellular module within user
application shall be done according to the design rules described in this manual.
The information presented in this document is believed to be accurate and reliable.
However, no responsibility is assumed by Telit Communications S.p.A. for its use, nor
any infringement of patents or other rights of third parties which may result from its
use. No license is granted by implication or otherwise under any patent rights of Telit
Communications S.p.A. other than for circuitry embodied in Telit products. This
document is subject to change without notice.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 11 of 69
![](/img.php?id=1303214&img=bgc.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04

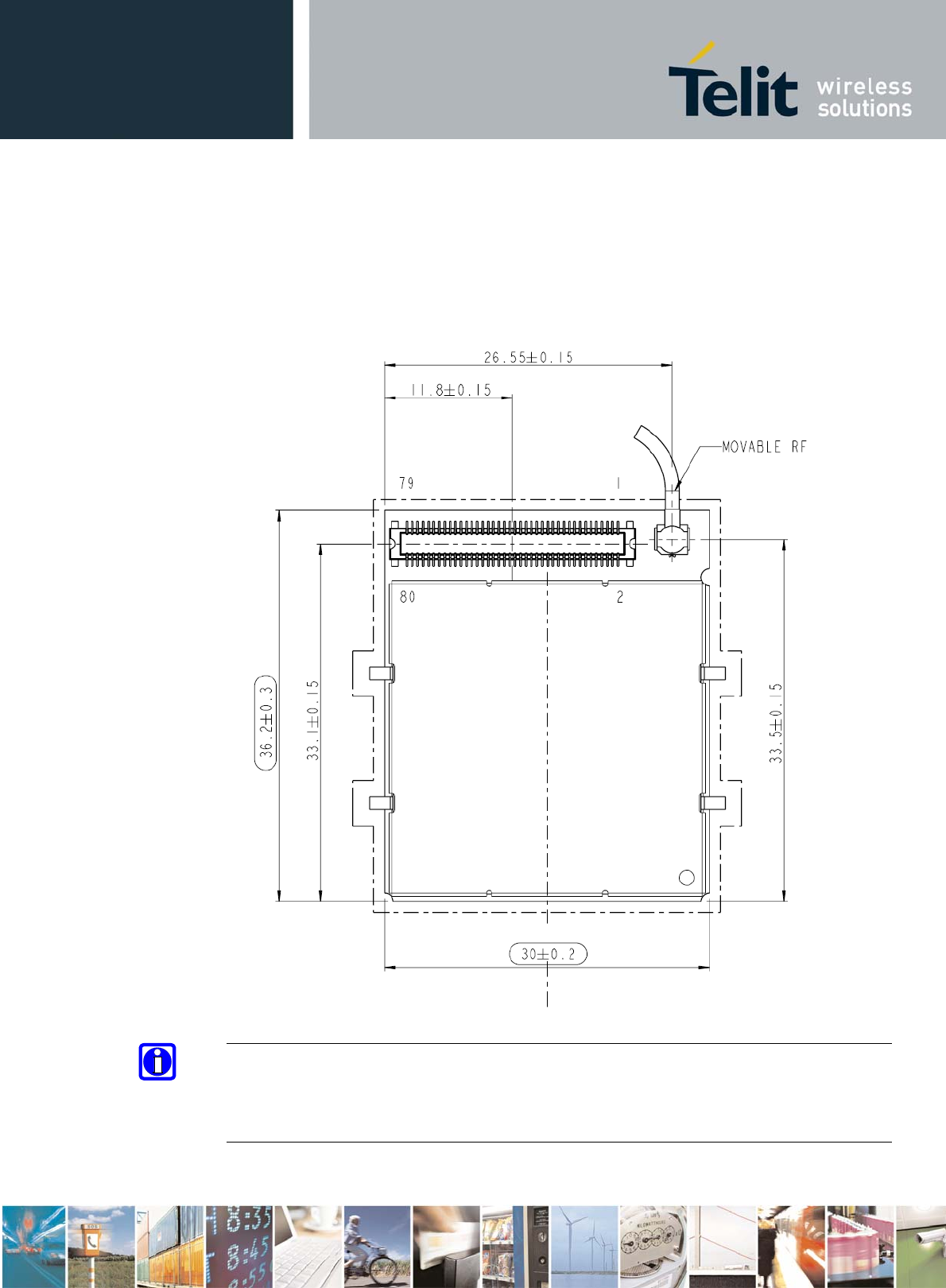

3. GC864 Mechanical Dimensions
The Telit GC864-QUAD/PY module overall dimensions are:
• Length: 36.2 mm
• Width: 30 mm
• Thickness: 3.2 mm
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 12 of 69
![](/img.php?id=1303214&img=bgd.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04

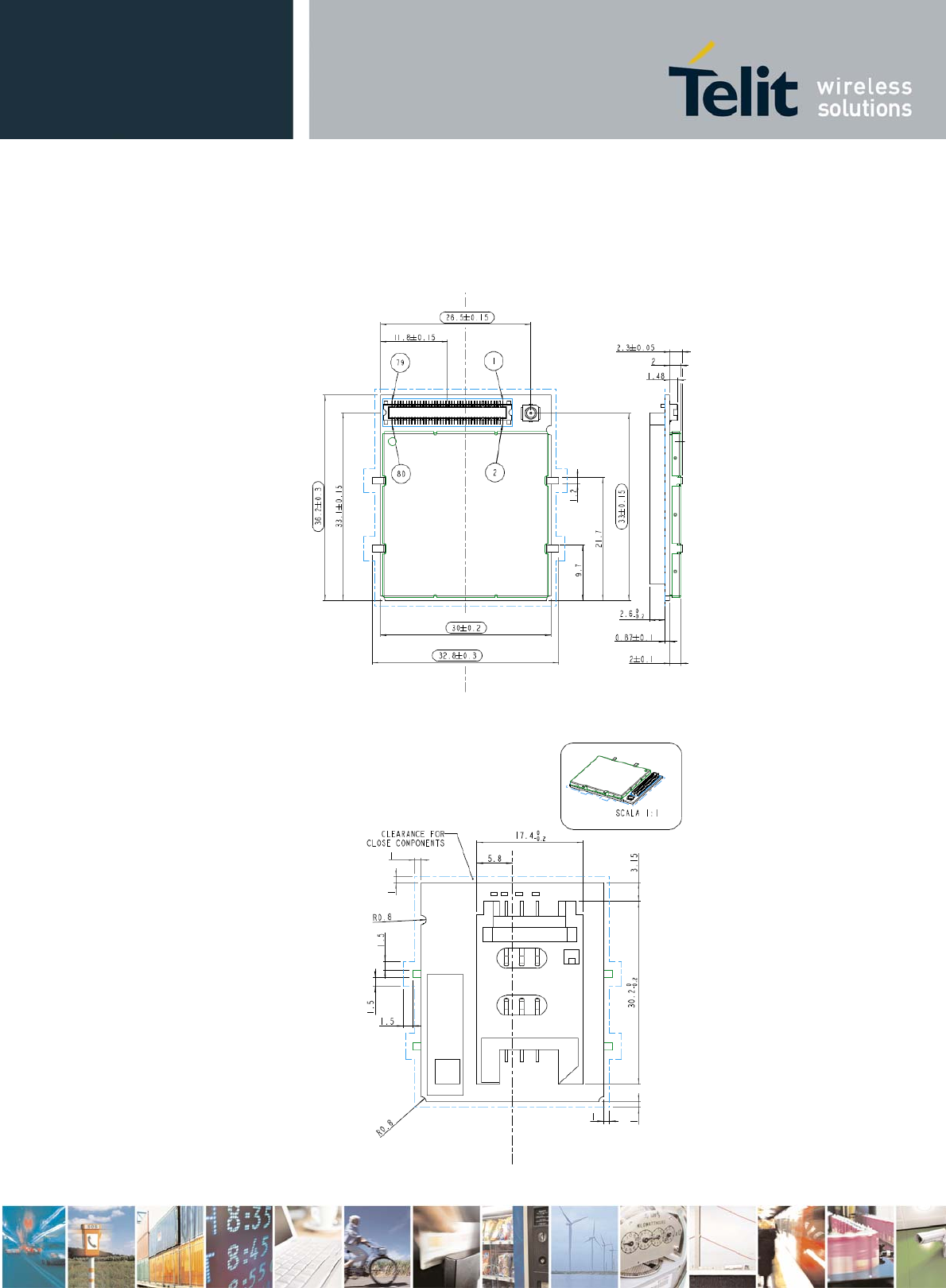

3.1. Mechanical View of Telit GC864-QUAD with SIM Holder
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 13 of 69
![](/img.php?id=1303214&img=bge.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 14 of 69
4. GC864-QUAD/PY Module Connections
4.1. PIN-OUT
The GC864-QUAD/PY uses a 80 pin Molex p.n. 53949-0878 male connector for the
connections with the external applications. This connector matches the 54150-0878
models.
Pin Signal I/O Function Internal
Pull up Type
Power Supply
1 VBATT - Main power supply Power
2 VBATT - Main power supply Power
3 VBATT - Main power supply Power
4 VBATT - Main power supply Power
5 GND - Ground Power
6 GND - Ground Power
7 GND - Ground Power
Audio
8 AXE I Handsfree switching 100K
Ω
CMOS 2.8V
9 EAR_HF+ AO Handsfree ear output, phase + Audio
10 EAR_HF- AO Handsfree ear output, phase - Audio
11 EAR_MT+ AO Handset earphone signal output, phase + Audio
12 EAR_MT- AO Handset earphone signal output, phase - Audio
13 MIC_HF+ AI Handsfree microphone input; phase Audio
14 MIC_HF- AI Handsfree microphone input; phase Audio
15 MIC_MT+ AI Handset microphone signal input; phase+ Audio
16 MIC_MT- AI Handset microphone signal input; phase- Audio
SIM Card Interface
181 SIMVCC - External SIM signal – Power supply for the SIM 1.8 / 3V
19 SIMRST O External SIM signal – Reset 1.8 / 3V
20 SIMIO I/O External SIM signal - Data I/O 1.8 / 3V
21 SIMIN I External SIM signal - Presence (active low) 47K
Ω
1.8 / 3V
22 SIMCLK O External SIM signal – Clock 1.8 / 3V
Trace
23 RX_TRACE I RX Data for debug monitor/ DVI1_WA (Digital Voice Interface) CMOS 2.8V
24 TX_TRACE O TX Data for debug monitor/ DVI1_CLK (Digital Voice Interface) CMOS 2.8V
Prog. / Data + Hw Flow Control
1 On this line a maximum of 10nF bypass capacitor is allowed
![](/img.php?id=1303214&img=bgf.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 15 of 69
Pin Signal I/O Function Internal
Pull up Type
25 C103/TXD I Serial data input (TXD) from DTE CMOS 2.8V
26 C104/RXD O Serial data output to DTE CMOS 2.8V
27 C107/DSR O Output for Data set ready signal (DSR) to DTE/ DVI1_RX (Digital Voice
Interface) CMOS 2.8V
28 C106/CTS O Output for Clear to send signal (CTS) to DTE CMOS 2.8V
29 C108/DTR I Input for Data terminal ready signal (DTR) from DTE CMOS 2.8V
30 C125/RING O Output for Ring indicator signal (RI) to DTE CMOS 2.8V
31 C105/RTS I Input for Request to send signal (RTS) from DTE CMOS 2.8V
32 C109/DCD O Output for Data carrier detect signal (DCD) to DTE CMOS 2.8V
DAC and ADC
37 ADC_IN1 AI Analog/Digital converter input A/D
38 ADC_IN2 AI Analog/Digital converter input A/D
39 ADC_IN3 AI Analog/Digital converter input A/D
40 DAC_OUT AO Digital/Analog converter output D/A
Miscellaneous Functions
45 STAT_LED O Status indicator led CMOS 1.8V
46 GND - Ground Ground
49 PWRMON O Power ON Monitor CMOS 2.8V
50 VAUX1 - Power output for external accessories -
51 CHARGE AI Charger input Power
52 CHARGE AI Charger input Power
53 ON/OFF* I
Input command for switching power ON or OFF (toggle command). The
pulse to be sent to the GC864-QUAD/PY must be equal or greater than
1 second.
47K
Ω
Pull up to VBATT
54 RESET* I Reset input
55 VRTC AO VRTC Backup capacitor Power
36 DVI2_CLK - Digital Voice Interface Clock 4.7K
Ω
CMOS 2.8V
Telit GPIO
56 TGPIO_19 I/O Telit GPIO19 Configurable GPIO CMOS 2.8V
57 TGPIO_11 I/O Telit GPIO11 Configurable GPIO CMOS 2.8V
58 TGPIO_20 I/O Telit GPIO20 Configurable GPIO CMOS 2.8V
59 TGPIO_04 I/O Telit GPIO4 Configurable GPIO / RF Transmission Control CMOS 2.8V
60 TGPIO_14 I/O Telit GPIO14 Configurable GPIO CMOS 2.8V
61 TGPIO_15 I/O Telit GPIO15 Configurable GPIO CMOS 2.8V
62 TGPIO_12 I/O Telit GPIO12 Configurable GPIO CMOS 2.8V
63 TGPIO_10 I/O Telit GPIO10 Configurable GPIO / DVI2_TX (Digital Voice Interface) CMOS 2.8V
64 TGPIO_22 I/O Telit GPIO22 Configurable GPIO CMOS 1.8V
65 TGPIO_18 I/O Telit GPIO18 Configurable GPIO / DVI2_RX (Digital Voice Interface) CMOS 2.8V
66 TGPIO_03 I/O Telit GPIO3 Configurable GPIO CMOS 2.8V
67 TGPIO_08 I/O Telit GPIO8 Configurable GPIO CMOS 2.8V
![](/img.php?id=1303214&img=bg10.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 16 of 69
Pin Signal I/O Function Internal
Pull up Type
68 TGPIO_06 / ALARM I/O Telit GPIO6 Configurable GPIO / ALARM CMOS 2.8V
70 TGPIO_01 I/O Telit GPIO1 Configurable GPIO CMOS 2.8V
71 TGPIO_17 I/O Telit GPIO17 Configurable GPIO / DVI2_WA (Digital Voice Interface) CMOS 2.8V
72 TGPIO_21 I/O Telit GPIO21 Configurable GPIO CMOS 2.8V
73 TGPIO_07 / BUZZER I/O Telit GPIO7 Configurable GPIO / Buzzer CMOS 2.8V
74 TGPIO_02 / JDR I/O Telit GPIO02 I/O pin / Jammer detect report CMOS 2.8V
75 TGPIO_16 I/O Telit GPIO16 Configurable GPIO CMOS 2.8V
76 TGPIO_09 I/O Telit GPIO9 Configurable GPIO CMOS 2.8V
77 TGPIO_13 I/O Telit GPIO13 Configurable GPIO CMOS 2.8V
78 TGPIO_05/ RFTXMON I/O Telit GPIO05 Configurable GPIO / Transmitter ON monitor CMOS 2.8V
RESERVED
17 -
33 -
34 -
41 -
42 -
43 -
44 -
47 -
48 -
79 -
69 -
80 -
35 DVI1_TX - Digital Voice Interface Transmitted Data 4.7K
Ω
CMOS 2.8V
NOTE:
The GC864 family Wireless Modules (GC864-QUAD and GC864-PY) has two DVI ports
on the system interface.
Only one port can be selected and be active at the time. The choice of DVI port
depends on the needs of the application, but Telit suggests that applications only use
the DVI2 port as this minimizes the impact on the module functionality.
![](/img.php?id=1303214&img=bg11.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 17 of 69
NOTE:
Reserved pins must not be connected.
NOTE:
RTS must be connected to the GND (on the module side) if flow control is not used.
NOTE:
If not used, almost all pins must be left disconnected. The only exceptions are the
following pins2:
Pin Signal Function
1 VBATT Main power supply
2 VBATT Main power supply
3 VBATT Main power supply
4 VBATT Main power supply
5 GND Ground
6 GND Ground
7 GND Ground
46 GND Ground
25 C103/TXD Serial data input (TXD) from DTE
26 C104/RXD Serial data output to DTE
31 C105/RTS Input for Request to send signal (RTS) from DTE
53 ON/OFF* Input command for switching power ON or OFF (toggle command).
54 RESET* Reset input
4.1.1. GC864-QUAD/PY Antenna Connector
The GC864-QUAD/PY module is equipped with a 50 RF connector from Murata,
GSC type P/N MM9329-2700B.
The counterpart suitable is Murata MXTK92 Type or MXTK88 Type.
Moreover, the GC864-QUAD/PY has the antenna pads on the back side of the PCB.
This allows the manual soldering of the coaxial cable directly on the back side of the
PCB. However, the soldering is not an advisable solution for a reliable connection of
the antenna.
2 RTS should be connected to the GND (on the module side) if flow control is not used.
![](/img.php?id=1303214&img=bg12.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
5. Hardware Commands
5.1. Turning ON the GC864-QUAD / PY
To turn the GC864-QUAD / PY on, the pad ON# must be tied low for at least 1 second
and then released. A pulse duration less than 1 second should also start the power
on procedure, but this is not guaranteed.
The maximum current that can be drained from the ON# pad is 0,1 mA.

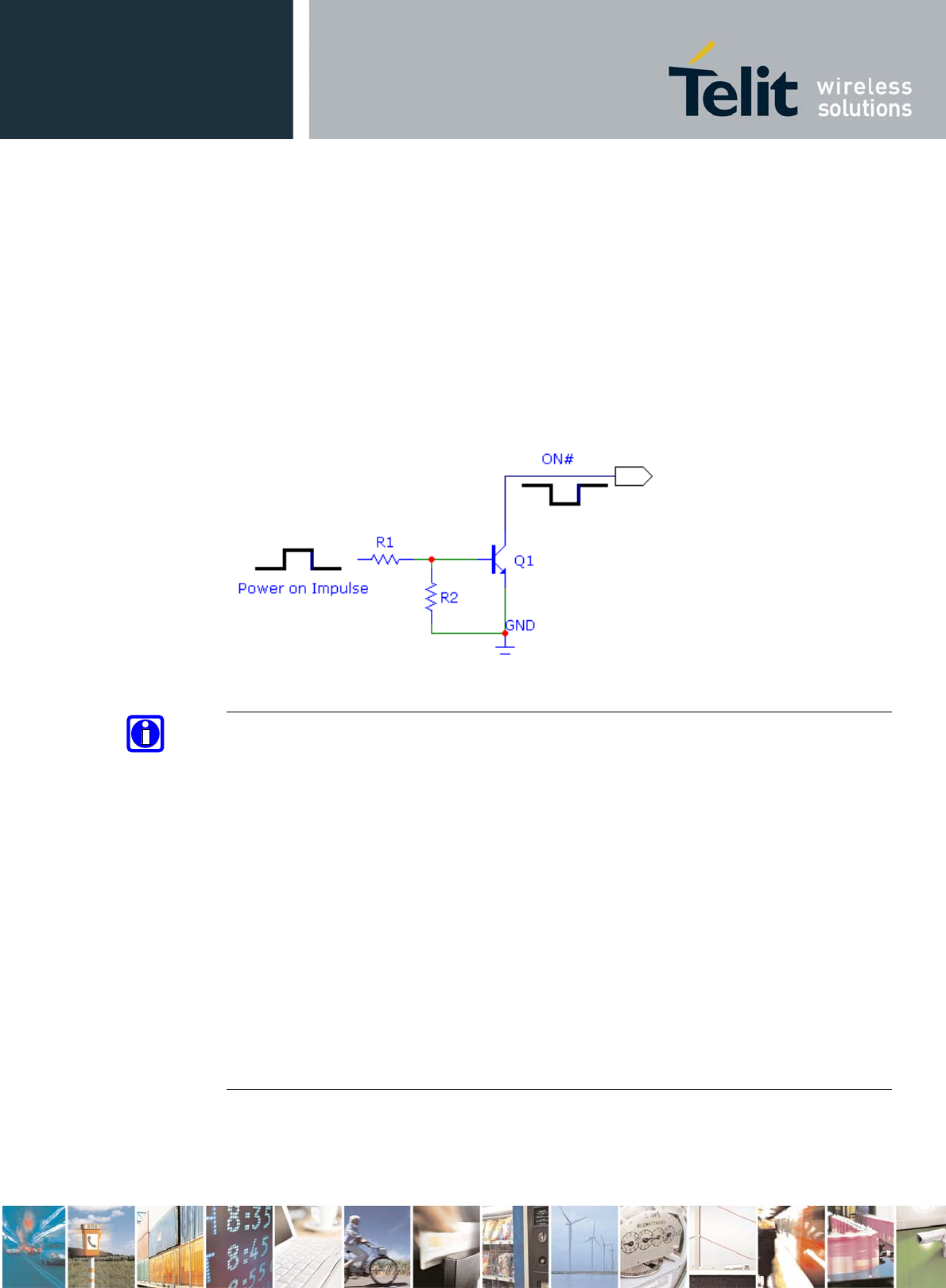

A simple circuit to do it is:
TIP:
To check if the device has powered on, the hardware line PWRMON must be
monitored. After 900ms the line raised up the device could be considered powered
on.
PWRMON line rises up also when supplying power to the Charge pad.
NOTE:
Do not use any pull up resistor on the ON# line, it is internally pulled up. Using pull
up resistor may bring to latch up problems on the GC864-QUAD / PY power regulator
and improper power on/off of the module. The line ON# must be connected only in
open collector configuration.
In this document all the lines that are inverted, hence have active low signals are
labeled with a name that ends with a "#" or with a bar over the name.
The GC864-QUAD / PY turns fully on also by supplying power to the Charge pad
(Module provided with a battery on the VBATT pads).
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 18 of 69
![](/img.php?id=1303214&img=bg13.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
For example:
1- Let us assume you need to drive the ON# pad with a totem pole output of a +3/5 V
microcontroller (uP_OUT1):
2- Let us assume you need to drive the ON# pad directly with an ON/OFF button:
A flow chart with proper turn on procedure is detailed below:
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 19 of 69
![](/img.php?id=1303214&img=bg14.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
5.2. Turning OFF the GC864-QUAD / PY
Turning off of the device can be done in three ways:
• by software command (see GC864-QUAD / PY Software User Guide)
• by tying low pin ON#
Either ways, the device issues a detach request to network informing that the device
will not be reachable any more.
To turn OFF the GC864 via pin ON#, this must be tied low for at least 1s and then
released.
The same circuitry and timing for the power on shall be used.
The device shuts down after the release of the ON# pin.

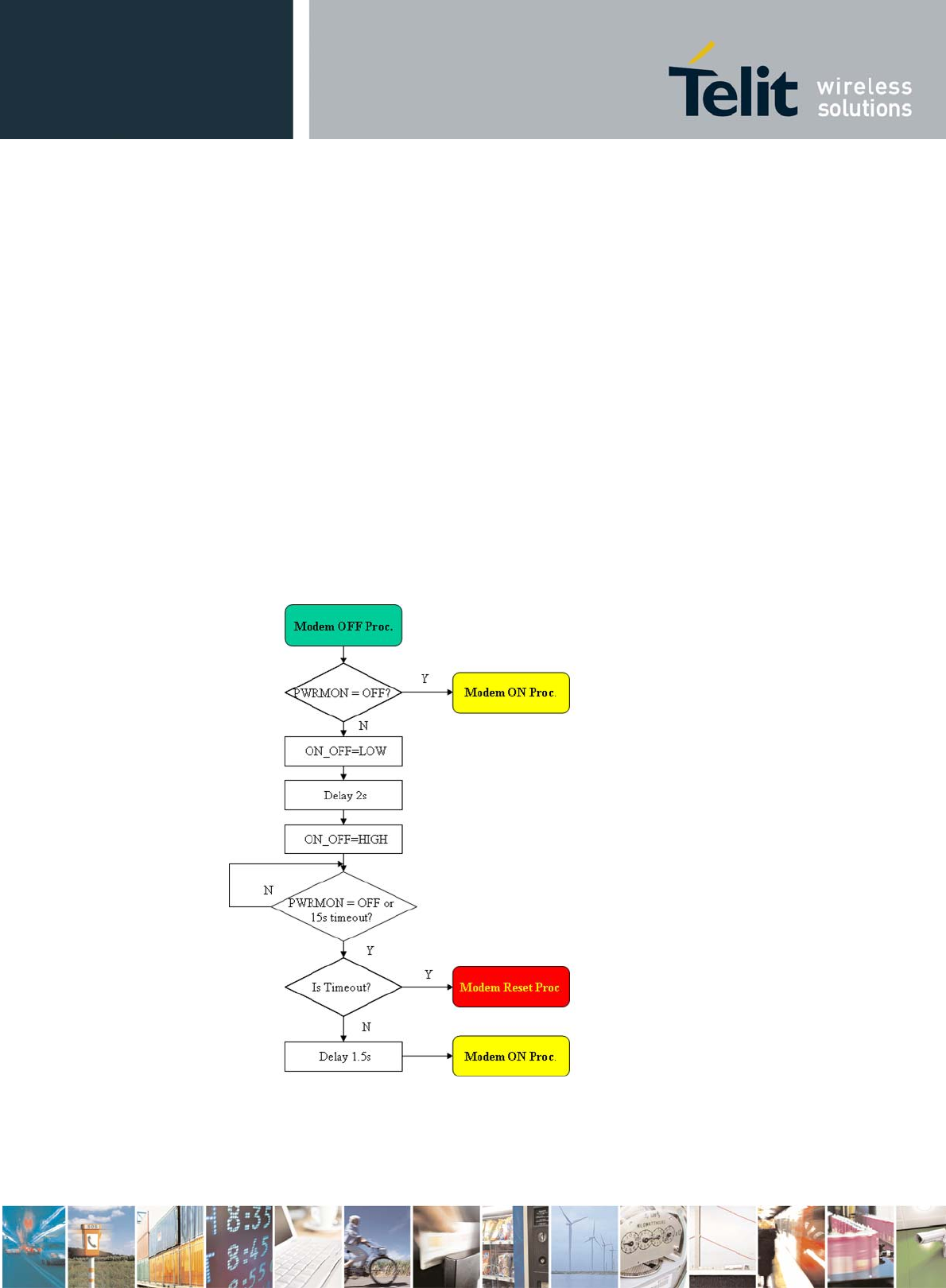

The following flow chart shows the proper turnoff procedure:
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 20 of 69
![](/img.php?id=1303214&img=bg15.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
TIP:
To check if the device has powered off, the hardware line PWRMON must be
monitored. When PWRMON goes low, then the device has powered off.
5.2.1. Hardware Unconditional Restart
WARNING:
The hardware unconditional Restart must not be used during normal operation of the
device since it does not detach the device from the network. It shall be kept as an
emergency exit procedure to be done in the rare case that the device gets stacked
waiting for some network or SIM responses.

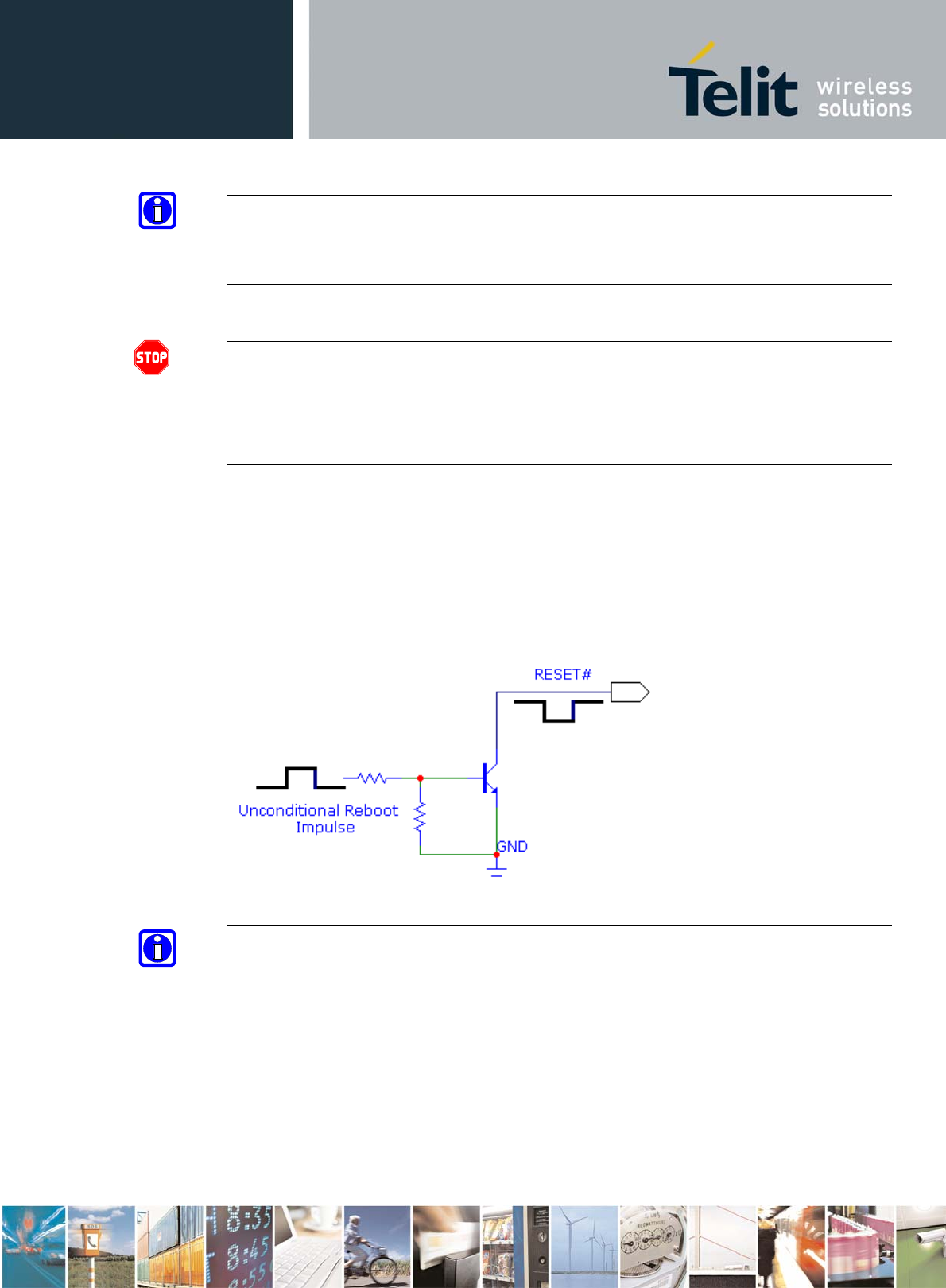

To unconditionally Restart the GC864-QUAD / PY, the pad RESET# must be tied low
for at least 200 milliseconds and then released.
The maximum current that can be drained from the ON# pad is 0,15 mA.
A simple circuit to do it is:
NOTE:
Do not use any pull up resistor on the RESET* line nor any totem pole digital output.
Using pull up resistor may cause latch up problems on the GC864-QUAD / PY power
regulator and improper functioning of the module. The line RESET* must be
connected only in open collector configuration.
TIP:
The unconditional hardware reboot must always be implemented on the boards and
the software must use it as an emergency exit procedure.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 21 of 69
![](/img.php?id=1303214&img=bg16.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04

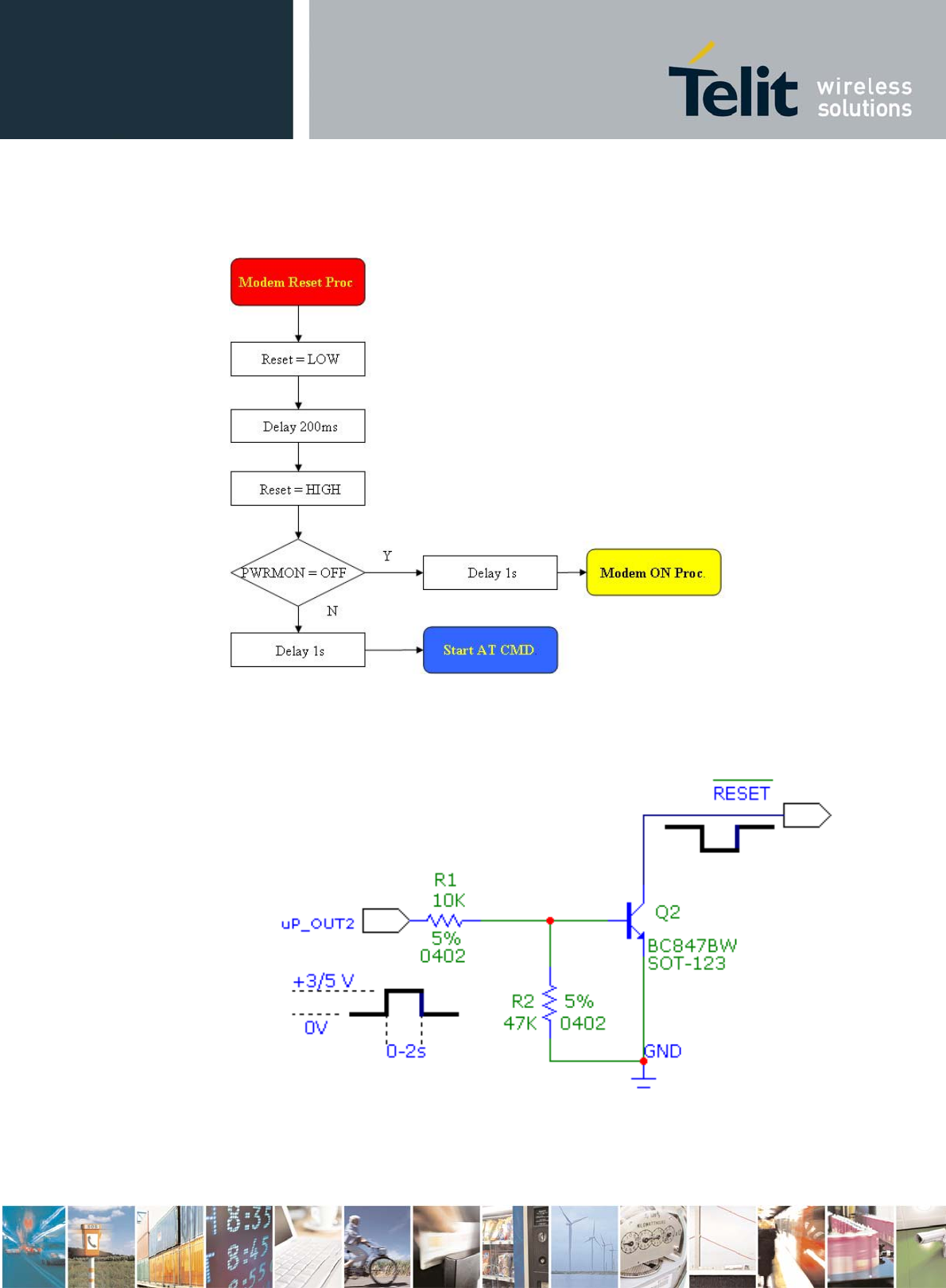

In the following flow chart is detailed the proper restart procedure:
For example:
1- Let us assume you need to drive the RESET# pad with a totem pole output of a
+3/5 V microcontroller (uP_OUT2):
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 22 of 69
![](/img.php?id=1303214&img=bg17.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
6. Power Supply
The power supply circuitry and board layout are a very important part in the full
product design and they strongly reflect on the product overall performances, hence
read carefully the following requirements and guidelines for a proper design.
6.1. Power Supply Requirements
POWER SUPPLY
SW rel. 7.02.xx4 or
older
SW rel. 7.03.x00 or
newer
Nominal Supply Voltage 3.8 V 3.8 V
Max Supply Voltage 4.2 V 4.5 V
Supply voltage range 3.4 V - 4.2 V 3.22 V – 4.5 V
The GC864-QUAD / PY power consumptions are:
GC864-QUAD / PY
Mode Average
(mA) Mode description
SWITCHED OFF
Switched Off <26 uA Module supplied but Switched Off
IDLE mode
AT+CFUN=1 19.0 Normal mode: full functionality of the module
AT+CFUN=4 18.2 Disabled TX and RX; module is not registered on the network
6.6 Paging Multiframe 2
4.5 Paging Multiframe 4
3.3 Paging Multiframe 6
3.2 Paging Multiframe 8
AT+CFUN=0 or =5
2.5 Paging Multiframe 9
CSD TX and RX mode
GSM900 CSD PL5 237.3
DCS1800 CSD PL0 223.8
GSM VOICE CALL
GPRS (class 10) 1TX
GSM900 PL5 264,0
DCS1800 PL0 176,0
GPRS Sending data mode
GPRS (class 10) 2TX
GSM900 PL5 473,8
DCS1800 PL0 307,8
GPRS Sending data mode
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 23 of 69
![](/img.php?id=1303214&img=bg18.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
The GSM system is made in a way that the RF transmission is not continuous but it is
packed into bursts at a base frequency of about 216 Hz. The relative current peaks
can be as high as about 2A. Therefore the power supply has to be designed in order
to withstand with these current peaks without big voltage drops; this means that both
the electrical design and the board layout must be designed for this current flow.
If the layout of the PCB is not well designed, then a strong noise floor is generated on
the ground and the supply; this will reflect on all the audio paths producing an
audible and annoying noise at 216 Hz; if the voltage drop during the peak current
absorption is too much, then the device may even shutdown as a consequence of the
supply voltage drop.
TIP:
The power supply must be designed so that it is capable of a peak current output of
at least 2 A.
6.2. General Design Rules
The principal guidelines for the Power Supply Design embrace three different design
steps:
• the electrical design
• the thermal design
• the PCB layout.
6.2.1. Electrical Design Guidelines
The electrical design of the power supply depends strongly from the power source
where this power is drained. We will distinguish them into three categories:
• +5V input (typically PC internal regulator output)
• +12V input (typically automotive)
• Battery
6.2.1.1. +5V input Source Power Supply Design Guidelines
• The desired output for the power supply is 3.8V, hence there is no big
difference between the input source and the desired output. A linear
regulator can be used. A switching power supply will not be suited
because of the low drop out requirements.
• When using a linear regulator, a proper heat sink shall be provided in
order to dissipate the power generated.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 24 of 69
![](/img.php?id=1303214&img=bg19.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
• A Bypass low ESR capacitor of adequate capacity must be provided in
order to cut the current absorption peaks close to the GC864-QUAD / PY, a
100F tantalum capacitor is usually suited.
• Make sure the low ESR capacitor on the power supply output (usually a
tantalum one) is rated at least 10V.
• A protection diode must be inserted close to the power input, in order to
save the GC864-QUAD / PY from power polarity inversion.

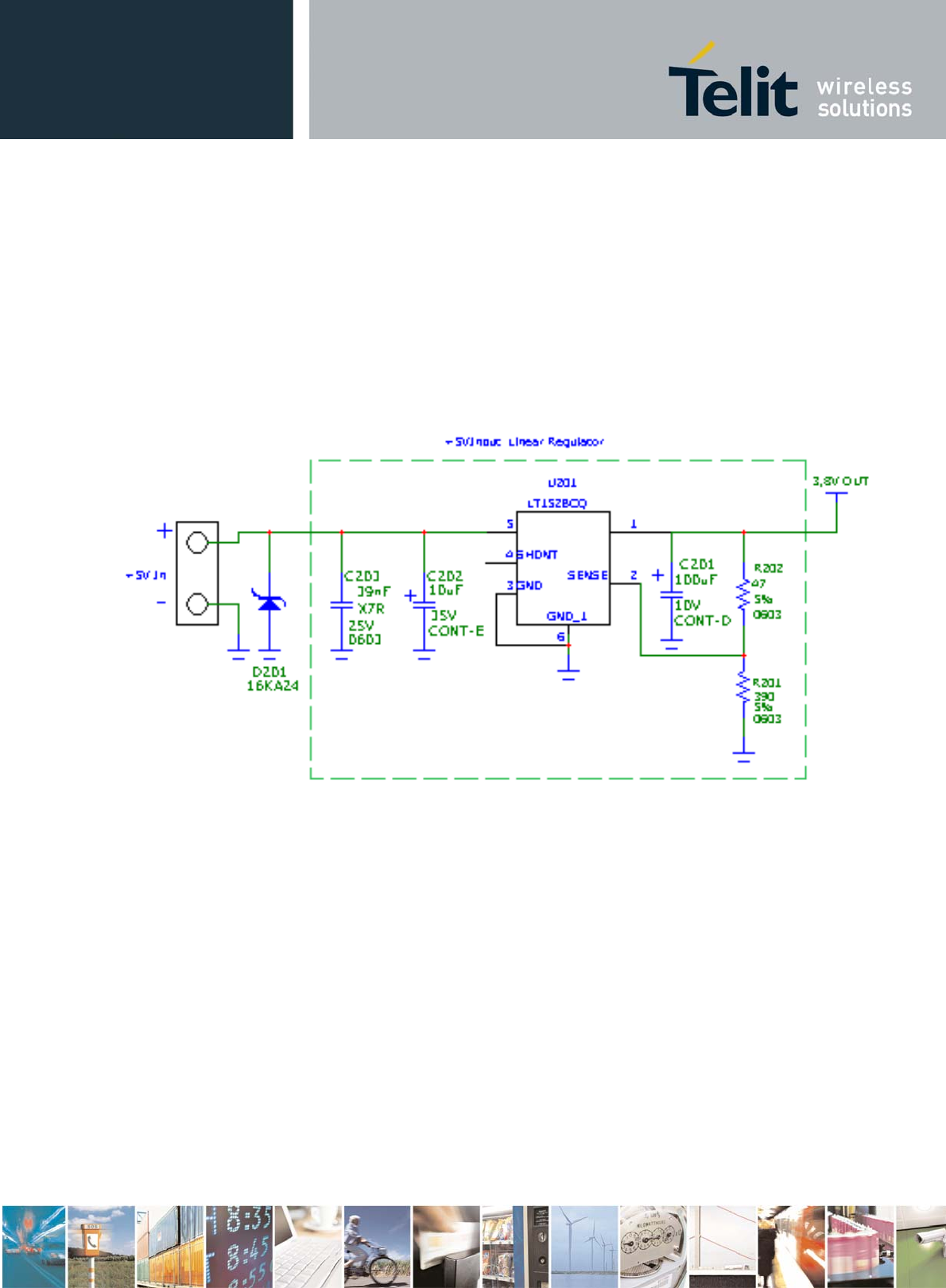

An example of linear regulator with 5V input is:
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 25 of 69
![](/img.php?id=1303214&img=bg1a.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
6.2.1.2. +12V input Source Power Supply Design Guidelines
• The desired output for the power supply is 3.8V, hence, due to the big
difference between the input source and the desired output, a linear
regulator is not suited and shall not be used. A switching power supply
will be preferable because of its better efficiency especially with the 2A
peak current load represented by the GC864-QUAD/PY.
• When using a switching regulator, a 500kHz (or more) switching
frequency regulator is preferable, because of its smaller inductor size and
its faster transient response. This allows the regulator to respond quickly
to the current peaks absorption.
• In any case the frequency and switching design selection is related to the
application to be developed, due to the fact that the switching frequency
could also generate EMC interferences.
• As far as car PB battery, the input voltage can rise up to 15.8V. This must
be kept in mind when choosing components: all components in the power
supply must withstand this voltage.
• A Bypass low ESR capacitor of adequate capacity must be provided, in
order to cut the current absorption peaks. A 100F tantalum capacitor is
typically used.
• Make sure the low ESR capacitor on the power supply output (usually a
tantalum one) is rated at least 10V.
• As far as car applications, a spike protection diode must be inserted close
to the power input, in order to clean the supply from spikes.
• A protection diode must be inserted close to the power input, in order to
save the GC864-QUAD/PY from power polarity inversion. This can be the
same diode used for spike protection.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 26 of 69
![](/img.php?id=1303214&img=bg1b.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04

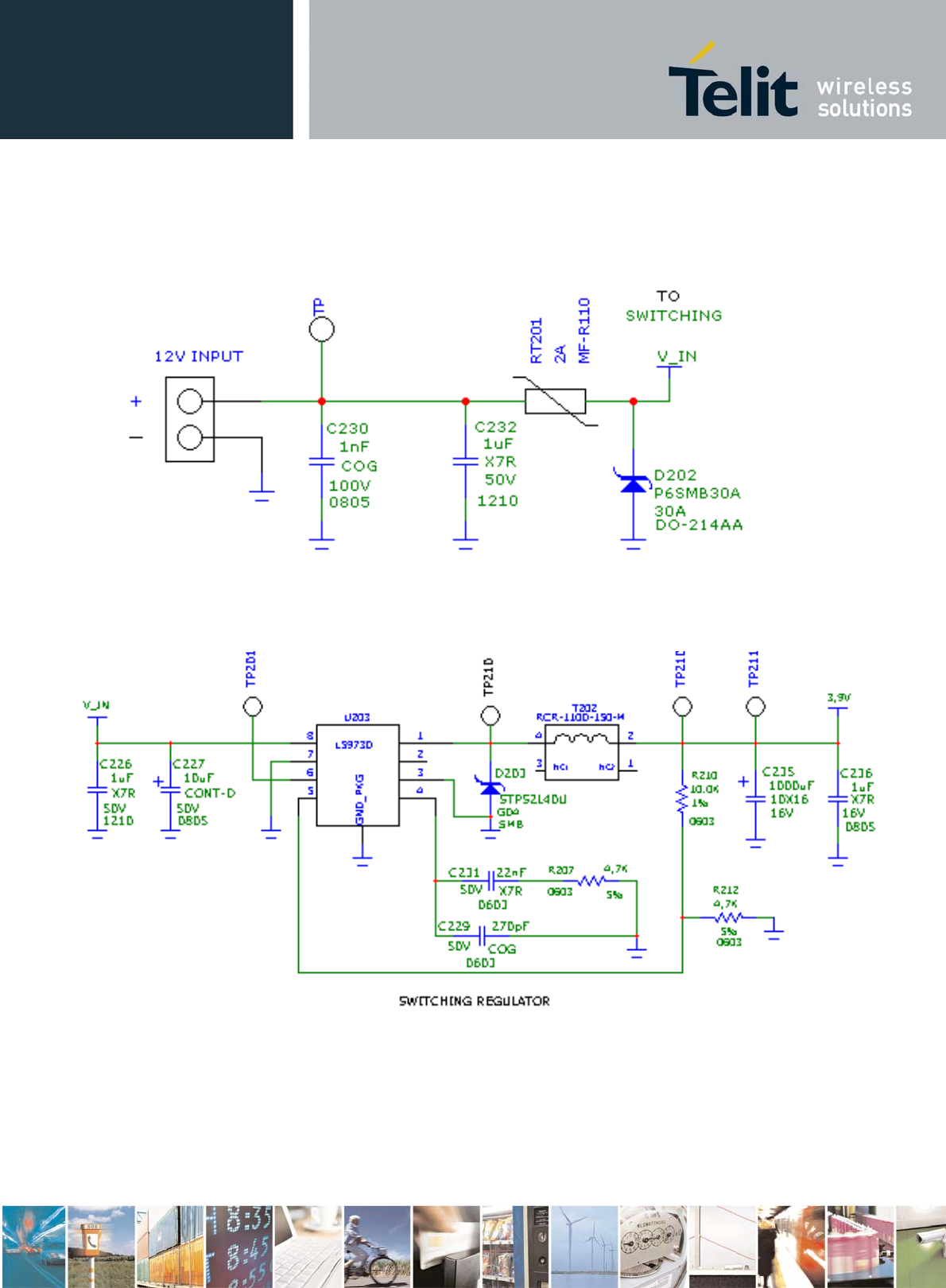

An example of switching regulator with 12V input is in the schematic below (split in 2
parts):
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 27 of 69
![](/img.php?id=1303214&img=bg1c.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
6.2.1.3. Battery Source Power Supply Design Guidelines
The desired nominal output for the power supply is 3.8V and the maximum voltage
allowed is 4.2V (4.5 if using SW release 7.03.x00 or newer). A single 3.7V Li-Ion cell
battery type is suited for supplying the power to the Telit GC864-QUAD/PY module.
CAUTION:
The three cells Ni/Cd or Ni/MH 3,6 V Nom. Battery types or 4V PB types MUST NOT
BE USED DIRECTLY since their maximum voltage can rise over the absolute
maximum voltage for the GC864-QUAD/PY and damage it.
CAUTION:
DO NOT USE any Ni-Cd, Ni-MH, and Pb battery types directly connected with GC864-
QUAD/PY. Their use can lead to overvoltage on the GC864-QUAD/PY and damage it.
USE ONLY Li-Ion battery types.
A Bypass low ESR capacitor of adequate capacity must be provided, in order to cut
the current absorption peaks. A 100F tantalum capacitor is typically used.
Make sure the low ESR capacitor (usually a tantalum one) is rated at least 10V.
A protection diode must be inserted close to the power input, in order to save the
GC864-QUAD/PY from power polarity inversion. Otherwise the battery connector
must be done in a way to avoid polarity inversions when connecting the battery.
The battery capacity must be at least 500mAh in order to withstand the current peaks
of 2A; the suggested capacity is from 500mAh to 1000mAh.
6.2.1.4. Battery Charge Control Circuitry Design Guidelines
The charging process for Li-Ion Batteries can be divided into 4 phases:
• Qualification and trickle charging
• Fast charge 1 – constant current
• Final charge – constant voltage or pulsed charging
• Maintenance charge
The qualification process consists in a battery voltage measure, indicating roughly its
charge status. If the battery is deeply discharged, then its voltage is lower than the
trickle charging threshold and the charge must start slowly, possibly with a current
limited pre-charging process where the current is kept very low with respect to the
fast charge value, aka the trickle charging.
During the trickle charging, the voltage across the battery terminals rises; when it
reaches the fast charge threshold level the charging process goes into fast charge
phase.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 28 of 69
![](/img.php?id=1303214&img=bg1d.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
During the fast charge phase the process proceeds with a current limited charging;
this current limit depends on the required time for the complete charge and from the
battery pack capacity. During this phase the voltage across the battery terminals still
raises but at a lower rate.
Once the battery voltage reaches its maximum voltage then the process goes into its
third state: Final charging. The voltage measure to change the process status into
final charge is very important. It must be ensured that the maximum battery voltage
is never exceeded, otherwise the battery may be damaged and even explode.
Moreover for the constant voltage final chargers, the constant voltage phase (final
charge) must not start before the battery voltage has reached its maximum value,
otherwise the battery capacity will be highly reduced.
The final charge can be of two different types: constant voltage or pulsed. GC864-
QUAD/PY uses constant voltage.
The constant voltage charge proceeds with a fixed voltage regulator (very accurately
set to the maximum battery voltage) and hence the current will decrease while the
battery is becoming charged. When the charging current falls below a certain
fraction of the fast charge current value, then the battery is considered fully charged,
the final charge stops and eventually starts the maintenance.
The pulsed charge process has no voltage regulation, instead the charge continues
with pulses. Usually the pulse charge works in the following manner: the charge is
stopped for some time, let us say few hundreds of ms, then the battery voltage will
be measured and when it drops below its maximum value a fixed time length
charging pulse is issued. As the battery approaches its full charge the off time will
become longer, hence the duty-cycle of the pulses will decrease. The battery is
considered fully charged when the pulse duty-cycle is less than a threshold value,
typically 10%, the pulse charge stops and eventually the maintenance starts.
The last phase is not properly a charging phase, since the battery at this point is fully
charged and the process may stop after the final charge. The maintenance charge
provides an additional charging process to compensate for the charge leak typical of
a Li-Ion battery. It is done by issuing pulses with a fixed time length, again few
hundreds of ms, and a duty-cycle around 5% or less.
This last phase is not implemented in the GC864-QUAD/PY internal charging
algorithm, so that the battery once charged is left discharging down to a certain
threshold so that it is cycled from full charge to slight discharge even if the battery
charger is always inserted. This guarantees that anyway the remaining charge in the
battery is a good percentage and that the battery is not damaged by keeping it always
fully charged (Li-Ion rechargeable battery usually deteriorate when kept fully
charged).
Last but not least, in some applications it is highly desired that the charging process
restarts when the battery is discharged and its voltage drops below a certain
threshold, GC864-QUAD/PY internal charger does it.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 29 of 69
![](/img.php?id=1303214&img=bg1e.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
As you can see, the charging process is not a trivial task to be done; moreover all
these operations must start only if battery temperature is inside a charging range,
usually 5°C – 45°C.
The GC864-QUAD/PY measures the temperature of its internal component, in order
to satisfy this last requirement, it is not exactly the same as the battery temperature
but in common application the two temperature must not differ too much and the
charging temperature range must be guaranteed.
NOTE:
For all the threshold voltages, inside the GC864-QUAD/PY all thresholds are fixed in
order to maximize Li-Ion battery performances and do not need to be changed.
NOTE:
In this application the battery charger input current must be limited to less than
400mA. This can be done by using a current limited wall adapter as the power
source.
NOTE:
When starting the charger from Module powered off the startup will be in CFUN4; to
activate the normal mode, a command AT+CFUN=1 has to be provided.
There is also the possibility to activate the normal mode using the ON_OFF* signal.
In this case, when HW powering off the module with the same line (ON_OFF*) and
having the charger still connected, the module will go back to CFUN4.
NOTE:
It is important having a 100uF Capacitor to VBAT in order to avoid instability of the
charger circuit if the battery is accidentally disconnected during the charging activity.
6.2.2. Thermal Design Guidelines
The thermal design for the power supply heat sink must be done with the following
specifications:
• Average current consumption during transmission @PWR level max:
500mA
• Average current consumption during transmission @ PWR level min:
100mA
• Average current during Power Saving (CFUN=5): 4mA
• Average current during idle (Power Saving disabled): 23mA
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 30 of 69
![](/img.php?id=1303214&img=bg1f.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
NOTE:
The average consumption during transmissions depends on the power level at which
the device is requested to transmit by the network. The average current consumption
hence varies significantly.
Considering the very low current during idle, especially if Power Saving function is
enabled, it is possible to consider from the thermal point of view that the device
absorbs current significantly only during calls.
If we assume that the device stays into transmission for short periods of time (let us
say few minutes) and then remains for a quite long time in idle (let us say one hour),
then the power supply has always the time to cool down between the calls, and the
heat sink could be smaller than the calculated one for 500mA maximum RMS
current, or even could be the simple chip package (no heat sink).
Moreover, in the average network conditions, the device is requested to transmit at a
lower power level than the maximum, hence the current consumption will be less
than 500mA, usually around 150mA.
For these reasons the thermal design is rarely a concern and the simple ground
plane where the power supply chip is placed grants a good thermal condition to avoid
overheating as well.
As far as the heat generated by the GC864-QUAD / PY, you can consider it to be
during transmissions of 1W max during CSD/VOICE calls and 2W max during class10
GPRS upload.
This generated heat will be mostly conducted to the ground plane under the GC864-
QUAD / PY; you must ensure that your application can dissipate it.
6.2.3. Power Supply PCB Layout Guidelines
As seen on the electrical design guidelines the power supply shall have a low ESR
capacitor on the output to cut the current peaks and a protection diode on the input
to protect the supply from spikes and polarity inversion. The placement of these
components is crucial for the correct working of the circuitry. A misplaced
component can be useless or can even decrease the power supply performances.
• The Bypass low ESR capacitor must be placed close to the Telit GC864-
QUAD / PY power input pads or in the case the power supply is a switching
type it can be placed close to the inductor to cut the ripple provided the
PCB trace from the capacitor to the GC864-QUAD / PY is wide enough to
ensure a dropless connection even during the 2A current peaks.
• The protection diode must be placed close to the input connector where
the power source is drained.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 31 of 69
![](/img.php?id=1303214&img=bg20.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
• The PCB traces from the input connector to the power regulator IC must
be wide enough to ensure no voltage drops occur when the 2A current
peaks are absorbed. Note that this is not made in order to save power
loss but especially to avoid the voltage drops on the power line at the
current peaks frequency of 216 Hz that will reflect on all the components
connected to that supply, introducing the noise floor at the burst base
frequency. For this reason while a voltage drop of 300-400 mV may be
acceptable from the power loss point of view, the same voltage drop may
not be acceptable from the noise point of view. If your application does not
have audio interface but only uses the data feature of the Telit GC864-
QUAD / PY, then this noise is not so disturbing and power supply layout
design can be more forgiving.
• The PCB traces to the GC864-QUAD / PY and the Bypass capacitor must
be wide enough to ensure no significant voltage drops occur when the 2A
current peaks are absorbed. This is for the same reason as previous
point. Try to keep this trace as short as possible.
• The PCB traces connecting the Switching output to the inductor and the
switching diode must be kept as short as possible by placing the inductor
and the diode very close to the power switching IC (only for switching
power supply). This is done in order to reduce the radiated field (noise) at
the switching frequency (100-500 kHz usually).
• The use of a good common ground plane is suggested.
• The placement of the power supply on the board must be done in such a
way to guarantee that the high current return paths in the ground plane
are not overlapped to any noise sensitive circuitry as the microphone
amplifier/buffer or earphone amplifier.
• The power supply input cables must be kept separate from noise sensitive
lines such as microphone/earphone cables.
6.2.4. Parameters for ATEX Applications
In order to integrate the Telit’s GC864 module into an ATEX application, the
appropriate reference standard IEC EN xx and integrations shall be followed.
Below are listed parameters and useful information to integrate the module in your
application:
• Total capacity: 78.494 uF
• Total inductance: 10.163 uH
• No voltage upper than supply voltage is present in the module.
• No step-up converters are present in the module.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 32 of 69
![](/img.php?id=1303214&img=bg21.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
• In abnormal conditions, the maximum RF output power is up to 34 dBm
for few seconds.
For this particular application, we recommend the customer to involve TTSC (Telit
Technical Support Center) in the design phase of the application.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 33 of 69
![](/img.php?id=1303214&img=bg22.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
7. Antenna
The antenna connection and board layout design are the most important part in the
full product design and they strongly reflect on the product overall performances,
hence read carefully and follow the requirements and the guidelines for a proper
design.
7.1. GSM Antenna Requirements
As suggested on the Product Description the antenna for a Telit GC864-QUAD / PY
device shall fulfill the following requirements:
ANTENNA REQUIREMENTS
Frequency range Depending by frequency band(s) provided by the
network operator, the customer shall use the most
suitable antenna for that/those band(s)
Bandwidth 70 MHz in GSM850, 80 MHz in GSM900, 170 MHz in
DCS & 140 MHz PCS band
Gain Gain < 1,4dBi in GSM 850 & 900 and < 3,0dBi DCS & PCS
Impedance 50
Input power > 2 W peak power
VSWR absolute max <= 10:1
VSWR recommended <= 2:1
Furthermore if the device is developed for the US market and/or Canada market, it
shall comply to the FCC and/or IC approval requirements:
This device is to be used only for mobile and fixed application. The antenna(s) used
for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-Users must be provided with transmitter
operation conditions for satisfying RF exposure compliance. OEM integrators must
ensure that the end user has no manual instructions to remove or install the GC864-
QUAD / PY module. Antennas used for this OEM module must not exceed 3dBi gain
for mobile and fixed operating configurations.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 34 of 69
![](/img.php?id=1303214&img=bg23.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
7.2. GSM Antenna – Installation Guidelines
• Install the antenna in a place covered by the GSM signal.
• The Antenna must be installed to provide a separation distance of at least
20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter;
• Antenna shall not be installed inside metal cases
• Antenna shall be installed also according Antenna manufacturer
instructions.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 35 of 69
![](/img.php?id=1303214&img=bg24.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
8. Logic Level Specifications
Where not specifically stated, all the interface circuits work at 2.8V CMOS logic
levels. The following table shows the logic level specifications used in the Telit
GC864-QUAD / PY interface circuits:
Absolute Maximum Ratings – Not Functional
Parameter Min Max
Input level on any
digital pin when on
-0.3V +3.6V
Input voltage on
analog pins when on
-0.3V +3.0 V
Operating Range – Interface Levels (2.8V CMOS)
Level Min Max
Input high level 2.1V 3.3V
Input low level 0V 0.5V
Output high level 2.2V 3.0V
Output low level 0V 0.35V
For 1,8V signals:
Operating Range – Interface Levels (1.8V CMOS)
Level Min Max
Input high level 1.6V 2.2V
Input low level 0V 0.4V
Output high level 1,65V 2.2V
Output low level 0V 0.35V
Current characteristics
Level Typical
Output Current 1mA
Input Current 1uA
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 36 of 69
![](/img.php?id=1303214&img=bg25.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
8.1. Reset Signal
Signal Function I/O PIN Number
RESET Phone reset I 54
RESET is used to reset the GC864-QUAD / PY modules. Whenever this signal is pulled
low, the GC864-QUAD / PY is reset. When the device is reset it stops any operation.
After the release of the reset GC864-QUAD / PY is unconditionally shut down, without
doing any detach operation from the network where it is registered. This behaviour is
not a proper shut down because any GSM device is requested to issue a detach
request on turn off. For this reason the Reset signal must not be used to normally
shutting down the device, but only as an emergency exit in the rare case the device
remains stuck waiting for some network response.
The RESET is internally controlled on start-up to achieve always a proper power-on
reset sequence, so there is no need to control this pin on start-up. It may only be
used to reset a device already on that is not responding to any command.
NOTE:
Do not use this signal to power off the GC864-QUAD / PY. Use the ON/OFF signal to
perform this function or the AT#SHDN command.
Reset Signal Operating Levels:
Signal Min Max
RESET Input high 2.0V* 2.2V
RESET Input low 0V 0.2V
* this signal is internally pulled up so the pin can be left floating if not used.
If unused, this signal may be left unconnected. If used, then it must always be
connected with an open collector transistor, to permit to the internal circuitry the
power on reset and under voltage lockout functions.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 37 of 69
![](/img.php?id=1303214&img=bg26.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
9. Serial Ports
The serial port on the Telit GC864-QUAD/PY is the core of the interface between the
module and OEM hardware.
2 serial ports are available on the module:
• MODEM SERIAL PORT
• MODEM SERIAL PORT 2 (DEBUG)
9.1. MODEM SERIAL PORT
Several configurations can be designed for the serial port on the OEM hardware, but
the most common are:
• RS232 PC com port
• microcontroller UART @ 2.8V – 3V (Universal Asynchronous Receive
Transmit)
• microcontroller UART@ 5V or other voltages different from 2.8V
Depending from the type of serial port on the OEM hardware a level translator circuit
may be needed to make the system work. The only configuration that does not need a
level translation is the 2.8V UART.
The serial port on the GC864-QUAD/PY is a +2.8V UART with all the 7 RS232 signals.
It differs from the PC-RS232 in the signal polarity (RS232 is reversed) and levels. The
levels for the GC864-QUAD/PY UART are the CMOS levels:
Absolute Maximum Ratings –Not Functional
Parameter Min Max
Input level on any
digital pad when on
-0.3V +3.6V
Input voltage on
analog pads when on
-0.3V +3.0 V
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 38 of 69
![](/img.php?id=1303214&img=bg27.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Operating Range – Interface levels (2.8V CMOS)
Level Min Max
Input high level VIH 2.1V 3.3V
Input low level VIL 0V 0.5V
Output high level VOH 2.2V 3.0V
Output low level VOL 0V 0.35V
The table below shows the signals of the GC864-QUAD/PY serial port:
RS232 Pin
Number
Signal GC864-
QUAD / PY
Pad
Number
Name Usage
1 DCD –
dcd_uart 32 Data Carrier Detect Output from the GC864-QUAD / PY that indicates
the carrier presence
2 RXD –
tx_uart 26 Transmit line *see Note Output transmit line of GC864-QUAD / PY UART
3 TXD –
rx_uart 25 Receive line *see Note Input receive of the GC864-QUAD / PY UART
4 DTR –
dtr_uart 29 Data Terminal Ready Input to the GC864-QUAD / PY that controls the DTE
READY condition
5 GND 5,6,7 Ground ground
6 DSR –
dsr_uart 27 Data Set Ready Output from the GC864-QUAD / PY that indicates
the module is ready
7 RTS –
rts_uart 31 Request to Send Input to the GC864-QUAD / PY that controls the
Hardware flow control
8 CTS –
cts_uart 28 Clear to Send Output from the GC864-QUAD / PY that controls the
Hardware flow control
9 RI – ri_uart 30 Ring Indicator Output from the GC864-QUAD / PY that indicates
the incoming call condition
*NOTE:
According to V.24, RX/TX signal names are referred to the application side, therefore
on the GC864-QUAD/PY side these signal are on the opposite direction: TXD on the
application side will be connected to the receive line (here named TXD/ rx_uart ) of
the GC864-QUAD/PY serial port and viceversa for RX.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 39 of 69
![](/img.php?id=1303214&img=bg28.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
TIP:
For a minimum implementation, only the TXD and RXD lines can be connected, the
other lines can be left open provided a software flow control is implemented.
TIP:
In order to avoid noise or interferences on the RXD lines it is suggested to add a pull
up resistor (100K to 2.8V)
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 40 of 69
![](/img.php?id=1303214&img=bg29.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
9.2. RS232 Level Translation
In order to interface the Telit GC864-QUAD/PY with a PC com port or a RS232
(EIA/TIA-232) application a level translator is required. This level translator must
• invert the electrical signal in both directions
• change the level from 0/3V to +15/-15V
Actually, the RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with
lower levels on the RS232 side (EIA/TIA-562), allowing for a lower voltage-multiplying
ratio on the level translator. Note that the negative signal voltage must be less than
0V and hence some sort of level translation is always required.
The simplest way to translate the levels and invert the signal is by using a single chip
level translator. There are a multitude of them, differing in the number of driver and
receiver and in the levels (be sure to get a true RS232 level translator not a RS485 or
other standards).
By convention the driver is the level translator from the 0-3V UART level to the RS232
level, while the receiver is the translator from RS232 level to 0-3V UART.
In order to translate the whole set of control lines of the UART you will need:
• 5 driver
• 3 receiver
NOTE:
The digital input lines working at 2.8VCMOS have an absolute maximum input voltage
of 3,75V; therefore the level translator IC shall not be powered by the +3.8V supply of
the module. Instead it shall be powered from a +2.8V / +3.0V (dedicated) power
supply.
This is because in this way the level translator IC outputs on the module side (i.e.
GC864-QUAD/PY inputs) will work at +3.8V interface levels, stressing the module
inputs at its maximum input voltage.
This can be acceptable for evaluation purposes, but not on production devices.
NOTE:
In order to be able to do in circuit reprogramming of the GC864-QUAD/PY firmware,
the serial port on the Telit GC864-QUAD/PY shall be available for translation into
RS232 and either it is controlling device shall be placed into tristate, disconnected or
as a gateway for the serial data when module reprogramming occurs.
Only RXD, TXD, GND and the On/off module turn on pad are required to the
reprogramming of the module, the other lines are unused.
All applicator shall include in their design such a way of reprogramming the GC864.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 41 of 69
![](/img.php?id=1303214&img=bg2a.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
An example of level translation circuitry of this kind is:
The RS232 serial port lines are usually connected to a DB9 connector with the
following layout:
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 42 of 69
![](/img.php?id=1303214&img=bg2b.png)

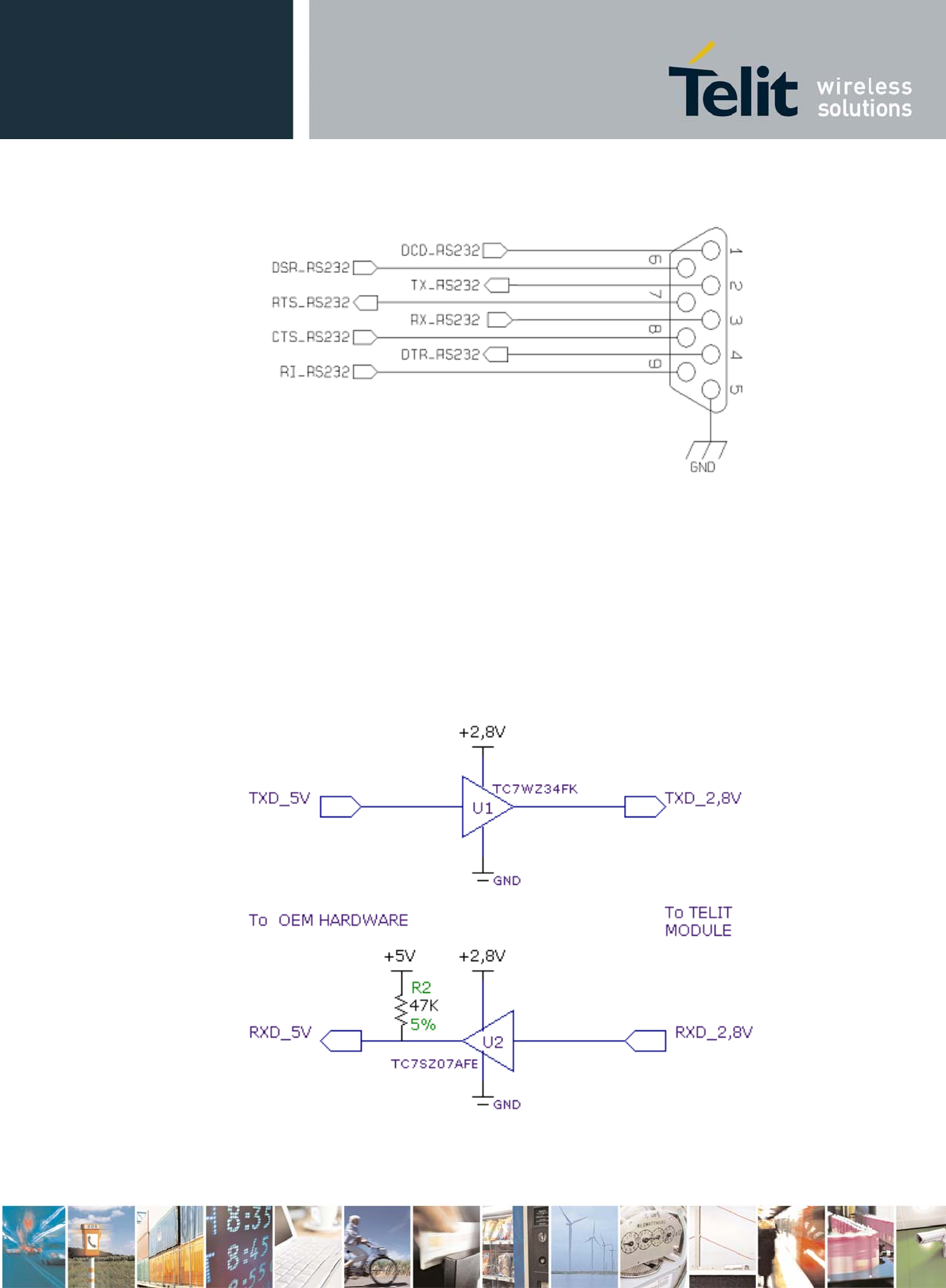

GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
9.3. 5V UART Level Translation
If the OEM application uses a microcontroller with a serial port (UART) that works at
a voltage different from 2.8 – 3V, then a circuitry has to be provided to adapt the
different levels of the two set of signals. As for the RS232 translation there are a
multitude of single chip translators. For example a possible translator circuit for a 5V
TRANSMITTER/RECEIVER can be:
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 43 of 69
![](/img.php?id=1303214&img=bg2c.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
TIP:
This logic IC for the level translator and 2.8V pull-ups (not the 5V one) can be
powered directly from VAUX line of the GC864-QUAD / PY. Note that the TC7SZ07AE
has open drain output; therefore the resistor R2 is mandatory.
NOTE:
The UART input line TXD (rx_uart) of the GC864-QUAD / PY is NOT internally pulled
up with a resistor, so there may be the need to place an external 47K pull-up
resistor, either the DTR (dtr_uart) and RTS (rts_uart) input lines are not pulled up
internally, so an external pull-up resistor of 47K may be required.
A power source of the internal interface voltage corresponding to the 2.8VCMOS high
level is available at the VAUX pin on the connector,
A maximum of 9 resistors of 47 K pull-up can be connected to the VAUX pin,
provided no other devices are connected to it and the pulled-up lines are GC864-
QUAD / PY input lines connected to open collector outputs in order to avoid latch-up
problems on the GC864-QUAD / PY.
Care must be taken to avoid latch-up on the GC864-QUAD / PY and the use of this
output line to power electronic devices shall be avoided, especially for devices that
generate spikes and noise such as switching level translators, micro controllers,
failure in any of these condition can severely compromise the GC864-QUAD / PY
functionality.
NOTE:
The input lines working at 2.8VCMOS can be pulled-up with 47K resistors that can
be connected directly to the VAUX line provided they are connected as in this
example.
In case of reprogramming of the module has to be considered the use of the RESET
line to start correctly the activity.
The preferable configuration is having an external supply for the buffer.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 44 of 69
![](/img.php?id=1303214&img=bg2d.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
10. Audio Section Overview
The Baseband chip was developed for the cellular phones, which needed two
separated amplifiers both in RX and in TX section.
A couple of amplifiers had to be used with internal audio transducers while the other
couple of amplifiers had to be used with external audio transducers.
To distinguish the schematic signals and the Software identifiers, two different
definitions were introduced, with the following meaning:
• internal audio transducers Æ
HS/MT
(from HandSet or MicroTelephone )
• external audio transducers Æ
HF
(from HandsFree )
Actually the acronyms have not the original importance.
In other words this distinction is not necessary, being the performances between the
two blocks like the same.
Only if the customer needs higher output power to the speaker , he has a constraint.
Otherwise the choice could be done in order to overcome the PCB design difficulties.
For these reasons we have not changed the HS and HF acronyms, keeping them in
the Software and on the schematics.
The Base Band Chip of the GC864Telit Module maintains the same architecture.
For more information refer to Telit document :
“
80000NT10007a Audio Settings Application Note
“.
10.1. Selection mode
Only one block can be active at a time , and the activation of the requested audio
path is done via hardware by
AXE
line or via software by
AT#CAP
command .
Moreover the Sidetone functionality could be implemented by the amplifier fitted
between the transmit path and the receive path, enabled at request in both modes.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 45 of 69
![](/img.php?id=1303214&img=bg2e.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
EGold Lite Audio Section Block Diagram
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 46 of 69
![](/img.php?id=1303214&img=bg2f.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
10.2. Electrical Characteristics
TIP: Being the microphone circuitry the more noise sensitive, its design and layout
must be done with particular care. Both microphone paths are balanced and the OEM
circuitry must be balanced designed to reduce the common mode noise typically
generated on the ground plane. However the customer can use the unbalanced
circuitry for particular application.
10.2.1. Input Lines Characteristics
“MIC_MT” and “MIC_HF” differential microphone paths
Line Coupling AC*
Line Type Balanced
Coupling capacitor 100nF
Differential input resistance 50K
Differential input voltage 1,03Vpp @
MicG=0dB
(*) WARNING : AC means that the signals from the microphone have to be
connected to input lines of the module through capacitors which value has to
be 100nf. not respecting this constraint, the input stages will be damaged.
WARNING: when particular OEM application needs a
Single Ended Input
configuration, it is forbidden connecting the unused input directly to Ground,
but only through a 100nF capacitor. Don’t forget that in Single Ended configuration
the useful input signal will be halved.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 47 of 69
![](/img.php?id=1303214&img=bg30.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
10.2.2. Output Lines Characteristics
TIP:
We suggest driving the load differentially from both output drivers, thus the output
swing will double and the need for the output coupling capacitor avoided. However if
particular OEM application needs also a Single Ended circuitry can be implemented,
but the output power will be reduced four times .
The OEM circuitry shall be designed to reduce the common mode noise typically
generated on the ground plane and to get the maximum power output from the
device (low resistance tracks).
WARNING:
The loads are directly connected to the amplifier outputs when in
Differential
configuration, through a capacitor when in
Single Ended
configuration. Using
Single Ended configuration, the unused output line must be left open . Not
respecting this constraint, the output stage will be damaged.
TIP :
Remember that there are slightly different electrical performances between the two
internal audio amplifiers:
• the
“Ear_MT”
lines
can directly drive a
16
Ω
load
at –12dBFS (**) in
Differential
configuration
• the “
Ear_HF”
lines can directly drive a
16
Ω
load
in
Differential
or
Single Ended
configurations
• There is no difference if the amplifiers drive an external amplifier
(**)
0dBFS
is the normalized overall Analog Gain for each Output channel equal to
3,7V
pp
differential
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 48 of 69
![](/img.php?id=1303214&img=bg31.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
“EAR_MT” Output Lines
line coupling
AC single-ended
DC differential
output load resistance 14
internal output resistance 4 (
typical
)
signal bandwidth 150 - 4000 Hz @ -3 dB
max. differential output voltage 1.31 Vrms (
typical, open circuit
)
differential output voltage 328mVrms /16 /
@ -12dBFS
volume increment 2 dB per step
volume steps 10
“EAR_HF” Output Lines
line coupling:
AC single-ended
DC differential
output load resistance : 14
internal output resistance: 4 (>1,7 )
signal bandwidth: 150 - 4000 Hz @ -3 dB
max. differential output
voltage
1.31 Vrms (
typical, open circuit
)
max. S.E. output voltage 656 mVrms (
typical, open circuit
)
volume increment 2 dB per step
volume steps 10
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 49 of 69
![](/img.php?id=1303214&img=bg32.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
11. General Purpose I/O
The general-purpose I/O pads can be configured to act in three different ways:
• Input
• Output
• Alternate function (internally controlled)
Input pads can only be read and report the digital value (high or low) present on the
pad at the read time; output pads can only be written or queried and set the value of
the pad output; an alternate function pad is internally controlled by the GC864-QUAD
/ PY firmware and acts depending on the function implemented.
The following GPIO are available on the GC864-QUAD and GC864-PY:
Pin Signal I/O Function Type
Input /
output
current
Default
State
ON_OFF
state
State
during
Reset
Note
70 TGPIO_01 I/O GPIO01 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
74 TGPIO_02 I/O GPIO02 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0 Alternate function
(JDR)
66 TGPIO_03 I/O GPIO03 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
59 TGPIO_04 I/O GPIO04 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
Alternate function
(RF Transmission
Control)
78 TGPIO_05 I/O GPIO05 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0 Alternate function
(RFTXMON)
68 TGPIO_06 I/O GPIO06 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT Pict 01 1 Alternate function
(ALARM)
73 TGPIO_07 I/O GPIO07 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0 Alternate function
(BUZZER)
67 TGPIO_08 I/O GPIO08 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
76 TGPIO_09 I/O GPIO09 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
63 TGPIO_10 I/O GPIO10 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
57 TGPIO_11 I/O GPIO11 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
62 TGPIO_12 I/O GPIO12 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
77 TGPIO_13 I/O GPIO13 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
60 TGPIO_14 I/O GPIO14 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
61 TGPIO_15 I/O GPIO15 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
75 TGPIO_16 I/O GPIO16 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
71 TGPIO_17 I/O GPIO17 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
65 TGPIO_18 I/O GPIO18 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
56 TGPIO_19 I/O GPIO19 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
58 TGPIO_20 I/O GPIO20 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 0
72 TGPIO_21 I/O GPIO21 Configurable GPIO CMOS 2.8V 1uA / 1mA INPUT 1
64 TGPIO_22 I/O GPIO22 Configurable GPIO CMOS 1.8V
(not 2.8V !!) 1uA / 1mA INPUT 0
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 50 of 69
![](/img.php?id=1303214&img=bg33.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Not all GPIO pads support all these three modes:
• GPIO2 supports all three modes and can be input, output, Jamming Detect
Output (Alternate function)
• GPIO4 supports all three modes and can be input, output, RF
Transmission Control (Alternate function)
• GPIO5 supports all three modes and can be input, output, RFTX monitor
output (Alternate function)
• GPIO6 supports all three modes and can be input, output, alarm output
(Alternate function)
• GPIO7 supports all three modes and can be input, output, buzzer output
(Alternate function)
ch1: ON_OFF (2sec)
ch2: GPIO 06 [ bis ]
GC864
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 51 of 69
![](/img.php?id=1303214&img=bg34.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
11.1. GPIO Logic Levels
Where not specifically stated, all the interface circuits work at 2.8V CMOS logic
levels.
The following tables show the logic level specifications used in the GC864-QUAD/PY
interface circuits:
Absolute Maximum Ratings –Not Functional
Parameter Min Max
Input level on any
digital pin when on
-0.3V +3.6V
Input voltage on
analog pins when on
-0.3V +3.0 V
Operating Range – Interface Levels (2.8V CMOS)
Level Min Max
Input high level 2.1V 3.3V
Input low level 0V 0.5V
Output high level 2.2V 3.0V
Output low level 0V 0.35V
For 1.8V signals:
Operating Range – Interface Levels (1.8V CMOS)
Level Min Max
Input high level 1.6V 2.2V
Input low level 0V 0.4V
Output high level 1,65V 2.2V
Output low level 0V 0.35V
11.2. Using a GPIO Pad as INPUT
The GPIO pads, when used as inputs, can be connected to a digital output of another
device and report its status, provided this device has interface levels compatible with
the 2.8V CMOS levels of the GPIO.
If the digital output of the device to be connected with the GPIO input pad has
interface levels different from the 2.8V CMOS, then it can be buffered with an open
collector transistor with a 47K pull up to 2.8V.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 52 of 69
![](/img.php?id=1303214&img=bg35.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
11.3. Using a GPIO Pad as OUTPUT
The GPIO pads, when used as outputs, can drive 2.8V CMOS digital devices or
compatible hardware. When set as outputs, the pads have a push-pull output and
therefore the pull-up resistor may be omitted.
The illustration below shows the base circuit of a push-pull stage:
Q1
Q2
VDD
GPIO7
11.4. Using the RF Transmission Control GPIO4
The GPIO4 pin, when configured as RF Transmission Control Input, permits to disable
the Transmitter when the GPIO is set to Low by the application.
In the design is necessary to add a pull up resistor (47K to VAUX).
11.5. Using the RFTXMON Output GPIO5
The GPIO5 pin, when configured as RFTXMON Output, is controlled by the GC864-
QUAD / PY module and will rise when the transmitter is active and fall after the
transmitter activity is completed.
For example, if a call is started, the line will be HIGH during all the conversation and
it will be again LOW after hanged up.
The line rises up 300ms before first TX burst and will became again LOW from 500ms
to 1sec after last TX burst.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 53 of 69
![](/img.php?id=1303214&img=bg36.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
11.6. Using the Alarm Output GPIO6
The GPIO6 pad, when configured as Alarm Output, is controlled by the GC864-QUAD /
PY module and will rise when the alarm starts and fall after the issue of a dedicated
AT command.
This output can be used to power up the GC864-QUAD / PY controlling micro
controller or application at the alarm time, giving you the possibility to program a
timely system wake-up to achieve some periodic actions and completely turn off
either the application and the GC864-QUAD / PY during sleep periods, dramatically
reducing the sleep consumption to few A.
In battery-powered devices this feature will greatly improve the autonomy of the
device.
NOTE:
During RESET the line is set to HIGH logic level.
11.7. Using the Buzzer Output GPIO7
As
Alternate Function
, the GPIO7 is controlled by the firmware that depends on the
function implemented internally.
This setup places always the GPIO7 pin in
OUTPUT
direction and the corresponding
function must be activated properly by AT#SRP command (refer to
AT commands
specification
).
Also in this case, the
dummy value
for the pin state can be both “
0
” or “
1
”.
• Send the command AT#GPIO=7, 1, 2<cr>:
• Wait for response OK
• Send the command AT#SRP=3
The GPIO7 pin will be set as
Alternate Function
pin with its
dummy
logic status set to
HIGH
value.
The “
Alternate Function
” permits your application to easily implement Buzzer
feature with some small hardware extension of your application as shown in the
sample figure below.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 54 of 69
![](/img.php?id=1303214&img=bg37.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
TR1
BCR141W
TR2
SMBT2907A
R1
4,7K
R2
1K
D1
D1N4148
C1
33pF
+
-
+V bu zzer
GPIO7

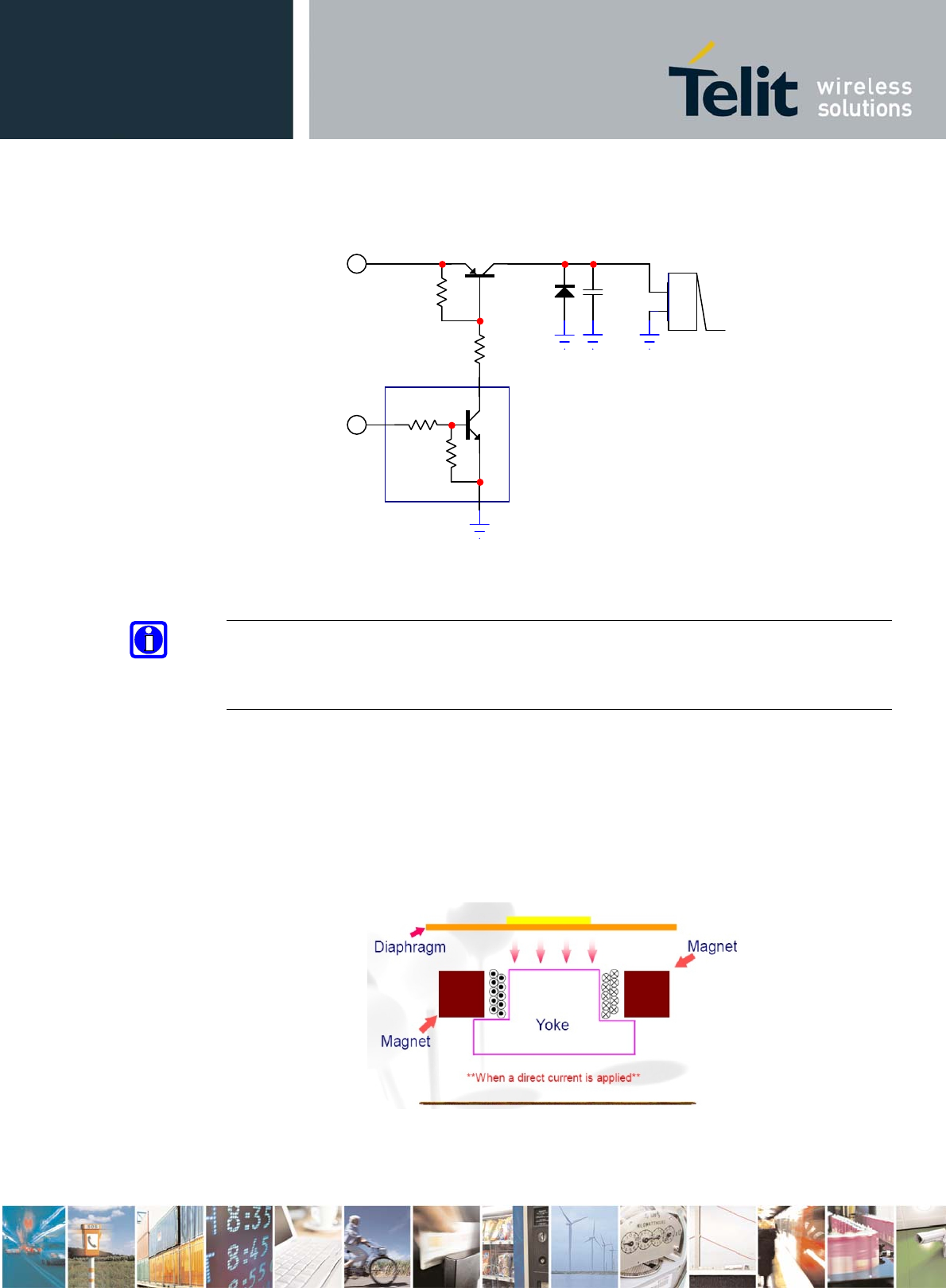

Example of Buzzer
’
s driving circuit
NOTE:
To correctly drive a buzzer, a driver must be provided; its characteristics depend on
the Buzzer and for them refer to your buzzer vendor.
11.8. Magnetic Buzzer Concepts
11.8.1. Short Description
A magnetic Buzzer is a sound-generating device with a coil located in the magnetic
circuit consisting of a permanent magnet, an iron core, a high permeable metal disk,
and a vibrating diaphragm.
Drawing of the Magnetic Buzzer
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 55 of 69
![](/img.php?id=1303214&img=bg38.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
The disk and diaphragm are attracted to the core by the magnetic field. When an
oscillating signal is moved through the coil, it produces a fluctuating magnetic field,
which vibrates the diaphragm at a frequency of the drive signal. Thus the sound is
produced relative to the frequency applied.
Diaphragm movement
11.8.1 Frequency Behavior
The frequency behavior represents the effectiveness of the reproduction of the
applied signals.
Because its performance is related to a square driving waveform (whose amplitude
varies from 0V to Vpp), if you modify the waveform (e.g. from square to sinus) the
frequency response will change.
11.8.2. Power Supply Influence
Applying a signal whose amplitude is different from that suggested by manufacturer,
the performance change following the rule:
if resonance frequency
f
o increases, amplitude decreases.
Because of resonance frequency depends from acoustic design, lowering the
amplitude of the driving signal the response bandwidth tends to become narrow, and
vice versa.
Summarizing: Vpp Æ
f
o Vpp Æ
f
o
The risk is that the
f
o could easily fall outside of new bandwidth; consequently the
SPL could be much lower than the expected.
11.8.3. Warning
It is very important to respect the sense of the applied voltage: never apply to the “
-
“
pin
a voltage more positive than the “
+
”
pin
. If this happens, the diaphragm vibrates
in the opposite sense with a high probability to be expelled from its physical position,
damaging the device forever.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 56 of 69
![](/img.php?id=1303214&img=bg39.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
11.8.4. Working Current Influence
In the component data sheet you will find the value of MAX CURRENT that represents
the maximum average current that can flow at nominal voltage without current
limitation.
In other words it is not the peak current, which could be twice or three times higher.
If driving circuitry does not support these peak values, the SPL will never reach the
declared level or the oscillations will stop.
11.9. Using the Temperature Monitor Function
11.9.1. Short Description
The Temperature Monitor is a function of the module that permits to control its
internal temperature and if properly set (see the #TEMPMON command on AT
Interface guide) it raise to High Logic level a GPIO when the maximum temperature
is reached.
11.9.2. Allowed GPIO
The AT#TEMPMON set command could be used with one of the following GPIO:
Signal Function Type
Input /
output
current
Note
TGPIO_01 GPIO01 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_03 GPIO03 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_08 GPIO08 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_09 GPIO09 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_10 GPIO10 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_11 GPIO11 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_12 GPIO12 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_13 GPIO13 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_14 GPIO14 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_15 GPIO15 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_16 GPIO16 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_17 GPIO17 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_18 GPIO18 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_19 GPIO19 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_20 GPIO20 Configurable GPIO CMOS 2.8V 1A / 1mA
TGPIO_22 GPIO22 Configurable GPIO CMOS 1.8V
(not 2.8V !!) 1A / 1mA
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 57 of 69
![](/img.php?id=1303214&img=bg3a.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
The set command could be used also with one of the following GPIO but in that case
the alternate function is not usable:
Signal Function Type
Input /
output
current
Note
TGPIO_02 GPIO02 Configurable GPIO CMOS 2.8V 1A / 1mA Alternate function (JDR)
TGPIO_04 GPIO04 Configurable GPIO CMOS 2.8V 1A / 1mA Alternate function (RF
Transmission Control)
TGPIO_05 GPIO05 Configurable GPIO CMOS 2.8V 1A / 1mA Alternate function (RFTXMON)
TGPIO_07 GPIO07 Configurable GPIO CMOS 2.8V 1A / 1mA Alternate function (BUZZER)
11.10. Indication of Network Service Availability
The STAT_LED pin status shows information on the network service availability and Call
status.
In the GC864-QUAD/PY modules, the STAT_LED usually needs an external transistor to drive
an external LED.
Therefore, the status indicated in the following table is reversed with respect to the pin
status.
LED status Device Status
Permanently off Device off
Fast blinking
(Period 1s, Ton 0,5s)
Net search / Not registered /
turning off
Slow blinking
(Period 3s, Ton 0,3s) Registered full service
Permanently on a call is active
A schematic example could be:
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 58 of 69
![](/img.php?id=1303214&img=bg3b.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
11.11. RTC Bypass Out
The VRTC pin brings out the Real Time Clock supply, which is separate from the rest
of the digital part, allowing having only RTC going on when all the other parts of the
device are off.
To this power output a backup capacitor can be added in order to increase the RTC
autonomy during power off of the battery. NO Devices must be powered from this pin.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 59 of 69
![](/img.php?id=1303214&img=bg3c.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
11.12. VAUX1 Power Output
A regulated power supply output is provided in order to supply small devices from
the module.
This output is active when the module is ON and goes OFF when the module is shut
down.
The table below shows the operating range characteristics of the supply:
Operating Range – VAUX1 Power Supply
Min Typical Max
Output voltage 2.75V 2.85V 2.95V
Output current 100mA
Output bypass capacitor
(inside the module)
2.2F
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 60 of 69
![](/img.php?id=1303214&img=bg3d.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
12. DAC and ADC Section
12.1. DAC Converter
12.1.1. Description
The GC864-QUAD / PY module provides a Digital to Analog Converter. The signal
(named DAC_OUT) is available on pin 40 of the GC864-QUAD / PY module and on pin
17 of PL102 on EVK2 Board (CS1203).
The on board DAC is a 10-bit converter, able to generate a analogue value based a
specific input in the range from 0 up to 1023. However, an external low-pass filter is
necessary.
Min Max Units
Voltage range (filtered) 0 2,6 Volt
Range 0 1023 Steps
The precision is 10 bits, so if we consider that the maximum voltage is 2V, the
integrated voltage could be calculated with the following formula:
Integrated output voltage = 2 * value / 1023

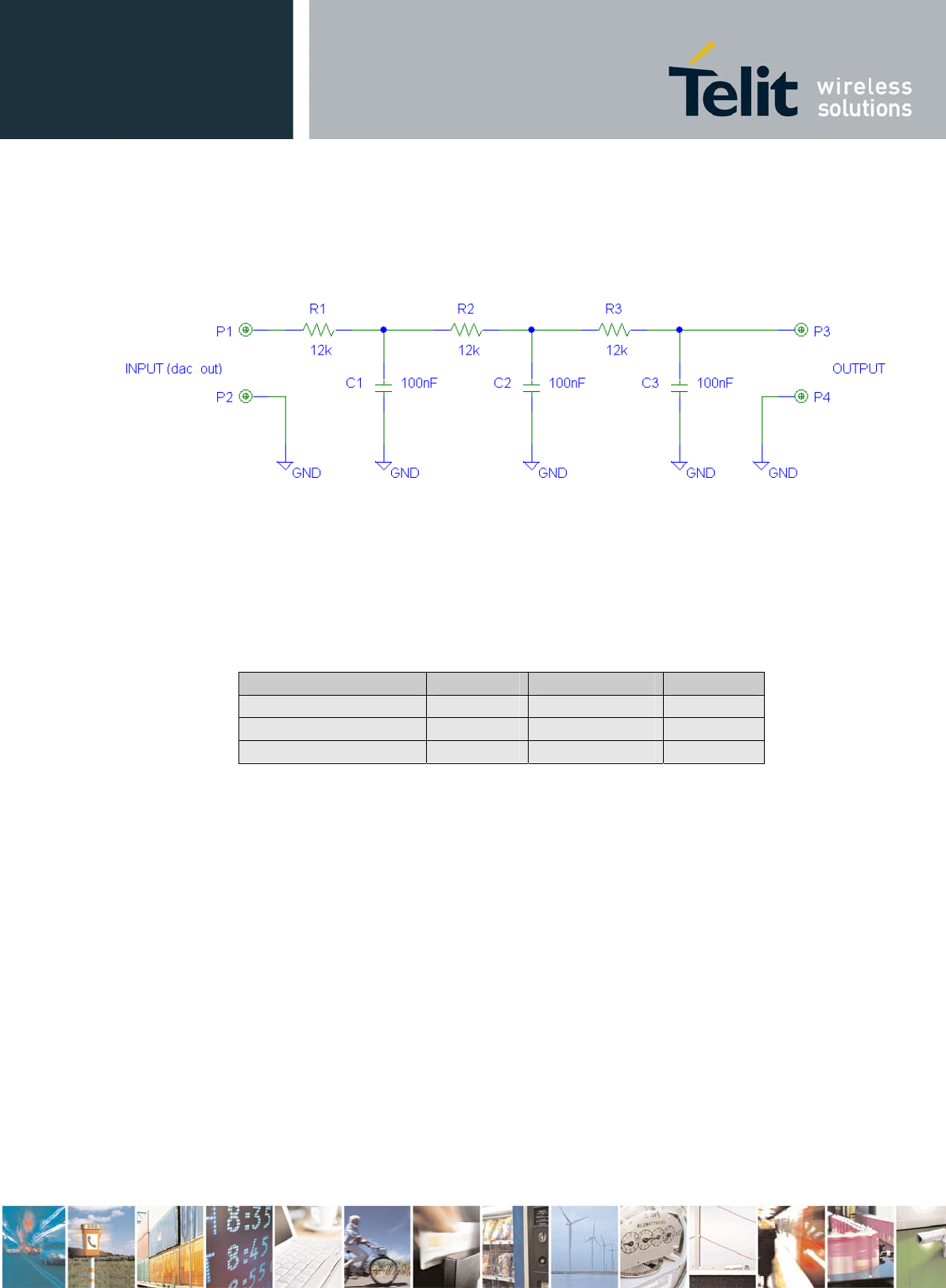

DAC_OUT line must be integrated (for example with a low band pass filter) in order to
obtain an analog voltage.
12.1.2. Enabling DAC
The AT command below is available to use the DAC function:
AT#DAC[=<enable>[,<value>]]
<value> – scale factor of the integrated output voltage (0–1023, with 10 bit precision),
and it must be present if <enable>=1.
Refer to SW User Guide or AT Commands Reference Guide for the full description of
this function.
Refer to SW User Guide or AT Commands Reference Guide for the full description of
this function.
NOTE:
The DAC frequency is selected internally. D/A converter must not be used during
POWERSAVING.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 61 of 69
![](/img.php?id=1303214&img=bg3e.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
12.1.3. Low Pass Filter Example
12.2. ADC Converter
12.2.1. Description
The on board A/D are 11-bit converter. They are able to read a voltage level in the
range of 0÷2 volts applied on the ADC pin input, store and convert it into 11 bit word.
Min Max Units
Input Voltage range 0 2 Volt
AD conversion - 11 bits
Resolution - < 1 mV
The GC864-QUAD / PY module provides 3 Analog to Digital Converters. The input
lines are:
ADC_IN1 available on Pin 37 and Pin 19 of PL102 on EVK2 Board (CS1203).
ADC_IN2 available on Pin 38 and Pin 20 of PL102 on EVK2 Board (CS1203).
ADC_IN3 available on Pin 39 and Pin 21 of PL102 on EVK2 Board (CS1203).
12.2.2. Using ADC Converter
The AT command below is available to use the ADC function:
AT#ADC=1,2
The read value is expressed in mV.
Refer to SW User Guide or AT Commands Reference Guide for the full description of
this function.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 62 of 69
![](/img.php?id=1303214&img=bg3f.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
13. Mounting the GC864-QUAD/PY on the Board
The position of the Molex board to board connector and the pin 1 are shown in the
following picture.
NOTE:
The metal tabs present on GC864-QUAD/PY must be connected to GND.
This module could not be processed with a reflow.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 63 of 69
![](/img.php?id=1303214&img=bg40.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
13.1.1. Debug of the GC864-QUAD/PY in Production
To test and debug the mounting of the GC864, we strongly recommend to foreseen
test pads on the host PCB, in order to check the connection between the GC864-
QUAD/PY itself and the application and to test the performance of the module
connecting it with an external computer. Depending by the customer application,
these pads include, but are not limited to the following signals:
• TXD
• RXD
• ON/OFF
• RESET
• GND
• VBATT
• TX_TRACE
• RX_TRACE
• PWRMON
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 64 of 69
![](/img.php?id=1303214&img=bg41.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04

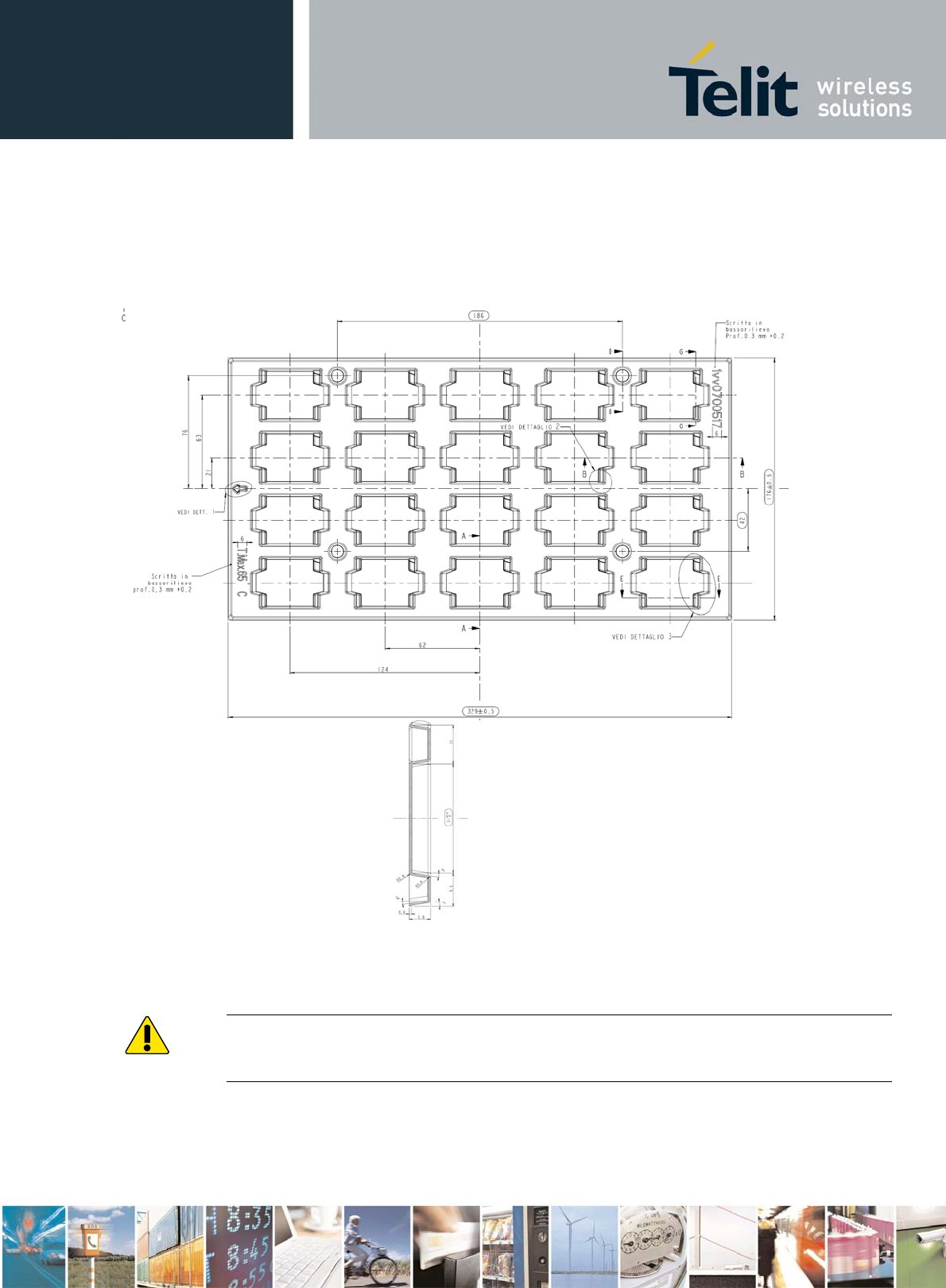

14. Packing System
The Telit GC864-QUAD and GC864-PY are packaged on trays of 20 pieces each.
The size of the tray is: 329 x 176mm.
WARNING:
These trays can withstand at the maximum temperature of 65° C.
Section A
-
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 65 of 69
![](/img.php?id=1303214&img=bg42.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
15. Conformity Assessment Issues
The Telit GC864 has been assessed in order to satisfy the
essential requirements of the R&TTE Directive 1999/05/EC (Radio
Equipment & Telecommunications Terminal Equipments) to
demonstrate the conformity against the harmonized standards with the
final involvement of a Notified Body.
If the module is installed in conformance to the Telit installation manuals, no further
evaluation under Article 3.2 of the R&TTE Directive and do not require further
involvement of a R&TTE Directive Notified Body for the final product.
In all other cases, or if the manufacturer of the final product is in doubt, then the
equipment integrating the radio module must be assessed against Article 3.2 of the
R&TTE Directive.
In all cases the assessment of the final product must be made against the Essential
requirements of the R&TTE Directive Articles 3.1(a) and (b), Safety and EMC
respectively, and any relevant Article 3.3 requirements.
This Product Description, the Hardware User Guide and Software User Guide contain
all the information you may need for developing a product meeting the R&TTE
Directive.
Furthermore the GC864 module is FCC Approved as module to be installed in other
devices. This device is to be used only for fixed and mobile applications. If the final
product after integration is intended for portable use, a new application and FCC is
required.
The GC864 is conforming to the following US Directives:
• Use of RF Spectrum. Standards: FCC 47 Part 24 (GSM 1900)
• EMC (Electromagnetic Compatibility). Standards: FCC47 Part 15
0168
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 66 of 69
![](/img.php?id=1303214&img=bg43.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
To meet the FCC's RF exposure rules and regulations:
• The system antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all the persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
• The system antenna(s) used for this module must not exceed 1.4dBi (850MHz)
and 3.0dBi (1900MHz) for mobile and fixed or mobile operating configurations.
• Users and installers must be provided with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance.
Manufacturers of mobile, fixed or portable devices incorporating this module are
advised to clarify any regulatory questions and to have their complete product tested
and approved for FCC compliance.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 67 of 69
![](/img.php?id=1303214&img=bg44.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
16. SAFETY RECOMMENDATIONS
NOTE:
Read this section carefully to ensure the safe operation.
Be sure the use of this product is allowed in the country and in the environment
required. The use of this product may be dangerous and has to be avoided in the
zfollowing areas:
• Where it can interfere with other electronic devices in environments such
as hospitals, airports, aircrafts, etc
• Where there is risk of explosion such as gasoline stations, oil refineries,
etc
It is responsibility of the user to enforce the country regulation and the specific
environment regulation.
Do not disassemble the product; any mark of tampering will compromise the
warranty validity.
We recommend following the instructions of the hardware user guides for a correct
wiring of the product. The product has to be supplied with a stabilized voltage source
and the wiring has to be conforming to the security and fire prevention regulations.
The product has to be handled with care, avoiding any contact with the pins because
electrostatic discharges may damage the product itself. Same cautions have to be
taken for the SIM, checking carefully the instruction for its use. Do not insert or
remove the SIM when the product is in power saving mode.
The system integrator is responsible of the functioning of the final product;
therefore, care has to be taken to the external components of the module, as well as
of any project or installation issue, because the risk of disturbing the GSM network or
external devices or having impact on the security. Should there be any doubt, please
refer to the technical documentation and the regulations in force.
Every module has to be equipped with a proper antenna with specific characteristics.
The antenna has to be installed with care in order to avoid any interference with
other electronic devices and has to guarantee a minimum distance from the body (20
cm). In case of this requirement cannot be satisfied, the system integrator has to
assess the final product against the SAR regulation EN 50360.
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 68 of 69
![](/img.php?id=1303214&img=bg45.png)
GC864 Hardware User Guide
1vv0300733 Rev.12 – 2009-06-04
Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 69 of 69
The European Community provides some Directives for the electronic equipments
introduced on the market. All the relevant information are available on the European
Community website:
http://europa.eu.int/comm/enterprise/rtte/dir99-5.htm
The text of the Directive 99/05 regarding telecommunication equipments is available,
while the applicable Directives (Low Voltage and EMC) are available at:
http://europa.eu.int/comm/enterprise/electr_equipment/index_en.htm
