GM862-GPS Hardware User Guide
GM862-GPS HW User Guide
1vv0300728 Rev. 0 - 27/04/06
![](/img.php?id=687778&img=bg2.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 2 of 55
Contents
1 Overview ...........................................................................................................................4
2 Hardware Commands ......................................................................................................5
2.1 Turning ON the GM862-GPS..................................................................................................5
2.2 Turning OFF the GM862-GPS ................................................................................................7
2.2.1 Hardware shutdown..........................................................................................................................7
2.2.2 Hardware Unconditional Reboot.......................................................................................................8
3 Power Supply .................................................................................................................10
3.1 Power Supply Requirements...............................................................................................10
3.2 General Design Rules ..........................................................................................................11
3.2.1 Electrical design Guidelines........................................................................................................... 11
3.2.1.1 + 5V input Source Power Supply Design Guidelines ................................................................ 11
3.2.1.2 + 12V input Source Power Supply Design Guidelines .............................................................. 13
3.2.1.3 Battery Source Power Supply Design Guidelines ..................................................................... 14
3.2.1.4 Battery Charge control Circuitry Design Guidelines .................................................................. 15
3.2.2 Thermal Design Guidelines ........................................................................................................... 17
3.2.3 Power Supply PCB layout Guidelines ........................................................................................... 18
4 Serial Ports .....................................................................................................................19
4.1 level translation ....................................................................................................................21
4.2 5V UART level translation....................................................................................................23
5 Audio Section Overview ................................................................................................25
5.1 Microphone paths characteristic and requirements .........................................................27
5.2 General Design Rules ..........................................................................................................30
5.3 Other considerations . .........................................................................................................30
5.4 Microphone Biasing .............................................................................................................31
5.4.1 Balanced Microphone biasing........................................................................................................ 31
5.4.2 Unbalanced Microphone biasing ...................................................................................................32
5.5 Microphone buffering...........................................................................................................34
5.5.1 Buffered Balanced Mic................................................................................................................... 34
5.5.2 Buffered Unbalanced (Single Ended) Microphone . ...................................................................... 36
6 OUTPUT LINES (Speaker)..............................................................................................39
6.1 Short description..................................................................................................................39
6.2 Output lines characteristics . .............................................................................................40
6.3 General Design rules............................................................................................................41
![](/img.php?id=687778&img=bg3.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 3 of 55
6.3.1 Noise Filtering ................................................................................................................................ 41
6.4 Handset earphone design....................................................................................................42
6.5 Hands-free earphone (low power) design ..........................................................................43
6.6 Car Kit speakerphone design..............................................................................................44
7 General Purpose I/O.......................................................................................................45
7.1 Using a GPIO pin as INPUT .................................................................................................45
7.2 Using a GPIO pin as OUTPUT .............................................................................................45
7.3 Using the Alarm Output GPIO6 ...........................................................................................46
7.4 Using the Buzzer Output GPIO7..........................................................................................46
8 GPS Receiver..................................................................................................................47
8.1 GPS Antenna.........................................................................................................................47
9 Camera ............................................................................................................................48
9.1 Camera Transchip ................................................................................................................48
9.1.1 Camera interface connectors......................................................................................................... 48
9.1.2 EVB for camera support ................................................................................................................ 49
9.1.3 EVB for Transchip camera support ............................................................................................... 50
9.1.3 EVB for Transchip camera support ............................................................................................... 51
9.1.4 Block Diagram for supported camera ............................................................................................ 52
9.1.5 Schematic Diagrams for supported cameras ................................................................................ 53
9.1.6 Example usage script for camera .................................................................................................. 54
10 Document Change Log ..................................................................................................55
![](/img.php?id=687778&img=bg4.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 4 of 55
1 Overview
The aim of this document is the description of some hardware solutions useful for developing a product with the
Telit GM862-GPS modules.
In this document all the basic functions of a mobile phone will be taken into account; for each one of them a
proper hardware solution will be suggested and eventually the wrong solutions and common errors to be
avoided will be evidenced. Obviously this document can not embrace the whole hardware solutions and
products that may be designed. The wrong solutions to be avoided shall be considered as mandatory, while the
suggested hardware configurations shall not be considered mandatory, instead the information given shall be
used as a guide and a starting point for properly developing your product with the Telit GM862-GPS modules. For
further hardware details that may not be explained in this document refer to the GM862-GPS/-QUAD-PY Product
Description document where all the hardware information is reported.
NOTE: In this document all the hardware solution are referenced to the GM862-GPS.
NOTE
The information presented in this document is believed to be accurate and reliable. However, no responsibility is
assumed by Telit Communications S.p.A. for its use, nor any infringement of patents or other rights of third
parties which may result from its use. No license is granted by implication or otherwise under any patent rights of
Telit Communications S.p.A. other than for circuitry embodied in Telit products. This document is subject to
change without notice.
![](/img.php?id=687778&img=bg5.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 5 of 55
2 Hardware Commands
2.1 Turning ON the GM862-GPS
To turn on the GM862-GPS the pin ON# must be tied low for at least 1 second and then released.
The maximum current that can be drained from the ON# pin is 0,1 mA.

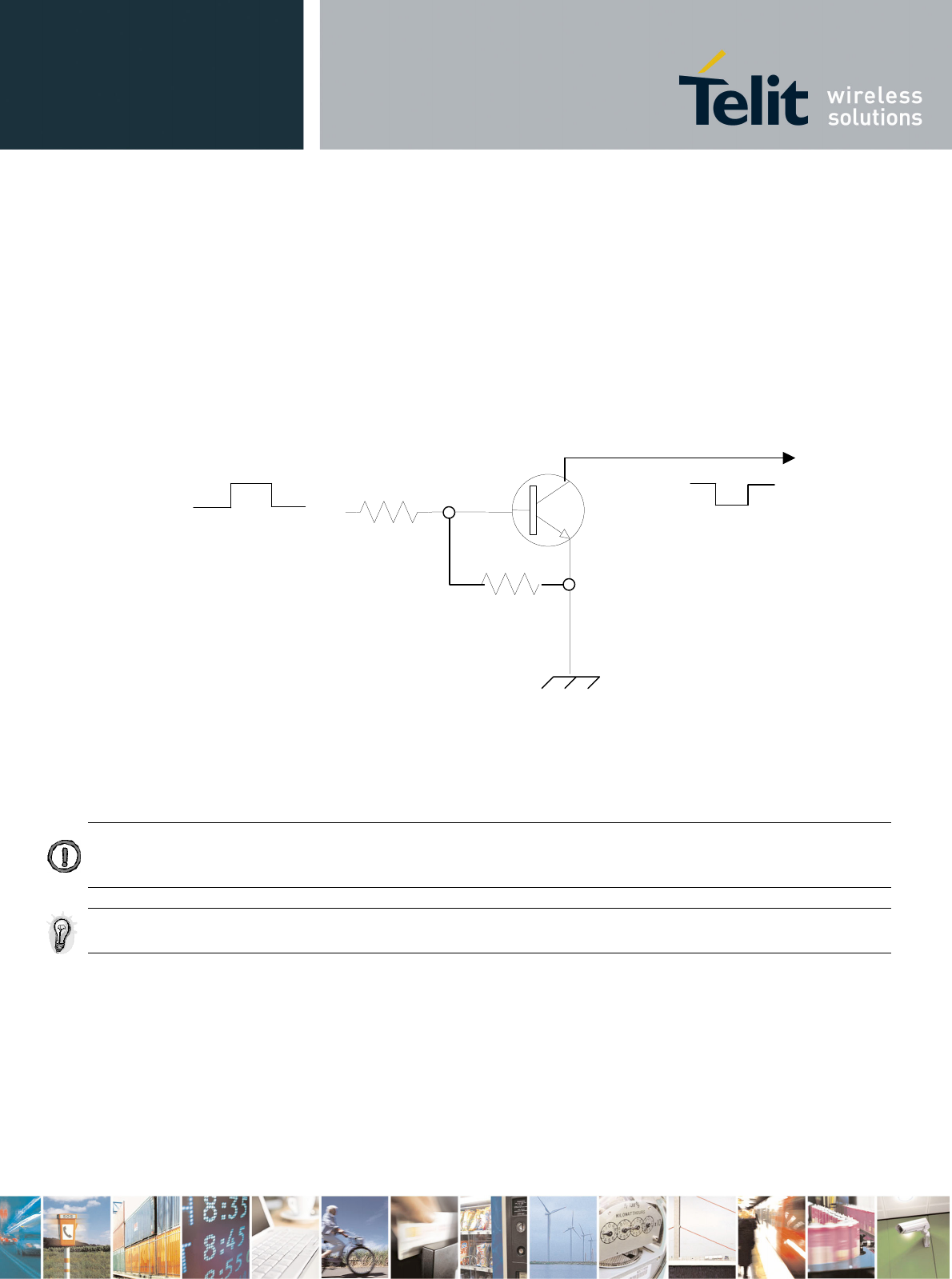

A simple circuit to do it is:
NOTE: don't use any pull up resistor on the ON# line, it is internally pulled up. Using pull up resistor may bring to
latch up problems on the GM862-GPS power regulator and improper power on/off of the module. The line ON# must
be connected only in open collector configuration.
NOTE: In this document all the lines that are inverted, hence have active low signals are labeled with a name that
ends with a "#" or with a bar over the name.
TIP: To check if power has raised it is possible to monitor the START line, when this line goes high the module is
powered on, but before it remains on the device needs other 900 ms for software startup. Hence check the PWRCTL
line and 900 ms after its transition to high it is possible to release the ON# pin.
ON#
Power ON impulse
GND
R1
R2
Q1
![](/img.php?id=687778&img=bg6.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 6 of 55
For example:
1- Let's assume you need to drive the ON# pin with a totem pole output of a +3/5 V microcontroller
(uP_OUT1):
2- Let's assume you need to drive the ON# pin directly with an ON/OFF button:
![](/img.php?id=687778&img=bg7.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 7 of 55
2.2 Turning OFF the GM862-GPS
The turning off of the device can be done in two ways:
• by software command (see GM862-GPS Software User Guide)
• by hardware shutdown
When the device is shut down by software command or by hardware shutdown, it issues to the
network a detach request that informs the network that the device will not be reachable any more.
The hardware unconditional shutdown does not issue this request and shuts down immediately the
device.
2.2.1 Hardware shutdown
To turn OFF the GM862-GPS the pin ON# must be tied low for at least 1 second and then released.
The same circuitry and timing for the power on shall be used.
The device shuts down after the release of the ON# pin.
TIP: To check if the device has powered off, the hardware line PWRCTL should be monitored. When PWRCTL goes
low, the device has powered off.
![](/img.php?id=687778&img=bg8.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 8 of 55
2.2.2 Hardware Unconditional Reboot
To unconditionally Reboot the GM862-GPS the pin RESET# must be tied low for at least 200
milliseconds and then released.
The maximum current that can be drained from the ON# pin is 0,15 mA.
A simple circuit to do it is:
NOTE: don't use any pull up resistor on the RESET# line nor any totem pole digital output. Using pull up resistor
may bring to latch up problems on the GM862-GPS power regulator and improper functioning of the module. The
line RESET# must be connected only in open collector configuration.
TIP: The unconditional hardware reset should be always implemented on the boards and software should use it as
an emergency exit procedure.
RESET#
Unconditional Power OFF
impulse
GND
![](/img.php?id=687778&img=bg9.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 9 of 55
For example:

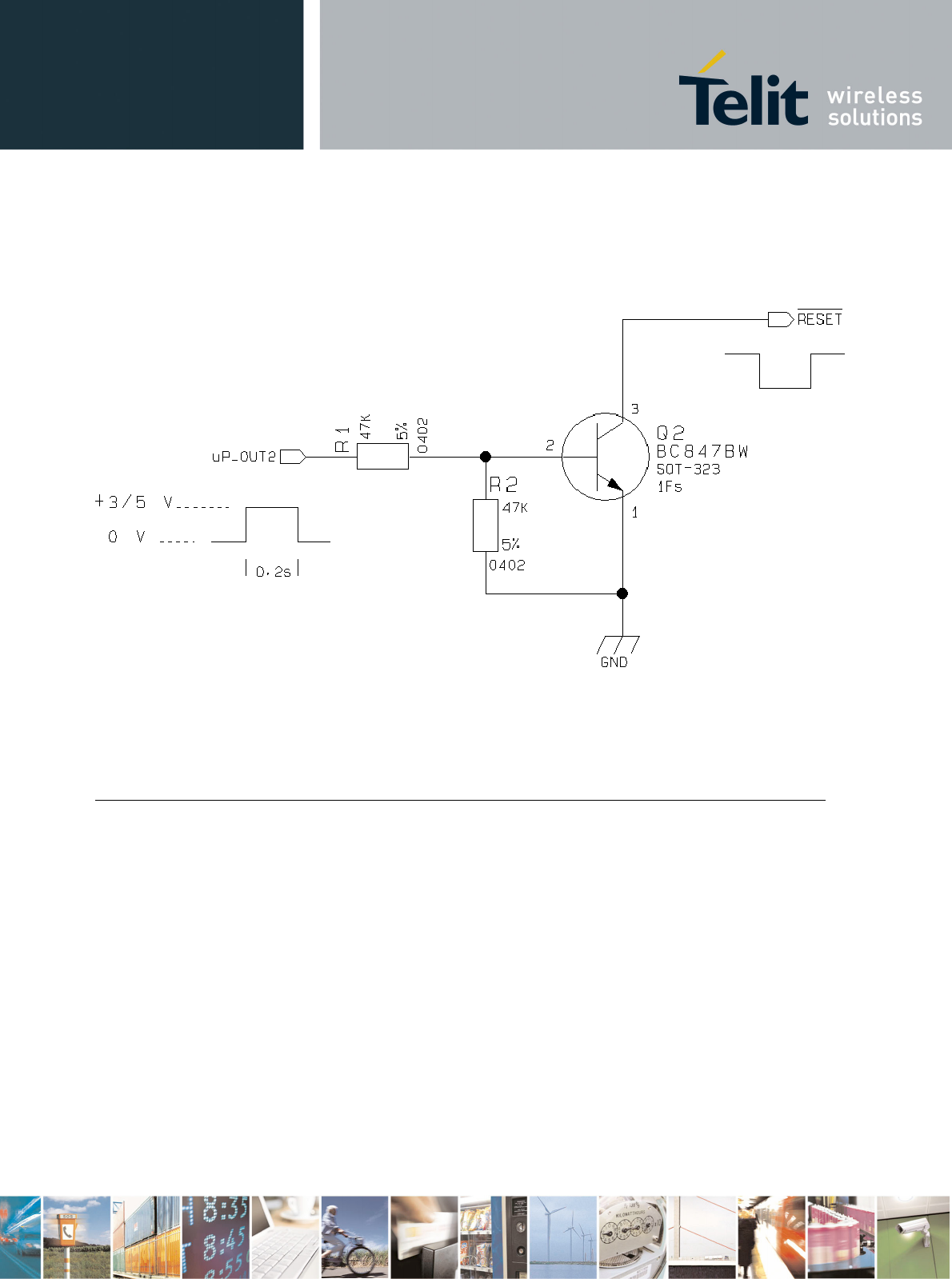

1- Let's assume you need to drive the RESET# pin with a totem pole output of a +3/5 V microcontroller
(uP_OUT2):
The hardware unconditional reboot must not be used during normal operation of the device since it
does not detach the device from the network. It shall be kept as an emergency exit procedure to be
done in the rare case that the device gets stacked waiting for some network or SIM responses.
If device does not respond to a command in the timeout window, retry issuing the command and if still
no response is received a hardware unconditional reboot shall be issued.
Unconditional Reboot
impulse
![](/img.php?id=687778&img=bga.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 10 of 55
3 Power Supply
The power supply circuitry and board layout are the most important part in the full product design and
they strongly reflect on the product overall performances, hence read carefully the requirements and
the guidelines that will follow for a proper design.
3.1 Power Supply Requirements
The GM862-GPS power requirements are:
• Nominal Supply Voltage: 3.8 V
• Max Supply Voltage: 4.2 V
• Supply voltage range: 3.4 V - 4.2 V
• Max Peak current consumption (impulsive): 1.9 A
• Max Average current consumption during GPRS transmission (rms): 500 mA
• Max Average current consumption during VOICE/CSD transmission (rms): 270 mA
• Average current during Power Saving: ≈ 4 mA
• Average current during idle (Power Saving disabled) ≈ 19 mA
• GPS Max Peak current consumption: 80 mA
• GPS Max Average current consumption during Tracking: 60 mA
• GPS Average current during Power Saving: ≈ 1 mA
• GPS antenna consumption (external active antenna) ≈ 20 mA
The GSM system is made in a way that the RF transmission is not continuous, else it is packed into
bursts at a base frequency of about 216 Hz, the relative current peaks can be as high as about 2A.
Therefore the power supply has to be designed in order to withstand with these current peaks without
big voltage drops; this means that both the electrical design and the board layout must be designed for
this current flow.
If the layout of the PCB is not well designed a strong noise floor is generated on the ground and the
supply; this will reflect on all the audio paths producing an audible annoying noise at 216 Hz; if the
voltage drop during the peak current absorption is too much, then the device may even shutdown as a
consequence of the supply voltage drop.
TIP: The electrical design for the Power supply should be made ensuring it will be capable of a peak current output
of at least 2 A.
![](/img.php?id=687778&img=bgb.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 11 of 55
3.2 General Design Rules
The principal guidelines for the Power Supply Design embrace three different design steps:
- the electrical design
- the thermal design.
- the PCB layout.
3.2.1 Electrical design Guidelines
The electrical design of the power supply depends strongly from the power source where this power is
drained. We will distinguish them into three categories:
• +5V input (typically PC internal regulator output)
• +12V input (typically automotive)
• Battery
3.2.1.1 + 5V input Source Power Supply Design Guidelines
• The desired output for the power supply is 3.8V, hence there's not a big difference between the
input source and the desired output and a linear regulator can be used. A switching power supply
will not be suited because of the low drop out requirements.
• When using a linear regulator, a proper heat sink shall be provided in order to dissipate the power
generated.
• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current
absorption peaks close to the GM862-GPS, a 100μF tantalum capacitor is usually suited.
• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is rated at
least 10V.
• A protection diode should be inserted close to the power input, in order to save the GM862-GPS
from power polarity inversion.
![](/img.php?id=687778&img=bgc.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 12 of 55

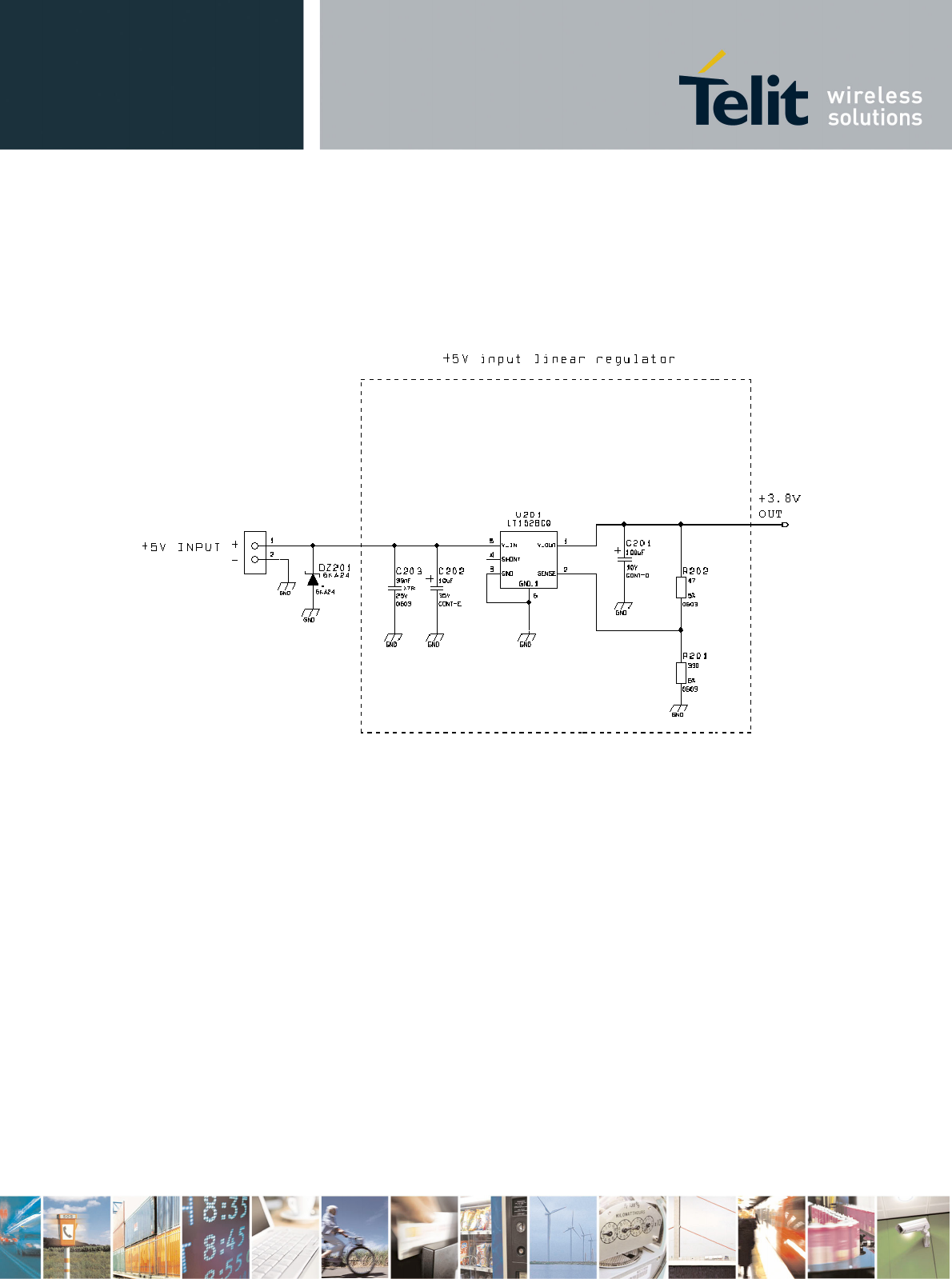

An example of linear regulator with 5V input is:
![](/img.php?id=687778&img=bgd.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 13 of 55
3.2.1.2 + 12V input Source Power Supply Design Guidelines
• The desired output for the power supply is 3.8V, hence due to the big difference between the input
source and the desired output, a linear regulator is not suited and shall not be used. A switching
power supply will be preferable because of its better efficiency especially with the 2A peak current
load represented by the GM862-GPS.
• When using a switching regulator, a 500Khz switching frequency regulator is preferable because
of its smaller inductor size and its faster transient response. This allows the regulator to respond
quickly to the current peaks absorption.
• For car PB battery the input voltage can rise up to 15,8V and this should be kept in mind when
choosing components: all components in the power supply must withstand this voltage.
• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current
absorption peaks, a 100μF tantalum capacitor is usually suited.
• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is rated at
least 10V.
• For Car applications a spike protection diode should be inserted close to the power input, in order
to clean the supply from spikes.
• A protection diode should be inserted close to the power input, in order to save the GM862-GPS
from power polarity inversion. This can be the same diode as for spike protection.
![](/img.php?id=687778&img=bge.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 14 of 55
An example of switching regulator with 12V input is:
3.2.1.3 Battery Source Power Supply Design Guidelines
• The desired nominal output for the power supply is 3.8V and the maximum voltage allowed is
4.2V, hence a single 3.7V Li-Ion cell battery type is suited for supplying the power to the Telit
GM862-GPS module.
The three cells Ni/Cd or Ni/MH 3,6 V Nom. battery types or 4V PB types MUST NOT BE USED
since their maximum voltage can rise over the absolute maximum voltage for the GM862-GPS and
damage it.
NOTE: DON'T USE any Ni-Cd, Ni-MH, and Pb battery types. Their use can lead to overvoltage on the GM862-GPS
and damage it. USE ONLY Rechargeable Li-Ion battery types.
• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current
absorption peaks, a 100μF tantalum capacitor is usually suited.
• Make sure the low ESR capacitor (usually a tantalum one) is rated at least 10V.
• A protection diode should be inserted close to the power input, in order to save the GM862-GPS
from power polarity inversion. Otherwise the battery connector should be done in a way to avoid
polarity inversions when connecting the battery.
• The battery capacity must be at least 500mAh in order to withstand the current peaks of 2A; the
suggested capacity is from 500mAh to 1000mAh.
![](/img.php?id=687778&img=bgf.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 15 of 55
3.2.1.4 Battery Charge control Circuitry Design Guidelines
The charging process for Li-Ion Batteries can be divided into 4 phases:
• Qualification and trickle charging
• Fast charge 1 - constant current
• Final charge - constant voltage or pulsed charging
• Maintenance charge
The qualification process consists in a battery voltage measure, indicating roughly its charge status. If
the battery is deeply discharged, that means its voltage is lower than the trickle charging threshold,
then the charge must start slowly possibly with a current limited pre-charging process where the
current is kept very low with respect to the fast charge value: the trickle charging.
During the trickle charging the voltage across the battery terminals rises; when it reaches the fast
charge threshold level the charging process goes into fast charge phase.
During the fast charge phase the process proceeds with a current limited charging; this current limit
depends on the required time for the complete charge and from the battery pack capacity. During this
phase the voltage across the battery terminals still raises but at a lower rate.
Once the battery voltage reaches its maximum voltage then the process goes into its third state: Final
charging. The voltage measure to change the process status into final charge is very important. It
must be ensured that the maximum battery voltage is never exceeded, otherwise the battery may be
damaged and even explode. Moreover for the constant voltage final chargers, the constant voltage
phase (final charge) must not start before the battery voltage has reached its maximum value,
otherwise the battery capacity will be highly reduced.
The final charge can be of two different types: constant voltage or pulsed.
The constant voltage charge proceeds with a fixed voltage regulator (very accurately set to the
maximum battery voltage) and hence the current will decrease while the battery is becoming charged.
When the charging current falls below a certain fraction of the fast charge current value, then the
battery is considered fully charged, the final charge stops and eventually starts the maintenance.
The pulsed charge process has no voltage regulation, instead the charge continues with pulses.
Usually the pulse charge works in the following manner: the charge is stopped for some time, let's say
few hundreds of ms, then the battery voltage will be measured and when it drops below its maximum
value a fixed time length charging pulse is issued. As the battery approaches its full charge the off
time will become longer, hence the duty-cycle of the pulses will decrease. The battery is considered
fully charged when the pulse duty-cycle is less than a threshold value, typically 10%, the pulse charge
stops and eventually the maintenance starts.
The last phase is not properly a charging phase, since the battery at this point is fully charged and the
process may stop after the final charge. The maintenance charge provides an additional charging
process to compensate for the charge leak typical of a Li-Ion battery. It is done by issuing pulses with
a fixed time length, again few hundreds of ms, and a duty-cycle around 5% or less.
This last phase is not implemented in the GM862-GPS internal charging algorithm, so that the battery
once charged is left discharging down to a certain threshold so that it is cycled from full charge to
slight discharge even if the battery charger is always inserted. This guarantees that anyway the
remaining charge in the battery is a good percentage and that the battery is not damaged by keeping it
always fully charged (Li-Ion rechargeable battery usually deteriorate when kept fully charged).
Last but not least, in some applications it is highly desired that the charging process restarts when the
battery is discharged and its voltage drops below a certain threshold, GM862-GPS internal charger
does it.
![](/img.php?id=687778&img=bg10.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 16 of 55
As you can see, the charging process is not a trivial task to be done; moreover all these operations
should start only if battery temperature is inside a charging range, usually 5°C - 45°C.
The GM862-GPS measures the temperature of its internal component, in order to satisfy this last
requirement, it's not exactly the same as the battery temperature but in common application the two
temperature should not differ too much and the charging temperature range should be guaranteed.
An example of battery charger can be:
NOTE: In this particular application the battery charger input current must be limited to less than 1A. This can be
done by using a current limited wall adapter as the power source.
For your convenience in the EVK there's also a current unlimited input, where the input source is not limited in
current and the drawn current is limited to about 0,5A by a MOSFET in the EVK.
![](/img.php?id=687778&img=bg11.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 17 of 55
3.2.2 Thermal Design Guidelines
The thermal design for the power supply heat sink should be done with the following specifications:
• Average current consumption during transmission @PWR level max (rms): 500mA
• Average current consumption during transmission @ PWR level min (rms): 100mA
• Average current during Power Saving: 4mA
• Average current during idle (Power Saving disabled) 19mA
• Average GPS current during Power Saving: 1mA
• Average GPS current during Tracking (Power Saving disabled) 60mA
NOTE: The average consumption during transmissions depends on the power level at which the device is requested
to transmit by the network. The average current consumption hence varies significantly.
TIP: The thermal design for the Power supply should be made keeping a average consumption at the max
transmitting level during calls of 350mA rms.
Considering the very low current during idle, especially if Power Saving function is enabled, it is
possible to consider from the thermal point of view that the device absorbs current significantly only
during calls.
If we assume that the device stays into transmission for short periods of time (let's say few minutes)
and then remains for a quite long time in idle (let's say one hour), then the power supply has always
the time to cool down between the calls and the heat sink could be smaller than the calculated one for
350mA maximum RMS current, or even could be the simple chip package (no heat sink).
Moreover in the average network conditions the device is requested to transmit at a lower power level
than the maximum and hence the current consumption will be less than the 350mA, being usually
around 150mA.
For these reasons the thermal design is rarely a concern and the simple ground plane where the
power supply chip is placed can be enough to ensure a good thermal condition and avoid overheating.
![](/img.php?id=687778&img=bg12.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 18 of 55
3.2.3 Power Supply PCB layout Guidelines
As seen on the electrical design guidelines the power supply shall have a low ESR capacitor on the
output to cut the current peaks and a protection diode on the input to protect the supply from spikes
and polarity inversion. The placement of these components is crucial for the correct working of the
circuitry. A misplaced component can be useless or can even decrease the power supply
performances.
• The Bypass low ESR capacitor must be placed close to the Telit GM862-GPS power input pins or
in the case the power supply is a switching type it can be placed close to the inductor to cut the
ripple provided the PCB trace from the capacitor to the GM862-GPS is wide enough to ensure a
dropless connection even during the 2A current peaks.
• The protection diode must be placed close to the input connector where the power source is
drained.
• The PCB traces from the input connector to the power regulator IC must be wide enough to ensure
no voltage drops occur when the 2A current peaks are absorbed. Note that this is not made in
order to save power loss but especially to avoid the voltage drops on the power line at the current
peaks frequency of 216 Hz that will reflect on all the components connected to that supply,
introducing the noise floor at the burst base frequency. For this reason while a voltage drop of 300-
400 mV may be acceptable from the power loss point of view, the same voltage drop may not be
acceptable from the noise point of view. If your application doesn't have audio interface but only
uses the data feature of the Telit GM862-GPS, then this noise is not so disturbing and power
supply layout design can be more forgiving.
• The PCB traces to the GM862-GPS and the Bypass capacitor must be wide enough to ensure no
voltage drops occur when the 2A current peaks are absorbed. This is for the same reason as
previous point. Try to keep this trace as short as possible.
• The PCB traces connecting the Switching output to the inductor and the switching diode must be
kept as short as possible by placing the inductor and the diode very close to the power switching
IC (only for switching power supply). This is done in order to reduce the radiated field (noise) at the
switching frequency (100-500 kHz usually).
• The use of a good common ground plane is suggested.
• The placement of the power supply on the board should be done in such a way to guarantee that
the high current return paths in the ground plane are not overlapped to any noise sensitive circuitry
as the microphone amplifier/buffer or earphone amplifier.
• The power supply input cables should be kept separate from noise sensitive lines such as
microphone/earphone cables.
![](/img.php?id=687778&img=bg13.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 19 of 55
4 Serial Ports
The serial port on the Telit GM862-GPS is the core of the interface between the module and OEM
hardware.
2 serial ports are available on the module:
• MODEM SERIAL PORT
• GPS SERIAL PORT (NMEA)
Several configurations can be designed for the serial port on the OEM hardware, but the most
common are:
- RS232 PC com port
- microcontroller UART @ 2.8V - 3V (Universal Asynchronous Receive Transmit)
- microcontroller UART@ 5V or other voltages different from 2.8V
Depending from the type of serial port on the OEM hardware a level translator circuit may be needed
to make the system work. The only configuration that doesn't need a level translation is the 2.8V
UART.
The GPS Serial Port is a 3 wire (RX, TX GND) +2.8V UART.
The MODEM serial port on the GM862-GPS is a +2.8V UART with all the 7 RS232 signals. It differs
from the PC-RS232 in the signal polarity (RS232 is reversed) and levels. The levels for the GM862-
GPS UART are the CMOS levels:
Absolute Maximum Ratings -Not Functional
Parameter Min Max
Input level on any
digital pin when on
-0.3V +3.75V
Input voltage on
analog pins when on
-0.3V +3.0 V
Operating Range - Interface levels (2.8V CMOS)
Level Min Max
Input high level VIH 2.1V 3.3V
Input low level VIL 0V 0.5V
Output high level VOH 2.2V 3.0V
Output low level VOL 0V 0.35V
![](/img.php?id=687778&img=bg14.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 20 of 55
The signals of the GM862-GPS MODEM serial port are:
RS232
Pin
Number
Signal GM862-
GPS Pin
Number
Name Usage
1 DCD -
dcd_uar
t
36 Data Carrier Detect Output from the GM862-GPS that
indicates the carrier presence
2 RXD -
tx_uart
37 Transmit line *see Note Output transmit line of GM862-GPS
UART
3 TXD -
rx_uart
20 Receive line *see Note Input receive of the GM862-GPS UART
4 DTR -
dtr_uart
43 Data Terminal Ready Input to the GM862-GPS that controls
the DTE READY condition
5 GND 2-4-6-8 Ground ground
6 DSR -
dsr_uart
33 Data Set Ready Output from the GM862-GPS that
indicates the module is ready
7 RTS -
rts_uart
45 Request to Send Input to the GM862-GPS that controls
the Hardware flow control
8 CTS -
cts_uart
29 Clear to Send Output from the GM862-GPS that
controls the Hardware flow control
9 RI -
ri_uart
30 Ring Indicator Output from the GM862-GPS that
indicates the incoming call condition
NOTE: According to V.24, RX/TX signal names are referred to the application side, therefore on the GM862-GPS side
these signal are on the opposite direction: TXD on the application side will be connected to the receive line (here
named TXD/ rx_uart ) of the GM862-GPS serial port and viceversa for RX.
TIP: For a minimum implementation, only the TXD and RXD lines can be connected, the other lines can be left open
provided a software flow control is implemented.
The signals in the UART connector on the EVK are:
DCD RXD
TXD DTR
GND DSR
RTS CTS
RI GND
The signals of the GPS serial port are:
![](/img.php?id=687778&img=bg15.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 21 of 55
Signal GM862-
GPS Pin
Number
Name Usage
RX_GPS 41 GPS Transmit line Output line of GPS serial Port (NMEA
protocol)
TX_GPS 35 GPS Receive line Input line of GPS serial Port (NMEA
protocol)
GND 2-4-6-8 Ground ground
The default configuration is 4800 bps, 8, n, 1
GPS RX Lines and TX lines may need a dual supply isolation buffer like an FXLP34 to avoid CMOS
high states while in POWER SAVING.
4.1 level translation
In order to interface the Telit GM862-GPS with a PC com port or a RS232 (EIA/TIA-232) application a
level translator is required. This level translator must
- invert the electrical signal in both directions
- change the level from 0/3V to +15/-15V
Actually, the RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower levels on
the RS232 side (EIA/TIA-562) , allowing for a lower voltage-multiplying ratio on the level translator.
Note that the negative signal voltage must be less than 0V and hence some sort of level translation is
always required.
The simplest way to translate the levels and invert the signal is by using a single chip level translator.
There are a multitude of them, differing in the number of driver and receiver and in the levels (be sure
to get a true RS232 level translator not a RS485 or other standards).
By convention the driver is the level translator from the 0-3V UART level to the RS232 level, while the
receiver is the translator from RS232 level to 0-3V UART.
In order to translate the whole set of control lines of the UART you will need:
- 5 driver
- 3 receiver
NOTE: The digital input lines working at 2.8VCMOS have an absolute maximum input voltage of 3,75V; therefore the
level translator IC shall not be powered by the +3.8V supply of the module. Instead it shall be powered from a +2.8V /
+3.0V (dedicated) power supply.
This is because in this way the level translator IC outputs on the module side (i.e. GM862-GPS inputs) will work at
+3.8V interface levels, stressing the module inputs at its maximum input voltage.
This can be acceptable for evaluation purposes, but not on production devices.
![](/img.php?id=687778&img=bg16.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 22 of 55

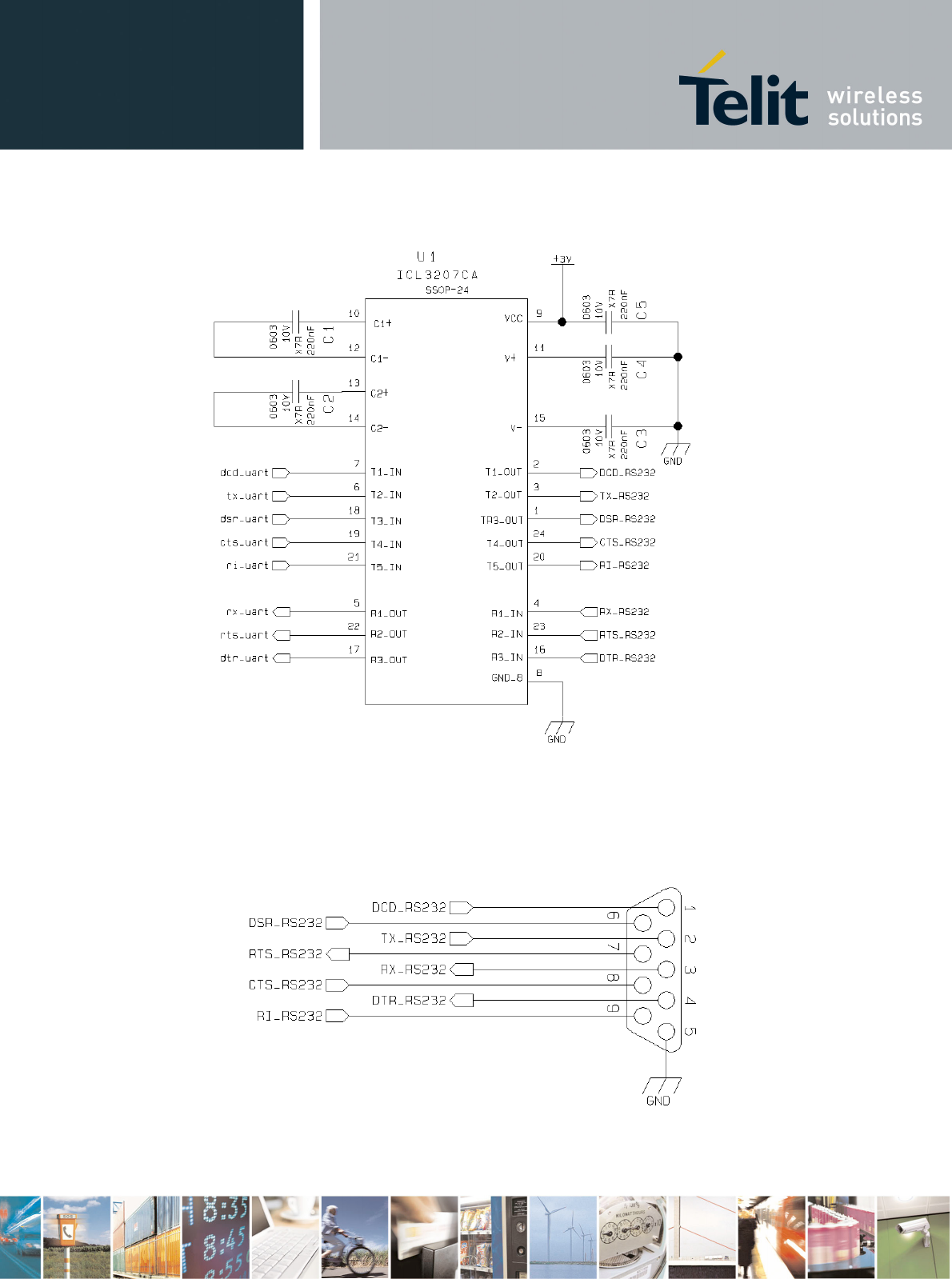

An example of level translation circuitry of this kind is:
the RS232 serial port lines are usually connected to a DB9 connector with the following layout:
![](/img.php?id=687778&img=bg17.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 23 of 55
4.2 5V UART level translation
If the OEM application uses a microcontroller with a serial port (UART) that works at a voltage
different from 2.8 - 3V, then a circuitry has to be provided to adapt the different levels of the two set of
signals. As for the RS232 translation there are a multitude of single chip translators, but since the
translation requires very few components, then also a discrete design can be suited. For example a

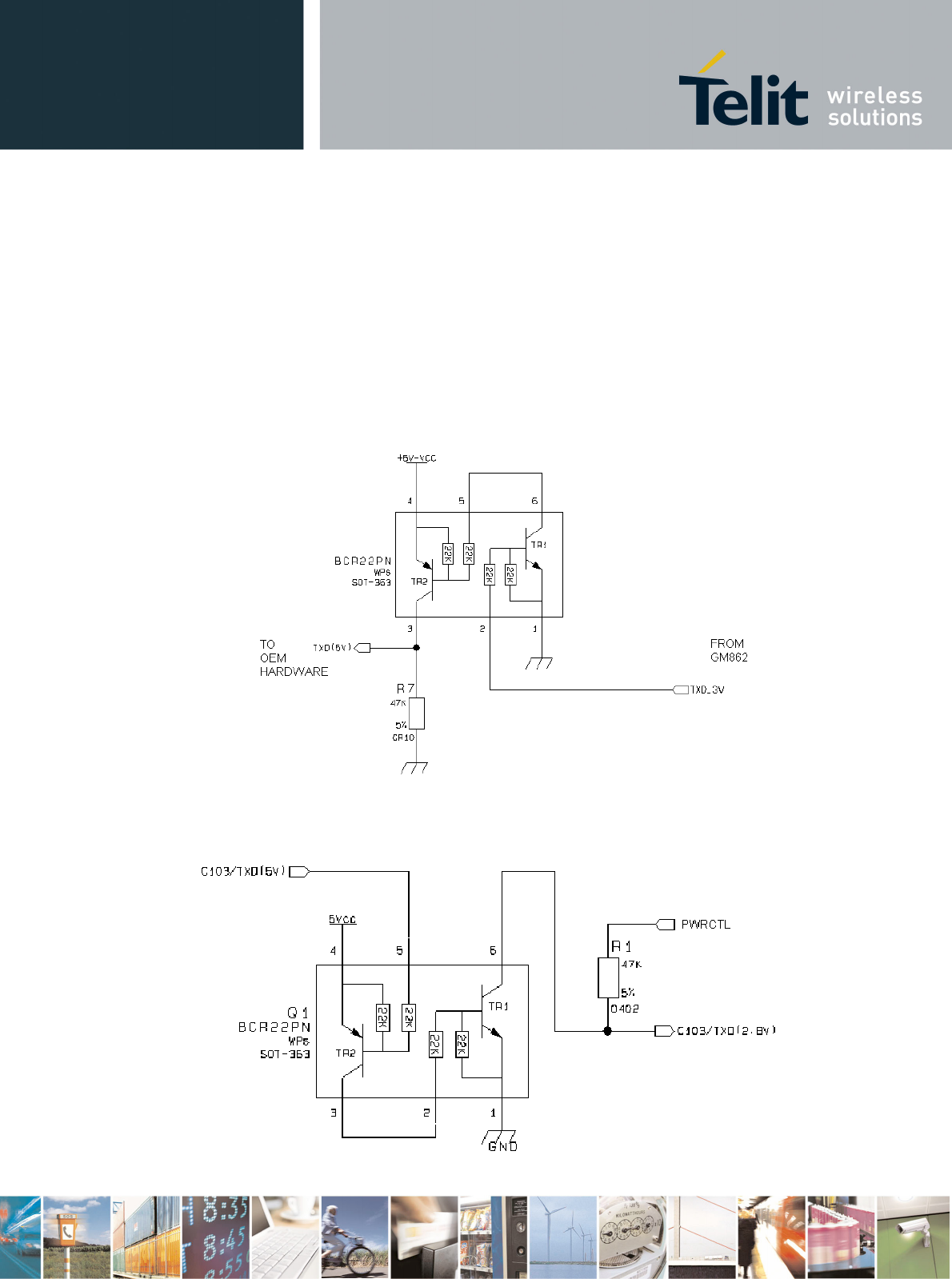

possible inexpensive translator circuit for a 5V driver can be:
and for a 5V receiver:
![](/img.php?id=687778&img=bg18.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 24 of 55
NOTE: The UART input line TXD (rx_uart) of the GM862-GPS is NOT internally pulled up with a resistor, so there
may be the need to place an external 47KΩ pull-up resistor, either the DTR (dtr_uart) and RTS (rts_uart) input lines
are not pulled up internally, so an external pull-up resistor of 47KΩ may be required.
A power source of the internal interface voltage corresponding to the 2.8VCMOS high level is
available at the PWRCTL pin on the connector, whose absolute maximum output current is 10mA.
A maximum of 9 47 KΩ pull-up resistors can be connected to the PWRCTL pin, provided no other
devices are connected to it and the pulled-up lines are GM862-GPS input lines connected to open
collector outputs in order to avoid latch-up problems on the GM862-GPS.
Care must be taken to avoid latch-up on the GM862-GPS and the use of this output line to power
electronic devices shall be avoided, especially for devices that generate spikes and noise such as
level translators, digital ICs or microcontrollers, failure in any of these condition can severely
compromise the GM862-GPS functionality.
NOTE: The input lines working at 2.8VCMOS can be pulled-up with 47KΩ resistors that can be connected directly to
the PWRCTL line provided they are connected as in this example.
NO OTHER devices should be powered with the PWRCTL line, otherwise the module functionality may be
compromised.
![](/img.php?id=687778&img=bg19.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 25 of 55
5 Audio Section Overview
The Base Band Chip of the GM862-GPS Telit Module provides two different audio blocks; both in
transmit (Uplink) and in receive (Downlink) direction:
“MT lines” should be used for handset function,
“HF lines” is suited for hands -free function (car kit).
These two blocks can be active only one at a time, selectable by AXE hardware line or by AT
command.
The audio characteristics are equivalent in transmit blocks, but are different in the receive ones and
this should be kept in mind when designing.
![](/img.php?id=687778&img=bg1a.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 26 of 55
Ear_MT-
Ear_MT+
+20dB 365mV rms
Mic_MT+
Mic_MT-
7cm
GM862-GPS
Differential
Line-Out Drivers
Fully Differential
Power Buffers
EXTERNAL
AMPLIFIER
-12dBFS
16
8
-45dBV/Pa
3,3mV
16
+10dB
-45dBV/Pa
0,33mV
Mic_HF- Ear_HF-
Balanced
Single
ended
23mV rms
Mic_HF+ Ear_HF+
50cm

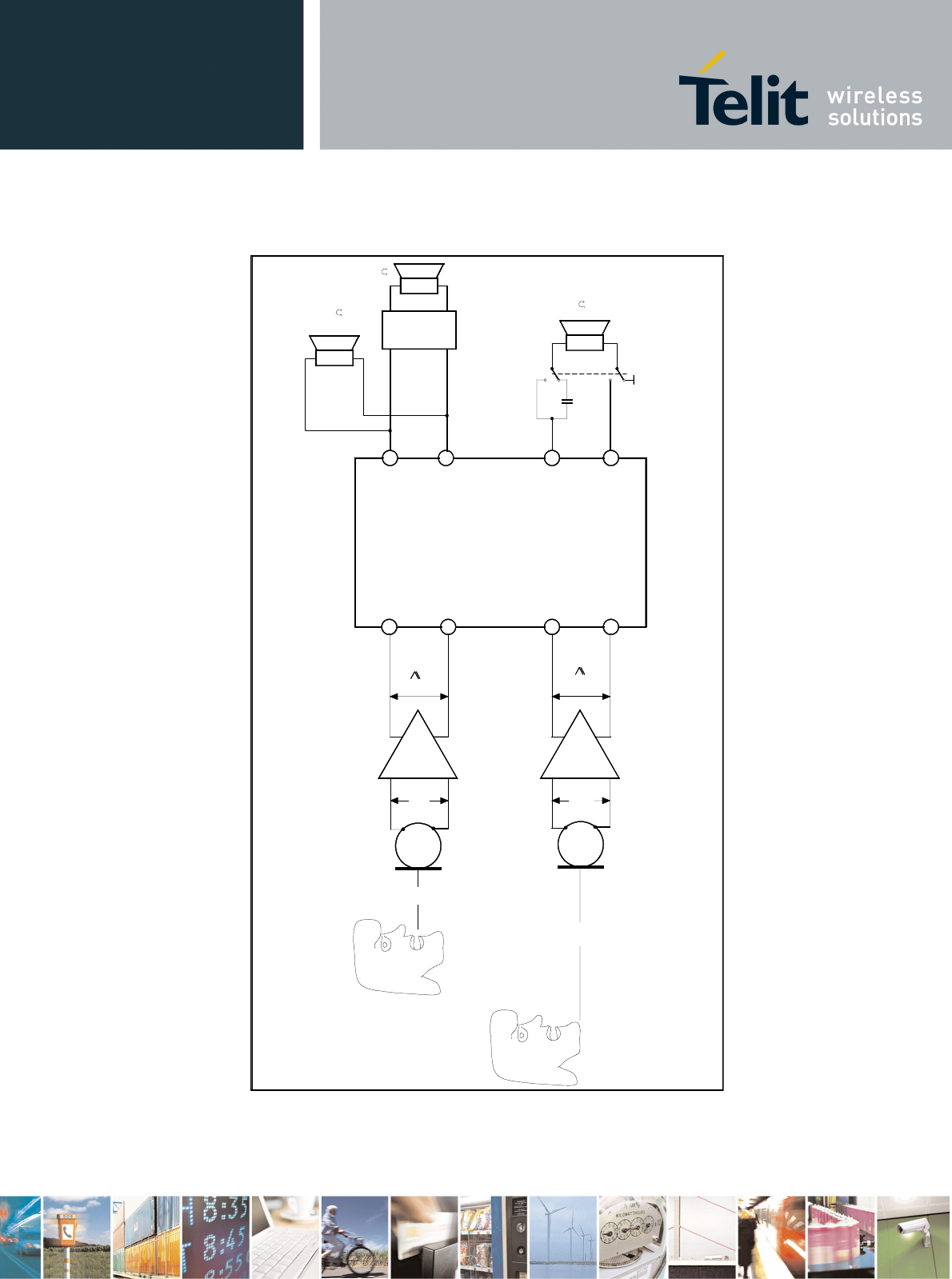

GM862-GPS Audio Paths
egolite.skd
![](/img.php?id=687778&img=bg1b.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 27 of 55
5.1 Microphone paths characteristic and requirements
TIP: being the microphone circuitry the more noise sensitive , its design and layout must be
done with particular care. Both microphone paths are balanced and the OEM circuitry should
be balanced designed to reduce the common mode noise typically generated on the ground
plane. However also an unbalanced circuitry can be used for particular OEM application needs
.
TIP: due to the difference in the echo canceller type, the “Mic_MT” audio path is suited for
Handset applications, while the “Mic_HF”audio path is suited for hands-free function (car kit).
The Earphone applications should be made using the “Mic_HF” audio path but DISABLING the
echo canceller by software AT command. If the echo canceller is left active with the Earphone,
then some echo might be introduced by the echo cancel algorithm.
“Mic_MT” 1st differential microphone path
• line coupling AC
• line type balanced
• coupling capacitor ≥ 100nF
• differential input resistance 50kΩ
• differential input voltage ≤ 1,03Vpp (365mVrms)
• microphone nominal sensitivity -45 dBVrms/Pa
• analog gain suggested + 20dB
• echo canceller type handset
“Mic_HF” 2nd differential microphone path
• line coupling AC
• line type balanced
• coupling capacitor ≥ 100nF
• differential input resistance 50kΩ
• differential input voltage ≤ 65mVpp (23mVrms)
• microphone nominal sensitivity -45 dBVrms/Pa
• analog gain suggested +10dB
• echo canceller type car kit hands-free
![](/img.php?id=687778&img=bg1c.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 28 of 55
TIP: definition of the nominal sensitivity of the microphone lines .
The nominal sensitivity of the microphone lines indicates the voltage level on the GM862-GPS pins
present during "normal spoken" conditions.
For a handset , the "normal spoken” conditions take place when the talker mouth is 7cm far from the
microphone ; under these conditions the voice will produce an acoustic pressure of -4,7dBPa @1kHz
on the microphone membrane .
TIP: electrical equivalent signal and operating voice levels .
At "normal spoken" conditions, a microphone having the suggested nominal sensitivity of -
45dBVrms/Pa , will produce
the electrical equivalent signal :
that means :
During a call , this level varies according to the volume of the talker voice; usually the following rough
thumb rule for the dynamic range may be used :
1) the talker is screaming . This is the strongest voice level condition: the signal increases by
+20dB ;
2) the talker is whispering. This is the lowest voice level condition: the voice level decreases by –
50dB .
These changes must be considered for designing the external microphone amplifier.
TIP: example of external microphone amplifier calculation .
Let’s suppose to use the 1stdifferential microphone path .In this case the maximum differential input
voltage to “Mic_MT” lines is 365mVrms(1,03Vpp) corresponding to –8,76dBV.
Now we can calculate the maximum voltage gain of an external microphone amplifier GA:
()
[]
dBVGdBMicLevel A76,820 −
=
++
[]
76,8207,49 −=++− A
G
A
G−=+− 209,40
dBGA94,20= you can set GA= +20dB to use standard resistor values .
MicLevel = ( -45) + (-4.7) = -49.7 dBVrms
MicVoltage = 10 (
-
49.7 / 20 ) = 3.3* 10
-
3
Vrms
![](/img.php?id=687778&img=bg1d.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 29 of 55
TIP: environment consideration .
For hands-free/car kit microphone, you must take into account the voice attenuation, due to the
distance between the microphone itself and the talker , when designing the external microphone
amplifier.
Not only, you must consider that the microphone will pick up also ambient noise; to overcome this
problem it is preferable to set the gain of the microphone 10dB lower with respect to the calculated
value for a nominal sensitivity. The corresponding reduction in signal level will be compensated by an
increased voice volume of the talker which will speak louder because of the ambient noise.
For a car cabin usually the distance between the microphone itself and the talker is 40/50cm ; in these
conditions the attenuation can be considered as a thumb rule around 20dB .
For the earphone we shall distinguish two different types: the earphones having the microphone
sustained close to the mouth and the ones having the microphone on the earpiece cable.
The same considerations for the additional voice attenuation due to the distance from the microphone
and the noise pick up can be made for the earphone having the microphone on the earpiece cable,
while the other kind of earphone shall be threaten as an handset.
TIP: how to compensate the losses in car cabin hands-free condition .
The voice signal , that in the "normal spoken” conditions produces on the microphone membrane an
acoustic pressure of -4,7dBPa at 1kHz , will have a further attenuation of 20dB due the 50cm distance
.
Therefore a microphone having the suggested nominal sensitivity of -45dBVrms/Pa,will produce a lower
electrical
equivalent signal :
that means :
Setting the “microphone gain” at +10dB (3 times), the signal in the nominal conditions on the
“Mic_HF” inputs s of GM862-GPS Telit Module will be :
Hence in these conditions the signal level on the“Mic_HF” input pads of the GM862-GPS is 10 dB (3
times) lower than the nominal, as suggested.
MicLevel = ( -45) + (-4.7)-20 = -69.7
MicVoltage = 10 (
-
49.7 / 20 ) = 0,33* 10
-
3
“Mic_HF” Level = 0,33* 10
-
3
* 3=1* 10
-
3
![](/img.php?id=687778&img=bg1e.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 30 of 55
5.2 General Design Rules
There are several configurations for the audio paths, but the most effective difference is between
balanced and unbalanced microphone configuration.
It is highly recommended to keep the whole microphone path balanced even if this means having 2
wires connecting the microphone instead of one needed (plus ground) in the unbalanced case. The
balanced circuitry is more suited because of its good common mode noise rejection, reducing the 216
Hz burst noise produced during the GSM transmissions.
• Where possible use balanced microphone circuitry
• Keep the microphone traces on the PCB and wires as short as possible.
• If your application requires an unbalanced microphone, then keep the lines on the PCB balanced
and "unbalance" the path close to the microphone wire connector if possible.
• For the microphone biasing voltage use a dedicated voltage regulator and a capacitor multiply
circuit.
• Make sure that the microphone traces in the PCB don't cross or run parallel to noisy traces
(especially the power line)
• If possible put all around to the microphone lines a ground trace connected to the ground plane by
several vias. This is done in order to simulate a shielded trace on the PCB.
• The biasing circuit and eventually the buffer can be designed in the same manner for the internal
and external microphones.
5.3 Other considerations .
If your application is a hands-free/car kit scenario, but you need to put microphone and speaker inside
the same box:
• Try to have the maximum possible distance between them, at least 7cm;
• becauses the microphone type is very important, if you use an omni-directional one ( and this is
the typical applicaton ) please seal it on the rear side (no back cavity) in order not to collect
unwanted signals ;
• try to make divergent the main axes of the two devices .
![](/img.php?id=687778&img=bg1f.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 31 of 55
5.4 Microphone Biasing
The electret microphones usually need a biasing voltage to work properly. Refer to your microphone
provider for the characteristics required.
NOTE: The microphones have a hot wire were the positive biasing must be connected. Usually
it is indicated by a + symbol or a red point. If the polarity of the bias is reversed, then the
microphone will not work properly. For this reason be sure to respect the mic. biasing polarity.
5.4.1 Balanced Microphone biasing
The balanced microphone bias voltage should be obtained from a dedicated voltage regulator, in order
to eliminate the noise present on the power lines. This regulator can be the same for all the audio
paths. The microphone should be supplied from a capacitor multiply circuit.
For example a circuit for the balanced microphone biasing can be:
NOTE: In the balanced application the resistors R2 and R3 must have the same value to keep
the circuit balanced.
![](/img.php?id=687778&img=bg20.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 32 of 55
NOTE: The cable to the microphone should not be shielded, instead a twisted pair cable shall
be used.
NOTE: The microphone sensitivity changes with the value of R2 and R3. Usually the
microphones are characterized with 2kΩ biasing resistance, so try to keep the sum of R2 and
R3 around 2kΩ. Refer to your microphone manufacturer for the mic. characteristics.
5.4.2 Unbalanced Microphone biasing
The unbalanced microphone biasing voltage should be obtained from a dedicated voltage regulator, in
order to eliminate the noise present on the power lines. This regulator can be the same for all the
audio paths. The microphone should be supplied from a capacitor multiply circuit.
For example a circuit for the unbalanced microphone biasing can be:
![](/img.php?id=687778&img=bg21.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 33 of 55
NOTE: In the unbalanced application the capacitor C3 shall be > 200nF otherwise the frequency
response will be cut at low band frequencies (down to 300Hz). This capacitor can be placed
close to the MIC- pad (MIC_HF- or MIC_MT- depending on the audio path chosen) or if
possible it should be placed close to the shielded cable connector. If the ground return path is
well designed, then it is possible to eliminate the C3 capacitor, provided the buffer is close to
the mic. input.
NOTE: The cable to the microphone should be shielded.
NOTE: The microphone changes with the value of R2. Usually the microphone sensitivity is
characterized with 2kΩ biasing resistance, so try to keep the value of R2 around 2kΩ. For mic.
characteristics refer to the manufacturer.
![](/img.php?id=687778&img=bg22.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 34 of 55
5.5 Microphone buffering
As seen previously, a microphone shall be connected to the input pins of the GM862-GPS through a
buffer amplifier that boosts the signal level to the required value.
Again the buffered microphone circuitry can be balanced or unbalanced: where possible it is always
preferable a balanced solution. The buffering circuit shall be placed close to the microphone or close
to the microphone wire connector.
5.5.1 Buffered Balanced Mic.

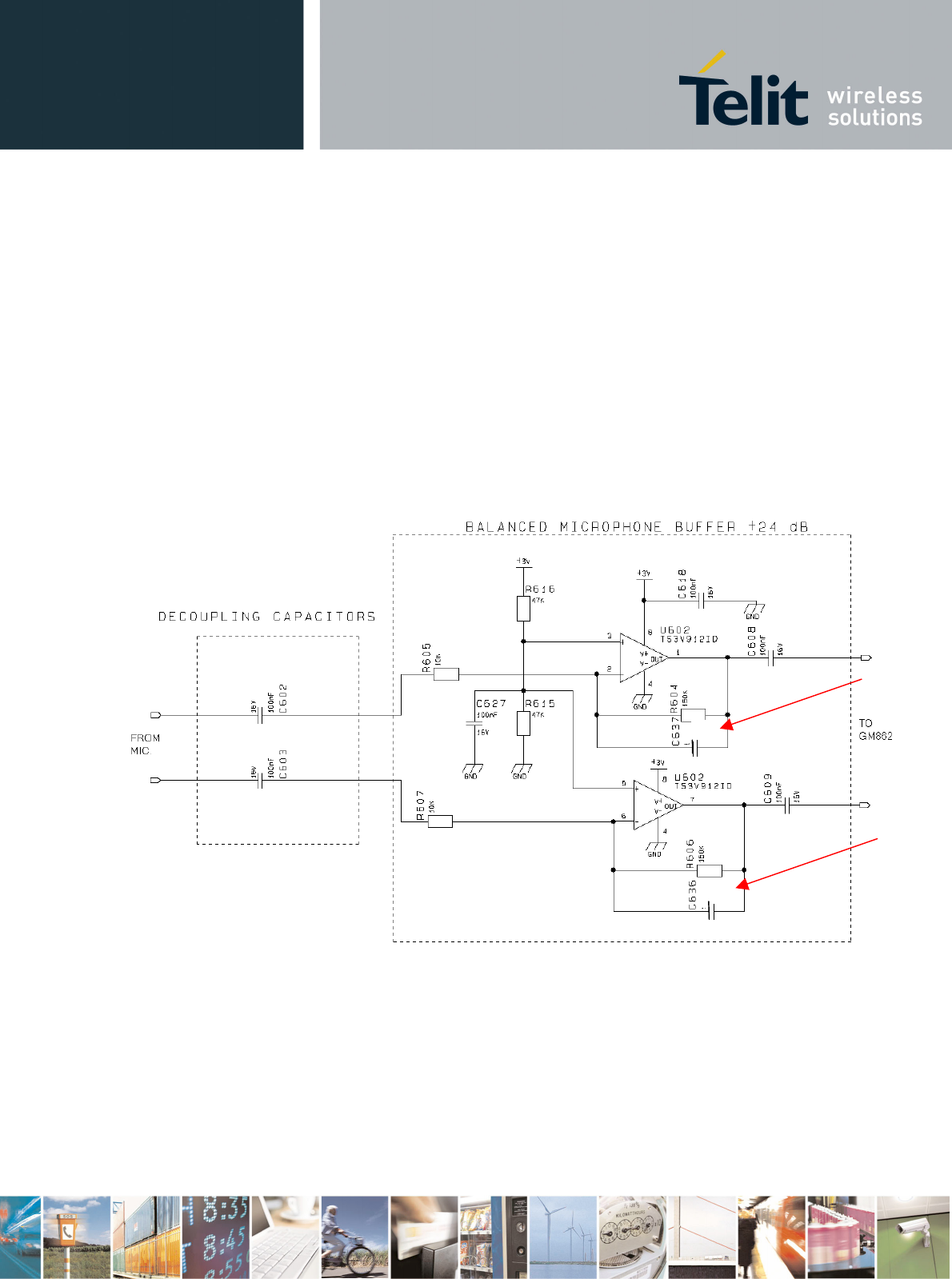

A sample circuit can be:
This circuit has a gain of 10 times (+20 dB), and is therefore suited for the “Mic_MT “ input if you have
a microphone with a sensitivity close to the suggested one (-45 dBVrms/Pa). If your microphone has a
different sensitivity or if the buffer is connected to the “Mic_HF “ inputs , then a gain adjustment shall
be done by changing resistors R604 and R606 ( if the required value is not a standard one , you can
change R605 e R607 ) and as a consequence the capacitors C636 and C637 to maintain the
bandwidth 150-4000Hz (at -3dB).
270pF
270pF
![](/img.php?id=687778&img=bg23.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 35 of 55
The buffer gain is given by the formula:
607
606
605
604
R
R
R
R
Gain ==
The C636 and C637 capacitors are placed in order to cut off the gain at higher frequencies than the
transmitted GSM band, the cutoff frequency (-3dB) should be 3500Hz in order to have -1dB at 3kHz.
The cutoff frequency is given by the formula:
636*606*2
1
637*604*2
1
.CRCR
freq
ππ
== [Hz]
TIP: example of calculation .
Let's assume you have a microphone with a sensitivity of -45 dBVrms/Pa and you want to use it in 1st
differential microphone path (“Mic_MT” inputs) in "normal spoken" conditions at acoustic pressure of
-4.7dBPa.
As reported at page 33 , the electrical level output from the microphone will be :
corresponding to:
When the talker is screaming ,we will have a signal of 330 mVrms on the “Mic_MT “ inputs for a buffer
gain GA :
GA =20 log (AmplifierOutput / MicVoltage) =20 log (330 * 10 -3 )/( 3.3 * 10 -3 ) = 20 log 10=20dB
The corresponding values for the resistors on the buffer could be ( if we keep the input resistance
10kΩ )
R604 = R606 = gain* R603= gain* R605 = 10* 15 = 150 kΩ
The commercial values of 150kΩ & 15kΩ are then chosen.
As a consequence the values of the capacitors C636 and C637 shall be:
C636=C637= 1/ (2π*4000*R606)= 265 *10 -12 F
A commercial value of 270pF gives a cutoff frequency of 3931Hz with an errorless than 1,8% .
MicLevel = ( -45) + (-4.7) = -49.7 dBVrms
MicVoltage = 10 (
-
49.7 / 20 ) = 3.3* 10
-
3
Vrms
![](/img.php?id=687778&img=bg24.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 36 of 55

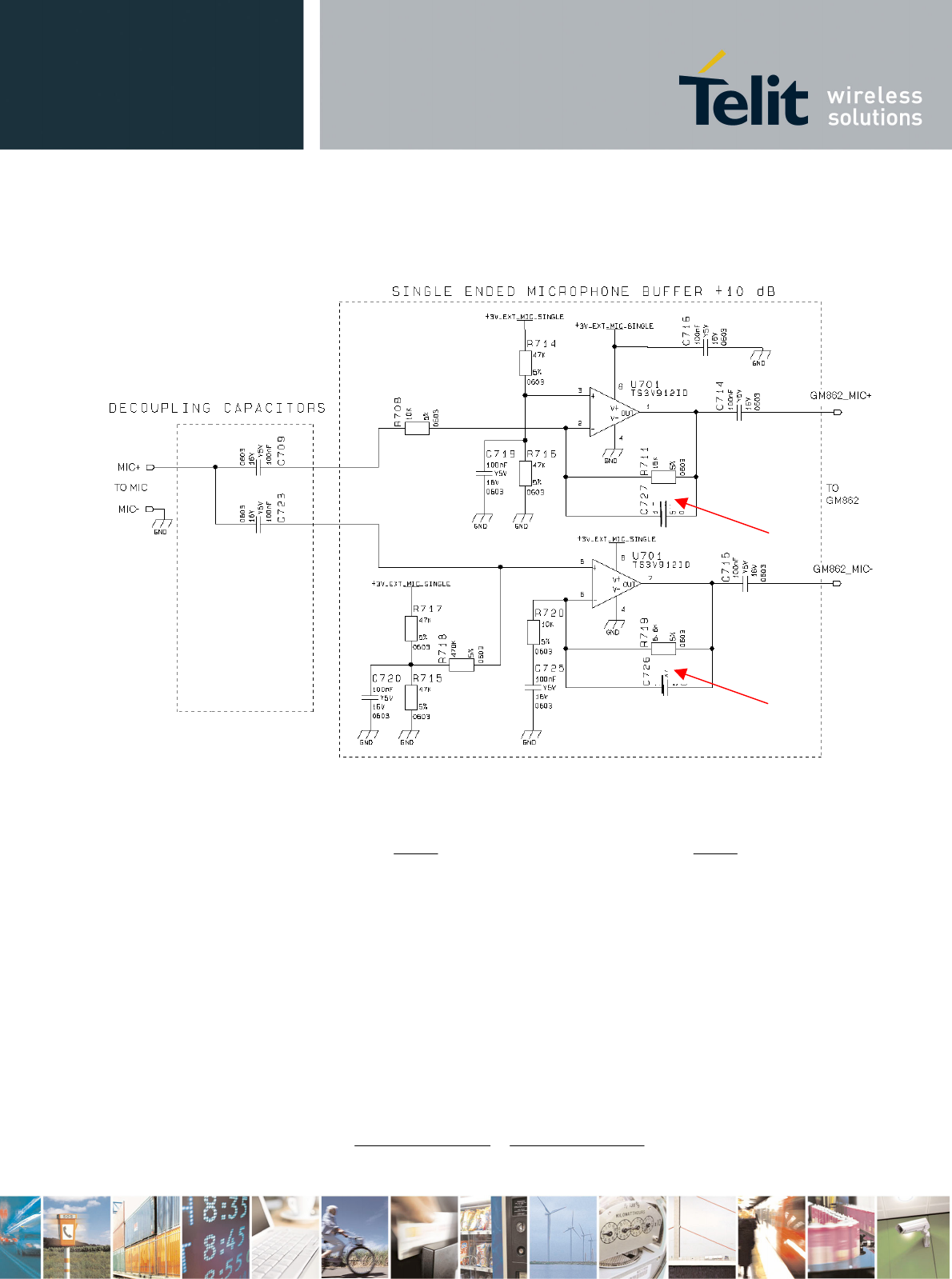

5.5.2 Buffered Unbalanced (Single Ended) Microphone .
The above schematic can be used for a single ended (buffered unbalanced) microphone ; the required
biasing circuitry is not included. Note also that the capacitor C3 is not needed .
The gains of the two amplifiers are given by the formulas :
()
720
719
1buffer invertingnot R
R
Gain +=
()
708
711
buffer inverting R
R
Gain =
Assigning half of overall gain to each amplifier, you will obtain the requested gain because of doubling
the microphone signal path; in fact by the use of two amplifiers (the upper as “inverting” and the lower
as “not inverting”configuration ) we obtain an additional +6dB gain (2 times) .
Remember : the “not inverting “ amplifier section gain shall not be less than 1 .
Like for the balanced buffered microphone , the amplifier overall gain can be modify changing the
value of resistor R719/R720 and R711 and as a consequence the capacitors C726 and C727. It is
advisable to change R708 only if you have difficulty to find a commercial value for R711 ; in this case
change R708 as little as possible .
The -3dB bandwidth is given by the approximated formula (considering C725 >> C726):
727*711*2
1
726*719*2
1
.CRCR
freq
ππ
== [Hz]
2,7nF
6,8nF
![](/img.php?id=687778&img=bg25.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 37 of 55
The buffer bandwidth at -3dB shall be 4KHz.
Note that the biasing of the operational amplifier is given for the inverting amplifier by the series divider
R714-R715. The 100nF capacitor C719 is needed to filter the noise that could be coupled to that
divider. For the not inverting operational amplifier the biasing is given by a different divider R715-R717
with the capacitor C720 and through a series resistor R718 of 470KΩ.
TIP: example of calculation.
Llet's assume you have a microphone with a sensitivity of -45dBVrms/Pa and you want to use it in 2nd
differential microphone path (“Mic_HF” inputs) in "normal spoken" conditions at acoustic pressure
of -4.7dBPa.
As reported at page XX , the electrical level output from the microphone will be :
but we have to consider 20dB loss due to the higher distance from the mouth of the talker ( 50cm ) .
corresponding to
In order to have a signal of 1 mVrms at the “Mic_HF” inputs , as suggested at TIP “environment
consideration “,
the buffer must have a gain or +10 dB
Keeping in mind that “ balancing the line will double the signal”, to calculate the resistor values assign
half of required gain GA to each amplifier section . And therefore GS =1,5times (or +3,52dB) .
Choosing as 10kΩ as the input resistance , the corresponding values for the resistors on the buffer will
be :
R711 = GS * R708= 1.5*10 =15 kΩ
R719 = (GS -1) * R720 = (1.5 -1)*10 =5 kΩ
The commercial values of 15kΩ and 5.6kΩ be accepted .
As a consequence of the assigned values of the resistors, the nominal values of C726 and C727 are
:
MicLevel = ( -45) + (-4.7) = -49.7 dBVrms
MicVoltage = 10 (
-
69.7 / 20 ) = 0,33* 10
-
3
MicLevel = ( -49.7) + (-20) = -69.7 dBVrms
GA= “Mic_HF /MicVoltage = (1*10
-
3
)/(0,33*10
3
![](/img.php?id=687778&img=bg26.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 38 of 55
C726= 1/ (2π*4000*R719)= 7.10 *10 -9 F
C727= 1/ (2π*4000*R711)= 2,65 *10 -9 F
modified in 6,8nF (fc1=4181Hz ) and 2,7nF (fc2=3931Hz) because of commercial values .
![](/img.php?id=687778&img=bg27.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 39 of 55
6 OUTPUT LINES (Speaker)
6.1 Short description.
The Telit GM862-GPS provides two audio paths in receive section. Only one of the two paths can be
active at a time, selectable by AXE hardware line or by AT command.
You must keep in mind the different audio characteristics of the receive blocks when designing :
Æ the “Ear_MT” lines EPN1 and EPP1 are the Differential Line-Out Drivers ; they can drive an
external amplifier or directly a 16 Ω earpiece at –12dBFS (*) ;
Æ the “Ear_HF” lines EPPA1_2 and EPPA2 are the Fully Differential Power Buffers ; they can directly
drive a 16Ω speaker in differential (balanced) or single ended (unbalanced) operation mode .
(*) FS : acronym of Full Scale. It is equal to 0dB, the maximum Hardware Analog Receive Gain of
BaseBand Chip.
The “Ear_MT” audio path should be used for handset function, while the “Ear_HF” audio path is suited
for hands-free function (car kit).
Both receiver outputs are B.T.L. type (Bridged Tie Load) and the OEM circuitry shall be designed
bridged to reduce the common mode noise typically generated on the ground plane and to get the
maximum power output from the device; however also a single ended circuitry can be designed for
particular OEM application needs.
![](/img.php?id=687778&img=bg28.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 40 of 55
6.2 Output lines characteristics .
“Ear_MT” Differential Line-out Drivers Path
• line coupling: DC
• line type: bridged
• output load resistance : ≥ 14 Ω
• internal output resistance: 4 Ω (typical)
• signal bandwidth: 150 - 4000 Hz @ -3 dB
• max. differential output voltage 1310 mVrms (typ, open circuit)
• differential output voltage 328mVrms /16 Ω @ -12dBFS
• SW volume level step - 2 dB
• number of SW volume steps 10
“Ear_HF” Power Buffers path
• line coupling: DC
• line type: bridged
• output load resistance : ≥ 14 Ω
• internal output resistance: 4 Ω ( >1,7 Ω )
• signal bandwidth: 150 - 4000 Hz @ -3 dB
• max. differential output voltage 1310 mVrms (typ, open circuit)
• max. single ended output voltage 656 mVrms (typ, open circuit)
• SW volume level step - 2 dB
• number of SW volume steps 10
![](/img.php?id=687778&img=bg29.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 41 of 55
6.3 General Design rules
There are several configurations for the audio output path, but the various design requirements can be
grouped into three different categories:
• handset earphone (low power, typically a handset)
• hands-free earphone (low power, typically a earphone)
• car kit speakerphone (high power, typically a speaker)
The three groups have different power requirements, usually the first two applications need only few
mW of power, which can be directly drained from the GM862-GPS pads, provided a suited speaker is
used. This direct connect design is the cheaper and simpler solution and will be suited for the most of
the earphone design requirements. There's no need to decouple the output ear lines if a suited
earpiece is connected. For the last group, the speakerphone, a power amplifier is required to raise the
output power up to 5-10W required in a car cabin application.
All the designs shall comply with the following guidelines:
• Where possible use a bridged earphone circuitry, to achieve the maximum power output from the
device.
• Keep the earphone traces on the PCB and wires as short as possible.
• If your application requires a single ended earpiece and you want a direct connection, then leave
one of the two output lines open and use only the other referred to ground. Remember that in this
case the power output is 4 times lower than the bridged circuit and may not be enough to ensure
a good voice volume.
• Make sure that the earphone traces in the PCB don't cross or run parallel to noisy traces
(especially the power line)
• The cable to the speaker shall be a twisted pair with both the lines floating for the bridged output
type, shielded with the shield to ground for the single ended output type.
6.3.1 Noise Filtering
The I/O of the PCB should have a noise filter close to the connector, to filter the high frequency GSM
noise. The filter can be a Π formed by 2 capacitor and a inductance, with the one capacitor of 39pF -
0603 case , and the other capacitor of 1nF - 0603; the inductance shall have a value of 39μH .
![](/img.php?id=687778&img=bg2a.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 42 of 55
6.4 Handset earphone design
As seen previously, a 16Ω earpiece can be directly connected to the output pads EAR_MT+ and
EAR_MT- of the GM862-GPS.
This solution is often the more cost effective, reducing the components count to a minimum. There are
several limitations to the use of this solution: speaker direct connect imposes the speaker
characteristics to be almost exactly the suggested ones, otherwise the power output may be reduced
(if speaker impedance is bigger than 16Ω) or the GM862-GPS ear port may be damaged (if speaker
impedance is less than 15Ω).
The other limitation of the speaker direct connection is the power output capability of the GM862-GPS
which is limited and for some particular applications may not be enough.
For these reasons, when the power output of the GM862-GPS is not enough or if the speaker
characteristics are different from the suggested, then it is preferable to use an amplifier to increase the
power and current output capabilities.
Again the output from the GM862-GPS is bridged and both lines should be used, where possible, as
inputs to the power amplifier. This ensures a higher common mode rejection ratio, reducing the GSM
current busts noise on the speaker output.
In this case the “EAR_MT” lines from the GM862-GPS should be AC coupled with a ceramic capacitor
of 100nF (or bigger ) .
It is always desirable to have a mute control on the amplifier, in order to turn it off while the device is
not sending signal to the output, in this manner the amplifier background noise which may be audible
during idle conditions is cut off.
A principle schematic may be:
![](/img.php?id=687778&img=bg2b.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 43 of 55
The resulting gain and high pass cut can be obtained with the formula:
2
3
R
R
Gain =
4*3*2
1
.CR
freq
π
= [Hz]

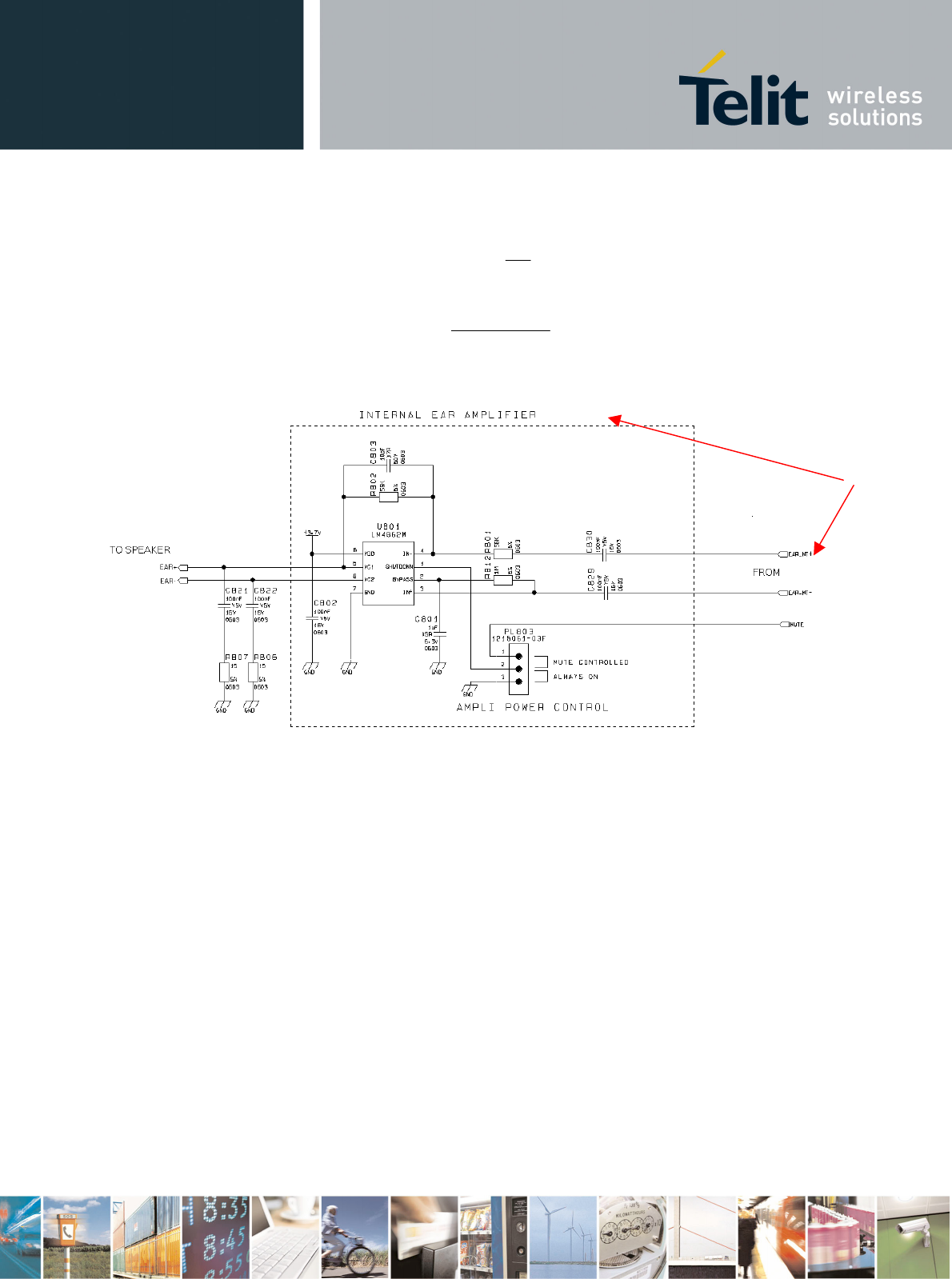

And an example of internal Ear amplifier could be :
Some amplifier require a low impedance load at high frequency in order to avoid auto oscillation, this
can be made with a capacitor (100nF) in series with a resistor (15Ω).
When designing your application, remember to provide an adequate bypass capacitor to the amplifier
and place it close to the power input pin of the IC, keeping the traces as short as possible.
6.5 Hands-free earphone (low power) design
The same design considerations made for the handset are valid for the hands-free earphone.
+12dB
GM862-GPS
![](/img.php?id=687778&img=bg2c.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 44 of 55
6.6 Car Kit speakerphone design
For the car kit speaker phone function the power output requirement is usually at least 4W, therefore
an amplifier is needed to boost the GM862-GPS output.
The design of the amplifier shall comply with the following guidelines:
• The input to the amplifier MUST be taken from the “Ear_HF” audio path of the GM862-GPS,
because of its echo canceller parameters suited to a car cabin use.
• The amplifier shall have a gain of 30-40 times (29-32 dB) to provide the desired output power of 5-
10W with the signal from the GM862-GPS “Ear_HF” audio output lines.
• If the amplifier has a fixed gain then it can be adjusted to the desired value by reducing the input
signal with a resistor divider network.
• The amplifier shall have a mute control to be used while not in conversation. This results in two
benefits: eliminating the background noise when not in conversation and saving power.
• The power to the amplifier should be decoupled as much as possible from the GM862-GPS power
supply, by either keeping separate wires and placing bypass capacitors of adequate value close to
the amplifier power input pads.
• The biasing voltage of the amplifier shall be stabilized with a low ESR (e.g. a tantalum) capacitor of
adequate value.
NOTE: The GM862-GPS audio path connected to the car kit hands-free amplifier MUST be
“Ear_HF” one, otherwise the echo cancellation will not be done due to the difference in the
echo canceller characteristics of the GM862-GPS internal audio path from the external audio
path.

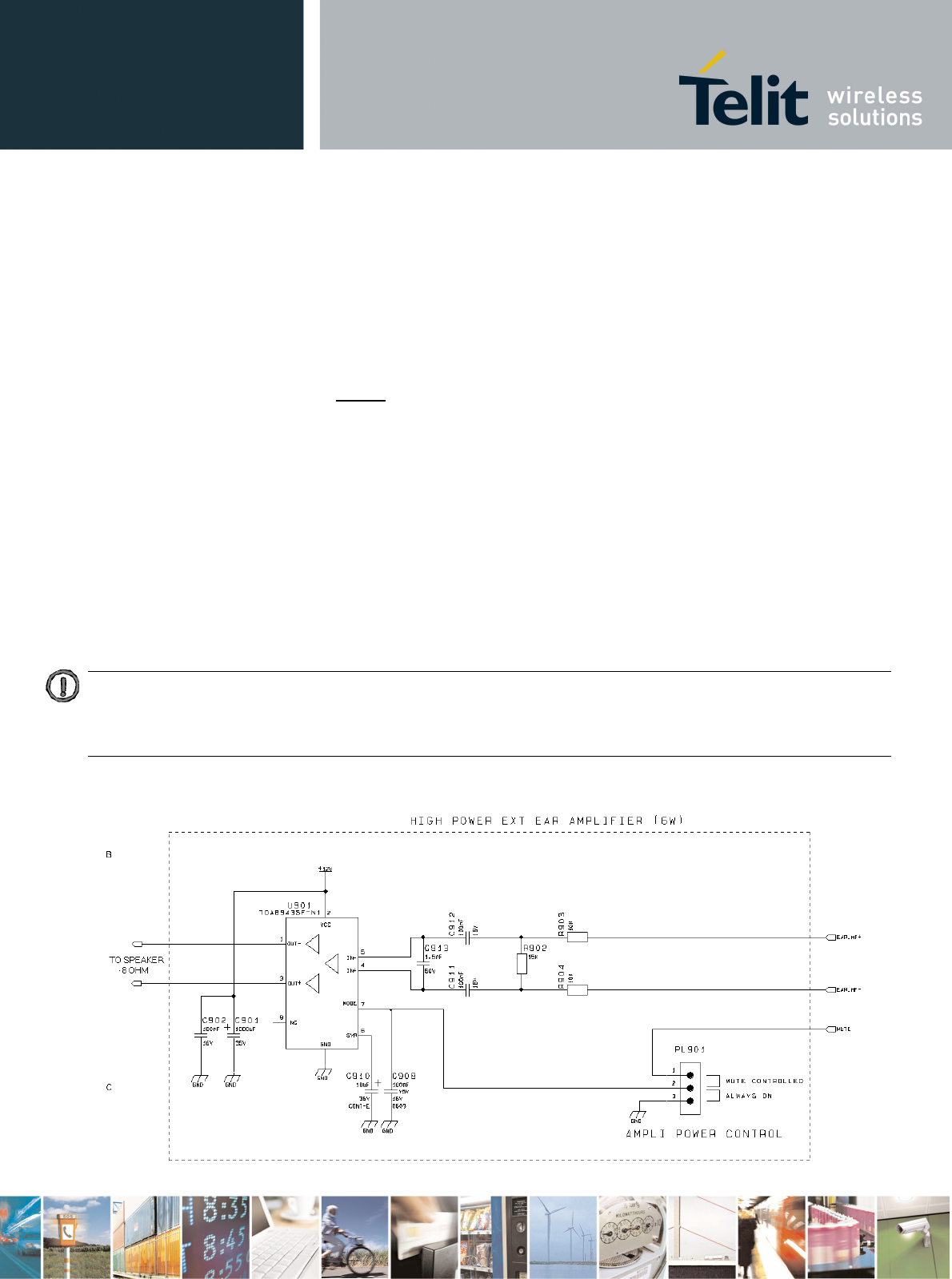

Example of car kit amplifier schematic.
![](/img.php?id=687778&img=bg2d.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 45 of 55
7 General Purpose I/O
The general purpose I/O pins can be configured to act in three different ways:
- input
- output
- alternate function (internally controlled)
Input pins can only be read and report the digital value (high or low) present on the pin at the read
time; output pins can only be written or queried and set the value of the pin output; an alternate
function pin is internally controlled by the GM862-GPS firmware and acts depending on the function
implemented.
Not all GPIO pins support all these three modes:
- GPIO1 is an INPUT ONLY
- GPIO2 is an OUTPUT ONLY (open collector)
- GPIO3, GPIO4 and GPIO5 support both input or output mode but not Alternate function.
- GPIO6 supports all three modes and can be input, output, alarm output (Alternate function)
- GPIO7 supports all three modes and can be input, output, buzzer output (Alternate function)
All GPIO pins except from GPIO1 and GPIO2 that are buffered with a transistor, are 2.8V CMOS
signals and their interface levels are the same specified in the paragraph 4 Serial Port.
7.1 Using a GPIO pin as INPUT
The GPIO pins, when used as inputs, can be connected to a digital output of another device and
report its status, provided this device has interface levels compatible with the 2.8V CMOS levels of the
GPIO.
If the digital output of the device to be connected with the GPIO input pin has interface levels different
from the 2.8V CMOS, then it can be connected to GPIO1 or can be buffered with an open collector
transistor, provided a 47KΩ pull-up resistor is connected as seen in the paragraph 4.2 5V UART level
translation.
7.2 Using a GPIO pin as OUTPUT
The GPIO pins, when used as outputs, can drive 2.8V CMOS digital devices or compatible hardware.
When set as outputs, the pins (except from GPIO2 which is Open Collector) have a push-pull output
and therefore the pull-up resistor may be omitted.
The GPIO2 pin, since it is an Open Collector output needs an external pull-up resistor.
![](/img.php?id=687778&img=bg2e.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 46 of 55
7.3 Using the Alarm Output GPIO6
The GPIO6 pin, when configured as Alarm Output, is controlled by the GM862-GPS module and will
rise when the alarm starts and fall after the issue of a dedicated AT command.
This output can be used to power up the GM862-GPS controlling microcontroller or application at the
alarm time, giving you the possibility to program a timely system wake-up to achieve some periodic
actions and completely turn off either the application and the GM862-GPS during sleep periods,
drammatically reducing the sleep comsumption to few μA.
In battery powered devices this feature will greatly improve the autonomy of the device.
7.4 Using the Buzzer Output GPIO7
The GPIO7 pin, when configured as Buzzer Output, is controlled by the GM862-GPS module and will
drive with appropriate square waves a Buzzer driver.
This permits to your application to easily implement Buzzer feature with ringing tones or melody
played at the call incoming, tone playing on SMS incoming or simply playing a tone or melody when
needed by your application.

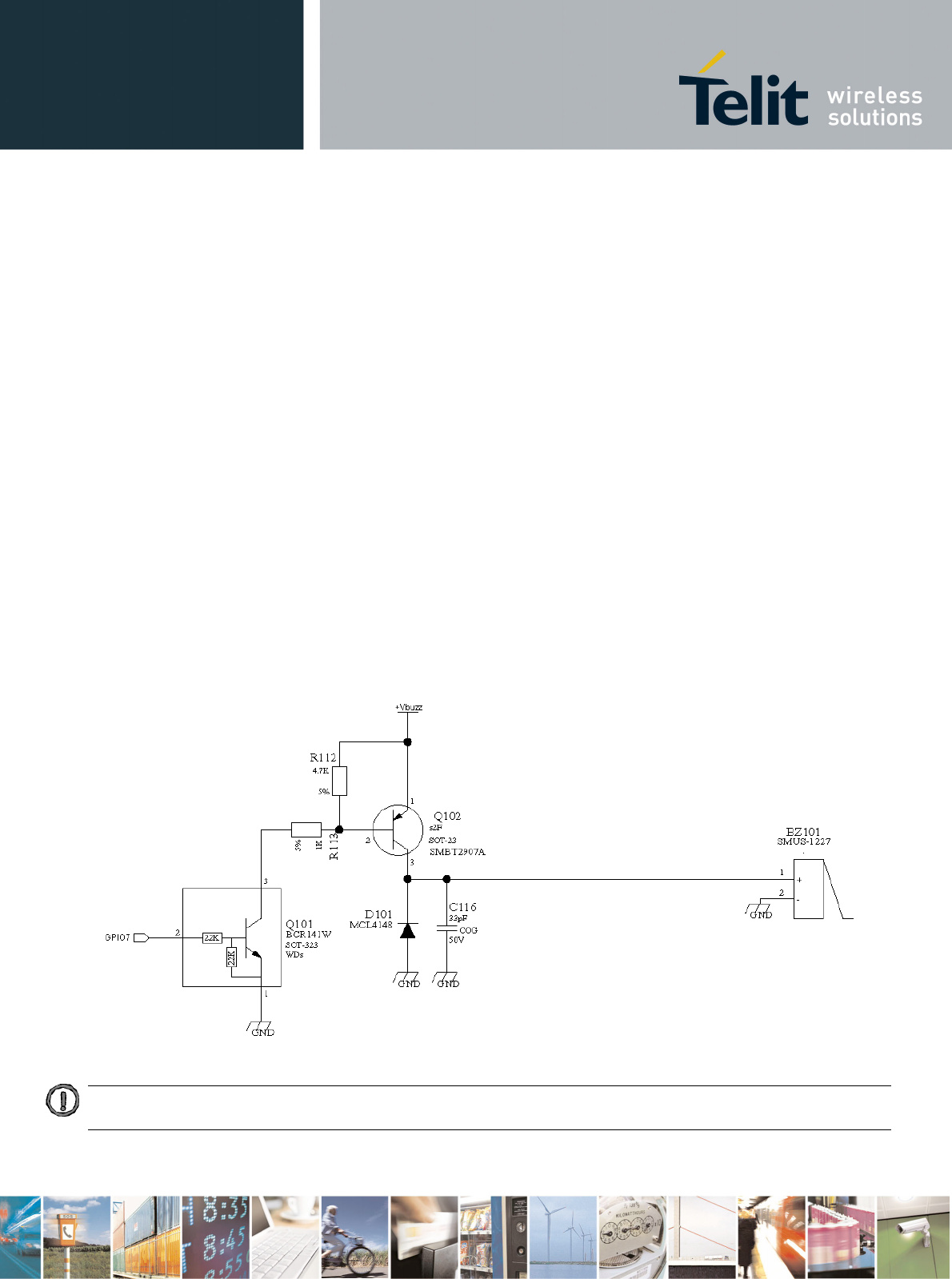

A sample interface scheme is included below to give you an idea of how to interface a Buzzer to the
GPIO7:
NOTE: To correctly drive a buzzer a driver must be provided, its characteristics depend on the Buzzer and for them
refer to your buzzer vendor.
![](/img.php?id=687778&img=bg2f.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 47 of 55
8 GPS Receiver
8.1 GPS Antenna
The GE863-GPS module is not provided with an internal LNA amplifier. The use of an active antenna
is suggested to achieve a good performance.
The module is provided of an Antenna supply circuit with the following characteristics:
• Supply voltage referred to VBATT (mandatory a working range between 3.4 to 4.2 V DC)
• Supply enable controlled internally by the BB
• Current measurement circuit (readable also with AT commands)
• Voltage measurement circuit (readable also with AT commands)
• HW Protection for Antenna Short Circuit (if consumption exceeds 40mA)
ANTENNA REQUIREMENTS
Frequency range 1575.42 MHz (GPS L1)
Bandwidth +- 1.023 MHz
Gain 1.5 dBi < Gain < 4.5 dBi
Impedance 50 ohm
Amplification Typical 25dB (max 27dB)
Supply voltage Must accept from 3 to 5 V DC
Current
consumption
Typical 20 mA
![](/img.php?id=687778&img=bg30.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 48 of 55
9 Camera
9.1 Camera Transchip
The GM862-GPS provides a direct support for Transchip digital cameras with the following
characteristics:
9.1.1 Camera interface connectors
The 50-pins Molex connector of the module and a 24 pins ZIF connector for the CMOS camera
provide the interface connection between GM862 and Transchip camera.
Molex 52991-0508 GM862 TC5747MF24L
Pin Signal I/O Notes Pin Signal I/O
46 GPIO3
PD(6)
O I2C bus serial clock 1 SCLK I
2-4-6 GND Ground 2 AGND I
50 GPIO7
CAM_PWR_ON
O External 2.8V Regulator enable
controlled by CAM_PWR_ON pin
3 AVDD28* I
34 GPIO9
PD(1)
O Camera Reset 4 RESET_N I
25 MON1
MON1_CAM
O Clock 5 CLK_IN** I
2-4-6 GND Ground 6 DGND I
n.c 7 DOUT_0 I/O
n.c 8 DOUT_1 I/O
n.c 9 DOUT_2 I/O
n.c 10 DOUT_3 I/O
n.c 11 DOUT_4 I/O
n.c 12 DOUT_5 I/O
Type: TRANSCHIP TC5747
Technology: CMOS COLOR camera
Max picture size: VGA 480x640 pixels landscape
Output format: JPEG
Sensitivity: 4 Lux
![](/img.php?id=687778&img=bg31.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 49 of 55
n.c 13 DOUT_6 I/O
n.c 14 DOUT_7 I/O
n.c 15 DOUT_8 I/O
n.c 16 VCLKOUT O
n.c 17 VALIDH O
n.c 18 VALIDV O
50 GPIO7
CAM_PWR_ON
O External 2.8V Regulator enable
controlled by CAM_PWR_ON pin
19 DVDD28 I
47 GPIO4
IICSDA_CAM
I/O I2C bus serial data 20 SDIN I/O
2-4-6 GND Ground 21 PS1 I
32 GPIO8
PD(0)
O Camera power type selector 22 PS2 I
2-4-6 GND Ground 23 SHIELD -
Flash Enable 24 LED_CTRL O
* Filter the AVDD28.
** Use a Buffer between module clk out, MON1_CAM and camera clk in, CLK_IN.
*** Non-connected.
9.1.2 EVB for camera support
In order to interface the Telit GM862-GPS with a CMOS camera, Telit has developed an evaluation
board. The EVB is provided by:
• 10 pin Berg male connector (PL201) and RS232 level translator that allows a direct connection to
the PC. To switch on the level translator a jumper shall be set on PL203.
• 12 pin Berg male connector (PL202) to supply the GM862-GPS mounted on the EVB. The input
source power should be in the range 4,5V-12V. Charge line is also provided in case a Li-Ion
battery is connected to the VBATT pins. Charge input must fulfil charger line requests.
• 50 pin Molex male connector (PL103) to interface with the GM862-GPS directly.
• 30 pin Berg male connector (PL101) to interface with a PCB developed by the user or the EVK
board. On this connector is available the complete audio path, the serial port lines with full
handshaking, and the pins ON, AXE, RESET, GPIO1 and STAT_LED. Also the CHARGER_IN pin
can be available placing a 0 ohm resistor.
• 18 pin ZIF female connector (SO101) for CMOS camera.
• ON/OFF button (SW102) to power on and off the module.
• GPIO1 button (SW101) for future applications.
• Led (DL101) for device status indication.
NOTE: The Philips 74LVC1G08GW must be placed close to the GM862 connector; the length of the line between
CAMERA connector and MOLEX 50 PIN of GM862 must be max 5cm anyway.
NOTE: The CMOS cameras must be removed when the GPIO pins are used for I/O purpose.
![](/img.php?id=687778&img=bg32.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 50 of 55

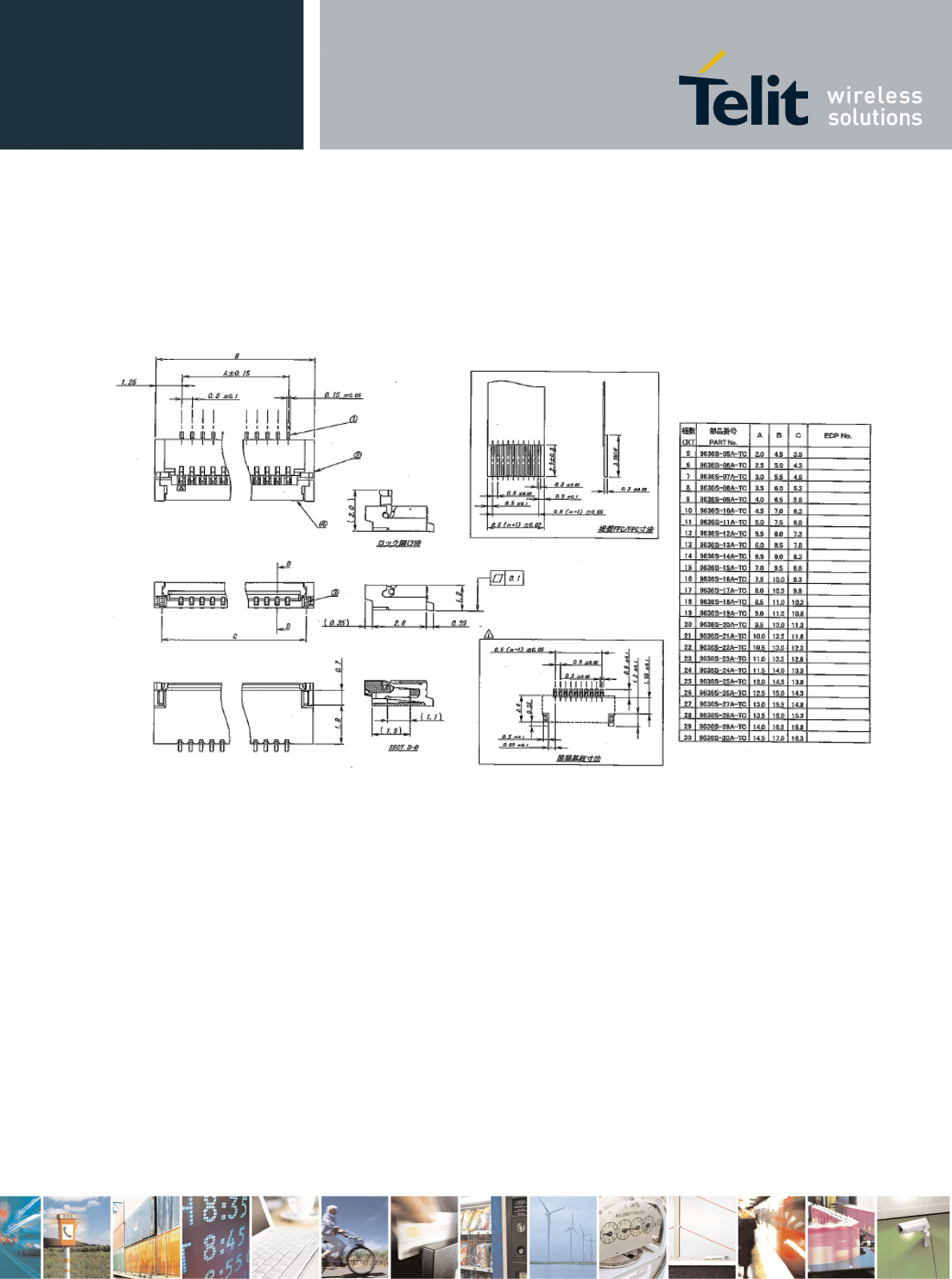

Camera Socket Connector
9.1.3
![](/img.php?id=687778&img=bg33.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 51 of 55

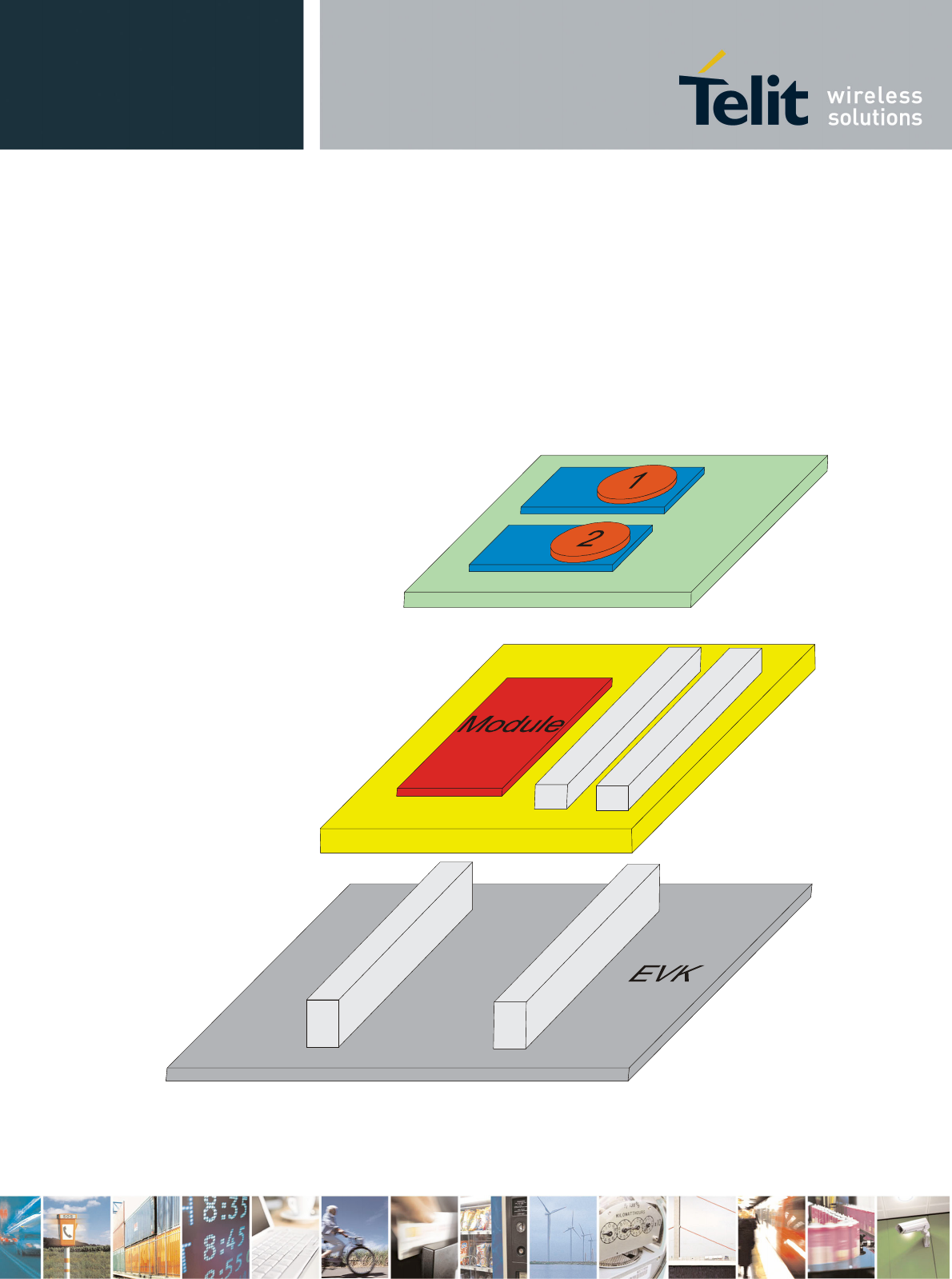

EVB for Transchip camera support
In order to interface the Telit GM862 with a CMOS camera, Telit has developed an evaluation board.
The EVK allow connecting all Telit modules through 2 connectors of 40 pins each.
The I2CBUS DUAL CAMERA board is plugged in the 2 connectors of 30 pins each on the module
board.
MODULE
BOARD
MAIN
BOARD
CAMERA
BOARD
![](/img.php?id=687778&img=bg34.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 52 of 55
9.1.4 Block Diagram for supported camera
DVDD is an external power supply of 2.8V, controlled or gated by pin CAM_PWR_ON.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GND
AVDD
CAM_CLK
GND
DVDD
IICSDA_CAM
GND
GND
PD[1]
PD[0]
PD[6]
CAM_CLK
DVDD AVDD
GND
CAMERA TRANSCHIP
MON1_CAM
![](/img.php?id=687778&img=bg35.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 53 of 55

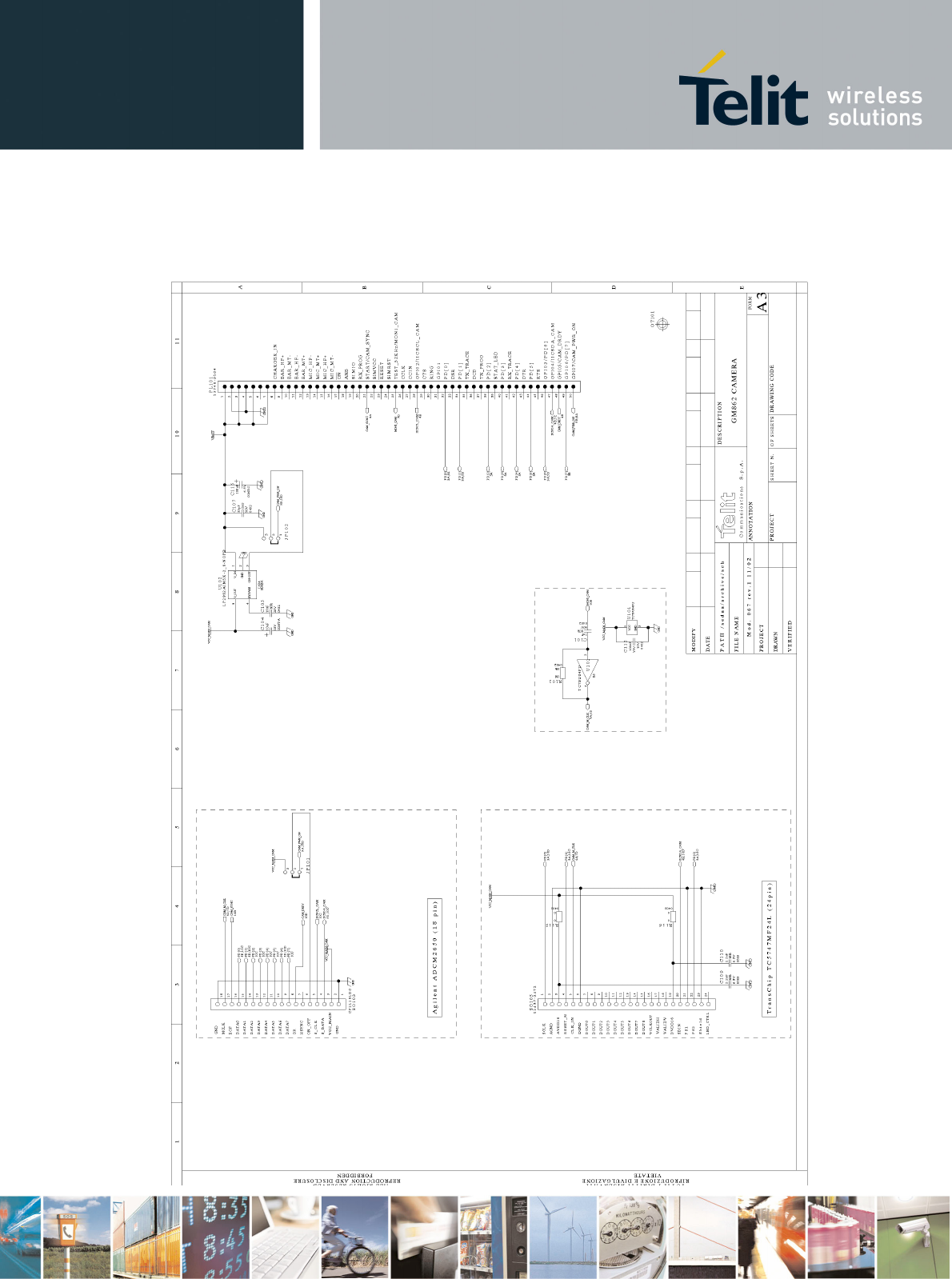

9.1.5 Schematic Diagrams for supported cameras
![](/img.php?id=687778&img=bg36.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 54 of 55
9.1.6 Example usage script for camera
Camera setting: (shown here are the defaults ones)
>AT#CAMSEL=0 (camera selection: 0-auto, 1-agilent, 2-transchip)
OK
>AT#CMODE=0 (camera mode: 0-day, 1-night)
OK
>AT#CAMQUA=0 (camera quality: 0-low, 1-medieum, 2-high)
OK
>AT#CAMRES=0 (camera resolution: 0-VGA, 1-QVGA, 2-QQVGA)
OK
>AT#CAMCOL=0* (camera color: 0-color, 1-grayscale)
OK
>AT#CAMZOOM=0 (camera zoom: 0-x1, 1-x2, 2-x4)
OK
>AT#CAMTXT=0* (camera timestamp: 0-no, 1-time only, 2-data only, 3-time&data)
OK
Taking an reading a photo:
>AT#CAMEN=1 (camera ON)
OK
>AT#TPHOTO (take photo)
OK
>AT+OBJL? (see photo dimension)
#OBJL: Snapshot,38900 (where 38900 is the file dimension in bytes of the photo taken)
OK
>AT#RPHOTO (download the photo)
…data….. (where …data… Correspond to the photo data in binary)
OK
>AT#TPHOTO
OK
>AT#RPHOTO Repeating photo capture and download n times
…data…..
OK
>AT#CAMEN=O (camera OFF)
*only Transchip camera
![](/img.php?id=687778&img=bg37.png)
GM862-GPS Hardware User Guide
1vv0300728 Rev. 0 - 27/04/06
Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 55 of 55
10 Document Change Log
R
Re
ev
vi
is
si
io
on
n
D
Da
at
te
e
C
Ch
ha
an
ng
ge
es
s
ISSUE#0 27/04/06 Release First ISSUE# 0
