1 Overview

The aim of this document is the description of some hardware solutions useful for developing a product with the

Telit GM862-QUAD / PY module.

In this document all the basic functions of a mobile phone will be taken into account; for each one of them a

proper hardware solution will be suggested and eventually the wrong solutions and common errors to be

avoided will be evidenced. Obviously this document cannot embrace the whole hardware solutions and products

that may be designed. The wrong solutions to be avoided shall be considered as mandatory, while the

suggested hardware configurations shall not be considered mandatory, instead the information given shall be

used as a guide and a starting point for properly developing your product with the Telit GM862-QUAD / PY module.

For further hardware details that may not be explained in this document refer to the Telit GM862-QUAD / PY

Product Description document where all the hardware information is reported.

NOTICE

(EN) The integration of the GSM/GPRS GM862-QUAD / PY cellular module within user application shall

be done according to the design rules described in this manual.

(IT) L’integrazione del modulo cellulare GSM/GPRS GM862-QUAD / PY all’interno dell’applicazione

dell’utente dovrà rispettare le indicazioni progettuali descritte in questo manuale.

(DE) Die integration des GM862-QUAD / PY GSM/GPRS Mobilfunk-Moduls in ein Gerät muß gemäß der in

diesem Dokument beschriebenen Kunstruktionsregeln erfolgen

(SL) Integracija GSM/GPRS GM862-QUAD / PY modula v uporabniški aplikaciji bo morala upoštevati

projektna navodila, opisana v tem piročniku.

(SP) La utilización del modulo GSM/GPRS GM862-QUAD / PY debe ser conforme a los usos para los

cuales ha sido deseñado descritos en este manual del usuario.

(FR) L’intégration du module cellulaire GSM/GPRS GM862-QUAD / PY dans l’application de l’utilisateur

sera faite selon les règles de conception décrites dans ce manuel.

The information presented in this document is believed to be accurate and reliable. However, no responsibility is

assumed by Telit Communication S.p.A. for its use, nor any infringement of patents or other rights of third parties

which may result from its use. No license is granted by implication or otherwise under any patent rights of Telit

Communication S.p.A. other than for circuitry embodied in Telit products. This document is subject to change

without notice.

GM862-QUAD / PY

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

2 Interface connectors on GM862-QUAD

/ PY

2.1 Description

The Telit GM862-QUAD / PY is provided of the following interfaces:

• GSM antenna connector

• Board To Board Interface connector

• SIM Card Reader

The Telit GM862-QUAD / PY board to board connector is a CSTP 50 pin vertical SMD Molex 52991–0508

(male).

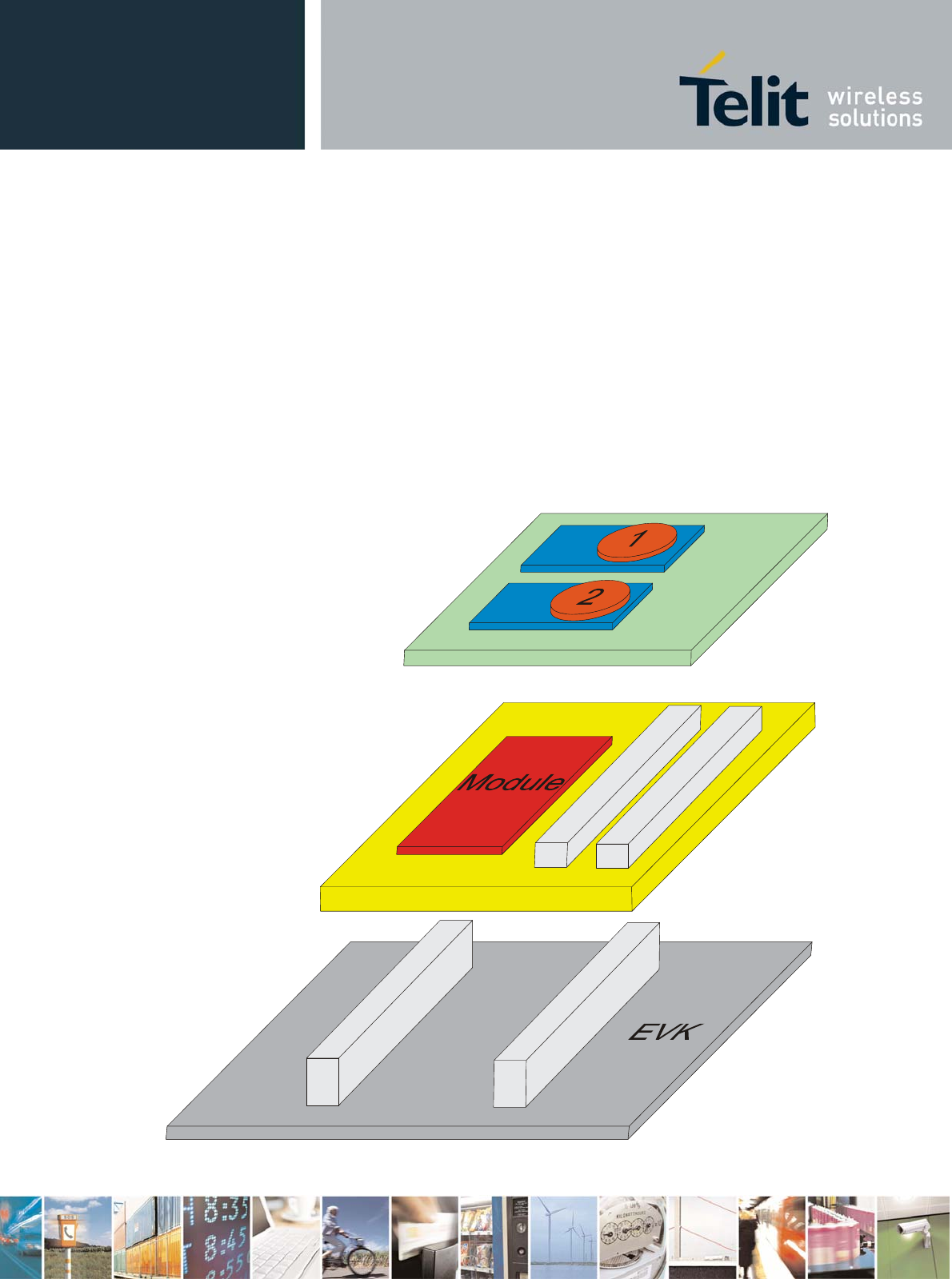

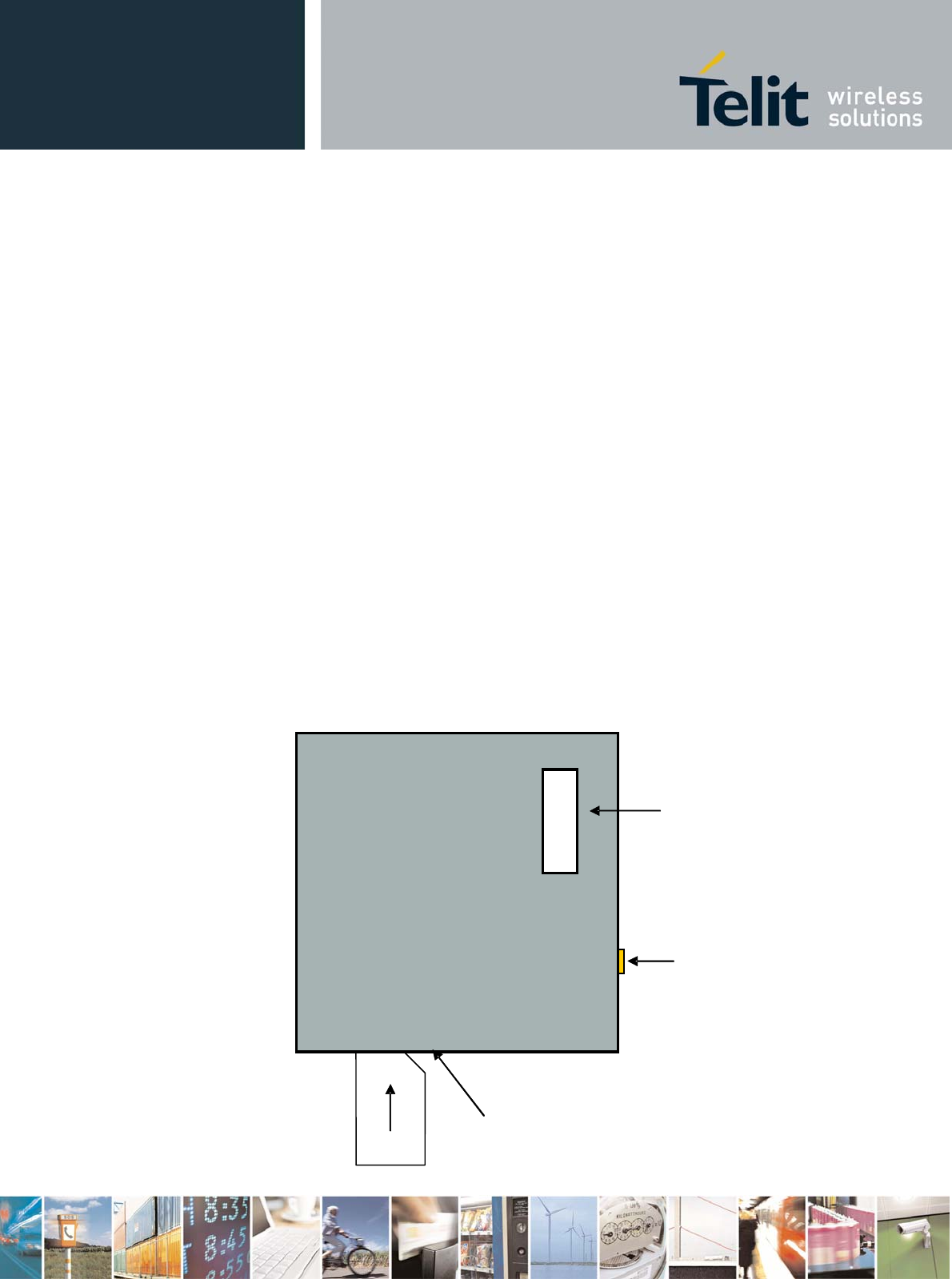

2.2 Connectors Position

1 2

GSM Antenna

Connector

Board to Board

Connector

SIM Card Holder

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

2.3 Board to Board Connector

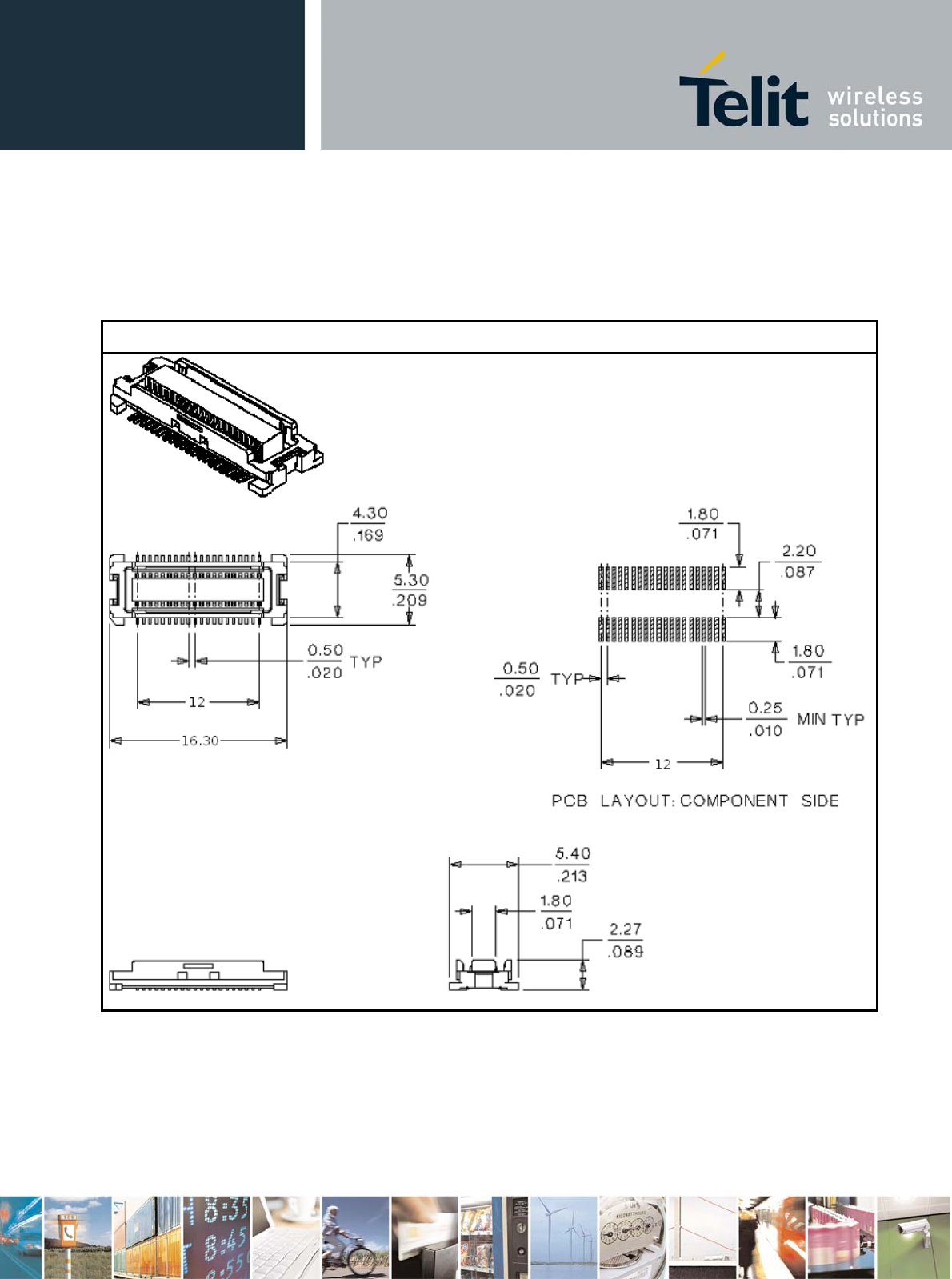

Molex 52991-0508 (male) GM862 Connector LAY-OUT

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

2.3.1 Molex 52991-0508 (male) GM862 Connector PIN-OUT

Pin Signal I/O Function Internal

Pull up Type

1 VBATT - Main power supply Power

2 GND - Ground Power

3 VBATT - Main power supply Power

4 GND - Ground Power

5 VBATT - Main power supply Power

6 A/D - A/D converter @ 11 bit (Input Impedance >100Kohm) Max 2V input

7 VBATT - Main power supply Power

8 CHARGE AI Battery Charger Input Power

9 EAR_HF+ AO Handsfree ear output, phase + Audio

10 EAR_MT- AO Handset earphone signal output, phase - Audio

11 EAR_HF- AO Handsfree ear output, phase - Audio

12 EAR_MT+ AO Handset earphone signal output, phase + Audio

13 MIC_HF- AI Handsfree microphone input; phase - Audio

14 MIC_MT+ AI Handset microphone signal input; phase+ Audio

15 MIC_HF+ AI Handsfree microphone input; phase + Audio

16 MIC_MT- AI Handset microphone signal input; phase- Audio

17 ON_OFF I Input command for switching power ON or OFF (toggle command). 47K

Pull Up to

VBATT

18 AXE I Handsfree switching 100K

CMOS 2.8V

19 SIMIO I/O External SIM signal - Data I/O 3V ONLY

20 C103/TXD I Serial data input (TXD) from DTE CMOS 2.8V

21 PWRMON O Module Status ON indication (Signal output for power on/off control of external

devices 1K

CMOS 2.8V

22 SIMVCC - External SIM signal – Power (3) 3V ONLY

23 RESET I Reset input

24 SIMRST O External SIM signal – Reset 3V ONLY

25 CAM_CLK I/O Camera Interface (4) CMOS 2.8V

26 SIMCLK O External SIM signal – Clock 3V ONLY

27 SIMIN I/O External SIM signal – Presence (active low) 47K

CMOS 2.8V

28 GPO2 / JDR O General purpose output (Open Collector) / Jammer Detect Report

Open Collector

29 C106/CTS O Output for Clear to send signal (CTS) to DTE CMOS 2.8V

30 C125/RING O Output for Ring indicator signal (RI) to DTE CMOS 2.8V

31 GPI1 I General purpose input transistor base

32 GPIO8/CAM_O

N I/O Configurable general purpose I/O pin / Camera Interface (4) CMOS 2.8V

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

Pin Signal I/O Function Internal

Pull up Type

33 C107/DSR O Output for Data set ready signal (DSR) to DTE CMOS 2.8V

34 GPIO9/CAM_RS

T I/O Configurable general purpose I/O pin / Camera Interface (4) CMOS 2.8V

35 TX_TRACE O RESERVED on GM862-QUAD, Python Debug on GM862-QUAD-PY (TX data) CMOS 2.8V

36 C109/DCD O Output for Data carrier detect signal (DCD) to DTE CMOS 2.8V

37 C104/RXD O Serial data output to DTE CMOS 2.8V

38 GPIO10 I/O Configurable general purpose I/O CMOS 2.8V

39 STAT_LED O Status indicator led Open Collector

40 GPIO11 I/O Configurable general purpose I/O pin CMOS 2.8V

41 RX_TRACE I RESERVED on GM862-QUAD, Python Debug on GM862-QUAD-PY (RX data) CMOS 2.8V

42 GPIO12 I/O Configurable general purpose I/O pin CMOS 2.8V

43 C108/DTR I Input for Data terminal ready signal (DTR) from DTE (4) CMOS 2.8V

44 GPIO13 I/O Configurable general purpose I/O pin CMOS 2.8V

45 C105/RTS I Input for Request to send signal (RTS) from DTE CMOS 2.8V

46 GPIO3 / CAM_

SCL I/O Configurable general purpose I/O pin /

IIC Camera Interface (4) CMOS 2.8V

47 GPIO4 /

CAM_SDA I/O Configurable general purpose I/O pin /

IIC Camera Interface (4) CMOS 2.8V

48 GPIO5 /

RFTXMON I/O Configurable general purpose I/O pin / Transmitter ON Monitor CMOS 2.8V

GPIO6

/ ALARM

I/O Configurable general purpose I/O pin /

ALARM CMOS 2.8V

GPIO7

/ BUZZER

I/O Configurable general purpose I/O pin /

BUZZER CMOS 2.8V

(1) For the exclusive use of the Technical Support Service

(2) An earphone with a 150 ohm impedance can be directly connected to EAR+ and EAR–

(3) On this pin a maximum of 10nF bypass capacitor is allowed.

(4) When activating the Easy camera these pins will not be available for other use

Note: If not used, almost all pins should be left disconnected. The only exceptions are the following

pins:

pin signal

1,3,5,7 VBATT

2,4,6,8 GND

17 ON/OFF*

20 TXD

23 RESET*

37 RXD

45 RTS1

1 RTS should be connected to the GND (on the module side) if flow control is not used

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

2.3.2 Antenna Connector

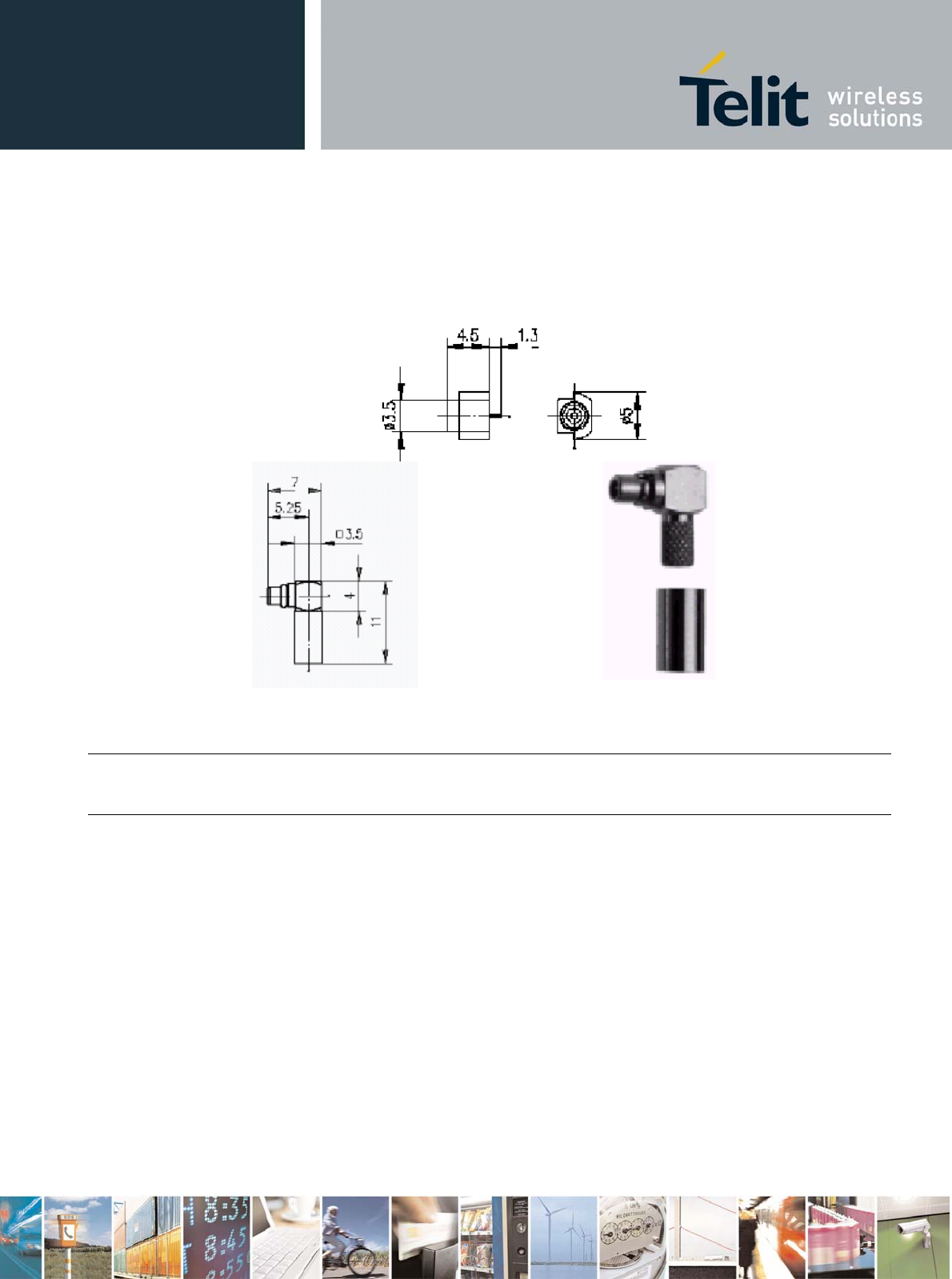

The Telit GM862-QUAD / PY includes one 50 Ohm MMCX coaxial female RF connector. On the user

application side the following connector must be used:

a) Telegärtner MMCX angle plug

crimp - Order n. J01340A0121

NOTE: be very careful when connecting the Telit GM862 Family modules RF connector. The RF

connector can be damaged if not connected with the proper antenna RF connector. The minimum

number of insertion cycles are recommended.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

2.4 Dimensions

The Telit GM862-QUAD / PY module overall dimension are:

• Length: 43.9 mm

• Width: 43.9 mm

• Thickness: 6.9 mm

• Volume: ≅ 13 cm3

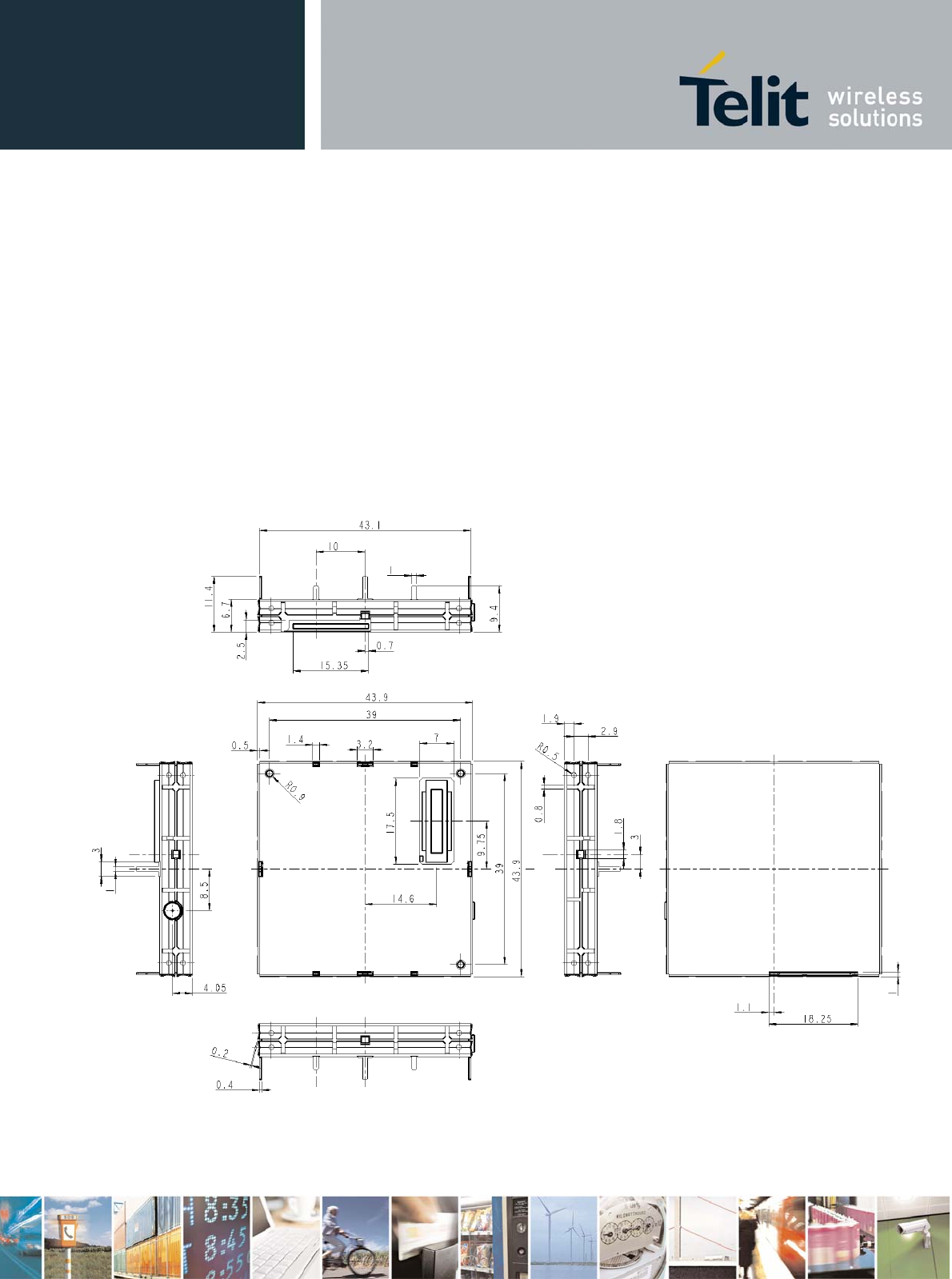

The layout is shown in the following figure:

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

2.5 Mounting the GM862 Modules on your Board

In order to electrically connect your board to the Telit GM862 Family modules, use a CSTP 2x25 pin

vertical SMD SCH–SCH Molex 53748 - 0504 (female, low profile) as a counterpart to the CSTP 50

pin vertical SMD Molex 52991–0508 (male) of your Telit GM862 Family modules.

When mounting the Telit GM862 Family modules on your board, take care of soldering the GM862

shielding reeds on a ground plane or signal.

NOTE: be very careful when connecting the Telit GM862 module RF connector. The Telit GM862

module RF connector can be damaged if not connected with the proper antenna RF connector. The

minimum number of insertion cycles is recommended.

2.5.1 Antenna Coaxial Cable Fixing

The following constraints must be respected in the Telit GM862 Family modules antenna cable

connection:

• The fixing point of the coaxial cable must not be placed too close to the antenna connector of the

GM862 module, leaving at least 30mm of flexible cable between the fixed point and the plug end.

• The fixing point must be at the same height of the GM862 module antenna connector, eventually

using a wedge between the PCB and the cable if it is directly fixed to the PCB.

• The flexible cable must never be bent with a radius lower than 25mm (RG174 cable).

• The cable must be a RG174 type or more flexible ones.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

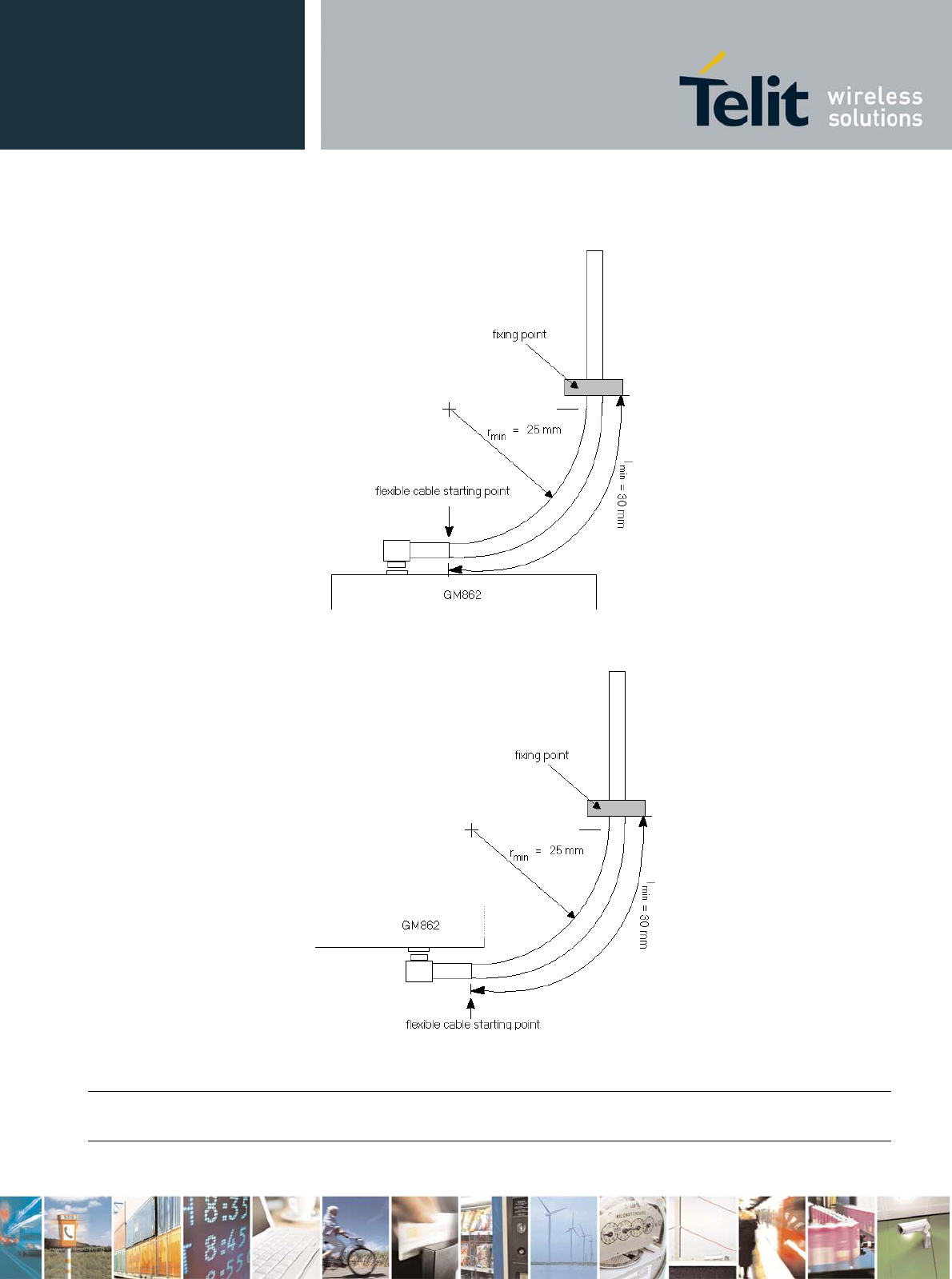

The following pictures explain these constraints:

- Angle connector fixing example -

- Angle connector fixing example 2 -

NOTE: in the examples the cable is always bent, this is not a constrain. If the installation does not

require it, then the cable can be kept straight, ensuring that the fixing is without sliding.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

2.5.2 Precautions

• The plug should be inserted in the connector only after the installation of the Telit GM862

Family modules in the board. This is to prevent accidental breaking of the antenna

connection during the transport.

• The coaxial cable must be fixed at least in one point, without sliding possibilities.

• The plug insertion/removal must be done axially with the female connector of the GM862,

keeping lateral strains to a minimum.

• The insertion/crimping pull out force must be less than 15N.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

3 Hardware Commands

3.1 Turning ON the GM862-QUAD / PY

To turn on the GM862-QUAD / PY the pin ON# must be tied low for at least 1 second and then

released.

The maximum current that can be drained from the ON# pin is 0,1 mA.

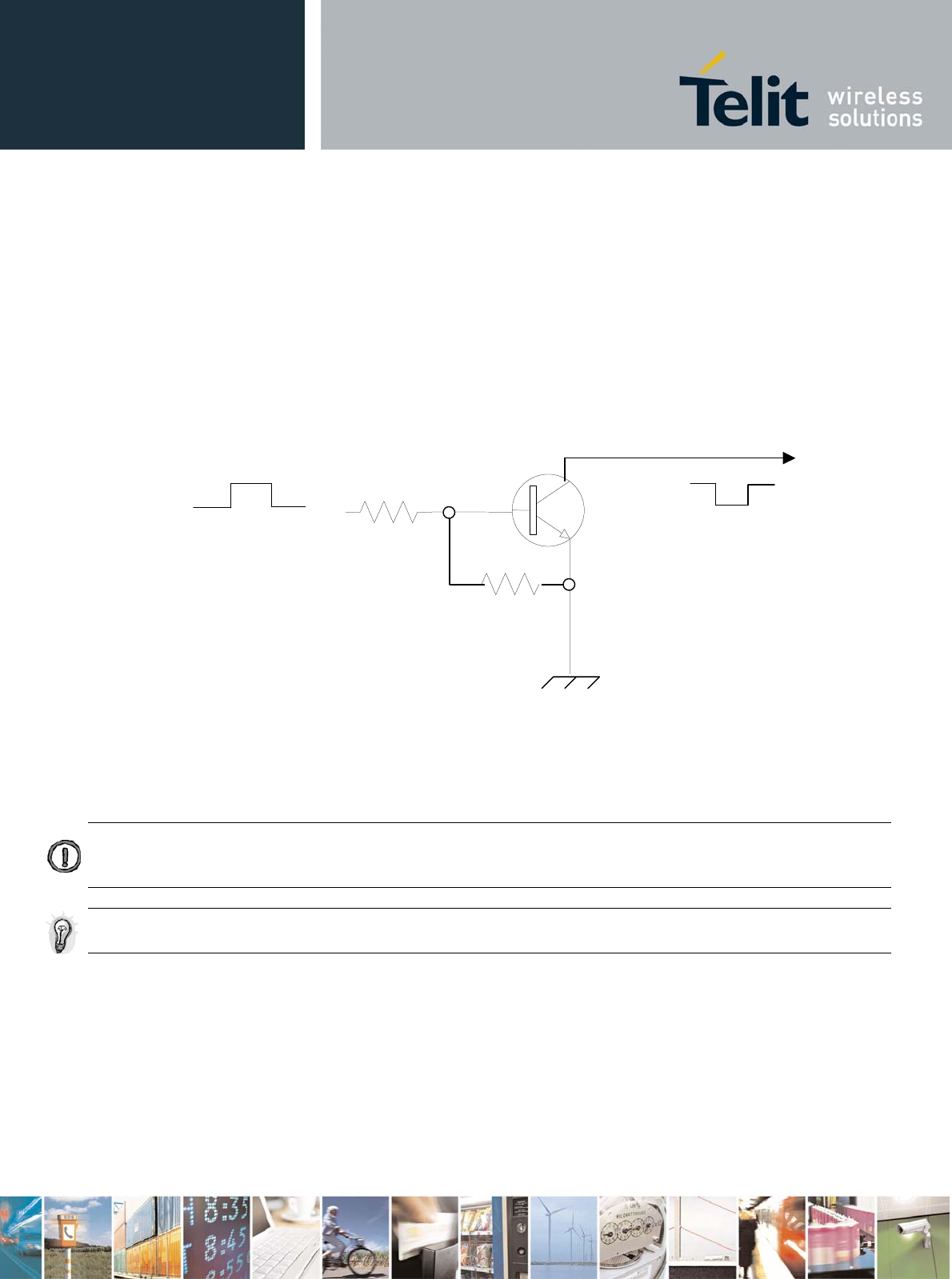

A simple circuit to do it is:

NOTE: don't use any pull up resistor on the ON# line, it is internally pulled up. Using pull up resistor may bring to

latch up problems on the GM862-QUAD / PY power regulator and improper power on/off of the module. The line ON#

must be connected only in open collector configuration.

NOTE: In this document all the lines that are inverted, hence have active low signals are labelled with a name that

ends with a "#" or with a bar over the name.

TIP: To check if power has raised it is possible to monitor the PWRMON line, when this line goes high the module is

powered on, but before it remains on the device needs other 900 ms for software startup. Hence check the

PWRMON line and 900 ms after its transition to high it is possible to release the ON# pin.

ON#

Power ON impulse

GND

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

For example:

1- Let's assume you need to drive the ON# pin with a totem pole output of a +3/5 V microcontroller

(uP_OUT1):

2- Let's assume you need to drive the ON# pin directly with an ON/OFF button:

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

3.2 Turning OFF the GM862-QUAD / PY

The turning off of the device can be done in two ways:

• by software command (see GM862-QUAD / PY Software User Guide)

• by hardware shutdown

• by hardware unconditional shutdown

When the device is shut down by software command or by hardware shutdown, it issues to the

network a detach request that informs the network that the device will not be reachable any more.

The hardware unconditional shutdown does not issue this request and shuts down immediately the

device.

3.2.1 Hardware Shutdown

To turn OFF the GM862-QUAD / PY the pin ON# must be tied low for at least 1 second and then

released.

The same circuitry and timing for the power on shall be used.

The device shuts down after the release of the ON# pin.

TIP: To check if the device has powered off, the hardware line PWRMON should be monitored. When PWRMON goes

low, the device has powered off.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

3.2.2 Hardware Unconditional Restart

To unconditionally Shutdown the GM862-QUAD / PY the pin RESET# must be tied low for at least 200

milliseconds and then released.

The maximum current that can be drained from the RESET# pin is 0,15 mA.

A simple circuit to do it is:

NOTE: don't use any pull up resistor on the RESET# line nor any totem pole digital output. Using pull up resistor

may bring to latch up problems on the GM862-QUAD / PY power regulator and improper functioning of the module.

The line RESET# must be connected only in open collector configuration.

TIP: The unconditional hardware Restart should be always implemented on the boards and software should use it

as an emergency exit procedure.

RESET#

Unconditional Restart

impulse

GND

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

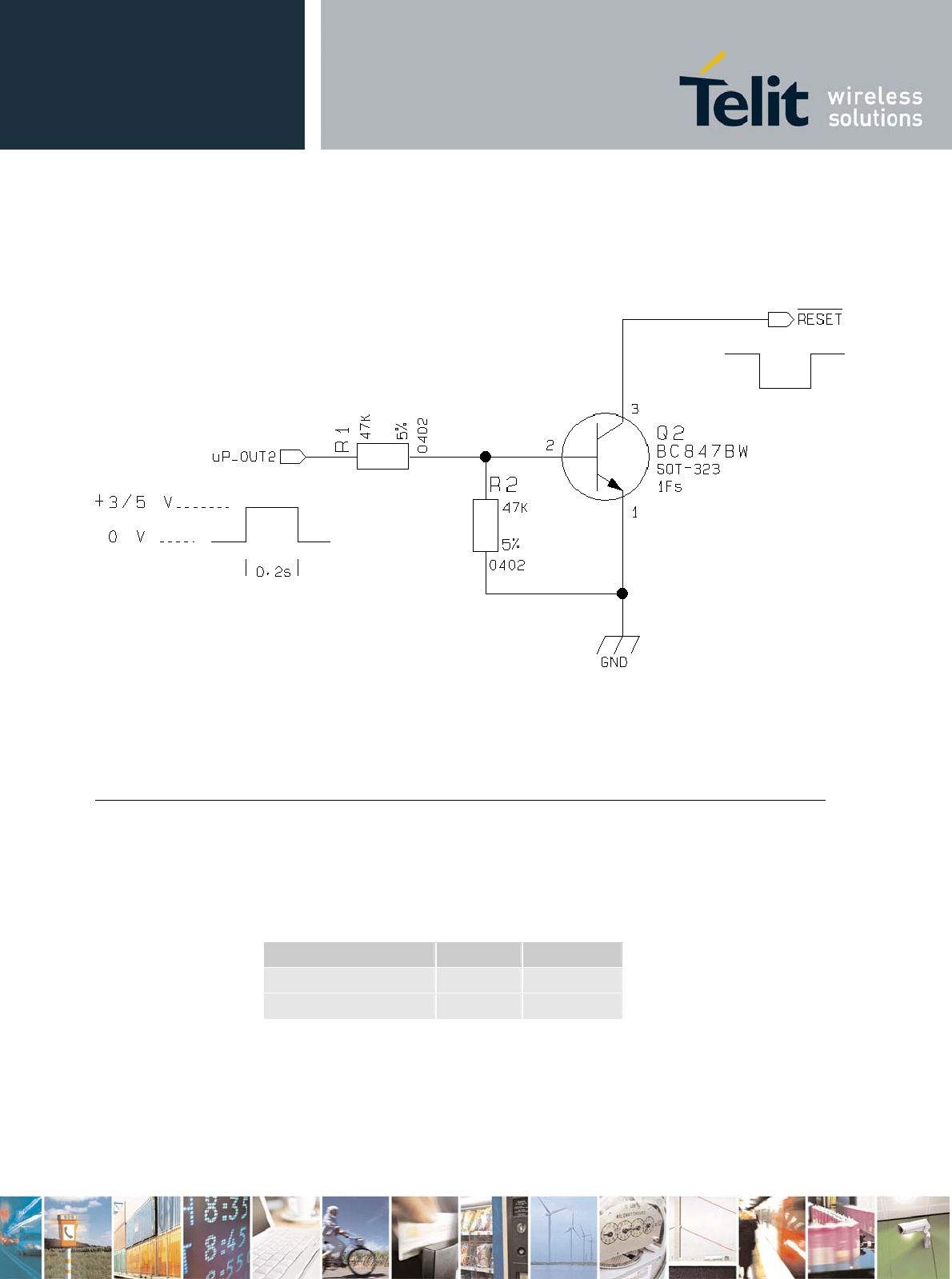

For example:

1- Let's assume you need to drive the RESET# pin with a totem pole output of a +3/5 V microcontroller

(uP_OUT2):

The hardware unconditional restart must not be used during normal operation of the device since it

does not detach the device from the network. It shall be kept as an emergency exit procedure to be

done in the rare case that the device gets stacked waiting for some network or SIM responses.

If device does not respond to a command in the timeout window, retry issuing the command and if still

no response is received a hardware reset shall be issued.

Reset Signal Operating levels:

Signal Min Max

RESET Input high 2.0V* 2.2V

RESET Input low 0V 0.2V

* this signal is internally pulled up so the pin can be left floating if not used.

Unconditional Restart

impulse

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

4 Power Supply

The power supply circuitry and board layout are the most important part in the full product design and

they strongly reflect on the product overall performances, hence read carefully the requirements and

the guidelines that will follow for a proper design.

4.1 Power Supply Requirements

The GM862-QUAD / PY power requirements are:

• Nominal Supply Voltage: 3.8 V

• Max Supply Voltage: 4.2 V

• Supply voltage range: 3.4 V - 4.2 V

• Max Peak current consumption (impulsive): 1.9 A

• Max Average current consumption during GPRS transmission : 500 mA

• Max Average current consumption during VOICE/CSD transmission : 270 mA

• Average current during Power Saving: ≈ 4 mA

• Average current during idle (Power Saving disabled) ≈ 19 mA

The GSM system is made in a way that the RF transmission is not continuous, else it is packed into

bursts at a base frequency of about 216 Hz, the relative current peaks can be as high as about 2A.

Therefore the power supply has to be designed in order to withstand with these current peaks without

big voltage drops; this means that both the electrical design and the board layout must be designed for

this current flow.

If the layout of the PCB is not well designed a strong noise floor is generated on the ground and the

supply; this will reflect on all the audio paths producing an audible annoying noise at 216 Hz; if the

voltage drop during the peak current absorption is too much, then the device may even shutdown as a

consequence of the supply voltage drop.

TIP: The electrical design for the Power supply should be made ensuring it will be capable of a peak current output

of at least 2 A.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

4.2 General Design Rules

The principal guidelines for the Power Supply Design embrace three different design steps:

- the electrical design

- the thermal design.

- the PCB layout.

4.2.1 Electrical Design Guidelines

The electrical design of the power supply depends strongly from the power source where this power is

drained. We will distinguish them into three categories:

• +5V input (typically PC internal regulator output)

• +12V input (typically automotive)

• Battery

4.2.1.1 + 5V input Source Power Supply Design Guidelines

• The desired output for the power supply is 3.8V, hence there's not a big difference between the

input source and the desired output and a linear regulator can be used. A switching power supply

will not be suited because of the low drop out requirements.

• When using a linear regulator, a proper heat sink shall be provided in order to dissipate the power

generated.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current

absorption peaks close to the GM862-QUAD / PY, a 100μF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is rated at

least 10V.

• A protection diode should be inserted close to the power input, in order to save the GM862-QUAD

/ PY from power polarity inversion.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

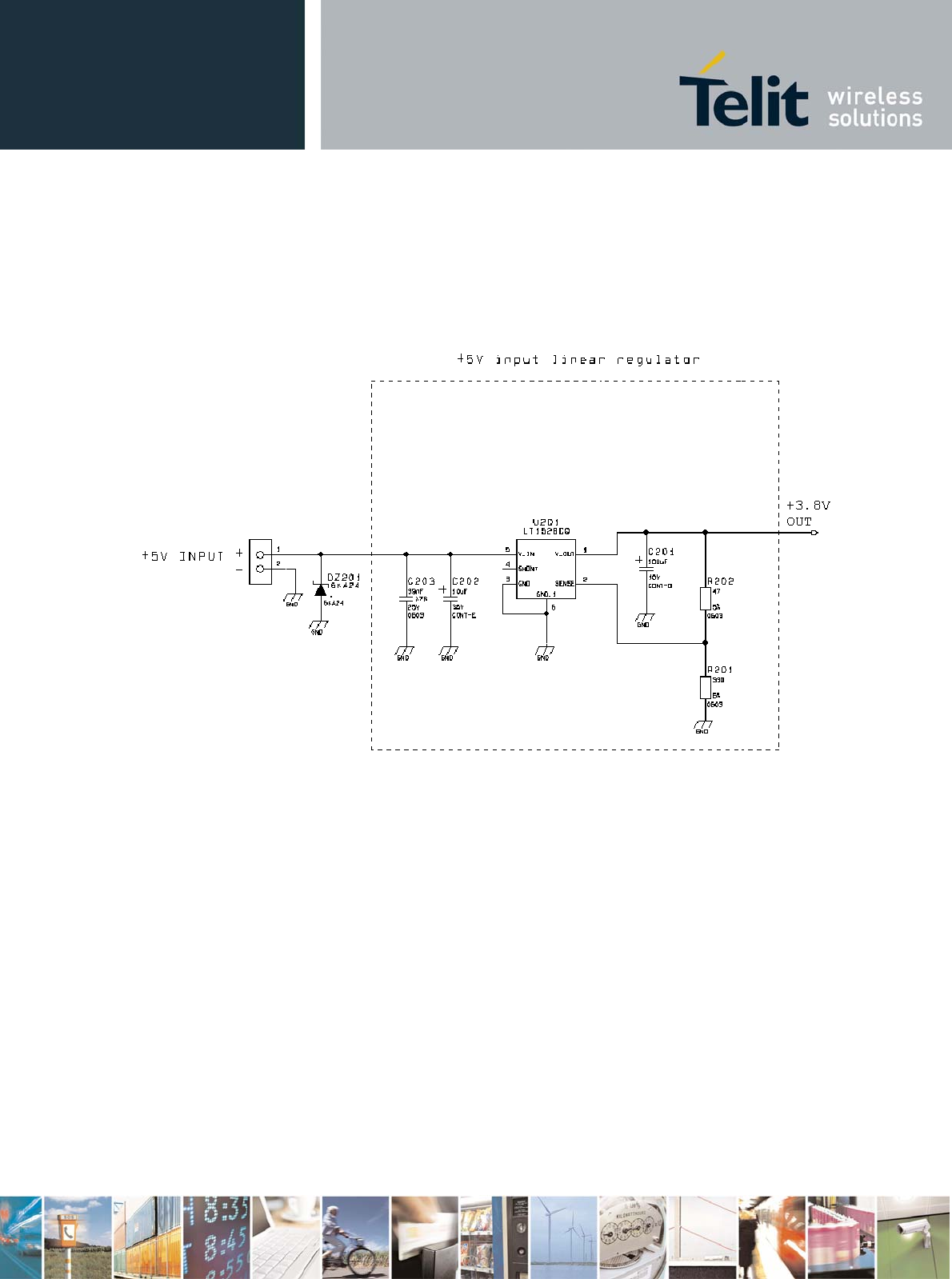

An example of linear regulator with 5V input is:

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

4.2.1.2 + 12V input Source Power Supply Design Guidelines

• The desired output for the power supply is 3.8V, hence due to the big difference between the input

source and the desired output, a linear regulator is not suited and shall not be used. A switching

power supply will be preferable because of its better efficiency especially with the 2A peak current

load represented by the GM862-QUAD / PY.

• When using a switching regulator, a 500Khz switching frequency regulator is preferable because

of its smaller inductor size and its faster transient response. This allows the regulator to respond

quickly to the current peaks absorption.

• For car PB battery the input voltage can rise up to 15,8V and this should be kept in mind when

choosing components: all components in the power supply must withstand this voltage.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current

absorption peaks, a 100μF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is rated at

least 10V.

• For Car applications a spike protection diode should be inserted close to the power input, in order

to clean the supply from spikes.

• A protection diode should be inserted close to the power input, in order to save the GM862-QUAD

/ PY from power polarity inversion. This can be the same diode as for spike protection.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

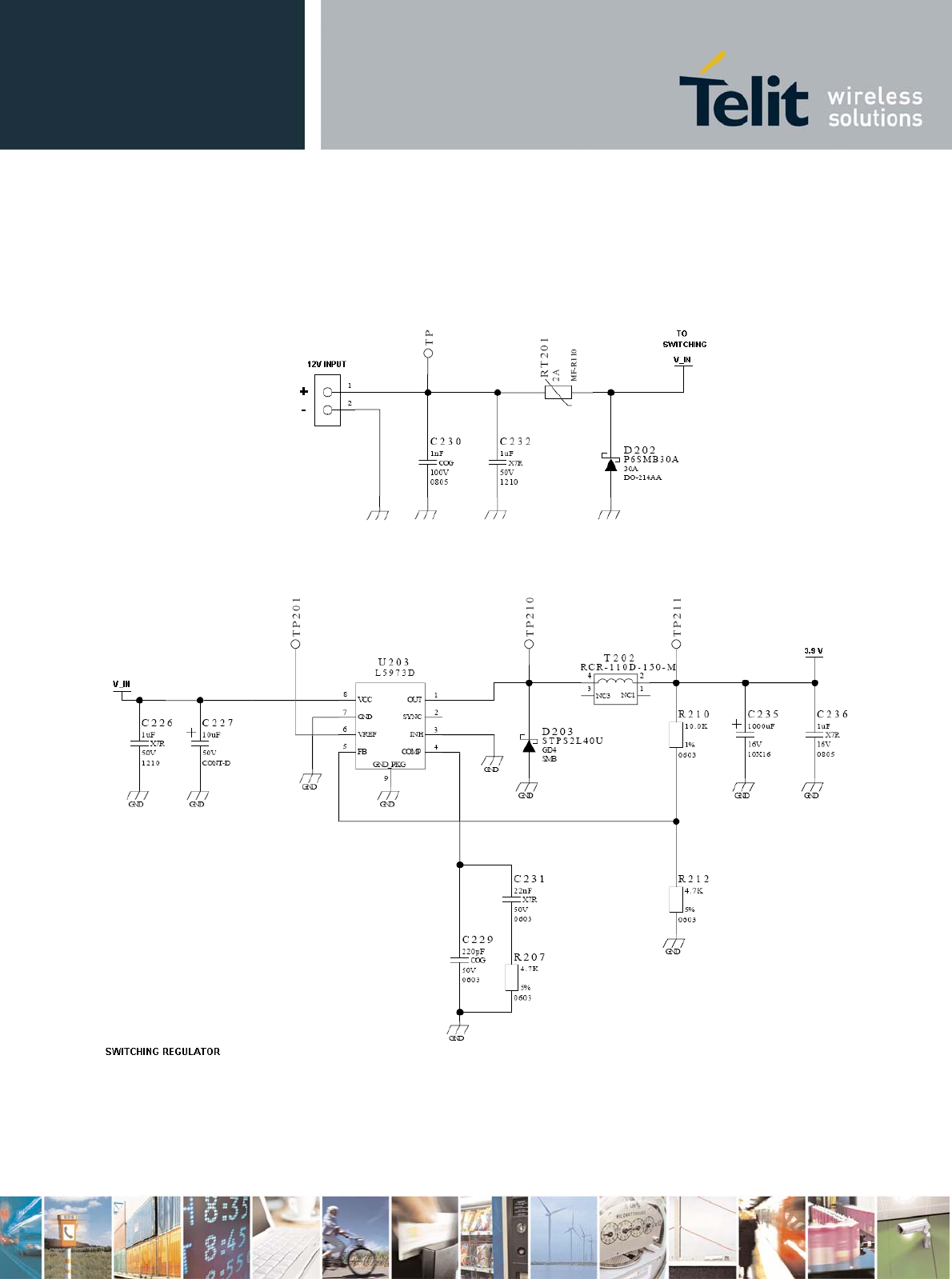

An example of switching regulator with 12V input is in the below schematic (it is split in 2 parts):

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

4.2.1.3 Battery Source Power Supply Design Guidelines

• The desired nominal output for the power supply is 3.8V and the maximum voltage allowed is

4.2V, hence a single 3.7V Li-Ion cell battery type is suited for supplying the power to the Telit

GM862-QUAD / PY module.

The three cells Ni/Cd or Ni/MH 3,6 V Nom. battery types or 4V PB types MUST NOT BE USED

since their maximum voltage can rise over the absolute maximum voltage for the GM862-QUAD /

PY and damage it.

NOTE: DON'T USE any Ni-Cd, Ni-MH, and Pb battery types. Their use can lead to overvoltage on the GM862-QUAD /

PY and damage it. USE ONLY Rechargeable Li-Ion battery types.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current

absorption peaks, a 100μF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor (usually a tantalum one) is rated at least 10V.

• A protection diode should be inserted close to the power input, in order to save the GM862-QUAD

/ PY from power polarity inversion. Otherwise the battery connector should be done in a way to

avoid polarity inversions when connecting the battery.

• The battery capacity must be at least 500mAh in order to withstand the current peaks of 2A; the

suggested capacity is from 500mAh to 1000mAh.

4.2.1.4 Battery Charge control Circuitry Design Guidelines

The charging process for Li-Ion Batteries can be divided into 4 phases:

• Qualification and trickle charging

• Fast charge 1 - constant current

• Final charge - constant voltage or pulsed charging

• Maintenance charge

The qualification process consists in a battery voltage measure, indicating roughly its charge status. If

the battery is deeply discharged, that means its voltage is lower than the trickle charging threshold,

then the charge must start slowly possibly with a current limited pre-charging process where the

current is kept very low with respect to the fast charge value: the trickle charging.

During the trickle charging the voltage across the battery terminals rises; when it reaches the fast

charge threshold level the charging process goes into fast charge phase.

During the fast charge phase the process proceeds with a current limited charging; this current limit

depends on the required time for the complete charge and from the battery pack capacity. During this

phase the voltage across the battery terminals still raises but at a lower rate.

Once the battery voltage reaches its maximum voltage then the process goes into its third state: Final

charging. The voltage measure to change the process status into final charge is very important. It

must be ensured that the maximum battery voltage is never exceeded, otherwise the battery may be

damaged and even explode. Moreover for the constant voltage final chargers, the constant voltage

phase (final charge) must not start before the battery voltage has reached its maximum value,

otherwise the battery capacity will be highly reduced.

The final charge can be of two different types: constant voltage or pulsed.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

The constant voltage charge proceeds with a fixed voltage regulator (very accurately set to the

maximum battery voltage) and hence the current will decrease while the battery is becoming charged.

When the charging current falls below a certain fraction of the fast charge current value, then the

battery is considered fully charged, the final charge stops and eventually starts the maintenance.

The pulsed charge process has no voltage regulation, instead the charge continues with pulses.

Usually the pulse charge works in the following manner: the charge is stopped for some time, let's say

few hundreds of ms, then the battery voltage will be measured and when it drops below its maximum

value a fixed time length charging pulse is issued. As the battery approaches its full charge the off

time will become longer, hence the duty-cycle of the pulses will decrease. The battery is considered

fully charged when the pulse duty-cycle is less than a threshold value, typically 10%, the pulse charge

stops and eventually the maintenance starts.

The last phase is not properly a charging phase, since the battery at this point is fully charged and the

process may stop after the final charge. The maintenance charge provides an additional charging

process to compensate for the charge leak typical of a Li-Ion battery. It is done by issuing pulses with

a fixed time length, again few hundreds of ms, and a duty-cycle around 5% or less.

This last phase is not implemented in the GM862-QUAD / PY internal charging algorithm, so that the

battery once charged is left discharging down to a certain threshold so that it is cycled from full charge

to slight discharge even if the battery charger is always inserted. This guarantees that anyway the

remaining charge in the battery is a good percentage and that the battery is not damaged by keeping it

always fully charged (Li-Ion rechargeable battery usually deteriorate when kept fully charged).

Last but not least, in some applications it is highly desired that the charging process restarts when the

battery is discharged and its voltage drops below a certain threshold, GM862-QUAD / PY internal

charger does it.

As you can see, the charging process is not a trivial task to be done; moreover all these operations

should start only if battery temperature is inside a charging range, usually 5°C - 45°C.

The GM862-QUAD / PY measures the temperature of its internal component, in order to satisfy this

last requirement, it's not exactly the same as the battery temperature but in common application the

two temperature should not differ too much and the charging temperature range should be

guaranteed.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

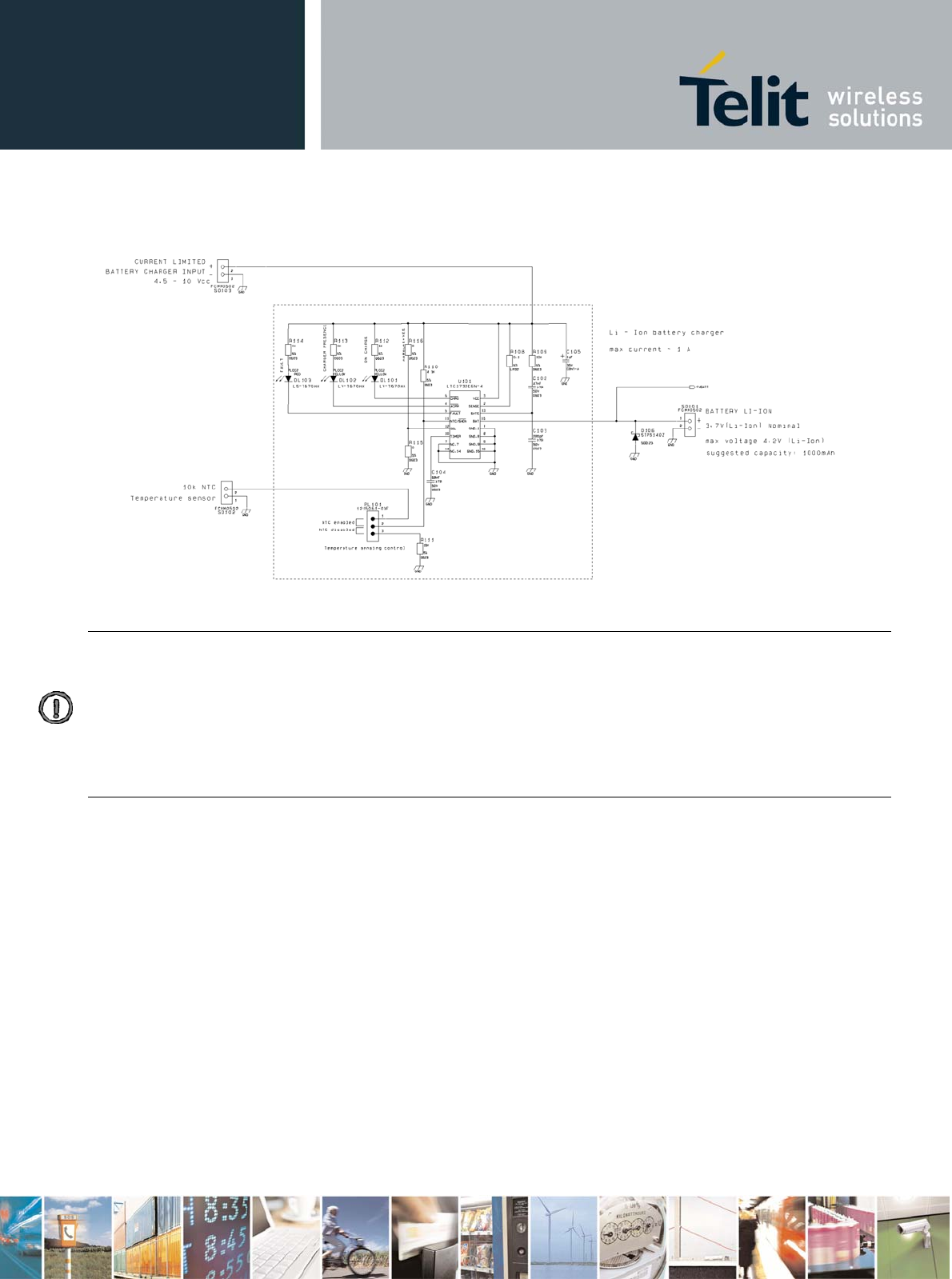

An example of battery charger can be:

NOTE: In this particular application the battery charger input current must be limited to less than 1A. Using a

current limited wall adapter as the power source can do this.

For your convenience in the EVK there's also a current unlimited input, where the input source is not limited in

current and the drawn current is limited to about 0,5A by a MOSFET in the EVK.

The external battery charger is suggested in applications where the total consumption is higher than the current

provided by the GM862-QUAD / PY module.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

4.2.2 Thermal Design Guidelines

The thermal design for the power supply heat sink should be done with the following specifications:

• Average current consumption during transmission @PWR level max: 500mA

• Average current consumption during transmission @ PWR level min: 100mA

• Average current during Power Saving: 4mA

• Average current during idle (Power Saving disabled) 19mA

NOTE: The average consumption during transmissions depends on the power level at which the device is requested

to transmit by the network. The average current consumption hence varies significantly.

TIP: The thermal design for the Power supply should be made keeping a average consumption at the max

transmitting level during calls of 500mA.

Considering the very low current during idle, especially if Power Saving function is enabled, it is

possible to consider from the thermal point of view that the device absorbs current significantly only

during calls.

If we assume that the device stays into transmission for short periods of time (let's say few minutes)

and then remains for a quite long time in idle (let's say one hour), then the power supply has always

the time to cool down between the calls and the heat sink could be smaller than the calculated one for

500mA maximum current, or even could be the simple chip package (no heat sink).

Moreover in the average network conditions the device is requested to transmit at a lower power level

than the maximum and hence the current consumption will be less than the 500mA, being usually

around 150mA.

For these reasons the thermal design is rarely a concern and the simple ground plane where the

power supply chip is placed can be enough to ensure a good thermal condition and avoid overheating.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

4.2.3 Power Supply PCB layout Guidelines

As seen on the electrical design guidelines the power supply shall have a low ESR capacitor on the

output to cut the current peaks and a protection diode on the input to protect the supply from spikes

and polarity inversion. The placement of these components is crucial for the correct working of the

circuitry. A misplaced component can be useless or can even decrease the power supply

performances.

• The Bypass low ESR capacitor must be placed close to the Telit GM862-QUAD / PY power input

pins or in the case the power supply is a switching type it can be placed close to the inductor to cut

the ripple provided the PCB trace from the capacitor to the GM862-QUAD / PY is wide enough to

ensure a dropless connection even during the 2A current peaks.

• The protection diode must be placed close to the input connector where the power source is

drained.

• The PCB traces from the input connector to the power regulator IC must be wide enough to ensure

no voltage drops occur when the 2A current peaks are absorbed. Note that this is not made in

order to save power loss but especially to avoid the voltage drops on the power line at the current

peaks frequency of 216 Hz that will reflect on all the components connected to that supply,

introducing the noise floor at the burst base frequency. For this reason while a voltage drop of 300-

400 mV may be acceptable from the power loss point of view, the same voltage drop may not be

acceptable from the noise point of view. If your application doesn't have audio interface but only

uses the data feature of the Telit GM862-QUAD / PY, then this noise is not so disturbing and

power supply layout design can be more forgiving.

• The PCB traces to the GM862-QUAD / PY and the Bypass capacitor must be wide enough to

ensure no voltage drops occur when the 2A current peaks are absorbed. This is for the same

reason as previous point. Try to keep this trace as short as possible.

• The PCB traces connecting the Switching output to the inductor and the switching diode must be

kept as short as possible by placing the inductor and the diode very close to the power switching

IC (only for switching power supply). This is done in order to reduce the radiated field (noise) at the

switching frequency (100-500 kHz usually).

• The use of a good common ground plane is suggested.

• The placement of the power supply on the board should be done in such a way to guarantee that

the high current return paths in the ground plane are not overlapped to any noise sensitive circuitry

as the microphone amplifier/buffer or earphone amplifier.

• The power supply input cables should be kept separate from noise sensitive lines such as

microphone/earphone cables.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

5 Serial Ports

The serial port on the Telit GM862-QUAD / PY is the core of the interface between the module and

OEM hardware.

2 serial ports are available on the module:

• MODEM SERIAL PORT

• TRACE (Usable only on GM862-QUAD-PY for Python Debug)

Several configurations can be designed for the serial port on the OEM hardware, but the most

common are:

- RS232 PC com port

- microcontroller UART @ 2.8V - 3V (Universal Asynchronous Receive Transmit)

- microcontroller UART@ 5V or other voltages different from 2.8V

Depending from the type of serial port on the OEM hardware a level translator circuit may be needed

to make the system work. The only configuration that doesn't need a level translation is the 2.8V

UART.

The TRACE Serial Port is a 3 wire (RX, TX GND) +2.8V UART.

The MODEM serial port on the GM862-QUAD / PY is a +2.8V UART with all the 7 RS232 signals. It

differs from the PC-RS232 in the signal polarity (RS232 is reversed) and levels. The levels for the

GM862-QUAD / PY UART are the CMOS levels:

Absolute Maximum Ratings -Not Functional

Parameter Min Max

Input level on any

digital pin when on

-0.3V +3.75V

Input voltage on

analog pins when on

-0.3V +3.0 V

Operating Range - Interface levels (2.8V CMOS)

Level Min Max

Input high level VIH 2.1V 3.3V

Input low level VIL 0V 0.5V

Output high level VOH 2.2V 3.0V

Output low level VOL 0V 0.35V

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

The signals of the GM862-QUAD / PY MODEM serial port are:

RS232

Number

Signal GM862-

QUAD /

PY Pin

Number

Name Usage

1 DCD -

dcd_uart

36 Data Carrier Detect Output from the GM862-QUAD / PY that

indicates the carrier presence

2 RXD -

tx_uart

37 Transmit line *see Note Output transmit line of GM862-QUAD / PY

UART

3 TXD -

rx_uart

20 Receive line *see Note Input receive of the GM862-QUAD / PY

UART

4 DTR -

dtr_uart

43 Data Terminal Ready Input to the GM862-QUAD / PY that controls

the DTE READY condition

5 GND 2-4 Ground Ground

6 DSR -

dsr_uart

33 Data Set Ready Output from the GM862-QUAD / PY that

indicates the module is ready

7 RTS -

rts_uart

45 Request to Send Input to the GM862-QUAD / PY that controls

the Hardware flow control

8 CTS -

cts_uart

29 Clear to Send Output from the GM862-QUAD / PY that

controls the Hardware flow control

9 RI -

ri_uart

30 Ring Indicator Output from the GM862-QUAD / PY that

indicates the incoming call condition

NOTE: According to V.24, RX/TX signal names are referred to the application side, therefore on the GM862-QUAD /

PY side these signal are on the opposite direction: TXD on the application side will be connected to the receive line

(here named TXD/ rx_uart ) of the GM862-QUAD / PY serial port and vice versa for RX.

TIP: For a minimum implementation, only the TXD and RXD lines can be connected, the other lines can be left open

provided a software flow control is implemented.

The signals of the TRACE serial port are:

Signal GM862-

QUAD /

PY Pin

Number

Name Usage

RX_TRACE 41 Python Debug Receive

line

Input line of Python Debug serial Port

TX_TRACE 35 Python Debug Transmit

line

Output line of Python Debug serial Port

GND 2-4 Ground Ground

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

5.1 Level translation

In order to interface the Telit GM862-QUAD / PY with a PC com port or a RS232 (EIA/TIA-232)

application a level translator is required. This level translator must

- invert the electrical signal in both directions

- change the level from 0/3V to +15/-15V

Actually, the RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower levels on

the RS232 side (EIA/TIA-562) , allowing for a lower voltage-multiplying ratio on the level translator.

Note that the negative signal voltage must be less than 0V and hence some sort of level translation is

always required.

The simplest way to translate the levels and invert the signal is by using a single chip level translator.

There are a multitude of them, differing in the number of driver and receiver and in the levels (be sure

to get a true RS232 level translator not a RS485 or other standards).

By convention the driver is the level translator from the 0-3V UART level to the RS232 level, while the

receiver is the translator from RS232 level to 0-3V UART.

In order to translate the whole set of control lines of the UART you will need:

- 5 driver

- 3 receiver

NOTE: The digital input lines working at 2.8VCMOS have an absolute maximum input voltage of 3,75V; therefore the

level translator IC shall not be powered by the +3.8V supply of the module. Instead it shall be powered from a +2.8V /

+3.0V (dedicated) power supply.

This is because in this way the level translator IC outputs on the module side (i.e. GM862-QUAD / PY inputs) will

work at +3.8V interface levels, stressing the module inputs at its maximum input voltage.

This can be acceptable for evaluation purposes, but not on production devices.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

An example of level translation circuitry of this kind is:

the RS232 serial port lines are usually connected to a DB9 connector with the following layout:

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

5.2 5V UART level translation

If the OEM application uses a microcontroller with a serial port (UART) that works at a voltage different

from 2.8 - 3V, then a circuitry has to be provided to adapt the different levels of the two set of signals.

As for the RS232 translation there are a multitude of single chip translators. For example a possible

translator circuit for a 5V TRANSMITTER/RECEIVER can be:

TIP: This logic IC for the level translator and 2.8V pull-ups (not the 5V one) can be powered

directly from PWRMON line of the GM862-QUAD / PY. Note that the TC7SZ07AE has open

drain output, therefore the resistor R2 is mandatory.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

NOTE: The UART input line TXD (rx_uart) of the GM862-QUAD / PY is NOT internally pulled

up with a resistor, so there may be the need to place an external 47KΩ pull-up resistor,

either the DTR (dtr_uart) and RTS (rts_uart) input lines are not pulled up internally, so an

external pull-up resistor of 47KΩ may be required.

A power source of the internal interface voltage corresponding to the 2.8VCMOS high level is

available at the PWRMON pin on the connector, whose absolute maximum output current is 1mA.

A maximum of 9 resistors of 47 KΩ pull-up can be connected to the PWRMON pin, provided no other

devices are connected to it and the pulled-up lines are GM862-QUAD / PY input lines connected to

open collector outputs in order to avoid latch-up problems on the GM862-QUAD / PY.

Care must be taken to avoid latch-up on the GM862-QUAD / PY and the use of this output line to

power electronic devices shall be avoided, especially for devices that generate spikes and noise such

as switching level translators, micro controllers, failure in any of these condition can severely

compromise the GM862-QUAD / PY functionality.

NOTE: The input lines working at 2.8VCMOS can be pulled-up with 47KΩ resistors that can

be connected directly to the PWRMON line provided they are connected as in this example.

NO OTHER devices than those suggested should be powered with the PWRMON line;

otherwise the module functionality may be compromised.

It is important to consider that the added circuit must have consumption lower than 1mA.

In case of reprogramming of the module has to be considered the use of the RESET line to

start correctly the activity.

The preferable configuration is having an external supply for the buffer.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

6 Audio Section Overview

The Base Band Chip of the GM862-QUAD / PY Telit Module provides two different audio blocks; both

in transmit (Uplink) and in receive (Downlink) direction:

“MT lines” should be used for handset function,

“HF lines” is suited for hands -free function (car kit).

These two blocks can be active only one at a time, selectable by AXE hardware line or by AT

command.

The audio characteristics are equivalent in transmit blocks, but are different in the receive ones and

this should be kept in mind when designing.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

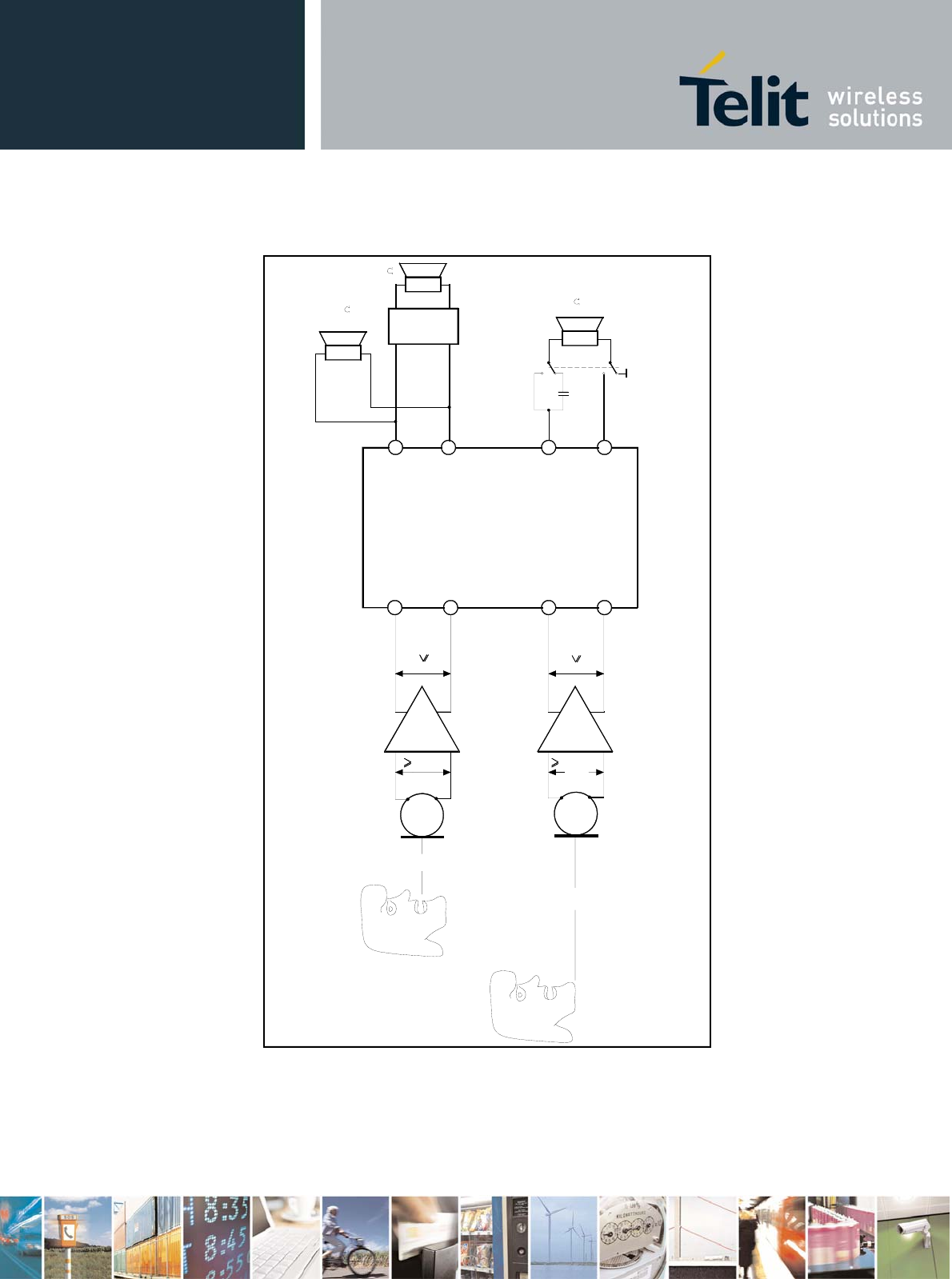

GE863-GPS Audio Paths

Differential

Line-Out Drivers

Fully Differential

Power Buffers

EXTERNAL

AMPLIFIER

-12dBFS

+10dB

-45dBV/Pa

Mic_HF-Ear_HF-

Balanced

Single

ended

Mic_HF+Ear_HF+

50cm23mVrms

0,33mV rms

audio2.skd

GM863-GPS

+20dB

7cm-45dBV/Pa

3,3mVrms

365mVrms

Mic_MT+Ear_MT+

Mic_MT-Ear_MT-

GM862-QUAD /

GM862-QUAD / PY

Audio Paths

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

6.1 Microphone Paths Characteristic and Requirements

TIP: being the microphone circuitry the more noise sensitive, its design and layout must be

done with particular care. Both microphone paths are balanced and the OEM circuitry should

be balanced designed to reduce the common mode noise typically generated on the ground

plane. However also an unbalanced circuitry can be used for particular OEM application needs.

TIP: due to the difference in the echo canceller type, the “Mic_MT” audio path is suited for

Handset applications, while the “Mic_HF”audio path is suited for hands-free function (car kit).

The Earphone applications should be made using the “Mic_HF” audio path but DISABLING the

echo canceller by software AT command. If the echo canceller is left active with the Earphone,

then some echo might be introduced by the echo cancel algorithm.

“Mic_MT” 1st differential microphone path

• line coupling AC

• line type balanced

• coupling capacitor ≥ 100nF

• differential input resistance 50kΩ

• differential input voltage ≤ 1,03Vpp (365mVrms)

• microphone nominal sensitivity -45 dBVrms/Pa

• analog gain suggested + 20dB

• echo canceller type handset

“Mic_HF” 2nd differential microphone path

• line coupling AC

• line type balanced

• coupling capacitor ≥ 100nF

• differential input resistance 50kΩ

• differential input voltage ≤ 65mVpp (23mVrms)

• microphone nominal sensitivity -45 dBVrms/Pa

• analog gain suggested +10dB

• echo canceller type car kit hands-free

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

TIP: definition of the nominal sensitivity of the microphone lines .

The nominal sensitivity of the microphone lines indicates the voltage level on the GM862-QUAD / PY

pins present during "normal spoken" conditions.

For a handset , the "normal spoken” conditions take place when the talker mouth is 7cm far from the

microphone ; under these conditions the voice will produce an acoustic pressure of -4,7dBPa @1kHz

on the microphone membrane .

TIP: electrical equivalent signal and operating voice levels .

At "normal spoken" conditions, a microphone having the suggested nominal sensitivity of -

45dBVrms/Pa , will produce

the electrical equivalent signal :

that means :

During a call , this level varies according to the volume of the talker voice; usually the following rough

thumb rule for the dynamic range may be used :

1) the talker is screaming . This is the strongest voice level condition: the signal increases by

+20dB ;

2) the talker is whispering. This is the lowest voice level condition: the voice level decreases by –

50dB .

These changes must be considered for designing the external microphone amplifier.

TIP: example of external microphone amplifier calculation .

Let’s suppose to use the 1stdifferential microphone path .In this case the maximum differential input

voltage to “Mic_MT” lines is 365mVrms(1,03Vpp) corresponding to –8,76dBV.

Now we can calculate the maximum voltage gain of an external microphone amplifier GA:

()

[]

dBVGdBMicLevel A76,820 −

[]

76,8207,49 −=++− A

G−=+− 209,40

dBGA94,20= you can set GA= +20dB to use standard resistor values .

MicLevel = ( -45) + (-4.7) = -49.7 dBVrms

MicVoltage = 10 (

49.7 / 20 ) = 3.3* 10

Vrms

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

TIP: environment consideration .

For hands-free/car kit microphone, you must take into account the voice attenuation, due to the

distance between the microphone itself and the talker, when designing the external microphone

amplifier.

Not only, you must consider that the microphone will pick up also ambient noise; to overcome this

problem it is preferable to set the gain of the microphone 10dB lower with respect to the calculated

value for a nominal sensitivity. The corresponding reduction in signal level will be compensated by an

increased voice volume of the talker which will speak louder because of the ambient noise.

For a car cabin usually the distance between the microphone itself and the talker is 40/50cm ; in these

conditions the attenuation can be considered as a thumb rule around 20dB .

For the earphone we shall distinguish two different types: the earphones having the microphone

sustained close to the mouth and the ones having the microphone on the earpiece cable.

The same considerations for the additional voice attenuation due to the distance from the microphone

and the noise pick up can be made for the earphone having the microphone on the earpiece cable,

while the other kind of earphone shall be threaten as an handset.

TIP: how to compensate the losses in car cabin hands-free condition.

The voice signal , that in the "normal spoken” conditions produces on the microphone membrane an

acoustic pressure of -4,7dBPa at 1kHz , will have a further attenuation of 20dB due the 50cm distance

Therefore a microphone having the suggested nominal sensitivity of -45dBVrms/Pa,will produce a lower

electrical

equivalent signal :

that means :

Setting the “microphone gain” at +10dB (3 times), the signal in the nominal conditions on the

“Mic_HF” inputs s of GM862-QUAD / PY Telit Module will be :

Hence in these conditions the signal level on the“Mic_HF” input pads of the GM862-QUAD / PY is 10

dB (3 times) lower than the nominal, as suggested.

MicLevel = ( -45) + (-4.7)-20 = -69.7

MicVoltage = 10 (

49.7 / 20 ) = 0,33* 10

“Mic_HF” Level = 0,33* 10

* 3=1* 10

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

6.2 General Design Rules

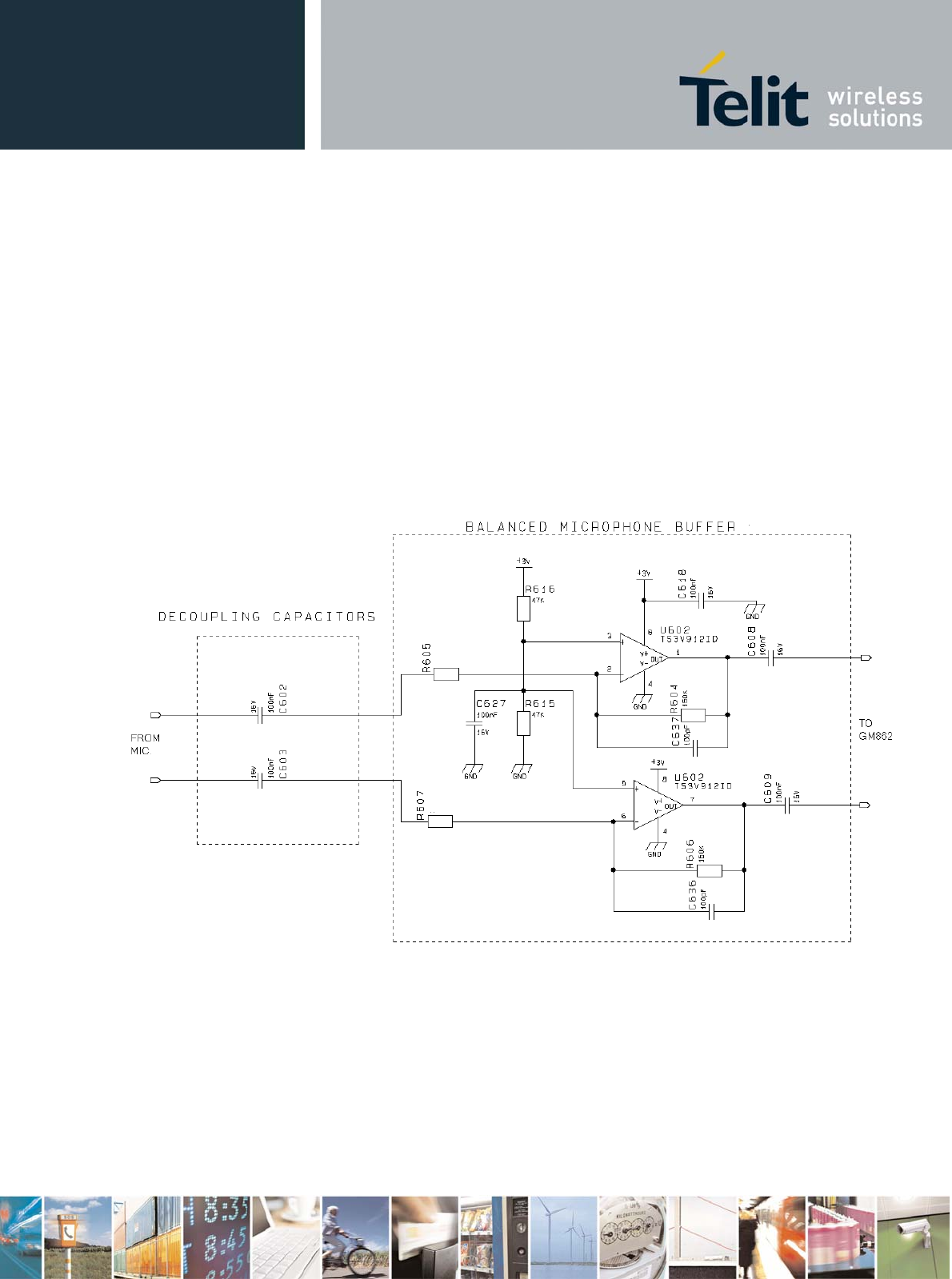

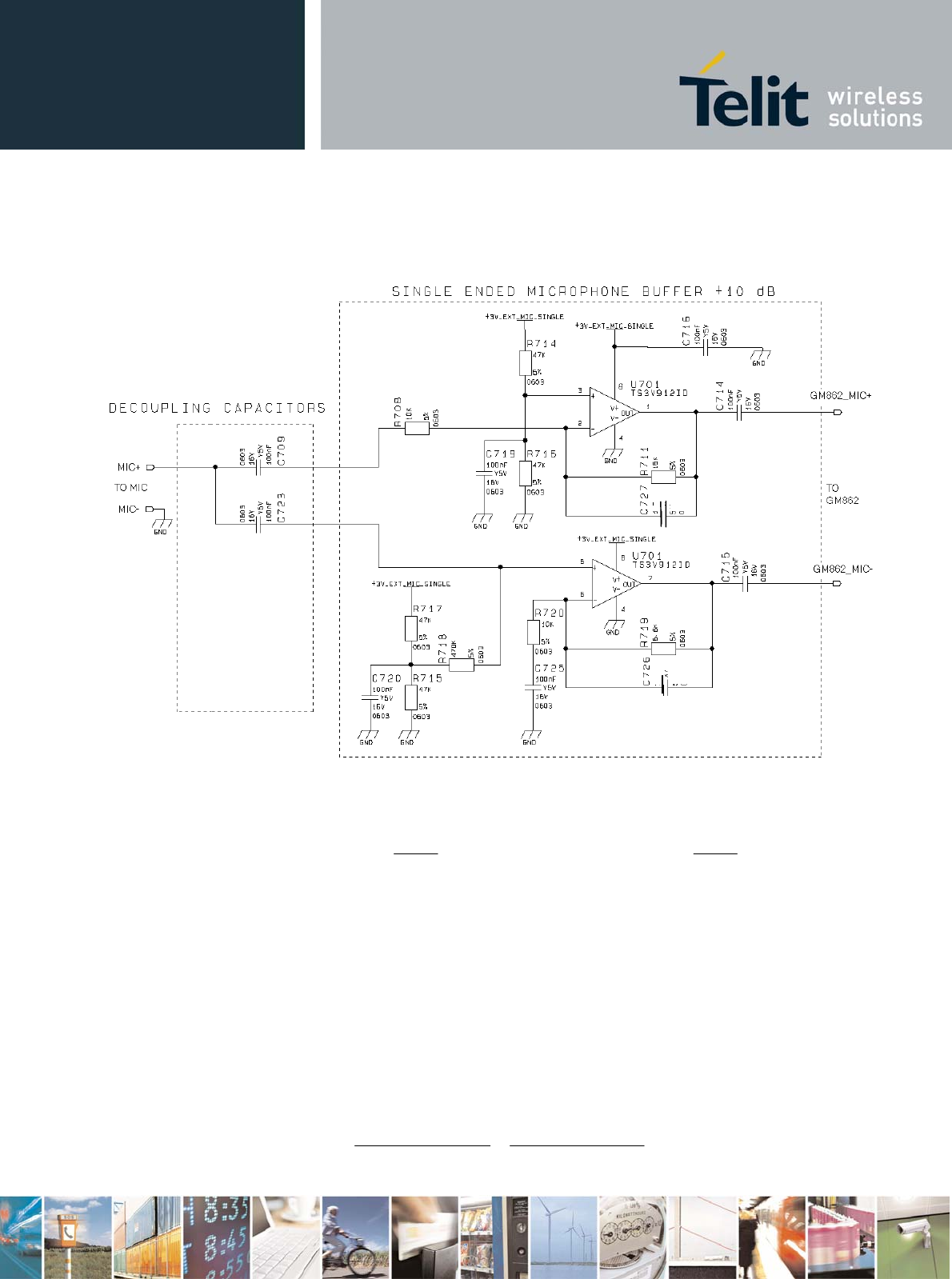

There are several configurations for the audio paths, but the most effective difference is between

balanced and unbalanced microphone configuration.

It is highly recommended to keep the whole microphone path balanced even if this means having 2

wires connecting the microphone instead of one needed (plus ground) in the unbalanced case. The

balanced circuitry is more suited because of its good common mode noise rejection, reducing the 216

Hz burst noise produced during the GSM transmissions.

• Where possible use balanced microphone circuitry

• Keep the microphone traces on the PCB and wires as short as possible.

• If your application requires an unbalanced microphone, then keep the lines on the PCB balanced

and "unbalance" the path close to the microphone wire connector if possible.

• For the microphone biasing voltage use a dedicated voltage regulator and a capacitor multiply

circuit.

• Make sure that the microphone traces in the PCB don't cross or run parallel to noisy traces

(especially the power line)

• If possible put all around to the microphone lines a ground trace connected to the ground plane by

several vias. This is done in order to simulate a shielded trace on the PCB.

• The biasing circuit and eventually the buffer can be designed in the same manner for the internal

and external microphones.

6.3 Other Considerations

If your application is a hands-free/car kit scenario, but you need to put microphone and speaker inside

the same box:

• Try to have the maximum possible distance between them, at least 7cm;

• becauses the microphone type is very important, if you use an omni-directional one ( and this is

the typical applicaton ) please seal it on the rear side (no back cavity) in order not to collect

unwanted signals ;

• try to make divergent the main axes of the two devices .

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

6.4 Microphone Biasing

The electret microphones usually need a biasing voltage to work properly. Refer to your microphone

provider for the characteristics required.

NOTE: The microphones have a hot wire were the positive biasing must be connected. Usually

it is indicated by a + symbol or a red point. If the polarity of the bias is reversed, then the

microphone will not work properly. For this reason be sure to respect the mic. biasing polarity.

6.4.1 Balanced Microphone Biasing

The balanced microphone bias voltage should be obtained from a dedicated voltage regulator, in order

to eliminate the noise present on the power lines. This regulator can be the same for all the audio

paths. The microphone should be supplied from a capacitor multiply circuit.

For example a circuit for the balanced microphone biasing can be:

NOTE: In the balanced application the resistors R2 and R3 must have the same value to keep

the circuit balanced.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

NOTE: The cable to the microphone should not be shielded; instead a twisted pair cable shall

be used.

NOTE: The microphone sensitivity changes with the value of R2 and R3. Usually the

microphones are characterized with 2kΩ biasing resistance, so try to keep the sum of R2 and

R3 around 2kΩ. Refer to your microphone manufacturer for the mic. characteristics.

6.4.2 Unbalanced Microphone Biasing

The unbalanced microphone biasing voltage should be obtained from a dedicated voltage regulator, in

order to eliminate the noise present on the power lines. This regulator can be the same for all the

audio paths. The microphone should be supplied from a capacitor multiply circuit.

For example a circuit for the unbalanced microphone biasing can be:

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

NOTE: In the unbalanced application the capacitor C3 shall be > 200nF otherwise the frequency

response will be cut at low band frequencies (down to 300Hz). This capacitor can be placed

close to the MIC- pad (MIC_HF- or MIC_MT- depending on the audio path chosen) or if

possible it should be placed close to the shielded cable connector. If the ground return path is

well designed, then it is possible to eliminate the C3 capacitor, provided the buffer is close to

the mic. input.

NOTE: The cable to the microphone should be shielded.

NOTE: The microphone changes with the value of R2. Usually the microphone sensitivity is

characterized with 2kΩ biasing resistance, so try to keep the value of R2 around 2kΩ. For mic.

characteristics refer to the manufacturer.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

6.5 Microphone Buffering

As seen previously, a microphone shall be connected to the input pins of the GM862-QUAD / PY

through a buffer amplifier that boosts the signal level to the required value.

Again the buffered microphone circuitry can be balanced or unbalanced: where possible it is always

preferable a balanced solution. The buffering circuit shall be placed close to the microphone or close

to the microphone wire connector.

6.5.1 Buffered Balanced Mic.

A sample circuit can be:

This circuit has a gain of 10 times (+20 dB), and is therefore suited for the “Mic_MT “ input if you have

a microphone with a sensitivity close to the suggested one (-45 dBVrms/Pa). If your microphone has a

different sensitivity or if the buffer is connected to the “Mic_HF “ inputs , then a gain adjustment shall

be done by changing resistors R604 and R606 ( if the required value is not a standard one , you can

change R605 e R607 ) and as a consequence the capacitors C636 and C637 to maintain the

bandwidth 150-4000Hz (at -3dB).

270pF

+20 dB

15K

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

The buffer gain is given by the formula:

607

606

605

604

Gain ==

The C636 and C637 capacitors are placed in order to cut off the gain at higher frequencies than the

transmitted GSM band, the cutoff frequency (-3dB) should be 3500Hz in order to have -1dB at 3kHz.

The cutoff frequency is given by the formula:

636*606*2

637*604*2

.CRCR

freq

ππ

== [Hz]

TIP: example of calculation.

Let's assume you have a microphone with a sensitivity of -45 dBVrms/Pa and you want to use it in 1st

differential microphone path (“Mic_MT” inputs) in "normal spoken" conditions at acoustic pressure of

-4.7dBPa.

As reported at page 33 , the electrical level output from the microphone will be :

corresponding to:

When the talker is screaming , we will have a signal of 330 mVrms on the “Mic_MT “ inputs due to a

20dB higher Mic Level (see TIP 1) with a buffer gain GA :

GA =20 log (AmplifierOutput / MicVoltage) =20 log (330 * 10 -3 )/( 33 * 10 -3 ) = 20 log 10=20dB

The corresponding values for the resistors on the buffer could be ( if we keep the input resistance

10kΩ )

R604 = R606 = gain* R607= gain* R605 = 10* 15 = 150 kΩ

The commercial values of 150kΩ & 15kΩ are then chosen.

As a consequence the values of the capacitors C636 and C637 shall be:

C636=C637= 1/ (2π*4000*R606)= 265 *10 -12 F

A commercial value of 270pF gives a cutoff frequency of 3931Hz with an errorless than 1,8% .

MicLevel = ( -45) + (-4.7) = -49.7 dBVrms

MicVoltage = 10 (

49.7 / 20 ) = 3.3* 10

Vrms

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

6.5.2 Buffered Unbalanced (Single Ended) Microphone .

The above schematic can be used for a single ended (buffered unbalanced) microphone ; the required

biasing circuitry is not included. Note also that the capacitor C3 is not needed .

The gains of the two amplifiers are given by the formulas :

()

720

719

1buffer invertingnot R

Gain +=

()

708

711

buffer inverting R

Gain =

Assigning half of overall gain to each amplifier, you will obtain the requested gain because of doubling

the microphone signal path; in fact by the use of two amplifiers (the upper as “inverting” and the lower

as “not inverting”configuration ) we obtain an additional +6dB gain (2 times) .

Remember : the “not inverting “ amplifier section gain shall not be less than 1 .

Like for the balanced buffered microphone , the amplifier overall gain can be modify changing the

value of resistor R719/R720 and R711 and as a consequence the capacitors C726 and C727. It is

advisable to change R708 only if you have difficulty to find a commercial value for R711 ; in this case

change R708 as little as possible .

The -3dB bandwidth is given by the approximated formula (considering C725 >> C726):

727*711*2

726*719*2

.CRCR

freq

ππ

== [Hz]

2,7nF

6,8nF

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

The buffer bandwidth at -3dB shall be 4KHz.

Note that the biasing of the operational amplifier is given for the inverting amplifier by the series divider

R714-R715. The 100nF capacitor C719 is needed to filter the noise that could be coupled to that

divider. For the not inverting operational amplifier the biasing is given by a different divider R715-R717

with the capacitor C720 and through a series resistor R718 of 470KΩ.

TIP: example of calculation.

Llet's assume you have a microphone with a sensitivity of -45dBVrms/Pa and you want to use it in 2nd

differential microphone path (“Mic_HF” inputs) in "normal spoken" conditions at acoustic pressure of -

4.7dBPa.

As reported at page XX , the electrical level output from the microphone will be :

but we have to consider 20dB loss due to the higher distance from the mouth of the talker ( 50cm ) .

corresponding to

In order to have a signal of 1 mVrms at the “Mic_HF” inputs , as suggested at TIP “environment

consideration “,

the buffer must have a gain or +10 dB

Keeping in mind that “ balancing the line will double the signal”, to calculate the resistor values assign

half of required gain GA to each amplifier section . And therefore GS =1,5times (or +3,52dB) .

Choosing as 10kΩ as the input resistance , the corresponding values for the resistors on the buffer will

be :

R711 = GS * R708= 1.5*10 =15 kΩ

R719 = (GS -1) * R720 = (1.5 -1)*10 =5 kΩ

The commercial values of 15kΩ and 5.6kΩ be accepted .

As a consequence of the assigned values of the resistors, the nominal values of C726 and C727 are

MicLevel = ( -45) + (-4.7) = -49.7 dBVrms

MicVoltage = 10 (

69.7 / 20 ) = 0,33* 10

MicLevel = ( -49.7) + (-20) = -69.7 dBVrms

GA= “Mic_HF /MicVoltage = (1*10

)/(0,33*10

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

C726= 1/ (2π*4000*R719)= 7.10 *10 -9 F

C727= 1/ (2π*4000*R711)= 2,65 *10 -9 F

modified in 6,8nF (fc1=4181Hz ) and 2,7nF (fc2=3931Hz) because of commercial values .

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

7 OUTPUT LINES (Speaker)

7.1 Short Description.

The Telit GM862-QUAD / PY provides two audio paths in receive section. Only one of the two paths

can be active at a time, selectable by AXE hardware line or by AT command.

You must keep in mind the different audio characteristics of the receive blocks when designing:

Æ the “Ear_MT” lines EPN1 and EPP1 are the Differential Line-Out Drivers ; they can drive an

external amplifier or directly a 16 Ω earpiece at –12dBFS (*) ;

Æ the “Ear_HF” lines EPPA1_2 and EPPA2 are the Fully Differential Power Buffers ; they can directly

drive a 16Ω speaker in differential (balanced) or single ended (unbalanced) operation mode .

(*) FS : acronym of Full Scale. It is equal to 0dB, the maximum Hardware Analog Receive Gain of

BaseBand Chip.

The “Ear_MT” audio path should be used for handset function, while the “Ear_HF” audio path is suited

for hands-free function (car kit).

Both receiver outputs are B.T.L. type (Bridged Tie Load) and the OEM circuitry shall be designed

bridged to reduce the common mode noise typically generated on the ground plane and to get the

maximum power output from the device; however also a single ended circuitry can be designed for

particular OEM application needs.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

7.2 Output Lines Characteristics

“Ear_MT” Differential Line-out Drivers Path

• line coupling: DC

• line type: bridged

• output load resistance : ≥ 14 Ω

• internal output resistance: 4 Ω (typical)

• signal bandwidth: 150 - 4000 Hz @ -3 dB

• max. differential output voltage 1310 mVrms (typ, open circuit)

• differential output voltage 328mVrms /16 Ω @ -12dBFS

• SW volume level step - 2 dB

• number of SW volume steps 10

“Ear_HF” Power Buffers path

• line coupling: DC

• line type: bridged

• output load resistance : ≥ 14 Ω

• internal output resistance: 4 Ω ( >1,7 Ω )

• signal bandwidth: 150 - 4000 Hz @ -3 dB

• max. differential output voltage 1310 mVrms (typ, open circuit)

• max. single ended output voltage 656 mVrms (typ, open circuit)

• SW volume level step - 2 dB

• number of SW volume steps 10

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

7.3 General Design Rules

There are several configurations for the audio output path, but the various design requirements can be

grouped into three different categories:

• handset earphone (low power, typically a handset)

• hands-free earphone (low power, typically a earphone)

• car kit speakerphone (high power, typically a speaker)

The three groups have different power requirements, usually the first two applications need only few

mW of power, which can be directly drained from the GM862-QUAD / PY pads, provided a suited

speaker is used. This direct connect design is the cheaper and simpler solution and will be suited for

the most of the earphone design requirements. There's no need to decouple the output ear lines if a

suited earpiece is connected. For the last group, the speakerphone, a power amplifier is required to

raise the output power up to 5-10W required in a car cabin application.

All the designs shall comply with the following guidelines:

• Where possible use a bridged earphone circuitry, to achieve the maximum power output from the

device.

• Keep the earphone traces on the PCB and wires as short as possible.

• If your application requires a single ended earpiece and you want a direct connection, then leave

one of the two output lines open and use only the other referred to ground. Remember that in this

case the power output is 4 times lower than the bridged circuit and may not be enough to ensure

a good voice volume.

• Make sure that the earphone traces in the PCB don't cross or run parallel to noisy traces

(especially the power line)

• The cable to the speaker shall be a twisted pair with both the lines floating for the bridged output

type, shielded with the shield to ground for the single ended output type.

7.3.1 Noise Filtering

The I/O of the PCB should have a noise filter close to the connector, to filter the high frequency GSM

noise. The filter can be a Π formed by 2 capacitor and a inductance, with the one capacitor of 39pF -

0603 case , and the other capacitor of 1nF - 0603; the inductance shall have a value of 39μH .

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

7.4 Handset Earphone Design

As seen previously, a 16Ω earpiece can be directly connected to the output pads EAR_MT+ and

EAR_MT- of the GM862-QUAD / PY.

This solution is often the more cost effective, reducing the components count to a minimum. There are

several limitations to the use of this solution: speaker direct connect imposes the speaker

characteristics to be almost exactly the suggested ones, otherwise the power output may be reduced

(if speaker impedance is bigger than 16Ω) or the GM862-QUAD / PY ear port may be damaged (if

speaker impedance is less than 15Ω).

The other limitation of the speaker direct connection is the power output capability of the GM862-

QUAD / PY which is limited and for some particular applications may not be enough.

For these reasons, when the power output of the GM862-QUAD / PY is not enough or if the speaker

characteristics are different from the suggested, then it is preferable to use an amplifier to increase the

power and current output capabilities.

Again the output from the GM862-QUAD / PY is bridged and both lines should be used, where

possible, as inputs to the power amplifier. This ensures a higher common mode rejection ratio,

reducing the GSM current busts noise on the speaker output.

In this case the “EAR_MT” lines from the GM862-QUAD / PY should be AC coupled with a ceramic

capacitor of 100nF (or bigger ) .

It is always desirable to have a mute control on the amplifier, in order to turn it off while the device is

not sending signal to the output, in this manner the amplifier background noise which may be audible

during idle conditions is cut off.

A principle schematic may be:

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

The resulting gain and high pass cut can be obtained with the formula:

Gain =

4*3*2

.CR

freq

= [Hz]

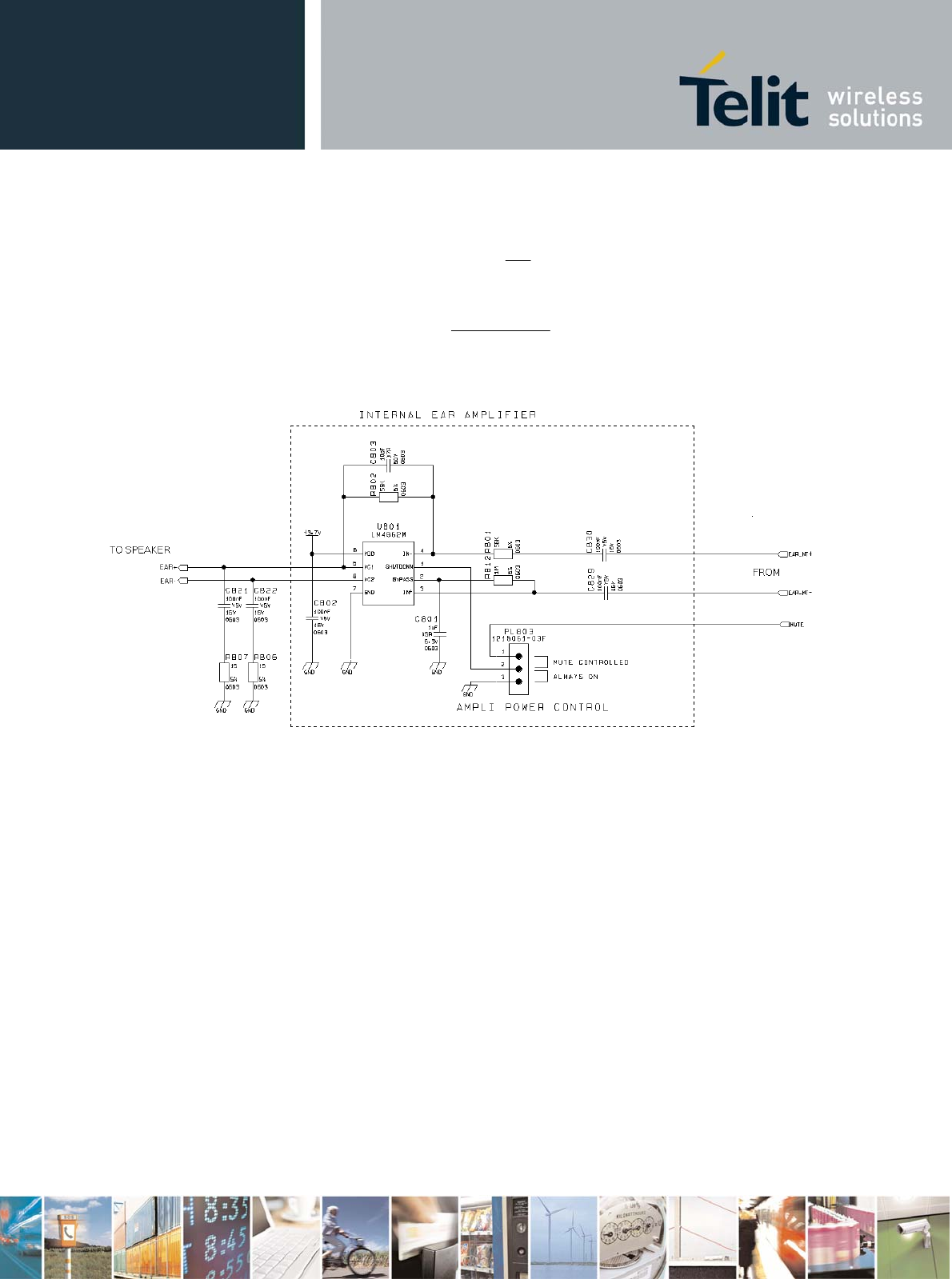

And an example of internal Ear amplifier could be :

Some amplifier require a low impedance load at high frequency in order to avoid auto oscillation, this

can be made with a capacitor (100nF) in series with a resistor (15Ω).

When designing your application, remember to provide an adequate bypass capacitor to the amplifier

and place it close to the power input pin of the IC, keeping the traces as short as possible.

7.5 Hands-Free Earphone (Low Power) Design

The same design considerations made for the handset are valid for the hands-free earphone.

+12dB

GM862-QUAD / P

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

7.6 Car Kit Speakerphone Design

For the car kit speaker phone function the power output requirement is usually at least 4W, therefore

an amplifier is needed to boost the GM862-QUAD / PY output.

The design of the amplifier shall comply with the following guidelines:

• The input to the amplifier MUST be taken from the “Ear_HF” audio path of the GM862-QUAD / PY,

because of its echo canceller parameters suited to a car cabin use.

• The amplifier shall have a gain of 30-40 times (29-32 dB) to provide the desired output power of 5-

10W with the signal from the GM862-QUAD / PY “Ear_HF” audio output lines.

• If the amplifier has a fixed gain then it can be adjusted to the desired value by reducing the input

signal with a resistor divider network.

• The amplifier shall have a mute control to be used while not in conversation. This results in two

benefits: eliminating the background noise when not in conversation and saving power.

• The power to the amplifier should be decoupled as much as possible from the GM862-QUAD / PY

power supply, by either keeping separate wires and placing bypass capacitors of adequate value

close to the amplifier power input pads.

• The biasing voltage of the amplifier shall be stabilized with a low ESR (e.g. a tantalum) capacitor of

adequate value.

NOTE: The GM862-QUAD / PY audio path connected to the car kit hands-free amplifier MUST

be “Ear_HF” one, otherwise the echo cancellation will not be done due to the difference in the

echo canceller characteristics of the GM862-QUAD / PY internal audio path from the external

audio path.

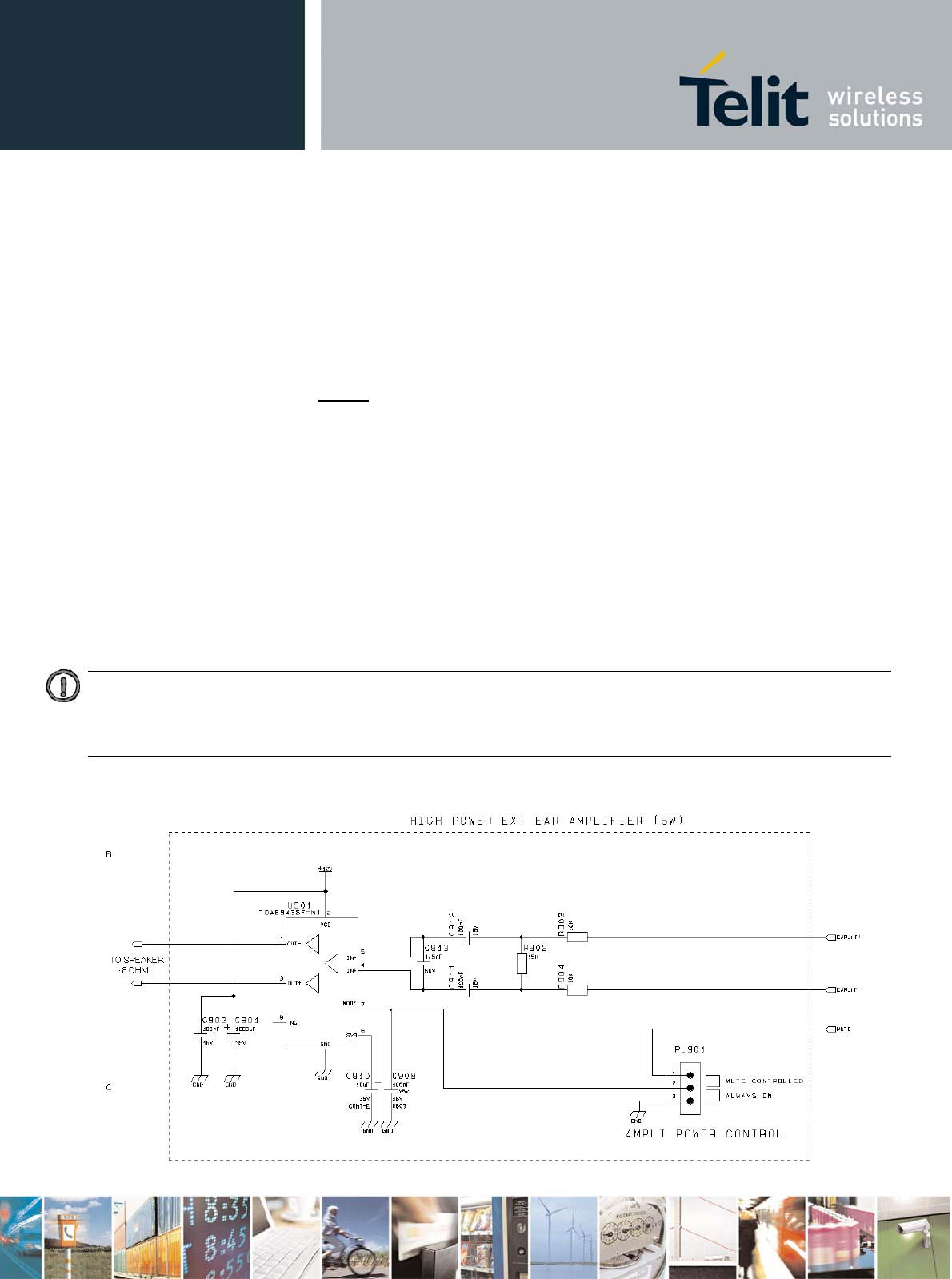

Example of car kit amplifier schematic.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

8 General Purpose I/O

The general purpose I/O pins can be configured to act in three different ways:

- input

- output

- alternate function (internally controlled)

Input pins can only be read and report the digital value (high or low) present on the pin at the read

time; output pins can only be written or queried and set the value of the pin output; an alternate

function pin is internally controlled by the GM862-QUAD / PY firmware and acts depending on the

function implemented.

Not all GPIO pins support all these three modes:

- GPIO1 is an INPUT ONLY

- GPIO2 is an OUTPUT ONLY (open collector)

- GPIO3, GPIO4, GPIO8 to GPIO13 support both input or output mode but not Alternate function.

- GPIO5 supports all three modes and can be input, output, RFTXMON output (Alternate function)

- GPIO6 supports all three modes and can be input, output, ALARM output (Alternate function)

- GPIO7 supports all three modes and can be input, output, BUZZER output (Alternate function)

All GPIO pins except from GPIO1 and GPIO2 that are buffered with a transistor, are 2.8V CMOS

signals and their interface levels are the same specified in the paragraph 5 Serial Port.

8.1 Logic level specifications

Where not specifically stated, all the interface circuits work at 2.8V CMOS logic levels.

The following table shows the logic level specifications used in the GM862 interface circuits:

Absolute Maximum Ratings -Not Functional

Parameter Min Max

Input level on any

digital pin when on

-0.3V +3.75V

Input voltage on

analog pins when on

-0.3V +3.0 V

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

Operating Range - Interface levels (2.8V CMOS)

Level Min Max

Input high level 2.1V 3.3V

Input low level 0V 0.5V

Output high level 2.2V 3.0V

Output low level 0V 0.35V

For 2,0V signals:

Operating Range - Interface levels (2.0V CMOS)

Level Min Max

Input high level 1.6V 3.3V

Input low level 0V 0.4V

Output high level 1,65V 2.2V

Output low level 0V 0.35V

Current characteristics

Level Typical

Output Current 1mA

Input Current 1uA

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

8.2 Using a GPIO pin as INPUT

The GPIO pins, when used as inputs, can be connected to a digital output of another device and

report its status, provided this device has interface levels compatible with the 2.8V CMOS levels of the

GPIO.

If the digital output of the device to be connected with the GPIO input pin has interface levels different

from the 2.8V CMOS, then it can be connected to GPIO1 or can be buffered with an open collector

transistor, provided a 47KΩ pull-up resistor is connected as seen in the paragraph 5.2 5V UART level

translation.

8.3 Using a GPIO pin as OUTPUT

The GPIO pins, when used as outputs, can drive 2.8V CMOS digital devices or compatible hardware.

When set as outputs, the pins (except from GPIO2 which is Open Collector) have a push-pull output

and therefore the pull-up resistor may be omitted.

The GPIO2 pin, since it is an Open Collector output needs an external pull-up resistor.

8.4 Using the RFTXMON Output GPIO5

The GPIO5 pin, when configured as RFTXMON Output, is controlled by the GM862-QUAD / PY

module and will rise when the transmitter is active and fall after the transmitter activity is completed.

For example, if a call is started, the line will be HIGH during all the conversation and it will be again

LOW after hanged up.

8.5 Using the Alarm Output GPIO6

The GPIO6 pin, when configured as Alarm Output, is controlled by the GM862-QUAD / PY module

and will rise when the alarm starts and fall after the issue of a dedicated AT command.

This output can be used to power up the GM862-QUAD / PY controlling microcontroller or application

at the alarm time, giving you the possibility to program a timely system wake-up to achieve some

periodic actions and completely turn off either the application and the GM862-QUAD / PY during sleep

periods, drammatically reducing the sleep comsumption to few μA.

In battery powered devices this feature will greatly improve the autonomy of the device.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

8.6 Using the Buzzer Output GPIO7

The GPIO7 pin, when configured as Buzzer Output, is controlled by the GM862-QUAD / PY module

and will drive with appropriate square waves a Buzzer driver.

This permits to your application to easily implement Buzzer feature with ringing tones played at the call

incoming, on SMS incoming or simply playing a tone when needed by your application.

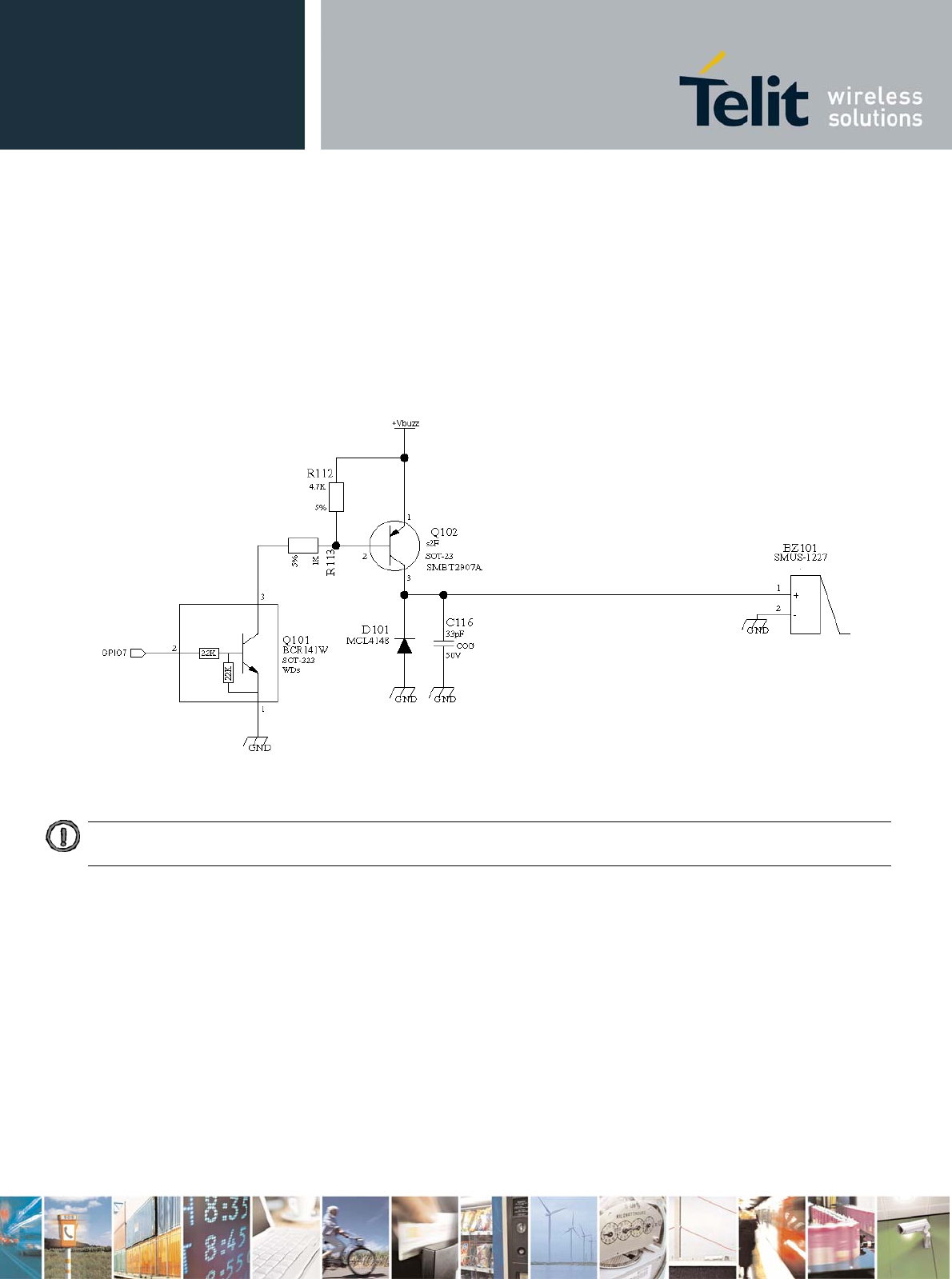

A sample interface scheme is included below to give you an idea of how to interface a Buzzer to the

GPIO7:

NOTE: To correctly drive a buzzer a driver must be provided, its characteristics depend on the Buzzer and for them

refer to your buzzer vendor.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

9 ADC section

9.1 ADC converter

9.1.1 Description

The GM862-QUAD / PY module provides a Analog to Digital Converter. The input line (named

ADC_IN1) is available on Pin #6 of the B2B connector of the module and on pin 19 of PL104

on EVK2 Board.

The on board A/D is 11-bit converter. It is able to read a voltage level in the range of 0÷2 volts

applied on the ADC pin input, store and convert it into 11 bit word.

Min Max Units

Input Voltage range 0 2 Volt

AD conversion - 11 bits

Resolution - < 1 mV

9.1.2 Using ADC Converter

An AT command is available to use the ADC function.

The command is AT#ADC=1,2

The read value is expressed in mV

Refer to SW user guide or to GM862-QUAD / PY AT commands specification for the full

description of this function.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

10 Camera

10.1 Camera Transchip

The GM862-QUAD / PY provides a direct support for Transchip digital cameras with the following

characteristics:

10.1.1 Camera Interface Connectors

The 50-pins Molex connector of the module and a 24 pins ZIF connector for the CMOS camera

provide the interface connection between GM862 and Transchip camera.

Molex 52991-0508 GM862 TC5747MF24L

Pin Signal I/O Notes Pin Signal I/O

46 GPIO3

PD(6)

O I2C bus serial clock 1 SCLK I

2-4-6 GND Ground 2 AGND I

50 GPIO7

CAM_PWR_ON

O External 2.8V Regulator enable

controlled by CAM_PWR_ON pin

3 AVDD28* I

34 GPIO9

PD(1)

O Camera Reset 4 RESET_N I

25 MON1

MON1_CAM

O Clock 5 CLK_IN** I

2-4-6 GND Ground 6 DGND I

n.c 7 DOUT_0 I/O

n.c 8 DOUT_1 I/O

n.c 9 DOUT_2 I/O

n.c 10 DOUT_3 I/O

n.c 11 DOUT_4 I/O

n.c 12 DOUT_5 I/O

n.c 13 DOUT_6 I/O

Type: TRANSCHIP TC5747

Technology: CMOS COLOR camera

Max picture size: VGA 480x640 pixels landscape

Output format: JPEG

Sensitivity: 4 Lux

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

n.c 14 DOUT_7 I/O

n.c 15 DOUT_8 I/O

n.c 16 VCLKOUT O

n.c 17 VALIDH O

n.c 18 VALIDV O

50 GPIO7

CAM_PWR_ON

O External 2.8V Regulator enable

controlled by CAM_PWR_ON pin

19 DVDD28 I

47 GPIO4

IICSDA_CAM

I/O I2C bus serial data 20 SDIN I/O

2-4-6 GND Ground 21 PS1 I

32 GPIO8

PD(0)

O Camera power type selector 22 PS2 I

2-4-6 GND Ground 23 SHIELD -

Flash Enable 24 LED_CTRL O

* Filter the AVDD28.

** Use a Buffer between module clk out, MON1_CAM and camera clk in, CLK_IN.

*** Non-connected.

10.1.2 EVB for Camera Support

In order to interface the Telit GM862-QUAD / PY with a CMOS camera, Telit has developed an

evaluation board. The EVB is provided by:

• 10 pin Berg male connector (PL201) and RS232 level translator that allows a direct connection to

the PC. To switch on the level translator a jumper shall be set on PL203.

• 12 pin Berg male connector (PL202) to supply the GM862-QUAD / PY mounted on the EVB. The

input source power should be in the range 4,5V-12V. Charge line is also provided in case a Li-Ion

battery is connected to the VBATT pins. Charge input must fulfil charger line requests.

• 50 pin Molex male connector (PL103) to interface with the GM862-QUAD / PY directly.

• 30 pin Berg male connector (PL101) to interface with a PCB developed by the user or the EVK

board. On this connector is available the complete audio path, the serial port lines with full

handshaking, and the pins ON, AXE, RESET, GPIO1 and STAT_LED. Also the CHARGER_IN pin

can be available placing a 0 ohm resistor.

• 18 pin ZIF female connector (SO101) for CMOS camera.

• ON/OFF button (SW102) to power on and off the module.

• GPIO1 button (SW101) for future applications.

• Led (DL101) for device status indication.

NOTE: The Philips 74LVC1G08GW must be placed close to the GM862 connector; the length of the line between

CAMERA connector and MOLEX 50 PIN of GM862 must be max 5cm anyway.

NOTE: The CMOS cameras must be removed when the GPIO pins are used for I/O purpose.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

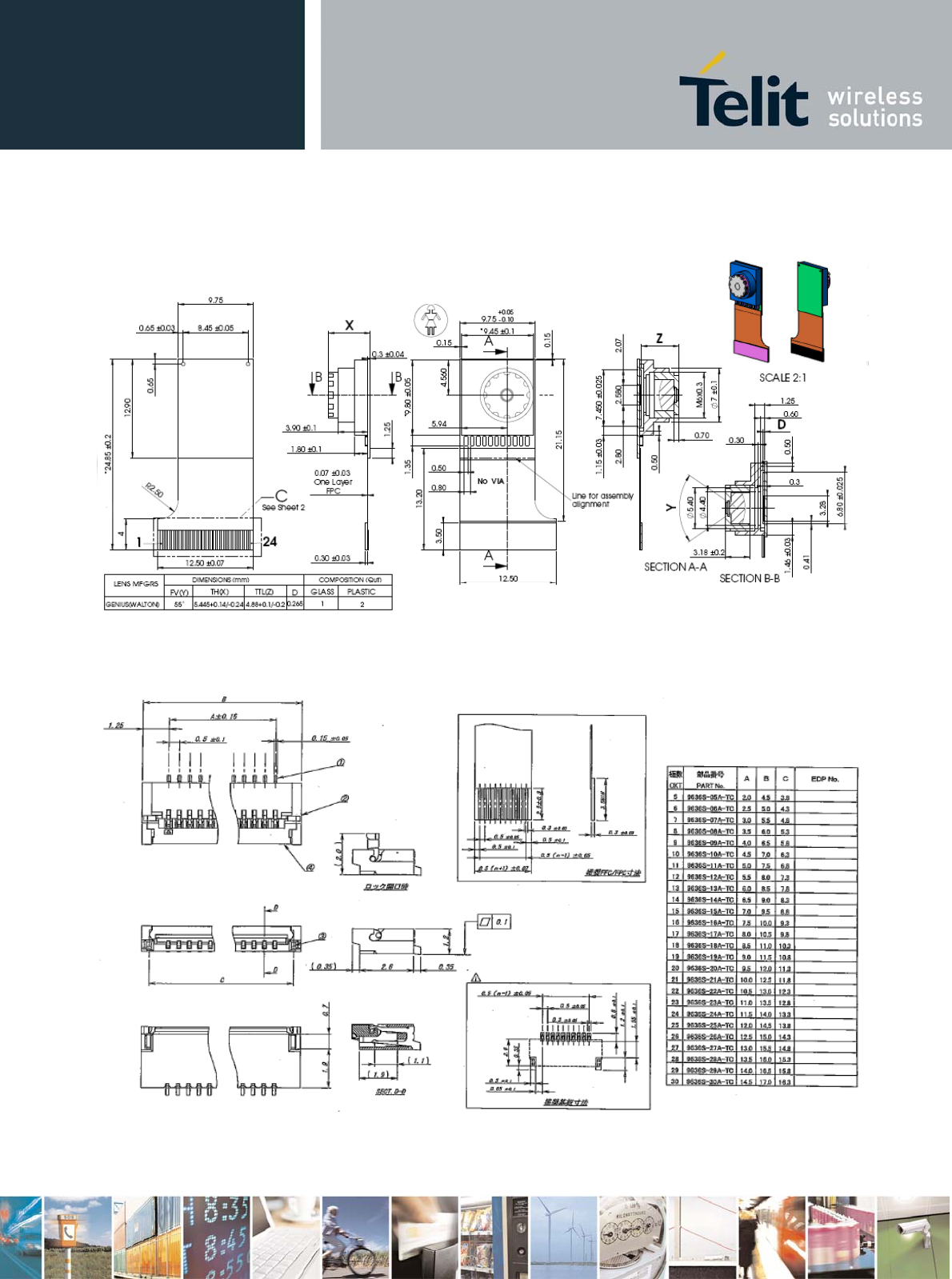

Pic 1. Camera Physical Detail & Connector

Pic 2. Camera Socket Connector

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

10.1.3 EVB for Transchip camera support

In order to interface the Telit GM862 with a CMOS camera, Telit has developed an evaluation board.

The EVK allow connecting all Telit modules through 2 connectors of 40 pins each.

The I2CBUS DUAL CAMERA board is plugged in the 2 connectors of 30 pins each on the module

board.

MODULE

BOARD

MAIN

BOARD

CAMERA

BOARD

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

10.1.4 Block Diagram for supported camera

DVDD is an external power supply of 2.8V, controlled or gated by pin CAM_PWR_ON.

GND

AVDD

CAM_CLK

GND

DVDD

IICSDA_CAM

GND

PD[1]

PD[0]

PD[6]

CAM_CLK

DVDD AVDD

GND

CAMERA TRANSCHIP

MON1_CAM

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

10.1.5 Schematic Diagrams for supported cameras

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

10.1.6 Example usage script for camera

Camera setting: (shown here are the defaults ones)

>AT#CAMSEL=0 (camera selection: 0-auto, 1-agilent, 2-transchip)

>AT#CMODE=0 (camera mode: 0-day, 1-night)

>AT#CAMQUA=0 (camera quality: 0-low, 1-medieum, 2-high)

>AT#CAMRES=0 (camera resolution: 0-VGA, 1-QVGA, 2-QQVGA)

>AT#CAMCOL=0* (camera color: 0-color, 1-grayscale)

>AT#CAMZOOM=0 (camera zoom: 0-x1, 1-x2, 2-x4)

>AT#CAMTXT=0* (camera timestamp: 0-no, 1-time only, 2-data only, 3-time&data)

Taking an reading a photo:

>AT#CAMEN=1 (camera ON)

>AT#TPHOTO (take photo)

>AT+OBJL? (see photo dimension)

#OBJL: Snapshot,38900 (where 38900 is the file dimension in bytes of the photo taken)

>AT#RPHOTO (download the photo)

…data….. (where …data… Correspond to the photo data in binary)

>AT#TPHOTO

>AT#RPHOTO Repeating photo capture and download n times

…data…..

>AT#CAMEN=O (camera OFF)

*only Transchip camera

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

11 Conformity Assessment Issues

The GM862-QUAD & GM862-QUAD-PY module is assessed to be conforming to the R&TTE Directive

as stand-alone products so If the module is installed in conformance with Telit Communications

installation instructions require no further evaluation under Article 3.2 of the R&TTE Directive and do

not require further involvement of a R&TTE Directive Notified Body for the final product.

In all other cases, or if the manufacturer of the final product is in doubt then the equipment integrating

the radio module must be assessed against Article 3.2 of the R&TTE Directive.

In all cases assessment of the final product must be made against the Essential requirements of the

R&TTE Directive Articles 3.1(a) and (b), safety and EMC respectively, and any relevant Article 3.3

requirements.

The GM862-QUAD & GM862-QUAD-PY module is conform with the following European Union

Directives:

• R&TTE Directive 1999/5/EC (Radio Equipment & Telecommunications Terminal Equipments)

• Low Voltage Directive 73/23/EEC and product safety

• Directive 89/336/EEC for conformity for EMC

In order to satisfy the essential requisite of the R&TTE 99/5/EC directive, the GM862-QUAD &

GM862-QUAD-PY module is compliant with the following standards:

• GSM (Radio Spectrum). Standard: EN 301 511 and 3GPP 51.010-1

• EMC (Electromagnetic Compatibility). Standards: EN 301 489-1 and EN 301 489-7

• LVD (Low Voltage Directive) Standards: EN 60 950

In this document and the Hardware User Guide, Software User Guide all the information you may

need for developing a product meeting the R&TTE Directive is included. The GM862-QUAD &

GM862-QUAD-PY module is conform with the following US Directives:

• Use of RF Spectrum. Standards: FCC 47 Part 24 (GSM 1900)

• EMC (Electromagnetic Compatibility). Standards: FCC47 Part 15

To meet the FCC's RF exposure rules and regulations:

- The system antenna(s) used for this transmitter must be installed to provide a separation distance of

at least 20 cm from all the persons and must not be co-located or operating in conjunction with any

other antenna or transmitter.

- The system antenna(s) used for this module must not exceed 3 dBi for mobile and fixed or mobile

operating configurations.

- Users and installers must be provided with antenna installation instructions and transmitter operating

conditions for satisfying RF exposure compliance.

Manufacturers of mobile, fixed or portable devices incorporating this module are advised to clarify any

regulatory questions and to have their complete product tested and approved for FCC compliance.

GM862-QUAD / PY Hardware User Guide

1vv0300748 Rev. 1 - 24/10/06

12 Document Change Log

ISSUE#0 16/10/06 Release First ISSUE# 0

ISSUE#1 24/10/06 Added chapter 11 (Conformity assessment Issues)

Telit Communications S p A GM862L Quad-Band GSM/GPRS module User Manual GM862 QUAD PY Hardware User Guide

Telit Communications S.p.A. Quad-Band GSM/GPRS module GM862 QUAD PY Hardware User Guide

Users Manual

Navigation menu

Namespaces

Views

Navigation
