UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

APPLICABILITY TABLE

PRODUCT

UE910-EU V2

UE910-NA V2

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

DISCLAIMER

While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no

liability resulting from any inaccuracies or omissions in this document, or from use of the information

obtained herein. The information in this document has been carefully checked and is believed to be

entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Telit reserves

the right to make changes to any products described herein and reserves the right to revise this

document and to make changes from time to time in content hereof with no obligation to notify any

person of revisions or changes. Telit does not assume any liability arising out of the application or use

of any product, software, or circuit described herein; neither does it convey license under its patent

rights or the rights of others.

It is possible that this publication may contain references to, or information about Telit products

(machines and programs), programming, or services that are not announced in your country. Such

references or information must not be construed to mean that Telit intends to announce such Telit

products, programming, or services in your country.

Copyrights

This instruction manual and the Telit products described in this instruction manual may be, include or

describe copyrighted Telit material, such as computer programs stored in semiconductor memories or

other media. Laws in the Italy and other countries preserve for Telit and its licensors certain exclusive

rights for copyrighted material, including the exclusive right to copy, reproduce in any form,

distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted

material of Telit and its licensors contained herein or in the Telit products described in this instruction

manual may not be copied, reproduced, distributed, merged or modified in any manner without the

express written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed

to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights,

patents or patent applications of Telit, as arises by operation of law in the sale of a product.

Computer Software Copyrights

The Telit and 3rd Party supplied Software (SW) products described in this instruction manual may

include copyrighted Telit and other 3rd Party supplied computer programs stored in semiconductor

memories or other media. Laws in the Italy and other countries preserve for Telit and other 3rd Party

supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive

right to copy or reproduce in any form the copyrighted computer program. Accordingly, any

copyrighted Telit or other 3rd Party supplied SW computer programs contained in the Telit products

described in this instruction manual may not be copied (reverse engineered) or reproduced in any

manner without the express written permission of Telit or the 3rd Party SW supplier. Furthermore, the

purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or

otherwise, any license under the copyrights, patents or patent applications of Telit or other 3rd Party

supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation

of law in the sale of a product.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Usage and Disclosure Restrictions

License Agreements

The software described in this document is the property of Telit and its licensors. It is furnished by

express license agreement only and may be used only in accordance with the terms of such an

agreement.

Copyrighted Materials

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by

law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language or computer language, in any form or by any means,

without prior written permission of Telit

High Risk Materials

Components, units, or third-party products used in the product described herein are NOT fault-tolerant

and are NOT designed, manufactured, or intended for use as on-line control equipment in the

following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities,

Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or

Weapons Systems (High Risk Activities"). Telit and its supplier(s) specifically disclaim any expressed

or implied warranty of fitness for such High Risk Activities.

Trademarks

TELIT and the Stylized T Logo are registered in Trademark Office. All other product or service

names are the property of their respective owners.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Contents

1. Introduction ............................................................................................................................. 8

1.1. Scope .................................................................................................................................. 8

1.2. Audience ............................................................................................................................. 8

1.3. Contact Information, Support .............................................................................................. 8

1.4. Document Organization ...................................................................................................... 9

1.5. Text Conventions ................................................................................................................ 9

1.6. Related Documents .......................................................................................................... 10

2. General Product Description ................................................................................................ 11

2.1. Overview ........................................................................................................................... 11

2.2. Product Specifications ...................................................................................................... 12

2.3. RoHS Compliance ............................................................................................................ 13

3. UE910 V2 Module Connections ............................................................................................ 14

3.1. Pin-Out .............................................................................................................................. 14

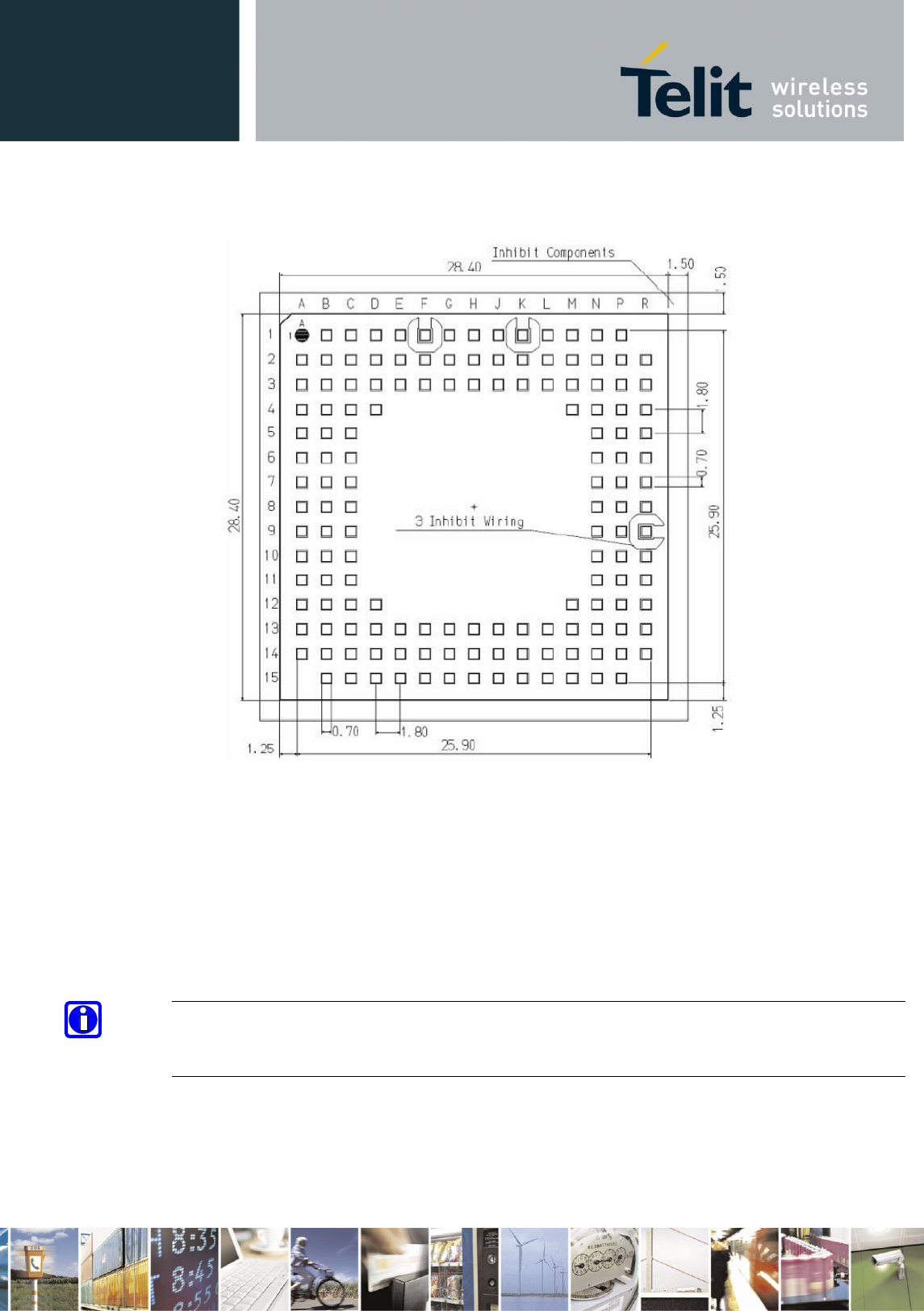

3.1.1. LGA Pads Layout .................................................................................................................. 19

4. Hardware Commands ........................................................................................................... 20

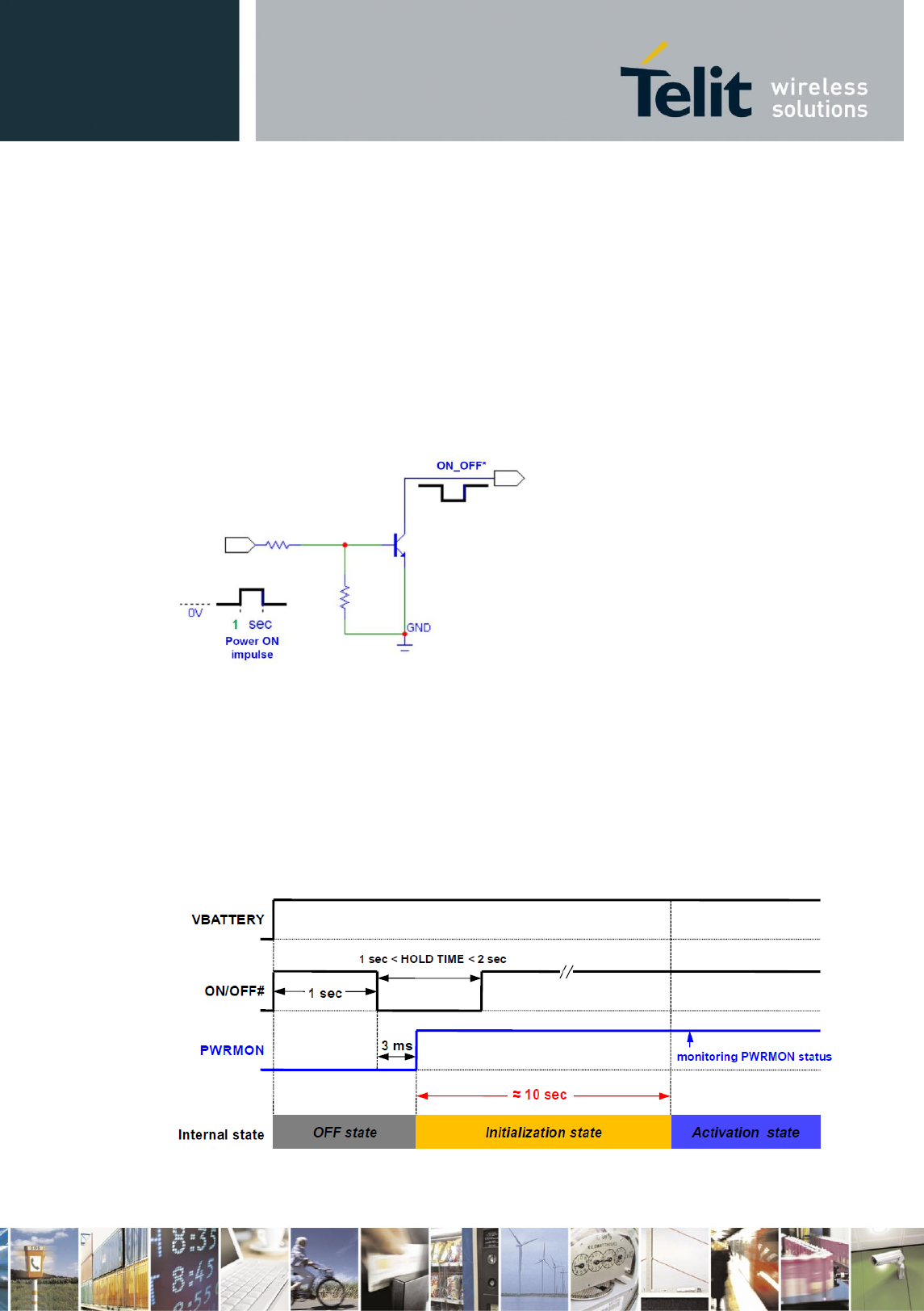

4.1. Turning on the UE910 V2 module ..................................................................................... 20

4.1.1. Initialization and Activation State ........................................................................................... 20

4.2. Turning off the UE910 V2 module ..................................................................................... 22

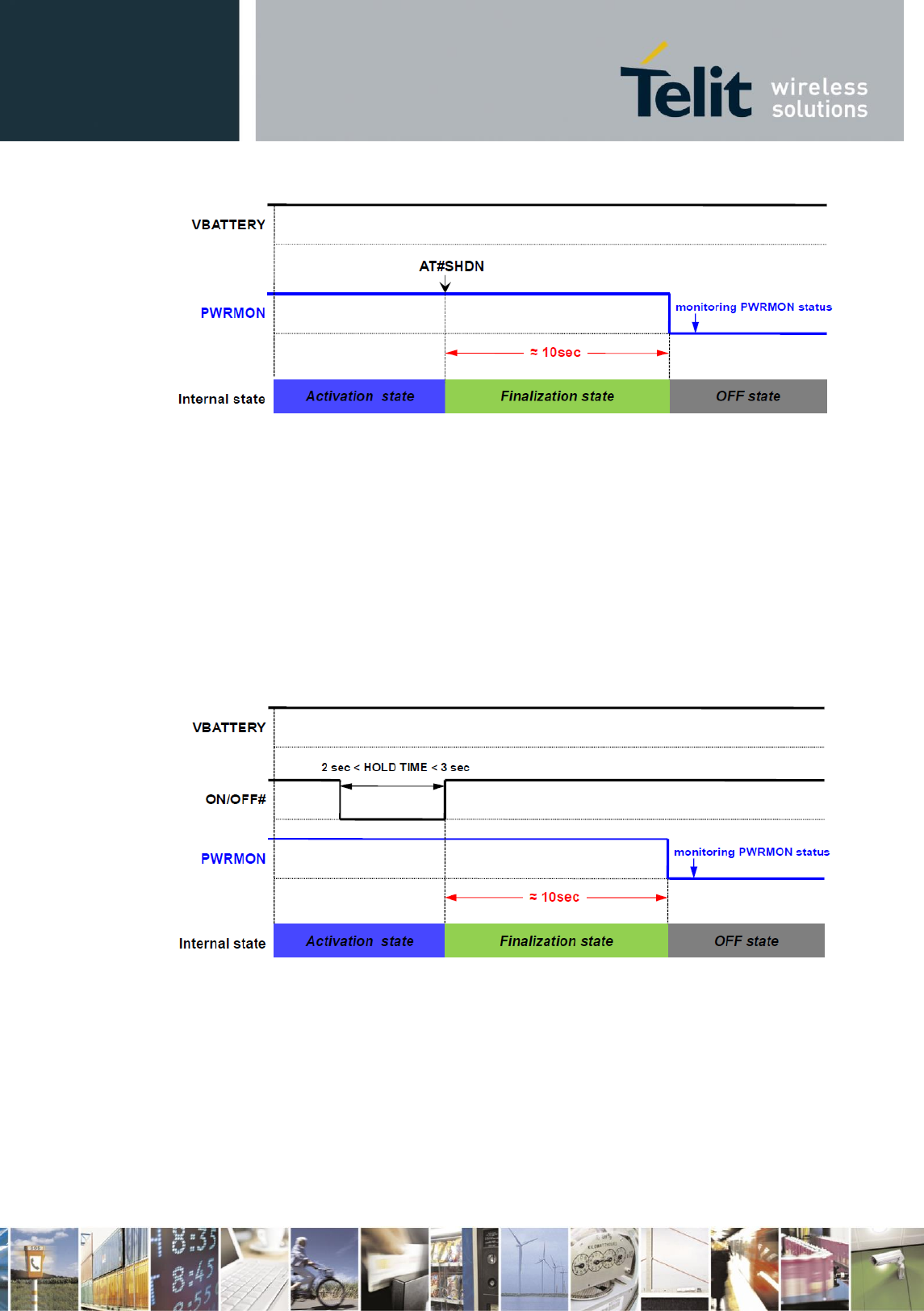

4.2.1. Turning OFF by AT Command .............................................................................................. 22

4.2.2. Turning OFF by tying low ON_OFF* ...................................................................................... 23

4.3. Summary of Turning ON and OFF the Module ................................................................. 23

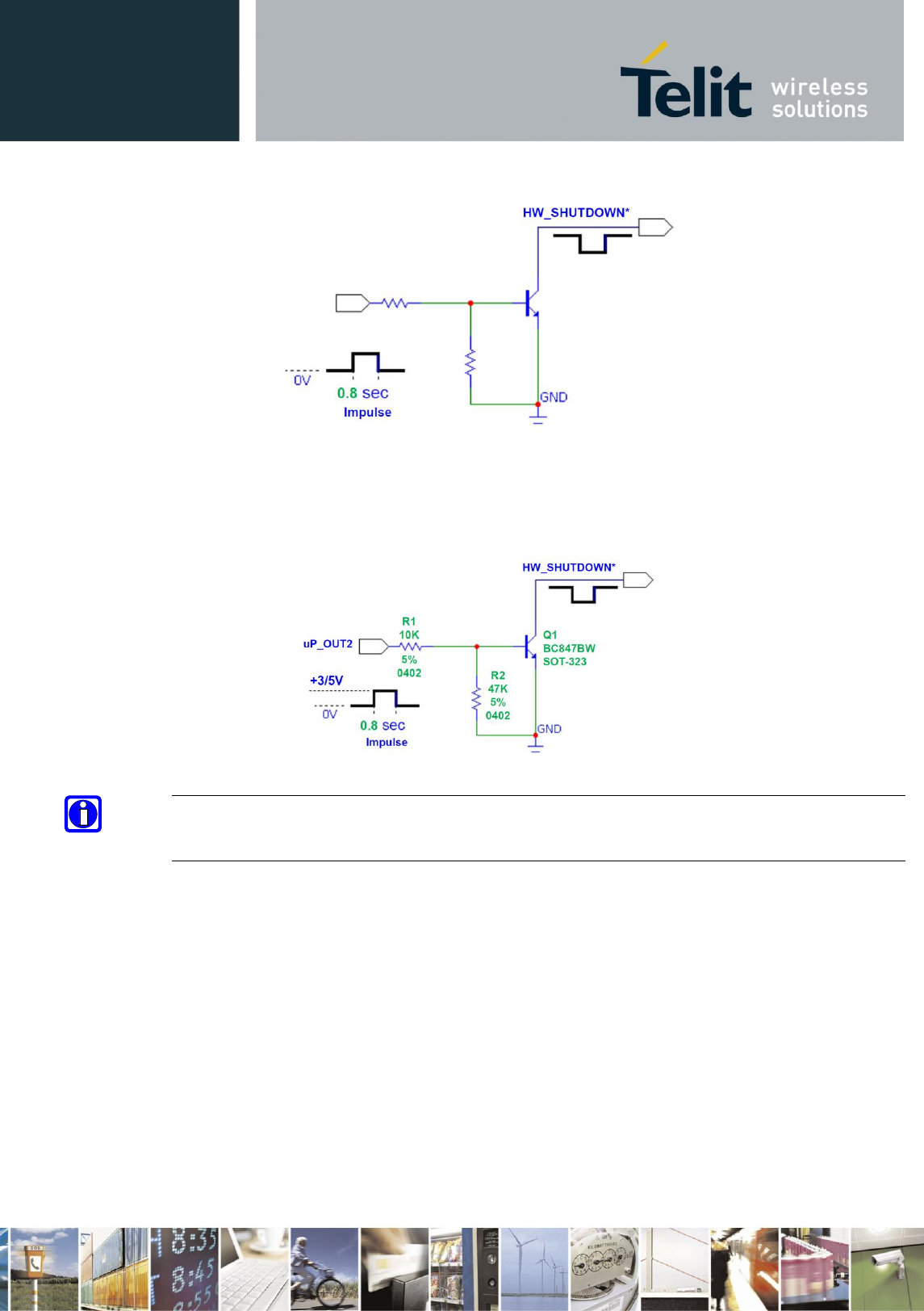

4.4. Hardware Unconditional Shutdown ................................................................................... 24

5. Power Supply ......................................................................................................................... 26

5.1. Power Supply Requirements ............................................................................................ 26

5.2. Power Supply Requirements ............................................................................................ 27

5.3. General Design Rules ....................................................................................................... 28

5.3.1. Electrical Design Guidelines .................................................................................................. 28

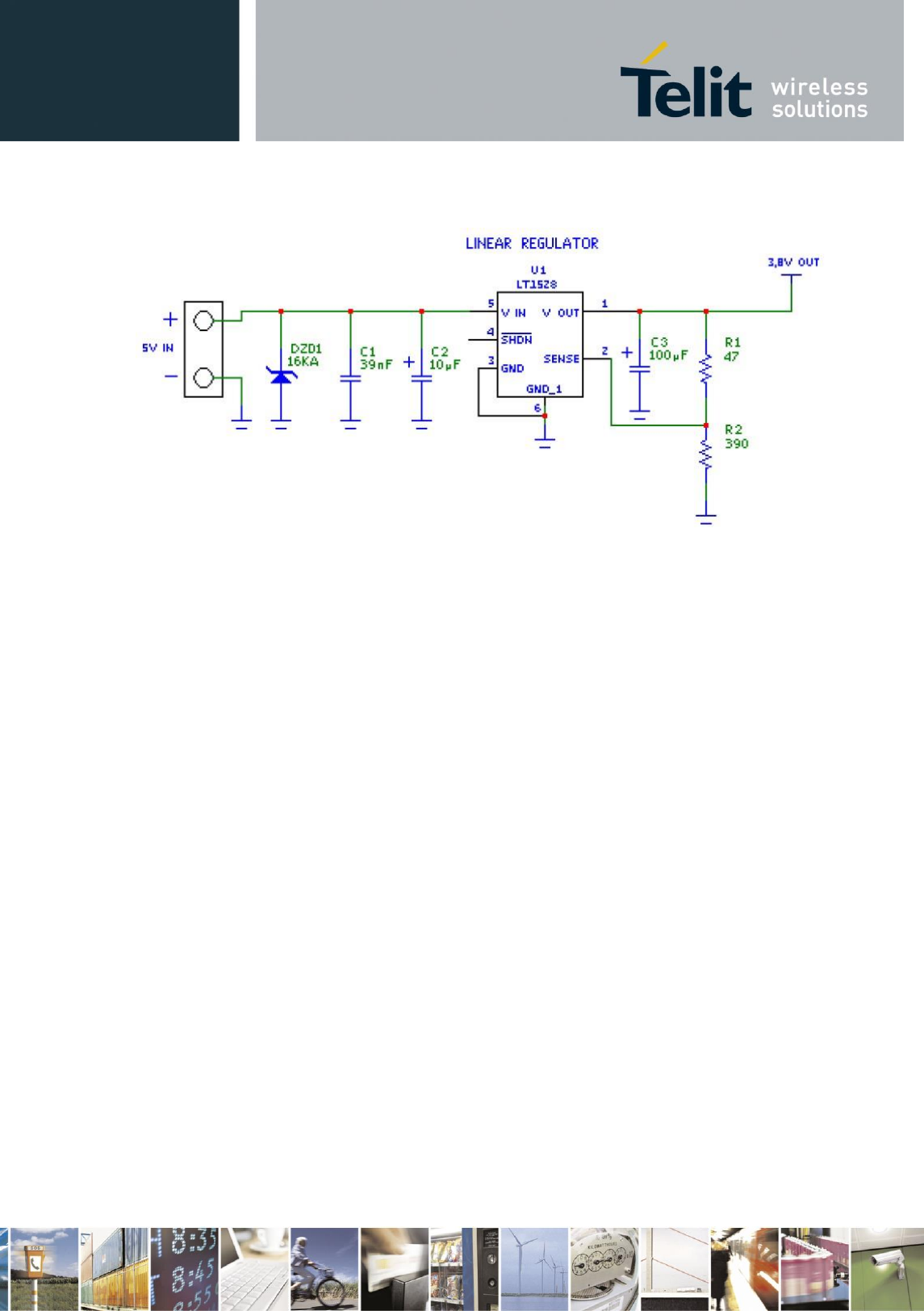

5.3.2. + 5V Input Source Power Supply Design Guidelines ............................................................. 28

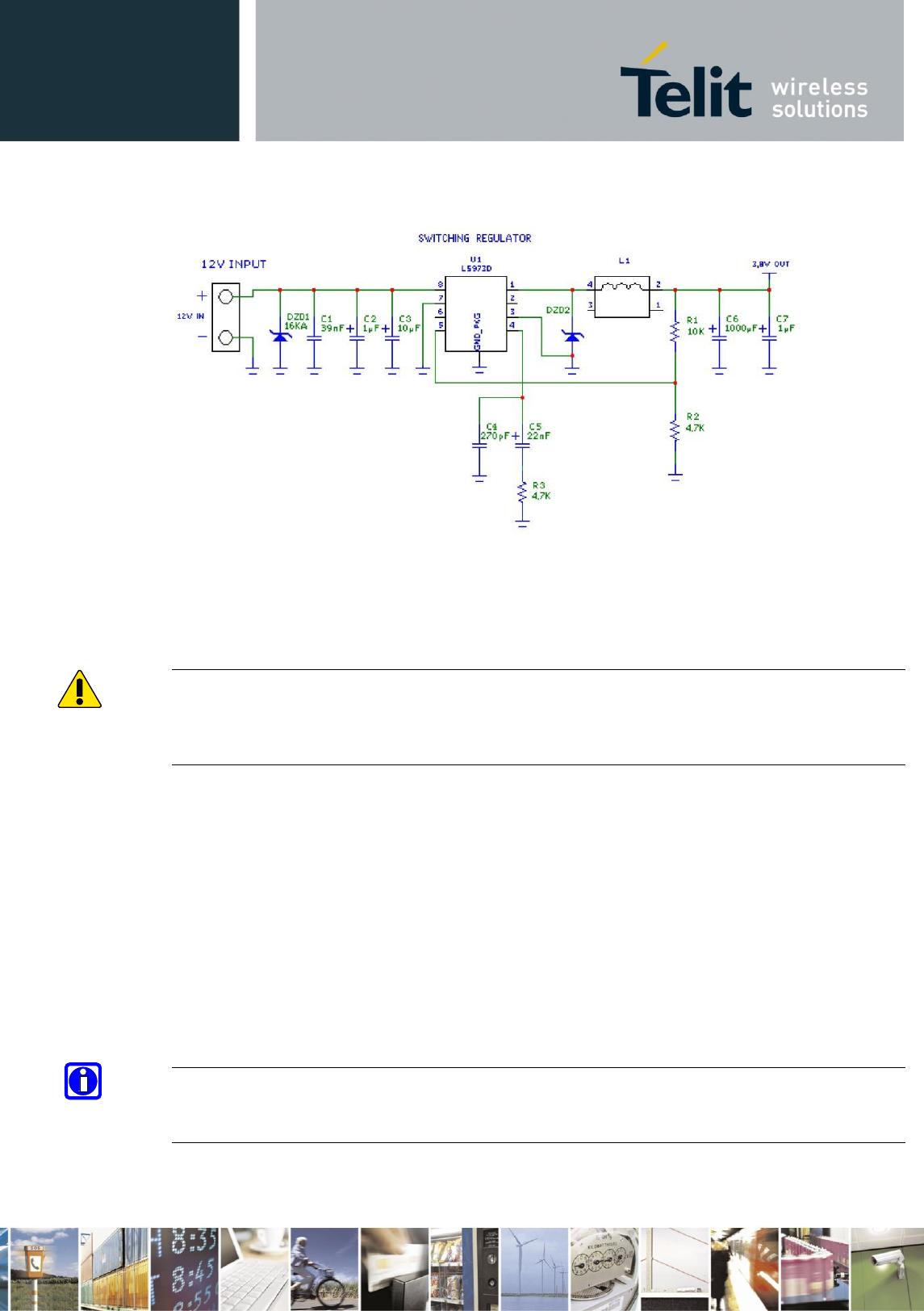

5.3.3. +12V Input Source Power Supply Design Guidelines ............................................................ 29

5.3.4. Battery Source Power Supply Design Guidelines .................................................................. 30

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

5.3.5. Thermal Design Guidelines ................................................................................................... 30

5.3.6. Power Supply PCB layout Guidelines .................................................................................... 31

6. Antenna .................................................................................................................................. 33

6.1. GSM/WCDMA Antenna Requirements ............................................................................. 33

6.2. GSM/WCDMA antenna – PCB line Guidelines ................................................................. 34

6.3. GSM/WCDMA Antenna installation Guidelines ....................................................................... 34

7. USB Port ................................................................................................................................ 36

8. Serial Port .............................................................................................................................. 37

8.1. Modem Serial Port 1 ......................................................................................................... 38

8.2. Modem Serial Port 2 ......................................................................................................... 40

8.3. RS232 Level Translation ................................................................................................... 41

9. Audio Section Overview ....................................................................................................... 42

9.1. Analog Audio Interface ...................................................................................................... 42

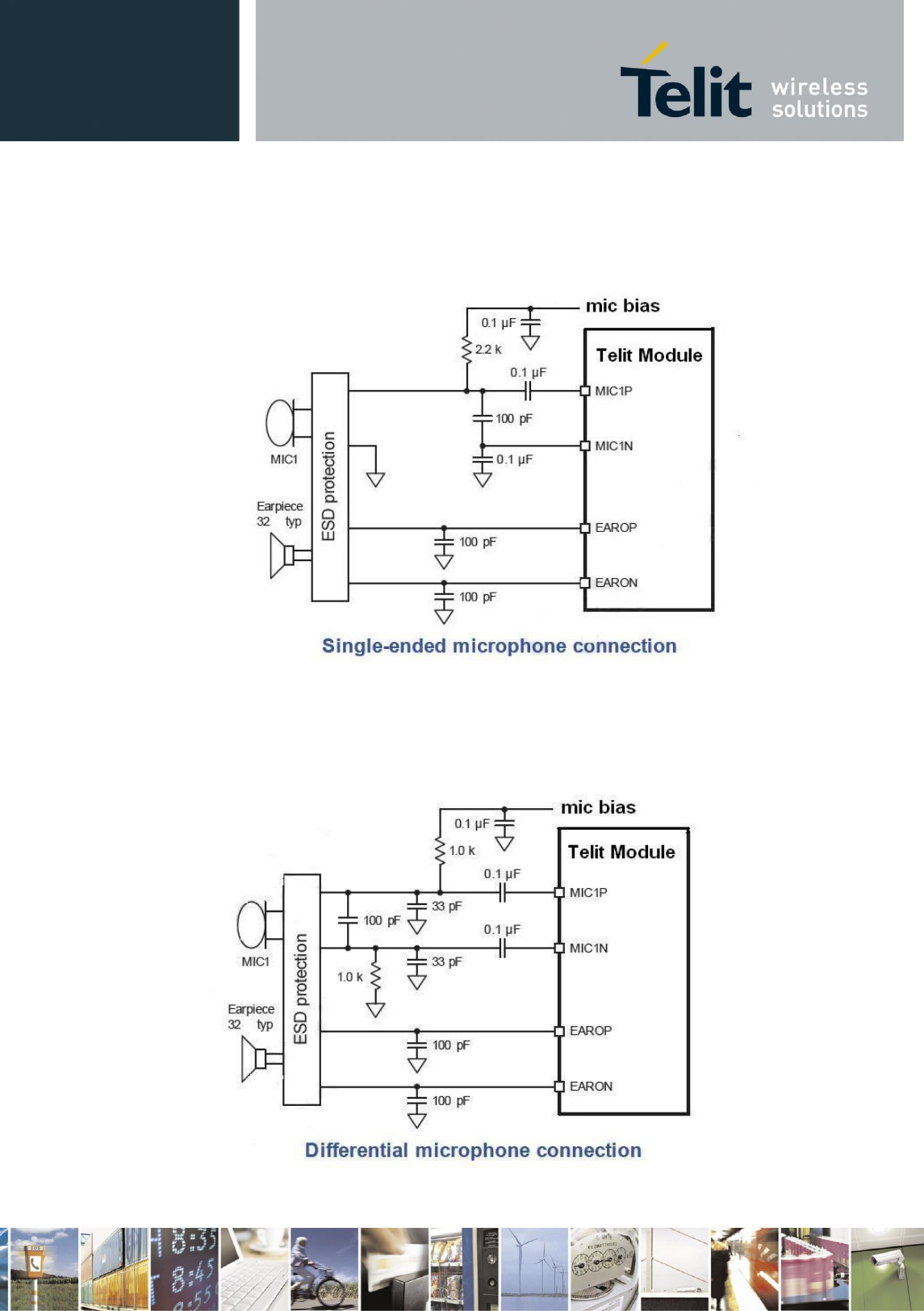

9.1.1. MIC Connection ..................................................................................................................... 43

9.1.2. LIN-IN Connection (TBD) ...................................................................................................... 44

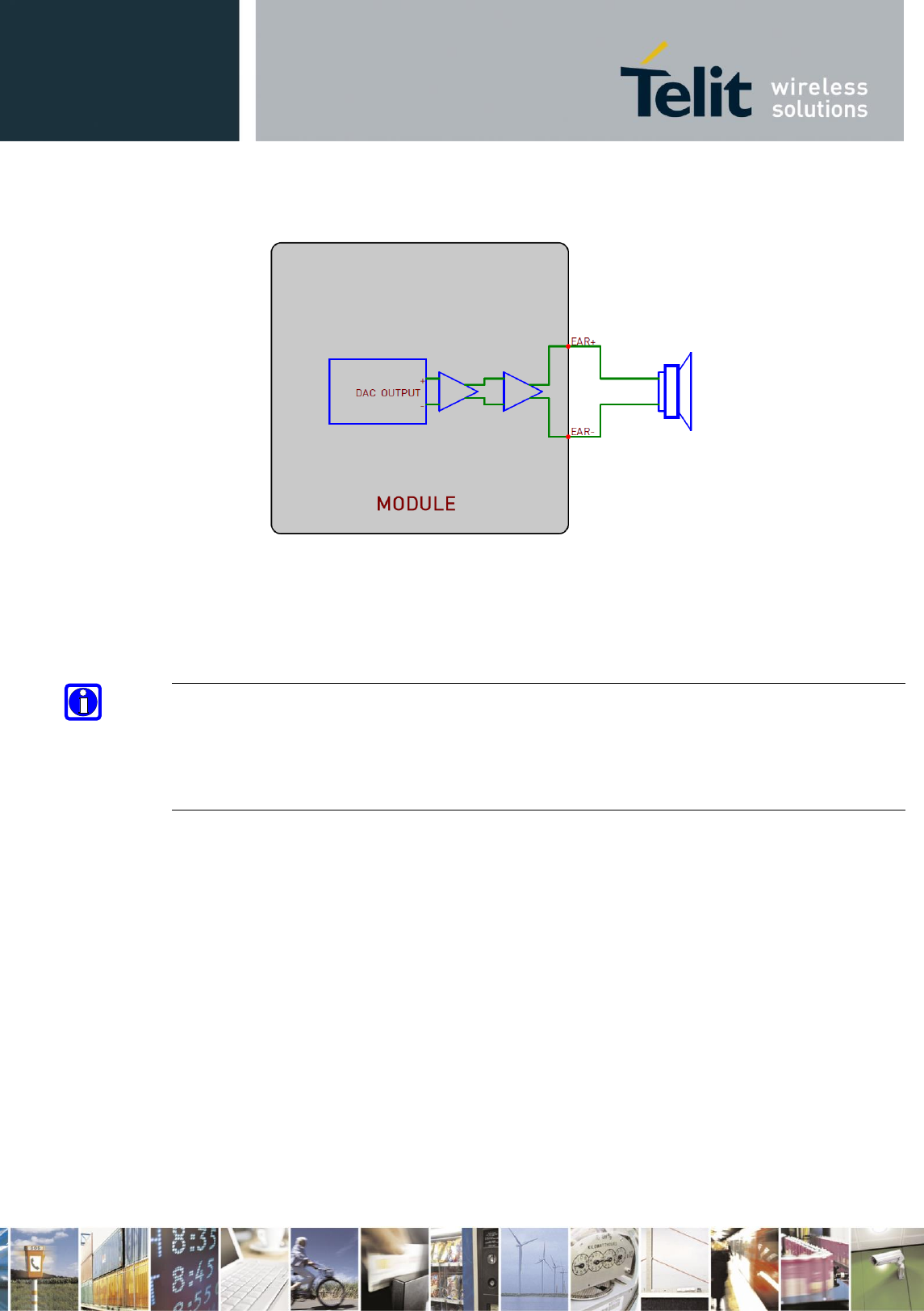

9.1.3. EAR Connection .................................................................................................................... 45

9.2. Digital Voice Interface(DVI) ............................................................................................... 46

9.2.1. CODEC Example .................................................................................................................. 46

10. General Purpose I/O ........................................................................................................... 47

10.1. Logic Level Specification ............................................................................................... 48

10.2. Using a GPIO Pad as Input ........................................................................................... 48

10.3. Using a GPIO Pad as Output ......................................................................................... 49

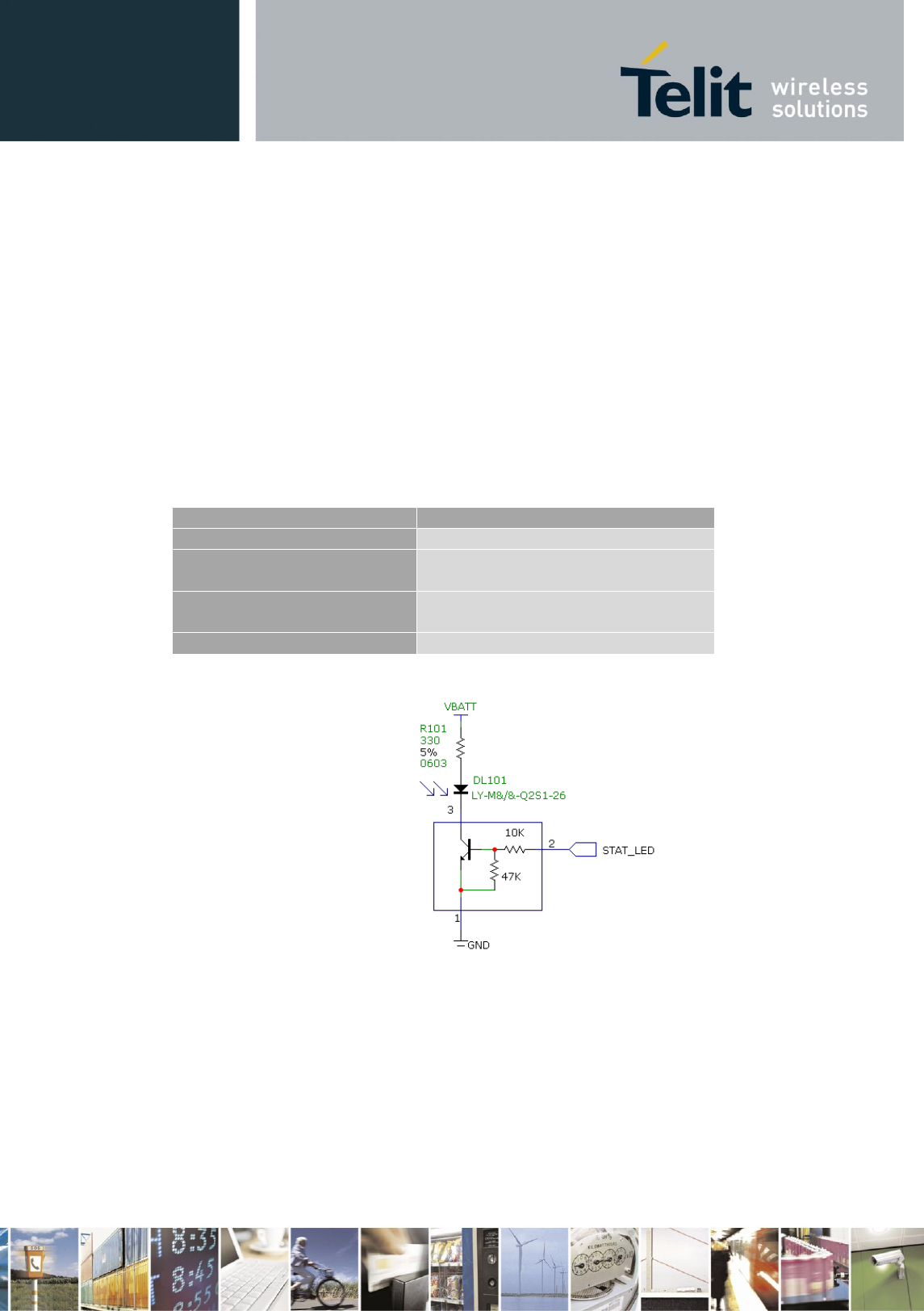

10.4. Indication of Network Service Availability ...................................................................... 49

10.5. RTC Bypass Output ....................................................................................................... 50

10.6. VAUX/PWRMON Power Output .................................................................................... 50

11. ADC section ........................................................................................................................ 51

11.1. Description ..................................................................................................................... 51

11.2. Using ADC Converter .................................................................................................... 51

12. Mounting UE910 V2 on the Application ........................................................................... 52

12.1. General .......................................................................................................................... 52

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

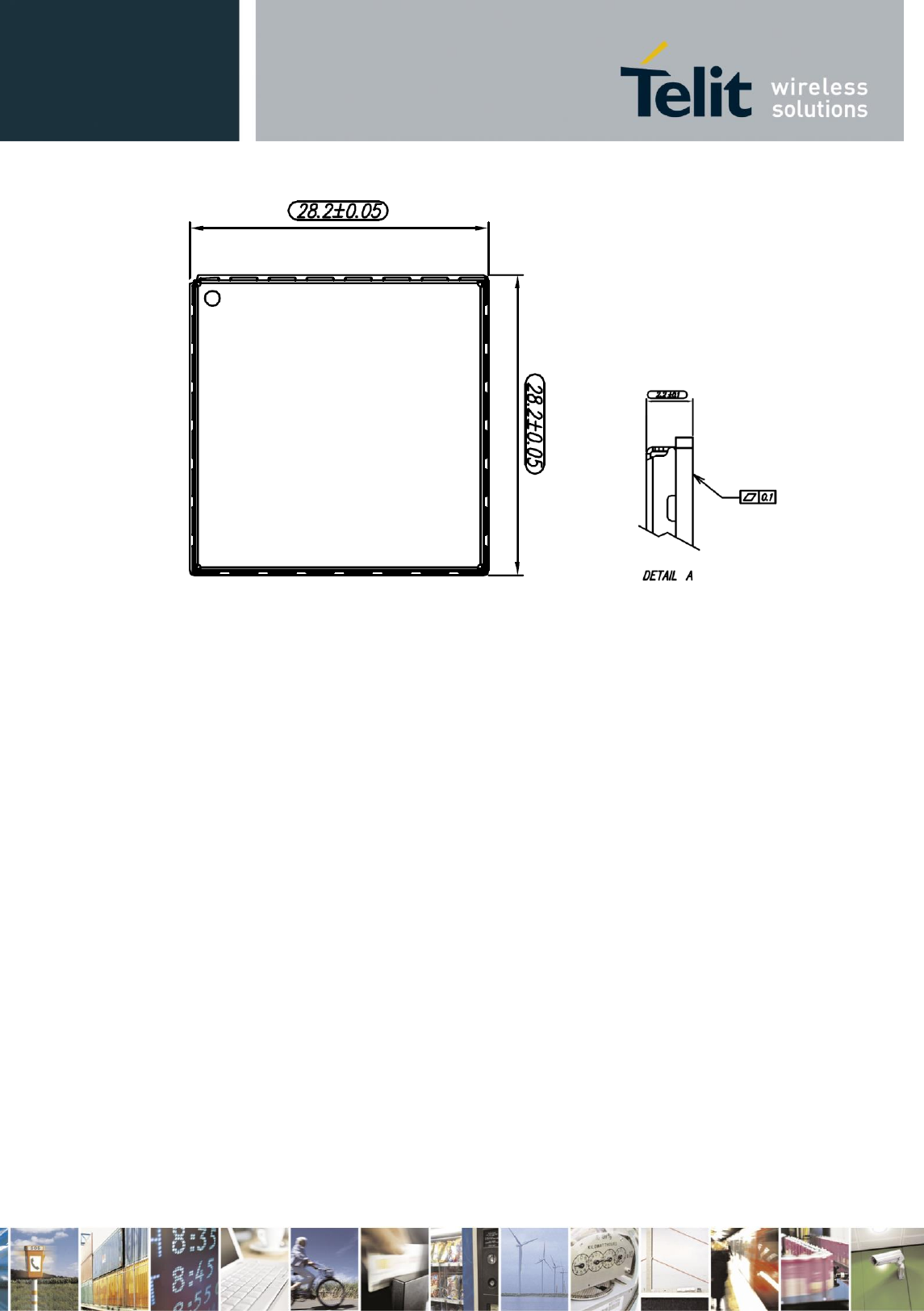

12.2. Module Finishing & Dimensions .................................................................................... 52

12.3. Recommended foot print for the application .................................................................. 54

12.4. Stencil ............................................................................................................................ 55

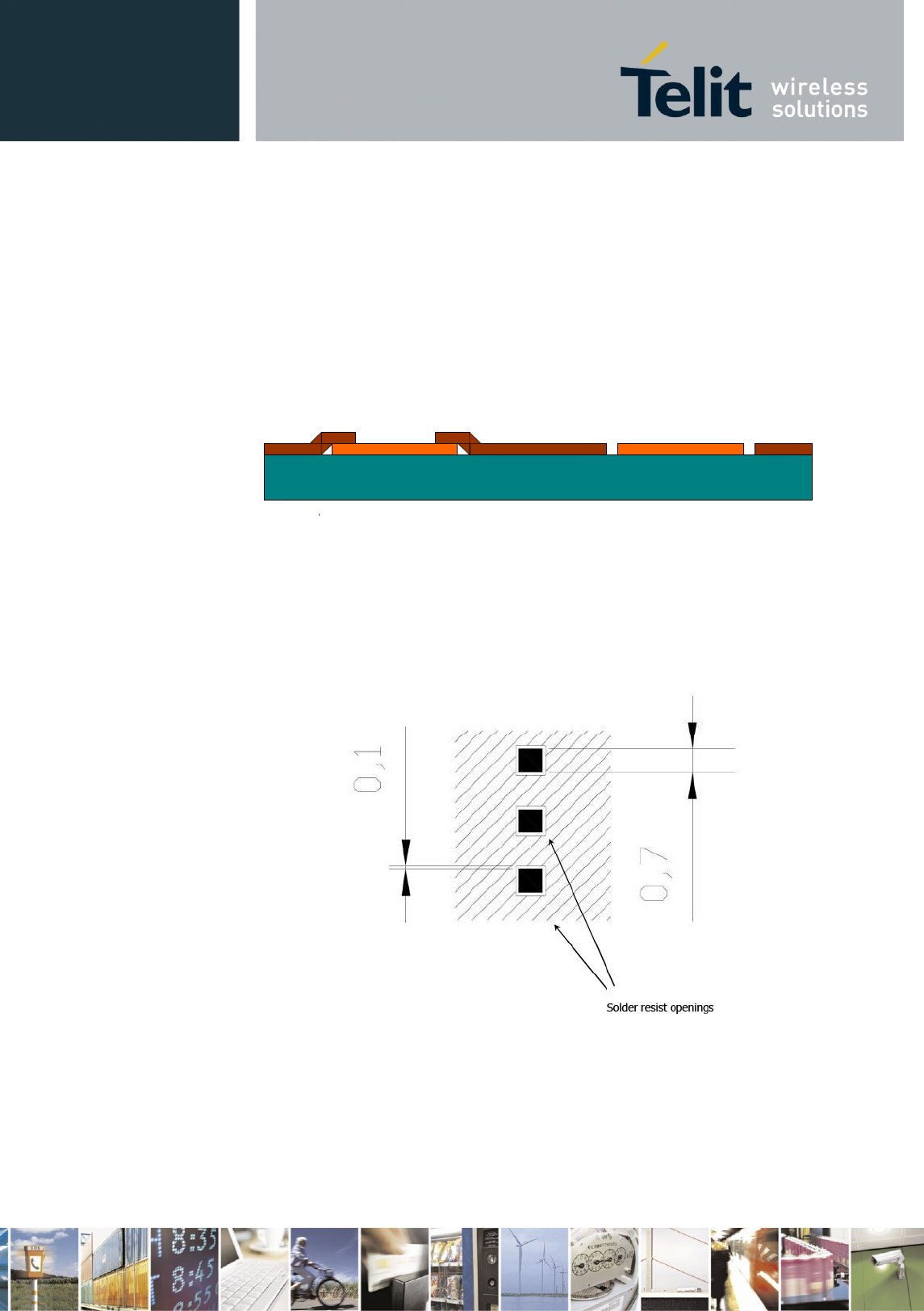

12.5. PCB Pad Design ............................................................................................................ 55

12.6. Recommendations for PCB Pad Dimensions (mm) ....................................................... 55

12.7. Solder Paste .................................................................................................................. 57

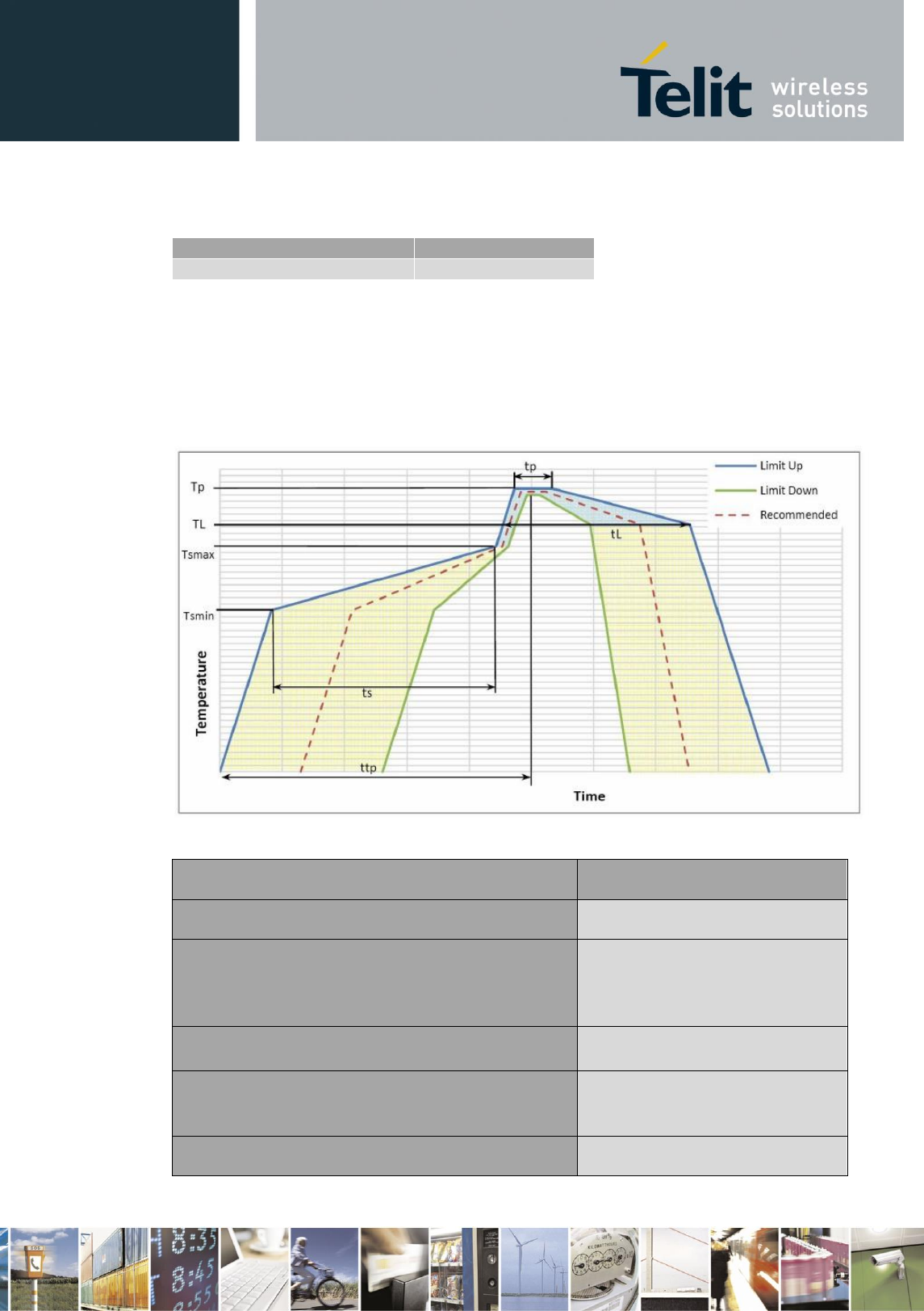

12.7.1. Solder Reflow ........................................................................................................................ 57

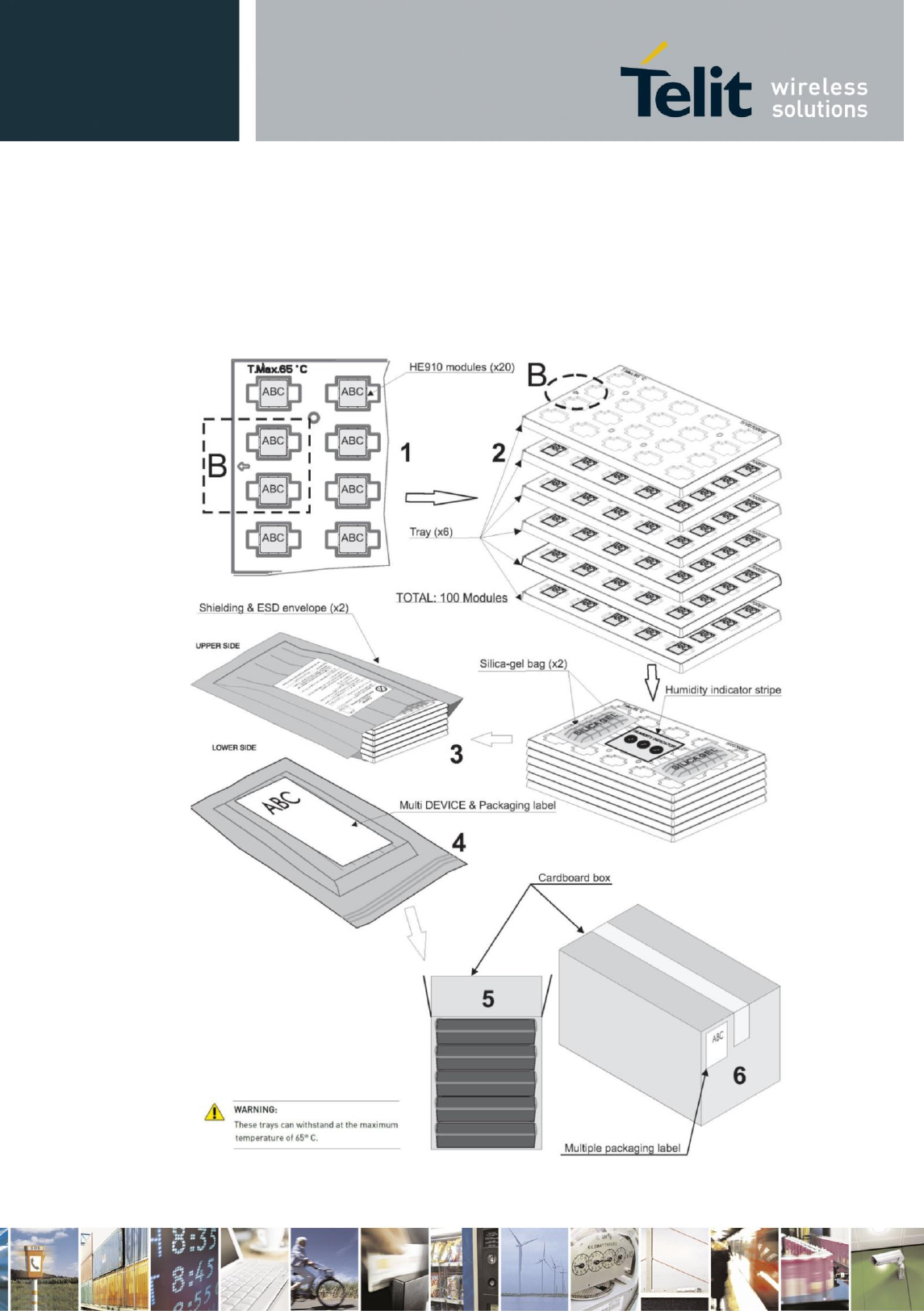

13. Packing System .................................................................................................................. 59

13.1. Moisture Sensibility ........................................................................................................ 61

14. Application Design Guide ................................................................................................. 62

14.1. Download and Debug Port ............................................................................................. 62

15. Conformity Assessment Issues(Problèmes d'évaluation de conformité) ..................... 63

15.1. 1999/5EC Directive ........................................................................................................ 63

15.2. FCC/IC Regulatory notices ............................................................................................ 64

16. Safety Recommendations ................................................................................................. 66

17. Document History .............................................................................................................. 67

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

1. Introduction

1.1. Scope

The aim of this document is the description of typical hardware solutions useful for developing a

product with the Telit UE910 V2 module.

1.2. Audience

This document is intended for Telit customers who are about to implement their applications using

our UE910 V2 modules.

1.3. Contact Information, Support

For general contact, technical support, to report documentation errors and to order manuals, contact

Telit Technical Support Center (TTSC) at:

TS-EMEA@telit.com

TS-NORTHAMERICA@telit.com

TS-LATINAMERICA@telit.com

TS-APAC@telit.com

Alternatively, use:

http://www.telit.com/en/products/technical-support-center/contact.php

For detailed information about where to buy the Telit modules or for recommendations on accessories

and components visit:

http://www.telit.com

To register for product news and announcements or for product questions contact Telit Technical

Support Center (TTSC).

Our aim is to make this guide as helpful as possible. Please keep us informed of comments and

suggestions for improvements.

Telit appreciates feedback from the users of our information.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

1.4. Document Organization

This document contains the following chapters:

Chapter 1: “Introduction” provides a scope for this document, target audience, contact and support

information, and text conventions.

Chapter 2: “General Product Description” gives an overview of the features of the product.

Chapter 3: “UE910 V2 Module Connections” deals with the pin out configuration and layout.

Chapter 4: “Hardware Commands” How to operate the module via hardware.

Chapter 5: “Power supply” Power supply requirements and general design rules.

Chapter 6: “Antenna” The antenna connection and board layout design are the most important parts in

the full product design.

Chapter 7: “USB Port” The USB port on the Telit UE910 V2 is the core of the interface between the

module and OEM hardware.

Chapter 8: “Serial ports” Refers to the serial ports of the Telit UE910 V2.

Chapter 9: “Audio Section overview” Refers to the audio blocks of the Base Band Chip of the UE910

V2 Telit Module.

Chapter 10: “General Purpose I/O” How the general purpose I/O pads can be configured.

Chapter 11: “ADC section” Deals with this one kind of converter.

Chapter 12: “Mounting UE910 V2 on the Application” Mechanical dimensions and

recommendations on how to mount the module on the user’s board.

Chapter 13: “Packing System” Deals with packing system.

Chapter 14: “Application Design Guide” Deals with the design of host system for download or

upgrade.

Chapter 15: “Conformity Assessment Issues” provides some fundamental hints about the conformity

assessment that the final application might need.

Chapter 16: “Safety Recommendation” provides some safety recommendations that must be followed

by the customer in the design of the application that makes use of the Telit UE910 V2.

Chapter 17: “Document History” provides document revision history of the Telit UE910 V2.

1.5. Text Conventions

Danger – This information MUST be followed or catastrophic equipment failure or bodily injury

may occur.

Caution or Warning – Alerts the user to important points about integrating the module. If these

points are not followed, the module and end user equipment may fail or malfunction.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Tip or Information – Provides advice and suggestions that may be useful when integrating the

module.

All dates are in ISO 8601 format, i.e. YYYY-MM-DD.

1.6. Related Documents

 UE910 V2 Software User Guide 1VV0301066

 UE910 V2 AT Commands Reference Guide 80419ST10124A

 Telit EVK2 User Guide 1vv0300704

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

2. General Product Description

2.1. Overview

The aim of this document is the description of typical hardware solutions useful for developing a

product with the Telit UE910 V2 module.

In this document all the basic functions of a mobile device will be taken into account; for each one of

them a proper hardware solution will be suggested and eventually the wrong solutions and common

errors to be avoided will be evidenced. Obviously this document cannot embrace all hardware

solutions and products that may be designed. Avoiding the discussed wrong solutions must be

considered as mandatory. While the suggested hardware configurations must not be considered

mandatory, the information given must be used as a guide and a starting point for properly developing

a product with the Telit UE910 V2 module.

NOTE:

The integration of the GSM/GPRS/EGPRS/WCDMA/HSDPA UE910 V2 module within a user

application must be done according to the design rules described in this manual.

The information presented in this document is believed to be accurate and reliable. However, no

responsibility is assumed by Telit Communication S.p.A. for its use, such as any infringement of

patents or other rights of third parties. No license is granted by implication or otherwise under any

patent rights of Telit Communication S.p.A. other than for circuitry embodied in Telit products. This

document is subject to change without notice.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

2.2. Product Specifications

ITEM

FEATUREs

UE910-EU V2

UE910-NA V2

Air Interface

 Dual-Bands WCDMA/HSDPA

900/2100MHz

 Dual-Bands EGSM 900/DCS1800MHz

 Dual-Bands WCDMA/HSDPA

850/1900MHz

 Dual-Bands GSM 850/PCS1900MHz

Data Service

 HSDPA : Uplink up to 384kbps / Downlink up to 3.6Mbps(cat-6)

 WCDMA : Uplink/Downlink up to 384kbps

 EDGE : Uplink/Downlink up to 236.8kbps

 GPRS : Uplink/Downlink up to 85.6kbps

 CSD : 9.6kbps

Power Class

for

Each band

 GSM /GPRS

- Power Class4 @ 900MHz

- Power Class1 @1800MHz

 EDGE

- Power Class E2@900MHz

- Power Class E2 @1800MHz

 WCDMA

- Power Class3@900/2100MHZ

 GSM /GPRS

- Power Class4@850MHz

- Power Class1@1900MHz

 EDGE

- Power Class E2@850MHz

- Power Class E2@1900MHz

 WCDMA

- Power Class3@850/1900MHZ

Multi-slot

Configuration

 GPRS/EDGE Multi-slot Configuration:

- EGSM900/DCS1800 : Multi-slot Class12(up to 4TX)

- GSM850/PCS1900 : Multi-slot Class10(up to 2TX)

Device

dimensions

 28.2mm(L) x 28.2mm(W) x 2.2mm(T)

Weight

 4.1g

Temperature

Range

 Storage and Operating temperature range : –40 ~ +85°C

Operating

voltage

 Operating Voltage Range : 3.4 ~ 4.2V

IO voltage

 1.8V

Interface

 144 Land-Grid-Array interface

 10 general I/O ports maximum including multi-functional I/Os

 State LED output

 1 A/D converter

 Full RS232 CMOS UART: baud rate up to 4Mbps

 USB High speed 2.0 : baud rate up to 480Mbps

Antenna

 900/1800/2100MHz

 850/1900MHz

Audio

 Analog audio interface ( 1 EAR/MIC)

 Digital Voice Interface

Message

 SMS (MO/MT)

Approvals

 R&TTE, GCF

 FCC, IC, PTCRB

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

2.3. RoHS Compliance

As a part of Telit’s corporate policy of environmental protection, the UE910 V2 complies with the

RoHS (Restriction of Hazardous Substances) directive of the European Union (EU directive

2002/95/EG).

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

3. UE910 V2 Module Connections

3.1. Pin-Out

Signal

I/O

Function

Type

USB HS 2.0 Communication Port

B15

USB_D+

I/O

USB differential Data(+)

C15

USB_D-

I/O

USB differential Data(-)

A13

VUSB

Power sense for the internal USB transceiver

Asynchronous UART – Prog. / data +HW Flow Control

N15

C103/TXD

Serial data input from DTE

CMOS 1.8V

M15

C104/RXD

Serial data output to DTE

CMOS 1.8V

M14

C108/DTR

Input for (DTR) from DTE

CMOS 1.8V

L14

C105/RTS

Input for (RTS) from DTE

CMOS 1.8V

P15

C106/CTS

Output for (CTS) to DTE

CMOS 1.8V

N14

C109/DCD

Output for (DCD) to DTE

CMOS 1.8V

P14

C107/DSR

Output for (DSR) to DTE

CMOS 1.8V

R14

C125/RING

Output for (RI) to DTE

CMOS 1.8V

SIM Interface

SIMVCC

External SIM signal – Power supply for the SIM

1.8/3V

SIMIN

External SIM signal – Presence (active low)

CMOS 1.8V

SIMIO

I/O

External SIM signal – Data I/O

1.8/3V

SIMCLK

External SIM signal – Clock

1.8/3V

SIMRST

External SIM signal – Reset

1.8/3V

Digital Voice interface

DVI_WA0

I/O

Digital Voice Inteface

CMOS 1.8V

DVI_RX

I/O

Digital Voice Inteface

CMOS 1.8V

DVI_TX

I/O

Digital Voice Inteface

CMOS 1.8V

DVI_CLK

I/O

Digital Voice Inteface

CMOS 1.8V

Analog Voice Interface

EAR+

Earphone signal output, phase +

EAR-

Earphone signal output, phase -

MIC+

Microphone input, phase +

MIC-

Microphone input, phase -

Digital IO

GPIO_01

I/O

GPIO_01 / STAT LED

CMOS 1.8V

GPIO_02

I/O

GPIO_02

CMOS 1.8V

C10

GPIO_03

I/O

GPIO_03

CMOS 1.8V

C11

GPIO_04

I/O

GPIO_04

CMOS 1.8V

B14

GPIO_05

I/O

GPIO_05

CMOS 1.8V

C12

GPIO_06

I/O

GPIO_06

CMOS 1.8V

C13

GPIO_07

I/O

GPIO_07

CMOS 1.8V

K15

GPIO_08

I/O

GPIO_08

CMOS 1.8V

L15

GPIO_09

I/O

GPIO_09

CMOS 1.8V

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Signal

I/O

Function

Type

G15

GPIO_10

I/O

GPIO_10

CMOS 1.8V

ADC Section

ADC_IN1

Analog to Digital converter input

A/D

RF Section

Antenna

I/O

GSM/WCDMA Antenna (50Ohm)

Miscellaneous Functions

R13

HW_SHUTDOWN*

Hardware Unconditional Shutdown

Pull up to VBATT

R12

ON_OFF*

Input Command for Power ON

CMOS 1.8V

C14

VRTC

RTC Power

Power

R11

VAUX/PWRMON

Supply Output for external accessories / Power

ON Monitor

1.8V

Power Supply

VBATT

Main Power Supply (Baseband)

Power

VBATT

Main Power Supply (Baseband)

Power

VBATT_PA

Main Power Supply (Radio PA)

Power

VBATT_PA

Main Power Supply (Radio PA)

Power

VBATT_PA

Main Power Supply (Radio PA)

Power

VBATT_PA

Main Power Supply (Radio PA)

Power

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Signal

I/O

Function

Type

GND

Ground

GND

Ground

GND

Ground

GND

Ground

P10

GND

Ground

R10

GND

Ground

M12

GND

Ground

B13

GND

Ground

P13

GND

Ground

E14

GND

Ground

Reserved

A10

Reserved

B10

Reserved

N10

Reserved

A11

Reserved

B11

Reserved

N11

Reserved

P11

Reserved

A12

Reserved

B12

Reserved

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Signal

I/O

Function

Type

D12

Reserved

N12

Reserved

P12

Reserved

D13

Reserved

E13

Reserved

F13

Reserved

G13

Reserved

H13

Reserved

J13

Reserved

K13

Reserved

L13

Reserved

M13

Reserved

N13

Reserved

A14

Reserved

D14

Reserved

F14

Reserved

G14

Reserved

H14

Reserved

J14

Reserved

K14

Reserved

D15

Reserved

E15

Reserved

F15

Reserved

H15

Reserved

J15

Reserved

WARNING:

Reserved pins must not be connected.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

NOTE:

If not used, almost all pins not in use must be left disconnected. The only exceptions are the following

pins:

PAD

Signal

Notes

M1,M2,N1,N2,P1,P2

VBATT&VBATT_PA

E1,G1,H1,J1,L1,A2,E2,F2,G2,H2,J

2,K2,L2,R2,M3,N3,P3,R3,D4,M4,N

4,P4,R4,N5,P5,R5,N6,P6,R6,P8,R8,

P9,P10,R10,M12,B13,P13,E14

GND

R12

ON/OFF*

R13

HW_SHUTDOWN*

B15

USB_D+

If not used it should be connected to a

Test point.

C15

USB_D-

If not used it should be connected to a

Test point.

A13

VUSB

If not used it should be connected to a

Test point.

N15

C103/TXD

If not used it should be connected to a

Test point.

M15

C104/RXD

If not used it should be connected to a

Test point.

L14

C105/RTS

If the flow control is not used it should

be connected to GND.

P15

C106/CTS

If not used it should be connected to a

Test point.

Main Antenna

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

3.1.1. LGA Pads Layout

Top View

NOTE:

The pin defined as RES must be considered RESERVED and not connected on any pin in the

application. The related area on the application has to be kept empty.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

4. Hardware Commands

4.1. Turning on the UE910 V2 module

To turn on the UE910 V2, the pad ON_OFF* must be tied low for at least 1 second and then released.

The maximum current that can be drained from the ON_OFF* pad is 0.1 mA.

A simple circuit to power on the module is illustrated below:

4.1.1. Initialization and Activation State

Upon turning on UE910 V2 module, the UE910 V2 module is not active yet because the boot

sequence of UE910 V2 is still executing internally. It takes about 10 seconds to complete the

initialization of the module internally.

For this reason, it would be useless to try to access UE910 V2 during the Initialization state as below.

The UE910 V2 module needs at least 10 seconds after the PWRMON goes High to become

operational by reaching the activation state.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

During the Initialization state, any kind of AT-command is not available. DTE must wait for the

Activation state to communicate with UE910 V2.

To check if the UE910 V2 has powered on, the hardware line VAUX/PWRMON must be monitored.

When VAUX/PWRMON goes high, the module has powered on.

NOTE:

Do not use any pull up resistor on the ON_OFF* line. It is pulled up with 250kΩ internally. Using a

pull up resistor may bring latch up problems on the UE910 V2 power regulator and improper power

on/off of the module. The line ON_OFF* must be connected only in open collector configuration.

NOTE:

In this document all the lines are inverted. Active low signals are labeled with a name that ends with

"*" or with a bar over the name.

NOTE:

In order to avoid a back powering effect it is recommended to avoid having any HIGH logic level

signal applied to the digital pins of the UE910 V2 module when the module is powered OFF or during

an ON/OFF transition.

For example:

1. To drive the ON_OFF* pad with a totem pole output of a +3/5 V microcontroller (uP_OUT1):

2. To drive the ON_OFF* pad directly with an ON/OFF button:

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

4.2. Turning off the UE910 V2 module

Turning off the device can be done in two ways:

 via AT command (see UE910 V2 Software User Guide, AT#SHDN)

 by tying low pin ON_OFF*

Either ways, the device issues a detach request to network informing that the device will not be

reachable any more.

To turn OFF the UE910 V2 the pad ON_OFF* must be tied low for at least 2 seconds and then

released.

TIP:

To check if the device has powered off, hardware line PWRMON must be monitored.

The device is powered off when PWRMON goes low.

NOTE:

In order to avoid a back powering effect it is recommended to avoid having any HIGH logic level

signal applied to the digital pins of the UE910 V2 when the module is powered OFF or during an

ON/OFF transition.

4.2.1. Turning OFF by AT Command

The UE910 V2 can be shut down by a software command.

When a shutdown command is sent, the UE910 V2 goes into the finalization state and will shut down

PWRMON at the end of this state. The period of the finalization state can vary according to the state

of the UE910 V2 so it cannot be fixed definitely.

Normally it will be 10 seconds after sending a shutdown command and DTE should monitor the status

of PWRMON to see the actual power off.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

4.2.2. Turning OFF by tying low ON_OFF*

To turn OFF the UE910 V2 the pad ON_OFF* must be tied low for at least 2 seconds and then

released. The same circuitry and timing for the power on must be used.

When the hold time of ON_OFF* is above 2 seconds, the UE910 V2 goes into the finalization state

and will shut down PWRMON at the end of this state.

The period of the finalization state can vary according to the state of the UE910 V2 so it cannot be

fixed definitely.

Normally it will be 10 seconds after releasing ON_OFF* and DTE should monitor the status of

PWRMON to see the actual power off.

4.3. Summary of Turning ON and OFF the Module

The chart below describes the overall sequences for turning ON and OFF the module.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

4.4. Hardware Unconditional Shutdown

The Unconditional shutdown of the module could be activated using the HW_SHUTDOWN*

line(pad R13).

WARNING:

The hardware unconditional shutdown must NOT be used during normal operation of the device since

it does not detach the device from the network. It shall be used as an emergency exit procedure.

To unconditionally shutdown the UE910 V2, the pad HW_SHUTDOWN* must be tied low for at

least 0.8 seconds and then released.

NOTE:

Do not use any pull up resistor on the HW_SHUTDOWN* line nor any totem pole digital output. It is

pulled up internally to VBATT with 57kΩ. Using an external pull up resistor may bring latch up

problems on the UE910 V2 power regulator and improper functioning of the module.

The line HW_SHUTDOWN* must be connected only in open collector configuration.

The HW_SHUTDOWN* will generate an unconditional shutdown of the module without an

automatic restart.

The module will shutdown but will NOT perform the detach from the cellular network.

To proper power on again the module please refer to 4.1 Turning ON the UE910 V2.

TIP:

The unconditional hardware shutdown must always be implemented on the boards and the software

must use it only as an emergency exit procedure.

A simple circuit to unconditionally shutdown the module is illustrated below:

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

For example:

Let us assume you need to drive the HW_SHUTDOWN* pad with a totem pole output of a +3/5 V

microcontroller (uP_OUT2):

NOTE: In order to avoid a back powering effect it is recommended to avoid having any HIGH logic

level signal applied to the digital pins of the UE910 V2 when the module is powered OFF or during

an ON/OFF transition.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

5. Power Supply

The power supply circuitry and board layout are a very important part in the full product design and

they strongly reflect on the product’s overall performance. Read carefully the requirements and the

guidelines that follow for a proper design.

5.1. Power Supply Requirements

The external power supply must be connected to VBATT & VBATT_PA signals and must fulfill the

following requirements:

Power Supply

Nominal Supply Voltage

3.8V

Normal Operating Voltage range

3.4V ~ 4.2V

Extended Operating Voltage range

3.4V ~ 4.5V

NOTE:

The Operating Voltage Range MUST never be exceeded. Special care must be taken when designing

the application’s power supply section to avoid having an excessive voltage drop.

If the voltage drop is exceeding the limits it could cause a Power Off of the module..

Behavior in the extended operating voltage range might deviate from 3GPP specification.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

5.2. Power Supply Requirements

Current Consumption

Mode

Average

(mA)

Mode Description

Power off current (Typical)

< 10uA

Standby mode

No call in progress

AT+CFUN=1

Normal mode; full functionality of the module

AT+CFUN=4

Disabled TX and RX; modules is not registered on the

network

AT+CFUN=0

AT+CFUN=5

4.8/1.2*

Power saving; CFUN=0 module registered on the

network and can receive voice call or an SMS; but it is

not possible to send AT commands; module wakes up

with an unsolicited code (call or SMS) or rising RTS

line.

CFUN=5 full functionality with power saving;

Module registered on the network can receive

incoming call sand SMS

Tx and Rx mode

A call in progress

Max Power Mode

700

WCDMA/HSDPA voice/data call

Max Power Mode

700

440

EU : GPRS Class12

NA : GPRS Class10

Max Power Mode

420

270

EU : EGPRS Class12

NA : EGPRS Class10

*Worst/best case depends on network configuration and is not under module control.

TIP:

The electrical design for the power supply should be made ensuring it will be capable of a peak

current output of at least 2A.

In GSM/GPRS mode, RF transmission is not continuous and it is packed into bursts at a base

frequency of about 216 Hz, and the relative current peaks can be as high as about 2A. Therefore the

power supply has to be designed in order to withstand these current peaks without big voltage drops;

this means that both the electrical design and the board layout must be designed for this current flow.

If the layout of the PCB is not well designed, a strong noise floor is generated on the ground; this will

reflect on all the audio paths producing an audible annoying noise at 216 Hz; if the voltage drops

during the peak, current absorption is too much. The device may even shut down as a consequence of

the supply voltage drop.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

5.3. General Design Rules

The principal guidelines for the Power Supply Design embrace three different design steps:

 the electrical design

 the thermal design

 the PCB layout

5.3.1. Electrical Design Guidelines

The electrical design of the power supply depends strongly on the power source where this power is

drained. We will distinguish them into three categories:

 +5V input (typically PC internal regulator output)

 +12V input (typically automotive)

 Battery

5.3.2. + 5V Input Source Power Supply Design Guidelines

 The desired output for the power supply is 3.8V, hence there is not a big difference

between the input source and the desired output so a linear regulator can be used. A

switching power supply will not be suitable because of the low drop-out requirements.

 When using a linear regulator, a proper heat sink must be provided in order to dissipate

the power generated.

 A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the

current absorption peaks close to the UE910 V2. A tantalum 100μF capacitor is usually

suited.

 Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is

rated at least 10V.

 A protection diode must be inserted close to the power input in order to save the UE910

V2 from power polarity inversion.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

An example of a linear regulator with 5V input:

5.3.3. +12V Input Source Power Supply Design Guidelines

 The desired output for the power supply is 3.8V, hence due to the big difference between

the input source and the desired output, a linear regulator is not suitable and must not be

used. A switching power supply would be preferable because of its better efficiency,

especially with the 2A peak current load represented by UE910 V2.

 When using a switching regulator, a 500 kHz or more switching frequency regulator is

preferable because of its smaller inductor size and its faster transient response. This

allows the regulator to respond quickly to the current peaks absorption.

 In any case, the frequency and switching design selection is related to the application to

be developed due to the fact the switching frequency could also generate EMC

interferences.

 For car PB battery the input voltage can rise up to 15.8V and this must be kept in mind

when choosing components: all components in the power supply must withstand this

voltage.

 A bypass low ESR capacitor of adequate capacity must be provided in order to cut the

current absorption peaks. A 100μF tantalum capacitor is usually suited for this.

 Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is

rated at least 10V.

 For car applications a spike protection diode must be inserted close to the power input in

order to clean the supply from spikes.

 A protection diode must be inserted close to the power input in order to save the UE910

V2 from power polarity inversion. This can be the same diode as for spike protection.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

An example of switching regulator with 12V input is in the schematic below:

5.3.4. Battery Source Power Supply Design Guidelines

The desired nominal output for the power supply is 3.8V and the maximum voltage allowed is 4.2V.

A single 3.7V lithium-ion cell battery type is ideal to supply power to the Telit UE910 V2 module.

WARNING:

The three battery cells (Ni/Cd or Ni/MH 3.6V nom. battery types or 4V PB types) MUST NOT be

used directly because their maximum voltage can rise over the absolute maximum voltage for the

UE910 V2 and cause damage. USE only Li-Ion battery types.

 A bypass low (usually a 100uF tantalum) ESR capacitor with adequate capacity must be

provided in order to cut the current absorption peaks.

 Make sure the low ESR capacitor (usually a tantalum) is rated at least 10V.

 A protection diode must be inserted close to the power input in order to protect the

UE910 V2 module from power polarity inversions when connecting the battery.

 The battery capacity must be at least 500mAh in order to withstand the current peaks of

2A. The suggested battery capacity is from 500mAh to 1000mAh.

5.3.5. Thermal Design Guidelines

The thermal design for the power supply heat sink must be done with the following specifications:

Average current consumption during GSM/WCDMA @PWR level max : 700mA

NOTE:

The average consumption during transmissions depends on the power level at which the device is

requested to transmit via the network. The average current consumption hence varies significantly.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Considering the very low current during idle, especially if the Power Saving function is enabled, it is

possible to consider from the thermal point of view that the device absorbs current significantly only

during calls.

If we assume that the device stays in transmission for short periods of time (a few minutes) and then

remains for quite a long time in idle (one hour), then the power supply always has time to cool down

between the calls and the heat sink could be smaller than the calculated for 700mA maximum RMS

current. There could even be a simple chip package (no heat sink).

Moreover in average network conditions the device is requested to transmit at a lower power level

than the maximum and hence the current consumption will be less than 700mA (usually around 200

mA).

For these reasons the thermal design is rarely a concern and the simple ground plane where the power

supply chip is placed can be enough to ensure a good thermal condition and avoid overheating.

The heat generated by the UE910 V2 must be taken into consideration during transmission at

23.5dBm max during calls. This generated heat will be mostly conducted to the ground plane under

the UE910 V2. The application must be able to dissipate heat.

In the GSM/WCDMA mode, since UE910 V2 emits RF signals continuously during transmission,

special attention must be paid to how to dissipate the heat generated.

The current consumption will be up to about 700mA in GSM/WCDMA continuously at the maximum

TX output power. Thus, you must arrange the area on the application PCB must be as large as

possible under UE910 V2.

The UE910 V2 must be mounted on the large ground area of the application board and make many

ground vias to dissipate the heat.

5.3.6. Power Supply PCB layout Guidelines

As seen in the electrical design guidelines, the power supply must have a low ESR capacitor on the

output to cut the current peaks and a protection diode on the input to protect the supply from spikes

and polarity inversion. The placement of these components is crucial for the correct operation of the

circuitry. A misplaced component can be useless or can even decrease the power supply performance.

 The bypass low ESR capacitor must be placed close to the Telit UE910 V2 power input

pads, or if the power supply is a switching type, the capacitor can be placed close to the

inductor to cut the ripple if the PCB trace from the capacitor to UE910 V2 is wide enough

to ensure a drop-less connection even during the 2A current peaks.

 The protection diode must be placed close to the input connector where the power source

is drained.

 The PCB traces from the input connector to the power regulator IC must be wide enough

to ensure no voltage drops occur when the 2A current peaks are absorbed. While a

voltage drop of hundreds of mV may be acceptable from the power loss point of view, the

same voltage drop may not be acceptable from the noise point of view. If the application

does not have an audio interface but only uses the data feature of the Telit UE910 V2,

then this noise is not as disruptive and the power supply layout design can be more

forgiving.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

 The PCB traces to UE910 V2 and the Bypass capacitor must be wide enough to ensure no

significant voltage drops occur when the 2A current peaks are absorbed. This is a must

for the same above-mentioned reasons. Try to keep this trace as short as possible.

 The PCB traces connecting the switching output to the inductor and the switching diode

must be kept as short as possible by placing the inductor and the diode very close to the

power switching IC (only for switching power supply). This is done in order to reduce the

radiated field (noise) at the switching frequency (usually 100-500 kHz).

 The use of a good common ground plane is suggested.

 The placement of the power supply on the board must be done in a way to guarantee that

the high current return paths in the ground plane are not overlapped with any noise

sensitive circuitry such as the microphone amplifier/buffer or earphone amplifier.

The power supply input cables must be kept separate from noise sensitive lines such as

microphone/earphone cables.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

6. Antenna

The antenna connection and board layout design are the most important parts in the full product

design and they strongly reflect on the product’s overall performance. Read carefully and follow the

requirements and the guidelines for a proper design.

6.1. GSM/WCDMA Antenna Requirements

The antenna for a Telit UE910 V2 device must fulfill the following requirements:

When using the Telit UE910 V2, since there’s no antenna connector on the module, the antenna must

be connected to the UE910 V2 antenna pad (K1) by means of a transmission line implemented in the

PCB.

In the case that the antenna is not directly connected at the antenna pad of the UE910 V2, then a PCB

line is required. This transmission line shall fulfill the following requirements:

Antenna Line on PCB Requirements

Characteristic Impedance

50Ohm

Max Attenuation

0.3dB

Coupling with other signals shall be avoided

Cold End (Ground Plane) of antenna shall be equipotential to the UE910 V2 ground pads

GSM / WCDMA Antenna Requirements

Frequency

range

Depending on the frequency band(s) provided by the network operator, the

customer must use the most suitable antenna for that/those band(s)

Bandwidth

UE910-EU V2

UE910-NA V2

EGSM900 : 80 MHz

GSM1800(DCS) : 170 MHz

WCDMA FDD-I(2100) : 250 MHz

WCDMA FDD-VIII(900) : 80 MHz

GSM850 : 70 MHz

GSM1900(PCS) : 140 MHz

WCDMA FDD-II(1900) : 140 MHz

WCDMA FDD-V(850) : 70 MHz

Gain

Gain < 3dBi

Impedance

50 Ohm

Input power

> 33dBm(2 W) peak power in GSM

> 23.5dBm Average power in WCDMA

VSWR

absolute max

<= 5:1(limit to avoid permanent damage)

VSWR

recommended

<= 2:1(limit to fulfill all regulatory requirements)

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Furthermore if the device is developed for the US and/or Canada market, it must comply with the

FCC and/or IC approval requirements:

This device is to be used only for mobile and fixed application. The antenna(s) used for this

transmitter must be installed to provide a separation distance of at least 20 cm from all persons and

must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users

must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM

integrators must ensure that the end user has no manual instructions to remove or install the UE910

V2 module. Antennas used for this OEM module must not exceed 2dBi gain for mobile and fixed

operating configurations.

6.2. GSM/WCDMA antenna – PCB line Guidelines

 Make sure that the transmission line’s characteristic impedance is 50ohm.

 Keep line on the PCB as short as possible since the antenna line loss shall be less than around

0.3dB.

 Line geometry should have uniform characteristics, constant cross section, avoid meanders and

abrupt curves.

 Any kind of suitable geometry/structure can be used for implementing the printed transmission

line afferent the antenna.

 If a Ground plane is required in line geometry, that plane has to be continuous and sufficiently

extended so the geometry can be as similar as possible to the related canonical model.

 Keep, if possible, at least one layer of the PCB used only for the Ground plane; If possible, use

this layer as reference Ground plane for the transmission line.

 It is wise to surround (on both sides) the PCB transmission line with Ground. Avoid having

other signal tracks facing directly the antenna line track.

 Avoid crossing any un-shielded transmission line footprint with other tracks on different layers.

 The Ground surrounding the antenna line on PCB has to be strictly connected to the main

Ground plane by means of via holes (once per 2mm at least) placed close to the ground edges

facing line track.

 Place EM noisy devices as far as possible from UE910 V2 antenna line.

 Keep the antenna line far away from the UE910 V2 power supply lines.

 If EM noisy devices are present on the PCB hosting the UE910 V2, such as fast switching ICs,

take care of shielding them with a metal frame cover.

 If EM noisy devices are not present around the line use of geometries like Micro strip or

Grounded Coplanar Waveguide are preferred since they typically ensure less attenuation when

compared to a Strip line having same length.

6.3. GSM/WCDMA Antenna installation Guidelines

 Install the antenna in a place covered by the GSM/WCDMA signal.

 If the device antenna in the application is located greater then 20cm from the human body and

there are no co-located transmitters then the Telit FCC/IC approvals can be re-used by the end

product.

 Antenna shall not be installed inside metal cases.

 Antenna shall be installed also according to antenna manufacture instructions.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

WARNING:

Consider a mechanical design and a low-capacitance ESD protection device to protect UE910 V2 or

customer specific requirements from ESD event to Antenna port (K1).

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

7. USB Port

The UE910 V2 module includes a Universal Serial Bus (USB) transceiver, which operates at USB

High-speed (480Mbits/sec) and slave mode only.

It is compliant with the USB 2.0 specification and can be used for diagnostic monitoring, control and

data transfers.

The table below describes the USB interface signals:

Signal

I/O

Function

Type

B15

USB_D+

I/O

USB differential Data(+)

C15

USB_D-

I/O

USB differential Data(+)

A13

VUSB

Power sense for the internal USB transceiver

The table below describes the VUSB specification:

Parameter

Min

Typ

Max

Input voltage

4.75V

5.0V

5.25V

WARNING:

Consider a mechanical design and a low-capacitance ESD protection device to protect UE910 V2 or

customer specific requirements from ESD event to USB lines (B15, C15 and A13).

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

8. Serial Port

The serial port on the Telit UE910 V2 is the interface between the module and OEM hardware.

Only one serial port is available on the module:

 Modem Serial Port 1 (Main)

Several configurations can be designed for the serial port on the OEM hardware.

The most common are:

 RS232 PC comport

 Microcontroller UART@1.8V(Universal Asynchronous Receiver Transmit)

 Microcontroller UART@5V or other voltages different from 1.8V

Depending on the type of serial port on the OEM hardware, a level translator circuit may be needed to

make the system work.

On the UE910 V2 the ports are CMOS 1.8V.

The electrical characteristics of the serial port are explained in the following tables:

Absolute Maximum Ratings -Not Functional

Parameter

Min

Max

Input level on non-power pin with respect to ground

-0.3

+2.3V

Operating Range - Interface levels (1.8V CMOS)

Parameter

Min

Max

Input high level

1.5V

2.1 V

Input low level

0.35V

Output high level

1.35V

1.8V

Output low level

0.45V

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

8.1. Modem Serial Port 1

The serial port 1 on the UE910 V2 is a +1.8V UART with all 7 RS232 signals.

It differs from the PC-RS232 in the signal polarity (RS232 is reversed) and levels.

RS232

Pin #

Signal

UE910

Pad No.

Function

Usage

C109/DCD

N14

Data Carrier Detect

Output from the UE910 V2 that

indicates the carrier presence

C104/RXD

M15

Transmit line *see Note

Output transmit line of the UE910

V2 UART

C103/TXD

N15

Receive line *see Note

Input receive of the UE910 V2

UART

C108/DTR

M14

Data Terminal Ready

Input to the UE910 V2 that

controls the DTE READY

condition

GND

C107/DSR

P14

Data Set Ready

Output from the UE910 V2 that

indicates the module is ready

C106/CTS

P15

Request to Send

Output from the UE910 V2 that

controls the hardware flow control

C105/RTS

L14

Clear to Send

Input to the UE910 V2 that

controls the hardware flow control

C125/RI

R14

Ring Indicator

Output from the UE910 V2 that

indicates the incoming call

condition

The following table shows the typical value(pulled inside the baseband chipset) and status for input

lines in all module states:

Signal/State

OFF

RESET

Power saving

PU tied to

TXD

unknown

Pull Down

(21K~210K)

Pull Up

(39K~390K)

Pull Up

(39K~390K)

1.8V

RTS

Pull Down

(21K~210K)

DTR

Pull Up

(39K~390K)

NOTE:

According to V.24, RX/TX signal names are referred to the application side. Therefore, on the UE910

V2 side these signals are on the opposite direction:

TXD on the application side will be connected to the receive line (here named C103/TXD)

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

RXD in the application side will be connected to the transmit line (here named C104/RXD)

NOTE:

For minimum implementation, only the TXD and RXD lines must be connected, the other lines can be

left open provided a software flow control is implemented.

NOTE:

In order to avoid a back powering effect it is recommended to avoid having any HIGH logic level

signal applied to the digital pins of the UE910 V2 when the module is powered off or during an

ON/OFF transition.

NOTE:

High-speed UART supports up to 4Mbps. Please refer to the AT command User Guide in detail.

WARNING:

Consider a mechanical design and a low-capacitance ESD protection device to protect UE910 V2 or

customer specific requirements from ESD event to UART port (M15, N15, P15 and L14).

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

8.2. Modem Serial Port 2

The secondary serial port on the UE910 V2 is not supported.

PAD

Signal

I/O

Function

Type

D15

Reserved

E15

Reserved

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

8.3. RS232 Level Translation

In order to interface the Telit UE910 V2 with a PC com port or a RS232 (EIA/TIA-232) application, a

level translator is required. This level translator must:

 Invert the electrical signal in both directions

 Change the level from 0/1.8V to +/-15V

Actually, the RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower levels

on the RS232 side (EIA/TIA-562), allowing a lower voltage-multiplying ratio on the level translator.

Note that the negative signal voltage must be less than 0V and hence some sort of level translation is

always required. The simplest way to translate the levels and invert the signal is by using a single chip

level translator. There is a multitude of them, differing in the number of drivers and receivers and in

the levels (be sure to get a true RS232 level translator not a RS485 or other standards). By convention

the driver is the level translator from the 0-1.8V UART to the RS232 level. The receiver is the

translator from the RS232 level to 0-1.8V UART.

In order to translate the whole set of control lines of the UART you will need:

 5 drivers

 3 receivers

An example of RS232 level adaption circuitry could be accomplished using a MAXIM transceiver

(MAX218). In this case the chipset is capable of translating directly from 1.8V to the RS232 levels

(Example on 4 signals only).

The RS232 serial port lines are usually connected to a DB9 connector with the following layout:

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

9. Audio Section Overview

The UE910 V2 provides an analog audio interface and digital audio interface.

9.1. Analog Audio Interface

The UE910 V2 provides an analog audio interface; one differential input for audio to be

transmitted(Uplink) and a balanced output for audio to be received(Downlink).

The bias for the microphone has to be as clean as possible; the first connection (single ended) is

preferable since the Vmic noise and ground noise are fed into the input as common mode and then

rejected. This sounds strange; usually the connection to use in order to reject the common mode is the

balanced one. In this situation we have to recall that the microphone is a sound to current transducer,

so the resistor is the current to tension transducer, so finally the resistor feeds the input in balanced

way even if the configuration, from a microphone point of view, seems to be un-balanced.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

9.1.1. MIC Connection

If a “balanced way” is anyway desired, much more care has to be taken to VMIC noise and ground

noise.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

TIP: Since the J-FET transistor inside the microphone acts as RF-detector-amplifier, ask vendor for a

microphone with anti-EMI capacitor (usually a 33pF or a 10pF capacitor placed across the output

terminals inside the case).

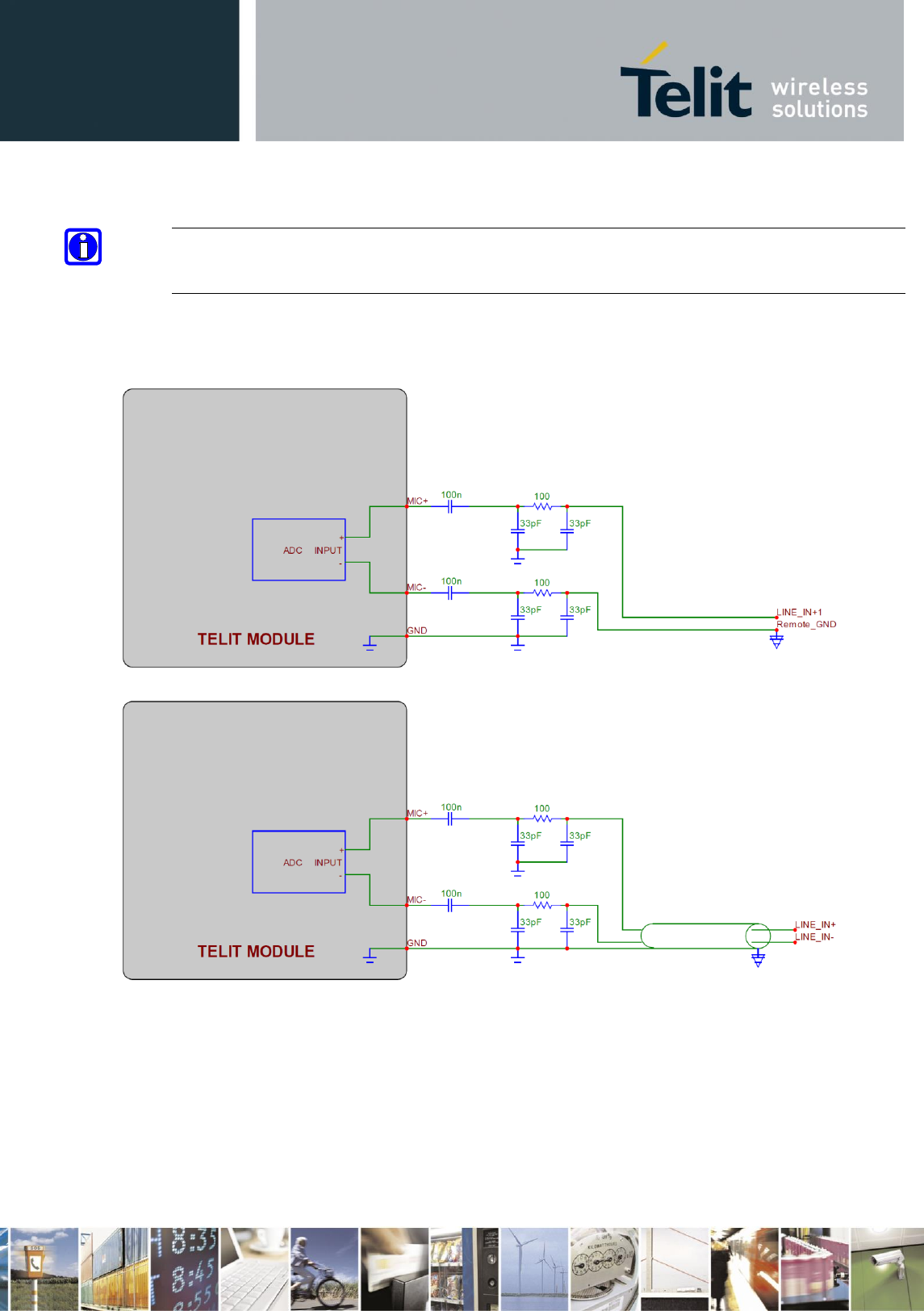

9.1.2. LIN-IN Connection (TBD)

If the audio source is not a mike but a different device, the following connections can be done. Place

100nF capacitor in series with both inputs, so the DC current is blocked. Place the 33pF-100Ohm-

33pF RF-filter, in order to prevent some EMI field to get into the high impedance high gain MIC

inputs. Since the input is differential, the common mode voltage noise between the two (different)

grounds is rejected, provided that both AF_IN+ & AF_IN- are connected directly onto the source.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

9.1.3. EAR Connection

The audio output of the UE910 V2 is balanced, this is helpful to double the level and to reject

common mode (click and pop are common mode and therefore rejected). These outputs can drive

directly a small loudspeaker with electrical impedance not lower than 32Ohm.

TIP: in order to get the maximum audio level at a given output voltage level (dBspl/Vrms), the

following breaking through procedure can be used. Have the loudspeaker as close as you can to the

listener (this simplify also the echo cancelling); choose the loudspeaker with the higher sensitivity

(dBspl per W); choose loudspeakers with the impedance close to the limit in order to feed more

power inside the transducer (it increases the W/Vrms ratio). If this were not enough, an external

amplifier should be used.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

9.2. Digital Voice Interface(DVI)

The product is providing one Digital Audio Interface (DVI) on the following Pins:

Signal

I/O

Function

Type

DVI_WA0

I/O

Digital Voice interface (WA0)

1.8V

DVI_RX

Digital Voice interface (RX)

DVI_TX

Digital Voice interface (TX)

DVI_CLK

I/O

Digital Voice interface (CLK)

9.2.1. CODEC Example

Please refer to the Digital Voice Interface Application note.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

10. General Purpose I/O

The UE910 V2 module is provided by a set of Digital Input / Output pins

Input pads can only be read; they report the digital value (high or low) present on the pad at the read

time.

Output pads can only be written or queried and set the value of the pad output.

An alternate function pad is internally controlled by the UE910 V2 firmware and acts depending on

the function implemented.

The following GPIOs are available on the UE910 V2:

Signal

I/O

Function

Type

Default

State

Note

GPIO_01

I/O

Configurable GPIO

CMOS 1.8V

INPUT

Alternate function

STAT_LED

GPIO_02

I/O

Configurable GPIO

CMOS 1.8V

INPUT

C10

GPIO_03

I/O

Configurable GPIO

CMOS 1.8V

INPUT

C11

GPIO_04

I/O

Configurable GPIO

CMOS 1.8V

INPUT

B14

GPIO_05

I/O

Configurable GPIO

CMOS 1.8V

INPUT

C12

GPIO_06

I/O

Configurable GPIO

CMOS 1.8V

INPUT

C13

GPIO_07

I/O

Configurable GPIO

CMOS 1.8V

INPUT

K15

GPIO_08

I/O

Configurable GPIO

CMOS 1.8V

INPUT

L15

GPIO_09

I/O

Configurable GPIO

CMOS 1.8V

INPUT

G15

GPIO_10

I/O

Configurable GPIO

CMOS 1.8V

INPUT

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

10.1. Logic Level Specification

Where not specifically stated, all the interface circuits work at 1.8V CMOS logic levels.

The following table shows the logic level specifications used in the UE910 V2 interface circuits:

Absolute Maximum Ratings -Not Functional

Parameter

Min

Max

Input level on any digital pin (CMOS 1.8) with respect to ground

-0.3V

2.3V

Operating Range - Interface levels (1.8V CMOS)

Parameter

Min

Max

Input high level

1.5V

2.1V

Input low level

0.0V

0.35V

Output high level

1.35V

1.8V

Output low level

0.0V

0.45V

Current characteristics

Parameter

Typical

Output Current

2mA

Input Current

30uA

10.2. Using a GPIO Pad as Input

The GPIO pads, when used as inputs, can be connected to a digital output of another device and report

its status, provided this device has interface levels compatible with the 1.8V CMOS levels of the

GPIO.

If the digital output of the device to be connected with the GPIO input pad has interface levels

different from the 1.8V CMOS, then it can be buffered with an open collector transistor with a 47KΩ

pull-up resistor to 1.8V.

NOTE:

In order to avoid a back powering effect it is recommended to avoid having any HIGH logic level

signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF

transition.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

10.3. Using a GPIO Pad as Output

The GPIO pads, when used as outputs, can drive 1.8V CMOS digital devices or compatible hardware.

When set as outputs, the pads have a push-pull output and therefore the pull-up resistor may be

omitted.

10.4. Indication of Network Service Availability

The STAT_LED pin status shows information on the network service availability and Call status. In

the UE910 V2 modules, the STAT_LED usually needs an external transistor to drive an external LED.

Because of the above, the status indicated in the following table is reversed with respect to the pin

status:

LED status

Device Status

Permanently off

Device off

Fast blinking

(Period 1s, Ton 0,5s)

Net search / Not registered / turning off

Slow blinking

(Period 3s, Ton 0,3s)

Registered full service

Permanently on

a call is active

A schematic example could be:

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

10.5. RTC Bypass Output

The VRTC pin brings out the Real Time Clock supply, which is separate from the rest of the digital

part, allowing having only RTC going on when all the other parts of the device are off.

To this power output a backup capacitor can be added in order to increase the RTC autonomy during

power off of the battery. NO Devices must be powered from this pin.

In order to keep the RTC active when VBATT is not supplied it is possible to back up the RTC

section connecting a backup circuit to the related VRTC signal (pad C14 on module’s Pinout).

For additional details on the Backup solutions please refer to the related application note (xE910

RTC Backup Application Note)

10.6. VAUX/PWRMON Power Output

A regulated power supply output is provided in order to supply small devices from the module. This

output is active when the module is ON and goes OFF when the module is shut down. The operating

range characteristics of the supply are:

Operating Range – VAUX/PWRMON power supply

Parameter

Min

Typical

Max

Output voltage

1.77V

1.8V

1.83V

Output current

200mA

Output bypass capacitor

(Inside the module)

2.2μF

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

11. ADC section

11.1. Description

The on board ADC is 12-bit converter. It is able to read a voltage level in the range of 0 ~ 1.2 volts

applied on the ADC pin input and store and convert it into 12 bit word.

Parameter

Min

Max

Units

Input Voltage range

1.2

Volt

AD conversion

bits

Resolution

Input Resistance

Mohm

The UE910 V2 provides one Analog to Digital Converter.

The input line is named as ADC_IN1 and it is available on pad B1.

11.2. Using ADC Converter

An AT command is available to use the ADC function.

The command is AT#ADC=1,2. The read value is expressed in mV

Refer to SW User Guide or AT Commands Reference Guide for the full description of this function.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

12. Mounting UE910 V2 on the Application

12.1. General

The UE910 V2 has been designed in order to be compliant with a standard lead-free SMT process.

12.2. Module Finishing & Dimensions

The UE910 V2 overall dimensions are:

 Length : 28.2 mm

 Width : 28.2 mm

 Thickness : 2.2 mm

 Weight : 4.1 g

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

12.3. Recommended foot print for the application

144 pins

< Top View >

In order to easily rework the UE910 V2 it is suggested to consider having a 1.5 mm placement inhibit

area around the module on the application.

It is also suggested, as a common rule for an SMT component, to avoid having a mechanical part of

the application in direct contact with the module.

NOTE:

In the customer application, the region under WIRING INHIBIT (see figure) must be clear from

signal or ground paths.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

12.4. Stencil

Stencil’s apertures layout can be the same as the recommended footprint (1:1). A suggested thickness

of stencil foil ≥ 120 µm.

12.5. PCB Pad Design

Non solder mask defined (NSMD) type is recommended for the solder pads on the PCB.

PCB

Solder maskCopper pad

Solder Mask Defined

Copper pad

Non Solder Mask Defined

12.6. Recommendations for PCB Pad Dimensions (mm)

The recommendation for the PCB pads dimensions are described in the following image(dimensions

in mm)

It is not recommended to place via or micro-via not covered by solder resist in an area of 0.3 mm

around the pads unless it carries the same signal as the pad itself (see following figure).

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Holes in pad are allowed only for blind holes and not for through holes.

Recommendations for PCB Pad Surfaces:

Finish

Layer thickness (um)

Properties

Electro-less Ni / Immersion Au

3 ~ 7 / 0.05 ~ 0.15

good solder ability protection,

high shear force values

The PCB must be able to resist the higher temperatures which are occurring at the lead-free process.

This issue should be discussed with the PCB-supplier. Generally, the wettability of tin-lead solder

paste on the described surface plating is better compared to lead-free solder paste.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

12.7. Solder Paste

Lead free

Solder Paste

Sn/Ag/Cu

We recommend using only “no clean” solder paste in order to avoid the cleaning of the modules after

assembly.

12.7.1. Solder Reflow

The following is the recommended solder reflow profile:

Profile Feature

Pb-Free Assembly

Average ramp-up rate (TL to TP)

3℃/second max

Preheat

- Temperature Min (Tsmin)

- Temperature Max (Tsmax)

- Time (min to max) (ts)

150℃

200℃

60 ~ 180 seconds

Tsmax to TL

- Ramp-up Rate

3℃/second max

Time maintained above:

- Temperature (TL)

- Time (tL)

217℃

60 ~150 seconds

Peak Temperature (TP)

245 +0/-5℃

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Profile Feature

Pb-Free Assembly

Time within 5℃ of actual Peak Temperature (tP)

10 ~30 seconds

Ramp-down Rate

6 ℃/sec max

Time 25℃ to Peak Temperature

8 minutes max

NOTE:

All temperatures refer to topside of the package, measured on the package body surface.

WARNING:

The UE910 V2 module withstands one reflow process only.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

13. Packing System

The UE910 V2 modules are packaged on trays of 20 pieces each. These trays can be used in SMT

processes for pick & place handling.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

13.1. Moisture Sensibility

The UE910 V2 is a Moisture Sensitive Device level 3, in accordance with standard IPC/JEDEC J-

STD-020, take care all the relative requirements for using this kind of components.

Moreover, the customer has to take care of the following conditions:

a) Calculated shelf life in sealed bag: 12 months at < 40°C and 90% relative humidity (RH).

b) Environmental condition during the production: 30°C / 60% RH according to IPC/JEDEC J-STD-

033A paragraph 5.

c) The maximum time between the opening of the sealed bag and the reflow process must be

168hours if condition b) “IPC/JEDEC J-STD-033A paragraph 5.2” is respected

d) Baking is required if conditions b) or c) are not respected

e) Baking is required if the humidity indicator inside the bag indicates 10% RH or more

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

14. Application Design Guide

14.1. Download and Debug Port

One of the following options should be chosen in the design of host system in order to download or

upgrade the Telit’s software and debug UE910 V2 when UE910 V2 is already mounted on a host

system.

CASE I:

Users who use both of UART and USB interfaces to communicate with UE910 V2

- Must implement a download method in a host system for upgrading UE910 V2 when it’s mounted.

CASE II:

Users who use USB interface only to communicate with UE910 V2

- Must arrange UART port in a host system for debugging or upgrading UE910 V2 when it’s

mounted.

CASE III:

Users who use UART interface only to communicate with UE910 V2

- Must arrange USB port in a host system for debugging or upgrading UE910 V2 when it’s

mounted.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

15. Conformity Assessment Issues(Problèmes

d'évaluation de conformité)

15.1. 1999/5EC Directive

The Telit UE910-EU V2 module has been evaluated against the essential requirements of the

1999/5/EC Directive.

The conformity assessment procedure referred to in Article 10 and detailed in Annex IV of Directive

1999/5/EC has been followed with the involvement of the following Notified Body:

AT4 wireless S.A.

Parque Technologico de Andalucia

C/ Severo Ochoa 2

29590 Campanillas – Malaga

SPAIN

Notified Body No: 1909

Thus the following marking is included in the product:

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

15.2. FCC/IC Regulatory notices

Modification statement

Telit has not approved any changes or modifications to this device by the user. Any changes or

modifications could void the user’s authority to operate the equipment.

Interference statement

This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS

standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference,

(2) This device must accept any interference, including interference that may cause undesired

operation of the device.

Wireless notice

The user must refer to below information to meet the FCC/IC's RF exposure rules and regulations

when they design:

 The system antenna(s) used for this transmitter must be installed to provide a separation distance

of at least 20 cm from all the persons and must not be co-located or operating in conjunction with

any other antenna or transmitter.

 Users and installers must be provided with antenna installation instructions and transmitter

operating conditions for satisfying RF exposure compliance.

Antenna gain must be below:

Frequency band

UE910-NA V2

GSM850

8.1 dBi

WCDMA FDD V

11.09 dBi

PCS1900

3.51 dBi

WCDMA FDD II

9.83 dBi

FCC Class B digital device notice

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

Labeling on Host product statements

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

Host system including UE910-NA V2 must be labeled with

“Contains FCC ID:RI7UE910NAV2 and IC ID:5131A-UE910NAV2”.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

16. Safety Recommendations

READ CAREFULLY

Be sure the use of this product is allowed in the country and in the environment required. The use of

this product may be dangerous and has to be avoided in the following areas:

 Where it can interfere with other electronic devices in environments such as hospitals, airports,

aircrafts, etc.

 Where there is risk of explosion such as gasoline stations, oil refineries, etc. It is the

responsibility of the user to enforce the country’s regulations and the specific environmental

regulation.

Do not disassemble the product; any evidence of tampering will compromise the warranty validity.

Follow the instructions of the hardware user guides for a correct wiring of the product. The product

has to be supplied with a stabilized voltage source and the wiring has to conform to the security and

fire prevention regulations. The product has to be handled with care, avoiding any contact with the

pads because electrostatic discharges may damage the product itself.

The system integrator is responsible for the functioning of the final product; therefore, care has to be

taken with the external components of the module as well as of any project or installation issue

because of the risk of disturbing the GSM/WCDMA network or external devices or having impact on

security. Should there be any doubt, please refer to the technical documentation and the regulations in

force. Every module has to be equipped with a proper antenna with specific characteristics. The

antenna has to be installed with care in order to avoid any interference with other electronic devices

and has to guarantee a minimum distance from the body (20 cm). In case this requirement cannot be

satisfied, the system integrator has to assess the final product against SAR regulations.

UE910 V2 Hardware User Guide

1VV0301065 Rev.1 – 2013-12-12

17. Document History

Revision

Date

Changes

2013-08-22

Preliminary release

2013-12-12

Changed Audio block diagram

Added Conformity Assessment Issues

Updated FCC/IC Regulatory notices
