Telrad Networks CPE7000IDU2X DM-CPE7000-Si-2D-1V-WiFi-2.x User Manual
Telrad Networks Ltd DM-CPE7000-Si-2D-1V-WiFi-2.x
User manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/CE. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of
the R&TTE Directive 1999/5/CE:
- EN 60950-1：2006＋A11＋A1＋A12＋A2: 2013
- EN62311 : 2008
- EN 300 328 V1.8.1: 2012
- EN 301 489-1 V1.9.2: 2011
- EN 301 489-17 V2.2.1: 2012
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklæ rer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væ sentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Ü bereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type
of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment
/ iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Industry Canada statement:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada. Son fonctionnement
est soumis aux deux conditions suivantes: (1) Ce dispositif ne peut causer d'interférences; et (2) Ce
dispositif doit accepter toute interférence, y compris les interférences qui peuvent causer un
mauvais fonctionnement de l'appareil.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
Copyright
This DOCUMENT is copyrighted with all rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language
in any form by any means without the written permission of Telnet.
Notice
Telnet reserves the right to change specifications without prior notice. While the information in
this document has been compiled with great care, it may not be deemed an assurance of product
characteristics. Telnet shall be liable only to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product
and the use of its contents is subject to written authorization from Telnet

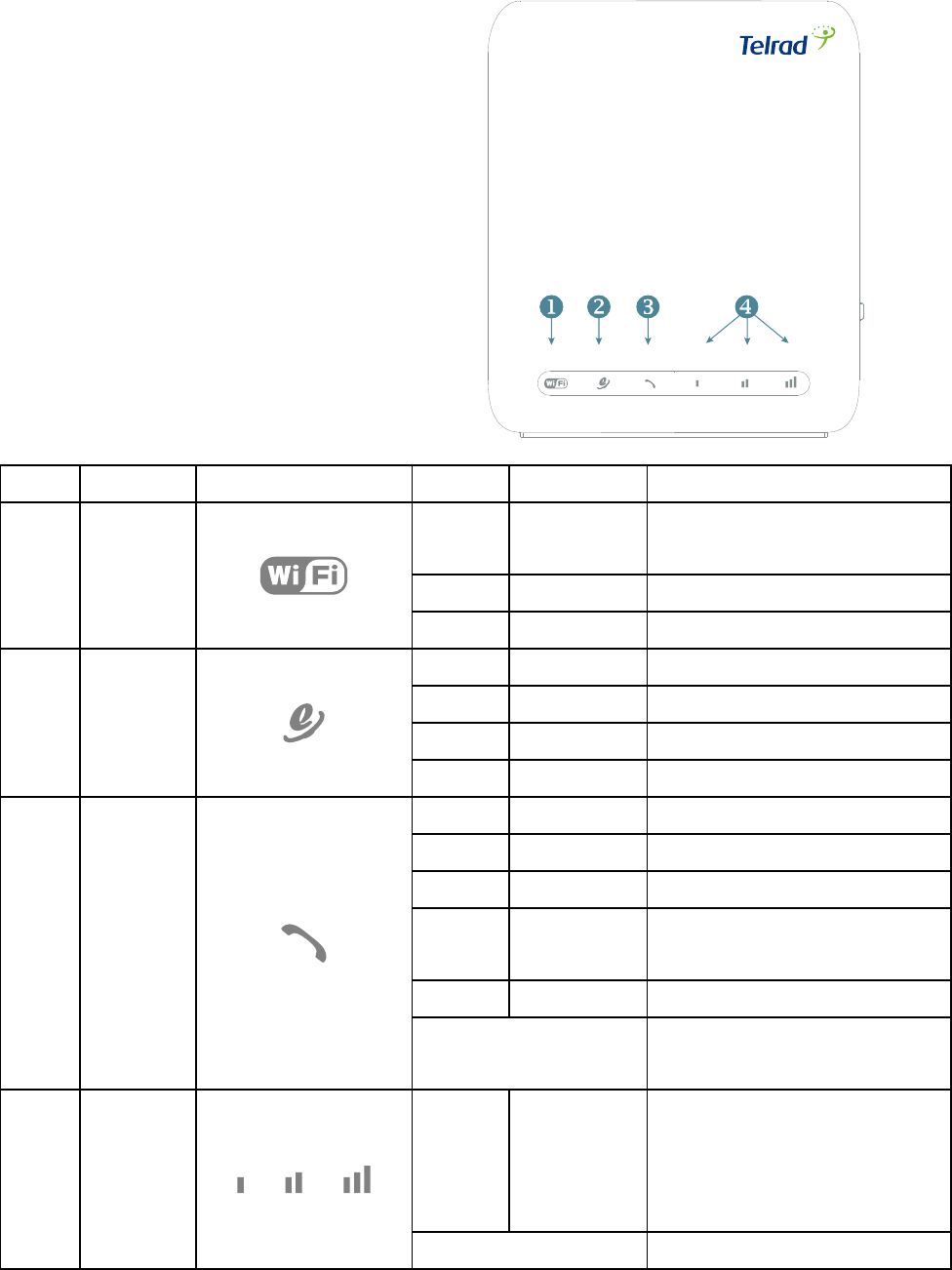

CPE7000 Indoor LED Indicators
Num.
Type
Logo
Color
Action
Description
1
Power &
Wi-Fi
Blue
Solid ON
Power on (System is booting ,
or WiFi is disabled)
Purple
Solid ON
WiFi is enabled
Purple
Blinking
WiFi is transmitting data
2
WAN
Blue
Blinking
LTE is connecting
Blue
Solid ON
LTE is connected
Red
Blinking
WiMAX is connecting
Red
Solid ON
WiMAX is connected
3
VoIP
Blue
Solid ON
VoIP Registered
Blue
Blinking
Incoming call ringing
Red
Solid ON
Off-hook/ Busy
Red
Blinking
New incoming call during
conversation
Purple
Blinking
Incoming voice mail waiting
OFF
VoIP not registered
/ VoIP disabled
4
Signal
Strength
Green
Solid ON
Display signal strength
1 LED: 0<=CINR<8
2 LED: 8<=CINR<24
3 LED: 24<=CINR
OFF
No signal

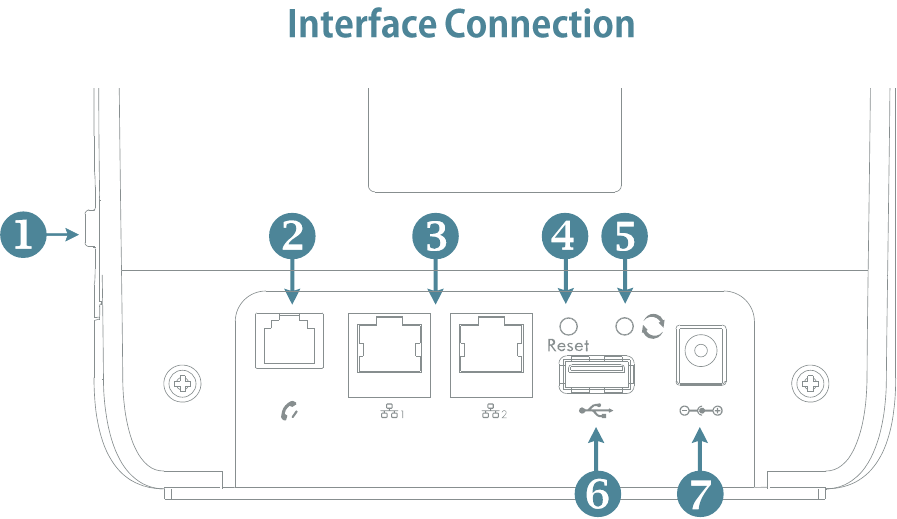

CPE7000 Indoor Connectors:
1. SIM card Slot Cover: Open the cover and insert SIM card into the slot with right direction.
2. Telephone Port (RJ-11): Connect your telephone to Indoor CPE with a RJ-11 telephone cable.
3. LAN Port (RJ-45): Port for connecting PC, hub and switch or other network equipment by RJ-45
Ethernet cable.
4. Reset Button: Press “Reset” button less than 5 seconds to reboot the device. Or press and hold
the Reset button 10 seconds to set router to factory default settings.
5. WPS Button: Press “WPS” button, router can easily connects to Wi-Fi client which also support
WPS function.
6. USB: Connect USB equipment by standard USB cable
7. Power Adapter Socket (DC-12V): Plug adapter DC pin into this socket.

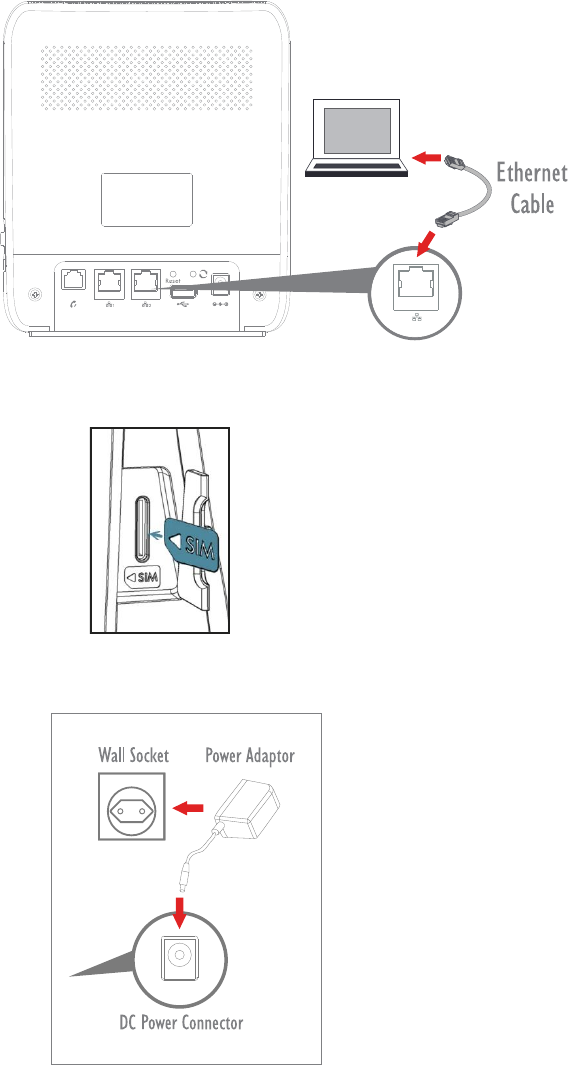

Installation
Please follow the steps below to install the device:
Step1: Connect the device LAN port to your PC with a RJ-45 Ethernet cable.
Step2: Insert SIM card into the device with right direction.
Step3: Insert the power cord into the LTE Indoor CPE's DC-12V power jack; and insert the plug
into power outlet.
Step4: Switch ON the power. The device will start the booting process. After a few seconds, the
LED lights will start blinking.

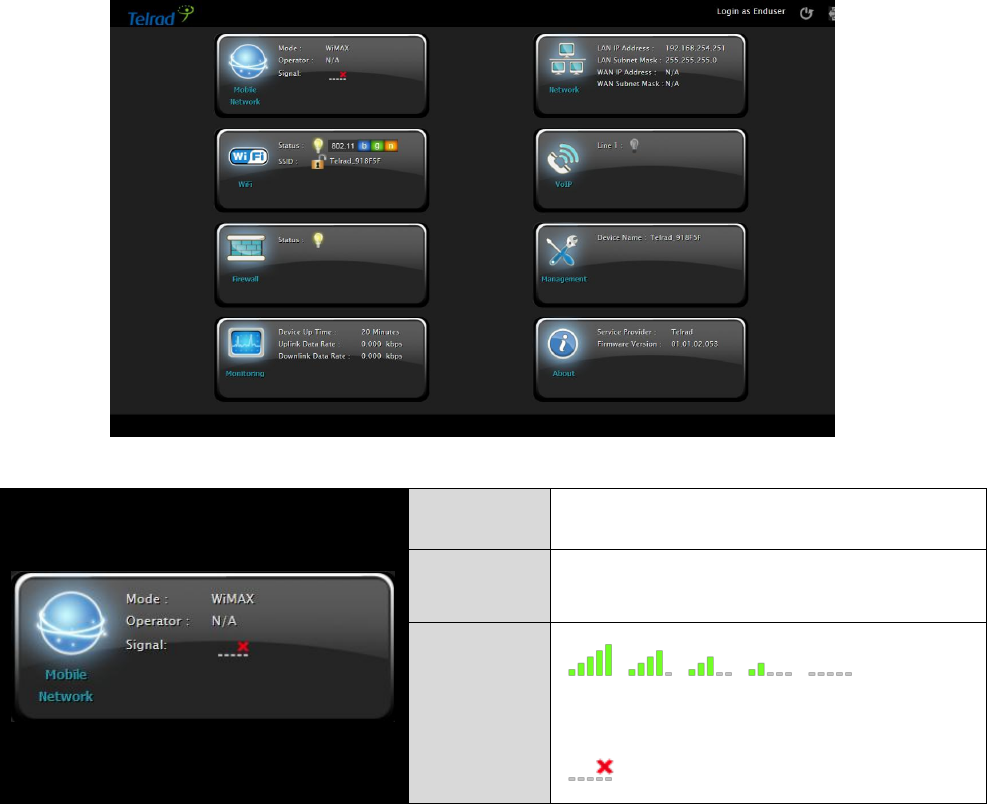

Easy Setup
Please follow the steps below to configure your device through the web interface:
Step1: Open the Web browser (Internet Explorer) and enter the default IP address of the IDU
CPE : http://192.168.254.251
Step2: Enter IDU administrator login username/password to access the web management
interface. The default username/password is admin/admin.
Step3: The page displays in your browser after login; you can simply configure the device
settings.
Step4: Signal Strength indicator on the upper-left corner of webpage. There are two modes to
show different connection status.
Mode:
LTE or WiMAX
Operator:
Either APN Name (LTE mode) or BSID
(WiMAX mode)
Signal:
(More bars indicate better signal)
(Disconnect, no signal)

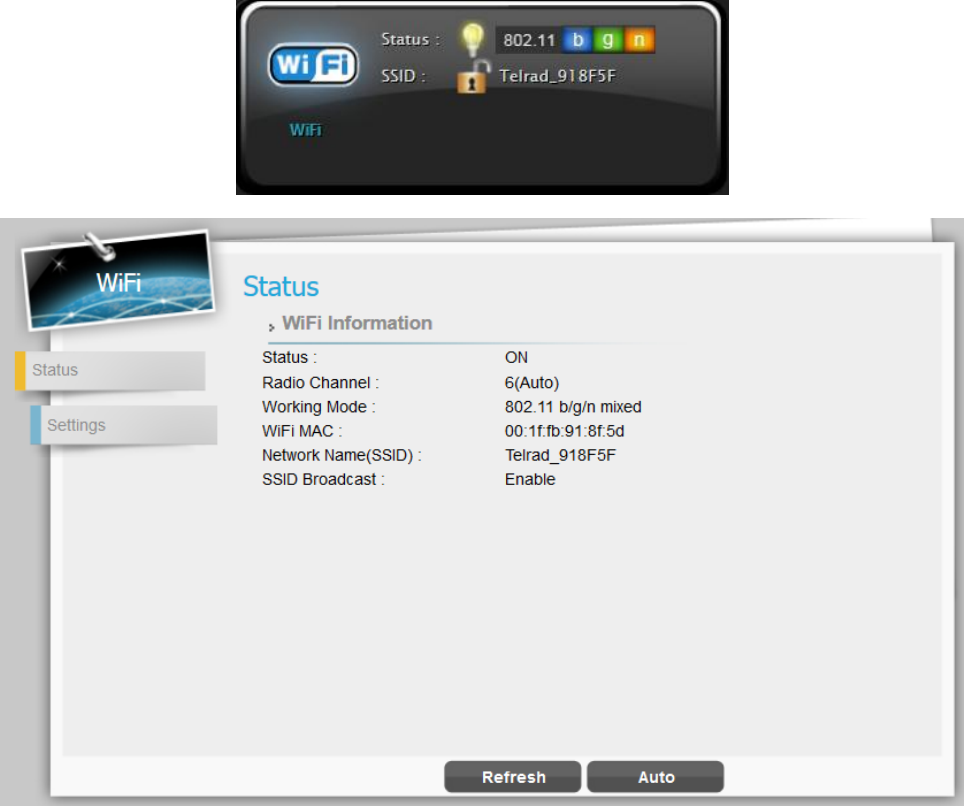

Wi-Fi Setting
Step1: Select WIFI from main menu. Then screen will display the default setting of SSID, radio
channel, working mode, WiFi MAC and SSID broadcast.
Step2: Specify a radio channel, working mode, bandwidth in Settings page.
Step3: Specify a SSID (Service Set ID), SSID broadcast and Security in Multiple SSID page.
