1. INTRODUCTION
The MBS Units are the outdoor modules that make up a Mast Mounted Base Station (MBS).
They are independent units that can be interconnected with each other to increase the base
station capacity. A MBS consists of a maximum of two MBS Units.
This manual is common to all the equipment models, including all their options and
accessories.
The proper operation of any electronic device depends on its correct use. Therefore, it is
recommended to follow the instructions showed in this manual.
2. UNPACKING AND CHECKING
The equipment is supplied with all the necessary materials for the installation, either on a
mast/pole or on a wall:
MBS Unit includes the followings items
One power connector.
One Ethernet connector
RF super-flexible wire N-Male – N-Male.
Brackets for the installation.
Besides, in some types of installation, as detailed below, it is necessary an additional
material that is NOT supplied with the equipment.
IMPORTANT: If any of the necessary elements to carry out the installation process
described in this guide is missing or damaged, please contact your supplier.
3. PREVIOUS CONSIDERATIONS
This manual contains information about instructions for installation, maintenance and use.
Read the following pages before using this equipment.
It is not advisable to switch on the equipment without having previously connected the
antenna otherwise irreparable damage could be. It is important to use an antenna adjusted
to the work frequency.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 5 of 38
01.01.00/1 Rev.1
4. INFORMATION ON SAFETY AND ELECTROMAGNETIC COMPATIBILITY
Most electronic equipment is susceptible to electromagnetic
interference if it is not duly protected. If the MBS Unit is placed near
unprotected electronic devices, they may malfunction.
The MBS Unit must not transmit without its antenna connected.
When installing the antenna, follow the guidelines for exposure of the
human body to high and low frequency electromagnetic fields. Follow
the supplier’s / manufacturer’s instructions.
Burns may be suffered if the antenna connector output is touched by
bare skin when the MBS Unit is transmitting with the antenna
disconnected.
Take care when handling the MBS Unit. It has edges, which may cut if
handled incorrectly.
Maintenance and repair of these repeaters must be carried out by
qualified personnel only.
4.1. STANDARDS
The equipment has been designed according to the following standards:
ETSI EN 300 394-1 – V3.1.1 (2007-11) Terrestrial Trunked Radio (TETRA);Conformance
testing specification; Part 1: Radio
ETSI EN 301 489-1 – V1.8.1 (2008-04)
Electromagnetic Compatibility and Radio spectrum
Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 1:
Common technical requirements
ETSI EN 301 489-18 - V1.3.1 (2002-08)
Electromagnetic Compatibility and Radio spectrum
Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 18:
Specific conditions for TETRA equipment
EN 60950-1:2006, EN 60950-
1:2006/A1:2010
Information technology equipment - Safety -- Part 1:
General requirements
EN 60215-1989, EN 60215:1989/A1:1992,
EN 60215:1989/A2:1994 Safety requirements for radio transmitting equipment
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 6 of 38
01.01.00/1 Rev.1
EN 60950-22:2006, EN 60950-
22:2006/A11:2008
Information technology equipment - Safety -- Part 22:
Equipment installed outdoors
EN 50383:2010
Basic standard for the calculation and measurement
of electromagnetic field strength and SAR related to
human exposure from radio base stations and fixed
terminal stations for wireless telecommunication
systems (110 MHz - 40 GHz)
EN 50385:2002
Product standard to demonstrate the compliance of
radio base stations and fixed terminal stations for
wireless telecommunication systems with the basic
restrictions or the reference levels related to human
exposure to radio frequency electromagnetic fields
(110 MHz - 40 GHz) - General public
These standards ensure the essential requirements set out in Article 3 of Directive
1999/5/EC.
4.2. FCC REGULATIONS COMPLIANCE
The equipment has been designed to fulfil the applicable compliance regulations.
The equipment complies with Part 15 of the FCC Title 47 of the Code of Federal
Regulations. Operation is subject to the condition that this device does not cause harmful
interference.
The equipment complies with the applicable Part 90 of the FCC Title 47 of the Code of
Federal Regulations.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 7 of 38
01.01.00/1 Rev.1
4.3. MECHANICAL AND ENVIRONMENTAL STANDARDS
The equipment complies with the following standards:
EN 60068-2-1:2007
* No Functional. -40 ºC. Duration: 72 h
* Functional: -30 ºC. Duration: 16 h.
Environmental testing -- Part 2-1: Tests - Test A: Cold
EN 60068-2-2:2007
* No Functional. +85 ºC. Duration: 72 h
* Functional: +60 ºC. Duration: 16 h.
Environmental testing -- Part 2-2: Tests - Test B: Dry
heat
EN 60068-2-78:2001
* Functional +60 ºC 93%. Duration 21
days.
Environmental testing -- Part 2-78: Tests - Test Cab:
Damp heat, steady state
EN 60068-2-30:2005
* Functional: 6 cycles 24 hours:
• 12 hours. Temperature: +60 ºC.
Relative humidity: 95% ± 5%
• 12 hour: Temperature +25 ºC. Relative
humidity: 98% ± 5%
Environmental testing -- Part 2-30: Tests - Test Db:
Damp heat, cyclic (12 h + 12 h cycle)
EN 60068-2-11:1999
No functional : 336 hours. +35 ºC +/- 2 ºC.
5% ClNa
Environmental testing -- Part 2: Tests - Test Ka: Salt
mist
EN 60529:1991
EN 60529:1991/A1:2000
* No functional. IP66
Degrees of protection provided by enclosures (IP
Code)
EN 60068-2-9: 1999
* No functional.
• Proc. B: 20 hours of solar radiation and
4 hours of darkness
• Temperature: +40 ºC
• Humidity: 65%
• Duration: 10 days
Environmental testing -- Part 2: Tests - Guidance for
solar radiation testing
EN 60068-2-64:2008
* No functional:
• Duration: 30 minutes by axe
• 5-20 Hz. ASD: 1 m2/s3.
• 20-200 Hz. ASD; - 3dB/oct
Environmental testing -- Part 2-64: Tests - Test Fh:
Vibration, broadband random and guidance
EN 60068-2-6:2008
* No functional:
• Duration: 5 sweep by axe
• 5-9 Hz. Displacement 1.2 mm.
• 9-200 Hz. Acceleration 4m/s2
Environmental testing -- Part 2-6: Tests - Test Fc:
Vibration (sinusoidal)
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 8 of 38
01.01.00/1 Rev.1
UNE-EN 60598:2009
* Vibration type: Sine swept
* Frequency range: From 10 to 55 Hz
* Amplitude (peak):
• 10 Hz Amplitude (peak): 1.4 mm
• 38 Hz Amplitude (peak): 20 m/s2
• 55 Hz Amplitude (peak): 20 m/s2
* Number of axes: 3 axes
* Swept ratio: 1 Oct./min.
* Duration: 30 min./axis
Vibration: simulation of the fixing between MBS unit
and mast.
Eurocode UNE-EN 1991-1-4 (September
2007)
* Wind speed: 200 km/h (55.55 m/s) (Safety
factor 1.5)
* Height in post: 20 m
Protection for avoiding damages either in the
enclosure and the fixing parts, due to meteo effects
such as strong gusts of wind
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 9 of 38
01.01.00/1 Rev.1
5. EQUIPMENT DESCRIPTION
5.1. VIEW
5
4
2
1
3
1
2
Male panel connector
Female cable connector
3
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 10 of 38
01.01.00/1 Rev.1

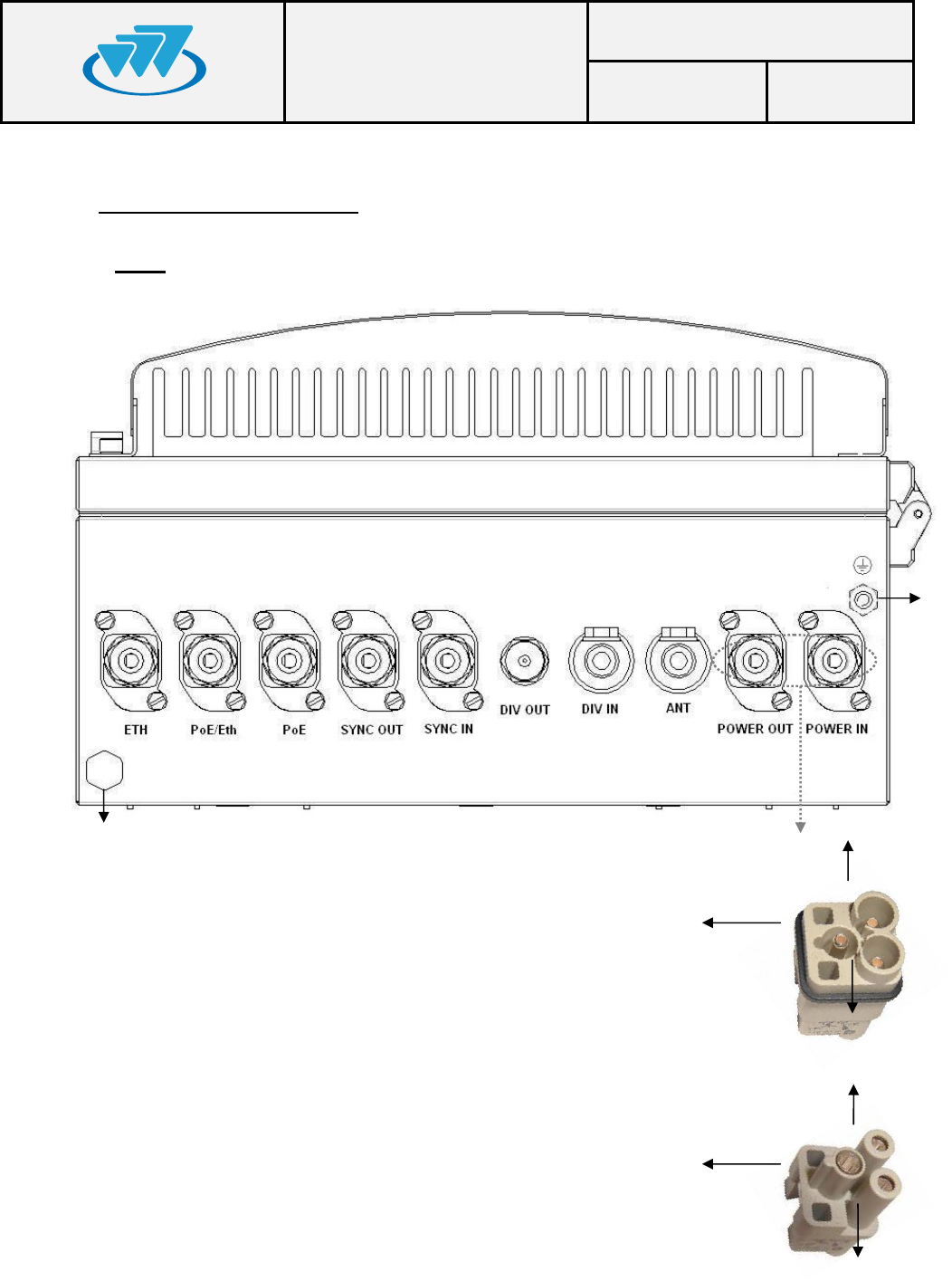

5.2. CONNECTORS
• 1.- Terminal with the following meaning depending on the MBS Unit Power option:
- AC MBS Units: Neutral contact (N).
- DC MBS Units: Negative contact (-).
• 2.- Terminal with the following meaning depending on the MBS Unit Power option:
- AC MBS Units: Line contact (L).
- DC MBS Units: Positive contact (+).
• 3.- Power supply Earth contact.
• 4.- Pressure equalizer.
• 5.- Chassis Earth contact.
• ETH: Connector that allows Ethernet connection between MBS Units. It also can be
used as Maintenance Ethernet connector.
• PoE/ETH: Power Over Ethernet (IEEE 802.3at) connector. It provides power supply
(48 VDC) and Ethernet connection to a PoE radio link. It can be used as
Maintenance Ethernet connector if there is not radio link (Poe) connected.
• PoE: Power Over Ethernet (IEEE 802.3at) connector. It provides power supply (48
VDC) and Ethernet connection to a PoE radio link.
• SYNC OUT: Synchronism output connector. It provides synchronism to a second
MBS Unit through its SYNC_IN connector.
• SYNC IN: Synchronism input connector.
• DIV OUT: Output reception connector. It provides the receiver chain 2 to the next
MBS Unit through its DIV IN connector.
• DIV IN: Reception antenna connector (receiver chain 2). It is connected to an
antenna or to a MBS Unit DIV OUT connector (diversity 2).
• ANT: Transmission/reception antenna power connector (receiver chain 1).
• POWER OUT: Output power supply connector. It provides power supply to another
MBS Unit with the same Power Supply option.
• POWER IN: Input power supply connector (VAC or VDC).
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 11 of 38
01.01.00/1 Rev.1

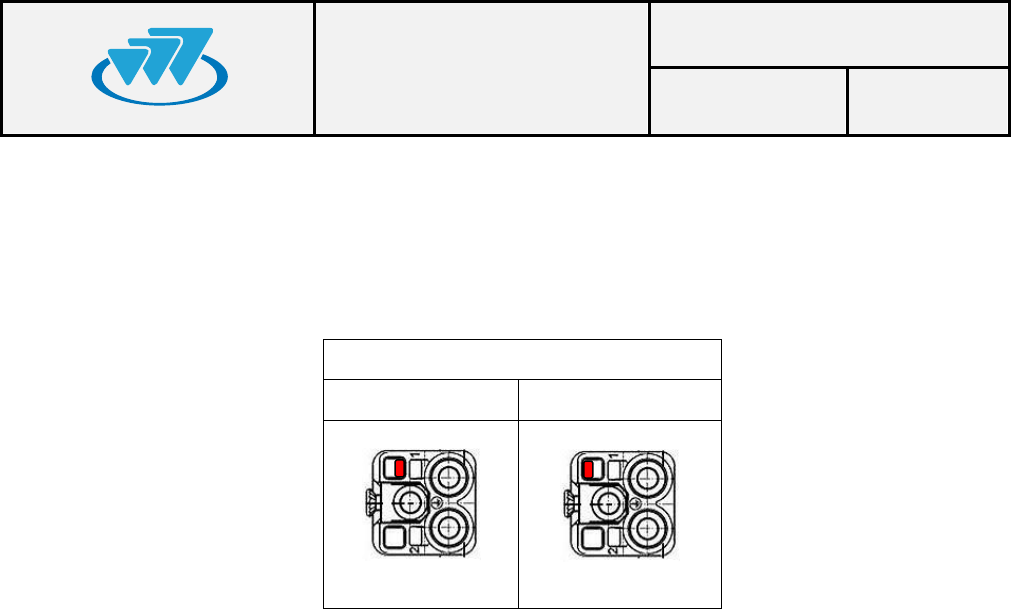

Note: POWER_IN and POWER_OUT connectors have a coding key to avoid wrong
connections; on the following table is showed the location of this coding key depending on
the MBS Unit power supply option.
External view of power supply panel connector
AC Power Supply DC Power Supply
Note: The amount of power delivered by both PoE and PoE/ETH connectors to the radio
links can not exceed 35 W in total.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 12 of 38
01.01.00/1 Rev.1
6. INSTALLATION GUIDE
The following recommendations must be followed before powering on the MBS Unit module.
Next diagram shows the steps to be followed to carry out the installation:
Verification of the necessary
equipment
Basic Pre-Configuration
Final location installation
Final Configuration/Verification
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 13 of 38
01.01.00/1 Rev.1
6.1. NECESSARY EQUIPMENT
Make sure you have the necessary equipment depending on the
configuration to install. If any of the elements necessary to carry out the
installation process described in this manual, were lost or damaged, contact
your supplier and / or installer.
Necessary equipment
Element Code Comments
MBS Unit D148x01 “x” varies depending on band.
Each MBS Unit includes:
- MBS Unit equipment
- Power supply cable connector
- Ethernet cable connector
- RF superflexible wire N-Male ↔ N-Male
- Brackets for installation
Anti-vandal kit D014000 It is only necessary if anti-vandal protection is
required
Ethernet cable connector 225120 Every MBS Unit includes one connector of this
type; if a MBS Unit must be connected to two
radio links, it is necessary to have a second
unit.
RF superflexible wire N-Male
↔ N-Male
208931 Each MBS Unit includes one cable of this type;
if a MBS Unit requires diversity 2 on reception it
is necessary to have a second unit.
Additional carrier
interconnection kit
D014001 It is mandatory in case of connecting a second
MBS Unit to the first MBS Unit.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 14 of 38
01.01.00/1 Rev.1
Additional equipment to be considered for installation
Element Comments
Cable to power the MBS
Unit.
See features in external power connection section. One power
supply cable connector is supplied with the MBS Unit.
Ethernet cable to connect
PoE radio links
See features in Ethernet connection section. One Ethernet
cable connector is supplied with the MBS Unit.
Antenna coaxial cable and
antenna. See features in Antenna connection section.
Tools
Element Comments
Toolbox In addition to the usual material used for installations
(wrenches, screwdrivers ...) it is necessary to use:
- Torque wrench for 17 mm hexagonal nut capable of delivering
15 Nm.
- Vulcanizable tape.
Ethernet Cable Cable to make specific maintenance tasks in the field
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 15 of 38
01.01.00/1 Rev.1
6.2. BASIC PRE-CONFIGURATION
Before connecting the MBS Unit to the infrastructure it should have the IP address
correctly configured in order to have remote access once it is connected (to set the IP
address, see the configuration chapter (F067220) in technical manual).
Steps:
• Apply power supply to the MBS through its POWER_IN connector.
• Wait 3 minutes until the MBS Unit initializes.
• Connect the PC, to set the IP address, to the ETH connector.
• Change the IP address according to the network IP addressing.
• Check that IP address was successfully changed through a “ping” from the PC to the
new IP address of the MBS Unit.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 16 of 38
01.01.00/1 Rev.1
6.3. INSTALLATION
The MBS has been designed to be mounted on both mast/pole and wall. This chapter
provides the necessary steps to be followed for a right MBS Unit installation.
At least two people are required to carry out the installation of a MBS Unit on a mast/pole.

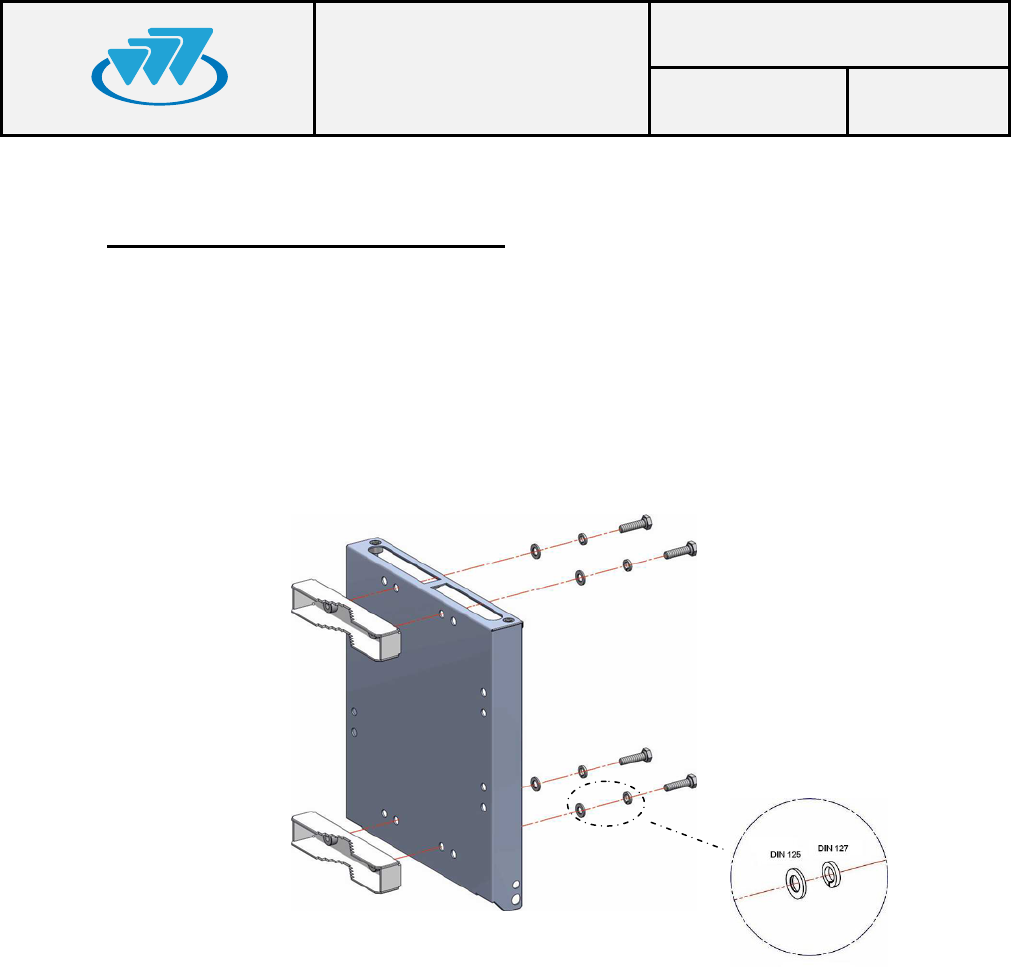

Bracket system:
1 x Bracket 2 x clamp (2 holes) 2 x clamp (4 holes)
4 x Bolt M10x180
(Clamp attachment)
6 x Bolt M10x40
(lateral attachment MBS-
Bracket & Clamp-Bracket)
2 x Bolt M10x20
(Top attachment MBS-
Bracket)
12 x Grower washer DIN 127
Ø10
12 Plain washer DIN125 x
Ø10
---
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 17 of 38
01.01.00/1 Rev.1
6.3.1. MAST/POLE INSTALLATION
The different section types of mast/pole where the MBS Unit can be mounted are the
following ones:
Circular section: Diameter from 30 mm to 130 mm.
Square section: From 30 mm x30 mm to 85 mm x85 mm.
L section: From 30 mm x30 mm to 110 mm x110 mm.
In the choice of the mast/pole where the MBS Unit is being installed the following
recommendations must be followed:
The mast/pole has to support the loads due to the installation of some elements
on them.
The mast/pole has to support the loads due to the action of the wind, snow as
well as its own weight, because these are going to induce its flexion.
The mast/pole must have the enough inertia both lateral and frontal in order that
the action of different loads does not induce permanent deformations on it.
The manufacturer of the mast/pole must evaluate the structural factor of the
mast/pole correctly depending on its type.
It is necessary to take into account both the height where the MBS Unit is
installed and its weight/dimensions (See section “MBS Unit” in chapter
(F067326) “SBS Technical Description” in the Technical Manual).
It is recommended to choose a lattice mast/pole in case of this one has a
high height and it is going to be submitted to important flexion efforts. In any
case, it is responsibility of the manufacturer of the mast/pole to determine if
the resistant section of mast/pole is suitable.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 18 of 38
01.01.00/1 Rev.1
The brackets should be installed tight enough to support the MBS Unit without causing
deformation of the mast/pole or areas of corrosion.
Once mounted in its definitive location, if the vandal resistant kit is available, it will
prevent the access / disassembly not authorized.
In case of installing more than one MBS Unit on the same mast/pole, it is recommended
not to mount one above the other one to avoid the heat transfer from the MBS Unit low
to the MBS Unit high. If the MBS Units have to be installed in the same vertical axis
these must be oriented in different directions to increase the separation of them as far as
possible, depending on the length of wiring between both equipments (1.5 m
approximately).
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 19 of 38
01.01.00/1 Rev.1
Steps to install a MBS on a mast/pole:
1) Place the MBS Unit bracket on the mast/pole as follows.
Note: Handle the MBS Unit bracket with care if it rests on the floor. Place some
protection underneath to prevent scratches on the surface.
a) Secure 4 holes clamps on the bracket by tightening the bolts with a 15 Nm
torque, using a 17 mm torque wrench, do not forget to place the washers
b) Install the bracket to the desired final location on the mast/pole. Embrace the 2
holes clamps and screw these to the bracket with a 17 mm wrench and 15 Nm
torque. Due to the length of the bolts it is advisable to screw them slowly.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 20 of 38
01.01.00/1 Rev.1
2) Place MBS Unit on the bracket as follows.
a) Raise the MBS Unit to the position where the bracket is placed on the mast/pole
and hang it on the bracket, tilting slightly to match the bracket guides as
indicated in the following figure:
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 21 of 38
01.01.00/1 Rev.1

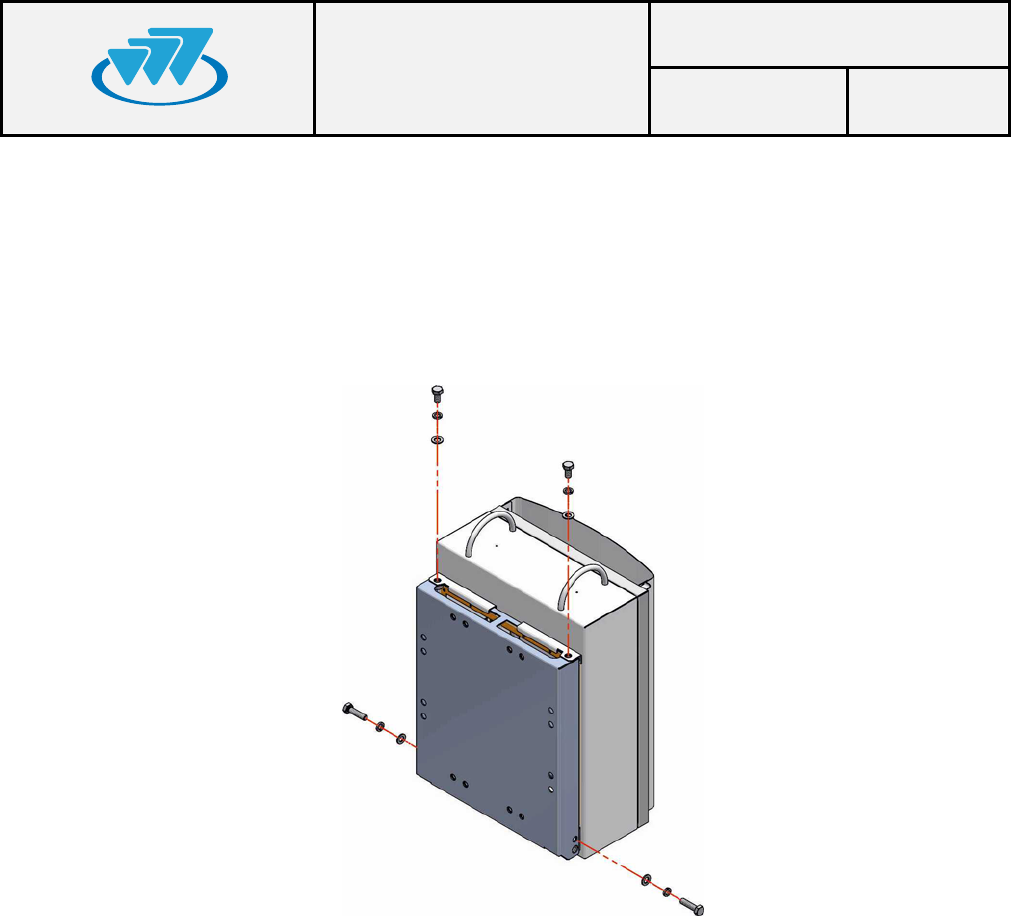

b) Put the bolts of the MBS Unit and washers to the bracket with a 17 mm wrench
and 15 Nm torque.
Note: If anti-vandal kit is available (D014000), lateral bolts should be placed after
mounting the anti-vandal kit.
3) Make the necessary cable connections as described in the connections section in
this guide.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 22 of 38
01.01.00/1 Rev.1
6.3.2. WALL INSTALLATION
To install the MBS Unit on a wall, make the following steps:
1) Mark the position of the holes using the bracket as a template itself with the help of a
level.
Note: To ensure proper ventilation there must be at least 700 mm clearance above
and below each MBS Unit. There must also be a minimum distance of 300 mm free
on both sides of the MBS Unit.
Note: The screws, expansion bolts and washers needed to secure the brackets to
wall are not supplied with the unit.
The distance between the holes are shown in the following figure.
2) Drill holes on the wall and insert a rawlplug in each hole.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 23 of 38
01.01.00/1 Rev.1
3) Place the bracket over the rawlplug and insert the bolts and washers. Finally screw
them with a 17 mm wrench and 15 Nm torque.
4) Place the MBS Unit on the bracket as follows.
a) Raise the MBS Unit to the position where the bracket is placed and hang it on the
bracket, tilting slightly to match the anchor guides as indicated in the following
figure:
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 24 of 38
01.01.00/1 Rev.1
b) Put the bolts of the MBS Unit and washers to the bracket with a 17 mm wrench
and 15 Nm torque. The order is bolt + grower washer + plain washer.
Note: If anti-vandal kit is available (D014000), lateral bolts should be placed after
mounting the anti-vandal kit.
5) Make the necessary cable connections as described in the connections section in
this guide.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 25 of 38
01.01.00/1 Rev.1
6.3.3. ANTI-VANDAL KIT INSTALLATION
The anti-vandal kit for MBS Unit is an optional accessory (D014000). Either the MBS
Unit is mounted on a mast/pole or on a wall, the anti-vandal kit, is performed as follows.
Take into account that the installation of the ant-vandal kit should be done once you
have completed the wiring connections of the MBS Unit.
Anti-vandal Kit:

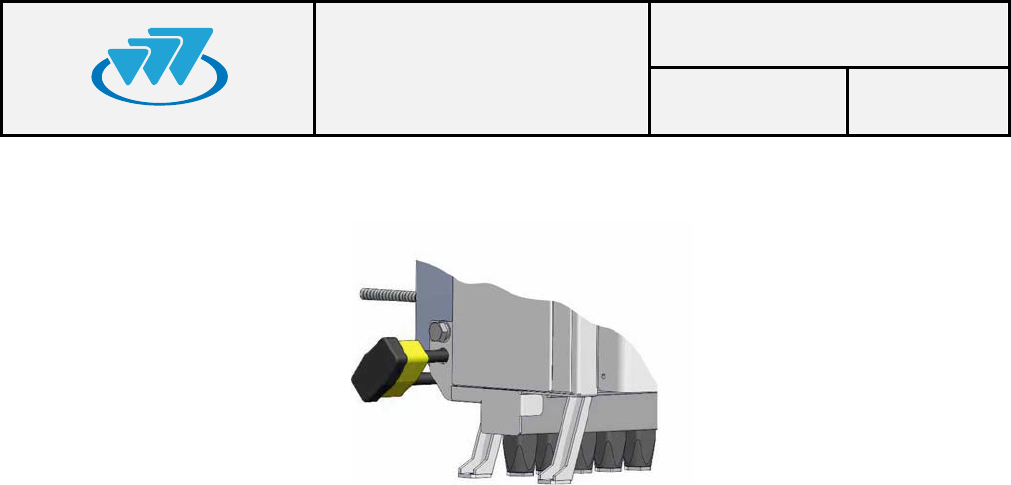

Anti-Vandal Kit 6 x Torx screw M3X4 6 x Grower
washer
1 x padlock
- Place the anti-vandal kit and slide the kit guides as shown on the following figure:
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 26 of 38
01.01.00/1 Rev.1
- Place the padlock and screw the attachment bolt to the bracket with a 17 mm
wrench and 15 Nm torque.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 27 of 38
01.01.00/1 Rev.1
6.3.4. CONNECTIONS
This section shows the connections to be made and the characteristics of the material to
be used. The MBS Unit is a weather-protected device once the equipment has been
installed in its final location; make sure that there is no MBS Unit connector without plug
or cable connected. Besides, the external wiring connections of the MBS Unit must be
protected from weather, (vulcanizable tape can be used if it is necessary).
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 28 of 38
01.01.00/1 Rev.1
6.3.4.1. SUPPORTED CONFIGURATIONS
a) ONE MBS UNIT WITHOUT DIVERSITY IN RECEPTION
The connections are the following ones:
Power supply 220/110 VAC or 24 VDC.
From ANT connector to the antenna.
Connection with radio link through PoE connector.
Maintenance through PoE/ETH N or ETH connector.
Of
ANT
DIV_IN
DIV_OUT
POWER_IN
PoE/ETH
SYNC_OUT
POWER_OUT
PoE
ETH
SYNC_IN
Radio link
Antenna 1 (Tx/Rx)
Power Input
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 29 of 38
01.01.00/1 Rev.1
b) ONE MBS UNIT WITH DIVERSITY 2 IN RECEPTION
The connections are the following ones:
Power supply: 220/110 VAC ó 24 VDC.
From ANT connector to the first antenna.
From DIV IN connector to the second antenna.
Connection with the radio link through PoE connector.
Maintenance through PoE/ETH or ETH connector.
ANT
DIV_IN
DIV_OUT
POWER_IN
PoE/ETH
SYNC_OUT
POWER_OUT
PoE
ETH
SYNC_IN
Power
Radio link Antenna 2 (Rx2)
Antenna 1 (Tx/Rx1)
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 30 of 38
01.01.00/1 Rev.1
c) TWO MBS UNIT WITH DIVERSITY 2 IN RECEPTION
The connections are the following ones:
Power supply for the MBS Unit 1: 220/110 VAC or 24 VDC.
From ANT connector of the MBS Unit 1 to the first antenna.
From ANT connector of the MBS Unit 2 to the second antenna.
Connection with the radio links through PoE connector of both MBS Units.
Maintenance through PoE/ETH connector of both MBS Units
Power
Radio link 2
Radio link 1
ANT
DIV IN
DIV OUT
POWER IN
PoE/ETH
SYNC OUT
POWER OUT
PoE
ETH
SYNC IN
Antenna 2
(
TX
F2
/Rx2
)
Antenna 1
(
Tx
F1
/Rx1
)
TX F1: Output Transmission Frequency 1
TX F2: Output Transmission Frequency 2
RX1: Reception “Chain 1” of frequencies 1 y 2
RX2: “Recepetion Chain 2” of frequencies 1 y 2
ANT
DIV IN
DIV OUT
POWER IN
PoE/ETH
SYNC OUT
POWER OUT
PoE
ETH
SYNC IN
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 31 of 38
01.01.00/1 Rev.1
6.3.4.2. CONNECTION OF THE EXTERNAL POWER SUPPLY
Check that the power supply source and/or the battery to be used are
adapted to the type of MBS Unit (AC/DC) and meets the voltage and current
requirements necessary to supply the equipment.
a) MBS Unit with AC power supply source:
Nominal voltage: 110/220 VAC (Range: from 94 to 264 VAC).
Use the power cable connector provided with the MBS Unit to connect the
MBS Unit to the power supply source. Use a cable of 3 wires; with weather
protection; with the following features:
Cable diameter: 6 mm - 12 mm.
Cable section: 4 mm² (0.6/1KV) or AWG-11.

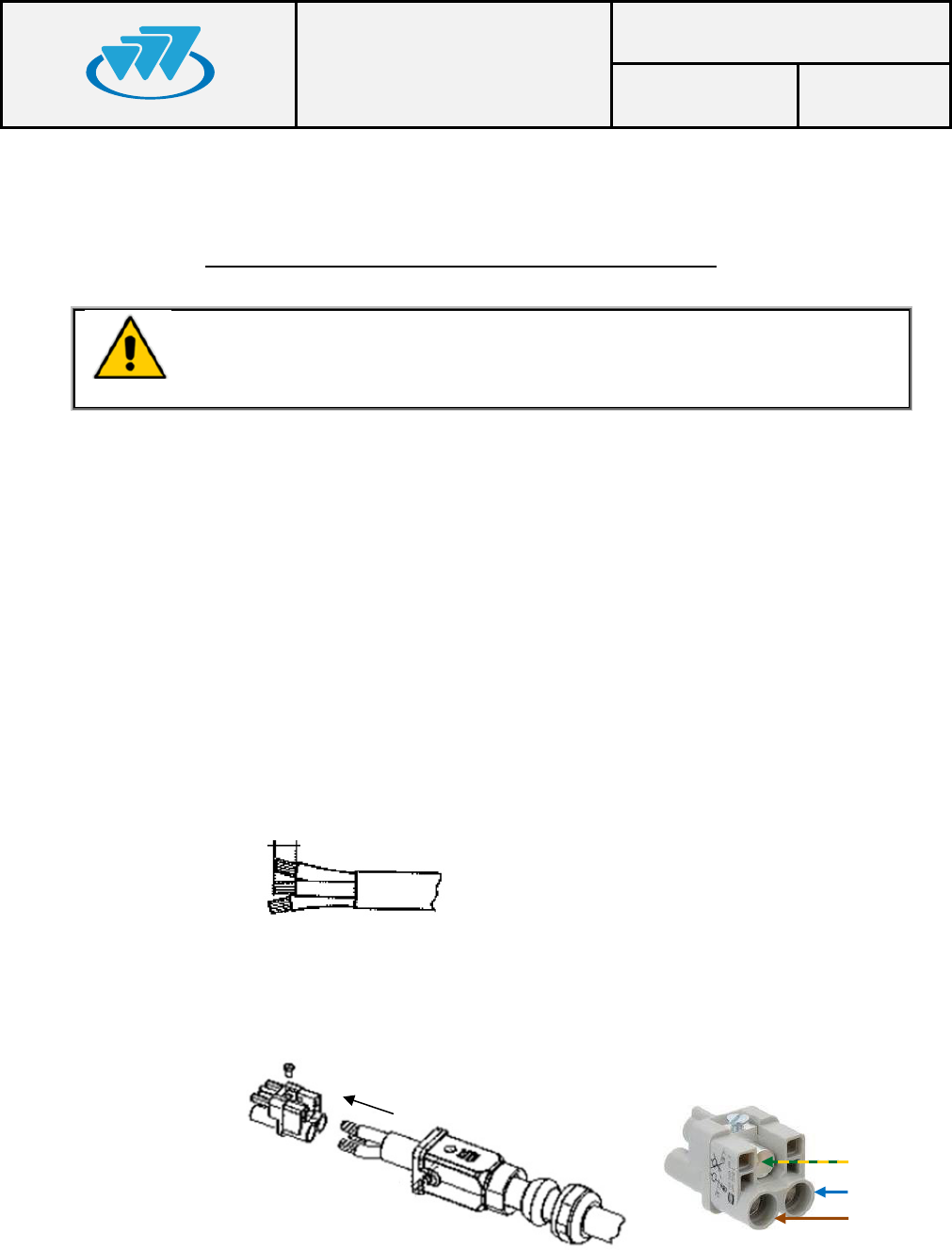

Ensure that the connection is made in the correct way (Line, Neutral and
Earth) following the next steps:
Strip cable and wires (stripping length 8 mm -9 mm).
NOTE: The earth cable must be 2 mm longer.
Push the cable through the cable gland and the hood/housing and
insert the wires into the insert respecting the correct polarity.
8-9mm
Neutral (N)
Line (L)
Earth (PE)
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 32 of 38
01.01.00/1 Rev.1

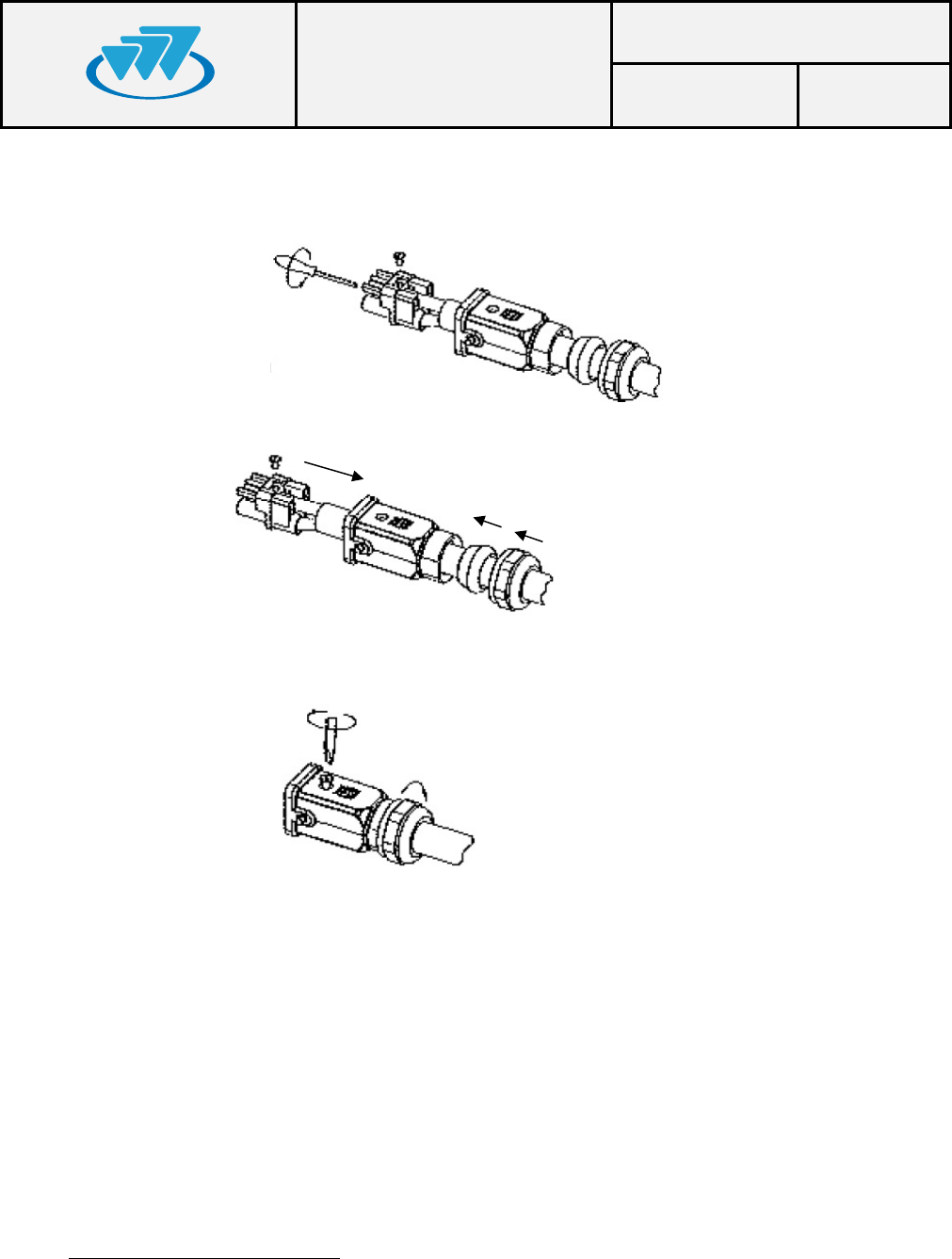

Fix each wire tightening each pin from the front side with a hexagonal
screwdriver (Allen number 2).
Push the insert back into the hood/housing.
Fix the assembly tightening the top locking screw and tightening the
cable gland nut on the back of the hood/housing.
b) MBS Unit with DC power supply source:
Nominal voltage: 24 VDC (Range: from 21.6 to 31.2 VDC).
Use the power cable connector provided with the MBS Unit to connect the
MBS Unit to the power supply source. Use a cable of 3 wires with weather
protection and the following features:
Cable diameter: 10 mm - 14 mm.
Cable section: 6 mm² (0.6/1KV) or AWG-10.
Maximum cable length1:
- One MBS Unit: 85 m.
- Two MBS Units: 42 m.
1 The greater the cable length, the greater the voltage drop in it. The specified length has been calculated to ensure
minimum operating voltage of the MBS Unit, assuming a minimum voltage of 24V at the output of the power system and a
typical resistivity of copper wire Ω ≤ 0.0172 mm2/m.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 33 of 38
01.01.00/1 Rev.1

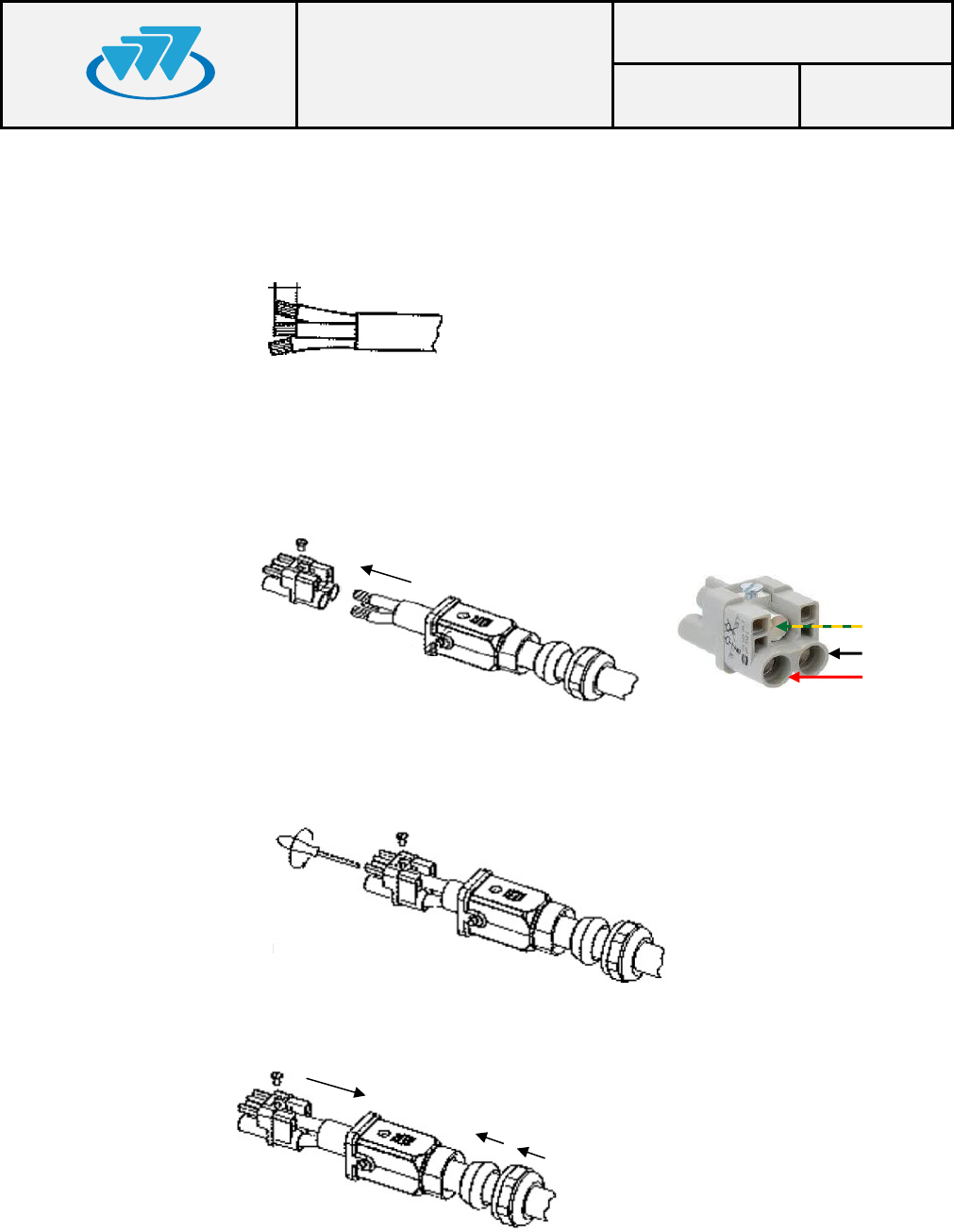

Ensure that the connection is made in the correct way (Positive, Negative
and Earth) following the next steps:
Strip cable and wires (stripping length 8 mm - 9 mm).
NOTE: The Earth cable must be 2 mm longer.
Push the cable through the cable gland and the hood/housing and
insert the wires into the insert respecting the correct polarity.
Fix each wire tightening each pin from the front side with a hexagonal
screwdriver (Allen number 2).
Push the insert back into the hood/housing.
8-9mm
Negative (-)
Positive
(+)
Earth (PE)
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 34 of 38
01.01.00/1 Rev.1
Fix the assembly tightening the top locking screw and tightening the
cable gland nut on the back of the hood/housing.
c) In both cases:
The power supply cable to the MBS Unit must be provided by the installer
with the proper power supply connector adapted for the connection to the
electrical network or to a 24 VDC source
Ensure that the earth connection is made. The MBS Unit has an earth
connector; this connector will connect to the earth protection of the
installation, which is different to the earth protection of the lightning rod.
Make this connection with a cable of, at least, 25 mm2 section (or AWG-3).
NEVER use a gas or electricity conduit as an earth.
6.3.4.3. ANTENNA CONNECTION
With every MBS Unit, a RF super-flexible wire, N-Male – N-Male, is supplied
to connect the ANT connector of the MBS Unit with the RF wire of the
antenna.
Note: In case of installation a MBS Unit with diversity 2, it is recommended to
contact your supplier and/or installer who will provide the additional RF
super-flexible wire (Cod. 208931).
The RF assembly depends on the cable type used in the installation up to the
antenna.
The RF cable must have a protection against water entry (vulcanizable tape).
Choose the most adaptable antenna for the installation. The antenna must
have an impedance of 50 ohms to the equipment transmission frequency.
Install the antenna in accordance with the manufacturer’s instructions.
Use a coaxial cable, avoiding as much as possible large cable lengths. Cable
impedance is 50 ohms.
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 35 of 38
01.01.00/1 Rev.1
In installations with diversity, the greatest gain is achieved by placing the
antennas on the same horizontal plane with a minimum distance of 5.5 m
between them.
Measure the ROE of the installation. Never accept a ROE greater than 2.
6.3.4.4. EXTERNAL ETHERNET CONNECTION
The Ethernet cable connector, to connect the MBS Unit with the radio link
(PoE), is supplied with every MBS Unit.
Note: In the case of connection to two radio links, it is recommended to
contact your supplier and/or installer who will provide the additional Ethernet
cable connector.
The Ethernet wire for the radio link connections is supplied by the installer,
and must have the following characteristics:
Cable with 8 wires, FTP cat5E with outdoor protection.
Diameter: 6.5 mm to 9.5 mm.
Maximum length: 100 m
Mount the wire on the connector according to the TIA / EIA 568B
standard (The assembly requires no tools, is done manually).
Pin Color T568B Pins on plug face (socket is reversed)
1
White/Orange
2
Orange
3
White/Green
4
Blue
5
White/Blue
6
Green
7
White/Brown)
8
Brown
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 36 of 38
01.01.00/1 Rev.1
6.3.4.5. CONNECTION BETWEEN TWO MBS UNITS
To connect two MBS Units you must have the interconnection kit for additional carrier
(Cod. D014001). This is obtained as an independent accessory.
Apart from the power wiring, antennas and radio links to connect as indicated in the
section of supported configurations, it should be considered the use of interconnection
kit between the two Units MBS, as indicated bellow.
Connections MBS_1
connector
MBS_2
connector
Power Supply Power_OUT Power_IN
Ethernet ETH ETH
Synchronism SYNC_OUT SYNC_IN
DIV_OUT DIV_IN
Diversity in reception
DIV_IN DIV_OUT
ANT
DIV IN
DIV OUT
POWER IN
PoE/ETH
SYNC OUT
POWER OUT
PoE
ETH
SYNC IN
ANT
DIV IN
DIV OUT
POWER IN
PoE/ETH
SYNC OUT
POWER OUT
PoE
ETH
SYNC IN
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 37 of 38
01.01.00/1 Rev.1
7. START UP/CONFIGURATION/VERIFICATION
IMPORTANT: Ensure that the power supply of the MBS Unit is the proper
one before switch it on; an erroneous power supply can cause damages in
the equipment.
Every MBS Unit has in its labelling the diverse options that it offers. If the
MBS Unit includes the option O148017, this it will have to be powered with
AC (220/110 VAC), however, if the MBS Unit includes the option O148018 it
will have to be powerred with +24 VDC nominal voltage.
Preliminary considerations for carrying out the MBS Unit start up:
• To start up the equipment, this must have the final IP correctly configured (see
chapter of infrastructure configuration (F067220) in the Technical Manual).
• Refer to the radio link used to configure this device. Make sure this element is
properly connected to ground.
The steps to perform the final settings are:
1. Before connecting power supply to the MBS Unit, make sure the right voltage level
reaches the power supply cable connector.
2. Provide power to the MBS Units through the POWER_IN connector.
3. Wait for the MBS Unit initialization (about 3 minutes).
4.
Verify that you have access to the MBS (by performing a "ping"). Make partial checks in
case of no response from the MBS, perform pings to intermediate elements: SNI Æ Node
radio link Æ remote site radio link Æ MBS.
5. From NMS, register the MBS Unit(s), completing the necessary settings (see chapter of
infrastructure configuration, F067220, and the client's user manual NMS, F067201).
6.
Verify the absence of alarms in monitoring module and check with a radio terminal that it is
registered and you can make and receive calls. In case of interference or coverage fault
alarms see chapter of the infrastructure adjustment (F067218).
Code: D148X01_DDS06
MBS USER AND
INSTALLATION
MANUAL Date: 05/10/11 Page: 38 of 38
01.01.00/1 Rev.1
8. INCIDENTS
The MBS Unit must be repaired by authorized technical personnel only. There
will not be performed any repair of the MBS Unit and it will have to be sent to
factory except for the change of the pressure equalizer or the overvoltage
protections.
8.1. INTERFERENCE AT MBS UNIT
This alarm is monitored in the NEBULA (NMS) management and configuration module.
See the infrastructure event list (F067516) in NEBULA Technical Manual.
Any interference in the MBS Unit is activated when there are a large number of
consecutive invalid events in the MBS Unit. A reception fault is considered when a level
higher than the threshold for reception of the carrier, but is not recognized as a valid
signal. Depending on the signal level, interference is considered low or high. So, if the
level of signal is above the threshold for reception and below the threshold set to high
interference and is not recognized as a valid sign, it will be a low interference alarm. If the
signal level is above the threshold set to high interference and is not recognized as a valid
signal, the low level alarm would disappear (if it happened) and high interference would
produce.
These alarms are turned off with any valid signal reception for low interference case, and
with more than one consecutive right reception for high-level interference.
8.2. OVER VOLTAGE PROTECTION
The MBS Unit has several protections against lightning and surges, in any case the action
of these protections generate an alarm in the NMS client which disappear when the
protective element is replaced by authorized technical staff.
a) Protection against lightning and power surges
This protection is located within the MBS Unit. It should be changed every time it
breaks even if the MBS Unit continues functioning properly. An alarm in the NMS
Client is reported showing that the replacement of this type of protection is needed.
b) Protection against lightning and surges in the RF connections
This protection is located inside the connectors themselves (ANT and DIV_IN).
These connectors have a gas discharger that when it is broken, it ceases to
receive/transmit signal through the connector. The NMS Client provides a reflected
alarm when the ANT discharger fails and diversity alarm when the DIV_IN
discharger fails.
