I. Login
Login
Login
Login Screen
Screen
Screen
Screen

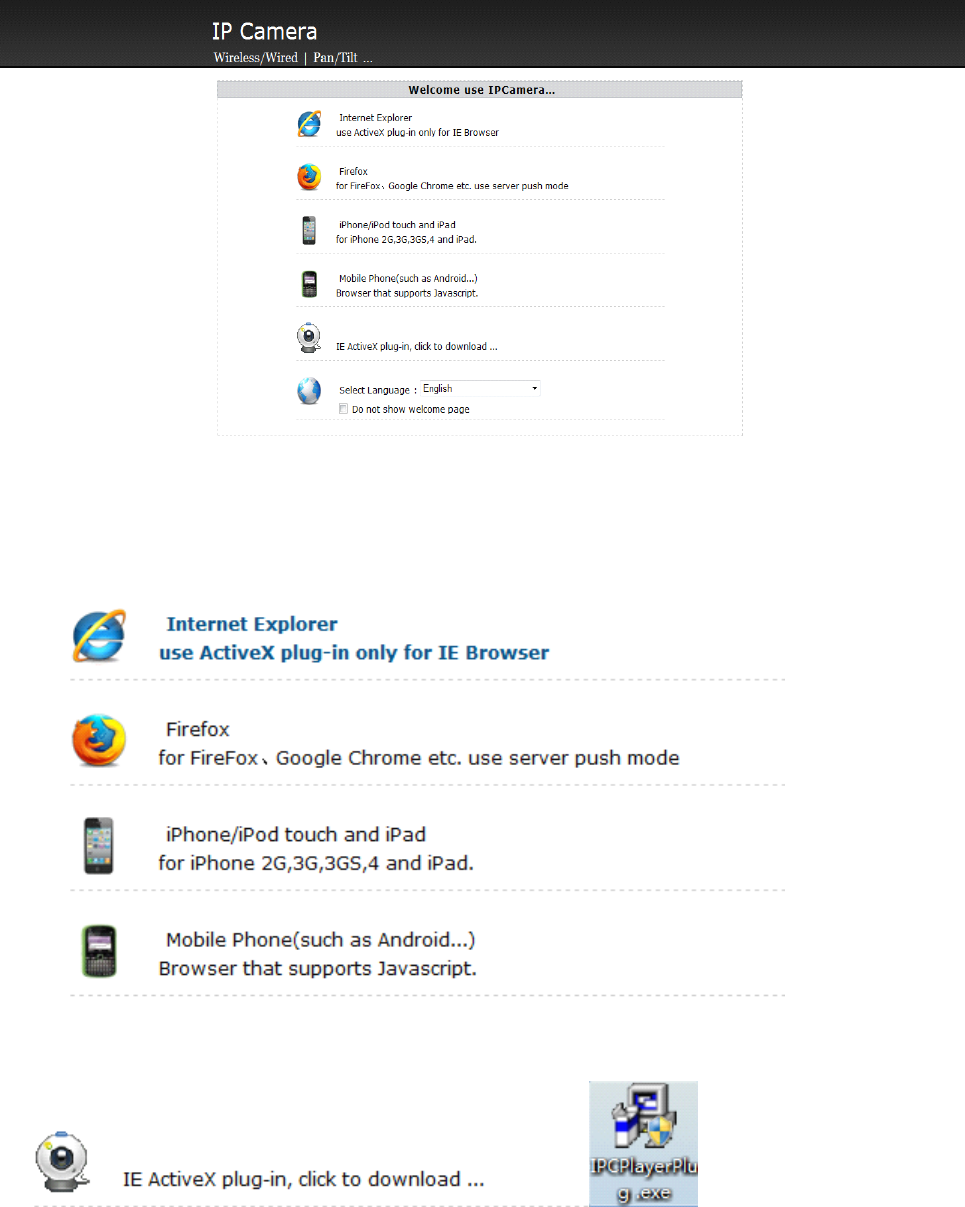

a、You can choose IE 、Firefox or other mobile devices to view the video ：
b、For IE browser, please download and install the Active X, after that, you can view the
video.

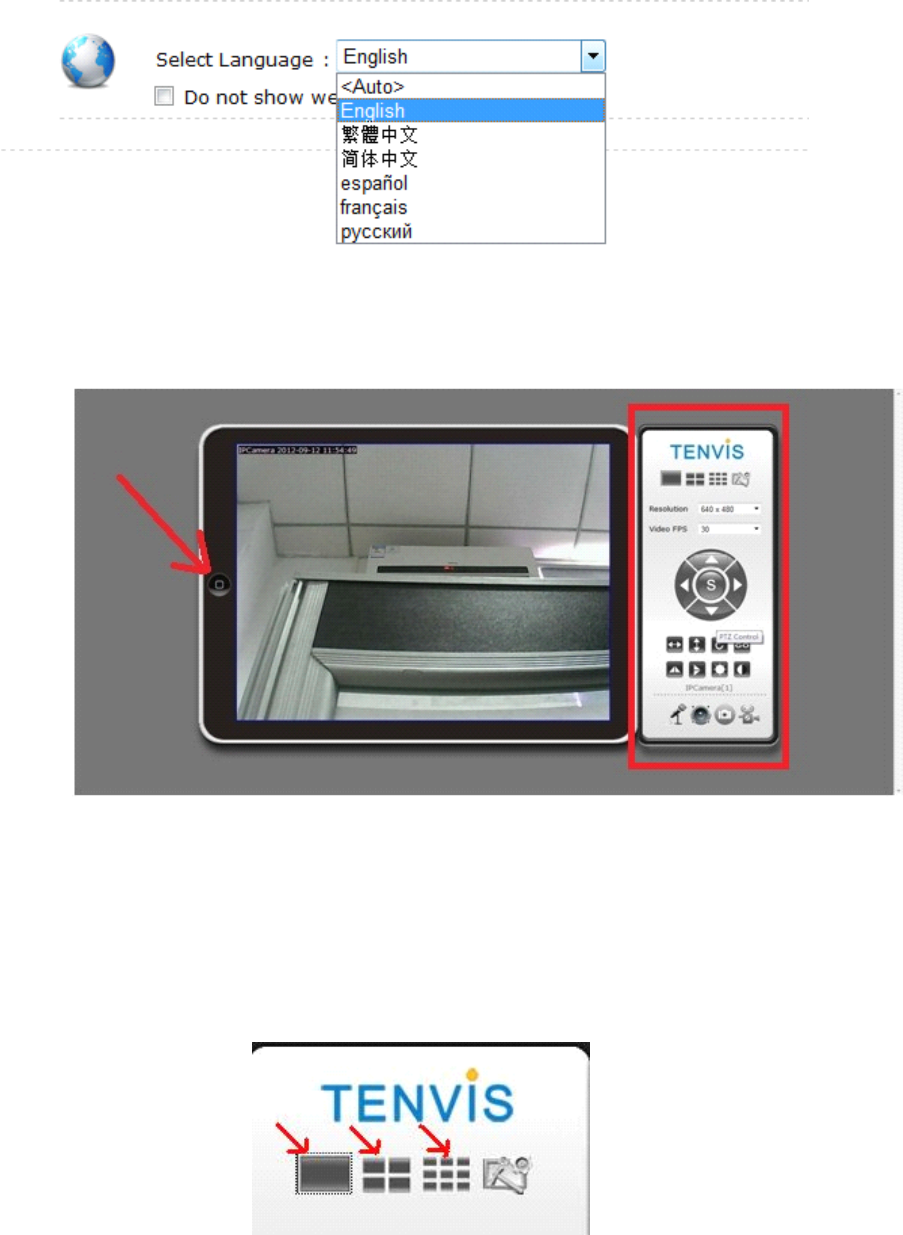

c、Language selection （when choose
“
Auto
”
, it will automatically be compatible with
your computer language ） ：
II.
II.
II.
II. Live
Live
Live
Live Video
Video
Video
Video
a. Click the button : ” Home ” button at left, we can back to previous interface. 。
b. At right, there are multi-live setting, pan/tilt, image setting, two-way audio, video record,
snapshot button.
1.
1.
1.
1. Multiple
Multiple
Multiple
Multiple Channels
Channels
Channels
Channels Selection
Selection
Selection
Selection
a、Please add your devices based on the quantity you have before selecting multi-live devices,
red arrow area is for different cameras you have.
b、Red arrow directing area is for 1,4,9 windows.
c、Select the related camera, you could make snapshots, recording or settings.
2.
2.
2.
2. PTZ
PTZ
PTZ
PTZ and
and
and
and Preset
Preset
Preset
Preset Position.
Position.
Position.
Position.

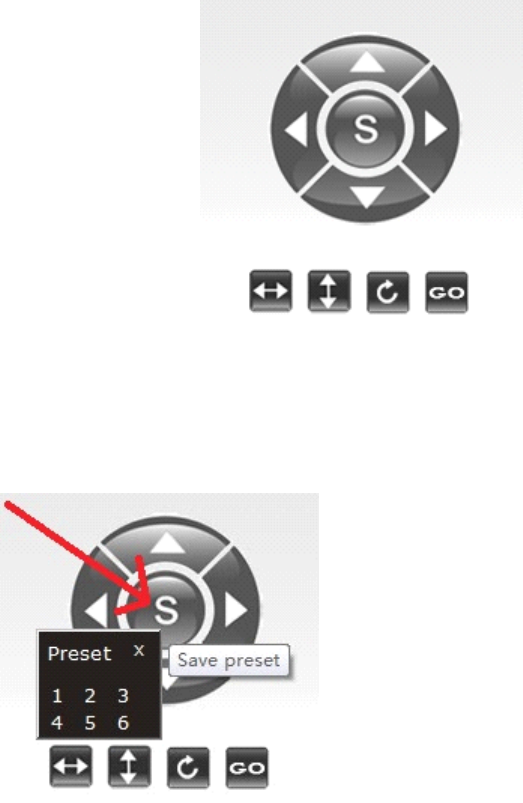

a. U p,down, left & right arrow is for controlling the pan/tilt, double arrows and ring arrow is used
for cruising.
b. S stands for preset position, click it then you will see the preset position settings, the number
stands for current position.,

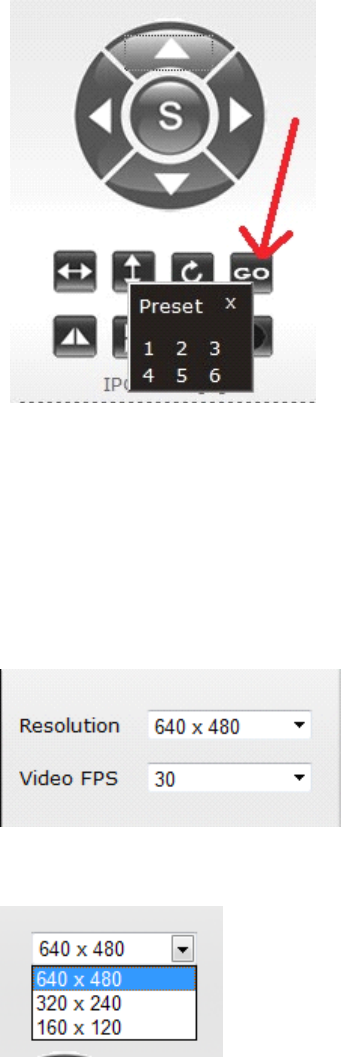

c、Click GO and will appear the choice of preset position, you can choose the position you ’ d like.
3.
3.
3.
3. Resolution
Resolution
Resolution
Resolution Selection
Selection
Selection
Selection ：
a. Resolution ratio ,3 choices, they are 640 ×480 、320 ×240 、160 ×120
b. Frame rate have 30 、25 、20,total 3 modes you could choose. 。
4.
4.
4.
4. Graphic
Graphic
Graphic
Graphic Adjustment
Adjustment
Adjustment
Adjustment

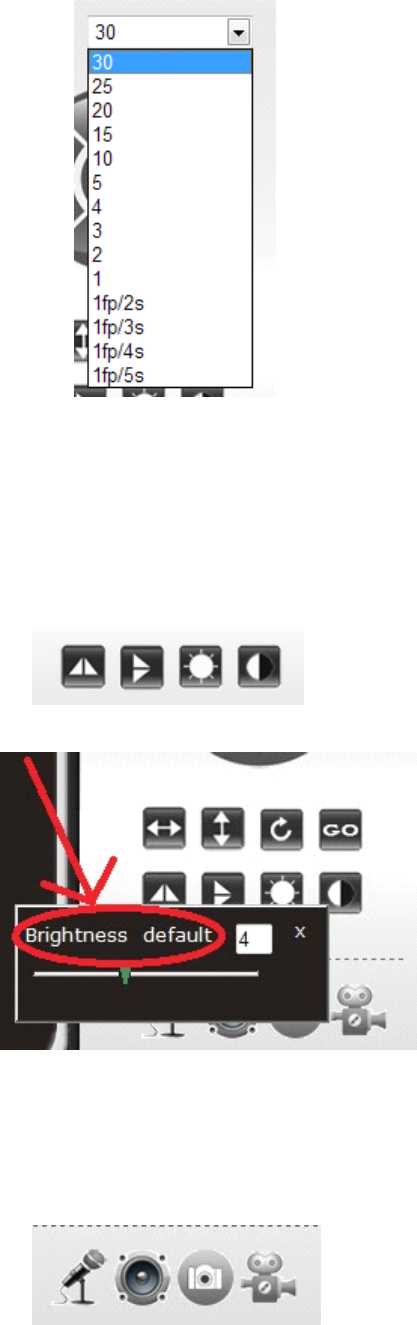

You
could choose flip vertical, flip horizontal , brightness adjusting and contrast.
You
could rest
with clicking the default.
5.
5.
5.
5. Record,
Record,
Record,
Record, Snapshot,
Snapshot,
Snapshot,
Snapshot, and
and
and
and Two-way
Two-way
Two-way
Two-way Audio
Audio
Audio
Audio
a、
You
could click related button to get such function upside.

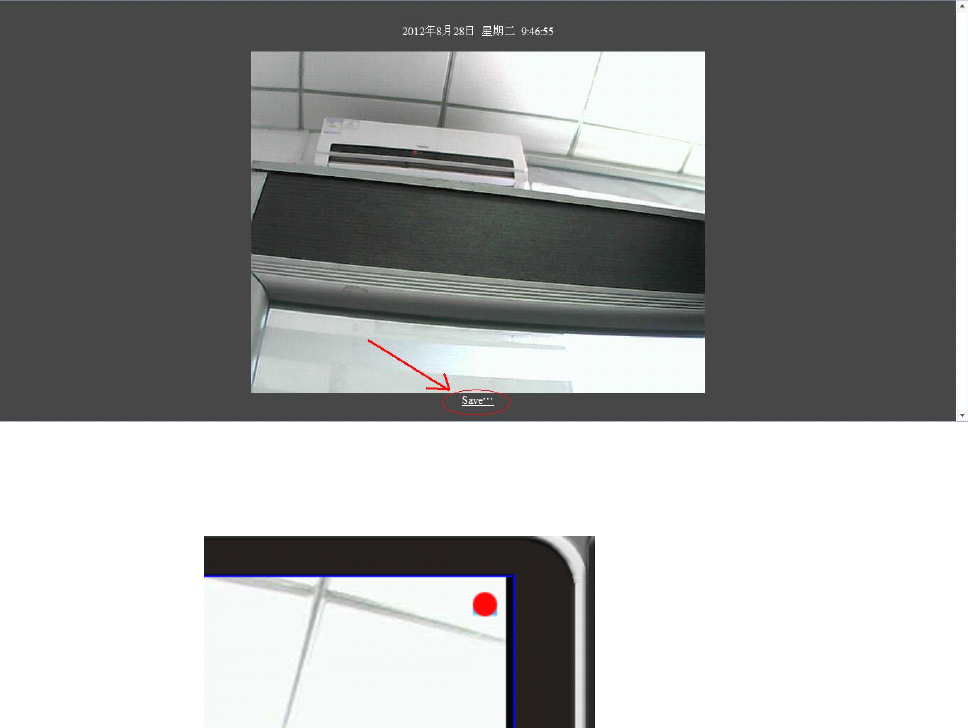

b、After you make the snapshots, please click save button the red arrow direct. Then select the
storage area on your computer.
c、Click record and then you will see a red point on the right up-side, that means it
’
s recording
now.
6.
6.
6.
6. Short-cut
Short-cut
Short-cut
Short-cut Buttons
Buttons
Buttons
Buttons

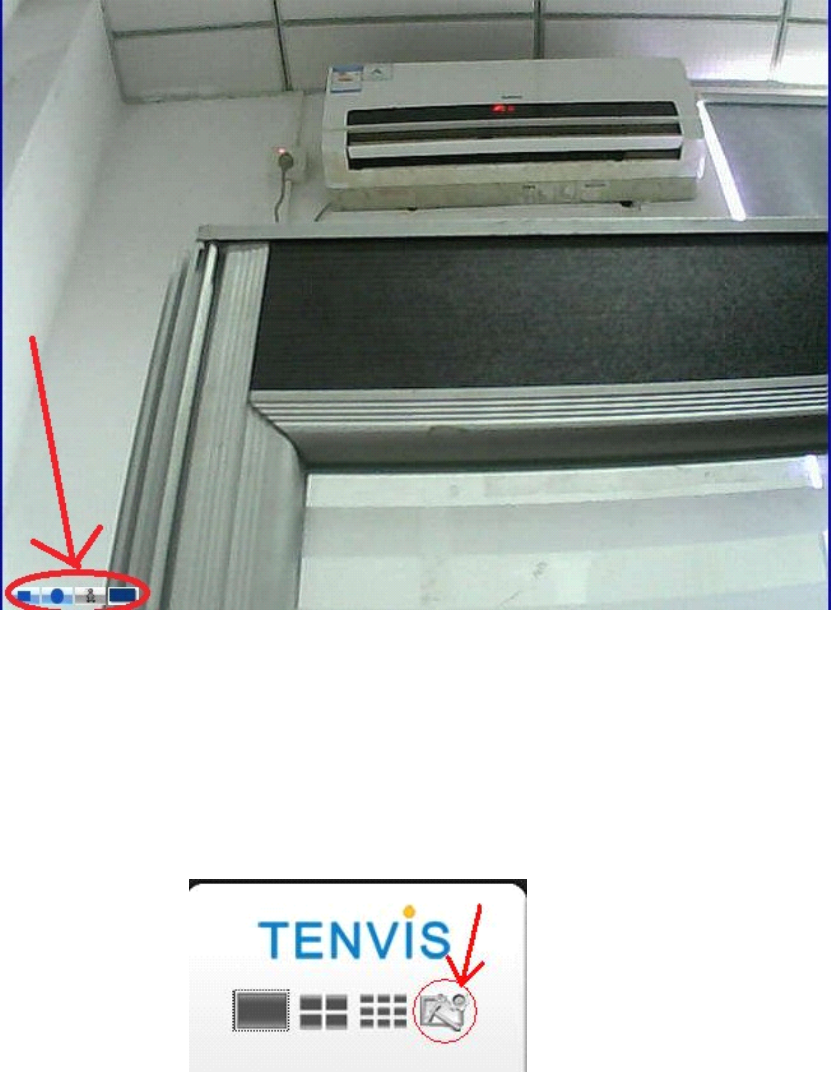

When mouse is using at the windows, there will appear the short-cut buttons, From left to
right: Pause/Play ；Record ；Alarm stop ；Wide &narrow screen switching.
III.
III.
III.
III. Parameter
Parameter
Parameter
Parameter Setting
Setting
Setting
Setting
Click the red arrow directing area, you will see the device information there.
1.
1.
1.
1. Alarm
Alarm
Alarm
Alarm Setting
Setting
Setting
Setting

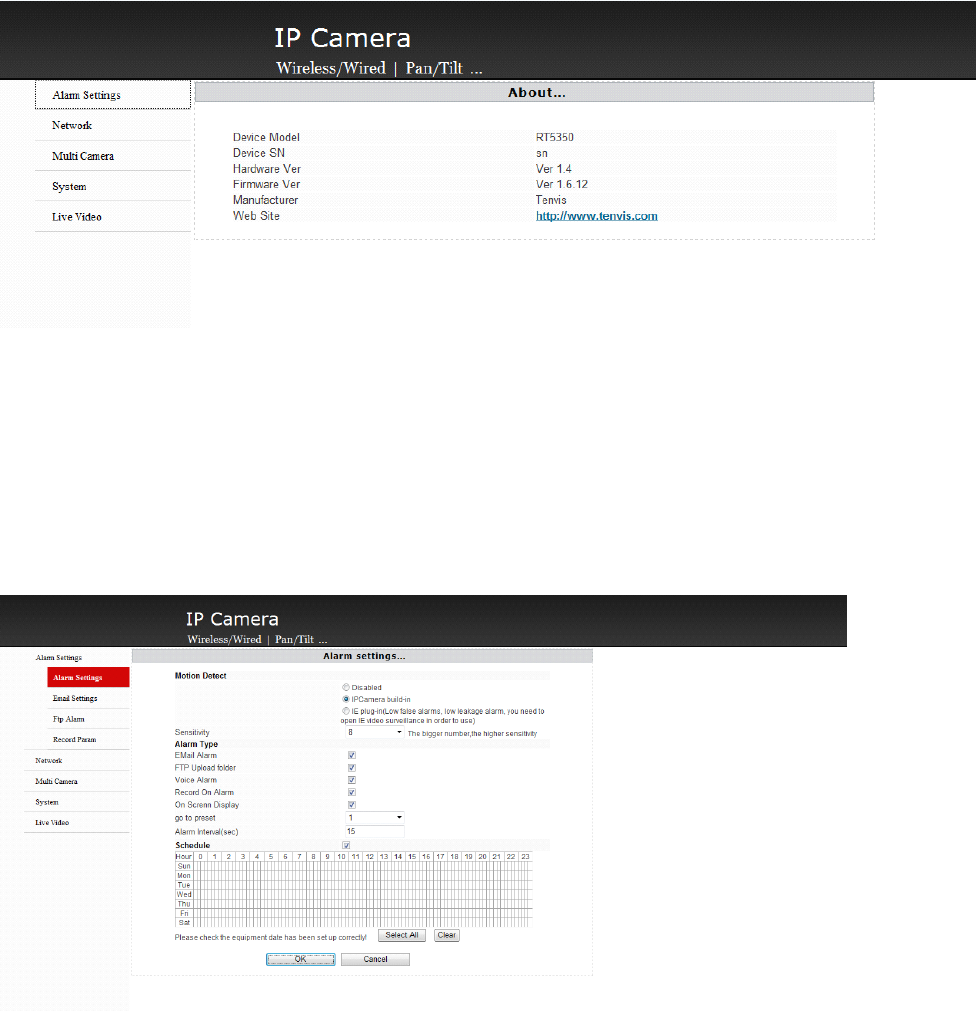

a、Set the motion detection and voice alarm, pictures can be sent to mail box or FTP server.
Besides, can record video when alarm.
b、On the menu, we also provide motion detection sensitivity adjustment and preset setting when
alarm.
c、
You
also could choose daily schedule there.
d、After finish the setting, please store your settings then could works.
2.
2.
2.
2. E-
E-
E-
E- m
m
m
m ail
ail
ail
ail Setting
Setting
Setting
Setting

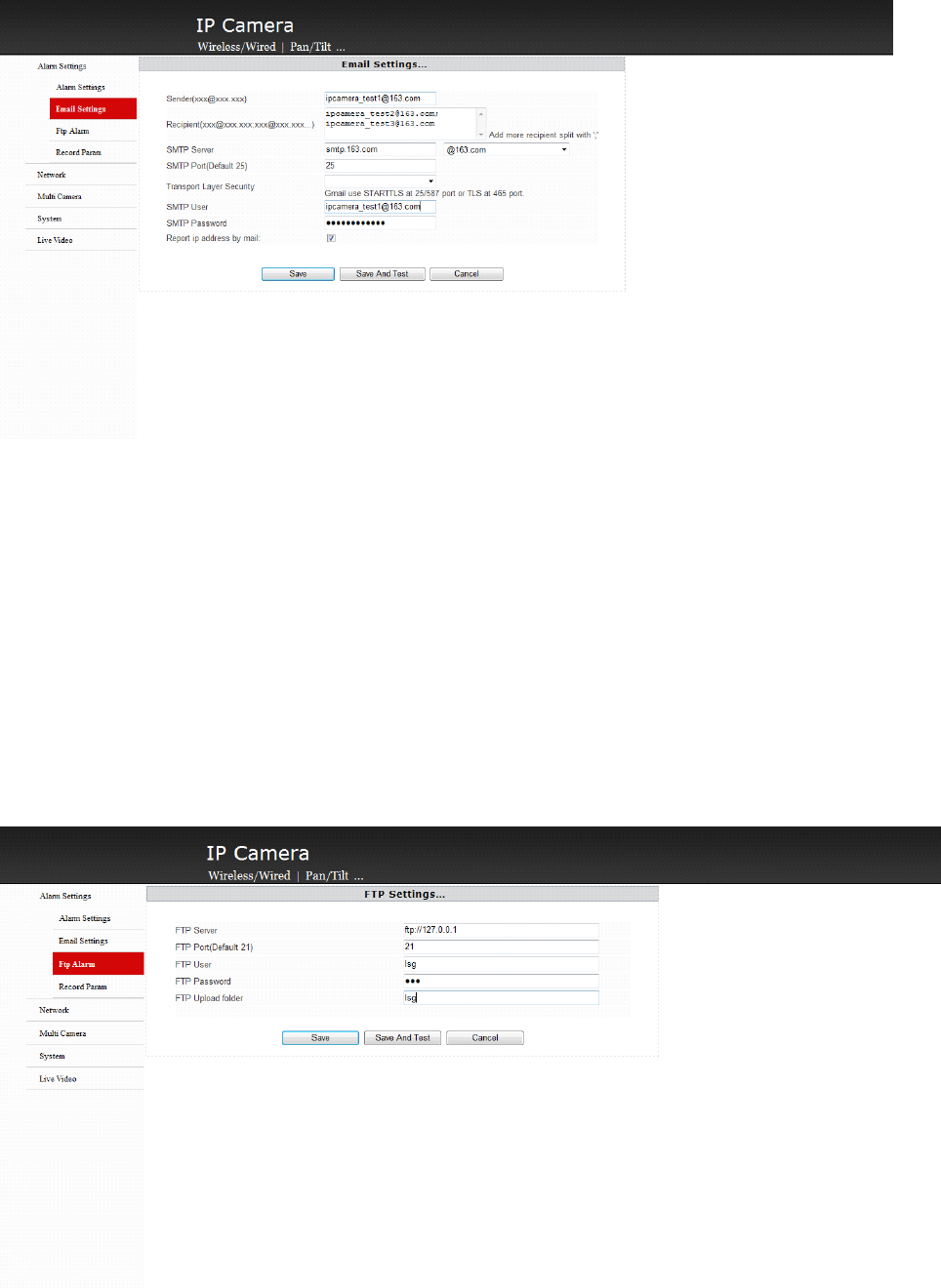

a、Please enter write sender
’
and receiver
’
s email in the proper area. Please add ; when have
many email addresses there.
b、SMTP Server is the same as the sender
’
s email SMTP .
c、SMTP port is 25.
d、User name and password please use the sender
’
s information there.
e、After finishing entering, please save it to make the setting work.
You
could make a test to
check whether it works or not.
3.
3.
3.
3. FTP
FTP
FTP
FTP Setting
Setting
Setting
Setting
a、Please enter right sever address for the
FTP.
在FTP
b、FTP port is 21.
c、User name and password is the same as you use on FTP.
d. Upload the menu and make it as your save menu.
e. After the filling, please save it and then the setting works.
You
could make a test on it to check
if it works.
4.
4.
4.
4. Record
Record
Record
Record P
P
P
P arameter
arameter
arameter
arameter

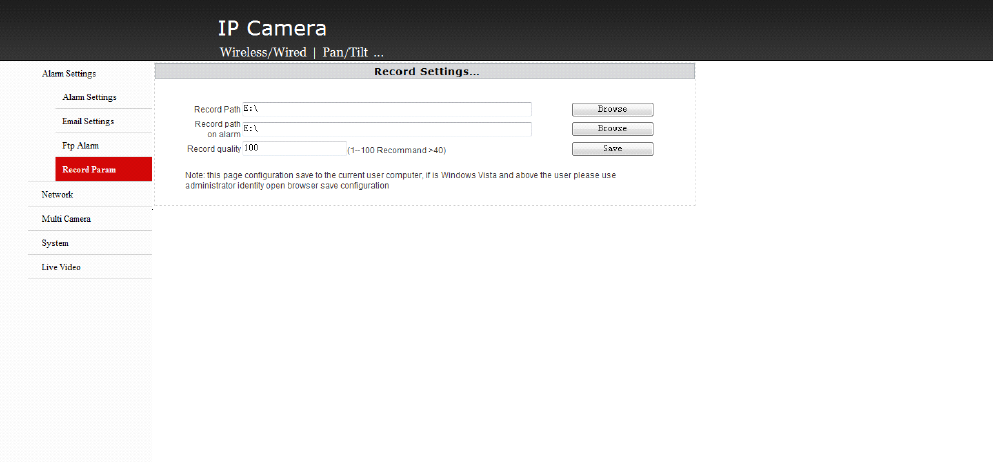

a、Click the recording and alarm route , you could change the rout there.
b、Recording quality edit box could change the quality of the video, please save it after the
settings.
5.
5.
5.
5. Network
Network
Network
Network Setting
Setting
Setting
Setting

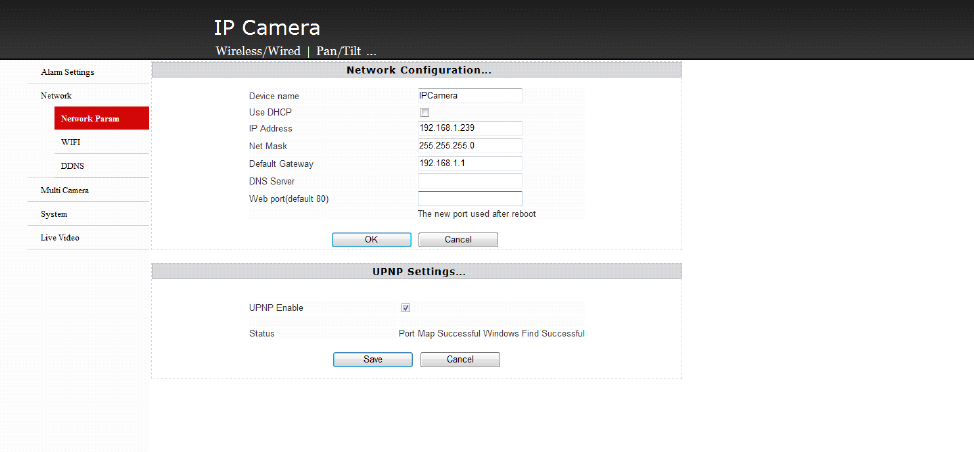

a、
You
could change the device name on the name edit box.
b、If your network support DHCP service, please click dynamic obtaining IP address, the camera
will automatic obtaining the IP address.
c、IP address edit frame shows the current IP address if the device, you could modify it there..
d、S ubnet mask edit box shows the current device subnet mask, you could revise it there.
e、Default edit box shows the current gateway, you could revise it there
f、WEB port edit box shows the current device
’
s WEB. you could revise it there WEB
g、Please circle UPNP, it can make the camera automatically achieve port forwarding to your
wireless router, connect your router to achieve internet view. your wireless router also should
have UPNP function.
h、After finishing, please remember to save it to make it effect.
6.
6.
6.
6. WIFI
WIFI
WIFI
WIFI Setting
Setting
Setting
Setting

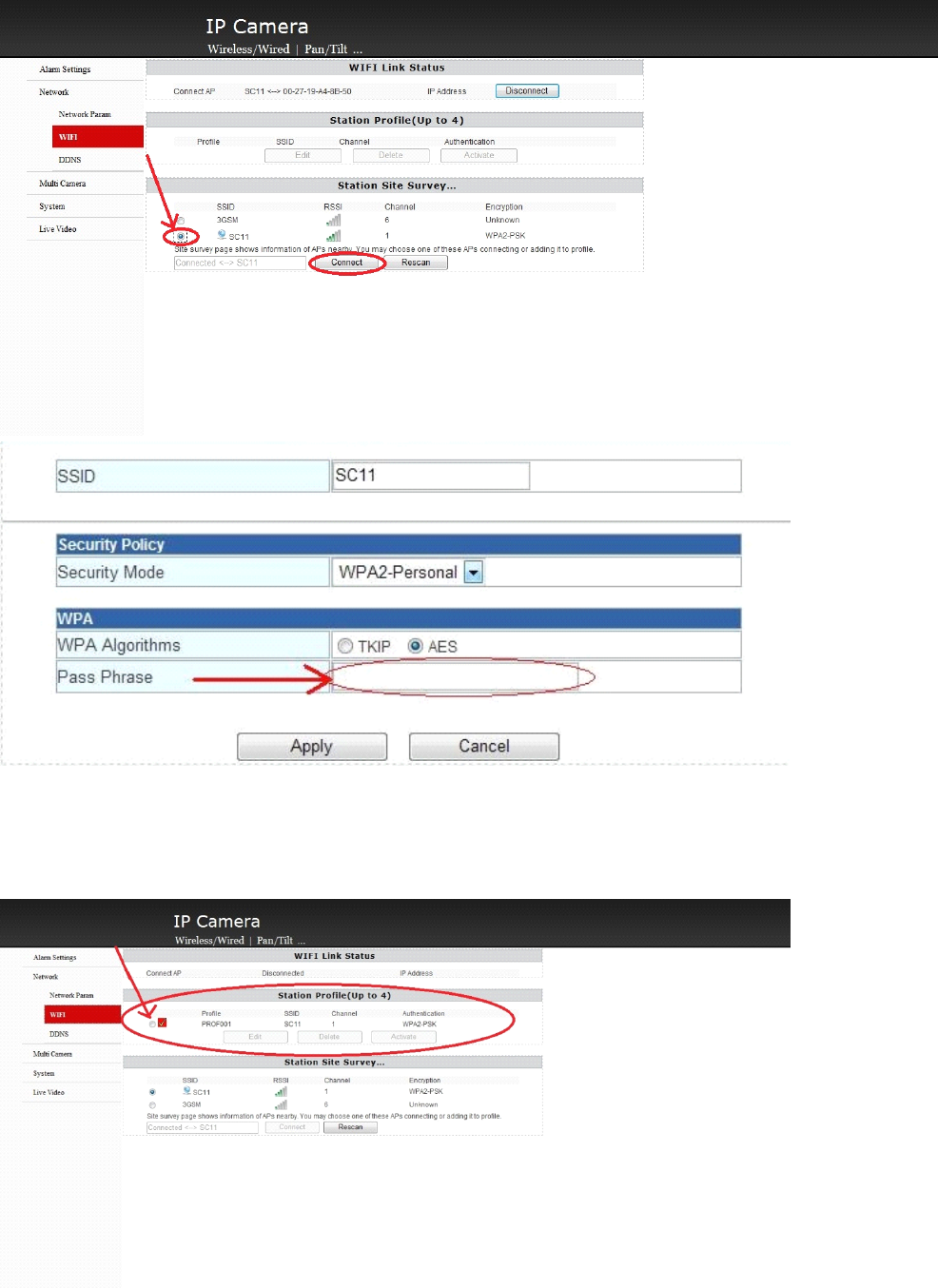

IP camera supports WIFI:IEEE802.11b/g

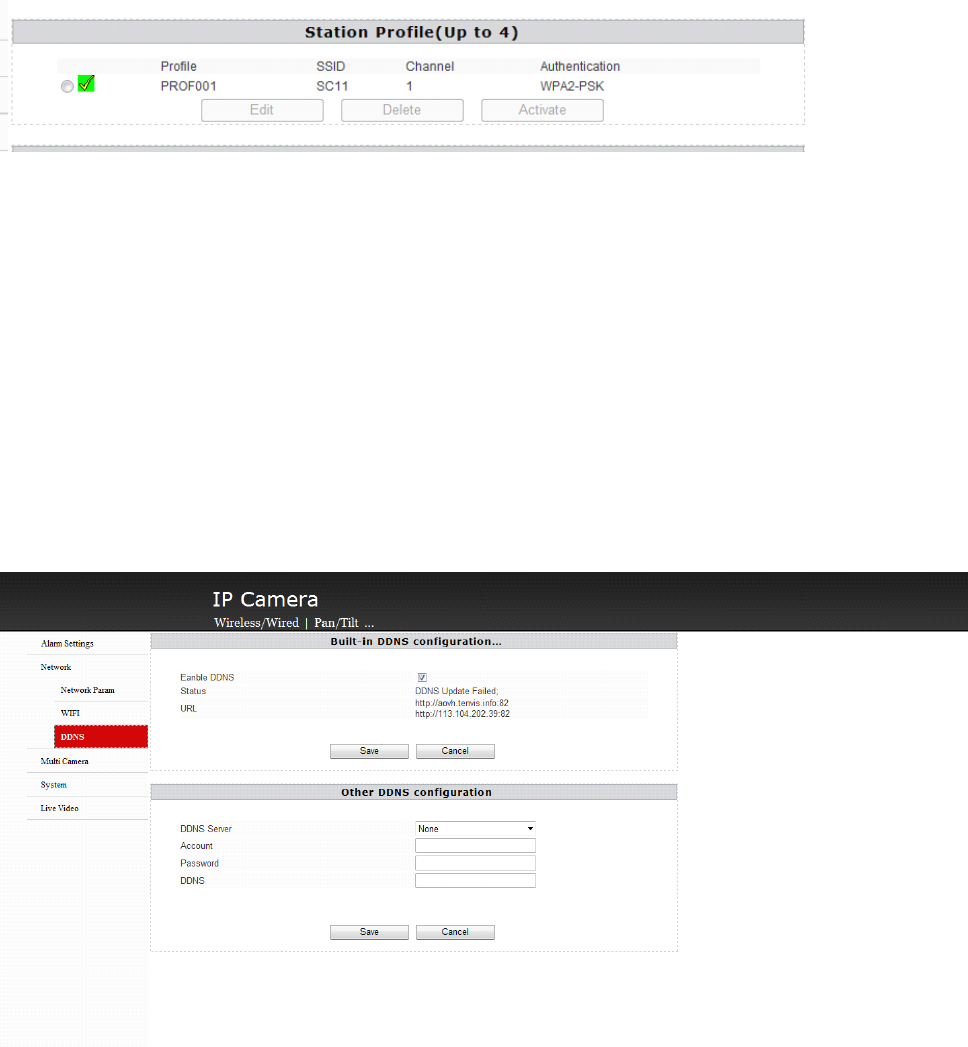

a、Click scan, and you will see the Wifi there, choose your own Wifi and connect it.
b、Choose the right Security Mode and
WPA
Algorithms and then you will see pass phrase
and then enter the Wifi password, click apply and then works.
c. If disconnect, it shows red circle, when succeed, it shows green circle.
d.All the settings upside need be the same as you set on your router, please check your acess point
or the manual book of the router to check it or consult the web administrator .
7.
7.
7.
7. DDNS
DDNS
DDNS
DDNS
Dynamic realm name is used as a static realm name to visit a dynamic one. W h en you access to
ISP network, the device will get a temporary dynamic IP address,the dynamic real name will
track the address . Even the address changed, you also could use a static realm to visit this
device from remote.
a、Built in DDNS is what we offer you on the gift box,, user name and the passwords.
b、If you want to setting the DDNS yourself, please setting them on the third part DDNS setting
area to select the right sever and then enter the right account, command and realm name. Save
it and then works.
c、If you need internet to visit the camera, please open UPNP or open the port on the router, you
could refer to the manual book and also consult the webmaster.
8.
8.
8.
8. Multi-live
Multi-live
Multi-live
Multi-live Channels
Channels
Channels
Channels Setting
Setting
Setting
Setting
Add other cameras and click the area the photos shows and enter the right IP Address or realm
name, port, user name, password, and they save it.
You
could click the multi graphics there.
9.
9.
9.
9. Camera
Camera
Camera
Camera Basic
Basic
Basic
Basic Status
Status
Status
Status
Show device info.
10.
10.
10.
10. PTZ
PTZ
PTZ
PTZ Setting
Setting
Setting
Setting

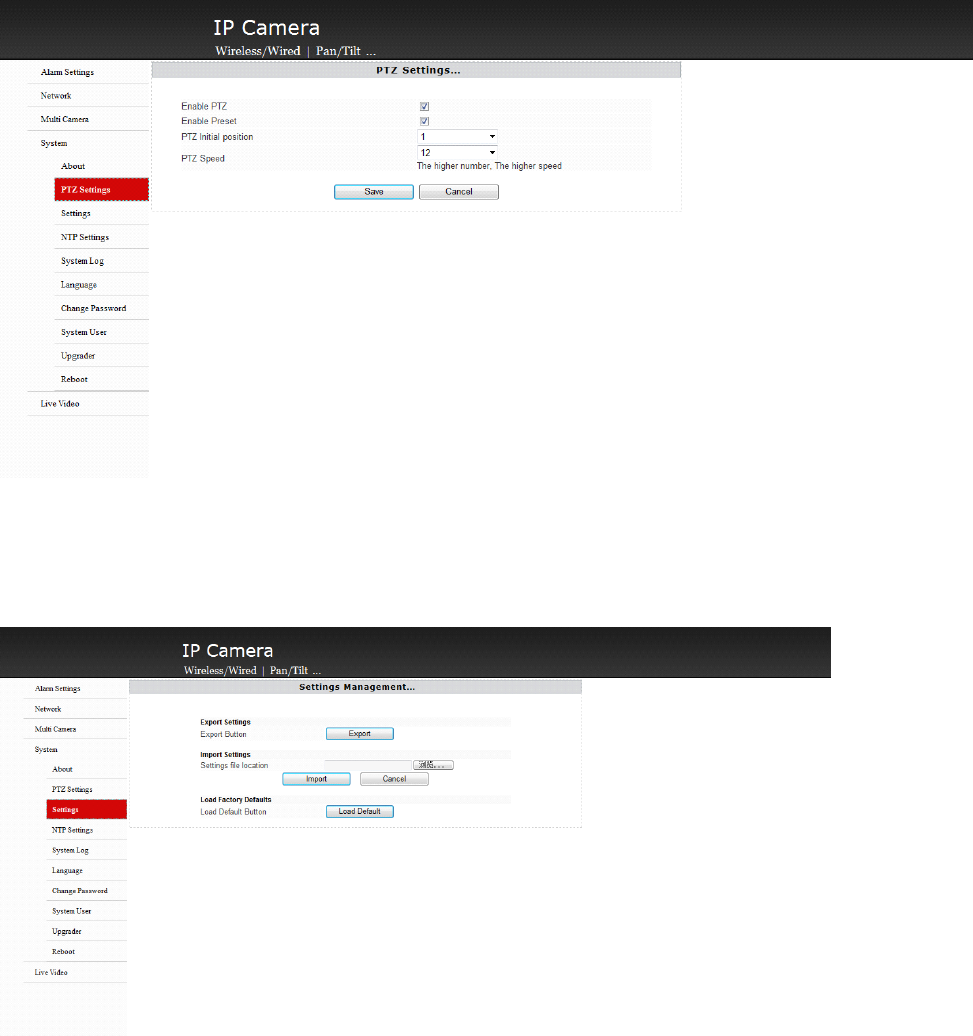

Enable or disable PTZ function, preset position, adjust PTZ initial position or PTZ speed.
11.
11.
11.
11. System
System
System
System Setting
Setting
Setting
Setting
a、Derive setting could help you make the backup file
b、Lead-in could choose backup file and recover it.
c、Recover the factory setting would empty any settings you have and come back to the original
factory default.
12.
12.
12.
12. Time
Time
Time
Time Setting
Setting
Setting
Setting

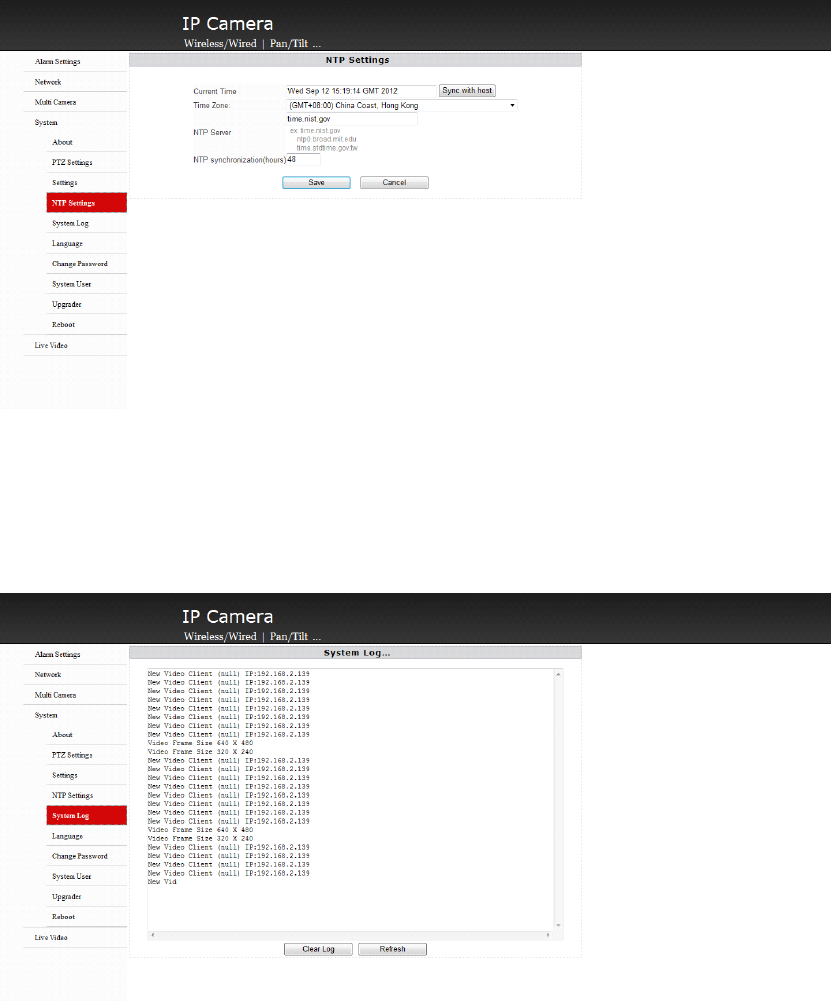

User could choose the time as the PC, you also could choose time zone, internet time and the
adjustment. Click save to make it work.
13.
13.
13.
13. System
System
System
System Log
Log
Log
Log
Check the system log.
14.
14.
14.
14. System
System
System
System Language
Language
Language
Language

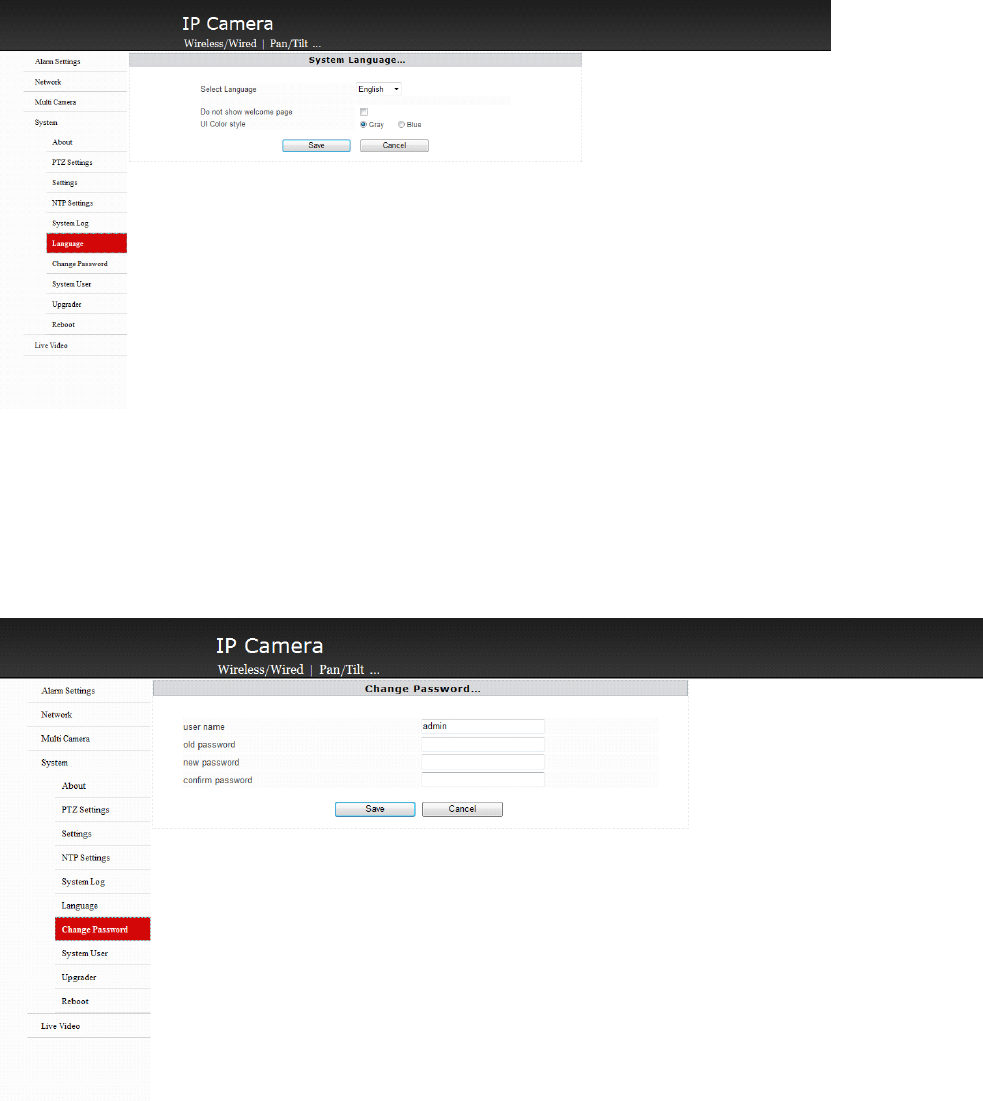

You
could choose the operation language and operation window as youer choice
15.
15.
15.
15. Modify
Modify
Modify
Modify Password
Password
Password
Password
Modify current password.
16.
16.
16.
16. User
User
User
User Management
Management
Management
Management

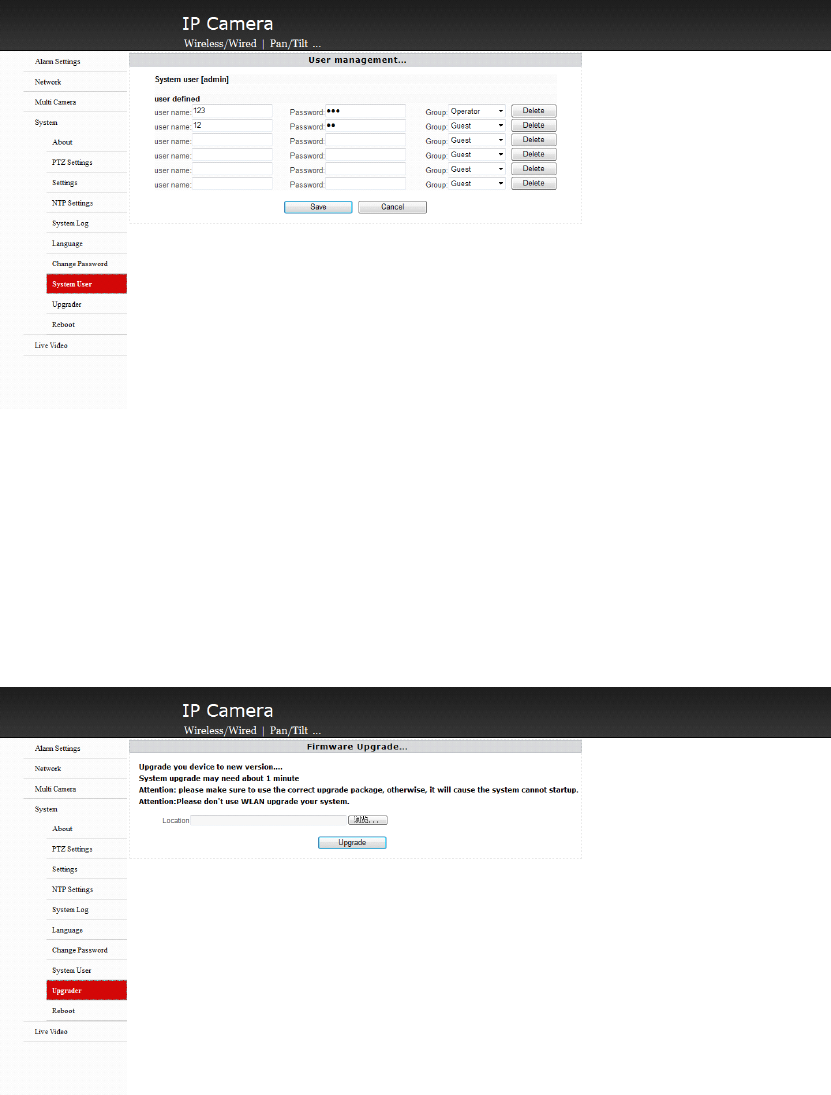

a. Administrator could operate, add, cancel the user
b. There have 3 authorities for this camera: Visitor, operator, administrator.
1.Visitor: Only watch couldn ’ t do other operations.
2.Operator ：Only could Watch, control the PAN/TILT.
3. Administrator: Could whole control of your camera.
17.
17.
17.
17. Firmware
Firmware
Firmware
Firmware Upgrading
Upgrading
Upgrading
Upgrading

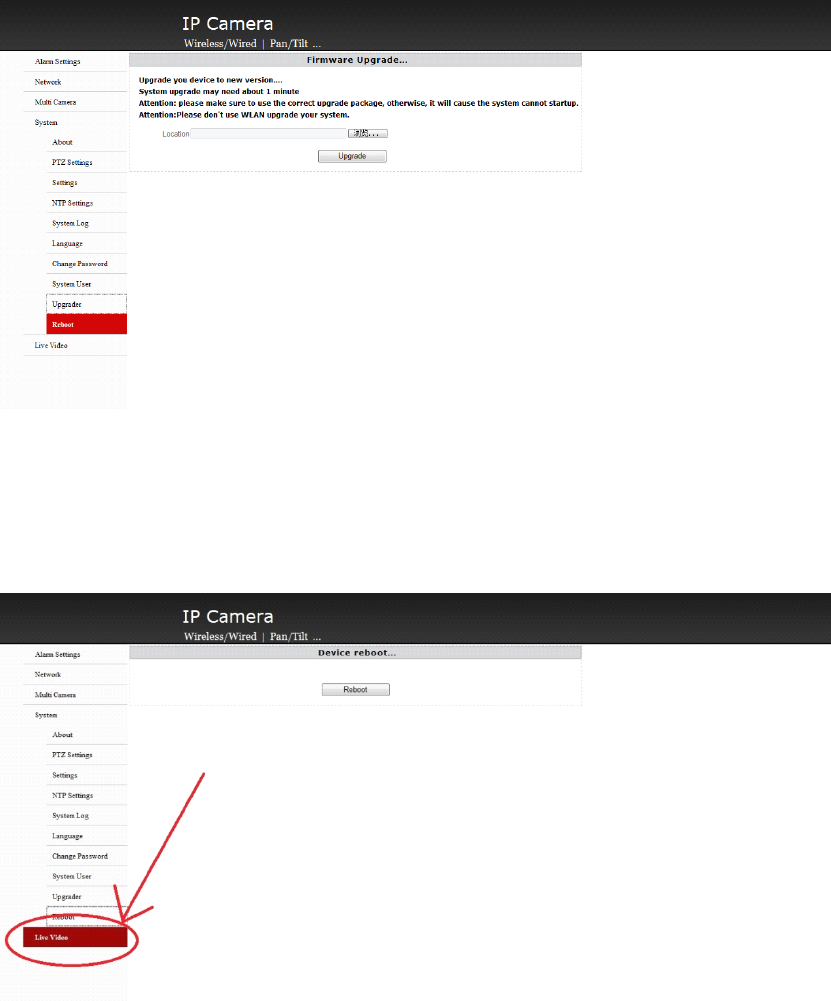

User could choose right firmware to upgrade your camera.
18.
18.
18.
18. Reboot
Reboot
Reboot
Reboot System
System
System
System
Click rebooting button and reboot the camera
19.
19.
19.
19. R
R
R
R eal
eal
eal
eal -
-
-
- time
time
time
time M
M
M
M onitoring
onitoring
onitoring
onitoring
Click the real time monitoring and back to the video page.
