Tersus GNSS TC20 TC20 Controller User Manual

Tersus GNSS Inc. TC20 Controller

User Manual

Sales & Technical Support:sales@tersus-gnss.com & support@tersus-gnss.comMore details, please visit www.tersus-gnss.com
User Manual for Tersus TC20 Controller v1.01Table of ContentTable of Content.......................................................................................................................1List of Figures........................................................................................................................... 2List of Tables.............................................................................................................................2Revision History....................................................................................................................... 31. Introduction...........................................................................................................................41.1 Overview......................................................................................................................... 41.2 Specification...................................................................................................................52. General Operation............................................................................................................... 62.1 Starting to use TC20 Controller...................................................................................62.2 Insert the SIM card and T-Flash card.........................................................................72.3 T-Flash card................................................................................................................... 92.4 Using of Touch Screen...............................................................................................102.5 Home Screen operations........................................................................................... 102.6 Extend the battery life.................................................................................................223. Terminology........................................................................................................................23

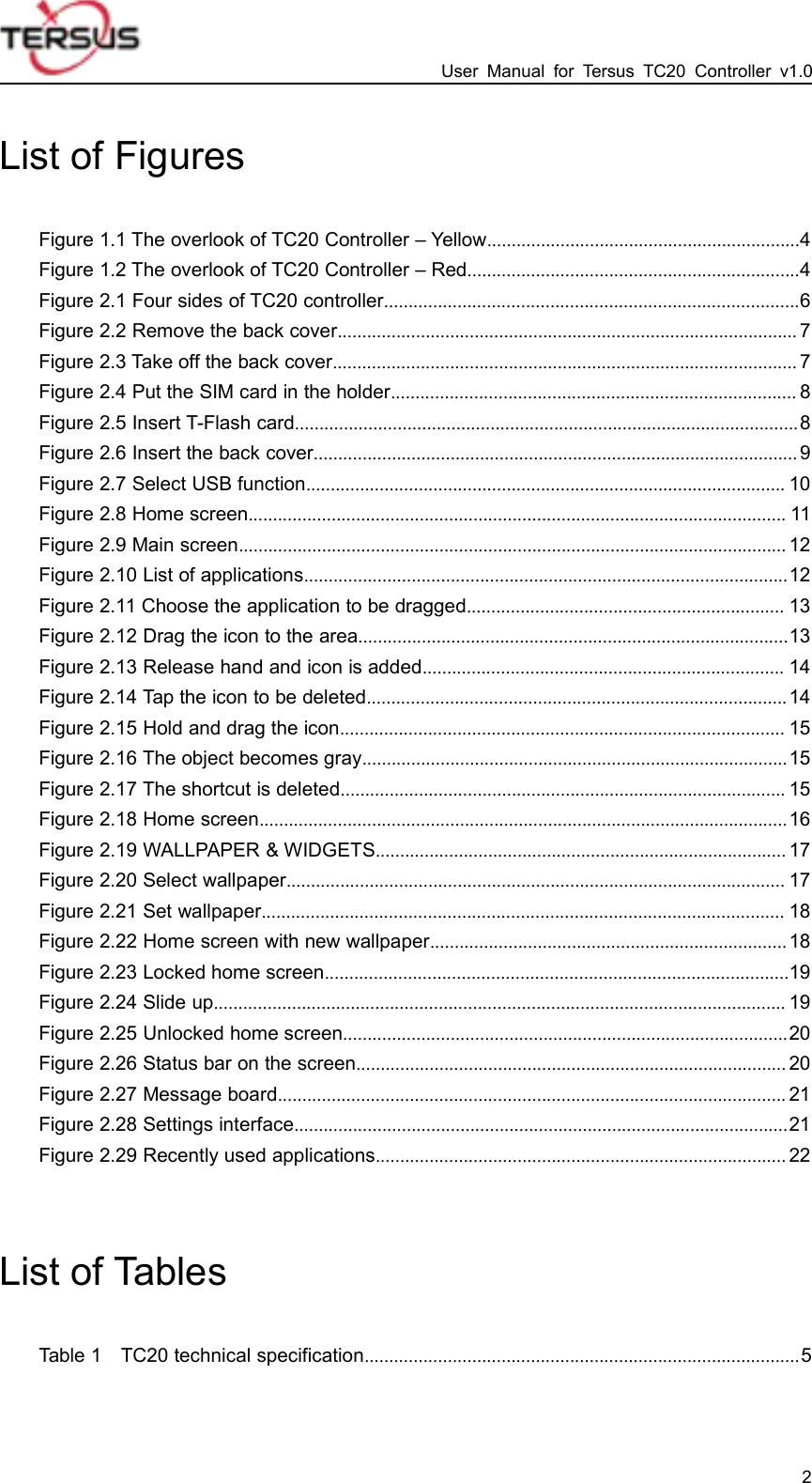

User Manual for Tersus TC20 Controller v1.02List of FiguresFigure 1.1 The overlook of TC20 Controller – Yellow................................................................4Figure 1.2 The overlook of TC20 Controller – Red....................................................................4Figure 2.1 Four sides of TC20 controller.....................................................................................6Figure 2.2 Remove the back cover.............................................................................................. 7Figure 2.3 Take off the back cover............................................................................................... 7Figure 2.4 Put the SIM card in the holder................................................................................... 8Figure 2.5 Insert T-Flash card.......................................................................................................8Figure 2.6 Insert the back cover................................................................................................... 9Figure 2.7 Select USB function.................................................................................................. 10Figure 2.8 Home screen.............................................................................................................. 11Figure 2.9 Main screen................................................................................................................ 12Figure 2.10 List of applications...................................................................................................12Figure 2.11 Choose the application to be dragged................................................................. 13Figure 2.12 Drag the icon to the area........................................................................................13Figure 2.13 Release hand and icon is added.......................................................................... 14Figure 2.14 Tap the icon to be deleted......................................................................................14Figure 2.15 Hold and drag the icon........................................................................................... 15Figure 2.16 The object becomes gray.......................................................................................15Figure 2.17 The shortcut is deleted........................................................................................... 15Figure 2.18 Home screen............................................................................................................16Figure 2.19 WALLPAPER & WIDGETS.................................................................................... 17Figure 2.20 Select wallpaper...................................................................................................... 17Figure 2.21 Set wallpaper........................................................................................................... 18Figure 2.22 Home screen with new wallpaper......................................................................... 18Figure 2.23 Locked home screen...............................................................................................19Figure 2.24 Slide up..................................................................................................................... 19Figure 2.25 Unlocked home screen...........................................................................................20Figure 2.26 Status bar on the screen........................................................................................ 20Figure 2.27 Message board........................................................................................................ 21Figure 2.28 Settings interface.....................................................................................................21Figure 2.29 Recently used applications.................................................................................... 22List of TablesTable 1 TC20 technical specification.........................................................................................5
User Manual for Tersus TC20 Controller v1.03Revision HistoryVersionRevision DateChange summary1.020181224Initial Release

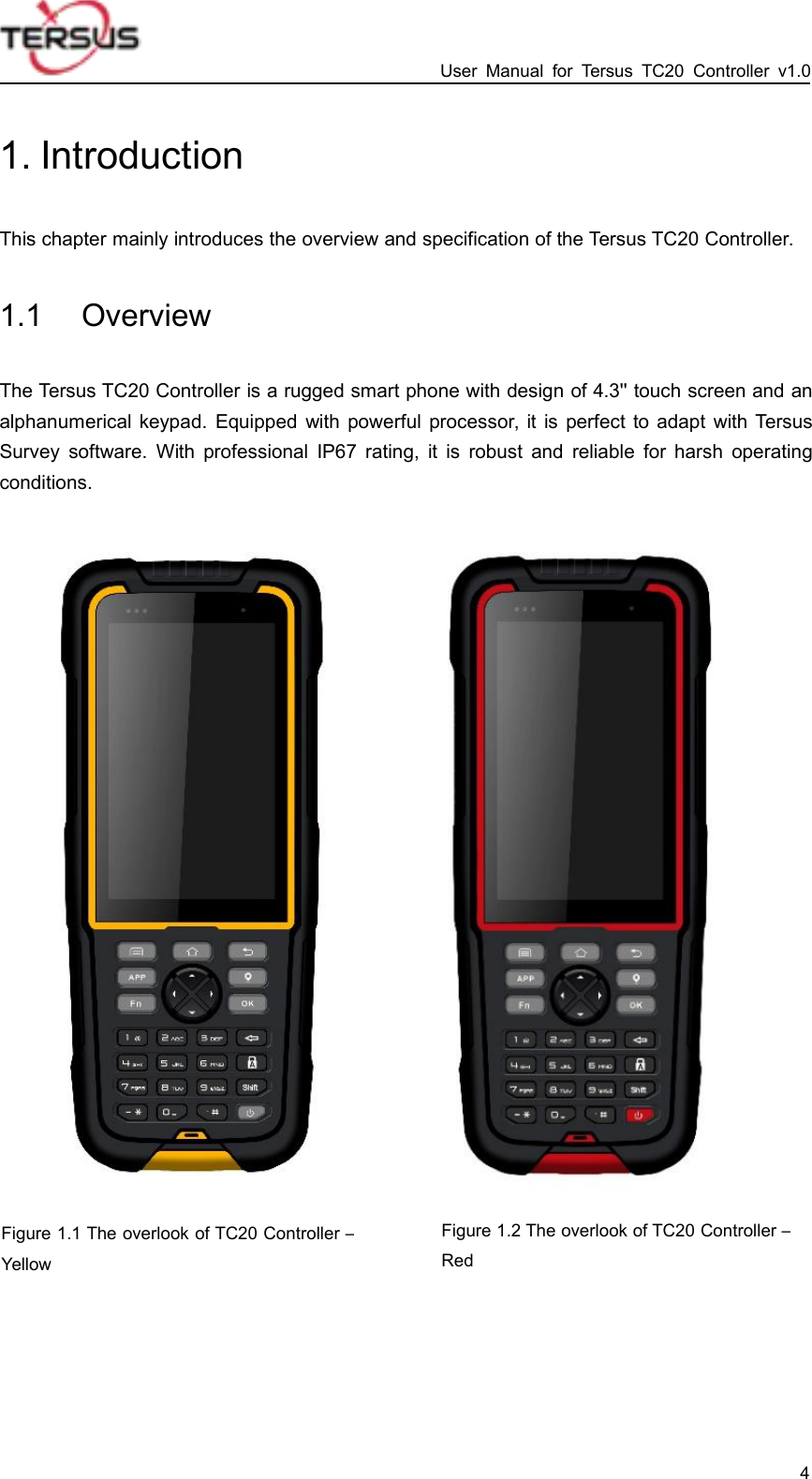

User Manual for Tersus TC20 Controller v1.041. IntroductionThis chapter mainly introduces the overview and specification of the Tersus TC20 Controller.1.1 OverviewThe Tersus TC20 Controller is a rugged smart phone with design of 4.3'' touch screen and analphanumerical keypad. Equipped with powerful processor, it is perfect to adapt with TersusSurvey software. With professional IP67 rating, it is robust and reliable for harsh operatingconditions.Figure 1.2 The overlook of TC20 Controller –RedFigure 1.1 The overlook of TC20 Controller –Yellow

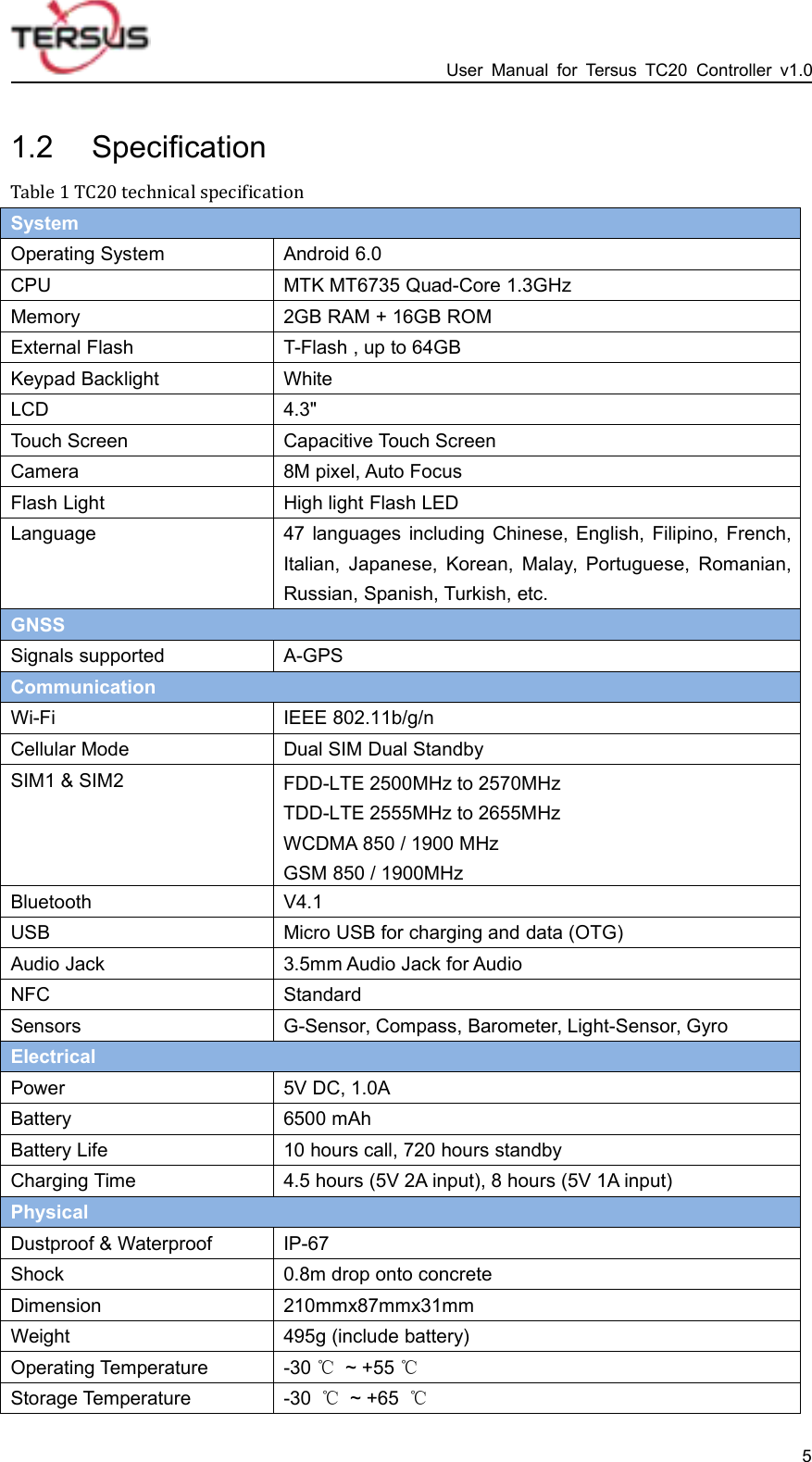

User Manual for Tersus TC20 Controller v1.051.2 SpecificationTable 1 TC20 technical specificationSystemOperating SystemAndroid 6.0CPUMTK MT6735 Quad-Core 1.3GHzMemory2GB RAM + 16GB ROMExternal FlashT-Flash , up to 64GBKeypad BacklightWhiteLCD4.3"Touch ScreenCapacitive Touch ScreenCamera8M pixel, Auto FocusFlash LightHigh light Flash LEDLanguage47 languages including Chinese, English, Filipino, French,Italian, Japanese, Korean, Malay, Portuguese, Romanian,Russian, Spanish, Turkish, etc.GNSSSignals supportedA-GPSCommunicationWi-FiIEEE 802.11b/g/nCellular ModeDual SIM Dual StandbySIM1 & SIM2FDD-LTE 2500MHz to 2570MHz TDD-LTE 2555MHz to 2655MHz WCDMA 850 / 1900 MHz GSM 850 / 1900MHzBluetoothV4.1USBMicro USB for charging and data (OTG)Audio Jack3.5mm Audio Jack for AudioNFCStandardSensorsG-Sensor, Compass, Barometer, Light-Sensor, GyroElectricalPower5V DC, 1.0ABattery6500 mAhBattery Life10 hours call, 720 hours standbyCharging Time4.5 hours (5V 2A input), 8 hours (5V 1A input)PhysicalDustproof & WaterproofIP-67Shock0.8m drop onto concreteDimension210mmx87mmx31mmWeight495g (include battery)Operating Temperature-30 ℃ ~ +55 ℃Storage Temperature-30 ℃~ +65 ℃

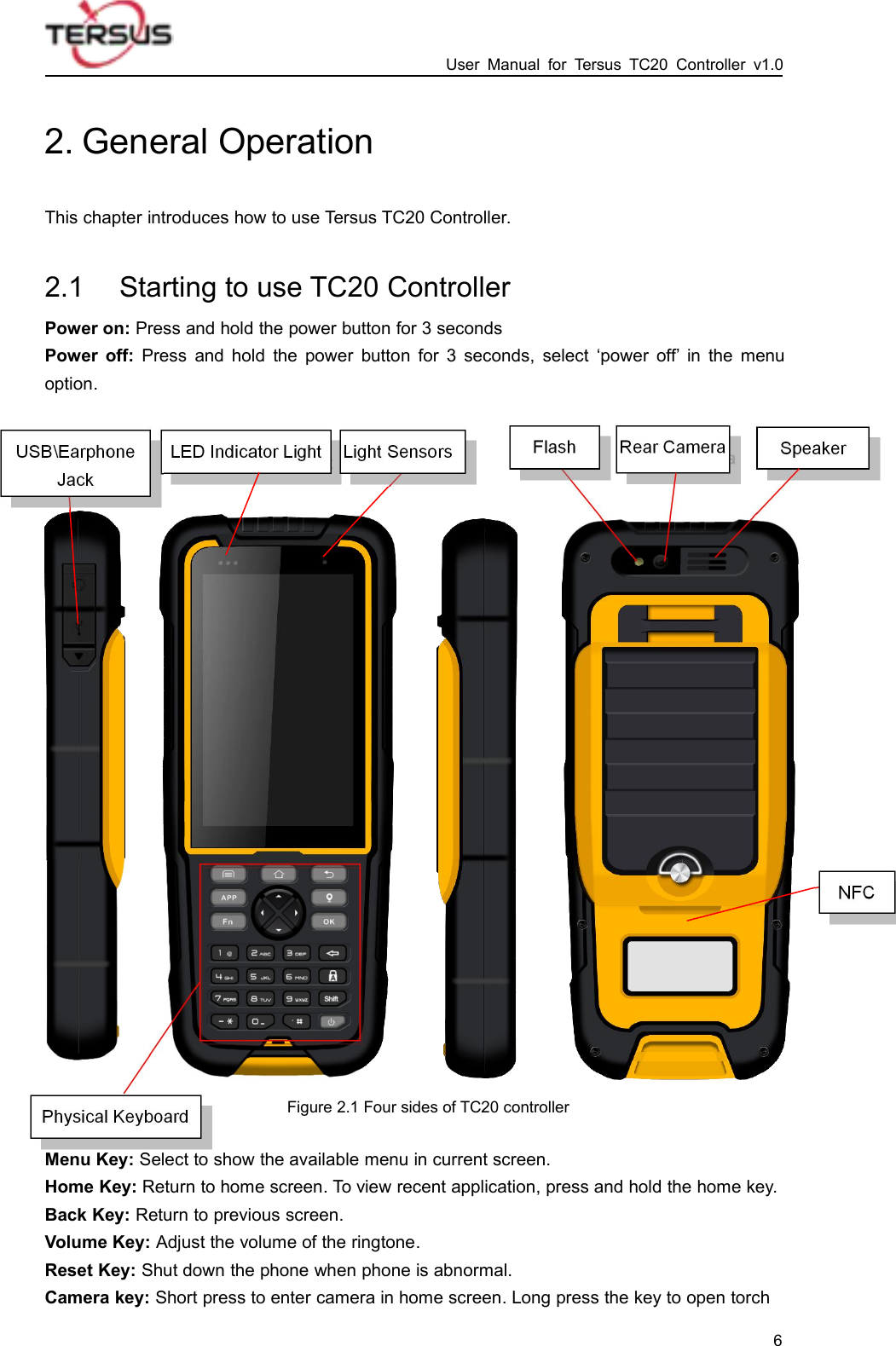

User Manual for Tersus TC20 Controller v1.062. General OperationThis chapter introduces how to use Tersus TC20 Controller.2.1 Starting to use TC20 ControllerPower on: Press and hold the power button for 3 secondsPower off: Press and hold the power button for 3 seconds, select ‘power off’ in the menuoption.Menu Key: Select to show the available menu in current screen.Home Key: Return to home screen. To view recent application, press and hold the home key.Back Key: Return to previous screen.Volume Key: Adjust the volume of the ringtone.Reset Key: Shut down the phone when phone is abnormal.Camera key: Short press to enter camera in home screen. Long press the key to open torchFigure 2.1 Four sides of TC20 controller
User Manual for Tersus TC20 Controller v1.072.2 Insert the SIM card and T-Flash card1. Remove the back cover: Loosen the screws on the back side – to rotate the screwsanti-clockwise until open the bake cover as shown in Figure 2.2.Figure 2.2 Remove the back cover2. Take off the back cover: Remove the back cover by lifting it up from the bottom part asshown in Figure 2.3.Figure 2.3 Take off the back cover3. Put the SIM Card in the holder: Put the SIM card into the slot touching the SIM contactsof the phone as shown in Figure 2.4.
User Manual for Tersus TC20 Controller v1.08Figure 2.4 Put the SIM card in the holder4. Insert T-Flash card: Open T-Flash card holder and insert T-Flash card into the slot, thenclose T-Flash card holder as shown in Figure 2.5.Figure 2.5 Insert T-Flash card

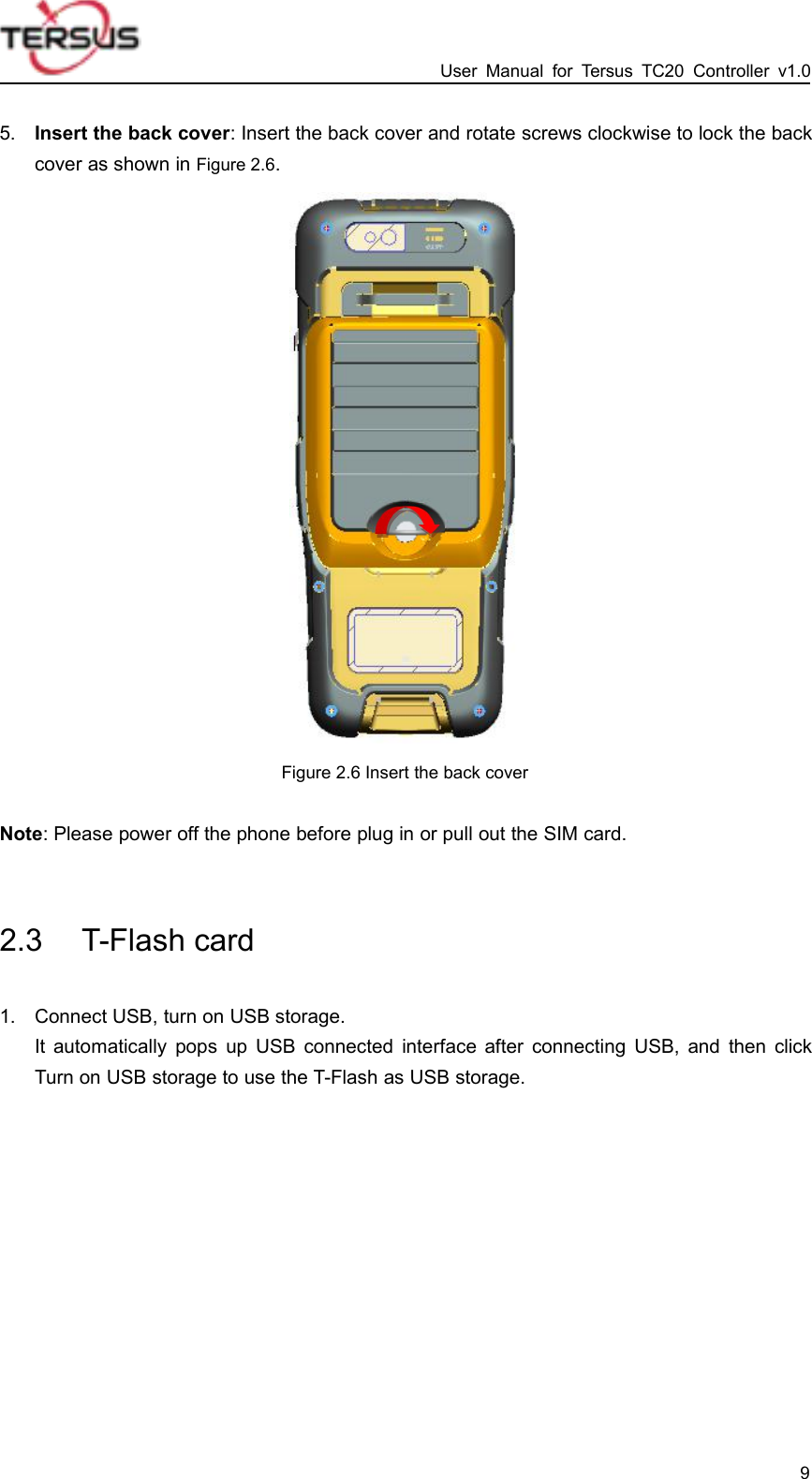

User Manual for Tersus TC20 Controller v1.095. Insert the back cover: Insert the back cover and rotate screws clockwise to lock the backcover as shown in Figure 2.6.Figure 2.6 Insert the back coverNote: Please power off the phone before plug in or pull out the SIM card.2.3 T-Flash card1. Connect USB, turn on USB storage.It automatically pops up USB connected interface after connecting USB, and then clickTurn on USB storage to use the T-Flash as USB storage.

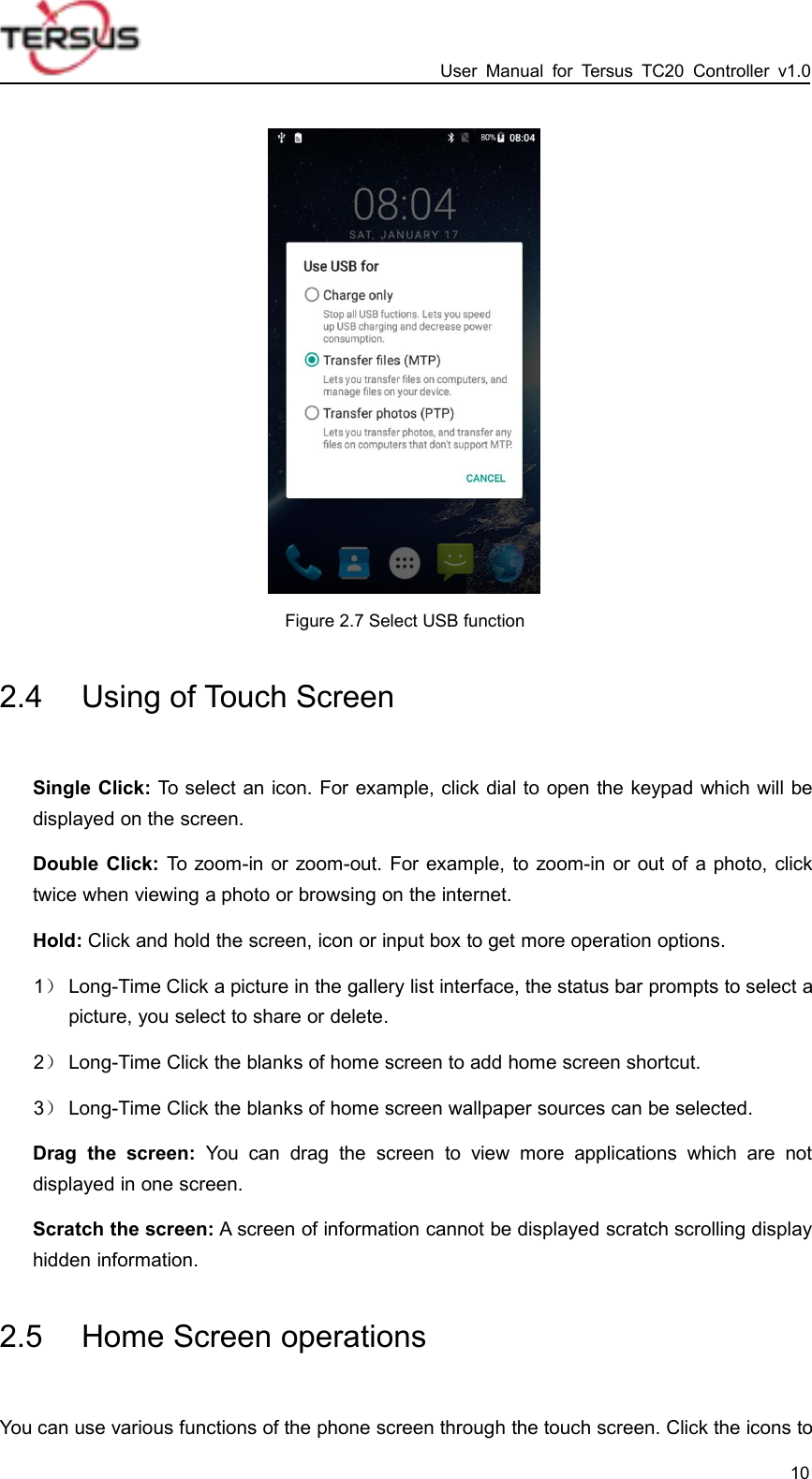

User Manual for Tersus TC20 Controller v1.010Figure 2.7 Select USB function2.4 Using of Touch ScreenSingle Click: To select an icon. For example, click dial to open the keypad which will bedisplayed on the screen.Double Click: To zoom-in or zoom-out. For example, to zoom-in or out of a photo, clicktwice when viewing a photo or browsing on the internet.Hold: Click and hold the screen, icon or input box to get more operation options.1)Long-Time Click a picture in the gallery list interface, the status bar prompts to select apicture, you select to share or delete.2)Long-Time Click the blanks of home screen to add home screen shortcut.3)Long-Time Click the blanks of home screen wallpaper sources can be selected.Drag the screen: You can drag the screen to view more applications which are notdisplayed in one screen.Scratch the screen: A screen of information cannot be displayed scratch scrolling displayhidden information.2.5 Home Screen operationsYou can use various functions of the phone screen through the touch screen. Click the icons to

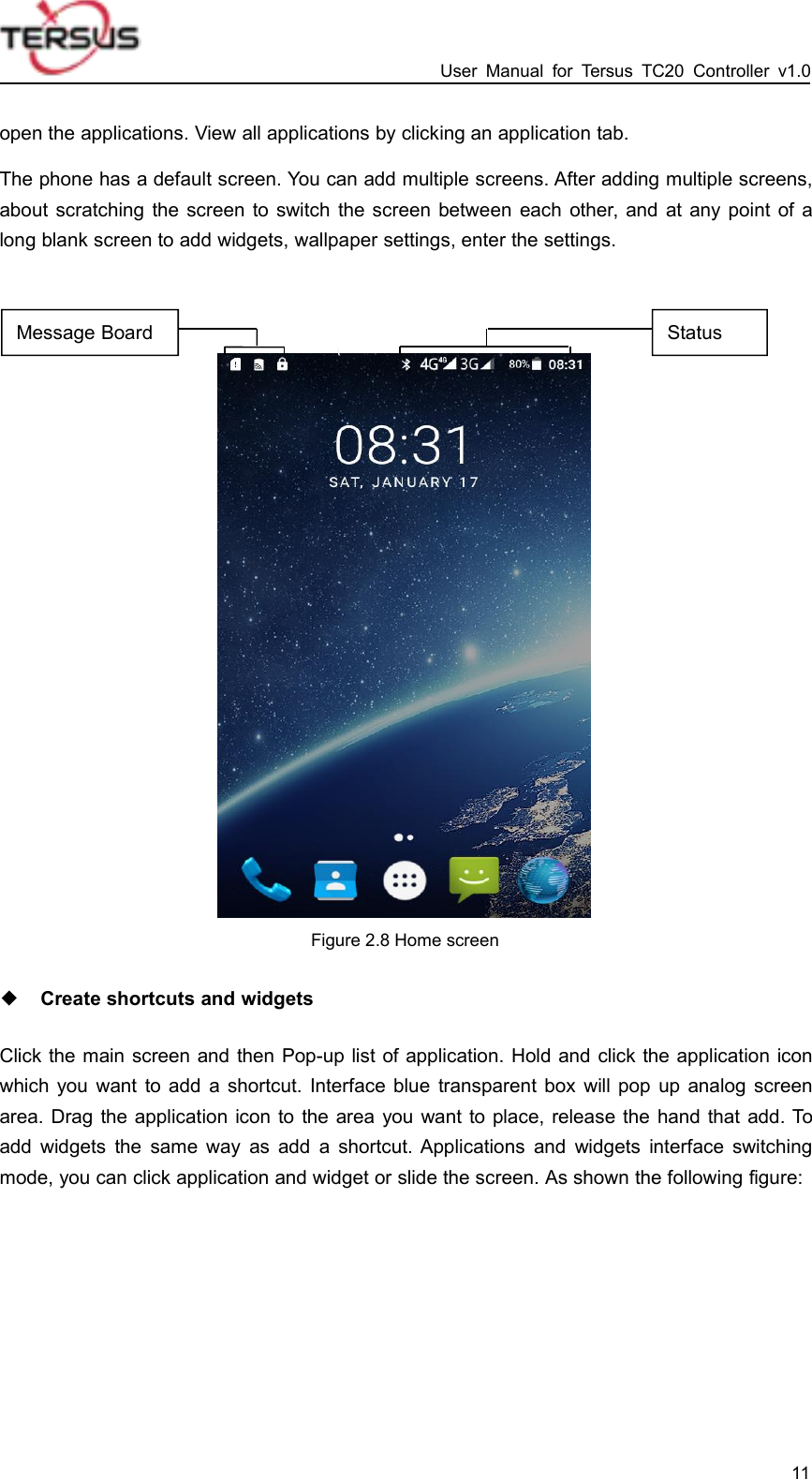

User Manual for Tersus TC20 Controller v1.011open the applications. View all applications by clicking an application tab.The phone has a default screen. You can add multiple screens. After adding multiple screens,about scratching the screen to switch the screen between each other, and at any point of along blank screen to add widgets, wallpaper settings, enter the settings.Figure 2.8 Home screen◆Create shortcuts and widgetsClick the main screen and then Pop-up list of application. Hold and click the application iconwhich you want to add a shortcut. Interface blue transparent box will pop up analog screenarea. Drag the application icon to the area you want to place, release the hand that add. Toadd widgets the same way as add a shortcut. Applications and widgets interface switchingmode, you can click application and widget or slide the screen. As shown the following figure:StatusMessage Board
User Manual for Tersus TC20 Controller v1.012Figure 2.9 Main screenFigure 2.10 List of applications

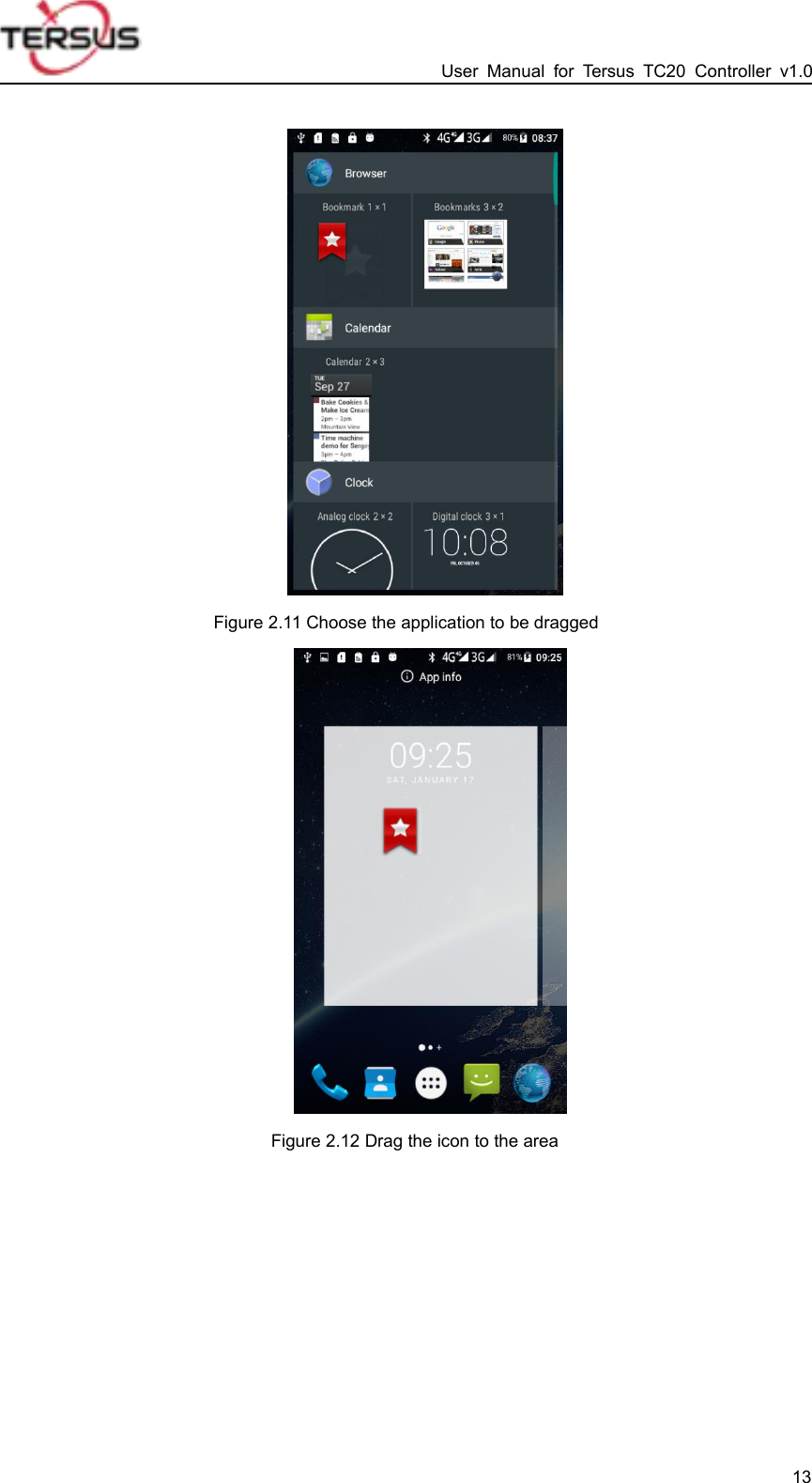

User Manual for Tersus TC20 Controller v1.013Figure 2.11 Choose the application to be draggedFigure 2.12 Drag the icon to the area
User Manual for Tersus TC20 Controller v1.014Figure 2.13 Release hand and icon is added◆Delete the shortcuts and widgetsTo delete an object, tap and hold the object, then drag it towards the top of thescreen . When the object become gray let go of it and the selected object will bedeleted.Figure 2.14 Tap the icon to be deleted
User Manual for Tersus TC20 Controller v1.015Figure 2.15 Hold and drag the iconFigure 2.16 The object becomes grayFigure 2.17 The shortcut is deleted◆Lock the screenLock the phone in order to avoid useless operation and to save the battery by press the powerbutton.
User Manual for Tersus TC20 Controller v1.016The phone will automatically lock when it is not being used for some time.◆Set wallpaper◆Long press Home screen pop-up "wallpaper" and "widgets" button. Click the "wallpaper"button to enter the setup screen wallpaper. Slide the bottom of the screen wallpaper zoomview can be switched wallpaper. After Select to set wallpaper, Click "Set wallpaper" thatwallpaper setting is completed. As shown the following figure:Figure 2.18 Home screen

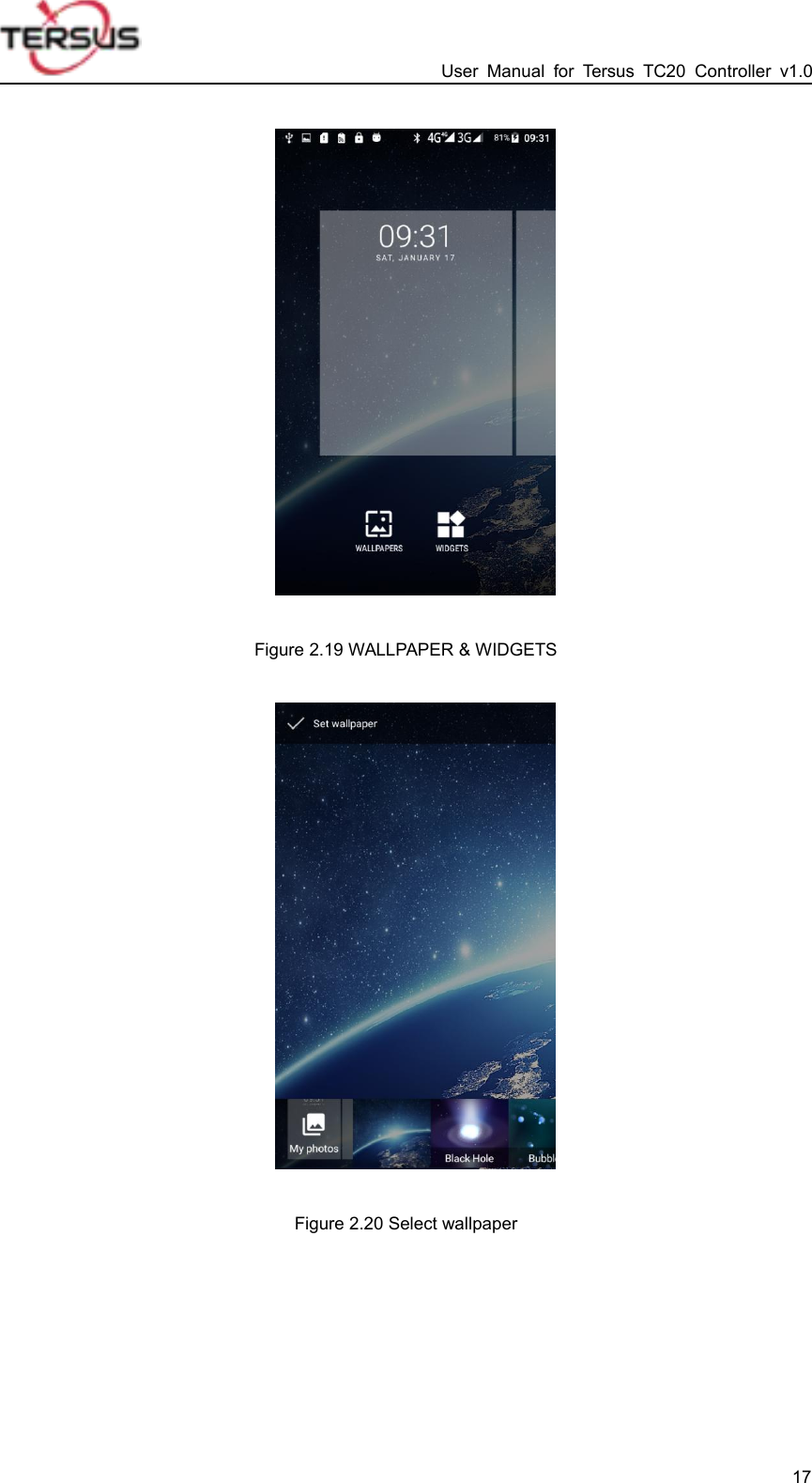

User Manual for Tersus TC20 Controller v1.017Figure 2.19 WALLPAPER & WIDGETSFigure 2.20 Select wallpaper
User Manual for Tersus TC20 Controller v1.018Figure 2.21 Set wallpaperFigure 2.22 Home screen with new wallpaper◆Unlock the phonePress the power button to enter the unlocking interface, then slide up and unlock.

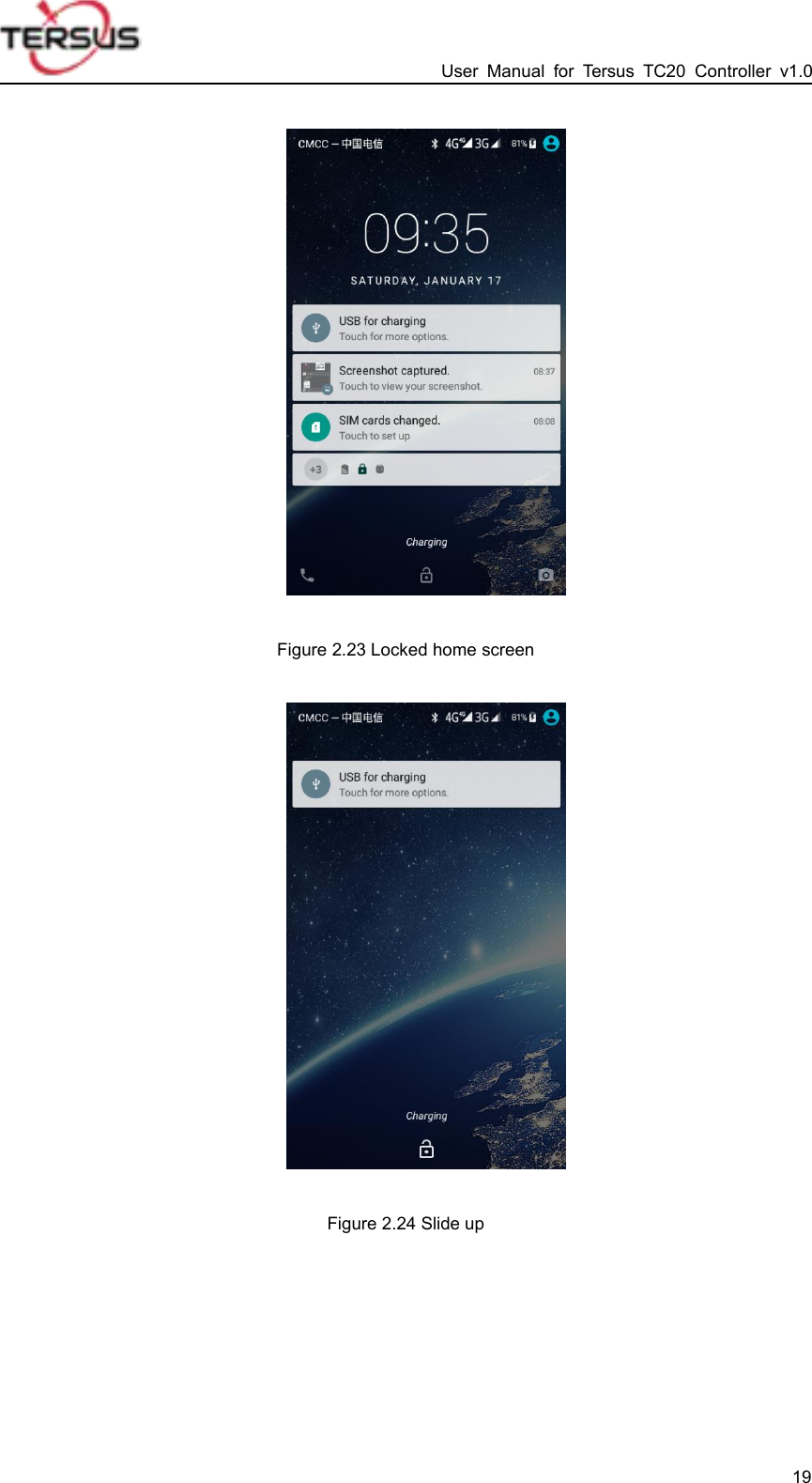

User Manual for Tersus TC20 Controller v1.019Figure 2.23 Locked home screenFigure 2.24 Slide up
User Manual for Tersus TC20 Controller v1.020Figure 2.25 Unlocked home screen◆Message boardDrag the status bar of any screen can open the message board. Click the icon in the upperright corner to bring up the settings interface and various parameters setting interface. Asshown the following figure:Figure 2.26 Status bar on the screen

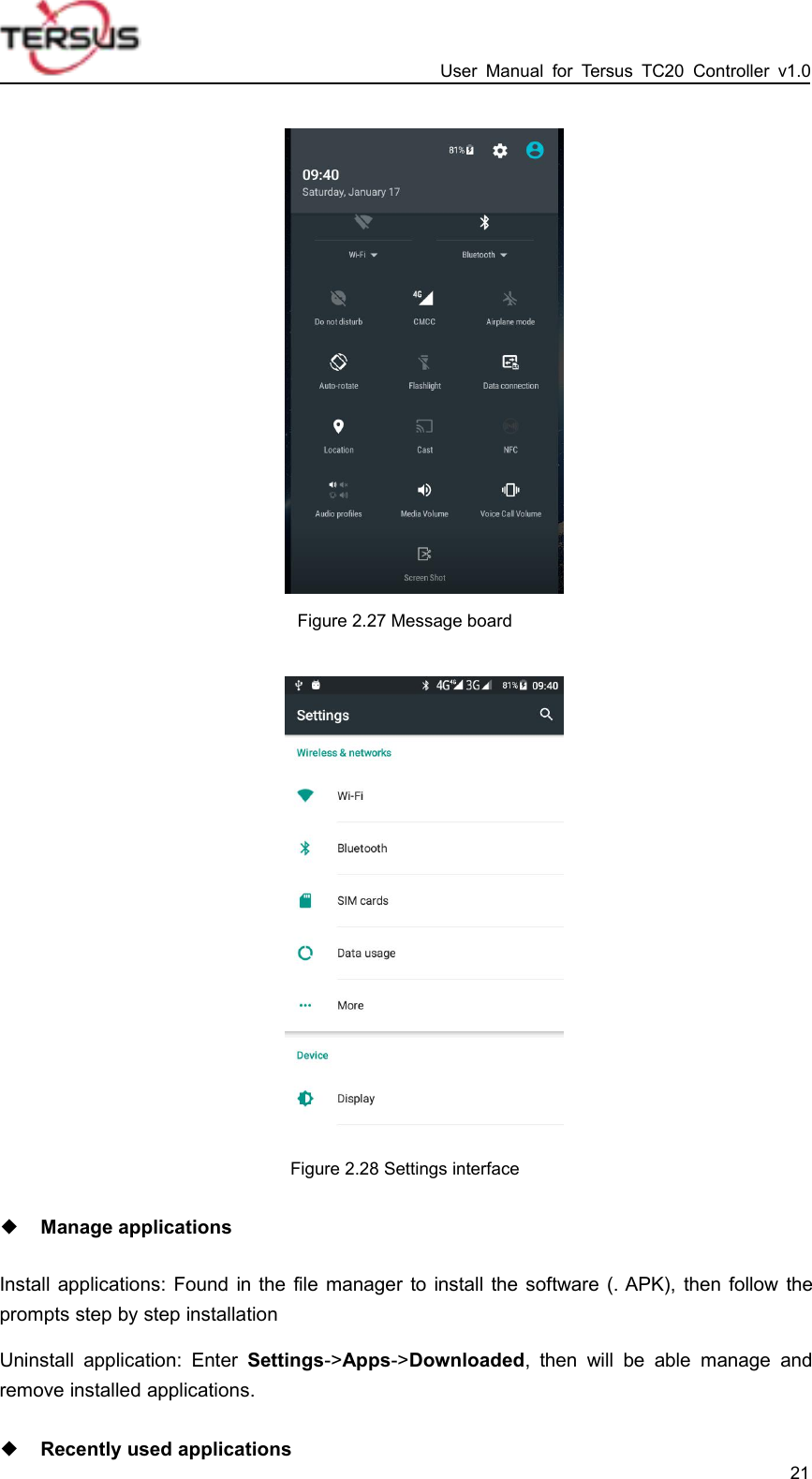

User Manual for Tersus TC20 Controller v1.021Figure 2.27 Message boardFigure 2.28 Settings interface◆Manage applicationsInstall applications: Found in the file manager to install the software (. APK), then follow theprompts step by step installationUninstall application: Enter Settings->Apps->Downloaded, then will be able manage andremove installed applications.◆Recently used applications
User Manual for Tersus TC20 Controller v1.022Press and hold the home key, the screen will display a window which shows your recentlyused applications. Click the icon to open the application.Figure 2.29 Recently used applications2.6 Extend the battery lifeSome functions may use up more power, which eventually shorten the battery life. You could:Close all the wireless connection when not in use Bluetooth, Wi-Fi or GPS.Reduce the brightness and shorten the screen timeout to save battery, or press power keyto shut down the screen when the phone is not in use.Close any automatically synchronized applications such as Email, calendar, contacts andother.Some applications which are downloaded could also shorten the battery life.
User Manual for Tersus TC20 Controller v1.0233. TerminologyDCDirect CurrentGNSSGlobal Navigation Satellite SystemGPSGlobal Positioning SystemLEDLight Emitting DiodeSIMSubscriber Identification ModuleUSBUniversal Serial BUSProprietary NoticeAll Information in this document is subject to change without notice and does not reflect thecommitment on Tersus GNSS Inc. No part of this manual may be reproduced or transmitted byall means without authorization of Tersus GNSS Inc. The software described in this documentmust be used in terms of the agreement. Any modification without permission from TersusGNSS Inc. is not allowed.
User Manual for Tersus TC20 Controller v1.024FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.   This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and  (2) This device must accept any interference received, including interference that may cause undesired operation.    RF warning for Portable device:  The device has been evaluated to meet general RF exposure requirment. The device can be used in portable exposure condition without restriction.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,  there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful  interference to radio or television reception, which can be determined by turning the equipment off and on, the user is  encouraged to try to correct the interference by one or more of the following measures:   —Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   —Consult the dealer or an experienced radio/TV technician for help.  RF Exposure Information (SAR) : FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of  tissue. Device types: TC20 Controller  (FCC ID: 2AMDJ-TC20 ) has also been tested against this SAR limit. The device was test for typical body-worn operations and head face up operations . keep the decice at least 10mm from the face and  5mm from the body,The use of belt clips, holsters and similar accessories should not contain  metallic components in its assembly. The use of accessories that do not satisfy these requirements may  not comply with FCC RF exposure requirements, and should be avoided. For handheld operating condition, SAR meets with FCC limit 4.0W/kg.
