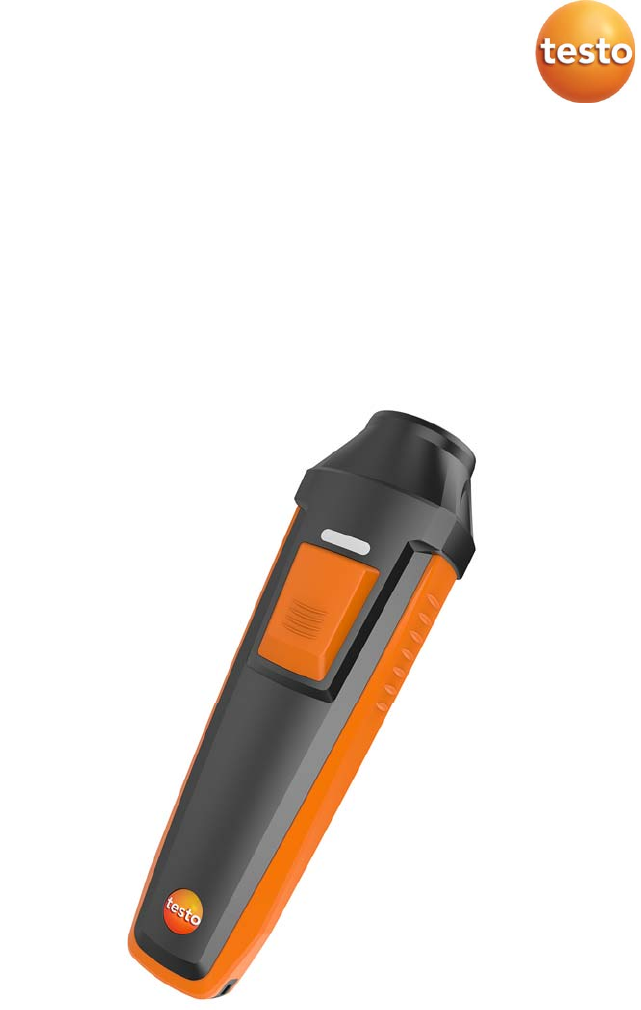

Handle for probe heads with Bluetooth®
0554 1111
Short instructions
3
Application
The handle with Bluetooth® 0554 1111 is used for the wireless connection of
probe heads to the testo 440 measuring instrument.
Observe the information on the measuring process in the detailed
instrument instruction manual. You will find these at: www.testo.com.
General safety instructions
Only operate the product properly, for its intended purpose, and within the
parameters specified in the technical data. Do not apply any force.
Dangers may also arise from the systems to be measured or from the
measuring environment: Always comply with the locally valid safety
regulations when carrying out measurements.
Do not operate the instrument if there are signs of damage on the housing.
Do not store the product together with solvents. Do not use any desiccants.
Only perform that maintenance and repair work on this instrument which is
described in the documentation. Follow the prescribed steps exactly when
doing the work. Use only original spare parts from Testo.
Temperature information given on probes/sensors relates only to the
measuring range of the sensor technology. Do not expose handles and feed
lines to temperatures in excess of 50 °C (122 °F), unless they are expressly
authorised for use at higher temperatures.
Do not operate the instrument if there are signs of damage on the housing
or cable.
Batteries
Improper use of batteries may cause destruction of the batteries, injuries
due to current surges, fire or the escape of chemicals.
Only use the batteries supplied in accordance with the instructions in the
instruction manual.
Do not short, take apart or modify batteries.
Do not expose the batteries to heavy impacts, water, fire or temperatures
above +140 °C or below -20 °C.
Do not store unused batteries in the proximity of metal objects.
Do not use any leaky or damaged batteries.
In the event of contact with battery acid: rinse affected areas thoroughly
with water, and if necessary consult a doctor.
4

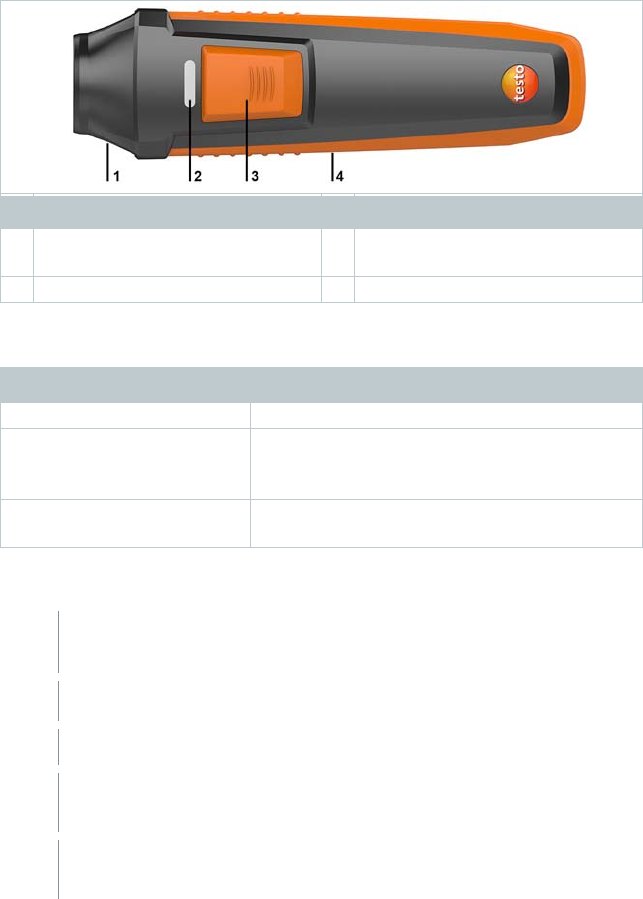

Structure
Element Element
1 Quick-release connector for
probe heads and adapter
2 LED status display
3 Button 4 Battery compartment (on rear)
LED status display
LED status display Meaning
Flashing red Low battery status
Flashing yellow Measurement probe is switched on and is
searching for a Bluetooth connection, but is
not connected.
Flashing green Measurement probe is switched on and
Bluetooth is connected.
Switching on and establishing the Bluetooth connection
- You need the testo 440 with Bluetooth enabled in order to be able to
establish a connection via Bluetooth.
1 - Press button on the handle.
The handle is switched on.
The LED flashes yellow while the Bluetooth connection is being
established.
The LED lights up green as soon as the connection between your
measurement probe and the testo 440 has been established.
5
Switching off
1 - Press and hold the button on the handle for three seconds.
The handle is switched off.
Using the handle
You can initiate various functions on the testo 440 using the button on the
handle, such as starting and stopping a series of measurements. You will find
detailed information on how each of the handle’s functions work in the
corresponding chapter of the instruction manual for the measuring instrument.
Technical data
Feature Value
Storage temperature -10°C to +50°C
Operating temperature 0 to +50°C
Dimensions 170 mm x 50 mm x 40 mm
Warranty Duration: 2 years
Warranty terms: see www.testo.com/warranty
website.
Approvals
The use of the wireless module is subject to the regulations and
stipulations of the respective country of use, and the module may only
be used in countries for which a country certification has been granted.
The user and every owner has the obligation to adhere to these
regulations and prerequisites for use, and acknowledges that the re-
sale, export, import etc. in particular in countries without wireless
permits, is his responsibility.
Product 0554 1111
Mat.-No.: 0554 1111
Date 06.12.2017
Country Comments
Australia
E 1561
6
Country Comments
Canada Product IC ID: 6127B-05541111
IC Warnings
Europa + EFTA
The EU Declaration of Conformity can be
found on the testo homepage www.testo.com
under the product specific downloads.
EU countries:
Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE),
Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland
(IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU),
Malta (MT), Netherlands (NL), Austria (AT), Poland (PL),
Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK),
Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary
(HU), United Kingdom (GB), Republic of Cyprus (CY).
EFTA countries:
Iceland, Liechtenstein, Norway, Switzerland
Japan
Japan Information
Turkey Authorized
USA Product FCC ID: WAF-05541111
FCC Warnings
Bluetooth-
Module
Feature Values
Bluetooth range < 20 m (free field)
Bluetooth type L Series BLE module (08 May 2013)
based on TI CC254X chip
Qualified Design ID B016552
Bluetooth radio class Class 3
Bluetooth company LSD Science & Technology Co., Ltd
RF Band 2402-2480MHz
Output power 0 dBm
7
IC Warnings
RSS-Gen & RSS-247 statement:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Caution: Radio Frequency Radiation Exposure
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment and meets the IC radio frequency (RF) Exposure
Guidelines. This equipment should be installed and operated keeping the
radiator at least 20 cm or more away from person´s body in normal use
position.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
Attention : exposition au rayonnement de radiofréquences
Cet équipement est conforme aux limites d'exposition aux radiofréquences IC
fixées pour un environnement non contrôlé et aux Lignes directrices relatives à
l'exposition aux radiofréquences (RF). Cet équipement devrait être installé et
utilisé à une distance d'au moins 20 cm d'un radiateur ou à une distance plus
grande du corps humain en position normale d'utilisation.
Co-location
Ce transmetteur ne peut pas être installé en colocation ou être utilisé avec une
autre antenne ou transmetteur, quel qu'en soit le type.
FCC Warnings
Information from the FCC (Federal Communications Commission) for your own
safety.
Shielded cables should be used for a composite interface. This is to ensure
Information from the FCC (Federal Communications Commission)
8
For your own safety
Shielded cables should be used for a composite interface. This is to ensure
continued protection against radio frequency interference.
FCC warning statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. Shielded
interface cable must be used in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment should be installed and operated keeping the
radiator at least 20 cm or more away from person´s body in normal use position
9
Japan Information
当該機器には電波法に基づく、技術基準適合証明等を受けた特定無線設備を装
着している。
