Users Manual

SWRU284A
November 2013

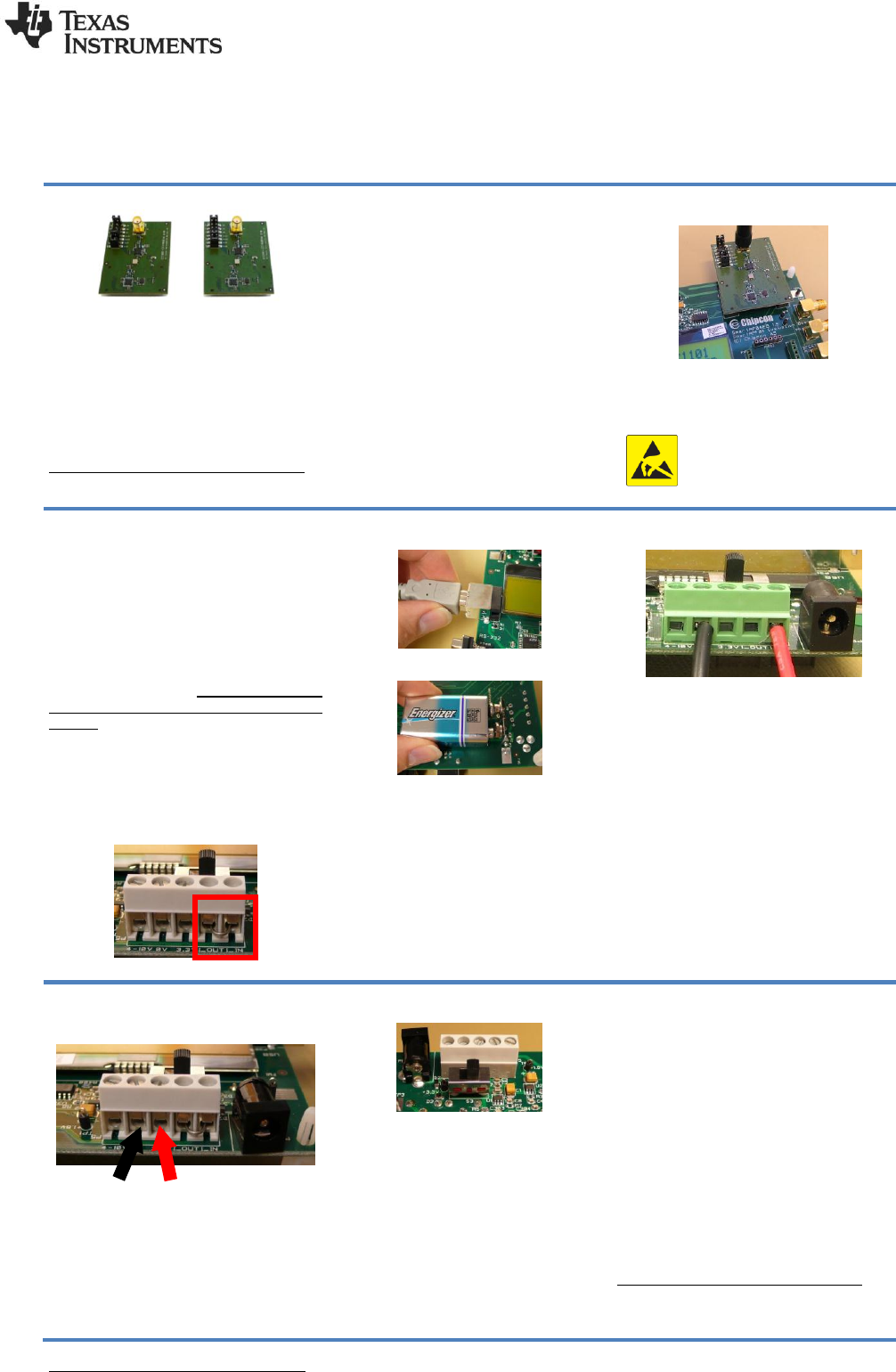

CC1101-CC1190EMK Quick Start Guide
Opening the box and using the modules with SmartRF04EB
1. Kit Contents
2 x CC1101-CC1190EM (869 or 915 MHz)
2 x Pulse W5017 Antennas (2 dBi)
The 869 MHz RF board is tested to comply with
ETSI/R&TTE over temperatures from 0 to +70°C. The
915 MHz RF board is FCC and IC certified.
The boards should not be modified to operate in other
frequency bands than what they have been designed for.
FCC/IC Regulatory Compliance (915 MHz board only)
FCC Part 15 Class A Compliant
IC ICES-003 Class A Compliant
2. How to Use the Modules
The CC1101-CC1190 Evaluation Module
(EM) boards can be plugged into the
SmartRF04EB (EB), which is included in
the CC1101DK. This board lets you control
the devices from SmartRF™ Studio and it
can also be used as a development
platform.
The evaluation module is also supported
by the SmartRF TrxEB, included in the
CC11xL, CC1120 and CC1200
development kits.
This Quick Start Guide describes how to
properly power the SmartRF04EB with a
CC1101-CC1190EM and how to control
the combo from SmartRF Studio.
3. Plug EM into SmartRF04EB
Insert the EM into the EB. Attach the
antenna firmly.
Caution! The kit contains ESD sensitive
components. Handle with care to prevent
permanent damage. To minimize risk of
injury, avoid touching components during
operation if symbolized as hot.
4a. Apply Power
The EB can be powered from different
sources: USB, Battery or an External
Power Supply
The voltage regulator on the EB supplies
3.3 V to the assembly, but it can only
source up to 150 mA. It cannot supply the
CC1101-CC1190EM since it can consume
more than 300 mA. An external power
supply is therefore required for powering
the EM.
It is possible to have separate power
sources for the EB and for the EM. This is
controlled with the strap between I_OUT
and I_IN on P5 (the screw terminal).
Remove it to allow separate power
supplies.
4b. Power the EB
Connect the EB to a USB port on a PC.
Alternatively, connect a 9 V, non-
rechargeable, alkaline battery (not included
in the kit) to the battery connector on the
bottom side of the board.
Note that if multiple power sources are
connected, the source with the highest
voltage will power the EB. This means that
you should disconnect any attached
battery when using USB power; otherwise
the battery will be drained.
4c. Power the EM
As noted in 4a, remove the strap on P5
and connect the external power supply as
shown in the picture above. The red wire is
the positive supply and the black wire is
GND.
This will power the EM directly from the
external power supply, whereas the rest of
the EB will be powered from USB or the
battery.
The power supply range should be within
3.0 to 3.6 V.
4d. Optional: Same Power
Supply for both EB and EM
Connect a 3.3 V voltage source between
the 3.3 V and 0 V terminals. 3.3 V is the
middle terminal.
In this case, the on-board voltage regulator
will be bypassed. Note that the strap on P5
should not be removed.
5. Set Power Switch
If EB and EM are powered from different
sources as described in 4a-4c, the switch
should be set to the rightmost position.
If EB and EM are powered from the same
external supply as described in 4d, the
switch should be set to the leftmost
position.
This switch can be used to turn off the EB
by switching it to the opposite position of
that used to turn it on.
6. External Power Supply Range
With the test setup in 4a-4c, the EB is
connected to a 3.3 V supply through the
on-board voltage regulator and the EM is
powered by the external supply. Since the
EB is powered through a regulated 3.3 V
supply the signals going from CC1101-
CC1190 to the EB (and vice versa) need to
be within 3.0 V to 3.6 V. The external
supply connected to the EM when using
the setup in 4a-4c is therefore limited to 3.0
V to 3.6 V.
With the setup in 4d the supply range is
limited 2.7 V to 3.6 V.
External Power Supply1 Requirements:
Nom Voltage: 3.3VDC
Max Current: 800 mA
Efficiency Level V
1
When using an external power supply, make sure it meets the listed requirements in addition to complying with applicable regional product regulatory and safety certification
requirements such as UL, CSA, VDE, CCC, and PSE
GND
VDD
SWRU284A
November 2013

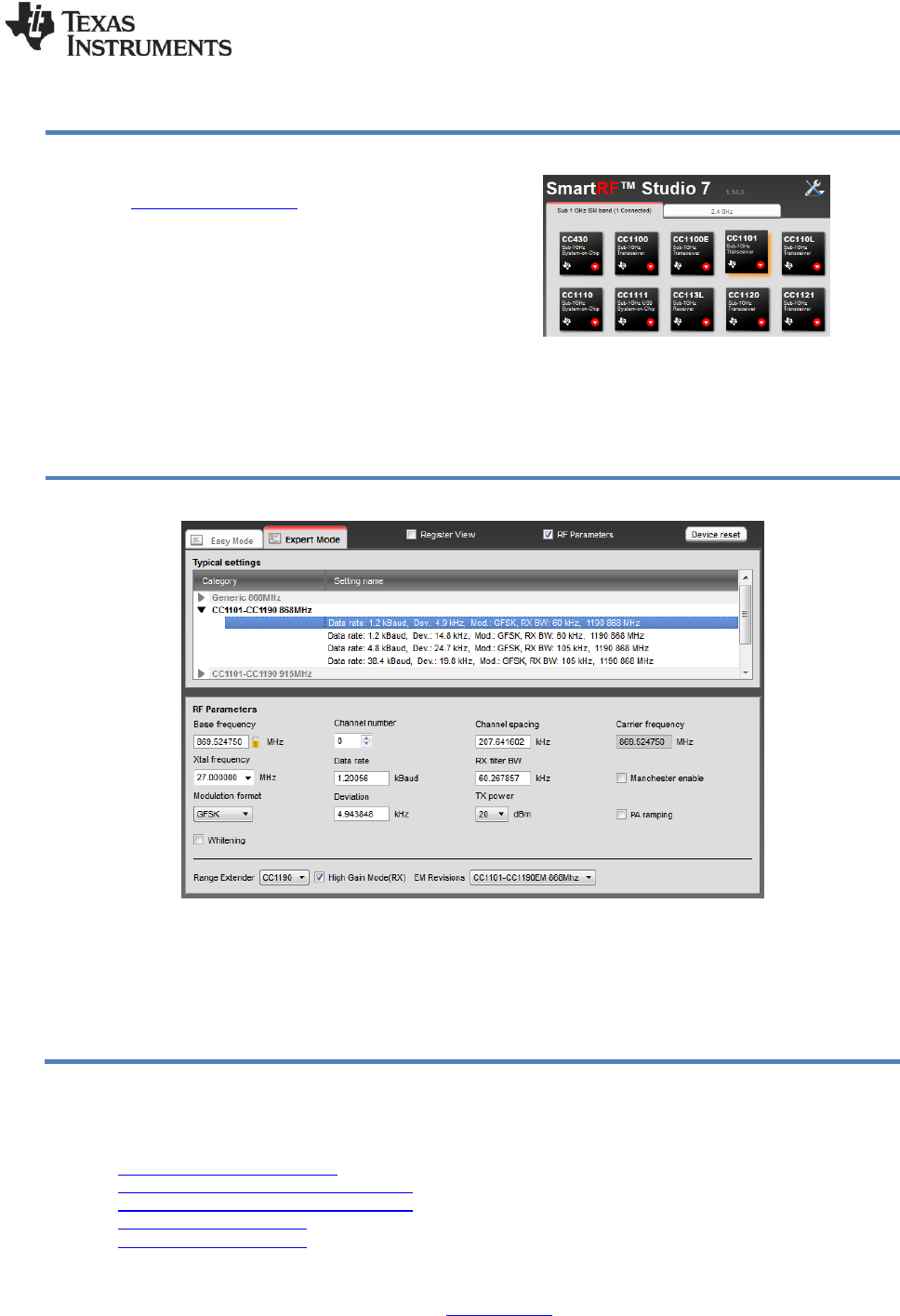

SmartRF™ Studio
2. Launch SmartRF Studio
Launch SmartRF Studio and double click on the highlighted
CC1101 device icon to get complete control of the device from
the PC.
You can now configure the radio, run tests, export register
settings and run link tests with another CC1101-CC1190EM on
a SmartRF04EB connected to the PC.
3. Configure the Radio
In order to control the CC1190 select CC1190 as “Range Extender” and select the appropriate “EM Revisions” as shown (either
869 or 915 MHz). You can now use all the features in Studio as for a standalone EM. Test the performance of the radio using
some of these features:
Continuous TX: Output power, spectrum
Continuous RX: Received signal strength, synchronous/asynchronous serial RX mode
Packet TX/RX: Link and sensitivity testing
References
Please visit
http://www.ti.com/product/cc1190
http://www.ti.com/tool/cc1101cc1190emk868
http://www.ti.com/tool/cc1101cc1190emk915
http://www.ti.com/lit/swra356 (Using the CC1190 Front End with CC1101 under EN 300 220)
http://www.ti.com/lit/swra361 (Using the CC1190 Front End with CC1101 under FCC 15.247)
Download the SmartRF™ Studio software, as well as datasheets, reference designs and application notes.
You will also find a lot of information on the TI E2E forum at http://e2e.ti.com
We hope you will enjoy working with the CC1101 and CC1190 devices.
