The Cable Ferret CFWF50A Ferret WIFI camera User Manual

The Cable Ferret Company Ferret WIFI camera

User manual

              WiFi Inspection Camera  Instruction Manual

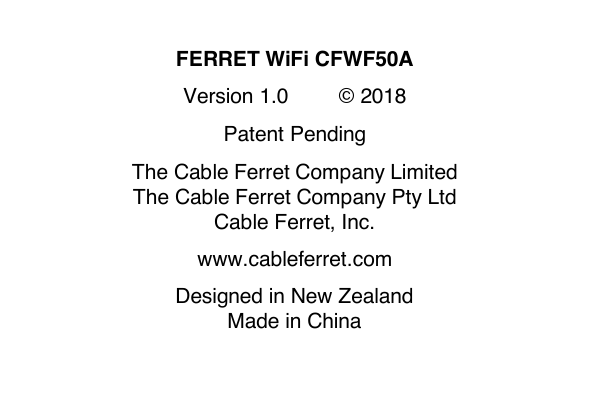

  FERRET WiFi CFWF50A  Version 1.0     © 2018  Patent Pending  The Cable Ferret Company Limited The Cable Ferret Company Pty Ltd Cable Ferret, Inc.   www.cableferret.com  Designed in New Zealand Made in China
Caution: This  equipment has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B  digital device, pursuant  to  part  15  of  the  FCC  rules.  These  limits  are  designed  to  provide  reasonable  protection against  harmful  interference  in  a  residential  installation.  This  equipment  generates  uses  and  can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television  reception,  which  can  be  determined  by  turning  the  equipment  off  and  on,  the  user  is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect  the  equipment  into  an  outlet  on  a  circuit  different  from  that  to  which  the  receiver  is connected. -Consult the dealer or an experienced radio/TV technician for help.  This  device  complies  with  part  15  of  the  FCC  rules.  Operation  is  subject  to  the  following  two conditions: (1) This device may not cause harmful interference,  and (2) this device must accept  any interference received, including interference that may cause undesired operation.  Any Changes or modifications not expressly approved by the party responsible  for compliance could void the user's authority to operate the equipment.

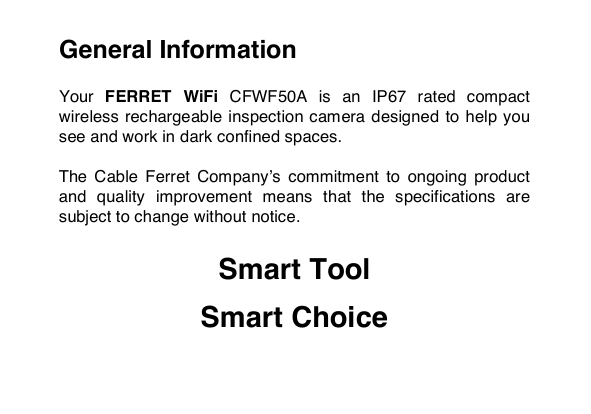

General Information  Your FERRET WiFi CFWF50A is  an  IP67  rated compact wireless rechargeable inspection camera designed  to help you see and work in dark confined spaces.  The  Cable  Ferret  Company’s  commitment  to  ongoing  product and  quality  improvement  means  that  the  specifications  are subject to change without notice.  Smart Tool  Smart Choice

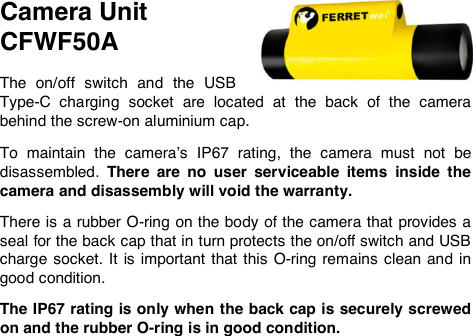

Camera Unit  CFWF50A  The  on/off  switch  and  the  USB Type-C  charging  socket  are  located  at  the  back  of  the  camera behind the screw-on aluminium cap.   To  maintain  the  camera’s  IP67  rating,  the  camera  must  not  be disassembled.  There  are  no  user  serviceable  items  inside  the camera and disassembly will void the warranty.   There is a rubber O-ring on the body of the camera that provides a seal for the back cap that in turn protects the on/off switch and USB charge socket. It is important that  this  O-ring remains  clean  and  in good condition.   The IP67 rating is only when the back cap is securely screwed on and the rubber O-ring is in good condition.
Turn On/Off – Slide the switch at the rear of the camera to turn the camera on or off. When turned on the front LEDs will illuminate and a rear power indication LED will also illuminate.  Charge – Connect the supplied power supply. While the camera is charging the red LED at the rear will illuminate. Once  fully charged the red LED at the rear will turn off.  Note: When the camera is screwed on to fish sticks (push-pull rods) and  in  use,  take  care  not  to  twist  the  sticks  (rod)  too  far anti-clockwise  as  this  may  result  in  the  camera  unscrewing  and becoming disconnected from the stick (rod).

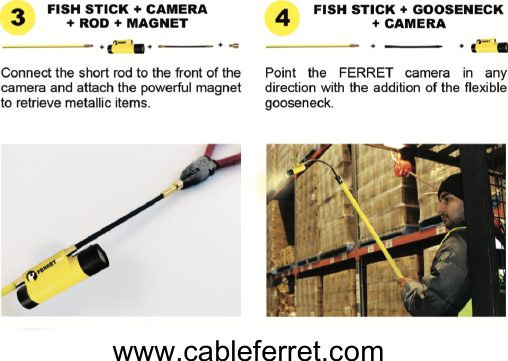

Gooseneck     Point  the FERRET camera  in any direction with the addition of the flexible  gooseneck.  It’s  approximately  150mm  long  (6”)  and  can attach to fish sticks (push pull rods).  Rod/Hook/Magnet      Connect the 150mm (6”) rod to the front of the camera  and  use  the  hook  or  magnet  to  pull back a cable or retrieve a metallic object.  Thread Adaptors     The  Ferret  camera  thread  is  ¼”-20UNC.  For compatibility with the majority of fish sticks (push pull rods), thread adaptors are included to suit 8-32 threaded fish sticks (most  common thread  type in  USA)  as  well  as  5mm  and  6mm metric threaded fish sticks.
Ferret WiFi Configuration Guide
                       www.cableferret.com
Ferret WiFi Free App   Scan the QR Code below or search for “Ferret WiFi”             iOS V8 Android V6          or later        or later        recommended     recommended

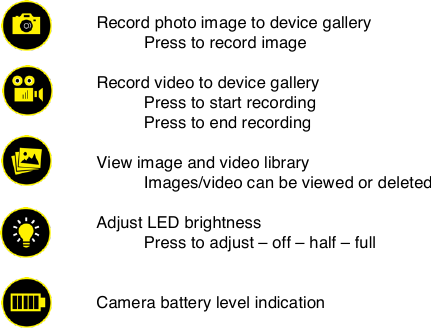

          Record photo image to device gallery     Press to record image         Record video to device gallery     Press to start recording     Press to end recording         View image and video library     Images/video can be viewed or deleted          Adjust LED brightness       Press to adjust – off – half – full          Camera battery level indication

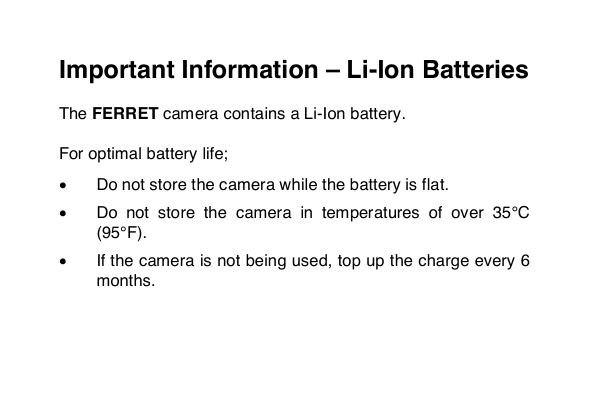

 Important Information – Li-Ion Batteries  The FERRET camera contains a Li-Ion battery.   For optimal battery life;  • Do not store the camera while the battery is flat.  • Do  not  store  the  camera  in  temperatures  of  over  35°C (95°F).   • If the camera is not being used, top up the charge every 6 months.

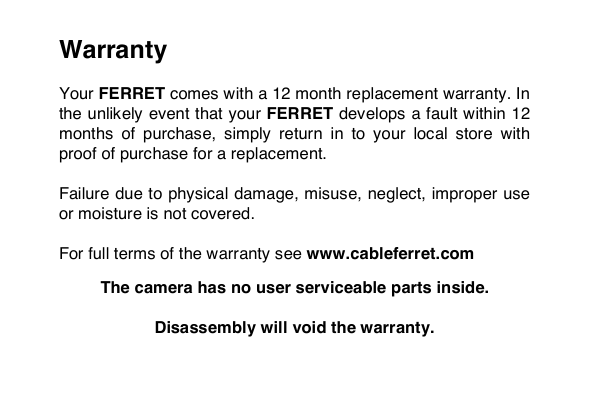

Warranty  Your FERRET comes with a 12 month replacement warranty. In the unlikely event that your FERRET develops a fault within 12 months  of  purchase,  simply  return  in  to  your  local  store  with proof of purchase for a replacement.   Failure due to physical damage, misuse, neglect, improper use or moisture is not covered.   For full terms of the warranty see www.cableferret.com  The camera has no user serviceable parts inside.   Disassembly will void the warranty.
